Acemagic AD15 Mini PC recension: Kraftfullt NUC-alternativ med Intel Core i7-11800H

Svart plastbit!

Kommer Acemagic AD15 med Intel Core i7-11800H att visa sig vara en bra vardaglig följeslagare i vårt test? Vi tar en detaljerad titt på vad som kan förväntas av SoC som är mer än tre år gammal vid denna tidpunkt. Med hjälp av många mätningar och riktmärken utvärderar vi prestandan hos Acemagic AD15 mot sina konkurrenter och kommer att lägga fram dess fördelar och nackdelar här.

"AD15" är etiketten på en liten mini-PC från Acemagic som vi utvärderar i detalj genom att köra den genom många tester. Även om den medIntel Core i7-11800Hdu bara får en åldrad SoC här, vi är fortfarande förvånade över hur bra processorn för närvarande fungerar i vardaglig drift. Förutom Intel Core i7-11800H får du också 16 GB RAM och en 512-GB SSD inklusive Windows 11 Professional för $ 400. Efter lite kort sökning kan du också hitta Acemagic med en Intel Core i5-12450Hmen då får du betala 500 euro (~533 USD) för den.

I denna recension jämför vi Acemagic AD15 mot några kända konkurrenter som vi redan har undersökt i detalj. Deras priser varierar från 350 till 600 euro (~$373 - $639), med vår testenhet placerad i mitten av detta intervall. Tabellen nedan ger en översikt över jämförelseenheterna för denna recension.

AD15, i7-11800H
Processor
Intel Core i7-11800H 8 x 2.3 - 4.6 GHz, 65 W PL2 / Short Burst, 45 W PL1 / Sustained, Tiger Lake-H
Grafikkort
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Kärna: 1400 MHz, 31.0.151.4575 DCH

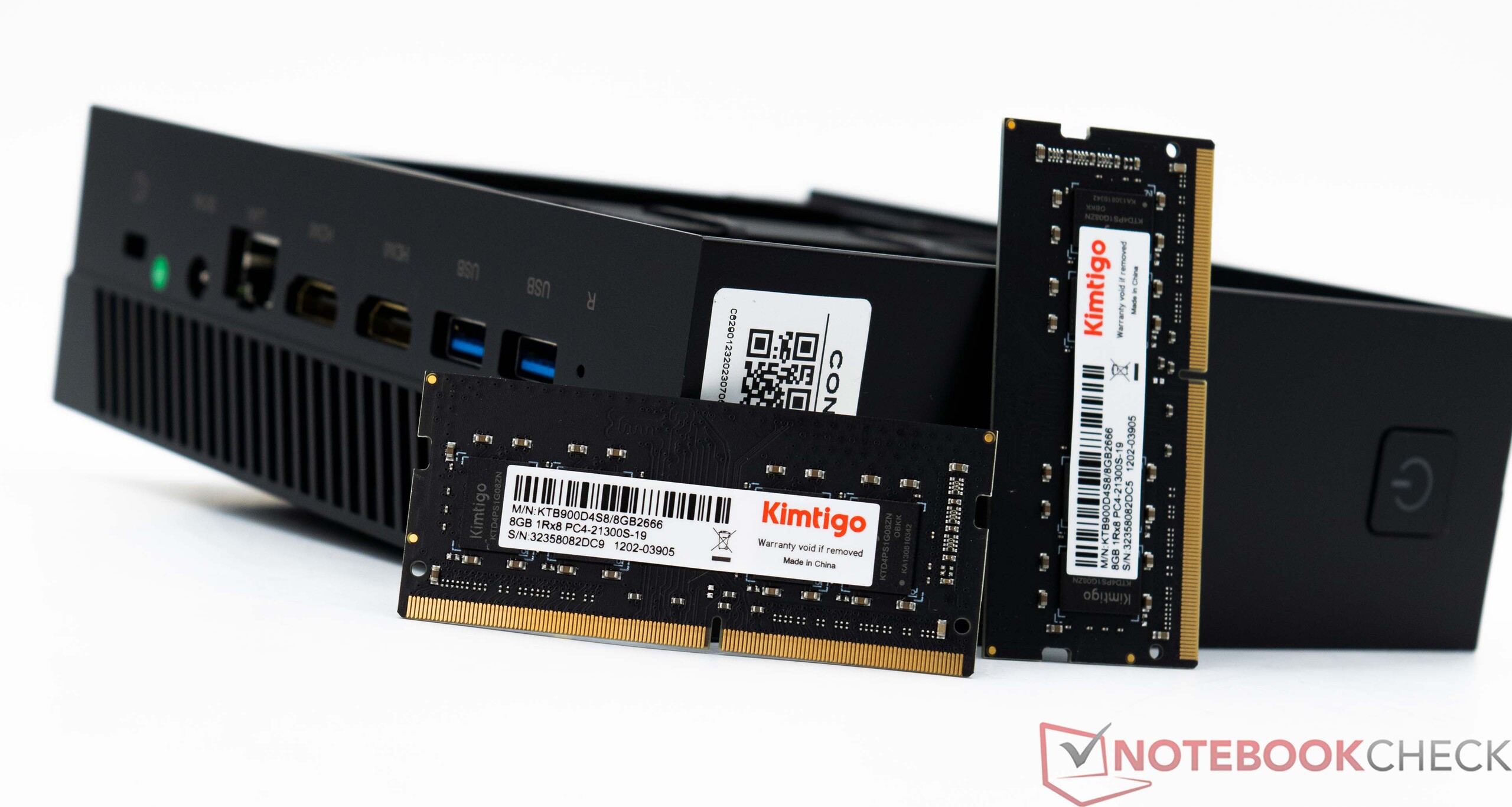

Minne
16 GB
, DDR4-2666, 2 of 2 slots occupied, max 64 GB
Moderkort
Intel HM570

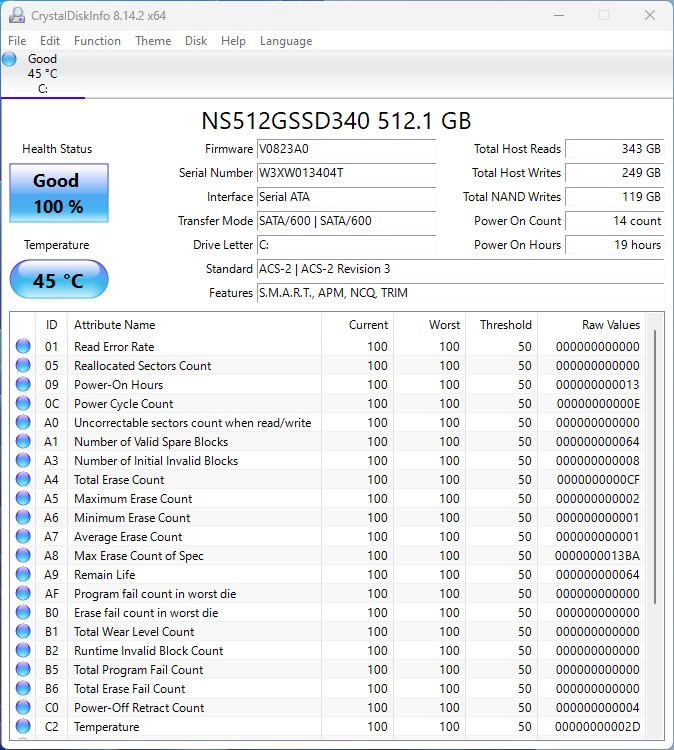

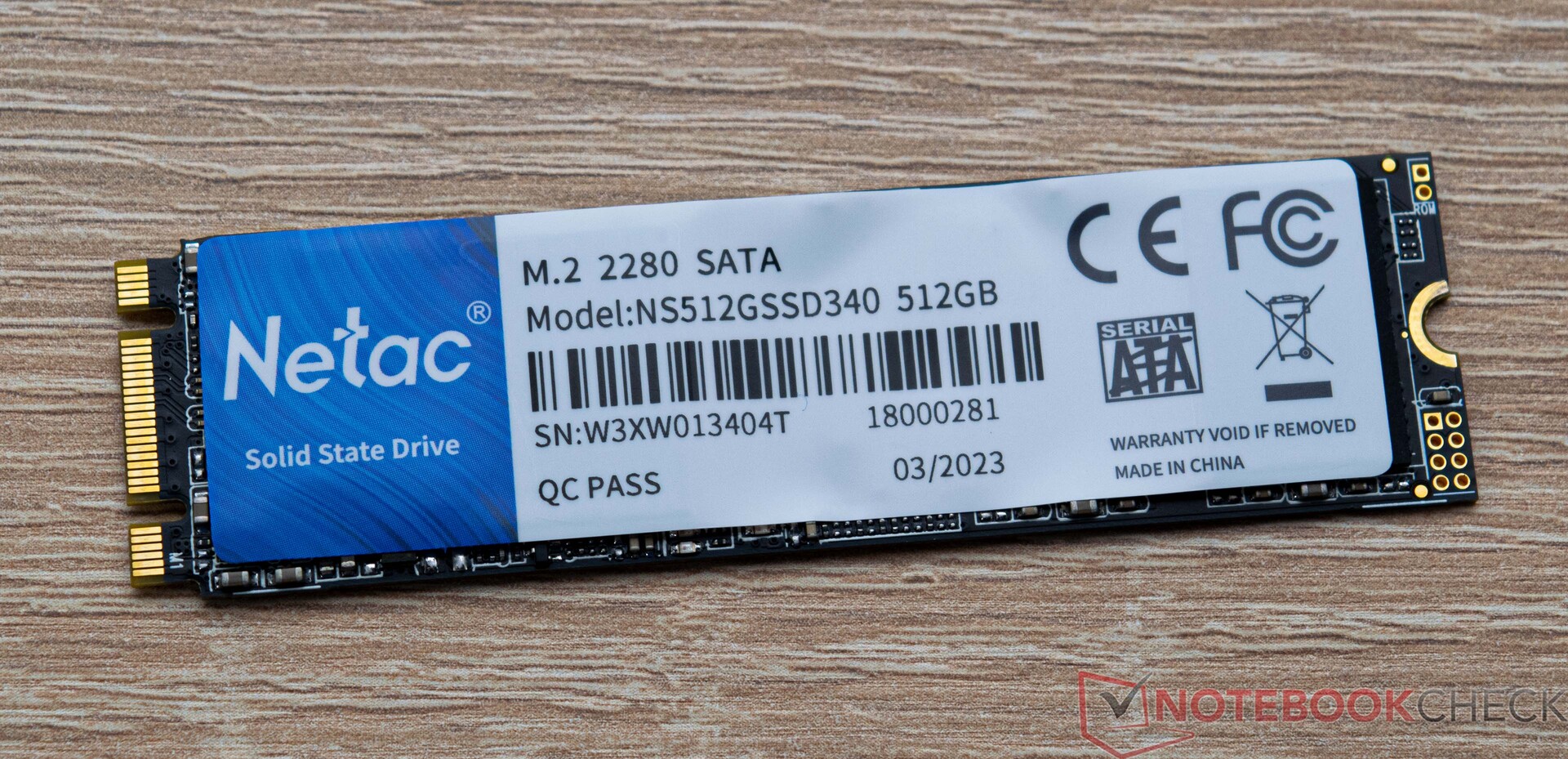

Hårddisk
Netac NS512GSSD340, 512 GB
, M.2 SSD, 450 GB ledigt
Ljudkort
Intel Tiger Lake PCH-H - cAVS (Audio, Voice, Speech)
Anslutningar
4 USB 3.0, 1 USB 3.1 Gen2, 2 HDMI, 1 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5 mm audio port
Nätverk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Storlek
höjd x bredd x djup (i mm) 76 x 184 x 150
Operativsystem
Microsoft Windows 11 Pro
Vikt
765 g, Strömförsörjning: 479 g
Pris
399 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potentiella konkurrenter i jämförelse

Rating
Date
Model
Weight
Height
Price
77.8 %
v7 (old)
09/2023
Acemagic AD15
i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
765 g76 mm
83.7 %
v7 (old)
05/2023
Morefine M600, 6600U
R5 6600U, Radeon 660M
768 g40.6 mm
81.7 %
v7 (old)
05/2023
Minisforum Venus Series UM560 XT
R5 5600H, Vega 7
652 g48 mm
80.6 %
v7 (old)
07/2023
Geekom Mini IT11, i7-11390H
i7-11390H, Iris Xe G7 96EUs
536 g48 mm
73.8 %
v7 (old)
08/2023
Blackview MP200
i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
678 g75.5 mm
73.4 %
v7 (old)
04/2023
ACEMagician ACE-CK10-8259U
i5-8259U, Iris Plus Graphics 655
449 g50 mm
70.9 %
v7 (old)
12/2022
Minipc Union NiPoGi CK10 - 10810U
i7-10810U, UHD Graphics 620
468 g50 mm

v7 (old)
09/2022
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
586 g53 mm

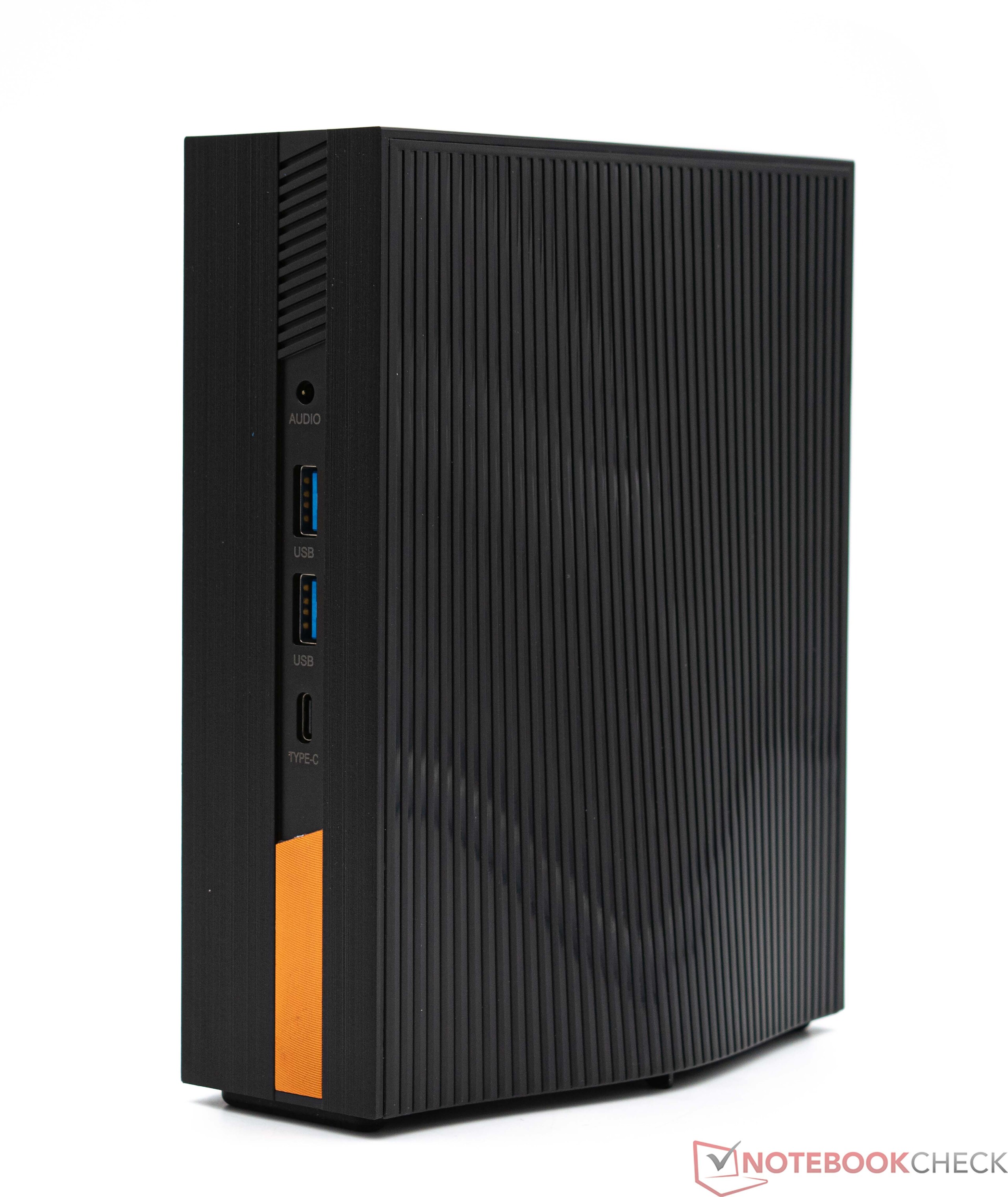

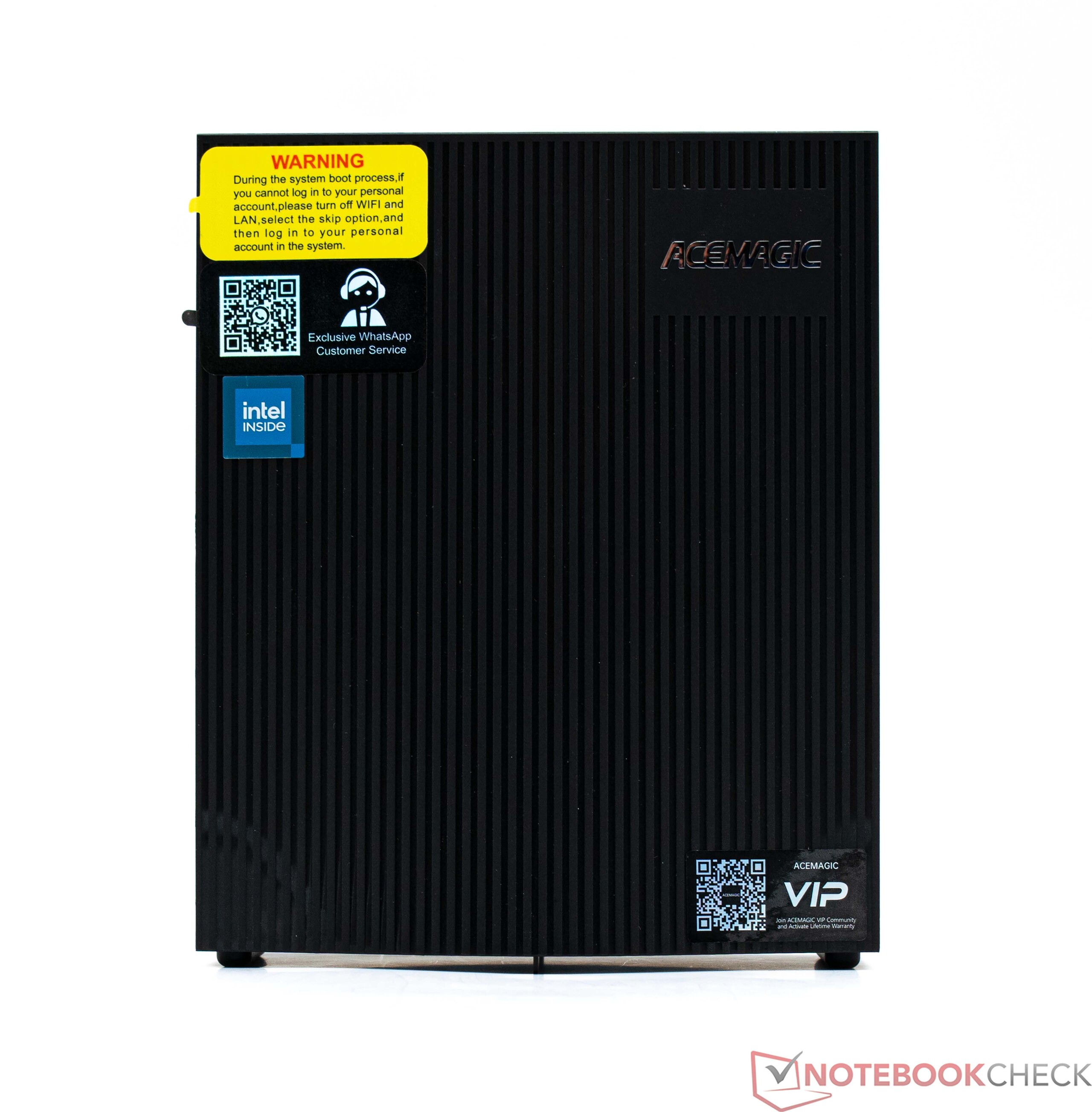

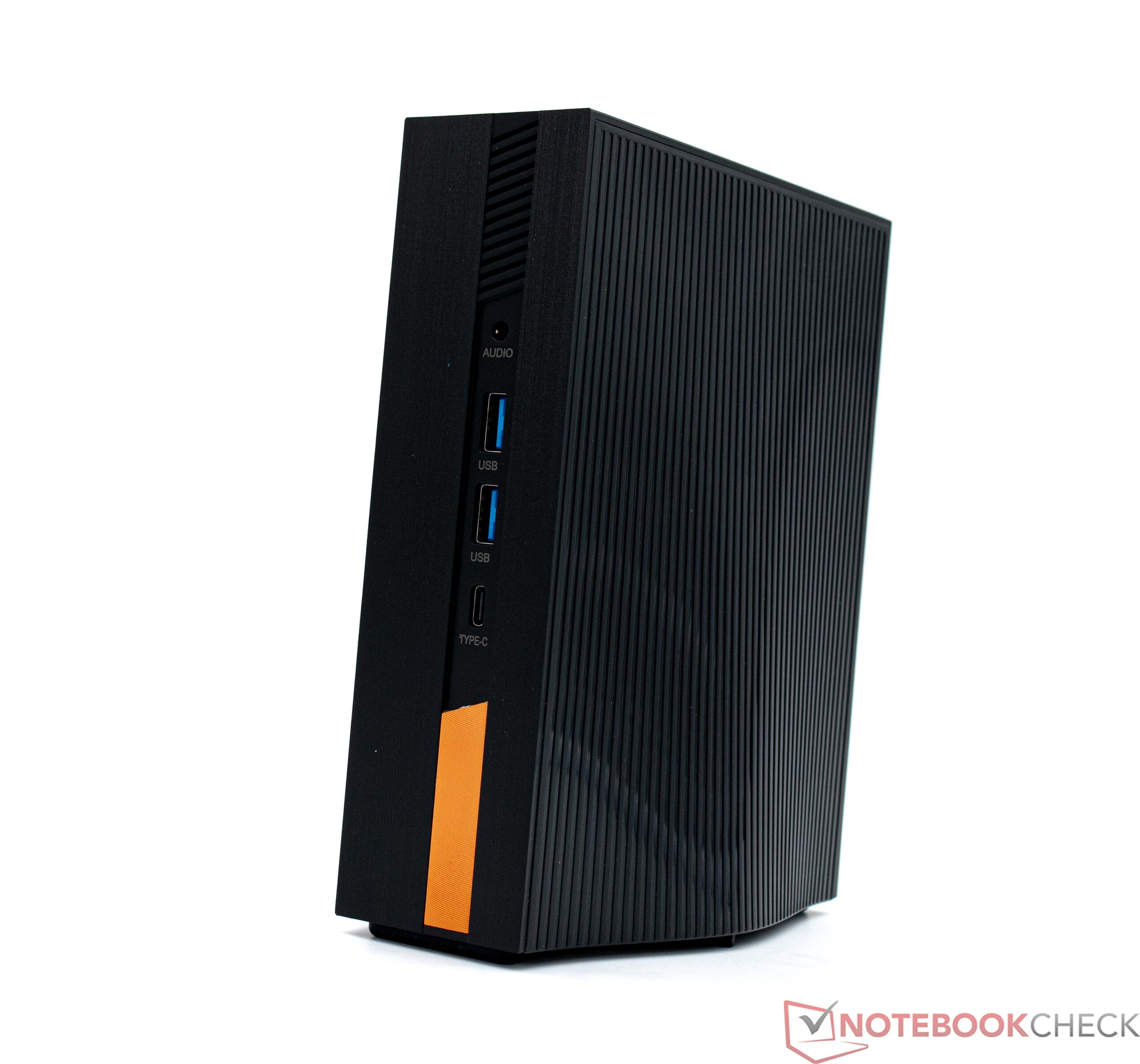

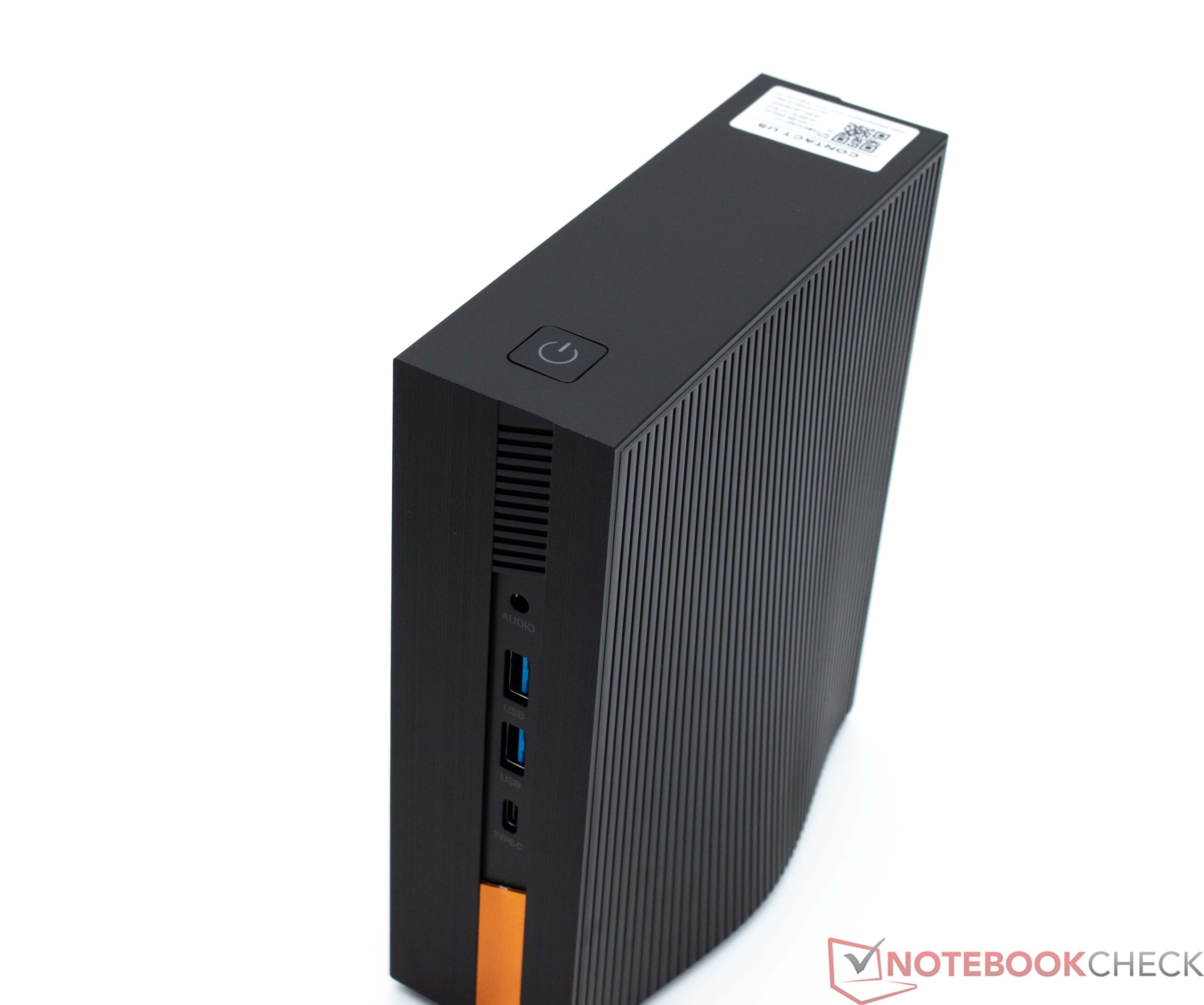

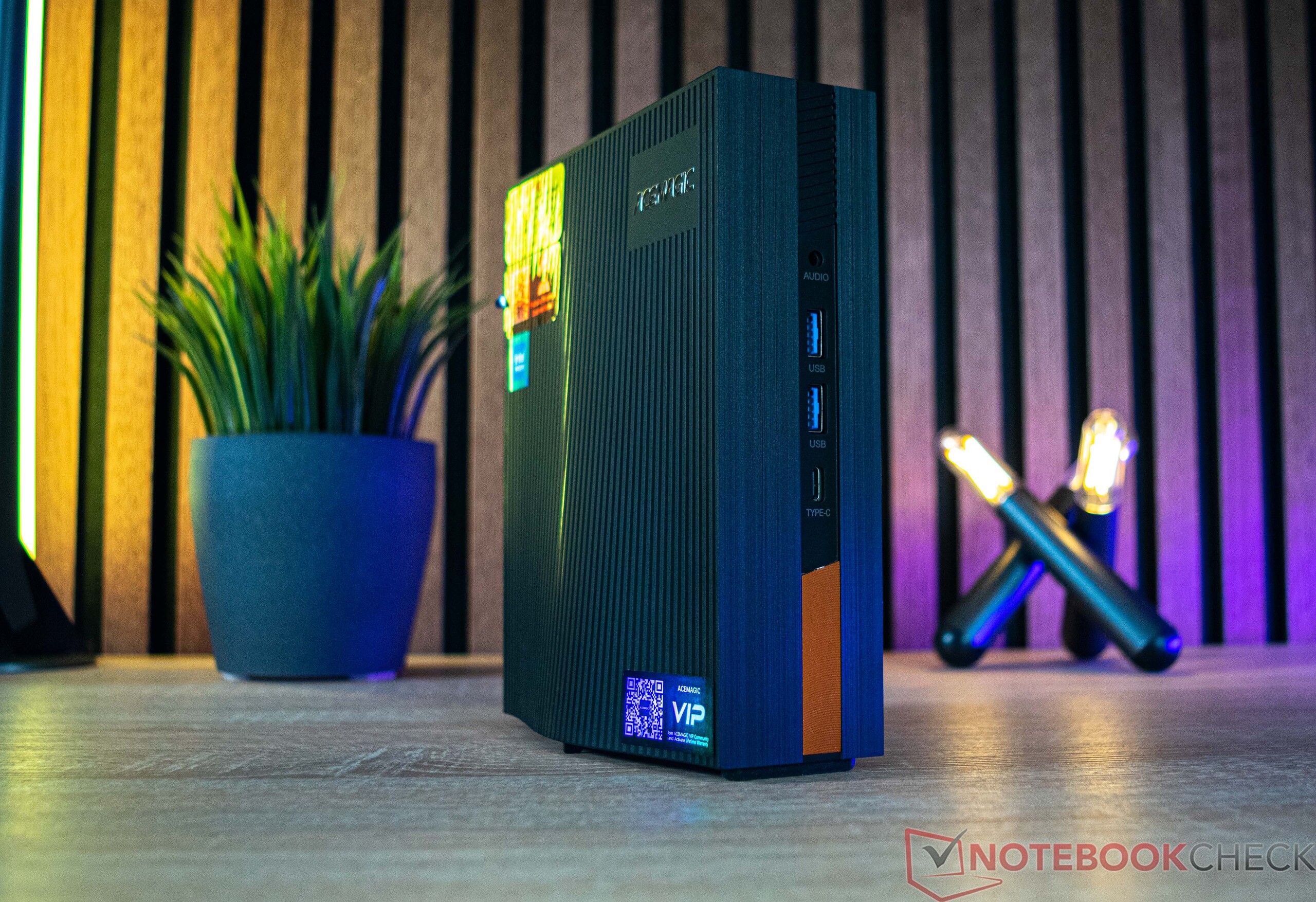

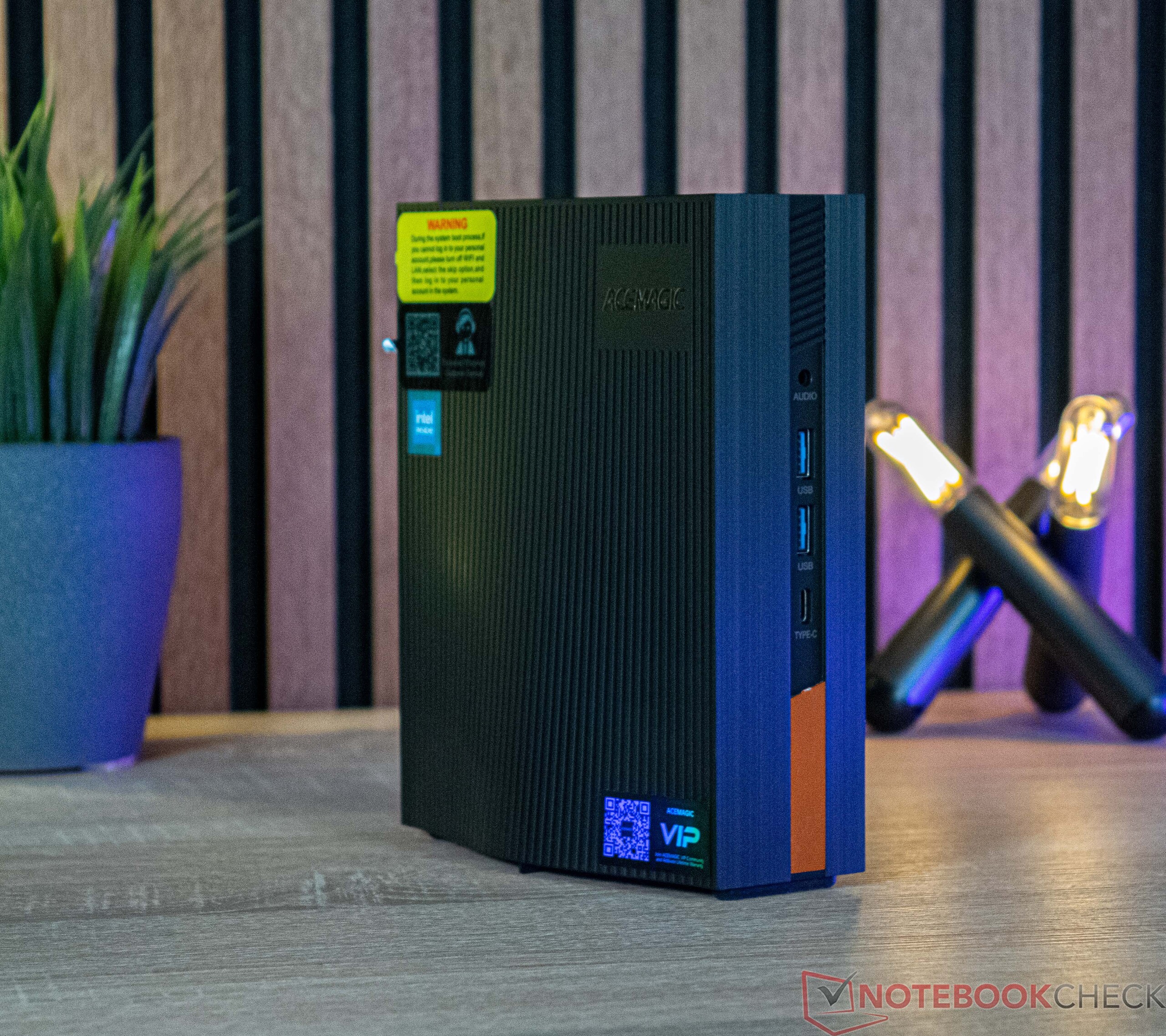

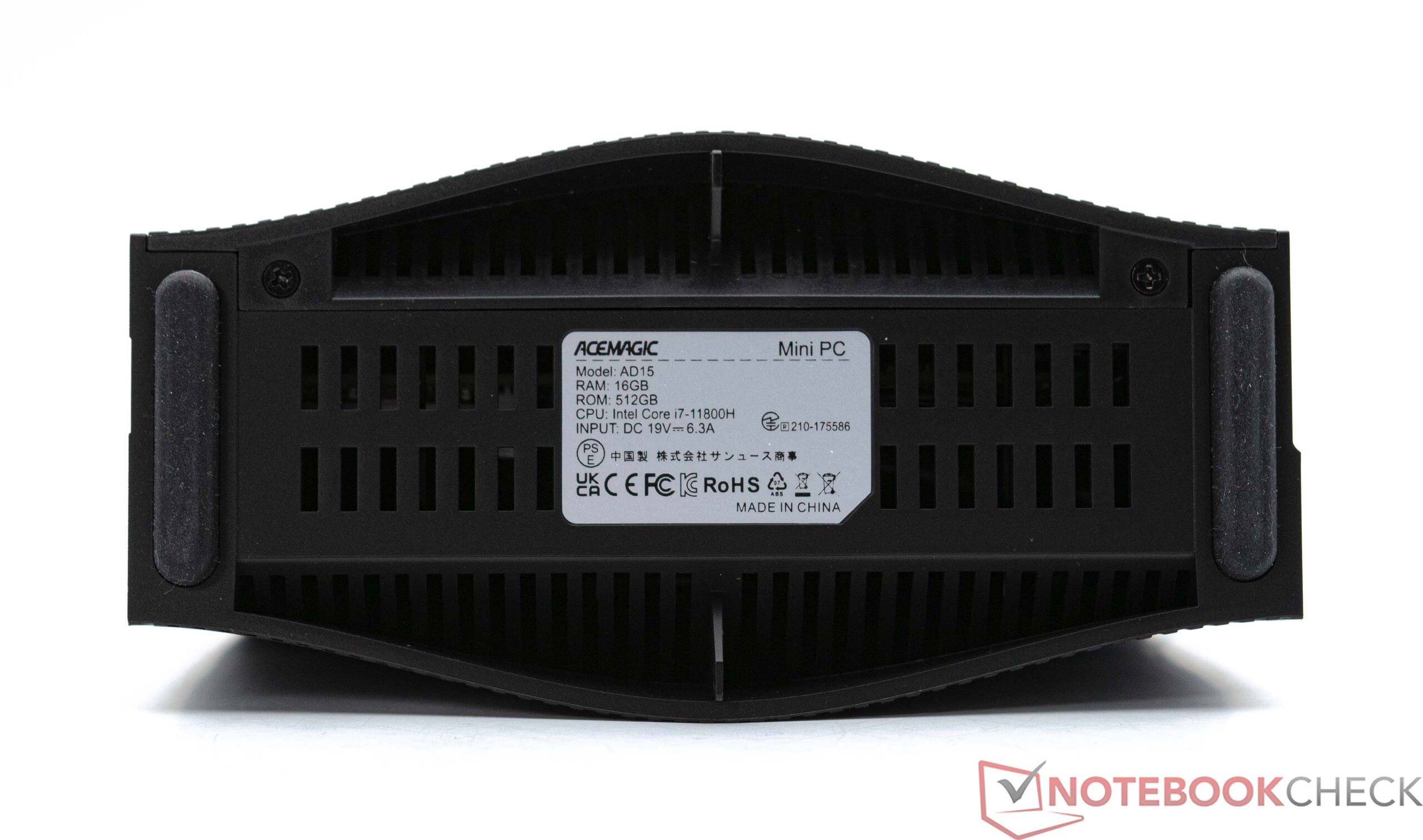

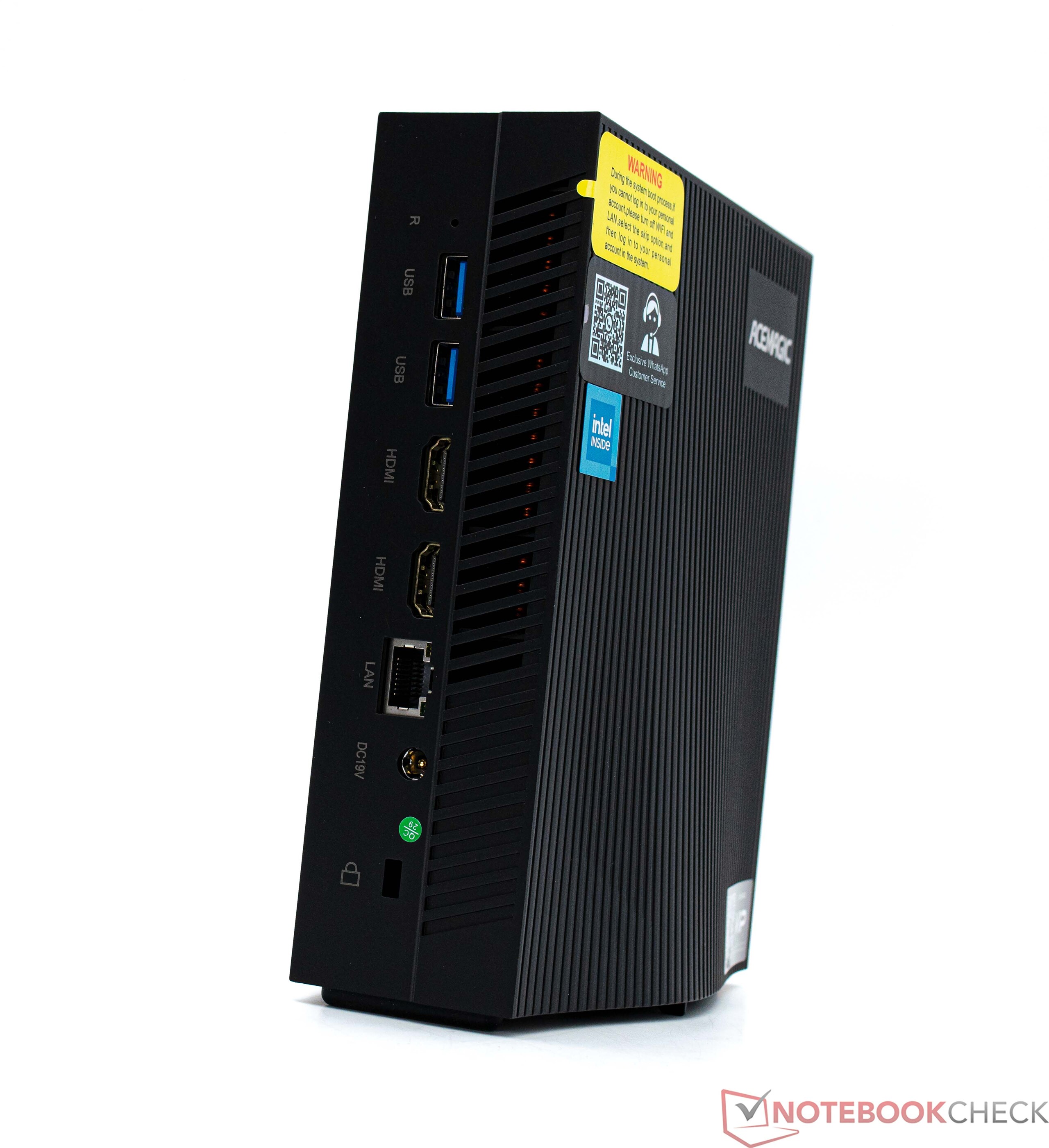

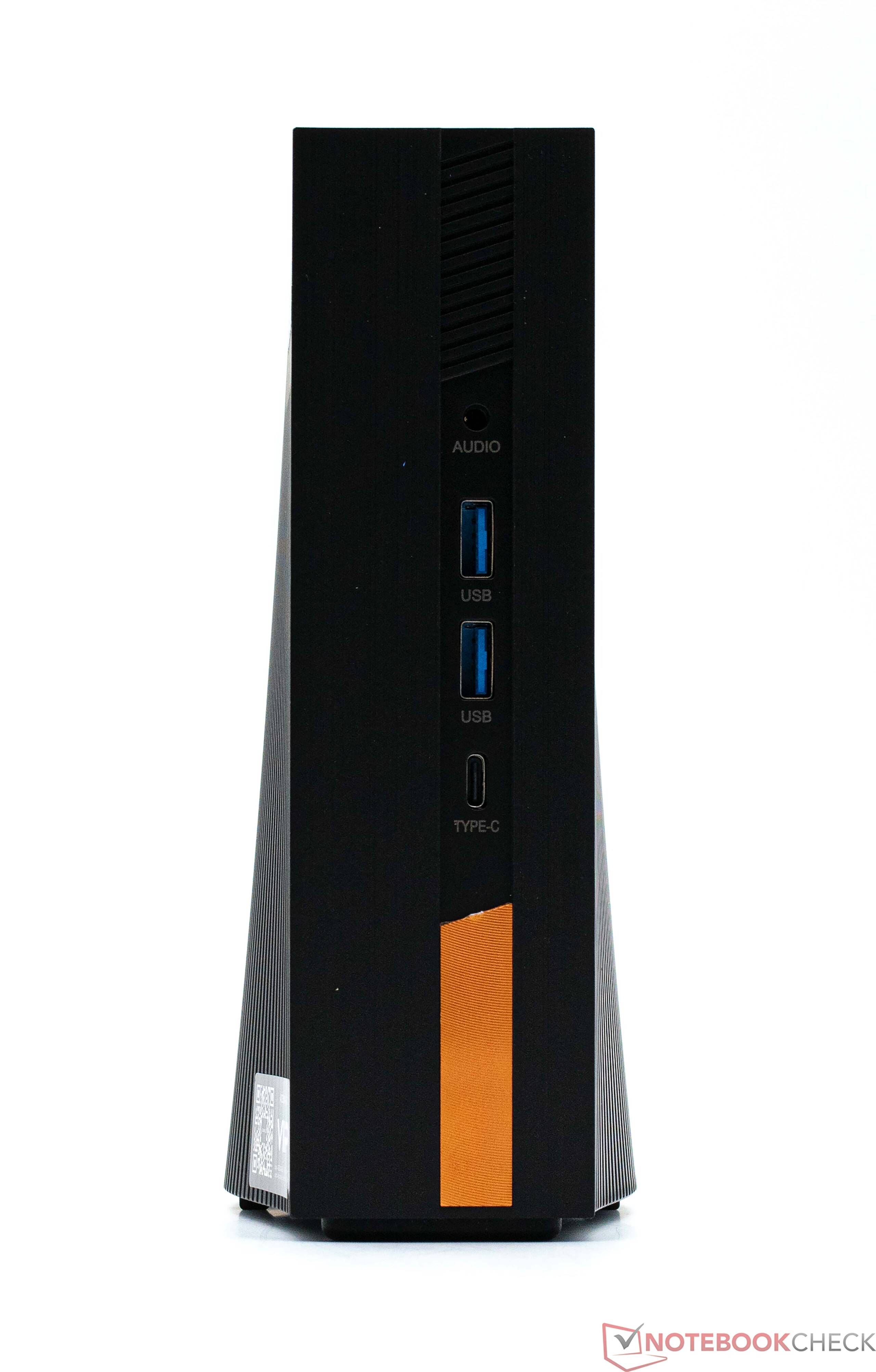

Acemagic AD15 i detalj

Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15
Acemagic AD15

Hölje - Mycket plast och lite metall

Acemagic AD15 är en enkel enhet som klarar sig utan en massa gimmicks. Datorhöljet sticker inte ut och är helt tillverkat av plast. Enhetens haptik motsvarar priset, även om vi med Blackview MP200 nyligen testade en liknande enhet som visade sig vara betydligt bättre här. Utförandet är dock fortfarande bra och det finns inga märkbara luckor.

När det gäller utrymmesbehov på skrivbordet drar enheten nytta av sin vertikala konstruktion, även om det gör att den ser lite större ut än sina konkurrenter. Blackview MP200 kan också placeras vertikalt. Trots sin plastkonstruktion väger Acemagic AD15 fortfarande 765 gram (~1,7 lb), vilket gör vår testenhet till den näst tyngsta enheten i vår nuvarande jämförelse efter Morefine M600.

Storleksjämförelse

184 mm 150 mm 76 mm 765 g183.2 mm 150 mm 75.5 mm 678 g138 mm 138 mm 53 mm 586 g147.3 mm 144.7 mm 40.6 mm 768 g137.5 mm 125 mm 50 mm 449 g137.5 mm 125 mm 50 mm 468 g129 mm 126 mm 48 mm 652 g117 mm 112 mm 48 mm 536 g297 mm 210 mm 1 mm 5.7 g

Utrustning - Tillräcklig och lämplig för vardagliga uppgifter

Anslutningsutrustningen för Acemagic AD15 överensstämmer med den vanliga standarden. Vi räknar totalt fem USB-anslutningar, varav en också stöder bildutgång som en typ-C-port. Tillsammans med de två tillgängliga HDMI-anslutningarna gör detta att du kan ansluta tre skärmar samtidigt.

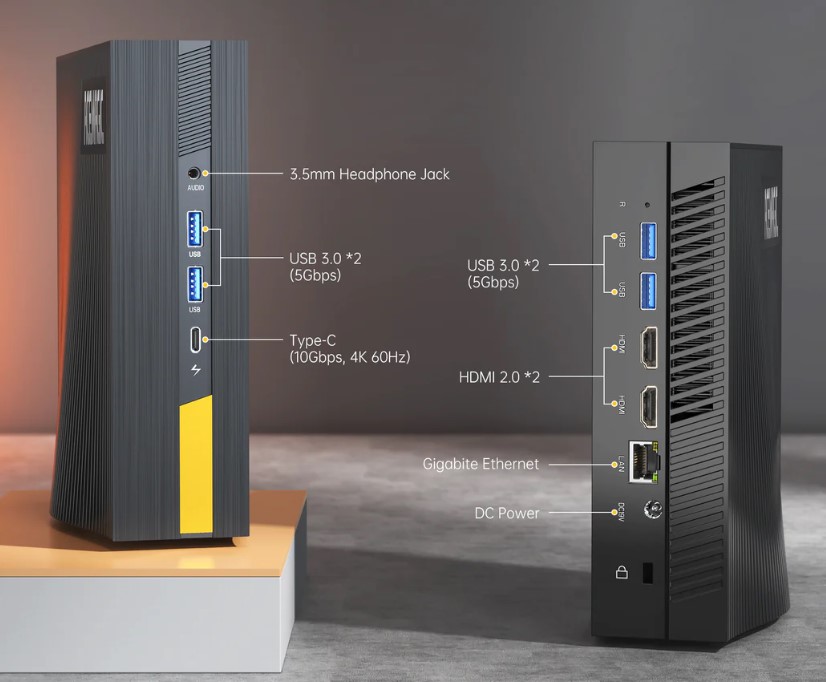

Externa anslutningar på Acemagic AD15 (källa: Acemagic)
Externa anslutningar på Acemagic AD15 (källa: Acemagic)

Kommunikation

WLAN-modulen som används här kommer från Realtek. I bästa fall kommunicerar den i 5-GHz-frekvensbandet, och den är också kompatibel med 2,4-GHz-intervallet. Även om vi inte ser några enastående resultat i vårt test är anslutningen tillräcklig för vardagsdrift, och dess konstanta stabilitet i vårt test är värt att nämna. Vi använder vår Asus ROG Rapture GT-AXE11000-router i detta test. Alternativt kan du också skapa en trådbunden anslutning med RJ45-porten.

Networking
iperf3 receive AXE11000
Geekom Mini IT11, i7-11390H
Intel Wi-Fi 6 AX201
958 (941min - 967max) MBit/s +33%
Blackview MP200
Intel Wi-Fi 6 AX201
953 (859min - 970max) MBit/s +32%
Morefine M600, 6600U
MediaTek RZ608
948 (934min - 957max) MBit/s +31%
Average of class Mini PC
  (192.9 - 1796, n=113, last 2 years)
932 MBit/s +29%
Minisforum Venus Series UM560 XT
MediaTek RZ608
890 (851min - 908max) MBit/s +23%
Average Realtek RTL8852BE
  (455 - 984, n=43)
847 MBit/s +17%
Acemagic AD15
Realtek RTL8852BE
721 (696min - 743max) MBit/s
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
390 MBit/s -46%
ACEMagician ACE-CK10-8259U
RealTek Semiconductor, Device ID: C821
349 (175min - 353max) MBit/s -52%
Minipc Union NiPoGi CK10 - 10810U
RealTek Semiconductor, Device ID: C821
192.9 (95min - 196max) MBit/s -73%
iperf3 transmit AXE11000
Average of class Mini PC
  (184.1 - 1776, n=113, last 2 years)
864 MBit/s +18%
Geekom Mini IT11, i7-11390H
Intel Wi-Fi 6 AX201
845 (818min - 879max) MBit/s +16%
Minisforum Venus Series UM560 XT
MediaTek RZ608
829 (775min - 889max) MBit/s +14%
Blackview MP200
Intel Wi-Fi 6 AX201
825 (426min - 867max) MBit/s +13%
Average Realtek RTL8852BE
  (536 - 925, n=42)
792 MBit/s +8%
Morefine M600, 6600U
MediaTek RZ608
784 (381min - 874max) MBit/s +7%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
745 MBit/s +2%
Acemagic AD15
Realtek RTL8852BE
730 (707min - 753max) MBit/s
Minipc Union NiPoGi CK10 - 10810U
RealTek Semiconductor, Device ID: C821
343 (170min - 362max) MBit/s -53%
ACEMagician ACE-CK10-8259U
RealTek Semiconductor, Device ID: C821
272 (263min - 279max) MBit/s -63%
050100150200250300350400450500550600650700750800850Tooltip
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø733 (381-876)
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø389 (322-478)
Acemagic AD15 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø720 (696-743)
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)
Acemagic AD15 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø730 (707-753)
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

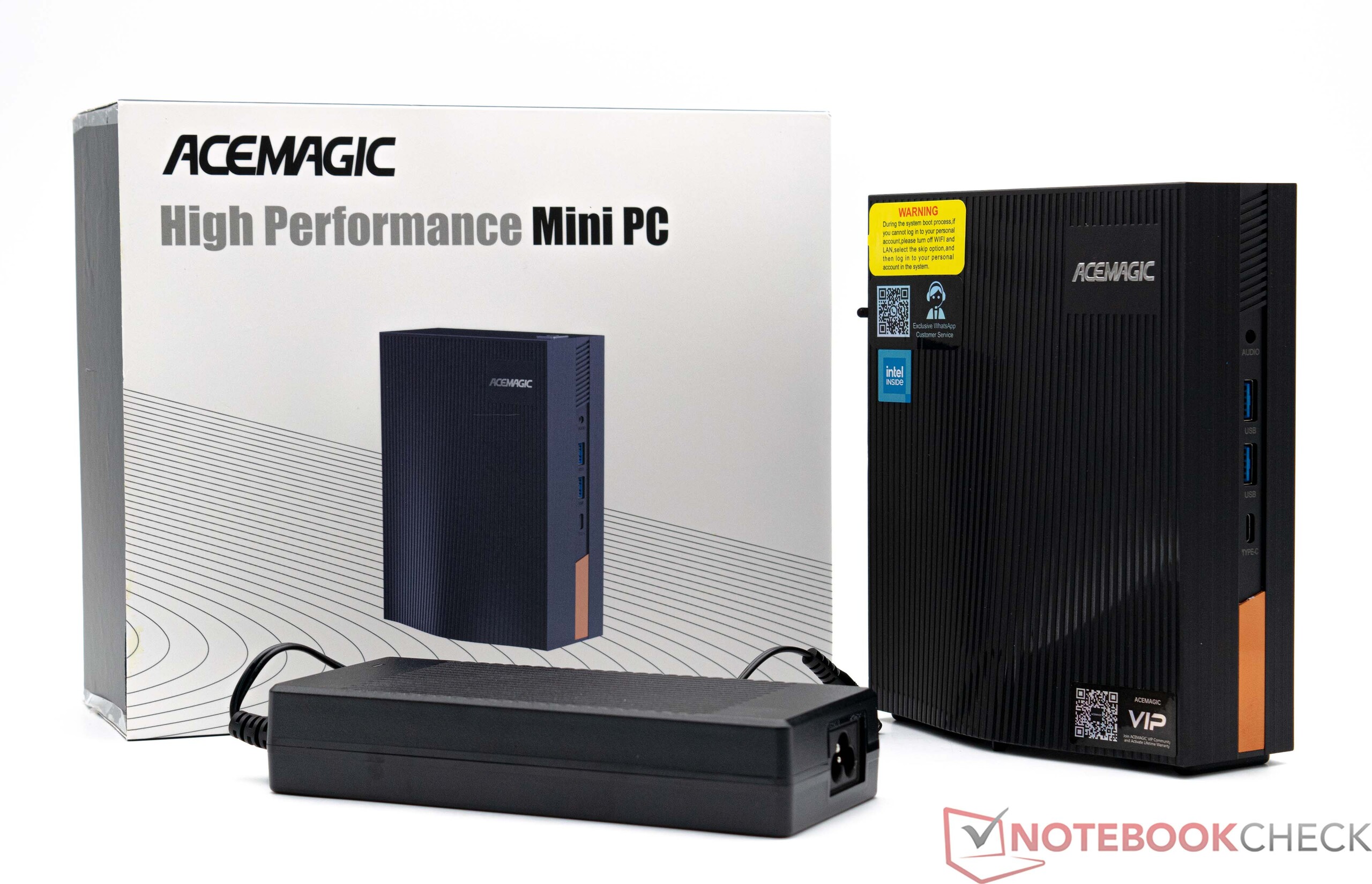

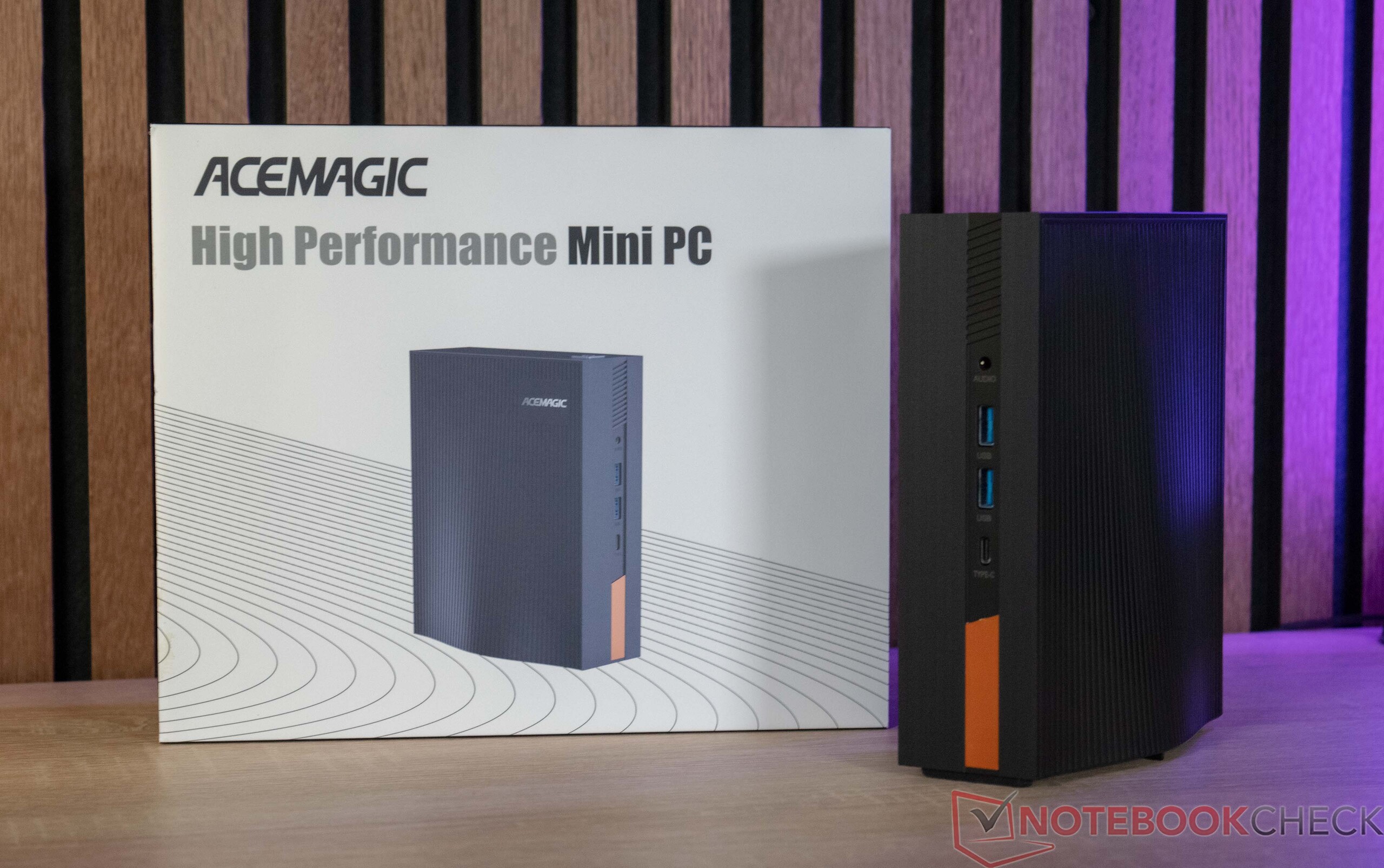

Tillbehör

Förpackningen innehåller allt som är viktigt för att köra enheten, till exempel 120 watts strömförsörjning. Acemagic AD15 innehåller också en HDMI-kabel.

Underhåll

Med hjälp av lämpliga verktyg kan Acemagic AD15 öppnas utan problem. Om man tittar framifrån är den högra sidan fäst med några skruvar längst ner. Efter att ha tagit bort dem kan sidokåpan helt enkelt skjutas mot botten för att ta bort den. Men det här ger dig inte många alternativ ännu, och du måste öppna enheten ytterligare om du vill komma åt WLAN-modulen eller rengöra fläkten. Men även det kommer inte att vara mycket av ett problem om du använder lite skicklighet.

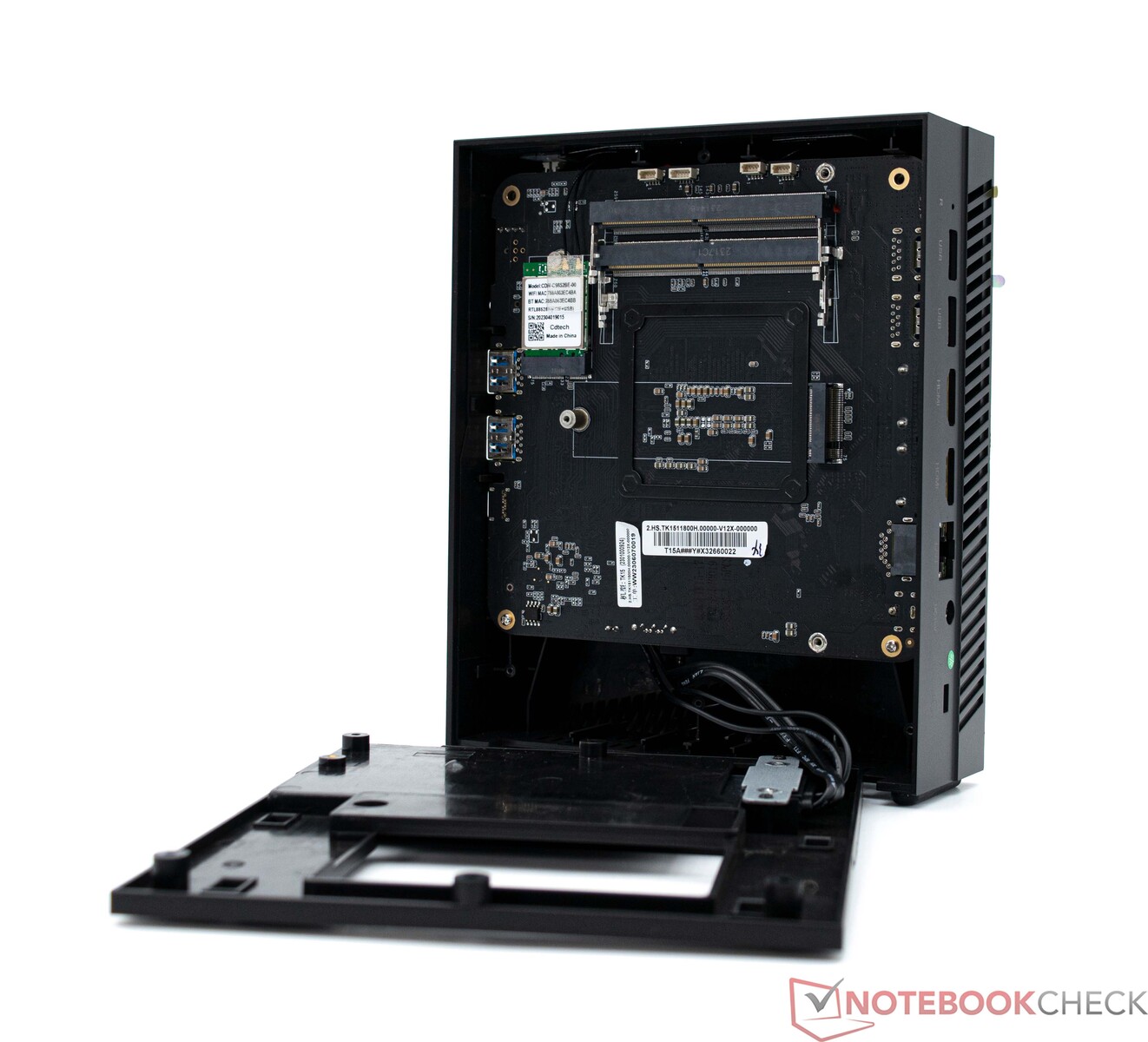

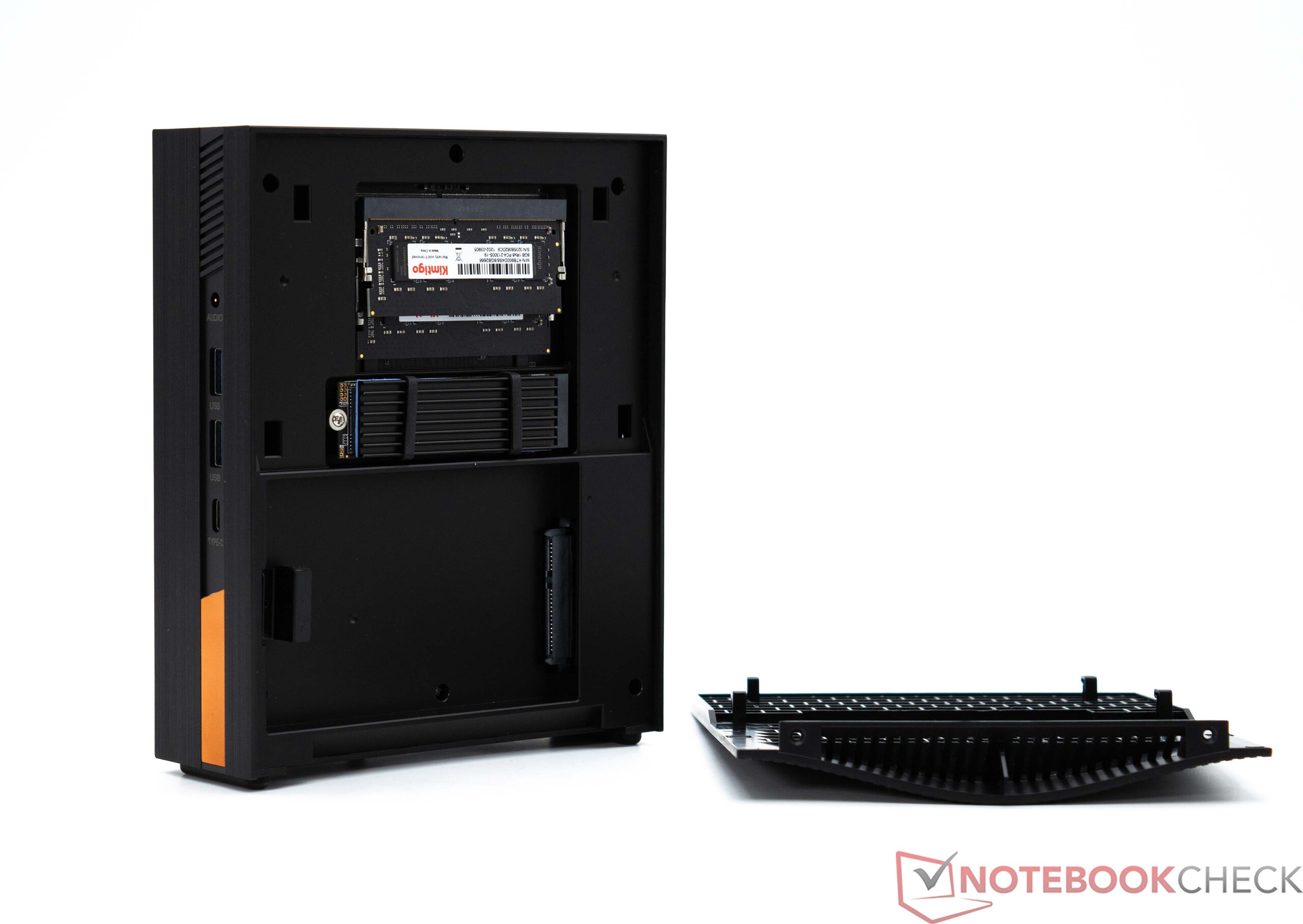

Öppnade Acemagic AD15
Öppnade Acemagic AD15

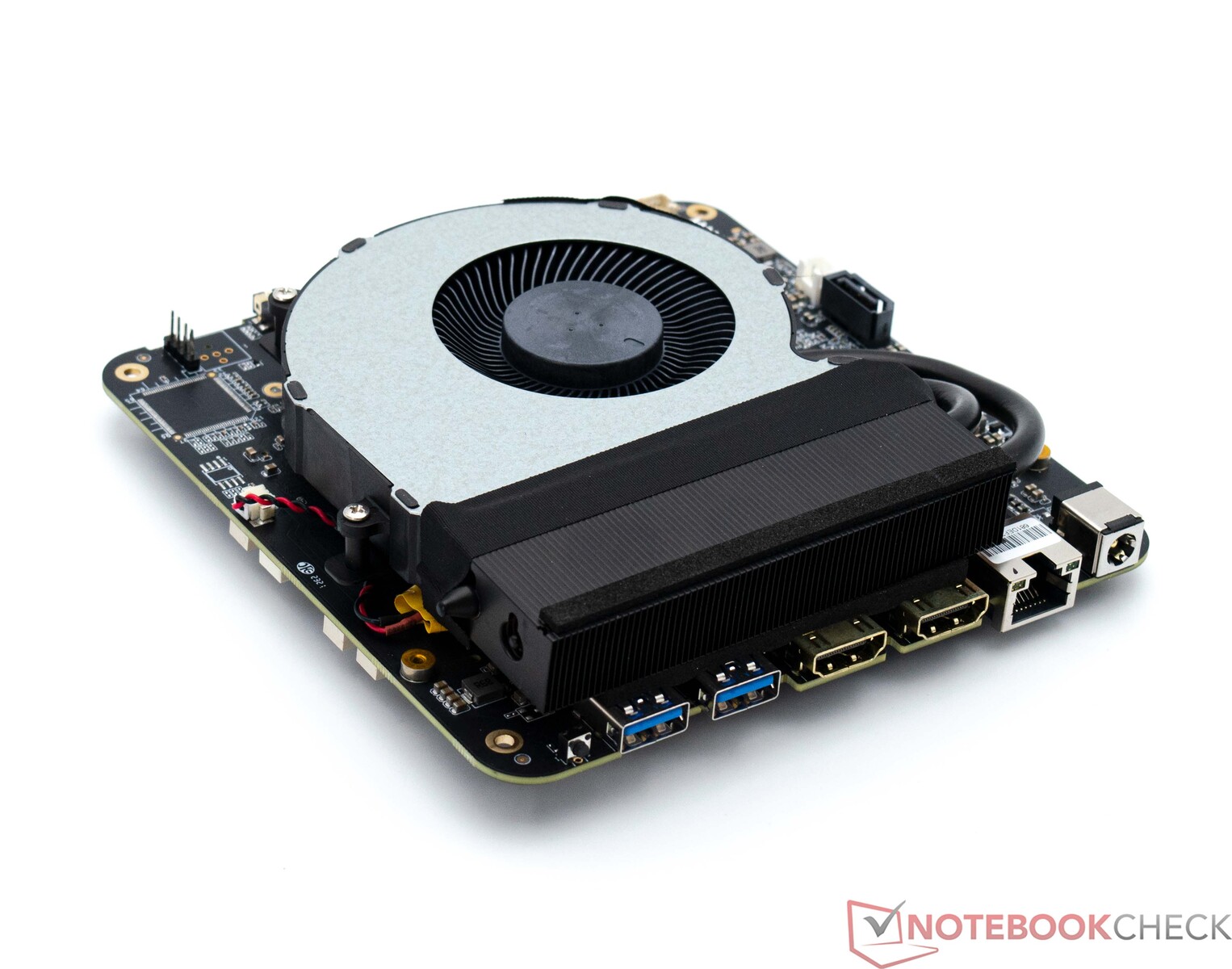

En titt på kylningen av Acemagic AD15
En titt på kylningen av Acemagic AD15

Prestanda - Intel Core i5-11800H erbjuder 8 kärnor och 16 trådar

Intel CoreIntel Core i7-11800Hkommer från Tiger Lake -serien och ger fortfarande tillräcklig prestanda för vardagliga uppgifter. Dessutom kan den 8-kärniga processorn hantera vissa krävande applikationer utan att bli lätt överbelastad. Baserat påIntel Core i5-12450Hfinns AD15 även tillgänglig med en mer aktuell SoC.

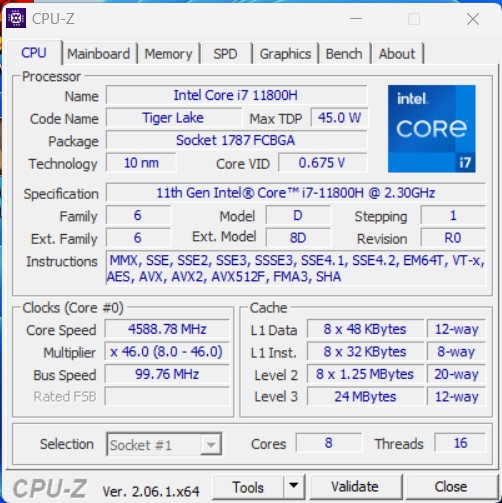

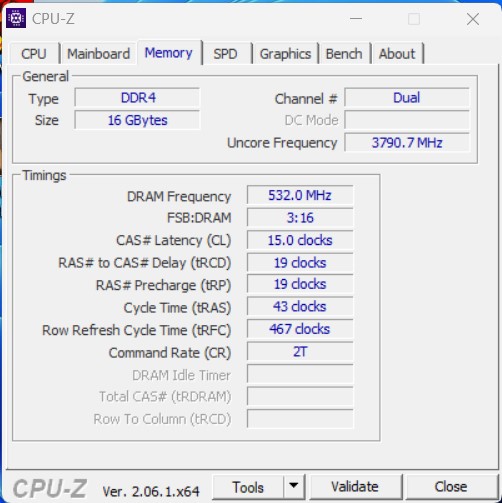

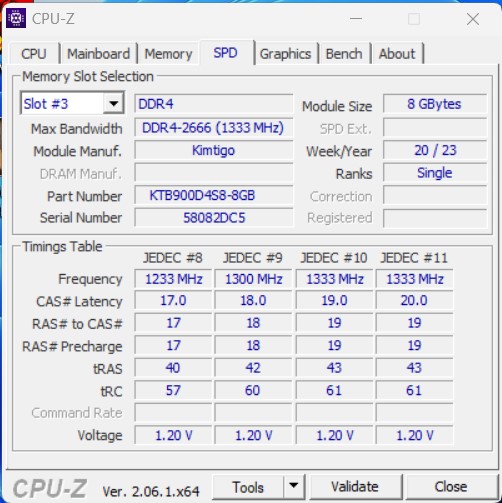

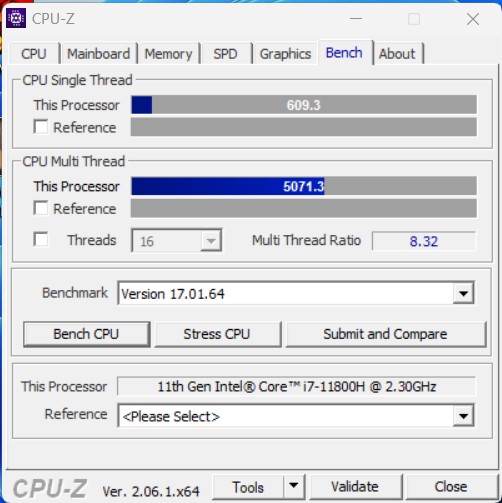

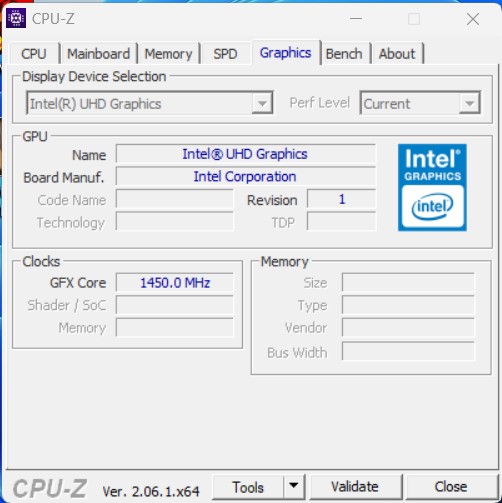

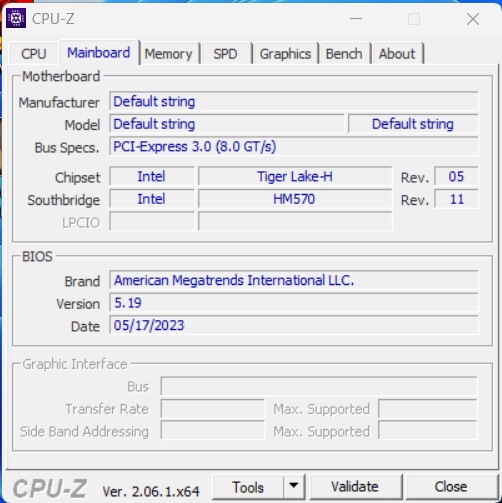

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

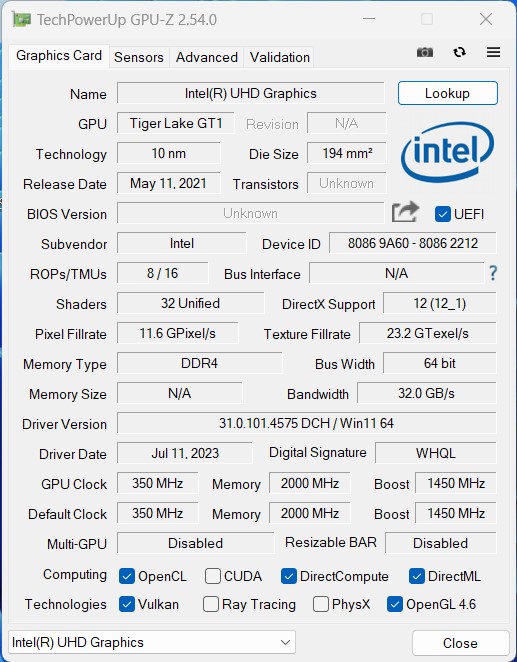

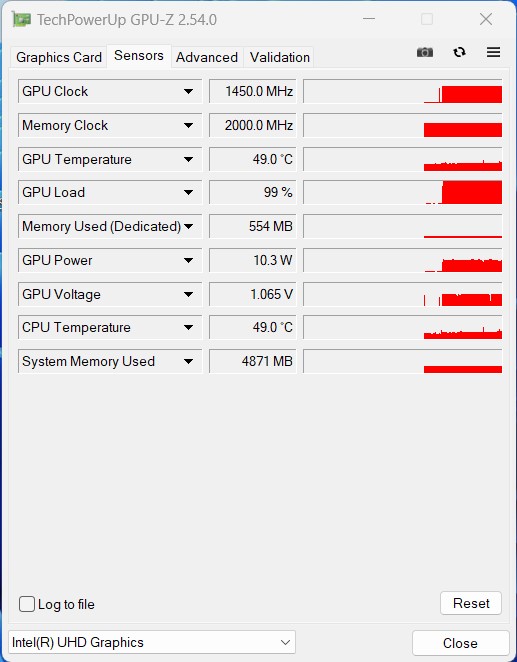

GPU-Z
GPU-Z

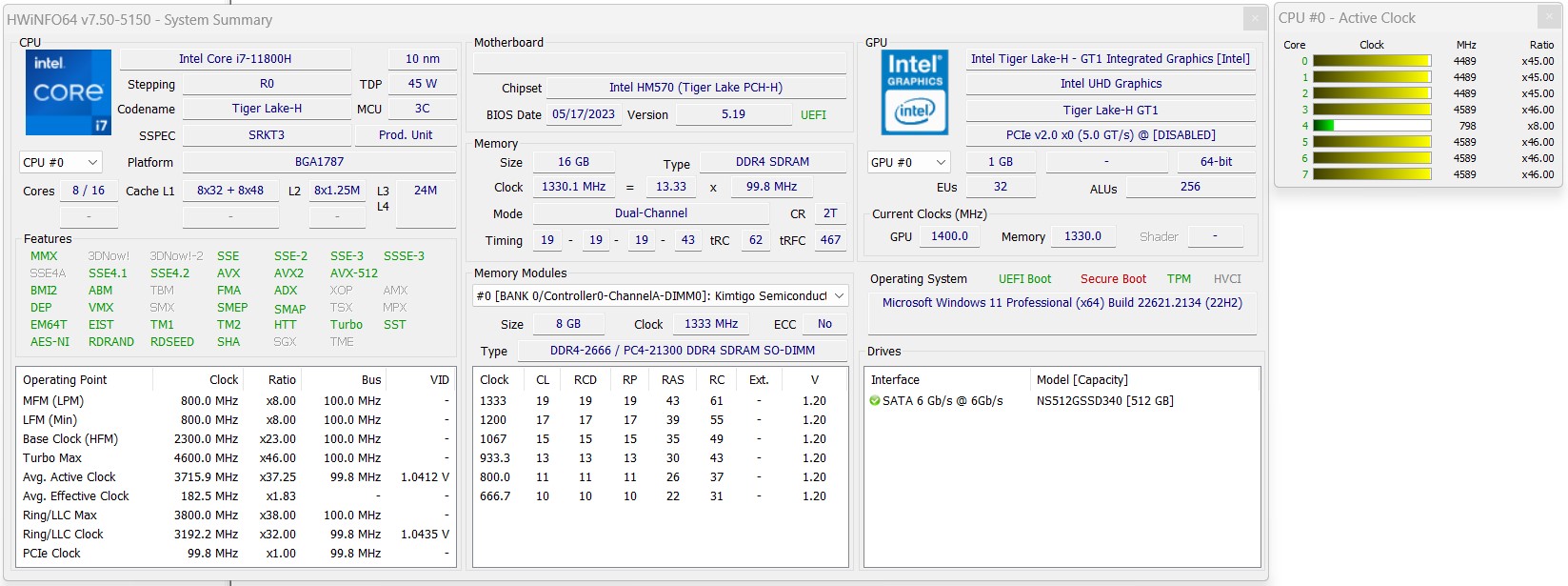

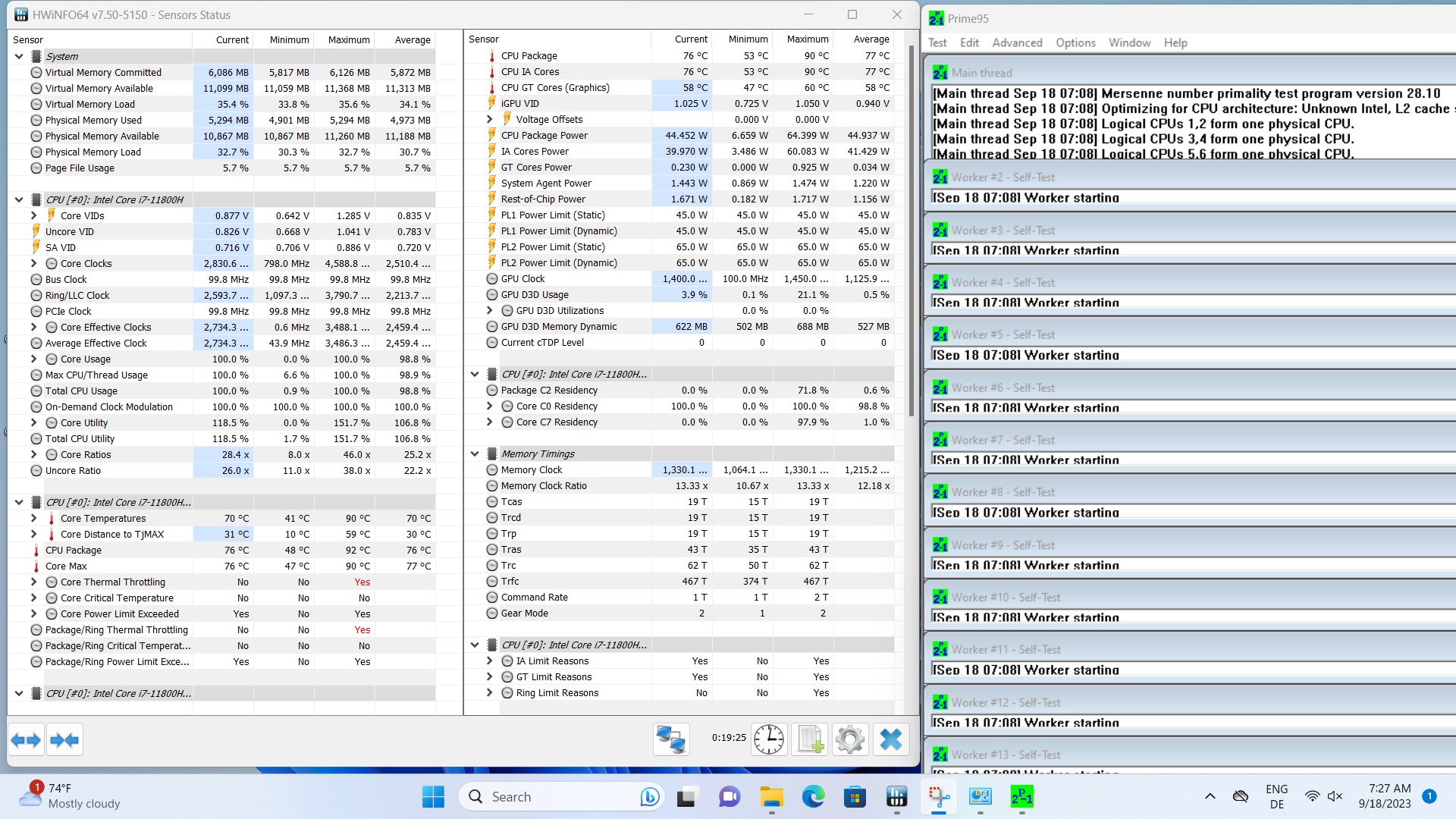

HWiNFO

Testförhållanden

Vi körde alla prestandatester med energiprofilen "Highest Performance". Vi ändrade inte SoC:ns prestanda utan behöll standardinställningarna i BIOS. Enligt våra testkriterier använde vi bara andra inställningar för energiprofilen i våra mätningar av strömförbrukning och ljudnivå.

Processor

Intel Core i7-11800H (källa: Acemagic)
Intel Core i7-11800H (källa: Acemagic)

Som redan nämnts använder Acemagic en Intel Core i7-11800H i AD15. Förutom den goda single-core-prestandan erbjuder SoC också en utmärkt multi-thread-prestanda med sina 8 kärnor och 16 trådar. I vår jämförelse ser vi ett tätt lopp om förstaplatsen som vår testenhet kan vinna med en knivskarp marginal. När det gäller strömförbrukningen kan vi konstatera att de fulla effektgränserna används till perfektion. SoC kan använda 65 watt kortvarigt och de nås också alltid. Under en längre tidsperiod upprätthålls 45 watt också enkelt, vilket också pekar på en bra kylenhet.

I AIDA64-testerna ser vi vår testenhet på första plats igen och överträffar Minisforum Venus Series UM560 XT med 6 procentenheter. I alla CPU-tester visar Acemagic AD15 en perfekt prestandautveckling, där SoC kan använda sin prestanda fullt ut, utan att begränsas av en för svag kylenhet. Det är inte alla minidatorer som klarar detta, eftersom deras begränsade storlek också skapar vissa begränsningar.

Du kan hitta ytterligare jämförelser och benchmarks i vår Jämförelsetabell för processorer.

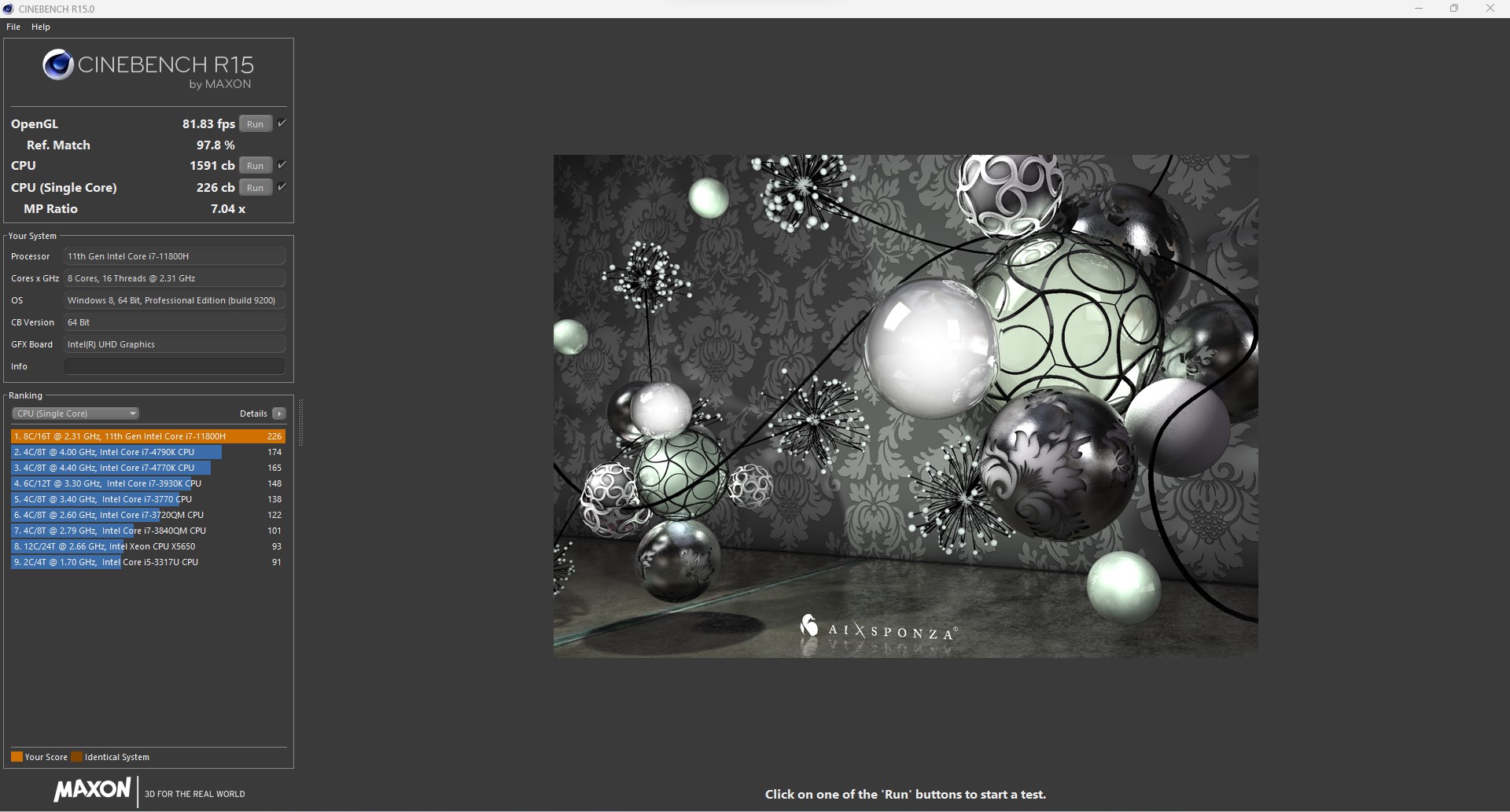

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20

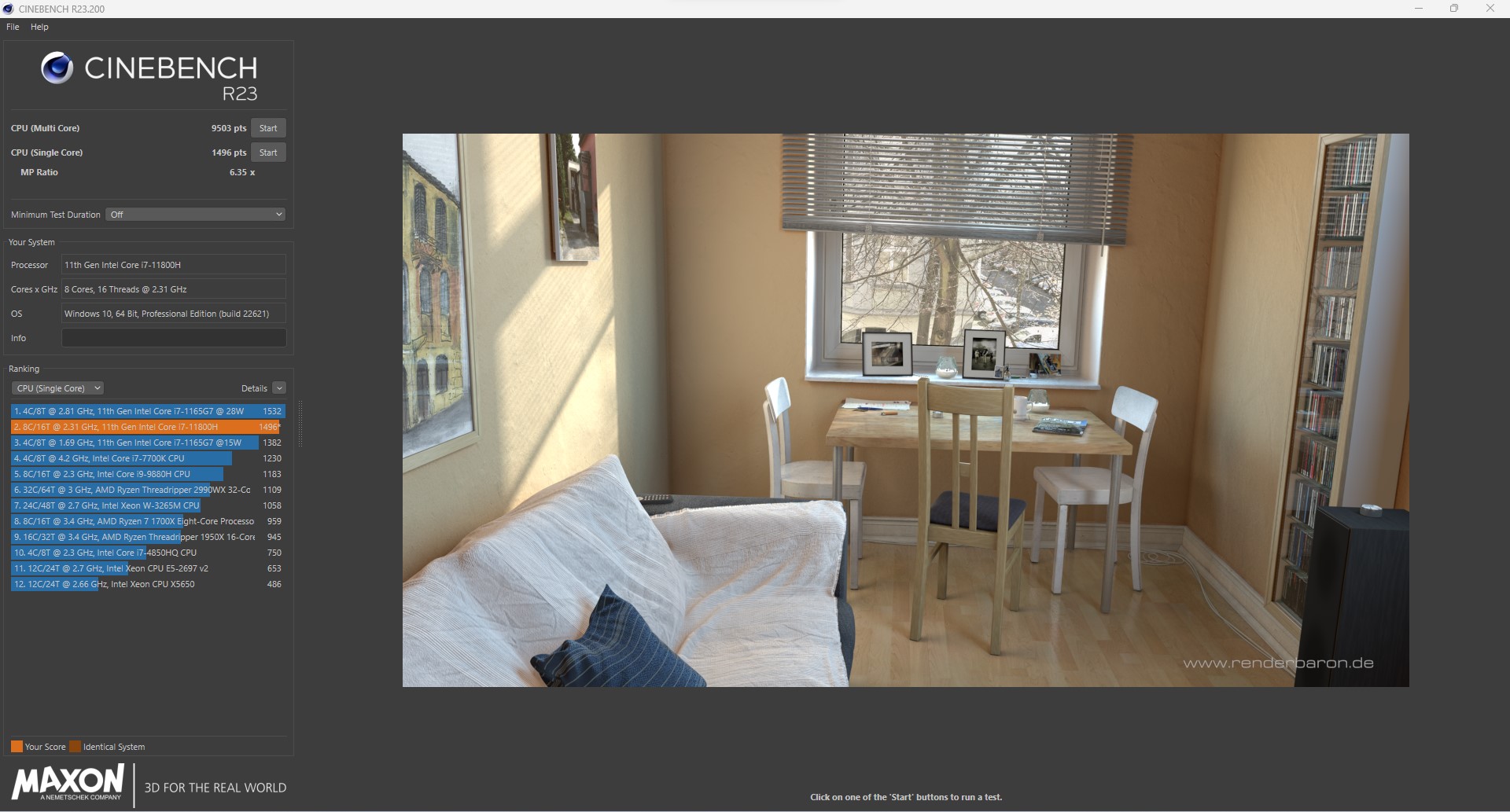

Cinebench R23
Cinebench R23

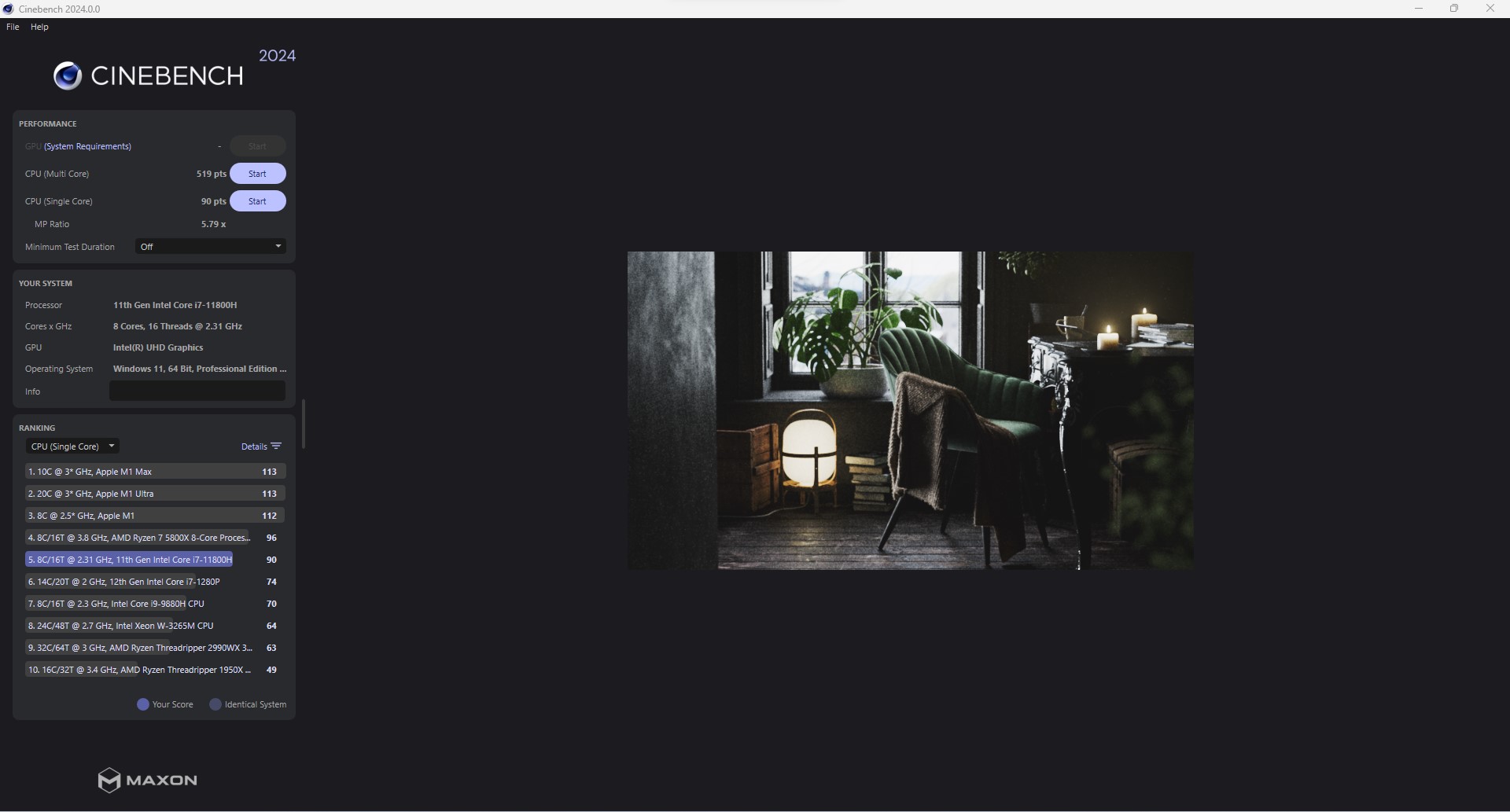

Cinebench 2024
Cinebench 2024
Performance Rating - Percent
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
45.2 pt
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
43.9 pt
Morefine M600, 6600U
AMD Ryzen 5 6600U
43.4 pt
Blackview MP200
Intel Core i5-11400H
41.6 pt
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
40.3 pt
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
35.5 pt
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
33.4 pt
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
32 pt
Cinebench R23
Multi Core
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
9564 Points +1%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
9503 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
8491 Points -11%
Blackview MP200
Intel Core i5-11400H
8451 Points -11%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5917 Points -38%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
4025 Points -58%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
3867 Points -59%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
3721 Points -61%
Single Core
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
1602 Points +7%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
1496 Points
Blackview MP200
Intel Core i5-11400H
1462 Points -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U
1420 Points -5%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
1375 Points -8%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
1346 Points -10%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1082 Points -28%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
959 Points -36%
Cinebench R15
CPU Single 64Bit
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
232 Points +3%
Morefine M600, 6600U
AMD Ryzen 5 6600U
227 Points 0%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
226 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
225 Points 0%
Blackview MP200
Intel Core i5-11400H
218 Points -4%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
197 Points -13%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
170 Points -25%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
146 Points -35%
CPU Multi 64Bit
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
1596 Points 0%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
1591 Points
Blackview MP200
Intel Core i5-11400H
1378 Points -13%
Morefine M600, 6600U
AMD Ryzen 5 6600U
1361 Points -14%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
953 Points -40%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
634 Points -60%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
623 Points -61%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
560 Points -65%
Cinebench R20
CPU (Single Core)
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
620 Points +8%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
574 Points
Blackview MP200
Intel Core i5-11400H
560 Points -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U
558 Points -3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
533 Points -7%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
517 Points -10%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
415 Points -28%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
372 Points -35%
CPU (Multi Core)
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
3779 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
3768 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U
3419 Points -10%
Blackview MP200
Intel Core i5-11400H
3283 Points -13%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
2284 Points -40%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
1567 Points -59%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1498 Points -60%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
1440 Points -62%
Cinebench R11.5
CPU Single 64Bit
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
2.78 Points +6%
Morefine M600, 6600U
AMD Ryzen 5 6600U
2.73 Points +4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
2.63 Points 0%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
2.62 Points
Blackview MP200
Intel Core i5-11400H
2.55 Points -3%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
2.31 Points -12%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1.95 Points -26%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
1.67 Points -36%
CPU Multi 64Bit
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
18.68 Points +5%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
17.87 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
17.15 Points -4%
Blackview MP200
Intel Core i5-11400H
15.97 Points -11%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
10.68 Points -40%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
7.07 Points -60%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
6.98 Points -61%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
6.37 Points -64%
Cinebench R10
Rendering Single CPUs 64Bit
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
12516 Points +6%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
11860 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
11685 Points -1%
Blackview MP200
Intel Core i5-11400H
11530 Points -3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
11201 Points -6%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
10395 Points -12%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
8591 Points -28%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
7397 Points -38%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
59479 Points +2%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
58173 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
54792 Points -6%
Blackview MP200
Intel Core i5-11400H
54687 Points -6%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
39426 Points -32%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
27377 Points -53%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
24499 Points -58%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
23491 Points -60%
Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
750 Seconds * -135%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
694 Seconds * -118%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
688 Seconds * -116%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
513 Seconds * -61%
Morefine M600, 6600U
AMD Ryzen 5 6600U
415 Seconds * -30%
Blackview MP200
Intel Core i5-11400H
373 Seconds * -17%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
319 Seconds * -0%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
319 Seconds *
wPrime 2.10
32m
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
7.479 s * -88%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
6.952 s * -75%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
6.799 s * -71%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
6.518 s * -64%
Morefine M600, 6600U
AMD Ryzen 5 6600U
4.688 s * -18%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
4.552 s * -15%
Blackview MP200
Intel Core i5-11400H
4.498 s * -13%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
3.969 s *
1024m
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
286.835 s * -137%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
267.369 s * -121%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
248.619 s * -105%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
196.909 s * -63%
Morefine M600, 6600U
AMD Ryzen 5 6600U
146.553 s * -21%
Blackview MP200
Intel Core i5-11400H
140.674 s * -16%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
129.204 s * -7%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
121.132 s *
X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
251.21 fps +4%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
242 (239min - 245max) fps
Blackview MP200
Intel Core i5-11400H
226.5 (210min - 228max) fps -6%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
214.5 (213min - 216max) fps -11%
Morefine M600, 6600U
AMD Ryzen 5 6600U
212 (206min - 224max) fps -12%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
167.95 (167.5min - 172.9max) fps -31%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
165.55 (163.6min - 204max) fps -32%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
141.6 (140.9min - 163.1max) fps -41%
Pass 2
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
95.18 fps +10%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
86.25 (83.2min - 94.6max) fps
Blackview MP200
Intel Core i5-11400H
77.85 (69.8min - 82.6max) fps -10%
Morefine M600, 6600U
AMD Ryzen 5 6600U
71.45 (70.2min - 76.6max) fps -17%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
55.2 (54.6min - 55.9max) fps -36%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
40.5 (39.6min - 43.1max) fps -53%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
39.15 (39.1min - 42.7max) fps -55%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
36.7 (36.7min - 37.6max) fps -57%
WinRAR - Result
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
8569 KB/s
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
7497 KB/s -13%
Morefine M600, 6600U
AMD Ryzen 5 6600U
6937 KB/s -19%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
6144 KB/s -28%
Blackview MP200
Intel Core i5-11400H
5477 KB/s -36%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
5348 KB/s -38%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
4747 KB/s -45%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
4185 KB/s -51%
TrueCrypt
AES Mean 100MB
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
9.7 GB/s
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
9.4 GB/s -3%
Morefine M600, 6600U
AMD Ryzen 5 6600U
9.3 GB/s -4%
Blackview MP200
Intel Core i5-11400H
8.4 GB/s -13%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
5.9 GB/s -39%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5.4 GB/s -44%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
5.3 GB/s -45%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
4.1 GB/s -58%
Twofish Mean 100MB
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
1.5 GB/s
Morefine M600, 6600U
AMD Ryzen 5 6600U
1.3 GB/s -13%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
1.3 GB/s -13%
Blackview MP200
Intel Core i5-11400H
1.3 GB/s -13%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1 GB/s -33%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
0.838 GB/s -44%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
0.755 GB/s -50%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
0.753 GB/s -50%
Serpent Mean 100MB
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
1 GB/s
Morefine M600, 6600U
AMD Ryzen 5 6600U
0.857 GB/s -14%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
0.857 GB/s -14%
Blackview MP200
Intel Core i5-11400H
0.815 GB/s -18%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
0.566 GB/s -43%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
0.509 GB/s -49%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
0.454 GB/s -55%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
0.448 GB/s -55%
Geekbench 5.5
Multi-Core
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
7976 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
7658 Points -4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
7253 Points -9%
Blackview MP200
Intel Core i5-11400H
6006 Points -25%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5091 Points -36%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
4898 Points -39%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
3934 Points -51%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
3839 Points -52%
Single-Core
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
1669 Points +4%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
1603 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
1504 Points -6%
Blackview MP200
Intel Core i5-11400H
1465 Points -9%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
1443 Points -10%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
1391 Points -13%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1219 Points -24%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
948 Points -41%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6600U
AMD Ryzen 5 6600U
10249 Points +30%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
7879 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
7128 Points -10%
Blackview MP200
Intel Core i5-11400H
5961 Points -24%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5025 Points -36%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
4841 Points -39%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
3924 Points -50%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
3811 Points -52%
5.0 Single-Core
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
1655 Points +5%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
1570 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
1557 Points -1%
Blackview MP200
Intel Core i5-11400H
1461 Points -7%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
1393 Points -11%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
1385 Points -12%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
1220 Points -22%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
944 Points -40%
Geekbench 4.4
64 Bit Single-Core Score
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
7146 Points +6%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
6747 Points
Morefine M600, 6600U
AMD Ryzen 5 6600U
6698 Points -1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
6117 Points -9%
Blackview MP200
Intel Core i5-11400H
6110 Points -9%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
5911 Points -12%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
4762 Points -29%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
4211 Points -38%
64 Bit Multi-Core Score
Morefine M600, 6600U
AMD Ryzen 5 6600U
39852 Points +24%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
32181 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
28997 Points -10%
Blackview MP200
Intel Core i5-11400H
24947 Points -22%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
20385 Points -37%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
19324 Points -40%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
19288 Points -40%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
14984 Points -53%
3DMark 11 - 1280x720 Performance Physics
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
14645 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
14496 Points -1%
Morefine M600, 6600U
AMD Ryzen 5 6600U
11630 Points -21%
Blackview MP200
Intel Core i5-11400H
10999 Points -25%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
10536 Points -28%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
8666 Points -41%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
7792 Points -47%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
6537 Points -55%
7-Zip 18.03
7z b 4
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
46562 MIPS +8%
Morefine M600, 6600U
AMD Ryzen 5 6600U
44320 MIPS +3%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
43146 MIPS
Blackview MP200
Intel Core i5-11400H
34660 MIPS -20%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
25876 MIPS -40%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
20163 MIPS -53%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
18729 MIPS -57%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
17636 MIPS -59%
7z b 4 -mmt1
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
5895 MIPS +3%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
5732 MIPS
Morefine M600, 6600U
AMD Ryzen 5 6600U
5486 MIPS -4%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
5369 MIPS -6%
Blackview MP200
Intel Core i5-11400H
5343 MIPS -7%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
4788 MIPS -16%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
4638 MIPS -19%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
3753 MIPS -35%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
12.4 fps +3%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
12 fps
Morefine M600, 6600U
AMD Ryzen 5 6600U
11.7 fps -2%
Blackview MP200
Intel Core i5-11400H
10.2 fps -15%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
7.61 fps -37%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
5.49 fps -54%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
5.26 fps -56%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
5.2 fps -57%
R Benchmark 2.5 - Overall mean
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
0.818 sec * -46%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
0.7 sec * -25%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
0.639 sec * -14%
Blackview MP200
Intel Core i5-11400H
0.581 sec * -4%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
0.559 sec *
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
0.543 sec * +3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
0.526 sec * +6%
Morefine M600, 6600U
AMD Ryzen 5 6600U
0.511 sec * +9%
LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
68.2 s * -47%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
62.7 s * -35%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
56.7 s * -22%
Morefine M600, 6600U
AMD Ryzen 5 6600U
53 s * -14%
Blackview MP200
Intel Core i5-11400H
53 s * -14%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
52 s * -12%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
47.2 s * -2%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
46.3 s *
WebXPRT 3 - Overall
Morefine M600, 6600U
AMD Ryzen 5 6600U
274 Points +1%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
270 Points 0%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
270 Points
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
261 Points -3%
Blackview MP200
Intel Core i5-11400H
247 Points -9%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
236 Points -13%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
205 Points -24%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
182.4 Points -32%
Mozilla Kraken 1.1 - Total
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
1088 ms * -70%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
968 ms * -51%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
724 ms * -13%
Blackview MP200
Intel Core i5-11400H
660 ms * -3%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
651 ms * -2%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
644 ms * -0%
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
641 ms *
Morefine M600, 6600U
AMD Ryzen 5 6600U
619 ms * +3%
3DMark
3840x2160 Fire Strike Ultra Physics
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
21176 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
21110 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U
18599 Points -12%
Blackview MP200
Intel Core i5-11400H
16258 Points -23%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
11557 Points -45%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
10500 Points -50%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
9561 Points -55%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
8470 Points -60%
1920x1080 Fire Strike Physics
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
21928 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
21025 Points -4%
Blackview MP200
Intel Core i5-11400H
16949 Points -23%
Morefine M600, 6600U
AMD Ryzen 5 6600U
15934 Points -27%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
11883 Points -46%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
10860 Points -50%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
9354 Points -57%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
9003 Points -59%
2560x1440 Time Spy CPU
Acemagic AD15
AD15, i7-11800H, Intel Core i7-11800H
8744 Points
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H
6767 Points -23%
Blackview MP200
Intel Core i5-11400H
5160 Points -41%
Morefine M600, 6600U
AMD Ryzen 5 6600U
5114 Points -42%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H
4598 Points -47%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U
3346 Points -62%
Minipc Union Ace Magician TK11-A0
Ace Magician TK11-A0, Intel Core i5-1135G7
2867 Points -67%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U
2728 Points -69%

* ... smaller is better

Performance Rating
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
91.9 pt
Average of class Mini PC

90.8 pt
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
87.1 pt
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
76.8 pt
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
76.2 pt
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
54.2 pt
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
49.1 pt
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
40.3 pt
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
38.5 pt
AIDA64 / FP32 Ray-Trace
Average of class Mini PC
  (561 - 51004, n=119, last 2 years)
12449 KRay/s +2%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
12240 KRay/s
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
11347 KRay/s -7%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
10552 KRay/s -14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
9518 KRay/s -22%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
6633 KRay/s -46%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
5612 KRay/s -54%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
5247 KRay/s -57%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
4654 KRay/s -62%
AIDA64 / FPU Julia
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
70782 Points +34%
Average of class Mini PC
  (3604 - 214250, n=119, last 2 years)
62645 Points +19%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
59704 Points +13%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
52677 Points
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
44789 Points -15%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
27788 Points -47%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
26251 Points -50%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
26145 Points -50%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
24138 Points -54%
AIDA64 / CPU SHA3
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
3501 MB/s
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
3103 MB/s -11%
Average of class Mini PC
  (225 - 9399, n=119, last 2 years)
2760 MB/s -21%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
2360 MB/s -33%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
1997 MB/s -43%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
1841 MB/s -47%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
1649 MB/s -53%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
1367 MB/s -61%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
1052 MB/s -70%
AIDA64 / CPU Queen
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
85233 Points
Average of class Mini PC
  (8172 - 184747, n=119, last 2 years)
77998 Points -8%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
75724 Points -11%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
75248 Points -12%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
69756 Points -18%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
56561 Points -34%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
49399 Points -42%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
46646 Points -45%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
43072 Points -49%
AIDA64 / FPU SinJulia
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
8952 Points +5%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
8738 Points +3%
Average of class Mini PC
  (408 - 29064, n=119, last 2 years)
8538 Points 0%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
8510 Points
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
7186 Points -16%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
4648 Points -45%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
4529 Points -47%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
4310 Points -49%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
3964 Points -53%
AIDA64 / FPU Mandel
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
38989 Points +23%
Average of class Mini PC
  (1958 - 113499, n=119, last 2 years)
32689 Points +3%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
32465 Points +3%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
31628 Points
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
26798 Points -15%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
16652 Points -47%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
14905 Points -53%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
12914 Points -59%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
12560 Points -60%
AIDA64 / CPU AES
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
122812 MB/s
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
99449 MB/s -19%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
95057 MB/s -23%
Average of class Mini PC
  (3691 - 325960, n=119, last 2 years)
85358 MB/s -30%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
58910 MB/s -52%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
57644 MB/s -53%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
39680 MB/s -68%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
17907 MB/s -85%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
16354 MB/s -87%
AIDA64 / CPU ZLib
Average of class Mini PC
  (74.8 - 2039, n=119, last 2 years)
714 MB/s +4%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
687 MB/s
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
614 MB/s -11%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
591 MB/s -14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
530 MB/s -23%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
372 MB/s -46%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
316 MB/s -54%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
292 MB/s -57%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
265 MB/s -61%
AIDA64 / FP64 Ray-Trace
Average of class Mini PC
  (308 - 26952, n=119, last 2 years)
6658 KRay/s 0%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
6651 KRay/s
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
5777 KRay/s -13%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
5743 KRay/s -14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
5058 KRay/s -24%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
3668 KRay/s -45%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
2997 KRay/s -55%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
2771 KRay/s -58%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
2527 KRay/s -62%
AIDA64 / CPU PhotoWorxx
Average of class Mini PC
  (4408 - 50500, n=119, last 2 years)
27805 MPixel/s +35%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
27456 MPixel/s +33%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
26959 MPixel/s +31%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
25453 MPixel/s +23%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
20652 MPixel/s
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
20410 MPixel/s -1%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
14986 MPixel/s -27%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
12248 MPixel/s -41%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
10107 MPixel/s -51%

Acemagic AD15 vs. Cinebench R15 Multi Loop

Vid denna tidpunkt ger Cinebench R15 konstant loop-test oss ett bra första intryck av kylsystemets effektivitet i kombination med processorns effektmål. Medan de utmärkta resultaten från CPU-testerna inte kan upprepas här, slutar Acemagic AD15 fortfarande en bra sekund bakom Minisforum Venus-serien UM560 XT. Med 1 470 poäng efter 50 körningar uppnår Intel Core i7-11800H ett acceptabelt resultat.

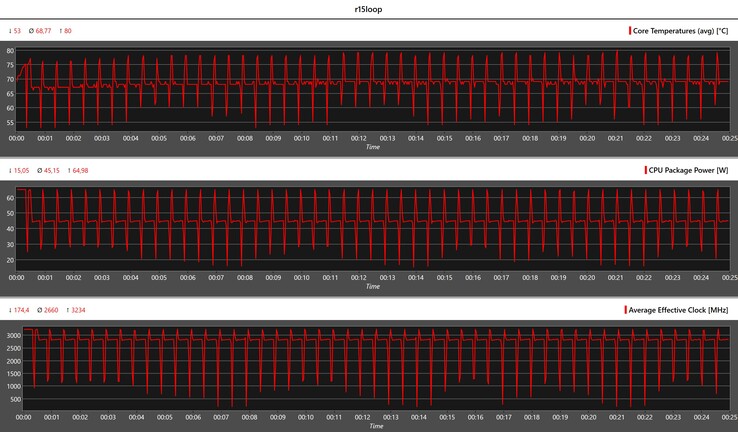

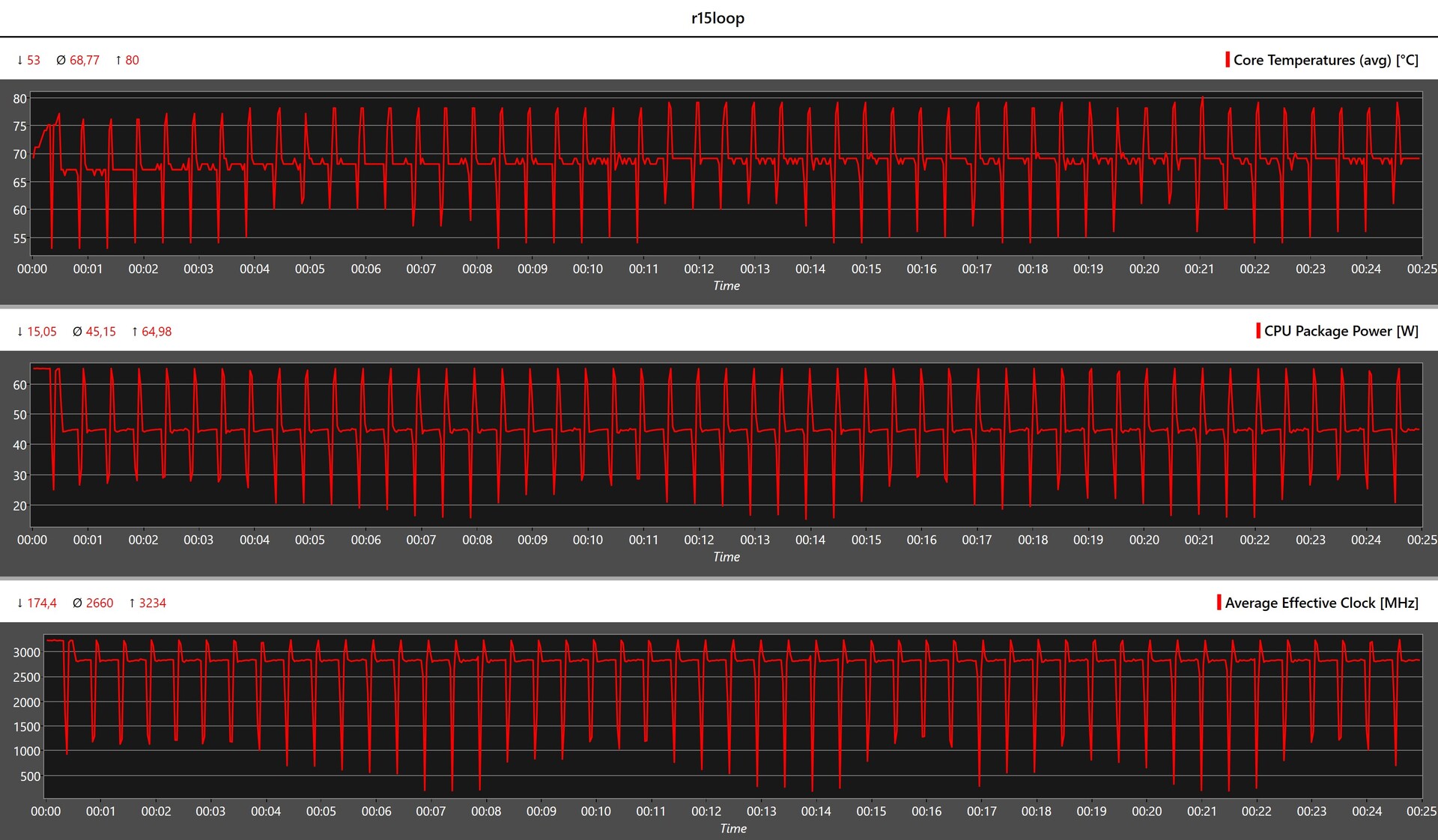

CPU-mätvärden under Cinebench R15-loopen
CPU-mätvärden under Cinebench R15-loopen
08517025534042551059568076585093510201105119012751360144515301615Tooltip
Acemagic AD15 Intel Core i7-11800H, Intel Core i7-11800H: Ø1470 (1424.65-1647.85)
Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)
Blackview MP200 Intel Core i5-11400H, Intel Core i5-11400H: Ø1208 (1178.24-1384.8)
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Core i5-8259U: Ø621 (611.68-659.87)
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Systemets prestanda

I de syntetiska riktmärkena har Acemagic AD15 något mer problem att hävda sig. Minidatorn saknar prestanda i PCMark10, vilket resulterar i att de två enheterna med AMD-processorer hamnar på de två första platserna. Även i Crossmark är prestandan bara tillräcklig för tredje plats, även om nackdelen för Morefine M600 visar sig vara betydligt mindre. Vi ser RAM-utrustningen som en svag punkt i Acemagic AD15. Även om tillverkaren använder två moduler, vilket i grunden är positivt, har de bara en klockhastighet på 2 666 MT/s, vilket resulterar i att vår testenhet bara hamnar i den nedre mitten av vårt testfält i RAM-testerna. Att använda arbetsminne med en klockhastighet på 3 200 MT/s skulle vara mer optimalt här.

PCMark 10 / Score
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
6189 Points +23%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
5872 Points +17%
Acemagic AD15, Intel Core i7-11800H
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340
5036 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
4914 Points -2%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
4525 Points -10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
4521 Points -10%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
4132 Points -18%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
3884 Points -23%
PCMark 10 / Essentials
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
10503 Points +8%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9820 Points +1%
Acemagic AD15, Intel Core i7-11800H
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340
9694 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
9649 Points 0%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
9513 Points -2%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
8910 Points -8%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
8215 Points -15%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
7469 Points -23%
PCMark 10 / Productivity
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
9642 Points +43%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9031 Points +34%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
6788 Points +1%
Acemagic AD15, Intel Core i7-11800H
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340
6723 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
6657 Points -1%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
6495 Points -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
6357 Points -5%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
5976 Points -11%
CrossMark / Overall
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1517 Points +7%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
1438 Points +1%
Acemagic AD15, Intel Core i7-11800H
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340
1423 Points
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1346 Points -5%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
1285 Points -10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1245 Points -13%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
1018 Points -28%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
954 Points -33%
CrossMark / Responsiveness
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
1434 Points +38%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1238 Points +19%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1224 Points +18%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1197 Points +15%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
1079 Points +4%
Acemagic AD15, Intel Core i7-11800H
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340
1038 Points
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
796 Points -23%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
779 Points -25%
CrossMark / Creativity
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1652 Points +3%
Acemagic AD15, Intel Core i7-11800H
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340
1598 Points
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1377 Points -14%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
1359 Points -15%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
1309 Points -18%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1193 Points -25%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
1038 Points -35%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
1027 Points -36%
CrossMark / Productivity
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H
Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG
1523 Points +8%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1491 Points +6%
Acemagic AD15, Intel Core i7-11800H
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340
1408 Points
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H
AMD Radeon RX Vega 7, ESO512GYLCT
1368 Points -3%
Blackview MP200, Intel Core i5-11400H
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G
1336 Points -5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1306 Points -7%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U
Intel UHD Graphics 620, FPT310M8SSD512G
1092 Points -22%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U
Intel Iris Plus Graphics 655, FPT330M8SSD512G
943 Points -33%
AIDA64 / Memory Copy
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
47711 MB/s +26%
Average of class Mini PC
  (6481 - 89287, n=119, last 2 years)
47585 MB/s +26%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
41953 MB/s +11%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
41732 MB/s +10%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
37992 MB/s 0%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
37807 MB/s
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
35423 MB/s -6%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
22181 MB/s -41%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
18973 MB/s -50%
AIDA64 / Memory Read
Average of class Mini PC
  (6914 - 99171, n=119, last 2 years)
48328 MB/s +14%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
47290 MB/s +12%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
46963 MB/s +11%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
46084 MB/s +9%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
42236 MB/s
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
40348 MB/s -4%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
35415 MB/s -16%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
25003 MB/s -41%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
19621 MB/s -54%
AIDA64 / Memory Write
Average of class Mini PC
  (6862 - 98583, n=119, last 2 years)
52056 MB/s +34%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
49353 MB/s +27%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
46860 MB/s +20%
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
44872 MB/s +15%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
43598 MB/s +12%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
39154 MB/s +1%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
38930 MB/s
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
22892 MB/s -41%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
18296 MB/s -53%
AIDA64 / Memory Latency
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
94 ns * -19%
Average of class Mini PC
  (44.9 - 184.8, n=119, last 2 years)
91.9 ns * -17%
Acemagic AD15
Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
78.7 ns *
Minisforum Venus Series UM560 XT
AMD Ryzen 5 5600H, Vega 7
75.5 ns * +4%
Blackview MP200
Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
73.3 ns * +7%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
69 ns * +12%
Geekom Mini IT11, i7-11390H
Intel Core i7-11390H, Iris Xe G7 96EUs
66.3 ns * +16%
ACEMagician ACE-CK10-8259U
Intel Core i5-8259U, Iris Plus Graphics 655
60.3 ns * +23%
Minipc Union NiPoGi CK10 - 10810U
Intel Core i7-10810U, UHD Graphics 620
60.2 ns * +24%

* ... smaller is better

DPC-fördröjningar

Acemagic AD15 kan användas för att spela upp högupplösta videor. Även om systemet spelar upp vår testvideo utan problem, märker vi 10 tappade bildrutor precis i början. IGPU:n belastas upp till 27% och tar därmed en del av belastningen från processorn, vilket resulterar i att latenserna alltid ligger inom det gröna området. Systemet kan hantera att öppna flera webbläsarflikar och full CPU-belastning med Prime95 med låga latenser hela tiden.

I detta test visar Blackview MP200 bra resultat. När vi öppnar flera flikar i Edge-webbläsaren och spelar upp vår 4K-testvideo ser vi inga kritiska latenser. Endast när vi startar Prime95 är de något förhöjda, men sedan ökar inte latenserna ytterligare.

Maximal latens vid öppning av flera webbläsarflikar och uppspelning av 4K-videomaterial
Maximal latens vid öppning av flera webbläsarflikar och uppspelning av 4K-videomaterial
Maximal latens efter 10 sekunder med Prime95
Maximal latens efter 10 sekunder med Prime95
Förare ordnade efter längsta körtid
Förare ordnade efter längsta körtid
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
7414 μs * -778%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
3247 μs * -284%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
1411 μs * -67%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
1016.7 μs * -20%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
940.27 μs * -11%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
844.9 μs *
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
659.1 μs * +22%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
466 μs * +45%

* ... smaller is better

Lagringslösning

512-GB SSD
512-GB SSD

Acemagic AD15 använder en 512-GB SSD från Netac. Lagringen erbjuder endast SATA-hastighet, vilket har en negativ effekt i vår jämförelse med konkurrenterna eftersom de ofta är utrustade med NVMe SSD-enheter. Medan denna nackdel är mycket tydlig i riktmärkena, är den knappast märkbar i den dagliga driften. Systemet startar upp och är snabbt redo att användas, och installationen av våra testprogram och spel fungerar också utan problem. Våra mätningar visar lämpliga resultat för en SATA SSD. Den här anslutningen tillåter ändå inte högre överföringshastigheter. Acemagic AD15 kan utrustas med två lagringslösningar. Förutom M.2 SSD finns det också en tillgänglig 2,5-tums kortplats som ger utrymme för en andra SSD eller HDD med en maximal kapacitet på upp till 2 TB.

Du kan hitta ytterligare jämförelser och riktmärken i vår

jämförelsetabell.

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Netac NS512GSSD340
Sequential Read: 538.8 MB/s
Sequential Write: 473.5 MB/s
512K Read: 391.3 MB/s
512K Write: 400 MB/s
4K Read: 35.95 MB/s
4K Write: 103.6 MB/s
4K QD32 Read: 188.5 MB/s
4K QD32 Write: 255.1 MB/s
Drive Performance Rating - Percent
Average of class Mini PC

88.7 pt
Minisforum Venus Series UM560 XT
ESO512GYLCT
75.4 pt
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
72.3 pt
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
68.8 pt
Blackview MP200
Foresee XP1000F512G
67.8 pt
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
56.7 pt
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
29 pt
Acemagic AD15
Netac NS512GSSD340
25.6 pt
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
23.8 pt
DiskSpd
seq read
Average of class Mini PC
  (233 - 4357, n=119, last 2 years)
2288 MB/s +335%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2184 (2176.42min - 2183.52max) MB/s +315%
Blackview MP200
Foresee XP1000F512G
2089 (1961.74min - 2088.97max) MB/s +297%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1720 (1344.24min - 1720.17max) MB/s +227%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1684 (1646.89min - 1684.01max) MB/s +220%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1645 (1636.91min - 1645.01max) MB/s +213%
Acemagic AD15
Netac NS512GSSD340
526 (524.71min - 525.97max) MB/s
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
464 (407.92min - 464.01max) MB/s -12%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
311 (298.22min - 311.01max) MB/s -41%
seq write
Average of class Mini PC
  (222 - 5595, n=119, last 2 years)
2448 MB/s +428%
Blackview MP200
Foresee XP1000F512G
2395 (2371.88min - 2394.91max) MB/s +416%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2298 (1081.92min - 2298.06max) MB/s +395%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1877 (1870.87min - 1877.35max) MB/s +305%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1681.49min - 1789.9max) MB/s +286%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1075 (545.51min - 1075.26max) MB/s +132%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
502 (311.64min - 502.31max) MB/s +8%
Acemagic AD15
Netac NS512GSSD340
464 (461.79min - 463.68max) MB/s
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
439 (396.15min - 438.89max) MB/s -5%
seq q8 t1 read
Average of class Mini PC
  (236 - 8430, n=119, last 2 years)
3706 MB/s +580%
Blackview MP200
Foresee XP1000F512G
3034 (2493.77min - 3034.37max) MB/s +457%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2525 (2269.25min - 2525.2max) MB/s +363%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
2522 (2230.32min - 2522.44max) MB/s +363%
Minisforum Venus Series UM560 XT
ESO512GYLCT
2360 (2078.7min - 2359.72max) MB/s +333%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2223 (1765.77min - 2223.4max) MB/s +308%
Acemagic AD15
Netac NS512GSSD340
545 (387.49min - 544.63max) MB/s
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
444 (287.73min - 443.55max) MB/s -19%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
236 (35.65min - 236.35max) MB/s -57%
seq q8 t1 write
Average of class Mini PC
  (228 - 6669, n=119, last 2 years)
2743 MB/s +468%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2494 (2222.35min - 2493.51max) MB/s +416%
Blackview MP200
Foresee XP1000F512G
2412 (2365.59min - 2411.72max) MB/s +399%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1946 (1938.09min - 1945.74max) MB/s +303%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1687.16min - 1790.13max) MB/s +271%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1599 (266.87min - 1599.24max) MB/s +231%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
512 (493.73min - 511.73max) MB/s +6%
Acemagic AD15
Netac NS512GSSD340
483 (480.04min - 483.18max) MB/s
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
461 (421.95min - 460.95max) MB/s -5%
4k q1 t1 read
Average of class Mini PC
  (5.67 - 86.6, n=119, last 2 years)
54.7 MB/s +59%
Blackview MP200
Foresee XP1000F512G
53.7 (53.3min - 53.65max) MB/s +56%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
45.1 (43.96min - 45.09max) MB/s +31%
Minisforum Venus Series UM560 XT
ESO512GYLCT
44.8 (44.42min - 44.77max) MB/s +30%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
40.3 (36.8min - 40.3max) MB/s +17%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
38.8 (38.52min - 38.82max) MB/s +13%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
38.1 (37.92min - 38.07max) MB/s +11%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
38.1 (35.61min - 38.07max) MB/s +11%
Acemagic AD15
Netac NS512GSSD340
34.4 (34.22min - 34.41max) MB/s
4k q1 t1 write
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
229 (165.03min - 229.29max) MB/s +145%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
196.3 (179.94min - 196.31max) MB/s +110%
Average of class Mini PC
  (30.4 - 435, n=119, last 2 years)
194.7 MB/s +109%
Minisforum Venus Series UM560 XT
ESO512GYLCT
168.4 (166.77min - 168.37max) MB/s +80%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
120 (112.79min - 120.03max) MB/s +29%
Blackview MP200
Foresee XP1000F512G
105.3 (104.05min - 105.3max) MB/s +13%
Acemagic AD15
Netac NS512GSSD340
93.3 (91.37min - 93.31max) MB/s
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
90.9 (89.44min - 90.91max) MB/s -3%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
81.9 (80.7min - 81.87max) MB/s -12%
4k q32 t16 read
Average of class Mini PC
  (26.1 - 4158, n=119, last 2 years)
1360 MB/s +619%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1005 (1003.31min - 1005.12max) MB/s +431%
Minisforum Venus Series UM560 XT
ESO512GYLCT
831 (807.33min - 831.01max) MB/s +339%
Blackview MP200
Foresee XP1000F512G
731 (727.82min - 730.52max) MB/s +286%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
639 (421.15min - 639.47max) MB/s +238%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
561 (475.29min - 560.56max) MB/s +197%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
338 (299.48min - 338.25max) MB/s +79%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
296 (283.25min - 295.59max) MB/s +56%
Acemagic AD15
Netac NS512GSSD340
189.2 (184.89min - 189.2max) MB/s
4k q32 t16 write
Minisforum Venus Series UM560 XT
ESO512GYLCT
1611 (1590.22min - 1610.86max) MB/s +603%
Average of class Mini PC
  (30.2 - 4288, n=119, last 2 years)
1287 MB/s +462%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
774 (725.33min - 774.03max) MB/s +238%
Blackview MP200
Foresee XP1000F512G
754 (743.45min - 754.38max) MB/s +229%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
544 (355.98min - 544.47max) MB/s +138%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
350 (206.15min - 349.79max) MB/s +53%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
329 (317.87min - 329.01max) MB/s +44%
Acemagic AD15
Netac NS512GSSD340
229 (222.72min - 229.28max) MB/s
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
176.1 (168.14min - 176.06max) MB/s -23%
AS SSD
Score Total
Average of class Mini PC
  (181.5 - 10021, n=117, last 2 years)
4121 Points +447%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
3887 Points +416%
Blackview MP200
Foresee XP1000F512G
3153 Points +319%
Minisforum Venus Series UM560 XT
ESO512GYLCT
3139 Points +317%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2887 Points +283%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
1048 Points +39%
Acemagic AD15
Netac NS512GSSD340
753 Points
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
748.83 Points -1%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
181.49 (344min) Points -76%
Score Read
Average of class Mini PC
  (61 - 3741, n=117, last 2 years)
1534 Points +477%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1513 Points +469%
Blackview MP200
Foresee XP1000F512G
1276 Points +380%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1152 Points +333%
Minisforum Venus Series UM560 XT
ESO512GYLCT
954 Points +259%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
661 Points +148%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
420 Points +58%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
382 Points +44%
Acemagic AD15
Netac NS512GSSD340
266 Points
Score Write
Average of class Mini PC
  (88 - 4371, n=117, last 2 years)
1851 Points +437%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1702 Points +393%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1632 Points +373%
Blackview MP200
Foresee XP1000F512G
1235 Points +258%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1169 Points +239%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
700 Points +103%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
403 Points +17%
Acemagic AD15
Netac NS512GSSD340
345 Points
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
173 Points -50%
Seq Read
Average of class Mini PC
  (291 - 6620, n=117, last 2 years)
3161 MB/s +498%
Blackview MP200
Foresee XP1000F512G
2930 MB/s +454%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
2844 MB/s +438%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
2268 MB/s +329%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2204 MB/s +317%
Minisforum Venus Series UM560 XT
ESO512GYLCT
2193 MB/s +315%
Acemagic AD15
Netac NS512GSSD340
529 MB/s
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
490 MB/s -7%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
486 MB/s -8%
Seq Write
Blackview MP200
Foresee XP1000F512G
2478 MB/s +483%
Average of class Mini PC
  (240 - 5783, n=117, last 2 years)
2212 MB/s +420%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1762 MB/s +315%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1603 MB/s +277%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1318 MB/s +210%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
524 MB/s +23%
Acemagic AD15
Netac NS512GSSD340
425 MB/s
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
400 MB/s -6%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
330 MB/s -22%
4K Read
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
63.4 MB/s +107%
Average of class Mini PC
  (6.08 - 104.3, n=117, last 2 years)
58.9 MB/s +92%
Minisforum Venus Series UM560 XT
ESO512GYLCT
55.3 MB/s +81%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
53.5 MB/s +75%
Blackview MP200
Foresee XP1000F512G
52.2 MB/s +71%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
46.8 MB/s +53%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
42.04 MB/s +37%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
39.71 MB/s +30%
Acemagic AD15
Netac NS512GSSD340
30.6 MB/s
4K Write
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
225 MB/s +152%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
185.4 MB/s +107%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
185.32 MB/s +107%
Average of class Mini PC
  (30.9 - 366, n=117, last 2 years)
175.1 MB/s +96%
Minisforum Venus Series UM560 XT
ESO512GYLCT
151.8 MB/s +70%
Blackview MP200
Foresee XP1000F512G
103.1 MB/s +15%
Acemagic AD15
Netac NS512GSSD340
89.4 MB/s
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
87.1 MB/s -3%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
39.4 MB/s -56%
4K-64 Read
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1223 MB/s +572%
Average of class Mini PC
  (23.4 - 3220, n=117, last 2 years)
1159 MB/s +536%
Blackview MP200
Foresee XP1000F512G
931 MB/s +411%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
891.59 MB/s +390%
Minisforum Venus Series UM560 XT
ESO512GYLCT
679 MB/s +273%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
324 MB/s +78%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
323 MB/s +77%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
291.36 MB/s +60%
Acemagic AD15
Netac NS512GSSD340
182.1 MB/s
4K-64 Write
Average of class Mini PC
  (32.8 - 3731, n=117, last 2 years)
1455 MB/s +583%
Minisforum Venus Series UM560 XT
ESO512GYLCT
1374 MB/s +545%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
1276 MB/s +499%
Blackview MP200
Foresee XP1000F512G
884 MB/s +315%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
823.51 MB/s +287%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
462 MB/s +117%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
283 MB/s +33%
Acemagic AD15
Netac NS512GSSD340
213 MB/s
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
93.65 MB/s -56%
Access Time Read
Blackview MP200
Foresee XP1000F512G
0.158 ms * -151%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
0.112 ms * -78%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
0.1 ms * -59%
Average of class Mini PC
  (0.022 - 0.489, n=117, last 2 years)
0.09726 ms * -54%
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
0.083 ms * -32%
Acemagic AD15
Netac NS512GSSD340
0.063 ms *
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
0.06 ms * +5%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
0.06 ms * +5%
Minisforum Venus Series UM560 XT
ESO512GYLCT
0.044 ms * +30%
Access Time Write
Blackview MP200
Foresee XP1000F512G
0.16 ms * -17%
Acemagic AD15
Netac NS512GSSD340
0.137 ms *
ACEMagician ACE-CK10-8259U
FPT330M8SSD512G
0.127 ms * +7%
Average of class Mini PC
  (0.014 - 0.765, n=117, last 2 years)
0.1153 ms * +16%
Minipc Union NiPoGi CK10 - 10810U
FPT310M8SSD512G
0.113 ms * +18%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
0.103 ms * +25%
Geekom Mini IT11, i7-11390H
Lexar 1024GB LNM6A1X001T-HNNNG
0.087 ms * +36%
Minisforum Venus Series UM560 XT
ESO512GYLCT
0.024 ms * +82%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
0.023 ms * +83%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

01553104656207759301085124013951550170518602015217023252480263527902945Tooltip
Acemagic AD15 Netac NS512GSSD340: Ø540 (386.44-542.74)
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)
Minisforum Venus Series UM560 XT ESO512GYLCT: Ø2347 (2148.11-2354.15)
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)
Blackview MP200 Foresee XP1000F512G: Ø3033 (2552.65-3092.67)
ACEMagician ACE-CK10-8259U FPT330M8SSD512G: Ø330 (164.21-394.73)
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G: Ø453 (292.09-461.16)
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Grafikkort

Med Intel UHD Graphics Xe som erbjuder 32 EUs, använder Acemagic AD15 bara en enkel iGPU, och på motsvarande sätt placerar sig vår testenhet bara i mitten av vårt testfält. AMD:s iGPU-lösningar som Radeon RX Vega 7 eller Radeon 660M är långt före och erbjuder en märkbart högre prestanda.

Du kan hitta ytterligare jämförelser och riktmärken i vår

GPU-jämförelsetabell.

3DMark Performance Rating - Percent
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
97.4 pt
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
90 pt
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
83.4 pt
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
79.7 pt
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
51.1 pt
ACEMagician ACE-CK10-8259U
Intel Iris Plus Graphics 655, Intel Core i5-8259U
44.7 pt
Blackview MP200
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H
25.8 pt
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
25.3 pt
3DMark 11 - 1280x720 Performance GPU
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
6079 Points +92%
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
5634 Points +78%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
5565 Points +76%
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
5413 Points +71%
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
3168 Points
ACEMagician ACE-CK10-8259U
Intel Iris Plus Graphics 655, Intel Core i5-8259U
2888 Points -9%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
1660 Points -48%
Blackview MP200
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H
1654 Points -48%
3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
29927 Points +91%
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
28159 Points +80%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
20432 Points +30%
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
19240 Points +23%
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
15662 Points
ACEMagician ACE-CK10-8259U
Intel Iris Plus Graphics 655, Intel Core i5-8259U
13739 Points -12%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
8164 Points -48%
Blackview MP200
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H
7779 Points -50%
1920x1080 Fire Strike Graphics
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
4621 Points +85%
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
4041 Points +62%
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
3971 Points +59%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
3725 Points +49%
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
2495 Points
ACEMagician ACE-CK10-8259U
Intel Iris Plus Graphics 655, Intel Core i5-8259U
1987 Points -20%
Blackview MP200
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H
1203 Points -52%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
1078 Points -57%
2560x1440 Time Spy Graphics
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
1430 Points +117%
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
1300 Points +98%
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1247 Points +90%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
1109 Points +69%
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
658 Points
ACEMagician ACE-CK10-8259U
Intel Iris Plus Graphics 655, Intel Core i5-8259U
633 Points -4%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
365 Points -45%
Blackview MP200
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H
348 Points -47%
Fire Strike Extreme Graphics
Morefine M600, 6600U
AMD Radeon 660M, AMD Ryzen 5 6600U
2149 Points +95%
Geekom Mini IT11, i7-11390H
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
1833 Points +66%
Minipc Union Ace Magician TK11-A0
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7
1735 Points +58%
Minisforum Venus Series UM560 XT
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1654 Points +50%
Acemagic AD15
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H
1101 Points
ACEMagician ACE-CK10-8259U
Intel Iris Plus Graphics 655, Intel Core i5-8259U
916 Points -17%
Blackview MP200
Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H
544 Points -51%
Minipc Union NiPoGi CK10 - 10810U
Intel UHD Graphics 620, Intel Core i7-10810U
491 Points -55%
Performance Rating - Percent
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
96.9 pt
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
93.5 pt
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
80.1 pt
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
79.5 pt
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
53.9 pt
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
49.6 pt
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
29.2 pt
Minipc Union NiPoGi CK10 - 10810U -1!
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
26.9 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
20.9 fps +57%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
20.4 fps +53%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
17.7 fps +33%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
17.3 fps +30%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
13.3 fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
10.5 fps -21%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
7.5 fps -44%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
5.4 fps -59%
Extreme Preset DX11
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
20.9 fps +49%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
19.8 fps +41%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
17.9 fps +28%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
17.7 fps +26%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
14 fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
11.2 fps -20%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
7.7 fps -45%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
5.7 fps -59%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
13.2 fps +50%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
11.5 fps +31%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
11.3 fps +28%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
10.9 fps +24%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
8.8 fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
8.2 fps -7%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
5.1 fps -42%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
3.9 fps -56%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
13.7 fps +36%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
13.5 fps +34%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
11.7 fps +16%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
11.6 fps +15%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
10.1 fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
7.6 fps -25%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
5.4 fps -47%
ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
3439 Points +142%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
3244 Points +128%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
2766 Points +95%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
2693 Points +89%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
1584 Points +11%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
1422 Points
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
899 Points -37%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
745 Points -48%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
318 Points +75%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
272 Points +49%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
223 Points +23%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
186 Points +2%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
182 Points
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
146 Points -20%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
118 Points -35%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
86 Points -53%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
340 Points +100%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
260 Points +53%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
230 Points +35%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
204 Points +20%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
170 Points
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
118 Points -31%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
109 Points -36%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
84 Points -51%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
948 Points +273%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
933 Points +267%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
598 Points +135%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
558 Points +120%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
291 Points +15%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
254 Points
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
177 Points -30%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
144 Points -43%
1024x600 Normal, Mandel Scalar
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
885 Points +134%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
884 Points +134%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
779 Points +106%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
751 Points +99%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
453 Points +20%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
378 Points
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
200 Points -47%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
141 Points -63%
1024x600 Normal, QJuliaRayTrace
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
994 Points +118%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
963 Points +111%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
936 Points +105%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
880 Points +93%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
577 Points +26%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
457 Points
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
352 Points -23%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
233 Points -49%
Unigine Superposition
1280x720 720p Low
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
7862 Points +94%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
7180 Points +78%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
4433 Points +10%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
4362 Points +8%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
4043 Points
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
3783 Points -6%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
2151 Points -47%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
2027 Points -50%
1920x1080 1080p High
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
1800 Points +77%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
1664 Points +63%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
1530 Points +50%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
1522 Points +50%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
1018 Points
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
1008 Points -1%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
511 Points -50%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
507 Points -50%
1920x1080 1080p Extreme
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
801 Points +72%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
776 Points +67%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
768 Points +65%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
752 Points +62%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
465 Points
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
424 Points -9%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
243 Points -48%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
231 Points -50%
3DMark 05 Standard
32116 poäng
3DMark 06 Standard Score
19728 poäng
3DMark Vantage P Result
13730 poäng
3DMark 11 Performance
3632 poäng
3DMark Ice Storm Standard Score
82221 poäng
3DMark Cloud Gate Standard Score
15413 poäng
3DMark Fire Strike Score
2356 poäng
3DMark Fire Strike Extreme Score
1104 poäng
3DMark Time Spy Score
763 poäng
Hjälp

Spelprestanda

På grund av den låga 3D-prestandan som erbjuds av Intel UHD Graphics Xeär Acemagic AD15 endast lämplig för enkla spelapplikationer. Krävande spel kommer snabbt att överbelasta iGPU, och om alls, spelbara bildhastigheter kan endast uppnås i de lägsta detaljnivåerna och en mycket låg upplösning. De som letar efter en mini-dator med högre 3D-prestanda bör ta en titt på modeller med en AMD Ryzen 9 6900HX. Exempel på sådana system skulle vara Geekom AS 6, denMorefine M600eller Ace Magican AM08 Pro.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
76.8 fps +62%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
75.4 fps +59%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
65.9 (1.678min, 12.6P0.1, 39.7P1) fps +39%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
63.3 fps +34%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
47.3 (4.78min, 19.9P0.1, 25.3P1) fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
27.9 fps -41%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
24.5 fps -48%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
23.7 (1.923min, 13.5P0.1, 19.7P1) fps +47%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
23 fps +43%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
22.6 fps +40%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
22.2 fps +38%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
16.1 (8.34min, 8.6P0.1, 8.83P1) fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
10.1 fps -37%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
8.3 fps -48%
Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
66.4 fps +171%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
49 fps +100%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
36.6 fps +49%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
33.9 fps +38%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
24.5 fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
22.5 fps -8%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
14.9 fps -39%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
13.4 fps -45%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
15.6 fps +150%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
13.6 fps +118%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
10.5 fps +69%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
10.5 fps +69%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
6.65 fps +7%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
6.23 fps
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
3.69 fps -41%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
3.3 fps -47%
GTA V
1024x768 Lowest Settings possible
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
142.9 (1.358min, 71.4P1) fps +42%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
140.7 (5.04min, 90.9P1) fps +40%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
100.8 (23.7min, 71.4P1) fps
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
97.7 (25.6min, 55.6P1) fps -3%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
68.3 (18.7min, 45.5P1) fps -32%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
59.3 (9.5min, 33.3P1) fps -41%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
57 (12.6min, 32.3P1) fps -43%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
33.9 (12.8min, 19.2P1) fps -66%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
33.9 (1.094min, 20.4P1) fps +147%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
31.7 (15.9min, 23.3P1) fps +131%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
20.5 (8.17min, 14.5P1) fps +50%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
16.4 (5.82min, 11.9P1) fps +20%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
14.3 (9.08min, 10.6P1) fps +4%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
13.7 (7.54min, 9.71P1) fps
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
8.59 (3.34min, 6.21P1) fps -37%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
6.56 (3.2min, 4.55P1) fps -52%
Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
62 (49min) fps +107%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
57 (51min) fps +90%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
40 (35min) fps +33%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
30 (26min) fps
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
25 (19min) fps -17%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
22 (19min) fps -27%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
16 (14min) fps -47%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
11 (10min) fps -63%
1920x1080 High Preset AA:T
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
29 (25min) fps +142%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
25 (22min) fps +108%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
19 (17min) fps +58%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
16 (13min) fps +33%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
12 (10min) fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
10 (8min) fps -17%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
7 (6min) fps -42%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
5 (4min) fps -58%
Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
58 (42min) fps +115%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
52 (39min) fps +93%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
36 (24min) fps +33%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
29 (19min) fps +7%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
27 (17min) fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
21 (16min) fps -22%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
15 (11min) fps -44%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
11 (8min) fps -59%
1920x1080 High Preset
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
29 (23min) fps +123%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
24 (20min) fps +85%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
18 (14min) fps +38%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
15 (12min) fps +15%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
13 (9min) fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
10 (9min) fps -23%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
7 (5min) fps -46%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
5 (4min) fps -62%
Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
137.7 (114.5min) fps +19%
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
135.9 (121.4min) fps +17%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
116 (101.7min) fps
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
98.7 (85.5min) fps -15%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
95.8 (84.4min) fps -17%
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
86.8 (75.1min) fps -25%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
79.1 (53.9min) fps -32%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
72.8 (60.3min) fps -37%
1920x1080 high (2/3)
Morefine M600, 6600U
Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
64.9 (56.8min) fps +75%
Minisforum Venus Series UM560 XT
Vega 7, R5 5600H, ESO512GYLCT
62.1 (57.1min) fps +67%
Geekom Mini IT11, i7-11390H
Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG
45.2 (38.5min) fps +22%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
43.4 (31.3min) fps +17%
Acemagic AD15
UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340
37.1 (33.3min) fps
ACEMagician ACE-CK10-8259U
Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G
34.5 (31.9min) fps -7%
Blackview MP200
UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
22.6 (20.6min) fps -39%
Minipc Union NiPoGi CK10 - 10810U
UHD Graphics 620, i7-10810U, FPT310M8SSD512G
18.4 (17min) fps -50%
lågmed.högultra
GTA V (2015) 100.8 89.6 13.7
The Witcher 3 (2015) 47.3 16.1 8.22
Dota 2 Reborn (2015) 116 73.6 37.1 33.8
Final Fantasy XV Benchmark (2018) 23.6 12.4 8.57
X-Plane 11.11 (2018) 38.4 25.8 22.5
Far Cry 5 (2018) 30 13 12 12
Strange Brigade (2018) 55.6 21.6 16.6 15.6
Shadow of the Tomb Raider (2018) 33.2 13.2 12.1 10
Far Cry New Dawn (2019) 27 14 13
Borderlands 3 (2019) 24.5 10.7 6.23
F1 2020 (2020) 48.5 22.3 16.5 10.3
F1 2021 (2021) 56.8 25.3 20.1 12.9
GRID Legends (2022) 32 24.9 18.2
Tiny Tina's Wonderlands (2022) 13.1 9.82 6.35
F1 22 (2022) 21.8 19.6 13.8 10.6
F1 23 (2023) 19.1 17.1 11.5

Utsläpp - En stabil föreställning som förblir behagligt tyst

Bullernivåer

I våra bullermätningar är Acemagic AD15:s beteende till en början mycket diskret. Utan belastning arbetar enheten med en låg ljudnivå på endast 26 till 27,3 dB(A). Under genomsnittlig belastning ökar det bara något till 30,8 dB(A). Under stresstestet visar vår mätutrustning dock 37,5 dB(A), vilket innebär att vår testenhet är mer högljudd än konkurrenternas. Subjektivt sett är Acemagic AD15 tystare, vilket beror på ett mer behagligt surrande ljud från fläkten.

Ljudnivå

Låg belastning
26.2 / 26.5 / 27.3 dB(A)
Hög belastning
30.8 / 37.5 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Earthworks M23R (15 cm avstånd)   environment noise: 25.4 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2039.142.138.934.341.935.939.12539.643.836.636.24647.539.63143.340.54443.445.345.443.34030.835.634.244.644.331.330.85026.225.228.63235.929.826.26331.624.728.427.730.826.531.68028.423.728.628.232.328.328.410030.225.630.526.528.526.730.212524.917.727.717.120.62024.916023.918.218.814.519.515.423.920023.719.519.314.115.915.823.725025.517.916.113.821.814.825.531524.71818.511.415.213.524.740025.322.617.212.213.111.825.350027.221.316.710.912.810.727.263029.721.815.410.713.29.829.780027.520.813.91010.910.327.5100030.823.915.311.211.71130.8125027.32014.911.411.410.927.3160026.119.213.711.811.211.226.1200025.517.7131311.811.825.5250025.915.913.114.812.612.625.9315023.21513.715.113.313.223.2400019.515.314.315.614.11419.5500017.415.214.816.314.414.417.4630016.915.21515.514.814.816.9800015.815.215.416.11515.115.81000015.415.615.81617.415.115.41250015.415.218.515.615.814.915.41600016.515.5161714.514.616.5SPL37.530.827.326.526.225.437.5N2.61.40.90.70.80.62.6median 24.9median 17.9median 15.4median 14.5median 14.4median 14median 24.9Delta4.32.82.22.22.41.84.3hearing rangehide median Fan NoiseAcemagic AD15
Acemagic AD15
i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
Morefine M600, 6600U
R5 6600U, Radeon 660M
Minisforum Venus Series UM560 XT
R5 5600H, Vega 7
Geekom Mini IT11, i7-11390H
i7-11390H, Iris Xe G7 96EUs
Blackview MP200
i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
ACEMagician ACE-CK10-8259U
i5-8259U, Iris Plus Graphics 655
Minipc Union NiPoGi CK10 - 10810U
i7-10810U, UHD Graphics 620
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
Noise
-4%
-9%
-7%
-12%
-8%
-9%
-17%
off / environment *
25.4
29.4
-16%
30
-18%
29.7
-17%
25.1
1%
29.6
-17%
30.4
-20%
30.28
-19%
Idle Minimum *
26.2
29.4
-12%
30.3
-16%
30.2
-15%
25.3
3%
29.7
-13%
30.8
-18%
31.82
-21%
Idle Average *
26.5
29.4
-11%
30.5
-15%
30.2
-14%
25.3
5%
29.8
-12%
30.9
-17%
32.27
-22%
Idle Maximum *
27.3
29.5
-8%
30.6
-12%
30.2
-11%
25.3
7%
29.8
-9%
30.9
-13%
33.17
-22%
Load Average *
30.8
29.6
4%
32.5
-6%
30.6
1%
46
-49%
33.5
-9%
31
-1%
35.82
-16%
Witcher 3 ultra *
32.6
30.5
6%
Load Maximum *
37.5
29.6
21%
33.2
11%
36.4
3%
51.8
-38%
33.6
10%
31
17%
37.1
1%

* ... smaller is better

Temperaturer

Acemagic AD15 har inte vid något tillfälle några problem med höga temperaturer. Chassit värms bara upp något, och vi ser bara högre temperaturer i området för fläktventilen i baksidan. DenIntel Core i7-11800Hnår sin högsta temperatur under stresstestet med Prime95, och vi mäter 90 °C (194 °F), så SoC når aldrig den maximala temperatur som anges av tillverkaren. De effektgränser som definieras som PL1 och PL2 uppnås, och särskilt PL1-värdet kan bibehållas konstant på 45 watt. Den maximala temperaturen gäller också bara den korta tidsperiod under vilken SoC kan förbruka 65 watt i det här fallet. Om man tittar på längre tidsperioder ligger processortemperaturen på 70 °C (158 °F).

Stresstest med endast Prime95
Stresstest med endast Prime95
Stresstest med endast FurMark
Stresstest med endast FurMark
Stresstest med Prime95 + FurMark
Stresstest med Prime95 + FurMark
Acemagic AD15 under stresstestet (Prime95)
Acemagic AD15 under stresstestet (Prime95)
Acemagic AD15 under stresstestet (Prime95)
Acemagic AD15 under stresstestet (Prime95)
Strömförsörjning under belastning
Strömförsörjning under belastning
Hög belastning
 37.4 °C37.1 °C34.2 °C
 39.4 °C31.6 °C30.9 °C
 27.1 °C27.1 °C27 °C
Max: 39.4 °C
Medel: 32.4 °C
31.8 °C36.5 °C35.1 °C
31.7 °C30.9 °C32.7 °C
28.7 °C26.5 °C26.3 °C
Max: 36.5 °C
Medel: 31.1 °C
Strömförsörjning (max.)  44.3 °C | Rumstemperatur 23 °C | Fluke t3000FC (calibrated)
(±) The average temperature for the upper side under maximal load is 32.4 °C / 90 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 39.4 °C / 103 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 36.5 °C / 98 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 31.8 °C / 89 F, compared to the device average of 32.2 °C / 90 F.

Strömförbrukning

Mini-datorer är vanligtvis extremt effektiva och ligger ofta betydligt före vanliga stationära datorer i detta avseende. I grund och botten är Acemagic AD15 också effektiv, även om den inte utgör någon fara för konkurrenterna här. Jämfört med Blackview MP200ser vi en liknande strömförbrukning. På grund av Tiger Lake -arkitekturen har båda dessa modeller en liten nackdel i vårt testfält, och ofta kan modernare enheter göra bättre här på grund av deras mer aktuella CPU-arkitekturer. Vid nästan 50 watt under genomsnittlig belastning förblir förbrukningen av vår testenhet fortfarande inom acceptabla gränser. Vi mäter kortvarigt nästan 98 watt, när SoC kan dra full nytta av boosthastigheten under en kort tid. Det medföljande 120-watts nätaggregatet ger tillräcklig strömförsörjning hela tiden.

Strömförbrukning
Av/Standbydarklight 0.79 / 0.85 Watt
Låg belastningdarkmidlight 8.7 / 14.9 / 18.9 Watt
Hög belastning midlight 49.6 / 97.7 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Acemagic AD15
i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)
Morefine M600, 6600U
R5 6600U, Radeon 660M
Minisforum Venus Series UM560 XT
R5 5600H, Vega 7
Geekom Mini IT11, i7-11390H
i7-11390H, Iris Xe G7 96EUs
Blackview MP200
i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
ACEMagician ACE-CK10-8259U
i5-8259U, Iris Plus Graphics 655
Minipc Union NiPoGi CK10 - 10810U
i7-10810U, UHD Graphics 620
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
Average Intel UHD Graphics Xe 32EUs (Tiger Lake-H)

Average of class Mini PC

Power Consumption
22%
35%
40%
12%
27%
56%
48%
-2%
4%
Idle Minimum *
8.7
8
8%
6.6
24%
7.3
16%
9
-3%
8.1
7%
4.8
45%
3.4
61%
Idle Average *
14.9
8.7
42%
6.8
54%
7.8
48%
10.6
29%
8.4
44%
4.9
67%
5.7
62%
Idle Maximum *
18.9
8.8
53%
7.2
62%
8.4
56%
19.9
-5%
13.8
27%
5.5
71%
7
63%
20.2 ?(14 - 30.5, n=4)
-7%
Load Average *
49.6
54.6
-10%
45.1
9%
28.7
42%
30.9
38%
43.1
13%
23
54%
36.5
26%
45.7 ?(40 - 49.6, n=4)
8%
Load Maximum *
97.7
83.2
15%
73.4
25%
61.1
37%
97.8
-0%
55.9
43%
54
45%
68
30%
Witcher 3 ultra *
44.8

* ... smaller is better

Power Consumption With External Monitor

05101520253035404550556065707580859095Tooltip
Acemagic AD15; Prime95 V2810 Stress (external Monitor): Ø72.8 (66.3-97.7)
Acemagic AD15; Cinebench R15 Multi (external Monitor): Ø93.7 (93.4-94.2)
Acemagic AD15; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø40.9 (36.5-49.9)
Acemagic AD15; 1920x1080 The Witcher 3 ultra (external Monitor): Ø52 (50.7-64.6)
Acemagic AD15; Idle 1min (external Monitor): Ø18.9 (17.6-24.1)
Acemagic AD15; Cinebench R23 Single (external Monitor): Ø46.3 (43.3-80.9)
Acemagic AD15; Cinebench R23 Multi (external Monitor): Ø75.5 (61.5-92.5)

För

+ SoC med 8 kärnor och 16 trådar
+ bra prestanda i vardagen
+ lätt att öppna
+ många USB-anslutningar
+ robust hölje
+ bra kylenhet
+ stabil CPU-prestanda
+ låga DPC-latenstider

Emot

- låg 3D-prestation
- långsamt arbetsminne
- billigt utseende

Dom - Det viktiga är de inre värderingarna

Acemagic AD15 recension - testenhet tillhandahållen av Acemagic
Acemagic AD15 recension - testenhet tillhandahållen av Acemagic

Som en liten och kraftfull mini-PC kan Acemagic AD15 prestera övertygande. Trots Intel Core i7-11800H lyckas den lilla datorn leverera en bra vardagsprestanda. Men det lämnar fortfarande några frågor och förblir ett mysterium för oss, varför tillverkaren inte använde snabbare arbetsminne. Även om detta innebär en liten kostnad för prestandan, skulle det gynna iGPU. Vid den här tidpunkten är arkitekturen nästan tre år gammal, vilket också märks i flera mätningar. Vi kan särskilt nämna strömförbrukningen här, där Acemagic AD15 något missar baren, även om detta inte skulle vara en anledning att avråda från ett köp.

Acemagic AD15 övertygar med en utmärkt prestanda till ett acceptabelt pris.

Visuellt erbjuder Acemagic AD15 inga anmärkningsvärda höjdpunkter, men många användare kanske inte bryr sig, eftersom datorn helt enkelt måste fungera i vardagen. Och minidatorn från Fjärran Östern gör just det, och den gör det till och med ganska bra. Hela utrustningspaketet är lämpligt för priset, och för för närvarande $ 400 får du en kraftfull stationär dator i miniformat. De som inte nödvändigtvis är beroende av Thunderbolt kan köpa mini-PC:n utan några bekymmer. Den låga ljudnivån vid daglig drift förtjänar också ett positivt omnämnande här.

Pris och tillgänglighet

Du kan beställa Acemagic AD15 direkt från tillverkarens onlinebutik, som för närvarande kostar $ 449. Detta erbjudande är dock endast tillgängligt i USA och England. För Tyskland erbjuder tillverkaren den identiska modellen baserad på Intel Core i5-12450H och ber om 499 euro (~ $ 532). Amazon erbjuder för närvarande Acemagic AD15 för $ 399.

Acemagic AD15 - 02/20/2024 v7 (old)
Sebastian Bade

Design
64 / 98 → 66%
Anslutningar
58 / 81 → 72%
Vikt
79%
Spelprestanda
59%
Programprestanda
90%
Workstation
53%
Temperatur
92%
Ljudnivå
93%
Medel
73%
78%
Mini PC - Vägt medel

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Please share our article, every link counts!
Mail Logo
> Bärbara datorer, laptops - tester och nyheter > Tester > Acemagic AD15 Mini PC recension: Kraftfullt NUC-alternativ med Intel Core i7-11800H
Sebastian Bade, 2023-09-25 (Update: 2023-09-25)
