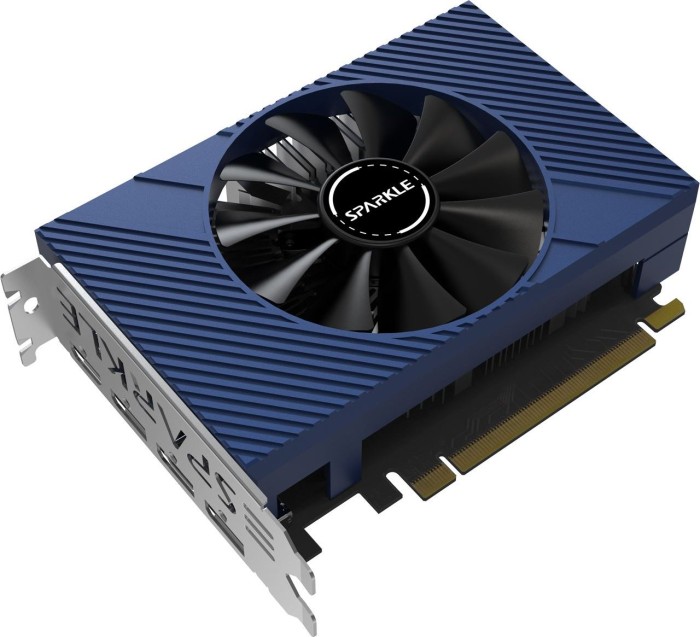

Intel Arc A310
Intel Arc A310 är ett dedikerat instegsgrafikkort från Intel för stationära datorer. Det är baserat på ACM-G11-chipet och erbjuder 6 av de 8 Xe-kärnorna (96 ALU), 6 av de 8 ray tracing-enheterna, 1,152 MB L1-cache och 4 MB L2-cache. Minnesgränssnittet är 64 bitar brett och stöder 4 GB GDDR6-grafikminne med 15,5 Gbps. TGP är mellan 40 och 75 watt beroende på modell.
A310 liknar den mobila Arc A350Mmed undantag för de högre klockfrekvenserna för kärnor och minne.
ACM-G11-chippet tillverkas av TSMC i 6nm (N6-process) och har 7,2 miljarder transistorer och är 157 mm2 stort. Den integrerar två mediamotorer för VP9, AVC, HEVC, AV1 8k60 12-bit HDR-avkodning och 8k 10-bit HDR-kodning. De integrerade 4 bildskärmsrören stöder 4x 4k120 HDR, HDMI 2.0B, DP 2.0 10G och Adaptive Sync.
Arc Serie
| ||||||||||||||||||||||||||||||||||||||||
Kodnamn | Alchemist | |||||||||||||||||||||||||||||||||||||||
Arkitektur | Xe HPG | |||||||||||||||||||||||||||||||||||||||
Pipelines | 6 - unified | |||||||||||||||||||||||||||||||||||||||
Raytracing Cores | 6 | |||||||||||||||||||||||||||||||||||||||
Kärnhastighet | 2000 (Boost) MHz | |||||||||||||||||||||||||||||||||||||||
Cache | L1: 1.1 MB, L2: 4 MB | |||||||||||||||||||||||||||||||||||||||
Minneshastighet | 15500 MHz | |||||||||||||||||||||||||||||||||||||||
Minnesbuss | 64 Bit | |||||||||||||||||||||||||||||||||||||||
Minnestyp | GDDR6 | |||||||||||||||||||||||||||||||||||||||
Max. minne | 4 GB | |||||||||||||||||||||||||||||||||||||||
Delat minne | nej | |||||||||||||||||||||||||||||||||||||||
Memory Bandwidth | 124 GB/s | |||||||||||||||||||||||||||||||||||||||
API | DirectX 12_2, OpenGL 4.6, Vulkan 1.3 | |||||||||||||||||||||||||||||||||||||||
Strömförbrukning | 75 Watt (40 - 75 Watt TGP) | |||||||||||||||||||||||||||||||||||||||
Antal transistorer | 7.2 Billion | |||||||||||||||||||||||||||||||||||||||
Die Size | 157 mm² | |||||||||||||||||||||||||||||||||||||||
Teknologi | 6 nm | |||||||||||||||||||||||||||||||||||||||
PCIe | 4 8x | |||||||||||||||||||||||||||||||||||||||
Displays | 4 Displays (max.), HDMI 2.0b, DisplayPort 2.0 10G Ready | |||||||||||||||||||||||||||||||||||||||
Lanseringsdatum | 01.09.2022 | |||||||||||||||||||||||||||||||||||||||
Länk till tillverkarens hemsida | www.intel.com |
Prestandatester
3DM Vant. Perf. total +
Modell | CPU | GPU | RAM | Värde | |
---|---|---|---|---|---|
3DMark 06 - Standard 1280x1024 | |||||
Sparkle Intel Arc A310 Elf (3DMark 06 - Standard 1280x1024) | i9-13900K | A310 75 W ? / 1937 MHz 4 GB | 48 GB | 53771 |
- Genomsnittliga benchmark-värden för det här grafikkortet
* Smaller numbers mean a higher performance
Speltester
Följande tester/benchmarks kommer från våra laptoprecensioner. Prestandan beror på typen av grafikminne, klockfrekvens, processor, systeminställningar och operativsystem. Resultaten är därför inte nödvändigtvis representativa för alla bärbara datorer med denna GPU. För detaljerad information om resultaten, klicka på fps-värdet.
Last Epoch
2024Intel Core i9-13900K 3GHz
A310
min: 25.1 fps, P0.1: 27.7 fps, P1: 51.8 fps, max: 397 fps
Intel Core i9-13900K 3GHz
A310
min: 29.4 fps, P0.1: 30 fps, P1: 37.6 fps, max: 154.9 fps
Intel Core i9-13900K 3GHz
A310
min: 27.3 fps, P0.1: 27.5 fps, P1: 32.4 fps, max: 70.7 fps
Intel Core i9-13900K 3GHz
A310
min: 26.4 fps, P0.1: 26.5 fps, P1: 27.4 fps, max: 37.2 fps
Skull & Bones
2024Intel Core i9-13900K 3GHz
A310
Problem during benchmarking occured: game wont start crash
Intel Core i9-13900K 3GHz
A310
Problem during benchmarking occured: game wont start crash
Intel Core i9-13900K 3GHz
A310
Problem during benchmarking occured: game wont start crash
Intel Core i9-13900K 3GHz
A310
Problem during benchmarking occured: game wont start crash
Helldivers 2
2024Intel Core i9-13900K 3GHz
A310
min: 17.2 fps, P0.1: 17.2 fps, P1: 17.4 fps, max: 34 fps
Intel Core i9-13900K 3GHz
A310
min: 16.5 fps, P0.1: 16.6 fps, P1: 17.5 fps, max: 30 fps
Intel Core i9-13900K 3GHz
A310
min: 14.8 fps, P0.1: 14.9 fps, P1: 15.2 fps, max: 20.3 fps
Intel Core i9-13900K 3GHz
A310
min: 14.5 fps, P0.1: 14.7 fps, P1: 14.9 fps, max: 19.3 fps
Enshrouded
2024Intel Core i9-13900K 3GHz
A310
min: 17.1 fps, P0.1: 17.2 fps, P1: 17.4 fps, max: 27.8 fps
Intel Core i9-13900K 3GHz
A310
min: 13.3 fps, P0.1: 13.6 fps, P1: 14.9 fps, max: 23.3 fps
Intel Core i9-13900K 3GHz
A310
min: 9.34 fps, P0.1: 9.47 fps, P1: 9.79 fps, max: 20.1 fps
Intel Core i9-13900K 3GHz
A310
min: 6.44 fps, P0.1: 6.45 fps, P1: 6.49 fps, max: 14.8 fps
Palworld
2024Intel Core i9-13900K 3GHz
A310
min: 14.8 fps, P0.1: 15.2 fps, P1: 32.6 fps, max: 122.4 fps
Intel Core i9-13900K 3GHz
A310
min: 14.4 fps, P0.1: 14.8 fps, P1: 29.3 fps, max: 154.6 fps
Intel Core i9-13900K 3GHz
A310
min: 12.3 fps, P0.1: 13.2 fps, P1: 19.2 fps, max: 131.3 fps
Intel Core i9-13900K 3GHz
A310
min: 3.9 fps, P0.1: 5.05 fps, P1: 15.2 fps, max: 26.5 fps
Intel Core i9-13900K 3GHz
A310
min: 30 fps, P0.1: 103.3 fps, P1: 195.1 fps, max: 638 fps
Intel Core i9-13900K 3GHz
A310
min: 25.7 fps, P0.1: 55.4 fps, P1: 126.6 fps, max: 453 fps
Intel Core i9-13900K 3GHz
A310
min: 26.8 fps, P0.1: 62.4 fps, P1: 117.6 fps, max: 371 fps
Ready or Not
2023Intel Core i9-13900K 3GHz
A310
min: 20.6 fps, P0.1: 42.2 fps, P1: 55.3 fps, max: 554 fps
Intel Core i9-13900K 3GHz
A310
min: 32.2 fps, P0.1: 35.1 fps, P1: 41.5 fps, max: 474 fps
Intel Core i9-13900K 3GHz
A310
min: 13.1 fps, P0.1: 20.1 fps, P1: 29.9 fps, max: 410 fps
Intel Core i9-13900K 3GHz
A310
min: 14.9 fps, P0.1: 16.6 fps, P1: 17.9 fps, max: 379 fps
The Finals
2023Intel Core i9-13900K 3GHz
A310
min: 56.9 fps, P0.1: 59.1 fps, P1: 61.1 fps, max: 102 fps
Intel Core i9-13900K 3GHz
A310
min: 38.4 fps, P0.1: 39 fps, P1: 41 fps, max: 66.5 fps
Intel Core i9-13900K 3GHz
A310
min: 33.6 fps, P0.1: 34.2 fps, P1: 37.1 fps, max: 57.1 fps
Intel Core i9-13900K 3GHz
A310
min: 24.6 fps, P0.1: 25 fps, P1: 27.2 fps, max: 40.1 fps
EA Sports WRC
2023Intel Core i9-13900K 3GHz
A310
min: 11.8 fps, P0.1: 12.3 fps, P1: 16.6 fps, max: 298 fps
Intel Core i9-13900K 3GHz
A310
min: 13.5 fps, P0.1: 13.6 fps, P1: 13.7 fps, max: 195.6 fps
Intel Core i9-13900K 3GHz
A310
min: 7.35 fps, P0.1: 10.1 fps, P1: 10.8 fps, max: 114.3 fps
Intel Core i9-13900K 3GHz
A310
min: 9.44 fps, P0.1: 9.52 fps, P1: 9.99 fps, max: 137.2 fps
Alan Wake 2
2023Intel Core i9-13900K 3GHz
A310
min: 13.2 fps, P0.1: 13.3 fps, P1: 14.2 fps, max: 19.2 fps
Intel Core i9-13900K 3GHz
A310
min: 11.3 fps, P0.1: 11.3 fps, P1: 12.1 fps, max: 15.5 fps
Intel Core i9-13900K 3GHz
A310
min: 9.9 fps, P0.1: 9.96 fps, P1: 10.5 fps, max: 14 fps
Lords of the Fallen
2023Intel Core i9-13900K 3GHz
A310
min: 6.77 fps, P0.1: 7.06 fps, P1: 14.2 fps, max: 210 fps
Intel Core i9-13900K 3GHz
A310
min: 14.9 fps, P0.1: 15.6 fps, P1: 16.7 fps, max: 57.3 fps
Intel Core i9-13900K 3GHz
A310
min: 4.08 fps, P0.1: 6.38 fps, P1: 14.2 fps, max: 185.5 fps
Intel Core i9-13900K 3GHz
A310
min: 5.96 fps, P0.1: 6.51 fps, P1: 8.89 fps, max: 137.8 fps
Total War Pharaoh
2023Counter-Strike 2
2023Intel Core i9-13900K 3GHz
A310
min: 119.2 fps, P0.1: 121.2 fps, P1: 124.9 fps, max: 243 fps
Intel Core i9-13900K 3GHz
A310
min: 13 fps, P0.1: 82.6 fps, P1: 87.5 fps, max: 159.8 fps
Intel Core i9-13900K 3GHz
A310
min: 15 fps, P0.1: 15.4 fps, P1: 30.2 fps, max: 107.6 fps
Intel Core i9-13900K 3GHz
A310
min: 13.1 fps, P0.1: 14.8 fps, P1: 21.3 fps, max: 103.7 fps
Baldur's Gate 3
2023Intel Core i9-13900K 3GHz
A310
min: 27 fps, P0.1: 27.1 fps, P1: 28.2 fps, max: 80.9 fps
Intel Core i9-13900K 3GHz
A310
min: 16.2 fps, P0.1: 16.5 fps, P1: 21 fps, max: 68.8 fps
Intel Core i9-13900K 3GHz
A310
min: 11.4 fps, P0.1: 13 fps, P1: 16.2 fps, max: 60.1 fps
Intel Core i9-13900K 3GHz
A310
min: 14 fps, P0.1: 14 fps, P1: 15.7 fps, max: 55.7 fps
Lies of P
2023Intel Core i9-13900K 3GHz
A310
min: 19.9 fps, P0.1: 24 fps, P1: 25.8 fps, max: 354 fps
Intel Core i9-13900K 3GHz
A310
min: 20.6 fps, P0.1: 21.2 fps, P1: 21.8 fps, max: 321 fps
Intel Core i9-13900K 3GHz
A310
min: 17.4 fps, P0.1: 17.4 fps, P1: 18.1 fps, max: 284 fps
Intel Core i9-13900K 3GHz
A310
min: 12.8 fps, P0.1: 14.2 fps, P1: 15.3 fps, max: 285 fps
The Crew Motorfest
2023Starfield
2023Intel Core i9-13900K 3GHz
A310
min: 12.3 fps, P0.1: 12.3 fps, P1: 12.7 fps, max: 21.2 fps
Intel Core i9-13900K 3GHz
A310
min: 10.6 fps, P0.1: 10.7 fps, P1: 10.9 fps, max: 17.2 fps
Intel Core i9-13900K 3GHz
A310
min: 10.8 fps, P0.1: 10.9 fps, P1: 11.1 fps, max: 15.6 fps
Intel Core i9-13900K 3GHz
A310
min: 7.2 fps, P0.1: 7.2 fps, P1: 8.38 fps, max: 12.3 fps
Armored Core 6
2023Intel Core i9-13900K 3GHz
A310
min: 21.5 fps, P0.1: 34.2 fps, P1: 43.6 fps, max: 137.2 fps
Intel Core i9-13900K 3GHz
A310
min: 30 fps, P0.1: 32 fps, P1: 35.4 fps, max: 56 fps
Intel Core i9-13900K 3GHz
A310
min: 8.83 fps, P0.1: 29 fps, P1: 31.6 fps, max: 97.4 fps
Intel Core i9-13900K 3GHz
A310
min: 21.4 fps, P0.1: 21.6 fps, P1: 23.6 fps, max: 35 fps
Atlas Fallen
2023Intel Core i9-13900K 3GHz
A310
min: 20.4 fps, P0.1: 20.4 fps, P1: 20.9 fps, max: 60 fps
Intel Core i9-13900K 3GHz
A310
min: 19 fps, P0.1: 19.2 fps, P1: 20.5 fps, max: 62.8 fps
Intel Core i9-13900K 3GHz
A310
min: 19.9 fps, P0.1: 19.9 fps, P1: 20 fps, max: 55.7 fps
Intel Core i9-13900K 3GHz
A310
min: 4.77 fps, P0.1: 5.19 fps, P1: 6.8 fps, max: 10.2 fps
Intel Core i9-13900K 3GHz
A310
min: 15.6 fps, P0.1: 17.2 fps, P1: 23 fps, max: 45.8 fps
Intel Core i9-13900K 3GHz
A310
min: 14.7 fps, P0.1: 15.8 fps, P1: 18 fps, max: 36.7 fps
Intel Core i9-13900K 3GHz
A310
min: 11 fps, P0.1: 11 fps, P1: 13.5 fps, max: 30.8 fps
Intel Core i9-13900K 3GHz
A310
min: 10.1 fps, P0.1: 10.8 fps, P1: 11.7 fps, max: 22 fps
F1 23
2023Intel Core i9-13900K 3GHz
A310
min: 16 fps, P0.1: 26.1 fps, P1: 29.3 fps, max: 55.9 fps
Intel Core i9-13900K 3GHz
A310
min: 22.7 fps, P0.1: 22.9 fps, P1: 24.7 fps, max: 38.6 fps
Intel Core i9-13900K 3GHz
A310
min: 16.3 fps, P0.1: 16.6 fps, P1: 17.6 fps, max: 31.8 fps
Intel Core i9-13900K 3GHz
A310
min: 7.07 fps, P0.1: 7.11 fps, P1: 7.56 fps, max: 10.9 fps
Company of Heroes 3
2023Sons of the Forest
2023Intel Core i9-13900K 3GHz
A310
min: 15.3 fps, P0.1: 15.6 fps, P1: 17.5 fps, max: 42.5 fps
Intel Core i9-13900K 3GHz
A310
min: 8.27 fps, P0.1: 8.43 fps, P1: 10.2 fps, max: 28.5 fps
Intel Core i9-13900K 3GHz
A310
min: 4.21 fps, P0.1: 4.53 fps, P1: 7.9 fps, max: 77.2 fps
Intel Core i9-13900K 3GHz
A310
min: 1.534 fps, P0.1: 2.52 fps, P1: 8.67 fps, max: 27.9 fps
Atomic Heart
2023Intel Core i9-13900K 3GHz
A310
min: 44.6 fps, P0.1: 45.2 fps, P1: 47.1 fps, max: 65.9 fps
Intel Core i9-13900K 3GHz
A310
min: 23.2 fps, P0.1: 33.5 fps, P1: 35.1 fps, max: 96.8 fps
Intel Core i9-13900K 3GHz
A310
min: 15.3 fps, P0.1: 23.1 fps, P1: 24 fps, max: 80.4 fps
Intel Core i9-13900K 3GHz
A310
min: 14.6 fps, P0.1: 16.2 fps, P1: 16.9 fps, max: 27 fps
Returnal
2023Hogwarts Legacy
2023Intel Core i9-13900K 3GHz
A310
min: 20.2 fps, P0.1: 31.3 fps, P1: 37 fps, max: 177.1 fps
Intel Core i9-13900K 3GHz
A310
min: 17 fps, P0.1: 23.5 fps, P1: 29 fps, max: 140.1 fps
Intel Core i9-13900K 3GHz
A310
min: 13.2 fps, P0.1: 14.7 fps, P1: 17.6 fps, max: 32.7 fps
Intel Core i9-13900K 3GHz
A310
min: 10.1 fps, P0.1: 10.4 fps, P1: 11.3 fps, max: 20.7 fps
1.47.22.14 D3D12
Intel Core i9-13900K 3GHz
A310
min: 85.2 fps, P1: 160.6 fps, max: 800 fps
1.47.22.14 D3D12
Intel Core i9-13900K 3GHz
A310
min: 65.9 fps, P1: 68.8 fps, max: 99.8 fps
1.47.22.14 D3D12
Intel Core i9-13900K 3GHz
A310
min: 48.8 fps, P1: 52.2 fps, max: 84.8 fps
1.47.22.14 D3D12
Intel Core i9-13900K 3GHz
A310
min: 33.7 fps, P1: 43.4 fps, max: 112.6 fps
Far Cry 5
2018The Witcher 3
2015GTA V
2015Intel Core i9-13900K 3GHz
A310
min: 2.91 fps, P1: 200 fps, max: 656 fps
Intel Core i9-13900K 3GHz
A310
min: 4.4 fps, P1: 28.6 fps, max: 186.9 fps
låg | med. | hög | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
Last Epoch | 62.5 | 53.4 | 39.6 | 30.9 | ||
Skull & Bones | ||||||
Helldivers 2 | 22.4 | 19.5 | 16.7 | 16.3 | ||
Enshrouded | 20.4 | 18 | 13.8 | 9.88 | ||
Palworld | 38.3 | 33.2 | 23.2 | 20.9 | ||
Prince of Persia The Lost Crown | 260 | 154.7 | 141.6 | |||
Ready or Not | 102.2 | 75.6 | 58.3 | 34.6 | ||
The Finals | 75 | 53.1 | 46.6 | 34.6 | ||
Avatar Frontiers of Pandora | 16 | 14 | 11 | 8.1 | ||
EA Sports WRC | 34.3 | 27.3 | 18.6 | 16.8 | ||
Alan Wake 2 | 16.3 | 13.9 | 12.3 | |||
Lords of the Fallen | 22.7 | 22.2 | 18.4 | 14 | ||
Total War Pharaoh | 111 | 73.6 | 41.6 | 32.3 | ||
Assassin's Creed Mirage | 37 | 32 | 25 | 20 | ||
Counter-Strike 2 | 153.5 | 106.3 | 37.5 | 27.7 | ||
Cyberpunk 2077 2.1 Phantom Liberty | 41 | 31.1 | 25.7 | 23.7 | ||
Baldur's Gate 3 | 40.6 | 32 | 25.5 | 24.9 | ||
Lies of P | 49.3 | 42 | 36 | 30.3 | ||
The Crew Motorfest | 37 | 33 | 27 | 22 | ||
Starfield | 17.3 | 14.2 | 13 | 10.3 | ||
Armored Core 6 | 56.3 | 43.8 | 39 | 26.9 | ||
Atlas Fallen | 32.6 | 31.8 | 26.7 | 8.12 | ||
Ratchet & Clank Rift Apart | 30.3 | 24.6 | 19.1 | 16.1 | ||
F1 23 | 88 | 75 | 42 | 12 | ||
Resident Evil 4 Remake | 42.4 | 30.1 | 21.6 | 9.5 | ||
Company of Heroes 3 | 35.2 | 31.2 | 25.4 | 24.8 | ||
Sons of the Forest | 29.9 | 18.9 | 17.4 | 17.1 | ||
Atomic Heart | 54.2 | 40.3 | 27.4 | 18.8 | ||
Returnal | 30 | 29 | 26 | 21 | ||
Hogwarts Legacy | 42.3 | 35.2 | 21.5 | 15.4 | ||
Strange Brigade | 187.3 | 79.7 | 65.3 | 53.8 | ||
Far Cry 5 | 99 | 51 | 47 | 44 | ||
Final Fantasy XV Benchmark | 41.7 | 24.1 | ||||
The Witcher 3 | 176 | 108 | 56 | 29 | ||
GTA V | 187.7 | 187.6 | 38.3 | 16.8 | ||
< 30 fps < 60 fps < 120 fps ≥ 120 fps | 7 15 6 4 | 10 16 6 2 | 21 11 1 1 | 24 7 1 | | |
För att se fler spel som kan vara spelbara och se en lista med alla spel och grafikkort, besök vår spellista
#0 ran 0s before starting gpusingle class +0s ... 0s
#1 no ids found in url (should be separated by "_") +0s ... 0s
#2 not redirecting to Ajax server +0s ... 0s
#3 did not recreate cache, as it is less than 5 days old! Created at Thu, 19 Dec 2024 05:31:27 +0100 +0.001s ... 0.001s
#4 no comparison url found in template nbc.compare_page_1 needed +0.025s ... 0.026s
#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s
#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s
#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s
#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.027s
#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.028s
#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.028s
#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.028s
#12 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.028s
#13 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.029s
#14 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.029s
#15 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.029s
#16 composed specs +0s ... 0.029s
#17 did output specs +0s ... 0.029s
#18 start showIntegratedCPUs +0s ... 0.029s
#19 getting avg benchmarks for device 12464 +0.024s ... 0.053s
#20 got single benchmarks 12464 +0.006s ... 0.059s
#21 got avg benchmarks for devices +0s ... 0.059s
#22 min, max, avg, median took s +0.408s ... 0.467s
#23 before gaming benchmark output +0s ... 0.467s
#24 Got 136 rows for game benchmarks. +0.008s ... 0.475s
#25 composed SQL query for gamebenchmarks +0s ... 0.475s
#26 got data and put it in $dataArray +0.021s ... 0.496s
#27 benchmarks composed for output. +1.083s ... 1.579s
#28 no comparison url found in template nbc.compare_page_1 needed +0.004s ... 1.583s
#29 return log +0s ... 1.583s
Inga recensioner med det här grafikkortet hittades.
