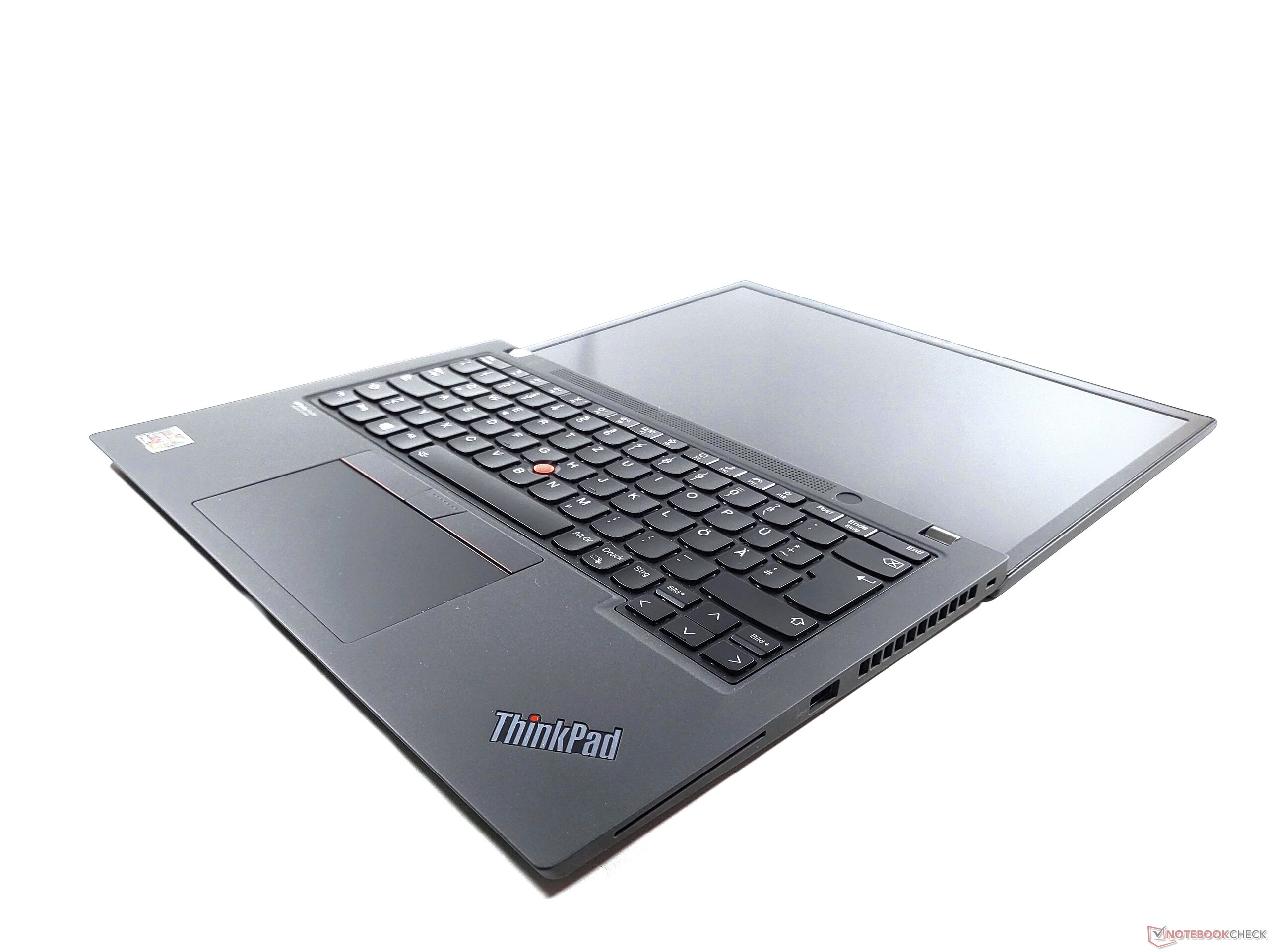

Recension av Lenovo ThinkPad X13 Gen 2: AMD Ryzen Pro gör en kompakt kontorslaptop snabb

En vägkrigare med kraft från Ryzen.

Intel-versionen av Lenovo ThinkPad X13 Gen 2 har redan fått ett mycket bra betyg. Den kompakta kontorsdatorn blir nu ännu bättre med AMD Ryzen 5000-serien. Cezanne U-processorerna gör Lenovo ThinkPad snabbare samtidigt som de sänker temperatur och fläktljud.
Business Laptop / Notebook AMD Cezanne (Zen 3) ThinkPad Windows Ultrabook

Namnet "ThinkPad X13 Gen 2" avser två modeller. Lenovos minsta ThinkPad för företag, förutom ThinkPad Lenovo ThinkPad X1 Nano, finns både med Intel- och AMD-processorer. Vi recenserade redan årets stora 16:10-uppdatering när ThinkPad X13 Gen 2 Intel tog sig igenom våra testlabb i juli - nu är det AMD-modellens tur. Som vanligt i det här fallet kommer vi inte att gå igenom detaljerna kring design, anslutningsmöjligheter och inmatningsenheter igen, utan vi hoppar direkt in i avsnittet om skärmen istället. Information om de övriga ämnena hittar du i recensionen av den Lenovo ThinkPad X13 Gen 2 Intel.

Lenovo ThinkPad X13 G2 AMD 20XH001KGE (ThinkPad X13 Serie)
Processor
AMD Ryzen 5 PRO 5650U 6 x 2.3 - 4.2 GHz, Cezanne-U PRO (Zen 3)
Grafikkort
AMD Radeon RX Vega 7
Minne
16 GB
, LPDDR4X-4266, on-board, dual-channel
Skärm
13.30 tum 16:10, 1920 x 1200 pixlar 170 PPI, NV133WUM-N61, IPS LED, glansig: nej
Moderkort
AMD Promontory/Bixby FCH
Hårddisk
Samsung SSD PM981a MZVLB512HBJQ, 512 GB
, M.2 2280, NVMe PCIe 3.0, 433 GB ledigt
Ljudkort
Realtek ALC3287
Anslutningar
2 USB 3.0, 2 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: 3.5 mm audio jack, 1 SmartCard, 1 Fingeravtrycksläsare
Nätverk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2, Quectel EM120R-GL, LTE, GPS
Storlek
höjd x bredd x djup (i mm) 18.19 x 305.8 x 217.06
Batteri
54.7 Wh Litiumpolymer
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Webbkamera: 1080p with IR and ThinkShutter
Övrigt
Högtalare: 2-watt stereo, Tangentbord: six-row chiclet, 1.5 mm travel, 95% size, Tangentbordsbelysning: ja, 65-watt USB-C charger, Lenovo Commercial Vantage, 36 Månader Garanti
Vikt
1.443 kg, Strömförsörjning: 374 g
Pris
1 Euro
Länkar
Lenovo hemsida
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible contenders in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Price
90.6 %
v7 (old)
11/2021
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
R5 PRO 5650U, Vega 7		1.4 kg18.19 mm13.30"1920x1200
89.3 %
v7 (old)
07/2021
Lenovo ThinkPad X13 G2 20WK0024GE
i7-1165G7, Iris Xe G7 96EUs		1.3 kg18.2 mm13.30"1920x1200
89.5 %
v7 (old)
Lenovo ThinkPad X13-20UGS00800
R7 PRO 4750U, Vega 7		1.3 kg16.9 mm13.30"1920x1080
87.7 %
v7 (old)
07/2021
HP EliteBook 835 G7 23Y57EA
R5 PRO 4650U, Vega 6		1.4 kg17.9 mm13.30"1920x1080
88.1 %
v7 (old)
12/2020
Dell XPS 13 9310 Core i7 FHD
i7-1165G7, Iris Xe G7 96EUs		1.3 kg14.8 mm13.40"1920x1200
89.8 %
v7 (old)
02/2021
Lenovo ThinkPad X1 Nano-20UN002UGE
i7-1160G7, Iris Xe G7 96EUs		946 g16 mm13.00"2160x1350

Size comparison

❌
311.9 mm 217.2 mm 16.9 mm 1.3 kg307.8 mm 204.6 mm 17.9 mm 1.4 kg305.8 mm 217.06 mm 18.19 mm 1.4 kg296 mm 199 mm 14.8 mm 1.3 kg292.8 mm 207.7 mm 16 mm 946 g297 mm 210 mm 1 mm 5.7 g

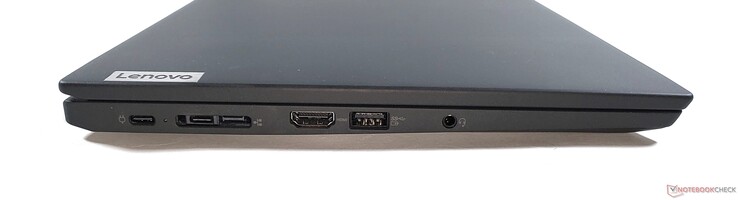

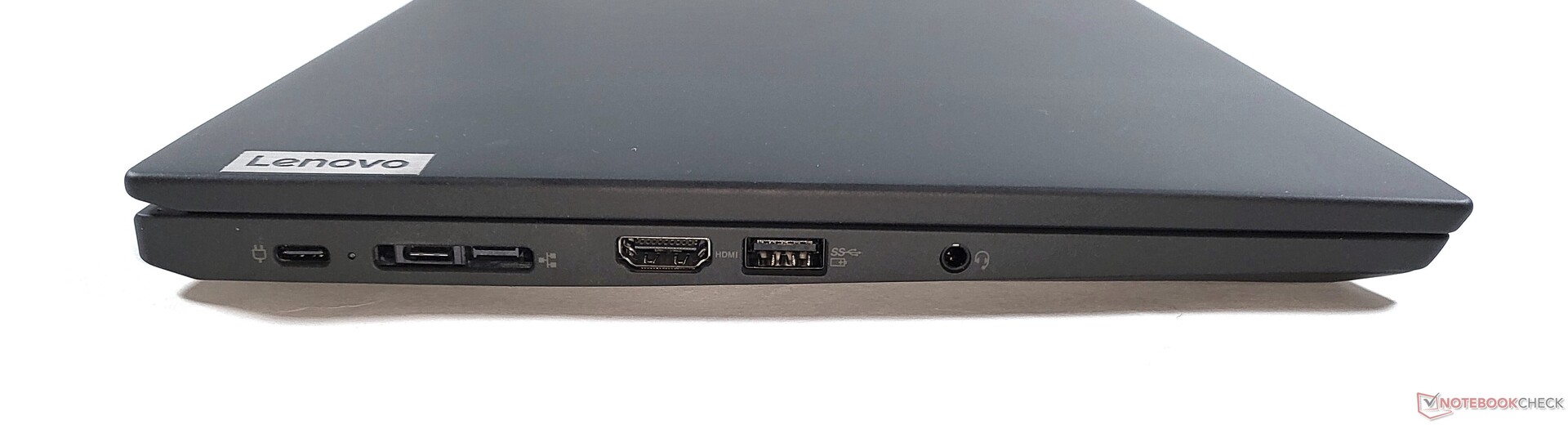

Vänster: 2x USB-C 3.2 Gen 2, dockningsmini Ethernet, HDMI 2.0, USB-A 3.2 Gen 1, 3,5 mm ljuduttag
Vänster: 2x USB-C 3.2 Gen 2, dockningsmini Ethernet, HDMI 2.0, USB-A 3.2 Gen 1, 3,5 mm ljuduttag

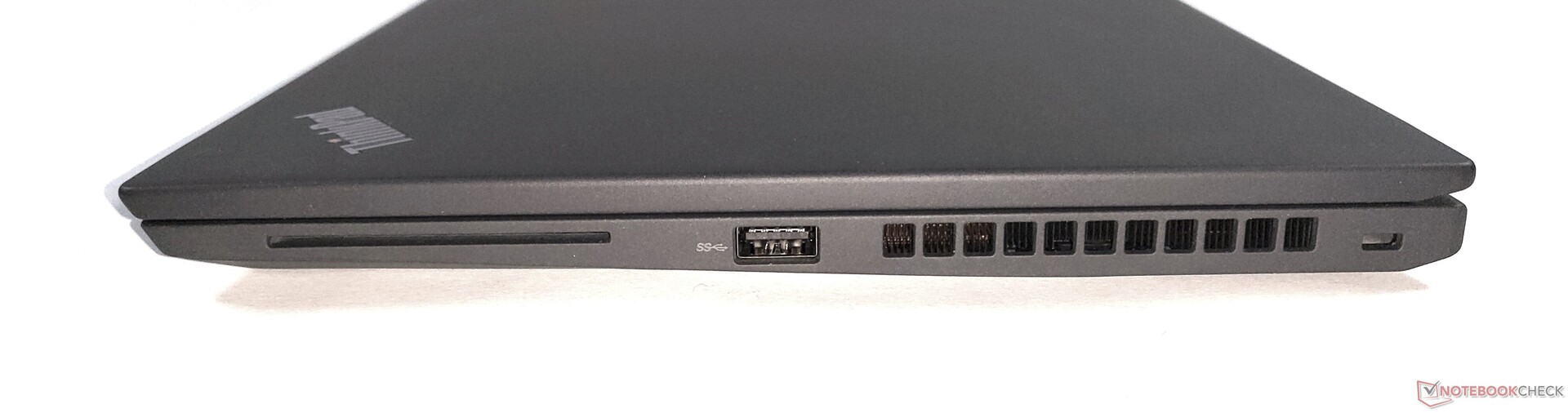

Just det: Smartcard, USB-A 3.2 Gen 1, Kensington-lås
Just det: Smartcard, USB-A 3.2 Gen 1, Kensington-lås
Networking
iperf3 transmit AX12
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Wi-Fi 6E AX210
1602 (1477min - 1662max) MBit/s +71%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Wi-Fi 6 AX201
1225 (540min - 1382max) MBit/s +31%
Average Intel Wi-Fi 6 AX200
  (447 - 1645, n=127)
1104 MBit/s +18%
Dell XPS 13 9310 Core i7 FHD
Intel Killer Wi-Fi 6 AX1650s
975 (786min - 1026max) MBit/s +4%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
Intel Wi-Fi 6 AX200
937 (498min - 967max) MBit/s
Lenovo ThinkPad X13-20UGS00800
Intel Wi-Fi 6 AX200
903 (452min - 920max) MBit/s -4%
HP EliteBook 835 G7 23Y57EA
Intel Wi-Fi 6 AX200
447 (416min - 479max) MBit/s -52%
iperf3 receive AX12
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Wi-Fi 6E AX210
1524 (1322min - 1649max) MBit/s +40%
Dell XPS 13 9310 Core i7 FHD
Intel Killer Wi-Fi 6 AX1650s
1439 (1386min - 1504max) MBit/s +32%
Lenovo ThinkPad X13-20UGS00800
Intel Wi-Fi 6 AX200
1335 (1208min - 1544max) MBit/s +22%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Wi-Fi 6 AX201
1259 (628min - 1412max) MBit/s +15%
Average Intel Wi-Fi 6 AX200
  (523 - 1684, n=128)
1191 MBit/s +9%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
Intel Wi-Fi 6 AX200
1091 (786min - 1421max) MBit/s
HP EliteBook 835 G7 23Y57EA
Intel Wi-Fi 6 AX200
843 (802min - 861max) MBit/s -23%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400Tooltip
Lenovo ThinkPad X13 G2 AMD 20XH001KGE; iperf3 receive AX12; iperf 3.1.3: Ø1090 (786-1421)
Lenovo ThinkPad X13 G2 AMD 20XH001KGE; iperf3 transmit AX12; iperf 3.1.3: Ø920 (498-967)

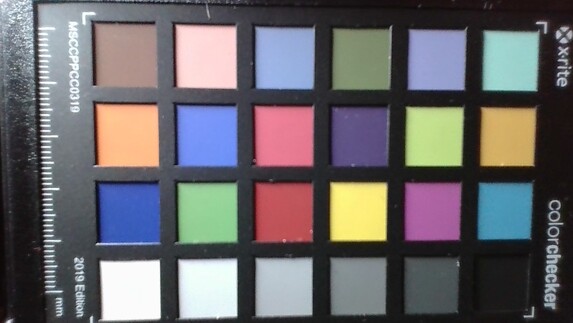

ColorChecker
26.4 ∆E
19.8 ∆E
19 ∆E
15.6 ∆E
10.3 ∆E
10.5 ∆E
18.3 ∆E
23.3 ∆E
14.3 ∆E
8.4 ∆E
11 ∆E
8.1 ∆E
12.3 ∆E
20.4 ∆E
10.2 ∆E
11.9 ∆E
5 ∆E
8.1 ∆E
1.8 ∆E
12.5 ∆E
12.3 ∆E
8.6 ∆E
4.4 ∆E
8.6 ∆E
ColorChecker Lenovo ThinkPad X13 G2 AMD 20XH001KGE: 12.54 ∆E min: 1.76 - max: 26.38 ∆E

Visa: 16:10 för första gången i en Ryzen ThinkPad

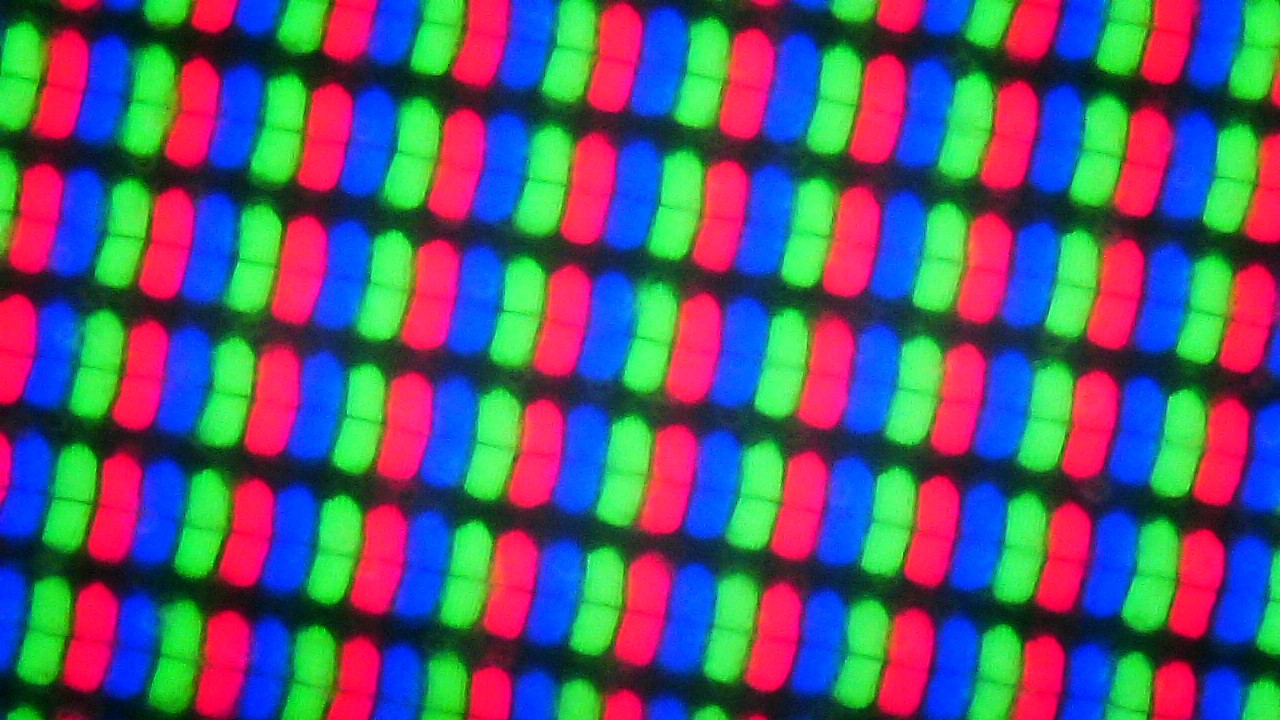

Subpixelmatris på Lenovo ThinkPad X13 Gen 2
Subpixelmatris på Lenovo ThinkPad X13 Gen 2

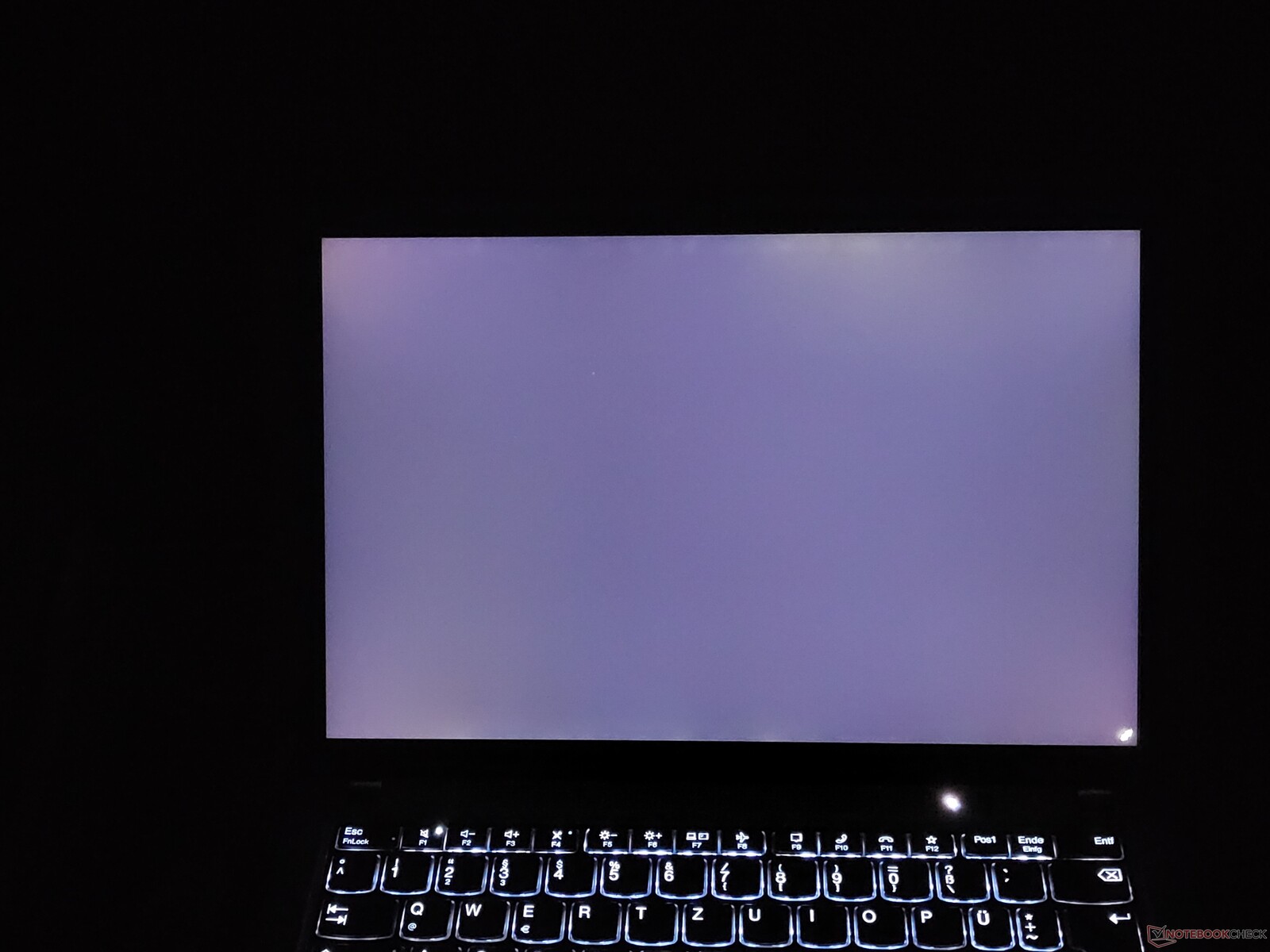

Bakgrundsbelysning som blöder (här representerad på ett intensifierat sätt)
Bakgrundsbelysning som blöder (här representerad på ett intensifierat sätt)

Med årets 16:10-omdesign av ThinkPad X13 Gen 2 uppdaterade Lenovo utbudet av tillgängliga skärmalternativ. HD-upplösningen (1366x768) har äntligen tagits bort från sortimentet. Dessutom är alla skärmar i ThinkPad X13 Gen 2 nu IPS-baserade

  • 1920x1200 (WUXGA), 300 cd/m², matt, 72 % NTSC
  • 1920x1200 (WUXGA), 300 cd/m², matt, 72 % NTSC, On-Cell Touch
  • 1920x1200 (WUXGA), 500 cd/m², matt, 72 % NTSC ePrivacy Filter
  • 2560x1600 (WQXGA), 400 cd/m², matt, 72 % NTSC, låg effekt

Vi kunde redan testa baspanelen som installerades i vår enhet, som har en WUXGA-upplösning och tillverkas av BOE, i ThinkPad X13 Gen 2 Intel. Mätningarna är mycket likartade, även om den modell som testas här är något svagare och missar precis det angivna ljusstyrkevärdet på 300 cd/m² med ett genomsnitt på 297 cd/m². I jämförelse med konkurrenterna är både den lättaLenovo ThinkPad X1 Nanosom den Dell XPS 13 9310 erbjuder mer ljusstyrka.

300
cd/m²		319
cd/m²		324
cd/m²
270
cd/m²		309
cd/m²		308
cd/m²
262
cd/m²		291
cd/m²		291
cd/m²
Distribution av ljusstyrkan
NV133WUM-N61 tested with X-Rite i1Pro 2
Max: 324 cd/m² (Nits) Medel: 297.1 cd/m² Minimum: 3.41 cd/m²
Distribution av ljusstyrkan: 81 %
Mitt på batteriet: 309 cd/m²
Kontrast: 1188:1 (Svärta: 0.26 cd/m²)
ΔE Color 1.6 | 0.5-29.43 Ø4.91, calibrated: 0.8
ΔE Greyscale 2 | 0.5-98 Ø5.2
71.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.4% sRGB (Argyll 2.2.0 3D)
70.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
NV133WUM-N61, IPS LED, 1920x1200, 13.3"		Lenovo ThinkPad X13 G2 20WK0024GE
NV133WUM-N61, IPS, 1920x1200, 13.3"		Lenovo ThinkPad X13-20UGS00800
B133HAK01.1, IPS LED, 1920x1080, 13.3"		HP EliteBook 835 G7 23Y57EA
CMN13AA, IPS LED, 1920x1080, 13.3"		Dell XPS 13 9310 Core i7 FHD
Sharp LQ134N1, IPS, 1920x1200, 13.4"		Lenovo ThinkPad X1 Nano-20UN002UGE
MND007ZA1-2, IPS, 2160x1350, 13"
Display
0%
-7%
-41%
1%
1%
Display P3 Coverage
70.1
71.1
1%
64.8
-8%
40.86
-42%
70.9
1%
70.4
0%
sRGB Coverage
99.4
99.7
0%
95.6
-4%
61
-39%
99.1
0%
99.9
1%
AdobeRGB 1998 Coverage
71.3
71.1
0%
65.7
-8%
42.27
-41%
72.9
2%
72
1%
Response Times
16%
-52%
-11%
-52%
-33%
Response Time Grey 50% / Grey 80% *
34 ?(17, 17)
30.8 ?(14.8, 16)
9%
56.8 ?(29.2, 27.6)
-67%
38
-12%
52 ?(27.6, 24.4)
-53%
46.8 ?(22, 24.8)
-38%
Response Time Black / White *
22 ?(11, 11)
17.2 ?(8.4, 8.8)
22%
30 ?(16.8, 13.2)
-36%
24
-9%
33.2 ?(19.2, 14)
-51%
28 ?(13.2, 14.8)
-27%
PWM Frequency
24000 ?(30)
2475 ?(20)
Screen
-34%
-78%
-112%
-34%
14%
Brightness middle
309
320
4%
331
7%
245
-21%
543.3
76%
460
49%
Brightness
297
310
4%
315
6%
228
-23%
524
76%
434
46%
Brightness Distribution
81
89
10%
90
11%
86
6%
92
14%
92
14%
Black Level *
0.26
0.24
8%
0.21
19%
0.19
27%
0.38
-46%
0.27
-4%
Contrast
1188
1333
12%
1576
33%
1289
9%
1430
20%
1704
43%
Colorchecker dE 2000 *
1.6
2.7
-69%
6.1
-281%
5.84
-265%
3.02
-89%
1.1
31%
Colorchecker dE 2000 max. *
3
7.6
-153%
10
-233%
8.87
-196%
7.61
-154%
4.5
-50%
Colorchecker dE 2000 calibrated *
0.8
0.9
-13%
1.2
-50%
3.45
-331%
1.23
-54%
1
-25%
Greyscale dE 2000 *
2
4.1
-105%
6.3
-215%
6.35
-218%
5
-150%
1.6
20%
Gamma
2.24 98%
2.24 98%
2.77 79%
2.4 92%
2.02 109%
2.2 100%
CCT
6315 103%
6429 101%
6938 94%
6649 98%
6550 99%
6475 100%
Color Space (Percent of AdobeRGB 1998)
60.7
39
66.8
65.7
Color Space (Percent of sRGB)
95.4
61
99.6
99.9
Total Average (Program / Settings)
-6% / -19%
-46% / -59%
-55% / -83%
-28% / -29%
-6% / 4%

* ... smaller is better

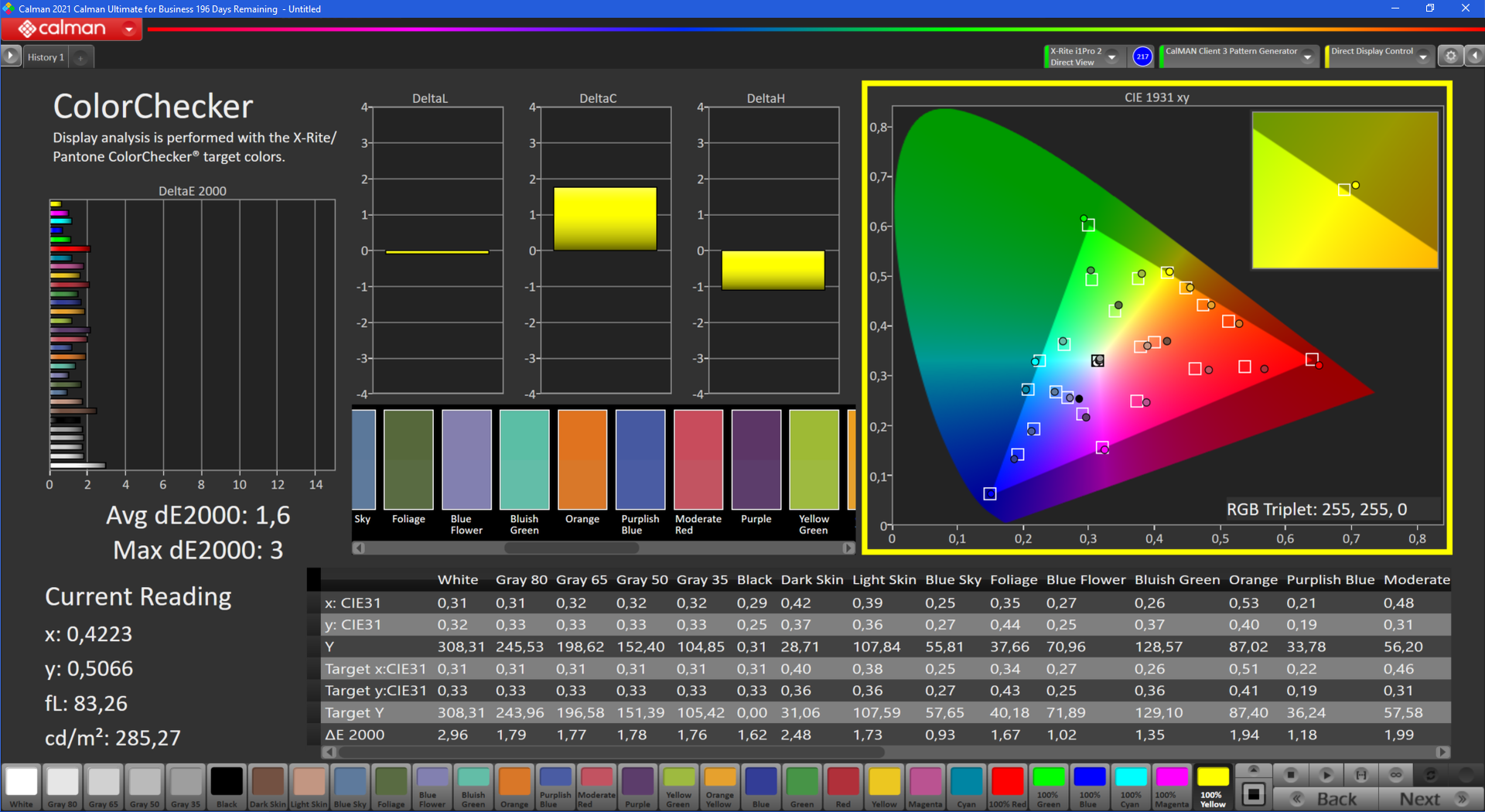

Färger
Färger

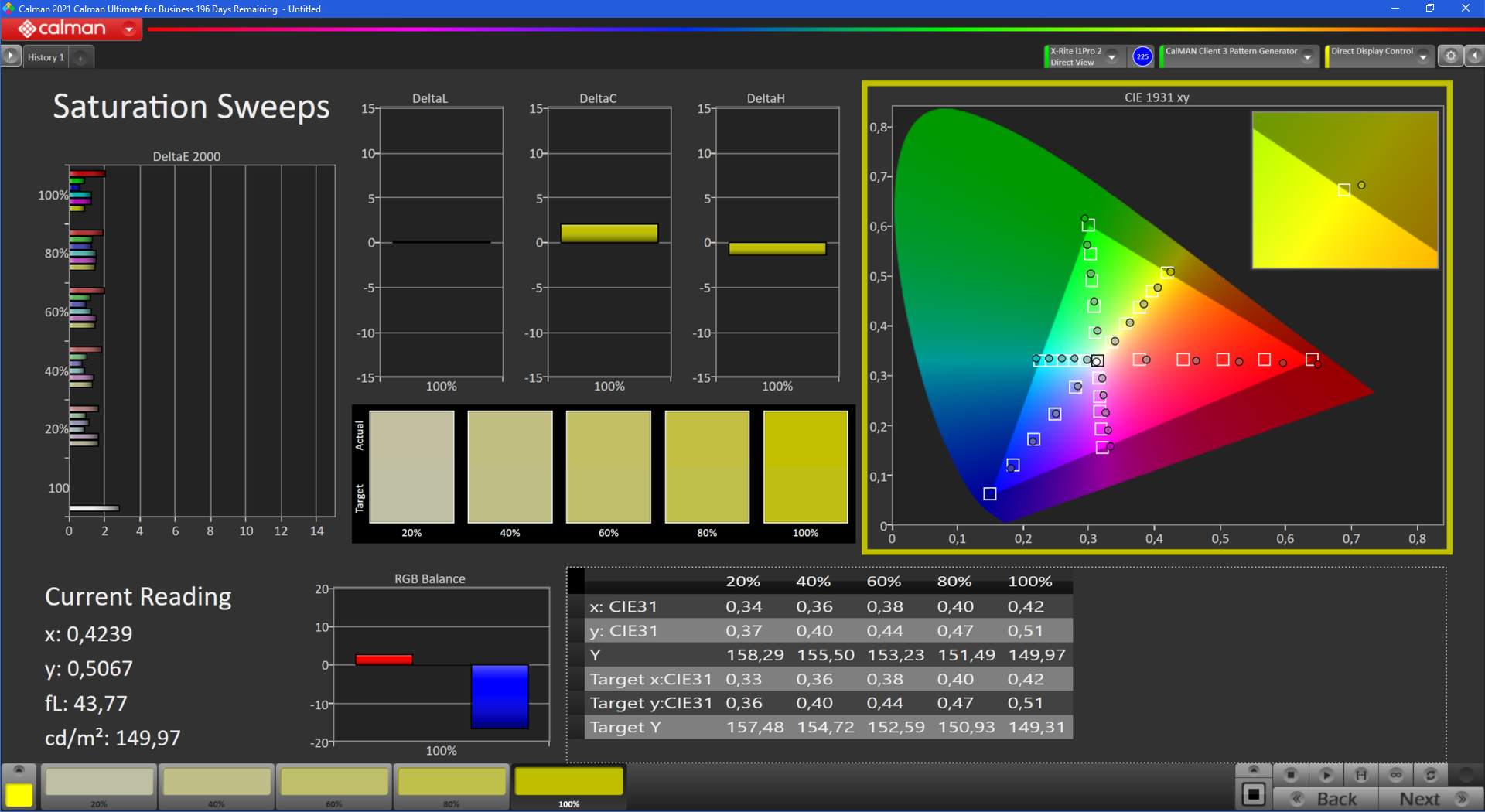

Mättnad
Mättnad
Gråskalor
Gråskalor
Färger (kalibrerade)
Färger (kalibrerade)

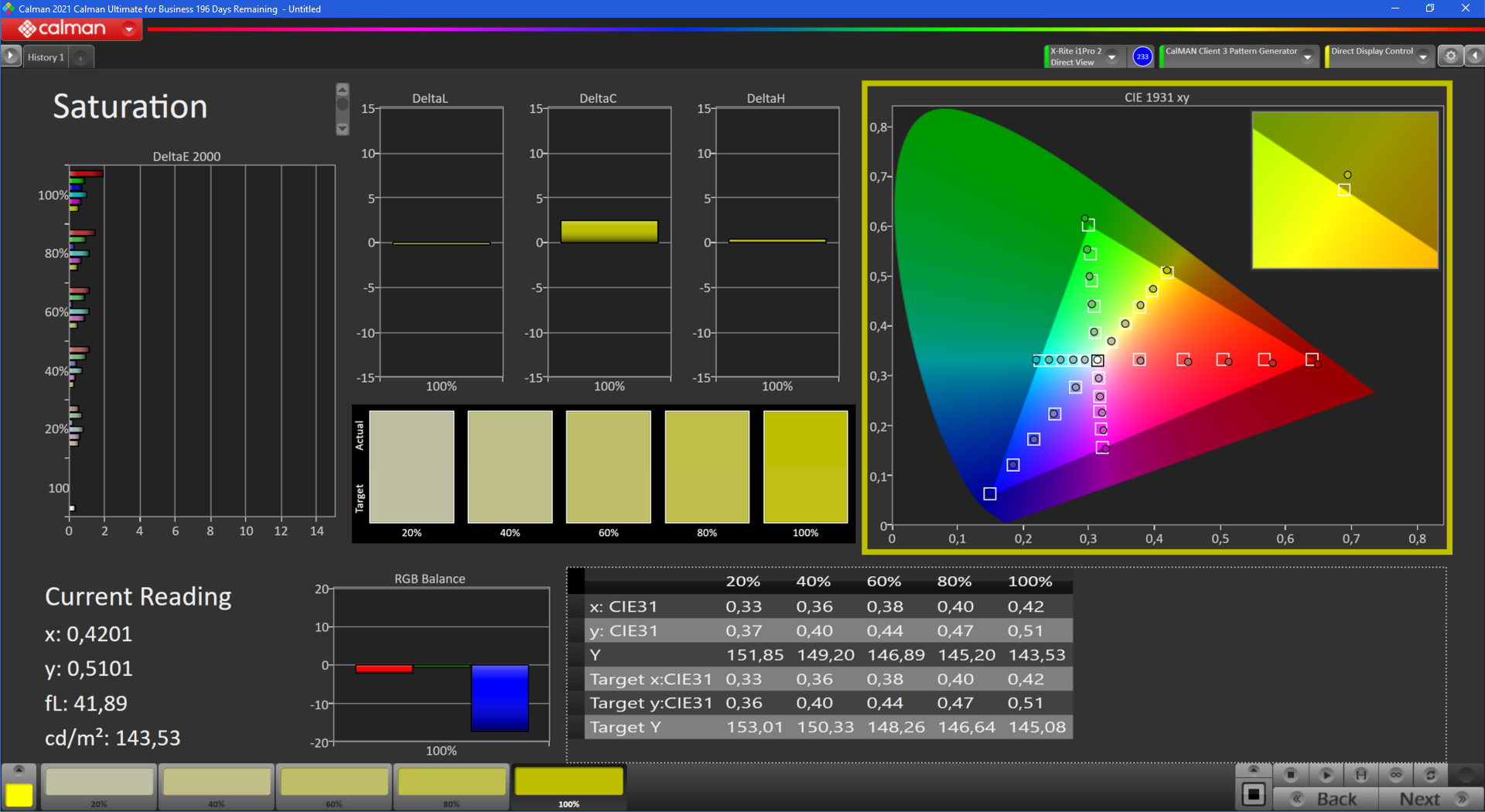

Mättnad (kalibrerad)
Mättnad (kalibrerad)

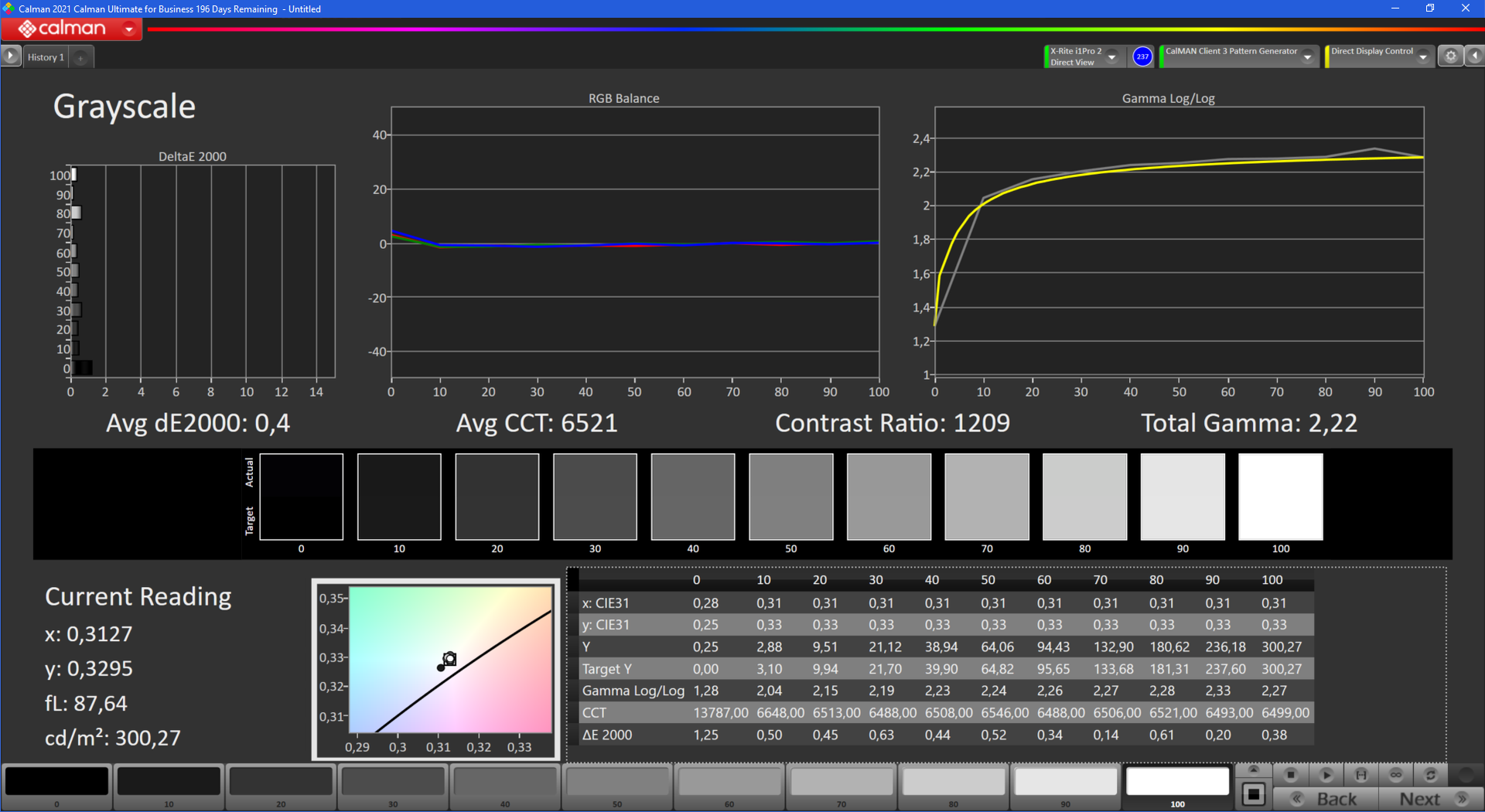

Gråskalor (kalibrerade)
Gråskalor (kalibrerade)

Färgprofilen för Lenovo ThinkPad X13 Gen 2 AMD kan beskrivas som något för varm - som vanligt gjordes mätningarna av skärmen med CalMan-programvaran och X-Rite i1Pro 2-kolorimetern. Vi kunde korrigera den här effekten genom att utföra en kalibrering med X-Rite i1Profiler, vilket resulterade i en genomsnittlig DeltaE 2000 för färgvärden på drygt 0,8 efter kalibreringen. Som vanligt kan du ladda ner färgprofilen som vi skapade gratis.

Skärmens bildåtergivning är acceptabel, om än inte fantastisk - ett något högre kontrastvärde än det uppmätta 1 188:1 skulle gynna skärmen. Å andra sidan kan sRGB-färgrymdens täckning knappast förbättras, eftersom det lilla färgutrymmet nästan täcks helt och hållet med en hastighet på 99,4 %. Därför kan du förvänta dig någorlunda exakta färger för webbsurfning eller enkel bildredigering efter kalibrering

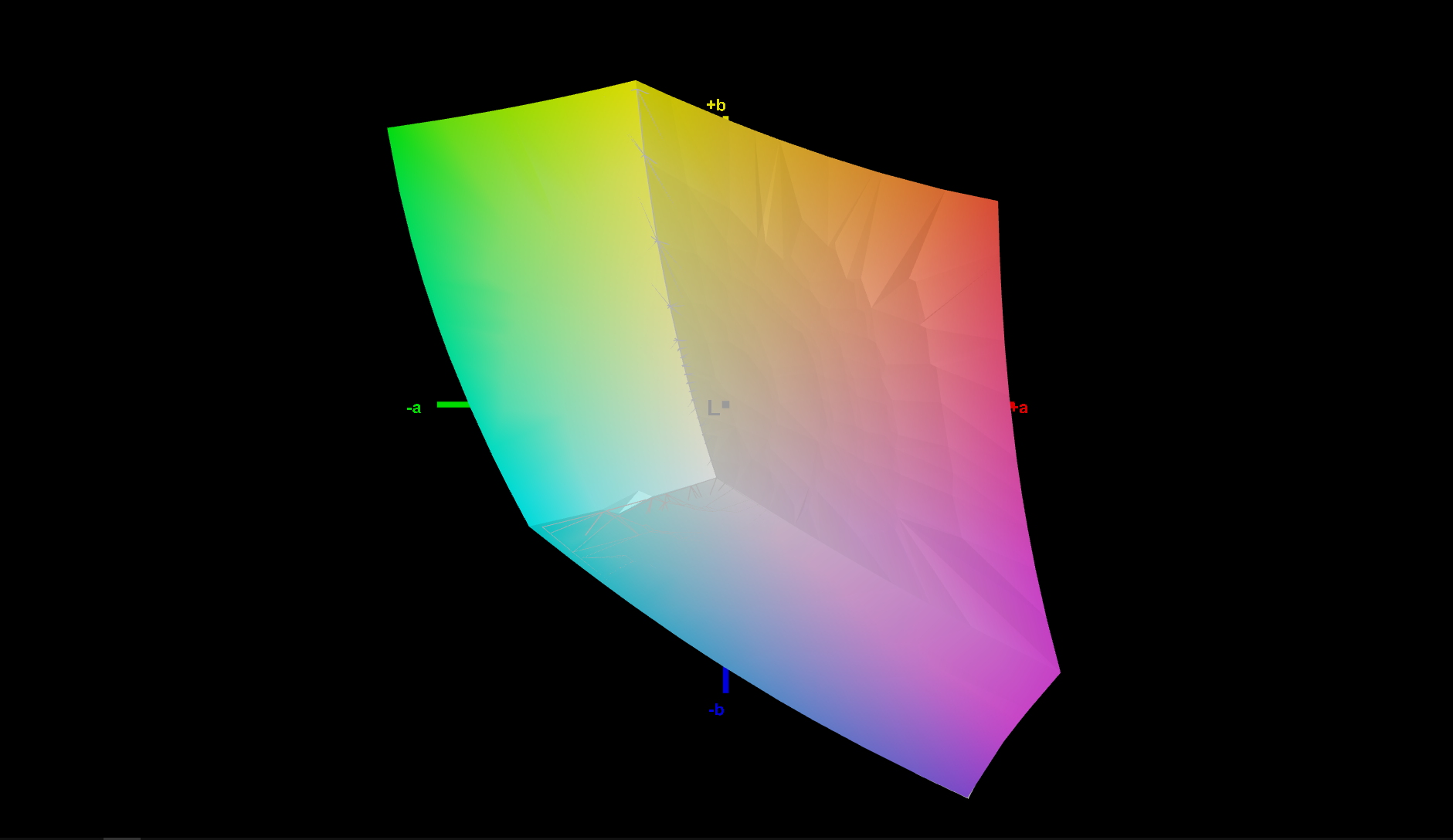

sRGB: 99,4 %
sRGB: 99,4 %

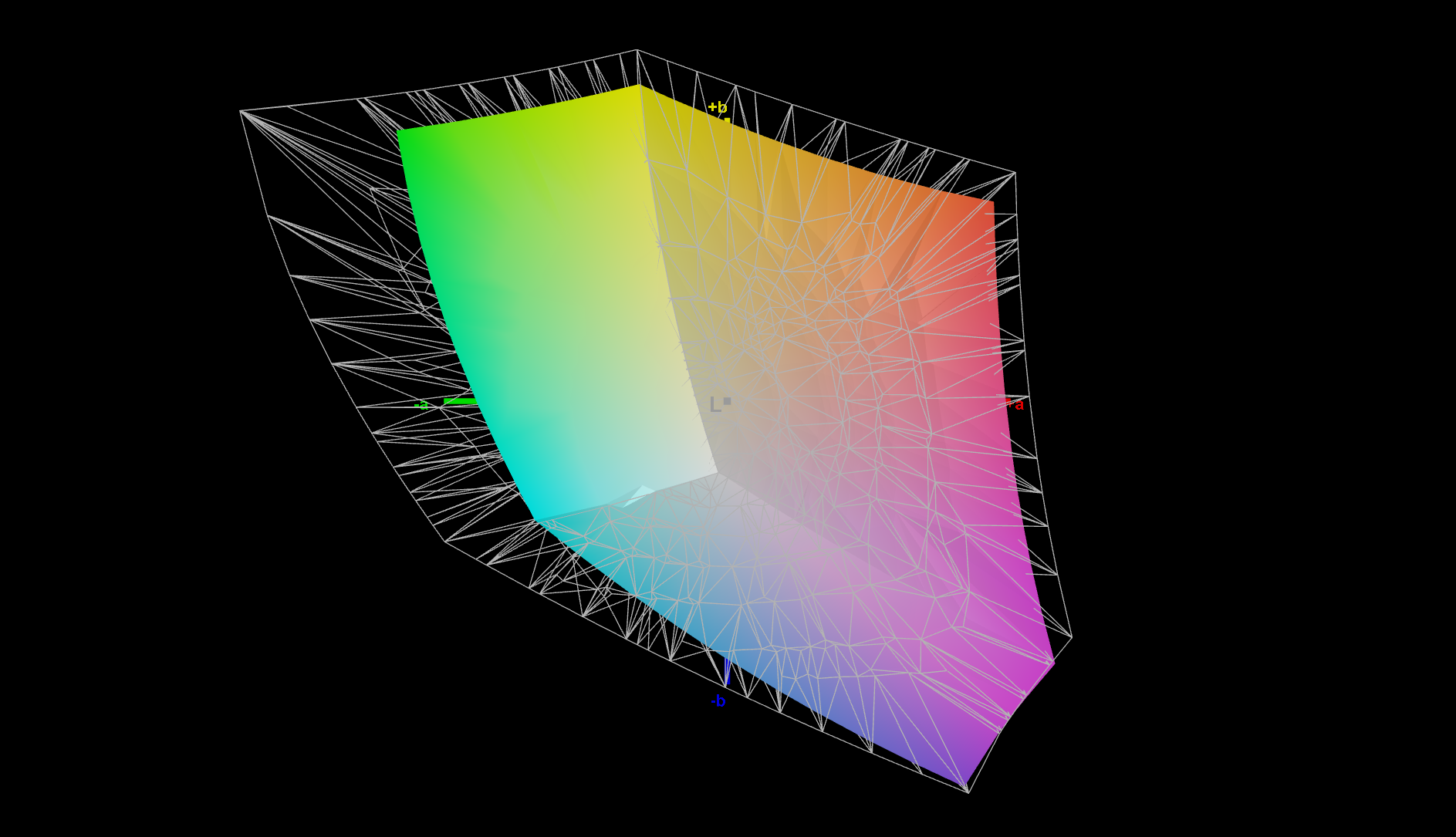

AdobeRGB: 71,3 %
AdobeRGB: 71,3 %

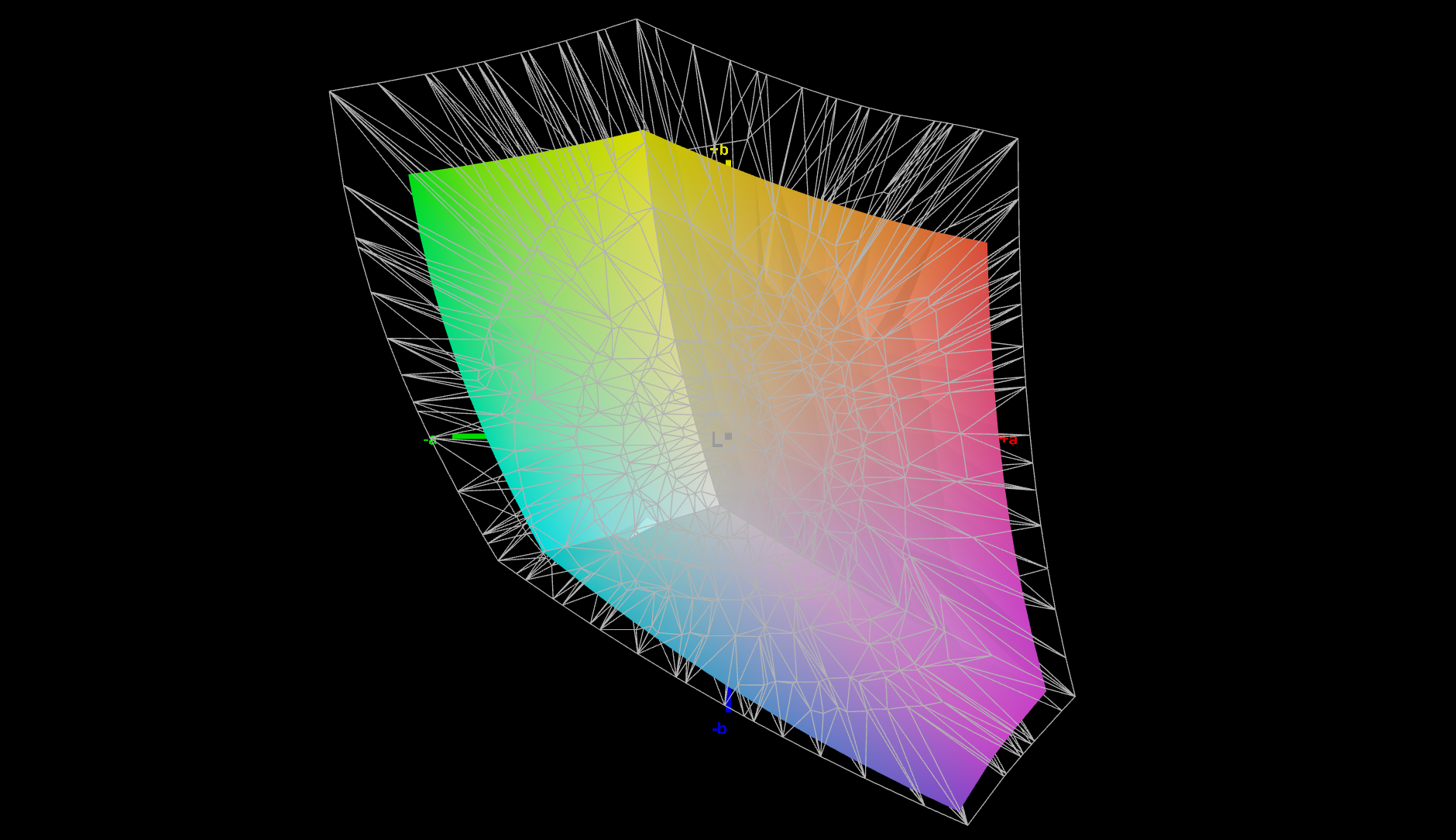

DCI-P3: 70,1 %
DCI-P3: 70,1 %

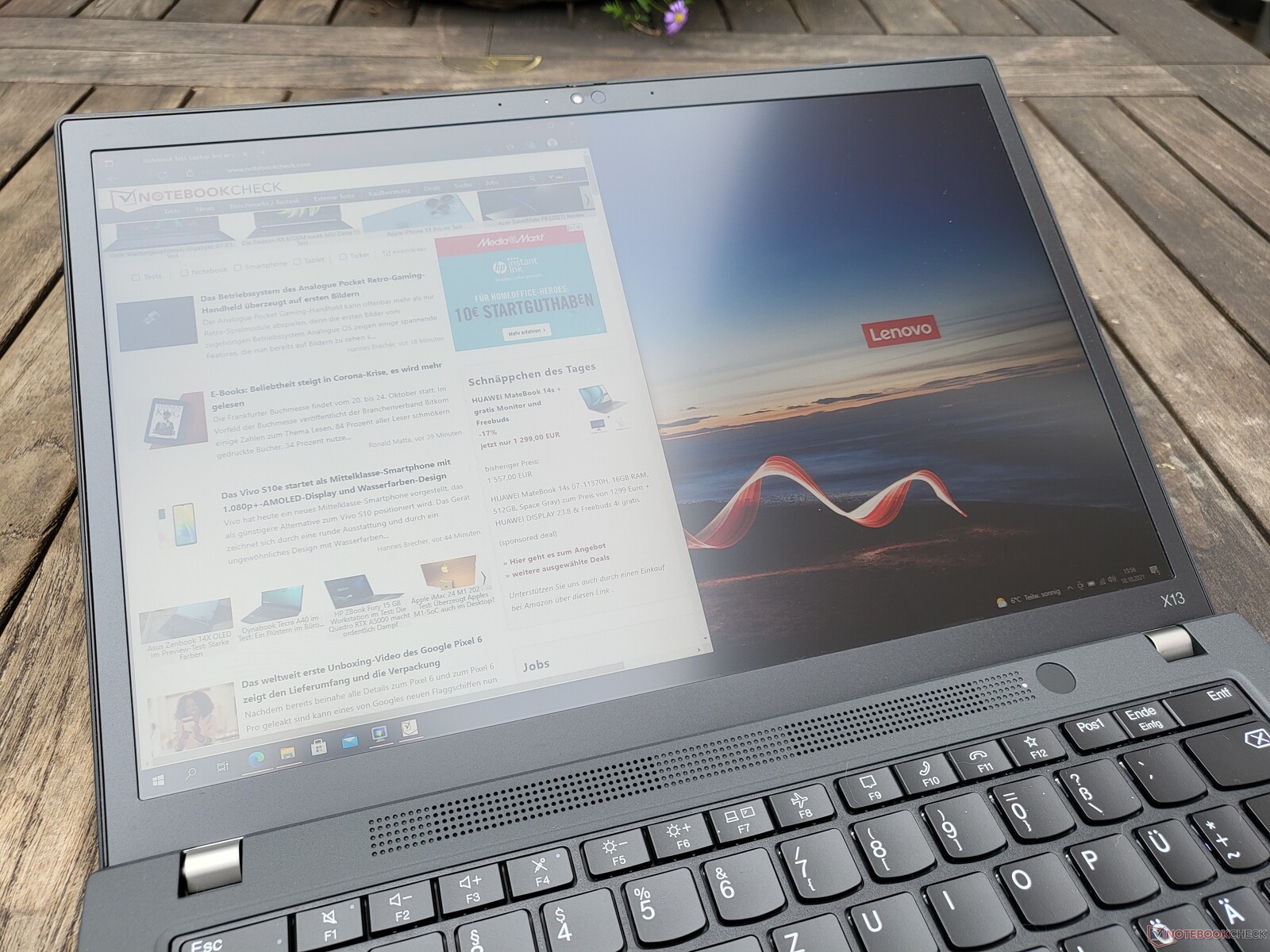

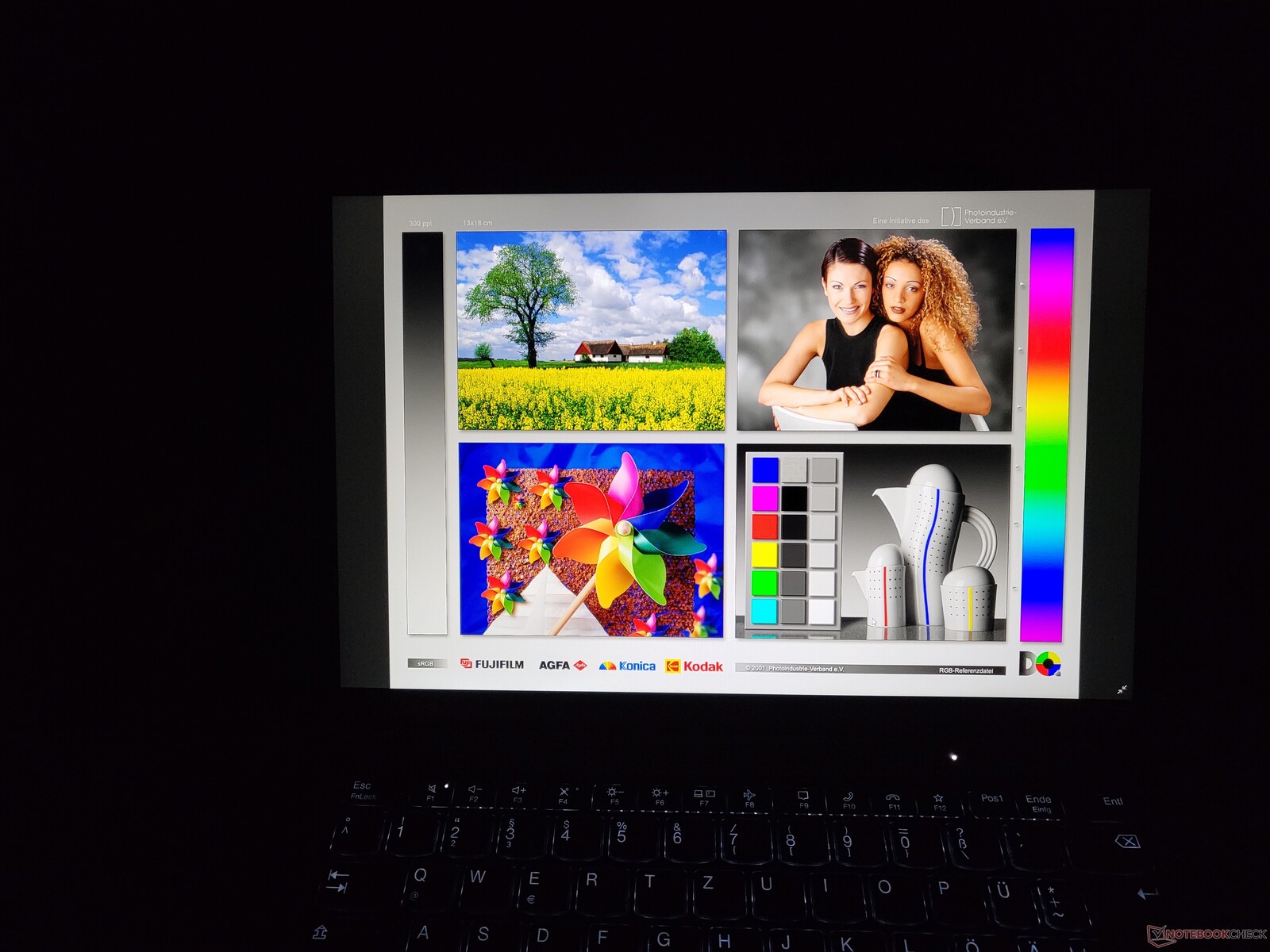

Utomhus (molnigt)
Utomhus (molnigt)

Ljusstyrkan är tillräcklig för att innehållet på Lenovo ThinkPad X13 Gen 2 AMD:s matta skärm ska kunna läsas utomhus i dagsljus. Särskilt för en subnotebook kan användarna dock komma att önska sig en något högre ljusstyrka i framtiden

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

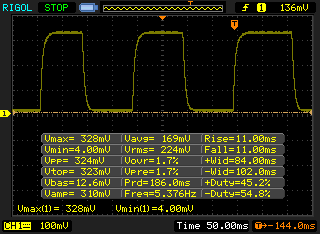

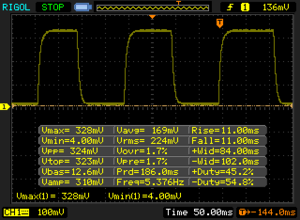

   ↔    Response Time Black to White
22 ms ... rise ↗ and fall ↘ combined↗ 11 ms rise
↘ 11 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 44 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (20.9 ms).

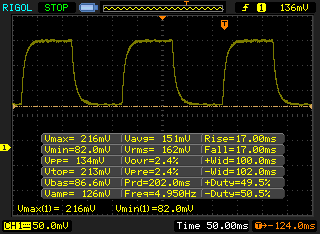

   ↔    Response Time 50% Grey to 80% Grey
34 ms ... rise ↗ and fall ↘ combined↗ 17 ms rise
↘ 17 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 42 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (32.8 ms).

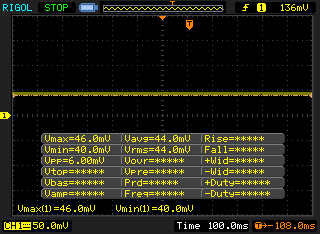

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured.

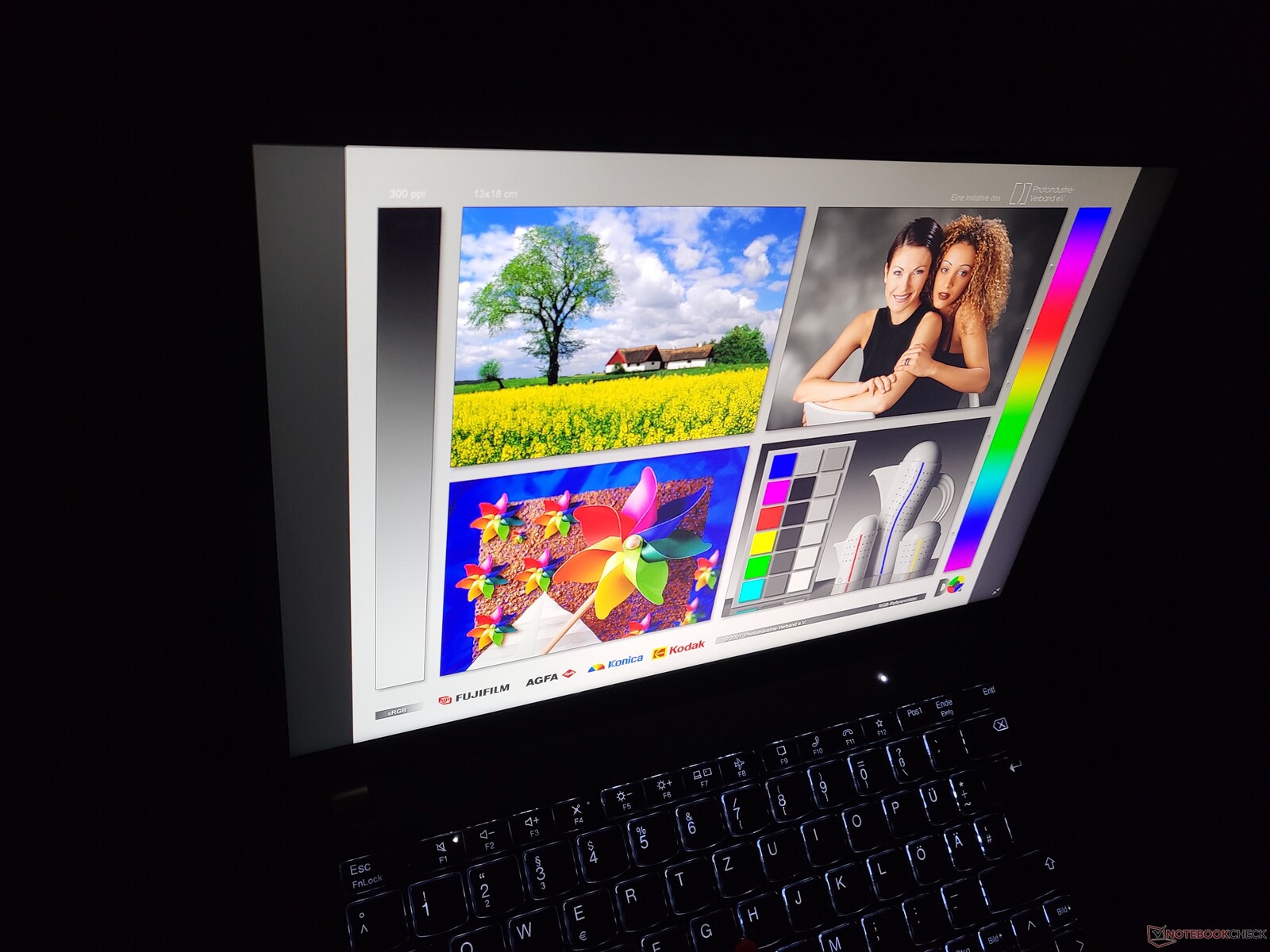

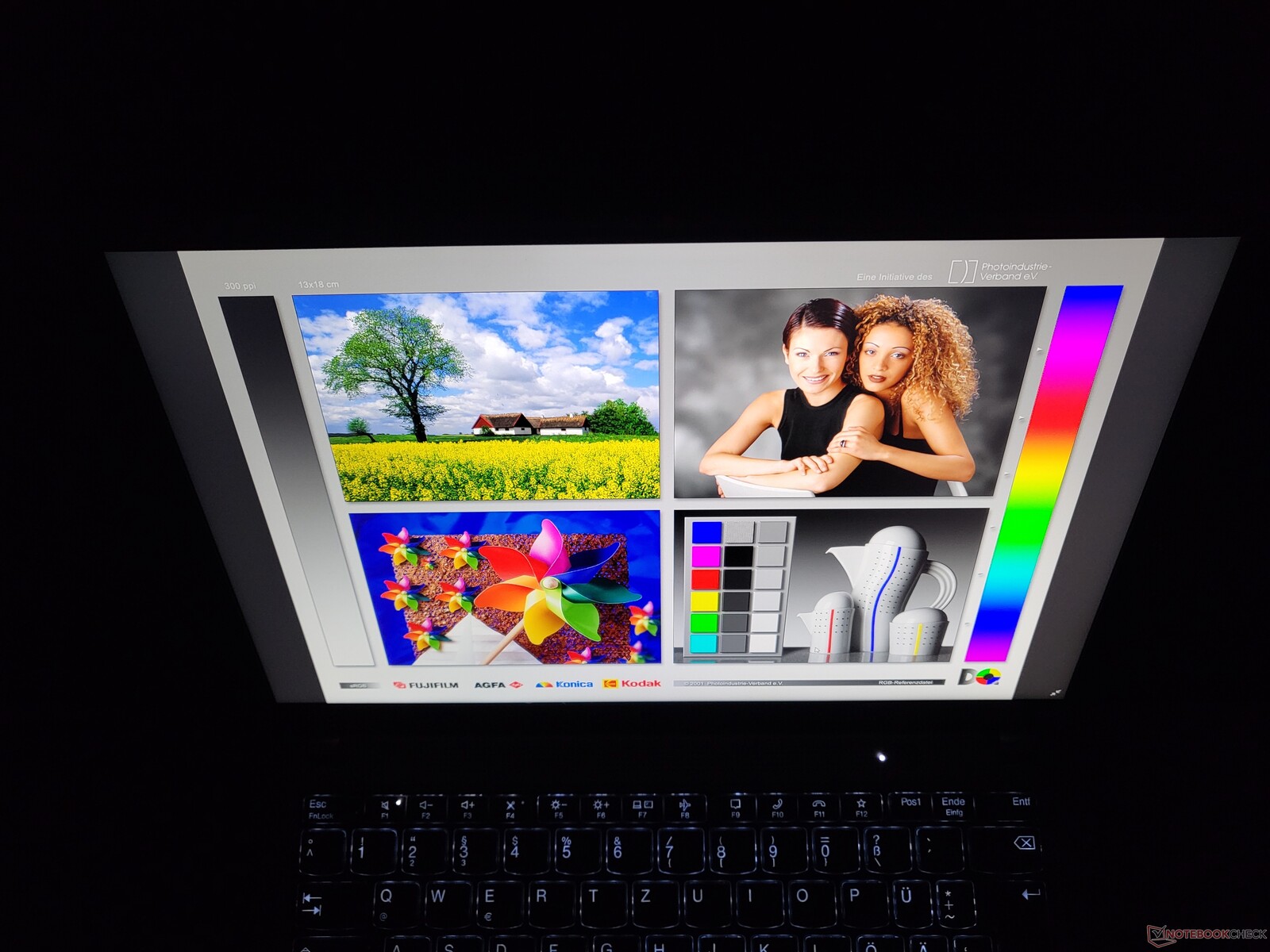

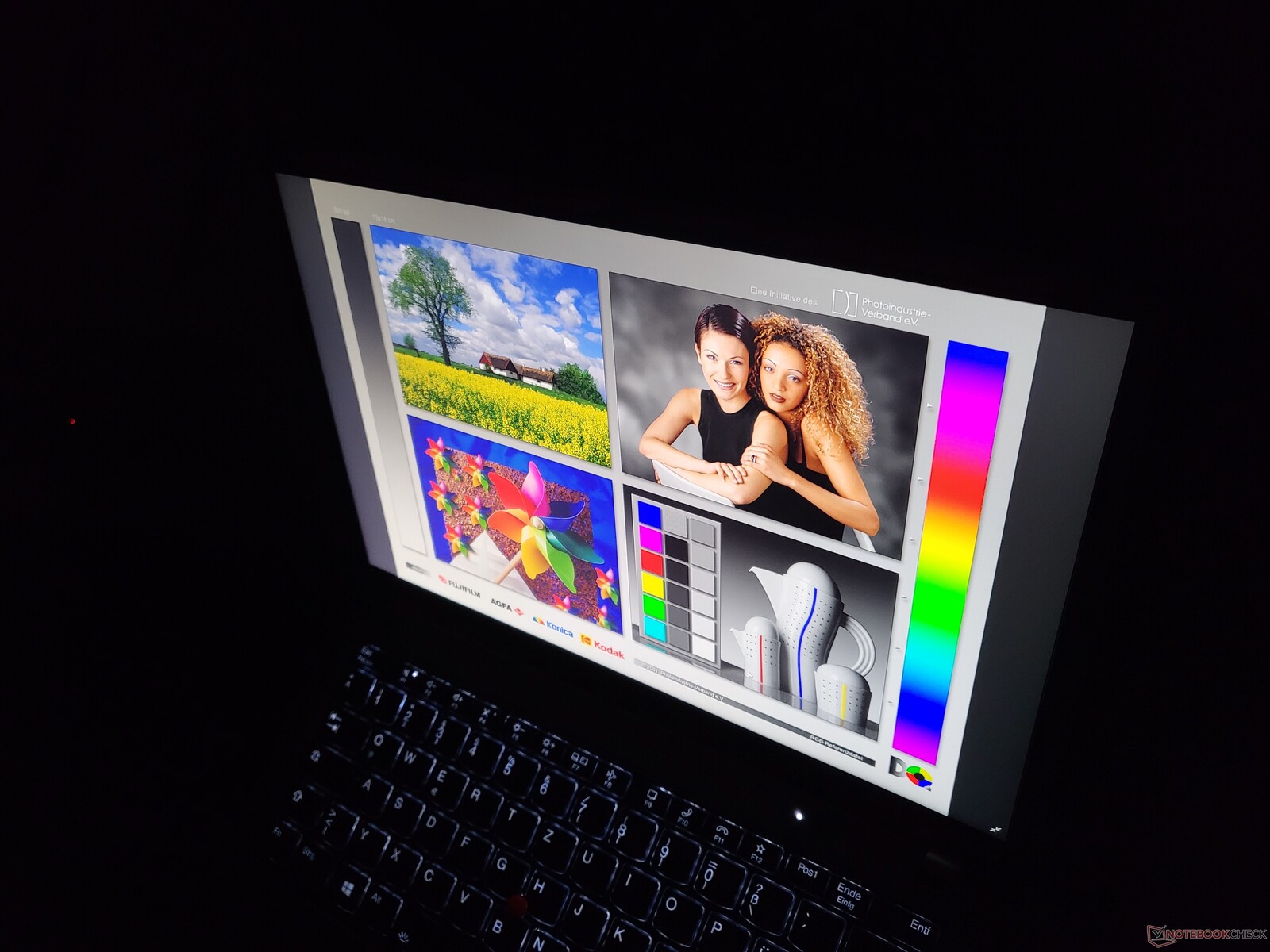

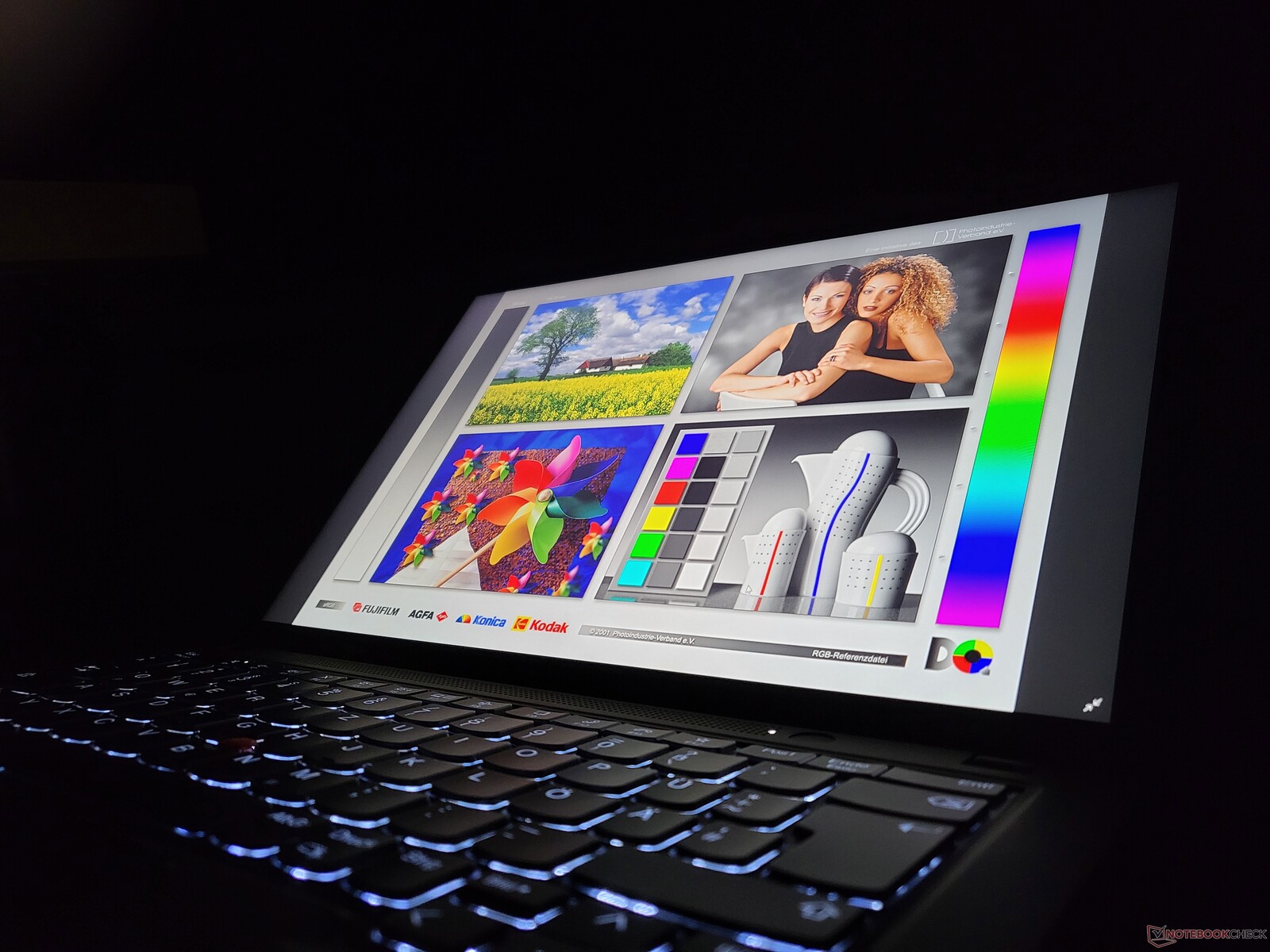

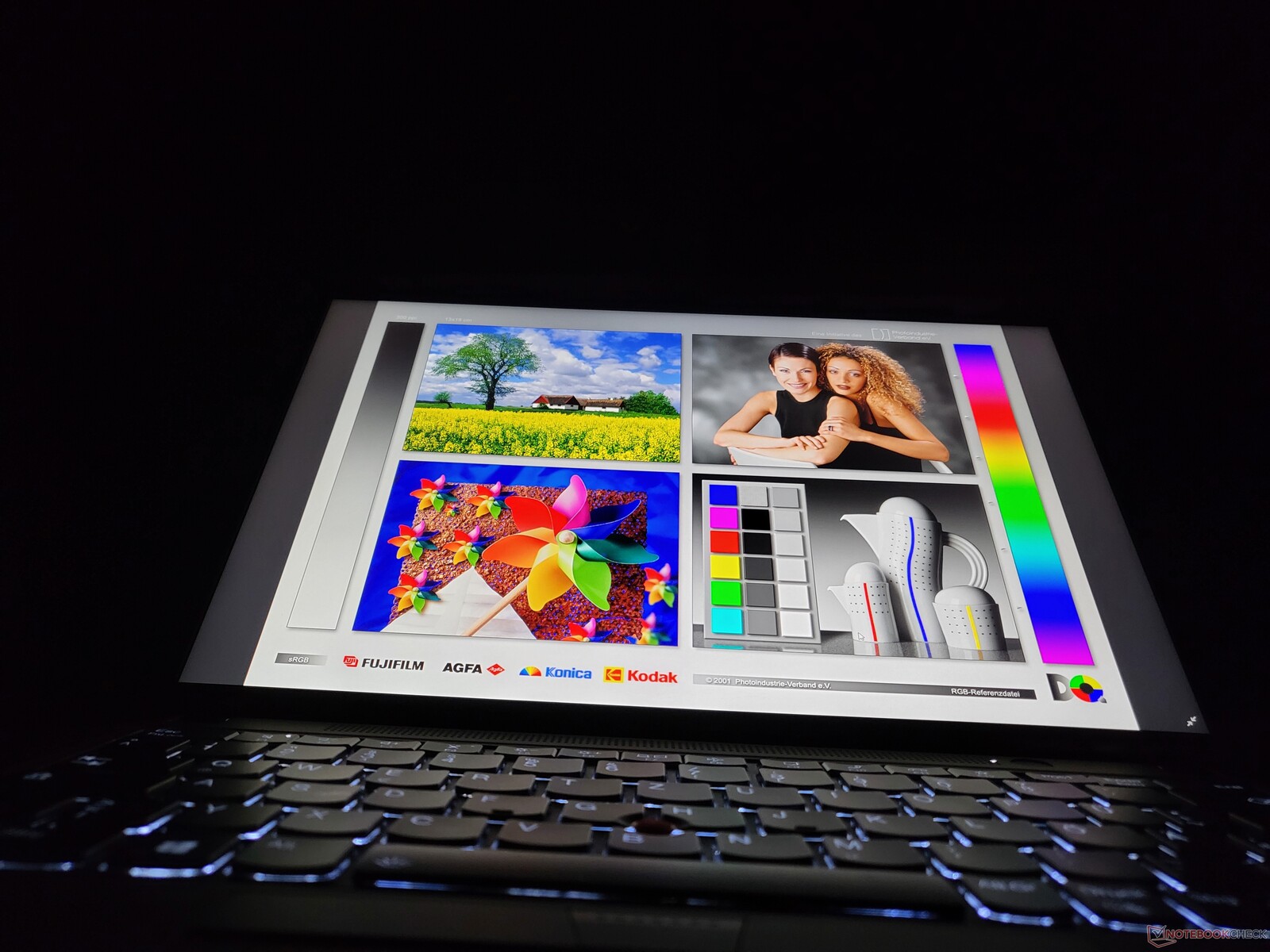

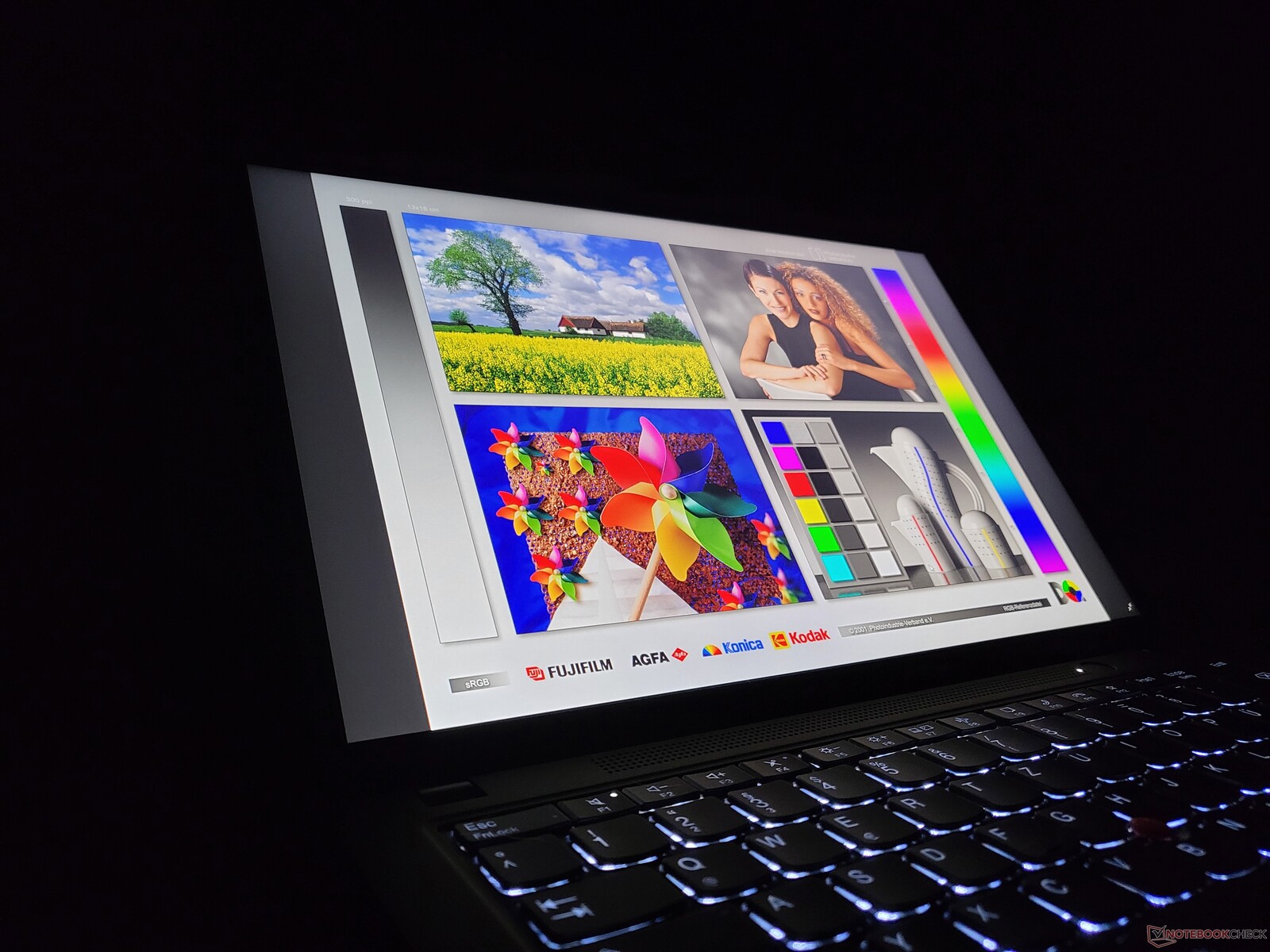

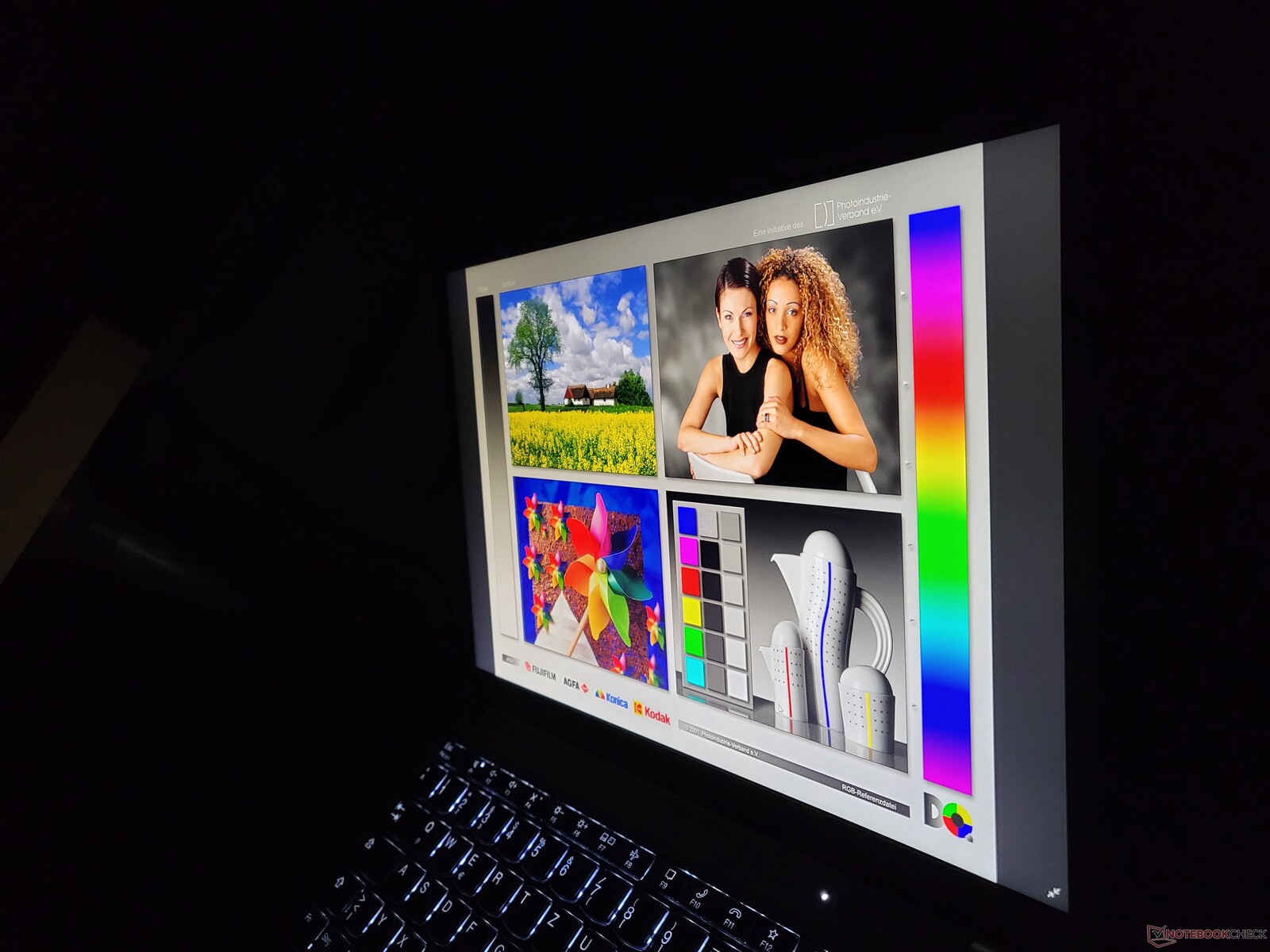

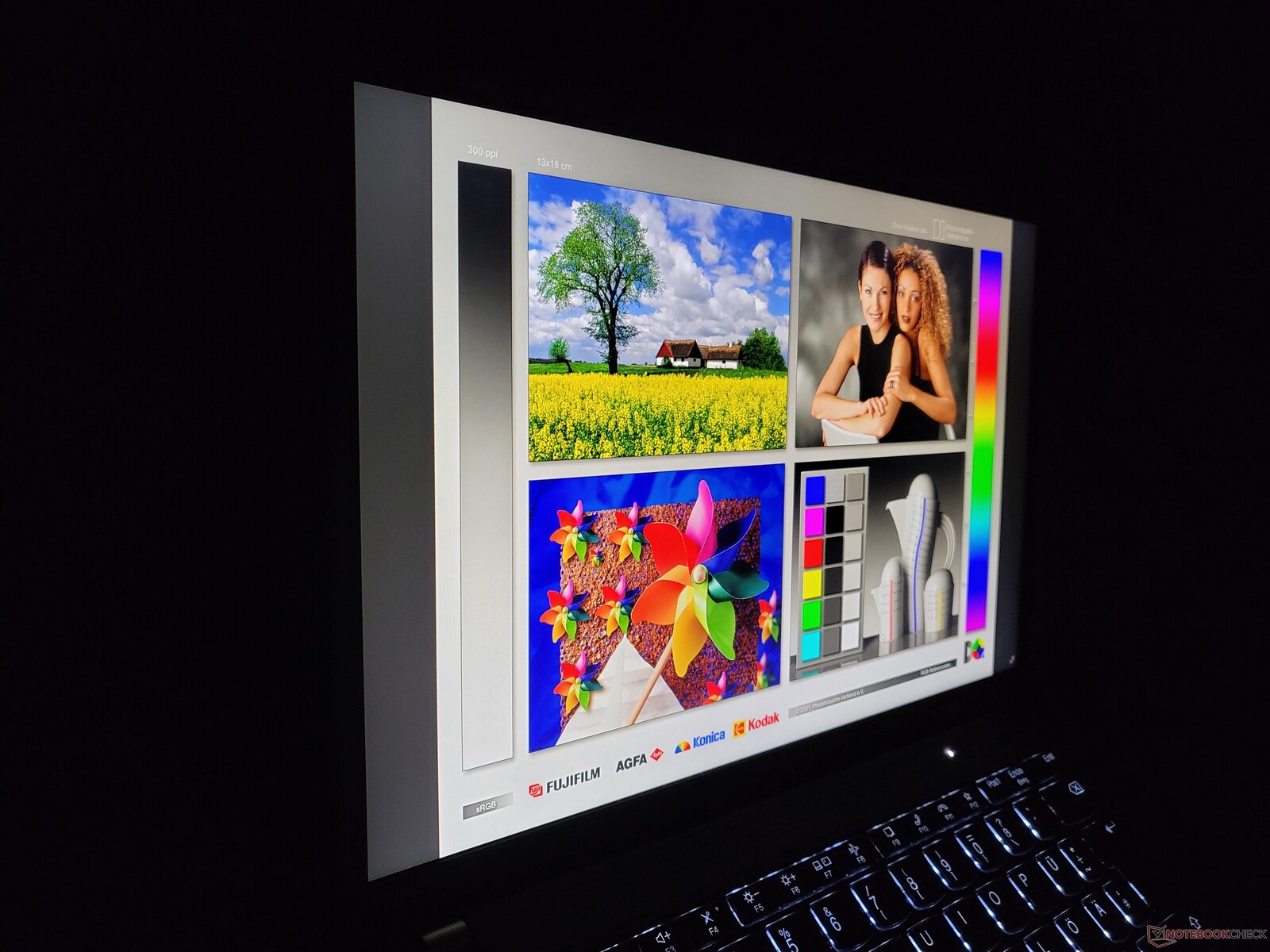

Visningsvinklar på ThinkPad X13 Gen 2
Visningsvinklar på ThinkPad X13 Gen 2

Prestanda: AMD Ryzen Pro ger prestandaökning för Lenovos bärbara dator

Det finns tre Pro- och en icke-Pro Ryzen-processor tillgängliga i ThinkPad X13 Gen 2 AMD: DenAMD Ryzen 3 Pro 5450U, denRyzen 5 Pro 5650U, denRyzen 7 Pro 5850Usamt AMD Ryzen 5 5600U. Det finns inga dedikerade GPU:er, vilket innebär att den integrerade AMD Radeon-lösningen får duga.

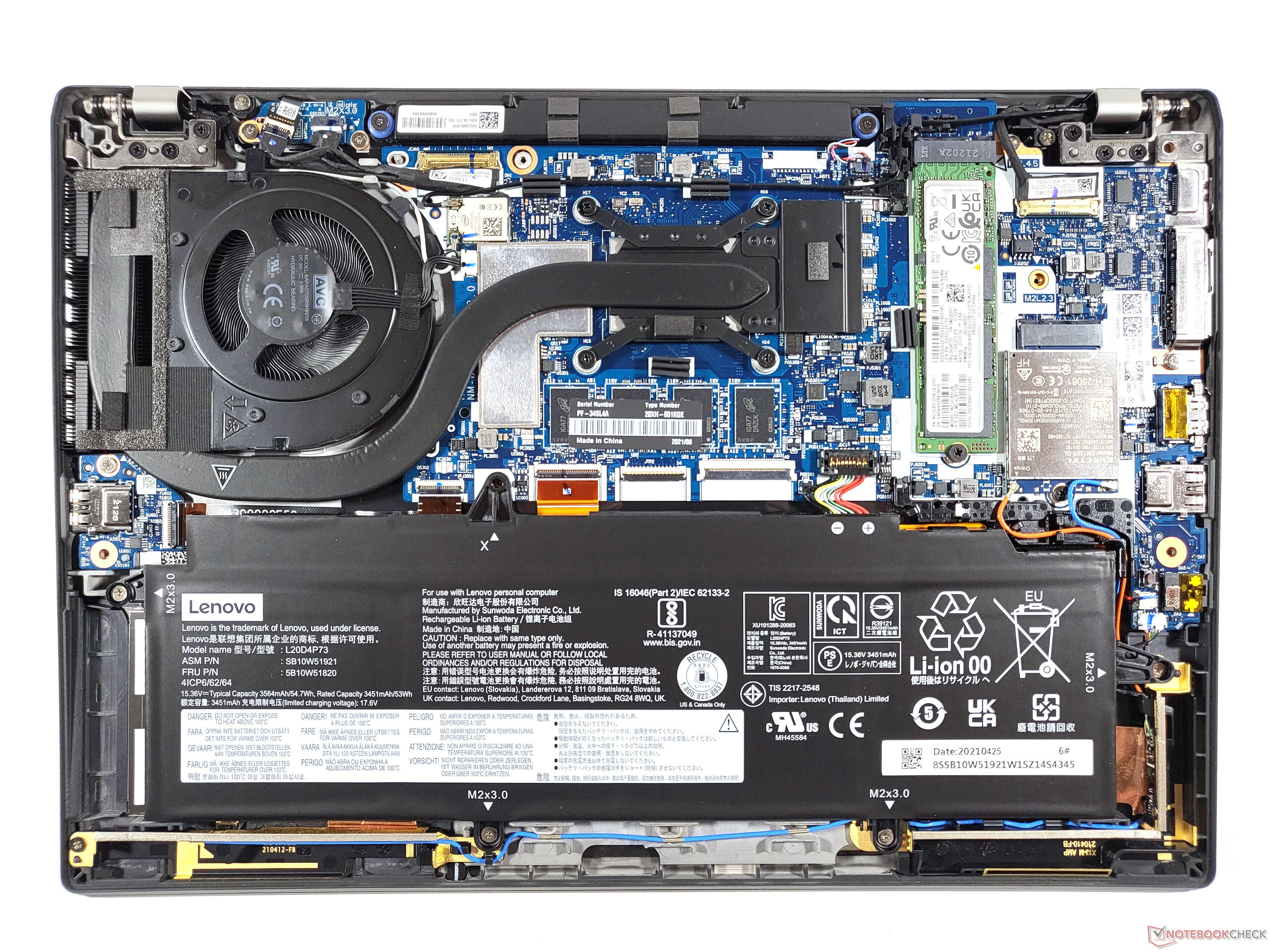

RAM-minne har lödts in i ThinkPad X-serien sedan 2018 - åtminstone finns det nu upp till 32 GB, och ThinkPad X13 Gen 2 har nu snabbare LPDDR4X-4266-minne i stället för DDR4-3200. En M.2-2280 SSD med en maximal kapacitet på 2 TB, som använder ett NVMe PCIe 3.0-gränssnitt, tar över rollen som masslagring.

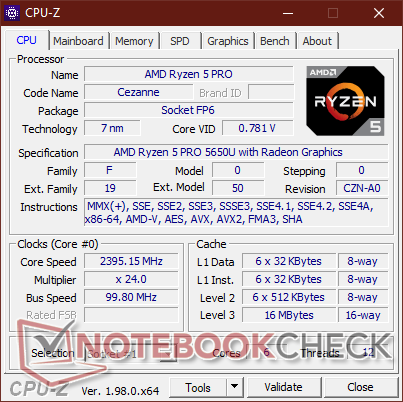

CPU-Z
CPU-Z

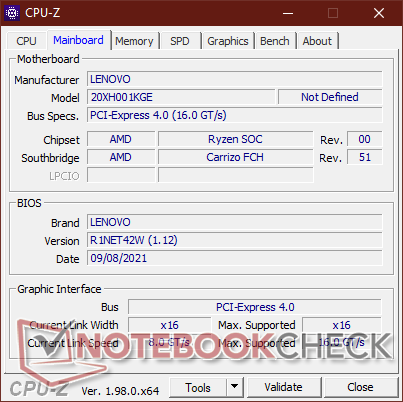

CPU-Z Mainboard
CPU-Z Mainboard

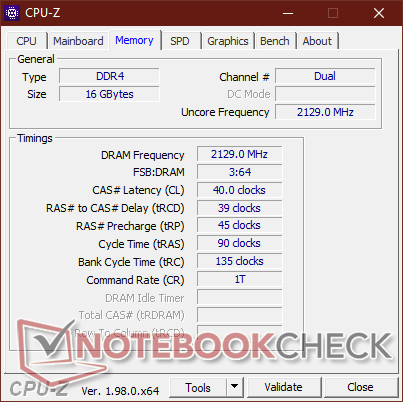

CPU-Z-minne
CPU-Z-minne

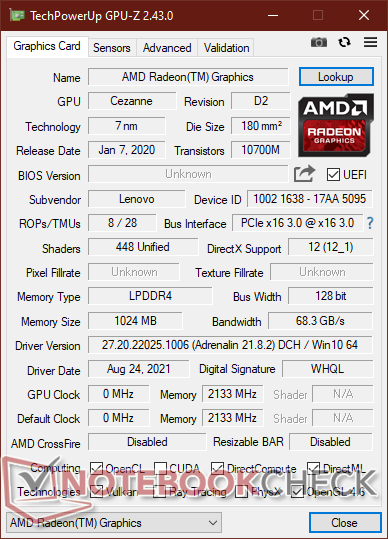

GPU-Z
GPU-Z

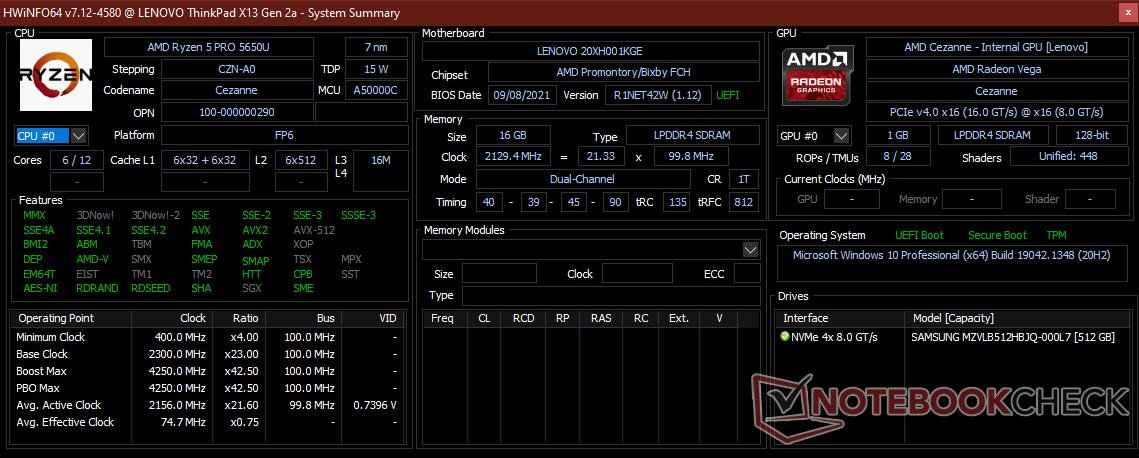

HWiNFO
HWiNFO




Processor

AMD Ryzen 5 Pro 5650U är en U-processor med en typisk förbrukning på 15-25 watt. Dess sex Zen 3-kärnor av "Cezanne"-generationen når en maximal klockfrekvens på 4,2 GHz, och basklockfrekvensen är 2,3 GHz. Tack vare Hyper-Threading erbjuder processorn totalt 12 trådar. Du kan använda vårArtikel om CPU-jämförelser för omfattande jämförelser av riktmärken.

I förra årets ThinkPad X13 Gen 1 AMDkunde vi testa den snabbaste tillgängliga processorn, denRyzen 7 Pro 4750U i det fallet. Imponerande nog lyckas den modernare hexa-kärniga processorn i Lenovo ThinkPad X13 Gen 2 AMD matcha den äldre octa-kärniga processorn. I enkärnigt läge är Cezanne-chipet märkbart snabbare än Renoir-processorn, och skillnaden mellan de två är liten i flerkärnig prestanda.

CPU-prestandan är helt tillgänglig på batteri.

Cinebench R15 Multi endurance test

0651301952603253904555205856507157808459109751040110511701235Tooltip
Lenovo ThinkPad X13 G2 AMD 20XH001KGE AMD Ryzen 5 PRO 5650U: Ø1198 (1193.92-1206.53)
Lenovo ThinkPad X13 G2 20WK0024GE Intel Core i7-1165G7: Ø827 (741.02-973.71)
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U: Ø1173 (1057.08-1287.21)
HP EliteBook 835 G7 23Y57EA AMD Ryzen 5 PRO 4650U: Ø1118 (1104.42-1160.36)
Dell XPS 13 9310 Core i7 FHD Intel Core i7-1165G7: Ø718 (617.03-918.32)
Lenovo ThinkPad X1 Nano-20UN002UGE Intel Core i7-1160G7: Ø659 (587.69-862.27)
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23 / Multi Core
Average of class Subnotebook
  (1555 - 21812, n=63, last 2 years)
11681 Points +64%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
7140 Points
Average AMD Ryzen 5 PRO 5650U
  (6210 - 7140, n=3)
6593 Points -8%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
5750 Points -19%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
5648 (4011.45min - 5648.13max) Points -21%
Cinebench R23 / Single Core
Average of class Subnotebook
  (358 - 2001, n=63, last 2 years)
1670 Points +23%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
1526 Points +12%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
1363 Points
Average AMD Ryzen 5 PRO 5650U
  (1356 - 1367, n=3)
1362 Points 0%
Cinebench R20 / CPU (Multi Core)
Average of class Subnotebook
  (579 - 8541, n=59, last 2 years)
4542 Points +64%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
2935 Points +6%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
2771 Points
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
2561 Points -8%
Average AMD Ryzen 5 PRO 5650U
  (2415 - 2771, n=3)
2558 Points -8%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
2188 Points -21%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
1913 Points -31%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
1750 Points -37%
Cinebench R20 / CPU (Single Core)
Average of class Subnotebook
  (128 - 790, n=59, last 2 years)
636 Points +20%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
574 Points +8%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
559 Points +5%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
544 Points +2%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
531 Points
Average AMD Ryzen 5 PRO 5650U
  (524 - 533, n=3)
529 Points 0%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
475 Points -11%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
453 Points -15%
Cinebench R15 / CPU Multi 64Bit
Average of class Subnotebook
  (327 - 3345, n=65, last 2 years)
1983 Points +64%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
1287 (1057.08min - 1287.21max) Points +7%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
1207 (1193.92min - 1206.53max) Points
Average AMD Ryzen 5 PRO 5650U
  (1048 - 1333, n=3)
1196 Points -1%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
1160 (1104.42min - 1160.36max) Points -4%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
974 Points -19%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
918 Points -24%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
862 Points -29%
Cinebench R15 / CPU Single 64Bit
Average of class Subnotebook
  (72.4 - 307, n=60, last 2 years)
250 Points +15%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
226 Points +4%
Average AMD Ryzen 5 PRO 5650U
  (217 - 221, n=3)
219 Points 0%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
218 Points 0%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
218 Points
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
208 Points -5%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
184 Points -16%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
175 Points -20%
Blender / v2.79 BMW27 CPU
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
632 Seconds * -50%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
625 Seconds * -48%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
541 Seconds * -28%
Average AMD Ryzen 5 PRO 5650U
  (422 - 455, n=3)
440 Seconds * -4%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
429 Seconds * -2%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
422 Seconds *
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
403 Seconds * +5%
Average of class Subnotebook
  (159 - 2271, n=63, last 2 years)
360 Seconds * +15%
7-Zip 18.03 / 7z b 4
Average of class Subnotebook
  (11775 - 77867, n=56, last 2 years)
48300 MIPS +35%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
37081 MIPS +4%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
35665 MIPS
Average AMD Ryzen 5 PRO 5650U
  (32687 - 35665, n=3)
34529 MIPS -3%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
32062 MIPS -10%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
25265 MIPS -29%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
22305 MIPS -37%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
20843 MIPS -42%
7-Zip 18.03 / 7z b 4 -mmt1
Average of class Subnotebook
  (2669 - 6403, n=58, last 2 years)
5478 MIPS +8%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
5283 MIPS +4%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
5274 MIPS +4%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
5081 MIPS
Average AMD Ryzen 5 PRO 5650U
  (5021 - 5081, n=3)
5044 MIPS -1%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
4596 MIPS -10%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
4438 MIPS -13%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
4202 MIPS -17%
Geekbench 5.5 / Multi-Core
Average of class Subnotebook
  (2557 - 14728, n=58, last 2 years)
10135 Points +75%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
5788 Points
Average AMD Ryzen 5 PRO 5650U
  (5634 - 5788, n=3)
5719 Points -1%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
5682 Points -2%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
5653 Points -2%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
5600 Points -3%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
4660 Points -19%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
4616 Points -20%
Geekbench 5.5 / Single-Core
Average of class Subnotebook
  (621 - 2350, n=58, last 2 years)
1795 Points +33%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
1547 Points +14%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
1547 Points +14%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
1406 Points +4%
Average AMD Ryzen 5 PRO 5650U
  (1352 - 1384, n=3)
1363 Points +1%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
1353 Points
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
1157 Points -14%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
1065 Points -21%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Subnotebook
  (0.97 - 25.1, n=58, last 2 years)
12.9 fps +39%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
9.27 fps
Average AMD Ryzen 5 PRO 5650U
  (8.36 - 9.27, n=3)
8.67 fps -6%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
8.33 fps -10%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
7.85 fps -15%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
6.97 fps -25%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
6.06 fps -35%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
5.84 fps -37%
LibreOffice / 20 Documents To PDF
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
86.6 s * -64%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
58.4 s * -11%
Average of class Subnotebook
  (38.5 - 220, n=57, last 2 years)
54.4 s * -3%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
52.7 s * -0%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
52.7 s *
Average AMD Ryzen 5 PRO 5650U
  (35.3 - 57.6, n=4)
48.8 s * +7%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
46.2 s * +12%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
45.9 s * +13%
R Benchmark 2.5 / Overall mean
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U
0.658 sec * -19%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7
0.64 sec * -15%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U
0.613 sec * -10%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7
0.586 sec * -6%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7
0.581 sec * -5%
Average AMD Ryzen 5 PRO 5650U
  (0.555 - 0.569, n=3)
0.563 sec * -1%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U
0.555 sec *
Average of class Subnotebook
  (0.413 - 1.456, n=58, last 2 years)
0.52 sec * +6%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit
2.24
Cinebench R10 Rendering Multiple CPUs 32Bit
12.47
Cinebench R11.5 CPU Single 64Bit
2.6 Points
Cinebench R11.5 CPU Multi 64Bit
14.19 Points
Cinebench R15 CPU Single 64Bit
218 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
82.2 fps
Cinebench R15 CPU Multi 64Bit
1207 Points
Cinebench R20 CPU (Single Core)
531 Points
Cinebench R20 CPU (Multi Core)
2771 Points
Cinebench R23 Multi Core
7140 Points
Cinebench R23 Single Core
1363 Points
Hjälp
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating
Average of class Subnotebook

95.2 pt
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
76.2 pt
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
74 pt
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
67.9 pt
Average AMD Ryzen 5 PRO 5650U

67.5 pt
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
65.7 pt
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
58.1 pt
AIDA64 / FP32 Ray-Trace
Average of class Subnotebook
  (1141 - 32888, n=58, last 2 years)
12741 KRay/s +54%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
9108 KRay/s +10%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
8274 KRay/s
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
8176 KRay/s -1%
Average AMD Ryzen 5 PRO 5650U
  (7205 - 8274, n=3)
7596 KRay/s -8%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
7225 KRay/s -13%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
6940 KRay/s -16%
AIDA64 / FPU Julia
Average of class Subnotebook
  (6838 - 123315, n=58, last 2 years)
60264 Points +13%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
53123 Points
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
51864 Points -2%
Average AMD Ryzen 5 PRO 5650U
  (46649 - 53123, n=3)
49108 Points -8%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
46534 Points -12%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
30797 Points -42%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
28020 Points -47%
AIDA64 / CPU SHA3
Average of class Subnotebook
  (444 - 5287, n=58, last 2 years)
2898 MB/s +58%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
2157 MB/s +18%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
1945 MB/s +6%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
1829 MB/s
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
1692 MB/s -7%
Average AMD Ryzen 5 PRO 5650U
  (1553 - 1829, n=3)
1658 MB/s -9%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
1502 MB/s -18%
AIDA64 / CPU Queen
Average of class Subnotebook
  (11579 - 115682, n=58, last 2 years)
79022 Points +17%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
75268 Points +11%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
71276 Points +5%
Average AMD Ryzen 5 PRO 5650U
  (67818 - 70596, n=3)
68915 Points +2%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
67818 Points
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
50334 Points -26%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
43991 Points -35%
AIDA64 / FPU SinJulia
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
10878 Points +37%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
9722 Points +23%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
7931 Points
Average of class Subnotebook
  (744 - 18418, n=58, last 2 years)
7916 Points 0%
Average AMD Ryzen 5 PRO 5650U
  (7289 - 7931, n=3)
7560 Points -5%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
4792 Points -40%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
4208 Points -47%
AIDA64 / FPU Mandel
Average of class Subnotebook
  (3366 - 65433, n=58, last 2 years)
31330 Points +7%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
29311 Points
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
27264 Points -7%
Average AMD Ryzen 5 PRO 5650U
  (25763 - 29311, n=3)
27097 Points -8%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
24341 Points -17%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
18415 Points -37%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
16923 Points -42%
AIDA64 / CPU AES
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
73719 MB/s
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
69746 MB/s -5%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
64346 MB/s -13%
Average of class Subnotebook
  (638 - 161430, n=58, last 2 years)
60058 MB/s -19%
Average AMD Ryzen 5 PRO 5650U
  (27927 - 73719, n=3)
56094 MB/s -24%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
51408 MB/s -30%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
45990 MB/s -38%
AIDA64 / CPU ZLib
Average of class Subnotebook
  (166.9 - 1379, n=58, last 2 years)
742 MB/s +57%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
549 MB/s +16%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
510 MB/s +8%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
473 MB/s
Average AMD Ryzen 5 PRO 5650U
  (414 - 473, n=3)
438 MB/s -7%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
402 MB/s -15%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
295 MB/s -38%
AIDA64 / FP64 Ray-Trace
Average of class Subnotebook
  (610 - 17495, n=58, last 2 years)
6601 KRay/s +51%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
5012 KRay/s +14%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
4484 KRay/s +2%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
4383 KRay/s
Average AMD Ryzen 5 PRO 5650U
  (3893 - 4383, n=3)
4083 KRay/s -7%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
3907 KRay/s -11%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
3657 KRay/s -17%
AIDA64 / CPU PhotoWorxx
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
41830 MPixel/s +140%
Average of class Subnotebook
  (6569 - 54881, n=58, last 2 years)
40710 MPixel/s +134%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
34217 MPixel/s +96%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
18467 MPixel/s +6%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
17421 MPixel/s
Average AMD Ryzen 5 PRO 5650U
  (14215 - 17421, n=3)
15342 MPixel/s -12%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
12261 MPixel/s -30%

Systemprestanda

Lenovo ThinkPad X13 G2 AMD uppnår goda resultat i PCMark10. Den tar till och med toppositionen i vår jämförelsegrupp för subnotebooks. Den mycket goda systemprestandan kan bekräftas vid daglig användning

PCMark 10: Score | Essentials | Productivity | Digital Content Creation
PCMark 10 / Score
Average of class Subnotebook
  (4993 - 7788, n=50, last 2 years)
6454 Points +13%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
Vega 7, R5 PRO 5650U, Samsung SSD PM981a MZVLB512HBJQ
5720 Points
Average AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7
  (5320 - 5720, n=3)
5554 Points -3%
Lenovo ThinkPad X13 G2 20WK0024GE
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFS512 GDE9X081N
5105 Points -11%
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
4956 Points -13%
Dell XPS 13 9310 Core i7 FHD
Iris Xe G7 96EUs, i7-1165G7, Micron 2300 512GB MTFDHBA512TDV
4914 Points -14%
Lenovo ThinkPad X1 Nano-20UN002UGE
Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G
4615 Points -19%
HP EliteBook 835 G7 23Y57EA
Vega 6, R5 PRO 4650U, SK hynix BC511 HFM256GDJTNI-82A0
4378 Points -23%
PCMark 10 / Essentials
Average of class Subnotebook
  (9476 - 11331, n=50, last 2 years)
10490 Points +3%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
Vega 7, R5 PRO 5650U, Samsung SSD PM981a MZVLB512HBJQ
10171 Points
Average AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7
  (9576 - 10750, n=3)
10166 Points 0%
Lenovo ThinkPad X13 G2 20WK0024GE
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFS512 GDE9X081N
10065 Points -1%
Dell XPS 13 9310 Core i7 FHD
Iris Xe G7 96EUs, i7-1165G7, Micron 2300 512GB MTFDHBA512TDV
9749 Points -4%
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
9490 Points -7%
Lenovo ThinkPad X1 Nano-20UN002UGE
Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G
9482 Points -7%
HP EliteBook 835 G7 23Y57EA
Vega 6, R5 PRO 4650U, SK hynix BC511 HFM256GDJTNI-82A0
8065 Points -21%
PCMark 10 / Productivity
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
Vega 7, R5 PRO 5650U, Samsung SSD PM981a MZVLB512HBJQ
9087 Points
Average AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7
  (8729 - 9087, n=3)
8892 Points -2%
Average of class Subnotebook
  (6440 - 10623, n=50, last 2 years)
8635 Points -5%
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
7098 Points -22%
Lenovo ThinkPad X13 G2 20WK0024GE
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFS512 GDE9X081N
6926 Points -24%
Dell XPS 13 9310 Core i7 FHD
Iris Xe G7 96EUs, i7-1165G7, Micron 2300 512GB MTFDHBA512TDV
6838 Points -25%
HP EliteBook 835 G7 23Y57EA
Vega 6, R5 PRO 4650U, SK hynix BC511 HFM256GDJTNI-82A0
6653 Points -27%
Lenovo ThinkPad X1 Nano-20UN002UGE
Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G
6210 Points -32%
PCMark 10 / Digital Content Creation
Average of class Subnotebook
  (5305 - 10983, n=50, last 2 years)
8143 Points +48%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
Vega 7, R5 PRO 5650U, Samsung SSD PM981a MZVLB512HBJQ
5495 Points
Lenovo ThinkPad X13 G2 20WK0024GE
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFS512 GDE9X081N
5180 Points -6%
Average AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7
  (4891 - 5495, n=3)
5150 Points -6%
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
4905 Points -11%
Dell XPS 13 9310 Core i7 FHD
Iris Xe G7 96EUs, i7-1165G7, Micron 2300 512GB MTFDHBA512TDV
4832 Points -12%
Lenovo ThinkPad X1 Nano-20UN002UGE
Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G
4530 Points -18%
HP EliteBook 835 G7 23Y57EA
Vega 6, R5 PRO 4650U, SK hynix BC511 HFM256GDJTNI-82A0
4244 Points -23%
PCMark 10 Score
5720 poäng
Hjälp
AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency
AIDA64 / Memory Copy
Average of class Subnotebook
  (14916 - 108756, n=58, last 2 years)
71859 MB/s +130%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
56829 MB/s +82%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
46915 MB/s +50%
Average AMD Ryzen 5 PRO 5650U
  (31262 - 33245, n=3)
32533 MB/s +4%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
31262 MB/s
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
30403 MB/s -3%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
18519 MB/s -41%
AIDA64 / Memory Read
Average of class Subnotebook
  (15948 - 122210, n=58, last 2 years)
69350 MB/s +91%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
60733 MB/s +67%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
48771 MB/s +34%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
37559 MB/s +3%
Average AMD Ryzen 5 PRO 5650U
  (36338 - 37610, n=3)
37090 MB/s +2%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
36338 MB/s
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
21616 MB/s -41%
AIDA64 / Memory Write
Average of class Subnotebook
  (16513 - 117898, n=58, last 2 years)
74703 MB/s +174%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
61657 MB/s +126%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
50592 MB/s +85%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
35563 MB/s +30%
Average AMD Ryzen 5 PRO 5650U
  (25594 - 32670, n=3)
28516 MB/s +5%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
27283 MB/s
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
21805 MB/s -20%
AIDA64 / Memory Latency
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, Vega 7
113 ns *
Average AMD Ryzen 5 PRO 5650U
  (100 - 120, n=3)
111 ns * +2%
Average of class Subnotebook
  (7.2 - 187.8, n=58, last 2 years)
105.3 ns * +7%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
105 ns * +7%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, Vega 6
97.4 ns * +14%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, Vega 7
95.6 ns * +15%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Iris Xe G7 96EUs
82 ns * +27%

* ... smaller is better

DPC-fördröjningar

Vår testenhet av Lenovo ThinkPad X13 Gen 2 AMD hade inga problem med ljud-/videoprogram i vårt LatencyMon-test

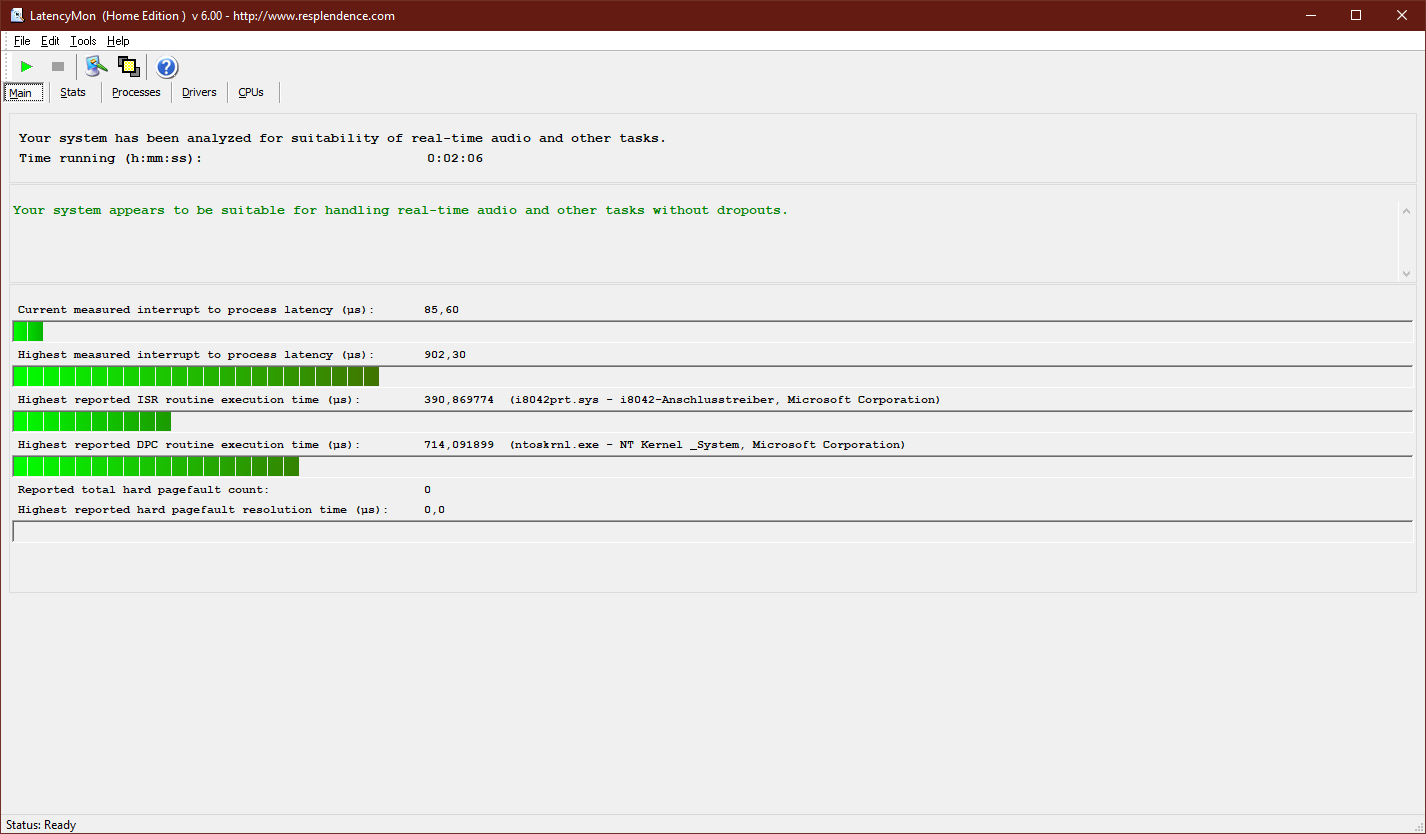

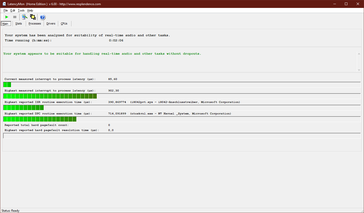

LatencyMon
LatencyMon

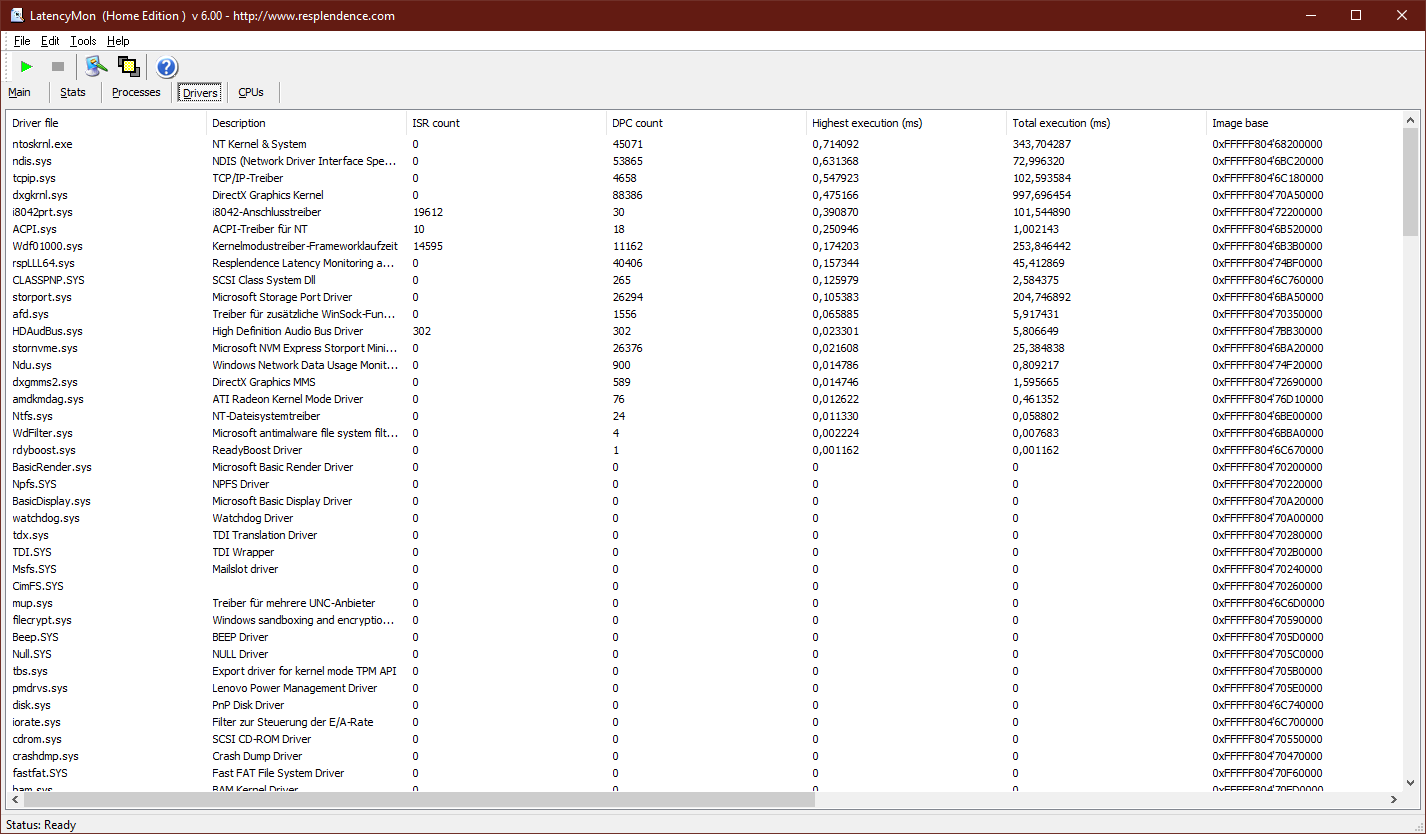

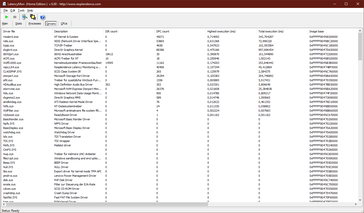

LatencyMon drivrutiner
LatencyMon drivrutiner
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad X13-20UGS00800
Vega 7, R7 PRO 4750U, Samsung SSD PM981a MZVLB512HBJQ
1502 μs * -67%
Lenovo ThinkPad X1 Nano-20UN002UGE
Iris Xe G7 96EUs, i7-1160G7, WDC PC SN530 SDBPNPZ-512G
1350 μs * -50%
Dell XPS 13 9310 Core i7 FHD
Iris Xe G7 96EUs, i7-1165G7, Micron 2300 512GB MTFDHBA512TDV
1009 μs * -12%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
Vega 7, R5 PRO 5650U, Samsung SSD PM981a MZVLB512HBJQ
902 μs *
HP EliteBook 835 G7 23Y57EA
Vega 6, R5 PRO 4650U, SK hynix BC511 HFM256GDJTNI-82A0
675 μs * +25%
Lenovo ThinkPad X13 G2 20WK0024GE
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFS512 GDE9X081N
603 μs * +33%

* ... smaller is better

Lagring

Samsung PM981a är en NVMe PCIe 3.0 SSD som installeras i Lenovo ThinkPad X13 Gen 2 AMD i formatet M.2-2280. Detta är en mycket snabb SSD, men den är något långsammare än Hynix SSD i ThinkPad X13 Gen 2 Intel-modellen.

Det bör också nämnas att AMD-plattformen inte har stöd för PCIe 4.0 ännu - en nackdel för X13 AMD.

Lenovo ThinkPad X13 G2 AMD 20XH001KGE
Samsung SSD PM981a MZVLB512HBJQ		Lenovo ThinkPad X13 G2 20WK0024GE
SK Hynix HFS512 GDE9X081N		Lenovo ThinkPad X13-20UGS00800
Samsung SSD PM981a MZVLB512HBJQ		HP EliteBook 835 G7 23Y57EA
SK hynix BC511 HFM256GDJTNI-82A0		Dell XPS 13 9310 Core i7 FHD
Micron 2300 512GB MTFDHBA512TDV		Lenovo ThinkPad X1 Nano-20UN002UGE
WDC PC SN530 SDBPNPZ-512G		Average Samsung SSD PM981a MZVLB512HBJQ

AS SSD
23%
-1%
-36%
-95%
-3%
6%
Seq Read
2936
2776
-5%
2553
-13%
1657
-44%
2091
-29%
2228
-24%
2412 ?(1658 - 3078, n=36)
-18%
Seq Write
1457
1461
0%
1406
-4%
642
-56%
1396
-4%
1707
17%
1983 ?(1200 - 2724, n=36)
36%
4K Read
47.96
63.8
33%
48.53
1%
39.02
-19%
49.29
3%
47.12
-2%
53.1 ?(42.1 - 63.1, n=36)
11%
4K Write
110.6
209.4
89%
119.6
8%
100.2
-9%
104.2
-6%
237.4
115%
131.1 ?(96.5 - 196.7, n=36)
19%
4K-64 Read
903
1148
27%
808
-11%
672
-26%
827
-8%
916
1%
1201 ?(585 - 1666, n=36)
33%
4K-64 Write
1829
1623
-11%
1846
1%
546
-70%
1636
-11%
1245
-32%
1726 ?(1311 - 2009, n=36)
-6%
Access Time Read *
0.075
0.032
57%
0.062
17%
0.085
-13%
0.066
12%
0.053
29%
0.05525 ?(0.035 - 0.079, n=36)
26%
Access Time Write *
0.034
0.019
44%
0.031
9%
0.037
-9%
0.365
-974%
0.069
-103%
0.05394 ?(0.018 - 0.151, n=36)
-59%
Score Read
1244
1489
20%
1112
-11%
877
-30%
1086
-13%
1186
-5%
1495 ?(843 - 2013, n=36)
20%
Score Write
2086
1978
-5%
2107
1%
710
-66%
1880
-10%
1654
-21%
2055 ?(1598 - 2377, n=36)
-1%
Score Total
3902
4178
7%
3742
-4%
1994
-49%
3499
-10%
3431
-12%
4303 ?(2927 - 5307, n=36)
10%

* ... smaller is better

AS SSD
DiskSpd
hddimg
Samsung SSD PM981a MZVLB512HBJQ
Sequential Read: 2936MB/s
Sequential Write: 1457MB/s
4K Read: 47.96MB/s
4K Write: 110.6MB/s
4K-64 Read: 903MB/s
4K-64 Write: 1829MB/s
Access Time Read: 0.075ms
Access Time Write: 0.034ms
Score Read: 1244Points
Score Write: 2086Points
Score Total: 3902Points

Continuous load read: DiskSpd Read Loop, Queue Depth 8

24272587274729073067Tooltip
Lenovo ThinkPad X13 G2 AMD 20XH001KGE: Ø3109 (2427.03-3143.84)

Grafikkort

Den integrerade AMD Radeon-grafikenheten, denAMD Radeon RX Vega 7 i det här fallet, drar stor nytta av det RAM-minne som är installerat här - det här grafikkortet har trots allt inget eget minne utan måste förlita sig på systemets RAM-minne. Dubbelkanals LPDDR4X-4266 är praktiskt taget den bästa minneskonfiguration som för närvarande finns tillgänglig för en intern AMD- eller Intel-GPU.

Därför är det knappast förvånande att Lenovo ThinkPad X13 Gen 2 AMD ligger föreX13 Gen 1 AMD när det gäller GPU-prestanda, eftersom Lenovo endast försåg den senare med DDR4-3200-minne. Den maximala grafikprestanda som för närvarande finns tillgänglig i ThinkPad X13 kan dock endast uppnås med Intel: X13 Gen 2 IntelmedIris Xe (96 EU) grafikkretsen ligger klart före i 3DMark-jämförelserna.

3DMark 11 | 3DMark
3DMark 11 - 1280x720 Performance GPU
Average of class Subnotebook
  (968 - 16296, n=55, last 2 years)
9537 Points +76%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6711 Points +24%
Dell XPS 13 9310 Core i7 FHD
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6698 Points +23%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7
5465 Points +1%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5650U
5424 Points
Average AMD Radeon RX Vega 7
  (3353 - 6249, n=58)
5054 Points -7%
Lenovo ThinkPad X13-20UGS00800
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
4690 Points -14%
HP EliteBook 835 G7 23Y57EA
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 PRO 4650U
3511 Points -35%
3DMark
1920x1080 Fire Strike Graphics
Average of class Subnotebook
  (832 - 11887, n=59, last 2 years)
6977 Points +93%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5202 Points +44%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7
4192 Points +16%
Dell XPS 13 9310 Core i7 FHD
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
4170 Points +15%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5650U
3611 Points
Average AMD Radeon RX Vega 7
  (1772 - 4037, n=62)
3189 Points -12%
Lenovo ThinkPad X13-20UGS00800
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
3019 Points -16%
HP EliteBook 835 G7 23Y57EA
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 PRO 4650U
2122 Points -41%
2560x1440 Time Spy Graphics
Average of class Subnotebook
  (804 - 4501, n=60, last 2 years)
2577 Points +143%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1563 Points +47%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7
1260 Points +19%
Dell XPS 13 9310 Core i7 FHD
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1209 Points +14%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Radeon RX Vega 7, AMD Ryzen 5 PRO 5650U
1060 Points
Average AMD Radeon RX Vega 7
  (496 - 1249, n=57)
991 Points -7%
Lenovo ThinkPad X13-20UGS00800
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
949 Points -10%
HP EliteBook 835 G7 23Y57EA
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 PRO 4650U
655 Points -38%
3DMark 11 Performance
5720 poäng
3DMark Fire Strike Score
3338 poäng
3DMark Time Spy Score
1203 poäng
Hjälp

Spelprestanda

Lenovo ThinkPad X13 Gen 2 är i stort sett motsatsen till en bärbar dator för spel. Den kan dock ändå klara av att köra ett spel då och då efter jobbet - förutsatt att respektive spel är ett äldre spel och att detaljnivåerna samt upplösningen inte är inställda på max. ThinkPad X13 Gen 2 Intel med sin snabbare iGPU är bättre lämpad för spel, och den erbjuder dessutom möjligheten att ansluta en extern GPU tack vare Thunderbolt. X13 Gen 2 AMD saknar detta alternativ

The Witcher 3 | Dota 2 Reborn | X-Plane 11.11 | Strange Brigade | GTA V
The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Average of class Subnotebook
  (48 - 187, n=47, last 2 years)
118.2 fps +80%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
97.7 (89min - 107max) fps +49%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
97 fps +48%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs
78.5 fps +20%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7
65.5 (54min - 72max) fps
Average AMD Radeon RX Vega 7
  (25.5 - 105.8, n=50)
58.1 fps -11%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
56.1 (47min - 62max) fps -14%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
35.6 (29min - 41max) fps -46%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Average of class Subnotebook
  (13 - 99.5, n=63, last 2 years)
62.5 fps +32%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7
47.4 (42.8min) fps
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
44.4 (29.2min) fps -6%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
42.5 (24.8min) fps -10%
Average AMD Radeon RX Vega 7
  (23.3 - 58.2, n=58)
41.9 fps -12%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
39.5 (34.4min) fps -17%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs
35.8 (24.2min) fps -24%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
30.4 (28.3min) fps -36%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Average of class Subnotebook
  (20.7 - 97.1, n=56, last 2 years)
34 fps +17%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
32.5 fps +12%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
32.4 fps +11%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7
29.1 fps
Average AMD Radeon RX Vega 7
  (17.4 - 35.7, n=56)
27.2 fps -7%
Lenovo ThinkPad X1 Nano-20UN002UGE
Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs
26.7 fps -8%
Lenovo ThinkPad X13-20UGS00800
AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
25.6 fps -12%
HP EliteBook 835 G7 23Y57EA
AMD Ryzen 5 PRO 4650U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)
22.6 fps -22%
Strange Brigade - 1920x1080 medium AA:medium AF:4
Average of class Subnotebook
  (29.4 - 96.5, n=61, last 2 years)
58.9 fps +88%
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
38.9 (20.9min, 22.4P1 - 198max) fps +24%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
38.5 (8.5min, 10P1 - 315max) fps +23%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7
31.4 (18.4min, 26.8P1 - 72.3max) fps
Average AMD Radeon RX Vega 7
  (13.4 - 36.1, n=41)
27.1 fps -14%
GTA V - 1366x768 Normal/Off AF:4x
Average of class Subnotebook
  (63.4 - 172.6, n=57, last 2 years)
119.1 fps +31%
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
AMD Ryzen 5 PRO 5650U, AMD Radeon RX Vega 7
91.1 (12.4min, 55.6P1 - 245max) fps
Lenovo ThinkPad X13 G2 20WK0024GE
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
89.2 (17min, 50P1 - 163max) fps -2%
Average AMD Radeon RX Vega 7
  (38 - 123, n=33)
78.7 fps -14%
Dell XPS 13 9310 Core i7 FHD
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
76.8 (5.78min, 40P1 - 185max) fps -16%
lågmed.högultra
GTA V (2015) 106 91.1 27.3 11
The Witcher 3 (2015) 65.5 20
Dota 2 Reborn (2015) 113 88.3 51 47.4
X-Plane 11.11 (2018) 45.1 33.5 29.1
Strange Brigade (2018) 82.4 31.4 26.2 22.2

Utsläpp: X13 Gen 2 går svalare och tystare tack vare AMD Ryzen 5000

Bullerutsläpp

Även vid maximal belastning ger fläkten endast en tyst viskning på 31,52 dB(a). Lenovo ThinkPad X13 Gen 2 AMD förblir naturligtvis helt tyst i tomgång. Lyckligtvis gäller detta även för allt elektriskt ljud, eftersom spolviftande inte är uppenbart på den här ThinkPad

Ljudnivå

Låg belastning
24.17 / 24.17 / 24.17 dB(A)
Hög belastning
29.92 / 31.52 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm avstånd)   environment noise: 24.17 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2022.824.926.625.12523.524.823.924.5312022.319.620.2402323.524.6235023.122.921.522.96321.318.220.819.38016.616.417.316.410021.32123.121.112521.119.417.418.2160222221.823.820017.415.314.21625023.42319.120.931517.8171823.340020.117.315.620.35001813.91319.663018.413.811.318.780018.91410.820.4100020.114.312.221.6125017.813.110.519.3160018.813.910.620.6200018.914.310.620.425001813.510.919.1315018.612.911.620400017.312.811.919.5500016.312.51217.8630014.712.211.819.5800013.112.312141000012.311.911.912.61250012.212.61212.41600011.912.711.612.1SPL29.925.924.231.5N1.30.80.61.6median 18median 13.9median 12median 19.5Delta2.12.32.71.631.132.231.632.230.226.231.124.523.925.527.525.424.327.736.730.932.834.833.630.136.633.427.230.830.430.726.934.334.924.923.626.922.3283425.222.624.123.721.520.82621.119.82821.119.319.323.827.626.628.325.724.426.429.119.119.821.820.120.219.822.719.120.320.72221.721.62320.420.7212221.819.522.719.819.520.52221.119.222.518.417.117.220.919.716.721.12119.52123.121.918.322.519.416.118.521.920.316.120.818.413.216.32119.712.920.117.912.817.421.119.612.720.519.613.417.621.419.611.921.321.114.119.524.322.511.123.823.714.92226.323.810.526.525.315.123.128.72611.128.324.413.422.928.224.811.228.323.313.320.329.124.511.62822.31319.526.722.411.726.720.612.517.824.820.71225.616.212.314.220.816.312.321.713.412.412.815.413.412.315.712.912.612.613.512.912.313.413.112.513.113.713.512.313.513.61212.612.913.211.613.133.726.331.837.534.324.937.31.70.81.42.41.90.72.4median 19.6median 13.4median 19.5median 22median 20.7median 12.3median 22.52.82.52.72.82.52.73.6hearing rangehide median Fan NoiseLenovo ThinkPad X13 G2 AMD 20XH001KGELenovo ThinkPad X1 Nano-20UN002UGE

Temperatur

Stresstest (Prime95 + FurMark)
Stresstest (Prime95 + FurMark)

Som vanligt för en bärbar dator på kontoret är Lenovo ThinkPad X13 Gen 2 AMD nästan helt kall när den är inaktiv. Även om detta förändras vid belastning håller sig temperaturen inom gränserna även här. Den högsta avläsningen på 43,7 °C uppmättes på höljets ovansida ovanför fläktutloppet.

Ingen strypning kan observeras i stresstestet. Processorn kan stadigt förbruka cirka 21 watt när CPU och GPU är under full belastning samtidigt.

Hög belastning
 32.7 °C39 °C36 °C
 30.3 °C39 °C43.7 °C
 28.3 °C26.2 °C29.3 °C
Max: 43.7 °C
Medel: 33.8 °C
31.1 °C38 °C33 °C
30 °C36.1 °C31.3 °C
28.9 °C28.6 °C27.6 °C
Max: 38 °C
Medel: 31.6 °C
Strömförsörjning (max.)  29.8 °C | Rumstemperatur 20.2 °C | Fluke 62 Max+
(±) The average temperature for the upper side under maximal load is 33.8 °C / 93 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 43.7 °C / 111 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 38 °C / 100 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.1 °C / 75 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.3 °C / 84.7 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-1 °C / -1.8 F).
Stresstest (överst)
Stresstest (överst)
Stresstest (botten)
Stresstest (botten)

Högtalare

Du kan hitta en beskrivning av de nya högtalarna med uppåtriktade högtalare i vår recension avLenovo ThinkPad X13 Gen 2 Intel

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.139.82528.737.33133.343.34033.2425029.734.8632534.98022.332.810024.133.41252131.916021.935.720019.648.225020.649.631515.753.240015.1625001466.963016.269.280013.366.5100015.263.8125013.468.5160012.869.1200012.165.5250011.563.6315011.663.2400011.963.5500012.363.5630012.464.5800012.659.41000012.558.61250012.355.61600011.749.6SPL25.577.4N0.740.8median 13.3median 63.2Delta2.78.433.935.425.228.228.629.726.73226.928.125.42823.426.824.332.722.327.322.534.622.448.123.458.621.661.119.960.218.959.219.263.618.265.517.666.317.16516.465.116.16515.960.11660.115.762.815.758.315.661.715.75515.650.515.542.315.231.729.174.81.235.3median 17.1median 60.12.48.6hearing rangehide median Pink NoiseLenovo ThinkPad X13 G2 20WK0024GELenovo ThinkPad X13-20UGS00800
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad X13 G2 20WK0024GE audio analysis

(±) | speaker loudness is average but good (77.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.2% lower than median
(±) | linearity of bass is average (7.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(±) | linearity of mids is average (7.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.5% away from median
(+) | highs are linear (2.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18% difference to median)
Compared to same class
» 48% of all tested devices in this class were better, 8% similar, 44% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 34% of all tested devices were better, 8% similar, 58% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad X13-20UGS00800 audio analysis

(±) | speaker loudness is average but good (74.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.7% lower than median
(-) | bass is not linear (17.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(+) | mids are linear (3.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3% away from median
(±) | linearity of highs is average (8.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.1% difference to median)
Compared to same class
» 73% of all tested devices in this class were better, 6% similar, 21% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 61% of all tested devices were better, 7% similar, 33% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Energiförvaltning: Ryzen ger bättre batteritid

Energiförbrukning

Den låga strömförbrukningen hos Lenovo ThinkPad X13 Gen 2 AMD är fortfarande högre än hos Intel-modellen. X13 Gen 2 AMD är dock mycket mer sparsam än X13 Gen 1 AMD.

En 45-watts nätadapter skulle också räcka för den maximala förbrukningen på 45,04 watt; den medföljande 65-watts nätadaptern levererar mer än tillräckligt med energi.

Strömförbrukning
Av/Standbydarklight 0.314 / 0.529 Watt
Låg belastningdarkmidlight 3.82 / 5.74 / 7.65 Watt
Hög belastning midlight 35.79 / 45.04 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
R5 PRO 5650U, Vega 7, Samsung SSD PM981a MZVLB512HBJQ, IPS LED, 1920x1200, 13.3"		Lenovo ThinkPad X13 G2 20WK0024GE
i7-1165G7, Iris Xe G7 96EUs, SK Hynix HFS512 GDE9X081N, IPS, 1920x1200, 13.3"		Lenovo ThinkPad X13-20UGS00800
R7 PRO 4750U, Vega 7, Samsung SSD PM981a MZVLB512HBJQ, IPS LED, 1920x1080, 13.3"		HP EliteBook 835 G7 23Y57EA
R5 PRO 4650U, Vega 6, SK hynix BC511 HFM256GDJTNI-82A0, IPS LED, 1920x1080, 13.3"		Dell XPS 13 9310 Core i7 FHD
i7-1165G7, Iris Xe G7 96EUs, Micron 2300 512GB MTFDHBA512TDV, IPS, 1920x1200, 13.4"		Lenovo ThinkPad X1 Nano-20UN002UGE
i7-1160G7, Iris Xe G7 96EUs, WDC PC SN530 SDBPNPZ-512G, IPS, 2160x1350, 13"		Average AMD Radeon RX Vega 7
 		Average of class Subnotebook

Power Consumption
-5%
-28%
3%
-0%
2%
-19%
-30%
Idle Minimum *
3.82
2.8
27%
6
-57%
3.4
11%
3.9
-2%
3.3
14%
4.66 ?(2.6 - 8.4, n=52)
-22%
4.43 ?(1.3 - 9.3, n=60, last 2 years)
-16%
Idle Average *
5.74
5.9
-3%
8.9
-55%
6.4
-11%
5.9
-3%
5.7
1%
7.56 ?(4.8 - 10.7, n=52)
-32%
7.58 ?(2.5 - 16, n=60, last 2 years)
-32%
Idle Maximum *
7.65
6.8
11%
11.3
-48%
8.2
-7%
6.3
18%
9.1
-19%
8.95 ?(5.6 - 13.8, n=52)
-17%
9.43 ?(4.1 - 16.8, n=60, last 2 years)
-23%
Load Average *
35.79
41.5
-16%
34.2
4%
29.3
18%
39.7
-11%
29.6
17%
38.7 ?(21.6 - 54.9, n=53)
-8%
45.8 ?(19.1 - 78.6, n=58, last 2 years)
-28%
Witcher 3 ultra *
35.6
34.2
4%
34.8
2%
27.7
22%
Load Maximum *
45.04
68.2
-51%
37.2
17%
43
5%
47.5
-5%
55.1
-22%
51.9 ?(31 - 73.4, n=52)
-15%
68.7 ?(24.2 - 121.2, n=60, last 2 years)
-53%

* ... smaller is better

Energy consumption during our The Witcher 3 test / stress test

34.639.644.6Tooltip
Lenovo ThinkPad X13 G2 AMD 20XH001KGE; Witcher 3 ultra: Ø35.6 (34.6-40)
Lenovo ThinkPad X13 G2 AMD 20XH001KGE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø36.5 (35.5-47.3)

Batteriets livslängd

Laddningstid: 106 minuter
Laddningstid: 106 minuter

Det interna batteriet i Lenovo ThinkPad X13 G2 AMD har fått ökad kapacitet; i stället för 48 Wh som i föregångaren har det nu en kapacitet på 54,7 Wh. Som ett resultat av detta ökar batteritiden något jämfört med den ThinkPad X13 Gen 1 AMD, medanLenovo X13 Gen 2 Intel fortsätter att ligga marginellt före den Ryzen-variant som recenserats här. Överlag levererar X13 Gen 2 AMD ett bra resultat med över nio timmar i vårt Wi-Fi-test (150 cd/m²). Även vid maximal ljusstyrka på skärmen klarar den fortfarande över åtta timmar i vårt Wi-Fi-test

Batteritid
WiFi Websurfing (Edge 95)
9tim 16min
WiFi Websurfing max. Brightness (Edge 95)
8tim 28min
Big Buck Bunny H.264 1080p
13tim 34min
Hög belastning (maximal ljusstyrka)
1tim 26min
Lenovo ThinkPad X13 G2 AMD 20XH001KGE
R5 PRO 5650U, Vega 7, 54.7 Wh		Lenovo ThinkPad X13 G2 20WK0024GE
i7-1165G7, Iris Xe G7 96EUs, 54.7 Wh		Lenovo ThinkPad X13-20UGS00800
R7 PRO 4750U, Vega 7, 48 Wh		HP EliteBook 835 G7 23Y57EA
R5 PRO 4650U, Vega 6, 53 Wh		Dell XPS 13 9310 Core i7 FHD
i7-1165G7, Iris Xe G7 96EUs, 52 Wh		Lenovo ThinkPad X1 Nano-20UN002UGE
i7-1160G7, Iris Xe G7 96EUs, 48.2 Wh		Average of class Subnotebook

Battery Runtime
5%
-13%
6%
71%
12%
26%
H.264
814
902
11%
495
-39%
800
-2%
925
14%
917 ?(527 - 1298, n=26, last 2 years)
13%
WiFi v1.3
556
597
7%
522
-6%
648
17%
657
18%
596
7%
729 ?(389 - 1585, n=61, last 2 years)
31%
Load
86
83
-3%
92
7%
89
3%
193
124%
98
14%
116.5 ?(57 - 197, n=47, last 2 years)
35%

För

+ kompakt hölje av hög kvalitet
+ mycket hög CPU-prestanda
+ matt 16:10-skärm med hög färgprecision
+ omfattande anslutningsmöjligheter
+ lång batteritid
+ går att få med LTE eller 5G
+ sval och tyst

Emot

- tangentbordet är sämre än på föregångaren
- ingen SD-kortläsare
- fastlött RAM-minne
- har ej Thunderbolt 4

Bedömning: Lenovo ThinkPad X13 Gen 2 är bättre med en röd CPU i stället för en blå

I granskning: Lenovo ThinkPad X13 Gen 2 AMD, tillhandahålls av
I granskning: Lenovo ThinkPad X13 Gen 2 AMD, tillhandahålls av

I vår bedömning av Lenovo ThinkPad X13 Gen 2 med Intel-processor sa vi att det fortfarande fanns en del outnyttjad potential. Detta kan också sägas om ThinkPad X13 Gen 2 AMD, men den utnyttjar lite mer av sin potential än Intel-versionen.

Anledningen till detta är naturligtvis AMD-processorn: Ryzen 5000-serien, eller i det här fallet Cezanne-U-serien, erbjuder helt enkelt många fördelar jämfört med Tiger Lake-U-serien - särskilt i form av mycket bättre CPU-prestanda samt lägre värmeutveckling och minskat fläktljud. Du måste dock också hantera nackdelar i gengäld - något lägre batteritid, inget Thunderbolt 3 och lägre GPU-prestanda - som enligt vår mening inte uppväger fördelarna på något sätt.

Över 90 med AMD: Den snabbare Ryzen-processorn gör den redan bra Lenovo ThinkPad X13 Gen 2 ännu bättre.

På så sätt kan ThinkPad X13 Gen 2 AMD förbättra det redan mycket goda resultatet för Intel-varianten ytterligare genom att kombinera fördelarna med den här bärbara plattformen för bärbara datorer med en snabbare AMD-processor. Affärsanvändare, studenter och andra frekventa resenärer får en mångsidig, välutrustad och högkvalitativ subnotebook med endast några få svagheter.

Förutom den traditionella konkurrensen i form av HP EliteBooks och Dell Latitudes måste Lenovo ThinkPad X13 Gen 2 AMD bevisa sig särskilt mot följande.Dell XPS 13 9310 - den senare har en ännu mer kompakt design med en ljusare skärm, men det finns kompromisser när det gäller funktioner i gengäld, och det finns inget AMD-alternativ. Det ser likadant ut när det gäller den interna premiumkonkurrensen - denLenovo ThinkPad X1 Nano är också mer kompakt, har en bättre skärm och är betydligt lättare. I gengäld har den knappt några portar, det finns inga AMD-processorer och priset är högre.

Pris och tillgänglighet

Lenovo erbjuder just nu en stor rabatt på sina ThinkPad X13 Gen 2 AMD-modeller (upp till 54 % rabatt). I skrivande stund är priserna i -tillverkarens nätbutik från cirka 899 dollar (AMD Ryzen 5 Pro 5650U, 8 GB RAM, 256 GB lagringsutrymme).

Lenovo ThinkPad X13 G2 AMD 20XH001KGE - 11/17/2021 v7 (old)
Benjamin Herzig

Design
86 / 98 → 87%
Tangentbord
88%
Mus
92%
Anslutningar
72 / 75 → 96%
Vikt
70 / 20-75 → 90%
Batteri
88%
Skärm
90%
Spelprestanda
65 / 78 → 83%
Programprestanda
93 / 85 → 100%
Temperatur
92%
Ljudnivå
98%
Audio
75 / 91 → 82%
Camera
38 / 85 → 45%
Medel
80%
91%
Subnotebook - Vägt medel

More articles related to this device

Lenovo ThinkPad X13 G2 AMD 20XH001KGE (ThinkPad X13 Serie)
Test
•
Lenovo ThinkPad X13 2-in-1 Gen...
|
Test
•
Recension av Lenovo ThinkPad X...
|
Test
•
Test: Lenovo ThinkPad X13 G2 -...

Price comparison

Please share our article, every link counts!
Mail Logo
> Bärbara datorer, laptops - tester och nyheter > Tester > Recension av Lenovo ThinkPad X13 Gen 2: AMD Ryzen Pro gör en kompakt kontorslaptop snabb
Benjamin Herzig, 2021-11-24 (Update: 2021-11-26)
