Recension av den bärbara datorn Lenovo ThinkPad X1 Carbon G9: ePrivacy-skärmen är fortfarande problematisk

BIOS-uppdateringar stabiliserar prestandan.

I våra första tester hade ThinkPad X1 Carbon G9 fortfarande problem med prestanda. Efter flera BIOS-uppdateringar är prestandan nu stabil, men också lägre. ePrivacy-skärmen som finns som tillval är också fortfarande problematisk.

Vi har redan testat den nuvarande nionde generationen ThinkPad X1 Carbon, men prestandan hos de tidiga modellerna var inte konsekvent under hög belastning. Lenovo har under tiden släppt flera BIOS-uppdateringar, varför vi vill kontrollera prestandautvecklingen ännu en gång. Samtidigt tar vi fortfarande en titt på den valfria ePrivacy-skärmen med integrerat integritetsfilter.

För all annan information (hölje, utrustning och inmatningsenheter) finns våra tidigare recensioner av ThinkPad X1 Carbon G9.

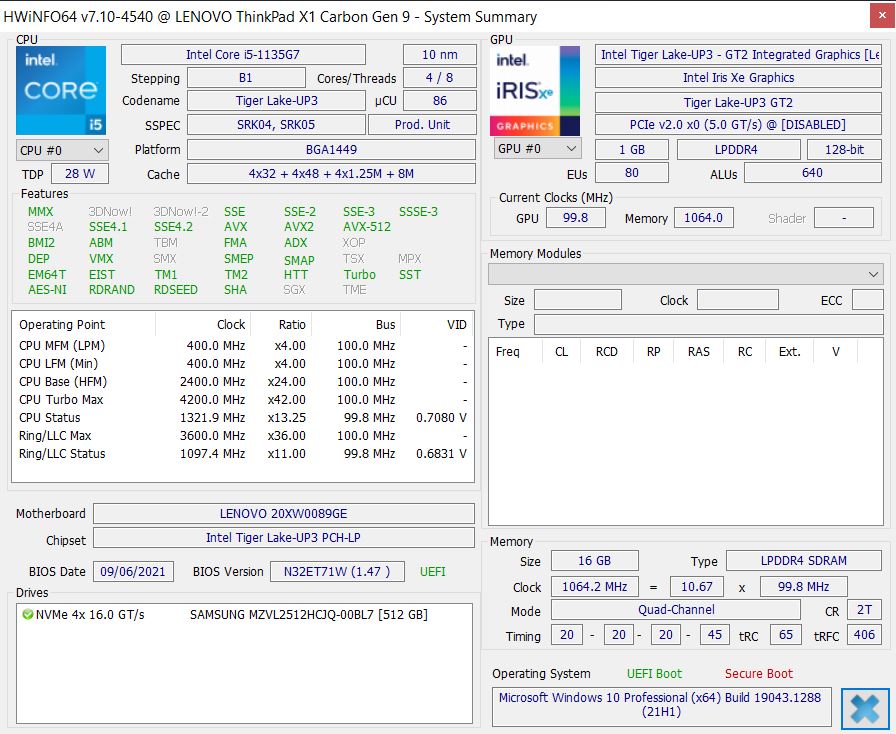

Lenovo ThinkPad X1 Carbon G9-20XW0089GE (ThinkPad X1 Carbon G9 Serie)
Processor
Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 34 W PL2 / Short Burst, 27 W PL1 / Sustained, Tiger Lake-UP3
Minne
16 GB
, LPDDR4x-4266, Dual-Channel, onboard
Skärm
14.00 tum 16:10, 1920 x 1200 pixlar 162 PPI, LEB14201N, IPS, glansig: nej, 60 Hz
Moderkort
Intel Tiger Lake-UP3 PCH-LP
Hårddisk
Samsung PM9A1 MZVL2512HCJQ, 512 GB
, 435 GB ledigt
Ljudkort
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Anslutningar
2 USB 3.0, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5 mm , 1 Fingeravtrycksläsare
Nätverk
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1
Storlek
höjd x bredd x djup (i mm) 14.9 x 315 x 221.6
Batteri
57 Wh Litiumpolymer
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Webbkamera: 720p
Primary Camera: 0.9 MPix
Övrigt
Högtalare: 2x 2 W, 2x 0.8 W, Dolby Atmos, Tangentbord: 6 row Chiclet w/1.5mm travel,, Tangentbordsbelysning: ja, 65 W USB C Charger, 36 Månader Garanti
Vikt
1.247 kg, Strömförsörjning: 322 g
Pris
2100 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Price
87.4 %
v7 (old)
11/2021
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
i5-1135G7, Iris Xe G7 80EUs
1.2 kg14.9 mm14.00"1920x1200
89.8 %
v7 (old)
08/2021
HP EliteBook 840 Aero G8 3E4Q6AA
i7-1185G7, Iris Xe G7 96EUs
1.2 kg17.9 mm14.00"1920x1080
90.3 %
v7 (old)
05/2021
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
i7-1165G7, Iris Xe G7 96EUs
1.2 kg14.9 mm14.00"3840x2400
89.1 %
v7 (old)
SCHENKER Vision 14
i7-1165G7, Iris Xe G7 96EUs
1 kg15.6 mm14.00"2880x1800
87.1 %
v7 (old)
09/2021
Asus ExpertBook B9 B9400CE-KC0166R
i7-1165G7, Iris Xe G7 96EUs
995 g14.9 mm14.00"1920x1080

Size comparison

323.6 mm 214.7 mm 17.9 mm 1.2 kg320 mm 203 mm 14.9 mm 995 g315 mm 221.6 mm 14.9 mm 1.2 kg315 mm 221.6 mm 14.9 mm 1.2 kg308.8 mm 215 mm 15.6 mm 1 kg297 mm 210 mm 1 mm 5.7 g

Display - ThinkPad med inbyggt integritetsfilter

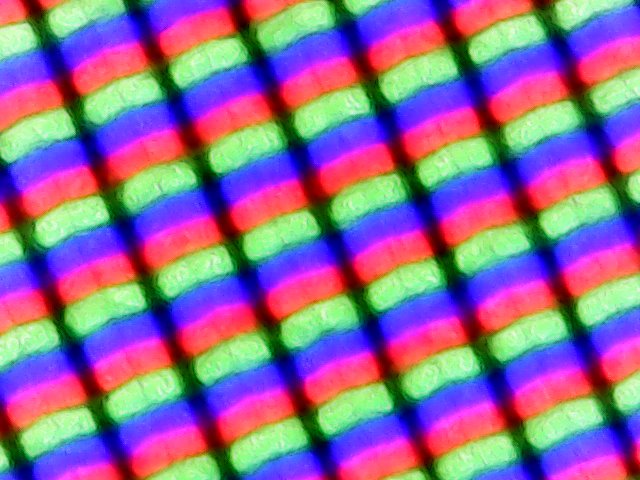

Arrangemang av subpixlar
Arrangemang av subpixlar

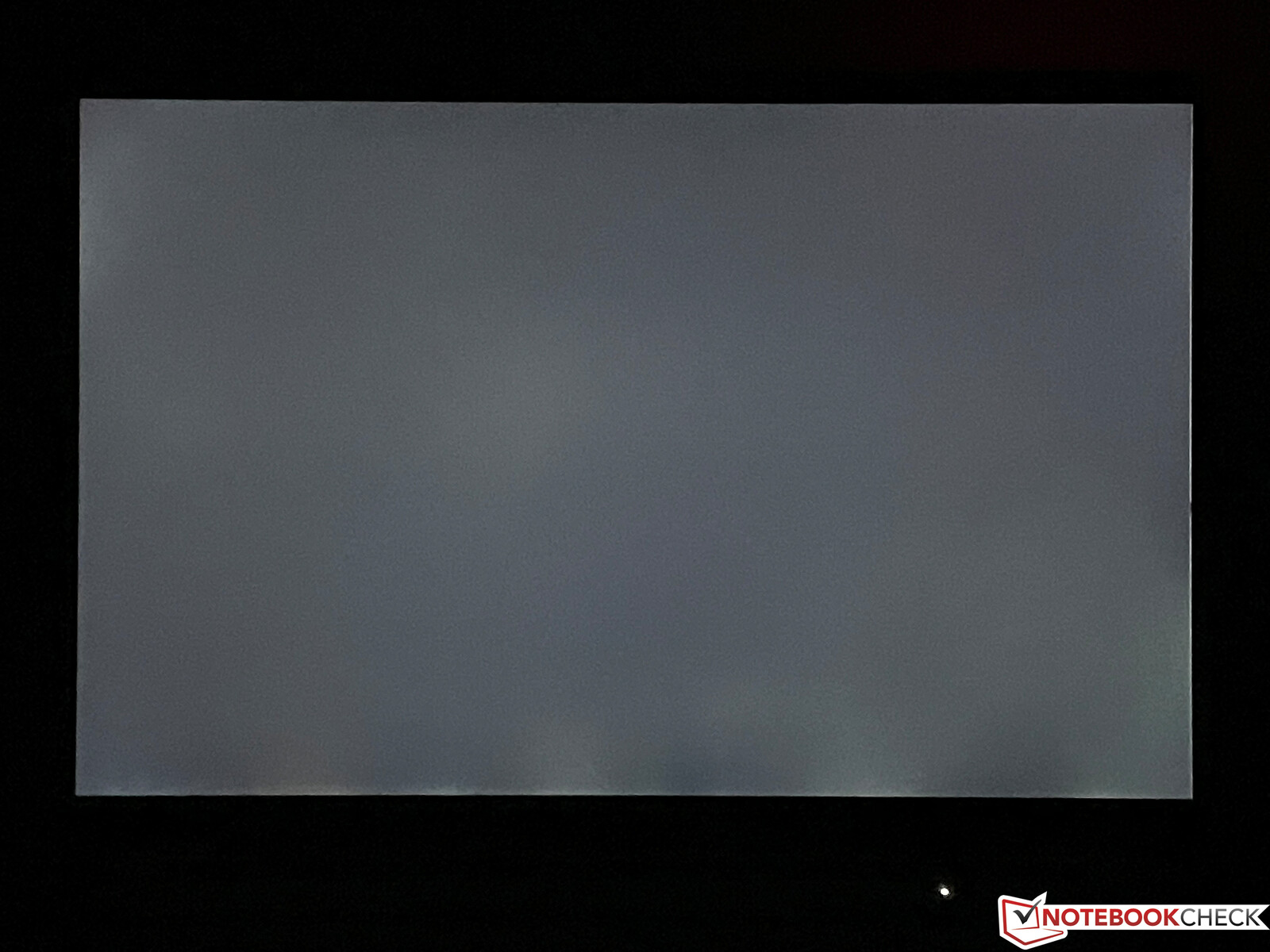

Små halos i botten av skärmen
Små halos i botten av skärmen

Den valfria ePrivacy-skärmen i vår testenhet har en upplösning på 1 920 x 1 200 pixlar (16:10) på 14-tumsdiagonalen. Lenovo anger en ljusstyrka på 500 nits, vilket vi kan bekräfta enligt vår analys (CalMAN & X-Rite i1 Pro 2) och den genomsnittliga ljusstyrkan är till och med lite mer än 540 cd/m². Samtidigt är svartvärdet mycket lågt (0,24), vilket leder till ett mycket bra kontrastförhållande på 2400:1.

Det subjektiva bildintrycket i praktiken är dock mycket sämre än vad dessa värden antyder. På grund av ePrivacy-filtret finns det bara en mycket liten sweet spot när man tittar centralt på skärmen (även när ePrivacy är inaktiverat). Även vid små avvikelser minskar kontrast och ljusstyrka synligt och det verkar nästan som om ett grått dis täcker bilden. Betraktningsvinklarna är också mycket sämre än för vanliga IPS-skärmar.

Skillnaden mellan aktiverat och inaktiverat integritetsfilter (Fn + D) är faktiskt inte heller särskilt stor. Lenovo trixar lite här genom att minska ljusstyrkan till ~160 cd/m² som standard när filtret är aktiverat. Du kan sedan öka ljusstyrkan igen, men effekten av sekretessfiltret är då praktiskt taget borta. Realistiskt sett ger det bara önskad effekt vid låga ljusstyrkor, vilket kan vara problematiskt särskilt när man är på språng.

Vi kunde inte konstatera PWM-flimmer (även med ePrivacy-filtret aktiverat), men svarstiderna är ganska långsamma och du kan också se spökbilder under drift, t.ex. när du flyttar muspekaren.

518
cd/m²
525
cd/m²
490
cd/m²
573
cd/m²
576
cd/m²
543
cd/m²
573
cd/m²
556
cd/m²
517
cd/m²
Distribution av ljusstyrkan
LEB14201N tested with X-Rite i1Pro 2
Max: 576 cd/m² (Nits) Medel: 541.2 cd/m² Minimum: 6.6 cd/m²
Distribution av ljusstyrkan: 85 %
Mitt på batteriet: 577 cd/m²
Kontrast: 2400:1 (Svärta: 0.24 cd/m²)
ΔE Color 2.2 | 0.5-29.43 Ø4.92, calibrated: 1.4
ΔE Greyscale 2.8 | 0.5-98 Ø5.2
70% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.6% sRGB (Argyll 2.2.0 3D)
69.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
LEB14201N, IPS, 1920x1200, 14"
HP EliteBook 840 Aero G8 3E4Q6AA
AU Optronics AUO068B, IPS, 1920x1080, 14"
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
MNE007A1-2, IPS LED, 3840x2400, 14"
SCHENKER Vision 14
CSOT T3_MNE007ZA1_1, IPS, 2880x1800, 14"
Asus ExpertBook B9 B9400CE-KC0166R
B140HAN06.B, IPS, 1920x1080, 14"
Display
-1%
22%
6%
1%
Display P3 Coverage
69.3
68
-2%
95.2
37%
75.4
9%
69.8
1%
sRGB Coverage
98.6
97.6
-1%
99.8
1%
99
0%
98.8
0%
AdobeRGB 1998 Coverage
70
69.3
-1%
89.2
27%
76.4
9%
71.3
2%
Response Times
10%
11%
38%
-3%
Response Time Grey 50% / Grey 80% *
52.4 ?(24.8, 27.6)
48 ?(23.6, 24.4)
8%
46 ?(23, 23)
12%
32.8 ?(15.6, 17.2)
37%
60 ?(28.8, 31.2)
-15%
Response Time Black / White *
32.8 ?(16.4, 16.4)
28.8 ?(14, 14.8)
12%
30 ?(15, 15)
9%
20.4 ?(10, 10.4)
38%
29.6 ?(14, 15.6)
10%
PWM Frequency
Screen
-27%
9%
-22%
-5%
Brightness middle
576
466.4
-19%
497
-14%
390
-32%
437
-24%
Brightness
541
426
-21%
488
-10%
387
-28%
421
-22%
Brightness Distribution
85
84
-1%
87
2%
94
11%
87
2%
Black Level *
0.24
0.32
-33%
0.35
-46%
0.29
-21%
0.29
-21%
Contrast
2400
1458
-39%
1420
-41%
1345
-44%
1507
-37%
Colorchecker dE 2000 *
2.2
2.84
-29%
1.2
45%
2.8
-27%
1.8
18%
Colorchecker dE 2000 max. *
4.3
4.73
-10%
2.1
51%
4.4
-2%
3.5
19%
Colorchecker dE 2000 calibrated *
1.4
2.27
-62%
0.9
36%
1.8
-29%
1.4
-0%
Greyscale dE 2000 *
2.8
3.7
-32%
1.3
54%
3.5
-25%
2.3
18%
Gamma
2.23 99%
2.13 103%
2.16 102%
2.24 98%
2.18 101%
CCT
6792 96%
6886 94%
6690 97%
6174 105%
6782 96%
Color Space (Percent of AdobeRGB 1998)
79.37
76.4
65.4
Color Space (Percent of sRGB)
99.78
99
98.7
Total Average (Program / Settings)
-6% / -16%
14% / 12%
7% / -7%
-2% / -4%

* ... smaller is better

CalMAN Gråskala
CalMAN Gråskala

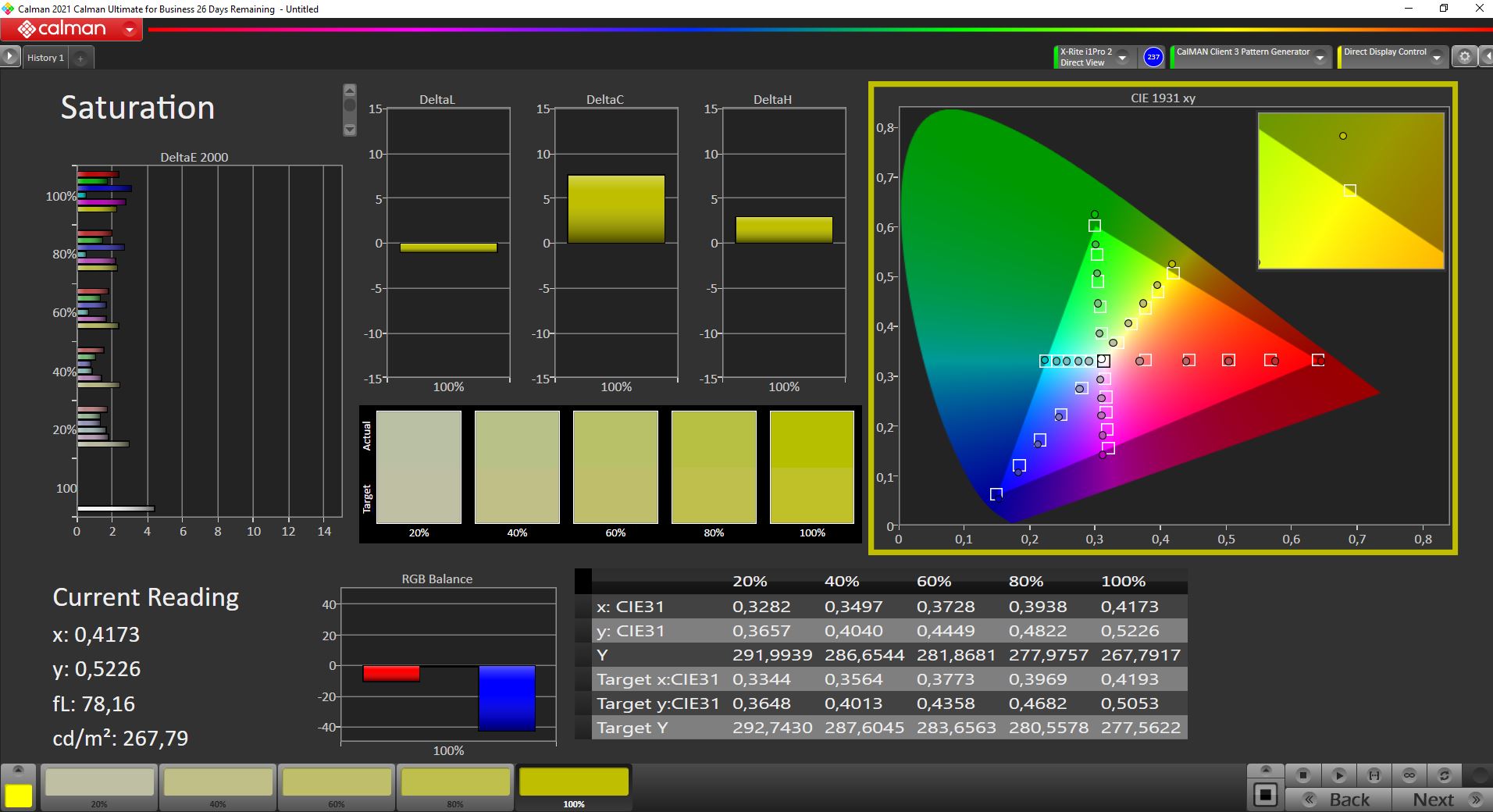

CalMAN-mättnad
CalMAN-mättnad

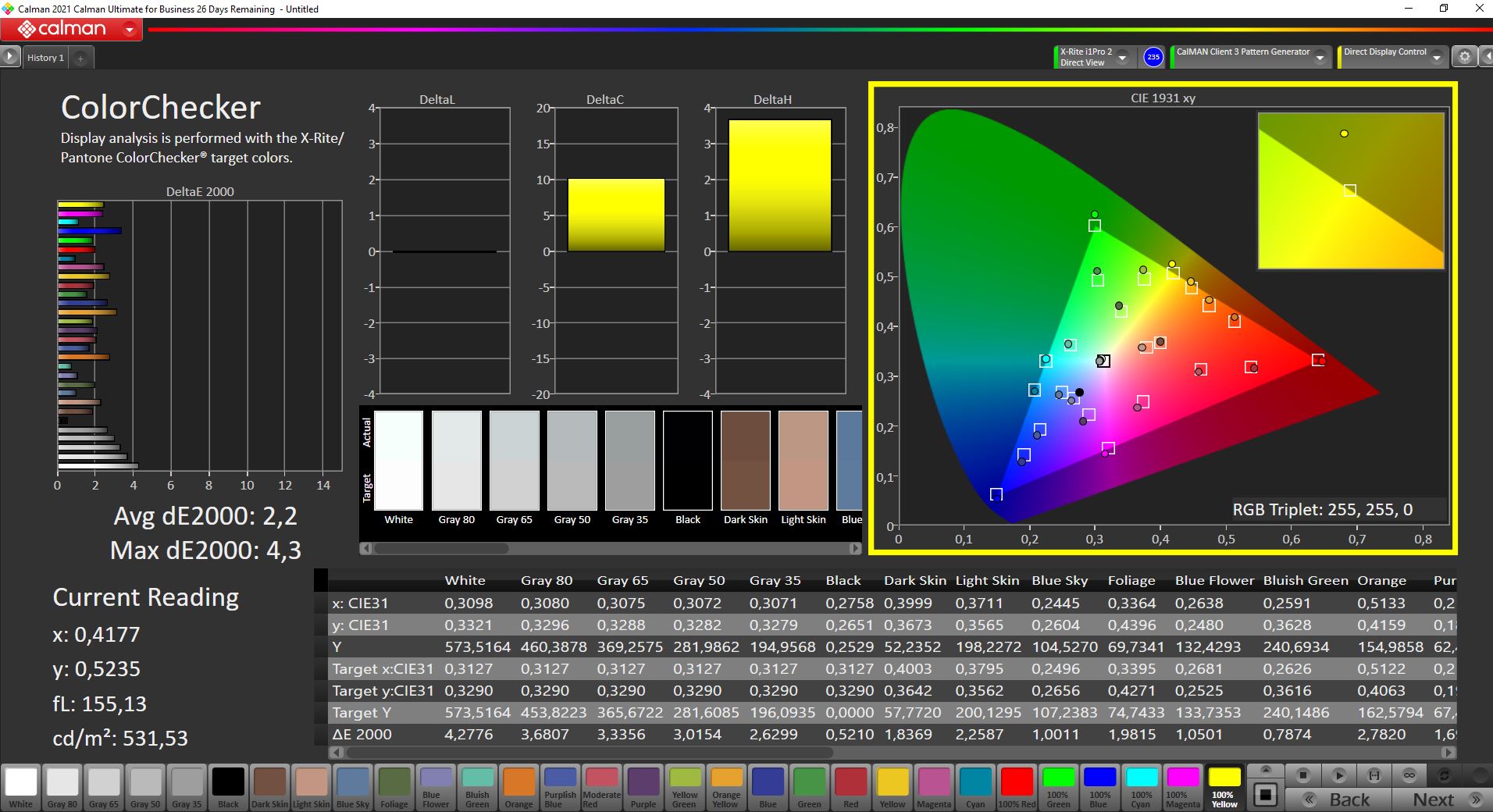

CalMAN ColorChecker
CalMAN ColorChecker

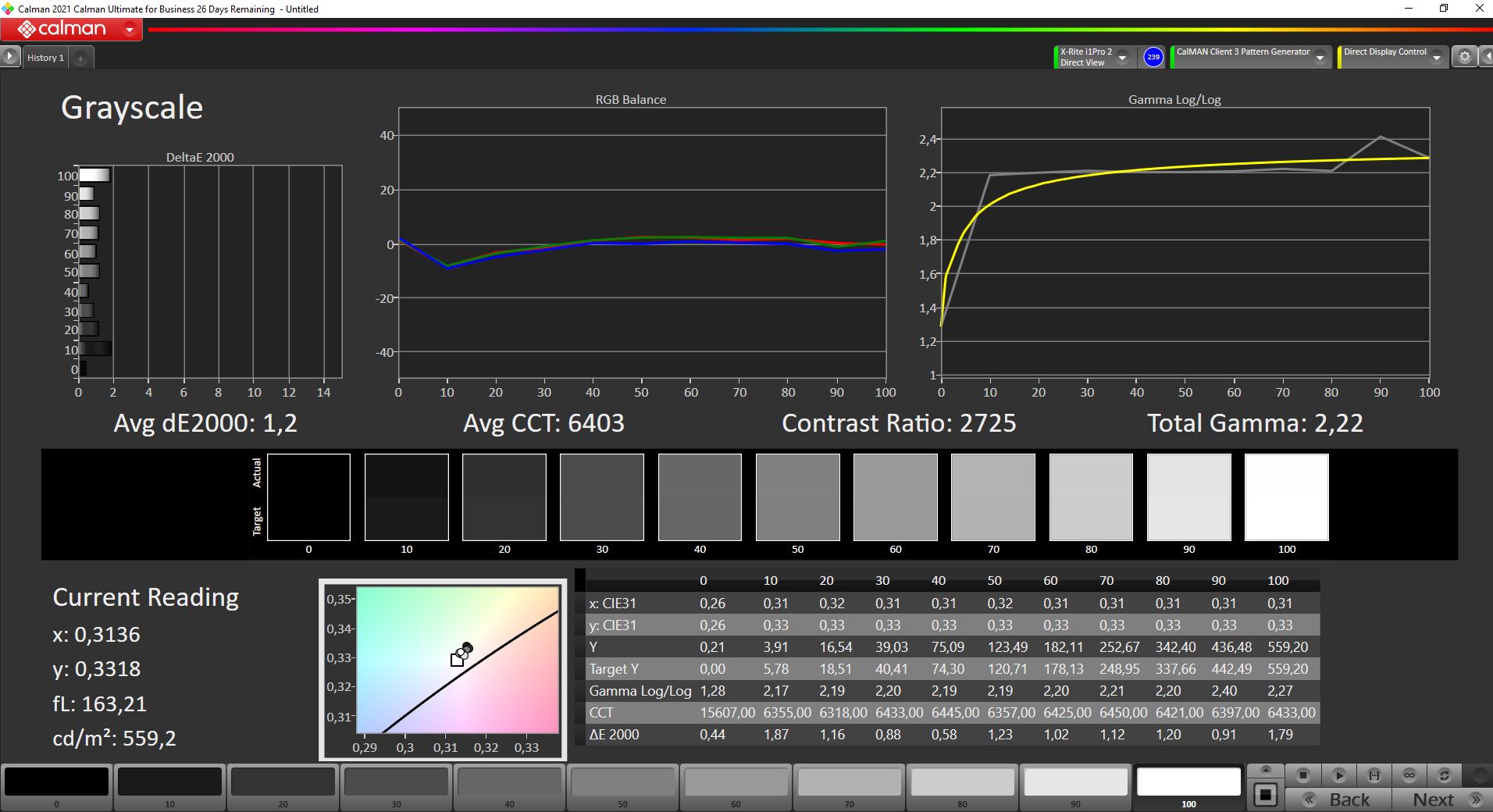

CalMAN Gråskala (kalibrerad)
CalMAN Gråskala (kalibrerad)

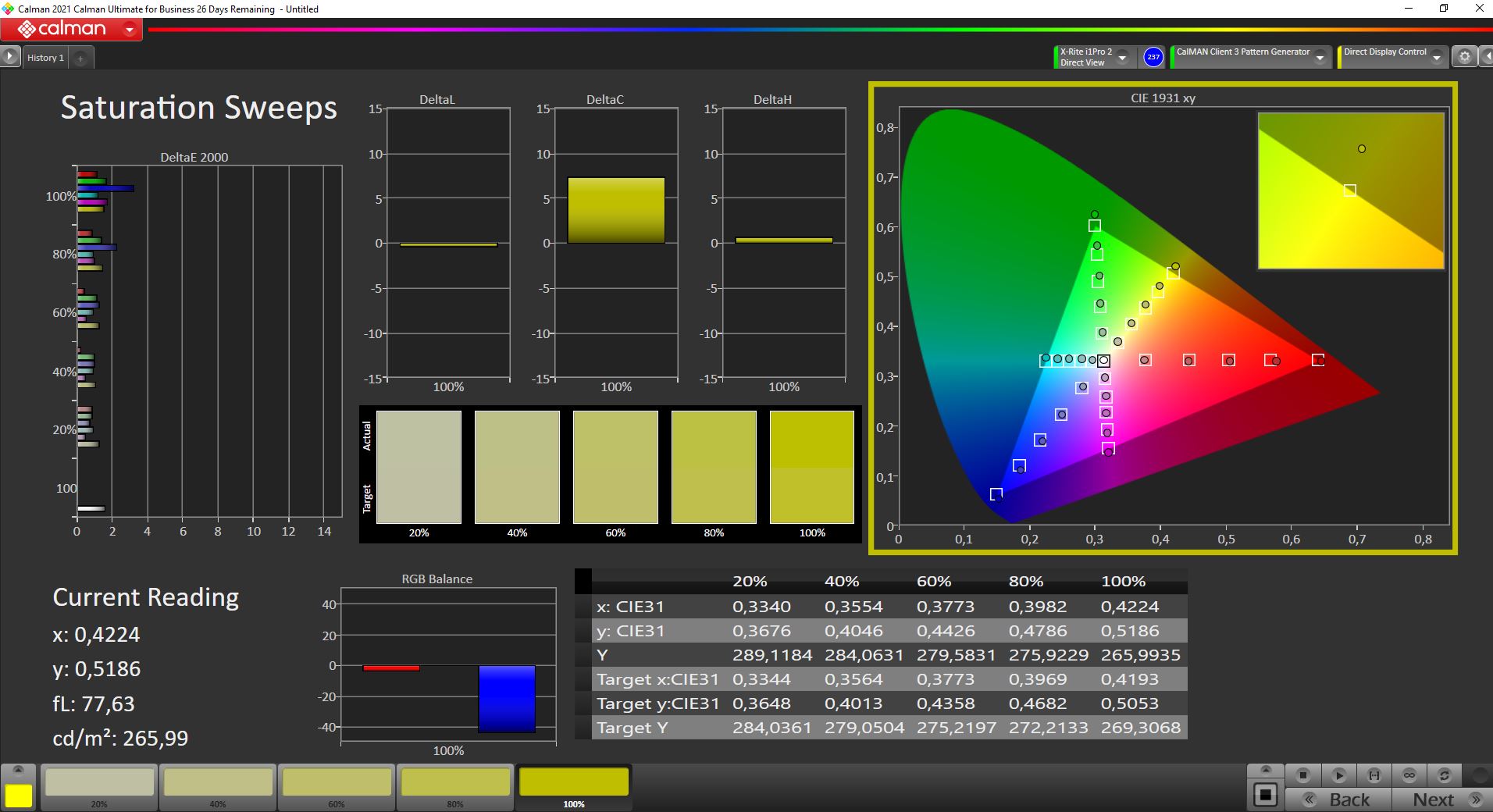

CalMAN Saturation (kalibrerad)
CalMAN Saturation (kalibrerad)
CalMAN ColorChecker (kalibrerad)
CalMAN ColorChecker (kalibrerad)

Displayen är redan från början ganska bra kalibrerad och mätningarna försämras inte ens med det aktiverade ePrivacy-filtret. Gråskalan uppvisar visserligen ett lätt färgutslag (grönt/blått), men detta syns knappast i praktiken. Med vår kalibrering (profilen finns för gratis nedladdning ovan) kan vi förbättra värdena ytterligare lite och tack vare den nästan fullständiga sRGB-täckningen lämpar sig panelen även för redigering av bilder/videor

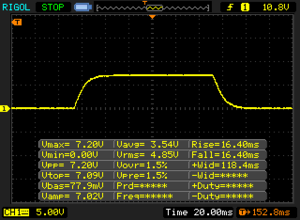

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

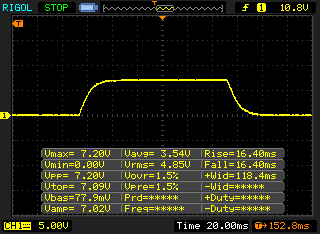

       Response Time Black to White
32.8 ms ... rise ↗ and fall ↘ combined↗ 16.4 ms rise
↘ 16.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 87 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

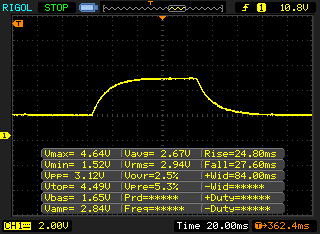

       Response Time 50% Grey to 80% Grey
52.4 ms ... rise ↗ and fall ↘ combined↗ 24.8 ms rise
↘ 27.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 88 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

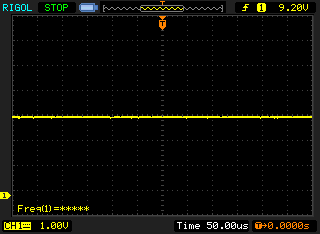

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

Trots den matta ytan och den höga maximala ljusstyrkan begränsar sekretessfiltret tydligt användbarheten utomhus. När det gäller stabiliteten i betraktningsvinkeln ser du också snabbt en minskning av ljusstyrka och kontrast.

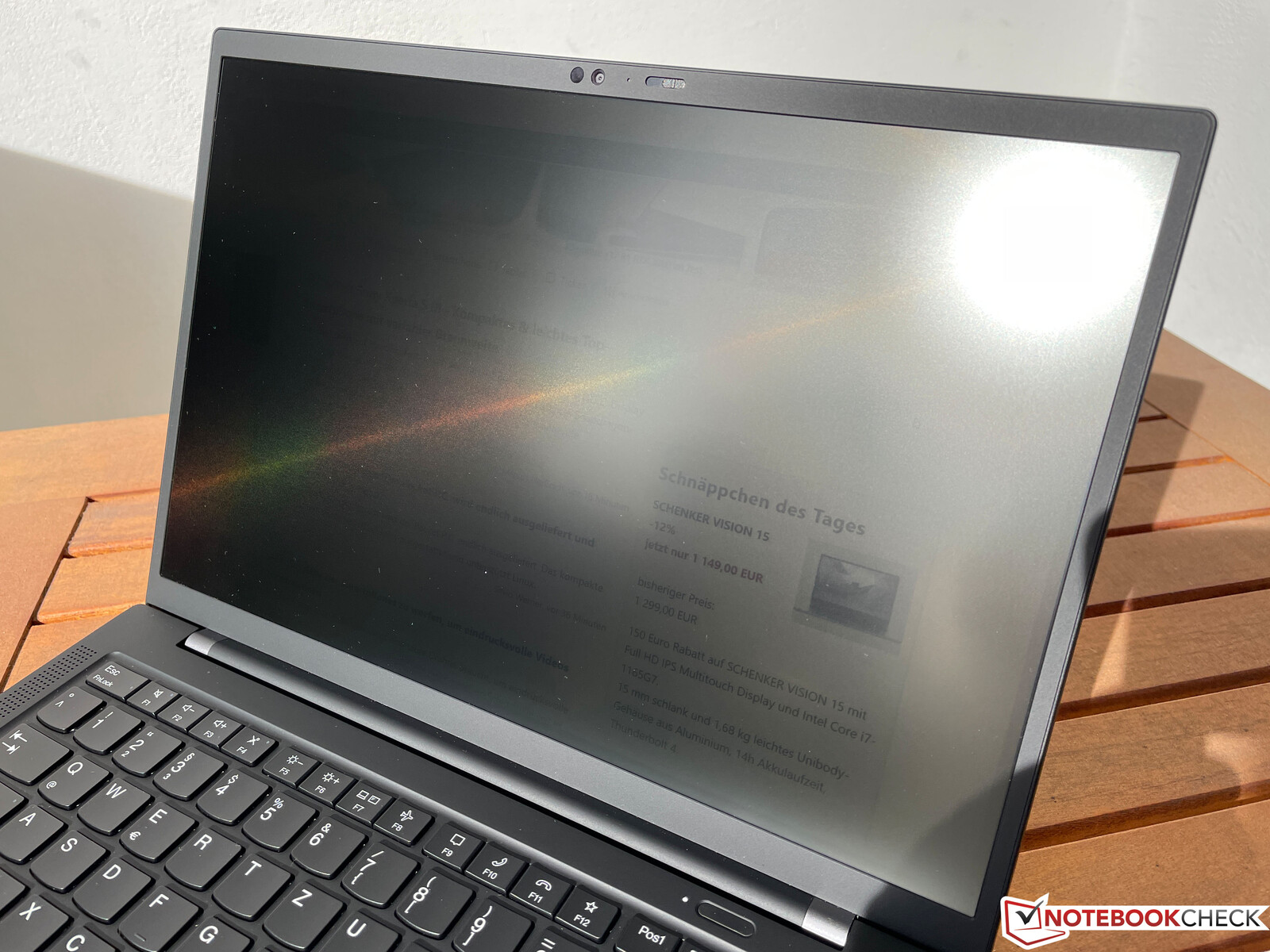

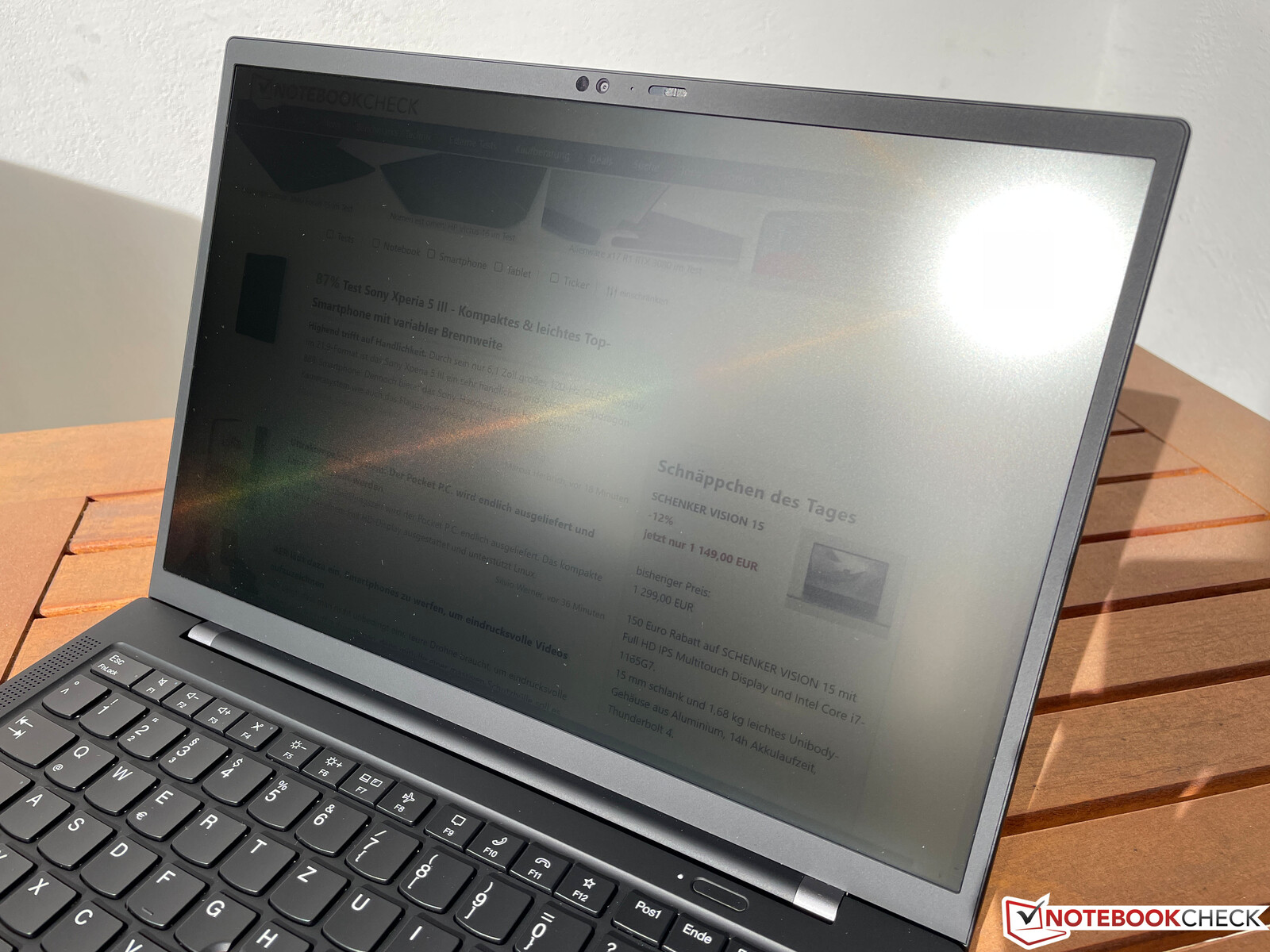

I solen (sekretessfilter avaktiverat)
I solen (sekretessfilter avaktiverat)
I solen (sekretessfilter avaktiverat)
I solen (sekretessfilter avaktiverat)

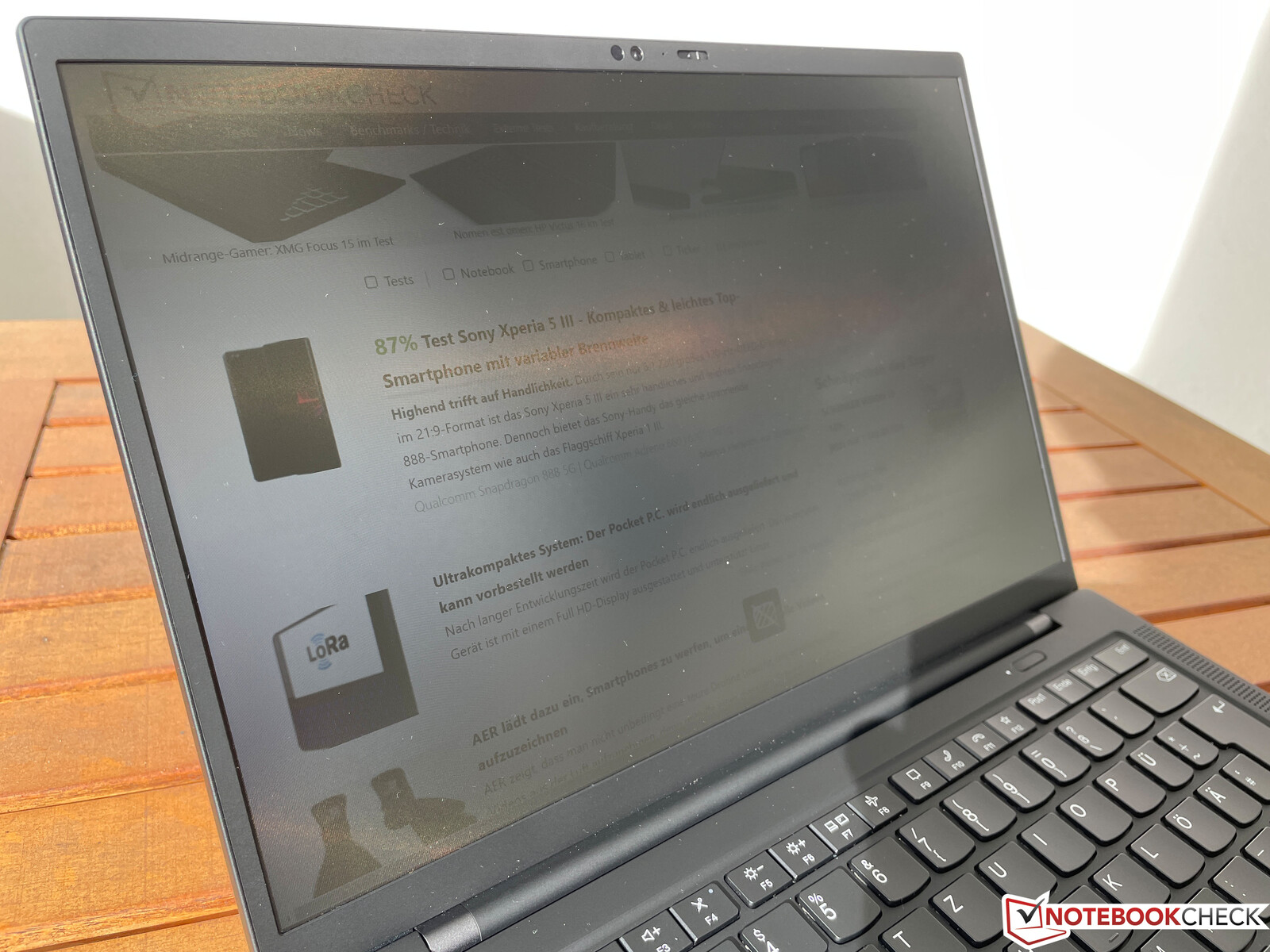

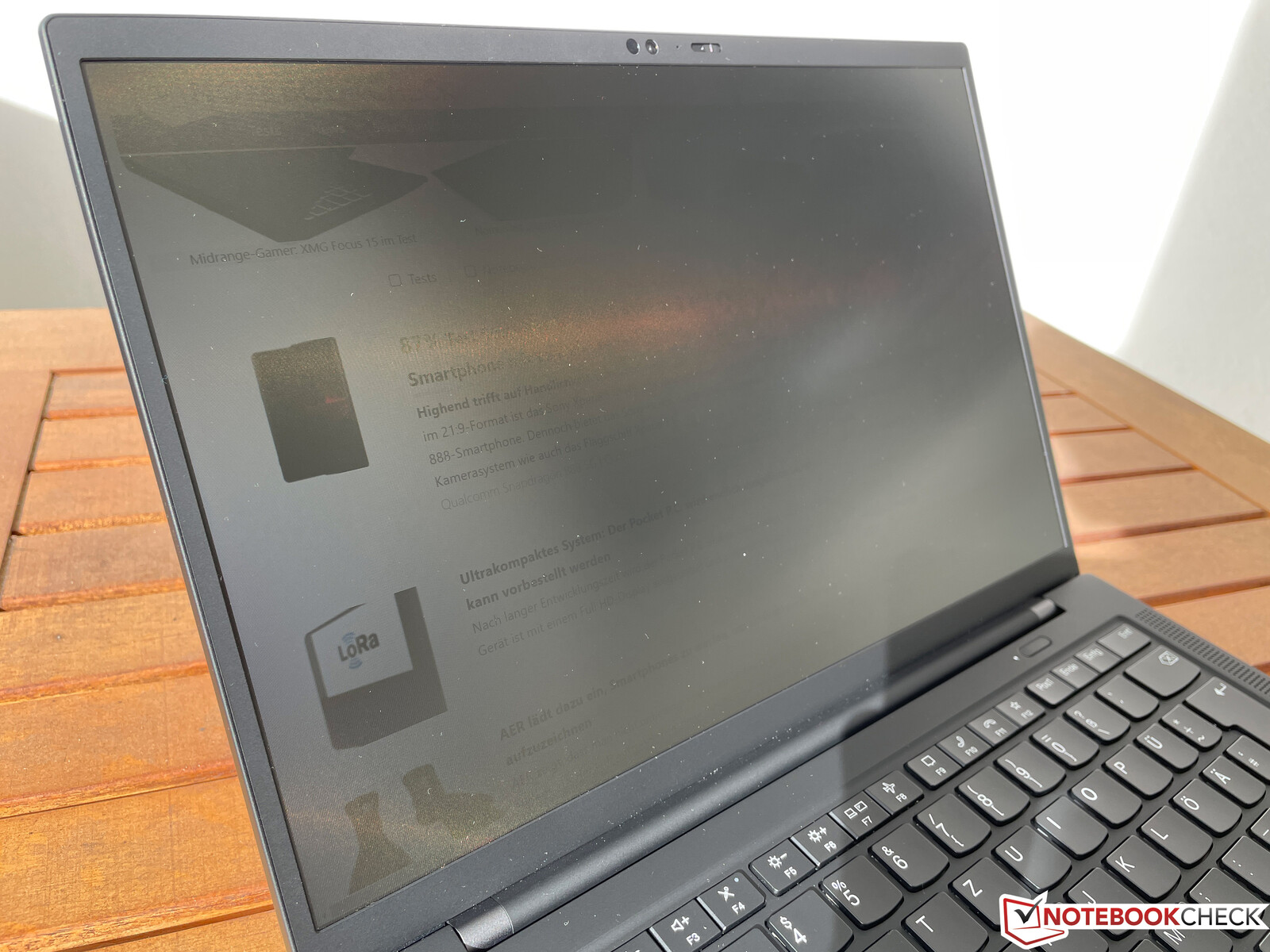

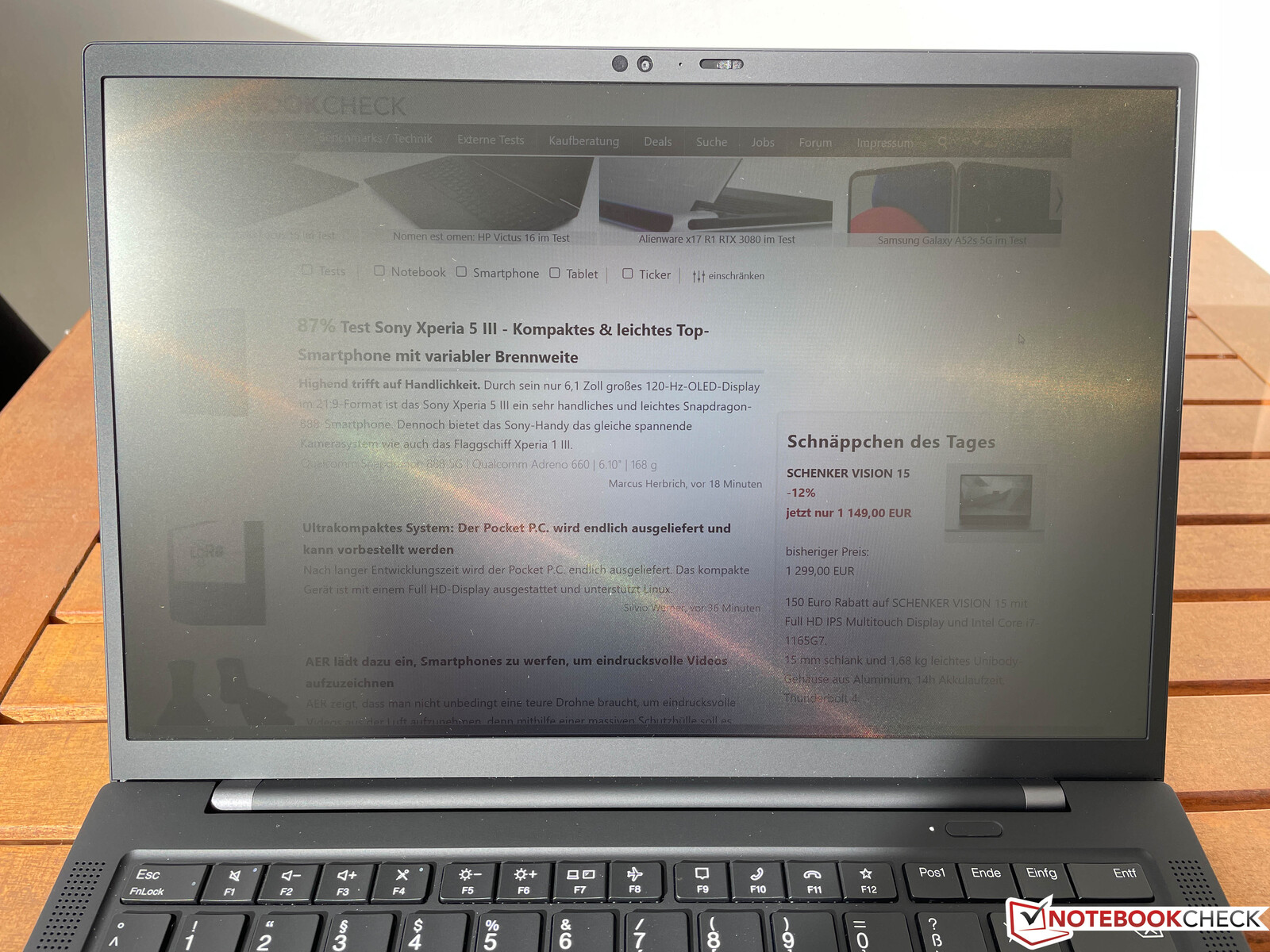

I solen (sekretessfilter aktiverat)
I solen (sekretessfilter aktiverat)
I solen (sekretessfilter aktiverat)
I solen (sekretessfilter aktiverat)
I solen (sekretessfilter aktiverat)
I solen (sekretessfilter aktiverat)

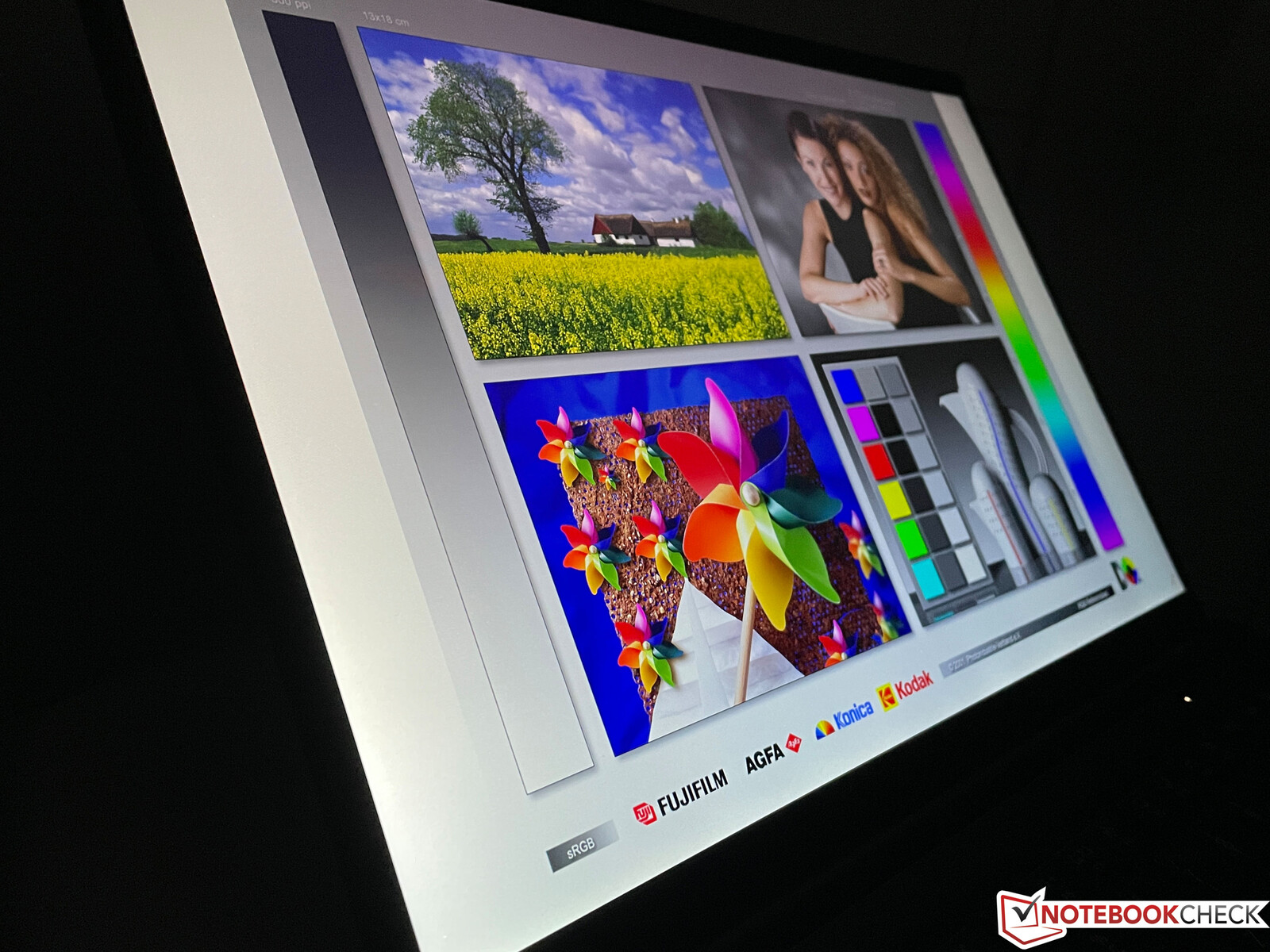

Stabilitet i betraktningsvinkeln
Stabilitet i betraktningsvinkeln

Prestanda och utsläpp

Processorprestanda i den nuvarande ThinkPad X1 Carbon G9 är mycket bra och den Core i5-1135G7 kan också hålla jämna steg med de faktiskt snabbare i7-modellerna tack vare de höga TDP-gränserna. Efter några minuter stabiliseras strömförbrukningen på cirka 27 watt, ett bra resultat.

CPU-prestandan var dock bra redan innan dess, men vi kunde se kraftiga prestandaförluster vid kombinerad belastning. Lenovo har nu fått grepp om detta med BIOS-uppdateringarna, vilket också syns tydligt i den Witcher 3 diagrammet nedan. Lenovo har dock gjort det ganska lätt för sig och begränsar prestandan till 15 watt under kombinerad CPU/iGPU-belastning ganska snabbt.

Vi märkte också att fläktkurvan nu arbetar mer aggressivt. Även under vardagliga uppgifter kan man ofta höra ett tyst väsande och under mer belastning (även vid spel) når kylningen mycket snabbt upp till maximala 40,9 dB(A), vilket gör den betydligt högre än den första testenheten med Core i7.

Cinebench R15 Multi Endurance test

050100150200250300350400450500550600650700750800850900Tooltip
Lenovo ThinkPad X1 Carbon G9-20XW0089GE Intel Core i5-1135G7: Ø763 (710.29-890.99)
HP EliteBook 840 Aero G8 3E4Q6AA Intel Core i7-1185G7: Ø718 (665.15-755.62)
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7: Ø834 (823.11-884.45)
SCHENKER Vision 14 Intel Core i7-1165G7: Ø886 (876-943.04)
Asus ExpertBook B9 B9400CE-KC0166R Intel Core i7-1165G7: Ø837 (823.72-913.58)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Average of class Subnotebook

83.3 pt
SCHENKER Vision 14
Intel Core i7-1165G7
58.6 pt
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
55 pt
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
53.5 pt
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
49.7 pt
HP EliteBook 840 Aero G8 3E4Q6AA -2!
Intel Core i7-1185G7
47.6 pt
Average Intel Core i5-1135G7

47.1 pt
Cinebench R23 / Multi Core
Average of class Subnotebook
  (1555 - 21812, n=61, last 2 years)
11706 Points +117%
SCHENKER Vision 14
Intel Core i7-1165G7
5878 Points +9%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
5671 Points +5%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
5402 Points
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
4744 (3563.96min - 4744max) Points -12%
Average Intel Core i5-1135G7
  (2786 - 6136, n=55)
4724 Points -13%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
4611 Points -15%
Cinebench R23 / Single Core
Average of class Subnotebook
  (358 - 2001, n=61, last 2 years)
1669 Points +23%
SCHENKER Vision 14
Intel Core i7-1165G7
1515 Points +12%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
1478 Points +9%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
1449 Points +7%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
1387 Points +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
1354 Points
Average Intel Core i5-1135G7
  (1062 - 1373, n=53)
1322 Points -2%
Cinebench R20 / CPU (Multi Core)
Average of class Subnotebook
  (579 - 8541, n=57, last 2 years)
4548 Points +124%
SCHENKER Vision 14
Intel Core i7-1165G7
2235 Points +10%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
2059 Points +2%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
2033 Points 0%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
2026 Points
Average Intel Core i5-1135G7
  (979 - 2382, n=62)
1827 Points -10%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
1823 Points -10%
Cinebench R20 / CPU (Single Core)
Average of class Subnotebook
  (128 - 790, n=57, last 2 years)
636 Points +22%
SCHENKER Vision 14
Intel Core i7-1165G7
580 Points +11%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
566 Points +8%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
563 Points +8%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
522 Points
Average Intel Core i5-1135G7
  (375 - 527, n=62)
507 Points -3%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
506 Points -3%
Cinebench R15 / CPU Multi 64Bit
Average of class Subnotebook
  (327 - 3345, n=63, last 2 years)
1987 Points +123%
SCHENKER Vision 14
Intel Core i7-1165G7
943 (876min - 943.04max) Points +6%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
913 (828.19min - 893.66max) Points +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
891 (710.29min - 890.99max) Points
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
884 (823.11min - 884.45max) Points -1%
Average Intel Core i5-1135G7
  (431 - 941, n=65)
792 Points -11%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
756 (665.15min - 755.62max) Points -15%
Cinebench R15 / CPU Single 64Bit
Average of class Subnotebook
  (72.4 - 307, n=58, last 2 years)
249 Points +25%
SCHENKER Vision 14
Intel Core i7-1165G7
225 Points +13%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
219 Points +10%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
217 Points +9%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
209 Points +5%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
199 Points
Average Intel Core i5-1135G7
  (141.4 - 205, n=61)
194.4 Points -2%
Blender / v2.79 BMW27 CPU
Average Intel Core i5-1135G7
  (499 - 1044, n=60)
662 Seconds * -7%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
641 Seconds * -4%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
618 Seconds *
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
601 Seconds * +3%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
566 Seconds * +8%
SCHENKER Vision 14
Intel Core i7-1165G7
525 Seconds * +15%
Average of class Subnotebook
  (159 - 2271, n=61, last 2 years)
359 Seconds * +42%
7-Zip 18.03 / 7z b 4
Average of class Subnotebook
  (11775 - 77867, n=54, last 2 years)
48778 MIPS +119%
SCHENKER Vision 14
Intel Core i7-1165G7
25894 MIPS +16%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
23950 MIPS +8%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
23657 MIPS +6%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
22257 MIPS
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
21683 MIPS -3%
Average Intel Core i5-1135G7
  (14745 - 24873, n=62)
21407 MIPS -4%
7-Zip 18.03 / 7z b 4 -mmt1
Average of class Subnotebook
  (2669 - 6403, n=56, last 2 years)
5486 MIPS +20%
SCHENKER Vision 14
Intel Core i7-1165G7
5408 MIPS +18%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
5237 MIPS +14%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
5192 MIPS +13%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
5069 MIPS +11%
Average Intel Core i5-1135G7
  (3924 - 4921, n=62)
4674 MIPS +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
4586 MIPS
Geekbench 5.5 / Multi-Core
Average of class Subnotebook
  (2557 - 14728, n=57, last 2 years)
10113 Points +93%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
5773 Points +10%
SCHENKER Vision 14
Intel Core i7-1165G7
5441 Points +4%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
5241 Points
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
5105 Points -3%
Average Intel Core i5-1135G7
  (3475 - 5472, n=58)
4663 Points -11%
Geekbench 5.5 / Single-Core
Average of class Subnotebook
  (621 - 2350, n=57, last 2 years)
1783 Points +32%
SCHENKER Vision 14
Intel Core i7-1165G7
1579 Points +17%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
1529 Points +13%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
1412 Points +4%
Average Intel Core i5-1135G7
  (1147 - 1428, n=58)
1373 Points +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
1352 Points
HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Subnotebook
  (0.97 - 25.1, n=56, last 2 years)
13 fps +115%
SCHENKER Vision 14
Intel Core i7-1165G7
7.46 fps +24%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
6.87 fps +14%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
6.21 fps +3%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
6.15 fps +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
6.04 fps
Average Intel Core i5-1135G7
  (3.57 - 7.6, n=57)
5.93 fps -2%
LibreOffice / 20 Documents To PDF
Average of class Subnotebook
  (38.5 - 220, n=56, last 2 years)
54.7 s * -8%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
53.8 s * -7%
Average Intel Core i5-1135G7
  (44.2 - 62.9, n=60)
52.8 s * -5%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
50.5 s *
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
49.3 s * +2%
SCHENKER Vision 14
Intel Core i7-1165G7
45.6 s * +10%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
43.8 s * +13%
R Benchmark 2.5 / Overall mean
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7
0.649 sec *
Average Intel Core i5-1135G7
  (0.619 - 0.727, n=59)
0.642 sec * +1%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7
0.599 sec * +8%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7
0.593 sec * +9%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7
0.583 sec * +10%
SCHENKER Vision 14
Intel Core i7-1165G7
0.569 sec * +12%
Average of class Subnotebook
  (0.413 - 1.456, n=56, last 2 years)
0.518 sec * +20%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
891 Points
Cinebench R15 OpenGL 64Bit
98.9 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
199 Points
Cinebench R20 CPU (Multi Core)
2026 Points
Cinebench R20 CPU (Single Core)
522 Points
Cinebench R23 Single Core
1354 Points
Cinebench R23 Multi Core
5402 Points
Hjälp
Performance Rating
Average of class Subnotebook

97.4 pt
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
64.7 pt
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
64.2 pt
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
63.4 pt
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
61.8 pt
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
55.5 pt
Average Intel Core i5-1135G7

54 pt
AIDA64 / FP32 Ray-Trace
Average of class Subnotebook
  (1141 - 32888, n=56, last 2 years)
12858 KRay/s +81%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
7596 KRay/s +7%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
7106 KRay/s 0%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
7096 KRay/s
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
7049 KRay/s -1%
Average Intel Core i5-1135G7
  (4313 - 7952, n=45)
6445 KRay/s -9%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
6158 KRay/s -13%
AIDA64 / FPU Julia
Average of class Subnotebook
  (6838 - 123315, n=56, last 2 years)
61107 Points +108%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
31224 Points +7%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
29521 Points +1%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
29359 Points 0%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
29309 Points
Average Intel Core i5-1135G7
  (19402 - 32283, n=45)
26975 Points -8%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
25544 Points -13%
AIDA64 / CPU SHA3
Average of class Subnotebook
  (444 - 5287, n=56, last 2 years)
2891 MB/s +47%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
2124 MB/s +8%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
1987 MB/s +1%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
1971 MB/s 0%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
1963 MB/s
Average Intel Core i5-1135G7
  (1316 - 2172, n=45)
1832 MB/s -7%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
1724 MB/s -12%
AIDA64 / CPU Queen
Average of class Subnotebook
  (11579 - 115682, n=56, last 2 years)
80395 Points +73%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
52445 Points +13%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
50522 Points +8%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
50082 Points +7%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
49846 Points +7%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
46605 Points
Average Intel Core i5-1135G7
  (39000 - 46951, n=45)
45742 Points -2%
AIDA64 / FPU SinJulia
Average of class Subnotebook
  (744 - 18418, n=56, last 2 years)
8218 Points +85%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
4795 Points +8%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
4793 Points +8%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
4721 Points +6%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
4442 Points
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
4255 Points -4%
Average Intel Core i5-1135G7
  (3497 - 4445, n=45)
4218 Points -5%
AIDA64 / FPU Mandel
Average of class Subnotebook
  (3366 - 65433, n=56, last 2 years)
31746 Points +81%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
18719 Points +7%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
17897 Points +2%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
17803 Points +1%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
17565 Points
Average Intel Core i5-1135G7
  (12569 - 19635, n=45)
16302 Points -7%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
16249 Points -7%
AIDA64 / CPU AES
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
73297 MB/s +8%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
69697 MB/s +3%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
67969 MB/s
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
67843 MB/s 0%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
62377 MB/s -8%
Average of class Subnotebook
  (638 - 161430, n=56, last 2 years)
60483 MB/s -11%
Average Intel Core i5-1135G7
  (28988 - 67977, n=45)
58975 MB/s -13%
AIDA64 / CPU ZLib
Average of class Subnotebook
  (166.9 - 1379, n=56, last 2 years)
745 MB/s +105%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
392 MB/s +8%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
364 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
357 MB/s -2%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
349 MB/s -4%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
315 MB/s -13%
Average Intel Core i5-1135G7
  (265 - 373, n=51)
289 MB/s -21%
AIDA64 / FP64 Ray-Trace
Average of class Subnotebook
  (610 - 17495, n=56, last 2 years)
6677 KRay/s +78%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
4036 KRay/s +7%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
3836 KRay/s +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
3756 KRay/s
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
3719 KRay/s -1%
Average Intel Core i5-1135G7
  (2226 - 4291, n=45)
3424 KRay/s -9%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
3339 KRay/s -11%
AIDA64 / CPU PhotoWorxx
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
43824 MPixel/s +23%
Average of class Subnotebook
  (6569 - 53954, n=56, last 2 years)
39998 MPixel/s +12%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
37026 MPixel/s +4%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
35671 MPixel/s
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
30567 MPixel/s -14%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
26159 MPixel/s -27%
Average Intel Core i5-1135G7
  (9004 - 45366, n=45)
23085 MPixel/s -35%
PCMark 10 / Score
Average of class Subnotebook
  (4993 - 7788, n=49, last 2 years)
6427 Points +31%
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
5104 Points +4%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
5038 Points +3%
Asus ExpertBook B9 B9400CE-KC0166R
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
5008 Points +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ
4892 Points
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
4879 Points 0%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (4026 - 4952, n=53)
4613 Points -6%
PCMark 10 / Essentials
Average of class Subnotebook
  (9476 - 11331, n=49, last 2 years)
10486 Points +6%
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
10368 Points +5%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
10127 Points +3%
Asus ExpertBook B9 B9400CE-KC0166R
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
10086 Points +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ
9856 Points
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
9397 Points -5%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (8149 - 9917, n=53)
9310 Points -6%
PCMark 10 / Productivity
Average of class Subnotebook
  (6440 - 10623, n=49, last 2 years)
8627 Points +33%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
6856 Points +6%
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
6807 Points +5%
Asus ExpertBook B9 B9400CE-KC0166R
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
6774 Points +5%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
6606 Points +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ
6465 Points
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (5040 - 6619, n=53)
6218 Points -4%
PCMark 10 / Digital Content Creation
Average of class Subnotebook
  (5305 - 10983, n=49, last 2 years)
8048 Points +61%
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
5114 Points +3%
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
5077 Points +2%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
4998 Points 0%
Asus ExpertBook B9 B9400CE-KC0166R
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
4989 Points 0%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ
4989 Points
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3548 - 5255, n=53)
4612 Points -8%
AIDA64 / Memory Copy
Average of class Subnotebook
  (14916 - 108756, n=56, last 2 years)
70251 MB/s +24%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
59988 MB/s +6%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
58355 MB/s +3%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
56748 MB/s
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
41477 MB/s -27%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
41286 MB/s -27%
Average Intel Core i5-1135G7
  (17443 - 63889, n=45)
36640 MB/s -35%
AIDA64 / Memory Read
Average of class Subnotebook
  (15948 - 122210, n=56, last 2 years)
67358 MB/s +12%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
59914 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
59682 MB/s 0%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
53556 MB/s -11%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
48380 MB/s -19%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
46922 MB/s -22%
Average Intel Core i5-1135G7
  (19716 - 63705, n=45)
40897 MB/s -32%
AIDA64 / Memory Write
Average of class Subnotebook
  (16513 - 112837, n=56, last 2 years)
73251 MB/s +19%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
63791 MB/s +4%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
61605 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
61439 MB/s 0%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
46409 MB/s -25%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
44549 MB/s -28%
Average Intel Core i5-1135G7
  (18722 - 66778, n=45)
41742 MB/s -32%
AIDA64 / Memory Latency
Average of class Subnotebook
  (7.4 - 187.8, n=56, last 2 years)
107.2 ns * -37%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Core i7-1165G7, Iris Xe G7 96EUs
91.9 ns * -17%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Core i7-1185G7, Iris Xe G7 96EUs
82.6 ns * -5%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Core i7-1165G7, Iris Xe G7 96EUs
81.8 ns * -4%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Core i5-1135G7, Iris Xe G7 80EUs
78.5 ns *
Average Intel Core i5-1135G7
  (68.3 - 107, n=51)
72.5 ns * +8%
SCHENKER Vision 14
Intel Core i7-1165G7, Iris Xe G7 96EUs
71.4 ns * +9%

* ... smaller is better

DPC-fördröjningar

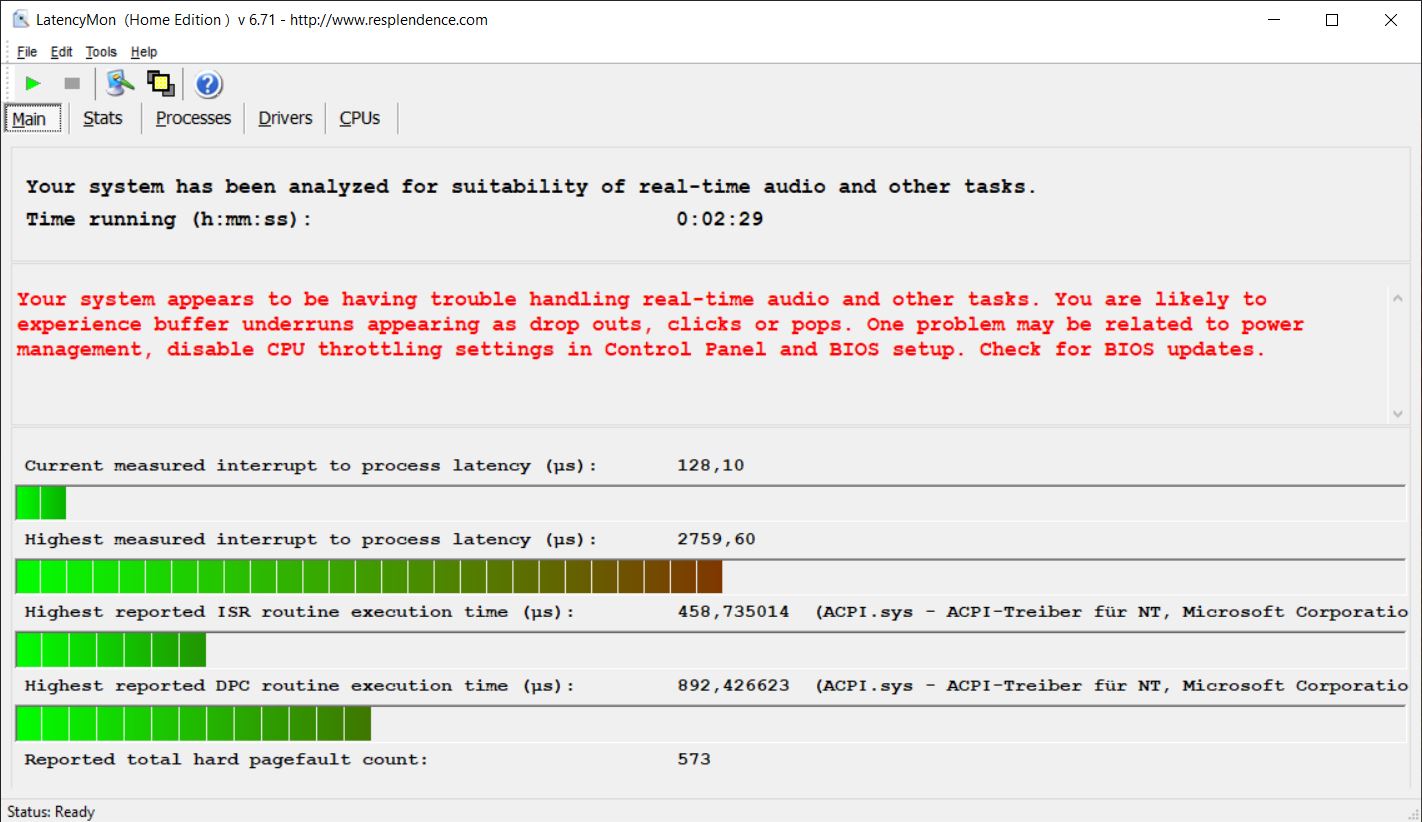

Översikt över LatencyMon
Översikt över LatencyMon

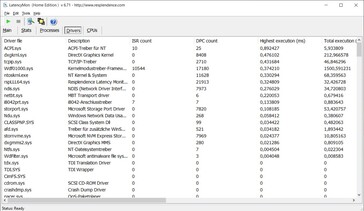

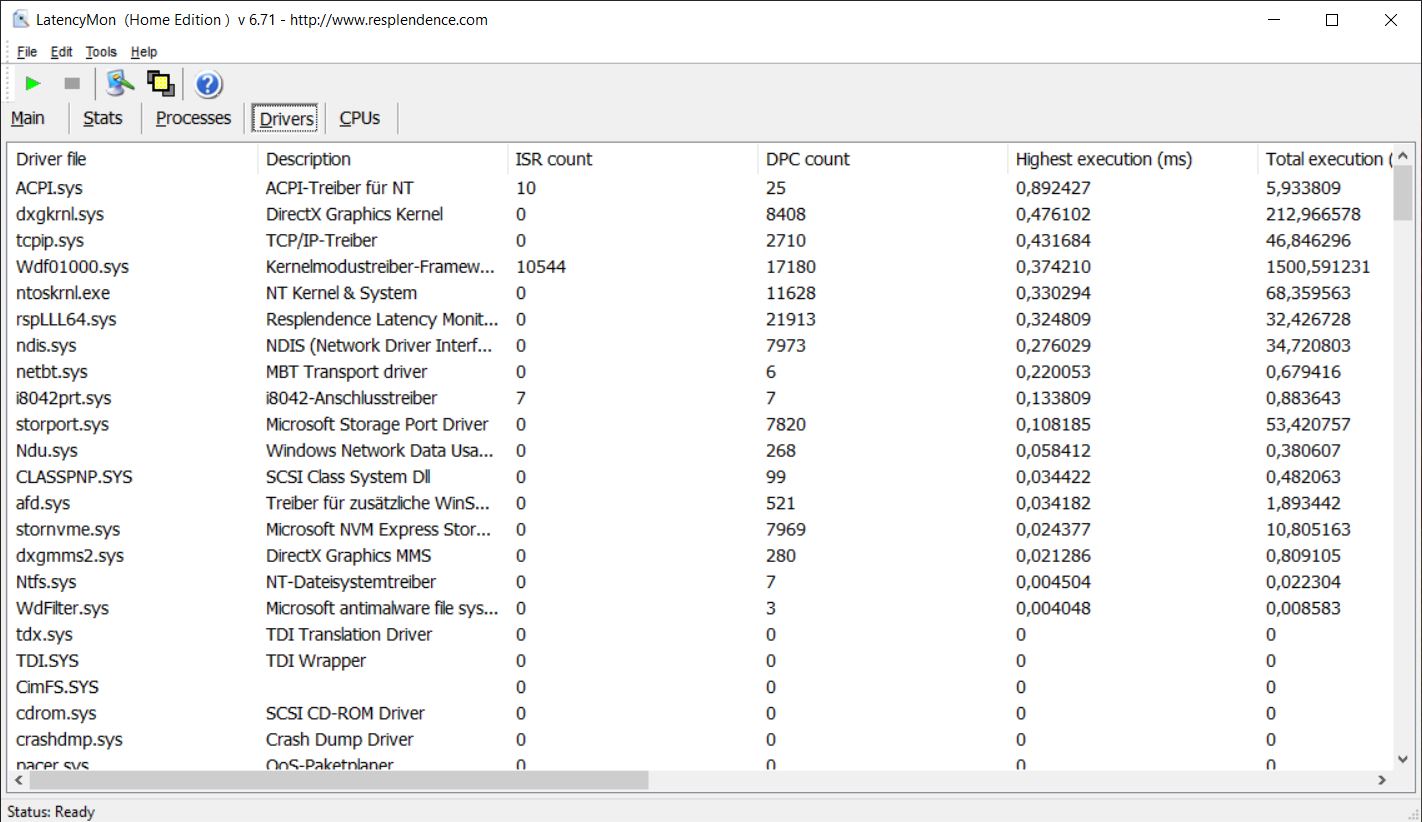

LatencyMon-drivrutin
LatencyMon-drivrutin
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
3846 μs * -39%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ
2760 μs *
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
739 μs * +73%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
459.2 μs * +83%
Asus ExpertBook B9 B9400CE-KC0166R
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
339.4 μs * +88%

* ... smaller is better

Samsung PM9A1 MZVL2512HCJQ
CDM 5/6 Read Seq Q32T1: 6838 MB/s
CDM 5/6 Write Seq Q32T1: 4808 MB/s
CDM 5/6 Read 4K Q32T1: 659 MB/s
CDM 5/6 Write 4K Q32T1: 507 MB/s
CDM 5/6 Read 4K: 89.4 MB/s
CDM 5/6 Write 4K: 229 MB/s
CDM 6 Write 4K Q8T8: 2015 MB/s
CDM 6 Read 4K Q8T8: 2414 MB/s
Drive Performance Rating - Percent
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
94.9 pt
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
88.8 pt
Average Samsung PM9A1 MZVL2512HCJQ

74.5 pt
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
68.7 pt
Average of class Subnotebook

58.2 pt
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
51.3 pt
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
48.6 pt
DiskSpd
seq read
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
4277 (4263.3min - 4277.19max) MB/s +24%
Average Samsung PM9A1 MZVL2512HCJQ
  (1472 - 4572, n=39)
3501 MB/s +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
3442 (3108.26min - 3442.23max) MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
3128 (3059.5min - 3127.9max) MB/s -9%
Average of class Subnotebook
  (38.2 - 4501, n=56, last 2 years)
2937 MB/s -15%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
2207 (2165.52min - 2207.46max) MB/s -36%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2026 (2004.88min - 2026.41max) MB/s -41%
seq write
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
4259 (4236.16min - 4258.69max) MB/s +3%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
4133 (4108.7min - 4132.65max) MB/s
Average Samsung PM9A1 MZVL2512HCJQ
  (1148 - 4434, n=39)
3289 MB/s -20%
Average of class Subnotebook
  (38.2 - 5344, n=56, last 2 years)
2942 MB/s -29%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
2436 (2129.45min - 2436.47max) MB/s -41%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2031 (1975.34min - 2031.43max) MB/s -51%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
1907 (1848.35min - 1906.98max) MB/s -54%
seq q8 t1 read
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
6739 (5371.02min - 6739.14max) MB/s
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
6677 (5948min - 6677.19max) MB/s -1%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
6493 (5671.14min - 6492.57max) MB/s -4%
Average Samsung PM9A1 MZVL2512HCJQ
  (3387 - 6793, n=39)
6077 MB/s -10%
Average of class Subnotebook
  (38.5 - 7155, n=56, last 2 years)
5088 MB/s -24%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
3550 (3228.19min - 3550.3max) MB/s -47%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
3513 (3315.18min - 3512.83max) MB/s -48%
seq q8 t1 write
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
4951 (4941.91min - 4951.12max) MB/s +3%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
4889 (4834.98min - 4888.88max) MB/s +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
4809 (4796.24min - 4808.56max) MB/s
Average Samsung PM9A1 MZVL2512HCJQ
  (1146 - 5091, n=39)
4428 MB/s -8%
Average of class Subnotebook
  (38.2 - 6810, n=56, last 2 years)
3998 MB/s -17%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
3173 (3168.8min - 3172.99max) MB/s -34%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
3018 (2979.84min - 3018.22max) MB/s -37%
4k q1 t1 read
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
92.2 (92.1min - 92.22max) MB/s +1%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
91 (90.76min - 90.98max) MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
79.6 (78.39min - 79.6max) MB/s -13%
Average Samsung PM9A1 MZVL2512HCJQ
  (37.6 - 92.9, n=39)
71.9 MB/s -21%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
62.7 (61.88min - 62.68max) MB/s -31%
Average of class Subnotebook
  (8.27 - 87.4, n=56, last 2 years)
61.3 MB/s -33%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
37.9 (37.88min - 37.94max) MB/s -58%
4k q1 t1 write
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
238 (236.71min - 237.74max) MB/s +3%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
230 (228.84min - 229.77max) MB/s
Average Samsung PM9A1 MZVL2512HCJQ
  (125.7 - 241, n=39)
180.3 MB/s -22%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
167 (163.6min - 166.54max) MB/s -27%
Average of class Subnotebook
  (12 - 360, n=56, last 2 years)
160.7 MB/s -30%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
145 (144.68min - 145.41max) MB/s -37%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
115 (114.14min - 114.57max) MB/s -50%
4k q32 t16 read
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
2810 (2724.15min - 2809.5max) MB/s +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
2742 (2732.41min - 2742.2max) MB/s
Average Samsung PM9A1 MZVL2512HCJQ
  (477 - 3426, n=39)
2058 MB/s -25%
Average of class Subnotebook
  (11.1 - 4286, n=56, last 2 years)
1291 MB/s -53%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1134 (809.9min - 1133.58max) MB/s -59%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
1129 (1036.67min - 1128.6max) MB/s -59%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
730 (718.45min - 730.37max) MB/s -73%
4k q32 t16 write
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
2416 (2058.59min - 2415.65max) MB/s +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
2368 (2138.75min - 2368.21max) MB/s
Average Samsung PM9A1 MZVL2512HCJQ
  (253 - 3567, n=39)
1535 MB/s -35%
Average of class Subnotebook
  (14.2 - 4189, n=56, last 2 years)
891 MB/s -62%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
546 (520.41min - 546.17max) MB/s -77%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
528 (438.7min - 528.12max) MB/s -78%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
450 (423.33min - 450.38max) MB/s -81%
AS SSD
Score Total
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
7939 Points +19%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
6658 Points
Average Samsung PM9A1 MZVL2512HCJQ
  (3573 - 8620, n=38)
5933 Points -11%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
4873 Points -27%
Average of class Subnotebook
  (515 - 8892, n=55, last 2 years)
4367 Points -34%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
4135 Points -38%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
3934 Points -41%
Score Read
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
3512 Points +29%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
2730 Points
Average Samsung PM9A1 MZVL2512HCJQ
  (1079 - 3224, n=38)
2099 Points -23%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
1688 Points -38%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
1467 Points -46%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1418 Points -48%
Average of class Subnotebook
  (246 - 3307, n=55, last 2 years)
1382 Points -49%
Score Write
Average Samsung PM9A1 MZVL2512HCJQ
  (1258 - 4036, n=38)
2819 Points +8%
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
2677 Points +3%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
2610 Points
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
2426 Points -7%
Average of class Subnotebook
  (153 - 4469, n=55, last 2 years)
2335 Points -11%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
1980 Points -24%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1841 Points -29%
Seq Read
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
5438 MB/s
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
4899 MB/s -10%
Average Samsung PM9A1 MZVL2512HCJQ
  (2629 - 5546, n=38)
4658 MB/s -14%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
4337 MB/s -20%
Average of class Subnotebook
  (448 - 5525, n=55, last 2 years)
3975 MB/s -27%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
2857 MB/s -47%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
2784 MB/s -49%
Seq Write
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
3952 MB/s +7%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
3677 MB/s
Average Samsung PM9A1 MZVL2512HCJQ
  (1108 - 3925, n=38)
2766 MB/s -25%
Average of class Subnotebook
  (99 - 4961, n=55, last 2 years)
2598 MB/s -29%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
1882 MB/s -49%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1569 MB/s -57%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
1362 MB/s -63%
4K Read
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
83.8 MB/s +1%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
82.6 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
77.4 MB/s -6%
Average Samsung PM9A1 MZVL2512HCJQ
  (39.2 - 85.1, n=38)
67.8 MB/s -18%
Average of class Subnotebook
  (19.8 - 96.2, n=55, last 2 years)
58.6 MB/s -29%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
58.5 MB/s -29%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
52.5 MB/s -36%
4K Write
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
207.3 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
206.3 MB/s 0%
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
205 MB/s -1%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
202.3 MB/s -2%
Average of class Subnotebook
  (37.4 - 256, n=55, last 2 years)
177.4 MB/s -14%
Average Samsung PM9A1 MZVL2512HCJQ
  (105.4 - 216, n=38)
174.9 MB/s -16%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
131 MB/s -37%
4K-64 Read
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
2938 MB/s +40%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
2104 MB/s
Average Samsung PM9A1 MZVL2512HCJQ
  (533 - 2783, n=38)
1566 MB/s -26%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
1176 MB/s -44%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
1136 MB/s -46%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1074 MB/s -49%
Average of class Subnotebook
  (181.8 - 2682, n=55, last 2 years)
926 MB/s -56%
4K-64 Write
Average Samsung PM9A1 MZVL2512HCJQ
  (1010 - 3480, n=38)
2393 MB/s +18%
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
2077 MB/s +2%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
2035 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
2032 MB/s 0%
Average of class Subnotebook
  (105.9 - 3905, n=55, last 2 years)
1894 MB/s -7%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
1642 MB/s -19%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
1554 MB/s -24%
Access Time Read
Average of class Subnotebook
  (0.02 - 0.167, n=55, last 2 years)
0.05771 ms * -75%
Average Samsung PM9A1 MZVL2512HCJQ
  (0.023 - 0.089, n=37)
0.048 ms * -45%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
0.038 ms * -15%
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
0.036 ms * -9%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
0.033 ms *
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
0.032 ms * +3%
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
0.025 ms * +24%
Access Time Write
HP EliteBook 840 Aero G8 3E4Q6AA
SK Hynix PC711 512GB HFS512GDE9X073N
0.086 ms * -310%
Average of class Subnotebook
  (0.017 - 0.352, n=55, last 2 years)
0.07515 ms * -258%
Average Samsung PM9A1 MZVL2512HCJQ
  (0.02 - 0.076, n=38)
0.03368 ms * -60%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Samsung PM9A1 MZVL2512HCJQ
0.021 ms *
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Samsung PM9A1 MZVL21T0HCLR
0.02 ms * +5%
SCHENKER Vision 14
Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
0.02 ms * +5%
Asus ExpertBook B9 B9400CE-KC0166R
Samsung PM981a MZVLB1T0HBLR
0.017 ms * +19%

* ... smaller is better

Continuous reading: DiskSpd Read Loop, Queue Depth 8

No graph data
3DMark Performance Rating - Percent
Average of class Subnotebook

100 pt
Asus ExpertBook B9 B9400CE-KC0166R
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
73.8 pt
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
68.2 pt
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW -1!
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
65.6 pt
SCHENKER Vision 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
65.1 pt
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
61.6 pt
Average Intel Iris Xe Graphics G7 80EUs

53.5 pt
3DMark 11 - 1280x720 Performance GPU
Average of class Subnotebook
  (968 - 16296, n=53, last 2 years)
9600 Points +71%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6866 Points +22%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6715 Points +19%
SCHENKER Vision 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6624 Points +18%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6591 Points +17%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5627 Points
Average Intel Iris Xe Graphics G7 80EUs
  (2246 - 6477, n=109)
5179 Points -8%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Subnotebook
  (5577 - 58319, n=29, last 2 years)
36827 Points +39%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
30951 Points +17%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
26596 Points +1%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
26450 Points
SCHENKER Vision 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
24152 Points -9%
Average Intel Iris Xe Graphics G7 80EUs
  (6361 - 30894, n=95)
21885 Points -17%
1920x1080 Fire Strike Graphics
Average of class Subnotebook
  (832 - 11887, n=57, last 2 years)
6933 Points +58%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5422 Points +24%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
4995 Points +14%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
4830 Points +10%
SCHENKER Vision 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
4795 Points +10%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4376 Points
Average Intel Iris Xe Graphics G7 80EUs
  (1560 - 5305, n=111)
3794 Points -13%
2560x1440 Time Spy Graphics
Average of class Subnotebook
  (999 - 4501, n=58, last 2 years)
2547 Points +90%
Asus ExpertBook B9 B9400CE-KC0166R
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1560 Points +16%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1493 Points +11%
HP EliteBook 840 Aero G8 3E4Q6AA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1493 Points +11%
SCHENKER Vision 14
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1441 Points +7%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1344 Points
Average Intel Iris Xe Graphics G7 80EUs
  (561 - 1511, n=108)
1172 Points -13%
3DMark 11 Performance
6087 poäng
3DMark Cloud Gate Standard Score
18583 poäng
3DMark Fire Strike Score
4021 poäng
3DMark Time Spy Score
1508 poäng
Hjälp

Witcher 3 FPS-Diagram

0123456789101112Tooltip
Lenovo ThinkPad X1 Carbon G9-20XW0089GE i5-1135G7, Iris Xe G7 80EUs: Ø10.6 (9-12)
lågmed.högultra
The Witcher 3 (2015) 85 53 28 10.6
Dota 2 Reborn (2015) 123 74.7 51.6 47.9
Final Fantasy XV Benchmark (2018) 39.9 21 15.1
X-Plane 11.11 (2018) 38.1 32.3 29.7

Ljudnivå

Låg belastning
24.7 / 24.7 / 24.7 dB(A)
Hög belastning
40.9 / 40.9 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm avstånd)   environment noise: 24.7 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.634.830.431.933.32533.130.429.629.631.53128.825.428.126.926.24030.62928.727.628.15027.42724.123.524.86325.324.325.423.423.58022.722.825.922.220.610025.322.924.820.621.112524.330.923.720.220.116022.122.620.119.318.120022.324.421.919.919.825021.724.121.116.617.431522.526.222.816.716.840024.428.124.216.917.750025.131.624.713.315.163024.628.824.812.215.380023.929.125.611.112.7100023.628.225.512.914.4125024.928.625.311.112160023.828.525.112.313200025.729.325.511.512.4250024.927.724.411.512315024.829.225.911.712.1400024.72925.411.812.350002429.82512.212.3630024.729.625.412.412.6800022.62823.112.612.61000022.528.823.412.512.71250018.624.719.612.412.51600015.821.716.312.212.2SPL36.440.93724.725.5N2.53.82.70.60.7median 24median 28.5median 24.7median 12.4median 12.7Delta1.62.32.12.52.7hearing rangehide median Fan NoiseLenovo ThinkPad X1 Carbon G9-20XW0089GE
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ
HP EliteBook 840 Aero G8 3E4Q6AA
Iris Xe G7 96EUs, i7-1185G7, SK Hynix PC711 512GB HFS512GDE9X073N
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
SCHENKER Vision 14
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 1TB MZ-V8P1T0BW
Asus ExpertBook B9 B9400CE-KC0166R
Iris Xe G7 96EUs, i7-1165G7, Samsung PM981a MZVLB1T0HBLR
Noise
14%
8%
-1%
-5%
off / environment *
24.7
24.1
2%
23.66
4%
25
-1%
24
3%
Idle Minimum *
24.7
24.2
2%
23.6
4%
25
-1%
24
3%
Idle Average *
24.7
24.2
2%
23.6
4%
25
-1%
24
3%
Idle Maximum *
24.7
24.2
2%
23.6
4%
26.9
-9%
24
3%
Load Average *
40.9
26.9
34%
33.5
18%
38.6
6%
47.5
-16%
Witcher 3 ultra *
40.9
27.9
32%
41.2
-1%
47.5
-16%
Load Maximum *
40.9
29.9
27%
34.3
16%
41.2
-1%
47.5
-16%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.9352529.635.23126.934.74027.631.75023.528.86323.425.38022.225.710020.636.212520.241.916019.349.820019.956.125016.660.731516.764.340016.965.650013.365.263012.264.480011.173100012.972.8125011.168.3160012.371.2200011.571.3250011.568.8315011.763.2400011.864.5500012.266.5630012.468.6800012.666.51000012.561.21250012.455.61600012.253.2SPL24.780.8N0.650.5median 12.4median 64.5Delta2.56.432.234.132.225.428.325.421.823.921.820.220.320.223.219.223.223.617.923.629.120.529.136.518.636.542.615.542.651.814.251.85615.75660.714.860.761146161.213.861.263.313.263.364.612.164.666.31266.370.411.570.470.211.570.267.911.267.967.711.667.765.411.665.46811.56866.612.166.662.412.662.459.812.359.860.712.160.761.712.561.763.114.363.158.212.458.278.624.278.6440.644median 62.4median 12.4median 62.451.35hearing rangehide median Pink NoiseLenovo ThinkPad X1 Carbon G9-20XW0089GEHP EliteBook 840 Aero G8 3E4Q6AA
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad X1 Carbon G9-20XW0089GE audio analysis

(±) | speaker loudness is average but good (80.8 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.5% away from median
(+) | mids are linear (4.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.9% difference to median)
Compared to same class
» 22% of all tested devices in this class were better, 6% similar, 72% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 14% of all tested devices were better, 4% similar, 83% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP EliteBook 840 Aero G8 3E4Q6AA audio analysis

(±) | speaker loudness is average but good (78.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11% lower than median
(±) | linearity of bass is average (10.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.3% away from median
(+) | mids are linear (3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.5% away from median
(+) | highs are linear (4.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.6% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 1% similar, 96% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 10% of all tested devices were better, 2% similar, 88% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning
Av/Standbydarklight 0.43 / 0.71 Watt
Låg belastningdarkmidlight 3.5 / 7.4 / 8.5 Watt
Hög belastning midlight 40.2 / 65.7 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy

Energy consumption Witcher 3 / Stress test

05101520253035404550556065Tooltip
Lenovo ThinkPad X1 Carbon G9-20XW0089GE; Witcher 3 ultra: Ø33.4 (31.8-40.5)
Lenovo ThinkPad X1 Carbon G9-20XW0089GE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø47.2 (34.8-65.7)

Batteriets livslängd

Vi fastställer en batteritid på 10 timmar i vårt WLAN-test med en justerad ljusstyrka på 150 cd/m² och fortfarande 7 timmar med maximal ljusstyrka. Detta placerar testenheten ganska mycket i mitten av jämförelsegruppen och även mellan de andra två versionerna av X1 Carbon G9. Den högupplösta 4K-modellen klarar bara 7 och 5 timmar i samma tester, medan den normala Full HD-panelen utan sekretessfilter klarar 11,5 respektive 9,5 timmar.

Batteritid
WiFi Websurfing (Edge 95)
9tim 58min
WiFi Websurfing max. Brightness (Edge 95)
7tim 03min
Battery Runtime
WiFi Websurfing
Asus ExpertBook B9 B9400CE-KC0166R
i7-1165G7, Iris Xe G7 96EUs, 66 Wh
745 min +25%
Average of class Subnotebook
  (389 - 1585, n=59, last 2 years)
719 min +20%
Lenovo ThinkPad X1 Carbon G9-20XXS00100
i7-1165G7, Iris Xe G7 96EUs, 57 Wh
700 min +17%
HP EliteBook 840 Aero G8 3E4Q6AA
i7-1185G7, Iris Xe G7 96EUs, 53 Wh
685 min +15%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
i5-1135G7, Iris Xe G7 80EUs, 57 Wh
598 min
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
i7-1165G7, Iris Xe G7 96EUs, 57 Wh
442 min -26%
SCHENKER Vision 14
i7-1165G7, Iris Xe G7 96EUs, 53 Wh
366 min -39%
WiFi Websurfing max. Brightness
Asus ExpertBook B9 B9400CE-KC0166R
i7-1165G7, Iris Xe G7 96EUs, 66 Wh
609 min +44%
Lenovo ThinkPad X1 Carbon G9-20XXS00100
i7-1165G7, Iris Xe G7 96EUs, 57 Wh
572 min +35%
Average of class Subnotebook
  (293 - 702, n=36, last 2 years)
464 min +10%
Lenovo ThinkPad X1 Carbon G9-20XW0089GE
i5-1135G7, Iris Xe G7 80EUs, 57 Wh
423 min
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW
i7-1165G7, Iris Xe G7 96EUs, 57 Wh
300 min -29%
SCHENKER Vision 14
i7-1165G7, Iris Xe G7 96EUs, 53 Wh
293 min -31%

För

+ hölje av hög kvalitet
+ matt 16:10-panel utan PWM
+ mycket bra systemprestanda
+ god batteritid
+ många portar inkl. Thunderbolt 4 och PCIe 4.0
+ bra inmatningsenheter

Emot

- Fläktarna låter mer efter BIOS-uppdateringarna
- ePrivacy-skärm med begränsningar
- dålig webbkamera
- ingen SD-kortläsare

Slutsats - Kylningen av X1 Carbon behöver fortfarande förbättras

I granskning: Lenovo ThinkPad X1 Carbon G9. Testapparat tillhandahållen av Lenovo Tyskland.
I granskning: Lenovo ThinkPad X1 Carbon G9. Testapparat tillhandahållen av Lenovo Tyskland.

Lenovo lyckades lösa prestandaproblemen när processorn och grafikkortet laddas samtidigt, men detta sker till priset av en ganska låg TDP-gräns och betydligt högre ljudnivå för fläktarna. Tillverkaren bör definitivt förbättra detta till nästa generation.

Den valfria ePrivacy-skärmen är fortfarande ett problem. I princip är de uppmätta värdena okej och panelen kan övertyga särskilt när det gäller ljusstyrka. Färgnoggrannheten är också på en bra nivå och tillåter behandling av bilder i sRGB-färgrymden (som är helt täckt). På grund av det inbyggda sekretessfiltret finns det dock bara en relativt liten sweet spot när du tittar väldigt centralt på skärmen. Så fort du ändrar vinkeln (horisontellt eller vertikalt) något så blir det en synlig förlust av ljusstyrka och kontrast. Det ser nästan ut som om ett grått dis täcker bilden. Dessutom är integritetsfiltrets effektivitet också begränsad. Det begränsar förvisso sikten från sidan en del, men det fungerar egentligen bara någorlunda vid låga ljusstyrkor, vilket naturligtvis inte alltid är optimalt i farten. Lenovo trixar också lite här och minskar ljusstyrkan till cirka 160 cd/m² som standard så fort du aktiverar filtret. Du kan öka ljusstyrkan igen, men det visuella skyddet minskar synligt.

Lenovo har stabiliserat prestandan, men i gengäld är fläktarna nu högre. Det inbyggda sekretessfiltret ger ett visst skydd mot oönskade blickar, men du måste räkna med begränsningar i den allmänna bildkvaliteten.

För de flesta användare skulle vi säkert välja den normala Full HD-panel. HP erbjuder EliteBook 840 med ett inbyggt sekretessfilter (SureView-teknik), men även här finns det begränsningar i bildkvaliteten.

Pris och tillgänglighet

Ett exemplar av ThinkPad X1 Carbon G9 finns bland annat tillgängligt på Cyberport för 2 140 euro (~2 455 dollar).

Lenovo ThinkPad X1 Carbon G9-20XW0089GE - 11/09/2021 v7 (old)
Andreas Osthoff

Design
90 / 98 → 92%
Tangentbord
89%
Mus
95%
Anslutningar
67 / 75 → 89%
Vikt
72 / 20-75 → 95%
Batteri
88%
Skärm
72%
Spelprestanda
66 / 78 → 85%
Programprestanda
89 / 85 → 100%
Temperatur
91%
Ljudnivå
92%
Audio
84 / 91 → 92%
Camera
22 / 85 → 26%
Medel
78%
87%
Subnotebook - Vägt medel

Price comparison

Please share our article, every link counts!
Mail Logo
> Bärbara datorer, laptops - tester och nyheter > Tester > Recension av den bärbara datorn Lenovo ThinkPad X1 Carbon G9: ePrivacy-skärmen är fortfarande problematisk
Andreas Osthoff, 2021-11-18 (Update: 2021-11-22)
