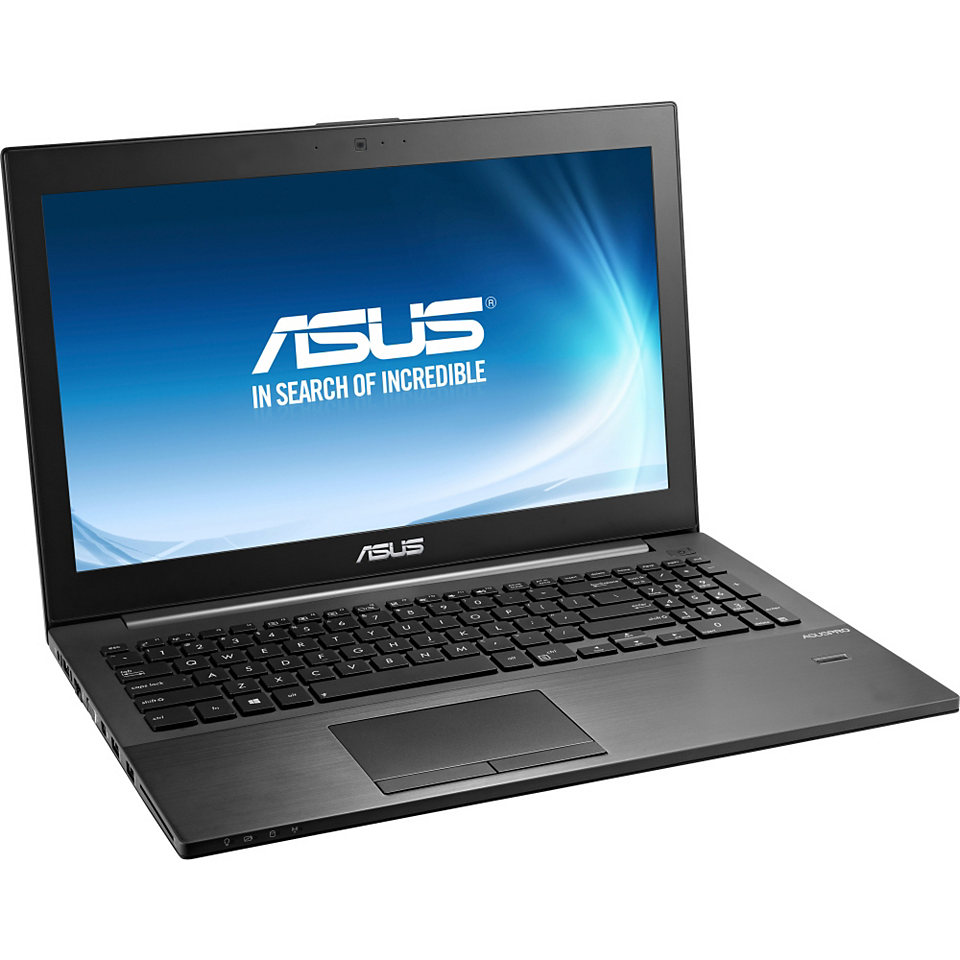

Test: Asus AsusPro B551LG-CN009G (sammanfattning)
| |||||||||||||||||||||||||
Samsung 156HL01-102 tested with X-Rite i1Pro 2
Max: 328 cd/m² (Nits) Medel: 310.2 cd/m²Distribution av ljusstyrkan: 90 %
Mitt på batteriet: 328 cd/m²
Kontrast: 863:1 (Svärta: 0.38 cd/m²)
ΔE Color 3.7 | 0.5-29.43 Ø4.91
ΔE Greyscale 4.85 | 0.5-98 Ø5.2
63% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.7% sRGB (Argyll 2.2.0 3D)
67.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35
| Asus Pro B551LG-CN009G GeForce 840M, 4650U, Kingston SVP200S37A256G | HP EliteBook 850 G1-H5G44ET Radeon HD 8750M, 4600U, Intel SSD Pro 1500 Series SSDSC2BF180A4H | Lenovo ThinkPad S540 20B30059GE Radeon HD 8670M, 4200U, WDC WD10JPVX-08JC3T5 + Sandisk SSD U110 16GB | |
|---|---|---|---|
| Display | |||
| Display P3 Coverage | 67.3 | 50.8 -25% | 53.3 -21% |
| sRGB Coverage | 96.7 | 72.3 -25% | 76 -21% |
| AdobeRGB 1998 Coverage | 69.4 | 51.9 -25% | 54.6 -21% |
| Screen | |||
| Brightness middle | 328 | 264 -20% | 280 -15% |
| Brightness | 310 | 264 -15% | 274 -12% |
| Brightness Distribution | 90 | 83 -8% | 84 -7% |
| Black Level * | 0.38 | 0.64 -68% | 0.81 -113% |
| Contrast | 863 | 413 -52% | 346 -60% |
| Colorchecker dE 2000 * | 3.7 | 11.37 -207% | 10.84 -193% |
| Greyscale dE 2000 * | 4.85 | 13.09 -170% | 12.6 -160% |
| Gamma | 2.35 94% | 2.68 82% | 2.76 80% |
| CCT | 7077 92% | 12953 50% | 15823 41% |
| Color Space (Percent of AdobeRGB 1998) | 63 | 47 -25% | 48.7 -23% |
* ... smaller is better
| Cinebench R11.5 | |
| CPU Multi 64Bit (sort by value) | |
| Asus Pro B551LG-CN009G | |
| Asus B551LA-CN018G | |
| Dell XPS 12 Haswell | |
| Apple MacBook Air 11 inch 2013-06 1.7 GHz 256 GB | |
| HP EliteBook 850 G1-H5G44ET | |
| Lenovo ThinkPad S540 20B30059GE | |
| CPU Single 64Bit (sort by value) | |
| Asus Pro B551LG-CN009G | |
| Asus B551LA-CN018G | |
| Dell XPS 12 Haswell | |
| Apple MacBook Air 11 inch 2013-06 1.7 GHz 256 GB | |
| HP EliteBook 850 G1-H5G44ET | |
| Lenovo ThinkPad S540 20B30059GE | |
| Asus Pro B551LG-CN009G GeForce 840M, 4650U, Kingston SVP200S37A256G | HP EliteBook 850 G1-H5G44ET Radeon HD 8750M, 4600U, Intel SSD Pro 1500 Series SSDSC2BF180A4H | Lenovo ThinkPad S540 20B30059GE Radeon HD 8670M, 4200U, WDC WD10JPVX-08JC3T5 + Sandisk SSD U110 16GB | |
|---|---|---|---|
| PCMark 7 | 19% | -25% | |
| Score | 4176 | 5431 30% | 3021 -28% |
| Lightweight | 4585 | 5223 14% | 3620 -21% |
| Productivity | 3547 | 3929 11% | 2852 -20% |
| Creativity | 7115 | 8686 22% | 5066 -29% |
| PCMark 8 | |||
| Work Score Accelerated v2 | 3883 | 4908 26% | 4106 6% |
| Total Average (Program / Settings) | 23% /
21% | -10% /
-18% |
| PCMark 7 Score | 4176 poäng | |
| PCMark 8 Home Score Accelerated v2 | 2654 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 3179 poäng | |
| PCMark 8 Work Score Accelerated v2 | 3883 poäng | |
Hjälp | ||
| Asus Pro B551LG-CN009G GeForce 840M, 4650U, Kingston SVP200S37A256G | HP EliteBook 850 G1-H5G44ET Radeon HD 8750M, 4600U, Intel SSD Pro 1500 Series SSDSC2BF180A4H | Lenovo ThinkPad S540 20B30059GE Radeon HD 8670M, 4200U, WDC WD10JPVX-08JC3T5 + Sandisk SSD U110 16GB | |
|---|---|---|---|
| AS SSD | 54% | ||
| Seq Read | 214 | 454.6 112% | |
| 4K Read | 19.15 | 23.84 24% | |
| 4K-64 Read | 147 | 201.1 37% | |
| Score Read | 188 | 270 44% | |
| CrystalDiskMark 3.0 | 41% | -84% | |
| Read Seq | 217.4 | 426.5 96% | 99.3 -54% |
| Read 4k | 24.71 | 27.84 13% | 0.372 -98% |
| Read 4k QD32 | 145.2 | 164.7 13% | 0.794 -99% |
| Total Average (Program / Settings) | 48% /
48% | -84% /
-84% |
Kingston SVP200S37A256G
Sequential Read:
217.4 MB/s
Sequential Write:
149 MB/s
512K Read:
195.8 MB/s
512K Write:
189.4 MB/s
4K Read:
24.71 MB/s
4K Write:
108.3 MB/s
4K QD32 Read:
145.2 MB/s
4K QD32 Write:
157.2 MB/s
| Asus Pro B551LG-CN009G GeForce 840M, 4650U, Kingston SVP200S37A256G | HP EliteBook 850 G1-H5G44ET Radeon HD 8750M, 4600U, Intel SSD Pro 1500 Series SSDSC2BF180A4H | Lenovo ThinkPad S540 20B30059GE Radeon HD 8670M, 4200U, WDC WD10JPVX-08JC3T5 + Sandisk SSD U110 16GB | |
|---|---|---|---|
| 3DMark | -4% | -35% | |
| 1280x720 Cloud Gate Standard Graphics | 9429 | 8882 -6% | 4840 -49% |
| 1280x720 Cloud Gate Standard Physics | 2924 | 3127 7% | 2450 -16% |
| 1280x720 Cloud Gate Standard Score | 6309 | 6303 0% | 3977 -37% |
| 1920x1080 Fire Strike Graphics | 1605 | 1331 -17% | 829 -48% |
| 1920x1080 Fire Strike Physics | 4121 | 4218 2% | 3410 -17% |
| 1920x1080 Fire Strike Score | 1369 | 1241 -9% | 767 -44% |
| 3DMark Ice Storm Standard Score | 35857 poäng | |
| 3DMark Cloud Gate Standard Score | 6309 poäng | |
| 3DMark Fire Strike Score | 1369 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| Anno 2070 (2011) | 120.3 | 62.5 | 39.3 | 19.5 |
| Max Payne 3 (2012) | 41.8 | 37.3 | 30.7 | |
| Medal of Honor: Warfighter (2012) | 66 | 45 | 36 | 13 |
| Call of Duty: Black Ops 2 (2012) | 73.3 | 58.5 | 39.7 | 26 |
| BioShock Infinite (2013) | 89.1 | 51.4 | 41.8 | 14.4 |
Ljudnivå
| Låg belastning |
| 29.6 / 29.6 / 29.6 dB(A) |
| DVD |
| 36.2 / dB(A) |
| Hög belastning |
| 38.2 / 42.7 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Voltcraft sl-320 (15 cm avstånd) | ||
(+) The average temperature for the upper side under maximal load is 31.1 °C / 88 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 40.7 °C / 105 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 46 °C / 115 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 28.2 °C / 83 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.3 °C / 81.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (+1.5 °C / 2.7 F).
(±) The maximum temperature on the upper side is 40.7 °C / 105 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 46 °C / 115 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 28.2 °C / 83 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.3 °C / 81.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (+1.5 °C / 2.7 F).
Strömförbrukning
| Av/Standby | 0.1 / 0.4 Watt |
| Låg belastning | 6.7 / 10.1 / 11.2 Watt |
| Hög belastning |
45.2 / 50.6 Watt |

| |
Förklaring:
min: ,
med: ,
max: Voltcraft VC 940 | |
Läs originaltestet på engelska här.

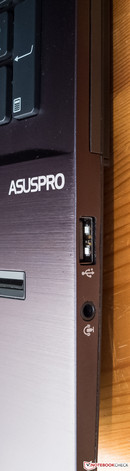

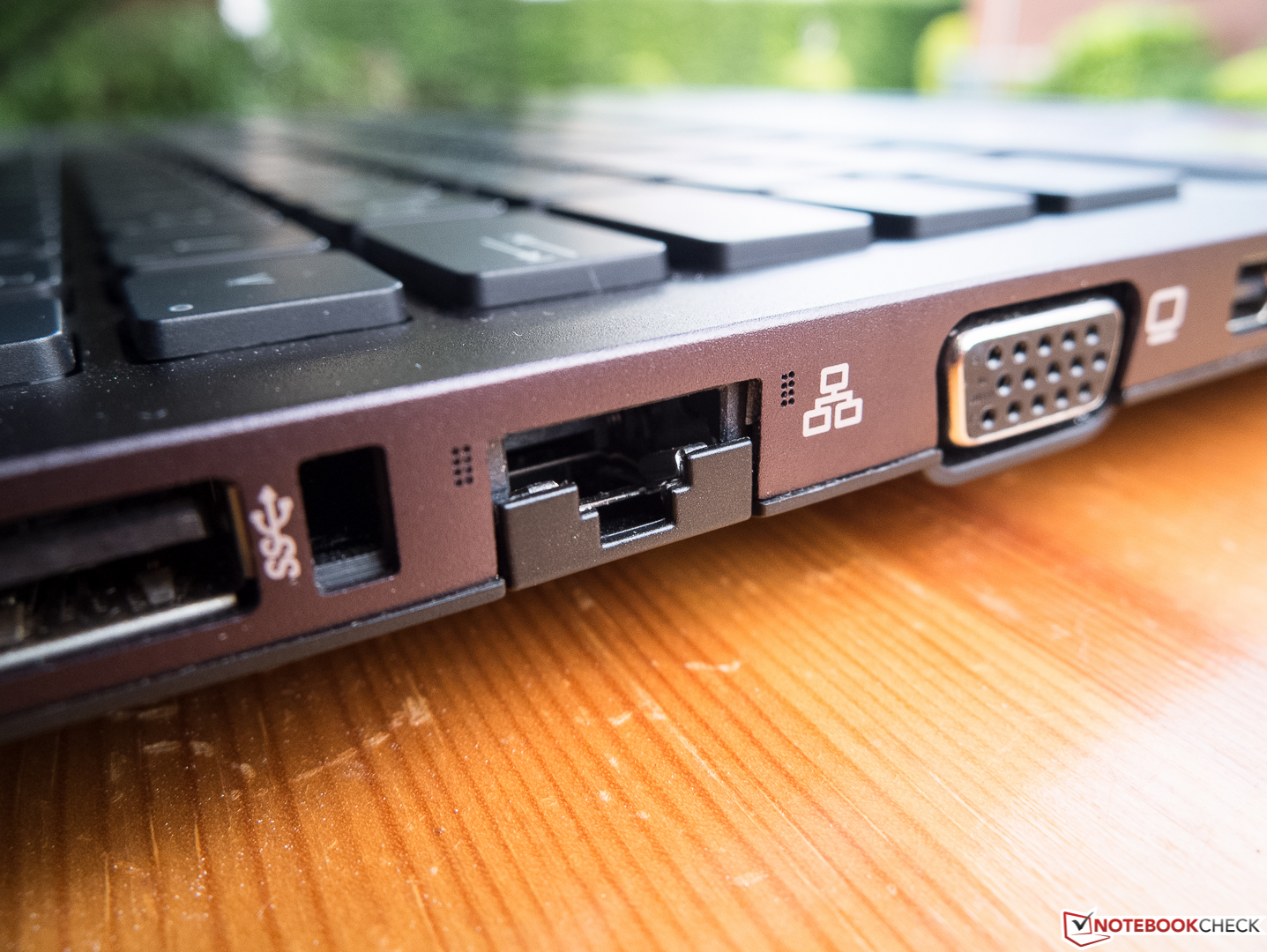

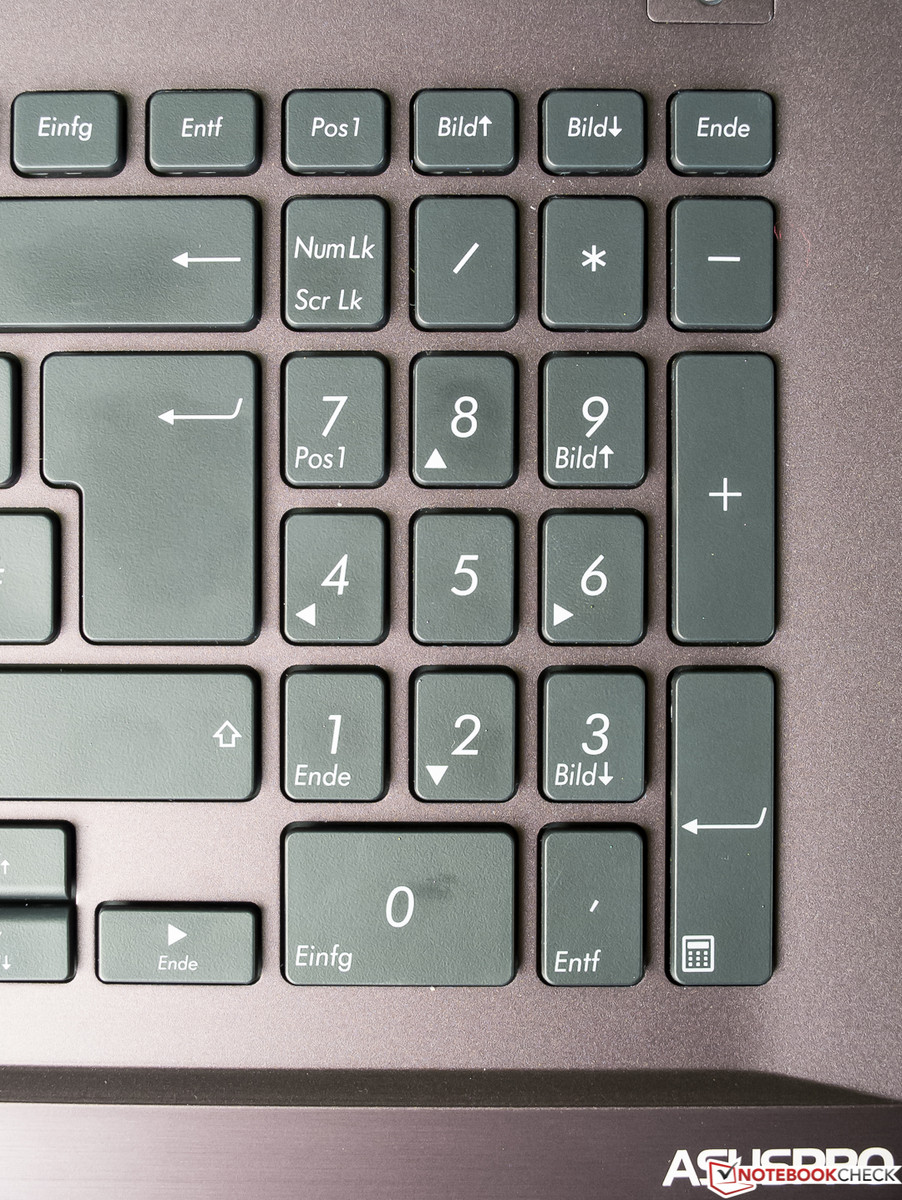

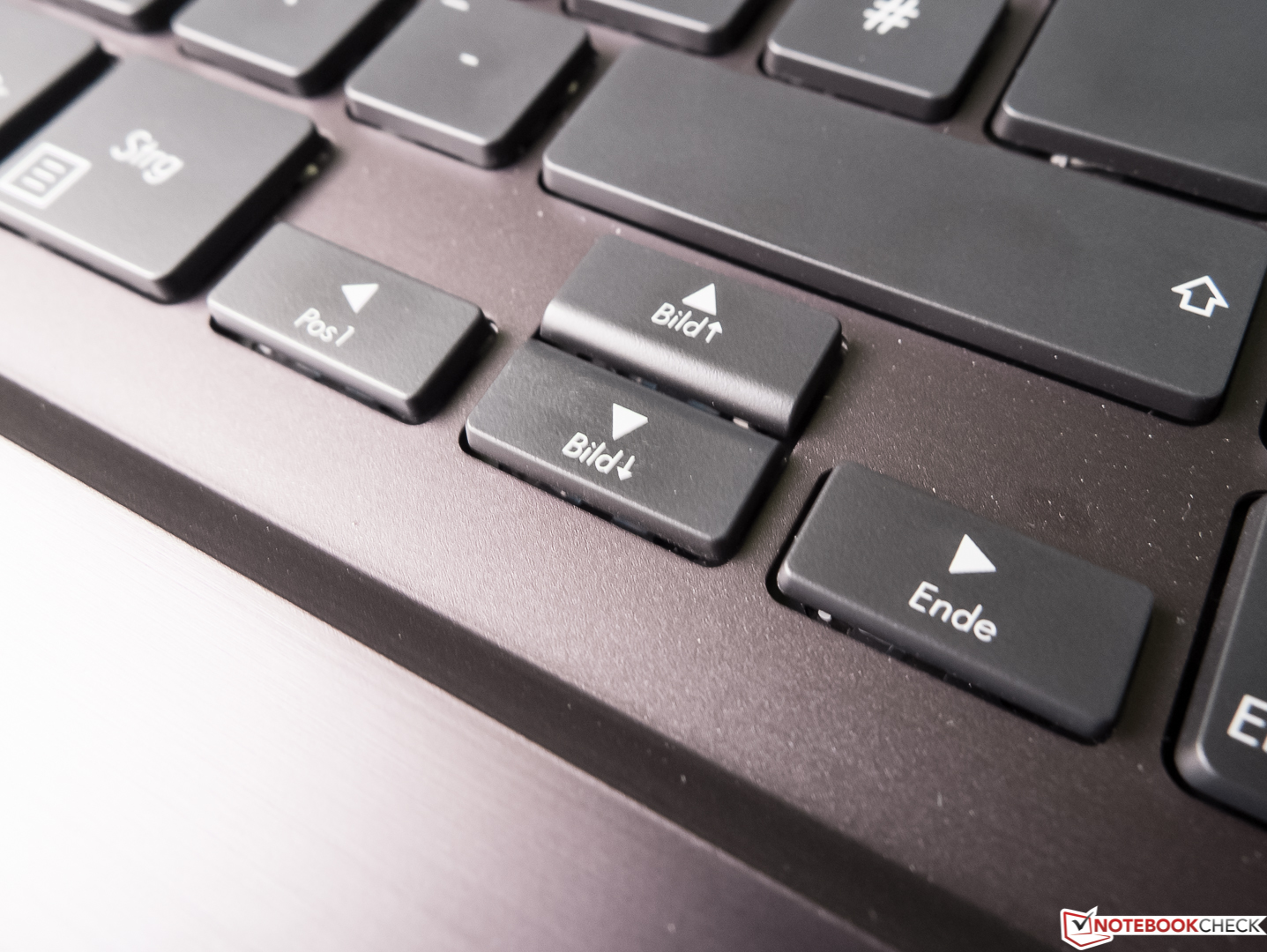

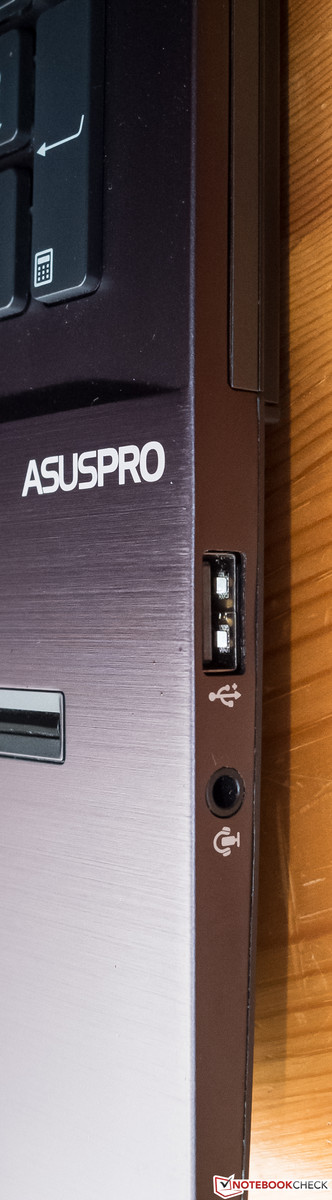

Asus har gått ut med en hel del löften om "professionell kvalitet" vad gäller Asus Pro B551LG, men vår första testenhet kunde inte leva upp till löftena. Vassa kanter, en trasig USB-port, otillräcklig CPU-prestanda, problem med Nvidia Optimus-drivrutinerna i prestandatestet Ice Storm, en ganska långsam SSD och mindre bra siffertangenter - det är en omfattande lista. Vår andra testenhet rättade till några av problemen, men andra frågetecken kvarstod.

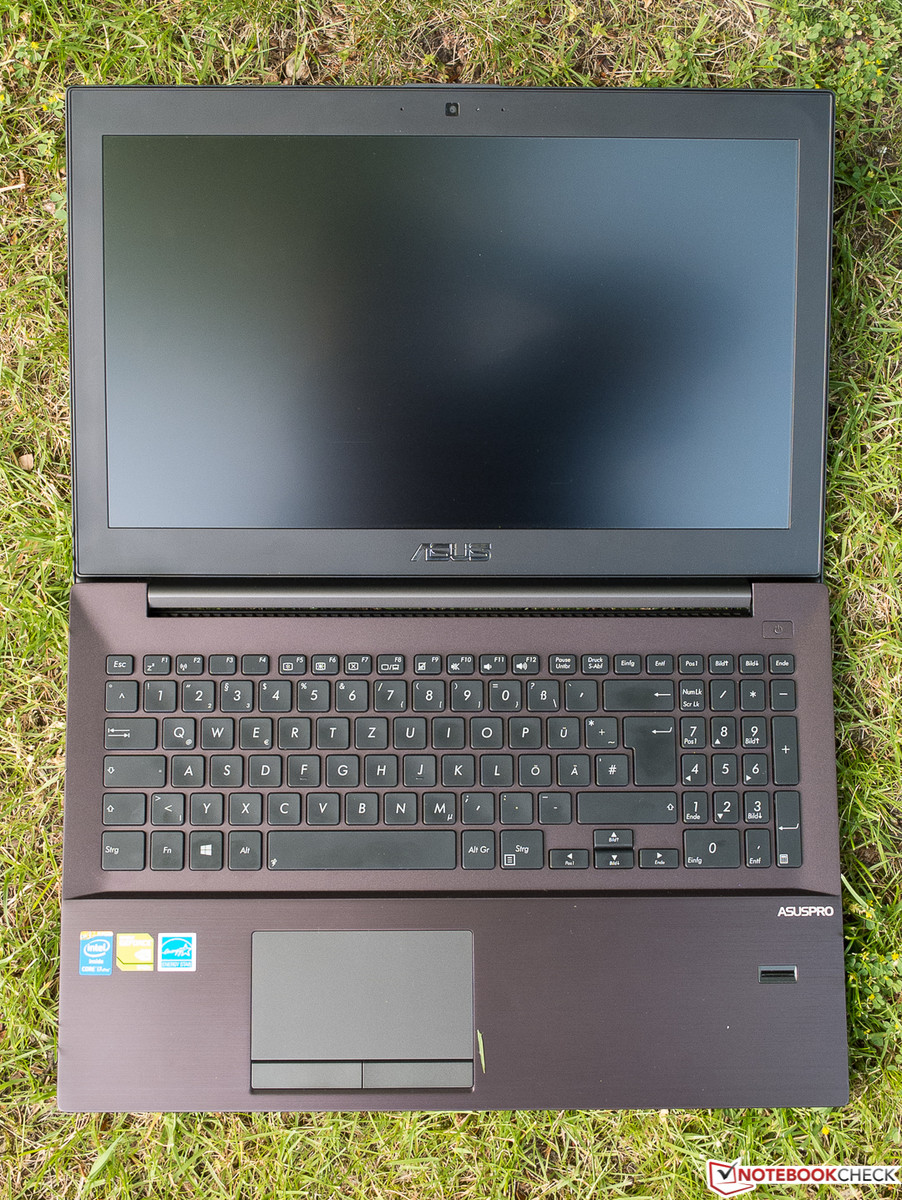

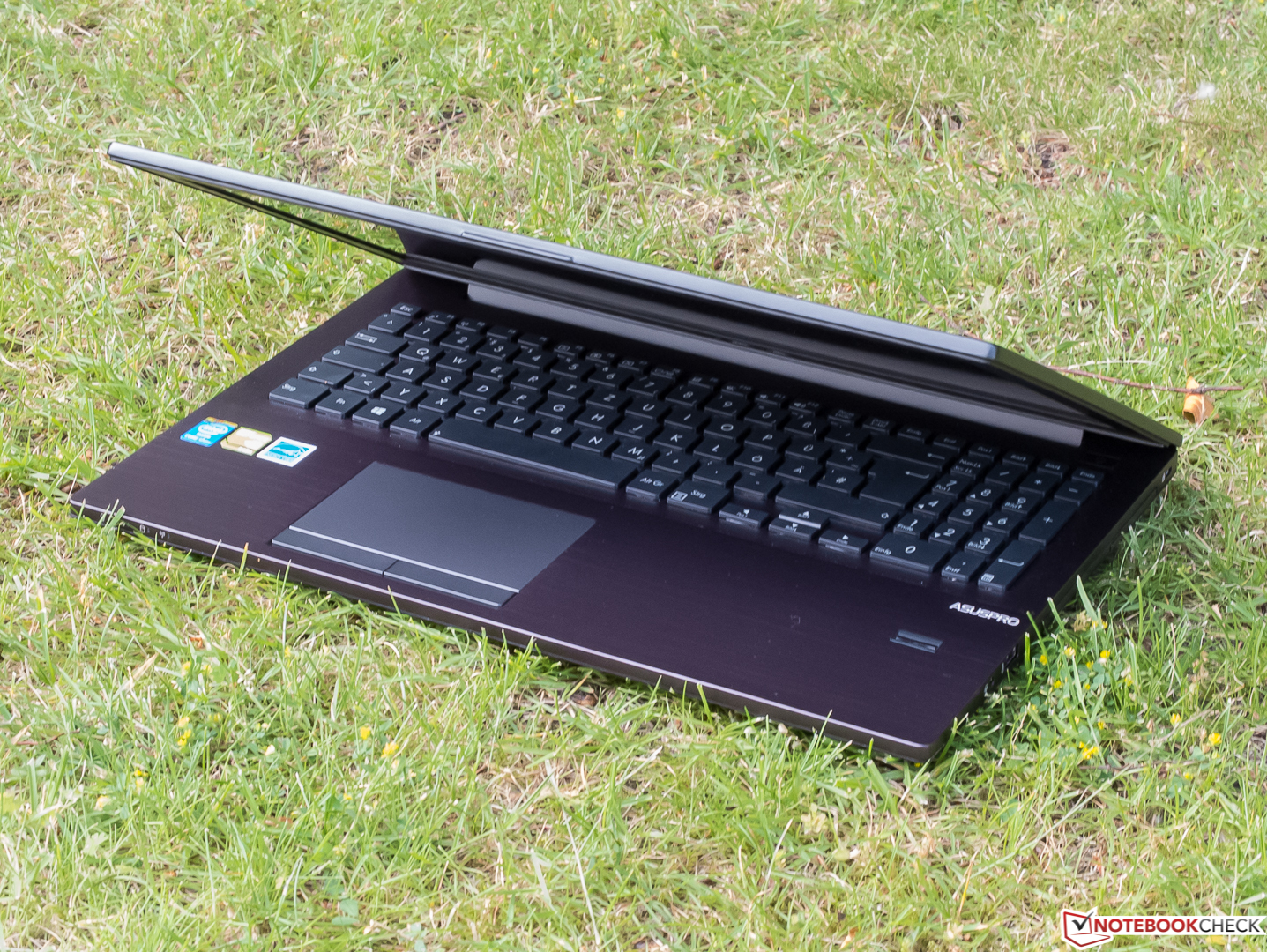

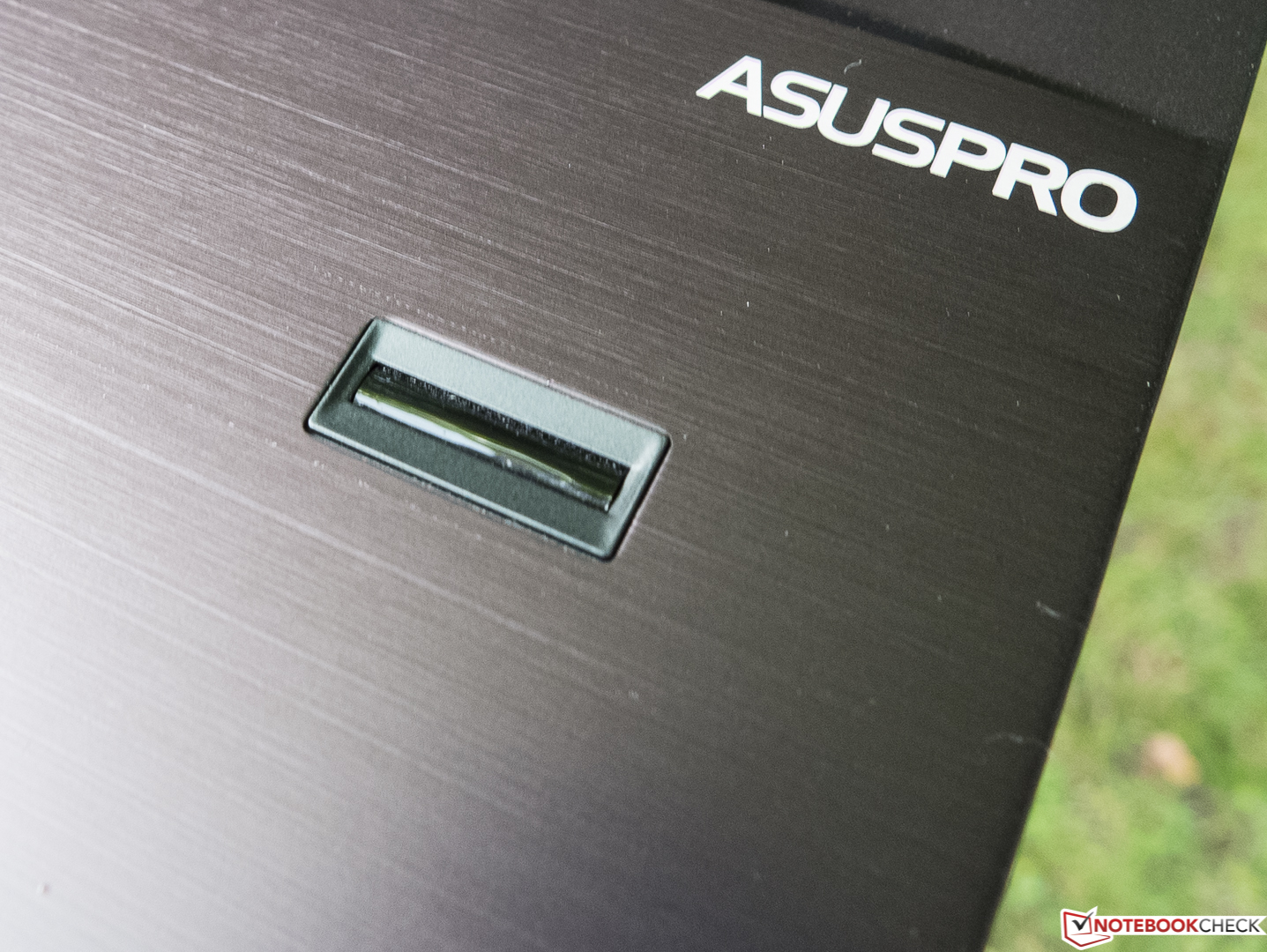

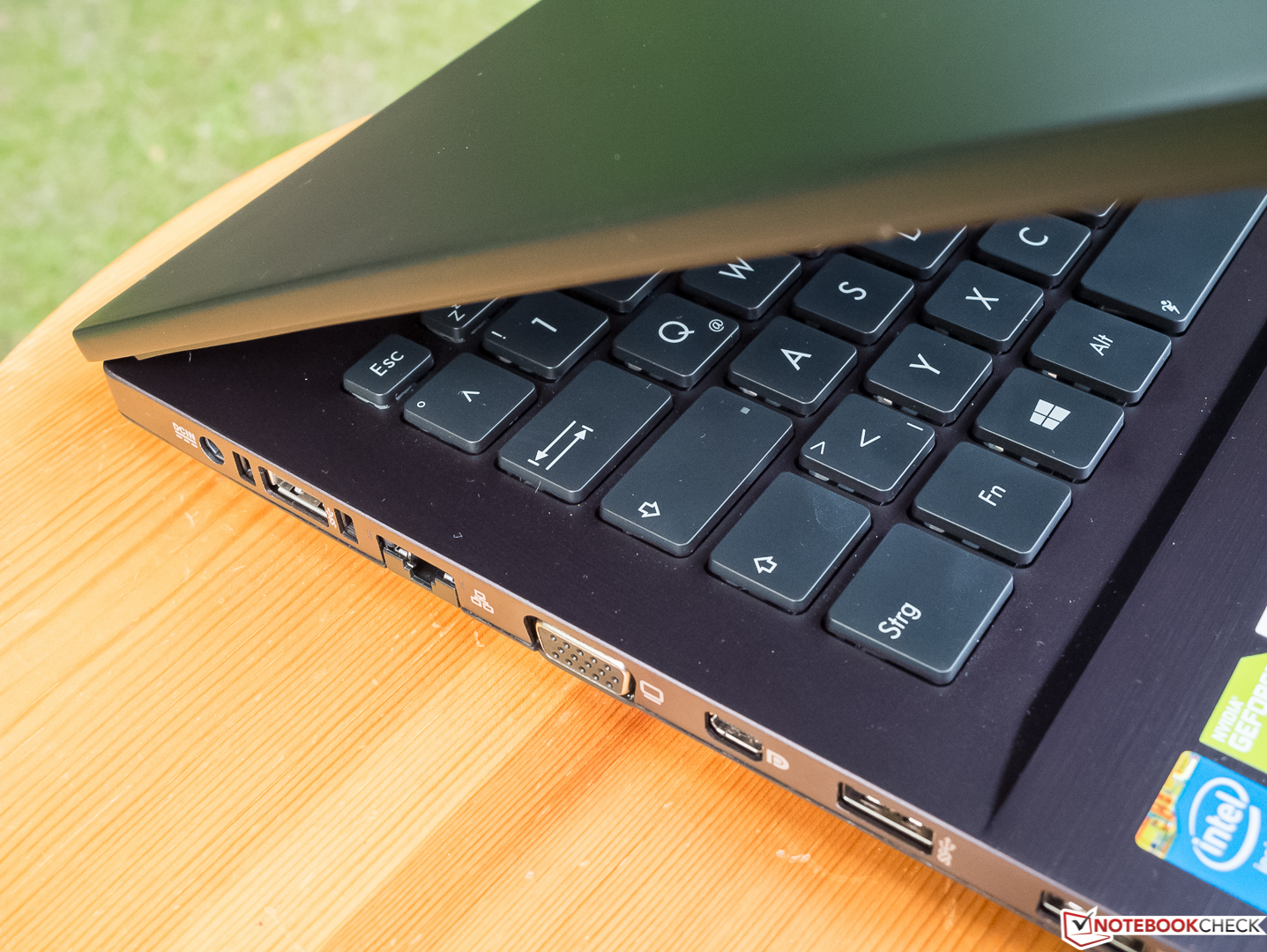

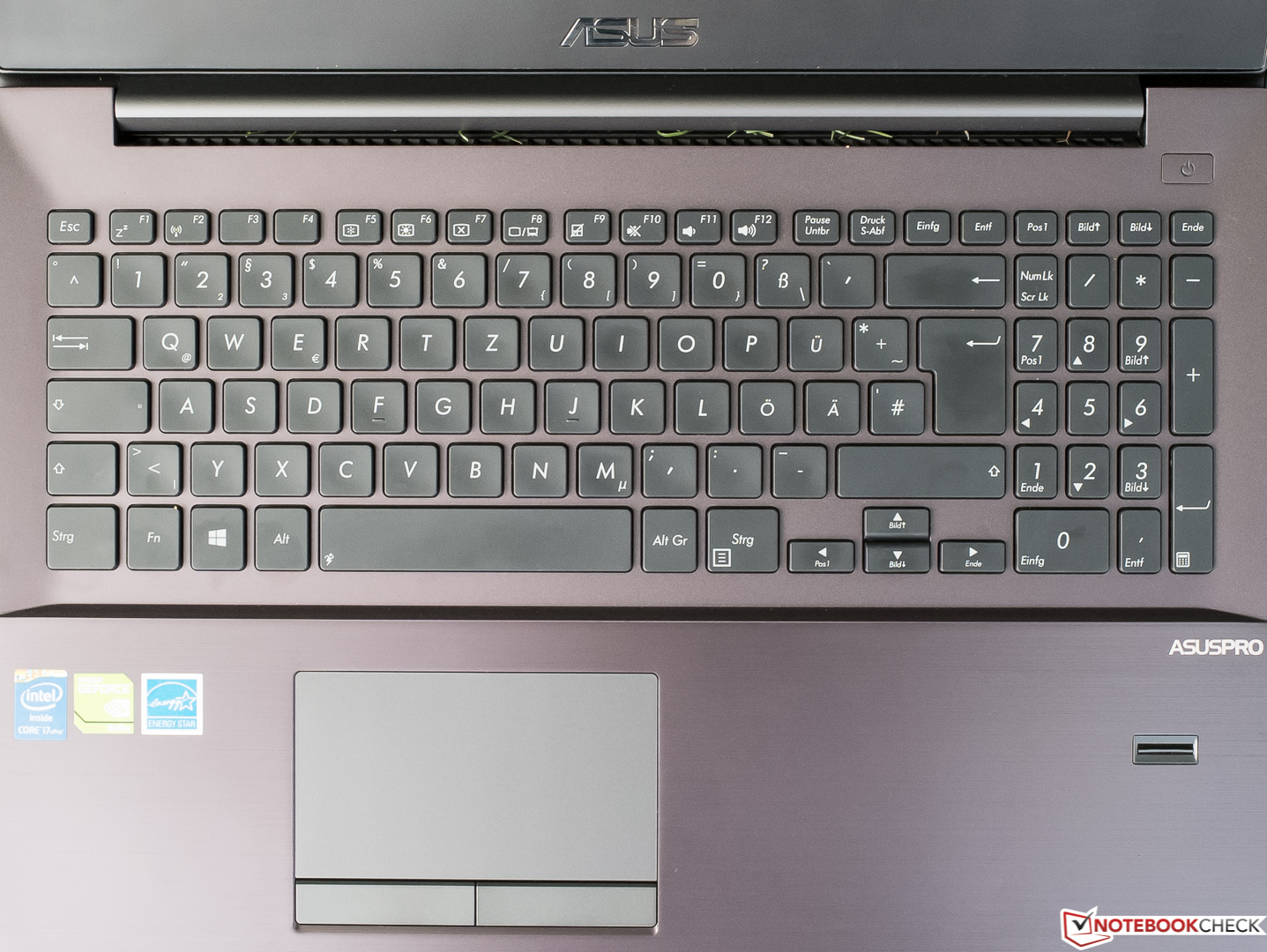

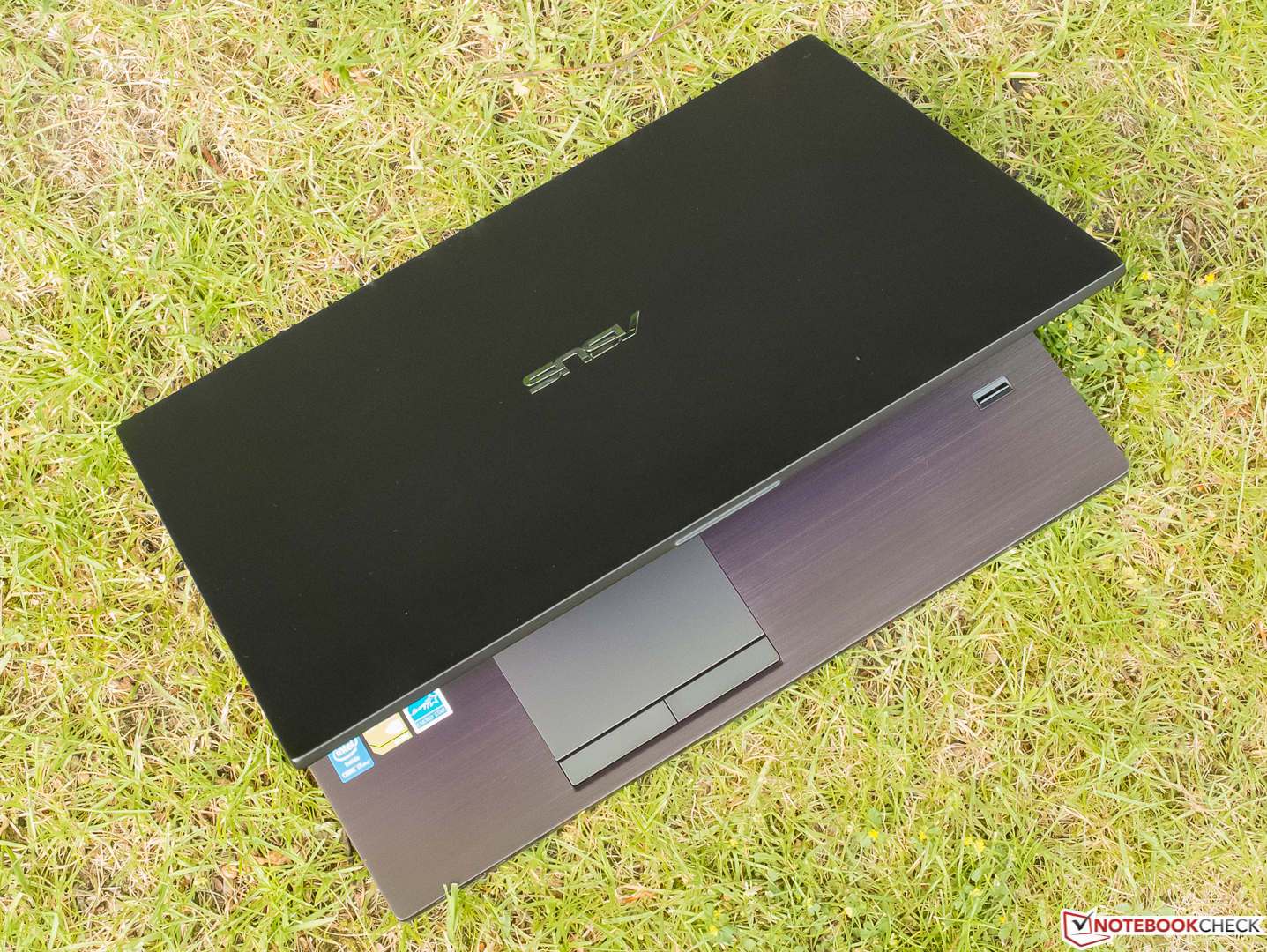

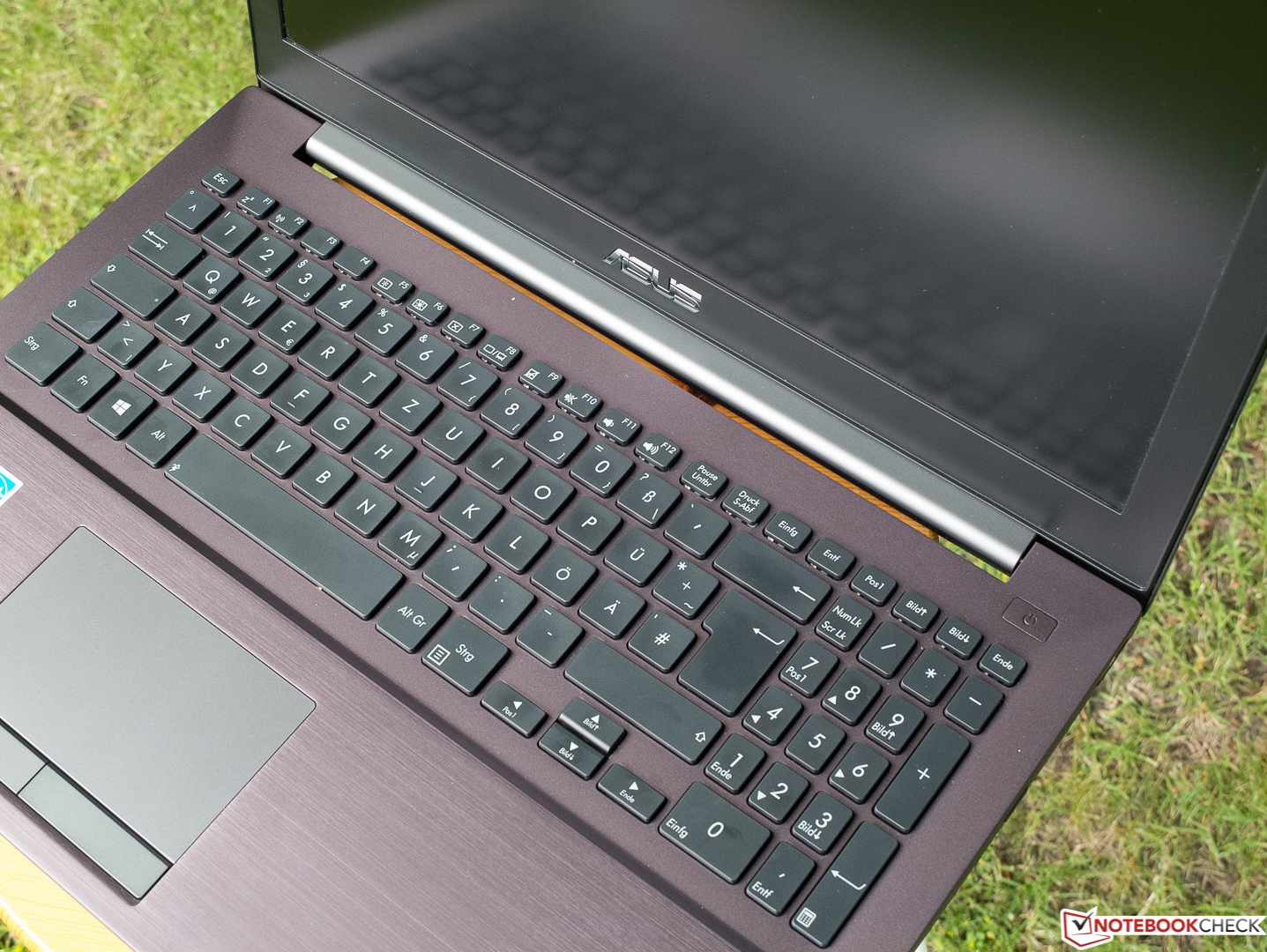

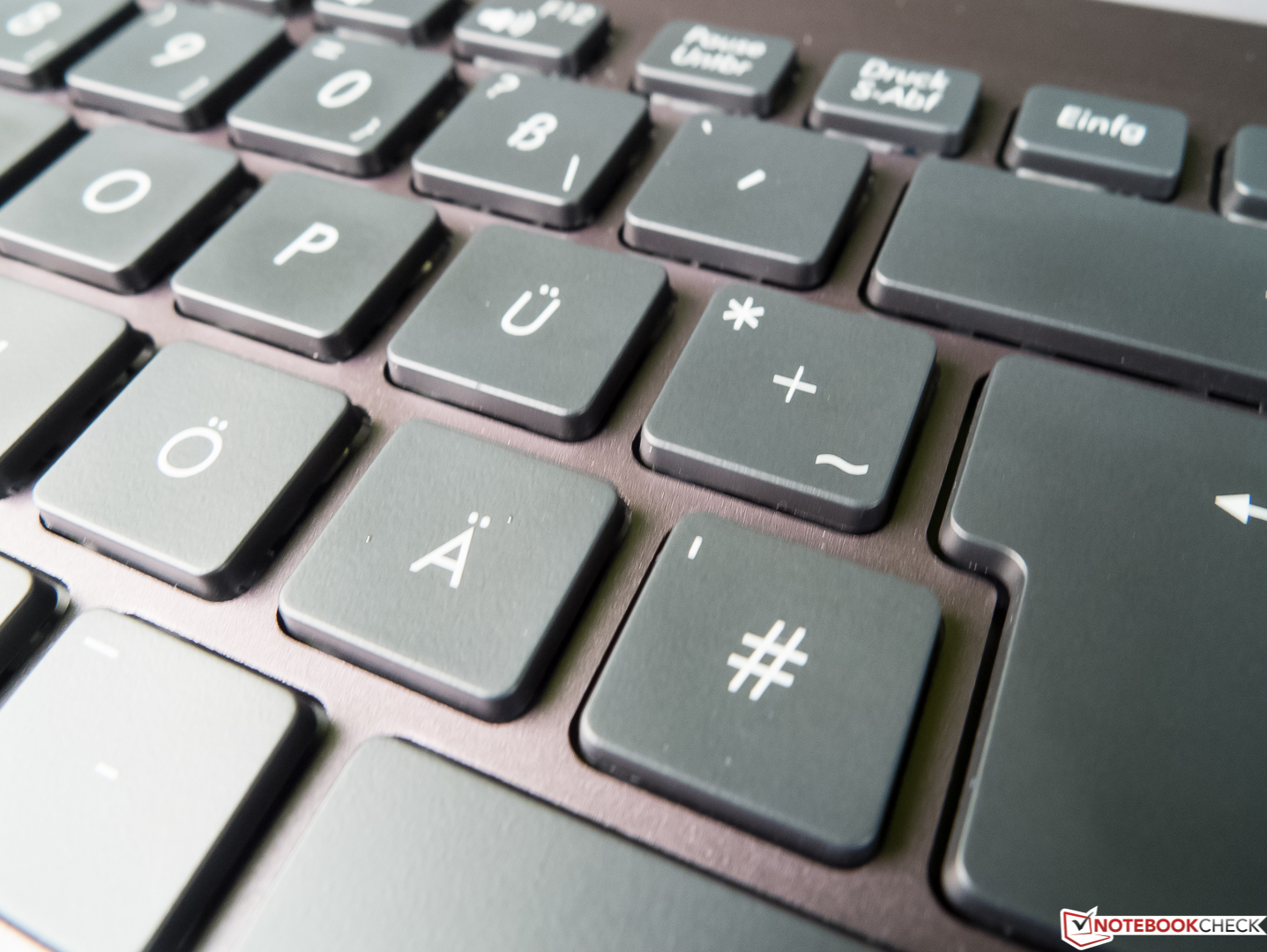

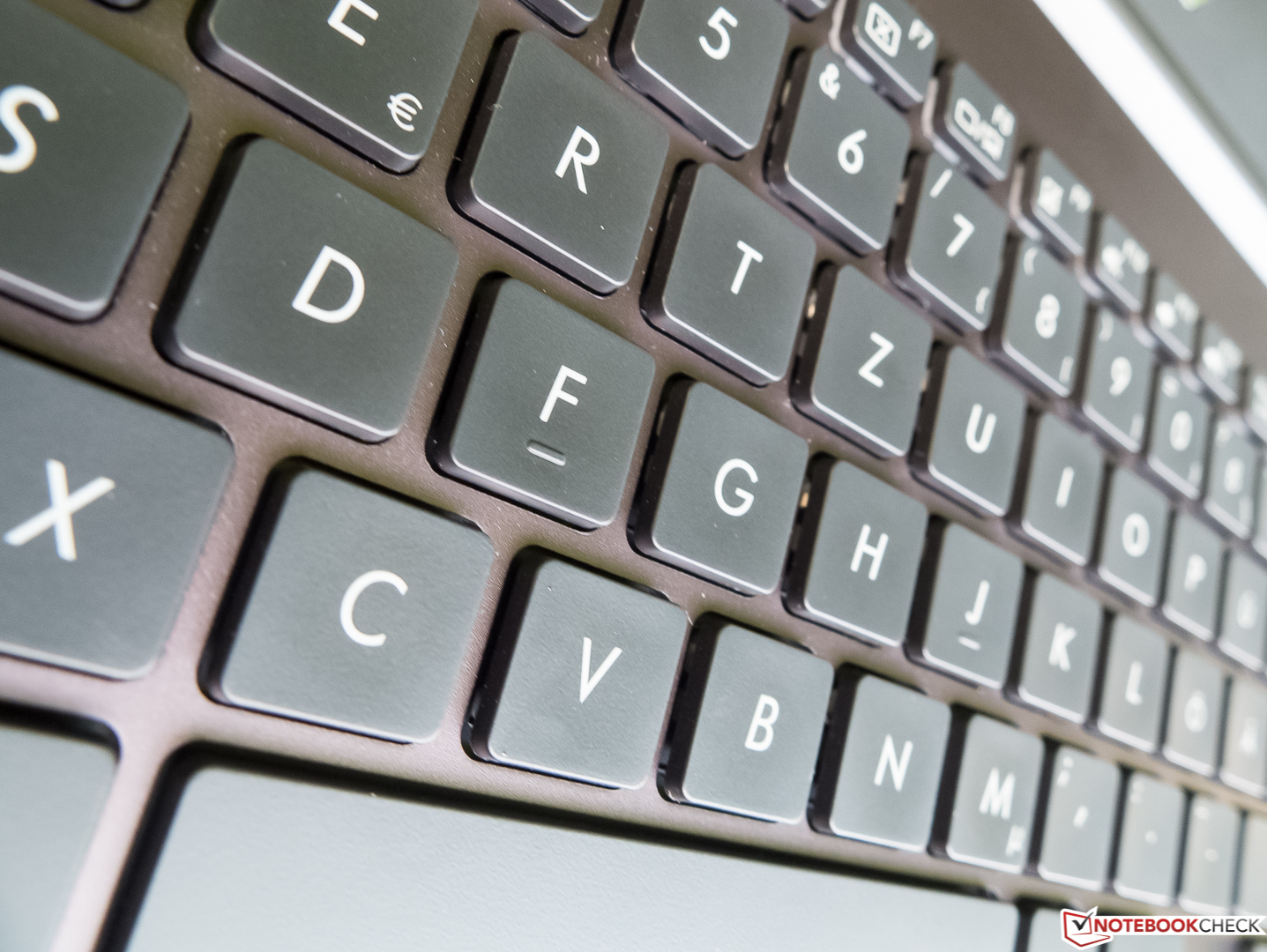

Den stora skärmen, det robusta chassit, tangentbordets tilltalande haptik, det stora antalet portar och de användbara högtalarna definitivt positiva punkter. Detsamma gäller säkerhetsfunktionerna, som bör vara tillräckliga för de flesta proffsanvändare - åtminstone de som kan leva med det skrymmande chassit och den ganska höga vikten.
System- och GPU-prestandan räcker även för att spela de senaste spelen (inklusive krävande spel) med anständiga inställningar. Den här kombinationen av egenskaper är faktiskt ganska unik, och särskiljer Asus Pro från konkurrenterna och gör det relativt höga priset mer motiverat. Våra problem med den första testenheten lämnar trots allt en syrlig eftersmak.
