Test: Asus EeeBook X205TA-FD005BS Netbook (sammanfattning)

Name: Asus EeeBook X205TA-FD005BS
Brand: Asus

En ny Netbook. Asus erbjuder en liten dator med Windows 8.1 Bing för ett par tusenlappar. Hur mycket netbook får man för pengarna? Asus pratar om elegans, premiumkänsla, 12 timmars surf och färgstark skärm.

Sebastian Jentsch, ✓ Stefanie Voigt, Published 12/15/2014 🇺🇸 🇩🇪 ...

Windows Laptop / Notebook Bay Trail


266 cd/m²	256 cd/m²	261 cd/m²
251 cd/m²	260 cd/m²	256 cd/m²
235 cd/m²	225 cd/m²	239 cd/m²

Distribution av ljusstyrkan

tested with X-Rite i1Pro 2

Max: 266 cd/m² (Nits) Medel: 249.9 cd/m²
Distribution av ljusstyrkan: 85 %
Mitt på batteriet: 260 cd/m²
Kontrast: 684:1 (Svärta: 0.38 cd/m²)
ΔE Color 6.33 | 0.5-29.43 Ø4.91
ΔE Greyscale 6.25 | 0.5-98 Ø5.2
36% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.14% AdobeRGB 1998 (Argyll 2.2.0 3D)
57% sRGB (Argyll 2.2.0 3D)
37.88% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.26

Download ICC-fil (X-Rite i1Pro 2)

	Asus EeeBook X205TA-FD005BS HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash	Lenovo S20-30 HD Graphics (Bay Trail), N2830, Western Digital Scorpio Blue WD5000LPCX-24C6HT0	Acer Aspire E3-111-C6LG HD Graphics (Bay Trail), N2930, Western Digital Scorpio Blue WD5000LPVX	Asus C200MA-KX003 HD Graphics (Bay Trail), N2830, 32 GB eMMC Flash	Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380
Display		11%	7%		3%
Display P3 Coverage	37.88	41.96 11%	40.43 7%		39.2 3%
sRGB Coverage	57	63.2 11%	60.7 6%		58.8 3%
AdobeRGB 1998 Coverage	39.14	43.35 11%	41.8 7%		40.51 4%
Screen		-57%	-61%	-11%	-47%
Brightness middle	260	254 -2%	245 -6%	250 -4%	294 13%
Brightness	250	235 -6%	235 -6%	243 -3%	266 6%
Brightness Distribution	85	86 1%	85 0%	90 6%	86 1%
Black Level *	0.38	1.25 -229%	1.17 -208%	0.31 18%	0.89 -134%
Contrast	684	203 -70%	209 -69%	806 18%	330 -52%
Colorchecker dE 2000 *	6.33	10.77 -70%	12.53 -98%	9.3 -47%	11.14 -76%
Greyscale dE 2000 *	6.25	11.97 -92%	13.25 -112%	10.18 -63%	11.48 -84%
Gamma	2.26 ^97%	2.13 ^103%	2.68 ^82%	2.37 ^93%	2.1 ^105%
CCT	7906 ^82%	14771 ^44%	18403 ^35%	12578 ^52%	12680 ^51%
Color Space (Percent of AdobeRGB 1998)	36	40 11%	38.7 8%
Total Average (Program / Settings)		-23% / -39%	-27% / -43%	-11% / -11%	-22% / -32%

* ... smaller is better

Cinebench R10 | Sunspider | Mozilla Kraken 1.1 | Octane V2 | PCMark 7

Cinebench R10
Rendering Single 32Bit (sort by value)
Asus EeeBook X205TA-FD005BS	813 Points
Lenovo S20-30	1202 Points +48%
Acer Aspire E3-111-C6LG	1141 Points +40%
Lenovo ThinkPad Edge E145	1052 Points +29%
Acer Aspire Switch 10 SW5-012-13DP	774 Points -5%
Rendering Multiple CPUs 32Bit (sort by value)
Asus EeeBook X205TA-FD005BS	2867 Points
Lenovo S20-30	2224 Points -22%
Acer Aspire E3-111-C6LG	4013 Points +40%
Lenovo ThinkPad Edge E145	2016 Points -30%
Acer Aspire Switch 10 SW5-012-13DP	2424 Points -15%

Sunspider - 1.0 Total Score (sort by value)
Asus EeeBook X205TA-FD005BS	488 ms *
Lenovo S20-30	564 ms * -16%
Lenovo S20-30	337.3 ms * +31%
Asus C200MA-KX003	522 ms * -7%
Asus C200MA-KX003	491 ms * -1%
Acer Aspire Switch 10 SW5-012-13DP	604 ms * -24%

Mozilla Kraken 1.1 - Total (sort by value)
Asus EeeBook X205TA-FD005BS	9362 ms *
Lenovo S20-30	6996 ms * +25%
Lenovo S20-30	4867 ms * +48%
Asus C200MA-KX003	4482 ms * +52%

Octane V2 - Total Score (sort by value)
Asus EeeBook X205TA-FD005BS	3483 Points
Lenovo S20-30	7261 Points +108%
Lenovo S20-30	4542 Points +30%
Asus C200MA-KX003	7321 Points +110%
Asus C200MA-KX003	7161 Points +106%

PCMark 7 - Computation (sort by value)
Asus EeeBook X205TA-FD005BS	5830 Points
Acer Aspire E3-111-C6LG	6648 Points +14%
Lenovo ThinkPad Edge E145	3258 Points -44%
Acer Aspire Switch 10 SW5-012-13DP	5409 Points -7%

Legend

Asus EeeBook X205TA-FD005BS Intel Atom Z3735F, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Lenovo S20-30 Intel Celeron N2830, Intel HD Graphics (Bay Trail), Western Digital Scorpio Blue WD5000LPCX-24C6HT0

Acer Aspire E3-111-C6LG Intel Celeron N2930, Intel HD Graphics (Bay Trail), Western Digital Scorpio Blue WD5000LPVX

Asus C200MA-KX003 Intel Celeron N2830, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Lenovo ThinkPad Edge E145 AMD E1-2500, AMD Radeon HD 8240, Hitachi Travelstar Z5K500 HTS545050A7E380

Acer Aspire Switch 10 SW5-012-13DP Intel Atom Z3735F, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

* ... smaller is better

Cinebench R10 Shading 32Bit

1740

Cinebench R10 Rendering Single 32Bit

813

Cinebench R10 Rendering Multiple CPUs 32Bit

2867

Hjälp

... jämför

PCMark 8 | PCMark 7

PCMark 8
Home Score Accelerated v2 (sort by value)
Asus EeeBook X205TA-FD005BS	1142 Points
Lenovo S20-30	1130 Points -1%
Acer Aspire E3-111-C6LG	1104 Points -3%
Storage Score (sort by value)
Lenovo ThinkPad Edge E145	1915 Points

PCMark 7
System Storage (sort by value)
Asus EeeBook X205TA-FD005BS	3676 Points
Acer Aspire E3-111-C6LG	1480 Points -60%
Lenovo ThinkPad Edge E145	417 Points -89%
Acer Aspire Switch 10 SW5-012-13DP	3730 Points +1%
Creativity (sort by value)
Asus EeeBook X205TA-FD005BS	4513 Points
Acer Aspire E3-111-C6LG	3670 Points -19%
Lenovo ThinkPad Edge E145	2865 Points -37%
Acer Aspire Switch 10 SW5-012-13DP	4422 Points -2%
Entertainment (sort by value)
Asus EeeBook X205TA-FD005BS	1614 Points
Acer Aspire E3-111-C6LG	1540 Points -5%
Lenovo ThinkPad Edge E145	1189 Points -26%
Acer Aspire Switch 10 SW5-012-13DP	1479 Points -8%
Productivity (sort by value)
Asus EeeBook X205TA-FD005BS	1761 Points
Acer Aspire E3-111-C6LG	839 Points -52%
Lenovo ThinkPad Edge E145	663 Points -62%
Acer Aspire Switch 10 SW5-012-13DP	850 Points -52%
Lightweight (sort by value)
Asus EeeBook X205TA-FD005BS	2214 Points
Acer Aspire E3-111-C6LG	1357 Points -39%
Lenovo ThinkPad Edge E145	1150 Points -48%
Acer Aspire Switch 10 SW5-012-13DP	1219 Points -45%
Score (sort by value)
Asus EeeBook X205TA-FD005BS	2388 Points
Acer Aspire E3-111-C6LG	1648 Points -31%
Lenovo ThinkPad Edge E145	1254 Points -47%
Acer Aspire Switch 10 SW5-012-13DP	2252 Points -6%

PCMark 7 Score		2388 poäng
PCMark 8 Home Score Accelerated v2		1142 poäng
Hjälp

... jämför

	Asus EeeBook X205TA-FD005BS	Lenovo S20-30	Acer Aspire E3-111-C6LG	Lenovo ThinkPad Edge E145	Acer Aspire Switch 10 SW5-012-13DP
CrystalDiskMark 3.0		-18%	-16%	-26%	46%
Read Seq	120	100.8 -16%	104.7 -13%	96.9 -19%	169.3 41%
Write Seq	46.54	101.3 118%	103.3 122%	96.3 107%	72.8 56%
Read 4k	12.03	0.396 -97%	0.387 -97%	0.102 -99%	18.31 52%
Write 4k	4.225	1.063 -75%	1.054 -75%	0.27 -94%	5.603 33%

CrystalDiskMark 3.0

AS SSD

32 GB eMMC Flash

Sequential Read: 120 MB/s

Sequential Write: 46.54 MB/s

512K Read: 81.7 MB/s

512K Write: 45.64 MB/s

4K Read: 12.03 MB/s

4K Write: 4.225 MB/s

4K QD32 Read: 32.36 MB/s

4K QD32 Write: 5.554 MB/s

	Asus EeeBook X205TA-FD005BS	Lenovo S20-30	Acer Aspire E3-111-C6LG	Lenovo ThinkPad Edge E145	HP Stream 14-z050ng	HP 15-g005ng	Asus F551MA-SX063H
3DMark 11		7%	25%	128%	113%	305%	23%
1280x720 Performance	212	226 7%	264 25%	464 119%	444 109%	831 292%	261 23%
1280x720 Performance GPU	182	194 7%	225 24%	429 136%	394 116%	759 317%	223 23%
3DMark		5%	-70%	47%	39%	136%	28%
1280x720 Cloud Gate Standard Score	1186	1176 -1%	354 -70%	1501 27%	1638 38%	2882 143%	1515 28%
1280x720 Cloud Gate Standard Graphics	1230	1349 10%	362 -71%	2273 85%	2099 71%	3291 168%	1471 20%
1280x720 Ice Storm Standard Score	15265	15256 0%	4791 -69%	18212 19%	16523 8%	32088 110%	20652 35%
1280x720 Ice Storm Standard Graphics	16059	17475 9%	5056 -69%	25296 58%	22434 40%	35930 124%	20760 29%
Total Average (Program / Settings)		6% / 5%	-23% / -38%	88% / 74%	76% / 64%	221% / 192%	26% / 26%

3DMark 11 Performance		212 poäng
3DMark Ice Storm Standard Score		15265 poäng
3DMark Cloud Gate Standard Score		1186 poäng
Hjälp

... jämför

Dishonored | Tomb Raider | Sleeping Dogs

Dishonored - 1024x768 Low / Off, FOV: 75 (sort by value)
Asus EeeBook X205TA-FD005BS HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash	12.5 fps
HP Stream 14-z050ng Radeon R3 (Mullins/Beema), A4 Micro-6400T, 32 GB eMMC Flash	17.6 fps +41%
HP 15-g005ng Radeon R5 (Beema/Carrizo-L), A8-6410, Hitachi Travelstar Z5K500 HTS545050A7E680	26.4 fps +111%
Asus F551MA-SX063H HD Graphics (Bay Trail), N3520, Western Digital Scorpio Blue WD5000LPVX	14.3 fps +14%

Tomb Raider - 1024x768 Low Preset (sort by value)
Asus EeeBook X205TA-FD005BS HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash	12.9 fps
Lenovo S20-30 HD Graphics (Bay Trail), N2830, Western Digital Scorpio Blue WD5000LPCX-24C6HT0	14.1 fps +9%
Acer Aspire E3-111-C6LG HD Graphics (Bay Trail), N2930, Western Digital Scorpio Blue WD5000LPVX	15 fps +16%
Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380	21.8 fps +69%
HP Stream 14-z050ng Radeon R3 (Mullins/Beema), A4 Micro-6400T, 32 GB eMMC Flash	20.7 fps +60%
HP 15-g005ng Radeon R5 (Beema/Carrizo-L), A8-6410, Hitachi Travelstar Z5K500 HTS545050A7E680	34 fps +164%
Asus F551MA-SX063H HD Graphics (Bay Trail), N3520, Western Digital Scorpio Blue WD5000LPVX	15.5 fps +20%

Sleeping Dogs - 1024x768 Low Preset AA:Normal (sort by value)
Asus EeeBook X205TA-FD005BS HD Graphics (Bay Trail), Z3735F, 32 GB eMMC Flash	13.2 fps
Lenovo ThinkPad Edge E145 Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380	16.4 fps +24%
HP 15-g005ng Radeon R5 (Beema/Carrizo-L), A8-6410, Hitachi Travelstar Z5K500 HTS545050A7E680	28.2 fps +114%

	låg	med.
Sleeping Dogs (2012)	13.2	7.5
Dishonored (2012)	12.5	9.8
Tomb Raider (2013)	12.9	6.7

	Lenovo S20-30 HDD	Acer Aspire E3-111-C6LG HDD	Lenovo ThinkPad Edge E145 HDD
Noise
Idle Minimum *	33.4	29.8	30
Idle Average *	33.4	29.8	30
Idle Maximum *	33.4	29.8	30
Load Average *	34.7	29.8	32.8
Load Maximum *	35.4	29.8	35.1

* ... smaller is better

	Asus EeeBook X205TA-FD005BS Z3735F	Lenovo S20-30 N2830	Acer Aspire E3-111-C6LG N2930	Asus C200MA-KX003 N2830	Lenovo ThinkPad Edge E145 E1-2500
Heat		4%	-20%	12%	18%
Maximum Upper Side *	44.5	33.7 24%	48.1 -8%	36.1 19%	28.4 36%
Maximum Bottom *	46.8	42 10%	56.8 -21%	34.3 27%	27.5 41%
Idle Upper Side *	27.2	29 -7%	32.6 -20%	28.1 -3%	27.7 -2%
Idle Bottom *	27.2	30.4 -12%	35.8 -32%	26.2 4%	28 -3%

* ... smaller is better

Hög belastning

Låg belastning


27.2 °C	25.7 °C	23.5 °C
26.7 °C	25.7 °C	23.5 °C
23.8 °C	24.1 °C	23 °C

Max: 27.2 °C
Medel: 24.8 °C


23.6 °C	26.3 °C	27.2 °C
23.2 °C	24.7 °C	25.3 °C
23.5 °C	24 °C	24.1 °C

Max: 27.2 °C
Medel: 24.7 °C

Strömförsörjning (max.) 30.8 °C | Rumstemperatur 22.2 °C | Voltcraft IR-360

(+) The average temperature for the upper side under maximal load is 31.9 °C / 89 F, compared to the average of 29.8 °C / 86 F for the devices in the class Netbook.
(±) The maximum temperature on the upper side is 44.5 °C / 112 F, compared to the average of 33.1 °C / 92 F, ranging from 21.6 to 53.2 °C for the class Netbook.
(-) The bottom heats up to a maximum of 46.8 °C / 116 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 29.8 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.9 °C / 84 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 29.3 °C / 84.7 F (+0.4 °C / 0.7 F).

	Asus EeeBook X205TA-FD005BS Z3735F	Lenovo S20-30 N2830	Acer Aspire E3-111-C6LG N2930	Asus C200MA-KX003 N2830	Lenovo ThinkPad Edge E145 E1-2500
Power Consumption		-103%	-135%	-21%	-114%
Idle Minimum *	1.6	4.9 -206%	5 -213%	2.2 -38%	4.2 -163%
Idle Average *	2.9	6 -107%	7.3 -152%	3.6 -24%	5.9 -103%
Idle Maximum *	3.2	6.2 -94%	7.4 -131%		6.3 -97%
Load Average *	8.1	12.8 -58%	15 -85%		14.9 -84%
Load Maximum *	9	13.4 -49%	17.4 -93%	9 -0%	20.1 -123%

* ... smaller is better

Strömförbrukning

Av/Standby	0 / 0.05 Watt
Låg belastning	1.6 / 2.9 / 3.2 Watt
Hög belastning	8.1 / 9 Watt


Förklaring: min: , med: , max: Voltcraft VC 960

Battery Runtime
Reader / Idle (sort by value)
Asus EeeBook X205TA-FD005BS	1173 min
Acer Aspire E3-111-C6LG	436 min
Asus C200MA-KX003	1200 min
Lenovo ThinkPad Edge E145	1183 min
H.264 (sort by value)
Asus EeeBook X205TA-FD005BS	585 min
Acer Aspire E3-111-C6LG	271 min
Asus C200MA-KX003	640 min
WiFi (sort by value)
Asus EeeBook X205TA-FD005BS	545 min
Lenovo S20-30	328 min
Acer Aspire E3-111-C6LG	257 min
Asus C200MA-KX003	612 min
Lenovo ThinkPad Edge E145	499 min
Load (sort by value)
Asus EeeBook X205TA-FD005BS	305 min
Acer Aspire E3-111-C6LG	108 min
Asus C200MA-KX003	323 min
Lenovo ThinkPad Edge E145	241 min

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		19tim 33min
Surfa med WLAN		9tim 05min
Big Buck Bunny H.264 1080p		9tim 45min
Hög belastning (maximal ljusstyrka)		5tim 05min

EeeBook X205TA-FD005BS: Browsing and office machine with a good screen

Asus reducerar kärnegenskaperna hos en netbook till en gemensam nämnare utan att ge avkall på en viss grad av kvalitet och utseende. Nyversionen av EeePC är praktisk, långlivad och utrustad med skapliga inmatningsenheter. Bay Trail-plattformen bidrar till anständig vardagsprestanda, som är något lägre än i identiskt byggda netbooks. Anledningen till det är att Asus har installerat extra långsam eMMC-lagring och strypt Turbohastigheten något. Höjdpunkterna är den höga kontrasten och den exceptionellt låga strömförbrukningen.

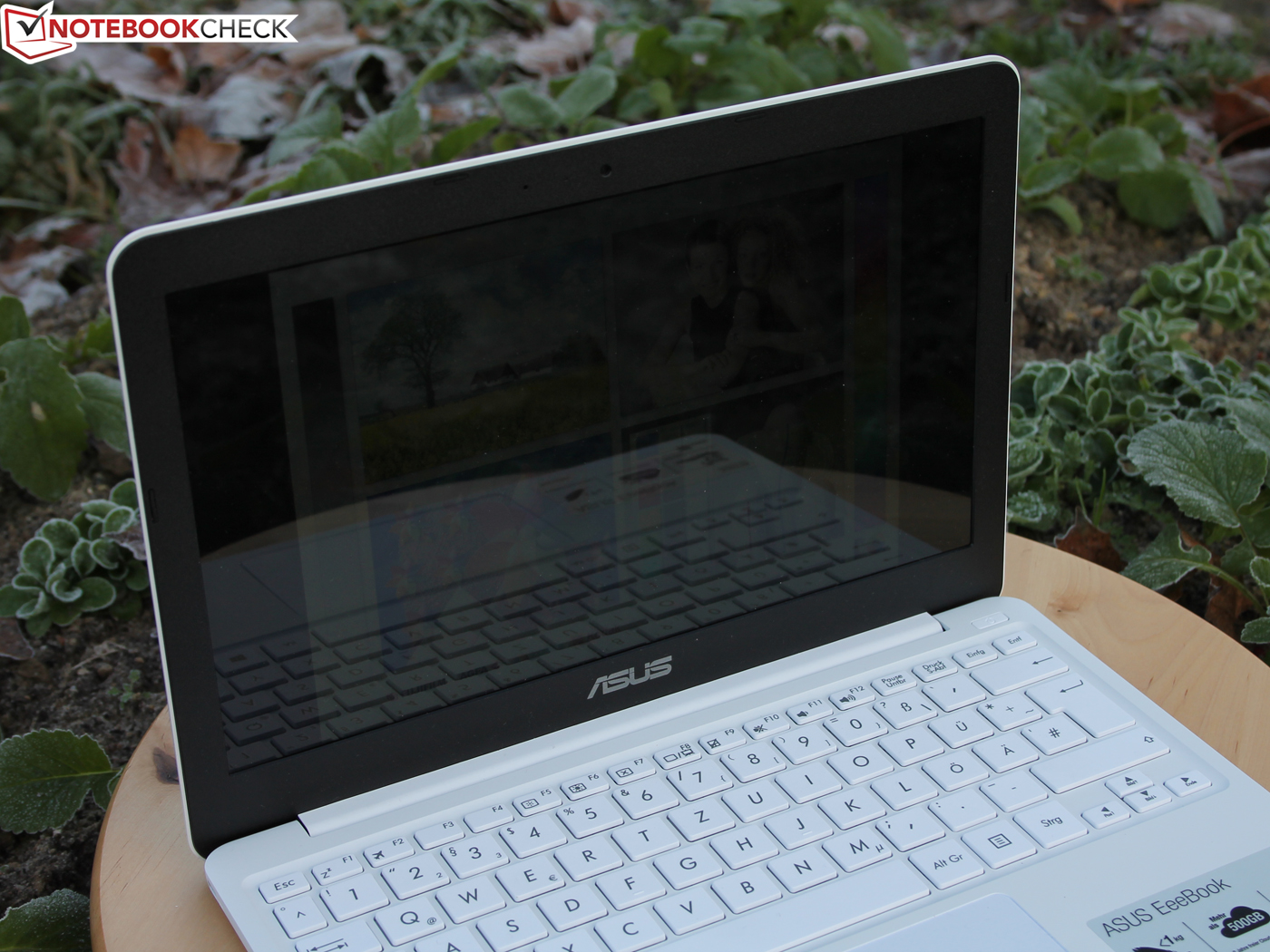

Även om Asus valt en glansig TN-skärm är kontrast och färgåtergivning bättre än hos lågpriskonkurrenterna. Den helt ljudlösa driften gör den låga lagringskapaciteten lite drägligare, men en hårddisk hade helt klart varit en fördel.

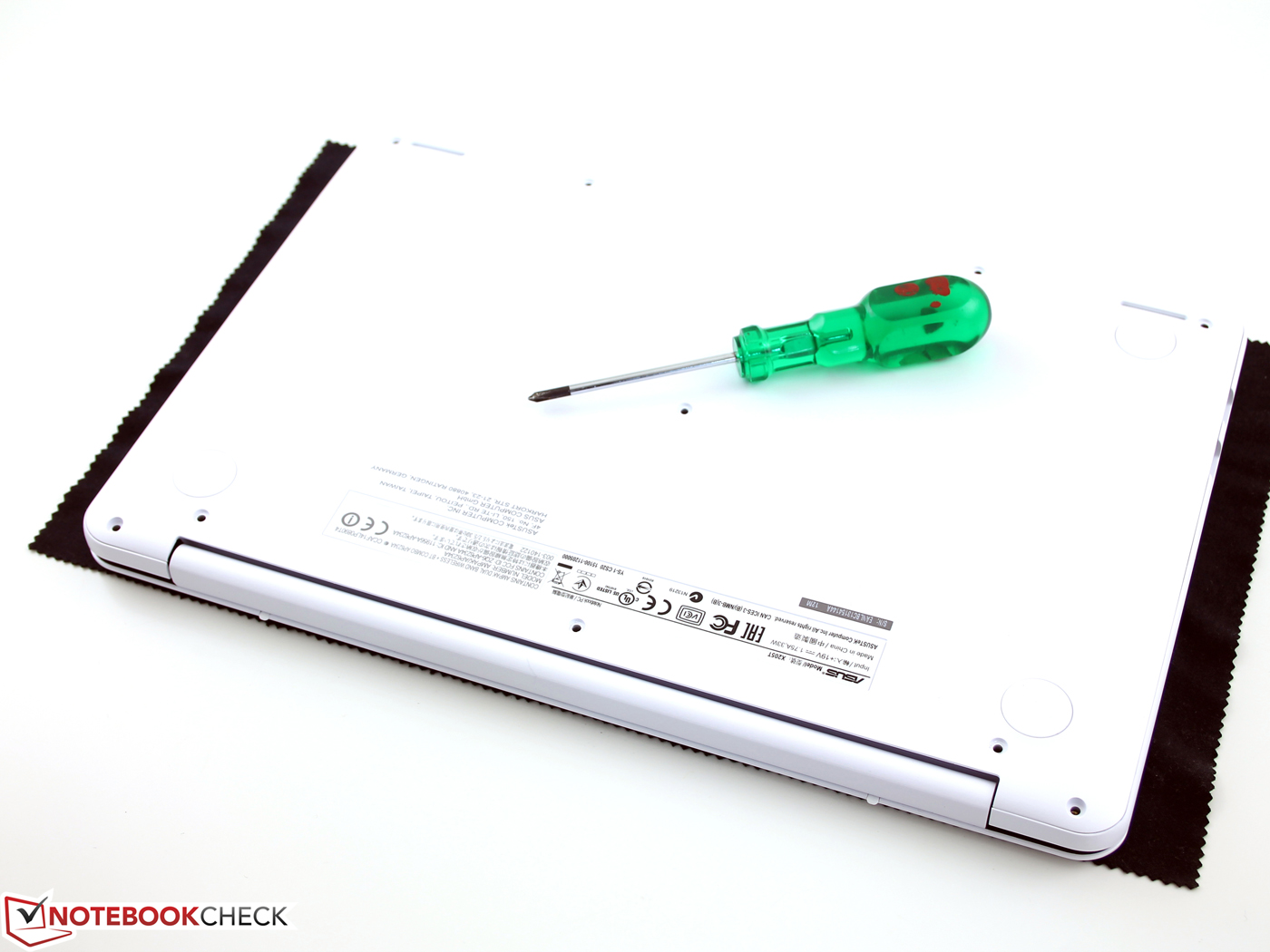

X205 har också några väsentliga nackdelar: Underhåll, även enkla batteribyten, är omöjliga. Lenovos ThinkPad Edge E145 och Aspire E3-111-C6LG är mer användarvänliga med lättåtkomlig interiör. Webbkameran tar bilder som inte duger för eBay-annonser, ens i dagsljus, men mikrofonen får godkänt.
