Test: Asus F550LN-CN89H (sammanfattning)
| |||||||||||||||||||||||||
AU Optronics B156HTN03.6 tested with X-Rite i1Pro 2
Max: 178 cd/m² (Nits) Medel: 166.4 cd/m²Distribution av ljusstyrkan: 81 %
Mitt på batteriet: 178 cd/m²
Kontrast: 434:1 (Svärta: 0.41 cd/m²)
ΔE Color 4.36 | 0.5-29.43 Ø4.91
ΔE Greyscale 3.35 | 0.5-98 Ø5.2
39% AdobeRGB 1998 (Argyll 1.6.3 3D)
42.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
61.2% sRGB (Argyll 2.2.0 3D)
40.82% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.36
| Asus F550LN-CN89H GeForce 840M, 4500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB | Lenovo IdeaPad Z510 GeForce GT 740M, 4200M, Seagate ST500LM000 Solid State Hybrid Drive | Acer Aspire V5-561G Radeon R7 M265, 4200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | Asus N56JR-S4080H GeForce GTX 760M, 4700HQ, Toshiba MQ01ABD100 | Acer Aspire V5-573G-54208G50aii GeForce GT 750M, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142 | |
|---|---|---|---|---|---|
| Display | 23% | 17% | 42% | 52% | |
| Display P3 Coverage | 40.82 | 50.8 24% | 48.35 18% | 58.1 42% | 64.1 57% |
| sRGB Coverage | 61.2 | 74.4 22% | 69.8 14% | 86.2 41% | 89 45% |
| AdobeRGB 1998 Coverage | 42.2 | 52.5 24% | 49.65 18% | 59.9 42% | 64.6 53% |
| Screen | -36% | -67% | 26% | 42% | |
| Brightness middle | 178 | 317 78% | 300 69% | 375 111% | 287 61% |
| Brightness | 166 | 295 78% | 280 69% | 341 105% | 278 67% |
| Brightness Distribution | 81 | 73 -10% | 85 5% | 76 -6% | 77 -5% |
| Black Level * | 0.41 | 0.97 -137% | 1.27 -210% | 0.58 -41% | 0.24 41% |
| Contrast | 434 | 327 -25% | 236 -46% | 647 49% | 1196 176% |
| Colorchecker dE 2000 * | 4.36 | 8.52 -95% | 10.93 -151% | 4.14 5% | 4.8 -10% |
| Greyscale dE 2000 * | 3.35 | 10.06 -200% | 12.96 -287% | 5.25 -57% | 5 -49% |
| Gamma | 2.36 93% | 2.51 88% | 2.39 92% | 2.48 89% | 2.7 81% |
| CCT | 6991 93% | 10564 62% | 11591 56% | 5699 114% | 6360 102% |
| Color Space (Percent of AdobeRGB 1998) | 39 | 48.76 25% | 45.3 16% | 56.6 45% | 61 56% |
| Total Average (Program / Settings) | -7% /
-20% | -25% /
-44% | 34% /
31% | 47% /
45% |
* ... smaller is better
| Cinebench R11.5 - CPU Single 64Bit (sort by value) | |
| Asus F550LN-CN89H | |
| Asus F550LN-CN89H | |
| HP Compaq 15-a024sg | |
| Acer Aspire V5-573G-54208G50aii | |
| Acer Aspire V5-561G | |
| Dell Inspiron 15R-5537 | |
| Lenovo IdeaPad Z510 | |
| Asus N56JR-S4080H | |
| Cinebench R11.5 - CPU Multi 64Bit (sort by value) | |
| Asus F550LN-CN89H | |
| Asus F550LN-CN89H | |
| HP Compaq 15-a024sg | |
| Acer Aspire V5-573G-54208G50aii | |
| Acer Aspire V5-561G | |
| Dell Inspiron 15R-5537 | |
| Lenovo IdeaPad Z510 | |
| Asus N56JR-S4080H | |
| PCMark 7 Score | 2909 poäng | |
| PCMark 8 Home Score Accelerated v2 | 2844 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 3303 poäng | |
| PCMark 8 Work Score Accelerated v2 | 3463 poäng | |
Hjälp | ||
| PCMark 7 - Score (sort by value) | |
| Asus F550LN-CN89H | |
| HP Compaq 15-a024sg | |
| Acer Aspire V5-573G-54208G50aii | |
| Acer Aspire V5-561G | |
| Dell Inspiron 15R-5537 | |
| Asus N56JR-S4080H | |
| Lenovo IdeaPad Z510 | |

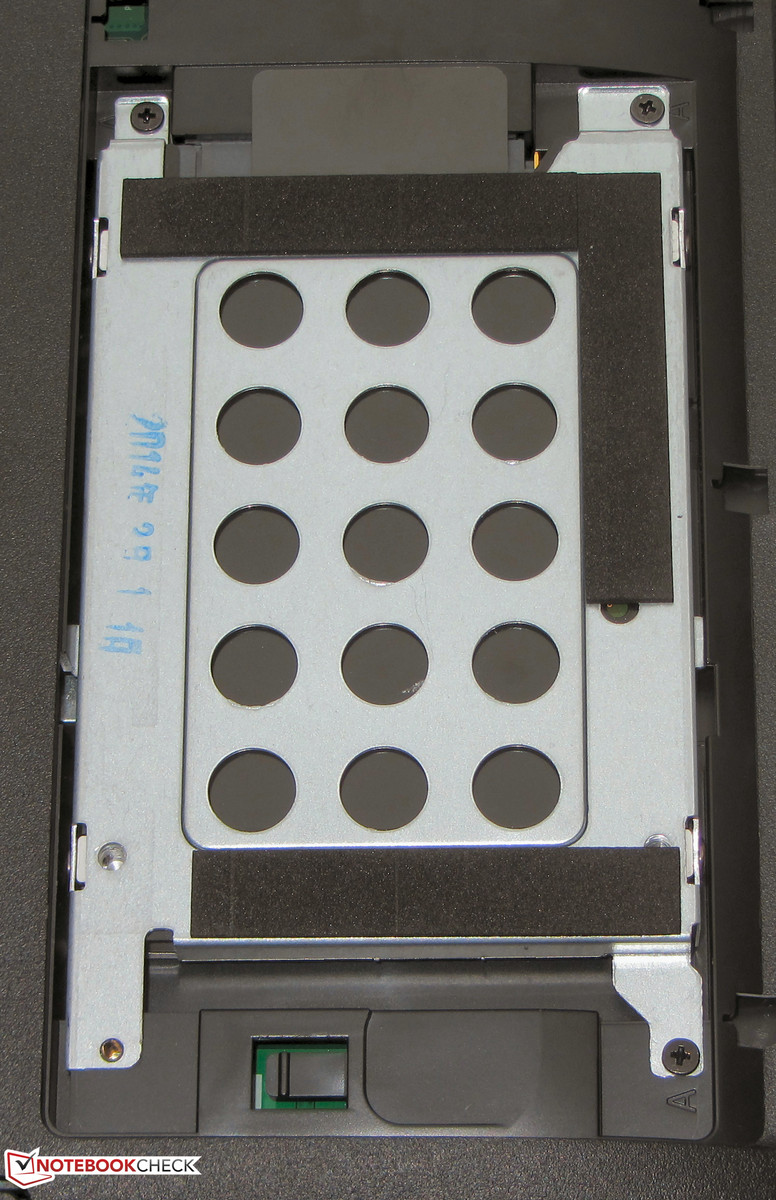

Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
Överföringshastighet min.:
44.5 MB/s
Överföringshastighet max.:
111.7 MB/s
Överföringshastighet med.:
82 MB/s
Accesstid:
17.3 ms
Burst rate:
283.6 MB/s
CPU-användning:
3.6 %
| 3DMark 06 Standard Score | 10332 poäng | |
| 3DMark Vantage P Result | 7191 poäng | |
| 3DMark 11 Performance | 2385 poäng | |
| 3DMark Ice Storm Standard Score | 46736 poäng | |
| 3DMark Cloud Gate Standard Score | 5816 poäng | |
| 3DMark Fire Strike Score | 1334 poäng | |
Hjälp | ||
| 3DMark 11 - 1280x720 Performance (sort by value) | |
| Asus F550LN-CN89H | |
| HP Compaq 15-a024sg | |
| Acer Aspire V5-561G | |
| Lenovo IdeaPad Z510 | |
| Dell Inspiron 15R-5537 | |
| Acer Aspire V5-573G-54208G50aii | |
| Asus N56JR-S4080H | |
| Asus N56JR-S4080H | |
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| Battlefield: Bad Company 2 (2010) | 75.3 | 55.9 | 23.6 | |
| Civilization 5 (2010) | 60.8 | 16.1 | ||
| Total War: Shogun 2 (2011) | 115 | 40 | 17.4 | |
| Batman: Arkham City (2011) | 49 | 36 | ||
| Mass Effect 3 (2012) | 36.7 | 21.4 | ||
| Risen 2: Dark Waters (2012) | 42.2 | 28 | 22.4 | |
| Max Payne 3 (2012) | 45.8 | 30.1 | ||
| Ghost Recon: Future Soldier (2012) | 40.8 | 17.6 | ||
| Sleeping Dogs (2012) | 58.9 | 28.9 | ||
| Counter-Strike: GO (2012) | 79.6 | 45.5 | ||
| Medal of Honor: Warfighter (2012) | 41.2 | 35.1 | ||
| Need for Speed: Most Wanted (2012) | 42 | 30.3 | ||
| Assassin´s Creed III (2012) | 42.3 | 38.2 | ||
| Tomb Raider (2013) | 125.3 | 58.8 | 29.2 | |
| BioShock Infinite (2013) | 83.4 | 47.5 | 38.4 | 13.4 |
| Thief (2014) | 32.7 | 21.3 | 17.1 |
| Asus F550LN-CN89H GeForce 840M, 4500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB | Acer Aspire V5-561G Radeon R7 M265, 4200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | Lenovo IdeaPad Z510 GeForce GT 740M, 4200M, Seagate ST500LM000 Solid State Hybrid Drive | Acer Aspire V5-573G-54208G50aii GeForce GT 750M, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142 | Asus N56JR-S4080H GeForce GTX 760M, 4700HQ, Toshiba MQ01ABD100 | |
|---|---|---|---|---|---|
| Tomb Raider | -13% | -18% | 14% | 127% | |
| 1024x768 Low Preset | 125.3 | 95.2 -24% | 97 -23% | 120.4 -4% | |
| 1366x768 Normal Preset AA:FX AF:4x | 58.8 | 45.8 -22% | 47 -20% | 65.4 11% | |
| 1366x768 High Preset AA:FX AF:8x | 29.2 | 31.5 8% | 25.9 -11% | 39.8 36% | 66.2 127% |
| BioShock Infinite | -15% | 8% | |||
| 1280x720 Very Low Preset | 83.4 | 71.8 -14% | 86.1 3% | ||
| 1366x768 Medium Preset | 47.5 | 40 -16% | 51.2 8% | ||
| 1366x768 High Preset | 38.4 | 33.2 -14% | 43.62 14% | ||
| Total Average (Program / Settings) | -14% /
-14% | -18% /
-18% | 11% /
11% | 127% /
127% |
Ljudnivå
| Låg belastning |
| 31.2 / 31.2 / 31.6 dB(A) |
| Hårddisk |
| 32 dB(A) |
| DVD |
| 36.9 / dB(A) |
| Hög belastning |
| 34.2 / 41.1 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Voltcraft sl-320 (15 cm avstånd) | ||
(±) The average temperature for the upper side under maximal load is 32.2 °C / 90 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(+) The bottom heats up to a maximum of 38.5 °C / 101 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.5 °C / 86.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-1.7 °C / -3.1 F).
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(+) The bottom heats up to a maximum of 38.5 °C / 101 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.5 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.5 °C / 86.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-1.7 °C / -3.1 F).
Strömförbrukning
| Av/Standby | 0 / 0.2 Watt |
| Låg belastning | 5 / 8.4 / 8.4 Watt |
| Hög belastning |
35.4 / 58.7 Watt |

| |
Förklaring:
min: ,
med: ,
max: Voltcraft VC 940 | |

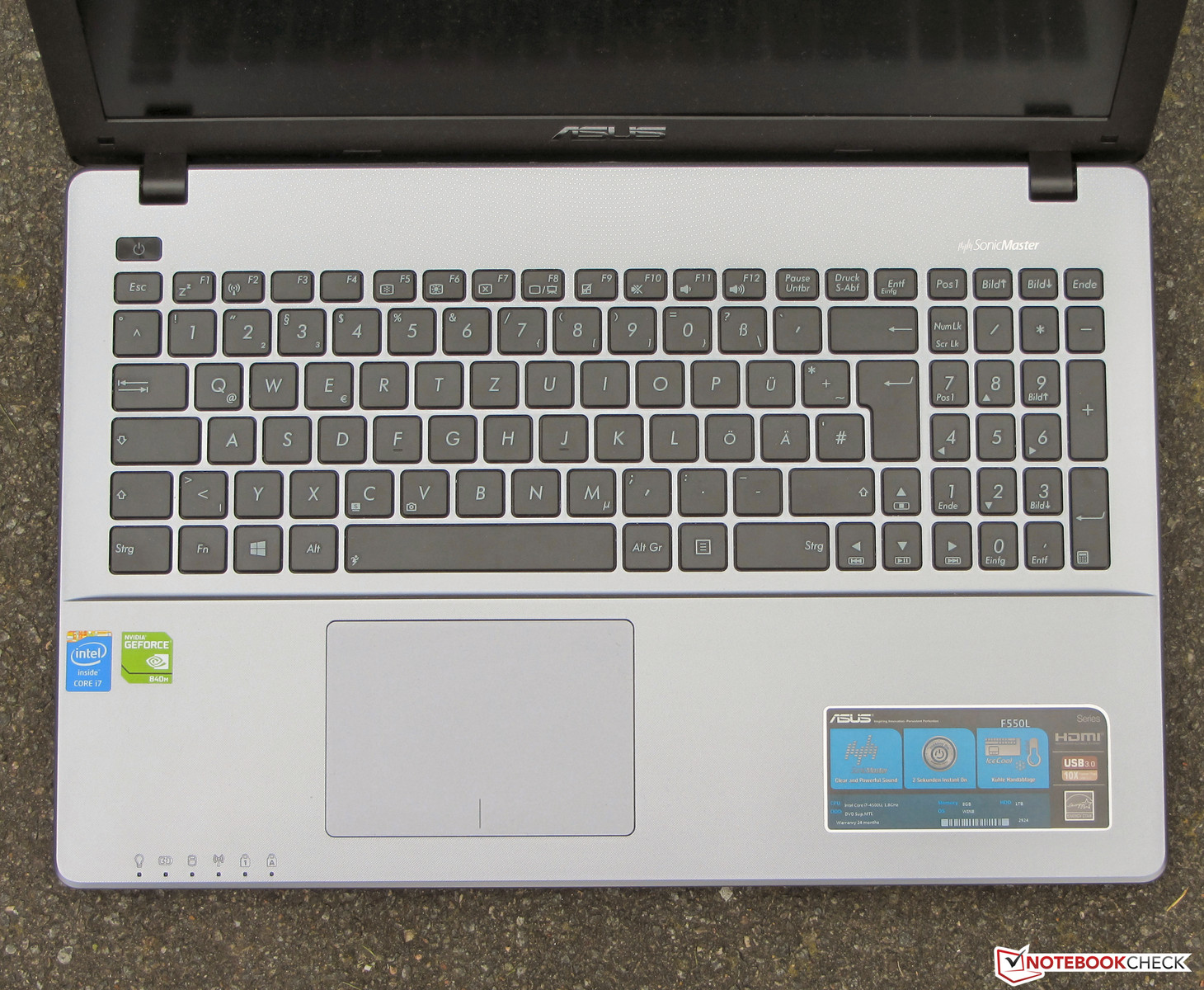

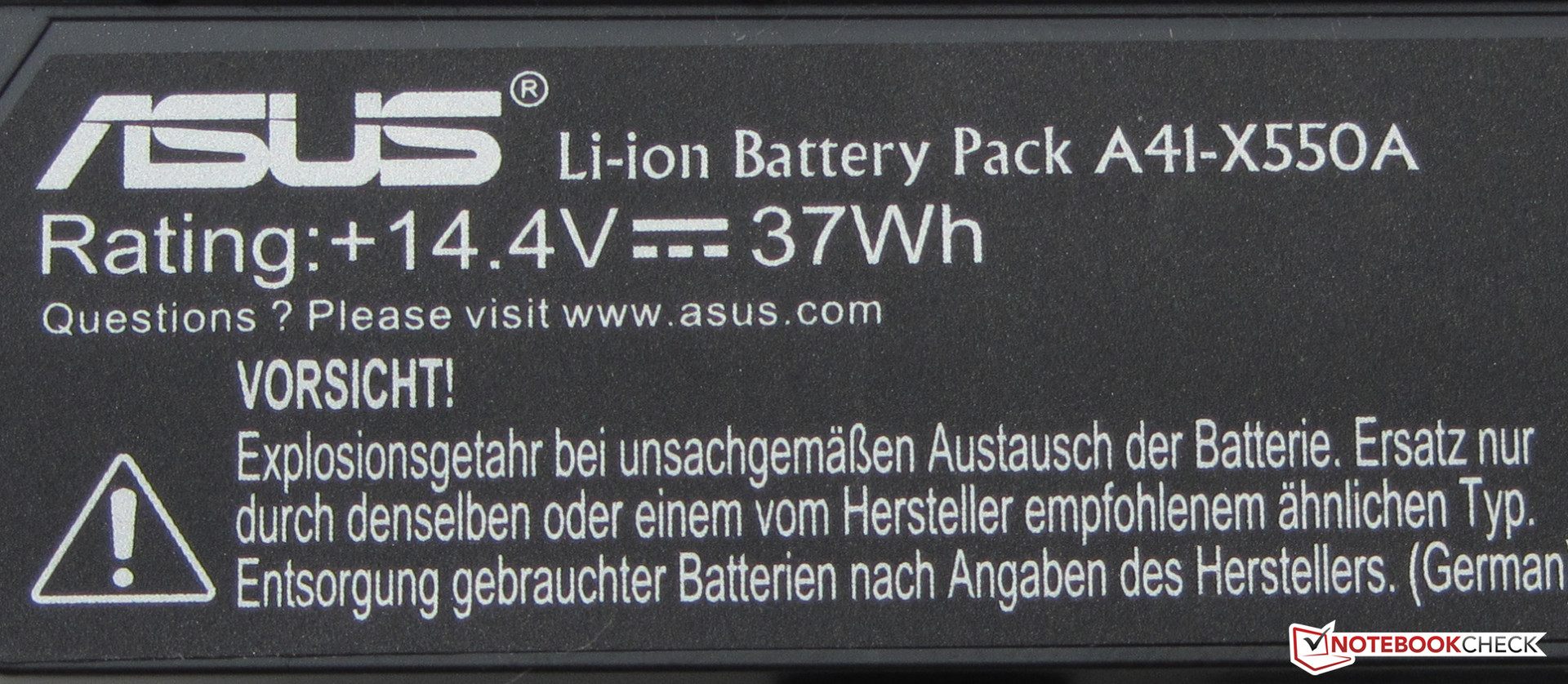

Asus F550LN-CN89H har mycket att erbjuda: bra prestanda och spelprestanda. Den har mycket lagringsutrymme och trots den kraftfulla hårdvaran är den oftast tyst och värms upp relativt lite. Batteritiden är bra och inmatningsenheterna anständiga. Två års garanti avrundar erbjudandet. Displayen är däremot en stor besvikelse, trots FHD-upplösning, en matt yta och bra färger. De dåliga betraktningsvinklarna, låga ljusstyrkan och kontrasten gör den ful att titta på.
Fördelarna med Acer Aspire V5-561G är den ljusare Full HD-panelen. Dessutom är den billigare än F550LN men har sämre prestanda. Lenovo IdeaPad Z510 har också en ljusare panel och är utrustad med den starkaste processorn av de tre. Z510 kostar bara ca 800 kr mer.
