Test: Asus F756UX-T7013T (sammanfattning)
Asus F756UX-T7013T (F756 Serie)
Processor

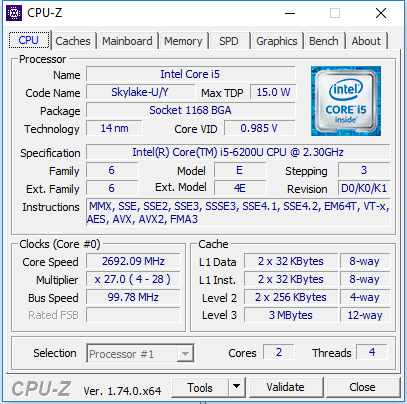

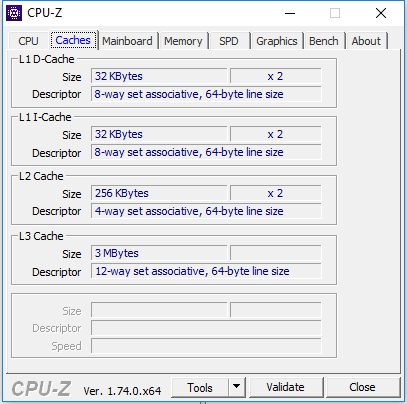

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Grafikkort

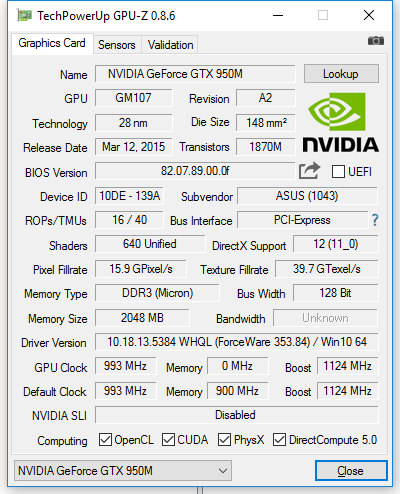

NVIDIA GeForce GTX 950M - 2048 MB VRAM, Kärna: 1124 MHz, Minne: 1800 MHz, DDR3, ForceWare 353.84, Nvidia Optimus

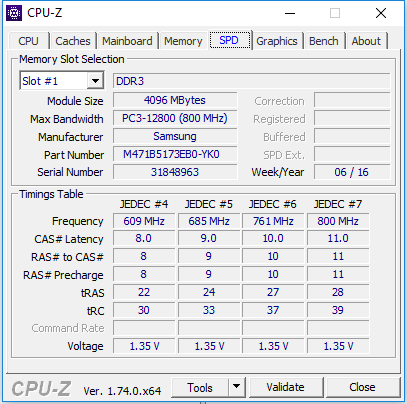

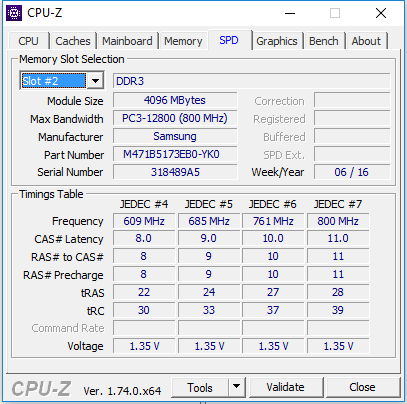

Minne
8 GB
, DDR3L, 1600 MHz, dual-channel, båda platserna används

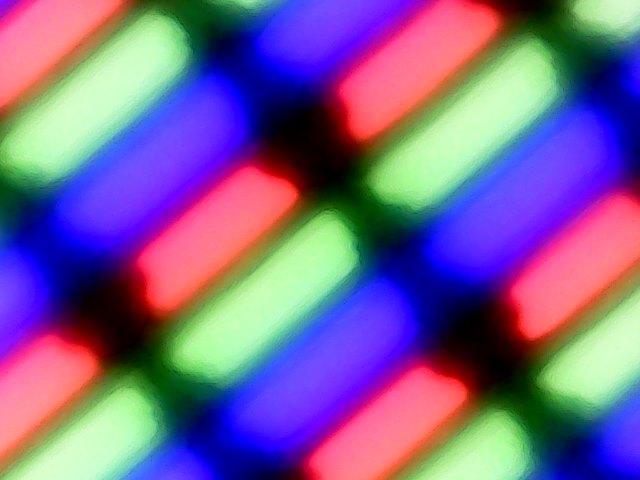

Skärm
17.30 tum 16:9, 1920 x 1080 pixlar 127 PPI, Chi Mei CMN1735 / N173HGE-E11, TN LED, glansig: nej

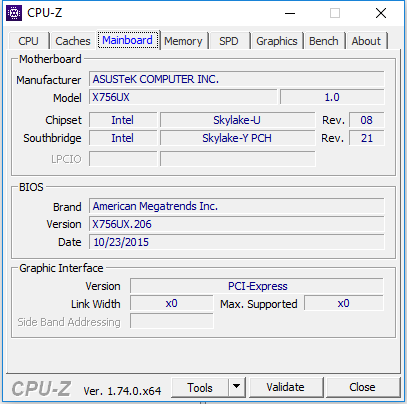

Moderkort
Intel Skylake-U Premium PCH
Hårddisk
HGST Travelstar 5K1000 HTS541010A9E680, 1000 GB
, 5400 rpm
Vikt
2.7 kg, Strömförsörjning: 261 g
Pris
799 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
Chi Mei CMN1735 / N173HGE-E11 tested with X-Rite i1Pro 2
Max: 273 cd/m² (Nits) Medel: 254.7 cd/m² Minimum: 15 cd/m²Distribution av ljusstyrkan: 83 %
Mitt på batteriet: 265 cd/m²
Kontrast: 1576:1 (Svärta: 0.17 cd/m²)
ΔE Color 7.18 | 0.5-29.43 Ø4.91
ΔE Greyscale 7.97 | 0.5-98 Ø5.2

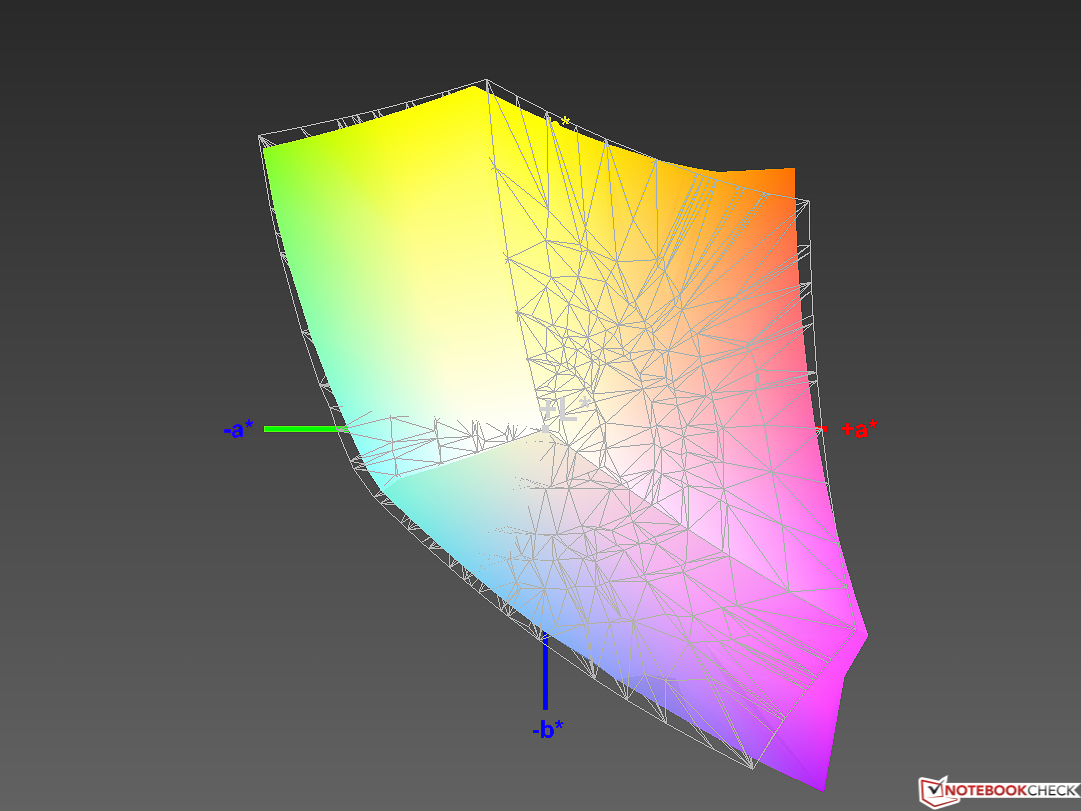

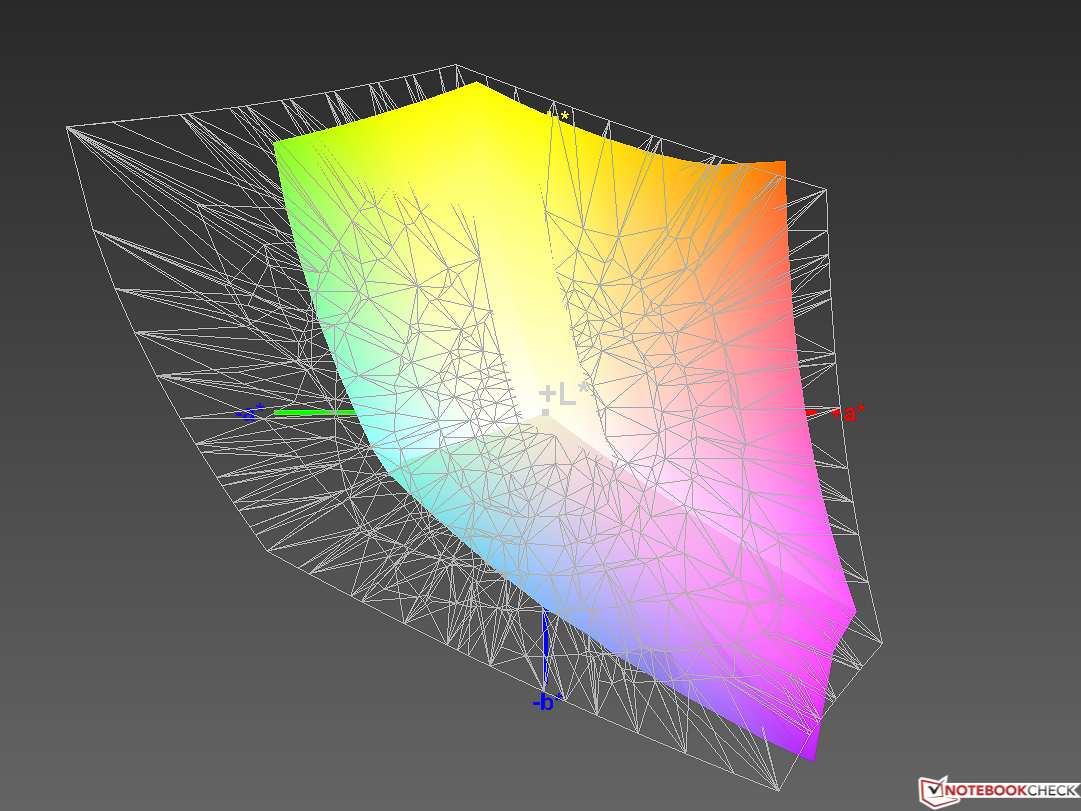

94% sRGB (Argyll 1.6.3 3D)
59% AdobeRGB 1998 (Argyll 1.6.3 3D)
64.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
93.7% sRGB (Argyll 2.2.0 3D)
63.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34
| Asus F756UX-T7013T | Medion Erazer P7644 | HP ProBook 470 G3 | HP Pavilion 17-g120ng | |
|---|---|---|---|---|
| Display | -2% | 1% | 4% | |
| Display P3 Coverage | 63.9 | 63.4 -1% | 65.1 2% | 65.7 3% |
| sRGB Coverage | 93.7 | 90.3 -4% | 92 -2% | 97.6 4% |
| AdobeRGB 1998 Coverage | 64.6 | 64.5 0% | 66.5 3% | 67.7 5% |
| Response Times | -60% | 2% | -89% | |
| Response Time Grey 50% / Grey 80% * | 42 ? | 48 ? -14% | 35 ? 17% | 70 ? -67% |
| Response Time Black / White * | 21 ? | 36 ? -71% | 24 ? -14% | 46 ? -119% |
| PWM Frequency | 1000 ? | 50 ? -95% | 200 ? -80% | |
| Screen | -17% | 2% | 3% | |
| Brightness middle | 268 | 296 10% | 314 17% | 309 15% |
| Brightness | 255 | 280 10% | 291 14% | 292 15% |
| Brightness Distribution | 83 | 87 5% | 88 6% | 86 4% |
| Black Level * | 0.17 | 0.48 -182% | 0.32 -88% | 0.27 -59% |
| Contrast | 1576 | 617 -61% | 981 -38% | 1144 -27% |
| Colorchecker dE 2000 * | 7.18 | 4.71 34% | 3.43 52% | 4.53 37% |
| Colorchecker dE 2000 max. * | 11.67 | |||
| Greyscale dE 2000 * | 7.97 | 5.17 35% | 3.72 53% | 5.66 29% |
| Gamma | 2.34 94% | 2.33 94% | 2.39 92% | 2.62 84% |
| CCT | 8541 76% | 7613 85% | 6764 96% | 7893 82% |
| Color Space (Percent of AdobeRGB 1998) | 59 | 59 0% | 59.8 1% | 62 5% |
| Color Space (Percent of sRGB) | 94 | 90 -4% | 92 -2% | 98 4% |
| Total Average (Program / Settings) | -26% /
-23% | 2% /
2% | -27% /
-15% |
* ... smaller is better

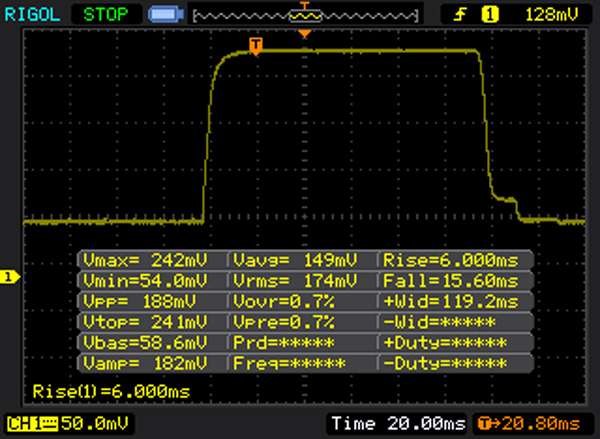

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 21 ms ... rise ↗ and fall ↘ combined | ↗ 6 ms rise |  |
| ↘ 15 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 43 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||

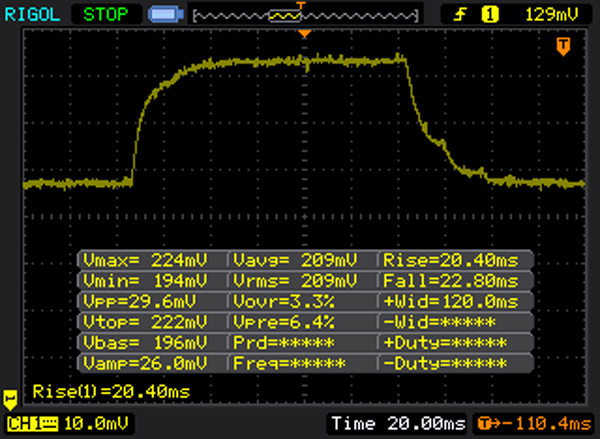

| ↔ Response Time 50% Grey to 80% Grey | ||
| 42 ms ... rise ↗ and fall ↘ combined | ↗ 20 ms rise |  |
| ↘ 22 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 64 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

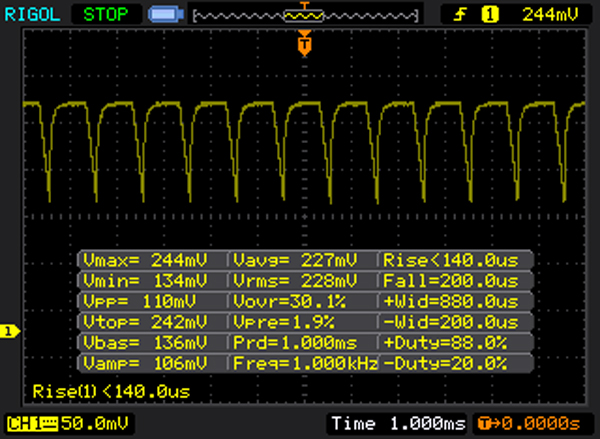

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 1000 Hz | ≤ 90 % brightness setting |  |
The display backlight flickers at 1000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 1000 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Cinebench R15 | |
| CPU Multi 64Bit | |
| HP ProBook 470 G3 | |
| Medion Erazer P7644 | |
| HP Pavilion 17-g120ng | |
| Asus F756UX-T7013T | |
| CPU Single 64Bit | |
| HP ProBook 470 G3 | |
| Medion Erazer P7644 | |
| HP Pavilion 17-g120ng | |
| Asus F756UX-T7013T | |
| PCMark 8 | |
| Home Score Accelerated v2 | |
| Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | |
| HP ProBook 470 G3 | |
| Medion Erazer P7644 | |
| Asus F756UX-T7013T | |
| Work Score Accelerated v2 | |
| Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | |
| Medion Erazer P7644 | |
| HP ProBook 470 G3 | |
| Asus F756UX-T7013T | |
| PCMark 8 Home Score Accelerated v2 | 3162 poäng | |
| PCMark 8 Work Score Accelerated v2 | 3969 poäng | |
Hjälp | ||
| Asus F756UX-T7013T HGST Travelstar 5K1000 HTS541010A9E680 | Medion Erazer P7644 Phison 256GB PC3110-S10C | HP ProBook 470 G3 WDC Scorpio Blue WD10JPVX-75JC3T0 | HP Pavilion 17-g120ng Toshiba MQ01ABD100 | |
|---|---|---|---|---|
| CrystalDiskMark 3.0 | 15221% | 16% | -10% | |
| Read Seq | 105.8 | 511 383% | 111.4 5% | 104.6 -1% |
| Read 4k | 0.413 | 32.35 7733% | 0.434 5% | 0.358 -13% |
| Read 4k QD32 | 0.812 | 305.7 37548% | 1.126 39% | 0.679 -16% |
HGST Travelstar 5K1000 HTS541010A9E680
Överföringshastighet min.:
33.1 MB/s
Överföringshastighet max.:
104.6 MB/s
Överföringshastighet med.:
81.3 MB/s
Accesstid:
19.5 ms
Burst rate:
256.5 MB/s
CPU-användning:
10.9 %
| 3DMark 11 - 1280x720 Performance GPU | |
| Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | |
| Medion Erazer P7644 | |
| Asus F756UX-T7013T | |
| HP Pavilion 17-g120ng | |
| HP ProBook 470 G3 | |
| 3DMark 11 Performance | 3846 poäng | |
| 3DMark Cloud Gate Standard Score | 8906 poäng | |
| 3DMark Fire Strike Score | 2541 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 122 | 82.8 | 69.7 | 24.9 |
| The Witcher 3 (2015) | 55.1 | 33 | 17.5 | |
| XCOM 2 (2016) | 50.2 | 19.8 | 13.3 | |
| The Division (2016) | 50.3 | 37 | 18 | 13.6 |
| Hitman 2016 (2016) | 38.2 | 34.6 | 20.9 | 19.7 |
Ljudnivå
| Låg belastning |
| 32.4 / 32.6 / 32.6 dB(A) |
| Hårddisk |
| 32.7 dB(A) |
| DVD |
| 37.4 / dB(A) |
| Hög belastning |
| 42 / 45.2 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm avstånd) environment noise: 31.2 dB(A) | ||
(±) The average temperature for the upper side under maximal load is 34.6 °C / 94 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 50.5 °C / 123 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.9 °C / 85.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-1.1 °C / -2 F).
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 50.5 °C / 123 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.9 °C / 85.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-1.1 °C / -2 F).
Strömförbrukning
| Av/Standby | 0 / 1 Watt |
| Låg belastning | 5.8 / 11.2 / 11.9 Watt |
| Hög belastning |
54 / 84 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| Asus F756UX-T7013T | Medion Erazer P7644 | HP ProBook 470 G3 | HP Pavilion 17-g120ng | |
|---|---|---|---|---|
| Battery Runtime | 32% | 12% | 18% | |
| Reader / Idle | 491 | 490 0% | ||
| WiFi v1.3 | 217 | 287 32% | 277 28% | 256 18% |
| Load | 75 | 81 8% | ||
| H.264 | 270 |
För
+ USB 3.1 Typ-C
+ underhållslucka för lagringsenhet

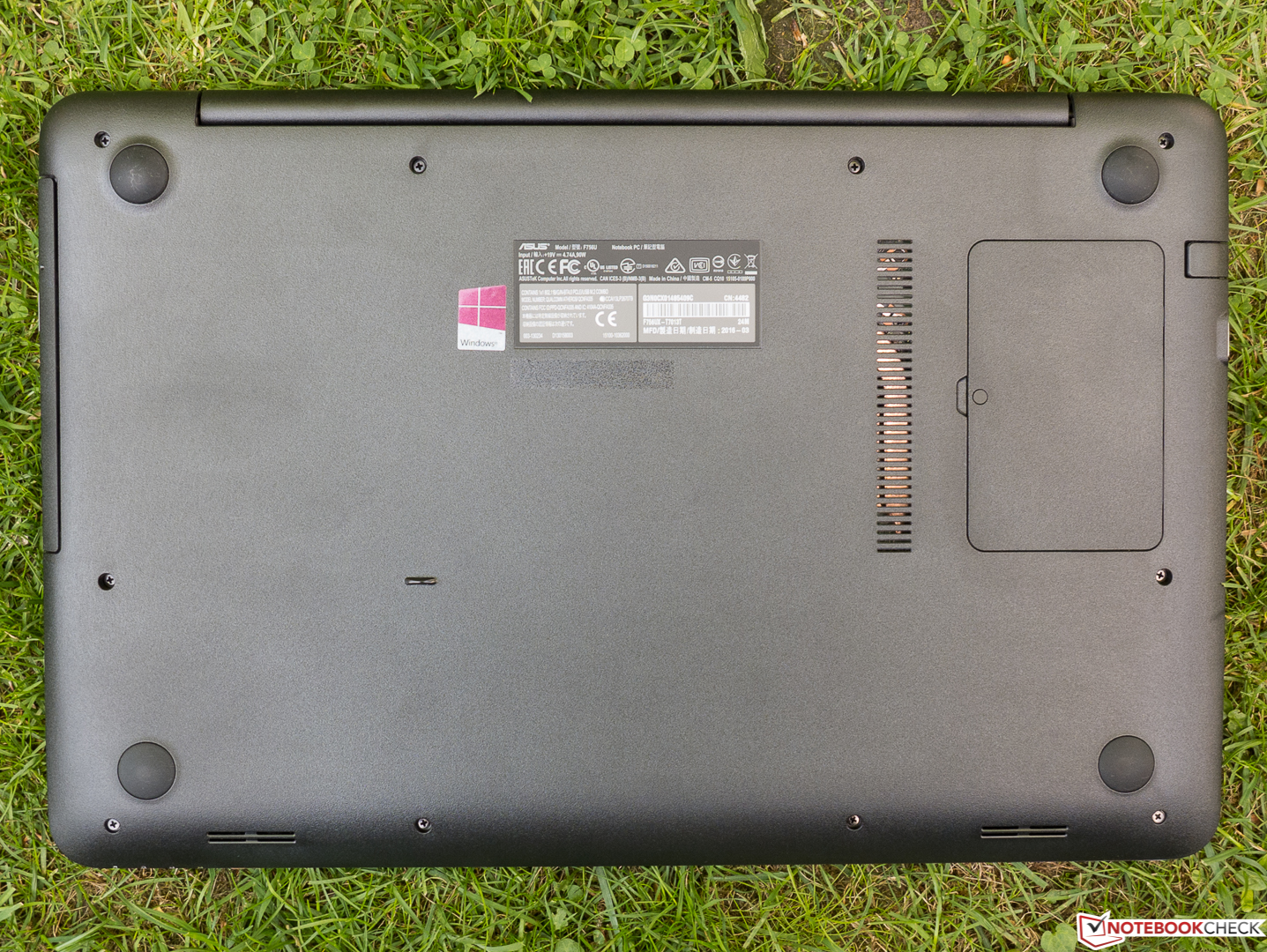

+ löstagbar bottenplatta (skruvar)
+ bra pekplatta
+ skaplig TN-panel med extrem kontrast för priset
+ PWM är inget problem
+ hyfsat ljudsystem
+ inga problematiska yttemperaturer
Emot
- chassit delvis instabilt
- tvåhandsfattning krävs för att öppna locket

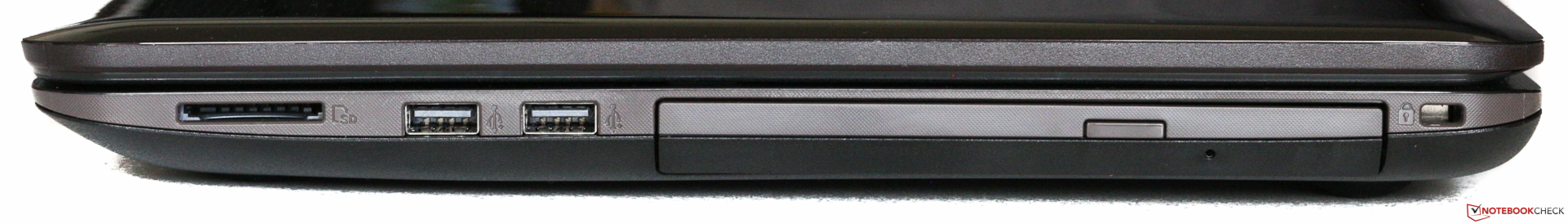

- 2 x USB 2.0 fram
- ej 5 Ghz Wi-Fi
- långsam kortläsare
- batteriet kan inte tas bort från utsidan
- nästan permanent hörbar hårddisk
Sammanfattning
Läs en längre version av testet på engelska här.

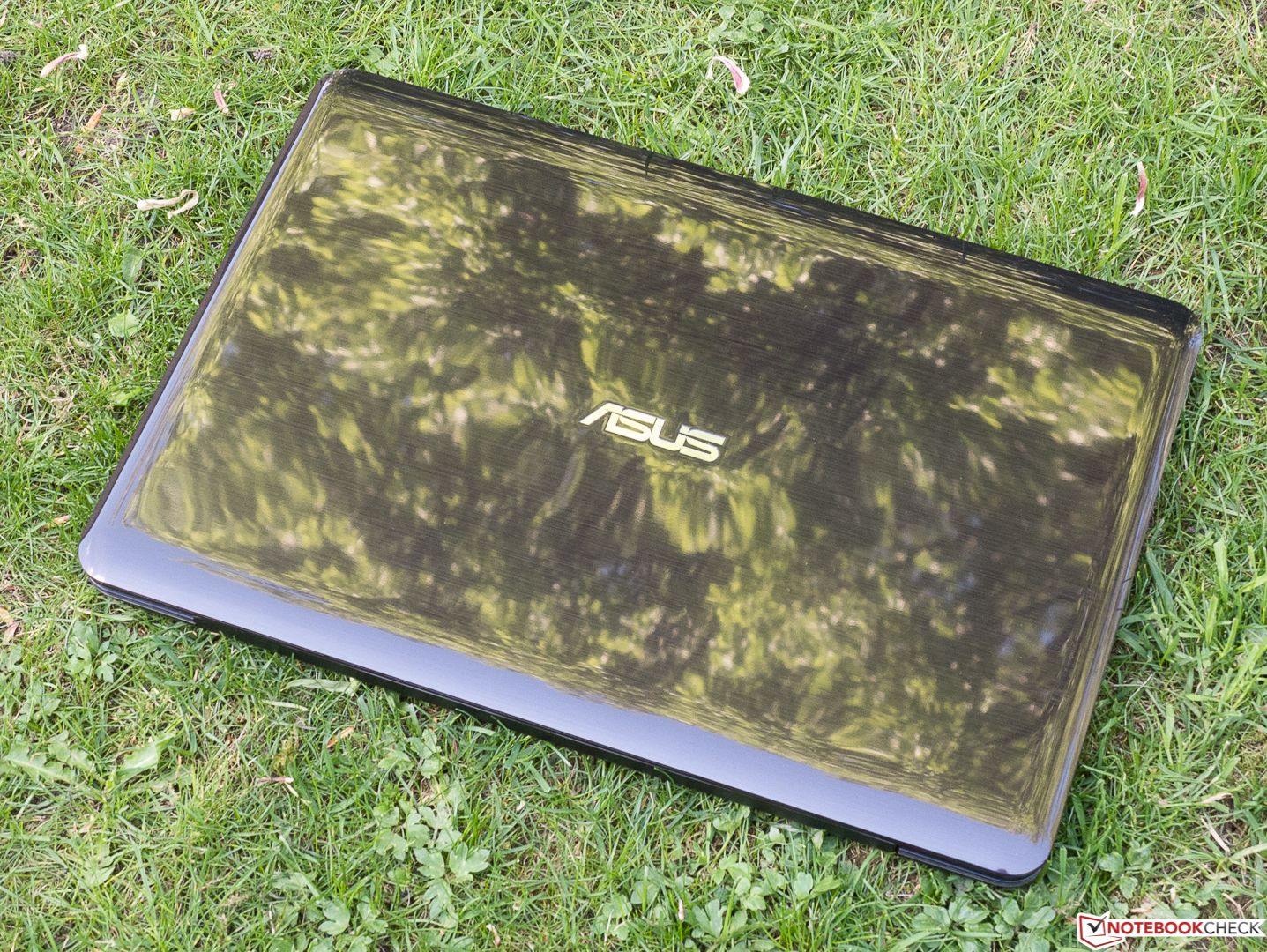

Den här skrymmande, halvstationära datorn med relativt kort batteritid kommer att tilltala alla som gillar blanka ytor. Den har en fin skärm med extremt hög kontrast skärm med tanke på prisklassen och inga tekniska brister.

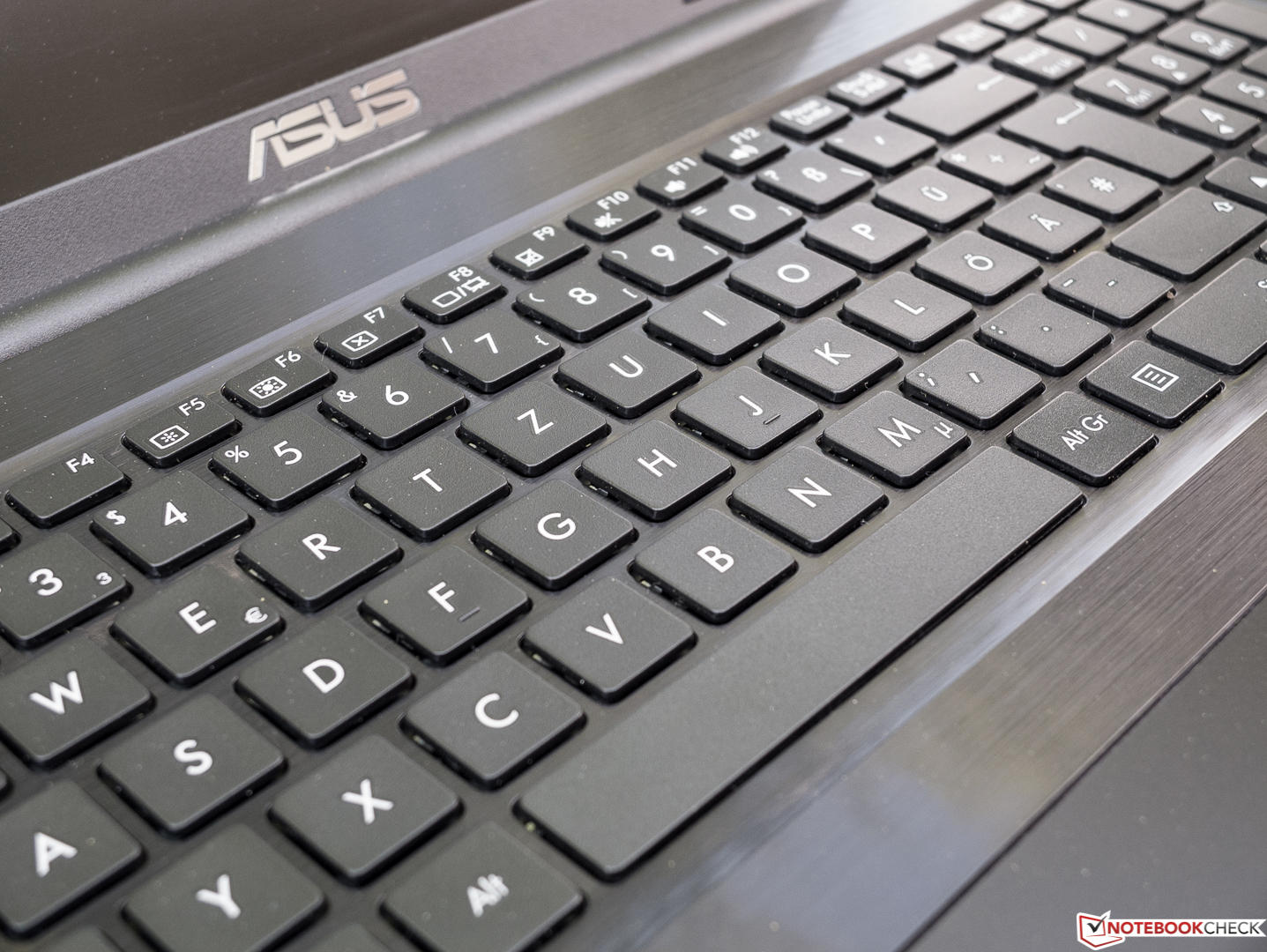

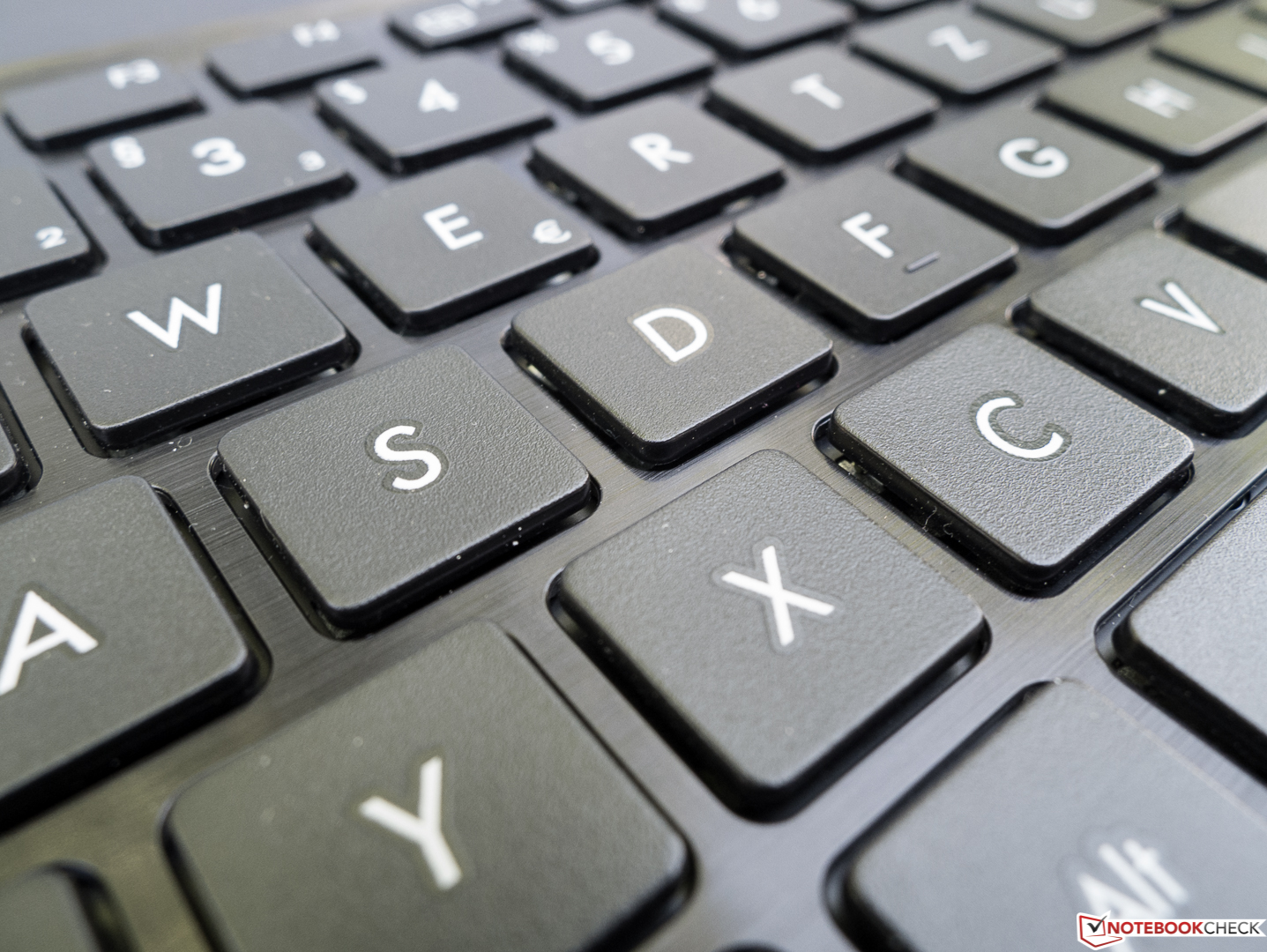

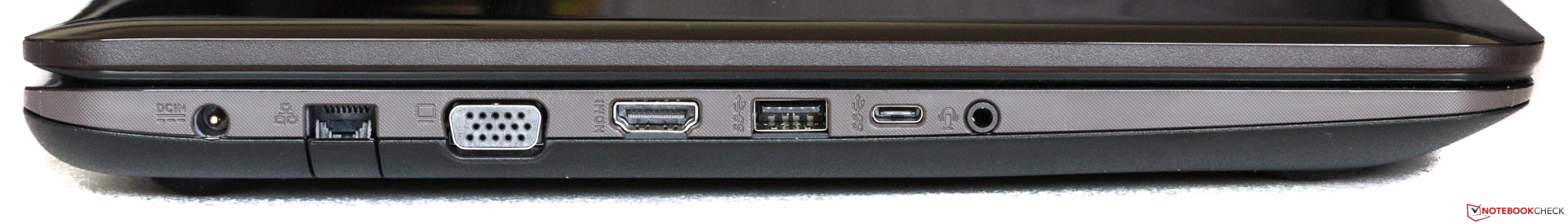

Tangentbordet är inte överdrivet bra och chassit är något instabilt på vissa ställen, men inte så att det märks när datorn används på ett bord. Vad gäller gränssnitt och trådlös teknik får man nöja sig med ett minimum utöver VGA och USB Typ-C. Wi-Fi-modulen är en besvikelse eftersom den inte ens stöder 5 GHz-bandet.
Följaktligen är F756UX lämpad för gamers med en begränsad budget och som inte ställer alltför höga krav. Uppskattar man grundkonceptet finns även en dyrare modell med SSD. Att välja till en i7-6500U ser vi ingen större poäng med, eftersom grafikkortet är och förblir flaskhalsen även med en Core i7-processor. De flesta av konkurrenterna får marginellt högre betyg, men är som regel också dyrare.
Asus F756UX-T7013T
- 05/12/2016 v5.1 (old)
Sven Kloevekorn
