Test: Asus GL552VW Xotic PC Edition (sammanfattning)

Mellanklassuppdatering. Den lite billigare ROG GL-serien får nu Skylake, DDR4, USB Typ C och andra, mindre uppdateringar. Här tar vi reda på hur den den nya modellen presterar i kombination med en överklockad GPU från Xotic PC.
Asus GL552VW-DH74 (GL552 Serie)

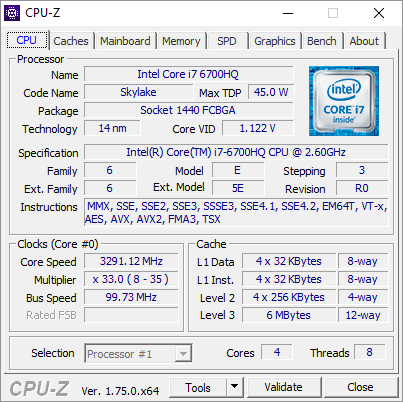

Processor
Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake

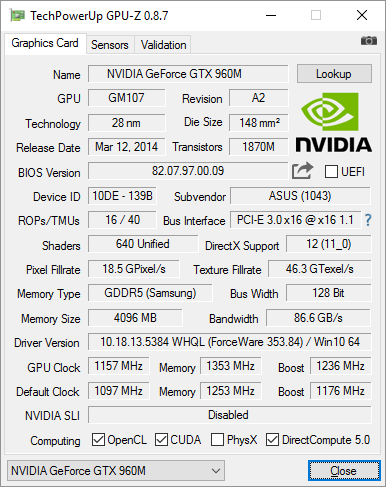

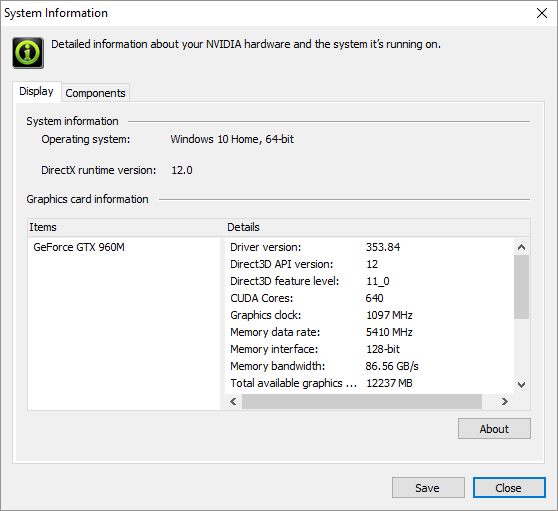

Grafikkort
NVIDIA GeForce GTX 960M - 4 GB VRAM, Kärna: 1097 MHz, Minne: 5410 MHz, 353.84, Optimus

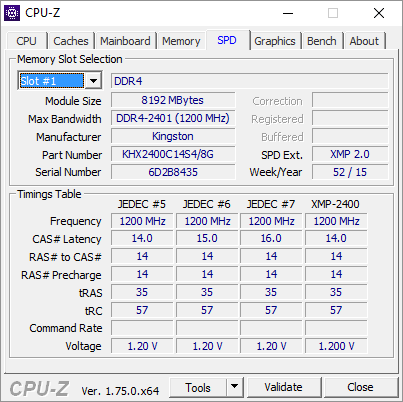

Minne
16 GB
, 1196.5 MHz, 14-14-14-35, Dual-Channel, DDR4
Skärm
15.60 tum 16:9, 1920 x 1080 pixlar, IPS, Name: LG Philips LP156WF6-SPB5, ID: LGD046F, glansig: nej

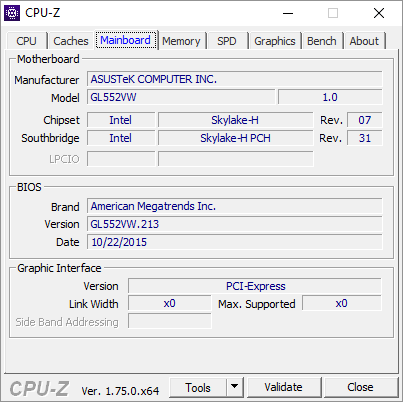

Moderkort
Intel HM170 (Skylake PCH-H)
Hårddisk
Samsung SSD 850 EVO M.2 500GB, 500 GB
, Sekundär: HGST HTS721010A9E630
Ljudkort
Intel Skylake PCH-H High Definition Audio Controller
Anslutningar
1 USB 2.0, 3 USB 3.0, 1 HDMI, 1 Kensingtonlås, Ljudanslutningar: 1 utgång, 1 ingång (3,5 mm), Kortläsare: 3-in-1 kortläsare
Nätverk
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Killer Wireless-n/a/ac 1535 Wireless Network Adapter (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Optisk enhet
SlimtypeDVD A DA8A6SH
Storlek
höjd x bredd x djup (i mm) 33 x 383.5 x 256.5
Batteri
48 Wh, 3200 mAh Litiumjon, 4 celler
Operativsystem
Microsoft Windows 10 Home 64 Bit
Camera
Webbkamera: HD-kamera
Primary Camera: 1.2 MPix
Övrigt
Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: ja, putsduk, MSI Afterburner, 12 Månader Garanti
Vikt
2.595 kg, Strömförsörjning: 544 g
Pris
1300 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



383.5 mm 256.5 mm 33 mm 2.6 kg387 mm 277 mm 25.95 mm 2.9 kg383 mm 260 mm 29.9 mm 2.5 kg383 mm 260 mm 29 mm 2.4 kg382 mm 260 mm 27 mm 2.3 kg384 mm 265 mm 24.6 mm 2.3 kg385 mm 255 mm 22 mm 2.3 kg380 mm 259.9 mm 22.5 mm 2.2 kg297 mm 210 mm 1 mm 5.7 g

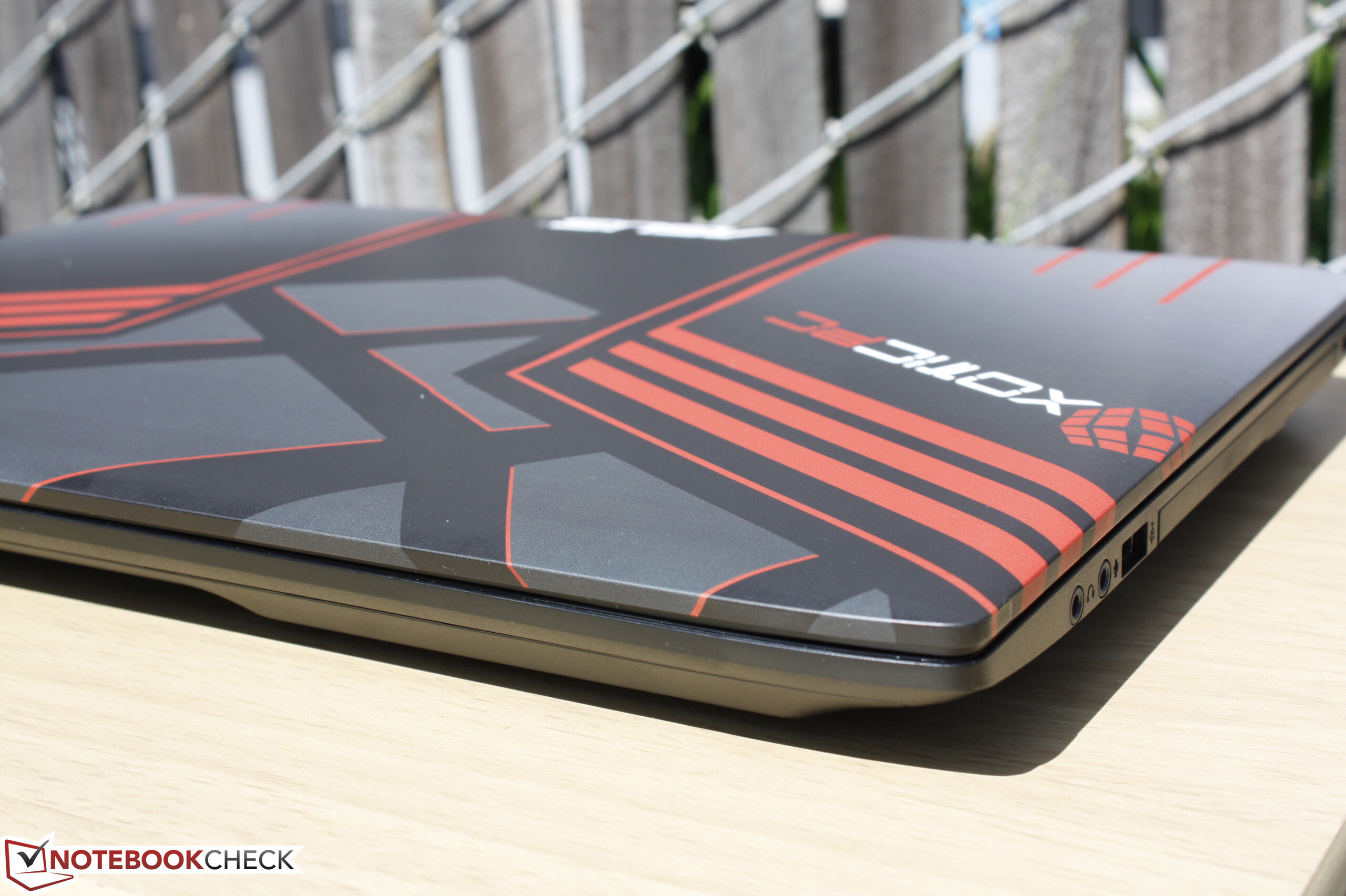

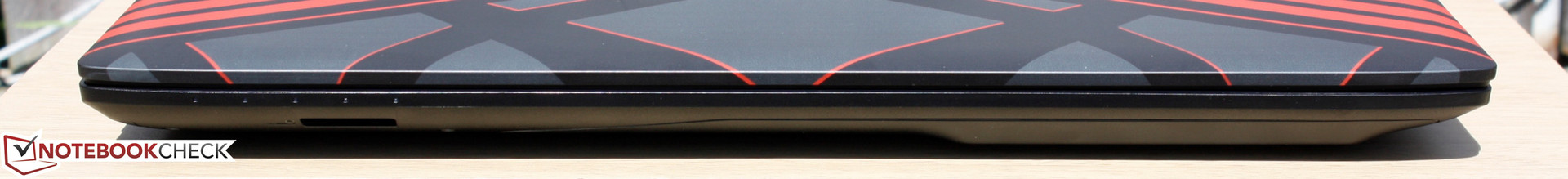

Front: SD reader
Front: SD reader

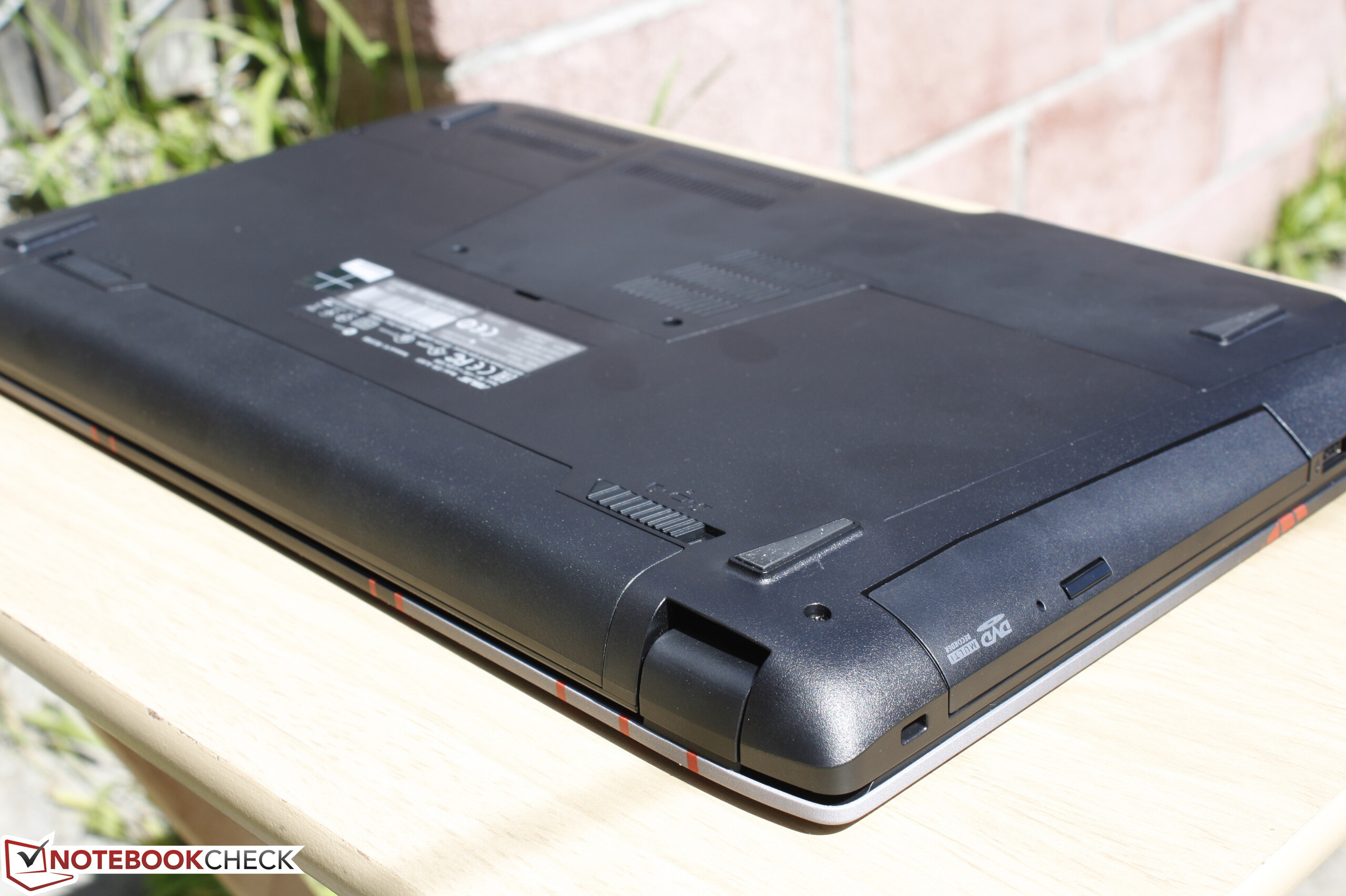

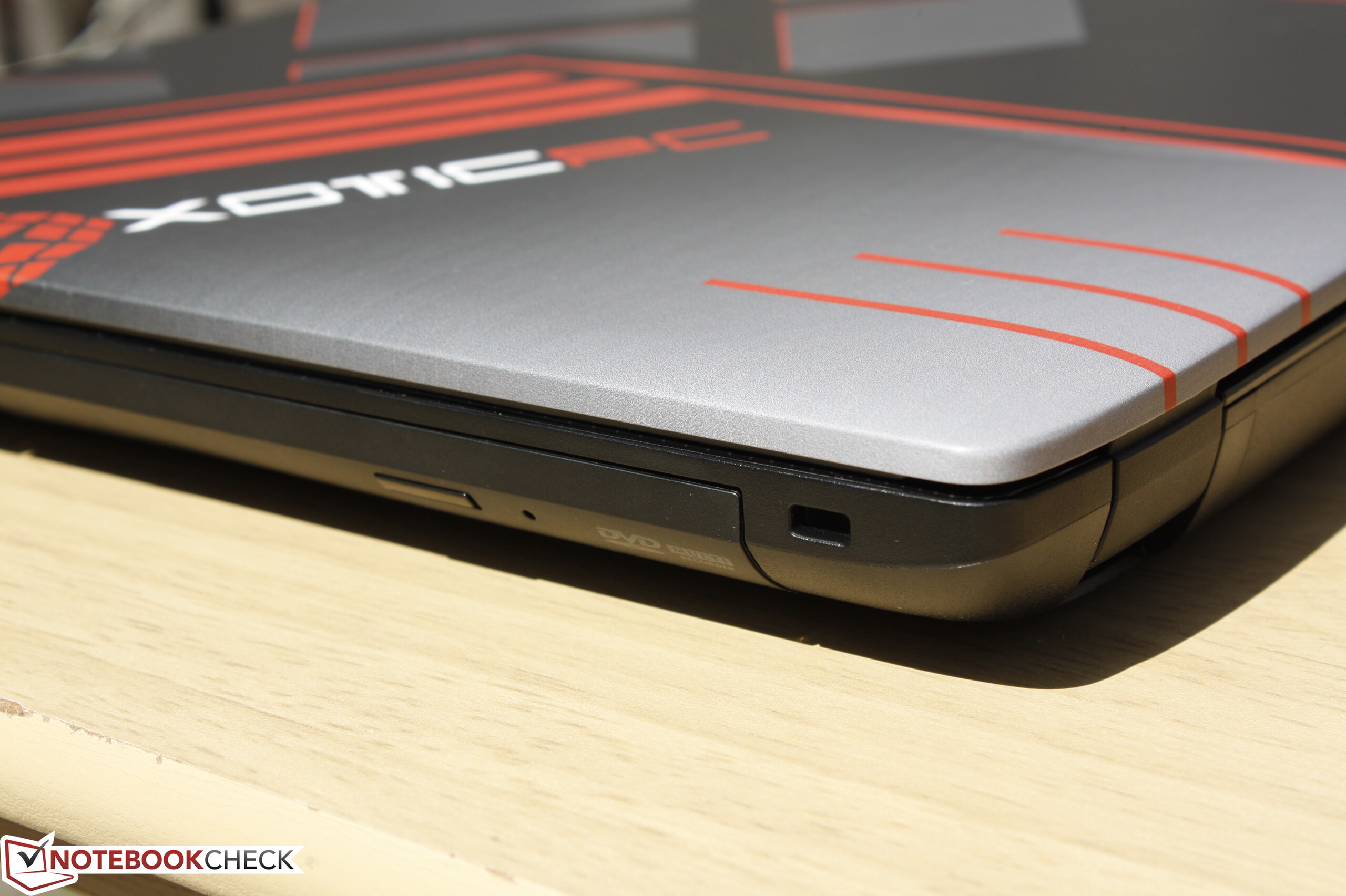

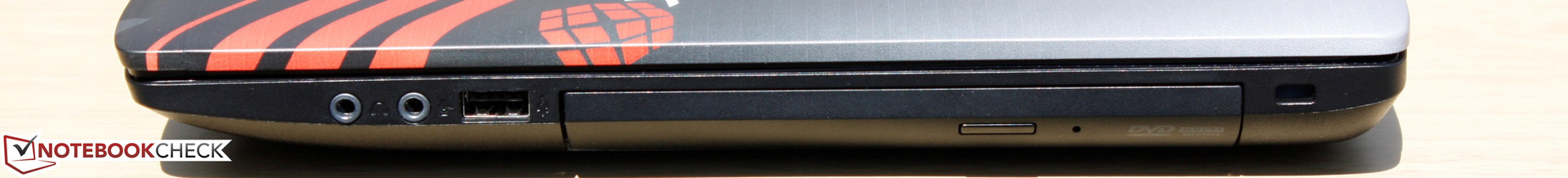

Right: 3.5 mm earphones, 3.5 mm microphone, USB 2.0, Optical drive, Kensington Lock
Right: 3.5 mm earphones, 3.5 mm microphone, USB 2.0, Optical drive, Kensington Lock

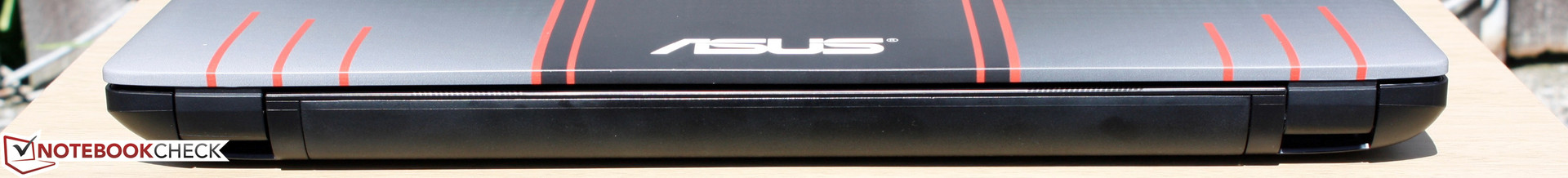

Rear: No connectivity
Rear: No connectivity

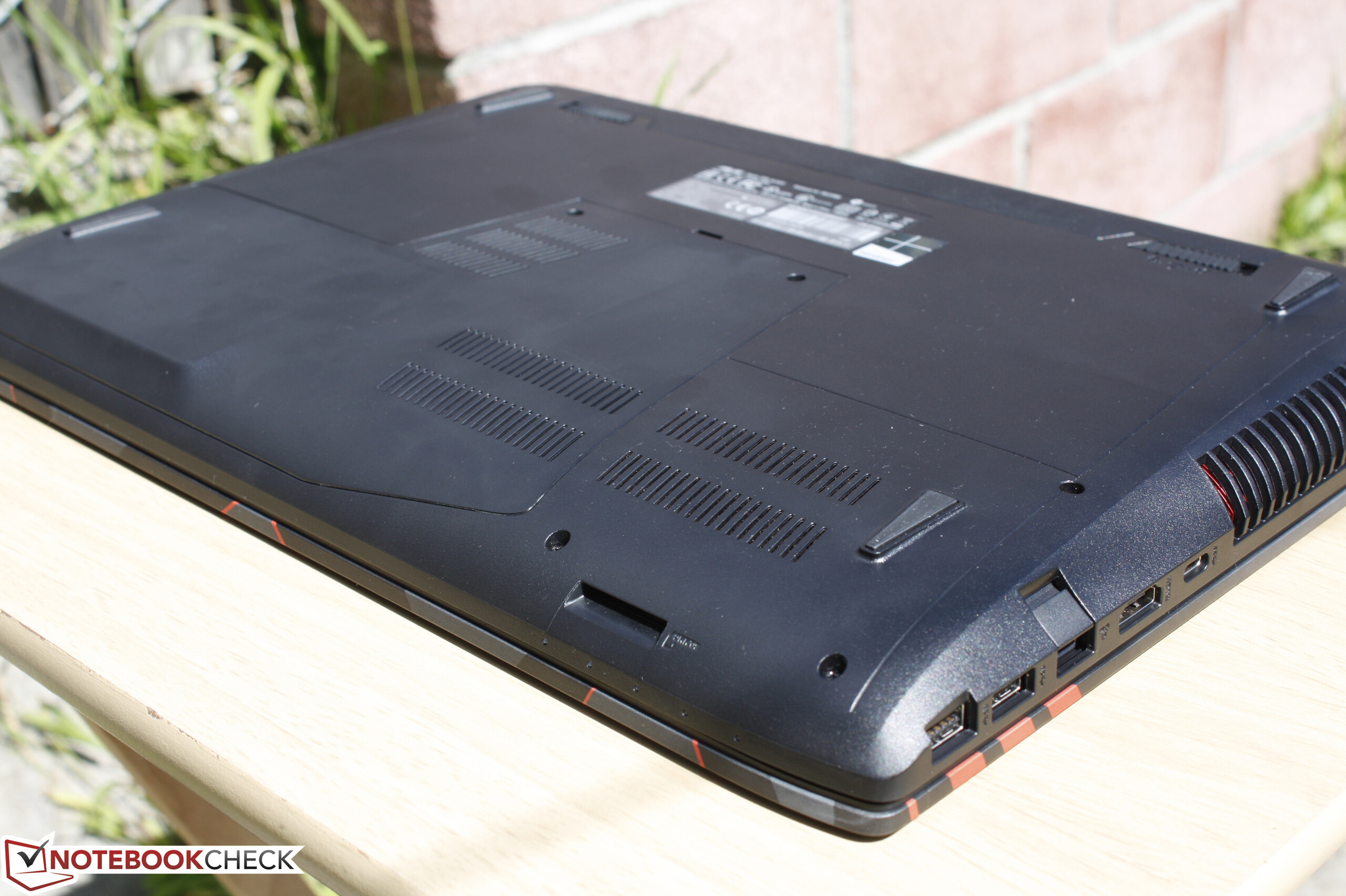

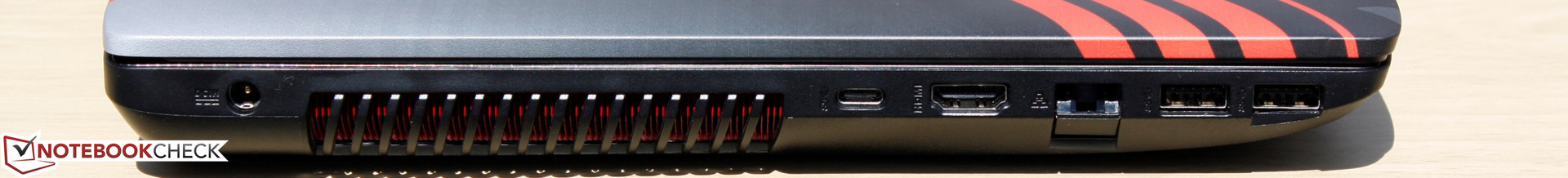

Left: AC adapter, USB 3.1 Type-C Gen. 1, HDMI-out, Gigabit Ethernet, 2x USB 3.0
Left: AC adapter, USB 3.1 Type-C Gen. 1, HDMI-out, Gigabit Ethernet, 2x USB 3.0
300.5
cd/m²
299.2
cd/m²
314.1
cd/m²
308.6
cd/m²
333
cd/m²
320.1
cd/m²
290.5
cd/m²
316.8
cd/m²
295.4
cd/m²
Distribution av ljusstyrkan
tested with X-Rite i1Pro Basic 2
Max: 333 cd/m² (Nits) Medel: 308.7 cd/m² Minimum: 18.4 cd/m²
Distribution av ljusstyrkan: 87 %
Mitt på batteriet: 333 cd/m²
Kontrast: 835:1 (Svärta: 0.399 cd/m²)
ΔE Color 4.46 | 0.5-29.43 Ø4.92
ΔE Greyscale 3.33 | 0.5-98 Ø5.2
81.2% sRGB (Argyll 1.6.3 3D)
53.3% AdobeRGB 1998 (Argyll 1.6.3 3D)
59.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
81.5% sRGB (Argyll 2.2.0 3D)
63.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.3
Asus GL552VW-DH74
15.6", 1920x1080
Asus N552VX-FY103T
15.6", 1920x1080
Acer Aspire V3-575G-5093
15.6", 1920x1080
Lenovo Ideapad 500-15ACZ
15.6", 1920x1080
Asus ZenBook Pro UX501VW-DS71T
15.6", 3840x2160
Display
7%
-32%
7%
Display P3 Coverage
63.2
67.9
7%
39.82
-37%
64.3
2%
sRGB Coverage
81.5
87.7
8%
59.7
-27%
89.9
10%
AdobeRGB 1998 Coverage
59.6
64
7%
41.16
-31%
65.4
10%
Response Times
13%
16%
16%
10%
Response Time Grey 50% / Grey 80% *
48.8 ?(14.8, 34)
42 ?(18, 24)
14%
44 ?(22, 22)
10%
43 ?(21, 22)
12%
43.2 ?(18, 25.2)
11%
Response Time Black / White *
29.6 ?(5.2, 24.4)
26 ?(5, 21)
12%
23 ?(7, 16)
22%
24 ?(8, 16)
19%
27.2 ?(7.6, 19.6)
8%
PWM Frequency
1042 ?(90)
Screen
-1%
-50%
-69%
-19%
Brightness middle
333
336
1%
251
-25%
238
-29%
252.9
-24%
Brightness
309
304
-2%
239
-23%
221
-28%
250
-19%
Brightness Distribution
87
85
-2%
87
0%
84
-3%
89
2%
Black Level *
0.399
0.34
15%
0.42
-5%
0.49
-23%
0.5
-25%
Contrast
835
988
18%
598
-28%
486
-42%
506
-39%
Colorchecker dE 2000 *
4.46
5.26
-18%
9.68
-117%
11.19
-151%
5.22
-17%
Colorchecker dE 2000 max. *
9.41
10.49
-11%
14.83
-58%
19.6
-108%
8.33
11%
Greyscale dE 2000 *
3.33
4.26
-28%
11.13
-234%
11.53
-246%
6.74
-102%
Gamma
2.3 96%
2.35 94%
2.46 89%
2.41 91%
2.45 90%
CCT
6340 103%
6758 96%
12149 54%
13057 50%
6026 108%
Color Space (Percent of AdobeRGB 1998)
53.3
57
7%
74
39%
38
-29%
58.4
10%
Color Space (Percent of sRGB)
81.2
88
8%
60
-26%
89.7
10%
Total Average (Program / Settings)
6% / 2%
-17% / -38%
-28% / -50%
-1% / -10%

* ... smaller is better

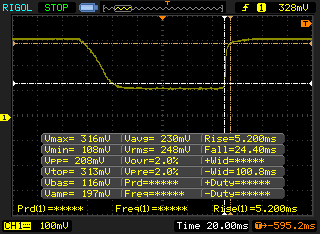

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

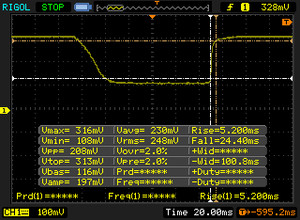

       Response Time Black to White
29.6 ms ... rise ↗ and fall ↘ combined↗ 5.2 ms rise
↘ 24.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 77 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

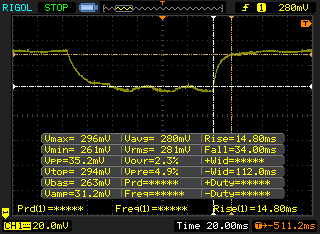

       Response Time 50% Grey to 80% Grey
48.8 ms ... rise ↗ and fall ↘ combined↗ 14.8 ms rise
↘ 34 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 83 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

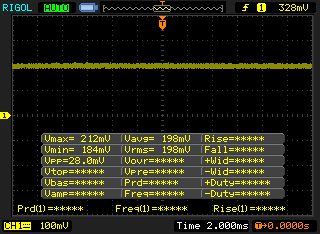

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Single 64Bit (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
144 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
177 Points +23%
Asus GX700
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
173 Points +20%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
144 Points 0%
Lenovo IdeaPad Y50
GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache
125 Points -13%
CPU Multi 64Bit (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
684 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
878 Points +28%
Asus GX700
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
875 Points +28%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
719 Points +5%
Lenovo IdeaPad Y50
GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache
490 Points -28%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
1.64 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
1.97 Points +20%
Asus GX700
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
1.95 Points +19%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
1.68 Points +2%
Lenovo IdeaPad Y50
GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache
1.46 Points -11%
CPU Multi 64Bit (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
7.52 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
9.7 Points +29%
Asus GX700
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
9.55 Points +27%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
7.96 Points +6%
Lenovo IdeaPad Y50
GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache
5.29 Points -30%
Cinebench R10
Rendering Single 32Bit (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
5488 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
6604 Points +20%
Asus GX700
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
6541 Points +19%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
5567 Points +1%
Lenovo IdeaPad Y50
GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache
4999 Points -9%
Rendering Multiple CPUs 32Bit (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
20141 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
26040 Points +29%
Asus GX700
GeForce GTX 980 (Laptop), 6820HK, 2x Samsung SM951 MZVPV512HDGL (RAID 0)
25765 Points +28%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
21681 Points +8%
Lenovo IdeaPad Y50
GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache
14329 Points -29%
wPrime 2.10 - 1024m (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
230.6 s *
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
178 s * +23%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
206.3 s * +11%
Lenovo IdeaPad Y50
GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache
323 s * -40%
Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
575 s *
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
463.8 s * +19%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
574 s * -0%
Lenovo IdeaPad Y50
GeForce GTX 860M, 4700HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache
569 s * +1%

* ... smaller is better

Cinebench R10 Shading 32Bit
6692
Cinebench R10 Rendering Multiple CPUs 32Bit
20141
Cinebench R10 Rendering Single 32Bit
5488
Cinebench R11.5 OpenGL 64Bit
15.09 fps
Cinebench R11.5 CPU Multi 64Bit
7.52 Points
Cinebench R11.5 CPU Single 64Bit
1.64 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
18.7 fps
Cinebench R15 CPU Multi 64Bit
684 Points
Cinebench R15 CPU Single 64Bit
144 Points
Hjälp
PCMark 8
Home Score Accelerated v2 (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
3855 Points
Asus G501VW-FY081T
GeForce GTX 960M, 6700HQ, Samsung CM871 MZNLF128HCHP
3495 Points -9%
Asus N552VX-FY103T
GeForce GTX 950M, 6700HQ, Toshiba MQ02ABD100H
3452 Points -10%
Asus ZenBook Pro UX501VW-DS71T
GeForce GTX 960M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
3077 Points -20%
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
2485 Points -36%
Work Score Accelerated v2 (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
4916 Points
Asus G501VW-FY081T
GeForce GTX 960M, 6700HQ, Samsung CM871 MZNLF128HCHP
4599 Points -6%
Asus N552VX-FY103T
GeForce GTX 950M, 6700HQ, Toshiba MQ02ABD100H
4503 Points -8%
Asus ZenBook Pro UX501VW-DS71T
GeForce GTX 960M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
3867 Points -21%
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
3290 Points -33%
Creative Score Accelerated v2 (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
4843 Points
Asus G501VW-FY081T
GeForce GTX 960M, 6700HQ, Samsung CM871 MZNLF128HCHP
4445 Points -8%
Asus ZenBook Pro UX501VW-DS71T
GeForce GTX 960M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
4357 Points -10%
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
2991 Points -38%
PCMark 8 Home Score Accelerated v2
3855 poäng
PCMark 8 Creative Score Accelerated v2
4843 poäng
PCMark 8 Work Score Accelerated v2
4916 poäng
Hjälp
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
Asus GL552JX-CN154H
GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF
Lenovo Ideapad Y700 15ISK 80NW
GeForce GTX 960M, 6700HQ, Samsung MZNLN128HCGR-000L2
MSI GE62-6QD16H11
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 250 GB
Asus ZenBook Pro UX501VW-DS71T
GeForce GTX 960M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
AS SSD
-10%
-23%
-29%
116%
91%
Copy Game MB/s
372.8
302
-19%
353.9
-5%
684
83%
805
116%
Copy Program MB/s
260.1
159.1
-39%
197.1
-24%
452
74%
325.3
25%
Copy ISO MB/s
401.6
295.6
-26%
391.6
-2%
1206
200%
1127
181%
Score Total
1058
1018
-4%
883
-17%
870
-18%
2588
145%
2410
128%
Score Write
418
386
-8%
251
-40%
268
-36%
619
48%
675
61%
Score Read
417
416
0%
421
1%
397
-5%
1312
215%
1180
183%
Access Time Write *
0.039
0.049
-26%
0.039
-0%
0.041
-5%
0.034
13%
0.035
10%
Access Time Read *
0.054
0.079
-46%
0.094
-74%
0.168
-211%
0.037
31%
0.038
30%
4K-64 Write
285.9
257.3
-10%
142.3
-50%
153.3
-46%
361.7
27%
513
79%
4K-64 Read
333.5
334.7
0%
337.5
1%
327.6
-2%
1075
222%
990
197%
4K Write
86
91.1
6%
94
9%
72.9
-15%
107.8
25%
105.4
23%
4K Read
33.31
29.5
-11%
34.29
3%
21.05
-37%
43.59
31%
31.86
-4%
Seq Write
463.5
378.7
-18%
151
-67%
449.1
-3%
1498
223%
570
23%
Seq Read
499.2
518
4%
492
-1%
500
0%
1944
289%
1579
216%

* ... smaller is better

Samsung SSD 850 EVO M.2 500GB
Överföringshastighet min.: 302 MB/s
Överföringshastighet max.: 338.7 MB/s
Överföringshastighet med.: 322.2 MB/s
Accesstid: 0 ms
Burst rate: 149 MB/s
CPU-användning: 3.4 %
3DMark 11
1280x720 Performance (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
6110 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
12364 Points +102%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
8932 Points +46%
Acer Aspire V15 Nitro BE VN7-592G-79DV
GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB
5635 Points -8%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
4596 Points -25%
1280x720 Performance GPU (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
5779 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
12967 Points +124%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
9910 Points +71%
Acer Aspire V15 Nitro BE VN7-592G-79DV
GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB
5304 Points -8%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
4457 Points -23%
3DMark
1920x1080 Fire Strike Score (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
4299 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
8793 Points +105%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
6565 Points +53%
Acer Aspire V15 Nitro BE VN7-592G-79DV
GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB
4008 Points -7%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
2866 Points -33%
1280x720 Cloud Gate Standard Score (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
17983 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
27362 Points +52%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
20087 Points +12%
Acer Aspire V15 Nitro BE VN7-592G-79DV
GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB
16358 Points -9%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
14469 Points -20%
1920x1080 Fire Strike Combined (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
1791 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
3748 Points +109%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
2774 Points +55%
Acer Aspire V15 Nitro BE VN7-592G-79DV
GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB
1662 Points -7%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
1033 Points -42%
1920x1080 Fire Strike Physics (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
9814 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
12752 Points +30%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
9628 Points -2%
Acer Aspire V15 Nitro BE VN7-592G-79DV
GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB
9690 Points -1%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
9499 Points -3%
1920x1080 Fire Strike Graphics (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
4645 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
9963 Points +114%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
7450 Points +60%
Acer Aspire V15 Nitro BE VN7-592G-79DV
GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB
4314 Points -7%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
3174 Points -32%
1280x720 Cloud Gate Standard Graphics (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
31747 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
62938 Points +98%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
48597 Points +53%
Acer Aspire V15 Nitro BE VN7-592G-79DV
GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB
27075 Points -15%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
21500 Points -32%
1280x720 Cloud Gate Standard Physics (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
7144 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
9187 Points +29%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
6579 Points -8%
Acer Aspire V15 Nitro BE VN7-592G-79DV
GeForce GTX 960M, 6700HQ, Lite-On CV1-8B512 M.2 512 GB
6858 Points -4%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
6747 Points -6%
3DMark 11 Performance
6110 poäng
3DMark Ice Storm Standard Score
84816 poäng
3DMark Cloud Gate Standard Score
17983 poäng
3DMark Fire Strike Score
4299 poäng
3DMark Fire Strike Extreme Score
2156 poäng
Hjälp
Rise of the Tomb Raider
1920x1080 High Preset AA:FX AF:4x (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
30.3 fps
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
60.4 fps +99%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
44.6 fps +47%
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
23.8 fps -21%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
20.19 (18min - 23max) fps -33%
1920x1080 Very High Preset AA:FX AF:16x (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
25.2 fps
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
51.6 fps +105%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
37.1 fps +47%
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
21.2 fps -16%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
16.32 (14min - 19max) fps -35%
BioShock Infinite
1366x768 High Preset (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
126.9 fps
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
205.5 fps +62%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
133.1 fps +5%
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
106.9 fps -16%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
59.4 fps -53%
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
49.5 fps
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
92.4 fps +87%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
69.7 fps +41%
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
44.1 fps -11%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
27.29 fps -45%
Metro: Last Light
1366x768 High (DX11) AF:16x (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
62.6 fps
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
125.8 fps +101%
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
55.7 fps -11%
1920x1080 Very High (DX11) AF:16x (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
34 fps
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
70.6 fps +108%
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
30.9 fps -9%
Thief
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
58.6 fps
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
114.7 fps +96%
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
51.2 fps -13%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
41 (31.4min - 51.6max) fps -30%
1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
30 fps
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
65.4 fps +118%
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
26.6 fps -11%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
20.5 (16.7min - 28max) fps -32%
Batman: Arkham Knight
1920x1080 High / On (Interactive Smoke & Paper Debris Off) AA:SM AF:8x (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
36 fps
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
76 fps +111%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
57 fps +58%
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
39 fps +8%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
24 (19min - 35max) fps -33%
1920x1080 High / On AA:SM AF:16x (sort by value)
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
25 fps
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
52 fps +108%
Gigabyte P55W v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV128 NVMe
36 fps +44%
Dell XPS 15 9550 i7 FHD
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB
19 fps -24%
Asus N752VX-GC131T
GeForce GTX 950M, 6700HQ, Lite-On CV1-8B256
24 (17min - 35max) fps -4%
lågmed.högultra
BioShock Infinite (2013) 138.3 126.9 49.5
Metro: Last Light (2013) 109.1 62.6 34
Thief (2014) 69.4 58.6 30
Batman: Arkham Knight (2015) 64 36 25
Rise of the Tomb Raider (2016) 55.3 30.3 25.2
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
Asus GL552JX-CN154H
GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF
Asus N552VX-FY103T
GeForce GTX 950M, 6700HQ, Toshiba MQ02ABD100H
Acer Aspire V3-575G-5093
GeForce 940M, 6200U, Toshiba MQ01ABD100
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
Asus ZenBook Pro UX501VW-DS71T
GeForce GTX 960M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
Noise
5%
-1%
-4%
0%
4%
off / environment *
29.7
31.3
-5%
31.3
-5%
31.3
-5%
Idle Minimum *
33.2
30
10%
33.1
-0%
33.5
-1%
33.1
-0%
28.9
13%
Idle Average *
33.2
30
10%
33.2
-0%
34.8
-5%
33.3
-0%
28.9
13%
Idle Maximum *
33.3
31.3
6%
33.2
-0%
34.8
-5%
33.5
-1%
30.2
9%
Load Average *
36.6
36.9
-1%
37.7
-3%
41.4
-13%
38.9
-6%
41.8
-14%
Load Maximum *
44
44.7
-2%
43.4
1%
42
5%
38.9
12%
43.9
-0%

* ... smaller is better

Ljudnivå

Låg belastning
33.2 / 33.2 / 33.3 dB(A)
DVD
37 / dB(A)
Hög belastning
36.6 / 44 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   BK Precision 732A (15 cm avstånd)   environment noise: 29.7 dB(A)
Hög belastning
 44.4 °C44.2 °C26.2 °C
 45.6 °C37.8 °C27.2 °C
 31.2 °C31.6 °C28.6 °C
Max: 45.6 °C
Medel: 35.2 °C
24.6 °C34.8 °C41.6 °C
26.4 °C33 °C45.2 °C
29.4 °C29.6 °C25.6 °C
Max: 45.2 °C
Medel: 32.2 °C
Strömförsörjning (max.)  47 °C | Rumstemperatur 20 °C | Fluke 62 Mini IR Thermometer
(±) The average temperature for the upper side under maximal load is 35.2 °C / 95 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 45.6 °C / 114 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 45.2 °C / 113 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 28.4 °C / 83 F, compared to the device average of 33.9 °C / 93 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.2 °C / 91.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-4.3 °C / -7.8 F).
Asus GL552VW-DH74
GeForce GTX 960M, 6700HQ, Samsung SSD 850 EVO M.2 500GB
Asus GL552JX-CN154H
GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF
Asus N552VX-FY103T
GeForce GTX 950M, 6700HQ, Toshiba MQ02ABD100H
Acer Aspire V3-575G-5093
GeForce 940M, 6200U, Toshiba MQ01ABD100
Lenovo Ideapad 500-15ACZ
Radeon R6 M340DX, A10-8700P, Seagate Momentus SpinPoint M8 ST1000LM024
Asus Zenbook Pro UX501JW-FI218H
GeForce GTX 960M, 4720HQ, SanDisk SD7SN3Q128G1002
Power Consumption
35%
34%
56%
54%
13%
Idle Minimum *
15.9
6.2
61%
7
56%
6.2
61%
6.8
57%
15.6
2%
Idle Average *
20.3
10.3
49%
10.9
46%
9.5
53%
10.5
48%
20.5
-1%
Idle Maximum *
27.9
12.2
56%
12.9
54%
11
61%
11
61%
21.2
24%
Load Average *
79.4
77
3%
72
9%
36
55%
41.6
48%
75.8
5%
Load Maximum *
114.2
105
8%
109
5%
58
49%
51
55%
72.9
36%

* ... smaller is better

Strömförbrukning
Av/Standbydarklight 0.875 / 1.32 Watt
Låg belastningdarkmidlight 15.9 / 20.3 / 27.9 Watt
Hög belastning midlight 79.4 / 114.2 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Asus GL552VW-DH74
48 Wh
Asus GL552JX-CN154H
48 Wh
Asus N552VX-FY103T
44 Wh
Acer Aspire V3-575G-5093
37 Wh
Lenovo Ideapad 500-15ACZ
32 Wh
Asus ZenBook Pro UX501VW-DS71T
96 Wh
Battery Runtime
50%
70%
99%
40%
185%
Reader / Idle
182
223
23%
357
96%
426
134%
365
101%
689
279%
WiFi v1.3
127
221
74%
268
111%
237
87%
183
44%
379
198%
Load
66
100
52%
68
3%
116
76%
49
-26%
117
77%
WiFi
237
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
3tim 02min
WiFi Websurfing
2tim 07min
Hög belastning (maximal ljusstyrka)
1tim 06min

För

+ matt IPS-skärm med bra färgreproduktion
+ fabriksöverklockad GPU, bra spelprestanda
+ 2 lagringsplatser (M.2 + 2,5-tums SATA III)
+ Tillgängliga minnes- och lagringsplatser
+ Ljusstark, bra kontrast
+ UBS 3.1 Typ C
+ löstagbart batteri
+ ej PWM

Emot

- svårt att komma åt övriga komponenter
- hög strömförbrukning, kort batteritid
- Thunderbolt 3-stöd ej inbyggt
- viss ljusblödning från skärm
- chassit är en fingeravtrycksmagnet
- systemfläkten är aldrig tyst
- ej NVMe-stöd
- tung och tjock
- klena högtalare
In review: Asus GL552VW-DH74. Test model provided by Xotic PC.
In review: Asus GL552VW-DH74. Test model provided by Xotic PC.

Våra slutsatser är baserade på datorns konfiguration direkt ur kartongen. Eftersom Xotic PC överklockar sina modeller på egen hand kan våra mätningar av temperaturer, fläktljud, prestanda och batteritid skilja sig från standardvarianten av GL552VW.

GPU-prestandan med vår Xotic PC GL552VW är mycket riktigt konsekvent bättre än andra system med en orörd GTX 960M, men på bekostnad av högre fläktljud, högre strömförbrukning och kortare batteritid. Å andra sidan är det nackdelar som kanske är mindre relevanta för målgruppen – användare som letar efter en bärbar speldator som sällan används utan sladd i vägguttaget.

Några skäl att hoppa över Asus GL552 till förmån för MSI GE62 inkluderar den sistnämndas mindre storlek och lägre vikt, utan kompromisser i chassikvalitet. MSI-datorn är också enklare att felsöka och har ett skarpare utseende. Däremot har den ett klenare kylsystem och komponenterna blir varmare under belastning.

Vikten och storleken är de största nackdelarna med GL552VW. Om man kan leva med en speldator som huvudsakligen används inomhus kan den erbjuda en utmärkt 1080p IPS-skärm, bra överklockningsutrymme och ett robust chassi utan krusiduller.

Asus GL552VW-DH74 - 04/18/2016 v5.1 (old)
Allen Ngo

Design
76 / 98 → 78%
Tangentbord
82%
Mus
85%
Anslutningar
50 / 81 → 62%
Vikt
59 / 10-66 → 88%
Batteri
64%
Skärm
85%
Spelprestanda
84%
Programprestanda
90%
Temperatur
88 / 95 → 93%
Ljudnivå
80 / 90 → 89%
Audio
64%
Medel
76%
80%
Gaming - Vägt medel

Price comparison

Please share our article, every link counts!
Mail Logo
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Asus GL552VW Xotic PC Edition (sammanfattning)
Allen Ngo, 2016-04-23 (Update: 2020-06- 8)
