Test: Asus GL752VW (sammanfattning)
Asus GL752VW-T4168T (GL752 Serie)

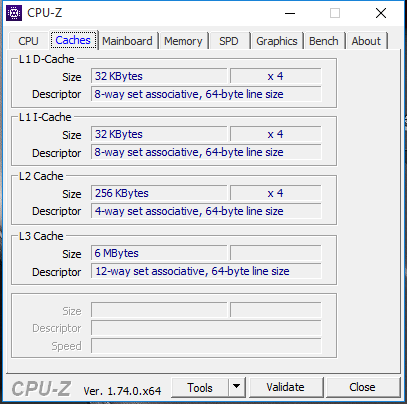

Processor

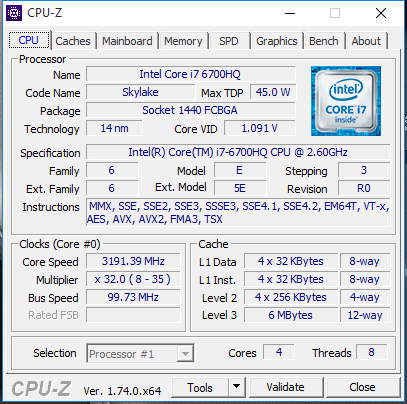

Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake

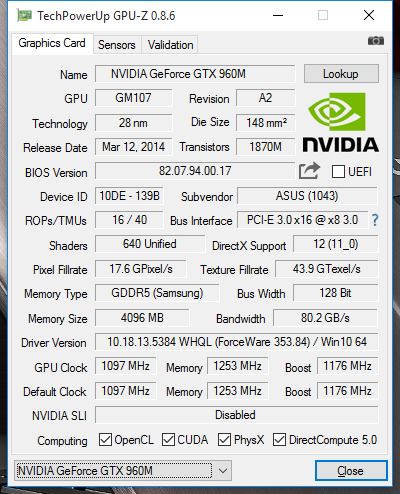

Grafikkort
NVIDIA GeForce GTX 960M - 4 GB VRAM, Kärna: 1097 MHz, Minne: 5000 MHz, GDDR5, ForceWare 353.84, Nvidia Optimus

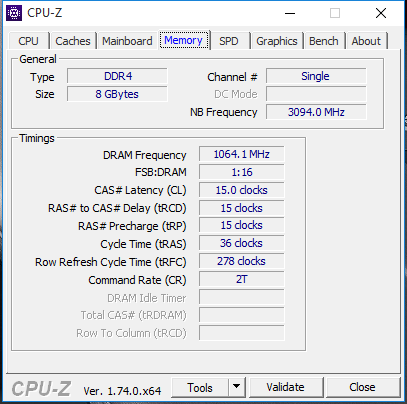

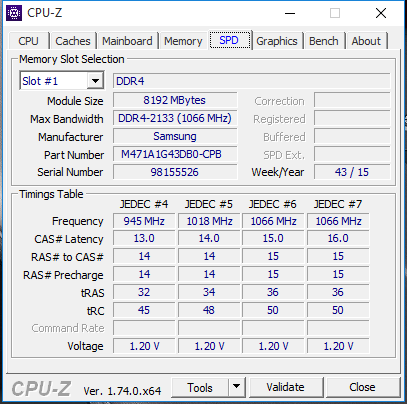

Minne
8 GB
, DDR4, 2133 MHz, Single-Channel, 1 av 2 platser används
Skärm
17.30 tum 16:9, 1920 x 1080 pixlar, Chi Mei N173HGE-E11 / CMN1735, TN LED, glansig: nej
Moderkort
Intel HM170 (Skylake PCH-H)
Hårddisk
Micron M600 MTFDDAV256MBF mSATA, 256 GB
, + 1 x Seagate ST2000LM003 HN-M201RAD 2 TB
Vikt
3 kg, Strömförsörjning: 359 g
Pris
1399 €
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
Chi Mei N173HGE-E11 / CMN1735 tested with X-Rite i1Pro 2
Max: 296 cd/m² (Nits) Medel: 267.7 cd/m² Minimum: 16 cd/m²Distribution av ljusstyrkan: 82 %
Mitt på batteriet: 289 cd/m²
Kontrast: 1156:1 (Svärta: 0.25 cd/m²)
ΔE Color 6.49 | 0.5-29.43 Ø4.91
ΔE Greyscale 7.8 | 0.5-98 Ø5.2

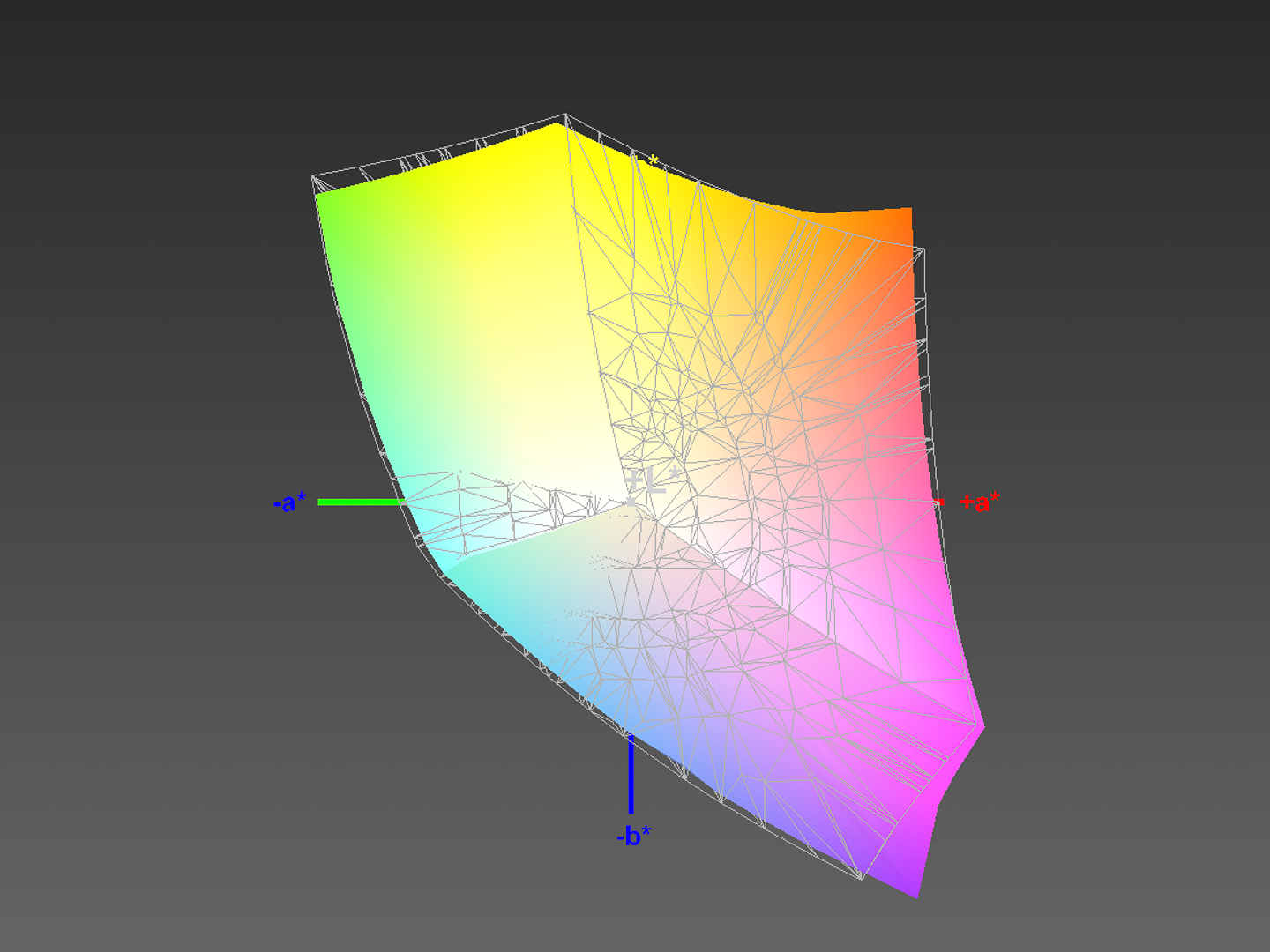

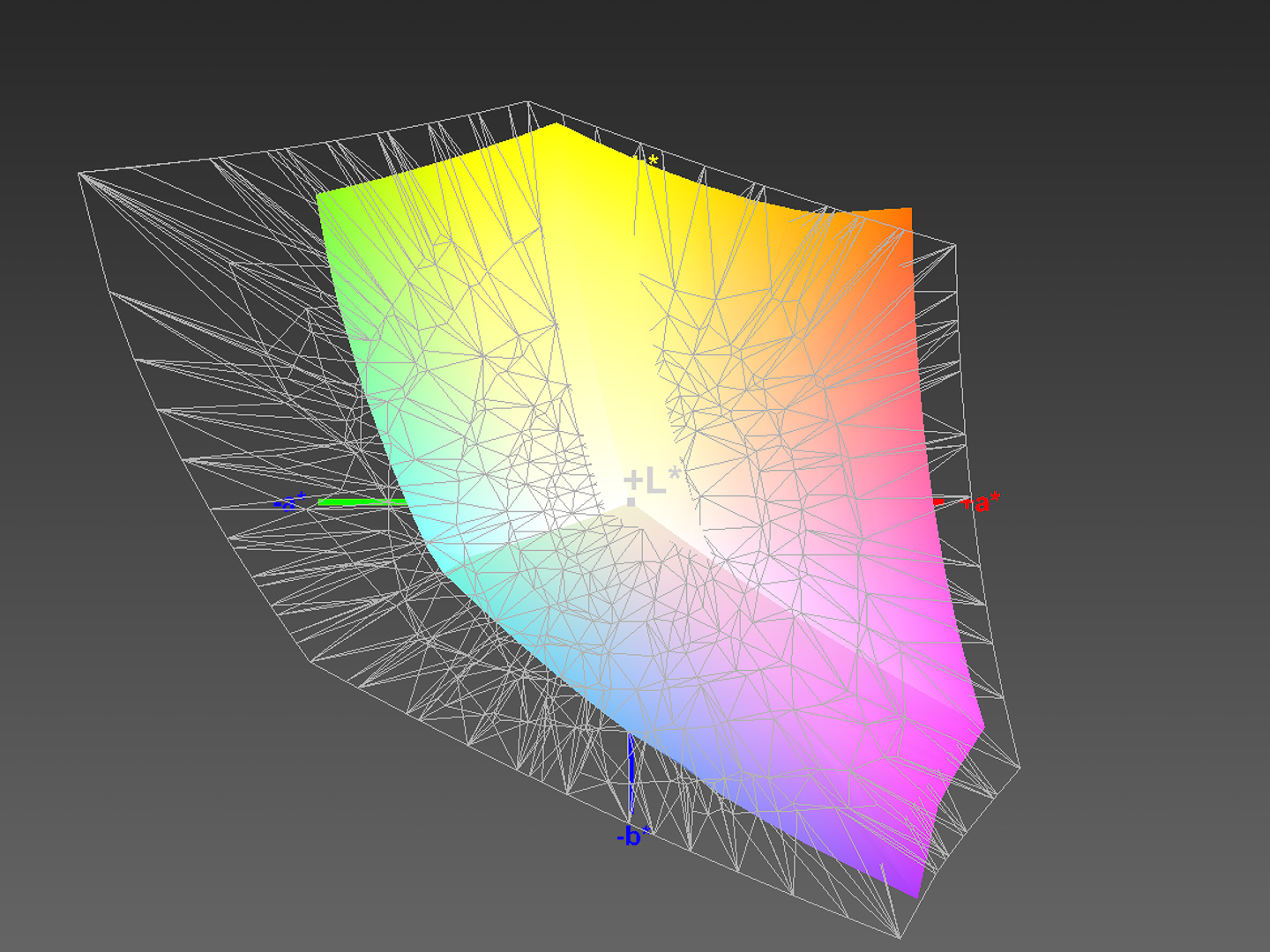

95% sRGB (Argyll 1.6.3 3D)
60% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.3% sRGB (Argyll 2.2.0 3D)
64.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.6
| Asus GL752VW-T4168T | Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | HP Envy 17-n107ng | MSI PE70-2QEi581 | Lenovo Ideapad Y700 17ISK 80Q0 | |
|---|---|---|---|---|---|
| Display | 0% | 2% | -5% | -4% | |
| Display P3 Coverage | 64.9 | 67 3% | 65.7 1% | 66.6 3% | 67.4 4% |
| sRGB Coverage | 95.3 | 91.3 -4% | 97.2 2% | 84.6 -11% | 84.8 -11% |
| AdobeRGB 1998 Coverage | 65.7 | 66.7 2% | 67.6 3% | 61.9 -6% | 62 -6% |
| Response Times | -30% | -46% | -37% | ||
| Response Time Grey 50% / Grey 80% * | 44 ? | 58 ? -32% | 49 ? -11% | 51.6 ? -17% | |
| Response Time Black / White * | 22 ? | 28 ? -27% | 32 ? -45% | 34.4 ? -56% | |
| PWM Frequency | 1020 ? | 198 ? -81% | |||
| Screen | 15% | -32% | -9% | 13% | |
| Brightness middle | 289 | 346 20% | 341 18% | 305 6% | 349.7 21% |
| Brightness | 268 | 326 22% | 325 21% | 265 -1% | 332 24% |
| Brightness Distribution | 82 | 88 7% | 91 11% | 79 -4% | 90 10% |
| Black Level * | 0.25 | 0.32 -28% | 1.05 -320% | 0.5 -100% | 0.304 -22% |
| Contrast | 1156 | 1081 -6% | 325 -72% | 610 -47% | 1150 -1% |
| Colorchecker dE 2000 * | 6.49 | 4.01 38% | 4.6 29% | 4.83 26% | 3.99 39% |
| Colorchecker dE 2000 max. * | 11.45 | 8.74 24% | |||
| Greyscale dE 2000 * | 7.8 | 3.58 54% | 6.08 22% | 3.29 58% | 3.34 57% |
| Gamma | 2.6 85% | 2.23 99% | 2.43 91% | 2.39 92% | 2.23 99% |
| CCT | 8187 79% | 6426 101% | 7627 85% | 7080 92% | 6111 106% |
| Color Space (Percent of AdobeRGB 1998) | 60 | 62 3% | 56 -7% | 55.8 -7% | |
| Color Space (Percent of sRGB) | 95 | 97 2% | 84 -12% | 84.8 -11% | |
| Total Average (Program / Settings) | -5% /
4% | -25% /
-28% | -7% /
-8% | -9% /
3% |
* ... smaller is better
Display Response Times
ℹ

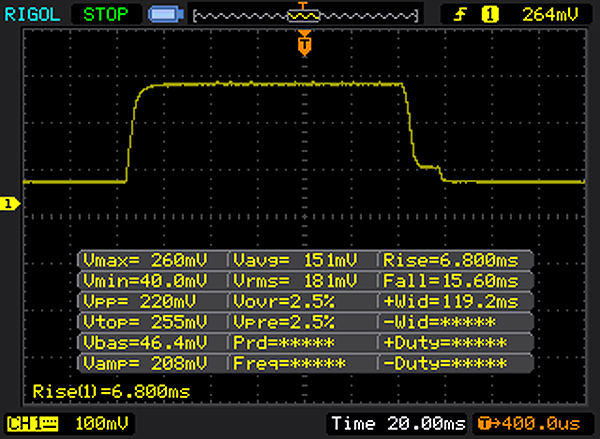

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 22 ms ... rise ↗ and fall ↘ combined | ↗ 7 ms rise |  |
| ↘ 15 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 44 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||

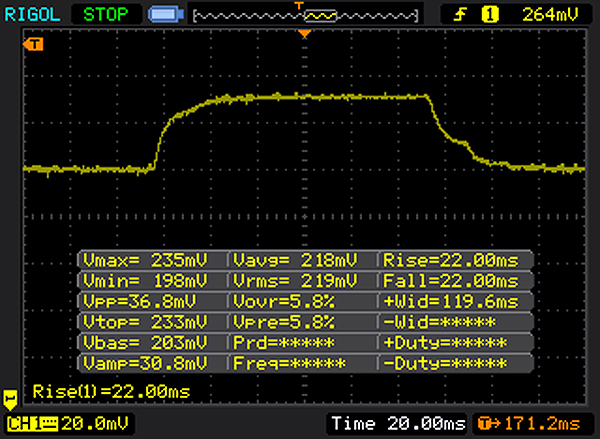

| ↔ Response Time 50% Grey to 80% Grey | ||
| 44 ms ... rise ↗ and fall ↘ combined | ↗ 22 ms rise |  |
| ↘ 22 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 71 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

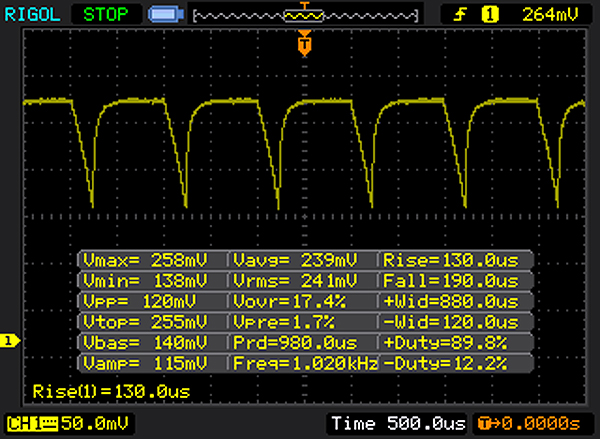

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 1020 Hz | ≤ 90 % brightness setting |  |
The display backlight flickers at 1020 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 1020 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| PCMark 7 Score | 5544 poäng | |
| PCMark 8 Home Score Accelerated v2 | 3434 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 4349 poäng | |
| PCMark 8 Work Score Accelerated v2 | 4648 poäng | |
Hjälp | ||
Micron M600 MTFDDAV256MBF mSATA
Sequential Read:
489.7 MB/s
Sequential Write:
448 MB/s
512K Read:
434.7 MB/s
512K Write:
434.7 MB/s
4K Read:
27.76 MB/s
4K Write:
79.4 MB/s
4K QD32 Read:
363.2 MB/s
4K QD32 Write:
301 MB/s
| 3DMark 11 - 1280x720 Performance GPU (sort by value) | |
| Asus GL752VW-T4168T | |
| Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | |
| HP Envy 17-n107ng | |
| MSI PE70-2QEi581 | |
| Lenovo Ideapad Y700 17ISK 80Q0 | |
| 3DMark | |
| 1920x1080 Fire Strike Graphics (sort by value) | |
| Asus GL752VW-T4168T | |
| Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | |
| HP Envy 17-n107ng | |
| Lenovo Ideapad Y700 17ISK 80Q0 | |
| 1280x720 Cloud Gate Standard Graphics (sort by value) | |
| Asus GL752VW-T4168T | |
| Acer Aspire V Nitro Black Edition VN7-792G-74Q4 | |
| HP Envy 17-n107ng | |
| Lenovo Ideapad Y700 17ISK 80Q0 | |
| 3DMark 11 Performance | 5327 poäng | |
| 3DMark Cloud Gate Standard Score | 16847 poäng | |
| 3DMark Fire Strike Score | 3913 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| Rainbow Six Siege (2015) | 105 | 55.5 | 45.6 | |
| Just Cause 3 (2015) | 63.5 | 33.8 | 28.9 |
Ljudnivå
| Låg belastning |
| 32 / 32 / 32 dB(A) |
| Hårddisk |
| 32.9 dB(A) |

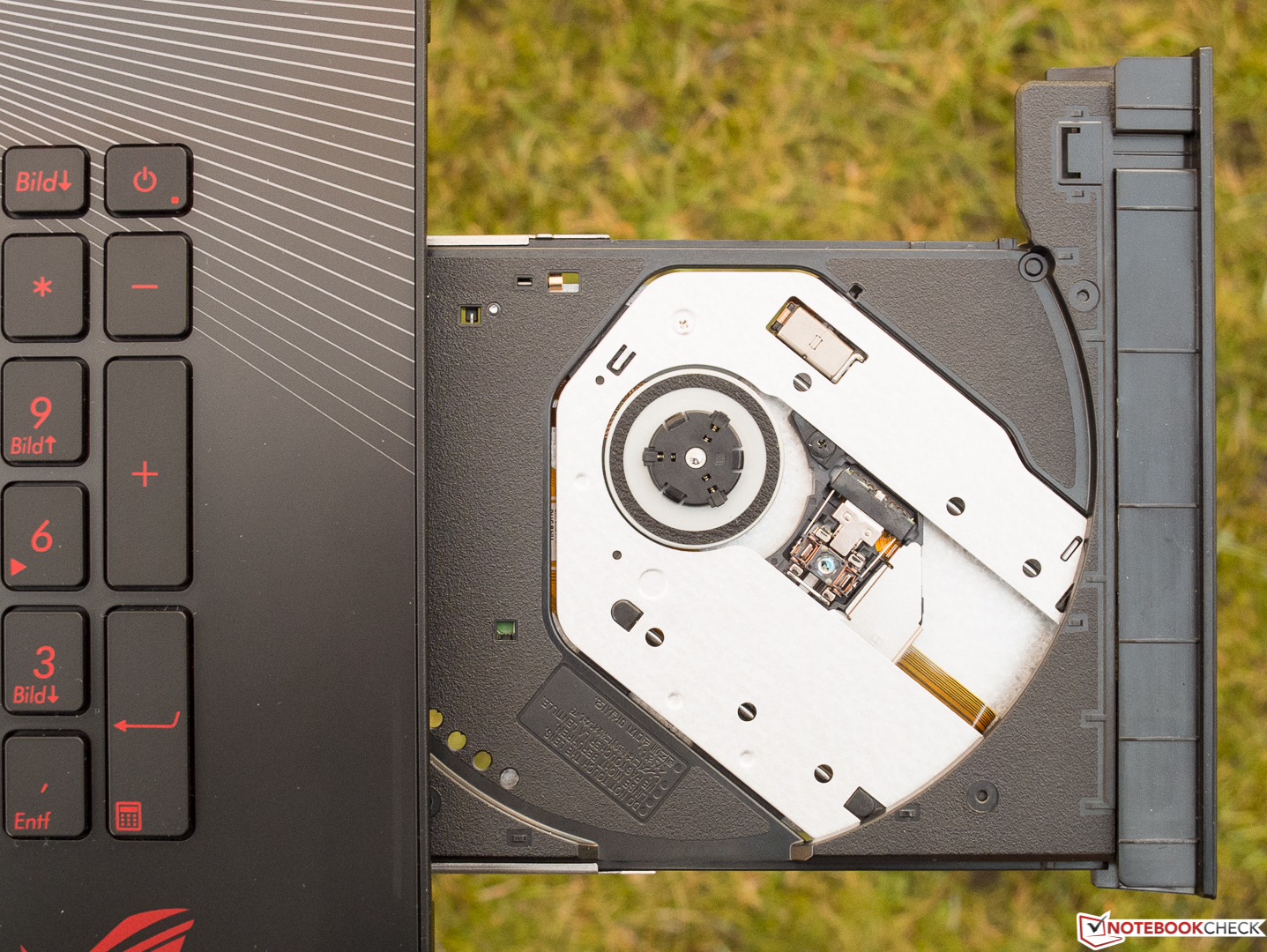

| DVD |
| 36.2 / dB(A) |
| Hög belastning |
| 43.8 / 44 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Audix TM1 Arta (15 cm avstånd) environment noise: 30.5 dB(A) | ||
(±) The average temperature for the upper side under maximal load is 33.7 °C / 93 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 44.1 °C / 111 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 44.8 °C / 113 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 44.1 °C / 111.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-15.3 °C / -27.6 F).
(±) The maximum temperature on the upper side is 44.1 °C / 111 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 44.8 °C / 113 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 44.1 °C / 111.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-15.3 °C / -27.6 F).
| Asus GL752VW-T4168T GeForce GTX 960M, 6700HQ, Micron M600 MTFDDAV256MBF mSATA | Acer Aspire V Nitro Black Edition VN7-792G-74Q4 GeForce GTX 960M, 6700HQ, Toshiba MQ02ABD100H | HP Envy 17-n107ng GeForce GTX 950M, 6700HQ, Samsung SSD PM851 MZNTE512HMJH | MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT | |
|---|---|---|---|---|
| Power Consumption | 21% | 35% | -29% | |
| Idle Minimum * | 14.5 | 5.8 60% | 5.5 62% | 19.1 -32% |
| Idle Average * | 19.3 | 9 53% | 10.8 44% | 24.3 -26% |
| Idle Maximum * | 19.5 | 14.7 25% | 11 44% | 29.2 -50% |
| Load Average * | 78 | 85 -9% | 72 8% | 88.6 -14% |
| Load Maximum * | 100 | 121.5 -22% | 85 15% | 122 -22% |
* ... smaller is better
Strömförbrukning
| Av/Standby | 2.8 / 3.9 Watt |
| Låg belastning | 14.5 / 19.3 / 19.5 Watt |
| Hög belastning |
78 / 100 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
För
+ många olika konfigurationer

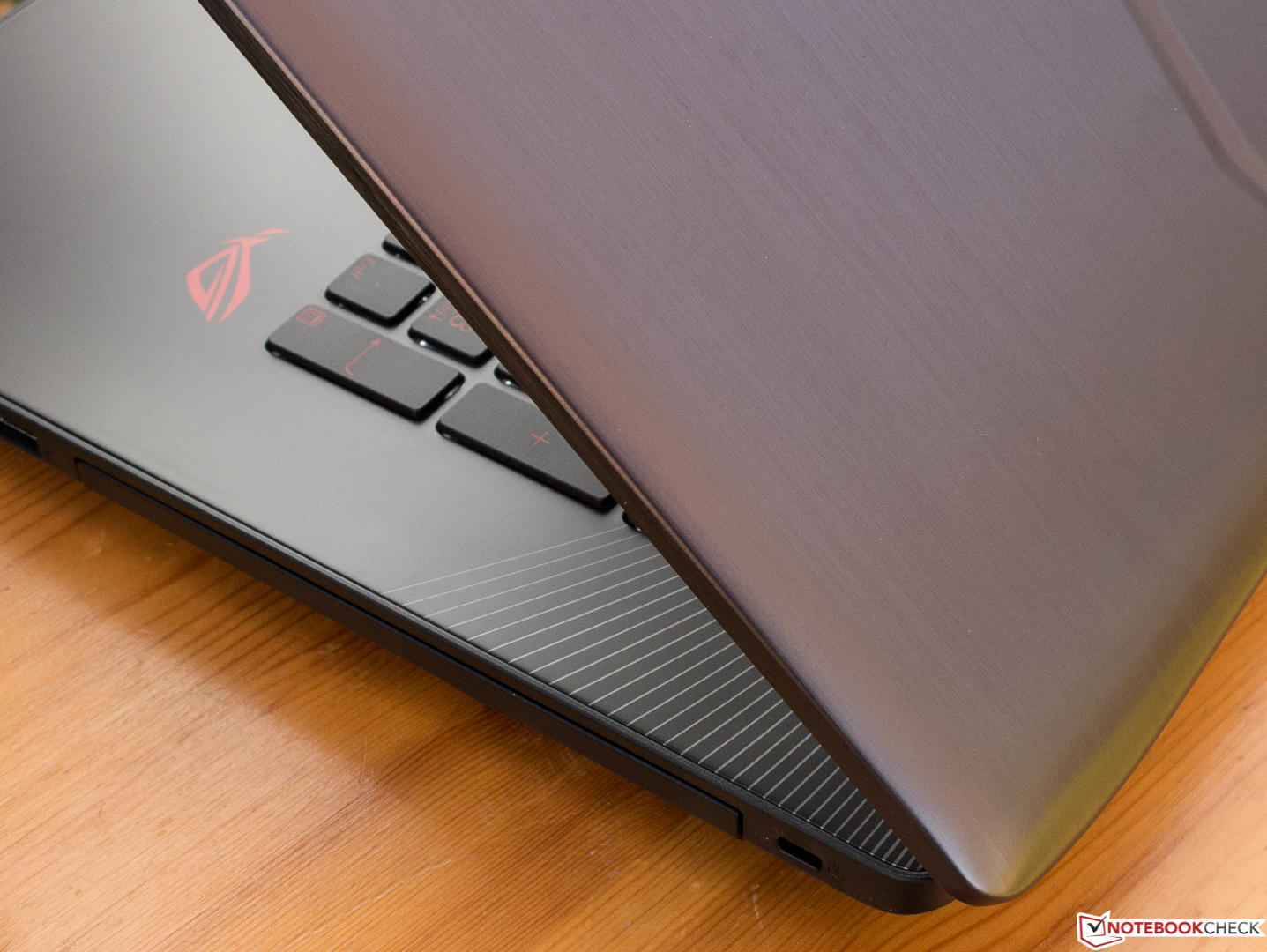

+ robust och välbyggt chassi
+ snabb minneskortläsare
+ USB typ C, DisplayPort

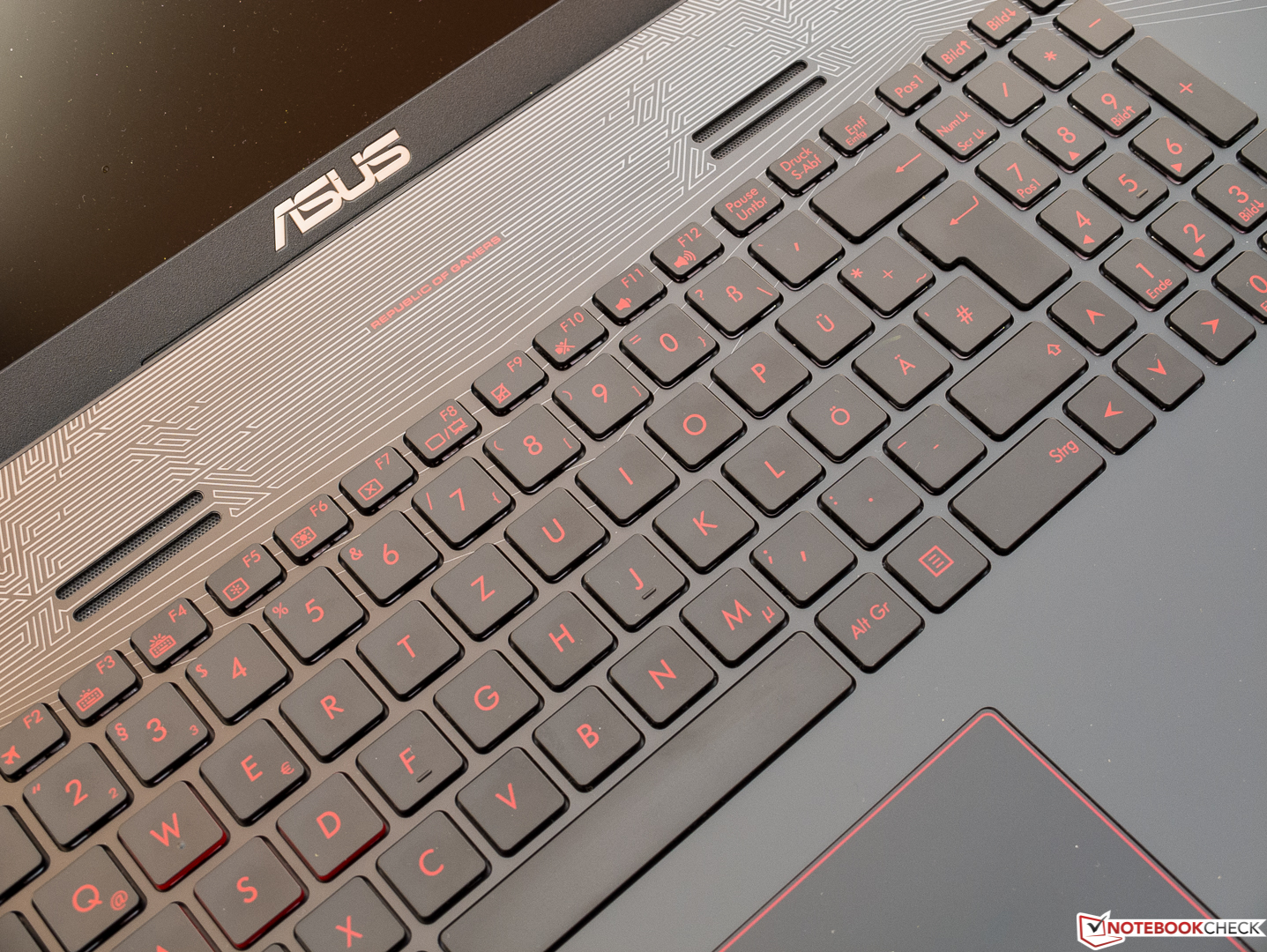

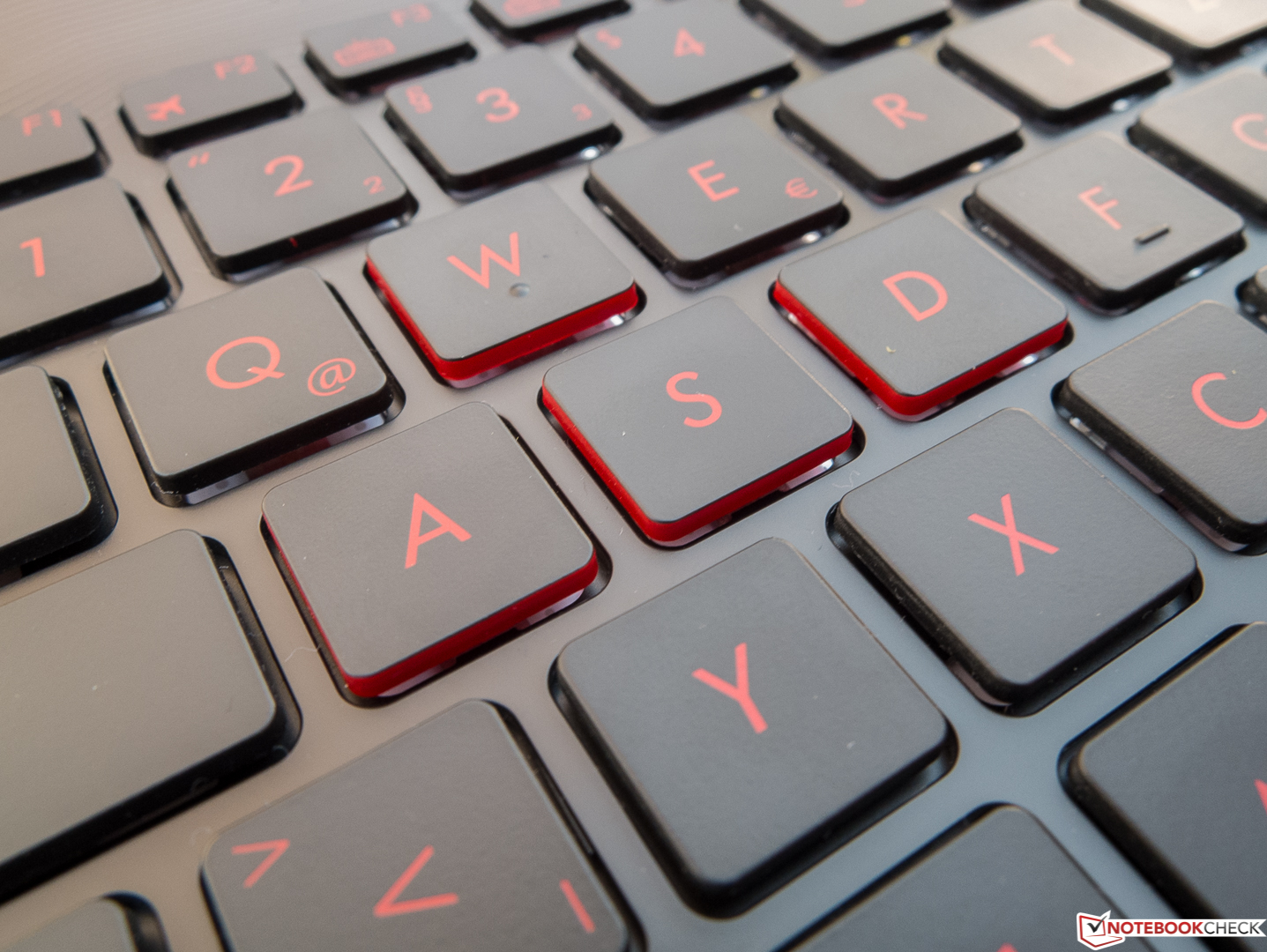

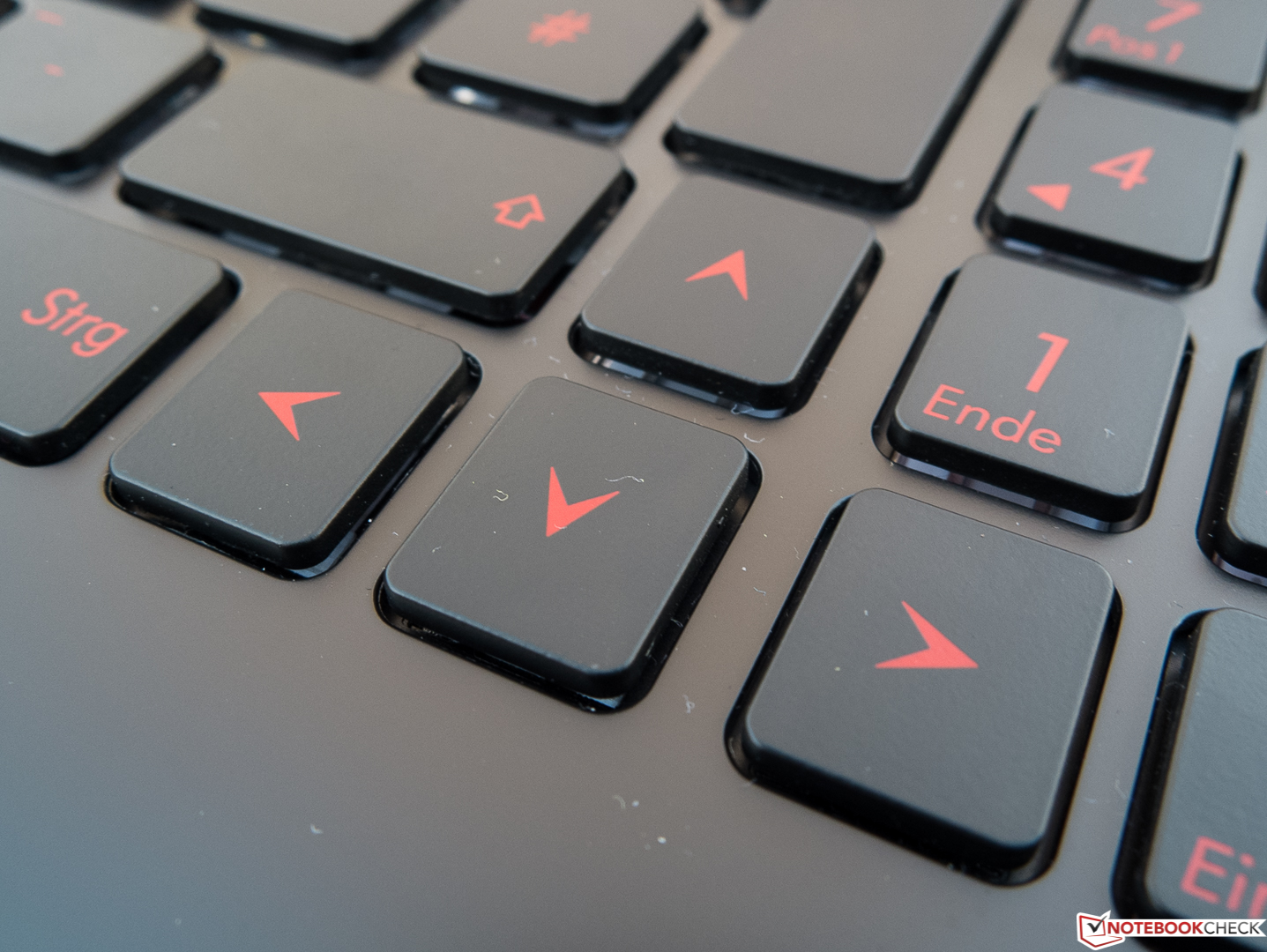

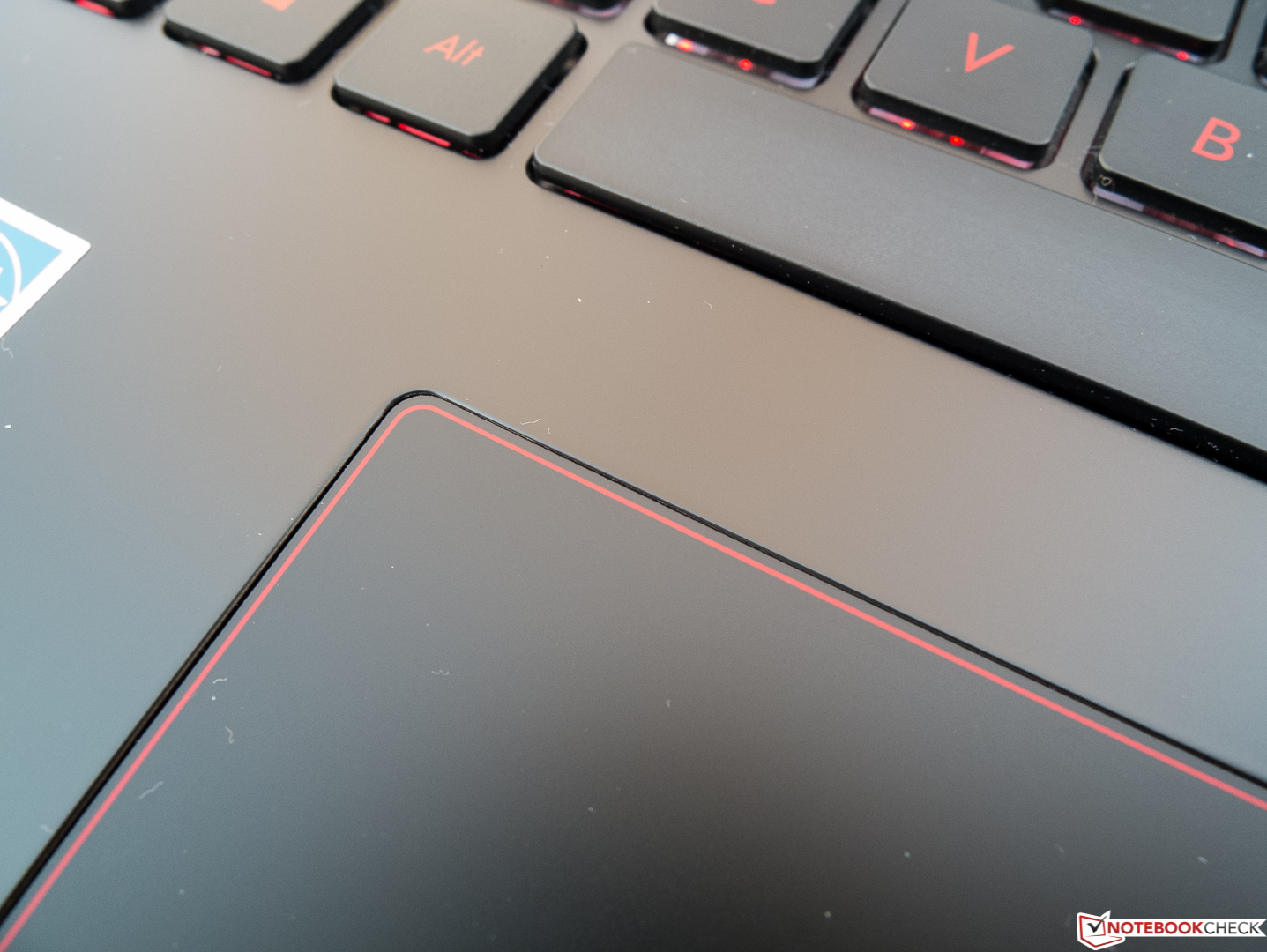

+ bra inmatningsenheter
+ mycket bra färgrymd (sRGB)
Emot

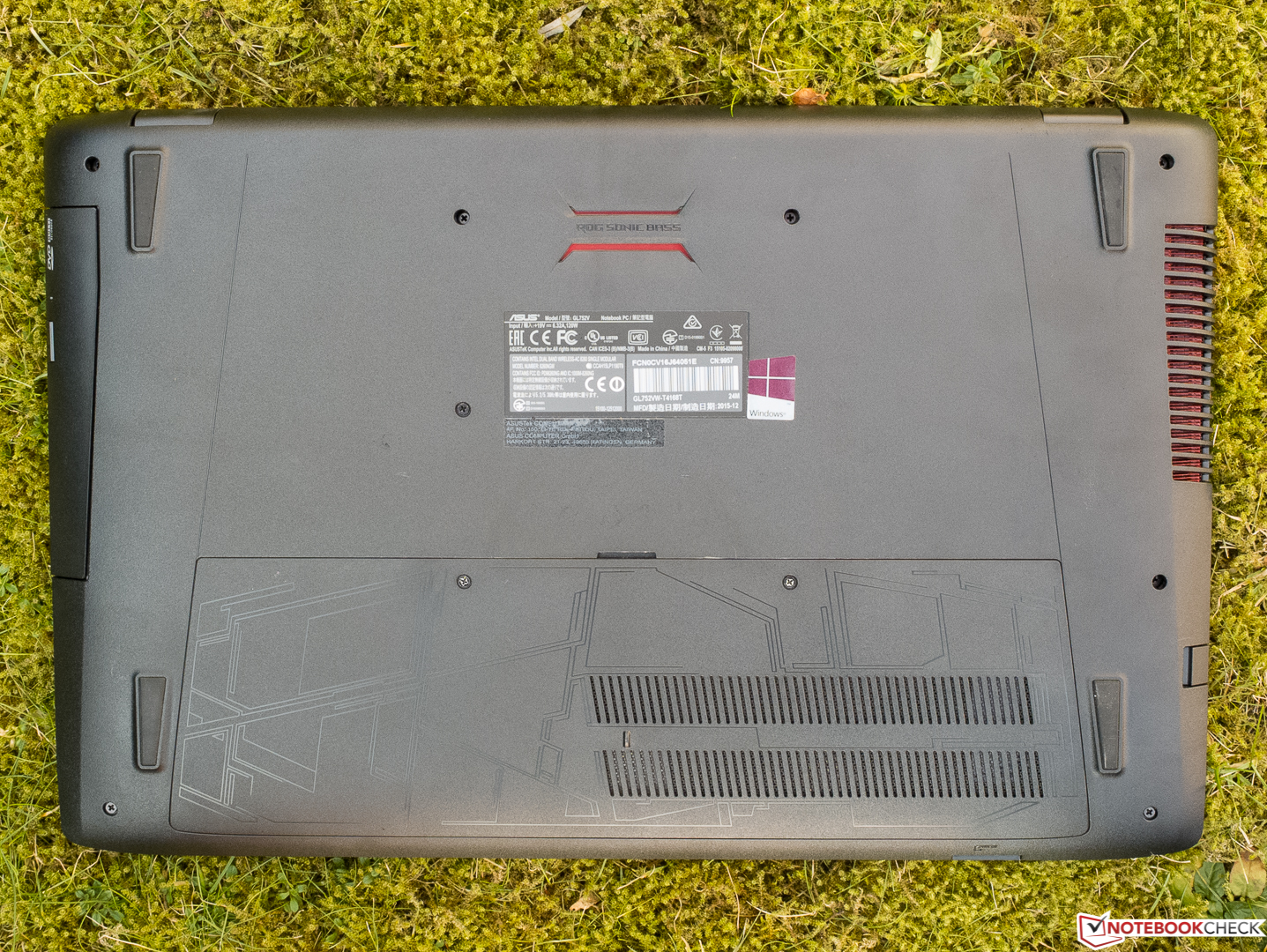

- batteriet är inte åtkomligt från utsidan

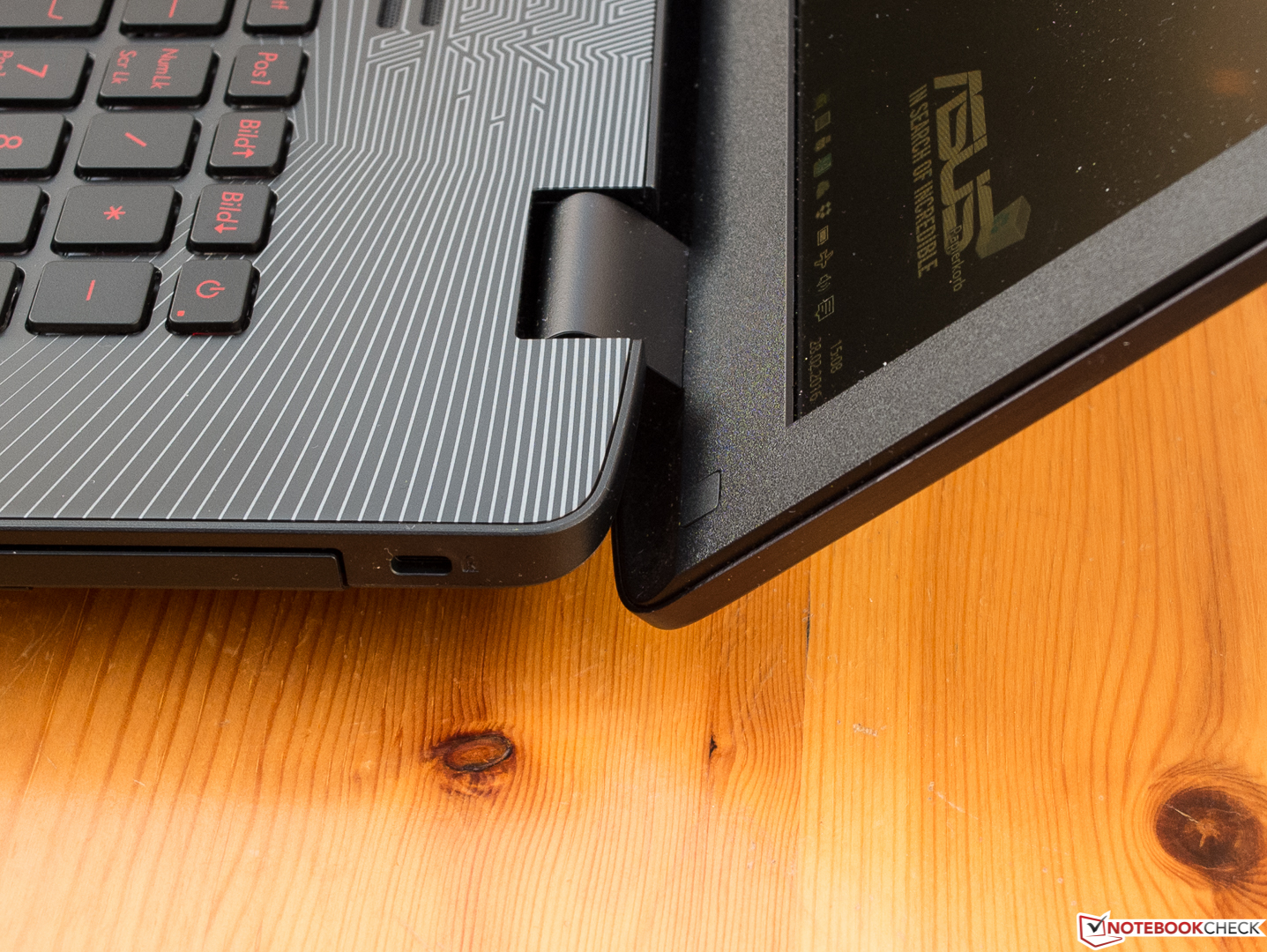

- gångjärnen rör sig vid vibrationer
- portar fram
- inte IPS
- lite irriterande ljusblödning

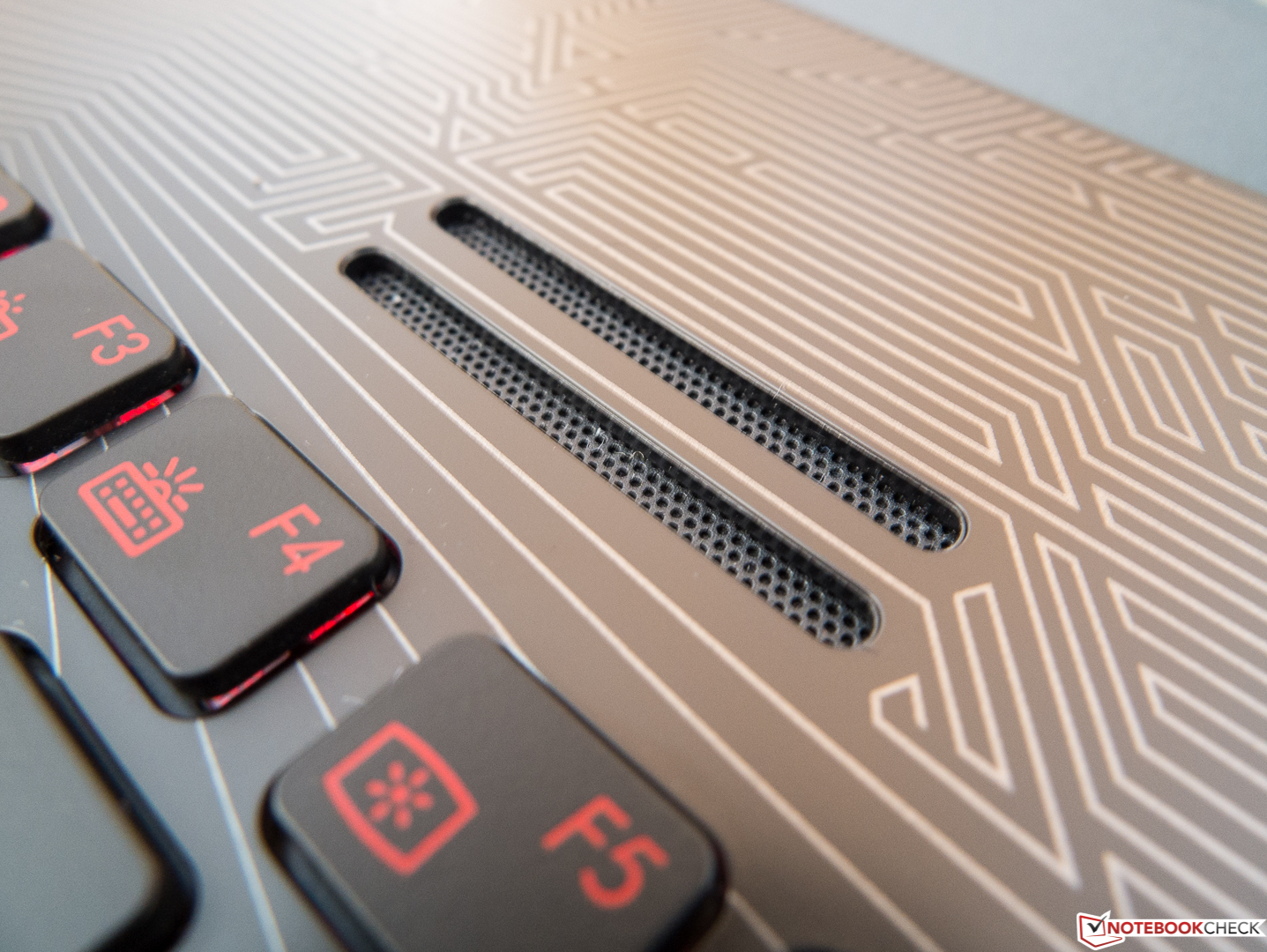

- klent ljudsystem
- för hög strömförbrukning under tomgång
En mer omfattande version av testet kan läsas här (på engelska).
Nya GL752VW från Asus är bra överlag. Vi hade uppskattat en IPS-skärm, åtminstone som tillval, men TN-panelen är åtminstone en av de bättre modellerna, med rimliga betraktningsvinklar och stor färgrymd.
Underhållsmöjligheterna lämnar en del övrigt att önska och ljudsystemet är något av en besvikelse. Det finns också problem med reproducerbara kraschar på batteridrift, vilket kan vara ett problem när du spelar spel eller kör andra GPU-krävande program.
Lagringskonfigurationen är nästan perfekt, med en snabb 256 GB SSD i kombination med en rymlig hårddisk på 2 TB. Det är en av de större invändningarna mot den något högre rankade Acer Aspire Nitro, där du måste leva med en hybridhårddisk på 1 TB och en försämrad prestandaupplevelse.
