Test: Dell Latitude 11 5175
Dell Latitude 11 5175 (Latitude 11 5100 Serie)

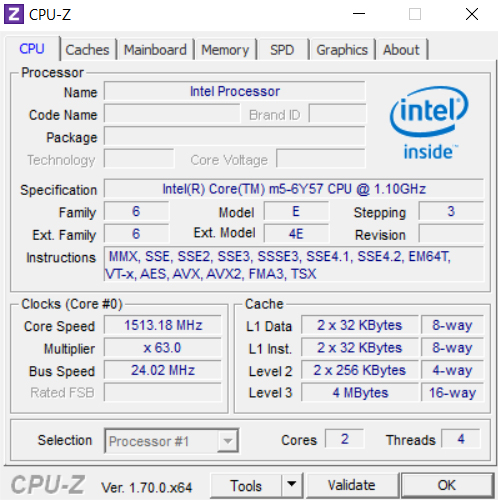

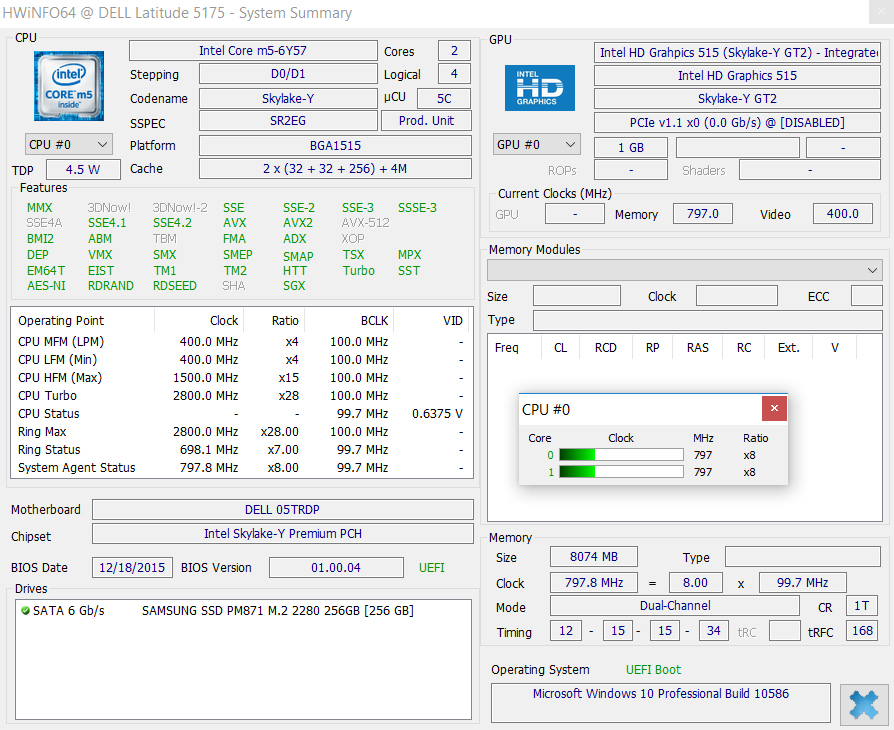

Processor
Intel Core m5-6Y57 2 x 1.1 - 2.8 GHz, Skylake

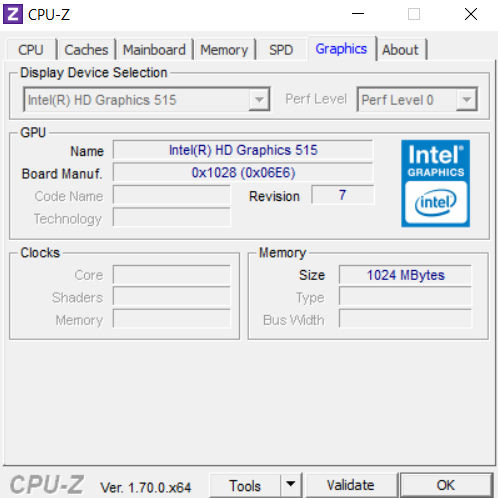

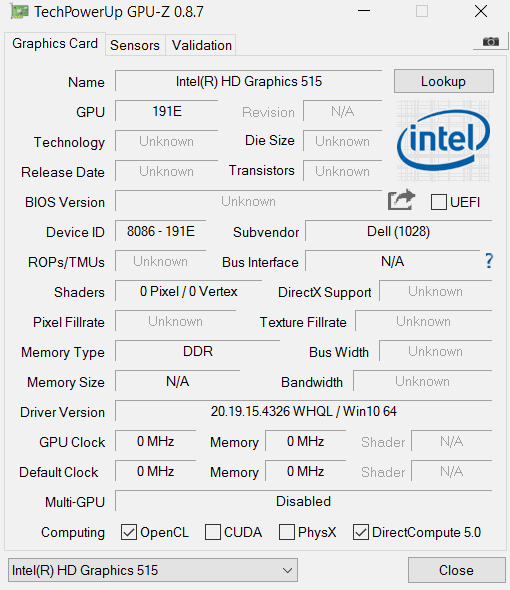

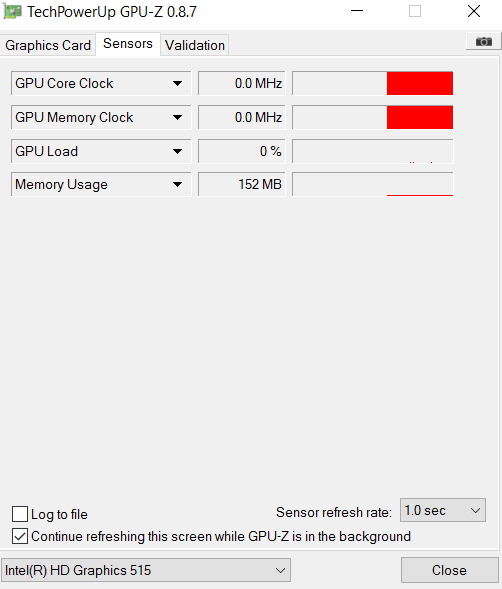

Grafikkort
Intel HD Graphics 515, Kärna: 900 MHz, Minne: 800 MHz, 20.19.15.4326
Minne
8 GB
, LPDDR3-1600 MHz, dual-channel, fastlött
Skärm
10.80 tum 16:9, 1920 x 1080 pixlar 204 PPI, Corning Concore Glass, YJ0MP-TV108FM, IPS, 10-punkters multi-touch, glansig: ja, detachable screen

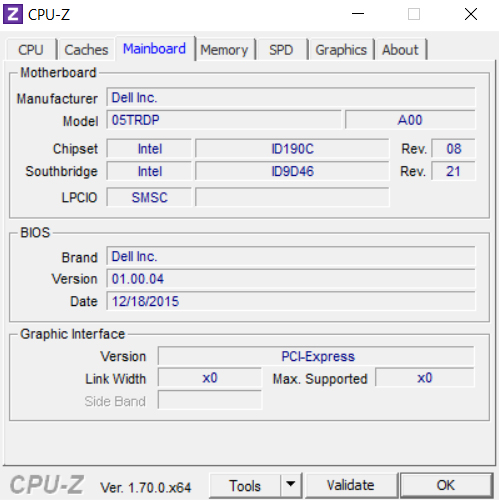

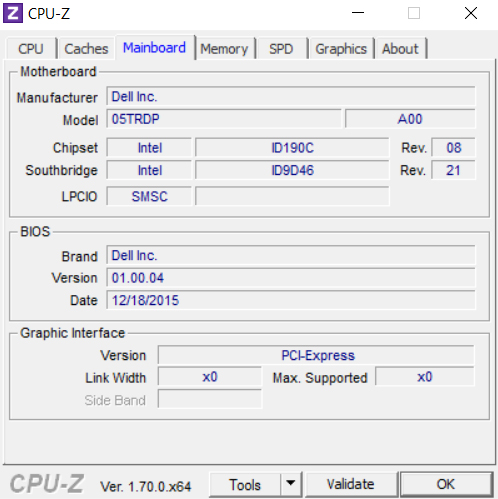

Moderkort
Intel Skylake-Y Premium PCH
Hårddisk
Samsung PM871 MZYLN256HCHP, 256 GB
, M.2-SSD
Vikt
710 g, Strömförsörjning: 234 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
YJ0MP-TV108FM tested with X-Rite i1Pro 2
Max: 469 cd/m² (Nits) Medel: 448.7 cd/m² Minimum: 23 cd/m²Distribution av ljusstyrkan: 86 %
Mitt på batteriet: 461 cd/m²
Kontrast: 1027:1 (Svärta: 0.45 cd/m²)
ΔE Color 4.4 | 0.5-29.43 Ø4.91
ΔE Greyscale 3.49 | 0.5-98 Ø5.2
80.76% sRGB (Argyll 1.6.3 3D)
53.21% AdobeRGB 1998 (Argyll 1.6.3 3D)
59.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
81.1% sRGB (Argyll 2.2.0 3D)
63.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.55
| Dell Latitude 11 5175 HD Graphics 515, 6Y57, Samsung PM871 MZYLN256HCHP | Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe | HP Elite x2 1011 G1 HD Graphics 5300, 5Y51, Samsung SSD PM851 256 GB MZNTE256HMHP | HP Elite x2 1012 G1 HD Graphics 515, 6Y54, Liteon L8H-256V2G | Lenovo ThinkPad Helix 2 HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB | HP Spectre x2 12-a003ng K3D42EA HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006 | |
|---|---|---|---|---|---|---|
| Display | 14% | -24% | -11% | -13% | ||
| Display P3 Coverage | 63.4 | 67.5 6% | 44.4 -30% | 53.8 -15% | 52.9 -17% | |
| sRGB Coverage | 81.1 | 96.6 19% | 66.4 -18% | 73.7 -9% | 71.8 -11% | |
| AdobeRGB 1998 Coverage | 59.3 | 69 16% | 45.91 -23% | 53.8 -9% | 52.6 -11% | |
| Response Times | -31% | 20% | -1% | |||
| Response Time Grey 50% / Grey 80% * | 46 ? | 46 ? -0% | 33.2 ? 28% | 47 ? -2% | ||
| Response Time Black / White * | 26 ? | 31 ? -19% | 22.8 ? 12% | 26 ? -0% | ||
| PWM Frequency | 200 | 50 ? -75% | ||||
| Screen | 12% | -31% | -21% | 2% | -23% | |
| Brightness middle | 462 | 389.2 -16% | 364 -21% | 322 -30% | 365 -21% | 353 -24% |
| Brightness | 449 | 392 -13% | 331 -26% | 319 -29% | 342 -24% | 347 -23% |
| Brightness Distribution | 86 | 92 7% | 84 -2% | 97 13% | 86 0% | 91 6% |
| Black Level * | 0.45 | 0.27 40% | 0.44 2% | 0.42 7% | 0.329 27% | 0.44 2% |
| Contrast | 1027 | 1441 40% | 827 -19% | 767 -25% | 1109 8% | 802 -22% |
| Colorchecker dE 2000 * | 4.4 | 3.61 18% | 7.32 -66% | 6.02 -37% | 4.37 1% | 6.09 -38% |
| Colorchecker dE 2000 max. * | 9.21 | 10.06 -9% | ||||
| Greyscale dE 2000 * | 3.49 | 3.8 -9% | 7.37 -111% | 6.29 -80% | 2.8 20% | 6.24 -79% |
| Gamma | 2.55 86% | 2.16 102% | 2.03 108% | 2.4 92% | 2.3 96% | 2.41 91% |
| CCT | 6256 104% | 5969 109% | 6479 100% | 7712 84% | 6595 99% | 7238 90% |
| Color Space (Percent of AdobeRGB 1998) | 53.21 | 63 18% | 42.2 -21% | 47.8 -10% | 46 -14% | |
| Color Space (Percent of sRGB) | 80.76 | 97 20% | 66.1 -18% | 73.2 -9% | 71 -12% | |
| Total Average (Program / Settings) | -2% /
3% | -28% /
-29% | -4% /
-13% | 2% /
2% | -12% /
-18% |
* ... smaller is better
Display Response Times
ℹ

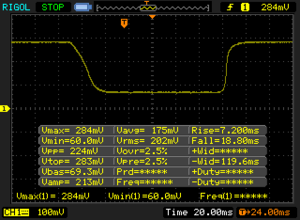

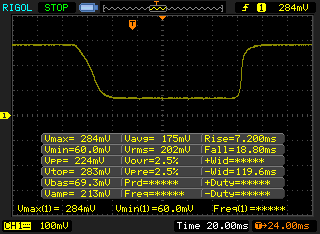

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 26 ms ... rise ↗ and fall ↘ combined | ↗ 7.2 ms rise |  |
| ↘ 18.8 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 59 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

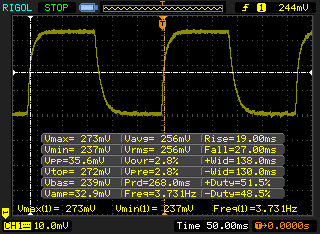

| ↔ Response Time 50% Grey to 80% Grey | ||
| 46 ms ... rise ↗ and fall ↘ combined | ↗ 19 ms rise |  |
| ↘ 27 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 77 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ

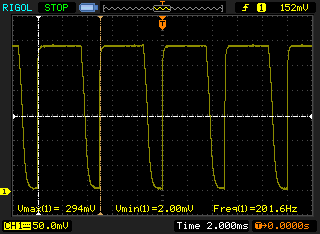

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 200 Hz |  | |
The display backlight flickers at 200 Hz (worst case, e.g., utilizing PWM) . The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Cinebench R10 | |
| Rendering Multiple CPUs 64Bit (sort by value) | |
| Dell Latitude 11 5175 | |
| Microsoft Surface Pro 4, Core m3 | |
| Lenovo ThinkPad Helix 2 | |
| HP Spectre x2 12-a003ng K3D42EA | |
| Rendering Single CPUs 64Bit (sort by value) | |
| Dell Latitude 11 5175 | |
| Microsoft Surface Pro 4, Core m3 | |
| Lenovo ThinkPad Helix 2 | |
| HP Spectre x2 12-a003ng K3D42EA | |
| PCMark 7 Score | 4289 poäng | |
| PCMark 8 Home Score Accelerated v2 | 2641 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 2905 poäng | |
| PCMark 8 Work Score Accelerated v2 | 3720 poäng | |
Hjälp | ||
Samsung PM871 MZYLN256HCHP
Sequential Read:
472.6 MB/s
Sequential Write:
296.8 MB/s
512K Read:
383.8 MB/s
512K Write:
296.8 MB/s
4K Read:
30.89 MB/s
4K Write:
71.4 MB/s
4K QD32 Read:
243.9 MB/s
4K QD32 Write:
198.6 MB/s
| 3DMark 11 Performance | 951 poäng | |
| 3DMark Ice Storm Standard Score | 35822 poäng | |
| 3DMark Cloud Gate Standard Score | 3748 poäng | |
| 3DMark Fire Strike Score | 545 poäng | |
| 3DMark Fire Strike Extreme Score | 274 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 32.99 | 17.76 | 15.32 | 4.39 |
| Battlefield 4 (2013) | 22.56 | 15.23 | 9.69 | 5.64 |
| Rise of the Tomb Raider (2016) | 7.96 | 5.18 |
(±) The average temperature for the upper side under maximal load is 37.7 °C / 100 F, compared to the average of 30 °C / 86 F for the devices in the class Tablet.
(±) The maximum temperature on the upper side is 44.1 °C / 111 F, compared to the average of 33.7 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 33.2 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 29.3 °C / 85 F, compared to the device average of 30 °C / 86 F.
(±) The maximum temperature on the upper side is 44.1 °C / 111 F, compared to the average of 33.7 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 33.2 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 29.3 °C / 85 F, compared to the device average of 30 °C / 86 F.
| Dell Latitude 11 5175 HD Graphics 515, 6Y57, Samsung PM871 MZYLN256HCHP | HP Elite x2 1011 G1 HD Graphics 5300, 5Y51, Samsung SSD PM851 256 GB MZNTE256HMHP | HP Elite x2 1012 G1 HD Graphics 515, 6Y54, Liteon L8H-256V2G | Lenovo ThinkPad Helix 2 HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB | HP Spectre x2 12-a003ng K3D42EA HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006 | |
|---|---|---|---|---|---|
| Power Consumption | 21% | -46% | -15% | -37% | |
| Idle Minimum * | 2.7 | 1.5 44% | 3.7 -37% | 2 26% | 4.5 -67% |
| Idle Average * | 5.8 | 4 31% | 6.8 -17% | 6 -3% | 7.7 -33% |
| Idle Maximum * | 6.6 | 5 24% | 7.6 -15% | 6.6 -0% | 8.3 -26% |
| Load Average * | 15.2 | 13.9 9% | 22.5 -48% | 17.6 -16% | 19.8 -30% |
| Load Maximum * | 16.1 | 16.9 -5% | 34.5 -114% | 29.7 -84% | 20.6 -28% |
* ... smaller is better
Strömförbrukning
| Av/Standby |   0.36 / 0.9 Watt |
| Låg belastning |  2.7 / 5.8 / 6.6 Watt |
| Hög belastning |
15.2 / 16.1 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| Dell Latitude 11 5175 35 Wh | Microsoft Surface Pro 4, Core m3 38 Wh | HP Elite x2 1011 G1 54 Wh | HP Elite x2 1012 G1 37 Wh | Lenovo ThinkPad Helix 2 35 Wh | HP Spectre x2 12-a003ng K3D42EA 42 Wh | |
|---|---|---|---|---|---|---|
| Battery Runtime | -2% | 55% | -6% | 8% | 1% | |
| Reader / Idle | 793 | 791 0% | 1063 34% | 732 -8% | 964 22% | 954 20% |
| H.264 | 411 | 658 60% | 432 5% | 360 -12% | ||
| WiFi v1.3 | 426 | 488 15% | 675 58% | 443 4% | 361 -15% | |
| Load | 172 | 138 -20% | 288 67% | 130 -24% | 197 15% | 166 -3% |
| WiFi | 396 |
För
+ ljusstark IPS-panel
+ passivt kyld Core m5-processor
+ bra batteritid
+ snabb SSD på 256 GB
+ fullstor USB 3.0
+ bra kamera
Emot
- processorn når inte sin fulla potential
- 12 månaders standardgaranti
- mindre tillverkningsbrister i vårt testexemplar
- bara en USB 3.0 Typ C-port
- relativt dyra tillbehör
Läs en längre version av testet på engelska här.
Dell Latitude 11 5175 är en anständig surfplatta för företag, med enkel design. Intel Core m5-6Y57-processorn har tillräcklig prestanda för standardprogram. Processorns låga TDP tillåter passiv kylning.
Med sina 256 GB har SSD:n tillräcklig lagringskapacitet och garanterar snabba läs- och skrivhastigheter. Full HD-pekskärmen har mycket bra ljusstyrka och reagerar snabbt på inmatningar. Dessutom övertygar IPS-panelen med sina utmärkta betraktningsvinklar. Ett annat plus är batteritiden.
Dell Latitude 11 5175 kan också kritiseras på ett par punkter. Processorns prestanda är inte helt tillgänglig för användaren. Microsofts Surface Pro 4 som är försedd med en Core m3 är t.ex. snabbare. Skärmen är inte att rekommendera för professionellt bruk, eftersom färgrymden är medelmåttig.
Köpare som kan leva med 1080p och även med begränsad färgrymd kan sätta siktet på Latitude 11. CPU-prestandan är tillräcklig för alla standardprogram trots begränsningarna. Det kan nämnas att det knappt finns några surfplattor på marknaden som kan dra maximal nytta av Core M-processorerna.
Dell Latitude 11 5175
- 04/19/2016 v5.1 (old)
Sebastian Bade
Tablet - Vägt medel
