Test: Dell Latitude 5290 2-i-1 (i5-8350U) Omvandlingsbar (Sammanfattning)

Surface Pro Pro? Latitude 5290 vill vara en Surface Pro för professionella företagskunder. Utrustad med en 8:e generationens Intel SoC, NVMe SSD och en ljusstark och levande skärm, kan denna omvandlingsbara för ca 16 000 kronor argumentera väl för att kunna bli en tillgång åt företagskunder?

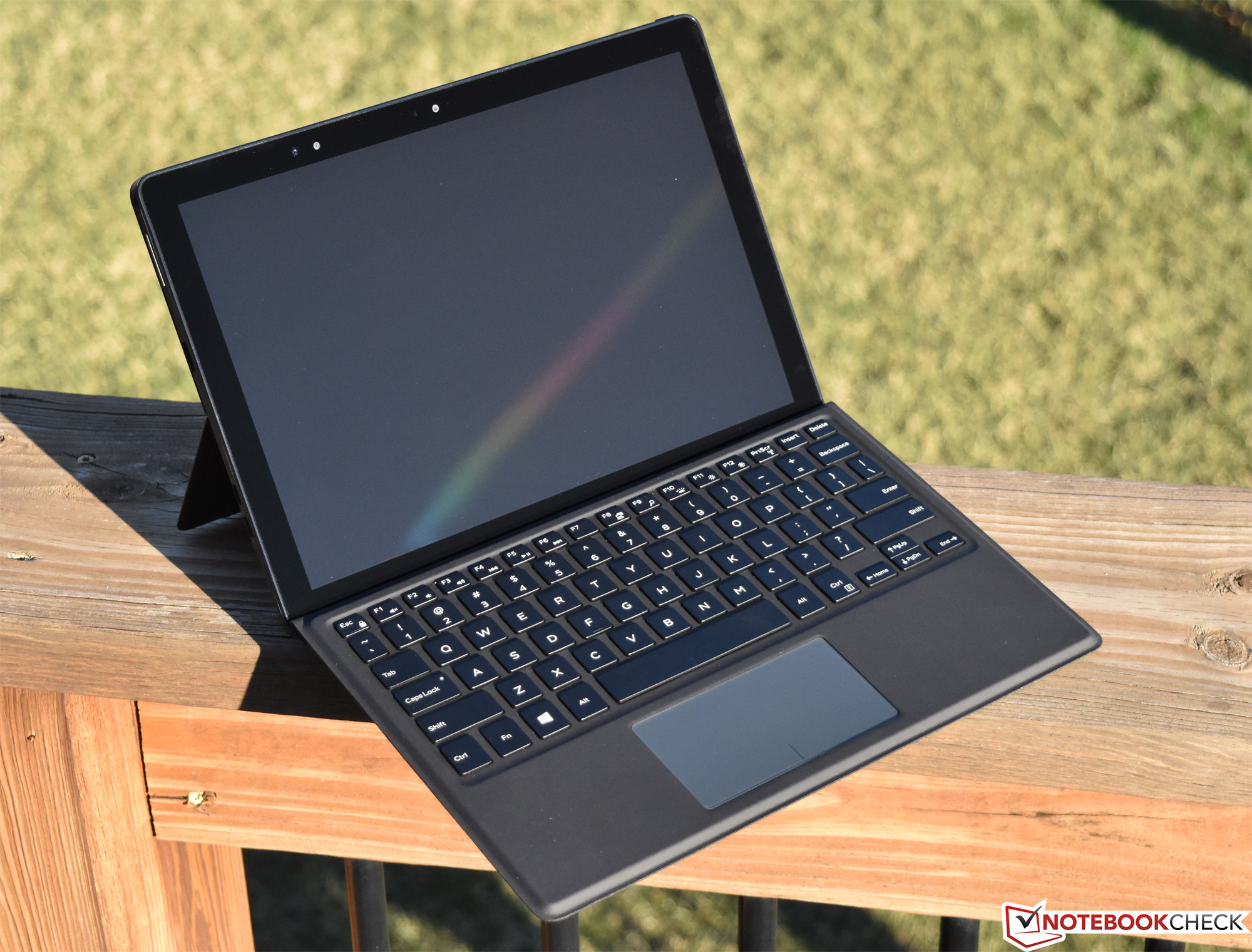

Dell Latitude 5290 2-in-1 (Latitude 12 5200 Serie)
Processor
Intel Core i5-8350U 4 x 1.7 - 3.6 GHz, Kaby Lake Refresh
Grafikkort
Intel UHD Graphics 620, Kärna: 1100 MHz, 22.20.16.4815
Minne
8 GB
, LPDDR3
Skärm
12.30 tum 3:2, 1920 x 1280 pixlar 179 PPI, ja, 10 punkters multitouch, native pen support, SHP1479, IPS, glansig: ja, detachable screen
Moderkort
Intel Sunrise Point-LP
Hårddisk
Toshiba XG5 KXG50ZNV256G, 256 GB
Anslutningar
3 USB 3.0, 2 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: 3.5 mm kombinerad ljudanslutning, Kortläsare: microSD, 1 Fingeravtrycksläsare
Nätverk
Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Storlek
höjd x bredd x djup (i mm) 9.75 x 292 x 210
Batteri
42 Wh, 5250 mAh Litiumjon
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Primary Camera: 8 MPix
Secondary Camera: 5 MPix
Övrigt

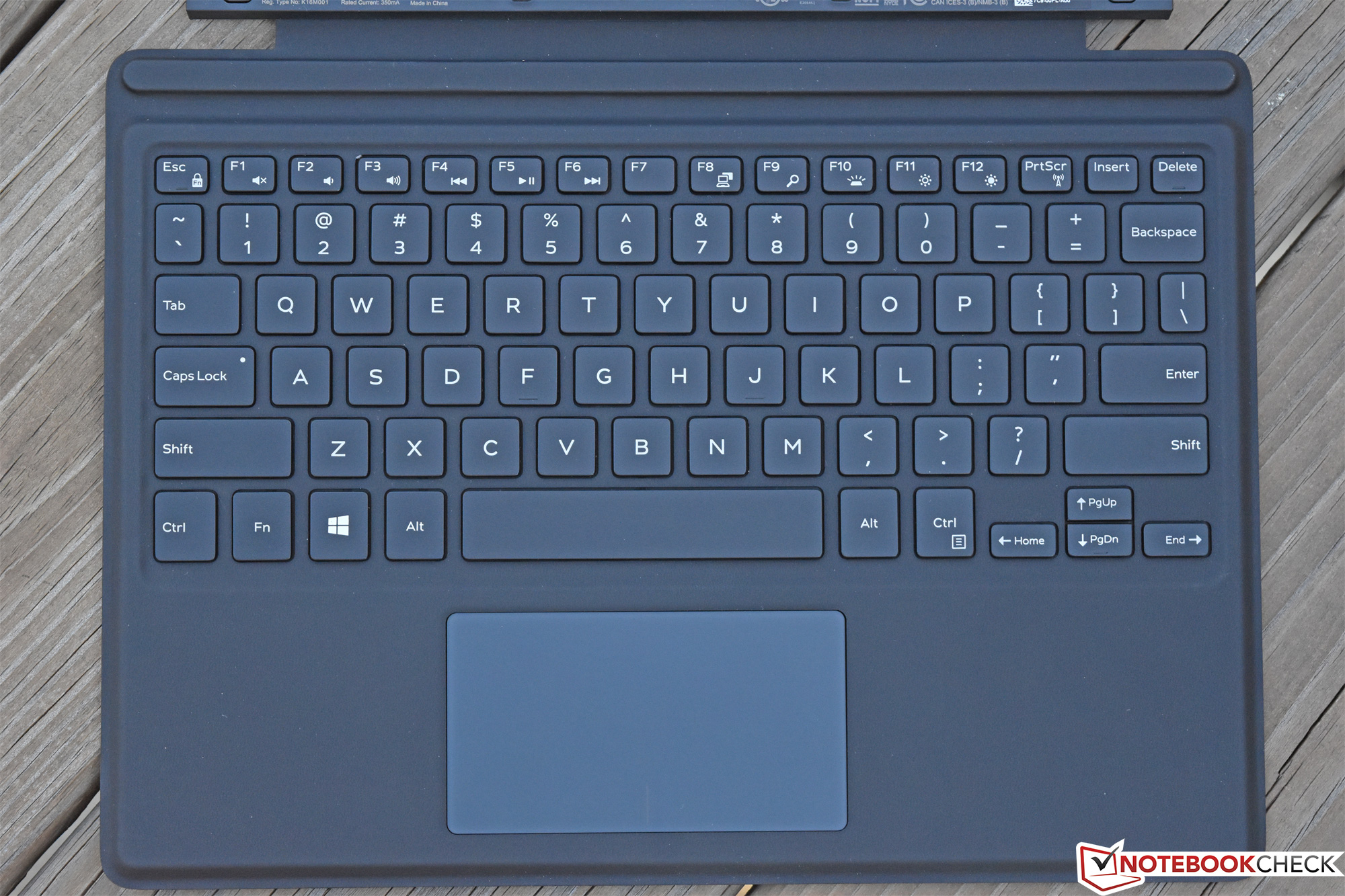

Högtalare: 2.0, monterade på sidorna, Tangentbord: Chiclet, Tangentbordsbelysning: ja, 12 Månader Garanti
Vikt

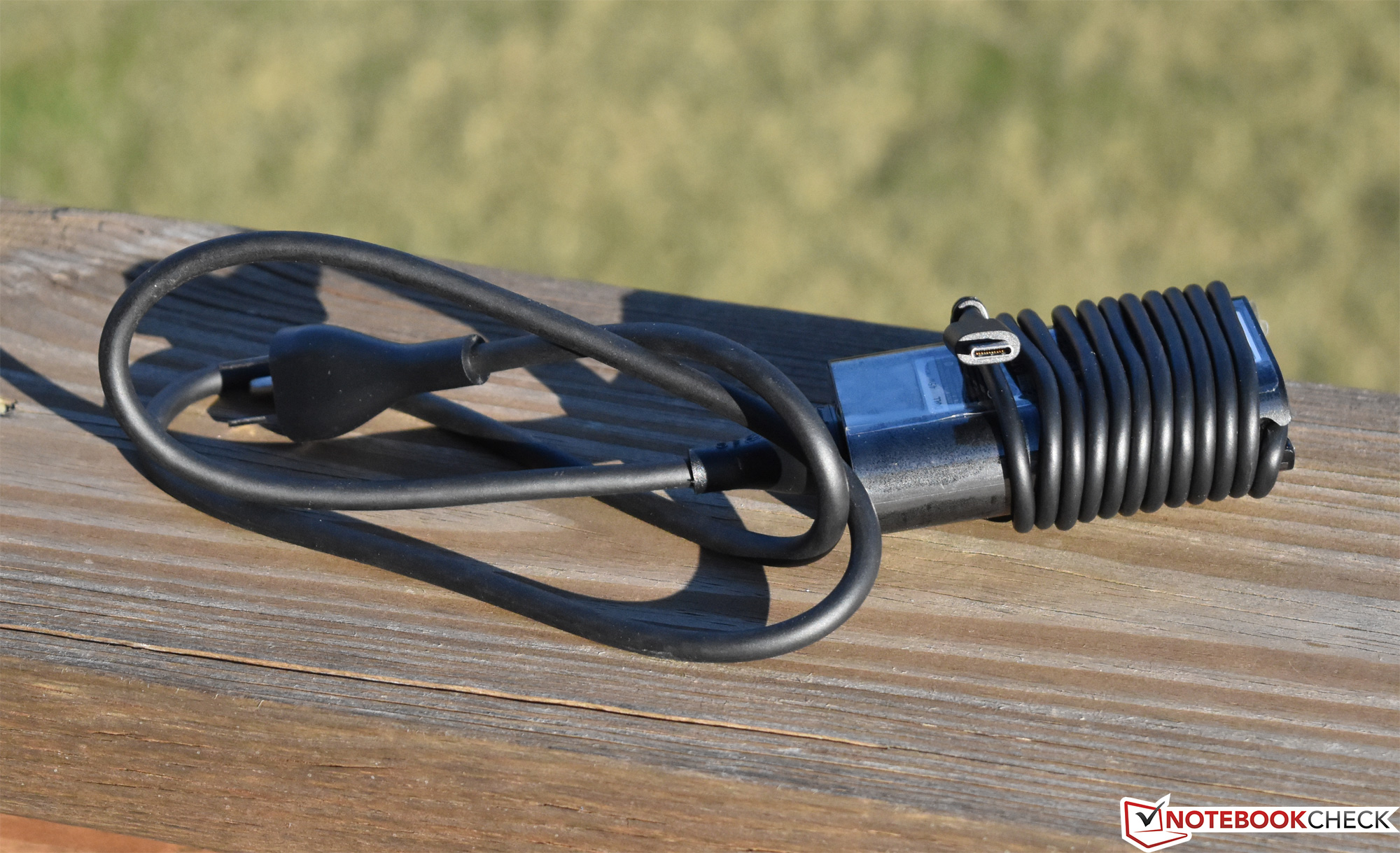

1.278 kg, Strömförsörjning: 254 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



309 mm 215.2 mm 21 mm 1.5 kg300 mm 219.7 mm 9.1 mm 1.2 kg293 mm 210 mm 9 mm 1.1 kg292 mm 210 mm 9.75 mm 1.3 kg292.1 mm 201.4 mm 8.5 mm 1.1 kg297 mm 210 mm 1 mm 5.7 g

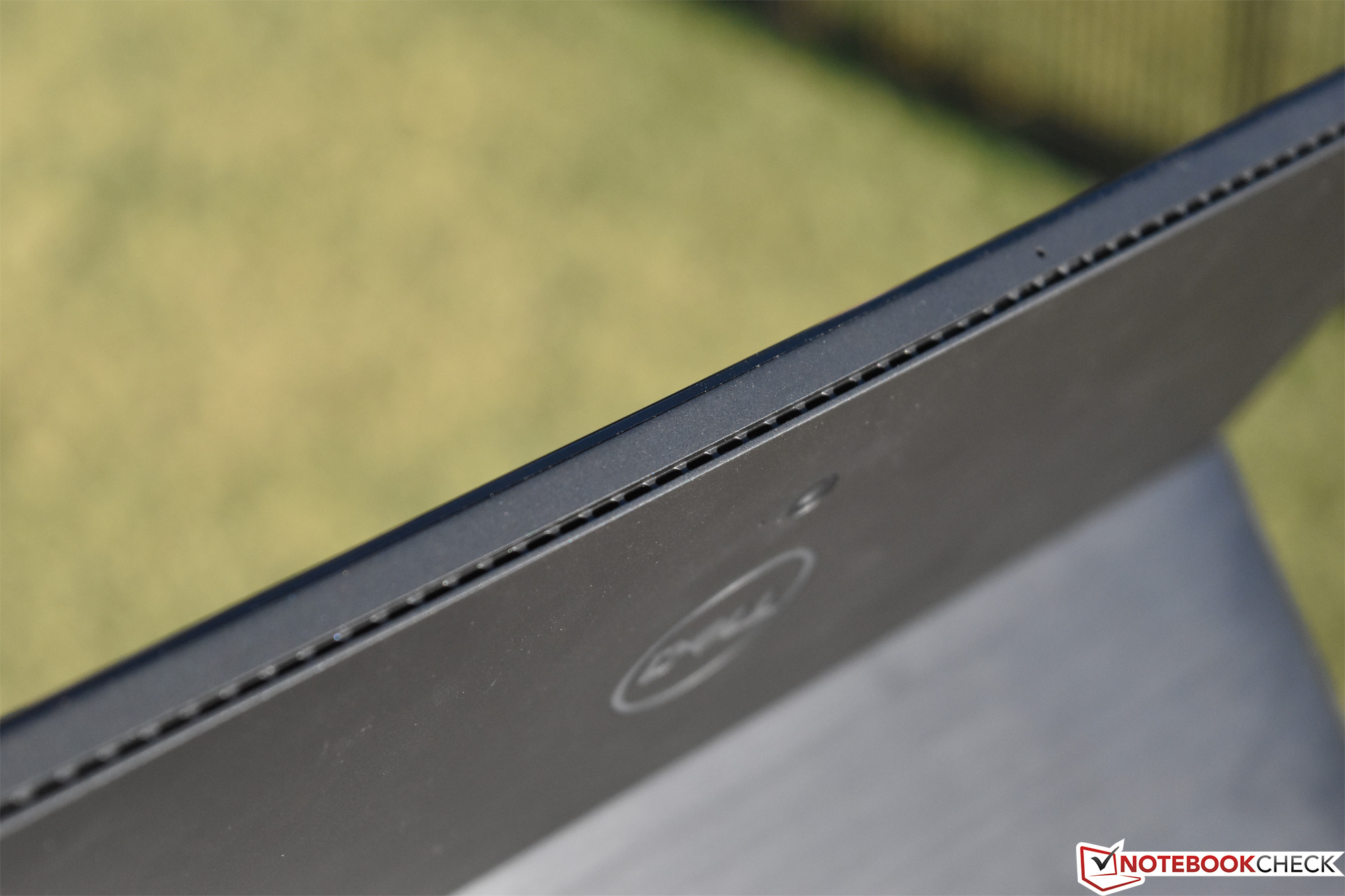

Top: Power button
Top: Power button

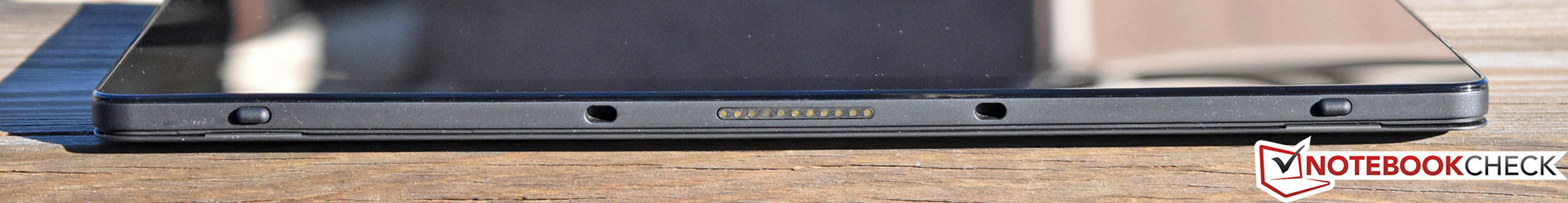

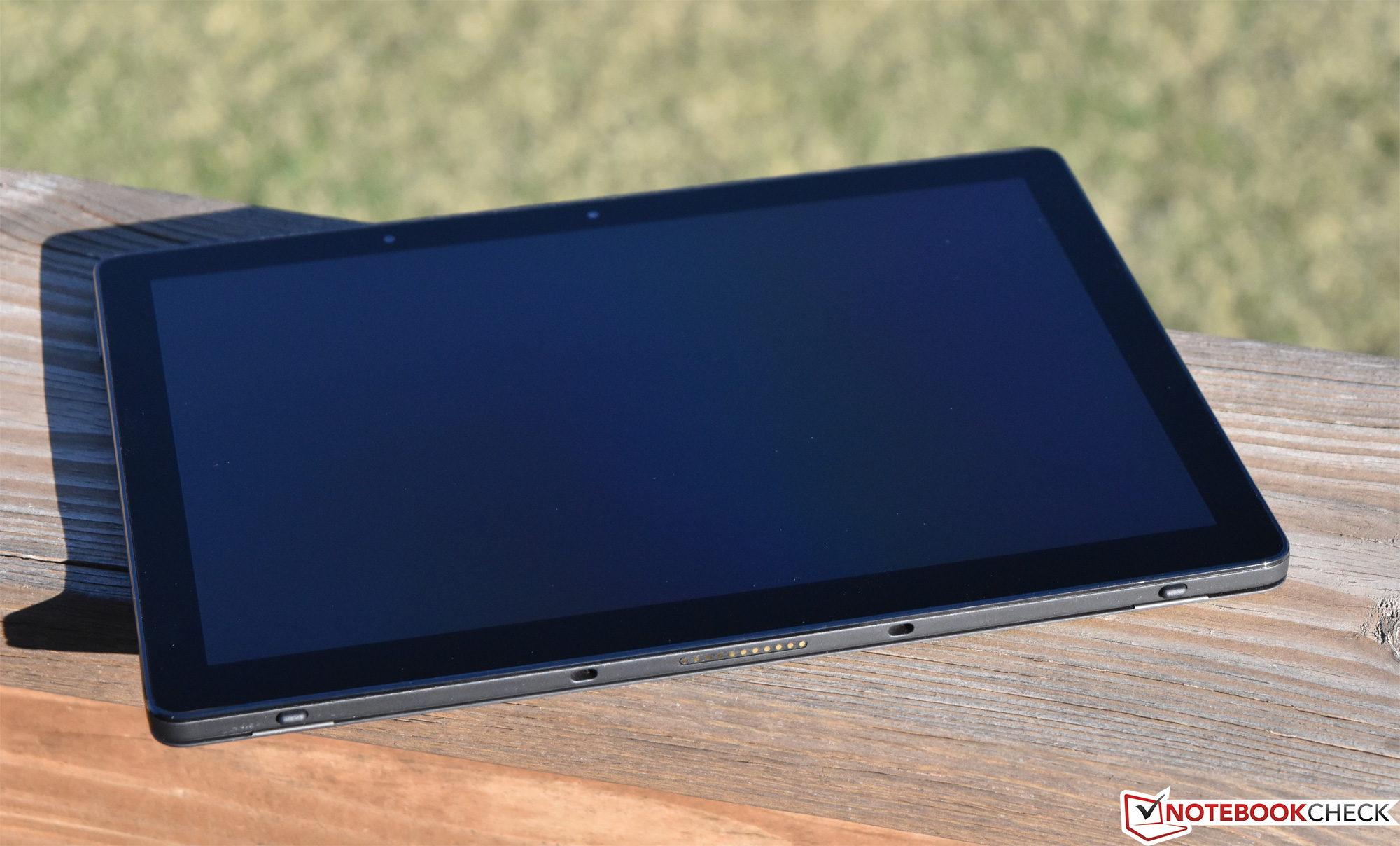

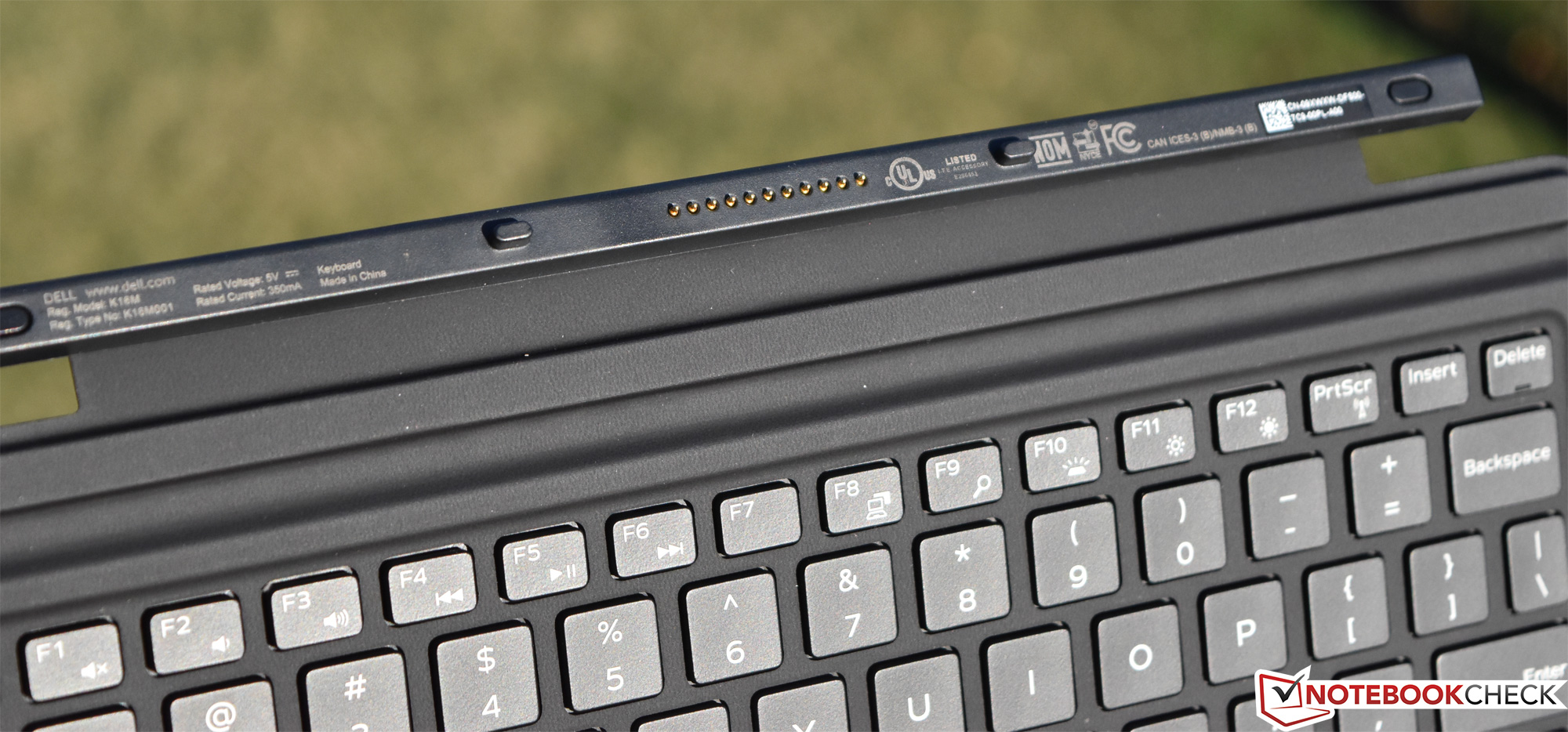

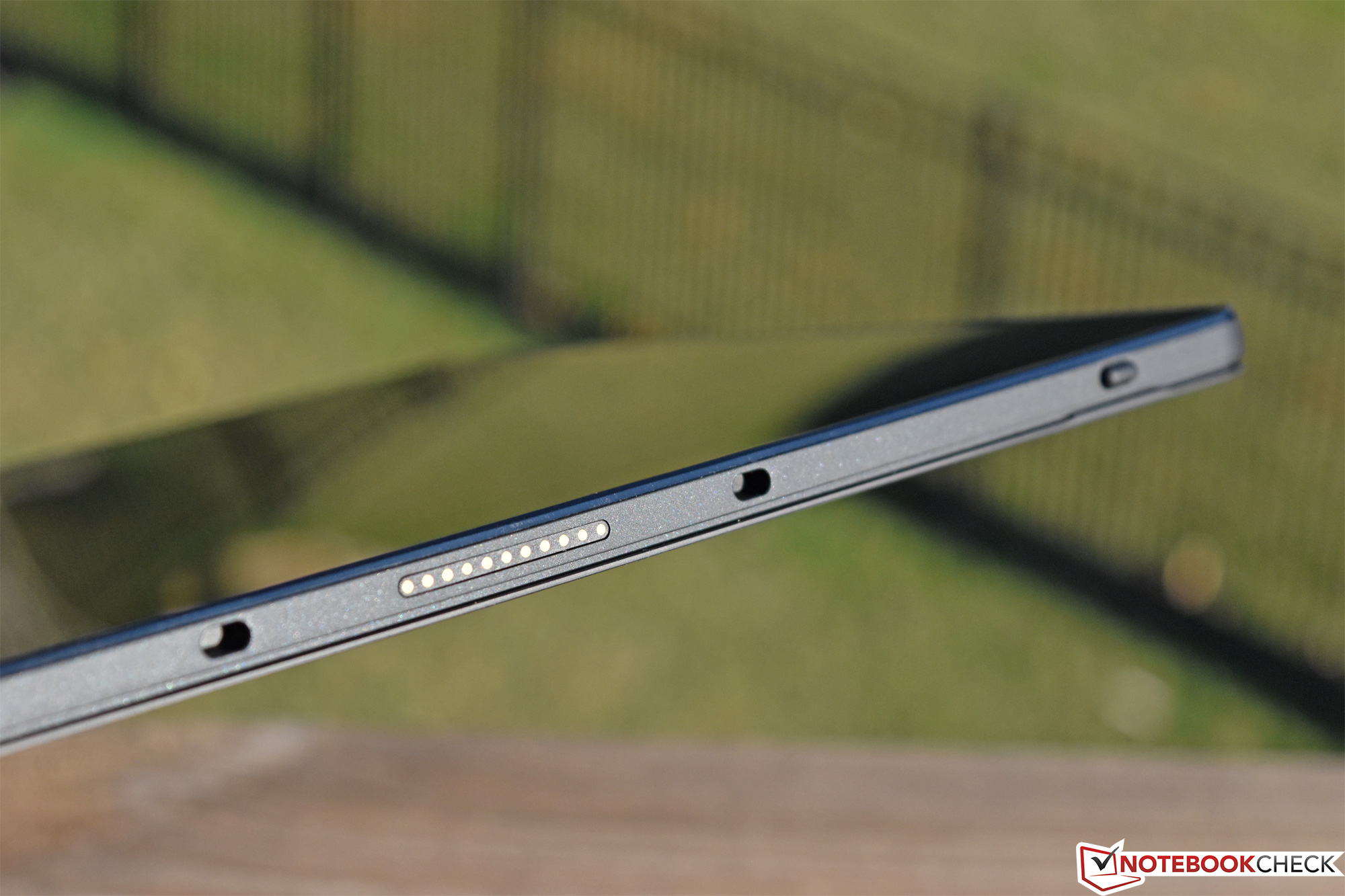

Bottom: Docking connector
Bottom: Docking connector

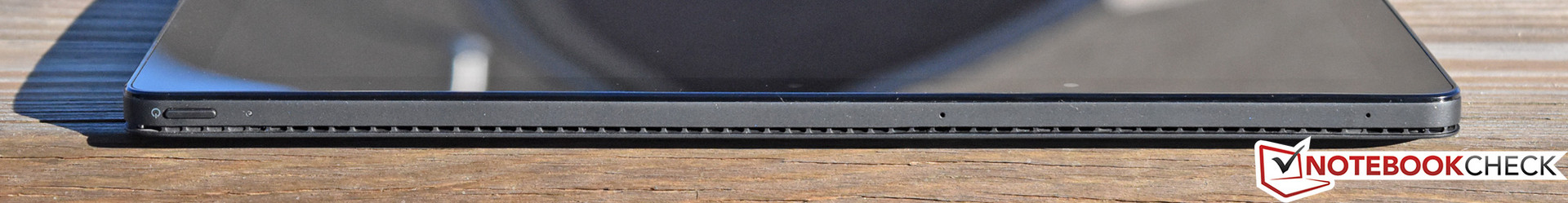

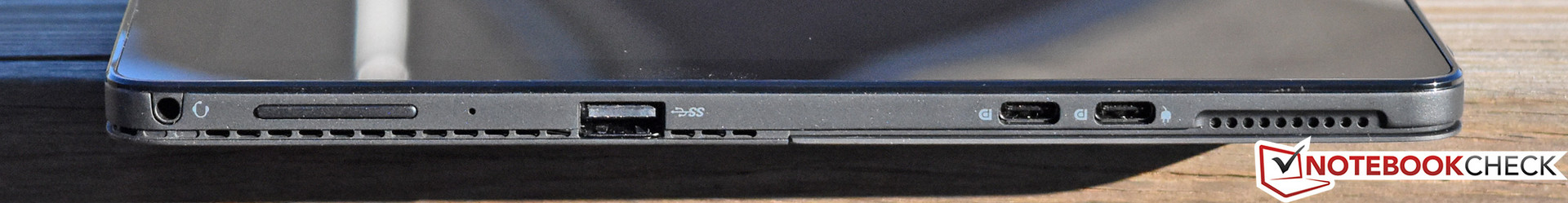

Left: audio/headset, volume rocker, USB 3.1 Gen 1 powershare, 2x USB Type-C/DisplayPort/charging port
Left: audio/headset, volume rocker, USB 3.1 Gen 1 powershare, 2x USB Type-C/DisplayPort/charging port

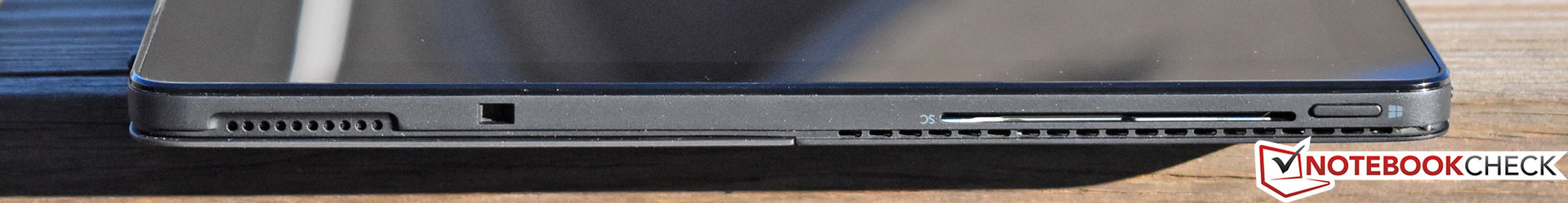

Right: Kensington Lock, smart card, Windows button
Right: Kensington Lock, smart card, Windows button
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Latitude 5290 2-in-1
  (Toshiba Exceria Pro M501 UHS-II)
142.2 MB/s
HP Elite x2 1012 G2-1LV76EA
  (Toshiba Exceria Pro M501)
79.8 MB/s -44%
Lenovo ThinkPad X1 Tablet Gen 2
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
72.6 MB/s -49%
Dell Latitude 12 5285 2-in-1
  (Toshiba THN-M401S0640E2)
64 MB/s -55%
Average of class Office
  (22.7 - 198.5, n=35, last 2 years)
58.4 MB/s -59%
Microsoft Surface Pro (2017) i7
  (Toshiba Exceria Pro M401 64 GB)
53.8 MB/s -62%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 5290 2-in-1
  (Toshiba Exceria Pro M501 UHS-II)
211.8 MB/s
Lenovo ThinkPad X1 Tablet Gen 2
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
93.8 MB/s -56%
HP Elite x2 1012 G2-1LV76EA
  (Toshiba Exceria Pro M501)
87.4 MB/s -59%
Dell Latitude 12 5285 2-in-1
  (Toshiba THN-M401S0640E2)
86.9 MB/s -59%
Microsoft Surface Pro (2017) i7
  (Toshiba Exceria Pro M401 64 GB)
86.5 MB/s -59%
Average of class Office
  (25 - 249, n=31, last 2 years)
73.6 MB/s -65%
Networking
iperf3 transmit AX12
Dell Latitude 12 5285 2-in-1
Intel Dual Band Wireless-AC 8265
446 MBit/s +46%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Dual Band Wireless-AC 8265
440 MBit/s +44%
Dell Latitude 5290 2-in-1
Intel Dual Band Wireless-AC 8265
305 MBit/s
HP Elite x2 1012 G2-1LV76EA
Intel Dual Band Wireless-AC 8265
246 MBit/s -19%
iperf3 receive AX12
Dell Latitude 5290 2-in-1
Intel Dual Band Wireless-AC 8265
653 MBit/s
Lenovo ThinkPad X1 Tablet Gen 2
Intel Dual Band Wireless-AC 8265
586 MBit/s -10%
HP Elite x2 1012 G2-1LV76EA
Intel Dual Band Wireless-AC 8265
569 MBit/s -13%
Dell Latitude 12 5285 2-in-1
Intel Dual Band Wireless-AC 8265
312 MBit/s -52%
563.9
cd/m²
554.8
cd/m²
589.3
cd/m²
530.4
cd/m²
548
cd/m²
546.5
cd/m²
524.1
cd/m²
504
cd/m²
543.7
cd/m²
Distribution av ljusstyrkan
SHP1479 tested with X-Rite i1Pro Basic 2
Max: 589.3 cd/m² (Nits) Medel: 545 cd/m²
Distribution av ljusstyrkan: 86 %
Mitt på batteriet: 548 cd/m²
Kontrast: 1075:1 (Svärta: 0.51 cd/m²)
ΔE Color 3.65 | 0.5-29.43 Ø4.91, calibrated: 1.81
ΔE Greyscale 5.5 | 0.5-98 Ø5.2
99.1% sRGB (Argyll 1.6.3 3D)
65.2% AdobeRGB 1998 (Argyll 1.6.3 3D)
71.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.6% sRGB (Argyll 2.2.0 3D)
70.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.154
Dell Latitude 5290 2-in-1
SHP1479, IPS, 12.3", 1920x1280
Dell Latitude 12 5285 2-in-1
BOE06DC, IPS, 12.3", 1920x1280
Microsoft Surface Pro (2017) i7
LG Display LP123WQ112604, IPS, 12.3", 2736x1824
HP Elite x2 1012 G2-1LV76EA
Samsung SDC4A49, IPS, 12.3", 2716x1824
Lenovo ThinkPad X1 Tablet Gen 2
LSN120QL01L01, IPS, 12", 2160x1440
Toshiba Portege Z20t-C-121
Toshiba TOS508F, IPS, 12.5", 1920x1080
Display
-9%
-4%
-3%
-38%
Display P3 Coverage
70.5
62.8
-11%
66.6
-6%
66.7
-5%
42.51
-40%
sRGB Coverage
98.6
94
-5%
96.5
-2%
98
-1%
63.7
-35%
AdobeRGB 1998 Coverage
71.5
64.7
-10%
67.8
-5%
68.7
-4%
43.95
-39%
Response Times
-17%
387%
25%
-0%
-4%
Response Time Grey 50% / Grey 80% *
56.8 ?(26.8, 30)
42.4 ?(20.4, 22)
25%
37 ?(16, 21)
35%
45.6 ?(23.6, 22)
20%
28.4 ?(15.2, 13.2)
50%
61 ?(28, 33)
-7%
Response Time Black / White *
36 ?(19.6, 16.4)
30.8 ?(18, 12.8)
14%
25 ?(13, 12)
31%
21.6 ?(9.2, 12.4)
40%
22.8 ?(13.6, 9.2)
37%
36 ?(7, 29)
-0%
PWM Frequency
1852 ?(98)
210.1 ?(99)
-89%
22130 ?(55)
1095%
2119 ?(50)
14%
221.2 ?(49)
-88%
Screen
-1%
-1%
10%
-14%
-49%
Brightness middle
548
523.2
-5%
482
-12%
443
-19%
388.1
-29%
354
-35%
Brightness
545
522
-4%
466
-14%
446
-18%
344
-37%
330
-39%
Brightness Distribution
86
88
2%
92
7%
88
2%
78
-9%
86
0%
Black Level *
0.51
0.42
18%
0.395
23%
0.41
20%
0.39
24%
0.63
-24%
Contrast
1075
1246
16%
1220
13%
1080
0%
995
-7%
562
-48%
Colorchecker dE 2000 *
3.65
4
-10%
4
-10%
2.6
29%
4.6
-26%
8.28
-127%
Colorchecker dE 2000 max. *
7.15
8.6
-20%
7.2
-1%
4
44%
9.1
-27%
12.71
-78%
Colorchecker dE 2000 calibrated *
1.81
Greyscale dE 2000 *
5.5
5.5
-0%
5.7
-4%
3
45%
6.1
-11%
9.15
-66%
Gamma
2.154 102%
2.16 102%
2.28 96%
2.38 92%
2.07 106%
2.73 81%
CCT
7052 92%
7546 86%
7950 82%
6780 96%
7104 91%
5953 109%
Color Space (Percent of AdobeRGB 1998)
65.2
64.86
-1%
62
-5%
62.6
-4%
59
-10%
40
-39%
Color Space (Percent of sRGB)
99.1
93.97
-5%
96
-3%
98
-1%
91
-8%
63
-36%
Total Average (Program / Settings)
-9% / -5%
127% / 71%
11% / 10%
-7% / -11%
-30% / -41%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

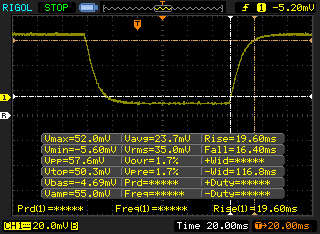

       Response Time Black to White
36 ms ... rise ↗ and fall ↘ combined↗ 19.6 ms rise
↘ 16.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (20.9 ms).

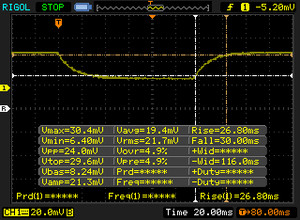

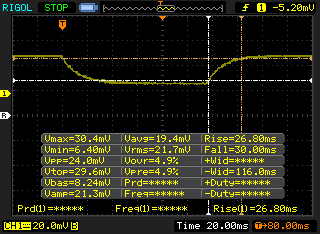

       Response Time 50% Grey to 80% Grey
56.8 ms ... rise ↗ and fall ↘ combined↗ 26.8 ms rise
↘ 30 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 93 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.8 ms).

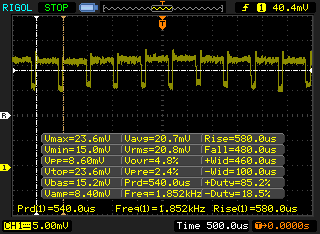

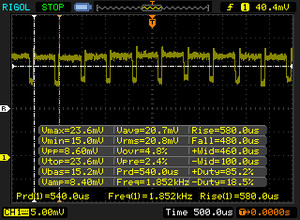

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 1852 Hz ≤ 98 % brightness setting

The display backlight flickers at 1852 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 98 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1852 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured.

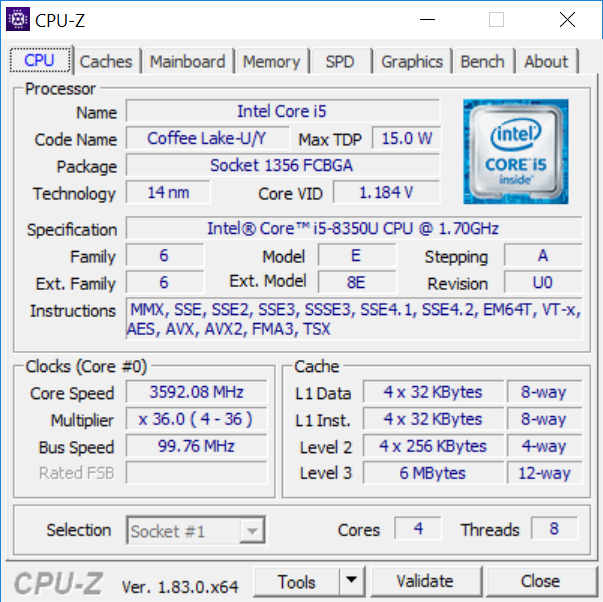

CPU-Z CPU
CPU-Z CPU

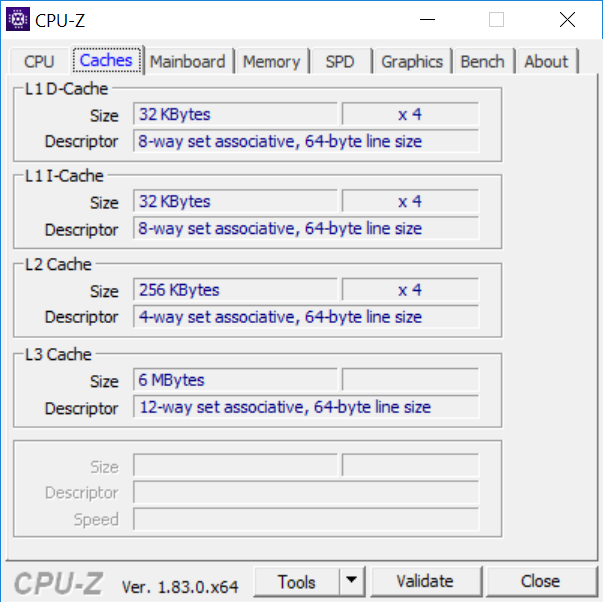

CPU-Z Caches
CPU-Z Caches

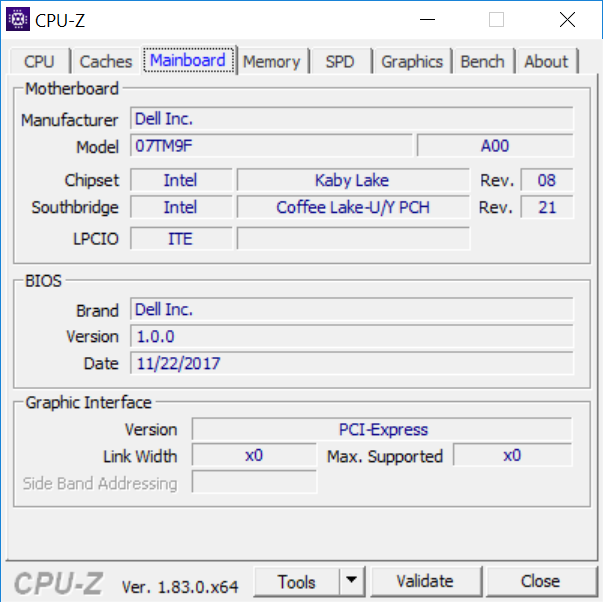

CPU-Z Mainboard
CPU-Z Mainboard

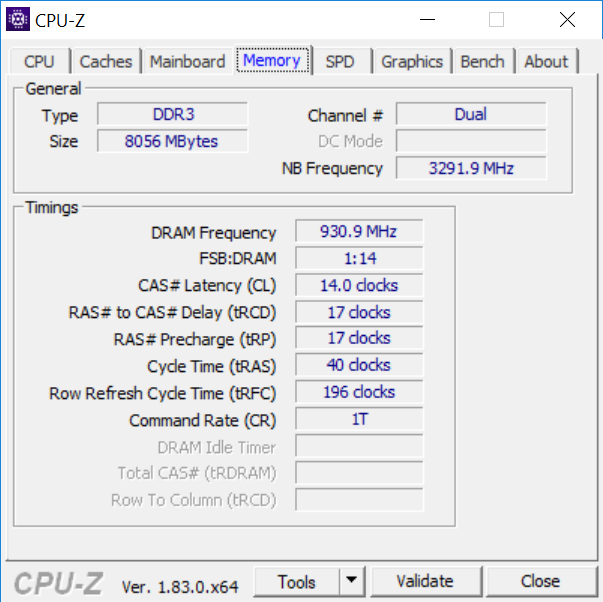

CPU-Z Memory
CPU-Z Memory

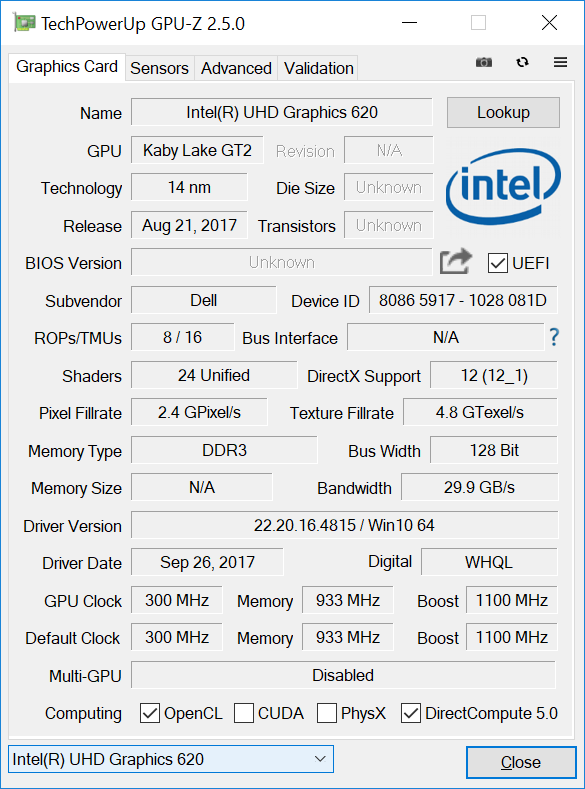

GPU-Z
GPU-Z
ComputeMark
ComputeMark

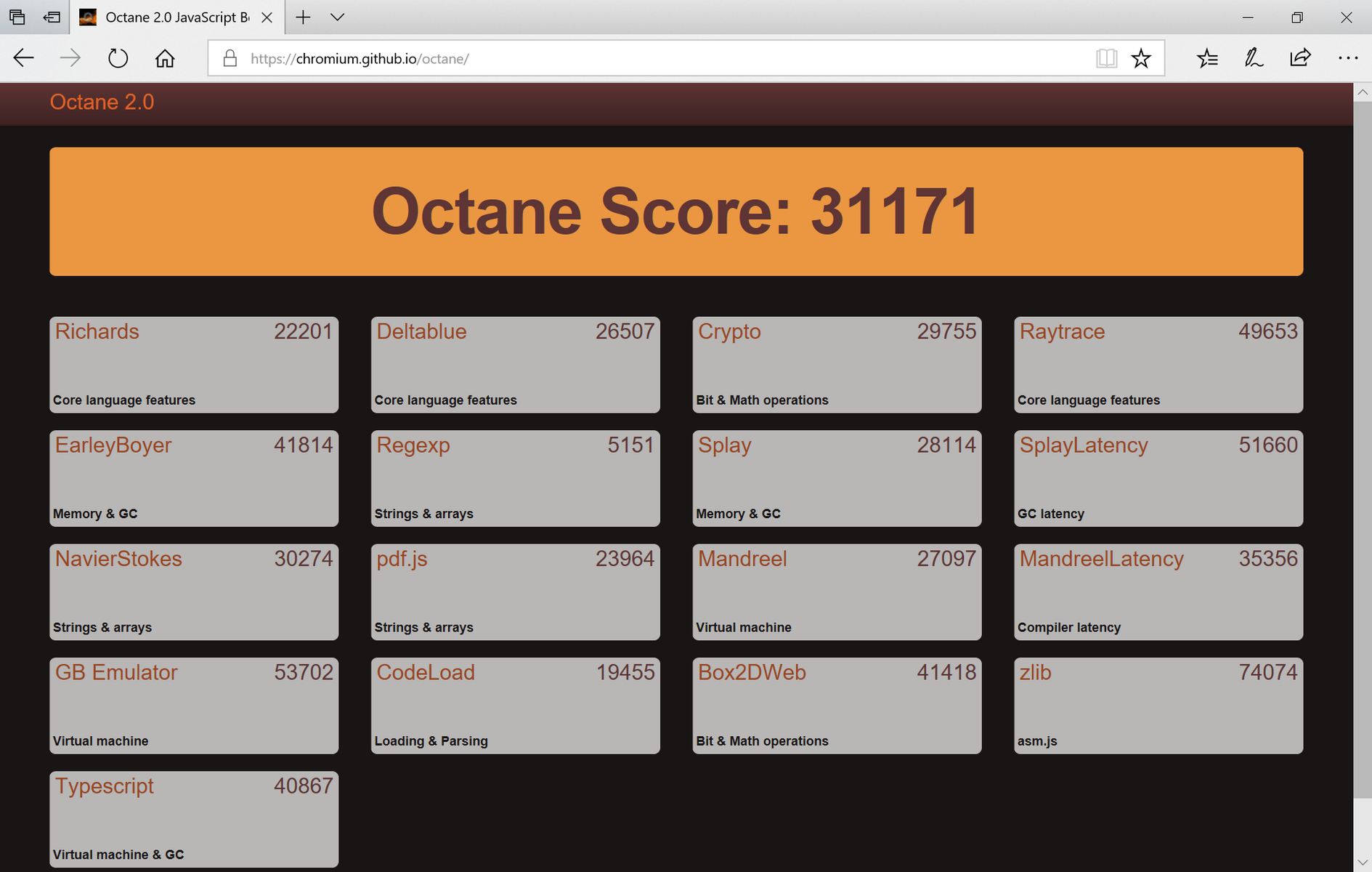

Octane v2
Octane v2

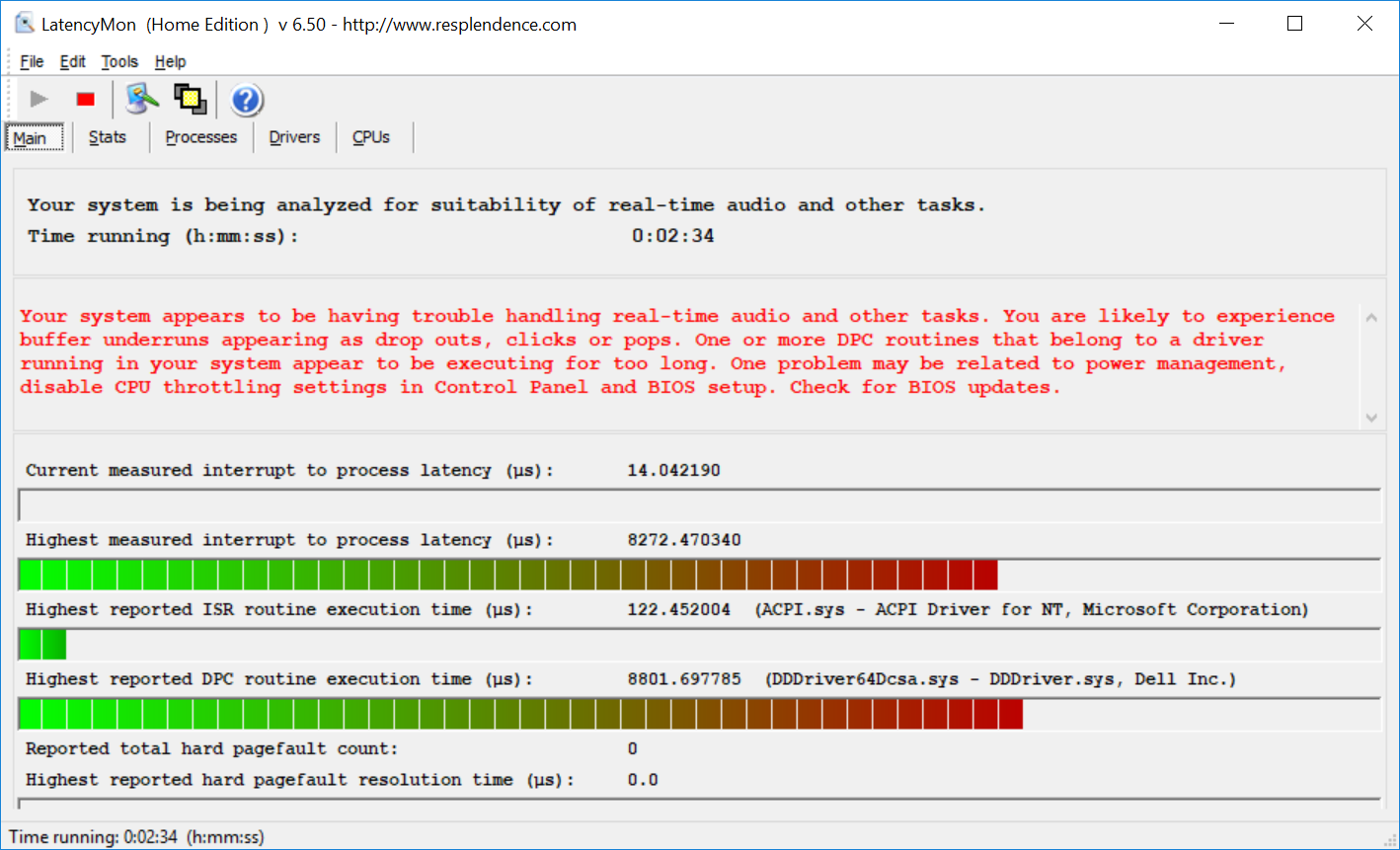

LatencyMon
LatencyMon
Cinebench R15
CPU Single 64Bit
Average of class Office
  (98 - 284, n=94, last 2 years)
230 Points +52%
Microsoft Surface Pro (2017) i7
Intel Core i7-7660U
163 Points +8%
Dell Latitude 12 5285 2-in-1
Intel Core i7-7600U
152 Points +1%
Dell Latitude 5290 2-in-1
Intel Core i5-8350U
151 Points
Average Intel Core i5-8350U
  (128 - 153, n=8)
146.8 Points -3%
HP Elite x2 1012 G2-1LV76EA
Intel Core i5-7200U
127 Points -16%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
115 Points -24%
Toshiba Portege Z20t-C-121
Intel Core m7-6Y75
99 Points -34%
CPU Multi 64Bit
Average of class Office
  (246 - 2642, n=95, last 2 years)
1561 Points +174%
Dell Latitude 5290 2-in-1
Intel Core i5-8350U
569 Points
Average Intel Core i5-8350U
  (346 - 631, n=8)
548 Points -4%
Microsoft Surface Pro (2017) i7
Intel Core i7-7660U
410 (335.35min - 409.45max) Points -28%
Dell Latitude 12 5285 2-in-1
Intel Core i7-7600U
329 Points -42%
HP Elite x2 1012 G2-1LV76EA
Intel Core i5-7200U
322 Points -43%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
234 Points -59%
Toshiba Portege Z20t-C-121
Intel Core m7-6Y75
180 Points -68%
Cinebench R11.5
CPU Single 64Bit
Average of class Office
  (1.3 - 3.5, n=7, last 2 years)
2.55 Points +49%
Microsoft Surface Pro (2017) i7
Intel Core i7-7660U
1.89 Points +11%
Dell Latitude 12 5285 2-in-1
Intel Core i7-7600U
1.76 Points +3%
Dell Latitude 5290 2-in-1
Intel Core i5-8350U
1.71 Points
Average Intel Core i5-8350U
  (1.62 - 1.71, n=3)
1.673 Points -2%
HP Elite x2 1012 G2-1LV76EA
Intel Core i5-7200U
1.47 Points -14%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
1.32 Points -23%
CPU Multi 64Bit
Average of class Office
  (5.59 - 25.5, n=7, last 2 years)
16.5 Points +177%
Average Intel Core i5-8350U
  (5.48 - 7.33, n=3)
6.25 Points +5%
Dell Latitude 5290 2-in-1
Intel Core i5-8350U
5.95 Points
Microsoft Surface Pro (2017) i7
Intel Core i7-7660U
4.55 Points -24%
Dell Latitude 12 5285 2-in-1
Intel Core i7-7600U
3.62 Points -39%
HP Elite x2 1012 G2-1LV76EA
Intel Core i5-7200U
3.6 Points -39%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
2.57 Points -57%
wPrime 2.10 - 1024m
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
761 s * -149%
Average of class Office
  (194.4 - 2103, n=6, last 2 years)
658 s * -115%
Dell Latitude 12 5285 2-in-1
Intel Core i7-7600U
546 s * -79%
Microsoft Surface Pro (2017) i7
Intel Core i7-7660U
438 s * -43%
Average Intel Core i5-8350U
  (306 - 355, n=2)
330 s * -8%
Dell Latitude 5290 2-in-1
Intel Core i5-8350U
305.7 s *

* ... smaller is better

Cinebench R11.5 CPU Single 64Bit
1.71 Points
Cinebench R11.5 CPU Multi 64Bit
5.95 Points
Cinebench R11.5 OpenGL 64Bit
41.34 fps
Cinebench R15 CPU Single 64Bit
151 Points
Cinebench R15 CPU Multi 64Bit
569 Points
Cinebench R15 OpenGL 64Bit
48.37 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Hjälp
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570Tooltip
Cinebench R15 CPU Multi 64 Bit
PCMark 8
Home Score Accelerated v2
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
4741 Points +26%
Average of class Office
  (4252 - 4830, n=7, last 2 years)
4559 Points +21%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, i7-7660U, Samsung PM971 KUS040202M
4095 Points +8%
Dell Latitude 5290 2-in-1
UHD Graphics 620, i5-8350U, Toshiba XG5 KXG50ZNV256G
3776 Points
Average Intel Core i5-8350U, Intel UHD Graphics 620
  (3063 - 3776, n=7)
3566 Points -6%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
3289 Points -13%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
3092 Points -18%
Toshiba Portege Z20t-C-121
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN512HCJH
3068 Points -19%
Work Score Accelerated v2
Dell Latitude 5290 2-in-1
UHD Graphics 620, i5-8350U, Toshiba XG5 KXG50ZNV256G
4764 Points
Average Intel Core i5-8350U, Intel UHD Graphics 620
  (4200 - 4906, n=6)
4669 Points -2%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, i7-7660U, Samsung PM971 KUS040202M
4431 Points -7%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
4288 Points -10%
Toshiba Portege Z20t-C-121
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN512HCJH
4060 Points -15%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
4036 Points -15%
Average of class Office
  (2900 - 5526, n=7, last 2 years)
3761 Points -21%
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
3510 Points -26%
Creative Score Accelerated v2
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, i7-7660U, Samsung PM971 KUS040202M
5540 Points +12%
Dell Latitude 5290 2-in-1
UHD Graphics 620, i5-8350U, Toshiba XG5 KXG50ZNV256G
4961 Points
Average Intel Core i5-8350U, Intel UHD Graphics 620
  (4669 - 4961, n=2)
4815 Points -3%
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
4602 Points -7%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
4412 Points -11%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
3924 Points -21%
Toshiba Portege Z20t-C-121
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN512HCJH
3513 Points -29%
PCMark 8 Home Score Accelerated v2
3776 poäng
PCMark 8 Creative Score Accelerated v2
4961 poäng
PCMark 8 Work Score Accelerated v2
4764 poäng
PCMark 10 Score
3737 poäng
Hjälp
Dell Latitude 5290 2-in-1
Toshiba XG5 KXG50ZNV256G
Dell Latitude 12 5285 2-in-1
Samsung PM961 MZVLW256HEHP
Microsoft Surface Pro (2017) i7
Samsung PM971 KUS040202M
HP Elite x2 1012 G2-1LV76EA
Samsung PM961 MZVLW256HEHP
Average Toshiba XG5 KXG50ZNV256G

AS SSD
-239%
-1002%
108%
-24%
Copy Game MB/s
317.3
585
84%
582
83%
379.9
20%
Copy Program MB/s
226.9
286.5
26%
386
70%
198.2
-13%
Copy ISO MB/s
512
1146
124%
1036
102%
791
54%
Score Total
1469
2760
88%
1774
21%
4653
217%
Score Write
544
150
-72%
52
-90%
879
62%
479 ?(71 - 1135, n=14)
-12%
Score Read
642
1768
175%
1164
81%
2545
296%
Access Time Write *
0.053
2.08
-3825%
7.6
-14240%
0.027
49%
0.2029 ?(0.038 - 2.15, n=14)
-283%
Access Time Read *
0.082
0.06
27%
0.04
51%
0.041
50%
0.1329 ?(0.063 - 0.321, n=14)
-62%
4K-64 Write
411.2
126.1
-69%
34
-92%
657
60%
4K-64 Read
472.7
1607
240%
1015
115%
2280
382%
4K Write
102.7
1.23
-99%
0.2
-100%
132.2
29%
4K Read
30.97
27.6
-11%
41
32%
45.24
46%
Seq Write
302.1
223.1
-26%
171
-43%
897
197%
Seq Read
1385
1328
-4%
1070
-23%
2197
59%

* ... smaller is better

Toshiba XG5 KXG50ZNV256G
CDM 5/6 Read Seq Q32T1: 1779 MB/s
CDM 5/6 Write Seq Q32T1: 358.1 MB/s
CDM 5/6 Read 4K Q32T1: 387 MB/s
CDM 5/6 Write 4K Q32T1: 353.6 MB/s
CDM 5 Read Seq: 1463 MB/s
CDM 5 Write Seq: 359.3 MB/s
CDM 5/6 Read 4K: 32.66 MB/s
CDM 5/6 Write 4K: 121.7 MB/s
3DMark 11
1280x720 Performance GPU
Average of class Office
  (1468 - 13132, n=89, last 2 years)
6812 Points +310%
Microsoft Surface Pro (2017) i7
Intel Iris Plus Graphics 640, i7-7660U
2493 Points +50%
Average Intel UHD Graphics 620
  (1144 - 3432, n=244)
1749 Points +5%
Dell Latitude 5290 2-in-1
Intel UHD Graphics 620, i5-8350U
1660 Points
Dell Latitude 12 5285 2-in-1
Intel HD Graphics 620, i7-7600U
1589 Points -4%
HP Elite x2 1012 G2-1LV76EA
Intel HD Graphics 620, i5-7200U
1510 Points -9%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, i5-7Y54
1161 Points -30%
Toshiba Portege Z20t-C-121
Intel HD Graphics 515, 6Y75
911 Points -45%
1280x720 Performance Combined
Average of class Office
  (1731 - 10701, n=89, last 2 years)
5196 Points +234%
Microsoft Surface Pro (2017) i7
Intel Iris Plus Graphics 640, i7-7660U
2184 Points +40%
Average Intel UHD Graphics 620
  (927 - 2505, n=244)
1578 Points +1%
Dell Latitude 5290 2-in-1
Intel UHD Graphics 620, i5-8350U
1556 Points
Dell Latitude 12 5285 2-in-1
Intel HD Graphics 620, i7-7600U
1490 Points -4%
HP Elite x2 1012 G2-1LV76EA
Intel HD Graphics 620, i5-7200U
1414 Points -9%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, i5-7Y54
1121 Points -28%
Toshiba Portege Z20t-C-121
Intel HD Graphics 515, 6Y75
836 Points -46%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Office
  (7982 - 58068, n=63, last 2 years)
26834 Points +188%
Microsoft Surface Pro (2017) i7
Intel Iris Plus Graphics 640, i7-7660U
11264 Points +21%
Dell Latitude 5290 2-in-1
Intel UHD Graphics 620, i5-8350U
9307 Points
Average Intel UHD Graphics 620
  (6205 - 16400, n=225)
9262 Points 0%
Dell Latitude 12 5285 2-in-1
Intel HD Graphics 620, i7-7600U
8850 Points -5%
HP Elite x2 1012 G2-1LV76EA
Intel HD Graphics 620, i5-7200U
7334 Points -21%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, i5-7Y54
6164 Points -34%
1920x1080 Fire Strike Graphics
Average of class Office
  (736 - 9375, n=91, last 2 years)
4858 Points +310%
Microsoft Surface Pro (2017) i7
Intel Iris Plus Graphics 640, i7-7660U
1418 Points +20%
Dell Latitude 5290 2-in-1
Intel UHD Graphics 620, i5-8350U
1185 Points
Average Intel UHD Graphics 620
  (557 - 2608, n=213)
1161 Points -2%
Dell Latitude 12 5285 2-in-1
Intel HD Graphics 620, i7-7600U
1084 Points -9%
HP Elite x2 1012 G2-1LV76EA
Intel HD Graphics 620, i5-7200U
933 Points -21%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, i5-7Y54
728 Points -39%
1920x1080 Ice Storm Extreme Graphics
Average of class Office
  (24762 - 137729, n=3, last 2 years)
71788 Points +51%
Dell Latitude 5290 2-in-1
Intel UHD Graphics 620, i5-8350U
47682 Points
Average Intel UHD Graphics 620
  (26409 - 59483, n=71)
42924 Points -10%
Dell Latitude 12 5285 2-in-1
Intel HD Graphics 620, i7-7600U
41229 Points -14%
HP Elite x2 1012 G2-1LV76EA
Intel HD Graphics 620, i5-7200U
38106 Points -20%
3DMark 06 Standard Score
10387 poäng
3DMark 11 Performance
1847 poäng
3DMark Ice Storm Standard Score
66347 poäng
3DMark Cloud Gate Standard Score
8236 poäng
3DMark Fire Strike Score
1086 poäng
3DMark Fire Strike Extreme Score
517 poäng
3DMark Time Spy Score
398 poäng
Hjälp
BioShock Infinite
1280x720 Very Low Preset (sort by value)
Dell Latitude 5290 2-in-1
UHD Graphics 620, i5-8350U, Toshiba XG5 KXG50ZNV256G
60 fps
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
56.5 fps -6%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
52.9 fps -12%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
42 fps -30%
Toshiba Portege Z20t-C-121
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN512HCJH
35.6 fps -41%
Average Intel UHD Graphics 620
  (18.3 - 90.2, n=187)
60.7 fps +1%
1366x768 Medium Preset (sort by value)
Dell Latitude 5290 2-in-1
UHD Graphics 620, i5-8350U, Toshiba XG5 KXG50ZNV256G
34 fps
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
32.8 fps -4%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
30.5 fps -10%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
21 fps -38%
Toshiba Portege Z20t-C-121
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN512HCJH
18.8 fps -45%
Average Intel UHD Graphics 620
  (11.5 - 45.5, n=187)
32.8 fps -4%
1366x768 High Preset (sort by value)
Dell Latitude 5290 2-in-1
UHD Graphics 620, i5-8350U, Toshiba XG5 KXG50ZNV256G
28 fps
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
28.6 fps +2%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
25.2 fps -10%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
19 fps -32%
Toshiba Portege Z20t-C-121
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN512HCJH
16.2 fps -42%
Average Intel UHD Graphics 620
  (8.1 - 35.9, n=187)
27.5 fps -2%
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Dell Latitude 5290 2-in-1
UHD Graphics 620, i5-8350U, Toshiba XG5 KXG50ZNV256G
9 fps
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
9 fps 0%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
7.5 fps -17%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, i5-7Y54, Samsung PM961 MZVLW256HEHP
6 fps -33%
Toshiba Portege Z20t-C-121
HD Graphics 515, 6Y75, Samsung SSD PM871 MZNLN512HCJH
4.3 fps -52%
Average Intel UHD Graphics 620
  (4.5 - 17, n=176)
9.2 fps +2%
lågmed.högultra
BioShock Infinite (2013) 60 34 28 9

Ljudnivå

Låg belastning
28.5 / 28.5 / 28.5 dB(A)
Hög belastning
28.5 / 41.6 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   BK Precision 732A (15 cm avstånd)   environment noise: 28.5 dB(A)
Dell Latitude 5290 2-in-1
UHD Graphics 620, i5-8350U, Toshiba XG5 KXG50ZNV256G
Dell Latitude 12 5285 2-in-1
HD Graphics 620, i7-7600U, Samsung PM961 MZVLW256HEHP
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, i7-7660U, Samsung PM971 KUS040202M
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP
Noise
3%
-3%
-0%
off / environment *
28.5
28.2
1%
29.6
-4%
29.5
-4%
Idle Minimum *
28.5
28.2
1%
29.6
-4%
29.5
-4%
Idle Average *
28.5
28.2
1%
29.6
-4%
29.5
-4%
Idle Maximum *
28.5
28.2
1%
29.6
-4%
29.5
-4%
Load Average *
28.5
30.4
-7%
33.4
-17%
30.6
-7%
Load Maximum *
41.6
34
18%
34.1
18%
32.5
22%
Witcher 3 ultra *
33.4

* ... smaller is better

Hög belastning
 34.4 °C44.4 °C30.6 °C
 32.4 °C33.8 °C25.2 °C
 29 °C28.8 °C27.4 °C
Max: 44.4 °C
Medel: 31.8 °C
28.6 °C52 °C47 °C
29.8 °C44.2 °C42.6 °C
30 °C33.8 °C35.6 °C
Max: 52 °C
Medel: 38.2 °C
Strömförsörjning (max.)  32 °C | Rumstemperatur 20.2 °C | Fluke 62 Mini IR Thermometer
(+) The average temperature for the upper side under maximal load is 31.8 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 44.4 °C / 112 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 52 °C / 126 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.3 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29 °C / 84.2 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-1.4 °C / -2.5 F).

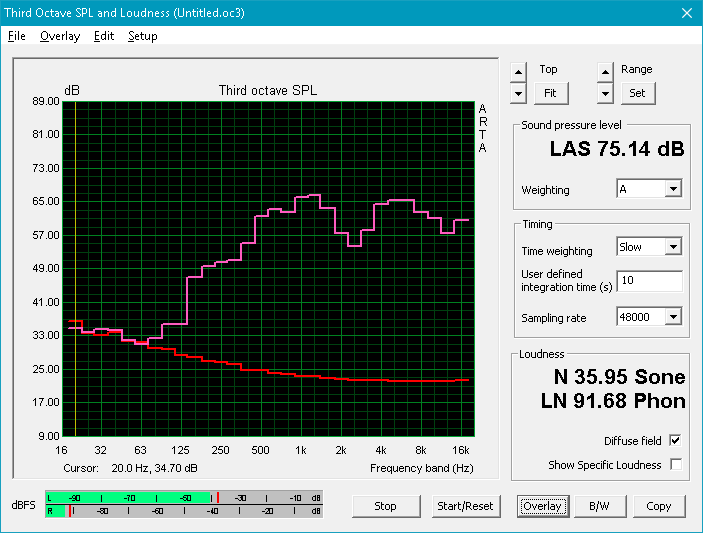

Speaker output
Speaker output
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.736.534.7253433.7343134.633.234.64034.333.734.35031.931.631.96331.131.531.18032.43032.410035.829.735.812535.728.535.716047.127.947.120049.526.949.525050.426.850.431551.126.151.140055.124.755.150061.624.761.663063.324.163.380062.623.862.610006623.466125066.523.466.5160063.522.963.5200057.422.757.4250054.422.354.4315058.322.358.3400064.422.364.4500065.522.265.5630065.42265.4800062.522.262.51000061.122.261.11250057.422.257.41600060.522.460.5SPL75.135.175.1N362.436median 60.5median 23.4median 60.5Delta6.51.86.5292728.527.526.725.124.525.626.22622.723.822.225.121.723.520.22419.122.918.325.516.63116.338.716.342.115.840.215.243.915.751.116.25216.351.517.350.617.952.11854.91862.918.266.418.3621855.217.848.817.443.716.945.416.449.129.5711.221.3median 17.4median 48.817.1hearing rangehide median Pink NoiseDell Latitude 5290 2-in-1HP Elite x2 1012 G2-1LV76EA
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Dell Latitude 5290 2-in-1 audio analysis

(±) | speaker loudness is average but good (75.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.5% lower than median
(±) | linearity of bass is average (8.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(±) | linearity of mids is average (8.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(±) | linearity of highs is average (7.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.4% difference to median)
Compared to same class
» 40% of all tested devices in this class were better, 10% similar, 49% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 50% of all tested devices were better, 8% similar, 42% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP Elite x2 1012 G2-1LV76EA audio analysis

(-) | not very loud speakers (71 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.3% lower than median
(±) | linearity of bass is average (10% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(±) | linearity of mids is average (7.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.9% higher than median
(-) | highs are not linear (16.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (35.1% difference to median)
Compared to same class
» 93% of all tested devices in this class were better, 2% similar, 5% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 92% of all tested devices were better, 1% similar, 6% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning
Av/Standbydarklight 0.29 / 0.57 Watt
Låg belastningdarkmidlight 3 / 7.2 / 10 Watt
Hög belastning midlight 37.1 / 38.2 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Dell Latitude 5290 2-in-1
i5-8350U, UHD Graphics 620, Toshiba XG5 KXG50ZNV256G, IPS, 1920x1280, 12.3"
Dell Latitude 12 5285 2-in-1
i7-7600U, HD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 1920x1280, 12.3"
Microsoft Surface Pro (2017) i7
i7-7660U, Iris Plus Graphics 640, Samsung PM971 KUS040202M, IPS, 2736x1824, 12.3"
HP Elite x2 1012 G2-1LV76EA
i5-7200U, HD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 2716x1824, 12.3"
Lenovo ThinkPad X1 Tablet Gen 2
i5-7Y54, HD Graphics 615, Samsung PM961 MZVLW256HEHP, IPS, 2160x1440, 12"
Toshiba Portege Z20t-C-121
6Y75, HD Graphics 515, Samsung SSD PM871 MZNLN512HCJH, IPS, 1920x1080, 12.5"
Power Consumption
11%
-22%
-19%
13%
18%
Idle Minimum *
3
2.85
5%
4.2
-40%
4.1
-37%
5
-67%
4.3
-43%
Idle Average *
7.2
6.76
6%
10.1
-40%
9.2
-28%
6.3
12%
6.1
15%
Idle Maximum *
10
6.91
31%
14
-40%
11.1
-11%
7.8
22%
8.9
11%
Load Average *
37.1
32.88
11%
37.4
-1%
33.8
9%
19.5
47%
16.3
56%
Load Maximum *
38.2
37.41
2%
34
11%
49.2
-29%
19.6
49%
18.6
51%
Witcher 3 ultra *
38.1

* ... smaller is better

Batteritid
WiFi Websurfing
5tim 00min
Hög belastning (maximal ljusstyrka)
1tim 24min
Dell Latitude 5290 2-in-1
i5-8350U, UHD Graphics 620, 42 Wh
Dell Latitude 12 5285 2-in-1
i7-7600U, HD Graphics 620, 42 Wh
Microsoft Surface Pro (2017) i7
i7-7660U, Iris Plus Graphics 640, 45 Wh
HP Elite x2 1012 G2-1LV76EA
i5-7200U, HD Graphics 620, 47 Wh
Lenovo ThinkPad X1 Tablet Gen 2
i5-7Y54, HD Graphics 615, 37 Wh
Toshiba Portege Z20t-C-121
6Y75, HD Graphics 515, 72 Wh
Battery Runtime
44%
48%
45%
54%
168%
WiFi v1.3
300
486
62%
489
63%
378
26%
441
47%
804
168%
Load
84
105
25%
112
33%
138
64%
134
60%
Witcher 3 ultra
115

För

+ fantastisk konstruktionskvalitet
+ bra portutbud för sin klass
+ extremt ljusstark skärm med bra färger och kontrast
+ robusta säkerhetsalternativ
+ stark CPU-prestanda
+ extremt tyst under normala förhållanden
+ relativt lätt att underhålla
+ bra inmatningsenheter
+ hyfsade högtalare
+ dubbel lagring möjlig tack vare tom M.2 2230 SSD/WWAN-plats

Emot

- höga temperaturer vid belastning (yta och internt)
- kort grundläggande garanti
- batteritiden besviker
- ingen Thunderbolt
- obekväm i knät
- ganska dyr
The Latitude 5290 2-in-1
The Latitude 5290 2-in-1

Läs den fullständiga versionen av den här recensionen på engelska här.

Latitude 5290 2-i-1 är på många sätt Surface Pro för företagsvärlden. Allt från dess nedtonade utseende, relativt praktiska servicemöjligheter, robusta säkerhetsalternativ, tysta drift och portutbud som ligger över genomsnittet gör att den passar perfekt ihop med vanliga kontorsbehov. Utöver allt det får vi fördelen av en extremt robust konstruktion i magnesiumlegering, en sällsynt ljusstark och levande skärm, väldigt snabb CPU-prestanda och ett bra tangentbord/styrplatta (på det separat sålda men ändå nödvändiga Travel Keyboard-tillbehöret för ca 1 300 kronor). Tillslut så tillfredställer Dell Active Pen, som finns som tillval för ca 500 kronor, behoven för en unik undergrupp av användare som behöver exakt Wacom-tryckkänslig aktiv stylus-inmatning.

Latitude 5290 2-i-1 är på många sätt företagsvärldens motsvarighet till Surface Pro; dess försiktiga kombination av lyx i konsumentklass och medvetenhet i företagsklass kombineras till en unik omvandlingsbar som möter ett antal väldigt specifika behov.

Men det finns inga perfekta enheter, och Latitude 5290 kommer med sin andel noterbara kompromisser. Den största av dom är batteritiden, där Latitude hamnar en bra bit efter en del moderna konkurrenter som använder Kaby Lake-baserade SoC:ar. Den tyngs också ner av höga drifttemperaturer vid belastning (både på ytan och internt), även om värmen till viss del har fördelats bort från enhetens kanter (där händer vanligtvis vilar). Den grundläggande garantin är alldeles för kort för en enhet med en så betydande prislapp. Avsaknaden av Thunderbolt kommer troligen irritera användare som önskar mångsidiga dockningslösningar. Och tillslut, för att återvända till den betydande prislappen vi nyss nämnde: den är dyr, ca 16 000 kronor för dagens konfiguration (som dock, för att vara rättvis, åtminstone inkluderar Travel Keyboard-överdraget och den Active Pen.

Dom främsta konkurrenterna är fortfarande förra årets Latitude 5285 (som åtminstone klarar av mycket längre batteritid än 5290), Microsoft Surface Pro 2017 (som totalt sett är väldigt bra men som är omöjlig att uppgradera och underhålla från ett hårdvaruperspektiv), HP Elite x2 1012 G2 (som är en väldigt välavrundad enhet men som är betydligt svårare att underhålla) och Lenovo ThinkPad X1 Tablet Gen 2 (som är en bra kandidat men som hålls tillbaka av den passiva kylningens begränsningar och andra irritationsmoment såsom PWM). Alla dessa enheter har sina unika uppsättningar av styrkor och svagheter, så innan du bestämmer dig för en omvandlingsbar företagsmodell rekommenderar vi starkt att du tar en titt på allihop. Men om löstagbar 2-i-1-funktionalitet (och kanske tryckkänslig penn-inmatning) är ett absolut måste så finns det få enheter som totat sett lyckas med så stark prestanda som Latitude 5290.

Dell Latitude 5290 2-in-1 - 03/30/2018 v6 (old)
Steve Schardein

Design
89 / 98 → 91%
Tangentbord
92%
Mus
92%
Anslutningar
65 / 80 → 81%
Vikt
72 / 20-67 → 100%
Batteri
82%
Skärm
86%
Spelprestanda
59 / 68 → 87%
Programprestanda
87 / 92 → 95%
Temperatur
88%
Ljudnivå
95%
Audio
54%
Camera
58 / 85 → 68%
Medel
78%
89%
Office - Vägt medel

Price comparison

Please share our article, every link counts!
Mail Logo
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Dell Latitude 5290 2-i-1 (i5-8350U) Omvandlingsbar (Sammanfattning)
Steve Schardein, 2018-04- 4 (Update: 2018-04- 4)
