Test: Dell Latitude 7480 (7600U, FHD) (sammanfattning)

Name: Dell Latitude 7480
Brand: Dell

Business as usual. Med nytt chassi, lägre vikt och kraftigt förbättrad batteritid bockar Latitude återigen av listan över rätt egenskaper för en företagslaptop. 14-tummaren 7480 är utrustad med den senaste hårdvaran, ett bra tangentbord och levererar bra prestanda. Tyvärr har den problem med "spoltjut".

Bernie Pechlaner, Published 04/27/2017 🇺🇸 🇷🇺 ...

Laptop / Notebook Windows Kaby Lake Business

Download your licensed rating image as PNG / SVG

Dell Latitude 7480 (Latitude 7400 Serie)

Processor

Intel Core i7-7600U 2 x 2.8 - 3.9 GHz, Kaby Lake

Grafikkort

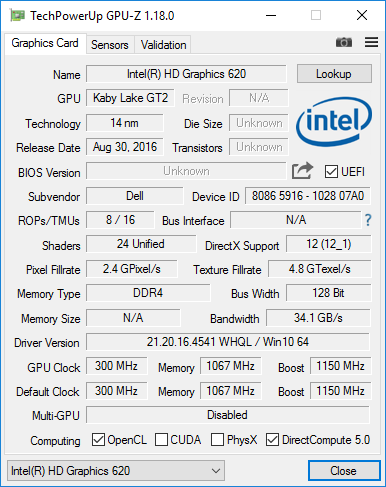

Intel HD Graphics 620, Kärna: 1150 MHz, Minne: 1067 MHz, 21.20.16.4574

Minne

8 GB

, 2133 MHz DDR4

Skärm

14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, LG Philips LGD0557, IPS, glansig: nej

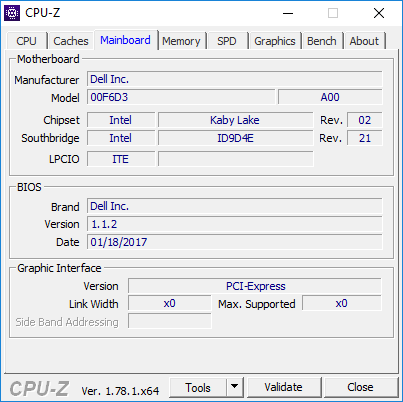

Moderkort

Intel Kaby Lake-U Premium PCH

Hårddisk

Intel SSDSCKKF256H6, 256 GB

Ljudkort

Intel Kaby Lake-U/Y PCH - High Definition Audio

Anslutningar

3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5 mm headphone combo jack, Kortläsare: Micro-SD, 1 SmartCard, 1 Fingeravtrycksläsare, Brightness Sensor

Nätverk

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 17.05 x 331 x 220.9

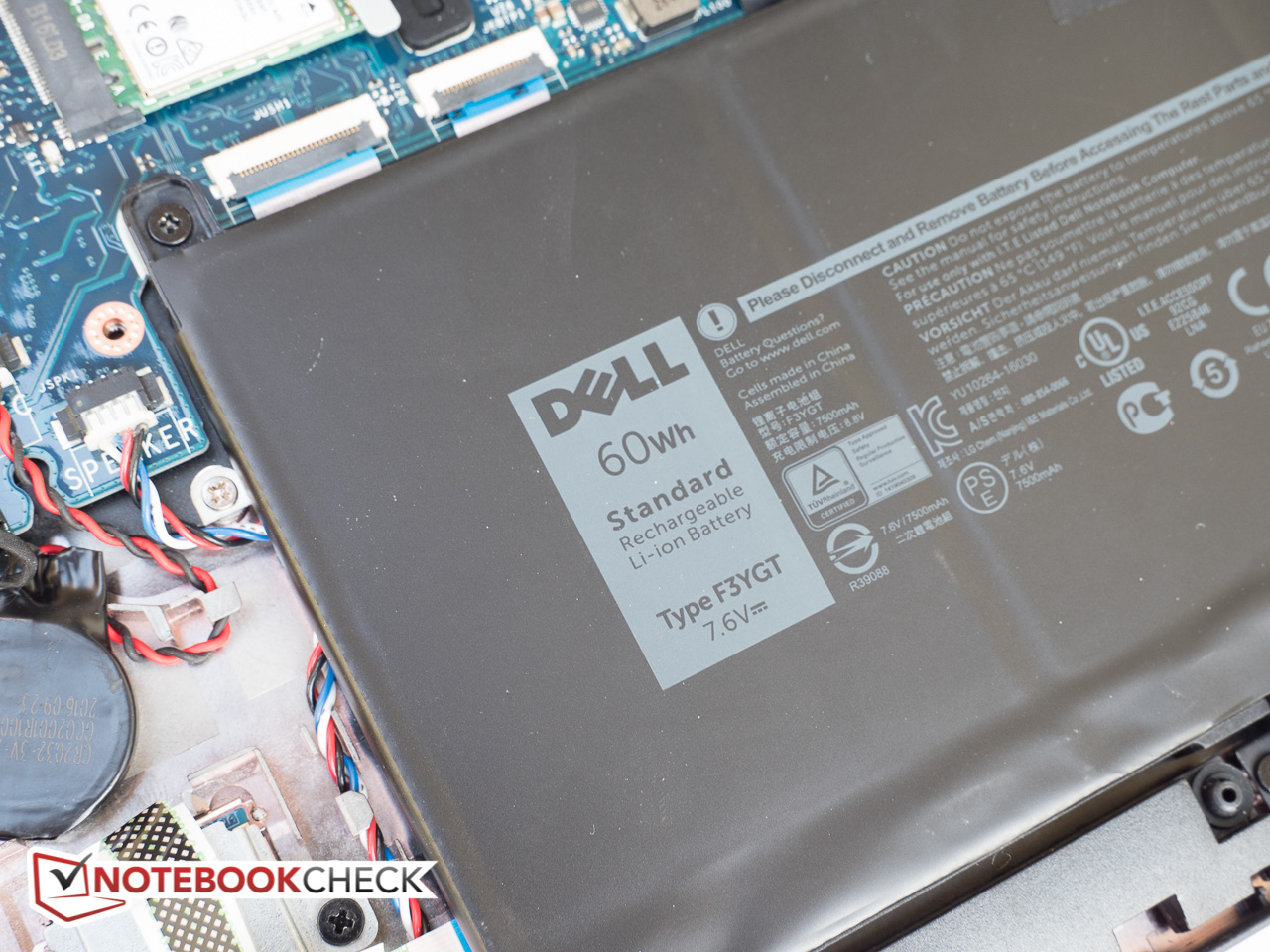

Batteri

60 Wh Litiumjon

Operativsystem

Microsoft Windows 10 Pro 64 Bit

Övrigt

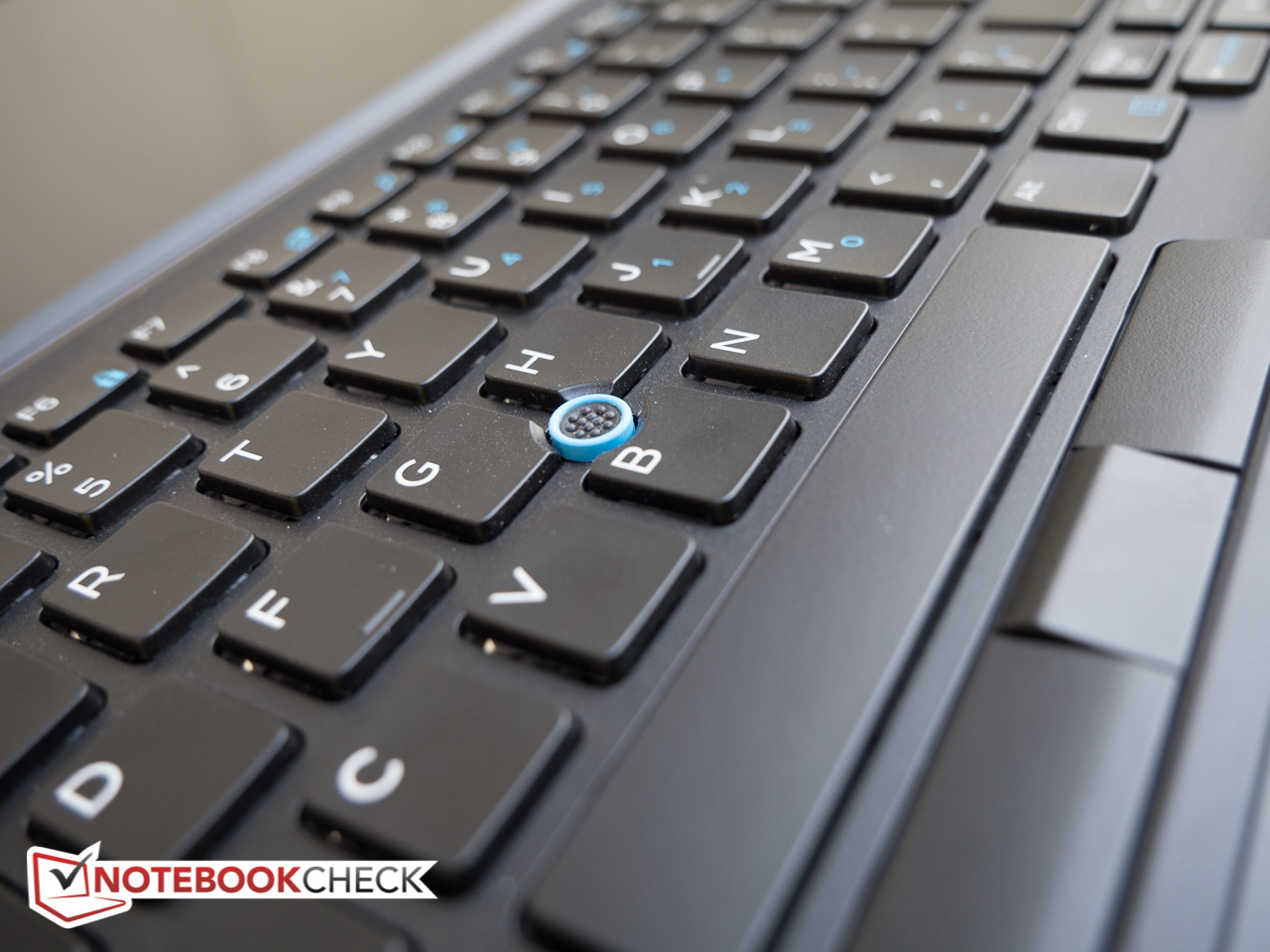

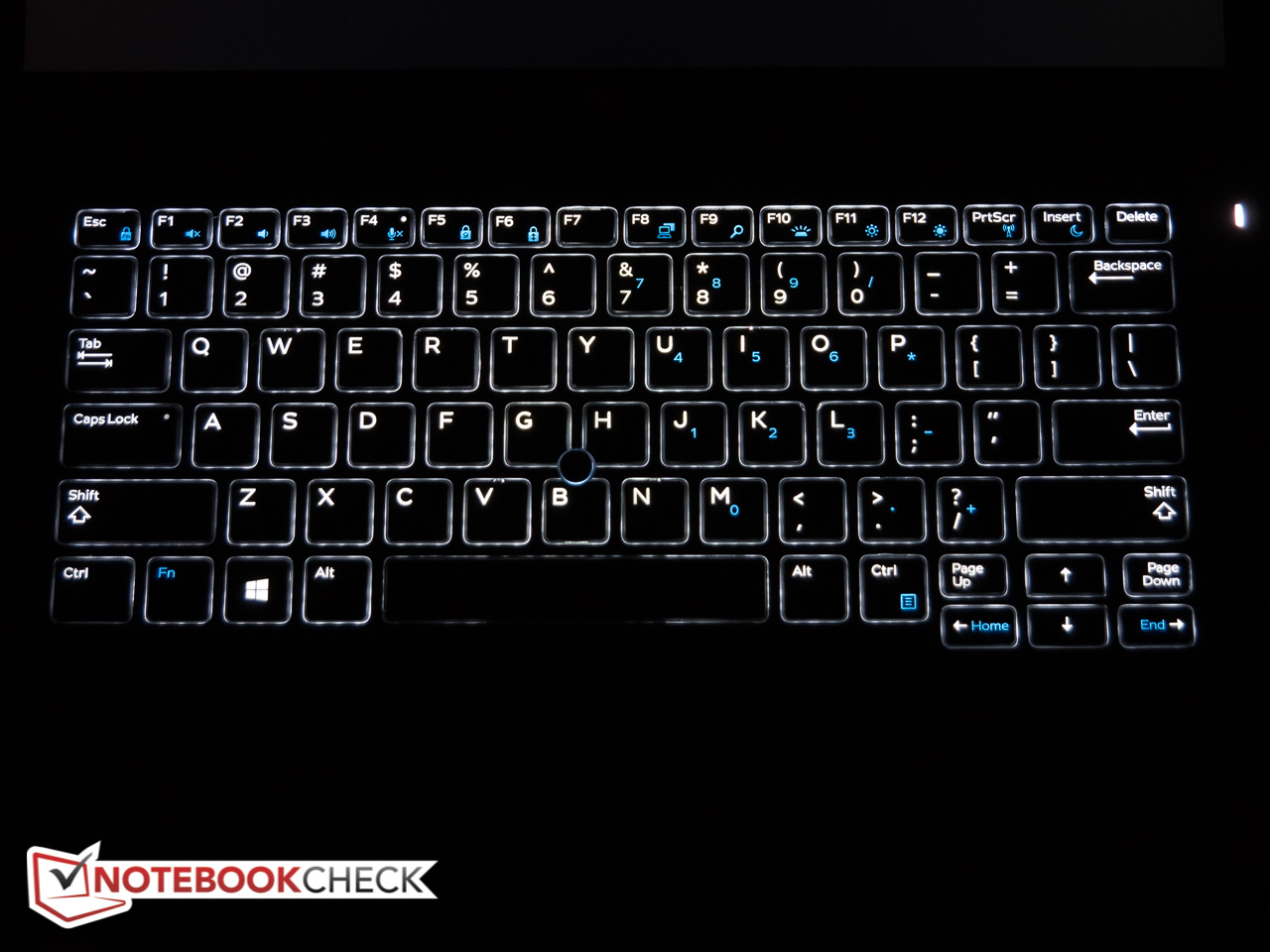

Tangentbord: Chiclet, Tangentbordsbelysning: ja, 36 Månader Garanti

Vikt

1.516 kg, Strömförsörjning: 294 g

Länkar

Dell hemsida
Dell kategori

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

HP EliteBook 840 G4-Z2V49ET ABD Dell Latitude 14 7000 Series E7470 Lenovo ThinkPad T470s-20HGS00V00 Dell Latitude 7480 Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 DIN A4 ❌

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Latitude 14 7000 Series E7470	183 MB/s +141%
Lenovo ThinkPad T470s-20HGS00V00	79.3 MB/s +5%
Dell Latitude 7480	75.8 MB/s
HP EliteBook 840 G4-Z2V49ET ABD	74.9 MB/s -1%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00	61.2 MB/s -19%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 14 7000 Series E7470	206.6 MB/s +125%
Dell Latitude 7480	92 MB/s
Lenovo ThinkPad T470s-20HGS00V00	90.5 MB/s -2%
HP EliteBook 840 G4-Z2V49ET ABD	83.7 MB/s -9%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00	82.9 MB/s -10%

Networking
WiFi Speed Client 1m 4M x10 Netgear AX12
WiFi Speed Server 1m 4M x10 (-R) Netgear AX12


322.2 cd/m²	320.7 cd/m²	302.1 cd/m²
331.2 cd/m²	344 cd/m²	301.5 cd/m²
333.3 cd/m²	344.4 cd/m²	291.2 cd/m²

Distribution av ljusstyrkan

LG Philips LGD0557 tested with X-Rite i1Pro 2

Max: 344.4 cd/m² (Nits) Medel: 321.2 cd/m² Minimum: 16.08 cd/m²
Distribution av ljusstyrkan: 85 %
Mitt på batteriet: 344 cd/m²
Kontrast: 1075:1 (Svärta: 0.32 cd/m²)
ΔE Color 2.6 | 0.5-29.43 Ø4.91
ΔE Greyscale 2.6 | 0.5-98 Ø5.2
92.27% sRGB (Argyll 1.6.3 3D)
65.82% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
92.3% sRGB (Argyll 2.2.0 3D)
65.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.28

Download ICC-fil (X-Rite i1Pro 2)

	Dell Latitude 7480 LG Philips LGD0557, IPS, 14", 1920x1080	Dell Latitude 14 7000 Series E7470 AUO B140QAN Dell PN F0WXVV, IPS, 14", 2560x1440	Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 B140HAN03_1, IPS, 14", 1920x1080	HP EliteBook 840 G4-Z2V49ET ABD AUO123D, TN, 14", 1920x1080	Lenovo ThinkPad T470s-20HGS00V00 B140QAN01.5, IPS, 14", 2560x1440
Display		4%	-6%	-13%	5%
Display P3 Coverage	65.4	67.2 3%	61.4 -6%	55.8 -15%	69 6%
sRGB Coverage	92.3	95.9 4%	85.9 -7%	80.7 -13%	95.1 3%
AdobeRGB 1998 Coverage	65.8	69.3 5%	62.4 -5%	57.7 -12%	69.6 6%
Response Times		-3%	-2%	15%	-3%
Response Time Grey 50% / Grey 80% *	40.8 ?(19.2, 21.6)	48 ?(15, 33) -18%	41.6 ?(20.4, 21.2) -2%	39 ?(20, 19, Plateau) 4%	46.4 ?(20.4, 26) -14%
Response Time Black / White *	31.2 ?(18.8, 12.4)	27 ?(7, 20) 13%	31.6 ?(18.8, 12.8) -1%	23 ?(6, 17, Plateau) 26%	28.8 ?(16.4, 12.4) 8%
PWM Frequency
Screen		-1%	-26%	-90%	-39%
Brightness middle	344	380 10%	311 -10%	346 1%	327 -5%
Brightness	321	354 10%	288 -10%	317 -1%	311 -3%
Brightness Distribution	85	81 -5%	85 0%	86 1%	88 4%
Black Level *	0.32	0.26 19%	0.24 25%	0.86 -169%	0.25 22%
Contrast	1075	1462 36%	1296 21%	402 -63%	1308 22%
Colorchecker dE 2000 *	2.6	3.11 -20%	5.5 -112%	8.64 -232%	6.1 -135%
Colorchecker dE 2000 max. *	7.8	6.73 14%	9 -15%	13.58 -74%	12.2 -56%
Greyscale dE 2000 *	2.6	4.35 -67%	6.2 -138%	11.24 -332%	8.8 -238%
Gamma	2.28 ^96%	2.37 ^93%	2.02 ^109%	2.62 ^84%	2.18 ^101%
CCT	7050 ^92%	6771 ^96%	5950 ^109%	12530 ^52%	6172 ^105%
Color Space (Percent of AdobeRGB 1998)	65.82	62 -6%	55.96 -15%	52 -21%	61.56 -6%
Color Space (Percent of sRGB)	92.27	96 4%	85.77 -7%	80 -13%	94.88 3%
Total Average (Program / Settings)		0% / 0%	-11% / -19%	-29% / -61%	-12% / -26%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

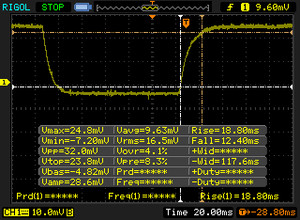

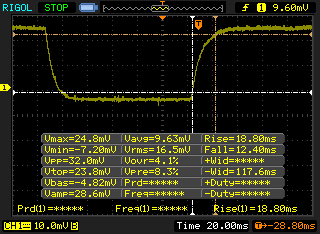

↔ Response Time Black to White
31.2 ms ... rise ↗ and fall ↘ combined	↗ 18.8 ms rise
31.2 ms ... rise ↗ and fall ↘ combined	↘ 12.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 83 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).

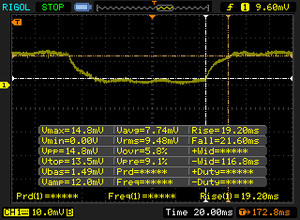

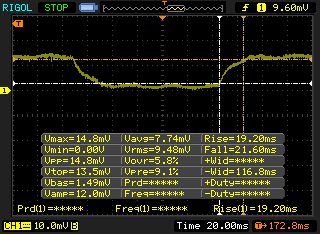

↔ Response Time 50% Grey to 80% Grey
40.8 ms ... rise ↗ and fall ↘ combined	↗ 19.2 ms rise
40.8 ms ... rise ↗ and fall ↘ combined	↘ 21.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 61 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

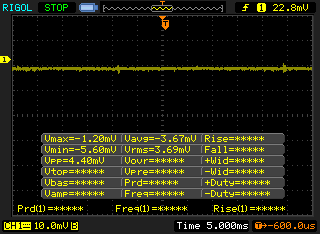

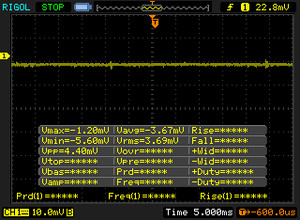

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15 CPU Multi 64 Bit

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10

Cinebench R15
CPU Single 64Bit
Dell Latitude 7280 Intel Core i7-7600U	164 Points +1%
Lenovo ThinkPad T470s-20HGS00V00 Intel Core i7-7600U	162 Points 0%
Dell Latitude 7480 Intel Core i7-7600U	162 Points
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel Core i7-7500U	143 Points -12%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	142 Points -12%
HP EliteBook 840 G4-Z2V49ET ABD Intel Core i5-7200U	119 Points -27%
CPU Multi 64Bit
Lenovo ThinkPad T470s-20HGS00V00 Intel Core i7-7600U	368 Points +7%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel Core i7-7500U	360 Points +5%
Dell Latitude 7280 Intel Core i7-7600U	351 Points +2%
Dell Latitude 7480 Intel Core i7-7600U	343 Points
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	334 Points -3%
HP EliteBook 840 G4-Z2V49ET ABD Intel Core i5-7200U	329 Points -4%

Cinebench R11.5
CPU Single 64Bit
Dell Latitude 7280 Intel Core i7-7600U	1.87 Points +1%
Lenovo ThinkPad T470s-20HGS00V00 Intel Core i7-7600U	1.86 Points +1%
Dell Latitude 7480 Intel Core i7-7600U	1.85 Points
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	1.61 Points -13%
CPU Multi 64Bit
Lenovo ThinkPad T470s-20HGS00V00 Intel Core i7-7600U	4.16 Points +10%
Dell Latitude 7280 Intel Core i7-7600U	3.89 Points +3%
Dell Latitude 7480 Intel Core i7-7600U	3.78 Points
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	3.58 Points -5%

Cinebench R10
Rendering Multiple CPUs 32Bit
Lenovo ThinkPad T470s-20HGS00V00 Intel Core i7-7600U	13073 Points +8%
Dell Latitude 7480 Intel Core i7-7600U	12153 Points
Rendering Single 32Bit
Lenovo ThinkPad T470s-20HGS00V00 Intel Core i7-7600U	6270 Points 0%
Dell Latitude 7480 Intel Core i7-7600U	6243 Points
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	3260 Points -48%

wPrime 2.10 - 1024m
Dell Latitude 7480 Intel Core i7-7600U	484.3 s *
Dell Latitude 7280 Intel Core i7-7600U	482 s * -0%
Lenovo ThinkPad T470s-20HGS00V00 Intel Core i7-7600U	441.7 s * +9%

* ... smaller is better

Cinebench R10 Shading 32Bit

10167

Cinebench R10 Rendering Multiple CPUs 32Bit

12153

Cinebench R10 Rendering Single 32Bit

6243

Cinebench R11.5 OpenGL 64Bit

43.3 fps

Cinebench R11.5 CPU Multi 64Bit

3.78 Points

Cinebench R11.5 CPU Single 64Bit

1.85 Points

Cinebench R15 Ref. Match 64Bit

97.7 %

Cinebench R15 OpenGL 64Bit

47.98 fps

Cinebench R15 CPU Multi 64Bit

343 Points

Cinebench R15 CPU Single 64Bit

162 Points

Hjälp

... jämför

PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 HD Graphics 620, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP	4025 Points +1%
Dell Latitude 7480 HD Graphics 620, i7-7600U, Intel SSDSCKKF256H6	3985 Points
Lenovo ThinkPad T470s-20HGS00V00 HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	3968 Points 0%
Dell Latitude 5480 HD Graphics 620, i7-7600U, Toshiba SG5 256GB THNSNK256GVN8	3913 Points -2%
Dell Latitude 7280 HD Graphics 620, i7-7600U, SanDisk X400 M.2 2280 256GB	3667 Points -8%
HP EliteBook 840 G4-Z2V49ET ABD HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP	3486 Points -13%
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	3344 Points -16%
Work Score Accelerated v2
Dell Latitude 7480 HD Graphics 620, i7-7600U, Intel SSDSCKKF256H6	5052 Points
Dell Latitude 5480 HD Graphics 620, i7-7600U, Toshiba SG5 256GB THNSNK256GVN8	4992 Points -1%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 HD Graphics 620, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP	4978 Points -1%
Dell Latitude 7280 HD Graphics 620, i7-7600U, SanDisk X400 M.2 2280 256GB	4957 Points -2%
Lenovo ThinkPad T470s-20HGS00V00 HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	4856 Points -4%
HP EliteBook 840 G4-Z2V49ET ABD HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP	4572 Points -10%
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	4543 Points -10%
Creative Score Accelerated v2
Lenovo ThinkPad T470s-20HGS00V00 HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	5050 Points +1%
Dell Latitude 7480 HD Graphics 620, i7-7600U, Intel SSDSCKKF256H6	4981 Points
Dell Latitude 5480 HD Graphics 620, i7-7600U, Toshiba SG5 256GB THNSNK256GVN8	4923 Points -1%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 HD Graphics 620, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP	4874 Points -2%
Dell Latitude 7280 HD Graphics 620, i7-7600U, SanDisk X400 M.2 2280 256GB	4662 Points -6%
HP EliteBook 840 G4-Z2V49ET ABD HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP	4352 Points -13%

PCMark 8 Home Score Accelerated v2		3985 poäng
PCMark 8 Creative Score Accelerated v2		4981 poäng
PCMark 8 Work Score Accelerated v2		5052 poäng
Hjälp

	Dell Latitude 7480 Intel SSDSCKKF256H6	Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Samsung PM961 NVMe MZVLW512HMJP	HP EliteBook 840 G4-Z2V49ET ABD Samsung PM961 MZVLW256HEHP	Lenovo ThinkPad T470s-20HGS00V00 Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	Dell Latitude 7280 SanDisk X400 M.2 2280 256GB	Dell Latitude 5480 Toshiba SG5 256GB THNSNK256GVN8
CrystalDiskMark 3.0		163%	141%	168%	-2%	-1%
Read Seq	486.5	1827 276%	1819 274%	1760 262%	470.8 -3%	469.4 -4%
Write Seq	418.6	1383 230%	1263 202%	1666 298%	477.4 14%	264.8 -37%
Read 512	354.3	814 130%	922 160%	832 135%	370.1 4%	408.1 15%
Write 512	306.8	1098 258%	804 162%	1064 247%	323.2 5%	265.5 -13%
Read 4k	29.25	61 109%	61.4 110%	53.2 82%	30.23 3%	24.66 -16%
Write 4k	90.5	172.2 90%	157.1 74%	167.4 85%	59.5 -34%	114.8 27%
Read 4k QD32	280.2	601 114%	513 83%	630 125%	344.4 23%	380.3 36%
Write 4k QD32	252.8	495.6 96%	410.2 62%	533 111%	183 -28%	207.2 -18%

HD Tune

CrystalDiskMark 3.0

AS SSD

Intel SSDSCKKF256H6

Överföringshastighet min.: 24.1 MB/s

Överföringshastighet max.: 417.3 MB/s

Överföringshastighet med.: 400.8 MB/s

Accesstid: 0.071 ms

Burst rate: 152.4 MB/s

CPU-användning: 6.5 %

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance GPU
Lenovo ThinkPad T470s-20HGS00V00 Intel HD Graphics 620, i7-7600U	1777 Points +8%
Dell Latitude 5480 Intel HD Graphics 620, i7-7600U	1685 Points +2%
Dell Latitude 7480 Intel HD Graphics 620, i7-7600U	1648 Points
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel HD Graphics 620, i7-7500U	1641 Points 0%
Dell Latitude 7280 Intel HD Graphics 620, i7-7600U	1442 Points -12%
HP EliteBook 840 G4-Z2V49ET ABD Intel HD Graphics 620, i5-7200U	1413 Points -14%
Dell Latitude 14 7000 Series E7470 Intel HD Graphics 520, 6600U	1264 Points -23%
1280x720 Performance Combined
Lenovo ThinkPad T470s-20HGS00V00 Intel HD Graphics 620, i7-7600U	1811 Points +18%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel HD Graphics 620, i7-7500U	1653 Points +8%
Dell Latitude 5480 Intel HD Graphics 620, i7-7600U	1536 Points 0%
Dell Latitude 7480 Intel HD Graphics 620, i7-7600U	1530 Points
Dell Latitude 14 7000 Series E7470 Intel HD Graphics 520, 6600U	1268 Points -17%
HP EliteBook 840 G4-Z2V49ET ABD Intel HD Graphics 620, i5-7200U	1141 Points -25%
Dell Latitude 7280 Intel HD Graphics 620, i7-7600U	1104 Points -28%

3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad T470s-20HGS00V00 Intel HD Graphics 620, i7-7600U	9610 Points +12%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel HD Graphics 620, i7-7500U	8971 Points +5%
Dell Latitude 5480 Intel HD Graphics 620, i7-7600U	8740 Points +2%
Dell Latitude 7480 Intel HD Graphics 620, i7-7600U	8555 Points
Dell Latitude 7280 Intel HD Graphics 620, i7-7600U	7032 Points -18%
HP EliteBook 840 G4-Z2V49ET ABD Intel HD Graphics 620, i5-7200U	6864 Points -20%
Dell Latitude 14 7000 Series E7470 Intel HD Graphics 520, 6600U	5819 Points -32%
1920x1080 Fire Strike Graphics
Lenovo ThinkPad T470s-20HGS00V00 Intel HD Graphics 620, i7-7600U	1176 Points +17%
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Intel HD Graphics 620, i7-7500U	1093 Points +8%
Dell Latitude 5480 Intel HD Graphics 620, i7-7600U	1027 Points +2%
Dell Latitude 7480 Intel HD Graphics 620, i7-7600U	1008 Points
Dell Latitude 7280 Intel HD Graphics 620, i7-7600U	819 Points -19%
Dell Latitude 14 7000 Series E7470 Intel HD Graphics 520, 6600U	744 Points -26%
HP EliteBook 840 G4-Z2V49ET ABD Intel HD Graphics 620, i5-7200U	738 Points -27%
1920x1080 Ice Storm Extreme Graphics
Dell Latitude 7480 Intel HD Graphics 620, i7-7600U	48374 Points

3DMark 11 Performance		1807 poäng
3DMark Ice Storm Standard Score		64798 poäng
3DMark Cloud Gate Standard Score		6706 poäng
3DMark Fire Strike Score		934 poäng
3DMark Fire Strike Extreme Score		441 poäng
Hjälp

... jämför

	låg	med.	hög	ultra
Tomb Raider (2013)	83.6	43.3	25.9	12.7
BioShock Infinite (2013)	54.5	31.6	26.3	8.4

Ljudnivå

Låg belastning		28.6 / 28.6 / 28.6 dB(A)
Hög belastning		30.2 / 31.2 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM1 (15 cm avstånd)

	Dell Latitude 7480 HD Graphics 620, i7-7600U, Intel SSDSCKKF256H6	Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 HD Graphics 620, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP	HP EliteBook 840 G4-Z2V49ET ABD HD Graphics 620, i5-7200U, Samsung PM961 MZVLW256HEHP	Lenovo ThinkPad T470s-20HGS00V00 HD Graphics 620, i7-7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)	Dell Latitude 7280 HD Graphics 620, i7-7600U, SanDisk X400 M.2 2280 256GB	Dell Latitude 5480 HD Graphics 620, i7-7600U, Toshiba SG5 256GB THNSNK256GVN8
Noise		-11%	-9%	-13%	-3%	-20%
Idle Minimum *	28.6	29.3 -2%	31 -8%	28.9 -1%	29.4 -3%	29.6 -3%
Idle Average *	28.6	29.3 -2%	31 -8%	28.9 -1%	29.4 -3%	29.6 -3%
Idle Maximum *	28.6	32.2 -13%	31 -8%	30.1 -5%	30 -5%	29.6 -3%
Load Average *	30.2	34.3 -14%	33.5 -11%	39.2 -30%	30.6 -1%	42 -39%
Load Maximum *	31.2	39.3 -26%	33.7 -8%	39.2 -26%	32.7 -5%	47.1 -51%
off / environment *		29.3	31	28.9	29.4

* ... smaller is better

Hög belastning

Låg belastning


39 °C	34.4 °C	31 °C
32.8 °C	32 °C	25.2 °C
23.8 °C	24.2 °C	23 °C

Max: 39 °C
Medel: 29.5 °C


28 °C	47.2 °C	41.2 °C
25.2 °C	34.4 °C	33.4 °C
24.6 °C	28.6 °C	29.8 °C

Max: 47.2 °C
Medel: 32.5 °C

Strömförsörjning (max.) 31.6 °C | Rumstemperatur 20 °C | Raytek Raynger ST

(+) The average temperature for the upper side under maximal load is 29.5 °C / 85 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 39 °C / 102 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 47.2 °C / 117 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.5 °C / 76 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.2 °C / 75.6 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+3.4 °C / 6.1 F).

Dell Latitude 7480 audio analysis

(±) | speaker loudness is average but good (75 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.9% lower than median
(±) | linearity of bass is average (10.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(±) | linearity of mids is average (7.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.6% higher than median
(+) | highs are linear (6.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.2% difference to median)
Compared to same class
» 62% of all tested devices in this class were better, 9% similar, 30% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 66% of all tested devices were better, 6% similar, 28% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning

Av/Standby	0.29 / 0.48 Watt
Låg belastning	4.32 / 6.27 / 6.35 Watt
Hög belastning	29.82 / 30.64 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Dell Latitude 7480 i7-7600U, HD Graphics 620, Intel SSDSCKKF256H6, IPS, 1920x1080, 14"	Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 i7-7500U, HD Graphics 620, Samsung PM961 NVMe MZVLW512HMJP, IPS, 1920x1080, 14"	HP EliteBook 840 G4-Z2V49ET ABD i5-7200U, HD Graphics 620, Samsung PM961 MZVLW256HEHP, TN, 1920x1080, 14"	Lenovo ThinkPad T470s-20HGS00V00 i7-7600U, HD Graphics 620, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), IPS, 2560x1440, 14"	Dell Latitude 7280 i7-7600U, HD Graphics 620, SanDisk X400 M.2 2280 256GB, IPS, 1920x1080, 12.5"	Dell Latitude 5480 i7-7600U, HD Graphics 620, Toshiba SG5 256GB THNSNK256GVN8, IPS, 1920x1080, 14"	Dell Latitude 14 7000 Series E7470 6600U, HD Graphics 520, Samsung SSD PM851 M.2 2280 256GB, IPS, 2560x1440, 14"
Power Consumption		-25%	2%	-38%	7%	-18%	-26%
Idle Minimum *	4.32	3.84 11%	2.9 33%	4.64 -7%	4.28 1%	6.64 -54%	5.1 -18%
Idle Average *	6.27	6.3 -0%	5.6 11%	8.93 -42%	5.11 19%	6.67 -6%	8.5 -36%
Idle Maximum *	6.35	8.6 -35%	8.15 -28%	9.12 -44%	5.49 14%	7.78 -23%	10.1 -59%
Load Average *	29.82	41.9 -41%	30.6 -3%	42.2 -42%	29.83 -0%	30.83 -3%	35.2 -18%
Load Maximum *	30.64	48.7 -59%	31 -1%	47.3 -54%	30.05 2%	31.7 -3%	31 -1%

* ... smaller is better

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		27tim 42min
WiFi Websurfing		11tim 59min
Hög belastning (maximal ljusstyrka)		2tim 51min

	Dell Latitude 7480 i7-7600U, HD Graphics 620, 60 Wh	Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 i7-7500U, HD Graphics 620, 57 Wh	HP EliteBook 840 G4-Z2V49ET ABD i5-7200U, HD Graphics 620, 51 Wh	Lenovo ThinkPad T470s-20HGS00V00 i7-7600U, HD Graphics 620, 51 Wh	Dell Latitude 5480 i7-7600U, HD Graphics 620, 68 Wh	Dell Latitude 14 7000 Series E7470 6600U, HD Graphics 520, 55 Wh
Battery Runtime		-31%	-15%	-47%	5%	-44%
Reader / Idle	1662	1252 -25%	1155 -31%	787 -53%	1448 -13%
WiFi v1.3	719	496 -31%	571 -21%	417 -42%	964 34%	346 -52%
Load	171	110 -36%	184 8%	93 -46%	159 -7%	112 -35%

För

+ oklanderlig kvalitet

+ utmärkt batteritid

+ ljusstark, matt skärm

+ attraktiv design

+ tyst och diskret

+ bra prestanda överlag

Emot

- väldigt tydligt spoltjut

- saknar fysisk dockningsport (och stöd för äldre dockningsstationer)

- pekpinnens placering är inte optimal

- CPU-prestanda under par

- inte lika lätt som konkurrenterna

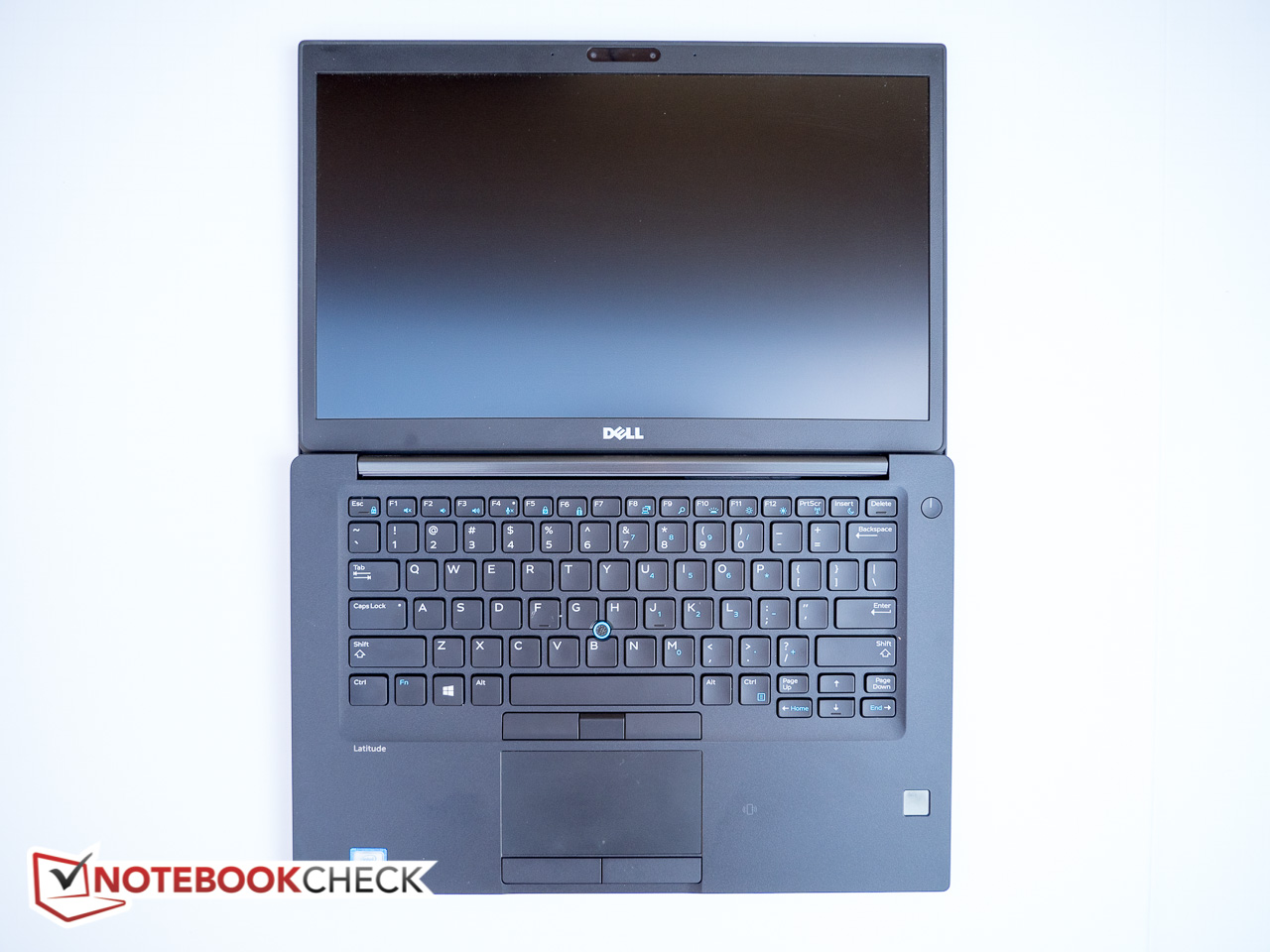

In review: Dell Latitude 7480. Test model provided by Dell US

Läs originaltestet på engelska här.

Även om den inte är lika elegant som Dells egna 13- och 15-tums XPS-modeller är Latitude 7480 på något sätt ändå en proffsvariant av de lovordade konsumentmaskinerna. Den snygga 14-tummaren är mindre och mycket lättare än tidigare, men byggkvaliteten är otvivelaktigt hög.

Chassit är styvt med snäva toleranser och har en mjuk, beröringsvänlig finish. Skärmen är ljusstark, med noggranna färger och få reflexer. Prestandan är också utmärkt; även om vissa CPU-specifika tester inte når hela vägen utmärker sig datorn i syntetiska prestandatester. Och batteriet räcker hela dagen även om det inte är fulladdat. Inmatningsenheterna är mycket bra – särskilt tangentbordet, som vi tycker är ett av de bästa på marknaden för närvarande.

Om det finns något stort minus är det ”spoltjutet” som hörs från minst 3 meters avstånd och verkar vara finnas närvarande oavsett belastning (men är naturligtvis mest märkbart när datorn går på lågvarv). Vi hoppas verkligen att det bara är vår testmodell som för oväsen, men med tanke på att vi hörde samma typ av oljud även när vi testade Latitude 5480 och 7280 skulle vi inte bli överraskade om det är ett vanligt problem.

Dell Latitude 7480 - 04/18/2017 v6 ^(old)
Bernie Pechlaner

Design

91 / 98 → 93%

Tangentbord

94%

Mus

72%

Anslutningar

73 / 80 → 91%

Vikt

69 / 20-67 → 100%

Batteri

95%

Skärm

90%

Spelprestanda

58 / 68 → 85%

Programprestanda

90 / 92 → 98%

Temperatur

92%

Ljudnivå

73%

Audio

70%

Camera

55 / 85 → 65%

Subjektivt intryck

-1%

Medel

73%

87%

Office - Vägt medel

Price comparison

Editor of the original article: Bernie Pechlaner - Senior Tech Writer - 276 articles published on Notebookcheck since 2012

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Dell Latitude 7480 (7600U, FHD) (sammanfattning)

Bernie Pechlaner, 2017-04-27 (Update: 2024-11- 4)
