Test: Dell Precision 3510 Workstation (sammanfattning)

Name: Dell Precision 3510
Brand: Dell

Instegsmodell. Dell Precision 3510 är en instegsmodell i workstation-klassen med många positiva egenskaper, men vår testkonfiguration är inte klockren.

Tobias Winkler, ✓ Stefanie Voigt, Published 08/21/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Windows Workstation Skylake

Test device courtesy of Dell Deutschland

Download your licensed rating image as PNG / SVG

Dell Precision 3510 (Precision 3000 Serie)

Processor

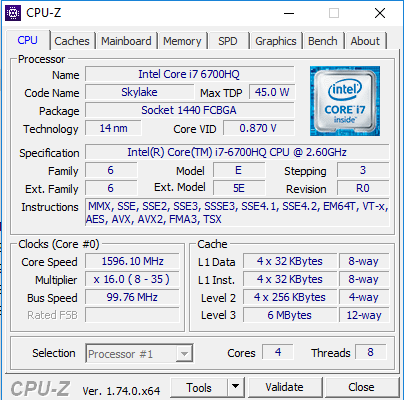

Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake

Grafikkort

AMD FirePro W5130M - 2048 MB VRAM, Kärna: 925 MHz, Minne: 1000 MHz, GDDR5, 15.201.1101.0 WHQL / Win 10 64, AMD Switchable Graphics

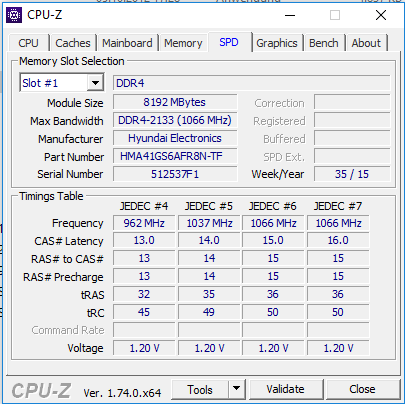

Minne

16 GB

, 2 x 8 GB DDR4-2133, max 32 GB, 2 platser, ingen ledig

Skärm

15.60 tum 16:9, 1366 x 768 pixlar 100 PPI, LGD04AF, K96D2_156WHU, TN LED, 62 % sRGB, glansig: nej

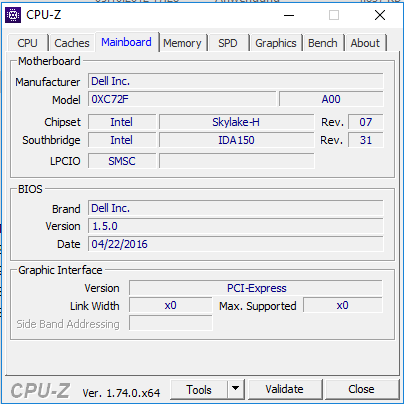

Moderkort

Intel Skylake-H

Hårddisk

Samsung SM951 MZVPV256HDGL m.2 PCI-e, 256 GB

, NVMe

Ljudkort

Realtek ALC293 @ Intel Skylake High Definition Audio Controller

Anslutningar

3 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: 3,5 mm in/ut, Kortläsare: Realtek PCIe UHS-II-kortläsare, SD, SDHC, SDXC, 1 SmartCard

Nätverk

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 22 x 377 x 253

Batteri

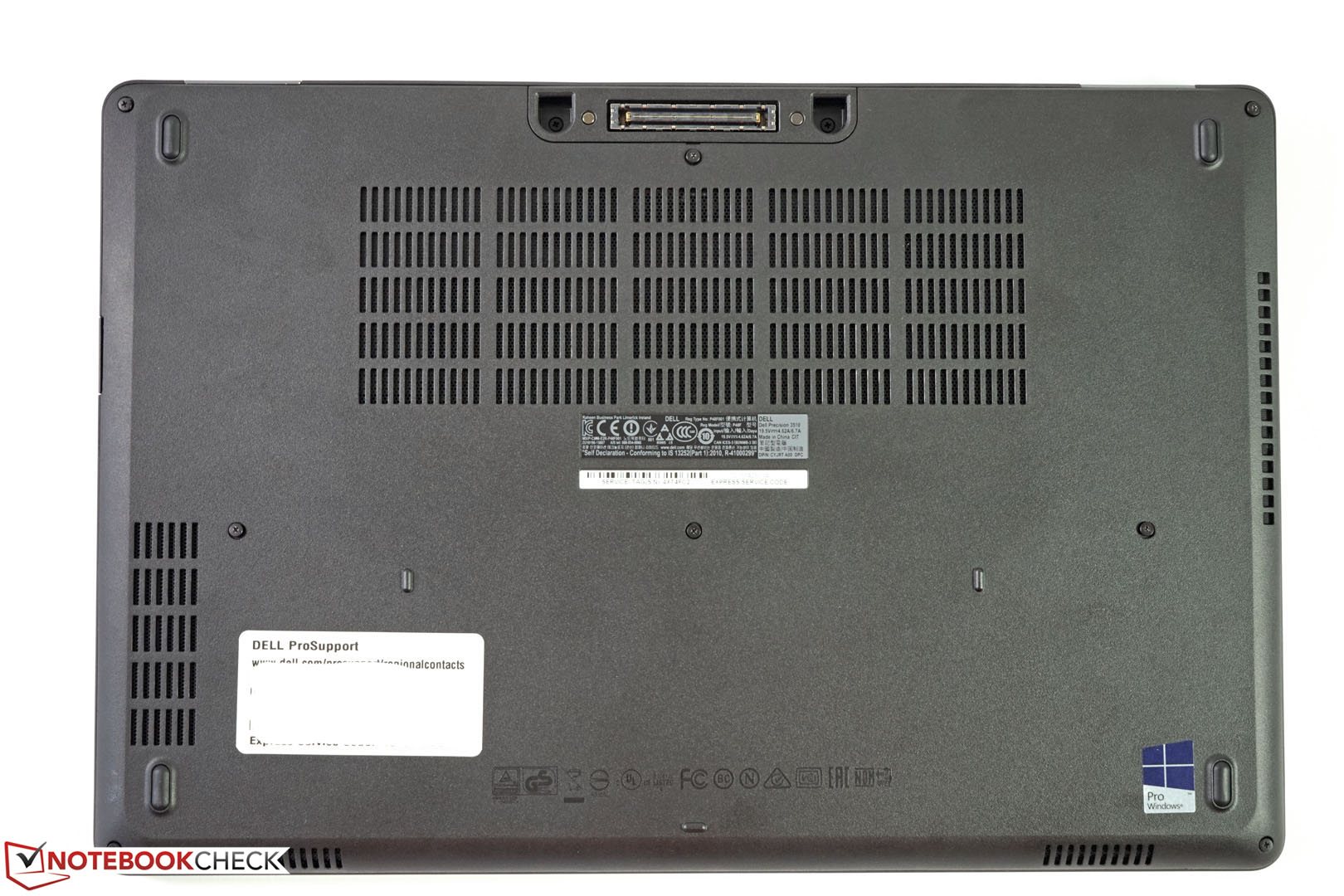

84 Wh Litiumjon, fastskruvat under bottenpanelen, men utbytbart, Batteritid (enligt tillverkaren): 17 tim

Operativsystem

Microsoft Windows 10 Pro 64 Bit

Camera

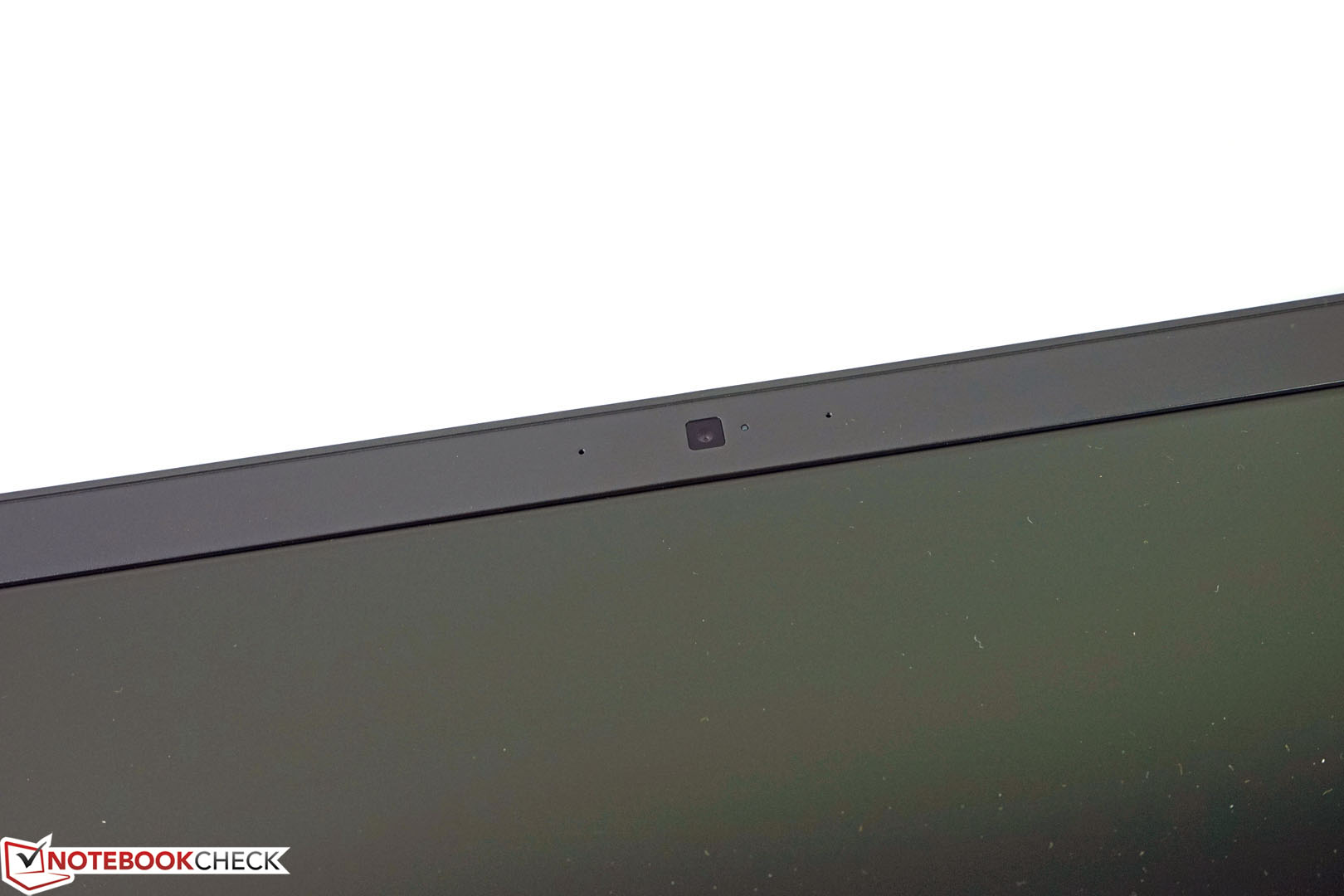

Webbkamera: HD-webbkamera

Övrigt

Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: ja, 36 Månader Garanti

Vikt

2.42 kg, Strömförsörjning: 610 g

Pris

1900 Kr

Länkar

Dell hemsida
Dell kategori

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

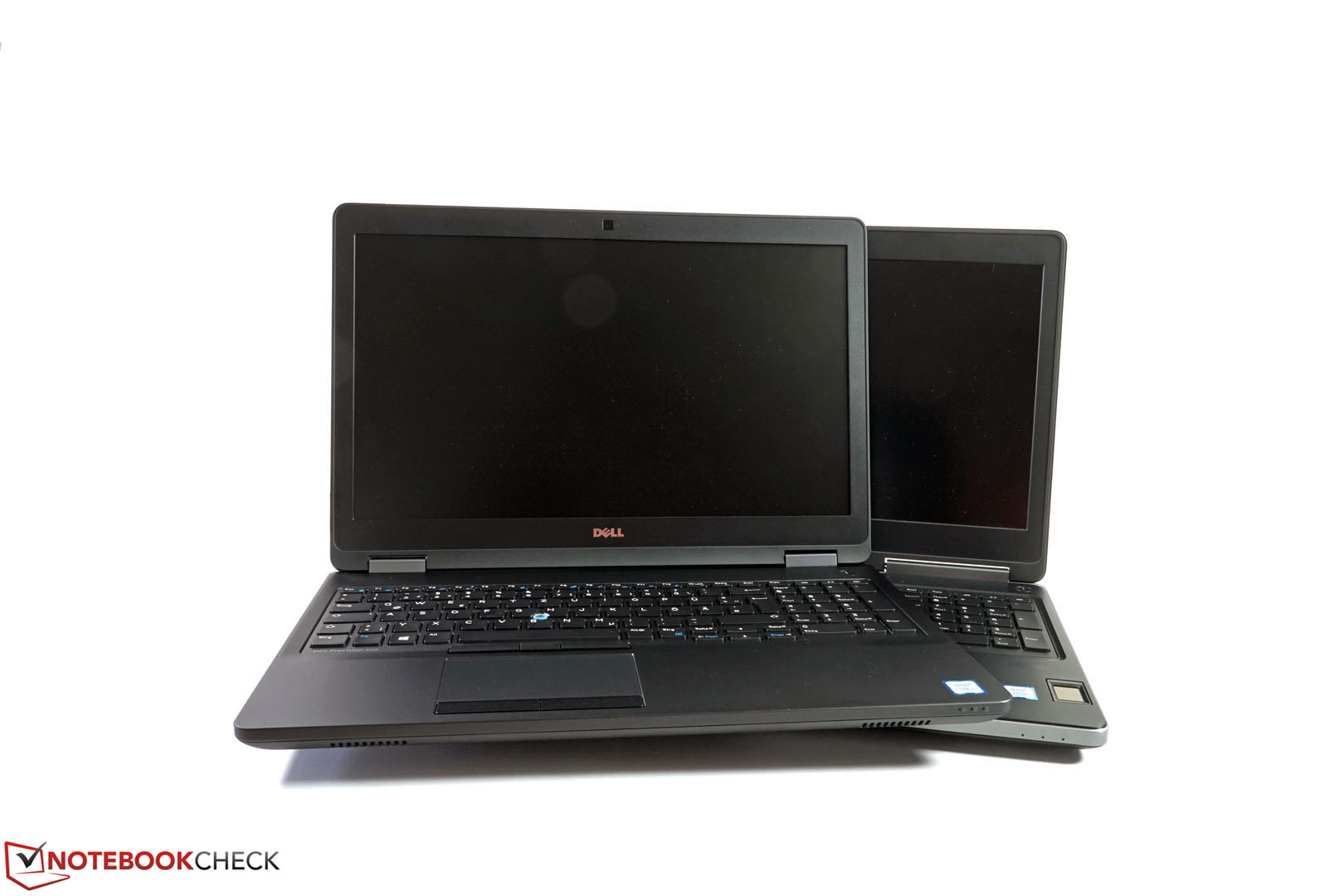

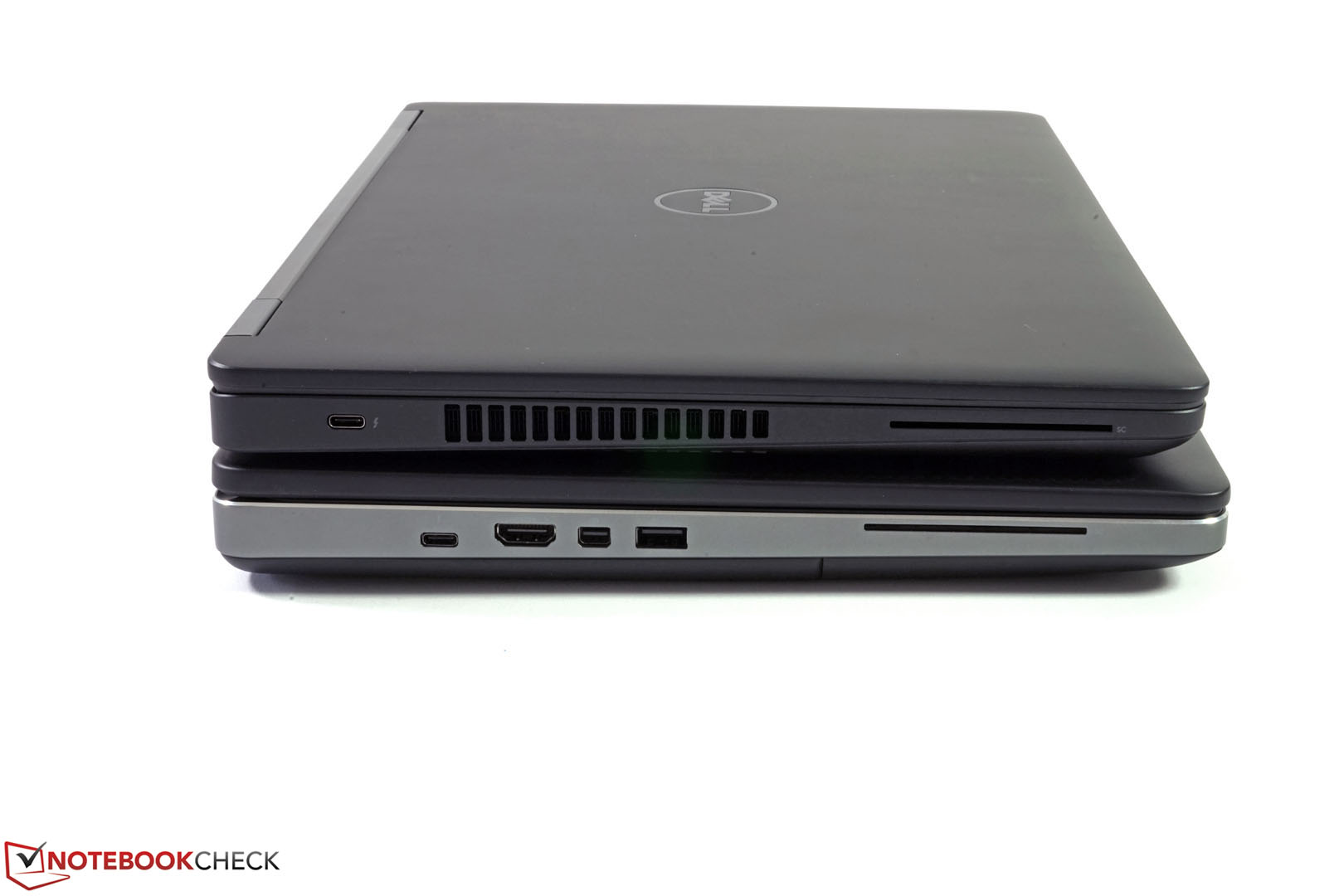

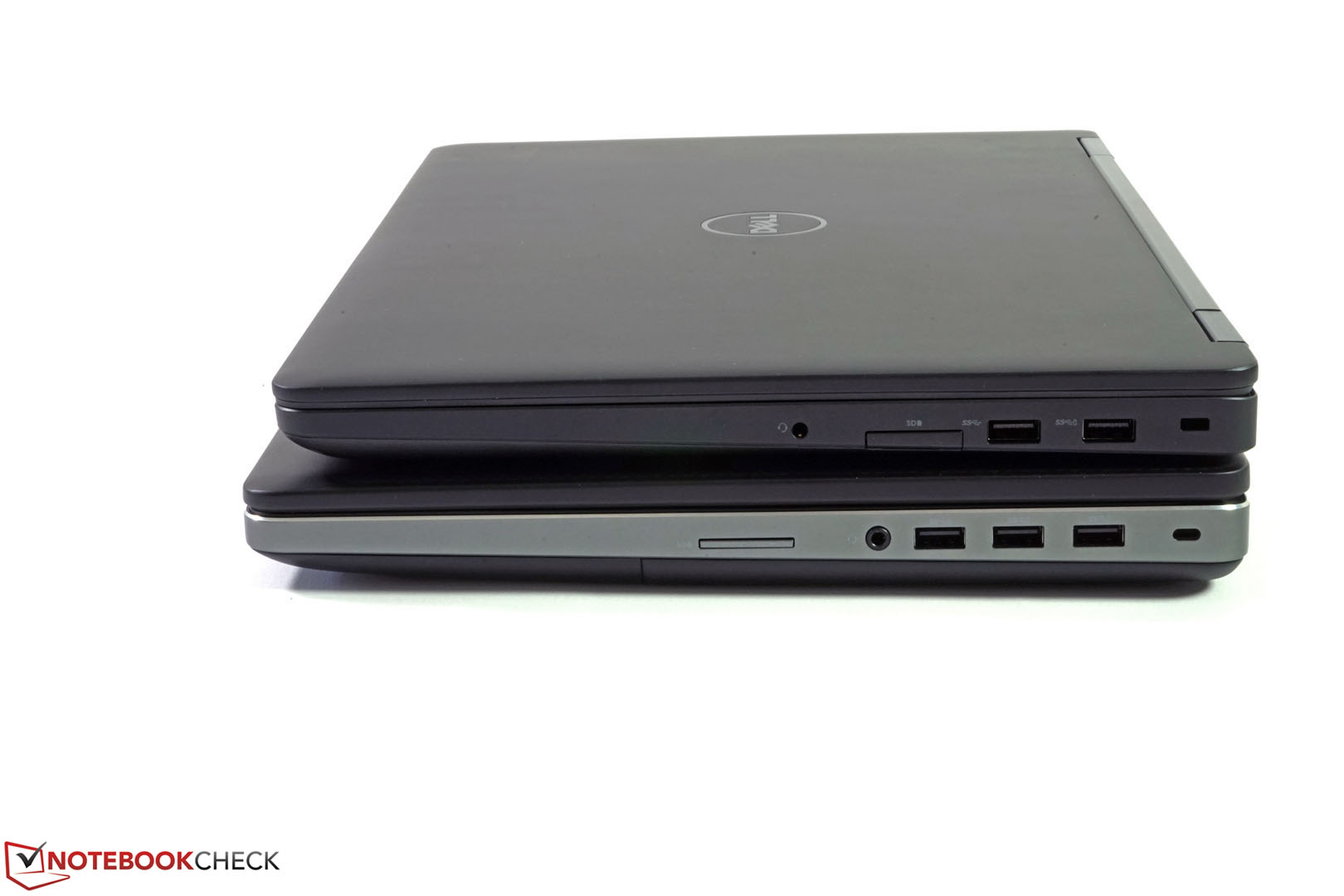

Size Comparison

Dell Precision 7510 (4K IGZO) HP ZBook 15 G3 Lenovo ThinkPad P50 Dell Precision 3510 Dell Precision 5510 DIN A4 ❌

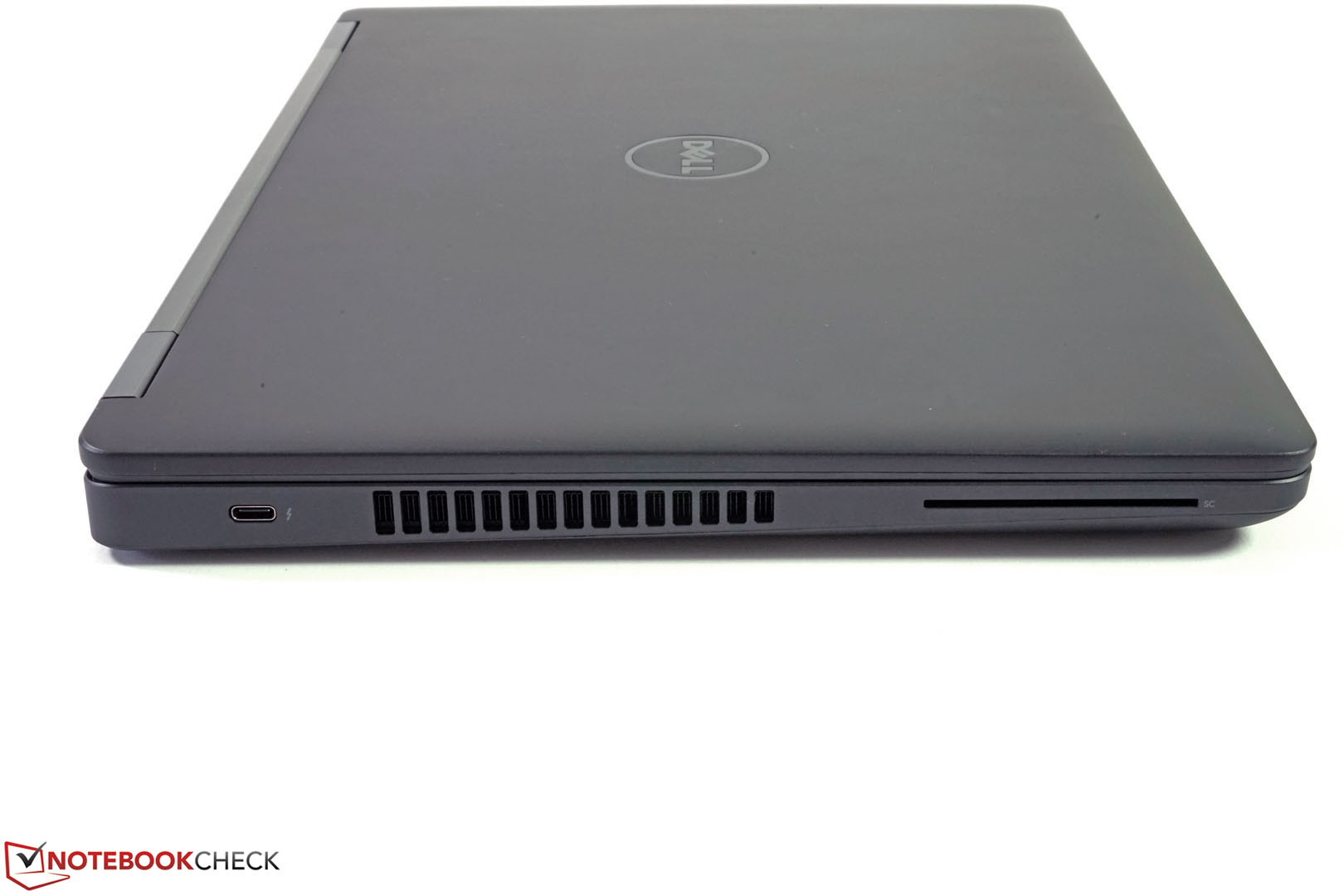

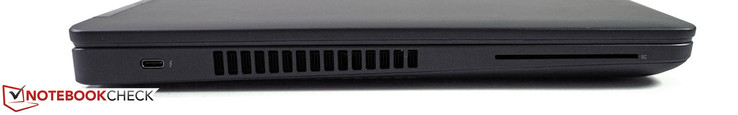

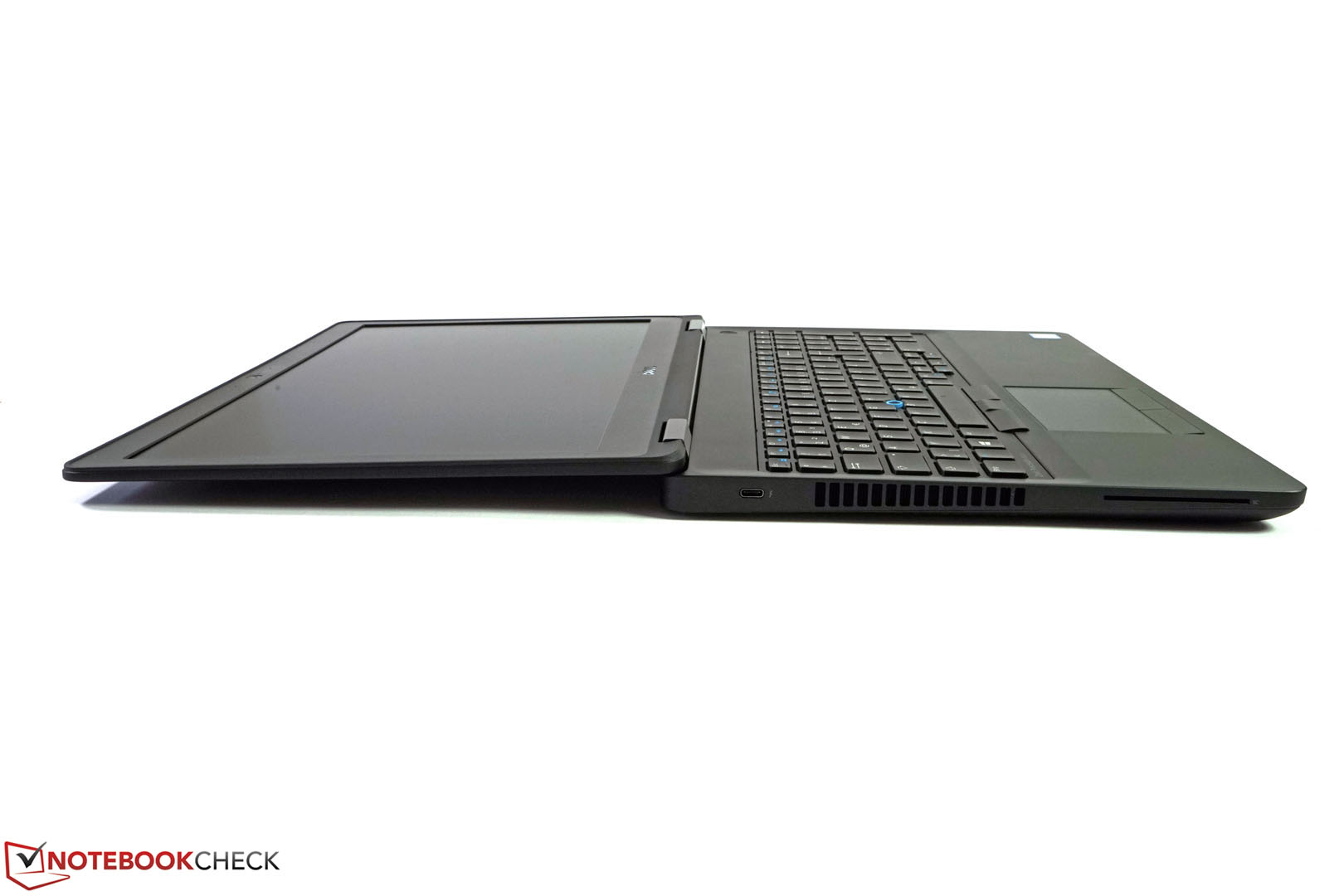

Left side: Thunderbolt 3 and SmartCard reader

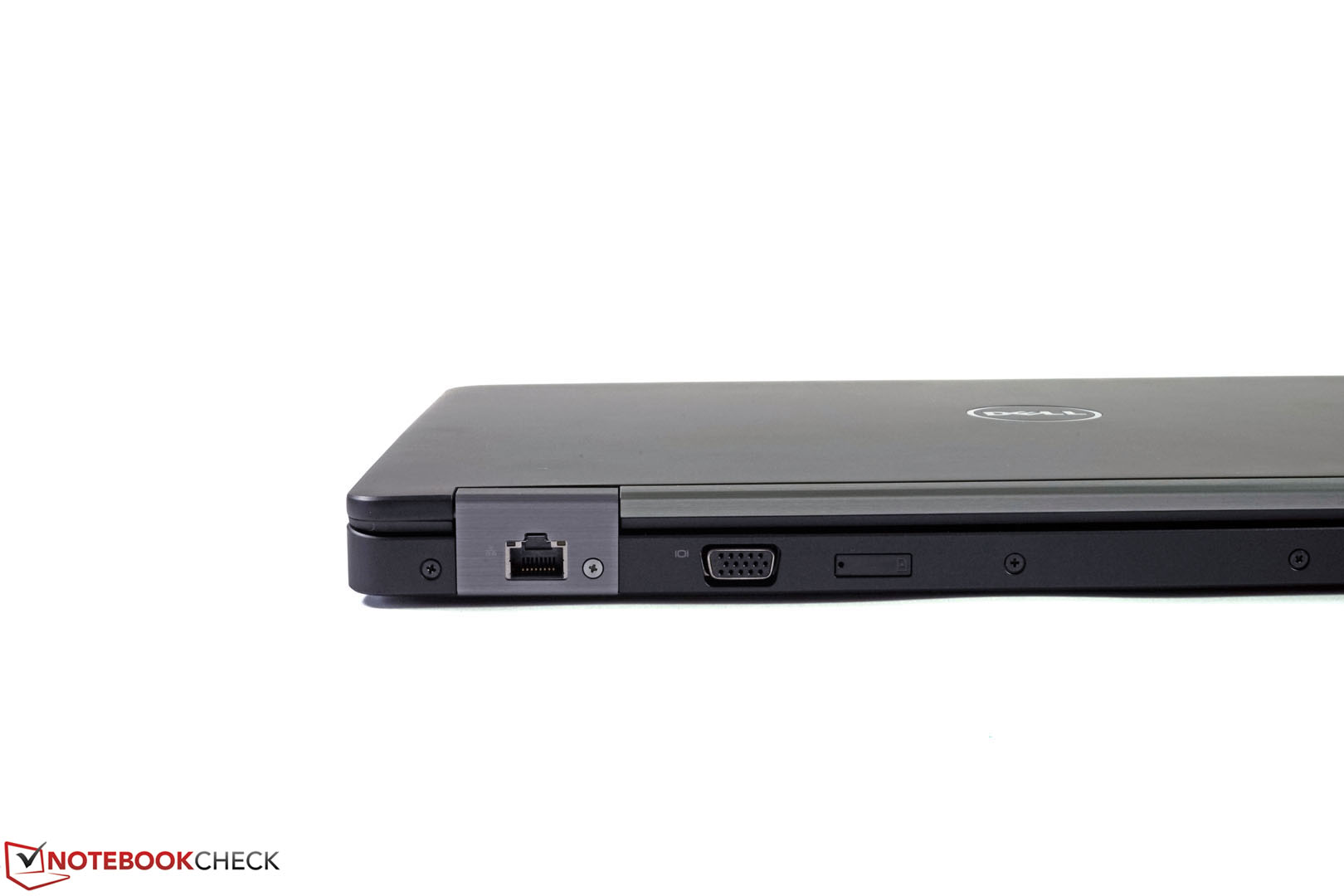

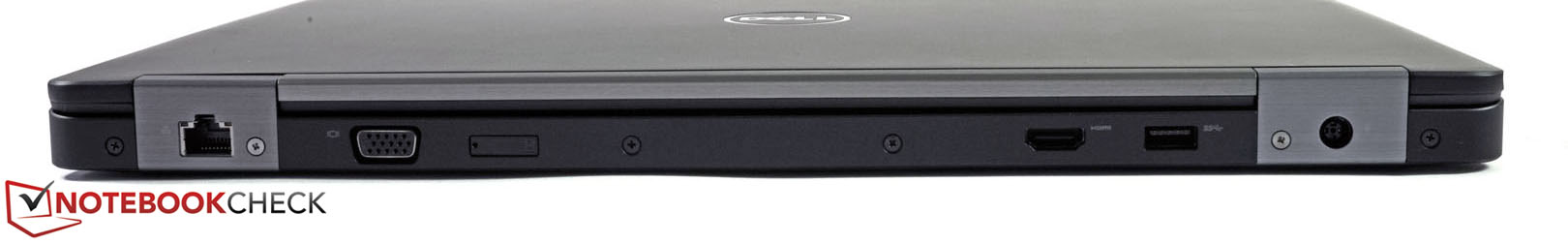

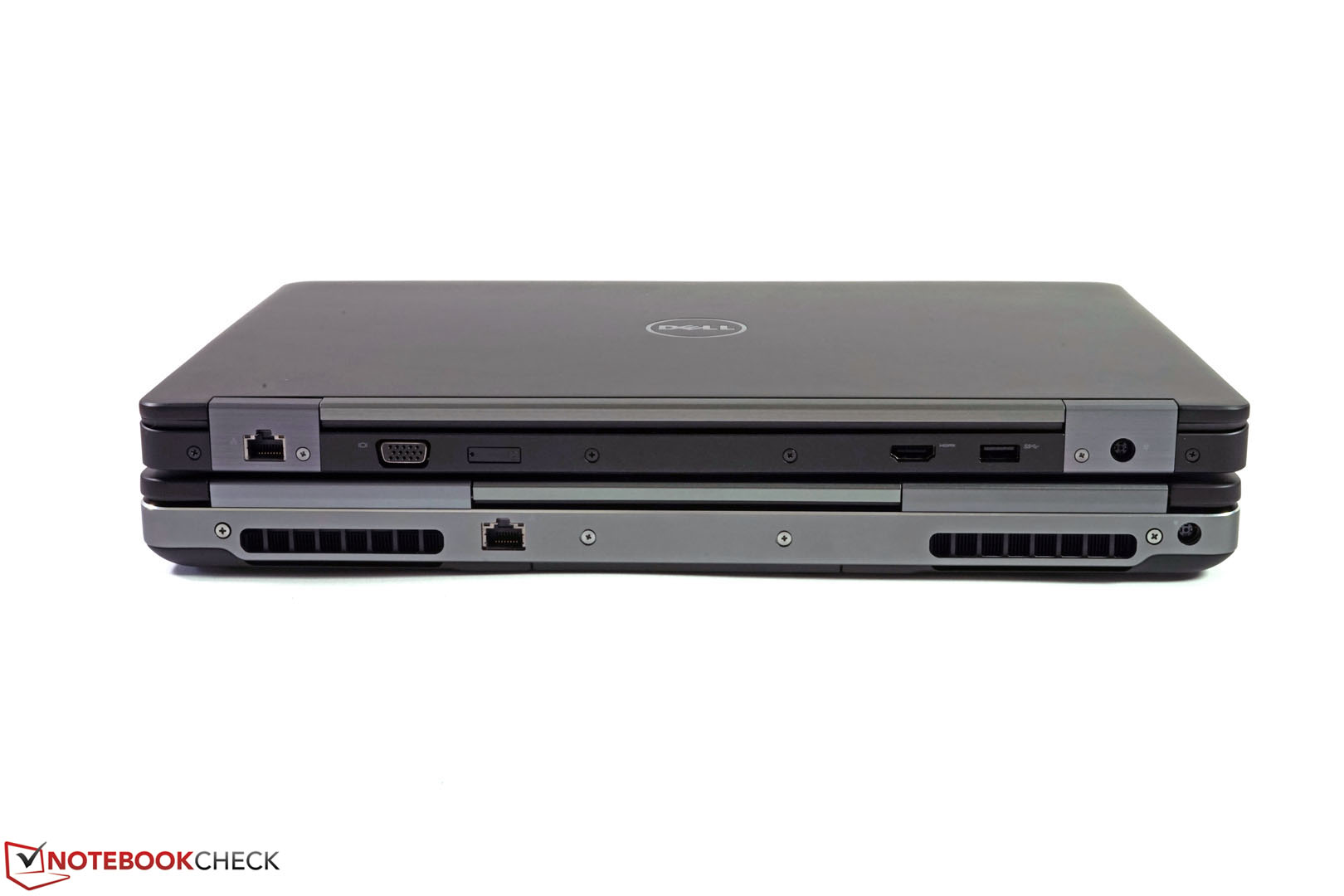

Rear: LAN, VGA, SIM slot, HDMI, USB, power

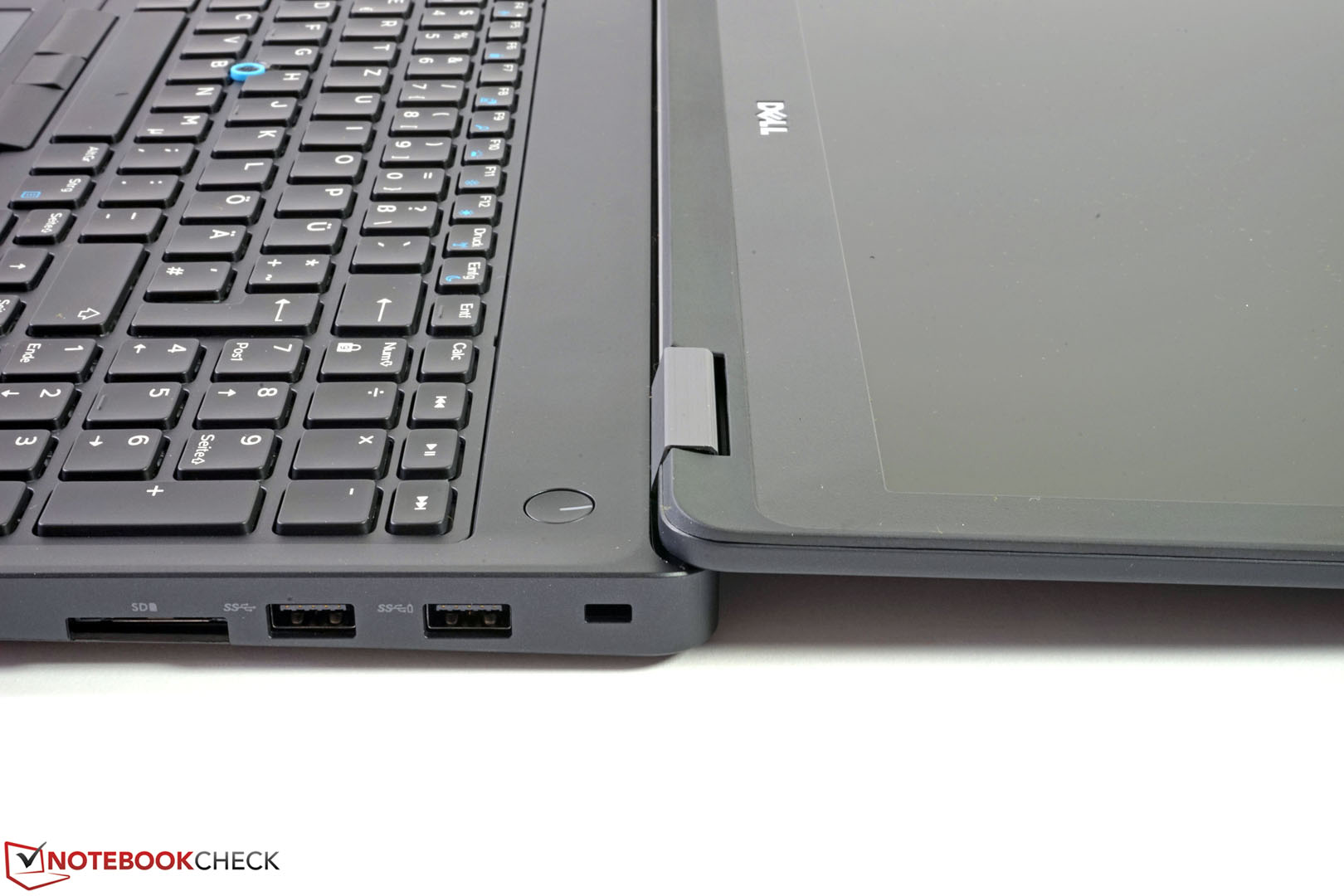

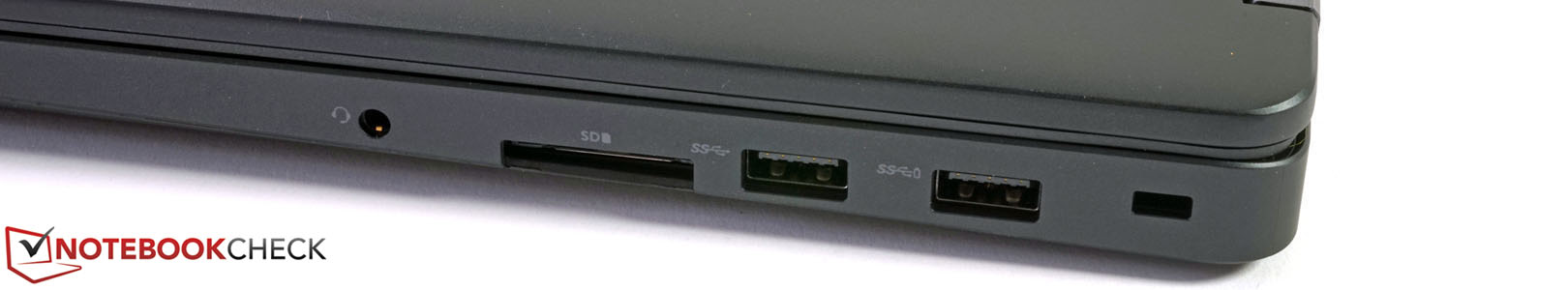

Right side: Audio, card reader, 2x USB 3.0, Kensington Lock

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Precision 3510	128 MB/s
HP ZBook 15 G3	123 MB/s -4%
Lenovo ThinkPad P50	108 MB/s -16%
maximum AS SSD Seq Read Test (1GB)
HP ZBook 15 G3	206 MB/s 0%
Dell Precision 3510	205 MB/s
Lenovo ThinkPad P50	197 MB/s -4%

Networking
WiFi Speed Client 1m
WiFi Speed Server 1m


217 cd/m²	187 cd/m²	185 cd/m²
223 cd/m²	199 cd/m²	191 cd/m²
217 cd/m²	197 cd/m²	196 cd/m²

Distribution av ljusstyrkan

LGD04AF, K96D2_156WHU tested with X-Rite i1Pro 2

Max: 223 cd/m² (Nits) Medel: 201.3 cd/m² Minimum: 9.1 cd/m²
Distribution av ljusstyrkan: 83 %
Mitt på batteriet: 199 cd/m²
Kontrast: 498:1 (Svärta: 0.4 cd/m²)
ΔE Color 9 | 0.5-29.43 Ø4.92
ΔE Greyscale 9.6 | 0.5-98 Ø5.2
73.7% sRGB (Calman 2D)
62.4% sRGB (Argyll 1.6.3 3D)
39.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
42.86% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.4% sRGB (Argyll 2.2.0 3D)
41.48% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.41

Download ICC-fil (X-Rite i1Pro 2)

	Dell Precision 3510 LGD04AF, K96D2_156WHU, , 1366x768, 15.6"	Dell Precision 3510 52452051.2 LG Display LGD049B / 156WF6, Dell P/N: F7HH2, , 1920x1080, 15.6"	Dell Precision 7510 (4K IGZO) Sharp LQ156D1, , 3840x2160, 15.6"	Dell Precision 5510 SHP143E, 7PHPT_LQ156D1, , 3840x2160, 15.6"	Lenovo ThinkPad P50 LQ156D1JW05, , 3840x2160, 15.6"	HP ZBook 15 G3 Samsung SDC5344, , 1920x1080, 15.6"
Display		54%	100%	102%	98%	58%
Display P3 Coverage	41.48	68.9 66%	86.2 108%	88.4 113%	85.8 107%	66.8 61%
sRGB Coverage	62.4	88.9 42%	99.7 60%	100 60%	98.6 58%	95.5 53%
AdobeRGB 1998 Coverage	42.86	65.4 53%	99 131%	99.5 132%	98.2 129%	69 61%
Response Times			15%	-11%	26%	-12%
Response Time Grey 50% / Grey 80% *	56 ?(27, 29)		40.4 ?(19.6, 20.8) 28%	56.4 ?(23.2, 33.2) -1%	39.2 ?(14.8, 24.4) 30%	54 ?(24.4, 29.6) 4%
Response Time Black / White *	28 ?(11, 17)		27.6 ?(6.8, 20.8) 1%	34 ?(11, 23) -21%	22 ?(7, 15) 21%	35.6 ?(11.6, 24) -27%
PWM Frequency			198.4 ?(29)		217	198 ?(95)
Screen		47%	57%	65%	42%	40%
Brightness middle	199	364.6 83%	279.2 40%	391 96%	250 26%	306 54%
Brightness	201	335 67%	271 35%	361 80%	250 24%	289 44%
Brightness Distribution	83	83 0%	83 0%	87 5%	86 4%	85 2%
Black Level *	0.4	0.4 -0%	0.266 33%	0.4 -0%	0.31 22%	0.34 15%
Contrast	498	912 83%	1050 111%	978 96%	806 62%	900 81%
Colorchecker dE 2000 *	9		4.14 54%	4.85 46%	4.5 50%	5.1 43%
Colorchecker dE 2000 max. *	13.3		6.56 51%		9.3 30%	9.9 26%
Greyscale dE 2000 *	9.6		3.26 66%	4.01 58%	7.2 25%	7.4 23%
Gamma	2.41 ^91%		2.19 ^100%	2.18 ^101%	2.31 ^95%	2.37 ^93%
CCT	10695 ^61%		6375 ^102%	7340 ^89%	6399 ^102%	7263 ^89%
Color Space (Percent of AdobeRGB 1998)	39.6		85.68 116%	96 142%	85 115%	63 59%
Color Space (Percent of sRGB)	62.4		99.72 60%	100 60%	98.6 58%	95 52%
Total Average (Program / Settings)		51% / 49%	57% / 60%	52% / 62%	55% / 51%	29% / 37%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined	↗ 11 ms rise
28 ms ... rise ↗ and fall ↘ combined	↘ 17 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 68 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).
↔ Response Time 50% Grey to 80% Grey
56 ms ... rise ↗ and fall ↘ combined	↗ 27 ms rise
56 ms ... rise ↗ and fall ↘ combined	↘ 29 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 92 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Single 64Bit
Dell Precision 7510 (4K IGZO) Intel Xeon E3-1535M v5	162 Points +13%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	158 Points +10%
Lenovo ThinkPad P50 Intel Xeon E3-1505M v5	157 Points +9%
Dell Precision 3510 Intel Core i7-6700HQ	144 Points
HP ZBook 15u G3 Intel Core i7-6600U	143 Points -1%
Dell Precision 5510 Intel Xeon E3-1505M v5	142 Points -1%
CPU Multi 64Bit
Dell Precision 7510 (4K IGZO) Intel Xeon E3-1535M v5	750 Points +25%
Dell Precision 5510 Intel Xeon E3-1505M v5	732 Points +22%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	732 Points +22%
Lenovo ThinkPad P50 Intel Xeon E3-1505M v5	729 Points +21%
Dell Precision 3510 Intel Core i7-6700HQ	601 Points
HP ZBook 15u G3 Intel Core i7-6600U	330 Points -45%

Cinebench R10 Shading 32Bit

9635

Cinebench R10 Rendering Multiple CPUs 32Bit

20496

Cinebench R10 Rendering Single 32Bit

5493

Cinebench R10 Shading 64Bit

9885 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

26547 Points

Cinebench R10 Rendering Single CPUs 64Bit

7053 Points

Cinebench R11.5 CPU Multi 64Bit

6.79 Points

Cinebench R11.5 OpenGL 64Bit

62.3 fps

Cinebench R11.5 CPU Single 64Bit

1.69 Points

Cinebench R15 CPU Single 64Bit

144 Points

Cinebench R15 CPU Multi 64Bit

601 Points

Cinebench R15 OpenGL 64Bit

61.8 fps

Hjälp

... jämför

PCMark 8
Home Score Accelerated v2
Dell Precision 3510 FirePro W5130M, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4405 Points
Lenovo ThinkPad P50 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4023 Points -9%
Dell Precision 7510 (4K IGZO) Quadro M2000M, E3-1535M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4020 Points -9%
HP ZBook 15u G3 FirePro W4190M, 6600U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	3974 Points -10%
HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	3959 Points -10%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	3941 Points -11%
Work Score Accelerated v2
Dell Precision 3510 FirePro W5130M, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5258 Points
HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	5221 Points -1%
Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	5100 Points -3%
HP ZBook 15u G3 FirePro W4190M, 6600U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4900 Points -7%
Lenovo ThinkPad P50 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4372 Points -17%
Dell Precision 7510 (4K IGZO) Quadro M2000M, E3-1535M v5, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4246 Points -19%

PCMark 8 Home Score Accelerated v2		4405 poäng
PCMark 8 Creative Score Accelerated v2		5244 poäng
PCMark 8 Work Score Accelerated v2		5258 poäng
Hjälp

	Dell Precision 3510 Samsung SM951 MZVPV256HDGL m.2 PCI-e	Dell Precision 5510 SK hynix SC920 512 GB	Dell Precision 7510 (4K IGZO) Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	Lenovo ThinkPad P50 Samsung SM951 MZVPV256HDGL m.2 PCI-e	HP ZBook 15u G3 Samsung SM951 MZVPV256HDGL m.2 PCI-e	HP ZBook 15 G3 Samsung SM951 MZVPV512HDGL m.2 PCI-e
AS SSD		-58%	18%	16%	13%	13%
Seq Write	1093	389 -64%	1484 36%	1252 15%	1106 1%	1181 8%
Seq Read	1897	474 -75%	1953 3%	1930 2%	1859 -2%	1841 -3%
4K-64 Write	294.1	257 -13%	375.7 28%	340.7 16%	335.6 14%	257 -13%
4K-64 Read	1114	327 -71%	1067 -4%	1077 -3%	1781 60%	1066 -4%
4K Write	121.7	82.2 -32%	145.1 19%	212.2 74%	126.2 4%	173.1 42%
4K Read	46.76	17.95 -62%	49.22 5%	54.2 16%	48.7 4%	52.5 12%
Access Time Read *	0.059	0.111 -88%	0.036 39%	0.062 -5%	0.053 10%	0.031 47%

* ... smaller is better

AS SSD

Samsung SM951 MZVPV256HDGL m.2 PCI-e

Sequential Read: 1897MB/s

Sequential Write: 1093MB/s

4K Read: 46.76MB/s

4K Write: 121.7MB/s

4K-64 Read: 1114MB/s

4K-64 Write: 294.1MB/s

Access Time Read: 0.059ms

Access Time Write: 0.03ms

Copy ISO: 1351MB/s

Copy Program: 454MB/s

Copy Game: 712MB/s

Score Read: 1351Points

Score Write: 525Points

Score Total: 2534Points

SPECviewperf 11 | SPECviewperf 12

SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P50	43.29 fps +44%
HP ZBook 15 G3	43.17 fps +44%
Dell Precision 5510	41 fps +37%
Dell Precision 3510	30 fps
Asus GL552VW-DK725T	5.94 fps -80%
1920x1080 Tcvis
HP ZBook 15 G3	44.89 fps +461%
Lenovo ThinkPad P50	43.79 fps +447%
Dell Precision 5510	40 fps +400%
Dell Precision 3510	8 fps
Asus GL552VW-DK725T	1.61 fps -80%
1920x1080 SolidWorks
Lenovo ThinkPad P50	53 fps +77%
Dell Precision 5510	51 fps +70%
HP ZBook 15 G3	48.13 fps +60%
Dell Precision 3510	30 fps
Asus GL552VW-DK725T	14.57 fps -51%
1920x1080 Pro/ENGINEER
HP ZBook 15 G3	21.57 fps +402%
Lenovo ThinkPad P50	21.27 fps +395%
Dell Precision 5510	21 fps +388%
Dell Precision 3510	4.3 fps
Asus GL552VW-DK725T	2.21 fps -49%
1920x1080 Maya
HP ZBook 15 G3	57.7 fps +175%
Lenovo ThinkPad P50	57.3 fps +173%
Dell Precision 5510	56 fps +167%
Dell Precision 3510	21 fps
Asus GL552VW-DK725T	19.48 fps -7%
1920x1080 Lightwave
Lenovo ThinkPad P50	56.4 fps +57%
Dell Precision 5510	54 fps +50%
HP ZBook 15 G3	52 fps +44%
Dell Precision 3510	36 fps
Asus GL552VW-DK725T	20.89 fps -42%
1920x1080 Ensight
HP ZBook 15 G3	46.68 fps +95%
Lenovo ThinkPad P50	45.8 fps +91%
Dell Precision 5510	39 fps +63%
Asus GL552VW-DK725T	34.18 fps +42%
Dell Precision 3510	24 fps
1920x1080 Catia
Lenovo ThinkPad P50	54.1 fps +316%
Dell Precision 5510	54 fps +315%
HP ZBook 15 G3	53.5 fps +312%
Asus GL552VW-DK725T	16.28 fps +25%
Dell Precision 3510	13 fps

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P50	74.7 fps +133%
Dell Precision 7510 (4K IGZO)	68.7 fps +115%
HP ZBook 15 G3	66 fps +106%
Dell Precision 5510	62 fps +94%
Dell Precision 3510	32 fps
HP ZBook 15u G3	31.41 fps -2%
Dell XPS 15 2016 9550	22.03 fps -31%
1900x1060 Siemens NX (snx-02)
HP ZBook 15 G3	35.87 fps +38%
Lenovo ThinkPad P50	32.86 fps +26%
Dell Precision 7510 (4K IGZO)	32.41 fps +25%
Dell Precision 5510	31 fps +19%
Dell Precision 3510	26 fps
HP ZBook 15u G3	19.89 fps -23%
Dell XPS 15 2016 9550	2.39 fps -91%
1900x1060 Showcase (showcase-01)
HP ZBook 15 G3	23.86 fps +70%
Dell XPS 15 2016 9550	21.73 fps +55%
Dell Precision 7510 (4K IGZO)	21.15 fps +51%
Lenovo ThinkPad P50	20.58 fps +47%
Dell Precision 5510	20 fps +43%
Dell Precision 3510	14 fps
HP ZBook 15u G3	4.98 fps -64%
1900x1060 Medical (medical-01)
Dell Precision 7510 (4K IGZO)	18.19 fps +208%
HP ZBook 15 G3	15.03 fps +155%
Lenovo ThinkPad P50	14.43 fps +145%
Dell XPS 15 2016 9550	12.3 fps +108%
Dell Precision 5510	12 fps +103%
HP ZBook 15u G3	6.09 fps +3%
Dell Precision 3510	5.9 fps
1900x1060 Maya (maya-04)
Lenovo ThinkPad P50	37.15 fps +69%
HP ZBook 15 G3	35.94 fps +63%
Dell Precision 7510 (4K IGZO)	35.55 fps +62%
Dell Precision 5510	30 fps +36%
Dell Precision 3510	22 fps
HP ZBook 15u G3	16.38 fps -26%
Dell XPS 15 2016 9550	15.37 fps -30%
1900x1060 Energy (energy-01)
Dell Precision 7510 (4K IGZO)	3.98 fps +947%
HP ZBook 15 G3	3.29 fps +766%
Lenovo ThinkPad P50	3.13 fps +724%
Dell XPS 15 2016 9550	0.74 fps +95%
Dell Precision 5510	0.69 fps +82%
HP ZBook 15u G3	0.41 fps +8%
Dell Precision 3510	0.38 fps
1900x1060 Creo (creo-01)
Dell Precision 7510 (4K IGZO)	45 fps +125%
HP ZBook 15 G3	40.61 fps +103%
Lenovo ThinkPad P50	39.39 fps +97%
Dell Precision 5510	34 fps +70%
Dell Precision 3510	20 fps
HP ZBook 15u G3	16.87 fps -16%
Dell XPS 15 2016 9550	10.72 fps -46%
1900x1060 Catia (catia-04)
HP ZBook 15 G3	47.08 fps +105%
Dell Precision 7510 (4K IGZO)	45.28 fps +97%
Lenovo ThinkPad P50	44.98 fps +96%
Dell Precision 5510	37 fps +61%
Dell Precision 3510	23 fps
HP ZBook 15u G3	18.62 fps -19%
Dell XPS 15 2016 9550	15.76 fps -31%

Legend

Dell Precision 3510 Intel Core i7-6700HQ, AMD FirePro W5130M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Dell Precision 7510 (4K IGZO) Intel Xeon E3-1535M v5, NVIDIA Quadro M2000M, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

Lenovo ThinkPad P50 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 15 G3 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

HP ZBook 15u G3 Intel Core i7-6600U, AMD FirePro W4190M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Dell XPS 15 2016 9550 Intel Core i5-6300HQ, NVIDIA GeForce GTX 960M, WDC WD10SPCX-75KHST0 + LiteON CS1-SP32-11 M.2 2242 32GB

Asus GL552VW-DK725T Intel Core i7-6700HQ, NVIDIA GeForce GTX 960M, Crucial MX200 M.2 CT250MX200SSD4

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	5203 Points
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	5023 Points
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	4997 Points
Dell Precision 5510 NVIDIA Quadro M1000M, Intel Xeon E3-1505M v5	4234 Points
HP ZBook 15u G3 AMD FirePro W4190M, Intel Core i7-6600U	1932 Points

3DMark
1280x720 Cloud Gate Standard Graphics
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	30236 Points +109%
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	26869 Points +85%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	26669 Points +84%
Dell Precision 5510 NVIDIA Quadro M1000M, Intel Xeon E3-1505M v5	23777 Points +64%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	14501 Points
HP ZBook 15u G3 AMD FirePro W4190M, Intel Core i7-6600U	8513 Points -41%
1920x1080 Fire Strike Graphics
Dell Precision 7510 (4K IGZO) NVIDIA Quadro M2000M, Intel Xeon E3-1535M v5	4193 Points +100%
HP ZBook 15 G3 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	4091 Points +95%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5	4071 Points +94%
Dell Precision 5510 NVIDIA Quadro M1000M, Intel Xeon E3-1505M v5	3517 Points +68%
Dell Precision 3510 AMD FirePro W5130M, Intel Core i7-6700HQ	2099 Points
HP ZBook 15u G3 AMD FirePro W4190M, Intel Core i7-6600U	1588 Points -24%

3DMark 06 Standard Score		15680 poäng
3DMark Cloud Gate Standard Score		11740 poäng
3DMark Fire Strike Score		2001 poäng
Hjälp

... jämför

	låg	med.	hög	ultra
Tomb Raider (2013)	158	75	58	25
BioShock Infinite (2013)	137	66	57	22
Total War: Rome II (2013)	106	80	66	23
Middle-earth: Shadow of Mordor (2014)	66	41	23	21
Dirt Rally (2015)	216	71	47	19
The Witcher 3 (2015)	31	21	10

Ljudnivå

Låg belastning		30 / 30 / 30 dB(A)
Hög belastning		38.1 / 44.4 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM1, Arta (15 cm avstånd) environment noise: 30 dB(A)

Hög belastning

Låg belastning


44.9 °C	54.6 °C	49.4 °C
48.3 °C	49.7 °C	46.6 °C
28.5 °C	29.8 °C	31.5 °C

Max: 54.6 °C
Medel: 42.6 °C


44.1 °C	46.1 °C	50.3 °C
45.4 °C	55.2 °C	59.4 °C
33.2 °C	39.8 °C	31.2 °C

Max: 59.4 °C
Medel: 45 °C

Strömförsörjning (max.) 53 °C | Rumstemperatur 20 °C | Fennel FIRT 550-Pocket

(-) The average temperature for the upper side under maximal load is 42.6 °C / 109 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 54.6 °C / 130 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 59.4 °C / 139 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 28 °C / 82 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.5 °C / 88.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-3.6 °C / -6.5 F).

Strömförbrukning

Av/Standby	0.35 / 1.1 Watt
Låg belastning	4.2 / 6.5 / 7.1 Watt
Hög belastning	74.6 / 92.2 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Dell Precision 3510 6700HQ, FirePro W5130M, Samsung SM951 MZVPV256HDGL m.2 PCI-e, TN LED, 1366x768, 15.6"	Dell Precision 5510 E3-1505M v5, Quadro M1000M, SK hynix SC920 512 GB, IGZO LED, 3840x2160, 15.6"	Dell Precision 7510 (4K IGZO) E3-1535M v5, Quadro M2000M, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), IGZO IPS, 3840x2160, 15.6"	Lenovo ThinkPad P50 E3-1505M v5, Quadro M2000M, Samsung SM951 MZVPV256HDGL m.2 PCI-e, IPS, 3840x2160, 15.6"	HP ZBook 15 G3 E3-1505M v5, Quadro M2000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e, UWVA-IPS, 1920x1080, 15.6"
Power Consumption		-89%	-247%	-102%	-52%
Idle Minimum *	4.2	8.6 -105%	23.9 -469%	10.2 -143%	5.7 -36%
Idle Average *	6.5	16.2 -149%	28.9 -345%	17.8 -174%	12.2 -88%
Idle Maximum *	7.1	16.7 -135%	30 -323%	18.3 -158%	12.6 -77%
Load Average *	74.6	82.6 -11%	95.2 -28%	76.9 -3%	83.1 -11%
Load Maximum *	92.2	131.8 -43%	157.1 -70%	123.5 -34%	138.2 -50%

* ... smaller is better

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		19tim 28min
WiFi Websurfing		9tim 51min
Big Buck Bunny H.264 1080p		10tim 05min
Hög belastning (maximal ljusstyrka)		1tim 51min

	Dell Precision 3510 6700HQ, FirePro W5130M, 84 Wh	Dell Precision 5510 E3-1505M v5, Quadro M1000M, 56 Wh	Dell Precision 7510 (4K IGZO) E3-1535M v5, Quadro M2000M, 91 Wh	Lenovo ThinkPad P50 E3-1505M v5, Quadro M2000M, 90 Wh	HP ZBook 15 G3 E3-1505M v5, Quadro M2000M, 90 Wh	HP ZBook 15u G3 6600U, FirePro W4190M, 90 Wh
Battery Runtime		-46%	-58%	-41%	-23%	-18%
Reader / Idle	1168	428 -63%	268 -77%	539 -54%	822 -30%	756 -35%
H.264	605	197 -67%		331 -45%	449 -26%
WiFi v1.3	591	286 -52%	239 -60%	288 -51%	386 -35%	312 -47%
Load	111	109 -2%	70 -37%	98 -12%	110 -1%	141 27%
WiFi		298

För

+ chassit

+ batteritiden

+ fläktljud vid låg belastning

+ portutbud

+ garanti och support

+ systemprestanda

Emot

- skärmen

- uppgraderingsmöjligheterna

- fläktljud under hög belastning

- prestandastabilitet under kontinuerlig belastning

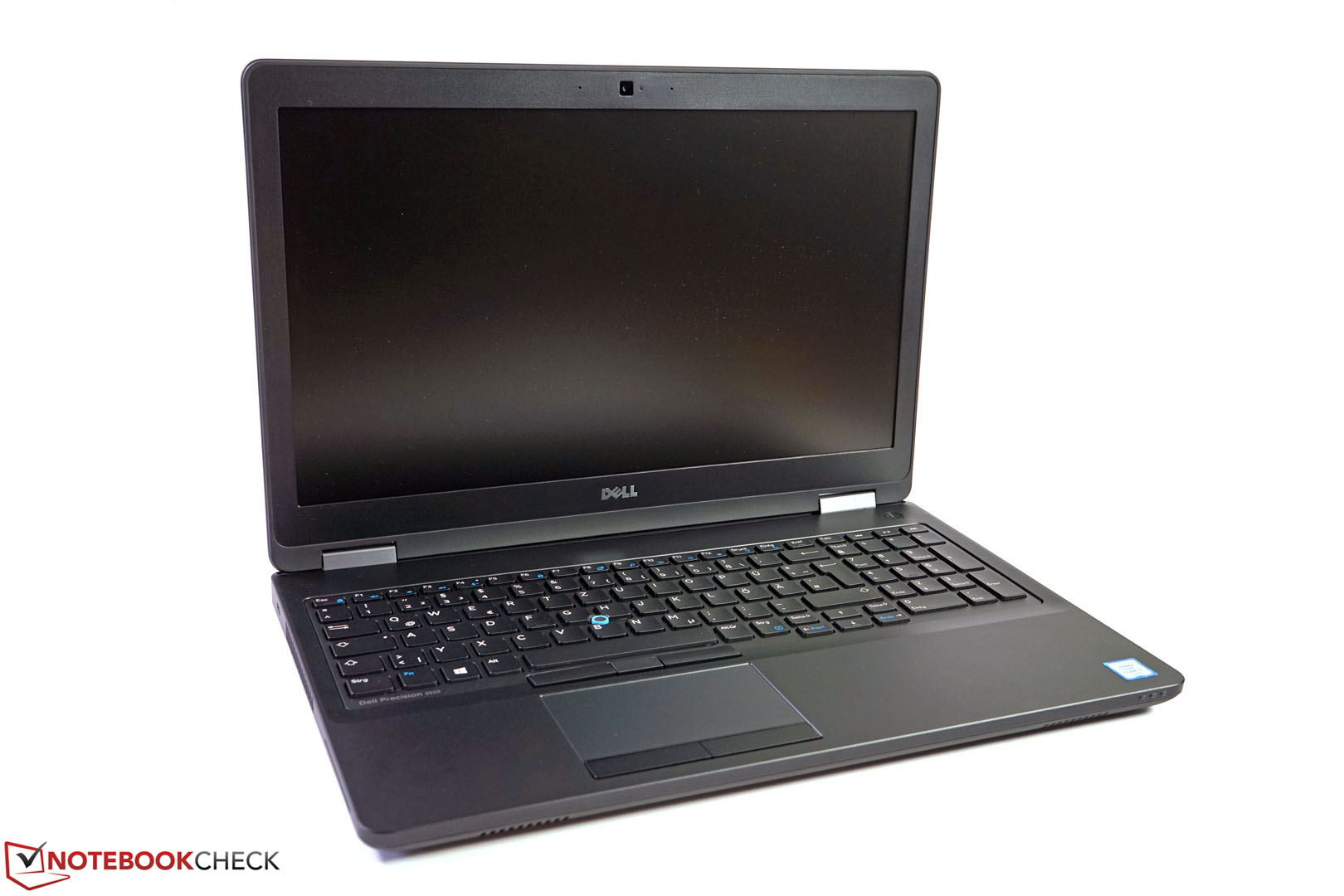

In review: Dell Precision 3510. Test device courtesy of Dell Deutschland

Läs en längre version av testet på engelska här.

Dell Precision 3510 är en professionell enhet i workstation-segmentet med ett tydligt fokus på mobilitet. Tack vare sin tunna profil, långa batteritid och robusta chassi är den en riktigt intressant alternativ för mobila användare. Andra fördelar är det bekväma urvalet portar och garanti/supportalternativen, liksom seriens prislappar.

Man får dock leva med kompromisser i några viktiga avseenden, som att prestandan sjunker märkbart under ihållande arbetsbelastning, och fläktljudet når obekväma nivåer i samma scenarier. En annan, mindre idealisk egenskap, är de begränsade uppgraderingsmöjligheterna och CAD-prestandan generellt. Vissa konkurrenter erbjuder helt enkelt mer.

Även om du kanske kan leva med nackdelarna beroende användningsområdet, kommer ingen att uppskatta vår testkonfigurations skärm. Med tanke på målgruppen är uppfyller den inga rimliga krav på upplösning, ljusstyrka, kontrast, färgskala, ljusfördelning eller betraktningsvinklar.

Lyckligtvis erbjuder Dell andra skärmar i sin onlinebutik, så det här problemet kan undvikas helt mot en merkostnad. Då kommer den också att göra ett betydligt bättre helhetsintryck.

Dell Precision 3510 - 07/17/2016 v5.1 ^(old)
Tobias Winkler

Design

88 / 98 → 89%

Tangentbord

90%

Mus

81%

Anslutningar

68 / 81 → 84%

Vikt

60 / 10-66 → 89%

Batteri

92%

Skärm

73%

Spelprestanda

67%

Programprestanda

93%

Workstation

57%

Temperatur

81 / 95 → 85%

Ljudnivå

88 / 90 → 98%

Camera

58 / 85 → 68%

Medel

77%

80%

Workstation - Vägt medel

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1698 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Dell Precision 3510 Workstation (sammanfattning)

Tobias Winkler, 2016-08-21 (Update: 2016-08-21)
