Test: Dell Precision 7710 (sammanfattning)

Name: Dell Precision 7710
Brand: Dell

Högpresterande. Dell lanserade nyligen en helt uppdaterad serie mobila 17-tumsmaskiner för proffsbruk, som innefattar många nyheter. Utöver det nya chassit har datorn nya processorer, grafikkort och skärmar som tillför mervärde.

Tobias Winkler, ✓ Stefanie Voigt, Published 02/18/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Windows Workstation

Test device courtesy of Dell Deutschland

Download your licensed rating image as PNG / SVG

Dell Precision 7710 (Precision 7000 Serie)

Processor

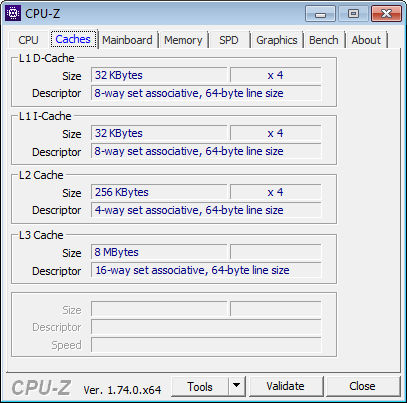

Intel Xeon E3-1535M v5 4 x 2.9 - 3.8 GHz, Skylake

Grafikkort

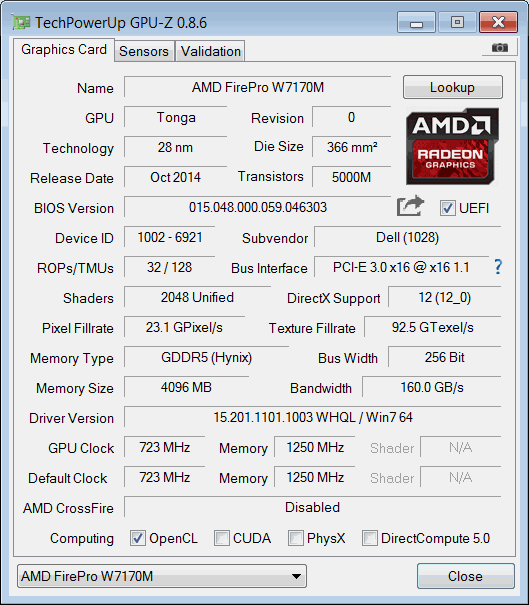

AMD FirePro W7170M - 4 GB VRAM, Kärna: 720 MHz, Minne: 1250 MHz, 15.201.1101.1003 WHQL Win7/ 64, AMD Switchable Graphics mit Intel P530

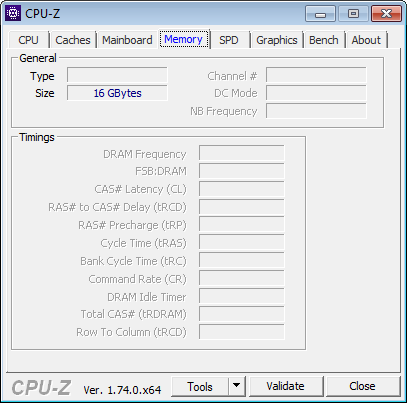

Minne

16 GB

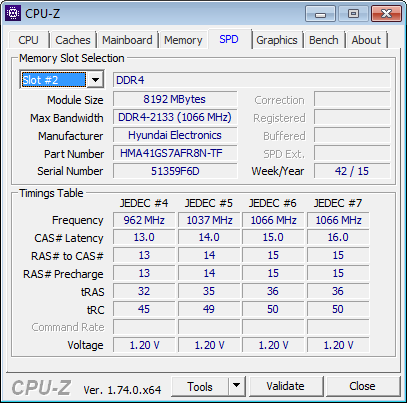

, 2x 8192 MB DDR4-2133 Hynix, 2 lediga platser, ej ECC

Skärm

17.30 tum 16:9, 1920 x 1080 pixlar, SDC8151, VHN17_173HL, IPS LED, 97 % sRGB, glansig: nej

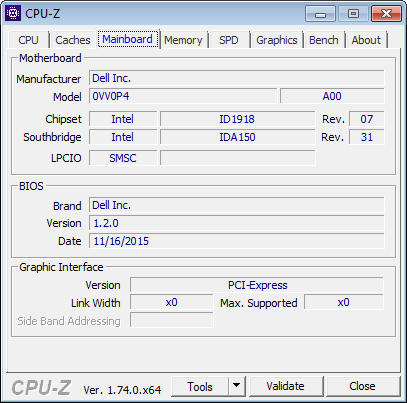

Moderkort

Intel Skylake-H

Hårddisk

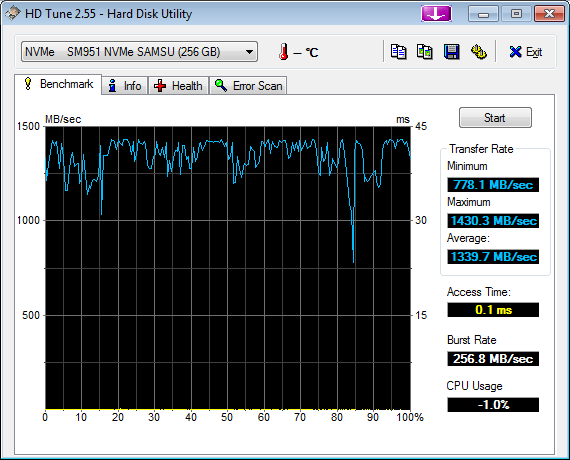

Samsung SM951 MZVPV256HDGL m.2 PCI-e, 256 GB

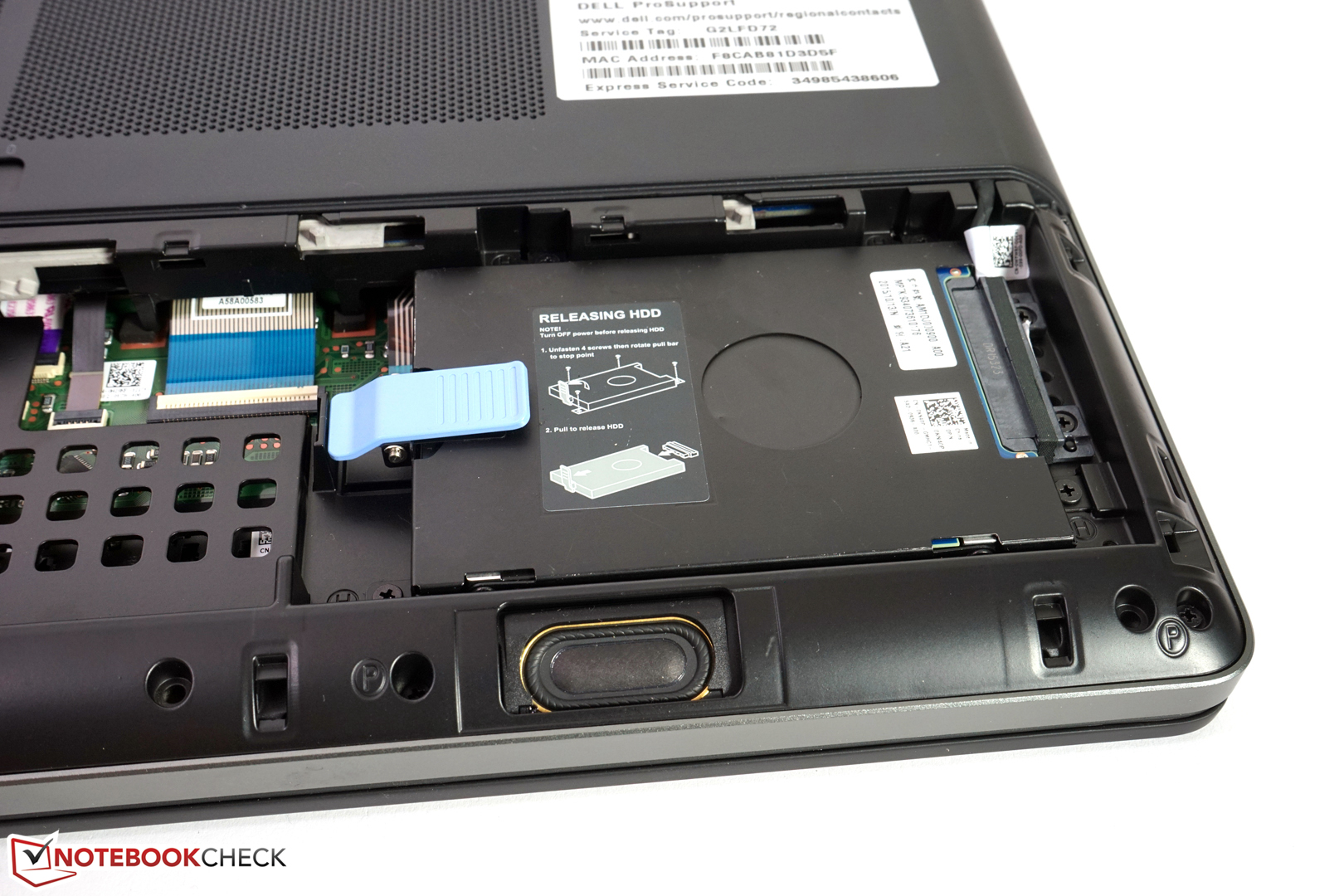

, även en HGST Travelstar 7K1000 HTS721010A9E630, 1 TB, 7200 RPM

Ljudkort

HD Audio

Anslutningar

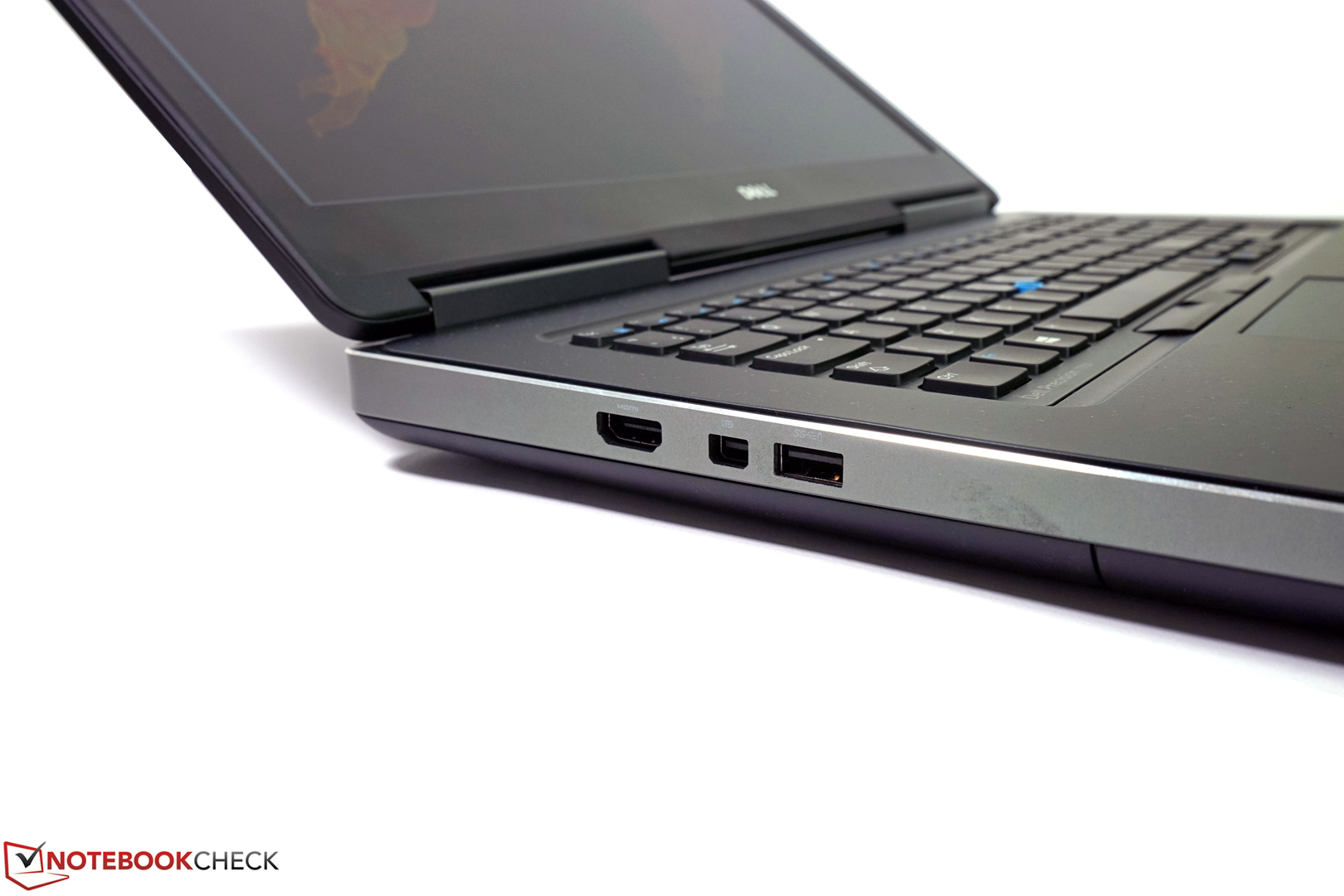

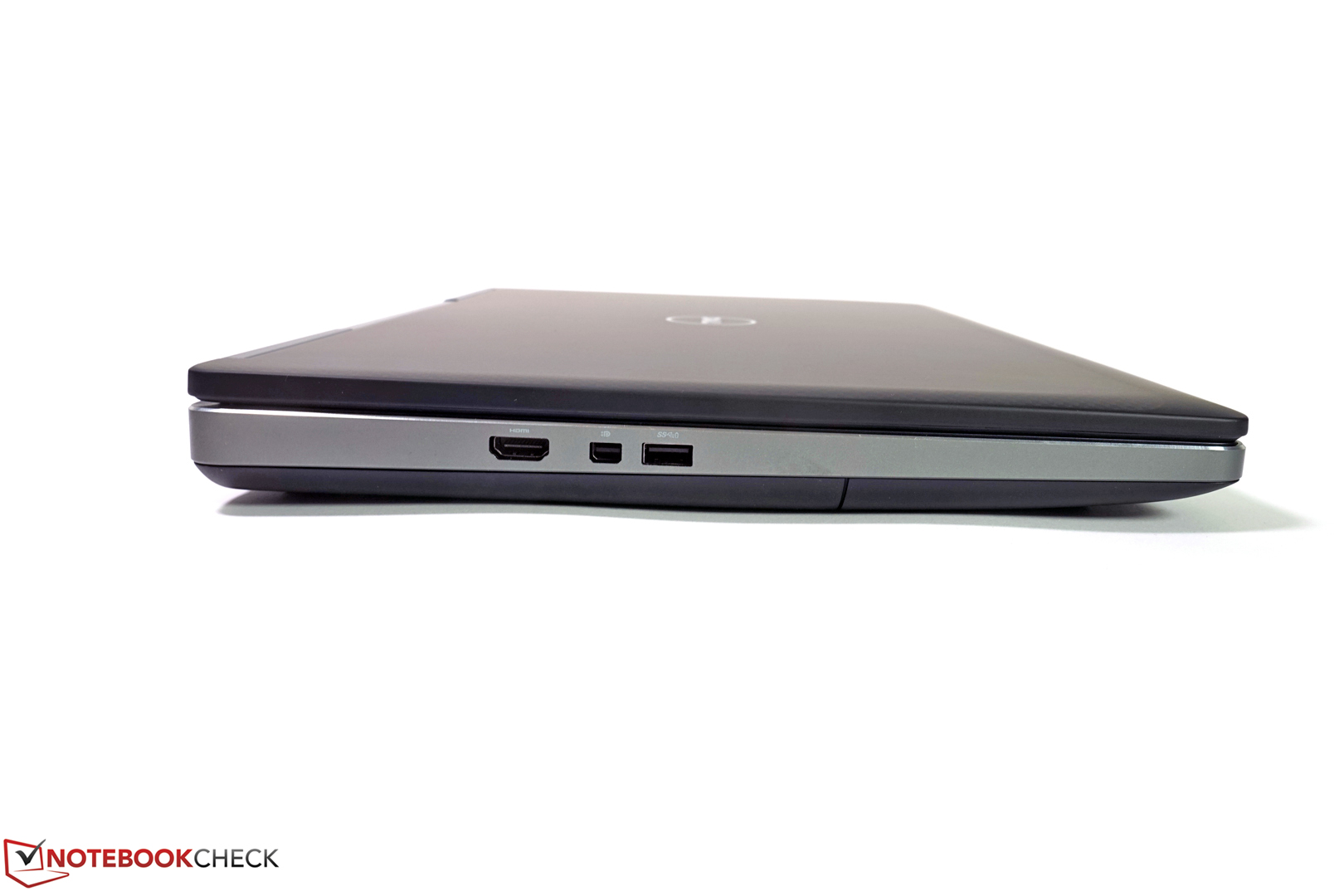

4 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: headset, Kortläsare: Realtek PCIe Cardreader UHS-II, SD, SDHC, SDXC

Nätverk

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Storlek

höjd x bredd x djup (i mm) 35 x 417 x 281

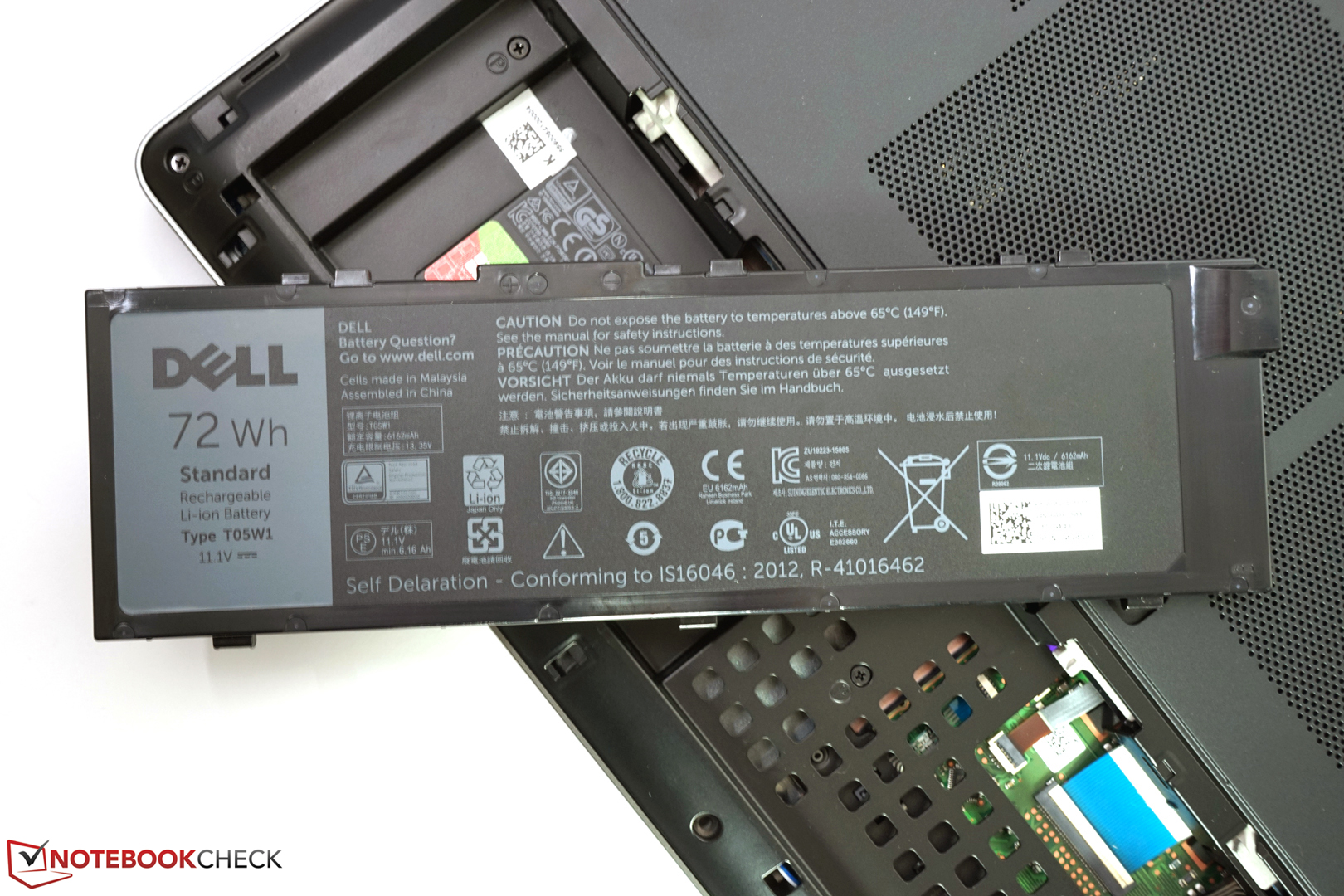

Batteri

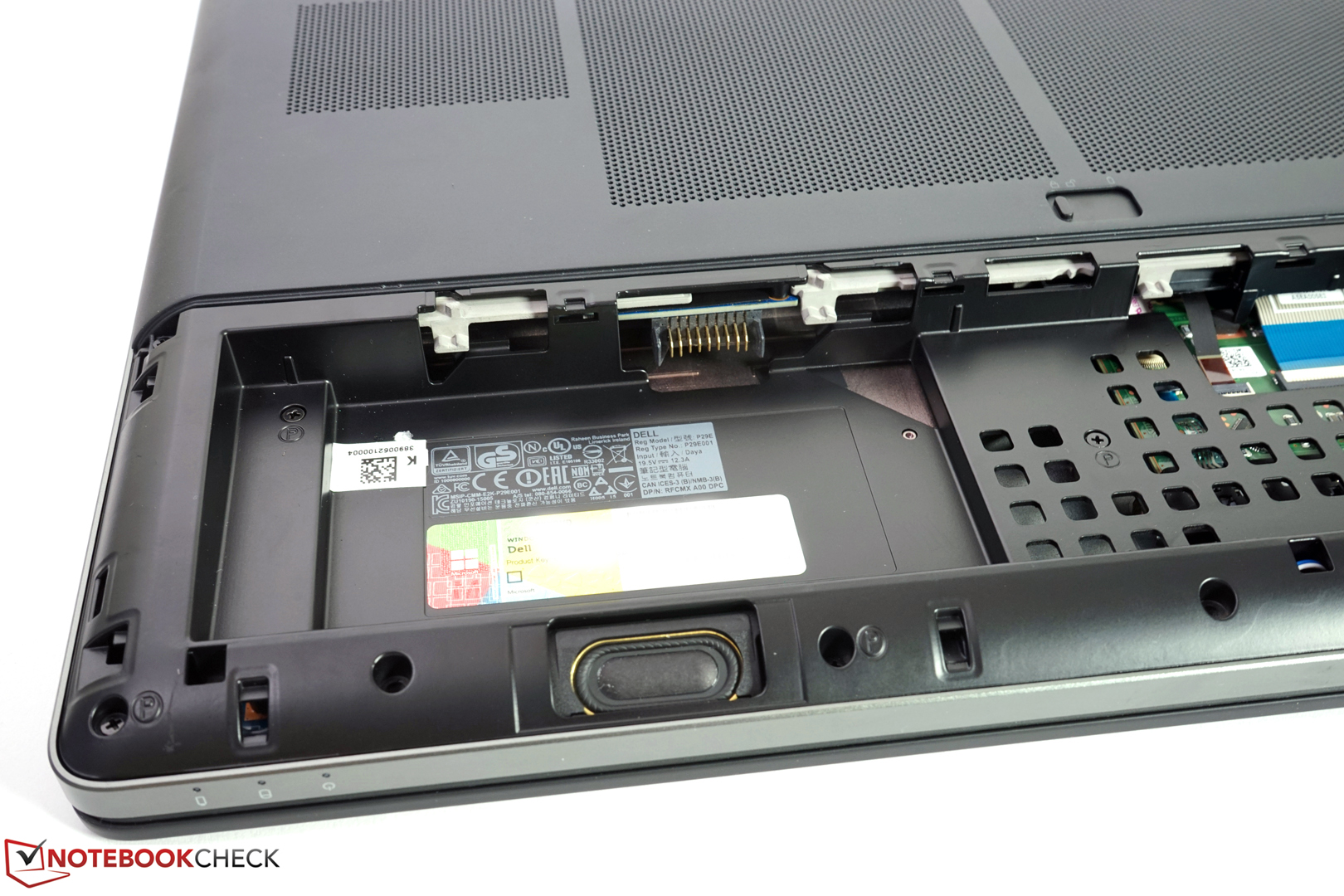

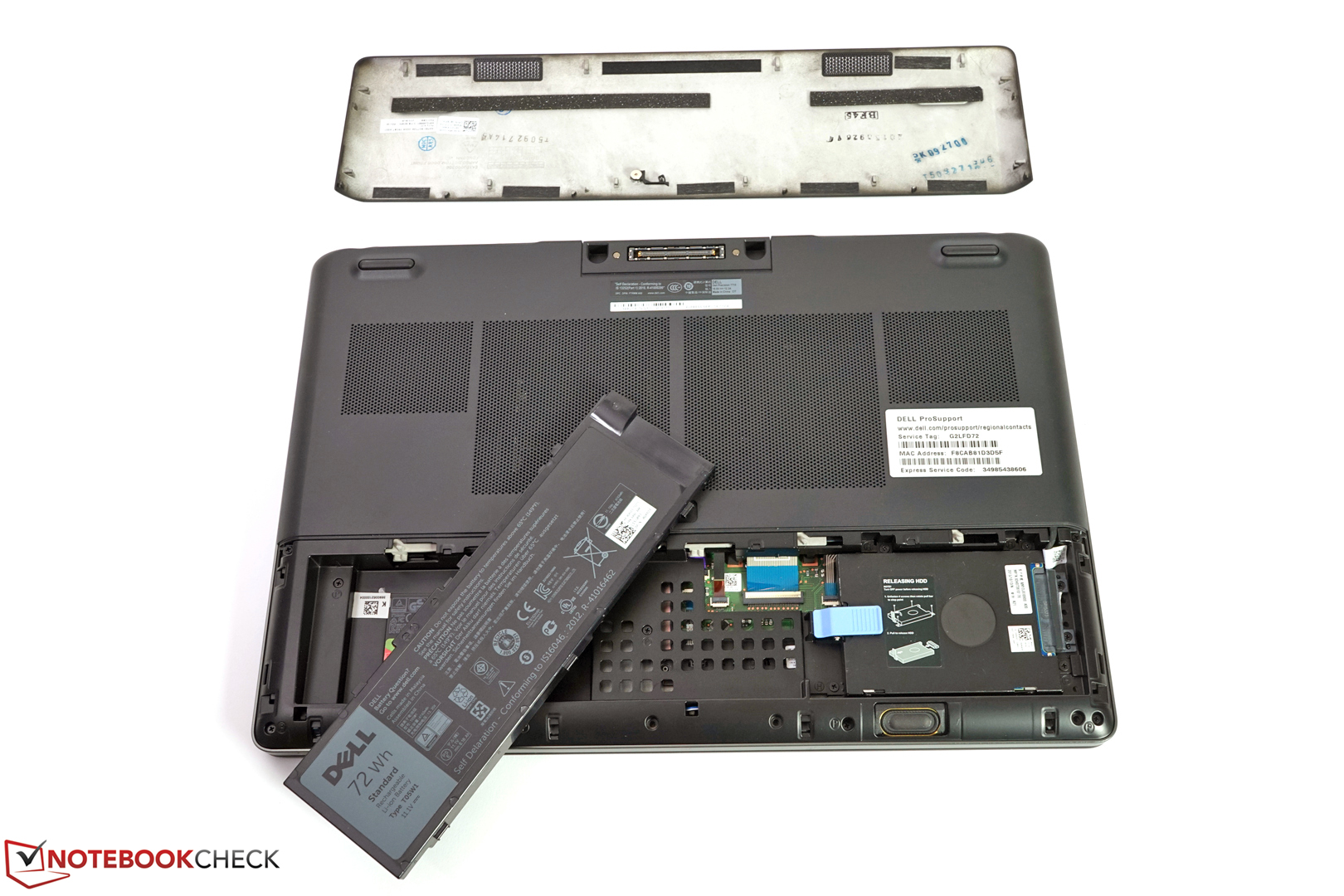

72 Wh Litiumjon, removeable

Operativsystem

Microsoft Windows 7 Professional 64 Bit

Camera

Webbkamera: HD, 1280 x 720 px

Övrigt

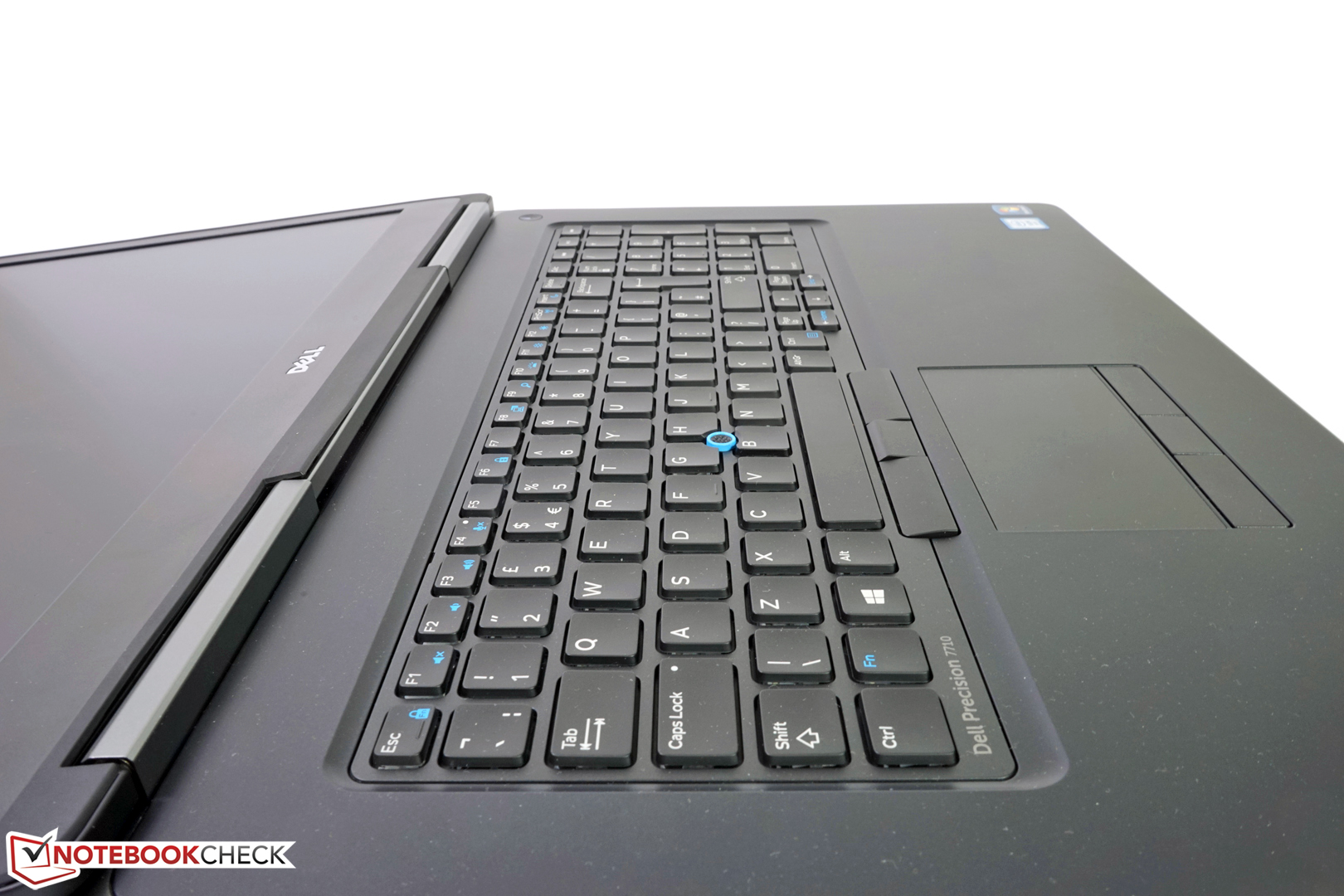

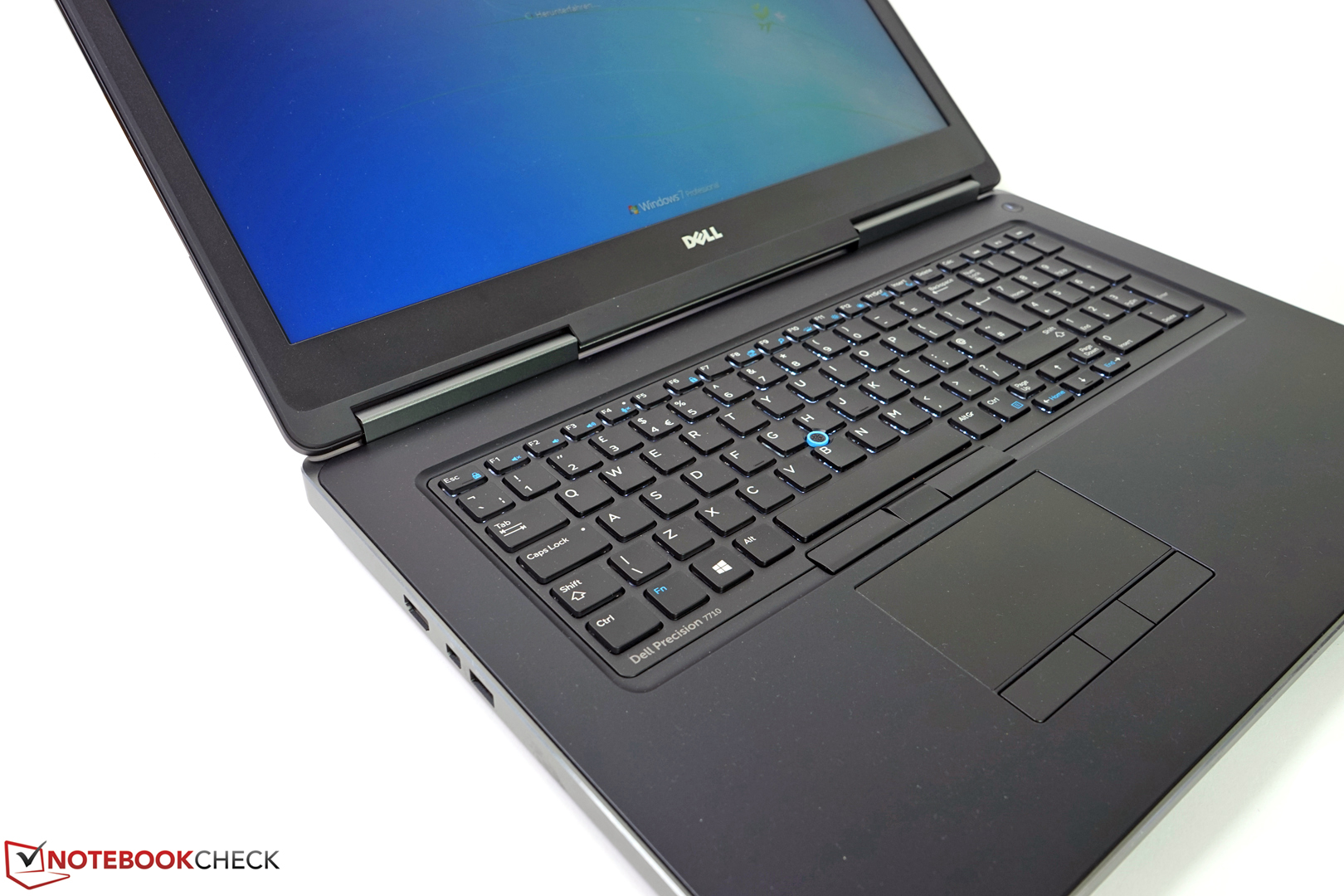

Högtalare: 2 stereohögtalare på botten fram, Tangentbord: Chiclet, Tangentbordsbelysning: ja, 36 Månader Garanti

Vikt

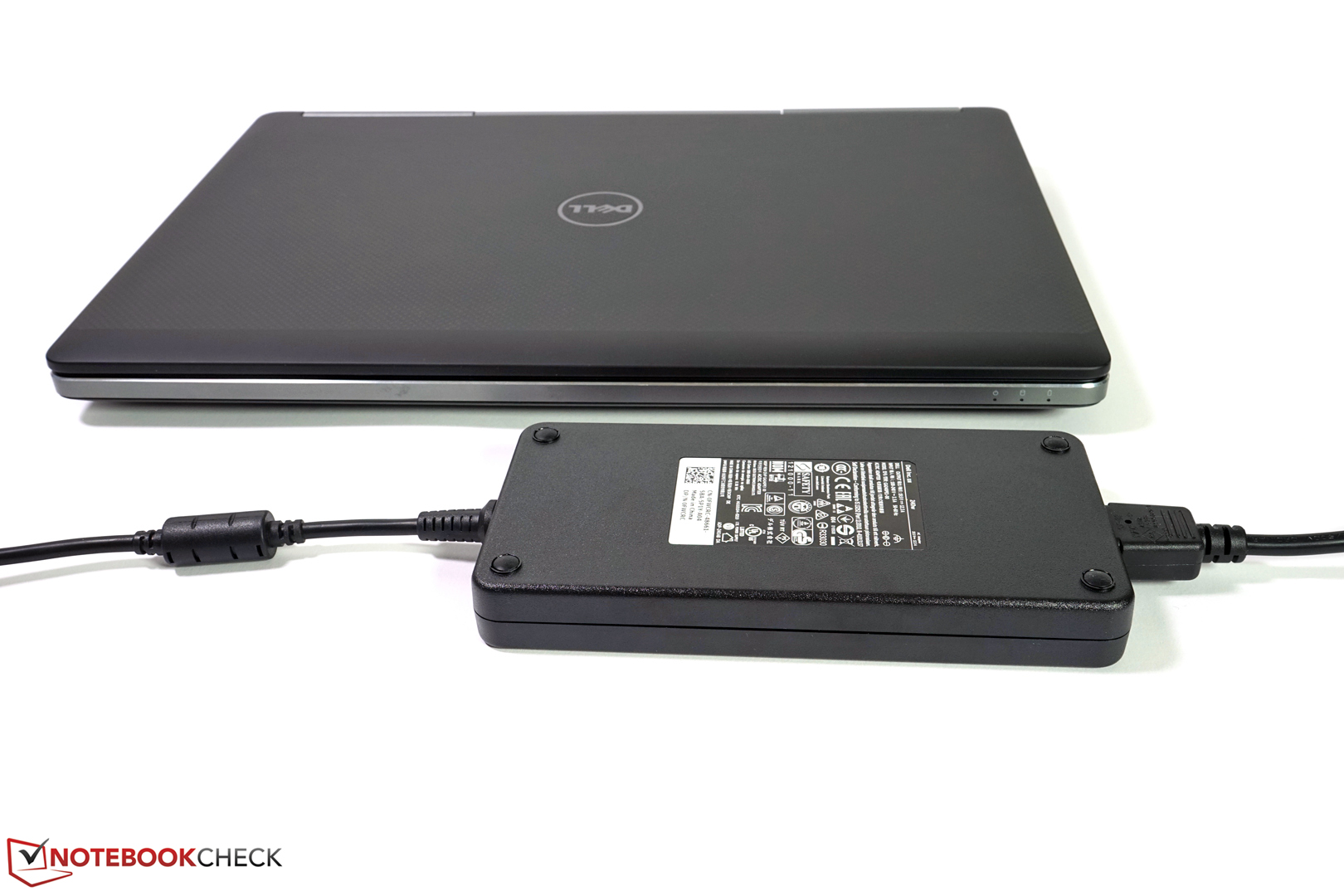

3.58 kg, Strömförsörjning: 990 g

Pris

3730 Kr

Länkar

Dell hemsida
Dell kategori

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

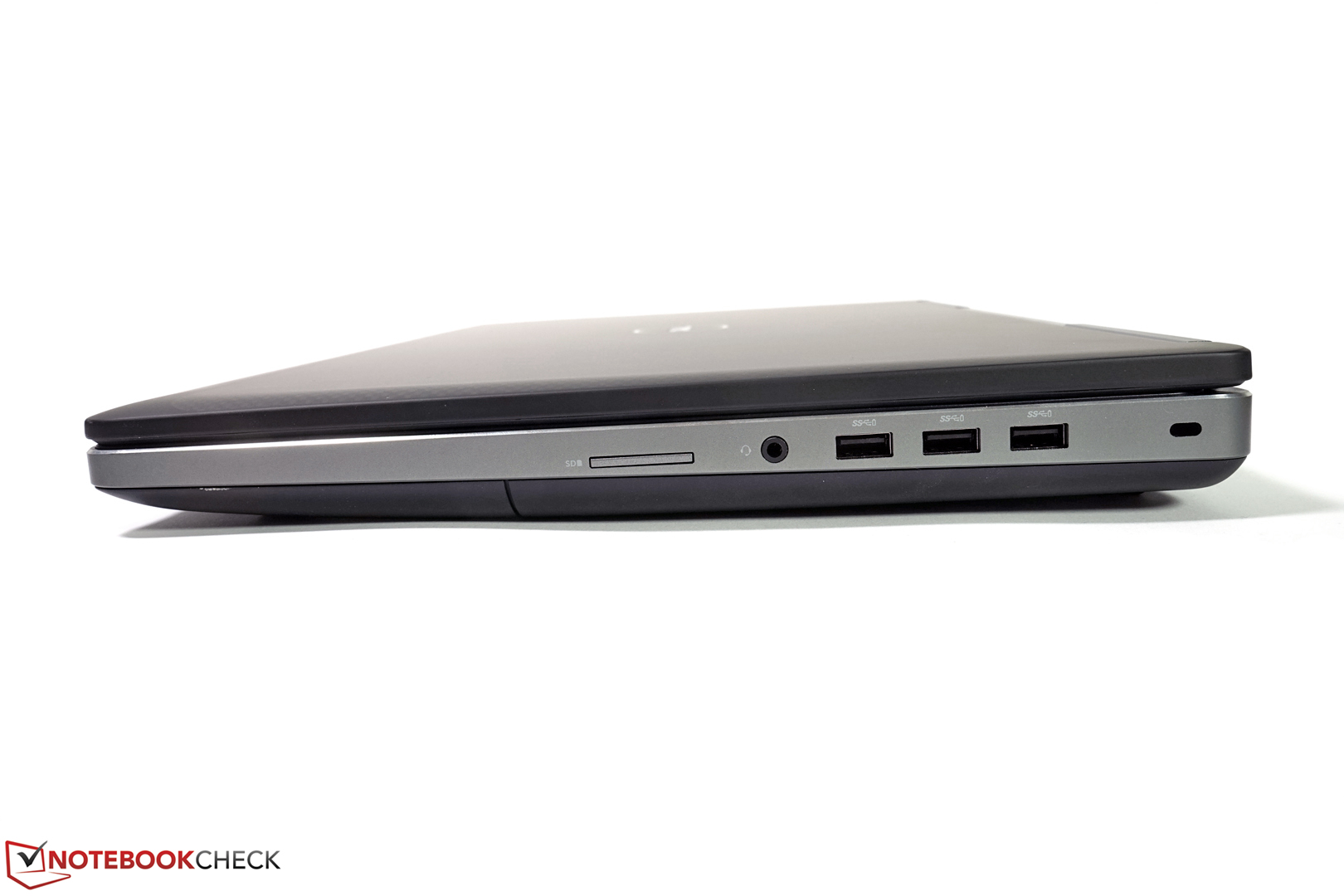

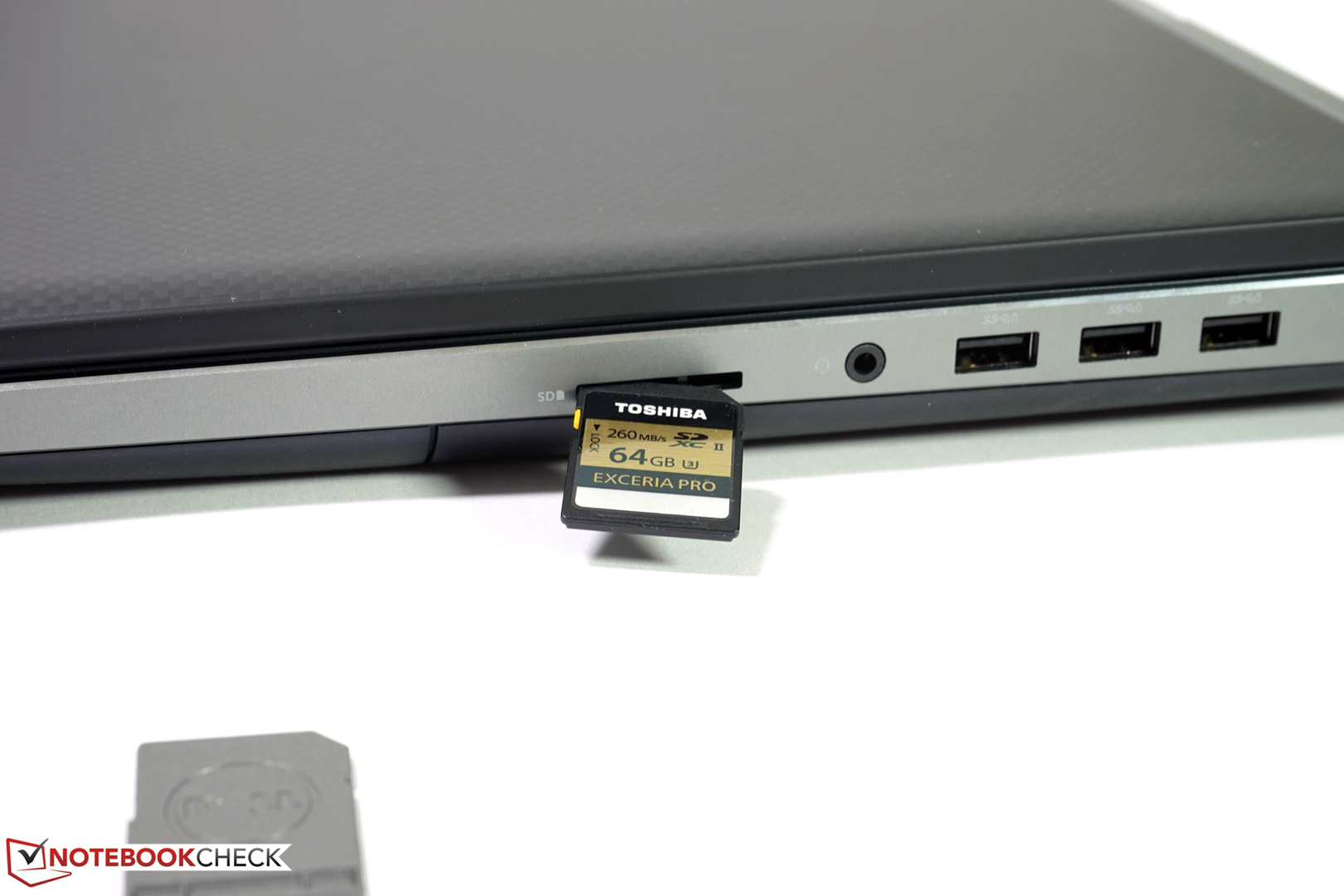

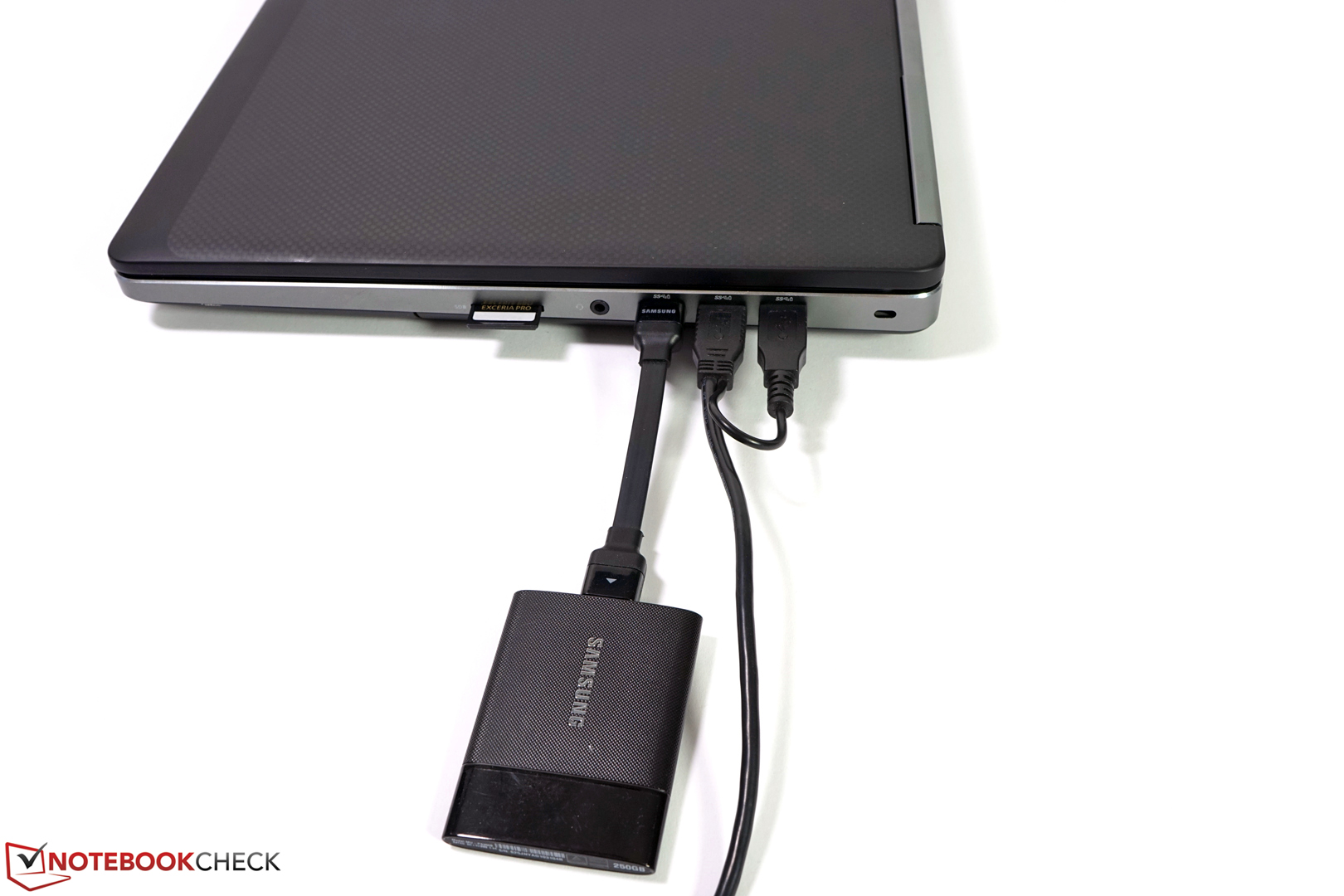

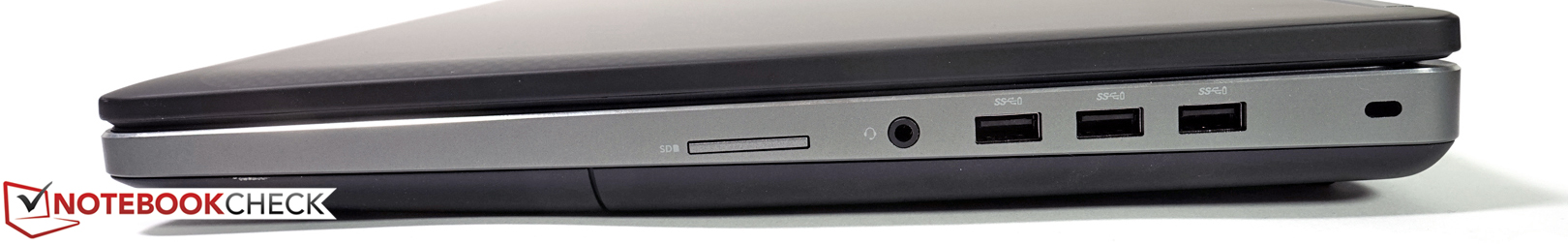

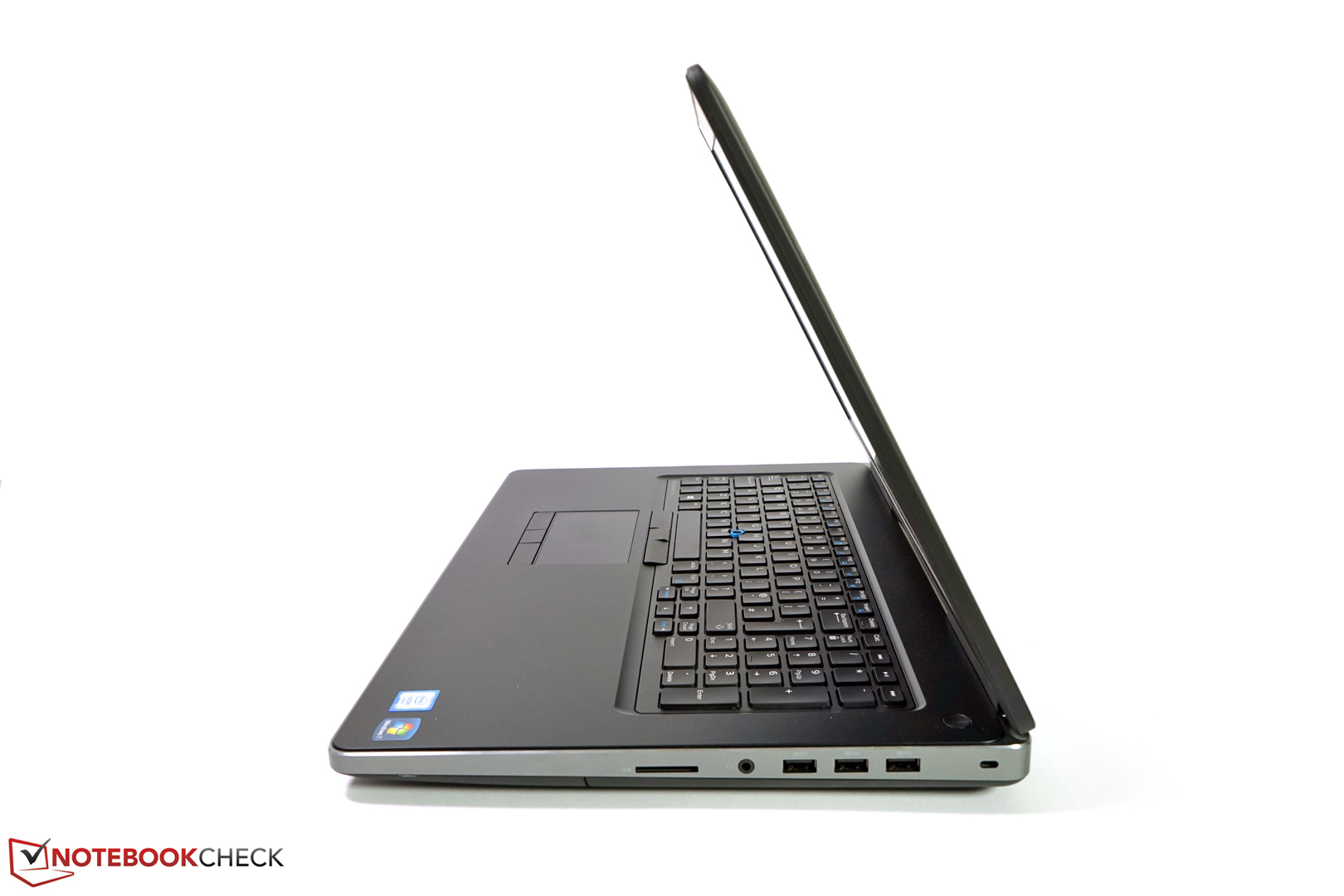

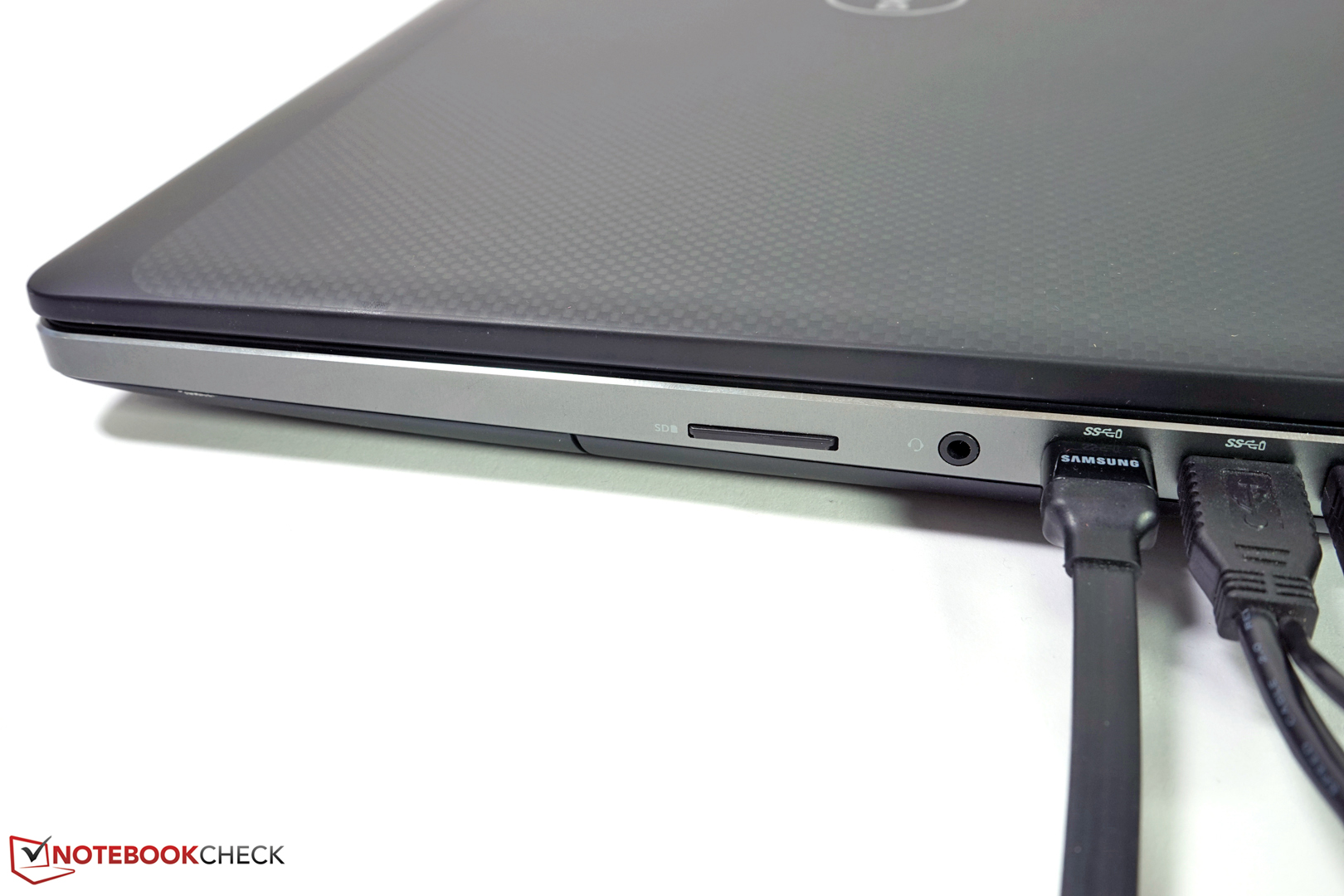

Right: card reader, combined audio in/out, 3x USB 3.0, Kensington lock slot

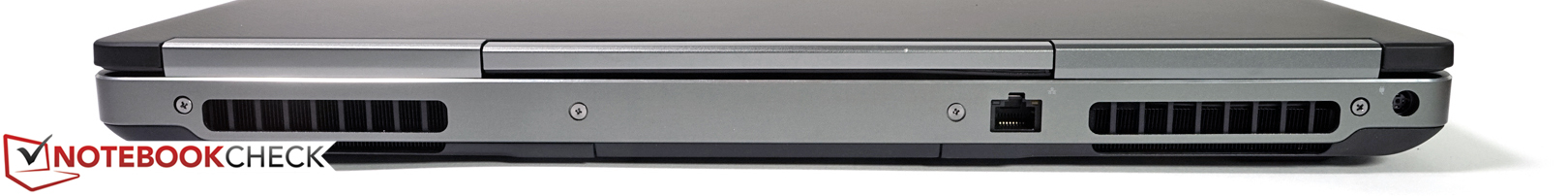

Rear: Gigabit LAN, fan grilles, power-in


277 cd/m²	308 cd/m²	299 cd/m²
318 cd/m²	332 cd/m²	318 cd/m²
307 cd/m²	295 cd/m²	310 cd/m²

Distribution av ljusstyrkan

SDC8151, VHN17_173HL tested with X-Rite i1Pro 2

Max: 332 cd/m² (Nits) Medel: 307.1 cd/m²
Distribution av ljusstyrkan: 83 %
Mitt på batteriet: 335 cd/m²
Kontrast: 1006:1 (Svärta: 0.33 cd/m²)
ΔE Color 3 | 0.5-29.43 Ø4.92
ΔE Greyscale 4 | 0.5-98 Ø5.2
97% sRGB (Argyll 1.6.3 3D)
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.9% sRGB (Argyll 2.2.0 3D)
66.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2

Download ICC-fil (X-Rite i1Pro 2)

Display
Display P3 Coverage (sort by value)
Dell Precision 7710	66.6 %
Lenovo ThinkPad P70	90.8 % +36%
SCHENKER W706	66.2 % -1%
MSI WT72-6QM	67.3 % +1%
sRGB Coverage (sort by value)
Dell Precision 7710	96.9 %
Lenovo ThinkPad P70	100 % +3%
SCHENKER W706	84.2 % -13%
MSI WT72-6QM	85.4 % -12%
AdobeRGB 1998 Coverage (sort by value)
Dell Precision 7710	68.6 %
Lenovo ThinkPad P70	85.4 % +24%
SCHENKER W706	61.5 % -10%
MSI WT72-6QM	62.5 % -9%

Response Times
Response Time Grey 50% / Grey 80% (sort by value)
Dell Precision 7710 (17, 33)	50 ms *
Lenovo ThinkPad P70 (17.2, 26.8)	44 ms * +12%
SCHENKER W706 (17.2, 26.8)	44 ms * +12%
MSI WT72-6QM (13, 29)	42 ms * +16%
Response Time Black / White (sort by value)
Dell Precision 7710 (11, 25)	36 ms *
Lenovo ThinkPad P70 (4.8, 22.8)	27.6 ms * +23%
SCHENKER W706 (8.4, 20.8)	29.2 ms * +19%
MSI WT72-6QM (7, 19)	26 ms * +28%
PWM Frequency (sort by value)
Dell Precision 7710 (25)	198 Hz
Lenovo ThinkPad P70 (95)	228 Hz +15%
SCHENKER W706	0 Hz -100%
MSI WT72-6QM (10, 15)	86 Hz -57%

Screen
Brightness middle (sort by value)
Dell Precision 7710	332 cd/m²
Lenovo ThinkPad P70	365 cd/m²
SCHENKER W706	356 cd/m²
MSI WT72-6QM	303 cd/m²
Brightness (sort by value)
Dell Precision 7710	307 cd/m²
Lenovo ThinkPad P70	341 cd/m²
SCHENKER W706	331 cd/m²
MSI WT72-6QM	298 cd/m²
Brightness Distribution (sort by value)
Dell Precision 7710	83 %
Lenovo ThinkPad P70	85 %
SCHENKER W706	86 %
MSI WT72-6QM	94 %
Black Level (sort by value)
Dell Precision 7710	0.33 cd/m² *
Lenovo ThinkPad P70	0.4 cd/m² *
SCHENKER W706	0.48 cd/m² *
MSI WT72-6QM	0.46 cd/m² *
Contrast (sort by value)
Dell Precision 7710	1006 :1
Lenovo ThinkPad P70	913 :1
SCHENKER W706	742 :1
MSI WT72-6QM	659 :1
Colorchecker dE 2000 (sort by value)
Dell Precision 7710	3 *
Lenovo ThinkPad P70	3.8 *
SCHENKER W706	4.64 *
MSI WT72-6QM	5.77 *
Greyscale dE 2000 (sort by value)
Dell Precision 7710	4 *
Lenovo ThinkPad P70	6.09 *
SCHENKER W706	3.65 *
MSI WT72-6QM	4.87 *
Gamma (sort by value)
Dell Precision 7710	2
Lenovo ThinkPad P70	2.3
SCHENKER W706	2.02
MSI WT72-6QM	1.99
CCT (sort by value)
Dell Precision 7710	7089
Lenovo ThinkPad P70	6332
SCHENKER W706	6393
MSI WT72-6QM	7363
Color Space (Percent of AdobeRGB 1998) (sort by value)
Dell Precision 7710	62 %
Lenovo ThinkPad P70	76.01 %
SCHENKER W706	55 %
MSI WT72-6QM	56.04 %
Color Space (Percent of sRGB) (sort by value)
Dell Precision 7710	97 %
Lenovo ThinkPad P70	99.97 %
SCHENKER W706	84 %
MSI WT72-6QM	85.27 %

Legend

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

SCHENKER W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

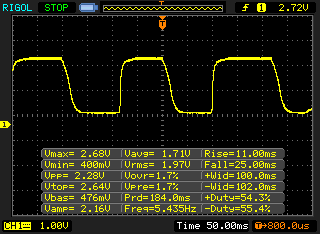

↔ Response Time Black to White
36 ms ... rise ↗ and fall ↘ combined	↗ 11 ms rise
36 ms ... rise ↗ and fall ↘ combined	↘ 25 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

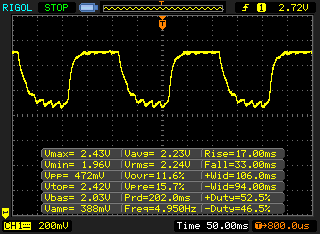

↔ Response Time 50% Grey to 80% Grey
50 ms ... rise ↗ and fall ↘ combined	↗ 17 ms rise
50 ms ... rise ↗ and fall ↘ combined	↘ 33 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 84 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

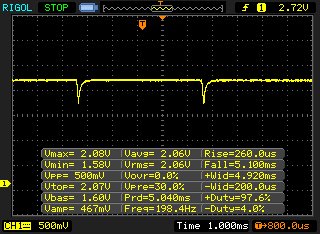

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

198 Hz

≤ 25 % brightness setting

The display backlight flickers at 198 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 25 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 198 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8747 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Single 64Bit (sort by value)
Dell Precision 7710	162 Points
Lenovo ThinkPad P70	153 Points -6%
Acer Aspire V5-591G-50NC	136 Points -16%
CPU Multi 64Bit (sort by value)
Dell Precision 7710	746 Points
Lenovo ThinkPad P70	699 Points -6%
Acer Aspire V5-591G-50NC	465 Points -38%

Legend

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Acer Aspire V5-591G-50NC Intel Core i5-6300HQ, NVIDIA GeForce GTX 950M, Samsung SSD 850 EVO 250GB

Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Dell Precision 7710	511 s *
Lenovo ThinkPad P70	561 s * -10%
Acer Aspire V5-591G-50NC	618 s * -21%

wPrime 2.10 - 1024m (sort by value)
Dell Precision 7710	214.5 s *
Lenovo ThinkPad P70	230.8 s * -8%
Acer Aspire V5-591G-50NC	361.1 s * -68%

Legend

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Acer Aspire V5-591G-50NC Intel Core i5-6300HQ, NVIDIA GeForce GTX 950M, Samsung SSD 850 EVO 250GB

* ... smaller is better

Cinebench R10 Shading 32Bit

9551

Cinebench R10 Rendering Multiple CPUs 32Bit

22496

Cinebench R10 Rendering Single 32Bit

5837

Cinebench R10 Shading 64Bit

9829 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

29375 Points

Cinebench R10 Rendering Single CPUs 64Bit

7608 Points

Cinebench R11.5 CPU Multi 64Bit

8.24 Points

Cinebench R11.5 OpenGL 64Bit

86.5 fps

Cinebench R11.5 CPU Single 64Bit

1.84 Points

Cinebench R15 CPU Multi 64Bit

746 Points

Cinebench R15 CPU Single 64Bit

162 Points

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

102.8 fps

Hjälp

... jämför

PCMark 8
Home Score Accelerated v2 (sort by value)
Dell Precision 7710	4770 Points
Lenovo ThinkPad P70	3345 Points -30%
SCHENKER W706	4914 Points +3%
MSI WT72-6QM	4731 Points -1%
Creative Score Accelerated v2 (sort by value)
Dell Precision 7710	5668 Points
SCHENKER W706	6772 Points +19%
Work Score Accelerated v2 (sort by value)
Dell Precision 7710	5417 Points
Lenovo ThinkPad P70	4411 Points -19%
SCHENKER W706	5151 Points -5%
MSI WT72-6QM	5655 Points +4%

Legend

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

SCHENKER W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7

PCMark 7 Score		5072 poäng
PCMark 8 Home Score Accelerated v2		4770 poäng
PCMark 8 Creative Score Accelerated v2		5668 poäng
PCMark 8 Work Score Accelerated v2		5417 poäng
Hjälp

... jämför

AS SSD

Samsung SM951 MZVPV256HDGL m.2 PCI-e

Sequential Read: 1886MB/s

Sequential Write: 626MB/s

4K Read: 51MB/s

4K Write: 179MB/s

4K-64 Read: 1064MB/s

4K-64 Write: 275MB/s

Access Time Read: 0.069ms

Access Time Write: 0.022ms

Copy ISO: 823MB/s

Copy Program: 196MB/s

Copy Game: 974MB/s

Score Read: 1304Points

Score Write: 517Points

Score Total: 2435Points

SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Dell Precision 7710	49 fps
Dell Precision 5510	41 fps -16%
Lenovo ThinkPad P70	67.4 fps +38%
HP ZBook 17 G2 J8Z55ET	47.84 fps -2%
MSI WT72-6QM	61.8 fps +26%
1920x1080 Tcvis (sort by value)
Dell Precision 7710	36 fps
Dell Precision 5510	40 fps +11%
Lenovo ThinkPad P70	41.16 fps +14%
HP ZBook 17 G2 J8Z55ET	28.37 fps -21%
MSI WT72-6QM	55.9 fps +55%
1920x1080 SolidWorks (sort by value)
Dell Precision 7710	74 fps
Dell Precision 5510	51 fps -31%
Lenovo ThinkPad P70	35.28 fps -52%
HP ZBook 17 G2 J8Z55ET	68.7 fps -7%
MSI WT72-6QM	49.26 fps -33%
1920x1080 Pro/ENGINEER (sort by value)
Dell Precision 7710	11.7 fps
Dell Precision 5510	21 fps +79%
Lenovo ThinkPad P70	16.08 fps +37%
HP ZBook 17 G2 J8Z55ET	10.66 fps -9%
MSI WT72-6QM	17.87 fps +53%
1920x1080 Maya (sort by value)
Dell Precision 7710	106 fps
Dell Precision 5510	56 fps -47%
Lenovo ThinkPad P70	86 fps -19%
HP ZBook 17 G2 J8Z55ET	99.7 fps -6%
MSI WT72-6QM	71.6 fps -32%
1920x1080 Lightwave (sort by value)
Dell Precision 7710	84 fps
Dell Precision 5510	54 fps -36%
Lenovo ThinkPad P70	35.34 fps -58%
HP ZBook 17 G2 J8Z55ET	77.8 fps -7%
MSI WT72-6QM	59.6 fps -29%
1920x1080 Ensight (sort by value)
Dell Precision 7710	70 fps
Dell Precision 5510	39 fps -44%
Lenovo ThinkPad P70	59.5 fps -15%
HP ZBook 17 G2 J8Z55ET	55.7 fps -20%
MSI WT72-6QM	74 fps +6%
1920x1080 Catia (sort by value)
Dell Precision 7710	61 fps
Dell Precision 5510	54 fps -11%
Lenovo ThinkPad P70	43.12 fps -29%
HP ZBook 17 G2 J8Z55ET	49.28 fps -19%
MSI WT72-6QM	55.3 fps -9%

Legend

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7

SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Dell Precision 7710	73 fps
HP ZBook 17 G2 J8Z55ET	66.5 fps -9%
Dell Precision 5510	62 fps -15%
Lenovo ThinkPad P70	52.3 fps -28%
SCHENKER W706	105 fps +44%
SCHENKER XMG U716	49.23 fps -33%
1900x1060 Siemens NX (snx-02) (sort by value)
Dell Precision 7710	63 fps
HP ZBook 17 G2 J8Z55ET	50.7 fps -20%
Dell Precision 5510	31 fps -51%
Lenovo ThinkPad P70	39.84 fps -37%
SCHENKER W706	88 fps +40%
SCHENKER XMG U716	6.11 fps -90%
1900x1060 Showcase (showcase-01) (sort by value)
Dell Precision 7710	37 fps
HP ZBook 17 G2 J8Z55ET	26.31 fps -29%
Dell Precision 5510	20 fps -46%
Lenovo ThinkPad P70	39.81 fps +8%
SCHENKER W706	44 fps +19%
SCHENKER XMG U716	59.3 fps +60%
1900x1060 Medical (medical-01) (sort by value)
Dell Precision 7710	27 fps
HP ZBook 17 G2 J8Z55ET	16.27 fps -40%
Dell Precision 5510	12 fps -56%
Lenovo ThinkPad P70	17.46 fps -35%
SCHENKER W706	33 fps +22%
SCHENKER XMG U716	30.94 fps +15%
1900x1060 Maya (maya-04) (sort by value)
Dell Precision 7710	46 fps
HP ZBook 17 G2 J8Z55ET	39.17 fps -15%
Dell Precision 5510	30 fps -35%
Lenovo ThinkPad P70	23.08 fps -50%
SCHENKER W706	73 fps +59%
SCHENKER XMG U716	107 fps +133%
1900x1060 Energy (energy-01) (sort by value)
Dell Precision 7710	3.17 fps
HP ZBook 17 G2 J8Z55ET	0.59 fps -81%
Dell Precision 5510	0.69 fps -78%
Lenovo ThinkPad P70	4.68 fps +48%
SCHENKER W706	7.4 fps +133%
SCHENKER XMG U716	7.17 fps +126%
1900x1060 Creo (creo-01) (sort by value)
Dell Precision 7710	50 fps
HP ZBook 17 G2 J8Z55ET	42.61 fps -15%
Dell Precision 5510	34 fps -32%
Lenovo ThinkPad P70	42.17 fps -16%
SCHENKER W706	82 fps +64%
SCHENKER XMG U716	34.82 fps -30%
1900x1060 Catia (catia-04) (sort by value)
Dell Precision 7710	58 fps
HP ZBook 17 G2 J8Z55ET	44.02 fps -24%
Dell Precision 5510	37 fps -36%
Lenovo ThinkPad P70	45.24 fps -22%
SCHENKER W706	99 fps +71%
SCHENKER XMG U716	53.6 fps -8%

Legend

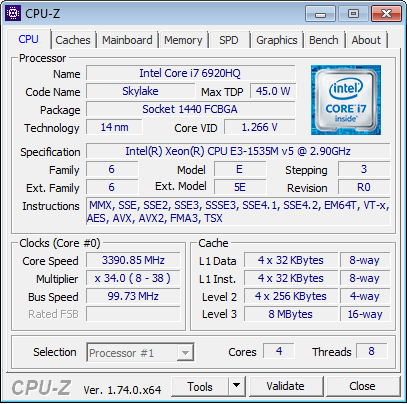

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

SCHENKER W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

SCHENKER XMG U716 Intel Core i7-6700, NVIDIA GeForce GTX 980 (Laptop), Samsung SM951 MZHPV512HDGL m.2 PCI-e

LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Dell Precision 7710	782 Samples/s
Lenovo ThinkPad P70	1258 Samples/s +61%
Dell Precision 5510	534 Samples/s -32%
Sala GPUs-only (sort by value)
Dell Precision 7710	1412 Samples/s
Lenovo ThinkPad P70	2234 Samples/s +58%
Dell Precision 5510	889 Samples/s -37%

SiSoft Sandra 2016
Image Processing (sort by value)
Dell Precision 7710	527 MPix/s
Lenovo ThinkPad P70	367.1 MPix/s -30%
Dell Precision 5510	127.5 MPix/s -76%
GP Cryptography (Higher Security AES256+SHA2-512) (sort by value)
Dell Precision 7710	12.47 GB/s
Lenovo ThinkPad P70	11.12 GB/s -11%
Dell Precision 5510	7.38 GB/s -41%
GP Financial Analysis (FP High/Double Precision) (sort by value)
Dell Precision 7710	66.4 KOPT/s
Lenovo ThinkPad P70	32.97 KOPT/s -50%
Dell Precision 5510	17 KOPT/s -74%

Legend

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 7710	59.3 fps
Lenovo ThinkPad P70	43.4 fps -27%
Dell Precision 5510	43.4 fps -27%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 7710	76.9 fps
Lenovo ThinkPad P70	79.3 fps +3%
Dell Precision 5510	44.9 fps -42%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8 (sort by value)
Dell Precision 7710	30.7 fps
Lenovo ThinkPad P70	37.8 fps +23%
Dell Precision 5510	18.7 fps -39%
1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Dell Precision 7710	26.6 fps
Lenovo ThinkPad P70	22 fps -17%
Dell Precision 5510	16.2 fps -39%

Legend

Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

3DMark 06 Standard Score		28430 poäng
3DMark Vantage P Result		26345 poäng
3DMark 11 Performance		9580 poäng
3DMark Ice Storm Standard Score		95675 poäng
3DMark Cloud Gate Standard Score		21612 poäng
3DMark Fire Strike Score		6180 poäng
Hjälp

... jämför

	låg	med.	hög	ultra
Tomb Raider (2013)	375	224	167	51
BioShock Infinite (2013)	220	178	158	66
Metro: Last Light (2013)	120	112	94	44
Company of Heroes 2 (2013)	57	56	55	28
Total War: Rome II (2013)	185	162	153	36
Thief (2014)	62	57	57	40
GRID: Autosport (2014)	232	116	99	67
Middle-earth: Shadow of Mordor (2014)	177	126	70	52
Ryse: Son of Rome (2014)	101	93	43	15
F1 2014 (2014)	132	111	95	74
Dirt Rally (2015)	278	187	89	63
The Witcher 3 (2015)	97	72	31	23
Anno 2205 (2015)	146	93	43	20

Ljudnivå

Låg belastning		30 / 30 / 30 dB(A)
Hårddisk		33.2 dB(A)
Hög belastning		43.2 / 47.13 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM1 Arta (15 cm avstånd) environment noise: 30 dB(A)

Hög belastning

Låg belastning


32.4 °C	33.1 °C	32.7 °C
29.5 °C	35.6 °C	32.2 °C
27 °C	25.9 °C	25.4 °C

Max: 35.6 °C
Medel: 30.4 °C


37.1 °C	55 °C	38.5 °C
28.3 °C	38.2 °C	33.2 °C
26 °C	27.6 °C	29.2 °C

Max: 55 °C
Medel: 34.8 °C

Strömförsörjning (max.) 44.8 °C | Rumstemperatur 20 °C | Fennel FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 30.4 °C / 87 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 35.6 °C / 96 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55 °C / 131 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27 °C / 80.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (+0.9 °C / 1.6 F).

Strömförbrukning

Av/Standby	0.2 / 0.8 Watt
Låg belastning	6.04 / 15.2 / 42.3 Watt
Hög belastning	112.8 / 182.2 Watt


Förklaring: min: , med: , max: Metrahit Energy

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		12tim 55min
WiFi Websurfing		6tim 05min
Big Buck Bunny H.264 1080p		4tim 43min
Hög belastning (maximal ljusstyrka)		1tim 25min

För

+ Mycket bra chassi

+ Riktigt bra skärm

+ Hög prestanda

+ Utmärkta uppgraderingsmöjligheter

+ Många konfigurationsalternativ

+ Lågt fläktljud under låg belastning

+ Bra batteritid

+ Bra inmatningsenheter

Emot

- Märkbar ljusblödning och ojämn ljusstyrka

- Flimrar vid låg ljusstyrka

- Reducerad grafikprestanda när CPU:n maxbelastas

- "Bara" plats för tre lagringsenheter

- Måttligt med anslutningsmöjligheter

Dell Precision 7710 har reviderats i grunden och har uppdaterats på många viktiga punkter. Köparen får en mobil arbetsstation med mycket bra prestanda, enkelt underhåll, bra inmatningsenheter och en bra Full HD-skärm som lämpar sig för professionell användning. Som vanligt erbjuder Dell många konfigurationsalternativ, samt extragarantier och service-tillägg som tillval.

Men vi är inte helt nöjda med anslutningsmöjligheterna, som borde ha varit bättre i en helt ny 17-tums arbetsstation. Äldre gränssnitt har tagits bort, men moderna portar som USB 3.1 Gen.2, Thunderbolt 3.0 (endast tillval) och HDMI 2.0 saknas fortfarande. Du får också klara dig utan optisk enhet och en extra 2,5-tumsplats.

Det är heller inte OK att testmodellens grafikprestanda stryps kraftigt under stresstestet och under batteridrift. Eftersom mobila arbetsstationer köps särskilt för prestandaintensiva uppgifter är problemet desto mer graverande.

Dell kompenserar för detta med lågt fläktljud under låg belastning och övergripande låg värmeutveckling. Batteritiden är enastående trots ett mindre 72 Wh-batteri, så datorn klarar sig ett bra tag utan vägguttag.

Allt som allt får du en robust mobil arbetsstation för en bra bit över 30 000 kr, inklusive 36 månaders ProSupport med på platsen-service (gäller vår testmodell).

Dell Precision 7710 - 2016-03-17 03/17/2016 v5 ^(old)
Tobias Winkler

Design

87 / 98 → 88%

Tangentbord

92%

Mus

86%

Anslutningar

68 / 81 → 84%

Vikt

53 / 10-66 → 77%

Batteri

83%

Skärm

88%

Spelprestanda

97%

Programprestanda

98%

Workstation

76%

Temperatur

90 / 95 → 94%

Ljudnivå

83 / 90 → 92%

Audio

55%

Camera

40 / 85 → 47%

Medel

78%

86%

Workstation - Vägt medel

Read about the changes in the new rating version 5

Price comparison

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Dell Precision 7710 (sammanfattning)

Tobias Winkler, 2016-02-18 (Update: 2024-11- 4)
