Size Comparison
Networking | |
iperf3 transmit AX12 | |
HP ZBook 17 G4-Y3J82AV | |
Dell Precision 7720 | |
Lenovo ThinkPad P71-20HK0004GE | |
Fujitsu Celsius H970 | |
MSI WE72 7RJ | |
iperf3 receive AX12 | |
Fujitsu Celsius H970 | |
Lenovo ThinkPad P71-20HK0004GE | |
HP ZBook 17 G4-Y3J82AV | |
Dell Precision 7720 | |
MSI WE72 7RJ |

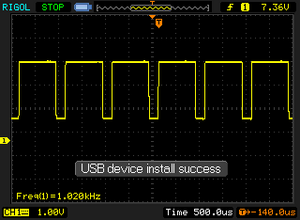

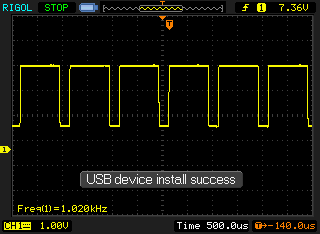

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM detected | 1020 Hz | ≤ 20 % brightness setting | |
The display backlight flickers at 1020 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 1020 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. |
|
Distribution av ljusstyrkan: 89 %
Mitt på batteriet: 462 cd/m²
Kontrast: 1031:1 (Svärta: 0.45 cd/m²)
ΔE Color 3.2 | 0.5-29.43 Ø4.92
ΔE Greyscale 4.2 | 0.5-98 Ø5.2
100% sRGB (Argyll 1.6.3 3D)
88.1% AdobeRGB 1998 (Argyll 1.6.3 3D)
99.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
87.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.01
Dell Precision 7720 SHP1446 (LQ173D1), , 3840x2160, 17.3" | Lenovo ThinkPad P71-20HK0004GE LEN4123, VVX17P051J00, , 3840x2160, 17.3" | HP ZBook 17 G4-Y3J82AV Sharp SHP144C, , 3840x2160, 17.3" | MSI WE72 7RJ LP173WF4-SPF1, , 1920x1080, 17.3" | Fujitsu Celsius H970 LP173WF4-SPF3, , 1920x1080, 17.3" | Dell Precision 7710 SDC8151, VHN17_173HL, , 1920x1080, 17.3" | |
---|---|---|---|---|---|---|
Display | 0% | -25% | -26% | -19% | ||
Display P3 Coverage | 87.6 | 88 0% | 67.4 -23% | 66.8 -24% | 66.6 -24% | |
sRGB Coverage | 100 | 100 0% | 85.3 -15% | 84.6 -15% | 96.9 -3% | |
AdobeRGB 1998 Coverage | 99.2 | 99.6 0% | 62.4 -37% | 61.8 -38% | 68.6 -31% | |
Response Times | 41% | 7% | 34% | 45% | -14% | |
Response Time Grey 50% / Grey 80% * | 60 ? | 39.2 ? 35% | 56.8 ? 5% | 45.2 ? 25% | 32 ? 47% | 50 ? 17% |
Response Time Black / White * | 46.4 ? | 23.2 ? 50% | 38.4 ? 17% | 26.4 ? 43% | 26.4 ? 43% | 36 ? 22% |
PWM Frequency | 1020 ? | 1412 ? 38% | 1020 ? 0% | 198 ? -81% | ||
Screen | 10% | 17% | -33% | -28% | -7% | |
Brightness middle | 464 | 358 -23% | 391 -16% | 302 -35% | 368 -21% | 332 -28% |
Brightness | 441 | 338 -23% | 360 -18% | 306 -31% | 360 -18% | 307 -30% |
Brightness Distribution | 89 | 83 -7% | 87 -2% | 93 4% | 91 2% | 83 -7% |
Black Level * | 0.45 | 0.31 31% | 0.35 22% | 0.31 31% | 0.3 33% | 0.33 27% |
Contrast | 1031 | 1155 12% | 1117 8% | 974 -6% | 1227 19% | 1006 -2% |
Colorchecker dE 2000 * | 3.2 | 2.1 34% | 1.3 59% | 6.2 -94% | 6.4 -100% | 3 6% |
Colorchecker dE 2000 max. * | 6.1 | 3.6 41% | 2.5 59% | 10.6 -74% | 10.1 -66% | |
Greyscale dE 2000 * | 4.2 | 2 52% | 1.8 57% | 7.3 -74% | 7.2 -71% | 4 5% |
Gamma | 2.01 109% | 2.16 102% | 2.11 104% | 2.08 106% | 2.02 109% | 2 110% |
CCT | 6736 96% | 6216 105% | 6461 101% | 7020 93% | 6882 94% | 7089 92% |
Color Space (Percent of AdobeRGB 1998) | 88.1 | 77 -13% | 87.9 0% | 56 -36% | 55.5 -37% | 62 -30% |
Color Space (Percent of sRGB) | 100 | 99.97 0% | 100 0% | 85.2 -15% | 84.4 -16% | 97 -3% |
Total Average (Program / Settings) | 26% /
17% | 8% /
12% | -8% /
-22% | -3% /
-17% | -13% /
-11% |
* ... smaller is better
Display Response Times

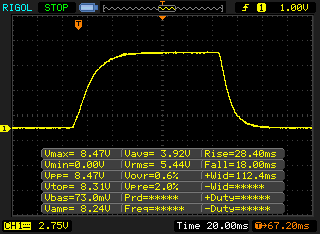

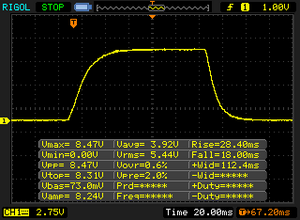

↔ Response Time Black to White | ||
---|---|---|
46.4 ms ... rise ↗ and fall ↘ combined | ↗ 28.4 ms rise | |
↘ 18 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 99 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

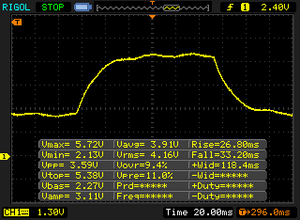

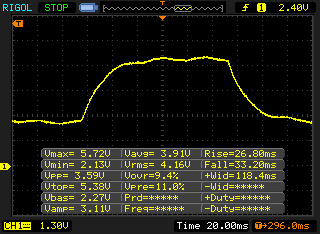

↔ Response Time 50% Grey to 80% Grey | ||
60 ms ... rise ↗ and fall ↘ combined | ↗ 26.8 ms rise | |
↘ 33.2 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 95 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). |
Cinebench R15 | |
CPU Single 64Bit | |
SCHENKER XMG U507 2017 | |
Dell Precision 7720 | |
Guru Mars K | |
HP ZBook 17 G4-Y3J82AV | |
Fujitsu Celsius H970 | |
Lenovo ThinkPad P71-20HK0004GE | |
Dell Precision 7710 | |
MSI WE72 7RJ | |
CPU Multi 64Bit | |
SCHENKER XMG U507 2017 | |
Guru Mars K | |
Dell Precision 7720 | |
HP ZBook 17 G4-Y3J82AV | |
Lenovo ThinkPad P71-20HK0004GE | |
Dell Precision 7710 | |
MSI WE72 7RJ | |
Fujitsu Celsius H970 |
PCMark 8 | |
Home Score Accelerated v2 | |
Dell Precision 7710 | |
HP ZBook 17 G4-Y3J82AV | |
MSI WE72 7RJ | |
Dell Precision 7720 | |
Lenovo ThinkPad P71-20HK0004GE | |
Work Score Accelerated v2 | |
Dell Precision 7710 | |
Fujitsu Celsius H970 | |
MSI WE72 7RJ | |
HP ZBook 17 G4-Y3J82AV | |
Dell Precision 7720 | |
Creative Score Accelerated v2 | |
HP ZBook 17 G4-Y3J82AV | |
Fujitsu Celsius H970 | |
Lenovo ThinkPad P71-20HK0004GE | |
Dell Precision 7710 | |
Dell Precision 7720 |
PCMark 10 - Score | |
HP ZBook 17 G4-Y3J82AV | |
Dell Precision 7720 | |
Fujitsu Celsius H970 |
PCMark 8 Home Score Accelerated v2 | 3772 poäng | |
PCMark 8 Creative Score Accelerated v2 | 5498 poäng | |
PCMark 8 Work Score Accelerated v2 | 4460 poäng | |
PCMark 10 Score | 5248 poäng | |
Hjälp |
LuxMark v2.0 64Bit | |
Room GPUs-only | |
Dell Precision 7720 | |
HP ZBook 17 G4-Y3J82AV | |
Fujitsu Celsius H970 | |
Lenovo ThinkPad P71-20HK0004GE | |
MSI WT72-6QM | |
MSI WE72 7RJ | |
Dell Precision 7710 | |
Sala GPUs-only | |
Dell Precision 7720 | |
HP ZBook 17 G4-Y3J82AV | |
Fujitsu Celsius H970 | |
Lenovo ThinkPad P71-20HK0004GE | |
MSI WT72-6QM | |
MSI WE72 7RJ | |
Dell Precision 7710 |
SiSoft Sandra 2016 | |
Image Processing | |
Dell Precision 7720 | |
HP ZBook 17 G4-Y3J82AV | |
Dell Precision 7710 | |
Lenovo ThinkPad P71-20HK0004GE | |
GP Cryptography (Higher Security AES256+SHA2-512) | |
HP ZBook 17 G4-Y3J82AV | |
Dell Precision 7720 | |
Lenovo ThinkPad P71-20HK0004GE | |
Dell Precision 7710 | |
GP Financial Analysis (FP High/Double Precision) | |
Dell Precision 7720 | |
HP ZBook 17 G4-Y3J82AV | |
Dell Precision 7710 | |
Lenovo ThinkPad P71-20HK0004GE |
3DMark 11 - 1280x720 Performance GPU | |
Guru Mars K | |
SCHENKER XMG U507 2017 | |
Asus Zephyrus GX501 | |
Lenovo Legion Y920-17IKB | |
HP ZBook 17 G4-Y3J82AV | |
Dell Precision 7720 | |
Fujitsu Celsius H970 | |
MSI WT72-6QM | |
Lenovo ThinkPad P71-20HK0004GE | |
Dell Precision 7710 | |
MSI WE72 7RJ |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Guru Mars K | |
SCHENKER XMG U507 2017 | |
Asus Zephyrus GX501 | |
Dell Precision 7720 | |
HP ZBook 17 G4-Y3J82AV | |
Lenovo Legion Y920-17IKB | |
MSI WT72-6QM | |
Lenovo ThinkPad P71-20HK0004GE | |
Fujitsu Celsius H970 | |
Razer Blade (2017) UHD | |
Dell Precision 7710 | |
MSI WE72 7RJ | |
1920x1080 Fire Strike Graphics | |
Guru Mars K | |
SCHENKER XMG U507 2017 | |
Asus Zephyrus GX501 | |
Lenovo Legion Y920-17IKB | |
Dell Precision 7720 | |
HP ZBook 17 G4-Y3J82AV | |
Fujitsu Celsius H970 | |
Razer Blade (2017) UHD | |
MSI WT72-6QM | |
Lenovo ThinkPad P71-20HK0004GE | |
Dell Precision 7710 | |
MSI WE72 7RJ |
Unigine Heaven 4.0 | |
Extreme Preset DX11 | |
SCHENKER XMG U507 2017 | |
Asus Zephyrus GX501 | |
Dell Precision 7720 | |
HP ZBook 17 G4-Y3J82AV | |
Lenovo ThinkPad P71-20HK0004GE | |
MSI WE72 7RJ | |
Extreme Preset OpenGL | |
Dell Precision 7720 | |
HP ZBook 17 G4-Y3J82AV | |
Lenovo ThinkPad P71-20HK0004GE | |
MSI WE72 7RJ |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
HP ZBook 17 G4-Y3J82AV | |
Dell Precision 7720 | |
Lenovo ThinkPad P71-20HK0004GE | |
MSI WT72-6QM | |
Dell Precision 7710 | |
MSI WE72 7RJ | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
HP ZBook 17 G4-Y3J82AV | |
Dell Precision 7720 | |
Lenovo ThinkPad P71-20HK0004GE | |
Dell Precision 7710 | |
MSI WE72 7RJ |
3DMark 11 Performance | 16158 poäng | |
3DMark Ice Storm Standard Score | 58131 poäng | |
3DMark Cloud Gate Standard Score | 28999 poäng | |
3DMark Fire Strike Score | 12298 poäng | |
3DMark Time Spy Score | 4823 poäng | |
Hjälp |
låg | med. | hög | ultra | 4K | |
---|---|---|---|---|---|
The Witcher 3 (2015) | 53.4 | 36 | |||
Star Wars Battlefront (2015) | 118.5 | 44 | |||
Rainbow Six Siege (2015) | 55.6 | ||||
Rise of the Tomb Raider (2016) | 97.9 | 84 | 35.8 | ||
Battlefield 1 (2016) | 40.8 | ||||
For Honor (2017) | 127.9 | 121.1 | 95.1 | 37.6 | |
Ghost Recon Wildlands (2017) | 83.9 | 76.5 | 42.8 | 27.5 | |
Prey (2017) | 125.2 | 47.8 |
Ljudnivå
Låg belastning |
| 29.5 / 29.5 / 29.5 dB(A) |
Hög belastning |
| 35 / 47.8 dB(A) |
| ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min: , med: , max: Audix TM1, Arta (15 cm avstånd) environment noise: 29.5 dB(A) |
Dell Precision 7720 Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7 | Lenovo ThinkPad P71-20HK0004GE Quadro P3000, i7-7820HQ, Samsung PM961 NVMe MZVLW512HMJP | HP ZBook 17 G4-Y3J82AV Quadro P5000, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH | MSI WE72 7RJ Quadro M2200, i7-7700HQ, Samsung SM961 MZVPW256 m.2 PCI-e | Fujitsu Celsius H970 Quadro P4000, E3-1535M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e | |
---|---|---|---|---|---|
Noise | 2% | -7% | -14% | -10% | |
off / environment * | 29.5 | 29.2 1% | 29.6 -0% | 29.3 1% | 30.2 -2% |
Idle Minimum * | 29.5 | 29.2 1% | 29.6 -0% | 36.3 -23% | 30.2 -2% |
Idle Average * | 29.5 | 29.2 1% | 31.7 -7% | 36.3 -23% | 32.8 -11% |
Idle Maximum * | 29.5 | 32.2 -9% | 34.4 -17% | 36.6 -24% | 32.8 -11% |
Load Average * | 35 | 34.7 1% | 41.3 -18% | 40.4 -15% | 47.3 -35% |
Witcher 3 ultra * | 41 | 45.6 -11% | |||
Load Maximum * | 47.8 | 39.1 18% | 45.6 5% | 46.6 3% | 47.3 1% |
* ... smaller is better
(±) The maximum temperature on the upper side is 42.3 °C / 108 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(±) The bottom heats up to a maximum of 44.9 °C / 113 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 25.2 °C / 77 F, compared to the device average of 32 °C / 90 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.1 °C / 95 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.3 °C / 81.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (+0.6 °C / 1.1 F).
Av/Standby | 0.37 / 0.97 Watt |
Låg belastning | 9.6 / 20.5 / 22.9 Watt |
Hög belastning |
96.8 / 202.1 Watt |
Förklaring:
min: ,
med: ,
max: Metrahit Energy |
Dell Precision 7720 E3-1535M v6, Quadro P5000, Toshiba NVMe THNSN5512GPU7, IGZO, 3840x2160, 17.3" | Lenovo ThinkPad P71-20HK0004GE i7-7820HQ, Quadro P3000, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 17.3" | HP ZBook 17 G4-Y3J82AV E3-1535M v6, Quadro P5000, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH, IPS, 3840x2160, 17.3" | MSI WE72 7RJ i7-7700HQ, Quadro M2200, Samsung SM961 MZVPW256 m.2 PCI-e, IPS, 1920x1080, 17.3" | Fujitsu Celsius H970 E3-1535M v6, Quadro P4000, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS LED, 1920x1080, 17.3" | MSI WT72-6QM E3-1505M v5, Quadro M5000M, Toshiba NVMe THNSN5256GPU7, IPS, 1920x1080, 17.3" | |
---|---|---|---|---|---|---|
Power Consumption | 17% | -5% | -2% | 14% | -48% | |
Idle Minimum * | 9.6 | 7.44 22% | 12.9 -34% | 15 -56% | 10.7 -11% | 24.8 -158% |
Idle Average * | 20.5 | 18 12% | 19.6 4% | 20.1 2% | 15.8 23% | 29.7 -45% |
Idle Maximum * | 22.9 | 21.8 5% | 23.6 -3% | 23.8 -4% | 17.8 22% | 30.1 -31% |
Load Average * | 96.8 | 77.1 20% | 92.8 4% | 85.6 12% | 92 5% | 105.2 -9% |
Load Maximum * | 202.1 | 150.5 26% | 190 6% | 128 37% | 137 32% | 192.2 5% |
Witcher 3 ultra * | 148.5 |
* ... smaller is better
Dell Precision 7720 E3-1535M v6, Quadro P5000, 91 Wh | Lenovo ThinkPad P71-20HK0004GE i7-7820HQ, Quadro P3000, 96 Wh | HP ZBook 17 G4-Y3J82AV E3-1535M v6, Quadro P5000, 95 Wh | MSI WE72 7RJ i7-7700HQ, Quadro M2200, 51 Wh | Fujitsu Celsius H970 E3-1535M v6, Quadro P4000, 96 Wh | Dell Precision 7710 E3-1535M v5, FirePro W7170M, 72 Wh | |
---|---|---|---|---|---|---|
Battery Runtime | 11% | -11% | -52% | 34% | 0% | |
Reader / Idle | 685 | 872 27% | 469 -32% | 268 -61% | 1002 46% | 775 13% |
H.264 | 405 | 517 28% | 316 -22% | 181 -55% | 573 41% | 283 -30% |
WiFi v1.3 | 379 | 358 -6% | 295 -22% | 177 -53% | 542 43% | 365 -4% |
Load | 70 | 66 -6% | 92 31% | 42 -40% | 74 6% | 85 21% |
För
Emot
Dells Precision 7720 är en väldigt kraftfull mobil arbetsstation. Det högkvalitativa höljet är i princip oförändrat från den tidigare generationen och du får nu en Thunderbolt 3-port som standard. Föregångaren hade fortfarande en del problem med att utnyttja sin fulla potential vid kombinerad belastning på CPU & GPU, men det verkar som att tillverkaren har förbättrat detta. Vårt testexemplar är utrustat med dom allra kraftfullaste komponenterna, men utnyttjandet av prestandan är ändå väldigt bra, även vid extrem belastning. Huruvida du behöver den mängden prestanda är förstås en annan fråga. Särskilt grafikkortet är för många användarfall inte nödvändigt.
Vi blev ganska besvikna på 4K PremierColor-skärmen. Detta är förstås gnäll på en väldigt hög nivå, men vi hade förväntat oss bättre resultat efter leverans för den extra kostnaden. En kalibrering är definitivt rekommenderad för den här enheten. Bakgrundbelysningens bleeding på den undre kanten är också en aning irriterande och skärmen använder PWM på låga ljusstyrkenivåer.
Precision 7720 är ett bra val när du behöver mycket prestanda, då denna mobila arbetsstation faktiskt kan utnyttja hela prestandan hos dom dyra komponenterna.
Det finns inga problem med irriterande fläktar, trots den höga prestandan. Sant, du kan höra dom tydligt vid hög belastning, men dom är ofta avstängda när du utför enklare uppgifter. Vi kan inte riktigt kritisera temperaturutvecklingen heller, och detsamma gäller batteritiden.
Utöver skärmens nackdelar så måste du titta noggrant för att hitta några problem. Listan inkluderar förstås SD-läsaren, som inte fungerade på vår testmodell, men det borde vara en isolerad händelse. SIM-platsen sitter på höljets undersida och är svår att nå, vilket förhindrar ett snabbt byte av datakort i andra länder, till exempel.
Dell Precision 7720
- 01/21/2018 v6 (old)
Andreas Osthoff
