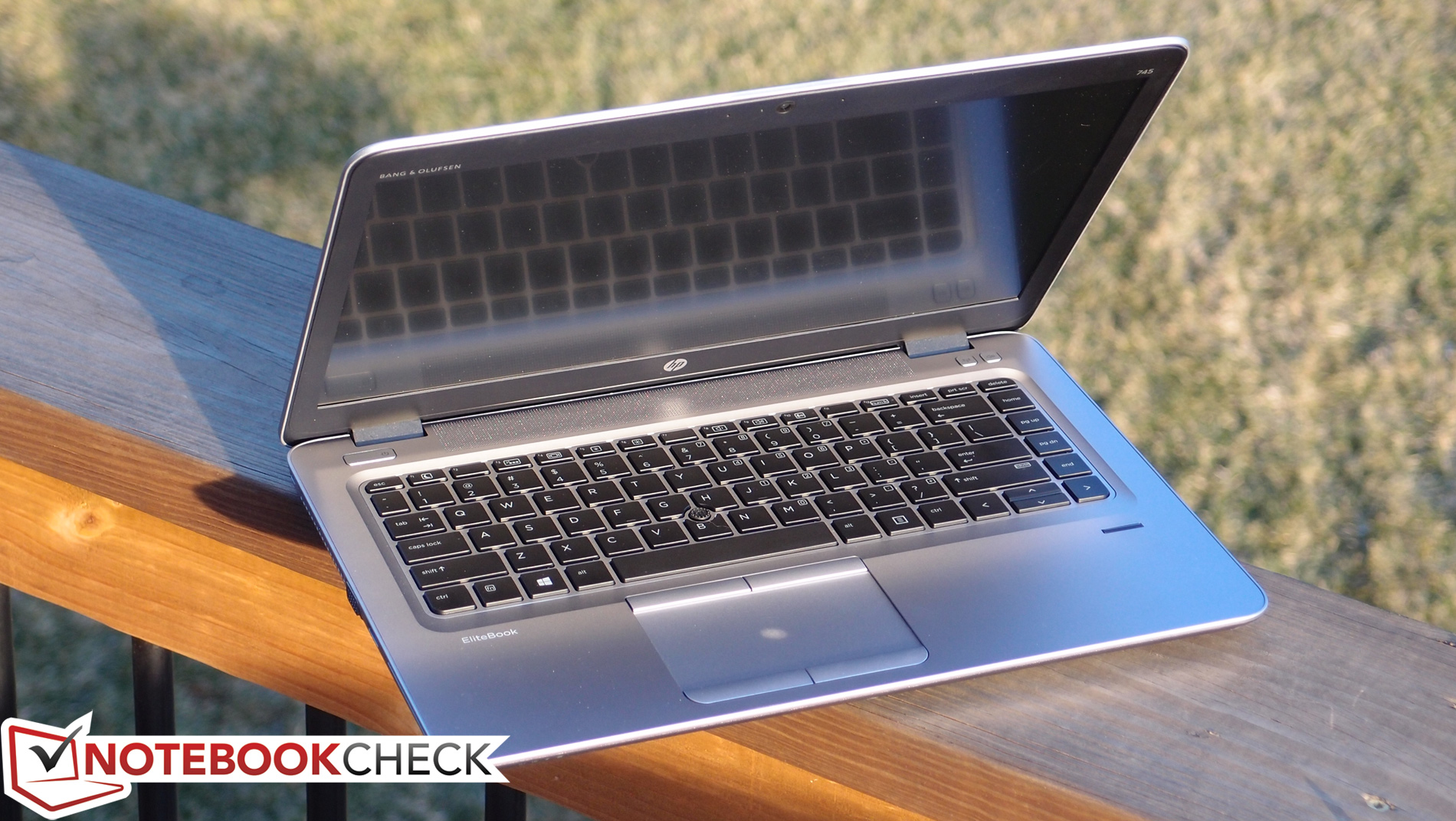

Test: HP EliteBook 745 G3 (FHD) (sammanfattning)
HP EliteBook 745 G3 (EliteBook 700 Serie)
Processor

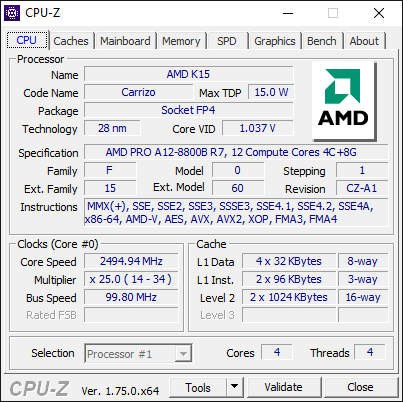

AMD Pro A12-8800B 4 x 2.1 - 3.4 GHz, Carrizo
Grafikkort
AMD Radeon R7 (Carrizo), Kärna: 800 MHz, 15.201.1001.1005

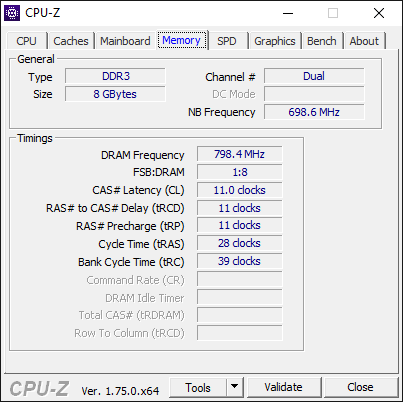

Minne

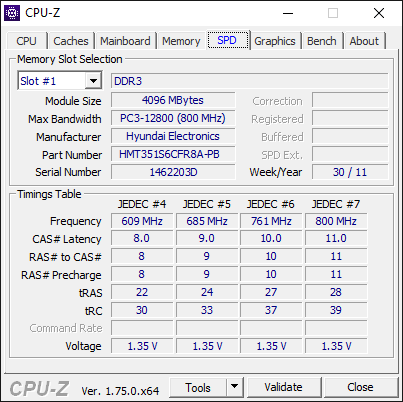

8 GB
, DDR3-1600
Skärm
14.00 tum 16:9, 1920 x 1080 pixlar, No, CMN14C0, TN LED, glansig: nej
Moderkort

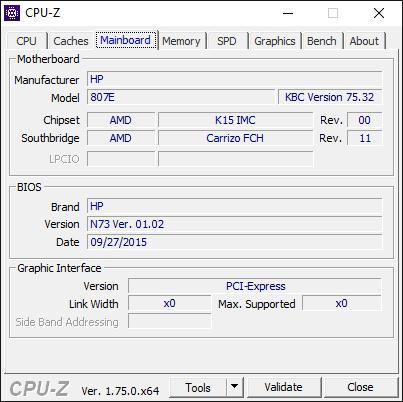

AMD KernCZ
Hårddisk
SanDisk X300s SD7TN3Q-256G-1006, 256 GB
Vikt

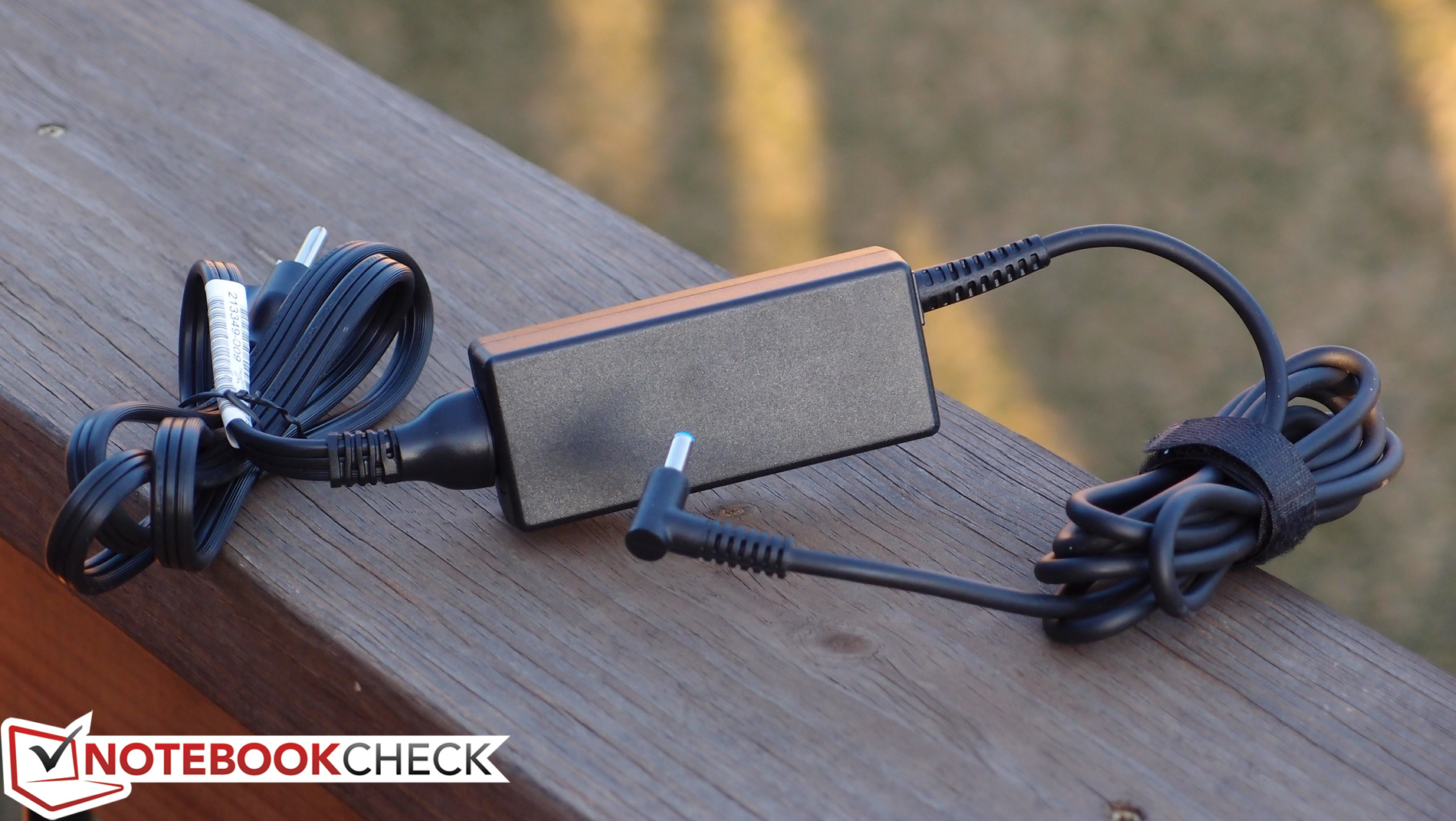

1.55 kg, Strömförsörjning: 292 g
Länkar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
CMN14C0 tested with X-Rite i1Basic Pro 2
Max: 366.2 cd/m² (Nits) Medel: 343.1 cd/m²Distribution av ljusstyrkan: 89 %
Mitt på batteriet: 366.2 cd/m²
Kontrast: 513:1 (Svärta: 0.714 cd/m²)
ΔE Color 9.15 | 0.5-29.43 Ø4.91
ΔE Greyscale 9.57 | 0.5-98 Ø5.2
77.28% sRGB (Argyll 1.6.3 3D)
49.03% AdobeRGB 1998 (Argyll 1.6.3 3D)
52.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
76.7% sRGB (Argyll 2.2.0 3D)
50.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.19
| HP EliteBook 745 G3 14", 1920x1080 | HP EliteBook 745 G3 14", 2560x1440 | Dell Latitude E7450 14", 1920x1080 | Lenovo ThinkPad T450s-20BWS1UT00 14", 1920x1080 | Toshiba Portege Z30t-B1320W10 13.3", 1920x1080 | |
|---|---|---|---|---|---|
| Display | 39% | 27% | 17% | 30% | |
| Display P3 Coverage | 50.9 | 75.7 49% | 66.6 31% | 64.8 27% | 67.1 32% |
| sRGB Coverage | 76.7 | 95.8 25% | 92.4 20% | 83.8 9% | 96.8 26% |
| AdobeRGB 1998 Coverage | 52.6 | 74.5 42% | 67.7 29% | 61.2 16% | 68.9 31% |
| Response Times | 19% | -18% | |||
| Response Time Grey 50% / Grey 80% * | 54 ? | 46.8 ? 13% | 59.2 ? -10% | ||
| Response Time Black / White * | 33 ? | 25.2 ? 24% | 50.4 ? -53% | ||
| PWM Frequency | 200 ? | 215.5 8% | |||
| Screen | 27% | 27% | 31% | 35% | |
| Brightness middle | 366.2 | 319 -13% | 280 -24% | 288 -21% | 296.1 -19% |
| Brightness | 343 | 301 -12% | 257 -25% | 281 -18% | 284 -17% |
| Brightness Distribution | 89 | 74 -17% | 75 -16% | 94 6% | 90 1% |
| Black Level * | 0.714 | 0.29 59% | 0.3 58% | 0.286 60% | 0.308 57% |
| Contrast | 513 | 1100 114% | 933 82% | 1007 96% | 961 87% |
| Colorchecker dE 2000 * | 9.15 | 7.23 21% | 3.45 62% | 4.35 52% | 3 67% |
| Colorchecker dE 2000 max. * | 15.11 | ||||
| Greyscale dE 2000 * | 9.57 | 6 37% | 3.35 65% | 3.7 61% | 1.61 83% |
| Gamma | 2.19 100% | 2.14 103% | 2.37 93% | 2.68 82% | 2.18 101% |
| CCT | 11114 58% | 6904 94% | 6940 94% | 6076 107% | 6716 97% |
| Color Space (Percent of AdobeRGB 1998) | 49.03 | 65.8 34% | 60 22% | 54.7 12% | 62.37 27% |
| Color Space (Percent of sRGB) | 77.28 | 95.3 23% | 92 19% | 96.57 25% | |
| Total Average (Program / Settings) | 28% /
29% | 27% /
27% | 24% /
27% | 16% /
23% |
* ... smaller is better
Display Response Times
ℹ

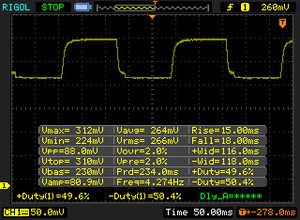

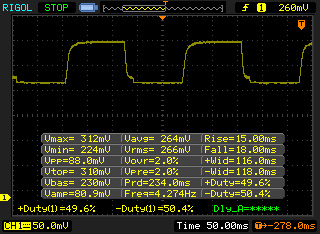

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 33 ms ... rise ↗ and fall ↘ combined | ↗ 15 ms rise |  |
| ↘ 18 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 88 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

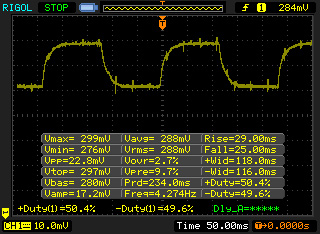

| ↔ Response Time 50% Grey to 80% Grey | ||
| 54 ms ... rise ↗ and fall ↘ combined | ↗ 29 ms rise |  |
| ↘ 25 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 90 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

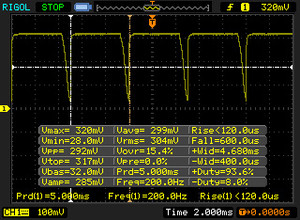

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 200 Hz | ≤ 90 % brightness setting |  |
| ≤ 343 cd/m² brightness | |||

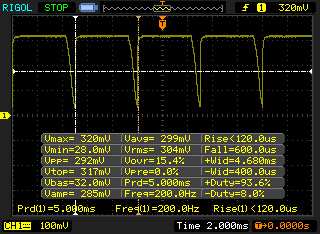

The display backlight flickers at 200 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % (343 cd/m²) and below. There should be no flickering or PWM above this brightness setting. The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. Flickering occurs even at high brightness setting and may have an effect on the user during everyday use. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Cinebench R10 | |
| Rendering Single CPUs 64Bit (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| Rendering Multiple CPUs 64Bit (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| PCMark 7 - Score (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| PCMark 7 Score | 4729 poäng | |
| PCMark 8 Home Score Accelerated v2 | 2978 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 3717 poäng | |
| PCMark 8 Work Score Accelerated v2 | 3824 poäng | |
Hjälp | ||

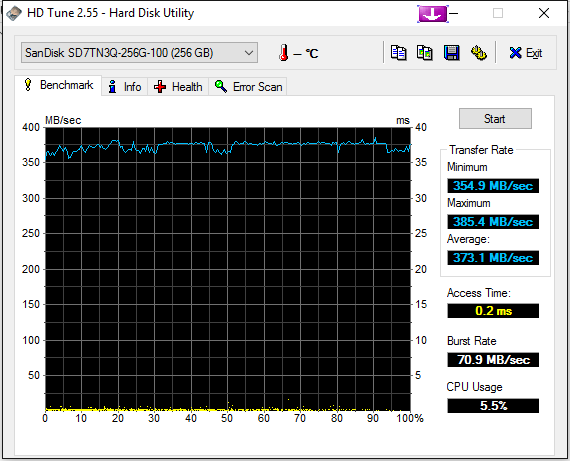

SanDisk X300s SD7TN3Q-256G-1006
Överföringshastighet min.:
354.9 MB/s
Överföringshastighet max.:
385.4 MB/s
Överföringshastighet med.:
373.1 MB/s
Accesstid:
0.2 ms
Burst rate:
70.9 MB/s
CPU-användning:
5.5 %
| 3DMark 11 - 1280x720 Performance (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| 3DMark | |
| 1920x1080 Fire Strike Score (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| 1280x720 Cloud Gate Standard Score (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| 1280x720 Ice Storm Standard Score (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| 3DMark 06 Standard Score | 7857 poäng | |
| 3DMark 11 Performance | 2020 poäng | |
| 3DMark Ice Storm Standard Score | 45140 poäng | |
| 3DMark Cloud Gate Standard Score | 5005 poäng | |
| 3DMark Fire Strike Score | 1170 poäng | |
| 3DMark Fire Strike Extreme Score | 540 poäng | |
Hjälp | ||
| HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B, SanDisk X300s SD7TN3Q-256G-1006 | HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B, Samsung SSD PM851 256 GB MZNTE256HMHP | Dell Latitude E7450 HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB | Lenovo ThinkPad T450s-20BWS1UT00 GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP | Toshiba Portege Z30t-B1320W10 HD Graphics 5500, 5600U, Toshiba THNSNJ256GMCU | |
|---|---|---|---|---|---|
| Noise | -8% | -9% | -4% | -11% | |
| Idle Minimum * | 28.5 | 29 -2% | 29.1 -2% | 29.1 -2% | 30.2 -6% |
| Idle Average * | 28.6 | 29 -1% | 29.1 -2% | 29.1 -2% | 30.3 -6% |
| Idle Maximum * | 28.6 | 31.1 -9% | 30 -5% | 29.1 -2% | 32.2 -13% |
| Load Average * | 30.5 | 35.6 -17% | 36.4 -19% | 33.1 -9% | 35.6 -17% |
| Load Maximum * | 32.6 | 35.6 -9% | 37.8 -16% | 34.3 -5% | 37.6 -15% |
* ... smaller is better
Ljudnivå
| Låg belastning |
| 28.5 / 28.6 / 28.6 dB(A) |
| Hög belastning |
| 30.5 / 32.6 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  BK Precision 732A (15 cm avstånd) | ||
(+) The average temperature for the upper side under maximal load is 29.6 °C / 85 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 36.8 °C / 98 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.8 °C / 111 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26 °C / 78.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+1.6 °C / 2.9 F).
(+) The maximum temperature on the upper side is 36.8 °C / 98 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.8 °C / 111 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26 °C / 78.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+1.6 °C / 2.9 F).
För
+ Relativt robust metallchassi

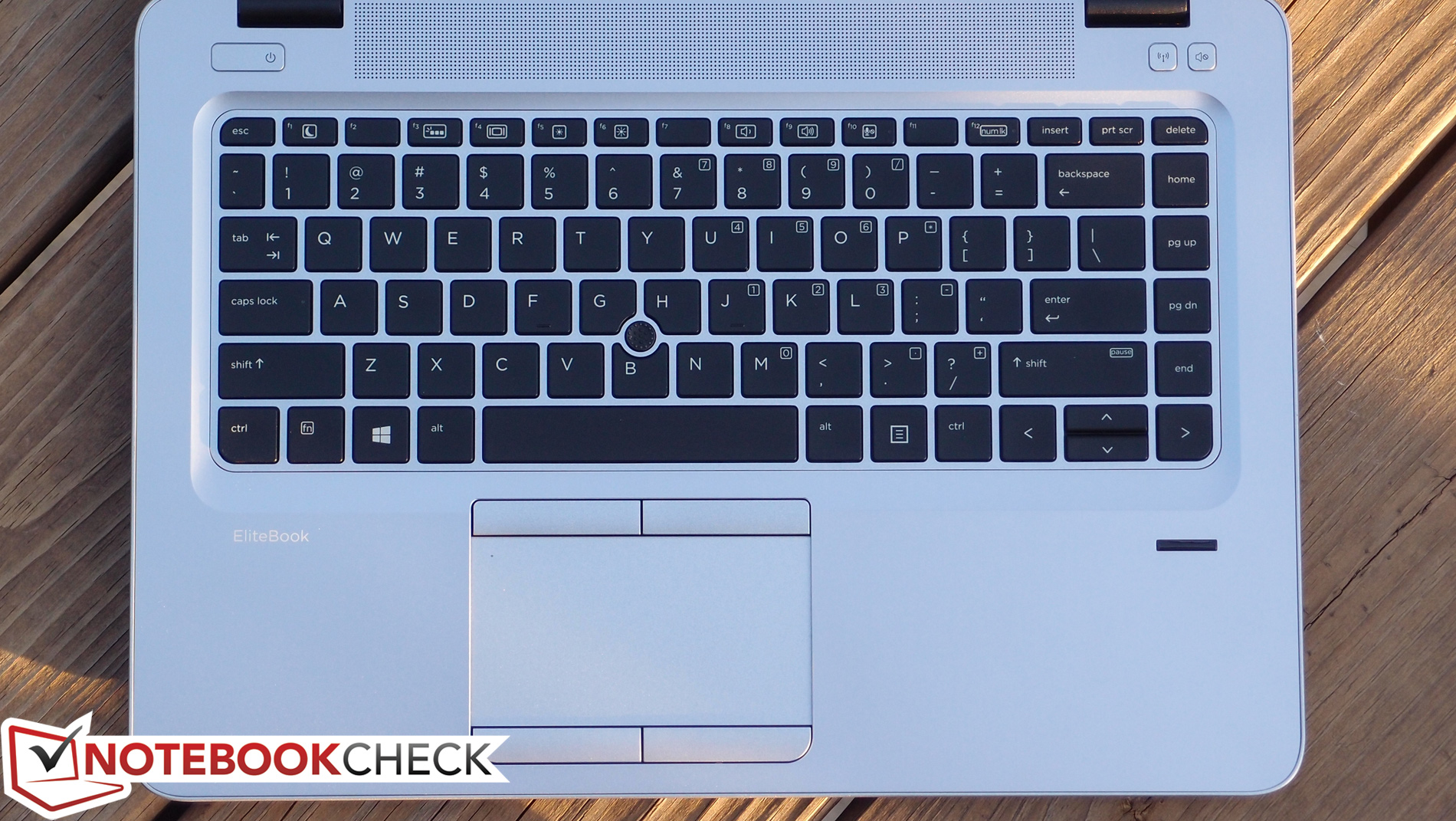

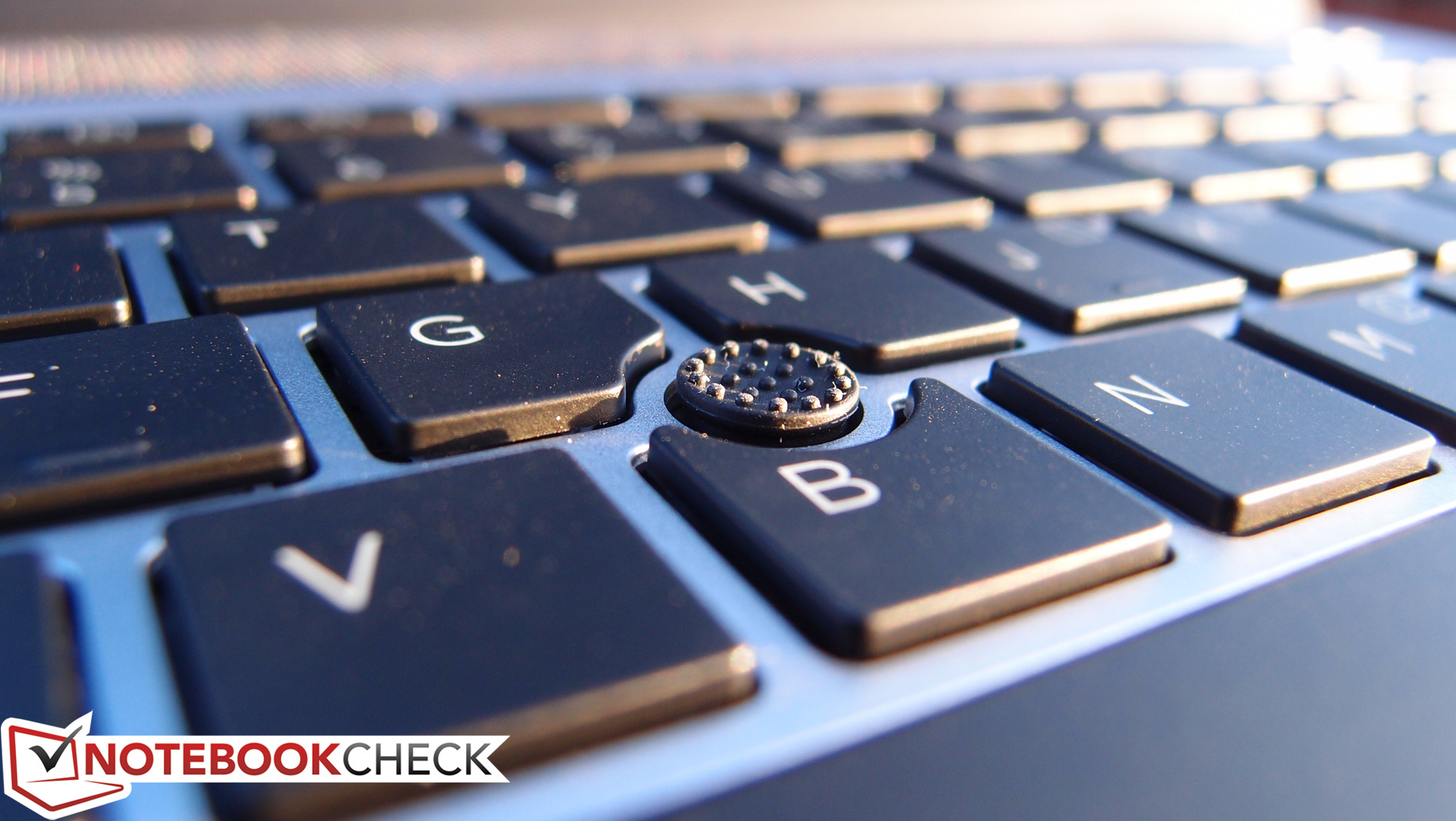

+ Utmärkt tangentbord
+ Bekväm och exakt pekplatta
+ Snabb SSD
+ Bra generell systemprestanda
+ Ljusstark, matt 1080p-skärm
+ Konkurrenskraftigt pris
+ Skapliga högtalare

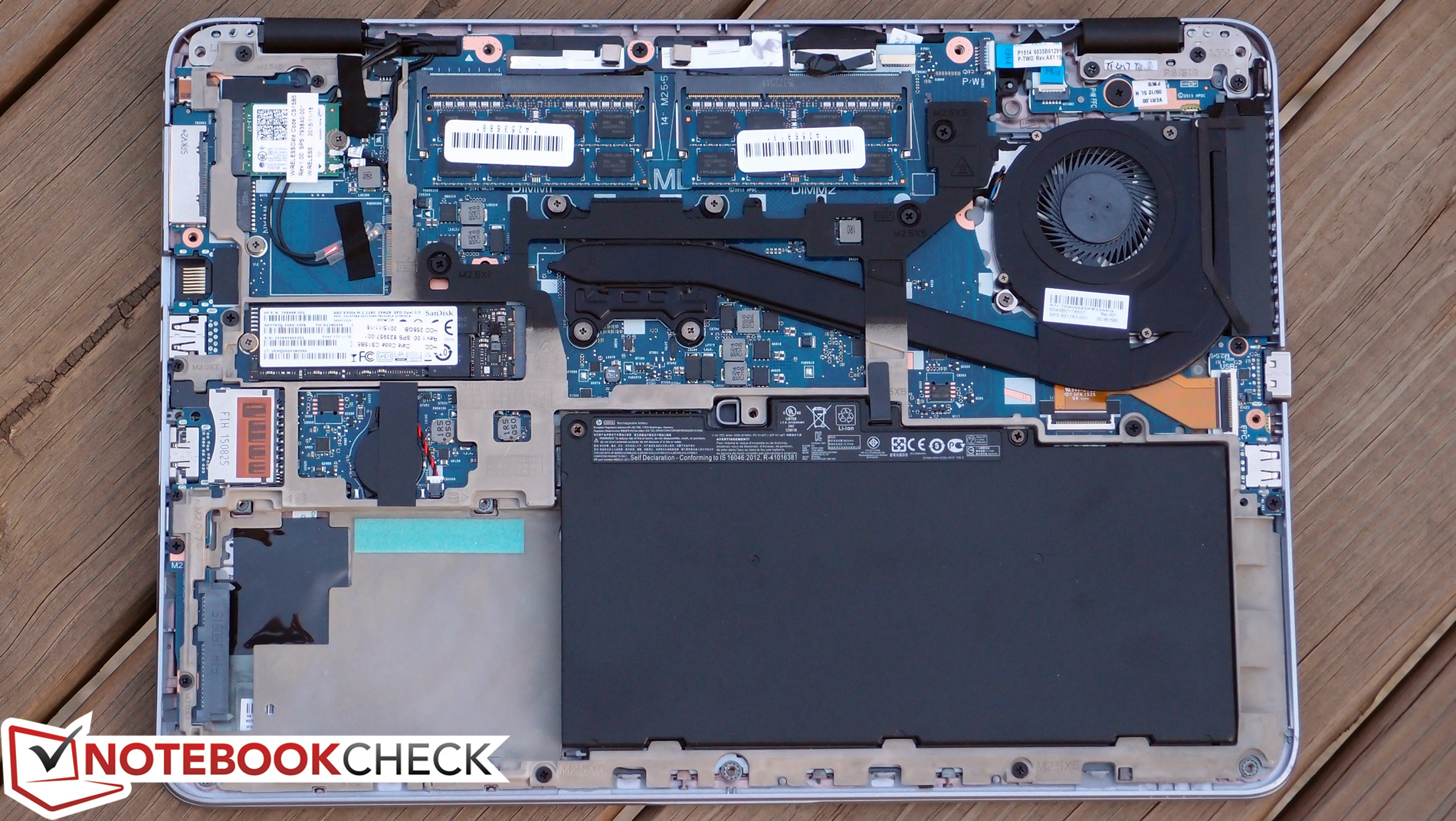

+ Ledig 2,5-tumsplats med M.2-SSD-konfigurationer
Emot
- Opraktisk att underhålla
- Dålig färgreproduktion och medelmåttig kontrast
- PWM på allt utom högsta ljusstyrkan
- CPU/GPU-prestanda hålls tillbaka av TDP
- Visslande CPU
- Batteritid under snittet
Förra veckans test av HP EliteBook 745 G3 startade konversationen om ett alternativ till normalt sett dyrare bärbara företagsdatorer. Eftersom maskinen behåller mycket av EliteBook 800-seriens fördelar har 745 G3 många starka sidor som gör den intressant inom företagssegmentet.
Med AMD Pro-komponenter istället för Intel blir kostnaden betydligt lägre än de flesta motsvarande konkurrenter. Dagens testexemplar tar samma strategi ett steg längre med en billigare skärmpanel. Trots det har Elitebook 745 G3 ett utmärkt tangentbord och stor pekplatta, attraktivt hölje, flexibla underhållsmöjligheter och lång garanti.
De kompromisser man får leva med är reducerad allmänprestanda och batteritid, vilket bland annat kan härledas till AMD:s 28 nm-arkitektur. AMD:s senaste systemkretsar har blivit allt bättre och erbjuder fördelar vad gäller grafikprestandan, men kan fortfarande inte konkurrera med Intels högeffektiva alternativ.
Om det spelar någon roll för den genomsnittliga företagsanvändaren är en helt annan fråga. För den som tillbringar en stor del av vardagen nära ett eluttag, och ägnar sig åt generella företagsprogram, kan EliteBook 745 G3 vara en rationell kompromiss.
HP EliteBook 745 G3
- 01/28/2016 v4.1 (old)
Steve Schardein
