Test: HP EliteBook x360 1030 G3 (i7-8650U, FHD) Omvandlingsbar (Sammanfattning)
| |||||||||||||||||||||||||
Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 467.2 cd/m²
Kontrast: 1168:1 (Svärta: 0.4 cd/m²)
ΔE Color 2.41 | 0.5-29.43 Ø4.92, calibrated: 1.33
ΔE Greyscale 3.7 | 0.5-98 Ø5.2
99.6% sRGB (Argyll 1.6.3 3D)
62.5% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.6% sRGB (Argyll 2.2.0 3D)
66.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.37
| HP EliteBook x360 1030 G3 45X96UT Chi Mei CMN1380, IPS, 13.3", 1920x1080 | Lenovo Yoga C930-13IKB B139HAN03_0, IPS, 13.9", 1920x1080 | Chuwi LapBook SE 13.3", 1920x1080 | Microsoft Surface Pro 6, Core i5, 128 GB LGPhilips LP123WQ112604, IPS, 12.3", 2736x1834 | Huawei Matebook X Pro i5 Tianma XM, IPS, 13.9", 3000x2000 | HP Elite x2 1013 G3-2TT14EA AU Optronics AUO101A, IPS, 13", 3000x2000 | |
|---|---|---|---|---|---|---|
| Display | -4% | -3% | -5% | -2% | -1% | |
| Display P3 Coverage | 66.7 | 64.3 -4% | 65 -3% | 65.5 -2% | 65.9 -1% | 67.5 1% |
| sRGB Coverage | 98.6 | 94.6 -4% | 94.8 -4% | 90.4 -8% | 95.2 -3% | 96.7 -2% |
| AdobeRGB 1998 Coverage | 68.7 | 66.2 -4% | 66.5 -3% | 65.6 -5% | 67.6 -2% | 68.2 -1% |
| Response Times | -2% | -33% | -6% | 2% | -8% | |
| Response Time Grey 50% / Grey 80% * | 39.6 ? | 40.8 ? -3% | 39.2 ? 1% | 42 ? -6% | 40.4 ? -2% | 47 ? -19% |
| Response Time Black / White * | 27.2 ? | 27.6 ? -1% | 27.7 ? -2% | 25 ? 8% | 25.6 ? 6% | 26 ? 4% |
| PWM Frequency | 26040 ? | 200 ? -99% | 20800 ? -20% | |||
| Screen | -46% | -69% | -14% | -13% | -18% | |
| Brightness middle | 467.2 | 316 -32% | 227 -51% | 463 -1% | 442.7 -5% | 452 -3% |
| Brightness | 445 | 291 -35% | 210 -53% | 450 1% | 428 -4% | 412 -7% |
| Brightness Distribution | 91 | 83 -9% | 89 -2% | 83 -9% | 84 -8% | 85 -7% |
| Black Level * | 0.4 | 0.36 10% | 0.44 -10% | 0.32 20% | 0.31 22% | 0.48 -20% |
| Contrast | 1168 | 878 -25% | 516 -56% | 1447 24% | 1428 22% | 942 -19% |
| Colorchecker dE 2000 * | 2.41 | 5.9 -145% | 6.6 -174% | 3.76 -56% | 2.24 7% | 4.05 -68% |
| Colorchecker dE 2000 max. * | 5.58 | 12.9 -131% | 12.2 -119% | 7.35 -32% | 7.19 -29% | 6.64 -19% |
| Colorchecker dE 2000 calibrated * | 1.33 | 1.3 2% | 1.9 -43% | 2.68 -102% | 1.11 17% | 1.56 -17% |
| Greyscale dE 2000 * | 3.7 | 8.6 -132% | 7.9 -114% | 3.18 14% | 9.7 -162% | 4.87 -32% |
| Gamma | 2.37 93% | 2.1 105% | 2.16 102% | 2.53 87% | 1.42 155% | 2.71 81% |
| CCT | 7158 91% | 6854 95% | 8879 73% | 6994 93% | 6227 104% | 7160 91% |
| Color Space (Percent of AdobeRGB 1998) | 62.5 | 60.7 -3% | 59 -6% | 61.6 -1% | 62 -1% | |
| Color Space (Percent of sRGB) | 99.6 | 94.5 -5% | 90 -10% | 95 -5% | 97 -3% | |
| Total Average (Program / Settings) | -17% /
-33% | -35% /
-49% | -8% /
-11% | -4% /
-9% | -9% /
-13% |
* ... smaller is better
Display Response Times

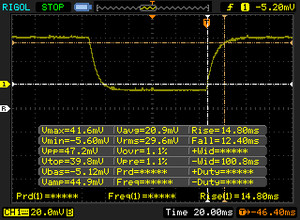

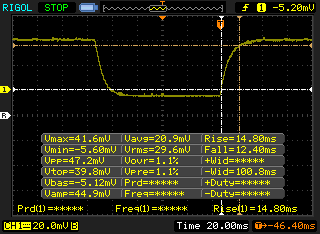

| ↔ Response Time Black to White | ||
|---|---|---|
| 27.2 ms ... rise ↗ and fall ↘ combined | ↗ 14.8 ms rise |  |
| ↘ 12.4 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 66 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

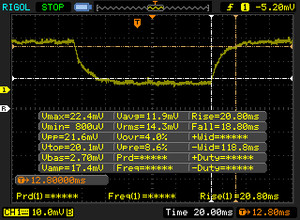

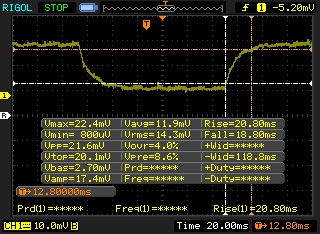

| ↔ Response Time 50% Grey to 80% Grey | ||
| 39.6 ms ... rise ↗ and fall ↘ combined | ↗ 20.8 ms rise |  |
| ↘ 18.8 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 57 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||

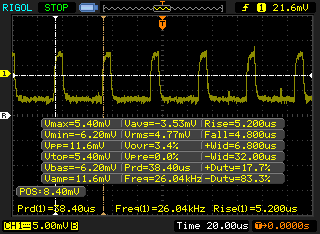

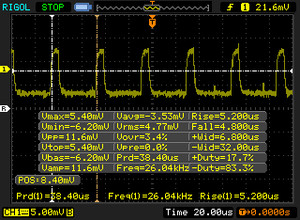

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 26040 Hz | ≤ 62 % brightness setting |  |
The display backlight flickers at 26040 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 62 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 26040 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| PCMark 8 Home Score Accelerated v2 | 4103 poäng | |
| PCMark 10 Score | 3901 poäng | |
Hjälp | ||
| HP EliteBook x360 1030 G3 45X96UT Samsung SSD PM981 MZVLB512HAJQ | Lenovo Yoga C930-13IKB SK hynix PC401 HFS256GD9TNG | Chuwi LapBook SE SanDisk DF4032 | Microsoft Surface Pro 6, Core i5, 128 GB Toshiba KBG30ZPZ128G | Huawei Matebook X Pro i5 Samsung PM961 MZVLW256HEHP | HP EliteBook x360 1030 G3 Samsung PM871b MZNLN128HAHQ | |
|---|---|---|---|---|---|---|
| AS SSD | -50% | -518% | -261% | -23% | -73% | |
| Seq Read | 1798 | 1850 3% | 264.1 -85% | 1114 -38% | 2416 34% | 488.2 -73% |
| Seq Write | 1374 | 661 -52% | 131.8 -90% | 340 -75% | 1170 -15% | 403.2 -71% |
| 4K Read | 46.05 | 38.04 -17% | 6.3 -86% | 40.46 -12% | 48.33 5% | 31.07 -33% |
| 4K Write | 104.3 | 95 -9% | 13.6 -87% | 80.6 -23% | 103.1 -1% | 70.8 -32% |
| 4K-64 Read | 1408 | 434.3 -69% | 25.65 -98% | 277.9 -80% | 1039 -26% | 255.1 -82% |
| 4K-64 Write | 790 | 266.3 -66% | 9.11 -99% | 129.3 -84% | 399.6 -49% | 156.5 -80% |
| Access Time Read * | 0.041 | 0.069 -68% | 0.671 -1537% | 0.913 -2127% | 0.058 -41% | 0.093 -127% |
| Access Time Write * | 0.036 | 0.056 -56% | 1.233 -3325% | 0.301 -736% | 0.036 -0% | 0.048 -33% |
| Score Read | 1634 | 657 -60% | 58 -96% | 430 -74% | 1329 -19% | 335 -79% |
| Score Write | 1032 | 427 -59% | 36 -97% | 244 -76% | 620 -40% | 268 -74% |
| Score Total | 3484 | 1373 -61% | 120 -97% | 870 -75% | 2575 -26% | 781 -78% |
| Copy ISO MB/s | 1947 | 539 -72% | 128.1 -93% | 739 -62% | 208.1 -89% | |
| Copy Program MB/s | 453.9 | 209.7 -54% | 94 -79% | 312.3 -31% | 74.3 -84% | |
| Copy Game MB/s | 990 | 340 -66% | 124.4 -87% | 486.3 -51% | 164.5 -83% |
* ... smaller is better
| 3DMark 11 Performance | 1814 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 70.9 | 32.9 | 28.5 | 8.9 |
Ljudnivå
| Låg belastning |
| 28.5 / 28.5 / 28.5 dB(A) |
| Hög belastning |
| 30.8 / 32.8 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm avstånd) environment noise: 28.5 dB(A) | ||
| HP EliteBook x360 1030 G3 45X96UT UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ | Lenovo Yoga C930-13IKB UHD Graphics 620, i5-8250U, SK hynix PC401 HFS256GD9TNG | HP EliteBook x360 1030 G3 UHD Graphics 620, i5-8250U, Samsung PM871b MZNLN128HAHQ | HP Envy x360 15-bq102ng Vega 8, R5 2500U, Samsung PM961 MZVLW256HEHP | HP Spectre x360 13-ac033dx HD Graphics 620, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP | Microsoft Surface Pro 6, Core i7, 512 GB UHD Graphics 620, i7-8650U, Toshiba KBG30ZPZ512G | |
|---|---|---|---|---|---|---|
| Noise | -3% | -1% | -11% | -14% | -6% | |
| off / environment * | 28.5 | 29.3 -3% | 28.5 -0% | 30.13 -6% | 28.7 -1% | 30.3 -6% |
| Idle Minimum * | 28.5 | 29.3 -3% | 28.5 -0% | 30.13 -6% | 28.7 -1% | 30.3 -6% |
| Idle Average * | 28.5 | 29.3 -3% | 28.5 -0% | 30.13 -6% | 34.2 -20% | 30.3 -6% |
| Idle Maximum * | 28.5 | 29.7 -4% | 28.5 -0% | 30.13 -6% | 35.8 -26% | 30.3 -6% |
| Load Average * | 30.8 | 31.8 -3% | 31.3 -2% | 38.8 -26% | 35.8 -16% | 33.5 -9% |
| Load Maximum * | 32.8 | 32.7 -0% | 33.5 -2% | 38.8 -18% | 39.6 -21% | 33.5 -2% |
* ... smaller is better
(±) The maximum temperature on the upper side is 40 °C / 104 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 46.2 °C / 115 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.6 °C / 80 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27 °C / 80.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (+1.1 °C / 2 F).
HP EliteBook x360 1030 G3 45X96UT audio analysis
(±) | speaker loudness is average but good (78.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.8% lower than median
(±) | linearity of bass is average (13.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.1% away from median
(+) | mids are linear (4.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(±) | linearity of highs is average (7.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.5% difference to median)
Compared to same class
» 8% of all tested devices in this class were better, 3% similar, 89% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 6% of all tested devices were better, 2% similar, 92% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis
(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%
| Av/Standby | 0.36 / 0.56 Watt |
| Låg belastning | 3.4 / 7.6 / 11.5 Watt |
| Hög belastning |
35.4 / 51.9 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| HP EliteBook x360 1030 G3 45X96UT i7-8650U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 13.3" | Lenovo Yoga C930-13IKB i5-8250U, UHD Graphics 620, SK hynix PC401 HFS256GD9TNG, IPS, 1920x1080, 13.9" | Chuwi LapBook SE Celeron N4100, UHD Graphics 600, SanDisk DF4032, , 1920x1080, 13.3" | Microsoft Surface Pro 6, Core i7, 512 GB i7-8650U, UHD Graphics 620, Toshiba KBG30ZPZ512G, IPS, 2736x1824, 12.3" | HP Elite x2 1013 G3-2TT14EA i5-8350U, UHD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 3000x2000, 13" | HP EliteBook x360 1030 G3 i5-8250U, UHD Graphics 620, Samsung PM871b MZNLN128HAHQ, IPS, 1920x1080, 13.3" | |
|---|---|---|---|---|---|---|
| Power Consumption | 1% | 38% | 8% | -3% | 12% | |
| Idle Minimum * | 3.4 | 3.3 3% | 2.7 21% | 3.2 6% | 4.9 -44% | 3.8 -12% |
| Idle Average * | 7.6 | 6.8 11% | 6.3 17% | 8.7 -14% | 8.9 -17% | 7.5 1% |
| Idle Maximum * | 11.5 | 9.5 17% | 7.6 34% | 10.4 10% | 11 4% | 8.6 25% |
| Load Average * | 35.4 | 40.8 -15% | 12.6 64% | 29.2 18% | 32 10% | 33.1 6% |
| Load Maximum * | 51.9 | 57 -10% | 24.6 53% | 40.8 21% | 36 31% | 31.8 39% |
* ... smaller is better
| HP EliteBook x360 1030 G3 45X96UT i7-8650U, UHD Graphics 620, 56.2 Wh | Lenovo Yoga C930-13IKB i5-8250U, UHD Graphics 620, 60 Wh | Chuwi LapBook SE Celeron N4100, UHD Graphics 600, 37 Wh | Huawei Matebook X Pro i5 i5-8250U, GeForce MX150, 57.4 Wh | Microsoft Surface Pro 6, Core i7, 512 GB i7-8650U, UHD Graphics 620, 45 Wh | HP EliteBook x360 1030 G3 i5-8250U, UHD Graphics 620, 56.2 Wh | |
|---|---|---|---|---|---|---|
| Battery Runtime | -7% | -25% | -5% | -14% | 2% | |
| WiFi v1.3 | 589 | 550 -7% | 444 -25% | 557 -5% | 509 -14% | 602 2% |
| Reader / Idle | 1432 | 1243 | 1083 | 1381 | ||
| Load | 124 | 347 | 133 | 131 | 189 |
För
Emot
Läs den fullständiga versionen av den här recensionen på engelska här.
När vi recenserade Core i5-versionen av EliteBook x360 1030 G3 sa vi att det var den bästa omvandlingsbara företagsmaskinen på 13 tum, med fler funktioner och en mer ljusstark skärm än en typisk flaggskepps-Ultrabook. Detta gäller även Core i7-konfigurationen men med en nackdel: den är inte särskilt mycket snabbare än det billigare Core i5-8250U-alternativet. Faktum är att våra resultat visade att i7-processorn konsekvent var långsammare än i5-processorn på grund av att den förstnämnda ströps kraftigare. I kontrast till detta är Core i7 Yoga C930 snabbare än Core i5 Yoga C930, särskilt när den utsätts för hög processorstress, så vi blev besvikna över att se det motsatta på en av HP:s bästa subnotebook-modeller.
EliteBook x360 1030 G3 är fortfarande riktigt värd att rekommendera då dess övriga kvaliteter vida överstiger de få negativa egenskaperna. Men med det sagt föreslår vi att hoppa över Core i7-8650U SKU:n och använda de extra pengarna till praktiska tillval som Sure View, bakgrundsbelysningens "Utomhusläge" på 700 nit, 4G LTE och kanske till och med en extern Thunderbolt Dock G2 eller en skärm.
Core i7 SKU:n kostar minst 2.000 eller 3.000 kronor mer än Core i5 SKU:n och dess prestandafördelar - eller snarare brist på sådana - rättfärdigar inte den extra kostnaden. Core i5 SKU:n är fortsatt det bästa alternativet EliteBook x360 1030 G3 har att erbjuda.
HP EliteBook x360 1030 G3 45X96UT
- 11/06/2018 v6 (old)
Allen Ngo
