MagyarTest: HP ZBook 15u G5 (FHD, i7-8550U) Arbetsstation (Sammanfattning)
| |||||||||||||||||||||||||
Distribution av ljusstyrkan: 88 %
Mitt på batteriet: 229 cd/m²
Kontrast: 996:1 (Svärta: 0.23 cd/m²)
ΔE Color 4.2 | 0.5-29.43 Ø4.92, calibrated: 4.2
ΔE Greyscale 2 | 0.5-98 Ø5.2
64.5% sRGB (Argyll 1.6.3 3D)
41% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
64.7% sRGB (Argyll 2.2.0 3D)
43.05% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
| HP ZBook 15u G5 2ZC05EA CMN15E7, , 1920x1080, 15.6" | HP ZBook 15u G4 LP156WF6, , 1920x1080, 15.6" | HP EliteBook 850 G5 3JX58EA AUO24ED, , 1920x1080, 15.6" | HP ZBook 15 G4-Y4E80AV LG Philips LGD057E, , 1920x1080, 15.6" | Lenovo ThinkPad P52s-20LB000HGE NV156FHM-N47, , 1920x1080, 15.6" | |
|---|---|---|---|---|---|
| Display | 40% | 43% | 38% | -3% | |
| Display P3 Coverage | 43.05 | 64.8 51% | 63.4 47% | 64 49% | 41.83 -3% |
| sRGB Coverage | 64.7 | 83.9 30% | 88.8 37% | 82.7 28% | 62.1 -4% |
| AdobeRGB 1998 Coverage | 44.5 | 61.3 38% | 64.4 45% | 60.4 36% | 43.22 -3% |
| Response Times | 3% | 6% | -1% | -21% | |
| Response Time Grey 50% / Grey 80% * | 41.6 ? | 39.6 ? 5% | 42 ? -1% | 39.2 ? 6% | 47.2 ? -13% |
| Response Time Black / White * | 28.8 ? | 22 ? 24% | 25 ? 13% | 25.6 ? 11% | 38.4 ? -33% |
| PWM Frequency | 25770 ? | 20830 ? -19% | 20830 ? -19% | 21550 ? -16% | |
| Screen | -9% | 5% | 13% | 6% | |
| Brightness middle | 229 | 320 40% | 402 76% | 321 40% | 291 27% |
| Brightness | 212 | 310 46% | 383 81% | 320 51% | 284 34% |
| Brightness Distribution | 88 | 92 5% | 88 0% | 89 1% | 91 3% |
| Black Level * | 0.23 | 0.45 -96% | 0.41 -78% | 0.29 -26% | 0.11 52% |
| Contrast | 996 | 711 -29% | 980 -2% | 1107 11% | 2645 166% |
| Colorchecker dE 2000 * | 4.2 | 5.5 -31% | 5.25 -25% | 4.5 -7% | 6.7 -60% |
| Colorchecker dE 2000 max. * | 18 | 9 50% | 8.65 52% | 9.5 47% | 20.2 -12% |
| Colorchecker dE 2000 calibrated * | 4.2 | 5.19 -24% | 4.5 -7% | ||
| Greyscale dE 2000 * | 2 | 4.8 -140% | 4 -100% | 2.9 -45% | 4.5 -125% |
| Gamma | 2.23 99% | 2.28 96% | 2.68 82% | 2.27 97% | 2.28 96% |
| CCT | 6292 103% | 6987 93% | 6756 96% | 6519 100% | 7503 87% |
| Color Space (Percent of AdobeRGB 1998) | 41 | 55 34% | 58 41% | 54.2 32% | 39.6 -3% |
| Color Space (Percent of sRGB) | 64.5 | 83.8 30% | 89 38% | 82.6 28% | 61.7 -4% |
| Total Average (Program / Settings) | 11% /
2% | 18% /
13% | 17% /
15% | -6% /
-0% |
* ... smaller is better

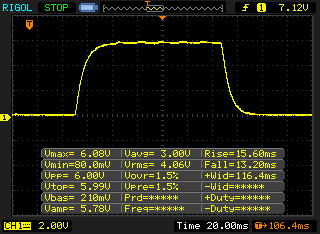

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 28.8 ms ... rise ↗ and fall ↘ combined | ↗ 15.6 ms rise |  |
| ↘ 13.2 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 73 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

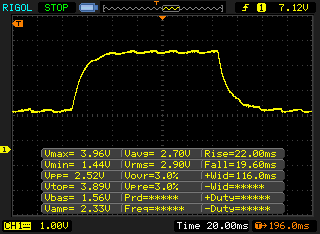

| ↔ Response Time 50% Grey to 80% Grey | ||
| 41.6 ms ... rise ↗ and fall ↘ combined | ↗ 22 ms rise |  |
| ↘ 19.6 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 64 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||

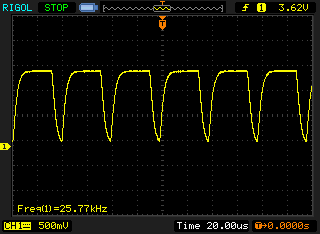

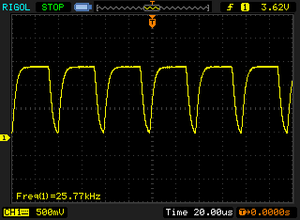

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 25770 Hz | ≤ 40 % brightness setting |  |
The display backlight flickers at 25770 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 40 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 25770 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8750 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| PCMark 8 Home Score Accelerated v2 | 3721 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 5369 poäng | |
| PCMark 8 Work Score Accelerated v2 | 5137 poäng | |
| PCMark 10 Score | 4046 poäng | |
Hjälp | ||
| HP ZBook 15u G5 2ZC05EA Toshiba XG5 KXG50ZNV256G | HP ZBook 15u G4 Samsung SM961 MZVKW512HMJP m.2 PCI-e | HP EliteBook 850 G5 3JX58EA Toshiba XG5 KXG50ZNV256G | HP ZBook 15 G4-Y4E80AV Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH | Lenovo ThinkPad P52s-20LB000HGE Samsung PM961 MZVLW256HEHP | Average Toshiba XG5 KXG50ZNV256G | |
|---|---|---|---|---|---|---|
| CrystalDiskMark 3.0 | 59% | -14% | 71% | 24% | -15% | |
| Read Seq | 2040 | 2042 0% | 2069 1% | 2166 6% | 898 -56% | 1843 ? -10% |
| Write Seq | 917 | 1580 72% | 393.4 -57% | 1682 83% | 862 -6% | 394 ? -57% |
| Read 512 | 912 | 413.4 -55% | 914 0% | 411.6 -55% | 557 -39% | 832 ? -9% |
| Write 512 | 488.9 | 1535 214% | 284.9 -42% | 1175 140% | 558 14% | 331 ? -32% |
| Read 4k | 35.5 | 53.3 50% | 31.76 -11% | 57.5 62% | 61.6 74% | 28.1 ? -21% |
| Write 4k | 99.1 | 152.7 54% | 99.2 0% | 187.6 89% | 164.8 66% | 105.8 ? 7% |
| Read 4k QD32 | 276.7 | 552 99% | 282 2% | 733 165% | 563 103% | 309 ? 12% |
| Write 4k QD32 | 351.5 | 478.3 36% | 338.5 -4% | 619 76% | 470.7 34% | 320 ? -9% |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Average of class Workstation (34.1 - 59.2, n=2, last 2 years) | |
| HP ZBook 15 G4-Y4E80AV | |
| Lenovo ThinkPad P52s-20LB000HGE | |
| HP ZBook 15u G5 2ZC05EA | |
| Average AMD Radeon Pro WX 3100 (9.4 - 10.8, n=2) | |
| HP ZBook 15u G4 | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Average of class Workstation (26.8 - 49.9, n=2, last 2 years) | |
| HP ZBook 15 G4-Y4E80AV | |
| Lenovo ThinkPad P52s-20LB000HGE | |
| HP ZBook 15u G4 | |
| HP ZBook 15u G5 2ZC05EA | |
| Average AMD Radeon Pro WX 3100 (5.6 - 6.3, n=2) | |
| Unigine Heaven 2.1 - 1280x1024 high, Tesselation (normal), DirectX11 AA:off AF:1x | |
| HP ZBook 15u G5 2ZC05EA | |
| Average AMD Radeon Pro WX 3100 () | |
| 3DMark 06 Standard Score | 18186 poäng | |
| 3DMark Vantage P Result | 11702 poäng | |
| 3DMark 11 Performance | 3993 poäng | |
| 3DMark Ice Storm Standard Score | 47152 poäng | |
| 3DMark Cloud Gate Standard Score | 11601 poäng | |
| 3DMark Fire Strike Score | 2448 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 154.8 | 76.6 | 68.2 | 23.4 |
| The Witcher 3 (2015) | 48.2 | 29 | 15.4 | 6.65 |
| Rise of the Tomb Raider (2016) | 50.4 | 29.1 | 14.8 | |
| Doom (2016) | 30.5 | 15.6 | ||
| Civilization VI (2016) | 73 | 51.1 | 18.2 | |
| Warhammer 40.000: Dawn of War III (2017) | 71.8 | 22.41 | ||
| Call of Duty WWII (2017) | 84.6 | 45.5 | 24.8 | |
| Star Wars Battlefront 2 (2017) | 65 | 23.1 |
Ljudnivå
| Låg belastning |
| 29.8 / 29.8 / 30.8 dB(A) |
| Hög belastning |
| 32.9 / 36.5 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm avstånd) environment noise: 29.8 dB(A) | ||
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(±) The bottom heats up to a maximum of 43.1 °C / 110 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 22.6 °C / 73 F, compared to the device average of 32 °C / 90 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 34.1 °C / 93 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.6 °C / 85.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-1.7 °C / -3.1 F).
HP ZBook 15u G5 2ZC05EA audio analysis
(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.9% lower than median
(±) | linearity of bass is average (9.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.5% away from median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.9% away from median
(+) | highs are linear (2.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.9% difference to median)
Compared to same class
» 51% of all tested devices in this class were better, 11% similar, 37% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 33% of all tested devices were better, 8% similar, 59% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkPad P52s-20LB000HGE audio analysis
(±) | speaker loudness is average but good (80.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.6% higher than median
(+) | mids are linear (5.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.8% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 11% similar, 38% worse
» The best had a delta of 7%, average was 18%, worst was 35%
Compared to all devices tested
» 32% of all tested devices were better, 8% similar, 60% worse
» The best had a delta of 4%, average was 25%, worst was 134%
| Av/Standby | 0.39 / 0.52 Watt |
| Låg belastning | 3.2 / 6.1 / 9.7 Watt |
| Hög belastning |
62 / 71 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| HP ZBook 15u G5 2ZC05EA i5-8550U, Radeon Pro WX 3100, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6" | HP ZBook 15u G4 i7-7500U, FirePro W4190M, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS LED, 1920x1080, 15.6" | HP EliteBook 850 G5 3JX58EA i5-8250U, UHD Graphics 620, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6" | HP ZBook 15 G4-Y4E80AV E3-1535M v6, Quadro M2200, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH, IPS, 1920x1080, 15.6" | Lenovo ThinkPad P52s-20LB000HGE i5-8550U, Quadro P500, Samsung PM961 MZVLW256HEHP, IPS LED, 1920x1080, 15.6" | Average AMD Radeon Pro WX 3100 | Average of class Workstation | |
|---|---|---|---|---|---|---|---|
| Power Consumption | -11% | 13% | -69% | -4% | 2% | -121% | |
| Idle Minimum * | 3.2 | 3.85 -20% | 2.7 16% | 5.9 -84% | 4.1 -28% | 3.3 ? -3% | 9.05 ? -183% |
| Idle Average * | 6.1 | 7.5 -23% | 8.1 -33% | 8.9 -46% | 7.7 -26% | 5.85 ? 4% | 14 ? -130% |
| Idle Maximum * | 9.7 | 11.8 -22% | 10.1 -4% | 12.7 -31% | 10.7 -10% | 9.1 ? 6% | 19.9 ? -105% |
| Load Average * | 62 | 47.7 23% | 39 37% | 95.2 -54% | 52 16% | 58.6 ? 5% | 95.2 ? -54% |
| Witcher 3 ultra * | 48 | 46.7 3% | 87.7 -83% | 38.8 19% | |||
| Load Maximum * | 71 | 90.2 -27% | 37.2 48% | 154 -117% | 65 8% | 71.2 ? -0% | 166.7 ? -135% |
* ... smaller is better
| HP ZBook 15u G5 2ZC05EA i5-8550U, Radeon Pro WX 3100, 56 Wh | HP ZBook 15u G4 i7-7500U, FirePro W4190M, 51 Wh | HP EliteBook 850 G5 3JX58EA i5-8250U, UHD Graphics 620, 56 Wh | HP ZBook 15 G4-Y4E80AV E3-1535M v6, Quadro M2200, 90 Wh | Lenovo ThinkPad P52s-20LB000HGE i5-8550U, Quadro P500, 104 Wh | Average of class Workstation | |
|---|---|---|---|---|---|---|
| Battery Runtime | -32% | -1% | -13% | 66% | -20% | |
| Reader / Idle | 1301 | 966 -26% | 1066 -18% | 1096 -16% | 2360 81% | 927 ? -29% |
| H.264 | 623 | 486 -22% | 627 1% | 629 1% | 1131 82% | 671 ? 8% |
| WiFi v1.3 | 514 | 457 -11% | 556 8% | 547 6% | 974 89% | 513 ? 0% |
| Load | 200 | 65 -67% | 207 4% | 115 -42% | 221 11% | 80.9 ? -60% |
För
Emot
Läs den fullständiga versionen av den här recensionen på engelska här.
HP ZBook 15u G5 verkar åtgärda en del av dom saker vi kritiserade ZBook 15u G4 för genom att sätta i en uppdaterad GPU och en kraftigare fyrkärnig CPU.
ZBook 15u G5 är baserad på EliteBook 850 G5, vilket verkligen inte är något dåligt. EliteBook 850 G5 har en del imponerande kvaliteter såsom det högkvalitativa metallhöljet och den skapliga styrplattan. HP har till och med lyckats återskapa EliteBook 850 G5:s låga yttemperaturer samt det hyfsade utbudet av portar och säkerhetsfunktioner. ZBook 15u G5 har också samma garantiperiod som EliteBook 850 G5.
På papperet är ZBook 15u G5 en kontorslaptop med en ISV-certifierad GPU. Detta kvalificerar inte ZBook 15u G5 till att bli en sann arbetsstation. ZBook 15u G5 har bara låga yttemperaturer på grund av dom konservativa temperaturbegränsningarna. Dessa begränsningar och det svaga kylsystemet kombineras och skapar såpass svag prestanda för CPU och GPU att dess Core i7-8550U presterar sämre än den svagare Core i5-8250U som sitter i EliteBook 850 G5. Dessutom misslyckas GPU:n att nå sin fulla potential då systemet värmestryper den, vilket resulterar i att dess Radeon Pro WX 3100 presterar sämre än sin föregångare i en del tester. Denna frustrerande upplevelse blir ännu värre av den irriterande högfrekventa fläkten och det fruktade spoltjutet. För att sammanfatta, ZBook 15u G5 stärker idén om att en bra arbetsstation inte kan vara baserad på designen för en kontorslaptop.
Detta är heller inte alla problem. Skärmen i vår testenhet var helt enkelt inte bra nog för en modell som kostar 17.500 kronor. Färgrymdstäckningen och ljusstyrkan var för låga för att datorn skulle kunna användas som en arbetsstation. Vi hade också förväntat oss att se en SD-kortsläsare och en bättre version av PointStick än den som används i EliteBook 850 G5; PointStick är inte på samma nivå som ThinkPad-modellernas TrackPoint. Tillslut hade vi förväntat oss minst två M.2-2280 SSD-platser i en arbetsstation på 15.6 tum snarare än den enda som ingår. En räcker gott för kontorslaptops men inte för arbetsstationer, särskilt när det finns plats för ytterligare en M.2-2280 plats.
HP ZBook 15u G5 stryps rejält vid belastning, vilket vi inte förväntar oss att se hos en enhet som marknadsförs som en arbetsstation.
För att summera så är det oklart för vem HP ZBook 15u är designad åt. Enheten misslyckas som en arbetsstation då den är underdimensionerad jämfört med andra arbetsstationer och har en skärm som är olämplig för professionellt bruk. På samma sätt är ZBook 14u G5 ett bättre val om du föredrar mobilitet men vill köpa en ZBook-modell. Till sist finns det bättre alternativ för kontorslaptops, till exempel den billigare EliteBook 850 G5.
Sammanfattningsvis kan vi inte rekommendera HP ZBook 15u G5 på grund av de avsevärda tillkortakommanden den har som arbetsstation.
HP ZBook 15u G5 2ZC05EA
- 05/23/2018 v6 (old)
Benjamin Herzig
