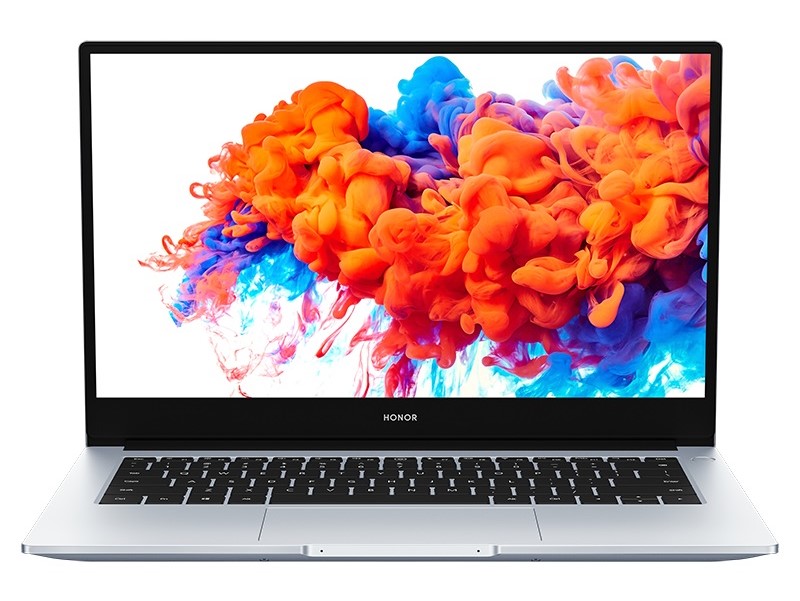

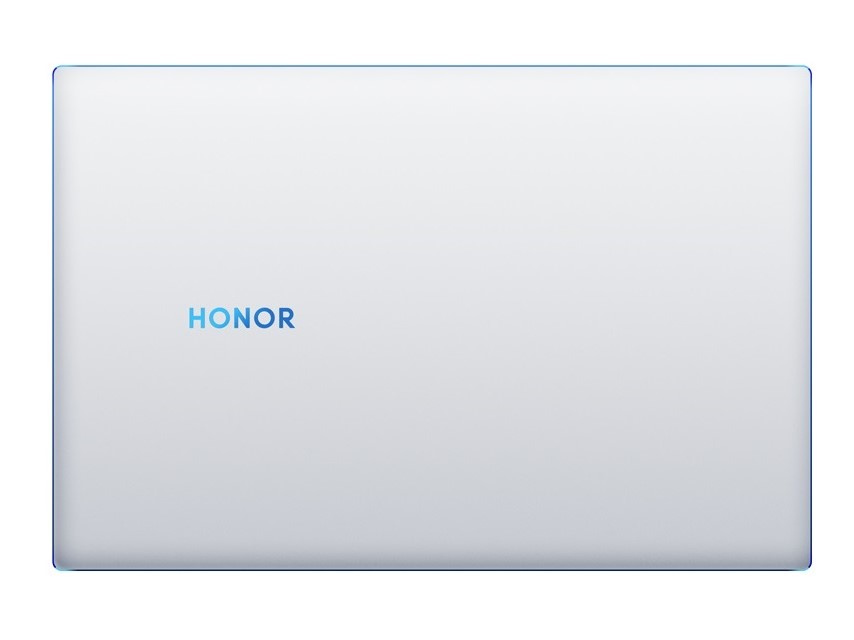

Test: Honor MagicBook 14 - En uthållig laptop med Ryzen 5 4500U (Sammanfattning)

Name: Honor MagicBook 14, Ryzen 5 4500U
Brand: Honor

14 timmar batteritid.

Efter MateBook 14 kommer ... MateBook 14. Men AMD:s Ryzen 5 4500U tar prestandan till en helt ny nivå i den här versionen. Honors laptop är inte bara mer kraftfull vid vardagsbruk utan är också extremt uthållig. I den här recensionen ska vi visa vad mer denna 14-tummare har att erbjuda.

Mike Wobker, 👁 Andreas Osthoff (översatt av Daniel Eriksson), Published 12/28/2020 🇺🇸 🇩🇪 ...

AMD Laptop / Notebook Ryzen (Zen) Windows

Test device courtesy of Honor Deutschland

Download your licensed rating image as PNG / SVG

Honor MagicBook 14, Ryzen 5 4500U (Magicbook Serie)

Processor

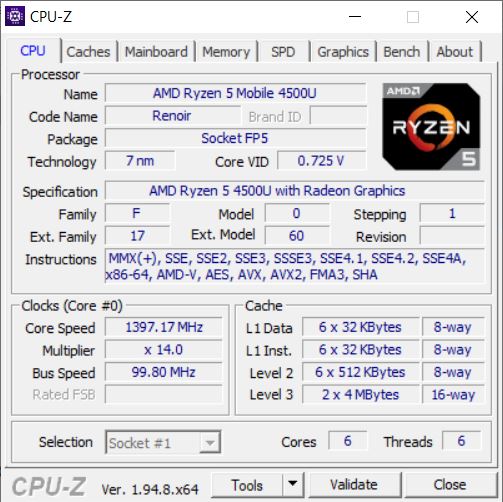

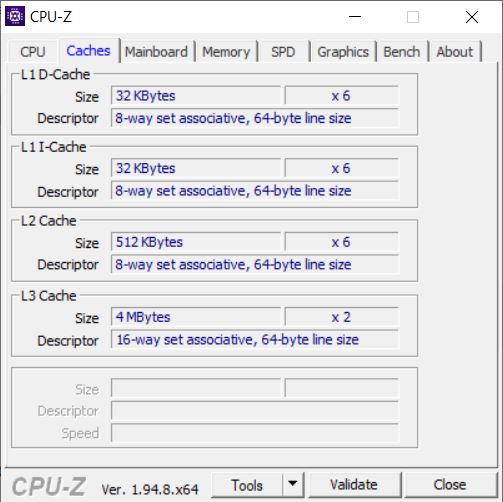

AMD Ryzen 5 4500U 6 x 2.3 - 4 GHz, Renoir-U (Zen 2)

Grafikkort

AMD Radeon RX Vega 6 (Ryzen 4000/5000)

Minne

8 GB

, DDR4, Dubbla kanaler

Skärm

14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, Chi Mei CMN1404, IPS, glansig: nej

Moderkort

AMD Promontory/Bixby FCH

Hårddisk

WDC PC SN530 SDBPNPZ-512G, 512 GB

, 421 GB ledigt

Ljudkort

AMD Raven/Renoir/VanGogh/Cezanne - Audio Processor - HD Audio Controller

Anslutningar

1 USB 2.0, 2 USB 3.0, USB-C Power Delivery (PD), 1 HDMI, Ljudanslutningar: 3.5 mm ljudanslutning, kombinerad, 1 Fingeravtrycksläsare, NFC, USB-C

Nätverk

Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5

Storlek

höjd x bredd x djup (i mm) 15.9 x 322.5 x 214.8

Batteri

56 Wh Litiumpolymer

Operativsystem

Microsoft Windows 10 Home 64 Bit

Camera

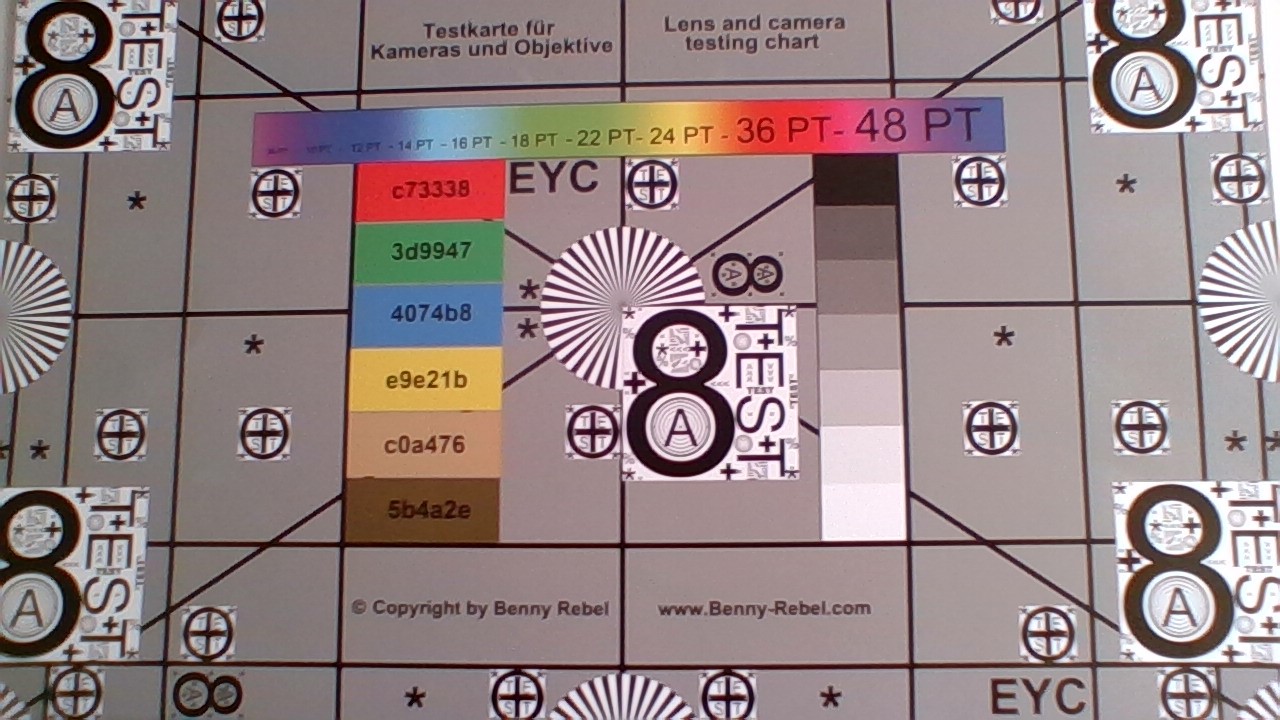

Webbkamera: 9.9 MP, 16:9 (1280x720)

Övrigt

Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: ja, Huawei PC Manager, 24 Månader Garanti

Vikt

1.38 kg, Strömförsörjning: 200 g

Pris

700 Kr

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Testgrupp

Rating	Date	Model	Weight	Height	Size	Resolution
85.6 % v7 ^(old)	12/2020	Honor MagicBook 14, Ryzen 5 4500U R5 4500U, Vega 6	1.4 kg	15.9 mm	14.00"	1920x1080
86.5 % v7 ^(old)	03/2020	Honor Magicbook 14 R5 3500U, Vega 8	1.4 kg	16 mm	14.00"	1920x1080
83.2 % v7 ^(old)	11/2020	HP ProBook 445 G7 175W4EA R5 4500U, Vega 6	1.6 kg	18 mm	14.00"	1920x1080
85 % v7 ^(old)	06/2020	Acer Swift 3 SF314-42-R27B R3 4300U, Vega 5	1.2 kg	16.55 mm	14.00"	1920x1080
85.6 % v7 ^(old)	09/2020	Lenovo ThinkPad E14 Gen2-20T7S00W00 R5 4500U, Vega 6	1.6 kg	17.9 mm	14.00"	1920x1080

Storleksjämförelse

HP ProBook 445 G7 175W4EA Lenovo ThinkPad E14 Gen2-20T7S00W00 Acer Swift 3 SF314-42-R27B Honor Magicbook 14 Honor MagicBook 14, Ryzen 5 4500U DIN A4 ❌

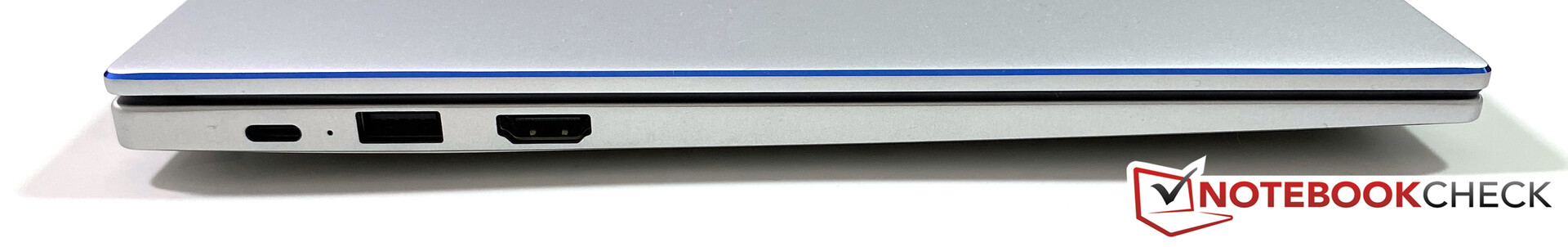

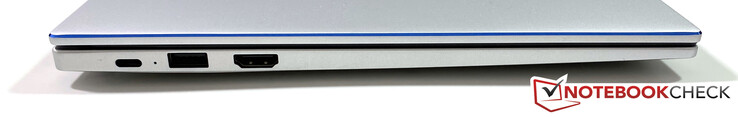

Vänster: 1x USB 3.1 Gen1 Typ-C (simultan strömförsörjning), 1x USB 3.0, HDMI

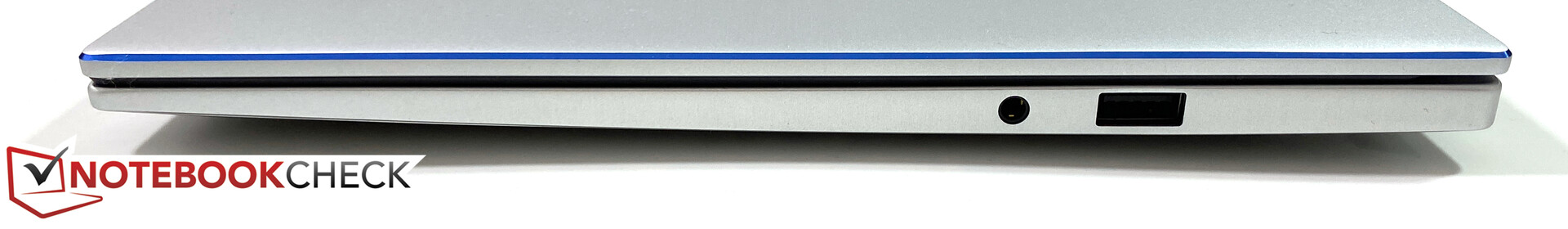

Höger: 3.5 mm kombinerad ljudanslutning, 1x USB 2.0

SD Card Reader
average JPG Copy Test (av. of 3 runs)
HP ProBook 445 G7 175W4EA (Toshiba Exceria Pro SDXC 64 GB UHS-II)	72 MB/s
Average of class Office (22.7 - 198.5, n=33, last 2 years)	58.1 MB/s
maximum AS SSD Seq Read Test (1GB)
HP ProBook 445 G7 175W4EA (Toshiba Exceria Pro SDXC 64 GB UHS-II)	85.9 MB/s
Average of class Office (25 - 249, n=30, last 2 years)	73.1 MB/s

Networking
iperf3 transmit AX12
Lenovo ThinkPad E14 Gen2-20T7S00W00 Intel Wi-Fi 6 AX200	1264 (638^min - 1336^max) MBit/s +94%
Honor MagicBook 14, Ryzen 5 4500U Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	652 (343^min - 741^max) MBit/s
Honor Magicbook 14 Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	646 (583^min - 663^max) MBit/s -1%
Average Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC (87 - 690, n=29)	618 MBit/s -5%
Acer Swift 3 SF314-42-R27B Intel Wi-Fi 6 AX200	615 (580^min - 641^max) MBit/s -6%
HP ProBook 445 G7 175W4EA Intel Wi-Fi 6 AX200	557 (527^min - 581^max) MBit/s -15%
iperf3 receive AX12
Lenovo ThinkPad E14 Gen2-20T7S00W00 Intel Wi-Fi 6 AX200	1339 (617^min - 1491^max) MBit/s +110%
Acer Swift 3 SF314-42-R27B Intel Wi-Fi 6 AX200	898 (695^min - 935^max) MBit/s +41%
HP ProBook 445 G7 175W4EA Intel Wi-Fi 6 AX200	817 (738^min - 851^max) MBit/s +28%
Honor Magicbook 14 Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	685 (640^min - 694^max) MBit/s +8%
Honor MagicBook 14, Ryzen 5 4500U Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC	637 (613^min - 660^max) MBit/s
Average Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC (486 - 685, n=29)	622 MBit/s -2%

Honor MagicBook 14, Ryzen 5 4500U; iperf3 receive AX12; iperf 3.1.3: Ø637 (613-660)

Honor MagicBook 14, Ryzen 5 4500U; iperf3 transmit AX12; iperf 3.1.3: Ø641 (343-741)

ColorChecker Honor MagicBook 14, Ryzen 5 4500U: 13.91 ∆E min: 3.84 - max: 26.07 ∆E


242 cd/m²	273 cd/m²	272 cd/m²
239 cd/m²	271 cd/m²	254 cd/m²
229 cd/m²	252 cd/m²	232 cd/m²

Distribution av ljusstyrkan

Chi Mei CMN1404 tested with X-Rite i1Pro 2

Max: 273 cd/m² (Nits) Medel: 251.6 cd/m² Minimum: 5.5 cd/m²
Distribution av ljusstyrkan: 84 %
Mitt på batteriet: 274 cd/m²
Kontrast: 1506:1 (Svärta: 0.18 cd/m²)
ΔE Color 5.6 | 0.5-29.43 Ø4.92, calibrated: 3.8
ΔE Greyscale 4.1 | 0.5-98 Ø5.2
67.7% sRGB (Argyll 1.6.3 3D)
43% AdobeRGB 1998 (Argyll 1.6.3 3D)
46.59% AdobeRGB 1998 (Argyll 2.2.0 3D)
67.8% sRGB (Argyll 2.2.0 3D)
45.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.03

Download ICC-fil (X-Rite i1Pro 2)

	Honor MagicBook 14, Ryzen 5 4500U Chi Mei CMN1404, IPS, 1920x1080, 14"	Honor Magicbook 14 BOE CQ TV140FHM-NH1, IPS, 1920x1080, 14"	HP ProBook 445 G7 175W4EA BOE0868, IPS, 1920x1080, 14"	Acer Swift 3 SF314-42-R27B AU Optronics B140HAN04.0, IPS, 1920x1080, 14"	Lenovo ThinkPad E14 Gen2-20T7S00W00 B140HAN05.7, a-Si IPS LED, 1920x1080, 14"
Display		-1%	-11%	-16%	-15%
Display P3 Coverage	45.1	44.93 0%	39.92 -11%	37.78 -16%	38.16 -15%
sRGB Coverage	67.8	66.2 -2%	59.6 -12%	56.8 -16%	57.2 -16%
AdobeRGB 1998 Coverage	46.59	46.42 0%	41.25 -11%	39.03 -16%	39.42 -15%
Response Times		-32%	-31%	4%	1%
Response Time Grey 50% / Grey 80% *	44 ?(23.6, 20.4)	44.8 ?(24.4, 20.4) -2%	40 ?(22, 18) 9%	42 ?(20, 22) 5%	46.4 ?(23.2, 23.2) -5%
Response Time Black / White *	28.8 ?(16.4, 12.4)	34 ?(19.2, 14.8) -18%	30 ?(17, 13) -4%	28 ?(16, 12) 3%	27.2 ?(16.8, 12.4) 6%
PWM Frequency	25000 ?(40)	5952 ?(99) -76%	192 ?(90) -99%
Screen		6%	-12%	-4%	-10%
Brightness middle	271	311 15%	277 2%	256 -6%	281 4%
Brightness	252	296 17%	270 7%	237 -6%	264 5%
Brightness Distribution	84	92 10%	88 5%	81 -4%	87 4%
Black Level *	0.18	0.18 -0%	0.285 -58%	0.17 6%	0.25 -39%
Contrast	1506	1728 15%	972 -35%	1506 0%	1124 -25%
Colorchecker dE 2000 *	5.6	5.3 5%	5.53 1%	5.43 3%	5.8 -4%
Colorchecker dE 2000 max. *	18.9	18.5 2%	10.68 43%	19.73 -4%	22.3 -18%
Colorchecker dE 2000 calibrated *	3.8	4.2 -11%	4.43 -17%	4.8 -26%	4.9 -29%
Greyscale dE 2000 *	4.1	3.5 15%	6.2 -51%	3.29 20%	3.2 22%
Gamma	2.03 ^108%	2.1 ^105%	2.34 ^94%	2.52 ^87%	2.15 ^102%
CCT	7253 ^90%	7078 ^92%	7342 ^89%	6840 ^95%	6452 ^101%
Color Space (Percent of AdobeRGB 1998)	43	42.5 -1%	38 -12%	36 -16%	36.2 -16%
Color Space (Percent of sRGB)	67.7	65.8 -3%	59 -13%	57 -16%	56.9 -16%
Total Average (Program / Settings)		-9% / -2%	-18% / -15%	-5% / -6%	-8% / -10%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

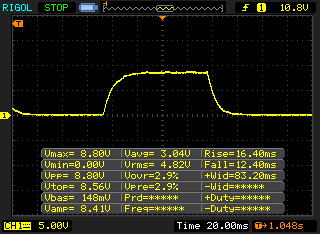

↔ Response Time Black to White
28.8 ms ... rise ↗ and fall ↘ combined	↗ 16.4 ms rise
28.8 ms ... rise ↗ and fall ↘ combined	↘ 12.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 73 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

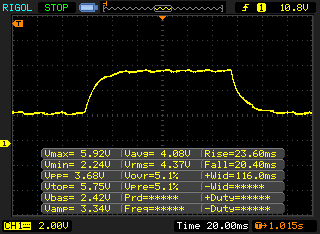

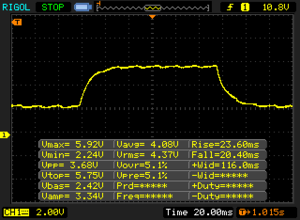

↔ Response Time 50% Grey to 80% Grey
44 ms ... rise ↗ and fall ↘ combined	↗ 23.6 ms rise
44 ms ... rise ↗ and fall ↘ combined	↘ 20.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 71 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

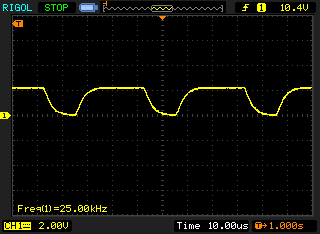

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

25000 Hz

≤ 40 % brightness setting

The display backlight flickers at 25000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 40 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U, AMD Ryzen 5 4500U: Ø906 (894.39-958.29)

Honor Magicbook 14 AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø651 (646.48-668.95)

HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U, AMD Ryzen 5 4500U: Ø761 (743.73-893.95)

Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U, AMD Ryzen 3 4300U: Ø560 (552.29-579.95)

Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U, AMD Ryzen 5 4500U: Ø845 (836.07-873.42)

Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Single Core)
Average of class Office (229 - 764, n=92, last 2 years)	602 Points +36%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	453 Points +2%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	453 Points +2%
Average AMD Ryzen 5 4500U (424 - 453, n=12)	446 Points +1%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	443 Points
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	427 Points -4%
Honor Magicbook 14 AMD Ryzen 5 3500U	369 Points -17%

Cinebench R20 / CPU (Multi Core)
Average of class Office (590 - 5980, n=92, last 2 years)	3556 Points +49%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	2389 Points
Average AMD Ryzen 5 4500U (1843 - 2530, n=13)	2236 Points -6%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	2208 Points -8%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	2173 Points -9%
Honor Magicbook 14 AMD Ryzen 5 3500U	1492 Points -38%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	1432 Points -40%

Cinebench R15 / CPU Single 64Bit
Average of class Office (98 - 284, n=92, last 2 years)	230 Points +34%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	177 Points +3%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	175 Points +2%
Average AMD Ryzen 5 4500U (156 - 177, n=13)	172.8 Points 0%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	172 Points
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	165 Points -4%
Honor Magicbook 14 AMD Ryzen 5 3500U	145 Points -16%

Cinebench R15 / CPU Multi 64Bit
Average of class Office (246 - 2642, n=93, last 2 years)	1561 Points +63%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	958 Points
Average AMD Ryzen 5 4500U (715 - 1007, n=18)	896 Points -6%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	894 (743.73^min - 893.95^max) Points -7%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	873 (836.07^min - 873.42^max) Points -9%
Honor Magicbook 14 AMD Ryzen 5 3500U	668 (646.48^min - 668.95^max) Points -30%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	580 Points -39%

Blender / v2.79 BMW27 CPU
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	907 Seconds * -66%
Honor Magicbook 14 AMD Ryzen 5 3500U	703 Seconds * -29%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	645 Seconds * -18%
Average AMD Ryzen 5 4500U (533 - 748, n=11)	603 Seconds * -10%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	584 Seconds * -7%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	547 Seconds *
Average of class Office (208 - 1956, n=93, last 2 years)	419 Seconds * +23%

7-Zip 18.03 / 7z b 4 -mmt1
Average of class Office (2972 - 6687, n=93, last 2 years)	5276 MIPS +25%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	4315 MIPS +2%
Average AMD Ryzen 5 4500U (4235 - 4338, n=11)	4290 MIPS +1%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	4282 MIPS +1%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	4237 MIPS
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	4014 MIPS -5%
Honor Magicbook 14 AMD Ryzen 5 3500U	3555 MIPS -16%

7-Zip 18.03 / 7z b 4
Average of class Office (7532 - 65460, n=93, last 2 years)	38934 MIPS +51%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	25812 MIPS
Average AMD Ryzen 5 4500U (22466 - 25891, n=11)	24384 MIPS -6%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	24058 MIPS -7%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	23877 MIPS -7%
Honor Magicbook 14 AMD Ryzen 5 3500U	17508 MIPS -32%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	15043 MIPS -42%

Geekbench 5.5 / Single-Core
Average of class Office (510 - 1989, n=93, last 2 years)	1585 Points +45%
Average AMD Ryzen 5 4500U (1082 - 1220, n=10)	1109 Points +1%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	1108 Points +1%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	1096 Points
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	1088 Points -1%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	1027 Points -6%
Honor Magicbook 14 AMD Ryzen 5 3500U	904 Points -18%

Geekbench 5.5 / Multi-Core
Average of class Office (1018 - 11980, n=92, last 2 years)	7612 Points +61%
Average AMD Ryzen 5 4500U (4352 - 6234, n=10)	4774 Points +1%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	4732 Points
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	4618 Points -2%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	4440 Points -6%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	3330 Points -30%
Honor Magicbook 14 AMD Ryzen 5 3500U	3154 Points -33%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Office (1.72 - 18.7, n=91, last 2 years)	10.4 fps +43%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	7.28 fps
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	6.98 fps -4%
Average AMD Ryzen 5 4500U (5.86 - 7.33, n=10)	6.8 fps -7%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	4.37 fps -40%
Honor Magicbook 14 AMD Ryzen 5 3500U	3.99 fps -45%

LibreOffice / 20 Documents To PDF
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U	78 s * -27%
Average AMD Ryzen 5 4500U (58.2 - 78, n=11)	66.4 s * -8%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	64.3 s * -5%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	62.2 s * -2%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	61.2 s *
Average of class Office (31.3 - 129.6, n=91, last 2 years)	53.2 s * +13%

R Benchmark 2.5 / Overall mean
Honor Magicbook 14 AMD Ryzen 5 3500U	0.734 sec * -14%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U	0.686 sec * -7%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U	0.644 sec *
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U	0.638 sec * +1%
Average AMD Ryzen 5 4500U (0.614 - 0.654, n=10)	0.636 sec * +1%
Average of class Office (0.4244 - 1.135, n=90, last 2 years)	0.543 sec * +16%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

958 Points

Cinebench R15 CPU Single 64Bit

172 Points

Cinebench R15 OpenGL 64Bit

52.3 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R20 CPU (Multi Core)

2389 Points

Cinebench R20 CPU (Single Core)

443 Points

Hjälp

... jämför

PCMark 10
Score
Average of class Office (2463 - 7344, n=86, last 2 years)	5618 Points +15%
Honor MagicBook 14, Ryzen 5 4500U Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G	4900 Points
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (4393 - 5024, n=12)	4683 Points -4%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	4433 Points -10%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	4393 Points -10%
Acer Swift 3 SF314-42-R27B Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0	4322 Points -12%
Honor Magicbook 14 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	3862 Points -21%
Essentials
Average of class Office (5575 - 20841, n=86, last 2 years)	10136 Points +15%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	8823 Points 0%
Honor MagicBook 14, Ryzen 5 4500U Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G	8780 Points
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (8204 - 9124, n=11)	8669 Points -1%
Acer Swift 3 SF314-42-R27B Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0	8600 Points -2%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	8327 Points -5%
Honor Magicbook 14 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	7544 Points -14%
Productivity
Average of class Office (3041 - 10415, n=86, last 2 years)	7689 Points +2%
Honor MagicBook 14, Ryzen 5 4500U Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G	7566 Points
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (6400 - 7752, n=11)	6987 Points -8%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	6530 Points -14%
Acer Swift 3 SF314-42-R27B Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0	6489 Points -14%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	6400 Points -15%
Honor Magicbook 14 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	5931 Points -22%
Digital Content Creation
Average of class Office (2126 - 9773, n=86, last 2 years)	6335 Points +32%
Honor MagicBook 14, Ryzen 5 4500U Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G	4808 Points
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) (4189 - 4808, n=11)	4517 Points -6%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	4233 Points -12%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	4189 Points -13%
Acer Swift 3 SF314-42-R27B Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0	3926 Points -18%
Honor Magicbook 14 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	3494 Points -27%

PCMark 10 Score		4900 poäng
Hjälp

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Honor Magicbook 14 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	1519 μs * -174%
HP ProBook 445 G7 175W4EA Vega 6, R5 4500U, Samsung PM991 MZVLQ512HALU	935 μs * -68%
Acer Swift 3 SF314-42-R27B Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0	800 μs * -44%
Lenovo ThinkPad E14 Gen2-20T7S00W00 Vega 6, R5 4500U, Toshiba BG4 KBG40ZNT512G	590 μs * -6%
Honor MagicBook 14, Ryzen 5 4500U Vega 6, R5 4500U, WDC PC SN530 SDBPNPZ-512G	555 μs *

* ... smaller is better

	Honor MagicBook 14, Ryzen 5 4500U WDC PC SN530 SDBPNPZ-512G	Honor Magicbook 14 Samsung SSD PM981a MZVLB256HBHQ	HP ProBook 445 G7 175W4EA Samsung PM991 MZVLQ512HALU	Acer Swift 3 SF314-42-R27B SK hynix BC511 HFM256GDJTNI-82A0	Lenovo ThinkPad E14 Gen2-20T7S00W00 Toshiba BG4 KBG40ZNT512G	Average WDC PC SN530 SDBPNPZ-512G
CrystalDiskMark 5.2 / 6		4%	-19%	-27%	-19%	-1%
Write 4K	161.1	137.7 -15%	144.6 -10%	96.3 -40%	102.3 -36%	170.1 ?(118 - 269, n=12) 6%
Read 4K	50	42.49 -15%	38.08 -24%	35.06 -30%	32.12 -36%	49.4 ?(43.2 - 57.3, n=12) -1%
Write Seq	1814	2341 29%	1320 -27%	1001 -45%	1518 -16%	1731 ?(1355 - 1829, n=12) -5%
Read Seq	1983	2436 23%	1397 -30%	1072 -46%	1501 -24%	1643 ?(1095 - 1983, n=12) -17%
Write 4K Q32T1	385.3	261 -32%	324.2 -16%	423.9 10%	356.4 -8%	453 ?(208 - 580, n=12) 18%
Read 4K Q32T1	509	335.4 -34%	434.8 -15%	464.7 -9%	459.6 -10%	488 ?(320 - 708, n=12) -4%
Write Seq Q32T1	1816	2343 29%	1382 -24%	967 -47%	1507 -17%	1791 ?(1467 - 1841, n=12) -1%
Read Seq Q32T1	2433	3569 47%	2354 -3%	2179 -10%	2327 -4%	2272 ?(1334 - 2485, n=12) -7%
AS SSD		-10%	-12%	-20%	-28%	-10%
Seq Read	2119	2591 22%	1936 -9%	1682 -21%	2007 -5%	1862 ?(1007 - 2228, n=12) -12%
Seq Write	1654	2133 29%	1213 -27%	931 -44%	1118 -32%	1392 ?(956 - 1755, n=12) -16%
4K Read	43.54	50 15%	44.09 1%	41.53 -5%	46.95 8%	42.1 ?(27.8 - 48.8, n=12) -3%
4K Write	144.3	95.7 -34%	118.5 -18%	109.1 -24%	124 -14%	163.8 ?(102.9 - 239, n=12) 14%
4K-64 Read	1067	607 -43%	867 -19%	603 -43%	1221 14%	813 ?(406 - 1067, n=12) -24%
4K-64 Write	846	482.6 -43%	838 -1%	713 -16%	774 -9%	876 ?(396 - 1385, n=12) 4%
Access Time Read *	0.073	0.075 -3%	0.122 -67%		0.108 -48%	0.07875 ?(0.045 - 0.132, n=12) -8%
Access Time Write *	0.061	0.034 44%	0.034 44%	0.035 43%	0.195 -220%	0.08225 ?(0.04 - 0.167, n=12) -35%
Score Read	1322	916 -31%	1105 -16%	813 -39%	1468 11%	1041 ?(581 - 1322, n=12) -21%
Score Write	1156	792 -31%	1078 -7%	915 -21%	1009 -13%	1179 ?(684 - 1654, n=12) 2%
Score Total	3138	2168 -31%	2721 -13%	2118 -33%	3191 2%	2738 ?(1795 - 3507, n=12) -13%
Total Average (Program / Settings)		-3% / -4%	-16% / -15%	-24% / -23%	-24% / -24%	-6% / -6%

* ... smaller is better

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN530 SDBPNPZ-512G

CDM 5/6 Read Seq Q32T1: 2433 MB/s

CDM 5/6 Write Seq Q32T1: 1816 MB/s

CDM 5/6 Read 4K Q32T1: 509 MB/s

CDM 5/6 Write 4K Q32T1: 385.3 MB/s

CDM 5 Read Seq: 1983 MB/s

CDM 5 Write Seq: 1814 MB/s

CDM 5/6 Read 4K: 50 MB/s

CDM 5/6 Write 4K: 161.1 MB/s

DiskSpd Read Loop, Queue Depth 8

No graph data

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Average of class Office (1468 - 13132, n=88, last 2 years)	6704 Points +60%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	4392 Points +5%
Honor MagicBook 14, Ryzen 5 4500U AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	4191 Points
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (3401 - 4713, n=23)	4146 Points -1%
Honor Magicbook 14 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3500U	3994 Points -5%
HP ProBook 445 G7 175W4EA AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	3683 Points -12%
Acer Swift 3 SF314-42-R27B AMD Radeon RX Vega 5, AMD Ryzen 3 4300U	3535 Points -16%

3DMark
1920x1080 Fire Strike Graphics
Average of class Office (1089 - 9375, n=89, last 2 years)	4861 Points
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	2802 Points
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (2122 - 3239, n=23)	2673 Points
Honor Magicbook 14 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3500U	2655 Points
Acer Swift 3 SF314-42-R27B AMD Radeon RX Vega 5, AMD Ryzen 3 4300U	2438 Points
HP ProBook 445 G7 175W4EA AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	2313 Points
2560x1440 Time Spy Graphics
Average of class Office (313 - 4109, n=89, last 2 years)	1585 Points
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	821 Points
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (650 - 996, n=22)	821 Points
Honor Magicbook 14 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3500U	788 Points
Acer Swift 3 SF314-42-R27B AMD Radeon RX Vega 5, AMD Ryzen 3 4300U	733 Points

3DMark 11 Performance		4428 poäng
Hjälp

... jämför

Dota 2 Reborn | X-Plane 11.11 | Final Fantasy XV Benchmark

Dota 2 Reborn - 1920x1080 high (2/3)
Average of class Office (14.2 - 130.9, n=94, last 2 years)	56.6 fps +34%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	44.4 (39.5^min) fps +5%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (32 - 70.9, n=21)	42.7 fps +1%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	42.2 (38.3^min) fps
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U, AMD Radeon RX Vega 5	41.4 (37.7^min) fps -2%
Honor Magicbook 14 AMD Ryzen 5 3500U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	39.8 (36^min) fps -6%
HP ProBook 445 G7 175W4EA AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	35.3 (32.7^min) fps -16%

X-Plane 11.11
1920x1080 high (fps_test=3)
Average of class Office (8.88 - 92.6, n=92, last 2 years)	30.1 fps +15%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.5 fps +5%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	26.1 fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (22.6 - 29.9, n=20)	25.8 fps -1%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U, AMD Radeon RX Vega 5	22.4 fps -14%
Honor Magicbook 14 AMD Ryzen 5 3500U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	18.1 fps -31%
1920x1080 med (fps_test=2)
Average of class Office (10.1 - 115.3, n=92, last 2 years)	34.9 fps +20%
Lenovo ThinkPad E14 Gen2-20T7S00W00 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.4 fps +4%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	29.1 fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (25.2 - 33.8, n=20)	28.8 fps -1%
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U, AMD Radeon RX Vega 5	24.9 fps -14%
Honor Magicbook 14 AMD Ryzen 5 3500U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	20.6 fps -29%

Final Fantasy XV Benchmark - 1920x1080 Standard Quality
Average of class Office (5.8 - 51.7, n=89, last 2 years)	22.3 fps +76%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (10.6 - 16.1, n=8)	13.4 fps +6%
Honor MagicBook 14, Ryzen 5 4500U AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	12.7 fps

	låg	med.	hög	ultra
Dota 2 Reborn (2015)	92.8	70.5	42.2	39.5
Final Fantasy XV Benchmark (2018)	26.7	12.7
X-Plane 11.11 (2018)	37.7	29.1	26.1

Ljudnivå

Låg belastning		29.9 / 29.9 / 30.3 dB(A)
Hög belastning		30.9 / 32.5 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix-TM1, Arta (15 cm avstånd) environment noise: 29.9 dB(A)

Hög belastning

Låg belastning


39.9 °C	39.1 °C	34 °C
39.3 °C	37.8 °C	29.7 °C
32.5 °C	29.7 °C	27.9 °C

Max: 39.9 °C
Medel: 34.4 °C


36.3 °C	44.7 °C	44.6 °C
29.4 °C	40.4 °C	40.9 °C
29.9 °C	33.7 °C	33.6 °C

Max: 44.7 °C
Medel: 37.1 °C

Strömförsörjning (max.) 43.3 °C | Rumstemperatur 20.9 °C | Voltcraft IR-900

(±) The average temperature for the upper side under maximal load is 34.4 °C / 94 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 39.9 °C / 104 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 44.7 °C / 112 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24 °C / 75 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.5 °C / 90.5 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.8 °C / -8.6 F).

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Honor MagicBook 14, Ryzen 5 4500U audio analysis

(±) | speaker loudness is average but good (75.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.3% lower than median
(±) | linearity of bass is average (11.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(+) | mids are linear (6.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.2% away from median
(+) | highs are linear (4.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.8% difference to median)
Compared to same class
» 36% of all tested devices in this class were better, 9% similar, 56% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 47% of all tested devices were better, 7% similar, 46% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad E14 Gen2-20T7S00W00 audio analysis

(±) | speaker loudness is average but good (74.1 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.5% lower than median
(±) | linearity of bass is average (13.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (7.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.3% difference to median)
Compared to same class
» 39% of all tested devices in this class were better, 11% similar, 50% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 49% of all tested devices were better, 8% similar, 43% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning

Av/Standby	0.33 / 0.56 Watt
Låg belastning	4.2 / 6.5 / 7.9 Watt
Hög belastning	31.2 / 37 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Honor MagicBook 14, Ryzen 5 4500U R5 4500U, Vega 6, WDC PC SN530 SDBPNPZ-512G, IPS, 1920x1080, 14"	Honor Magicbook 14 R5 3500U, Vega 8, Samsung SSD PM981a MZVLB256HBHQ, IPS, 1920x1080, 14"	HP ProBook 445 G7 175W4EA R5 4500U, Vega 6, Samsung PM991 MZVLQ512HALU, IPS, 1920x1080, 14"	Acer Swift 3 SF314-42-R27B R3 4300U, Vega 5, SK hynix BC511 HFM256GDJTNI-82A0, IPS, 1920x1080, 14"	Lenovo ThinkPad E14 Gen2-20T7S00W00 R5 4500U, Vega 6, Toshiba BG4 KBG40ZNT512G, a-Si IPS LED, 1920x1080, 14"	Average AMD Radeon RX Vega 6 (Ryzen 4000/5000)	Average of class Office
Power Consumption		-24%	-1%	11%	-22%	-11%	-28%
Idle Minimum *	4.2	5.2 -24%	3.5 17%	3.7 12%	4.6 -10%	3.98 ?(3.7 - 5.8, n=23) 5%	4.54 ?(2.2 - 13.8, n=90, last 2 years) -8%
Idle Average *	6.5	7.7 -18%	6.2 5%	5.6 14%	7.6 -17%	6.53 ?(5 - 8.4, n=23) -0%	7.49 ?(3.8 - 14.9, n=90, last 2 years) -15%
Idle Maximum *	7.9	9.3 -18%	8.8 -11%	7.8 1%	9.7 -23%	8.65 ?(5.3 - 11, n=23) -9%	9.14 ?(4.89 - 18.6, n=90, last 2 years) -16%
Load Average *	31.2	40.3 -29%	30 4%	26.4 15%	39.1 -25%	35 ?(27.6 - 48, n=23) -12%	42.8 ?(8.7 - 77.9, n=87, last 2 years) -37%
Witcher 3 ultra *	32
Load Maximum *	37	48 -30%	45 -22%	31.4 15%	50.3 -36%	51.5 ?(35.4 - 97.2, n=23) -39%	61.3 ?(11.1 - 107, n=90, last 2 years) -66%

* ... smaller is better

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		28tim 47min
WiFi Websurfing		14tim 25min
Hög belastning (maximal ljusstyrka)		1tim 50min

	Honor MagicBook 14, Ryzen 5 4500U R5 4500U, Vega 6, 56 Wh	Honor Magicbook 14 R5 3500U, Vega 8, 56 Wh	HP ProBook 445 G7 175W4EA R5 4500U, Vega 6, 45 Wh	Acer Swift 3 SF314-42-R27B R3 4300U, Vega 5, 48.85 Wh	Lenovo ThinkPad E14 Gen2-20T7S00W00 R5 4500U, Vega 6, 45 Wh	Average of class Office
Battery Runtime		-22%	-37%	-16%	-46%	-16%
Reader / Idle	1727		742 -57%			1300 ?(527 - 2296, n=16, last 2 years) -25%
WiFi v1.3	865	570 -34%	523 -40%	724 -16%	498 -42%	600 ?(300 - 1349, n=90, last 2 years) -31%
Load	110	100 -9%	94 -15%		55 -50%	118.1 ?(56 - 218, n=53, last 2 years) 7%

För

+ Hölje av hög kvalitet

+ Väldigt bra förhållande mellan pris och prestanda

+ Väldigt hög systemprestanda

+ Lång batteritid

Emot

- Knappt några servicemöjligheter

- Skärmen har ett relativt smalt färgomfång

- Webbkamera med grodperspektiv

Omdöme - Märkbar prestandaökning

Recension av Honor MagicBook 14. Recensionsex från Honor Germany

Läs den fullständiga versionen av den här recensionen på engelska här.

Det är bara processorn som har ändrats på den här versionen av Honor MagicBook 14. Det är bra för alla som vill köpa den, för man får styrkorna från den föregående modellen plus en modernare AMD Ryzen 5 4500U. Den presterar riktigt bra och saktas inte ner av höga temperaturer vid vardagsbruk. Låg vikt och lång batteritid är särskilt intressant för mobila användare.

Honor MagicBook 14 kombinerar lågt pris, lång batteritid och utmärkt systemprestanda.

MagicBook 14 ärver också några negativa aspekter från sin föregångare. Skärmen har fortfarande ett jämförelsevis smalt färgomfång och webbkamerans grodperspektiv är opraktiskt. Dessutom är det bara SSD-enheten och WLAN-modulen som går att byta ut. Se därför till att köpa den med tillräckligt mycket minne, för det går inte att utöka i efterhand.

Honor MagicBook 14, Ryzen 5 4500U - 12/18/2020 v7 ^(old)
Mike Wobker

Design

83 / 98 → 85%

Tangentbord

87%

Mus

91%

Anslutningar

49 / 80 → 61%

Vikt

70 / 20-75 → 92%

Batteri

90%

Skärm

82%

Spelprestanda

63 / 78 → 80%

Programprestanda

89 / 95 → 94%

Temperatur

91%

Ljudnivå

97%

Audio

70%

Camera

31 / 85 → 36%

Medel

77%

86%

Office - Vägt medel

Price comparison

Editor of the original article: Stephanie Chamberlain - Translator - 571 articles published on Notebookcheck since 2020

contact me via: LinkedIn

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Honor MagicBook 14 - En uthållig laptop med Ryzen 5 4500U (Sammanfattning)

Mike Wobker, 2020-12-28 (Update: 2020-12-28)

Testgrupp

Storleksjämförelse

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

DiskSpd Read Loop, Queue Depth 8

Honor MagicBook 14, Ryzen 5 4500U audio analysis

Lenovo ThinkPad E14 Gen2-20T7S00W00 audio analysis

För

Emot

Omdöme - Märkbar prestandaökning

More articles related to this device

Price comparison
