Test: Lenovo IdeaPad 710S-13ISK (Core i7) (sammanfattning)

Stilren reskamrat. Lenovo har gjort ett bra jobb med designen av den här bärbara datorn. En snabb titt på specifikationerna pekar på skaplig prestanda, men avslöjar också ett magert portutbud. Och hur ligger det till med skärm, inmatningsenheter och batteritid?
Lenovo IdeaPad 710S-13ISK (IdeaPad 710S Serie)
Processor

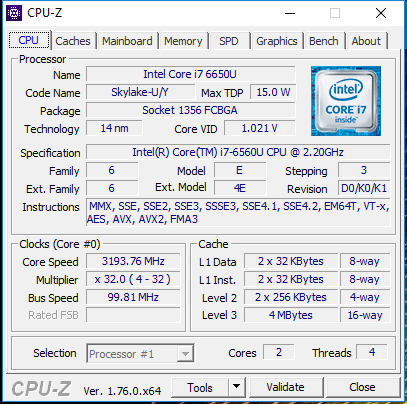

Intel Core i7-6560U 2 x 2.2 - 3.2 GHz, Skylake
Grafikkort

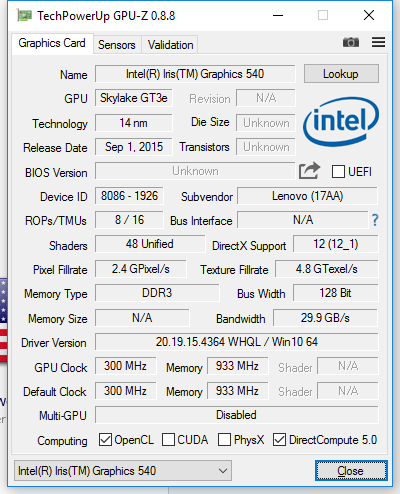

Intel Iris Graphics 540, Kärna: 1050 MHz, delat minne, 20.19.15.4364
Minne
8 GB
, LPDDR3, 1866 MHz, Dual-Channel, fastlött
Skärm
13.30 tum 16:9, 1920 x 1080 pixlar 166 PPI, Sharp SHP 1447 / LQ133M1JW15, IPS, glansig: nej
Moderkort
Intel Skylake-U Premium PCH
Hårddisk
Samsung PM951 NVMe MZVLV256, 256 GB
Ljudkort
Intel Skylake-U/Y PCH - High Definition Audio
Anslutningar
2 USB 3.0, 1 HDMI, Ljudanslutningar: Headset, Kortläsare: SD/SDHC/SDXC, Brightness Sensor
Nätverk
Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Storlek
höjd x bredd x djup (i mm) 14 x 307 x 214
Batteri
46 Wh Litiumpolymer, 4 celler
Operativsystem
Microsoft Windows 10 Home 64 Bit
Camera
Webbkamera: 720p (0,9 MP)
Övrigt

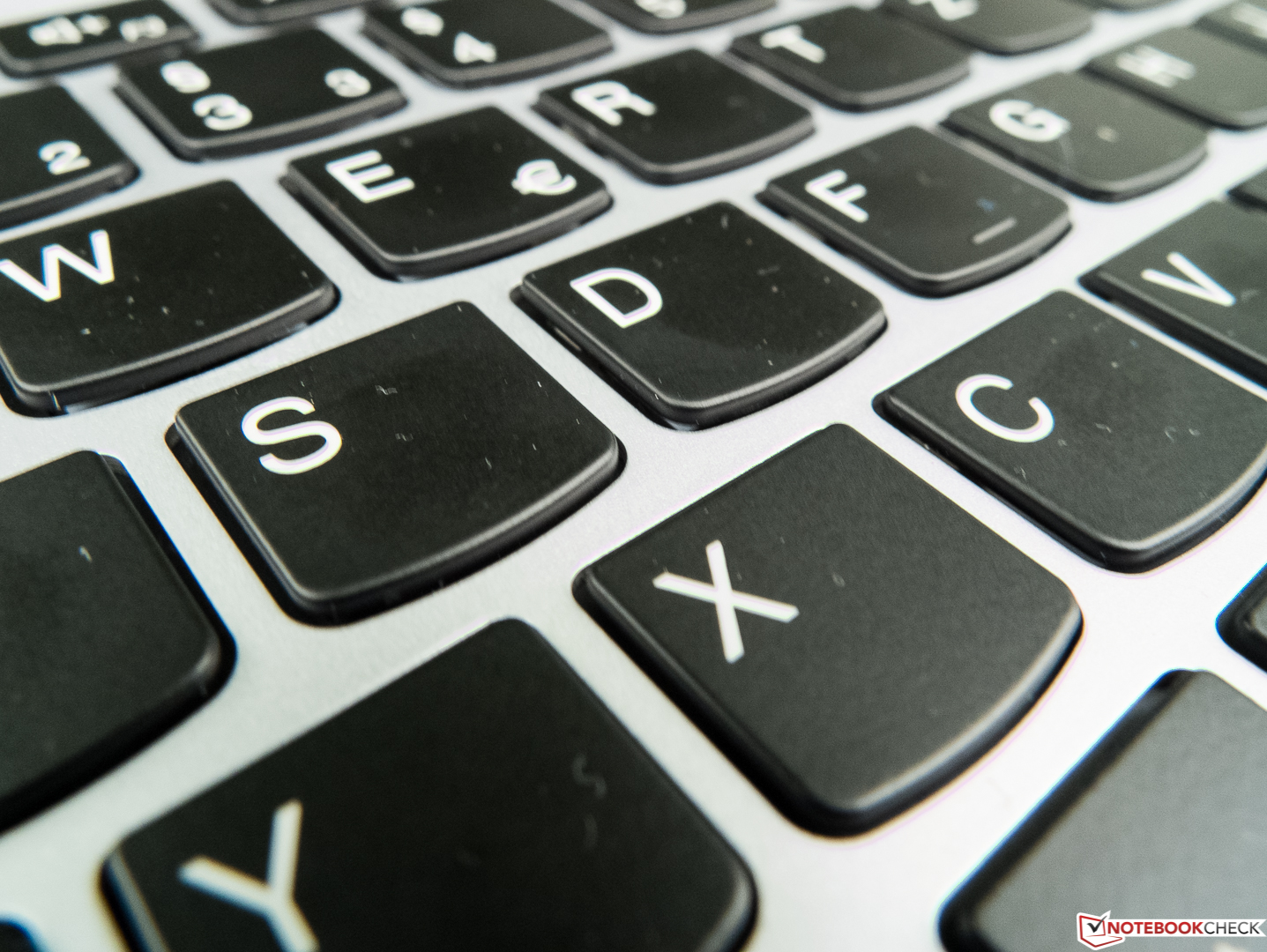

Högtalare: stereo, 2 x 2 W, Tangentbord: Chiclet, Tangentbordsbelysning: ja, 24 Månader Garanti
Vikt
1.16 kg, Strömförsörjning: 170 g
Pris
10000 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK
Lenovo IdeaPad 710S-13ISK

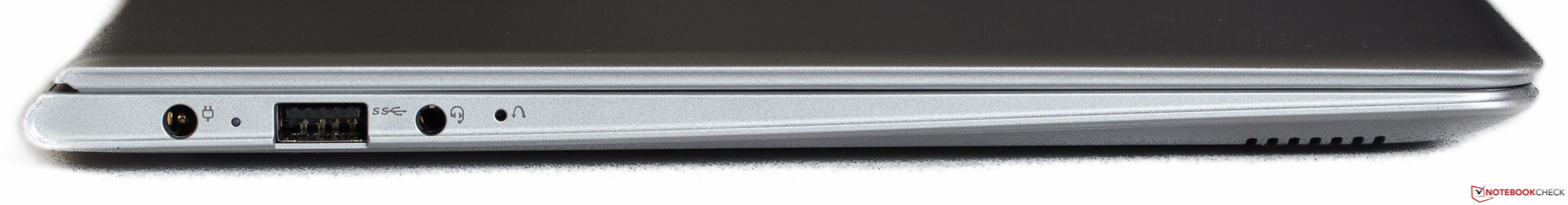

Left: power, USB 3.0, audio in/out
Left: power, USB 3.0, audio in/out

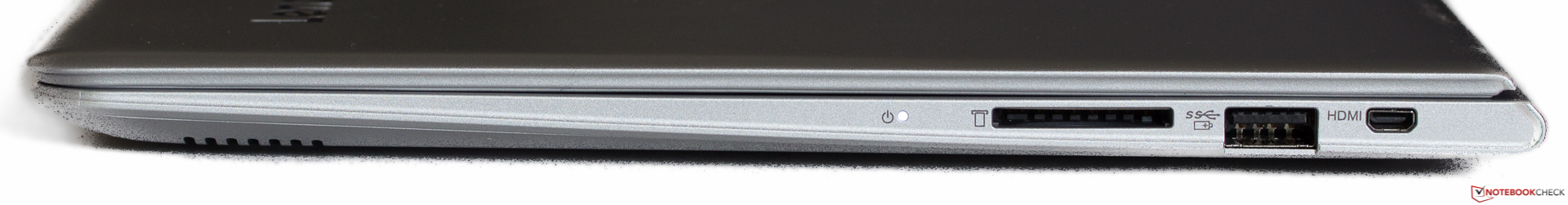

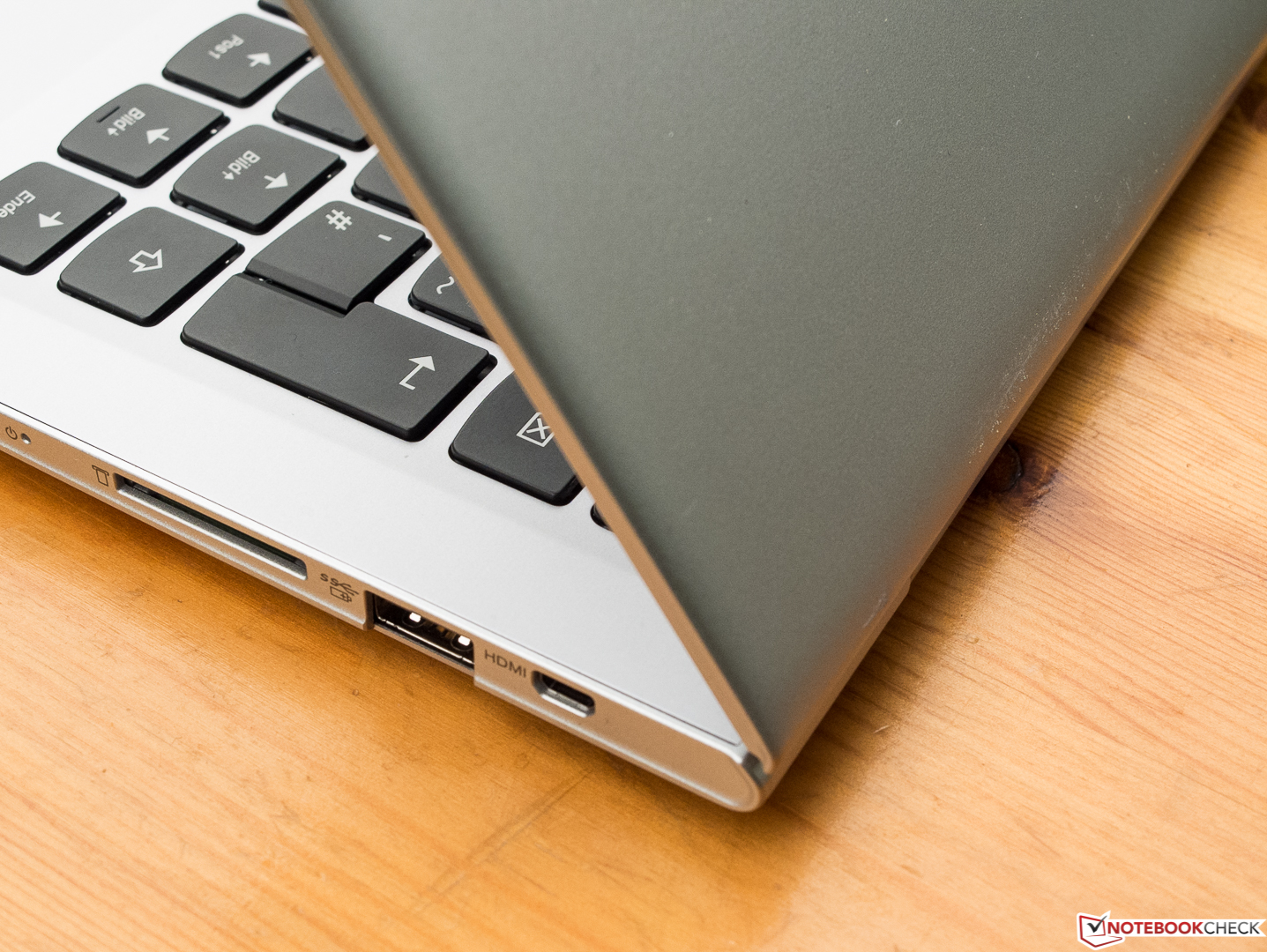

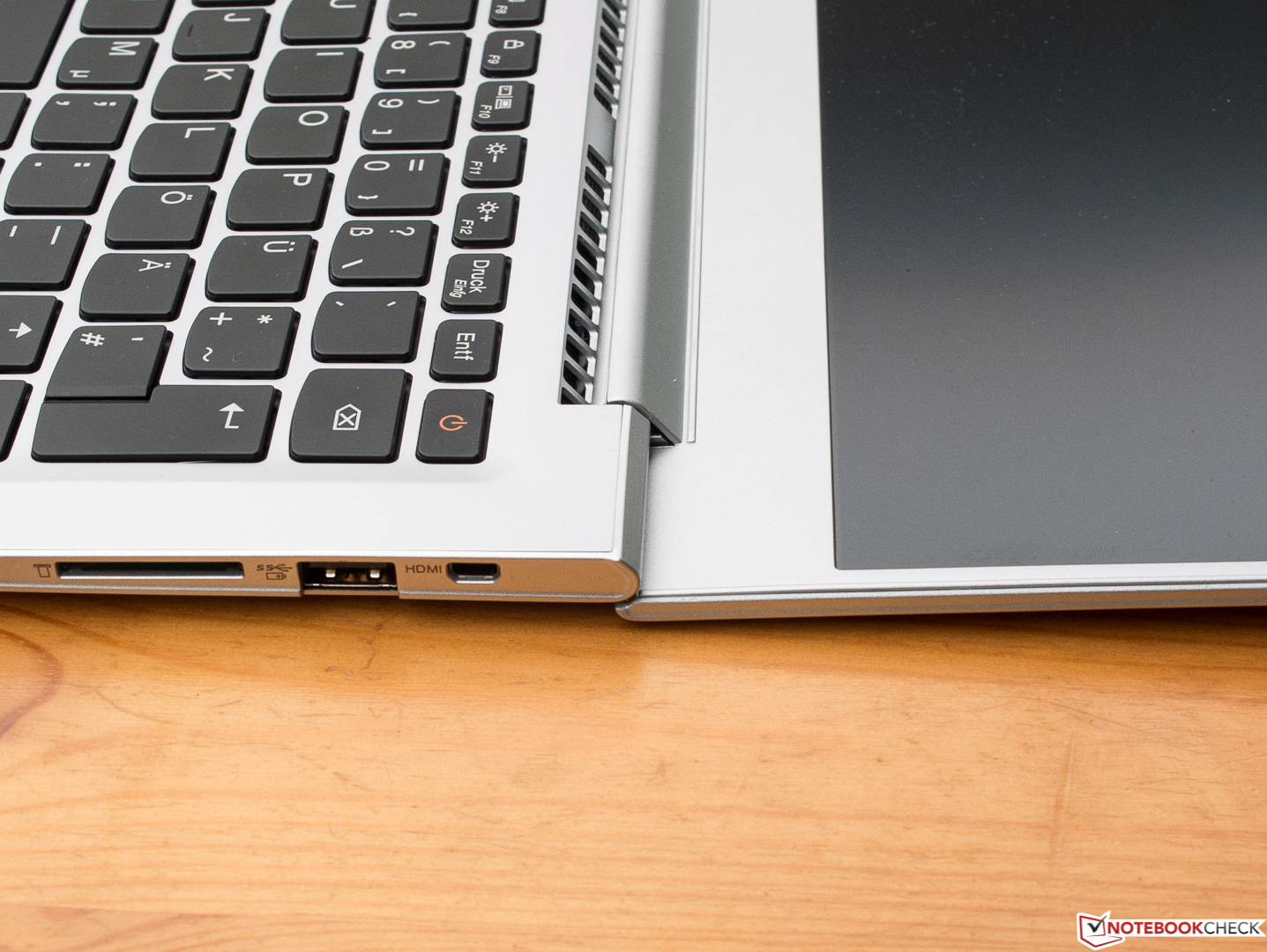

Right: On/Off LED, SD-card, USB 3.0, Mini-HDMI
Right: On/Off LED, SD-card, USB 3.0, Mini-HDMI
335
cd/m²
349
cd/m²
335
cd/m²
322
cd/m²
344
cd/m²
326
cd/m²
309
cd/m²
309
cd/m²
303
cd/m²
Distribution av ljusstyrkan
Sharp SHP 1447 / LQ133M1JW15 tested with X-Rite i1Pro 2
Max: 349 cd/m² (Nits) Medel: 325.8 cd/m² Minimum: 4 cd/m²
Distribution av ljusstyrkan: 87 %
Mitt på batteriet: 343 cd/m²
Kontrast: 956:1 (Svärta: 0.36 cd/m²)
ΔE Color 6.09 | 0.5-29.43 Ø4.92
ΔE Greyscale 5.36 | 0.5-98 Ø5.2
97.54% sRGB (Argyll 1.6.3 3D)
62.25% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.5% sRGB (Argyll 2.2.0 3D)
66.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.01

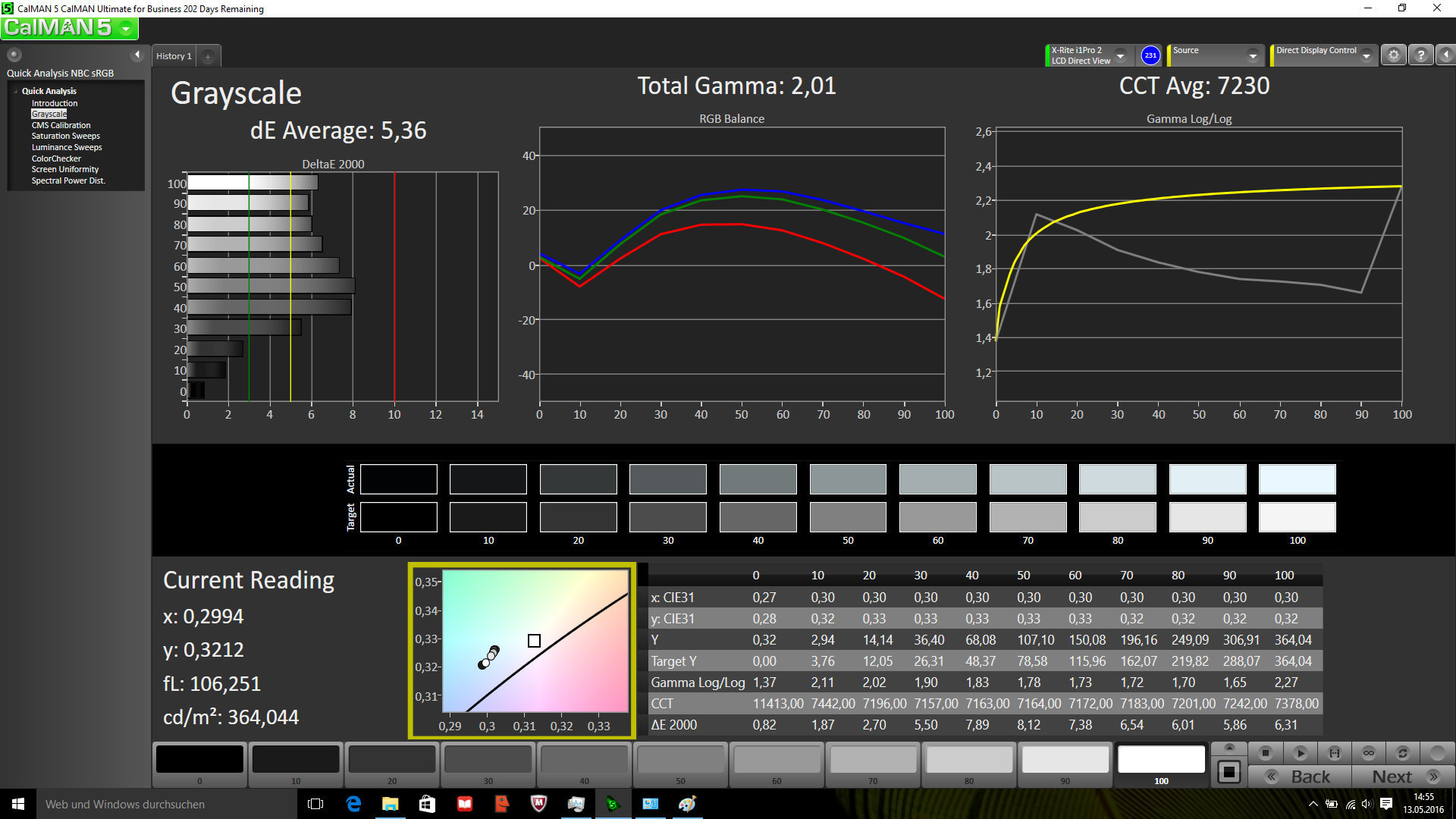

CalMAN Grayscale before calibration
CalMAN Grayscale before calibration

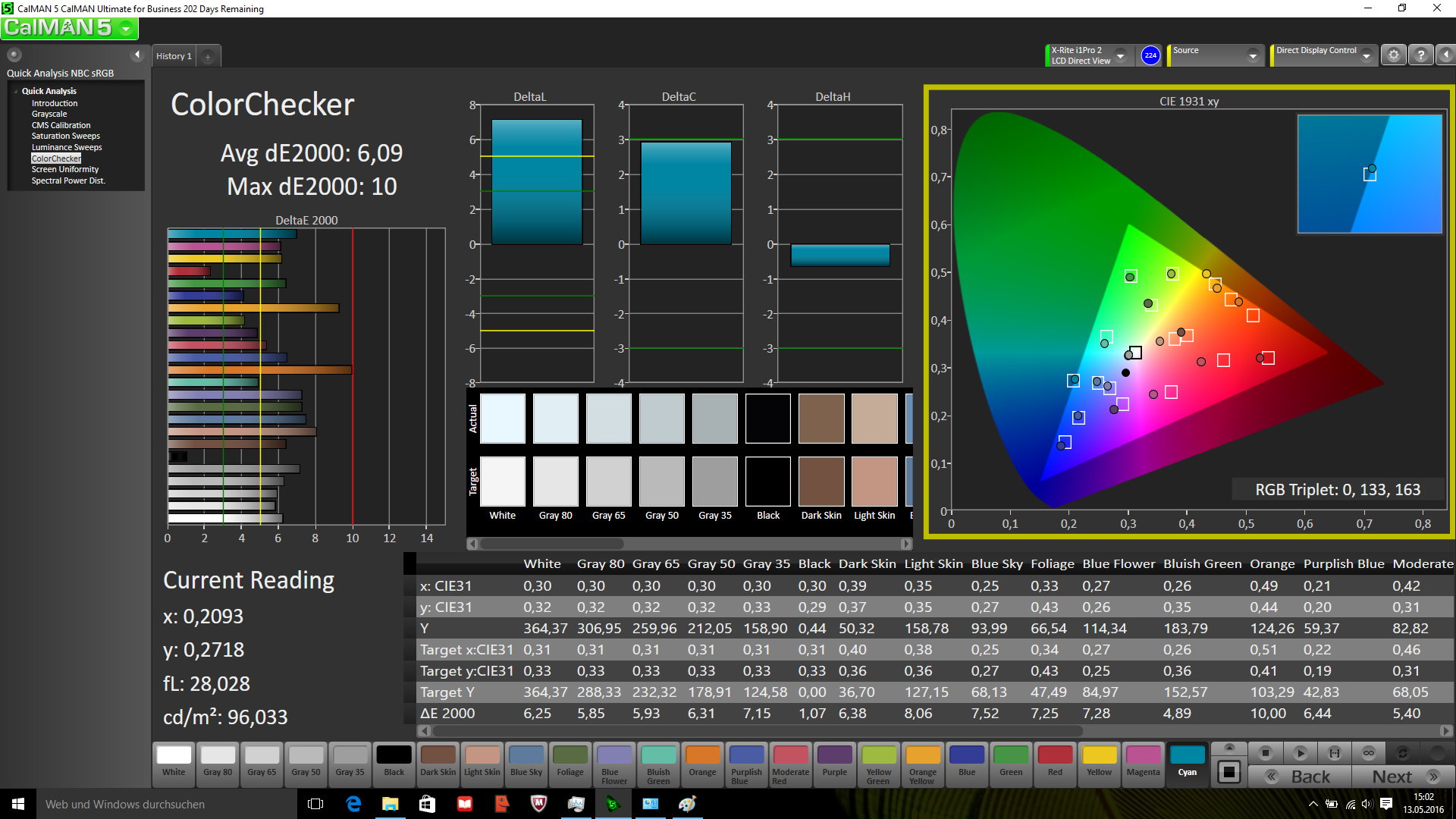

CalMAN ColorChecker before calibration
CalMAN ColorChecker before calibration

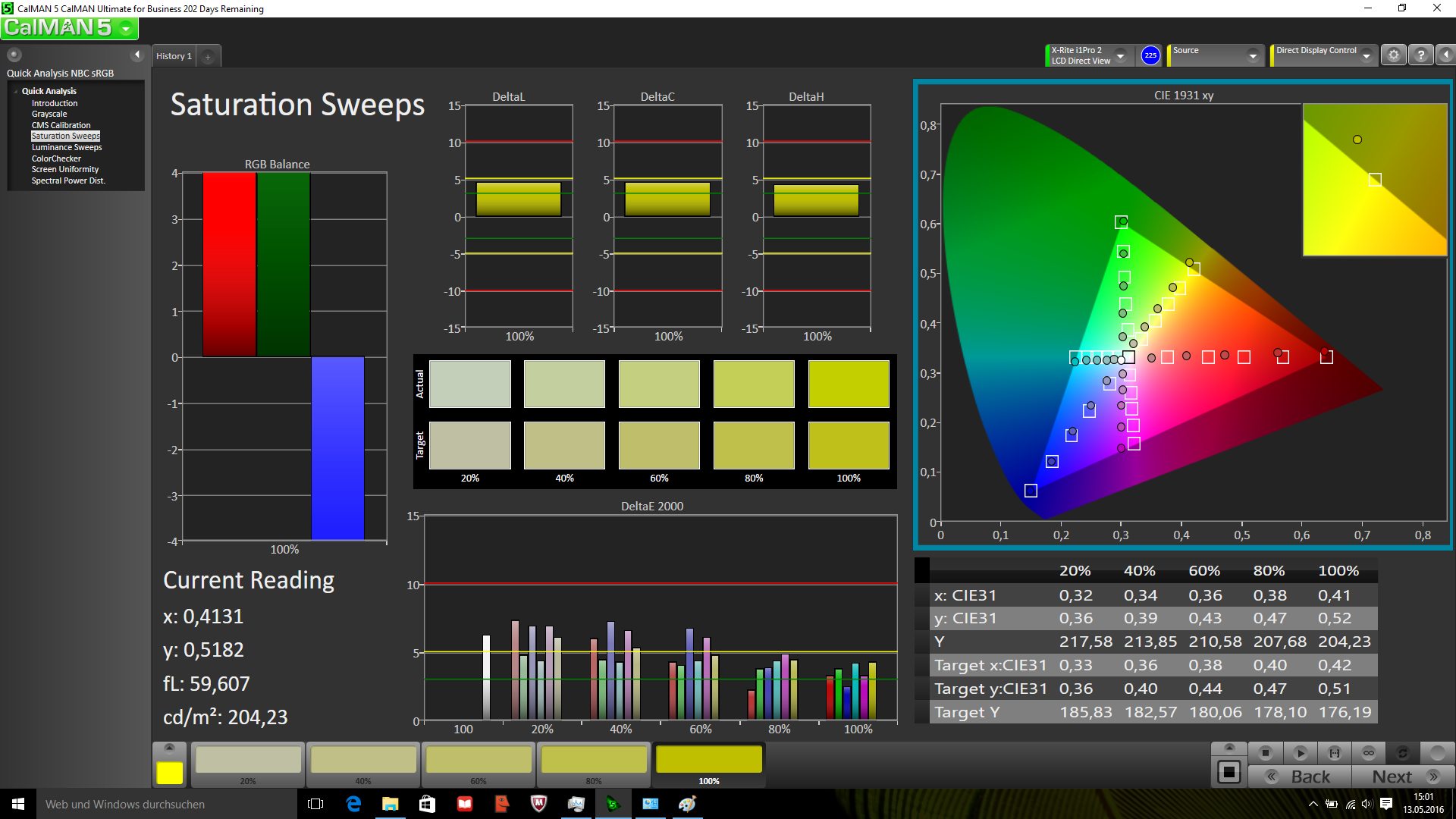

CalMAN Saturation Sweeps before calibration
CalMAN Saturation Sweeps before calibration

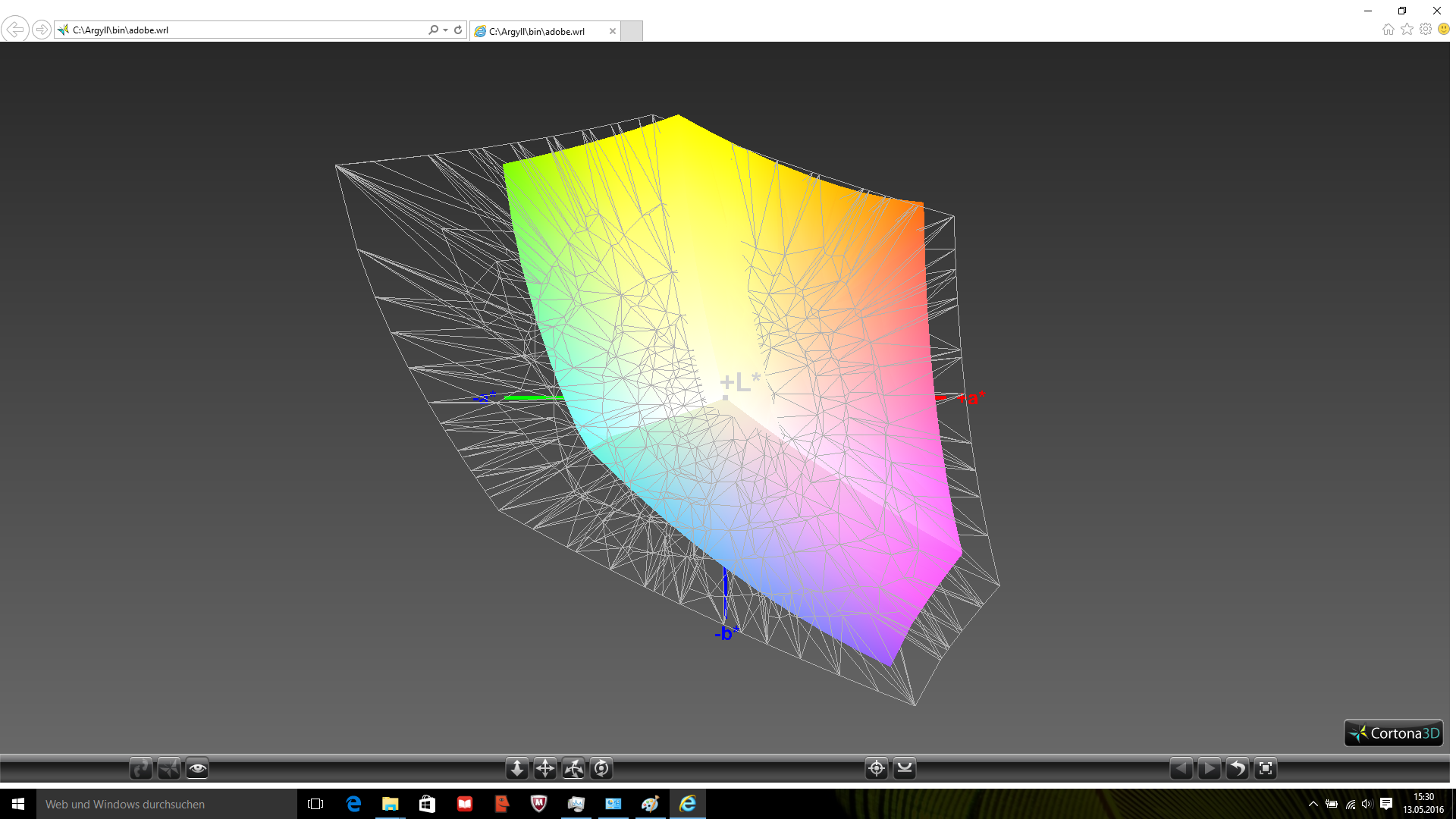

Lenovo Ideapad 710S vs. AdobeRGB
Lenovo Ideapad 710S vs. AdobeRGB

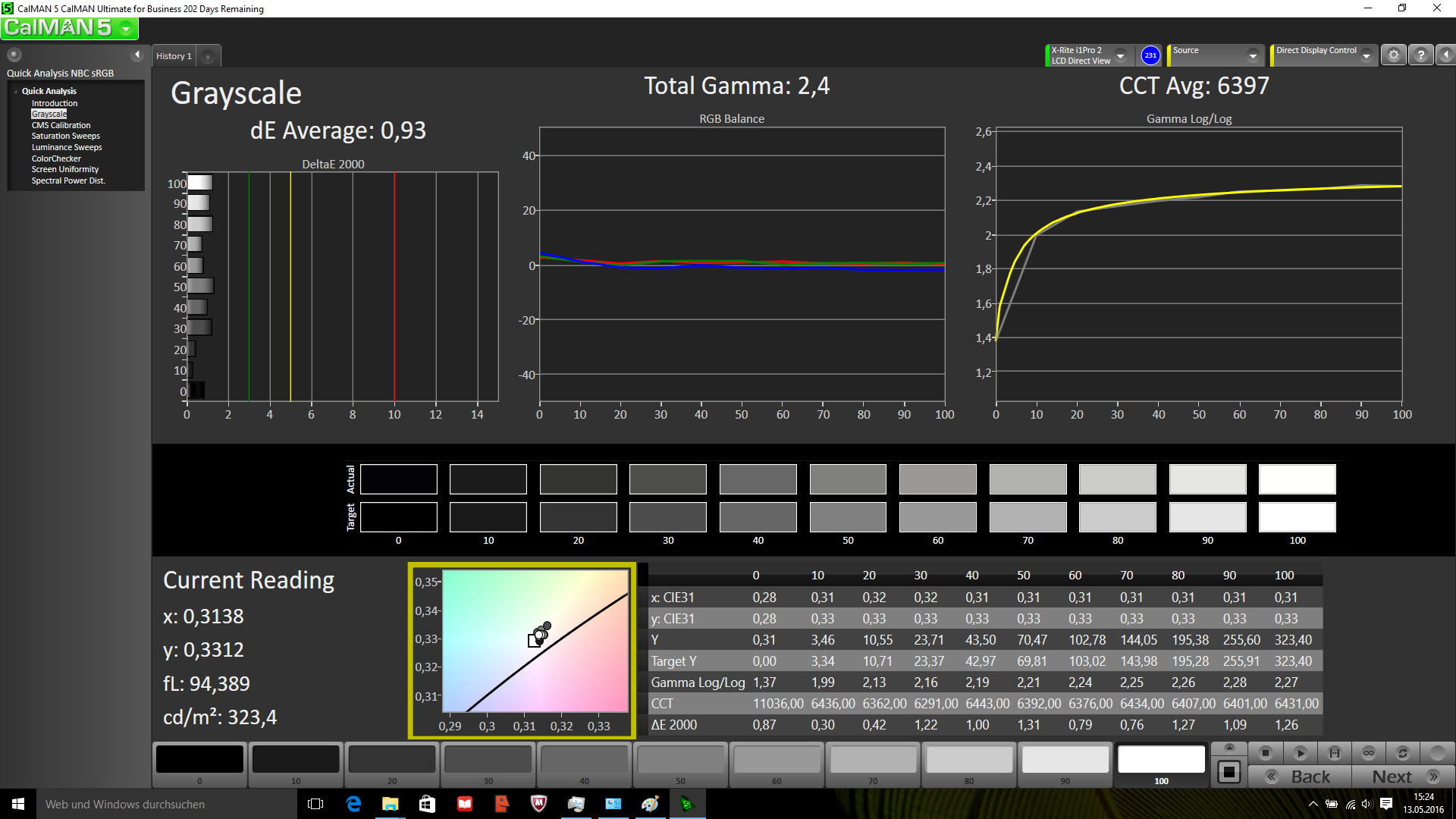

CalMAN Grayscale after calibration
CalMAN Grayscale after calibration

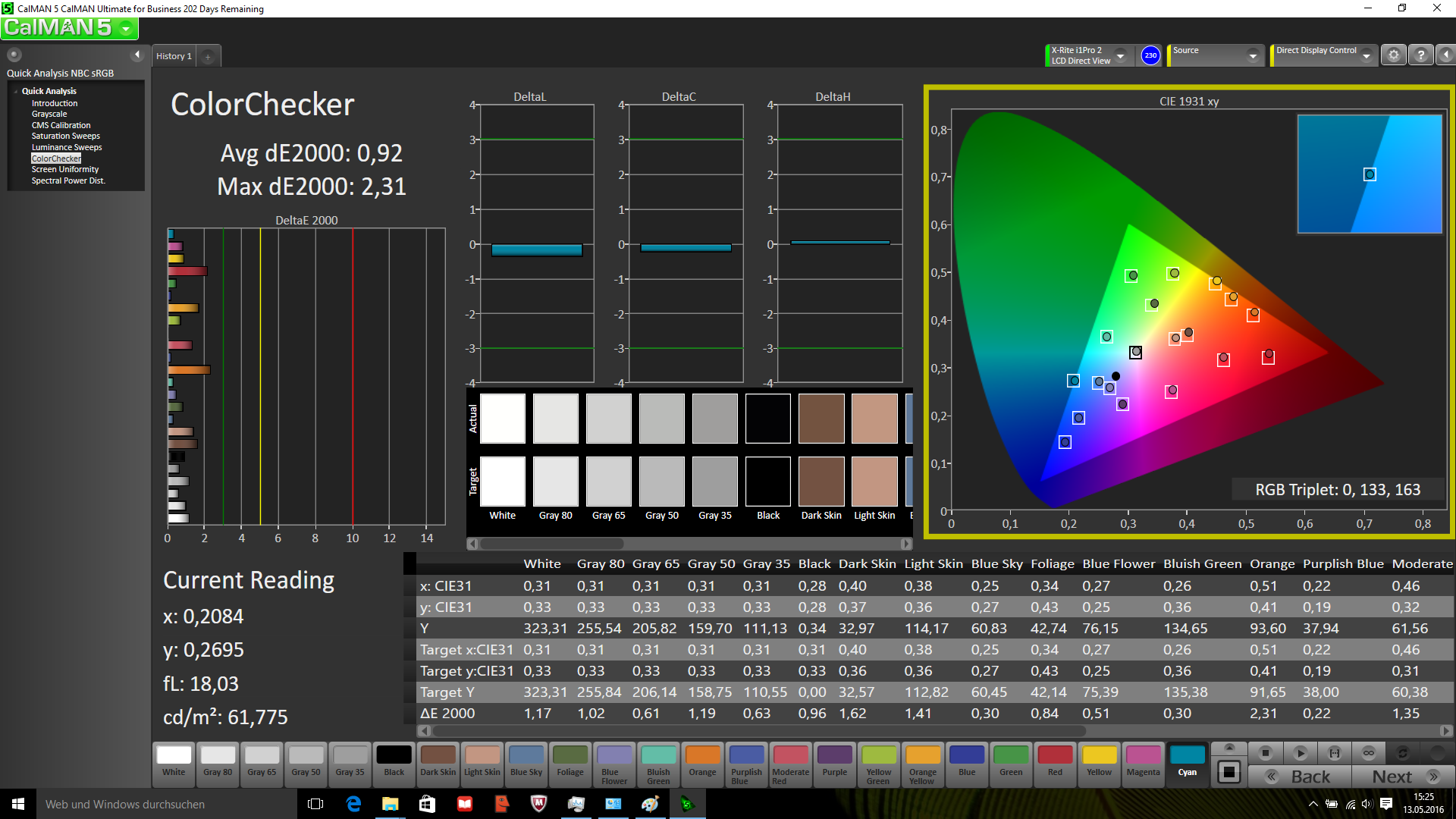

CalMAN ColorChecker after calibration
CalMAN ColorChecker after calibration

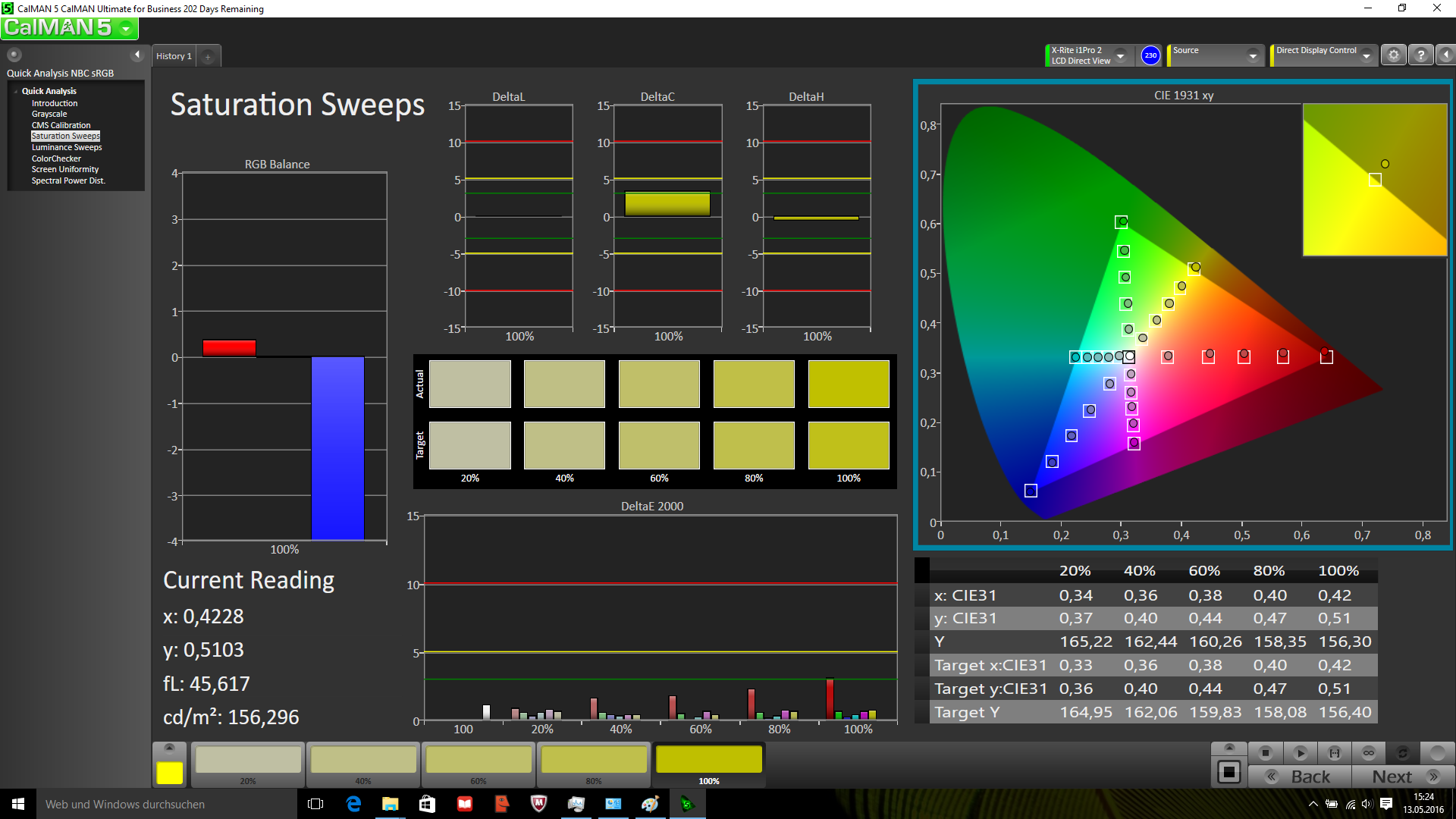

CalMAN Saturation Sweeps after calibration
CalMAN Saturation Sweeps after calibration

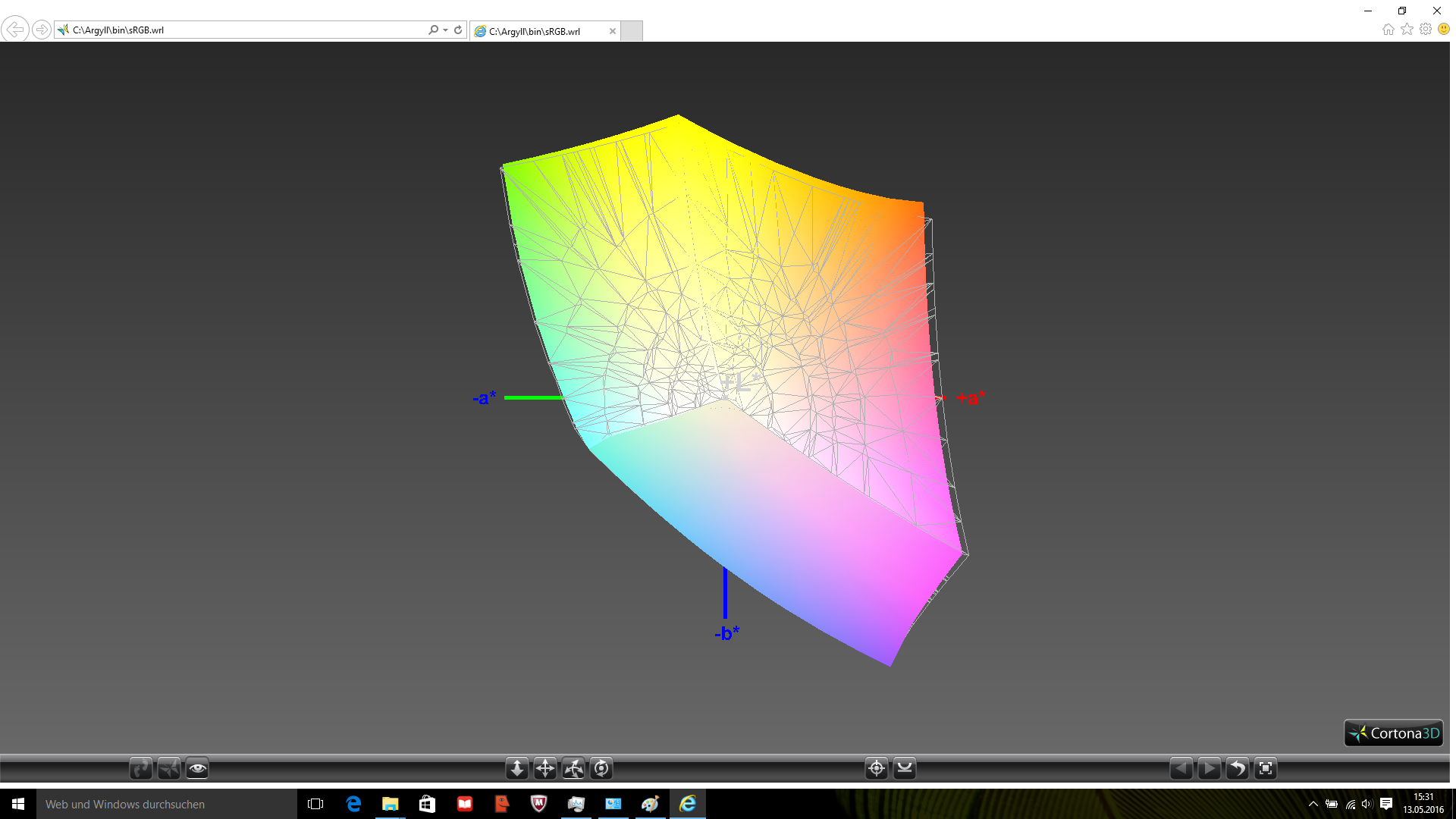

Lenovo Ideapad 710S vs. sRGB
Lenovo Ideapad 710S vs. sRGB
Lenovo IdeaPad 710S-13ISKAcer Aspire S 13 S5-371-71QZDell XPS 13 9350 WQXGAAsus Zenbook UX305UA-FC040T
Display
-4%
-3%
Display P3 Coverage
66.4
63.6
-4%
65.1
-2%
sRGB Coverage
97.5
92.3
-5%
92.8
-5%
AdobeRGB 1998 Coverage
68.4
65.4
-4%
66.3
-3%
Response Times
-10%
-11%
-15%
Response Time Grey 50% / Grey 80% *
52.4 ?(18.4, 34)
50 ?(22, 28)
5%
50.8 ?(18.4, 32.4)
3%
25 ?(15, 10)
52%
Response Time Black / White *
23.6 ?(12, 11.6)
29.6 ?(7.6, 22)
-25%
29.6 ?(6, 23.6)
-25%
28 ?(8, 20)
-19%
PWM Frequency
220 ?(50)
50 ?(20)
-77%
Screen
6%
13%
-9%
Brightness middle
344
375
9%
307.5
-11%
358
4%
Brightness
326
358
10%
297
-9%
351
8%
Brightness Distribution
87
87
0%
92
6%
86
-1%
Black Level *
0.36
0.39
-8%
0.207
42%
0.4
-11%
Contrast
956
962
1%
1486
55%
895
-6%
Colorchecker dE 2000 *
6.09
4.6
24%
4.18
31%
5.96
2%
Colorchecker dE 2000 max. *
10
8.8
12%
7.84
22%
10.99
-10%
Greyscale dE 2000 *
5.36
4
25%
4.94
8%
8.93
-67%
Gamma
2.01 109%
2.34 94%
2.31 95%
2.28 96%
CCT
7230 90%
7304 89%
7645 85%
6548 99%
Color Space (Percent of AdobeRGB 1998)
62.25
57.9
-7%
59
-5%
60
-4%
Color Space (Percent of sRGB)
97.54
88.7
-9%
92
-6%
93
-5%
Total Average (Program / Settings)
-2% / 3%
-1% / 7%
-9% / -9%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
23.6 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 11.6 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 50 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).
       Response Time 50% Grey to 80% Grey
52.4 ms ... rise ↗ and fall ↘ combined↗ 18.4 ms rise
↘ 34 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 88 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 220 Hz ≤ 50 % brightness setting

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Multi 64Bit
Lenovo IdeaPad 710S-13ISK
Intel Core i7-6560U
318 Points
Asus Zenbook UX305UA-FC040T
Intel Core i7-6500U
312 Points -2%
Dell XPS 13 9350 WQXGA
Intel Core i7-6560U
303 Points -5%
Acer Aspire S 13 S5-371-71QZ
Intel Core i7-6500U
293 Points -8%
CPU Single 64Bit
Dell XPS 13 9350 WQXGA
Intel Core i7-6560U
132 Points +2%
Lenovo IdeaPad 710S-13ISK
Intel Core i7-6560U
130 Points
Acer Aspire S 13 S5-371-71QZ
Intel Core i7-6500U
129 Points -1%
Asus Zenbook UX305UA-FC040T
Intel Core i7-6500U
123 Points -5%
Cinebench R15 CPU Single 64Bit
130 Points
Cinebench R15 CPU Multi 64Bit
318 Points
Hjälp
PCMark 8
Home Score Accelerated v2
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
3883 Points
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
3386 Points -13%
Asus Zenbook UX305UA-FC040T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
3341 Points -14%
Dell XPS 13 9350 WQXGA
Iris Graphics 540, 6560U, Samsung PM951 NVMe 512 GB
2928 Points -25%
Work Score Accelerated v2
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
4680 Points
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
4316 Points -8%
Asus Zenbook UX305UA-FC040T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
4225 Points -10%
Dell XPS 13 9350 WQXGA
Iris Graphics 540, 6560U, Samsung PM951 NVMe 512 GB
3438 Points -27%
PCMark 8 Home Score Accelerated v2
3883 poäng
PCMark 8 Work Score Accelerated v2
4680 poäng
Hjälp
Lenovo IdeaPad 710S-13ISK
Samsung PM951 NVMe MZVLV256
Acer Aspire S 13 S5-371-71QZ
LiteOn CV1-8B512
Dell XPS 13 9350 WQXGA
Samsung PM951 NVMe 512 GB
Asus Zenbook UX305UA-FC040T
SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
AS SSD
-46%
26%
-41%
Seq Read
1273
486
-62%
1442
13%
496.8
-61%
4K Read
39.13
27
-31%
38.29
-2%
26.87
-31%
4K-64 Read
1091
290
-73%
1497
37%
375.5
-66%
Score Write
429
347
-19%
664
55%
405
-6%
CrystalDiskMark 3.0
-44%
3%
-49%
Read Seq
1193
502
-58%
1236
4%
469.1
-61%
Read 4k
42.43
29.69
-30%
42.36
0%
28.08
-34%
Read 4k QD32
549
301.3
-45%
572
4%
262
-52%
Total Average (Program / Settings)
-45% / -45%
15% / 16%
-45% / -44%
Samsung PM951 NVMe MZVLV256
Sequential Read: 1193 MB/s
Sequential Write: 309.6 MB/s
512K Read: 613 MB/s
512K Write: 311 MB/s
4K Read: 42.43 MB/s
4K Write: 144.9 MB/s
4K QD32 Read: 549 MB/s
4K QD32 Write: 311.3 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo IdeaPad 710S-13ISK
Intel Iris Graphics 540
2101 Points
Dell XPS 13 9350 WQXGA
Intel Iris Graphics 540
1898 Points -10%
Dell Latitude E7470 N001LE747014EMEA
Intel HD Graphics 520
1482 Points -29%
Acer Aspire S 13 S5-371-71QZ
Intel HD Graphics 520
1428 Points -32%
Asus Zenbook UX305UA-FC040T
Intel HD Graphics 520
1362 Points -35%
3DMark
1280x720 Ice Storm Standard Graphics
Dell Latitude E7470 N001LE747014EMEA
Intel HD Graphics 520
82882 Points +12%
Lenovo IdeaPad 710S-13ISK
Intel Iris Graphics 540
73869 Points
Dell XPS 13 9350 WQXGA
Intel Iris Graphics 540
67714 Points -8%
Asus Zenbook UX305UA-FC040T
Intel HD Graphics 520
63784 Points -14%
1280x720 Cloud Gate Standard Graphics
Lenovo IdeaPad 710S-13ISK
Intel Iris Graphics 540
11531 Points
Dell XPS 13 9350 WQXGA
Intel Iris Graphics 540
9392 Points -19%
Dell Latitude E7470 N001LE747014EMEA
Intel HD Graphics 520
8204 Points -29%
Asus Zenbook UX305UA-FC040T
Intel HD Graphics 520
7047 Points -39%
3DMark 11 Performance
2244 poäng
3DMark Ice Storm Standard Score
60021 poäng
3DMark Cloud Gate Standard Score
7646 poäng
Hjälp
BioShock Infinite
1280x720 Very Low Preset
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
86.8 fps +26%
Acer Aspire V3-575G-5093
GeForce 940M, 6200U, Toshiba MQ01ABD100
73.5 fps +6%
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
69.1 fps
Dell Latitude E7470 N001LE747014EMEA
HD Graphics 520, 6300U, Crucial MX200 M.2 CT500MX200SSD4
57.7 fps -16%
Asus ASUSPRO Advanced B8430UA-FA0084E
HD Graphics 520, 6200U, Hynix HFS256G39MND
44.04 fps -36%
1366x768 Medium Preset
Acer Aspire V3-575G-5093
GeForce 940M, 6200U, Toshiba MQ01ABD100
51.4 fps +22%
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
49.1 fps +16%
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
42.2 fps
Dell Latitude E7470 N001LE747014EMEA
HD Graphics 520, 6300U, Crucial MX200 M.2 CT500MX200SSD4
32 fps -24%
Asus ASUSPRO Advanced B8430UA-FA0084E
HD Graphics 520, 6200U, Hynix HFS256G39MND
23.58 fps -44%
1366x768 High Preset
Acer Aspire V3-575G-5093
GeForce 940M, 6200U, Toshiba MQ01ABD100
42.27 fps +18%
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
41.2 fps +15%
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
35.7 fps
Dell Latitude E7470 N001LE747014EMEA
HD Graphics 520, 6300U, Crucial MX200 M.2 CT500MX200SSD4
27.2 fps -24%
Asus ASUSPRO Advanced B8430UA-FA0084E
HD Graphics 520, 6200U, Hynix HFS256G39MND
19.79 fps -45%
lågmed.högultra
Crysis 3 (2013) 37.6 27.6 19.6 6.6
BioShock Infinite (2013) 69.1 42.2 35.7 10
Metro: Last Light (2013) 21.9 9.5
Battlefield 4 (2013) 29 small graphical problems 18 small graphical problems 11.4
Dirt Rally (2015) 119.2 30.4 14.3 12.5
The Witcher 3 (2015) 17.8 12 0
Mad Max (2015) 28.9 13.2
Anno 2205 (2015) 29 small graphical problems 15 small graphical problems 6 small graphical problems
Star Wars Battlefront (2015) 40.2 22.9 0
Assassin's Creed Syndicate (2015) 4.9
Rainbow Six Siege (2015) 39.1 24.2 13.5 11
Rise of the Tomb Raider (2016) 21.5 0 0
XCOM 2 (2016) 18 6.7
Far Cry Primal (2016) 22 10 8
The Division (2016) 21.7 12.9
Hitman 2016 (2016) 13.5 13.8 7.6

Ljudnivå

Låg belastning
30.1 / 30.1 / 30.1 dB(A)
Hög belastning
39.2 / 39.3 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   ECM8000 + Voltcraft SL-451 (15 cm avstånd)   environment noise: 29 dB(A)
Hög belastning
 31.5 °C42 °C34.1 °C
 29.8 °C36.3 °C31.1 °C
 28.8 °C28.7 °C29.8 °C
Max: 42 °C
Medel: 32.5 °C
35.8 °C37.5 °C34.7 °C
34.5 °C36.8 °C32.1 °C
32.1 °C32 °C31.5 °C
Max: 37.5 °C
Medel: 34.1 °C
Strömförsörjning (max.)  45.8 °C | Rumstemperatur 22.8 °C | Fluke 62 Max
(±) The average temperature for the upper side under maximal load is 32.5 °C / 91 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 37.5 °C / 100 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 31.3 °C / 88 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.9 °C / 85.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-1.6 °C / -2.9 F).
Strömförbrukning
Av/Standbydarklight 0.32 / 0.35 Watt
Låg belastningdarkmidlight 3.3 / 7.4 / 8.2 Watt
Hög belastning midlight 36.5 / 43.7 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy
Lenovo IdeaPad 710S-13ISK
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
Dell XPS 13 9350 WQXGA
Iris Graphics 540, 6560U, Samsung PM951 NVMe 512 GB
Asus Zenbook UX305UA-FC040T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
Battery Runtime
17%
-2%
39%
Reader / Idle
810
1028
27%
604
-25%
1427
76%
H.264
486
545
12%
WiFi v1.3
418
472
13%
311
-26%
561
34%
Load
89
99
11%
128
44%
118
33%
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
13tim 30min
WiFi Websurfing
6tim 58min
Big Buck Bunny H.264 1080p
8tim 06min
Hög belastning (maximal ljusstyrka)
1tim 29min

För

+ tunn och lätt
+ stabilt och välbyggt aluminiumchassi
+ ingen fingeravtrycksmagnet

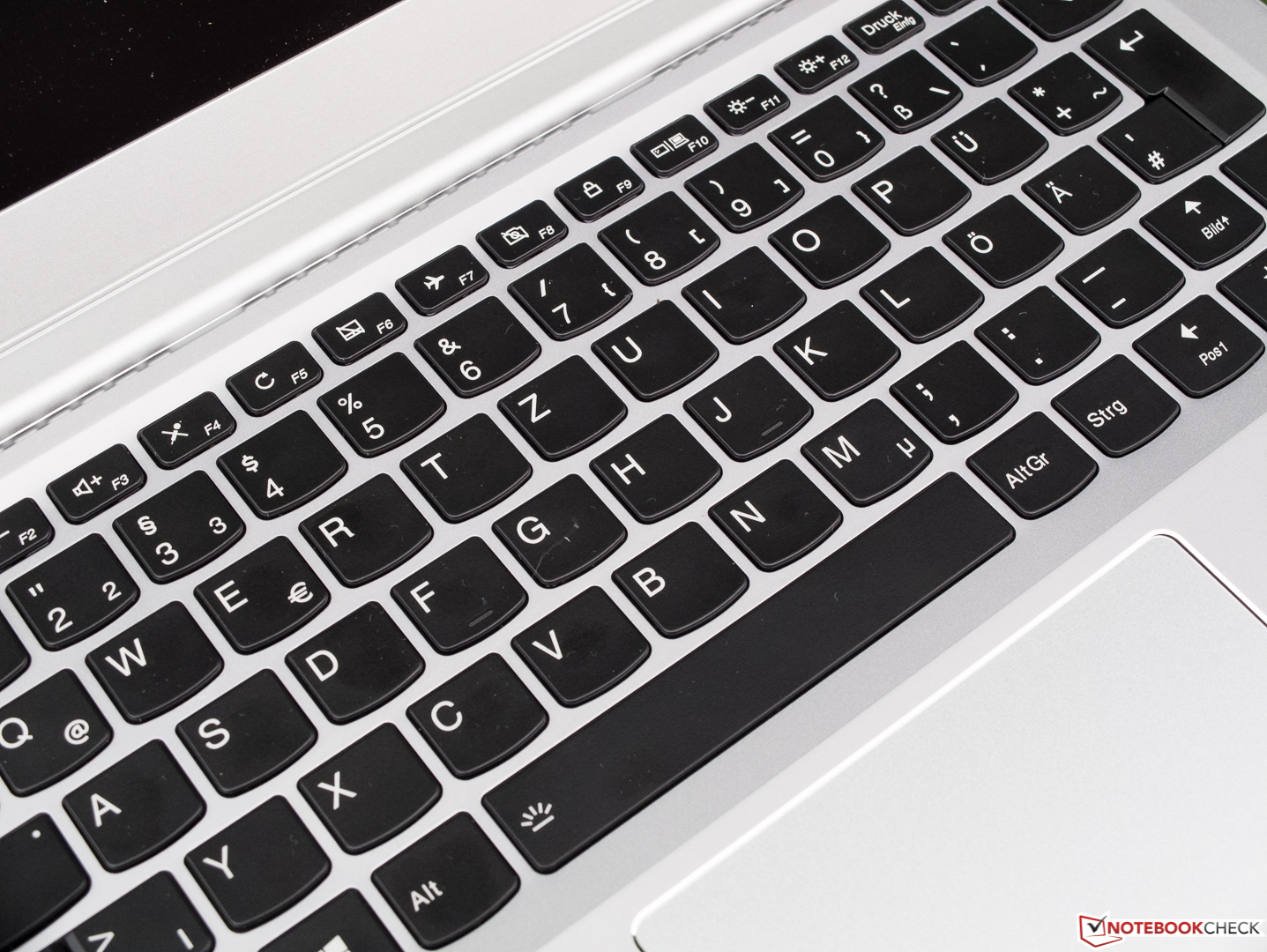

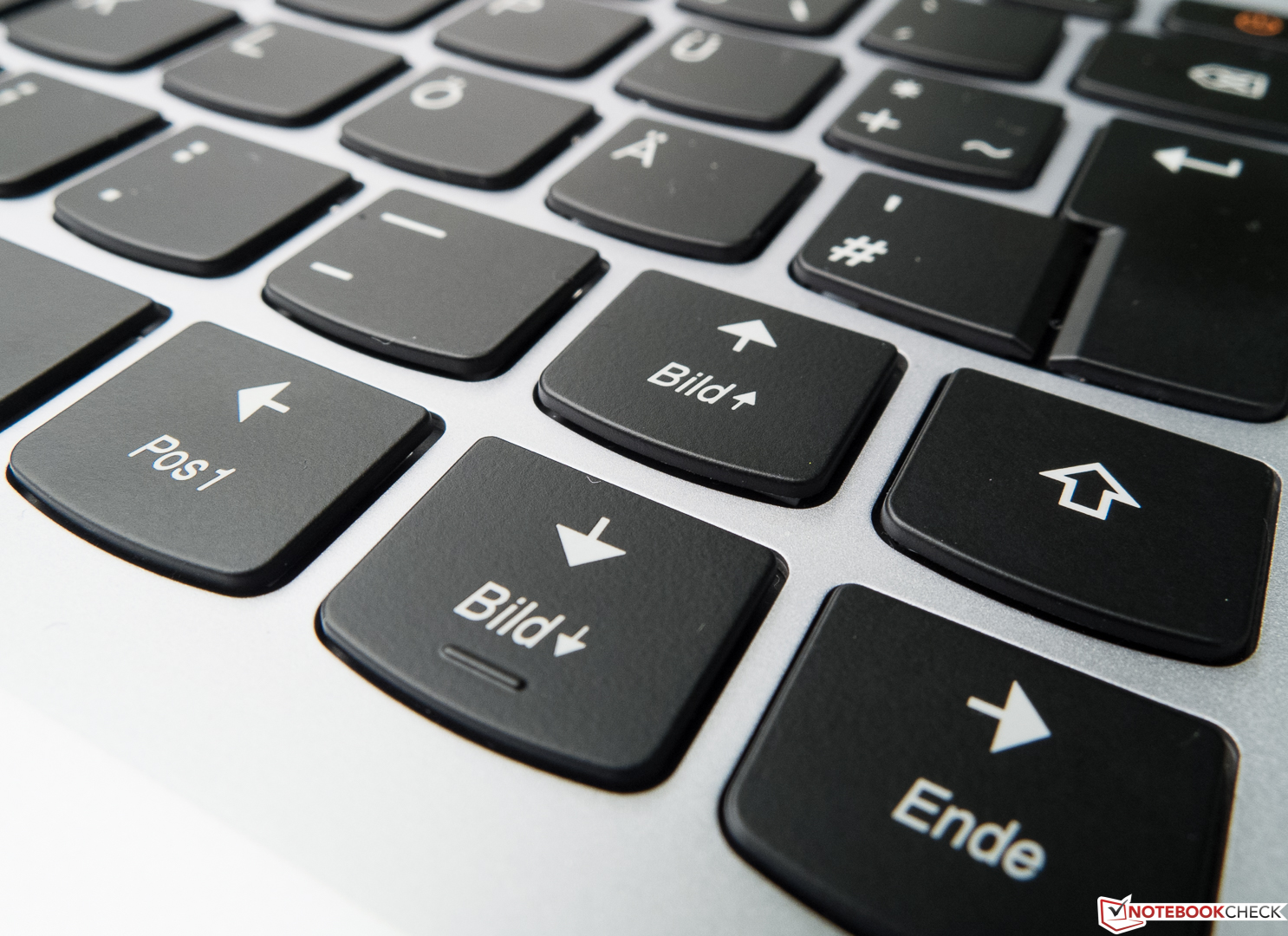

+ bra tangentbord
+ ljusstark skärm med hög kontrast
+ extremt snabb SSD

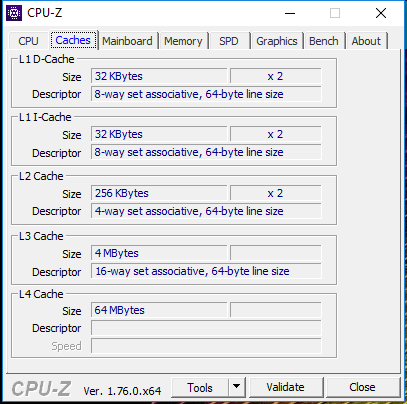

+ GPU med eDRAM
+ tyst och sval

Emot

- olika modeller med samma namn
- locket kan inte öppnas med en hand

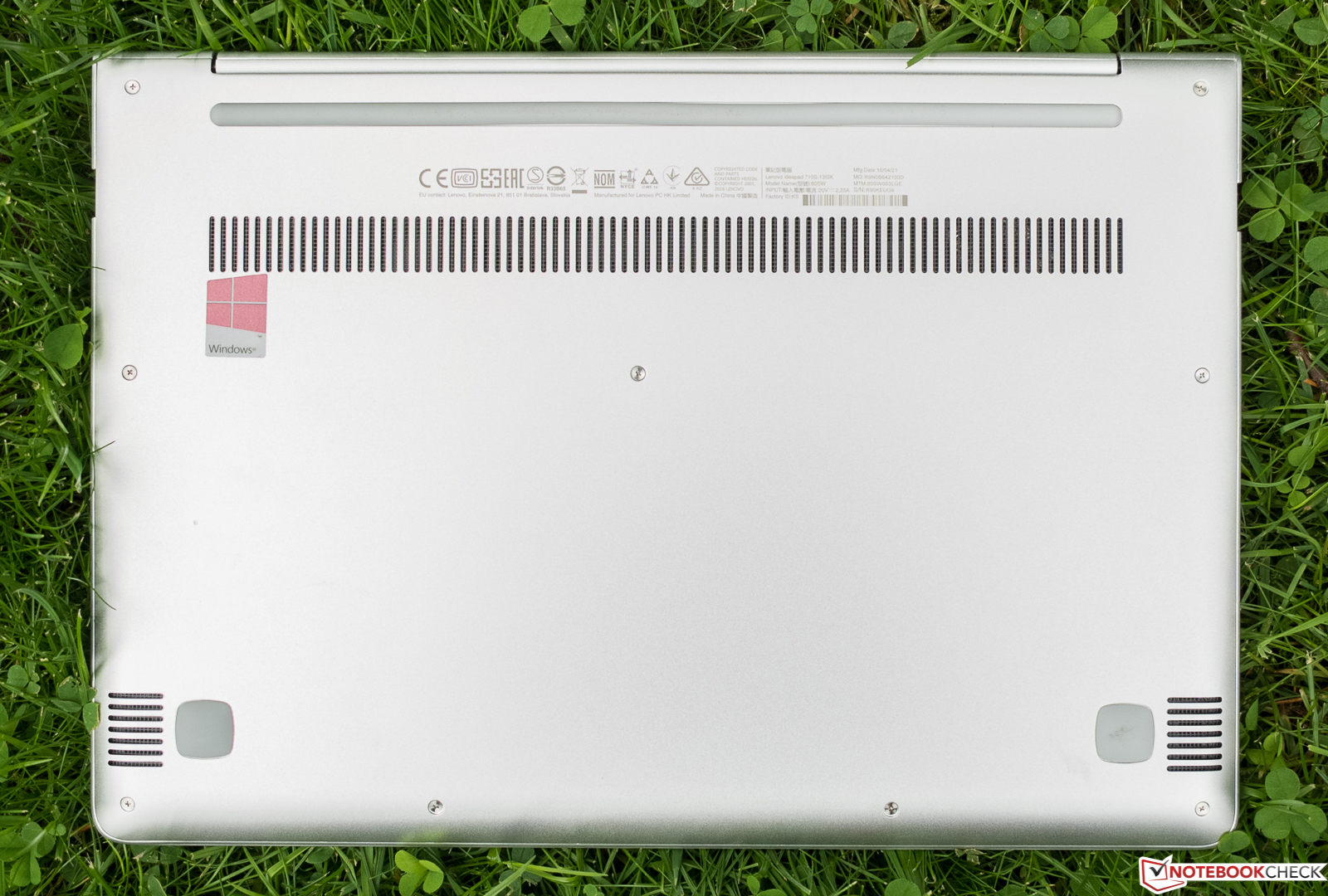

- ingen underhållspanel
- dåligt med portar
- mini-HDMI
- medioker WLAN-prestanda
- PWM vid 50 % ljusstyrka och lägre
- fläktarna genererar irriterande ljud under belastning
- extrem strypning när CPU och GPU belastas

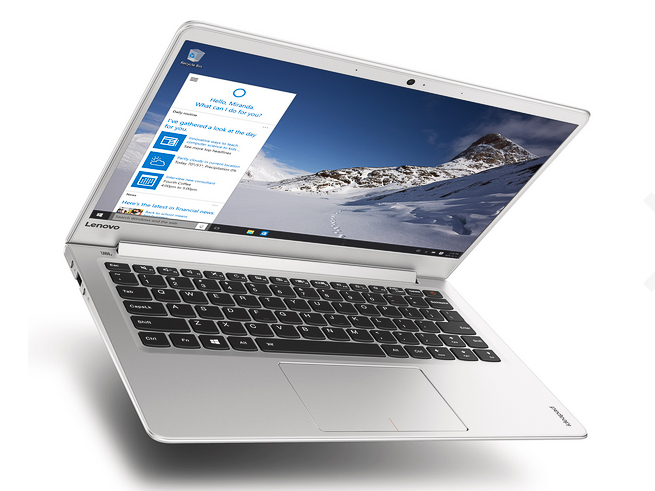

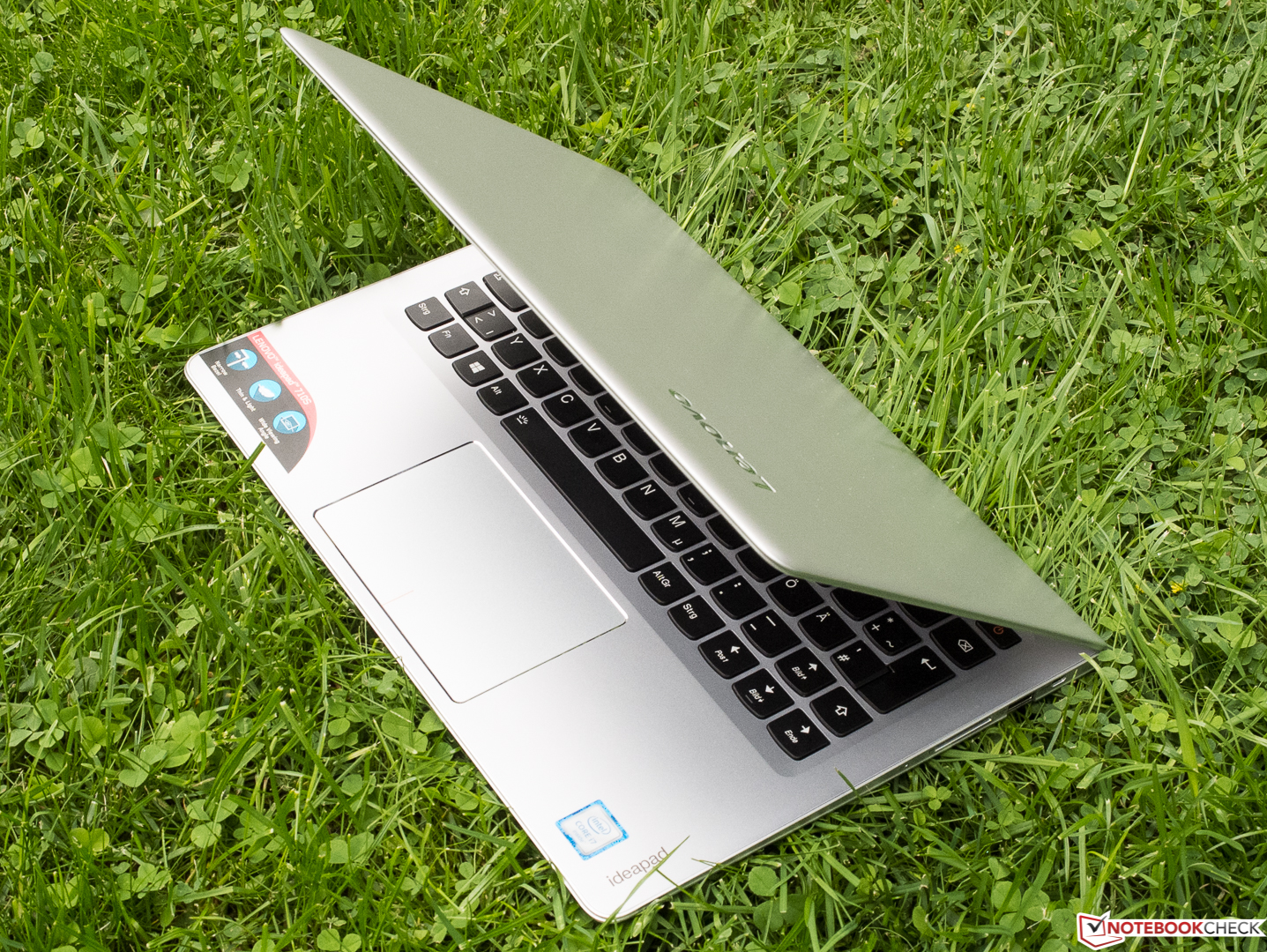

In review: Lenovo IdeaPad 710S-13ISK. Test model courtesy of Campuspoint.

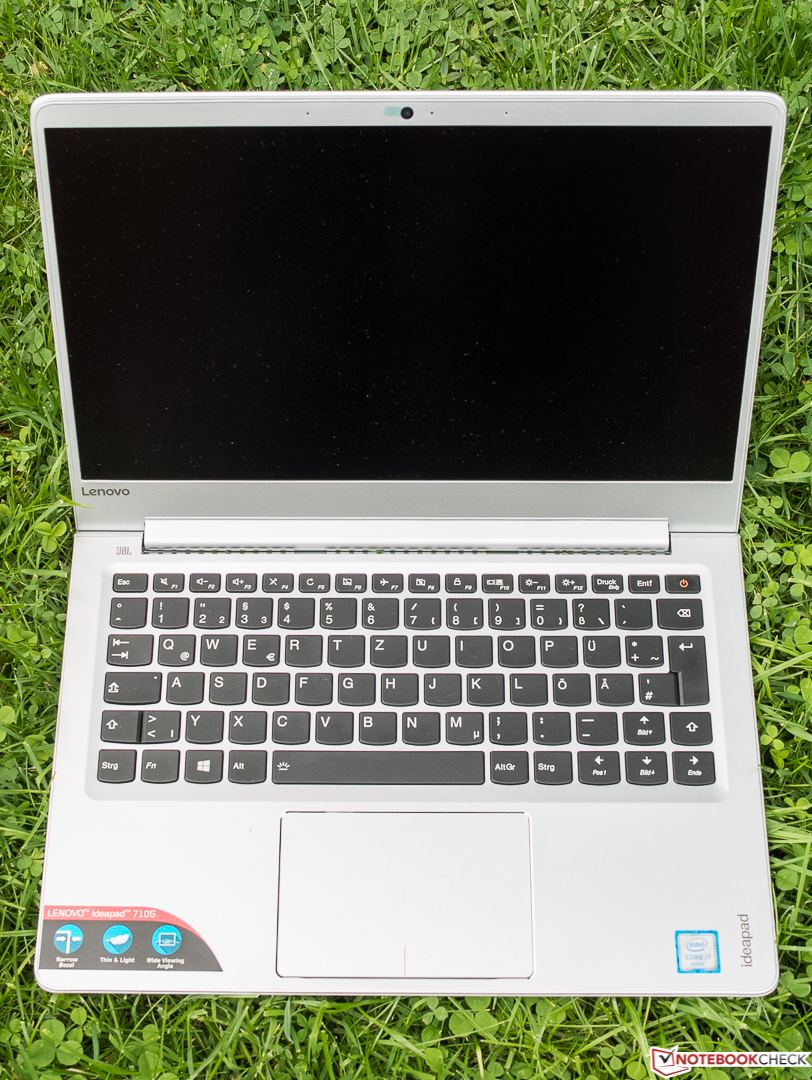

In review: Lenovo IdeaPad 710S-13ISK. Test model courtesy of Campuspoint.

Den kompakta och fjäderlätta Lenovo IdeaPad 710S-13ISK gjorde ett mycket positivt intryck under testet och verkar inte ha några allvarliga nackdelar. En stor del av intrycket påverkas av det praktiska aluminium-magnesium-chassit, eftersom vi tycker att det ser riktigt bra ut, med övertygande byggkvalitet. En annan höjdpunkt är den utmärkta skärmen.

Tangentbordet är bra, men inte pekplattans något klibbiga yta. Om du behöver ansluta mycket kringutrustning samtidigt lämnar den här enheten övrigt att önska på grund av det begränsade antalet portar. Någon underhållslucka finns inte heller, men bottenpanelen verkar vara lätt att avlägsna.

Vi kunde avslöja några tekniska brister, som den extrema strypningen under stresstestet och det något irriterande fläktljudet i samma situation. Det är å andra sidan inte så viktigt i det här fallet, eftersom maximal belastning kommer att vara ett mycket sällsynt scenario för den här maskinen.



Intressanta enheter att jämföra med är Dell XPS 13 9350 och Asus Zenbook UX305FA-FC040T, som båda får bättre totalpoäng.

Lenovo IdeaPad 710S-13ISK - 06/02/2016 v5.1 (old)
Sven Kloevekorn

Design
88 /  98 → 90%
Tangentbord
86%
Mus
82%
Anslutningar
44 / 80 → 54%
Vikt
73 / 35-78 → 88%
Batteri
89%
Skärm
87%
Spelprestanda
62 / 68 → 91%
Programprestanda
88 / 87 → 100%
Temperatur
91 / 91 → 100%
Ljudnivå
88%
Audio
60 / 91 → 66%
Camera
53 / 85 → 62%
Medel
76%
86%
Subnotebook - Vägt medel

Price comparison

Please share our article, every link counts!
Mail Logo
> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo IdeaPad 710S-13ISK (Core i7) (sammanfattning)
Sven Kloevekorn, 2016-07-11 (Update: 2016-07-11)
