Test: Lenovo IdeaPad Miix 310-10ICR (sammanfattning)
Lenovo IdeaPad MIIX 310-10ICR (Miix Serie)

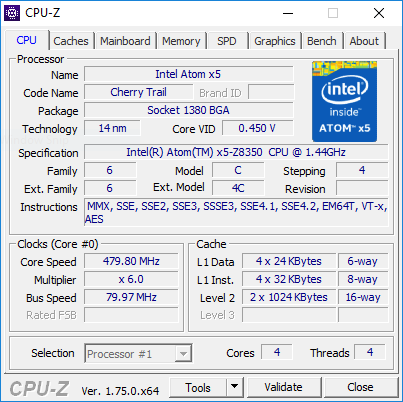

Processor
Intel Atom x5-Z8350 4 x 1.4 - 1.9 GHz, Cherry Trail

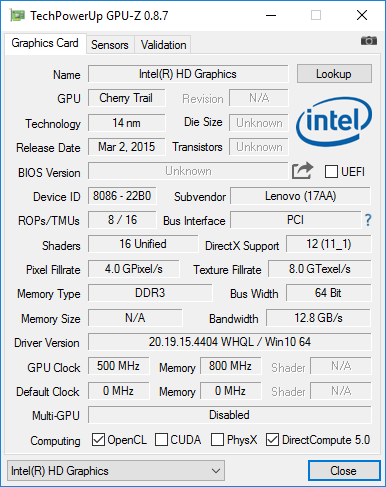

Grafikkort
Intel HD Graphics (Cherry Trail), Kärna: 500 MHz, 20.19.15.4404

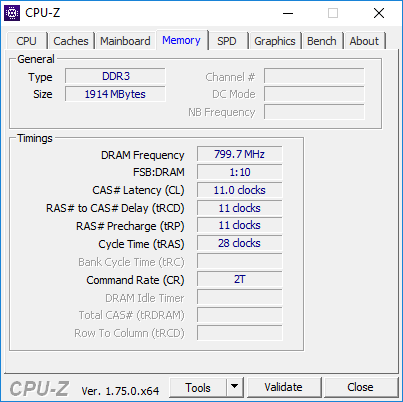

Minne
2048 MB
, DDR3L 1600
Skärm
10.10 tum 16:10, 1280 x 800 pixlar 149 PPI, yes, IPS, detachable screen

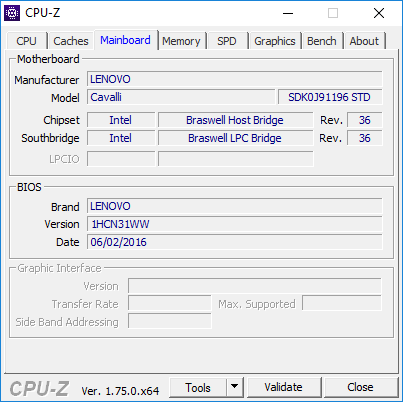

Moderkort
Intel Cherry Trail
Hårddisk
64 GB eMMC Flash, 64 GB
Vikt

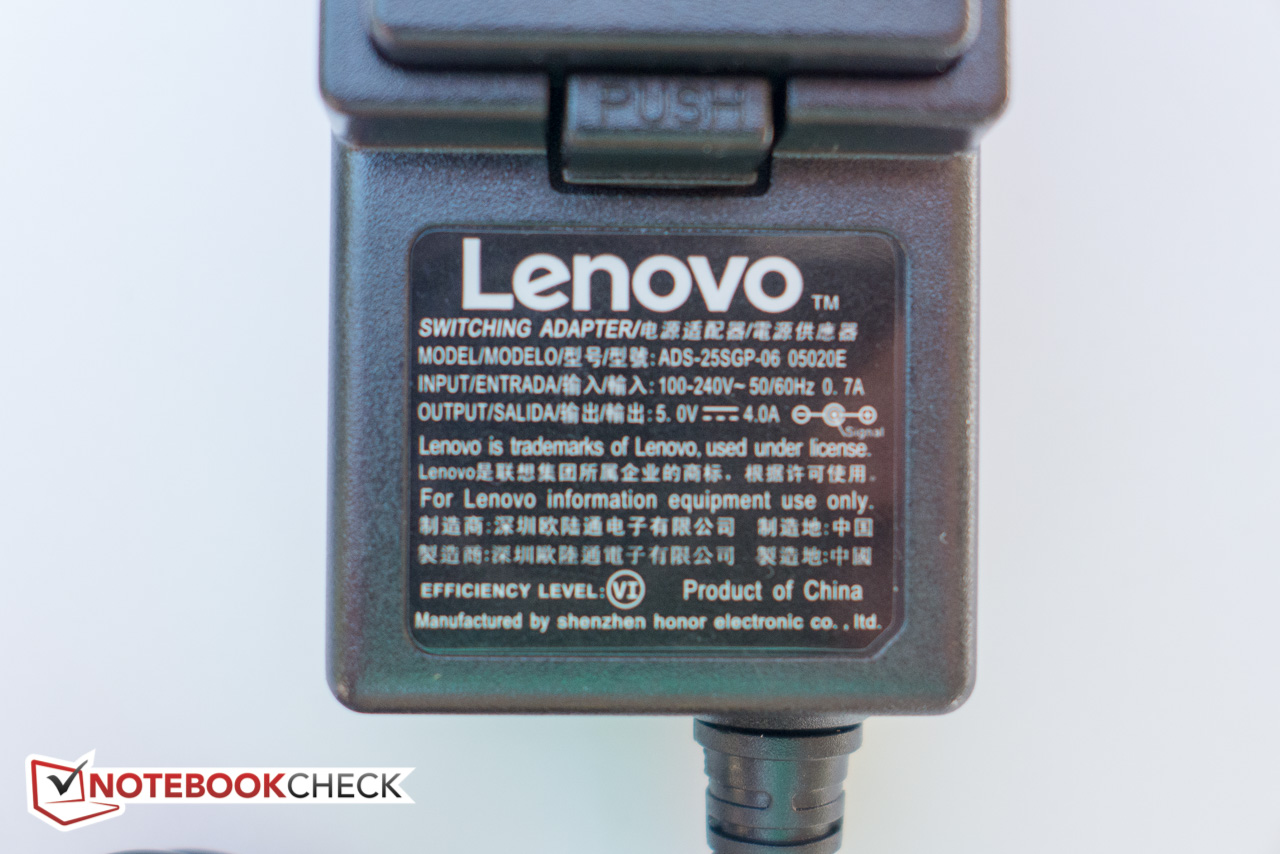

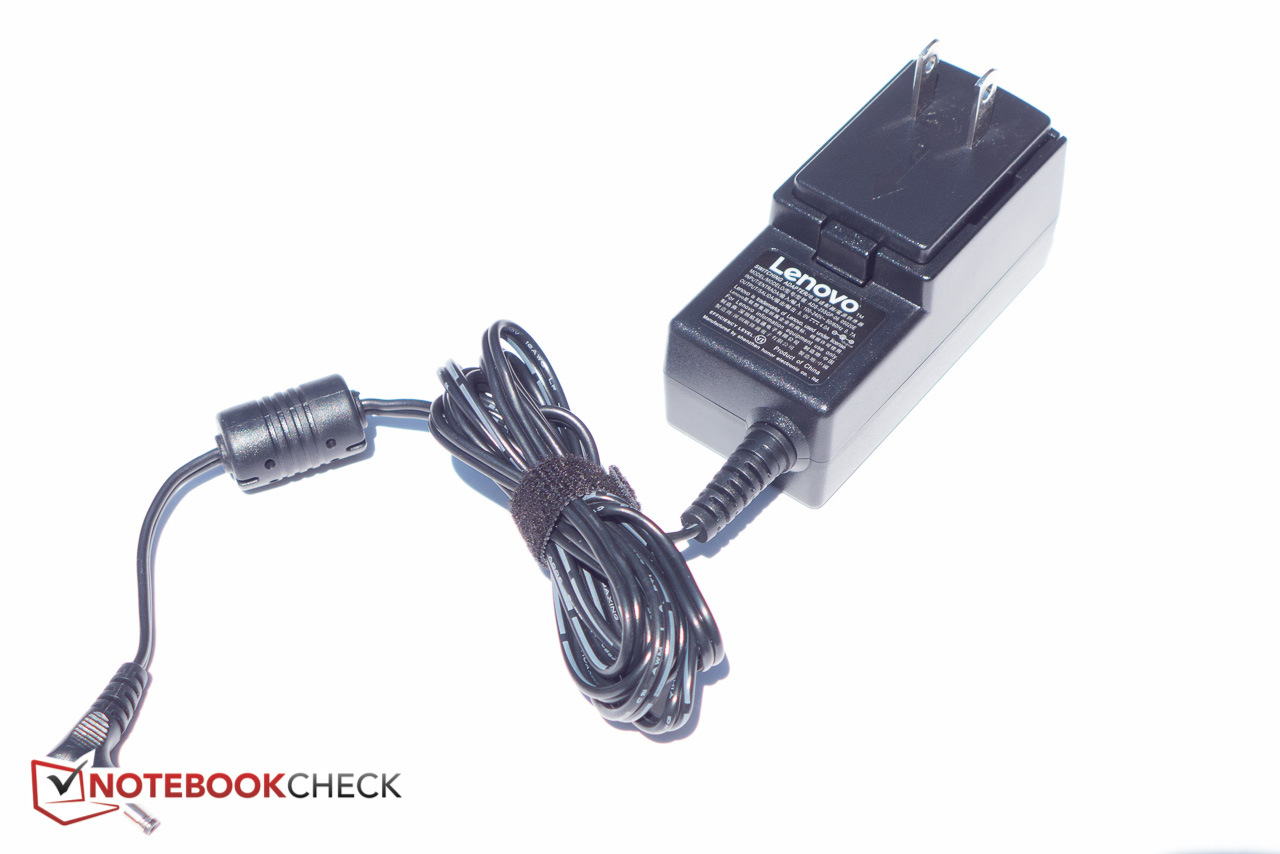

1.1 kg, Strömförsörjning: 156 g
Pris
299 USD
Länkar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo IdeaPad MIIX 310-10ICR | |
| maximum AS SSD Seq Read Test (1GB) | |
| Lenovo IdeaPad MIIX 310-10ICR | |
| Networking | |
| iperf Server (receive) TCP 1 m | |
| HP Spectre x2 12-a001ng | |
| HP x2 210 G1 | |
| VOYO VBook V3 | |
| Lenovo IdeaPad MIIX 310-10ICR | |
| iperf Client (transmit) TCP 1 m | |
| HP Spectre x2 12-a001ng | |
| HP x2 210 G1 | |
| VOYO VBook V3 | |
| Lenovo IdeaPad MIIX 310-10ICR | |
| |||||||||||||||||||||||||
tested with X-Rite i1Pro 2
Max: 251.9 cd/m² (Nits) Medel: 233.1 cd/m² Minimum: 23.7 cd/m²Distribution av ljusstyrkan: 83 %
Mitt på batteriet: 251.9 cd/m²
Kontrast: 724:1 (Svärta: 0.348 cd/m²)
ΔE Color 6.35 | 0.5-29.43 Ø4.91
ΔE Greyscale 7.09 | 0.5-98 Ø5.2
75.23% sRGB (Calman 2D)
52.69% AdobeRGB 1998 (Argyll 1.6.3 3D)
52.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
75.2% sRGB (Argyll 2.2.0 3D)
51.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.02
| Lenovo IdeaPad MIIX 310-10ICR IPS, 10.1", 1280x800 | Asus Transformer Book T100HA-C4-GR AUO20D4, IPS, 10.1", 1280x800 | Toshiba Satellite Click 10 LX0W-C-104 MS_9001, IPS, 10.1", 1920x1200 | Acer Aspire Switch 10E SW3-013 AU Optronics AUO15D4, IPS, 10.1", 1280x800 | HP Pavilion x2 10-n013dx HP Display MS_9001, IPS, 10.1", 1280x800 | Microsoft Surface 3 Panasonic MEI9001, IPS, 10.8", 1920x1280 | |
|---|---|---|---|---|---|---|
| Display | 0% | -17% | -11% | -16% | 33% | |
| Display P3 Coverage | 51.1 | 52.8 3% | 42.25 -17% | 45.18 -12% | 42.71 -16% | 68.8 35% |
| sRGB Coverage | 75.2 | 73 -3% | 63.5 -16% | 67.2 -11% | 64.1 -15% | 98.7 31% |
| AdobeRGB 1998 Coverage | 52.7 | 53.3 1% | 43.67 -17% | 46.73 -11% | 44.13 -16% | 70.4 34% |
| Response Times | 204% | |||||
| Response Time Grey 50% / Grey 80% * | 31.6 ? | 92 ? -191% | ||||
| Response Time Black / White * | 24.8 ? | 114 ? -360% | ||||
| PWM Frequency | 69.4 | 877 ? 1164% | ||||
| Screen | 50% | 10% | 14% | 12% | 36% | |
| Brightness middle | 251.9 | 480.2 91% | 308 22% | 337 34% | 316.1 25% | 399 58% |
| Brightness | 233 | 455 95% | 288 24% | 327 40% | 294 26% | 380 63% |
| Brightness Distribution | 83 | 85 2% | 87 5% | 86 4% | 85 2% | 90 8% |
| Black Level * | 0.348 | 0.324 7% | 0.43 -24% | 0.35 -1% | 0.327 6% | 0.49 -41% |
| Contrast | 724 | 1482 105% | 716 -1% | 963 33% | 967 34% | 814 12% |
| Colorchecker dE 2000 * | 6.35 | 3.45 46% | 4.68 26% | 6.24 2% | 6.18 3% | 1.66 74% |
| Colorchecker dE 2000 max. * | 11.15 | 3.24 71% | ||||
| Greyscale dE 2000 * | 7.09 | 2.67 62% | 3.4 52% | 5.74 19% | 5.51 22% | 2.75 61% |
| Gamma | 2.02 109% | 2.34 94% | 2.72 81% | 2.26 97% | 2.01 109% | 2.22 99% |
| CCT | 8590 76% | 6164 105% | 6803 96% | 7214 90% | 6510 100% | 6358 102% |
| Color Space (Percent of AdobeRGB 1998) | 52.69 | 47.28 -10% | 40 -24% | 43 -18% | 40 -24% | 64.4 22% |
| Color Space (Percent of sRGB) | 84.38 | 64 | 67 | 64 | 98.8 | |
| Total Average (Program / Settings) | 25% /
36% | 66% /
46% | 2% /
7% | -2% /
4% | 35% /
36% |
* ... smaller is better
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|

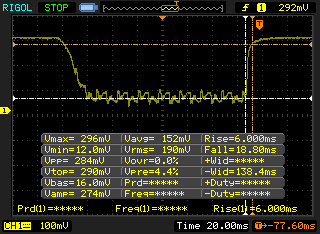

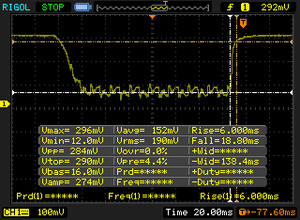

| 24.8 ms ... rise ↗ and fall ↘ combined | ↗ 6 ms rise |  |
| ↘ 28.8 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 54 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

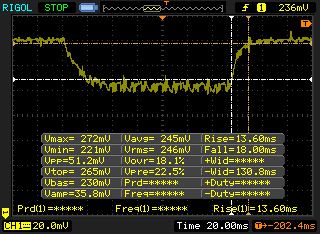

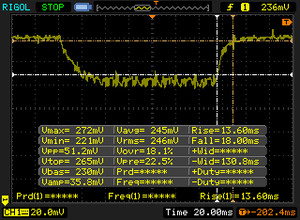

| ↔ Response Time 50% Grey to 80% Grey | ||
| 31.6 ms ... rise ↗ and fall ↘ combined | ↗ 13.6 ms rise |  |
| ↘ 18 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 38 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). | ||

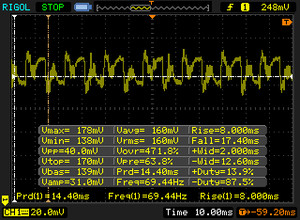

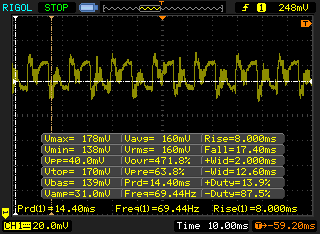

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 69.4 Hz |  | |
The display backlight flickers at 69.4 Hz (worst case, e.g., utilizing PWM) . The frequency of 69.4 Hz is very low, so the flickering may cause eyestrain and headaches after extended use. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| wPrime 2.10 - 1024m (sort by value) | |
| Lenovo IdeaPad MIIX 310-10ICR | |
| HP Pavilion x2 10-n013dx | |
| Mozilla Kraken 1.1 - Total (sort by value) | |
| Lenovo IdeaPad MIIX 310-10ICR | |
| Asus Transformer Book T100HA-C4-GR | |
| Toshiba Satellite Click 10 LX0W-C-104 | |
| HP Pavilion x2 10-n013dx | |
| Octane V2 - Total Score (sort by value) | |
| Lenovo IdeaPad MIIX 310-10ICR | |
| Toshiba Satellite Click 10 LX0W-C-104 | |
| HP Pavilion x2 10-n013dx | |
* ... smaller is better
| PCMark 8 Home Score Accelerated v2 | 1419 poäng | |
| PCMark 8 Work Score Accelerated v2 | 1224 poäng | |
Hjälp | ||
| Lenovo IdeaPad MIIX 310-10ICR 64 GB eMMC Flash | Asus Transformer Book T100HA-C4-GR Samsung CGND3R eMMC | Toshiba Satellite Click 10 LX0W-C-104 32 GB eMMC Flash | Acer Aspire Switch 10E SW3-013 32 GB eMMC Flash | HP Pavilion x2 10-n013dx | Microsoft Surface 3 128 GB eMMC Flash | |
|---|---|---|---|---|---|---|
| CrystalDiskMark 3.0 | 30% | -16% | 2% | 1% | -11% | |
| Read Seq | 151.9 | 139.2 -8% | 128.6 -15% | 167.6 10% 90.7 -40% | 120.5 -21% | 149.3 -2% |
| Write Seq | 87.3 | 87.6 0% | 43.99 -50% | 88.4 1% 54.7 -37% | 64.1 -27% | 47.99 -45% |
| Read 512 | 144.5 | 127.8 -12% | 97.3 -33% | 150.6 4% 83.9 -42% | 107.5 -26% | 133.7 -7% |
| Write 512 | 58 | 71.6 23% | 30.47 -47% | 66.4 14% 46.4 -20% | 67.2 16% | 39.9 -31% |
| Read 4k | 9.35 | 14.98 60% | 13.25 42% | 16.49 76% 15.56 66% | 15.2 63% | 12.64 35% |
| Write 4k | 12.26 | 17.59 43% | 11.54 -6% | 9.46 -23% 8.37 -32% | 10.69 -13% | 9.52 -22% |
| Read 4k QD32 | 29 | 33.16 14% | 20.93 -28% | 42.66 47% 39.38 36% | 34.34 18% | 27.94 -4% |
| Write 4k QD32 | 13.18 | 29.03 120% | 14.46 10% | 11.16 -15% 10.38 -21% | 12.85 -3% | 11.2 -15% |
64 GB eMMC Flash
Sequential Read:
151.9 MB/s
Sequential Write:
87.3 MB/s
512K Read:
144.5 MB/s
512K Write:
58 MB/s
4K Read:
9.35 MB/s
4K Write:
12.26 MB/s
4K QD32 Read:
29 MB/s
4K QD32 Write:
13.18 MB/s
| 3DMark 11 Performance | 344 poäng | |
Hjälp | ||
(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.4 °C / 108 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 36.6 °C / 98 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39.8 °C / 103.6 F.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-11.8 °C / -21.2 F).
(±) The maximum temperature on the upper side is 42.4 °C / 108 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 36.6 °C / 98 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39.8 °C / 103.6 F.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-11.8 °C / -21.2 F).
Strömförbrukning
| Av/Standby |   3 / 3.1 Watt |
| Låg belastning |  5.14 / 7.6 / 8.28 Watt |
| Hög belastning |
11.33 / 15.36 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo IdeaPad MIIX 310-10ICR Z8350, HD Graphics (Cherry Trail), 64 GB eMMC Flash, IPS, 1280x800, 10.1" | Asus Transformer Book T100HA-C4-GR Z8500, HD Graphics (Cherry Trail), Samsung CGND3R eMMC, IPS, 1280x800, 10.1" | Toshiba Satellite Click 10 LX0W-C-104 Z8300, HD Graphics (Cherry Trail), 32 GB eMMC Flash, IPS, 1920x1200, 10.1" | Acer Aspire Switch 10E SW3-013 Z3735F, HD Graphics (Bay Trail), 32 GB eMMC Flash, IPS, 1280x800, 10.1" | HP Pavilion x2 10-n013dx Z3736F, HD Graphics (Bay Trail), , IPS, 1280x800, 10.1" | Microsoft Surface 3 Z8700, HD Graphics (Cherry Trail), 128 GB eMMC Flash, IPS, 1920x1280, 10.8" | |
|---|---|---|---|---|---|---|
| Power Consumption | -0% | 34% | 16% | |||
| Idle Minimum * | 5.14 | 4.3 16% | 2.1 59% | 2.5 51% | ||
| Idle Average * | 7.6 | 7.8 -3% | 4.2 45% | 7 8% | ||
| Idle Maximum * | 8.28 | 8.5 -3% | 5.1 38% | 8.4 -1% | ||
| Load Average * | 11.33 | 13.4 -18% | 11 3% | 11.2 1% | ||
| Load Maximum * | 15.36 | 14.3 7% | 11.3 26% | 12.4 19% |
* ... smaller is better
| Lenovo IdeaPad MIIX 310-10ICR Z8350, HD Graphics (Cherry Trail), 33 Wh | Asus Transformer Book T100HA-C4-GR Z8500, HD Graphics (Cherry Trail), 30 Wh | Toshiba Satellite Click 10 LX0W-C-104 Z8300, HD Graphics (Cherry Trail), 46 Wh | Acer Aspire Switch 10E SW3-013 Z3735F, HD Graphics (Bay Trail), 30 Wh | HP Pavilion x2 10-n013dx Z3736F, HD Graphics (Bay Trail), 33 Wh | Microsoft Surface 3 Z8700, HD Graphics (Cherry Trail), 28 Wh | |
|---|---|---|---|---|---|---|
| Battery Runtime | -16% | 3% | -39% | -28% | -32% | |
| WiFi v1.3 | 643 | 541 -16% | 662 3% | 390 -39% | 460 -28% | 437 -32% |
| Reader / Idle | 1460 | 943 | 509 | 828 | ||
| Load | 246 | 219 | 173 | |||
| WiFi | 425 |
För
+ litet fotavtryck
+ lång batteritid
+ bra färger

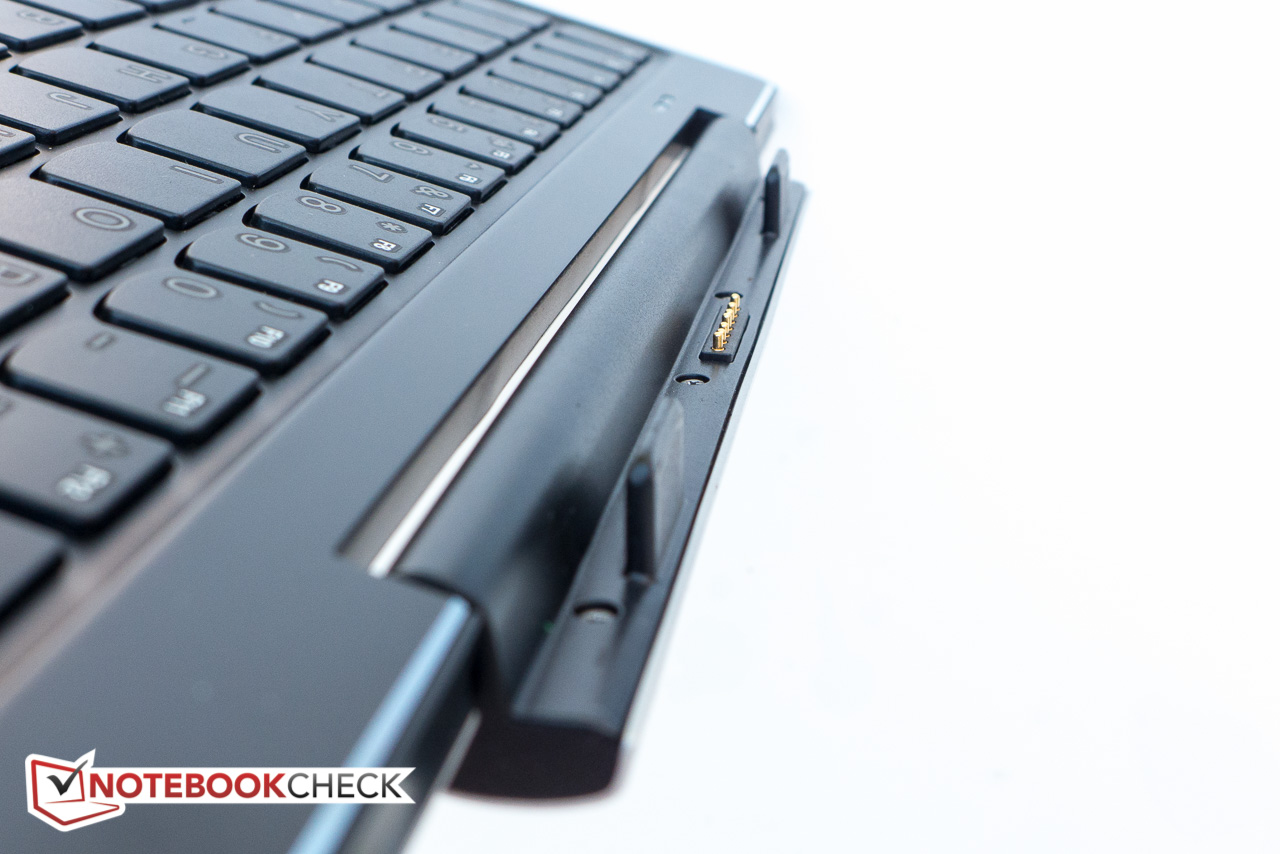

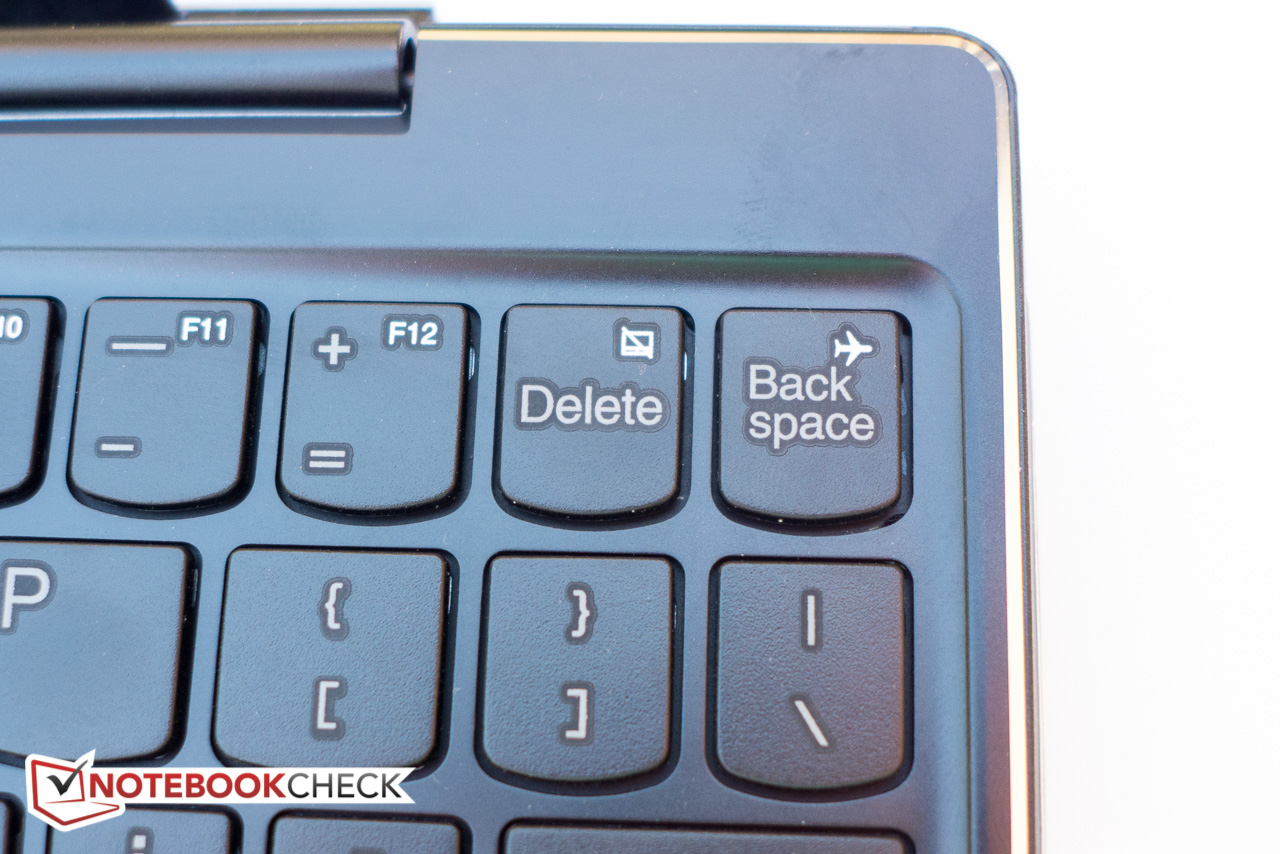

+ skaplig tangentbordsdocka
Emot
- skärmen är för mörk
- hänger sig ibland

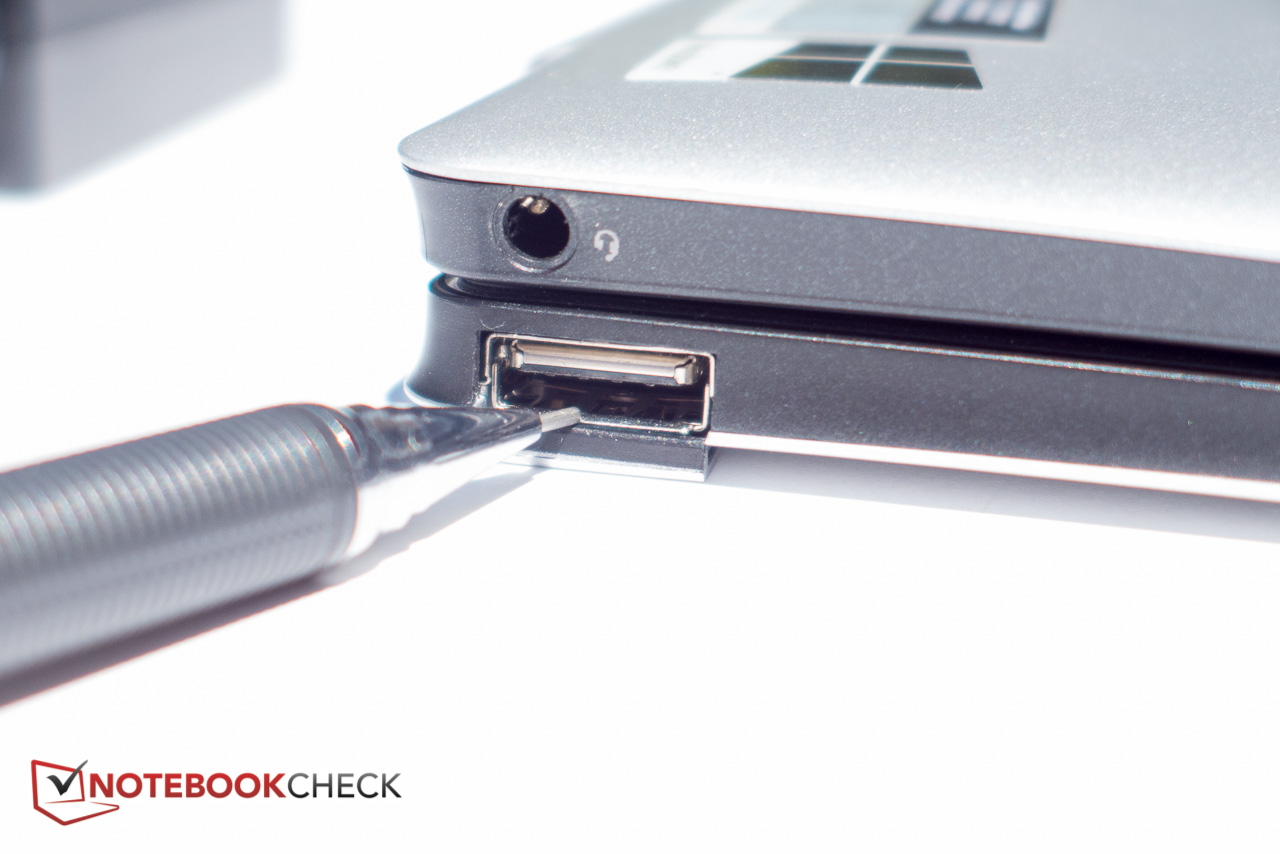

- potentiella problem med dockans USB-portar
- surfplattan inte särskilt bekväm
Läs en längre version av testet på engelska här.

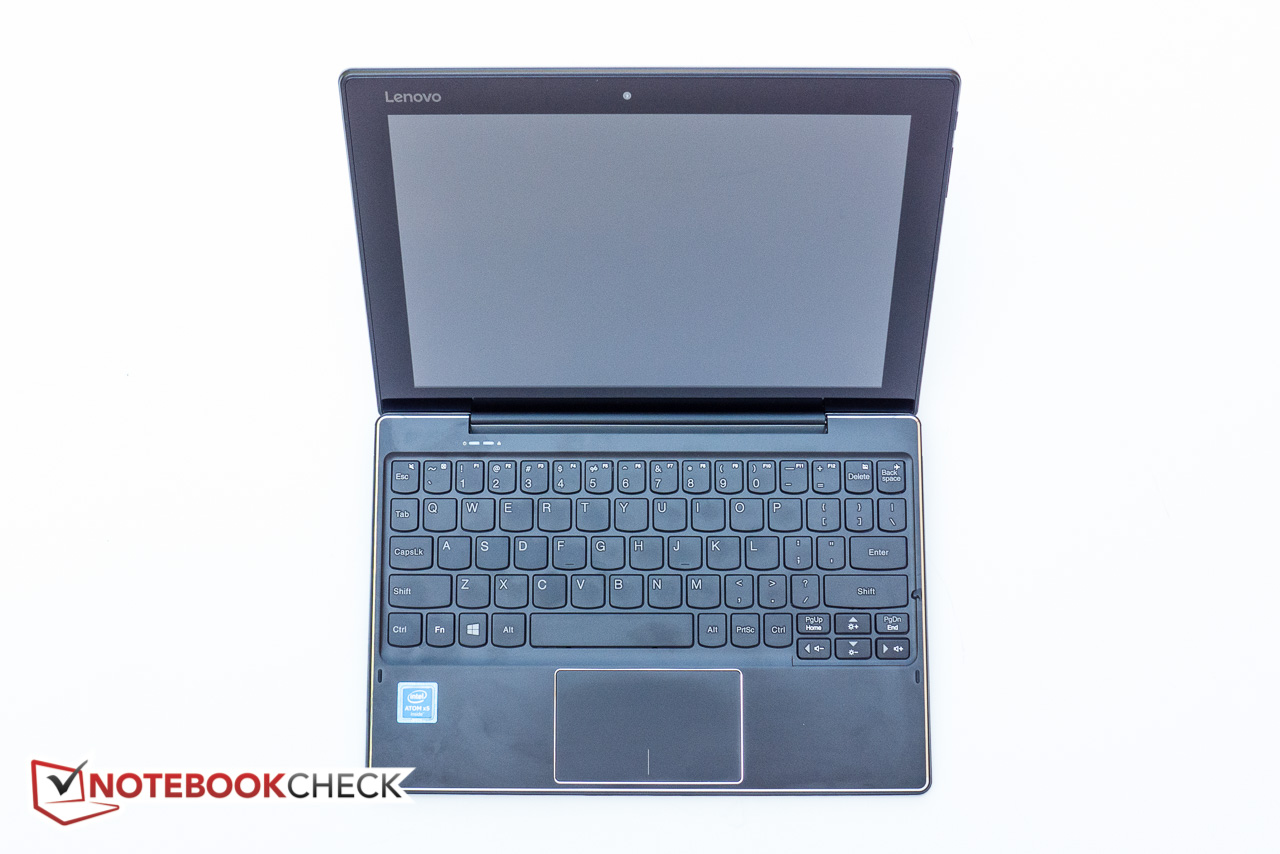

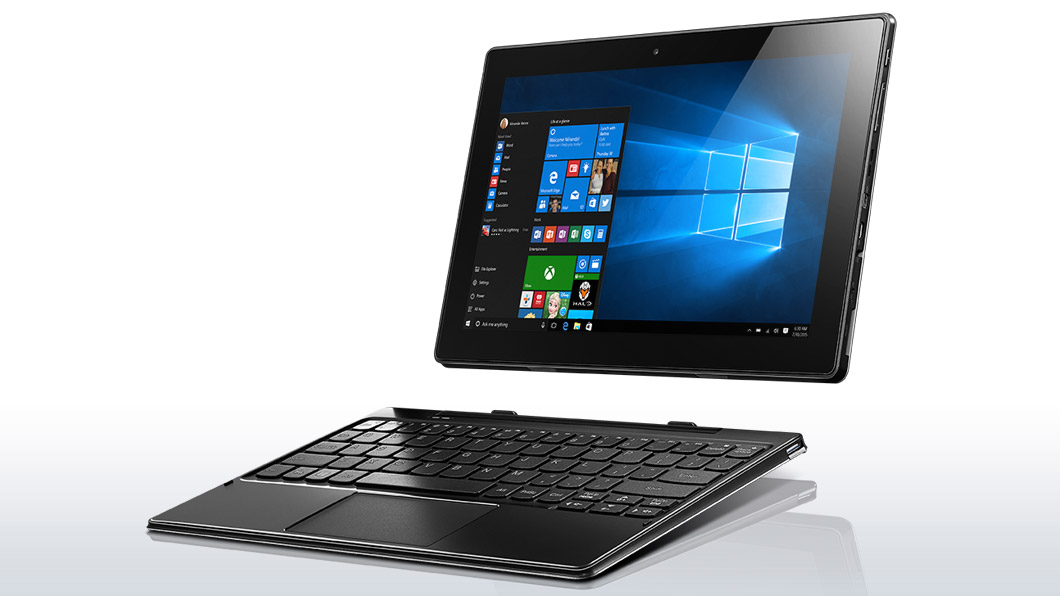

Lenovo IdeaPad Miix 310 är en 10,1-tums 2-i-1 med löstagbart tangentbord. Den är liten, lätt, ljudlös, sval och har tillräcklig processorkraft för alla enklare uppgifter. Batteriets livslängd är imponerande och fullt tillräcklig för att klara sig genom en dag.
IPS-skärmen är förvånansvärt exakt och erbjuder tillräckligt hög kontrast. Tyvärr är den också reflekterande, vilket – i kombination med den låga genomsnittliga ljusstyrkan – gör den mindre användbar i starkt ljus. Inmatningsenheterna fungerar bra nog, även om tangentbordslayouten tar tid att vänja sig vid.
Om du letar efter efter en prisvärd 2-i-1 blir du förmodligen ganska nöjd med Miix 310, så länge du inte tänkt använda den utomhus särskilt ofta.
Lenovo IdeaPad MIIX 310-10ICR
- 07/22/2016 v5.1 (old)
Bernhard Pechlaner
Convertible - Vägt medel
