Test: Lenovo IdeaPad Miix 700 (sammanfattning)
Lenovo IdeaPad Miix 700 (Miix Serie)
Processor

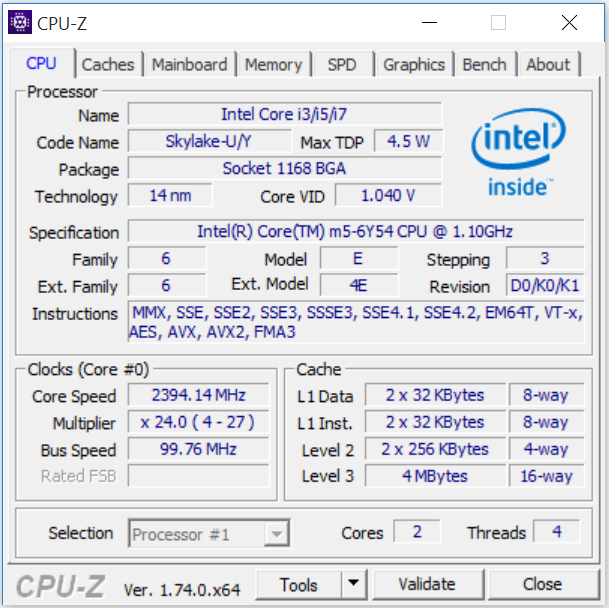

Intel Core m5-6Y54 2 x 1.1 - 2.7 GHz, Skylake

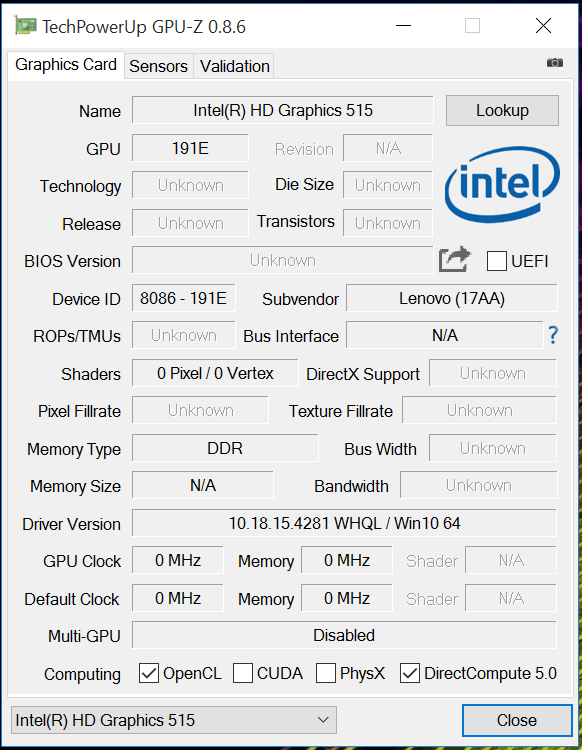

Grafikkort
Intel HD Graphics 515, Kärna: 900 MHz, Dual-Channel, 10.18.15.4281

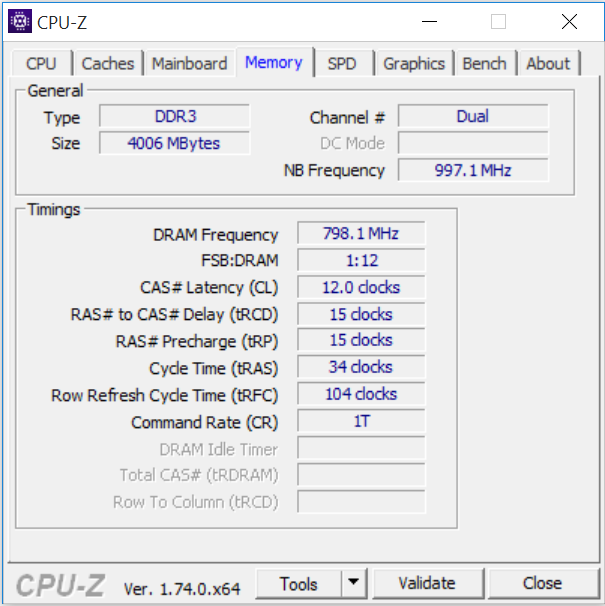

Minne
4 GB
, LPDDR3-1866, dual-channel, fastlött
Skärm
12.00 tum 3:2, 2160 x 1440 pixlar, Kapacitiv, 10 beröringspunkter, native pen support, Samsung L_QLLTN120QL01L01, IPS, glansig: ja, detachable screen
Moderkort
Intel Skylake-Y Premium PCH
Hårddisk
Samsung MZNLN128HCGR-000L2, 128 GB
, 100 GB ledigt
Vikt
1.08 kg, Strömförsörjning: 197 g
Pris
999 Euro
Länkar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||

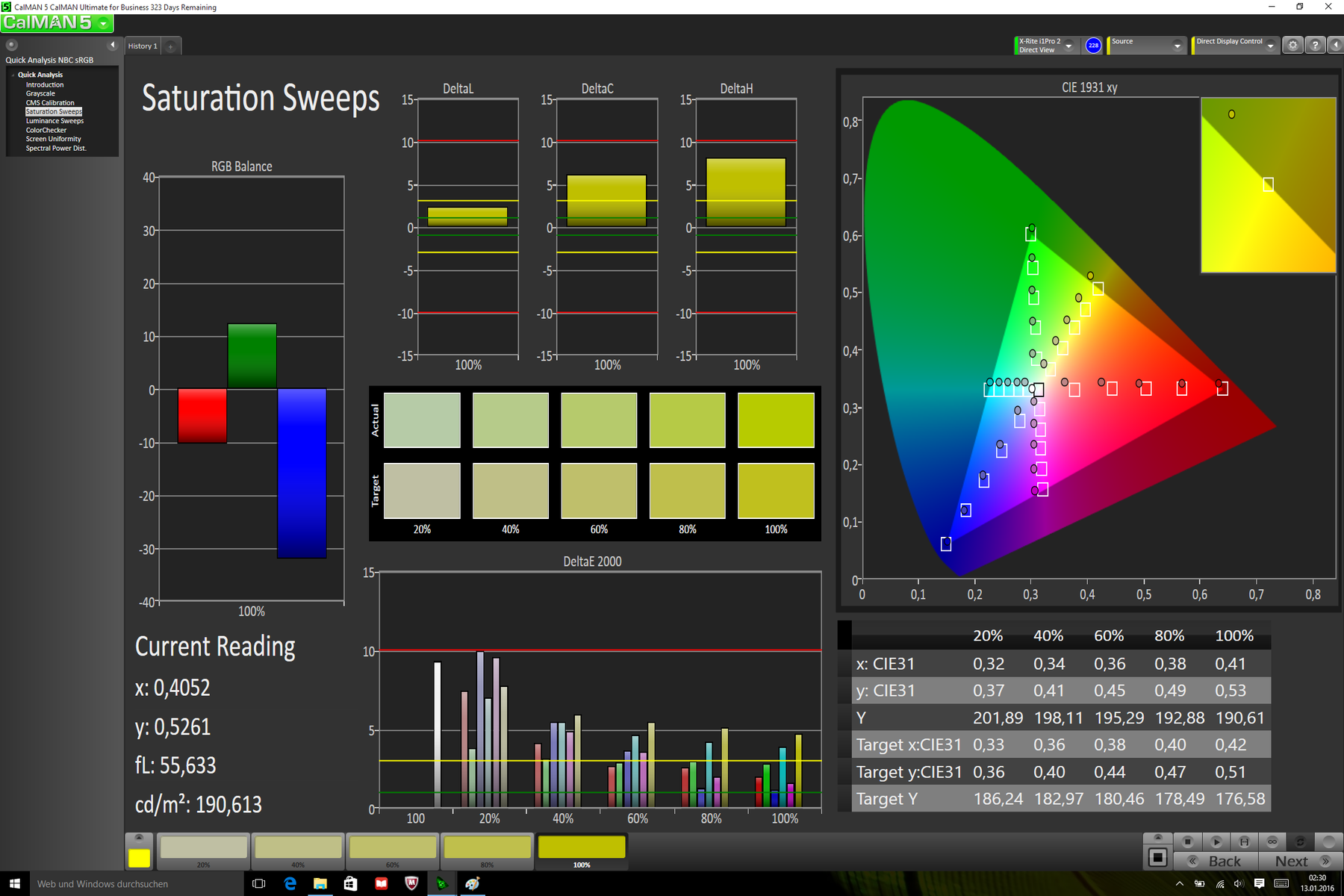

Samsung L_QLLTN120QL01L01 tested with X-Rite i1Pro 2
Max: 341 cd/m² (Nits) Medel: 317.9 cd/m²Distribution av ljusstyrkan: 87 %
Mitt på batteriet: 341 cd/m²
Kontrast: 947:1 (Svärta: 0.36 cd/m²)

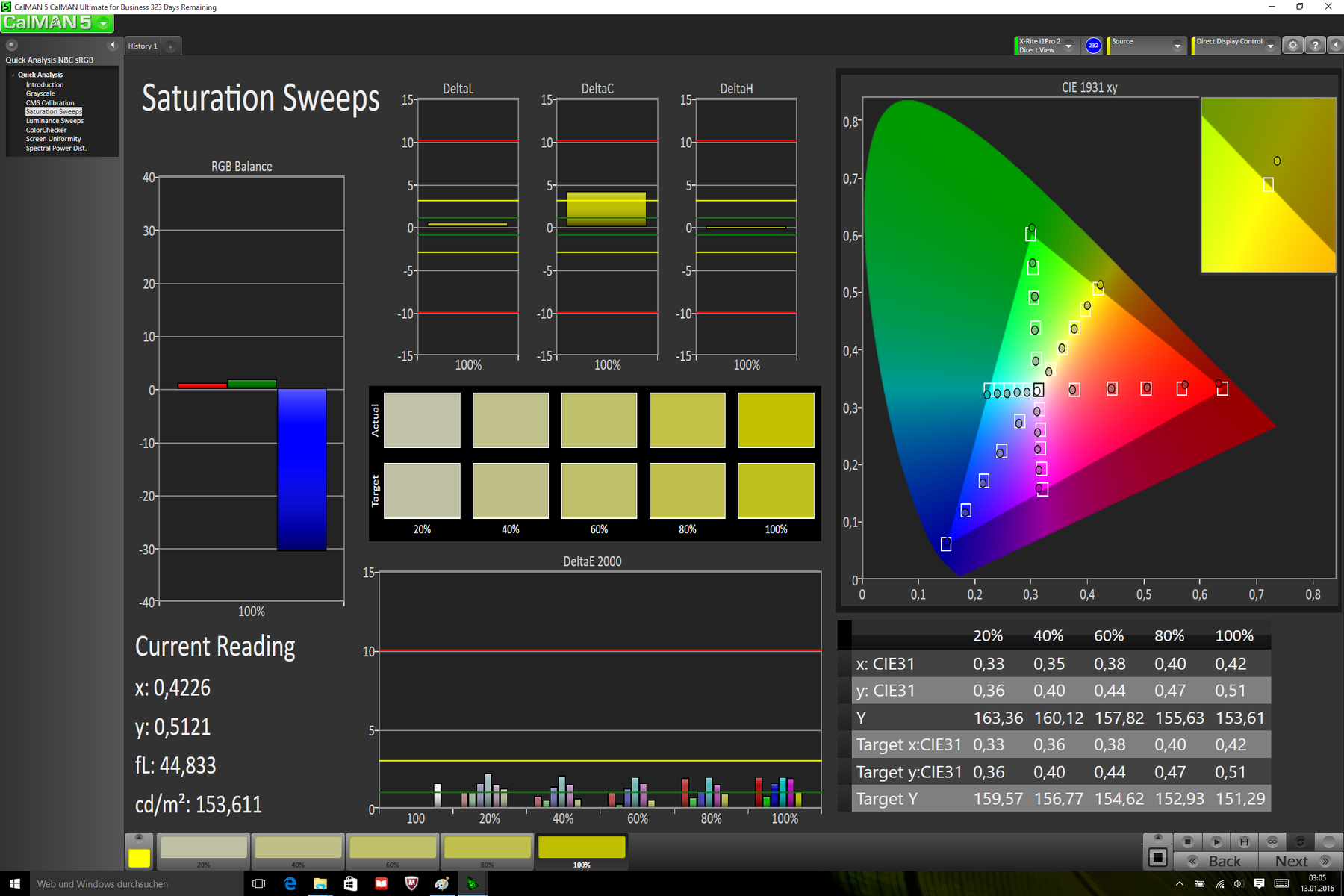

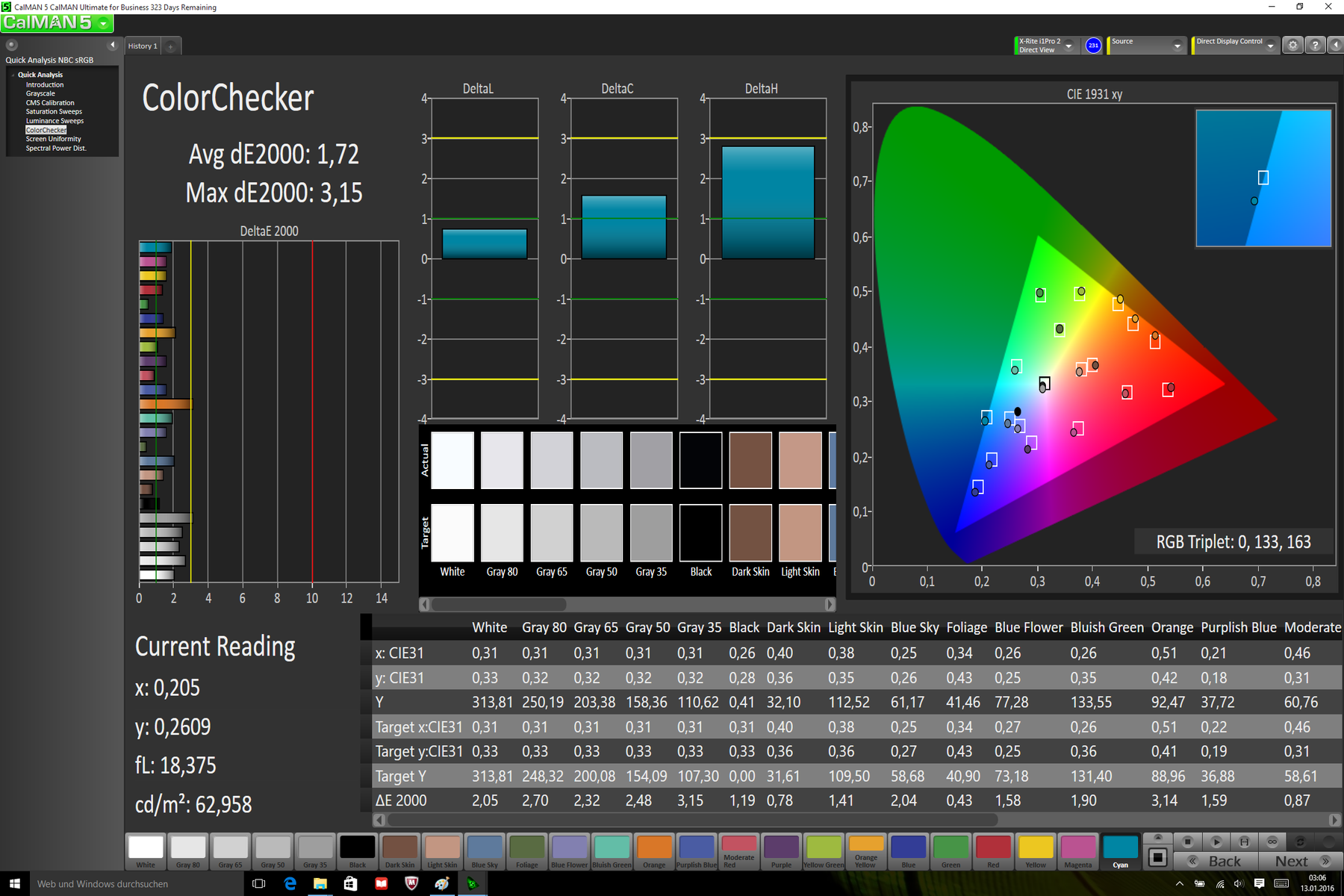

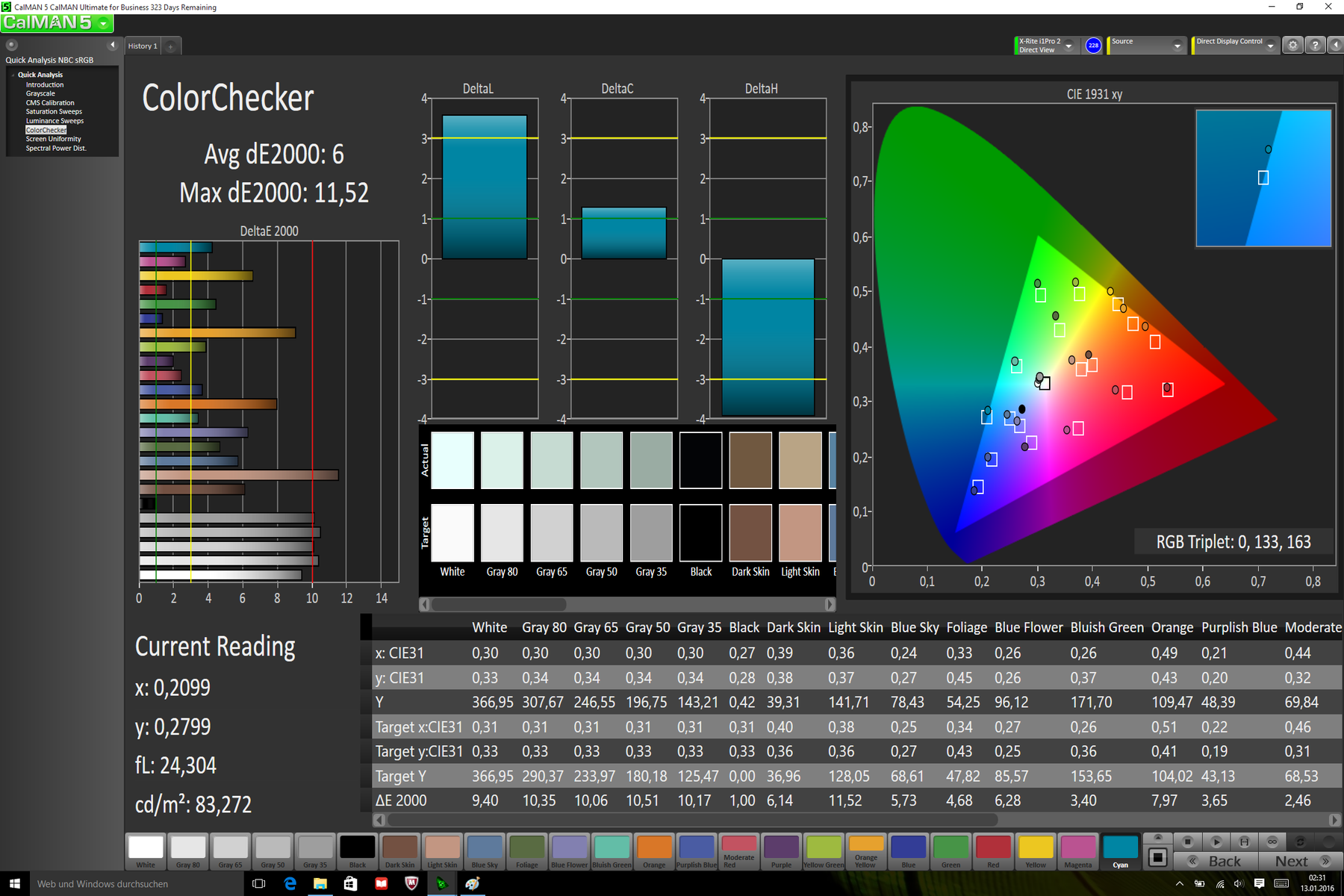

ΔE Color 6 | 0.5-29.43 Ø4.91

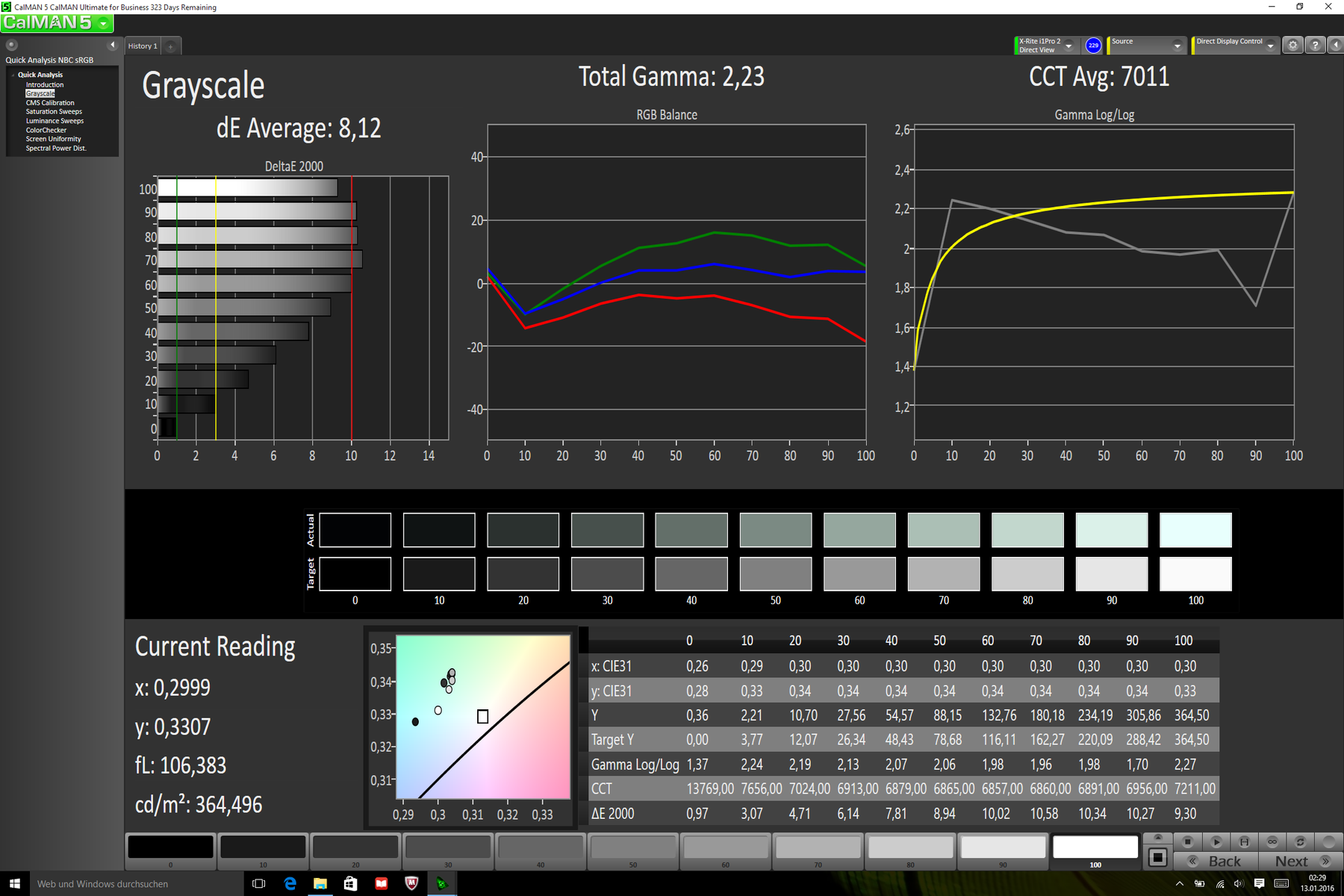

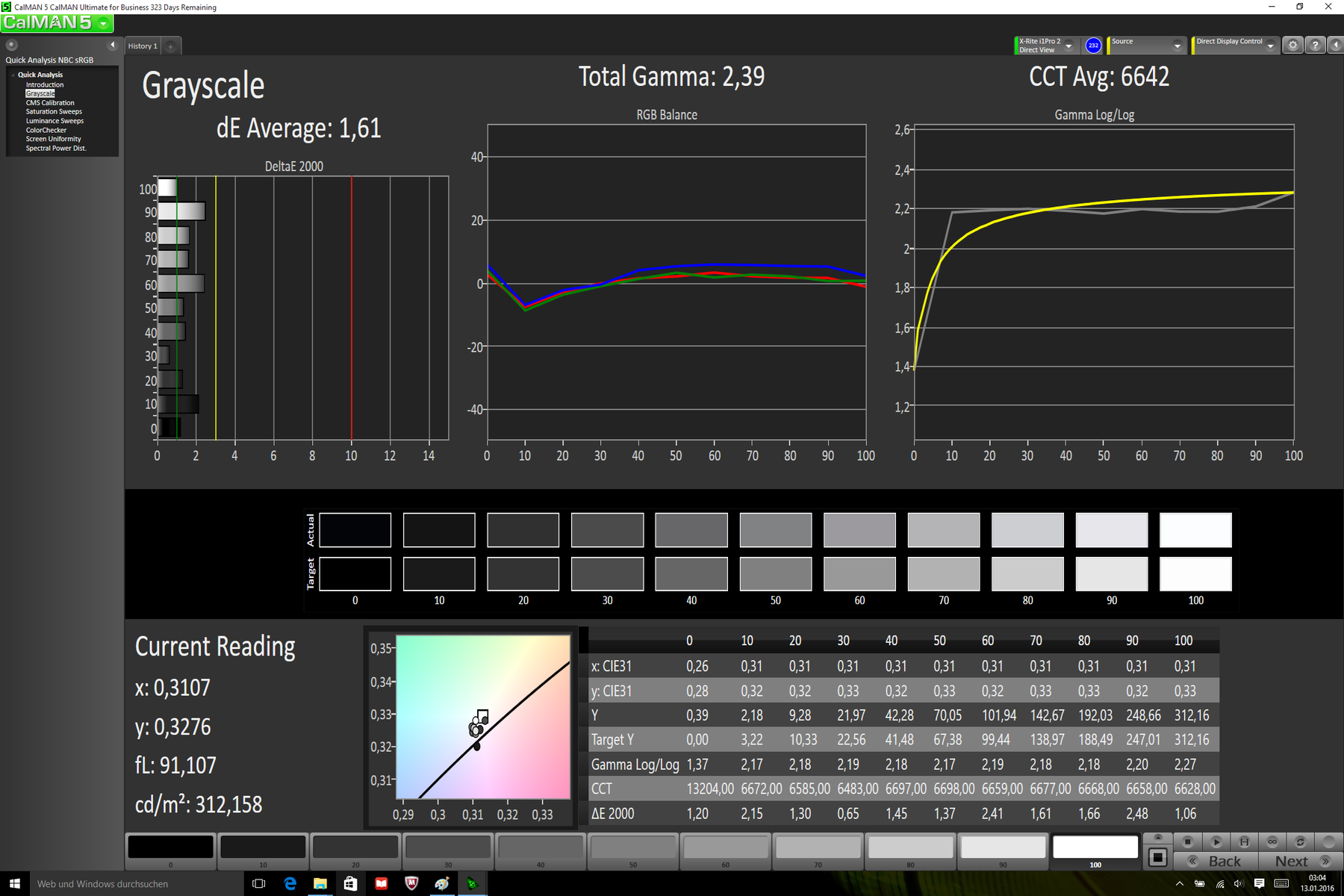

ΔE Greyscale 8.12 | 0.5-98 Ø5.2
97.4% sRGB (Argyll 1.6.3 3D)
63.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
70.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.4% sRGB (Argyll 2.2.0 3D)
68.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23

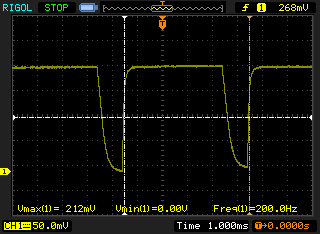

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 200 Hz | ≤ 18 % brightness setting |  |
The display backlight flickers at 200 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 18 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||

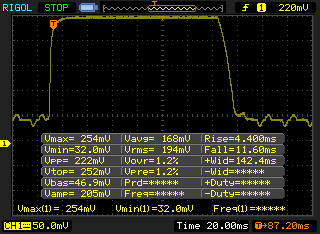

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 16 ms ... rise ↗ and fall ↘ combined | ↗ 4.4 ms rise |  |
| ↘ 11.6 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 34 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||

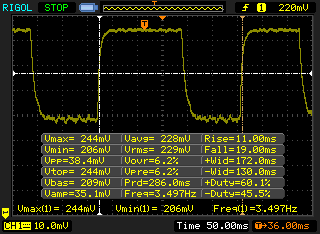

| ↔ Response Time 50% Grey to 80% Grey | ||
| 30 ms ... rise ↗ and fall ↘ combined | ↗ 11 ms rise |  |
| ↘ 19 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 36 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). | ||
| Lenovo IdeaPad Miix 700 IPS, 2160x1440 | Microsoft Surface Pro 4, Core m3 IPS, 2736x1824 | Microsoft Surface Pro 4, Core i5, 128GB IPS, 2736x1824 | Microsoft Surface Pro 4 Core i7 IPS, 2736x1824 | Apple iPad Pro 12.9 IPS, 2732x2048 | HP Elite x2 1011 G1 IPS-Panel, 1920x1080 | |
|---|---|---|---|---|---|---|
| Display | -1% | -4% | -1% | 16% | -34% | |
| Display P3 Coverage | 68.1 | 67.5 -1% | 65 -5% | 66.9 -2% | 91.2 34% | 44.4 -35% |
| sRGB Coverage | 97.4 | 96.6 -1% | 96.5 -1% | 97.5 0% | 98.1 1% | 66.4 -32% |
| AdobeRGB 1998 Coverage | 70.2 | 69 -2% | 67 -5% | 68.6 -2% | 79.3 13% | 45.91 -35% |
| Response Times | -74% | -74% | 1642% | |||
| Response Time Grey 50% / Grey 80% * | 30 ? | 46 ? -53% | 46 ? -53% | 48.4 ? -61% | ||
| Response Time Black / White * | 16 ? | 31 ? -94% | 31.2 ? -95% | 35.6 ? -123% | ||
| PWM Frequency | 200 ? | 50 ? -75% | 50 ? -75% | 10420 5110% | ||
| Screen | 24% | 18% | 29% | 34% | -12% | |
| Brightness middle | 341 | 389.2 14% | 413 21% | 436.7 28% | 399 17% | 364 7% |
| Brightness | 318 | 392 23% | 396 25% | 433 36% | 393 24% | 331 4% |
| Brightness Distribution | 87 | 92 6% | 87 0% | 87 0% | 92 6% | 84 -3% |
| Black Level * | 0.36 | 0.27 25% | 0.36 -0% | 0.326 9% | 0.22 39% | 0.44 -22% |
| Contrast | 947 | 1441 52% | 1147 21% | 1340 41% | 1814 92% | 827 -13% |
| Colorchecker dE 2000 * | 6 | 3.61 40% | 3.09 48% | 1.82 70% | 2.96 51% | 7.32 -22% |
| Greyscale dE 2000 * | 8.12 | 3.8 53% | 3.92 52% | 1.44 82% | 3 63% | 7.37 9% |
| Gamma | 2.23 99% | 2.16 102% | 2.3 96% | 2.1 105% | 2.21 100% | 2.03 108% |
| CCT | 7011 93% | 5969 109% | 7333 89% | 6560 99% | 7049 92% | 6479 100% |
| Color Space (Percent of AdobeRGB 1998) | 63.4 | 63 -1% | 61 -4% | 62.3 -2% | 71.15 12% | 42.2 -33% |
| Color Space (Percent of sRGB) | 97.4 | 97 0% | 97 0% | 97.5 0% | 97.87 0% | 66.1 -32% |
| Total Average (Program / Settings) | -17% /
-1% | -20% /
-5% | 557% /
346% | 25% /
29% | -23% /
-17% |
* ... smaller is better
Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Geekbench 3 | Sunspider | JetStream 1.1 | Mozilla Kraken 1.1 | Octane V2 | Peacekeeper
| Geekbench 3 | |
| 32 Bit Single-Core Score (sort by value) | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Fujitsu Stylistic Q665 | |
| 32 Bit Multi-Core Score (sort by value) | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Fujitsu Stylistic Q665 | |
| Sunspider - 1.0 Total Score (sort by value) | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Microsoft Surface Pro 4, Core m3 | |
| Apple iPad Pro 12.9 | |
| HP Elite x2 1011 G1 | |
| Fujitsu Stylistic Q665 | |
| JetStream 1.1 - Total Score (sort by value) | |
| Lenovo IdeaPad Miix 700 | |
| Apple iPad Pro 12.9 | |
| Fujitsu Stylistic Q665 | |
| Mozilla Kraken 1.1 - Total (sort by value) | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Microsoft Surface Pro 4, Core m3 | |
| Apple iPad Pro 12.9 | |
| HP Elite x2 1011 G1 | |
| Fujitsu Stylistic Q665 | |
| Octane V2 - Total Score (sort by value) | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Apple iPad Pro 12.9 | |
| HP Elite x2 1011 G1 | |
| Fujitsu Stylistic Q665 | |
| Peacekeeper - --- (sort by value) | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Microsoft Surface Pro 4, Core m3 | |
| Apple iPad Pro 12.9 | |
| HP Elite x2 1011 G1 | |
| Fujitsu Stylistic Q665 | |
* ... smaller is better
| PCMark 7 Score | 4518 poäng | |
| PCMark 8 Home Score Accelerated v2 | 2733 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 3344 poäng | |
| PCMark 8 Work Score Accelerated v2 | 3837 poäng | |
Hjälp | ||
| PCMark 7 - Score (sort by value) | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Microsoft Surface Pro 4, Core m3 | |
| Microsoft Surface Pro 4 Core i7 | |
| HP Elite x2 1011 G1 | |
Samsung MZNLN128HCGR-000L2
Sequential Read:
497.9 MB/s
Sequential Write:
153.5 MB/s
512K Read:
401.2 MB/s
512K Write:
154.5 MB/s
4K Read:
36.2 MB/s
4K Write:
95.5 MB/s
4K QD32 Read:
389.5 MB/s
4K QD32 Write:
154 MB/s
| 3DMark 06 Standard Score | 5842 poäng | |
| 3DMark 11 Performance | 1109 poäng | |
| 3DMark Ice Storm Standard Score | 38523 poäng | |
| 3DMark Cloud Gate Standard Score | 3936 poäng | |
| 3DMark Fire Strike Score | 630 poäng | |
Hjälp | ||
| 3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x (sort by value) | |
| Lenovo IdeaPad Miix 700 | |
| Microsoft Surface Pro 4, Core m3 | |
| HP Elite x2 1011 G1 | |
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| Deus Ex Human Revolution (2011) | 50 | 27.2 | 11.2 | |
| The Elder Scrolls V: Skyrim (2011) | 31.1 | 18.7 | 11.6 | 7.1 |
| Diablo III (2012) | 61.9 | 41.8 | 35.1 | 20.5 |
| Counter-Strike: GO (2012) | 76.7 | 57.3 | 35.1 | 20.2 |
| Tomb Raider (2013) | 45.3 | 23 | 16.3 | 7.2 |
| BioShock Infinite (2013) | 33.1 | 18.5 | 15.4 | 4.7 |
| GRID: Autosport (2014) | 86.5 | 26.3 | 14.9 | 12.5 |
| Sims 4 (2014) | 161.1 | 39.2 | 17.1 | 10.4 |
| F1 2014 (2014) | 41 | 28 | 17 | 12.5 |
| Battlefield Hardline (2015) | 22.1 | 18.1 | 6.8 | 4.1 |
| Dirt Rally (2015) | 65.7 | 14.4 | 12.5 | 12.5 |
| World of Warships (2015) | 42.8 | 26.3 | 12.7 | 7.4 |
| Anno 2205 (2015) | 15.5 | 9.3 | ||
| Star Wars Battlefront (2015) | 18.7 | 10.4 |
(±) The average temperature for the upper side under maximal load is 34.7 °C / 94 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 38.6 °C / 101 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 40.8 °C / 105 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.3 °C / 81 F, compared to the device average of 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.6 °C / 101.5 F.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-10.6 °C / -19.1 F).
(+) The maximum temperature on the upper side is 38.6 °C / 101 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 40.8 °C / 105 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.3 °C / 81 F, compared to the device average of 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.6 °C / 101.5 F.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-10.6 °C / -19.1 F).
| Lenovo IdeaPad Miix 700 6Y54, HD Graphics 515 | Microsoft Surface Pro 4, Core m3 6Y30, HD Graphics 515 | Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520 | Microsoft Surface Pro 4 Core i7 6650U, Iris Graphics 540 | Apple iPad Pro 12.9 A9X, A9X / PowerVR GT7xxx | HP Elite x2 1011 G1 5Y51, HD Graphics 5300 | |
|---|---|---|---|---|---|---|
| Heat | -9% | -33% | 2% | -7% | 2% | |
| Maximum Upper Side * | 38.6 | 43.6 -13% | 52.3 -35% | 45.4 -18% | 40.1 -4% | 36.6 5% |
| Maximum Bottom * | 40.8 | 45.2 -11% | 51.4 -26% | 43.2 -6% | 39.3 4% | 37.3 9% |
| Idle Upper Side * | 30.4 | 32.4 -7% | 43.2 -42% | 25.2 17% | 33.8 -11% | 30.5 -0% |
| Idle Bottom * | 28 | 29.6 -6% | 36 -29% | 24 14% | 32.9 -18% | 29.9 -7% |
* ... smaller is better
Strömförbrukning
| Av/Standby |   0.2 / 0.4 Watt |
| Låg belastning |  4 / 8.6 / 9.3 Watt |
| Hög belastning |
18.6 / 36.3 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo IdeaPad Miix 700 6Y54, HD Graphics 515 | Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520 | Apple iPad Pro 12.9 A9X, A9X / PowerVR GT7xxx | HP Elite x2 1011 G1 5Y51, HD Graphics 5300 | |
|---|---|---|---|---|
| Power Consumption | 2% | 18% | 48% | |
| Idle Minimum * | 4 | 4.4 -10% | 2.69 33% | 1.5 62% |
| Idle Average * | 8.6 | 9 -5% | 10.95 -27% | 4 53% |
| Idle Maximum * | 9.3 | 10.7 -15% | 11.14 -20% | 5 46% |
| Load Average * | 18.6 | 19.6 -5% | 11.54 38% | 13.9 25% |
| Load Maximum * | 36.3 | 19.9 45% | 12.8 65% | 16.9 53% |
* ... smaller is better
| Lenovo IdeaPad Miix 700 41 Wh | Microsoft Surface Pro 4, Core m3 38 Wh | Microsoft Surface Pro 4, Core i5, 128GB 38 Wh | Microsoft Surface Pro 4 Core i7 38 Wh | Apple iPad Pro 12.9 39 Wh | HP Elite x2 1011 G1 54 Wh | |
|---|---|---|---|---|---|---|
| Battery Runtime | -3% | -9% | -36% | 62% | 51% | |
| Reader / Idle | 861 | 791 -8% | 899 4% | 654 -24% | 1933 125% | 1063 23% |
| H.264 | 450 | 630 40% | 658 46% | |||
| WiFi v1.3 | 440 | 488 11% | 427 -3% | 293 -33% | 695 58% | 675 53% |
| Load | 157 | 138 -12% | 111 -29% | 79 -50% | 195 24% | 288 83% |
För
+ Ljusstark IPS-skärm med hög kontrast
+ Ljudlös
+ SSD i M.2-format
+ Tangentbordsdocka

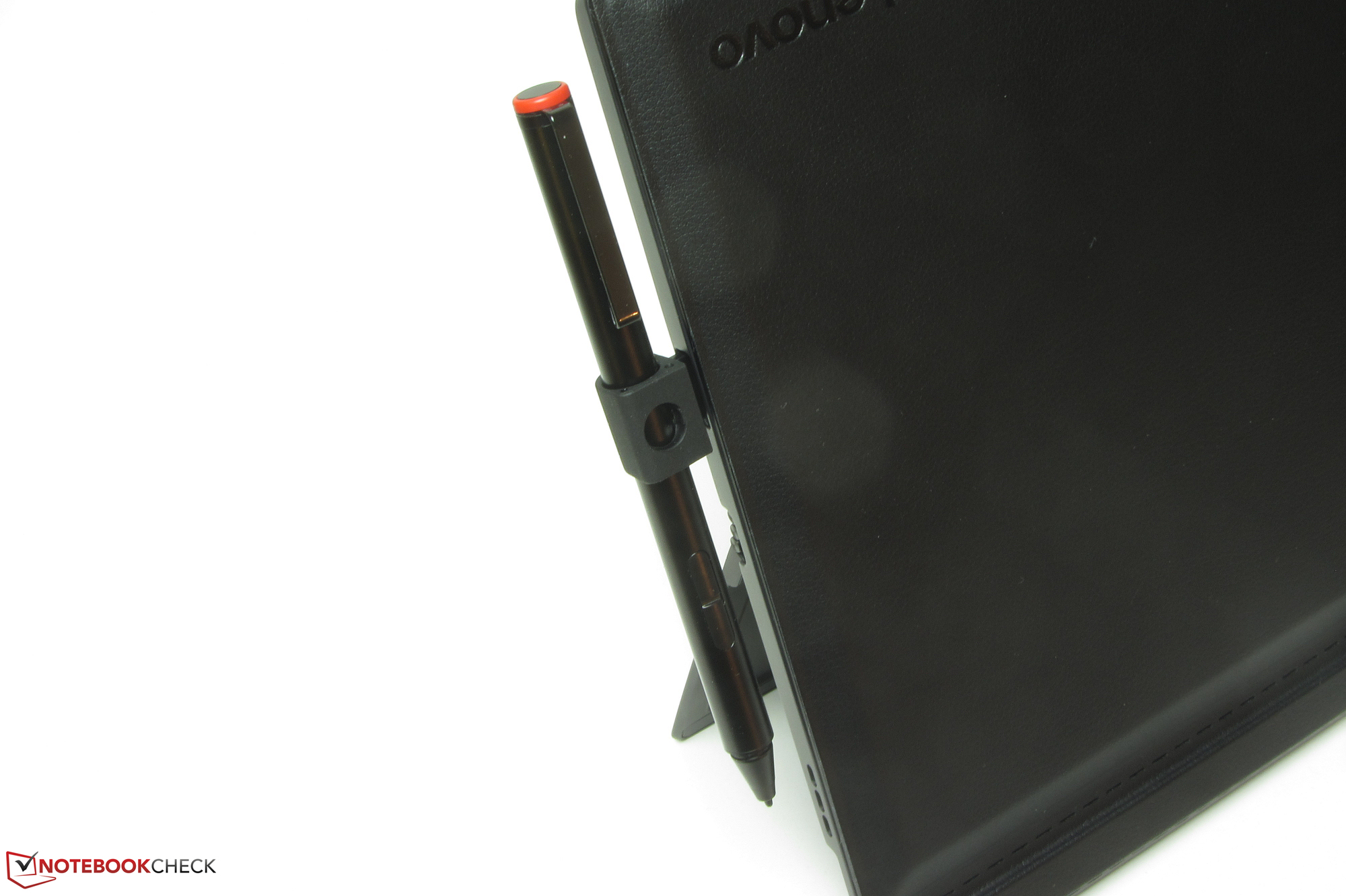

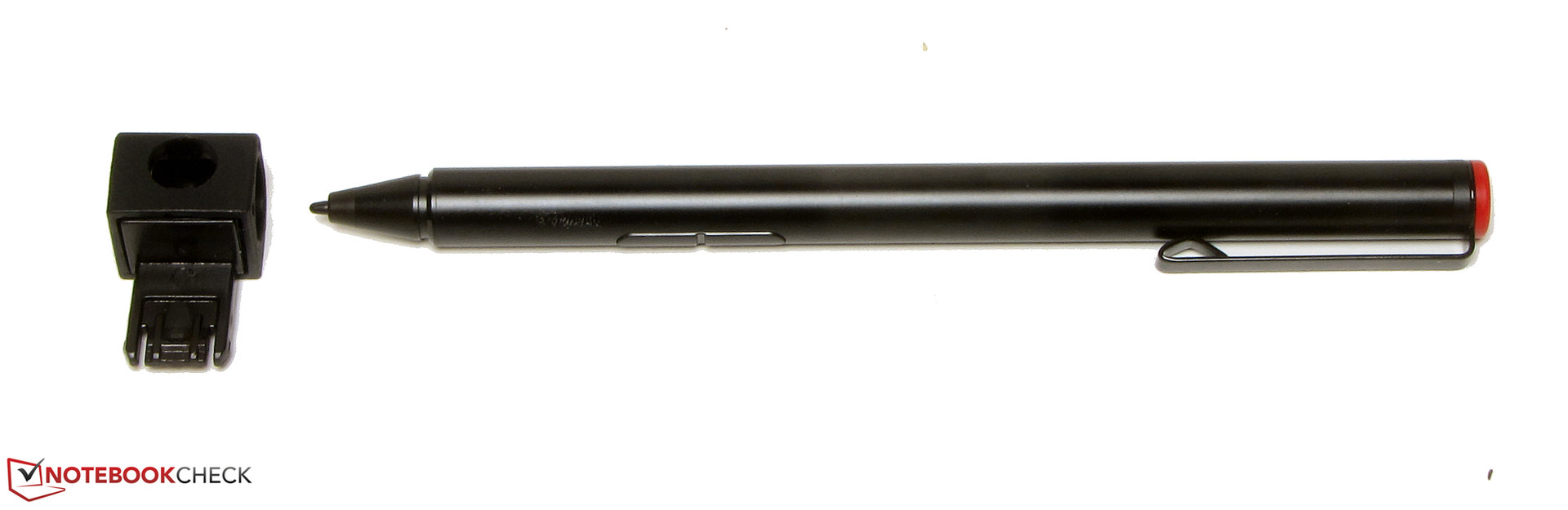

+ ActivePen
+ Mycket bra batteritid
Emot
- Flertrådig strypning
- GPU-strypning
- Chassit kunde varit styvare

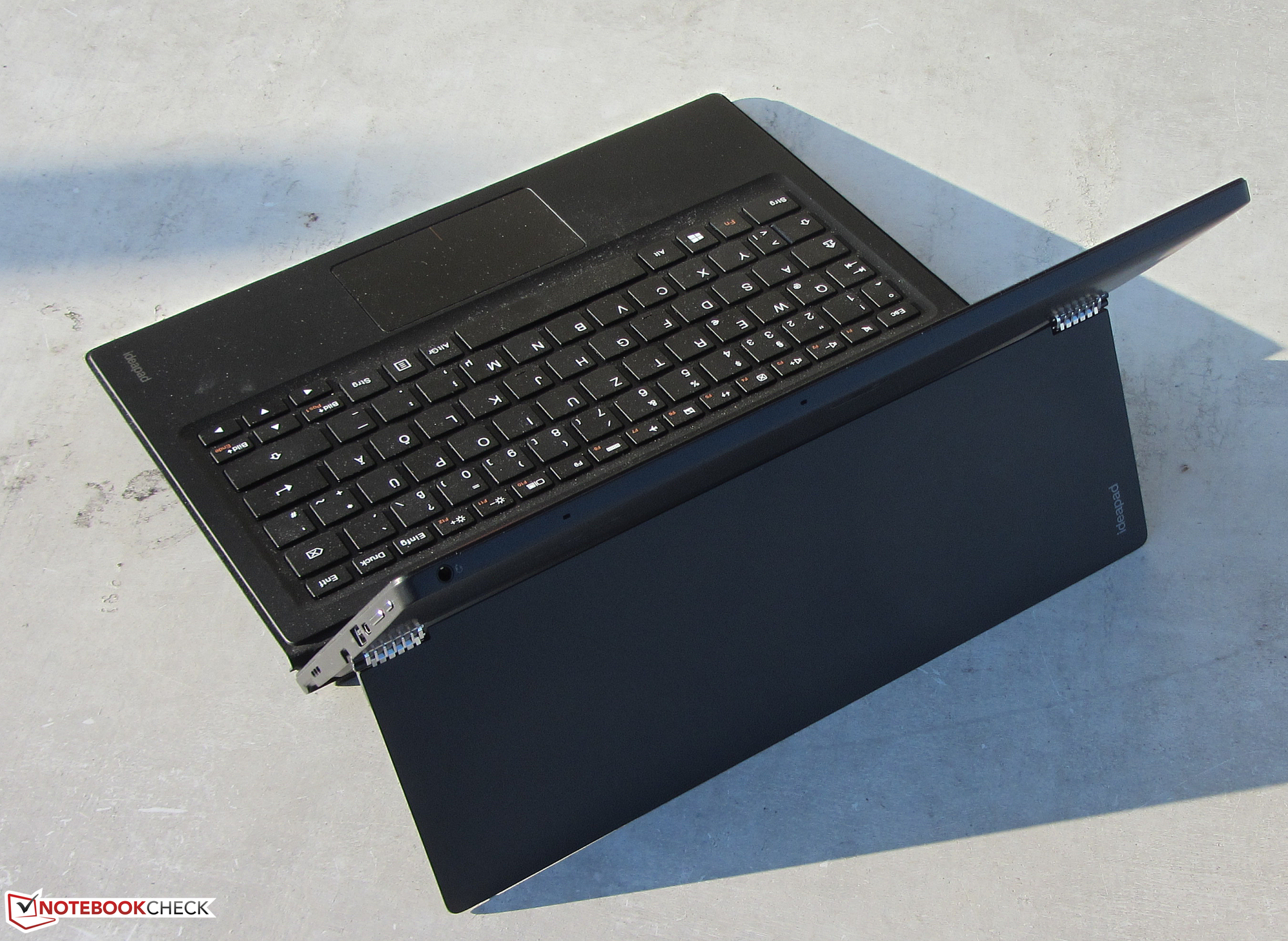

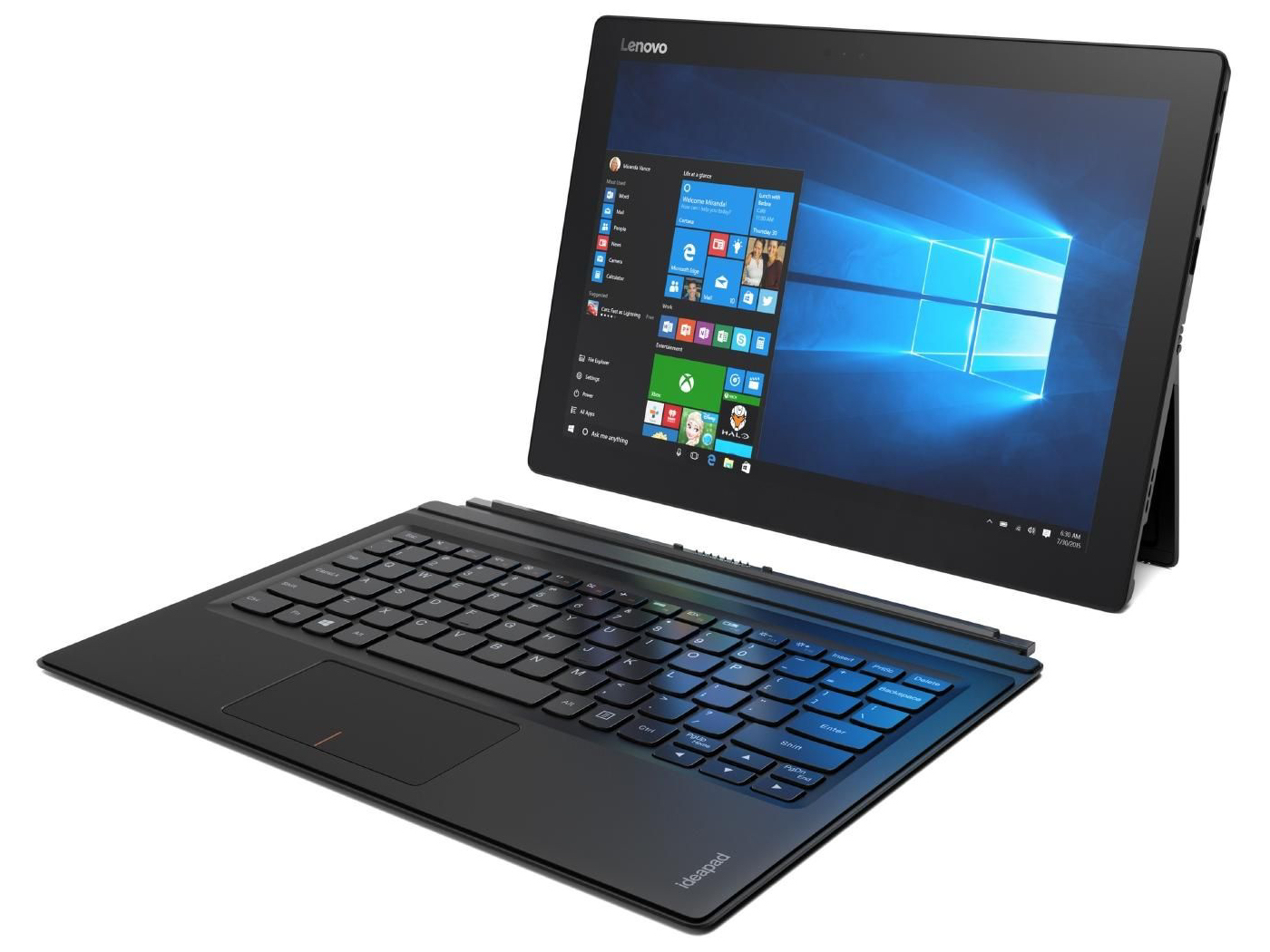

Lenovo IdeaPad Miix 700 är en elegant surfplatta/datorhybrid som totalt sett gör ett positivt intryck. Den installerade Core M-processorn har tillräcklig prestanda för vardagsbruk. Den kan upprätthålla konstant prestanda trots passiv kylning – åtminstone i enkeltrådiga arbetsuppgifter. När flera trådar används minskar prestandan något. Grafikkärnan använder aldrig sin maximala prestanda. Den kan inte hålla jämna steg med sin något klenare motståndare i Surface Pro 4 (Core m3) ens efter en kallstart.
Det väcker frågan om Lenovo borde kanske ha använt en Core m3-processor istället. Core m5-processorn är bara något snabbare än Core m3 i Surface Pro 4. Lenovo kunde även erbjuda en Core m3-version av Miix 700 till ett lägre pris, vilket skulle göra enheten ännu mer attraktiv.
En positiv effekt av den passiva CPU-kylningen är ljudlös drift, vilket gäller alla Miix 700-modeller. Lenovo använder enbart Core M-processorer i serien. Enheten producerar inget ljud bortsett från ett elektronisk brum eller visslande ljud. Den installerade solid-state-disken garanterar bra prestanda. Den skulle kunna ersättas med en modell med högre kapacitet om det behövs.
Skärmen är överlag tillfredsställande. Den är ljusstark, har hög kontrast och bra betraktningsvinklar. Färgåtergivningen är också imponerande – efter kalibrering. Pricken över i är en riktigt bra batteritid.
