Test: Lenovo IdeaPad S540 - AMD eller Intel? Lenovo låter köparen välja och vi jämför de båda alternativen

Name: Lenovo IdeaPad S540-14IWL
Brand: Lenovo

En nedtonad multimedialaptop.

Lenovo IdeaPad S540 utger sig för att vara en kompakt multimediaenhet på 14 tum. Den bör dessutom ha bra batteritid, även om det finns några märkvärda skillnader mellan AMD- och Intel-modellerna. Vi har recenserat båda för att få reda på vilken variant som är mest värd att överväga. Läs vidare för att få reda på hur de två enheterna står sig mot varanda och mot andra jämförbara enheter i den här detaljerade recensionen.

Sebastian Bade, 👁 Andreas Osthoff, ✓ T. Hinum (översatt av Daniel Eriksson), Published 07/15/2019 🇺🇸 🇩🇪 ...

Laptop / Notebook Whiskey Lake Geforce AMD Zen

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

Lenovo IdeaPad S540-14IWL (Ideapad S540 Serie)

Processor

Intel Core i5-8265U 4 x 1.6 - 3.9 GHz, Whiskey Lake-U

Grafikkort

NVIDIA GeForce MX250 - 2048 MB VRAM, Kärna: 1519 MHz, Minne: 1752 MHz, GDDR5, Nvidia 217.88, Nvidia Optimus

Minne

8 GB

, Dubbla kanaler, 4 GB fastlött & 4 GB SO-DIMM. Maximalt 20 GB

Skärm

14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, NV140FHM-N48, IPS, glansig: nej

Moderkort

Intel Cannon Lake-U PCH-LP Premium

Hårddisk

Samsung SSD PM981 MZVLB512HAJQ, 512 GB

, 512 GB ledigt

Ljudkort

Intel Cannon Lake-LP - cAVS

Anslutningar

3 USB 3.0, 1 HDMI, Ljudanslutningar: 3.5 mm hörlursanslutning, Kortläsare: 4-i-1 kortläsare (MMC, SD, SDHC, SDXC), 1 Fingeravtrycksläsare

Nätverk

Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 15.9 x 323 x 227

Batteri

48 Wh, 3145 mAh Litiumjon

Camera

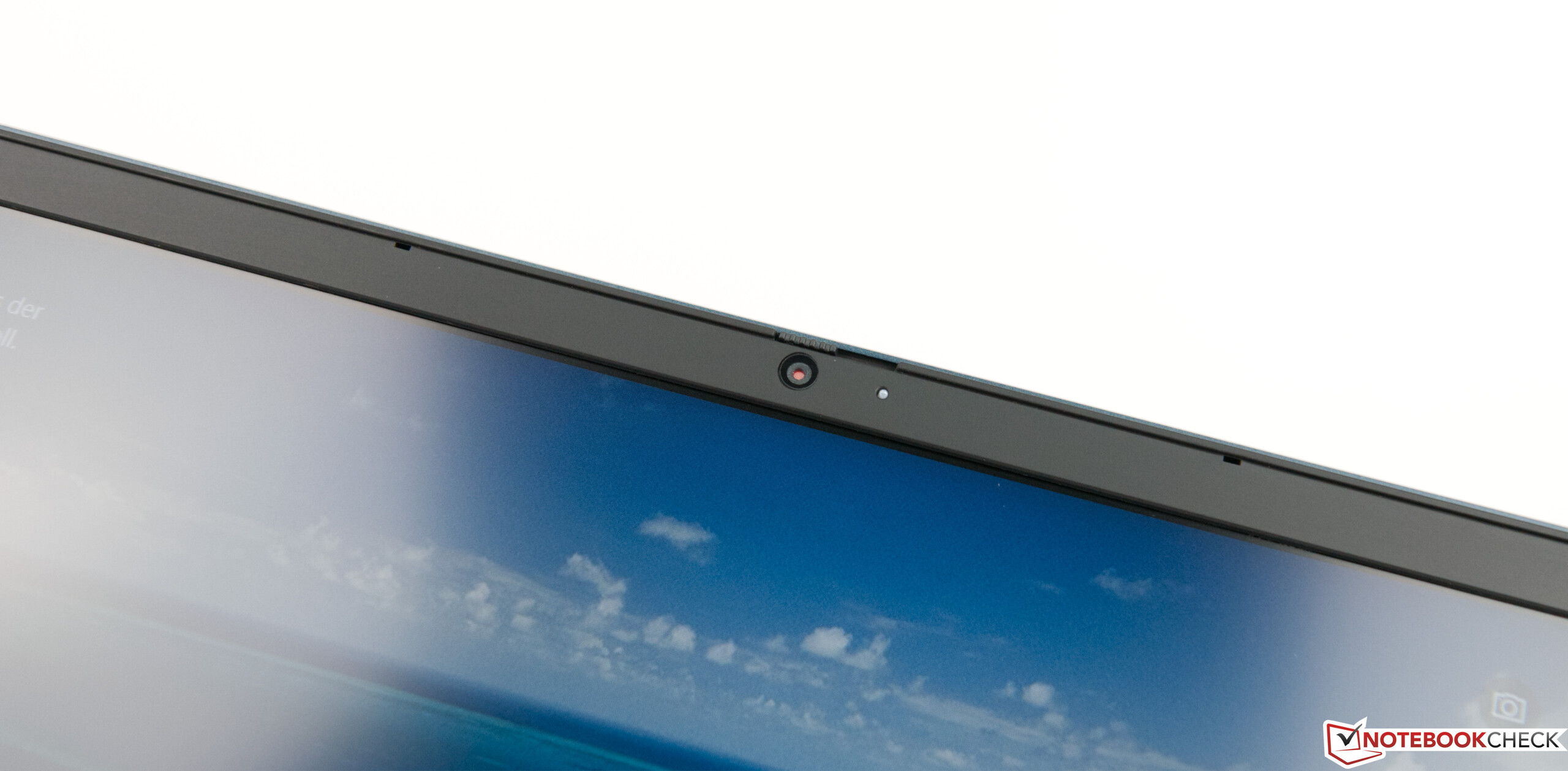

Webbkamera: HD
Primary Camera: 0.9 MPix

Övrigt

Högtalare: Dolby Audio Stereo, Tangentbord: Chiclet med 6 rader, Tangentbordsbelysning: ja, Nätadapter på 65 W, 24 Månader Garanti

Vikt

1.412 kg, Strömförsörjning: 358 g

Pris

699 EUR

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

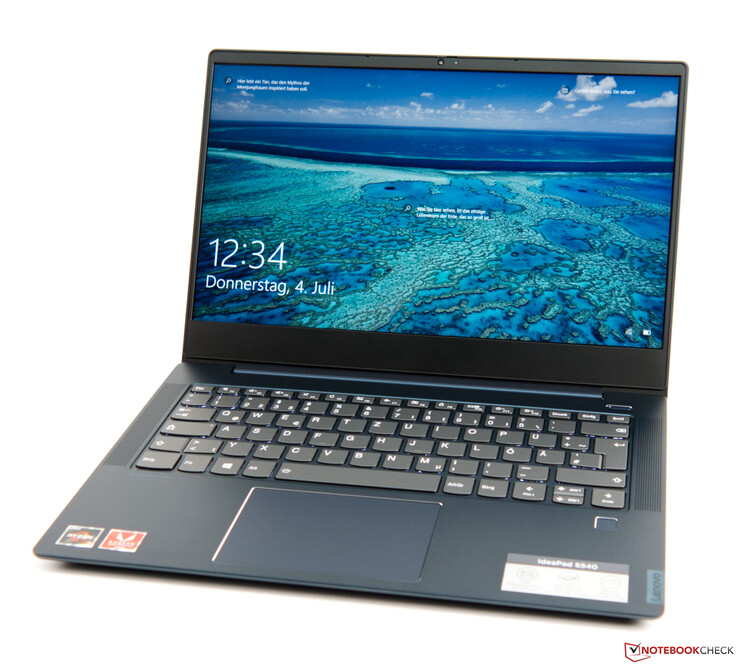

Lenovo IdeaPad S540-14API (Ideapad S540 Serie)

Processor

AMD Ryzen 7 3700U 4 x 2.3 - 4 GHz, Picasso-U (Zen+)

Grafikkort

AMD Radeon RX Vega 10 - 2048 MB VRAM, Kärna: 1401 MHz, Minne: 1200 MHz, DDR4 (shared Memory), Adrenalin 18.41.18

Minne

8 GB

, Dual-Channel, 4 GB fest verlötet + 4 GB Modul, max. 20 GB

Skärm

14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, LP140WFA-SPD1, IPS, glansig: nej

Moderkort

AMD CZ FCH

Hårddisk

Samsung SSD PM981 MZVLB512HAJQ, 512 GB

, 475 GB ledigt

Ljudkort

AMD Raven - Audio Processor - HD Audio Controller

Anslutningar

3 USB 3.0, 1 HDMI, Ljudanslutningar: 3,5mm Klinke, Kortläsare: 4-in-1 media reader (MMC, SD, SDHC, SDXC), 1 Fingeravtrycksläsare

Nätverk

Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 15.9 x 323 x 227

Batteri

48 Wh, 3145 mAh Litiumjon

Operativsystem

Microsoft Windows 10 Home 64 Bit

Camera

Webbkamera: HD
Primary Camera: 0.9 MPix

Övrigt

Högtalare: Dolby Audio Stereo, Tangentbord: 6-Zeilen-Chiclet, Tangentbordsbelysning: ja, 65-Watt-Netzteil, 24 Månader Garanti

Vikt

1.386 kg, Strömförsörjning: 350 g

Pris

749 EUR

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

HP Pavilion 14-ce0002ng Asus VivoBook 14 F412FJ-EB084T Lenovo Ideapad S340-14IWL-81N70056GE Lenovo IdeaPad S540-14IWL Lenovo IdeaPad S540-14API DIN A4 ❌

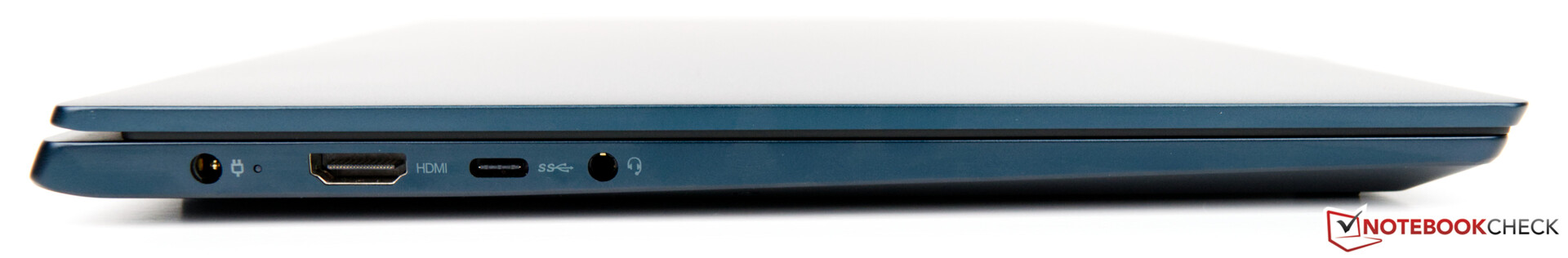

Vänster sida: Nätadapter, HDMI 1.4b, USB 3.1 Gen1 Typ C, 3.5 mm kombinerad ljudanslutning för hörlurar och mikrofon

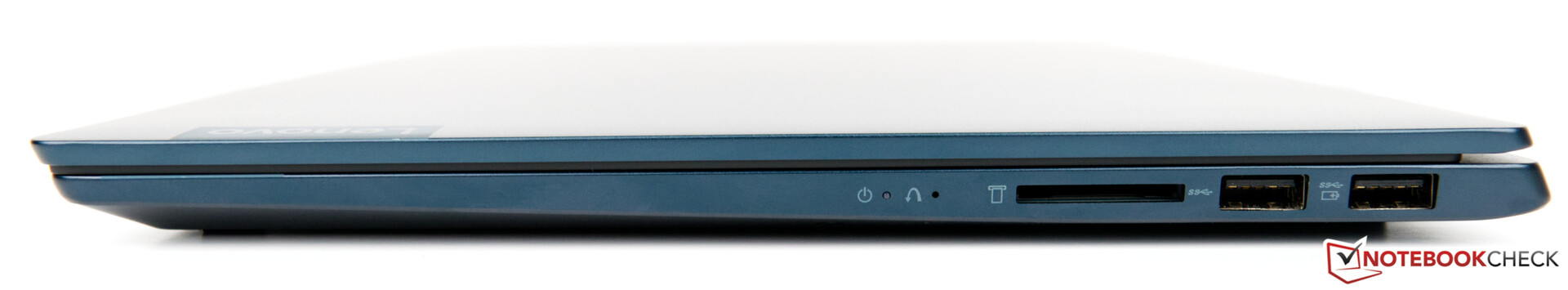

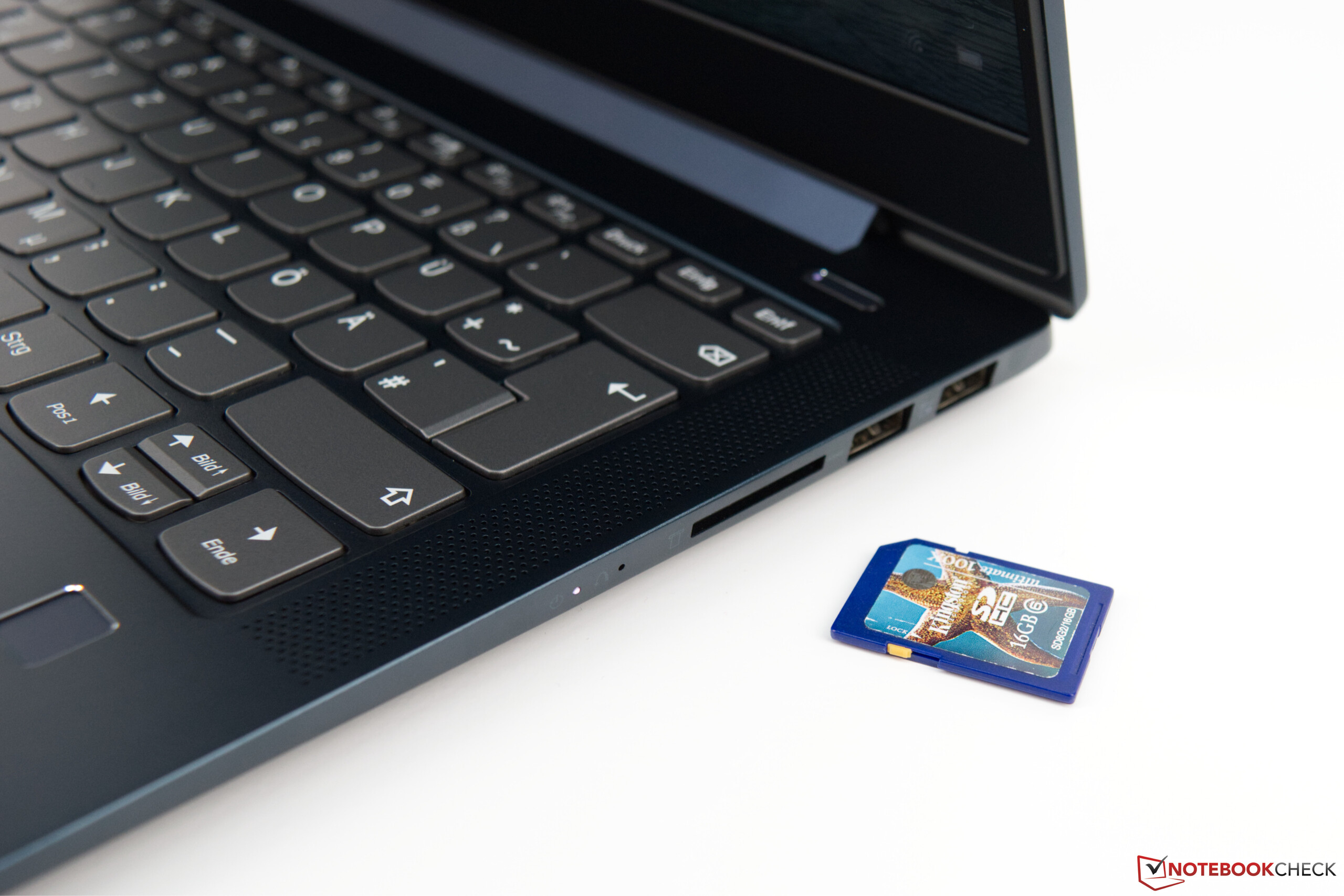

Höger sida: SD-kortläsare, 2x USB 3.1 Gen 1 Typ A-portar

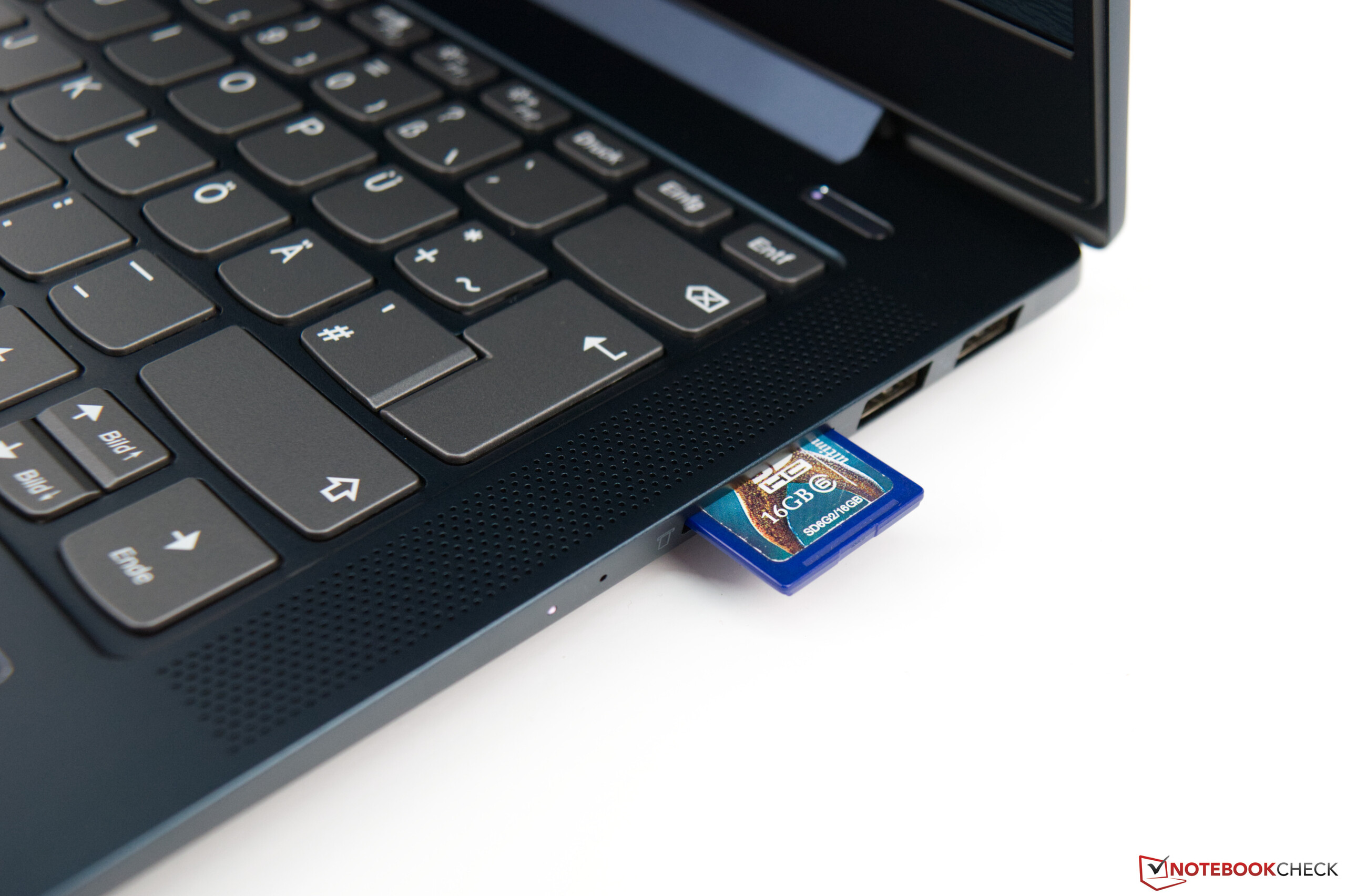

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Multimedia (18.4 - 201, n=60, last 2 years)	102.2 MB/s +23%
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	82.9 MB/s
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	77.8 MB/s -6%
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	71.6 MB/s -14%
HP Pavilion 14-ce0002ng, Intel Core i7-8550U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	39.6 MB/s -52%
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U (Toshiba Exceria Pro M501 microSDXC 64GB)	17.3 MB/s -79%
maximum AS SSD Seq Read Test (1GB)
Average of class Multimedia (25.8 - 266, n=59, last 2 years)	142.9 MB/s +59%
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	89.9 MB/s
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	88.2 MB/s -2%
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	83.7 MB/s -7%
HP Pavilion 14-ce0002ng, Intel Core i7-8550U (Toshiba Exceria Pro SDXC 64 GB UHS-II)	36.7 MB/s -59%
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U (Toshiba Exceria Pro M501 microSDXC 64GB)	25.2 MB/s -72%

Networking
iperf3 transmit AX12
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC	675 (561^min - 737^max) MBit/s 0%
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U Intel Wireless-AC 9560	672 MBit/s
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U Intel Cannon Lake-H/S CNVi: WiFi	321 (249^min - 389^max) MBit/s -52%
HP Pavilion 14-ce0002ng, Intel Core i7-8550U RealTek Semiconductor, Device ID: C821	287 MBit/s -57%
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	276 MBit/s -59%
iperf3 receive AX12
Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC	616 (569^min - 634^max) MBit/s +5%
Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U Intel Wireless-AC 9560	587 MBit/s
Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	335 MBit/s -43%
HP Pavilion 14-ce0002ng, Intel Core i7-8550U RealTek Semiconductor, Device ID: C821	281 MBit/s -52%
Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U Intel Cannon Lake-H/S CNVi: WiFi	251 (184^min - 354^max) MBit/s -57%


317 cd/m²	305 cd/m²	308 cd/m²
304 cd/m²	316 cd/m²	297 cd/m²
281 cd/m²	299 cd/m²	280 cd/m²

Distribution av ljusstyrkan

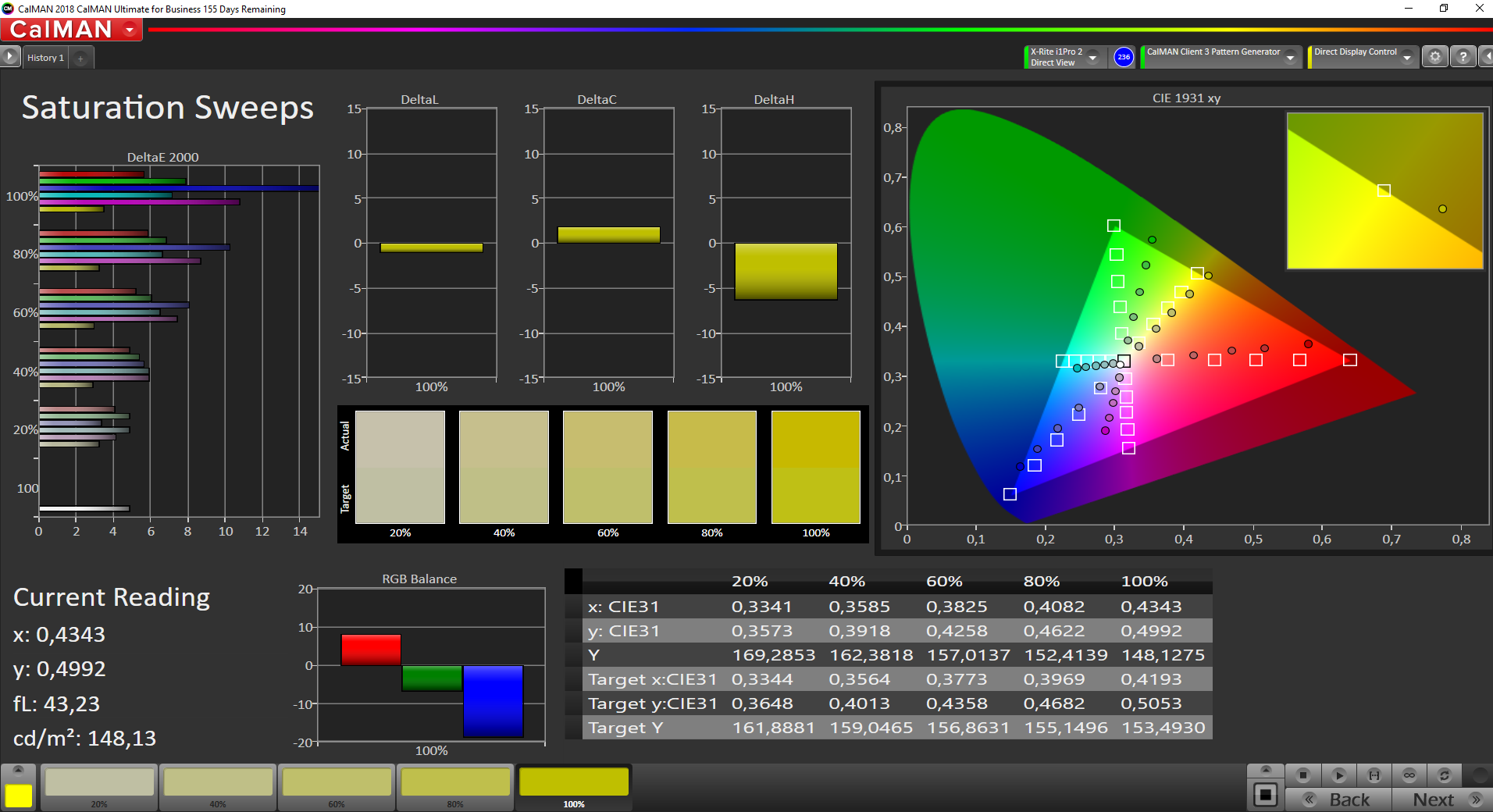

NV140FHM-N48 tested with X-Rite i1Pro 2

Max: 317 cd/m² (Nits) Medel: 300.8 cd/m² Minimum: 5 cd/m²
Distribution av ljusstyrkan: 88 %
Mitt på batteriet: 318 cd/m²
Kontrast: 1129:1 (Svärta: 0.28 cd/m²)

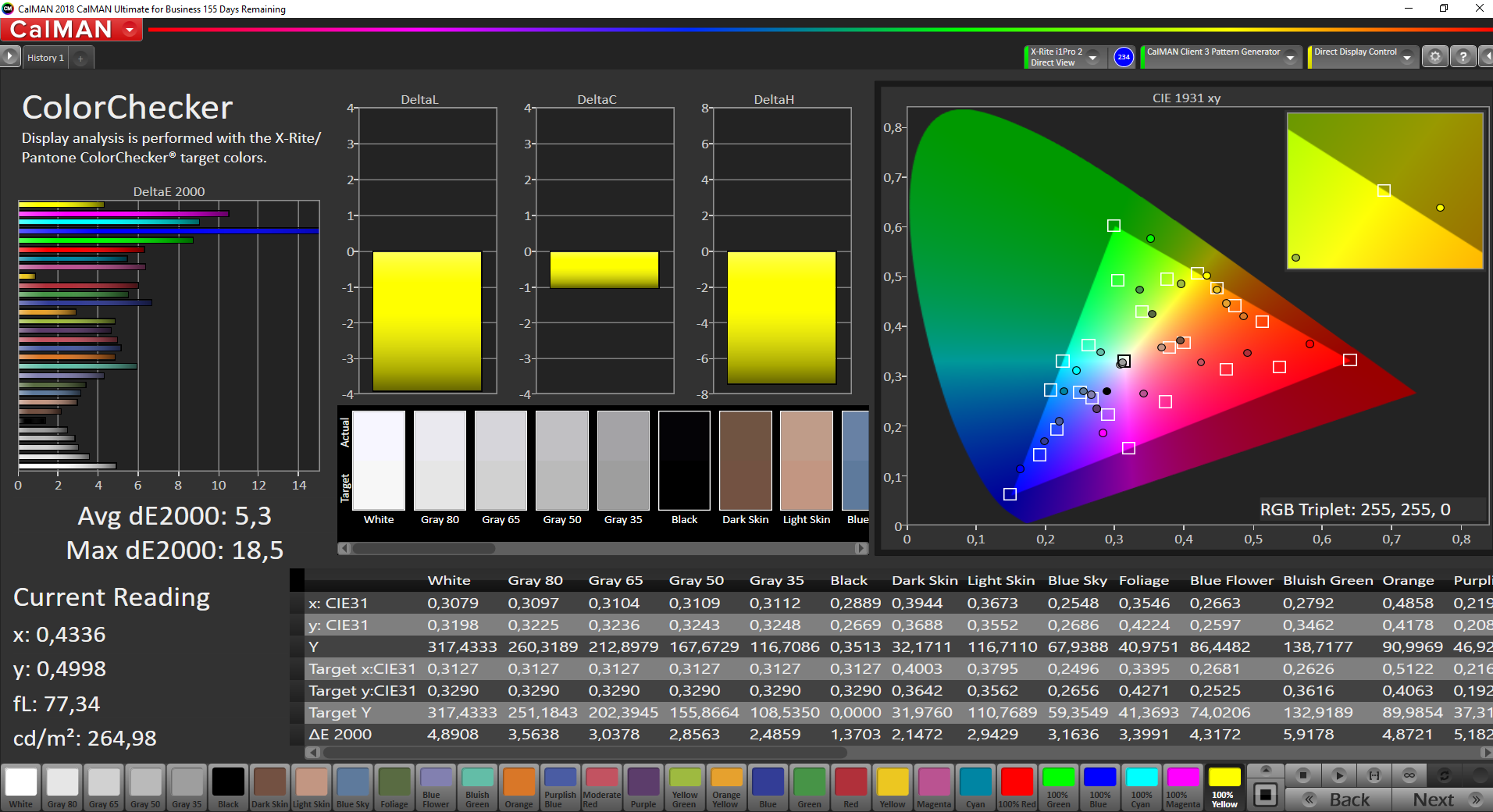

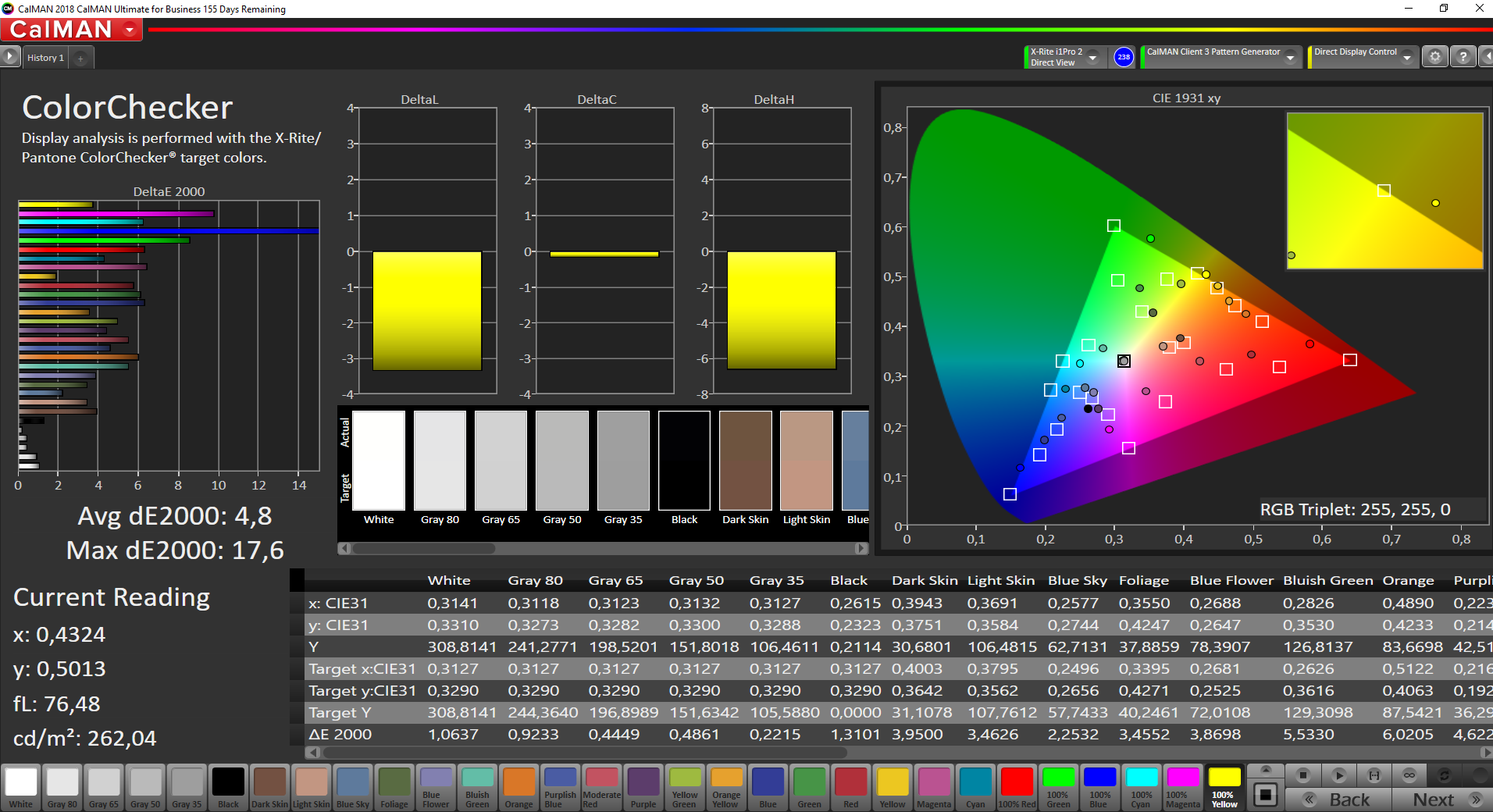

ΔE Color 5.3 | 0.5-29.43 Ø4.91, calibrated: 4.8

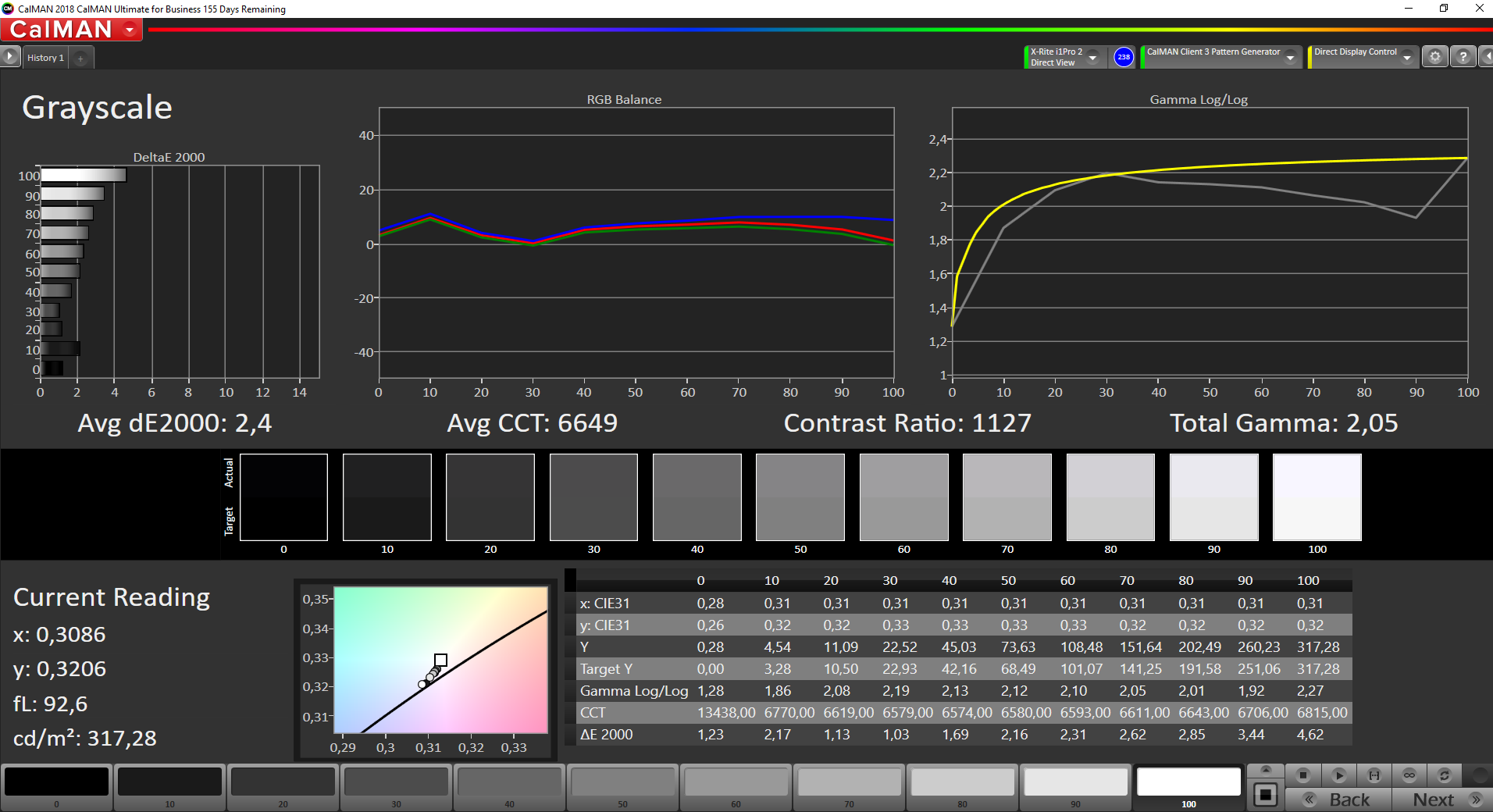

ΔE Greyscale 2.4 | 0.5-98 Ø5.2
58.3% sRGB (Argyll 1.6.3 3D)
37.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
41.43% AdobeRGB 1998 (Argyll 2.2.0 3D)
59.2% sRGB (Argyll 2.2.0 3D)
40.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.05

Download ICC-fil (X-Rite i1Pro 2)


251 cd/m²	248 cd/m²	247 cd/m²
266 cd/m²	271 cd/m²	254 cd/m²
257 cd/m²	265 cd/m²	255 cd/m²

Distribution av ljusstyrkan

LP140WFA-SPD1 tested with X-Rite i1Pro 2

Max: 271 cd/m² (Nits) Medel: 257.1 cd/m² Minimum: 24.6 cd/m²
Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 273 cd/m²
Kontrast: 1004:1 (Svärta: 0.27 cd/m²)

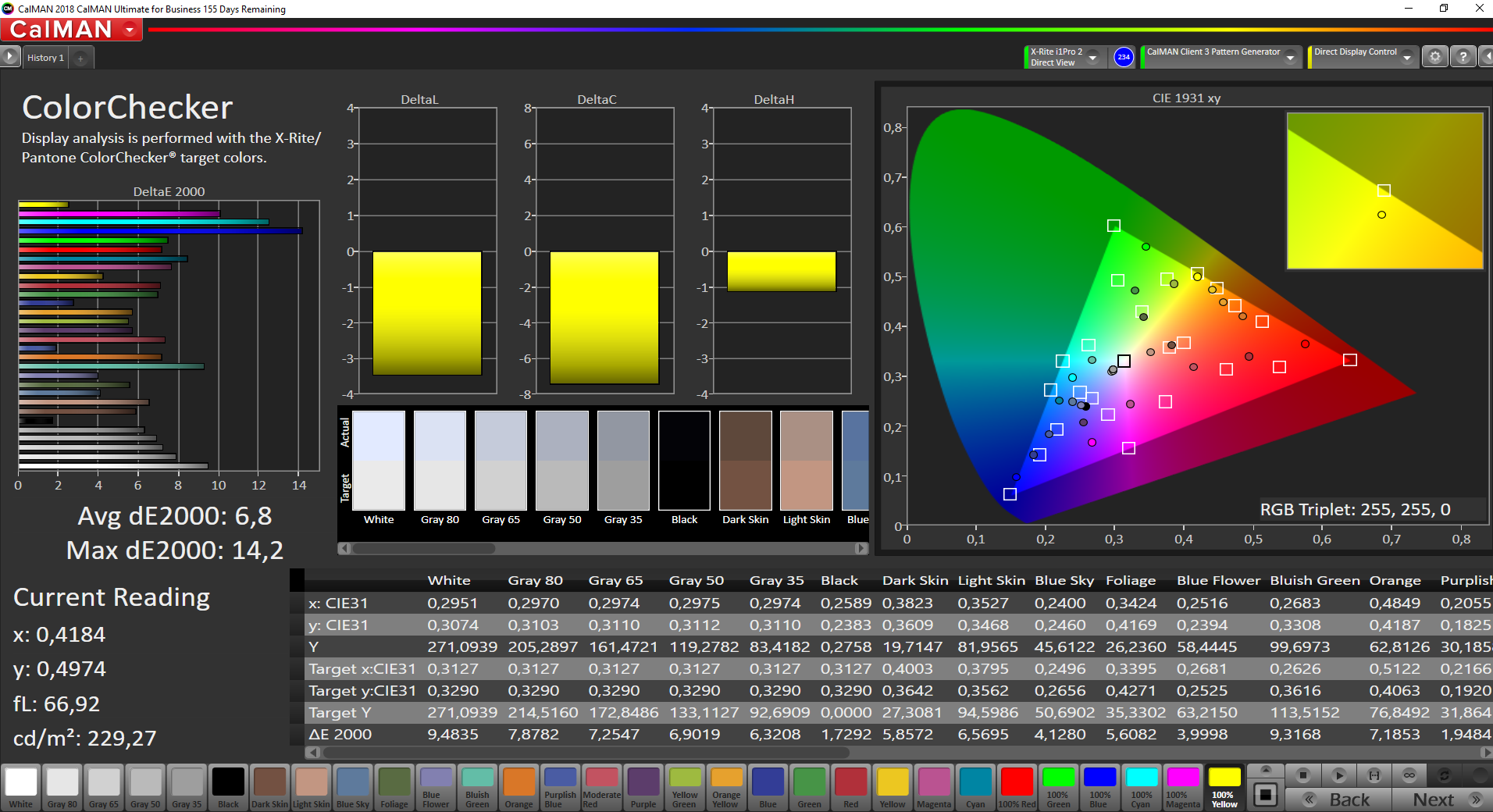

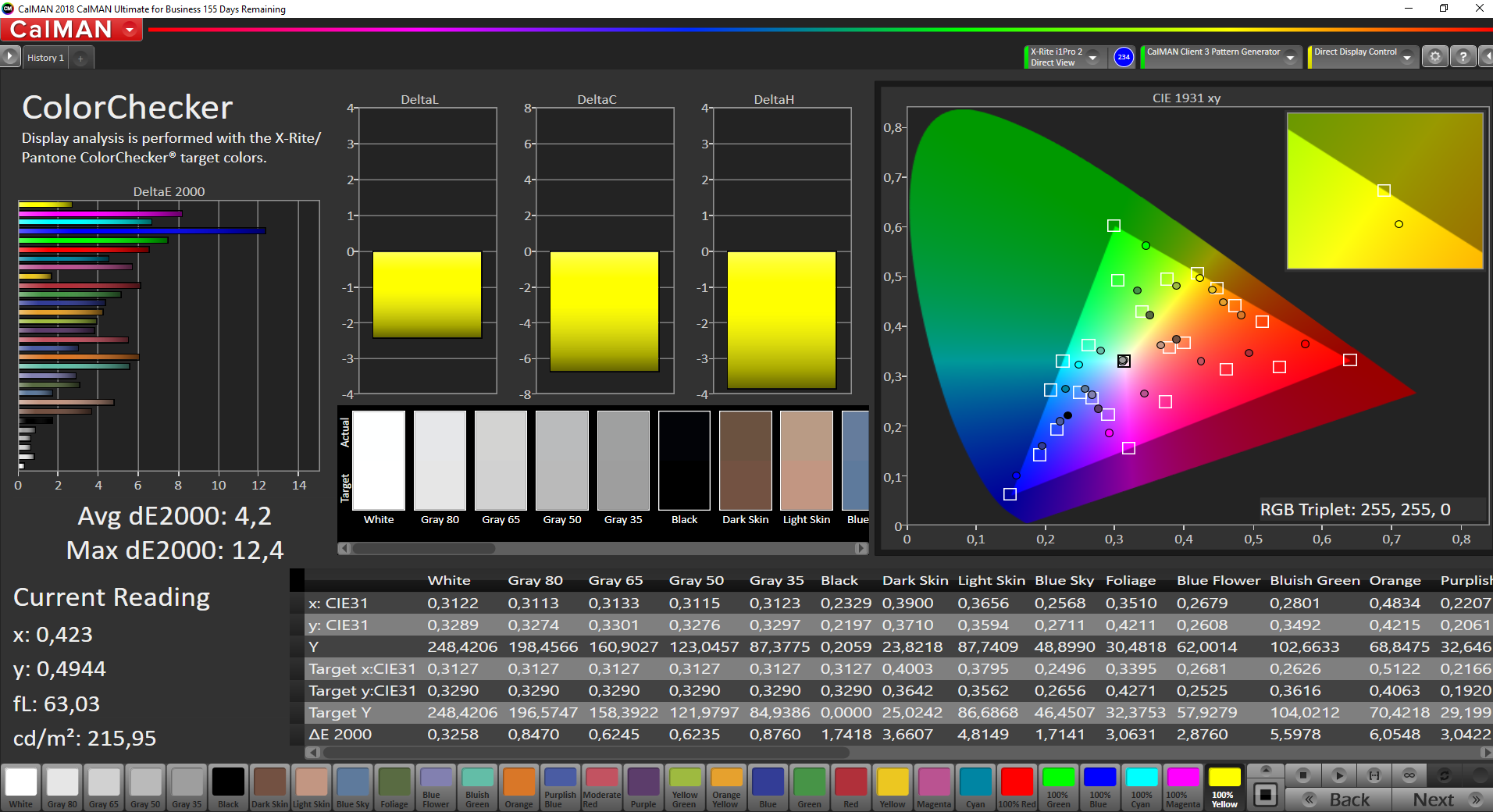

ΔE Color 6.8 | 0.5-29.43 Ø4.91, calibrated: 4.2

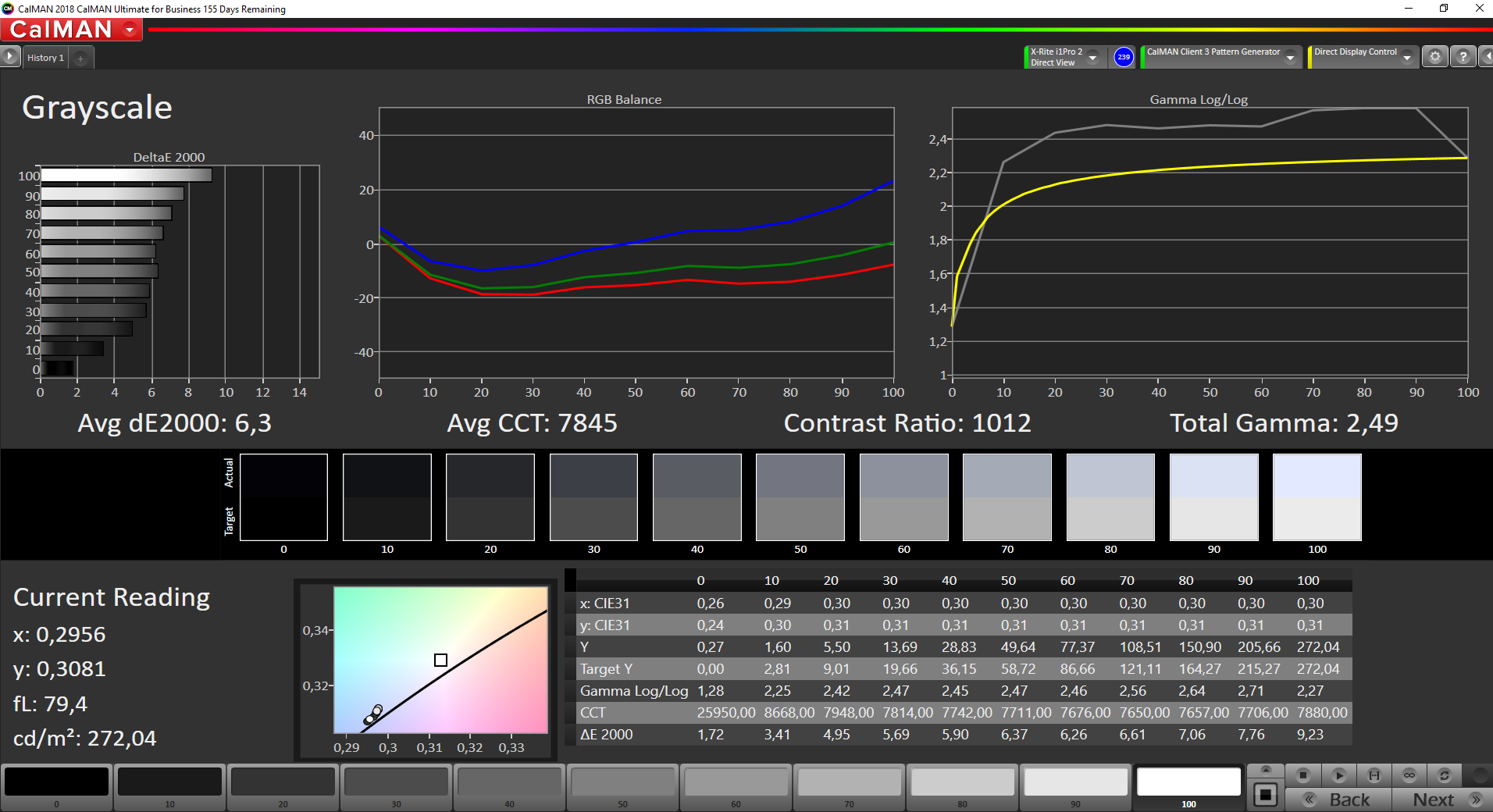

ΔE Greyscale 6.3 | 0.5-98 Ø5.2
58.3% sRGB (Argyll 1.6.3 3D)
36.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.09% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.4% sRGB (Argyll 2.2.0 3D)
38.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.49

Download ICC-fil (X-Rite i1Pro 2)

	Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U NV140FHM-N48, IPS, 1920x1080, 14"	Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U LP140WFA-SPD1, IPS, 1920x1080, 14"	Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U LG Philips LP140WFA-SPD1, IPS, 1920x1080, 14"	HP Pavilion 14-ce0002ng, Intel Core i7-8550U BOE072C, IPS, 1920x1080, 14"	Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U AU Optronics AUO403D B140HAN04.0, IPS, 1920x1080, 14"
Display		-2%	-3%	-1%	-0%
Display P3 Coverage	40.1	38.8 -3%	38.41 -4%	39.64 -1%	39.71 -1%
sRGB Coverage	59.2	58.4 -1%	57.8 -2%	59.3 0%	59.6 1%
AdobeRGB 1998 Coverage	41.43	40.09 -3%	39.68 -4%	40.96 -1%	41.04 -1%
Response Times		12%	13%	-14%	4%
Response Time Grey 50% / Grey 80% *	39.6 ?(21.6, 18)	38.8 ?(21.2, 17.6) 2%	36 ?(20, 16) 9%	40 ?(21, 19) -1%	40 ?(19, 21) -1%
Response Time Black / White *	32 ?(18, 14)	24.8 ?(14.8, 10) 22%	27 ?(16, 11) 16%	31 ?(18, 13) 3%	29 ?(17, 12) 9%
PWM Frequency	352.1 ?(99)			200 ?(90) -43%
Screen		-17%	-14%	-13%	13%
Brightness middle	316	271 -14%	260 -18%	239 -24%	267 -16%
Brightness	301	257 -15%	250 -17%	223 -26%	257 -15%
Brightness Distribution	88	91 3%	87 -1%	88 0%	91 3%
Black Level *	0.28	0.27 4%	0.29 -4%	0.27 4%	0.2 29%
Contrast	1129	1004 -11%	897 -21%	885 -22%	1335 18%
Colorchecker dE 2000 *	5.3	6.8 -28%	6.29 -19%	5.3 -0%	3.79 28%
Colorchecker dE 2000 max. *	18.5	14.2 23%	14.77 20%	10.03 46%	8.18 56%
Colorchecker dE 2000 calibrated *	4.8	4.2 12%	4.51 6%	3.64 24%	4.71 2%
Greyscale dE 2000 *	2.4	6.3 -163%	4.65 -94%	5.85 -144%	1.49 38%
Gamma	2.05 ^107%	2.49 ^88%	2.73 ^81%	2.45 ^90%	2.48 ^89%
CCT	6644 ^98%	7845 ^83%	7331 ^89%	7169 ^91%	6659 ^98%
Color Space (Percent of AdobeRGB 1998)	37.6	36.9 -2%	37 -2%	38 1%	38 1%
Color Space (Percent of sRGB)	58.3	58.3 0%	58 -1%	59 1%	59 1%
Total Average (Program / Settings)		-2% / -11%	-1% / -9%	-9% / -11%	6% / 10%

* ... smaller is better

Lenovo IdeaPad S540-14IWL

Lenovo IdeaPad S540-14API

Lenovo IdeaPad S540-14IWL

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

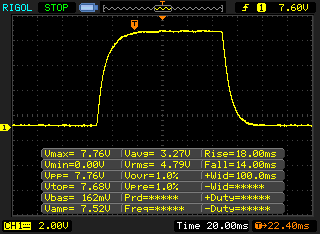

↔ Response Time Black to White
32 ms ... rise ↗ and fall ↘ combined	↗ 18 ms rise
32 ms ... rise ↗ and fall ↘ combined	↘ 14 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 84 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).

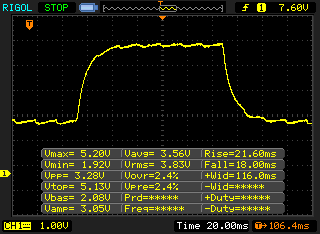

↔ Response Time 50% Grey to 80% Grey
39.6 ms ... rise ↗ and fall ↘ combined	↗ 21.6 ms rise
39.6 ms ... rise ↗ and fall ↘ combined	↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 57 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

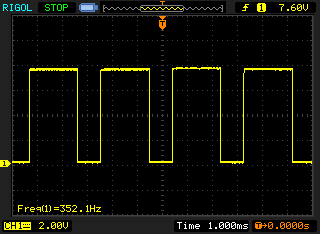

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

352.1 Hz

≤ 99 % brightness setting

The display backlight flickers at 352.1 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 99 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 352.1 Hz is relatively high, so most users sensitive to PWM should not notice any flickering. However, there are reports that some users are still sensitive to PWM at 500 Hz and above, so be aware.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured.

Lenovo IdeaPad S540-14API

Display Response Times

ℹ

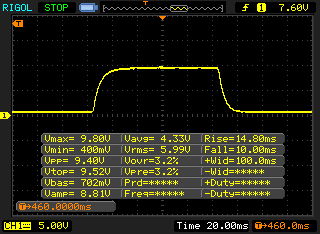

↔ Response Time Black to White
24.8 ms ... rise ↗ and fall ↘ combined	↗ 14.8 ms rise
24.8 ms ... rise ↗ and fall ↘ combined	↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 54 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).

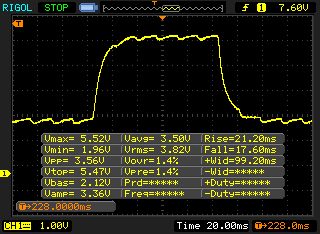

↔ Response Time 50% Grey to 80% Grey
38.8 ms ... rise ↗ and fall ↘ combined	↗ 21.2 ms rise
38.8 ms ... rise ↗ and fall ↘ combined	↘ 17.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 55 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

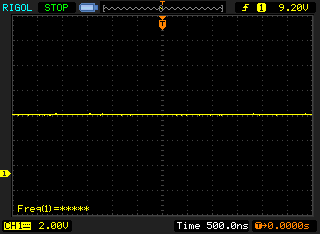

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured.

Lenovo IdeaPad S540-14IWL

IdeaPad S540-14API

Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, Intel Core i5-8265U: Ø548 (543.22-613.69)

Lenovo Ideapad S340-14IWL-81N70056GE Intel Core i7-8565U, Intel Core i7-8565U: Ø654 (578.9-760.2)

HP Pavilion 14-ce0002ng Intel Core i7-8550U, Intel Core i7-8550U: Ø512 (505.84-527.4)

Asus VivoBook 14 F412FJ-EB084T Intel Core i5-8265U, Intel Core i5-8265U: Ø503 (492.9-621.35)

Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø640 (634.34-662.55)

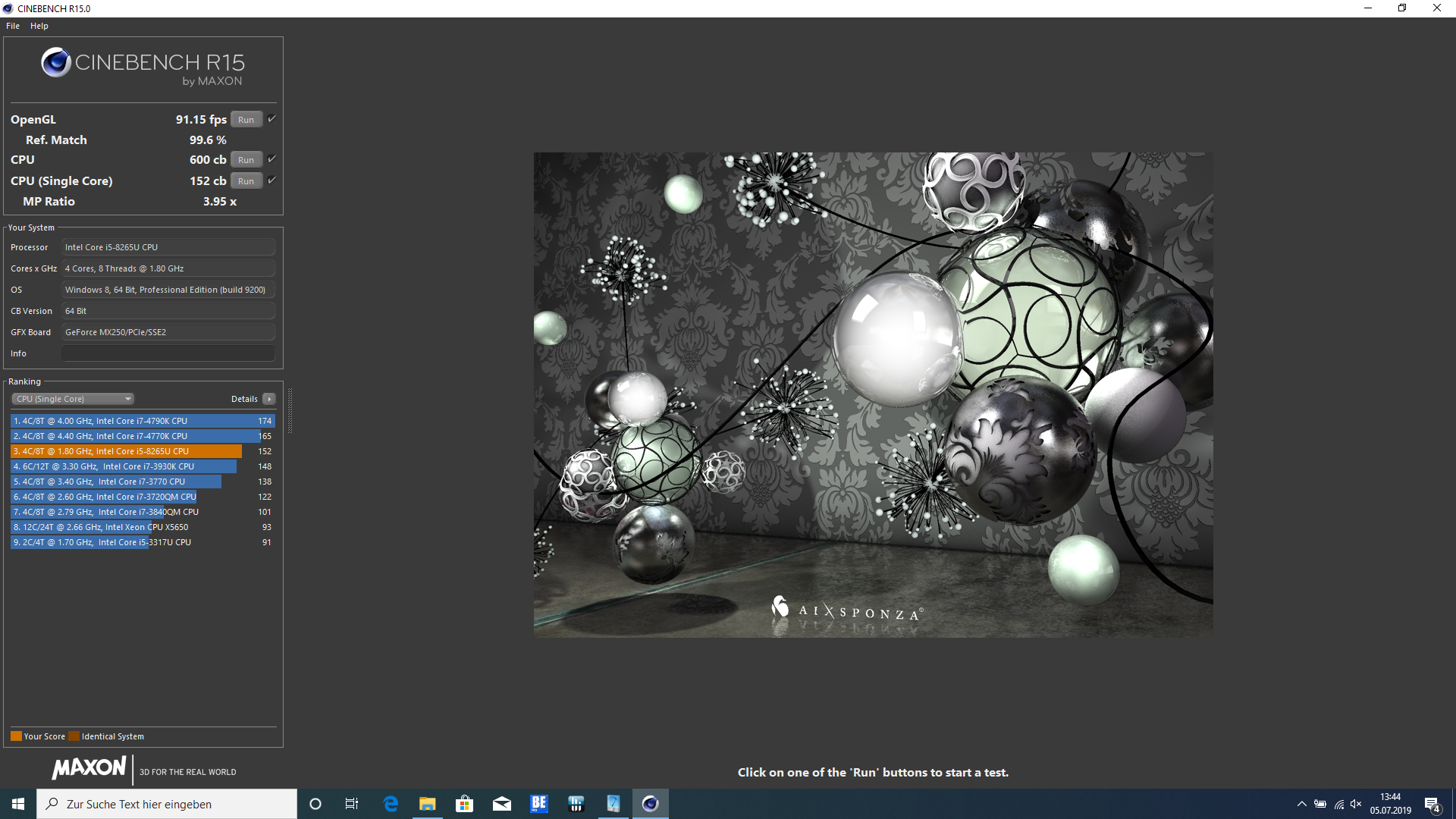

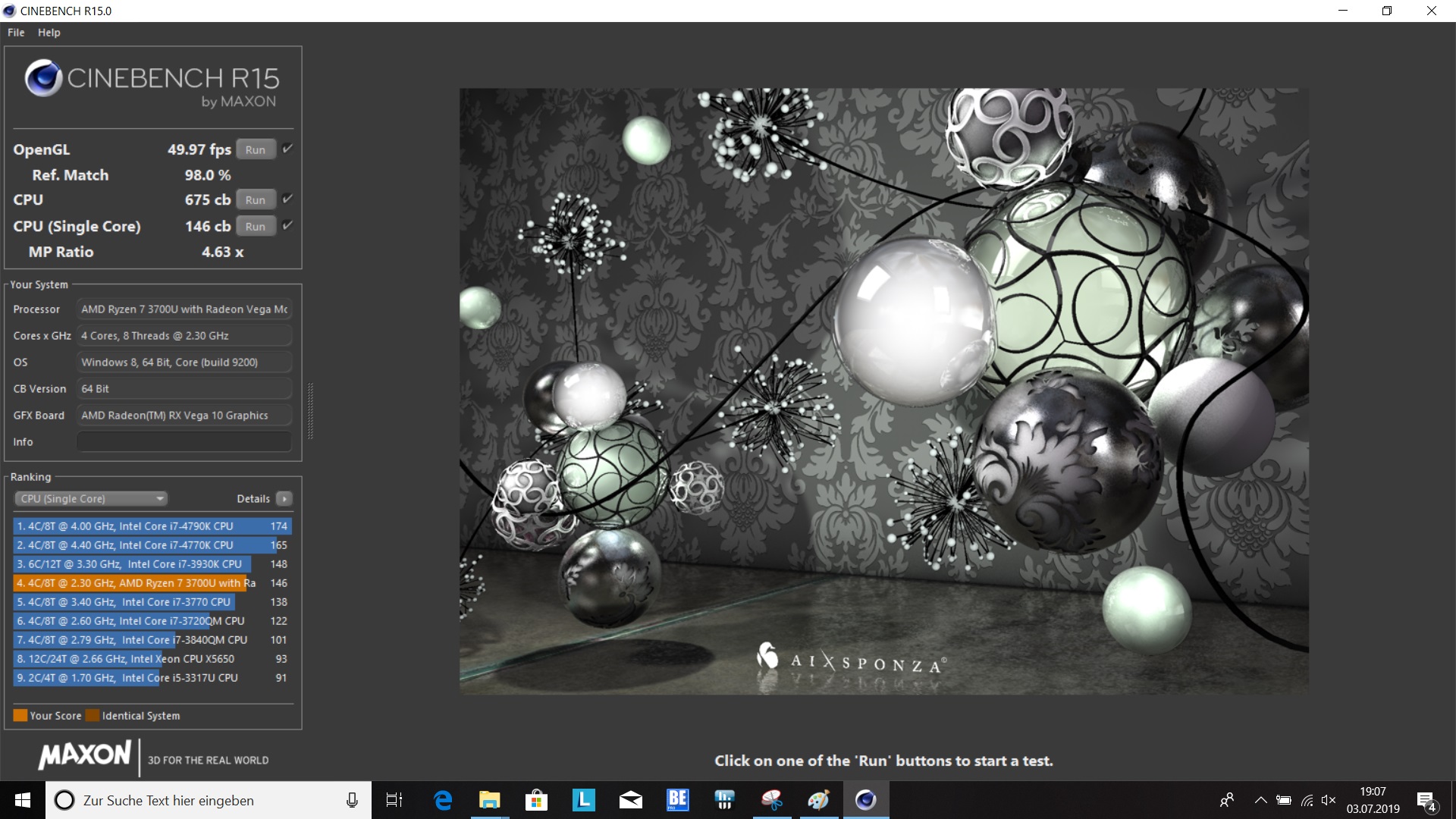

Cinebench R15
CPU Single 64Bit
Average of class Multimedia (99.6 - 323, n=89, last 2 years)	258 Points +70%
Lenovo Ideapad S340-14IWL-81N70056GE Intel Core i7-8565U	175 Points +15%
HP Pavilion 14-ce0002ng Intel Core i7-8550U	166 Points +9%
Asus VivoBook 14 F412FJ-EB084T Intel Core i5-8265U	161 Points +6%
Average Intel Core i5-8265U (111 - 164, n=35)	155 Points +2%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	152 Points
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	146 Points -4%
CPU Multi 64Bit
Average of class Multimedia (1252 - 4774, n=94, last 2 years)	2445 Points +308%
Lenovo Ideapad S340-14IWL-81N70056GE Intel Core i7-8565U	760 Points +27%
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	675 (643.4^min - 674.64^max) Points +13%
Asus VivoBook 14 F412FJ-EB084T Intel Core i5-8265U	623 Points +4%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	600 (548.41^min - 619.74^max) Points
Average Intel Core i5-8265U (457 - 750, n=38)	592 Points -1%
HP Pavilion 14-ce0002ng Intel Core i7-8550U	527 (505.84^min - 527.4^max) Points -12%

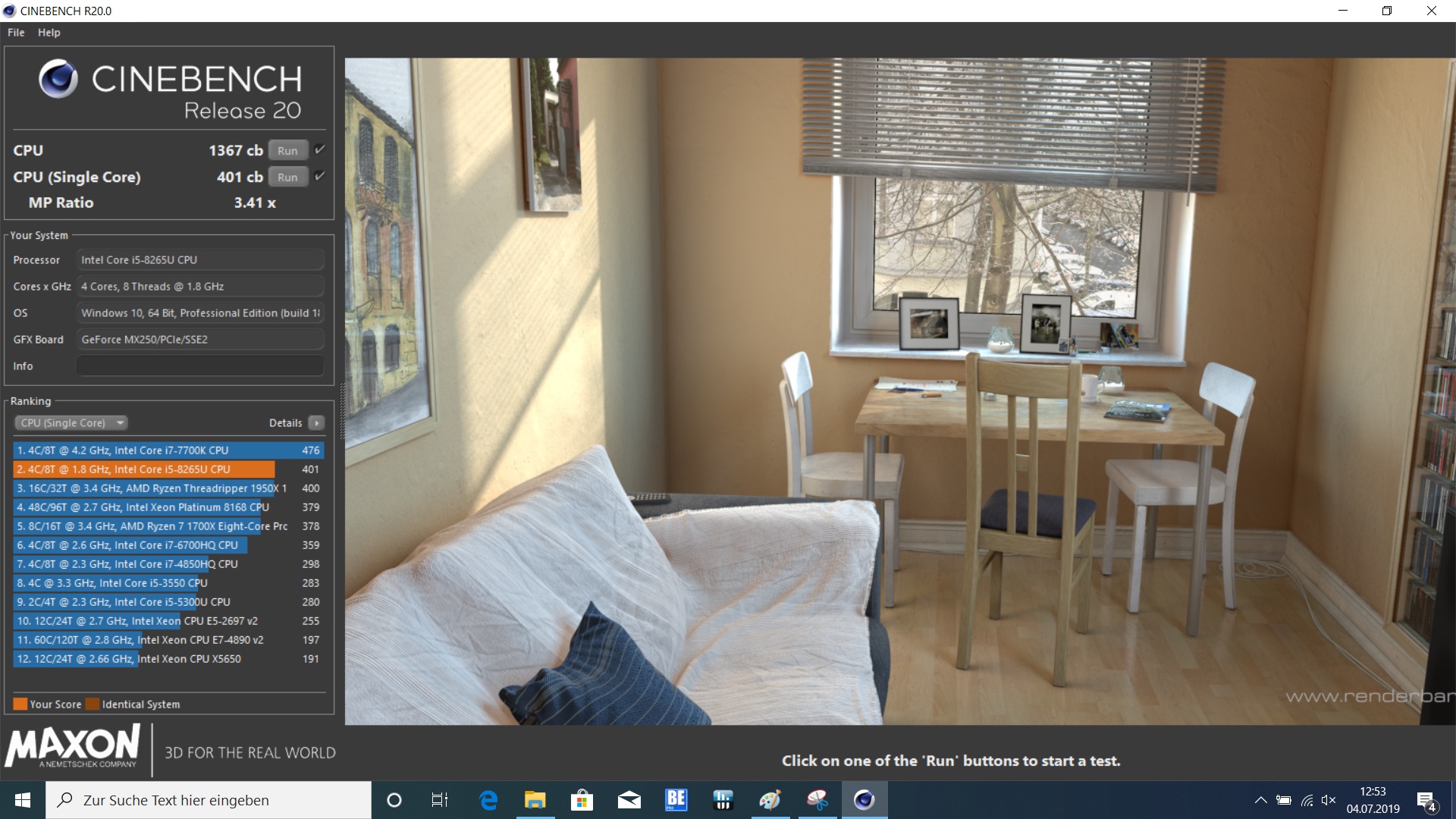

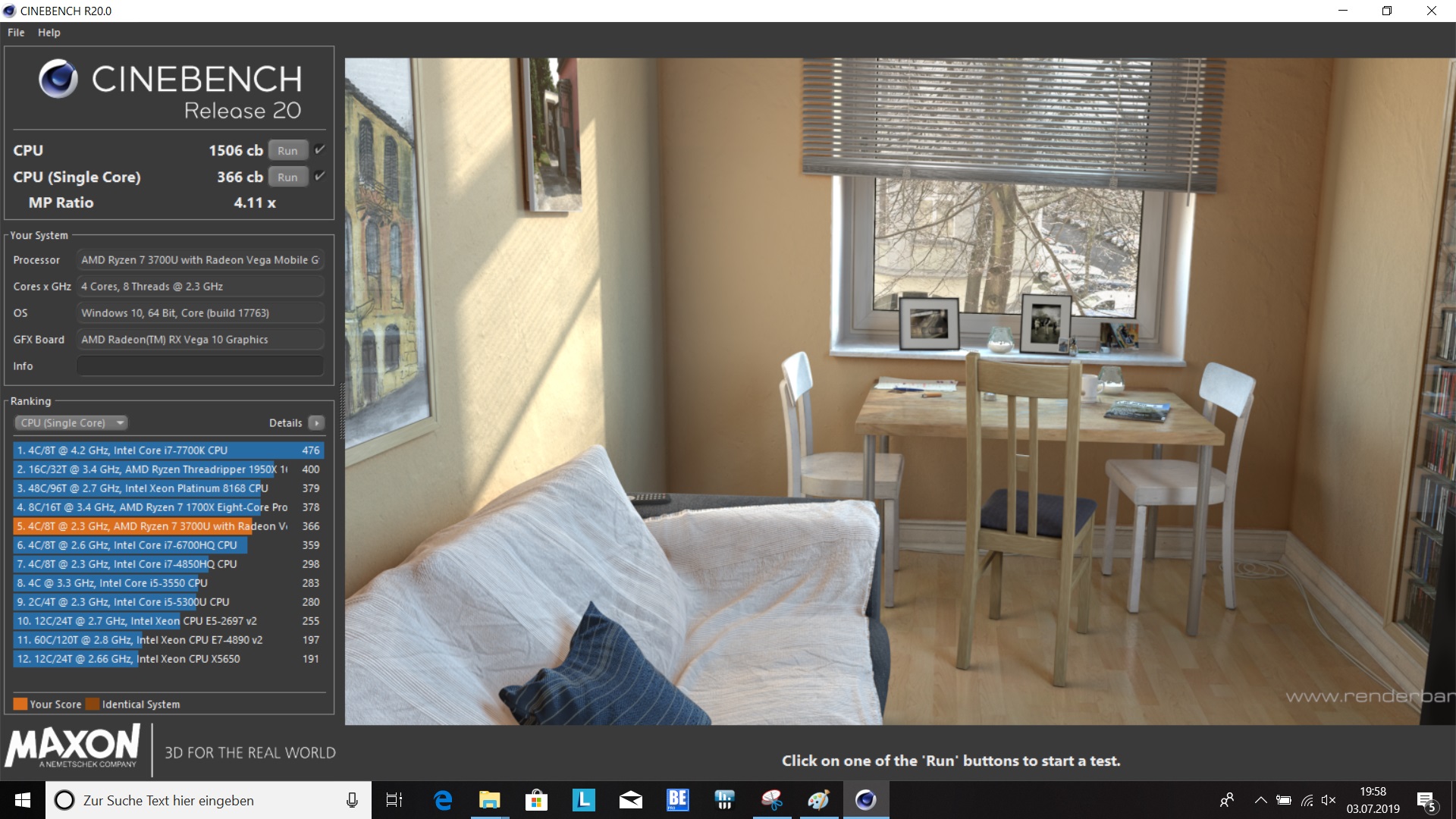

Cinebench R20
CPU (Single Core)
Average of class Multimedia (341 - 853, n=87, last 2 years)	651 Points +62%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	401 Points
Average Intel Core i5-8265U (325 - 403, n=16)	389 Points -3%
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	366 Points -9%
CPU (Multi Core)
Average of class Multimedia (2681 - 11768, n=87, last 2 years)	5687 Points +316%
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	1506 Points +10%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	1367 Points
Average Intel Core i5-8265U (972 - 1564, n=16)	1271 Points -7%

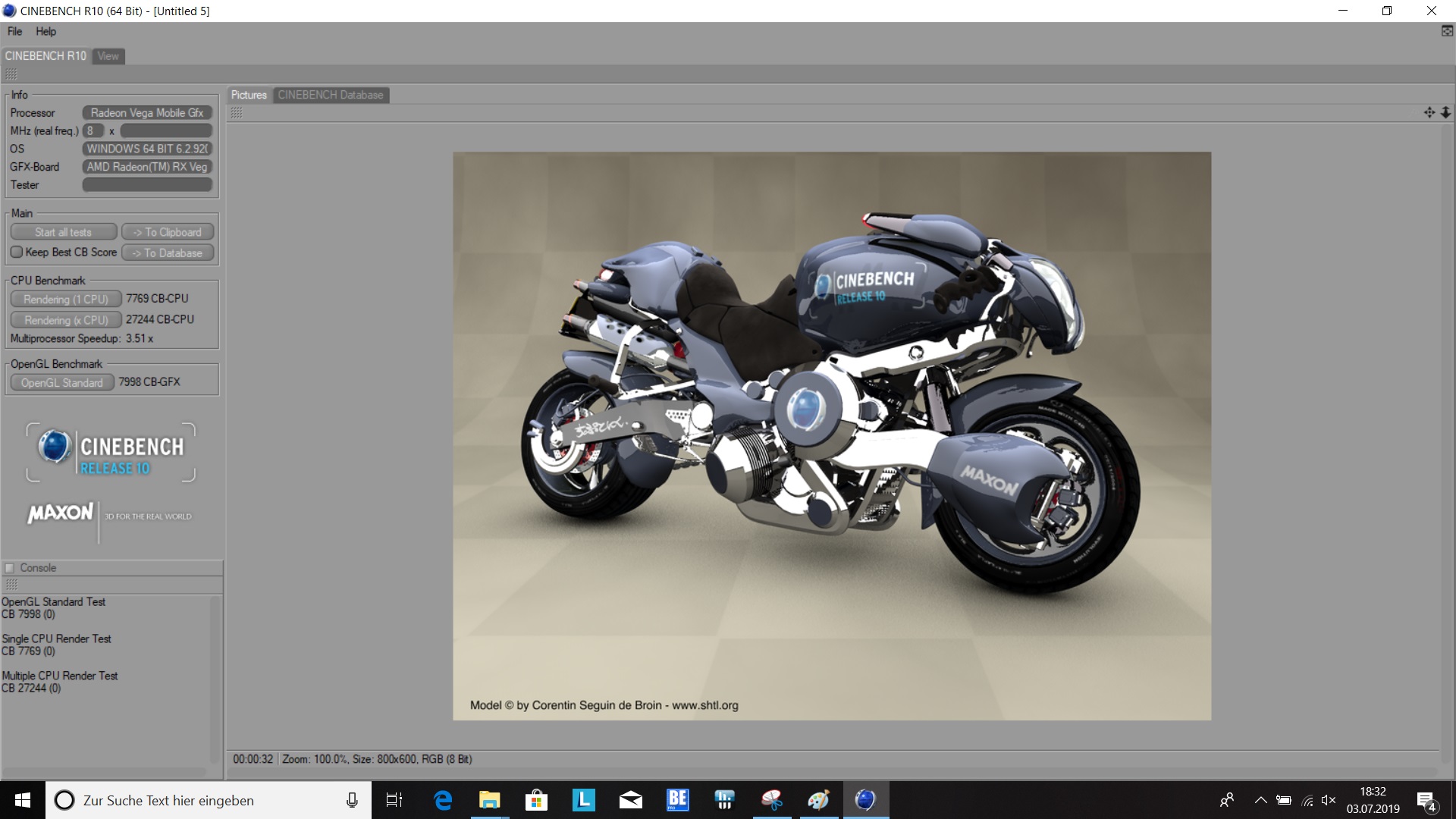

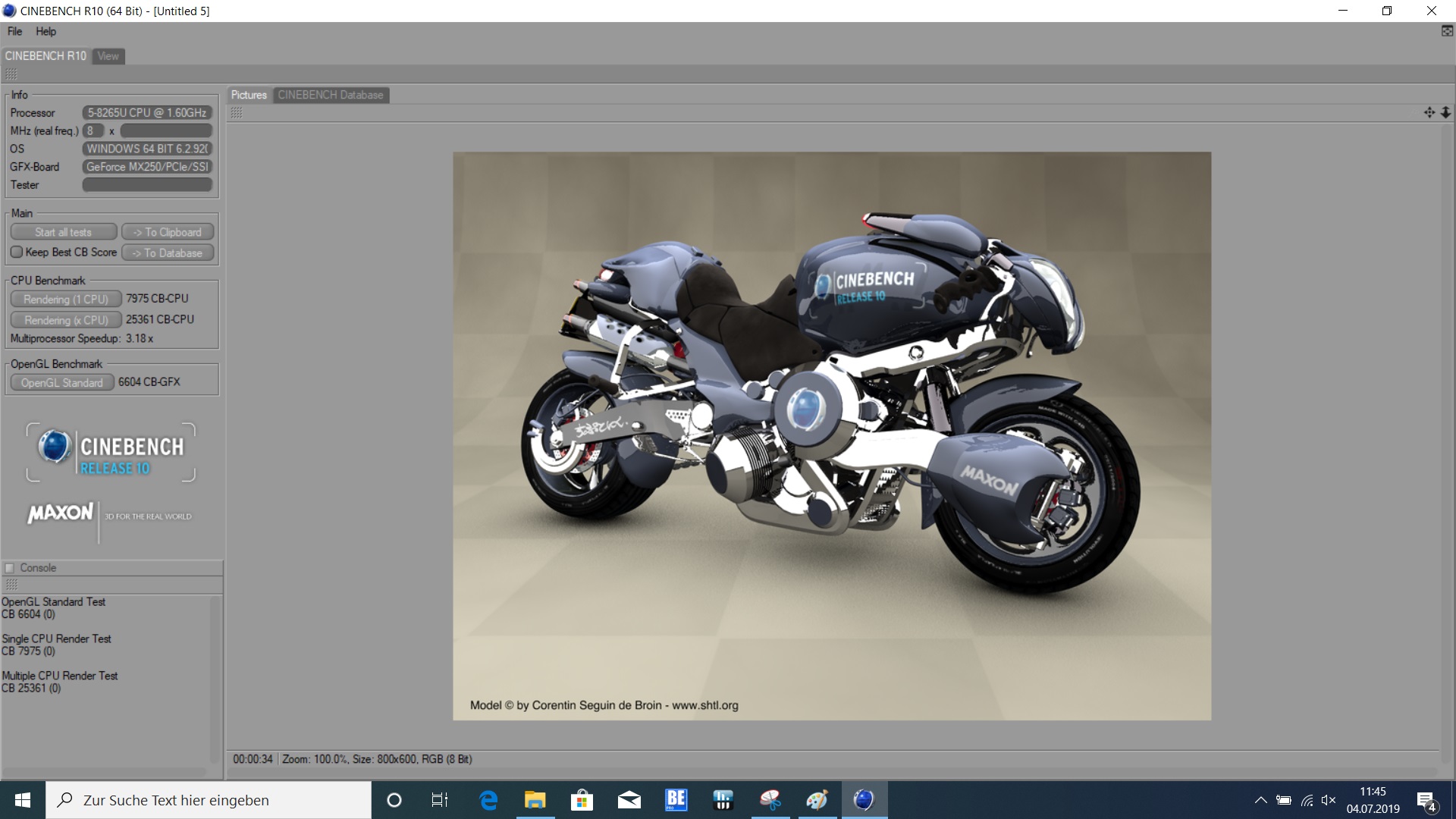

Cinebench R10
Rendering Single CPUs 64Bit
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	7975 Points
Average Intel Core i5-8265U (7705 - 7975, n=4)	7880 Points -1%
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	7769 Points -3%
Rendering Multiple CPUs 64Bit
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	27244 Points +7%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	25361 Points
Average Intel Core i5-8265U (18924 - 25361, n=4)	21959 Points -13%

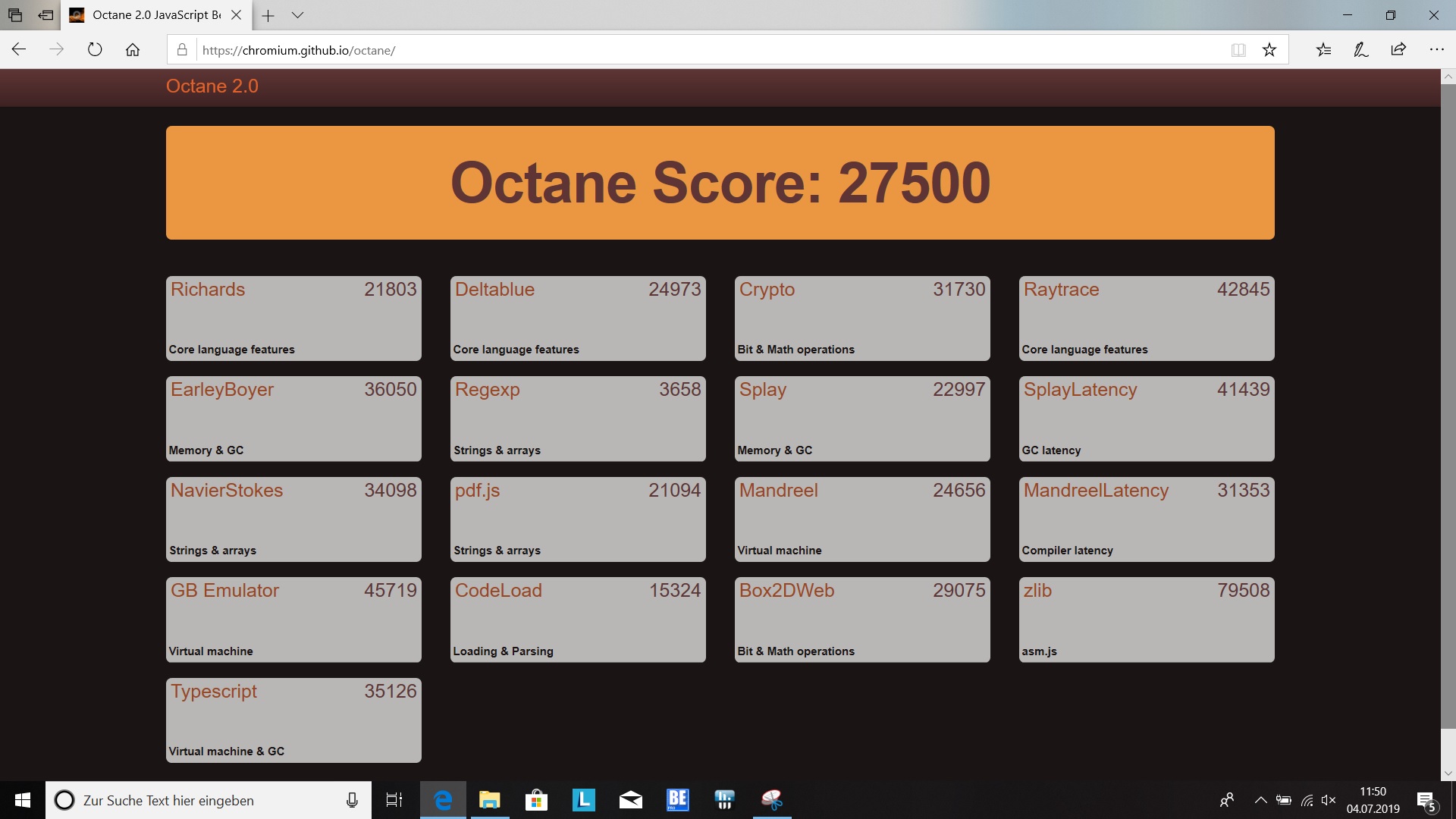

Octane V2 - Total Score
Average of class Multimedia (43921 - 119954, n=47, last 2 years)	92564 Points +176%
Lenovo Ideapad S340-14IWL-81N70056GE Intel Core i7-8565U	43069 Points +29%

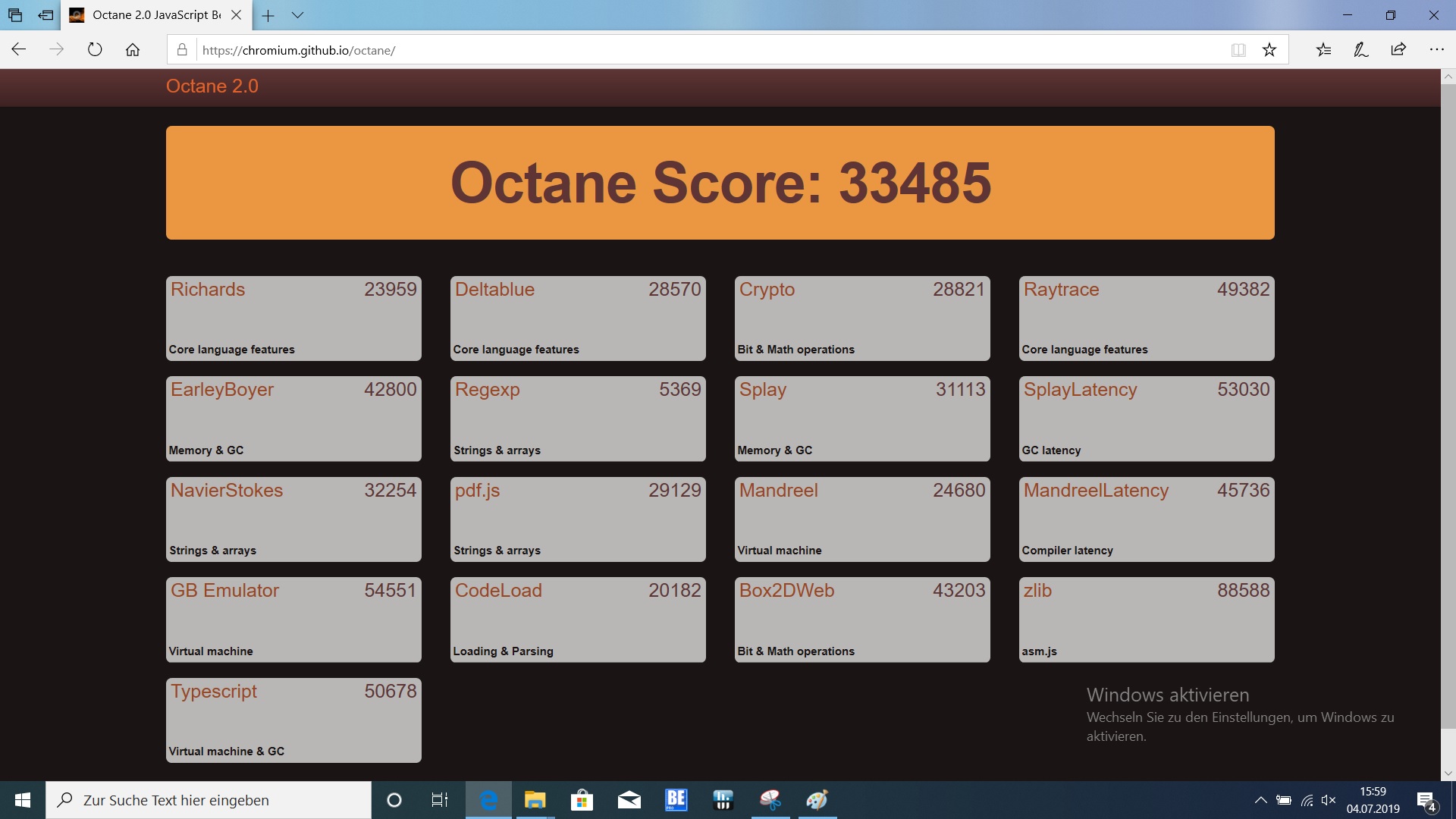

Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	33485 Points
Average Intel Core i5-8265U (12842 - 35563, n=23)	31246 Points -7%
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	27500 Points -18%

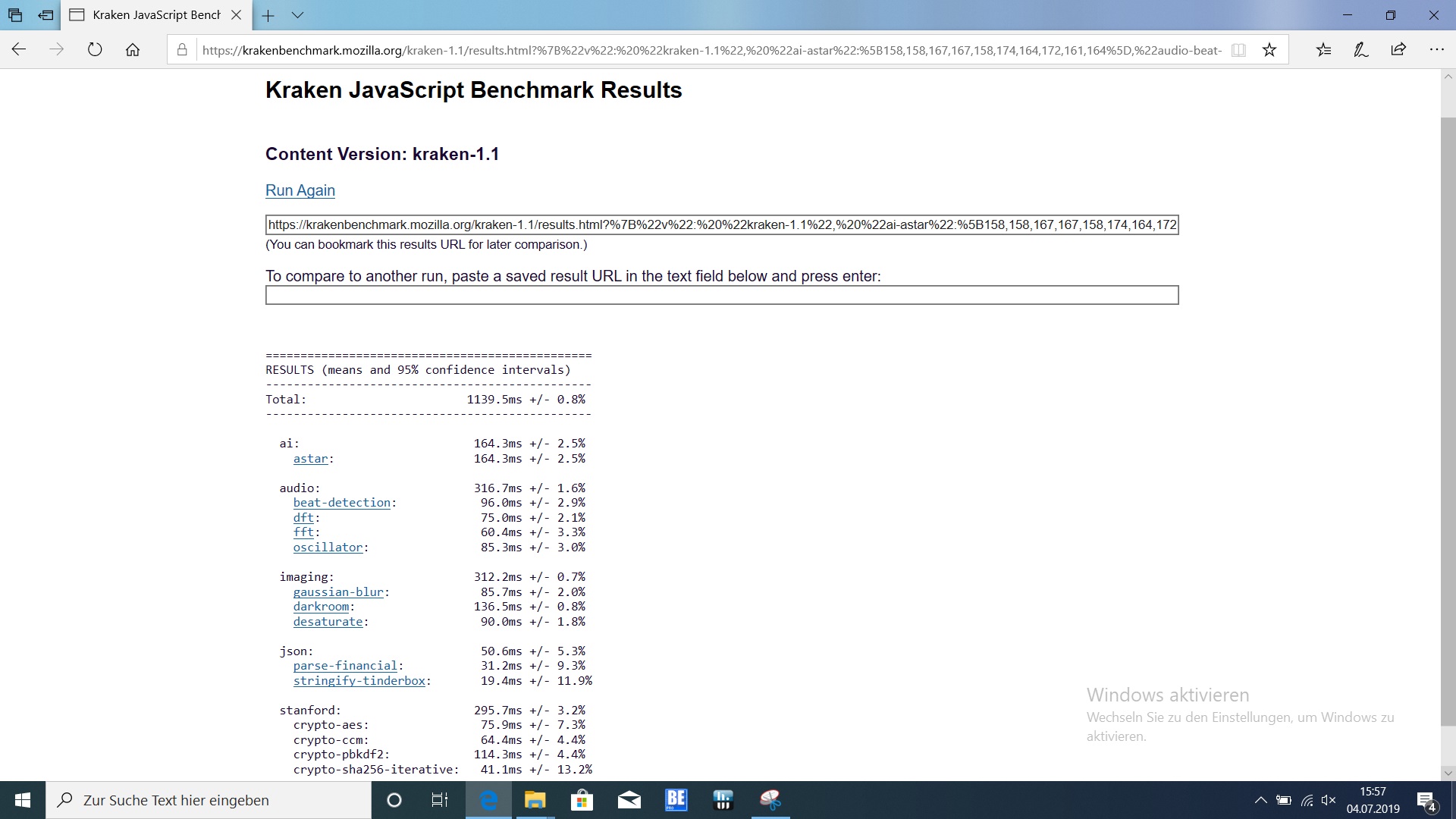

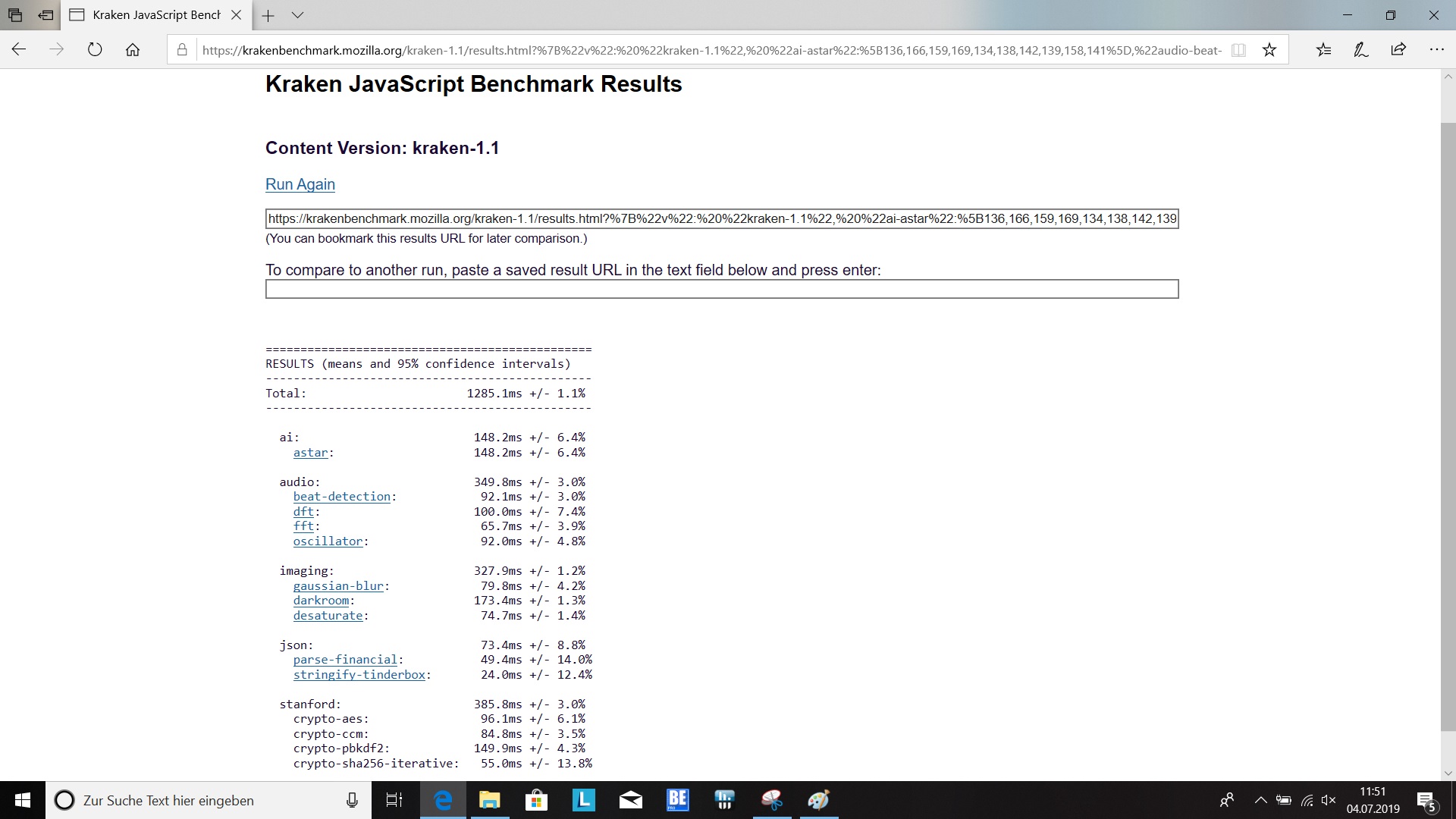

Mozilla Kraken 1.1 - Total
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	1285 ms * -13%
Average Intel Core i5-8265U (851 - 1245, n=25)	1141 ms * -0%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	1140 ms *
HP Pavilion 14-ce0002ng Intel Core i7-8550U	1139 ms * -0%
Lenovo Ideapad S340-14IWL-81N70056GE Intel Core i7-8565U	730 ms * +36%
Average of class Multimedia (254 - 1016, n=91, last 2 years)	503 ms * +56%

HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Multimedia (5.26 - 30.5, n=78, last 2 years)	16.4 fps +249%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	4.7 fps
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	4.69 fps 0%
Average Intel Core i5-8265U (3.38 - 4.8, n=15)	4.23 fps -10%
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	3.9 fps -17%

Blender - v2.79 BMW27 CPU
Average Intel Core i5-8265U (769 - 1098, n=15)	882 Seconds * -11%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	793 Seconds *
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	793 Seconds * -0%
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	703 Seconds * +11%
Average of class Multimedia (107 - 502, n=85, last 2 years)	253 Seconds * +68%

7-Zip 18.03
7z b 4
Average of class Multimedia (30592 - 121228, n=79, last 2 years)	60219 MIPS +242%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	17606 MIPS
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	17606 MIPS 0%
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	16931 MIPS -4%
Average Intel Core i5-8265U (13731 - 18802, n=15)	16360 MIPS -7%
7z b 4 -mmt1
Average of class Multimedia (3398 - 7545, n=79, last 2 years)	5716 MIPS +36%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	4193 MIPS
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U	4193 MIPS 0%
Average Intel Core i5-8265U (3780 - 4195, n=15)	4054 MIPS -3%
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U	3638 MIPS -13%

* ... smaller is better

IdeaPad S540-14IWL

Cinebench R10 Shading 64Bit

6604 Points

Cinebench R10 Rendering Single CPUs 64Bit

7975 Points

Cinebench R10 Rendering Single 32Bit

6102

Cinebench R10 Rendering Multiple CPUs 32Bit

19418

Cinebench R10 Shading 32Bit

6527

Cinebench R10 Rendering Multiple CPUs 64Bit

25361 Points

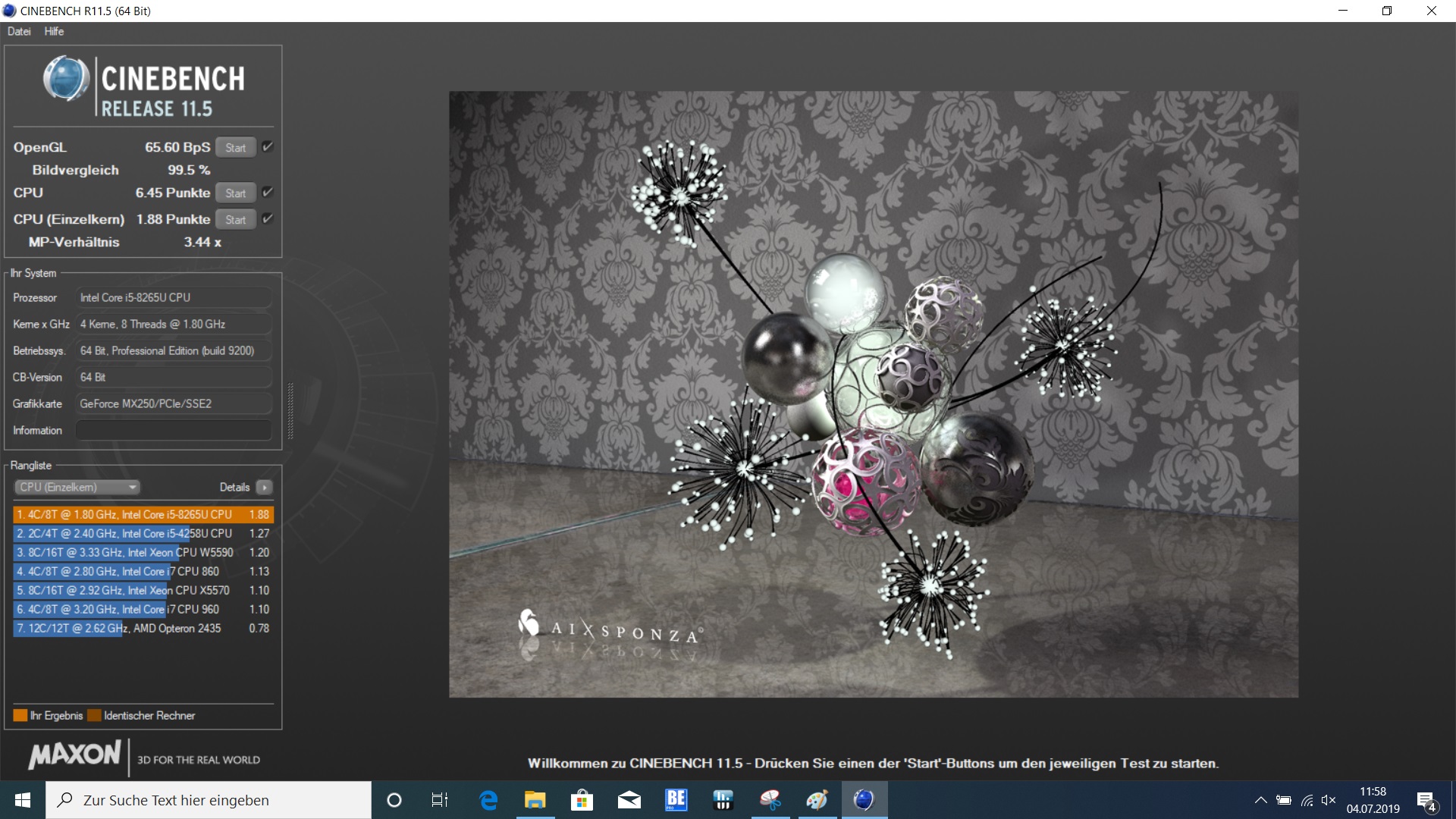

Cinebench R11.5 CPU Multi 64Bit

6.45 Points

Cinebench R11.5 CPU Single 64Bit

1.88 Points

Cinebench R11.5 OpenGL 32Bit

66.9 fps

Cinebench R11.5 CPU Multi 32Bit

5.88 Points

Cinebench R11.5 OpenGL 64Bit

65.6 fps

Cinebench R11.5 CPU Single 32Bit

1.66 Points

Cinebench R15 CPU Single 64Bit

152 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

91.2 fps

Cinebench R15 CPU Multi 64Bit

600 Points

Cinebench R20 CPU (Single Core)

401 Points

Cinebench R20 CPU (Multi Core)

1367 Points

Hjälp

... jämför

IdeaPad S540-14API

Cinebench R10 Shading 64Bit

7998 Points

Cinebench R10 Rendering Single CPUs 64Bit

7769 Points

Cinebench R10 Rendering Single 32Bit

4776

Cinebench R10 Rendering Multiple CPUs 32Bit

18041

Cinebench R10 Shading 32Bit

7856

Cinebench R10 Rendering Multiple CPUs 64Bit

27244 Points

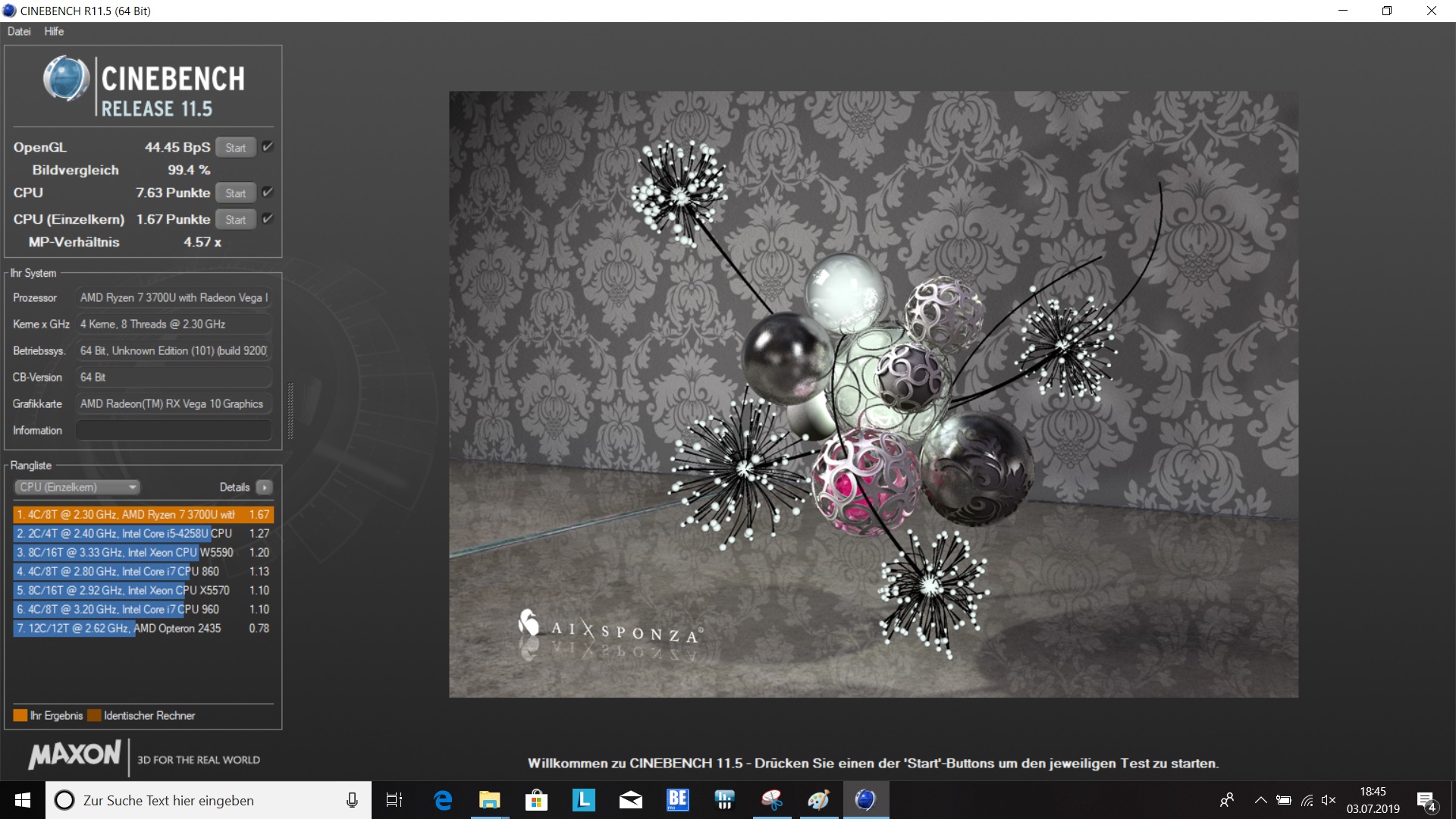

Cinebench R11.5 CPU Multi 64Bit

7.63 Points

Cinebench R11.5 CPU Single 64Bit

1.67 Points

Cinebench R11.5 OpenGL 32Bit

45.91 fps

Cinebench R11.5 CPU Multi 32Bit

6.94 Points

Cinebench R11.5 OpenGL 64Bit

44.45 fps

Cinebench R11.5 CPU Single 32Bit

1.53 Points

Cinebench R15 CPU Single 64Bit

146 Points

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

49.97 fps

Cinebench R15 CPU Multi 64Bit

675 Points

Cinebench R20 CPU (Single Core)

366 Points

Cinebench R20 CPU (Multi Core)

1506 Points

Hjälp

... jämför

PCMark 10 | PCMark 8

PCMark 10
Score
Average of class Multimedia (4542 - 8670, n=72, last 2 years)	6789 Points +62%
Lenovo IdeaPad S540-14IWL GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	4192 Points
Average Intel Core i5-8265U, NVIDIA GeForce MX250 (4190 - 4192, n=2)	4191 Points 0%
Lenovo Ideapad S340-14IWL-81N70056GE GeForce MX230, i7-8565U, WDC PC SN520 SDAPNUW-512G	4011 Points -4%
Lenovo IdeaPad S540-14API Vega 10, R7 3700U, Samsung SSD PM981 MZVLB512HAJQ	3829 Points -9%
Asus VivoBook 14 F412FJ-EB084T GeForce MX230, i5-8265U, Kingston RBU-SNS8180DS3512GJ	3764 Points -10%
Essentials
Average of class Multimedia (8480 - 12420, n=72, last 2 years)	10515 Points +27%
Average Intel Core i5-8265U, NVIDIA GeForce MX250 (8264 - 8394, n=2)	8329 Points +1%
Lenovo IdeaPad S540-14IWL GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	8264 Points
Lenovo Ideapad S340-14IWL-81N70056GE GeForce MX230, i7-8565U, WDC PC SN520 SDAPNUW-512G	8222 Points -1%
Asus VivoBook 14 F412FJ-EB084T GeForce MX230, i5-8265U, Kingston RBU-SNS8180DS3512GJ	7981 Points -3%
Lenovo IdeaPad S540-14API Vega 10, R7 3700U, Samsung SSD PM981 MZVLB512HAJQ	7312 Points -12%
Productivity
Average of class Multimedia (6089 - 10742, n=72, last 2 years)	8919 Points +34%
Asus VivoBook 14 F412FJ-EB084T GeForce MX230, i5-8265U, Kingston RBU-SNS8180DS3512GJ	6755 Points +2%
Lenovo IdeaPad S540-14IWL GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	6654 Points
Average Intel Core i5-8265U, NVIDIA GeForce MX250 (6604 - 6654, n=2)	6629 Points 0%
Lenovo Ideapad S340-14IWL-81N70056GE GeForce MX230, i7-8565U, WDC PC SN520 SDAPNUW-512G	6373 Points -4%
Lenovo IdeaPad S540-14API Vega 10, R7 3700U, Samsung SSD PM981 MZVLB512HAJQ	5952 Points -11%
Digital Content Creation
Average of class Multimedia (3651 - 13548, n=72, last 2 years)	9194 Points +153%
Lenovo IdeaPad S540-14IWL GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	3637 Points
Average Intel Core i5-8265U, NVIDIA GeForce MX250 (3604 - 3637, n=2)	3621 Points 0%
Lenovo IdeaPad S540-14API Vega 10, R7 3700U, Samsung SSD PM981 MZVLB512HAJQ	3501 Points -4%
Lenovo Ideapad S340-14IWL-81N70056GE GeForce MX230, i7-8565U, WDC PC SN520 SDAPNUW-512G	3344 Points -8%
Asus VivoBook 14 F412FJ-EB084T GeForce MX230, i5-8265U, Kingston RBU-SNS8180DS3512GJ	2685 Points -26%

PCMark 8
Home Score Accelerated v2
Average of class Multimedia (4484 - 5583, n=10, last 2 years)	5126 Points +21%
Lenovo IdeaPad S540-14IWL GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	4220 Points
Lenovo IdeaPad S540-14API Vega 10, R7 3700U, Samsung SSD PM981 MZVLB512HAJQ	3993 Points -5%
Average Intel Core i5-8265U, NVIDIA GeForce MX250 (3603 - 4220, n=2)	3912 Points -7%
Lenovo Ideapad S340-14IWL-81N70056GE GeForce MX230, i7-8565U, WDC PC SN520 SDAPNUW-512G	3641 Points -14%
HP Pavilion 14-ce0002ng GeForce MX150, i5-8550U, SanDisk X600 SD9SN8W-128G	3379 Points -20%
Work Score Accelerated v2
Lenovo Ideapad S340-14IWL-81N70056GE GeForce MX230, i7-8565U, WDC PC SN520 SDAPNUW-512G	5133 Points +3%
Average Intel Core i5-8265U, NVIDIA GeForce MX250 (4965 - 5223, n=2)	5094 Points +3%
Average of class Multimedia (3115 - 6078, n=10, last 2 years)	5081 Points +2%
Lenovo IdeaPad S540-14IWL GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	4965 Points
Lenovo IdeaPad S540-14API Vega 10, R7 3700U, Samsung SSD PM981 MZVLB512HAJQ	4839 Points -3%
HP Pavilion 14-ce0002ng GeForce MX150, i5-8550U, SanDisk X600 SD9SN8W-128G	4456 Points -10%

PCMark 8 Home Score Accelerated v2		4220 poäng
PCMark 8 Creative Score Accelerated v2		5959 poäng
PCMark 8 Work Score Accelerated v2		4965 poäng
PCMark 10 Score		4192 poäng
Hjälp

	Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U Samsung SSD PM981 MZVLB512HAJQ	Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U Samsung SSD PM981 MZVLB512HAJQ	Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U WDC PC SN520 SDAPNUW-512G	HP Pavilion 14-ce0002ng, Intel Core i7-8550U SanDisk X600 SD9SN8W-128G	Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U Kingston RBU-SNS8180DS3512GJ	Average Samsung SSD PM981 MZVLB512HAJQ
AS SSD		5%	-24%	-340%	-272%	-9%
Seq Read	1939	2749 42%	1583 -18%	481.4 -75%	487.6 -75%	1976 ?(1030 - 2806, n=62) 2%
Seq Write	1755	1813 3%	1345 -23%	110.1 -94%	392.7 -78%	1637 ?(487 - 2564, n=62) -7%
4K Read	61	47.69 -22%	44.47 -27%	31.49 -48%	36.4 -40%	50.5 ?(31.7 - 61, n=62) -17%
4K Write	138.9	94.3 -32%	136.1 -2%	62.6 -55%	26.46 -81%	112 ?(1.76 - 145.8, n=62) -19%
4K-64 Read	1271	1242 -2%	1038 -18%	221.8 -83%	325.4 -74%	1203 ?(530 - 1823, n=62) -5%
4K-64 Write	1330	2716 104%	1113 -16%	46.82 -96%	87.2 -93%	1504 ?(96.2 - 2716, n=62) 13%
Access Time Read *	0.04	0.047 -18%	0.086 -115%	0.394 -885%	0.432 -980%	0.05092 ?(0.029 - 0.103, n=62) -27%
Access Time Write *	0.028	0.04 -43%	0.027 4%	0.845 -2918%	0.4 -1329%	0.08337 ?(0.025 - 2.52, n=62) -198%
Score Read	1526	1564 2%	1241 -19%	301 -80%	411 -73%	1451 ?(752 - 2125, n=62) -5%
Score Write	1645	2992 82%	1383 -16%	120 -93%	153 -91%	1780 ?(147 - 2992, n=62) 8%
Score Total	3955	5316 34%	3255 -18%	570 -86%	782 -80%	3966 ?(2348 - 5316, n=62) 0%
Copy ISO MB/s	1134	934 -18%		135.2 -88%		1755 ?(917 - 3259, n=43) 55%
Copy Program MB/s	350.4	206.1 -41%		80.7 -77%		454 ?(206 - 828, n=43) 30%
Copy Game MB/s	736	547 -26%		111.5 -85%		1057 ?(547 - 1639, n=43) 44%

* ... smaller is better

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

Samsung SSD PM981 MZVLB512HAJQ

Sequential Read: 1273 MB/s

Sequential Write: 1244 MB/s

512K Read: 618 MB/s

512K Write: 1826 MB/s

4K Read: 66.4 MB/s

4K Write: 156.9 MB/s

4K QD32 Read: 458.1 MB/s

4K QD32 Write: 363.8 MB/s

3DMark 11 | 3DMark | SPECviewperf 12 | SPECviewperf 13

3DMark 11 - 1280x720 Performance GPU
Average of class Multimedia (3505 - 60250, n=78, last 2 years)	20510 Points +315%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	4942 Points
Average NVIDIA GeForce MX250 (3585 - 4942, n=29)	4404 Points -11%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	3968 Points -20%
Lenovo Ideapad S340-14IWL-81N70056GE NVIDIA GeForce MX230, Intel Core i7-8565U	3582 Points -28%
Asus VivoBook 14 F412FJ-EB084T NVIDIA GeForce MX230, Intel Core i5-8265U	3318 Points -33%
HP Pavilion 14-ce0002ng NVIDIA GeForce MX150, Intel Core i7-8550U	2945 Points -40%

3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Multimedia (14679 - 130614, n=38, last 2 years)	56887 Points +141%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	23643 Points
Average NVIDIA GeForce MX250 (13805 - 23863, n=25)	21491 Points -9%
HP Pavilion 14-ce0002ng NVIDIA GeForce MX150, Intel Core i7-8550U	19698 Points -17%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	18581 Points -21%
Lenovo Ideapad S340-14IWL-81N70056GE NVIDIA GeForce MX230, Intel Core i7-8565U	17999 Points -24%
Asus VivoBook 14 F412FJ-EB084T NVIDIA GeForce MX230, Intel Core i5-8265U	15299 Points -35%
1920x1080 Fire Strike Graphics
Average of class Multimedia (1835 - 46022, n=81, last 2 years)	14739 Points +296%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	3720 Points
HP Pavilion 14-ce0002ng NVIDIA GeForce MX150, Intel Core i7-8550U	3561 Points -4%
Average NVIDIA GeForce MX250 (2939 - 3885, n=29)	3531 Points -5%
Lenovo Ideapad S340-14IWL-81N70056GE NVIDIA GeForce MX230, Intel Core i7-8565U	2729 Points -27%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	2568 Points -31%
Asus VivoBook 14 F412FJ-EB084T NVIDIA GeForce MX230, Intel Core i5-8265U	2369 Points -36%

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	23.86 fps +43%
Average NVIDIA GeForce MX250 ()	16.7 fps 0%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	16.67 fps
1900x1060 Siemens NX (snx-02)
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	8.77 fps +318%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	2.1 fps
Average NVIDIA GeForce MX250 ()	2.1 fps 0%
1900x1060 Showcase (showcase-01)
Average NVIDIA GeForce MX250 ()	16.7 fps 0%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	16.66 fps
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	11.34 fps -32%
1900x1060 Medical (medical-01)
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	18.12 fps
Average NVIDIA GeForce MX250 ()	18.1 fps 0%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	12.09 fps -33%
1900x1060 Maya (maya-04)
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	5.99 fps +99%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	3.01 fps
Average NVIDIA GeForce MX250 ()	3.01 fps 0%
1900x1060 Energy (energy-01)
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	1.08 fps
Average NVIDIA GeForce MX250 ()	1.08 fps 0%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	0.8 fps -26%
1900x1060 Creo (creo-01)
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	16.26 fps +53%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	10.63 fps
Average NVIDIA GeForce MX250 ()	10.6 fps 0%
1900x1060 Catia (catia-04)
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	11.1 fps +21%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	9.15 fps
Average NVIDIA GeForce MX250 ()	9.15 fps 0%
1900x1060 3ds Max (3dsmax-05)
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	27.9 fps
Average NVIDIA GeForce MX250 ()	27.9 fps 0%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	24.67 fps -12%

SPECviewperf 13
Solidworks (sw-04)
Average of class Multimedia (last 2 years)	109.6 fps +215%
Average NVIDIA GeForce MX250 ()	34.8 fps 0%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	34.75 fps
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	3.69 fps -89%
Siemens NX (snx-03)
Average of class Multimedia (last 2 years)	22.8 fps +274%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	18.43 fps +203%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	6.09 fps
Average NVIDIA GeForce MX250 ()	6.09 fps 0%
Showcase (showcase-02)
Average of class Multimedia (last 2 years)	111.2 fps +565%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	16.72 fps
Average NVIDIA GeForce MX250 ()	16.7 fps 0%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	11.34 fps -32%
Medical (medical-02)
Average of class Multimedia (last 2 years)	74.4 fps +583%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	10.9 fps
Average NVIDIA GeForce MX250 ()	10.9 fps 0%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	7.96 fps -27%
Maya (maya-05)
Average of class Multimedia (last 2 years)	319 fps +544%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	49.53 fps
Average NVIDIA GeForce MX250 ()	49.5 fps 0%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	27.03 fps -45%
Energy (energy-02)
Average of class Multimedia (last 2 years)	42.1 fps +8671%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	0.63 fps +31%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	0.48 fps
Average NVIDIA GeForce MX250 ()	0.48 fps 0%
Creo (creo-02)
Average of class Multimedia (last 2 years)	241 fps +802%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	26.72 fps
Average NVIDIA GeForce MX250 ()	26.7 fps 0%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	25.18 fps -6%
Catia (catia-05)
Average of class Multimedia (last 2 years)	150.2 fps +472%
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	30.21 fps +15%
Average NVIDIA GeForce MX250 ()	26.3 fps 0%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	26.27 fps
3ds Max (3dsmax-06)
Average of class Multimedia (last 2 years)	216 fps +681%
Average NVIDIA GeForce MX250 ()	27.7 fps 0%
Lenovo IdeaPad S540-14IWL NVIDIA GeForce MX250, Intel Core i5-8265U	27.65 fps
Lenovo IdeaPad S540-14API AMD Radeon RX Vega 10, AMD Ryzen 7 3700U	24.81 fps -10%

3DMark 11 Performance		4950 poäng
3DMark Ice Storm Standard Score		64303 poäng
3DMark Cloud Gate Standard Score		10508 poäng
3DMark Fire Strike Score		3254 poäng
3DMark Fire Strike Extreme Score		1689 poäng
Hjälp

... jämför

The Witcher 3 | F1 2019 | Rocket League | FIFA 19

The Witcher 3
1024x768 Low Graphics & Postprocessing
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	47.4 fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	43 fps -9%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	19.8 fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	15 fps -24%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	12 fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	11 fps -8%

F1 2019
1280x720 Ultra Low Preset
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	66 fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	51 fps -23%
1920x1080 Medium Preset AA:T AF:16x
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	30 fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	21 fps -30%
1920x1080 High Preset AA:T AF:16x
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	25 fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	18 fps -28%

Rocket League
1280x720 Performance
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	176 (41^min - 235^max) fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	106.5 fps -39%
1920x1080 Quality AA:Medium FX
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	109 (43^min - 154^max) fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	62.5 fps -43%
1920x1080 High Quality AA:High FX
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	80 (35^min - 113^max) fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	35.3 fps -56%

FIFA 19
1280x720 Low Preset
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	74.1 fps +43%
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	52 (34^min - 76^max) fps
1920x1080 Medium Preset
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	45.7 (24^min - 52^max) fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	44.5 fps -3%
1920x1080 High Preset AA:2x MS
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, NVIDIA GeForce MX250	42.9 (22^min - 44^max) fps
Lenovo IdeaPad S540-14API AMD Ryzen 7 3700U, AMD Radeon RX Vega 10	33 fps -23%

Lenovo IdeaPad S540-14IWL GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ: Ø10.2 (1-12)

Lenovo IdeaPad S540-14API Vega 10, R7 3700U, Samsung SSD PM981 MZVLB512HAJQ: Ø10.2 (9-11)

IdeaPad S540-14IWL

	låg	med.	hög	ultra
BioShock Infinite (2013)	197.7	105.6	96.9	37.6
Battlefield 4 (2013)	88	68	63	29.9
The Witcher 3 (2015)	47.4	34.5	19.8	12
Dota 2 Reborn (2015)	118	99	67.3	60.3
Rise of the Tomb Raider (2016)	53.1	39.9	21	17.5
Rocket League (2017)	176	109	80
Playerunknown's Battlegrounds (PUBG) (2017)	57.3	28.4	23.2	18.7
Fortnite (2018)	140	55.4	25.2	22
X-Plane 11.11 (2018)	59.5	42.9	40
F1 2018 (2018)	65	37	26	16
FIFA 19 (2018)	52	45.7	42.9	40.1
Anno 1800 (2019)	43.3	18.2	12.9	7.2
Rage 2 (2019)	32.6	21.2	19.4	18.9
F1 2019 (2019)	66	30	25	14

IdeaPad S540-14API

	låg	med.	hög	ultra
BioShock Infinite (2013)	110			21.3
The Witcher 3 (2015)	43		15	11
Dota 2 Reborn (2015)	65	61	36.2	33.4
Rise of the Tomb Raider (2016)	44.4		16.4	13
Rocket League (2017)	106.5	62.5	35.3
Playerunknown's Battlegrounds (PUBG) (2017)	37.5	15	12.3
Fortnite (2018)	56.2	33	15.5
X-Plane 11.11 (2018)	25.4	19.4	17.9
F1 2018 (2018)	46	24	18
FIFA 19 (2018)	74.1	44.5	33
Anno 1800 (2019)	32.9	13	7.6
Rage 2 (2019)	25.1	11.8	7.3
F1 2019 (2019)	51	21	18

Ljudnivå

Låg belastning		29.3 / 29.3 / 29.3 dB(A)
Hög belastning		34.4 / 34.9 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM1, Arta (15 cm avstånd) environment noise: 29.3 dB(A)

	Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U Vega 10, R7 3700U, Samsung SSD PM981 MZVLB512HAJQ	Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U GeForce MX230, i7-8565U, WDC PC SN520 SDAPNUW-512G	HP Pavilion 14-ce0002ng, Intel Core i7-8550U GeForce MX150, i5-8550U, SanDisk X600 SD9SN8W-128G	Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U GeForce MX230, i5-8265U, Kingston RBU-SNS8180DS3512GJ
Noise		1%	-6%	-16%	-2%
off / environment *	29.3	29.3 -0%	30.6 -4%	30.5 -4%	29.9 -2%
Idle Minimum *	29.3	29.3 -0%	30.6 -4%	32.7 -12%	30 -2%
Idle Average *	29.3	29.3 -0%	30.6 -4%	32.7 -12%	30 -2%
Idle Maximum *	29.3	29.6 -1%	31.2 -6%	32.7 -12%	30 -2%
Load Average *	34.4	31.9 7%	36.5 -6%	42.9 -25%	33.5 3%
Witcher 3 ultra *	34.4	34.3 -0%
Load Maximum *	34.9	34.8 -0%	39.7 -14%	45 -29%	38 -9%

* ... smaller is better

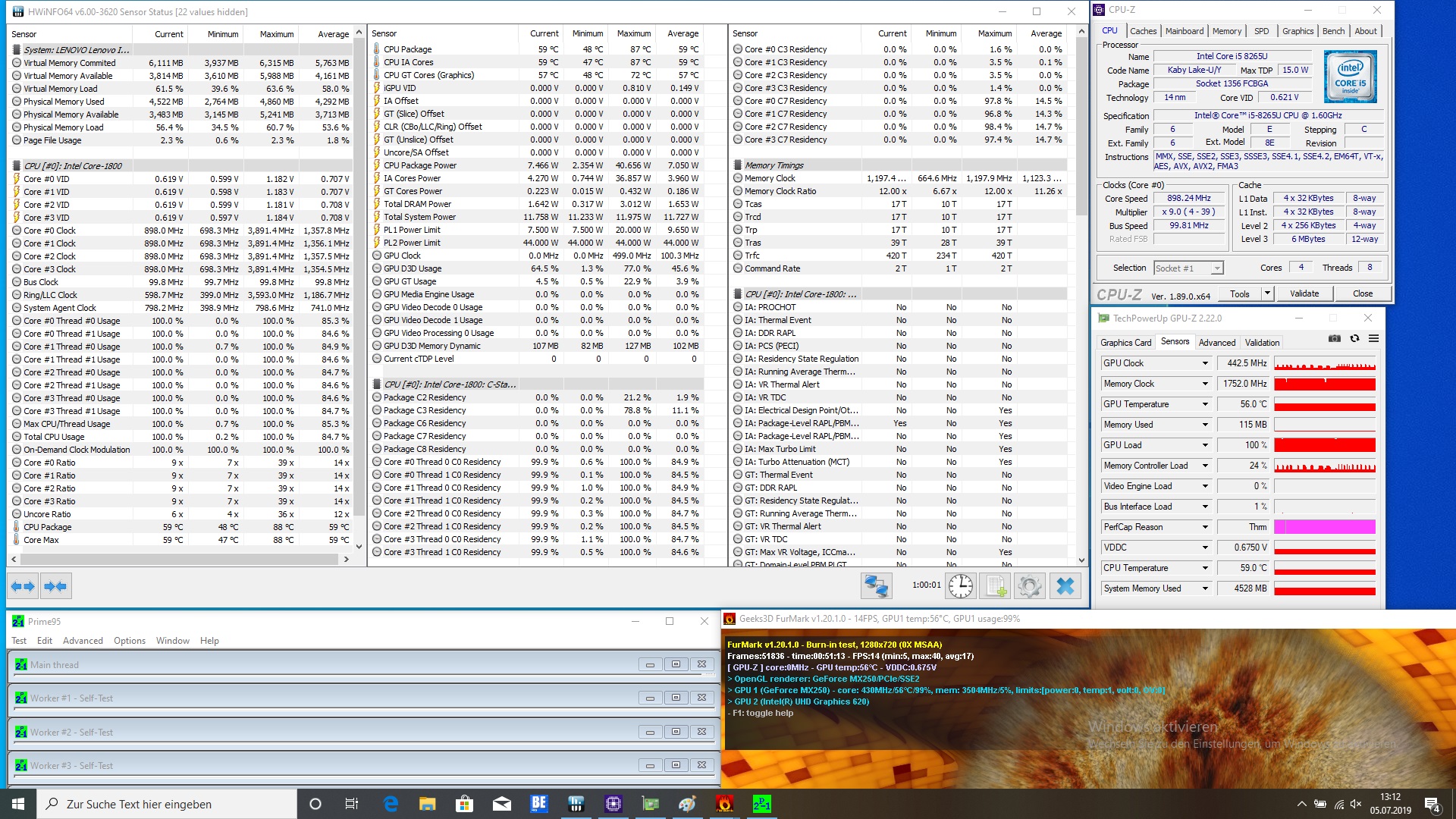

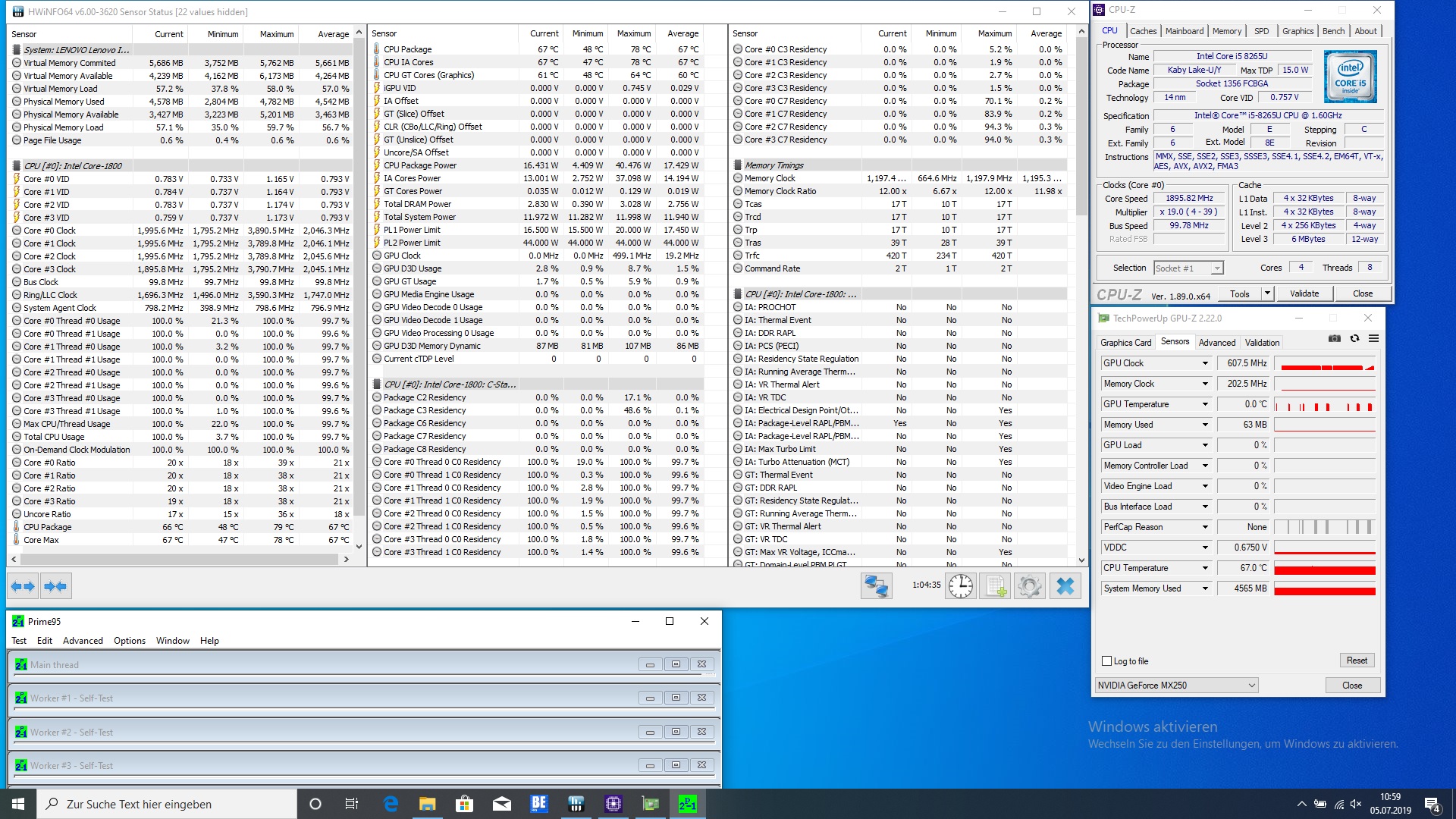

IdeaPad S540-14IWL: FurMark & Prime95 stress-test

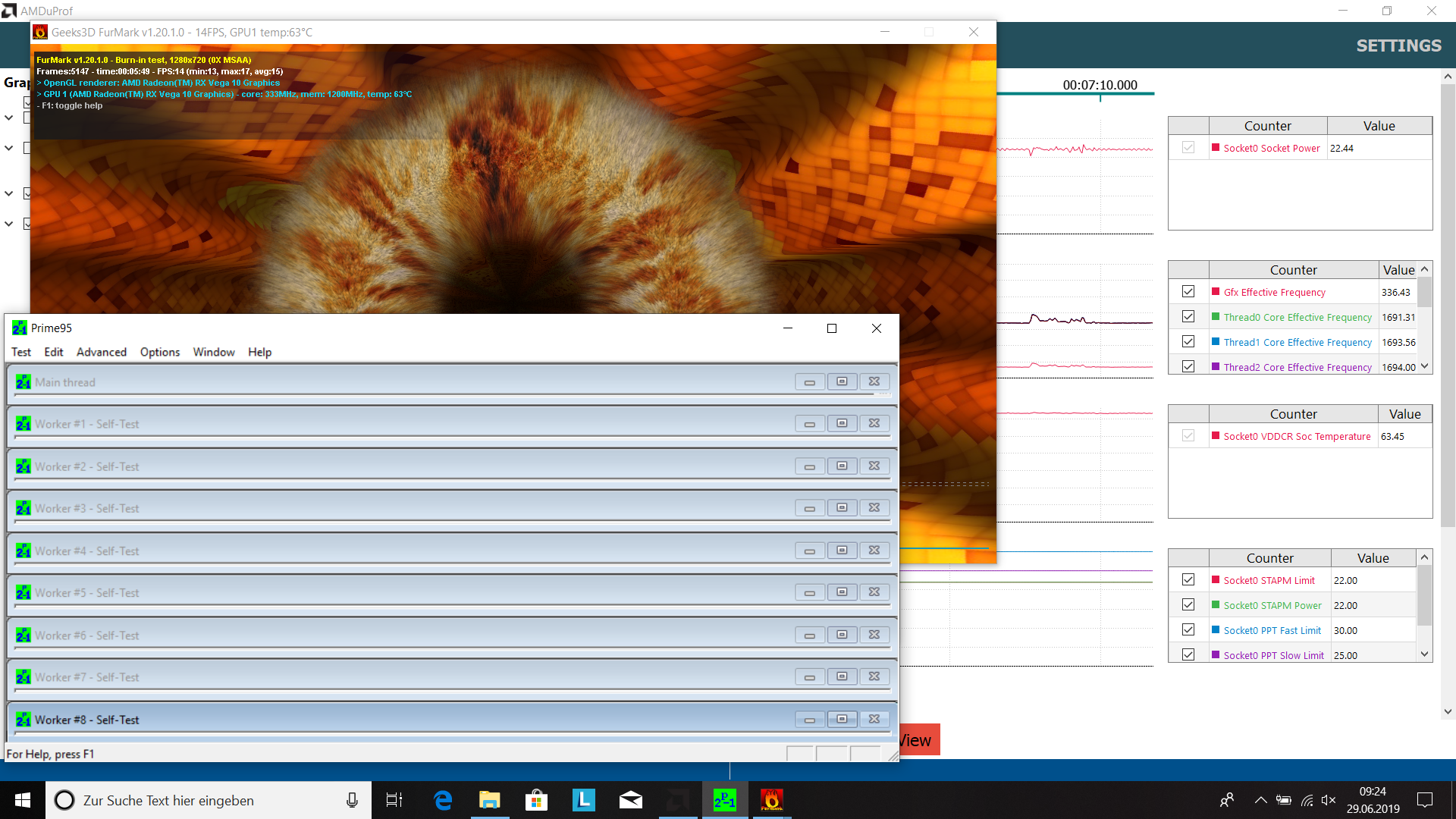

IdeaPad S540-14API: FurMark & Prime95 stress-test

Hög belastning

Låg belastning

Witcher 3


38.5 °C	41.8 °C	40.1 °C
34.4 °C	40.3 °C	38.8 °C
27.5 °C	27.9 °C	28 °C

Max: 41.8 °C
Medel: 35.3 °C


41.7 °C	43.3 °C	35.2 °C
34 °C	35.6 °C	31.4 °C
28.2 °C	28.9 °C	28.5 °C

Max: 43.3 °C
Medel: 34.1 °C

Strömförsörjning (max.) 40.6 °C | Rumstemperatur 23.1 °C | Voltcraft IR-900

Hög belastning

Låg belastning

Witcher 3


24.8 °C	25.1 °C	25 °C
24.8 °C	25 °C	24.9 °C
24.5 °C	24.6 °C	24.7 °C

Max: 25.1 °C
Medel: 24.8 °C


25.3 °C	25.4 °C	25.2 °C
25.1 °C	25.2 °C	25.3 °C
25 °C	25.1 °C	25 °C

Max: 25.4 °C
Medel: 25.2 °C

Strömförsörjning (max.) 25.3 °C | Rumstemperatur 23 °C | Voltcraft IR-900

Hög belastning

Låg belastning

Witcher 3


37.7 °C	41.1 °C	39.5 °C
33.7 °C	38.9 °C	39.5 °C
27.8 °C	27.9 °C	28.3 °C

Max: 41.1 °C
Medel: 34.9 °C


41.2 °C	42.2 °C	35.9 °C
35.1 °C	37.1 °C	33.3 °C
29.8 °C	31.2 °C	30.1 °C

Max: 42.2 °C
Medel: 35.1 °C

Strömförsörjning (max.) 40.4 °C | Rumstemperatur 23.4 °C | Voltcraft IR-900

(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 41.8 °C / 107 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 31.3 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 34.9 °C / 95 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.3 °C / 82.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (+0.5 °C / 0.9 F).

	Lenovo IdeaPad S540-14IWL, Intel Core i5-8265U GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	Lenovo IdeaPad S540-14API, AMD Ryzen 7 3700U Vega 10, R7 3700U, Samsung SSD PM981 MZVLB512HAJQ	Lenovo Ideapad S340-14IWL-81N70056GE, Intel Core i7-8565U GeForce MX230, i7-8565U, WDC PC SN520 SDAPNUW-512G	HP Pavilion 14-ce0002ng, Intel Core i7-8550U GeForce MX150, i5-8550U, SanDisk X600 SD9SN8W-128G	Asus VivoBook 14 F412FJ-EB084T, Intel Core i5-8265U GeForce MX230, i5-8265U, Kingston RBU-SNS8180DS3512GJ
Heat		-7%	-8%	-2%	-6%
Maximum Upper Side *	41.8	40.4 3%	45.2 -8%	49.2 -18%	45.4 -9%
Maximum Bottom *	43.3	40.2 7%	43.8 -1%	47 -9%	44.4 -3%
Idle Upper Side *	25.1	30.6 -22%	27.4 -9%	22.5 10%	26.9 -7%
Idle Bottom *	25.4	29.7 -17%	28.7 -13%	23.1 9%	26.5 -4%

* ... smaller is better

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Lenovo IdeaPad S540-14IWL audio analysis

(-) | not very loud speakers (70.5 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.7% lower than median
(±) | linearity of bass is average (12.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5% higher than median
(±) | linearity of mids is average (8.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 5.5% lower than median
(±) | linearity of highs is average (9.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23% difference to median)
Compared to same class
» 80% of all tested devices in this class were better, 6% similar, 15% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 65% of all tested devices were better, 6% similar, 29% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Asus VivoBook 14 F412FJ-EB084T audio analysis

(±) | speaker loudness is average but good (77.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.4% lower than median
(±) | linearity of bass is average (10.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.5% away from median
(+) | highs are linear (2.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.7% difference to median)
Compared to same class
» 47% of all tested devices in this class were better, 8% similar, 45% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 32% of all tested devices were better, 8% similar, 60% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning

Av/Standby	0.37 / 0.57 Watt
Låg belastning	2.74 / 5.64 / 8.4 Watt
Hög belastning	61.3 / 69.4 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Lenovo IdeaPad S540-14IWL i5-8265U, GeForce MX250, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14"	Lenovo IdeaPad S540-14API R7 3700U, Vega 10, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14"	Lenovo Ideapad S340-14IWL-81N70056GE i7-8565U, GeForce MX230, WDC PC SN520 SDAPNUW-512G, IPS, 1920x1080, 14"	HP Pavilion 14-ce0002ng i5-8550U, GeForce MX150, SanDisk X600 SD9SN8W-128G, IPS, 1920x1080, 14"	Asus VivoBook 14 F412FJ-EB084T i5-8265U, GeForce MX230, Kingston RBU-SNS8180DS3512GJ, IPS, 1920x1080, 14"	Average NVIDIA GeForce MX250	Average of class Multimedia
Power Consumption		-1%	16%	-38%	-0%	-22%	-76%
Idle Minimum *	2.74	4.92 -80%	2.5 9%	6.3 -130%	3.7 -35%	4.1 ?(2.16 - 7.4, n=29) -50%	6.54 ?(2.1 - 21.1, n=88, last 2 years) -139%
Idle Average *	5.64	7.2 -28%	5.1 10%	8.4 -49%	6.1 -8%	7.91 ?(4.2 - 12.4, n=29) -40%	11.3 ?(4.6 - 30, n=88, last 2 years) -100%
Idle Maximum *	8.4	9.24 -10%	5.6 33%	10.2 -21%	8.3 1%	10.4 ?(7 - 16.2, n=29) -24%	13.3 ?(5.6 - 30.4, n=88, last 2 years) -58%
Load Average *	61.3	31.8 48%	47.5 23%	59 4%	43 30%	58.6 ?(29 - 84, n=29) 4%	70.7 ?(14.3 - 147, n=86, last 2 years) -15%
Witcher 3 ultra *	49.2	34.6 30%
Load Maximum *	69.4	44.5 36%	64.5 7%	66.3 4%	61.6 11%	68.9 ?(38 - 131, n=29) 1%	116.1 ?(47.7 - 270, n=88, last 2 years) -67%

* ... smaller is better

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		21tim 21min
WiFi Websurfing (Edge: 44.18362.1.0)		8tim 25min
Big Buck Bunny H.264 1080p		8tim 15min
Hög belastning (maximal ljusstyrka)		1tim 27min

Batteritid: IdeaPad S540-14IWL

Batteritid: IdeaPad S540-14API

	Lenovo IdeaPad S540-14IWL i5-8265U, GeForce MX250, 48 Wh	Lenovo IdeaPad S540-14API R7 3700U, Vega 10, 48 Wh	Lenovo Ideapad S340-14IWL-81N70056GE i7-8565U, GeForce MX230, 52.5 Wh	HP Pavilion 14-ce0002ng i5-8550U, GeForce MX150, 41 Wh	Asus VivoBook 14 F412FJ-EB084T i5-8265U, GeForce MX230, 37 Wh	Average of class Multimedia
Battery Runtime		-13%	-9%	-5%	-34%	25%
Reader / Idle	1281	717 -44%	1393 9%	797 -38%		1168 ?(612 - 2760, n=17, last 2 years) -9%
H.264	495	431 -13%		350 -29%		847 ?(319 - 1481, n=53, last 2 years) 71%
WiFi v1.3	505	467 -8%	361 -29%	414 -18%	331.3 -34%	640 ?(279 - 1204, n=88, last 2 years) 27%
Load	87	98 13%	82 -6%	145 67%		97.1 ?(39 - 212, n=65, last 2 years) 12%

För

+ Elegant och nedtonad design

+ Robust

+ Lätt

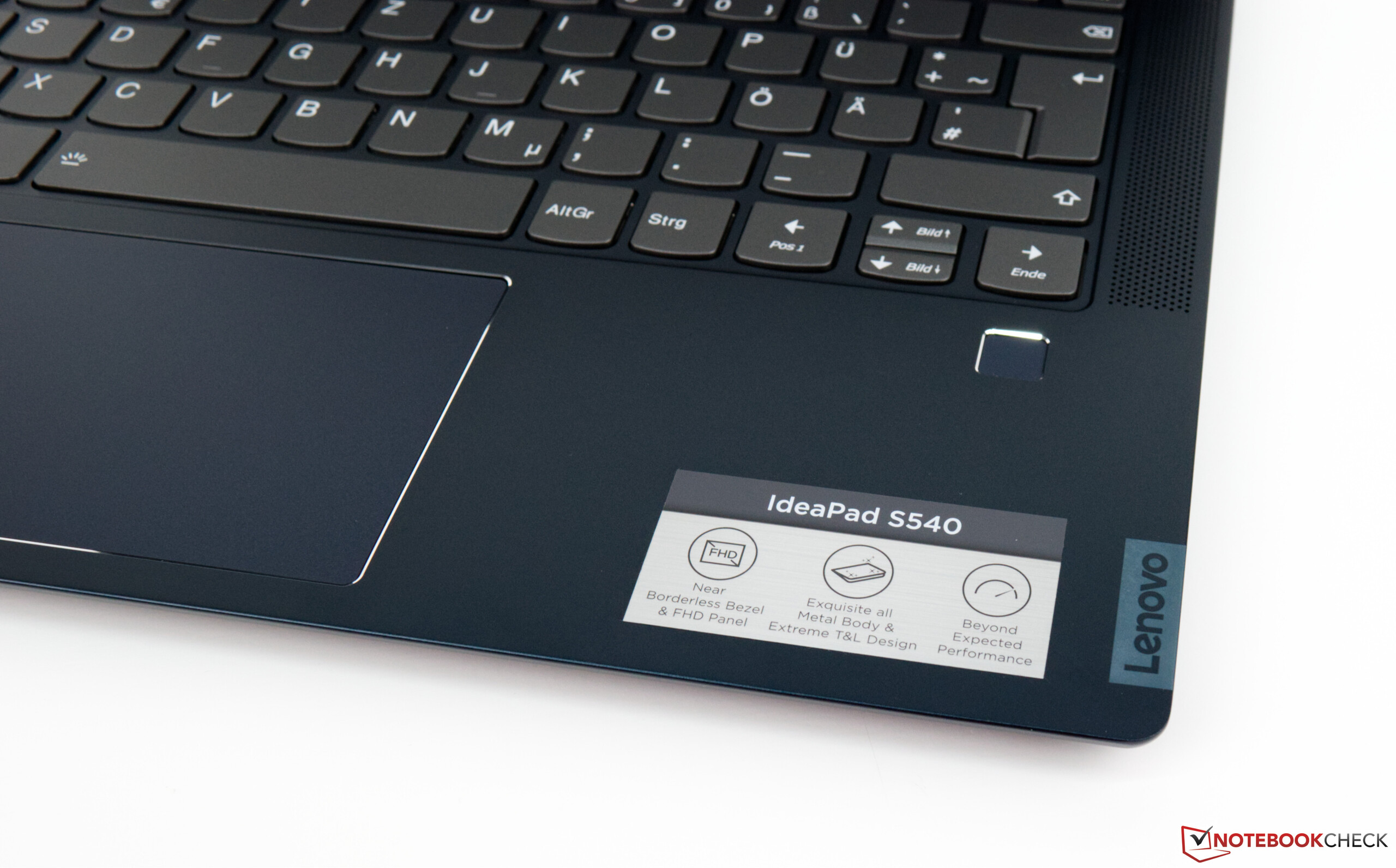

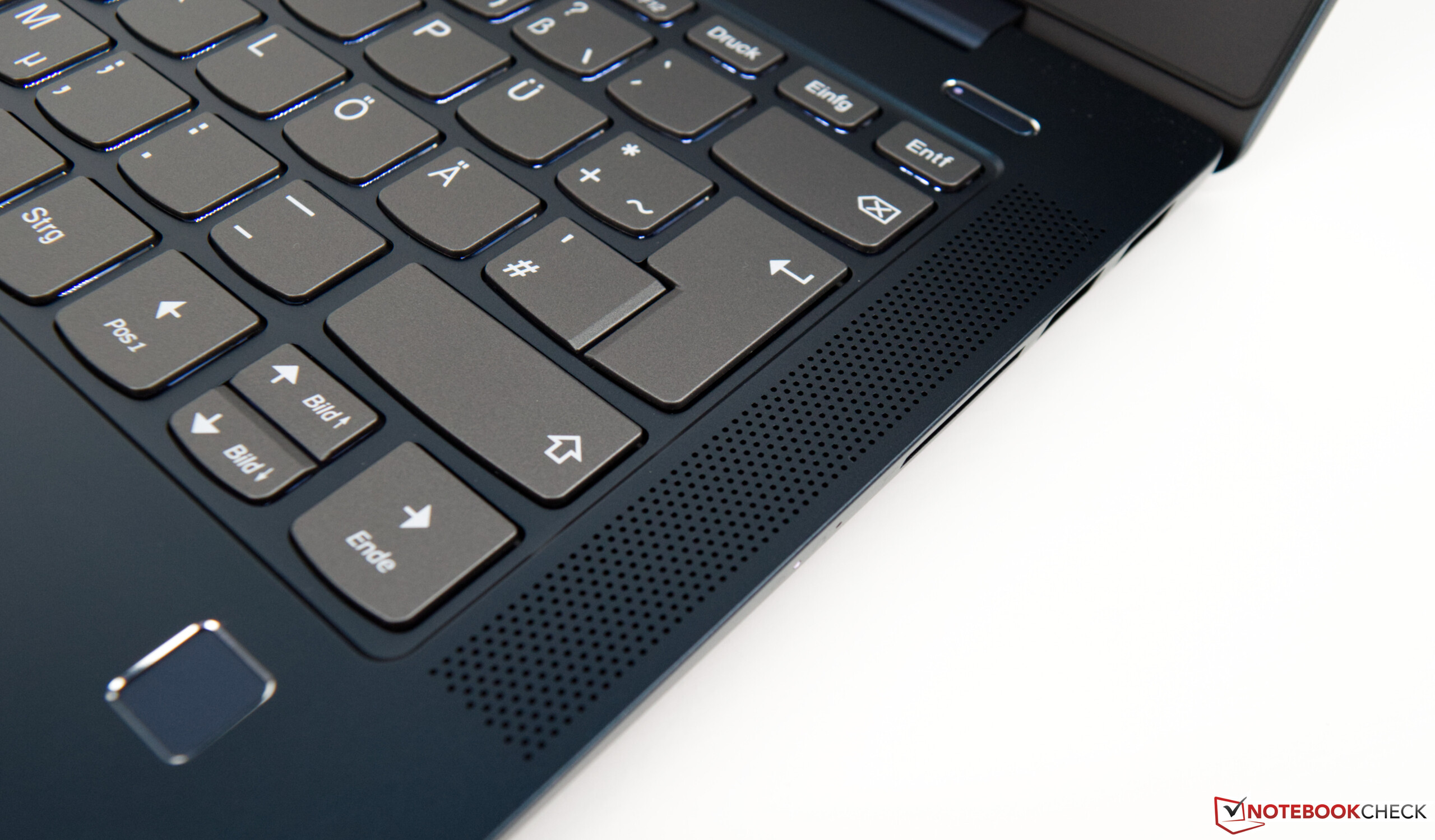

+ Fingeravtrycksläsare

+ Välplacerade högtalare

+ Skapliga inmatningsenheter

+ Bra batteritid

+ Snabb SSD-enhet

+ Prisvärd

+ Stabila betraktningsvinklar

+ SD-kortläsare

Emot

- Lenovo använder olika skärmar för AMD- och Intel-varianterna

- PWM används för skärmen på Intel-modellen

- Intel-modellens bakgrundsbelysning lider av bleeding

- AMD-modellen har en mörkare skärm än Intel-modellen

- Båda skärmarna har höga Delta E 2000-avvikelser

- Låg färgrymdstäckning

- Inga framtidssäkrade portar

- AMD-modellen har undermålig WiFi-prestanda

- Intel-processorn stryps vid batteridrift

Recension av Lenovo IdeaPad S540. Recensionsex från CampusPoint.

Läs den fullständiga versionen av den här recensionen på engelska här.

Lenovo IdeaPad S540 har rikligt med prestanda till ett bra pris oavsett vilket version du köper. Både S540-14IWL och -14API kostar runt 8.000 kronor och är identiska bortsett från att de har olika CPU och GPU.

Å ena sidan har S540-14API bättre flerkärnig prestanda jämfört med S540-14IWL, tack vare Ryzen 7 3700U-processorn. Men även om Radeon RX Vega 10 är kraftfull för att vara en integrerad GPU håller den inte jämna steg med den GeForce MX250 som sitter i S540-14IWL. RX Vega 10 saknar dessutom dedikerat VRAM och använder istället 2 GB av de 8 GB RAM som ingår. Effektivt sett gör detta att S540-API bara har 6 GB RAM jämfört med de 8 GB som S540-IWL har, då GeForce MX250 har 2 GB dedikerat GDDR5 VRAM.

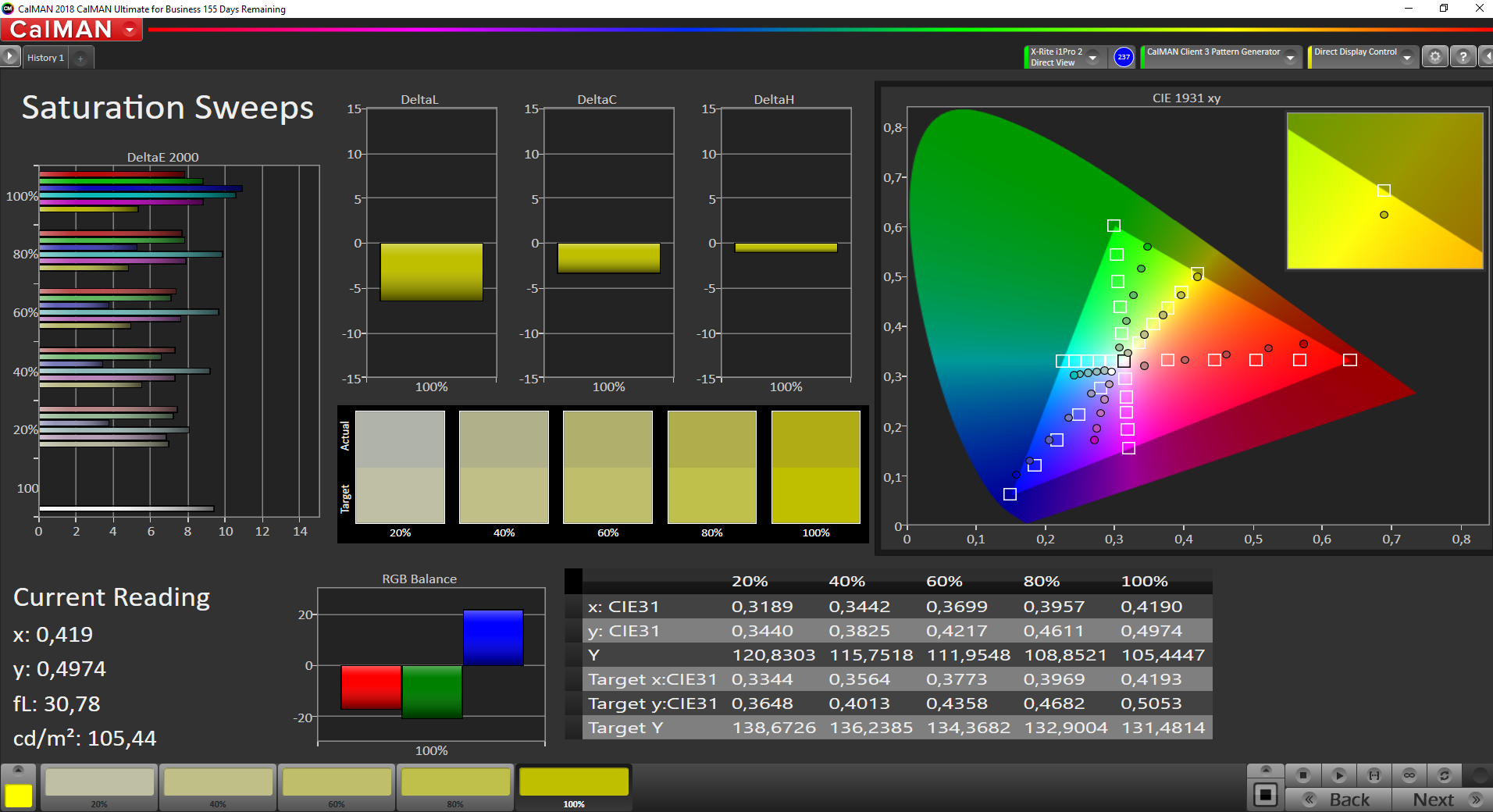

Skärmen har ofta varit en svag punkt på nyare AMD-drivna laptops som vi recenserat och det gäller också S540-14API. Den har en mörkare skärm än sin Intel-drivna motsvarighet. Den har dock inte problem med PWM eller att bakgrundsbelysningen blöder, vilket är fallet på S540-14IWL. Däremot har båda skärmarna kraftiga delta E-2000 avvikelser och begränsad färgrymdstäckning.

Lenovo IdeaPad S540-14IWL och -14API är båda bra multimediaenheter på 14 tum. De är välbyggda, prisvärda och har tillräckligt med kraft för de flesta uppgifter du slänger åt dem. Båda missar dock topp-poäng av olika anledningar.

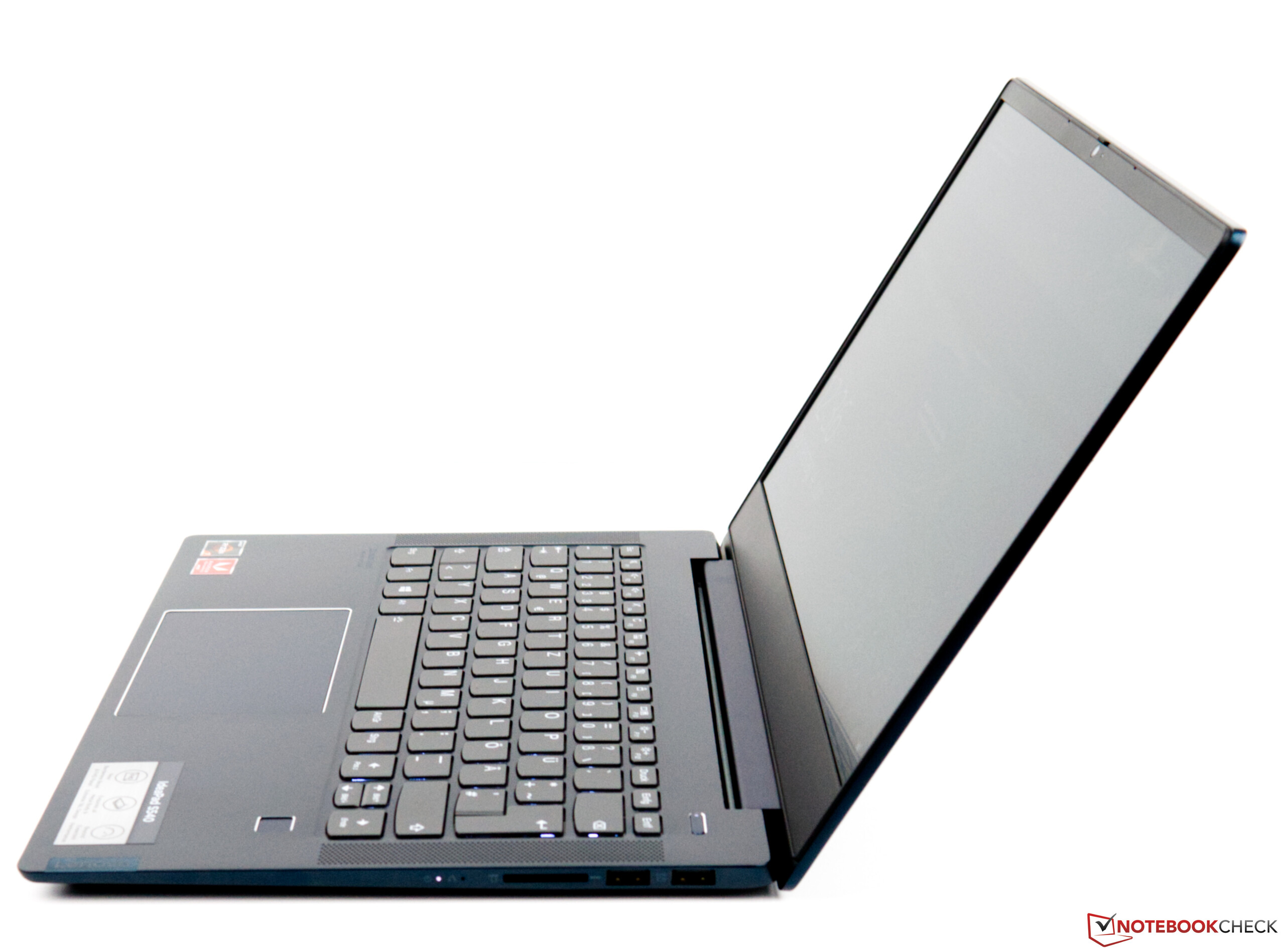

Vi uppskattade däremot den enkla och eleganta designen, som ser modern och nedtonad ut. Aluminiumhöljet är dessutom robust, precis som skärmlocket. IdeaPad S540 har ett bra portutbud även om användningen av den nu utdaterade HDMI 1.4b känns kortsiktig, precis som valet att inte inkludera stöd för DisplayPort eller Thunderbolt i den enda Typ C-porten. Detta, och ett byte av strömanslutningen mot en andra Typ C-port, hade framtidssäkrat S540 i åtminstone två eller tre år.

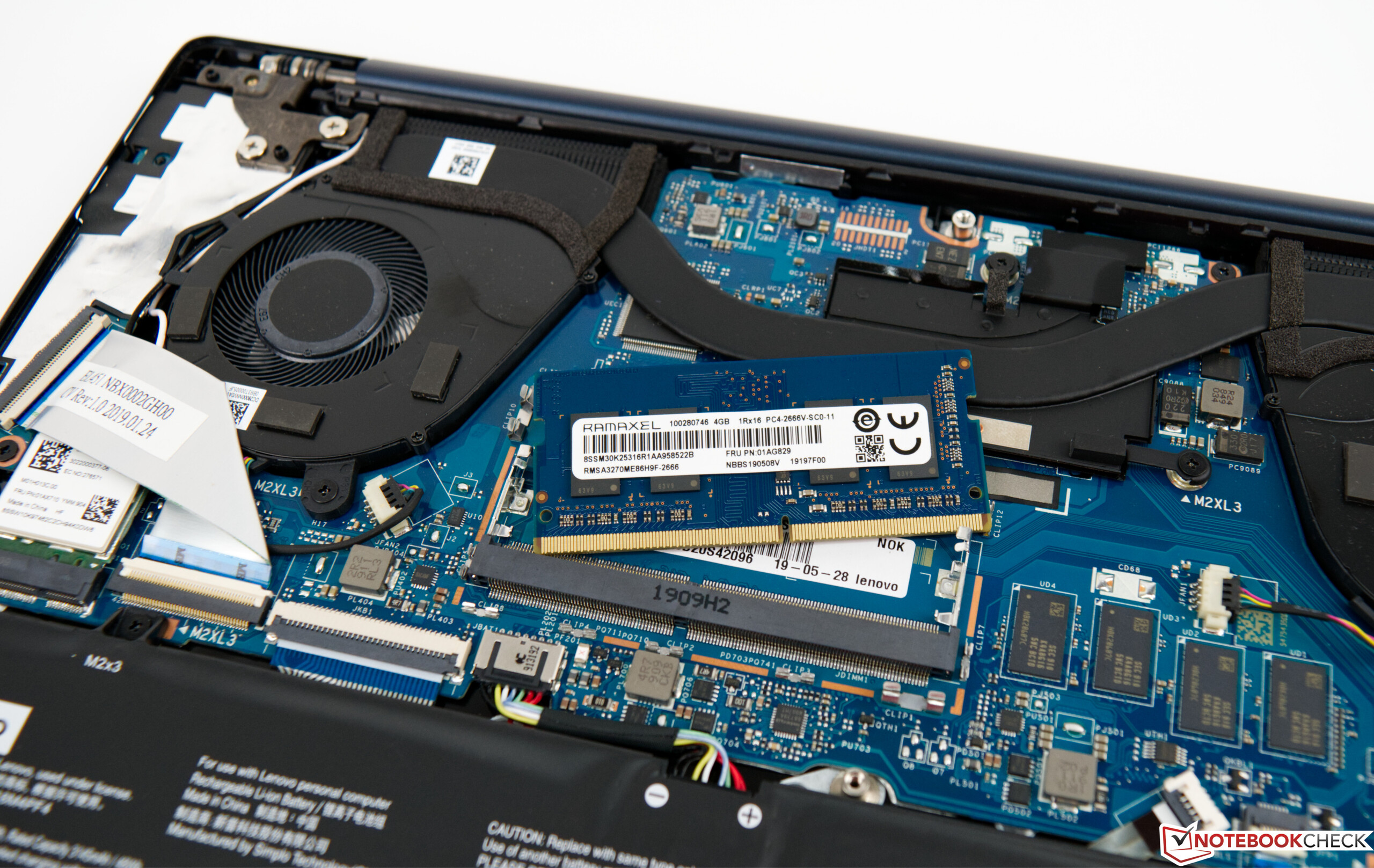

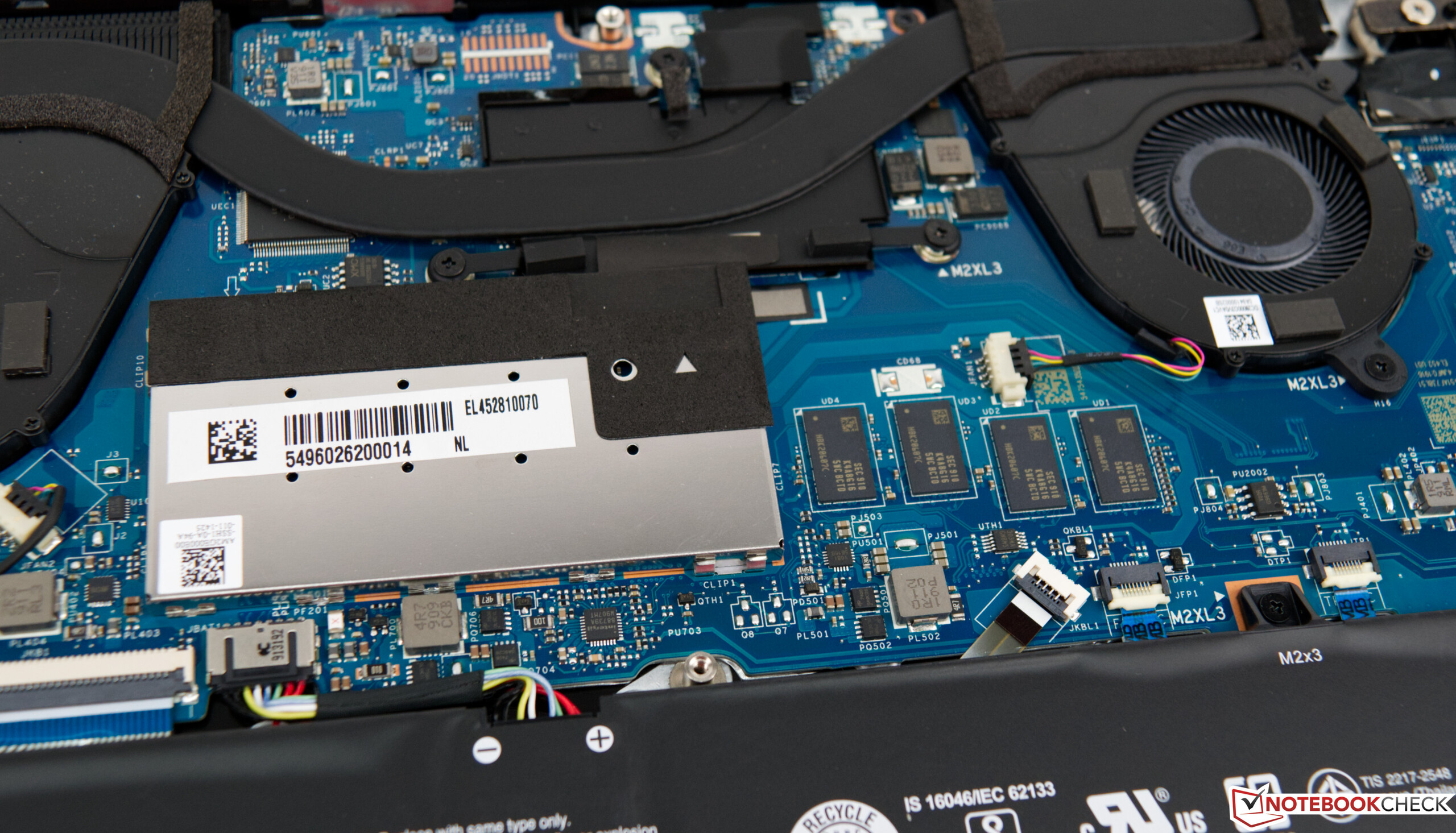

Båda enheterna har snabb NVMe-lagring, vilket hjälper systemet att flyta på smidigt. Det går att byta ut lagringsenheten mot en större sådan, men 512 GB bör räcka till för de flesta. Vi uppskattar att Lenovo har valt att inte inkludera en extra 2.5-tumsplats, då detta istället gjorde att de kunde sätta in ett stort batteri på 48 Wh. S540-14IWL har bättre batteritid än sitt AMD-drivna syskon, men båda står sig en hel dag mellan laddningarna.

Totalt sett är det knappt något som skiljer 540-14IWL från -14API. Den förstnämndas NVIDIA GPU ger bättre spel- och grafikprestanda än den sistnämndas integrerade RX Vega 10 GPU samtidigt som Ryzen 7 3700U har en fördel gentemot Core i5-8265U när det kommer till flerkärnade uppgifter. I slutändan är det en fråga om vilket du tycket är viktigast.

Lenovo IdeaPad S540-14IWL - 07/08/2019 v6 ^(old)
Sebastian Bade

Design

85 / 98 → 86%

Tangentbord

83%

Mus

92%

Anslutningar

47 / 81 → 58%

Vikt

70 / 20-67 → 100%

Batteri

90%

Skärm

87%

Spelprestanda

69 / 85 → 81%

Programprestanda

89 / 92 → 97%

Temperatur

91%

Ljudnivå

97 / 95 → 100%

Audio

51%

Camera

41 / 85 → 48%

Medel

76%

85%

Multimedia - Vägt medel

Lenovo IdeaPad S540-14API - 07/08/2019 v6 ^(old)
Sebastian Bade

Design

85 / 98 → 86%

Tangentbord

83%

Mus

92%

Anslutningar

45 / 81 → 56%

Vikt

70 / 20-67 → 100%

Batteri

89%

Skärm

84%

Spelprestanda

69 / 85 → 81%

Programprestanda

87 / 92 → 95%

Temperatur

91%

Ljudnivå

97 / 95 → 100%

Audio

51%

Camera

41 / 85 → 48%

Medel

76%

84%

Multimedia - Vägt medel

Price comparison

Editor of the original article: Alex Alderson - Senior Tech Writer - 11441 articles published on Notebookcheck since 2018

contact me via: @aldersonaj

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo IdeaPad S540 - AMD eller Intel? Lenovo låter köparen välja och vi jämför de båda alternativen

Sebastian Bade, 2019-07-15 (Update: 2019-07-15)

Lenovo IdeaPad S540-14IWL

Lenovo IdeaPad S540-14API

Lenovo IdeaPad S540-14IWL

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

Lenovo IdeaPad S540-14API

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

Lenovo IdeaPad S540-14IWL

IdeaPad S540-14API

IdeaPad S540-14IWL

IdeaPad S540-14API

IdeaPad S540-14IWL

IdeaPad S540-14API

Lenovo IdeaPad S540-14IWL audio analysis

Asus VivoBook 14 F412FJ-EB084T audio analysis

Batteritid: IdeaPad S540-14IWL

Batteritid: IdeaPad S540-14API

För

Emot

More articles related to this device

Price comparison
