MagyarTest: Lenovo ThinkCentre M910z Allt-i-Ett Dator (Sammanfattning)

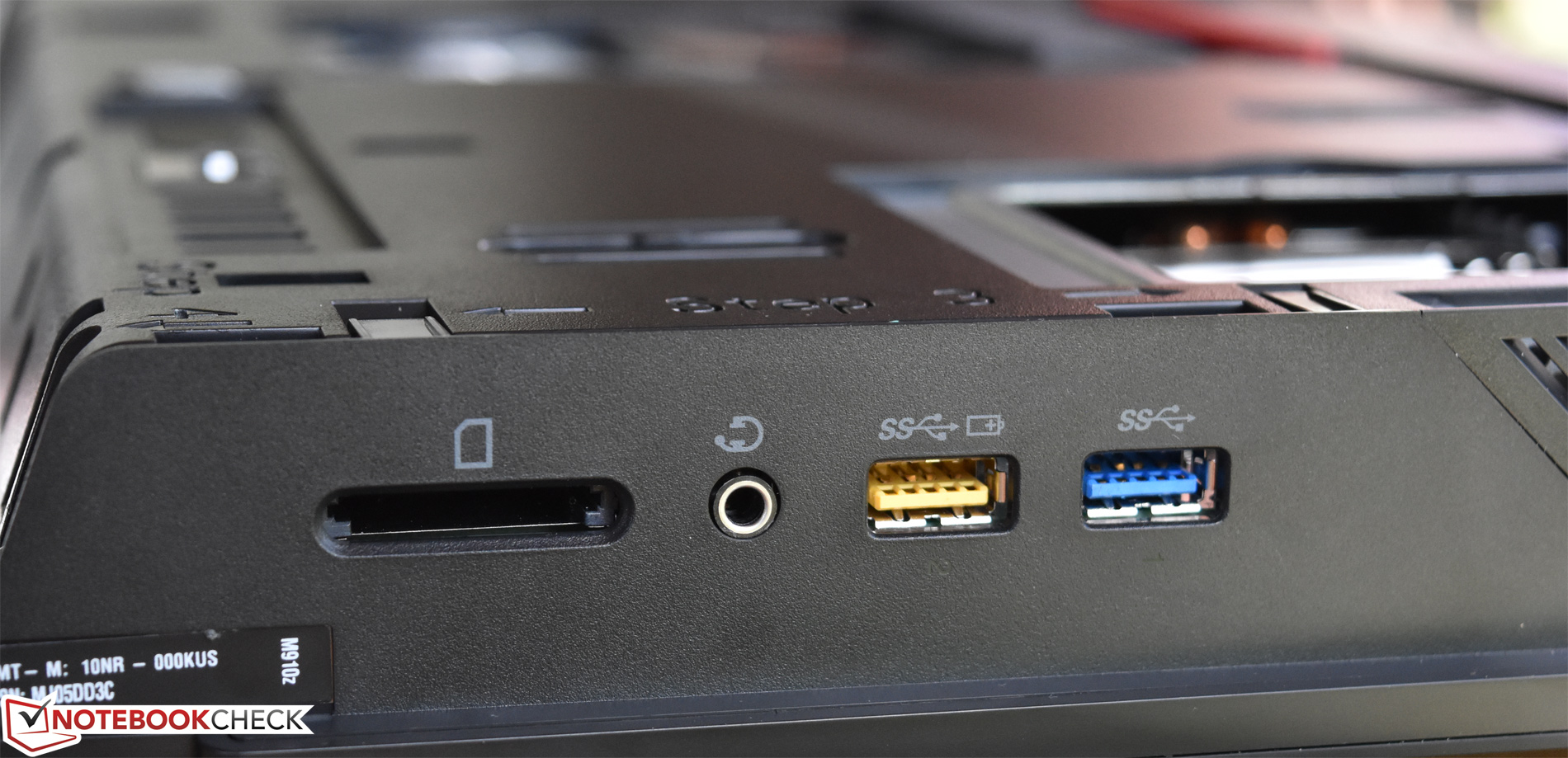

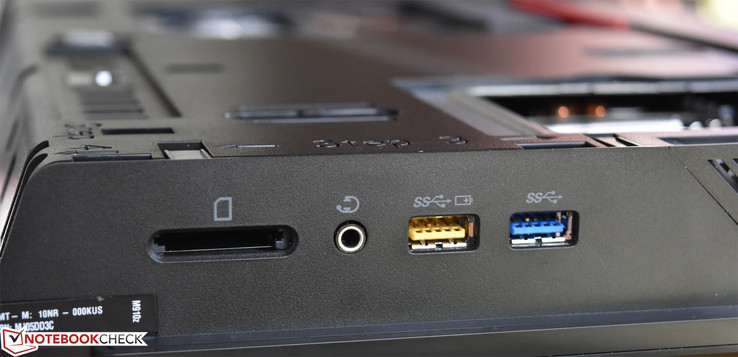

| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Dell Latitude 5580 | |
| HP Z1 G2 G1X47EA | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| maximum AS SSD Seq Read Test (1GB) | |
| Dell Latitude 5580 | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| HP Z1 G2 G1X47EA | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Networking | |
| iperf3 transmit AX12 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| Dell Latitude 5580 | |
| iperf3 receive AX12 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| Dell Latitude 5580 | |
| |||||||||||||||||||||||||
Distribution av ljusstyrkan: 93 %
Kontrast: 961:1 (Svärta: 0.23 cd/m²)
ΔE Color 3.8 | 0.5-29.43 Ø4.93
ΔE Greyscale 3.7 | 0.5-98 Ø5.2
90.3% sRGB (Argyll 1.6.3 3D)
58.44% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
90.3% sRGB (Argyll 2.2.0 3D)
64.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.38
| Lenovo ThinkCentre M910z-10NR000KUS LEN-M910z-B, IPS, 23.8", 1920x1080 | HP Z1 G2 G1X47EA HWP192F, IPS LED, 27", 2560x1440 | Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A 27", 5120x2880 | |
|---|---|---|---|
| Display | 14% | 33% | |
| Display P3 Coverage | 64.4 | 76.8 19% | 99.3 54% |
| sRGB Coverage | 90.3 | 99.7 10% | 100 11% |
| AdobeRGB 1998 Coverage | 65.6 | 74.4 13% | 88.2 34% |
| Response Times | -66% | -2% | |
| Response Time Grey 50% / Grey 80% * | 35.2 ? | 44.4 ? -26% | 30.4 ? 14% |
| Response Time Black / White * | 17.6 ? | 30.2 ? -72% | 20.8 ? -18% |
| PWM Frequency | 21740 ? | 200 ? -99% | |
| Screen | -3% | 15% | |
| Brightness middle | 221 | 365 65% | 429 94% |
| Brightness | 214 | 367 71% | 424 98% |
| Brightness Distribution | 93 | 87 -6% | 95 2% |
| Black Level * | 0.23 | 0.4 -74% | 0.58 -152% |
| Contrast | 961 | 913 -5% | 740 -23% |
| Colorchecker dE 2000 * | 3.8 | 4.68 -23% | 2.8 26% |
| Colorchecker dE 2000 max. * | 7.3 | ||
| Greyscale dE 2000 * | 3.7 | 6.6 -78% | 1.97 47% |
| Gamma | 2.38 92% | 2.34 94% | 2.13 103% |
| CCT | 6701 97% | 6094 107% | 6889 94% |
| Color Space (Percent of AdobeRGB 1998) | 58.44 | 66.26 13% | 79 35% |
| Color Space (Percent of sRGB) | 90.3 | 99.69 10% | 99.97 11% |
| Total Average (Program / Settings) | -18% /
-12% | 15% /
17% |
* ... smaller is better
Display Response Times

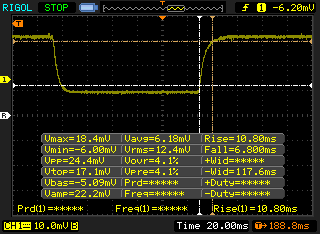

| ↔ Response Time Black to White | ||
|---|---|---|
| 17.6 ms ... rise ↗ and fall ↘ combined | ↗ 10.8 ms rise |  |
| ↘ 6.8 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 36 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||

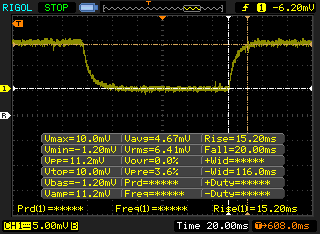

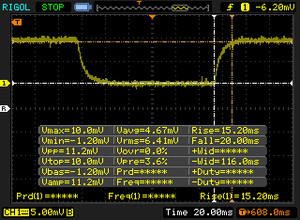

| ↔ Response Time 50% Grey to 80% Grey | ||
| 35.2 ms ... rise ↗ and fall ↘ combined | ↗ 15.2 ms rise |  |
| ↘ 20 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 45 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.9 ms). | ||

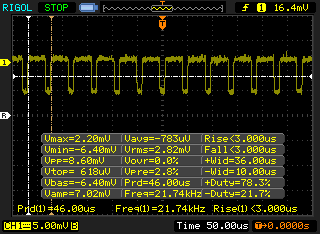

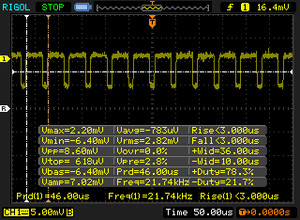

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 21740 Hz | ≤ 20 % brightness setting |  |
The display backlight flickers at 21740 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 21740 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Cinebench R15 | |
| CPU Single 64Bit | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | |
| HP Z1 G2 G1X47EA | |
| Dell Latitude 5580 | |
| CPU Multi 64Bit | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A | |
| HP Z1 G2 G1X47EA | |
| Dell Latitude 5580 | |
| Cinebench R11.5 | |
| CPU Single 64Bit | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| CPU Multi 64Bit | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| wPrime 2.10 - 1024m | |
| HP Z1 G2 G1X47EA | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
* ... smaller is better
| PCMark 8 | |
| Home Score Accelerated v2 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| HP Z1 G2 G1X47EA | |
| Dell Latitude 5580 | |
| Work Score Accelerated v2 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| HP Z1 G2 G1X47EA | |
| Creative Score Accelerated v2 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| HP Z1 G2 G1X47EA | |
| PCMark 8 Home Score Accelerated v2 | 3916 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 5077 poäng | |
| PCMark 8 Work Score Accelerated v2 | 5053 poäng | |
| PCMark 10 Score | 3910 poäng | |
Hjälp | ||
| 3DMark 11 | |
| 1280x720 Performance GPU | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Dell Latitude 5580 | |
| 1280x720 Performance Combined | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| Dell Latitude 5580 | |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| HP Z1 G2 G1X47EA | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| 1920x1080 Fire Strike Graphics | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| HP Z1 G2 G1X47EA | |
| Lenovo ThinkCentre M910z-10NR000KUS | |
| 1920x1080 Ice Storm Extreme Graphics | |
| Lenovo ThinkPad T470p-20J7S00000 | |
| 3DMark 06 Standard Score | 10165 poäng | |
| 3DMark 11 Performance | 1782 poäng | |
| 3DMark Cloud Gate Standard Score | 7160 poäng | |
| 3DMark Fire Strike Score | 907 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 52 | 35 | 23 | 8 |
Ljudnivå
| Låg belastning |
| 34.5 / 34.6 / 34.6 dB(A) |
| Hög belastning |
| 34.6 / 34.6 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  BK Precision 732A (15 cm avstånd) environment noise: 28 dB(A) | ||
| Lenovo ThinkCentre M910z-10NR000KUS HD Graphics 630, i5-7500, Toshiba NVMe THNSF5512GPUK | HP Z1 G2 G1X47EA Quadro K2100M, E3-1226 v3, Micron M600 MTFDDAT256MBF mSATA | Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A Radeon R9 M390, 6500, Apple Fusion Drive 1TB (24 GB SSD + 1 TB HDD) | Lenovo ThinkPad T470p-20J7S00000 GeForce 940MX, i7-7700HQ, Samsung PM961 NVMe MZVLW512HMJP | Dell Latitude 5580 HD Graphics 620, i5-7300U, Toshiba MQ01ACF050 | |
|---|---|---|---|---|---|
| Noise | 5% | -7% | 4% | -2% | |
| off / environment * | 28 | 30 -7% | 29 -4% | 30.6 -9% | |
| Idle Minimum * | 34.5 | 32.4 6% | 32.5 6% | 29 16% | 32.8 5% |
| Idle Average * | 34.6 | 32.4 6% | 32.5 6% | 29 16% | 32.8 5% |
| Idle Maximum * | 34.6 | 32.4 6% | 32.5 6% | 29 16% | 33.6 3% |
| Load Average * | 34.6 | 33.7 3% | 39 -13% | 35.6 -3% | 37.6 -9% |
| Load Maximum * | 34.6 | 33.7 3% | 48.2 -39% | 39.7 -15% | 37.6 -9% |
* ... smaller is better
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 34.4 °C / 94 F, ranging from 25 to 47 °C for the class Desktop.
(-) The bottom heats up to a maximum of 54.8 °C / 131 F, compared to the average of 34 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 26.6 °C / 80 F, compared to the device average of 29.7 °C / 85 F.
Lenovo ThinkCentre M910z-10NR000KUS audio analysis
(±) | speaker loudness is average but good (79.4 dB)
Bass 100 - 315 Hz
(+) | good bass - only 4.7% away from median
(-) | bass is not linear (15.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.7% higher than median
(±) | linearity of mids is average (9.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 6.8% lower than median
(±) | linearity of highs is average (11% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.9% difference to median)
Compared to same class
» 63% of all tested devices in this class were better, 25% similar, 13% worse
» The best had a delta of 6%, average was 17%, worst was 46%
Compared to all devices tested
» 47% of all tested devices were better, 7% similar, 46% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkPad T470p-20J7S00000 audio analysis
(+) | speakers can play relatively loud (83.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.1% lower than median
(±) | linearity of bass is average (14.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(+) | mids are linear (5.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(+) | highs are linear (6.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.6% difference to median)
Compared to same class
» 35% of all tested devices in this class were better, 8% similar, 57% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 45% of all tested devices were better, 7% similar, 48% worse
» The best had a delta of 4%, average was 25%, worst was 134%
| Av/Standby | 0.1 / 1.7 Watt |
| Låg belastning | 14.4 / 29.4 / 29.7 Watt |
| Hög belastning |
64.1 / 88.4 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkCentre M910z-10NR000KUS i5-7500, HD Graphics 630, Toshiba NVMe THNSF5512GPUK, IPS, 1920x1080, 23.8" | HP Z1 G2 G1X47EA E3-1226 v3, Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA, IPS LED, 2560x1440, 27" | Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A 6500, Radeon R9 M390, Apple Fusion Drive 1TB (24 GB SSD + 1 TB HDD), , 5120x2880, 27" | Lenovo ThinkPad T470p-20J7S00000 i7-7700HQ, GeForce 940MX, Samsung PM961 NVMe MZVLW512HMJP, IPS, 2560x1440, 14" | Dell Latitude 5580 i5-7300U, HD Graphics 620, Toshiba MQ01ACF050, IPS, 1920x1080, 15.6" | |
|---|---|---|---|---|---|
| Power Consumption | -109% | -119% | 43% | 63% | |
| Idle Minimum * | 14.4 | 36.8 -156% | 29.5 -105% | 3.8 74% | 4.3 70% |
| Idle Average * | 29.4 | 65.3 -122% | 59.2 -101% | 6.5 78% | 10.1 66% |
| Idle Maximum * | 29.7 | 67 -126% | 68 -129% | 7.2 76% | 11.8 60% |
| Load Average * | 64.1 | 114 -78% | 126 -97% | 62.5 2% | 32 50% |
| Load Maximum * | 88.4 | 142 -61% | 231 -161% | 99.6 -13% | 29 67% |
* ... smaller is better
För
Emot
Skrivbordsdatorer för företag, inklusive allt-i-ett modeller, är en del av en marknad som är lättare att tolka än det packade och olikartade landskapet som råder för bärbara datorer av samma slag. Som av en händelse är det ingenting särskilt spännande med ThinkCentre M910z (vår konfiguration: ~ 10 500 SEK), som tar det säkra före det osäkra med en fungerande, underskattad design och bockar av alla krav för en traditionell kontorsmaskin.

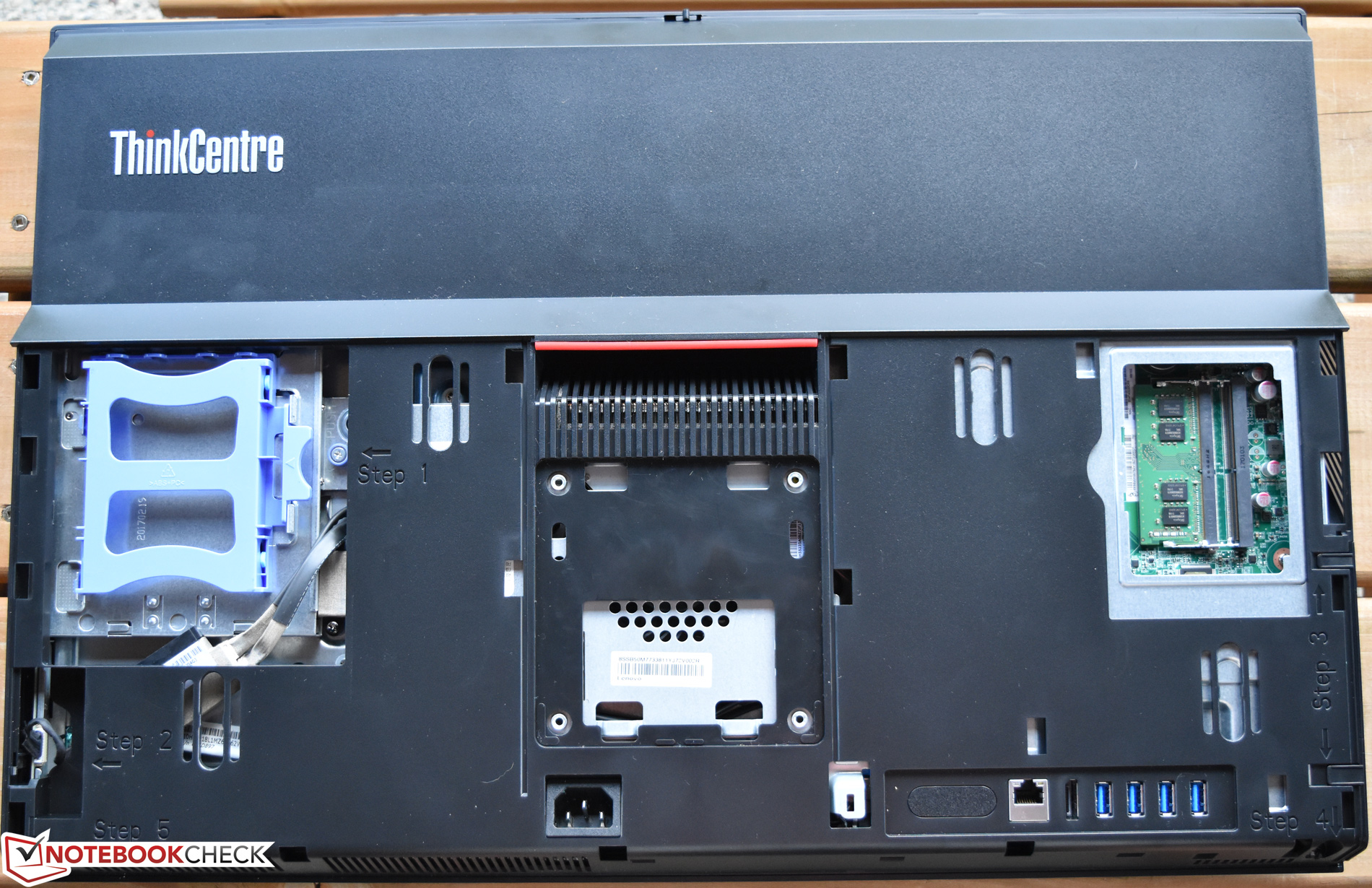

Men det är inte något dåligt: i linje med sitt arv så får ThinkCentre jobbet gjort med en design som fokuserar på funktion framför form och levererar uppskattade funktioner såsom att den är (relativt) lätt att serva och uppgradera och har en pålitlig men stabil ledad design på sitt ställ. Den är också tyst (även under belastning), snabb för vanliga uppgifter tack vare sin fyrkärniga CPU och en NVMe SSD och har dessutom en uppsättning högtalare som motsäger den typiska dåliga prestandan hos sina syskon i samma företags-kategori och har bra ljud genom majoriteten av spektrat (efter lite justeringar). Skärmen ger blandade intryck. I huvudsak tack vare låg ljusstyrka och ett aningen frånstötande tryckkänslighetslager (som ställer frågan om huruvida köparen borde bry sig om ett tryckkänsligt gränssnitt när det i huvudsak är orsaken till den här bristen) - men den behåller åtminstone sin icke-bländade yta även när den är konfigurerad för tryckkänslighet! Tillslut, energiåtgången är behagligt låg, så den som överväger att placera ut en flotta av M910z-maskiner kan ta det lungt och veta att dom inte kommer att förstöra elräkningen.
Det finns inget särskilt intressant med ThinkCentre M910z, men det är inte något dåligt; den tar det säkra för det osäkra med en funktionell, underskattad design och bockar av alla krav för en traditionell kontorsmaskin.
I slutändan finns det inte något större negativt att förknippa med ThinkCentre M910z - det är en kapabel skrivbordsdator för arbete som - även om den är ointressant i sin design - täcker upp alla behov för företagsmarknaden och är så lätt att underhålla och använda att den borde finna stöd hos många IT-avdelningar.
Lenovo ThinkCentre M910z-10NR000KUS
-
09/22/2017 v6 (old)
