Test: Lenovo ThinkPad E460 (Core i5, Radeon R7 M360) (sammanfattning)

Name: Lenovo ThinkPad E460-20EUS00000
Brand: Lenovo

Den nya generationen. För första gången använder Lenovo högkvalitativa IPS-paneler även i ThinkPad-seriens instegsmodeller. Utmärkta inmatningsenheter, en snabb SSD och Intels senaste processorer gör E460 till ett hett tips för t.ex. prismedvetna studenter.

Till Schönborn, ✓ Stefanie Voigt, Published 01/04/2016 🇺🇸 🇩🇪 ...

Laptop / Notebook Business Skylake Windows AMD

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad E460-20EUS00000

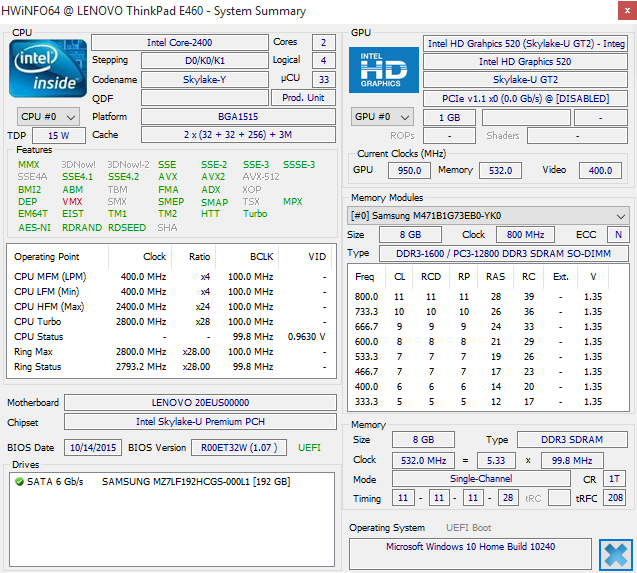

Processor

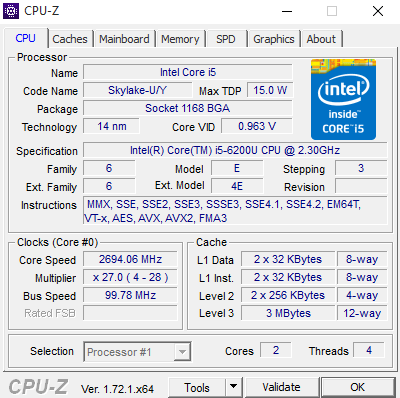

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake

Grafikkort

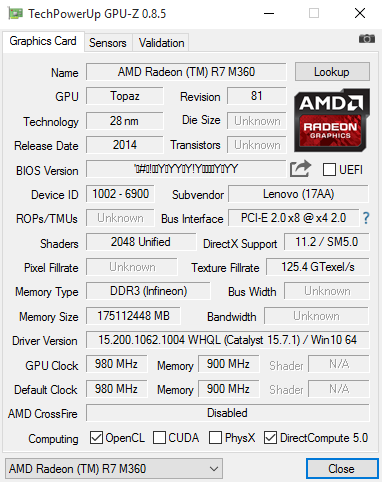

AMD Radeon R7 M360 - 2048 MB VRAM, Kärna: 980 MHz, Minne: 900 MHz, DDR3, Catalyst 15.7.1, Enduro

Minne

8 GB

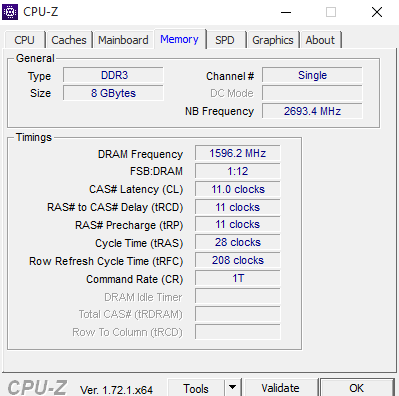

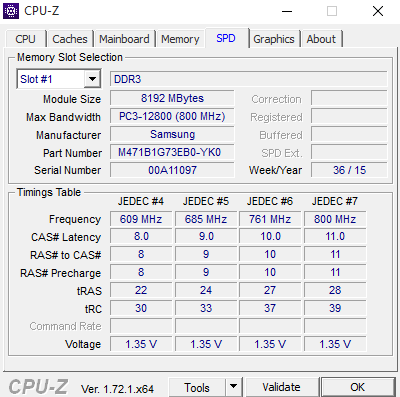

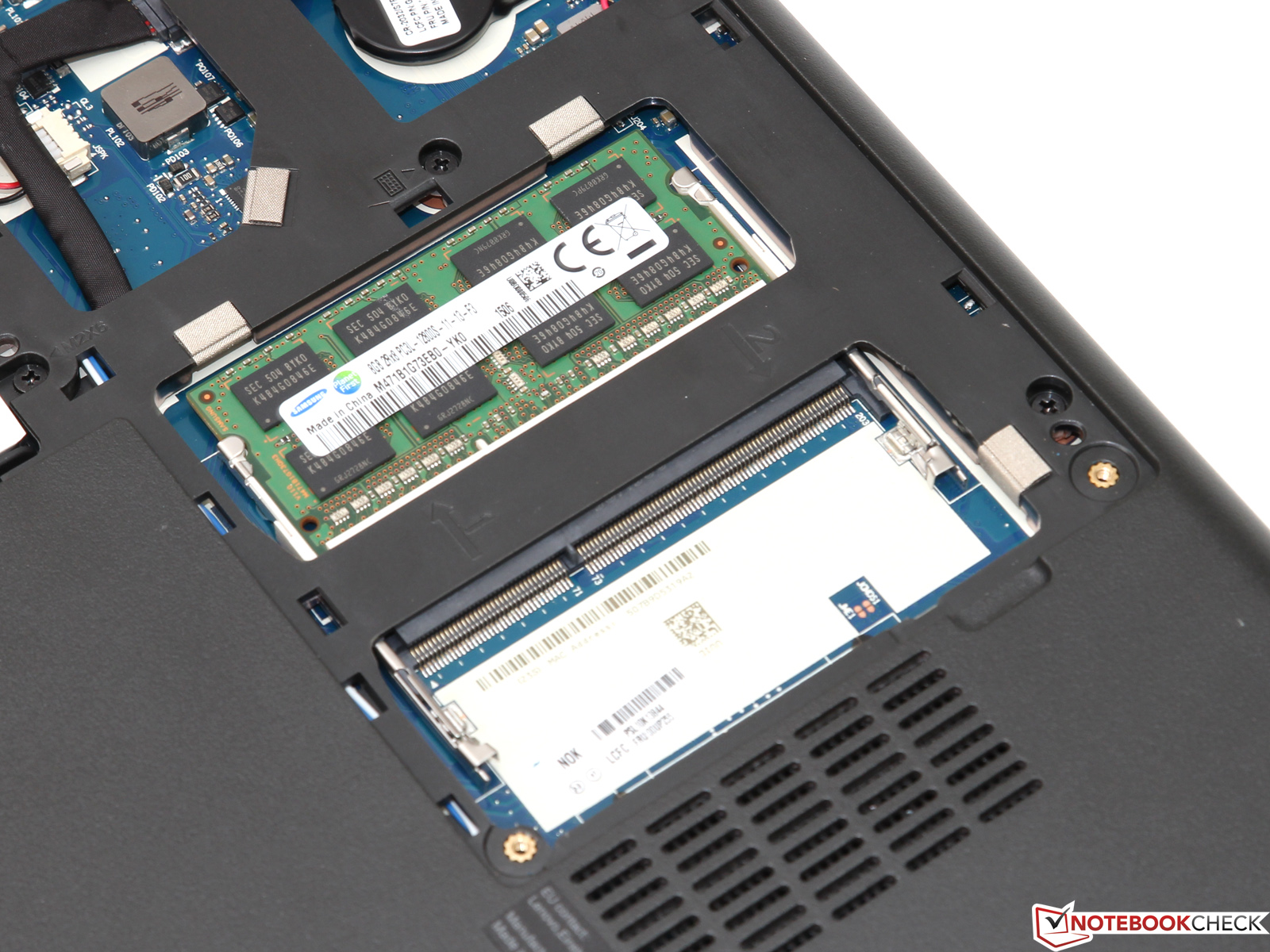

, 1x 8 GB DDR3L-1600, 1 av 2 platser används

Skärm

14.00 tum 16:9, 1920 x 1080 pixlar, LG LP140WF6-SPB2, IPS-panel, LED-belyst, glansig: nej

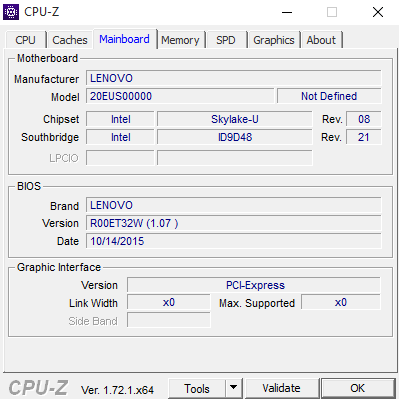

Moderkort

Intel Skylake-U Premium PCH

Hårddisk

Samsung CM871 MZ7LF192HCGS, 192 GB

, 158 GB ledigt

Ljudkort

Intel Skylake-U/Y PCH - High Definition Audio

Anslutningar

3 USB 3.0, 1 HDMI, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: headset (3,5 millimeter), Kortläsare: SD/MMC

Nätverk

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 24 x 339 x 239

Batteri

47 Wh Litiumjon, 6 celler

Operativsystem

FreeDos

Camera

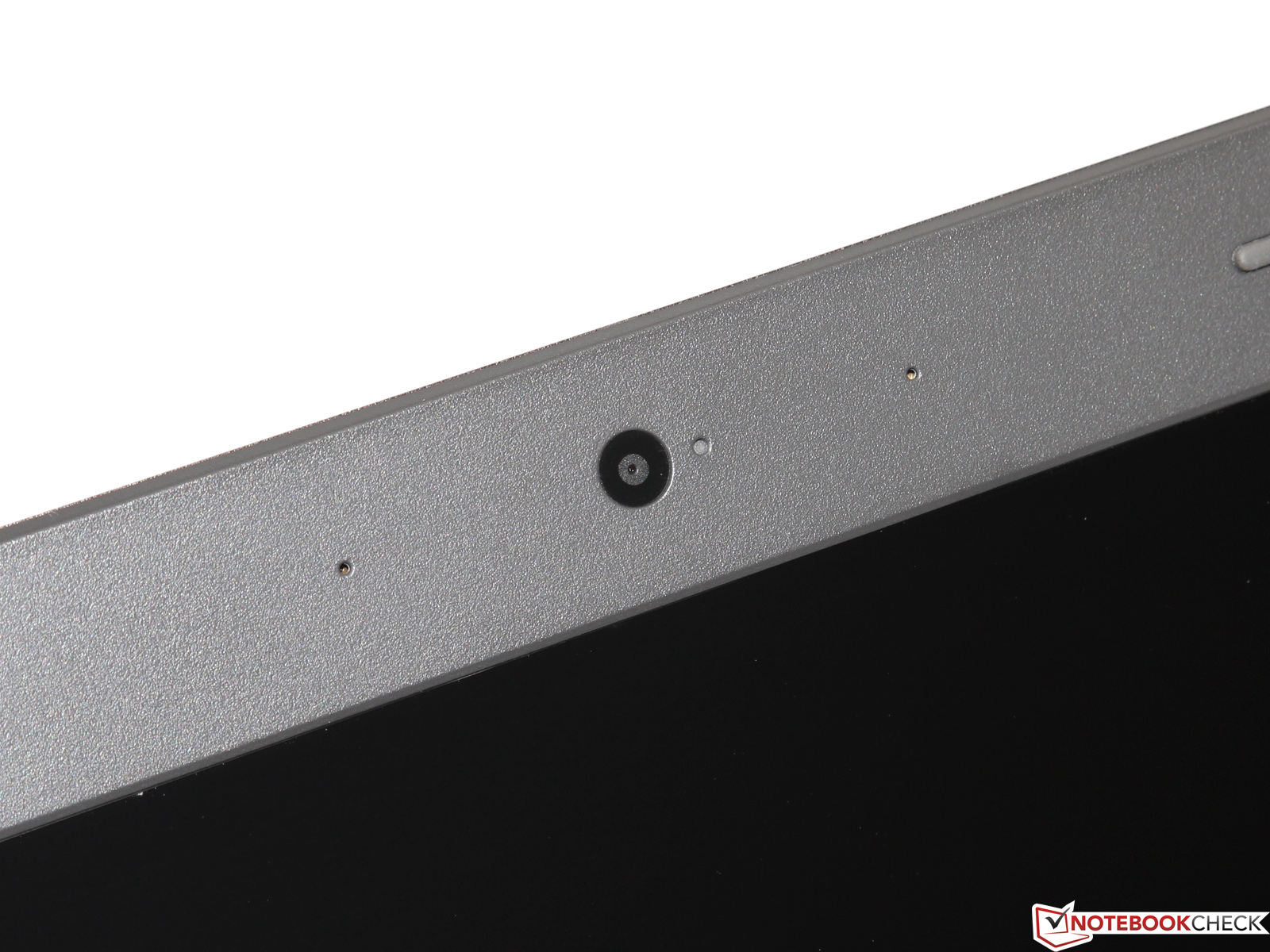

Webbkamera: 0,9 megapixel

Övrigt

Högtalare: stereo, Tangentbord: chiclet, Tangentbordsbelysning: nej, Adapter: 65 watt

Vikt

1.82 kg

Pris

7000 Kr

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

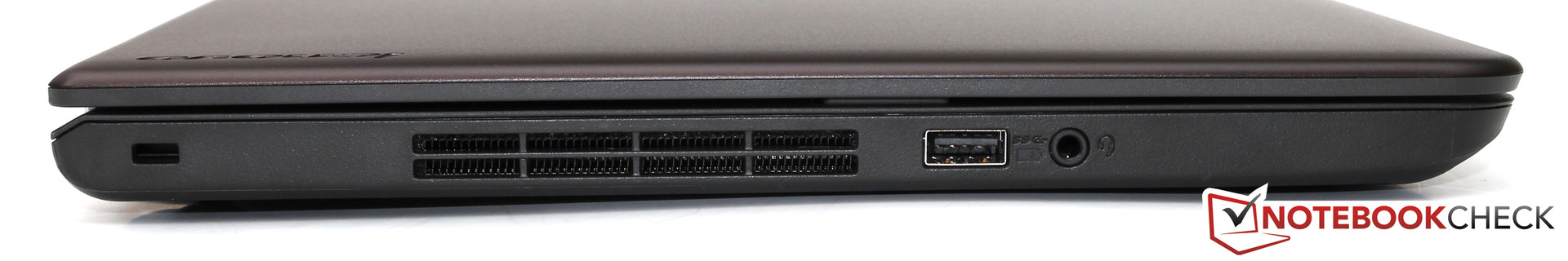

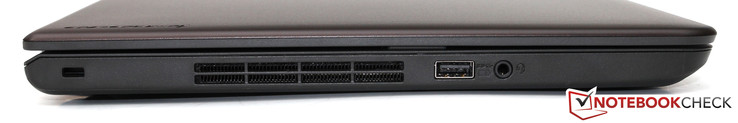

Left: Kensington lock, vent, USB 3.0, headset jack

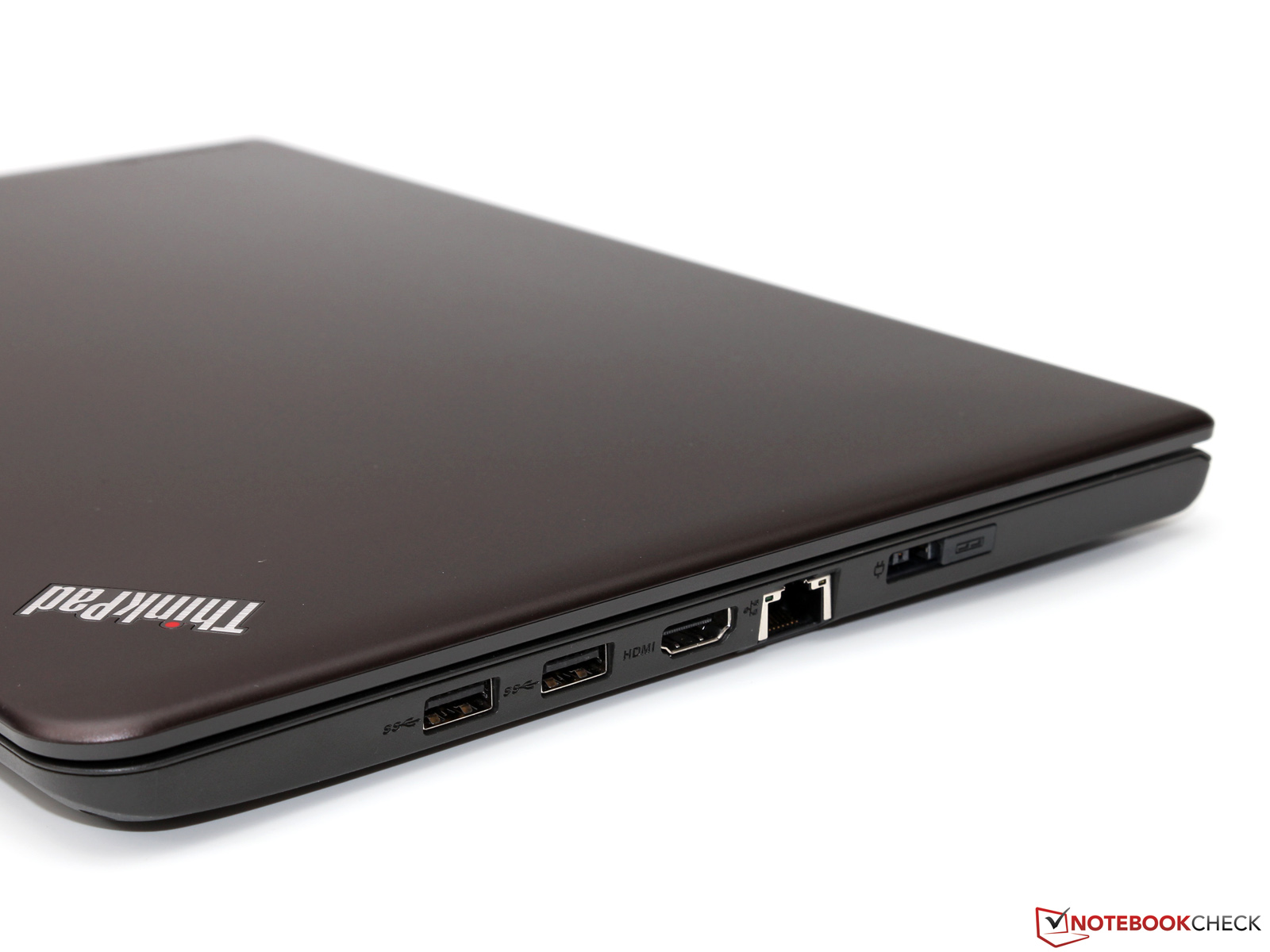

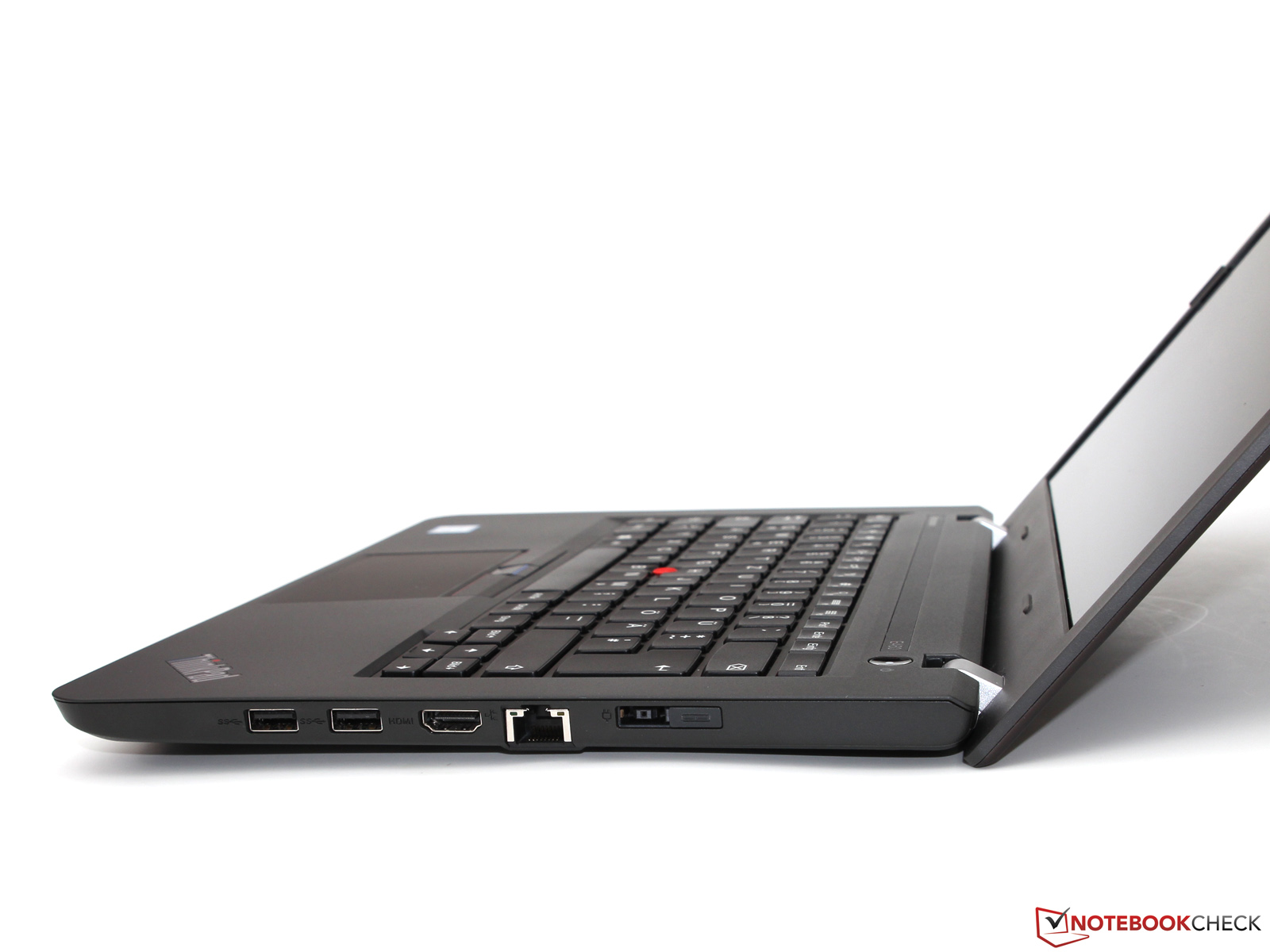

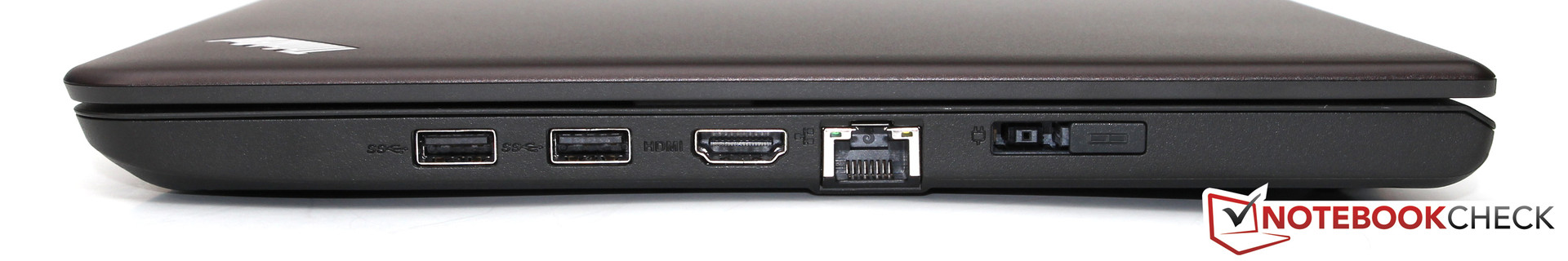

Right: 2x USB 3.0, HDMI, GBit LAN, power socket/OneLink

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured.


234 cd/m²	227 cd/m²	226 cd/m²
220 cd/m²	233 cd/m²	220 cd/m²
213 cd/m²	205 cd/m²	207 cd/m²

Distribution av ljusstyrkan

LG LP140WF6-SPB2 tested with X-Rite i1Pro 2

Max: 234 cd/m² (Nits) Medel: 220.6 cd/m²
Distribution av ljusstyrkan: 88 %
Mitt på batteriet: 234 cd/m²
Kontrast: 777:1 (Svärta: 0.3 cd/m²)
ΔE Color 4.43 | 0.5-29.43 Ø4.91
ΔE Greyscale 3.78 | 0.5-98 Ø5.2
58.7% sRGB (Argyll 1.6.3 3D)
37.3% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.41% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.8% sRGB (Argyll 2.2.0 3D)
39.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.31

Download ICC-fil (X-Rite i1Pro 2)

	Lenovo ThinkPad E460-20EUS00000 1.920 x 1.080 IPS-Panel	Dell Latitude 3450-9723 1.920 x 1.080 IPS-Panel	Acer TravelMate P246-M-598B 1.366 x 768 TN-Panel	Lenovo ThinkPad E450 20DDS01E00 1.920 x 1.080 TN-Panel	Lenovo ThinkPad T450s-20BWS1UT00 1.920 x 1.080 IPS-Panel
Display		66%	2%	3%	53%
Display P3 Coverage	39.1	66.3 70%	39.9 2%	40.37 3%	64.8 66%
sRGB Coverage	58.8	93.4 59%	59.9 2%	60.8 3%	83.8 43%
AdobeRGB 1998 Coverage	40.41	67.9 68%	41.24 2%	41.71 3%	61.2 51%
Response Times
Response Time Grey 50% / Grey 80% *	40 ?(17, 23)
Response Time Black / White *	23.2 ?(6.8, 16.4)
PWM Frequency
Screen		-2%	-64%	-58%	18%
Brightness middle	233	303 30%	238 2%	218 -6%	288 24%
Brightness	221	273 24%	222 0%	211 -5%	281 27%
Brightness Distribution	88	83 -6%	83 -6%	76 -14%	94 7%
Black Level *	0.3	0.445 -48%	0.56 -87%	0.53 -77%	0.286 5%
Contrast	777	681 -12%	425 -45%	411 -47%	1007 30%
Colorchecker dE 2000 *	4.43	3.94 11%	11.33 -156%	11.16 -152%	4.35 2%
Greyscale dE 2000 *	3.78	4.28 -13%	12.13 -221%	12.58 -233%	3.7 2%
Gamma	2.31 ^95%	2.5 ^88%	2.37 ^93%	2.34 ^94%	2.68 ^82%
CCT	7171 ^91%	7325 ^89%	15853 ^41%	14940 ^44%	6076 ^107%
Color Space (Percent of AdobeRGB 1998)	37.3		38 2%	39 5%	54.7 47%
Color Space (Percent of sRGB)	58.7			61 4%
Total Average (Program / Settings)		32% / 18%	-31% / -46%	-28% / -43%	36% / 28%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

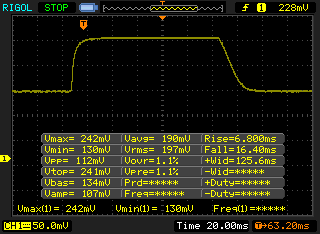

↔ Response Time Black to White
23.2 ms ... rise ↗ and fall ↘ combined	↗ 6.8 ms rise
23.2 ms ... rise ↗ and fall ↘ combined	↘ 16.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 49 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).

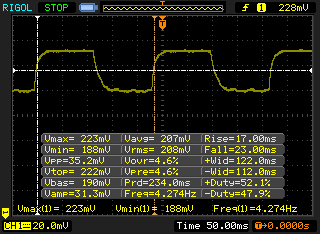

↔ Response Time 50% Grey to 80% Grey
40 ms ... rise ↗ and fall ↘ combined	↗ 17 ms rise
40 ms ... rise ↗ and fall ↘ combined	↘ 23 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 57 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

Cinebench R15 | Cinebench R11.5 | X264 HD Benchmark 4.0

Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	114 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	122 Points +7%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	130 Points +14%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	123 Points +8%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	108 Points -5%
Dell Latitude 3450-9723 Intel Core i5-5200U	105 Points -8%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	290 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	305 Points +5%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	302 Points +4%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	282 Points -3%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	258 Points -11%
Dell Latitude 3450-9723 Intel Core i5-5200U	260 Points -10%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	1.3 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	1.41 Points +8%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	1.51 Points +16%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	1.42 Points +9%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	1.24 Points -5%
Dell Latitude 3450-9723 Intel Core i5-5200U	1.23 Points -5%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	3.23 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	3.42 Points +6%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	3.31 Points +2%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	3.13 Points -3%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	2.83 Points -12%
Dell Latitude 3450-9723 Intel Core i5-5200U	2.74 Points -15%

X264 HD Benchmark 4.0
Pass 1 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	97.6 fps
Microsoft Surface Book Core i5 Intel Core i5-6300U	107.5 fps +10%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	102.4 fps +5%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	89.6 fps -8%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	83 fps -15%
Pass 2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	18.97 fps
Microsoft Surface Book Core i5 Intel Core i5-6300U	20.38 fps +7%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	18.72 fps -1%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	17.31 fps -9%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	16 fps -16%

Cinebench R10 Shading 32Bit

7326

Cinebench R10 Rendering Multiple CPUs 32Bit

9926

Cinebench R10 Rendering Single 32Bit

4396

Cinebench R10 Shading 64Bit

7215 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

12637 Points

Cinebench R10 Rendering Single CPUs 64Bit

5665 Points

Cinebench R11.5 CPU Single 64Bit

1.3 Points

Cinebench R11.5 OpenGL 64Bit

25.39 fps

Cinebench R11.5 CPU Multi 64Bit

3.23 Points

Cinebench R15 OpenGL 64Bit

34.29 fps

Cinebench R15 CPU Multi 64Bit

290 Points

Cinebench R15 CPU Single 64Bit

114 Points

Cinebench R15 Ref. Match 64Bit

98 %

Hjälp

... jämför

	Lenovo ThinkPad E460-20EUS00000 Samsung CM871 MZ7LF192HCGS	Acer TravelMate P645-S-58HK Kingston RBU-SNS8100S3256GD	Lenovo ThinkPad T450 20BVG733PB Samsung SSD 850 EVO 250GB	Lenovo ThinkPad X1 Carbon 2015 Samsung SSD SM951 512 GB MZHPV512HDGL	HP ProBook 470 G2 K9W25EA Samsung SSD 840 EVO 250GB
AS SSD		128%	269%	441%	269%
Seq Read	496.4	502 1%	513 3%	1339 170%	513 3%
Seq Write	172.8	324.6 88%	490.9 184%	1209 600%	497.8 188%
4K Read	17.47	31.82 82%	45.81 162%	39.9 128%	44.14 153%
4K Write	35.37	58 64%	121.8 244%	91.3 158%	120.6 241%
4K-64 Read	83.3	194.7 134%	374.8 350%	510 512%	374.6 350%
4K-64 Write	34.09	169.2 396%	262.9 671%	402.2 1080%	265.3 678%

HD Tune

CrystalDiskMark 3.0

AS SSD

Samsung CM871 MZ7LF192HCGS

Överföringshastighet min.: 364 MB/s

Överföringshastighet max.: 394.9 MB/s

Överföringshastighet med.: 389.9 MB/s

Accesstid: 0.1 ms

Burst rate: 127 MB/s

CPU-användning: 3.6 %

PCMark 7 | PCMark 8

PCMark 7 - Score (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	4852 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4797 Points -1%
Lenovo ThinkPad E450 20DDS01E00 Radeon R7 M260, 5200U, Samsung CM871 MZ7LF192HCGS	4797 Points -1%
Dell Latitude 3450-9723 HD Graphics 5500, 5200U, Toshiba MQ01ABD100	2856 Points -41%
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	2819 Points -42%

PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	3415 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	3270 Points -4%
Lenovo ThinkPad E450 20DDS01E00 Radeon R7 M260, 5200U, Samsung CM871 MZ7LF192HCGS	3299 Points -3%
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	3960 Points +16%
Creative Score Accelerated v2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	4098 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	3613 Points -12%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	4415 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4394 Points 0%
Lenovo ThinkPad E450 20DDS01E00 Radeon R7 M260, 5200U, Samsung CM871 MZ7LF192HCGS	4186 Points -5%
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	4020 Points -9%

PCMark 7 Score		4852 poäng
PCMark 8 Home Score Accelerated v2		3415 poäng
PCMark 8 Creative Score Accelerated v2		4098 poäng
PCMark 8 Work Score Accelerated v2		4415 poäng
Hjälp

... jämför

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	1989 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	2313 Points +16%
Lenovo ThinkPad E450 20DDS01E00 Intel Core i5-5200U, AMD Radeon R7 M260	1956 Points -2%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	1961 Points -1%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	1318 Points -34%
Dell Latitude 3450-9723 Intel Core i5-5200U, Intel HD Graphics 5500	983 Points -51%

3DMark - 1920x1080 Fire Strike Graphics (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	1109 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	1627 Points +47%
Lenovo ThinkPad E450 20DDS01E00 Intel Core i5-5200U, AMD Radeon R7 M260	1164 Points +5%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	1360 Points +23%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	861 Points -22%
Dell Latitude 3450-9723 Intel Core i5-5200U, Intel HD Graphics 5500	748 Points -33%

3DMark 06 Standard Score		8225 poäng
3DMark 11 Performance		2091 poäng
3DMark Ice Storm Standard Score		30550 poäng
3DMark Cloud Gate Standard Score		4583 poäng
3DMark Fire Strike Score		1003 poäng
Hjälp

... jämför

	låg	med.	hög	ultra
Tomb Raider (2013)	73.2	38.7	29.7	14.8
Dirt Rally (2015)	91.8	34	18.4	12.5
World of Warships (2015)	46.5	36.7	17.2	12.6
Call of Duty: Black Ops 3 (2015)	33.9	20.6	8.5
Fallout 4 (2015)	21.4	14.5	7.5
Star Wars Battlefront (2015)	23.5	16.5	8.9	8.2
Assassin's Creed Syndicate (2015)	12	10	5.9

Ljudnivå

Låg belastning		29 / 29 / 29 dB(A)
Hög belastning		33.1 / 35.6 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Voltcraft SL-451 (15 cm avstånd)

Hög belastning

Låg belastning


27.6 °C	28.1 °C	27.1 °C
28.6 °C	27.4 °C	26.7 °C
24.9 °C	25.2 °C	25.4 °C

Max: 28.6 °C
Medel: 26.8 °C


28.2 °C	30.6 °C	30.1 °C
27.3 °C	29.9 °C	30.2 °C
26.5 °C	26.4 °C	26.1 °C

Max: 30.6 °C
Medel: 28.4 °C

Strömförsörjning (max.) 33.2 °C | Rumstemperatur 21 °C | Fluke 62 Max

(±) The average temperature for the upper side under maximal load is 35.7 °C / 96 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 47.8 °C / 118 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 48.3 °C / 119 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.4 °C / -0.7 F).

Strömförbrukning

Av/Standby	0.2 / 0.5 Watt
Låg belastning	4.1 / 8 / 8.9 Watt
Hög belastning	39.3 / 52.2 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad E460-20EUS00000 47 Wh	Lenovo ThinkPad E450 20DDS01E00 47 Wh	Dell Latitude 3450-9723 58 Wh	Lenovo ThinkPad T450s-20BWS03F00 48 Wh	Acer TravelMate P645-S-58HK 54 Wh
Battery Runtime		26%	66%	-11%	41%
Reader / Idle	736	999 36%		774 5%	1143 55%
H.264	425			322 -24%	525 24%
WiFi v1.3	292	409 40%	484 66%	276 -5%	535 83%
Load	112	115 3%		88 -21%	113 1%
WiFi				336

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		12tim 16min
WiFi Websurfing		4tim 52min
Big Buck Bunny H.264 1080p		7tim 05min
Hög belastning (maximal ljusstyrka)		1tim 52min

För

+ Skaplig chassikvalitet

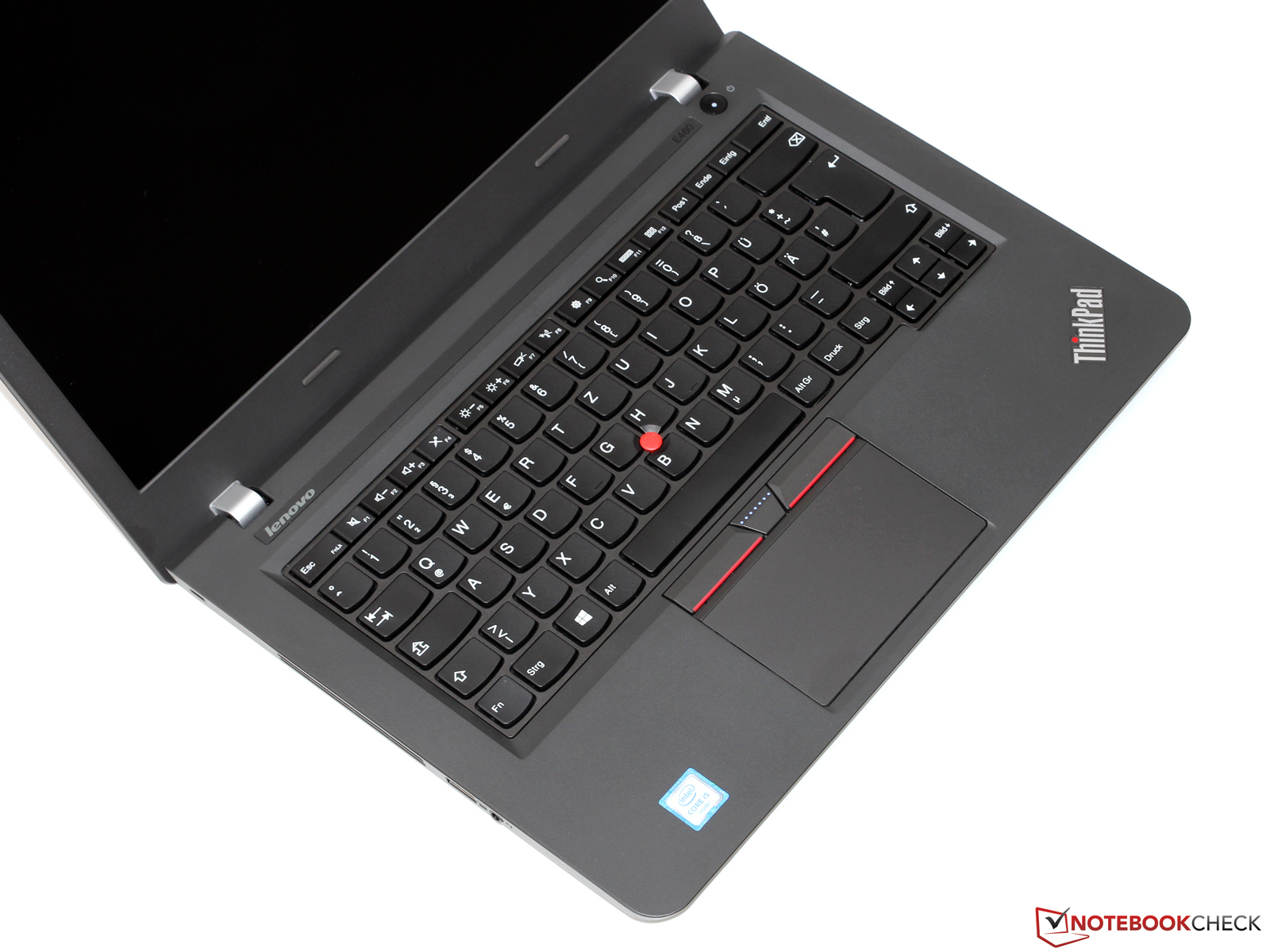

+ Superbt tangentbord

+ Dockningsstation som tillval

+ Bra skärm med IPS-panel

+ Hög systemprestanda

+ Relativt tyst

+ Utmärkt pris/prestanda-förhållande

Emot

- Skärmens medelmåttiga ljusstyrka

- Ej löstagbart batteri

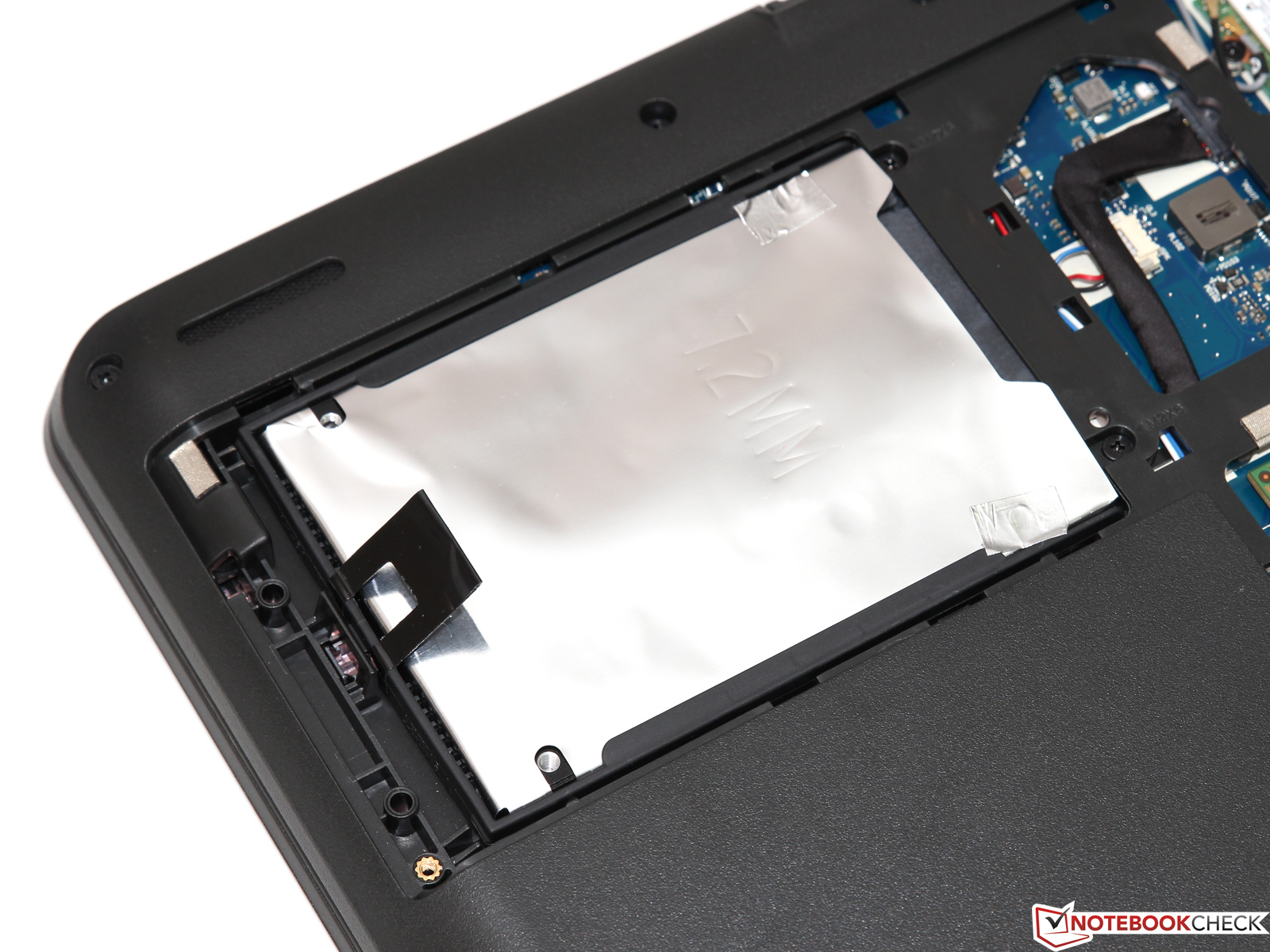

- Begränsade uppgraderingsmöjligheter

- Endast 12 månaders garanti

Det är sällsynt att en billigare kontorsdator imponerar på oss som Lenovos nya ThinkPad E460: Köparen får inte bara en solid jobbdator med superba inmatningsenheter, utan också bra komponenter överlag för ca 7000 kr.

Tack vare sin SSD och Skylake-processor har ThinkPad-modellen tillräckligt med kraft för att klara mer krävande program, multitasking – och om så önskas även spel, förutsatt att man nöjer sig med låga grafikinställningar.

Men man har inte snålat med mindre uppenbara detaljer heller. Förutom den snabba 802.11ac-modulen ska vi lyfta fram IPS-skärmen, som är en riktig höjdpunkt i den här prisklassen.

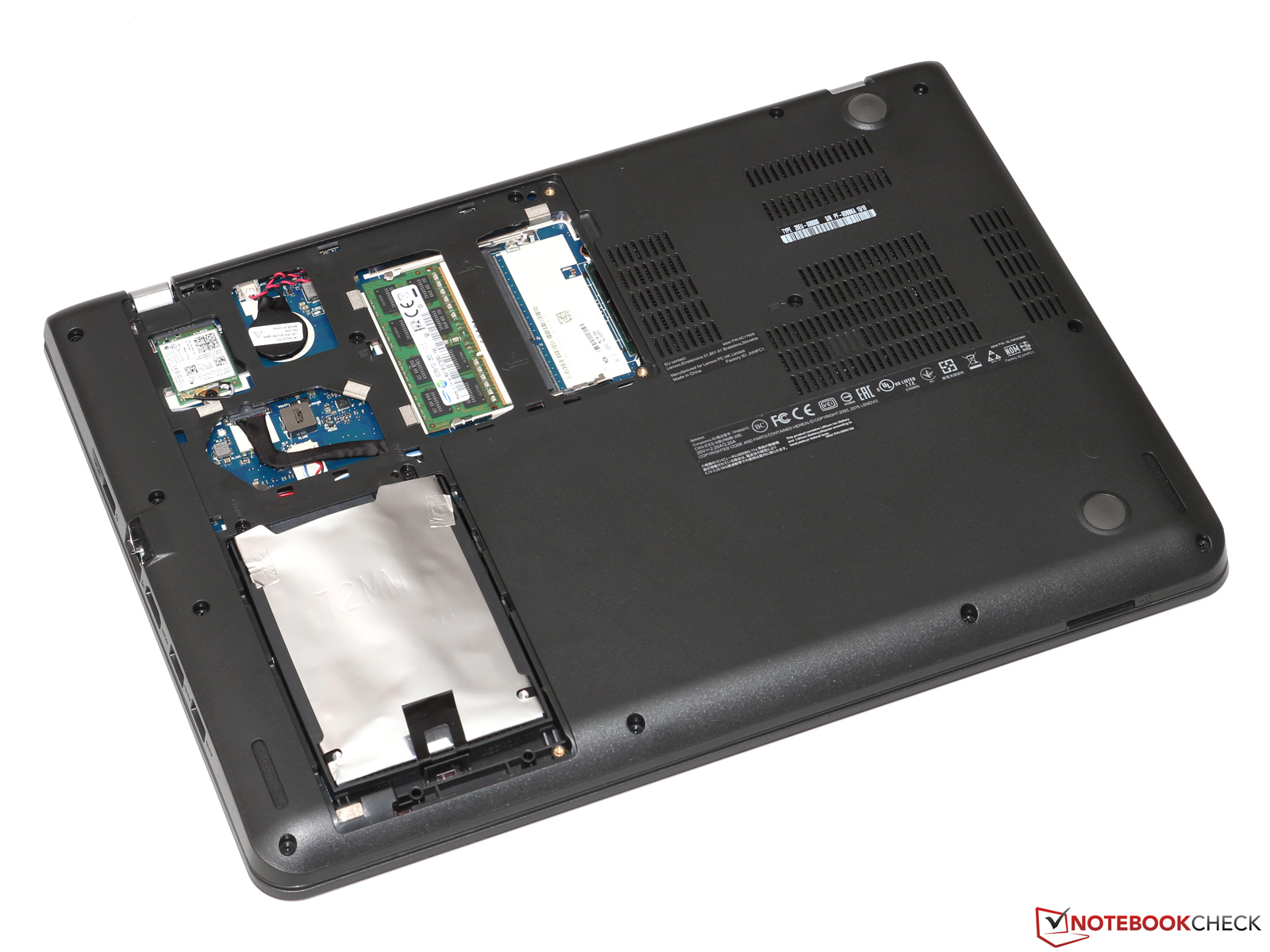

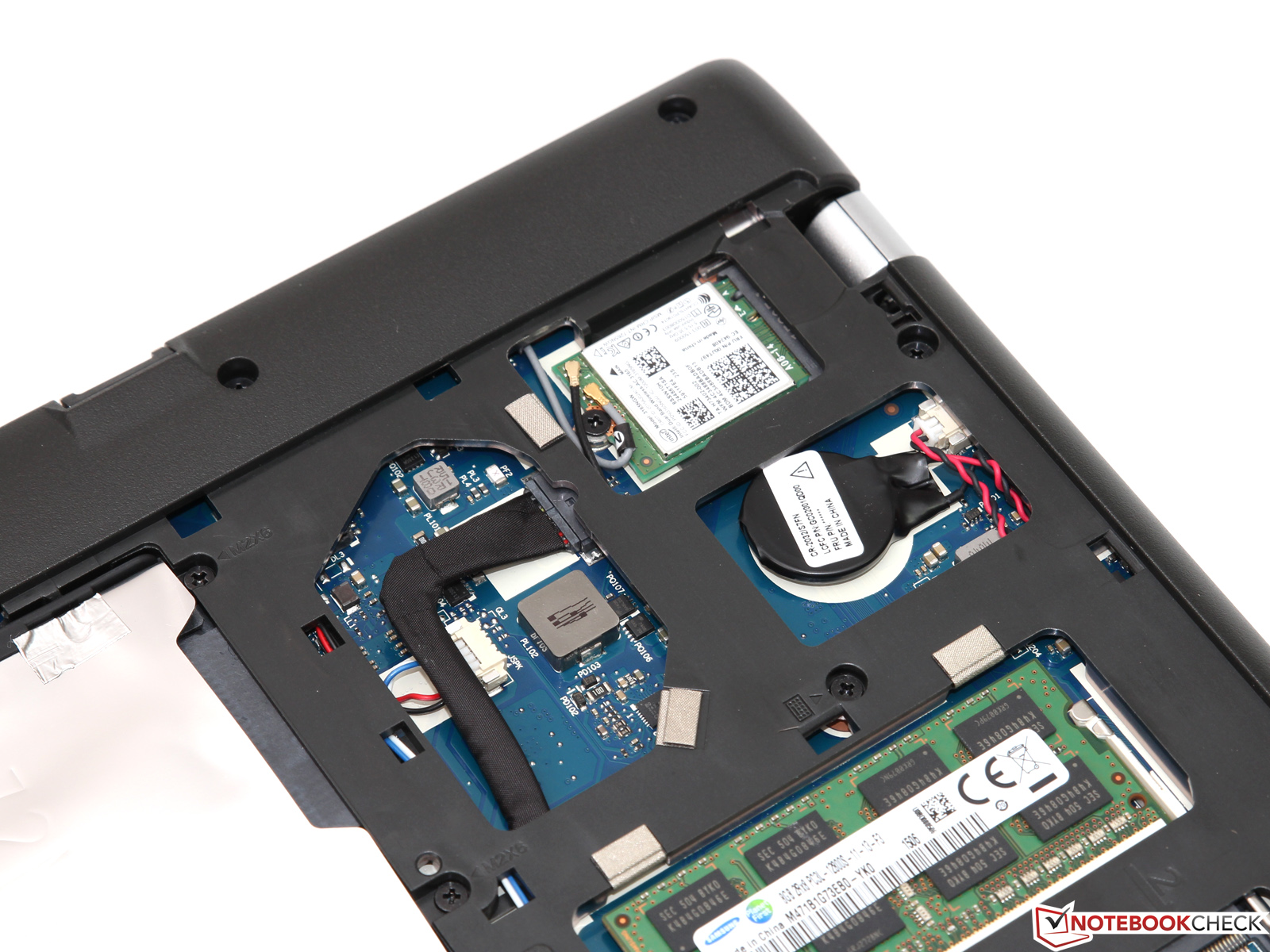

Naturligtvis har E460 vissa brister, men lyckligtvis inga allvarliga sådana. Att uppgradera eller underhålla datorn är relativt svårt, batteriets livslängd kunde ha varit lite längre och garantitiden på 12 månader (normalt i kategorin) är kort. Men ändå:

Knappast någon rival kan erbjuda så mycket för pengarna. Därför är det synd att modellen är reserverad för utbildningssektorn, inklusive elever, studenter och lärare.

Lenovo ThinkPad E460-20EUS00000 - 11/22/2015 v4 ^(old)
Till Schönborn

Design

79 / 98 → 81%

Tangentbord

87%

Mus

83%

Anslutningar

64 / 80 → 80%

Vikt

65 / 20-67 → 96%

Batteri

87%

Skärm

86%

Spelprestanda

74 / 68 → 100%

Programprestanda

86 / 92 → 93%

Temperatur

86%

Ljudnivå

95%

Audio

69%

Camera

58 / 85 → 68%

Medel

78%

85%

Office - Vägt medel

Price comparison

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad E460 (Core i5, Radeon R7 M360) (sammanfattning)

Till Schönborn, 2016-01- 4 (Update: 2016-01- 4)
