Distribution av ljusstyrkan: 83 %
Mitt på batteriet: 244 cd/m²
Kontrast: 1021:1 (Svärta: 0.24 cd/m²)

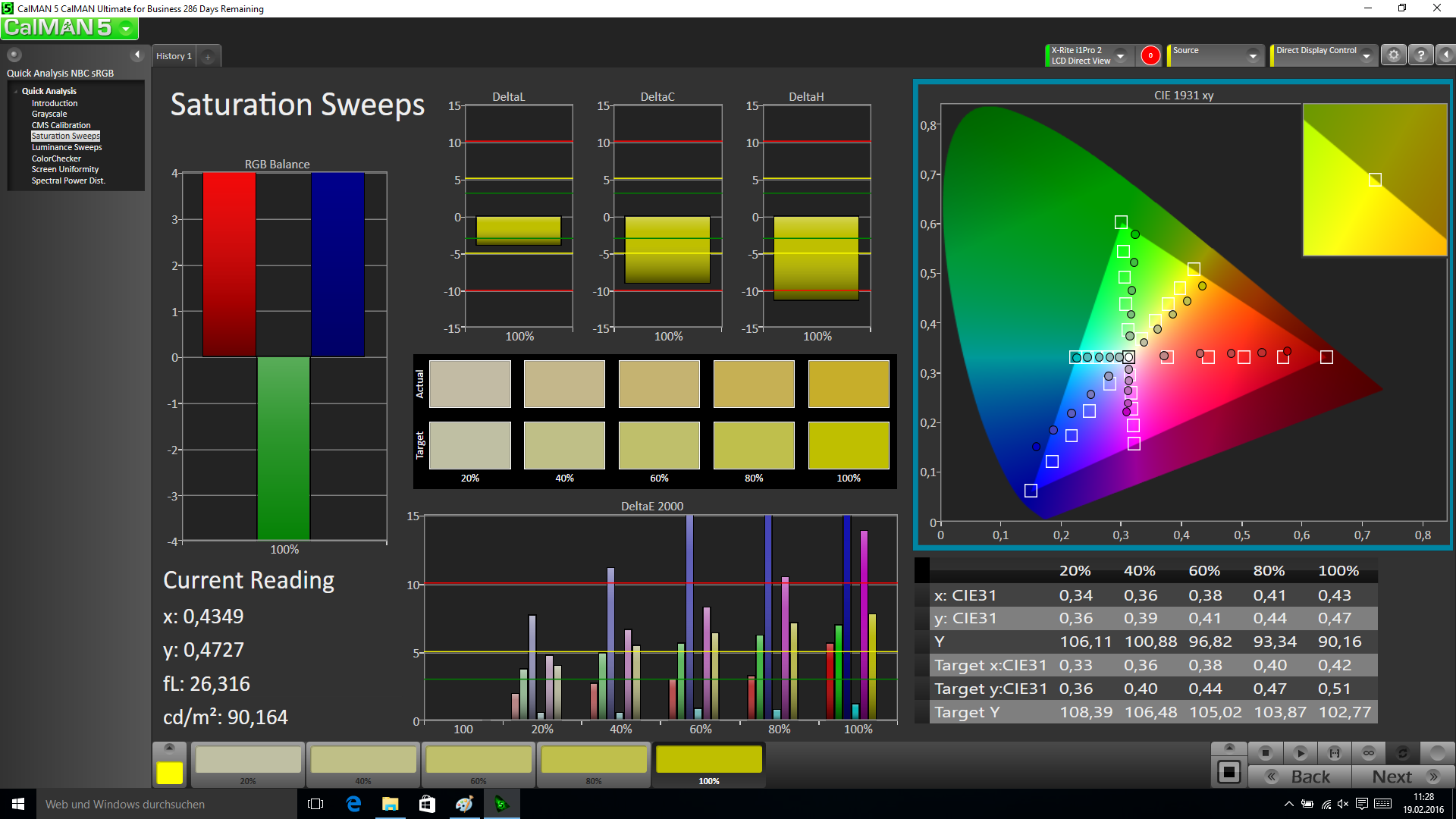

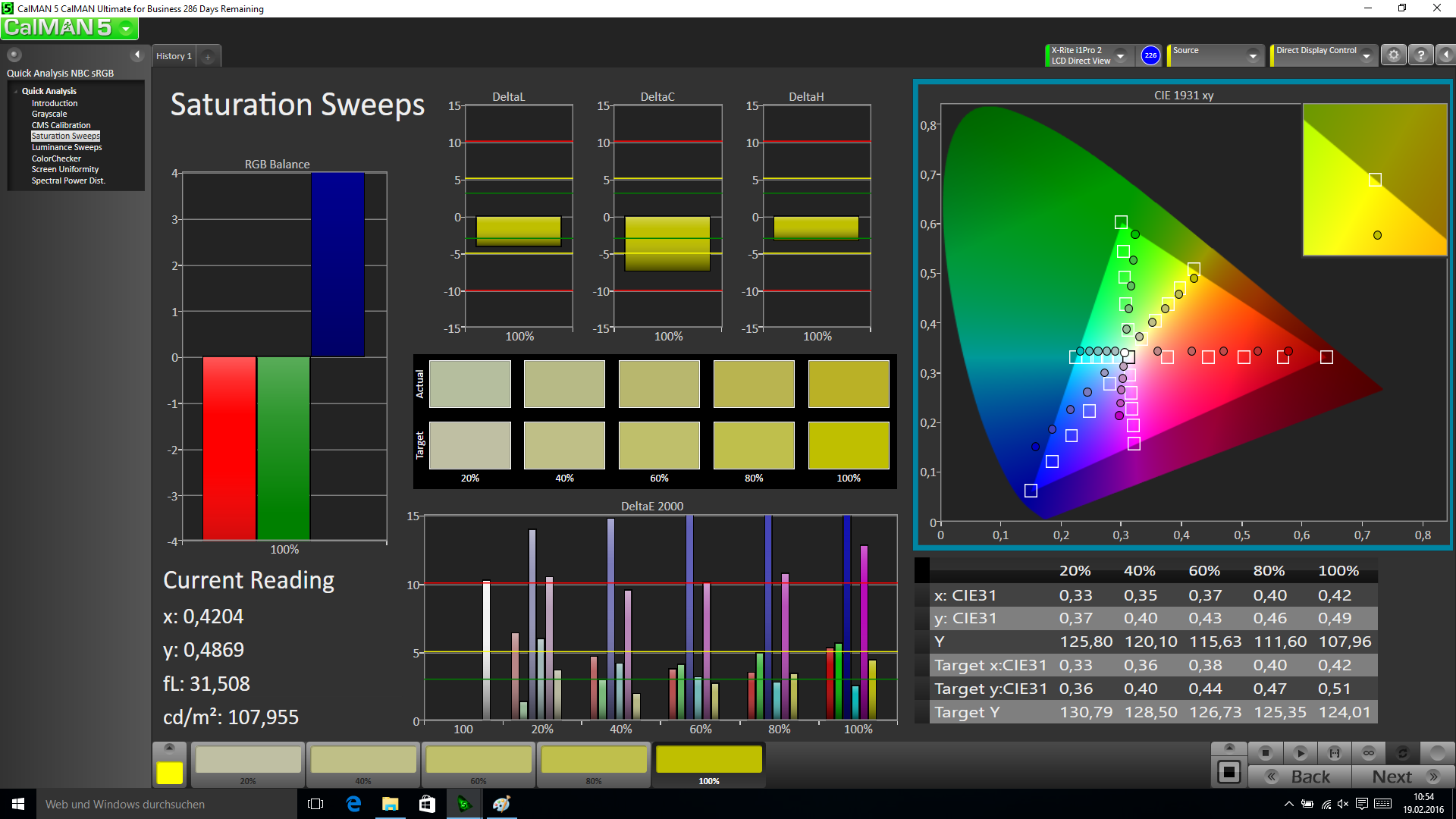

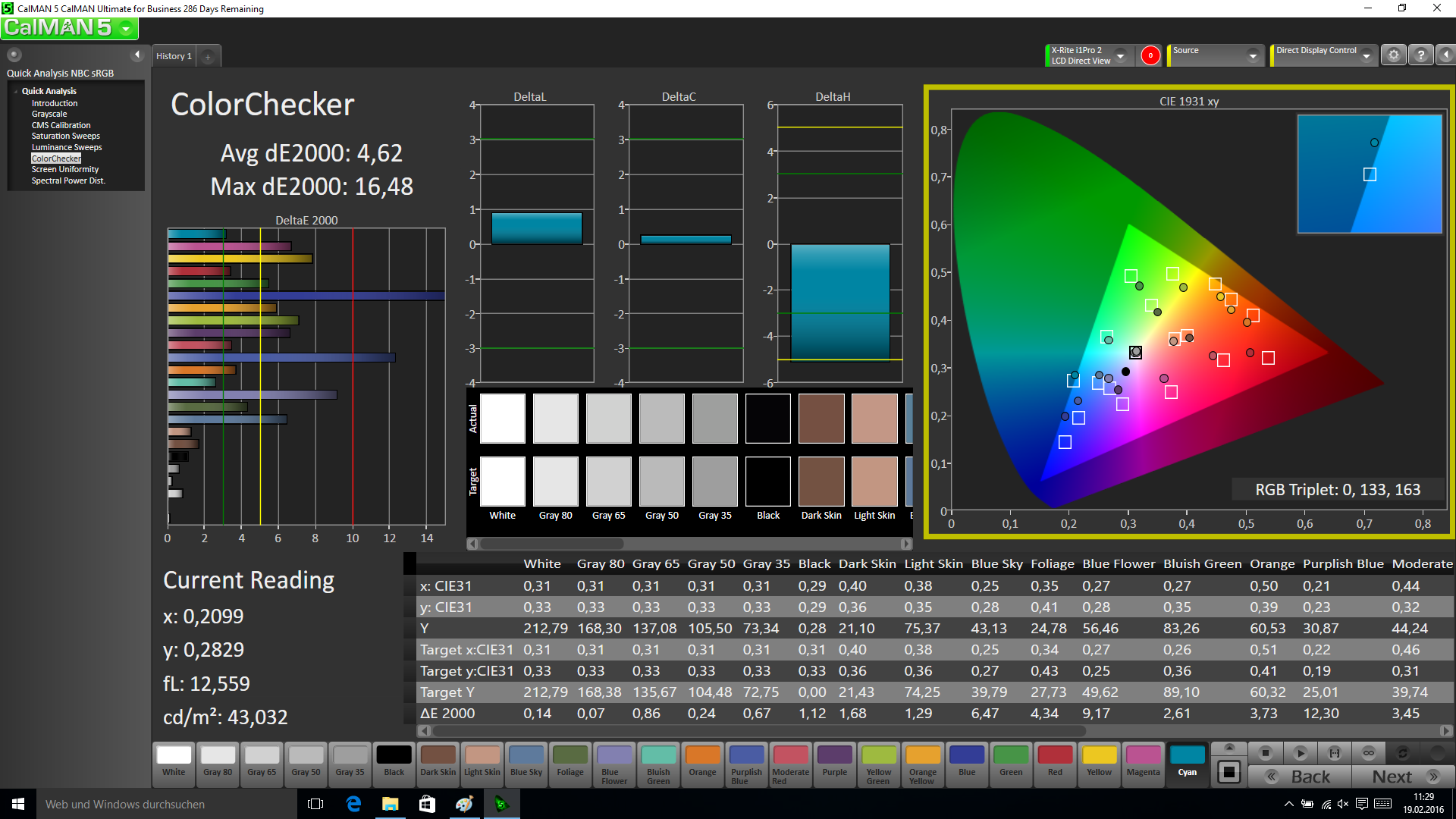

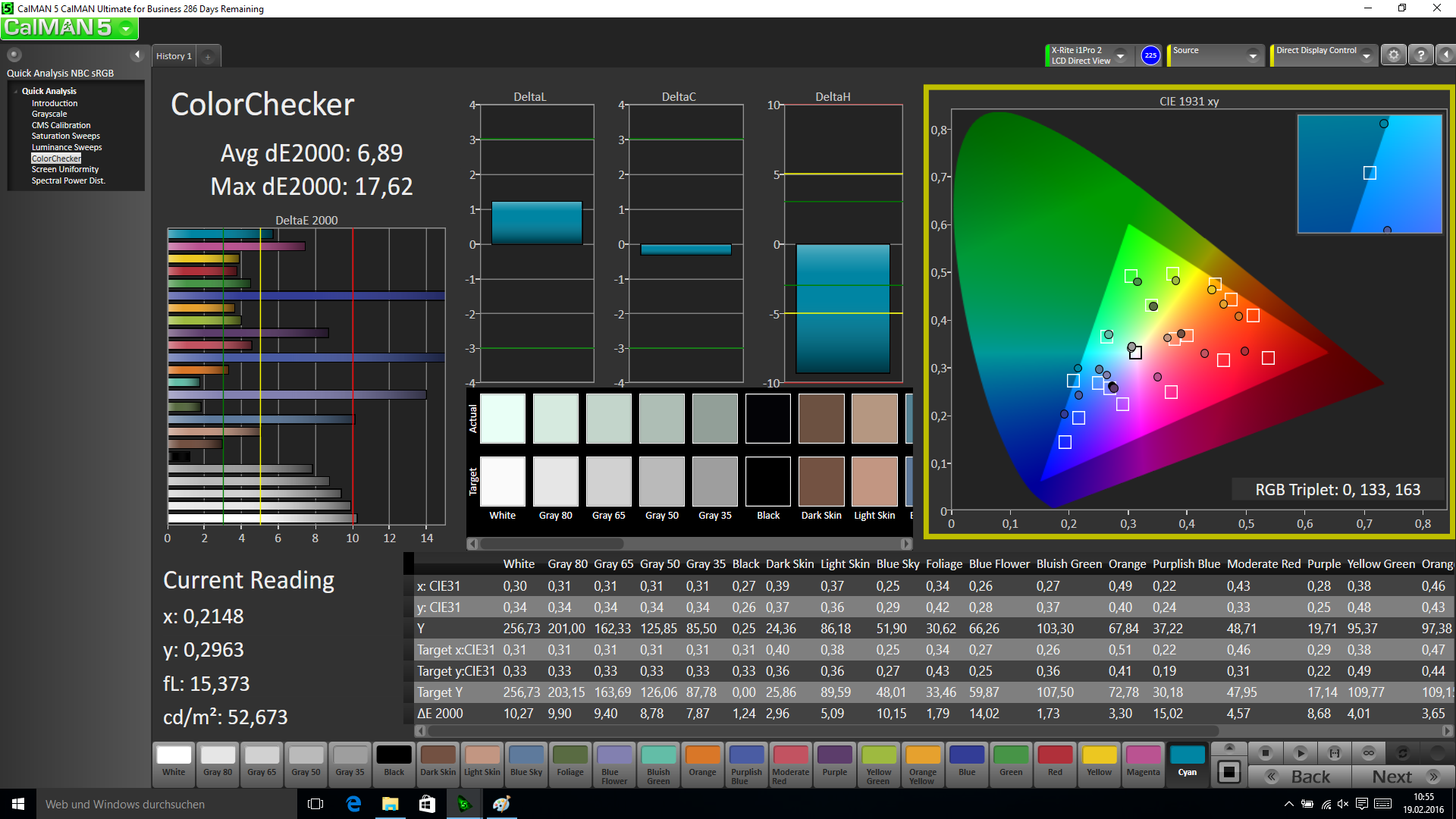

ΔE Color 6.89 | 0.5-29.43 Ø4.92

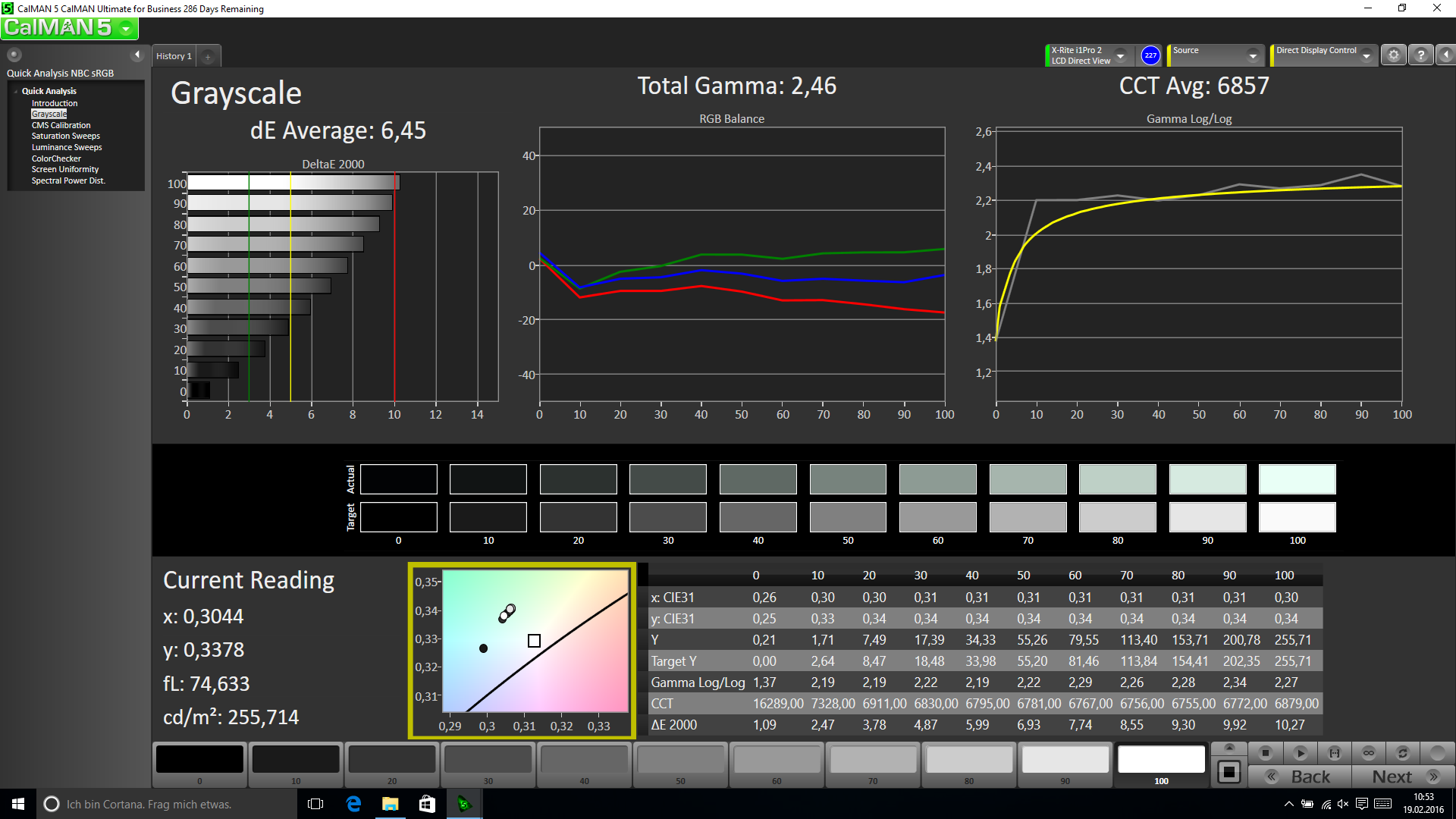

ΔE Greyscale 6.45 | 0.5-98 Ø5.2
61.8% sRGB (Argyll 1.6.3 3D)
40.1% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.72% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.3% sRGB (Argyll 2.2.0 3D)
42.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.46
Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. |
Display Response Times

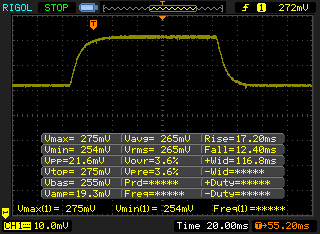

↔ Response Time Black to White | ||
---|---|---|
29.6 ms ... rise ↗ and fall ↘ combined | ↗ 17.2 ms rise | |
↘ 12.4 ms fall | ||
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 77 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

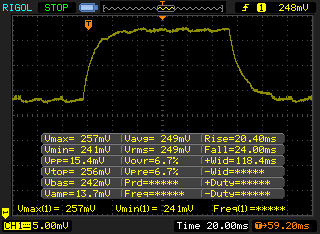

↔ Response Time 50% Grey to 80% Grey | ||
44.4 ms ... rise ↗ and fall ↘ combined | ↗ 20.4 ms rise | |
↘ 24 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 73 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). |
Lenovo ThinkPad L460-20FVS01400 IPS, 1920x1080 | Lenovo Thinkpad L450 20DS0001GE IPS, 1920x1080 | Lenovo ThinkPad E460-20EUS00000 IPS-Panel, 1920x1080 | HP EliteBook 745 G3 TN LED, 1920x1080 | HP Elitebook 745 G2 TN LED, 1366x768 | HP ProBook 440 G3 TN, 1920x1080 | Dell Latitude 14 E5470 TN, 1366x768 | Acer TravelMate P645-S-58HK IPS, 1920x1080 | |
---|---|---|---|---|---|---|---|---|
Display | -6% | -7% | 21% | -13% | -6% | -4% | 52% | |
Display P3 Coverage | 42.2 | 39.24 -7% | 39.1 -7% | 50.9 21% | 36.42 -14% | 39.6 -6% | 40.06 -5% | 66.7 58% |
sRGB Coverage | 62.3 | 58.9 -5% | 58.8 -6% | 76.7 23% | 54.7 -12% | 59.1 -5% | 60.3 -3% | 90.8 46% |
AdobeRGB 1998 Coverage | 43.72 | 40.56 -7% | 40.41 -8% | 52.6 20% | 37.64 -14% | 40.94 -6% | 41.42 -5% | 66.5 52% |
Response Times | 16% | -17% | 2% | -13% | ||||
Response Time Grey 50% / Grey 80% * | 44.4 ? | 40 ? 10% | 54 ? -22% | 46 ? -4% | 56.8 ? -28% | |||
Response Time Black / White * | 29.6 ? | 23.2 ? 22% | 33 ? -11% | 27.6 ? 7% | 28.8 ? 3% | |||
PWM Frequency | 200 ? | |||||||
Screen | -16% | 2% | -16% | -64% | -27% | -39% | 16% | |
Brightness middle | 245 | 206 -16% | 233 -5% | 366.2 49% | 208 -15% | 246 0% | 229 -7% | 331 35% |
Brightness | 225 | 202 -10% | 221 -2% | 343 52% | 202 -10% | 215 -4% | 207 -8% | 309 37% |
Brightness Distribution | 83 | 91 10% | 88 6% | 89 7% | 76 -8% | 84 1% | 80 -4% | 82 -1% |
Black Level * | 0.24 | 0.39 -63% | 0.3 -25% | 0.714 -198% | 0.72 -200% | 0.5 -108% | 0.69 -188% | 0.4 -67% |
Contrast | 1021 | 528 -48% | 777 -24% | 513 -50% | 289 -72% | 492 -52% | 332 -67% | 828 -19% |
Colorchecker dE 2000 * | 6.89 | 6.63 4% | 4.43 36% | 9.15 -33% | 12.51 -82% | 8.6 -25% | 10.16 -47% | 4.07 41% |
Colorchecker dE 2000 max. * | 17.62 | 15.11 14% | 17.18 2% | |||||
Greyscale dE 2000 * | 6.45 | 6.29 2% | 3.78 41% | 9.57 -48% | 13.57 -110% | 9.36 -45% | 10.87 -69% | 4.86 25% |
Gamma | 2.46 89% | 2.48 89% | 2.31 95% | 2.19 100% | 2.15 102% | 2.39 92% | 2.41 91% | 2.49 88% |
CCT | 6857 95% | 5823 112% | 7171 91% | 11114 58% | 15339 42% | 11226 58% | 12881 50% | 6109 106% |
Color Space (Percent of AdobeRGB 1998) | 40.1 | 37.3 -7% | 37.3 -7% | 49.03 22% | 35 -13% | 37.8 -6% | 38.4 -4% | 59 47% |
Color Space (Percent of sRGB) | 61.8 | 58.7 -5% | 77.28 25% | 59.1 -4% | 60.4 -2% | 90.6 47% | ||
Total Average (Program / Settings) | -11% /
-13% | 4% /
2% | -4% /
-9% | -39% /
-50% | -10% /
-18% | -19% /
-29% | 34% /
25% |
* ... smaller is better
Cinebench R11.5 | |
CPU Multi 64Bit | |
Lenovo ThinkPad T460s-20FA003GGE | |
Dell Latitude 14 E5470 | |
Lenovo ThinkPad L460-20FVS01400 | |
Lenovo ThinkPad E460-20EUS00000 | |
HP ProBook 440 G3 | |
Lenovo Thinkpad L450 20DS0001GE | |
HP EliteBook 745 G3 | |
Acer TravelMate P645-S-58HK | |
HP Elitebook 745 G2 | |
CPU Single 64Bit | |
Lenovo ThinkPad T460s-20FA003GGE | |
Dell Latitude 14 E5470 | |
Lenovo ThinkPad L460-20FVS01400 | |
Lenovo Thinkpad L450 20DS0001GE | |
HP ProBook 440 G3 | |
Lenovo ThinkPad E460-20EUS00000 | |
Acer TravelMate P645-S-58HK | |
HP EliteBook 745 G3 | |
HP Elitebook 745 G2 |
Cinebench R10 | |
Rendering Multiple CPUs 32Bit | |
Lenovo ThinkPad T460s-20FA003GGE | |
Lenovo ThinkPad L460-20FVS01400 | |
Lenovo ThinkPad L440 20AT004QGE | |
Dell Latitude 14 E5470 | |
HP ProBook 440 G3 | |
Lenovo ThinkPad E460-20EUS00000 | |
Lenovo Thinkpad L450 20DS0001GE | |
Acer TravelMate P645-S-58HK | |
HP EliteBook 745 G3 | |
Rendering Single 32Bit | |
Lenovo ThinkPad T460s-20FA003GGE | |
Lenovo ThinkPad L460-20FVS01400 | |
Dell Latitude 14 E5470 | |
Lenovo ThinkPad L440 20AT004QGE | |
HP ProBook 440 G3 | |
Lenovo ThinkPad E460-20EUS00000 | |
Lenovo Thinkpad L450 20DS0001GE | |
Acer TravelMate P645-S-58HK | |
HP EliteBook 745 G3 |
Geekbench 3 | |
32 Bit Single-Core Score | |
Lenovo ThinkPad T460s-20FA003GGE | |
Lenovo ThinkPad L460-20FVS01400 | |
Lenovo Thinkpad L450 20DS0001GE | |
Lenovo ThinkPad E460-20EUS00000 | |
Acer TravelMate P645-S-58HK | |
HP Elitebook 745 G2 | |
32 Bit Multi-Core Score | |
Lenovo ThinkPad T460s-20FA003GGE | |
Lenovo ThinkPad L460-20FVS01400 | |
Lenovo ThinkPad E460-20EUS00000 | |
Lenovo Thinkpad L450 20DS0001GE | |
Acer TravelMate P645-S-58HK | |
HP Elitebook 745 G2 |
Sunspider - 1.0 Total Score | |
Lenovo ThinkPad T460s-20FA003GGE | |
HP EliteBook 745 G3 | |
Acer TravelMate P645-S-58HK | |
Lenovo Thinkpad L450 20DS0001GE | |
Lenovo ThinkPad E460-20EUS00000 | |
HP ProBook 440 G3 | |
Lenovo ThinkPad L440 20AT004QGE | |
Dell Latitude 14 E5470 | |
Lenovo ThinkPad L460-20FVS01400 |
JetStream 1.1 - Total Score | |
Lenovo ThinkPad L460-20FVS01400 | |
HP ProBook 440 G3 | |
Lenovo ThinkPad T460s-20FA003GGE | |
Lenovo ThinkPad E460-20EUS00000 |
Mozilla Kraken 1.1 - Total | |
Acer TravelMate P645-S-58HK | |
Lenovo Thinkpad L450 20DS0001GE | |
Lenovo ThinkPad L440 20AT004QGE | |
HP EliteBook 745 G3 | |
HP ProBook 440 G3 | |
Lenovo ThinkPad E460-20EUS00000 | |
Dell Latitude 14 E5470 | |
Lenovo ThinkPad L460-20FVS01400 | |
Lenovo ThinkPad T460s-20FA003GGE |
Octane V2 - Total Score | |
Lenovo ThinkPad T460s-20FA003GGE | |
Lenovo ThinkPad L460-20FVS01400 | |
Dell Latitude 14 E5470 | |
HP ProBook 440 G3 | |
Lenovo ThinkPad E460-20EUS00000 | |
Lenovo Thinkpad L450 20DS0001GE | |
Acer TravelMate P645-S-58HK |
Peacekeeper - --- | |
Lenovo ThinkPad T460s-20FA003GGE | |
Lenovo ThinkPad L460-20FVS01400 | |
Lenovo ThinkPad E460-20EUS00000 | |
Lenovo Thinkpad L450 20DS0001GE | |
Acer TravelMate P645-S-58HK |
* ... smaller is better
PCMark 7 Score | 4911 poäng | |
PCMark 8 Home Score Accelerated v2 | 3092 poäng | |
PCMark 8 Creative Score Accelerated v2 | 3738 poäng | |
PCMark 8 Work Score Accelerated v2 | 4591 poäng | |
Hjälp |
PCMark 8 - Work Score Accelerated v2 | |
Dell Latitude 14 E5470 | |
Lenovo ThinkPad L460-20FVS01400 | |
Lenovo ThinkPad T460s-20FA003GGE | |
Lenovo ThinkPad E460-20EUS00000 | |
Lenovo ThinkPad L440 20AT004QGE | |
HP ProBook 440 G3 | |
HP EliteBook 745 G3 | |
Lenovo Thinkpad L450 20DS0001GE | |
Acer TravelMate P645-S-58HK | |
HP Elitebook 745 G2 |
3DMark 06 Standard Score | 6282 poäng | |
3DMark 11 Performance | 1869 poäng | |
3DMark Ice Storm Standard Score | 29533 poäng | |
3DMark Cloud Gate Standard Score | 4630 poäng | |
3DMark Fire Strike Score | 898 poäng | |
Hjälp |
3DMark 11 - 1280x720 Performance | |
Lenovo ThinkPad E460-20EUS00000 | |
HP EliteBook 745 G3 | |
Lenovo ThinkPad L460-20FVS01400 | |
Lenovo IdeaPad 305-15IBD | |
Lenovo E50-80 80JD973CPB | |
Lenovo B50-80 | |
Lenovo ThinkPad T460s-20FA003GGE | |
Dell Latitude 14 E5470 | |
HP ProBook 440 G3 | |
HP Elitebook 745 G2 | |
Acer TravelMate P645-S-58HK | |
Lenovo Thinkpad L450 20DS0001GE | |
Lenovo ThinkPad L440 20AT004QGE |
3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x | |
Lenovo ThinkPad T460s-20FA003GGE | |
Lenovo ThinkPad E460-20EUS00000 | |
HP EliteBook 745 G3 | |
Acer TravelMate P645-S-58HK | |
Lenovo ThinkPad L460-20FVS01400 | |
Lenovo B50-80 | |
HP Elitebook 745 G2 |
låg | med. | hög | ultra | |
---|---|---|---|---|
Tomb Raider (2013) | 58.6 | 30 | 23.2 | 11.9 |
BioShock Infinite (2013) | 46.5 | 26.4 | 22 | 8.4 |
Battlefield 4 (2013) | 40.5 | 29.1 | 19 | 7 |
Batman: Arkham Knight (2015) | 17 | 15 | 5 | 2 |
Fallout 4 (2015) | 19.4 | 13.2 | 6.9 | 4.1 |
Star Wars Battlefront (2015) | 34.3 | 21.2 | 9.8 | 6.9 |
Rainbow Six Siege (2015) | 41.3 | 26.1 | 9.1 | 7.1 |
Just Cause 3 (2015) | 23 | 18.9 | 9.4 | 6.1 |
Rise of the Tomb Raider (2016) | 17.3 | 10.7 | 6.3 | 3.9 |
XCOM 2 (2016) | 16.4 | 5.6 | ||
Far Cry Primal (2016) | 19 | 9 | 8 | 5 |
The Division (2016) | 21.4 | 14.1 |
Ljudnivå
Låg belastning |
| 29.2 / 29.2 / 29.2 dB(A) |
Hög belastning |
| 32.5 / 37.2 dB(A) |
| ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min: , med: , max: Voltcraft SL-451 + Behringer ECM8000 (15 cm avstånd) environment noise: 29.2 dB(A) |
Lenovo ThinkPad L460-20FVS01400 6500U, Radeon R5 M330 | Lenovo Thinkpad L450 20DS0001GE 5300U, HD Graphics 5500 | Lenovo ThinkPad E460-20EUS00000 6200U, Radeon R7 M360 | HP EliteBook 745 G3 Pro A12-8800B, Radeon R7 (Carrizo) | HP Elitebook 745 G2 A10 Pro-7350B, Radeon R6 (Kaveri) | HP ProBook 440 G3 6200U, HD Graphics 520 | Dell Latitude 14 E5470 6300U, HD Graphics 520 | Acer TravelMate P645-S-58HK 5200U, HD Graphics 5500 | |
---|---|---|---|---|---|---|---|---|
Noise | -3% | 1% | 5% | -3% | -0% | 0% | -2% | |
off / environment * | 29.2 | 29.2 -0% | ||||||
Idle Minimum * | 29.2 | 30.8 -5% | 29 1% | 28.5 2% | 31.2 -7% | 29.7 -2% | 29.2 -0% | 29.6 -1% |
Idle Average * | 29.2 | 30.8 -5% | 29 1% | 28.6 2% | 31.2 -7% | 29.7 -2% | 29.2 -0% | 29.6 -1% |
Idle Maximum * | 29.2 | 30.8 -5% | 29 1% | 28.6 2% | 31.2 -7% | 29.7 -2% | 29.2 -0% | 30.2 -3% |
Load Average * | 32.5 | 34.3 -6% | 33.1 -2% | 30.5 6% | 32.7 -1% | 32.7 -1% | 32.1 1% | 35.6 -10% |
Load Maximum * | 37.2 | 34.3 8% | 35.6 4% | 32.6 12% | 35.3 5% | 35.1 6% | 36.8 1% | 35.9 3% |
* ... smaller is better
(±) The maximum temperature on the upper side is 40.8 °C / 105 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 51.9 °C / 125 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.7 °C / 76 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.3 °C / 93.7 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-6.6 °C / -11.8 F).
Lenovo ThinkPad L460-20FVS01400 6500U, Radeon R5 M330 | Lenovo Thinkpad L450 20DS0001GE 5300U, HD Graphics 5500 | Lenovo ThinkPad E460-20EUS00000 6200U, Radeon R7 M360 | HP EliteBook 745 G3 Pro A12-8800B, Radeon R7 (Carrizo) | HP Elitebook 745 G2 A10 Pro-7350B, Radeon R6 (Kaveri) | HP ProBook 440 G3 6200U, HD Graphics 520 | Dell Latitude 14 E5470 6300U, HD Graphics 520 | Acer TravelMate P645-S-58HK 5200U, HD Graphics 5500 | |
---|---|---|---|---|---|---|---|---|
Heat | 3% | -9% | 0% | -9% | -14% | 1% | -1% | |
Maximum Upper Side * | 40.8 | 36.9 10% | 47.8 -17% | 36.8 10% | 40.4 1% | 41.4 -1% | 41.5 -2% | 41.6 -2% |
Maximum Bottom * | 51.9 | 39.6 24% | 48.3 7% | 43.8 16% | 43.6 16% | 50.2 3% | 41.4 20% | 41.7 20% |
Idle Upper Side * | 25.2 | 28.7 -14% | 28.6 -13% | 28.2 -12% | 33.1 -31% | 34 -35% | 26.9 -7% | 30.6 -21% |
Idle Bottom * | 27.6 | 30.1 -9% | 30.6 -11% | 31.2 -13% | 33.6 -22% | 33.3 -21% | 29.6 -7% | 27.5 -0% |
* ... smaller is better
Av/Standby | 0.23 / 0.4 Watt |
Låg belastning | 3.1 / 6.3 / 7.9 Watt |
Hög belastning |
29.5 / 57.3 Watt |
Förklaring:
min: ,
med: ,
max: Metrahit Energy |
Lenovo ThinkPad L460-20FVS01400 6500U, Radeon R5 M330 | Lenovo Thinkpad L450 20DS0001GE 5300U, HD Graphics 5500 | Lenovo ThinkPad E460-20EUS00000 6200U, Radeon R7 M360 | HP Elitebook 745 G2 A10 Pro-7350B, Radeon R6 (Kaveri) | HP ProBook 440 G3 6200U, HD Graphics 520 | Dell Latitude 14 E5470 6300U, HD Graphics 520 | Acer TravelMate P645-S-58HK 5200U, HD Graphics 5500 | |
---|---|---|---|---|---|---|---|
Power Consumption | 6% | -19% | -25% | -14% | 15% | 6% | |
Idle Minimum * | 3.1 | 3.4 -10% | 4.1 -32% | 6.1 -97% | 5.2 -68% | 3.5 -13% | 3.2 -3% |
Idle Average * | 6.3 | 6.1 3% | 8 -27% | 8.8 -40% | 8.2 -30% | 5.3 16% | 6.3 -0% |
Idle Maximum * | 7.9 | 7 11% | 8.9 -13% | 9.9 -25% | 9 -14% | 6 24% | 8.6 -9% |
Load Average * | 29.5 | 29 2% | 39.3 -33% | 31.2 -6% | 28.8 2% | 26.3 11% | 30.3 -3% |
Load Maximum * | 57.3 | 42.4 26% | 52.2 9% | 33.5 42% | 34 41% | 36.6 36% | 30.4 47% |
* ... smaller is better
Lenovo ThinkPad L460-20FVS01400 48 Wh | Lenovo Thinkpad L450 20DS0001GE 48 Wh | Lenovo ThinkPad E460-20EUS00000 47 Wh | HP EliteBook 745 G3 46 Wh | HP Elitebook 745 G2 50 Wh | HP ProBook 440 G3 44 Wh | Acer TravelMate P645-S-58HK 54 Wh | |
---|---|---|---|---|---|---|---|
Battery Runtime | -26% | -13% | -29% | -32% | -27% | 16% | |
Reader / Idle | 1153 | 798 -31% | 736 -36% | 564 -51% | 562 -51% | 537 -53% | 1143 -1% |
H.264 | 431 | 264 -39% | 425 -1% | 246 -43% | 321 -26% | 525 22% | |
WiFi v1.3 | 425 | 288 -32% | 292 -31% | 339 -20% | 293 -31% | 535 26% | |
Load | 97 | 97 0% | 112 15% | 81 -16% | 95 -2% | 101 4% | 113 16% |
WiFi | 279 |
För
Emot

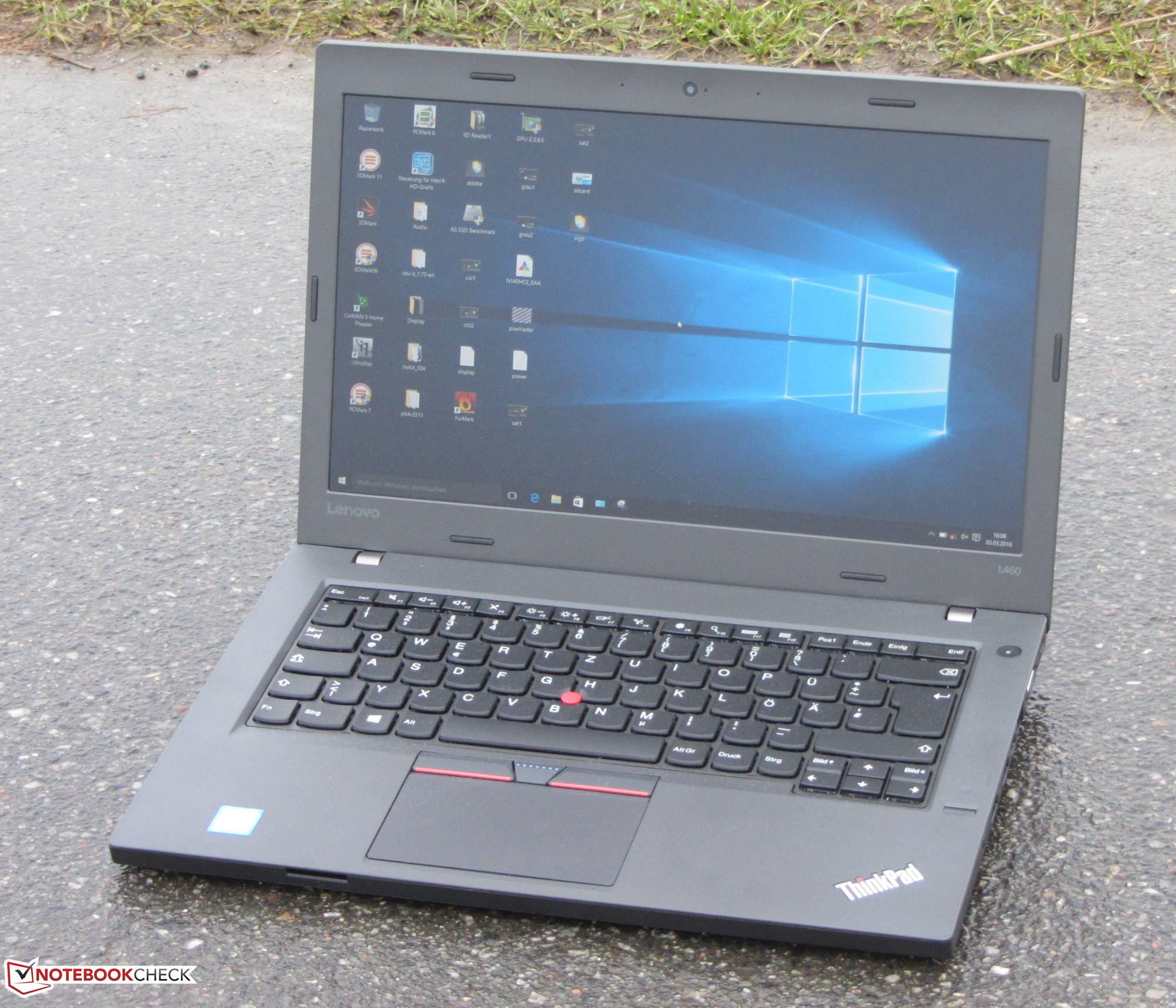

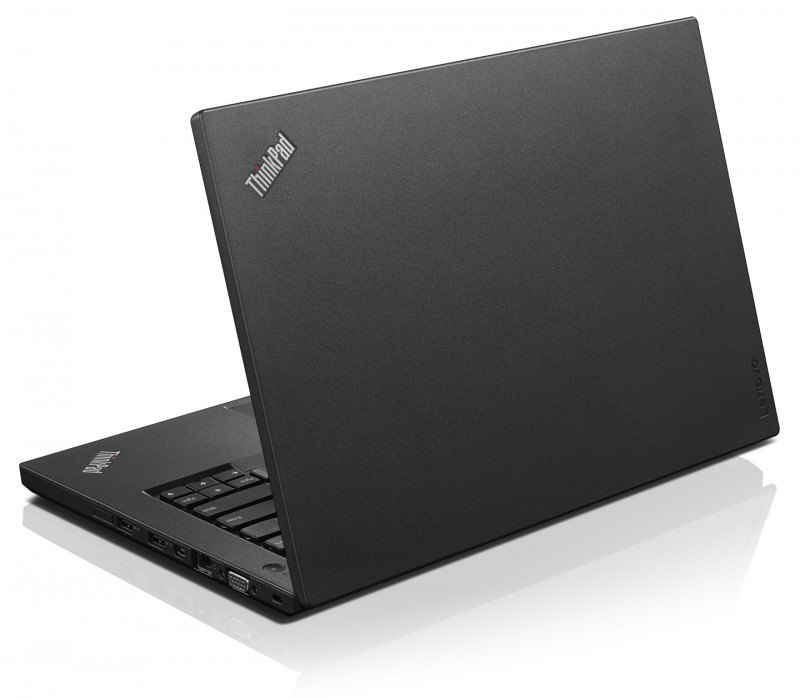

Lenovos ThinkPad L460 kan placeras i kategorin "lätt uppgraderad modell". Medan man gjorde en hel del ändringar från L440 till L450 har Lenovo använt samma chassi som föregångaren till L460.
Nyheterna finns bara på insidan i form av Skylake-processorer. Den i vårt testexemplar har tillräcklig prestanda för alla vanliga användningsområden. Tack vare Radeongrafiken får man även extra GPU-kraft i program som Photoshop. AMD:s GPU är överlägsen Intels integrerade grafikkretsar, även om inte just den här modellen är överdrivet lämpad för spel.

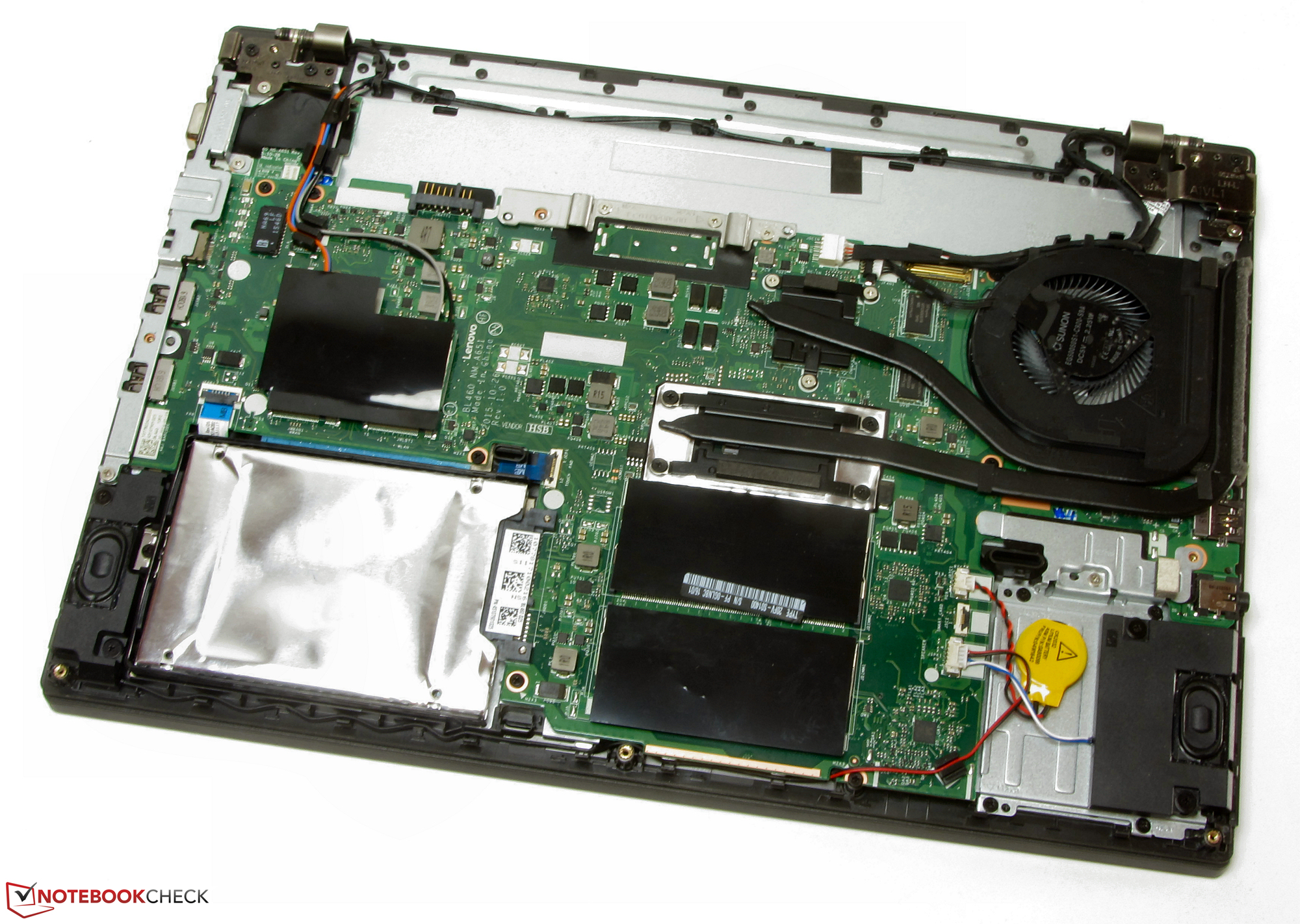

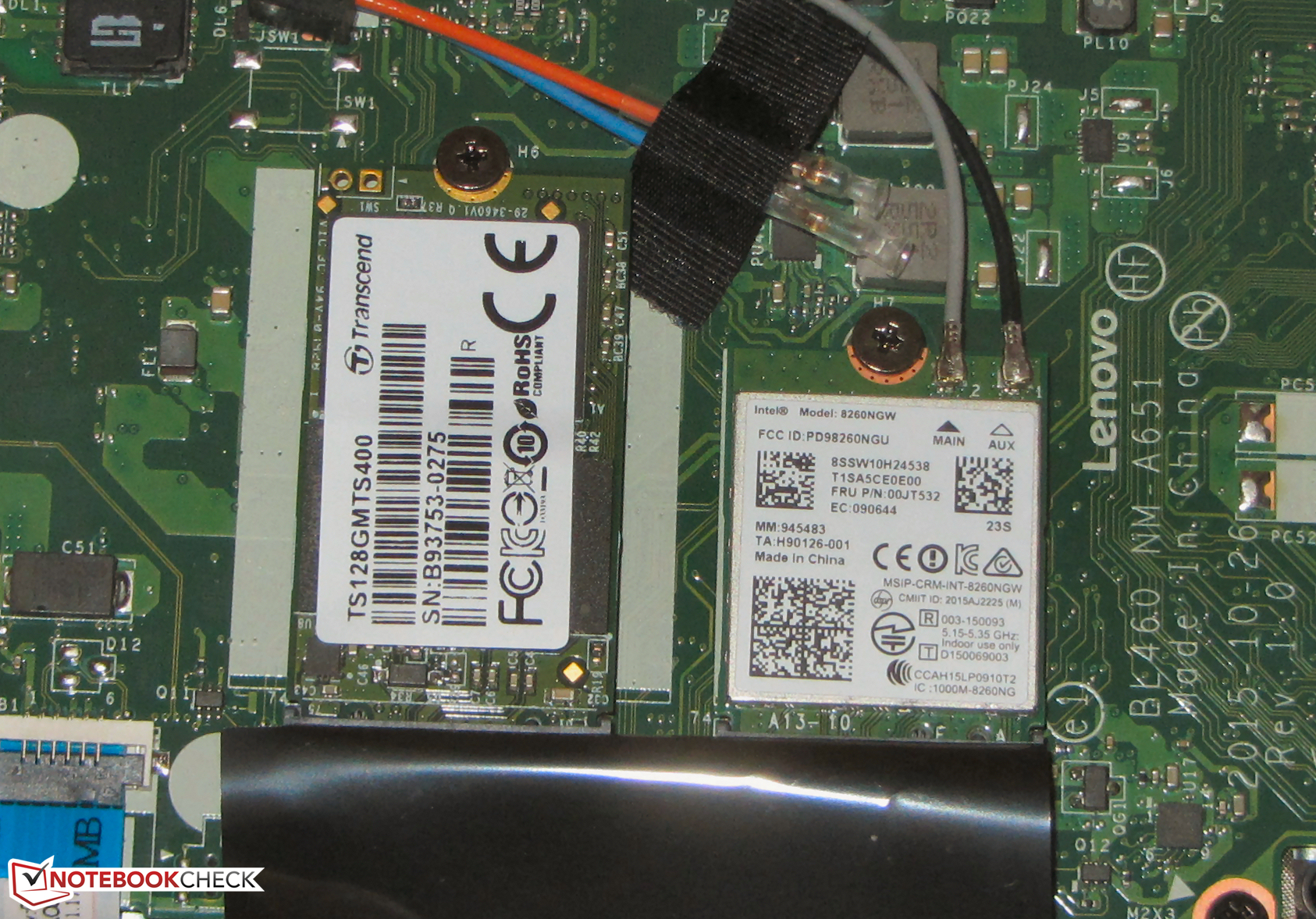

En snabb SSD säkerställer bra systemprestanda. Att byta ut den är teoretiskt möjligt, men datorn är inte försedd med någon underhållslucka. Den senaste modellen i ThinkPad L4x0-serien är också försedd med ett utmärkt tangentbord som har utformats för frekvent skrivande. Bakgrundsbelysning hade gjort det positiva intrycket fullkomligt.
Den matta Full HD-panelen erbjuder stabila betraktningsvinklar och bra kontrast, men tyvärr är ljusstyrkan för låg. Vi förväntar oss mer i den här prisklassen. Vårt största klagomål är relaterat till fläkten – i synnerhet fläktstyrningen. För det första surrar fläkten ibland vid låg belastning och för det andra avger den en tyst, visslande ljud. Ett kontorsdator som stör arbetet är inte perfekt.
ThinkPad-modeller med AMD:s grafiklösningar saknar dockningsport. Användare som behöver använda en docka måste antingen välja en annan L460-modell eller använda en USB 3.0-docka.
Lenovo ThinkPad L460-20FVS01400
- 03/09/2016 v5 (old)
Sascha Mölck
