Test: Lenovo ThinkPad P40 Yoga Workstation (sammanfattning)

Name: Lenovo ThinkPad P40 Yoga 20GQ-0004GE
Brand: Lenovo

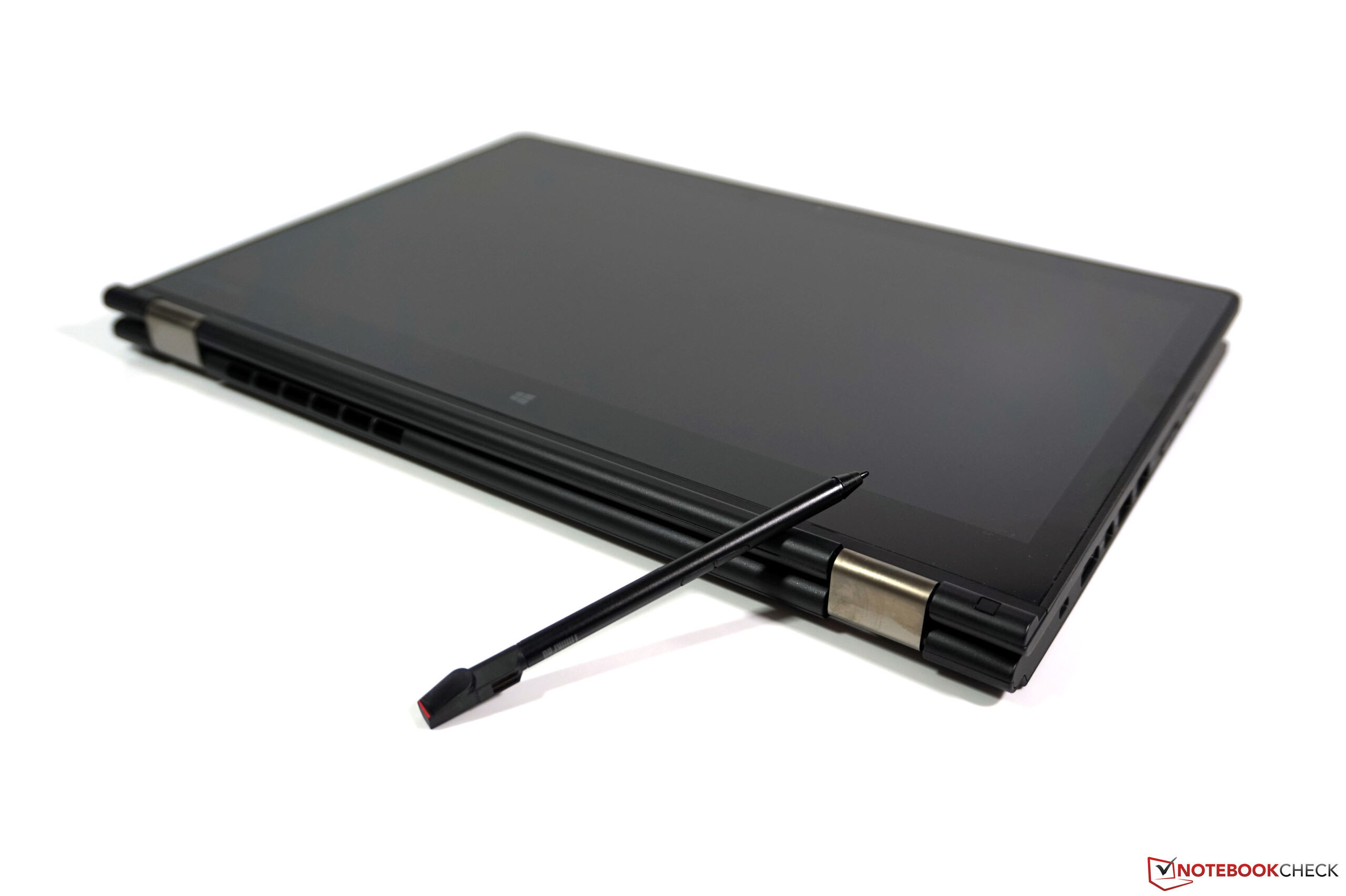

Flexibel arbetsstation. Lenovo vill etablera Yoga-seriens flexibilitet bland de mest krävande användarna med nya ThinkPad P40 Yoga. Det är i princip en Yoga 460 med dedikerad GPU, men vår testmodell var inte utan nackdelar.

Andreas Osthoff, ✓ Tanja Hinum, Published 05/21/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Touchscreen Ultrabook Windows Workstation

Test device courtesy of notebooksandmore.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad P40 Yoga 20GQ-0004GE (ThinkPad P1 Serie)

Processor

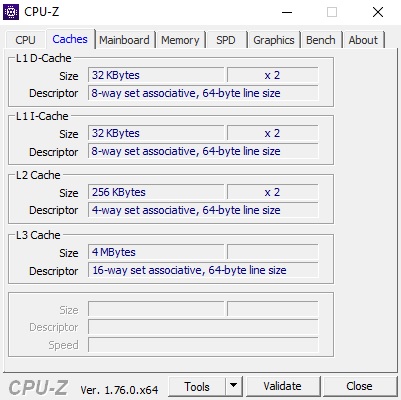

Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake

Grafikkort

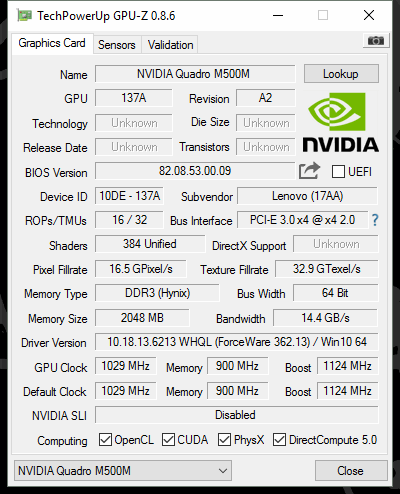

NVIDIA Quadro M500M - 2048 MB VRAM, Kärna: 1124 MHz, Minne: 900 MHz, DDR3, 362.13, Optimus

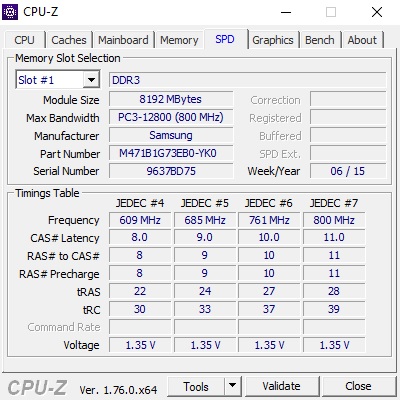

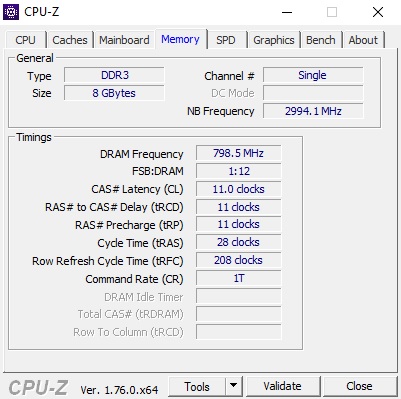

Minne

8 GB

, DDR3L-1600, 1 minnesplats (används), max 16 GB

Skärm

14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, 10-punkters kapacitiv, native pen support, NV140FHM-N41, IPS, glansig: ja

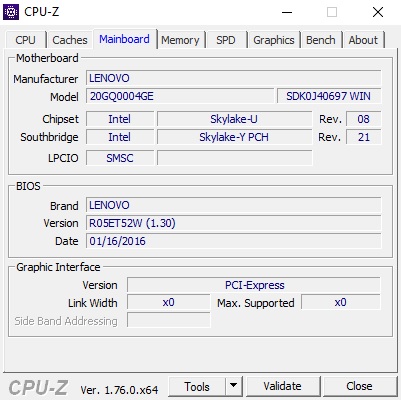

Moderkort

Intel Skylake-U Premium PCH

Hårddisk

Liteonit LCH-256V2S, 256 GB

Ljudkort

Intel Skylake-U/Y PCH - High Definition Audio

Anslutningar

3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: 3.5 mm headset, Kortläsare: 4-in-1 (MMC, SD, SDXC, SDHC), 1 Fingeravtrycksläsare, Brightness Sensor, Sensorer: Accelerometer, gyroskop, kompass

Nätverk

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 19.9 x 338 x 236

Batteri

53 Wh, 4390 mAh Litiumjon, Batteritid (enligt tillverkaren): 8 tim

Operativsystem

Microsoft Windows 10 Pro 64 Bit

Camera

Webbkamera: HD-webbkamera

Övrigt

Högtalare: Stereo, 2x 1.5W, Tangentbord: Chiclet, Tangentbordsbelysning: ja, ThinkPad Pen Pro, Lenovo Tools, MS Office test, McAffee LiveSafe test, 12 Månader Garanti

Vikt

1.834 kg, Strömförsörjning: 353 g

Pris

1900 Kr

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

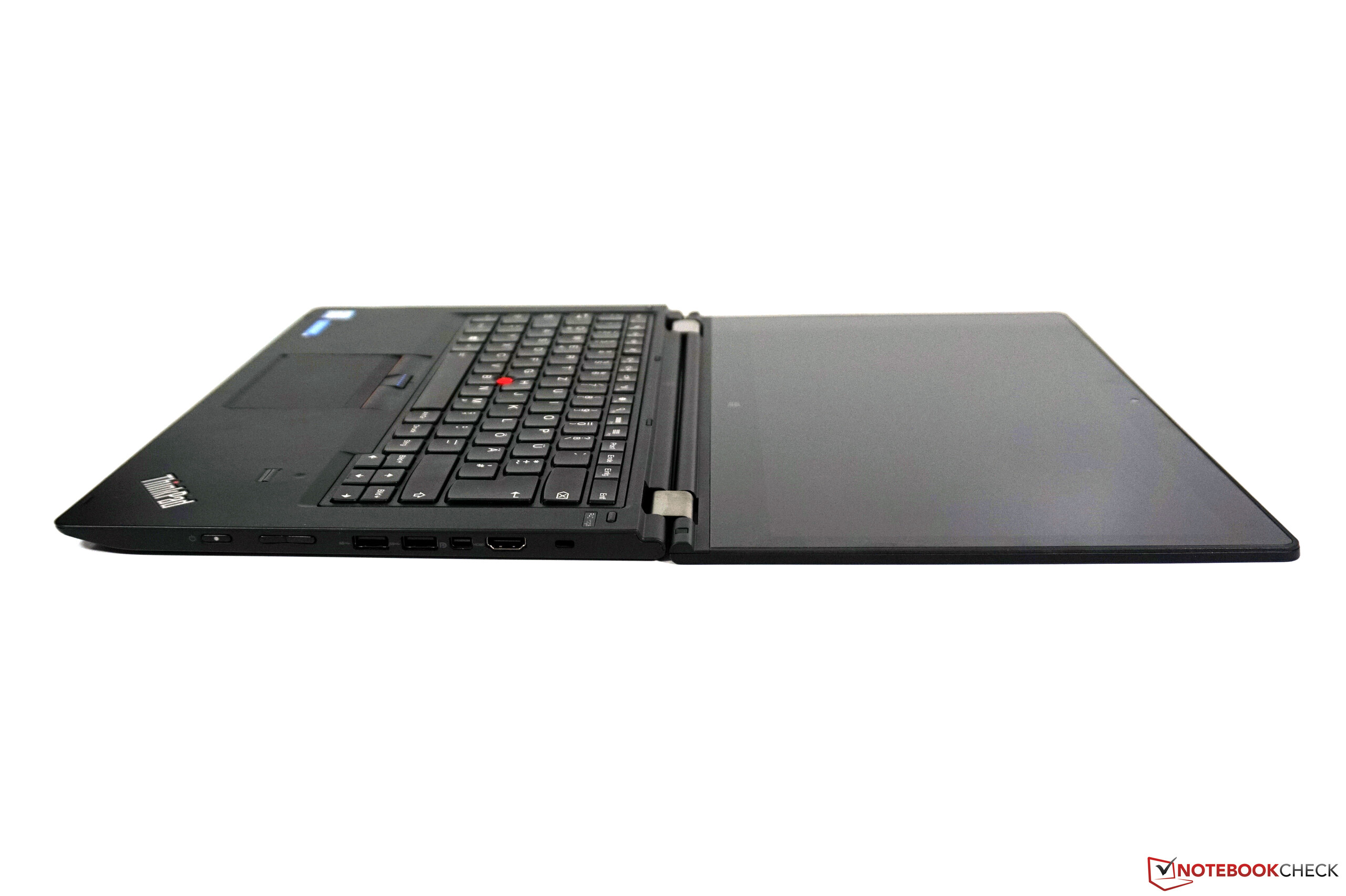

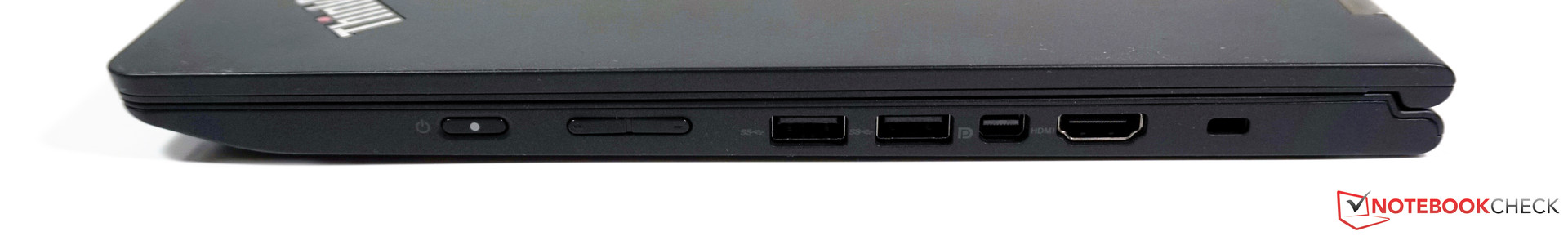

Right: power, volume, 2x USB 3.0, Mini-DisplayPort, HDMI, Kensington lock

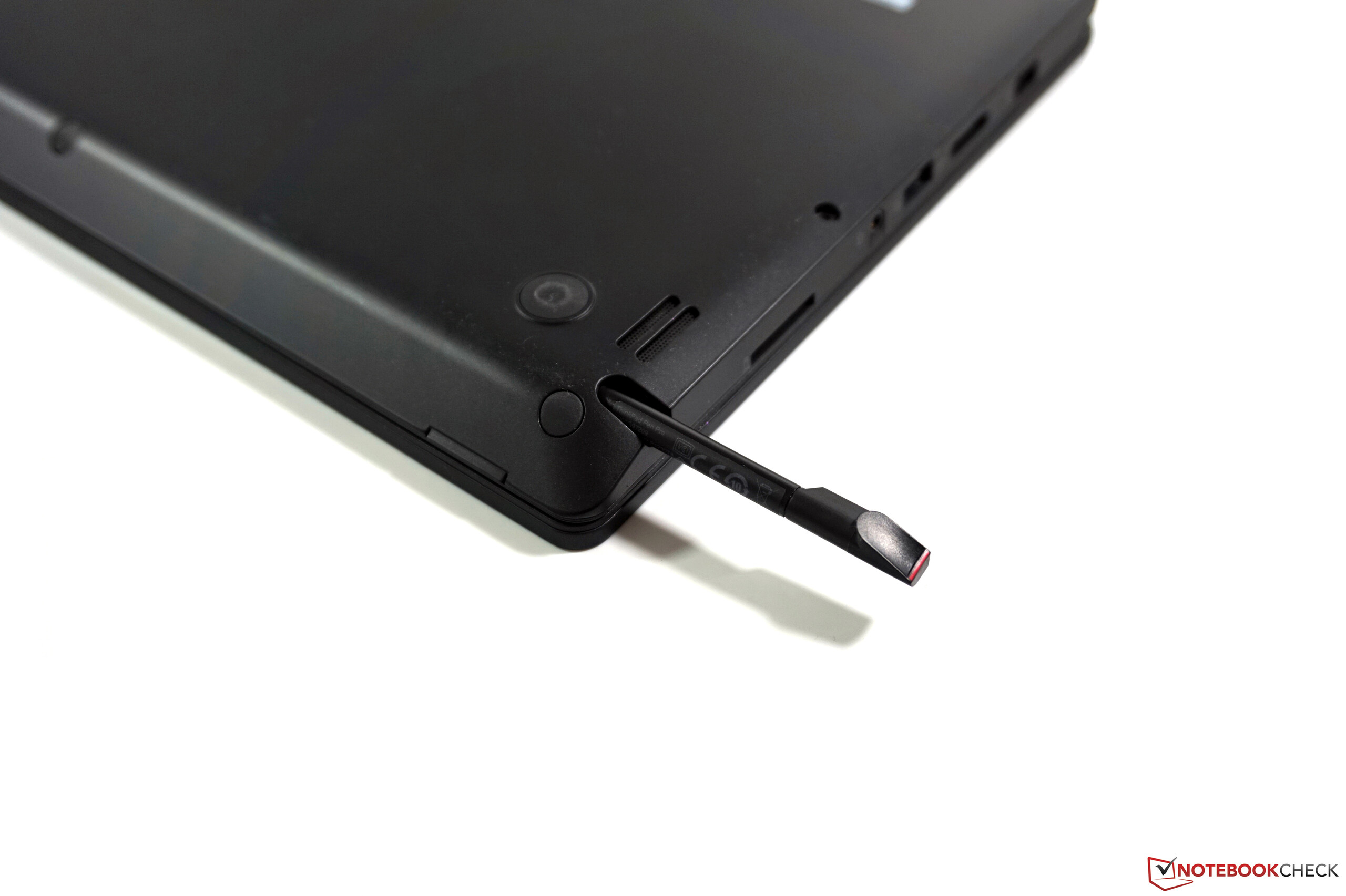

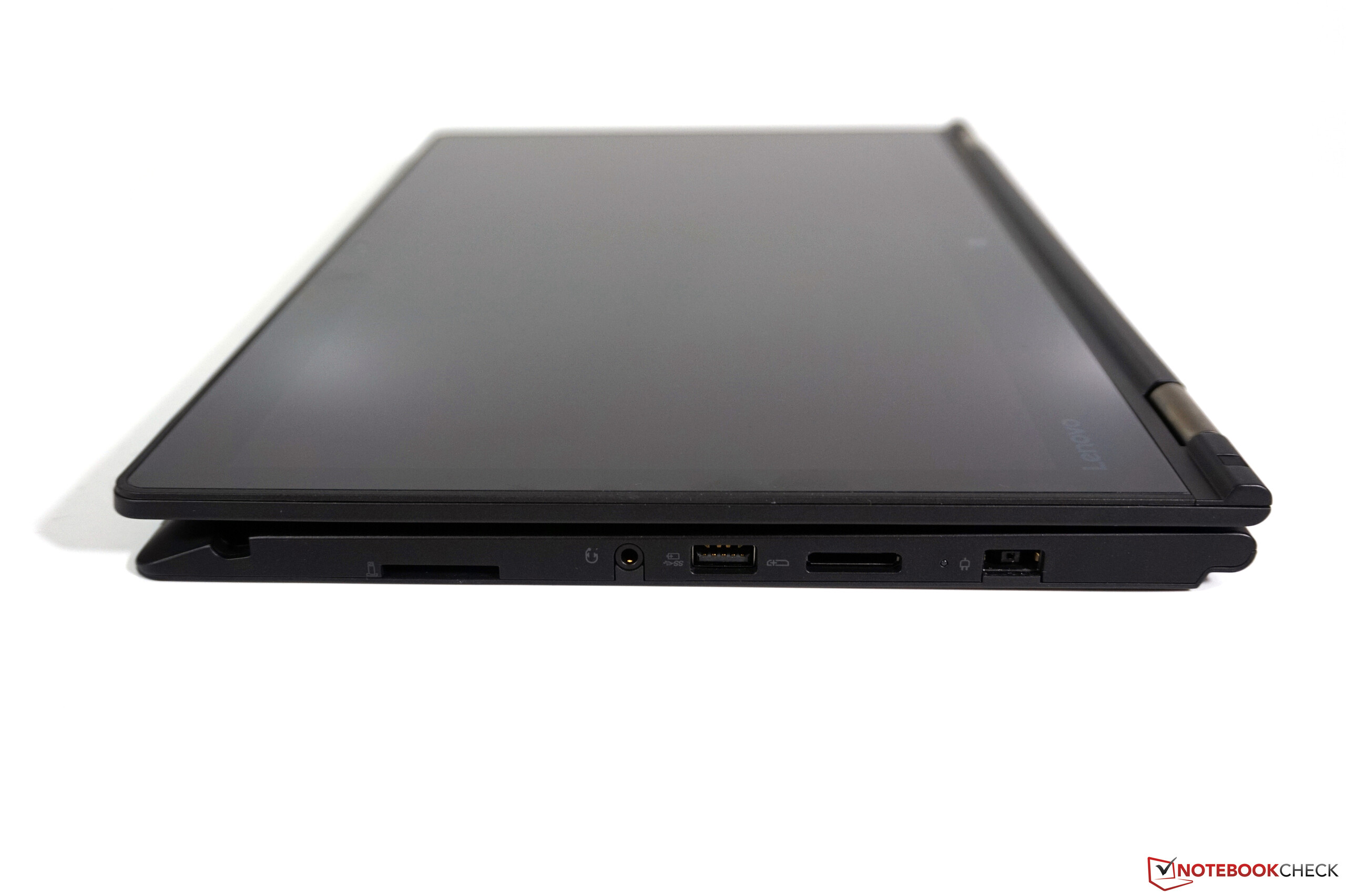

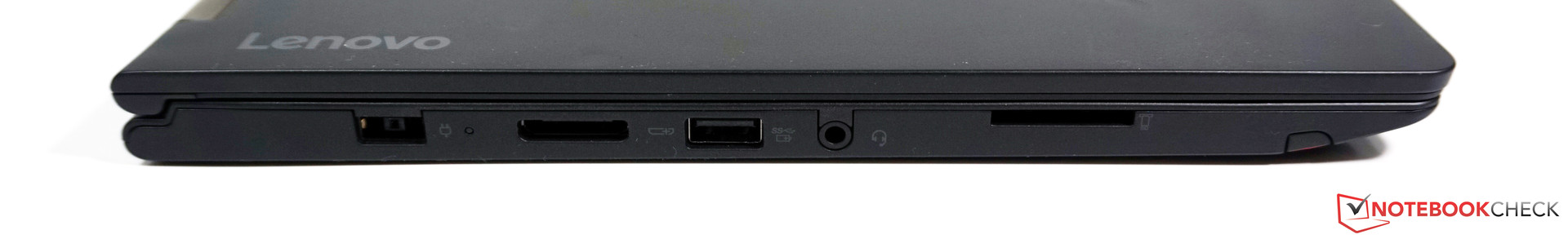

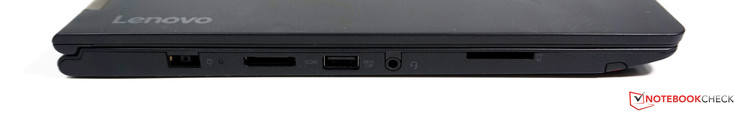

Left: AC power, OneLink+, USB 3.0, headset, SD-card reader, digitizer


249 cd/m²	256 cd/m²	235 cd/m²
236 cd/m²	229 cd/m²	229 cd/m²
248 cd/m²	239 cd/m²	244 cd/m²

Distribution av ljusstyrkan

NV140FHM-N41 tested with X-Rite i1Pro 2

Max: 256 cd/m² (Nits) Medel: 240.6 cd/m² Minimum: 2.5 cd/m²
Distribution av ljusstyrkan: 89 %
Mitt på batteriet: 227 cd/m²
Kontrast: 954:1 (Svärta: 0.24 cd/m²)
ΔE Color 6.3 | 0.5-29.43 Ø4.93
ΔE Greyscale 5.4 | 0.5-98 Ø5.2
65.5% sRGB (Calman 2D)
62% sRGB (Argyll 1.6.3 3D)
39.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.7% sRGB (Argyll 2.2.0 3D)
41.82% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22

Download ICC-fil (X-Rite i1Pro 2)

	Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S	Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH	Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP	Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe	Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP
Display		60%		56%	47%
Display P3 Coverage	41.82	68.1 63%		66.3 59%	63.7 52%
sRGB Coverage	62.7	97.2 55%		96 53%	87.6 40%
AdobeRGB 1998 Coverage	43.2	70.2 63%		68 57%	63.8 48%
Response Times		9%		6%	11%
Response Time Grey 50% / Grey 80% *	55 ?(19, 36)	38 ?(15.2, 22.8) 31%		39 ?(24, 15) 29%	38 ?(15.2, 22.8) 31%
Response Time Black / White *	28.8 ?(8.4, 20.4)	30.4 ?(6, 24.4) -6%		34 ?(10, 24, mini hills) -18%	28.8 ?(8.4, 20.4) -0%
PWM Frequency	217 ?(40)	219 ?(99) 1%			219 ?(90) 1%
Screen		8%	2%	53%	17%
Brightness middle	229	284.7 24%	286 25%	438 91%	319 39%
Brightness	241	272 13%	274 14%	414 72%	290 20%
Brightness Distribution	89	89 0%	90 1%	88 -1%	82 -8%
Black Level *	0.24	0.383 -60%	0.3 -25%	0.25 -4%	0.31 -29%
Contrast	954	743 -22%	953 0%	1752 84%	1029 8%
Colorchecker dE 2000 *	6.3	5.24 17%	5.62 11%	2.06 67%	4.8 24%
Colorchecker dE 2000 max. *	12.6	11.22 11%			7.8 38%
Greyscale dE 2000 *	5.4	7.32 -36%	6.19 -15%	2.87 47%	5.7 -6%
Gamma	2.22 ^99%	2.22 ^99%	2.35 ^94%	2.44 ^90%	2.07 ^106%
CCT	6592 ^99%	6277 ^104%	5606 ^116%	6820 ^95%	6260 ^104%
Color Space (Percent of AdobeRGB 1998)	39.4	70.17 78%		64 62%	56.9 44%
Color Space (Percent of sRGB)	62	94.68 53%		96 55%	87.4 41%
Total Average (Program / Settings)		26% / 18%	2% / 2%	38% / 47%	25% / 21%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

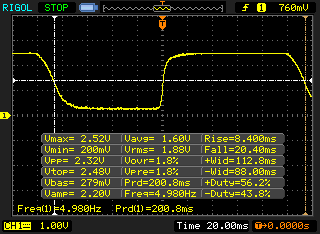

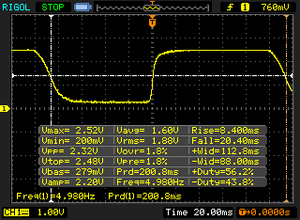

↔ Response Time Black to White
28.8 ms ... rise ↗ and fall ↘ combined	↗ 8.4 ms rise
28.8 ms ... rise ↗ and fall ↘ combined	↘ 20.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 73 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

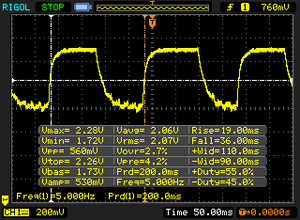

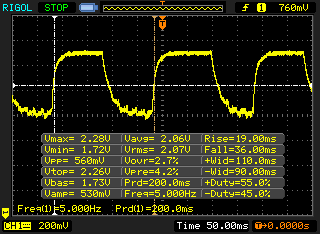

↔ Response Time 50% Grey to 80% Grey
55 ms ... rise ↗ and fall ↘ combined	↗ 19 ms rise
55 ms ... rise ↗ and fall ↘ combined	↘ 36 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 91 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

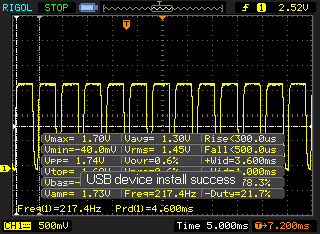

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

217 Hz

≤ 40 % brightness setting

The display backlight flickers at 217 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 40 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 217 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15 | Cinebench R11.5

Cinebench R15
CPU Multi 64Bit
Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe	335 Points +6%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S	316 Points
Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP	307 Points -3%
Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH	307 Points -3%
Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP	260 Points -18%
CPU Single 64Bit
Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe	129 Points +4%
Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP	129 Points +4%
Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH	128 Points +3%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S	124 Points
Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP	110 Points -11%

Cinebench R11.5
CPU Multi 64Bit
Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe	3.73 Points +7%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S	3.47 Points
Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP	3.45 Points -1%
CPU Single 64Bit
Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe	1.49 Points +2%
Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP	1.49 Points +2%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S	1.46 Points

Cinebench R10 Rendering Single CPUs 64Bit

6385 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

14337 Points

Cinebench R10 Shading 64Bit

6692 Points

Cinebench R10 Shading 32Bit

6602

Cinebench R10 Rendering Multiple CPUs 32Bit

9101

Cinebench R10 Rendering Single 32Bit

4850

Cinebench R11.5 OpenGL 64Bit

28.44 fps

Cinebench R11.5 CPU Multi 64Bit

3.47 Points

Cinebench R11.5 CPU Single 64Bit

1.46 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

34.92 fps

Cinebench R15 CPU Multi 64Bit

316 Points

Cinebench R15 CPU Single 64Bit

124 Points

Hjälp

... jämför

PCMark 8
Home Score Accelerated v2
Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH	3137 Points +9%
Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe	2947 Points +3%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S	2875 Points
Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP	2790 Points -3%
Creative Score Accelerated v2
Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe	3755 Points 0%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S	3744 Points
Work Score Accelerated v2
Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S	4377 Points
Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH	3986 Points -9%
Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe	3782 Points -14%
Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP	3744 Points -14%

PCMark 7 Score		4095 poäng
PCMark 8 Home Score Accelerated v2		2875 poäng
PCMark 8 Creative Score Accelerated v2		3744 poäng
PCMark 8 Work Score Accelerated v2		4377 poäng
Hjälp

... jämför

CrystalDiskMark 3.0

AS SSD

Liteonit LCH-256V2S

Sequential Read: 505 MB/s

Sequential Write: 287.6 MB/s

512K Read: 281.2 MB/s

512K Write: 289.2 MB/s

4K Read: 26.56 MB/s

4K Write: 79.8 MB/s

4K QD32 Read: 264.3 MB/s

4K QD32 Write: 227.4 MB/s

SPECviewperf 11 | SPECviewperf 12

SPECviewperf 11
1920x1080 Siemens NX
Dell Precision 5510 NVIDIA Quadro M1000M	41 fps +66%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	30.91 fps +25%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	29.41 fps +19%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	24.74 fps
1920x1080 Tcvis
Dell Precision 5510 NVIDIA Quadro M1000M	40 fps +57%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	39.52 fps +55%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	35.63 fps +40%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	25.49 fps
1920x1080 SolidWorks
Dell Precision 5510 NVIDIA Quadro M1000M	51 fps +45%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	41.78 fps +19%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	39.63 fps +13%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	35.08 fps
1920x1080 Pro/ENGINEER
Dell Precision 5510 NVIDIA Quadro M1000M	21 fps +44%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	15.68 fps +7%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	14.87 fps +2%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	14.61 fps
1920x1080 Maya
Dell Precision 5510 NVIDIA Quadro M1000M	56 fps +30%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	49.5 fps +15%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	46.88 fps +9%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	43.04 fps
1920x1080 Lightwave
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +40%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	46.9 fps +21%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	46.82 fps +21%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	38.69 fps
1920x1080 Ensight
Dell Precision 5510 NVIDIA Quadro M1000M	39 fps +130%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	20.68 fps +22%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20.44 fps +21%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	16.92 fps
1920x1080 Catia
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +65%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	46.7 fps +43%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	38.08 fps +16%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	32.72 fps

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Dell Precision 5510 NVIDIA Quadro M1000M	62 fps +109%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	37.22 fps +26%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	33.02 fps +11%
HP ZBook 15u G3 AMD FirePro W4190M	31.41 fps +6%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	29.64 fps
1900x1060 Siemens NX (snx-02)
Dell Precision 5510 NVIDIA Quadro M1000M	31 fps +94%
HP ZBook 15u G3 AMD FirePro W4190M	19.89 fps +24%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	19.13 fps +19%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	17.1 fps +7%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	16.01 fps
1900x1060 Showcase (showcase-01)
Dell Precision 5510 NVIDIA Quadro M1000M	20 fps +266%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	6.32 fps +16%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.08 fps +11%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	5.46 fps
HP ZBook 15u G3 AMD FirePro W4190M	4.98 fps -9%
1900x1060 Medical (medical-01)
Dell Precision 5510 NVIDIA Quadro M1000M	12 fps +76%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	9.51 fps +39%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	7.05 fps +3%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	6.82 fps
HP ZBook 15u G3 AMD FirePro W4190M	6.09 fps -11%
1900x1060 Maya (maya-04)
Dell Precision 5510 NVIDIA Quadro M1000M	30 fps +169%
HP ZBook 15u G3 AMD FirePro W4190M	16.38 fps +47%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	12.03 fps +8%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	11.17 fps
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	11.14 fps 0%
1900x1060 Energy (energy-01)
Dell Precision 5510 NVIDIA Quadro M1000M	0.69 fps +97%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	0.53 fps +51%
HP ZBook 15u G3 AMD FirePro W4190M	0.41 fps +17%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	0.38 fps +9%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	0.35 fps
1900x1060 Creo (creo-01)
Dell Precision 5510 NVIDIA Quadro M1000M	34 fps +90%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20.62 fps +15%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	17.92 fps
HP ZBook 15u G3 AMD FirePro W4190M	16.87 fps -6%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	16.28 fps -9%
1900x1060 Catia (catia-04)
Dell Precision 5510 NVIDIA Quadro M1000M	37 fps +102%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	21.42 fps +17%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	18.72 fps +2%
HP ZBook 15u G3 AMD FirePro W4190M	18.62 fps +1%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	18.35 fps

SiSoft Sandra 2016 | LuxMark v2.0 64Bit

SiSoft Sandra 2016
Image Processing
Dell Precision 5510 NVIDIA Quadro M1000M	127.5 MPix/s +32%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	99.5 MPix/s +3%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	96.4 MPix/s
GP Cryptography (Higher Security AES256+SHA2-512)
Dell Precision 5510 NVIDIA Quadro M1000M	7.38 GB/s +41%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	5.37 GB/s +2%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	5.25 GB/s
GP Financial Analysis (FP High/Double Precision)
Dell Precision 5510 NVIDIA Quadro M1000M	17 KOPT/s +34%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	12.82 KOPT/s +1%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	12.72 KOPT/s

LuxMark v2.0 64Bit
Room GPUs-only
Dell Precision 5510 NVIDIA Quadro M1000M	534 Samples/s +51%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	378 Samples/s +7%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	354 Samples/s
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	253 Samples/s -29%
Sala GPUs-only
HP ZBook 15u G3 AMD FirePro W4190M	1034 Samples/s +22%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	945 Samples/s +11%
Dell Precision 5510 NVIDIA Quadro M1000M	889 Samples/s +5%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	850 Samples/s
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	508 Samples/s -40%

Unigine Heaven 3.0 | Unigine Valley 1.0 | 3DMark

Unigine Heaven 3.0
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
Dell Precision 5510 NVIDIA Quadro M1000M	44.9 fps +107%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	21.9 fps +1%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	21.7 fps
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	21 fps -3%
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
Dell Precision 5510 NVIDIA Quadro M1000M	43.4 fps +127%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	20 fps +5%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	19.1 fps
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	18.6 fps -3%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Dell Precision 5510 NVIDIA Quadro M1000M	18.7 fps +207%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.5 fps +7%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	6.1 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Dell Precision 5510 NVIDIA Quadro M1000M	16.2 fps +157%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	6.8 fps +8%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	6.3 fps

3DMark
1920x1080 Fire Strike Score
Dell Precision 5510 NVIDIA Quadro M1000M	3344 Points +141%
Microsoft Surface Book Core i7 NVIDIA Maxwell GPU Surface Book	1952 Points +41%
Lenovo ThinkPad Yoga 14 NVIDIA GeForce 840M	1595 Points +15%
HP ZBook 15u G3 AMD FirePro W4190M	1517 Points +9%
Acer Aspire V3-575G-5093 NVIDIA GeForce 940M	1483 Points +7%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	1432 Points +3%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	1424 Points +3%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	1388 Points
1920x1080 Fire Strike Graphics
Dell Precision 5510 NVIDIA Quadro M1000M	3517 Points +122%
Microsoft Surface Book Core i7 NVIDIA Maxwell GPU Surface Book	2120 Points +34%
Acer Aspire V3-575G-5093 NVIDIA GeForce 940M	1718 Points +8%
Lenovo ThinkPad Yoga 14 NVIDIA GeForce 840M	1631 Points +3%
Lenovo ThinkPad W550s 20E2-000PGE NVIDIA Quadro K620M	1621 Points +2%
Lenovo ThinkPad P50s-20FKS00400 NVIDIA Quadro M500M	1610 Points +2%
HP ZBook 15u G3 AMD FirePro W4190M	1588 Points 0%
Lenovo ThinkPad P40 Yoga 20GQ-0004GE NVIDIA Quadro M500M	1585 Points

3DMark 06 Standard Score		11913 poäng
3DMark 11 Performance		2462 poäng
3DMark Ice Storm Standard Score		41915 poäng
3DMark Cloud Gate Standard Score		6491 poäng
3DMark Fire Strike Score		1388 poäng
Hjälp

... jämför

	låg	med.	hög	ultra
BioShock Infinite (2013)	89.1	50.1	40.3	13.8
The Witcher 3 (2015)	29	17.9	9.9
Rainbow Six Siege (2015)	65.4	38.2	20.2	11.9

Ljudnivå

Låg belastning		30 / 30 / 30 dB(A)
Hög belastning		37.3 / 39.8 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM1 Arta (15 cm avstånd) environment noise: 30 dB(A)

	Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S	Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH	Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP	Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe	Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP
Noise		6%	5%	-3%	1%
off / environment *	30	28.8 4%		31.3 -4%
Idle Minimum *	30	28.8 4%	29.6 1%	31.3 -4%	30 -0%
Idle Average *	30	28.8 4%	29.6 1%	31.3 -4%	30 -0%
Idle Maximum *	30	28.8 4%	29.6 1%	31.3 -4%	30 -0%
Load Average *	37.3	35.2 6%	34.2 8%	38 -2%	33.5 10%
Load Maximum *	39.8	35.2 12%	34.5 13%	40.5 -2%	41.9 -5%

* ... smaller is better

Hög belastning

Låg belastning


32.3 °C	54.8 °C	44.1 °C
31.1 °C	39.7 °C	37.9 °C
27.4 °C	28.9 °C	31.5 °C

Max: 54.8 °C
Medel: 36.4 °C


49.5 °C	55.2 °C	44.6 °C
35.4 °C	37.9 °C	27 °C
30.7 °C	30.4 °C	27.7 °C

Max: 55.2 °C
Medel: 37.6 °C

Strömförsörjning (max.) 43.5 °C | Rumstemperatur 20 °C | Fennel FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 36.4 °C / 98 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 54.8 °C / 131 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55.2 °C / 131 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.5 °C / 88.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-3.7 °C / -6.7 F).

	Lenovo ThinkPad P40 Yoga 20GQ-0004GE Quadro M500M, 6500U, Liteonit LCH-256V2S	Lenovo Thinkpad X1 Yoga 20FQ-000QUS HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH	Lenovo ThinkPad Yoga 14 GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP	Microsoft Surface Book Core i7 Maxwell GPU (940M, GDDR5), 6600U, Samsung MZFLV512 NVMe	Lenovo ThinkPad P50s-20FKS00400 Quadro M500M, 6500U, Samsung PM871 MZYLN256HCHP
Heat		0%	10%	5%	6%
Maximum Upper Side *	54.8	42.8 22%	43.5 21%	47.4 14%	44.2 19%
Maximum Bottom *	55.2	49.4 11%	47 15%	50.2 9%	57.8 -5%
Idle Upper Side *	28.1	32.4 -15%	26.7 5%	30.4 -8%	26.4 6%
Idle Bottom *	28.6	33.4 -17%	28.8 -1%	27.4 4%	28.1 2%

* ... smaller is better

Strömförbrukning

Av/Standby	0.4 / 0.6 Watt
Låg belastning	3.7 / 6.8 / 7.2 Watt
Hög belastning	41.5 / 50.5 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad P40 Yoga 20GQ-0004GE 53 Wh	Lenovo Thinkpad X1 Yoga 20FQ-000QUS 52 Wh	Lenovo ThinkPad Yoga 14 56 Wh	Microsoft Surface Book Core i7 78 Wh	Lenovo ThinkPad P50s-20FKS00400 67 Wh
Power Consumption		-37%	8%	-31%	-24%
Idle Minimum *	3.7	6.82 -84%	3.1 16%	4.5 -22%	4.3 -16%
Idle Average *	6.8	8.21 -21%	7.2 -6%	9.8 -44%	9.7 -43%
Idle Maximum *	7.2	17.55 -144%	7.7 -7%	12.2 -69%	10.2 -42%
Load Average *	41.5	28.81 31%	36.2 13%	46 -11%	45.7 -10%
Load Maximum *	50.5	34.07 33%	38.5 24%	56 -11%	55.8 -10%

* ... smaller is better

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		12tim 04min
WiFi Websurfing		5tim 18min
Big Buck Bunny H.264 1080p		8tim 57min
Hög belastning (maximal ljusstyrka)		2tim 00min

	Lenovo ThinkPad P40 Yoga 20GQ-0004GE 53 Wh	Lenovo Thinkpad X1 Yoga 20FQ-000QUS 52 Wh	Lenovo ThinkPad Yoga 14 56 Wh	Microsoft Surface Book Core i7 78 Wh	Lenovo ThinkPad P50s-20FKS00400 67 Wh
Battery Runtime		13%	3%	104%	22%
Reader / Idle	724	922 27%	747 3%		1107 53%
H.264	537				537 0%
WiFi v1.3	318	356 12%		648 104%	408 28%
Load	120	120 0%			129 8%
WiFi			352

För

+ tyst

+ flexibel

+ aktiv digitizer ingår

+ bra systemprestanda

+ bra pekskärm

+ snabbt Wi-Fi

+ bra tangentbord, men det för lite oväsen

Emot

- lockets stabilitet

- höga temperaturer, strypning under belastning

- bara ett års garanti

- begränsad färgrymd

- skärmen är glansig och kunde varit mer ljusstark

- medioker batteritid

- dåliga högtalare

- inga moderna portar

- PWM

- dyrxx1

In review: Lenovo ThinkPad P40 Yoga. Test model courtesy of Notebooksandmore.

Läs en mer omfattande version av testet här (på engelska).

Vi är inte helt övertygade av ThinkPad P40 Yoga. Liksom med den större arbetsstationen ThinkPad P50s har Lenovo avstått en hel del ny teknik (USB-C, USB 3.1, Thunderbolt, NVMe-SSD, M.2-2280), vilket är ett resultat av chassikonstruktionen. Den senare används även till den mycket billigare ThinkPad Yoga 460, som i sin tur är baserad på den gamla ThinkPad Yoga 14. Chassit är kompakt, så de stora 2,5-tumsdiskarna slösar mycket plats.

Vår testmodell visade sig också ha vissa nackdelar som vi inte förväntar oss i prisklassen. Stabiliteten kunde vara bättre, eftersom vi snabbt kan framkalla bildförvrängningar. Gångjärnen är inte tillräckliga heller, eftersom beröring eller vibrationer kommer att resultera i en del studsande. Vår testmodell är - trots den tillgängliga M.2 platsen - inte redo för mobilt bredband och garantin är begränsad till bara ett år. Den blanka panelen är för mörk för utomhusbruk och kan inte riktigt övertyga i andra discipliner heller. Enheten är mycket tyst, men blir istället mycket varm, vilket snabbt kan begränsa prestandan under belastning.

Det finns säkert köpare för P40 Yoga, men det finns bättre alternativ om du inte behöver ett professionellt grafikkort. Tillverkaren slösar bort mycket potential på grund av bristen på modern teknik och det finns onödiga begränsningar, som t.ex. minnet.

Fördelarna med P40 Yoga är uppenbara: de olika driftlägena, men de har också begränsningar på grund av vikten och gångjärnen. Även tangentbordet, som vanligen är en styrka i ThinkPad-serierna, har problem med stabiliteten. Det är ändå bra, men sämre än andra aktuella ThinkPad-modeller.

ThinkPad P40 Yoga riktar sig till en mycket snäv målgrupp. Om du behöver både en professionell GPU och pekplattefunktioner finns det för närvarande inget alternativ till P40. Men om du inte behöver en Quadro-GPU bör du ta en titt på den mer ljusstarka ThinkPad X1 Yoga eller den mycket billigare ThinkPad Yoga 460.

Lenovo ThinkPad P40 Yoga 20GQ-0004GE - 2016-04-25 04/25/2016 v5.1 ^(old)
Andreas Osthoff

Design

81 / 98 → 83%

Tangentbord

88%

Mus

87%

Anslutningar

67 / 81 → 83%

Vikt

65 / 10-66 → 98%

Batteri

87%

Skärm

80%

Spelprestanda

63%

Programprestanda

79%

Workstation

53%

Temperatur

86 / 95 → 90%

Ljudnivå

95 / 90 → 100%

Audio

59%

Camera

50 / 85 → 59%

Medel

74%

77%

Workstation - Vägt medel

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1692 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad P40 Yoga Workstation (sammanfattning)

Andreas Osthoff, 2016-05-21 (Update: 2016-05-21)
