MagyarTest: Lenovo ThinkPad T460p (sammanfattning)

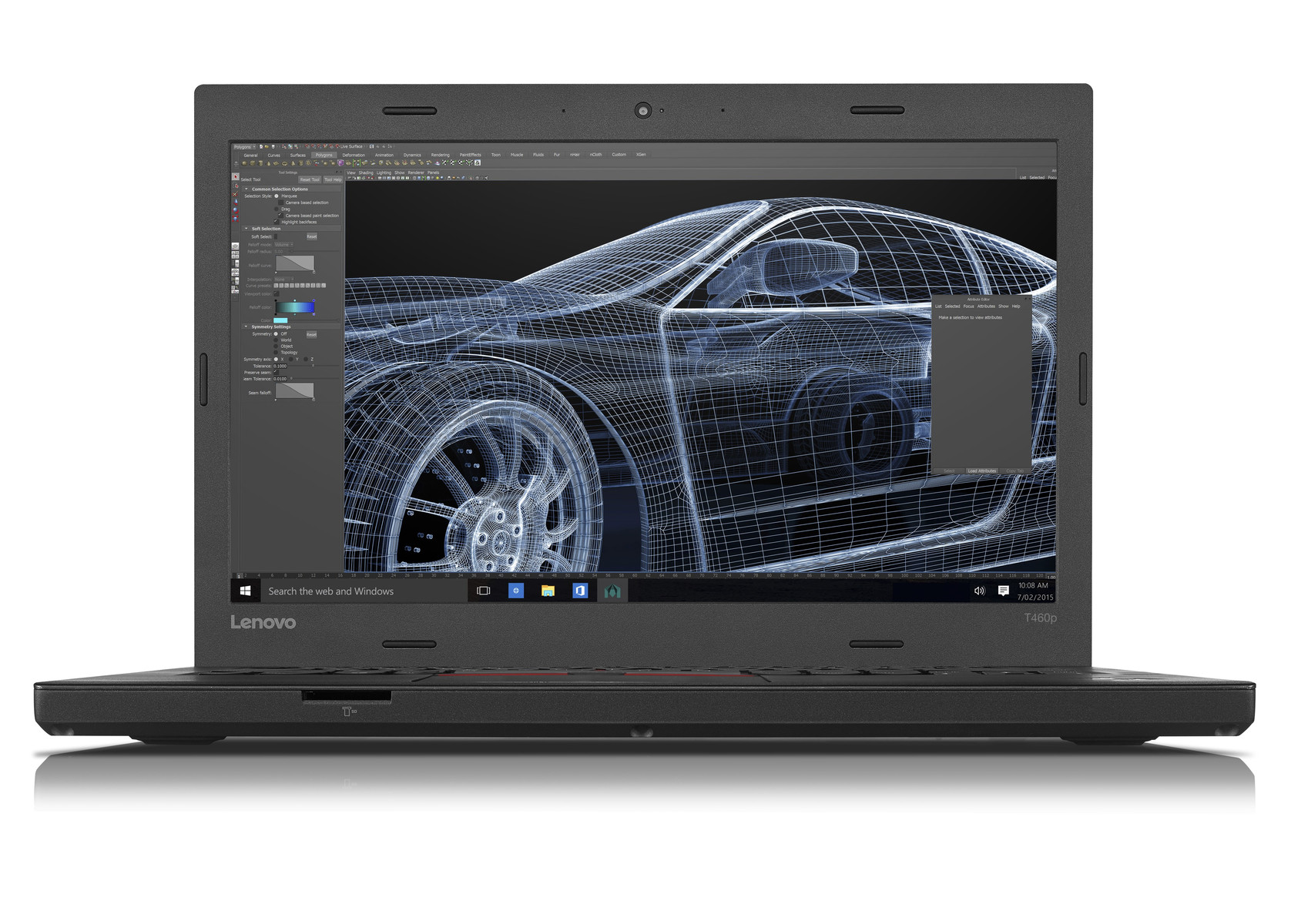

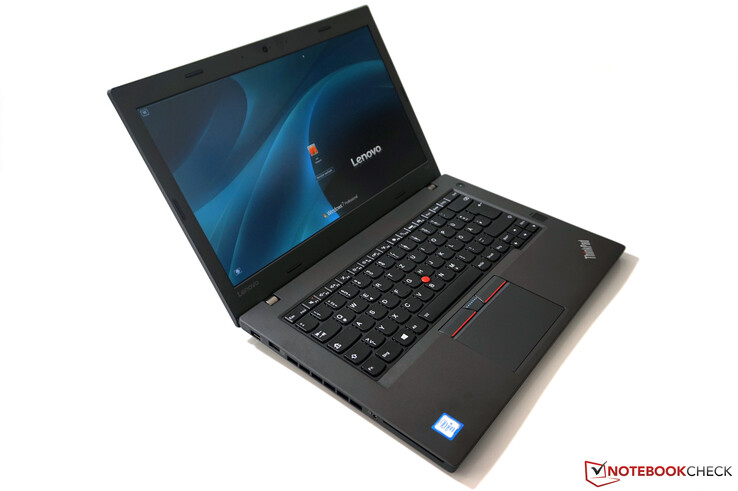

Lenovo ThinkPad T460p (Thinkpad T Serie)

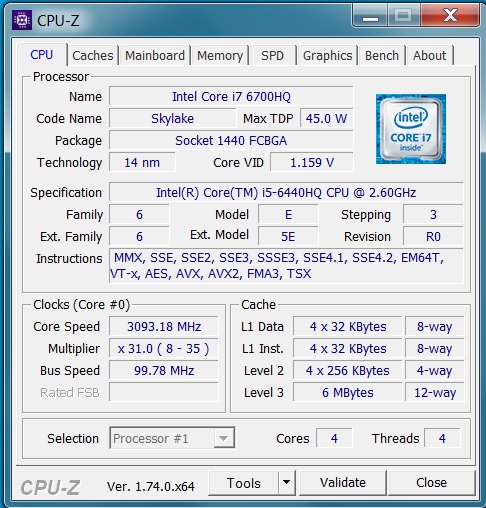

Processor
Intel Core i5-6440HQ 4 x 2.6 - 3.5 GHz, Skylake
Grafikkort

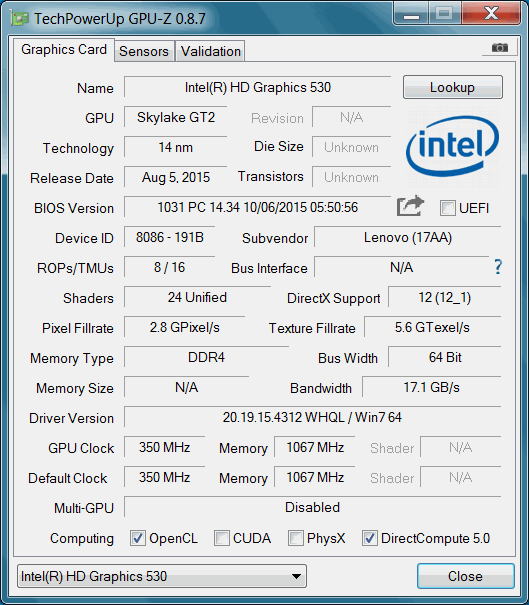

Intel HD Graphics 530, Kärna: 950 MHz

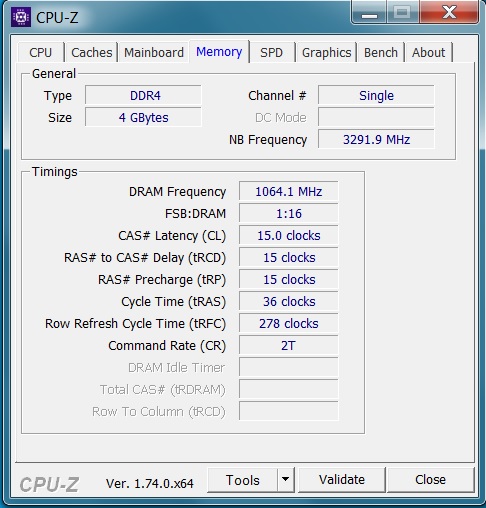

Minne
4 GB
, DDR4-2133, Single-Channel, 1 av 2 platser används, max 32 GB
Skärm
14.00 tum 16:9, 1920 x 1080 pixlar, LP140WF6-SPB1, LEN40A9, IPS, glansig: nej
Moderkort

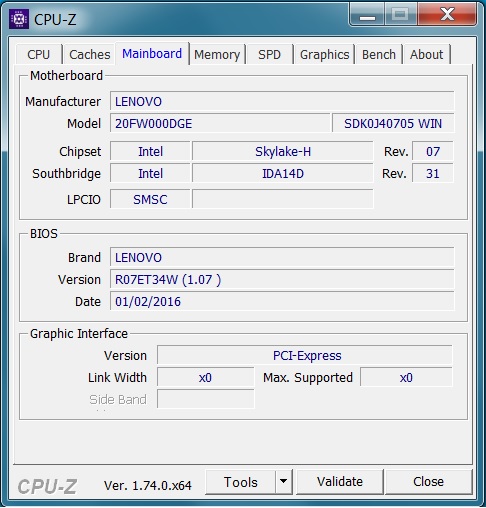

Intel Skylake QM170 (Skylake PCH-H)
Hårddisk
Toshiba MQ01ACF050, 500 GB
, 7200 rpm, 420 GB ledigt
Vikt
1.925 kg, Strömförsörjning: 455 g
Pris
1400 Kr
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
LP140WF6-SPB1, LEN40A9 tested with X-Rite i1Pro 2
Max: 269 cd/m² (Nits) Medel: 255.3 cd/m² Minimum: 7.6 cd/m²Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 270 cd/m²
Kontrast: 1121:1 (Svärta: 0.24 cd/m²)
ΔE Color 4.27 | 0.5-29.43 Ø4.93
ΔE Greyscale 2.95 | 0.5-98 Ø5.2
58.2% sRGB (Argyll 1.6.3 3D)
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.08% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.3% sRGB (Argyll 2.2.0 3D)
38.78% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.12
| Lenovo ThinkPad T460p LP140WF6-SPB1, LEN40A9, IPS, 1920x1080 | Lenovo ThinkPad T450-20BV001VGE Samsung LTN140KT14401, TN-Panel, 1600x900 | Lenovo Thinkpad L450 20DS0001GE Lenovo LP140WF3-SPL1, IPS, 1920x1080 | HP EliteBook 840 G2 Samsung, TN LED, 1600x900 | Dell Latitude E7450 AUO B140HAN, IPS-Panel, 1920x1080 | |
|---|---|---|---|---|---|
| Display | 2% | 1% | 0% | 66% | |
| Display P3 Coverage | 38.78 | 39.62 2% | 39.24 1% | 38.82 0% | 66.6 72% |
| sRGB Coverage | 58.3 | 59.6 2% | 58.9 1% | 58.4 0% | 92.4 58% |
| AdobeRGB 1998 Coverage | 40.08 | 40.94 2% | 40.56 1% | 40.11 0% | 67.7 69% |
| Response Times | |||||
| Response Time Grey 50% / Grey 80% * | 30.8 ? | ||||
| Response Time Black / White * | 24.8 ? | ||||
| PWM Frequency | |||||
| Screen | -75% | -41% | -111% | 8% | |
| Brightness middle | 269 | 166 -38% | 206 -23% | 267 -1% | 280 4% |
| Brightness | 255 | 163 -36% | 202 -21% | 240 -6% | 257 1% |
| Brightness Distribution | 91 | 68 -25% | 91 0% | 84 -8% | 75 -18% |
| Black Level * | 0.24 | 0.71 -196% | 0.39 -63% | 0.8 -233% | 0.3 -25% |
| Contrast | 1121 | 234 -79% | 528 -53% | 334 -70% | 933 -17% |
| Colorchecker dE 2000 * | 4.27 | 7.16 -68% | 6.63 -55% | 12.71 -198% | 3.45 19% |
| Colorchecker dE 2000 max. * | 8.82 | ||||
| Greyscale dE 2000 * | 2.95 | 7.62 -158% | 6.29 -113% | 13.91 -372% | 3.35 -14% |
| Gamma | 2.12 104% | 2.25 98% | 2.48 89% | 2.35 94% | 2.37 93% |
| CCT | 7049 92% | 9371 69% | 5823 112% | 20099 32% | 6940 94% |
| Color Space (Percent of AdobeRGB 1998) | 37 | 37.8 2% | 37.3 1% | 37.2 1% | 60 62% |
| Color Space (Percent of sRGB) | 58.2 | 92 58% | |||
| Total Average (Program / Settings) | -37% /
-54% | -20% /
-29% | -56% /
-81% | 37% /
22% |
* ... smaller is better

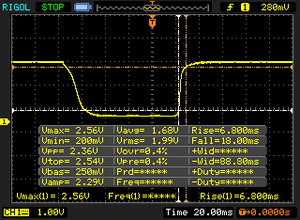

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|

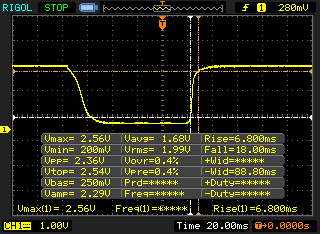

| 24.8 ms ... rise ↗ and fall ↘ combined | ↗ 6.8 ms rise |  |
| ↘ 18 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 54 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

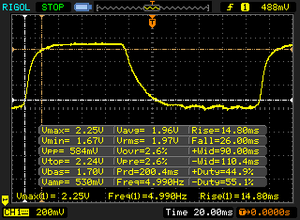

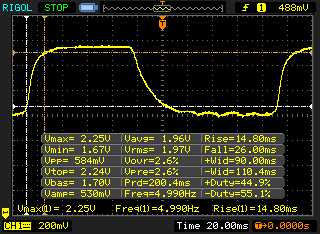

| ↔ Response Time 50% Grey to 80% Grey | ||
| 30.8 ms ... rise ↗ and fall ↘ combined | ↗ 14.8 ms rise |  |
| ↘ 26 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 37 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.9 ms). | ||

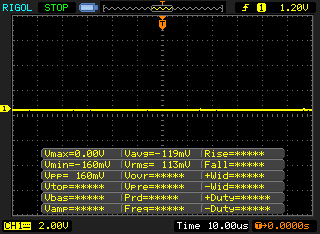

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| PCMark 7 - Score | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450-20BV001VGE | |
| HP EliteBook 840 G2 | |
| Lenovo ThinkPad T560-20FH001FGE | |
| Lenovo ThinkPad T460p | |
| Lenovo Thinkpad L450 20DS0001GE | |
| PCMark 7 Score | 3002 poäng | |
| PCMark 8 Home Score Accelerated v2 | 3088 poäng | |
| PCMark 8 Work Score Accelerated v2 | 4072 poäng | |
Hjälp | ||
Toshiba MQ01ACF050
Överföringshastighet min.:
55.6 MB/s
Överföringshastighet max.:
91.9 MB/s
Överföringshastighet med.:
81.8 MB/s
Accesstid:
17.3 ms
Burst rate:
62 MB/s
CPU-användning:
1 %
| 3DMark 11 Performance | 1327 poäng | |
| 3DMark Ice Storm Standard Score | 49094 poäng | |
| 3DMark Cloud Gate Standard Score | 5763 poäng | |
| 3DMark Fire Strike Score | 637 poäng | |
Hjälp | ||
| 3DMark | |
| 1920x1080 Fire Strike Score | |
| SCHENKER F516 Flex | |
| Lenovo ThinkPad T460p | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450-20BV001VGE | |
| Lenovo ThinkPad T560-20FH001FGE | |
| HP EliteBook 840 G2 | |
| Lenovo Thinkpad L450 20DS0001GE | |
| 1920x1080 Fire Strike Graphics | |
| SCHENKER F516 Flex | |
| Lenovo ThinkPad T460p | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450-20BV001VGE | |
| HP EliteBook 840 G2 | |
| Lenovo ThinkPad T560-20FH001FGE | |
| Lenovo Thinkpad L450 20DS0001GE | |
| 3DMark 11 | |
| 1280x720 Performance | |
| SCHENKER F516 Flex | |
| Lenovo ThinkPad T460p | |
| Lenovo ThinkPad T560-20FH001FGE | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450-20BV001VGE | |
| HP EliteBook 840 G2 | |
| Lenovo Thinkpad L450 20DS0001GE | |
| 1280x720 Performance GPU | |
| SCHENKER F516 Flex | |
| Lenovo ThinkPad T460p | |
| Lenovo ThinkPad T560-20FH001FGE | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450-20BV001VGE | |
| HP EliteBook 840 G2 | |
| Lenovo Thinkpad L450 20DS0001GE | |
| BioShock Infinite | |
| 1280x720 Very Low Preset | |
| SCHENKER F516 Flex | |
| Lenovo ThinkPad T460p | |
| HP EliteBook 840 G2 | |
| Dell Latitude E7450 | |
| 1366x768 Medium Preset | |
| SCHENKER F516 Flex | |
| Lenovo ThinkPad T460p | |
| Dell Latitude E7450 | |
| HP EliteBook 840 G2 | |
| 1366x768 High Preset | |
| SCHENKER F516 Flex | |
| Lenovo ThinkPad T460p | |
| Dell Latitude E7450 | |
| HP EliteBook 840 G2 | |
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| Tomb Raider (2013) | 65.1 | 33.5 | 20 | |
| BioShock Infinite (2013) | 42.2 | 22.3 | 18.1 | |
| The Witcher 3 (2015) | 11 |
Ljudnivå
| Låg belastning |
| 33.7 / 33.7 / 33.7 dB(A) |
| Hårddisk |
| 33.7 dB(A) |
| Hög belastning |
| 36.2 / 41.9 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Audix TM1 Arta (15 cm avstånd) environment noise: 30 dB(A) | ||
| Lenovo ThinkPad T460p Intel Core i5-6440HQ, Toshiba MQ01ACF050 | Lenovo ThinkPad T450-20BV001VGE Intel Core i5-5200U, Samsung SSD PM851 256 GB MZ7TE256HMHP | Lenovo Thinkpad L450 20DS0001GE Intel Core i5-5300U, Seagate ST500LM021-1KJ15 | HP EliteBook 840 G2 Intel Core i5-5200U, Samsung SSD PM851 256 GB MZ7TE256HMHP | Dell Latitude E7450 Intel Core i5-5300U, Samsung SSD PM851 mSATA 128 GB | Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U, Seagate ST500LM000 Solid State Hybrid Drive | |
|---|---|---|---|---|---|---|
| Noise | 12% | 10% | 14% | 10% | 10% | |
| off / environment * | 30 | 29 3% | ||||
| Idle Minimum * | 33.7 | 29.2 13% | 30.8 9% | 29.1 14% | 29.1 14% | 30.8 9% |
| Idle Average * | 33.7 | 29.2 13% | 30.8 9% | 29.1 14% | 29.1 14% | 30.8 9% |
| Idle Maximum * | 33.7 | 29.2 13% | 30.8 9% | 29.1 14% | 30 11% | 30.8 9% |
| Load Average * | 36.2 | 34.9 4% | 34.3 5% | 32.2 11% | 36.4 -1% | 33.1 9% |
| Load Maximum * | 41.9 | 35.1 16% | 34.3 18% | 34.2 18% | 37.8 10% | 34.4 18% |
* ... smaller is better
(±) The average temperature for the upper side under maximal load is 35.7 °C / 96 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 46.2 °C / 115 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 44.7 °C / 112 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.9 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.7 °C / 101.7 F.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-11 °C / -19.8 F).
(-) The maximum temperature on the upper side is 46.2 °C / 115 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 44.7 °C / 112 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.9 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.7 °C / 101.7 F.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-11 °C / -19.8 F).
Strömförbrukning
| Av/Standby | 0.3 / 0.47 Watt |
| Låg belastning | 6.3 / 9.4 / 10.6 Watt |
| Hög belastning |
42.7 / 66.7 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad T460p Intel Core i5-6440HQ, 48 Wh | Lenovo ThinkPad T450-20BV001VGE Intel Core i5-5200U, 48 Wh | Lenovo Thinkpad L450 20DS0001GE Intel Core i5-5300U, 48 Wh | HP EliteBook 840 G2 Intel Core i5-5200U, 50 Wh | Dell Latitude E7450 Intel Core i5-5300U, 54 Wh | Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U, 67 Wh | |
|---|---|---|---|---|---|---|
| Power Consumption | 41% | 37% | 46% | 30% | 34% | |
| Idle Minimum * | 6.3 | 3 52% | 3.4 46% | 2.6 59% | 4 37% | 4.3 32% |
| Idle Average * | 9.4 | 5.5 41% | 6.1 35% | 5.1 46% | 7.8 17% | 7.3 22% |
| Idle Maximum * | 10.6 | 6.4 40% | 7 34% | 5.8 45% | 9 15% | 7.8 26% |
| Load Average * | 42.7 | 28.4 33% | 29 32% | 28.7 33% | 31.6 26% | 26.3 38% |
| Load Maximum * | 66.7 | 40.7 39% | 42.4 36% | 36.8 45% | 29.6 56% | 32 52% |
* ... smaller is better
| Lenovo ThinkPad T460p Intel Core i5-6440HQ, 48 Wh | Lenovo ThinkPad T450-20BV001VGE Intel Core i5-5200U, 48 Wh | Lenovo Thinkpad L450 20DS0001GE Intel Core i5-5300U, 48 Wh | HP EliteBook 840 G2 Intel Core i5-5200U, 50 Wh | Dell Latitude E7450 Intel Core i5-5300U, 54 Wh | Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U, 67 Wh | |
|---|---|---|---|---|---|---|
| Battery Runtime | 46% | 35% | 68% | 67% | 170% | |
| Reader / Idle | 494 | 935 89% | 798 62% | 961 95% | 714 45% | 1085 120% |
| H.264 | 289 | 300 4% | 264 -9% | 324 12% | 452 56% | 571 98% |
| WiFi v1.3 | 265 | 324 22% | 288 9% | 422 59% | 422 59% | 661 149% |
| Load | 55 | 93 69% | 97 76% | 112 104% | 115 109% | 226 311% |
| WiFi | 459 |
För
+ robust chassi
+ strama gångjärn
+ mycket bra inmatningsenheter
+ IPS-skärm med bra färger
+ tre års garanti
+ flertal säkerhetsfunktioner
+ bra CPU-prestanda
Emot
- omständig att underhålla
- höga processortemperaturer
- viss prestandastrypning under belastning
- batteritiden
- långsam p.g.a. HDD
- vissa kvalitetsproblem med vår testenhet (skärmramen)
Läs den mer detaljerade, engelska versionen här.
Den nya Lenovo ThinkPad T460p har snabba komponenter och är tänkt att locka mer krävande användare som inte nöjer sig med ULV-hårdvara. Det är i grunden en bra idé, men intrycket av T460p är ganska blandat.
Den största nackdelen är förmodligen kylningen av processorn, eftersom den snabbt når temperaturer runt 95° C. Processorn är redan är konfigurerad till 35 watt. Om detsamma gäller i7-kretsarna som finns som tillval kommer du inte att kunna utnyttja den maximala prestandan. Det är en besvikelse med tanke på att enhetens fokus är just prestanda. Huruvida enheten klarar av värmen från dedikerad GPU (tillval) kan vi bara spekulera i.
Ett annat problem är den minimalistiska konfigurationen av vår testmodell: Bara 4 GB RAM och en konventionell hårddisk är knappast fräscht i premiumsegmentet och kan påverka det subjektiva prestandaintrycket avsevärt. Du får också göra avkall på moderna gränssnitt som Thunderbolt, USB-C eller M.2 2280, så enheten kan kännas ganska föråldrad. Du får inte "Power Bridge"-systemet med två batterier heller, och även det lilla 6-cellsbatteriet höjer enheten avsevärt.
Vissa problem beror på det faktum att den grundläggande designen fortfarande är baserad på den tidigare generationen. Det är olyckligt eftersom datorn också har många goda sidor, inklusive ett mycket robust chassi, ett stort tangentbord och i detta fall också en anständig skärm, som bara får kritik med sin begränsade färgrymd.
Några av de nämnda problemen kan undvikas med andra konfigurationer (SSD, mer RAM), men totalt sett är vi fortfarande ganska besvikna på ThinkPad T460p.
Lenovo ThinkPad T460p
-
03/05/2016 v5 (old)
Andreas Osthoff
