Test: Lenovo ThinkPad T460s (Core i7, WQHD) (sammanfattning)

Name: Lenovo ThinkPad T460s-20FA003GGE
Brand: Lenovo

På väg mot perfektion? Lenovos T460s bevisar att även en utmärkt bärbar dator som T450s kan förbättras. Ingen enhet från T4x0s-serien har varit så lätt och samtidigt så kraftfull - men istället får man kompromissa med underhålls- och uppgraderingsmöjligheterna.

Till Schönborn, ✓ Stefanie Voigt, Published 03/31/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Ultrabook Windows

Test device courtesy of notebooksandmore.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad T460s-20FA003GGE (ThinkPad T460s Serie)

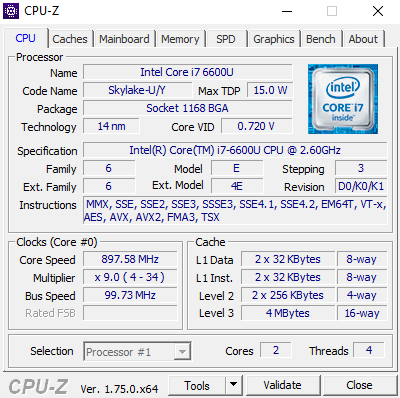

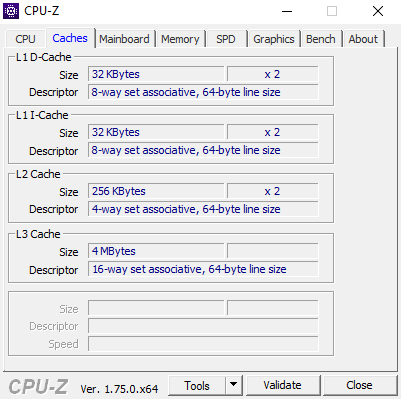

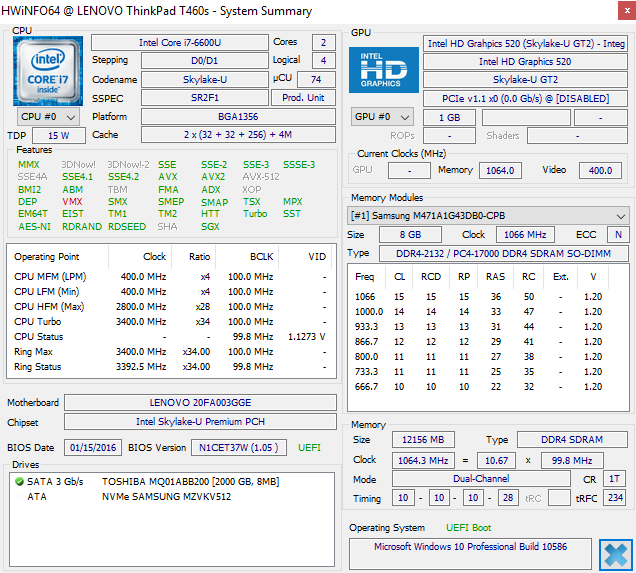

Processor

Intel Core i7-6600U 2 x 2.6 - 3.4 GHz, Skylake

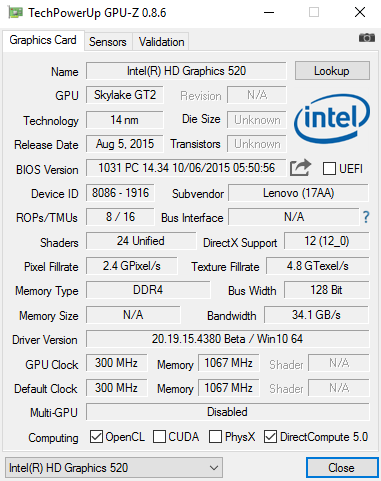

Grafikkort

Intel HD Graphics 520, Kärna: 1050 MHz, Minne: 1066 MHz, 20.19.15.4380

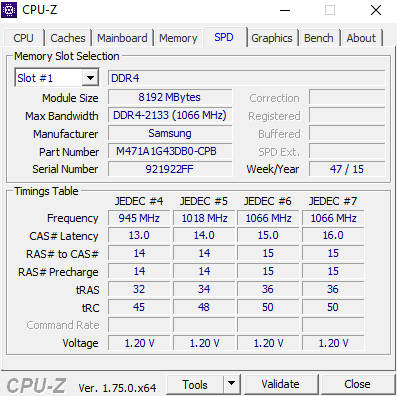

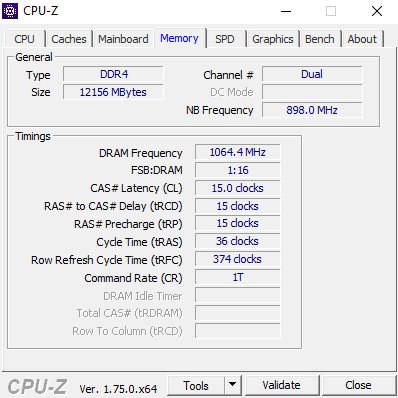

Minne

12 GB

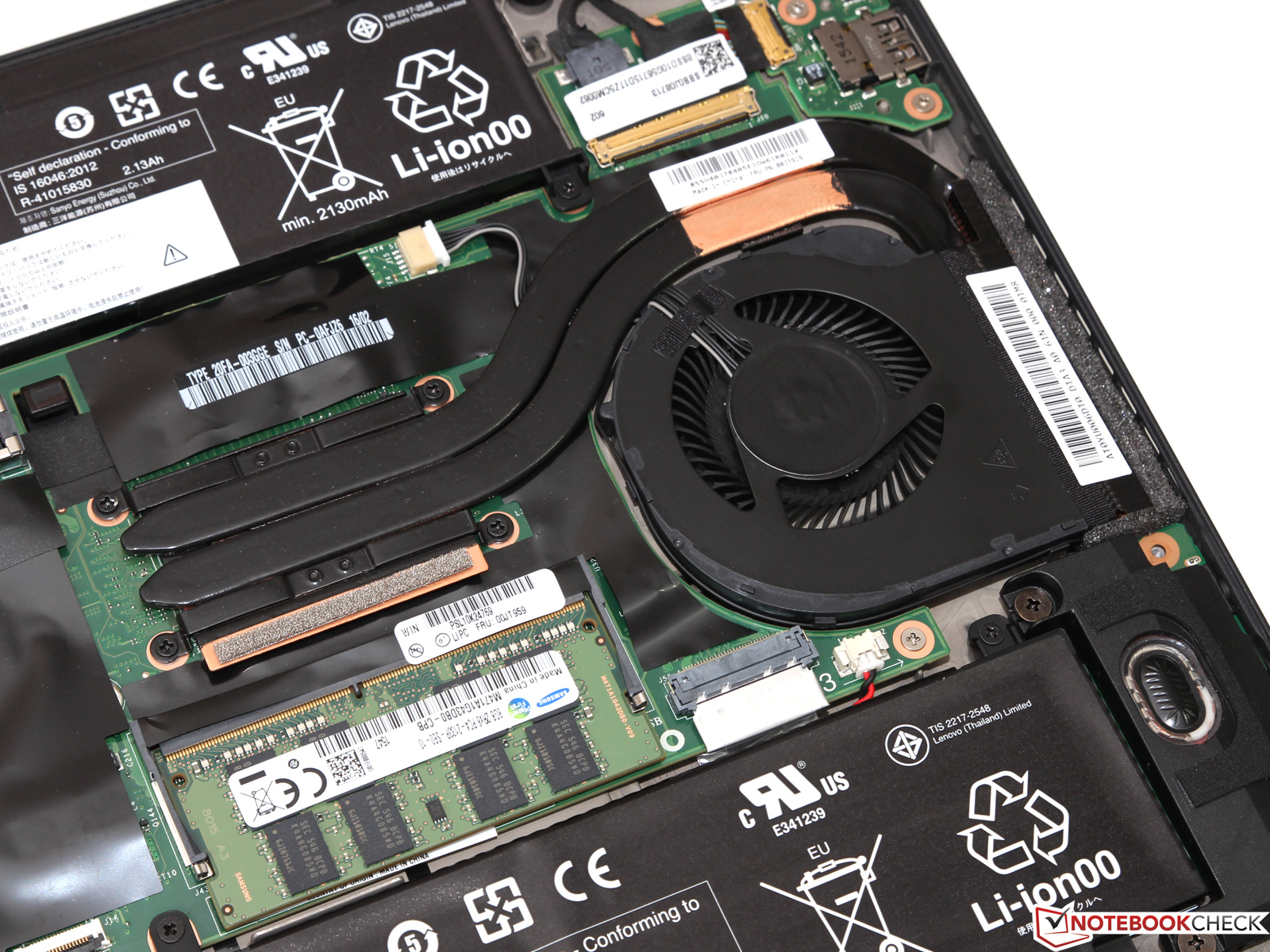

, DDR4-2133, 4 GB integrerat + 1x 8 GB modul, 1 av 1 platser används

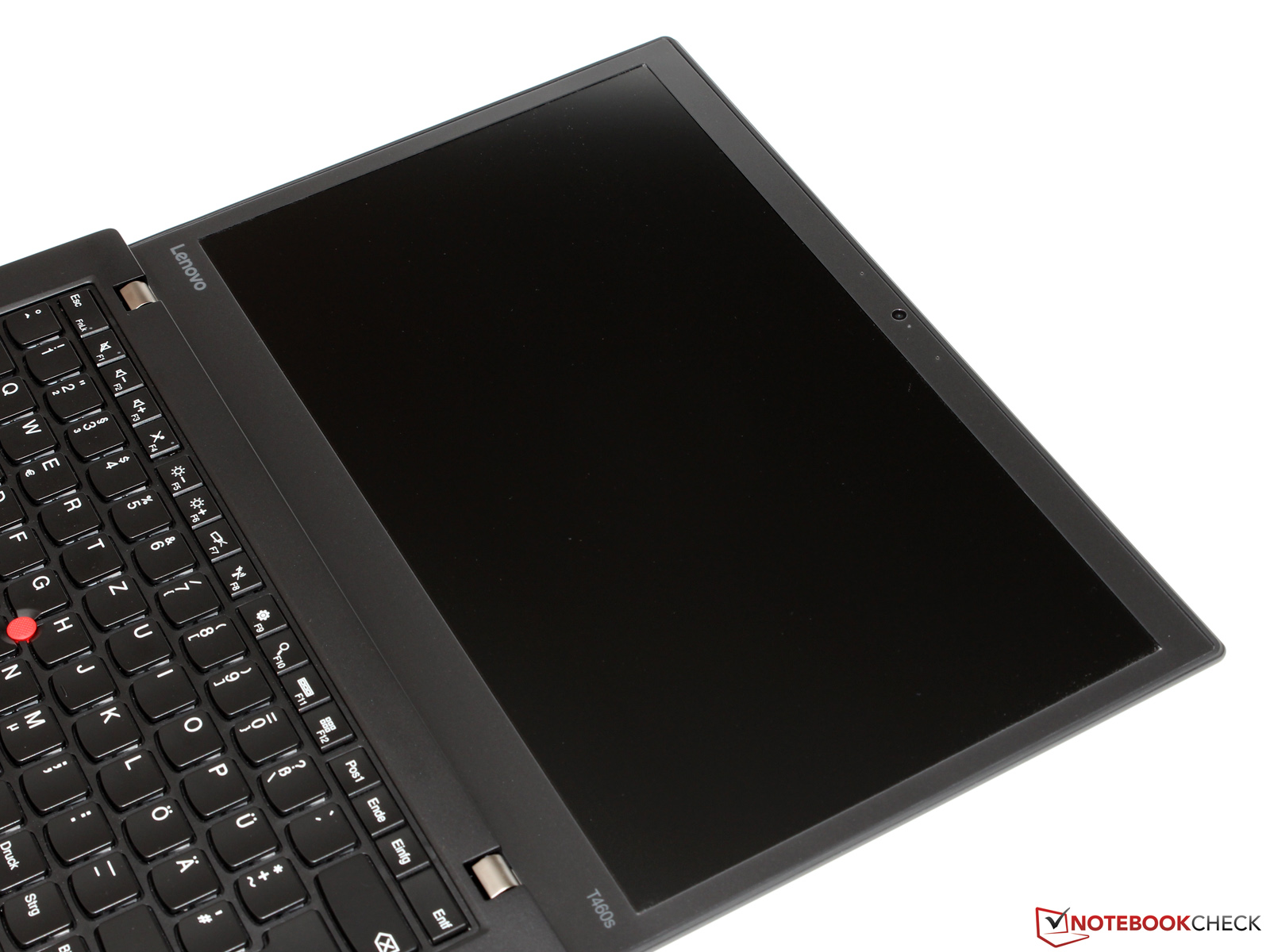

Skärm

14.00 tum 16:9, 2560 x 1440 pixlar, VVX14T058J02, IPS-Panel, LED-Backlight, glansig: nej

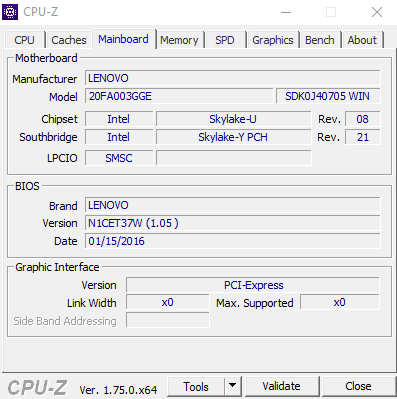

Moderkort

Intel Skylake-U Premium PCH

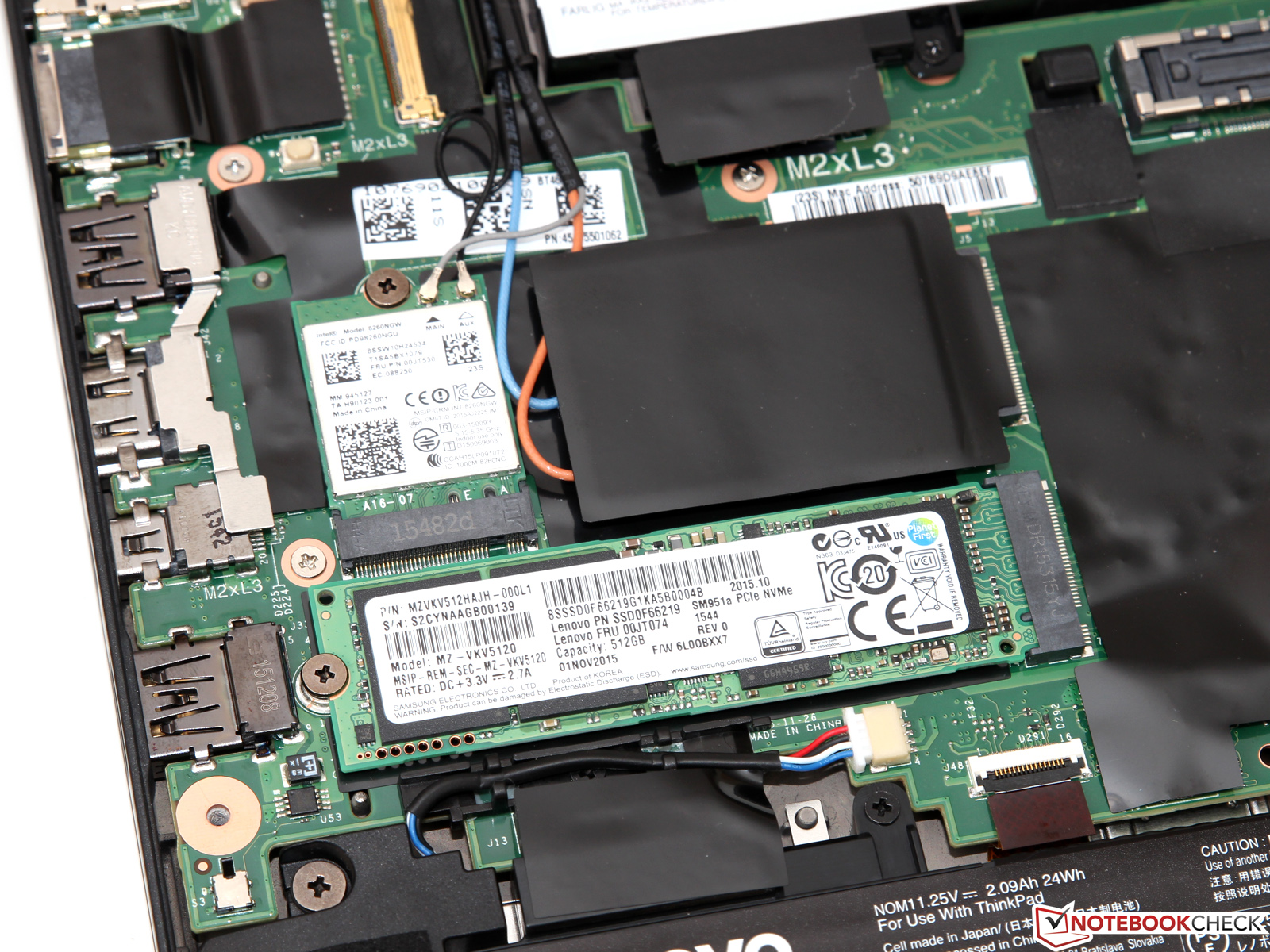

Hårddisk

Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), 512 GB

Ljudkort

Intel Skylake-U/Y PCH - High Definition Audio

Anslutningar

3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: Headset, Kortläsare: MMC, SD, SDHC, SDXC, 1 SmartCard, 1 Fingeravtrycksläsare, Brightness Sensor

Nätverk

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2, Huawei Mobile Broadband ME906s (UMTS/HSPA/LTE + GNSS), LTE, GPS

Storlek

höjd x bredd x djup (i mm) 18.8 x 331 x 227

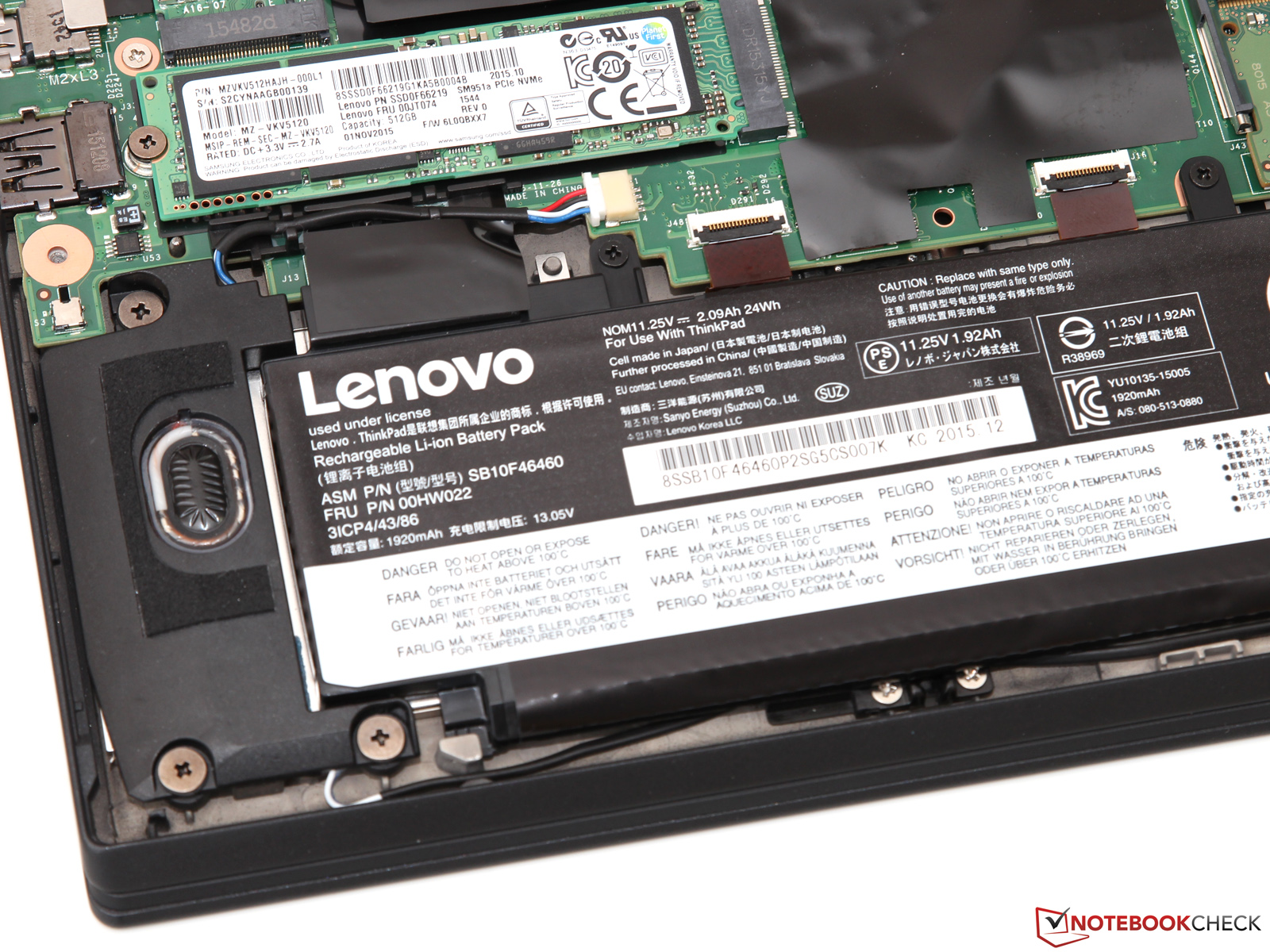

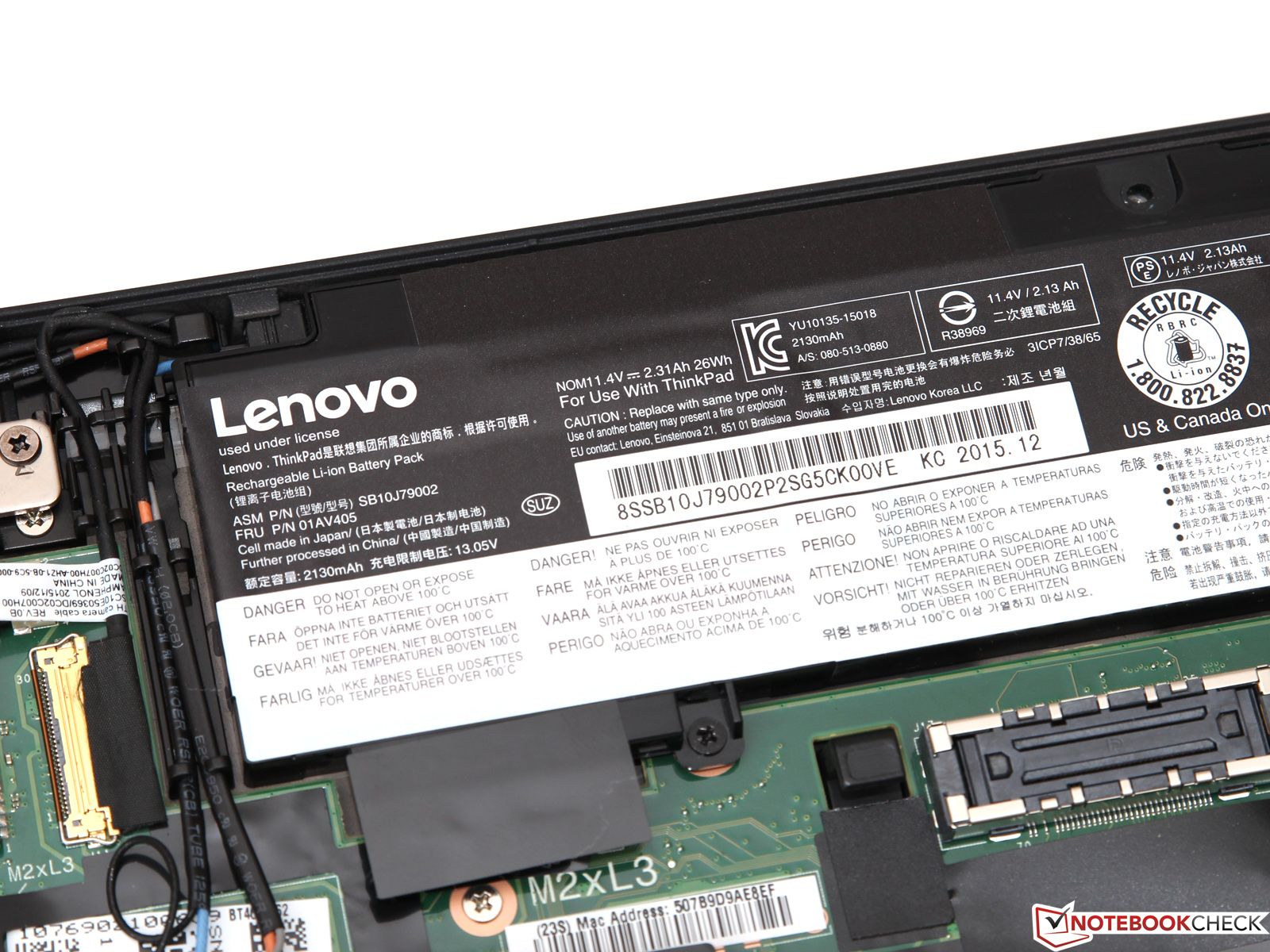

Batteri

49 Wh Litiumjon, 23 Wh + 26 Wh (båda interna)

Operativsystem

Microsoft Windows 10 Pro 64 Bit

Camera

Webbkamera: 720p, fixed focus

Övrigt

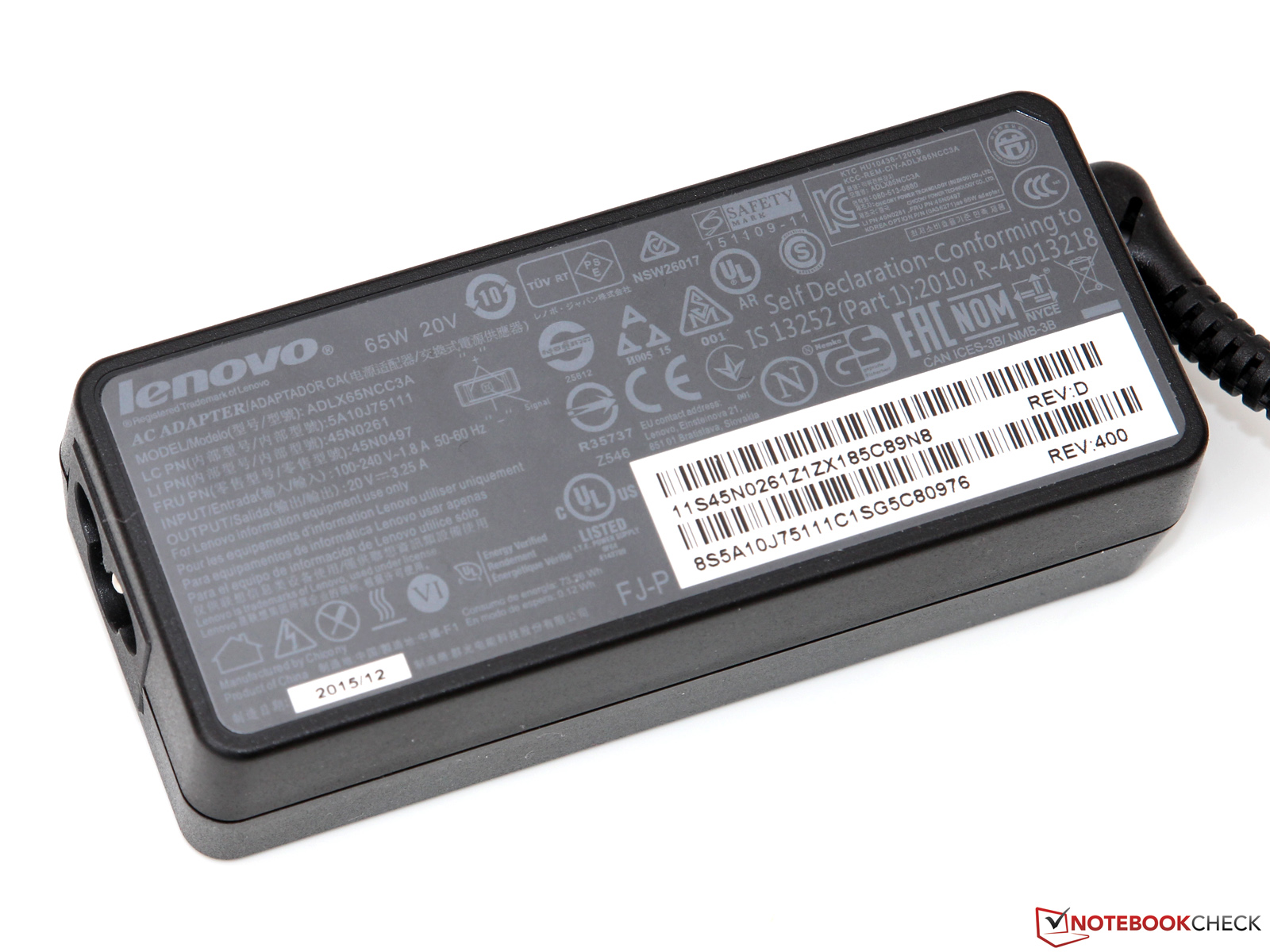

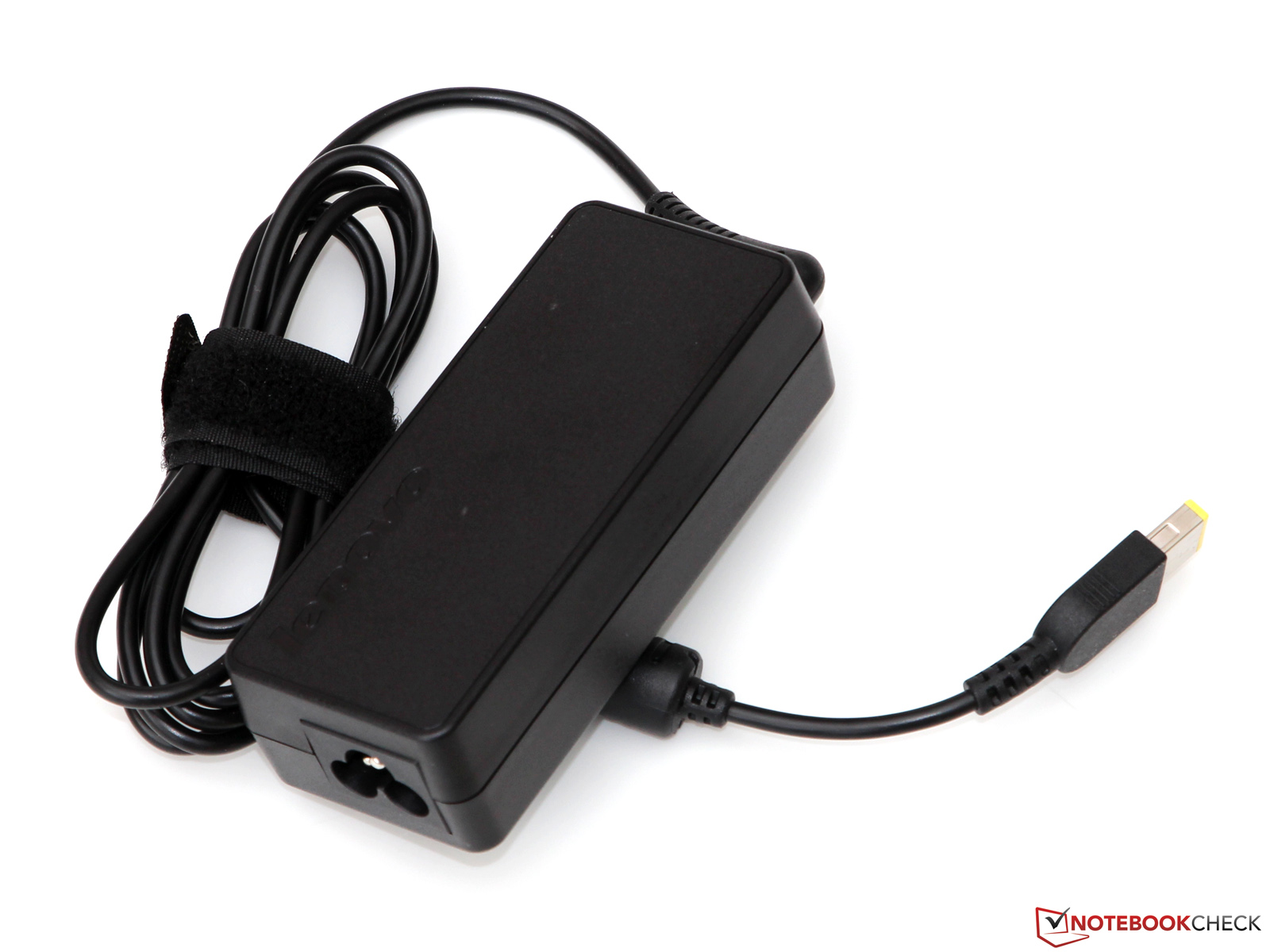

Högtalare: Stereo (2x 1 W), Tangentbord: Chiclet, Adapter: 65 Watt, Lenovo ThinkVantage Tools, Lenovo PowerEngage, Lenovo Companion, 36 Månader Garanti

Vikt

1.345 kg, Strömförsörjning: 346 g

Pris

2350 Euro

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

HP EliteBook 840 G3 T9X59ET#ABD Dell Latitude 14 7000 Series E7470 Lenovo ThinkPad T450s-20BWS03F00 Lenovo ThinkPad T460s-20FA003GGE Apple MacBook Air 13 inch 2015-03 DIN A4 ❌

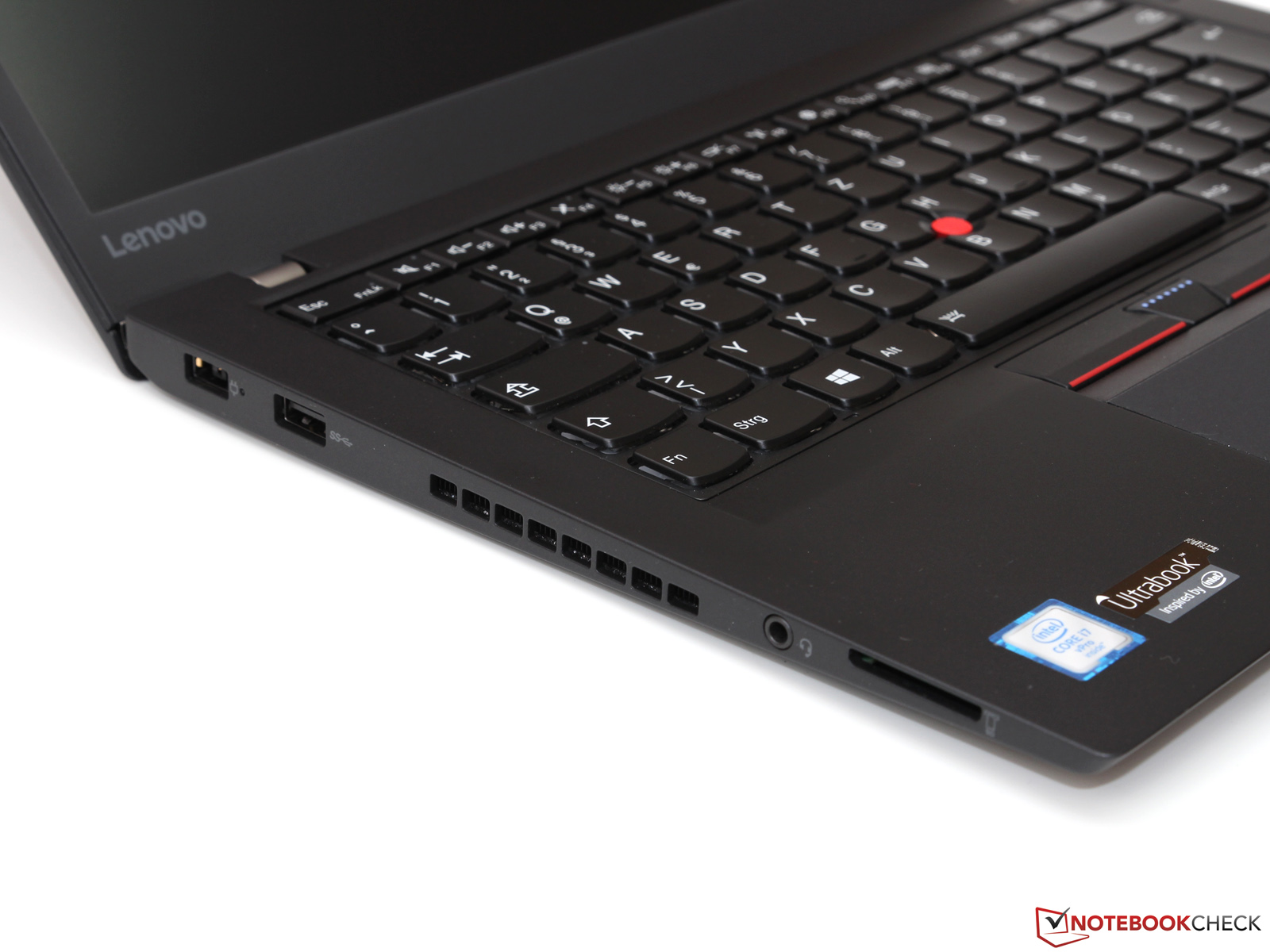

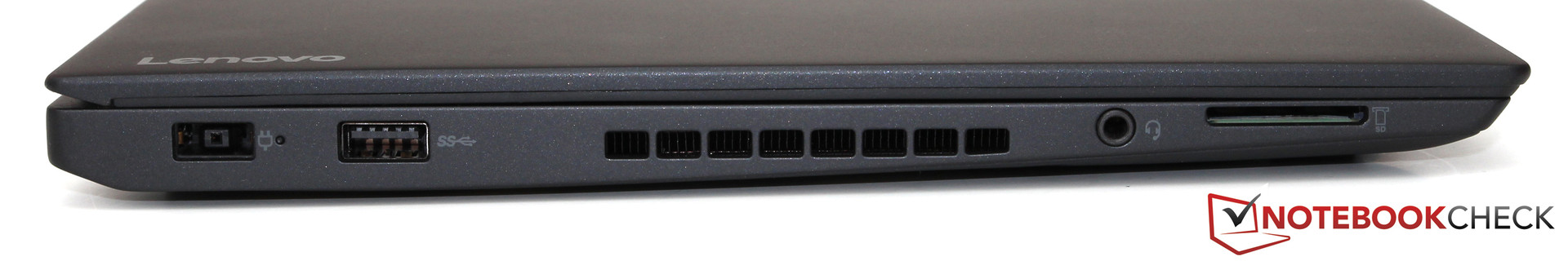

Left: power, USB 3.0, fan exhaust, headset port, card reader

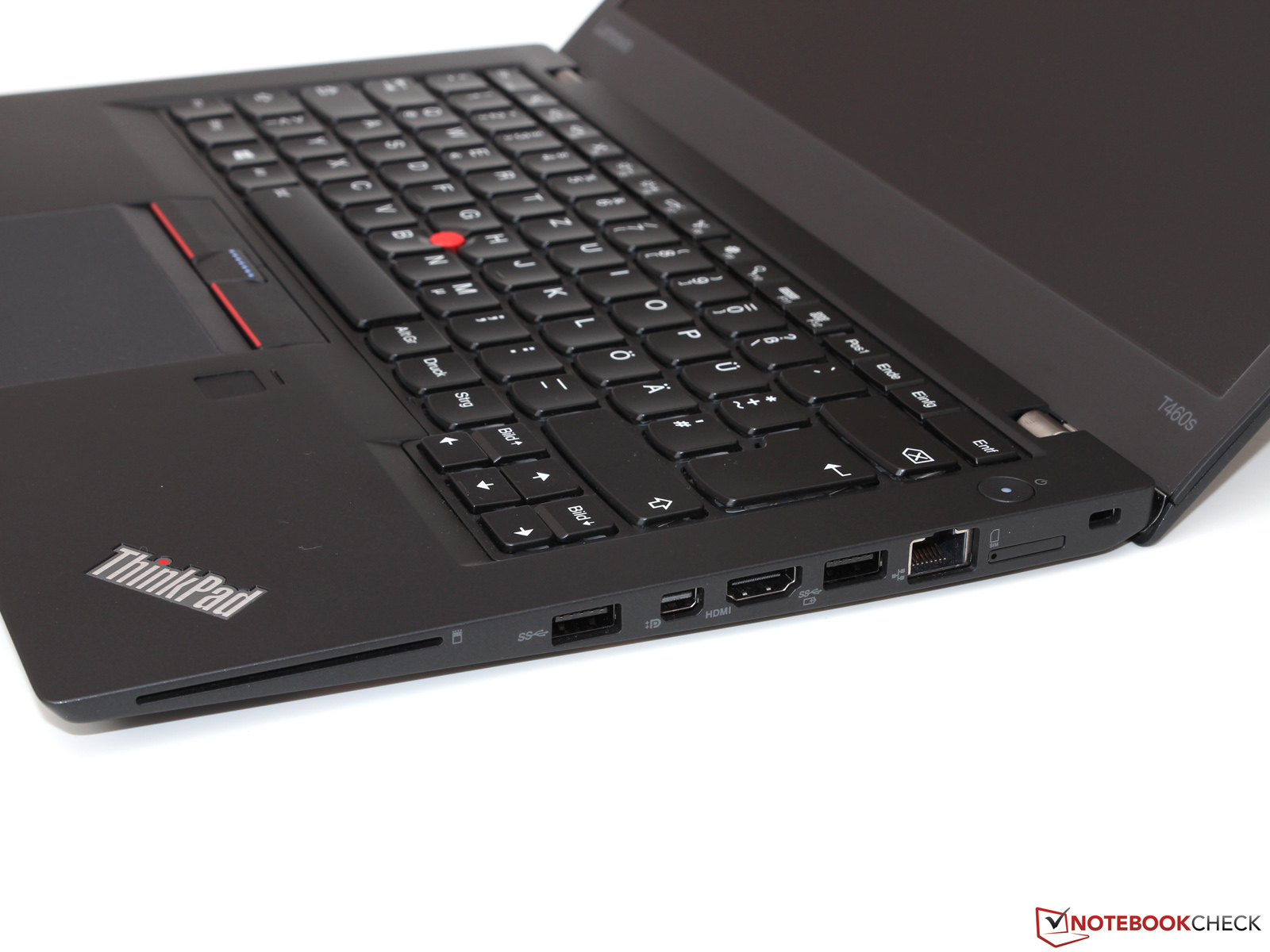

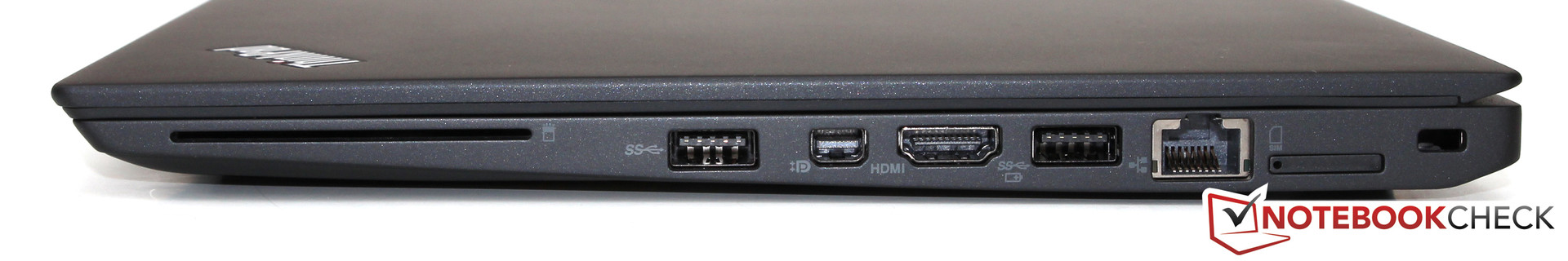

Right: SmartCard reader, USB 3.0, Mini-DisplayPort, HDMI, USB 3.0, Gbit-LAN, SIM-slot, Kensington lock

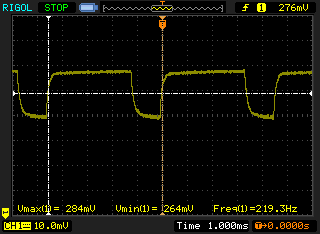

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

220 Hz

≤ 90 % brightness setting

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.


252 cd/m²	250 cd/m²	246 cd/m²
243 cd/m²	257 cd/m²	255 cd/m²
241 cd/m²	242 cd/m²	248 cd/m²

Distribution av ljusstyrkan

VVX14T058J02 tested with X-Rite i1Pro 2

Max: 257 cd/m² (Nits) Medel: 248.2 cd/m² Minimum: 3 cd/m²
Distribution av ljusstyrkan: 94 %
Mitt på batteriet: 255 cd/m²
Kontrast: 988:1 (Svärta: 0.26 cd/m²)
ΔE Color 4.59 | 0.5-29.43 Ø4.92
ΔE Greyscale 6.38 | 0.5-98 Ø5.2
98% sRGB (Argyll 1.6.3 3D)
65% AdobeRGB 1998 (Argyll 1.6.3 3D)
70.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.1% sRGB (Argyll 2.2.0 3D)
68.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.51

Download ICC-fil (X-Rite i1Pro 2)

	Lenovo ThinkPad T460s-20FA003GGE 2.560 x 1.440 IPS-Panel	Lenovo ThinkPad T460s-20F9003SGE 1.920 x 1.080 IPS-Panel	Lenovo ThinkPad T450s-20BWS1UT00 1.920 x 1.080 IPS-Panel	HP EliteBook 840 G3 T9X59ET#ABD 1.920 x 1.080 TN-Panel	Dell Latitude 14 7000 Series E7470 1.920 x 1.080 IPS-Panel
Display		-38%	-11%	-27%	-2%
Display P3 Coverage	68.7	41.65 -39%	64.8 -6%	48.93 -29%	67.2 -2%
sRGB Coverage	98.1	61.6 -37%	83.8 -15%	73.7 -25%	95.9 -2%
AdobeRGB 1998 Coverage	70.4	43.14 -39%	61.2 -13%	50.5 -28%	69.3 -2%
Response Times		-9%		-5%	-14%
Response Time Grey 50% / Grey 80% *	35.6 ?(17.2, 18.4)	42 ?(19.6, 22.4) -18%		43 ?(20, 23) -21%	48 ?(15, 33) -35%
Response Time Black / White *	29.2 ?(14.4, 14.8)	29.2 ?(16, 13.2) -0%		25 ?(9, 16) 14%	27 ?(7, 20) 8%
PWM Frequency	220 ?(90)			204 ?(90) -7%
Screen		-20%	6%	-42%	21%
Brightness middle	257	226 -12%	288 12%	366 42%	380 48%
Brightness	248	211 -15%	281 13%	336 35%	354 43%
Brightness Distribution	94	89 -5%	94 0%	87 -7%	81 -14%
Black Level *	0.26	0.22 15%	0.286 -10%	0.65 -150%	0.26 -0%
Contrast	988	1027 4%	1007 2%	563 -43%	1462 48%
Colorchecker dE 2000 *	4.59	6.44 -40%	4.35 5%	10.26 -124%	3.11 32%
Colorchecker dE 2000 max. *	9.72	17.18 -77%			6.73 31%
Greyscale dE 2000 *	6.38	5.87 8%	3.7 42%	11.51 -80%	4.35 32%
Gamma	2.51 ^88%	2.37 ^93%	2.68 ^82%	2.4 ^92%	2.37 ^93%
CCT	6238 ^104%	6856 ^95%	6076 ^107%	12725 ^51%	6771 ^96%
Color Space (Percent of AdobeRGB 1998)	65	39.58 -39%	54.7 -16%	47 -28%	62 -5%
Color Space (Percent of sRGB)	98	61.15 -38%		74 -24%	96 -2%
Total Average (Program / Settings)		-22% / -22%	-3% / 1%	-25% / -32%	2% / 12%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

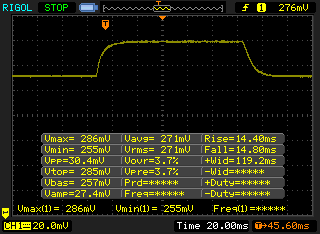

↔ Response Time Black to White
29.2 ms ... rise ↗ and fall ↘ combined	↗ 14.4 ms rise
29.2 ms ... rise ↗ and fall ↘ combined	↘ 14.8 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 76 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

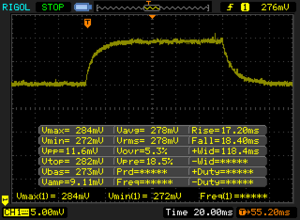

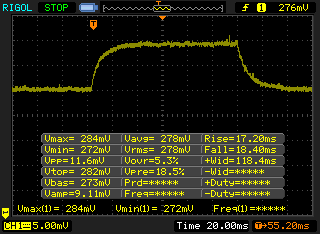

↔ Response Time 50% Grey to 80% Grey
35.6 ms ... rise ↗ and fall ↘ combined	↗ 17.2 ms rise
35.6 ms ... rise ↗ and fall ↘ combined	↘ 18.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 45 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.9 ms).

Cinebench R15 | Cinebench R11.5 | X264 HD Benchmark 4.0

Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T460p Intel Core i5-6440HQ	145 Points +3%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	142 Points +1%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	141 Points
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	130 Points -8%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	124 Points -12%
Dell Latitude 14 E5470 Intel Core i5-6300U	124 Points -12%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U	119 Points -16%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	116 Points -18%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	113 Points -20%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U	111 Points -21%
CPU Multi 64Bit
Lenovo ThinkPad T460p Intel Core i5-6440HQ	513 Points +48%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	347 Points
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	334 Points -4%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U	322 Points -7%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	319 Points -8%
Dell Latitude 14 E5470 Intel Core i5-6300U	311 Points -10%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	302 Points -13%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	290 Points -16%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	288 Points -17%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U	255 Points -27%

Cinebench R11.5
CPU Single 64Bit
Lenovo ThinkPad T460p Intel Core i5-6440HQ	1.66 Points +6%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	1.61 Points +3%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	1.57 Points
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	1.51 Points -4%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	1.45 Points -8%
Dell Latitude 14 E5470 Intel Core i5-6300U	1.42 Points -10%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	1.31 Points -17%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	1.29 Points -18%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U	1.28 Points -18%
CPU Multi 64Bit
Lenovo ThinkPad T460p Intel Core i5-6440HQ	5.91 Points +54%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	3.83 Points
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	3.58 Points -7%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	3.55 Points -7%
Dell Latitude 14 E5470 Intel Core i5-6300U	3.44 Points -10%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	3.31 Points -14%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	3.23 Points -16%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	3.18 Points -17%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U	2.77 Points -28%

X264 HD Benchmark 4.0
Pass 1
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	120.4 fps
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	107.6 fps -11%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	102.4 fps -15%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	98 fps -19%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U	86.6 fps -28%
Pass 2
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	22.62 fps
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	20.95 fps -7%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	19.04 fps -16%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	18.72 fps -17%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U	16.19 fps -28%

Cinebench R10 Shading 32Bit

9052

Cinebench R10 Rendering Multiple CPUs 32Bit

11798

Cinebench R10 Rendering Single 32Bit

5264

Cinebench R11.5 OpenGL 64Bit

41.71 fps

Cinebench R11.5 CPU Multi 64Bit

3.83 Points

Cinebench R11.5 CPU Single 64Bit

1.57 Points

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 OpenGL 64Bit

43.93 fps

Cinebench R15 CPU Multi 64Bit

347 Points

Cinebench R15 CPU Single 64Bit

141 Points

Hjälp

... jämför

	Lenovo ThinkPad T460s-20FA003GGE Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	Lenovo ThinkPad T460s-20F9003SGE Samsung CM871 MZ7LF192HCGS	Lenovo ThinkPad T450s-20BWS1UT00 Samsung SSD PM871 MZ7LN256HCHP	Lenovo ThinkPad T450s-20BWS03F00 Intel SSD Pro 2500 Series SSDSC2BF360A5L	Dell Latitude 14 7000 Series E7470 Samsung SSD PM851 M.2 2280 256GB
AS SSD		-82%	-50%	-75%	-57%
Seq Read	2039	471 -77%	503 -75%	489.6 -76%	495.5 -76%
Seq Write	1407	163.3 -88%	285.2 -80%	264.5 -81%	283.7 -80%
4K Read	45.41	14.18 -69%	33.27 -27%	22.19 -51%	30.91 -32%
4K Write	114.4	34.38 -70%	84.6 -26%	14.61 -87%	85.1 -26%
4K-64 Read	968	85.4 -91%	380 -61%	210.1 -78%	336.1 -65%
4K-64 Write	366	33.4 -91%	272.3 -26%	83.5 -77%	170 -54%
Score Total	2439	296 -88%	1086 -55%	546 -78%	913 -63%

HD Tune

CrystalDiskMark 3.0

AS SSD

Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

Överföringshastighet min.: 1064 MB/s

Överföringshastighet max.: 1168 MB/s

Överföringshastighet med.: 1162 MB/s

Accesstid: 0 ms

Burst rate: 254 MB/s

CPU-användning: 3.9 %

PCMark 8 | PCMark 7

PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	3542 Points
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	3344 Points -6%
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	3270 Points -8%
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	3231 Points -9%
Lenovo ThinkPad T450s-20BWS1UT00 GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP	3128 Points -12%
Lenovo ThinkPad T460p HD Graphics 530, 6440HQ, Toshiba MQ01ACF050	3088 Points -13%
Lenovo ThinkPad T460s-20F9003SGE HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS	3024 Points -15%
Creative Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4338 Points
Lenovo ThinkPad T450s-20BWS1UT00 GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP	3945 Points -9%
Lenovo ThinkPad T460s-20F9003SGE HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS	3644 Points -16%
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	3613 Points -17%
Work Score Accelerated v2
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	4543 Points +2%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4442 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4394 Points -1%
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	4275 Points -4%
Lenovo ThinkPad T460s-20F9003SGE HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS	4121 Points -7%
Lenovo ThinkPad T450s-20BWS1UT00 GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP	4097 Points -8%
Lenovo ThinkPad T460p HD Graphics 530, 6440HQ, Toshiba MQ01ACF050	4072 Points -8%

PCMark 7 - Score
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	5194 Points 0%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	5190 Points
Lenovo ThinkPad T450s-20BWS1UT00 GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP	4995 Points -4%
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4797 Points -8%
Lenovo ThinkPad T460p HD Graphics 530, 6440HQ, Toshiba MQ01ACF050	3002 Points -42%

PCMark 7 Score		5190 poäng
PCMark 8 Home Score Accelerated v2		3542 poäng
PCMark 8 Creative Score Accelerated v2		4338 poäng
PCMark 8 Work Score Accelerated v2		4442 poäng
Hjälp

... jämför

3DMark 11 | 3DMark | SPECviewperf 12

3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Pro 4 Core i7 Intel Core i7-6650U, Intel Iris Graphics 540	2450 Points +73%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	2313 Points +63%
Toshiba Satellite L50-C-275 Intel Core i5-6200U, NVIDIA GeForce 930M	2138 Points +51%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	1416 Points
Lenovo ThinkPad X260-20F60041GE Intel Core i5-6200U, Intel HD Graphics 520	1210 Points -15%
Lenovo ThinkPad T460p Intel Core i5-6440HQ, Intel HD Graphics 530	1162 Points -18%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Intel HD Graphics 520	1156 Points -18%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	1117 Points -21%

3DMark - 1920x1080 Fire Strike Graphics
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	1627 Points +74%
Toshiba Satellite L50-C-275 Intel Core i5-6200U, NVIDIA GeForce 930M	1497 Points +60%
Microsoft Surface Pro 4 Core i7 Intel Core i7-6650U, Intel Iris Graphics 540	1477 Points +58%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	935 Points
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	797 Points -15%
Lenovo ThinkPad X260-20F60041GE Intel Core i5-6200U, Intel HD Graphics 520	727 Points -22%
Lenovo ThinkPad T460p Intel Core i5-6440HQ, Intel HD Graphics 530	672 Points -28%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Intel HD Graphics 520	597 Points -36%

SPECviewperf 12
1900x1060 Catia (catia-04)
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	11.62 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	9.71 fps -16%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	9.69 fps -17%
1900x1060 Creo (creo-01)
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	10.15 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	8.99 fps -11%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	6.68 fps -34%
1900x1060 Energy (energy-01)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	0.08 fps +33%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	0.06 fps 0%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	0.06 fps
1900x1060 Maya (maya-04)
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	10.89 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	2.09 fps -81%
1900x1060 Medical (medical-01)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	5.72 fps +236%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	1.7 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	1.02 fps -40%
1900x1060 Showcase (showcase-01)
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	6.05 fps 0%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	6.05 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	4.79 fps -21%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	2.95 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	2.47 fps -16%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	1.81 fps -39%
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	22.64 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	15.6 fps -31%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	14.65 fps -35%

3DMark 06 Standard Score		9685 poäng
3DMark Vantage P Result		5859 poäng
3DMark 11 Performance		1600 poäng
3DMark Ice Storm Standard Score		58178 poäng
3DMark Cloud Gate Standard Score		6097 poäng
3DMark Fire Strike Score		863 poäng
Hjälp

... jämför

Tomb Raider
1024x768 Low Preset
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	130.8 fps +57%
Toshiba Satellite L50-C-275 Intel Core i5-6200U, NVIDIA GeForce 930M	121.4 fps +46%
HP EliteBook 745 G3 AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)	86.5 fps +4%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	83.1 fps
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	61.8 fps -26%
HP EliteBook 745 G3 AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)	54.7 fps -34%
Lenovo ThinkPad X260-20F60041GE Intel Core i5-6200U, Intel HD Graphics 520	48.3 fps -42%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Intel HD Graphics 520	39.3 fps -53%
1366x768 Normal Preset AA:FX AF:4x
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	66.1 fps +61%
Toshiba Satellite L50-C-275 Intel Core i5-6200U, NVIDIA GeForce 930M	58.4 fps +42%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	41.1 fps
HP EliteBook 745 G3 AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)	38.5 fps -6%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	30.4 fps -26%
HP EliteBook 745 G3 AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)	27.5 fps -33%
Lenovo ThinkPad X260-20F60041GE Intel Core i5-6200U, Intel HD Graphics 520	25.5 fps -38%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Intel HD Graphics 520	21.1 fps -49%
1366x768 High Preset AA:FX AF:8x
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	36.4 fps +42%
Toshiba Satellite L50-C-275 Intel Core i5-6200U, NVIDIA GeForce 930M	33.2 fps +29%
HP EliteBook 745 G3 AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)	27.8 fps +8%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	25.7 fps
HP EliteBook 745 G3 AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)	19.6 fps -24%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	19.3 fps -25%
Lenovo ThinkPad X260-20F60041GE Intel Core i5-6200U, Intel HD Graphics 520	16.8 fps -35%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Intel HD Graphics 520	13.3 fps -48%

	låg	med.	hög	ultra
Counter-Strike: GO (2012)	156.3	101	60.9	31.2
Tomb Raider (2013)	83.1	41.1	25.7	10.9
BioShock Infinite (2013)	55.7	29.8	24.5	7.3
Battlefield 4 (2013)	40.4	29.6	18.8	5.9
Sims 4 (2014)	182.6	46.7	21.8	15.6
Rise of the Tomb Raider (2016)	14.1	9.6	5.3

	Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Intel HD Graphics 520	Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500	HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U, Intel HD Graphics 520	Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Intel HD Graphics 520
Noise		2%	3%	2%	-7%	-1%
off / environment *	29.2	29.1 -0%			31.2 -7%	31.2 -7%
Idle Minimum *	29.2	29.1 -0%	29.1 -0%	29.1 -0%	31.2 -7%	31.2 -7%
Idle Average *	29.2	29.1 -0%	29.1 -0%	29.1 -0%	32.1 -10%	31.2 -7%
Idle Maximum *	29.2	29.1 -0%	29.1 -0%	29.1 -0%	33.1 -13%	31.2 -7%
Load Average *	33.7	32.3 4%	33.1 2%	34.3 -2%	36.2 -7%	31.9 5%
Load Maximum *	38.5	36.6 5%	34.3 11%	34.8 10%	37.8 2%	31.9 17%

* ... smaller is better

Ljudnivå

Låg belastning		29.2 / 29.2 / 29.2 dB(A)
Hög belastning		33.7 / 38.5 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: ECM8000 + Voltcraft SL-451 (15 cm avstånd) environment noise: 29.2 dB(A)

Hög belastning

Låg belastning


27.4 °C	27.6 °C	27.3 °C
27.4 °C	26.8 °C	26.7 °C
25.5 °C	26.2 °C	25.8 °C

Max: 27.6 °C
Medel: 26.7 °C


26.7 °C	27.5 °C	27.3 °C
27.4 °C	28.7 °C	27.2 °C
26.2 °C	26.8 °C	26.6 °C

Max: 28.7 °C
Medel: 27.2 °C

Strömförsörjning (max.) 28.3 °C | Rumstemperatur 20.6 °C | Fluke 62 Max

(+) The average temperature for the upper side under maximal load is 31.7 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 40.8 °C / 105 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 40.3 °C / 105 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.3 °C / 86.5 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-2.6 °C / -4.6 F).

Strömförbrukning

Av/Standby	0.28 / 0.6 Watt
Låg belastning	3.8 / 7.1 / 7.8 Watt
Hög belastning	36.3 / 46 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad T460s-20FA003GGE 49 Wh	Lenovo ThinkPad T460s-20F9003SGE 49 Wh	Lenovo ThinkPad T450s-20BWS1UT00 96 Wh	Lenovo ThinkPad T450s-20BWS03F00 48 Wh
Battery Runtime		37%	156%	-1%
Reader / Idle	833	915 10%	1857 123%	774 -7%
H.264	397	534 35%	757 91%	322 -19%
WiFi v1.3	340	395 16%	648 91%	276 -19%
Load	62	116 87%	259 318%	88 42%
WiFi				336

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		13tim 53min
WiFi Websurfing		5tim 40min
Big Buck Bunny H.264 1080p		6tim 37min
Hög belastning (maximal ljusstyrka)		1tim 02min

För

+ Stabilt och extremt lättviktigt chassi

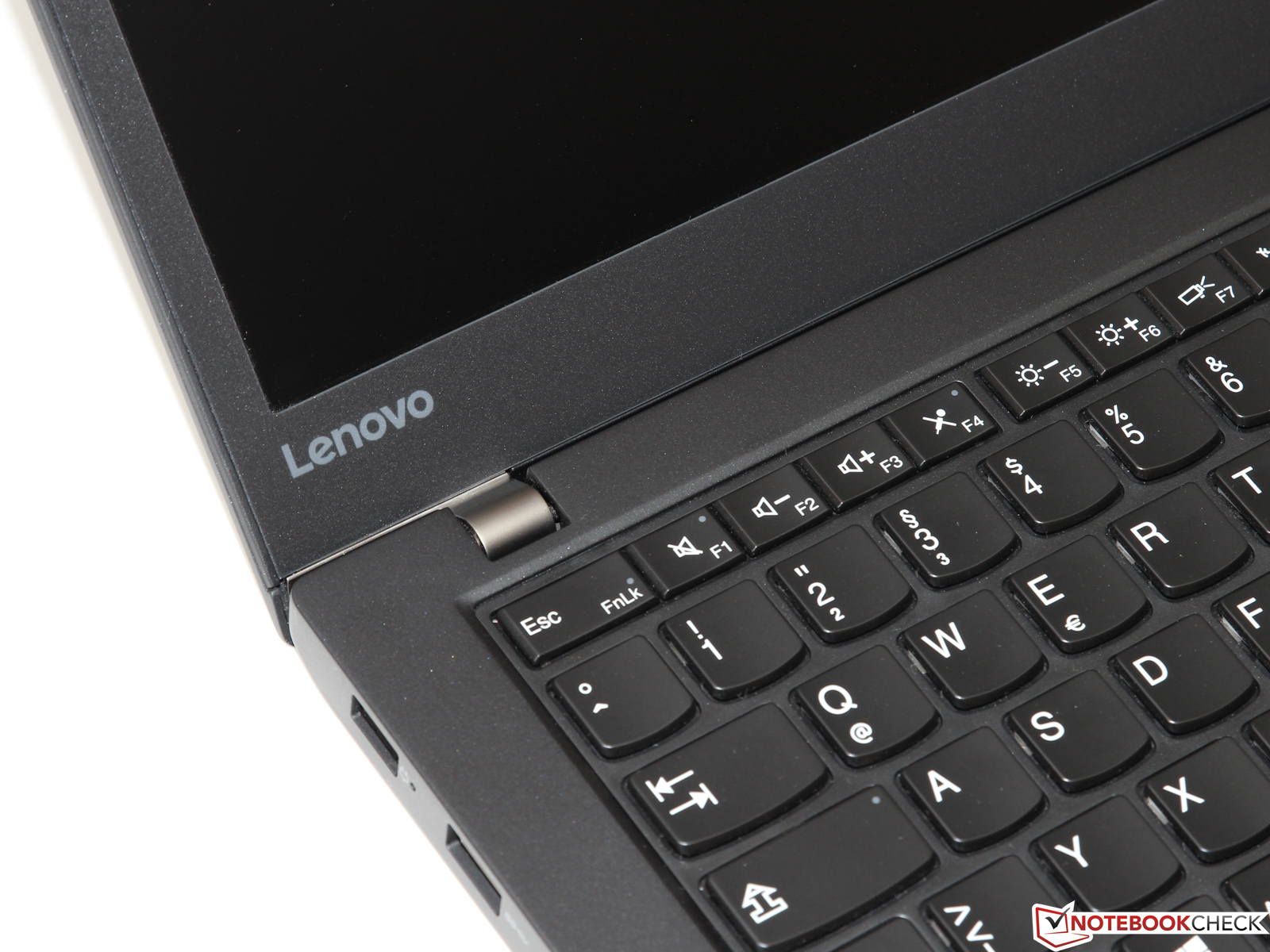

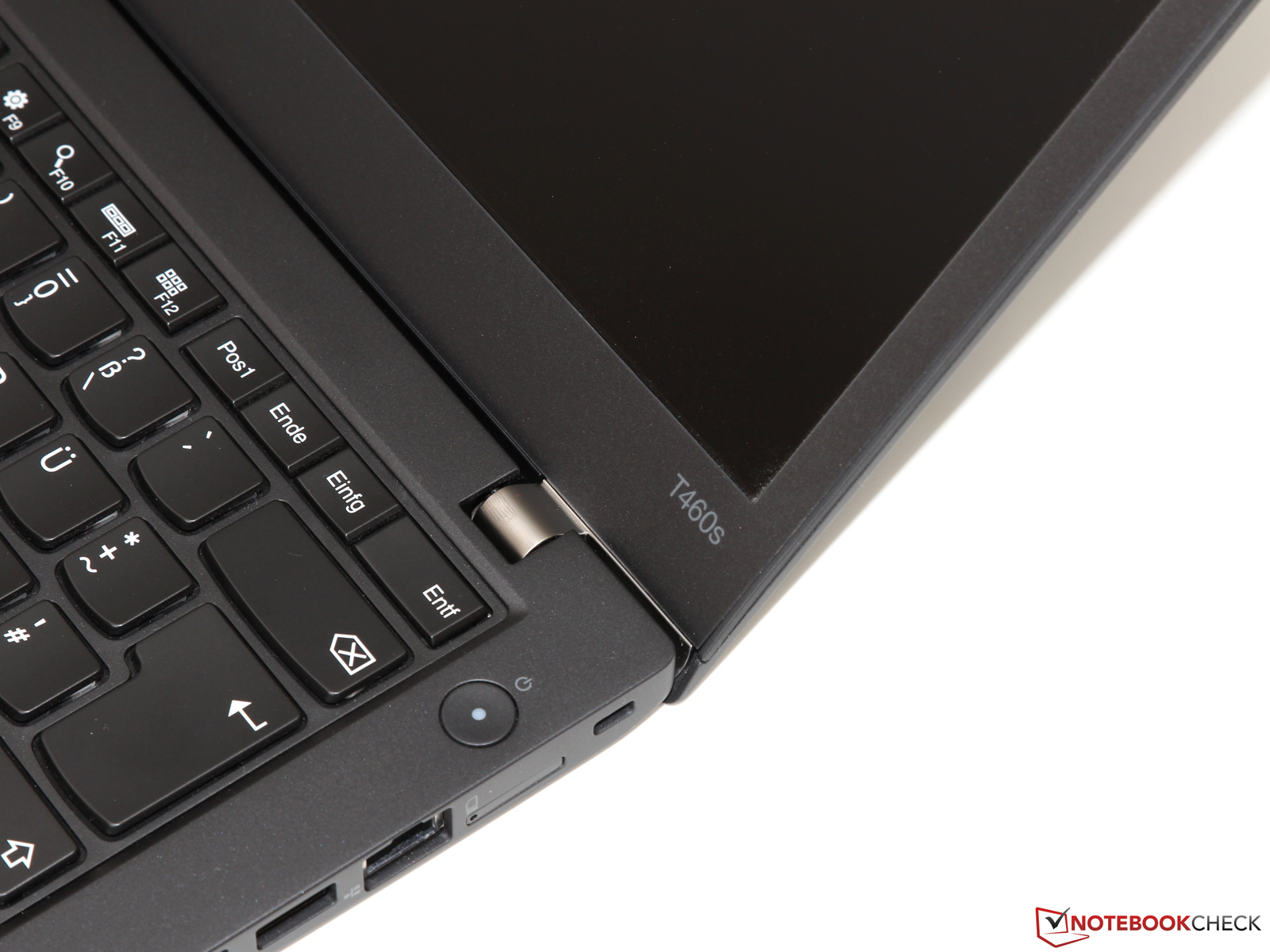

+ Exakta gångjärn

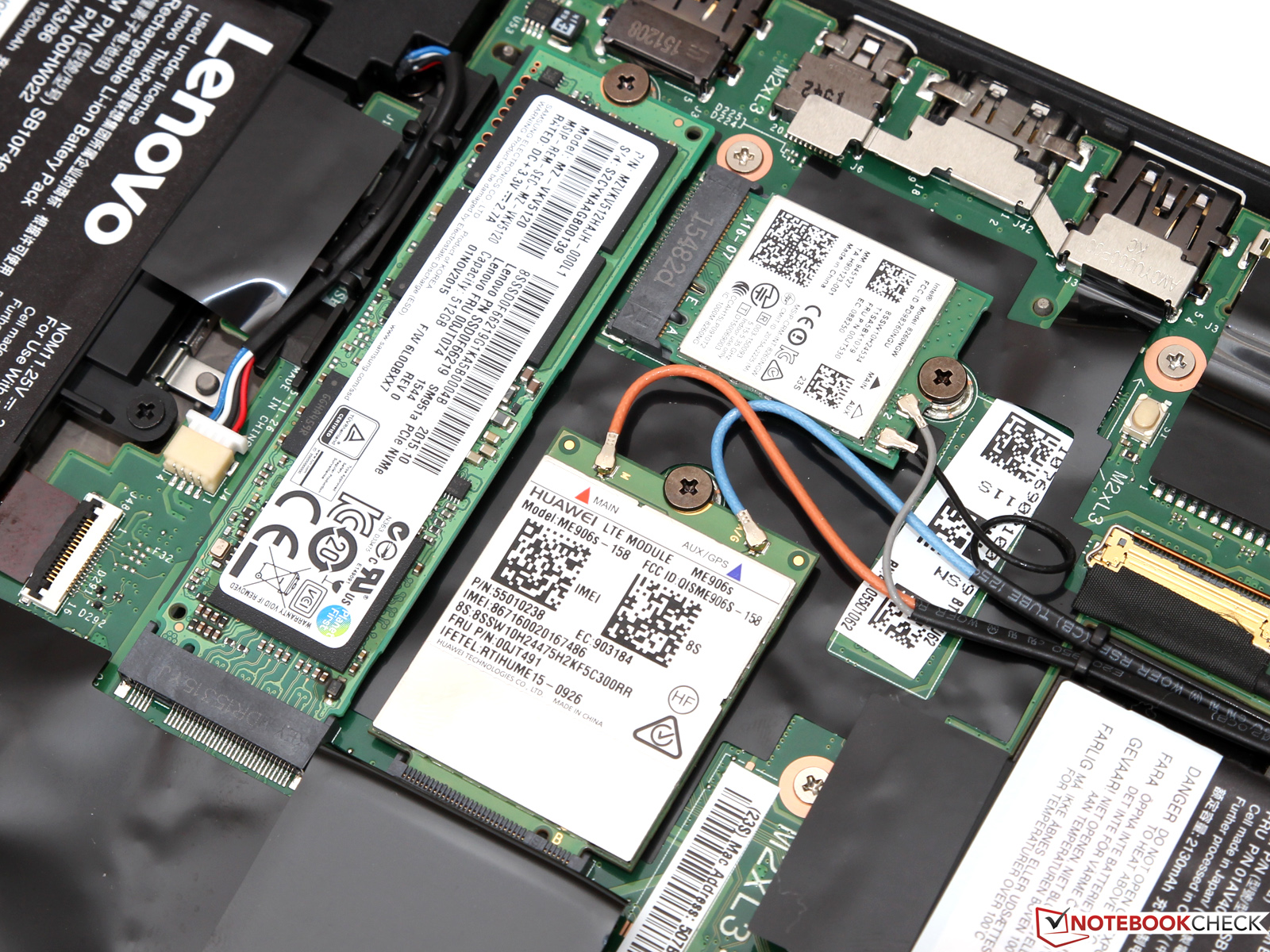

+ Integrerat LTE-modem

+ Bra skärm

+ Hög systemprestanda

+ Låg ljud- och värmeutveckling

+ Skaplig batteritid

+ 3 års garanti

Emot

- Begränsade uppgraderingsmöjligheter

- Ej USB-C

- Medelmåttig ljusstyrka

- Högt pris

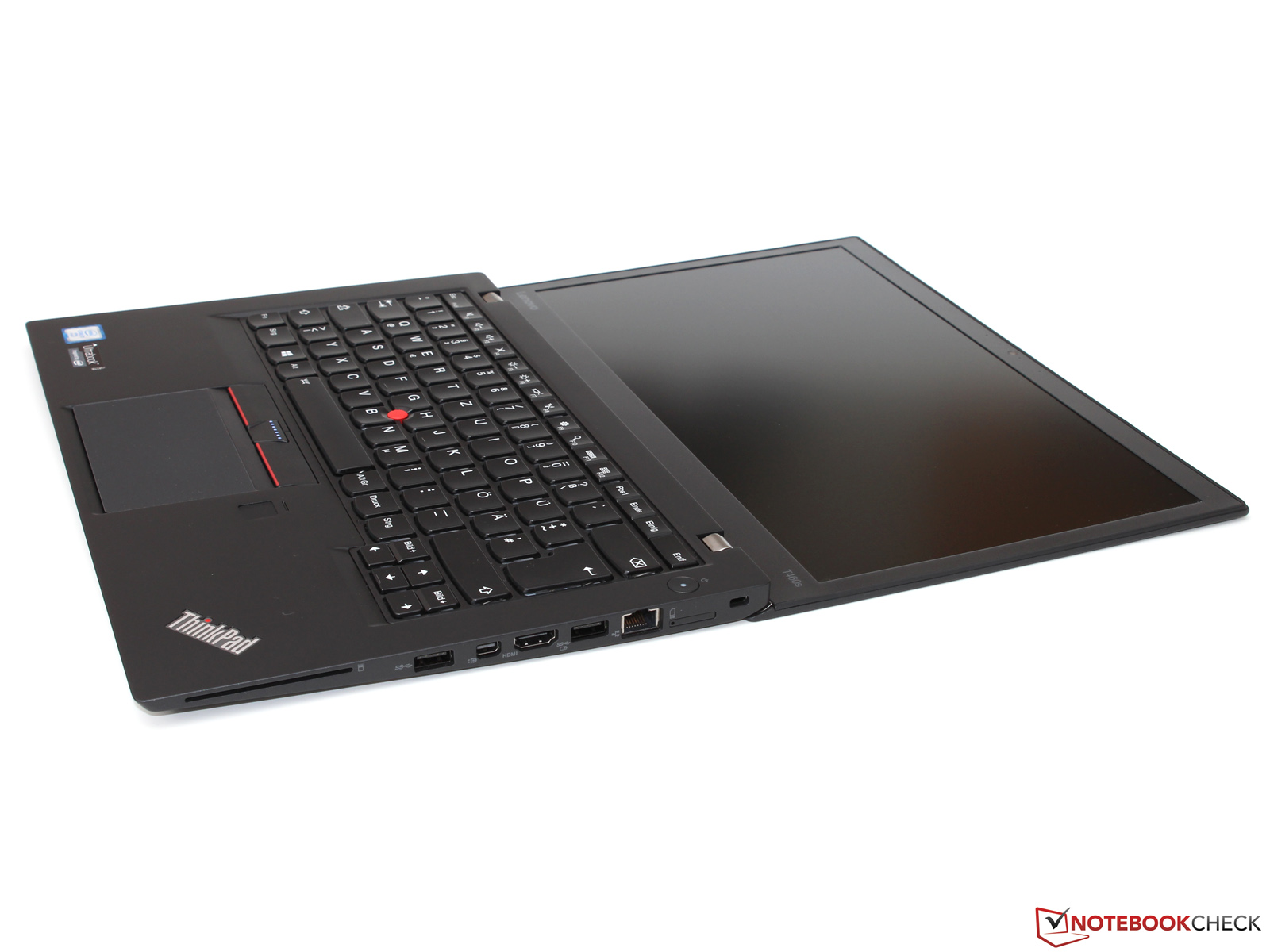

In review: Lenovo ThinkPad T460s. Test model courtesy of Notebooksandmore.

Läs originaltestet på engelska här.

Efter ungefär en veckas omfattande testande kan vi konstatera att ThinkPad T460s är mer än en tråkig Skylake-uppdatering av föregångaren T450s – och redan en av de bästa bärbara företagsdatorerna 2016 enligt vår mening.

Även om designen knappt förändrats är T460s faktiskt en helt ny konstruktion med ett ännu tunnare och lättare chassi. Dess byggkvalitet och stabilitet kan lätt leva upp till de höga förväntningar vi har på en bärbar dator för över 10 000 kr.

Detsamma gäller inmatningsenheterna: Om du letar efter ett tangentbord med en tydlig tryckpunkt är det svårt att hitta ett bättre alternativ just nu. Pekplattan håller kanske inte riktigt samma nivå, men är ändå bra i kombination med TrackPoint.

Vår dyra konfiguration presterar mycket bra, utan några TDP-begränsningar. Processorn Core i7-6600U levererar överraskande bra resultat utan att påverka fläktljud och temperaturutveckling alltför mycket. I kombination med en SSD med överföringshastigheter på upp till 2 GB/s, samt 12 GB snabbt DDR4-minne, kan datorn hantera det mesta. Den integrerade grafiken är en begränsande faktor, men fungerar med äldre spel och mindre CAD-modeller.

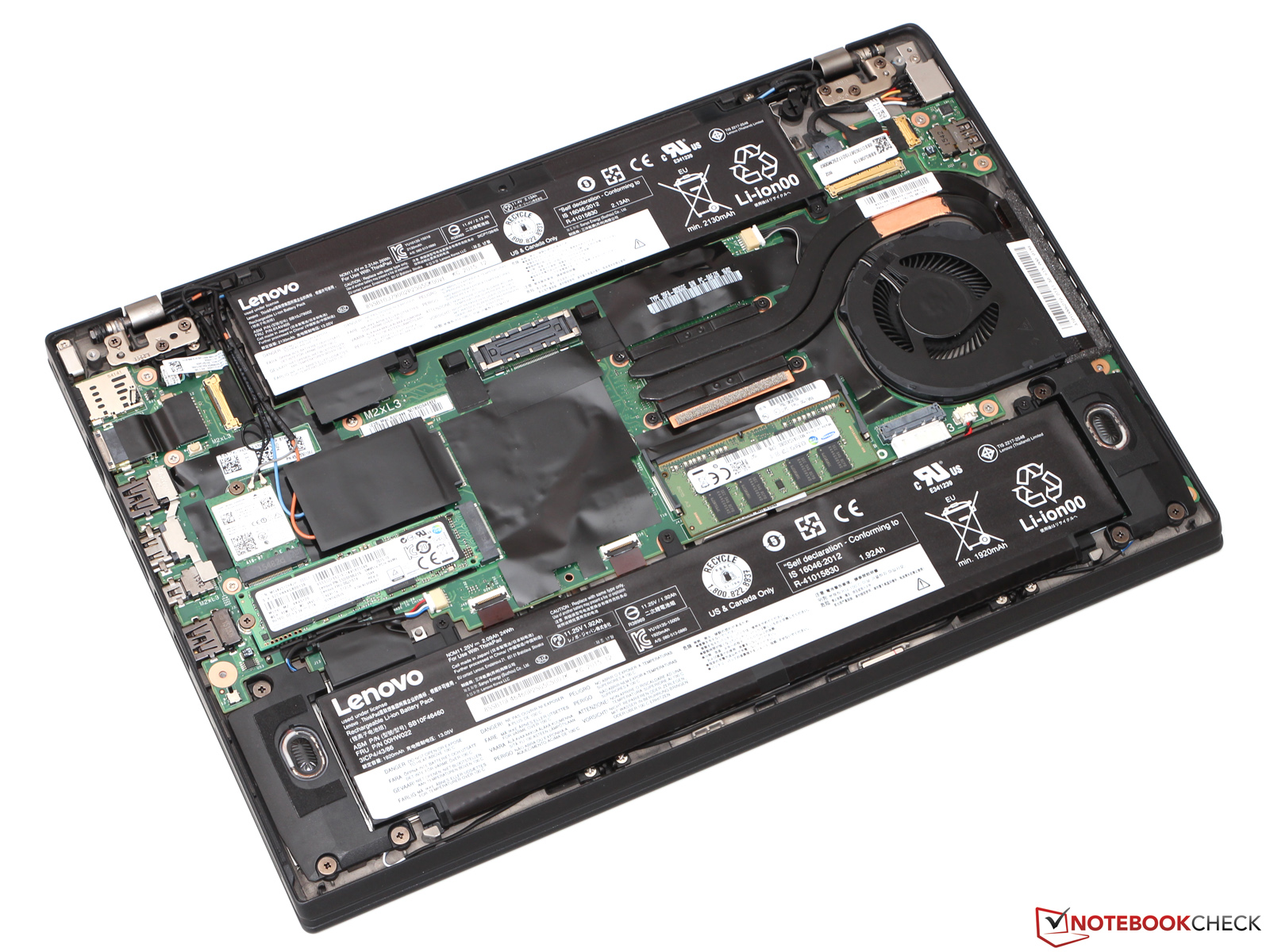

Vår kritik handlar främst om den nya chassikonstruktionen, som varken har plats för en 2,5-tumsenhet eller ett större batteri. Lenovo kunde också ha implementerat en modern USB-C-port och en något mer ljusstark skärm – vissa billiga konsumentmodeller presterar bättre i det avseendet.

Det påverkar egentligen inte det utmärkta helhetsintrycket. Enheten är klart köpvärd om du kan och vill betala det höga priset och dessutom jämfört med konkurrensen från HP och Dell.

Lenovo ThinkPad T460s-20FA003GGE - 03/09/2016 v5 ^(old)
Till Schönborn

Design

93 / 98 → 95%

Tangentbord

94%

Mus

87%

Anslutningar

74 / 80 → 92%

Vikt

71 / 20-67 → 100%

Batteri

87%

Skärm

87%

Spelprestanda

57 / 68 → 84%

Programprestanda

89 / 92 → 97%

Temperatur

92%

Ljudnivå

95%

Audio

69%

Camera

53 / 85 → 62%

Medel

81%

91%

Office - Vägt medel

Read about the changes in the new rating version 5

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1698 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad T460s (Core i7, WQHD) (sammanfattning)

Till Schönborn, 2016-03-31 (Update: 2024-11- 4)
