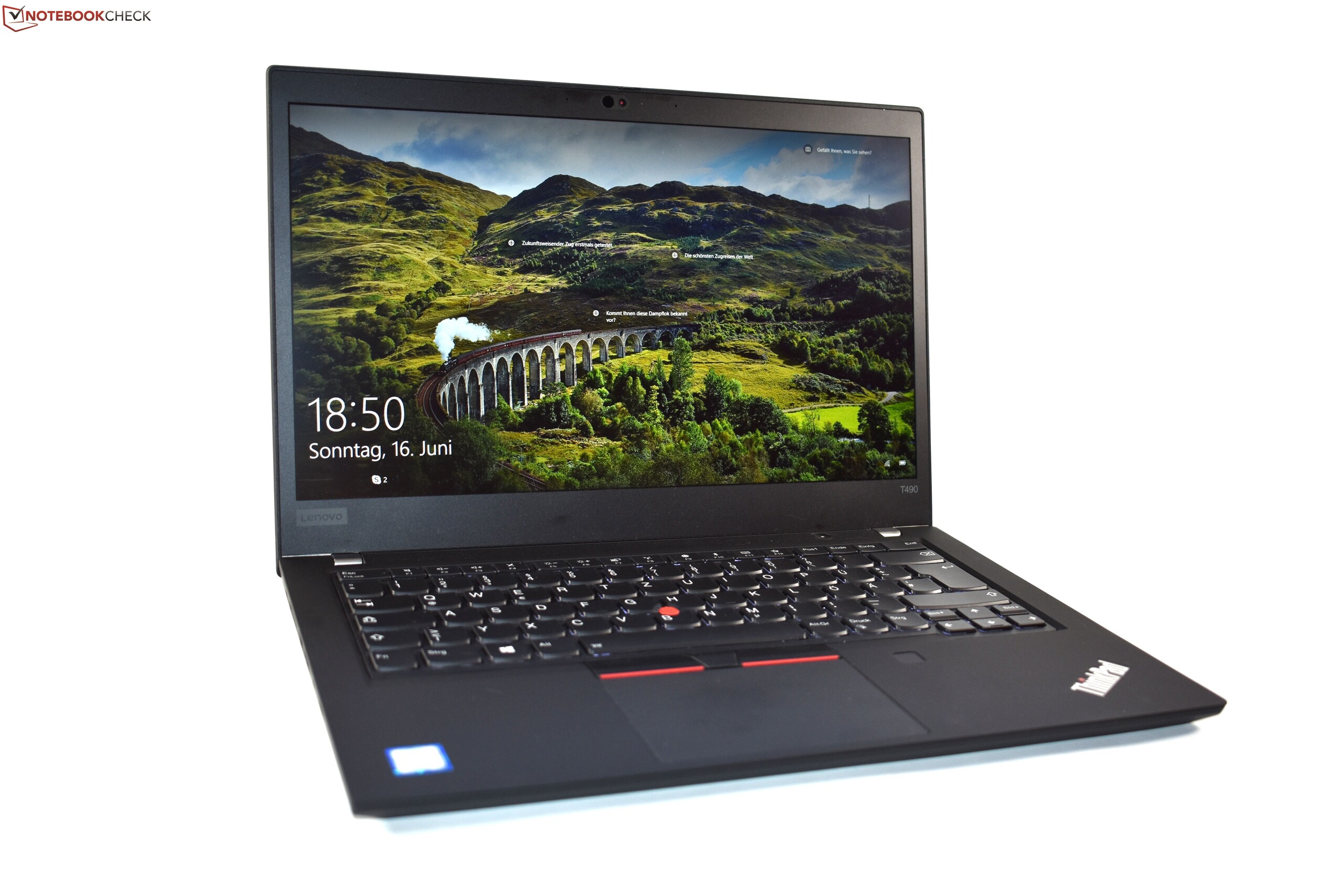

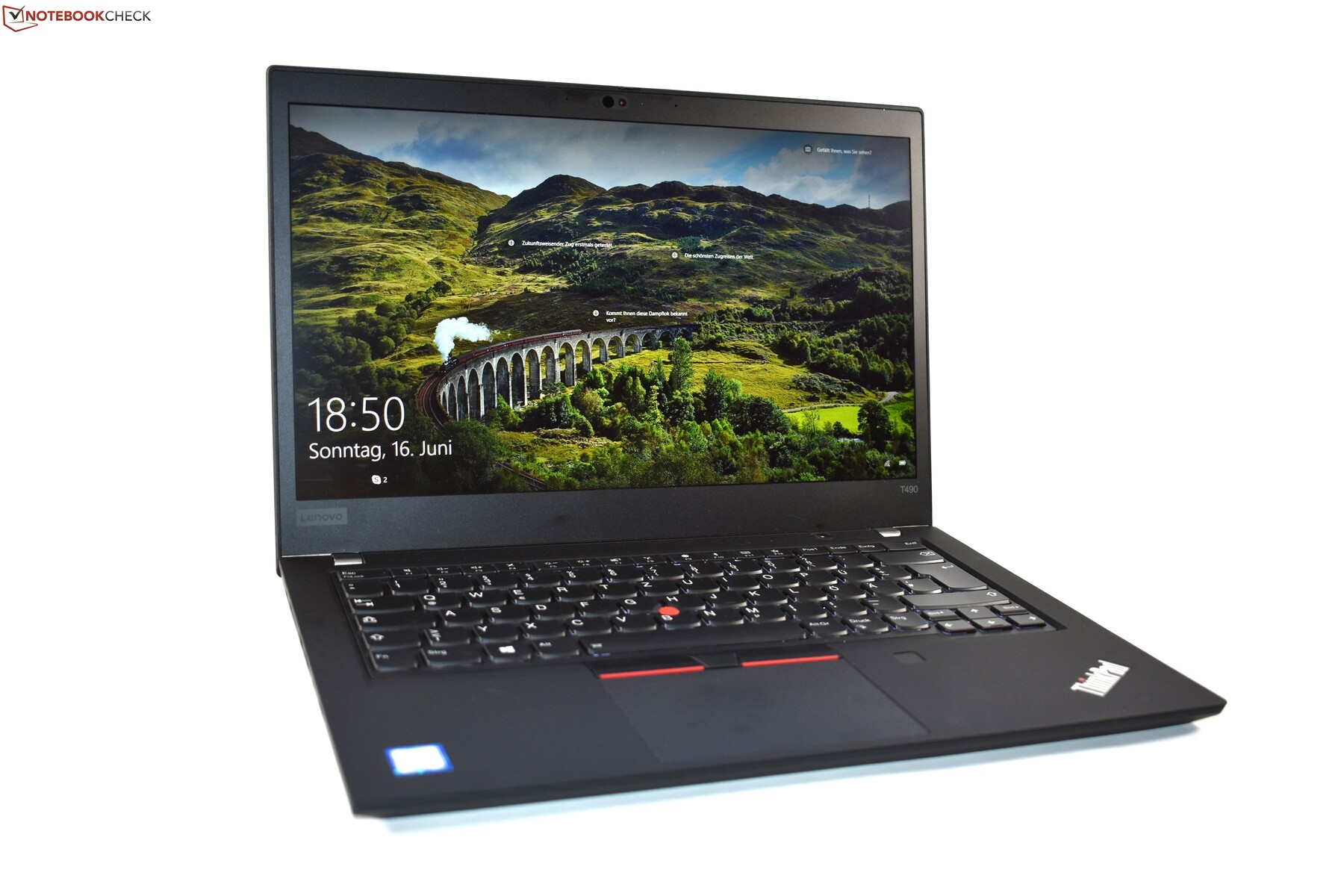

Test: Lenovo ThinkPad T490: En företagslaptop med lång batteritid och en iGPU
Lenovo ThinkPad T490-20N2004EGE (ThinkPad T490 Serie)

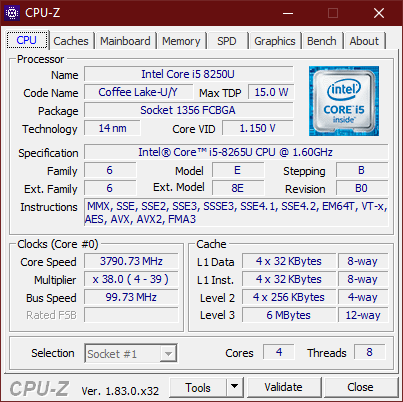

Processor
Intel Core i5-8265U 4 x 1.6 - 3.9 GHz, Whiskey Lake-U
Grafikkort
Minne
8 GB
, DDR4-2400, 8 GB fastlött, 1 SODIMM-plats ledig
Skärm
14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, NE140FHM-N61, IGZO IPS LED, glansig: nej

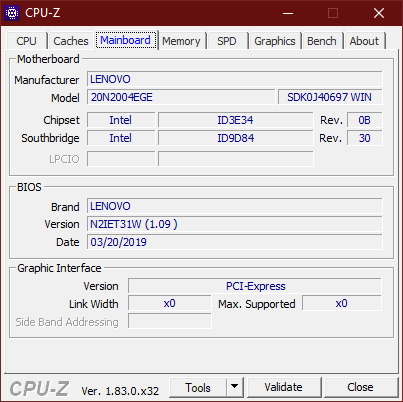

Moderkort
Intel Cannon Lake-U PCH-LP Premium
Hårddisk
Toshiba KXG5AZNV256G, 256 GB
, M.2 2280, PCIe NVMe, 213 GB ledigt
Vikt
1.443 kg, Strömförsörjning: 345 g
Pris
1520 Euro
Länkar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Dell Latitude 7490 (Toshiba Exceria Pro M501 UHS-II) | |
| Lenovo ThinkPad T480s-20L8S02D00 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad T480-20L6S01V00 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad T490-20N2004EGE (Toshiba Exceria Pro M501 64 GB UHS-II) | |
| Lenovo ThinkPad T490s-20NYS02A00 (Toshiba Exceria Pro M501) | |
| Average of class Office (22.7 - 198.5, n=33, last 2 years) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Dell Latitude 7490 (Toshiba Exceria Pro M501 UHS-II) | |
| Lenovo ThinkPad T480s-20L8S02D00 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad T490s-20NYS02A00 (Toshiba Exceria Pro M501) | |
| Lenovo ThinkPad T480-20L6S01V00 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo ThinkPad T490-20N2004EGE (Toshiba Exceria Pro M501 64 GB UHS-II) | |
| Average of class Office (25 - 249, n=30, last 2 years) | |
| |||||||||||||||||||||||||
NE140FHM-N61 tested with X-Rite i1Pro 2
Max: 428 cd/m² (Nits) Medel: 409.4 cd/m² Minimum: 5.2 cd/m²Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 428 cd/m²
Kontrast: 1476:1 (Svärta: 0.29 cd/m²)
ΔE Color 4.6 | 0.5-29.43 Ø4.92, calibrated: 2
ΔE Greyscale 5.4 | 0.5-98 Ø5.2
92.2% sRGB (Argyll 1.6.3 3D)
60% AdobeRGB 1998 (Argyll 1.6.3 3D)
67.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
92.3% sRGB (Argyll 2.2.0 3D)
69.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.09
| Lenovo ThinkPad T490-20N2004EGE NE140FHM-N61, , 1920x1080, 14" | Lenovo ThinkPad T490-20N3S02L00 NE140FHM-N61, , 1920x1080, 14" | Lenovo ThinkPad T490s-20NYS02A00 B140HAN05.7, , 1920x1080, 14" | HP EliteBook 840 G5-3JX61EA IVO M140NVF7 R0, , 1920x1080, 14" | Dell Latitude 7490 AUO503D (D04YD_B140HAN), , 1920x1080, 14" | Lenovo ThinkPad T480-20L6S01V00 Lenovo LP140WF6-SPB7, , 1920x1080, 14" | |
|---|---|---|---|---|---|---|
| Display | 0% | 1% | -8% | 0% | -40% | |
| Display P3 Coverage | 69.2 | 69.3 0% | 67.1 -3% | 61 -12% | 66.6 -4% | 39.24 -43% |
| sRGB Coverage | 92.3 | 92.2 0% | 97.6 6% | 87.7 -5% | 96.8 5% | 58.8 -36% |
| AdobeRGB 1998 Coverage | 67.6 | 67.4 0% | 68.5 1% | 62.1 -8% | 67.9 0% | 40.56 -40% |
| Response Times | -2% | 13% | 42% | 36% | 48% | |
| Response Time Grey 50% / Grey 80% * | 71.2 ? | 74 ? -4% | 61.6 ? 13% | 33 ? 54% | 41.6 ? 42% | 35.6 ? 50% |
| Response Time Black / White * | 44.8 ? | 45.6 ? -2% | 38.8 ? 13% | 26 ? 42% | 32 ? 29% | 24.8 ? 45% |
| PWM Frequency | 2427 ? | 2451 ? 1% | 3125 ? 29% | |||
| Screen | 1% | 15% | 3% | -11% | -38% | |
| Brightness middle | 428 | 418 -2% | 391 -9% | 655 53% | 308.6 -28% | 307 -28% |
| Brightness | 409 | 400 -2% | 389 -5% | 630 54% | 294 -28% | 295 -28% |
| Brightness Distribution | 91 | 88 -3% | 87 -4% | 93 2% | 89 -2% | 90 -1% |
| Black Level * | 0.29 | 0.24 17% | 0.23 21% | 0.56 -93% | 0.23 21% | 0.25 14% |
| Contrast | 1476 | 1742 18% | 1700 15% | 1170 -21% | 1342 -9% | 1228 -17% |
| Colorchecker dE 2000 * | 4.6 | 4.7 -2% | 3.4 26% | 3.27 29% | 6.07 -32% | 5.7 -24% |
| Colorchecker dE 2000 max. * | 8.2 | 8.7 -6% | 4.7 43% | 5.92 28% | 10.58 -29% | 21.3 -160% |
| Colorchecker dE 2000 calibrated * | 2 | 2.1 -5% | 1.1 45% | 3.22 -61% | 1.67 16% | 4.7 -135% |
| Greyscale dE 2000 * | 5.4 | 5.9 -9% | 4 26% | 2.85 47% | 7.3 -35% | 3.7 31% |
| Gamma | 2.09 105% | 2.06 107% | 2.49 88% | 2.45 90% | 2.061 107% | 2.11 104% |
| CCT | 7562 86% | 7350 88% | 6809 95% | 6065 107% | 7269 89% | 7353 88% |
| Color Space (Percent of AdobeRGB 1998) | 60 | 59.9 0% | 62.4 4% | 57 -5% | 62 3% | 37.4 -38% |
| Color Space (Percent of sRGB) | 92.2 | 92.1 0% | 97.4 6% | 88 -5% | 97 5% | 58.7 -36% |
| Total Average (Program / Settings) | -0% /
0% | 10% /
12% | 12% /
8% | 8% /
-3% | -10% /
-28% |
* ... smaller is better

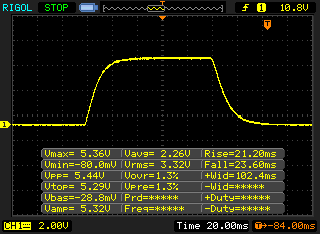

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 44.8 ms ... rise ↗ and fall ↘ combined | ↗ 21.2 ms rise |  |
| ↘ 23.6 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 99 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

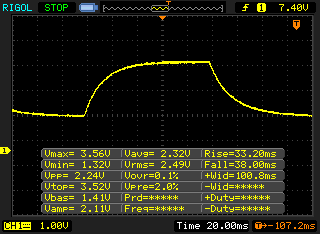

| ↔ Response Time 50% Grey to 80% Grey | ||
| 71.2 ms ... rise ↗ and fall ↘ combined | ↗ 33.2 ms rise |  |
| ↘ 38 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 99 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 2427 Hz | ≤ 50 % brightness setting |  |

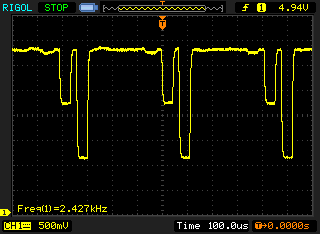

The display backlight flickers at 2427 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 2427 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured. | |||
Lenovo ThinkPad T490-20N2004EGE Intel Core i5-8265U, Intel Core i5-8265U: Ø617 (613-650)
Lenovo ThinkPad T490-20N3S02L00 Intel Core i7-8565U, Intel Core i7-8565U: Ø639 (632-673)
Lenovo ThinkPad T490s-20NYS02A00 Intel Core i5-8265U, Intel Core i5-8265U: Ø584 (566.02-686.12)
HP EliteBook 840 G5-3JX61EA Intel Core i7-8550U, Intel Core i7-8550U: Ø526 (517.01-554.05)
Dell Latitude 7490 Intel Core i5-8350U, Intel Core i5-8350U: Ø531 (519.92-595.49)
| PCMark 8 Home Score Accelerated v2 | 3436 poäng | |
| PCMark 8 Work Score Accelerated v2 | 4824 poäng | |
| PCMark 10 Score | 3704 poäng | |
Hjälp | ||
| Lenovo ThinkPad T490-20N2004EGE Toshiba KXG5AZNV256G | Dell Latitude 7490 Toshiba KSG60ZMV256G | Lenovo ThinkPad T480s-20L8S02D00 Samsung SSD PM981 MZVLB512HAJQ | Lenovo ThinkPad T480-20L6S01V00 Samsung SSD PM981 MZVLB512HAJQ | Lenovo ThinkPad T490s-20NYS02A00 Intel SSD Pro 7600p SSDPEKKF512G8L | HP EliteBook 840 G5-3JX61EA Toshiba KXG50ZNV1T02 | Lenovo ThinkPad T490-20N3S02L00 Toshiba XG5 KXG50ZNV512G | Average Toshiba KXG5AZNV256G | |
|---|---|---|---|---|---|---|---|---|
| CrystalDiskMark 5.2 / 6 | -56% | 17% | -2% | 8% | -5% | 12% | -10% | |
| Write 4K | 119.9 | 79.4 -34% | 155.4 30% | 153.1 28% | 122 2% | 96.1 -20% | 126.6 6% | 115.4 ? -4% |
| Read 4K | 39.94 | 27.37 -31% | 47.61 19% | 48.3 21% | 45.56 14% | 31.12 -22% | 43.61 9% | 38.2 ? -4% |
| Write Seq | 1334 | 343.9 -74% | 1624 22% | 866 -35% | 1497 12% | 919 -31% | 1342 1% | 908 ? -32% |
| Read Seq | 1357 | 472.7 -65% | 1346 -1% | 904 -33% | 2385 76% | 2089 54% | 1251 -8% | 1391 ? 3% |
| Write 4K Q32T1 | 311.2 | 206 -34% | 340.7 9% | 424.6 36% | 240.9 -23% | 425.6 37% | 297.7 -4% | 333 ? 7% |
| Read 4K Q32T1 | 400.6 | 188.3 -53% | 449.3 12% | 403.2 1% | 338 -16% | 275.3 -31% | 376.4 -6% | 403 ? 1% |
| Write Seq Q32T1 | 1642 | 343.3 -79% | 1965 20% | 1725 5% | 1528 -7% | 958 -42% | 2969 81% | 1069 ? -35% |
| Read Seq Q32T1 | 2778 | 533 -81% | 3398 22% | 1780 -36% | 2915 5% | 3118 12% | 3228 16% | 2278 ? -18% |
Toshiba KXG5AZNV256G
Sequential Read:
1491 MB/s
Sequential Write:
1388 MB/s
512K Read:
1096 MB/s
512K Write:
413.1 MB/s
4K Read:
39.72 MB/s
4K Write:
168 MB/s
4K QD32 Read:
558 MB/s
4K QD32 Write:
408.5 MB/s
| 3DMark 11 Performance | 1847 poäng | |
| 3DMark Cloud Gate Standard Score | 7289 poäng | |
| 3DMark Fire Strike Score | 937 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 53 | 28.33 | 22.93 | |
| The Witcher 3 (2015) | 15 | |||
| Dota 2 Reborn (2015) | 64 | 38.2 | 18 | 15.9 |
| Rise of the Tomb Raider (2016) | 21.14 | 11.9 | ||
| X-Plane 11.11 (2018) | 23.6 | 15.9 | 14.3 |
Ljudnivå
| Låg belastning |
| 28.8 / 28.8 / 31.7 dB(A) |
| Hög belastning |
| 34 / 36.1 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm avstånd) environment noise: 28.8 dB(A) | ||
(±) The average temperature for the upper side under maximal load is 34.3 °C / 94 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 41.1 °C / 106 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 49.3 °C / 121 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 22.6 °C / 73 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-2.3 °C / -4.1 F).
(±) The maximum temperature on the upper side is 41.1 °C / 106 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 49.3 °C / 121 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 22.6 °C / 73 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-2.3 °C / -4.1 F).
Strömförbrukning
| Av/Standby | 0.28 / 0.43 Watt |
| Låg belastning | 2.34 / 5.22 / 8.82 Watt |
| Hög belastning |
35.8 / 47.3 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad T490-20N2004EGE i5-8265U, UHD Graphics 620, Toshiba KXG5AZNV256G, IGZO IPS LED, 1920x1080, 14" | Lenovo ThinkPad T490-20N3S02L00 i7-8565U, GeForce MX250, Toshiba XG5 KXG50ZNV512G, IGZO IPS LED, 1920x1080, 14" | Lenovo ThinkPad T490s-20NYS02A00 i5-8265U, UHD Graphics 620, Intel SSD Pro 7600p SSDPEKKF512G8L, IPS, 1920x1080, 14" | Dell Latitude 7490 i5-8350U, UHD Graphics 620, Toshiba KSG60ZMV256G, IPS, 1920x1080, 14" | Lenovo ThinkPad T480s-20L8S02D00 i5-8250U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, IPS, 2560x1440, 14" | Lenovo ThinkPad T480-20L6S01V00 i5-8550U, GeForce MX150, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 14" | HP EliteBook 840 G5-3JX61EA i5-8550U, UHD Graphics 620, Toshiba KXG50ZNV1T02, IPS, 1920x1080, 14" | Average Intel UHD Graphics 620 | Average of class Office | |
|---|---|---|---|---|---|---|---|---|---|
| Power Consumption | -21% | -11% | 14% | -31% | -44% | -24% | -19% | -38% | |
| Idle Minimum * | 2.34 | 2.16 8% | 2.62 -12% | 2 15% | 3.1 -32% | 3.6 -54% | 3.8 -62% | 3.81 ? -63% | 4.54 ? -94% |
| Idle Average * | 5.22 | 5.04 3% | 5.16 1% | 4.7 10% | 6.8 -30% | 7.1 -36% | 8.3 -59% | 6.94 ? -33% | 7.49 ? -43% |
| Idle Maximum * | 8.82 | 8.64 2% | 8.7 1% | 5.7 35% | 10.1 -15% | 9.5 -8% | 10.7 -21% | 8.75 ? 1% | 9.14 ? -4% |
| Load Average * | 35.8 | 63.2 -77% | 40 -12% | 38.4 -7% | 48.4 -35% | 63.9 -78% | 35.5 1% | 35 ? 2% | 42.8 ? -20% |
| Load Maximum * | 47.3 | 67.5 -43% | 64 -35% | 38.9 18% | 67.1 -42% | 67.3 -42% | 37 22% | 47.5 ? -0% | 61.3 ? -30% |
| Witcher 3 ultra * | 50 | 53.9 |
* ... smaller is better
| Lenovo ThinkPad T490-20N2004EGE i5-8265U, UHD Graphics 620, 50 Wh | Lenovo ThinkPad T490-20N3S02L00 i7-8565U, GeForce MX250, 50 Wh | Lenovo ThinkPad T490s-20NYS02A00 i5-8265U, UHD Graphics 620, 57 Wh | Dell Latitude 7490 i5-8350U, UHD Graphics 620, 60 Wh | Lenovo ThinkPad T480s-20L8S02D00 i5-8250U, UHD Graphics 620, 57 Wh | Lenovo ThinkPad T480-20L6S01V00 i5-8550U, GeForce MX150, 72 Wh | HP EliteBook 840 G5-3JX61EA i5-8550U, UHD Graphics 620, 50 Wh | Average of class Office | |
|---|---|---|---|---|---|---|---|---|
| Battery Runtime | -27% | -3% | -4% | -8% | 11% | -22% | -6% | |
| H.264 | 677 | 523 -23% | 834 23% | 721 6% | 638 -6% | 704 ? 4% | ||
| WiFi v1.3 | 572 | 543 -5% | 607 6% | 548 -4% | 537 -6% | 794 39% | 444 -22% | 600 ? 5% |
| Load | 161 | 75 -53% | 99 -39% | 124 -23% | 159 -1% | 118.1 ? -27% | ||
| Reader / Idle | 1671 | 1300 ? |
För
+ robust design
+ mer kompakt och lättare än sin föregångare
+ anslutbarhet med god variation
+ bekväma inmatningsenheter
+ ljusstark skärm med god färgprecision
+ kompetent Full HD-skärm
+ CPU-prestanda över genomsnittet
+ fläkten håller sig oftast avstängd
+ skaplig batteritid
+ tre års garanti
Emot
- skärmen har dåliga responstider
- ingen SD-kortläsare i full storlek
- Thunderbolt 3 som bara använder två PCIe-banor
- höljet är svårt att öppna
- har ej stöd för Power Bridge
Läs den fullständiga versionen av den här recensionen på engelska här.
Lenovo ThinkPad T490 är en utmärkt företagslaptop med eller utan GPU från NVIDIA. Modellen utan NVIDIA-chippet är på en del områden en aning bättre än den mer tekniskt kapabla varianten av T490, vilket ökar poängsumman till 91% istället för de 90% vi gav dess MX250-utrustade syskon.
Bland annat kan nämnas att vår recensionsenhet hade bättre batteritid än ThinkPad T490-modellen med dedikerad GPU. Den förstnämnda höll sig dessutom svalare och led inte av det irriterande högtalarljudet som plågade vår första recensionsenhet. Lenovo har i princip eliminerat detta helt med en BIOS-uppdatering, så det bör inte längre påverka någon variant av ThinkPad T490.
Vidare stryps inte Intel-versionen av T490 i vårt stresstest, tack vare en till namnet svagare CPU. De övriga höjdpunkterna från vårt första test av T490 gäller också här och inkluderar ett robust och lätt hölje, fantastiska inmatningsenheter och en ljusstark skärm med god färgprecision. Vi uppskattade också det mångsidiga portutbudet samt att CPU-prestandan låg över genomsnittet.
Båda modellerna lider dock av i stort sett samma brister. Den energieffektiva skärmen har dåliga responstider och det är synd att det är en microSD-kortläsare som ingår istället för en i full storlek. På samma sätt förstår vi inte varför Lenovo bara låter Thunderbolt 3-porten använda två PCIe-banor, även om det är trevligt att en Thunderbolt 3-port ingår. Vidare är det svårt att ta isär och sätta ihop höljet och avsaknaden av Power Bridge-funktionen gör T490 mindre flexibel än sina föregångare.
Svalare och mer uthållig: Intel GPU-varianten av Lenovo ThinkPad T490 är på en del områden bättre än syskonet med en GPU från NVIDIA och är totalt sett en fantastisk företagslaptop.
Sammanfattningsvis bör T490 med en Intel-GPU vara mer än tillräcklig för den som inte behöver den extra grafikkapaciteten som kommer av ett GeForce MX250. Men om du ibland spelar spel efter jobbet eller behöver en laptop som du kan redigera video på är däremot T490 med en NVIDIA-GPU i vårt tycke ett bättre val.
Lenovo ThinkPad T490-20N2004EGE
- 10/22/2019 v7 (old)
Benjamin Herzig
