Test: Lenovo ThinkPad T560 (Core i5, SSHD) (sammanfattning)

Name: Lenovo ThinkPad T560-20FH001FGE
Brand: Lenovo

Snabbare och bättre? Lenovos nya ThinkPad T560 övertygar med en bra IPS-skärm och utlovar bättre prestanda och batteritid tack vare Skylake-plattformen. I övrigt är förändringarna små räcker det för att ta hem segern i klassen?

Till Schönborn, Published 03/19/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Ultrabook Windows

Test device courtesy of notebooksandmore.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad T560-20FH001FGE (ThinkPad T560 Serie)

Processor

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake

Grafikkort

Intel HD Graphics 520, Kärna: 1000 MHz, Minne: 800 MHz, 20.19.15.4352

Minne

4 GB

, 1x 4 GB DDR3L-1600, 1 av 2 platser används

Skärm

15.60 tum 16:9, 1920 x 1080 pixlar, LTN156HL09901, IPS-panel, LED, glansig: nej

Moderkort

Intel Skylake-U Premium PCH

Hårddisk

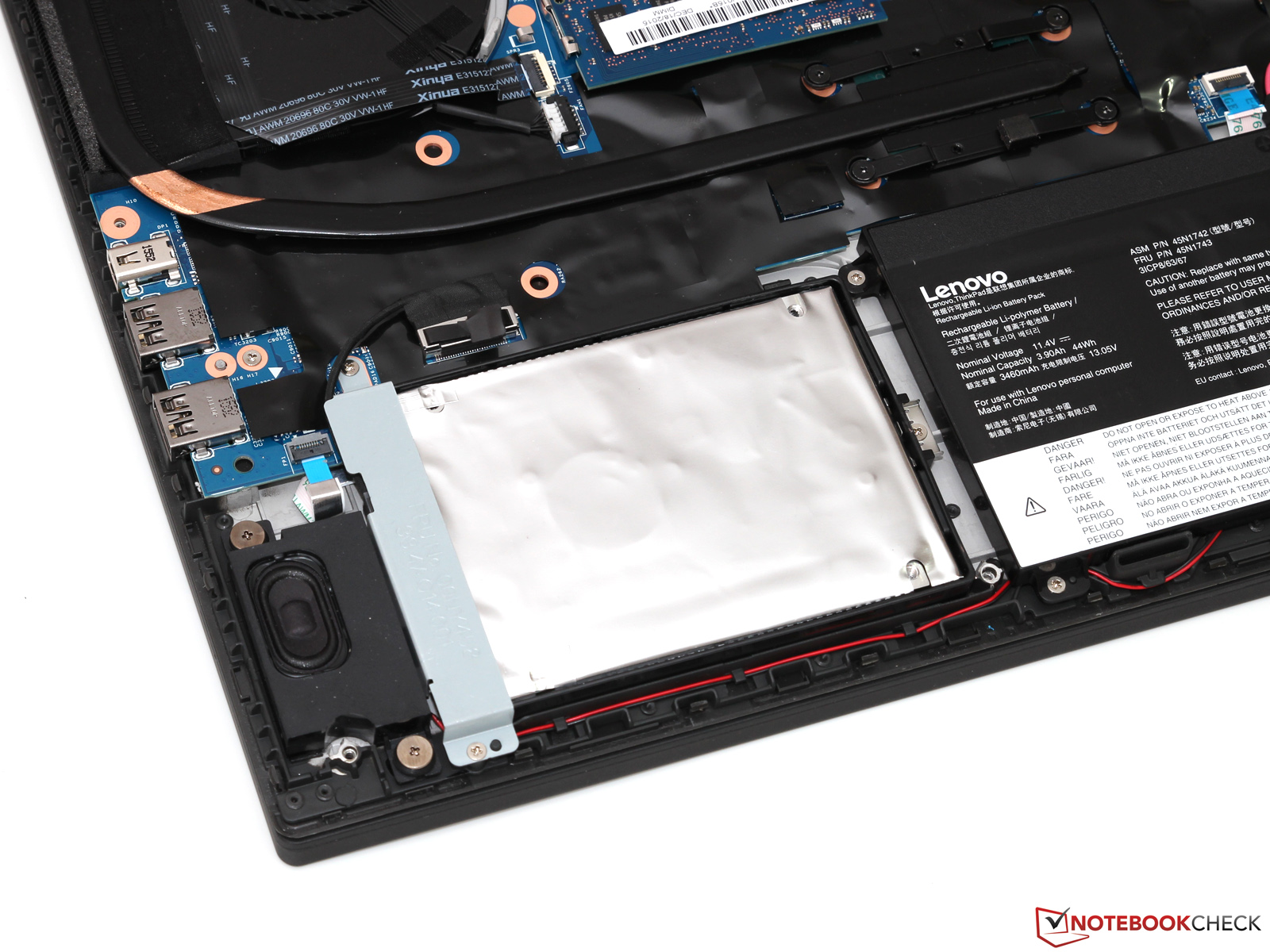

Seagate ST500LM000 Solid State Hybrid Drive, 500 GB

, 5400 rpm, 8 GB SSD-Cache

Ljudkort

Intel Skylake-U/Y PCH - High Definition Audio

Anslutningar

3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensingtonlås, 1 Dockningsstation, Ljudanslutningar: 3.5 mm, Kortläsare: SD, 1 SmartCard, 1 Fingeravtrycksläsare

Nätverk

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 22.4 x 380 x 252

Batteri

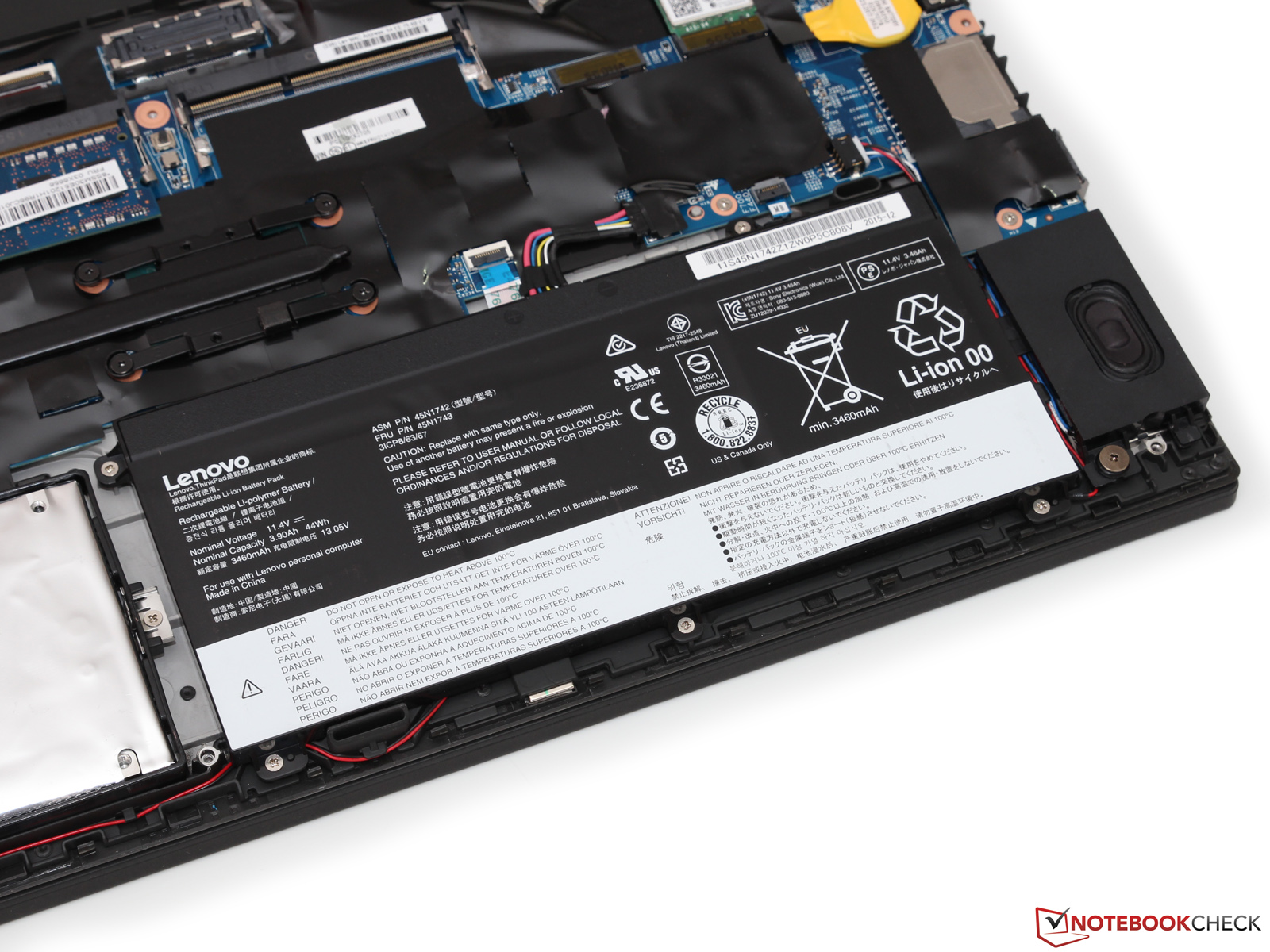

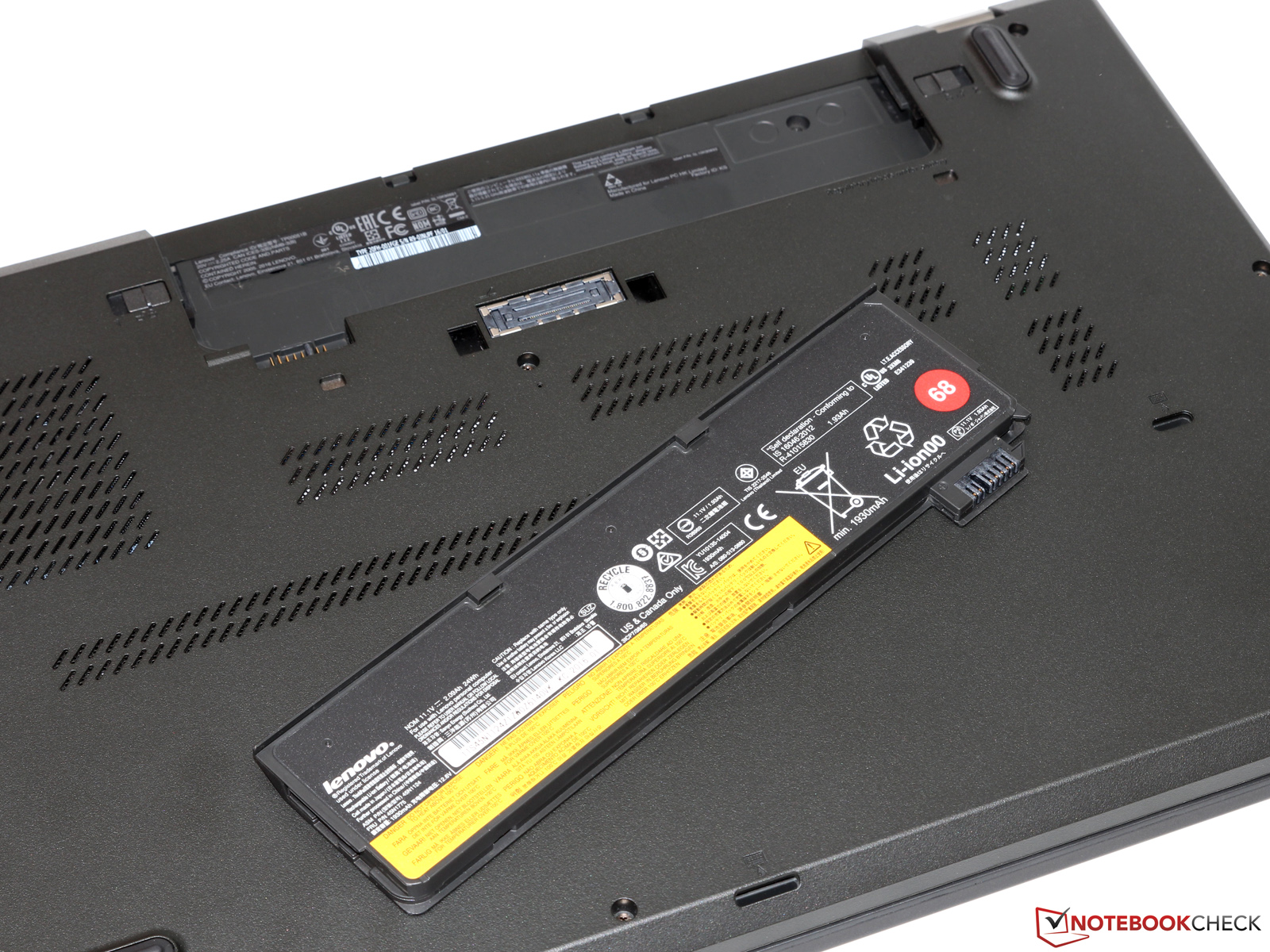

67 Wh Litiumjon, 44 Wh internt + 23 Wh externt

Operativsystem

Microsoft Windows 10 Pro 64 Bit

Camera

Webbkamera: 720p

Övrigt

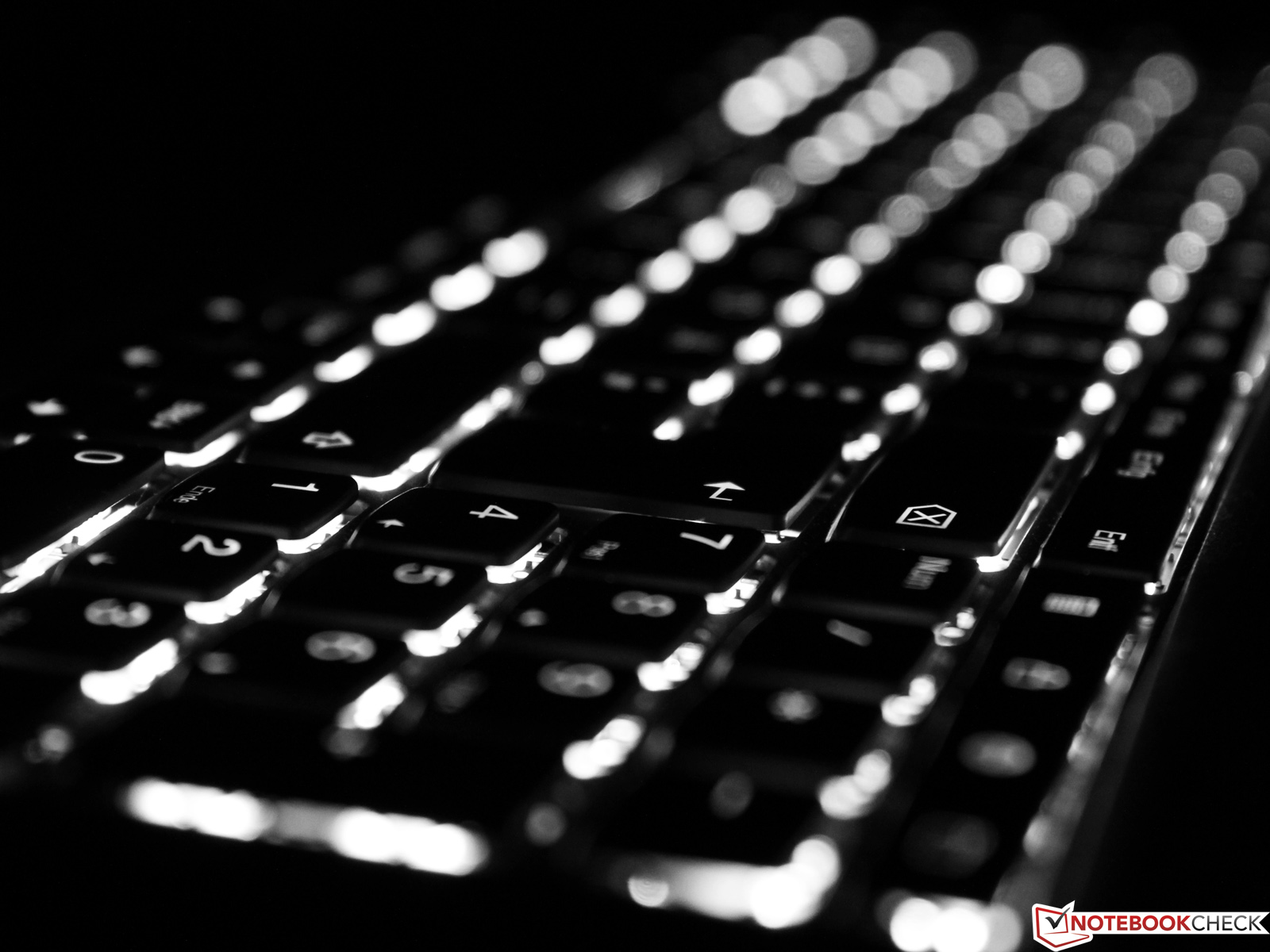

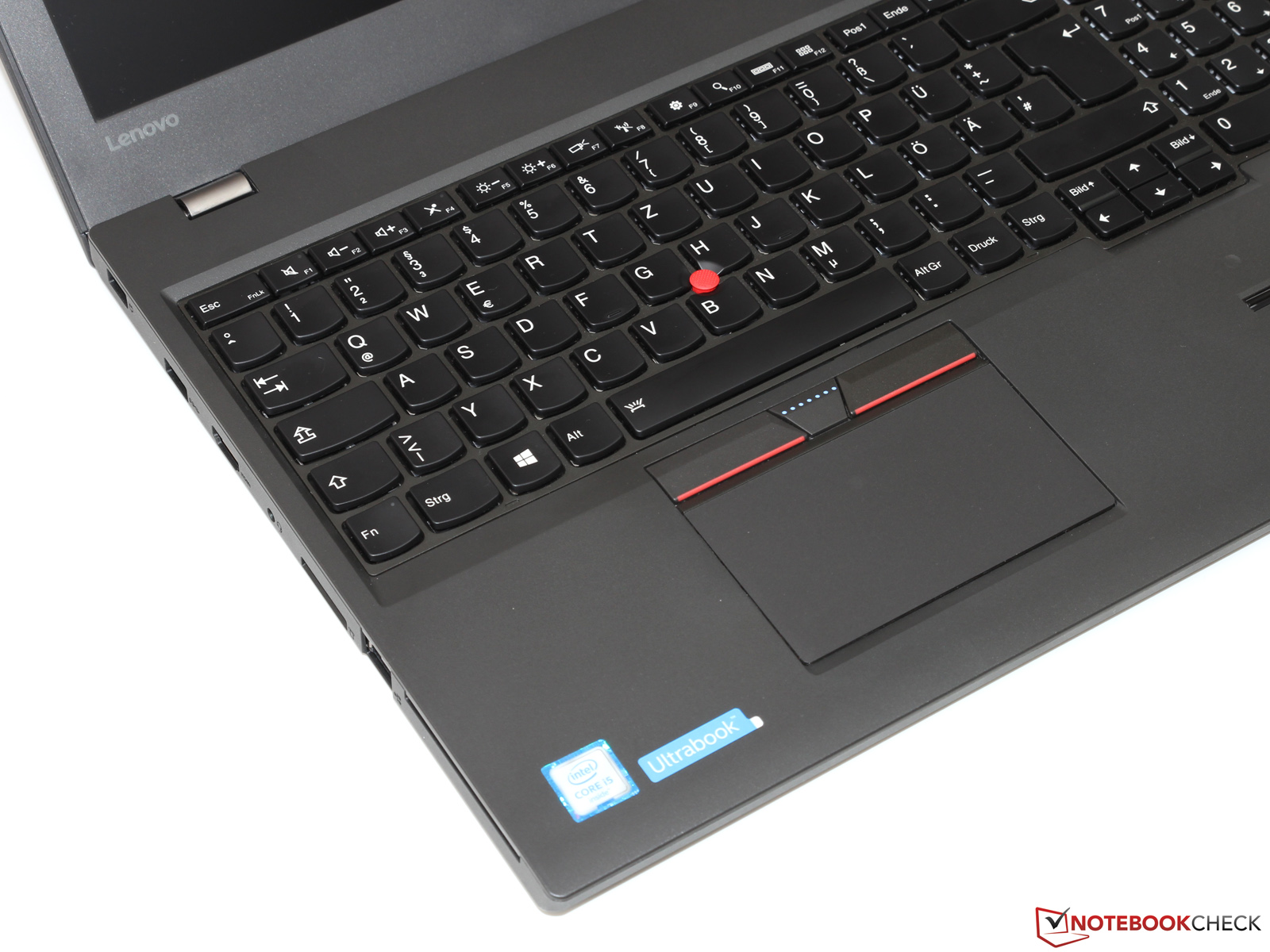

Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: ja, 45-Watt-Netzteil, 36 Månader Garanti

Vikt

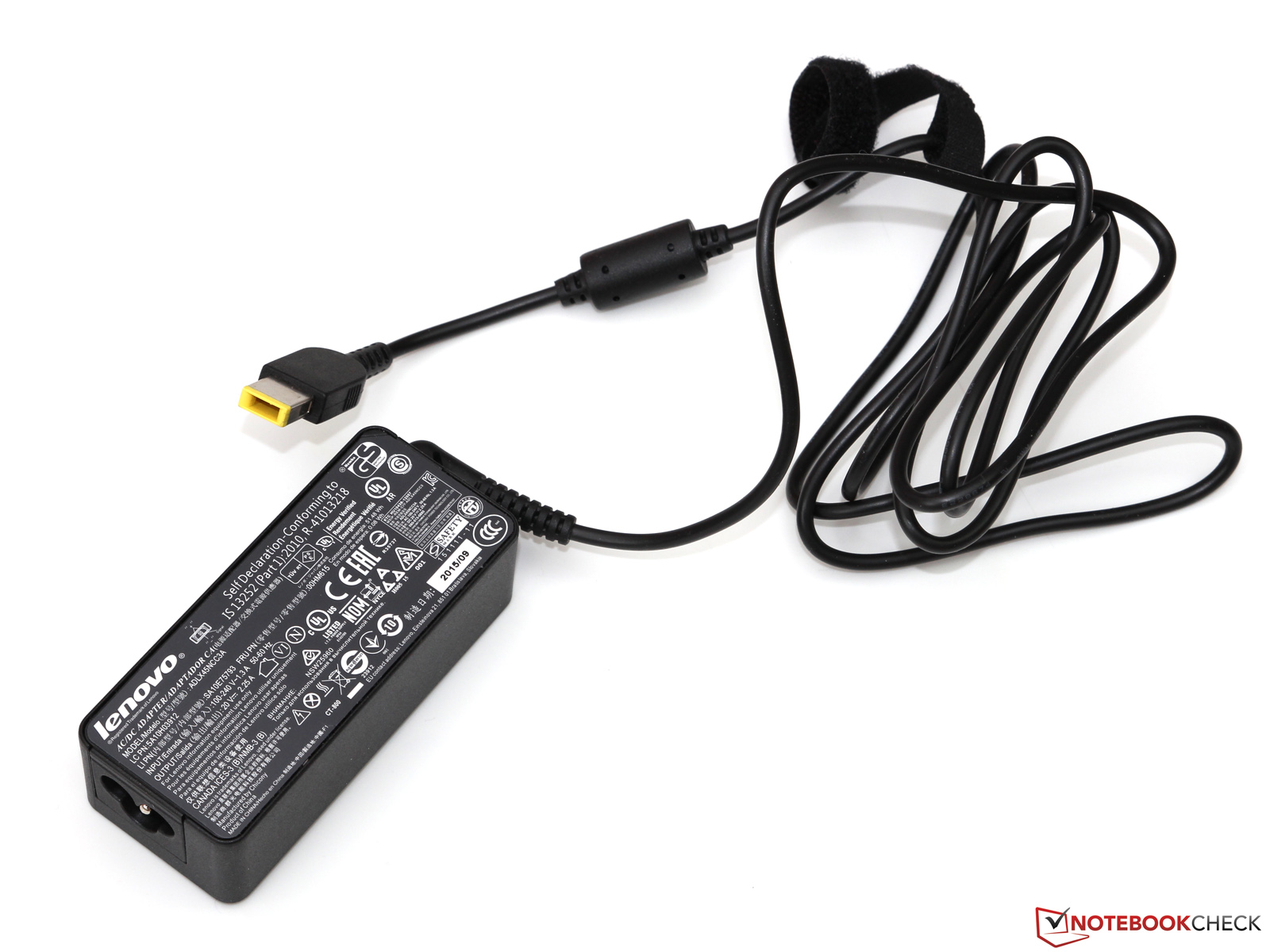

2.256 kg, Strömförsörjning: 185 g

Pris

1400 Euro

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

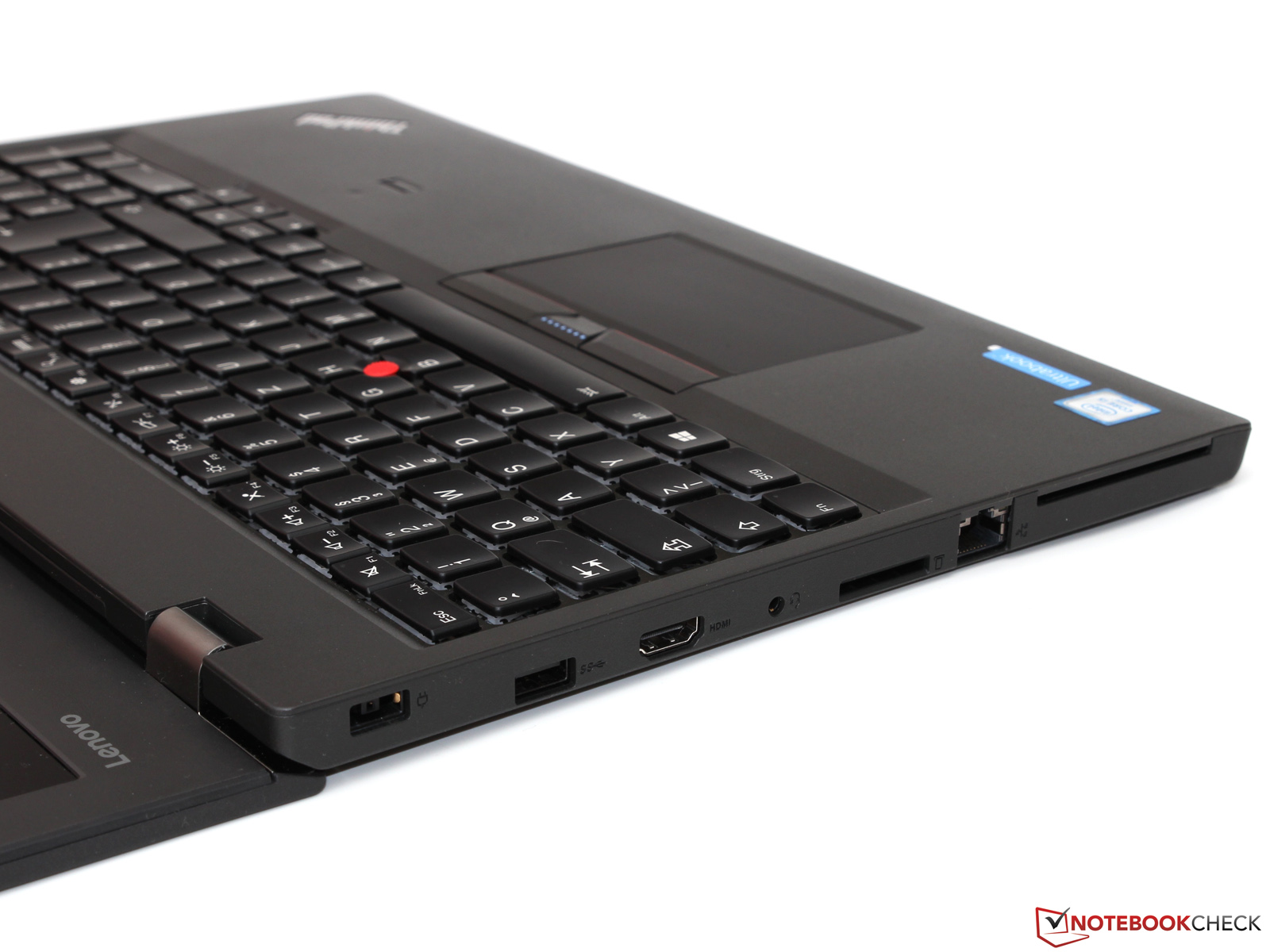

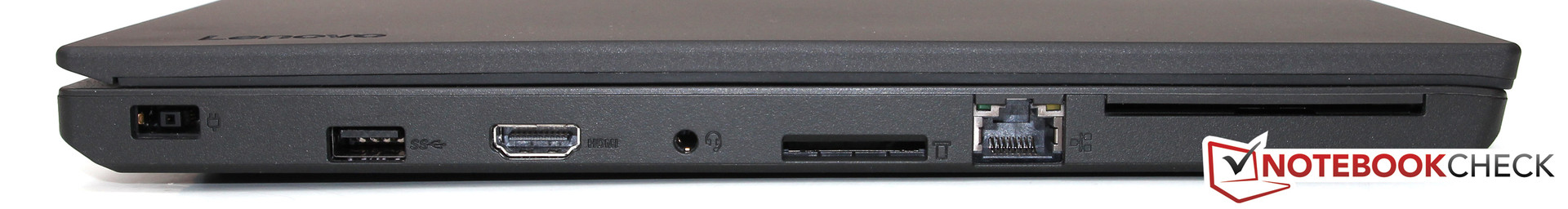

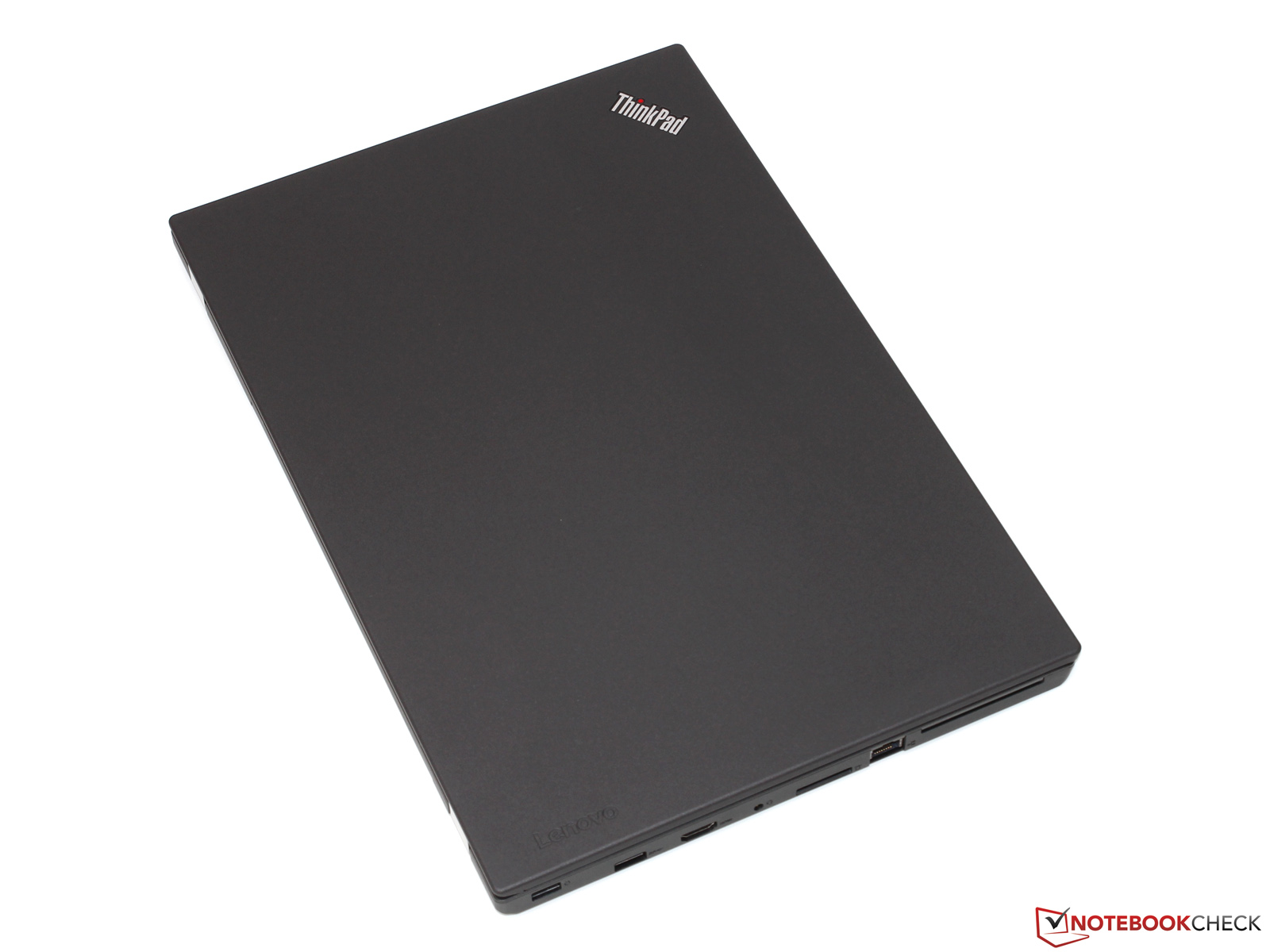

left side: power, USB 3.0, HDMI, headset port, card reader, Gbit-LAN, SmartCard reader

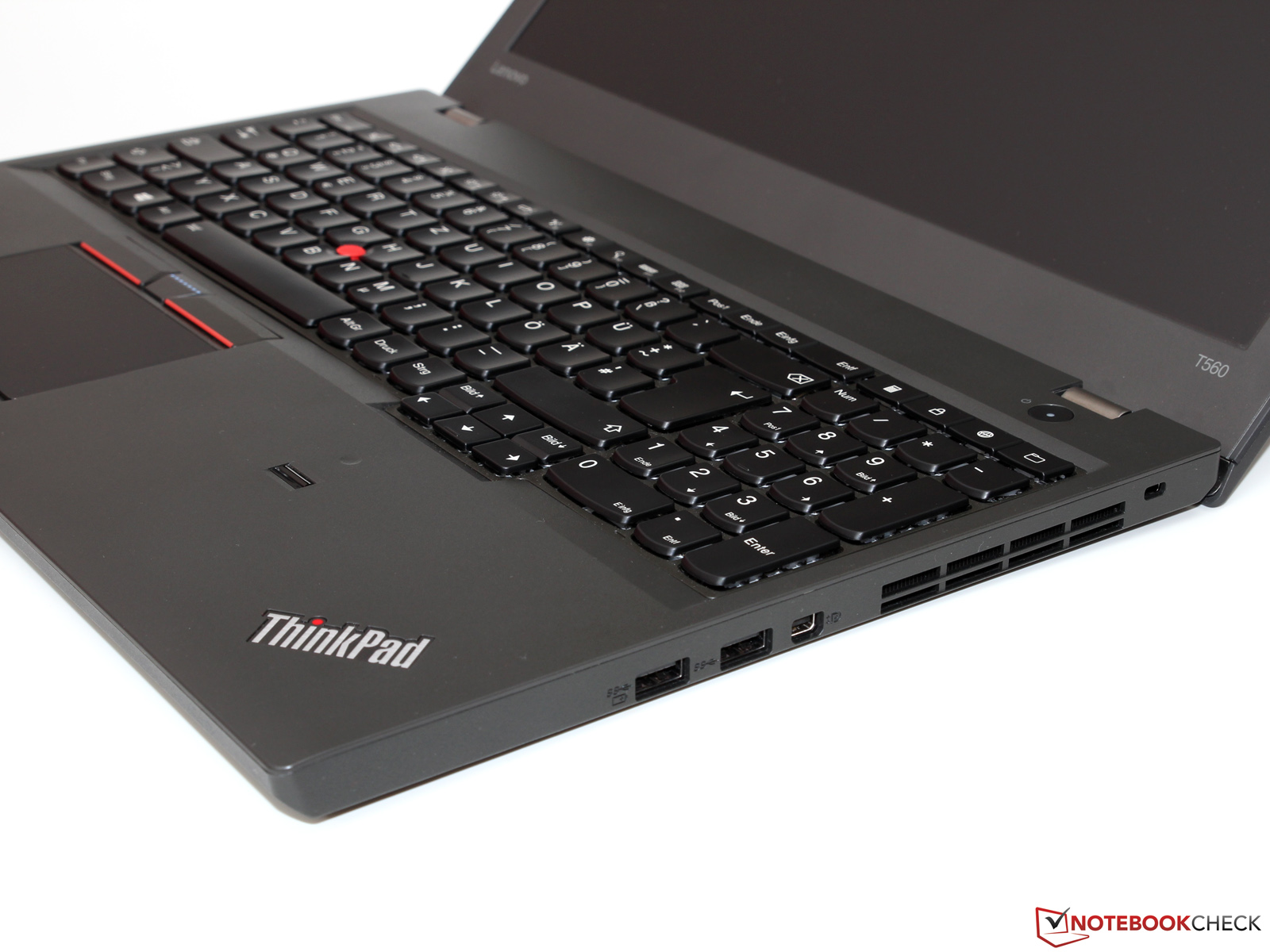

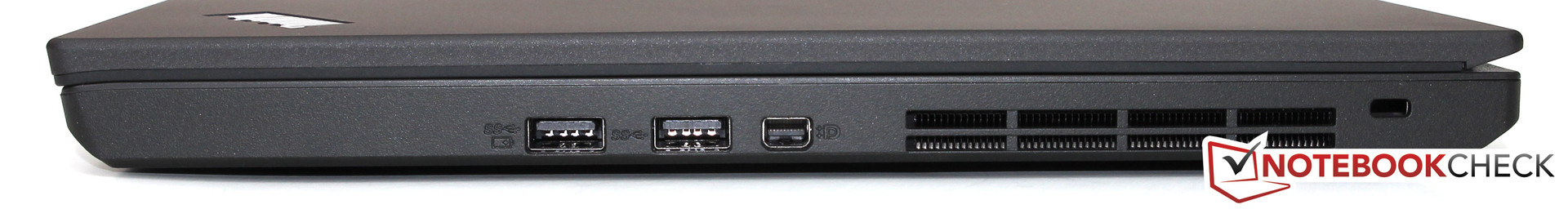

right side: 2x USB 3.0, Mini-DisplayPort, fan exhaust, Kensington Lock

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

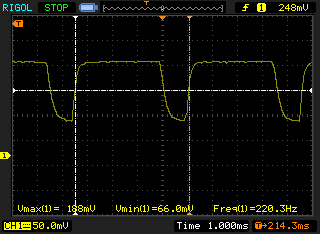

Screen flickering / PWM detected

220 Hz

≤ 50 % brightness setting

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8719 (minimum: 5 - maximum: 343500) Hz was measured.


224 cd/m²	218 cd/m²	207 cd/m²
224 cd/m²	243 cd/m²	212 cd/m²
229 cd/m²	214 cd/m²	205 cd/m²

Distribution av ljusstyrkan

LTN156HL09901 tested with X-Rite i1Pro 2

Max: 243 cd/m² (Nits) Medel: 219.6 cd/m² Minimum: 3 cd/m²
Distribution av ljusstyrkan: 84 %
Mitt på batteriet: 241 cd/m²
Kontrast: 900:1 (Svärta: 0.27 cd/m²)
ΔE Color 7.49 | 0.5-29.43 Ø4.91
ΔE Greyscale 7.5 | 0.5-98 Ø5.2
60.9% sRGB (Argyll 1.6.3 3D)
38.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
42.36% AdobeRGB 1998 (Argyll 2.2.0 3D)
61.3% sRGB (Argyll 2.2.0 3D)
40.96% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35

Download ICC-fil (X-Rite i1Pro 2)

	Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	Lenovo ThinkPad T540p-20BE005YGE GeForce GT 730M, 4700MQ, Samsung SSD 840 250GB MZ7TD256HAFV	Lenovo ThinkPad P50 Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP
Screen		-32%	3%	9%
Brightness middle	243	297 22%	333 37%	263 8%
Brightness	220	287 30%	310 41%	236 7%
Brightness Distribution	84	83 -1%	82 -2%	78 -7%
Black Level *	0.27	0.9 -233%	0.62 -130%	0.34 -26%
Contrast	900	330 -63%	537 -40%	774 -14%
Colorchecker dE 2000 *	7.49	8.74 -17%	4.67 38%	2.35 69%
Colorchecker dE 2000 max. *	15.13
Greyscale dE 2000 *	7.5	9.31 -24%	5.66 25%	3.33 56%
Gamma	2.35 ^94%	2.42 ^91%	2.46 ^89%	2.38 ^92%
CCT	6115 ^106%	10649 ^61%	5966 ^109%	6917 ^94%
Color Space (Percent of AdobeRGB 1998)	38.9	50.8 31%	61 57%	37 -5%
Color Space (Percent of sRGB)	60.9			58 -5%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

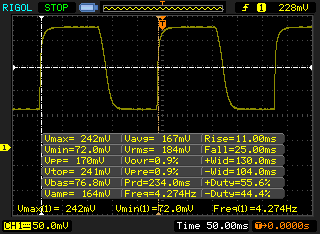

↔ Response Time Black to White
36 ms ... rise ↗ and fall ↘ combined	↗ 11 ms rise
36 ms ... rise ↗ and fall ↘ combined	↘ 25 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).

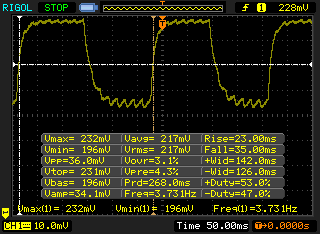

↔ Response Time 50% Grey to 80% Grey
58 ms ... rise ↗ and fall ↘ combined	↗ 23 ms rise
58 ms ... rise ↗ and fall ↘ combined	↘ 35 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 94 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

Cinebench R15 | Cinebench R11.5 | X264 HD Benchmark 4.0

Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T550 Intel Core i7-5600U	131 Points +16%
Microsoft Surface Book Core i7 Intel Core i7-6600U	129 Points +14%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	124 Points +10%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	123 Points +9%
HP ProBook 440 G3 PL Intel Core i5-6200U	116 Points +3%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	113 Points
Fujitsu LifeBook A555G PL Intel Core i5-5200U	107 Points -5%
CPU Multi 64Bit
Microsoft Surface Book Core i7 Intel Core i7-6600U	335 Points +16%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	319 Points +10%
HP ProBook 440 G3 PL Intel Core i5-6200U	290 Points 0%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	290 Points
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	282 Points -3%
Lenovo ThinkPad T550 Intel Core i7-5600U	279 Points -4%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	261 Points -10%

Cinebench R11.5
CPU Single 64Bit
Microsoft Surface Book Core i7 Intel Core i7-6600U	1.49 Points +16%
Lenovo ThinkPad T550 Intel Core i7-5600U	1.48 Points +15%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	1.45 Points +12%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	1.42 Points +10%
HP ProBook 440 G3 PL Intel Core i5-6200U	1.33 Points +3%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	1.29 Points
Fujitsu LifeBook A555G PL Intel Core i5-5200U	1.26 Points -2%
CPU Multi 64Bit
Microsoft Surface Book Core i7 Intel Core i7-6600U	3.73 Points +15%
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	3.55 Points +10%
HP ProBook 440 G3 PL Intel Core i5-6200U	3.25 Points +1%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	3.23 Points
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	3.13 Points -3%
Lenovo ThinkPad T550 Intel Core i7-5600U	3.07 Points -5%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	2.84 Points -12%

X264 HD Benchmark 4.0
Pass 1
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	107.6 fps +10%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	98 fps
HP ProBook 440 G3 PL Intel Core i5-6200U	95 fps -3%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	89.6 fps -9%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	84 fps -14%
Pass 2
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	20.95 fps +10%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	19.04 fps
HP ProBook 440 G3 PL Intel Core i5-6200U	19 fps 0%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	17.31 fps -9%
Fujitsu LifeBook A555G PL Intel Core i5-5200U	16 fps -16%

Cinebench R10 Shading 32Bit

6773

Cinebench R10 Rendering Multiple CPUs 32Bit

9862

Cinebench R10 Rendering Single 32Bit

4304

Cinebench R10 Shading 64Bit

5639 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

12462 Points

Cinebench R10 Rendering Single CPUs 64Bit

5267 Points

Cinebench R11.5 CPU Single 64Bit

1.29 Points

Cinebench R11.5 OpenGL 64Bit

23.13 fps

Cinebench R11.5 CPU Multi 64Bit

3.23 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

31.33 fps

Cinebench R15 CPU Single 64Bit

113 Points

Cinebench R15 CPU Multi 64Bit

290 Points

Hjälp

... jämför

	Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	HP EliteBook 850 G2 J7B56EA HD Graphics 5500, 5300U, Samsung SSD 850 EVO 250GB
CrystalDiskMark 3.0		-7%	11072%	15072%
Read Seq	108.6	122.8 13%	528 386%	523 382%
Write Seq	113.2	123.5 9%	241.1 113%	462.9 309%
Read 512	33.82	33.14 -2%	454.6 1244%	472.1 1296%
Write 512	60.8	56.5 -7%	239.8 294%	380.7 526%
Read 4k	0.36	0.341 -5%	36.61 10069%	50.9 14039%
Write 4k	5.223	0.721 -86%	124 2274%	129.6 2381%
Read 4k QD32	0.807	0.897 11%	296.1 36591%	389.9 48215%
Write 4k QD32	0.64	0.727 14%	241.3 37603%	342.6 53431%

HD Tune

CrystalDiskMark 3.0

Seagate ST500LM000 Solid State Hybrid Drive

Överföringshastighet min.: 15.5 MB/s

Överföringshastighet max.: 105 MB/s

Överföringshastighet med.: 85.5 MB/s

Accesstid: 18.5 ms

Burst rate: 57.2 MB/s

CPU-användning: 5.2 %

PCMark 7 | PCMark 8

PCMark 7 - Score
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4905 Points +36%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4518 Points +25%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	3609 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3075 Points -15%

PCMark 8
Home Score Accelerated v2
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	3726 Points +27%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	2988 Points +2%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	2928 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	2910 Points -1%
Creative Score Accelerated v2
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	3826 Points +8%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	3546 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3460 Points -2%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	3261 Points -8%
Work Score Accelerated v2
HP EliteBook 850 G2 J8R68EA Radeon R7 M260X, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4491 Points +10%
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	4193 Points +2%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	4091 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3901 Points -5%

PCMark 7 Score		3609 poäng
PCMark 8 Home Score Accelerated v2		2928 poäng
PCMark 8 Creative Score Accelerated v2		3546 poäng
PCMark 8 Work Score Accelerated v2		4091 poäng
Hjälp

... jämför

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B	1852 Points +52%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	1793 Points +47%
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B, Samsung SSD PM851 256 GB MZNTE256HMHP	1527 Points +25%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	1477 Points +21%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	1222 Points 0%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	1219 Points
Lenovo ThinkPad T550 HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZ7TE256HMHP	992 Points -19%

3DMark - 1920x1080 Fire Strike Graphics
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	1157 Points +96%
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B	1153 Points +95%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	861 Points +46%
HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B, Samsung SSD PM851 256 GB MZNTE256HMHP	782 Points +32%
HP ProBook 430 G3 P5T00ES HD Graphics 520, 6200U, Hitachi Travelstar Z7K500 HTS725050A7E630	620 Points +5%
Lenovo ThinkPad T560-20FH001FGE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive	591 Points

3DMark 06 Standard Score		6358 poäng
3DMark Vantage P Result		4381 poäng
3DMark 11 Performance		1219 poäng
3DMark Ice Storm Standard Score		35672 poäng
3DMark Cloud Gate Standard Score		4304 poäng
3DMark Fire Strike Score		552 poäng
Hjälp

... jämför

	låg	med.	hög
Sims 4 (2014)	140.4	33	15.1
Dirt Rally (2015)	65.3	18.5	12.5
FIFA 16 (2015)	25

Ljudnivå

Låg belastning		30.8 / 30.8 / 30.8 dB(A)
Hårddisk		31 dB(A)
Hög belastning		33.1 / 34.4 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: ECM8000 + Voltcraft SL-451 (15 cm avstånd) environment noise: 29 dB(A)

Hög belastning

Låg belastning


26.4 °C	30 °C	33.3 °C
27 °C	31.2 °C	32.3 °C
25.7 °C	27.8 °C	29.5 °C

Max: 33.3 °C
Medel: 29.2 °C


33 °C	29 °C	28.3 °C
40.1 °C	39 °C	28.4 °C
30.9 °C	28.9 °C	26.1 °C

Max: 40.1 °C
Medel: 31.5 °C

Strömförsörjning (max.) 38 °C | Rumstemperatur 19.4 °C | Fluke 62 Max

(+) The average temperature for the upper side under maximal load is 29.2 °C / 85 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 33.3 °C / 92 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 40.1 °C / 104 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.1 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.5 °C / 85.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-1.9 °C / -3.4 F).

Strömförbrukning

Av/Standby	0.2 / 0.36 Watt
Låg belastning	4.3 / 7.3 / 7.8 Watt
Hög belastning	26.3 / 32 Watt


Förklaring: min: , med: , max: Metrahit Energy

In review: Lenovo ThinkPad T560. Test model courtesy of Notebooksandmore.

En längre version av testet på engelska kan läsas här.

Trist uppdatering eller förnuftig vidareutveckling? Utöver den nya Skylake-plattformen är förbättringarna av T560 begränsade till små detaljer, men det behöver inte vara ett problem med tanke på den utmärkta föregångaren.

De positiva aspekterna inkluderar återigen ett bra chassi, utmärkta inmatningsenheter – särskilt det stora tangentbordet – liksom den extremt låga ljudnivån och värmeutvecklingen. Den senare är delvis ett resultat av Lenovos val att utrusta det stora 15-tumschassit med enbart strömsnåla ULV-processorer. Med Intels nuvarande Skylake-arkitektur är även Core i5-konfigurationen tillräckligt kraftfull för multitasking. Hela systemet är imponerande strömsnålt med en batteritid på omkring 11 timmar.

Tyvärr har Lenovo inte tagit chansen att utrusta den nya T5x0-serien med USB 3.1 eller typ C-portar, eller Thunderbolt 3. Den nya IPS-skärmen är inte alltid bättre än TN-föregångaren – kontrast och betraktningsvinklar har ökat betydligt, men färgerna och ljusstyrkan är sämre.

Allt som allt är ThinkPad T560 ett utmärkt helhetspaket och ett föredöme för konkurrenterna. Men med tanke på det höga priset och de små skillnaderna kan den utgående modellen T550 vara ett intressant alternativ för prismedvetna köpare.

För

+ robust, funktionell design

+ exakta gångjärn

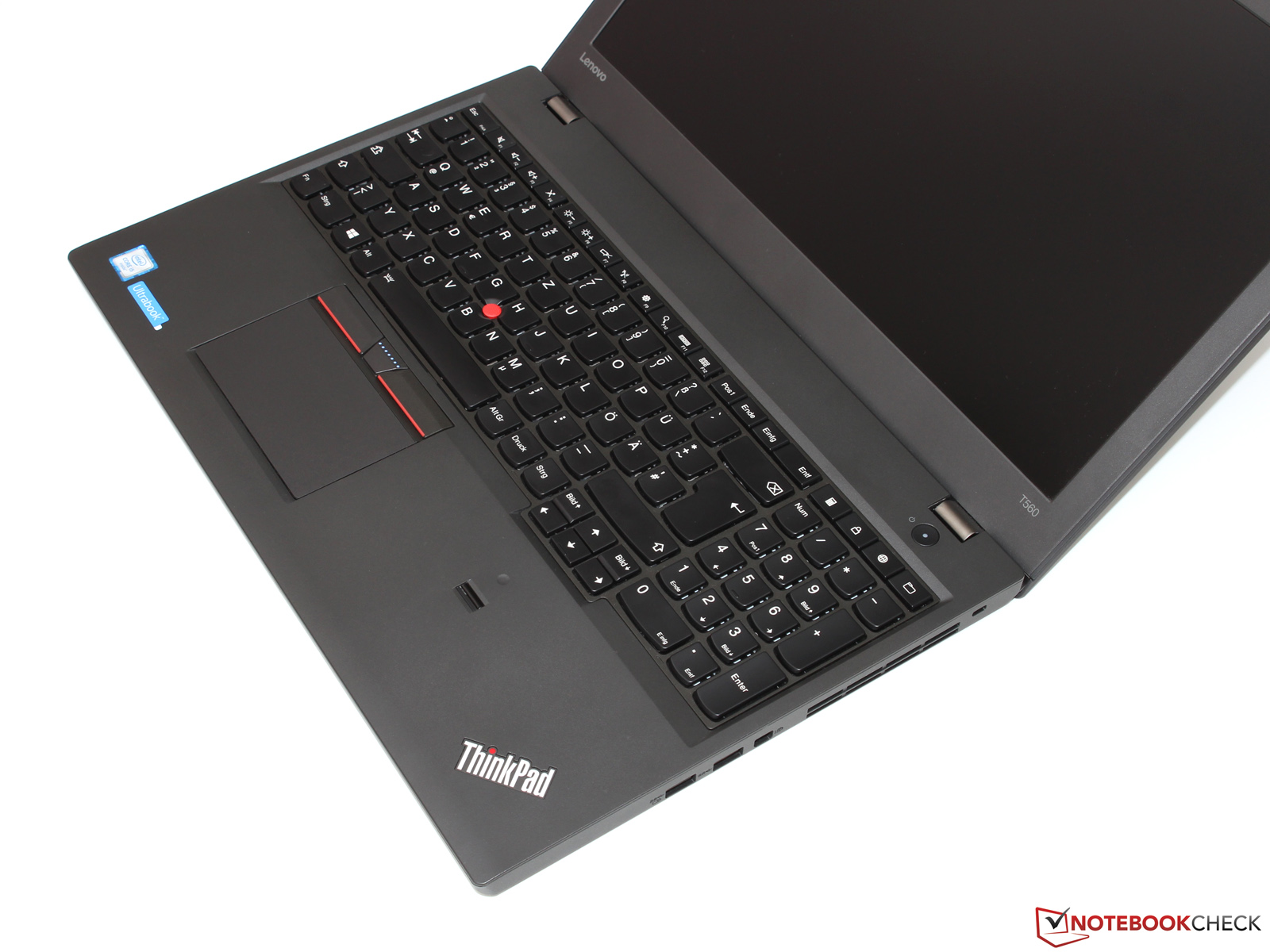

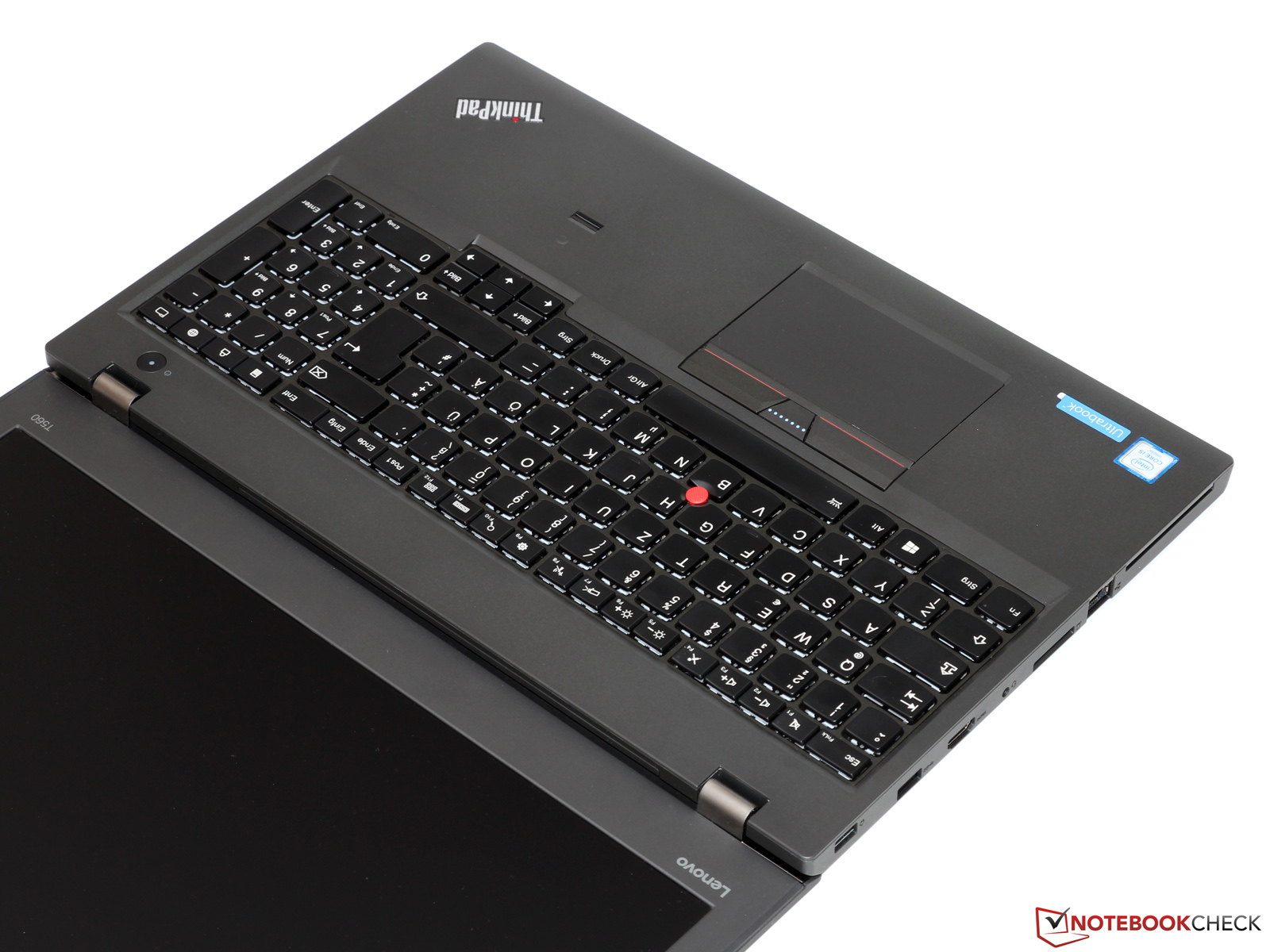

+ utmärkt tangentbord

+ snabbt WLAN, LTE som tillval

+ IPS-skärm

+ bra prestanda

+ flera säkerhetsfunktioner

+ imponerande batteritid

+ 3 års garanti

Emot

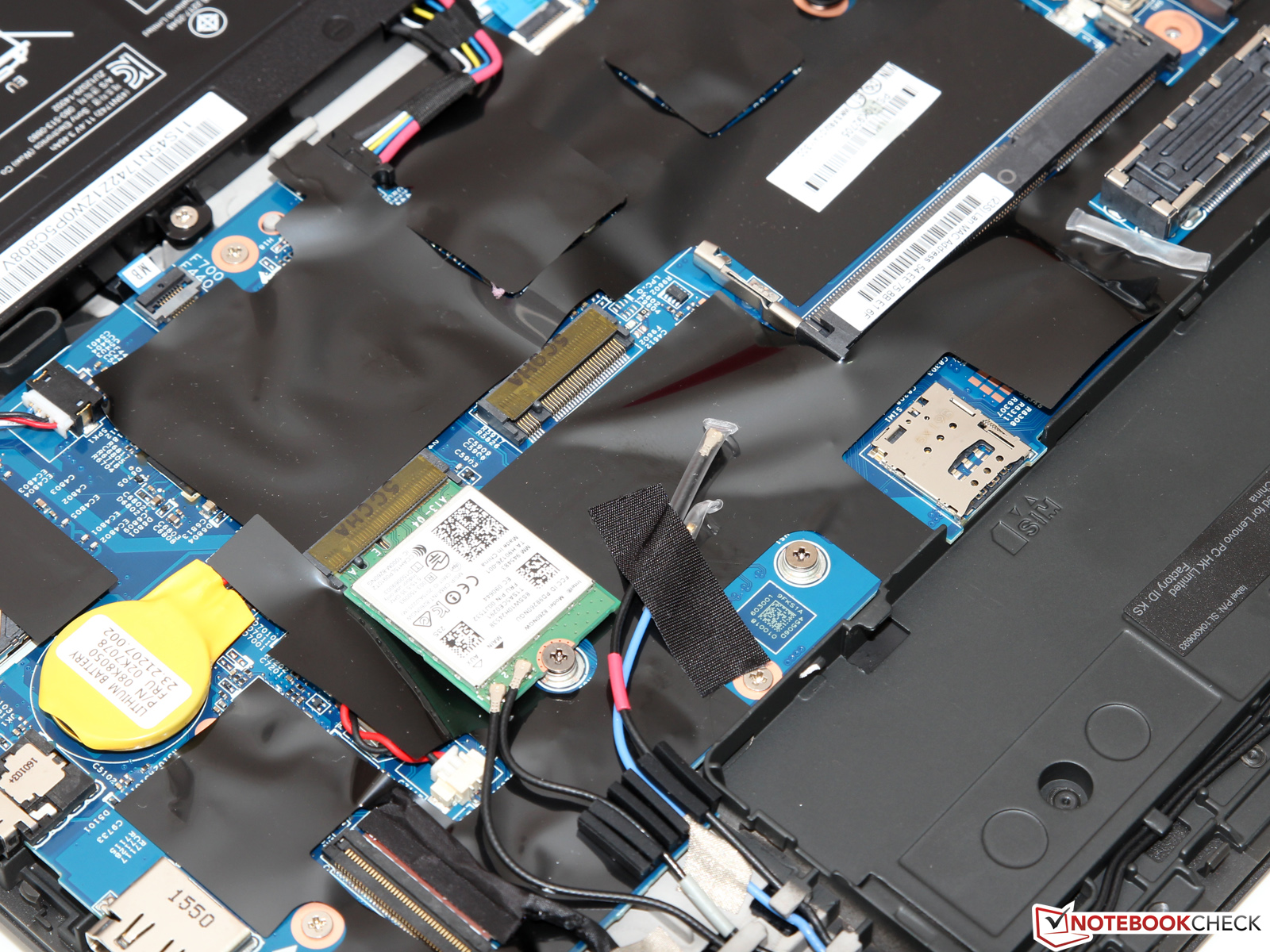

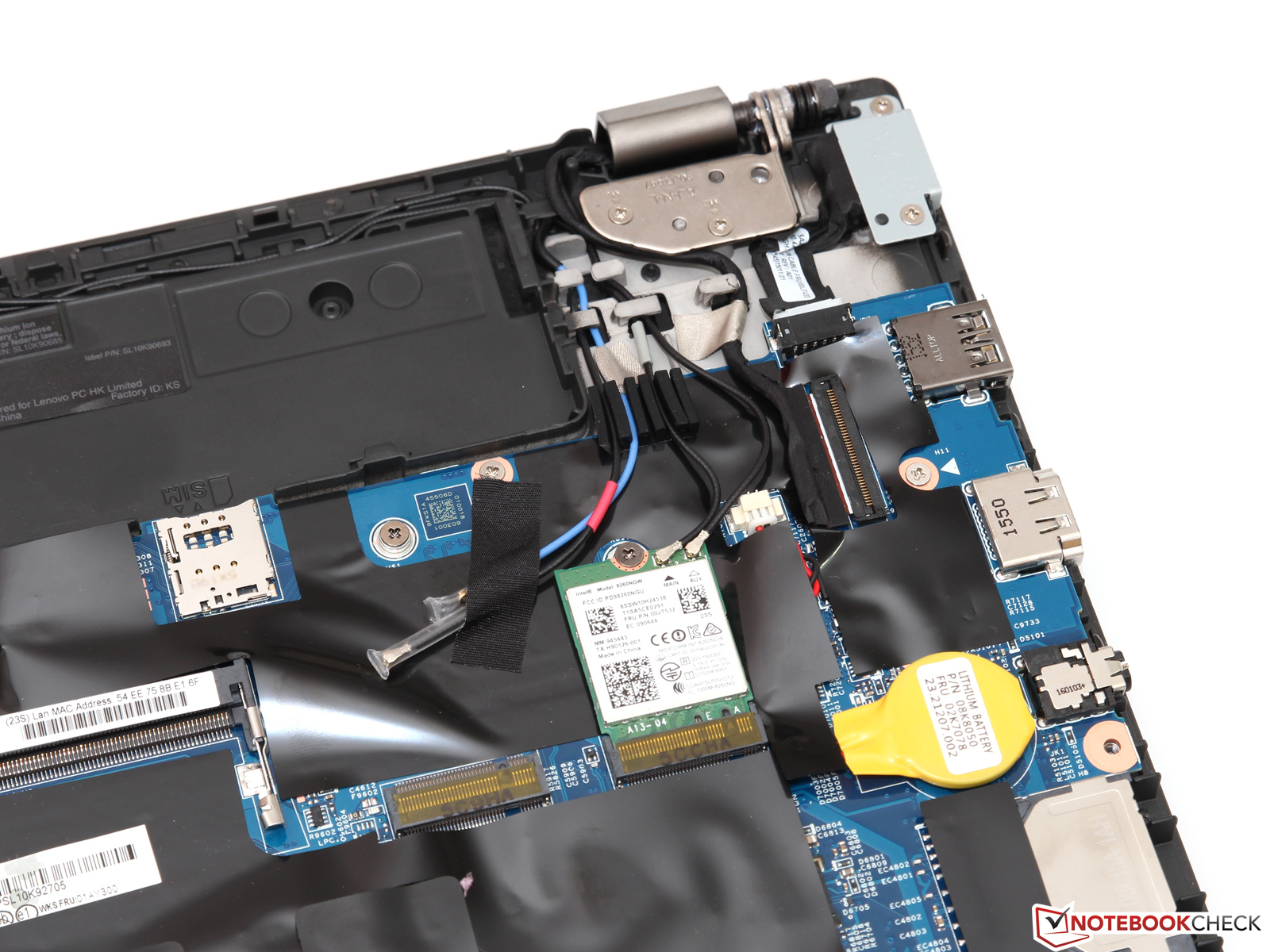

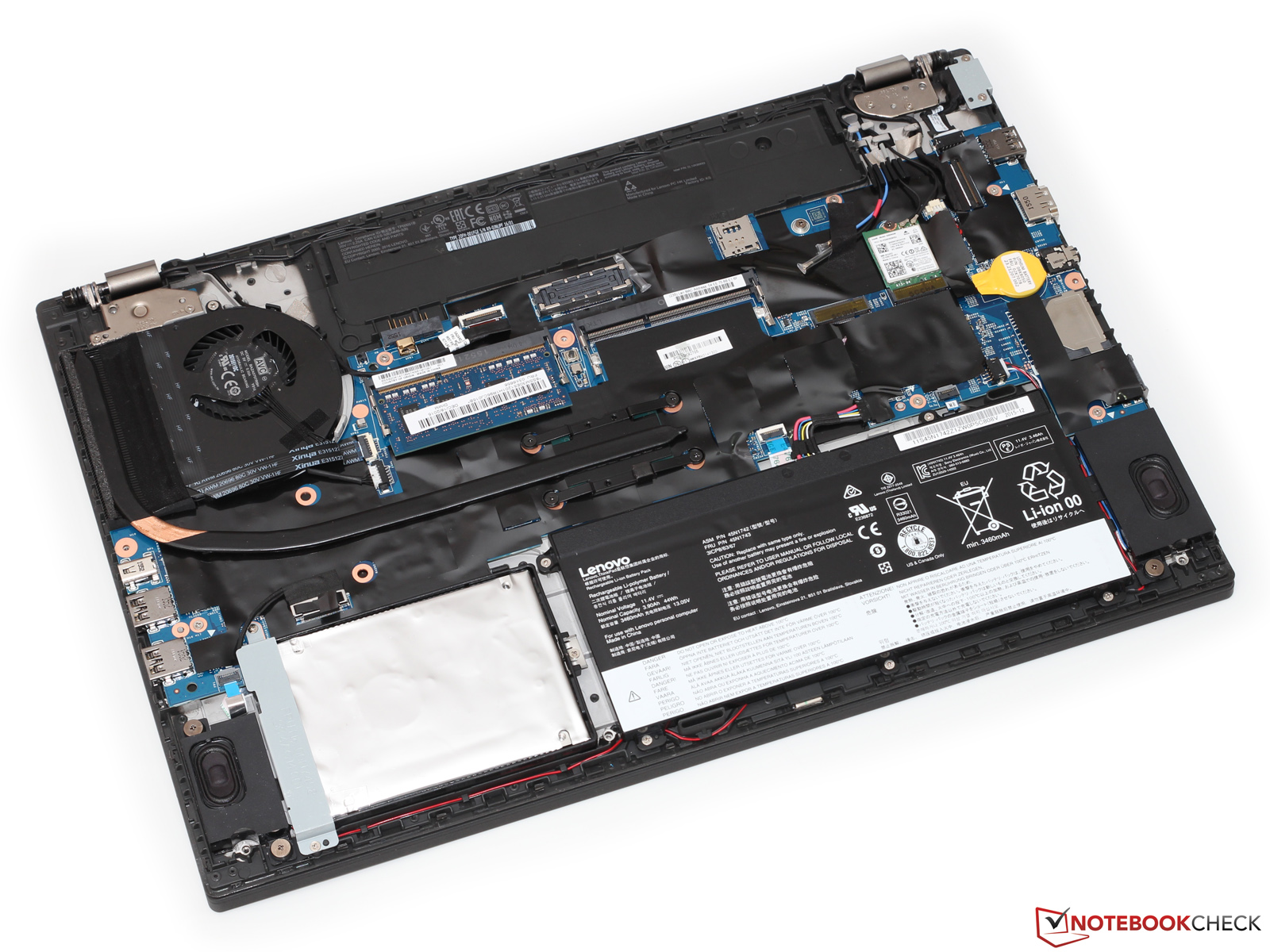

- ingen underhållspanel

- ej USB 3.1. eller Typ-C

- ganska svag bakbelysning

- högt pris

Lenovo ThinkPad T560-20FH001FGE - 02/23/2016 v5 ^(old)
Till Schönborn

Design

90 / 98 → 92%

Tangentbord

94%

Mus

87%

Anslutningar

66 / 80 → 83%

Vikt

61 / 20-67 → 87%

Batteri

93%

Skärm

82%

Spelprestanda

56 / 68 → 82%

Programprestanda

71 / 92 → 77%

Temperatur

93%

Ljudnivå

93%

Audio

69%

Camera

53 / 85 → 62%

Medel

78%

88%

Office - Vägt medel

Read about the changes in the new rating version 5

Price comparison

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad T560 (Core i5, SSHD) (sammanfattning)

Till Schönborn, 2016-03-19 (Update: 2016-03-20)
