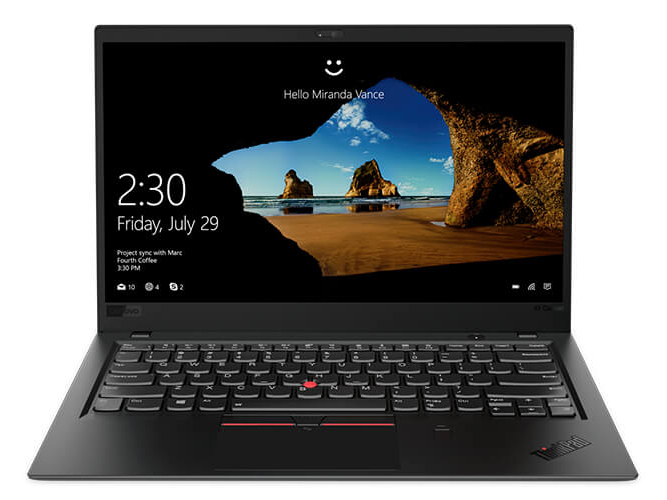

Test: Lenovo ThinkPad X1 Carbon G6 2018 (i5-8350U, Tryckkänslig FullHD, 256GB) Laptop (Sammanfattning)

Name: Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Brand: Lenovo

En bättre och billigare X1. Lenovo ThinkPad X1 Carbon G6 har anslutit sig till sitt WQHD HDR- och Core i7-utrustade syskon i vårt kontor för en recension. G6 är instegs-modellen av de nya tryckkänsliga Carbon X1-enheterna. G6 är fri från de värmeproblem som dess syskon led av tack vare en mindre kraftfull CPU, men detta kommer på bekostnad av WQHD HDR-skärmen. Trots denna nackdel ger G6 en mer välavrundad upplevelse än sitt dyrare syskon.

Sven Kloevekorn, ✓ Felicitas Krohn (översatt av Daniel Eriksson), Published 09/17/2018 🇺🇸 🇩🇪 ...

Business Kaby Lake Laptop / Notebook Security Thunderbolt Windows

Test device courtesy of Lenovo Deutschland

Download your licensed rating image as PNG / SVG

ThinkPad X1 Carbon G6-20KG0035GE (ThinkPad X1 Carbon G6 Serie)

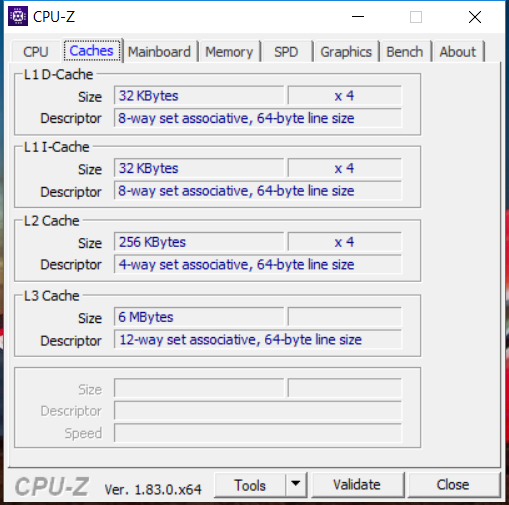

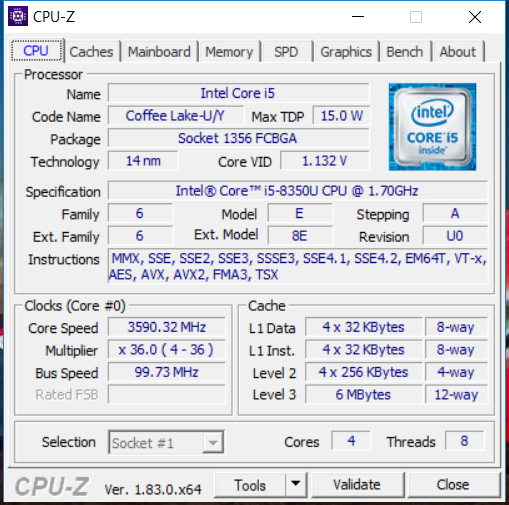

Processor

Intel Core i5-8350U 4 x 1.7 - 3.6 GHz, Kaby Lake Refresh

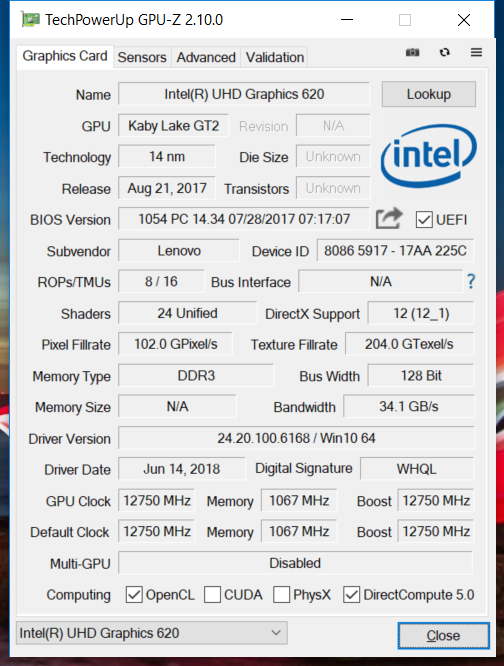

Grafikkort

Intel UHD Graphics 620, Kärna: 1150 MHz, Delat minne, 24.20.100.6168

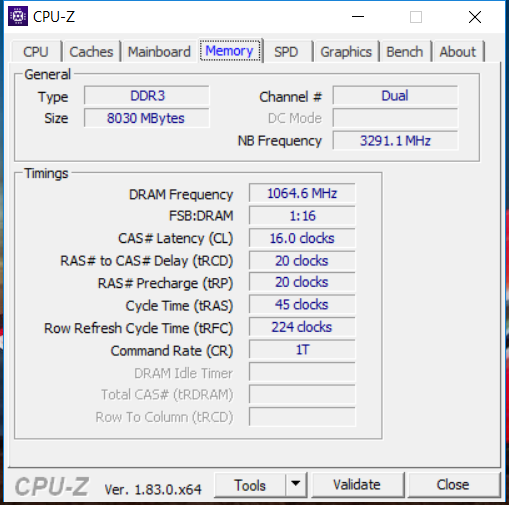

Minne

8 GB

, LPDDR3 2133 MHz: Dual-kanal

Skärm

14.00 tum 16:9, 1920 x 1080 pixlar 157 PPI, 10 punkter, Lenovo LEN40A9 / AUO B140HAK02.3, IPS, glansig: nej

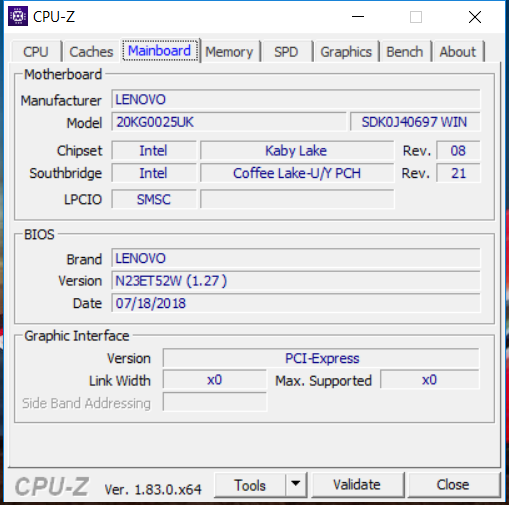

Moderkort

Intel Kaby Lake-U iHDCP 2.2 Premium PCH

Hårddisk

Lenovo LENSE20256GMSP34MEAT2TA, 256 GB

Ljudkort

Intel Kaby Lake-U/Y PCH - High Definition Audio

Anslutningar

2 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5 mm kombinerad anslutning för hörlurar och mikrofon, Kortläsare: SD/SDHC/SDXC/MMC, 1 Fingeravtrycksläsare, NFC, Brightness Sensor, NFC

Nätverk

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 15 x 323 x 217

Batteri

57 Wh Litiumpolymer

Operativsystem

Microsoft Windows 10 Pro 64 Bit

Camera

Webbkamera: 720p med ThinkShutter

Övrigt

Högtalare: Stereohögtalare på enhetens undersida, Tangentbord: Chiclet, Tangentbordsbelysning: ja, Ethernet-adapter, 36 Månader Garanti

Vikt

1.13 kg

Pris

2000 EUR

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Storleksjämförelse

Dell Latitude 7490 HP EliteBook 840 G5-3JX61EA HP EliteBook 745 G5 3UN74EA Lenovo ThinkPad X1 Carbon 2017-20HR0021GE Lenovo ThinkPad X1 Carbon G6-20KG0025UK DIN A4 ❌

Vänster sida: USB Typ C Thunderbolt 3 x2, Dockningsanslutning (ihopbyggd med den andra USB Typ C porten), USB Typ A 3.0, HDMI 1.4b

Höger sida: 3.5 mm ljudanslutning, USB Typ A 3.0, Security lock-port

Networking
iperf3 transmit AX12
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE Intel Dual Band Wireless-AC 8265	674 MBit/s +36%
HP EliteBook 840 G5-3JX61EA Intel Dual Band Wireless-AC 8265	663 MBit/s +34%
HP EliteBook 745 G5 3UN74EA Intel Dual Band Wireless-AC 8265	593 MBit/s +20%
Dell Latitude 7490 Intel Dual Band Wireless-AC 8265	513 MBit/s +4%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK Intel Dual Band Wireless-AC 8265	494 MBit/s
iperf3 receive AX12
Dell Latitude 7490 Intel Dual Band Wireless-AC 8265	650 MBit/s +20%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK Intel Dual Band Wireless-AC 8265	540 MBit/s
HP EliteBook 840 G5-3JX61EA Intel Dual Band Wireless-AC 8265	524 MBit/s -3%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE Intel Dual Band Wireless-AC 8265	517 MBit/s -4%
HP EliteBook 745 G5 3UN74EA Intel Dual Band Wireless-AC 8265	409 MBit/s -24%


291 cd/m²	302 cd/m²	284 cd/m²
286 cd/m²	298 cd/m²	278 cd/m²
286 cd/m²	280 cd/m²	275 cd/m²

Distribution av ljusstyrkan

Lenovo LEN40A9 / AUO B140HAK02.3 tested with X-Rite i1Pro 2

Max: 302 cd/m² (Nits) Medel: 286.7 cd/m² Minimum: 4.4 cd/m²
Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 304 cd/m²
Kontrast: 1490:1 (Svärta: 0.2 cd/m²)
ΔE Color 2.19 | 0.5-29.43 Ø4.93, calibrated: 1.67
ΔE Greyscale 1.97 | 0.5-98 Ø5.2

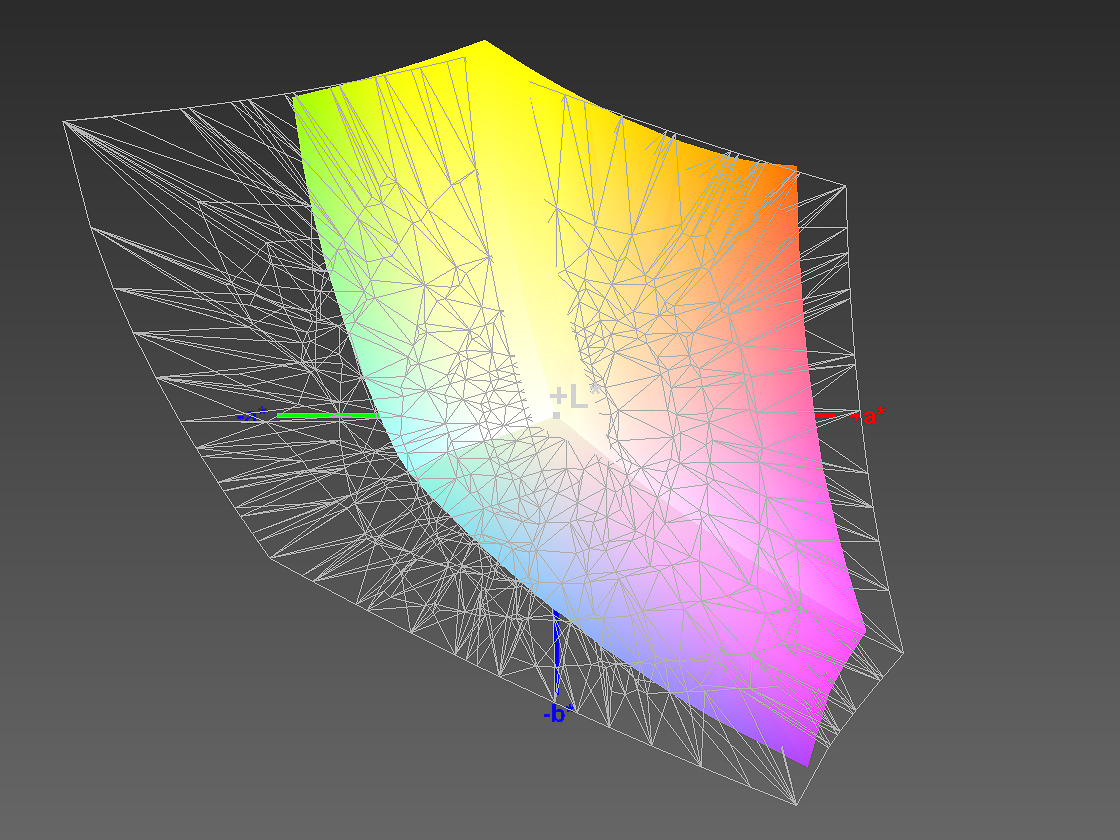

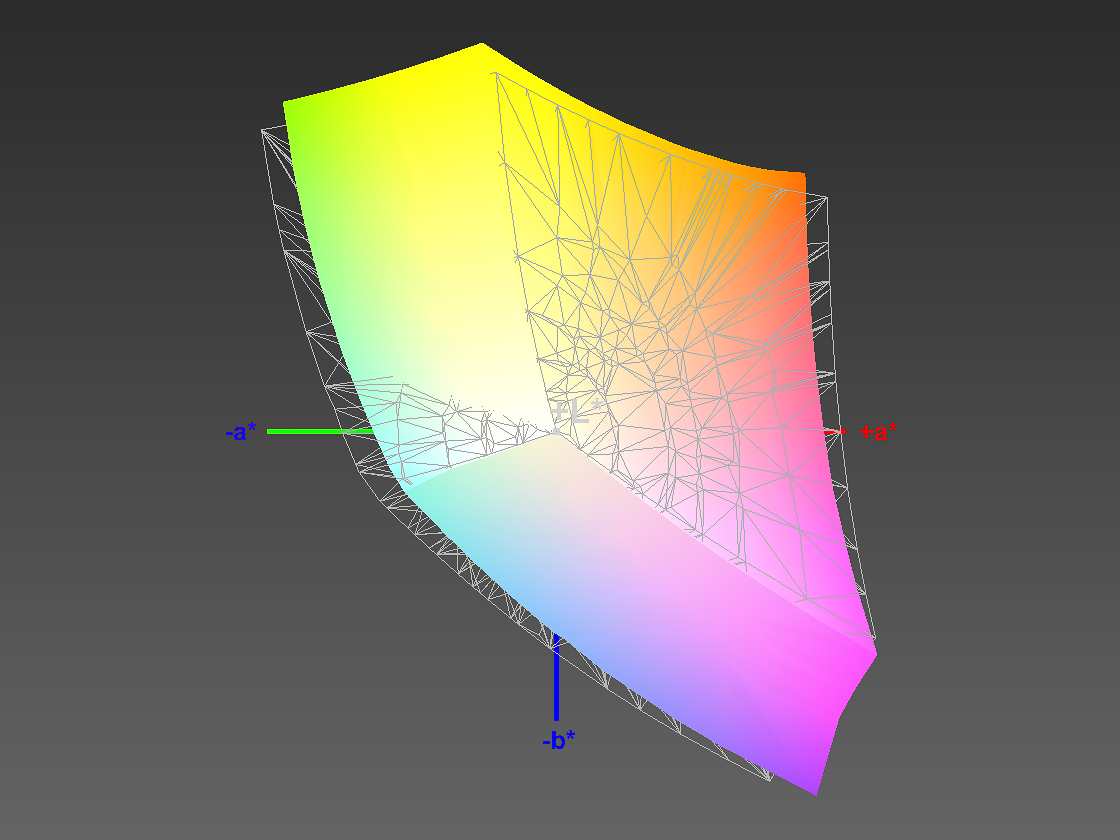

95% sRGB (Argyll 1.6.3 3D)
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
94.9% sRGB (Argyll 2.2.0 3D)
68.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.43

Download ICC-fil (X-Rite i1Pro 2)

	Lenovo ThinkPad X1 Carbon G6-20KG0025UK Lenovo LEN40A9 / AUO B140HAK02.3, , 1920x1080, 14"	HP EliteBook 840 G5-3JX61EA IVO M140NVF7 R0, , 1920x1080, 14"	Dell Latitude 7490 AUO503D (D04YD_B140HAN), , 1920x1080, 14"	HP EliteBook 745 G5 3UN74EA AUO383D, , 1920x1080, 14"	Lenovo ThinkPad X1 Carbon 2017-20HR0021GE B140HAN03_1, , 1920x1080, 14"
Display		-10%	-1%	-9%	-9%
Display P3 Coverage	68.3	61 -11%	66.6 -2%	61.3 -10%	61.6 -10%
sRGB Coverage	94.9	87.7 -8%	96.8 2%	87.6 -8%	87.6 -8%
AdobeRGB 1998 Coverage	69.3	62.1 -10%	67.9 -2%	62.3 -10%	62.6 -10%
Response Times		7%	-16%	6%	-21%
Response Time Grey 50% / Grey 80% *	40 ?(18, 22)	33 ?(15, 18) 17%	41.6 ?(22, 19.6) -4%	35 ?(17, 18) 12%	48 ?(22, 26) -20%
Response Time Black / White *	25 ?(14, 11)	26 ?(15, 11) -4%	32 ?(16.4, 15.6) -28%	25 ?(15, 10) -0%	30.4 ?(18.8, 11.6) -22%
PWM Frequency		3125 ?(90)
Screen		-18%	-55%	-18%	-25%
Brightness middle	298	655 120%	308.6 4%	421 41%	278 -7%
Brightness	287	630 120%	294 2%	398 39%	271 -6%
Brightness Distribution	91	93 2%	89 -2%	86 -5%	91 0%
Black Level *	0.2	0.56 -180%	0.23 -15%	0.27 -35%	0.16 20%
Contrast	1490	1170 -21%	1342 -10%	1559 5%	1738 17%
Colorchecker dE 2000 *	2.19	3.27 -49%	6.07 -177%	4.08 -86%	4.5 -105%
Colorchecker dE 2000 max. *	4.39	5.92 -35%	10.58 -141%	7.48 -70%	8.4 -91%
Colorchecker dE 2000 calibrated *	1.67	3.22 -93%	1.67 -0%
Greyscale dE 2000 *	1.97	2.85 -45%	7.3 -271%	2.92 -48%	3.2 -62%
Gamma	2.43 ^91%	2.45 ^90%	2.061 ^107%	2.32 ^95%	2.02 ^109%
CCT	6571 ^99%	6065 ^107%	7269 ^89%	7043 ^92%	7042 ^92%
Color Space (Percent of AdobeRGB 1998)	62	57 -8%	62 0%	57 -8%	57 -8%
Color Space (Percent of sRGB)	95	88 -7%	97 2%	87 -8%	87.5 -8%
Total Average (Program / Settings)		-7% / -13%	-24% / -40%	-7% / -13%	-18% / -21%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

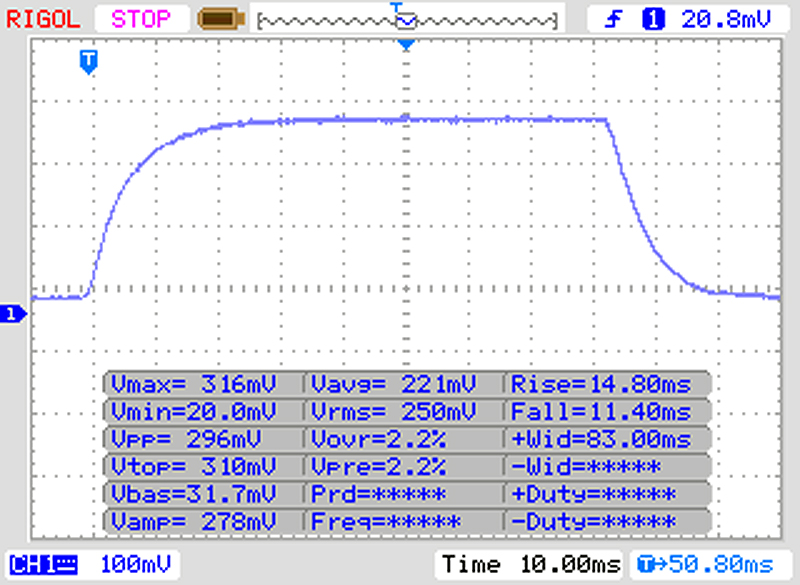

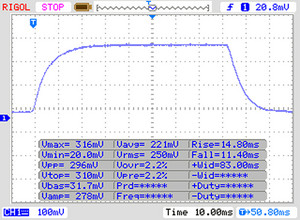

↔ Response Time Black to White
25 ms ... rise ↗ and fall ↘ combined	↗ 14 ms rise
25 ms ... rise ↗ and fall ↘ combined	↘ 11 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 55 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

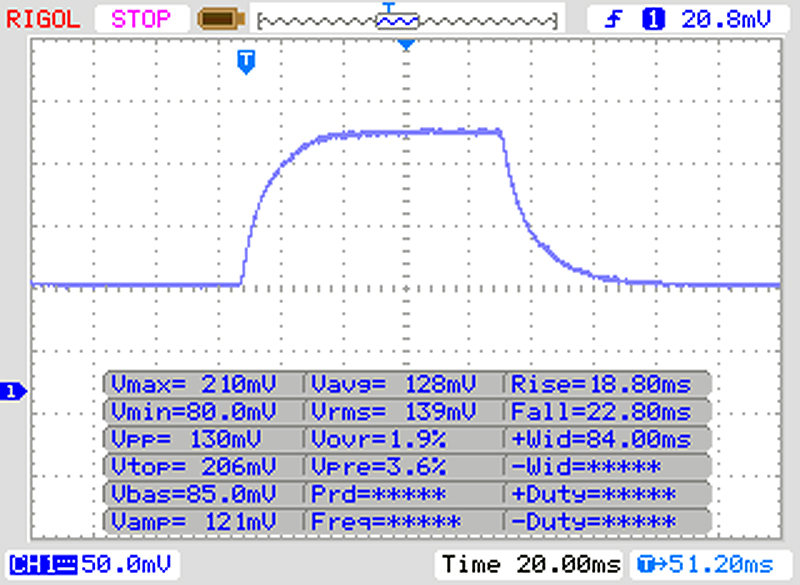

↔ Response Time 50% Grey to 80% Grey
40 ms ... rise ↗ and fall ↘ combined	↗ 18 ms rise
40 ms ... rise ↗ and fall ↘ combined	↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 57 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

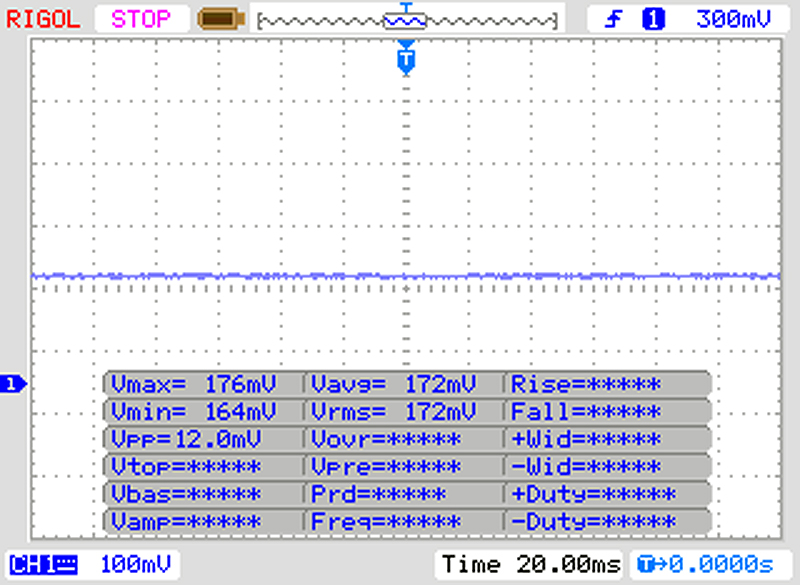

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15 CPU Single 64 Bit

Cinebench R15
CPU Single 64Bit
Average of class Office (98 - 284, n=101, last 2 years)	226 Points +51%
HP EliteBook 840 G5-3JX61EA Intel Core i7-8550U	167 Points +11%
Dell Latitude 7490 Intel Core i5-8350U	153 Points +2%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK Intel Core i5-8350U	150 Points
Average Intel Core i5-8350U (128 - 153, n=8)	146.8 Points -2%
HP EliteBook 745 G5 3UN74EA AMD Ryzen 7 2700U	143 Points -5%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE Intel Core i5-7200U	126 Points -16%
CPU Multi 64Bit
Average of class Office (242 - 2642, n=102, last 2 years)	1519 Points +141%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK Intel Core i5-8350U	631 Points
HP EliteBook 745 G5 3UN74EA AMD Ryzen 7 2700U	630 Points 0%
Dell Latitude 7490 Intel Core i5-8350U	569 Points -10%
HP EliteBook 840 G5-3JX61EA Intel Core i7-8550U	554 Points -12%
Average Intel Core i5-8350U (346 - 631, n=8)	548 Points -13%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE Intel Core i5-7200U	321 Points -49%

Cinebench R15 CPU Single 64Bit

150 Points

Cinebench R15 CPU Multi 64Bit

631 Points

Hjälp

... jämför

PCMark 8 | PCMark 10

PCMark 8
Home Score Accelerated v2
Average of class Office (4252 - 4830, n=7, last 2 years)	4559 Points +24%
HP EliteBook 840 G5-3JX61EA UHD Graphics 620, i5-8550U, Toshiba KXG50ZNV1T02	3966 Points +7%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE HD Graphics 620, i5-7200U, Toshiba THNSF5256GPUK	3824 Points +4%
Dell Latitude 7490 UHD Graphics 620, i5-8350U, Toshiba KSG60ZMV256G	3723 Points +1%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK UHD Graphics 620, i5-8350U, Lenovo LENSE20256GMSP34MEAT2TA	3690 Points
Average Intel Core i5-8350U, Intel UHD Graphics 620 (3063 - 3776, n=7)	3566 Points -3%
HP EliteBook 745 G5 3UN74EA Vega 10, R7 2700U, Toshiba XG5 KXG50ZNV256G	3155 Points -14%
Work Score Accelerated v2
HP EliteBook 840 G5-3JX61EA UHD Graphics 620, i5-8550U, Toshiba KXG50ZNV1T02	5004 Points +9%
Dell Latitude 7490 UHD Graphics 620, i5-8350U, Toshiba KSG60ZMV256G	4906 Points +7%
Average Intel Core i5-8350U, Intel UHD Graphics 620 (4200 - 4906, n=6)	4669 Points +2%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE HD Graphics 620, i5-7200U, Toshiba THNSF5256GPUK	4602 Points 0%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK UHD Graphics 620, i5-8350U, Lenovo LENSE20256GMSP34MEAT2TA	4600 Points
HP EliteBook 745 G5 3UN74EA Vega 10, R7 2700U, Toshiba XG5 KXG50ZNV256G	4403 Points -4%
Average of class Office (2900 - 5526, n=7, last 2 years)	3761 Points -18%

PCMark 10 - Score
Average of class Office (2463 - 7344, n=93, last 2 years)	5567 Points +48%
HP EliteBook 840 G5-3JX61EA UHD Graphics 620, i5-8550U, Toshiba KXG50ZNV1T02	3906 Points +4%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK UHD Graphics 620, i5-8350U, Lenovo LENSE20256GMSP34MEAT2TA	3764 Points
Dell Latitude 7490 UHD Graphics 620, i5-8350U, Toshiba KSG60ZMV256G	3564 Points -5%
Average Intel Core i5-8350U, Intel UHD Graphics 620 (3004 - 3764, n=6)	3534 Points -6%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE HD Graphics 620, i5-7200U, Toshiba THNSF5256GPUK	3214 Points -15%
HP EliteBook 745 G5 3UN74EA Vega 10, R7 2700U, Toshiba XG5 KXG50ZNV256G	2712 Points -28%

PCMark 8 Home Score Accelerated v2		3690 poäng
PCMark 8 Work Score Accelerated v2		4600 poäng
PCMark 10 Score		3764 poäng
Hjälp

	Lenovo ThinkPad X1 Carbon G6-20KG0025UK Lenovo LENSE20256GMSP34MEAT2TA	HP EliteBook 840 G5-3JX61EA Toshiba KXG50ZNV1T02	HP EliteBook 745 G5 3UN74EA Toshiba XG5 KXG50ZNV256G	Lenovo ThinkPad X1 Carbon 2017-20HR0021GE Toshiba THNSF5256GPUK	Average Lenovo LENSE20256GMSP34MEAT2TA
CrystalDiskMark 3.0		45%	-11%	17%	-2%
Read Seq	1880	2087 11%	1549 -18%	1277 -32%	1703 ?(1280 - 2358, n=4) -9%
Write Seq	479	907 89%	269.7 -44%	648 35%	642 ?(160.6 - 1288, n=4) 34%
Read 512	1227	993 -19%	823 -33%	972 -21%	1217 ?(872 - 1758, n=4) -1%
Write 512	243.3	623 156%	298.1 23%	311 28%	272 ?(115.4 - 609, n=4) 12%
Read 4k	34.87	32.84 -6%	24.9 -29%	34.63 -1%	23.9 ?(4.28 - 34.9, n=4) -31%
Write 4k	94.1	110.1 17%	97.1 3%	128.5 37%	73.3 ?(31.4 - 95.2, n=4) -22%
Read 4k QD32	306.1	312.1 2%	310.6 1%	477.3 56%	330 ?(257 - 390, n=4) 8%
Write 4k QD32	184.7	391.5 112%	208.4 13%	241.2 31%	172 ?(118.2 - 267, n=4) -7%

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

Lenovo LENSE20256GMSP34MEAT2TA

Sequential Read: 1880 MB/s

Sequential Write: 479 MB/s

512K Read: 1227 MB/s

512K Write: 243.3 MB/s

4K Read: 34.87 MB/s

4K Write: 94.1 MB/s

4K QD32 Read: 306.1 MB/s

4K QD32 Write: 184.7 MB/s

3DMark 11 - 1280x720 Performance GPU
Average of class Office (1468 - 13132, n=94, last 2 years)	6644 Points +256%
HP EliteBook 745 G5 3UN74EA AMD Radeon RX Vega 10, AMD Ryzen 7 2700U	2885 Points +54%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK Intel UHD Graphics 620, Intel Core i5-8350U	1868 Points
HP EliteBook 840 G5-3JX61EA Intel UHD Graphics 620, Intel Core i7-8550U	1849 Points -1%
Average Intel UHD Graphics 620 (1144 - 3432, n=244)	1749 Points -6%
Dell Latitude 7490 Intel UHD Graphics 620, Intel Core i5-8350U	1648 Points -12%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE Intel HD Graphics 620, Intel Core i5-7200U	1555 Points -17%

3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Office (5681 - 58068, n=72, last 2 years)	26440 Points +158%
HP EliteBook 745 G5 3UN74EA AMD Radeon RX Vega 10, AMD Ryzen 7 2700U	10604 Points +4%
HP EliteBook 840 G5-3JX61EA Intel UHD Graphics 620, Intel Core i7-8550U	10331 Points +1%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK Intel UHD Graphics 620, Intel Core i5-8350U	10234 Points
Average Intel UHD Graphics 620 (6205 - 16400, n=225)	9262 Points -9%
Dell Latitude 7490 Intel UHD Graphics 620, Intel Core i5-8350U	7943 Points -22%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE Intel HD Graphics 620, Intel Core i5-7200U	7725 Points -25%
1920x1080 Fire Strike Graphics
Average of class Office (712 - 9375, n=97, last 2 years)	4719 Points +268%
HP EliteBook 745 G5 3UN74EA AMD Radeon RX Vega 10, AMD Ryzen 7 2700U	1738 Points +35%
HP EliteBook 840 G5-3JX61EA Intel UHD Graphics 620, Intel Core i7-8550U	1336 Points +4%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK Intel UHD Graphics 620, Intel Core i5-8350U	1283 Points
Average Intel UHD Graphics 620 (557 - 2608, n=213)	1161 Points -10%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE Intel HD Graphics 620, Intel Core i5-7200U	1037 Points -19%
Dell Latitude 7490 Intel UHD Graphics 620, Intel Core i5-8350U	1001 Points -22%

3DMark 11 Performance		2065 poäng
3DMark Cloud Gate Standard Score		9353 poäng
3DMark Fire Strike Score		1141 poäng
Hjälp

... jämför

Rainbow Six Siege | Rise of the Tomb Raider | Farming Simulator 17

Rainbow Six Siege
1024x768 Low Preset AA:T AF:Linear
Lenovo ThinkPad X1 Carbon G6-20KG0025UK UHD Graphics 620, i5-8350U, Lenovo LENSE20256GMSP34MEAT2TA	48.4 fps
Average Intel UHD Graphics 620 (28.2 - 48.4, n=5)	40.4 fps -17%
1366x768 Medium Preset AA:T AF:2x
Lenovo ThinkPad X1 Carbon G6-20KG0025UK UHD Graphics 620, i5-8350U, Lenovo LENSE20256GMSP34MEAT2TA	28.8 fps
Average Intel UHD Graphics 620 (16.1 - 29.4, n=5)	25.1 fps -13%

Rise of the Tomb Raider - 1024x768 Lowest Preset
HP EliteBook 745 G5 3UN74EA Vega 10, R7 2700U, Toshiba XG5 KXG50ZNV256G	33.5 fps +40%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK UHD Graphics 620, i5-8350U, Lenovo LENSE20256GMSP34MEAT2TA	23.9 fps
Average Intel UHD Graphics 620 (10.4 - 110.7, n=82)	21.4 fps -10%
Dell Latitude 7490 UHD Graphics 620, i5-8350U, Toshiba KSG60ZMV256G	17 fps -29%
Lenovo ThinkPad X1 Carbon 2017-20HR0021GE HD Graphics 620, i5-7200U, Toshiba THNSF5256GPUK	16.9 fps -29%

Farming Simulator 17
1280x720 Low Preset
Lenovo ThinkPad X1 Carbon G6-20KG0025UK UHD Graphics 620, i5-8350U, Lenovo LENSE20256GMSP34MEAT2TA	95.2 fps
Average Intel UHD Graphics 620 (19 - 95.9, n=8)	69.1 fps -27%
1366x768 Medium Preset
Lenovo ThinkPad X1 Carbon G6-20KG0025UK UHD Graphics 620, i5-8350U, Lenovo LENSE20256GMSP34MEAT2TA	67.9 fps
Average Intel UHD Graphics 620 (8 - 67.9, n=12)	50.1 fps -26%
1920x1080 High Preset AA:2xMS AF:2x
Average Intel UHD Graphics 620 (18.8 - 26.2, n=11)	22.7 fps +2%
Lenovo ThinkPad X1 Carbon G6-20KG0025UK UHD Graphics 620, i5-8350U, Lenovo LENSE20256GMSP34MEAT2TA	22.3 fps
1920x1080 Very High Preset AA:4xMS AF:4x
Lenovo ThinkPad X1 Carbon G6-20KG0025UK UHD Graphics 620, i5-8350U, Lenovo LENSE20256GMSP34MEAT2TA	12.3 fps
Average Intel UHD Graphics 620 (10 - 13, n=4)	12 fps -2%

	låg	med.	hög	ultra
Rainbow Six Siege (2015)	48.4	28.8
Rise of the Tomb Raider (2016)	23.9	12.2
Farming Simulator 17 (2016)	95.2	67.9	22.3	12.3

Ljudnivå

Låg belastning		30.25 / 30.25 / 30.25 dB(A)
Hög belastning		31.3 / 31.3 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM1, Arta (15 cm avstånd) environment noise: 30.25 dB(A)

Hög belastning

Låg belastning


32.5 °C	40.7 °C	38.6 °C
30.1 °C	38.8 °C	36.7 °C
27 °C	25.8 °C	27.4 °C

Max: 40.7 °C
Medel: 33.1 °C


40 °C	41.6 °C	33.8 °C
27.4 °C	33.2 °C	29.9 °C
27.6 °C	27.3 °C	27.3 °C

Max: 41.6 °C
Medel: 32 °C

Strömförsörjning (max.) 31.6 °C | Rumstemperatur 21.4 °C | FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 33.1 °C / 92 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 40.7 °C / 105 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 41.6 °C / 107 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.2 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.4 °C / 81.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+0.3 °C / 0.6 F).

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Lenovo ThinkPad X1 Carbon G6-20KG0025UK audio analysis

(-) | not very loud speakers (64.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.7% lower than median
(±) | linearity of bass is average (8.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(±) | linearity of mids is average (9.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.9% away from median
(±) | linearity of highs is average (8.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (29.6% difference to median)
Compared to same class
» 90% of all tested devices in this class were better, 3% similar, 8% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 86% of all tested devices were better, 3% similar, 11% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP EliteBook 840 G5-3JX61EA audio analysis

(±) | speaker loudness is average but good (75 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 31.2% lower than median
(±) | linearity of bass is average (11.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.7% away from median
(+) | mids are linear (6.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(+) | highs are linear (2.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.5% difference to median)
Compared to same class
» 40% of all tested devices in this class were better, 10% similar, 49% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 50% of all tested devices were better, 8% similar, 42% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Dell Latitude 7490 audio analysis

(±) | speaker loudness is average but good (77.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.6% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(±) | linearity of mids is average (7.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(±) | linearity of highs is average (8.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.8% difference to median)
Compared to same class
» 30% of all tested devices in this class were better, 6% similar, 63% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 39% of all tested devices were better, 8% similar, 53% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Strömförbrukning

Av/Standby	0.3 / 2.7 Watt
Låg belastning	4.7 / 7.3 / 9.4 Watt
Hög belastning	28 / 28.2 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad X1 Carbon G6-20KG0025UK i5-8350U, UHD Graphics 620, Lenovo LENSE20256GMSP34MEAT2TA, IPS, 1920x1080, 14"	HP EliteBook 840 G5-3JX61EA i5-8550U, UHD Graphics 620, Toshiba KXG50ZNV1T02, IPS, 1920x1080, 14"	Dell Latitude 7490 i5-8350U, UHD Graphics 620, Toshiba KSG60ZMV256G, IPS, 1920x1080, 14"	HP EliteBook 745 G5 3UN74EA R7 2700U, Vega 10, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 14"	Lenovo ThinkPad X1 Carbon 2017-20HR0021GE i5-7200U, HD Graphics 620, Toshiba THNSF5256GPUK, IPS, 1920x1080, 14"	Average Intel UHD Graphics 620	Average of class Office
Power Consumption		-13%	11%	-19%	-8%	-12%	-32%
Idle Minimum *	4.7	3.8 19%	2 57%	4.9 -4%	3.8 19%	3.81 ?(1 - 12.4, n=259) 19%	4.51 ?(2.2 - 13.8, n=96, last 2 years) 4%
Idle Average *	7.3	8.3 -14%	4.7 36%	8.1 -11%	7.1 3%	6.94 ?(2.8 - 15.7, n=261) 5%	7.47 ?(3.8 - 14.9, n=96, last 2 years) -2%
Idle Maximum *	9.4	10.7 -14%	5.7 39%	10.6 -13%	8.3 12%	8.75 ?(3.8 - 30, n=259) 7%	9.11 ?(4.89 - 18.6, n=96, last 2 years) 3%
Load Average *	28	35.5 -27%	38.4 -37%	32.2 -15%	34.2 -22%	35 ?(8.1 - 51.6, n=259) -25%	42.4 ?(8.7 - 77.9, n=93, last 2 years) -51%
Load Maximum *	28.2	37 -31%	38.9 -38%	42.3 -50%	43.3 -54%	47.5 ?(22 - 96.3, n=261) -68%	60.5 ?(11.1 - 107, n=96, last 2 years) -115%

* ... smaller is better

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		24tim 28min
Surfa med WLAN		0tim 00min
WiFi Websurfing		10tim 21min
Big Buck Bunny H.264 1080p		10tim 57min
Hög belastning (maximal ljusstyrka)		1tim 51min

	Lenovo ThinkPad X1 Carbon G6-20KG0025UK i5-8350U, UHD Graphics 620, 57 Wh	HP EliteBook 840 G5-3JX61EA i5-8550U, UHD Graphics 620, 50 Wh	Dell Latitude 7490 i5-8350U, UHD Graphics 620, 60 Wh	HP EliteBook 745 G5 3UN74EA R7 2700U, Vega 10, 50 Wh	Lenovo ThinkPad X1 Carbon 2017-20HR0021GE i5-7200U, HD Graphics 620, 57 Wh	Average of class Office
Battery Runtime		-29%	-12%	-36%	-15%	-1%
Reader / Idle	1468			639 -56%	819 -44%	1300 ?(527 - 2296, n=16, last 2 years) -11%
H.264	657			426 -35%	573 -13%	703 ?(348 - 1112, n=33, last 2 years) 7%
WiFi v1.3	621	444 -29%	548 -12%	394 -37%	547 -12%	598 ?(300 - 1349, n=96, last 2 years) -4%
Load	111			95 -14%	122 10%	117.1 ?(56 - 218, n=57, last 2 years) 5%

För

+ lyxigt, tunt och lätt hölje

+ ljusstark, kontrastrik tryckkänslig skärm med hög färgrymdstäckning

+ modern I/O och vanliga USB Typ A-portar

+ bra systemprestanda

+ utmärkt tangentbord

+ imponerande batteritid

+ tre års garanti

+ snabb kortläsare

+ håller sig sval och extremt tyst

Emot

- SD-kortläsaren är svår att nå

- kortläsaren tar bara microSD

- ej "WWAN-redo"

- begränsade servicemöjligheter

- LAN endast via medföljande adapter

- extrem prestandastrypning under stresstesterna

Lenovo ThinkPad X1 Carbon G6 2018, recensionsex från Lenovo Germany.

Läs den fullständiga versionen av den här recensionen på engelska här.

Lenovo ThinkPad X1 Carbon G6 2018 är en utmärkt omvandlingsbar företagslaptop som förtjänar vårt omdöme på 92%. Dess enda nackdel är det oerhörda priset. Vi rekommenderar dock ändå Carbon G6 helhjärtat, då den övervann i princip alla test vi utsatte den för.

Carbon G6 är utrustad med lyxig hårdvara. Enheten har en imponerande skärm, toppmodern I/O, utmärkt batteritid och tre års garanti från tillverkaren. Carbon G6 representerar verkligen det bästa som Lenovo har att erbjuda.

Det finns även fördelar med att välja 1080p-skärmen framför WQHD HDR-alternativet. 1080p-skärmen har en matt yta jämfört med den blanka ytan som HDR-skärmen har, vilket är praktiskt när man använder enheten utomhus. Dessutom hjälper den lägre upplösningen till med att förlänga batteritiden och gör att enheten håller sig svalare då den inte behöver använda lika mycket resurser för att driva skärmen. Av samma anledning skulle vi även rekommendera en 1080p-skärm utan tryckkänslighet. Dessutom är WQHD-upplösning inte nödvändigt för kontorsarbete.

Det är smart att välja Core i5-8350U-processorn framför Core i7-varianten då den förstnämnda ofta presterar bättre än den senare, vilket både bidrar till att hålla enheten sval och till att utöka batteritiden.

Lenovo ThinkPad X1 Carbon G6-20KG0025UK - 2019-10-03 10/03/2019 v7 ^(old)
Sven Kloevekorn

Design

87 / 98 → 89%

Tangentbord

95%

Mus

92%

Anslutningar

74 / 80 → 93%

Vikt

73 / 20-75 → 97%

Batteri

88%

Skärm

90%

Spelprestanda

42 / 78 → 54%

Programprestanda

76 / 95 → 80%

Temperatur

92%

Ljudnivå

95%

Audio

60%

Camera

48 / 85 → 56%

Medel

78%

90%

Office - Vägt medel

Price comparison

Editor of the original article: Alex Alderson - Senior Tech Writer - 11127 articles published on Notebookcheck since 2018

contact me via: @aldersonaj

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo ThinkPad X1 Carbon G6 2018 (i5-8350U, Tryckkänslig FullHD, 256GB) Laptop (Sammanfattning)

Sven Kloevekorn, 2018-09-17 (Update: 2018-09-17)
