MagyarTest: Lenovo ThinkPad X260 (Core i7, FHD) (sammanfattning)

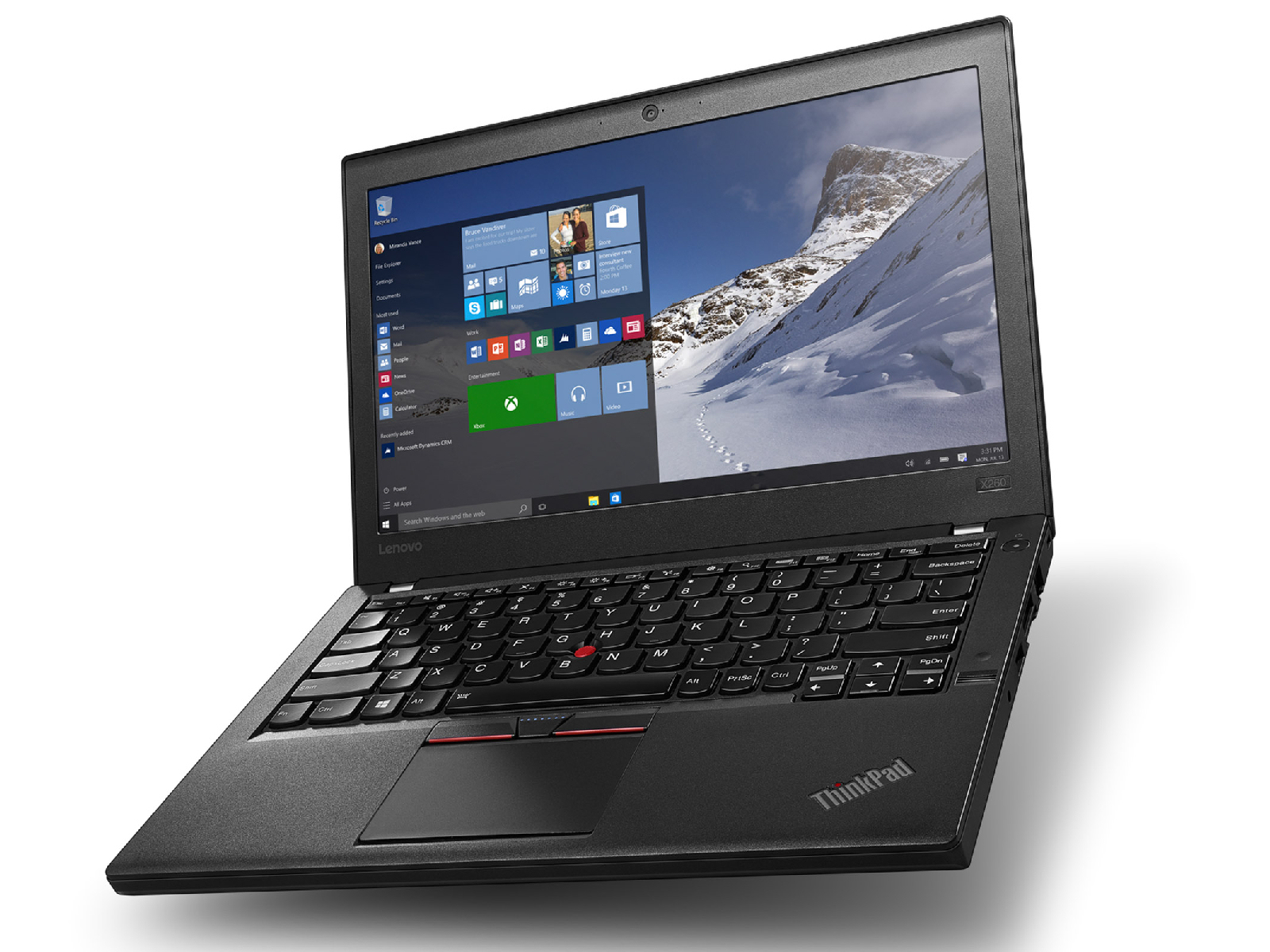

Lenovo ThinkPad X260-20F6007RGE (ThinkPad X260 Serie)

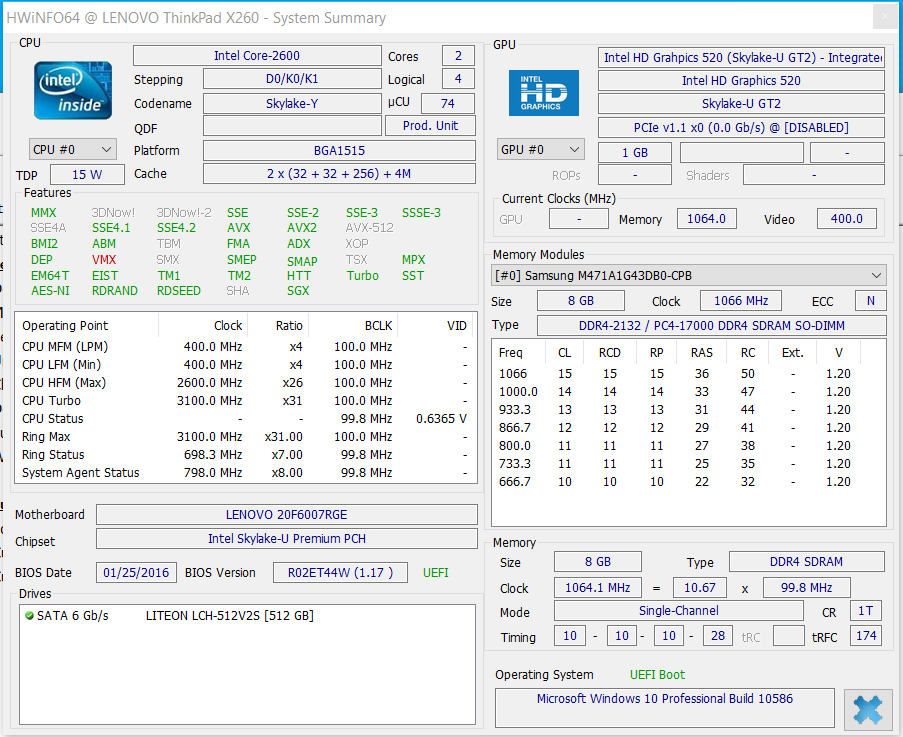

Processor

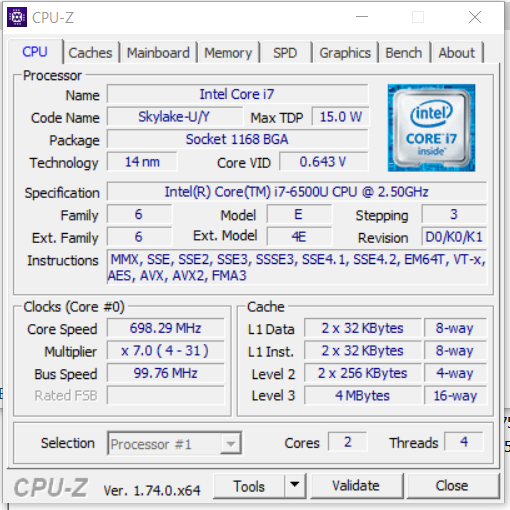

Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake

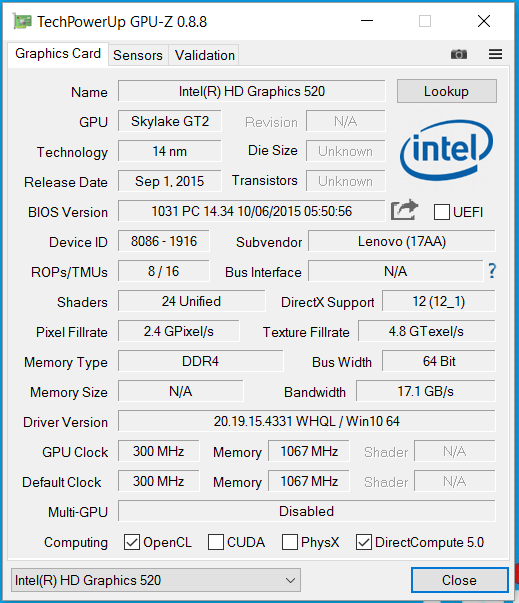

Grafikkort
Intel HD Graphics 520, Kärna: 1000 MHz, Single-Channel, 20.19.15.4331

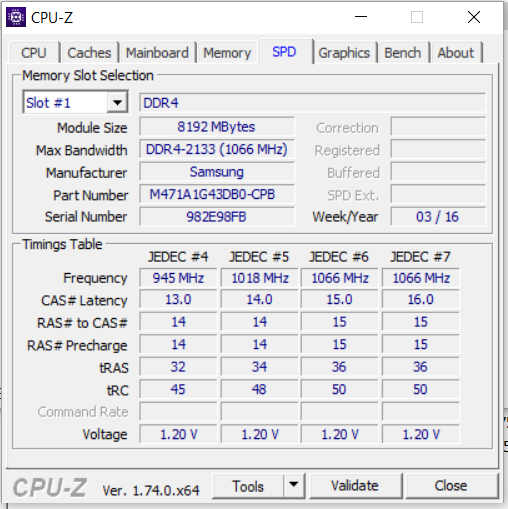

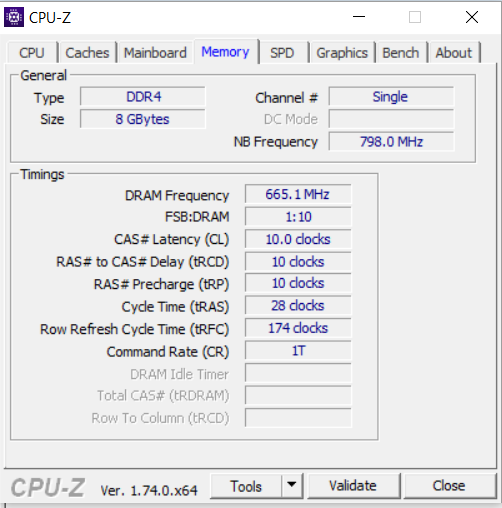

Minne
8 GB
, DDR4-2132, Single-Channel, en minnesplats (används)
Skärm
12.50 tum 16:9, 1920 x 1080 pixlar 176 PPI, Lenovo N125HCE-GN1, IPS, glansig: nej

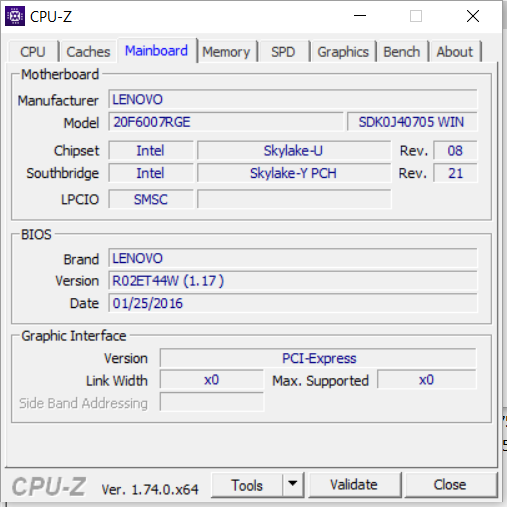

Moderkort
Intel Skylake-U Premium PCH
Hårddisk
Liteonit LCH-512V2S, 512 GB
, 430 GB ledigt
Vikt
1.44 kg, Strömförsörjning: 290 g
Pris
20000 Euro
Länkar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
Lenovo N125HCE-GN1 tested with X-Rite i1Pro 2
Max: 337 cd/m² (Nits) Medel: 322.2 cd/m² Minimum: 3 cd/m²Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 333 cd/m²
Kontrast: 1053:1 (Svärta: 0.32 cd/m²)

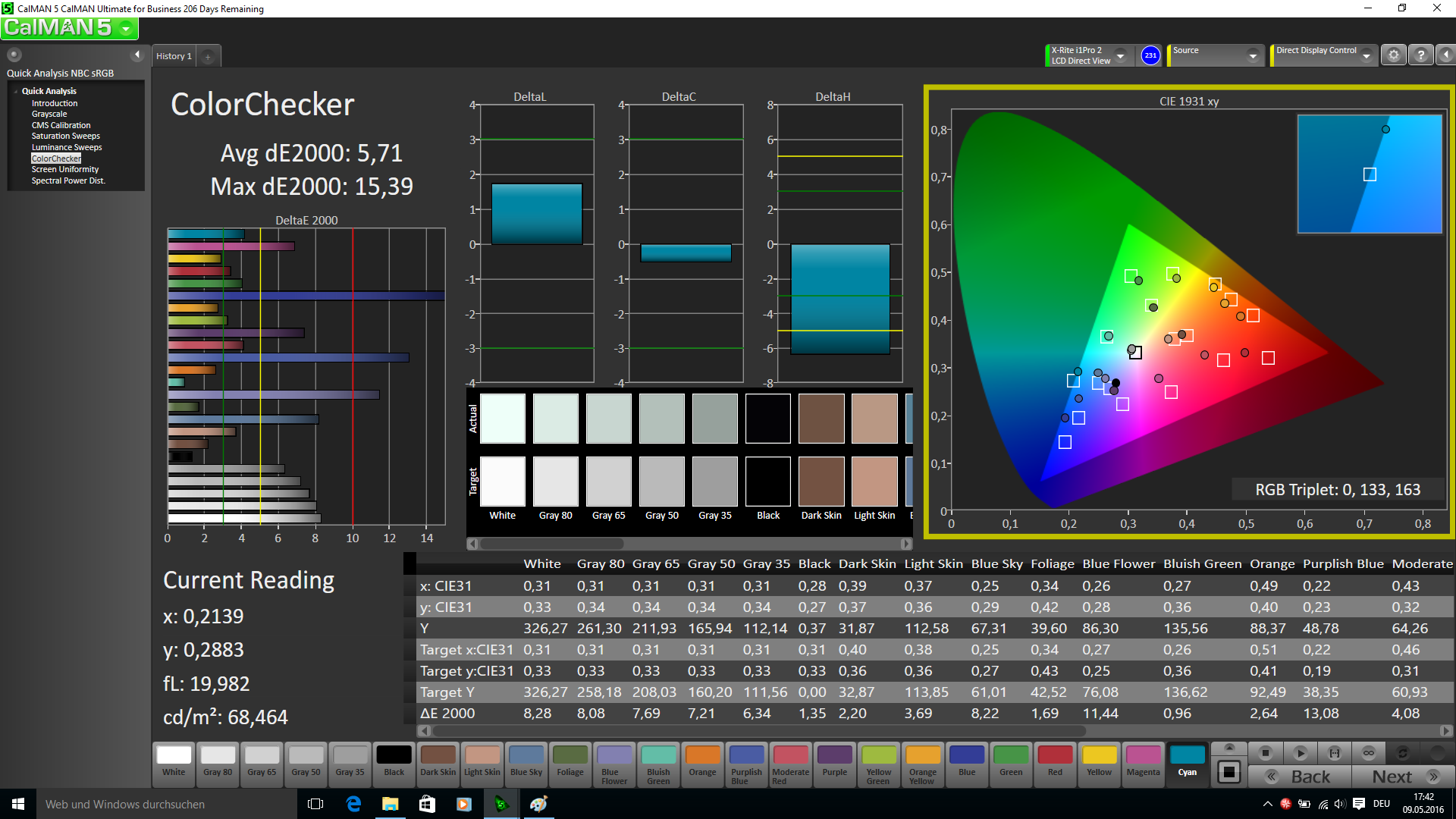

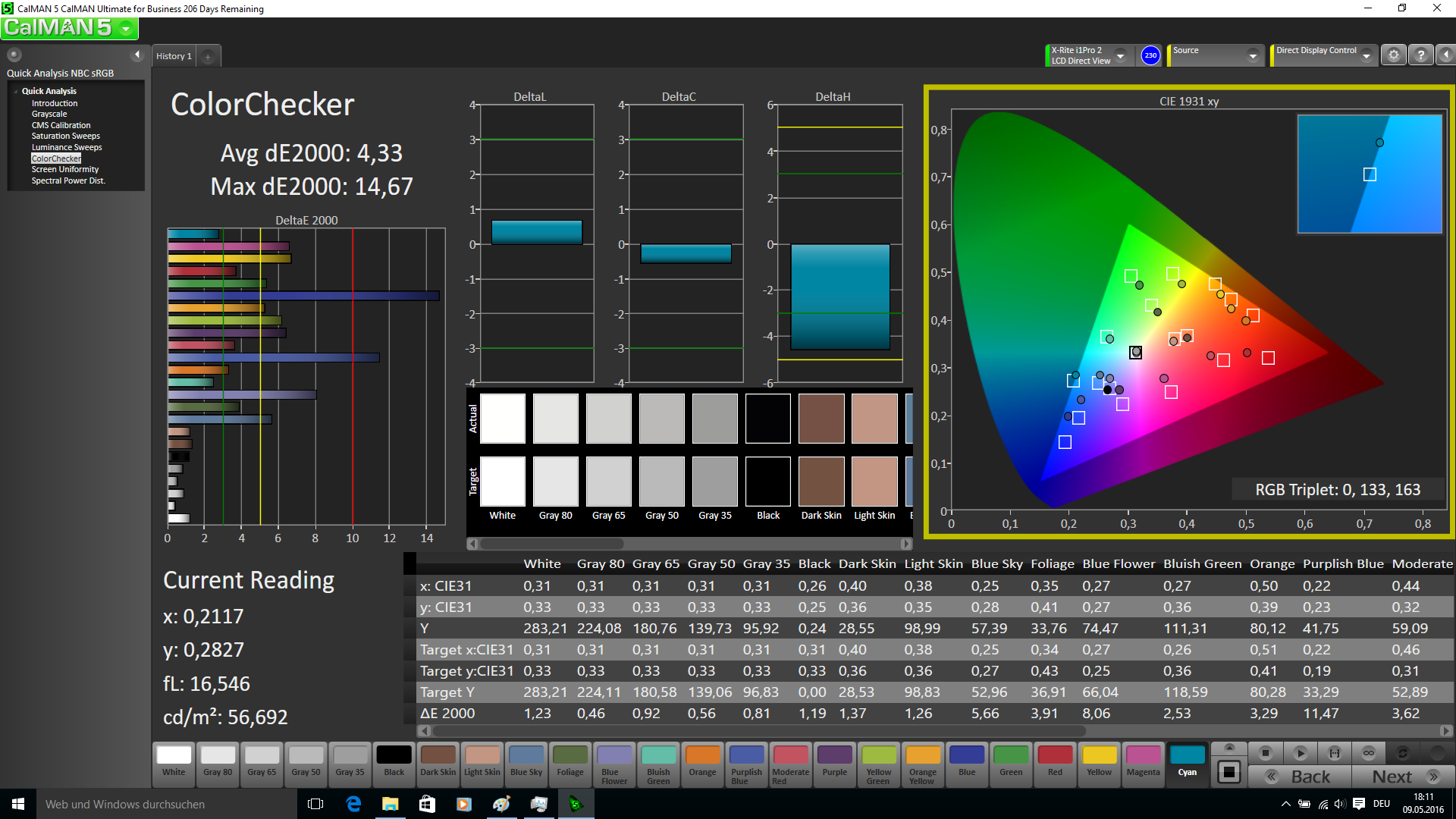

ΔE Color 5.71 | 0.5-29.43 Ø4.93

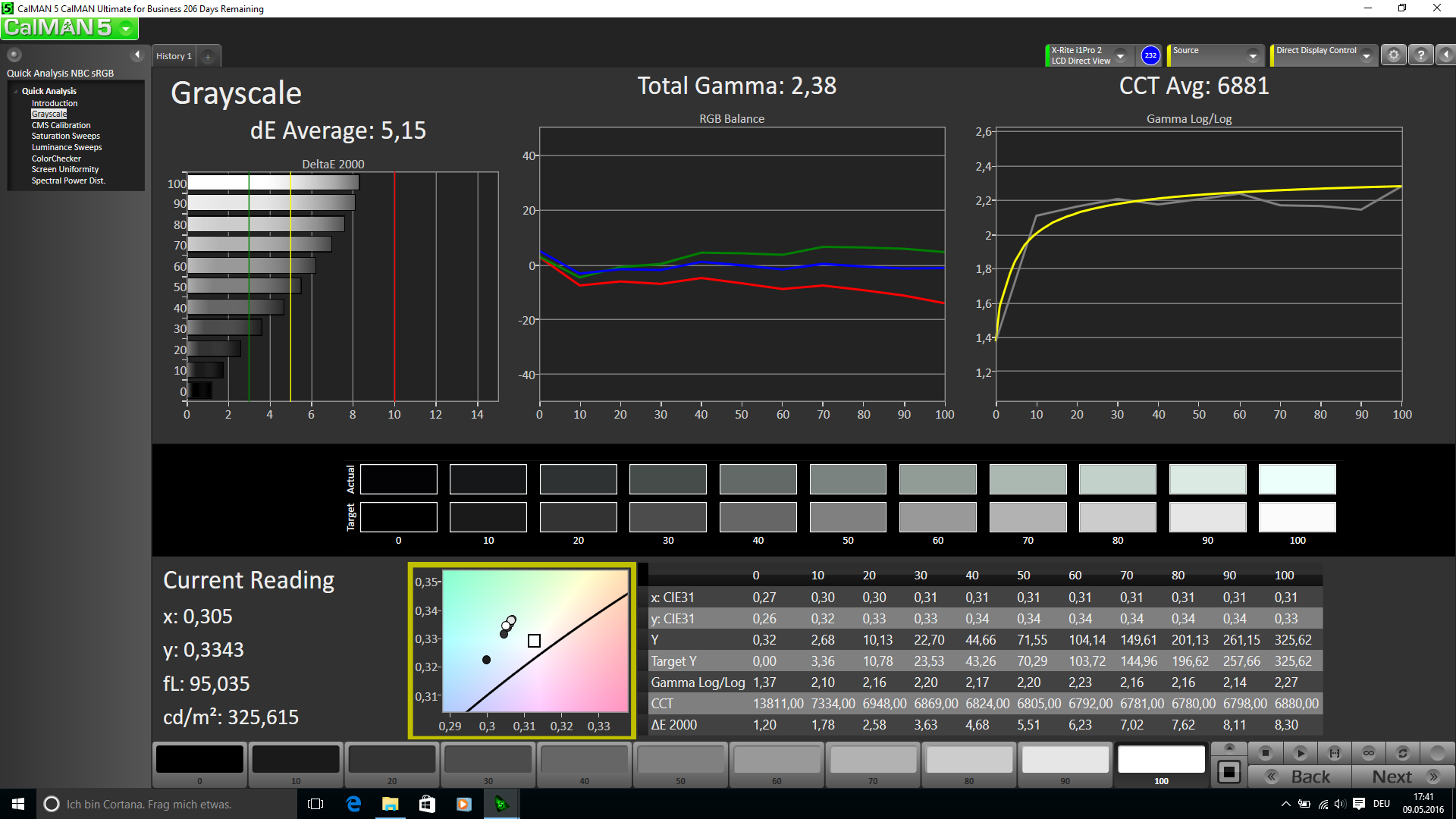

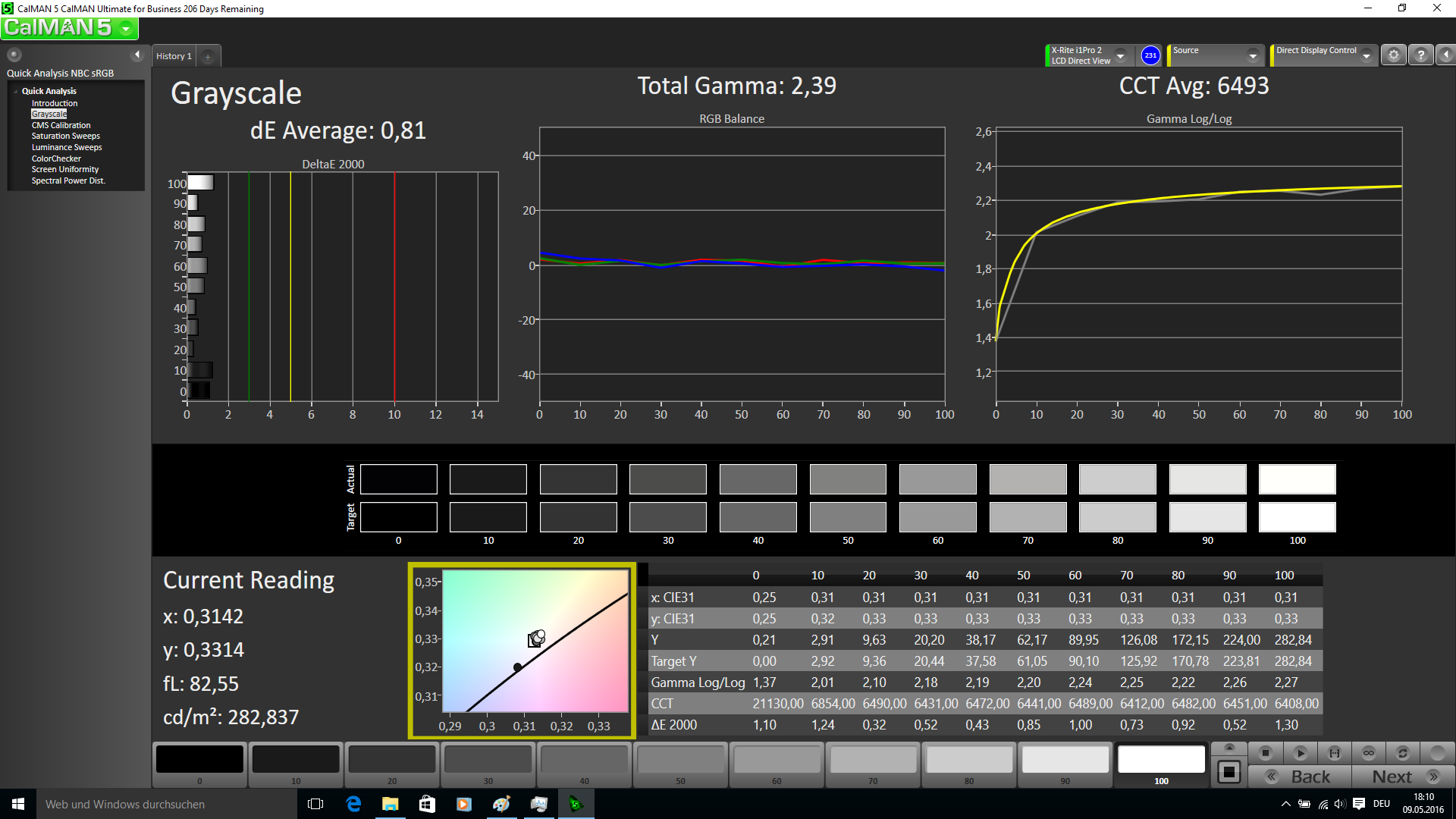

ΔE Greyscale 5.15 | 0.5-98 Ø5.2
65.62% sRGB (Argyll 1.6.3 3D)
42.38% AdobeRGB 1998 (Argyll 1.6.3 3D)
46.23% AdobeRGB 1998 (Argyll 2.2.0 3D)
66.1% sRGB (Argyll 2.2.0 3D)
44.71% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.38
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. | ||
Display Response Times
ℹ

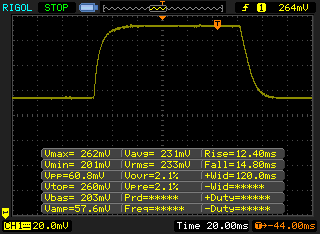

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 27.2 ms ... rise ↗ and fall ↘ combined | ↗ 12.4 ms rise |  |
| ↘ 14.8 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 66 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

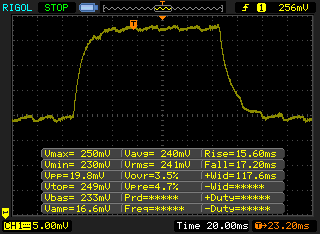

| ↔ Response Time 50% Grey to 80% Grey | ||
| 32.8 ms ... rise ↗ and fall ↘ combined | ↗ 15.6 ms rise |  |
| ↘ 17.2 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 40 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.9 ms). | ||
| Lenovo ThinkPad X260-20F6007RGE IPS, 1920x1080 | Lenovo ThinkPad X260-20F60041GE IPS, 1366x768 | HP EliteBook 820 G3 TN LED, 1366x768 | Dell Latitude 12 E7250 TN-LED, 1920x1080 | Microsoft Surface Pro 4, Core i5, 128GB IPS, 2736x1824 | |
|---|---|---|---|---|---|
| Display | 9% | -12% | -1% | 45% | |
| Display P3 Coverage | 44.71 | 48.19 8% | 38.9 -13% | 44.48 -1% | 65 45% |
| sRGB Coverage | 66.1 | 72.6 10% | 58.5 -11% | 66.2 0% | 96.5 46% |
| AdobeRGB 1998 Coverage | 46.23 | 49.79 8% | 40.2 -13% | 45.96 -1% | 67 45% |
| Response Times | -15% | -42% | -28% | ||
| Response Time Grey 50% / Grey 80% * | 32.8 ? | 42.8 ? -30% | 58 ? -77% | 46 ? -40% | |
| Response Time Black / White * | 27.2 ? | 27.2 ? -0% | 29.2 ? -7% | 31.2 ? -15% | |
| PWM Frequency | 220 ? | 50 ? | |||
| Screen | 12% | -38% | -10% | 22% | |
| Brightness middle | 337 | 262 -22% | 244 -28% | 360 7% | 413 23% |
| Brightness | 322 | 251 -22% | 240 -25% | 330 2% | 396 23% |
| Brightness Distribution | 91 | 88 -3% | 84 -8% | 81 -11% | 87 -4% |
| Black Level * | 0.32 | 0.26 19% | 0.6 -88% | 0.53 -66% | 0.36 -13% |
| Contrast | 1053 | 1008 -4% | 407 -61% | 679 -36% | 1147 9% |
| Colorchecker dE 2000 * | 5.71 | 3.55 38% | 9 -58% | 5.58 2% | 3.09 46% |
| Colorchecker dE 2000 max. * | 15.39 | 5.85 62% | 15.73 -2% | ||
| Greyscale dE 2000 * | 5.15 | 3.36 35% | 9.48 -84% | 3.98 23% | 3.92 24% |
| Gamma | 2.38 92% | 2.39 92% | 2.44 90% | 2.21 100% | 2.3 96% |
| CCT | 6881 94% | 5985 109% | 11116 58% | 6192 105% | 7333 89% |
| Color Space (Percent of AdobeRGB 1998) | 42.38 | 45.9 8% | 37.18 -12% | 42.2 0% | 61 44% |
| Color Space (Percent of sRGB) | 65.62 | 58.63 -11% | 97 48% | ||
| Total Average (Program / Settings) | 2% /
8% | -31% /
-33% | -6% /
-7% | 13% /
20% |
* ... smaller is better
Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Geekbench 3 | Sunspider | JetStream 1.1 | Mozilla Kraken 1.1 | Octane V2 | Peacekeeper
| Geekbench 3 | |
| 32 Bit Single-Core Score | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Lenovo ThinkPad X260-20F6007RGE | |
| Dell Latitude 12 E7275 | |
| 32 Bit Multi-Core Score | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Lenovo ThinkPad X260-20F6007RGE | |
| Dell Latitude 12 E7275 | |
| Sunspider - 1.0 Total Score | |
| Dell Latitude 12 E7275 | |
| Dell Latitude 12 E7250 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Lenovo ThinkPad X260-20F60041GE | |
| Lenovo ThinkPad X260-20F6007RGE | |
| JetStream 1.1 - Total Score | |
| Lenovo ThinkPad X260-20F6007RGE | |
| HP EliteBook 820 G3 | |
| Dell Latitude 12 E7275 | |
| Mozilla Kraken 1.1 - Total | |
| Dell Latitude 12 E7250 | |
| Dell Latitude 12 E7275 | |
| Lenovo ThinkPad X260-20F60041GE | |
| HP EliteBook 820 G3 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Lenovo ThinkPad X260-20F6007RGE | |
| Octane V2 - Total Score | |
| Lenovo ThinkPad X260-20F6007RGE | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| HP EliteBook 820 G3 | |
| Lenovo ThinkPad X260-20F60041GE | |
| Dell Latitude 12 E7275 | |
| Dell Latitude 12 E7250 | |
| Peacekeeper - --- | |
| Lenovo ThinkPad X260-20F6007RGE | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Dell Latitude 12 E7275 | |
* ... smaller is better
| PCMark 7 Score | 5194 poäng | |
| PCMark 8 Home Score Accelerated v2 | 3284 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 3945 poäng | |
| PCMark 8 Work Score Accelerated v2 | 4341 poäng | |
Hjälp | ||
| PCMark 8 - Work Score Accelerated v2 | |
| HP EliteBook 820 G3 | |
| Lenovo ThinkPad X260-20F6007RGE | |
| Lenovo ThinkPad X260-20F60041GE | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Dell Latitude 12 E7275 | |
| PCMark 7 - Score | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Lenovo ThinkPad X260-20F6007RGE | |
| Dell Latitude 12 E7250 | |
| Dell Latitude 12 E7275 | |
| Lenovo ThinkPad X260-20F60041GE | |
Liteonit LCH-512V2S
Sequential Read:
499.6 MB/s
Sequential Write:
403 MB/s
512K Read:
322.9 MB/s
512K Write:
372.4 MB/s
4K Read:
27.22 MB/s
4K Write:
83.6 MB/s
4K QD32 Read:
316.5 MB/s
4K QD32 Write:
273.1 MB/s
| 3DMark 06 Standard Score | 8553 poäng | |
| 3DMark 11 Performance | 1406 poäng | |
| 3DMark Ice Storm Standard Score | 47266 poäng | |
| 3DMark Cloud Gate Standard Score | 5321 poäng | |
| 3DMark Fire Strike Score | 747 poäng | |
Hjälp | ||
| 3DMark 11 - 1280x720 Performance | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| HP EliteBook 820 G3 | |
| Lenovo ThinkPad X260-20F6007RGE | |
| Lenovo ThinkPad X260-20F60041GE | |
| Dell Latitude 12 E7275 | |
| Dell Latitude 12 E7250 | |
| 3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x | |
| Lenovo ThinkPad X260-20F6007RGE | |
| Dell Latitude 12 E7275 | |
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| Tomb Raider (2013) | 56.8 | 28.1 | 18.6 | 8.9 |
| BioShock Infinite (2013) | 37.7 | 22 | 18.3 | 5.4 |
| Battlefield 4 (2013) | 36.7 | 26.4 | 15.8 | 4.4 |
Ljudnivå
| Låg belastning |
| 29 / 29 / 29 dB(A) |
| Hög belastning |
| 35.1 / 37.8 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  ECM8000 + Voltcraft SL-451 (15 cm avstånd) environment noise: 29 dB(A) | ||
| Lenovo ThinkPad X260-20F6007RGE 6500U, HD Graphics 520 | Lenovo ThinkPad X260-20F60041GE 6200U, HD Graphics 520 | HP EliteBook 820 G3 6300U, HD Graphics 520 | Dell Latitude 12 E7250 5300U, HD Graphics 5500 | Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520 | |
|---|---|---|---|---|---|
| Noise | 2% | -1% | -5% | -10% | |
| off / environment * | 29 | 29 -0% | 29.2 -1% | ||
| Idle Minimum * | 29 | 29.4 -1% | 29.2 -1% | 29.3 -1% | 31.5 -9% |
| Idle Average * | 29 | 29.4 -1% | 29.2 -1% | 29.3 -1% | 31.5 -9% |
| Idle Maximum * | 29 | 29.4 -1% | 29.2 -1% | 29.3 -1% | 31.5 -9% |
| Load Average * | 35.1 | 33.2 5% | 35.6 -1% | 37.9 -8% | 40.5 -15% |
| Load Maximum * | 37.8 | 33.2 12% | 37 2% | 42.8 -13% | 40.7 -8% |
* ... smaller is better
(±) The average temperature for the upper side under maximal load is 34.5 °C / 94 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(-) The maximum temperature on the upper side is 47.5 °C / 118 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 43.6 °C / 110 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 30.9 °C / 88 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.3 °C / 90.1 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-4 °C / -7.2 F).
(-) The maximum temperature on the upper side is 47.5 °C / 118 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 43.6 °C / 110 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 30.9 °C / 88 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.3 °C / 90.1 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-4 °C / -7.2 F).
| Lenovo ThinkPad X260-20F6007RGE 6500U, HD Graphics 520 | Lenovo ThinkPad X260-20F60041GE 6200U, HD Graphics 520 | HP EliteBook 820 G3 6300U, HD Graphics 520 | Dell Latitude 12 E7250 5300U, HD Graphics 5500 | Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520 | |
|---|---|---|---|---|---|
| Heat | 5% | 14% | -1% | -13% | |
| Maximum Upper Side * | 47.5 | 45.3 5% | 39.6 17% | 46.7 2% | 52.3 -10% |
| Maximum Bottom * | 43.6 | 48.8 -12% | 40.1 8% | 56 -28% | 51.4 -18% |
| Idle Upper Side * | 34.9 | 29.3 16% | 29.4 16% | 30.1 14% | 43.2 -24% |
| Idle Bottom * | 35.9 | 32.4 10% | 30.6 15% | 33.2 8% | 36 -0% |
* ... smaller is better
Strömförbrukning
| Av/Standby | 0.2 / 0.55 Watt |
| Låg belastning | 3.5 / 5.5 / 6.7 Watt |
| Hög belastning |
28.9 / 42.1 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad X260-20F6007RGE 6500U, HD Graphics 520 | Lenovo ThinkPad X260-20F60041GE 6200U, HD Graphics 520 | HP EliteBook 820 G3 6300U, HD Graphics 520 | Dell Latitude 12 E7250 5300U, HD Graphics 5500 | Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520 | |
|---|---|---|---|---|---|
| Power Consumption | 1% | 4% | -23% | -13% | |
| Idle Minimum * | 3.5 | 3.6 -3% | 3.5 -0% | 4.1 -17% | 4.4 -26% |
| Idle Average * | 5.5 | 5.9 -7% | 5.4 2% | 8.3 -51% | 9 -64% |
| Idle Maximum * | 6.7 | 6.6 1% | 6.2 7% | 9.4 -40% | 10.7 -60% |
| Load Average * | 28.9 | 28.5 1% | 27.3 6% | 31.6 -9% | 19.6 32% |
| Load Maximum * | 42.1 | 36.8 13% | 39.5 6% | 40.4 4% | 19.9 53% |
* ... smaller is better
| Lenovo ThinkPad X260-20F6007RGE 46 Wh | Lenovo ThinkPad X260-20F60041GE 46 Wh | HP EliteBook 820 G3 44 Wh | Dell Latitude 12 E7250 52 Wh | Microsoft Surface Pro 4, Core i5, 128GB 38 Wh | |
|---|---|---|---|---|---|
| Battery Runtime | 5% | 6% | -4% | 0% | |
| Reader / Idle | 953 | 795 -17% | 826 -13% | 845 -11% | 899 -6% |
| H.264 | 466 | 386 -17% | 495 6% | 402 -14% | |
| WiFi v1.3 | 501 | 396 -21% | 373 -26% | 427 -15% | |
| Load | 92 | 160 74% | 144 57% | 103 12% | 111 21% |
| WiFi | 446 |
För
+ matt IPS-skärm
+ Full HD-upplösning
+ utmärkt tangentbord
+ lång batteritid
+ snabb SSD
+ LTE-modem
+ 3 års garanti
Emot
- bara en RAM-plats
- ingen underhållspanel
Lenovos Thinkpad X260 är en grundligt genomarbetad 12,5-tums företagsdator och den vi testar här är top-of-the-line-modellen i serien. Byggkvaliteten är hög och datorn är robust överlag.
Processorkraften är också mer än tillräcklig. Core i7-modellen är lite snabbare än varianten med Core i5 som vi testat tidigare, men under dagligt bruk är skillnaden knappast märkbar. Användare som inte behöver extra processorkraft bör välja i5-versionen och spara lite pengar.
Trots prestandan och det kompakta chassit blir datorn varken bullrig eller varm. Den snabba SSD:n garanterar ett snabbt system och kapaciteten på 512 GB är väl tilltagen. Som förväntat är X260 utrustad med ett utmärkt tangentbord. Batteriets livslängd är också mycket bra och kan förbättras ytterligare med ett 72 Wh-batteri som tillval. Det bör nästan fördubbla batteritiden.
Full-HD-skärmen är imponerande; panelen är ljusstark och erbjuder mycket kontrast och bra betraktningsvinklar. Det är ingen tvekan om att den är bättre än den vanliga HD-skärm som används till vissa modeller. Dessutom har Full-HD-skärmen inget PWM-flimmer.
Lenovo ThinkPad X260-20F6007RGE
-
05/26/2016 v5.1 (old)
Sascha Mölck
Subnotebook - Vägt medel
