Test: Lenovo Yoga 500-14ISK (sammanfattning)
Lenovo Yoga 500-14ISK (Yoga 500 Serie)
Processor
Intel Core i5-6200U 2 x 2.3 GHz, Skylake
Grafikkort
NVIDIA GeForce 920M - 2048 MB VRAM, Kärna: 954 MHz, Minne: 900 MHz, ForceWare 361.75, Intel HD Graphics 520
Minne
4 GB
, DDR3L, single-channel
Skärm
14.00 tum 16:9, 1920 x 1080 pixlar, 10-punkters multi-touch, N140HCE-EAA IPS, a-Si TFT-LCD, glansig: ja
Moderkort
Intel Skylake-U Premium PCH
Hårddisk
WDC Slim WD10SPCX-24HWST1, 1000 GB
, 5400 rpm
Vikt
1.782 kg, Strömförsörjning: 352 g
Pris
769 Kr
Länkar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
N140HCE-EAA IPS tested with X-Rite i1Pro 2 // Gossen Mavo-Monitor
Max: 234 cd/m² (Nits) Medel: 209.1 cd/m²Distribution av ljusstyrkan: 82 %
Mitt på batteriet: 234 cd/m²
Kontrast: 1064:1 (Svärta: 0.22 cd/m²)
ΔE Color 6.3 | 0.5-29.43 Ø4.91
ΔE Greyscale 5.59 | 0.5-98 Ø5.2
39% AdobeRGB 1998 (Argyll 1.6.3 3D)
42.75% AdobeRGB 1998 (Argyll 2.2.0 3D)
61.3% sRGB (Argyll 2.2.0 3D)
41.31% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.53
| Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1 | Toshiba Satellite Radius 14 L40W-C-10Z HD Graphics 5500, 5015U, HGST Travelstar 5K1000 HTS541010A9E680 | Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | HP Envy 15-w000ng x360 GeForce 930M, 5200U, Hitachi Travelstar Z5K500 HTS545050A7E680 | Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe | |
|---|---|---|---|---|---|
| Display | -8% | -5% | -13% | 57% | |
| Display P3 Coverage | 41.31 | 38.01 -8% | 39.36 -5% | 35.87 -13% | 65 57% |
| sRGB Coverage | 61.3 | 57.2 -7% | 59 -4% | 54 -12% | 96.5 57% |
| AdobeRGB 1998 Coverage | 42.75 | 39.28 -8% | 40.68 -5% | 37.06 -13% | 67 57% |
| Response Times | 296% | -42% | |||
| Response Time Grey 50% / Grey 80% * | 36 ? | 38 ? -6% | 46 ? -28% | ||
| Response Time Black / White * | 26 ? | 28 ? -8% | 31.2 ? -20% | ||
| PWM Frequency | 217 ? | 2174 ? 902% | 50 ? -77% | ||
| Screen | -37% | -11% | -61% | 32% | |
| Brightness middle | 234 | 224 -4% | 205 -12% | 183 -22% | 413 76% |
| Brightness | 209 | 209 0% | 206 -1% | 196 -6% | 396 89% |
| Brightness Distribution | 82 | 84 2% | 87 6% | 82 0% | 87 6% |
| Black Level * | 0.22 | 0.37 -68% | 0.28 -27% | 0.51 -132% | 0.36 -64% |
| Contrast | 1064 | 605 -43% | 732 -31% | 359 -66% | 1147 8% |
| Colorchecker dE 2000 * | 6.3 | 10.29 -63% | 6.68 -6% | 12.45 -98% | 3.09 51% |
| Colorchecker dE 2000 max. * | 15.53 | ||||
| Greyscale dE 2000 * | 5.59 | 11.82 -111% | 6.3 -13% | 13.81 -147% | 3.92 30% |
| Gamma | 2.53 87% | 2.56 86% | 2.34 94% | 2.33 94% | 2.3 96% |
| CCT | 7064 92% | 12063 54% | 6996 93% | 16998 38% | 7333 89% |
| Color Space (Percent of AdobeRGB 1998) | 39 | 36 -8% | 37 -5% | 34 -13% | 61 56% |
| Color Space (Percent of sRGB) | 57 | 59 | 54 | 97 | |
| Total Average (Program / Settings) | 84% /
41% | -8% /
-9% | -37% /
-47% | 16% /
21% |
* ... smaller is better

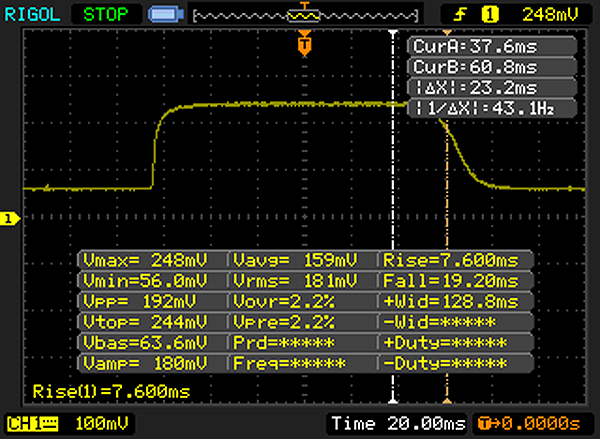

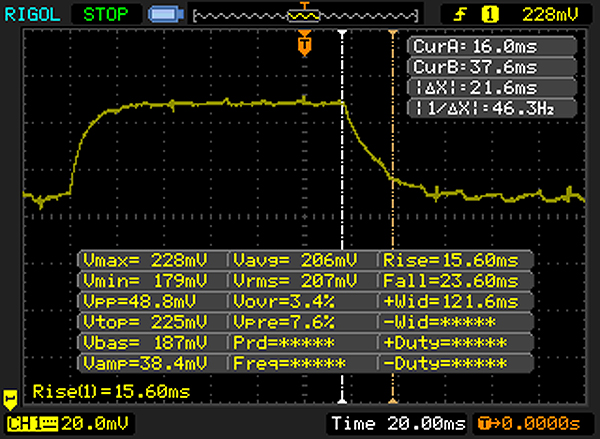

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 26 ms ... rise ↗ and fall ↘ combined | ↗ 719 ms rise |  |
| ↘ ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 59 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 36 ms ... rise ↗ and fall ↘ combined | ↗ 15 ms rise |  |
| ↘ 21 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 46 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). | ||

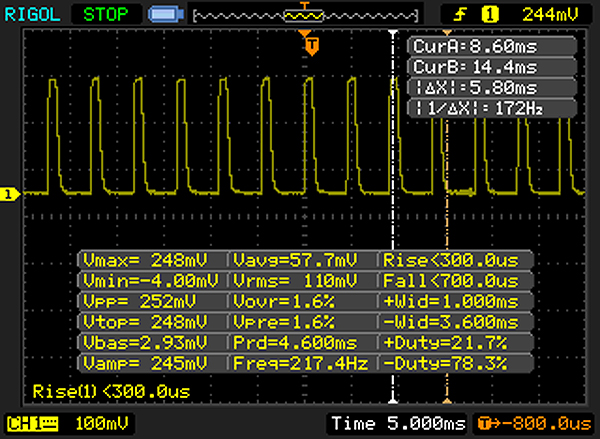

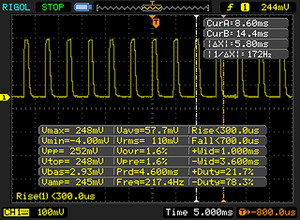

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 217 Hz | ≤ 90 % brightness setting |  |
The display backlight flickers at 217 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 217 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8719 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Cinebench R15 | |
| CPU Single 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| CPU Multi 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Cinebench R11.5 | |
| CPU Single 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| CPU Multi 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| OpenGL 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Lenovo Yoga 500-15IBD | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Cinebench R10 | |
| Rendering Single CPUs 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Rendering Multiple CPUs 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Shading 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| PCMark 8 | |
| Home Score Accelerated v2 (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Lenovo Yoga 500-15IBD | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Creative Score Accelerated v2 (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Work Score Accelerated v2 (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| PCMark 7 - Score (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| PCMark 7 Score | 2582 poäng | |
| PCMark 8 Home Score Accelerated v2 | 2689 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 2956 poäng | |
| PCMark 8 Work Score Accelerated v2 | 3585 poäng | |
Hjälp | ||
| Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1 | Toshiba Satellite Radius 14 L40W-C-10Z HD Graphics 5500, 5015U, HGST Travelstar 5K1000 HTS541010A9E680 | Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | HP Envy 15-w000ng x360 GeForce 930M, 5200U, Hitachi Travelstar Z5K500 HTS545050A7E680 | Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe | |
|---|---|---|---|---|---|

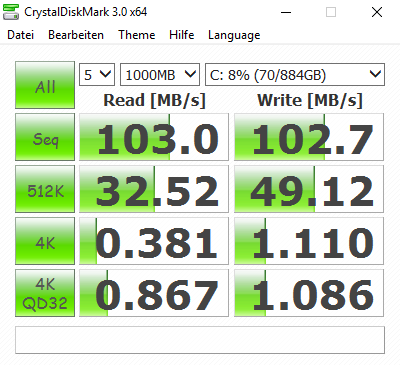

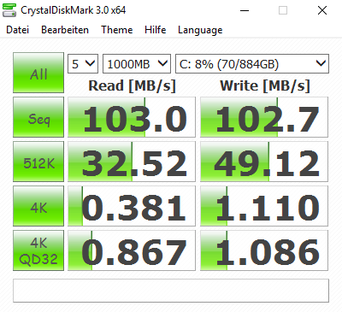

| CrystalDiskMark 3.0 | -9% | 27% | -42% | 9298% | |
| Read Seq | 103 | 97.1 -6% | 114.4 11% | 63.9 -38% | 666 547% |
| Write Seq | 102.7 | 94.9 -8% | 113 10% | 60 -42% | 154.2 50% |
| Read 512 | 32.52 | 32.3 -1% | 41.87 29% | 20.94 -36% | 266.3 719% |
| Write 512 | 49.12 | 37.5 -24% | 59.7 22% | 23.28 -53% | 154.2 214% |
| Read 4k | 0.381 | 0.39 2% | 0.542 42% | 0.241 -37% | 28.51 7383% |
| Write 4k | 1.11 | 0.958 -14% | 1.211 9% | 0.617 -44% | 101.5 9044% |
| Read 4k QD32 | 0.867 | 0.796 -8% | 1.498 73% | 0.471 -46% | 368.3 42380% |
| Write 4k QD32 | 1.086 | 0.952 -12% | 1.281 18% | 0.623 -43% | 153.6 14044% |

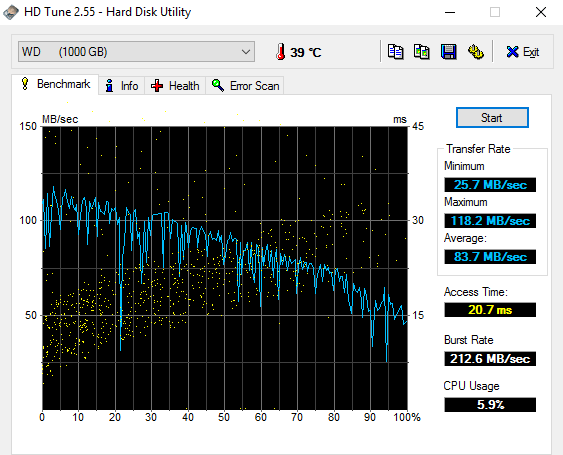

WDC Slim WD10SPCX-24HWST1
Överföringshastighet min.:
25.7 MB/s
Överföringshastighet max.:
118.2 MB/s
Överföringshastighet med.:
83.7 MB/s
Accesstid:
20.7 ms
Burst rate:
212.6 MB/s
CPU-användning:
5.9 %
| 3DMark | |
| 1280x720 Cloud Gate Standard Score (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 1280x720 Cloud Gate Standard Physics (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 1280x720 Cloud Gate Standard Graphics (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 3DMark 11 | |
| 1280x720 Performance Combined (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 1280x720 Performance Physics (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 1280x720 Performance GPU (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 1280x720 Performance (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 3DMark 06 Standard Score | 8808 poäng | |
| 3DMark Vantage P Result | 5518 poäng | |
| 3DMark 11 Performance | 1823 poäng | |
| 3DMark Ice Storm Standard Score | 37066 poäng | |
| 3DMark Cloud Gate Standard Score | 4926 poäng | |
| 3DMark Fire Strike Score | 1045 poäng | |
| 3DMark Fire Strike Extreme Score | 507 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| Thief (2014) | 22.9 | 14.1 | 16.9 | 5.9 |
| GRID: Autosport (2014) | 106.6 | 55.3 | 28.12 | 16.2 |
| F1 2014 (2014) | 96 | 71 | 44 | 26 |
Ljudnivå
| Låg belastning |
| 32.8 / 32.8 / 32.8 dB(A) |
| Hårddisk |
| 33.4 dB(A) |
| Hög belastning |
| 39.4 / 39.2 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Audix TM1 Arta (15 cm avstånd) environment noise: 31.3 dB(A) | ||
(+) The average temperature for the upper side under maximal load is 31.6 °C / 89 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 38.2 °C / 101 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.5 °C / 107 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.2 °C / 81 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.2 °C / 86.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-2.2 °C / -4 F).
(+) The maximum temperature on the upper side is 38.2 °C / 101 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.5 °C / 107 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.2 °C / 81 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.2 °C / 86.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-2.2 °C / -4 F).
| Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1 | Toshiba Satellite Radius 14 L40W-C-10Z HD Graphics 5500, 5015U, HGST Travelstar 5K1000 HTS541010A9E680 | Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | HP Envy 15-w000ng x360 GeForce 930M, 5200U, Hitachi Travelstar Z5K500 HTS545050A7E680 | Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe | |
|---|---|---|---|---|---|
| Power Consumption | 31% | 16% | 26% | 29% | |
| Idle Minimum * | 6.6 | 4.7 29% | 4.2 36% | 3.3 50% | 4.4 33% |
| Idle Average * | 10.6 | 6.9 35% | 7.4 30% | 6 43% | 9 15% |
| Idle Maximum * | 10.8 | 7.2 33% | 8.6 20% | 7.8 28% | 10.7 1% |
| Load Average * | 37 | 26.8 28% | 36.5 1% | 30.3 18% | 19.6 47% |
| Load Maximum * | 39 | 26.6 32% | 42.7 -9% | 42.3 -8% | 19.9 49% |
* ... smaller is better
Strömförbrukning
| Av/Standby | 0.2 / 0.45 Watt |
| Låg belastning | 6.6 / 10.6 / 10.8 Watt |
| Hög belastning |
37 / 39 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
För
+ Betraktningsvinklar, kontrast

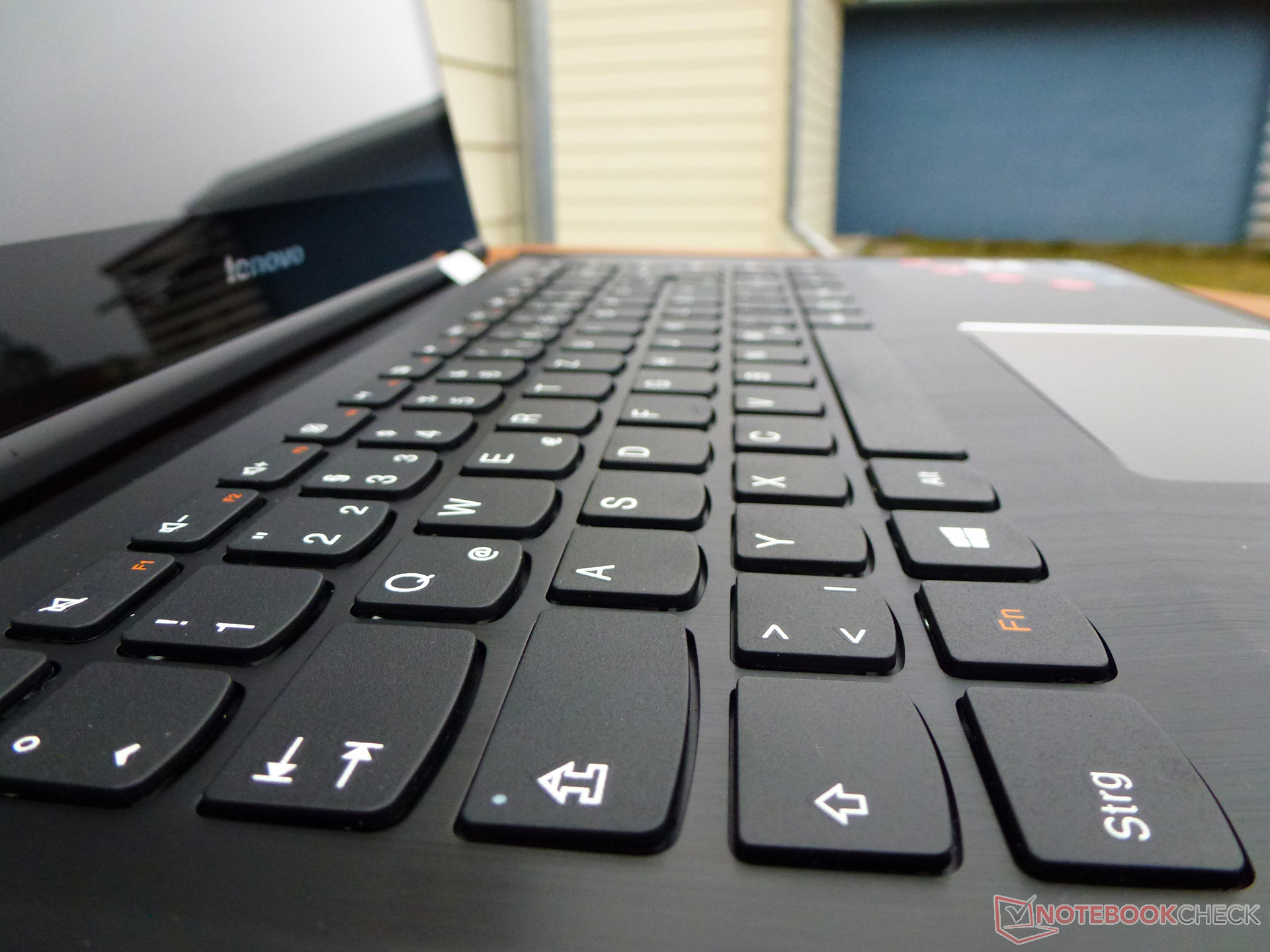

+ Bra inmatningsenheter
+ Ingen strypning under stress

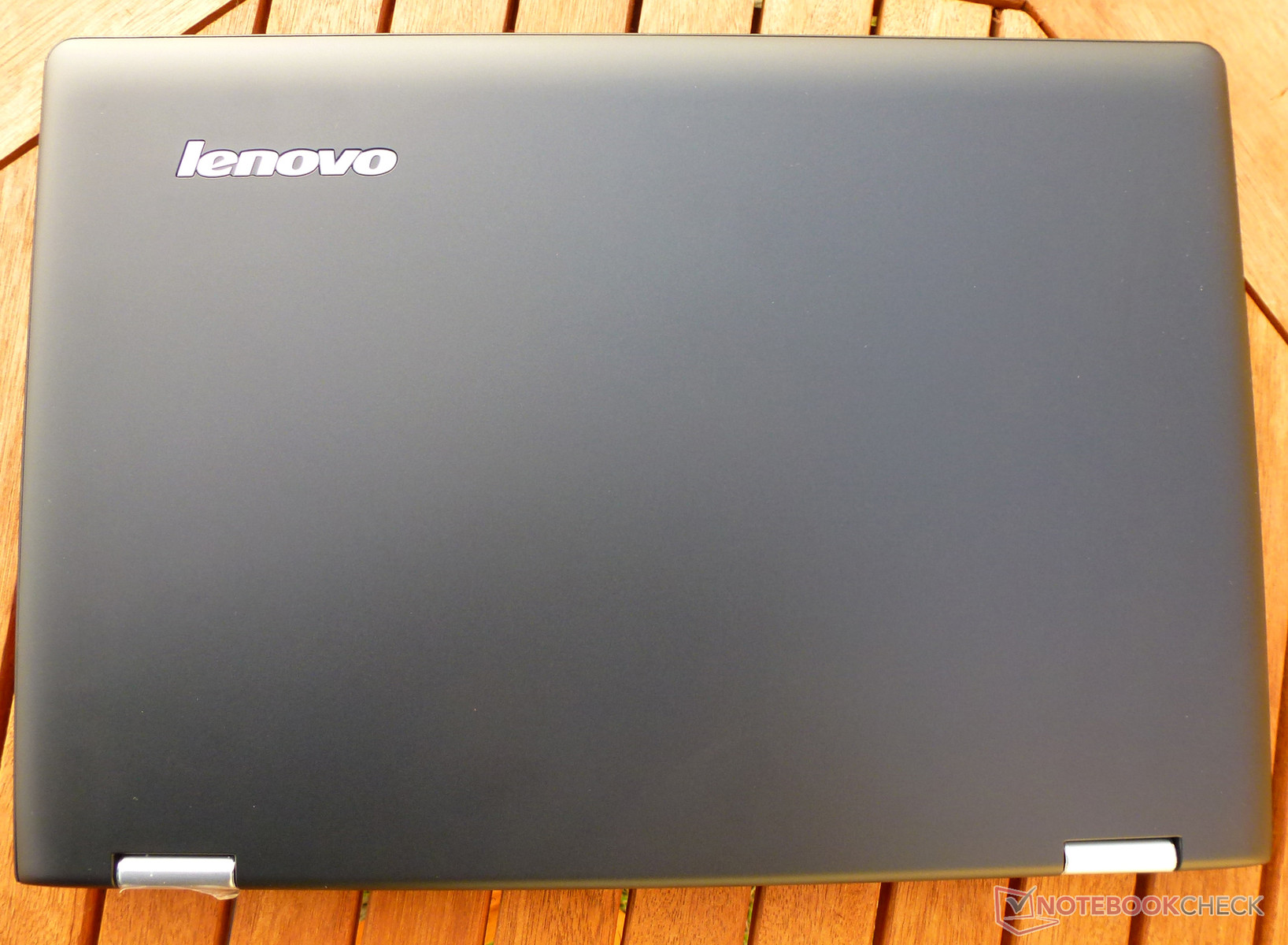

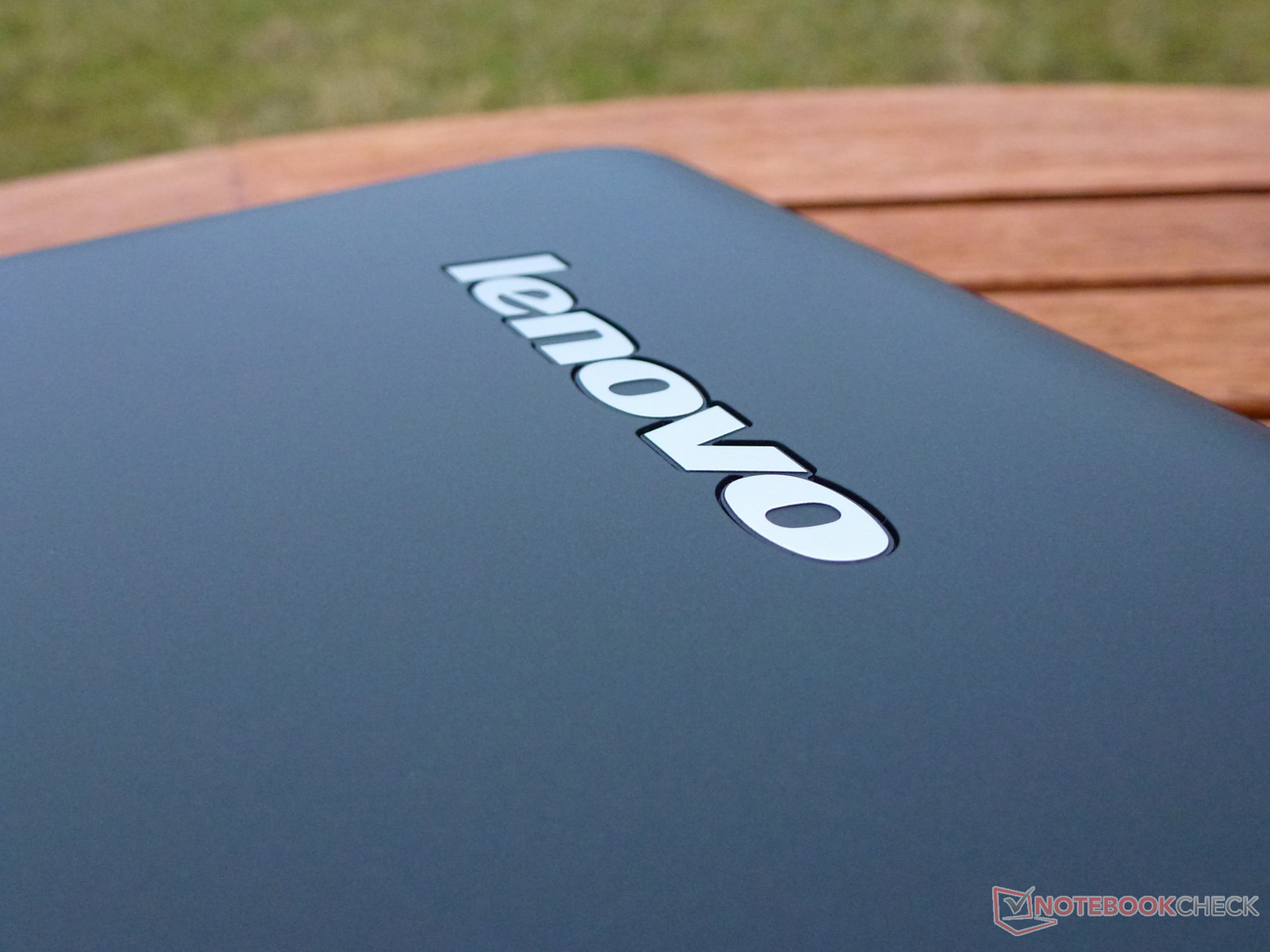

+ Välbyggt chassi

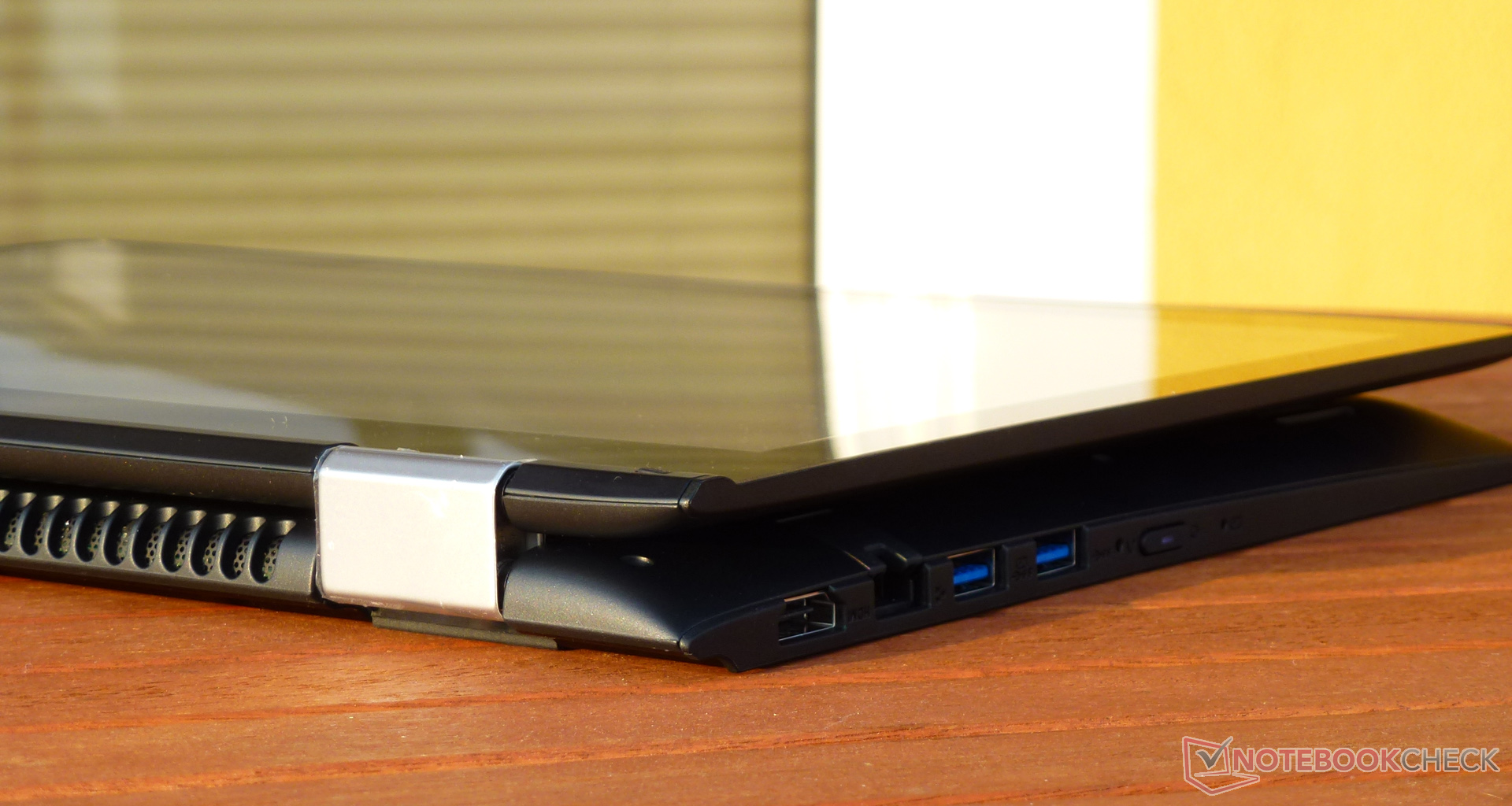

+ Bra portlayout

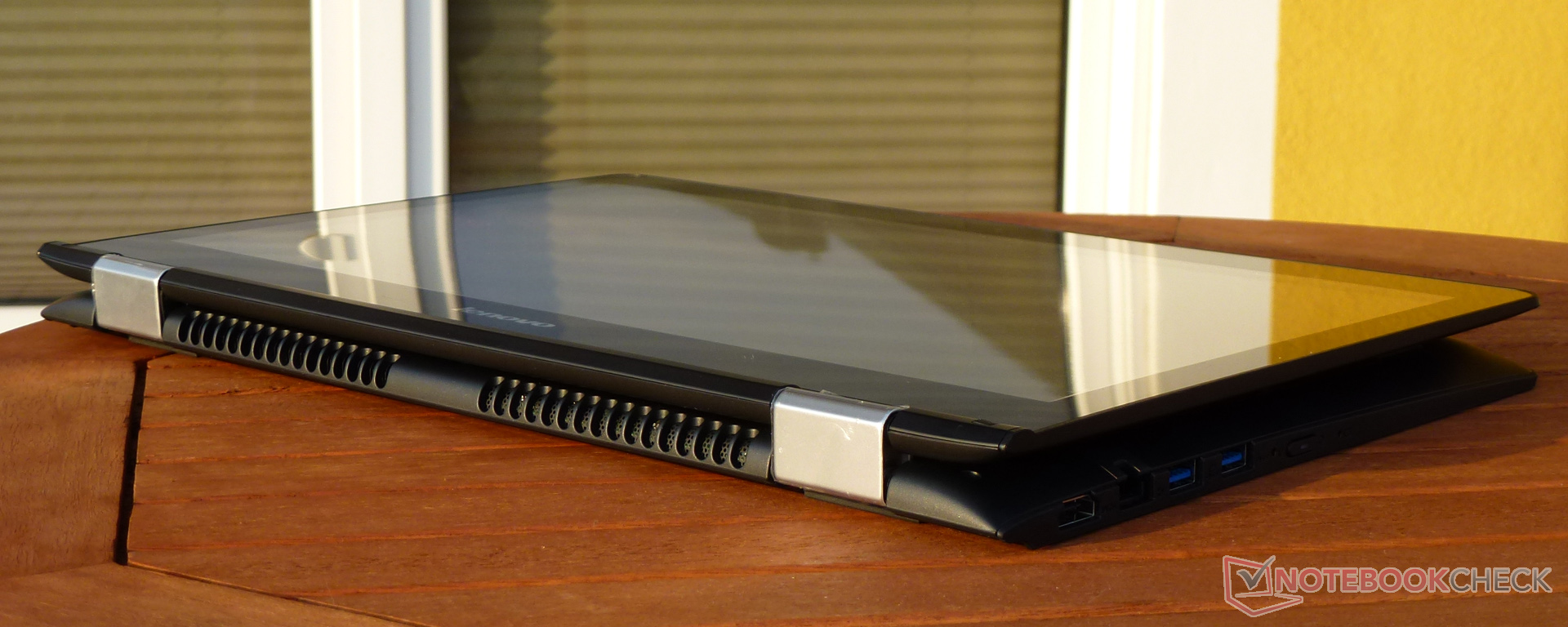

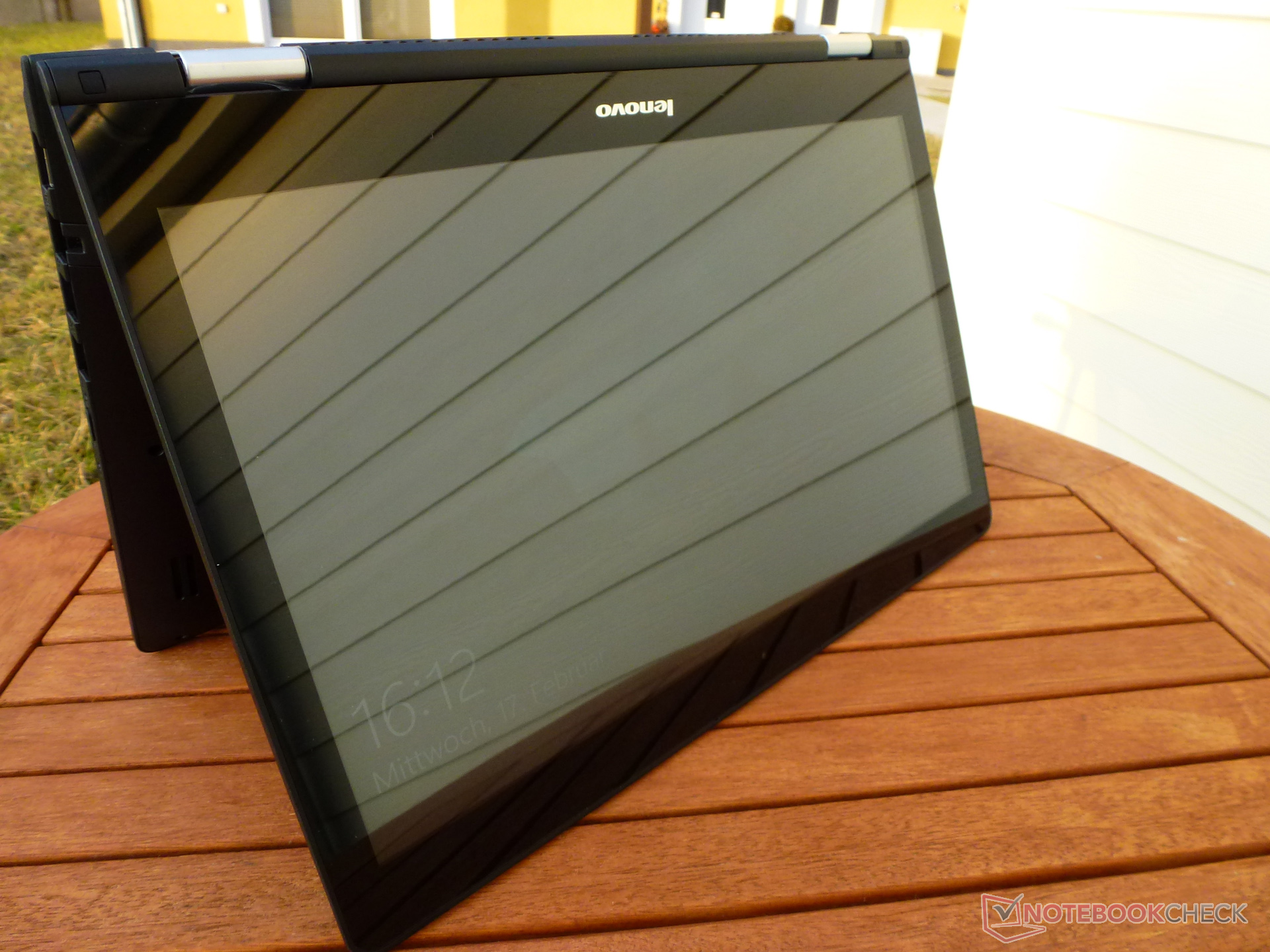

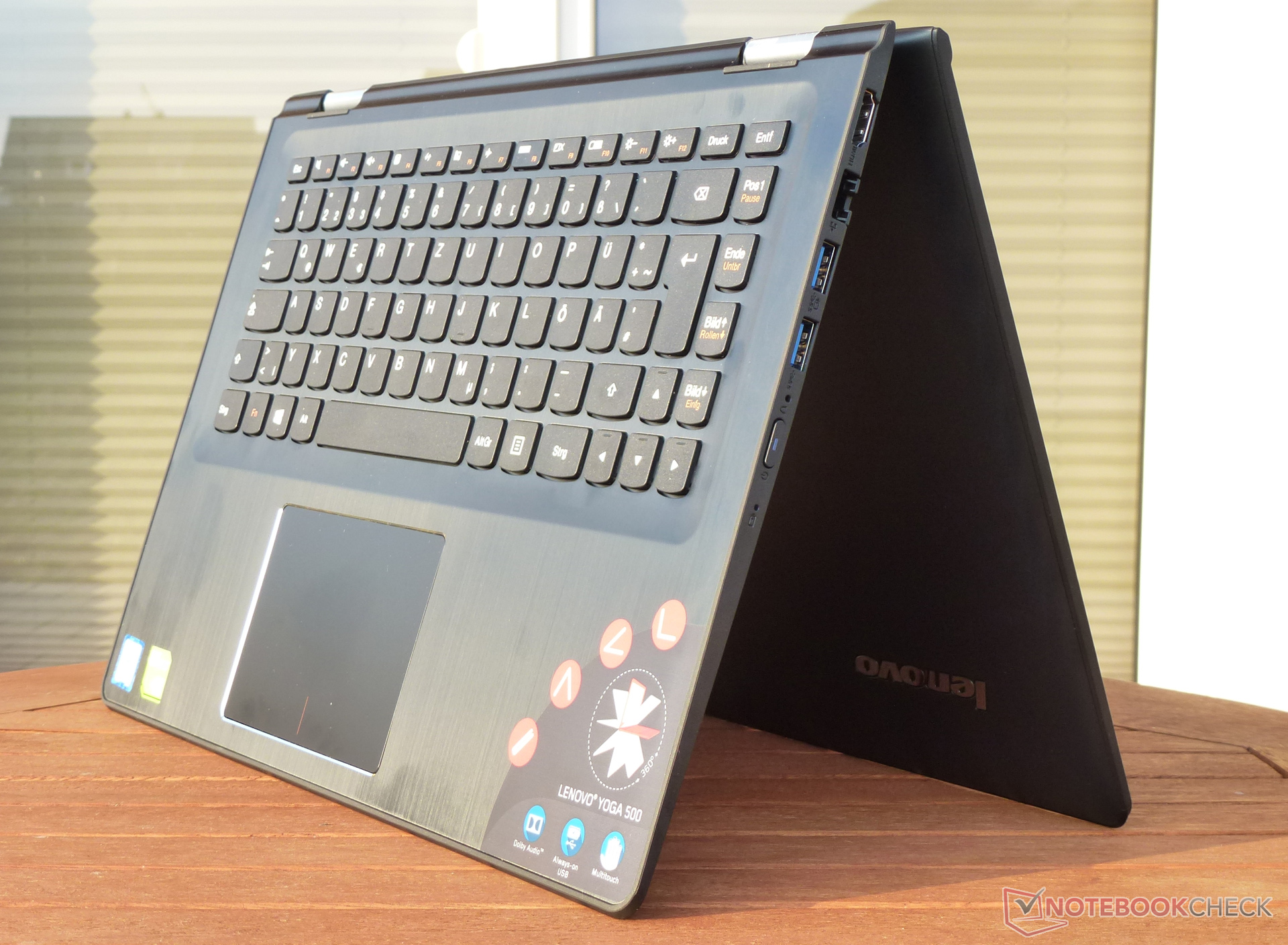

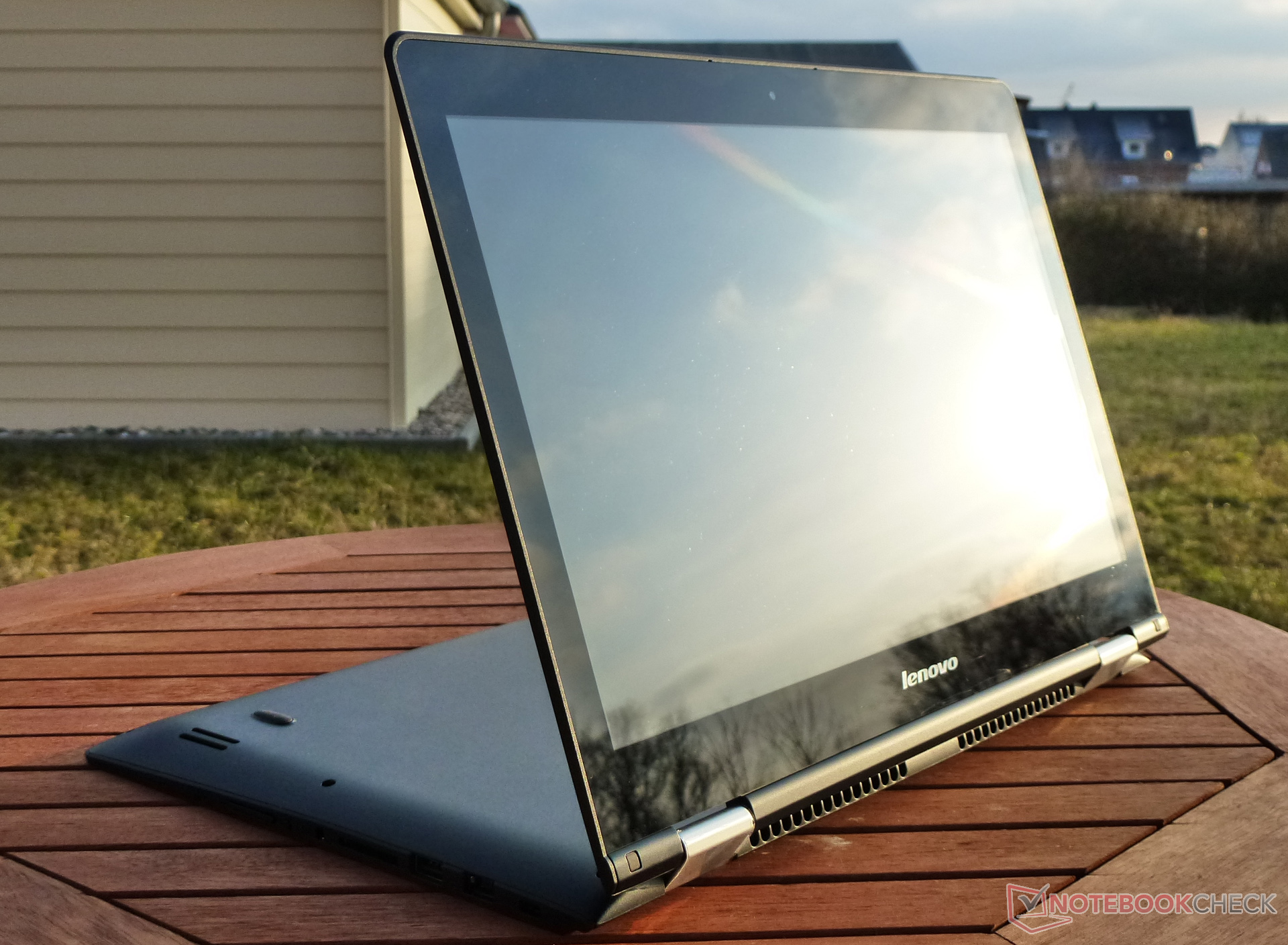

+ Flexibel (360-graders gångjärn)
Emot
- Batteritiden

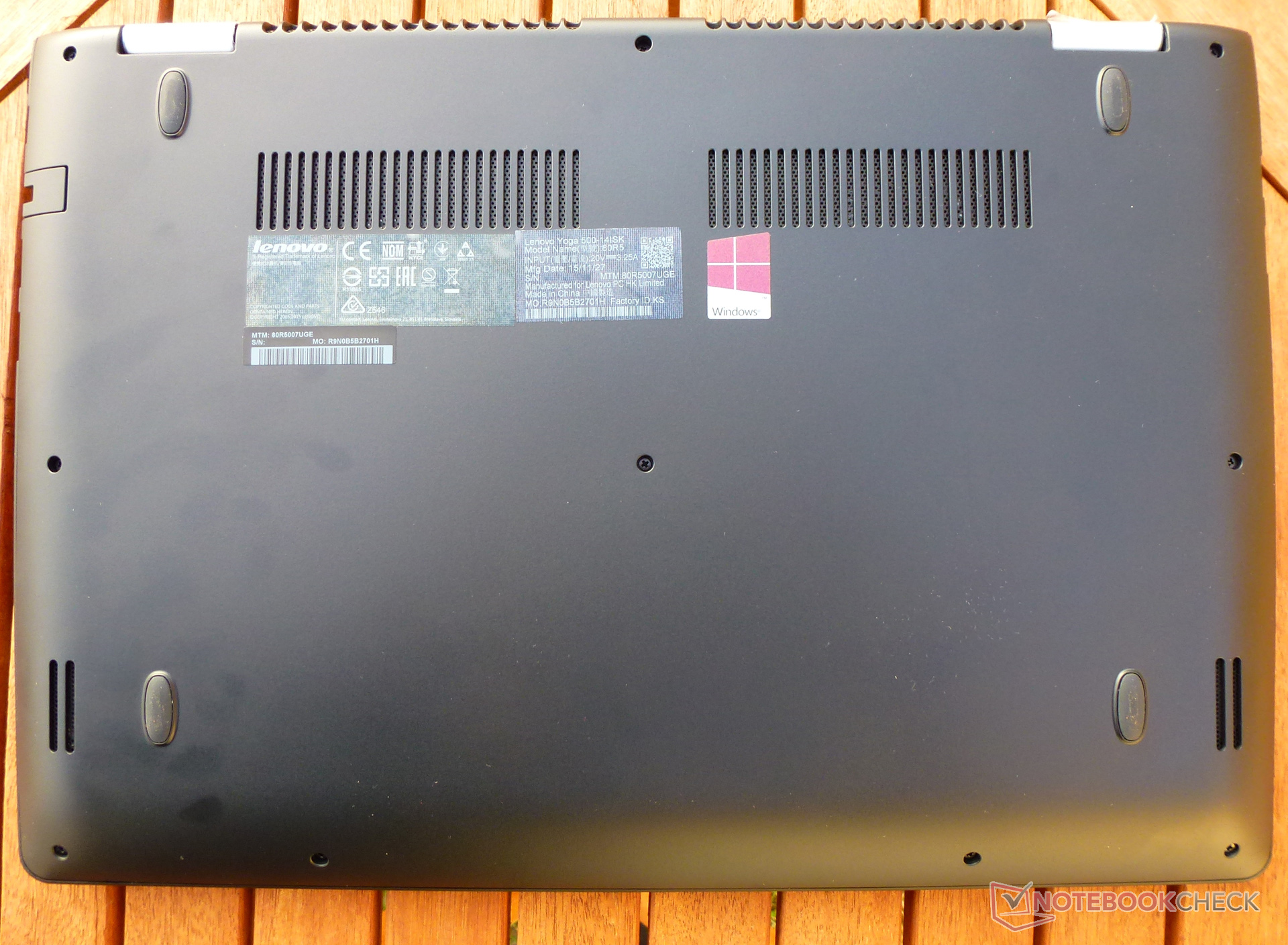

- Ingen underhållspanel, fast batteri

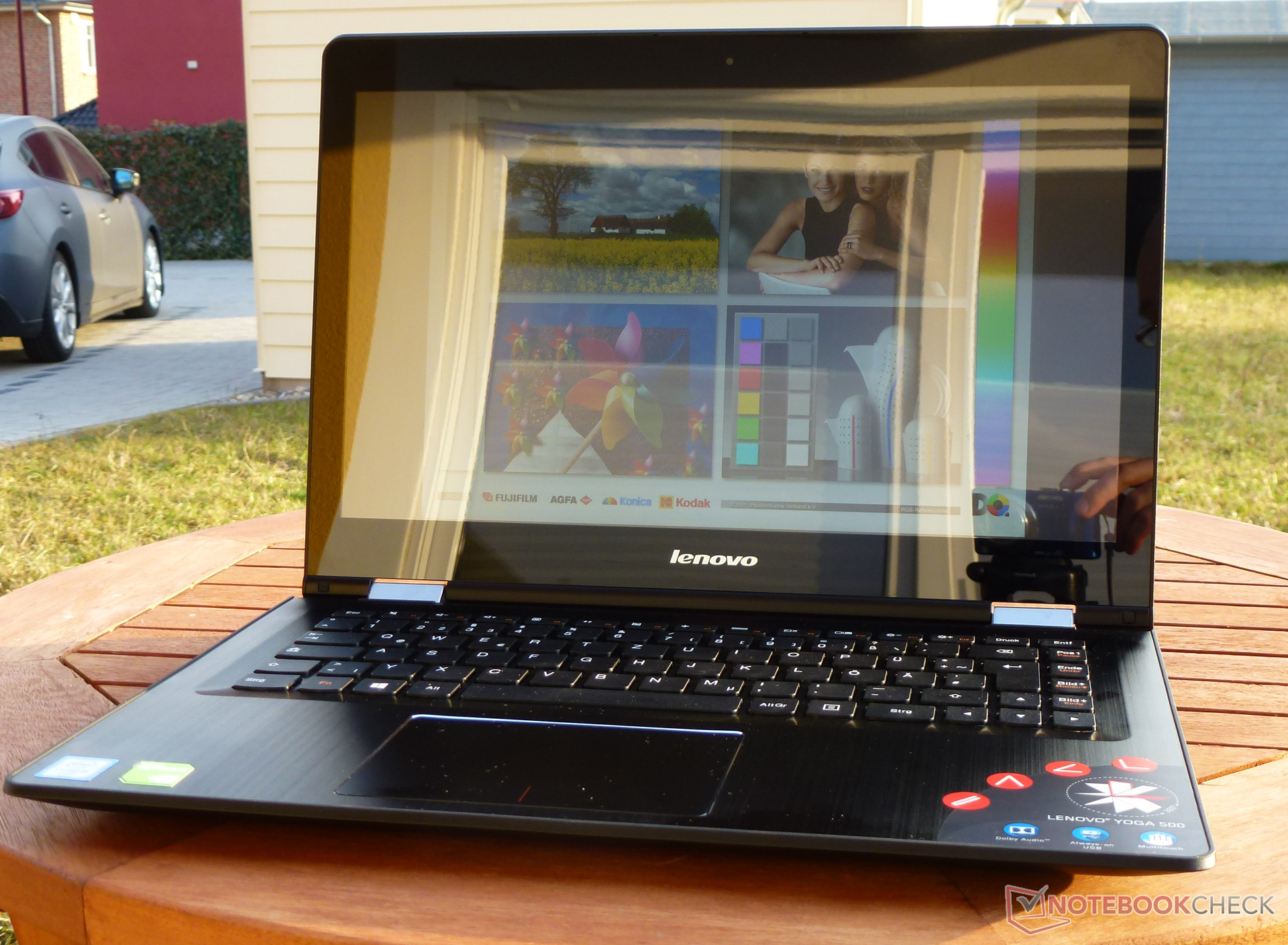

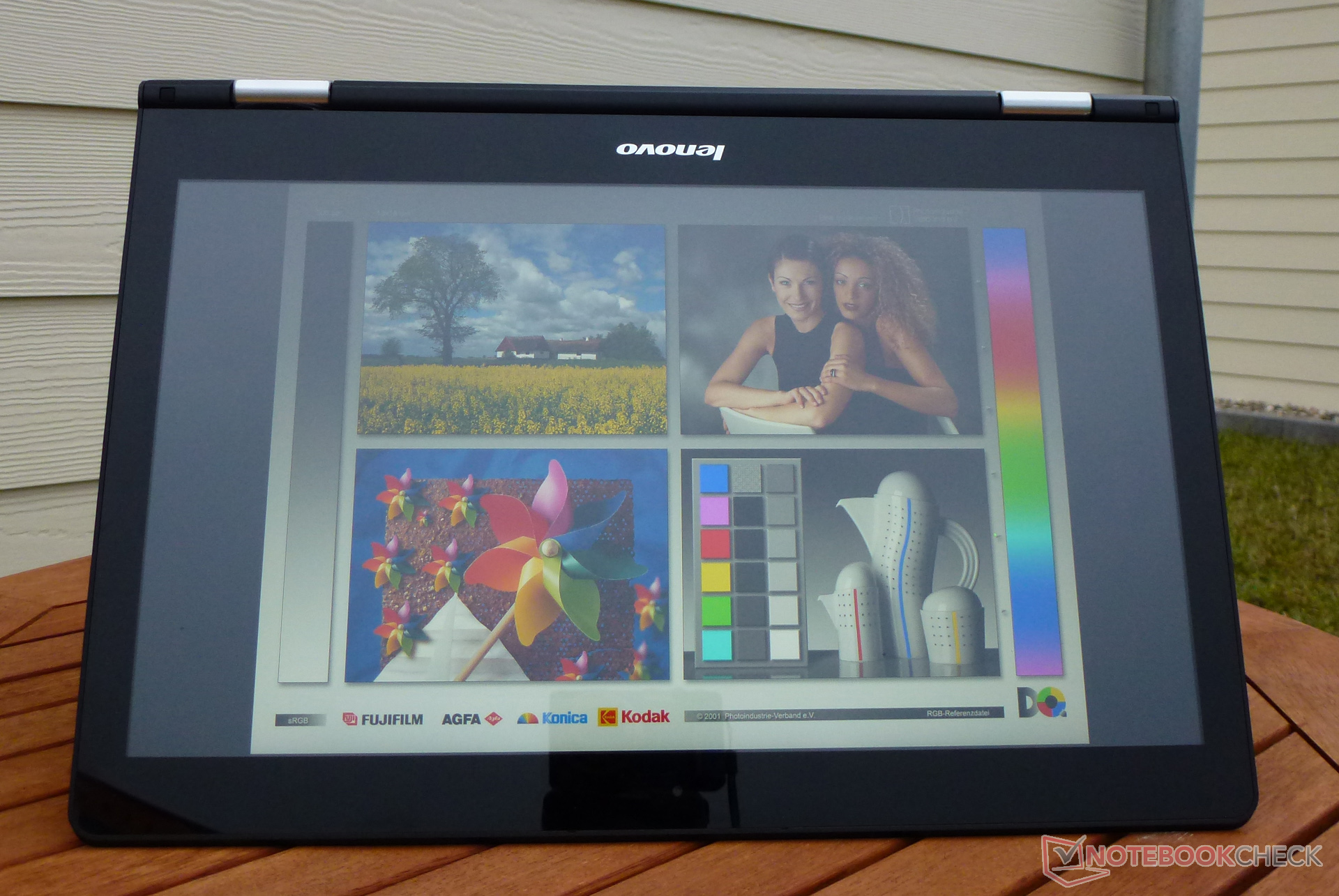

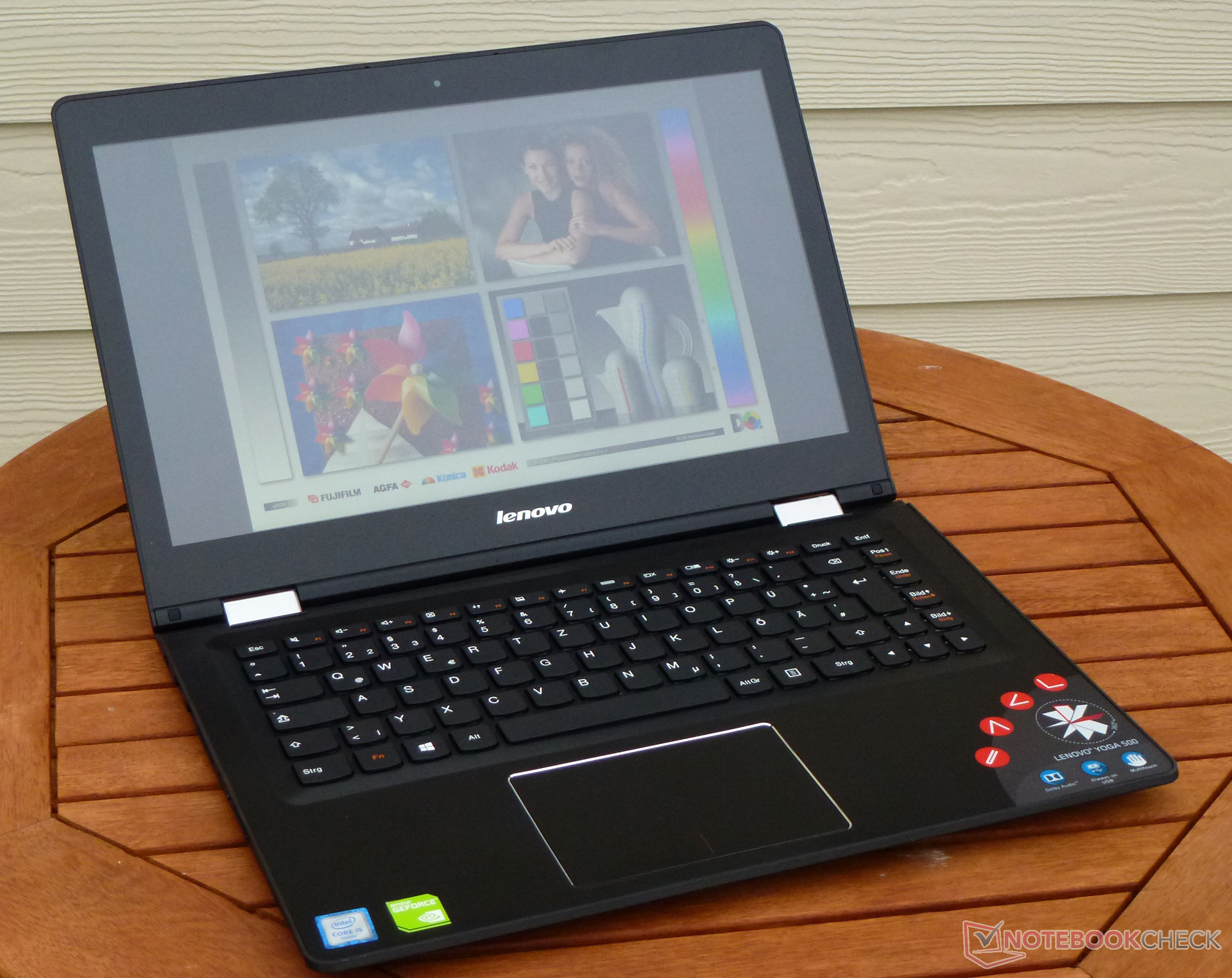

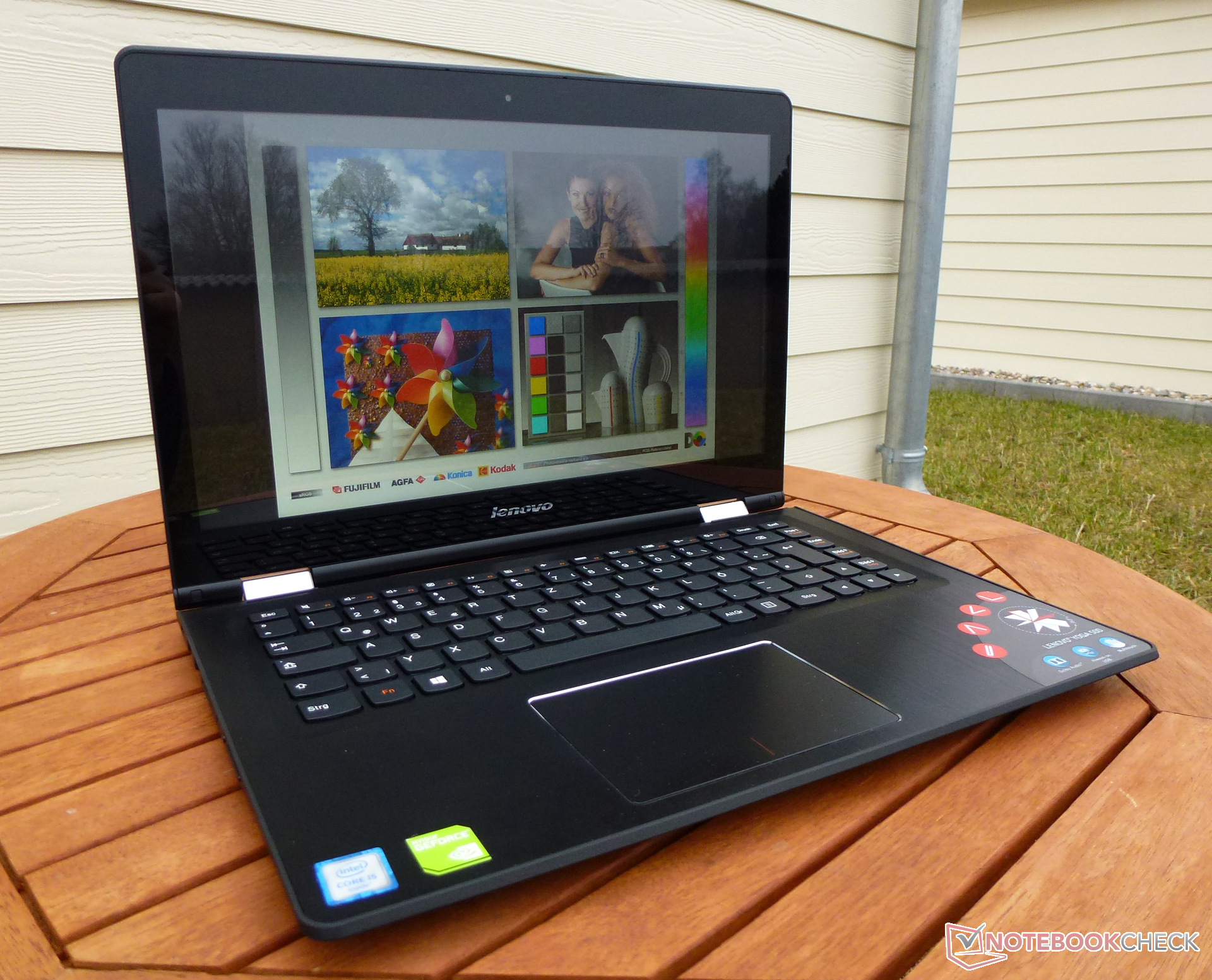

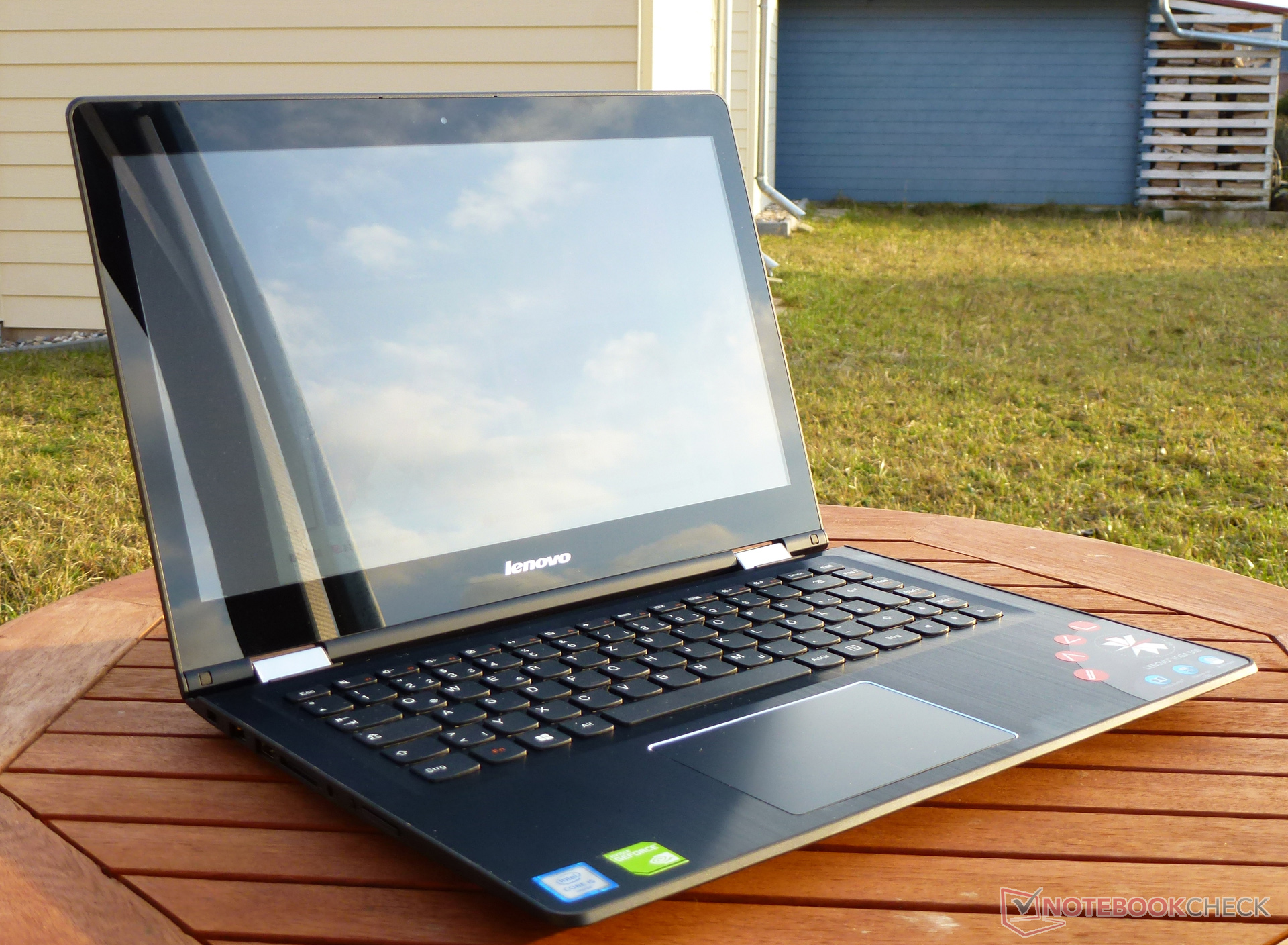

- Knappt användbar i solljus
- Ej bakbelyst tangentbord
- Ingen SSD
Lenovo Yoga 500-14ISK är en solid 14-tums ”cabriolet” för flera användningsscenarier. Om du redan är ute efter en hybrid mellan surfplatta och bärbar dator vet du förmodligen hur du vill använda den. Ett par exempel är soffsurf i surfplatteläge eller videouppspelning i ”tältläge”.
14-tummaren är lite lättare än jämförbara 15-tummare, men den väger ändå in på 1,8 kg. Om det är en alltför hög vikt är subjektivt, men inget större problem om du inte i första hand använder den som surfplatta.
Lenovo gör en massa saker rätt – materialen gör ett sofistikerat intryck och de två 360-graders gångjärnen fungerar mycket bra. Vi har ingen kritik vad gäller tangentbordet, pekplattan eller skärmen heller. En annan positiv aspekt är IPS-panelen (Full HD). Den erbjuder bra betraktningsvinklar, hög kontrast och bra svärta. Det enda problemet är den låga ljusstyrkan i kombination med den mycket glansiga skärmen.
Vi hade också velat se en SSD, vilket hade ökat prestandan väsentligt. Lenovo erbjuder tyvärr bara en konventionell hårddisk. Det finns tillräckligt med lagringsutrymme med en kapacitet på 1 TB. En annan invändning är batteritiden på mindre än 3 timmar i vårt Wi-Fi-test, vilket får ses som en stor besvikelse.
Spelprestandan är också mindre bra. Spelentusiaster bör satsa på en dator med GTX-chip. Den mest kraftfulla grafikkretsen i en 2-i-1-enhet är för närvarande Nvidia GeForce 940M.
Yoga 500-14ISK kunde varit en utmärkt allroundmaskin om Lenovo hade använt ett större batteri och en SSD. En bra IPS-skärm, en dedikerad GPU och en snabb processor är inte allt.
Lenovo Yoga 500-14ISK
- 04/18/2016 v5.1 (old)
Sebastian Bade
Convertible - Vägt medel
