Test: Lenovo Yoga 510-15ISK 2-i-1 (sammanfattning)

Name: Lenovo Yoga 510-15ISK
Brand: Lenovo

Mörk och tråkig. Med en 15,6-tums 2-i-1 vill du gardera sig för alla användningsscenarier. Yoga 510 har tyvärr några begränsningar: Lenovo har använt en ljussvag skärm och grafikkortet är inte tillräckligt kraftfullt.

Sascha Mölck, ✓ Tanja Hinum, Published 07/10/2016 🇺🇸 🇩🇪 ...

AMD Convertible / 2-in-1 Skylake Touchscreen Windows

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

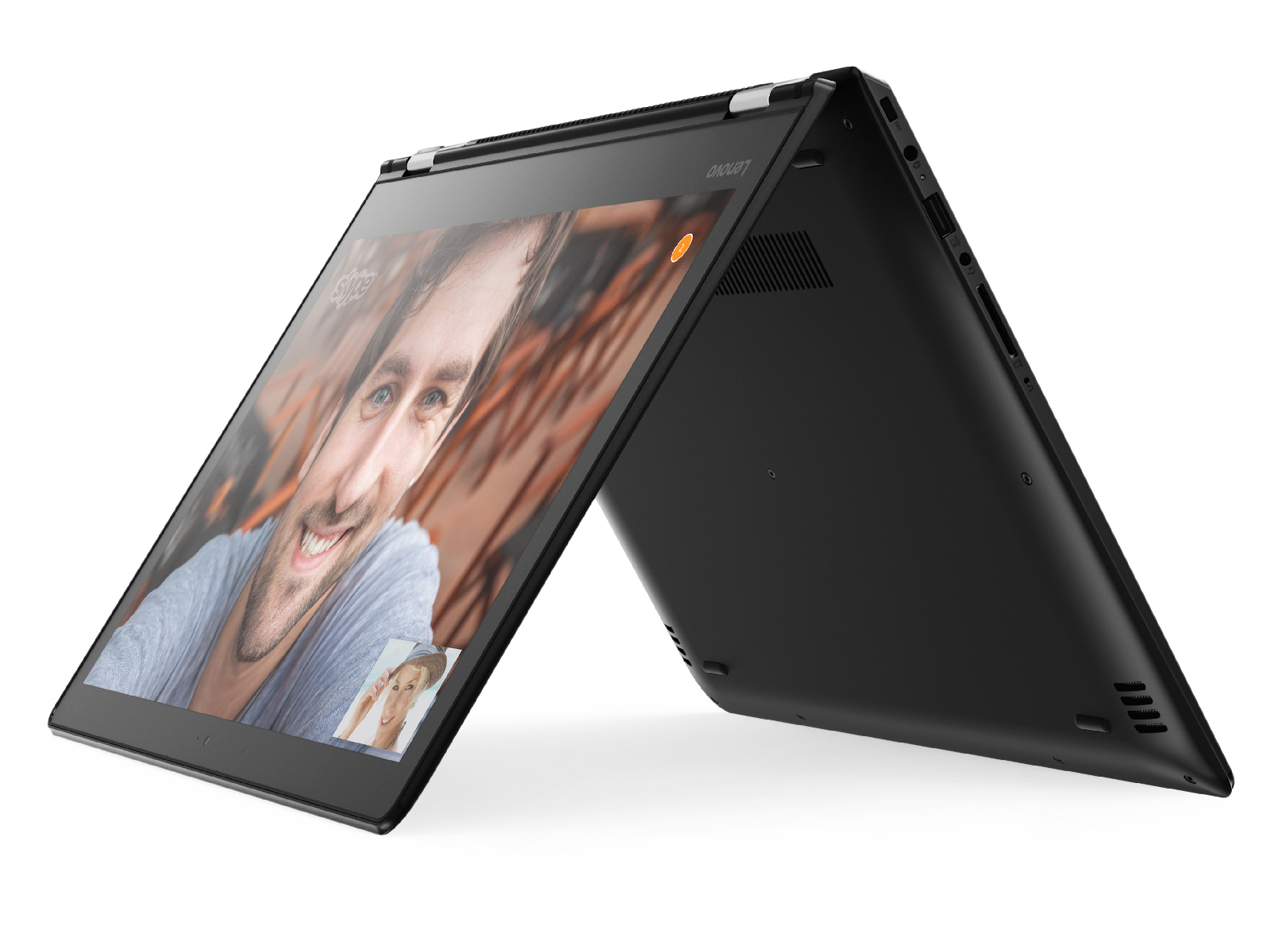

Lenovo Yoga 510-15ISK (Yoga 510 Serie)

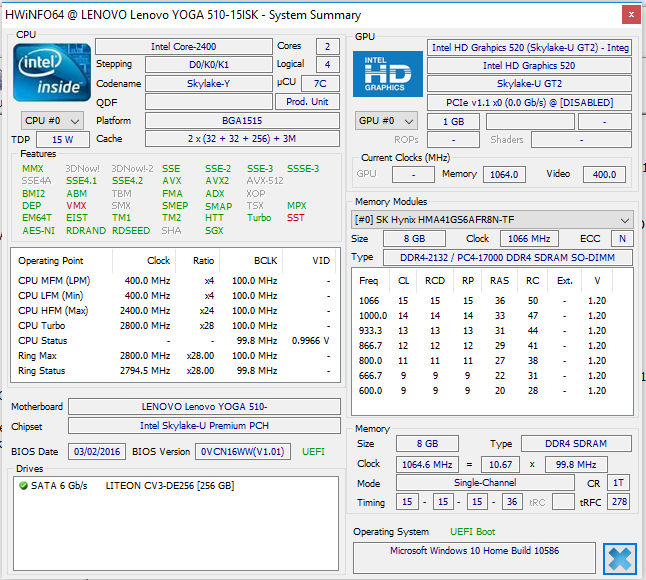

Processor

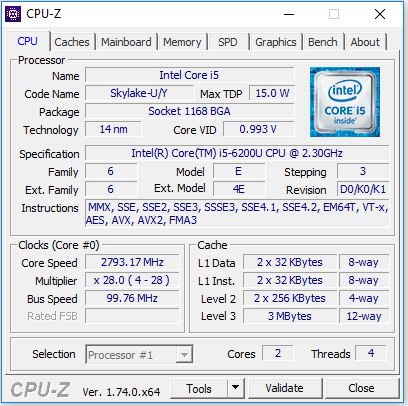

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake

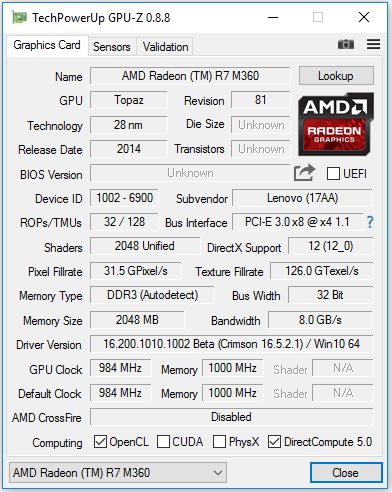

Grafikkort

AMD Radeon R7 M460 - 2048 MB VRAM, Kärna: 984 MHz, Minne: 1000 MHz, DDR3, 16.200.1010.1002 (Crimson 16.5.2.1), Enduro

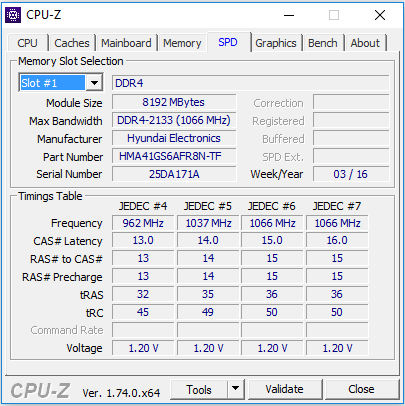

Minne

8 GB

, DDR4-2133, Single-Channel, en minnesplats

Skärm

15.60 tum 16:9, 1920 x 1080 pixlar 141 PPI, kapacitiv, BOE HF NV156FHM-N42, IPS, glansig: ja

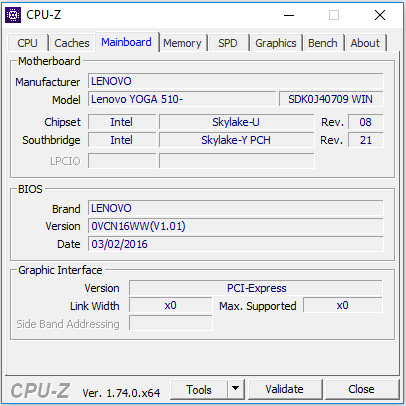

Moderkort

Intel Skylake-U Premium PCH

Hårddisk

Liteonit CV3-DE256, 256 GB

, 180 GB ledigt

Ljudkort

Realtek HD Audio

Anslutningar

1 USB 2.0, 2 USB 3.0, 1 HDMI, 1 Kensingtonlås, Ljudanslutningar: Headset, Kortläsare: SD, Brightness Sensor, Sensorer: Accelerometer, TPM 2.0

Nätverk

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Qualcomm Atheros QCA9377 Wireless Network Adapter (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1

Storlek

höjd x bredd x djup (i mm) 21.35 x 378 x 253

Batteri

35 Wh Litiumjon

Operativsystem

Microsoft Windows 10 Home 64 Bit

Camera

Webbkamera: HD-webbkamera

Övrigt

Högtalare: Stereo, Tangentbord: Chiclet, Tangentbordsbelysning: nej, Lenovo Photo Master, McAfee LiveSafe-Internet Security (test), MS Office, 24 Månader Garanti

Vikt

2.08 kg, Strömförsörjning: 231 g

Pris

8500 Euro

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

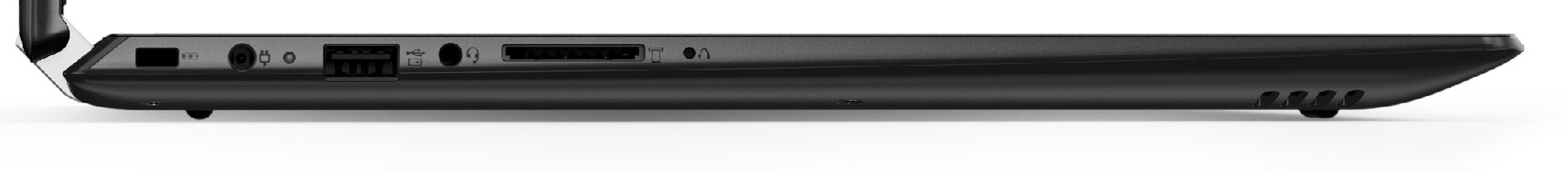

Left: slot for a cable lock, power, USB 2.0, combo audio, card reader, One-Key Recovery button

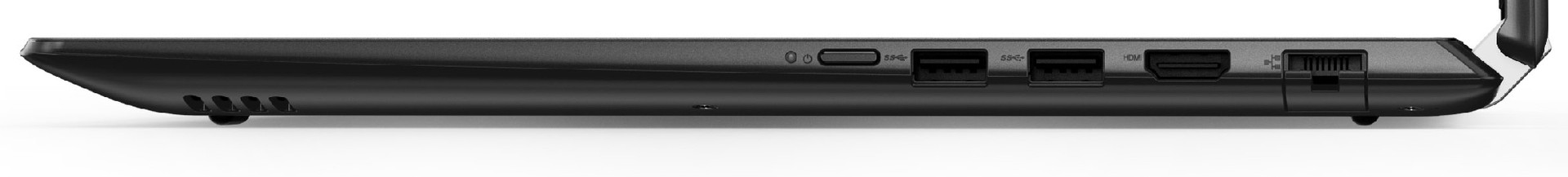

Right: power, 2x USB 3.0, HDMI, Gigabit-Ethernet


229 cd/m²	221 cd/m²	223 cd/m²
240 cd/m²	254 cd/m²	230 cd/m²
222 cd/m²	232 cd/m²	219 cd/m²

Distribution av ljusstyrkan

BOE HF NV156FHM-N42 tested with X-Rite i1Pro 2

Max: 254 cd/m² (Nits) Medel: 230 cd/m² Minimum: 3 cd/m²
Distribution av ljusstyrkan: 86 %
Mitt på batteriet: 256 cd/m²
Kontrast: 977:1 (Svärta: 0.26 cd/m²)

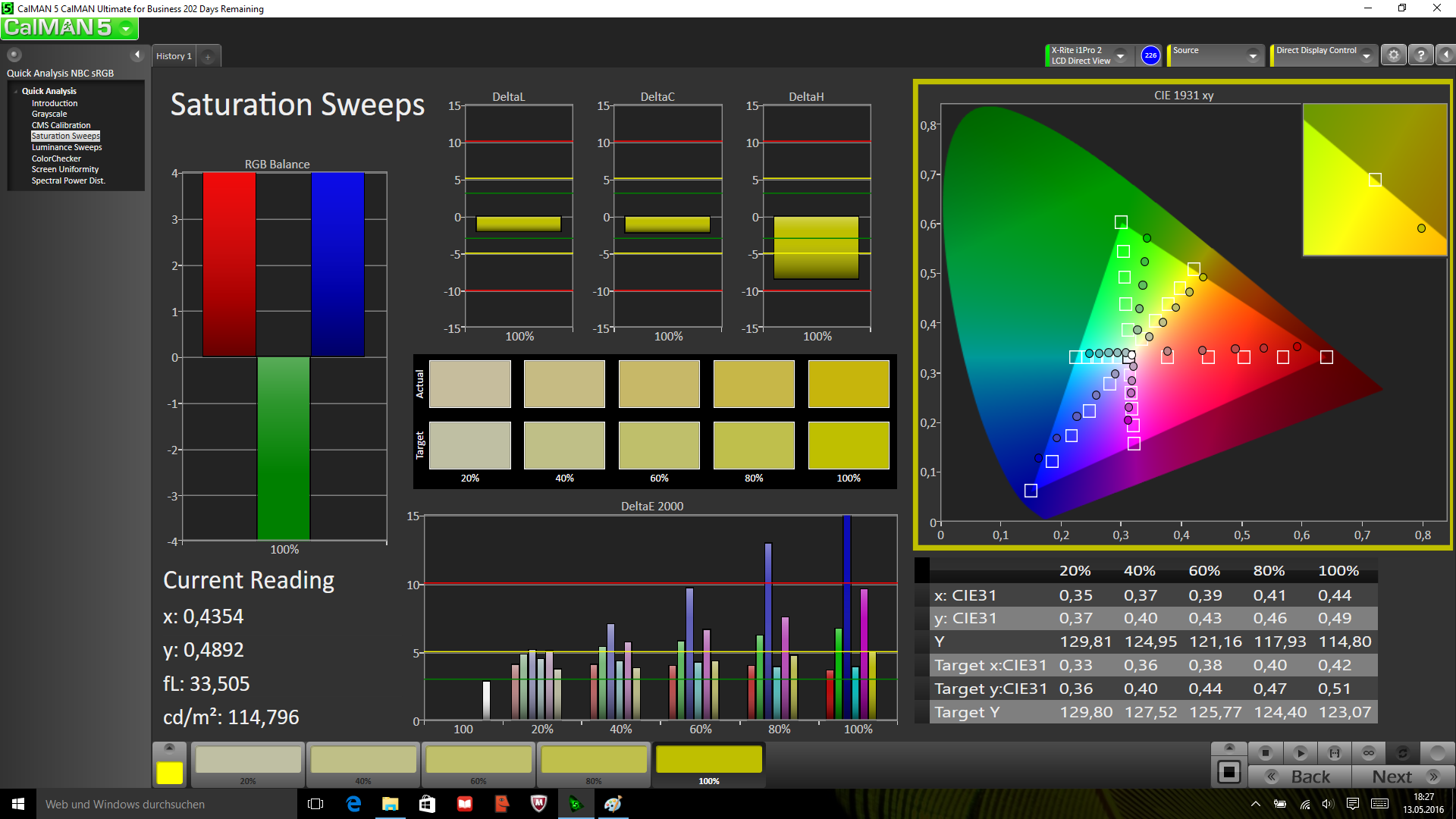

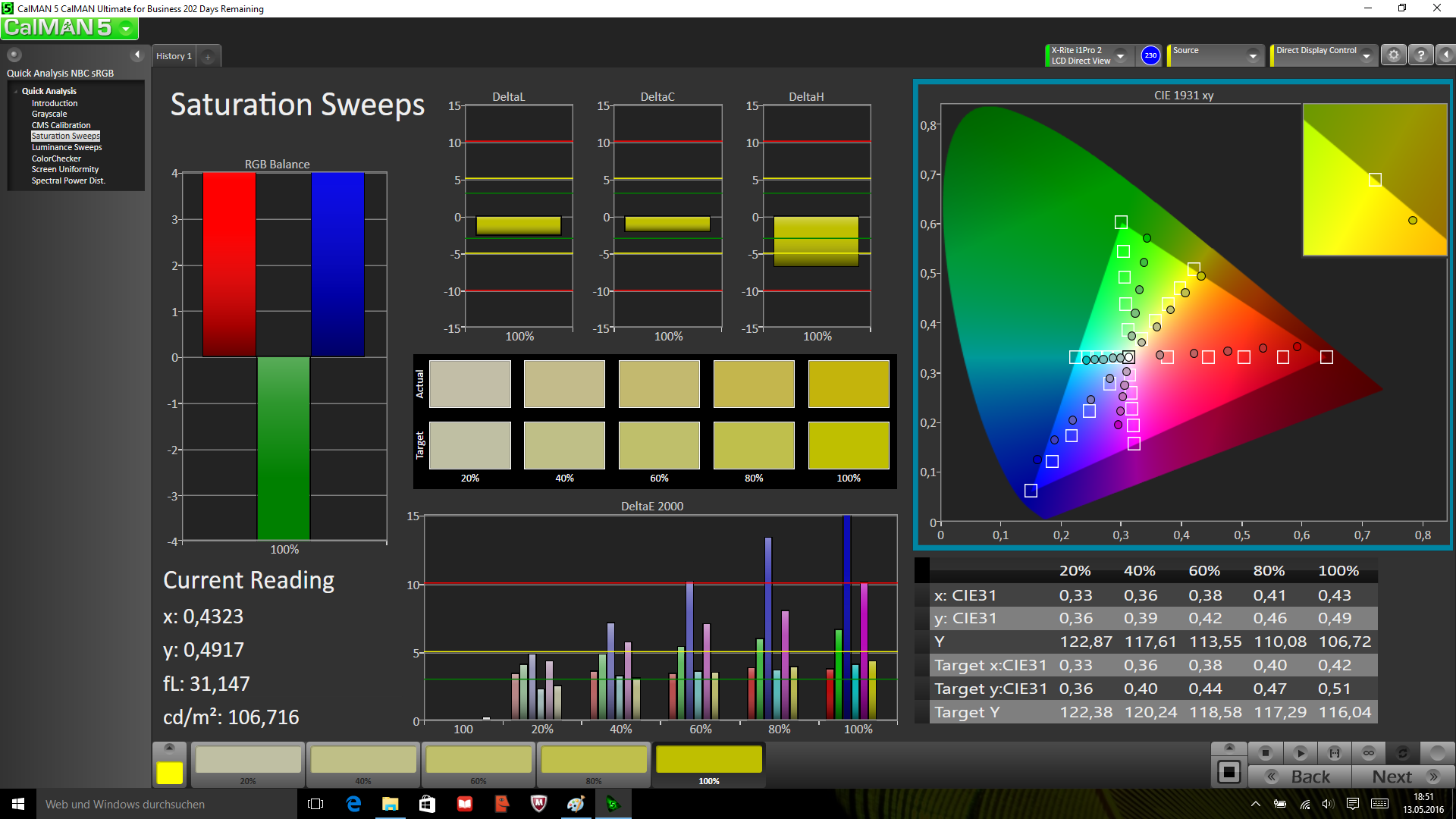

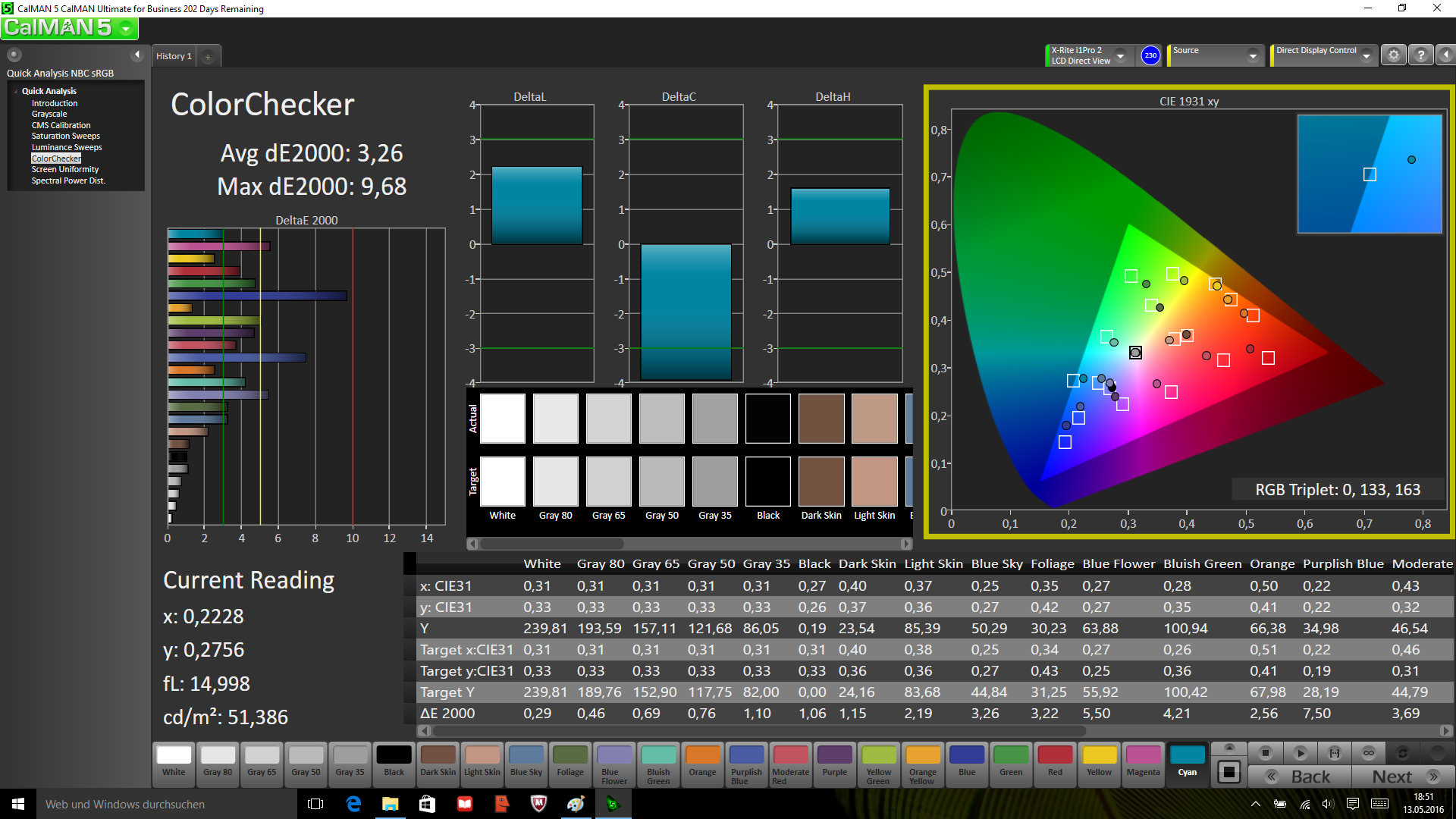

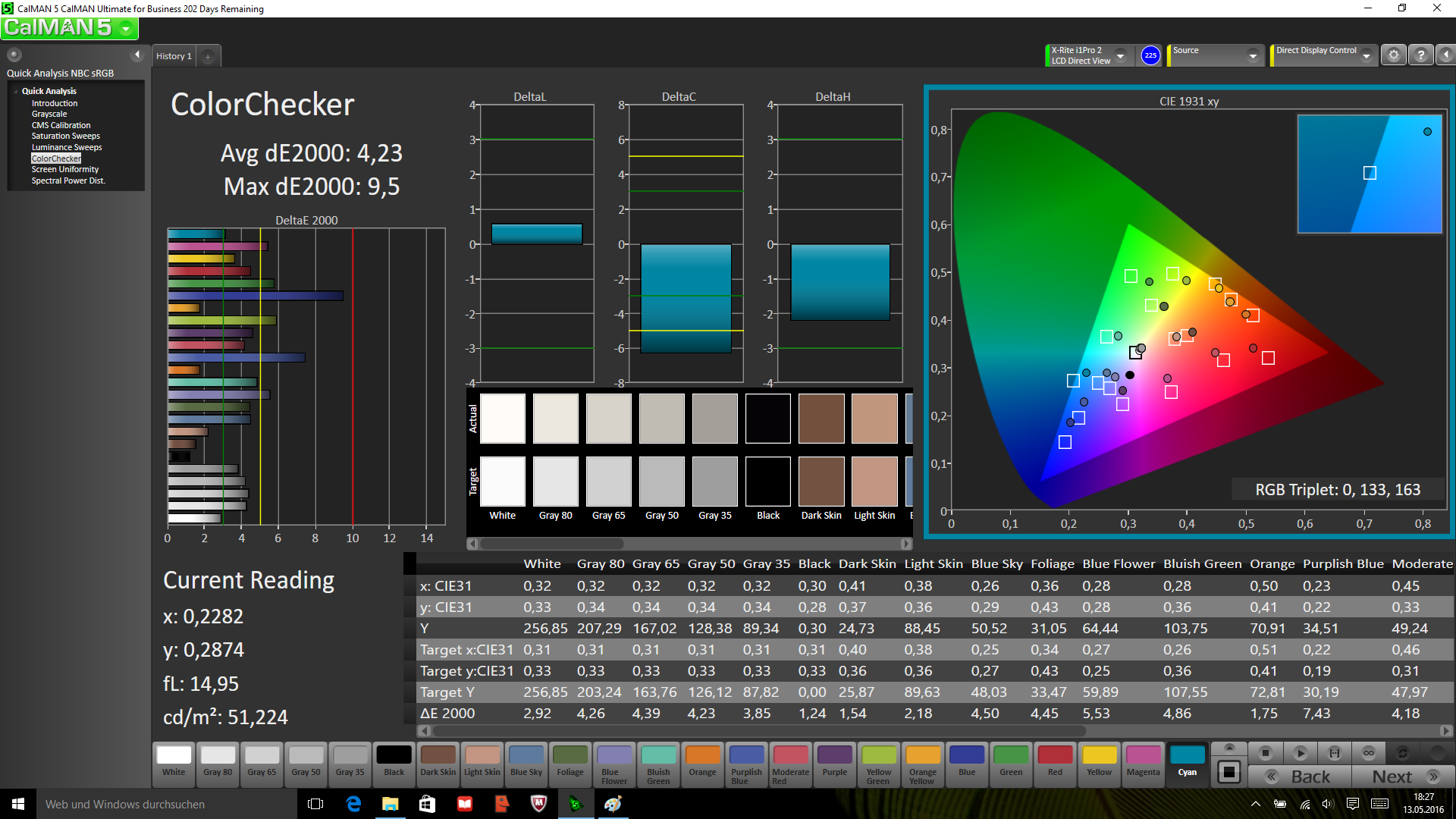

ΔE Color 4.23 | 0.5-29.43 Ø4.93

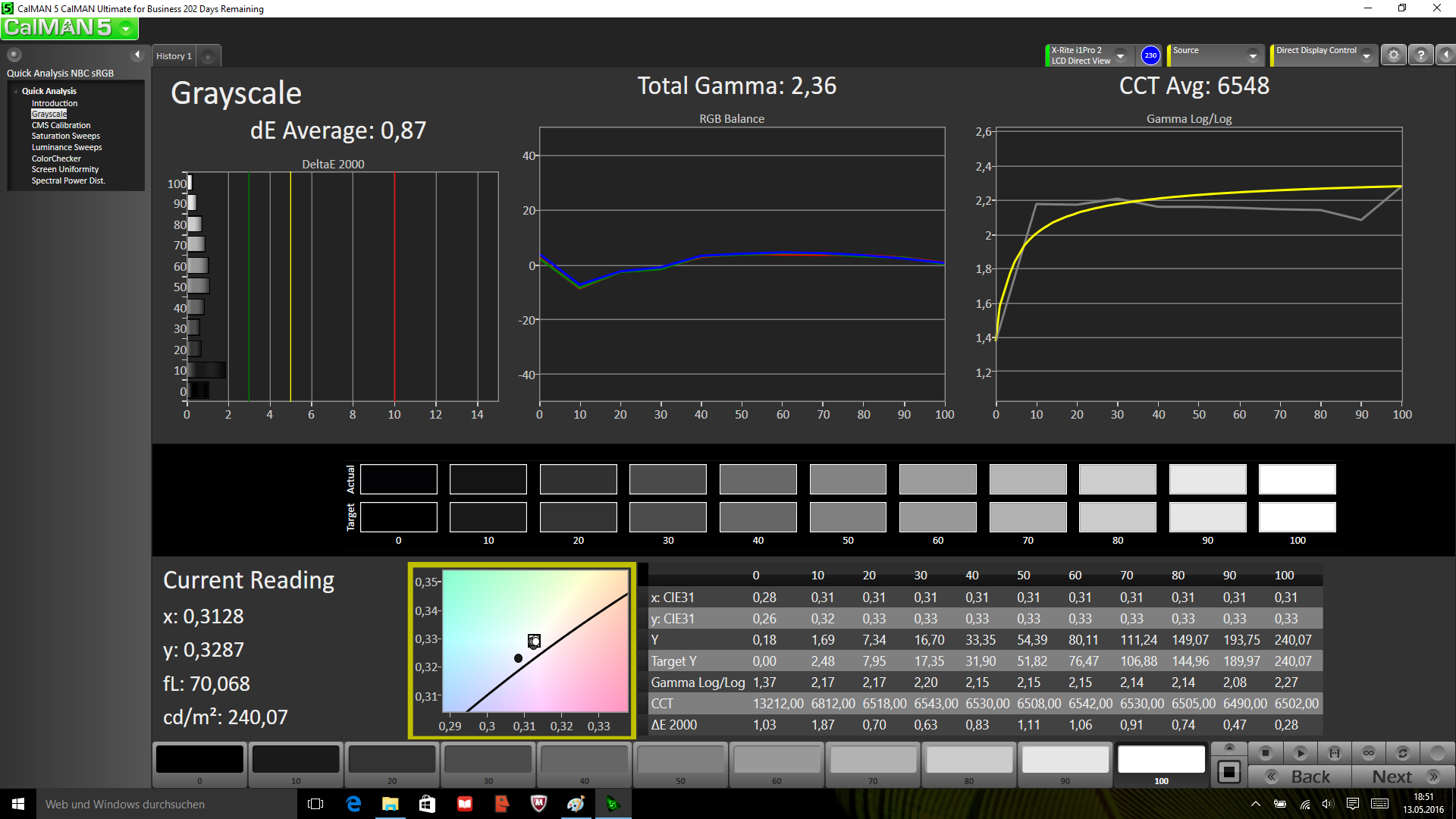

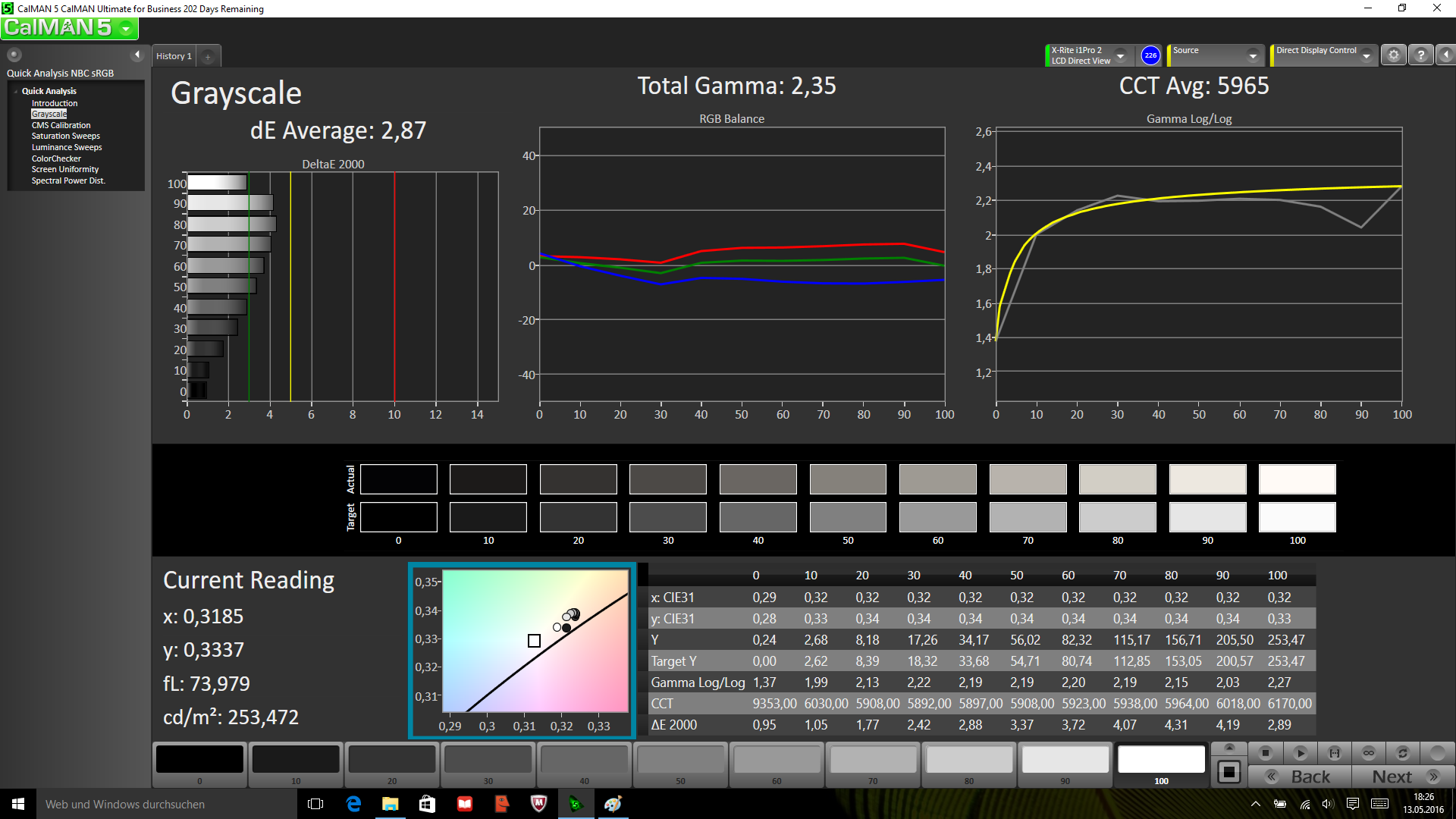

ΔE Greyscale 2.87 | 0.5-98 Ø5.2
63.48% sRGB (Argyll 1.6.3 3D)
40.35% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.99% AdobeRGB 1998 (Argyll 2.2.0 3D)
63.9% sRGB (Argyll 2.2.0 3D)
42.58% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35

Download ICC-fil (X-Rite i1Pro 2)

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

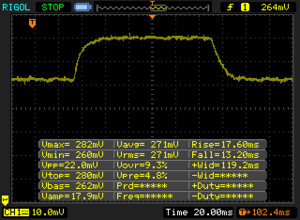

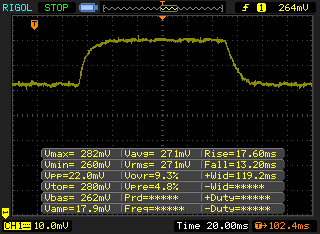

↔ Response Time Black to White
30.8 ms ... rise ↗ and fall ↘ combined	↗ 17.6 ms rise
30.8 ms ... rise ↗ and fall ↘ combined	↘ 13.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 81 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

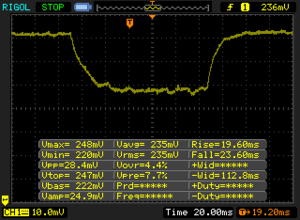

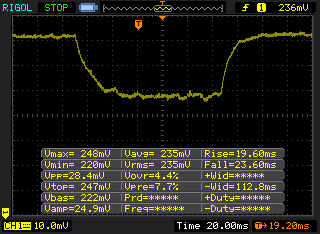

↔ Response Time 50% Grey to 80% Grey
43.2 ms ... rise ↗ and fall ↘ combined	↗ 19.6 ms rise
43.2 ms ... rise ↗ and fall ↘ combined	↘ 23.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 69 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Cinebench R10 Shading 32Bit

7408

Cinebench R10 Rendering Multiple CPUs 32Bit

9846

Cinebench R10 Rendering Single 32Bit

4399

Cinebench R11.5 OpenGL 64Bit

27.76 fps

Cinebench R11.5 CPU Multi 64Bit

3.23 Points

Cinebench R11.5 CPU Single 64Bit

1.34 Points

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

37.42 fps

Cinebench R15 CPU Multi 64Bit

289 Points

Cinebench R15 CPU Single 64Bit

114 Points

Hjälp

... jämför

Cinebench R15
CPU Multi 64Bit
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	292 Points +1%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	289 Points
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	259 Points -10%
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	257 Points -11%
CPU Single 64Bit
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	116 Points +2%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	114 Points
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	109 Points -4%
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	108 Points -5%

Cinebench R11.5
CPU Multi 64Bit
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	3.23 Points
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	3.2 Points -1%
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	2.77 Points -14%
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	2.75 Points -15%
CPU Single 64Bit
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	1.34 Points
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	1.3 Points -3%
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	1.24 Points -7%
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	1.08 Points -19%

Cinebench R10
Rendering Multiple CPUs 32Bit
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	9985 Points +1%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	9846 Points
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	6850 Points -30%
Rendering Single 32Bit
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	5449 Points +24%
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	4405 Points 0%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	4399 Points
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	4159 Points -5%

Geekbench 3
32 Bit Single-Core Score
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	2753 Points +2%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	2699 Points
32 Bit Multi-Core Score
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	5860 Points +2%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	5733 Points

Sunspider - 1.0 Total Score
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	121 ms * -13%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	106.8 ms *
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	105.5 ms * +1%
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	91.7 ms * +14%

JetStream 1.1 - Total Score
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	196.9 Points
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	192.1 Points -2%

Mozilla Kraken 1.1 - Total
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	2633 ms * -114%
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	1414 ms * -15%
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	1265 ms * -3%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	1232 ms *

Octane V2 - Total Score
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	29126 Points
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	28301 Points -3%
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	12225 Points -58%

Peacekeeper - ---
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	2718 Points 0%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	2713 Points

* ... smaller is better

PCMark 7 Score		5028 poäng
PCMark 8 Home Score Accelerated v2		3651 poäng
PCMark 8 Creative Score Accelerated v2		4380 poäng
PCMark 8 Work Score Accelerated v2		4555 poäng
Hjälp

... jämför

PCMark 8 | PCMark 7

PCMark 8 - Home Score Accelerated v2
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	3651 Points
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	3200 Points -12%
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	2848 Points -22%
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	2793 Points -24%

PCMark 7 - Score
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	5028 Points
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	4680 Points -7%
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	2558 Points -49%

CrystalDiskMark 3.0

AS SSD

Liteonit CV3-DE256

Sequential Read: 487 MB/s

Sequential Write: 450.7 MB/s

512K Read: 384.5 MB/s

512K Write: 356.3 MB/s

4K Read: 27.05 MB/s

4K Write: 63.7 MB/s

4K QD32 Read: 281.5 MB/s

4K QD32 Write: 232 MB/s

3DMark 06 Standard Score		8587 poäng
3DMark Vantage P Result		5304 poäng
3DMark 11 Performance		2246 poäng
3DMark Ice Storm Standard Score		42485 poäng
3DMark Cloud Gate Standard Score		4755 poäng
3DMark Fire Strike Score		1054 poäng
3DMark Fire Strike Extreme Score		513 poäng
Hjälp

... jämför

3DMark 11 | 3DMark | 3DMark 06

3DMark 11 - 1280x720 Performance
Lenovo Ideapad 500-15ISK 80NT005WGE Radeon R7 M360, 6500U, Samsung PM871 MZYLN256HCHP	2301 Points +2%
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	2270 Points +1%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	2246 Points
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	1174 Points -48%

3DMark
1280x720 Ice Storm Standard Score
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	48190 Points +13%
Lenovo Ideapad 500-15ISK 80NT005WGE Radeon R7 M360, 6500U, Samsung PM871 MZYLN256HCHP	47792 Points +12%
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	42527 Points 0%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	42485 Points
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	37883 Points -11%
1280x720 Cloud Gate Standard Score
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	6077 Points +28%
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	5932 Points +25%
Lenovo Ideapad 500-15ISK 80NT005WGE Radeon R7 M360, 6500U, Samsung PM871 MZYLN256HCHP	5001 Points +5%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	4755 Points
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	4561 Points -4%
1280x720 Sky Diver Score
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	4962 Points +19%
Lenovo Ideapad 500-15ISK 80NT005WGE Radeon R7 M360, 6500U, Samsung PM871 MZYLN256HCHP	4236 Points +1%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	4181 Points
1920x1080 Fire Strike Score
Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	1384 Points +31%
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	1294 Points +23%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	1054 Points
Lenovo Ideapad 500-15ISK 80NT005WGE Radeon R7 M360, 6500U, Samsung PM871 MZYLN256HCHP	1024 Points -3%
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	618 Points -41%

3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	8587 Points
Lenovo Ideapad 500-15ISK 80NT005WGE Radeon R7 M360, 6500U, Samsung PM871 MZYLN256HCHP	8322 Points -3%

	låg	med.	hög	ultra
Diablo III (2012)	92.2	60.5	50.7	29.9
Tomb Raider (2013)	80	39.9	30	14.7
BioShock Infinite (2013)	73.1	38.9	31.7	11
Metro: Last Light (2013)	35.4	26.2	16	7.7
Battlefield 4 (2013)	59.4	38	23.9	7.8
GRID: Autosport (2014)	125.3	56.6	26	13.6
Dirt Rally (2015)	108.7	36.7	17.9	12.5
Batman: Arkham Knight (2015)	20	17	9
World of Warships (2015)	79.6	49.9	21.2	15
FIFA 16 (2015)	88.1		51.8	24.5
Anno 2205 (2015)	31.4	16.5	7	3.7
Fallout 4 (2015)	27	15.8	8.2	6.5
Star Wars Battlefront (2015)	35.5	23	10.9	9.1
Rainbow Six Siege (2015)	51.9	31.8	13.1	10.6
Just Cause 3 (2015)	32.1	25.2	11.9	10.1
Rise of the Tomb Raider (2016)	19.5	12.2	6.8
XCOM 2 (2016)	22.5	7.8	5.2
Far Cry Primal (2016)	22	10	8	7
The Division (2016)	29.9	16.3	7.2

BioShock Infinite | World of Warships | Star Wars Battlefront | FIFA 16

BioShock Infinite - 1280x720 Very Low Preset
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	73.1 fps
Lenovo Ideapad 500-15ISK 80NT005WGE Radeon R7 M360, 6500U, Samsung PM871 MZYLN256HCHP	70.8 fps -3%
Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012	29.42 fps -60%

World of Warships - 1366x768 Low Preset AF:Trilinear
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	102.6 fps +29%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	79.6 fps
Lenovo Ideapad 500-15ISK 80NT005WGE Radeon R7 M360, 6500U, Samsung PM871 MZYLN256HCHP	43.6 fps -45%

Star Wars Battlefront - 1024x768 Low Preset
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	46.2 fps +30%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	35.5 fps
Lenovo Ideapad 500-15ISK 80NT005WGE Radeon R7 M360, 6500U, Samsung PM871 MZYLN256HCHP	34.2 fps -4%

FIFA 16 - 1366x768 High Preset AA:2x MS
HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	57.8 fps +12%
Lenovo Ideapad 500-15ISK 80NT005WGE Radeon R7 M360, 6500U, Samsung PM871 MZYLN256HCHP	54.1 fps +4%
Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	51.8 fps

Ljudnivå

Låg belastning		29 / 29 / 29 dB(A)
Hög belastning		35.9 / 41 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: ECM8000 + Voltcraft SL-451 (15 cm avstånd) environment noise: 29 dB(A)

Hög belastning

Låg belastning


27.9 °C	42.9 °C	40.9 °C
26.9 °C	36.5 °C	36.5 °C
25.3 °C	27.6 °C	31 °C

Max: 42.9 °C
Medel: 32.8 °C


39.1 °C	45.4 °C	28.6 °C
41.5 °C	41.2 °C	27.1 °C
33.4 °C	31.4 °C	27.3 °C

Max: 45.4 °C
Medel: 35 °C

Strömförsörjning (max.) 42.1 °C | Rumstemperatur 22.8 °C | Fluke 62 Max

(±) The average temperature for the upper side under maximal load is 32.8 °C / 91 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.9 °C / 109 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 45.4 °C / 114 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.5 °C / 83 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-2.9 °C / -5.2 F).

Strömförbrukning

Av/Standby	0.24 / 0.45 Watt
Låg belastning	4 / 7.5 / 8.1 Watt
Hög belastning	40.8 / 57.3 Watt


Förklaring: min: , med: , max: Metrahit Energy

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		12tim 10min
WiFi Websurfing (Edge 25.10586.0.0)		5tim 35min
Big Buck Bunny H.264 1080p		5tim 37min
Hög belastning (maximal ljusstyrka)		1tim 40min

	Lenovo Yoga 510-15ISK Radeon R7 M460, 6200U, Liteonit CV3-DE256	Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0	HP Envy 15-w103ng x360 GeForce 930M, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP	Dell Inspiron 15 7558 HD Graphics 5500, 5200U, Sandisk X300 SD7SB6S-256G-1012
Battery Runtime		-28%	19%	10%
Reader / Idle	730	467 -36%		885 21%
H.264	337
WiFi v1.3	335	153 -54%	398 19%	294 -12%
Load	100	107 7%		120 20%

För

+ IPS-skärm

+ Full HD-upplösning

+ snabb SSD

+ vanligtvis tyst

Emot

- mörk skärm

- otillräcklig GPU

- bara en minnesplats

- medelmåttig batteritid

- ingen underhållspanel

- ej bakbelyst tangentbord

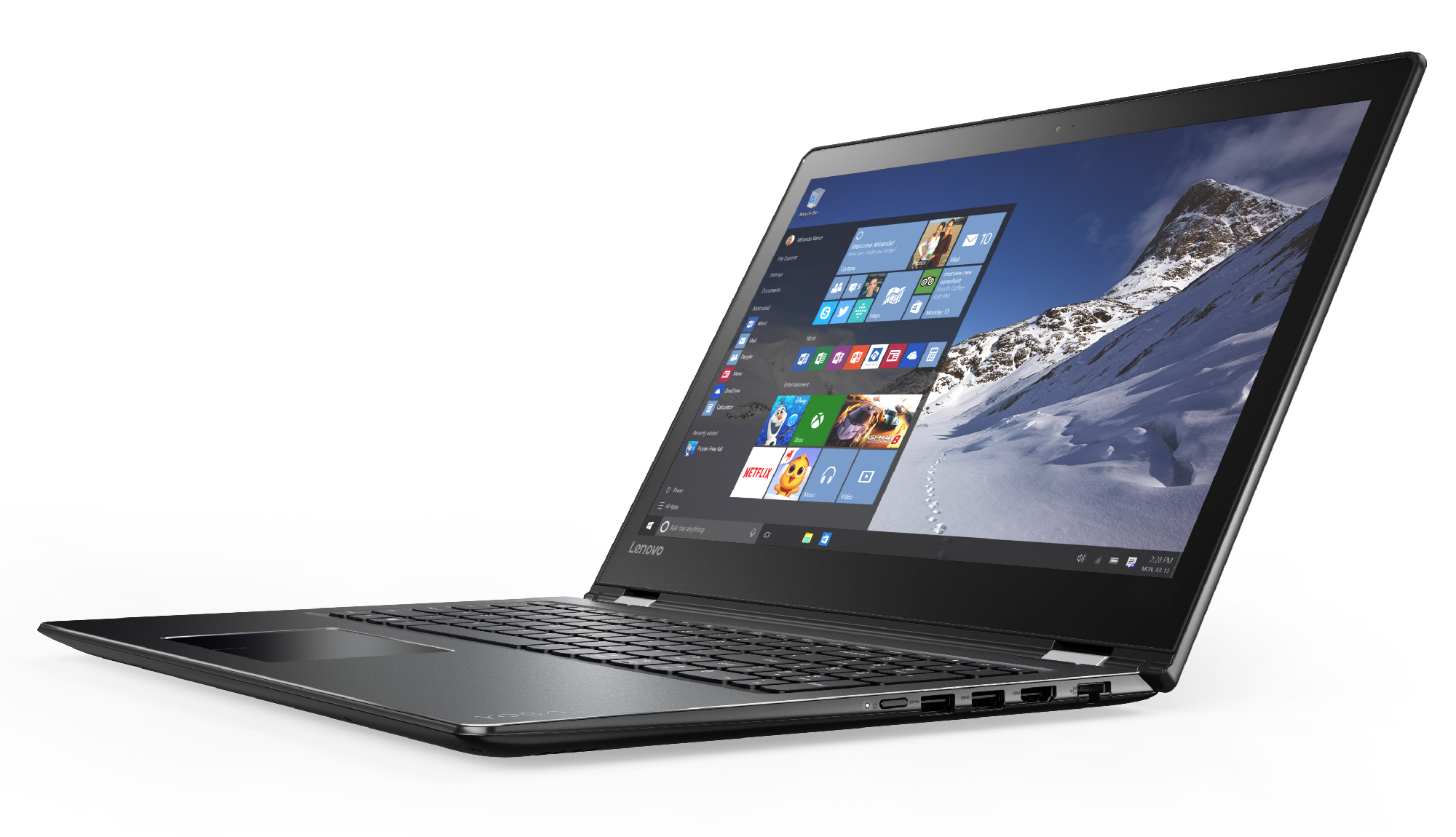

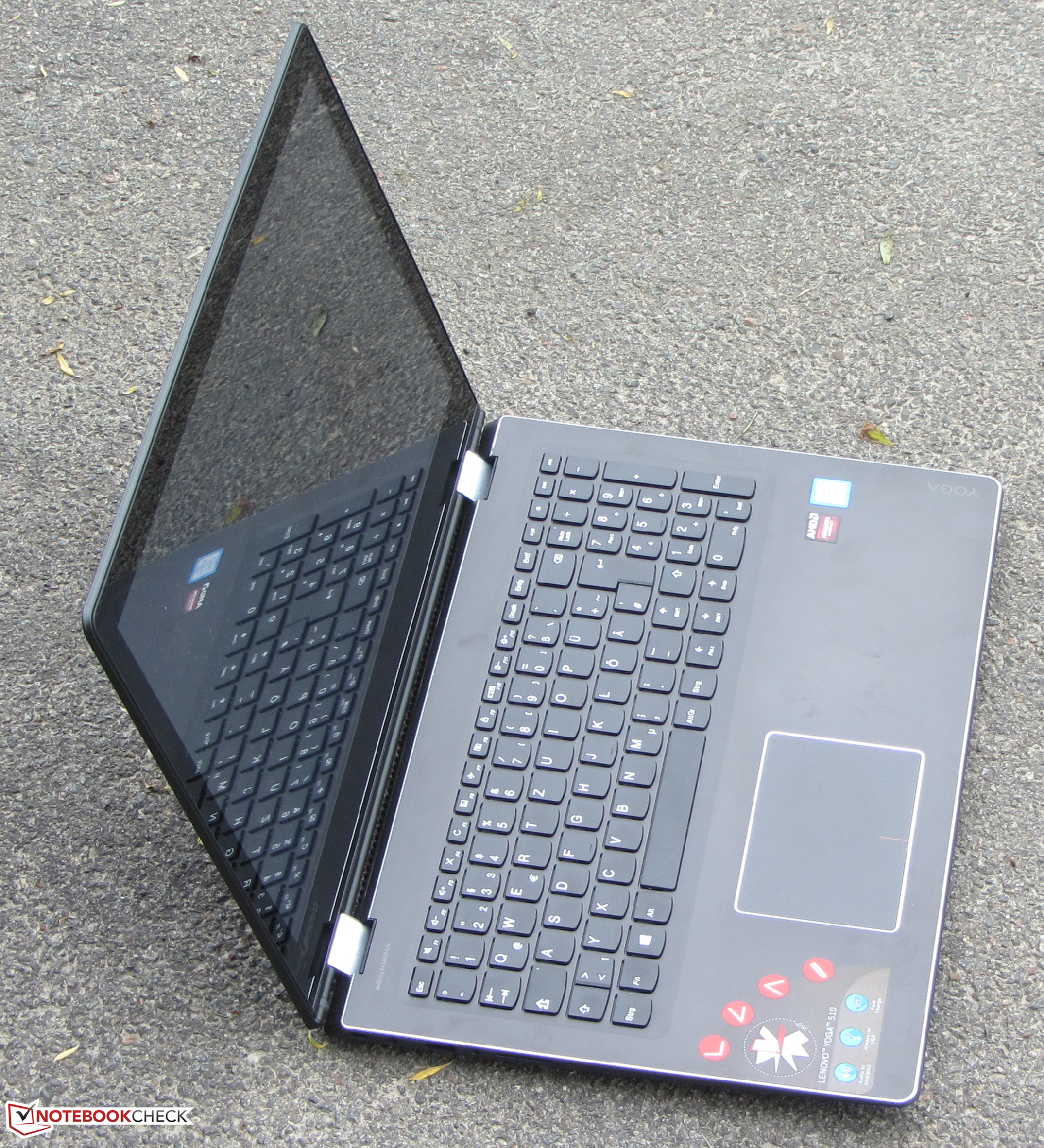

In review: Lenovo Yoga 510-15ISK. Test model courtesy of Campuspoint.de

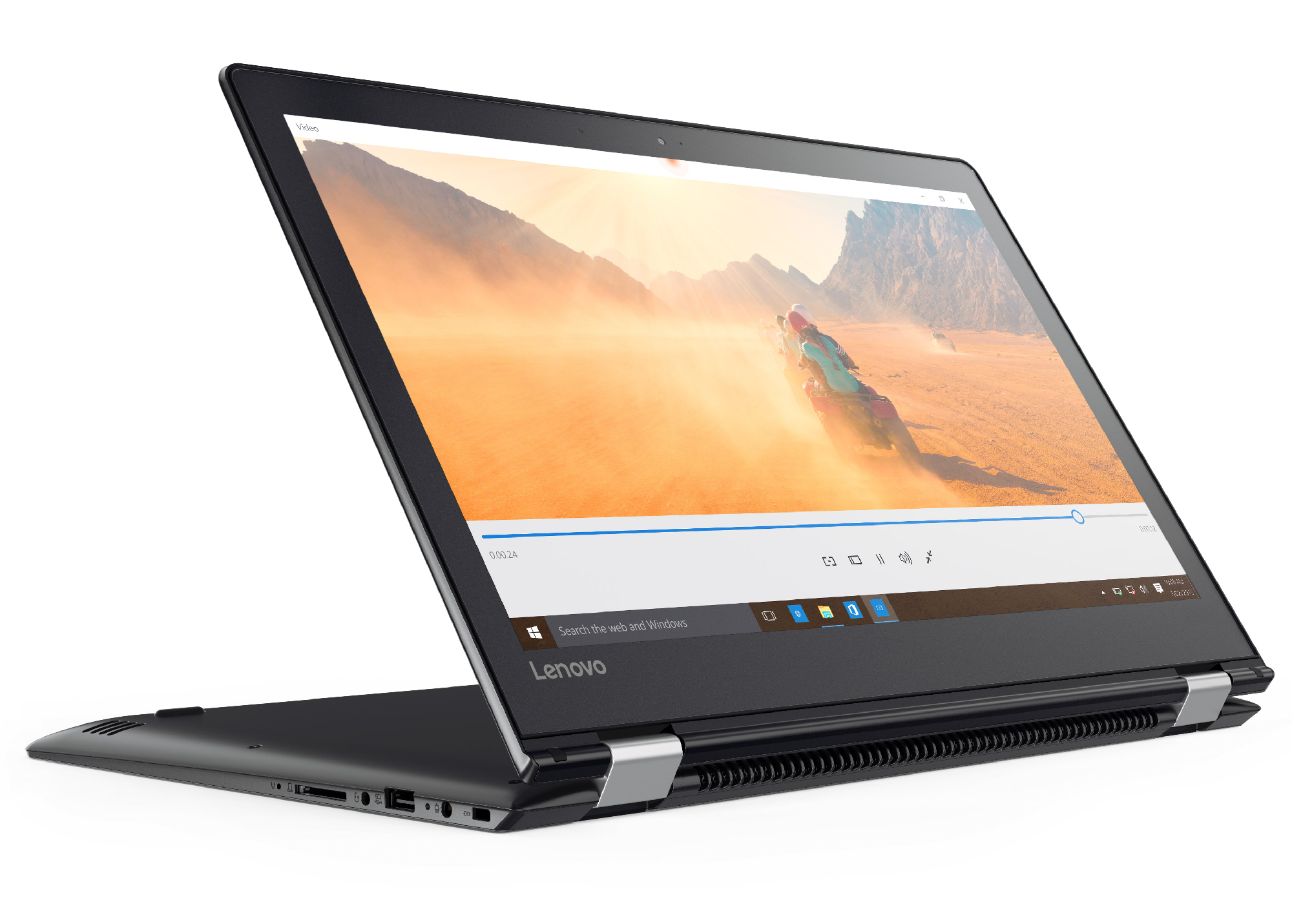

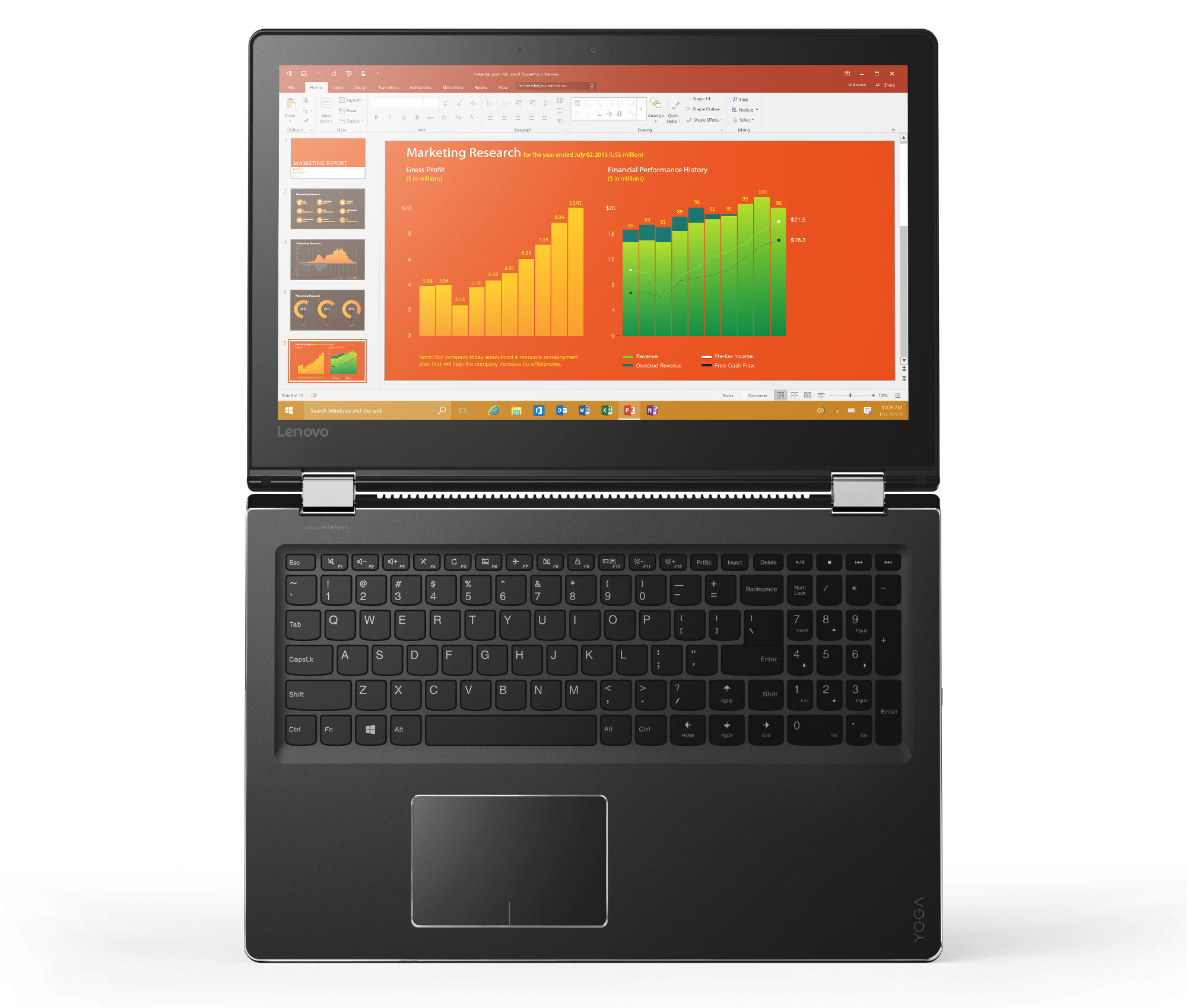

Lenovos Yoga 510-15ISK är en 15,6-tums 2-i-1. Den inbyggda Core i5-processorn bör vara tillräcklig för de flesta användare och datorns Radeon-GPU klarar vissa spel, men är inte tillräckligt kraftfull med tanke på priset. Jämförbara konkurrenter är ofta utrustade med det mycket snabbare GeForce 940M.

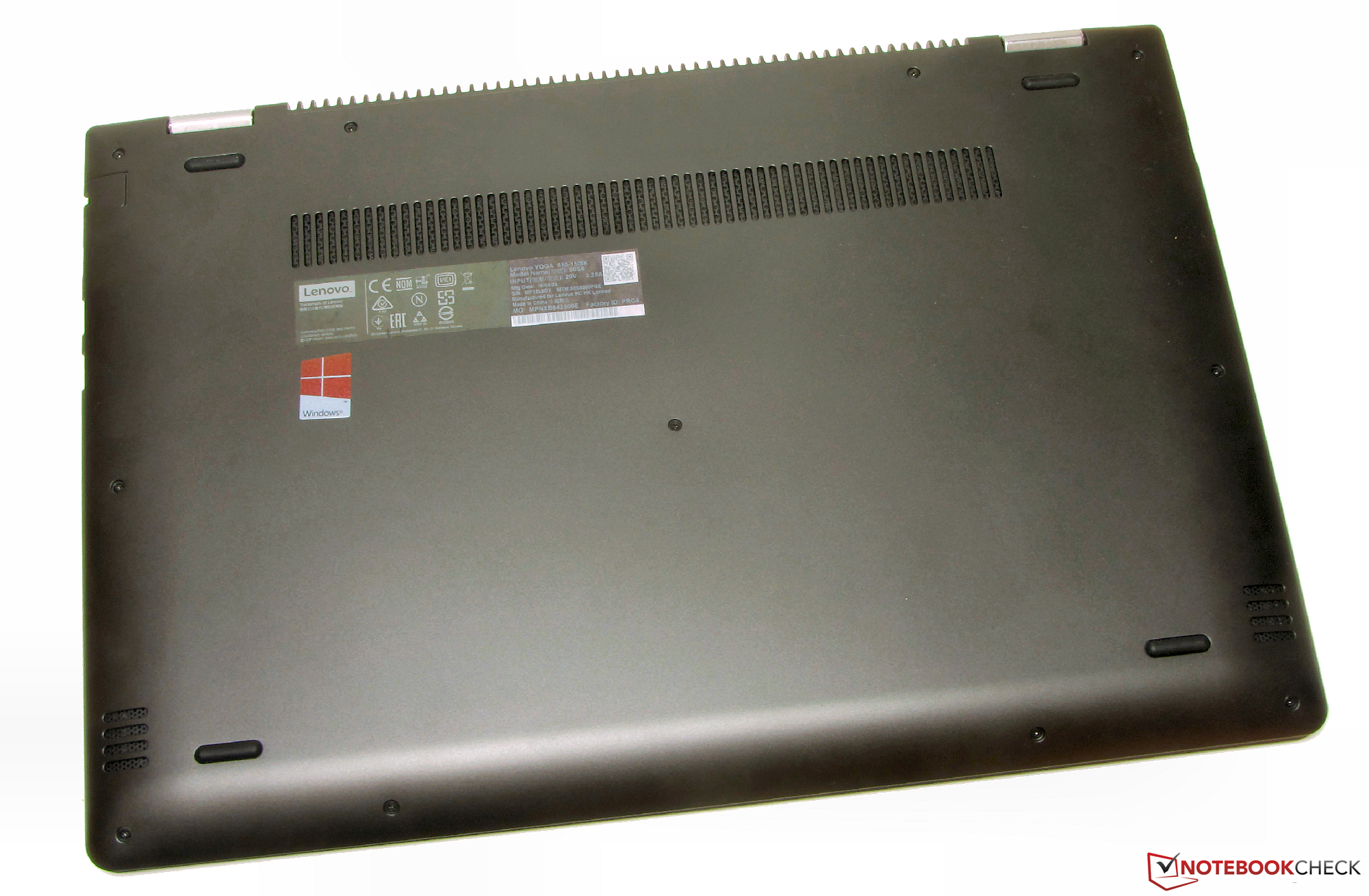

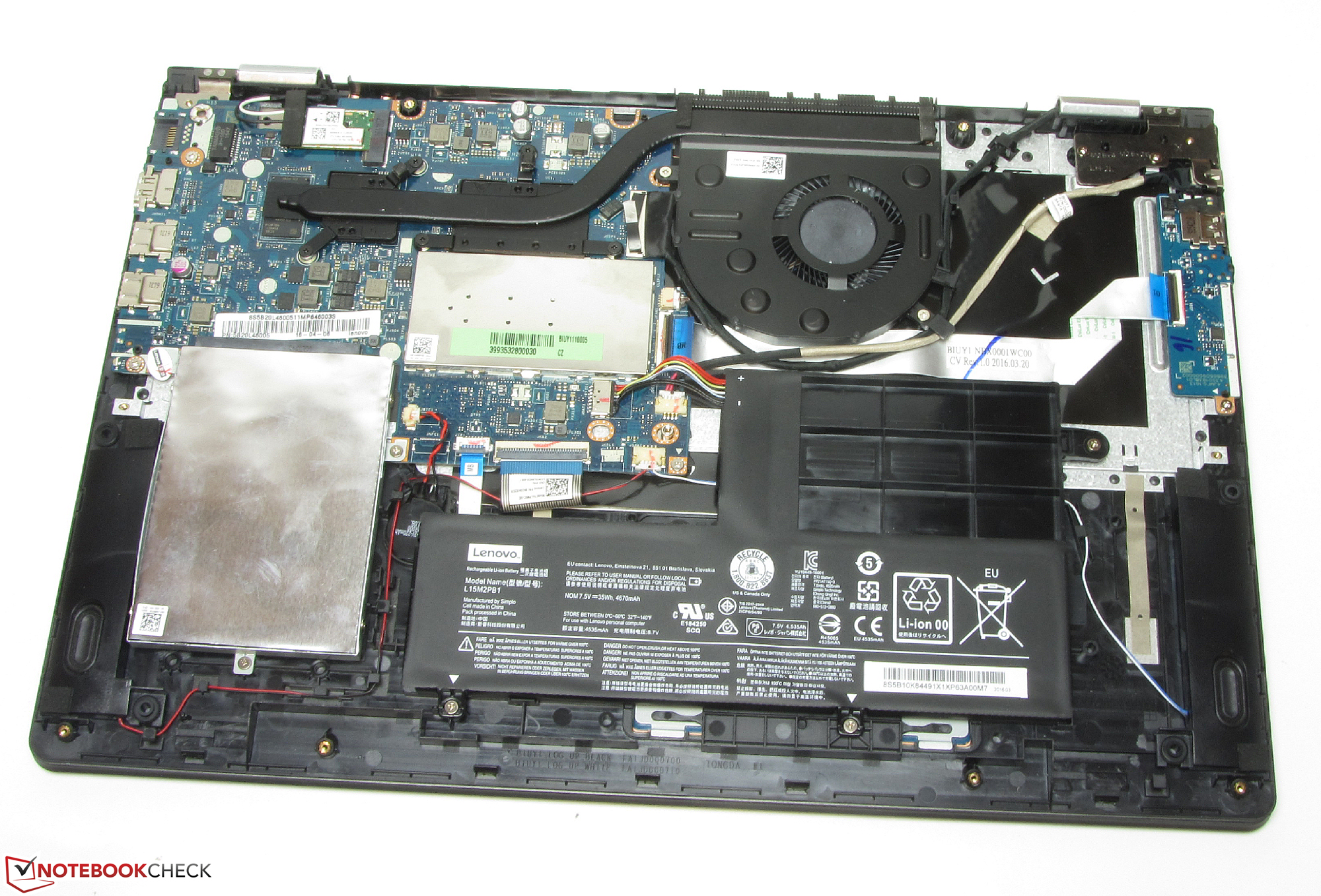

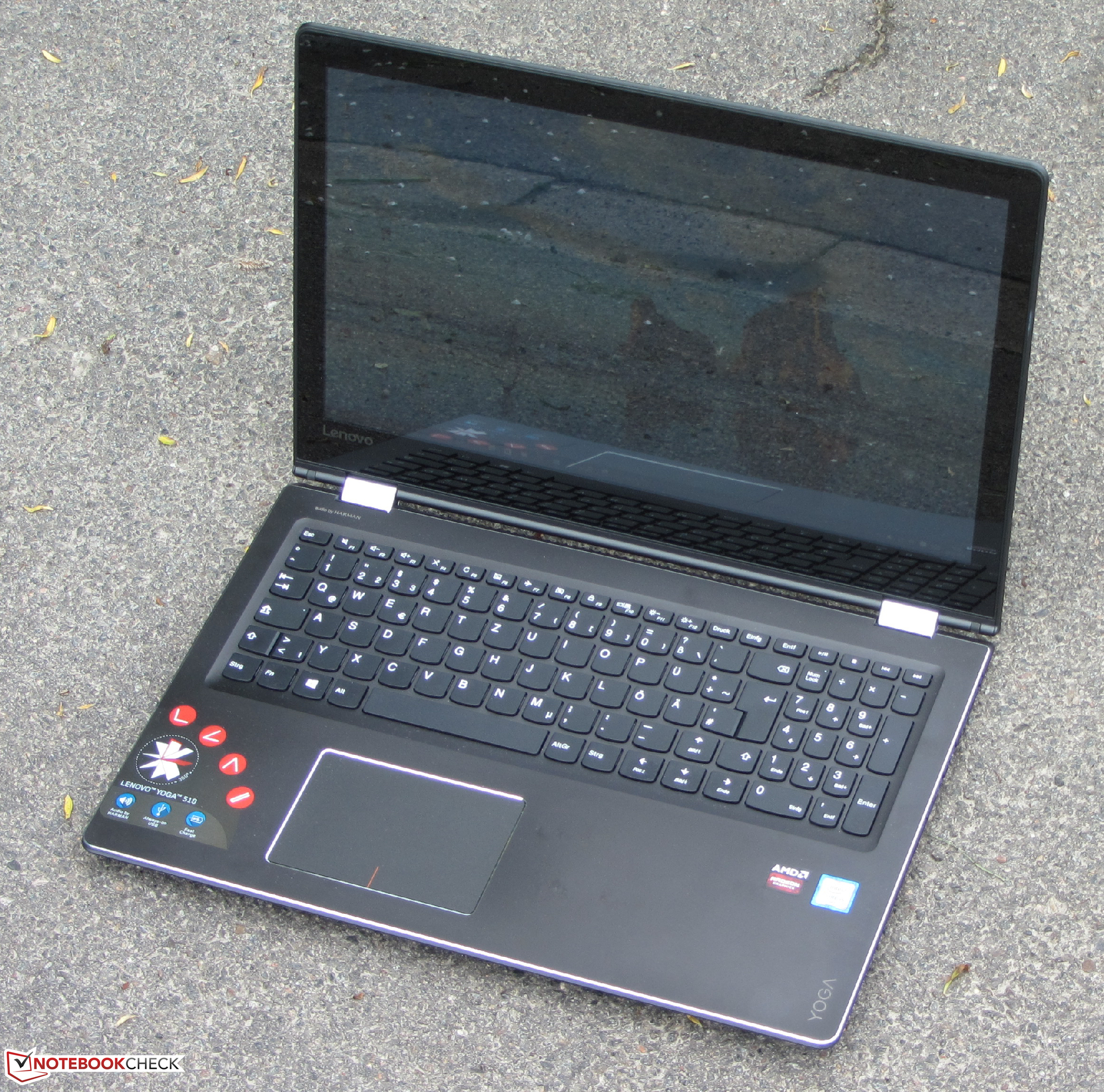

Datorn är oftast tyst och blir knappt varm under vanlig användning. Det bör vara möjligt att byta ut SSD:n, men det finns ingen servicelucka så du måste ta bort bottenpanelen. På det stora hela är tangentbordet bra, men vi saknar bakgrundsbelysning. Batteritiden får godkänt.

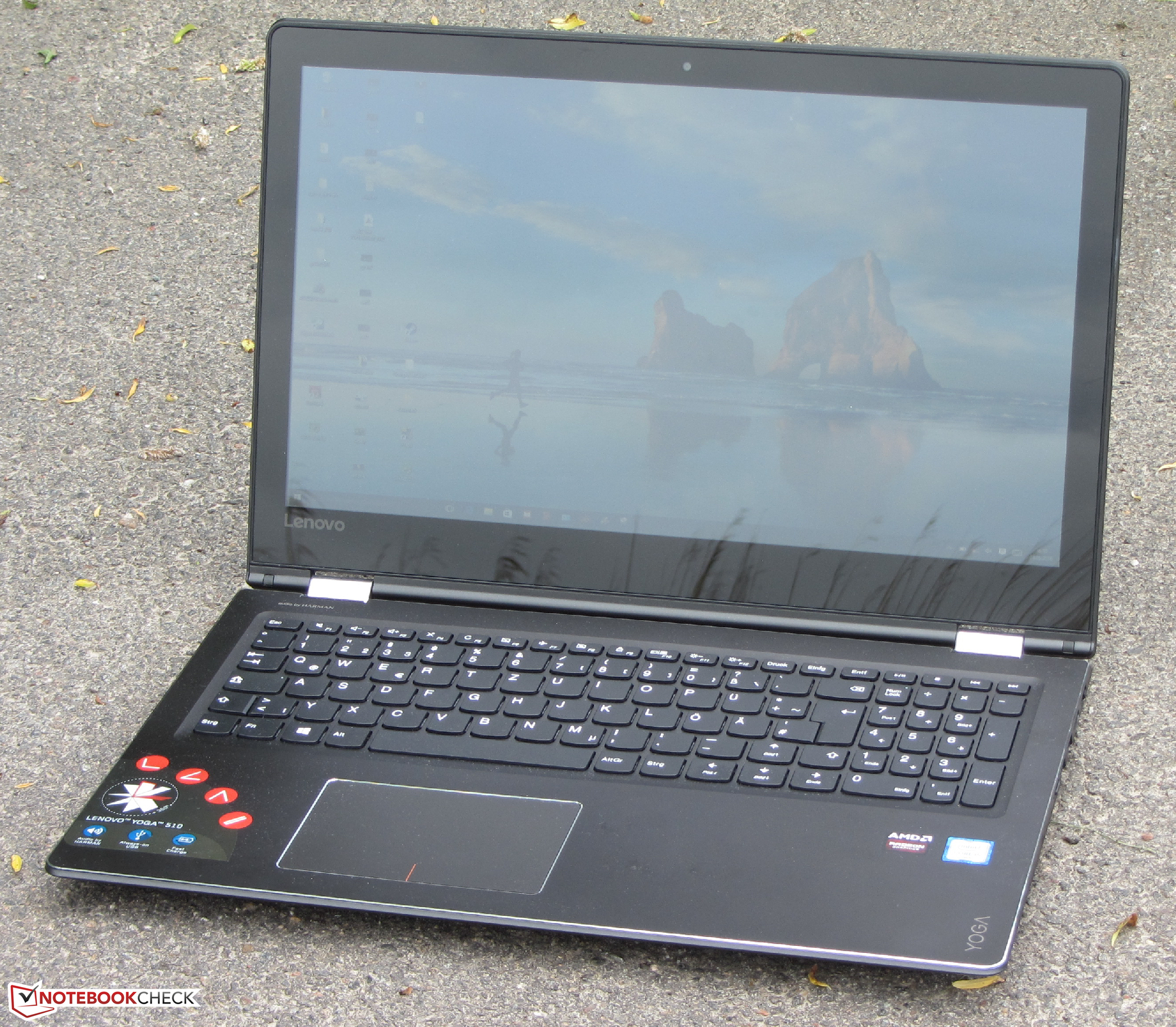

Tyvärr är bildskärmens ljusstyrka en svag punkt; vi förväntar oss minst 300 cd/m² från en 2-i-1 i den här prisklassen. Annars är skärmen bra vad gäller betraktningsvinklar, kontrast och frånvaro av PWM-flimmer.

Lenovo Yoga 510-15ISK - 2016-05-27 05/27/2016 v5.1 ^(old)
Sascha Mölck

Design

79 / 98 → 81%

Tangentbord

74%

Mus

82%

Anslutningar

54 / 80 → 68%

Vikt

62 / 35-78 → 63%

Batteri

84%

Skärm

82%

Spelprestanda

59 / 68 → 87%

Programprestanda

83 / 87 → 95%

Temperatur

90%

Ljudnivå

93%

Audio

40 / 91 → 44%

Camera

40 / 85 → 47%

Medel

71%

77%

Convertible - Vägt medel

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1692 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo Yoga 510-15ISK 2-i-1 (sammanfattning)

Sascha Mölck, 2016-07-10 (Update: 2016-07-10)
