Test: Lenovo Z51-70 (Radeon R9 M375) (sammanfattning)

Name: Lenovo Z51-70
Brand: Lenovo

Blandade känslor. Lenovos nykomling vill kvala in i allround-divisionen med en mellanklass-GPU, men det är sämre ställt med bild och ljud. Tangentbordet är inte heller i toppklass, även om många andra aspekter är riktigt bra.

Sven Kloevekorn, ✓ Stefanie Voigt, Published 10/21/2015 🇺🇸 🇩🇪 ...

Broadwell AMD Laptop / Notebook Windows

Test device courtesy of cyberport.de

Download your licensed rating image as PNG / SVG

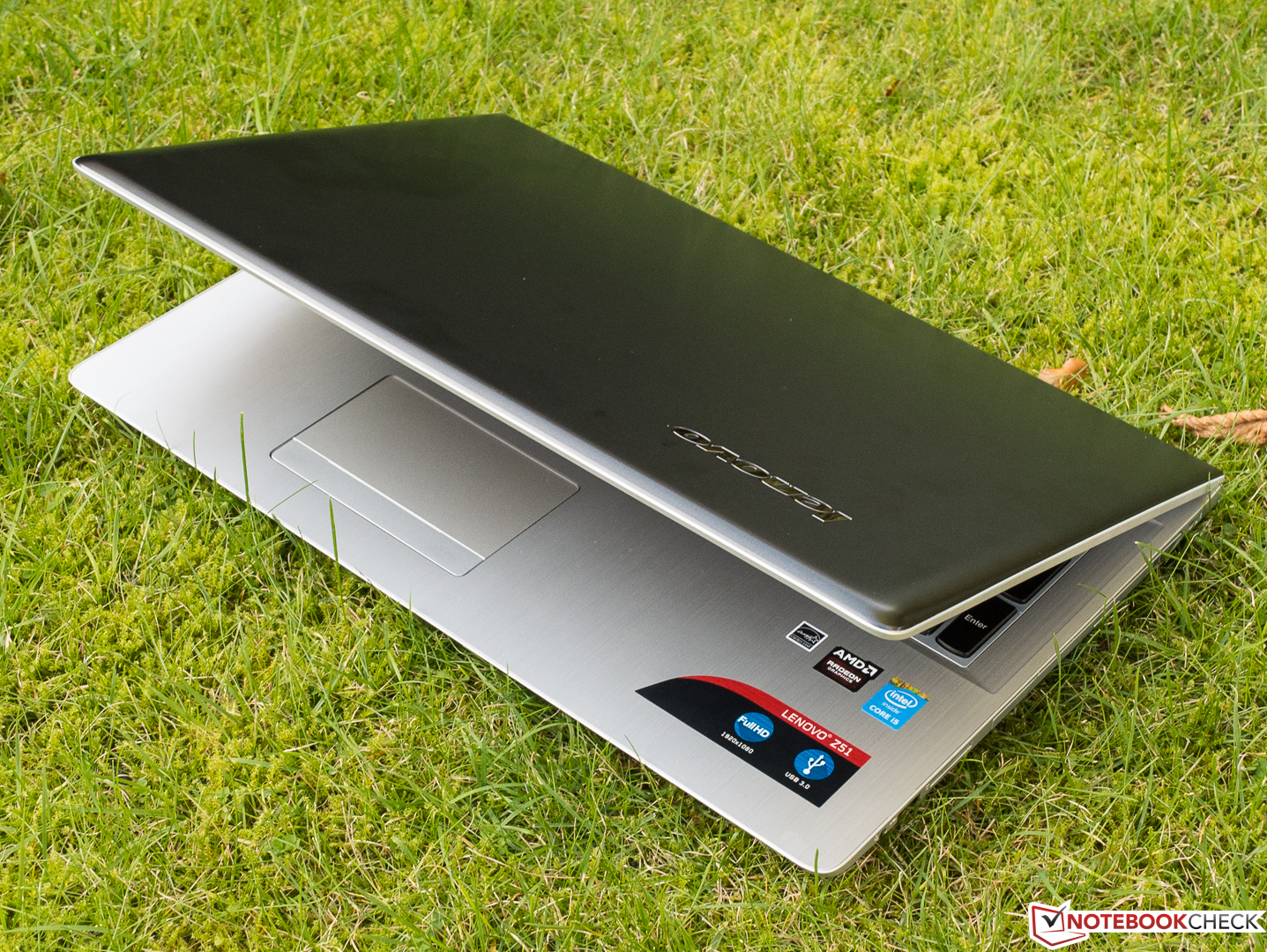

Lenovo Z51-70 (Z51 Serie)

Processor

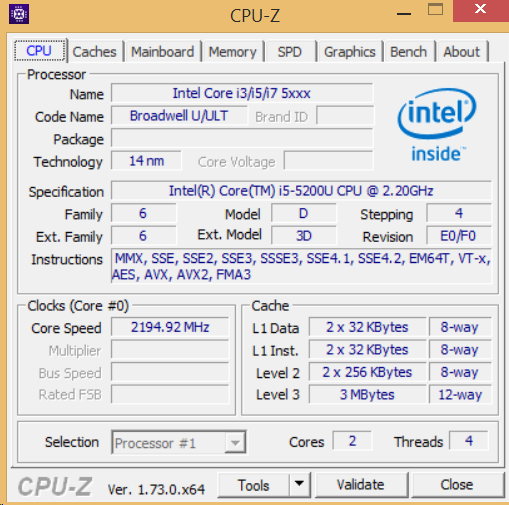

Intel Core i5-5200U 2 x 2.2 - 2.7 GHz, Broadwell

Grafikkort

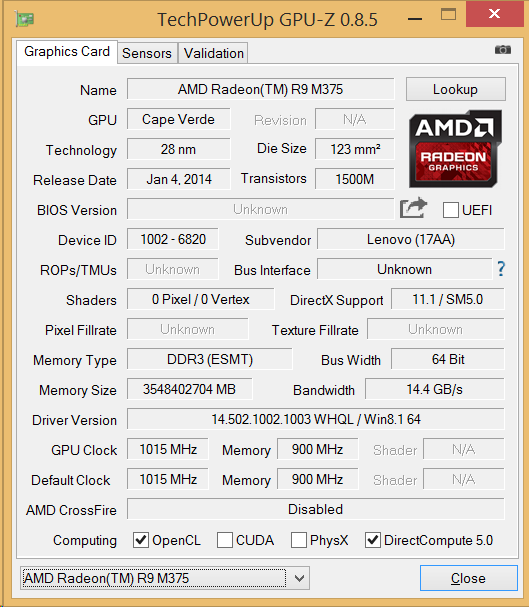

AMD Radeon R9 M375 - 2048 MB VRAM, Kärna: 1015 MHz, Minne: 2200 MHz, DDR3, 14.502.1002.1003, AMD Enduro

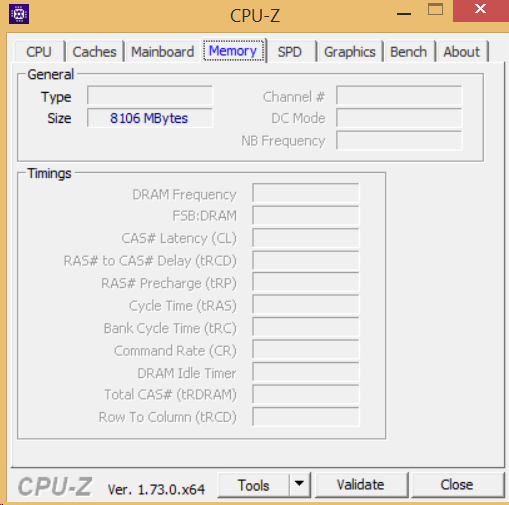

Minne

8 GB

, DDR3, 1600 MHz, single-channel, 2 minnesplatser, 1 används

Skärm

15.60 tum 16:9, 1920 x 1080 pixlar, Chi Mei CMN15C4, TN LED, glansig: nej

Moderkort

Intel Broadwell-U PCH-LP (Premium)

Hårddisk

Samsung PM871 MZYLN256HCHP, 256 GB

Ljudkort

Intel Broadwell PCH-LP - High Definition Audio Controller

Anslutningar

1 USB 2.0, 2 USB 3.0, 1 VGA, 1 HDMI, 1 Kensingtonlås, Ljudanslutningar: Headset, Kortläsare: SD/SDHC/SDXC

Nätverk

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Optisk enhet

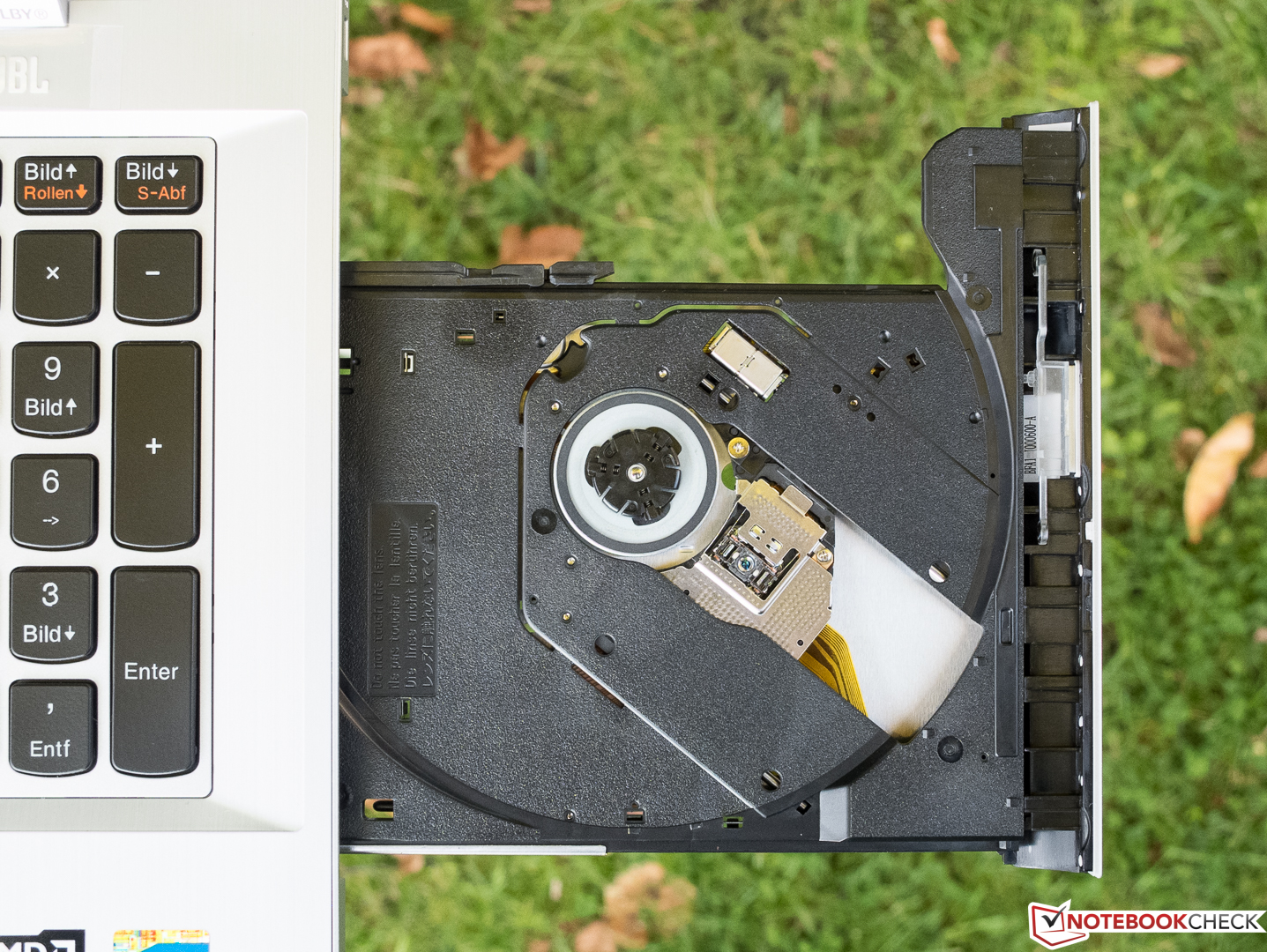

Matshita DVD-RAM UJ8HC

Storlek

höjd x bredd x djup (i mm) 26 x 380 x 265

Batteri

32 Wh Litiumjon

Operativsystem

Microsoft Windows 8.1 64 Bit

Camera

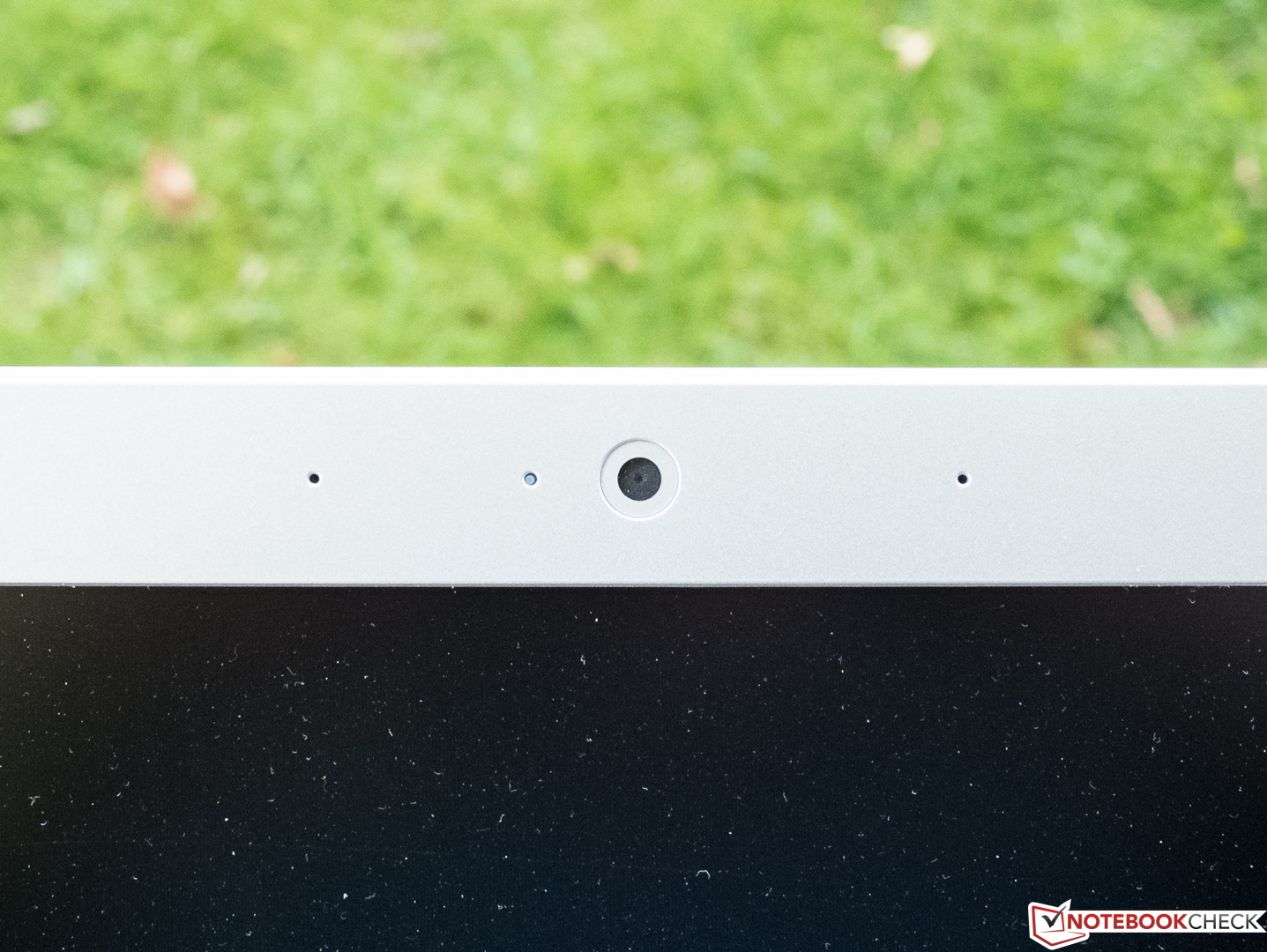

Webbkamera: HD

Övrigt

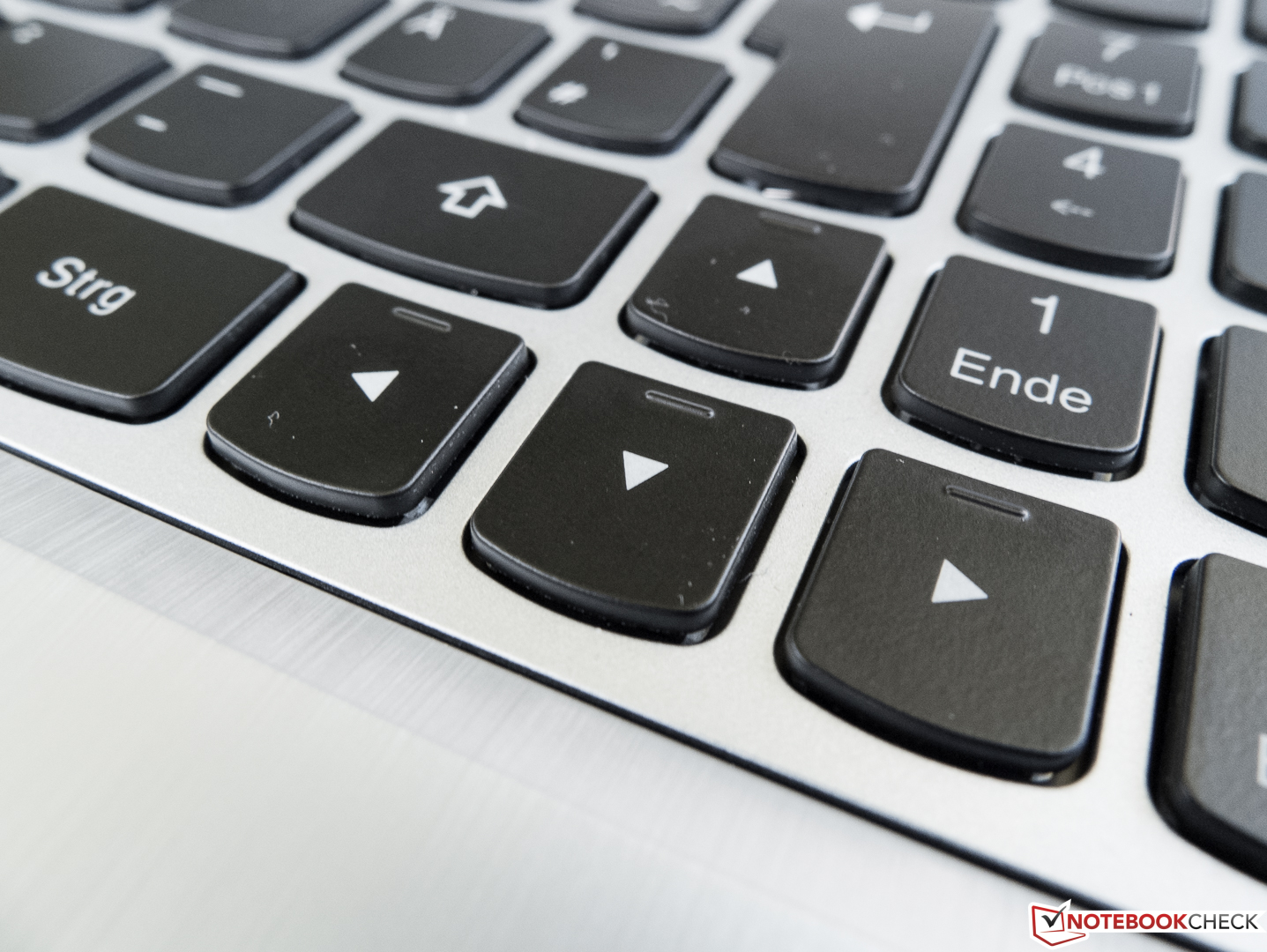

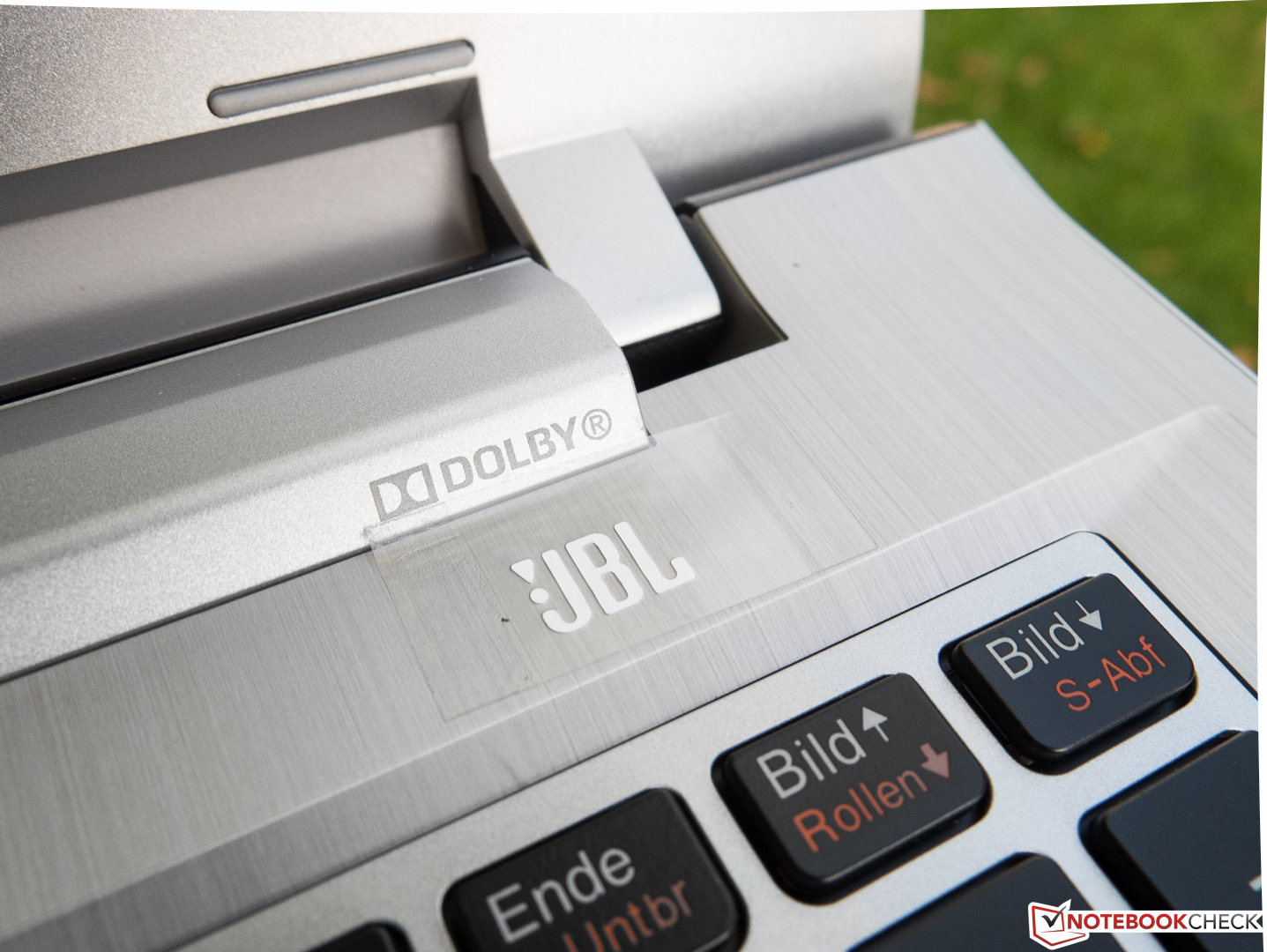

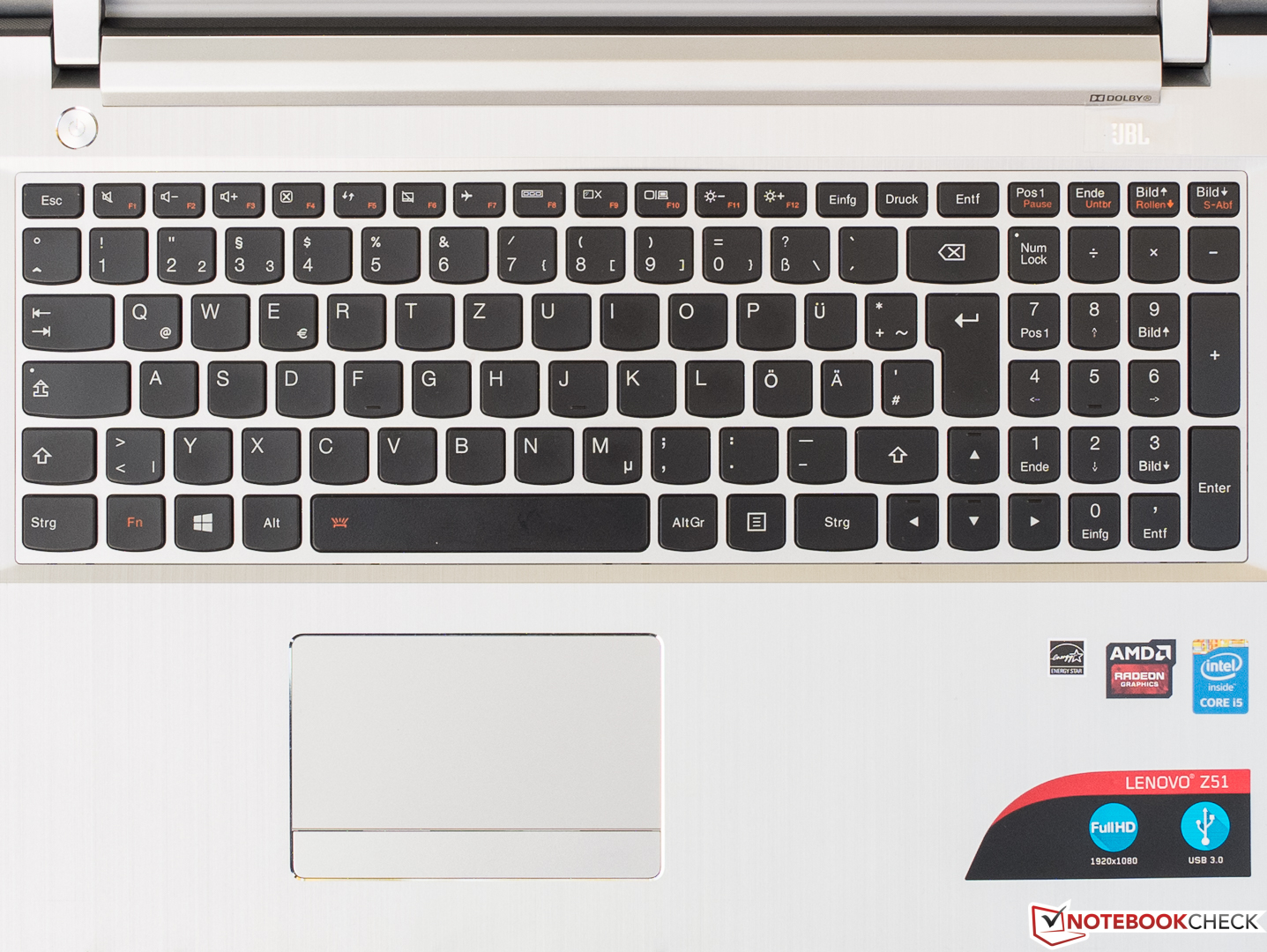

Högtalare: stereo, Tangentbord: chiclet, Tangentbordsbelysning: ja, 24 Månader Garanti

Vikt

2.3 kg, Strömförsörjning: 339 g

Pris

7800 Kr

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

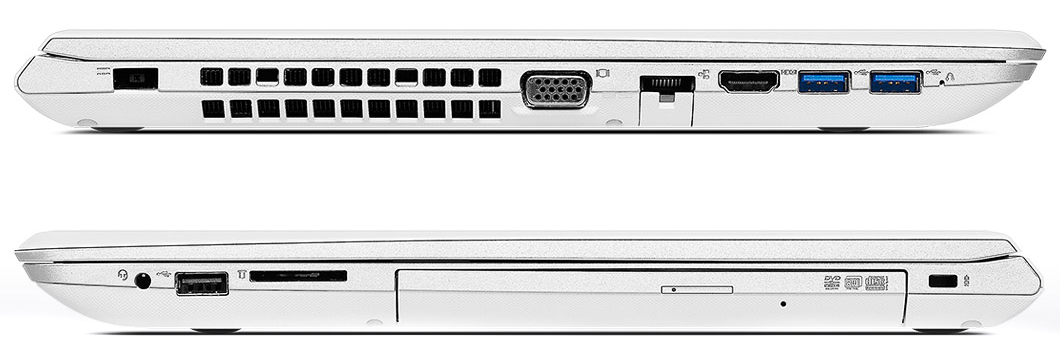

Right: power, vent, VGA, Ethernet, HDMI, 2x USB 3.0 / Left: audio in/out, USB 2.0, SD-card reader, DVD burner, Kensington


225 cd/m²	228 cd/m²	201 cd/m²
203 cd/m²	229 cd/m²	195 cd/m²
223 cd/m²	221 cd/m²	204 cd/m²

Distribution av ljusstyrkan

Chi Mei CMN15C4 tested with X-Rite i1Pro 2

Max: 229 cd/m² (Nits) Medel: 214.3 cd/m²
Distribution av ljusstyrkan: 85 %
Mitt på batteriet: 188 cd/m²
Kontrast: 509:1 (Svärta: 0.45 cd/m²)
ΔE Color 10.51 | 0.5-29.43 Ø4.93
ΔE Greyscale 11.32 | 0.5-98 Ø5.2
59% sRGB (Argyll 1.6.3 3D)
38% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.65% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.9% sRGB (Argyll 2.2.0 3D)
39.33% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.47

Download ICC-fil (X-Rite i1Pro 2)

	Lenovo Z51-70	Acer Aspire V3-574G-59MA	Dell Inspiron 15-5558
Display		1%	5%
Display P3 Coverage	39.33	39.83 1%	41.22 5%
sRGB Coverage	58.9	59.5 1%	61.8 5%
AdobeRGB 1998 Coverage	40.65	41.21 1%	42.58 5%
Screen		11%	21%
Brightness middle	229	257 12%	177 -23%
Brightness	214	247 15%	176 -18%
Brightness Distribution	85	84 -1%	78 -8%
Black Level *	0.45	0.45 -0%	0.15 67%
Contrast	509	571 12%	1180 132%
Colorchecker dE 2000 *	10.51	7.36 30%	8.52 19%
Greyscale dE 2000 *	11.32	7.82 31%	9.72 14%
Gamma	2.47 ^89%	2.4 ^92%	1.85 ^119%
CCT	12795 ^51%	6939 ^94%	5036 ^129%
Color Space (Percent of AdobeRGB 1998)	38	38 0%	39 3%
Color Space (Percent of sRGB)	59	59.2 0%	61 3%
Total Average (Program / Settings)		6% / 9%	13% / 17%

* ... smaller is better

Cinebench R11.5 | Cinebench R15 | Cinebench R10

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	2.84 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	2.78 Points -2%
Dell Inspiron 15-5558 Intel Core i5-5200U	2.8 Points -1%
CPU Single 64Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	1.13 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	1.26 Points +12%
Dell Inspiron 15-5558 Intel Core i5-5200U	1.26 Points +12%

Cinebench R15
CPU Multi 64Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	259 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	258 Points 0%
Dell Inspiron 15-5558 Intel Core i5-5200U	261 Points +1%
CPU Single 64Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	96 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	108 Points +13%
Dell Inspiron 15-5558 Intel Core i5-5200U	108 Points +13%

Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	8509 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	8699 Points +2%
Dell Inspiron 15-5558 Intel Core i5-5200U	8642 Points +2%
Rendering Single 32Bit (sort by value)
Lenovo Z51-70 Intel Core i5-5200U	4176 Points
Acer Aspire V3-574G-59MA Intel Core i5-5200U	4131 Points -1%
Dell Inspiron 15-5558 Intel Core i5-5200U	4137 Points -1%

Cinebench R10 Shading 32Bit

6544

Cinebench R10 Rendering Multiple CPUs 32Bit

8509

Cinebench R10 Rendering Single 32Bit

4176

Cinebench R11.5 OpenGL 64Bit

38.7 fps

Cinebench R11.5 CPU Multi 64Bit

2.84 Points

Cinebench R11.5 CPU Single 64Bit

1.13 Points

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

45.5 fps

Cinebench R15 CPU Multi 64Bit

259 Points

Cinebench R15 CPU Single 64Bit

96 Points

Hjälp

... jämför

PCMark 7 | PCMark 8

PCMark 7
Score (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	5071 Points
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	4857 Points -4%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	2736 Points -46%
Lightweight (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	5037 Points
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	4852 Points -4%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	2083 Points -59%
Productivity (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	4021 Points
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	3840 Points -5%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	1454 Points -64%

PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	3612 Points
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	3187 Points -12%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	2830 Points -22%
Work Score Accelerated v2 (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	4274 Points
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	4070 Points -5%
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	3609 Points -16%

PCMark 7 Score		5071 poäng
PCMark 8 Home Score Accelerated v2		3612 poäng
PCMark 8 Work Score Accelerated v2		4274 poäng
Hjälp

... jämför

CrystalDiskMark 3.0

AS SSD

Samsung PM871 MZYLN256HCHP

Sequential Read: 515 MB/s

Sequential Write: 300.4 MB/s

512K Read: 447.8 MB/s

512K Write: 300.4 MB/s

4K Read: 37.61 MB/s

4K Write: 113.6 MB/s

4K QD32 Read: 398.4 MB/s

4K QD32 Write: 299.3 MB/s

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375	3314 Points
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M	2432 Points -27%
Dell Inspiron 15-5558 NVIDIA GeForce 920M	1704 Points -49%
Lenovo Z51-70-80K6 AMD Radeon R7 M360	2108 Points -36%

3DMark
1280x720 Cloud Gate Standard Graphics (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375	8466 Points
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M	8946 Points +6%
Dell Inspiron 15-5558 NVIDIA GeForce 920M	7214 Points -15%
Lenovo Z51-70-80K6 AMD Radeon R7 M360	5117 Points -40%
1920x1080 Fire Strike Graphics (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375	1667 Points
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M	1639 Points -2%
Dell Inspiron 15-5558 NVIDIA GeForce 920M	1157 Points -31%
Lenovo Z51-70-80K6 AMD Radeon R7 M360	1122 Points -33%

3DMark 06 Standard Score		11543 poäng
3DMark Vantage P Result		8275 poäng
3DMark 11 Performance		3269 poäng
3DMark Cloud Gate Standard Score		5932 poäng
3DMark Fire Strike Score		1514 poäng
Hjälp

... jämför

	låg	med.	hög	ultra
Crysis 3 (2013)	37.9	23.2
Tomb Raider (2013)		50	36.2	17.8
BioShock Infinite (2013)	89.2	52.9	44	16.3
Metro: Last Light (2013)	42	34.8	22.3
Battlefield 4 (2013)		43.8	30.6	11.9
Thief (2014)	27	22.7	19.4
GRID: Autosport (2014)	91 severe graphical problems	47 severe graphical problems	30 severe graphical problems	20 severe graphical problems
Fifa 15 (2014)			66.3	32.7
Middle-earth: Shadow of Mordor (2014)	36	25.5	15.5
Alien: Isolation (2014)	53.4	38.7	21.6
Civilization: Beyond Earth (2014)	48	32	21.6
Call of Duty: Advanced Warfare (2014)	55	34.4	17.4
Assassin's Creed Unity (2014)	28.5
Far Cry 4 (2014)	40.8	31.6	15.8
Dragon Age: Inquisition (2014)	36 severe graphical problems	34 severe graphical problems	21 severe graphical problems
Evolve (2015)	41.1	31.1	16.7
Battlefield Hardline (2015)	59.3	43.5	17.7
Dirt Rally (2015)		40	24.8
The Witcher 3 (2015)	9.8
Batman: Arkham Knight (2015)	27	22
Mad Max (2015)		36.3	18.6

Batman: Arkham Knight | Dirt Rally | Thief | Tomb Raider

Batman: Arkham Knight
1280x720 Low / Off AF:Trilinear (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	27 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	21 fps -22%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	16 fps -41%
MSI GP72-2QEi781 NVIDIA GeForce GTX 950M,	56 fps +107%
1366x768 Normal / Off AF:4x (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	22 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	18 fps -18%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	13 fps -41%
MSI GP72-2QEi781 NVIDIA GeForce GTX 950M,	46 fps +109%

Dirt Rally
1366x768 Medium Preset (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	40.8 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	46.4 fps +14%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	33.1 fps -19%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	42.2 fps +3%
Lenovo Z51-70-80K6 AMD Radeon R7 M360,	31.7 fps -22%
1920x1080 High Preset (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	24.8 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	23.5 fps -5%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	16.8 fps -32%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	21.4 fps -14%
Lenovo Z51-70-80K6 AMD Radeon R7 M360,	16.3 fps -34%

Thief
1024x768 Very Low Preset (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	27 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	38.2 fps +41%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	35.2 fps +30%
Lenovo Y40-59423035 AMD Radeon R9 M275,	26.8 fps -1%
1366x768 Normal Preset AA:FX (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	22.7 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	24.4 fps +7%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	22.6 fps 0%
Lenovo Y40-59423035 AMD Radeon R9 M275,	22.6 fps 0%
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	19.4 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	19.8 fps +2%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	18.3 fps -6%
Lenovo Y40-59423035 AMD Radeon R9 M275,	19.3 fps -1%

Tomb Raider
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	50 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	64.8 fps +30%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	43.3 fps -13%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	58.7 fps +17%
Lenovo Y40-59423035 AMD Radeon R9 M275,	62.9 fps +26%
Lenovo Z51-70-80K6 AMD Radeon R7 M360,	36.7 fps -27%
1366x768 High Preset AA:FX AF:8x (sort by value)
Lenovo Z51-70 AMD Radeon R9 M375,	36.2 fps
Acer Aspire V3-574G-59MA NVIDIA GeForce 940M,	35 fps -3%
Dell Inspiron 15-5558 NVIDIA GeForce 920M,	25.7 fps -29%
HP Envy 15-w000ng x360 NVIDIA GeForce 930M,	31.9 fps -12%
Lenovo Y40-59423035 AMD Radeon R9 M275,	44.1 fps +22%
Lenovo Z51-70-80K6 AMD Radeon R7 M360,	29 fps -20%

Ljudnivå

Låg belastning		32.1 / 32.1 / 32.8 dB(A)
DVD		36.8 / dB(A)
Hög belastning		39.4 / 40.7 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Voltcraft sl-320 (15 cm avstånd)

Hög belastning

Låg belastning


43.6 °C	39.7 °C	25.6 °C
41.8 °C	39.2 °C	25.7 °C
33.4 °C	34.8 °C	27 °C

Max: 43.6 °C
Medel: 34.5 °C


25.7 °C	34.2 °C	37.2 °C
25.5 °C	32.3 °C	45.6 °C
25 °C	29.1 °C	29.8 °C

Max: 45.6 °C
Medel: 31.6 °C

Strömförsörjning (max.) 56.3 °C | Rumstemperatur 24 °C | Voltcraft IR-360

(±) The average temperature for the upper side under maximal load is 34.5 °C / 94 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 43.6 °C / 110 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 45.6 °C / 114 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.8 °C / 94.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-6 °C / -10.8 F).

Strömförbrukning

Av/Standby	0.1 / 0.2 Watt
Låg belastning	3.3 / 5.9 / 6 Watt
Hög belastning	55.1 / 55.2 Watt


Förklaring: min: , med: , max: Voltcraft VC 940 Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime
WiFi v1.3 (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	289 min
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	281 min
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	337 min
Load (sort by value)
Lenovo Z51-70 Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP	75 min
Acer Aspire V3-574G-59MA GeForce 940M, 5200U, Kingston RBU-SC150S37256GD	91 min
Dell Inspiron 15-5558 GeForce 920M, 5200U, Toshiba MQ01ABD100	103 min

Batteritid

WiFi Websurfing		4tim 49min
DVD		3tim 06min
Hög belastning (maximal ljusstyrka)		1tim 15min

För

+ Många olika konfigurationer

+ Väldesignad, acceptabelt chassi

+ ac-Wi-Fi

+ Bakbelyst tangentbord

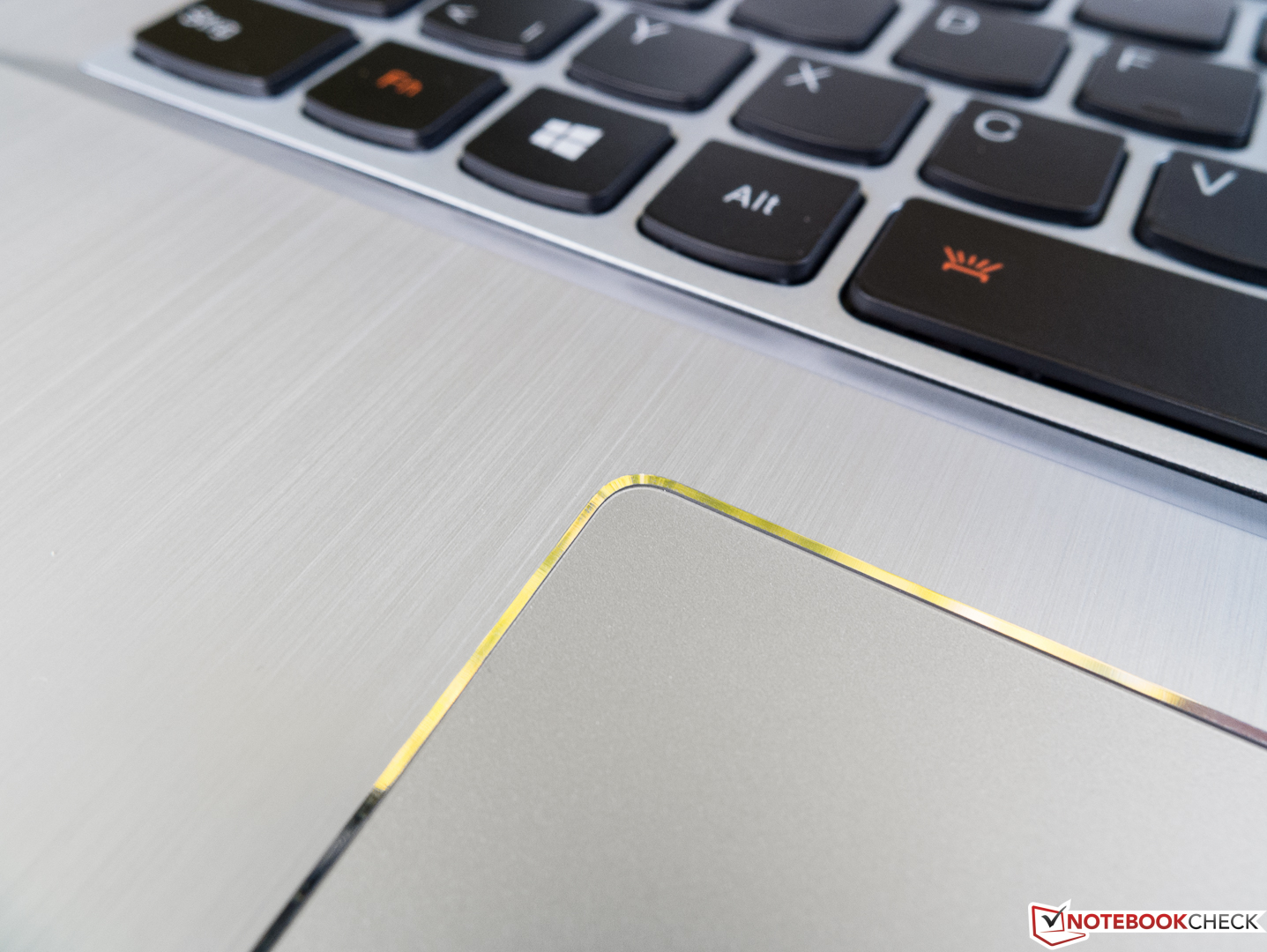

+ Trevlig pekplatta

+ Ingen strypning

+ Snabb SSD

+ Bra batteritid

Emot

- Måste plockas isär för att byta batteri

- Alla portar framtill

- Medelmåttigt tangentbord

- Blek TN-skärm med dåliga betraktningsvinklar

- Ljudsystem defekt

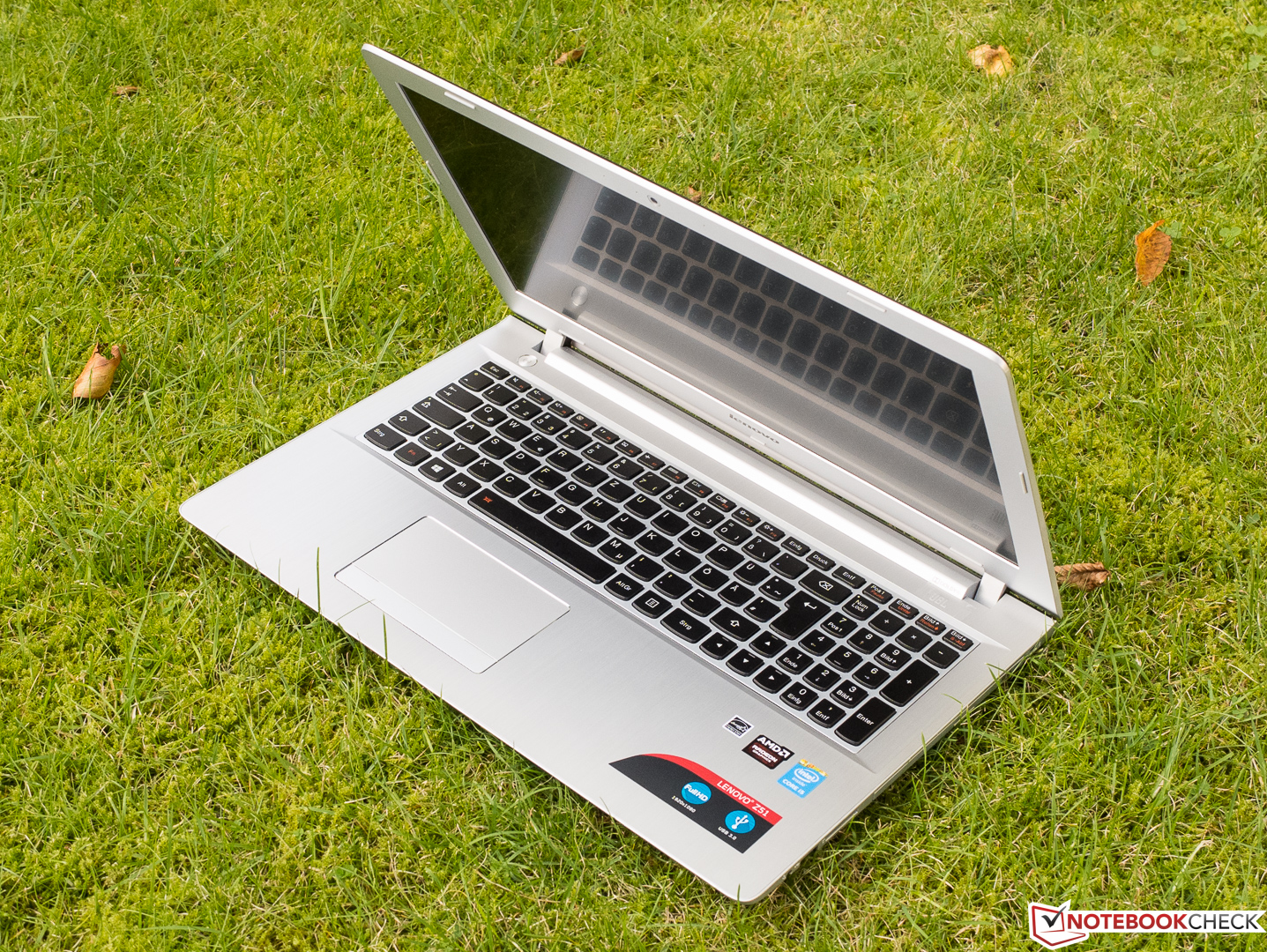

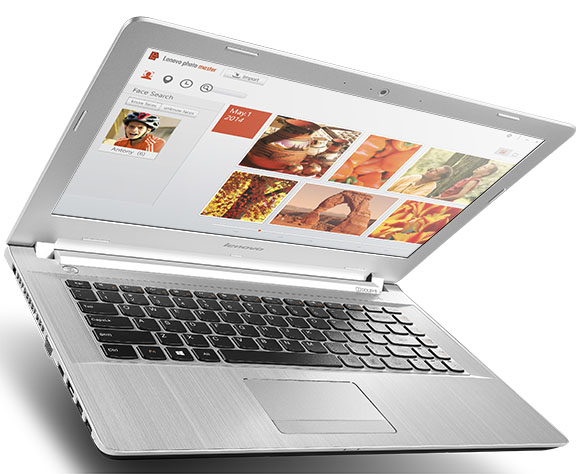

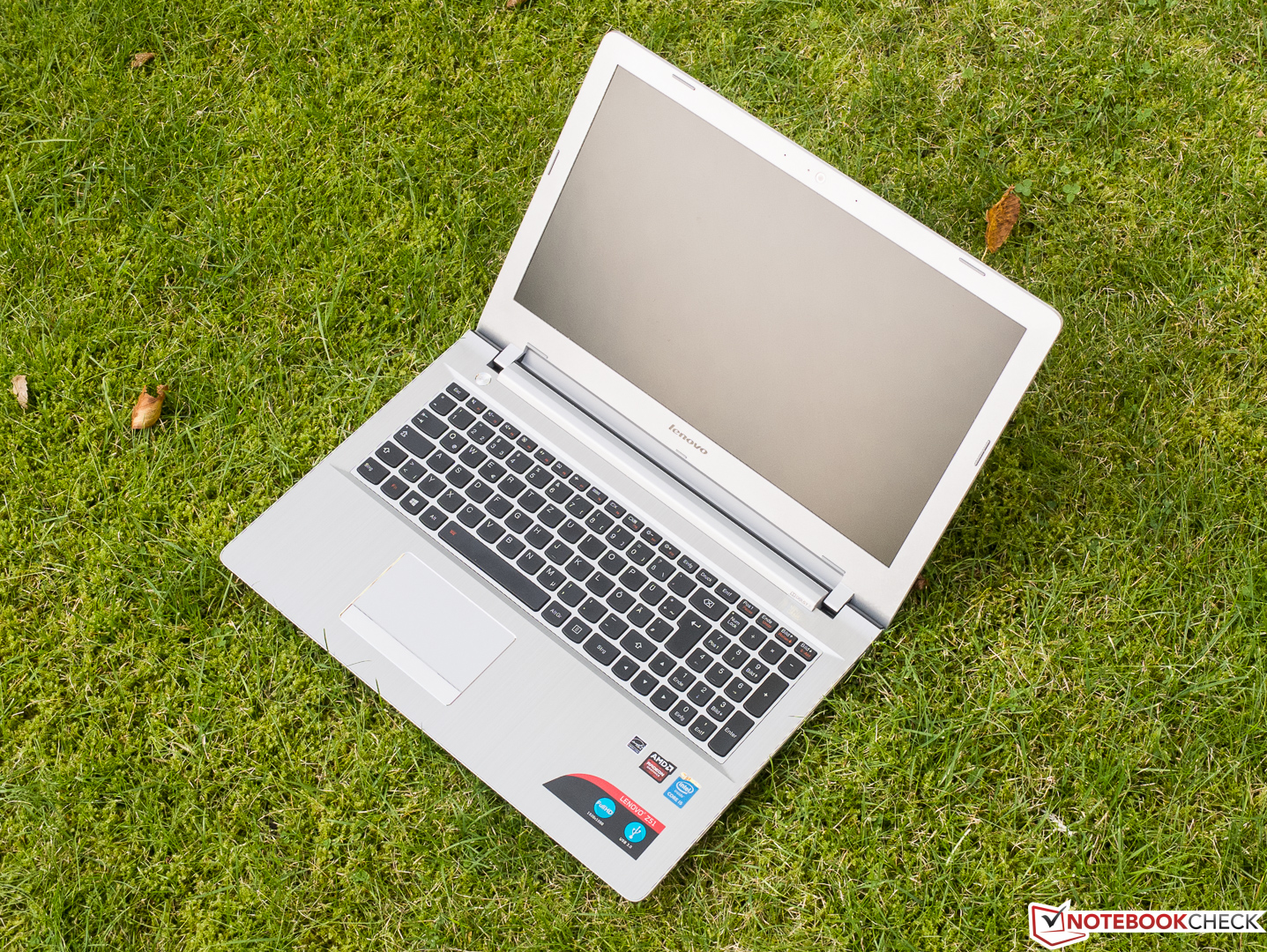

In review: Lenovo Z51-70. Test model courtesy of Cyberport.

Var är alla IPS-skärmar som Lenovo utlovat? En sådan hade i alla fall sett bra ut på vår testmaskin. Istället får vi leva med en medioker TN-panel med mycket begränsade betraktningsvinklar och en färgåtergivning som lämnar övrigt att önska.

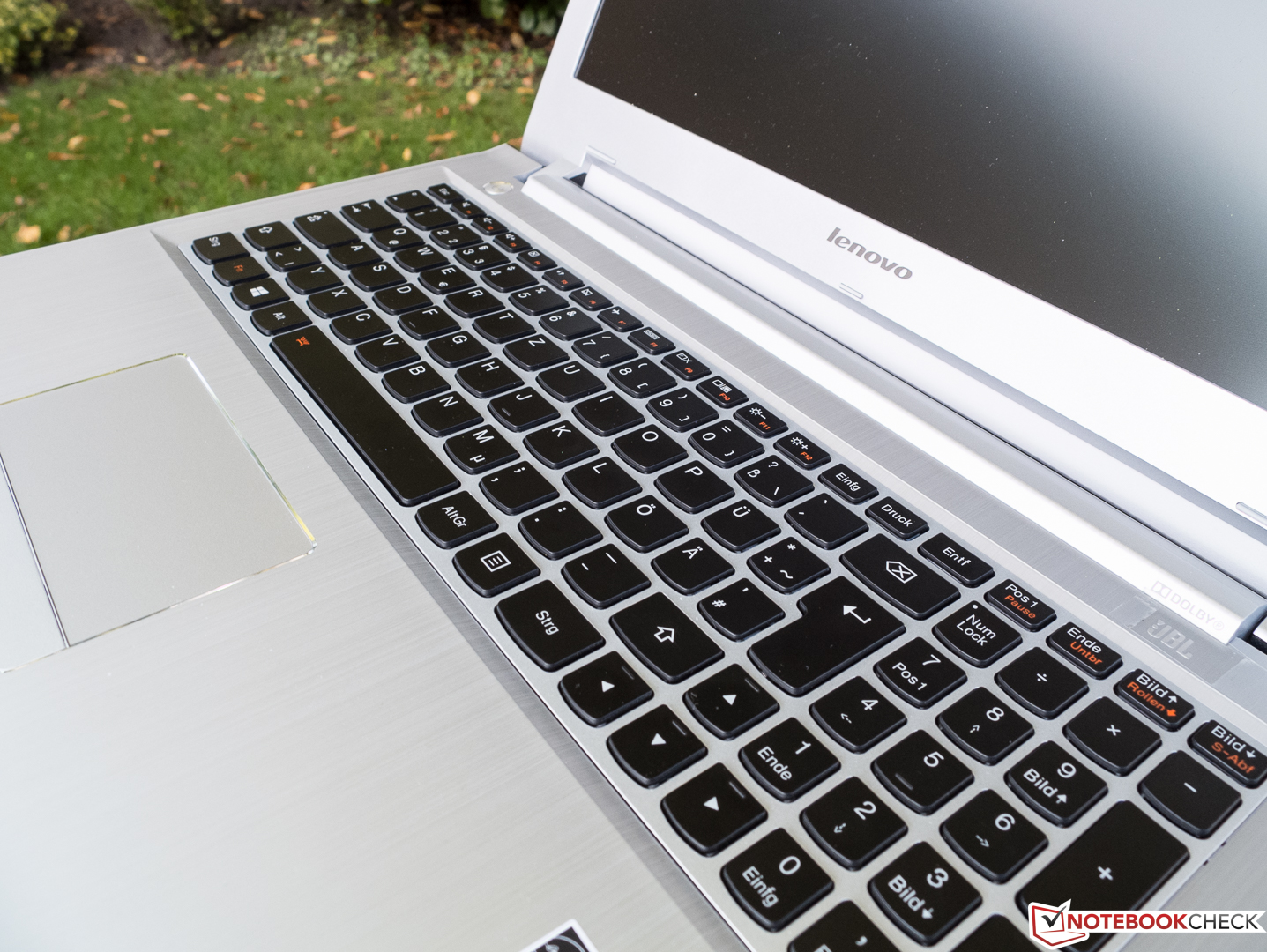

Det ganska dåliga tangentbordet och de otillräckliga underhållsalternativen kan också nämnas medan vi är igång och klagar. De mindre bristerna i det i övrigt väldesignade chassit kan vi bortse ifrån i en konsumentlaptop. Däremot kan inte det defekta ljudsystemet ignoreras.

All hårdvara fungerar å andra sidan utmärkt, främst tack vare en potent processor och en snabb SSD. Pekplattan är också bra. Det nya grafikkortet AMD Radeon R9 M375 kan utan problem konkurrera med jämförbara kort, som Nvidias GeForce 940M.

Vi avråder från att köpa en version med ett klenare grafikkort, eftersom datorn då hamnar i kontorskategorin, och tangentbordet är helt enkelt inte bra nog för det.

Lenovo Z51-70 - 2015-10-03 10/03/2015 v4 ^(old)
Sven Kloevekorn

Design

70 / 98 → 71%

Tangentbord

71%

Mus

82%

Anslutningar

67 / 81 → 83%

Vikt

61 / 20-67 → 87%

Batteri

78%

Skärm

77%

Spelprestanda

79 / 85 → 93%

Programprestanda

81 / 92 → 88%

Temperatur

88%

Ljudnivå

86 / 95 → 91%

Audio

25%

Camera

42 / 85 → 49%

Medel

70%

77%

Multimedia - Vägt medel

Price comparison

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: Lenovo Z51-70 (Radeon R9 M375) (sammanfattning)

Sven Kloevekorn, 2015-10-21 (Update: 2015-10-21)
