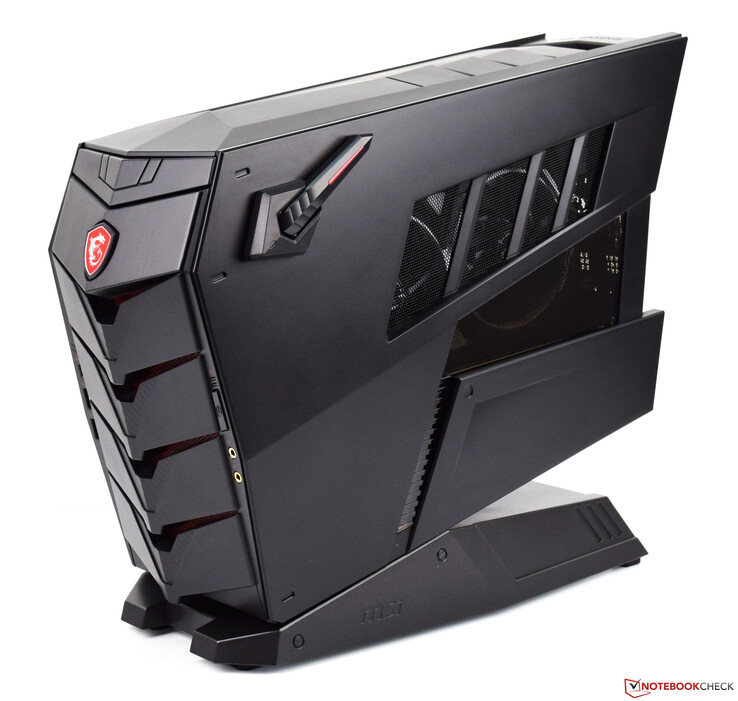

Test: MSI Aegis 3 8RD (Core i7-8700, GTX 1070, 16 GB) Desktop PC (Sammanfattning)

Kompakt spel-PC!

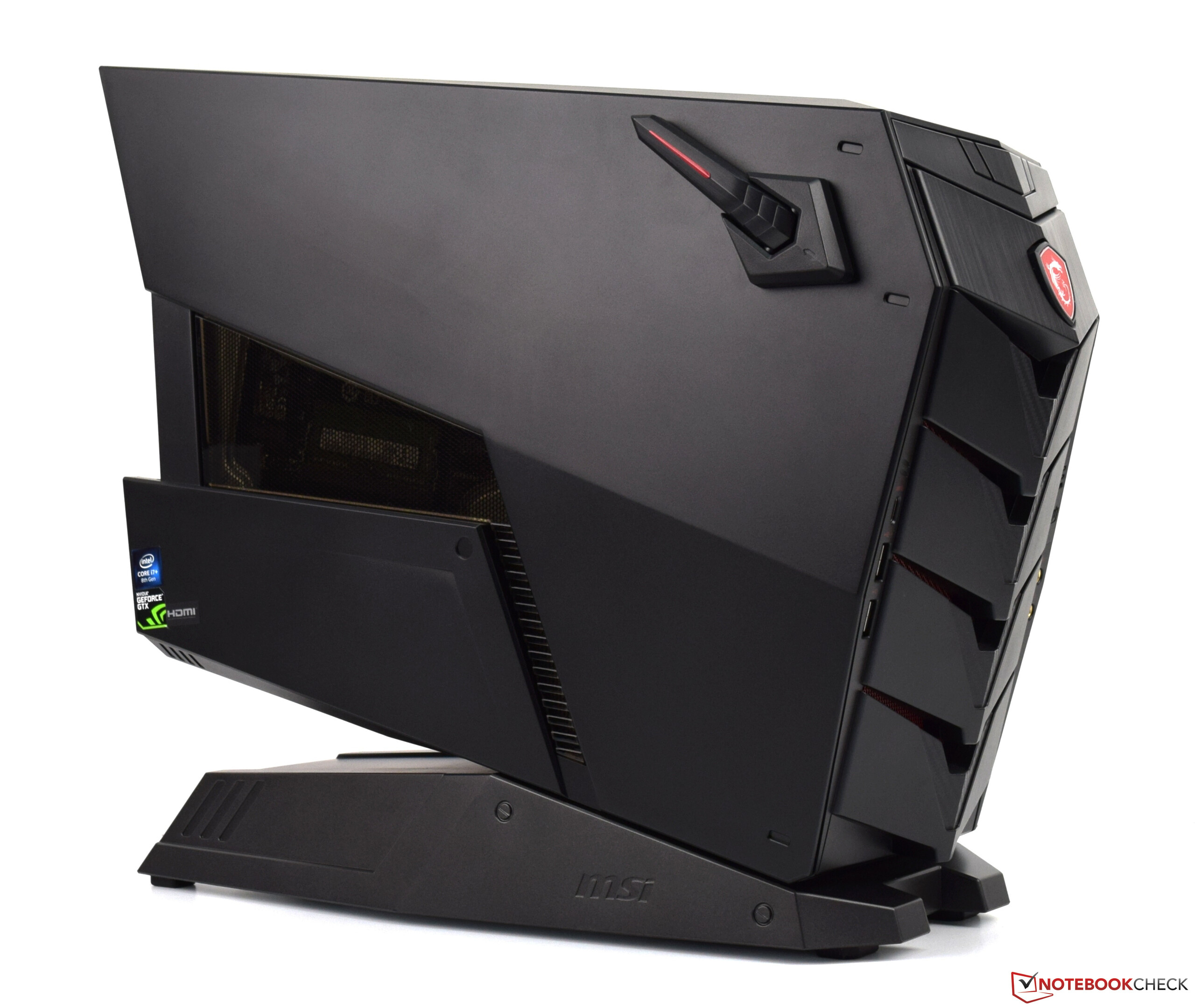

MSI Aegis 3 8RD är en kompakt spel-PC som är utrustad med en Intel Core i7-8700 processor och en Nvidia GeForce GTX 1070 GPU. På så vis är Aegis 3 på papperet tillräckligt kraftfull för att hantera alla moderna spel. Alltihop är packat i ett tjusigt hölje med RGB-belysning. I den här recensionen får du reda på om MSI:s senaste kompakta spel-PC imponerar i våra tester och huruvida den är värd ett köp.

Sebastian Bade (översatt av Daniel Eriksson), Published 12/06/2018 🇺🇸 🇩🇪 ...

Test device courtesy of MSI Deutschland

Download your licensed rating image as PNG / SVG

MSI Aegis 3 8RD

Processor

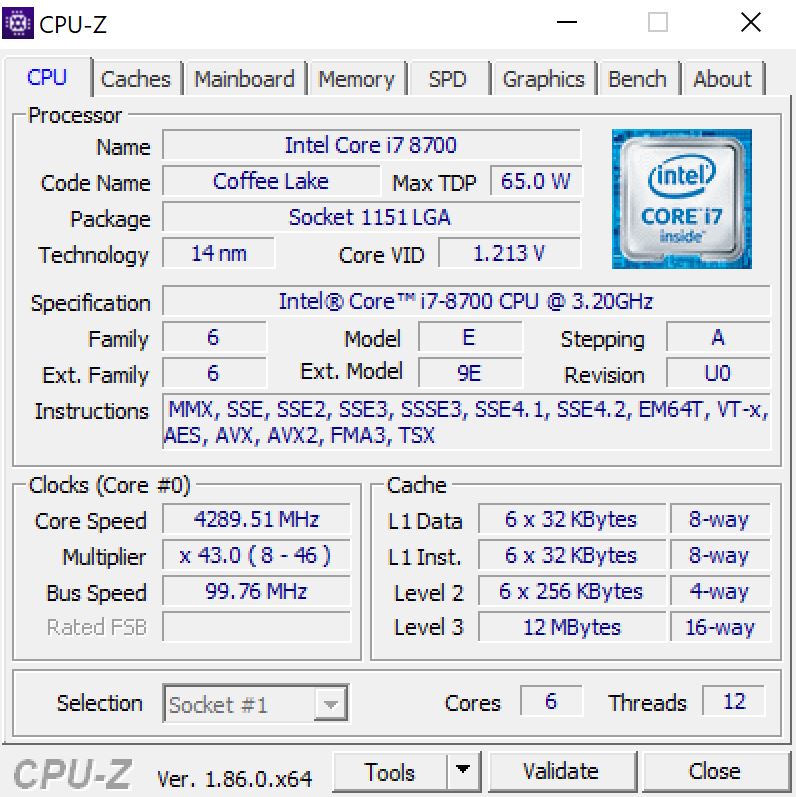

Intel Core i7-8700 6 x 3.2 - 4.6 GHz, Coffee Lake-S

Grafikkort

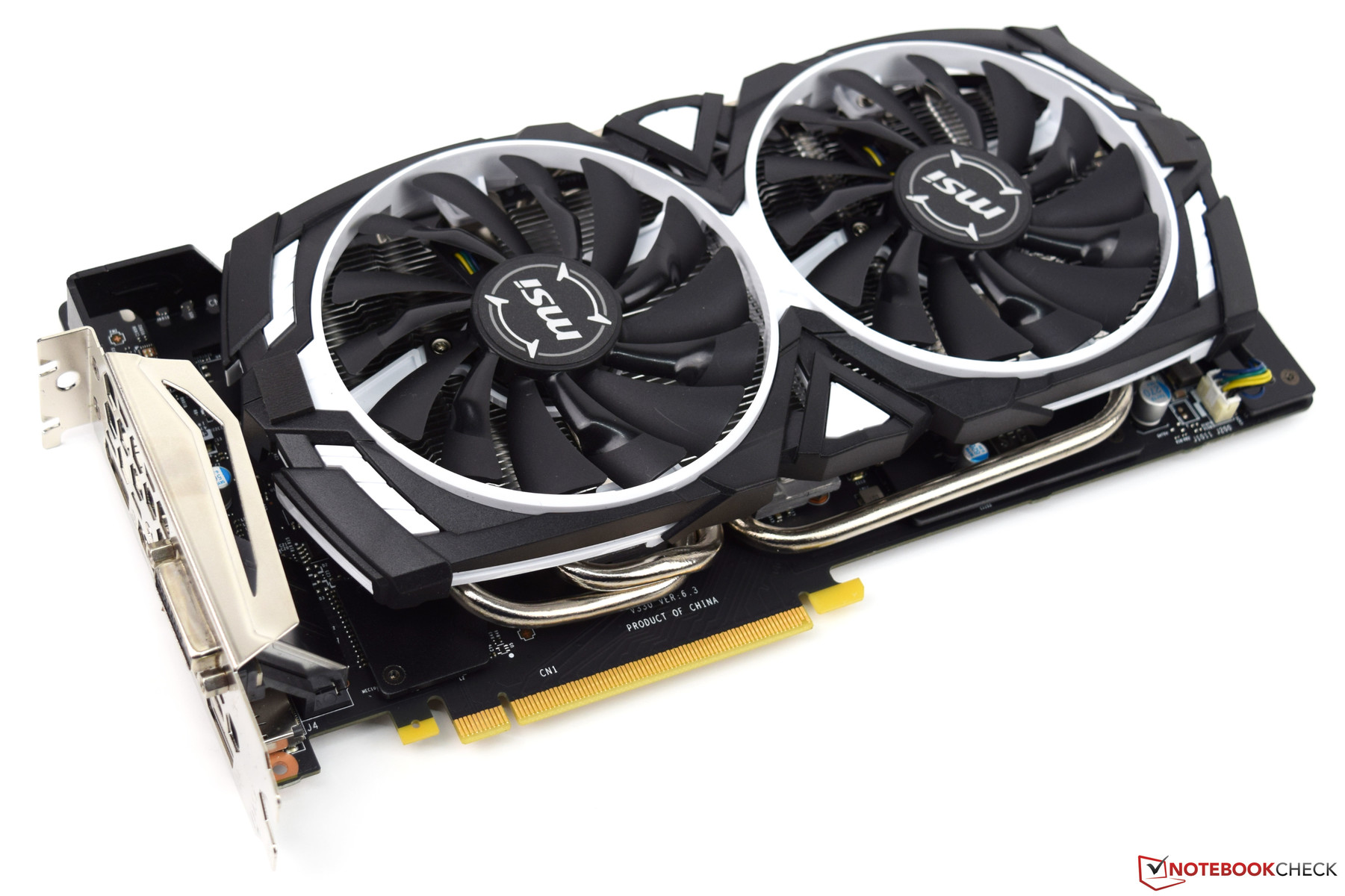

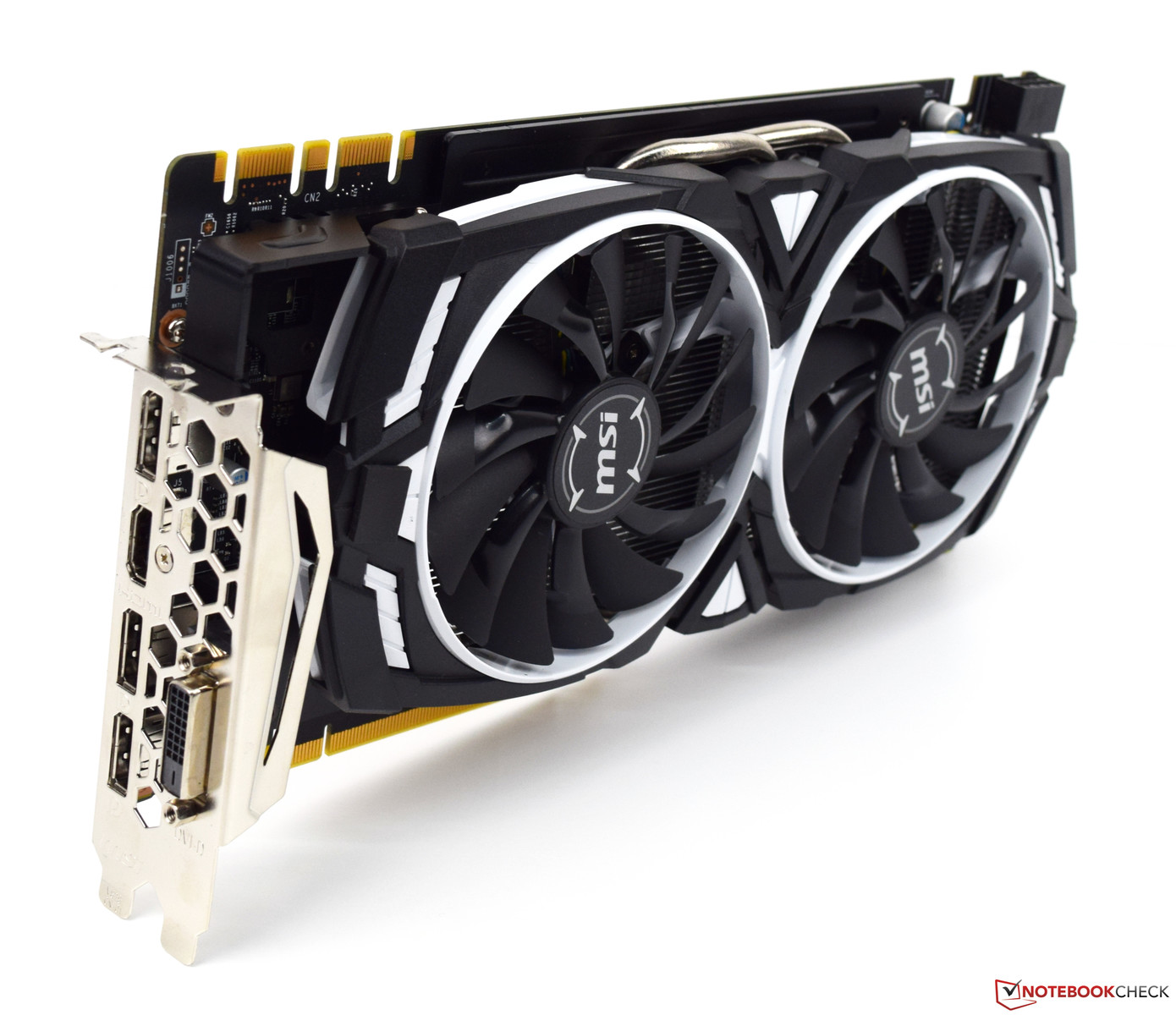

NVIDIA GeForce GTX 1070 (Desktop) - 8 GB VRAM, Kärna: 1747 MHz, Minne: 8000 MHz, Nvidia 416.81

Minne

16 GB

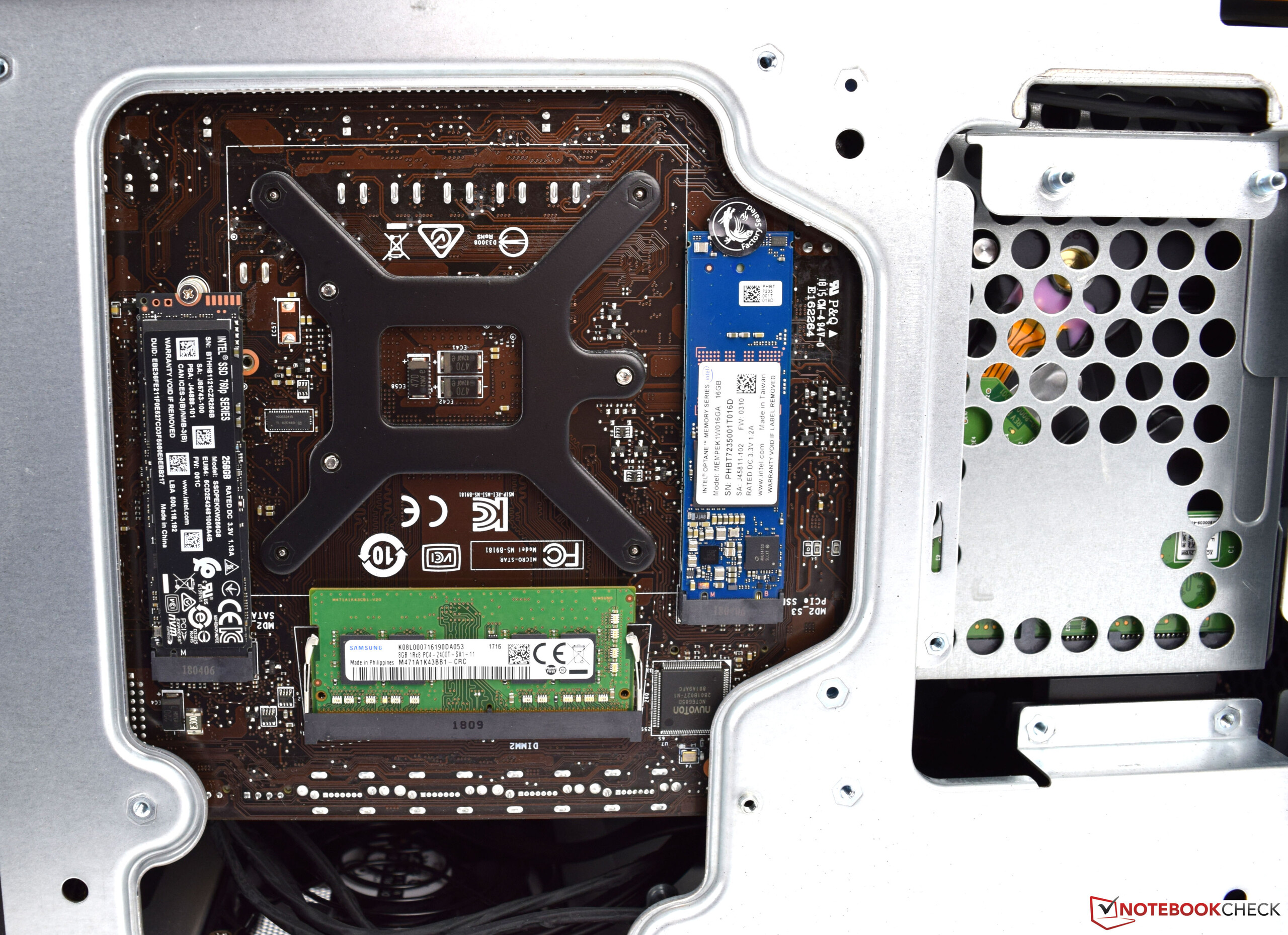

, DDR4 2400, Två SO-DIMM-platser, båda upptagna. 32 GB max RAM

Moderkort

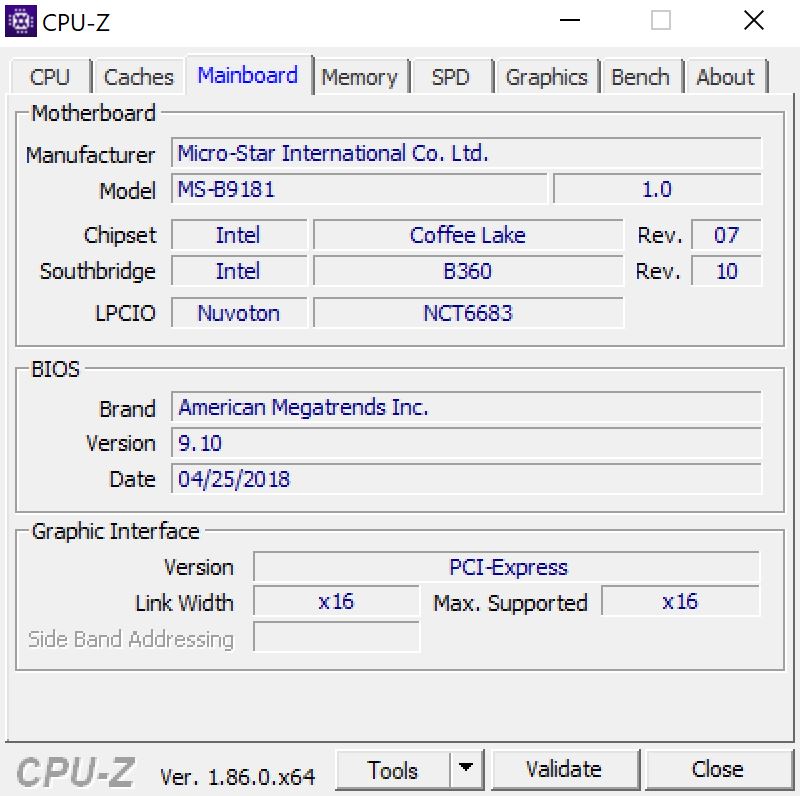

Intel B360 (Cannon Lake-H)

Hårddisk

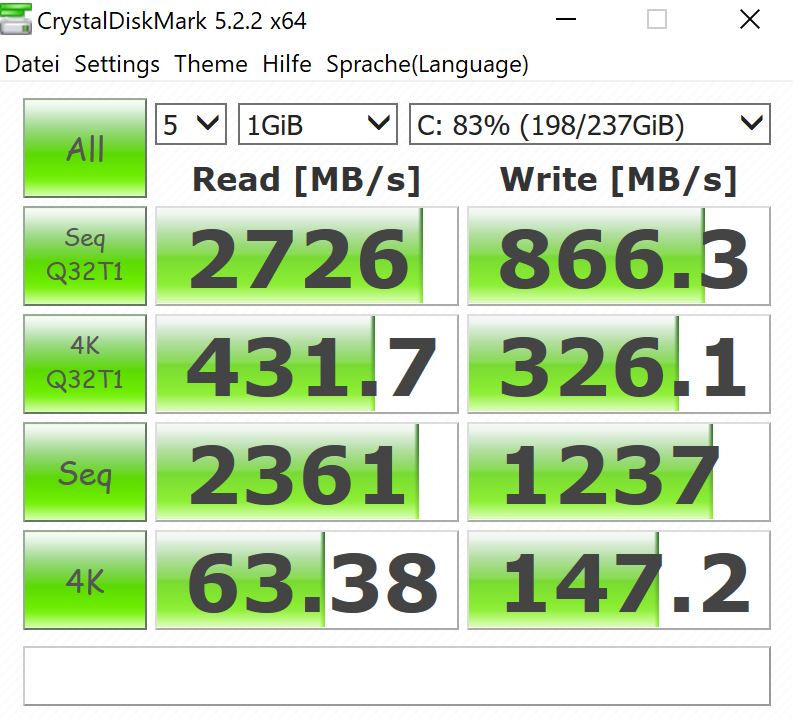

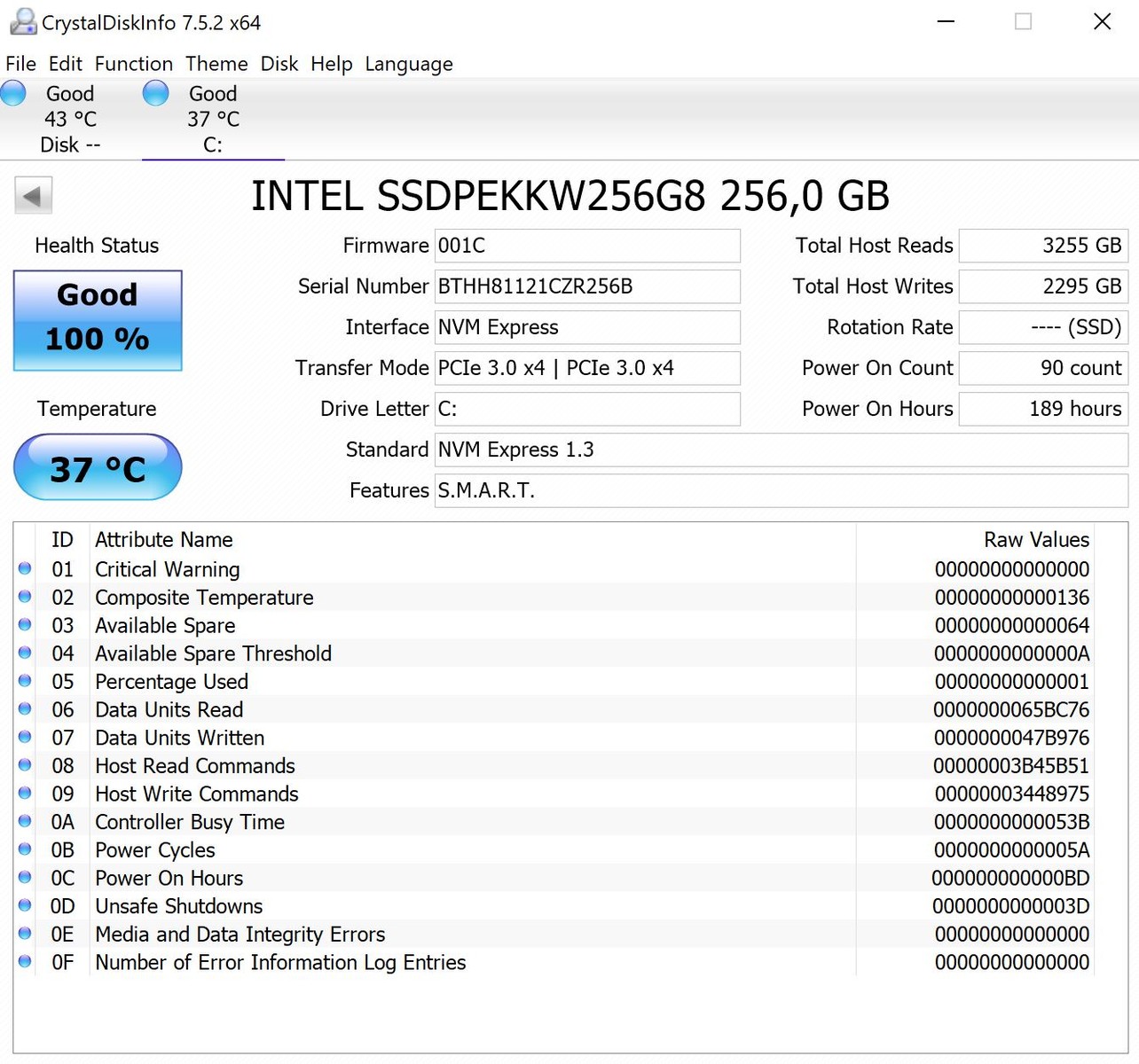

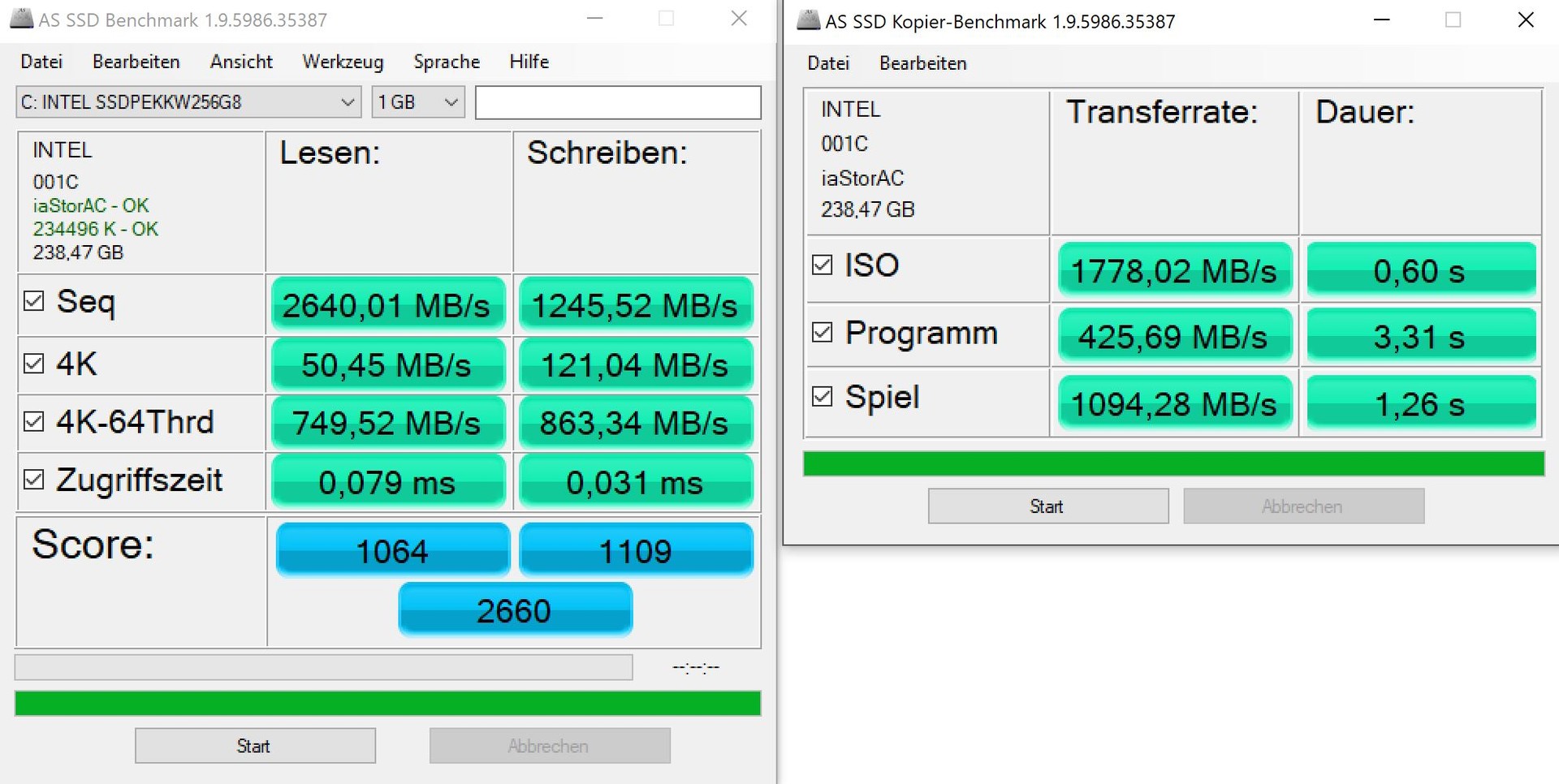

Intel SSD 760p SSDPEKKW256G8, 256 GB

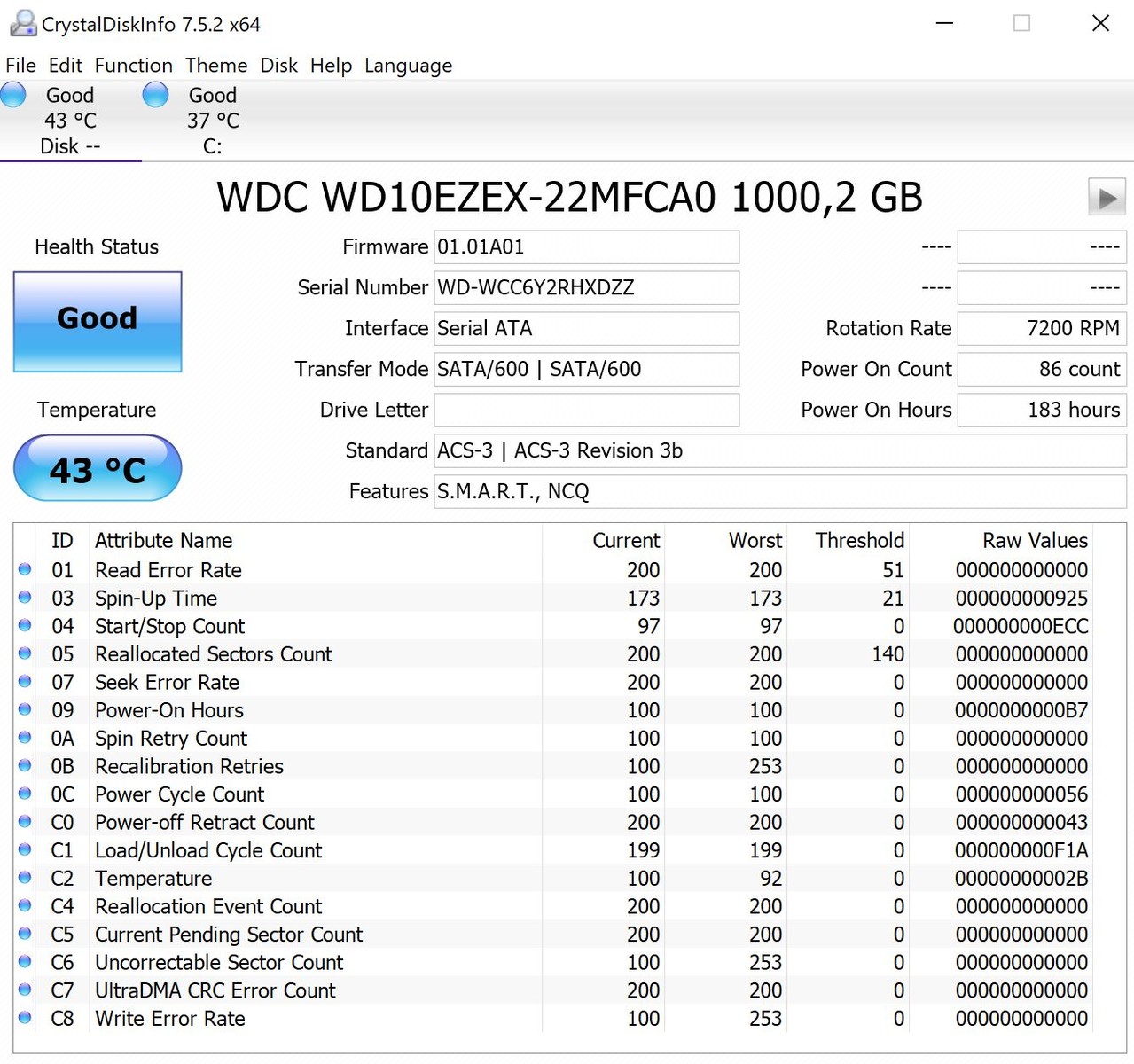

, WDC WD10EZEX-22MFCA0 & Intel Optane Memory 16 GB - MEMPEK1W016GA, 1100 GB ledigt

Ljudkort

Realtek Audio

Anslutningar

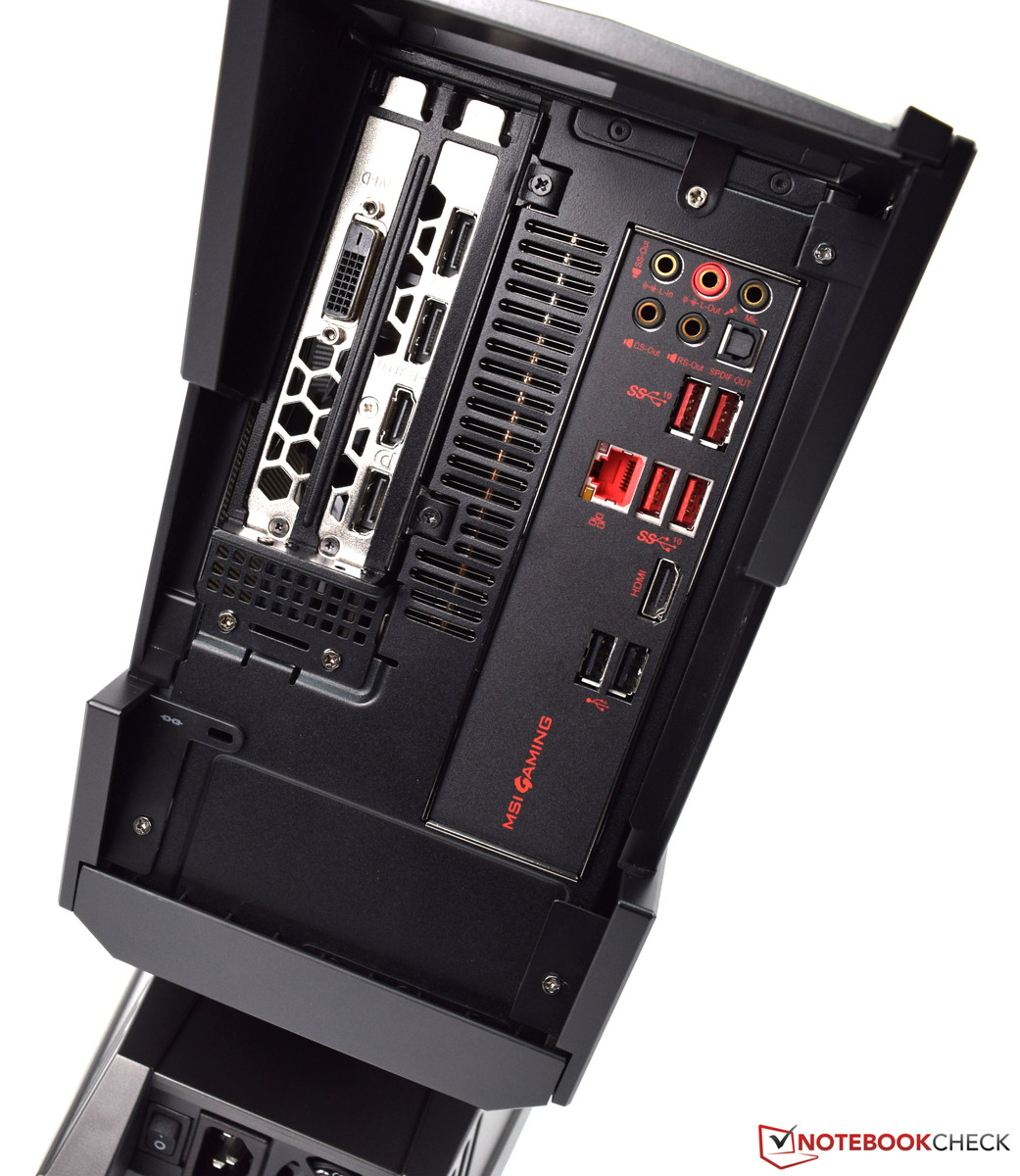

4 USB 2.0, 5 USB 3.0, 1 DVI, 2 HDMI, 3 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 7.1 analogt surround-ljud, SPDIF

Nätverk

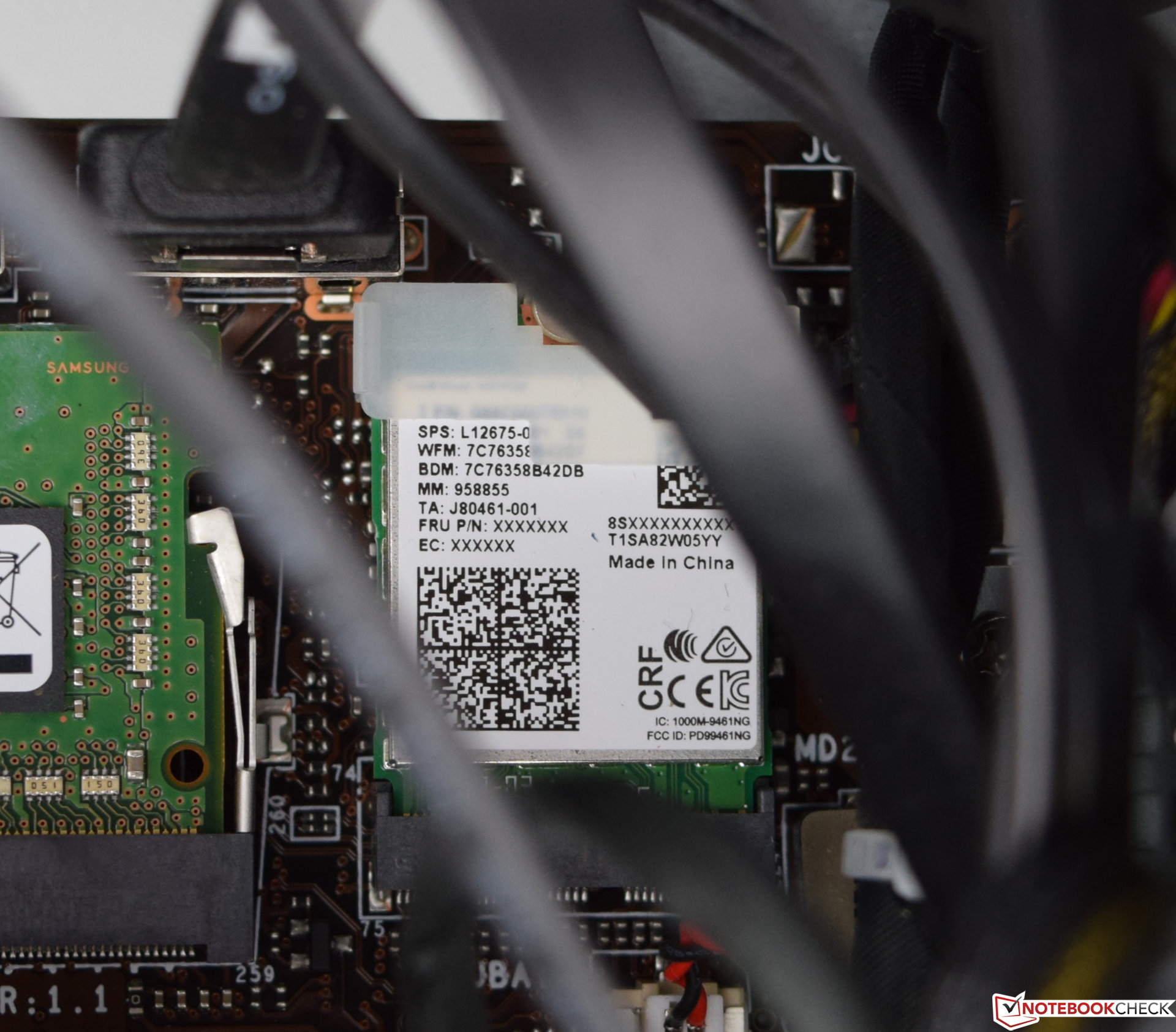

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Wireless AC-9461 (ac = Wi-Fi 5/), Bluetooth 5.0

Storlek

höjd x bredd x djup (i mm) 376 x 170 x 433

Operativsystem

Microsoft Windows 10 Home 64 Bit

Övrigt

MSI Gaming Center, MSI Mystic Light, 24 Månader Garanti

Pris

1500 EUR

Länkar

MSI hemsida
MSI kategori

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Performance Rating - Percent
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	51.2 pt
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	48.8 pt
AMD Ryzen 7 2700X ^-1! 3700 MHz, AMD Radeon RX Vega 64	45.5 pt
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	42.1 pt
Intel Core i7-8700K ^-2! 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	41.7 pt
AMD Ryzen 5 2600X ^-1! 3600 MHz, AMD Radeon RX Vega 64	41.7 pt
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	41 pt
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	39.1 pt
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	35.2 pt

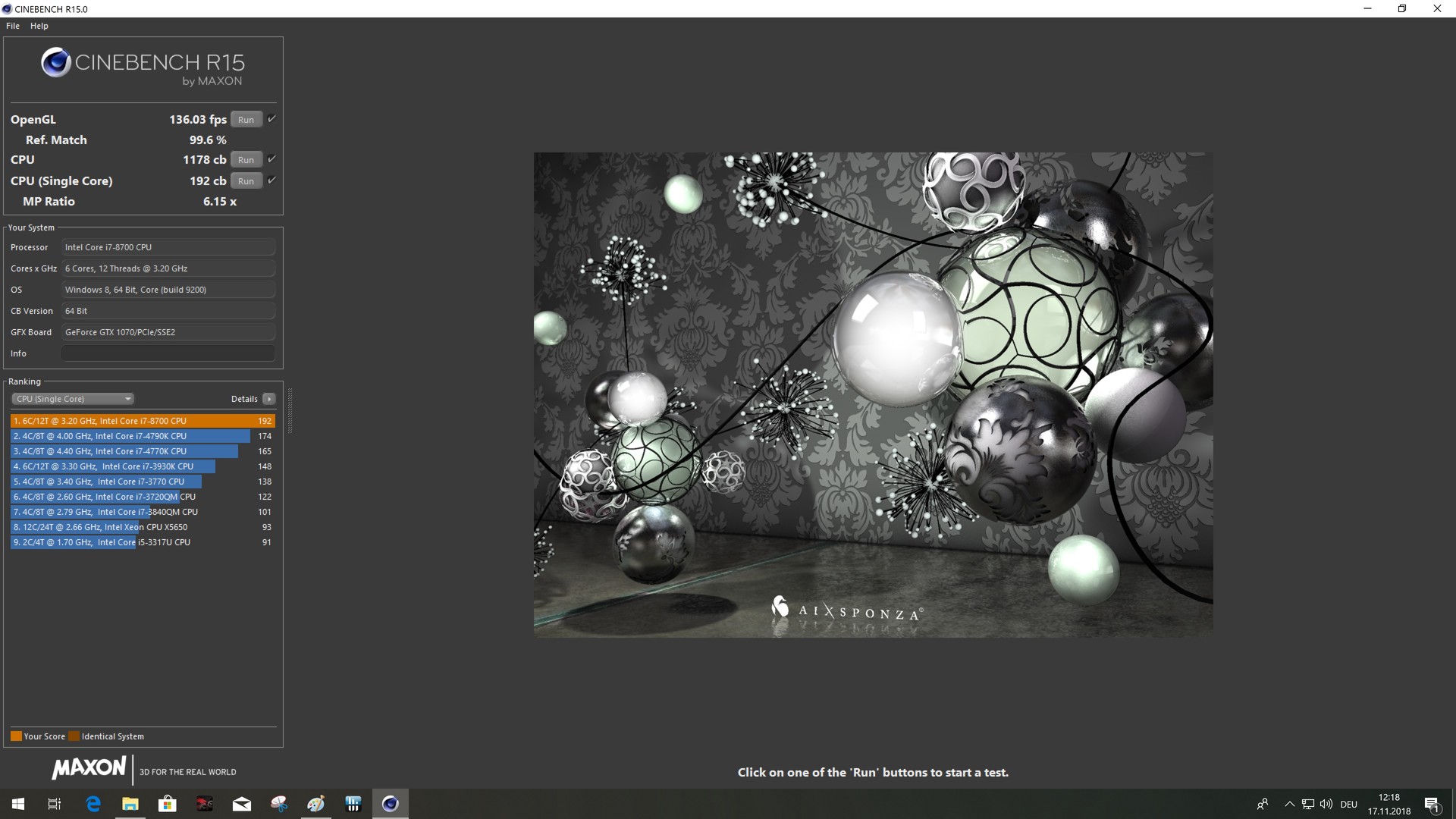

Cinebench R15
CPU Single 64Bit
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	199 Points +4%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	192 Points
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	176 Points -8%
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	176 Points -8%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	163 Points -15%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	161 Points -16%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	159 Points -17%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	159 Points -17%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	145 Points -24%
CPU Multi 64Bit
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	3110 Points +159%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	2997 Points +150%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	1801 Points +50%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	1551 Points +29%
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	1405 (1375.04^min - 1405.28^max) Points +17%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	1341 Points +12%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	1270 Points +6%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	1199 Points
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	843 Points -30%

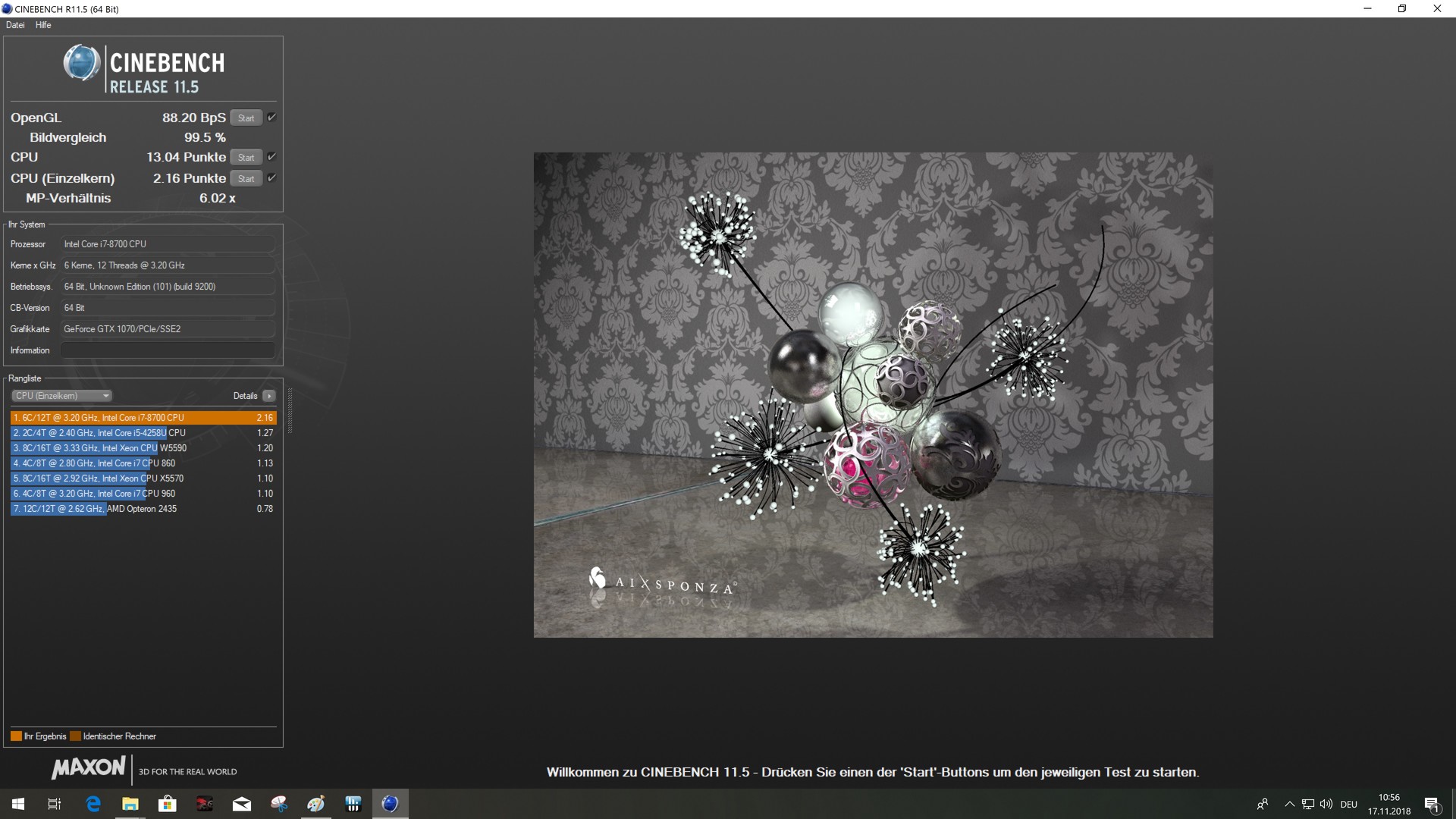

Cinebench R11.5
CPU Multi 64Bit
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	27.07 Points +108%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	23.13 Points +77%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	18.68 Points +43%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	16.71 Points +28%
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	15.64 Points +20%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	14.56 Points +12%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	13.71 Points +5%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	13.04 Points
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	8.6 Points -34%
CPU Single 64Bit
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	2.27 Points +5%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	2.16 Points
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	1.95 Points -10%
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	1.9 Points -12%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	1.81 Points -16%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	1.78 Points -18%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	1.76 Points -19%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	1.73 Points -20%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	1.65 Points -24%

Blender - v2.79 BMW27 CPU
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	561 Seconds * -45%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	388.2 Seconds *
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	375.7 Seconds * +3%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	350 Seconds * +10%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	308.3 Seconds * +21%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	264 Seconds * +32%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	163 Seconds * +58%
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	152.7 Seconds * +61%

wPrime 2.10
32m
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	8.025 s * -47%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	5.5 s * -1%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	5.469 s *
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	5.141 s * +6%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	4.62 s * +16%
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	4.186 s * +23%
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	4 s * +27%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	3.484 s * +36%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	3.34 s * +39%
1024m
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	235.1 s * -64%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	143.7 s *
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	140.9 s * +2%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	133.8 s * +7%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	130.5 s * +9%
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	118.6 s * +17%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	96.6 s * +33%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	55.1 s * +62%
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	53.2 s * +63%

HWBOT x265 Benchmark v2.2 - 4k Preset
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	17.5 fps +84%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	16.9 fps +77%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	9.53 fps
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	9.51 fps 0%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	7.79 fps -18%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	6.3 fps -34%

X264 HD Benchmark 4.0
Pass 1
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	235.5 (234^min - 237^max) fps
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	232 (229^min - 233^max) fps -1%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	226.7 fps -4%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	207.4 fps -12%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	205.3 (204.6^min - 207.33^max) fps -13%
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	202.3 (200.47^min - 203.47^max) fps -14%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	196 (196^min - 196^max) fps -17%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	195.7 (195.08^min - 196.35^max) fps -17%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	189.6 (188.03^min - 193.43^max) fps -19%
Pass 2
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	144.9 (143.48^min - 145.54^max) fps +93%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	134.3 (133.84^min - 135.07^max) fps +79%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	104.5 fps +39%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	89.7 (89.5^min - 89.85^max) fps +19%
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	87.4 fps +16%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	80.5 fps +7%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	75.2 (74.9^min - 76.3^max) fps
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	75 (74.84^min - 75.82^max) fps 0%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	51.8 (51.6^min - 51.9^max) fps -31%

WinRAR - Result
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	7120 KB/s +20%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	5912 KB/s
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	4779 KB/s -19%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	4599 KB/s -22%
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	4548 KB/s -23%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	4517 KB/s -24%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	4440 KB/s -25%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	4331 KB/s -27%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	4150 KB/s -30%

TrueCrypt
AES Mean 100MB
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	19.5 GB/s +153%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	19 GB/s +147%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	10.6 GB/s +38%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	9 GB/s +17%
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	8 GB/s +4%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	8 GB/s +4%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	7.7 GB/s
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	7.5 GB/s -3%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	3.4 GB/s -56%
Twofish Mean 100MB
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	2.9 GB/s +123%
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	2.9 GB/s +123%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	1.6 GB/s +23%
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	1.4 GB/s +8%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	1.4 GB/s +8%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	1.3 GB/s
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	1.2 GB/s -8%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	1 GB/s -23%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	0.629 GB/s -52%
Serpent Mean 100MB
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	1.8 GB/s +126%
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	1.8 GB/s +126%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	1 GB/s +26%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	0.899 GB/s +13%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	0.795 GB/s
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	0.793 GB/s 0%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	0.78 GB/s -2%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	0.732 GB/s -8%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	0.359 GB/s -55%

Geekbench 4.4
64 Bit Single-Core Score
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	5937 Points +7%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	5565 Points
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	4999 Points -10%
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	4903 Points -12%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	4706 Points -15%
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	4681 Points -16%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	4631 Points -17%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	4626 Points -17%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	4304 Points -23%
64 Bit Multi-Core Score
AMD Ryzen Threadripper 2950X 3500 MHz, AMD Radeon RX Vega 64	36198 Points +56%
AMD Ryzen Threadripper 1950X 3400 MHz, NVIDIA Titan X Pascal	28877 Points +24%
AMD Ryzen 7 2700X 3700 MHz, AMD Radeon RX Vega 64	25919 Points +12%
Intel Core i7-8700K 3700 MHz, NVIDIA GeForce GTX 1080 Ti (Desktop)	25223 Points +9%
Intel Core i7-8700 3200 MHz, NVIDIA GeForce GTX 1070 (Desktop)	23220 Points
AMD Ryzen 7 2700 3200 MHz, AMD Radeon RX Vega 64	22776 Points -2%
AMD Ryzen 5 2600X 3600 MHz, AMD Radeon RX Vega 64	21616 Points -7%
AMD Ryzen 5 2600 3400 MHz, AMD Radeon RX Vega 64	20633 Points -11%
Intel Core i5-8500T 2100 MHz, AMD Radeon RX Vega 64	18335 Points -21%

* ... smaller is better

MSI Aegis 3 8RD: Ø1169 (1152.37-1199.4)

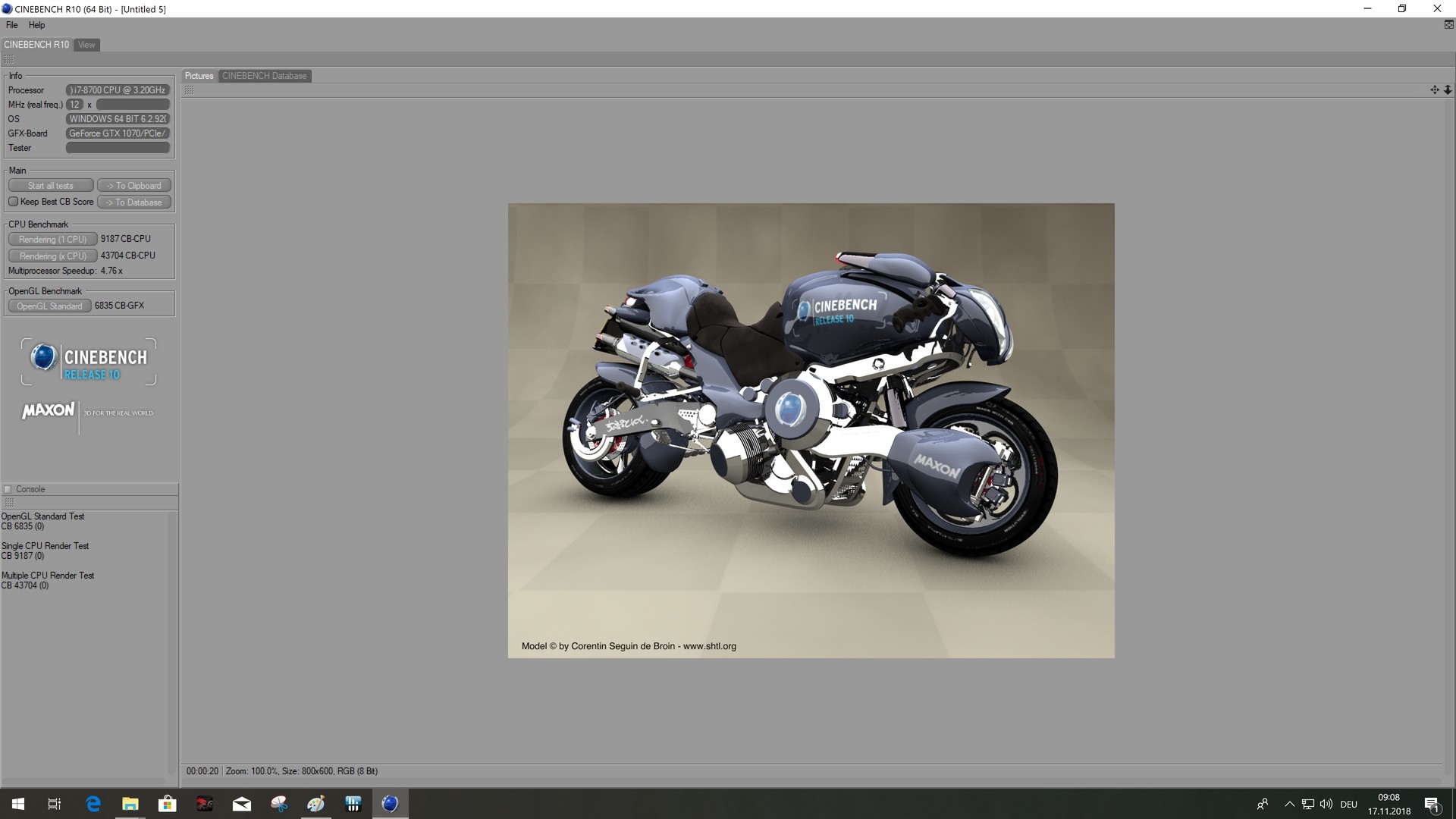

Cinebench R10 Shading 32Bit

6835

Cinebench R10 Rendering Single CPUs 64Bit

9187 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

43704 Points

Cinebench R10 Shading 64Bit

6835 Points

Cinebench R10 Rendering Single 32Bit

6992

Cinebench R10 Rendering Multiple CPUs 32Bit

35384

Cinebench R11.5 CPU Multi 32Bit

12.17 Points

Cinebench R11.5 OpenGL 32Bit

87.3 fps

Cinebench R11.5 CPU Single 64Bit

2.16 Points

Cinebench R11.5 CPU Multi 64Bit

13.04 Points

Cinebench R11.5 OpenGL 64Bit

88.2 fps

Cinebench R11.5 CPU Single 32Bit

1.92 Points

Cinebench R15 CPU Single 64Bit

192 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

136 fps

Cinebench R15 CPU Multi 64Bit

1199 Points

Hjälp

... jämför

PCMark 10 | PCMark 8 | PCMark 7

PCMark 10
Score
AMD Ryzen 7 2700X AMD Radeon RX Vega 64	7764 Points +27%
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	7451 Points +22%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	7337 Points +20%
AMD Ryzen Threadripper 1950X NVIDIA Titan X Pascal	7285 Points +19%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	7018 Points +15%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	6465 Points +6%
Intel Core i7-8700K NVIDIA GeForce GTX 1080 Ti (Desktop)	6150 Points +1%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	6100 Points
Intel Core i5-8500T AMD Radeon RX Vega 64	5473 Points -10%
Essentials
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	9689 Points
Intel Core i7-8700K NVIDIA GeForce GTX 1080 Ti (Desktop)	9597 Points -1%
AMD Ryzen 7 2700X AMD Radeon RX Vega 64	9521 Points -2%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	9205 Points -5%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	8985 Points -7%
Intel Core i5-8500T AMD Radeon RX Vega 64	8499 Points -12%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	8382 Points -13%
AMD Ryzen Threadripper 1950X NVIDIA Titan X Pascal	8377 Points -14%
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	8203 Points -15%
Productivity
AMD Ryzen 7 2700X AMD Radeon RX Vega 64	8447 Points +8%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	8024 Points +3%
Intel Core i7-8700K NVIDIA GeForce GTX 1080 Ti (Desktop)	7871 Points +1%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	7808 Points
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	7703 Points -1%
Intel Core i5-8500T AMD Radeon RX Vega 64	7516 Points -4%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	7443 Points -5%
AMD Ryzen Threadripper 1950X NVIDIA Titan X Pascal	5982 Points -23%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	5779 Points -26%
Digital Content Creation
AMD Ryzen Threadripper 1950X NVIDIA Titan X Pascal	8528 Points +5%
Intel Core i7-8700K NVIDIA GeForce GTX 1080 Ti (Desktop)	8356 Points +3%
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	8266 Points +2%
AMD Ryzen 7 2700X AMD Radeon RX Vega 64	8215 Points +1%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	8141 Points
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	7433 Points -9%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	7388 Points -9%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	7020 Points -14%
Intel Core i5-8500T AMD Radeon RX Vega 64	6966 Points -14%

PCMark 8
Home Score Accelerated v2
Intel Core i5-8500T AMD Radeon RX Vega 64	4898 Points +4%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	4708 Points
Intel Core i7-8700K NVIDIA GeForce GTX 1080 Ti (Desktop)	4648 Points -1%
AMD Ryzen 7 2700X AMD Radeon RX Vega 64	4483 Points -5%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	4392 Points -7%
AMD Ryzen Threadripper 1950X NVIDIA Titan X Pascal	4367 Points -7%
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	4359 Points -7%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	4311 Points -8%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	4209 Points -11%
Work Score Accelerated v2
Intel Core i5-8500T AMD Radeon RX Vega 64	5495 Points +12%
AMD Ryzen 7 2700X AMD Radeon RX Vega 64	4891 Points 0%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	4891 Points
Intel Core i7-8700K NVIDIA GeForce GTX 1080 Ti (Desktop)	4821 Points -1%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	4750 Points -3%
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	4735 Points -3%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	4633 Points -5%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	4598 Points -6%
AMD Ryzen Threadripper 1950X NVIDIA Titan X Pascal	4520 Points -8%

PCMark 7
Score
AMD Ryzen 7 2700X AMD Radeon RX Vega 64	8593 Points +17%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	8402 Points +14%
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	7960 Points +8%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	7619 Points +4%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	7556 Points +3%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	7338 Points
Productivity
AMD Ryzen 7 2700X AMD Radeon RX Vega 64	8383 Points +42%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	8137 Points +38%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	7074 Points +20%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	6869 Points +17%
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	6860 Points +17%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	5886 Points
Entertainment
AMD Ryzen 7 2700X AMD Radeon RX Vega 64	7939 Points +9%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	7809 Points +7%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	7302 Points
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	7262 Points -1%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	7065 Points -3%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	7000 Points -4%

PCMark 7 Score		7338 poäng
PCMark 8 Home Score Accelerated v2		4708 poäng
PCMark 8 Creative Score Accelerated v2		8234 poäng
PCMark 8 Work Score Accelerated v2		4891 poäng
PCMark 10 Score		6100 poäng
Hjälp

... jämför

Intel SSD benchmarks

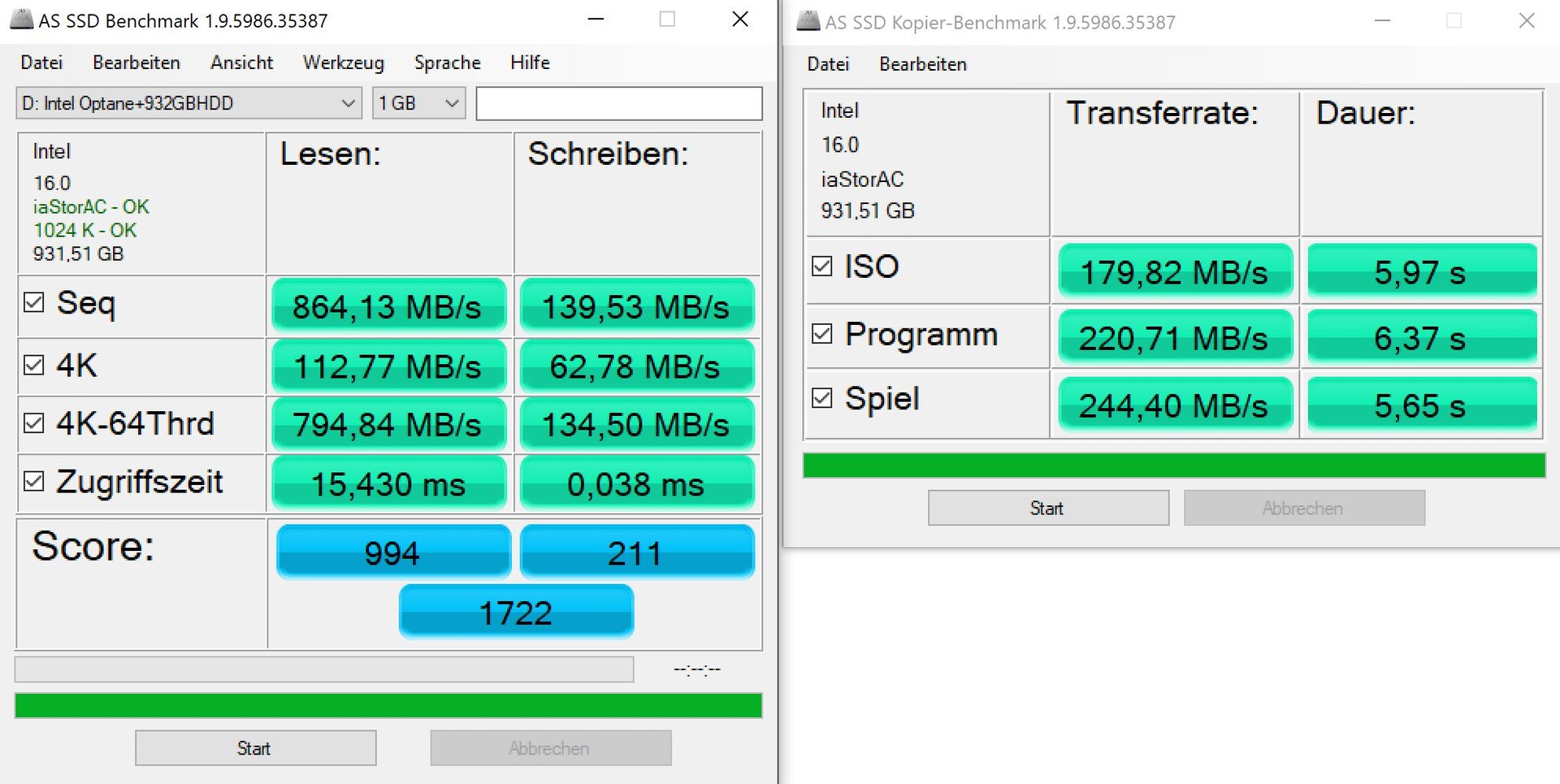

Western Digital HDD & Intel Optane benchmarks

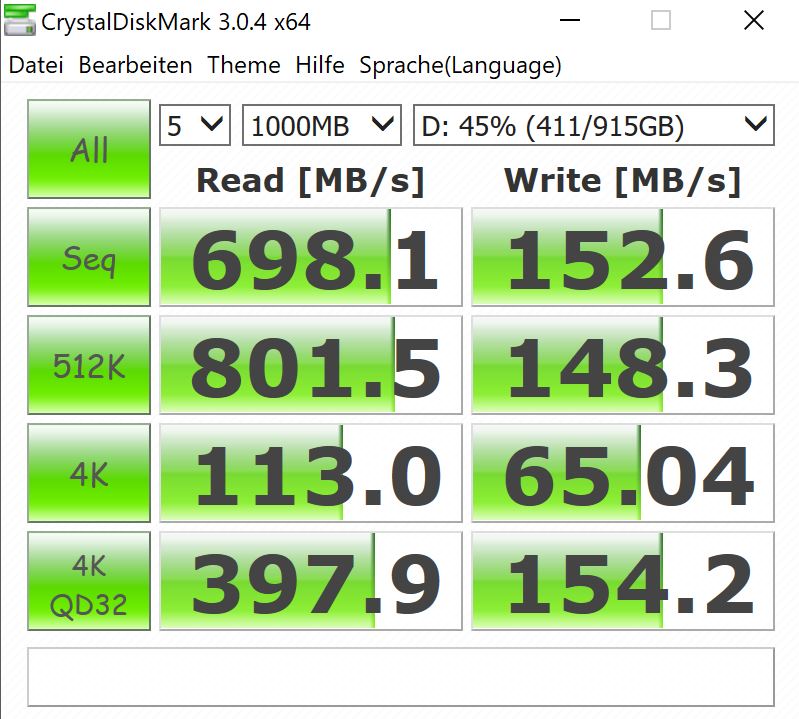

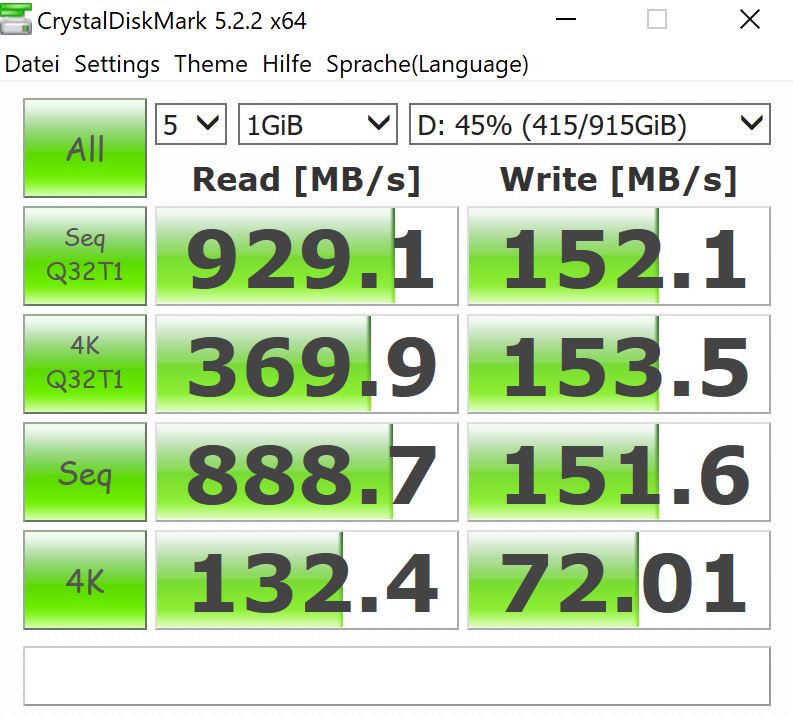

CrystalDiskMark 3.0

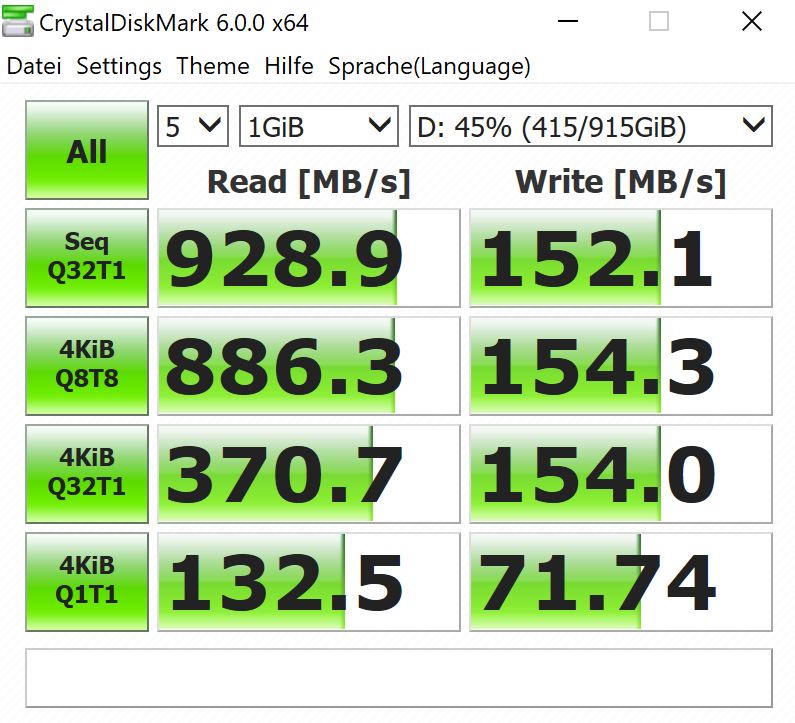

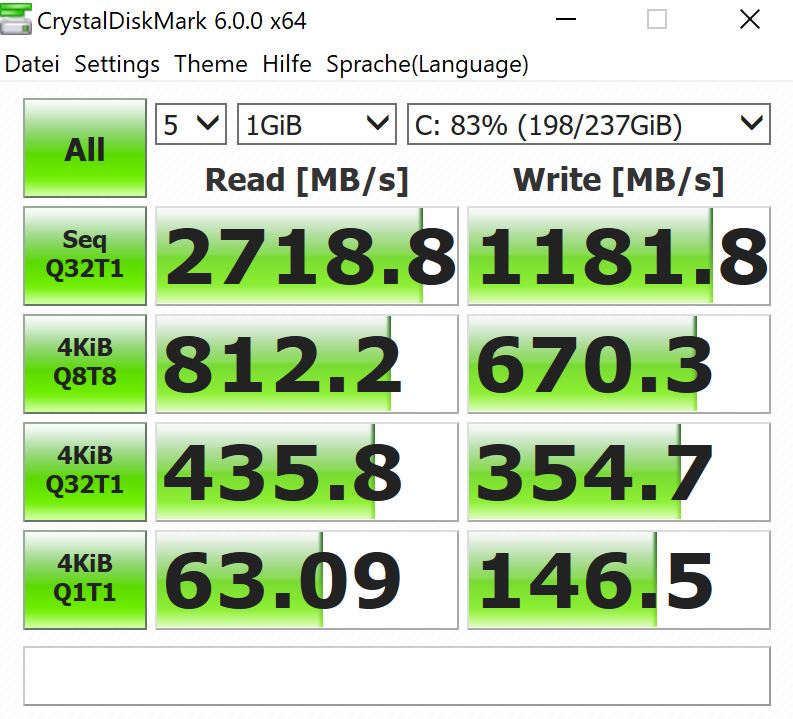

CrystalDiskMark 5.2 / 6

AS SSD

Intel SSD 760p SSDPEKKW256G8

Sequential Read: 2062 MB/s

Sequential Write: 1225 MB/s

512K Read: 1413 MB/s

512K Write: 671 MB/s

4K Read: 57.6 MB/s

4K Write: 118.3 MB/s

4K QD32 Read: 369.4 MB/s

4K QD32 Write: 280.7 MB/s

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Average of class Desktop (3347 - 104464, n=22, last 2 years)	70585 Points +186%
AMD Radeon RX Vega 64 Intel Core i5-8500T	31785 Points +29%
AMD Radeon RX Vega 64 Intel Core i7-8700K	31548 Points +28%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	31265 Points +27%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	29935 Points +21%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	29285 Points +19%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	28462 Points +15%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	27881 Points +13%
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	27632 Points +12%
Average NVIDIA GeForce GTX 1070 (Desktop) (23660 - 26098, n=5)	24686 Points 0%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	24652 Points

3DMark
1280x720 Cloud Gate Standard Graphics
AMD Radeon RX Vega 64 Intel Core i7-8700K	155414 Points +41%
Average of class Desktop (13814 - 189497, n=11, last 2 years)	130437 Points +18%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	127011 Points +15%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	120426 Points +9%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	118153 Points +7%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	110542 Points
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	107514 Points -3%
Average NVIDIA GeForce GTX 1070 (Desktop) (104764 - 110542, n=4)	107294 Points -3%
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	102781 Points -7%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	86339 Points -22%
AMD Radeon RX Vega 64 Intel Core i5-8500T	60794 Points -45%
1920x1080 Fire Strike Graphics
Average of class Desktop (2277 - 79185, n=19, last 2 years)	48863 Points +167%
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	27349 Points +49%
AMD Radeon RX Vega 64 Intel Core i7-8700K	23194 Points +27%
AMD Radeon RX Vega 64 Intel Core i5-8500T	23130 Points +26%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	22761 Points +24%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	22338 Points +22%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	21547 Points +18%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	20808 Points +14%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	20234 Points +10%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	18313 Points
Average NVIDIA GeForce GTX 1070 (Desktop) (16685 - 18408, n=5)	17893 Points -2%
2560x1440 Time Spy Graphics
Average of class Desktop (636 - 37589, n=21, last 2 years)	24918 Points +317%
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	9635 Points +61%
AMD Radeon RX Vega 64 Intel Core i7-8700K	7284 Points +22%
AMD Radeon RX Vega 64 Intel Core i5-8500T	7238 Points +21%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	7183 Points +20%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	7129 Points +19%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	6815 Points +14%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	6673 Points +12%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	6530 Points +9%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	5973 Points
Average NVIDIA GeForce GTX 1070 (Desktop) (5555 - 5973, n=3)	5808 Points -3%

3DMark 03 Standard		163345 poäng
3DMark 06 Standard Score		39794 poäng

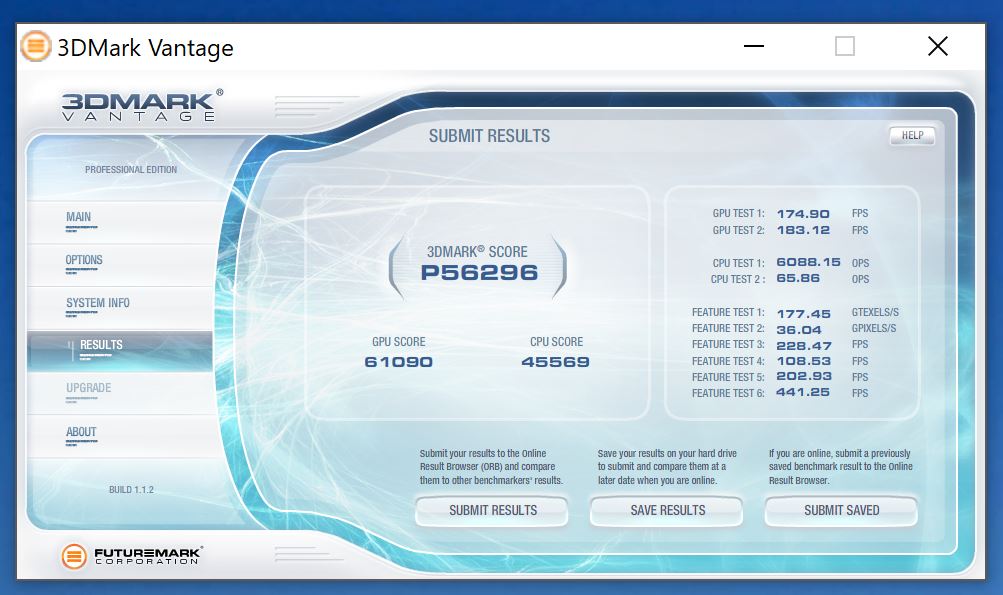

3DMark Vantage P Result		56296 poäng

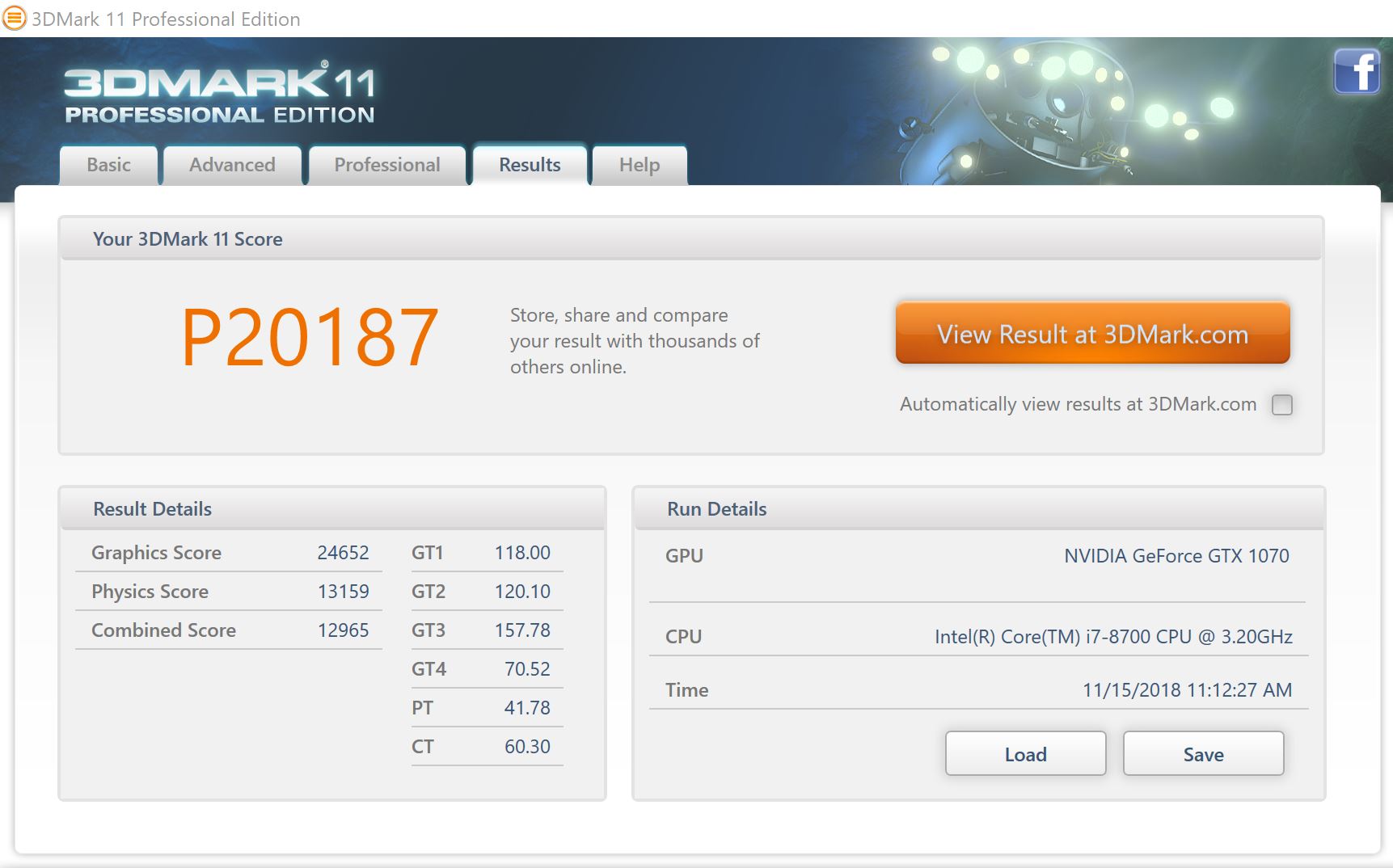

3DMark 11 Performance		20187 poäng

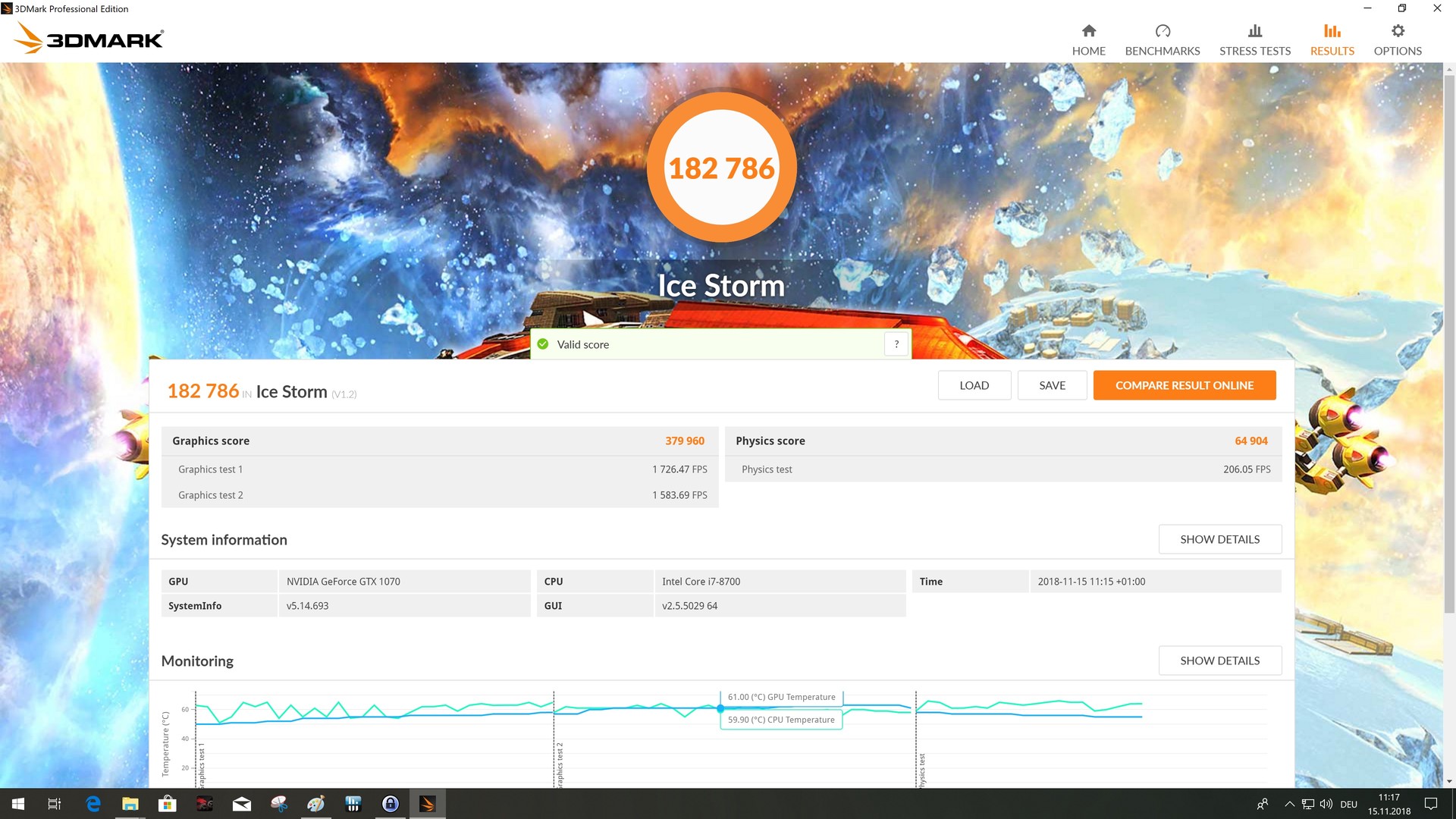

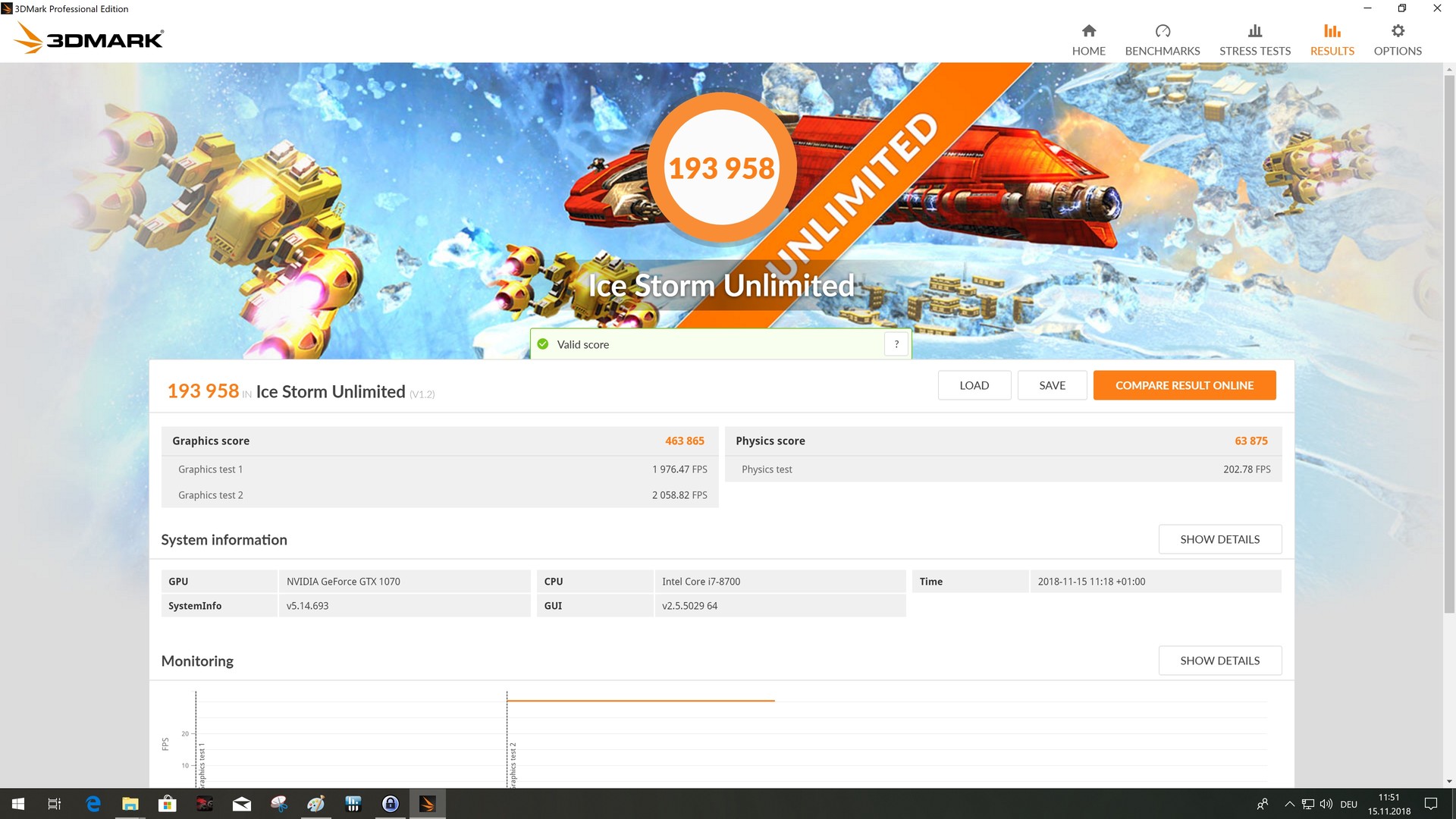

3DMark Ice Storm Standard Score		182786 poäng

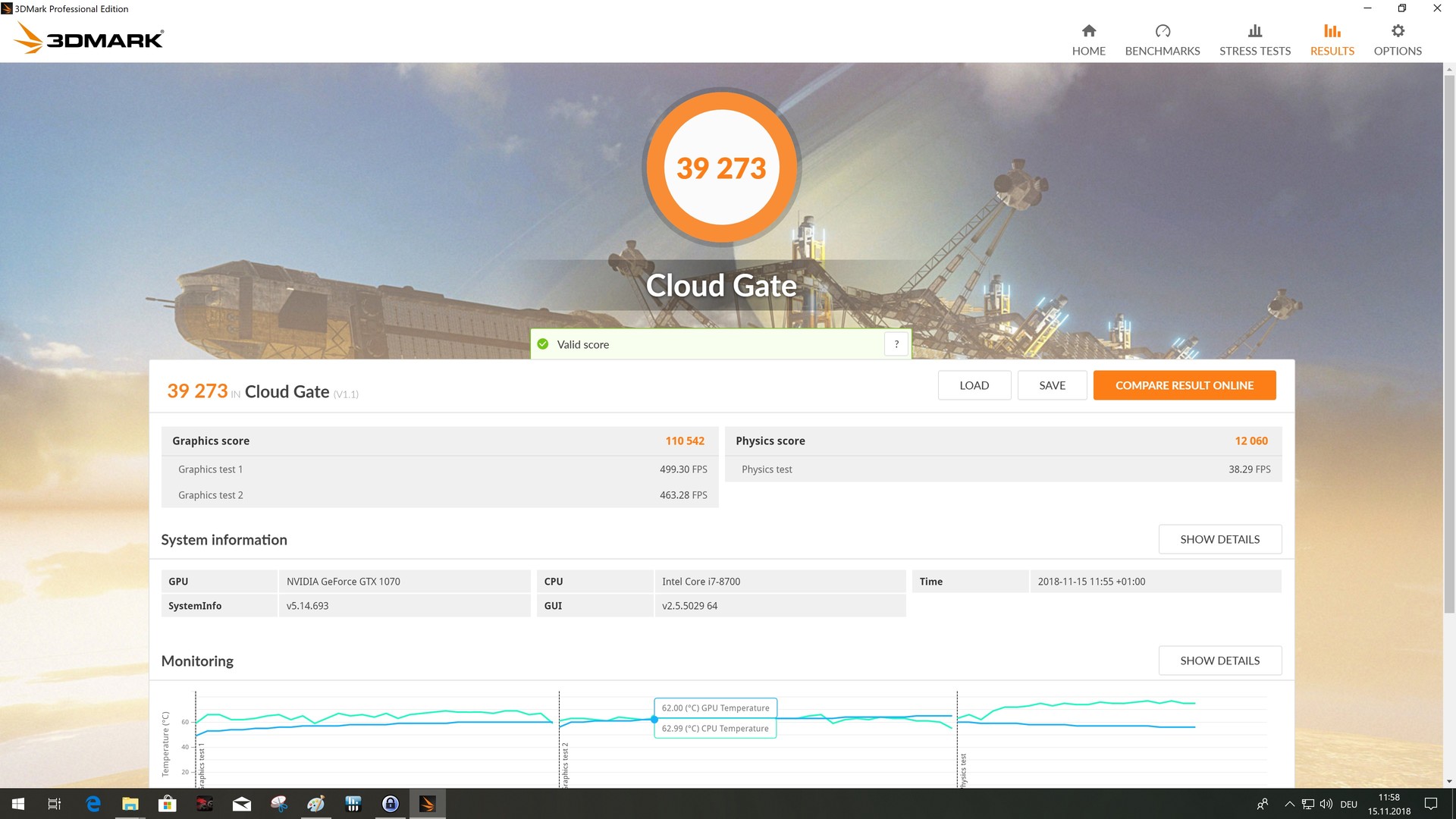

3DMark Cloud Gate Standard Score		39273 poäng

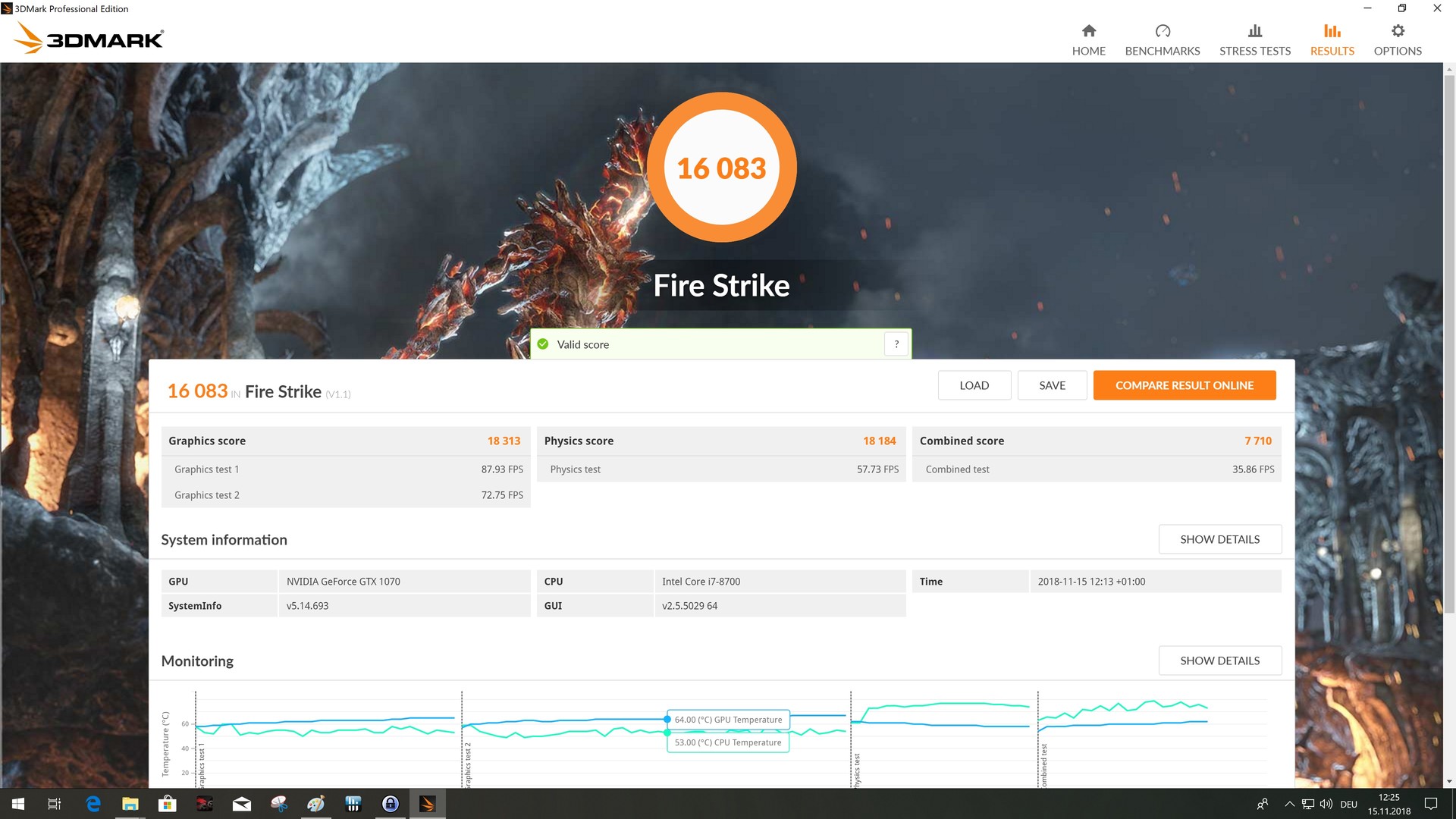

3DMark Fire Strike Score		16083 poäng

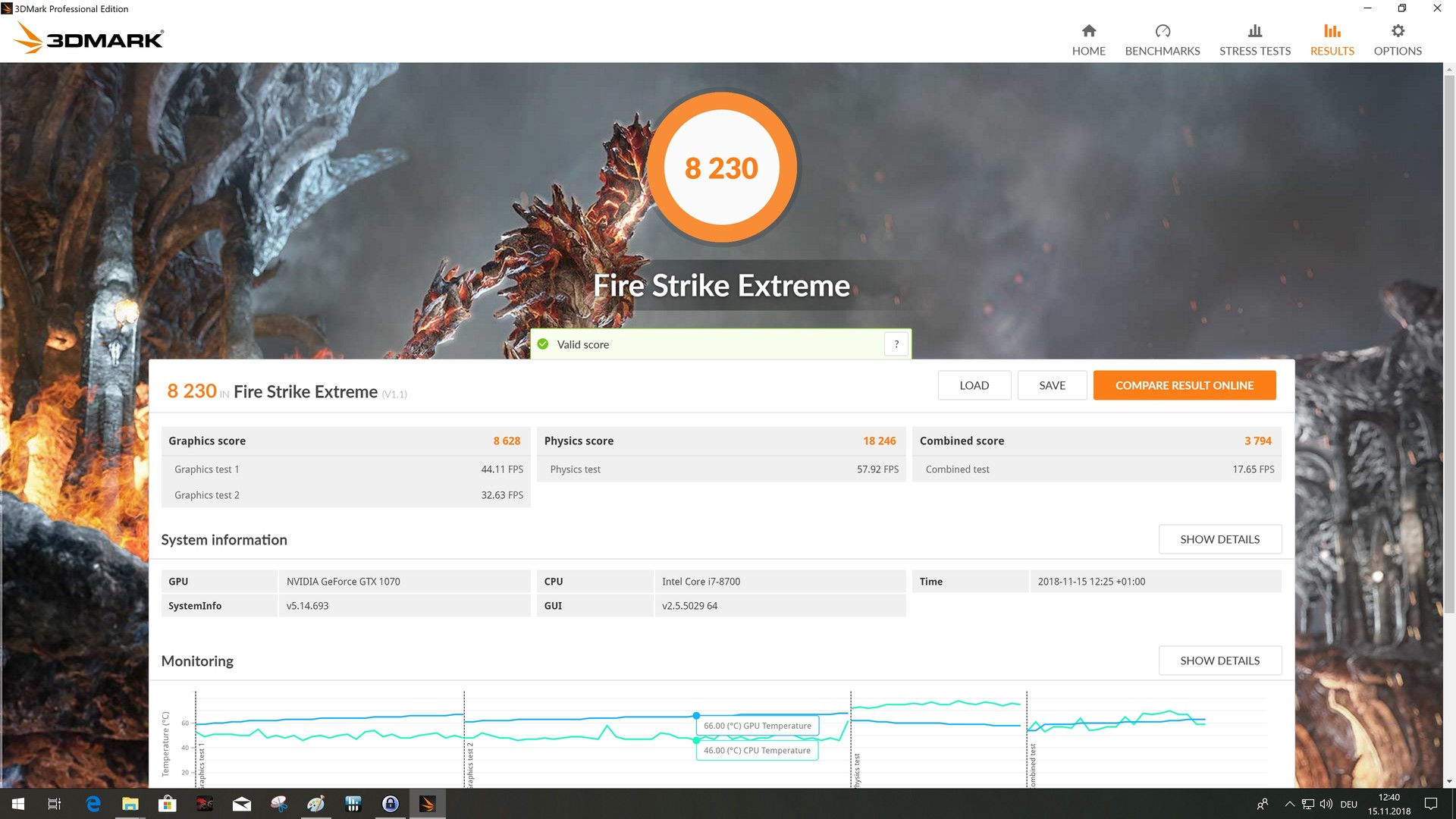

3DMark Fire Strike Extreme Score		8230 poäng

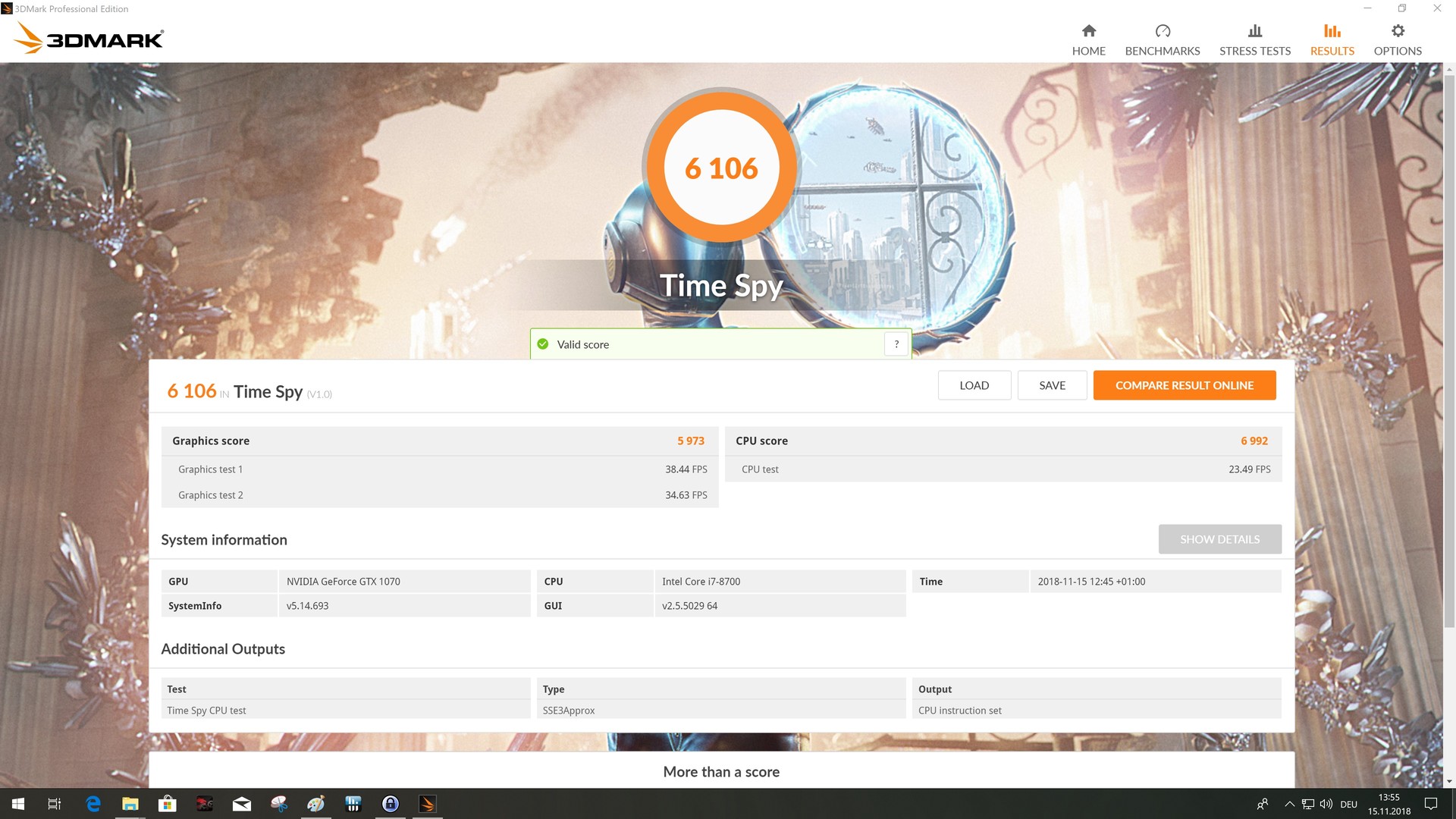

3DMark Time Spy Score		6106 poäng
Hjälp

... jämför

Performance Rating - Percent
AMD Radeon RX Vega 64 ^-2! Intel Core i7-8700K	94 pt
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	88.7 pt
AMD Radeon RX Vega 64 ^-6! AMD Ryzen Threadripper 2950X	88.4 pt
AMD Radeon RX Vega 64 ^-6! AMD Ryzen 5 2600	86.8 pt
AMD Radeon RX Vega 64 ^-6! AMD Ryzen 5 2600X	86.6 pt
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	86.6 pt
AMD Radeon RX Vega 64 ^-6! AMD Ryzen 7 2700	86.6 pt
AMD Radeon RX Vega 64 ^-2! Intel Core i5-8500T	83.3 pt
NVIDIA Titan X Pascal ^-12! AMD Ryzen Threadripper 1950X	80.8 pt

The Witcher 3
1024x768 Low Graphics & Postprocessing
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	318.2 (289^min - 352^max) fps +16%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	298.7 (259^min - 354^max) fps +9%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	285.1 (259^min - 331^max) fps +4%
AMD Radeon RX Vega 64 Intel Core i7-8700K	284.8 (216^min - 294^max) fps +4%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	283.7 (248^min - 321^max) fps +4%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	273.3 fps
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	258.5 (219^min - 295^max) fps -5%
AMD Radeon RX Vega 64 Intel Core i5-8500T	225.9 (176^min - 251^max) fps -17%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	80.9 (68^min - 87^max) fps +28%
AMD Radeon RX Vega 64 Intel Core i7-8700K	79.4 (70^min - 86^max) fps +26%
AMD Radeon RX Vega 64 Intel Core i5-8500T	77.7 (67^min - 86^max) fps +23%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	77 (67^min - 84^max) fps +22%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	73.3 (62^min - 82^max) fps +16%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	73.3 (62^min - 80^max) fps +16%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	69.4 (58^min - 76^max) fps +10%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	63.2 fps

Rise of the Tomb Raider
1024x768 Lowest Preset
AMD Radeon RX Vega 64 Intel Core i7-8700K	281.7 (266^min - 303^max) fps +4%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	271.4 (263^min - 279^max) fps
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	263.8 (256^min - 274^max) fps -3%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	263.7 (256^min - 276^max) fps -3%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	262.2 (252^min - 300^max) fps -3%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	258.9 (230^min - 274^max) fps -5%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	253.2 (243^min - 262^max) fps -7%
AMD Radeon RX Vega 64 Intel Core i5-8500T	221.6 (204^min - 244^max) fps -18%
1920x1080 Very High Preset AA:FX AF:16x
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	105.7 (90^min - 116^max) fps +6%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	99.7 (90^min - 108^max) fps
AMD Radeon RX Vega 64 Intel Core i7-8700K	99 (85^min - 112^max) fps -1%
AMD Radeon RX Vega 64 Intel Core i5-8500T	96.6 (83^min - 107^max) fps -3%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	94.7 (78^min - 106^max) fps -5%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	94 (82^min - 103^max) fps -6%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	91.5 (82^min - 103^max) fps -8%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	91.3 (79^min - 101^max) fps -8%

Battlefield 1
1280x720 Low Preset
AMD Radeon RX Vega 64 Intel Core i7-8700K	200 (186^min - 201^max) fps +9%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	199.1 (182^min - 201^max) fps +8%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	197.6 (183^min - 201^max) fps +7%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	196.2 (185^min - 201^max) fps +7%
AMD Radeon RX Vega 64 Intel Core i5-8500T	196 (181^min - 201^max) fps +6%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	184.2 (135^min - 199^max) fps
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	181.4 (141^min - 194^max) fps -2%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	173 (161^min - 185^max) fps -6%
1920x1080 Ultra Preset AA:T
AMD Radeon RX Vega 64 Intel Core i7-8700K	147.7 (137^min - 155^max) fps +21%
AMD Radeon RX Vega 64 Intel Core i5-8500T	146 (131^min - 155^max) fps +20%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	145.1 (131^min - 167^max) fps +19%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	136 (123^min - 142^max) fps +11%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	135.6 (124^min - 152^max) fps +11%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	135.2 (124^min - 148^max) fps +11%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	127.1 (116^min - 144^max) fps +4%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	122.1 (108^min - 131^max) fps

Assassin´s Creed Origins
1280x720 Very Low Preset
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	111 fps
AMD Radeon RX Vega 64 Intel Core i7-8700K	84 fps -24%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	81 fps -27%
AMD Radeon RX Vega 64 Intel Core i5-8500T	80 fps -28%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	76 fps -32%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	70 fps -37%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	68 (34^min - 93^max) fps -39%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	67 fps -40%
1920x1080 Ultra High Preset
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	72 fps
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	67 fps -7%
AMD Radeon RX Vega 64 Intel Core i7-8700K	67 fps -7%
AMD Radeon RX Vega 64 Intel Core i5-8500T	66 fps -8%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	63 fps -12%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	59 fps -18%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	57 (6^min - 93^max) fps -21%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	57 fps -21%

Final Fantasy XV Benchmark
1280x720 Lite Quality
AMD Radeon RX Vega 64 Intel Core i7-8700K	164.4 (87^min - 226^max) fps +13%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	145.6 (94^min - 177^max) fps 0%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	145.4 (95^min - 203^max) fps
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	143 (98^min - 201^max) fps -2%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	141.5 (72^min - 177^max) fps -3%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	133.6 (88^min - 191^max) fps -8%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	133.4 (78^min - 177^max) fps -8%
AMD Radeon RX Vega 64 Intel Core i5-8500T	68.1 (49^min - 198^max) fps -53%
1920x1080 High Quality
AMD Radeon RX Vega 64 Intel Core i7-8700K	61.4 (39^min - 99^max) fps +3%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	59.8 (33^min - 93^max) fps 0%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	59.6 (35^min - 90^max) fps
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	58.9 (23^min - 92^max) fps -1%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	58.5 (23^min - 92^max) fps -2%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	58.5 (23^min - 92^max) fps -2%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	56.7 (20^min - 89^max) fps -5%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	55 (19^min - 86^max) fps -8%
AMD Radeon RX Vega 64 Intel Core i5-8500T	54.5 (34^min - 85^max) fps -9%

Far Cry 5
1280x720 Low Preset AA:T
AMD Radeon RX Vega 64 Intel Core i7-8700K	144 (114^min - 194^max) fps +2%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	141 (110^min - 179^max) fps
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	125 (99^min - 171^max) fps -11%
AMD Radeon RX Vega 64 Intel Core i5-8500T	124 (98^min - 165^max) fps -12%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	122 (97^min - 162^max) fps -13%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	118 (90^min - 159^max) fps -16%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	114 (89^min - 154^max) fps -19%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	100 (82^min - 133^max) fps -29%
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	96 (77^min - 116^max) fps -32%
1920x1080 Ultra Preset AA:T
AMD Radeon RX Vega 64 Intel Core i7-8700K	111 (90^min - 128^max) fps +23%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	99 (78^min - 124^max) fps +10%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	98 (75^min - 125^max) fps +9%
AMD Radeon RX Vega 64 Intel Core i5-8500T	98 (79^min - 125^max) fps +9%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	96 (75^min - 121^max) fps +7%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	94 (74^min - 117^max) fps +4%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	90 (78^min - 103^max) fps
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	80 (64^min - 107^max) fps -11%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	80 (61^min - 108^max) fps -11%

Shadow of the Tomb Raider
1280x720 Lowest Preset
AMD Radeon RX Vega 64 Intel Core i7-8700K	188 fps +21%
AMD Radeon RX Vega 64 Intel Core i5-8500T	155 fps 0%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	155 fps
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	117 fps -25%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	107 fps -31%
1920x1080 Highest Preset AA:T
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	103 fps +37%
AMD Radeon RX Vega 64 Intel Core i7-8700K	91 fps +21%
AMD Radeon RX Vega 64 Intel Core i5-8500T	91 fps +21%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	85 fps +13%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	75 fps

Forza Horizon 4
1280x720 Very Low Preset
AMD Radeon RX Vega 64 Intel Core i7-8700K	234 fps +30%
AMD Radeon RX Vega 64 Intel Core i5-8500T	203 fps +13%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	200 fps +11%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	180 fps
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	141 fps -22%
1920x1080 Ultra Preset AA:2xMS
AMD Radeon RX Vega 64 Intel Core i7-8700K	131 fps +39%
AMD Radeon RX Vega 64 Intel Core i5-8500T	131 fps +39%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	121 fps +29%
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	112 fps +19%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	94 fps

Assassin´s Creed Odyssey
1280x720 Low Preset
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	120 (52^min - 163^max) fps +6%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	113 (59^min - 169^max) fps
AMD Radeon RX Vega 64 Intel Core i7-8700K	92 fps -19%
AMD Radeon RX Vega 64 Intel Core i5-8500T	79 fps -30%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	73 (20^min - 101^max) fps -35%
1920x1080 Ultra High Preset
NVIDIA Titan X Pascal AMD Ryzen Threadripper 1950X	67 (30^min - 125^max) fps +22%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	55 (11^min - 101^max) fps
AMD Radeon RX Vega 64 Intel Core i7-8700K	51 fps -7%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	50 (25^min - 75^max) fps -9%
AMD Radeon RX Vega 64 Intel Core i5-8500T	50 fps -9%

Battlefield 4
1024x768 Low Preset
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	200 (190^min - 202^max) fps 0%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	200 (192^min - 201^max) fps 0%
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	200 (195^min - 202^max) fps
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	199.9 (190^min - 201^max) fps 0%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	199.6 (194^min - 202^max) fps 0%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	191.8 (178^min - 200^max) fps -4%
1920x1080 Ultra Preset AA:4x MS
NVIDIA GeForce GTX 1070 (Desktop) Intel Core i7-8700	158.4 (144^min - 192^max) fps
AMD Radeon RX Vega 64 AMD Ryzen 7 2700X	142.5 (132^min - 172^max) fps -10%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	139.5 (130^min - 169^max) fps -12%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600X	139.5 (130^min - 169^max) fps -12%
AMD Radeon RX Vega 64 AMD Ryzen 7 2700	137.2 (125^min - 173^max) fps -13%
AMD Radeon RX Vega 64 AMD Ryzen Threadripper 2950X	136.3 (126^min - 174^max) fps -14%
AMD Radeon RX Vega 64 AMD Ryzen 5 2600	133.1 (121^min - 159^max) fps -16%

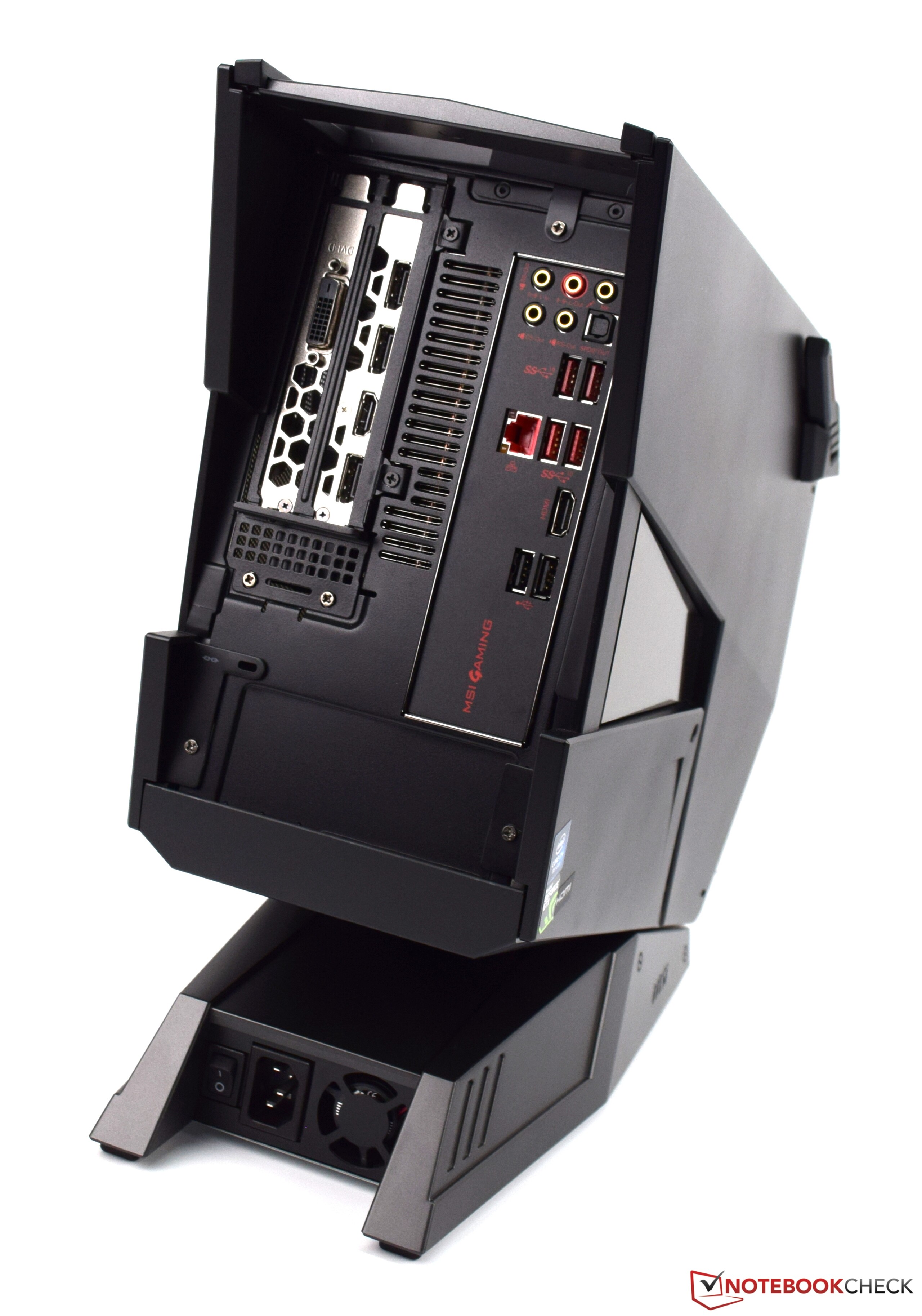

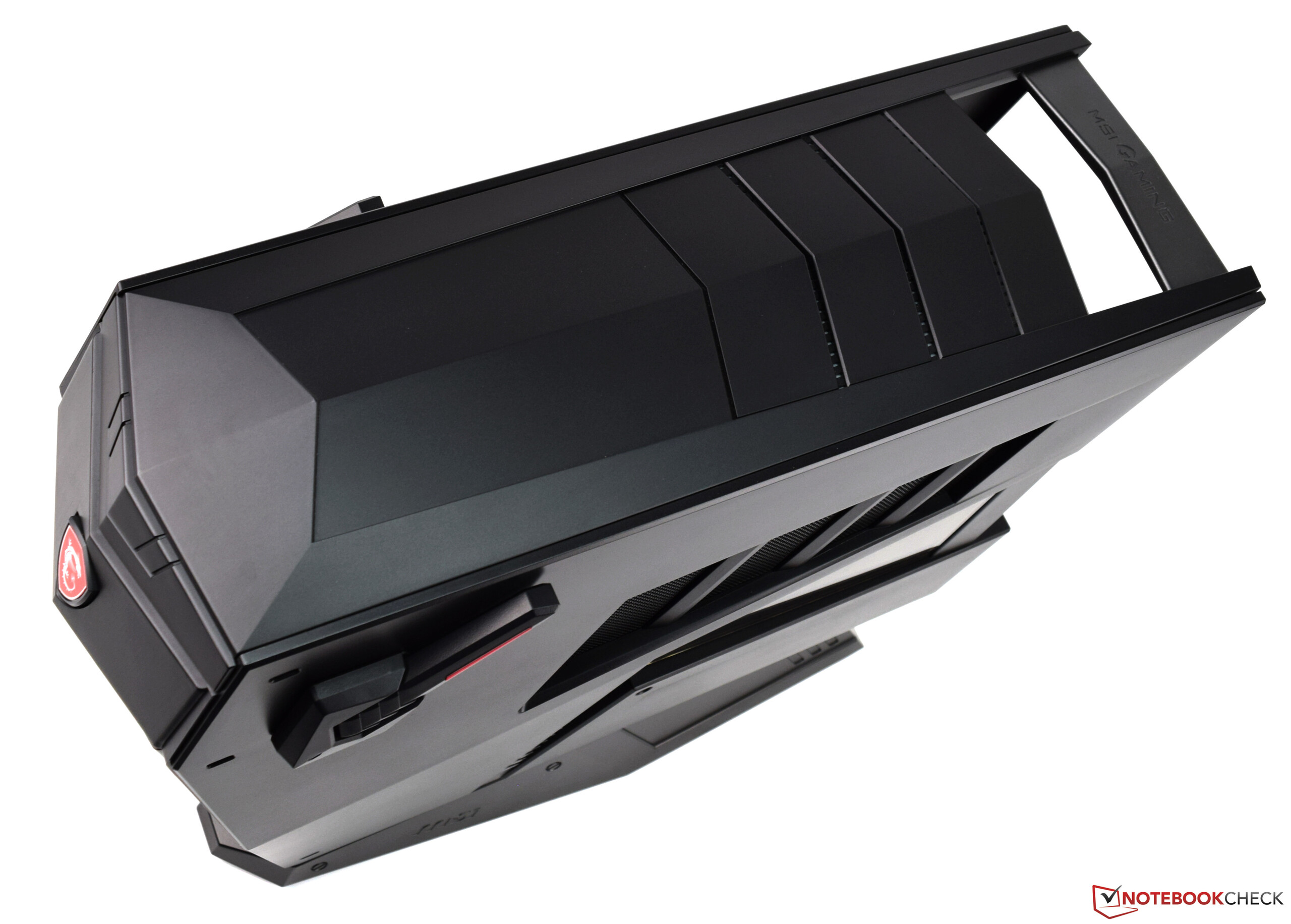

MSI Aegis 3 8RD GeForce GTX 1070 (Desktop), i7-8700, Intel SSD 760p SSDPEKKW256G8: Ø63.6 (61-65)

	låg	med.	hög	ultra	4K
Battlefield 4 (2013)	200	200	200	158.4	78
GTA V (2015)	174.1	168.6	148	101.4	89.5
The Witcher 3 (2015)	273.3	194.4	116	63.2	42.3
Rainbow Six Siege (2015)	322.9	279.7	207.2	189	74.9
Rise of the Tomb Raider (2016)	271.4	195.4	119	99.7	42
Far Cry Primal (2016)	154	131	116	94	41
The Division (2016)	245.9	192.1	109.3	86.5	42.2
Overwatch (2016)	300	297.2	279.7	176.8	60.8
Deus Ex Mankind Divided (2016)	160.7	144	87.2	62.9	29.6
Battlefield 1 (2016)	184.2	164.2	134.5	122.1	47.7
Dishonored 2 (2016)	118.8	118.4	111.4	102.1	45.2
Watch Dogs 2 (2016)	166.5	120.8	88.1	64	33.8
For Honor (2017)	298.6	151.7	143.4	115.7	47
Ghost Recon Wildlands (2017)	174.1	99.8	92	53.2	34.4
Rocket League (2017)	242.5	248	205.9		96.1
Dirt 4 (2017)	308.9	234.5	171	95.9	56.3
Playerunknown's Battlegrounds (PUBG) (2017)	182.8	153.3	136.9	110.6	41.8
Destiny 2 (2017)	183.5	156.8	148.7	129.2	45.8
Assassin´s Creed Origins (2017)	111	94	86	72	32
Call of Duty WWII (2017)	256.8	249	156	120.2	60.4
Fortnite (2018)	247	226.5	169.2	124.9	38.4
Final Fantasy XV Benchmark (2018)	145.4	85	59.6		27
Kingdom Come: Deliverance (2018)	138.8	103.2	82.8	63.2	22
Far Cry 5 (2018)	141	103	96	90	35
The Crew 2 (2018)	60	60	60	60	41.3
Monster Hunter World (2018)	166.8	102.3	93.5	72.2	22.4
F1 2018 (2018)	249	177	142	95	47
Shadow of the Tomb Raider (2018)	155	93	86	75	25
FIFA 19 (2018)	273.3	248.7	232.1	229.3	117.4
Forza Horizon 4 (2018)	180	127	118	94	52
Assassin´s Creed Odyssey (2018)	113	89	76	55	26
Call of Duty Black Ops 4 (2018)	224.7	199.5	196.7	184.5	64.6
Hitman 2 (2018)	92.7	91.4	83.2	80.2	39.7
Fallout 76 (2018)	60	60	59.9	59.9	43.3
Battlefield V (2018)	177.3	136.6	117.5	106.7	44.9

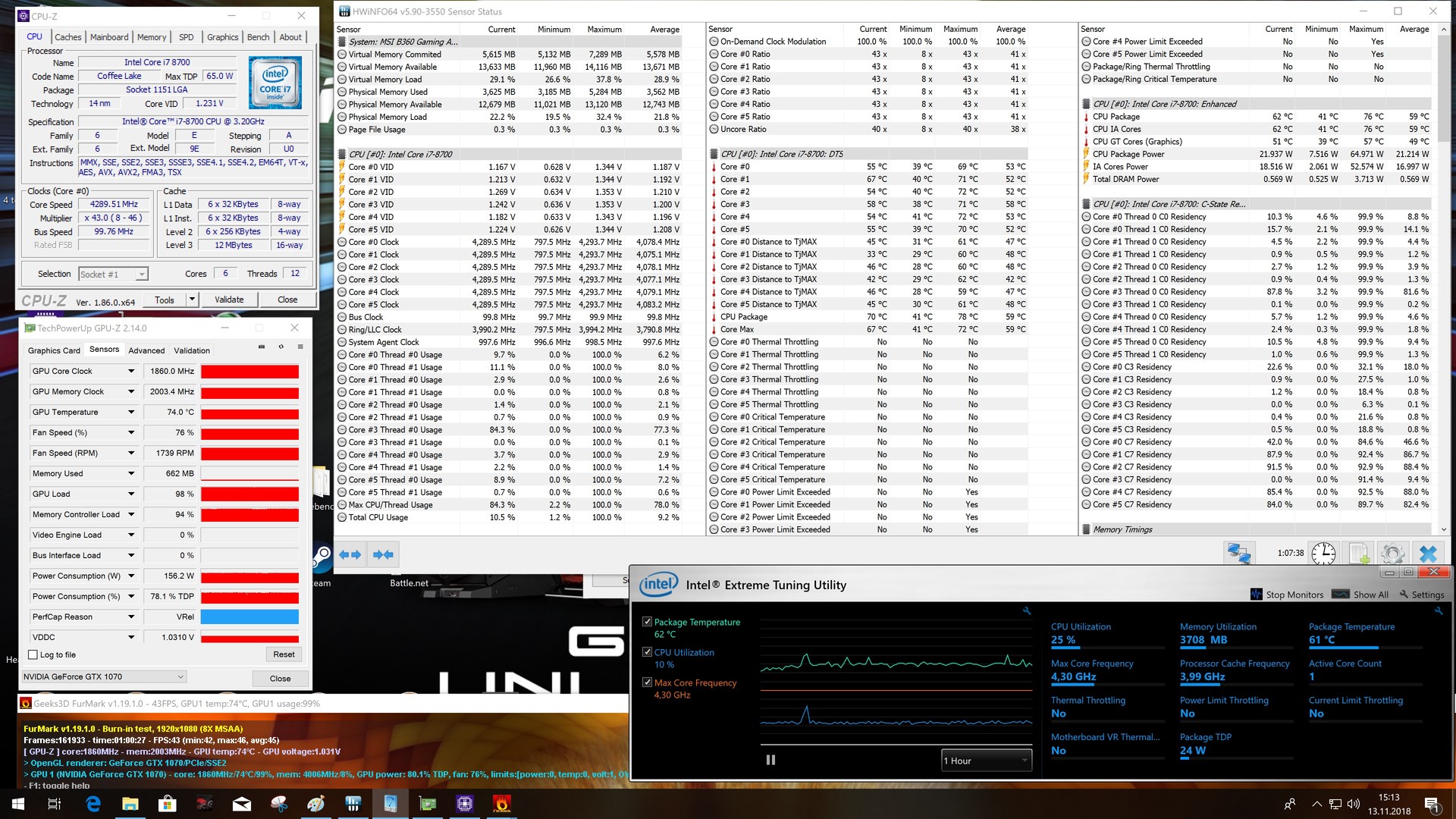

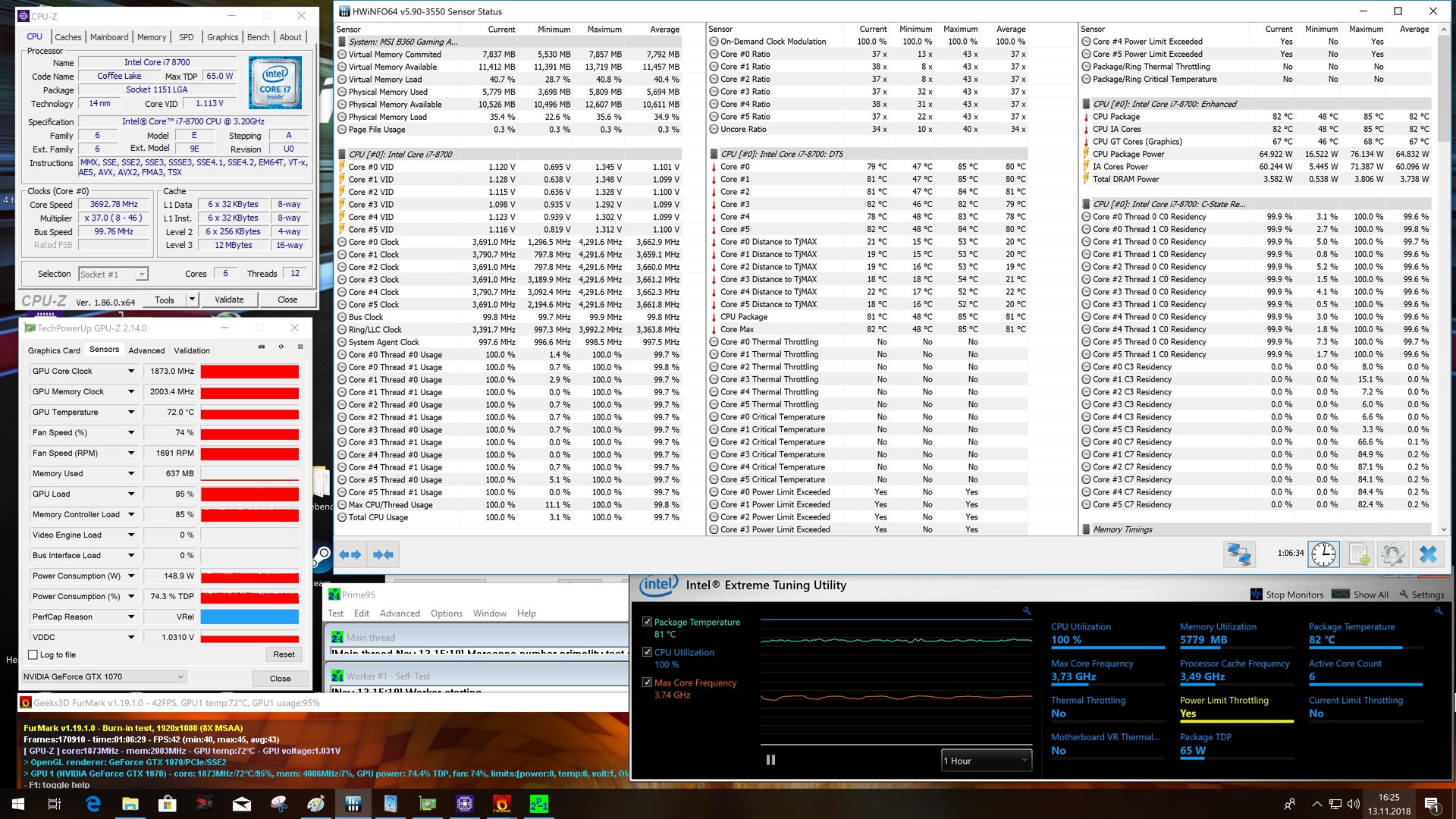

Kombinerat stresstest: FurMark och Prime95

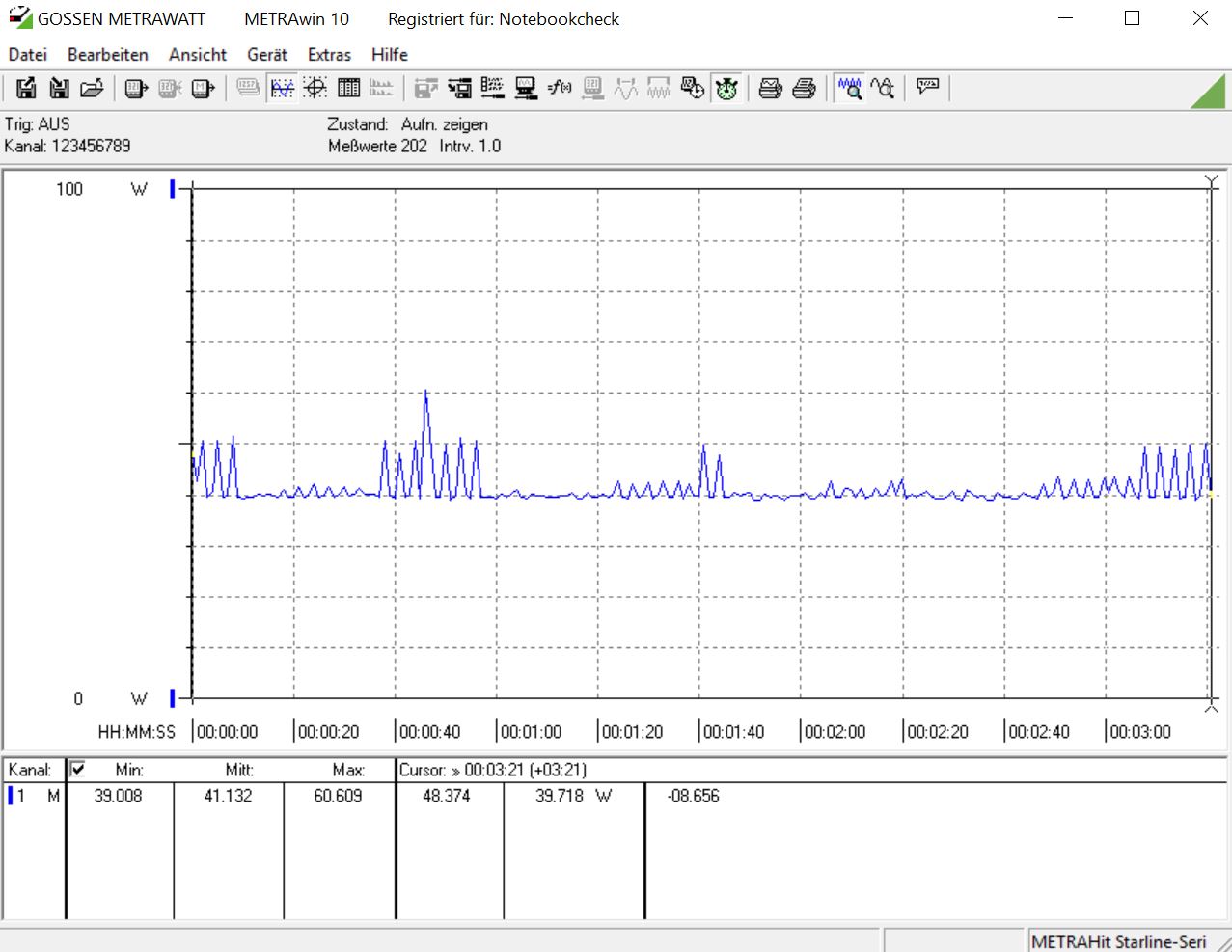

Testsystemets energiförbrukning

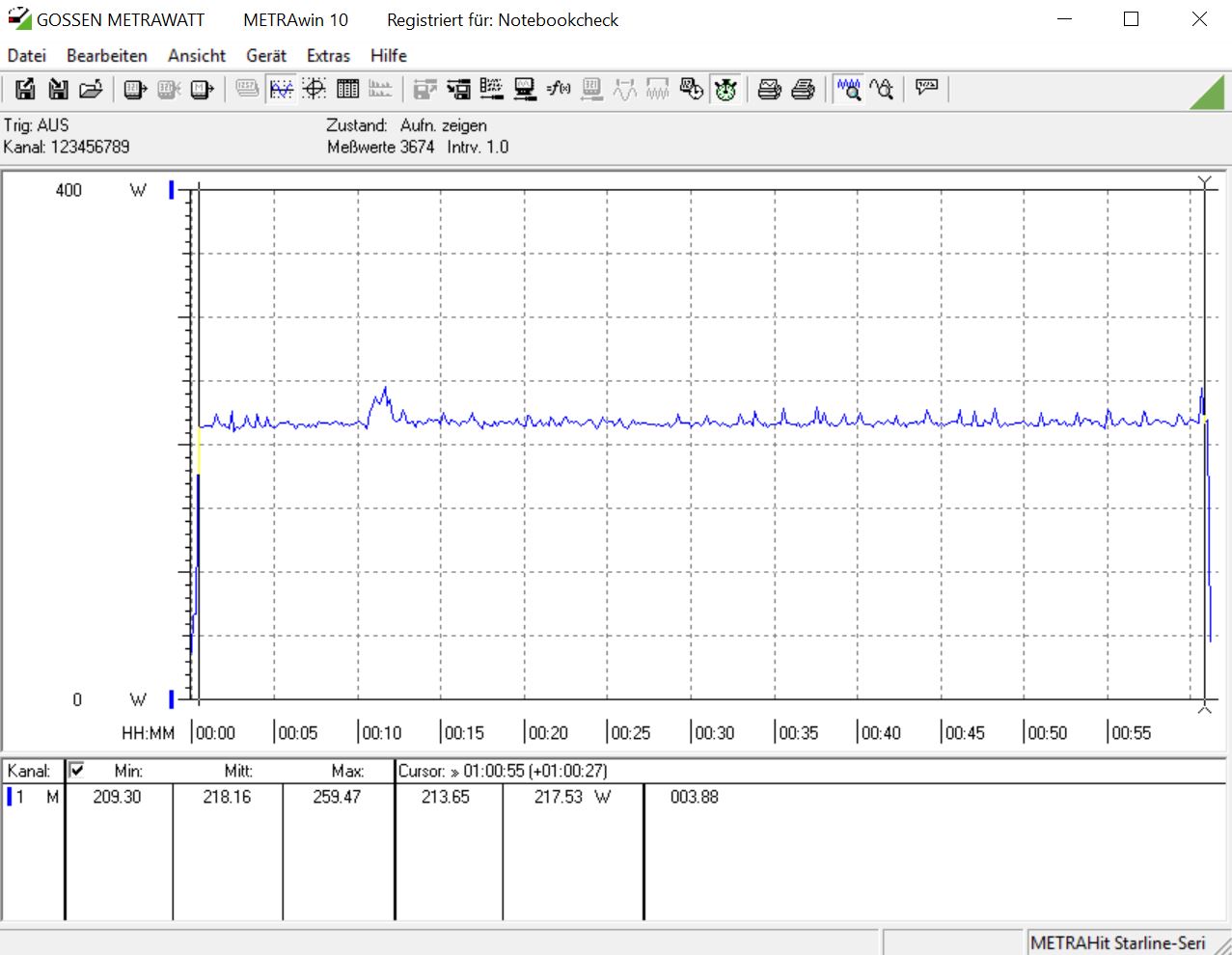

Under ett FurMark-stresstest på en timma

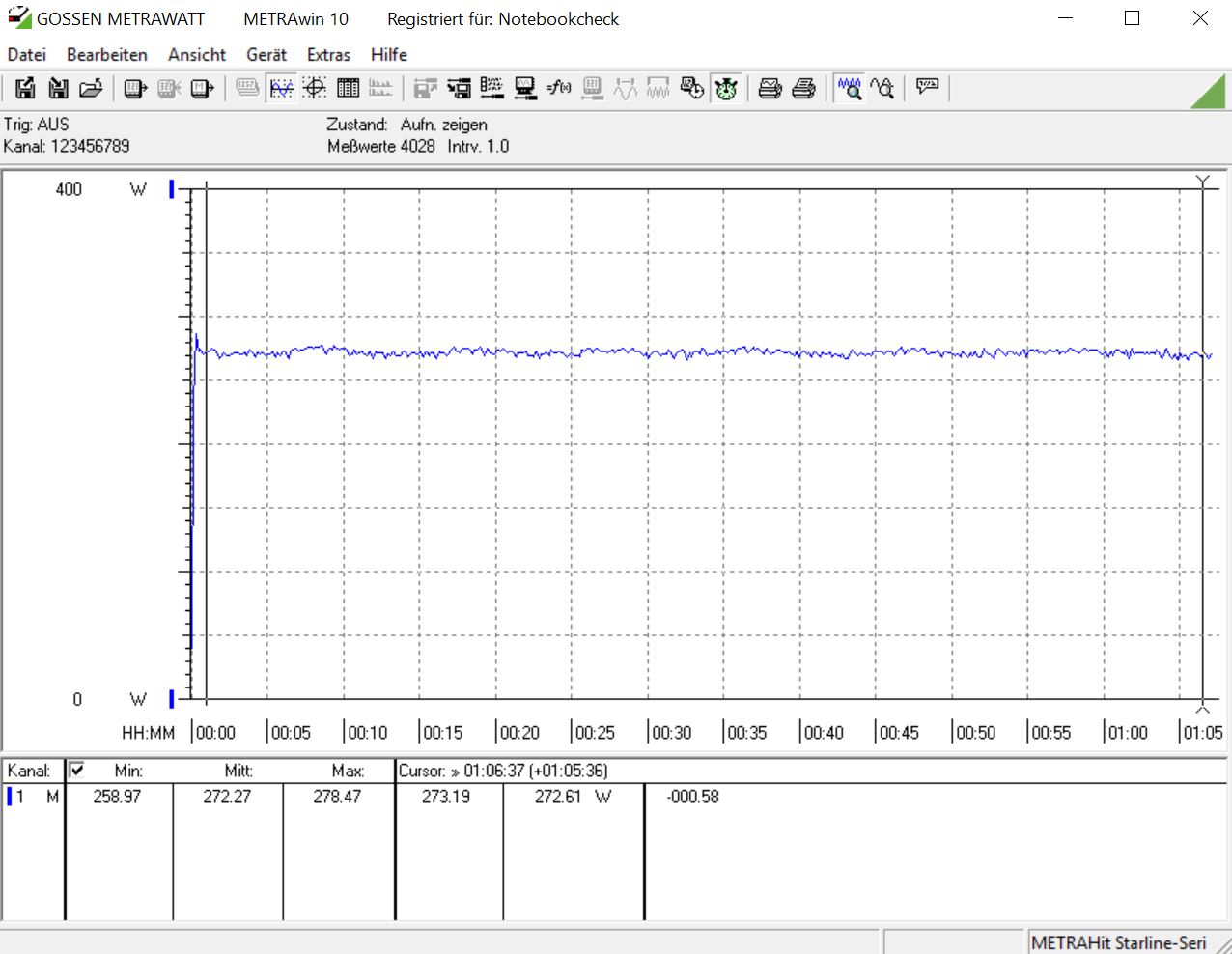

Under en stresstest med FurMark och Prime95 på en timma

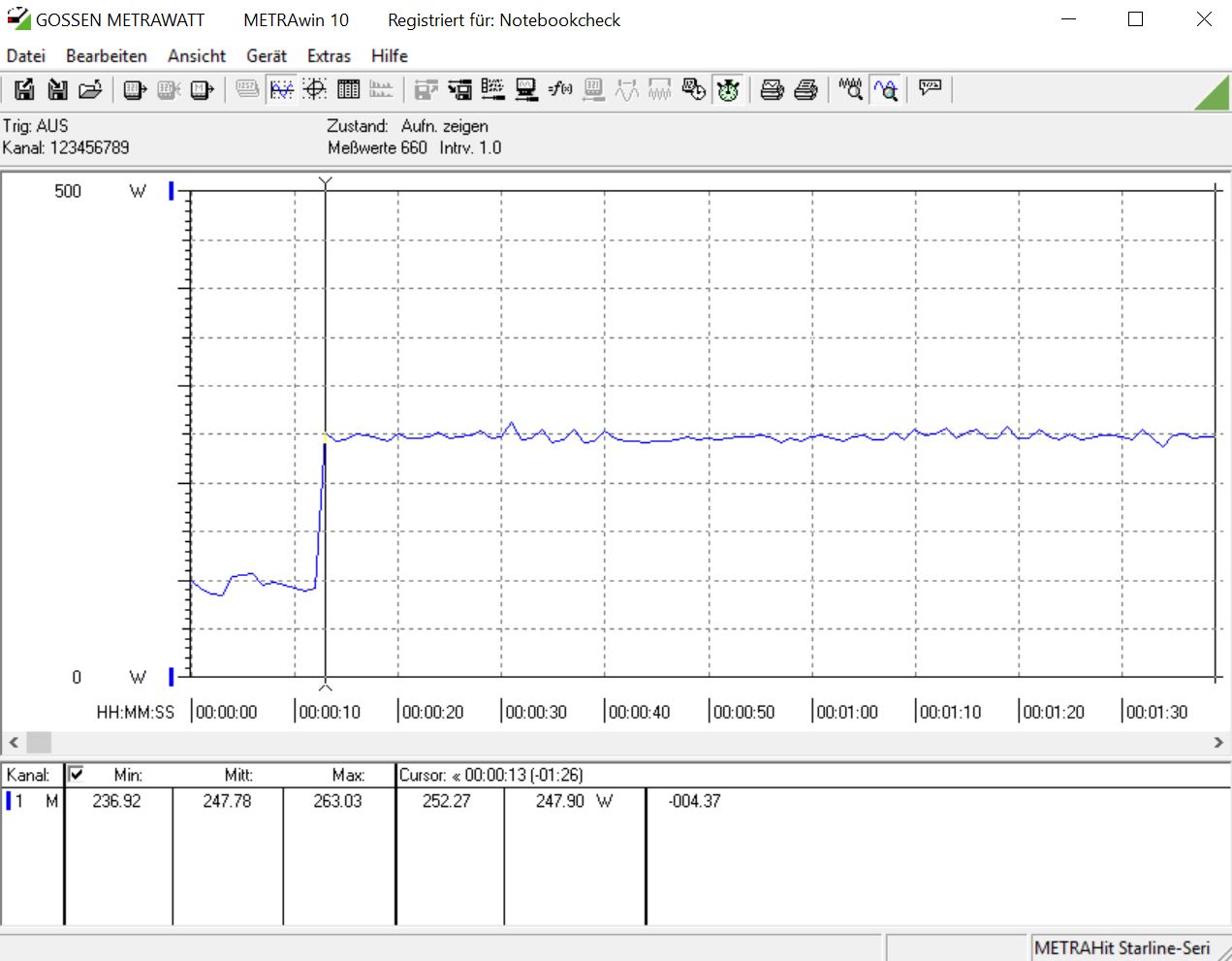

Vid spelande av The Witcher 3 i 1080p med ultra-inställningar

Power Consumption
Prime95 V2810 Stress (external Monitor)
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	270 Watt * -140%
AMD Ryzen 7 2700X AMD Radeon RX Vega 64 (Idle: 74.3 W)	211.2 (205^min - 216^max) Watt * -88%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64 (Idle: 71.3 W)	171.7 (166^min - 176^max) Watt * -53%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	157.5 Watt * -40%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	140.9 Watt * -25%
Intel Core i5-8500T AMD Radeon RX Vega 64	132.7 (120^min - 145^max) Watt * -18%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	112.3 Watt *
1920x1080 The Witcher 3 ultra (external Monitor)
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	421 Watt * -70%
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	411 Watt * -66%
AMD Ryzen 7 2700X AMD Radeon RX Vega 64 (Idle: 74.3 W)	408 Watt * -65%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	396.5 (376^min - 415^max) Watt * -60%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	378.2 Watt * -53%
Intel Core i5-8500T AMD Radeon RX Vega 64	353.6 (271^min - 395^max) Watt * -43%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	247.8 Watt *
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	218.2 Watt *
Cinebench R15 Multi (external Monitor)
AMD Ryzen Threadripper 2950X AMD Radeon RX Vega 64	263 Watt * -133%
AMD Ryzen 7 2700X AMD Radeon RX Vega 64 (Idle: 74.3 W)	219.2 Watt * -94%
AMD Ryzen 5 2600X AMD Radeon RX Vega 64	164.4 (159.3^min - 165.75^max) Watt * -46%
AMD Ryzen 5 2600 AMD Radeon RX Vega 64	149.5 Watt * -33%
AMD Ryzen 7 2700 AMD Radeon RX Vega 64	143.2 Watt * -27%
Intel Core i7-8700 NVIDIA GeForce GTX 1070 (Desktop)	112.8 Watt *
Intel Core i5-8500T AMD Radeon RX Vega 64	108.1 (106^min - 110^max) Watt * +4%

* ... smaller is better

För

+ snabb sexkärnig processor med ett TDP-värde på 65 W

+ Nvidia GeForce GTX 1070 GPU

+ 256 GB NVMe SSD

+ 1 TB HDD & Intel Optane-minne

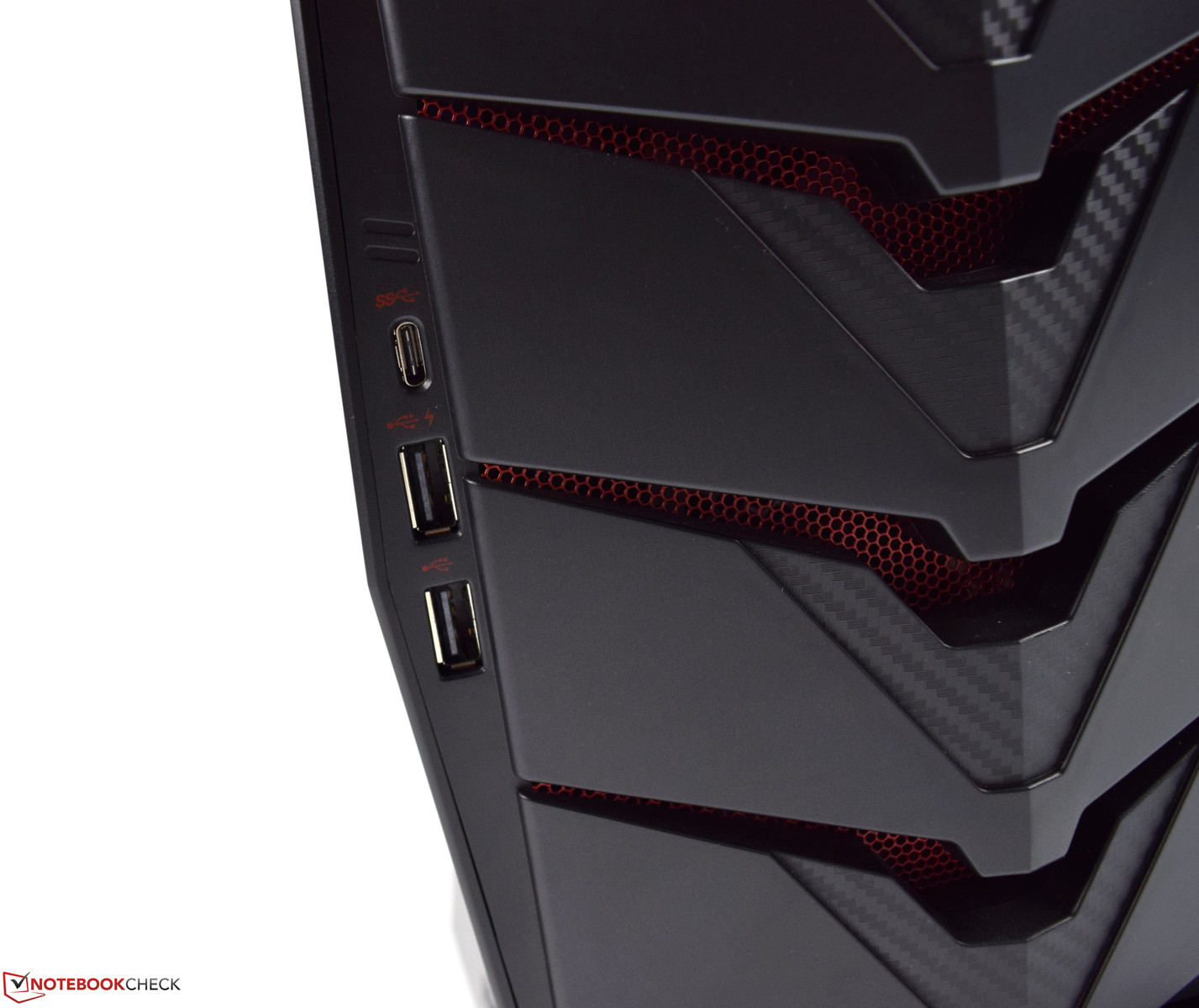

+ massor av USB-portar

+ kompakt hölje

+ imponerande spelprestanda

+ jämförelsevis låg energiförbrukning

+ Wi-Fi ac

+ Bluetooth 5.0

Emot

- höljet ser ganska billigt ut

- inget vanligt ATX-moderkort

- CPU-kylaren som följer med är högljudd vid belastning

Recenseras: MSI Aegis 3 8RD Desktop PC. Recensionsex från MSI Germany.

Läs den fullständiga versionen av den här recensionen på engelska här.

MSI Aegis 3 8RD är en kompakt spel-PC som vid skrivande stund kostar mellan 15.000 och 16.000 kronor. Den drivs av en snabb sexkärnig CPU och ett skapligt grafikkort. Lång historia kort, Aegis 3 8RD kan köra moderna trippel-A spel smidigt med maximal detalj.

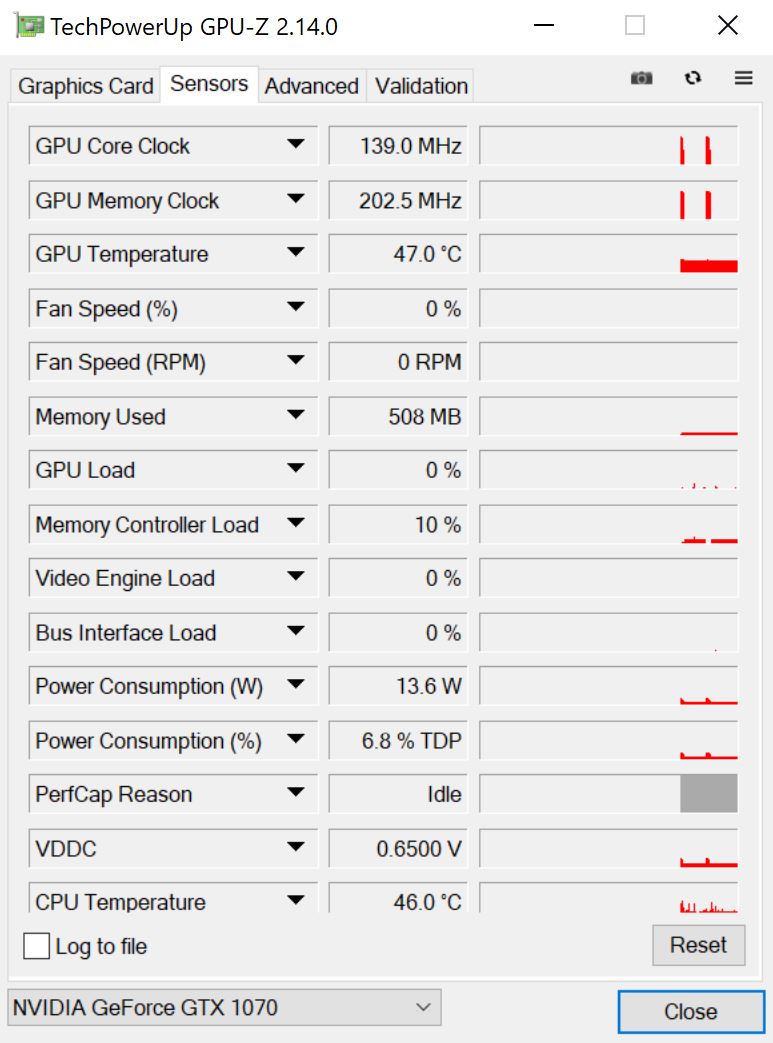

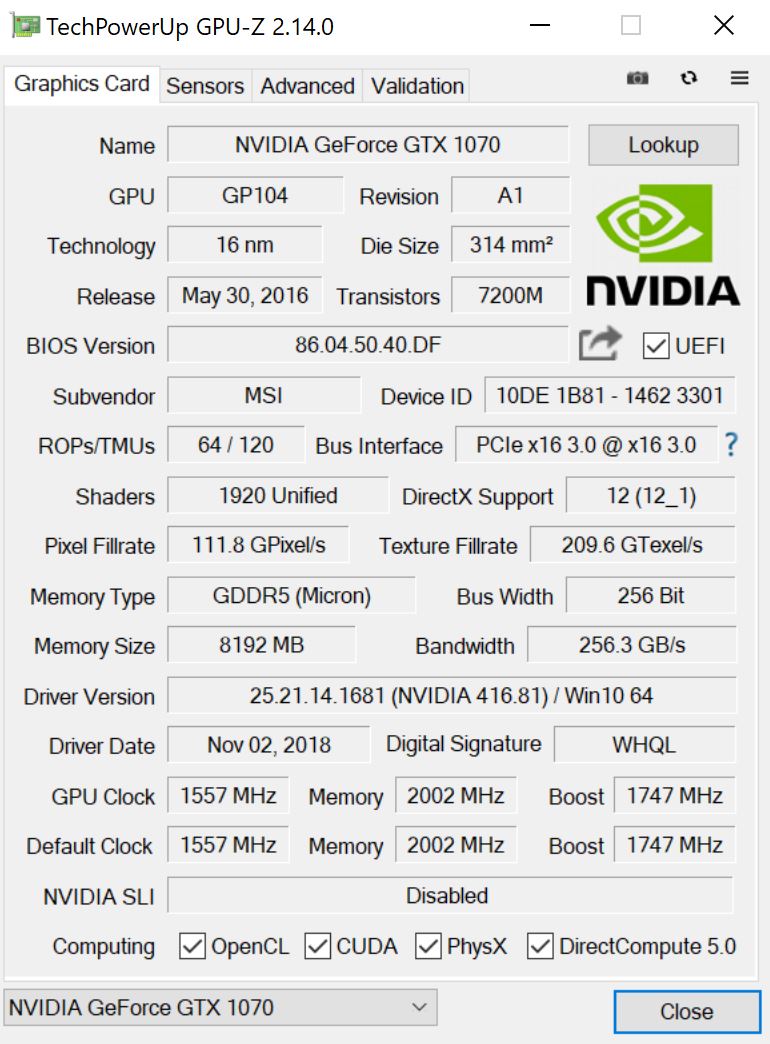

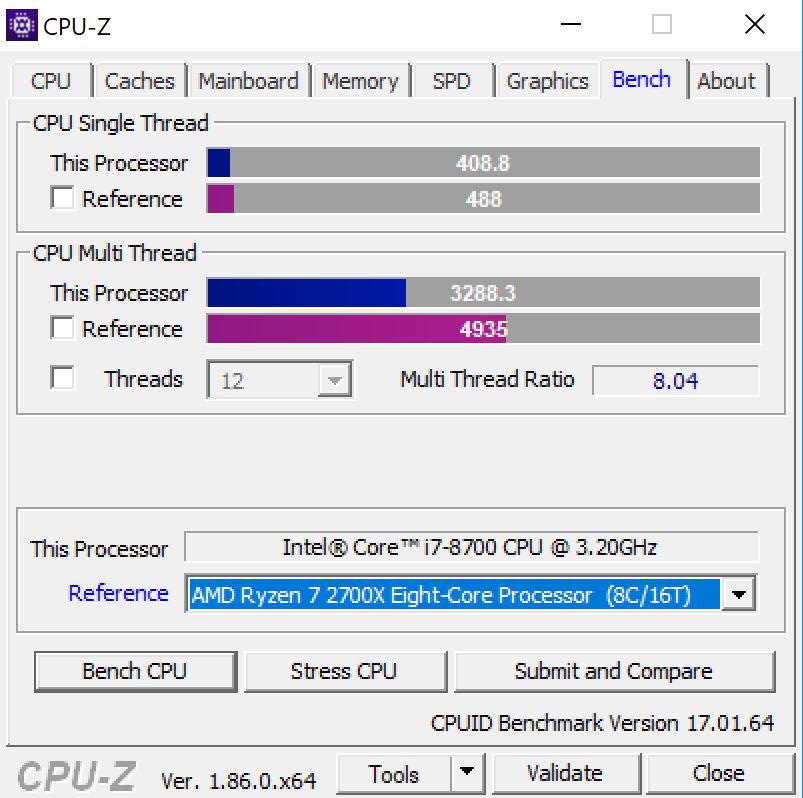

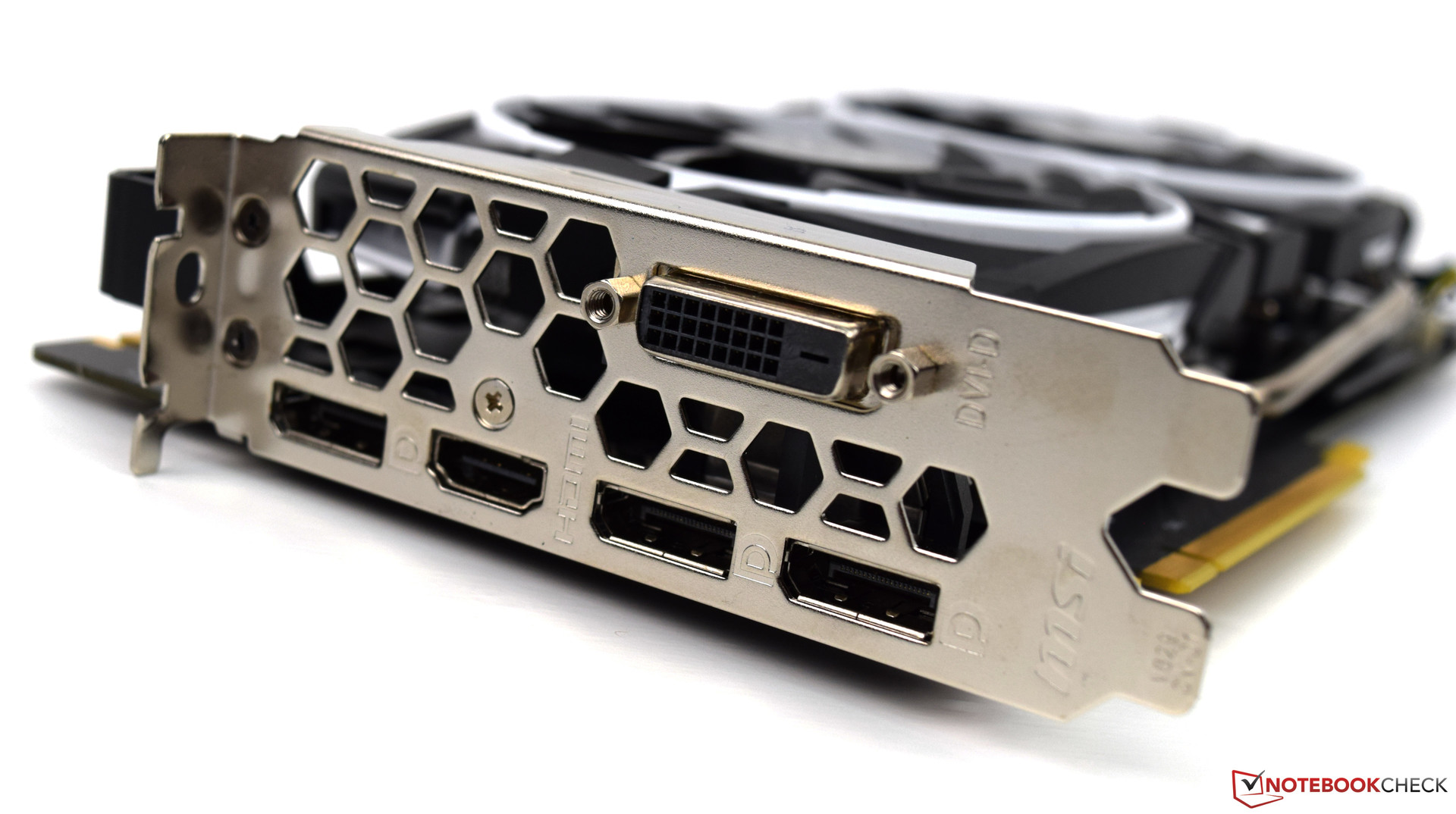

Core i7-8700 är inte Intels senaste CPU, som släpptes i slutet av förra året. Men den är effektiv och ger bra valuta för pengarna. Detsamma gäller dess Nvidia GeForce GTX 1070 GPU, men att utrusta systemet med ett AMD Radeon RX Vega 56 skulle ytterligare minska energiförbrukningen vid spelande.

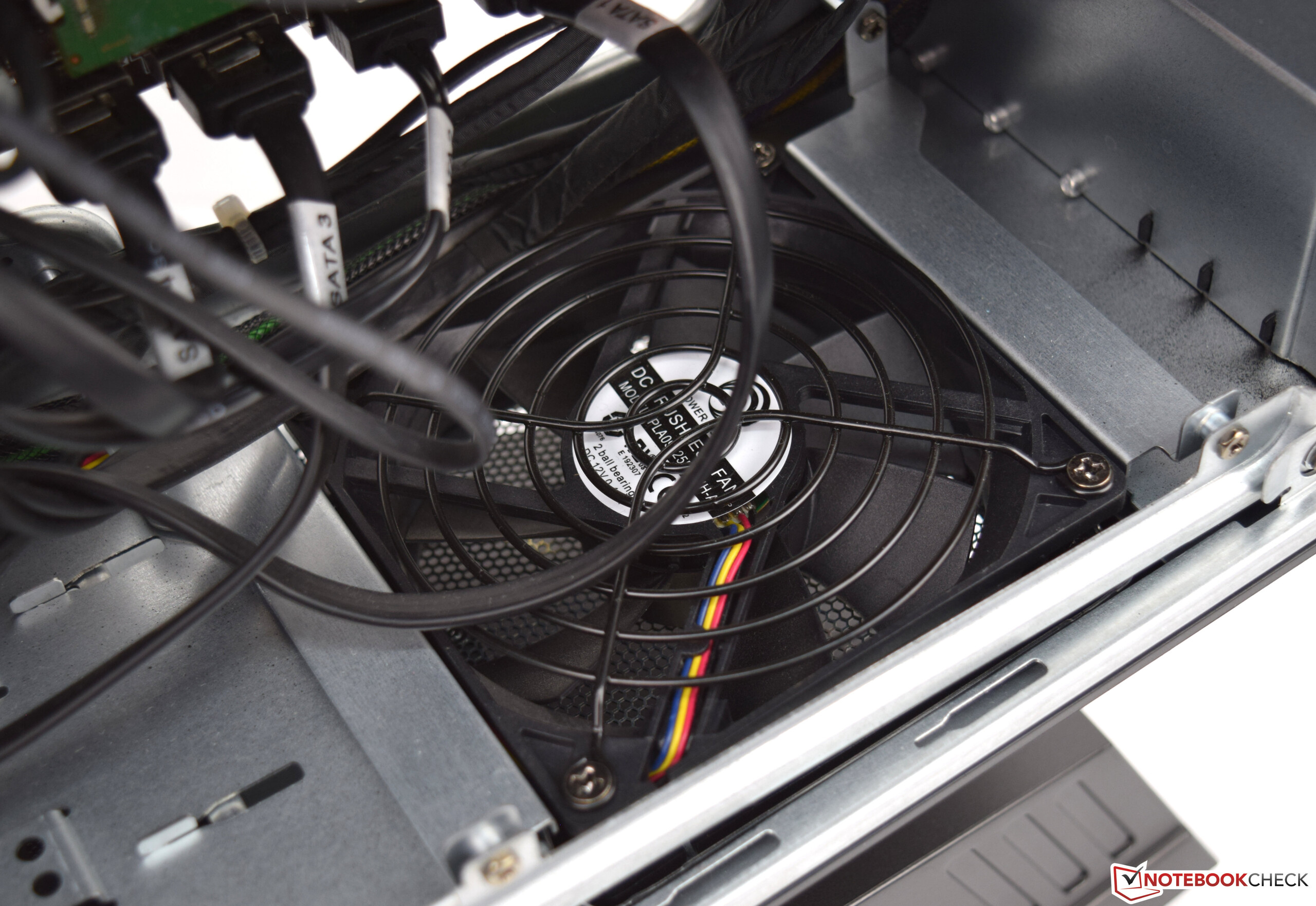

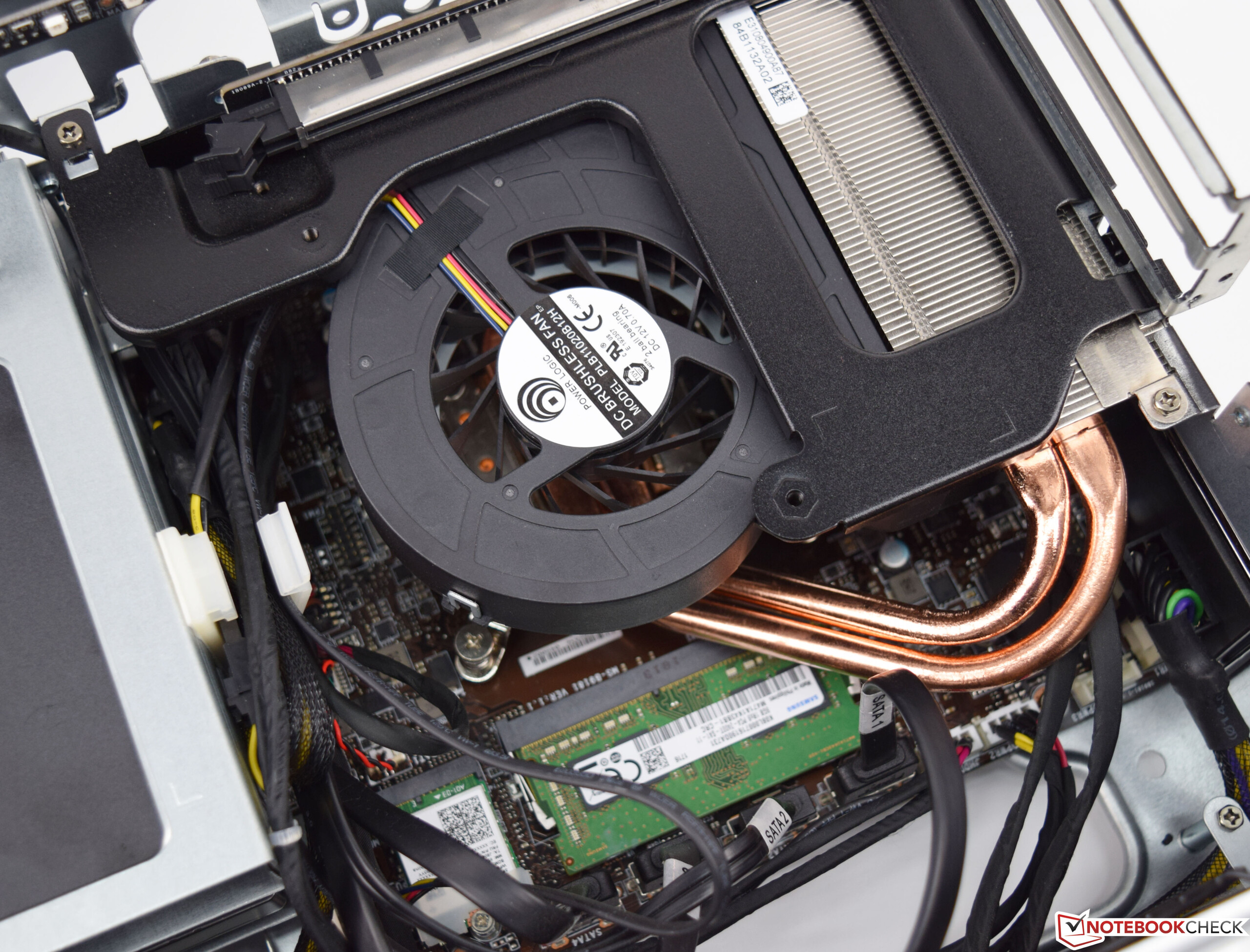

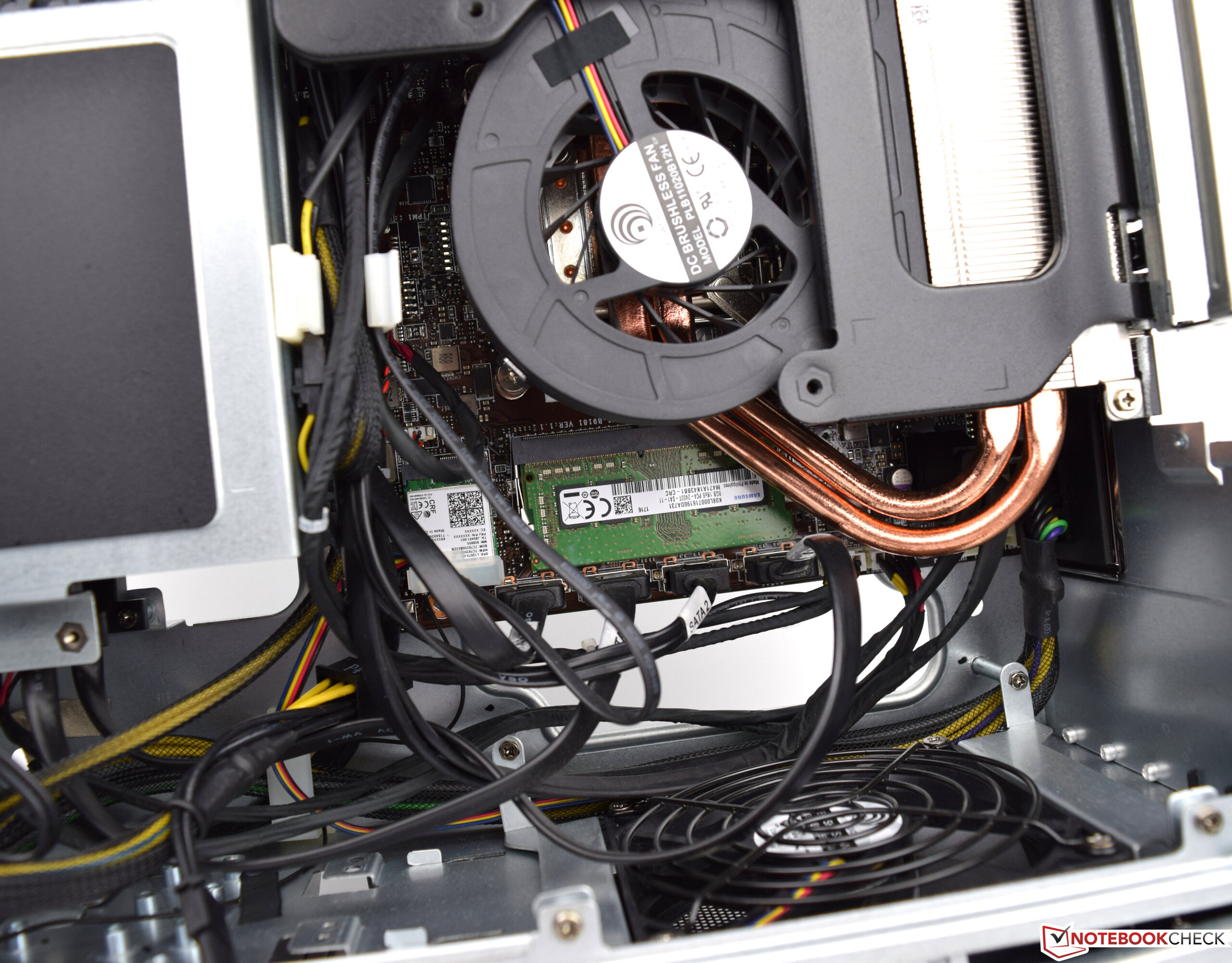

MSI Aegis 3 8RD är en kompakt desktop-PC som lätt kan hantera moderna trippel-A spel. Maskinen har dessutom utmärkt kylning, vilket säkrar att systemet inte värmestryps även om det pressas till det yttersta. Den som köper Aegis 3 8RD istället för att bygga ett eget system kommer inte bli missnöjd. I korthet: MSI Aegis 3 8RD är en ideal andra PC för LAN-partyn eller som en spel-PC till vardagsrummet.

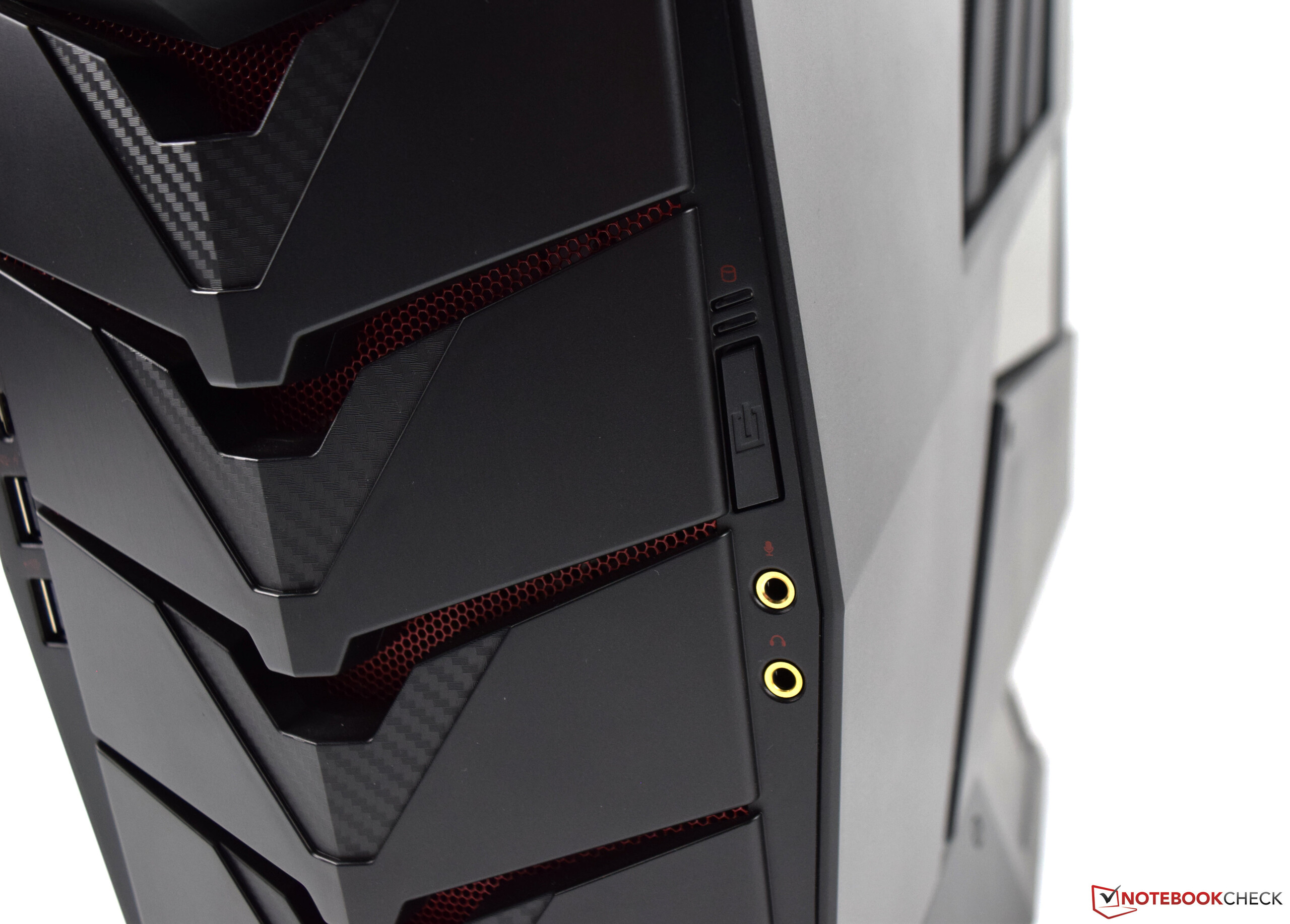

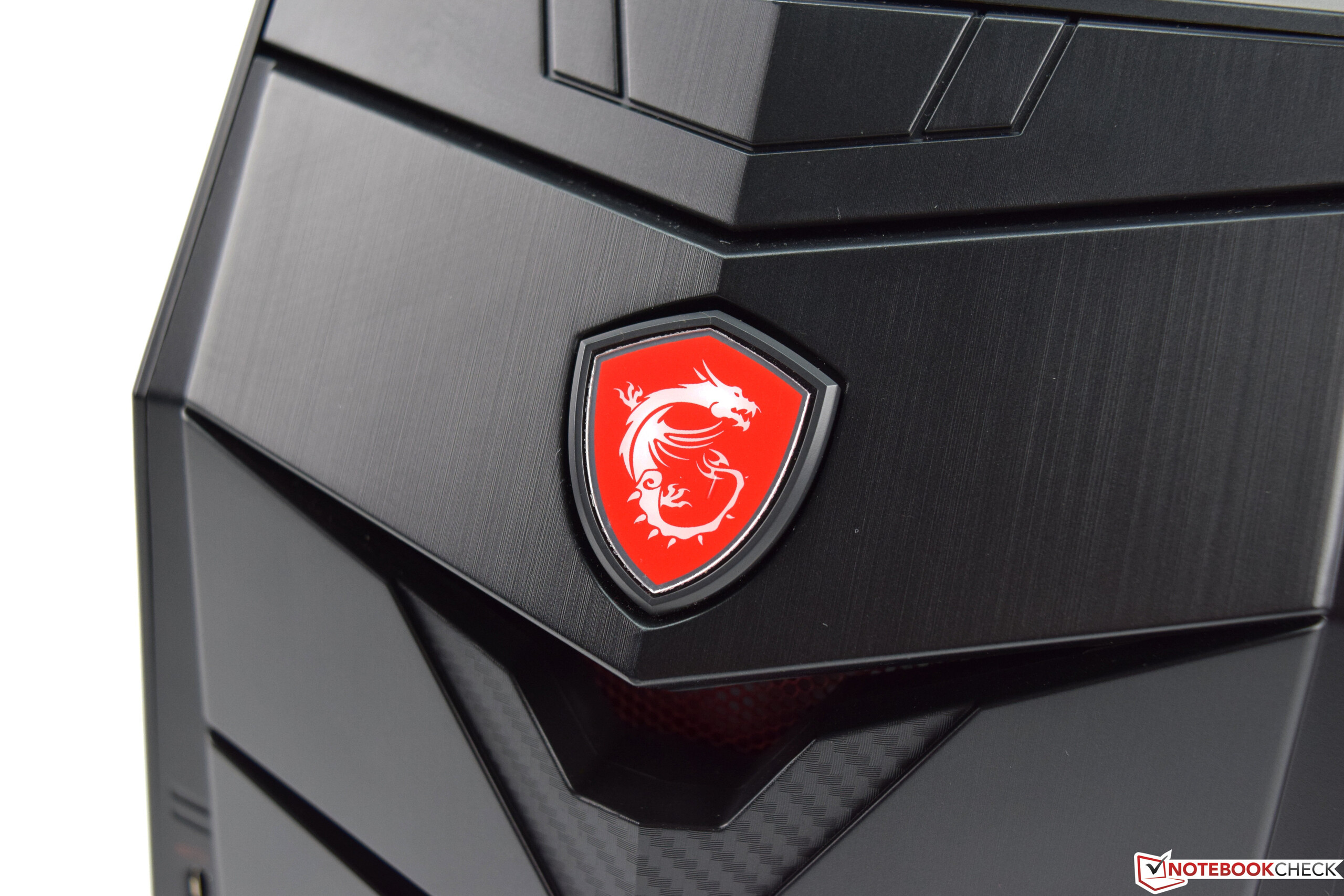

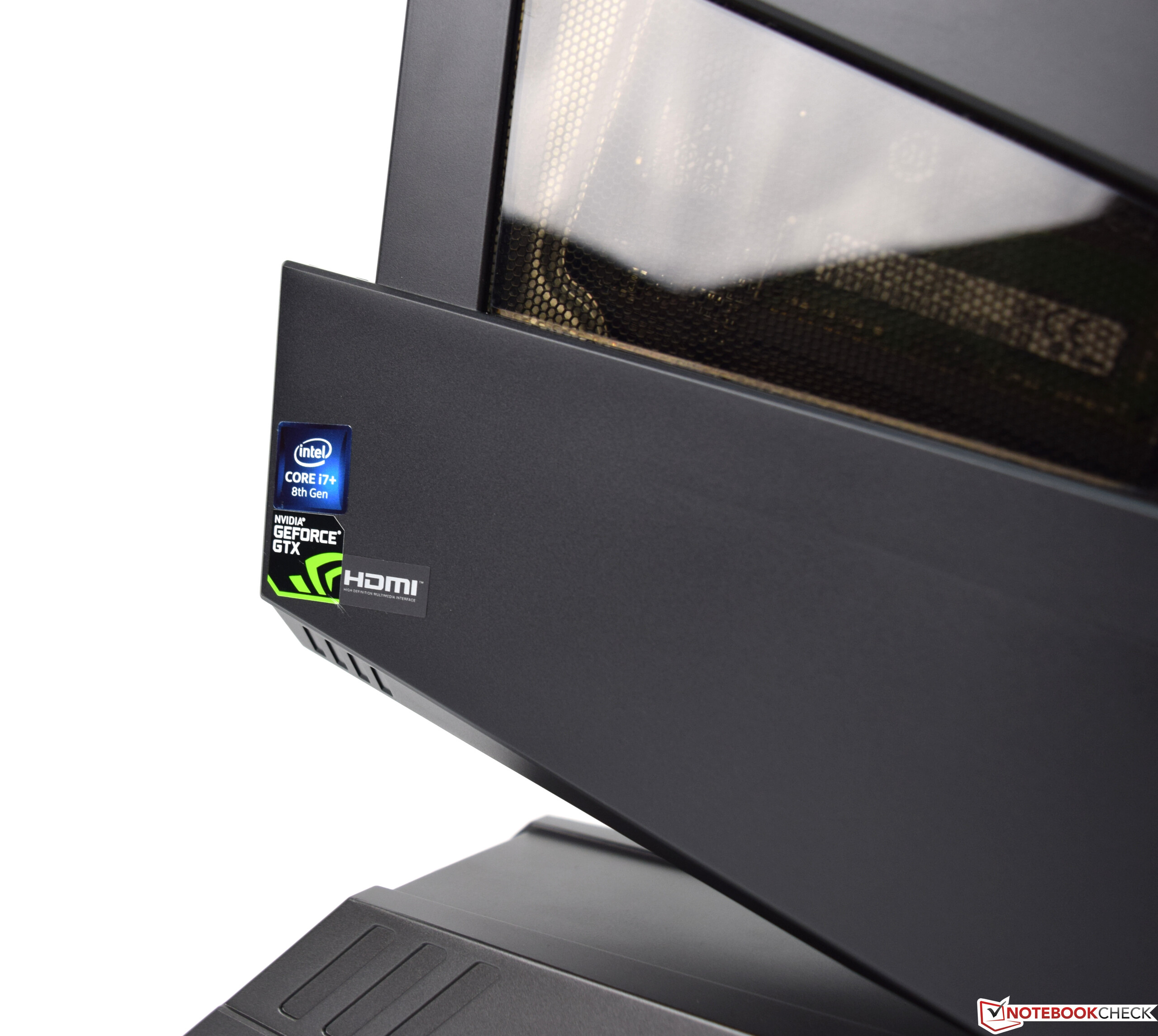

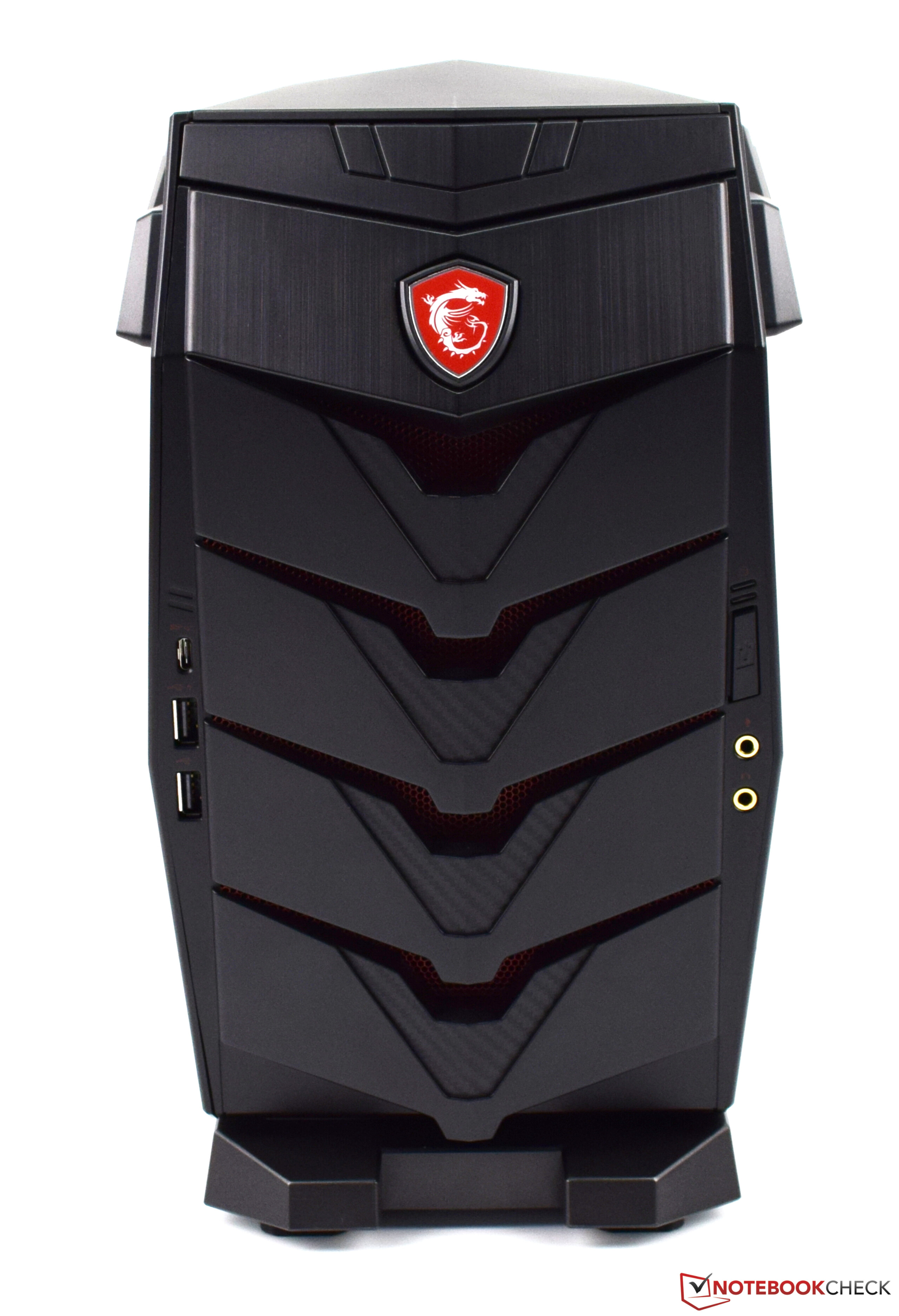

Aegis 3 8RD har ett relativt kompakt hölje på 19.6 liter, prytt med RGB-belysning. Det går dock att stänga av belysningen om man finner den distraherande. Vi hade dock föredragit en lyxigare utsida då plastpanelen känns billig för en maskin på 15.000 - 16.000 kronor.

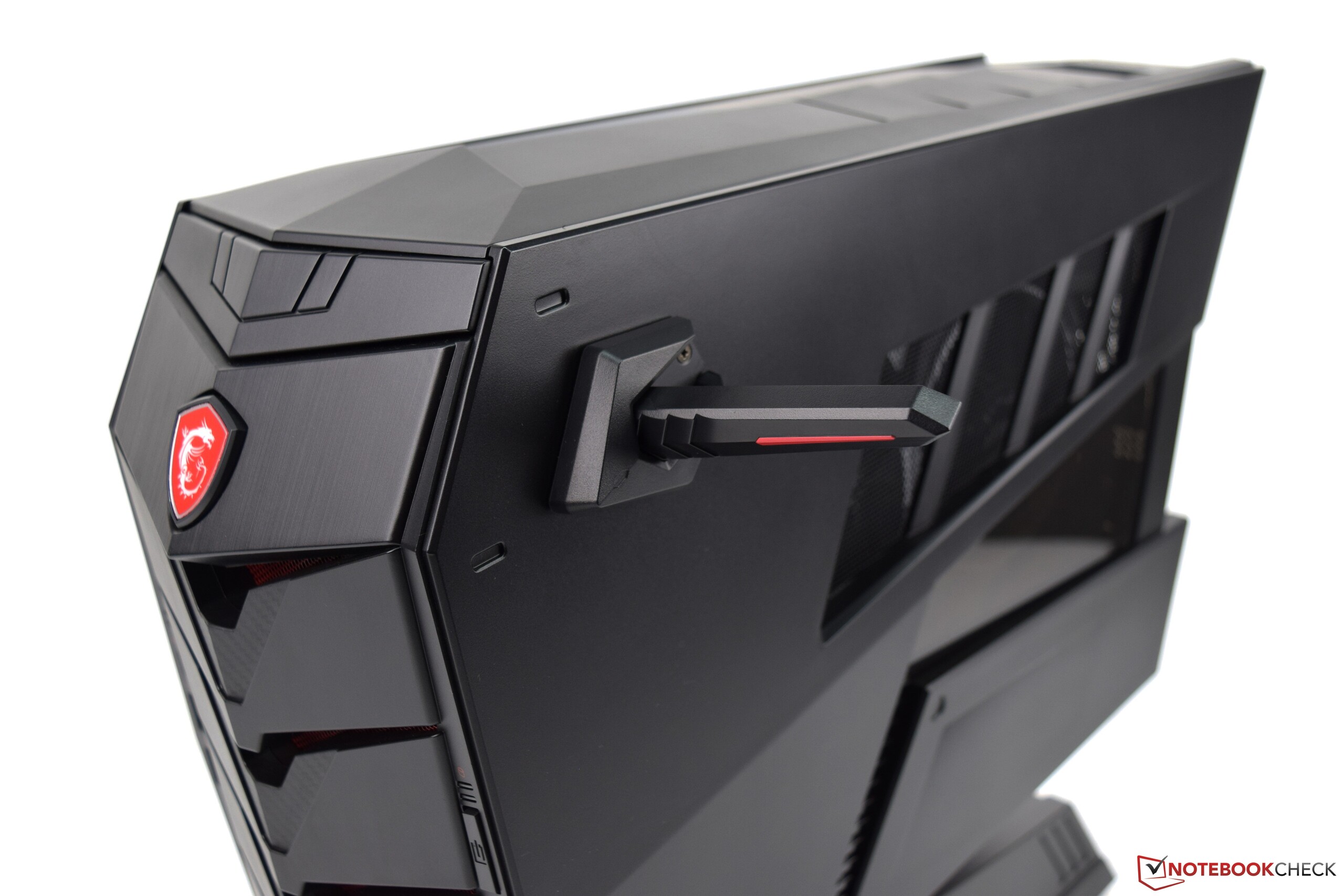

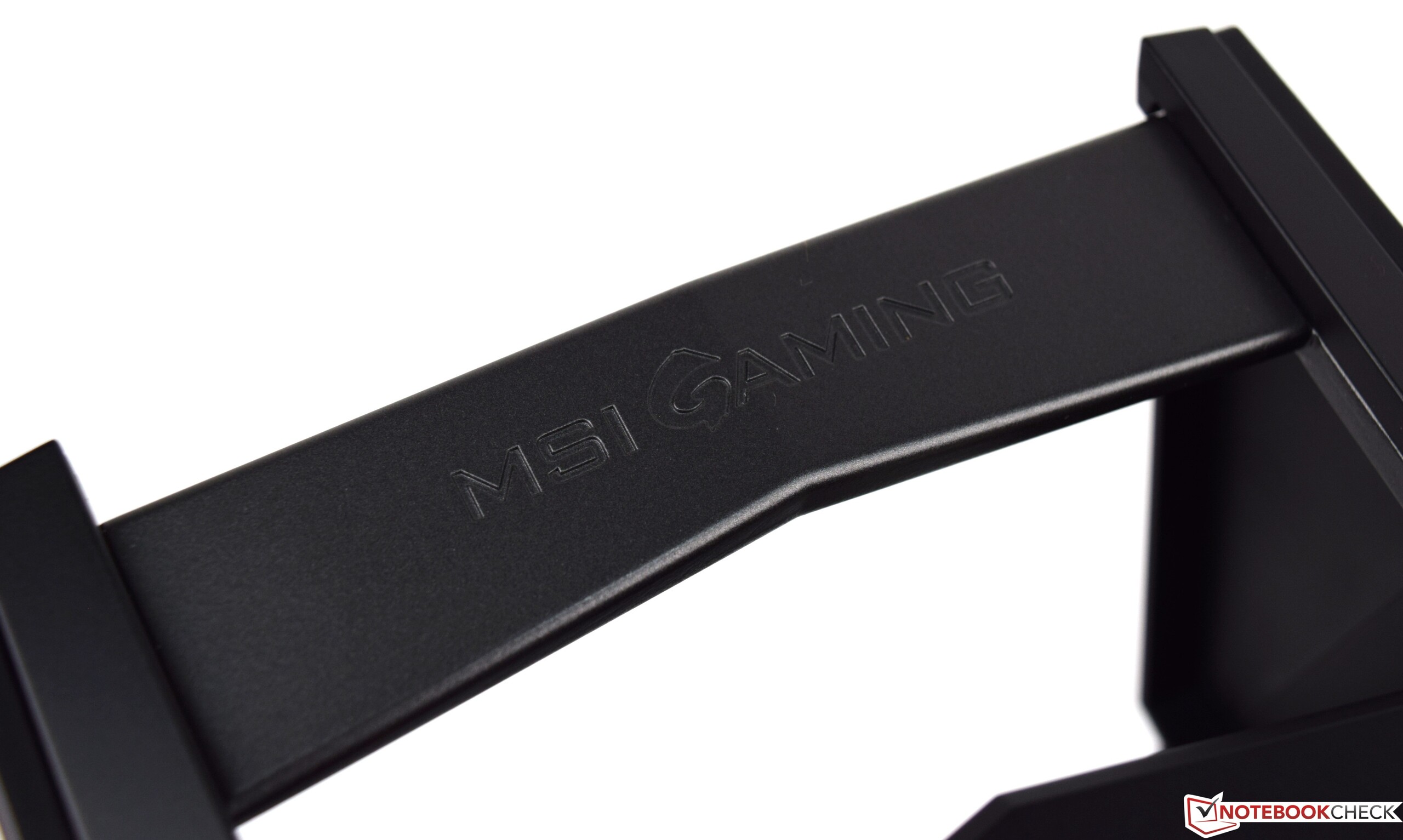

Men höljet är inte bara dåligt. Handtagen för förflyttning och hörlurar är praktiska och plasten håller systemets vikt under 10 kg, vilket gör det lätt att bära Aegis 3 8RD mellan olika LAN-partyn.

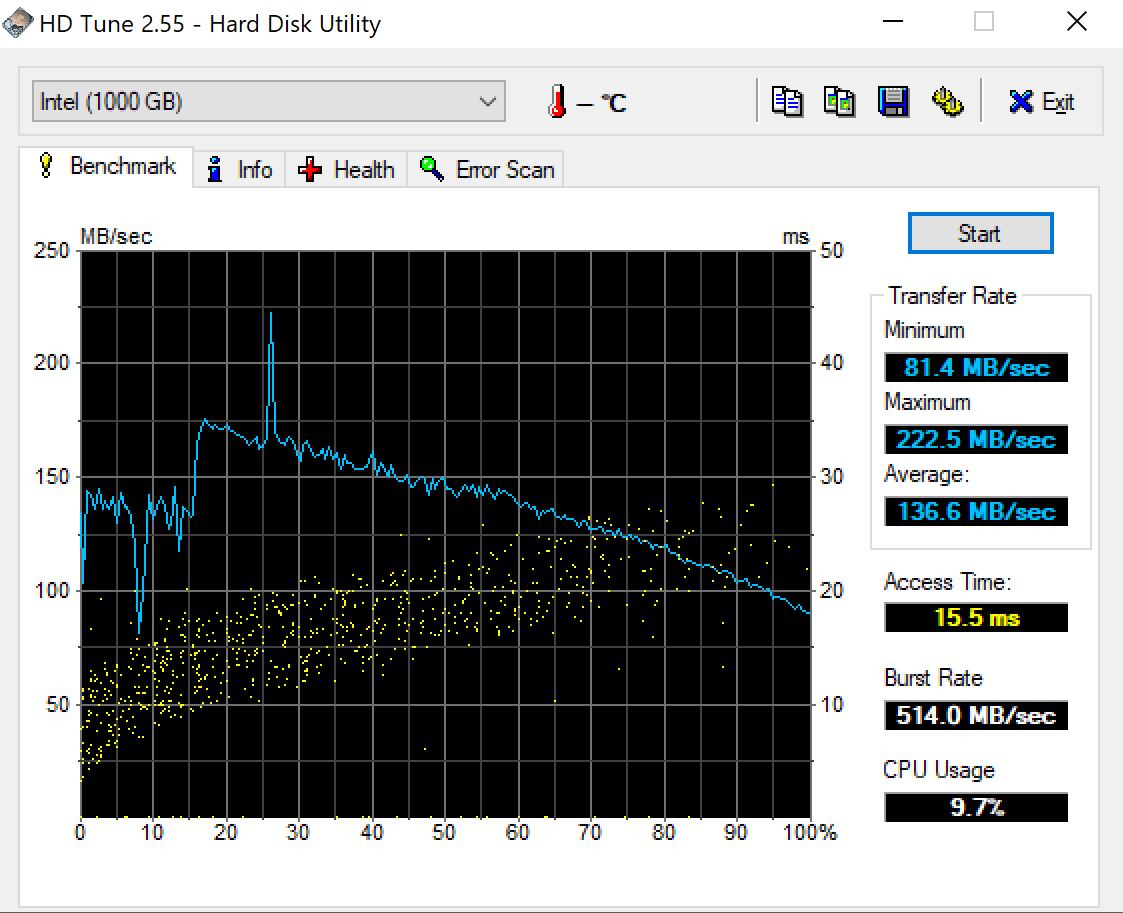

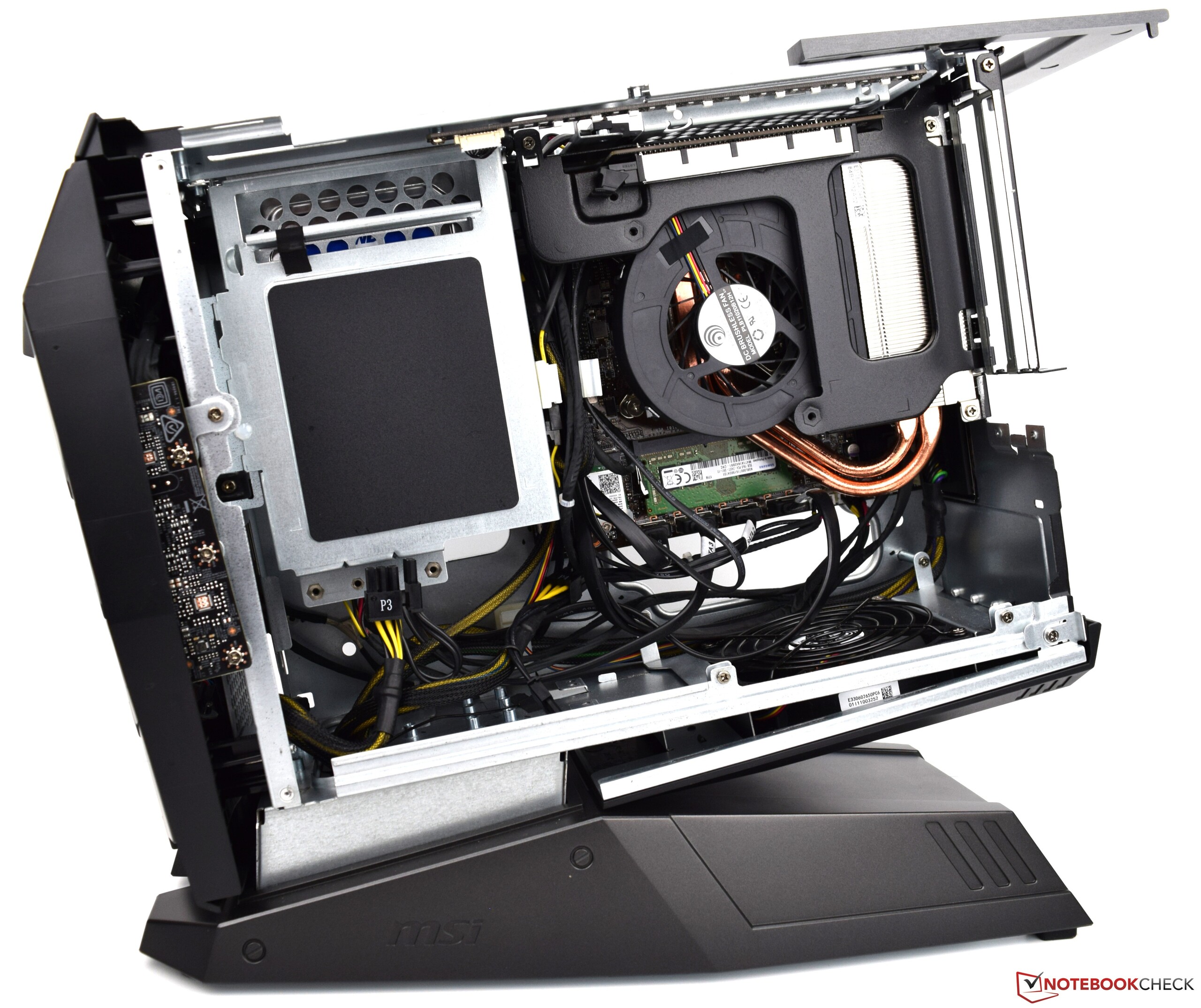

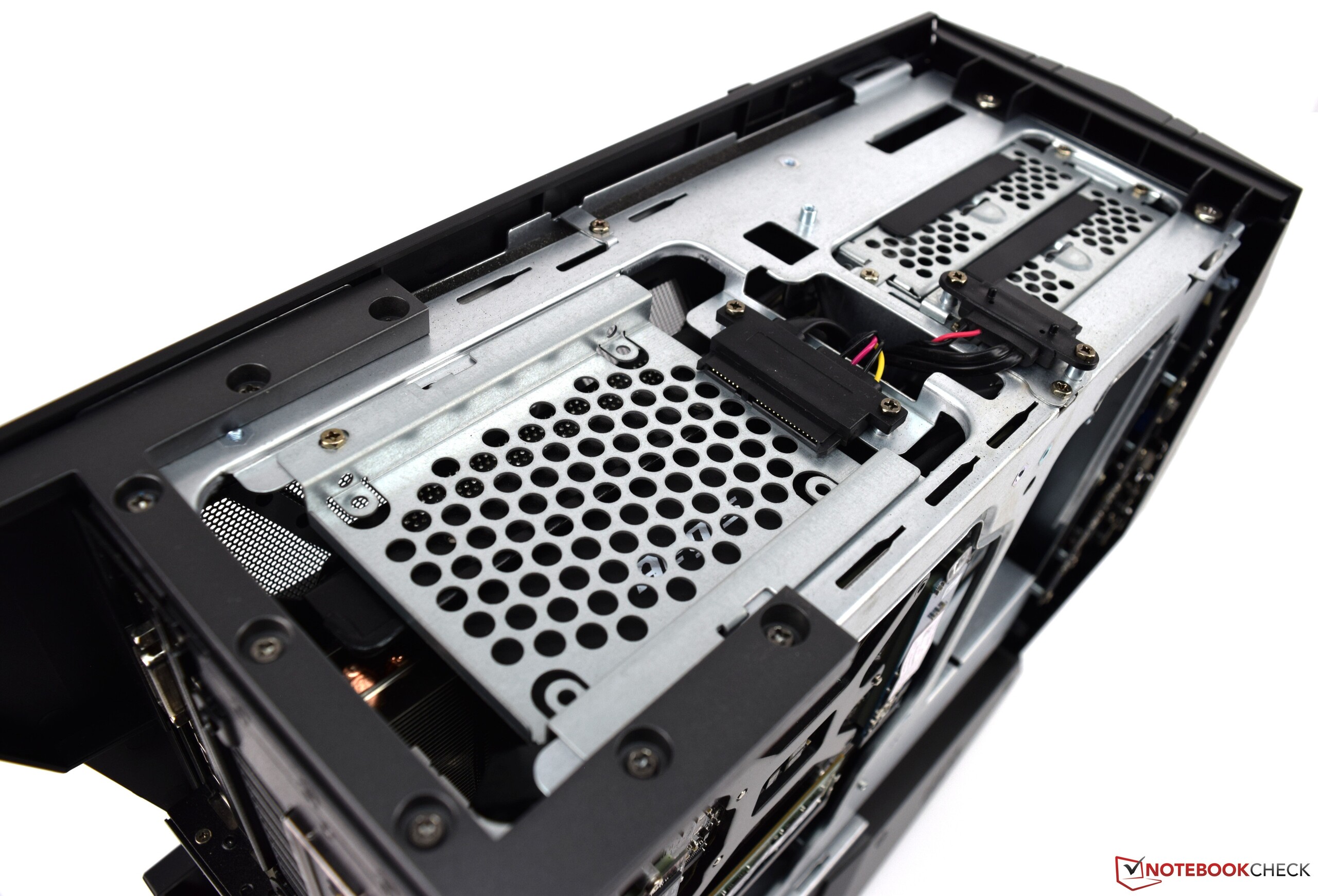

Maskinen har fem enhetsplatser och 1.2 TB lagring, vilket bör vara tillräckligt för de flesta. Det finns dock en extra plats på 2.5 tum och en på 3.5 tum med kablar redo, så det går att helt enkelt lägga till en extra enhet utan att systemet behöver formateras om.

Price comparison

Editor of the original article: Alex Alderson - Senior Tech Writer - 11244 articles published on Notebookcheck since 2018

contact me via: @aldersonaj

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: MSI Aegis 3 8RD (Core i7-8700, GTX 1070, 16 GB) Desktop PC (Sammanfattning)

Sebastian Bade, 2018-12- 6 (Update: 2018-12- 6)
