Test: Samsung ATIV Book 9 2014 (NP930X5J-K02DE) (sammanfattning)
| Samsung ATIV Book 9 2014 (NP930X5J-K02DE) HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO | Lenovo ThinkPad X1 Carbon Touch 20A7-002DGE HD Graphics 5000, 4550U, Samsung MZNTD512HAGL | Samsung ATIV Book 9 Plus HD Graphics 4400, 4200U, Samsung MZNTD128HAGM | |
|---|---|---|---|
| Display | -21% | ||
| Display P3 Coverage | 67.7 | 54.1 -20% | |
| sRGB Coverage | 97.8 | 77.5 -21% | |
| AdobeRGB 1998 Coverage | 69.7 | 55.2 -21% | |
| Screen | -36% | -14% | |
| Brightness middle | 275 | 228 -17% | 301 9% |
| Brightness | 261 | 226 -13% | 284 9% |
| Brightness Distribution | 91 | 89 -2% | 84 -8% |
| Black Level * | 0.34 | 0.23 32% | 0.39 -15% |
| Contrast | 809 | 991 22% | 772 -5% |
| Colorchecker dE 2000 * | 2.87 | 6.29 -119% | 4 -39% |
| Greyscale dE 2000 * | 2.88 | 7.79 -170% | 4.4 -53% |
| Gamma | 2.34 94% | 2.36 93% | 2.43 91% |
| CCT | 6830 95% | 5531 118% | 7434 87% |
| Color Space (Percent of AdobeRGB 1998) | 63 | 51.7 -18% | 54.8 -13% |
| Total Average (Program / Settings) | -29% /
-32% | -14% /
-14% |
* ... smaller is better
| |||||||||||||||||||||||||
Samsung 156HL06-C01 tested with X-Rite i1Pro 2
Max: 275 cd/m² (Nits) Medel: 260.9 cd/m²Distribution av ljusstyrkan: 91 %
Mitt på batteriet: 245 cd/m²
Kontrast: 809:1 (Svärta: 0.34 cd/m²)
ΔE Color 2.87 | 0.5-29.43 Ø4.91
ΔE Greyscale 2.88 | 0.5-98 Ø5.2
63% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.8% sRGB (Argyll 2.2.0 3D)
67.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34
| Samsung ATIV Book 9 2014 (NP930X5J-K02DE) HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO | Lenovo ThinkPad X1 Carbon Touch 20A7-002DGE HD Graphics 5000, 4550U, Samsung MZNTD512HAGL | Samsung ATIV Book 9 Plus HD Graphics 4400, 4200U, Samsung MZNTD128HAGM | |
|---|---|---|---|
| PCMark 7 | -6% | -15% | |
| Score | 4636 | 5321 15% | 4912 6% |
| Lightweight | 4742 | 3598 -24% | 3212 -32% |
| Productivity | 3984 | 2588 -35% | 2365 -41% |
| Creativity | 8382 | 10207 22% | 9140 9% |
| PCMark 8 | 23% | ||
| Work Score Accelerated v2 | 3303 | 3802 15% | |
| Home Score Accelerated v2 | 2389 | 2981 25% | |
| Creative Score Accelerated v2 | 2525 | 3248 29% | |
| Total Average (Program / Settings) | 9% /
7% | -15% /
-15% |
| PCMark 7 Score | 4636 poäng | |
| PCMark 8 Home Score Accelerated v2 | 2389 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 2525 poäng | |
| PCMark 8 Work Score Accelerated v2 | 3303 poäng | |
Hjälp | ||
| Samsung ATIV Book 9 2014 (NP930X5J-K02DE) HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO | Lenovo ThinkPad X1 Carbon Touch 20A7-002DGE HD Graphics 5000, 4550U, Samsung MZNTD512HAGL | Samsung ATIV Book 9 Plus HD Graphics 4400, 4200U, Samsung MZNTD128HAGM | |
|---|---|---|---|
| AS SSD | 13% | -6% | |
| Score Read | 422 | 447 6% | 386 -9% |
| Seq Read | 485 | 517 7% | 504 4% |
| 4K Read | 32.46 | 27.79 -14% | 27.17 -16% |
| 4K-64 Read | 341.2 | 367.4 8% | 308.8 -9% |
| Score Write | 203 | 324 60% | 205 1% |
| CrystalDiskMark 3.0 | 62% | -2% | |
| Read Seq | 520 | 523 1% | 525 1% |
| Read 4k | 35.42 | 30.64 -13% | 30.44 -14% |
| Read 4k QD32 | 371.3 | 389.5 5% | 338.4 -9% |
| Write Seq | 126.6 | 332.6 163% | 135 7% |
| Write 512 | 128.1 | 324.2 153% | 134.6 5% |
| Total Average (Program / Settings) | 38% /
38% | -4% /
-4% |
Samsung MZNTE128HMGR-000SO
Sequential Read:
520 MB/s
Sequential Write:
126.6 MB/s
512K Read:
433.2 MB/s
512K Write:
128.1 MB/s
4K Read:
35.42 MB/s
4K Write:
102.1 MB/s
4K QD32 Read:
371.3 MB/s
4K QD32 Write:
128.1 MB/s
| Samsung ATIV Book 9 2014 (NP930X5J-K02DE) HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO | Lenovo ThinkPad X1 Carbon Touch 20A7-002DGE HD Graphics 5000, 4550U, Samsung MZNTD512HAGL | Samsung ATIV Book 9 Plus HD Graphics 4400, 4200U, Samsung MZNTD128HAGM | |
|---|---|---|---|
| 3DMark | -6% | -8% | |
| 1280x720 Ice Storm Standard Score | 40682 | 35290 -13% | 34075 -16% |
| 1280x720 Ice Storm Standard Graphics | 47085 | 39288 -17% | 37354 -21% |
| 1280x720 Ice Storm Standard Physics | 27565 | 26023 -6% | 26069 -5% |
| 1280x720 Cloud Gate Standard Score | 4371 | 4360 0% | 4314 -1% |
| 1280x720 Cloud Gate Standard Graphics | 5720 | 5381 -6% | 5659 -1% |
| 1280x720 Cloud Gate Standard Physics | 2395 | 2621 9% | 2356 -2% |
| 3DMark 11 | 13% | 0% | |
| 1280x720 Performance | 918 | 1048 14% | 931 1% |
| 1280x720 Performance GPU | 810 | 949 17% | 827 2% |
| 1280x720 Performance Physics | 3234 | 3447 7% | 3142 -3% |
| Total Average (Program / Settings) | 4% /
1% | -4% /
-5% |
| 3DMark 11 Performance | 918 poäng | |
| 3DMark Ice Storm Standard Score | 40682 poäng | |
| 3DMark Cloud Gate Standard Score | 4371 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| The Elder Scrolls V: Skyrim (2011) | 31.69 | 17.33 | 10.57 | |
| Tomb Raider (2013) | 44.1 | 23.5 | 14.1 | |
| BioShock Infinite (2013) | 31.49 | 17.06 |
Ljudnivå
| Låg belastning |
| 29.6 / 29.6 / 29.6 dB(A) |
| Hög belastning |
| 40.9 / 41.2 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  Voltcraft sl-320 (15 cm avstånd) | ||
(±) The average temperature for the upper side under maximal load is 32.2 °C / 90 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 40.2 °C / 104 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.

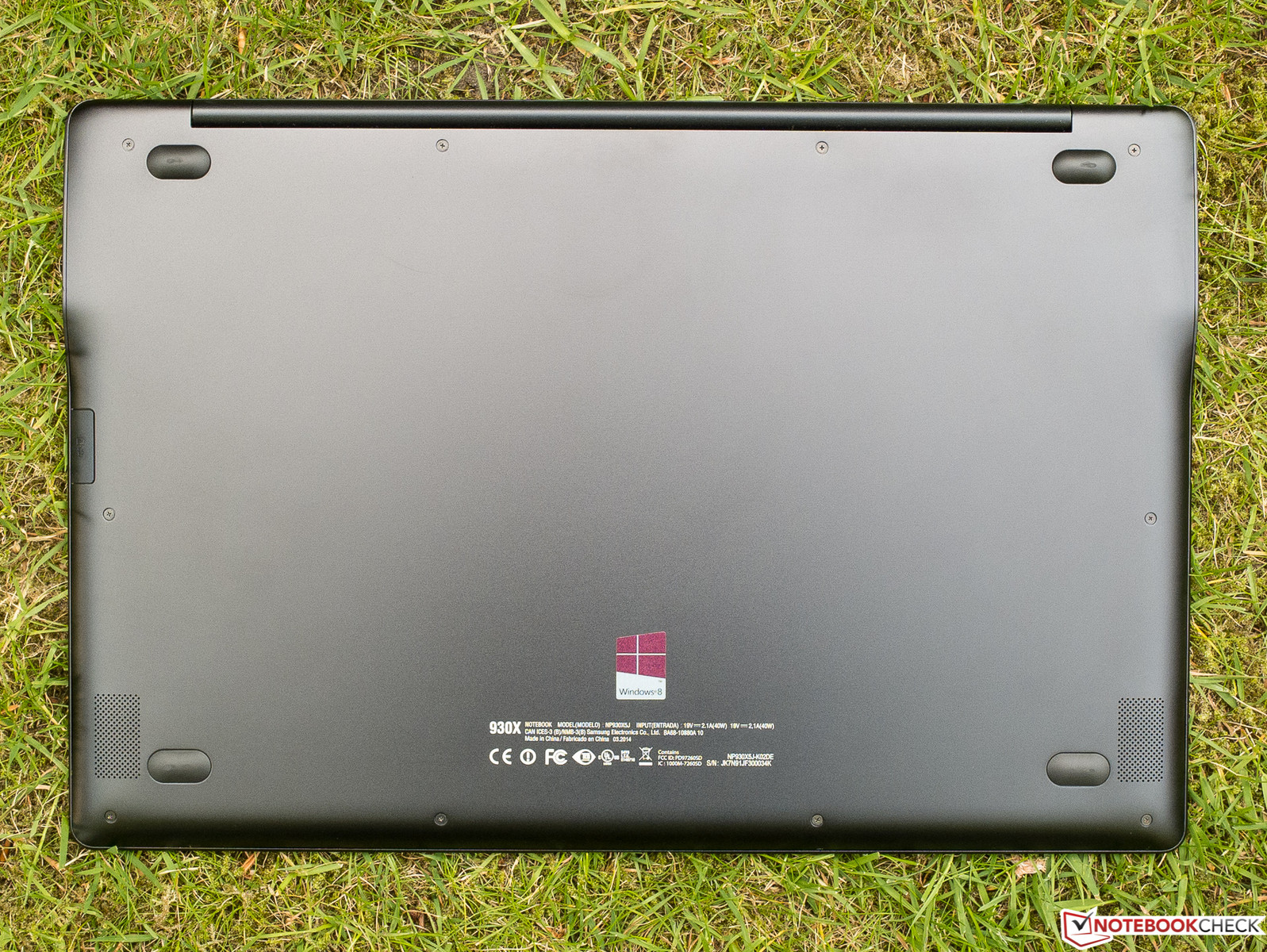

(+) The bottom heats up to a maximum of 38.6 °C / 101 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.5 °C / 74 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.8 °C / 83.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-1.2 °C / -2.1 F).
(±) The maximum temperature on the upper side is 40.2 °C / 104 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 38.6 °C / 101 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.5 °C / 74 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.8 °C / 83.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-1.2 °C / -2.1 F).
Strömförbrukning
| Av/Standby | 0.1 / 0.5 Watt |
| Låg belastning | 3.9 / 7.2 / 6.8 Watt |
| Hög belastning |
42.9 / 43 Watt |

| |
Förklaring:
min: ,
med: ,
max: Voltcraft VC 940 | |

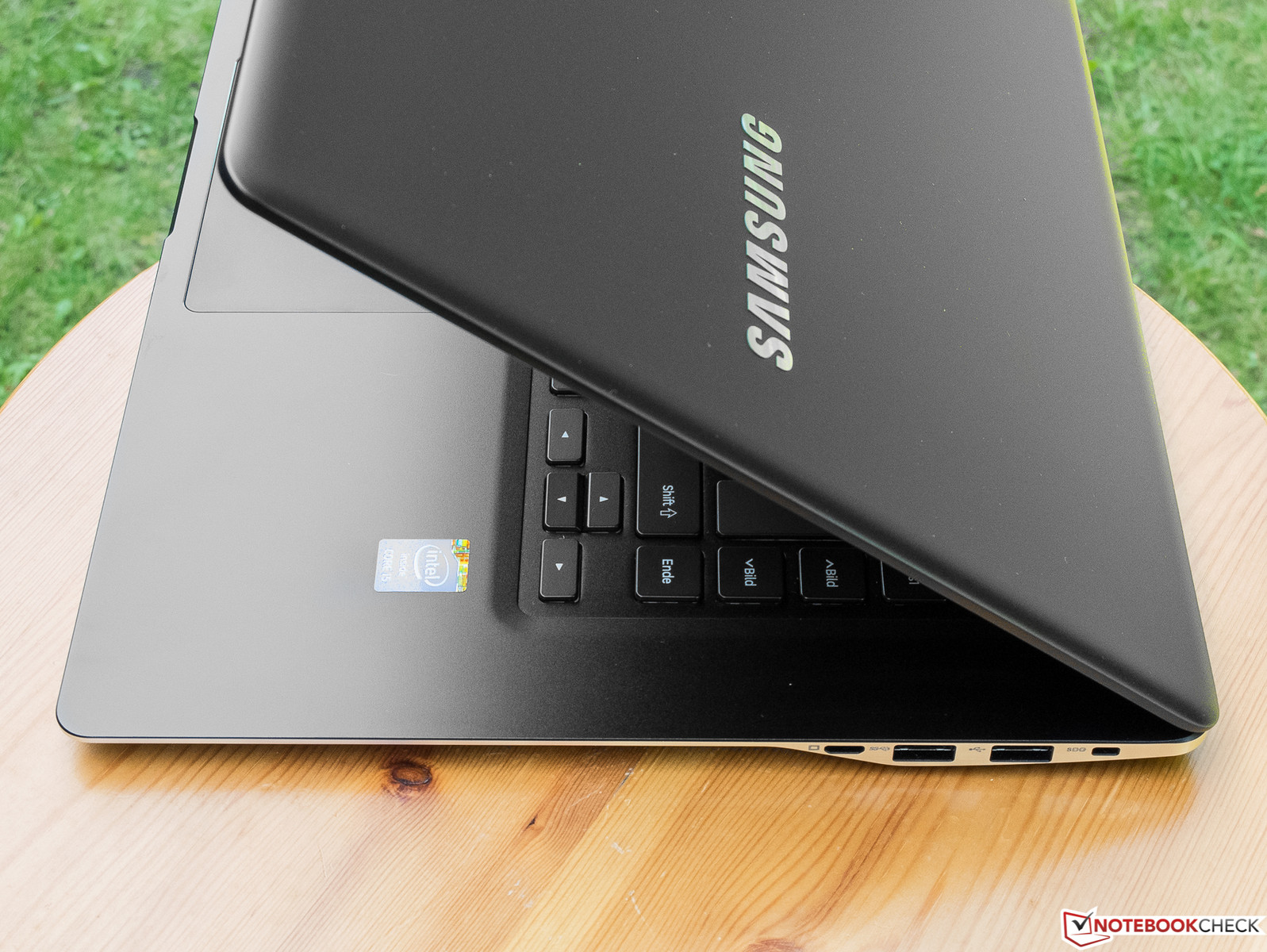

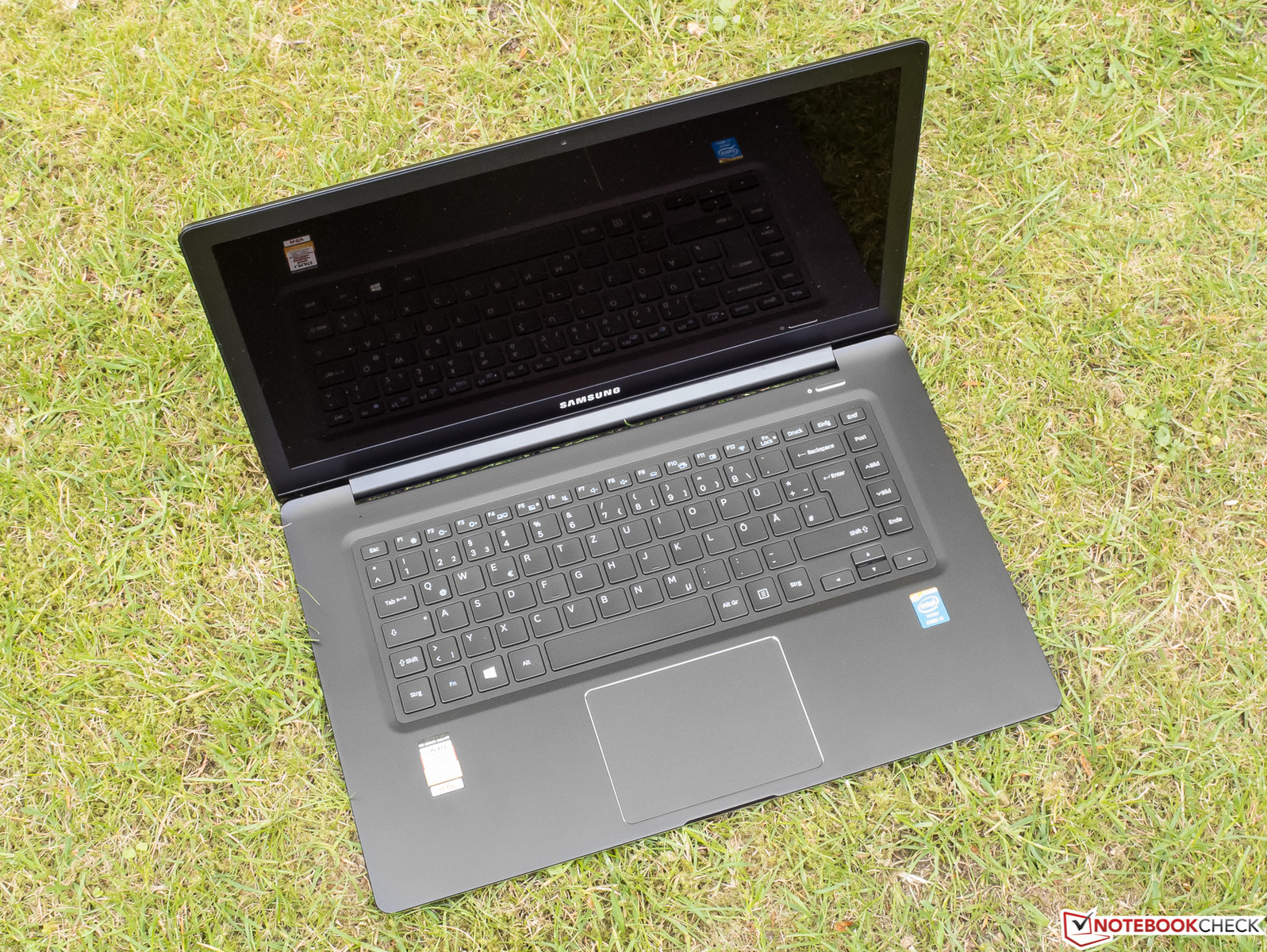

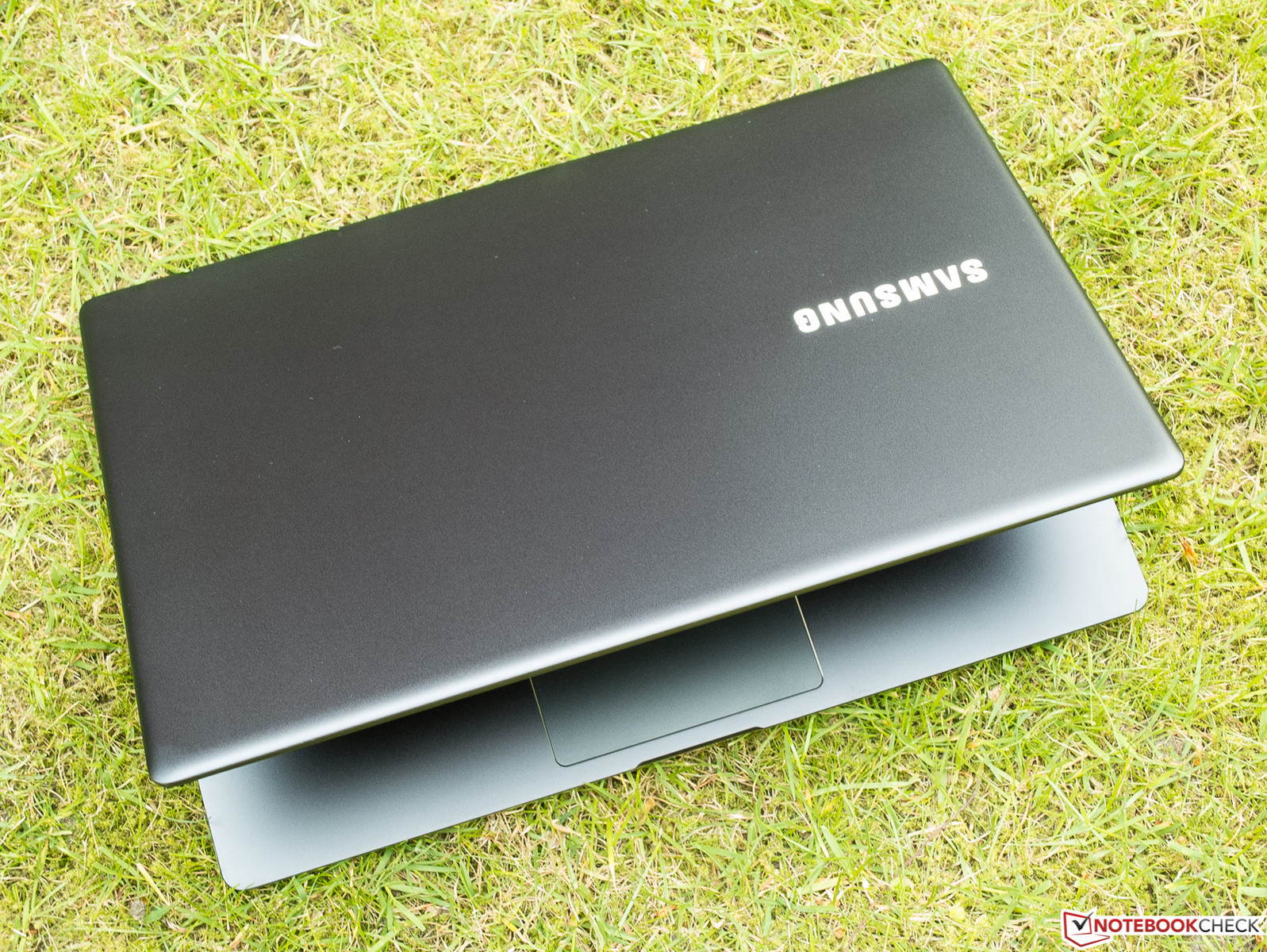

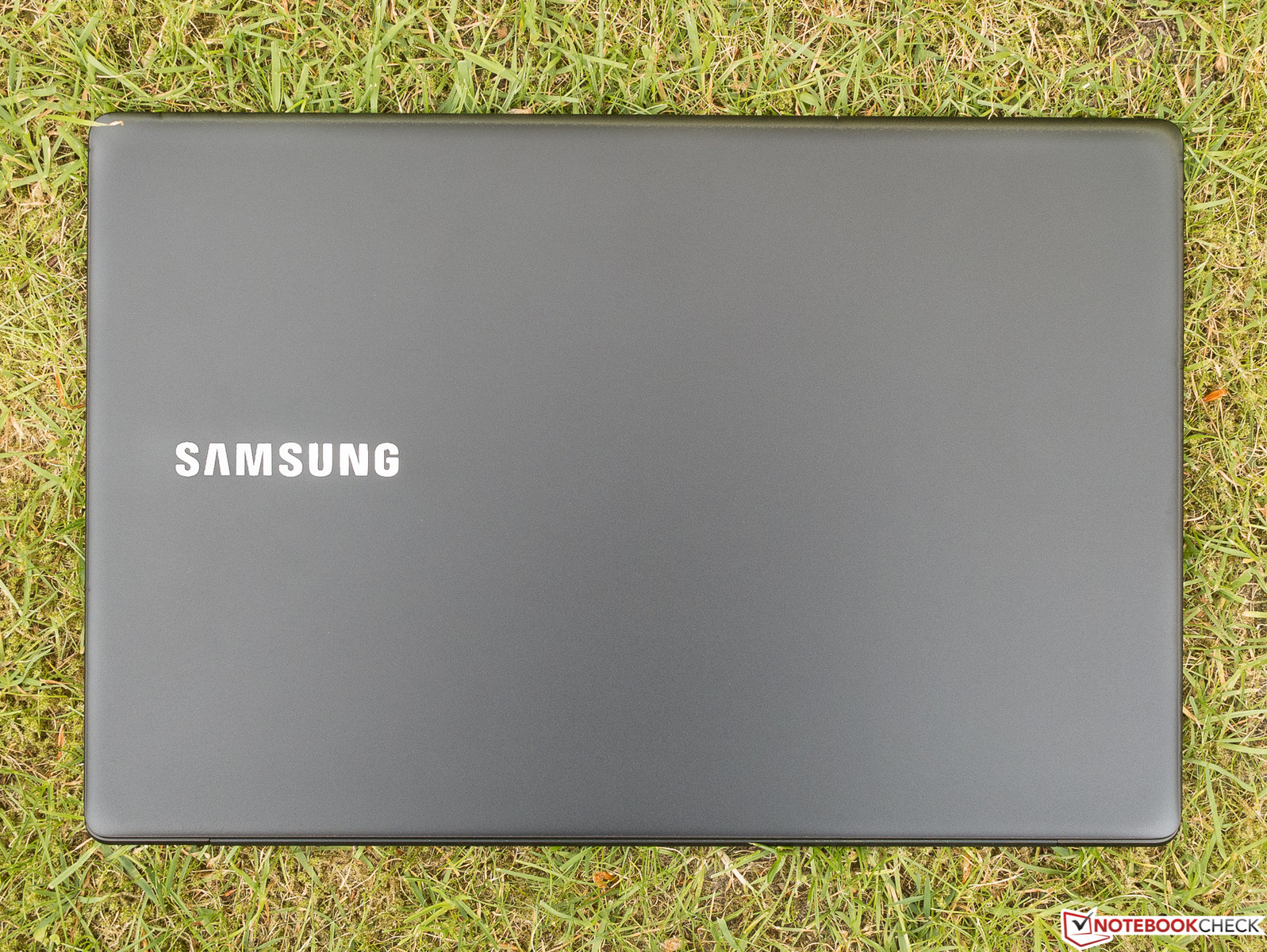

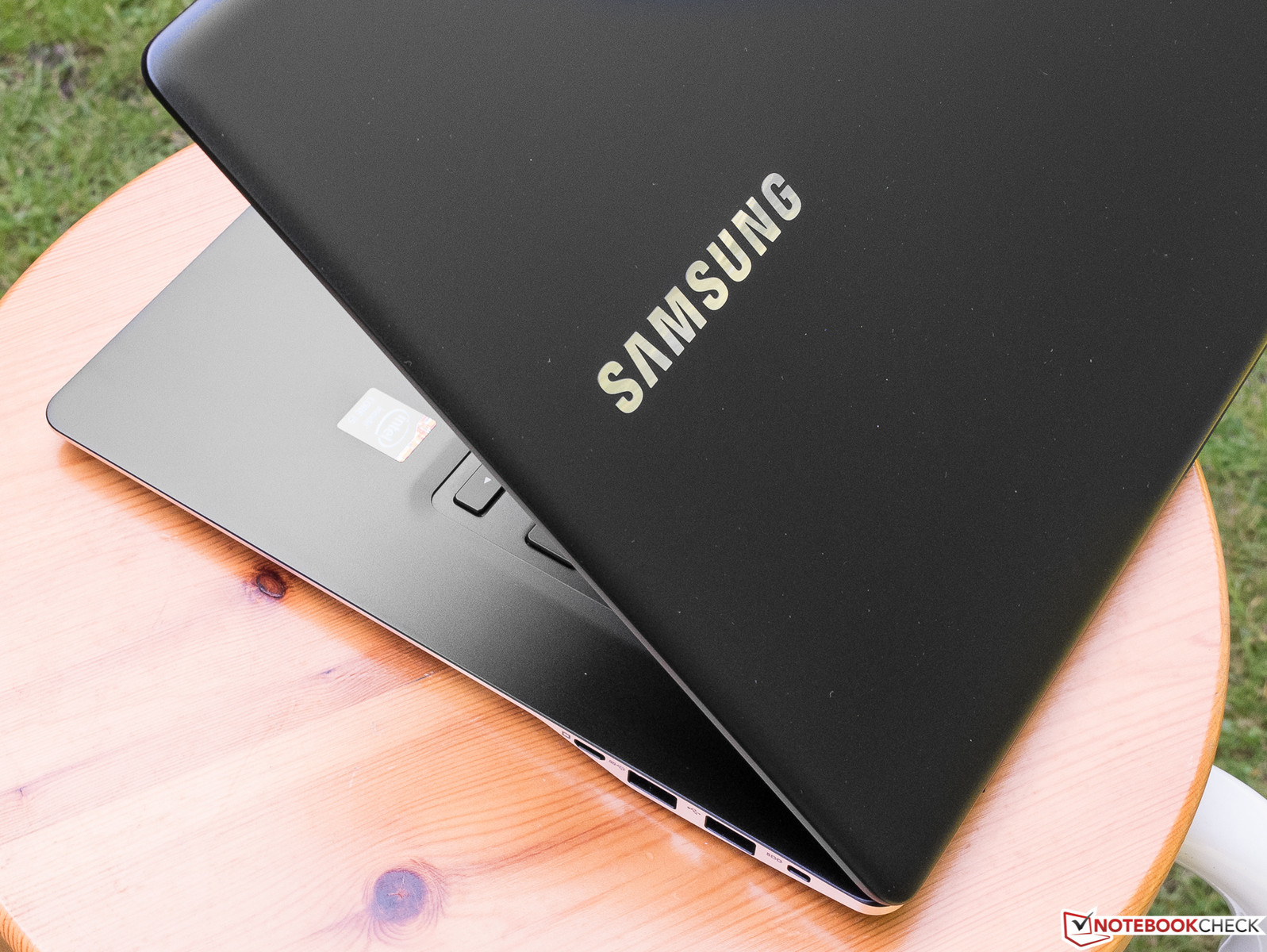

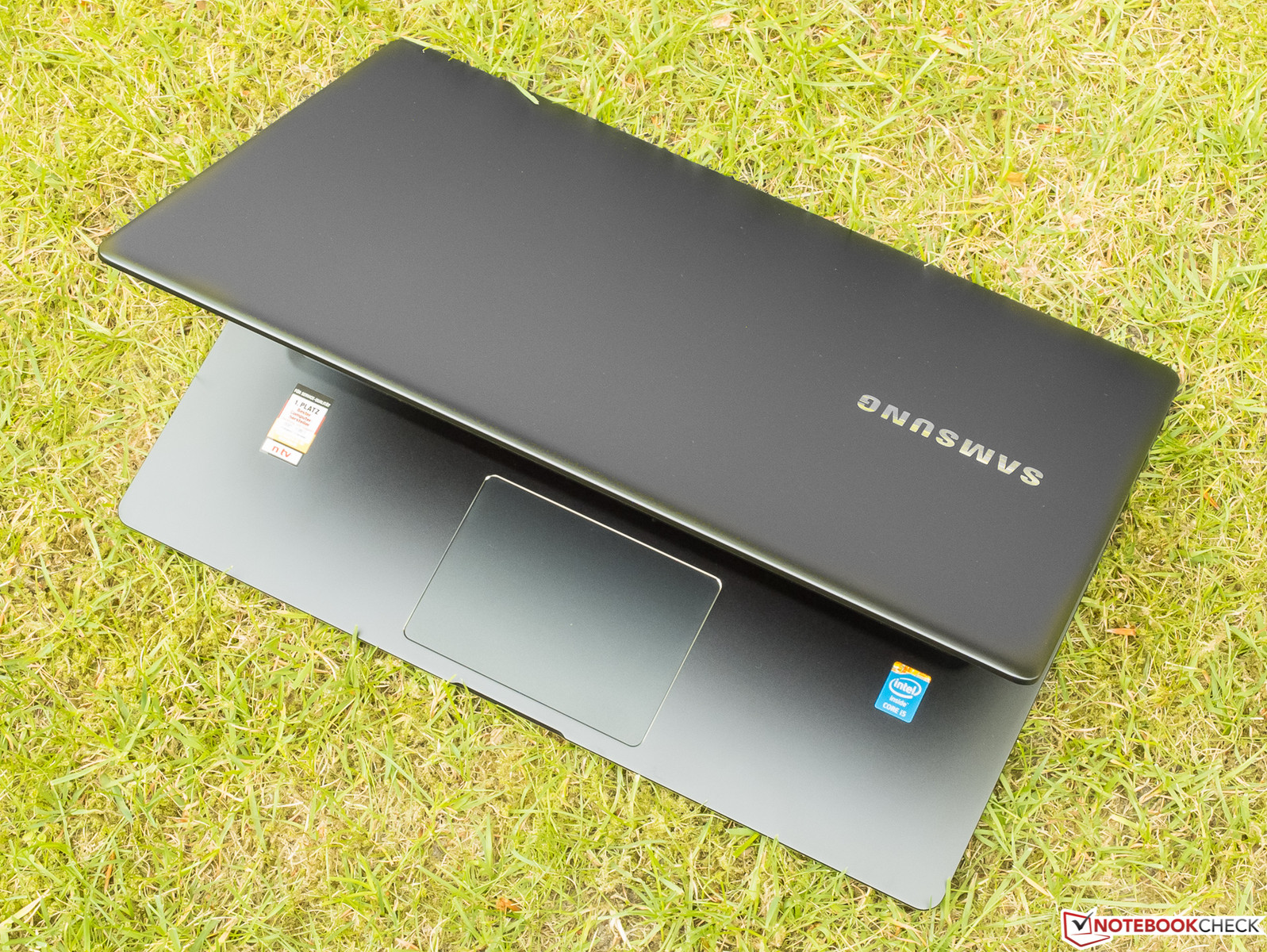

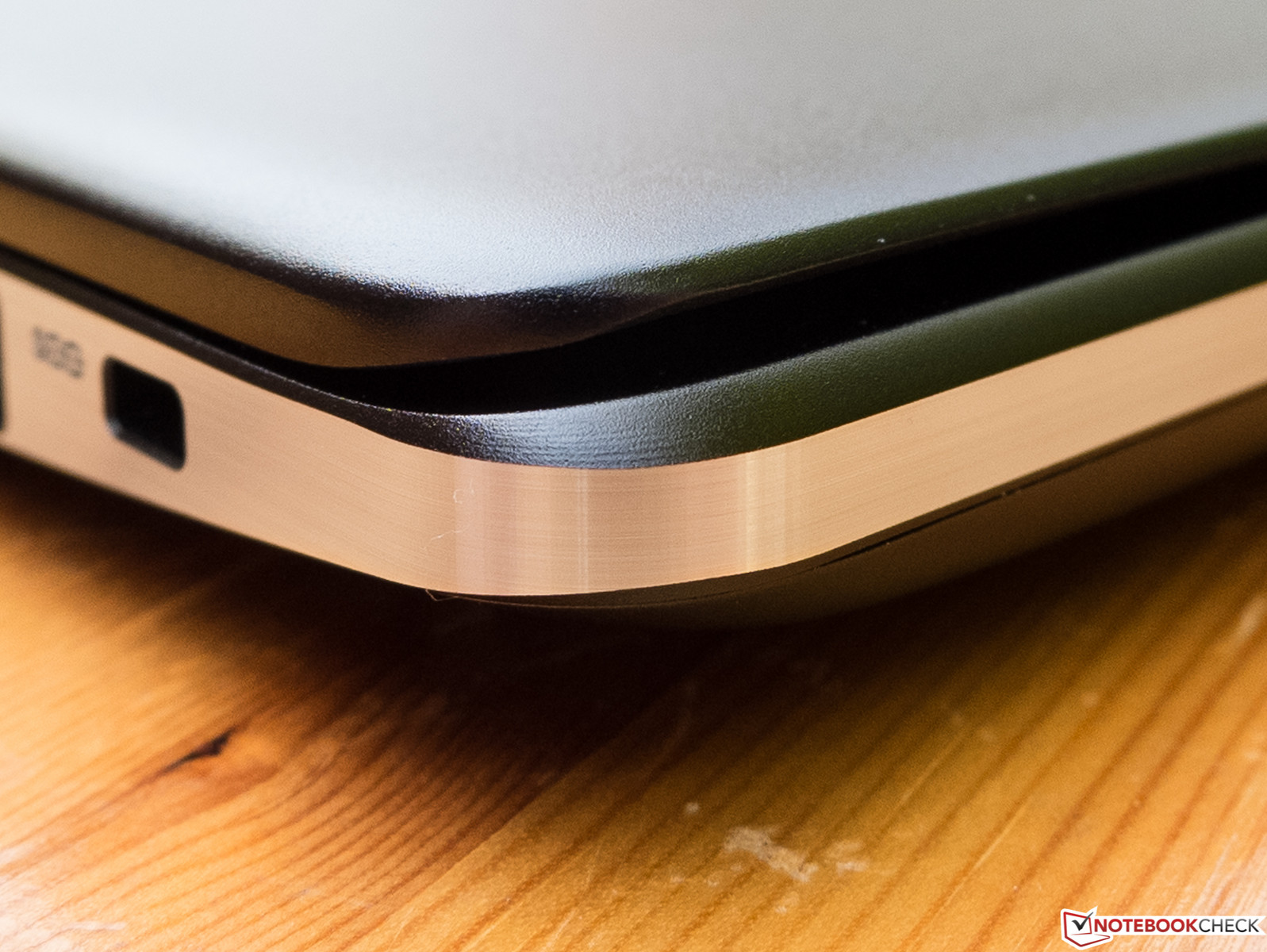

Alla som såg Samsungs nya Ativ Bok 9 under det här testet blev imponerade av den tunna designen och det eleganta men återhållsamma utseendet. Den här typen av understatement är säkert tilltalande på kontor som är måna om sin image. Samsung gjorde också ett bra jobb med temperaturer bullernivåer. Vi är också imponerade av de utmärkta batteritiderna i realistiska scenarier.

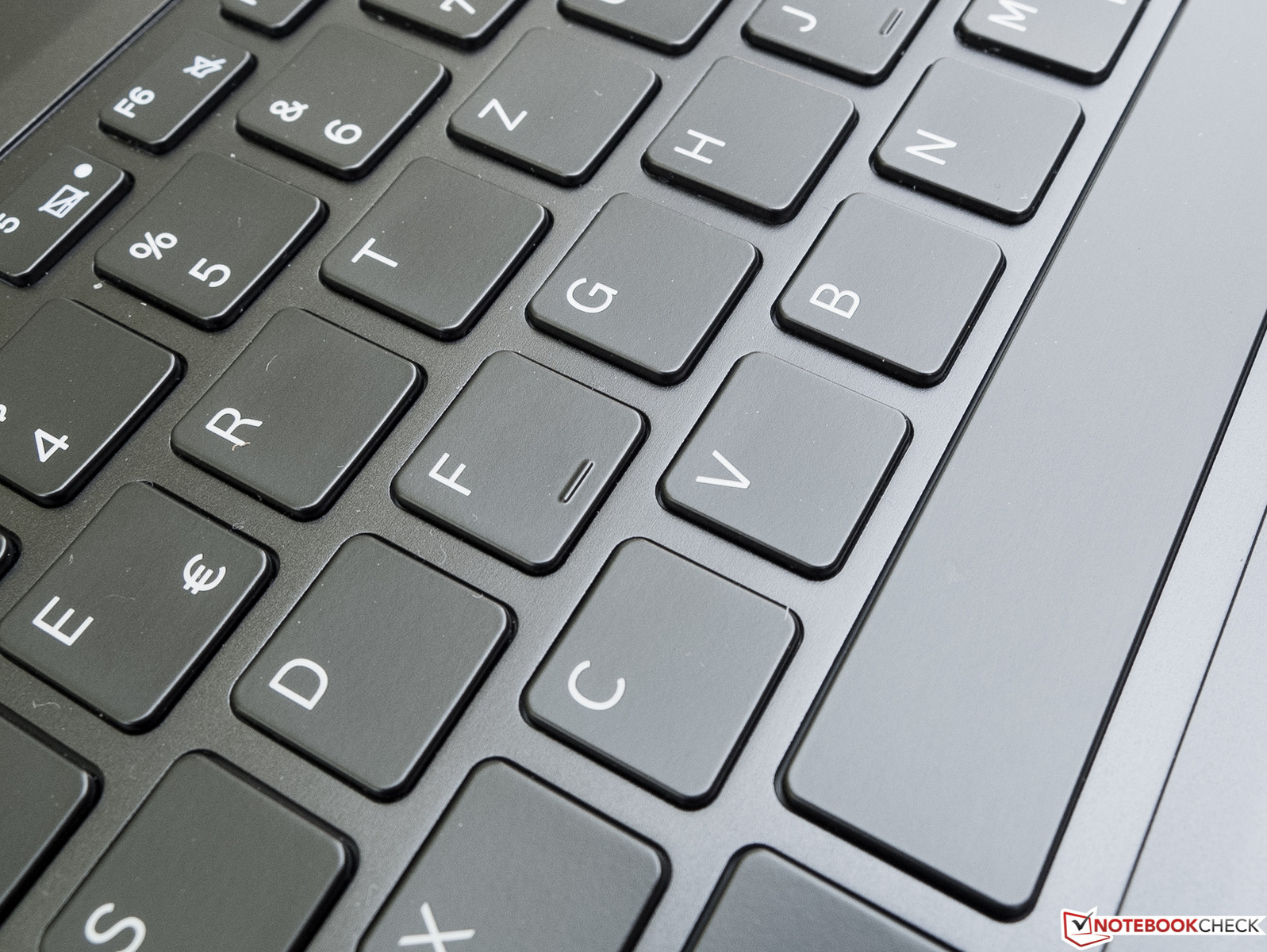

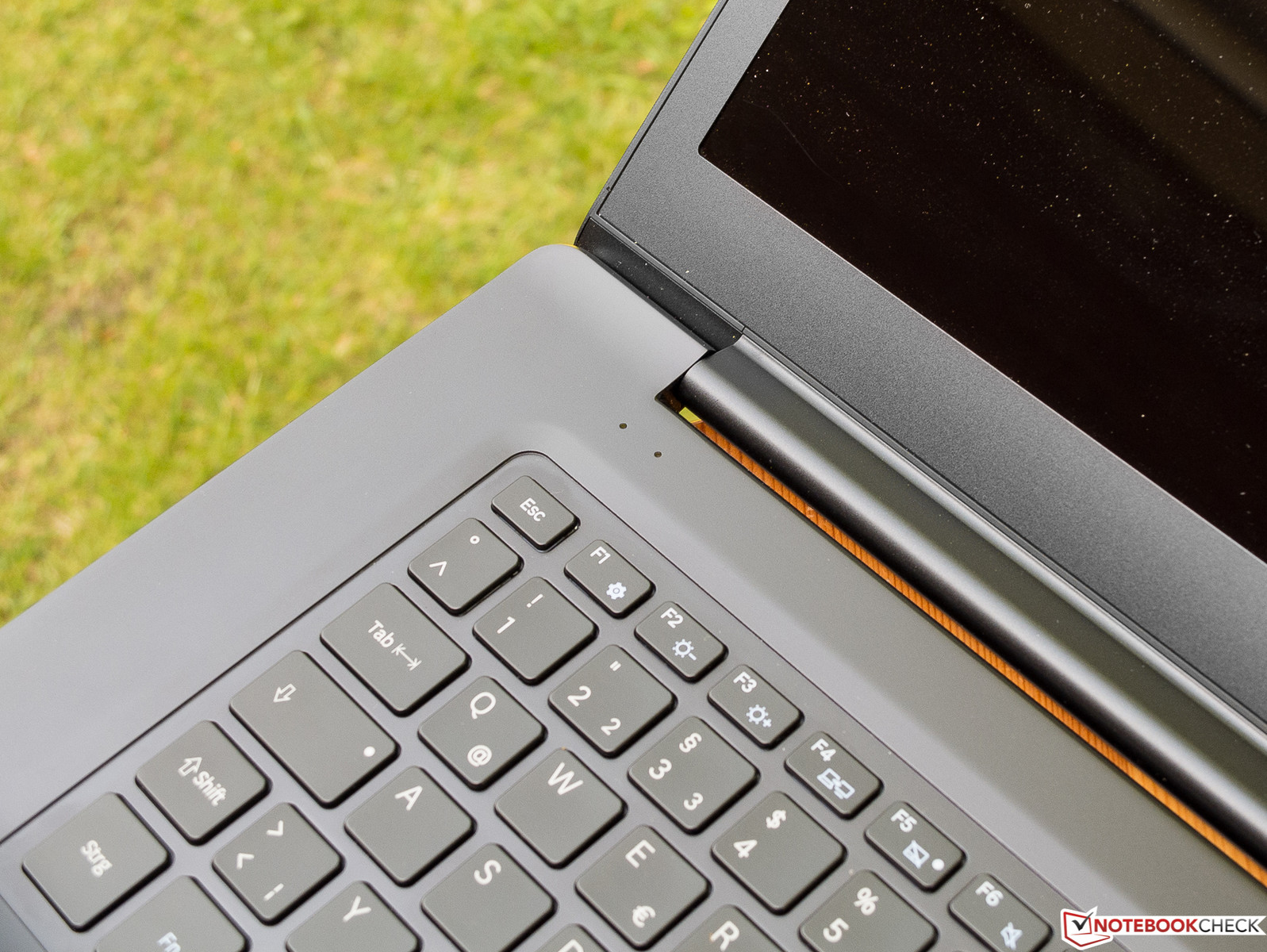

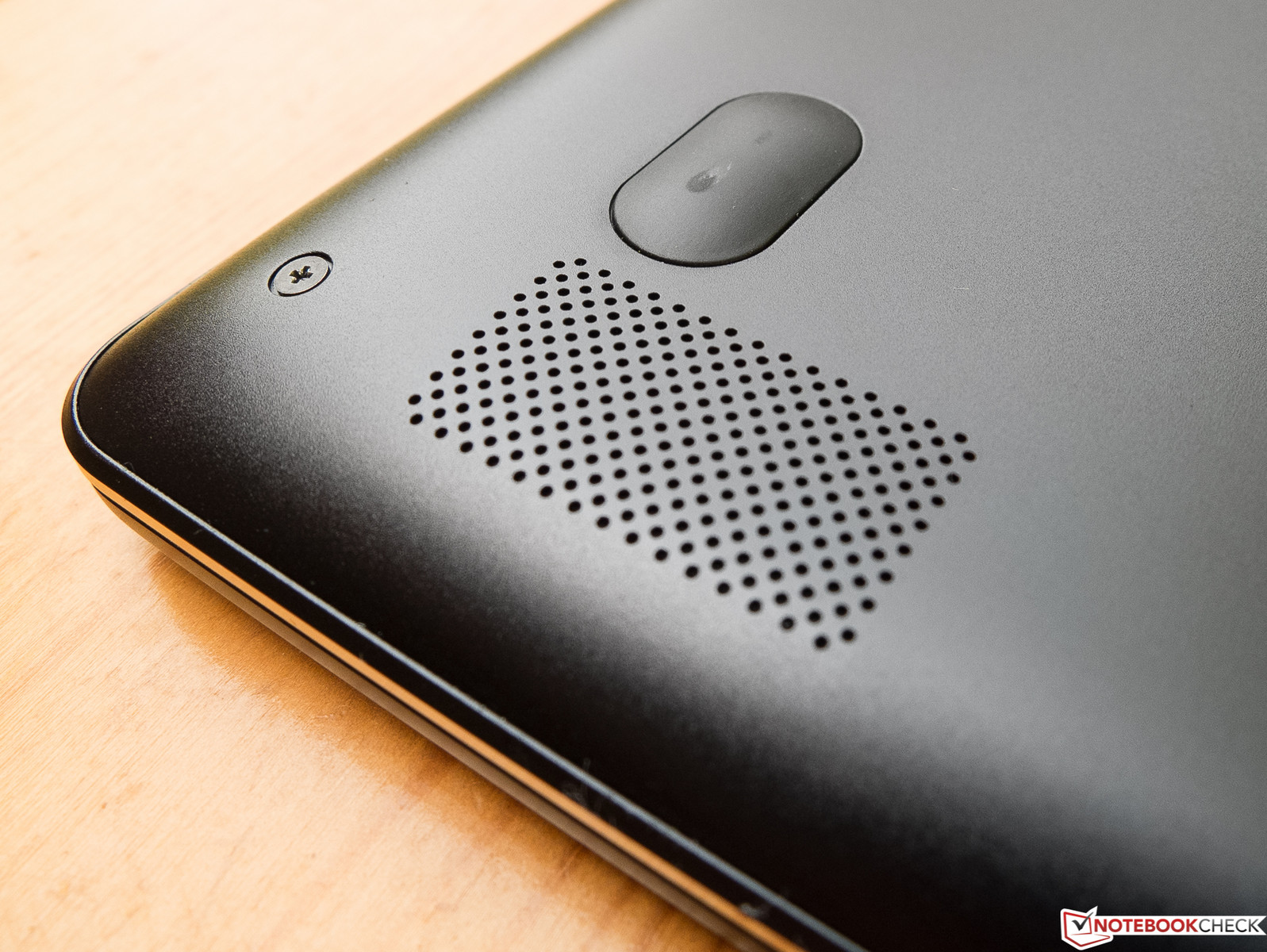

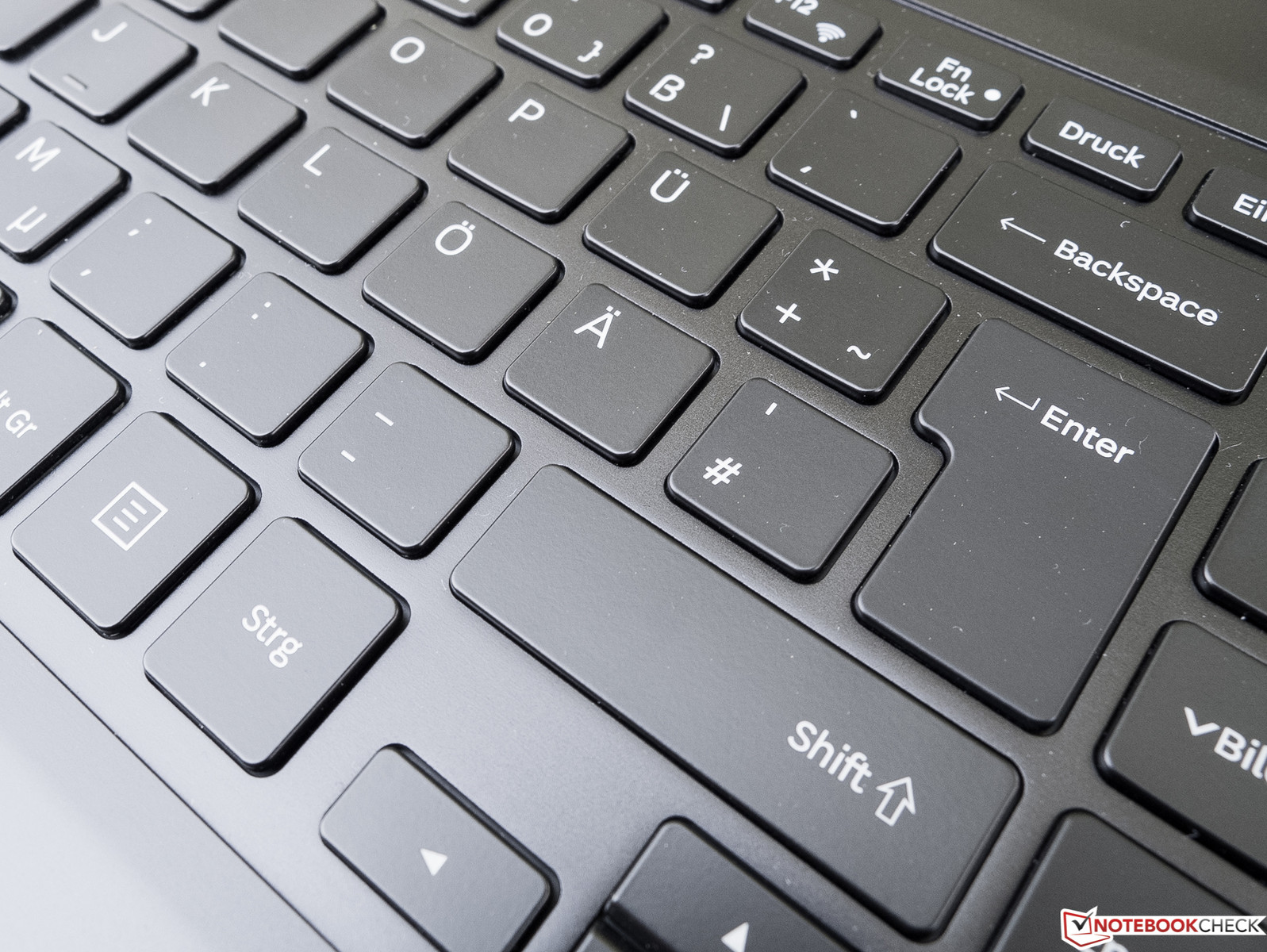

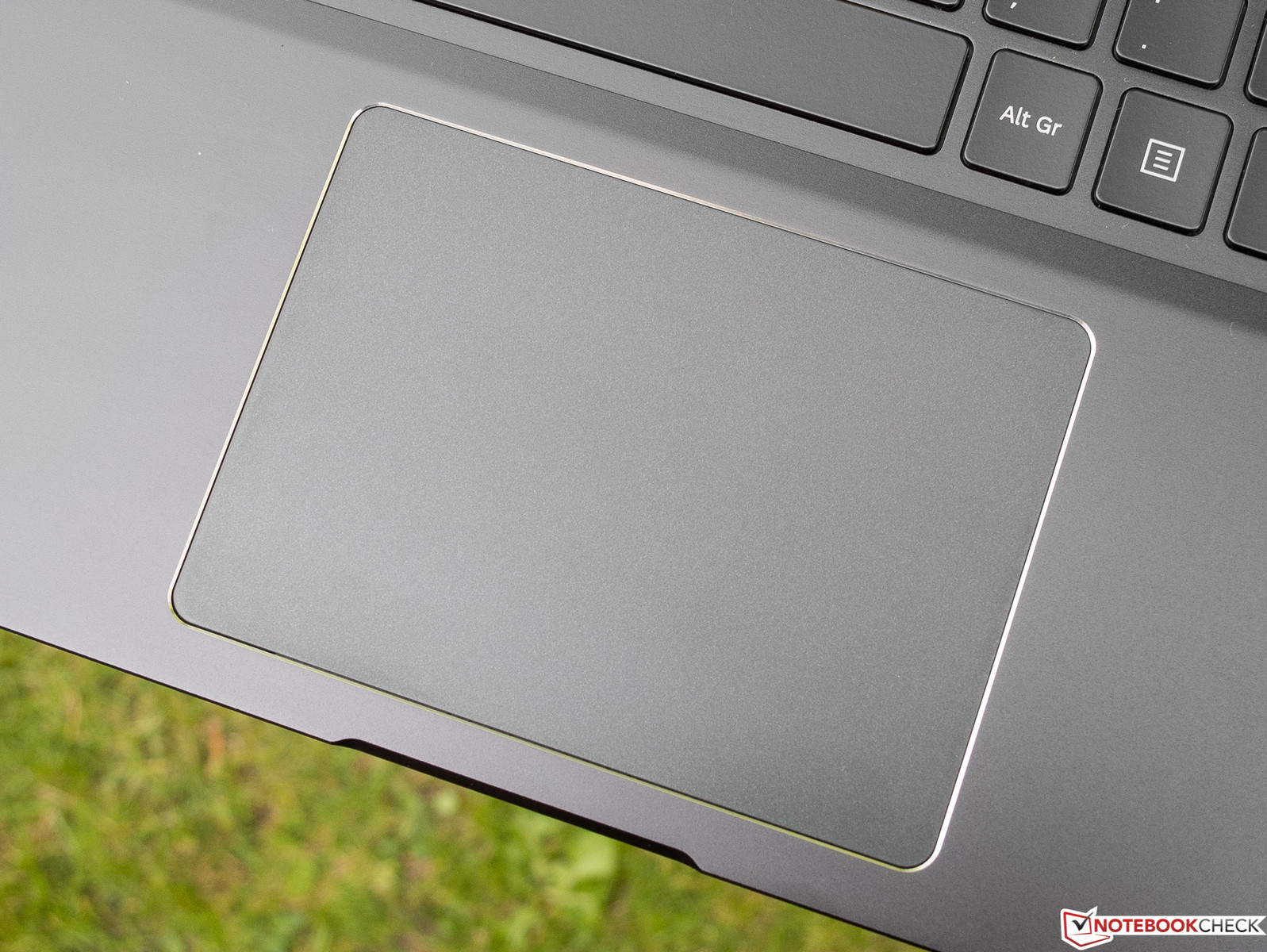

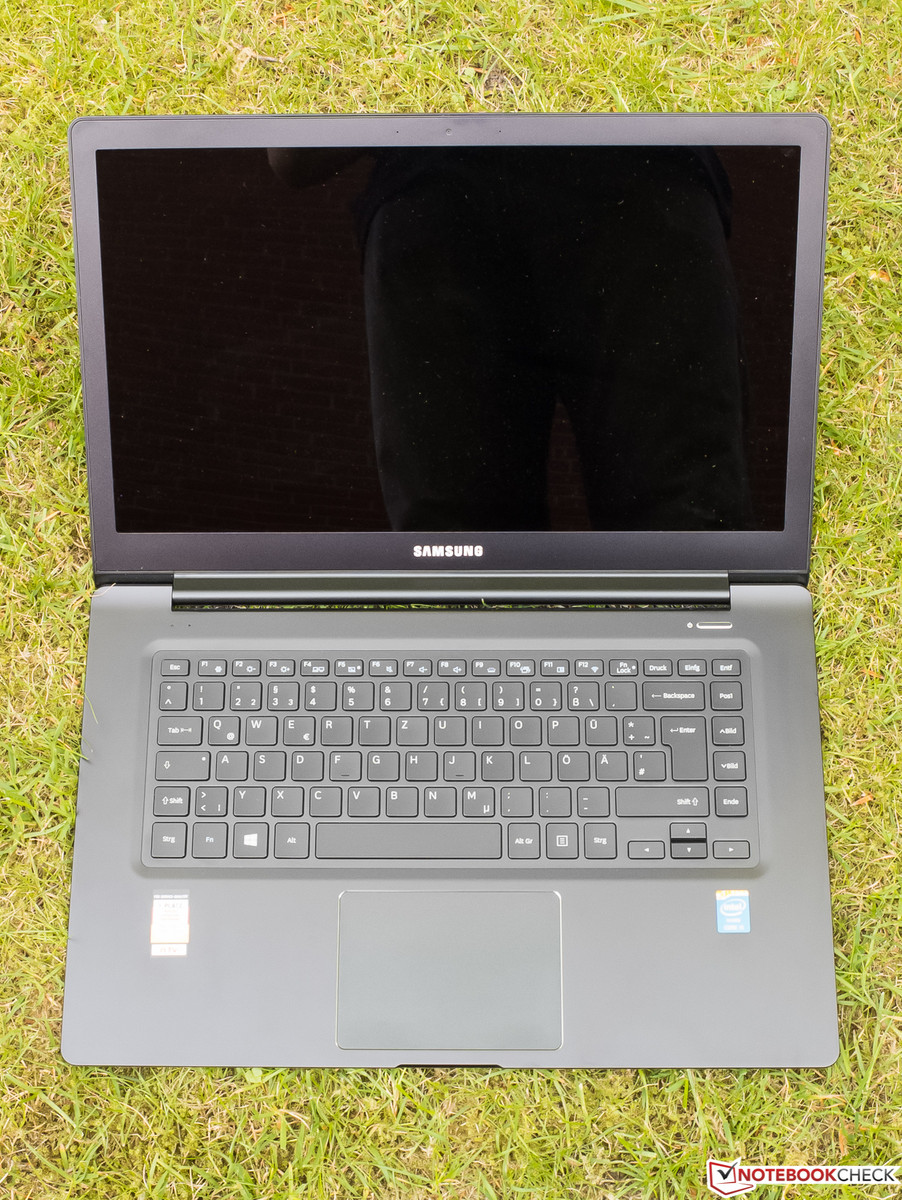

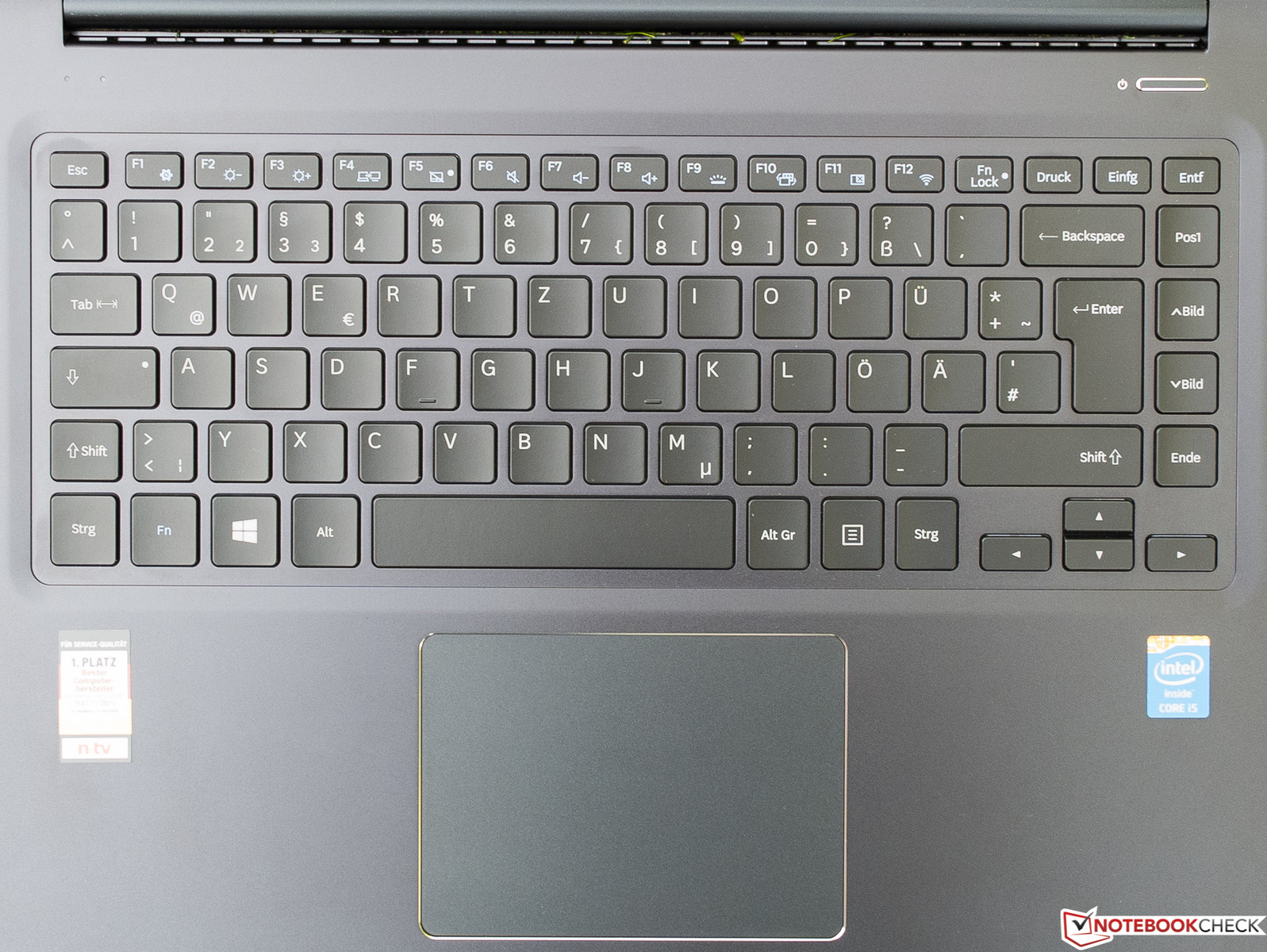

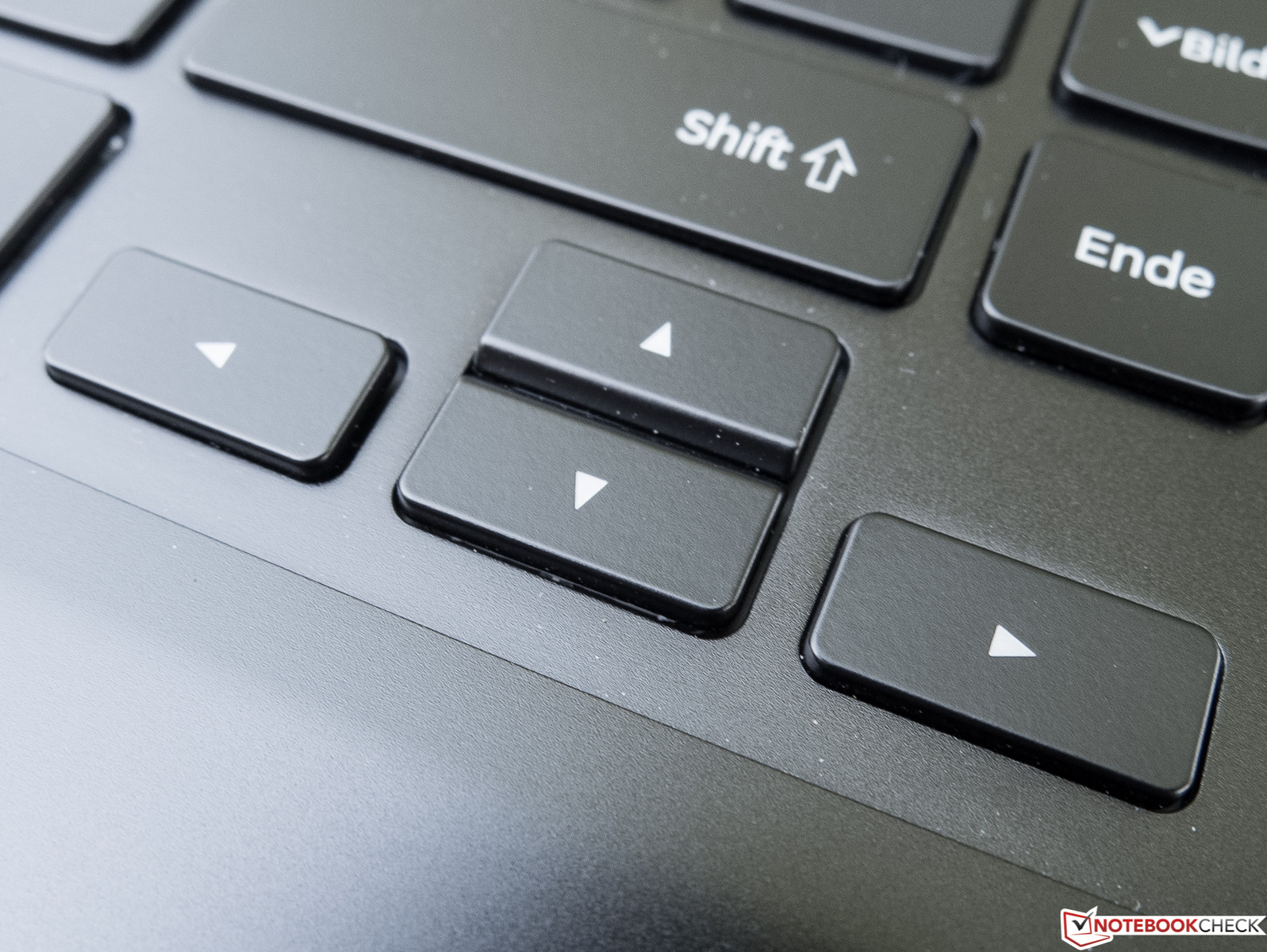

Vi ska heller inte kritisera det tunna men ändå mycket bra tangentbordet, men detsamma kan inte sägas om pekplattan. Den använder Windows standarddrivrutin trots en uppdatering. Funktionaliteten och konfigureringsmöjligheterna är mycket begränsade. Den stora skärmen har också en nackdel: Skärpan vid hög kontrast (teckensnitt) kunde varit bättre. Att ett välkonstruerat chassi ger ifrån sig knarrande ljud är också olyckligt i den här prisklassen. Däremot låter datorn väldigt bra i gengäld.

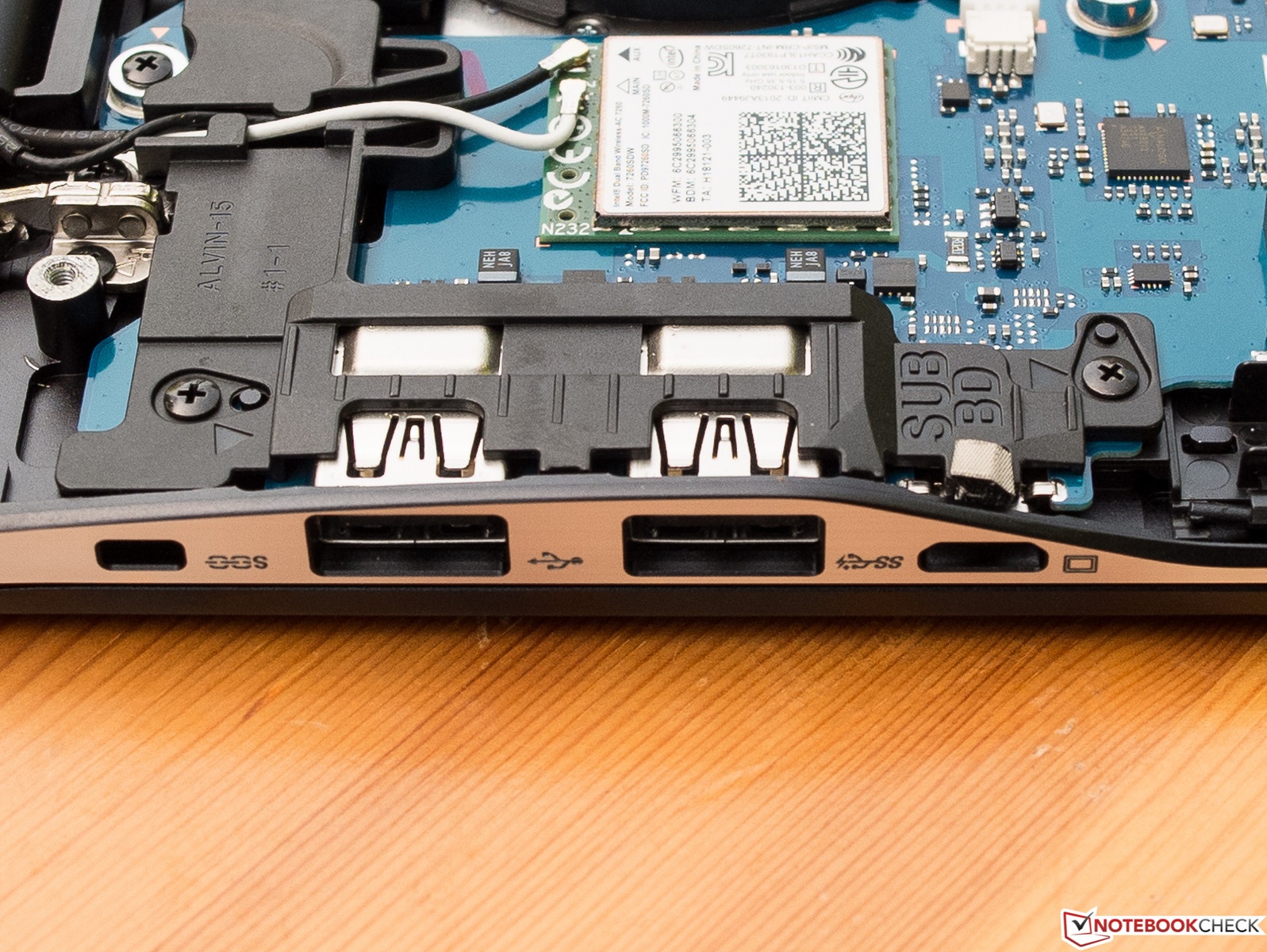

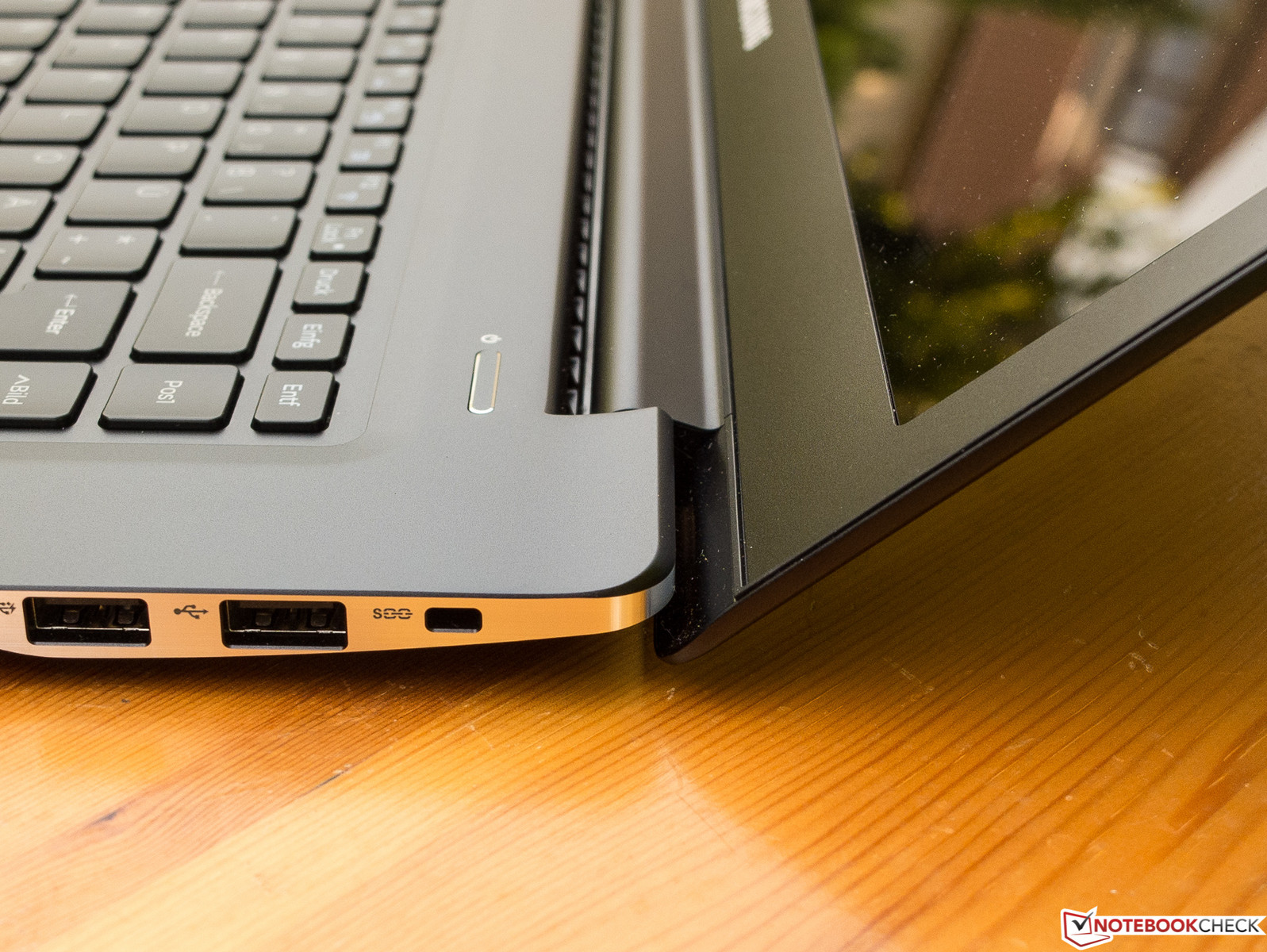

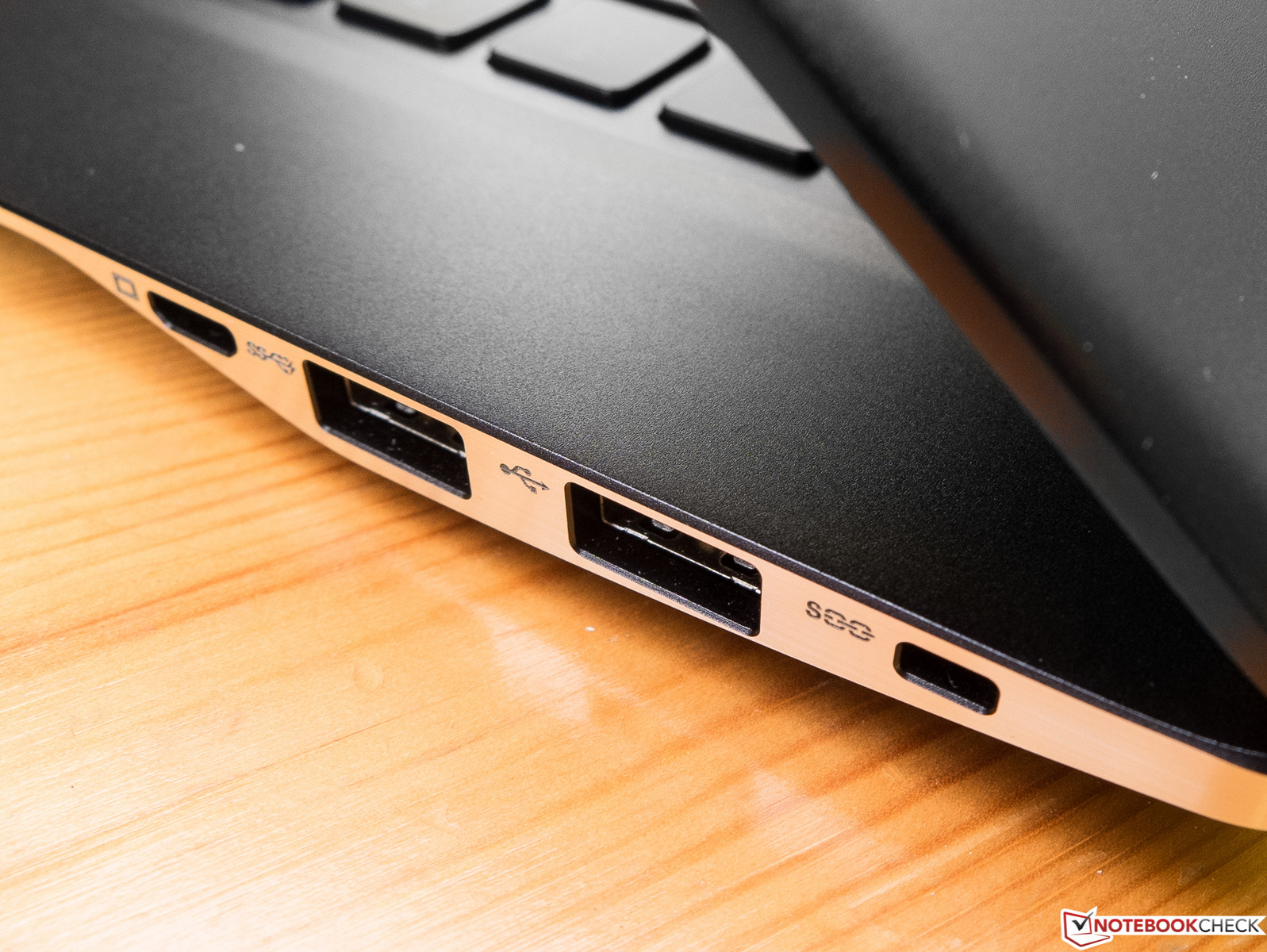

Prestandan får inte kritik heller. Man får nytta av en processor som passar alla de möjliga användningsscenarierna och en mycket snabb SSD. Urvalet portar kunde ha varit bättre, men det begränsade antalet orsakas främst av den tunna konstruktionen och är inte nödvändigtvis ett fel. Allt som allt är Ativ Bok 9 årgång 2014 en tilltalande ultrabook.
