Test: Samsung Galaxy Tab E (9,6", WiFi) T560N (sammanfattning)

Välkommen. Samsungs Galaxy Tab E inbjuder dig till surfplattornas värld med ett lågt pris, men gör trots prislappen ett gott intryck. Det är främst prestandan som lämnar övrigt att önska.
Tablet Android Touchscreen ARM
Galaxy Tab E (Galaxy Tab E Serie)
Processor
Spreadtrum SC8830 4 x 1.2 GHz, Cortex-A7
Grafikkort
ARM Mali-400 MP
Minne
1536 MB
Skärm
9.60 tum 16:10, 1280 x 800 pixlar, kapacitiv pekskärm, IPS, glansig: ja
Hårddisk
8 GB eMMC Flash, 8 GB
, 5 GB ledigt
Anslutningar
1 USB 2.0, Ljudanslutningar: Headset, Kortläsare: microSD, Sensorer: accelerationssensor
Nätverk
802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0, GPS
Storlek
höjd x bredd x djup (i mm) 8.9 x 242 x 150
Batteri
5000 mAh Litiumjon, Batteritid (enligt tillverkaren): 8 tim
Operativsystem
Android 4.4 KitKat
Camera
Primary Camera: 5 MPix CMOS, Autofokus, HD-Videos mit 30 fps

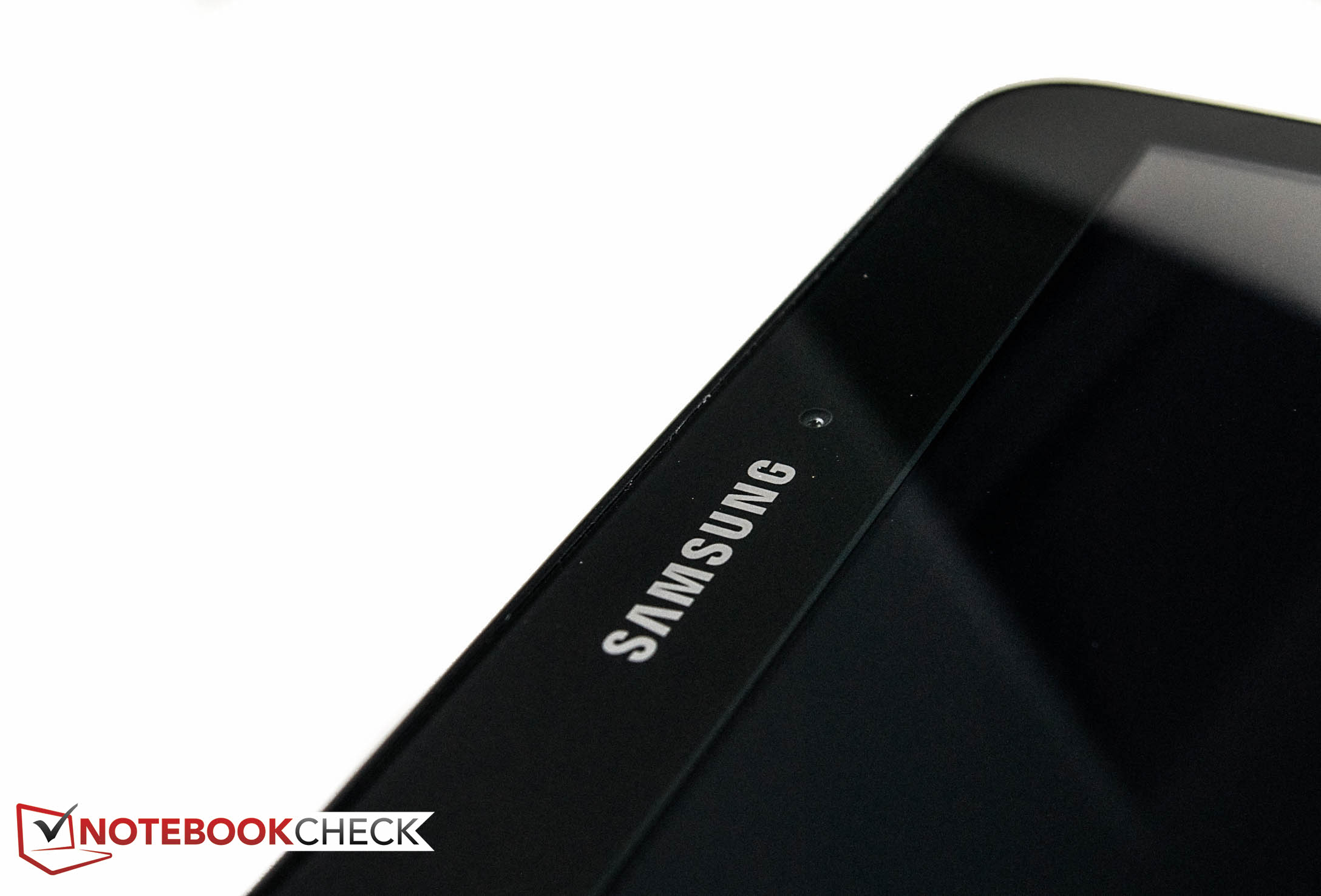

Secondary Camera: 2 MPix CMOS, Fixfokus
Övrigt
Högtalare: mono, Tangentbord: virtuellt, 24 Månader Garanti, fanless
Vikt
488 g, Strömförsörjning: 56 g
Pris
180 Kr
Länkar
Samsung kategori
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

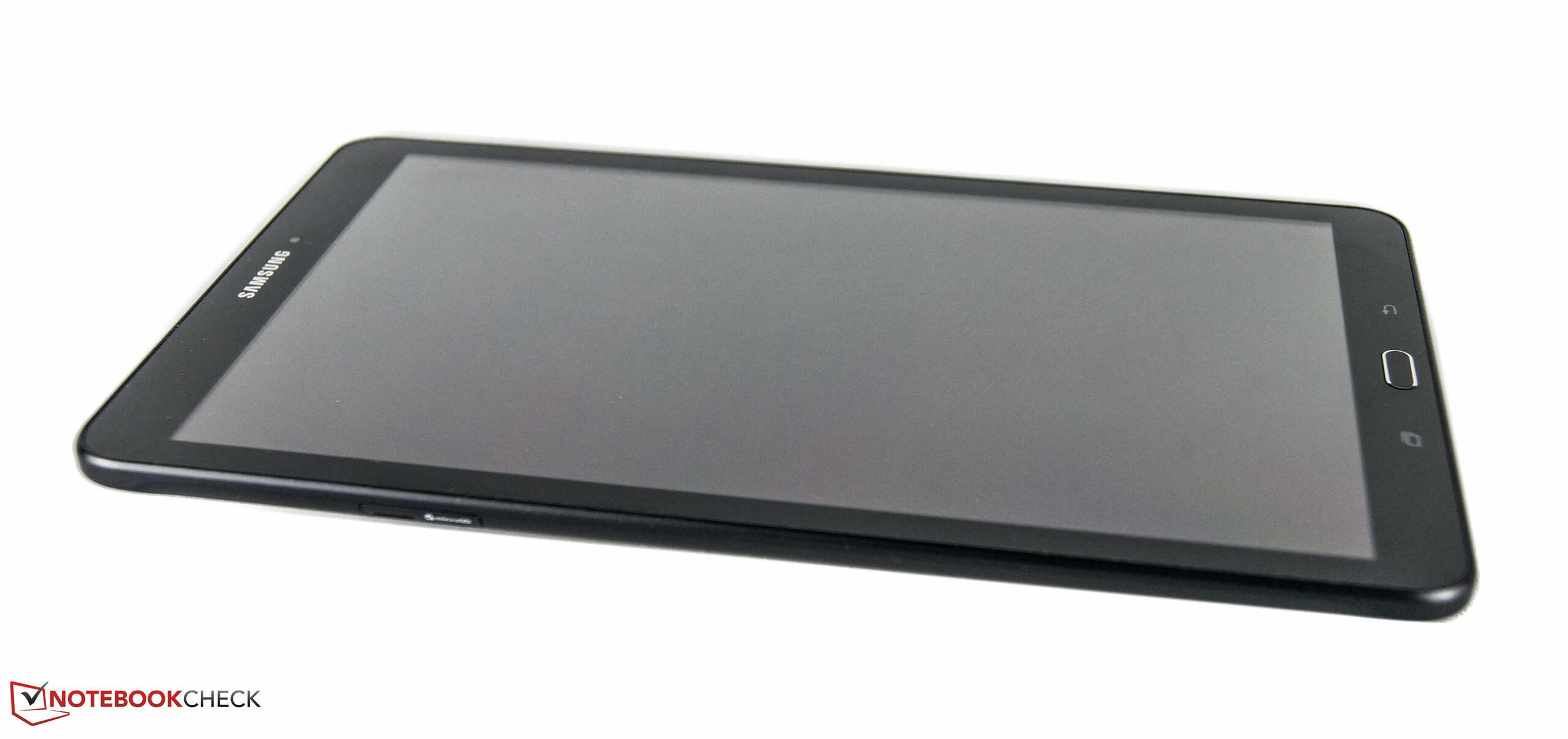

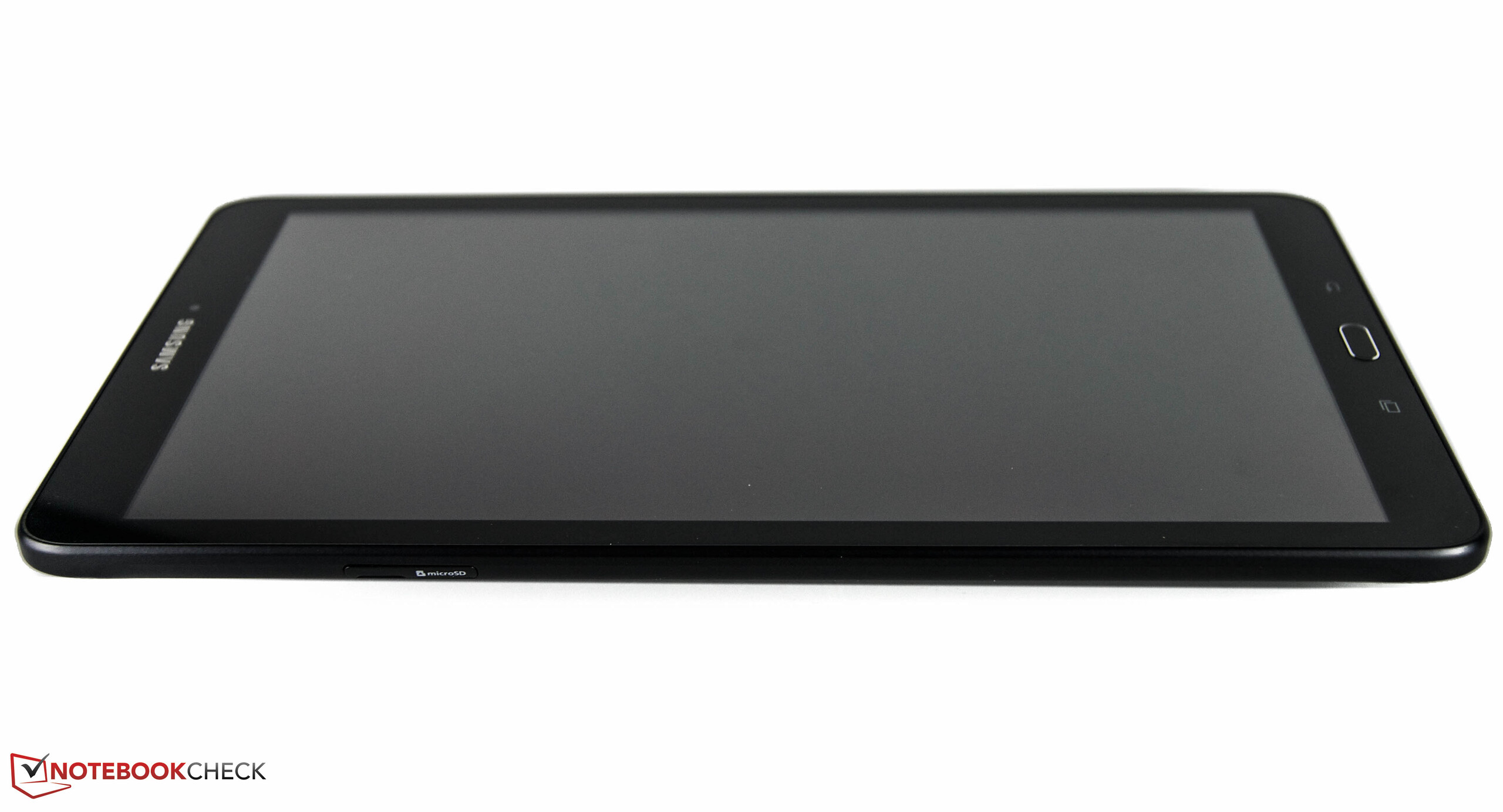

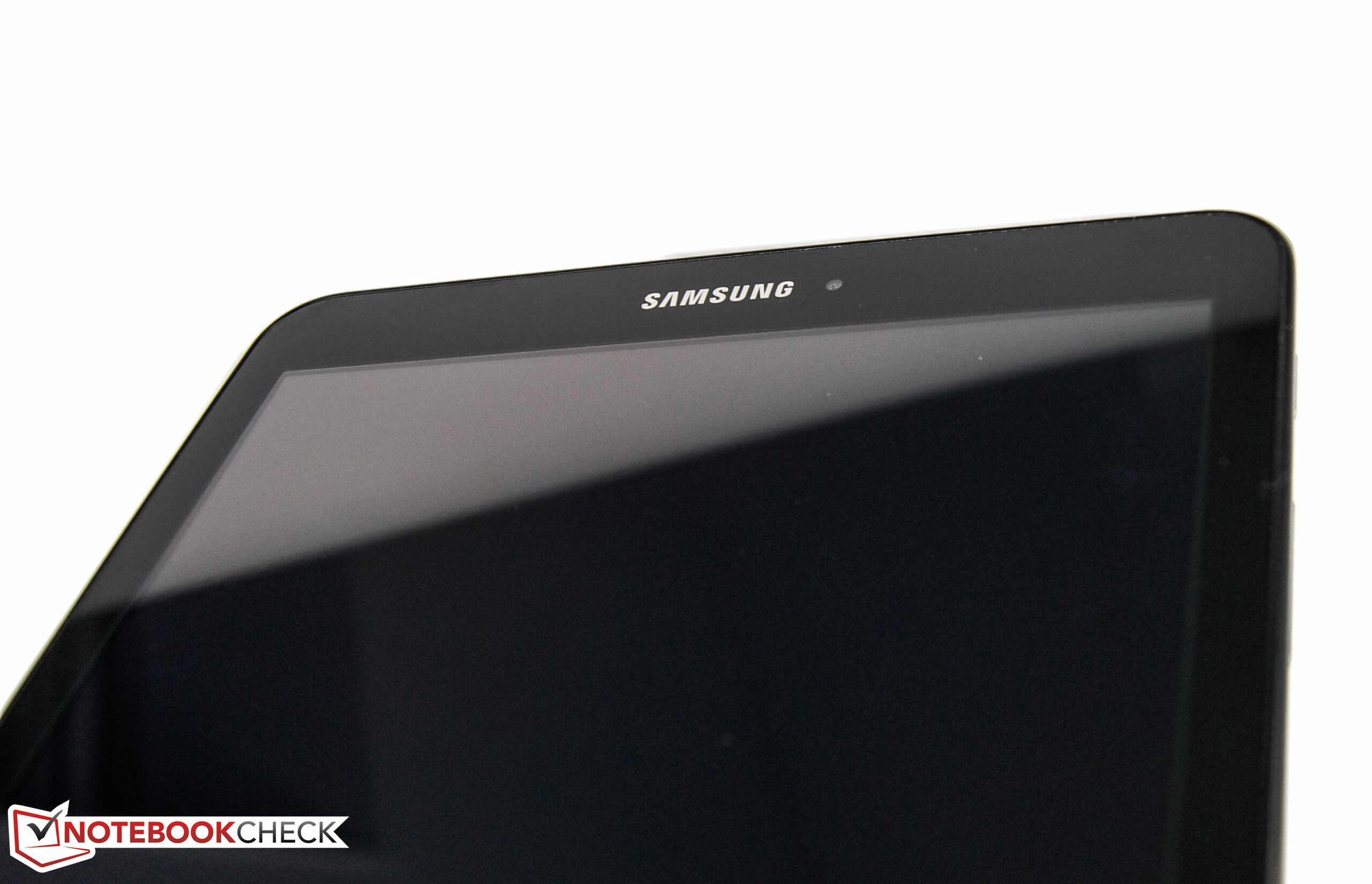

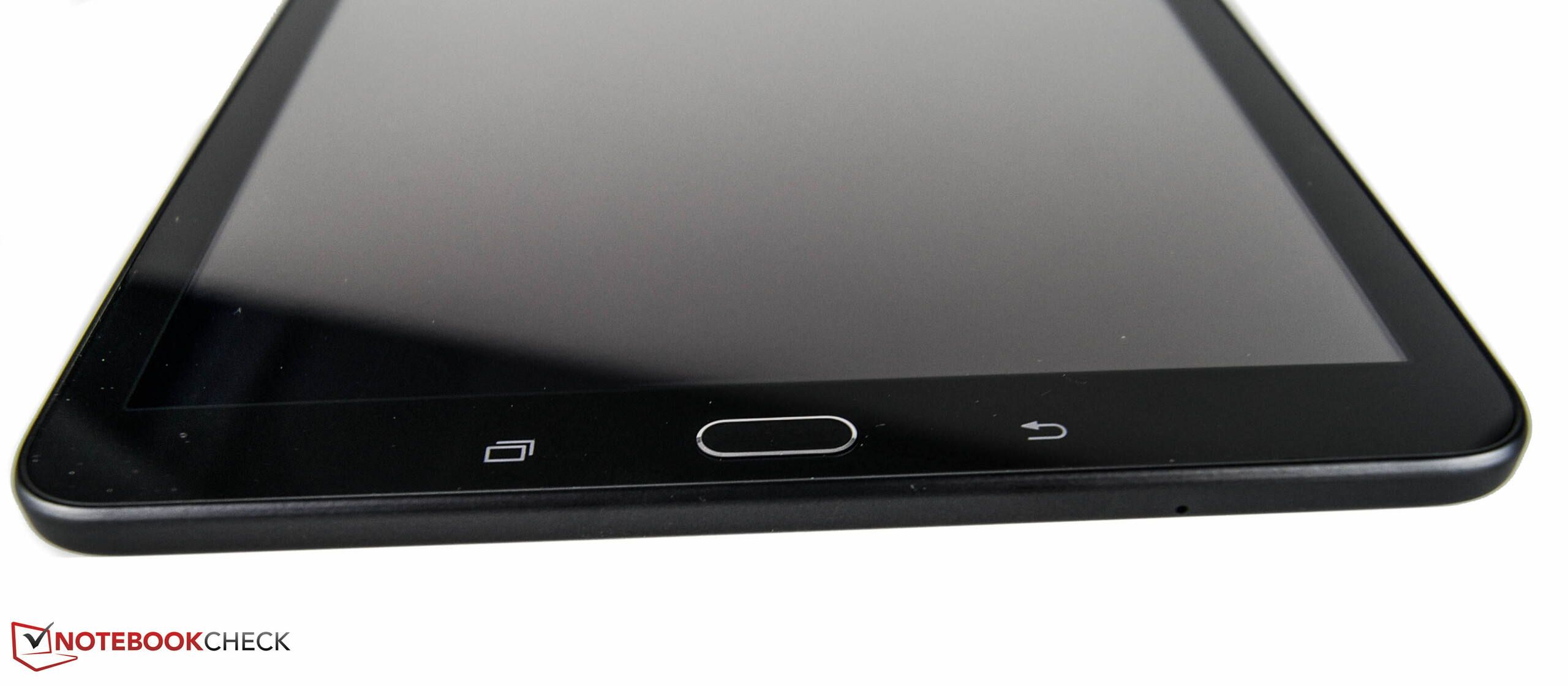

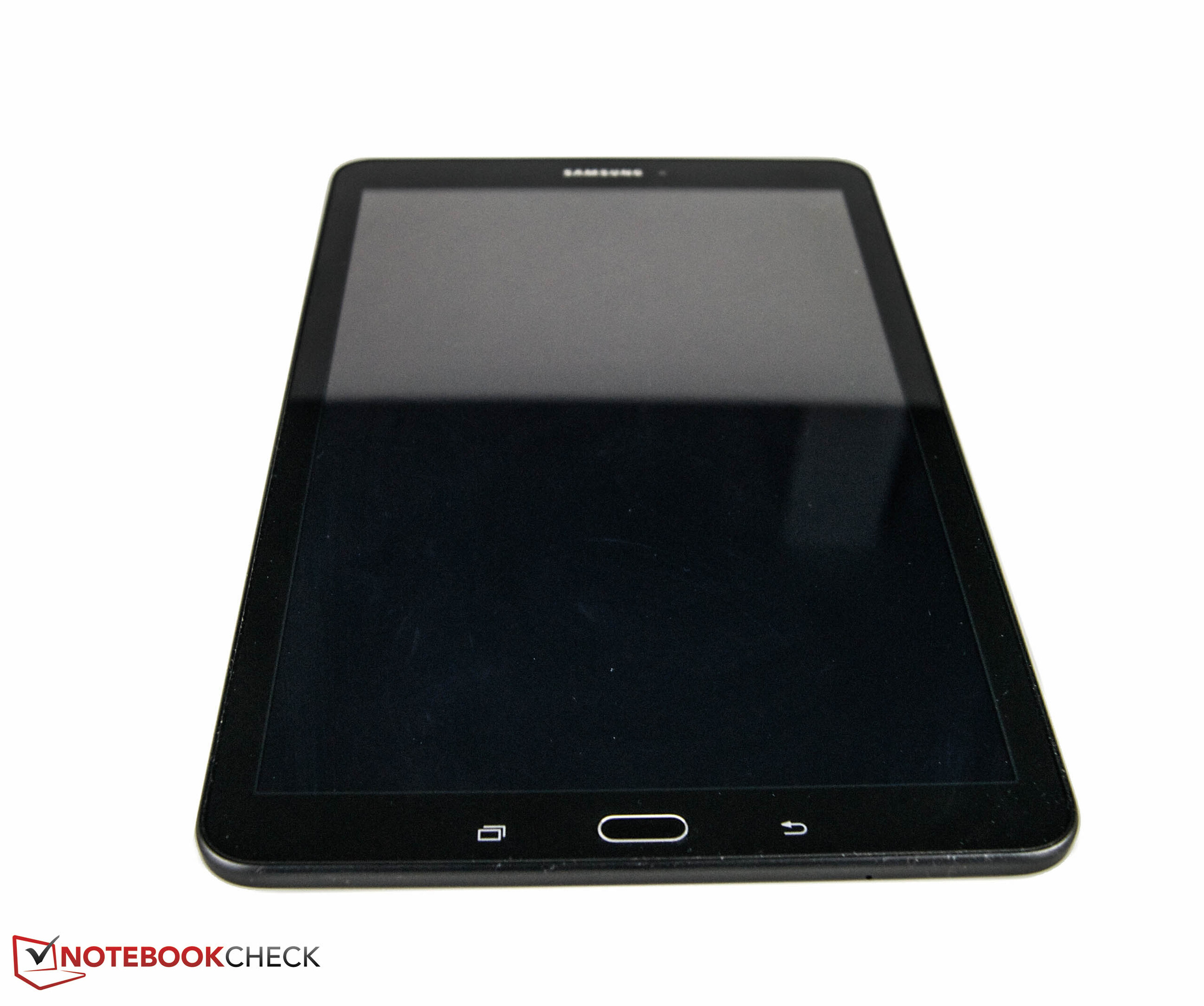

The plastic parts ...
The plastic parts ...

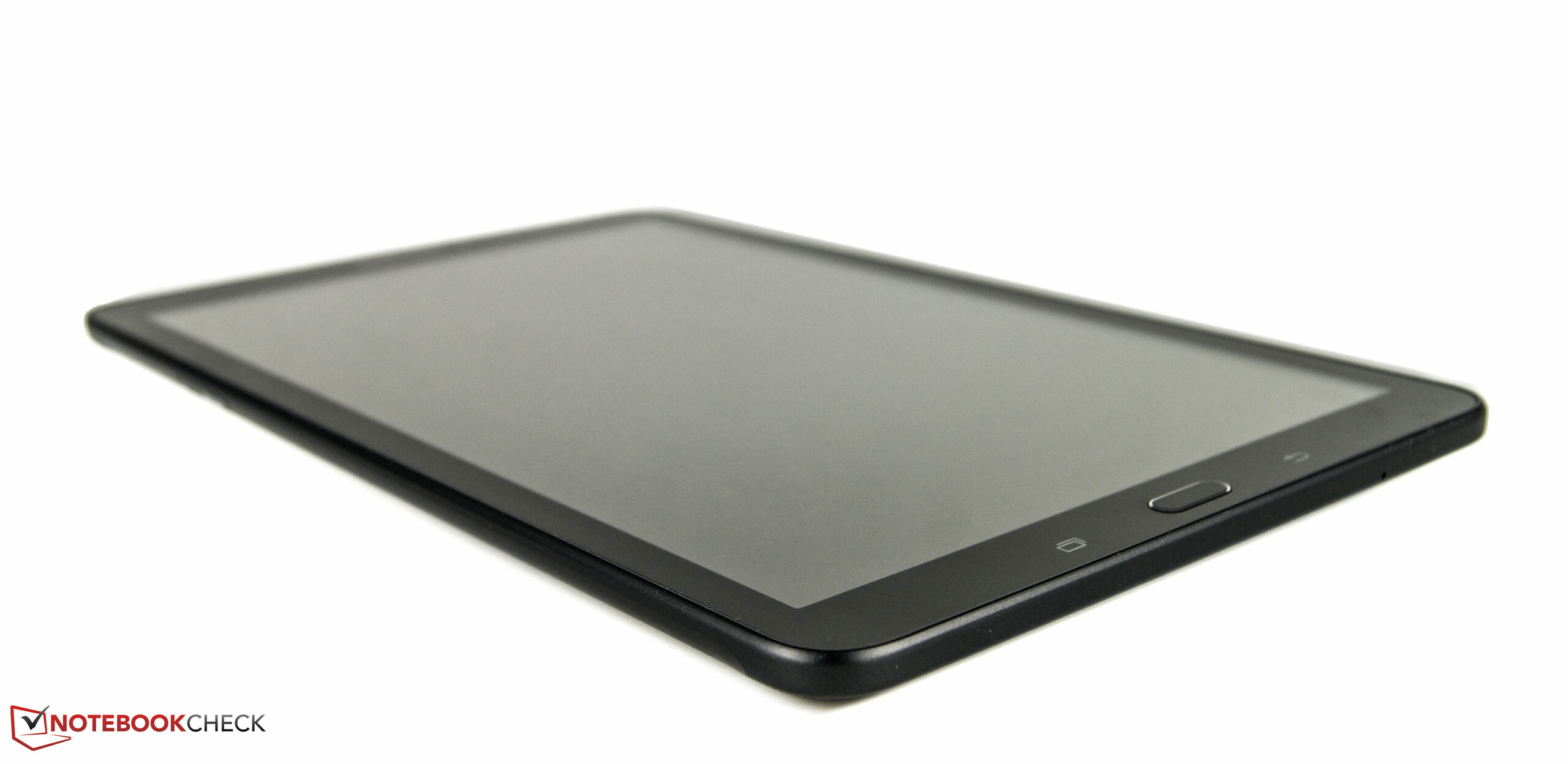

... fit together well.
Access to the inside ...
... is not something Samsung seems to want.

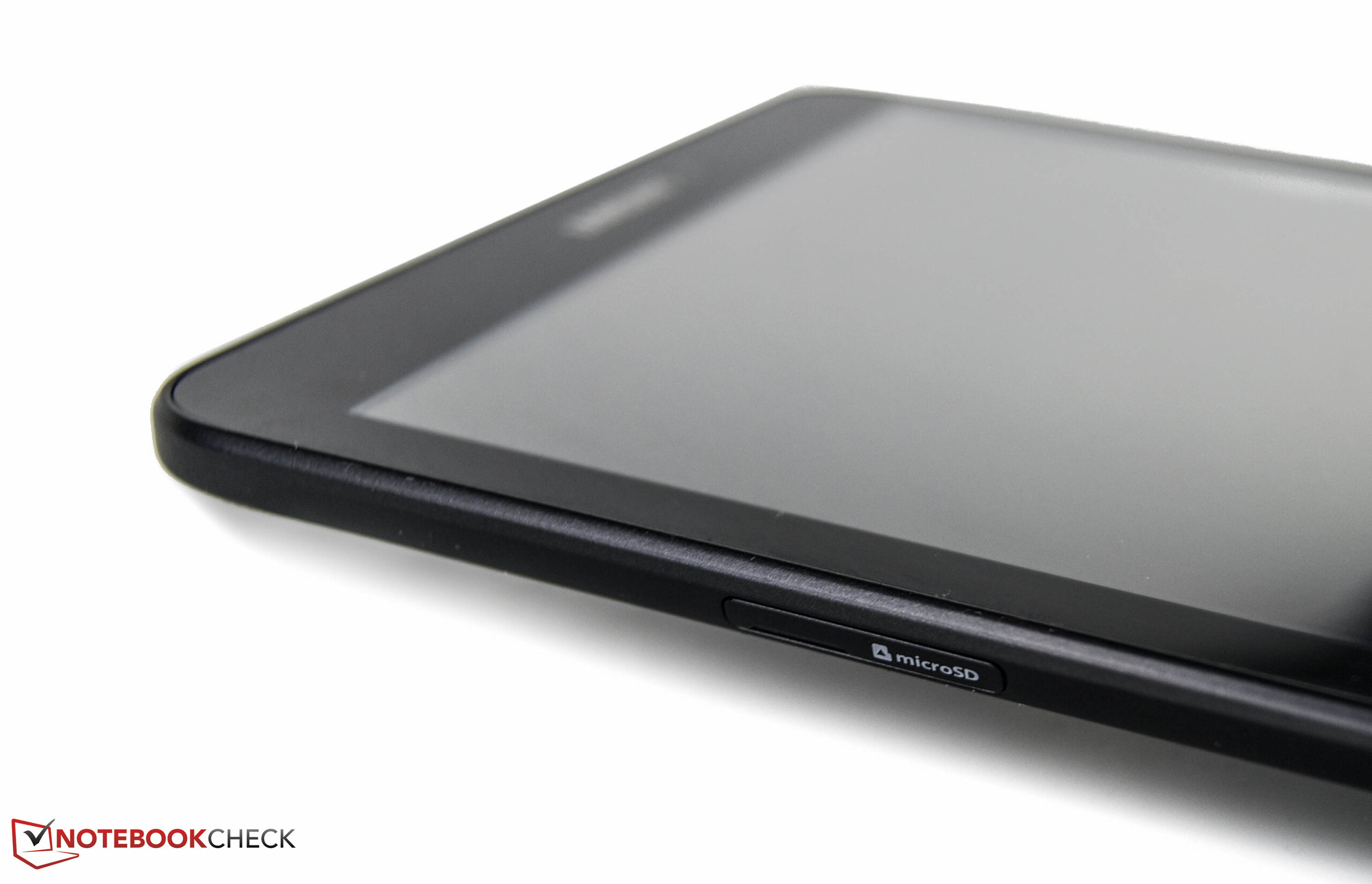

8 GB isn't a lot - but at least an expansion is possible.

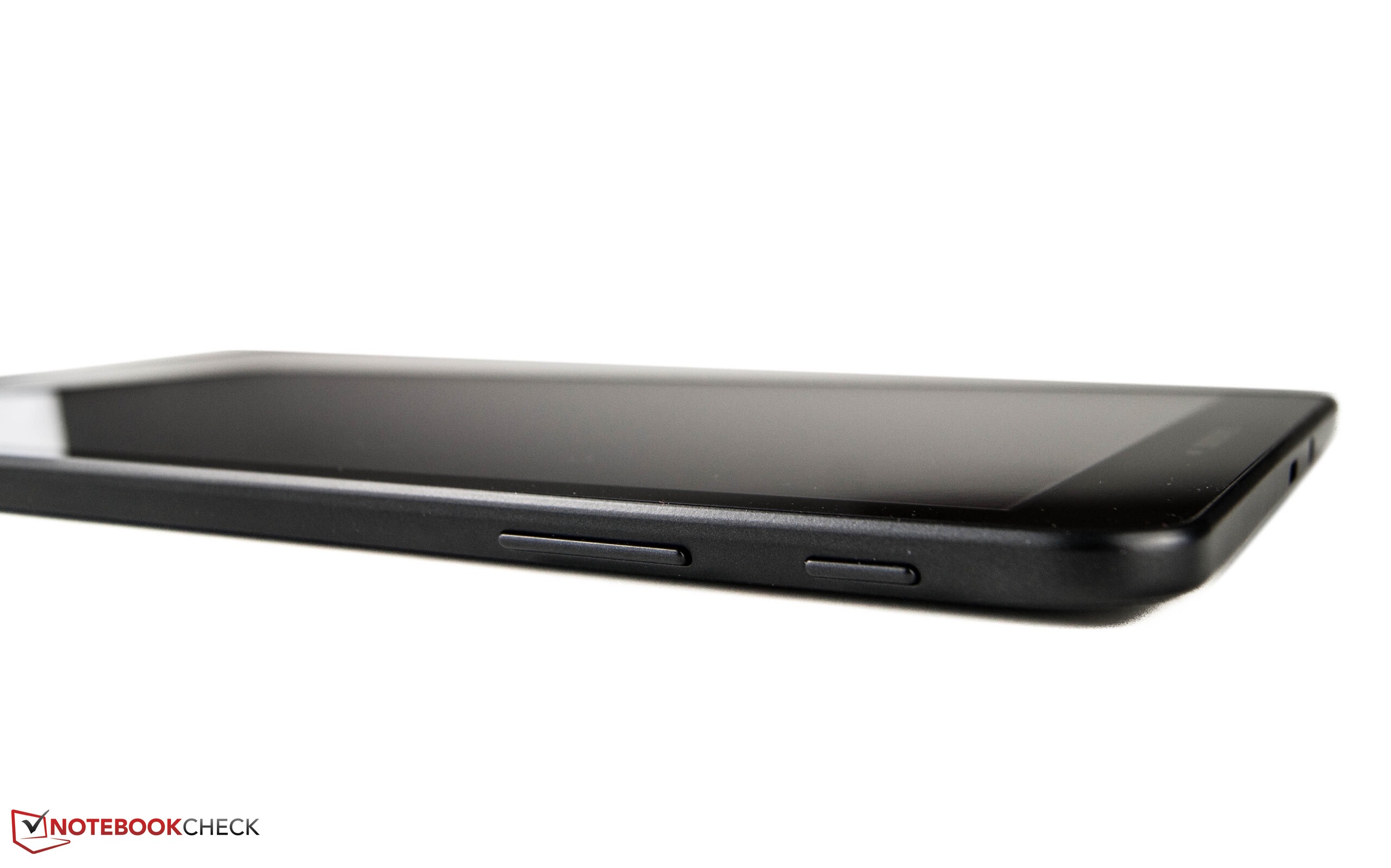

The right side houses the volume control and the power button.
A USB port is located on the upper edge.
❌
264 mm 170 mm 9.6 mm 590 g263 mm 174 mm 8.5 mm 580 g256 mm 171 mm 8.9 mm 520 g255.4 mm 183.3 mm 7.2 mm 619 g247 mm 171 mm 8.9 mm 518 g242 mm 150 mm 8.9 mm 488 g237.3 mm 169 mm 5.6 mm 387 g210 mm 148 mm 1 mm 2.9 g

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
orginal image
click to load images
Samsung Galaxy Tab E (9.6, Wi-Fi)
Mali-400 MP, SC8830, 8 GB eMMC Flash		Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash		Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)
Mali-450 MP4, MT8127, 16 GB SSD		Medion Lifetab S10345
HD Graphics (Bay Trail), Z3735F, 32 GB SSD
Screen
22%
-9%
-17%
Brightness middle
457
352.9
-23%
356
-22%
294
-36%
Brightness
453
335
-26%
339
-25%
281
-38%
Brightness Distribution
87
88
1%
90
3%
88
1%
Black Level *
0.49
0.191
61%
0.42
14%
0.5
-2%
Contrast
933
1848
98%
848
-9%
588
-37%
Colorchecker dE 2000 *
5.75
4.31
25%
6.51
-13%
5.78
-1%
Greyscale dE 2000 *
5.33
4.36
18%
5.92
-11%
5.61
-5%
Gamma
2.61 84%
2.33 94%
2.21 100%
2.67 82%
CCT
6820 95%
7045 92%
6736 96%
7439 87%

* ... smaller is better

478
cd/m²		440
cd/m²		459
cd/m²
493
cd/m²		457
cd/m²		433
cd/m²
456
cd/m²		429
cd/m²		429
cd/m²
Distribution av ljusstyrkan
tested with X-Rite i1Pro 2
Max: 493 cd/m² (Nits) Medel: 452.7 cd/m²
Distribution av ljusstyrkan: 87 %
Mitt på batteriet: 457 cd/m²
Kontrast: 933:1 (Svärta: 0.49 cd/m²)
ΔE Color 5.75 | 0.5-29.43 Ø4.91
ΔE Greyscale 5.33 | 0.5-98 Ø5.2
Gamma: 2.61

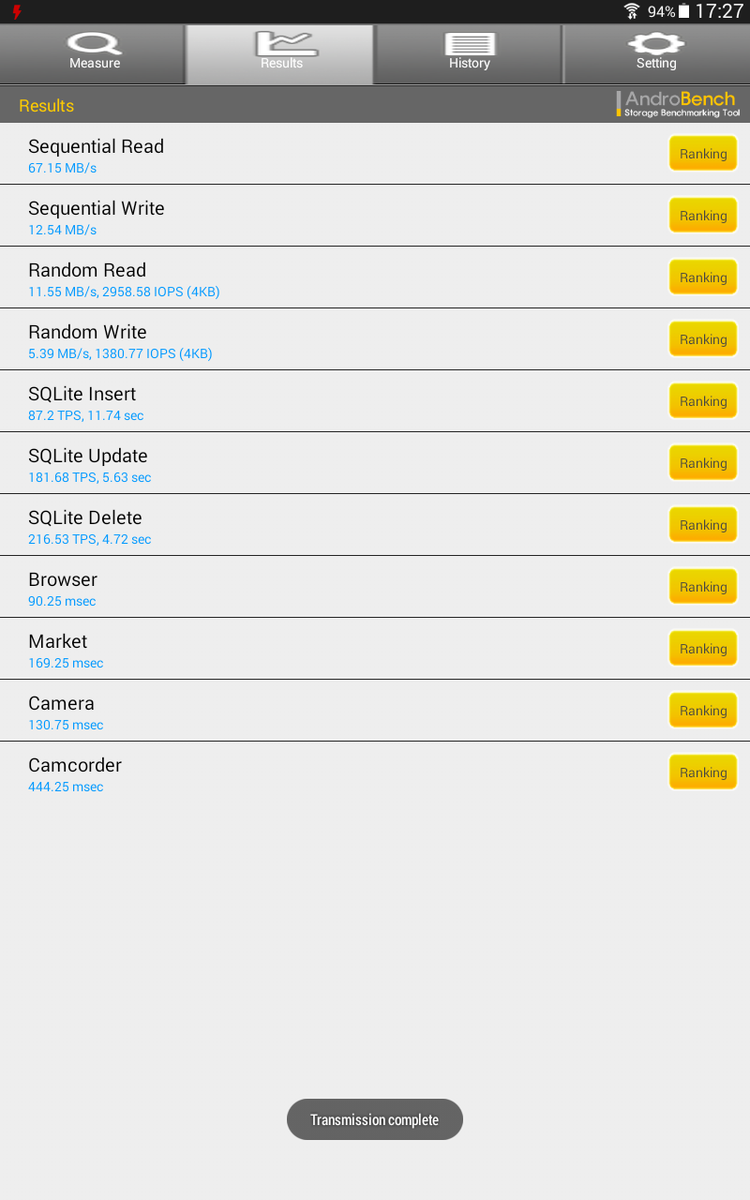

Transfer speed of the integrated flash storage
Transfer speed of the integrated flash storage
Geekbench 3 | 3DMark | PCMark for Android | Smartbench 2012 | BaseMark OS II
Geekbench 3
32 Bit Single-Core Score (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)
346 Points
Lenovo TAB2 A10-70
686 Points +98%
HP Pavilion 10-k000ng x2
729 Points +111%
Lenovo Yoga Tablet 2 1050F
764 Points +121%
Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)
361 Points +4%
Medion Lifetab S10345
801 Points +132%
Medion Lifetab S10334
516 Points +49%
LG Bello II
361 Points +4%
32 Bit Multi-Core Score (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)
1091 Points
Lenovo TAB2 A10-70
2031 Points +86%
HP Pavilion 10-k000ng x2
1941 Points +78%
Lenovo Yoga Tablet 2 1050F
2426 Points +122%
Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)
1179 Points +8%
Medion Lifetab S10345
2018 Points +85%
Medion Lifetab S10334
1493 Points +37%
LG Bello II
891 Points -18%
3DMark - 1280x720 Ice Storm Standard Score (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)
3323 Points
Lenovo TAB2 A10-70
10061 Points +203%
HP Pavilion 10-k000ng x2
14467 Points +335%
Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)
5030 Points +51%
Medion Lifetab S10345
9497 Points +186%
Medion Lifetab S10334
2773 Points -17%
LG Bello II
2880 Points -13%
Doogee Nova Y100X
2849 Points -14%
PCMark for Android - Work performance score (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)
2361 Points
Lenovo TAB2 A10-70
4226 Points +79%
Doogee Nova Y100X
2786 Points +18%
Smartbench 2012
Productivity Index (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)
4156 points
Lenovo TAB2 A10-70
7277 points +75%
Lenovo Yoga Tablet 2 1050F
9045 points +118%
Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)
4601 points +11%
Medion Lifetab S10345
8035 points +93%
LG Bello II
2913 points -30%
Doogee Nova Y100X
3769 points -9%
Gaming Index (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)
1932 points
Lenovo TAB2 A10-70
3843 points +99%
Lenovo Yoga Tablet 2 1050F
2781 points +44%
Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)
3047 points +58%
Medion Lifetab S10345
3166 points +64%
LG Bello II
3170 points +64%
Doogee Nova Y100X
2252 points +17%
BaseMark OS II - Overall (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)
354 Points
Lenovo TAB2 A10-70
929 Points +162%
LG Bello II
437 Points +23%
Doogee Nova Y100X
374 Points +6%

Legend


Samsung Galaxy Tab E (9.6, Wi-Fi) Spreadtrum SC8830, ARM Mali-400 MP, 8 GB eMMC Flash

Lenovo TAB2 A10-70 Mediatek MT8165, ARM Mali-T760 MP2, 16 GB eMMC Flash

HP Pavilion 10-k000ng x2 Intel Atom Z3736F, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Lenovo Yoga Tablet 2 1050F Intel Atom Z3745, Intel HD Graphics (Bay Trail), 16 GB eMMC Flash

Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003) Mediatek MT8127, ARM Mali-450 MP4, 16 GB SSD

Medion Lifetab S10345 Intel Atom Z3735F, Intel HD Graphics (Bay Trail), 32 GB SSD

Medion Lifetab S10334 Rockchip RK3188, ARM Mali-400 MP4, 16 GB eMMC Flash

LG Bello II Mediatek MT6582, ARM Mali-400 MP2, 8 GB eMMC Flash

Doogee Nova Y100X Mediatek MT6582, ARM Mali-400 MP, 8 GB eMMC Flash
Hög belastning
 28.8 °C27.5 °C32.6 °C
 33.5 °C28.5 °C34.1 °C
 32.8 °C27.7 °C32.6 °C
Max: 34.1 °C
Medel: 30.9 °C
30.6 °C28.6 °C29.6 °C
32.4 °C29.2 °C34.7 °C
31.7 °C29.6 °C33.4 °C
Max: 34.7 °C
Medel: 31.1 °C
Strömförsörjning (max.)  38.4 °C | Rumstemperatur 21.5 °C | Voltcraft IR-350
(+) The average temperature for the upper side under maximal load is 30.9 °C / 88 F, compared to the average of 30 °C / 86 F for the devices in the class Tablet.
(+) The maximum temperature on the upper side is 34.1 °C / 93 F, compared to the average of 33.7 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(+) The bottom heats up to a maximum of 34.7 °C / 94 F, compared to the average of 33.2 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 29.2 °C / 85 F, compared to the device average of 30 °C / 86 F.
Samsung Galaxy Tab E (9.6, Wi-Fi)
Mali-400 MP, SC8830, 8 GB eMMC Flash		Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)
Mali-450 MP4, MT8127, 16 GB SSD		Medion Lifetab S10345
HD Graphics (Bay Trail), Z3735F, 32 GB SSD		Lenovo Yoga Tablet 2 1050F
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
Power Consumption
-31%
39%
-16%
Idle Minimum *
1.1
2.1
-91%
0.8
27%
1.5
-36%
Idle Average *
3.9
4.7
-21%
1.1
72%
3.7
5%
Idle Maximum *
4.1
4.9
-20%
1.4
66%
4.1
-0%
Load Average *
5.2
6.2
-19%
4.5
13%
6.7
-29%
Load Maximum *
6.2
6.4
-3%
5.3
15%
7.5
-21%

* ... smaller is better

Strömförbrukning
Av/Standbydarklight 0 / 0.1 Watt
Låg belastningdarkmidlight 1.1 / 3.9 / 4.1 Watt
Hög belastning midlight 5.2 / 6.2 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Voltcraft VC 940
Battery Runtime - WiFi Websurfing (sort by value)
Samsung Galaxy Tab E (9.6, Wi-Fi)
Mali-400 MP, SC8830, 8 GB eMMC Flash
518 min
Lenovo TAB2 A10-70
Mali-T760 MP2, MT8165, 16 GB eMMC Flash
515 min -1%
Samsung Galaxy Tab E (9.6, Wi-Fi)
Mali-400 MP, SC8830, 8 GB eMMC Flash		Medion Lifetab S10345
HD Graphics (Bay Trail), Z3735F, 32 GB SSD		Acer Iconia Tab 10 A3-A20 (NT.L5DEE.003)
Mali-450 MP4, MT8127, 16 GB SSD		Lenovo Yoga Tablet 2 8
HD Graphics (Bay Trail), Z3745, 32 GB eMMC Flash		HP Pavilion 10-k000ng x2
HD Graphics (Bay Trail), Z3736F, 32 GB eMMC Flash
Battery Runtime
5%
4%
-2%
-10%
Reader / Idle
850
892
5%
768
-10%
829
-2%
755
-11%
Load
264
278
5%
308
17%
244
-8%
Batteritid
Låg belastning (utan WLAN, min. ljusstyrka)
14tim 10min
WiFi Websurfing
8tim 38min
Big Buck Bunny H.264 1080p
8tim 22min
Hög belastning (maximal ljusstyrka)
4tim 24min

För

+ Billig
+ Välbyggd
+ Högljudd högtalare
+ Blir inte varm

Emot

- Hölje helt i plast
- En USB-port
- Medioker prestanda
- Bara 8 GB lagring
In review: Samsung Galaxy Tab E. Test courtesy of notebooksbilliger.de
In review: Samsung Galaxy Tab E. Test courtesy of notebooksbilliger.de

Samsungs surfplatta Galaxy Tab E är en bra modell i instegsklassen. Testplattan känns robust och har alla nödvändiga funktioner, inklusive två kameror. Byggkvaliteten är oklanderlig och storleken är en bra kompromiss.

IPS-skärmen är mycket ljusstark och bättre än vad som vanligtvis ingår i prisklassen. Den stora nackdelen är prestandan – hårdvaran kunde ha varit lite mer kraftfull, eftersom strypning äger rum redan i början av prestandatesterna. Men vill man bara ha en surfplatta för surfande och enklare spel kommer det nog inte att märkas nämnvärt. Vi gillar också de låga temperaturerna och högtalaren.

Samsung Tab E gör ett positivt intryck överlag med tanke på priset. Även om Galaxy Tab E inte blir kung i lågprissegmentet är den definitivt ett bra val. Konkurrenter som kan vara värda att titta på är bl.a. Lenovo Tab 2 eller Lenovo Yoga 2.

Samsung Galaxy Tab E (9.6, Wi-Fi) - 01/05/2016 v4.1 (old)
Nino Ricchizzi

Design
80%
Tangentbord
77 / 80 → 96%
Mus
89%
Anslutningar
40 / 65 → 62%
Vikt
83 / 40-88 → 90%
Batteri
91%
Skärm
83%
Spelprestanda
53 / 68 → 78%
Programprestanda
22 / 76 → 29%
Temperatur
91%
Ljudnivå
100%
Audio
53 / 91 → 58%
Camera
61 / 85 → 72%
Medel
71%
83%
Tablet - Vägt medel
