Ace Magician TK11-A0 recension: Effektiv minidator med Thunderbolt 4 och ytterligare användbara funktioner

Vi har redan tagit en detaljerad titt på Minipc Union Ace Magician AMR5nyligen och lämnade den med ett ganska positivt intryck. Med Ace Magician TK11-A0 erbjuder Minipc Union ytterligare en kompakt dator i sin portfölj. Som kontorsdator riktar sig Ace Magician TK11-A0 dock till en annan användargrupp än Ace Magician AMR5, som marknadsförs som en liten speldator.

Minipc Union Ace Magician TK11-A0 använder en Intel Core i5-1135G7med 16 GB arbetsminne och en 512 GB SSD som lagringslösning. När det gäller grafiklösningen bör användarna vara nöjda med att se en Intel Iris Xe Graphics G7, som ganska väl kan hålla jämna steg med prestandan hos en AMD APU. Med 560 euro (~562 dollar) ligger priset för Ace Magician TK11-A0 på en liknande nivå som för andra minidatorer med jämförbar utrustning. Men vår testenhet kan också göra mål med en integrerad högtalare och en fingeravtryckssensor.

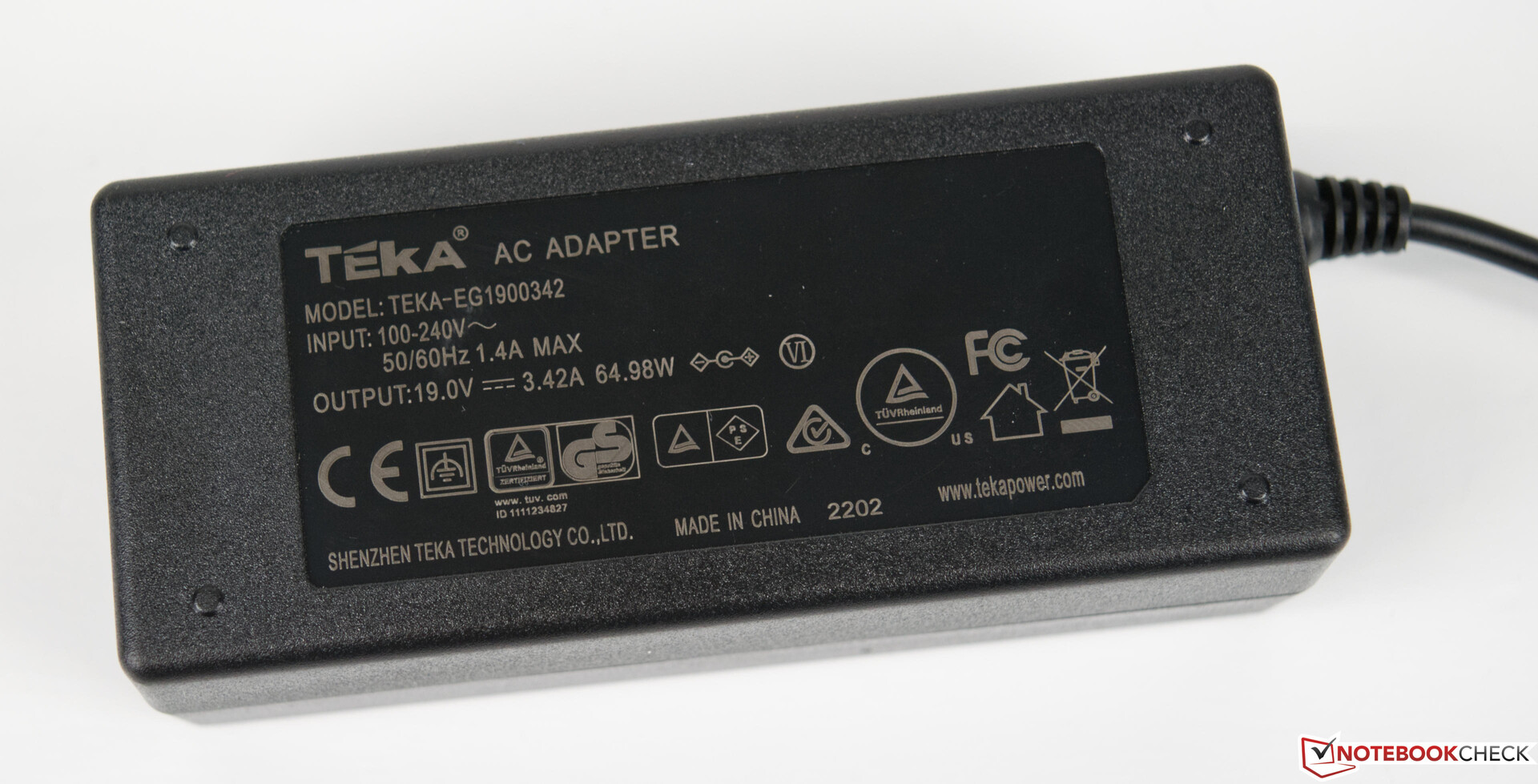

Minidatorn levereras i en liten låda tillsammans med ett 65-watts nätaggregat och en Vesa monteringsanordning, så att du kan montera enheten på en bildskärm.

Rating	Date	Model	Weight	Height
v7 ^(old)	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
v ^(old)	01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
v ^(old)	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
v ^(old)	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
v ^(old)	02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
v ^(old)	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
v ^(old)	08/2022	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	1.3 kg	40 mm
v ^(old)	12/2021	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
v ^(old)	12/2021	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs	638 g	39 mm

Minipc Union Ace Magician TK11-A0 i detalj

Hölje

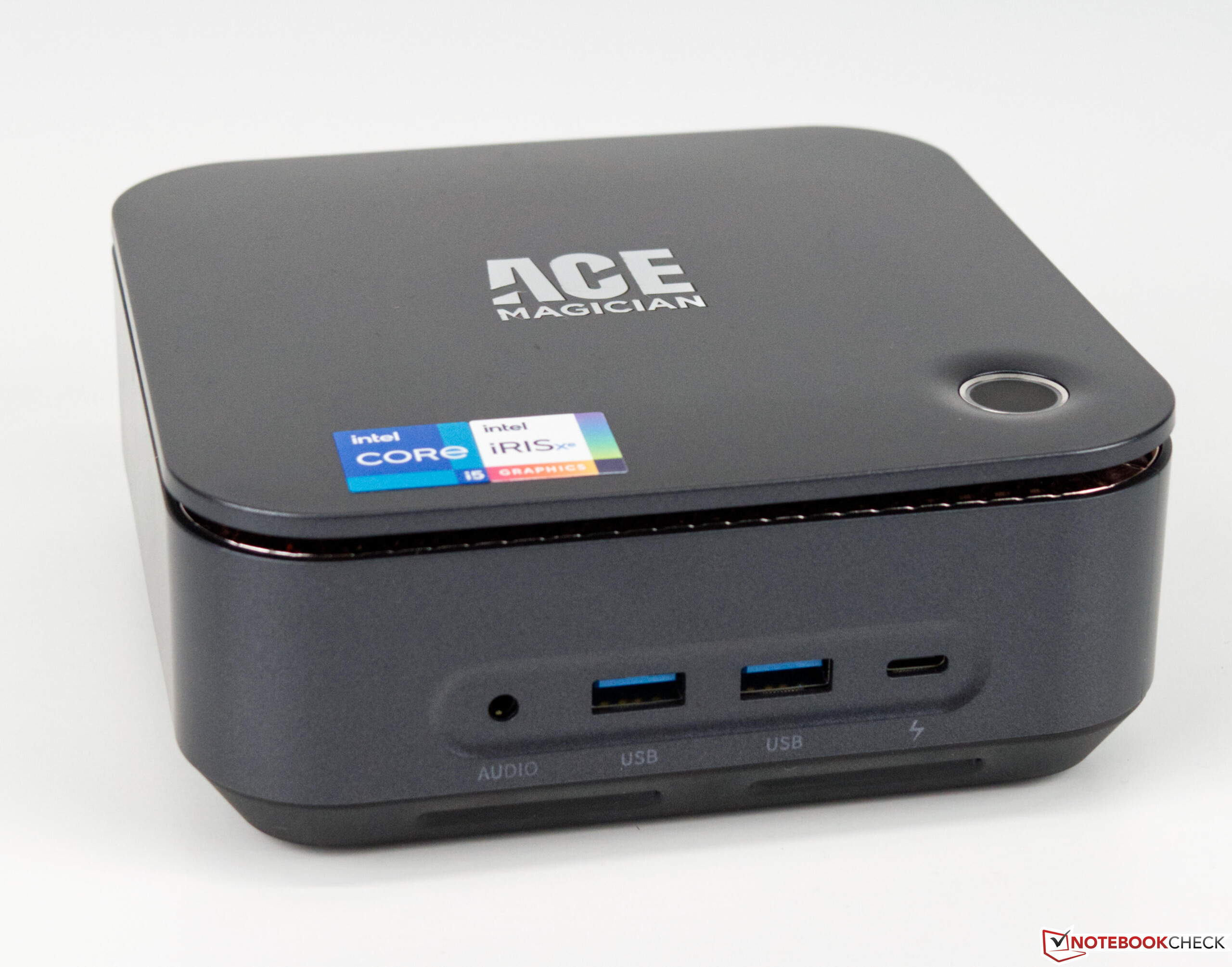

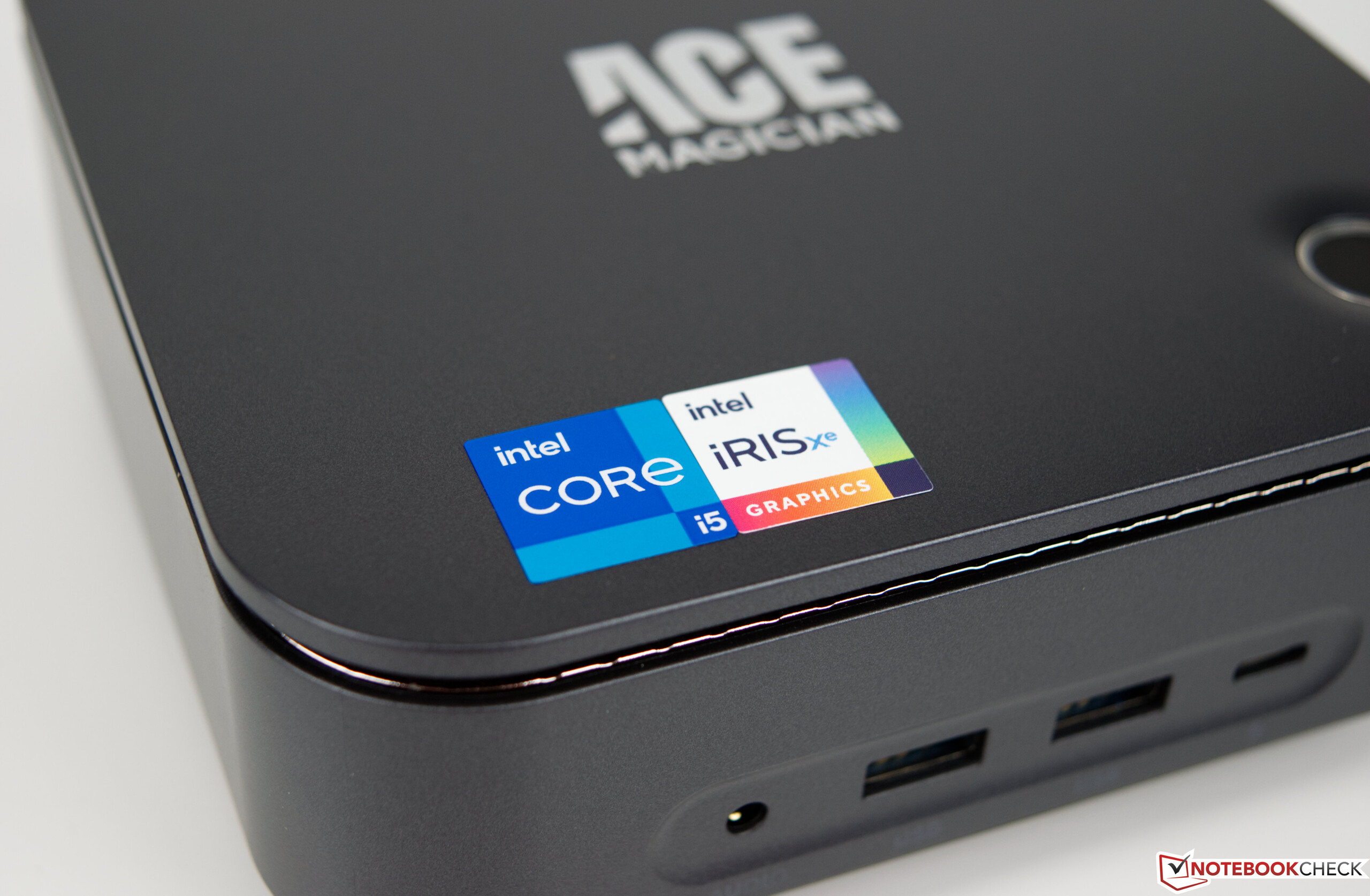

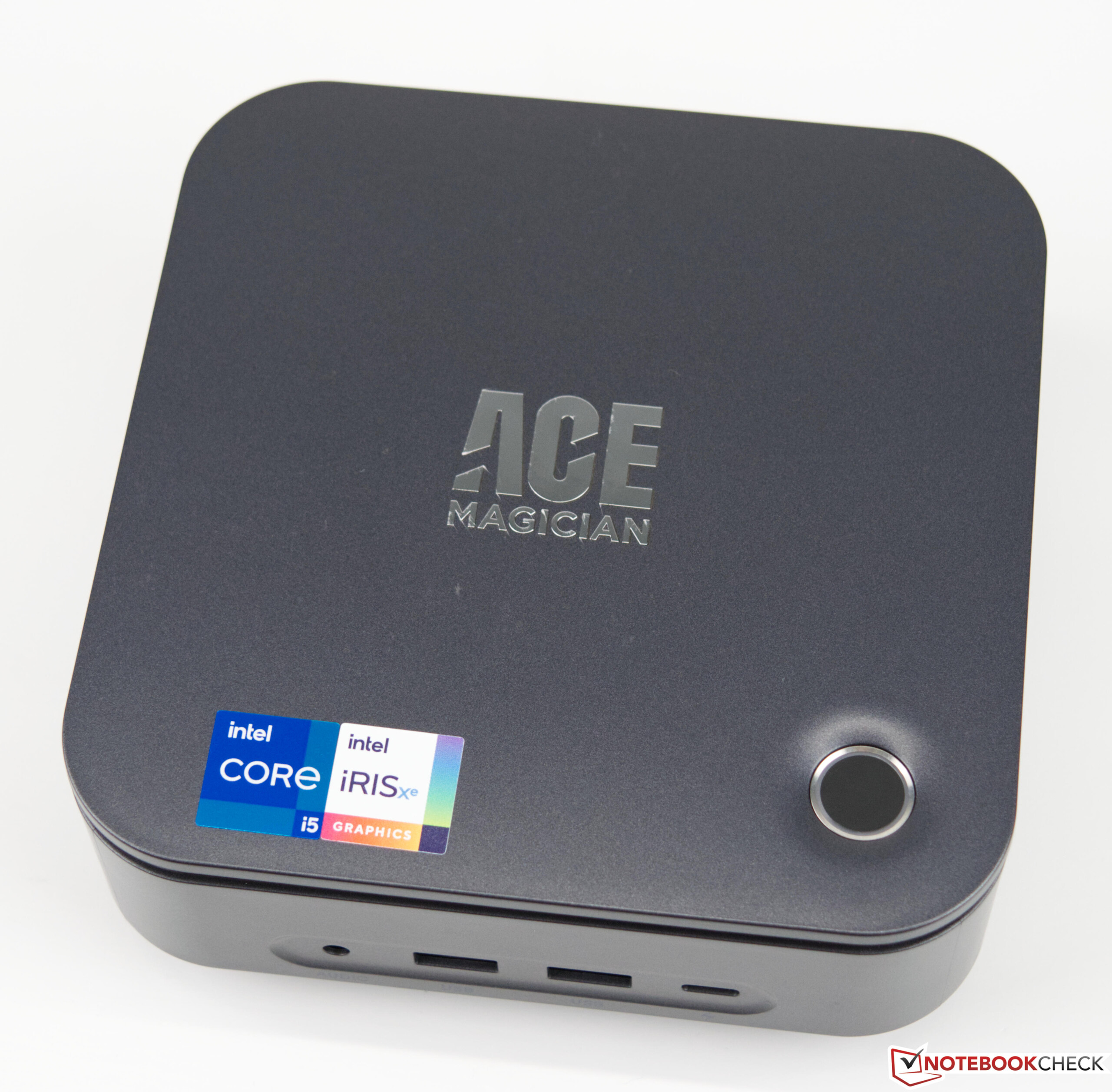

Visuellt sett är Ace Magician TK11-A0 en klassisk minidator med ett fotavtryck på endast cirka 14 x 14 cm (5,5 x 5,5 tum). Samtidigt har den lilla datorn en höjd på 5 cm, vilket är något högre än konkurrenterna. Höljet är huvudsakligen tillverkat av plast. Ytorna är relativt släta och alla kanter är bekvämt avrundade. När det gäller färgdesignen använder tillverkaren grått med ett svagt blått skimmer. Stabiliteten hos fodralet är bra, även om det inte finns något aluminium. Med 586 gram är den lilla datorn lättare än våra jämförelseenheter här i testet.

Storleksjämförelse

Minisforum EliteMini B550 Newsmay Neosmay S2-B560TPM Beelink GTI 11 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Morefine S500+ DIN A4 ❌

Utrustning

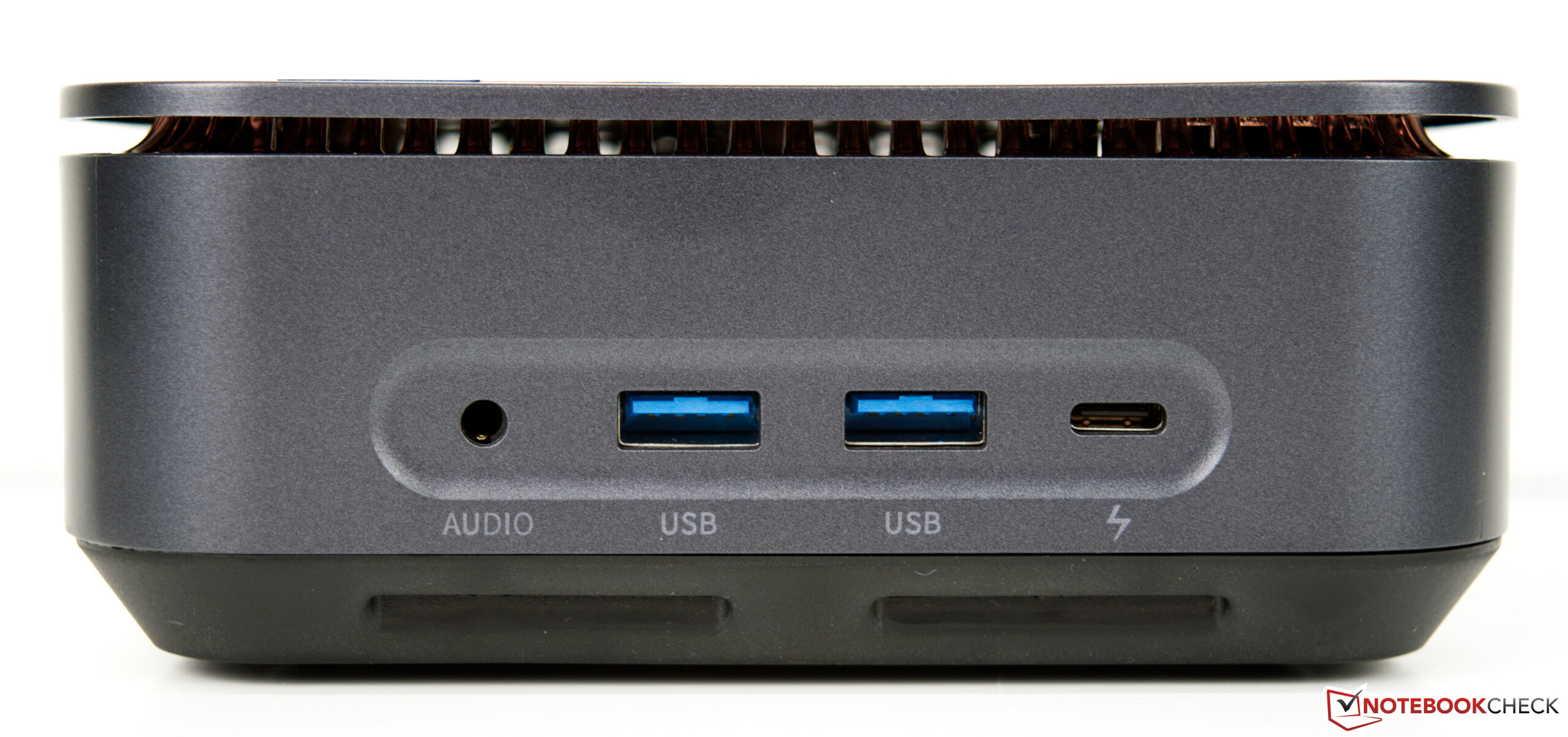

Ace Magician TK11-A0 kan göra mål med ett bra urval av externa anslutningsportar, som är fördelade på fram- och baksidan. Även om ett totalt antal på 5 USB-portar är bra, borde det inte heller vara färre, eftersom två av dem redan är reserverade för mus och tangentbord för det mesta. Type-C-porten erbjuder Thunderbolt-stöd, vilket utökar spektrumet av användbara externa enheter enormt. Liksom den Ace Magician AMR5kan TK11-A0 köra tre externa bildskärmar samtidigt. Tyvärr finns det ingen SD-kortläsare här heller.

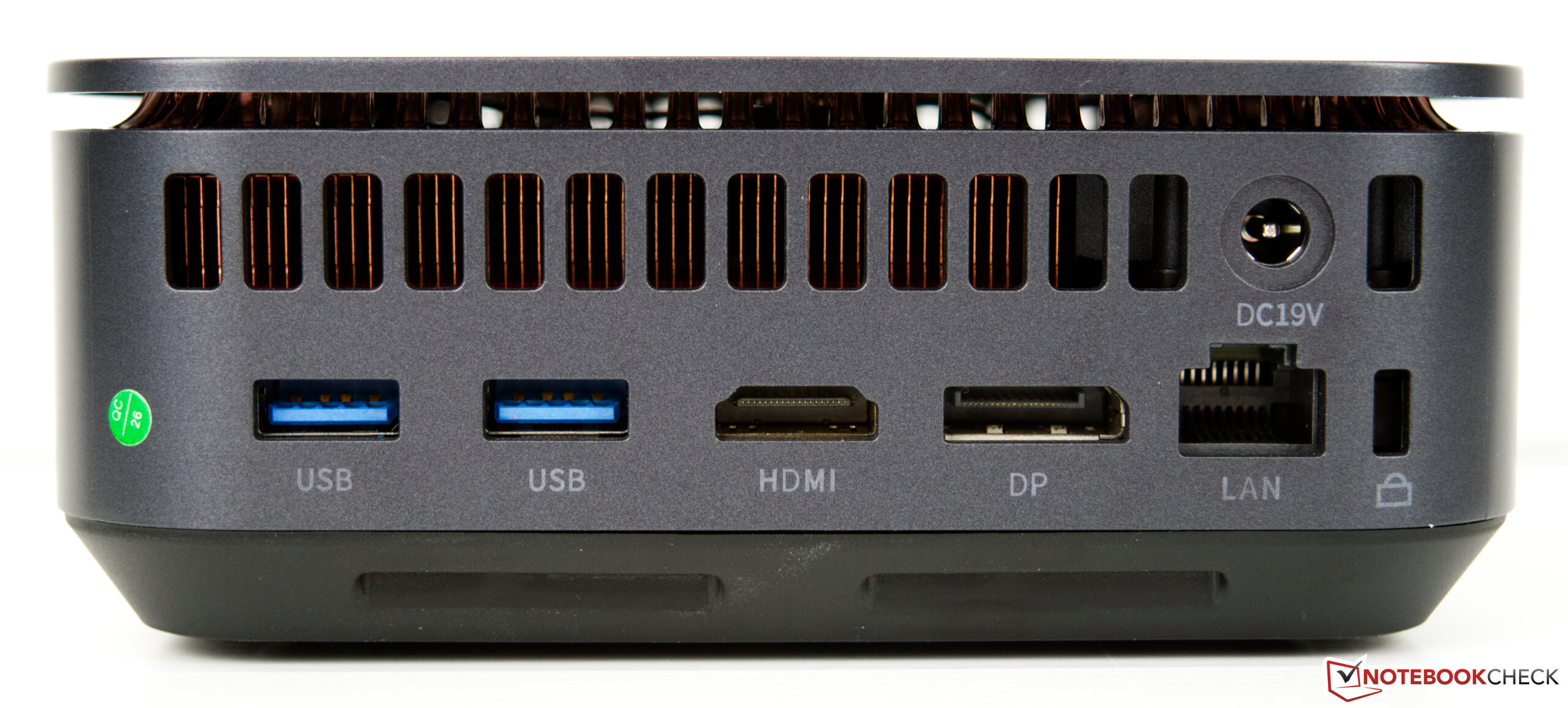

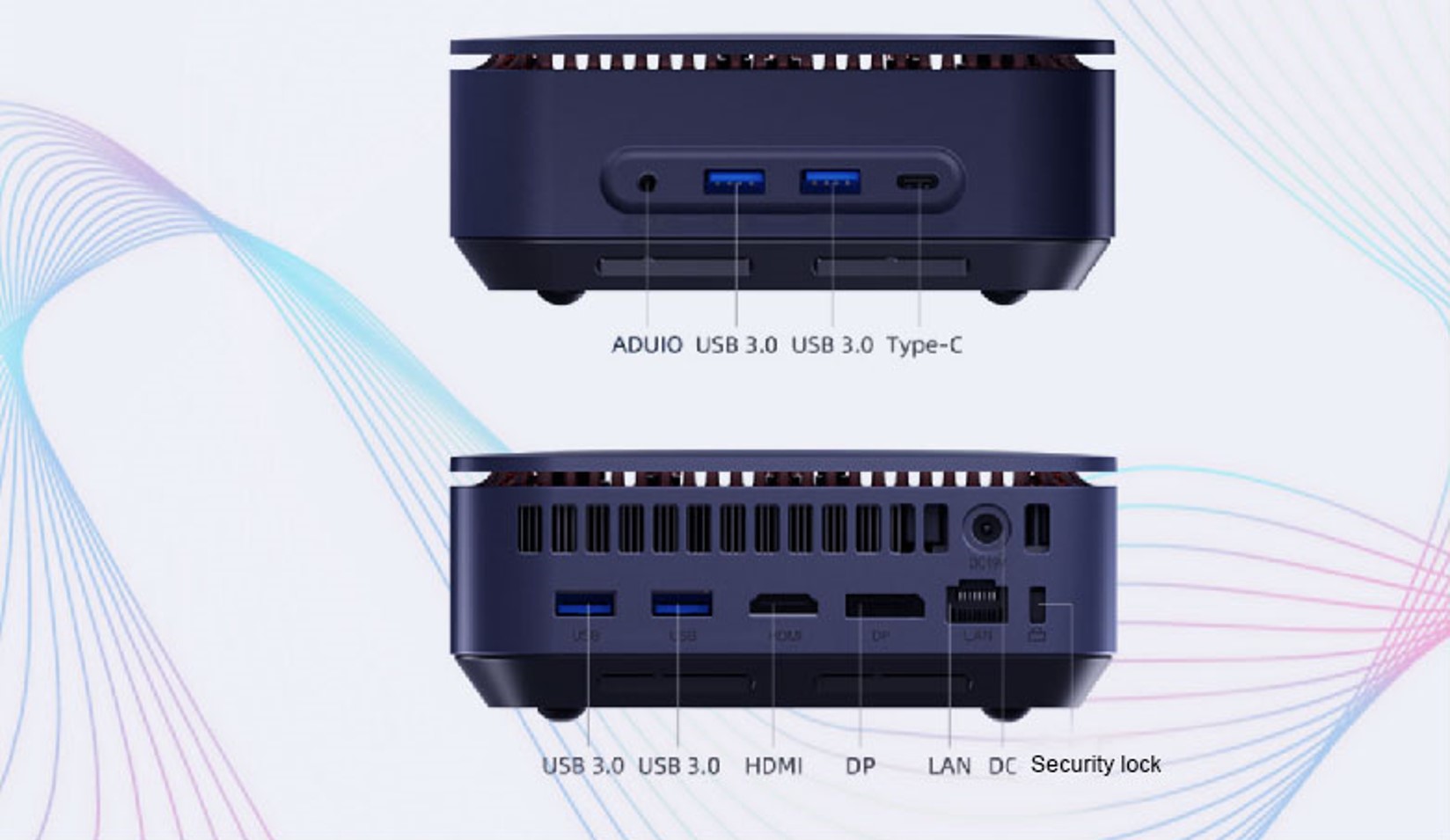

Yttre portar på Ace Magician TK11-A0 (Källa: Minipc Union)

Kommunikation

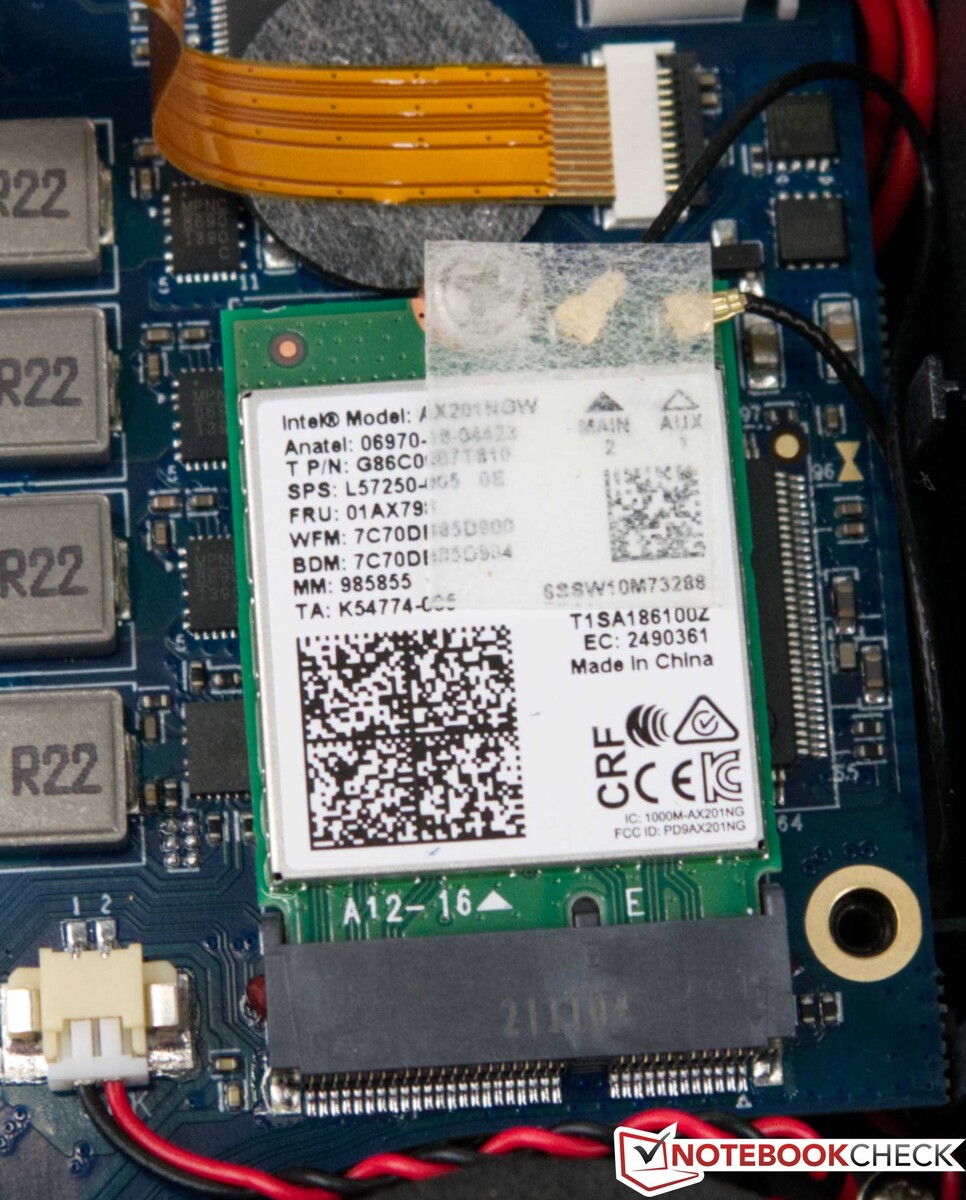

Minipc Union använder en Intel Wi-Fi 6 AX201 WLAN-modul i Ace Magician TK11-A0. Tyvärr är Wi-Fi-modulens fulla prestanda inte tillgänglig, vilket våra mätningar visar. Med de överföringshastigheter som uppmätts vid sändning och mottagning konkurrerar vår testenhet med Minisforum EliteMini B550. Vi använder vår router Asus ROG Rapture GT-AXE11000 för det här testet. Som ett alternativ till den trådlösa anslutningen finns det även ett ytterligare alternativ för en nätverksanslutning med en RJ45-port. Tyvärr erbjuder denna endast maximalt 1 Gbit/s. Några av konkurrenterna gör ett bättre jobb här, och den Minisforum EliteMini TH50erbjuder till och med två 2,5G-portar.

Networking
iperf3 receive AXE11000 6GHz
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s +254%
Average Intel Wi-Fi 6 AX201 (390 - 1670, n=3)	993 MBit/s +155%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s +132%
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s +99%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s +10%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s +78%
Average Intel Wi-Fi 6 AX201 (745 - 1252, n=3)	993 MBit/s +33%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s +30%
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s +16%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -23%

Minipc Union Ace Magician TK11-A0; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø733 (381-876)

Minipc Union Ace Magician TK11-A0; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø389 (322-478)

Säkerhet

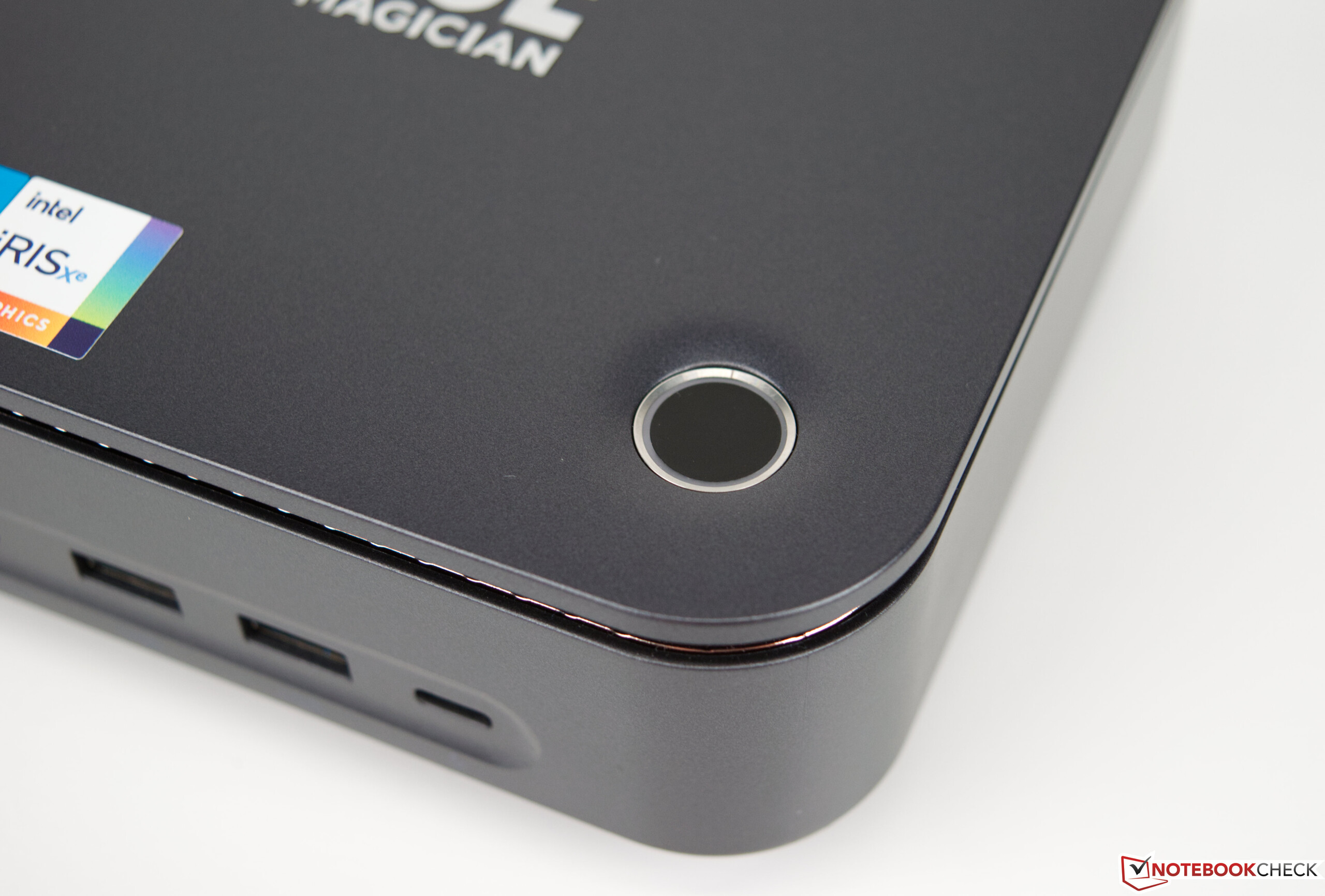

Ace Magician TK11-A0 är utrustad med en fingeravtrycksläsare. Sensorn från Mikroarray Technology är placerad på ovansidan av höljet. Den stöder även Windows Hello, och efter en kort installation kan du logga in direkt med ditt finger. Vi stötte inte på några problem i vårt test, och inloggning till operativsystemet fungerar mycket snabbt med hjälp av den.

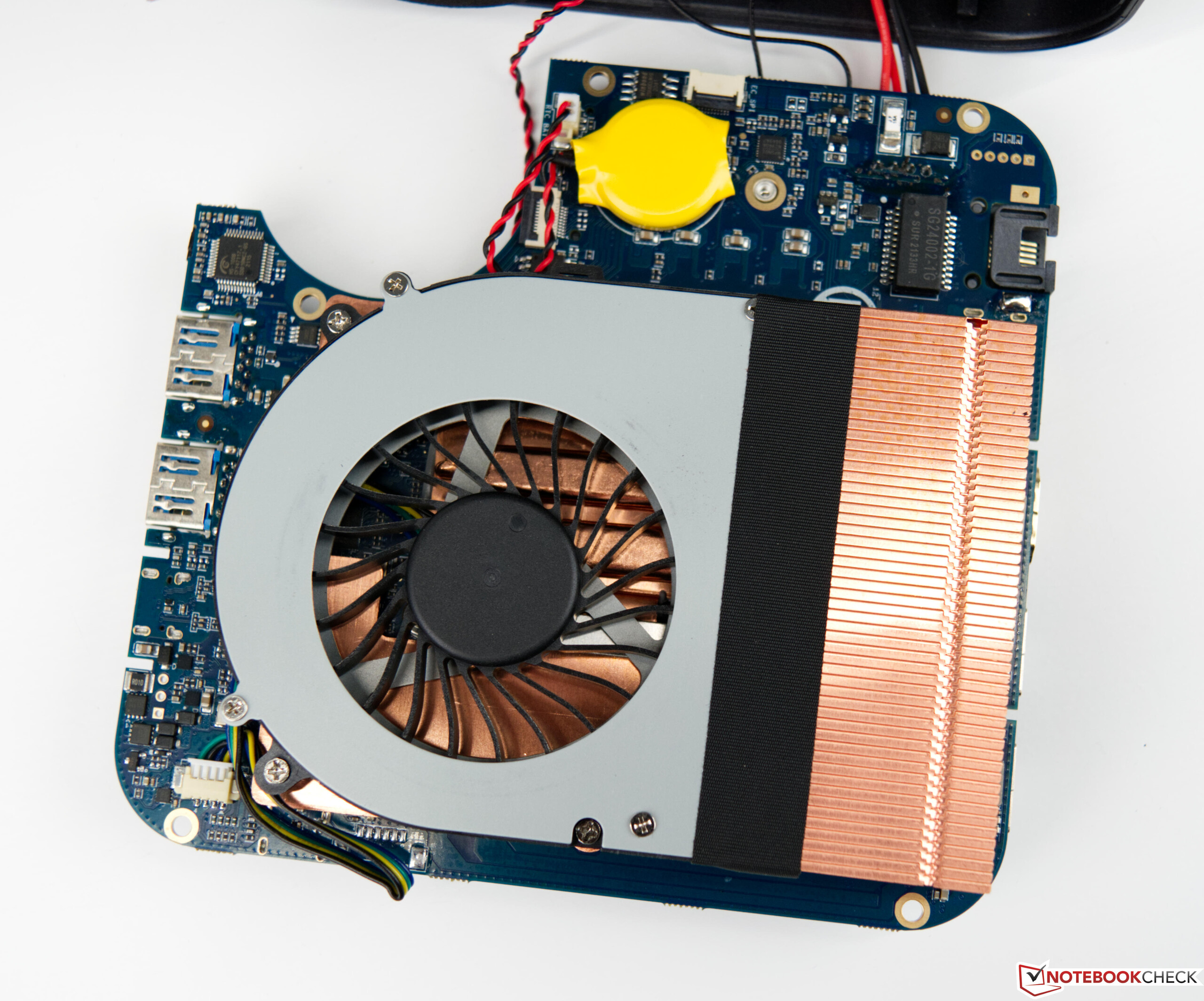

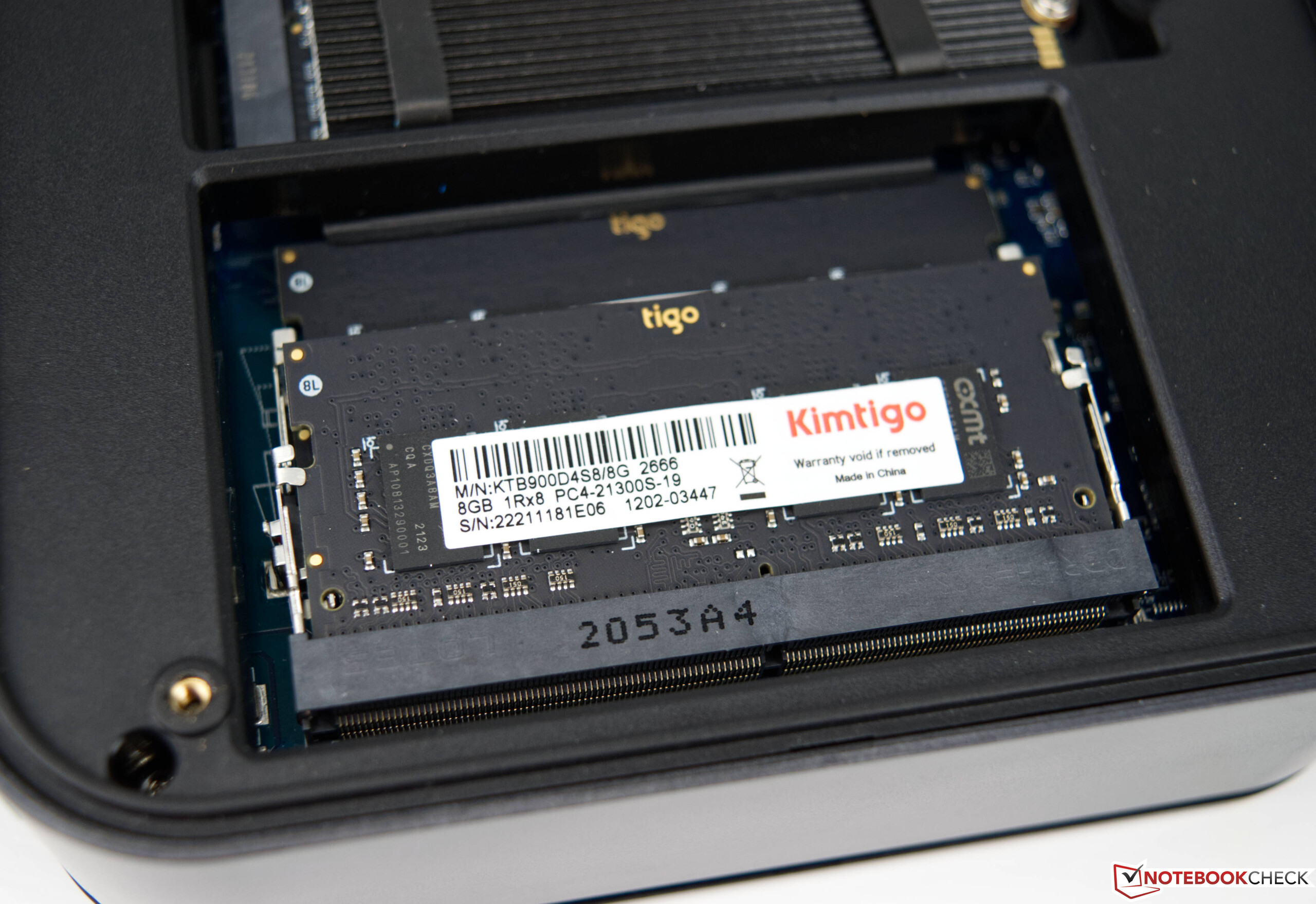

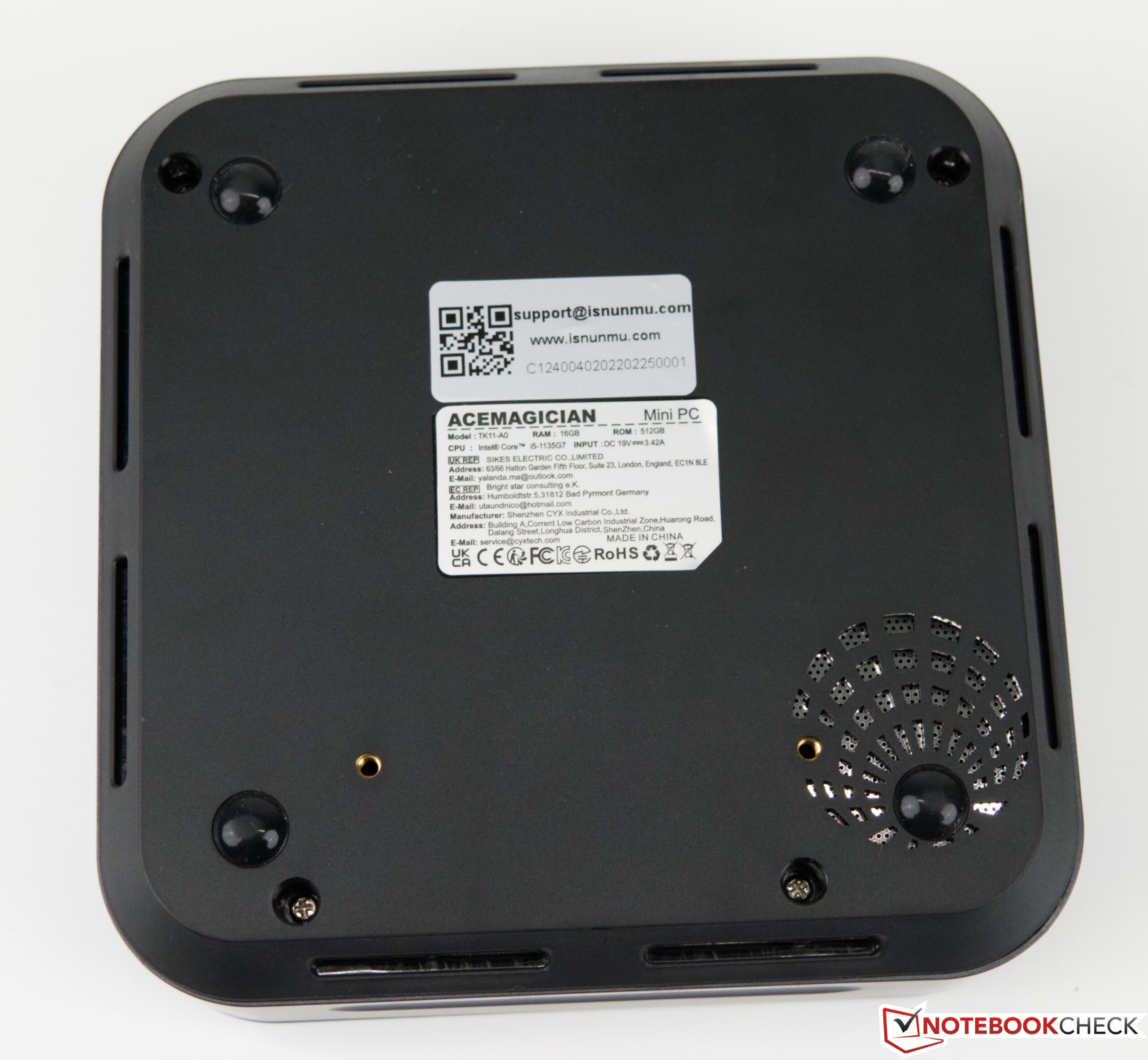

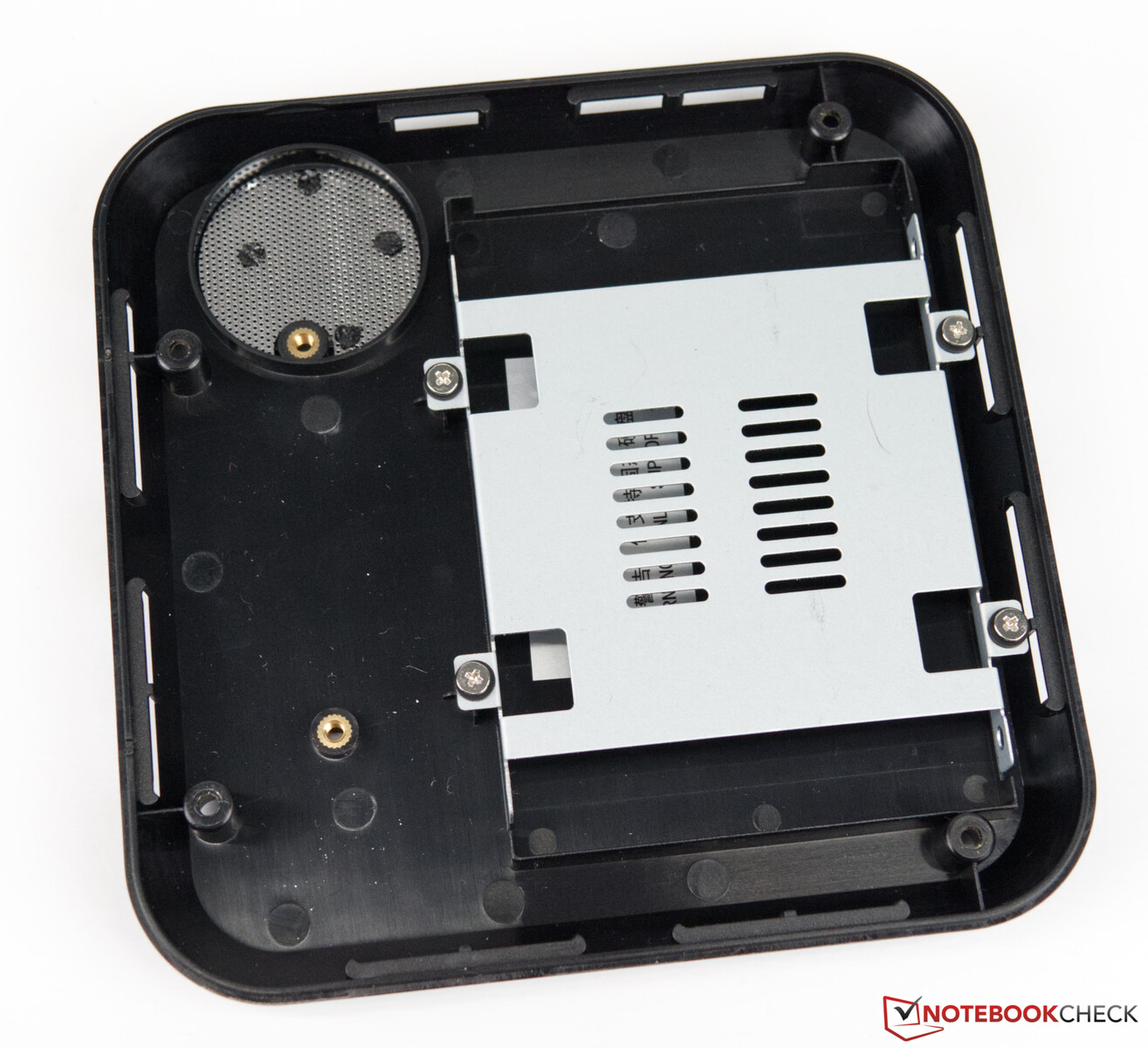

Underhåll

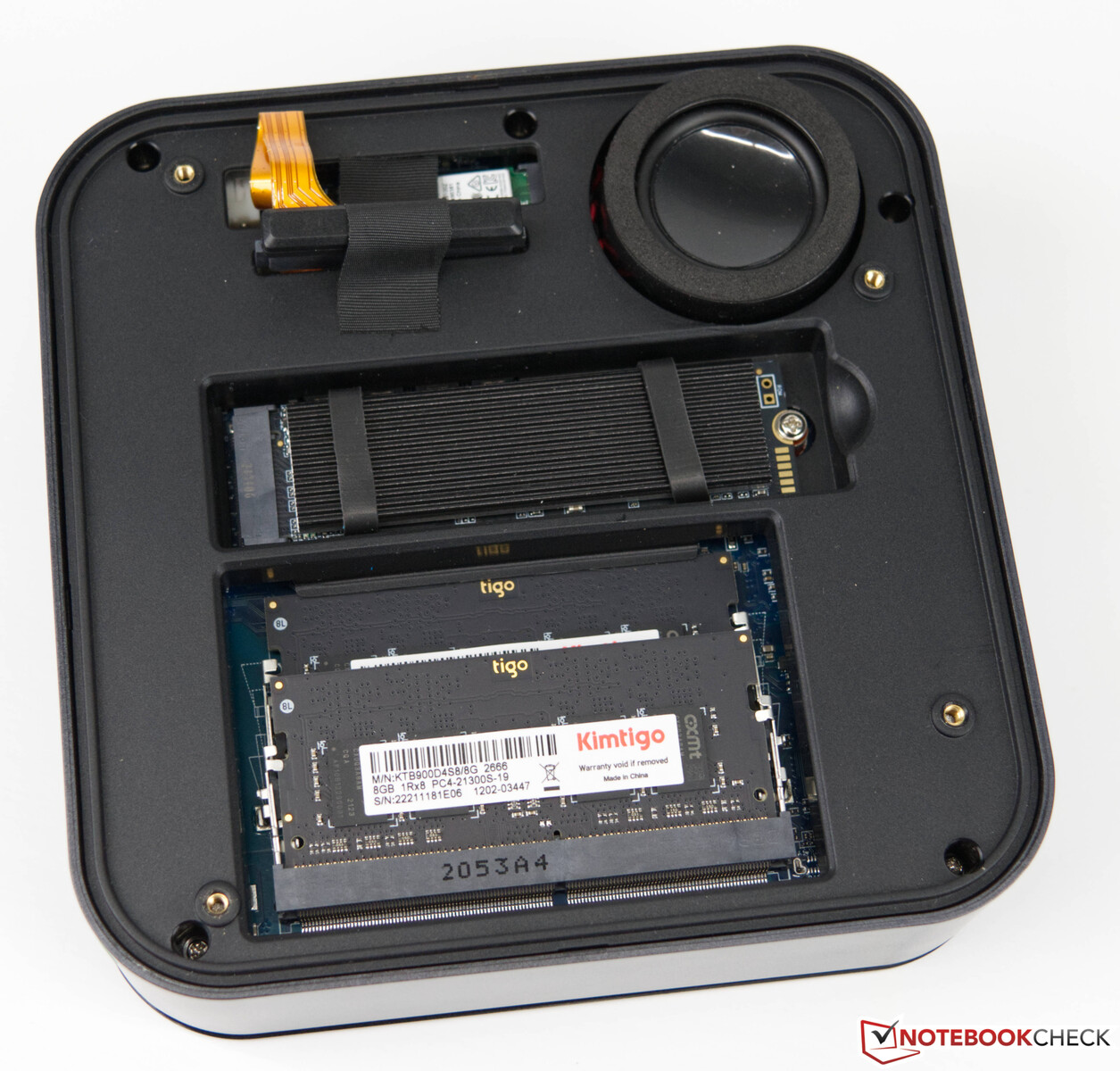

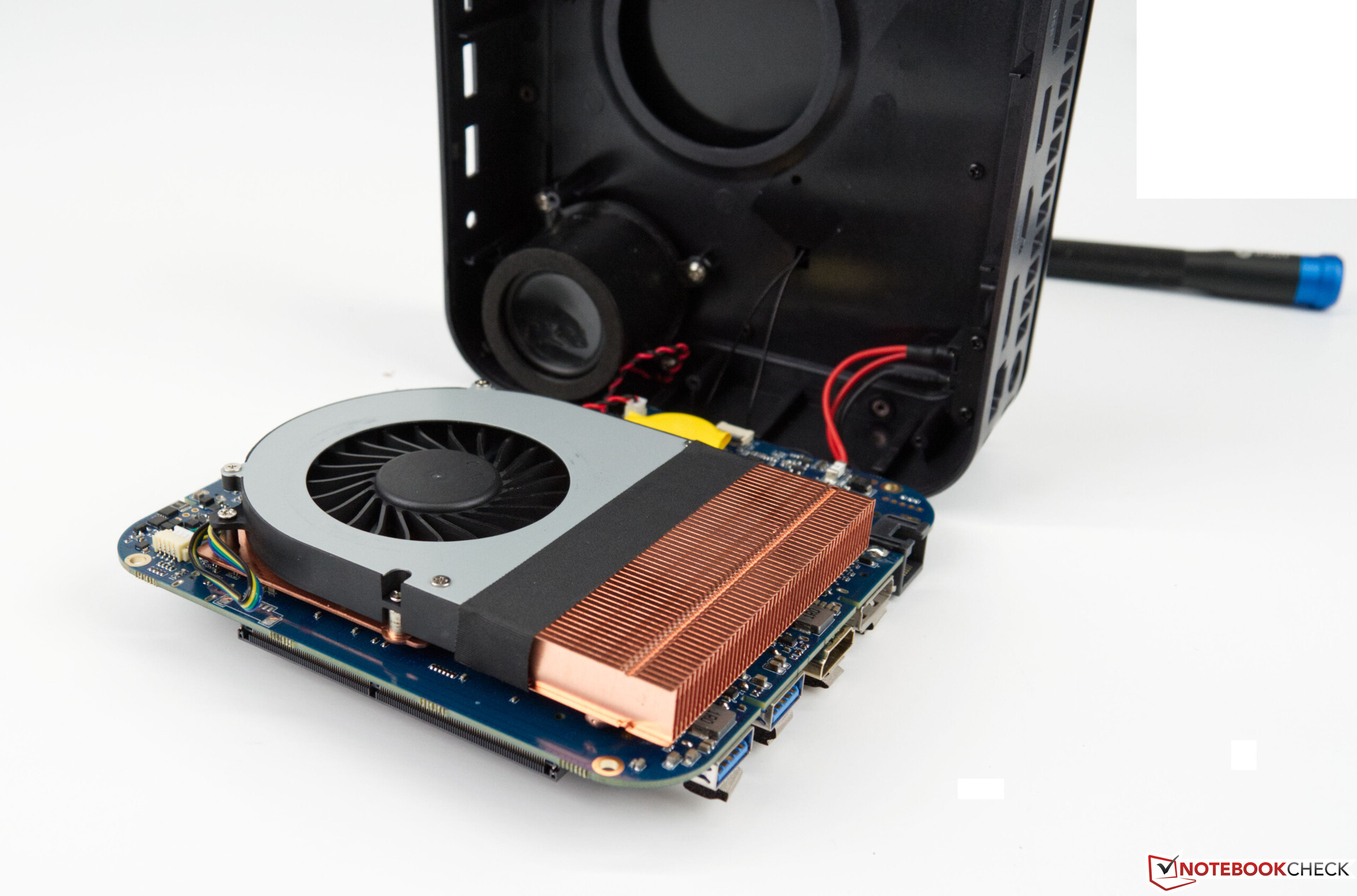

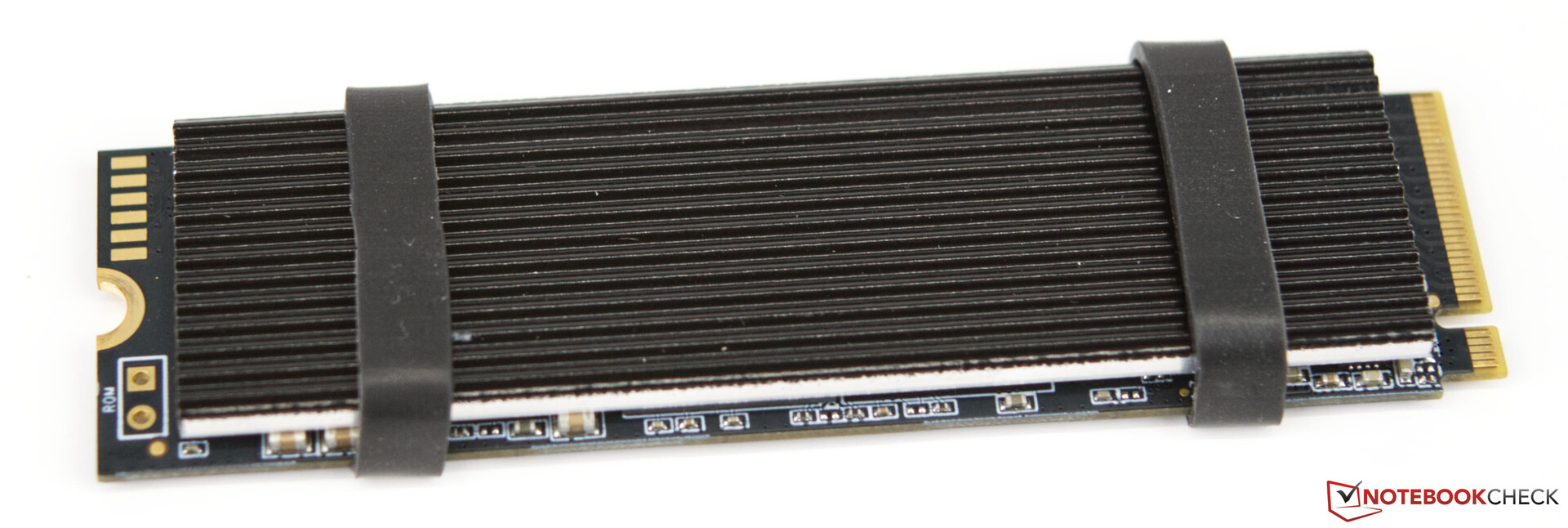

De som vill uppgradera Ace Magician TK11-A0 kan enkelt komma åt SSD eller RAM. Botten av fodralet kan tas bort mycket enkelt. De som också vill komma åt CPU-kylsystemet måste utföra några ytterligare borttagningar, vilket såg ganska skrämmande ut vid första anblicken. Detta visade sig dock inte vara något större hinder i praktiken. Ace Magician TK11-A0 kan utrustas med två lagringslösningar, och anslutningskablarna för att installera ytterligare en lagringsenhet i 2,5-tumsformat är redan förinstallerade.

Prestanda

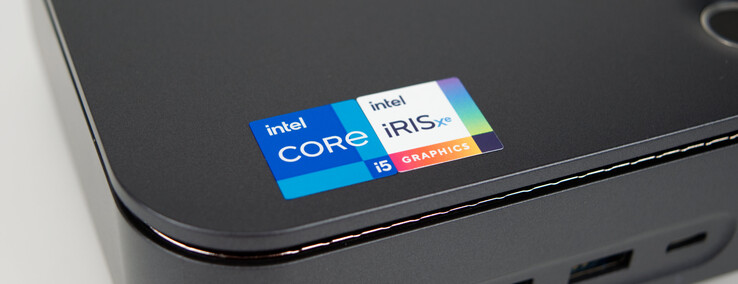

EnIntel Core i5-1135G7utgör beräkningsenheten i Ace Magician TK11-A0. I vår utrustningsversion åtföljs den inhemska fyrkärniga SoC:n av 16 GB arbetsminne, vilket är mer än tillräckligt för det dagliga arbetet. Enkla kontorsapplikationer utgör inga problem för den, och den effektiva SoC:n lämpar sig även för krävande uppgifter. Vid behov kan arbetsminnet utökas med upp till 64 GB. Å andra sidan är SoC:n densamma i alla modeller och det finns ingen annan bas för Ace Magician TK11-A0.

Testvillkor

Vi körde alla prestandatester med strömläget Högsta prestanda för att återspegla den högsta möjliga prestandan hos Ace Magician TK11-A0. Andra energisparlägen användes endast för mätningarna av strömförbrukningen och högtalarvolymen. Du kan hitta ytterligare detaljer om våra testkriterier här.

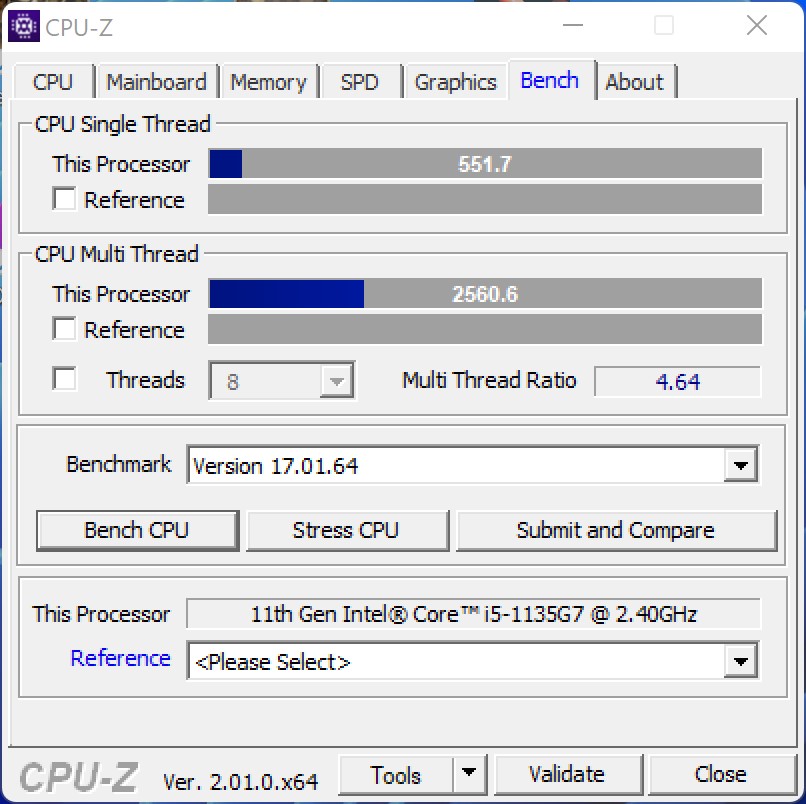

Processor

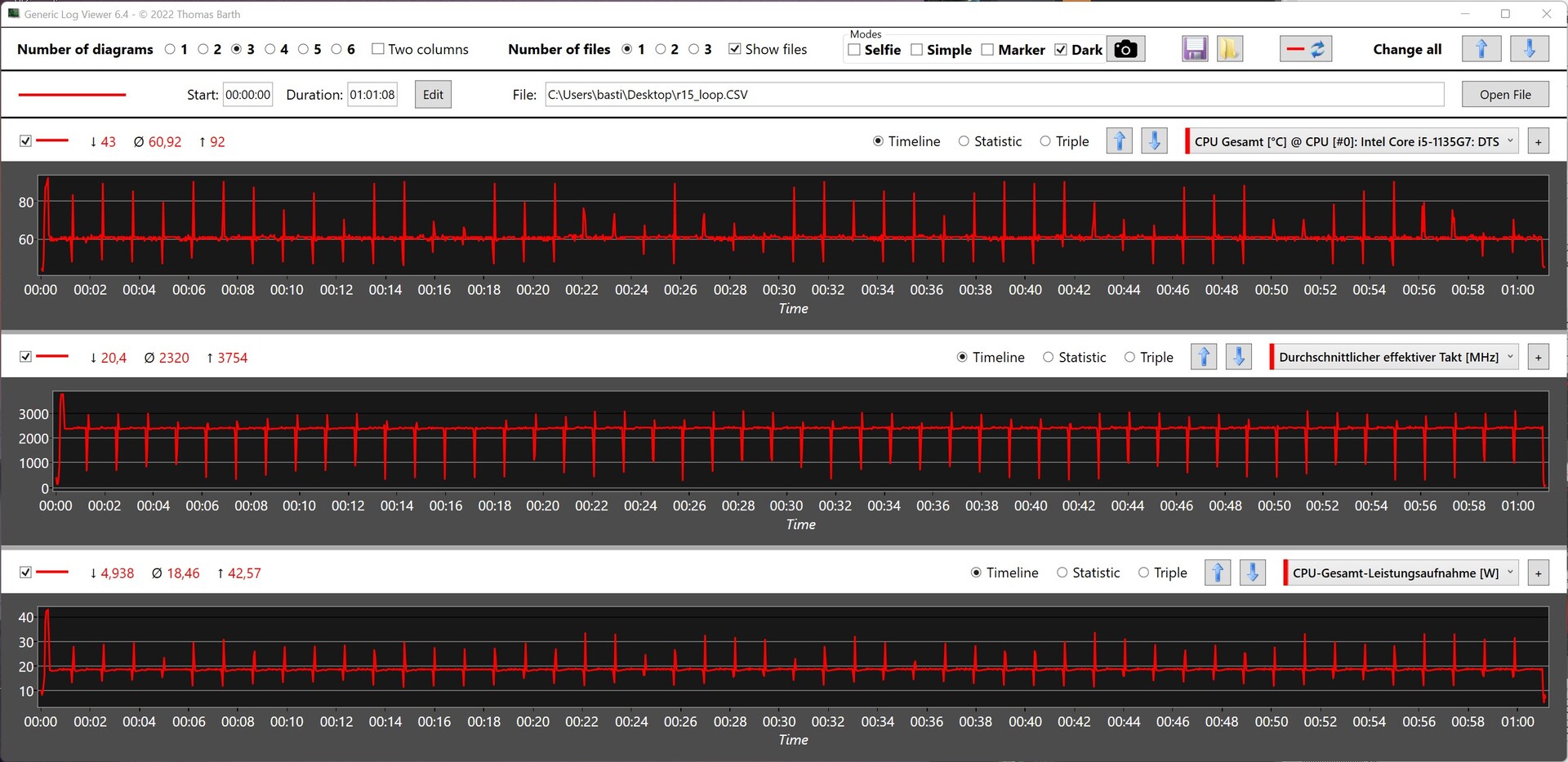

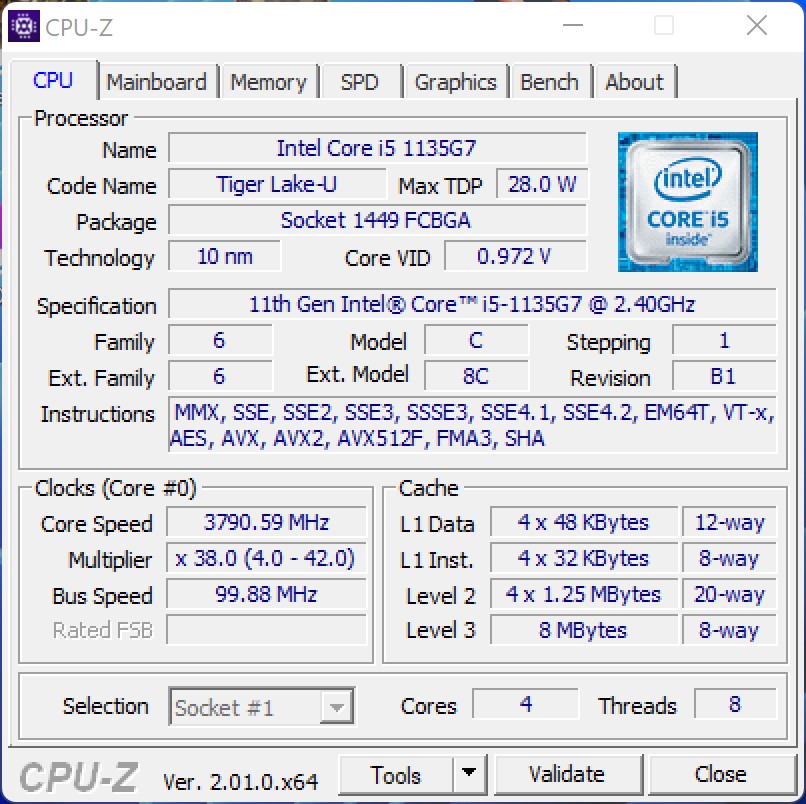

Intel Core i5-1135G7har fyra kärnor och är baserad på Intels Tiger Lake -arkitektur. Med 20 watt är SoC:ns förbrukning ganska konservativ, vilket också återspeglas i benchmarks. Även om den också kan använda upp till 48 watt under korta perioder är detta inte tillräckligt för att slå konkurrenterna i vår jämförelse. Ace Magician TK11-A0 kan endast överträffa Newsmay Neosmay S2-B560TPMi vår tävling.

Du kan hitta ytterligare riktmärken på processorerna här

Performance Rating - Percent
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	47.8 pt
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.6 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	47.3 pt
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	43.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	40 pt
Average Intel Core i5-1135G7	36.6 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt
Newsmay Neosmay S2-B560TPM ^-2! Intel Core i5-11400T, 1300 MHz	34.2 pt

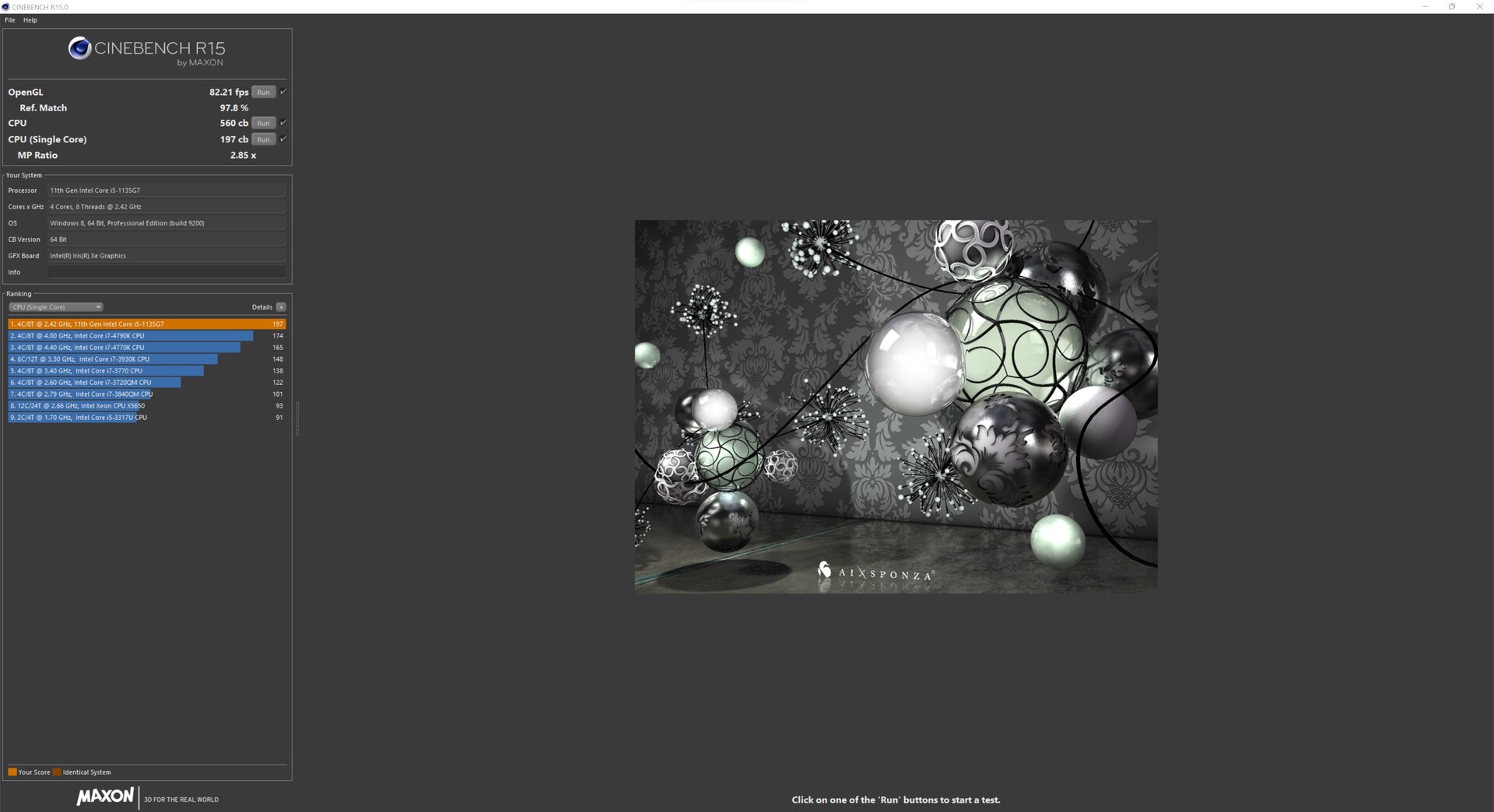

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points +13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points
Average Intel Core i5-1135G7 (141.4 - 205, n=61)	194.4 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	153 Points -22%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +297%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +254%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points +251%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +243%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points +126%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points +70%
Average Intel Core i5-1135G7 (431 - 941, n=65)	792 Points +41%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	642 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points

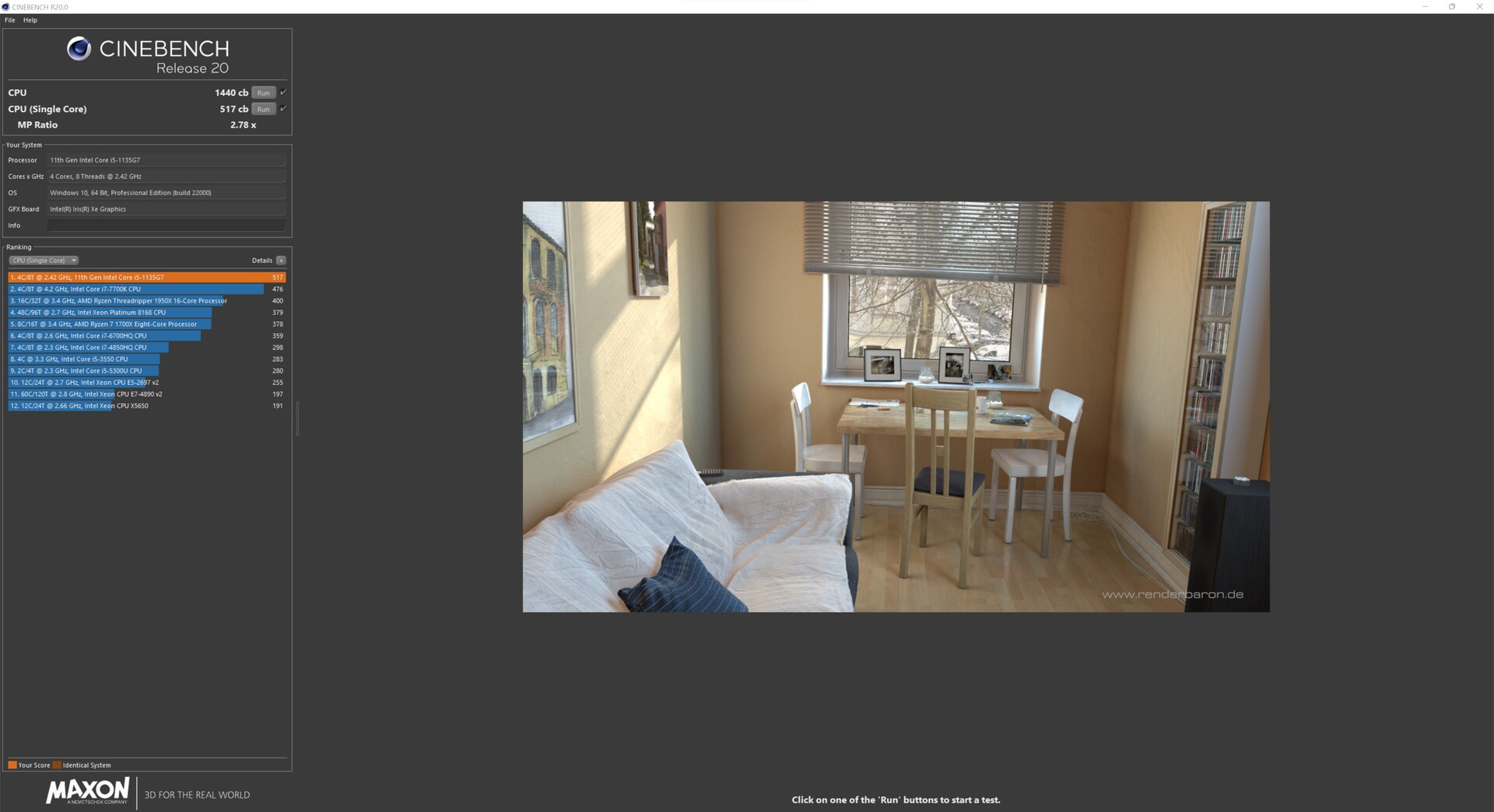

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +10%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points
Average Intel Core i5-1135G7 (375 - 527, n=62)	507 Points -2%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	378 Points -27%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +260%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +224%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points +218%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +212%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points +107%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points +61%
Average Intel Core i5-1135G7 (979 - 2382, n=62)	1827 Points +27%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1500 Points +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points +9%
Average Intel Core i5-1135G7 (2.31 - 2.36, n=3)	2.33 Points +1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points -3%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1.79 Points -23%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +302%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points +262%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +258%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +245%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points +132%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points +69%
Average Intel Core i5-1135G7 (6.37 - 9.72, n=3)	8.46 Points +33%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7.3 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +17%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points +7%
Average Intel Core i5-1135G7 (10395 - 10515, n=2)	10455 Points +1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	8290 Points -20%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +198%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +170%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points +167%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +163%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points +85%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points +73%
Average Intel Core i5-1135G7 (24499 - 37000, n=2)	30750 Points +26%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	25835 Points +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	704 Seconds * +6%
Average Intel Core i5-1135G7 (499 - 1044, n=60)	662 Seconds * +12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +65%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +66%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * +67%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +69%

wPrime 2.10
32m
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7.804 s * -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s *
Average Intel Core i5-1135G7 (6.53 - 6.8, n=2)	6.66 s * +2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * +13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * +21%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +47%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +51%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * +53%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	261.299 s * +9%
Average Intel Core i5-1135G7 (231 - 287, n=2)	259 s * +10%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +45%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +66%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +68%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * +71%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +67%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +64%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +59%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps +41%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps +30%
Average Intel Core i5-1135G7 (165.6 - 199.5, n=2)	182.5 fps +10%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	154.5 (154.4^min - 155.1^max) fps -7%
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +249%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +218%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +205%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps +202%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +107%
Average Intel Core i5-1135G7 (36.7 - 46.1, n=2)	41.4 fps +13%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	40 (40^min - 40.1^max) fps +9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +85%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +66%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +64%
Average Intel Core i5-1135G7 (4185 - 9377, n=3)	6282 KB/s +50%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s +31%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4409 KB/s +5%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s +3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +104%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s +43%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s +40%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s +40%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s
Average Intel Core i5-1135G7 (4.2 - 5.3, n=3)	4.9 GB/s -8%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4.2 GB/s -21%
Twofish Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s +165%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +165%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +112%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +99%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s +46%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s
Average Intel Core i5-1135G7 (0.593 - 0.774, n=3)	0.707 GB/s -6%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.648 GB/s -14%
Serpent Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s +168%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +168%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +146%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +146%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s +56%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s +17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s
Average Intel Core i5-1135G7 (0.384 - 0.449, n=3)	0.427 GB/s -5%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.414 GB/s -8%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +61%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +60%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points
Average Intel Core i5-1135G7 (3475 - 5472, n=58)	4663 Points -5%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	3510 Points -28%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +12%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +12%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +11%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points
Average Intel Core i5-1135G7 (1147 - 1428, n=58)	1373 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1146 Points -18%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +62%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +61%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points +57%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points +16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points
Average Intel Core i5-1135G7 (3937 - 5268, n=14)	4752 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	3495 Points -28%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points 0%
Average Intel Core i5-1135G7 (1156 - 1407, n=14)	1365 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1130 Points -18%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points
Average Intel Core i5-1135G7 (5194 - 6081, n=13)	5874 Points -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4855 Points -18%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +65%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points +14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points
Average Intel Core i5-1135G7 (16405 - 20747, n=13)	18945 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	17082 Points -11%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +115%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +83%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +79%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points +62%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points +50%
Average Intel Core i5-1135G7 (6423 - 11623, n=58)	9300 Points +19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7319 Points -6%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +226%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +212%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +212%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS +178%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS +122%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS +52%
Average Intel Core i5-1135G7 (14745 - 24873, n=62)	21407 MIPS +21%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	19699 MIPS +12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +21%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS +10%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS -1%
Average Intel Core i5-1135G7 (3924 - 4921, n=62)	4674 MIPS -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4157 MIPS -13%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +202%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +181%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +176%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps +145%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps +92%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps +49%
Average Intel Core i5-1135G7 (3.57 - 7.6, n=57)	5.93 fps +13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	5.24 fps 0%

R Benchmark 2.5 - Overall mean
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.792 sec * -24%
Average Intel Core i5-1135G7 (0.619 - 0.727, n=59)	0.642 sec * -0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec *
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * +10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +22%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +22%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +23%

LibreOffice - 20 Documents To PDF
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * -27%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	62.4 s * -20%
Average Intel Core i5-1135G7 (44.2 - 62.9, n=60)	52.8 s * -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s *
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +5%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +6%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +18%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points -4%
Average Intel Core i5-1135G7 (151 - 244, n=52)	226 Points -4%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	208 Points -12%

Mozilla Kraken 1.1 - Total
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	887 ms * -23%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * -6%
Average Intel Core i5-1135G7 (710 - 1273, n=58)	739 ms * -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms *
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +17%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +150%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +143%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +140%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points +99%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points +84%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points +44%
Average Intel Core i5-1135G7 (6277 - 13088, n=14)	10975 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +169%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +158%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +156%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points +120%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points +47%
Average Intel Core i5-1135G7 (1015 - 13480, n=61)	11403 Points +22%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	10064 Points +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +186%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +147%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +143%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points +128%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points +90%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points +82%
Average Intel Core i5-1135G7 (2664 - 5262, n=60)	3871 Points +35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.6 pt
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	83.8 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.2 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.1 pt
Average of class Mini PC	72.5 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	58.2 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50.6 pt
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	49 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.1 pt
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	35.5 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +181%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s +168%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +143%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +140%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +122%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s +62%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	7627 KRay/s +36%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s +33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	5279 KRay/s -6%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +316%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +260%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +253%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points +233%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +160%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +138%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points +31%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31613 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	23312 Points -3%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +109%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +79%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +77%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s +67%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s +60%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	2171 MB/s +32%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s +20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	1522 MB/s -8%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +125%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points +118%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +109%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +103%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points +67%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points +44%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	55222 Points +18%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points +13%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46657 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points +265%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +223%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +208%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +201%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points +115%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +109%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points +26%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	4442 Points +12%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	4059 Points +2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +272%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +219%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +215%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points +183%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +119%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +111%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points +26%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	18635 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	13839 Points -7%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +130%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +103%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +96%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s +45%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s +33%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s +30%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s +28%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	67937 MB/s +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	55995 MB/s -5%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +229%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s +221%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +192%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +182%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s +169%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s +91%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s +55%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	370 MB/s +40%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	294 MB/s +11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +181%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s +175%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +140%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +140%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +122%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s +55%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s +34%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	3864 KRay/s +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	2866 KRay/s -4%

AIDA64 / CPU PhotoWorxx
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31708 MPixel/s +18%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +14%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s -26%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s -27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -28%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -44%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -45%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	12524 MPixel/s -54%

Ace Magician TK11-A0 i Cinebench-R15 Multi Loop

Vi får ett första intryck av den inbyggda kylningens effektivitet under Cinebench-R15-testet med konstant loop. Efter den första körningen sjunker prestandan med cirka 5 %, vilket kan härledas till den högre Turbo-klockfrekvensen i början. Men när testet fortsätter, ökar prestandan hos Intel Core i5-1135G7förblir mycket stabil.

CPU-mätvärden under Cinebench-R15-slingan

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel Core i5-11400T: Ø664 (657.83-681.7)

Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)

Beelink GTI 11 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø829 (822.06-915.5)

Systemets prestanda

Det faktum att SoC:n är ungefär två år gammal blir märkbart i benchmarks. Core i5-1135G7kan inte hålla jämna steg med de modernare hexa- eller oktakärniga processorerna. Dessa resultat återspeglar dock inte det subjektiva prestandaintrycket av Ace Magician TK11-A0, eftersom det är mycket bättre än vad man kan tro. Systemet är snabbt redo att användas och när det fungerar finns det knappast några latenser som kan få dig att känna att du arbetar på ett långsamt system.

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	99.8 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	96.9 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	96.8 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	94 pt
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	84.5 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	79.3 pt
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	78 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	72.5 pt
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	66.7 pt

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +44%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +37%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points +27%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points +23%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points +13%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	4952 Points +10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	3975 Points -12%
Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points +17%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points +16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +13%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	9893 Points +11%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points +7%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points +1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	8679 Points -3%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +60%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +56%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +55%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +50%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points +30%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points +7%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	6400 Points +1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	5656 Points -11%

Performance Rating | CrossMark

Performance Rating - Percent
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	89 pt
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	80.5 pt

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points +3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1113 Points -9%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +21%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points +16%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points +4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1094 Points -8%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +11%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points +5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1160 Points -11%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +10%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points +4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1125 Points -10%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +37%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +34%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +18%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	40994 MB/s +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +6%
Average Intel Core i5-1135G7 (17443 - 63889, n=45)	36640 MB/s +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -1%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	19209 MB/s -46%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +20%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46916 MB/s +16%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +7%
Average Intel Core i5-1135G7 (19716 - 63705, n=45)	40897 MB/s +1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -5%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s -6%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	20405 MB/s -49%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +33%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +29%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46366 MB/s +18%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +7%
Average Intel Core i5-1135G7 (18722 - 66778, n=45)	41742 MB/s +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -10%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s -10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -10%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	18659 MB/s -52%

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -39%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -32%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * -31%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * -15%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * -8%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * -7%
Average Intel Core i5-1135G7 (68.3 - 107, n=51)	72.5 ns * -5%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	69.7 ns * -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns *
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	68.3 ns * +1%

* ... smaller is better

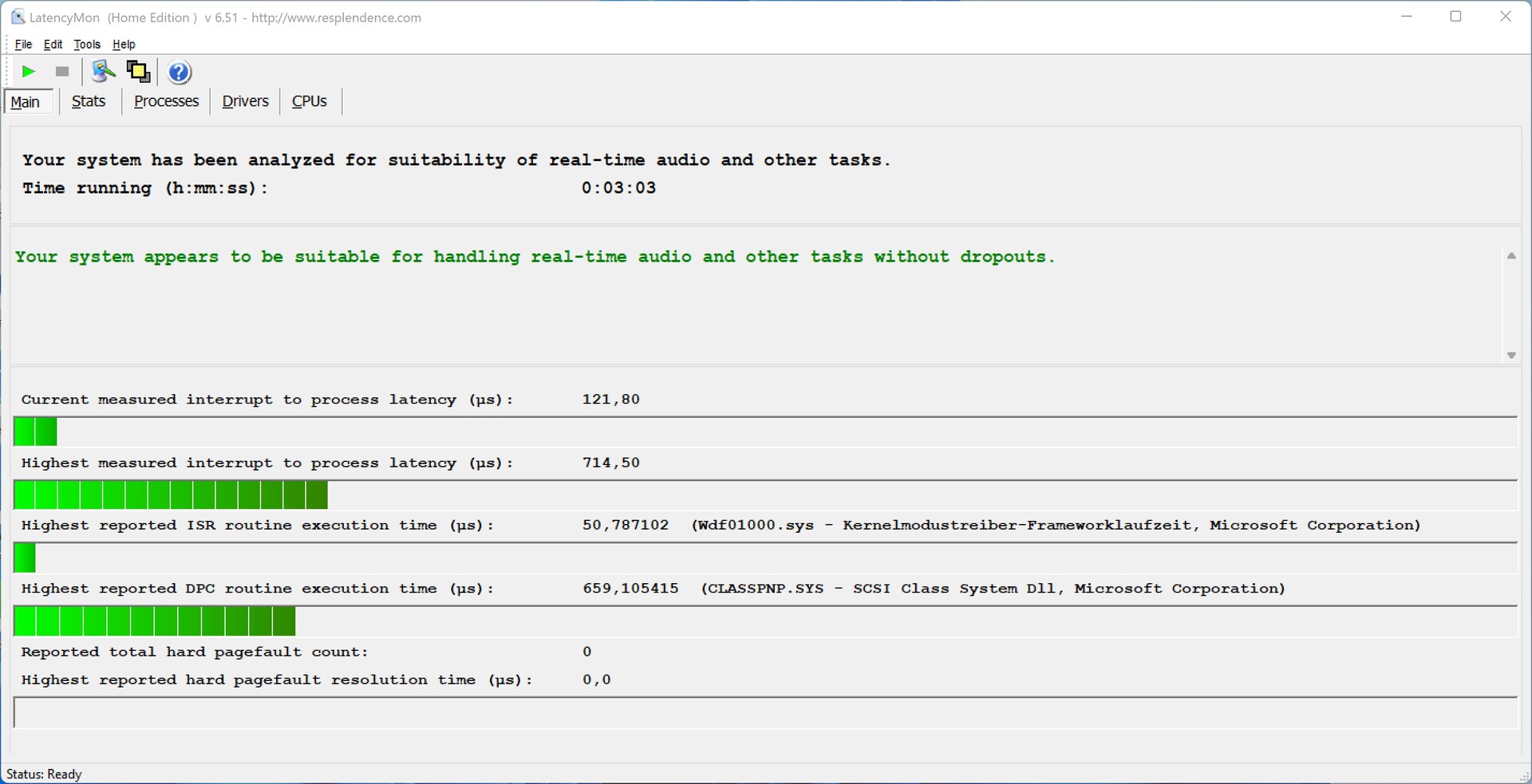

DPC-latenstider

Ace Magician TK11-A0 har aldrig haft några problem med latenstiden. Oavsett om du öppnar flera webbläsarflikar, spelar upp YouTube-videor i 4K eller belastar Prime95, finns det aldrig några ökade latenser. När vi spelar upp vår 4K-testvideo kan iGPU:n iIntel Core i5-1135G7belastas till cirka 20 procent.

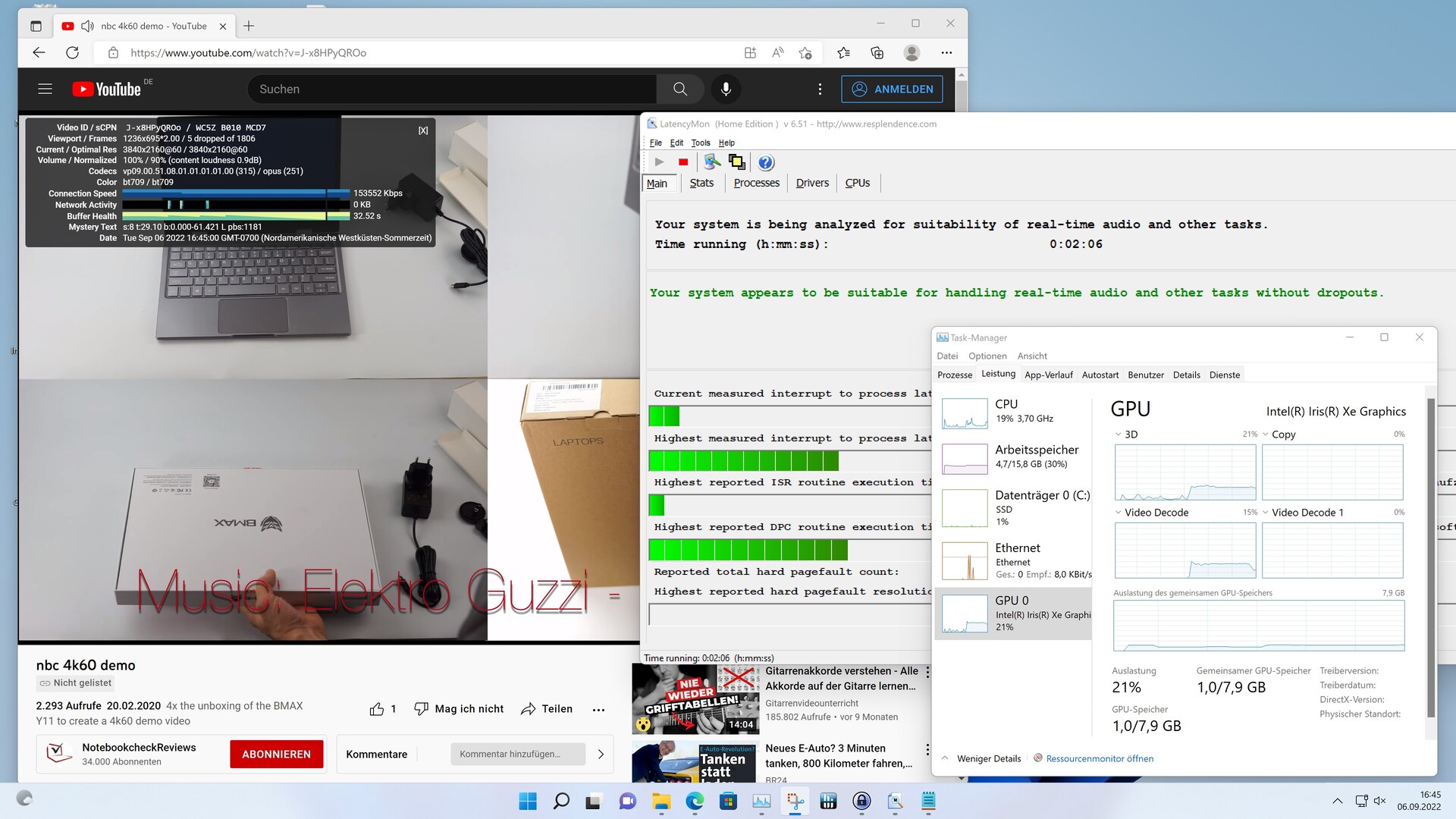

Maximal latens när du öppnar flera webbläsarflikar och spelar upp 4K-videomaterial.

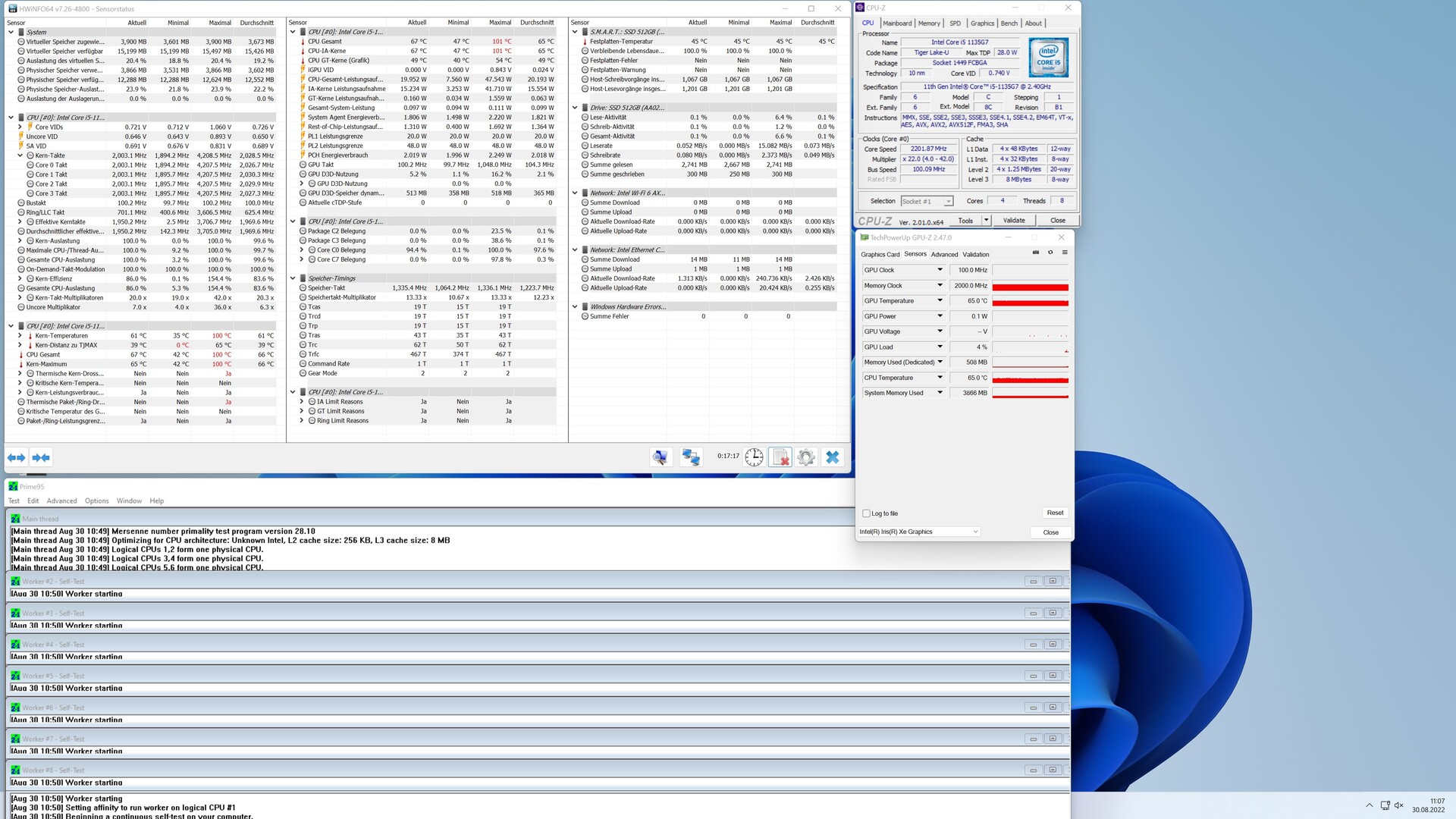

Maximal latenstid efter tio sekunders Prime95

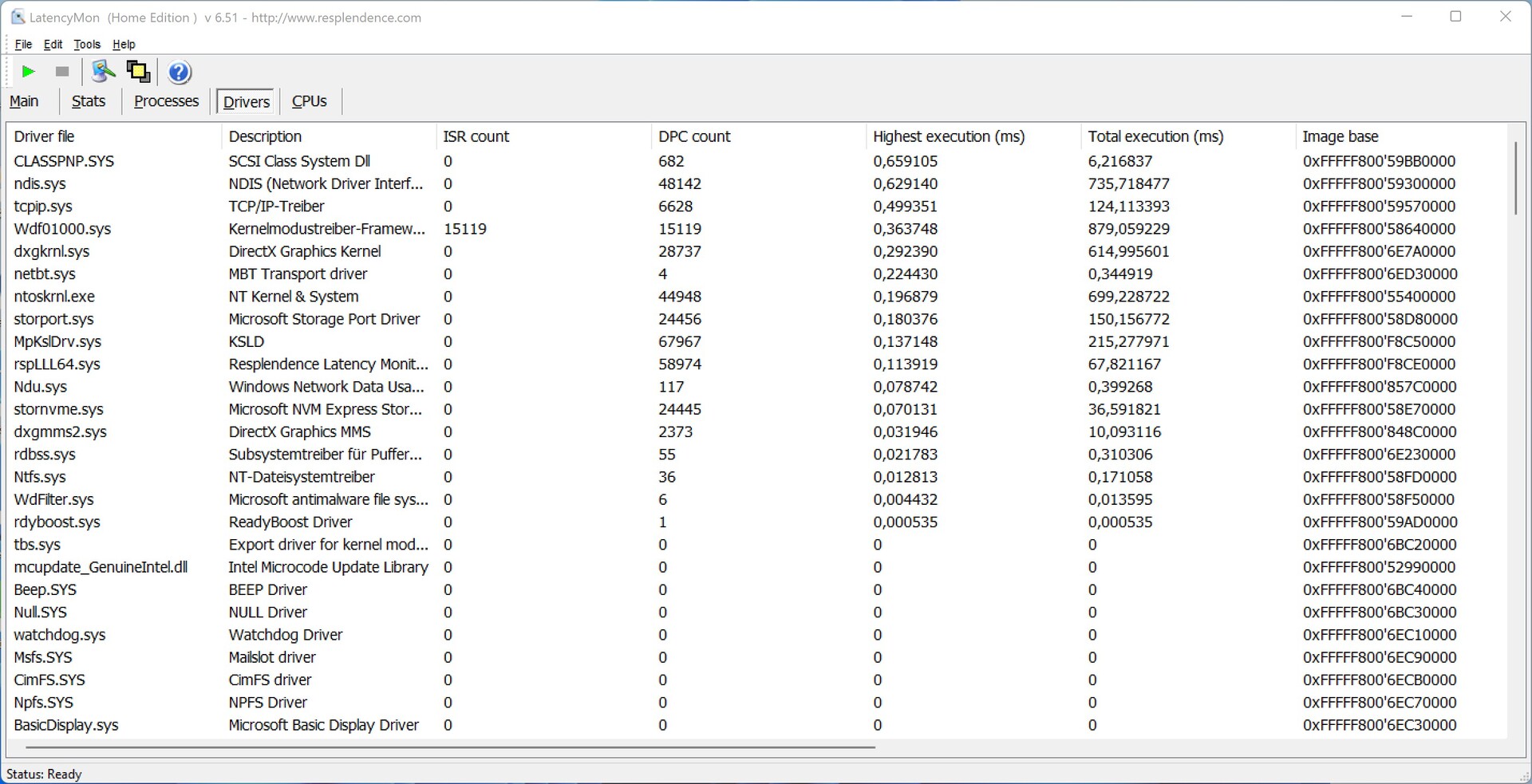

Drivrutiner ordnade efter längsta utförandestopp

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -183%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -147%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1232.3 μs * -87%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * -68%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * -68%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs *
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +47%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	278.2 μs * +58%

* ... smaller is better

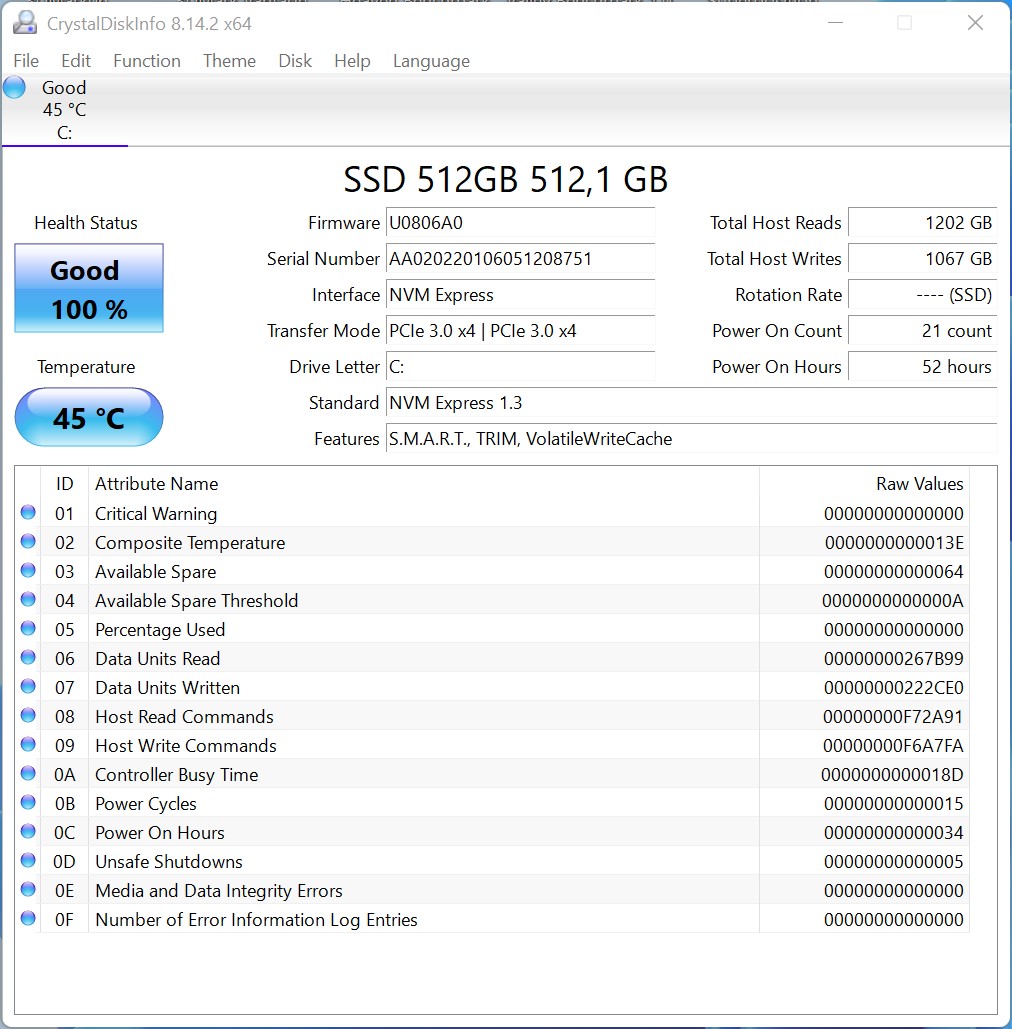

Lösning för lagring

Minipc Union utrustar Ace Magician TK11-A0 med en 512 GB SSD. Vi har redan sett samma modell från Future Path, som använder PCIe-anslutning, i Ace Magician AMR5. På det hela taget ser vi samma fördelar och nackdelar här. Den passiva kylningen är otillräcklig för att säkerställa stabila värden även vid konstant belastning. Med 512 GB är modellen tillräckligt stor för vanlig kontorsanvändning. De som behöver mer lagringsutrymme kan dock enkelt installera en andra SSD utan större ansträngning. Du måste dock vara medveten om formfaktorn, eftersom botten av höljet endast tillåter installation av en 2,5-tums modell.

Du kan hitta ytterligare jämförelser och riktmärken i vår jämförelsetabell.

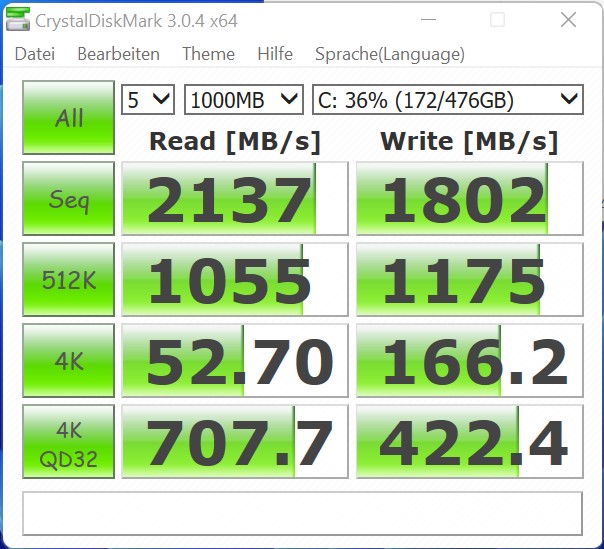

CrystalDiskMark 3.0

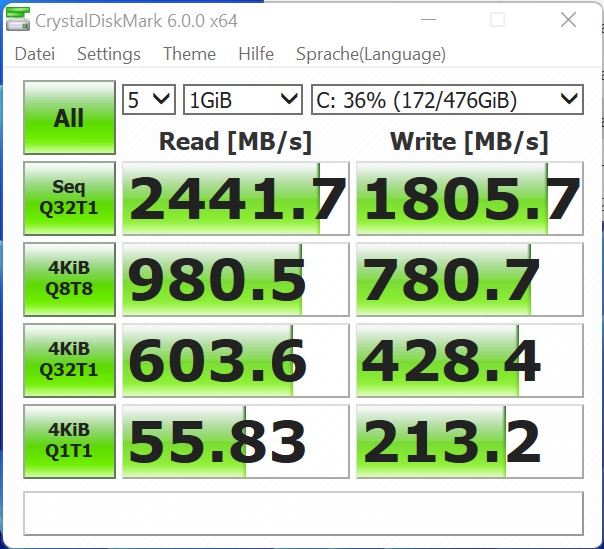

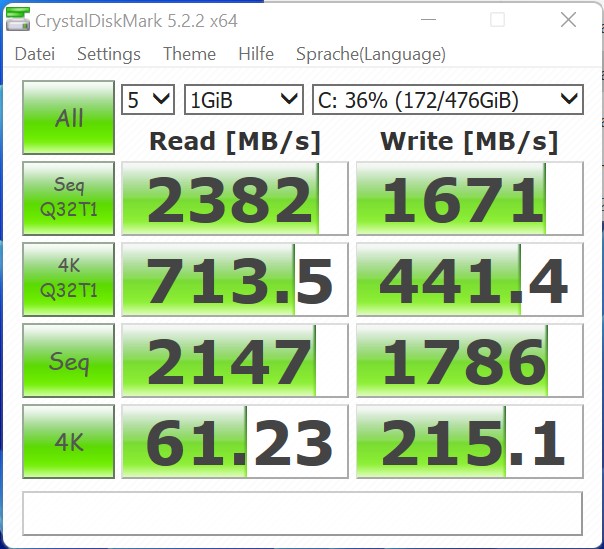

CrystalDiskMark 5.2 / 6

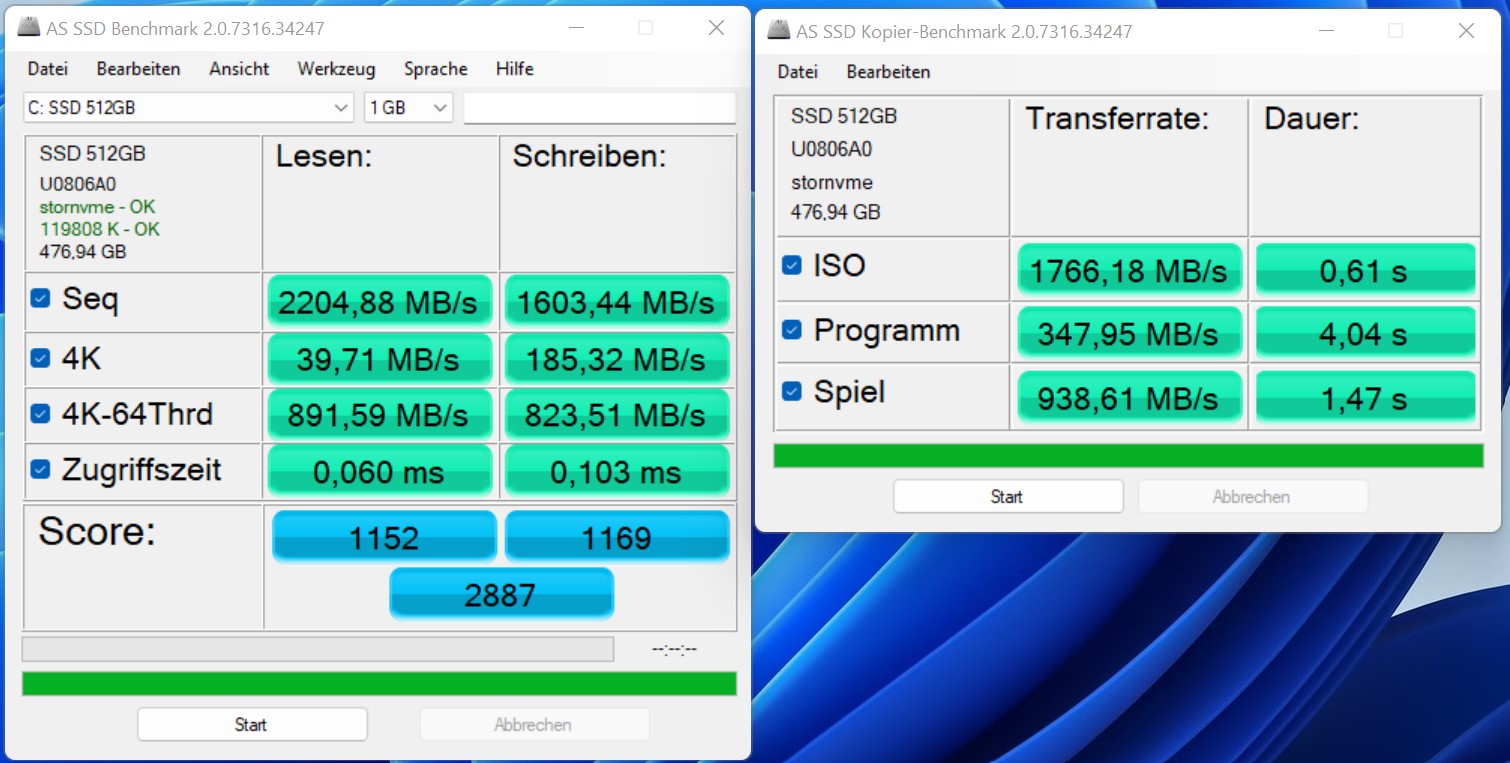

AS SSD

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2137 MB/s

Sequential Write: 1802 MB/s

512K Read: 1055 MB/s

512K Write: 1175 MB/s

4K Read: 52.7 MB/s

4K Write: 166.2 MB/s

4K QD32 Read: 707.7 MB/s

4K QD32 Write: 422.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	88.9 pt
Beelink GTI 11 Kingston SA2000M8500G	73.6 pt
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	70.4 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	68.6 pt
Average Future Path FPE220M8SSD512G	67.5 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	67.4 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	65.2 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	56.9 pt
Minisforum HM90 ^-11! Kingston OM8PDP3256B	53.7 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	53 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	52.4 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s +5%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s
Average Future Path FPE220M8SSD512G (2014 - 2184, n=3)	2093 MB/s -4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s -5%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s -7%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s -22%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s -30%
Minisforum HM90 Kingston OM8PDP3256B	1445 (1382.19^min - 1445.15^max) MB/s -34%
Beelink GTI 11 Kingston SA2000M8500G	1392 (1389.99^min - 1391.88^max) MB/s -36%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -40%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	802 (778.67^min - 802.37^max) MB/s -63%
seq write
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s +37%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2380 (607.54^min - 2380.06^max) MB/s +33%
Beelink GTI 11 Kingston SA2000M8500G	1810 (1639.55^min - 1810.32^max) MB/s +1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s 0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s
Average Future Path FPE220M8SSD512G (1598 - 1792, n=3)	1727 MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -29%
Minisforum HM90 Kingston OM8PDP3256B	1211 (1193.91^min - 1211.31^max) MB/s -32%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -45%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s -69%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s +47%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s
Average Future Path FPE220M8SSD512G (2399 - 2525, n=3)	2456 MB/s -3%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2453 (2244.5^min - 2453.25^max) MB/s -3%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s -3%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -6%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s -7%
Minisforum HM90 Kingston OM8PDP3256B	2177 (1922.11^min - 2177.05^max) MB/s -14%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -14%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -22%
Beelink GTI 11 Kingston SA2000M8500G	1699 (1607.68^min - 1699.07^max) MB/s -33%
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s +53%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2378 (615.51^min - 2377.75^max) MB/s +33%
Beelink GTI 11 Kingston SA2000M8500G	1873 (1713.16^min - 1872.55^max) MB/s +5%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -1%
Average Future Path FPE220M8SSD512G (1602 - 1790, n=3)	1720 MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -26%
Minisforum HM90 Kingston OM8PDP3256B	1245 (1229.98^min - 1245.08^max) MB/s -30%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -33%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -45%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s -69%
4k q1 t1 read
Beelink GTI 11 Kingston SA2000M8500G	66 (65.66^min - 66.02^max) MB/s +46%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s +21%
Average Future Path FPE220M8SSD512G (45.1 - 55, n=3)	49.4 MB/s +10%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +7%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s +5%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -2%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	42.1 (41.43^min - 42.13^max) MB/s -7%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -15%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -35%
Minisforum HM90 Kingston OM8PDP3256B	27.1 (26.54^min - 27.09^max) MB/s -40%
4k q1 t1 write
Beelink GTI 11 Kingston SA2000M8500G	223 (200.71^min - 223.16^max) MB/s +14%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +11%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +7%
Average Future Path FPE220M8SSD512G (194.7 - 210, n=3)	200 MB/s +2%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	195.3 (151.02^min - 195.34^max) MB/s -1%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s -1%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -15%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -18%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -30%
Minisforum HM90 Kingston OM8PDP3256B	125 (123.91^min - 124.78^max) MB/s -36%
4k q32 t16 read
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +35%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +6%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s
Average Future Path FPE220M8SSD512G (985 - 1005, n=3)	994 MB/s -1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s -1%
Beelink GTI 11 Kingston SA2000M8500G	813 (810.85^min - 813.32^max) MB/s -19%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s -20%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s -33%
Minisforum HM90 Kingston OM8PDP3256B	589 (585.51^min - 588.52^max) MB/s -41%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	509 (301.38^min - 508.59^max) MB/s -49%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -69%
4k q32 t16 write
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +66%
Beelink GTI 11 Kingston SA2000M8500G	1089 (1047.09^min - 1088.53^max) MB/s +41%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +33%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +26%
Minisforum HM90 Kingston OM8PDP3256B	932 (920.96^min - 931.78^max) MB/s +20%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +15%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s -15%
Average Future Path FPE220M8SSD512G (499 - 774, n=3)	644 MB/s -17%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	590 (520.84^min - 590.29^max) MB/s -24%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s -32%

AS SSD
Score Total
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points +43%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	3347 Points +16%
Beelink GTI 11 Kingston SA2000M8500G	3013 Points +4%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points
Average Future Path FPE220M8SSD512G (2797 - 2887, n=2)	2842 Points -2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points -3%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -6%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -22%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points -24%
Score Read
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points +33%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +1%
Average Future Path FPE220M8SSD512G (1152 - 1162, n=2)	1157 Points 0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1068 Points -7%
Beelink GTI 11 Kingston SA2000M8500G	1001 Points -13%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -13%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -26%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points -39%
Score Write
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points +58%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1717 Points +47%
Beelink GTI 11 Kingston SA2000M8500G	1486 Points +27%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +7%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points -1%
Average Future Path FPE220M8SSD512G (1059 - 1169, n=2)	1114 Points -5%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points -9%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -15%
Seq Read
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s +43%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +5%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +3%
Average Future Path FPE220M8SSD512G (2204 - 2260, n=2)	2232 MB/s +1%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2203.6 MB/s 0%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -7%
Beelink GTI 11 Kingston SA2000M8500G	2006 MB/s -9%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -19%
Seq Write
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s +38%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2189.3 MB/s +37%
Beelink GTI 11 Kingston SA2000M8500G	1904 MB/s +19%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +3%
Average Future Path FPE220M8SSD512G (1603 - 1644, n=2)	1624 MB/s +1%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -22%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -29%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -42%
4K Read
Beelink GTI 11 Kingston SA2000M8500G	60.9 MB/s +53%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s +48%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +46%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	56.28 MB/s +42%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +37%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +32%
Average Future Path FPE220M8SSD512G (39.7 - 52.5, n=2)	46.1 MB/s +16%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -30%
4K Write
Beelink GTI 11 Kingston SA2000M8500G	203.7 MB/s +10%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -6%
Average Future Path FPE220M8SSD512G (144.1 - 185.3, n=2)	164.7 MB/s -11%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s -18%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -22%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s -23%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -35%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	119.31 MB/s -36%
4K-64 Read
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s +30%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s
Average Future Path FPE220M8SSD512G (883 - 892, n=2)	887 MB/s -1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s -1%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	791.75 MB/s -11%
Beelink GTI 11 Kingston SA2000M8500G	740 MB/s -17%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -20%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s -48%
4K-64 Write
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s +77%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1378.5 MB/s +67%
Beelink GTI 11 Kingston SA2000M8500G	1092 MB/s +33%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +20%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +11%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s
Average Future Path FPE220M8SSD512G (750 - 824, n=2)	787 MB/s -4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s -9%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s -10%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -157%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -75%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * -62%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * -35%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * -25%
Average Future Path FPE220M8SSD512G (0.06 - 0.075, n=2)	0.0675 ms * -13%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms *
Beelink GTI 11 Kingston SA2000M8500G	0.047 ms * +22%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	0.035 ms * +42%
Access Time Write
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -12%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms *
Average Future Path FPE220M8SSD512G (0.102 - 0.103, n=2)	0.1025 ms * -0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +1%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	0.1 ms * +3%
Beelink GTI 11 Kingston SA2000M8500G	0.083 ms * +19%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +72%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +77%

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Newsmay Neosmay S2-B560TPM Lexar NM610 500GB: Ø2450 (2230.26-2457.44)

Grafikkort

Intel Iris Xe Graphics G7med 96EUs fungerar som integrerad grafikenhet i Intel Core i5-1135G7. Men totalt sett kan man inte utnyttja iGPU:ns fulla prestanda helt och hållet. Vår testenhet placerar sig även här långt bakom den likadant utrustade Beelink GTI 11.

De som fortfarande behöver mer 3D-prestanda kan ansluta ett externt grafikkort via Thunderbolt-anslutningen. Vi provade det med Razer Core X och ettNvidia GeForce RTX 3060 Tioch satte även in dessa värden i diagrammet

Du kan hitta ytterligare riktmärken på Intel Iris Xe Graphics G7 här.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	100 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.7 pt
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	18.6 pt
Average Intel Iris Xe Graphics G7 96EUs	17.1 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	16.4 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	16.3 pt
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	15.1 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	14.9 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	14.7 pt
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	14.1 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	13.7 pt
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	6.8 pt

3DMark 11 - 1280x720 Performance GPU
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	37941 Points +582%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +486%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +28%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +17%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7676, n=202)	6353 Points +14%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +13%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +1%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	5567 Points 0%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5566 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	2551 Points -54%

3DMark
1280x720 Cloud Gate Standard Graphics
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	153968 Points +654%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +451%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +61%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +42%
Average Intel Iris Xe Graphics G7 96EUs (13162 - 38578, n=180)	26508 Points +30%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +28%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points +28%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	25008 Points +22%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	23739 Points +16%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	11485 Points -44%
1920x1080 Fire Strike Graphics
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	28145 Points +656%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +549%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6482, n=215)	4920 Points +32%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +27%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +17%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	4010 Points +8%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +1%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -4%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	3414 Points -8%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -9%
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	1768 Points -53%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition

Performance Rating - Percent
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	100 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	62.3 pt
Average Intel Iris Xe Graphics G7 96EUs	12.9 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	12.7 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.4 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.4 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	9.8 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	9.8 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.6 pt
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.9 pt
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	5.2 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	172.3 (11.4^min - 371.5^max) fps +896%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +721%
Average Intel Iris Xe Graphics G7 96EUs (17.3 - 31.2, n=21)	23.3 fps +35%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +34%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +13%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps +2%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -6%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -14%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	13.5 fps -22%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	9.5 fps -45%
Extreme Preset DX11
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	188.6 (43.6^min - 434.5^max) fps +966%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +664%
Average Intel Iris Xe Graphics G7 96EUs (17.7 - 31.9, n=21)	23.9 fps +35%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +32%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +21%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +2%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -3%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -5%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	15.4 fps -13%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	9.5 fps -46%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	153.2 (48.2^min - 297.9^max) fps +1232%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +714%
Average Intel Iris Xe Graphics G7 96EUs (11.3 - 20, n=19)	15 fps +30%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +30%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +23%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +1%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -2%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -8%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	10 fps -13%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	5.9 fps -49%
1920x1080 Extreme HD Preset OpenGL AA:x8
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	132.9 (48.3^min - 236.1^max) fps +870%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +569%
Average Intel Iris Xe Graphics G7 96EUs (11.7 - 21.7, n=19)	16.6 fps +21%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +16%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps -7%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -16%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -22%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -33%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.8 fps -36%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	7.3 fps -47%

Unigine Superposition
1280x720 720p Low
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	38414 Points +767%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	14192 Points +220%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7768 Points +75%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6430 Points +45%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6189 Points +40%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5998 Points +35%
Average Intel Iris Xe Graphics G7 96EUs (4088 - 8223, n=16)	5965 Points +35%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	5566 Points +26%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	5361 Points +21%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	4433 Points
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	2704 Points -39%
1920x1080 1080p High
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	15479 Points +912%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	8142 Points +432%
Average Intel Iris Xe Graphics G7 96EUs (1522 - 2744, n=16)	2103 Points +37%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1995 Points +30%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points +26%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1702 Points +11%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points +3%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1530 Points
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1487 Points -3%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	1459 Points -5%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	700 Points -54%

Spelprestanda

Intel Iris Xe Graphics G7är överbelastad i aktuella spel. Även äldre spel kan ofta bara spelas smidigt i 720p-upplösning och på de lägsta detaljnivåerna. I bästa fall kan iGPU:n bara hantera de enklaste casual-spelen i den ursprungliga upplösningen. Vår testenhet överträffas också av Ace Magician AMR5 med följande AMD Radeon RX Vega 7.

Du kan hitta ytterligare jämförelser och benchmarks på vår GPU-spel-lista.

Med Thunderbolt-anslutningen har Ace Magician TK11-A0 dock fortfarande ett ess i rockärmen. Eftersom vi också hade Razer Core Xtillgänglig under testet, kopplade vi helt enkelt ihop minidatorn med en externNvidia GeForce RTX 3060 Ti. Även om grafikkortet inte kan arbeta med sin bullbandbredd skadas inte prestandan särskilt mycket av detta. Nackdelen för vårt GPU-testsystem håller sig inom gränserna och det extra värdet är tydligt märkbart.

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +99%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +70%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +67%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps +66%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps +45%
Average Intel Iris Xe Graphics G7 96EUs (52 - 166.4, n=162)	98.5 fps +44%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	95.1 (21.9^min, 55.6^P1) fps +39%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	92.8 (13.8^min, 62.5^P1) fps +36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	51.9 (7.44^min, 31.3^P1) fps -24%
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +124%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +90%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +79%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +72%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps +56%
Average Intel Iris Xe Graphics G7 96EUs (24.1 - 149.3, n=165)	83.1 fps +52%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 (12.9^min, 50^P1) fps +50%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	79.5 (21.5^min, 50^P1) fps +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.8 (38.5^min, 43^P0.1, 53.7^P1) fps +36%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps +28%
Average Intel Iris Xe Graphics G7 96EUs (28.9 - 117.2, n=186)	84 fps +27%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	77.1 (44^min) fps +17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -6%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	61.6 (30.7^min, 37.2^P0.1, 46.5^P1) fps -7%
1366x768 Medium Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.5 (23.4^min, 24.6^P0.1, 31.8^P1) fps +33%
Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=184)	53.6 fps +26%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.4 (32.2^min, 36.1^P0.1, 43.2^P1) fps +23%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	46.6 (41^min) fps +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.5 (31^min, 32.6^P0.1, 36.6^P1) fps +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	42.6 (10.6^min, 28.7^P0.1, 33.9^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.8 (1.9^min, 2.75^P0.1, 29.8^P1) fps -4%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.5 (21.6^min, 25.4^P0.1, 31.8^P1) fps -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps -8%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +148%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +120%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +92%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	47 (39^min) fps +88%
Average Intel Iris Xe Graphics G7 96EUs (23 - 75, n=92)	46.5 fps +86%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (41^min) fps +84%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps +76%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps +76%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	19 (7^min) fps -24%
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +71%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +71%
Average Intel Iris Xe Graphics G7 96EUs (14 - 39, n=90)	25.5 fps +50%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	23 (21^min) fps +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +29%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (18^min) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps +24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	9 (8^min) fps -47%

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +66%
Average Intel Iris Xe Graphics G7 96EUs (29 - 69, n=19)	47.2 fps +63%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +52%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +45%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41 (31^min) fps +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps +38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	19 (14^min) fps -34%
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +81%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +75%
Average Intel Iris Xe Graphics G7 96EUs (16 - 38, n=19)	27.2 fps +70%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +38%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (17^min) fps +31%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	10 (8^min) fps -37%

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +89%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +54%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps +49%
Average Intel Iris Xe Graphics G7 96EUs (49 - 109.6, n=34)	82 fps +36%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.7 (65^min) fps +32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	35.2 (28^min) fps -42%
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +62%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +46%
Average Intel Iris Xe Graphics G7 96EUs (23.1 - 57.5, n=34)	42.8 fps +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps +26%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps +26%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.6 (32^min) fps +18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	16.3 (13^min) fps -50%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +74%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +61%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +58%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +57%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	123 (107.9^min) fps +55%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps +40%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.5 (88.7^min) fps +27%
Average Intel Iris Xe Graphics G7 96EUs (36 - 148, n=215)	100.3 fps +27%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	90.8 (81.7^min) fps +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	79.1 (53.9^min) fps
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +50%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps +26%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	81 (68.5^min) fps +13%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.4 (69^min) fps +13%
Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=215)	75.7 fps +6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	71.4 (52.5^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	59 (53.4^min) fps -17%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +20%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +20%
Average Intel Iris Xe Graphics G7 96EUs (48.5 - 115.1, n=168)	84.8 fps +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps +10%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	76.5 (17.1^min, 23^P1) fps +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.6 (43.7^min, 64.9^P1) fps 0%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	33.1 (7.6^min, 9.05^P1) fps -55%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +35%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +32%
Average Intel Iris Xe Graphics G7 96EUs (18.2 - 51.4, n=166)	36.5 fps +29%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +18%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +11%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	30.8 (9.7^min, 16.6^P1) fps +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps +7%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.1 (23.3^min, 25.9^P1) fps +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	13.5 (5^min, 5.16^P1) fps -52%

Ace Magician TK11-A0 + iGPU

	låg	med.	hög	ultra
GTA V (2015)	68.3	54.8	16.4	7.73
The Witcher 3 (2015)	65.9	42.6	23.7	12.5
Dota 2 Reborn (2015)	79.1	71.4	43.4	39
Final Fantasy XV Benchmark (2018)	31.7	17.8	13.8
X-Plane 11.11 (2018)	25.7	30.5	31.1
Far Cry 5 (2018)	25	17	16	15
Strange Brigade (2018)	72.9	28.3	23.2	19
Far Cry New Dawn (2019)	29	16	15	14
Borderlands 3 (2019)	33.9	15.8	10.5	7.97
F1 2020 (2020)	60.4	32.6	24.8	15.6

Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti (Razer Core X via Thunderbolt)

	låg	med.	hög	ultra	QHD	4K
GTA V (2015)	140.8	125.8	96.1	56.1	51.2	25.7
The Witcher 3 (2015)	219	168.3	117	60.8		45
Dota 2 Reborn (2015)	115.5	97.6	94.8	92.8		93.2
Final Fantasy XV Benchmark (2018)	104.7	97.9	79		70	47.2
X-Plane 11.11 (2018)	72.8	66.9	58.9			53.2
Far Cry 5 (2018)	79	67	65	60	54	38
Strange Brigade (2018)	152.4	117.7	116.8	114.7	92.8	52.4
Far Cry New Dawn (2019)	72	61	58	54	50	35
Borderlands 3 (2019)	97.1	86.6	81	71.3	60.1	37.1
F1 2020 (2020)	154.1	94	97.8	81.5	67.7	39.2
F1 2021 (2021)	161.6	138.4	105.6	65.4	58.9	32.4

Utsläpp - Tyst och effektiv

Tack vare det genomtänkta kylsystemet är ljudnivån under belastning lätt att uthärda och med maximalt 37,1 dB(A) betydligt tystare än hos vissa andra konkurrenter i denna jämförelse. Ace Magician TK11-A0 når dock fortfarande inte upp till Minisforum EliteMini HX90. Även om fläkten också fortfarande fortsätter att gå under tomgångsdrift, med 31 till 33 dB(A), är bullerbelastningen mycket låg och knappt märkbar här.

Ljudnivå

Låg belastning		31.82 / 32.27 / 33.17 dB(A)
Hög belastning		35.82 / 37.1 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) environment noise: 30.28 dB(A)

Temperaturer

Fallvärmningen av Ace Magician TK11-A0 är mycket begränsad. Kylenheten är dock fortfarande något överbelastad med SoC:n när den använder maximalt 48 watt. I det fallet når SoC 100 °C redan efter några ögonblick, vilket leder till att man måste strypa hastigheten. Fortsätter belastningstestet tar PL1 vid 20 watt över, så att temperaturerna planar ut på i genomsnitt 65 °C (149 °F), vilket inte ger någon anledning till oro.

Högtalare

Som en extra funktion har Minipc Union utrustat Ace Magician med en liten högtalare. Denna är lämplig för återgivning av musik och röst. Den lilla högtalaren lämnar ett gott intryck, och på grund av dess storlek låter inte diskanten och mellanregistret alltför överväldigande. Basen är bara antydd men saknas inte helt och hållet.

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Minipc Union Ace Magician TK11-A0 audio analysis

(±) | speaker loudness is average but good (80.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.4% lower than median
(±) | linearity of bass is average (10.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 9.3% higher than median
(±) | linearity of mids is average (10.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.7% higher than median
(±) | linearity of highs is average (8.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.4% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 14% similar, 57% worse
» The best had a delta of 14%, average was 25%, worst was 40%
Compared to all devices tested
» 50% of all tested devices were better, 8% similar, 42% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Effektförbrukning

När det gäller strömförbrukningen klarar sig Ace Magician TK11-A0 mycket bra jämfört med konkurrenterna. Vi ser den största skillnaden under tomgångsdrift och vid låg belastning. Den kan dock fortfarande förbruka upp till 68 watt under belastning ibland. Men eftersom det maximala värdet bara uppnås under några sekunder kan laddaren på 65 watt hantera detta.

Strömförbrukning

Av/Standby	0.42 / 2.1 Watt
Låg belastning	3.4 / 5.7 / 7 Watt
Hög belastning	36.5 / 68 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		-104%	-47%	-292%	-149%	-37%	-99%
Idle Minimum *	3.4	8.9 -162%	8.4 -147%	23.7 -597%	15.2 -347%	5.34 ?(2.2 - 46.5, n=193) -57%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -179%
Idle Average *	5.7	9.6 -68%	8.7 -53%	23.7 -316%	16 -181%	8.55 ?(3.8 - 63, n=193) -50%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -102%
Idle Maximum *	7	11.8 -69%	9.3 -33%	40.8 -483%	16 -129%	10.8 ?(5.8 - 68.9, n=193) -54%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -113%
Load Average *	36.5	98.9 -171%	46.4 -27%	55.8 -53%	48.6 -33%	45.3 ?(12.5 - 87.3, n=193) -24%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -57%
Load Maximum *	68	101.8 -50%	52 24%	74.5 -10%	104.3 -53%	67.5 ?(30.1 - 123.3, n=193) 1%	97.5 ?(18.1 - 423, n=119, last 2 years) -43%
Witcher 3 ultra *					53.8

* ... smaller is better

Bedömning - Användbara funktioner men en långsam SoC

Testning av Ace Magician TK11-A0, testenhet tillhandahållen av Minipc Union

Minipc Union Ace Magician TK11-A0 är en kompakt mini-pc av standardtyp. Men med den Intel Core i5-1135G7är minidatorn inte baserad på den mest aktuella processormodellen. Därmed kan Ace Magician TK11-A0 inte hålla jämna steg med de modernare konkurrenterna med hexa- eller oktakärniga processorer. Dessutom sänker tillverkaren effektgränserna, vilket också går ut över prestandan. Å andra sidan kan Ace Magician TK11-A0 imponera med mycket bra utsläppsvärden. Både strömförbrukningen och bullerbelastningen är låga, vilket skonar din plånbok i längden. Tillsammans med 16 GB arbetsminne och 512 GB SSD får du en bra kontorsdator för det dagliga arbetet med den konfiguration vi testade.

Höljet är robust och kan utan problem öppnas för att till exempel byta ut arbetsminnet eller lagringslösningen. Det kan finnas olika åsikter om antalet anslutningar, men i princip alla viktiga portar finns där, och Thunderbolt ingår också. Å andra sidan erbjuder konkurrenterna ofta fler anslutningar, och vi hade förväntat oss en 2,5G-anslutning när det gäller nätverksstöd.

Ace Magician TK11-A0 är en bra enhet för arbete med några bra funktioner. Minidatorn skulle dock vara betydligt mer konkurrenskraftig med en mer aktuell SoC.

Sammantaget övertygar Ace Magician TK11-A0 med en bra hastighet när man utför vardagliga uppgifter, vilket är bättre än vad som framgår av benchmarks. Intel Iris Xe Graphics G7 kan dock inte hålla jämna steg med en AMD Radeon RX Vega 7 i 3D-prestanda. Å andra sidan gör Thunderbolt-anslutningen det möjligt att öka 3D-prestandan enkelt och snabbt genom att använda en extern GPU-docka, vilket gör att Ace Magician TK11-A0 även kan hantera aktuella spel.

Vi anser att fingeravtrycksläsaren är en annan användbar funktion. Många känner till den här funktionen från bärbara datorer, och nu har användare av Ace Magician TK11-A0 också tillgång till den. Man kan ha olika åsikter om nyttan av den inbyggda högtalaren, men dess kvalitet är god. Subjektivt sett låter högtalaren bättre än många modeller som är inbyggda i skärmar.

Pris och tillgänglighet

Vår testade konfiguration av Ace Magician TK11-A0 säljs för närvarande på Amazon för $449. Märkligt nog kostar modellen med den mindre SSD:n mer, 659 dollar.

Ace Magician TK11-A0 recension: Effektiv minidator med Thunderbolt 4 och ytterligare användbara funktioner

Kontorsdator med användbara funktioner!

Potentiella konkurrenter i jämförelse

Minipc Union Ace Magician TK11-A0 i detalj

Hölje

Storleksjämförelse

Utrustning

Kommunikation

Säkerhet

Underhåll

Prestanda

Testvillkor

Processor

Ace Magician TK11-A0 i Cinebench-R15 Multi Loop

Systemets prestanda

DPC-latenstider

Lösning för lagring

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

Grafikkort

Spelprestanda

Ace Magician TK11-A0 + iGPU

Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti (Razer Core X via Thunderbolt)

Utsläpp - Tyst och effektiv

Temperaturer

Högtalare

Minipc Union Ace Magician TK11-A0 audio analysis

Effektförbrukning

Power Consumption with an External Monitor

För

Emot

Bedömning - Användbara funktioner men en långsam SoC

Pris och tillgänglighet

More articles related to this device

3DMark 05 Standard		24543 poäng
3DMark 06 Standard Score		17626 poäng
3DMark Vantage P Result		16744 poäng
3DMark 11 Performance		5618 poäng
3DMark Ice Storm Standard Score		55514 poäng
3DMark Cloud Gate Standard Score		13596 poäng
3DMark Fire Strike Score		3305 poäng
3DMark Fire Strike Extreme Score		1690 poäng
3DMark Time Spy Score		1221 poäng
Hjälp

	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs
Noise		3%	-5%	6%	-0%	-13%	-0%	-10%
off / environment *	30.28	30.8 -2%	30.1 1%	30.2 -0%	30.2 -0%	30.5 -1%	30.2 -0%	25.7 15%
Idle Minimum *	31.82			30.5 4%	30.8 3%	31.5 1%	31.8 -0%	28.4 11%
Idle Average *	32.27	31.6 2%	33.15 -3%	30.5 5%	32.1 1%	32.6 -1%	32.7 -1%	32 1%
Idle Maximum *	33.17			30.5 8%	32.9 1%	33.8 -2%	33.1 -0%	37.7 -14%
Load Average *	35.82			31.2 13%	33.9 5%	49.3 -38%	35.8 -0%	44.2 -23%
Load Maximum *	37.1	33.4 10%	41.63 -12%	35.1 5%	41.4 -12%	50.9 -37%	37.1 -0%	56 -51%
Witcher 3 ultra *								44.5
