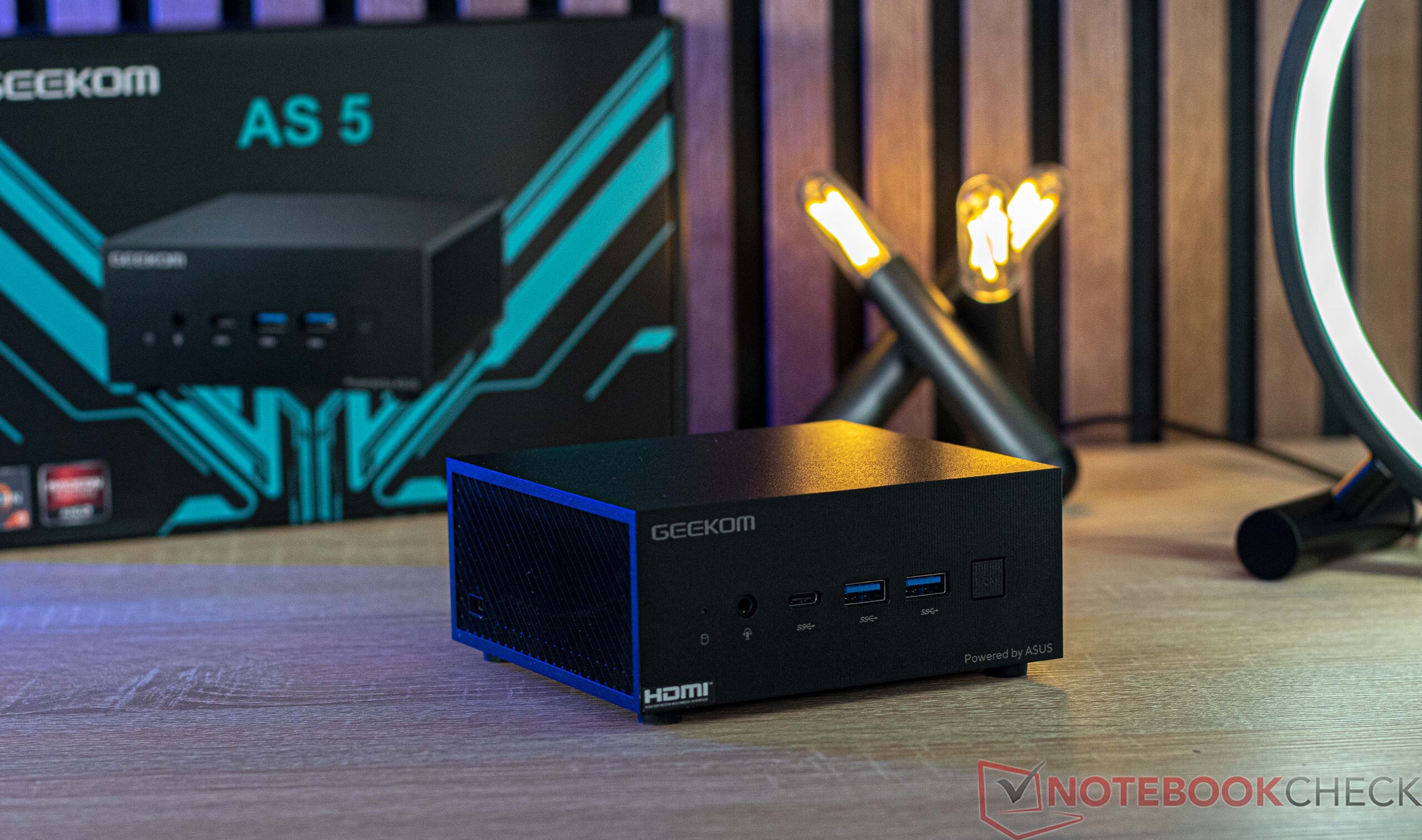

Geekom AS 5 granskad: En perfekt följeslagare för krävande projekt och inkluderar en AMD Ryzen 9 5900HX och AMD Radeon Vega 8

Name: Geekom AS 5
Brand: Geekom

Massor av kraft i de allra trängsta utrymmena!

Geekom har packat in en kraftfull AMD Ryzen 9 5900HX i sin lilla AS 5 mini-PC. Läs vår omfattande recension för att ta reda på hur den kompakta datorassistenten fungerar i vardagen och om kombinationen av 32 GB RAM och en 1 TB SSD kan mäta sig med Intel NUC-modellerna.

Sebastian Bade (översatt av DeepL / Ninh Duy), Published 07/03/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Radeon Cezanne (Zen 3)

Trots att Geekom AS 5 är en liten mini-PC lyckas den ändå erbjuda enAMD Ryzen 9 5900HXoch en snabb SoC som kanske redan är för mycket av det goda för daglig användning. Men, som ordspråket säger, att ha är bättre än att behöva. Som en konsekvens kan du se fram emot en säker framtid med Geekom AS 5, så länge du bara är intresserad av kontorsarbete.

Långvariga mini-PC-kännare kommer att ta en titt på Geekom AS 5 och säkert tro att de har sett den tidigare någonstans. Det är inte utan goda skäl. Geekom och Asus har bildat ett samarbete som innebär att Geekom AS 5 och Asus ExpertCenter PN52 är byggda på samma sätt. Till skillnad från Asus, vars PN52 också levereras med lägre specifikationer, är Geekoms enda alternativ baserat på AMD: s Ryzen 9 5900HX. För närvarande byter Geekom AS 5 händer för för $ 609. Ett rimligt pris eftersom Asus begär hela 900 dollar för en identiskt byggd mini-PC med endast 16 GB RAM och samma SSD.

I den här recensionen ställs testexemplaret mot aktuella, likadant utrustade mini-PC i samma prissegment. Du hittar en lista över dessa i följande tabell.

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

Geekom AS 5

Processor

AMD Ryzen 9 5900HX 8 x 3.3 - 4.6 GHz, 54 W PL2 / Short Burst, 35 W PL1 / Sustained, Cezanne-H (Zen 3)

Grafikkort

AMD Radeon RX Vega 8 (Ryzen 4000/5000), Adrenalin 13.5.1

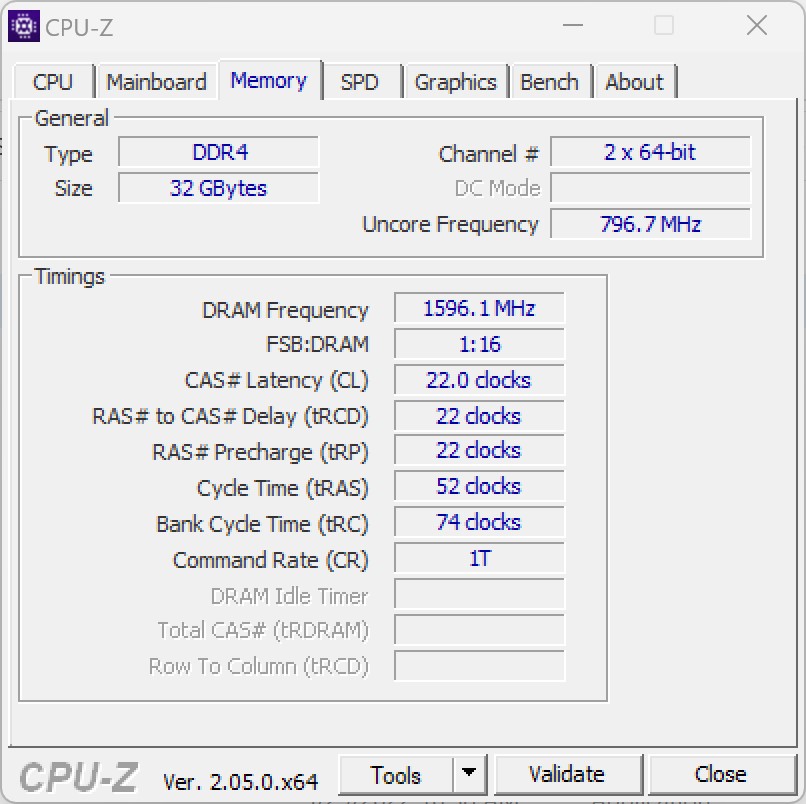

Minne

32 GB

, DDR4 3200, 2 of 2 occupied, max. 64 GB

Moderkort

AMD Promontory/Bixby FCH

Hårddisk

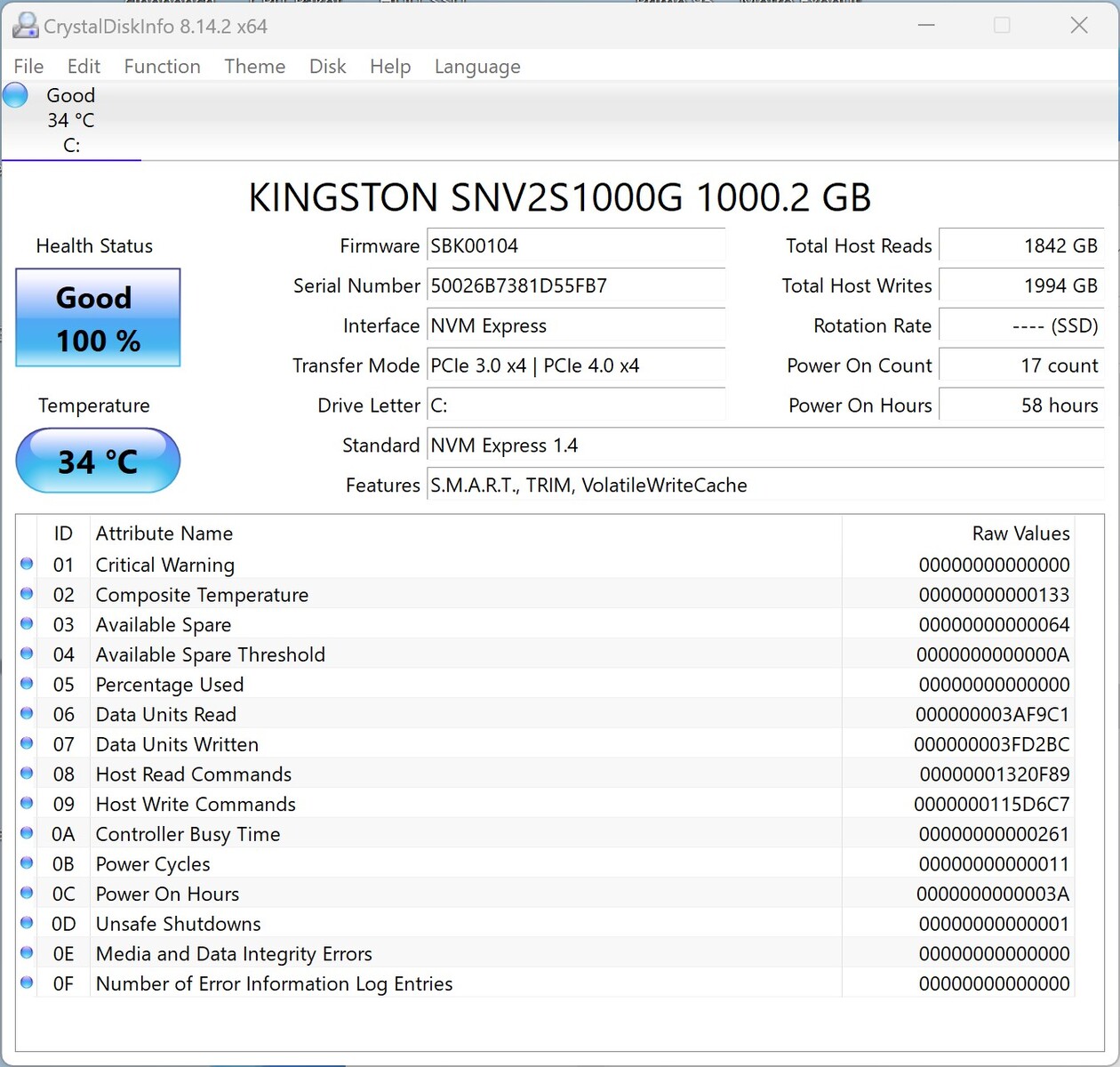

Kingston NV2 1000GB SNV2S/1000G, 1000 GB

, M.2 2280, NVMe, 920 GB ledigt

Ljudkort

AMD Zen - Audio Processor - HD Audio Controller

Anslutningar

5 USB 3.0, 2 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, 1 Kensingtonlås

Nätverk

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Storlek

höjd x bredd x djup (i mm) 58 x 130 x 120

Operativsystem

Microsoft Windows 11 Pro

Övrigt

120-watt PSU, VESA mount mounting plate, 24 Månader Garanti

Vikt

742 g, Strömförsörjning: 350 g

Pris

599 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Potentiella konkurrenter i jämförelse

Rating	Date	Model	Weight	Height
79.5 % v7 ^(old)	07/2023	Geekom AS 5 R9 5900HX, Vega 8	742 g	58 mm
85.1 % v7 ^(old)	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
85.5 % v7 ^(old)	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
83.7 % v7 ^(old)	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
82.3 % v7 ^(old)	05/2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
81.9 % v7 ^(old)	05/2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
80.8 % v7 ^(old)	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm

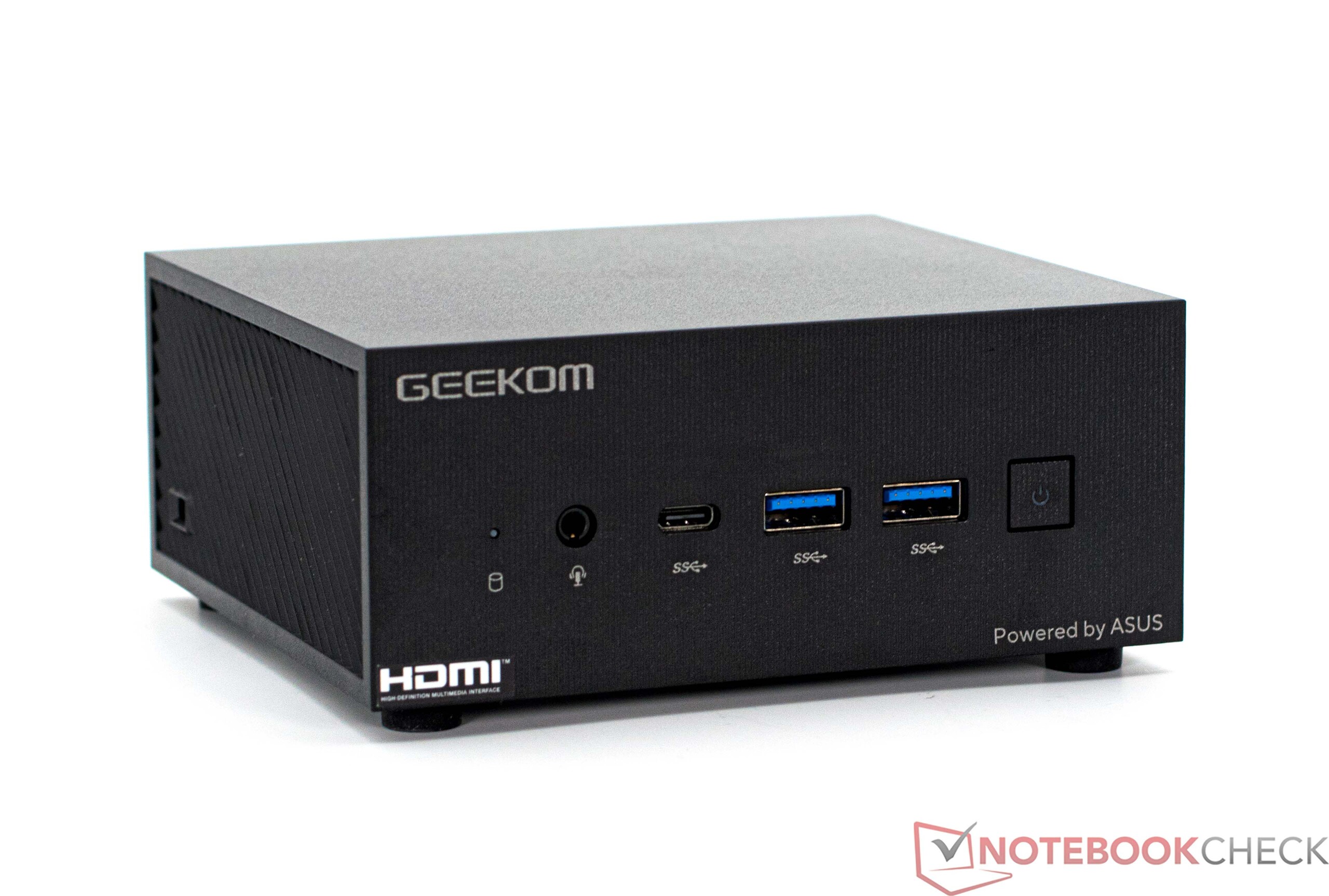

Geekom AS 5 i detalj

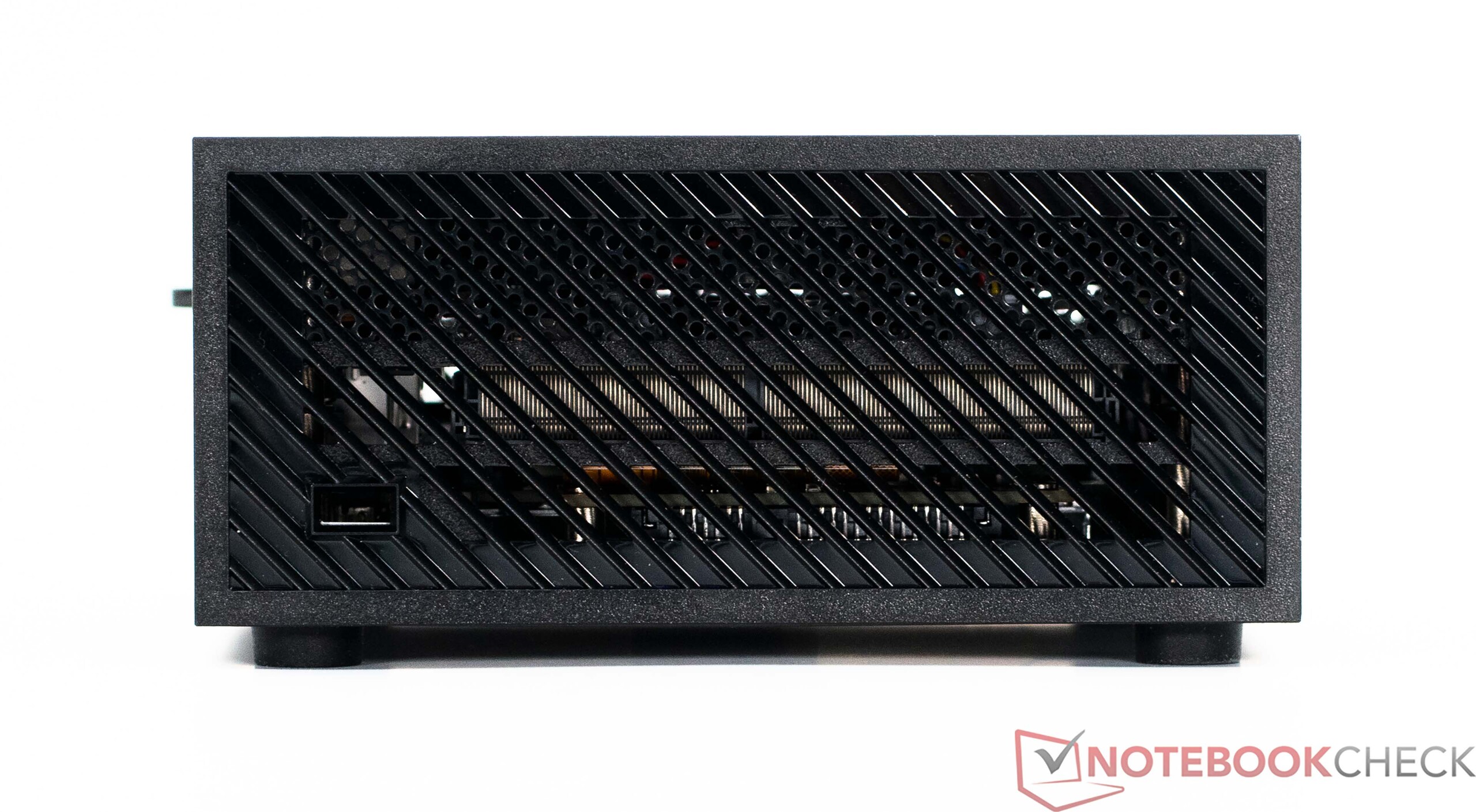

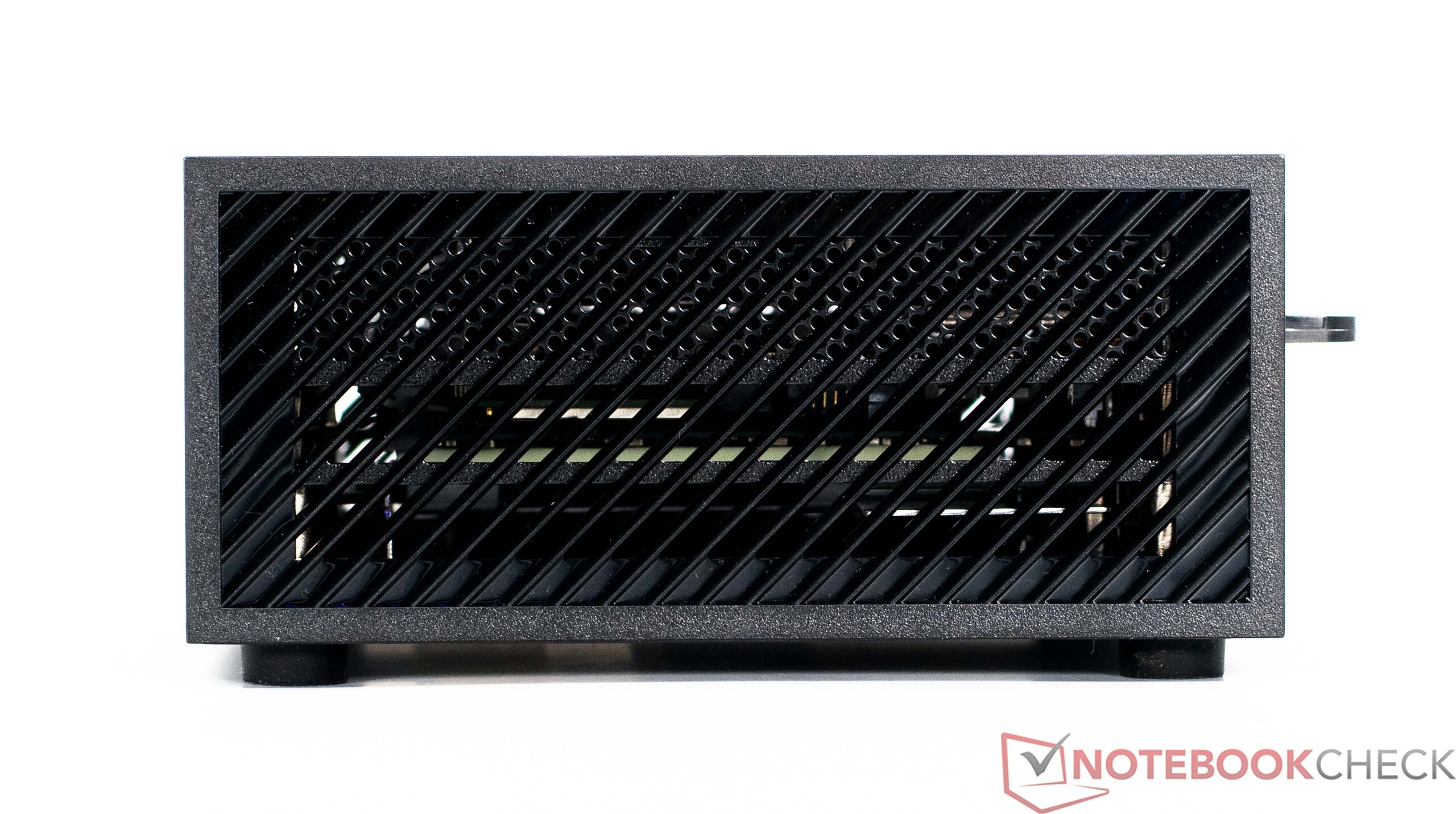

Fall

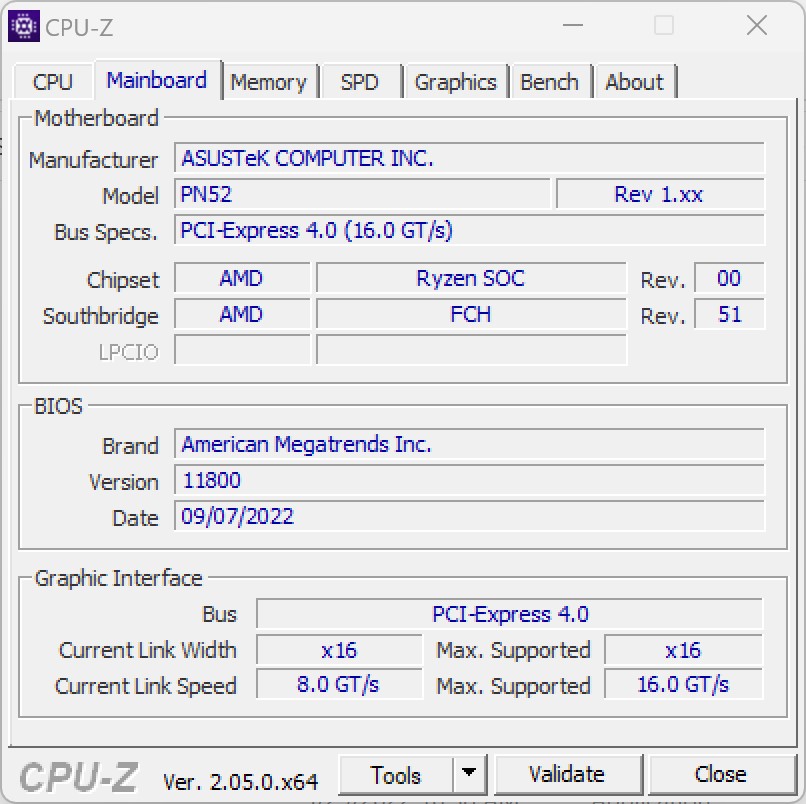

Som vi redan nämnt delar Geekom AS 5 och Asus ExpertCenter PN52 båda samma plattform. Detta innebär att vi har att göra med en annan design änGeekom Mini IT12. Dimensionerna på AS 5 har vuxit något jämfört med den andra interna enheten, även om enhetens fotavtryck fortsätter att vara litet. När det gäller vikten, 724 gram, säkerställer vårt granskningsprov en placering i mitten av bordet. Materialen består huvudsakligen av plast och aluminium. Återigen påminner det oss om den välbekanta NUC-designen som vi såg i Geekom Mini IT12. I grund och botten är konceptet bra och exceptionellt robust. Med sitt aluminiumchassi ger Morefines enheter en mer premiumkänsla. Det kan inte finnas några riktiga klagomål angående byggkvaliteten. Allt passar ihop ordentligt och vi kunde inte hitta några luckor i vår granskningsmodell.

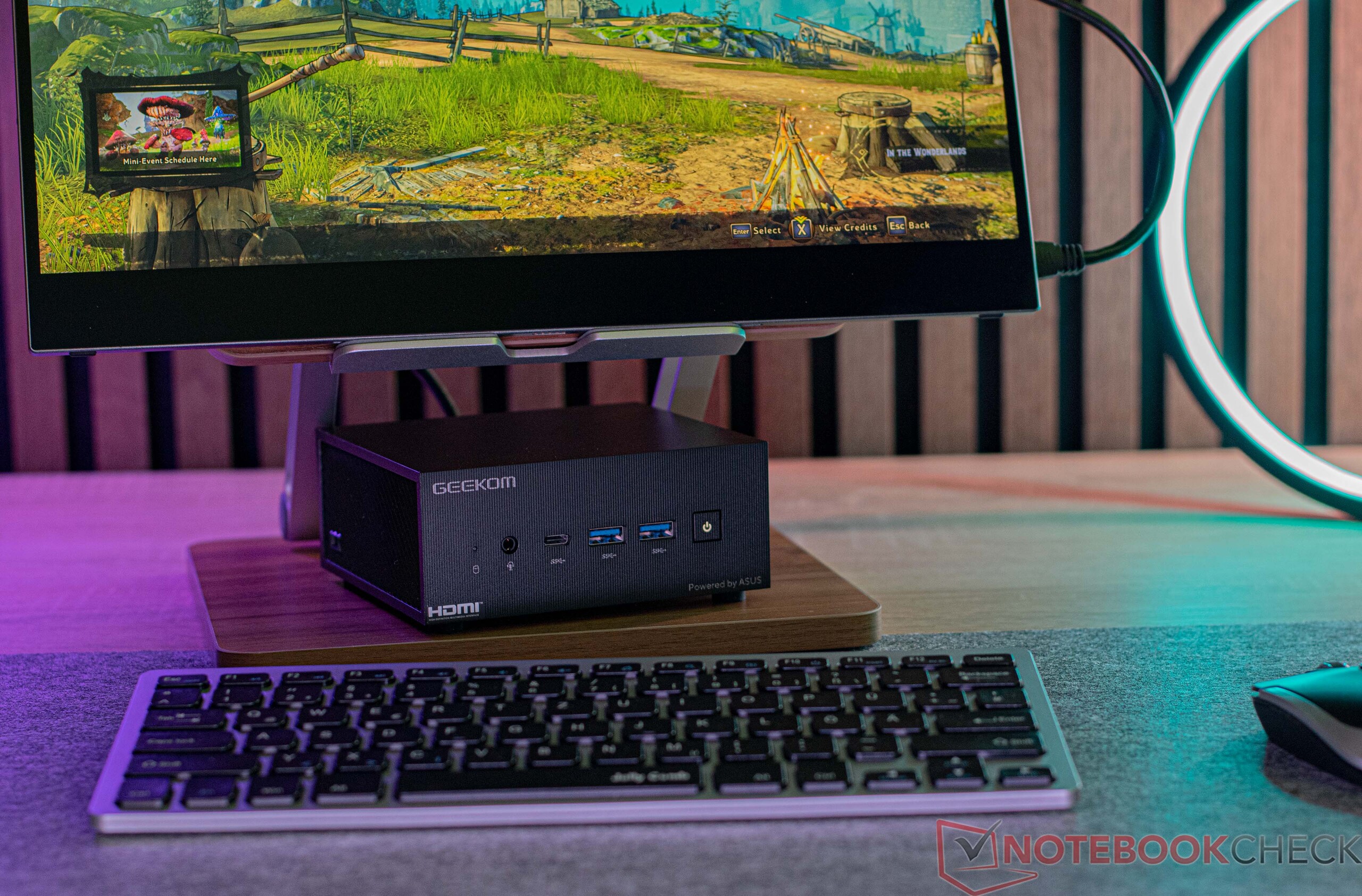

Som många andra mini-PC kan Geekom AS 5 också fästas på en bildskärm med det medföljande VESA-fästet.

Storleksjämförelse

Minisforum Neptune Series NAD9 Geekom AS 5 Morefine M600, 6900HX Morefine M600, 6600U Minisforum Venus Series NAB6 Geekom Mini IT12 Intel NUC 13 Pro Kit NUC13ANK DIN A4 ❌

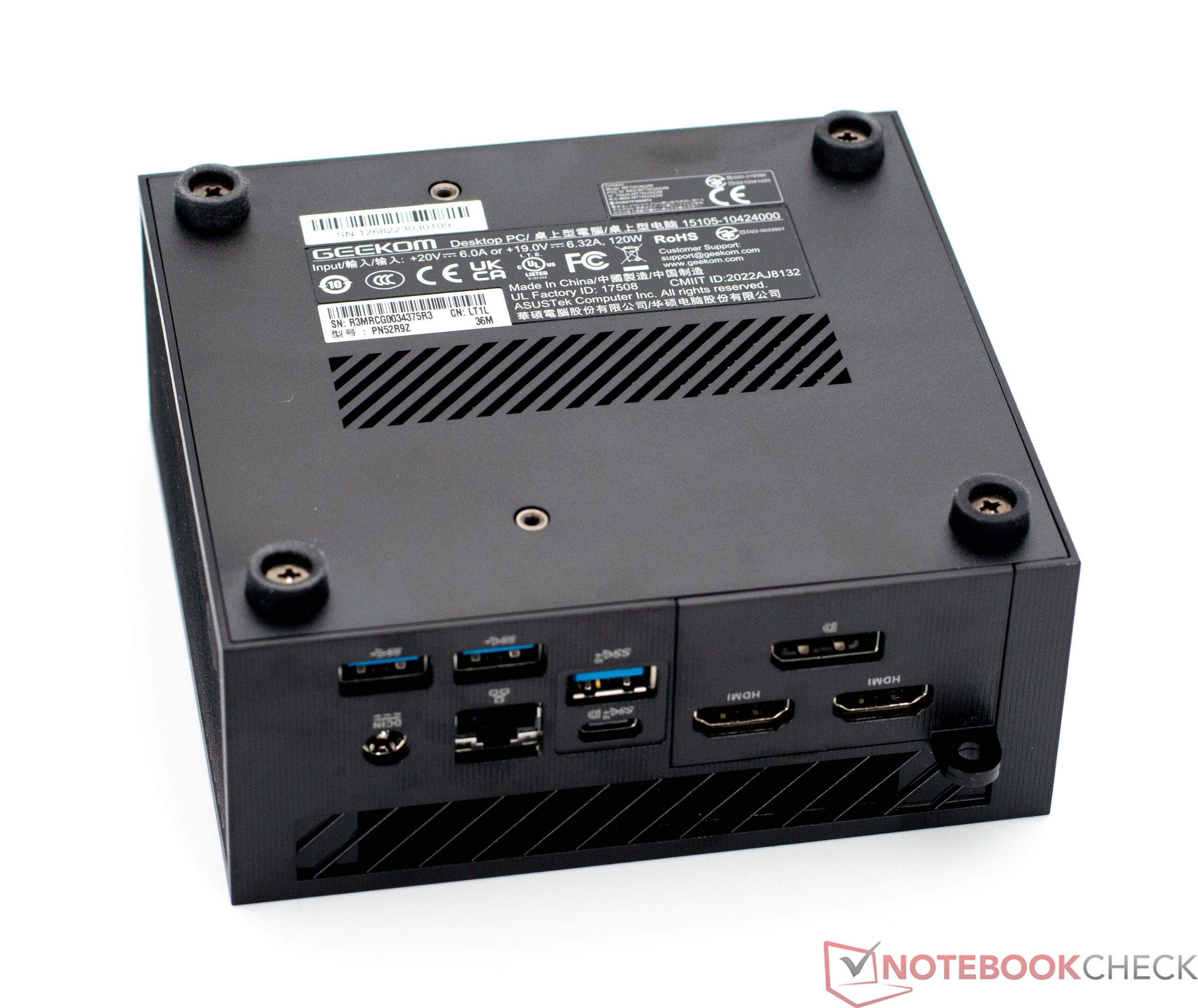

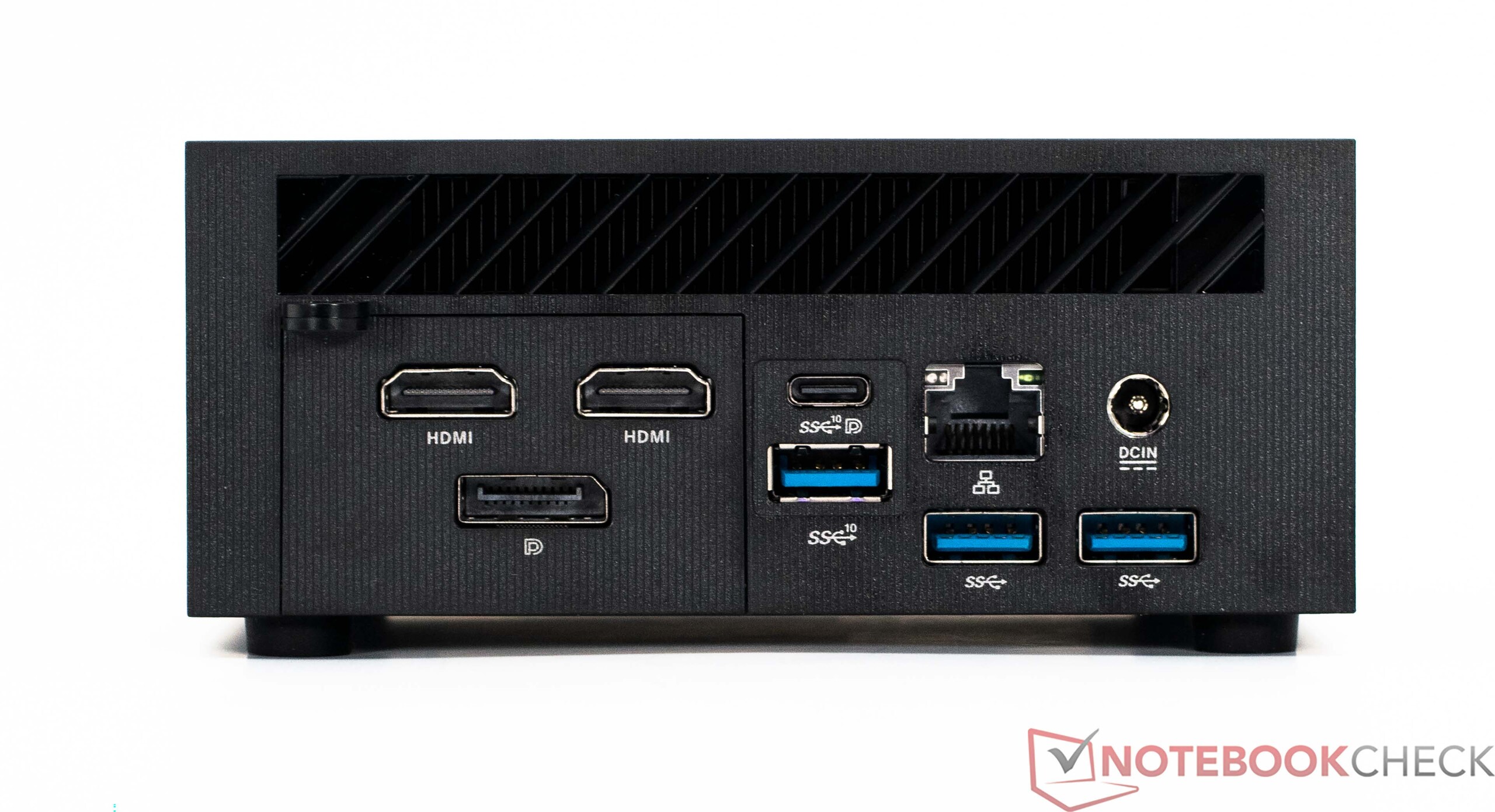

Funktioner

Trots sin storlek erbjuder den lilla Geekom AS 5 väldigt många gränssnittsalternativ. Alla portar finns på enhetens fram- och baksida. På båda sidor av min-PC:n finns generösa ventilationsöppningar som är utformade för att underlätta kylningen. Med sina sju USB-kontakter har vår testmodell av mini-PC några av de flesta portar som finns i en maskin av den här typen. Två av dem är dessutom utrustade med en typ-C-kontakt. AS 5 saknar dock stöd för Thunderbolt. Men den som vill ansluta många bildskärmar samtidigt kan lugnt ta Geekom AS 5 i handen eftersom vår testmodell enkelt kan hantera upp till fyra skärmar.

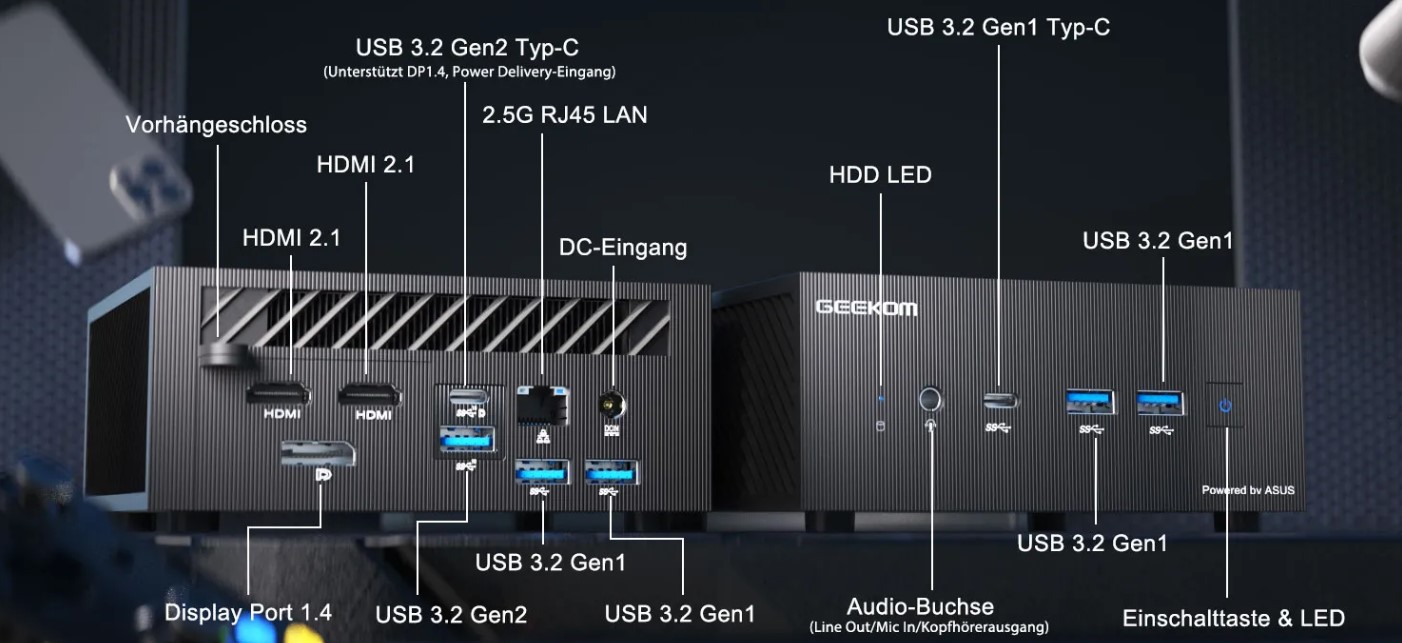

Geekom AS 5:s extrema portar (källa: Geekom)

Kommunikation

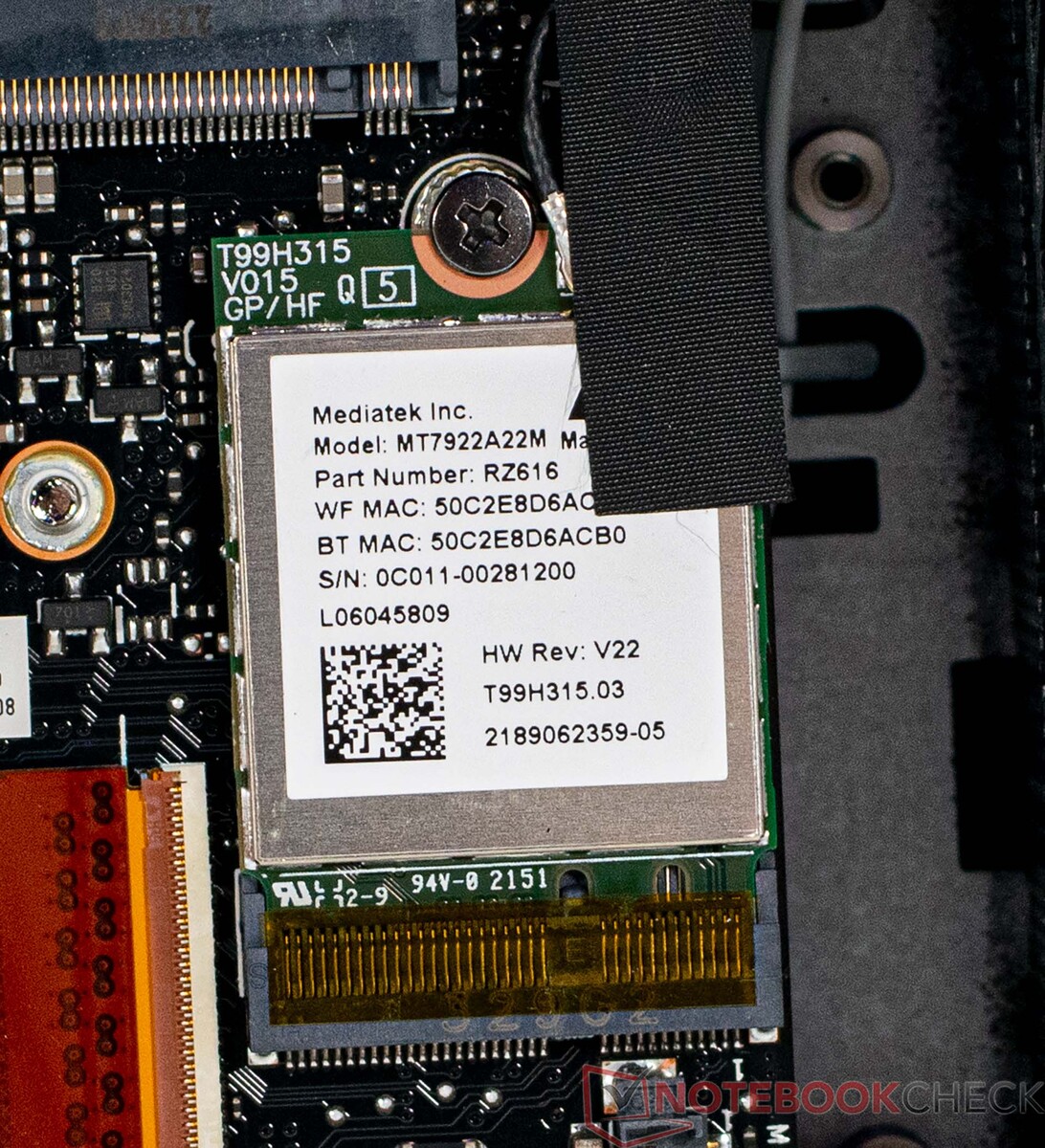

Geekom har utrustat sin AS 5 med en modern Wi-Fi 6E-modul från MediaTek. Det utbytbara M.2-kortet kan också hantera det snabba 6 GHz-bandet där betydligt högre dataöverföringshastigheter är möjliga än en anslutning med ditt vanliga 5 GHz-frekvensband. På det här området ligger vår testenhet inte bara före konkurrenterna utan lämnar dem också stående. Det ser inte lika ljust ut i tester med en 5 GHz-anslutning och vår Geekom AS 5 halkar ner till en låg placering i mitten av tabellen, bakom en stor del av konkurrenterna. Med undantag förMinisforum Neptune Series NAD9ligger konkurrenterna ganska tätt tillsammans. Som alltid använde vi vår testrouter för detta test - Asus ROG Rapture GT-AXE11000. Alternativt är det också möjligt att ansluta AS 5 till ett nätverk via en Ethernet-kontakt. Med upp till 2,5 Gbit/s är detta till och med snabbare än den trådlösa 6 GHz-anslutningen.

Networking
iperf3 receive AXE11000 6GHz
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1771 (1758^min - 1782^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s -6%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1519 (1392^min - 1699^max) MBit/s -14%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1771, n=39)	1433 MBit/s -19%
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s -22%
Morefine M600, 6600U MediaTek RZ608	957 (943^min - 967^max) MBit/s -46%
Minisforum Venus Series NAB6 MediaTek RZ608	791 (776^min - 799^max) MBit/s -55%
iperf3 transmit AXE11000 6GHz
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1764 (1647^min - 1826^max) MBit/s
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1622 (1561^min - 1670^max) MBit/s -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s -18%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1800, n=38)	1399 MBit/s -21%
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s -25%
Minisforum Venus Series NAB6 MediaTek RZ608	919 (853^min - 980^max) MBit/s -48%
Morefine M600, 6600U MediaTek RZ608	765 (718^min - 814^max) MBit/s -57%
iperf3 receive AXE11000
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (707 - 1775, n=55)	1397 MBit/s +61%
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +51%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +9%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +8%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s +7%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s +7%
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	870 (788^min - 885^max) MBit/s
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -10%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +58%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=55)	1279 MBit/s +53%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +15%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +10%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +3%
Geekom AS 5 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	838 (749^min - 923^max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -1%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -6%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -25%

Geekom AS 5; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1764 (1647-1826)

Geekom AS 5; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1771 (1758-1782)

Geekom AS 5; iperf3 receive AXE11000; iperf 3.1.3: Ø870 (788-885)

Geekom AS 5; iperf3 transmit AXE11000; iperf 3.1.3: Ø838 (749-923)

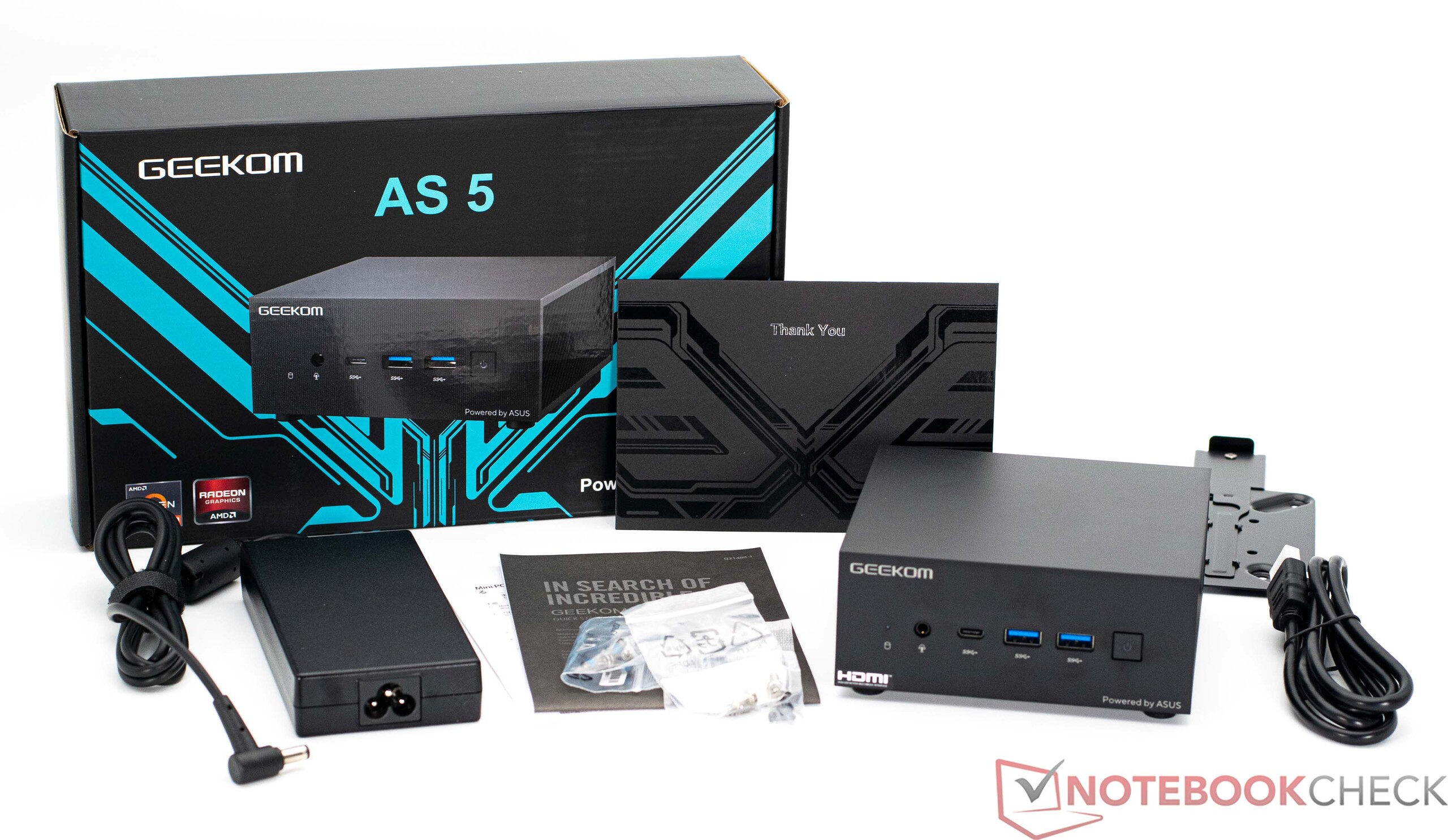

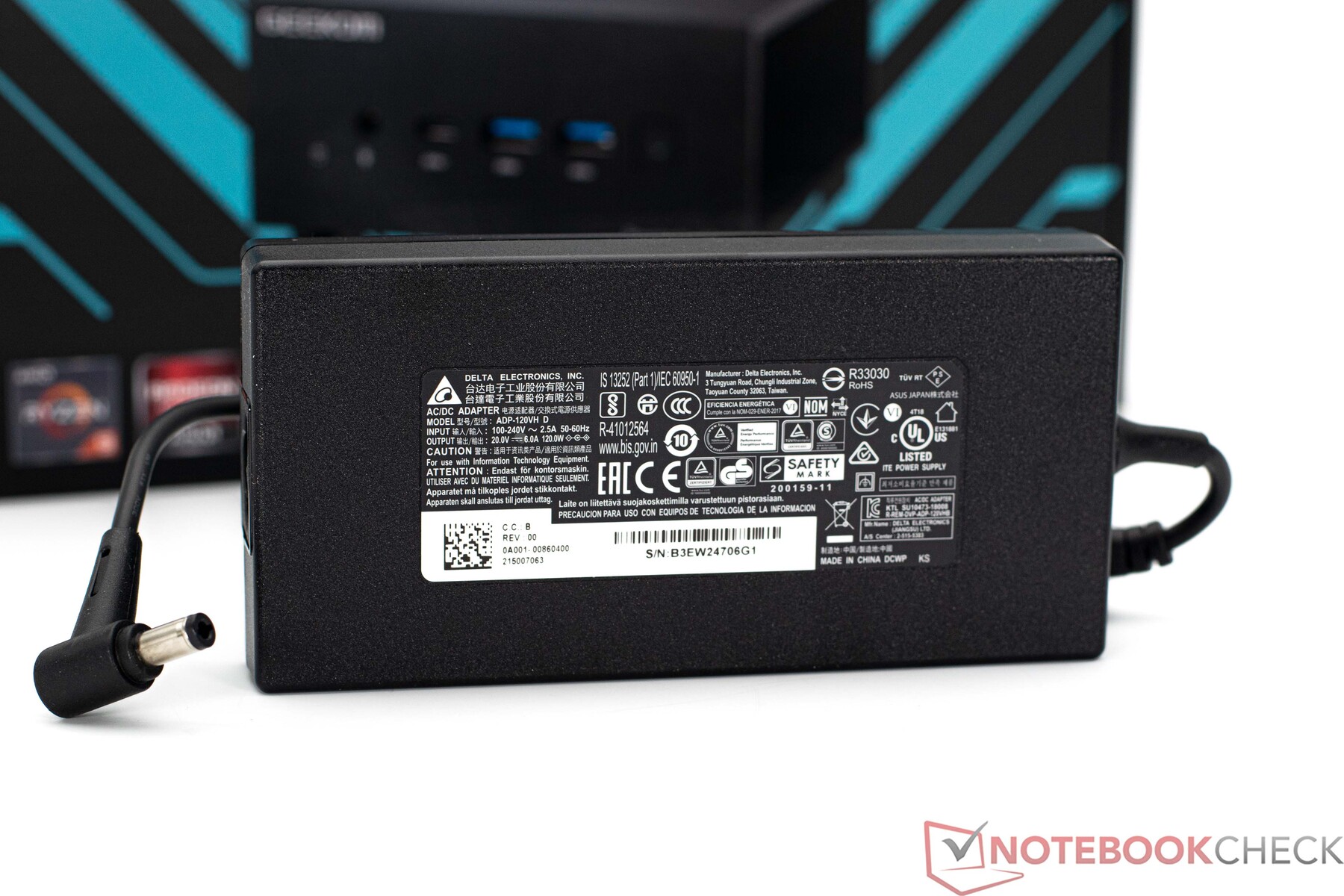

Tillbehör

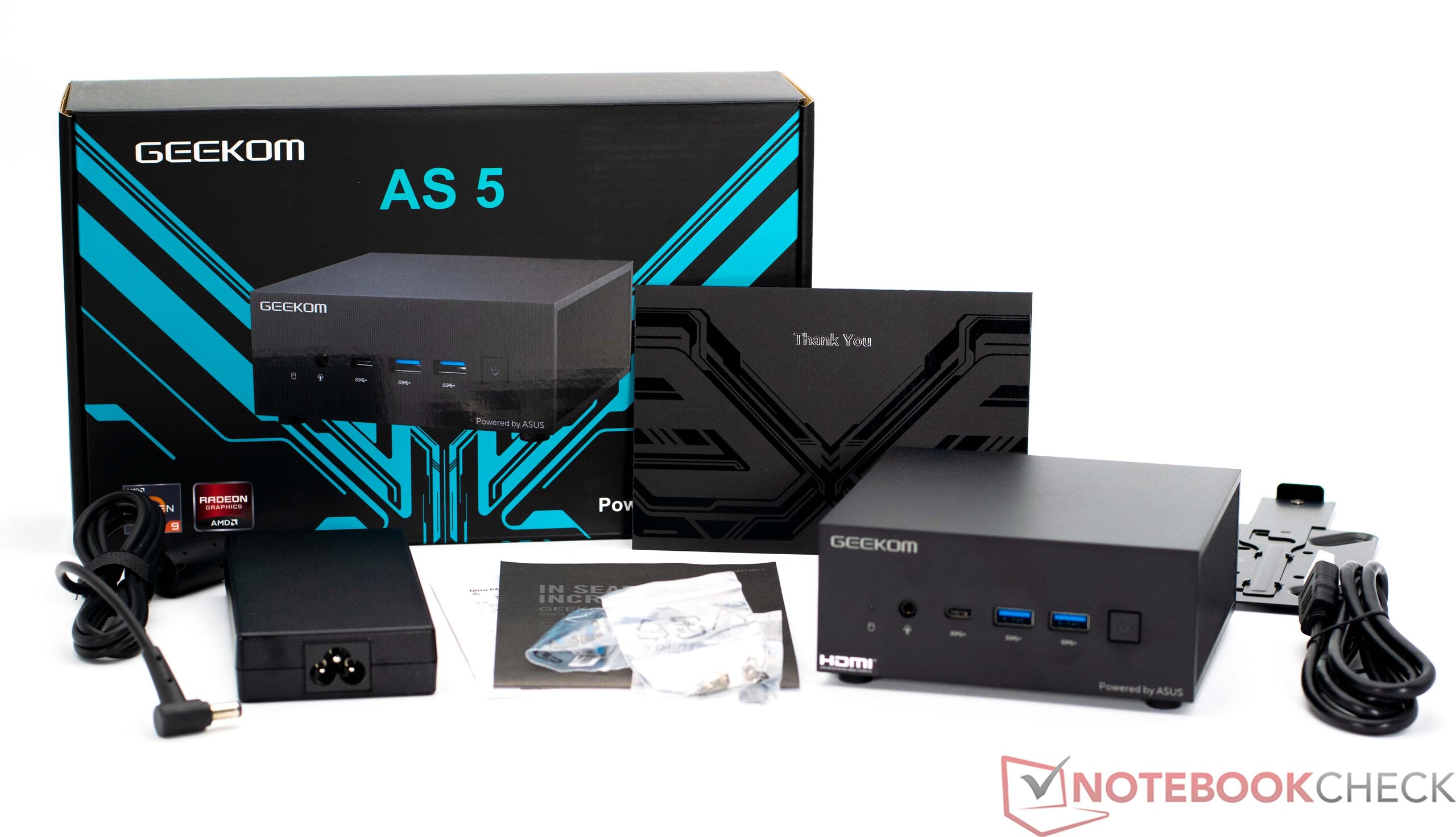

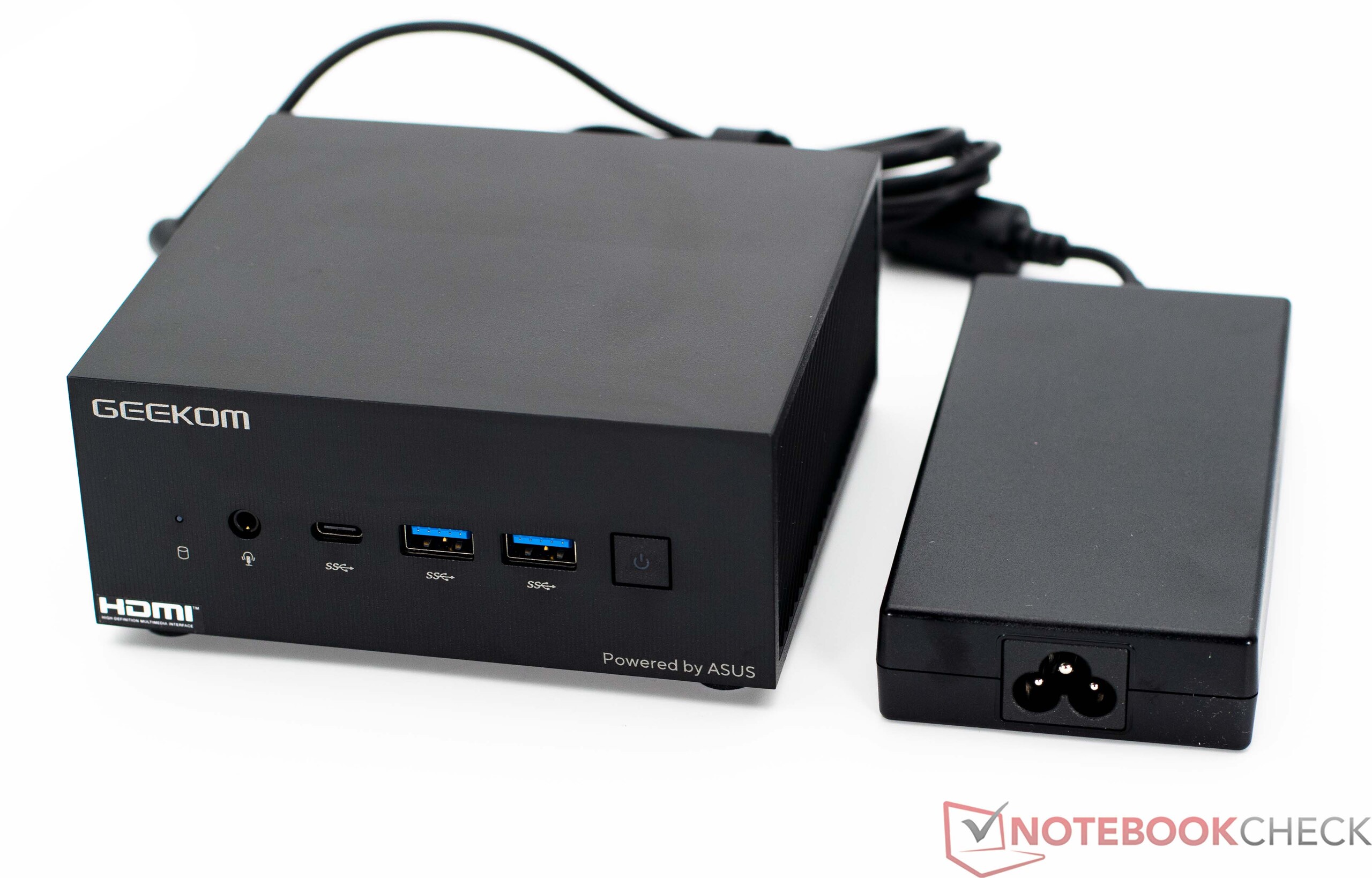

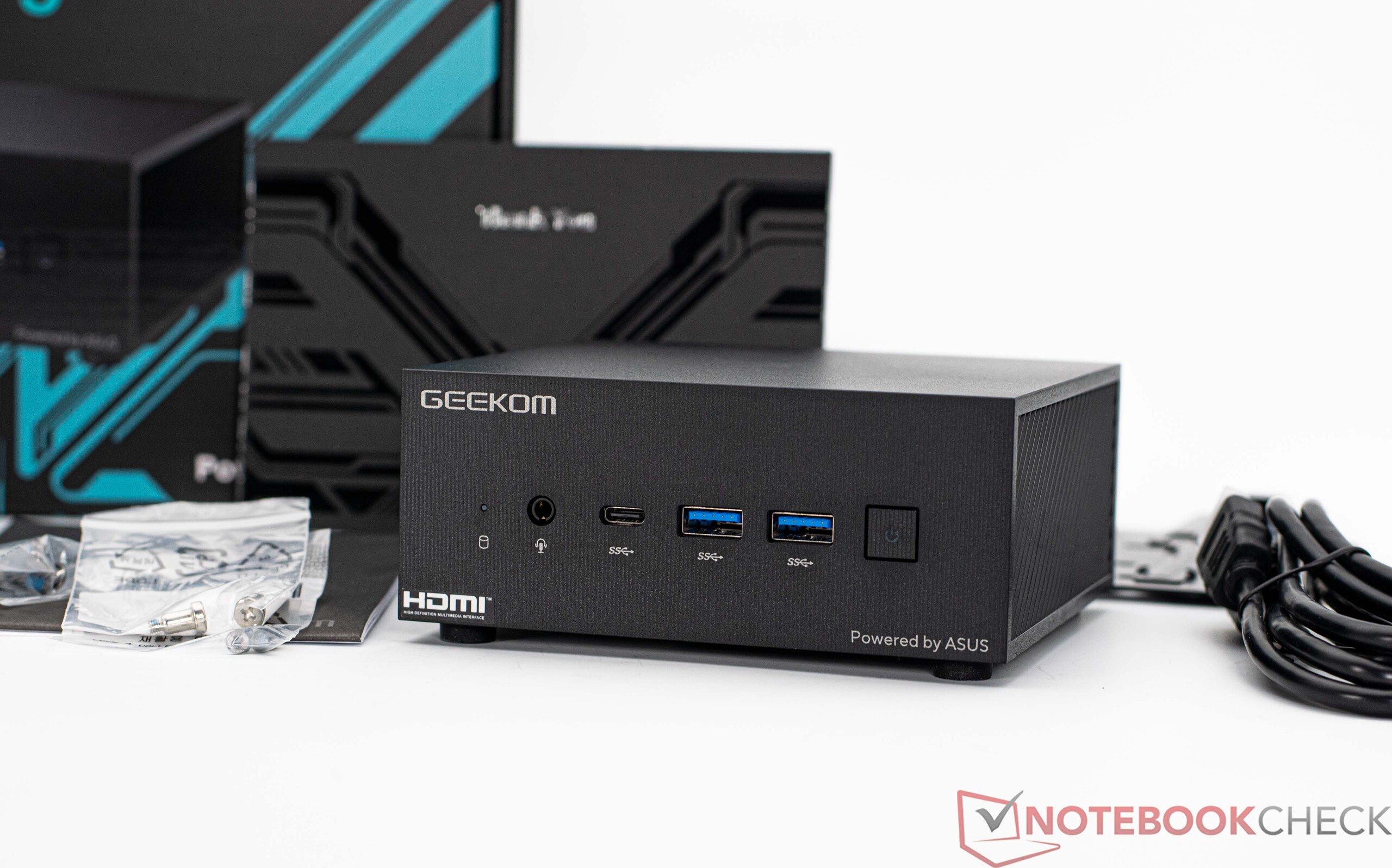

I förpackningen till Geekom AS 5 finns ett nätaggregat på 120 watt samt en monteringsplatta för montering på en bildskärm (VESA-montering), en HDMI-kabel, en snabbguide och några skruvar.

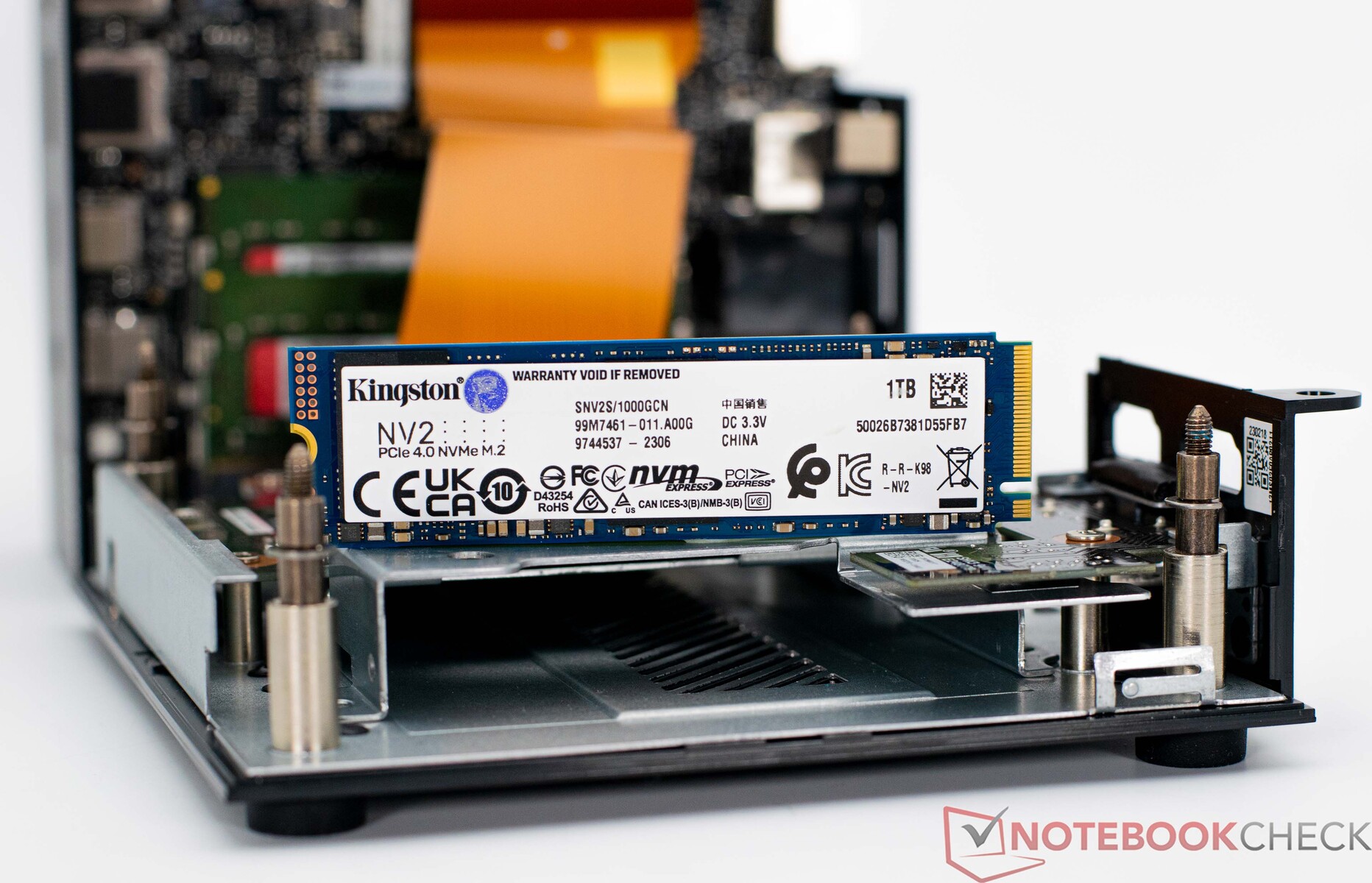

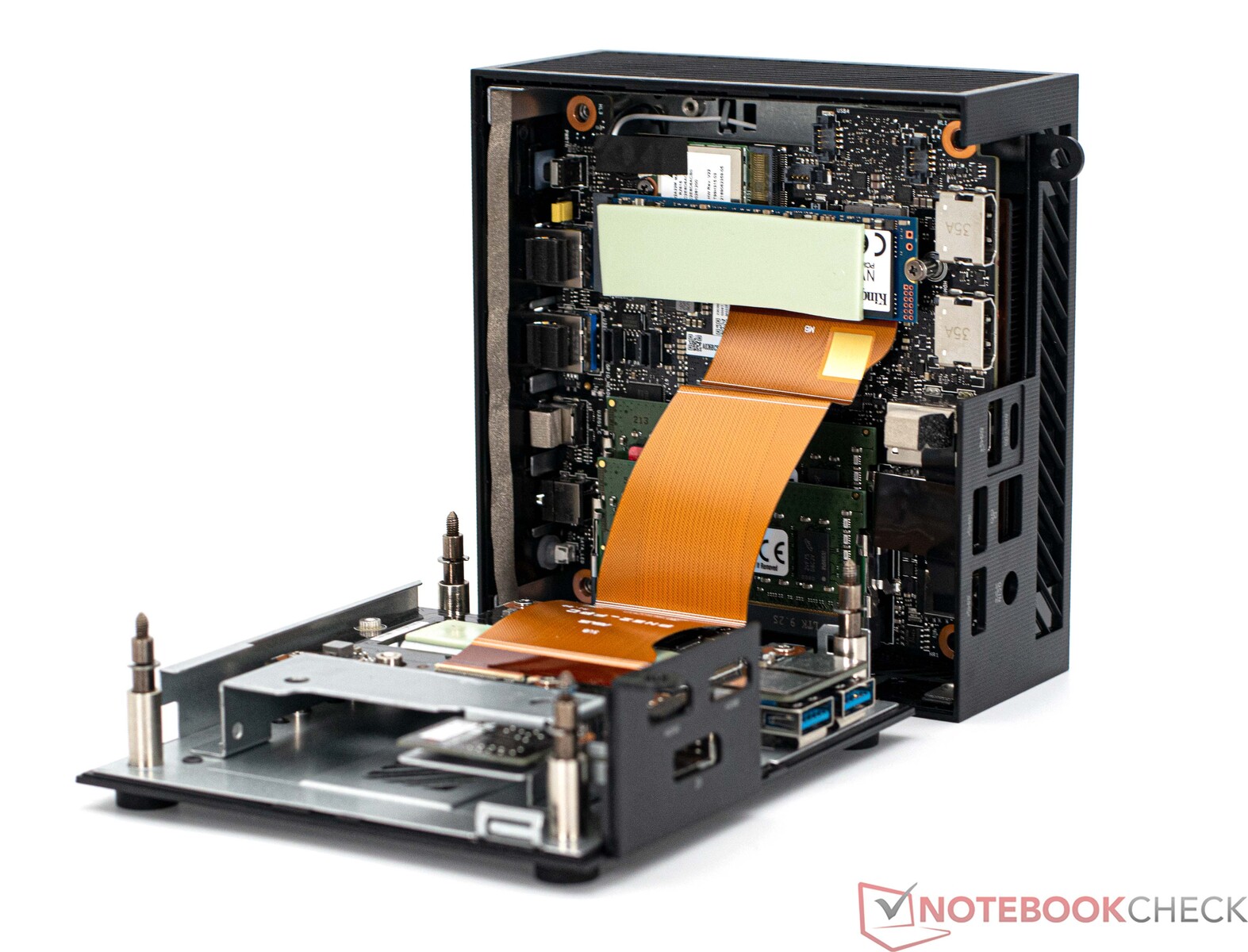

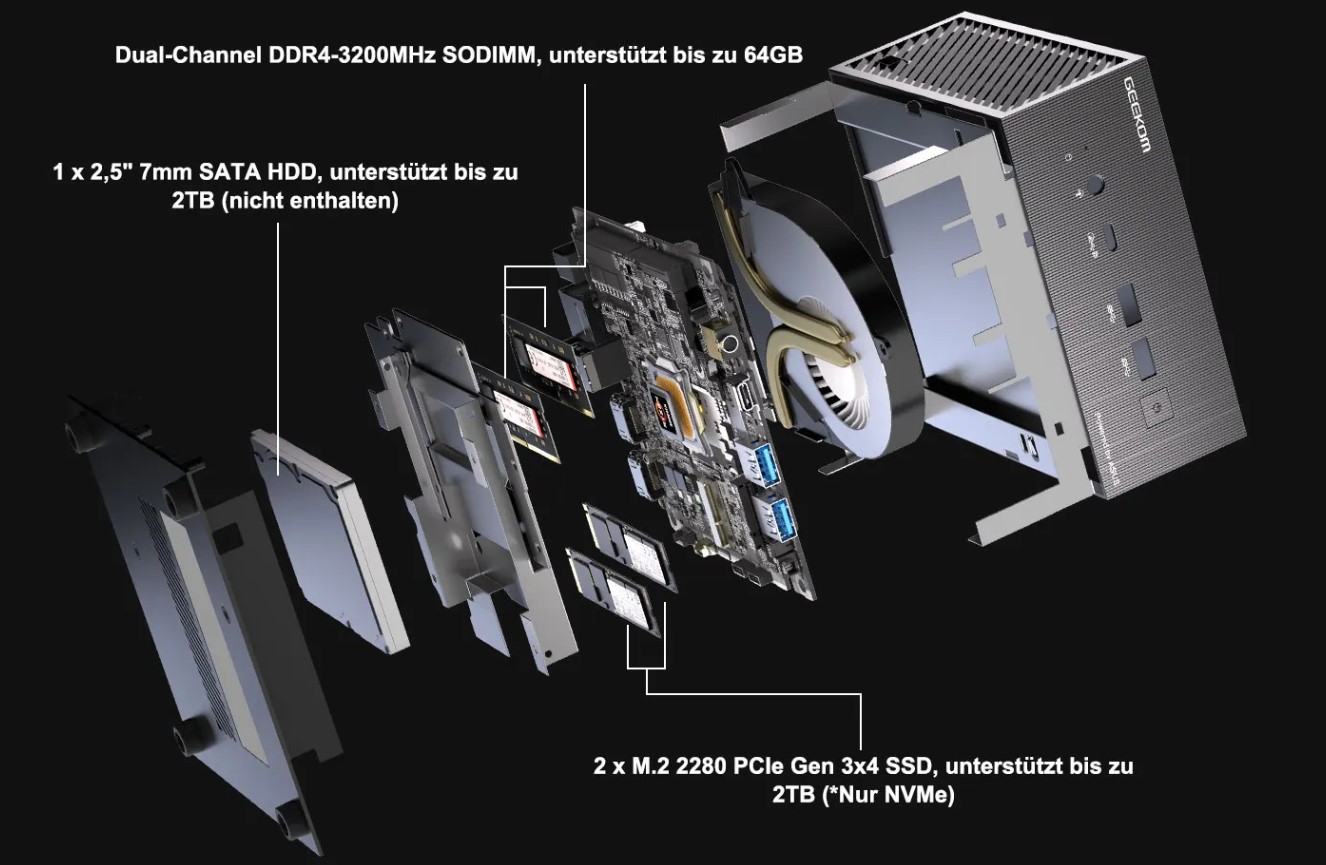

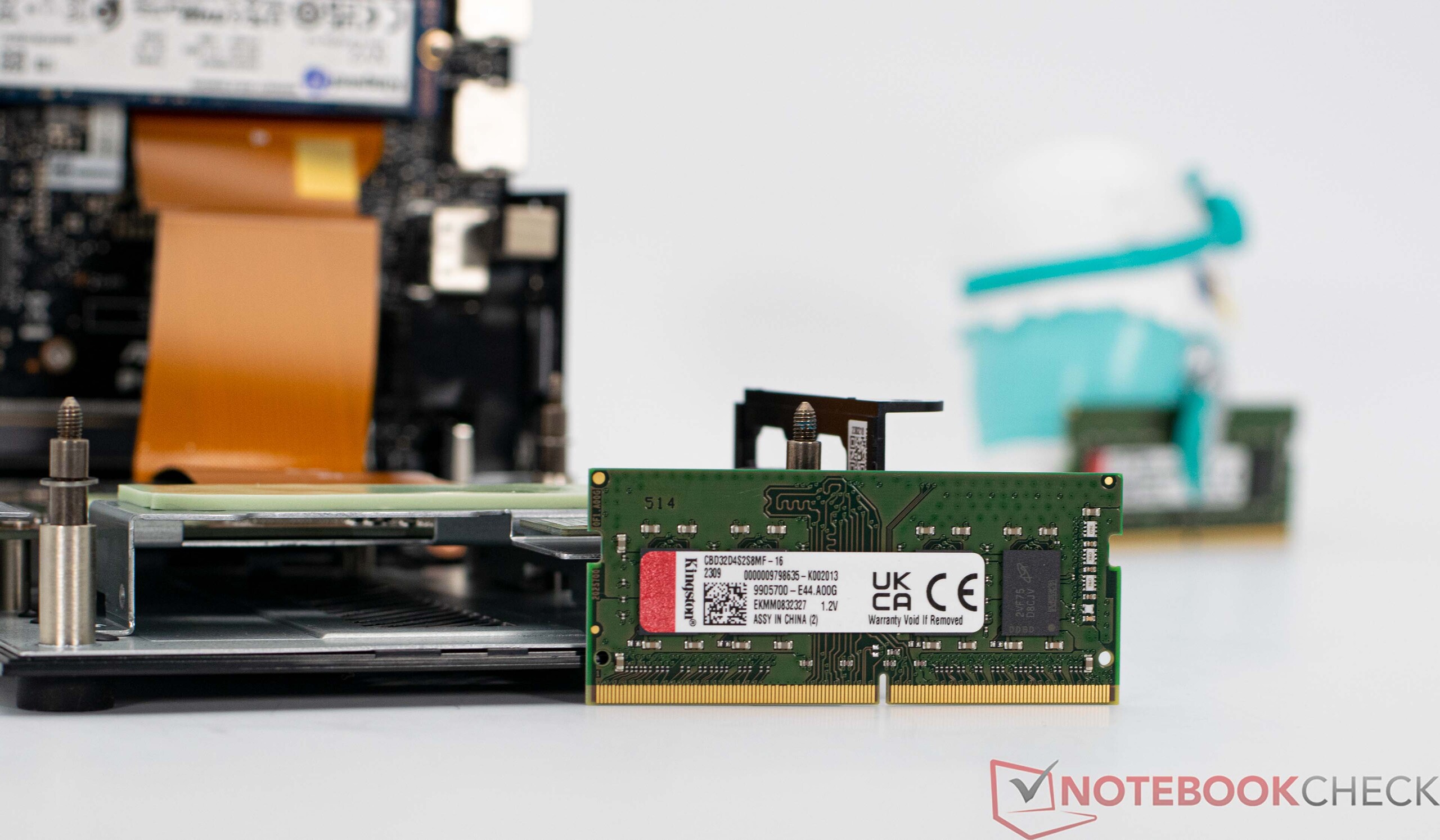

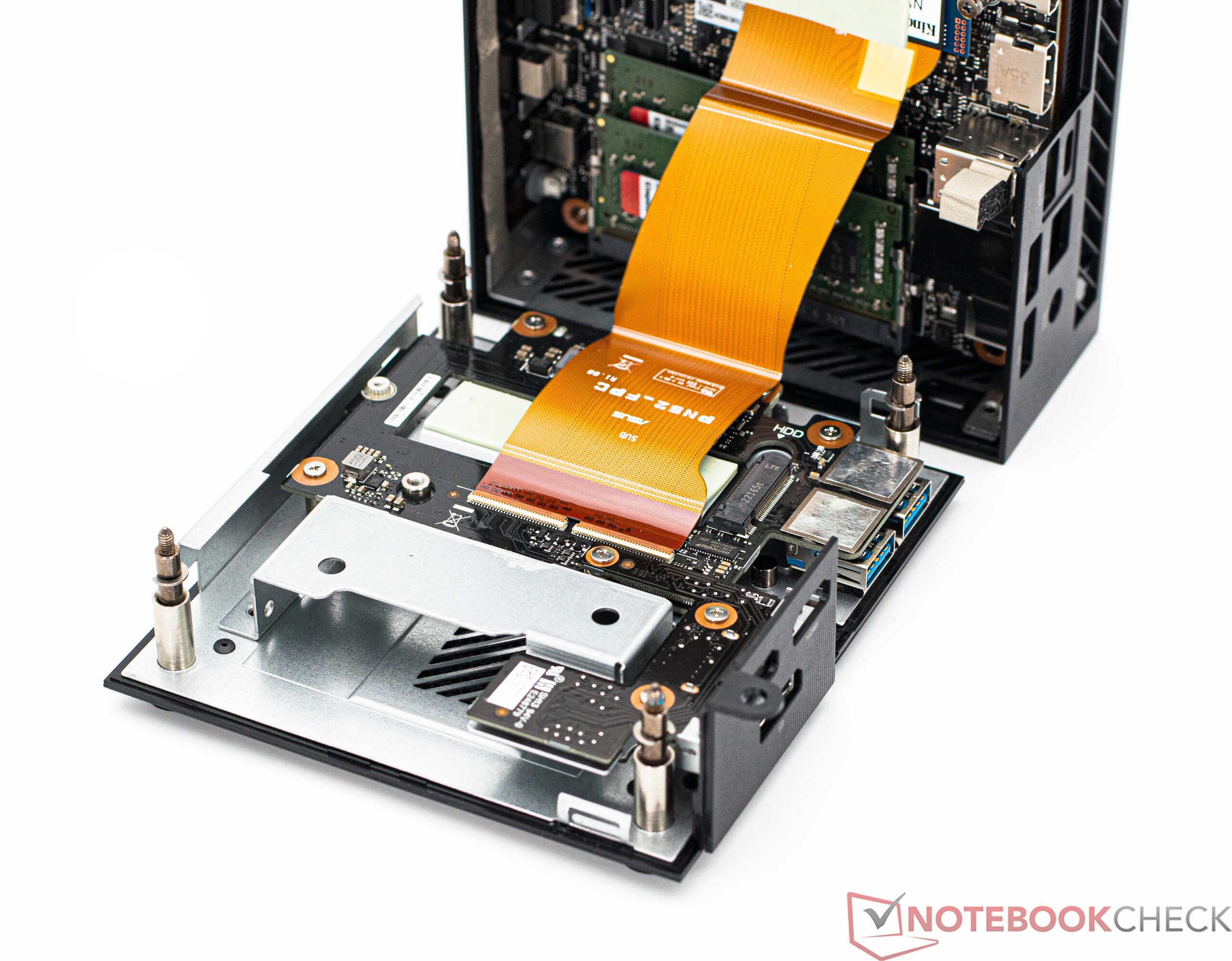

Underhåll

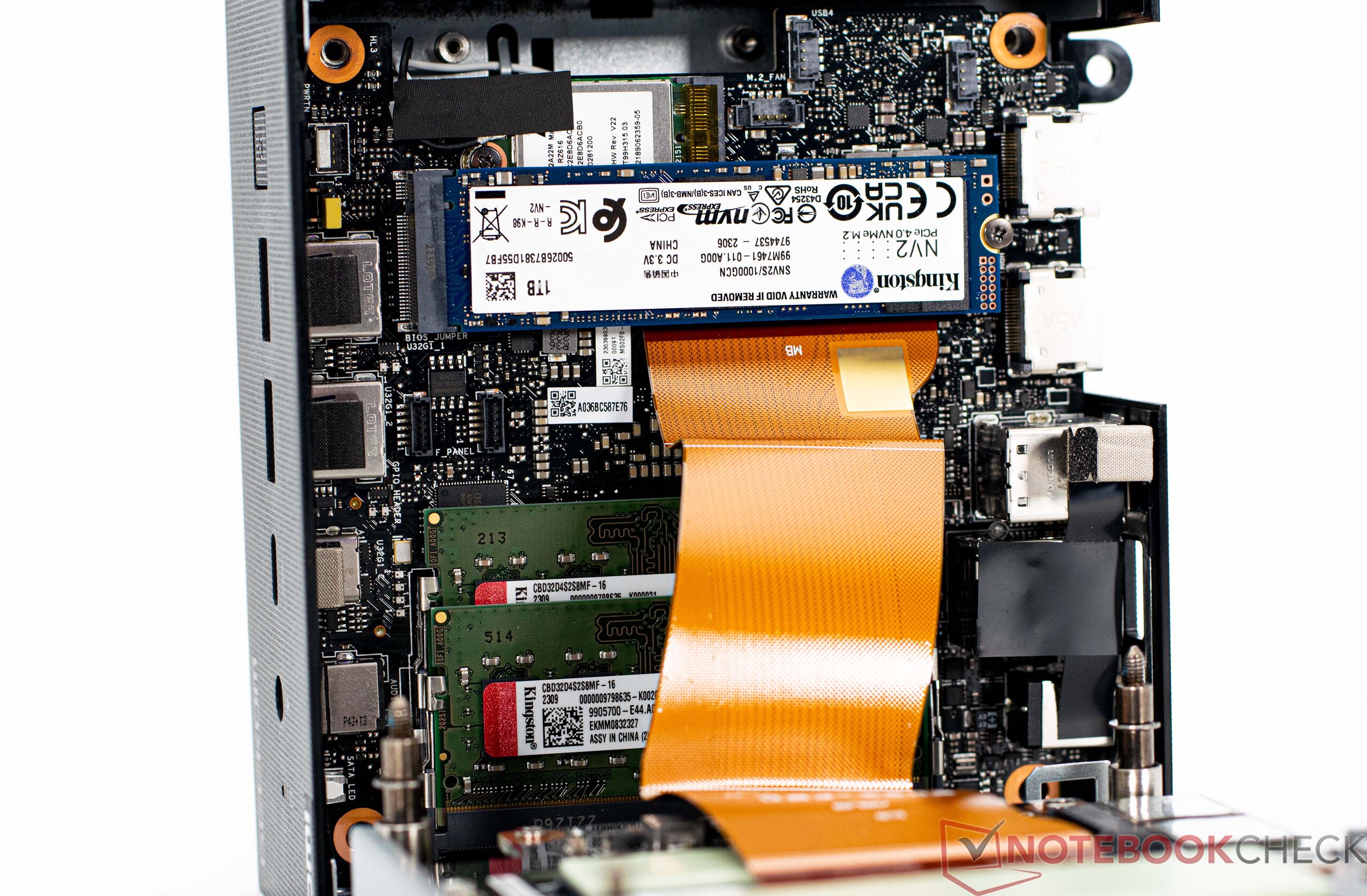

Geekom AS 5 kan öppnas via basen. De fyra skruvarna utgör en del av stativet och håller fast basen, tillsammans med några kommunikationsportar på ovansidan av en del av chassit. Det är inte svårt att ta bort bottenlocket, även om SSD-enhetens värmeplatta ger visst motstånd. I princip är det enkelt att komma åt de inbyggda komponenterna, som RAM-minne och SSD. Den som vill inspektera kylaggregatet måste dock demontera enheten lite mer. Du bör dock bara fortsätta med försiktighet för att undvika att skada Wi-Fi-antennens känsliga kablar.

Prestanda - En AMD Ryzen 9 5900HX i händelsernas centrum

Med AMD Ryzen 9 5900HX-baserade Geekom AS 5 får du mycket kraft i det minsta fotavtrycket. Med 32 GB RAM-minne och en 1 TB SSD är resten av specifikationerna också något att vara stolt över. Allt detta gör Geekom AS 5 perfekt utrustad för daglig kontorsanvändning och även mer krävande uppgifter som fotoredigering och enkel videoredigering är inget hinder för denna datortjänare.

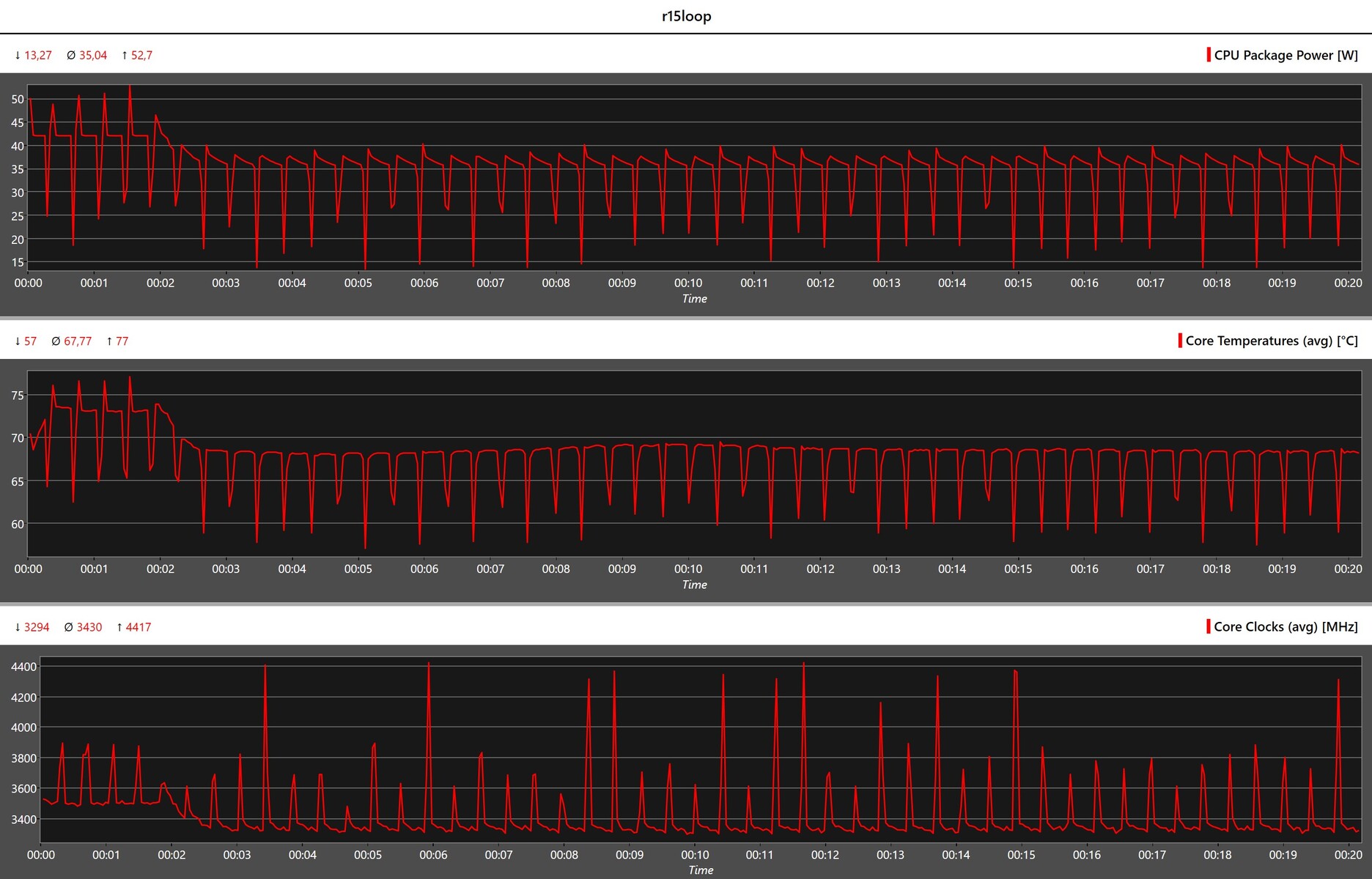

Testförhållanden

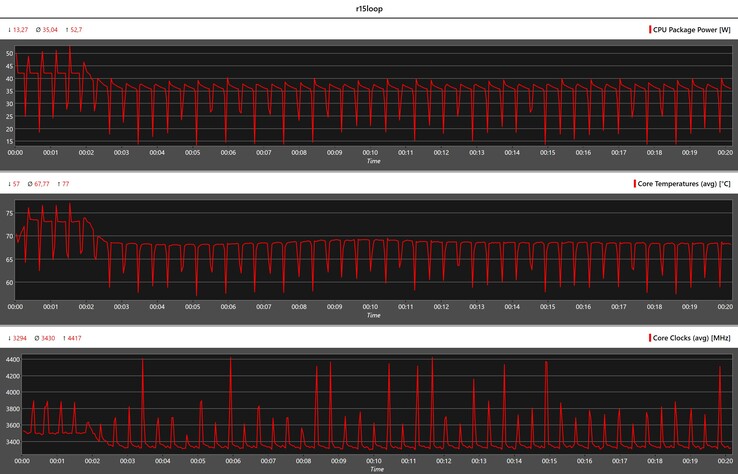

Alla prestandatester utfördes i läget Highest Performance. SoC:ns prestanda ändrades inte i BIOS utan lämnades i enlighet med tillverkarens fabriksinställningar.

Processor

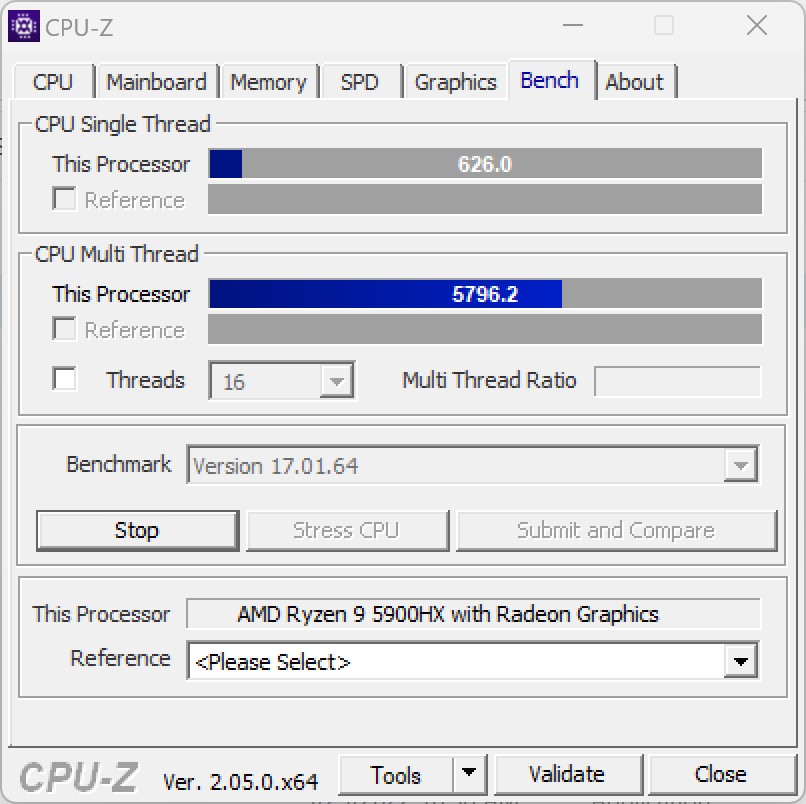

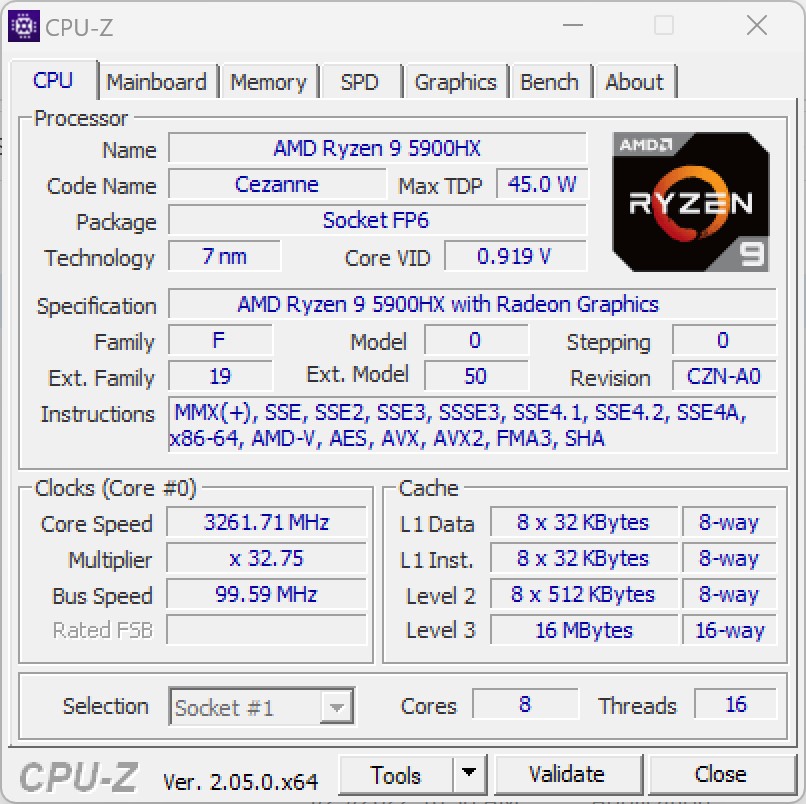

MedAMD Ryzen 9 5900HXerbjuder Geekom AS 5 en bra SoC med 8 kärnor och 16 trådar som dock inte längre tillhör de mest uppdaterade chipsen eftersom AMD redan har sin efterträdare på plats, denRyzen 9 6900HX- ett chip som vi kommer att ta en titt på i ett av våra kommande tester.

I nuvarande jämförelser klarade sig dock vår granskningsenhet relativt bra och ligger nära i hälarna på den nyare SoC-utrustade konkurrensen. Geekom stryper inte AMD Ryzen 9 5900HXs strömförbrukning vilket innebär att SoC arbetar vid 54 watt i turboläge och 35 watt under kontinuerlig belastning, i enlighet med tillverkarens påståenden. En av styrkorna hos den SoC som används här är dess flertrådsprestanda, men jämfört med konkurrenterna sjunker single-core-prestandan lite. Intel spelar i en annan liga här med sina nuvarande Raptor Lake P-processorer, vilket till exempel ses med Intel NUC 13 Pro. Även Morefine M600, som redan är utrustad med en AMD Ryzen 9 6900HX, kan inte göra något åt det.

Geekom AS 5 får dock förvånansvärt bra poäng när det gäller AIDA64-riktmärkena, där vår granskningsenhet till och med leder vägen och driver Morefine M600 till andra plats. I grund och botten ser vi AMD-baserade enheter som har tydliga fördelar. Intel verkar något missgynnad i detta avseende med Intel NUC 13 Pro som måste klara av att vara cirka 19 procent bakom sin AMD-kusin.

Ytterligare jämförelser och riktmärken finns i vårJämförelsetabell för processorer.

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	50.8 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	49.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	49.6 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.9 pt
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	47.5 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.5 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	43.4 pt

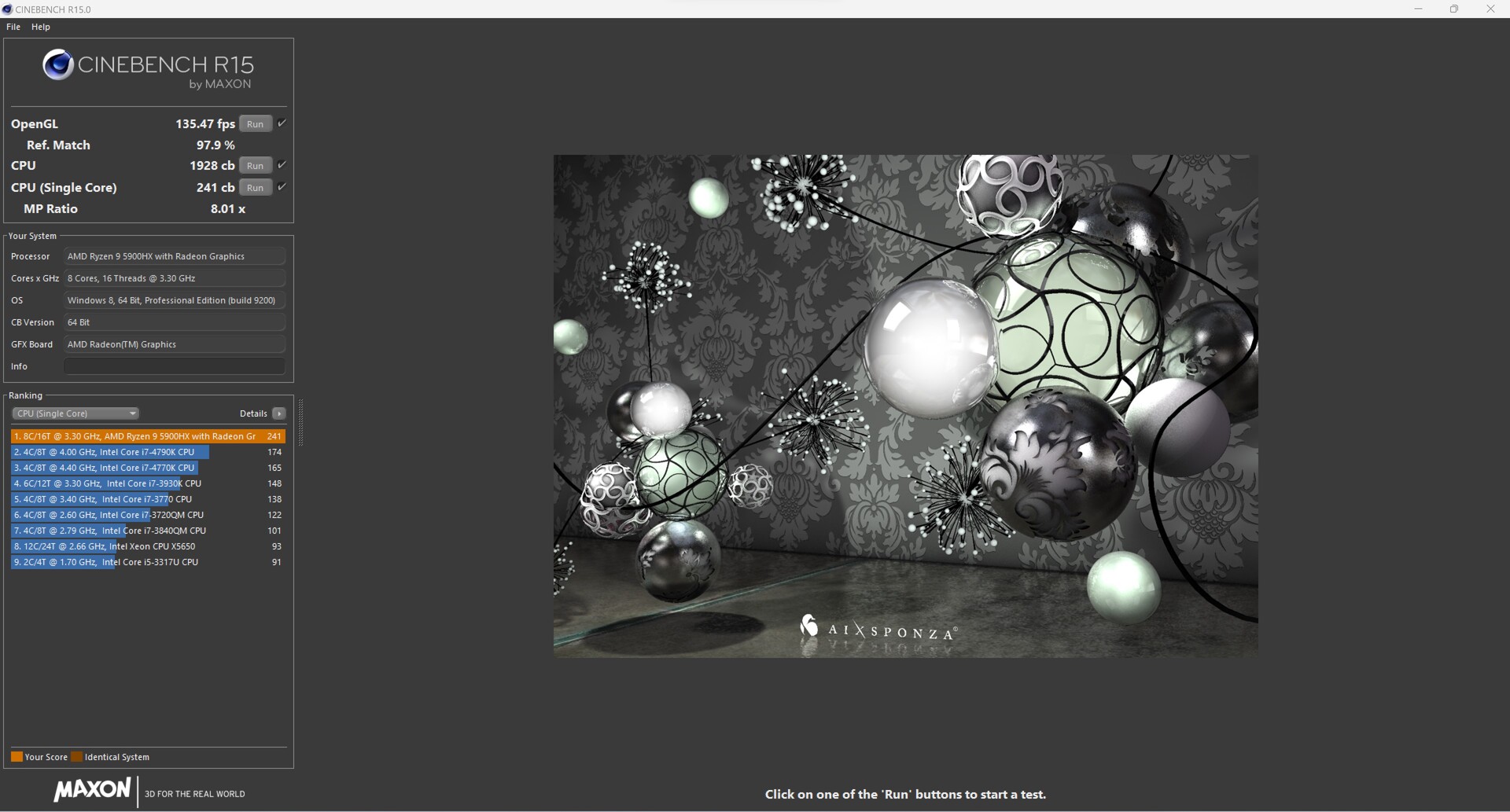

Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points +12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points +1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points 0%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	241 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -6%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points +5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1928 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -19%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points -29%

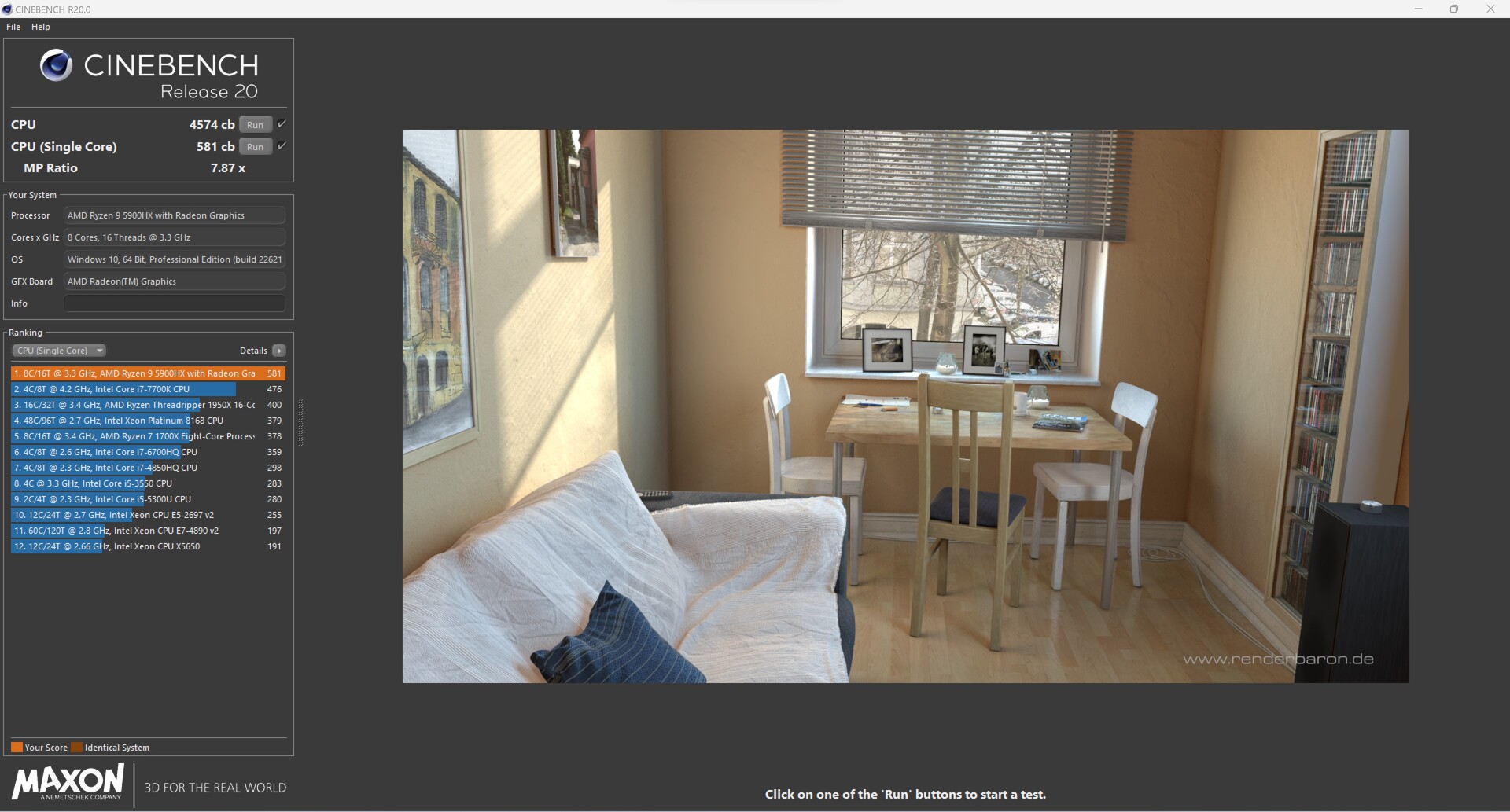

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +27%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	581 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -4%
CPU (Multi Core)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	4574 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points -25%

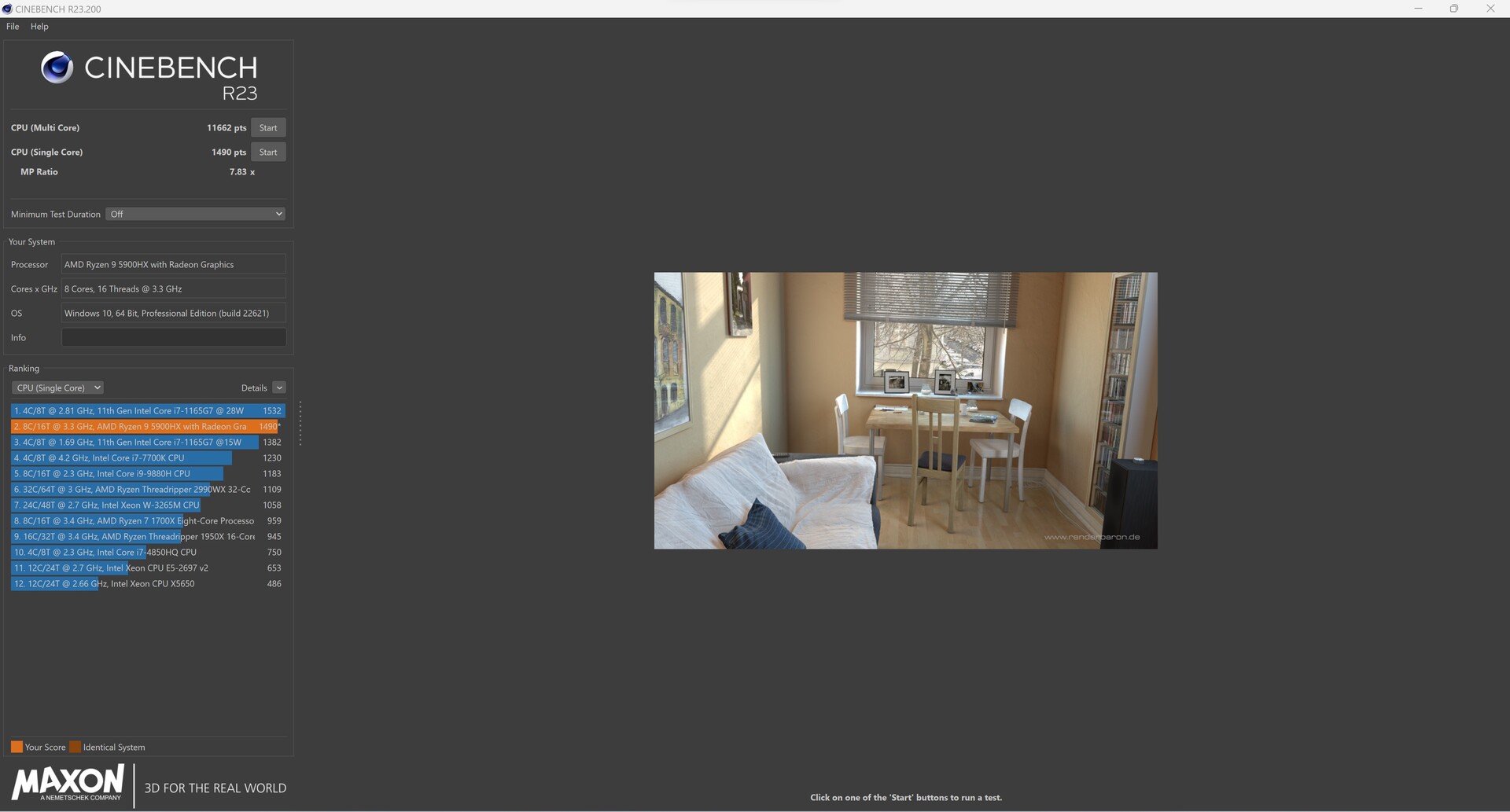

Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1909 Points +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1743 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1693 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1533 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1490 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1420 Points -5%
Multi Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	13320 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12637 Points +8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12375 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points +4%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	11662 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8846 Points -24%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	8491 Points -27%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points +1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	2.84 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points -4%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +4%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	22.78 Points
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points -25%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points +29%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +21%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	12025 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points -3%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points +15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	66904 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points -18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -19%

Blender - v2.79 BMW27 CPU
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * -60%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * -5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	260 Seconds *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +11%

wPrime 2.10
32m
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * -31%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * -25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * -4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * -2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	3.58 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +4%
1024m
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * -297%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * -168%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * -130%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -83%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * -42%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	103.299 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * -0%

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +14%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	274 (272^min - 279^max) fps
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -11%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -23%
Pass 2
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	112.45 (112.3^min - 114.9^max) fps
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -31%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -36%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +38%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	6599 KB/s
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s -13%

TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	12.3 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s -15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s -24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -30%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s +38%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +25%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s -19%
Serpent Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s -22%

Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points +20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +6%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8826 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points -13%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +12%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1574 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -4%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +4%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8750 Points
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +21%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points +3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	1517 Points

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +22%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +17%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points +2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points +2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	6591 Points
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points +16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +2%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	34237 Points

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points +8%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	16684 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -22%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -30%

7-Zip 18.03
7z b 4
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	50673 MIPS
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS -13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -26%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS +5%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	5653 MIPS
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS -3%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +3%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	15 fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -33%

R Benchmark 2.5 - Overall mean
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * -1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	0.506 sec *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * +12%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -6%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	50.1 s *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * +4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +24%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points +2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	285 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points -4%

Mozilla Kraken 1.1 - Total
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -1%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	601 ms *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +4%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * +18%

3DMark
3840x2160 Fire Strike Ultra Physics
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	23977 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points -11%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points -16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points -22%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -34%
1920x1080 Fire Strike Physics
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	24427 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points -8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points -12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -32%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -35%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points +8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +6%
Geekom AS 5 AMD Ryzen 9 5900HX, 3300 MHz	8653 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -41%

* ... smaller is better

Performance Rating
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	95.5 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	93.2 pt
Average of class Mini PC	81.5 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	80.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	76.9 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	75.3 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	67.9 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	61.7 pt

AIDA64 / FP32 Ray-Trace
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s 0%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	13746 KRay/s
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s -21%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -42%

AIDA64 / FPU Julia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +1%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	86566 Points
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points -28%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points -31%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -36%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -36%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points -37%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -54%

AIDA64 / CPU SHA3
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	2980 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s -2%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s -21%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -33%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -33%

AIDA64 / CPU Queen
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	100712 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points -14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points -18%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -23%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points -25%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -27%

AIDA64 / FPU SinJulia
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +3%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	12082 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points -28%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points -29%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points -38%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -40%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -54%

AIDA64 / FPU Mandel
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	47652 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points -6%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points -31%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points -32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -41%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -42%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points -44%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -58%

AIDA64 / CPU AES
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	117773 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s -21%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s -28%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -37%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -52%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -66%

AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +8%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	750 MB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -2%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s -5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s -10%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -23%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -29%

AIDA64 / FP64 Ray-Trace
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	7289 KRay/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s 0%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -21%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s -21%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -43%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +51%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s +47%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s +42%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s +42%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s +41%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +39%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s +23%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	19749 MPixel/s

Geekom AS 5 vs. Cinebench R15-Multi-Loop

Med Cinebench R15 continuous loop utvärderade vi SoC:ns beteende under belastning, över en längre tidsperiod. Geekom AS 5 hanterade de 50 körningarna relativt bra, även om vi registrerade en liten prestandaförlust efter den 20:e körningen.

CPU-mätvärden under Cinebench R15-loopen

Geekom AS 5 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1896 (1822.41-1994.52)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Systemets prestanda

Systemets prestanda i syntetiska riktmärken är solida. I PCMark 10 uppnådde vår Geekom AS 5 ett utmärkt resultat och placerade sig på andra plats. Trenden som sågs i Crossmark och RAM-riktmärkena fortsatte dock inte. I detta område halkade vår granskningsmodell till och med ner till sista plats eftersom de Intel-baserade systemen är något bättre lämpade för Crossmark-testet. Geekom AS 5 kämpar för att hålla jämna steg med DDR5-system när det gäller RAM-benchmarks på grund av att de bara har DDR4. Trots detta kan vi med säkerhet säga att inget av detta kommer att märkas i daglig användning.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +3%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	6430 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points -2%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -4%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points -6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points -9%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -12%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points +8%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +5%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	10702 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -3%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -5%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -8%

PCMark 10 / Productivity
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	10120 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points -11%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points -19%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points -22%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -24%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -27%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +35%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +34%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points +29%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +24%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points +8%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +8%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1402 Points

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +98%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +94%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +62%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points +48%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points +16%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points +16%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1068 Points

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points +27%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +17%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +16%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +13%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points +6%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +6%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1553 Points

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +39%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +35%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points +25%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +25%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points +7%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points +7%
Geekom AS 5, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston NV2 1000GB SNV2S/1000G	1387 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +21%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s +16%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s +8%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s +8%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	41434 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -15%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +8%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +5%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +3%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s +1%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	47137 MB/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -19%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +28%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s +27%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s +9%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s +7%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	43042 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -13%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -27%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -22%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * -17%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -16%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * -5%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -2%
Geekom AS 5 AMD Ryzen 9 5900HX, Vega 8	78.9 ns *

* ... smaller is better

DPC-fördröjningar

Inledningsvis var interaktionen mellan de inbyggda komponenterna bra och inte ansvarig för någon hög latens vid uppspelningen av vår 4K-testvideo. När det gäller iGPU observerade vi en relativt låg belastning på endast 10 procent. Latenserna ökade först efter lanseringen av Prime95, men trots detta lyckades vår granskningsenhet fortfarande säkra andraplatsen bland sina kamrater.

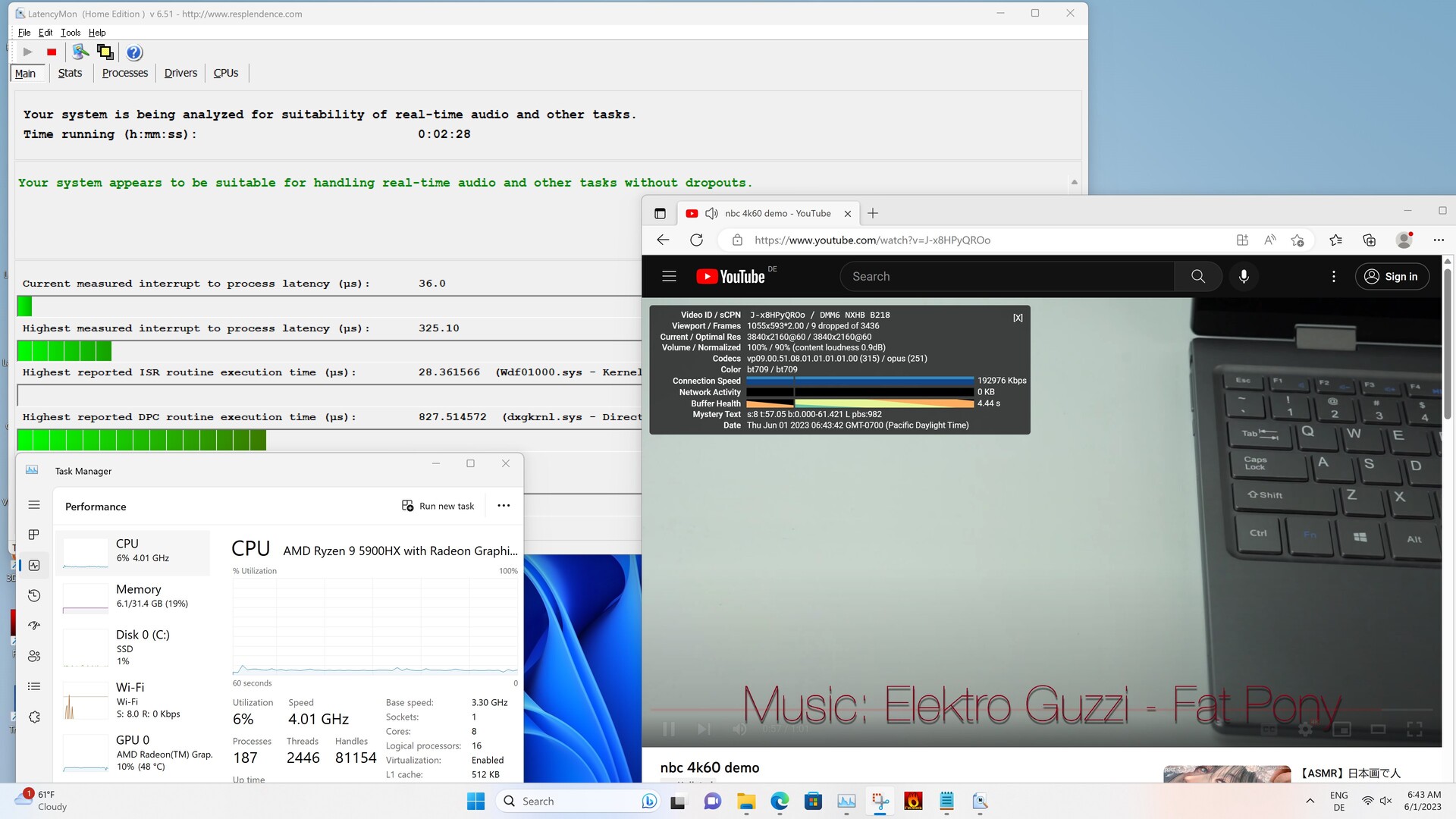

Maximal latens vid öppning av flera webbläsarflikar och uppspelning av 4K-videomaterial

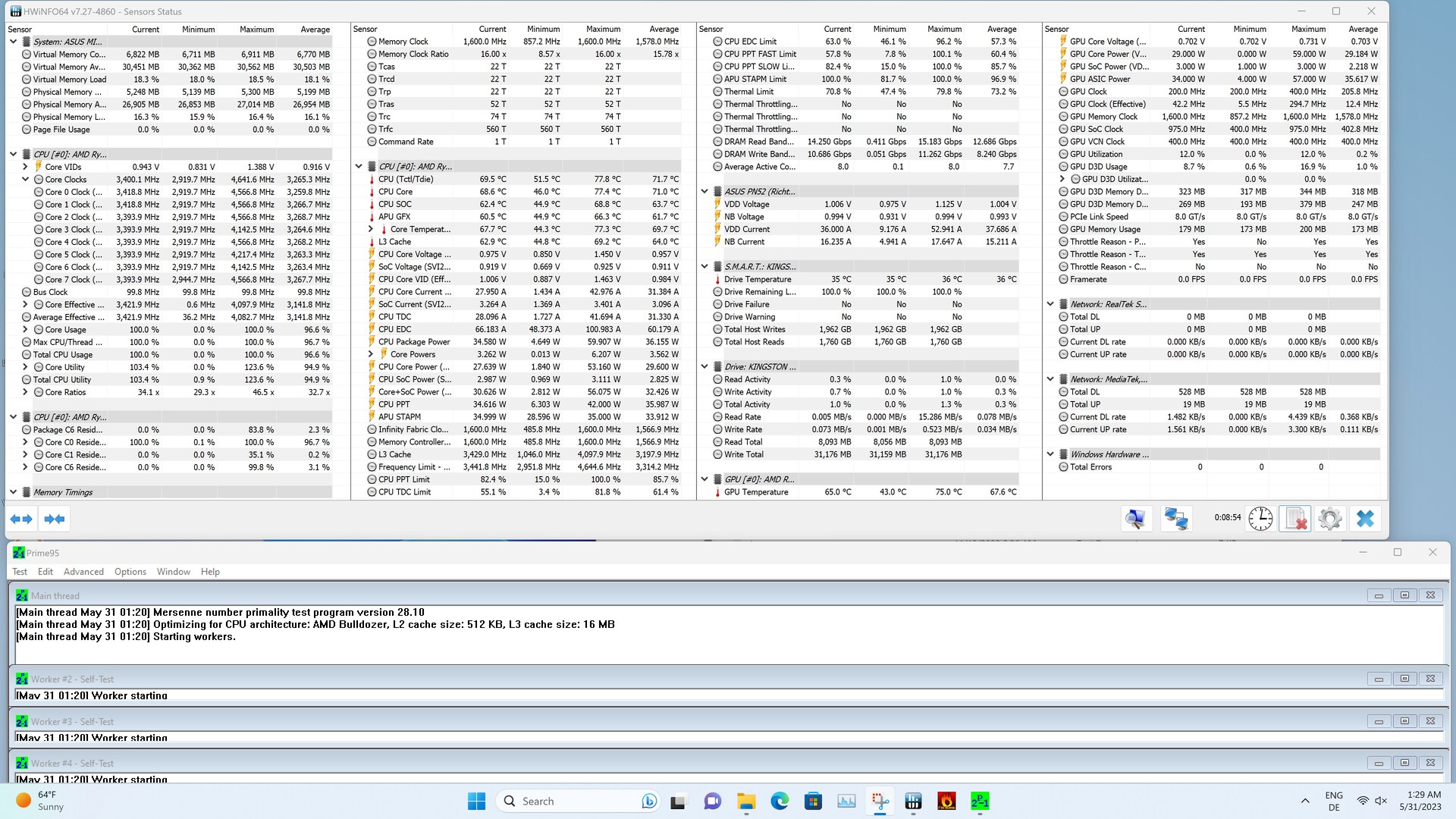

Maximal latens efter tio sekunder med Prime95

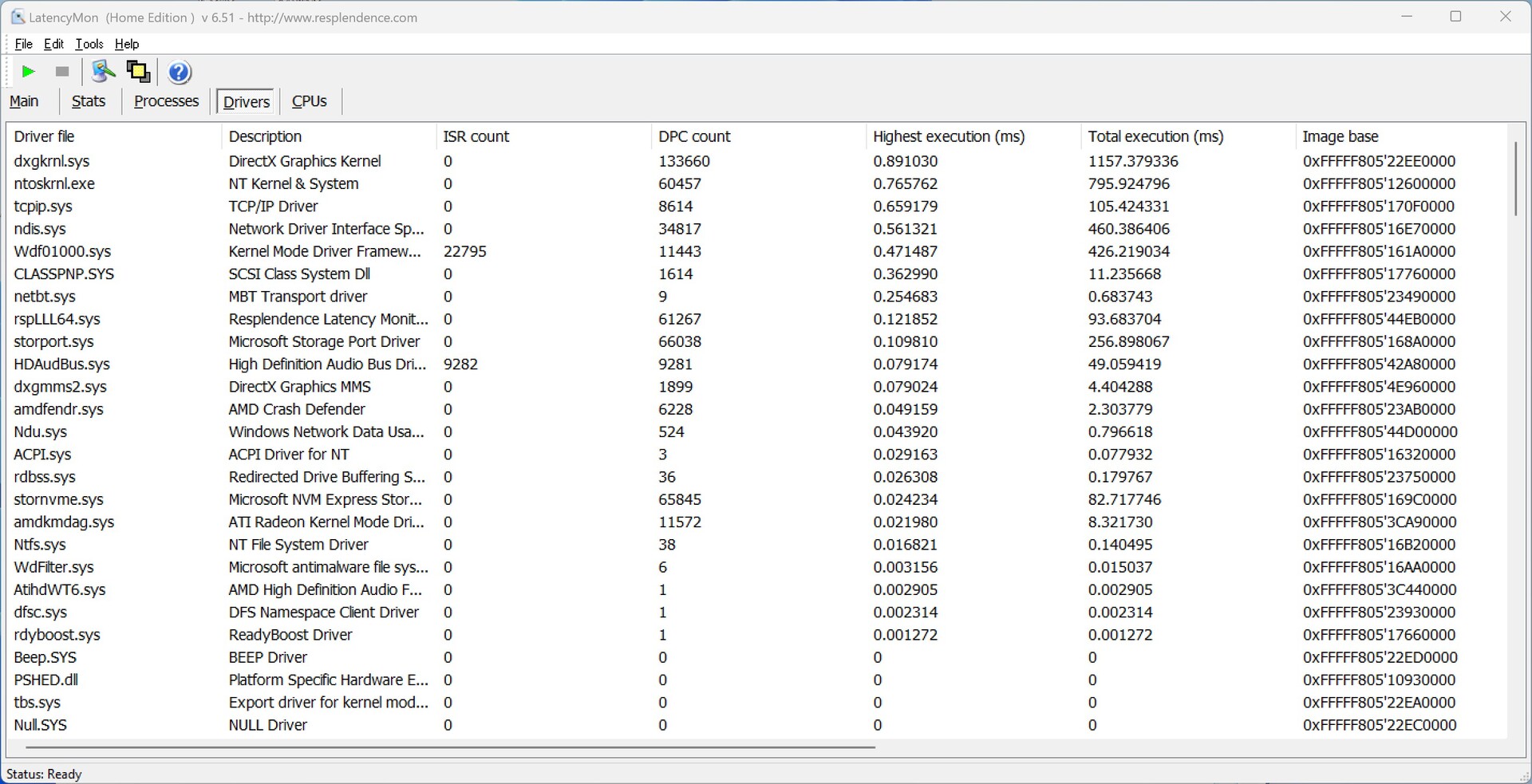

Förare listade efter den längsta användningsperioden

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -48%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -25%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * -22%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -14%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * -11%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	891 μs *
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * +11%

* ... smaller is better

Masslagring

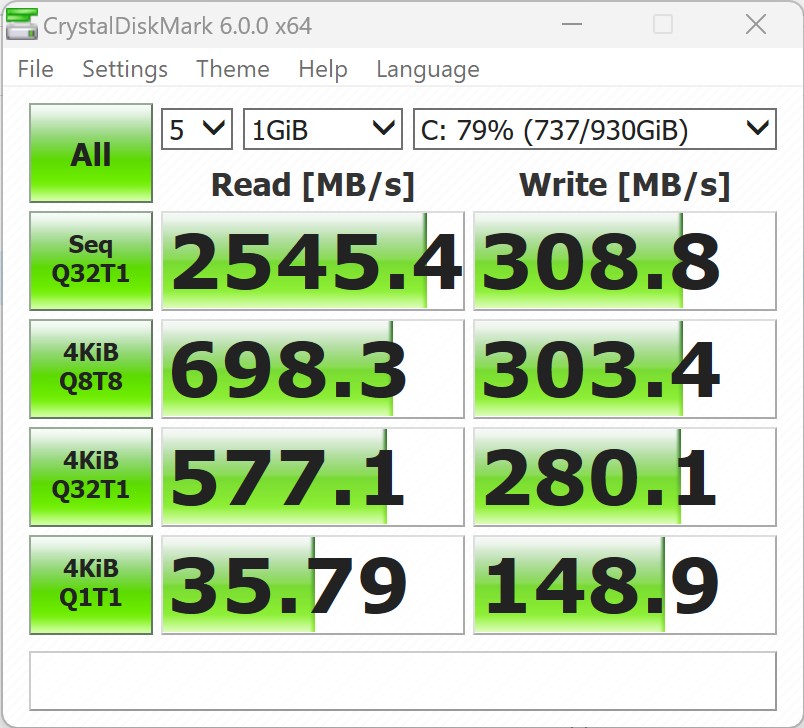

Geekom har utrustat AS 5 med en Kingston 1024 GB NVMe SSD. Den installerade modellen använder NVMe-gränssnittet och bör leverera motsvarande överföringshastigheter. När det gäller läshastigheten observerade vi solid prestanda även om skrivhastigheterna var avskyvärda. För att utesluta att detta är ett problem med Geekom AS 5, testade vi också Kingston NV2 i en annan mini-PC. Prestandan var dock inte nämnvärt bättre. Som en jämförelse utrustade vi också Geekom AS 5 med vår Kingston KC3000. Detta resulterade i betydligt bättre överföringshastigheter och gjorde det tydligt att problemet inte ligger hos vår testenhet utan hos Kingston NV2.

I testet innebar problemen med vår testmodell att den fick nöja sig med sista plats. Dessutom fanns det också kontinuerliga nedgångar i prestanda i stresstestet. Även om de interna metallytorna används för kylning, kan prestandaförlusten i samband med kontinuerliga läsåtkomster inte undvikas.

Under tiden kan Geekom AS 5 rymma upp till tre lagringsenheter. Två av dessa använder M.2-gränssnittet och ytterligare en enhet i 2,5-tumsformat kan också monteras.

För ytterligare jämförelser och riktmärken, ta en titt på vår jämförelsetabell.

Obs!

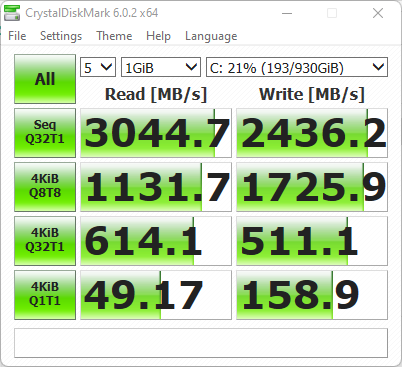

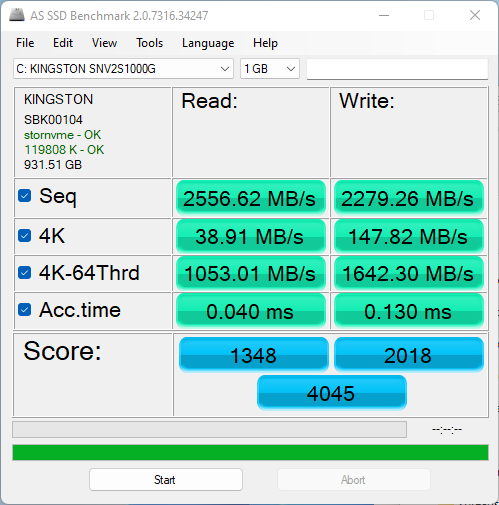

Våra amerikanska kollegor fick också en Geekom AS 5 samtidigt som vi. Mycket snabbt kunde vi göra en jämförelse med en enhet som har samma konstruktion. Och se, deras registrerade överföringshastigheter är av en mycket bättre standard.

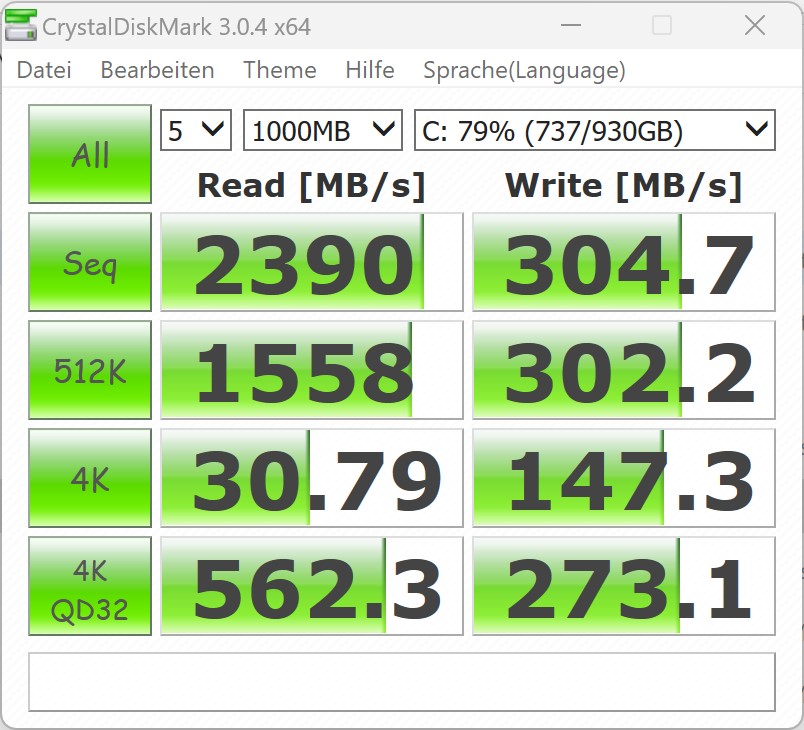

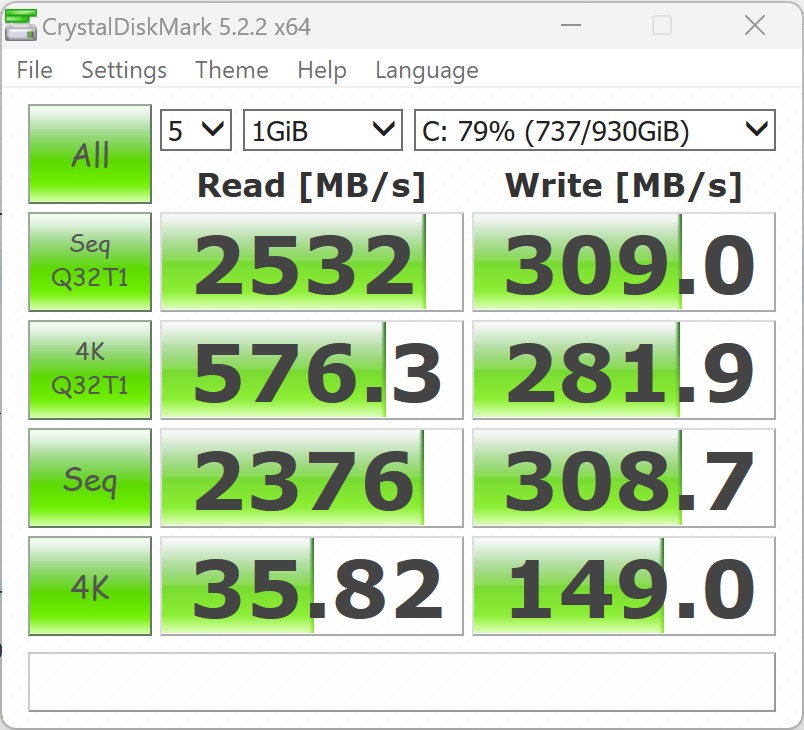

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV2 1000GB SNV2S/1000G

Sequential Read: 2390 MB/s

Sequential Write: 304.7 MB/s

512K Read: 1558 MB/s

512K Write: 302.2 MB/s

4K Read: 30.79 MB/s

4K Write: 147.3 MB/s

4K QD32 Read: 562.3 MB/s

4K QD32 Write: 273.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	84.5 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	71.2 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	71.1 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	65.9 pt
Average of class Mini PC	53.5 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	39 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	36.7 pt
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	22 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +74%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +45%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +39%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s +18%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	1935 (1920.15^min - 1935.25^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -11%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -25%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -39%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +1077%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +1030%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +1016%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s +713%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s +408%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s +300%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s +257%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	301 (225.06^min - 301.12^max) MB/s
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +184%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +103%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +103%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s +57%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +7%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	2366 (1354.13^min - 2365.71^max) MB/s
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -16%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -28%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +1076%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +1030%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s +840%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s +811%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s +431%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s +303%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s +260%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	301 (225.44^min - 301.12^max) MB/s
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +170%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +167%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +81%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s +78%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s +69%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s +58%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s +31%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	30.7 (30.15^min - 30.74^max) MB/s
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +217%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +213%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +106%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +71%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s +64%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s +45%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s +33%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	134 (102.93^min - 134.02^max) MB/s
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +155%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +155%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +79%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s +61%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	761 (756^min - 761.3^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -26%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -45%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -53%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +1106%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +753%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +358%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s +235%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s +218%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s +123%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s +94%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	281 (203.56^min - 280.69^max) MB/s

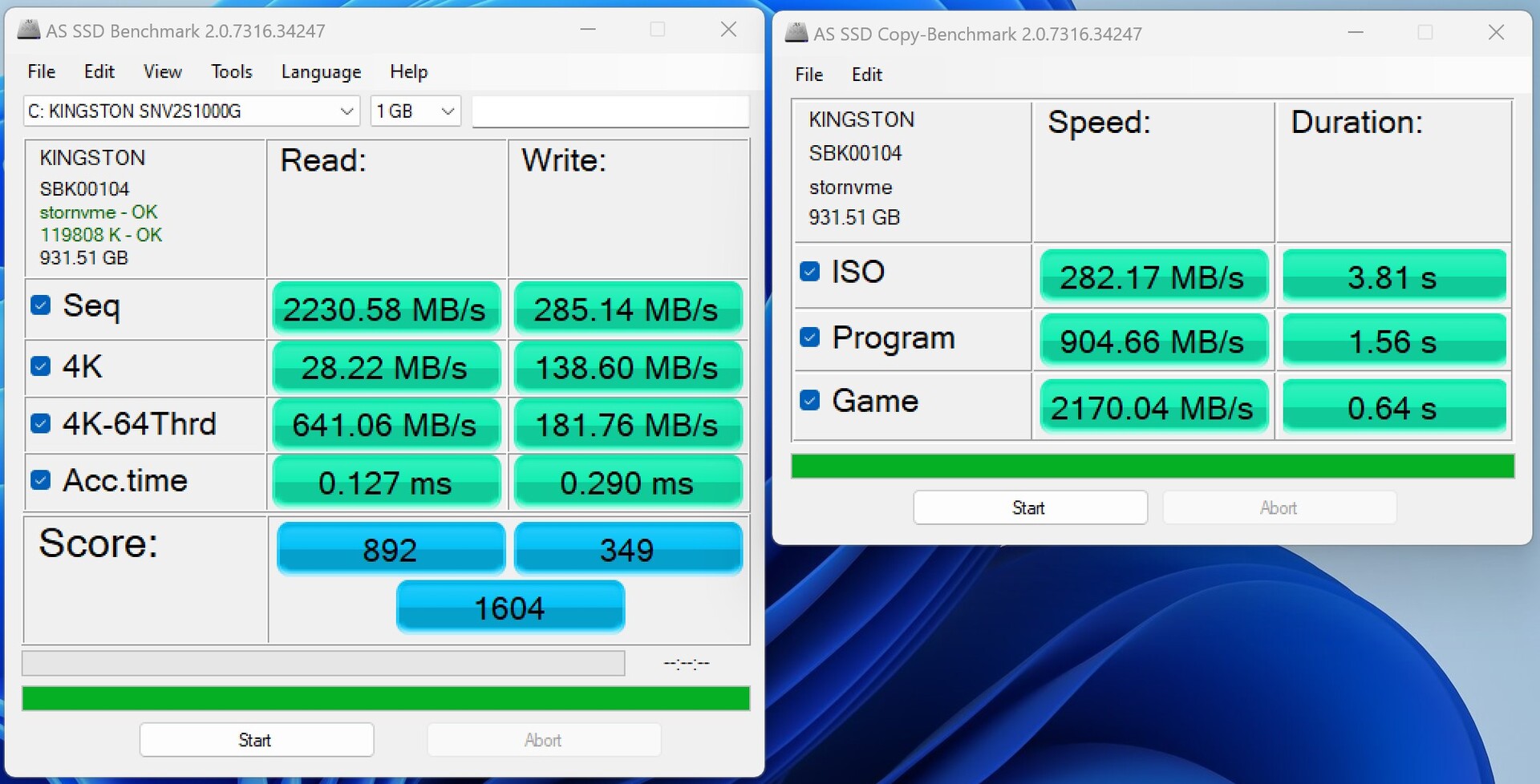

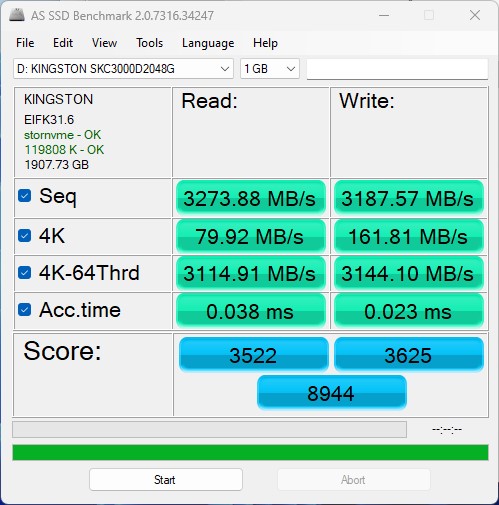

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +463%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +345%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +274%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points +196%
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points +157%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points +55%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	1604 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -53%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +308%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +168%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points +164%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +88%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points +72%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	892 Points
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -19%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -26%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +936%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +924%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +914%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points +430%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points +317%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points +275%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points +101%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	349 Points
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +139%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +114%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +86%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s +74%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s +42%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s +27%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s +25%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	2231 MB/s
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +1278%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +1055%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +757%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s +676%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s +332%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s +210%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s +84%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	285 MB/s
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +268%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s +265%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +178%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s +136%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s +109%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s +90%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s +73%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	28.2 MB/s
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +164%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s +156%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +97%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s +51%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s +51%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s +34%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s +26%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	138.6 MB/s
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +373%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +192%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s +191%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s +81%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s +74%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	641 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -38%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -50%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +1616%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +1557%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +1464%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s +700%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s +483%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s +376%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s +154%
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	181.8 MB/s
Access Time Read
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	0.127 ms *
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * +8%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +23%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * +23%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +42%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * +48%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +53%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +65%
Access Time Write
Geekom AS 5 Kingston NV2 1000GB SNV2S/1000G	0.29 ms *
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * +59%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * +60%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * +62%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * +89%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +92%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +93%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +94%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Geekom AS 5: Ø2244 (336.8-2451.44)

Grafikkort

Med AMD Radeon RX Vega 8, SoC kommer med en iGPU som har följt oss i många år. Tyvärr kan du också observera detta under tiden eftersom den nu åldrade iGPU i riktmärken är märkbart sämre än sin efterträdare. Det kan dock fortfarande konkurrera bra med en Intel Iris Xe Graphics G7. Detta innebär att Geekom AS 5 kan säkra en placering i mitten av tabellen på grund av de många Intel-systemen här i vår jämförelse.

Tyvärr saknar Geekom AS 5 ett Thunderbolt-alternativ vilket innebär att enheten inte kan anslutas till en extern GPU för att påskynda 3D-prestanda.

Ytterligare jämförelser och riktmärken finns i vårG PU jämförelsetabell.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	100 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	74 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	71.2 pt
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	65.6 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	64.3 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	63.7 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	54.9 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +54%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7166 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points 0%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -2%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -8%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points -21%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points -24%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +30%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	31638 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points -4%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points -13%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -29%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points -32%
1920x1080 Fire Strike Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +50%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +25%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +18%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points +10%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +5%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4419 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points -7%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +68%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +17%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +16%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +7%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points 0%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1430 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points -15%
Fire Strike Extreme Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +66%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +33%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points +27%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points +17%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +17%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +1%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1844 Points

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Unigine Superposition

Performance Rating - Percent
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	100 pt
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	69.8 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	68.9 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	64 pt
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	62 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	54 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +50%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps +5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	22.4 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps -6%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps -9%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps -12%
Extreme Preset DX11
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +50%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps +14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	21.5 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps -3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps -5%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +49%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps +7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	14.1 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps -9%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps -23%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +58%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps +23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps +6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +5%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	14.4 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -19%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +39%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	4178 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points -14%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points -18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -19%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points -21%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points -40%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +34%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +15%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points +3%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	276 Points
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -15%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points -22%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +39%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +29%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points +5%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	264 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -6%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points -10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points -17%
1024x600 Normal, Mandel Vector
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +29%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1295 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points -28%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points -30%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -34%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points -36%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points -63%
1024x600 Normal, Mandel Scalar
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +31%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1126 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points -21%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points -26%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points -32%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +58%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points +4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1217 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -2%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points -4%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points -21%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points -32%

Unigine Superposition
1280x720 720p Low
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	9915 Points +28%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7862 Points +2%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	7731 Points
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5662 Points -27%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	5162 Points -33%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	5141 Points -34%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	4088 Points -47%
1920x1080 1080p High
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	2916 Points +51%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	2062 Points +7%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	1935 Points
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1923 Points -1%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1800 Points -7%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	1659 Points -14%
1920x1080 1080p Extreme
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1358 Points +55%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points +23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1069 Points +22%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	992 Points +13%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	875 Points
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	801 Points -8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	796 Points -9%

3DMark 06 Standard Score		29311 poäng
3DMark Vantage P Result		23140 poäng
3DMark 11 Performance		7473 poäng
3DMark Ice Storm Standard Score		132906 poäng
3DMark Cloud Gate Standard Score		27070 poäng
3DMark Fire Strike Score		4015 poäng
3DMark Fire Strike Extreme Score		1825 poäng
3DMark Time Spy Score		1634 poäng
Hjälp

... jämför

Spelprestanda

Den inbyggda iGPU:n kan inte längre rekommenderas som en spellösning. Med sin AMD Radeon RX Vegakan Geekom AS 5 bara hantera spelbara bildhastigheter i äldre titlar och mycket ofta med låg upplösning och glesa detaljer. Baserat påAMD Ryzen 9 6900HX, den Morefine M600en mycket kraftfullare iGPU som får oss att hoppas att Geekoms efterföljare kommer att vara mer konkurrenskraftiga.

Den som är på jakt efter påtagligt bättre spelprestanda bör ta en titt på Minisforums HX99G och NUCXi7. Båda de tidigare nämnda Minisforum-modellerna är utrustade med ett dedikerat grafikkort och i tester levererar de bra spelprestanda.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +34%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +15%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps +3%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	84.7 fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.8 fps -5%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps -9%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +52%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +24%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps +20%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps +12%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	26.2 fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	25.9 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps -13%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +25%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	72.5 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -18%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -29%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps -32%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	46 fps -37%
1920x1080 High Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +35%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	17.9 fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps -9%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps -9%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -17%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps -24%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.1 fps -32%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +7%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	141.6 (8.77^min, 90.9^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -4%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	129.9 (16.1^min, 83.3^P1) fps -8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps -11%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -16%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +62%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps +2%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	33.1 (15.2^min, 23.8^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -37%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps -37%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -44%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	18.5 (6.9^min, 14.3^P1) fps -44%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +23%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps +2%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	61 (56^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -7%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps -18%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	50 (44^min) fps -18%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -25%
1920x1080 High Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +31%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps +12%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +4%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	26 (23^min) fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps -4%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps -4%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	22 (19^min) fps -15%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +25%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps +9%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	53 (40^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps -2%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48 (32^min) fps -9%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -13%
1920x1080 High Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +48%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps +16%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps 0%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	25 (20^min) fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	23 (17^min) fps -8%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +1%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps +1%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	135 (114.8^min) fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	134.7 (102.1^min) fps 0%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps -8%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -20%
1920x1080 high (2/3)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps +8%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps +3%
Geekom AS 5 Vega 8, R9 5900HX, Kingston NV2 1000GB SNV2S/1000G	62.8 (54.9^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps -3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	57.8 (54.5^min) fps -8%

	låg	med.	hög	ultra
GTA V (2015)	141.6	129.5	33.1	14.5
The Witcher 3 (2015)	84.7		25.9	17.3
Dota 2 Reborn (2015)	135	106.6	62.8	59.1
Final Fantasy XV Benchmark (2018)	44.4	22.2	16
X-Plane 11.11 (2018)	53.2	40.3	34.5
Far Cry 5 (2018)	61	28	26	25
Strange Brigade (2018)	97.8	37.9	32.1	27.3
Shadow of the Tomb Raider (2018)	69.2	25	23	19.9
Far Cry New Dawn (2019)	53	27	25	24
Metro Exodus (2019)	48.4	19.8	15.3	12.5
Borderlands 3 (2019)	72.5	28.3	17.9	13.9
F1 2020 (2020)	113.3	50.3	39.3	27.5
F1 2021 (2021)	118.5	50.1	38.1	25.9
GRID Legends (2022)	64	47.6	36.9	28
Tiny Tina's Wonderlands (2022)	38.4	28.8	18	13.1
F1 22 (2022)	46.7	41.2	31.2	22.1

Utsläpp - Bra, men inte perfekt kylning

Utsläpp av buller

I viloläge kan den kraftfulla SoC fortfarande kylas utan en kakofoni av ljud. Under belastning märkte vi däremot att Geekom AS 5 lider av en betydande ökning av fläktljudet. Vid maximalt 47,1 dB(A) är vårt testexemplar mer högljutt än de flesta andra mini-PC i aktuella jämförelser. Vid 50,9 dB(A) registrerade vi endast högre ljudnivåer iAce Magiker AMR5

Ljudnivå

Låg belastning		30.8 / 30.8 / 30.8 dB(A)
Hög belastning		47 / 47.1 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) environment noise: 30 dB(A)

	Geekom AS 5 R9 5900HX, Vega 8	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7
Noise		7%	7%	5%	12%	12%	-6%
off / environment *	30	30.4 -1%	30.5 -2%	29.8 1%	29.8 1%	30.2 -1%	30.5 -2%
Idle Minimum *	30.8	30.9 -0%	31.6 -3%	30.2 2%	29.9 3%	30.5 1%	31.5 -2%
Idle Average *	30.8	31.5 -2%	31.6 -3%	31.1 -1%	30.1 2%	30.5 1%	32.6 -6%
Idle Maximum *	30.8	31.5 -2%	31.6 -3%	31.9 -4%	30.2 2%	30.5 1%	33.8 -10%
Load Average *	47	37.5 20%	33.9 28%	40 15%	32.1 32%	30.5 35%	49.3 -5%
Load Maximum *	47.1	34.1 28%	34.4 27%	40.5 14%	32.5 31%	30.5 35%	50.9 -8%

* ... smaller is better

Temperatur

Vid tomgångskörning värms Geekom AS 5:s hölje upp lite. Detta innebär att det inte finns någon verklig värmeuppbyggnad att tala om eftersom den varma luften tar den kortaste vägen och riktas mot enhetens baksida innan den släpps ut.

I Prime95-stresstestet kunde AMD Ryzen 9 5900HX bara nå 77,8 °C vilket innebär att SoC fortfarande har mycket andningsutrymme innan den når sina termiska gränser. När vi samtidigt belastade CPU och iGPU såg vi bara marginellt låga temperaturer eftersom båda komponenterna måste dela på den kombinerade TDP på upp till 54 watt.

Strömförbrukning

När det gäller energikrav får Geekom AS 5 mycket bra poäng. I viloläge uppmätte vi cirka 8,6 till 9,6 watt, även om den genomsnittliga förbrukningen under belastning uppgick till cirka 60 watt. Det maximala vi uppmätte var 84 watt, vilket innebär att 120-watts PSU inte har några svårigheter och också gott om reserver kvar för ytterligare två masslagringsenheter.

Strömförbrukning

Av/Standby	0.1 / 1.1 Watt
Låg belastning	8.6 / 9.3 / 9.6 Watt
Hög belastning	59.8 / 83.7 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Geekom AS 5 R9 5900HX, Vega 8	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)	Average of class Mini PC
Power Consumption		15%	-25%	6%	-19%	-45%	6%	23%	-20%
Idle Minimum *	8.6	5 42%	10.4 -21%	5.1 41%	9.9 -15%	12.1 -41%	8 7%	5.26 ?(3 - 12.5, n=46) 39%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -10%
Idle Average *	9.3	7 25%	12.3 -32%	5.8 38%	11 -18%	13 -40%	8.7 6%	7.78 ?(4.1 - 12.8, n=46) 16%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -24%
Idle Maximum *	9.6	10.7 -11%	12.4 -29%	10.2 -6%	11.2 -17%	18.2 -90%	8.8 8%	9.18 ?(4.6 - 15.7, n=46) 4%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -55%
Load Average *	59.8	50.3 16%	72.9 -22%	68.1 -14%	74.2 -24%	70.6 -18%	54.6 9%	44.9 ?(28.2 - 98.9, n=46) 25%	57.4 ?(11.3 - 170.6, n=119, last 2 years) 4%
Load Maximum *	83.7	82 2%	101.2 -21%	108.3 -29%	103.2 -23%	113 -35%	83.2 1%	59.4 ?(29.5 - 101.8, n=46) 29%	97.5 ?(18.1 - 423, n=119, last 2 years) -16%

* ... smaller is better

Power consumption with an external monitor

Geekom AS 5; Prime95 V2810 Stress (external Monitor): Ø59.5 (53.2-84.5)

Geekom AS 5; Cinebench R15 Multi (external Monitor): Ø64.8 (59.2-81)

Geekom AS 5; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø55.2 (52.2-72.6)

Geekom AS 5; 1920x1080 The Witcher 3 ultra (external Monitor): Ø54 (51.4-73.9)

Geekom AS 5; Idle 1min (external Monitor): Ø9.67 (6-17.3)

Geekom AS 5; Cinebench R23 Multi (external Monitor): Ø60.7 (59-80.8)

Geekom AS 5; Cinebench R23 Single (external Monitor): Ø33.1 (31.1-71.6)

För

+ stabilt, kompakt hölje

+ snabb AMD Ryzen 9 5900HX

+ låga DPC-latenstider

+ bra Wi-Fi-prestanda

+ möjlig installation av tre masslagringsenheter

+ många USB-portar

+ stöd för fyra bildskärmar

+ 32 GB RAM-minne

+ lätt att öppna

+ 1 TB SSD

Emot

- tydligt hörbar under belastning

- ingen Thunderbolt

- dålig SSD-prestanda (läshastigheter)

Omdöme - Kraftfull men med svagheter

Geekom AS 5 granskade - tillhandahålls av Geekom

Geekom AS 5 är utan tvekan en liten, om inte den minsta, mycket kraftfull mini-PC och har mycket att erbjuda. Grunden som tillhandahålls avAMD Ryzen 9 5900HX är ett bra val och räcker för vardaglig kontorsanvändning. Du kan kräva ännu mer från mini-PC: n, med 32 GB RAM och en 1 TB SSD, har få hörn skurits.

Med tanke på enhetens kompakta storlek är portvalet mycket generöst. Geekom AS 5 har många USB-gränssnitt med på resan. Även flerskärmsinstallationer är inga problem eftersom upp till fyra skärmar kan anslutas. När det gäller Wi-Fi-prestanda är enheten bara överlägsen konkurrenterna när det gäller 6 GHz-banden i detta test. Om du väljer att använda 5 GHz Wi-Fi-frekvenser kan du förvänta dig att vara i jämnhöjd med konkurrenterna. Fram till denna punkt sätter Geekom AS 5 egentligen inte en fot fel. Det enda du måste svälja är avsaknaden av Thunderbolt.

Geekom AS 5 är en bra mini-PC med en snabb AMD Ryzen 9 5900HX. Utan Thunderbolt är den dock inte helt framtidssäker.

Vi ser inte samarbetet med Asus som kritiskt, utan mer som en fördel. På 609 $ är vår recensionskonfiguration Geekom perfekt prissatt och billigare än Asus PC. Valet av SSD är värt att kritisera eftersom den inte levde upp till de krav som förväntas av en NVMe SSD i våra riktmärken. En ytterligare kritikpunkt är ljudnivån under belastning. Enheten är bara riktigt tyst i viloläge eller under lätt belastning. På grund av de temperaturer som registrerades i vårt stresstest kunde Geekom ha justerat fläktkurvan lite bättre. Detta innebär att det är upp till användaren att förlita sig på sina egna färdigheter. Lyckligtvis erbjuder BIOS olika alternativ för att motverka detta.

Pris och tillgänglighet

Geekom AS 5 kostar för närvarande 609 USD och kan köpas direkt från tillverkaren https://www.geekompc.com/geekom-as-5-mini-pc/.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Geekom AS 5 - 06/04/2023 v7 ^(old)
Sebastian Bade

Design

84 / 98 → 85%

Anslutningar

63 / 81 → 77%

Vikt

79%

Spelprestanda

69%

Programprestanda

92%

Workstation

61%

Ljudnivå

73%

Medel

74%

80%

Mini PC - Vägt medel

Potentiella konkurrenter i jämförelse

Geekom AS 5 i detalj

Fall

Storleksjämförelse

Funktioner

Kommunikation

Tillbehör

Underhåll

Prestanda - En AMD Ryzen 9 5900HX i händelsernas centrum

Testförhållanden

Processor

Geekom AS 5 vs. Cinebench R15-Multi-Loop

Systemets prestanda

DPC-fördröjningar

Masslagring

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Grafikkort

Spelprestanda

Utsläpp - Bra, men inte perfekt kylning

Utsläpp av buller

Temperatur

Strömförbrukning

Power consumption with an external monitor

För

Emot

Omdöme - Kraftfull men med svagheter

Pris och tillgänglighet

Transparency

More articles related to this device
