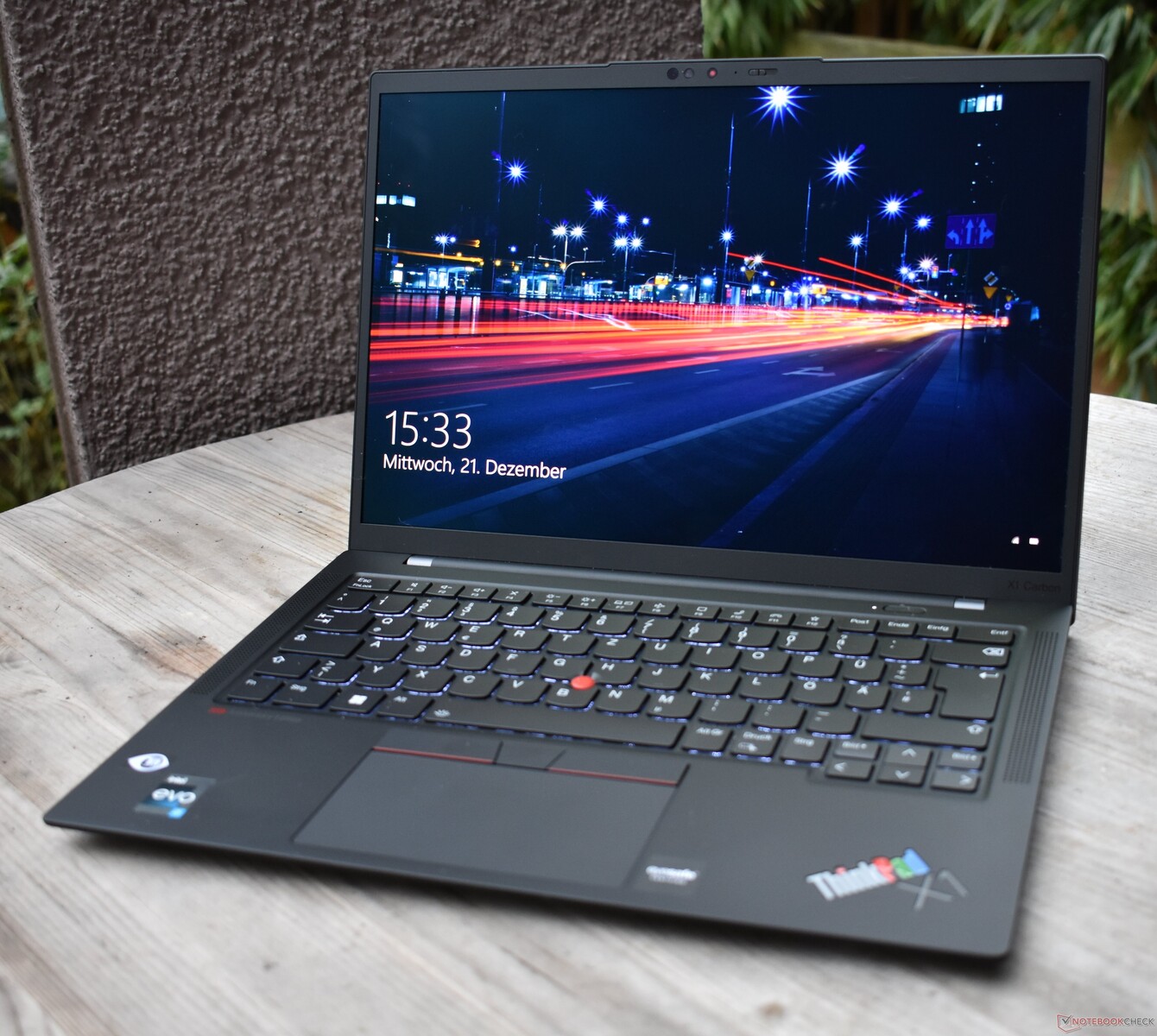

Lenovo ThinkPad X1 Carbon G10 30th Anniversary Laptop recension: OLED-utgåva med problem med uthållighet

Name: Lenovo ThinkPad X1 Carbon G10 21CB00DCGE
Brand: Lenovo

30 år av ThinkPad.

OLED är inte längre någon ny teknik, men introduktionen i bärbara datorer har försenats. Detta gäller särskilt de mer konservativa bärbara datorerna för företagskunder, t.ex. ThinkPad-serien. X1 Carbon G10 i 30th Anniversary Edition är en specialmodell som kommer med OLED.

Benjamin Herzig, 👁 Benjamin Herzig (översatt av DeepL / Ninh Duy), Published 12/23/2022 🇺🇸 🇩🇪 ...

Business Intel Intel Evo Laptop / Notebook ThinkPad Ultrabook Windows Thunderbolt

30 år är en evighet i teknikbranschen och en lång tid i en människas livstid. Lenovo firar denna milstolpe med en specialmodell: Lenovo ThinkPad X1 Carbon G10 30th Anniversary Edition, som är föremål för dagens recension.

Det här är förstås inte den första ThinkPad X1 Carbon Gen 10 som kommer under vårt förstoringsglas, vilket är anledningen till att det här är en testuppdatering. När det gäller specifikationer är den aktuella modellen särskilt intressant på grund av OLED-skärmen. Det ska också bli spännande att se om Lenovo har förbättrat prestandan hos Intel Alder Lake P28 CPU:erna.sedan den första granskningen av ThinkPad X1 Carbon G10, då med en i5-processor.

Test device courtesy of Lenovo

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE (ThinkPad X1 Carbon G10 Serie)

Processor

Intel Core i7-1260P 12 x 1.5 - 4.7 GHz, 55 W PL2 / Short Burst, 20 W PL1 / Sustained, Alder Lake-P

Grafikkort

Intel Iris Xe Graphics G7 96EUs

Minne

16 GB

, LPDDR5-5200

Skärm

14.00 tum 16:10, 2880 x 1800 pixlar 242 PPI, ATNA40YK01-1, OLED, glansig: ja

Moderkort

Intel Alder Lake-P PCH

Hårddisk

Samsung PM9A1 MZVL2512HCJQ, 512 GB

, M.2 2280, NVMe PCIe 4.0, 416 GB ledigt

Ljudkort

Realtek ALC3306

Anslutningar

2 USB 3.0, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5mm Audio, 1 Fingeravtrycksläsare

Nätverk

Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.1, Fibocom L860-GL, LTE, GPS

Storlek

höjd x bredd x djup (i mm) 15.36 x 315.6 x 222.5

Batteri

57 Wh Litiumpolymer

Operativsystem

Microsoft Windows 10 Pro 64 Bit

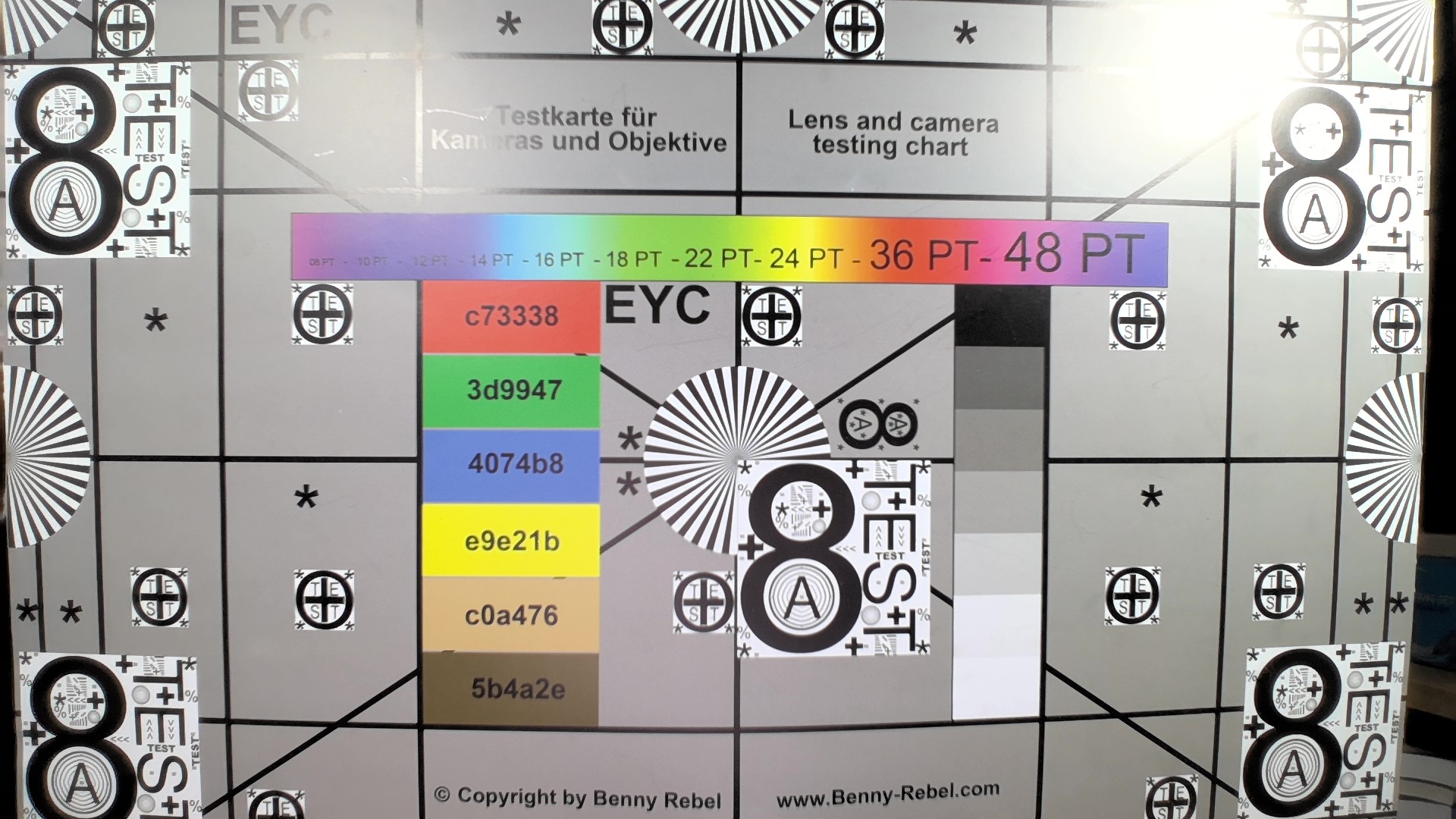

Camera

Webbkamera: 1080p MIPI, w/IR, ThinkShutter & Computervision

Övrigt

Högtalare: Quad Speakers, 2x 2 W Woofers, x 0.8 W Tweeters, Tangentbord: 6 row Chiclet full size, 1.5mm travel, Tangentbordsbelysning: ja, 65 W USB C charger, Lenovo Commercial Vantage, Lenovo View, 36 Månader Garanti

Vikt

1.15 kg, Strömförsörjning: 297 g

Pris

2500 Euro

Länkar

Lenovo hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Potentiella konkurrenter i jämförelse

Rating	Date	Model	Weight	Height	Size	Resolution
88.9 % v7 ^(old)	12/2022	Lenovo ThinkPad X1 Carbon G10 21CB00DCGE i7-1260P, Iris Xe G7 96EUs	1.2 kg	15.36 mm	14.00"	2880x1800
90.2 % v7 ^(old)	06/2022	Lenovo ThinkPad X1 Carbon G10 21CC001RGE i5-1250P, Iris Xe G7 80EUs	1.2 kg	15.36 mm	14.00"	1920x1200
90.3 % v7 ^(old)	05/2021	Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW i7-1165G7, Iris Xe G7 96EUs	1.2 kg	14.9 mm	14.00"	3840x2400
88.8 % v7 ^(old)	10/2022	Lenovo ThinkPad Z13 G1-21D20016GE R7 PRO 6860Z, Radeon 680M	1.3 kg	14 mm	13.30"	2880x1800
91 % v7 ^(old)	08/2022	HP Elite Dragonfly G3 i7-1265U, Iris Xe G7 96EUs	1.2 kg	16.3 mm	13.50"	1920x1280
89.8 % v7 ^(old)	08/2022	Dell Latitude 9430 2-in-1 i7-1265U, Iris Xe G7 96EUs	1.5 kg	13.94 mm	14.00"	2560x1600

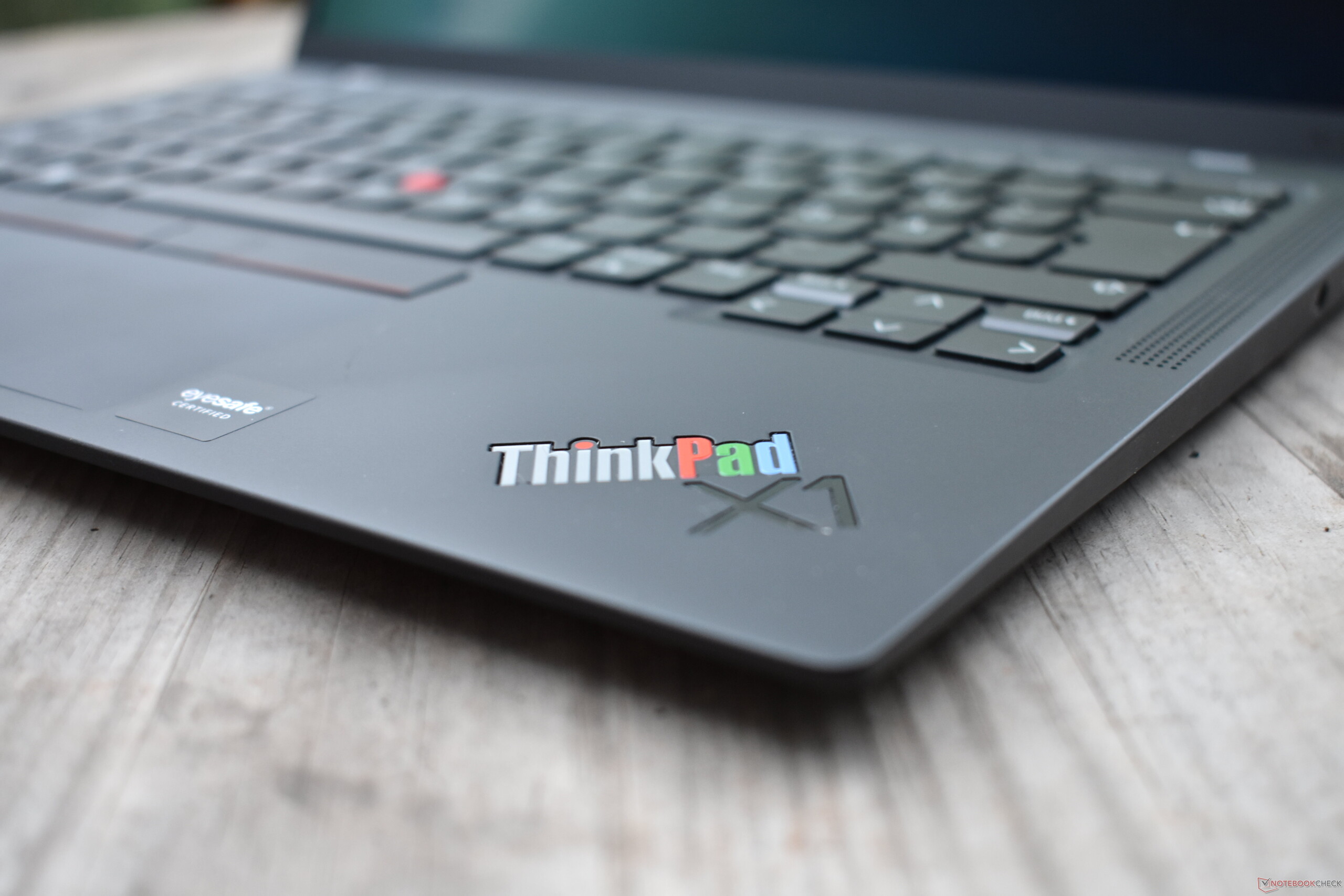

Skillnader jämfört med den vanliga modellen

Till skillnad från ThinkPad 25för fem år sedan har Lenovo avstått från större förändringar av hårdvaran i X1 Carbon Gen 10 30th Anniversary Edition. Istället finns det några kosmetiska ändringar, t.ex. en "30th Anniversary Edition"-logotyp på handflatsstödet, det lasergraverade enhetsnumret på gångjärnet (det finns totalt 5 000 modeller) och den speciella ThinkPad-logotypen för jubileumsåret med "Pad"-delen i IBM:s RGB Tricolor-färgschema - inspirerad av den gamla IBM ThinkPad-logotypdessutom ingår i leveransomfånget en specialförpackning och tre extra TrackPoint-kapslar, var och en med röd, grön och blå färg. I övrigt är det en vanlig ThinkPad X1 Carbon G10. Lenovo försöker inte återuppliva det klassiska ThinkPad-tangentbordet med sju rader den här gången.

Storleksjämförelse

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Lenovo ThinkPad X1 Carbon G10 21CC001RGE Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Dell Latitude 9430 2-in-1 HP Elite Dragonfly G3 Lenovo ThinkPad Z13 G1-21D20016GE DIN A4 ❌

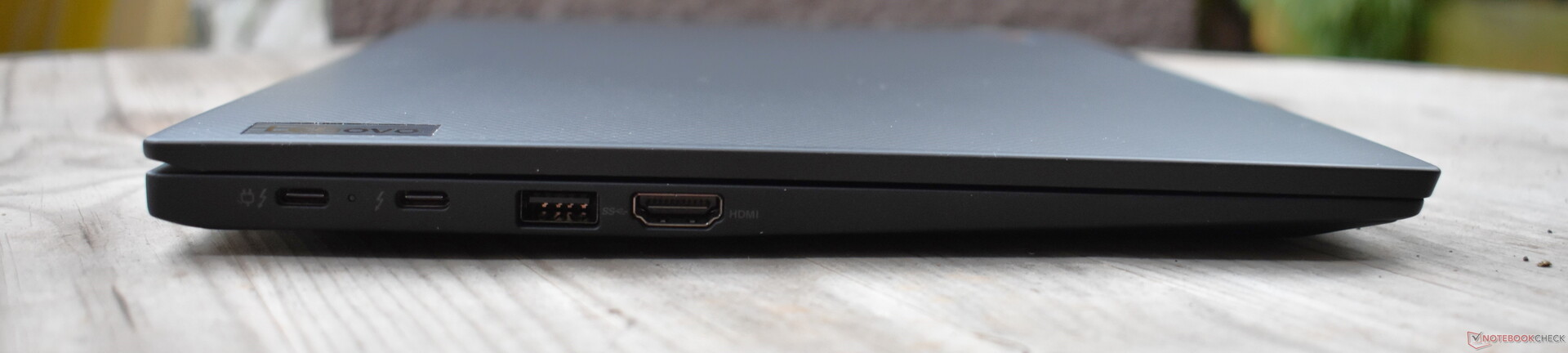

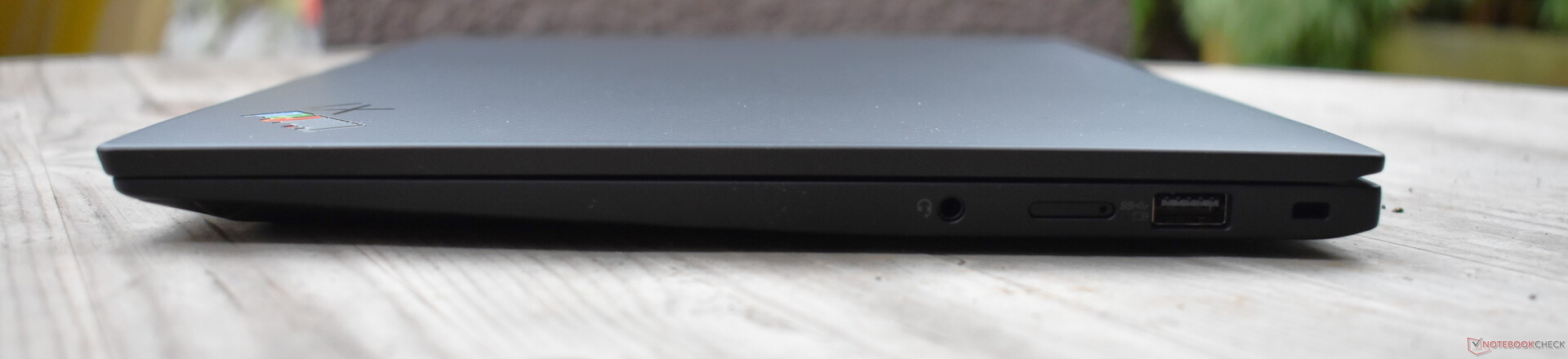

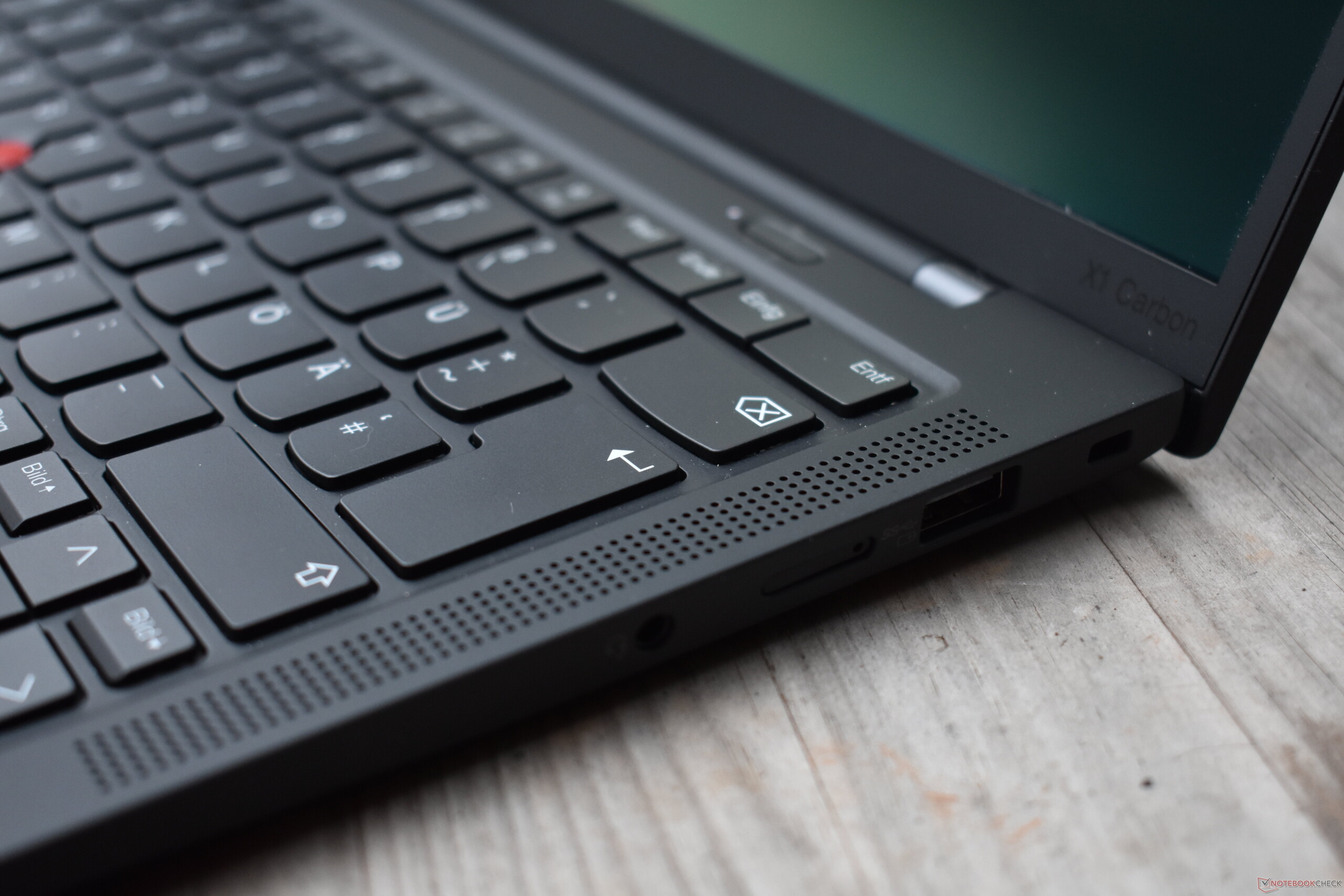

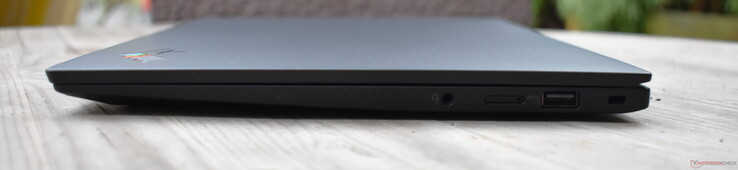

3.5mm ljuduttag, nanoSIM, USB A 3.2 Gen 1, Kensington Lock

Inga ändringar i utrustningen har gjorts, och resultaten från WiFi och webbkameran är praktiskt taget identiska med resultaten från första granskningen av ThinkPad X1 Carbon G10. undantag: Den version som testas här kör Windows 10, vilket är anledningen till att vi inte kunde testa WiFi 6E.

Networking
iperf3 transmit AXE11000
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Wi-Fi 6E AX211	1470 (1243^min - 1631^max) MBit/s
Average Intel Wi-Fi 6E AX211 (464 - 1921, n=239)	1234 MBit/s -16%
Average of class Office (47.8 - 1793, n=92, last 2 years)	1134 MBit/s -23%
iperf3 receive AXE11000
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Wi-Fi 6E AX211	1584 (1396^min - 1694^max) MBit/s
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=239)	1379 MBit/s -13%
Average of class Office (104.2 - 1775, n=92, last 2 years)	1286 MBit/s -19%
iperf3 receive AXE11000 6GHz
Lenovo ThinkPad Z13 G1-21D20016GE Qualcomm WCN685x	1771 (1736^min, 1742.67^P1 - 1781^max) MBit/s
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Wi-Fi 6E AX211	1574 (1210^min - 1693^max) MBit/s
Average of class Office (1065 - 1790, n=52, last 2 years)	1555 MBit/s
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=210)	1493 MBit/s
Dell Latitude 9430 2-in-1 Intel Wi-Fi 6E AX211	1447 (1316^min - 1494^max) MBit/s
HP Elite Dragonfly G3 Intel Wi-Fi 6E AX211	1331 (1021^min - 1387^max) MBit/s
iperf3 transmit AXE11000 6GHz
Lenovo ThinkPad Z13 G1-21D20016GE Qualcomm WCN685x	1735 (1622^min, 1628.96^P1 - 1813^max) MBit/s
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Wi-Fi 6E AX211	1611 (1450^min - 1645^max) MBit/s
Average of class Office (713 - 1961, n=52, last 2 years)	1399 MBit/s
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=211)	1372 MBit/s
HP Elite Dragonfly G3 Intel Wi-Fi 6E AX211	1216 (655^min - 1350^max) MBit/s
Dell Latitude 9430 2-in-1 Intel Wi-Fi 6E AX211	1082 (994^min - 1138^max) MBit/s

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE; iperf3 receive AXE11000; iperf 3.1.3: Ø1583 (1396-1694)

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE; iperf3 transmit AXE11000; iperf 3.1.3: Ø1470 (1243-1631)

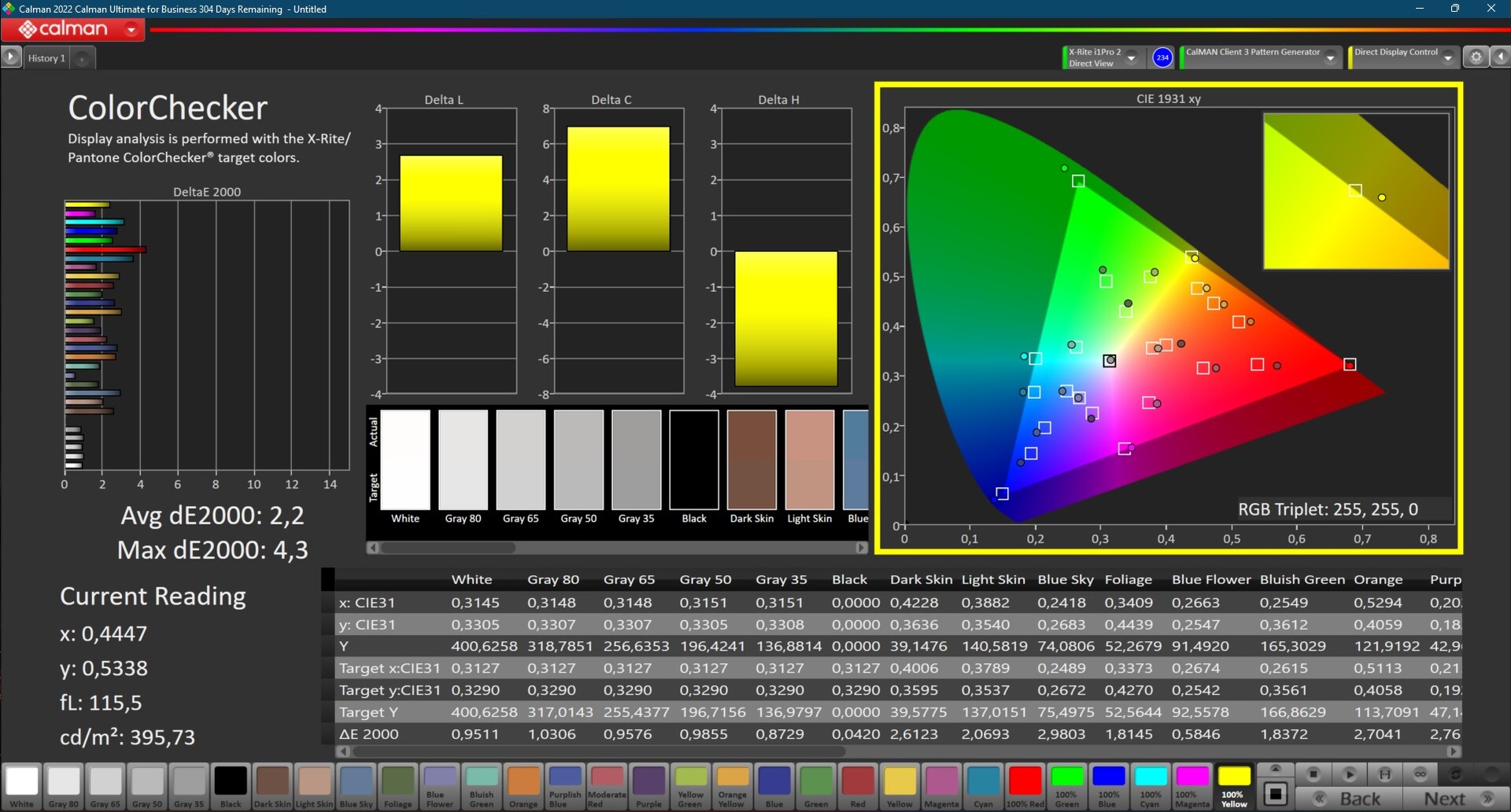

ColorChecker Lenovo ThinkPad X1 Carbon G10 21CB00DCGE: 12.43 ∆E min: 2.9 - max: 26.24 ∆E

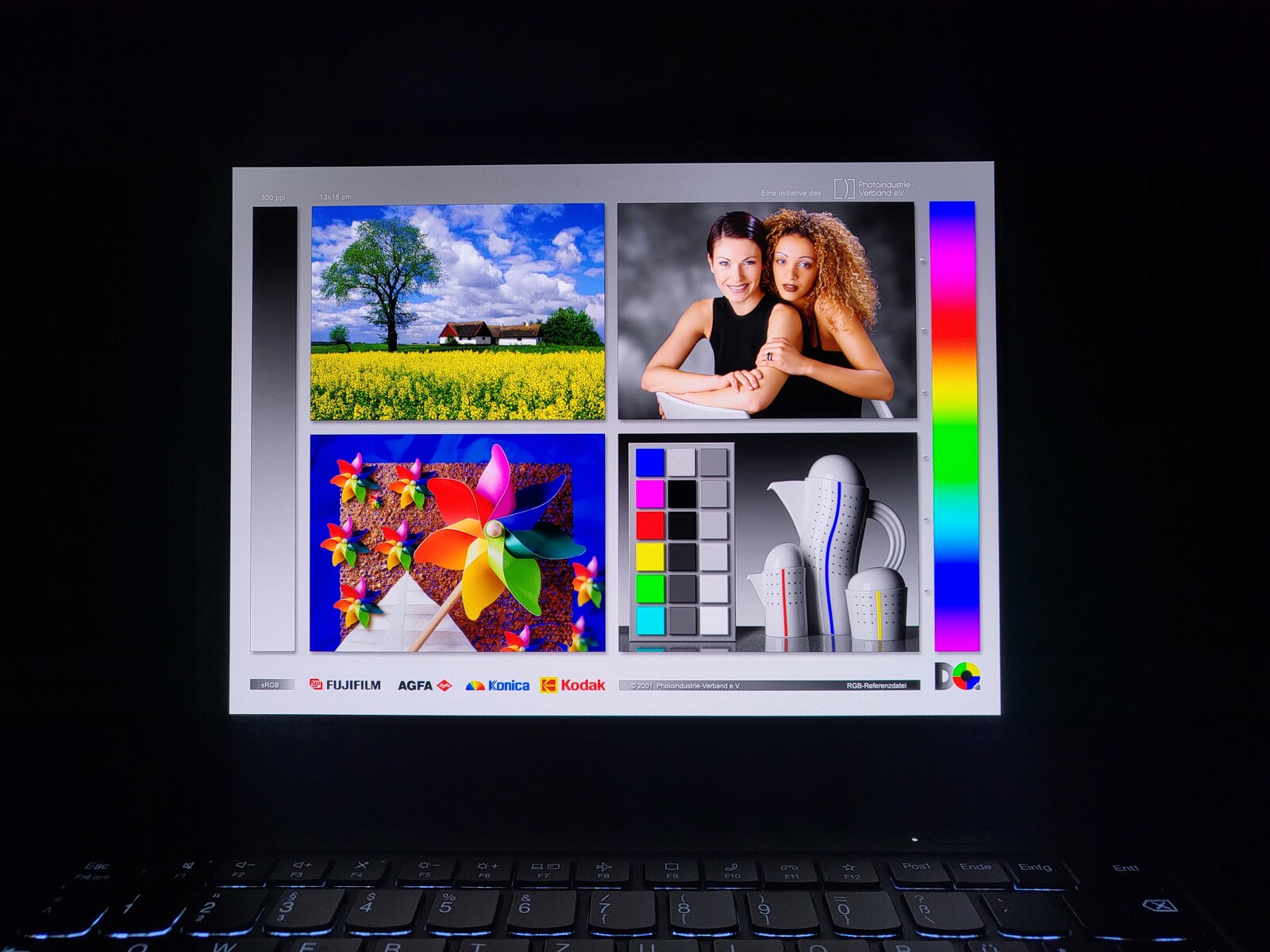

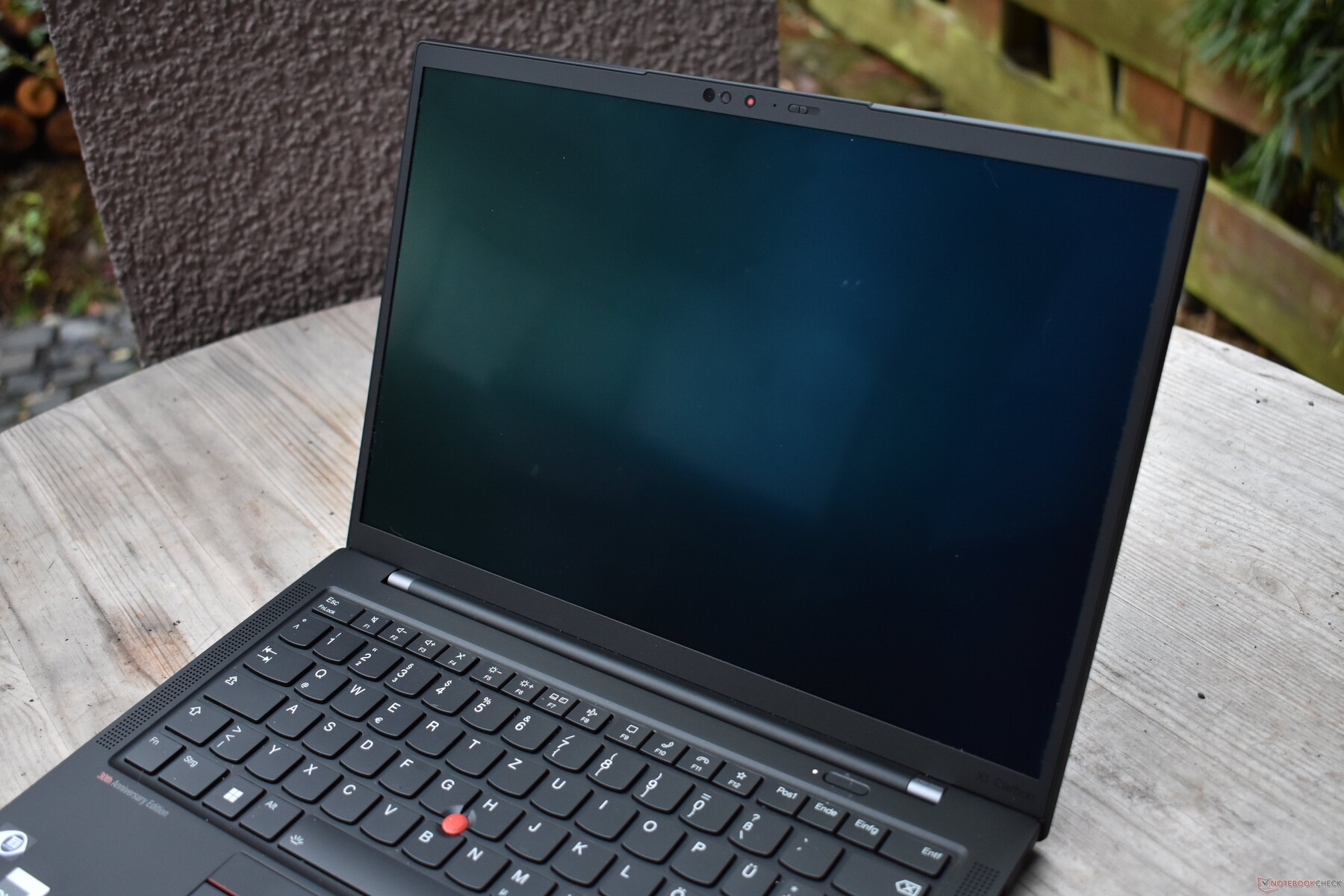

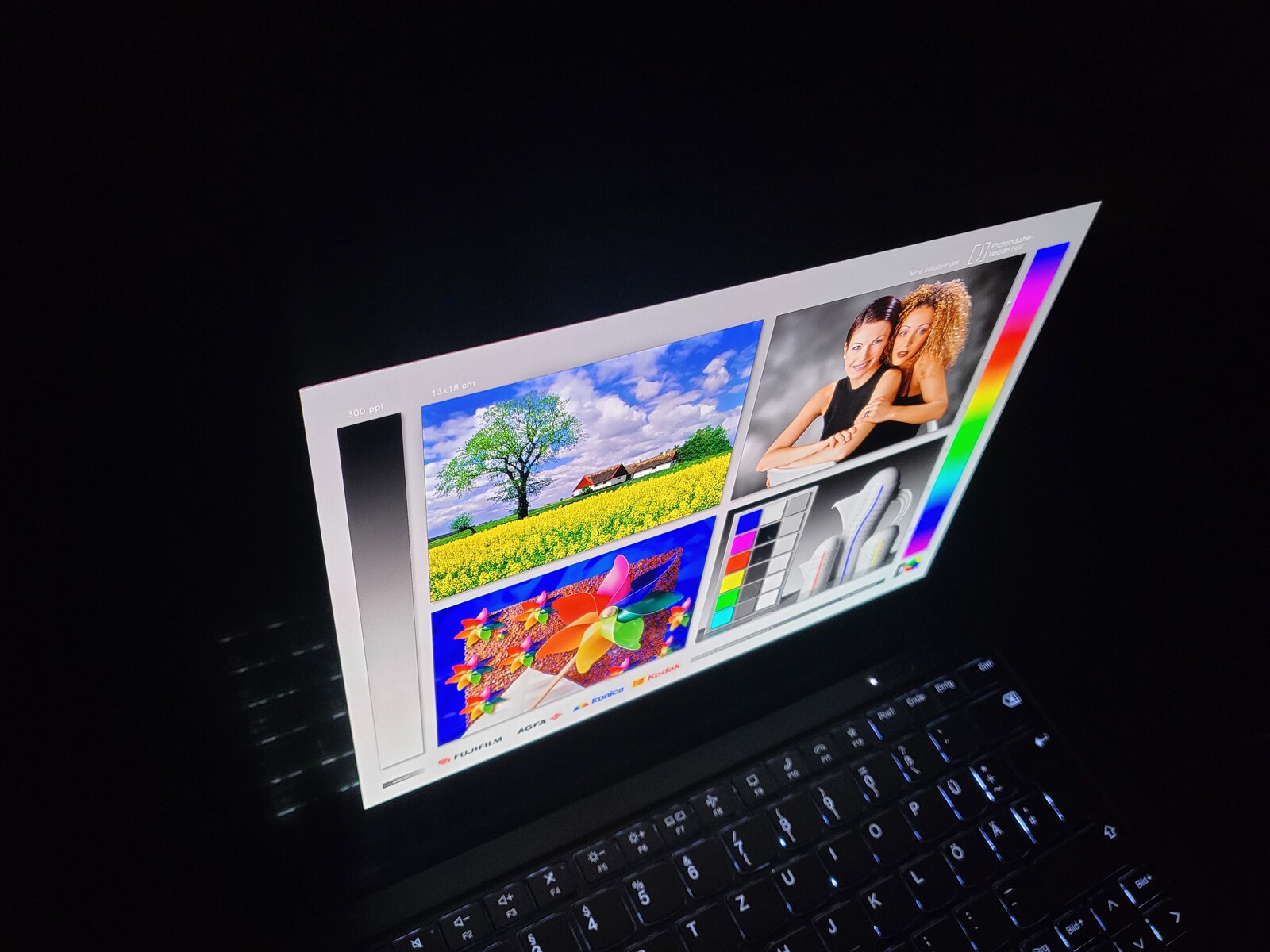

OLED-skärmen i X1 Carbon är nästan matt

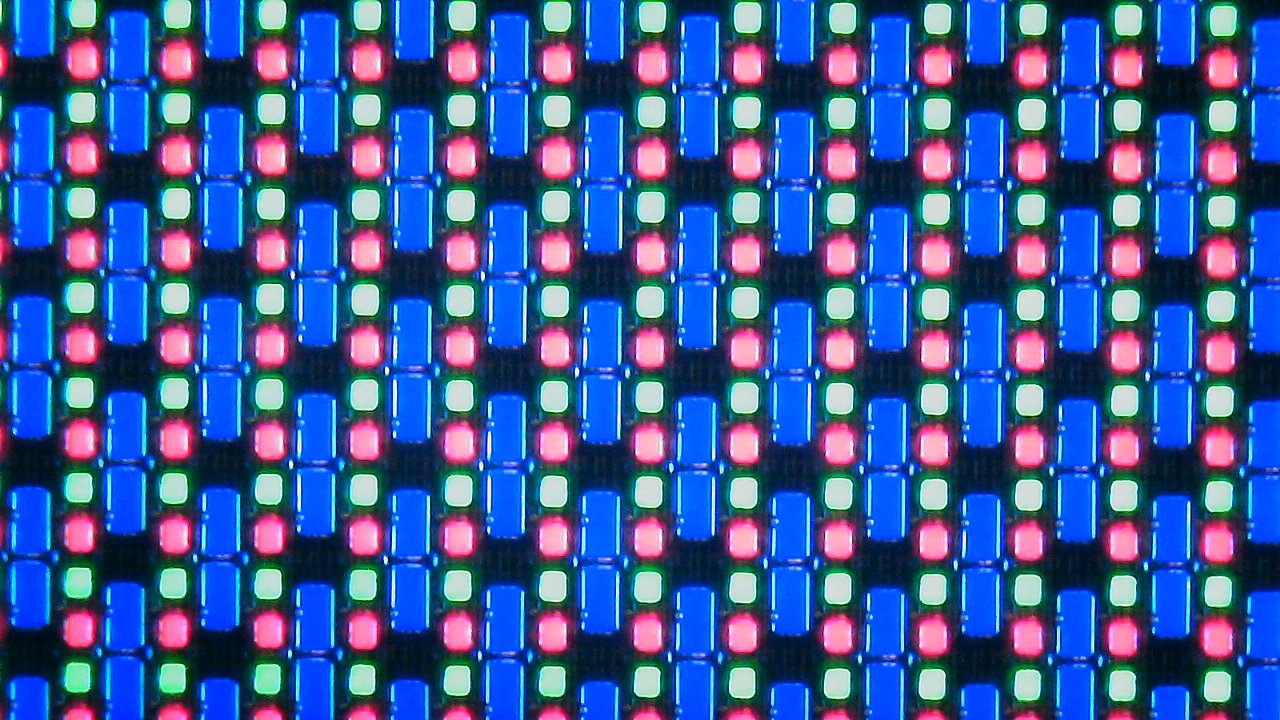

Supixelmatris av Lenovo ThinkPad X1 Carbon G10 OLED-bildskärmen

Huvuddelen av den här versionen av Lenovo ThinkPad X1 Carbon Gen 10 är utan tvekan skärmen. Som med nästan alla ThinkPad finns det olika alternativ, som vi också listade i vår första recension av X1 Carbon G10. Dagens recensionsenhet rymmer en 14-tums 2,8K-skärm (2 880 x 1 800) - panelen (modellnummer ATNA40YK01-1) kommer från Samsung och är en OLED-skärm.

Enligt Lenovo ska skärmen kunna visa SDR-innehåll vid 400 cd/m² och HDR vid 500 cd/m². Även om vi inte har mätt det sistnämnda kan vi definitivt bekräfta SDR-värdet. Detta gör skärmen mörkare än 4K UHD-skärmen påX1 Carbon G9 och 2,5K LCD-skärmen i Dell Latitude 9430men i gengäld har OLED-skärmen andra fördelar: Det finns inga problem med bakgrundsbelysningen och svarstiderna är betydligt bättre än hos IPS-rivalerna. Synd dock att Lenovo har lämnat uppdateringsfrekvensen på 60 Hz, eftersom 90 Hz hade varit ett bra steg framåt.

En nackdel med OLED-tekniken: PWM är alltid närvarande. PWM-frekvensen på cirka 342 Hz vid alla ljusstyrkor kan orsaka huvudvärk hos känsliga personer, även om inget flimmer syns med blotta ögat.


403 cd/m²	402 cd/m²	404 cd/m²
400 cd/m²	400 cd/m²	402 cd/m²
396 cd/m²	395 cd/m²	409 cd/m²

Distribution av ljusstyrkan

ATNA40YK01-1 tested with X-Rite i1Pro 2

Max: 409 cd/m² (Nits) Medel: 401.2 cd/m² Minimum: 5 cd/m²
Distribution av ljusstyrkan: 97 %
Mitt på batteriet: 400 cd/m²
Kontrast: ∞:1 (Svärta: 0 cd/m²)
ΔE Color 2.2 | 0.5-29.43 Ø4.91, calibrated: 2.6

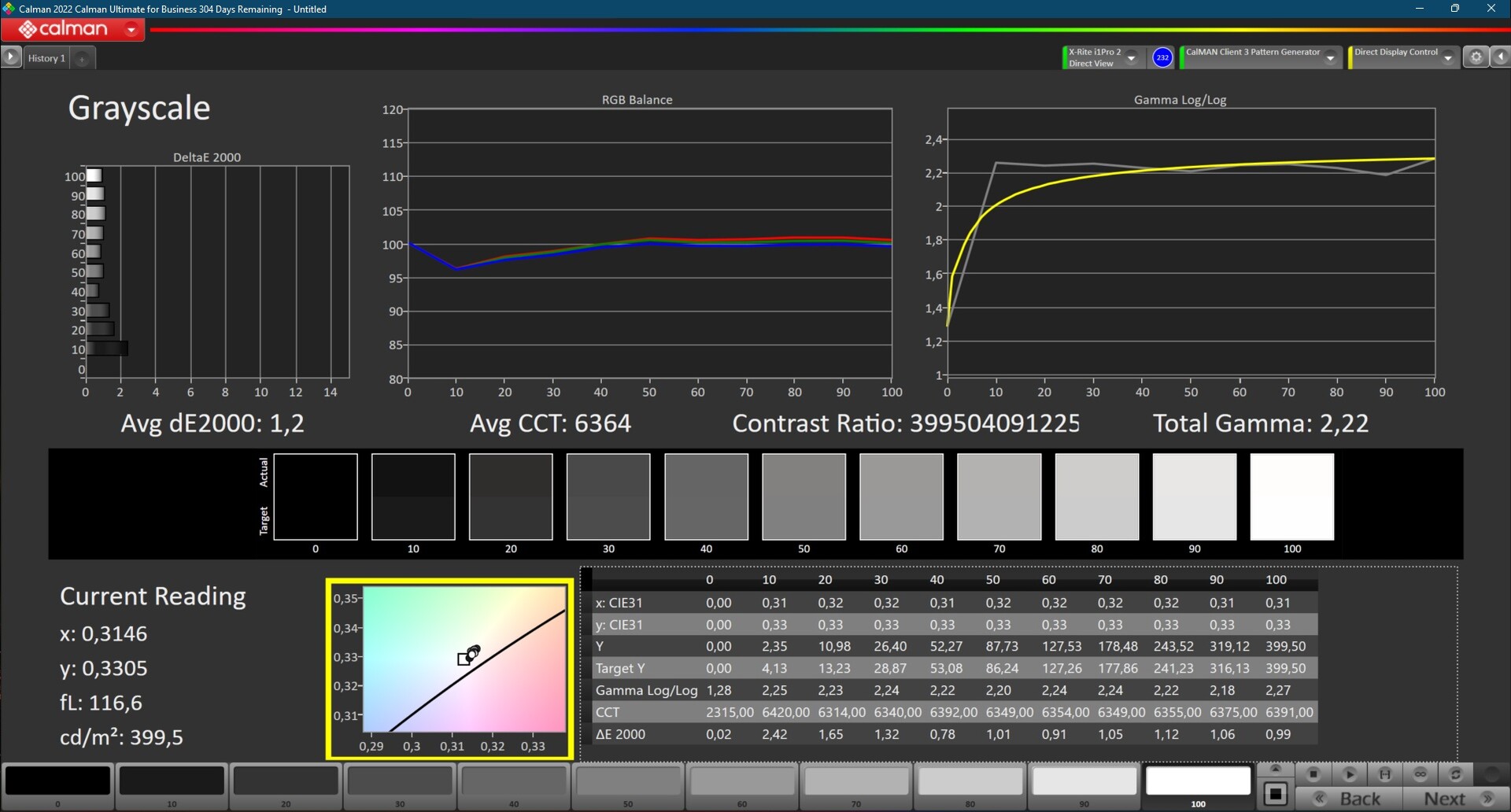

ΔE Greyscale 1.2 | 0.5-98 Ø5.2

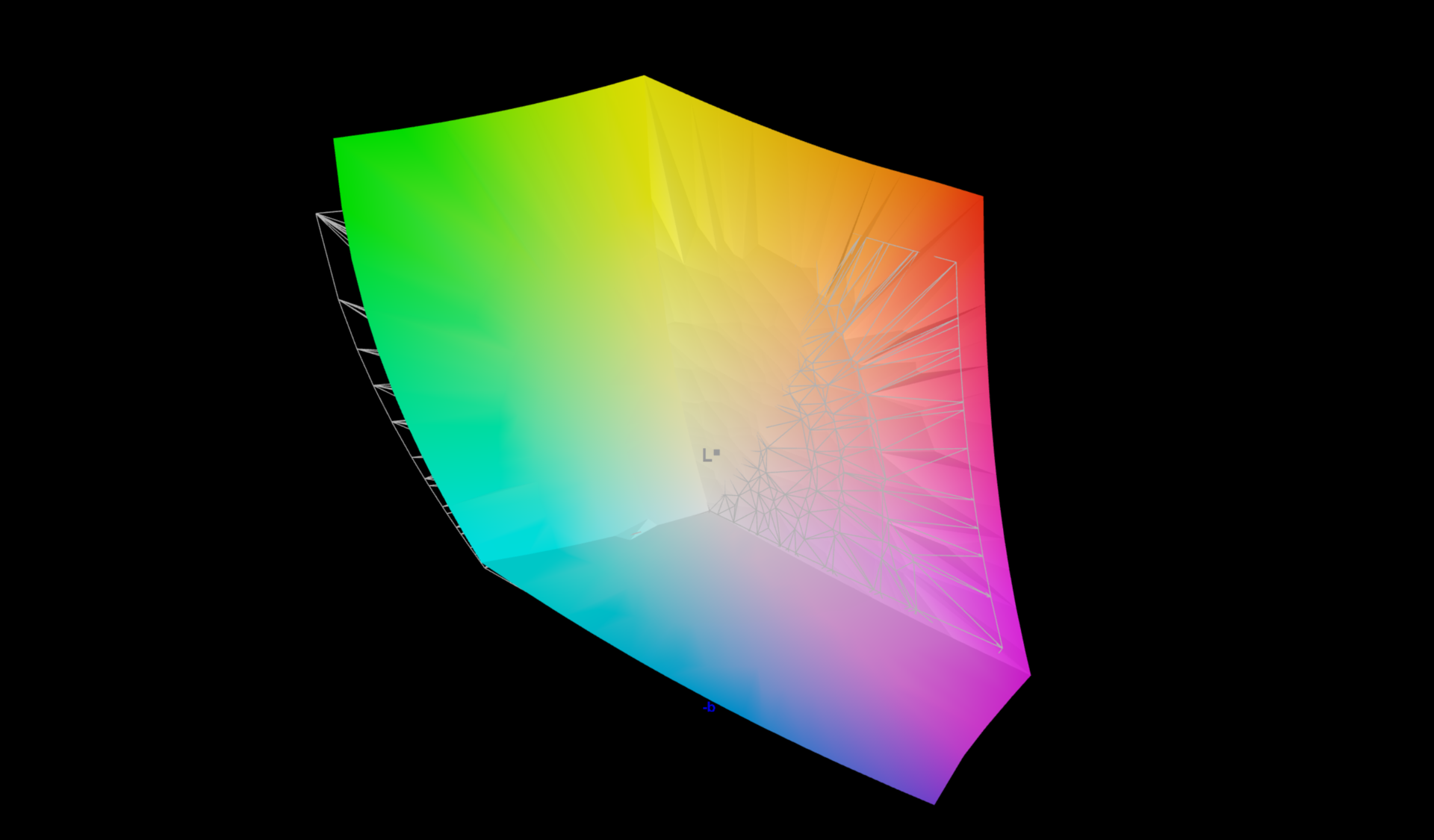

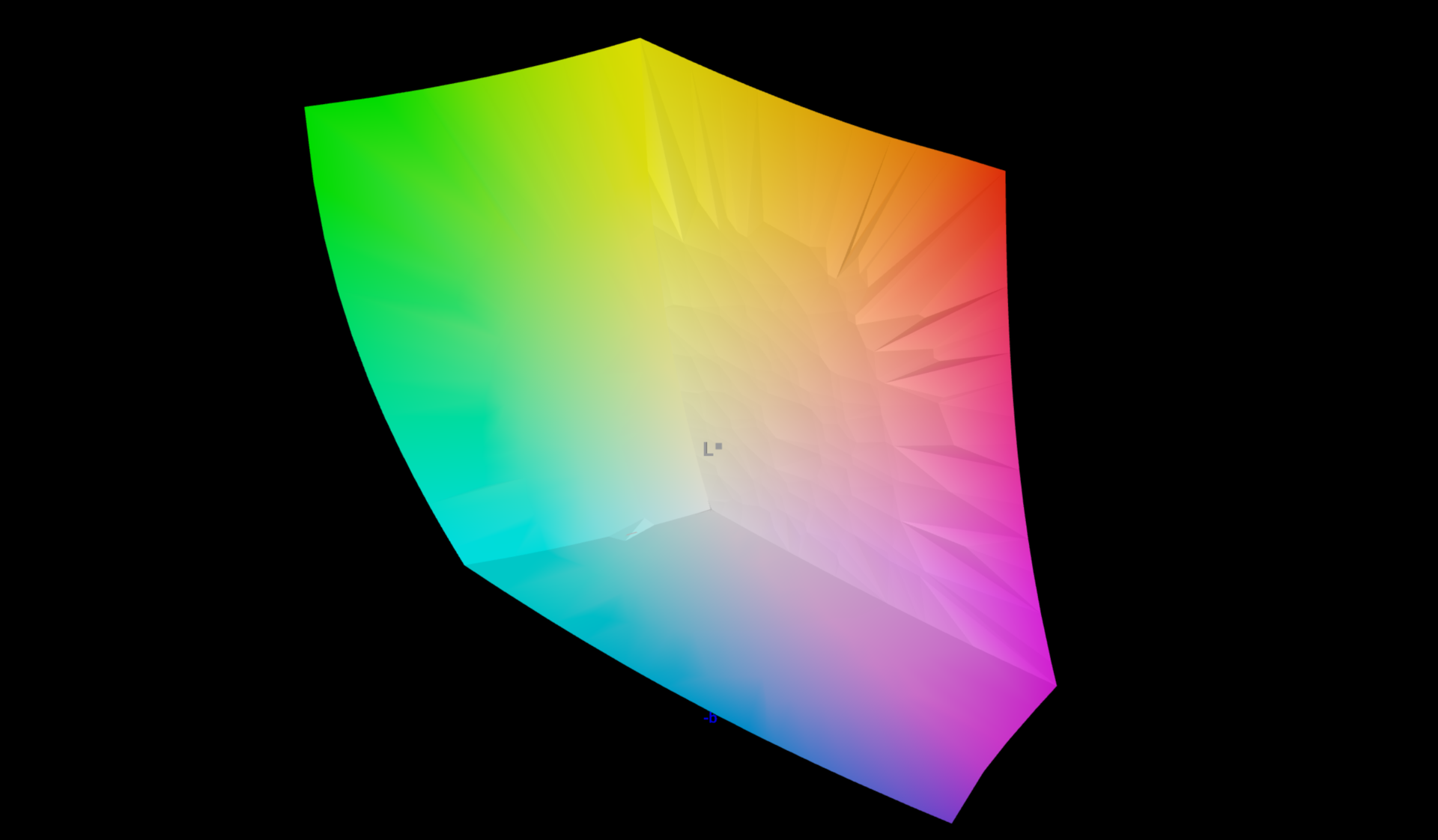

96.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22

Download ICC-fil (X-Rite i1Pro 2)

	Lenovo ThinkPad X1 Carbon G10 21CB00DCGE ATNA40YK01-1, OLED, 2880x1800, 14"	Lenovo ThinkPad X1 Carbon G10 21CC001RGE B140UAN02.1, IPS LED, 1920x1200, 14"	Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW MNE007A1-2, IPS LED, 3840x2400, 14"	Lenovo ThinkPad Z13 G1-21D20016GE ATNA33AA02-0, OLED, 2880x1800, 13.3"	HP Elite Dragonfly G3 Chi Mei CMN13C0, IPS, 1920x1280, 13.5"	Dell Latitude 9430 2-in-1 AU Optronics B140QAN, IPS, 2560x1600, 14"
Display		-16%	-4%	0%	-21%	-13%
Display P3 Coverage	99.7	74.6 -25%	95.2 -5%	99.9 0%	68 -32%	79.4 -20%
sRGB Coverage	100	98.6 -1%	99.8 0%	100 0%	98.3 -2%	100 0%
AdobeRGB 1998 Coverage	96.5	76.5 -21%	89.2 -8%	97.5 1%	69.9 -28%	79.4 -18%
Response Times		3440%	-2754%	-29%	-3117%	-3600%
Response Time Grey 50% / Grey 80% *	1.2 ?(0.6, 0.6)	45.5 ?(20, 25.5) -3692%	46 ?(23, 23) -3733%	1.9 ?(1, 0.9) -58%	50.8 ?(27.2, 23.6) -4133%	63.6 ?(33.2, 30.4) -5200%
Response Time Black / White *	1.6 ?(0.9, 0.7)	24 ?(12, 12) -1400%	30 ?(15, 15) -1775%	1.6 ?(0.8, 0.8) -0%	35.2 ?(18.8, 16.4) -2100%	33.6 ?(17.2, 16.4) -2000%
PWM Frequency	342 ?(100)	53050 ?(100) 15412%		240 ?(50, 86) -30%
Screen		-51%	27%	-10%	-18%	-29%
Brightness middle	400	372 -7%	497 24%	371 -7%	387.2 -3%	517.7 29%
Brightness	401	362 -10%	488 22%	378 -6%	360 -10%	493 23%
Brightness Distribution	97	94 -3%	87 -10%	98 1%	80 -18%	90 -7%
Black Level *		0.18	0.35	0.04	0.26	0.33
Colorchecker dE 2000 *	2.2	3.4 -55%	1.2 45%	2.5 -14%	2.36 -7%	3.38 -54%
Colorchecker dE 2000 max. *	4.3	6.7 -56%	2.1 51%	4.4 -2%	4.79 -11%	6.25 -45%
Colorchecker dE 2000 calibrated *	2.6	1.8 31%	0.9 65%	1.9 27%	0.63 76%	0.41 84%
Greyscale dE 2000 *	1.2	4.3 -258%	1.3 -8%	2 -67%	3 -150%	4 -233%
Gamma	2.22 ^99%	2.13 ^103%	2.16 ^102%	2.17 ^101%	2.17 ^101%	2.13 ^103%
CCT	6364 ^102%	6158 ^106%	6690 ^97%	6228 ^104%	6137 ^106%	6186 ^105%
Contrast		2067	1420	9275	1489	1569
Color Space (Percent of AdobeRGB 1998)			79.37
Color Space (Percent of sRGB)			99.78
Total Average (Program / Settings)		1124% / 763%	-910% / -444%	-13% / -12%	-1052% / -535%	-1214% / -620%

* ... smaller is better

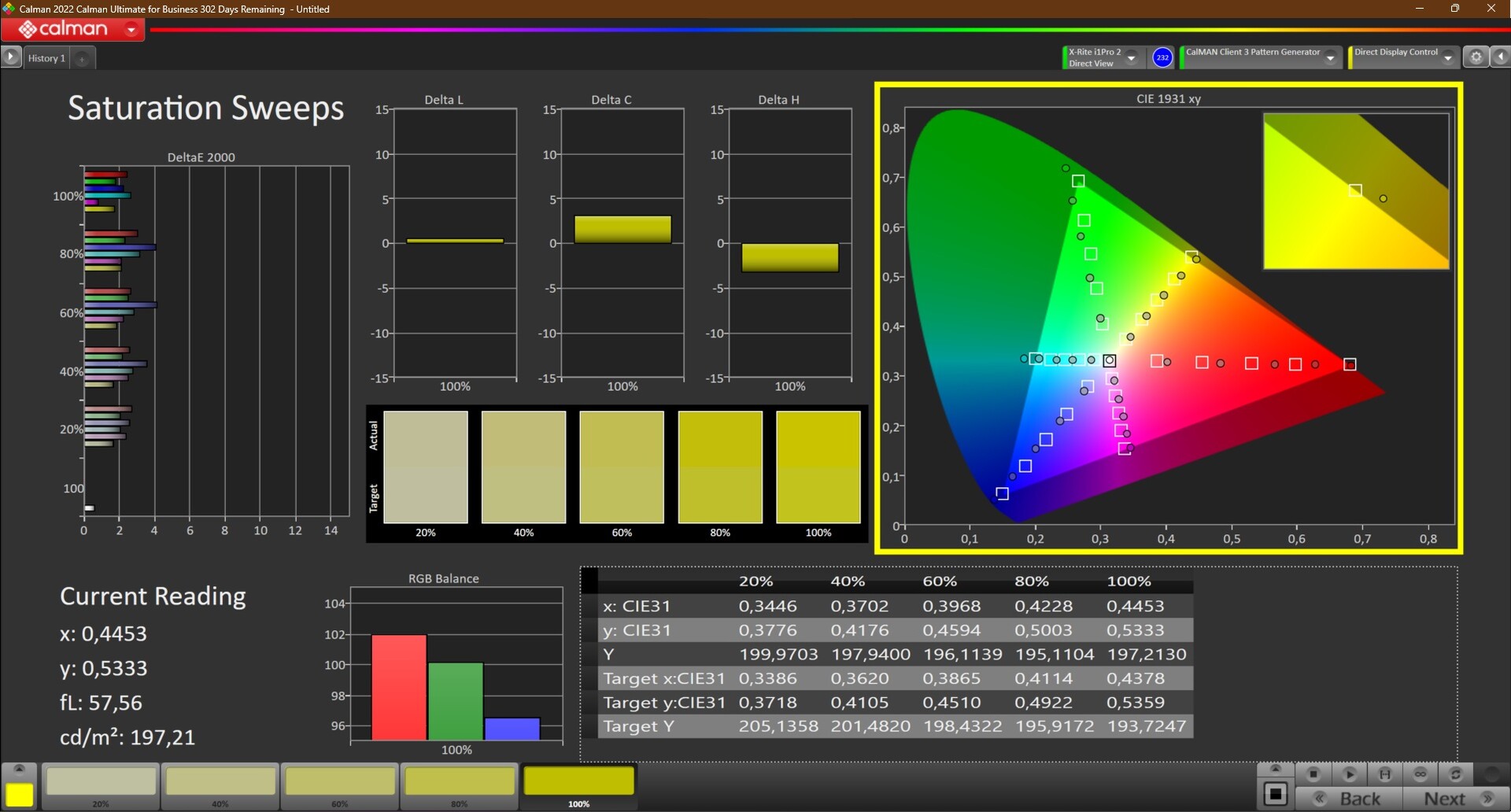

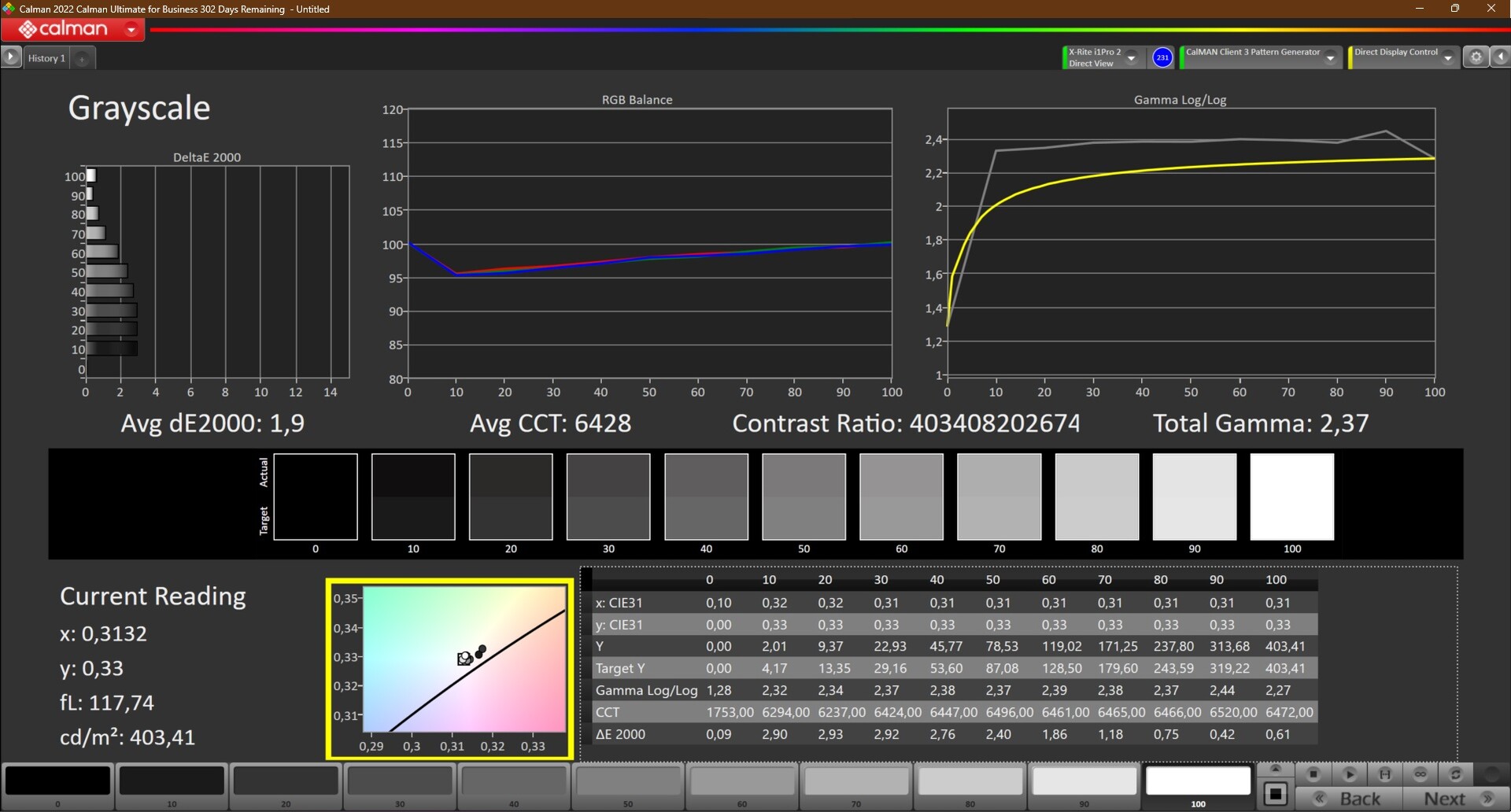

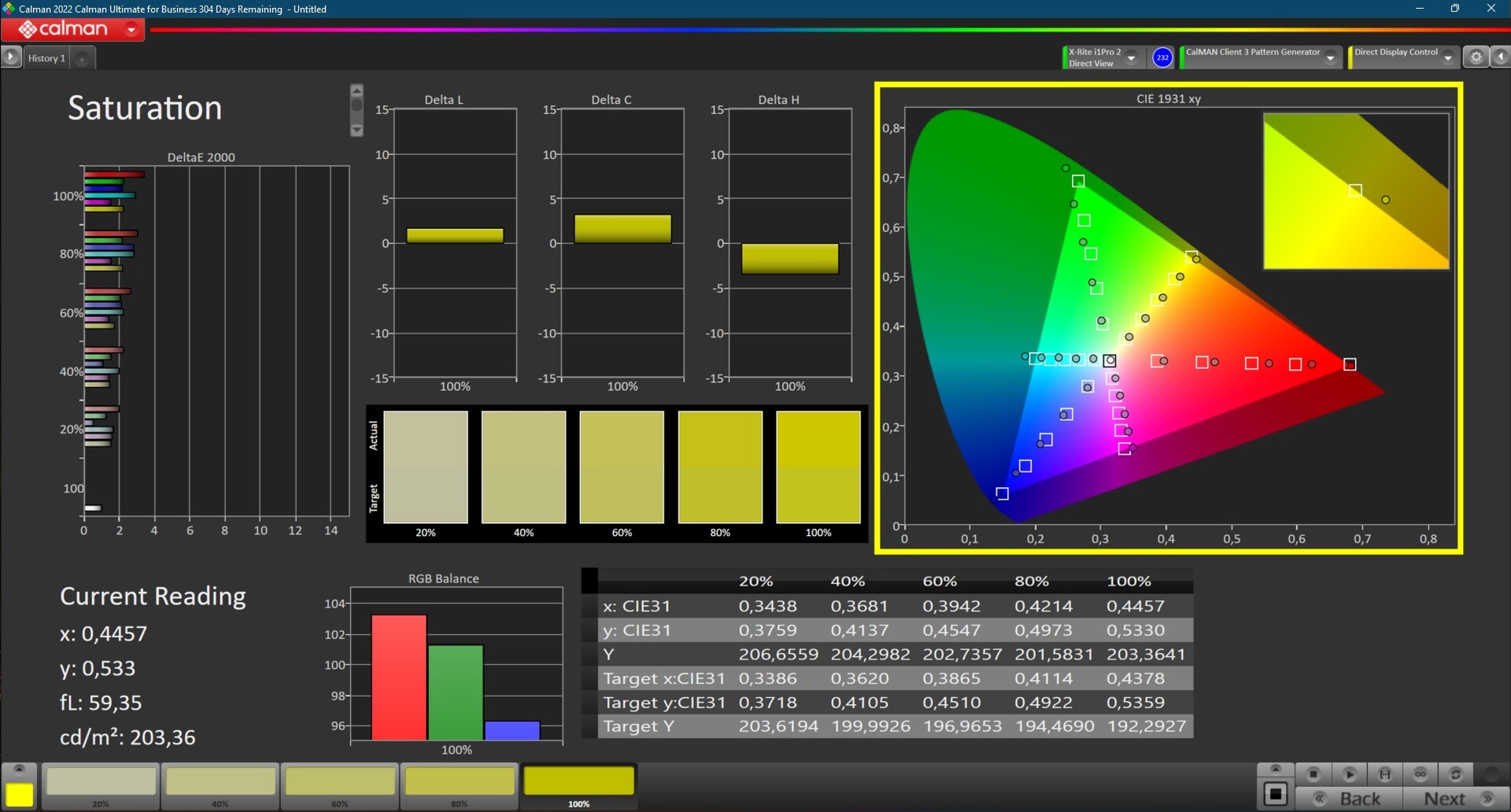

Skärmens färgkvalitet är extremt hög redan i fabriksskick; det praktiskt taget oändligt höga kontrastvärdet ger levande, accentuerade färger. Avvikelserna från idealet är redan från fabrik jämförelsevis små för de flesta färger - och vi kunde knappast förbättra kvaliteten via kalibrering.

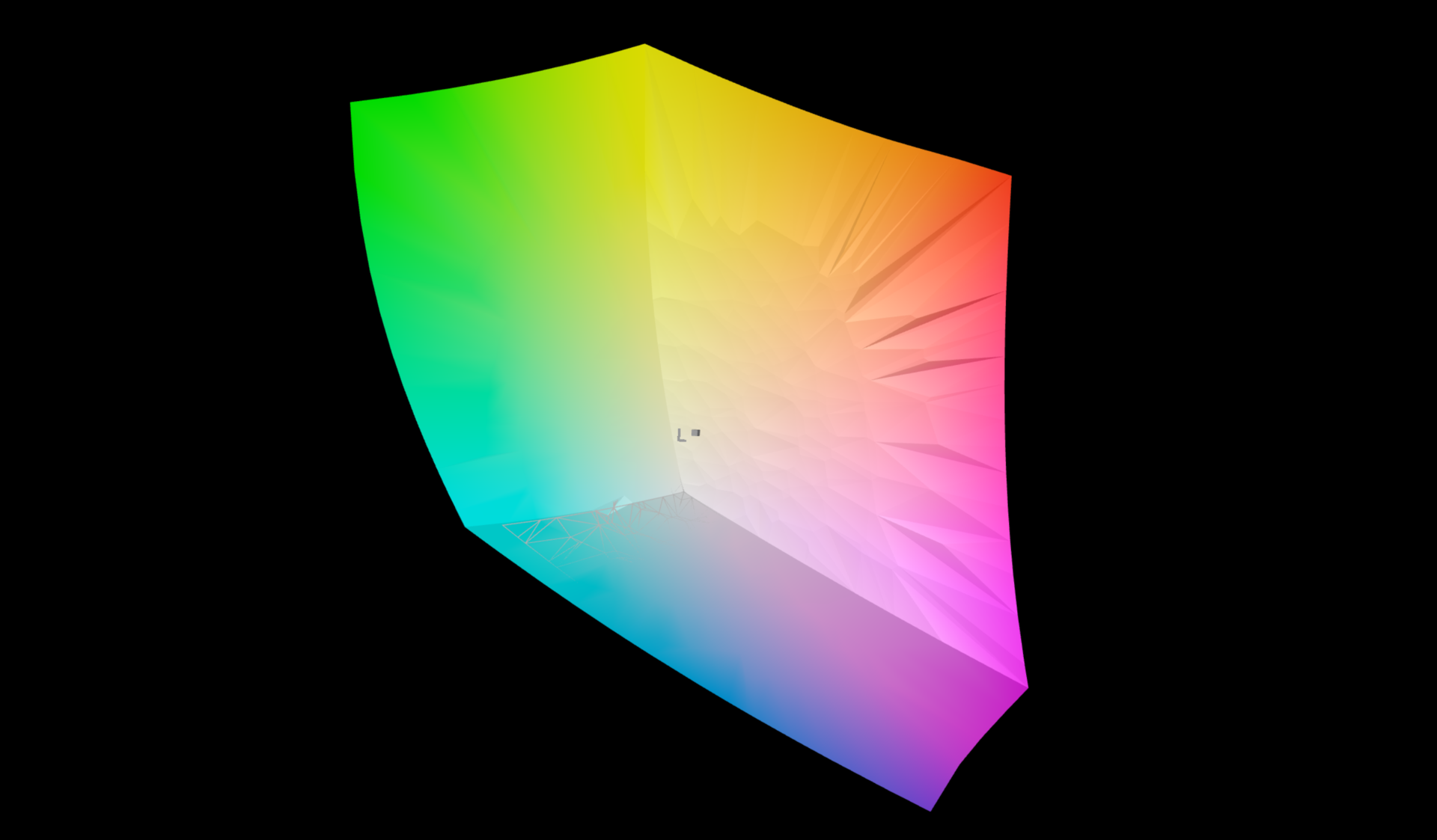

En styrka hos OLED-skärmen är den mycket goda färgområdestäckningen. Lenovo lovar 100 % DCI-P3, vilket faktiskt visar sig vara 99,7 %. Panelen kan fullt ut återge det lilla sRGB-färgutrymmet, och även AdobeRGB saknar inte mycket med sina 96,5 %.

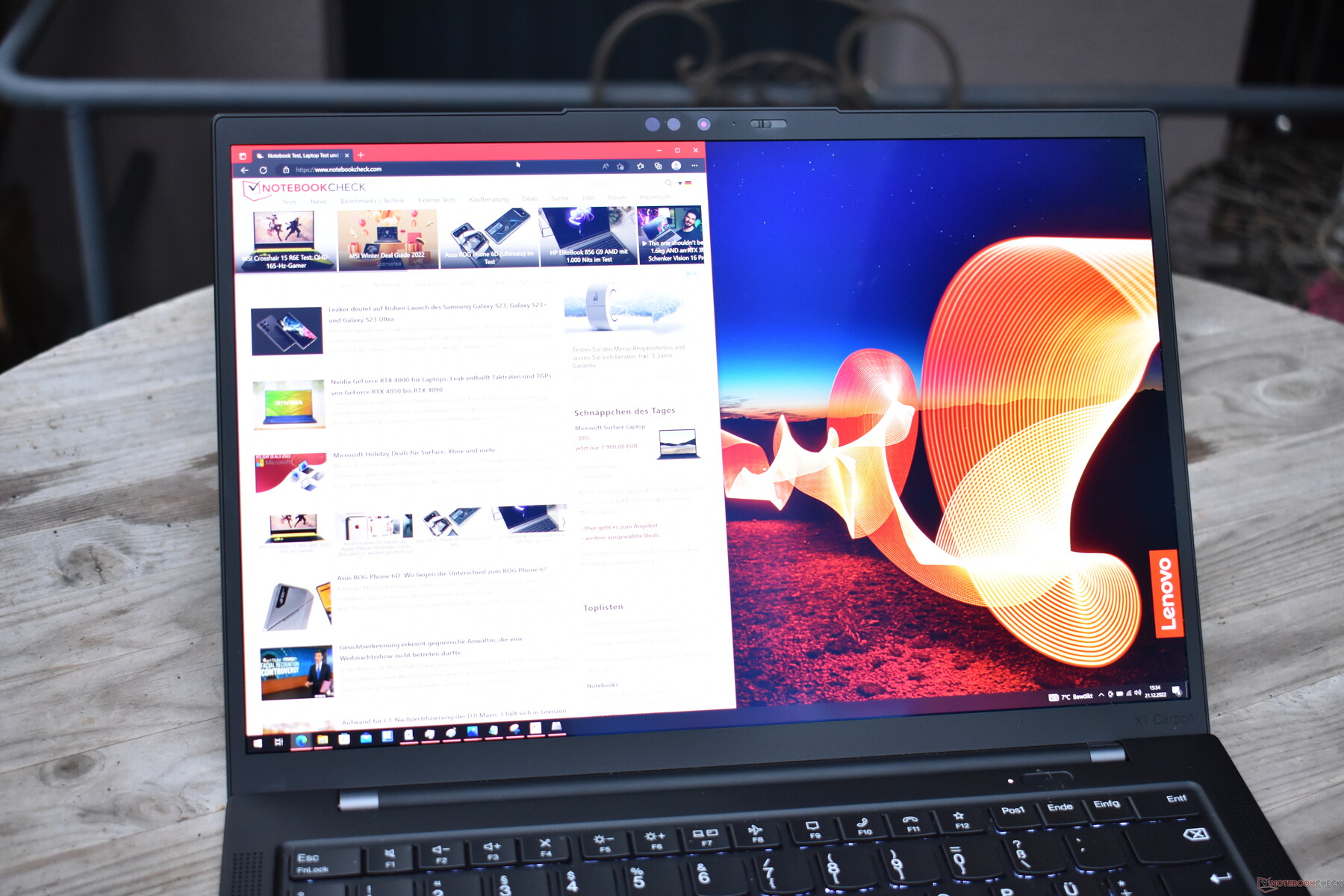

OLED-skärmar är vanligtvis blanka - skärmen på Lenovos ThinkPad X1 Carbon G10 är också blanka, men endast i mycket liten utsträckning, och är dessutom en antireflexpanel. I kombination med en ljusstyrka på cirka 400 cd/m² och det höga kontrastförhållandet kan skärmen användas utomhus utan problem.

Display Response Times

ℹ

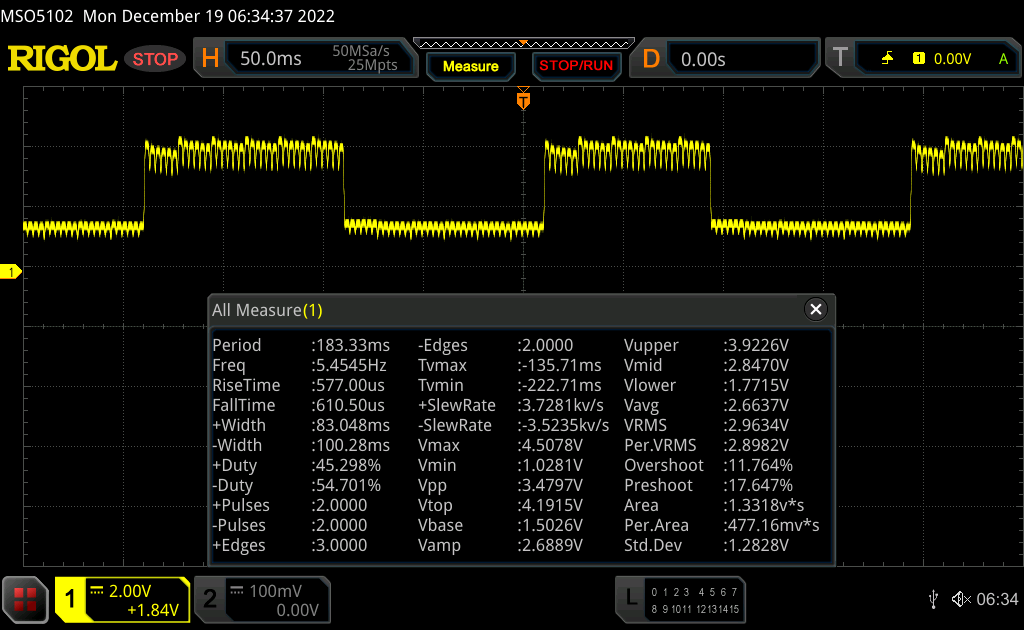

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

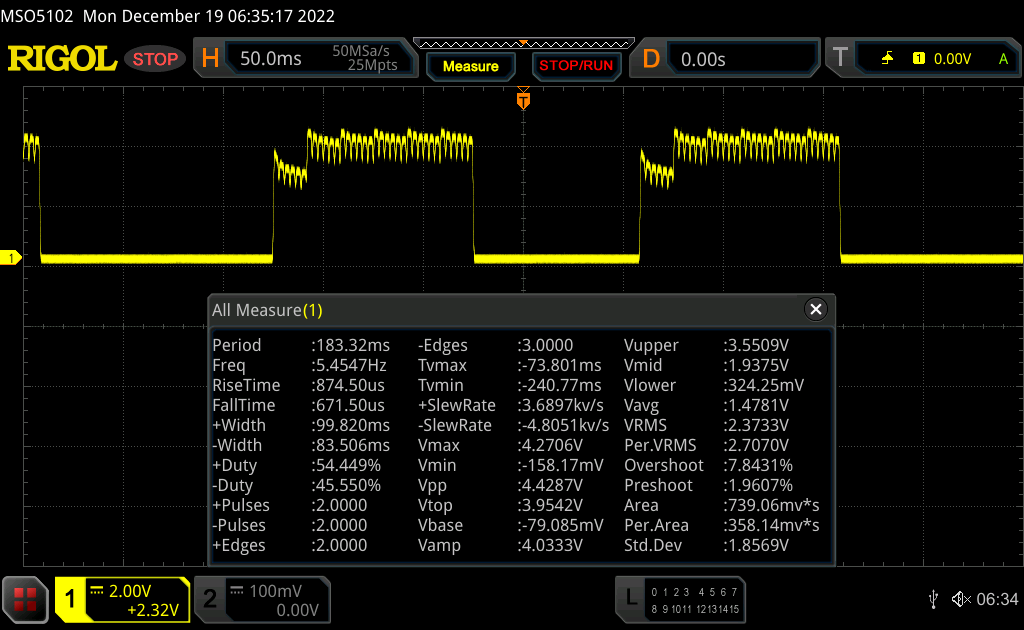

↔ Response Time Black to White
1.6 ms ... rise ↗ and fall ↘ combined	↗ 0.9 ms rise
1.6 ms ... rise ↗ and fall ↘ combined	↘ 0.7 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 6 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms).
↔ Response Time 50% Grey to 80% Grey
1.2 ms ... rise ↗ and fall ↘ combined	↗ 0.6 ms rise
1.2 ms ... rise ↗ and fall ↘ combined	↘ 0.6 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 3 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms).

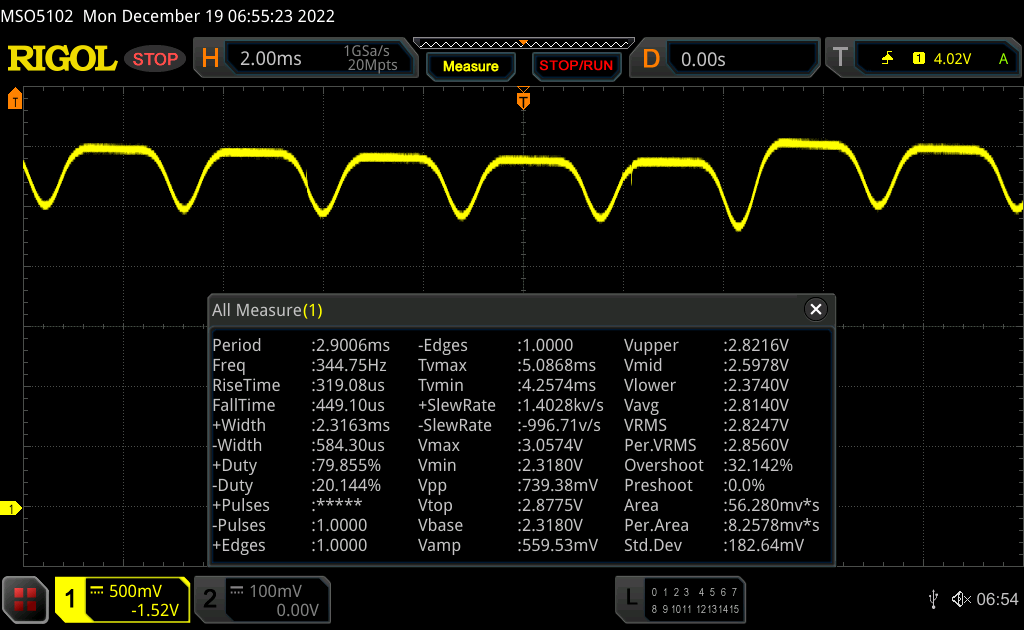

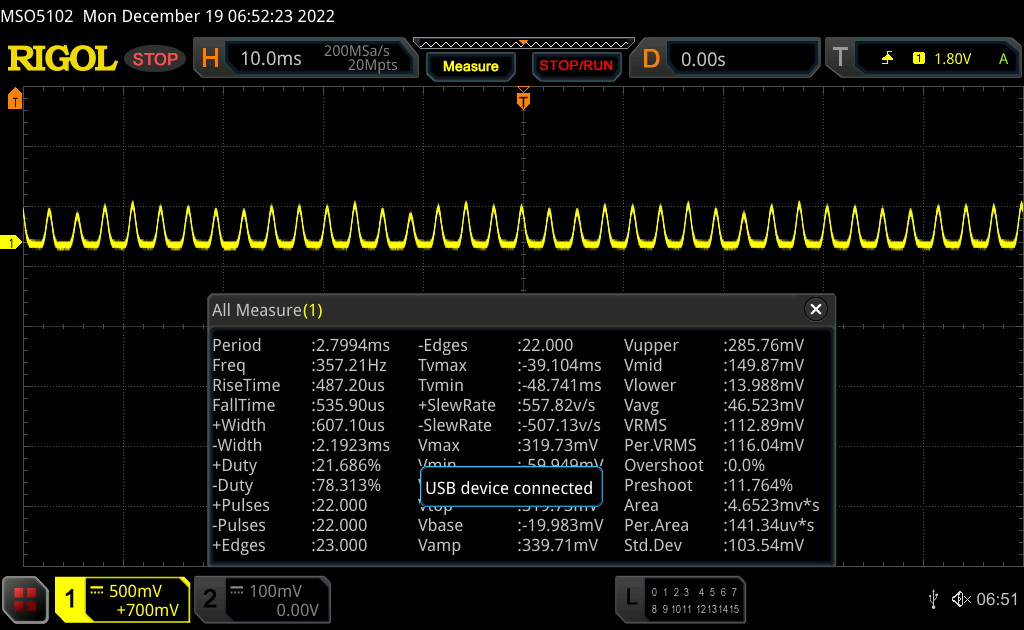

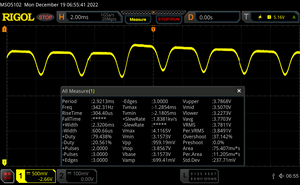

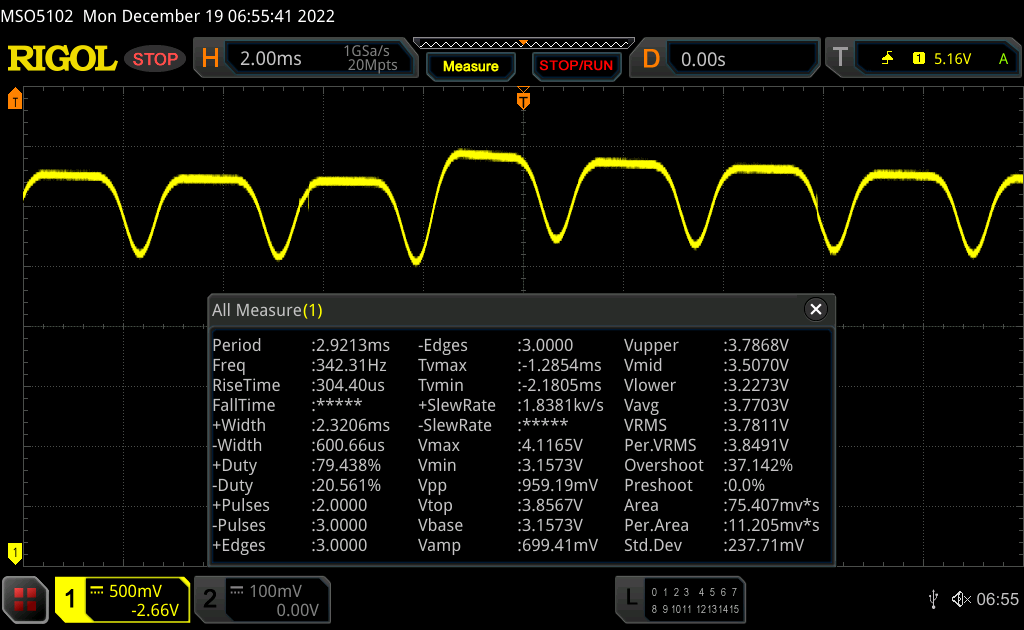

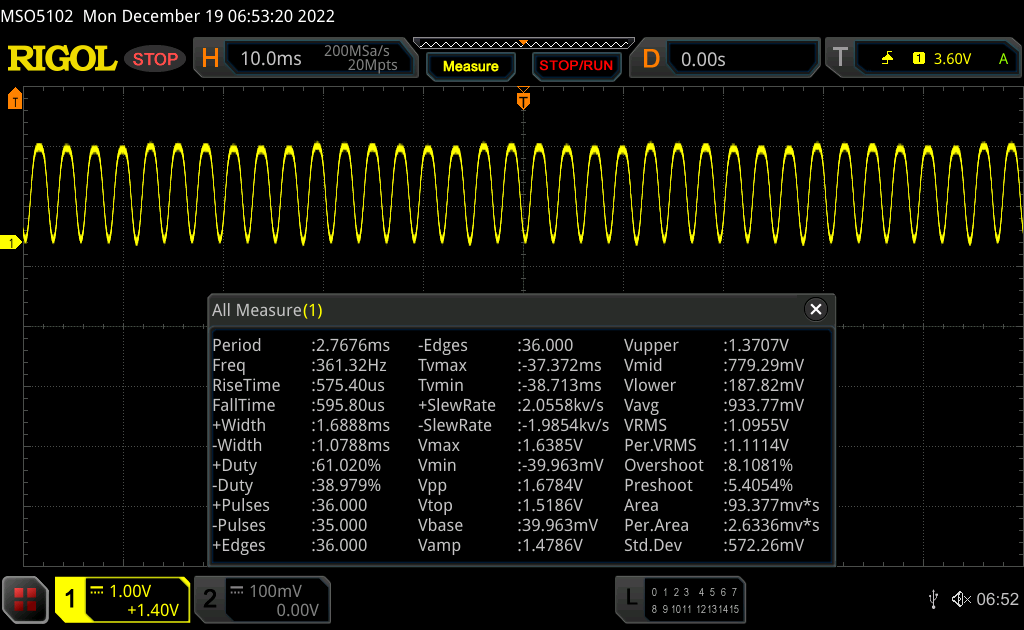

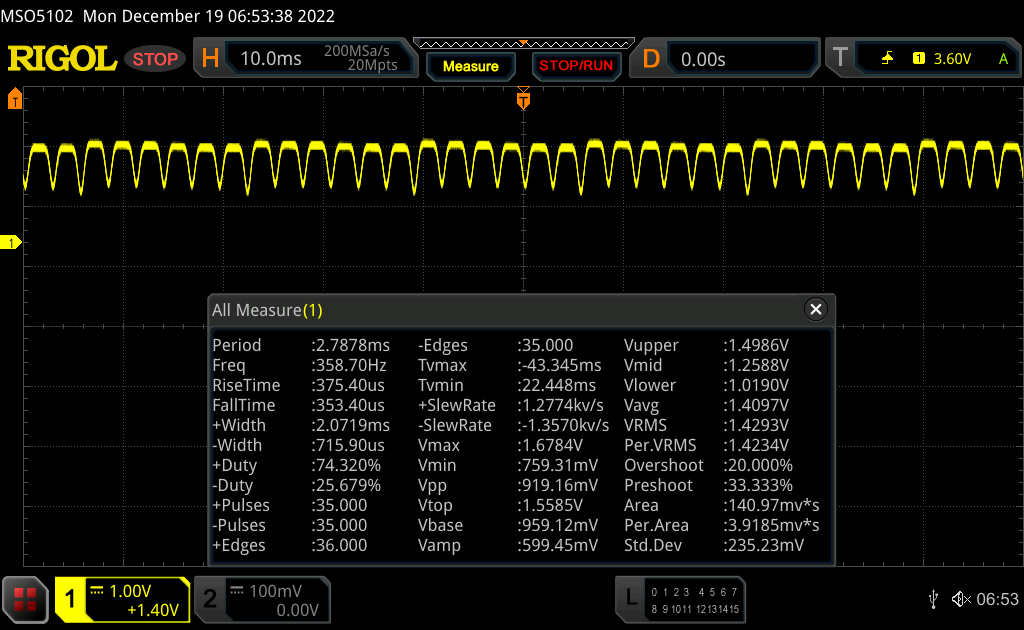

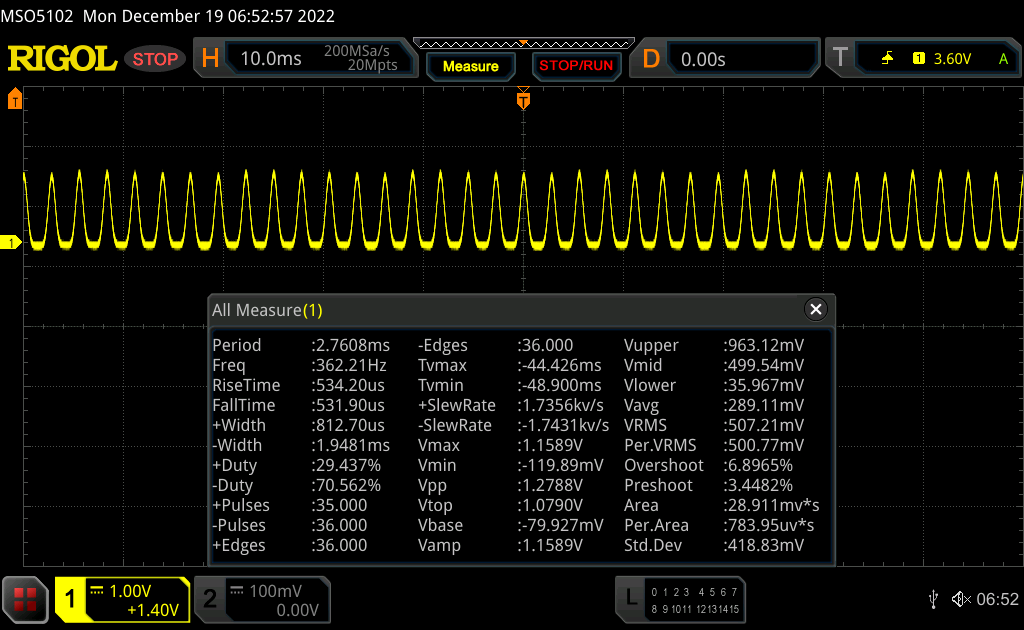

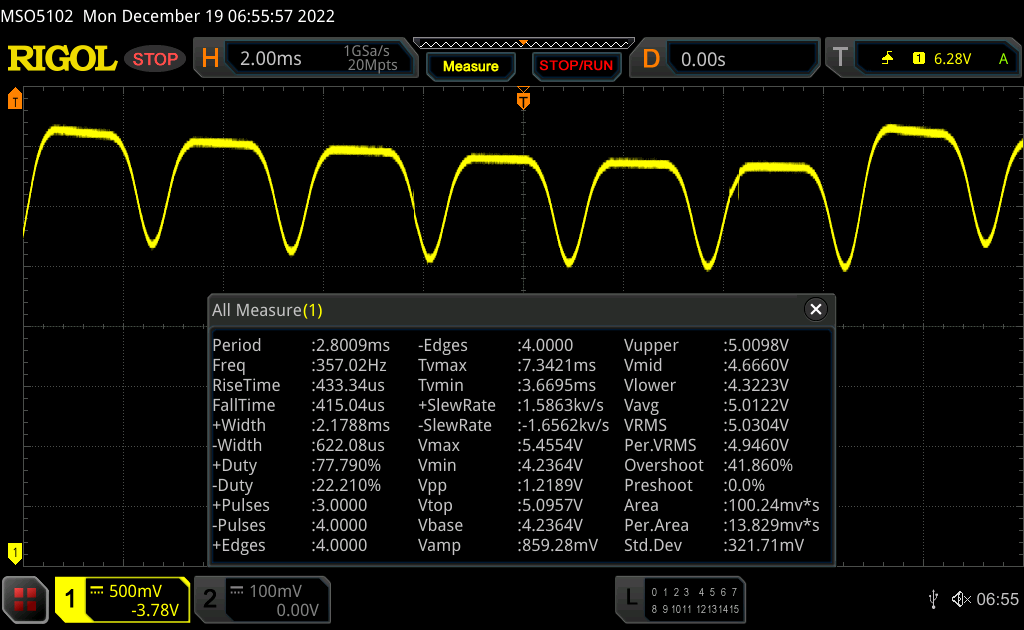

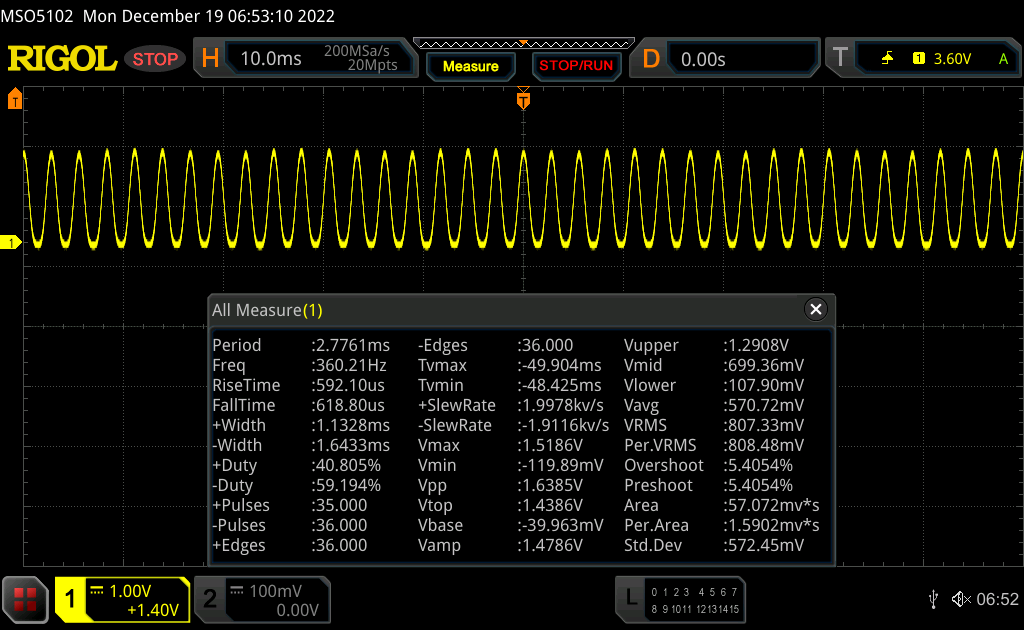

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

342 Hz

≤ 100 % brightness setting

The display backlight flickers at 342 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 342 Hz is relatively high, so most users sensitive to PWM should not notice any flickering. However, there are reports that some users are still sensitive to PWM at 500 Hz and above, so be aware.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured.

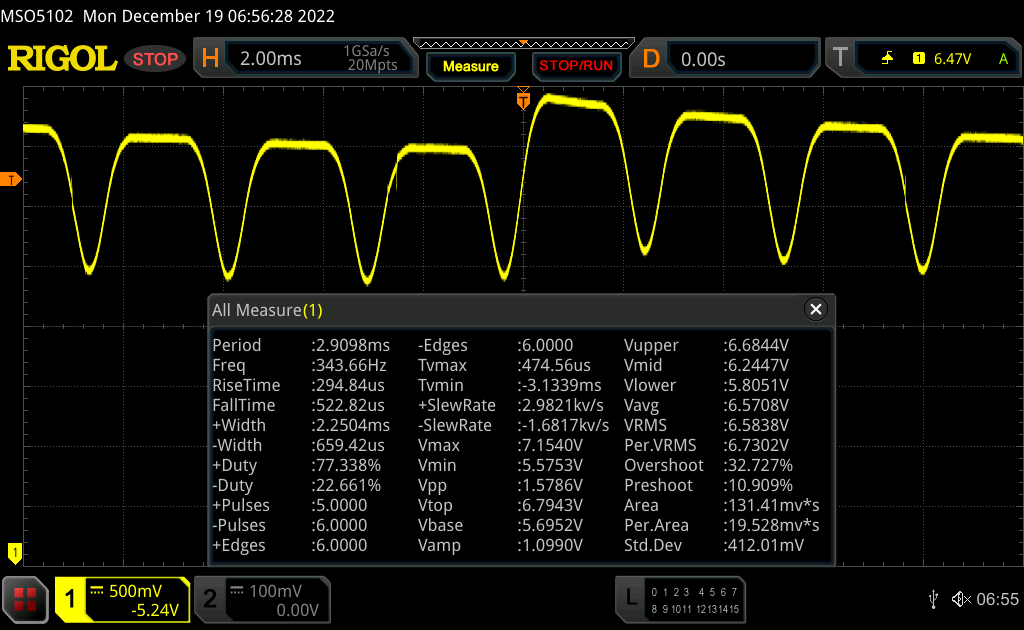

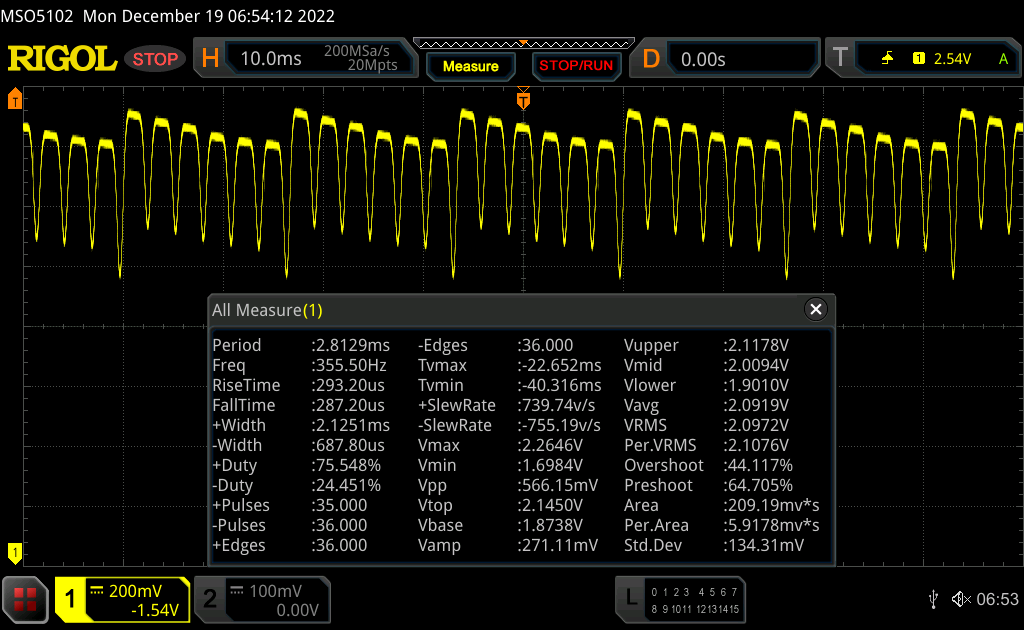

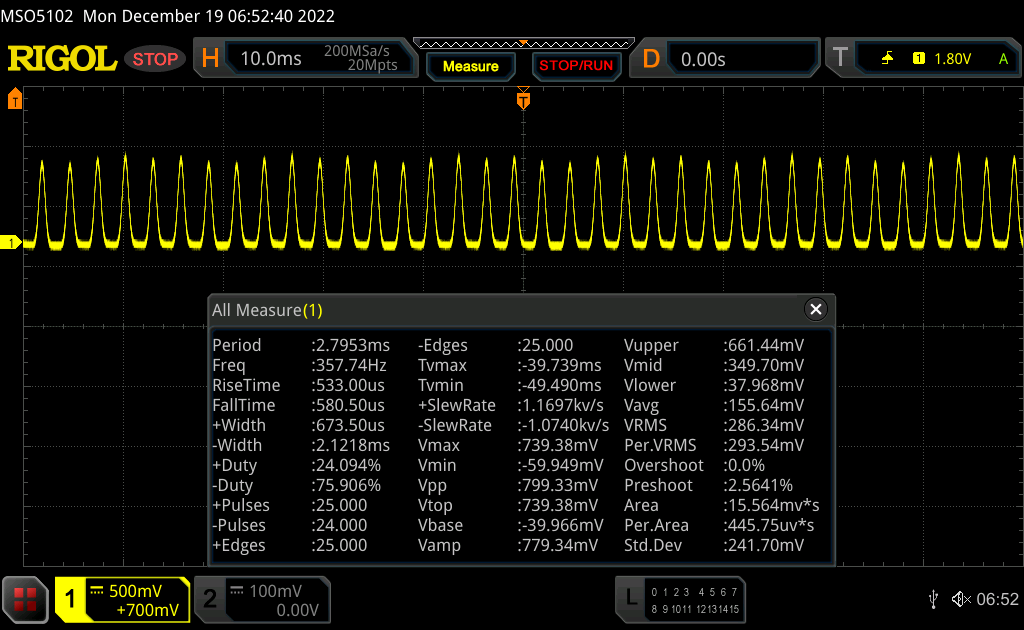

PWM: 2/10 Ljusstyrka — PWM: 1/10 ljusstyrka

Prestanda: Lenovo sätter TDP-gränsen högre den här gången

En beskrivning av komponentalternativen finns i vår första granskning av Lenovo ThinkPad X1 Carbon G10.

Provningsförhållanden

Som alltid med ThinkPads använder Lenovo Windows prestandalägen som kan ställas in i Windows-inställningarna. Läget "Längsta batteritid" begränsar permanent processorn till 11 watt. I mellannivån "Bättre prestanda" är upp till 50 watt möjligt som boost, och processorn begränsas till 19 watt under långa perioder. Denna långtidsbegränsning gäller även för inställningen "Bästa prestanda", där upp till 56 watt är möjligt för korta utbrott och 28 watt för mellansteg.

Processor

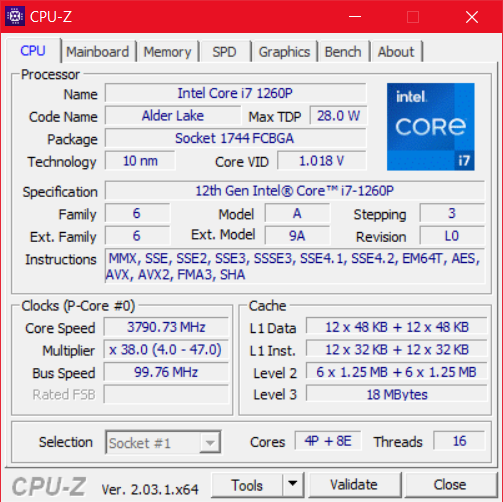

Intel Core i7-1260Pär en processor från "Alder-Lake-P28"-serien. Som namnet antyder är totalt tolv kärnor, varav fyra prestandakärnor och åtta effektivitetskärnor, utformade för en förbrukning på 28 watt. Vår processorlista kan användas för mer omfattande jämförelser av riktmärken med andra processorer.

Den permanenta förbrukningen på 19 watt ligger långt under de 28 watt som den här processorn faktiskt är avsedd för. Å andra sidan är detta fortfarande en förbättring jämfört medvårt första granskningsprov av X1 Carbon G10, vars Intel Core i5-1250P var permanent begränsad till endast 15 watt. Dessutom kan processorn hålla de 28 watt som ett mellansteg längre än i vår första granskning. När det gäller CPU-prestanda är X1 Carbon Gen 10 därmed betydligt mer konkurrenskraftig. Den är dock fortfarande klart sämre än Lenovo ThinkPad Z13 med sin AMD-processor.

CPU-prestanda är också fullt tillgänglig i batteriläge.

Cinebench R15 Multi Sustained Load

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P: Ø1333 (1063.15-1615.77)

Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P: Ø1080 (680.55-1527.77)

Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7: Ø834 (823.11-884.45)

Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z: Ø1748 (1679.4-1992.13)

HP Elite Dragonfly G3 Intel Core i7-1265U: Ø988 (961.28-1204.49)

Dell Latitude 9430 2-in-1 Intel Core i7-1265U: Ø1267 (1223.84-1572.02)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	79.7 pt
Dell Latitude 9430 2-in-1 ^-1! Intel Core i7-1265U	79 pt
Average Intel Core i7-1260P	73.1 pt
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	70.4 pt
Average of class Office	69.2 pt
HP Elite Dragonfly G3 Intel Core i7-1265U	59 pt
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	56.4 pt
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	53 pt

Cinebench R23 / Multi Core
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	11822 Points +22%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	9679 Points
Average of class Office (1577 - 15743, n=97, last 2 years)	9331 Points -4%
Average Intel Core i7-1260P (3173 - 12150, n=27)	9314 Points -4%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	9219 (7725.92^min - 9218.73^max) Points -5%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	7282 Points -25%
HP Elite Dragonfly G3 Intel Core i7-1265U	6145 (5739.99^min - 6144.82^max) Points -37%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	5671 Points -41%

Cinebench R23 / Single Core
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	1820 Points +12%
Average Intel Core i7-1260P (1155 - 1812, n=25)	1674 Points +3%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	1621 Points
Average of class Office (618 - 1995, n=97, last 2 years)	1562 Points -4%
HP Elite Dragonfly G3 Intel Core i7-1265U	1529 Points -6%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	1521 Points -6%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	1478 Points -9%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	1468 Points -9%

Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	4555 Points +23%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	3702 Points
Average Intel Core i7-1260P (1234 - 4748, n=25)	3595 Points -3%
Average of class Office (590 - 5980, n=97, last 2 years)	3590 Points -3%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	3584 Points -3%
HP Elite Dragonfly G3 Intel Core i7-1265U	2365 Points -36%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	2334 Points -37%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	2033 Points -45%

Cinebench R20 / CPU (Single Core)
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	701 Points +13%
Average Intel Core i7-1260P (448 - 698, n=25)	645 Points +4%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	618 Points
Average of class Office (229 - 766, n=97, last 2 years)	601 Points -3%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	588 Points -5%
HP Elite Dragonfly G3 Intel Core i7-1265U	586 Points -5%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	566 Points -8%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	536 Points -13%

Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	1992 (1679.4^min - 1992.13^max) Points +23%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	1616 (1063.15^min - 1615.77^max) Points
Average of class Office (246 - 2642, n=98, last 2 years)	1577 Points -2%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	1572 (1223.84^min - 1572.02^max) Points -3%
Average Intel Core i7-1260P (549 - 2034, n=29)	1553 Points -4%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	1528 (680.55^min - 1527.77^max) Points -5%
HP Elite Dragonfly G3 Intel Core i7-1265U	1204 (961.28^min - 1204.49^max) Points -25%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	884 (823.11^min - 884.45^max) Points -45%

Cinebench R15 / CPU Single 64Bit
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	260 Points +49%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	233 Points +33%
Average Intel Core i7-1260P (165.4 - 260, n=27)	232 Points +33%
Average of class Office (98 - 284, n=97, last 2 years)	231 Points +32%
HP Elite Dragonfly G3 Intel Core i7-1265U	224 Points +28%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	217 Points +24%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	201 Points +15%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	174.8 Points

Blender / v2.79 BMW27 CPU
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	601 Seconds * -71%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	511 Seconds * -45%
HP Elite Dragonfly G3 Intel Core i7-1265U	484 Seconds * -38%
Average of class Office (208 - 1956, n=98, last 2 years)	414 Seconds * -18%
Average Intel Core i7-1260P (264 - 906, n=26)	366 Seconds * -4%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	352 Seconds *
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	274 Seconds * +22%

7-Zip 18.03 / 7z b 4
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	52568 MIPS +29%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	40671 MIPS
Average of class Office (7532 - 65460, n=98, last 2 years)	39147 MIPS -4%
Average Intel Core i7-1260P (16146 - 47064, n=25)	38707 MIPS -5%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	38437 MIPS -5%
HP Elite Dragonfly G3 Intel Core i7-1265U	30561 MIPS -25%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	24625 MIPS -39%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	23657 MIPS -42%

7-Zip 18.03 / 7z b 4 -mmt1
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	5444 MIPS +6%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	5289 MIPS +3%
Average Intel Core i7-1260P (4064 - 5791, n=25)	5284 MIPS +3%
Average of class Office (2972 - 6687, n=98, last 2 years)	5267 MIPS +3%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	5123 MIPS
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	5069 MIPS -1%
HP Elite Dragonfly G3 Intel Core i7-1265U	4976 MIPS -3%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	3532 MIPS -31%

Geekbench 5.5 / Multi-Core
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	8981 Points +3%
Average Intel Core i7-1260P (3866 - 10570, n=25)	8763 Points 0%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	8739 Points
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	8734 Points 0%
HP Elite Dragonfly G3 Intel Core i7-1265U	8096 Points -7%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	7672 Points -12%
Average of class Office (1018 - 11980, n=97, last 2 years)	7647 Points -12%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	5773 Points -34%

Geekbench 5.5 / Single-Core
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	1773 Points +4%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	1712 Points
Average Intel Core i7-1260P (1436 - 1786, n=25)	1693 Points -1%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	1622 Points -5%
Average of class Office (510 - 1995, n=98, last 2 years)	1593 Points -7%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	1529 Points -11%
HP Elite Dragonfly G3 Intel Core i7-1265U	1515 Points -12%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	1452 Points -15%

HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	14.7 fps +81%
Average Intel Core i7-1260P (3.45 - 13.6, n=26)	10.8 fps +33%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	10.6 fps +30%
Average of class Office (1.72 - 18.7, n=96, last 2 years)	10.5 fps +29%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	8.14 fps
HP Elite Dragonfly G3 Intel Core i7-1265U	7.76 fps -5%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	6.77 fps -17%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	6.15 fps -24%

LibreOffice / 20 Documents To PDF
HP Elite Dragonfly G3 Intel Core i7-1265U	61.6 s * -31%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	53.5 s * -14%
Average of class Office (31.3 - 129.6, n=96, last 2 years)	53.3 s * -13%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	50 s * -6%
Average Intel Core i7-1260P (40.2 - 65.7, n=25)	48.4 s * -3%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	47.1 s *
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	47 s * -0%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	43.8 s * +7%

R Benchmark 2.5 / Overall mean
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7	0.599 sec * -13%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P	0.597 sec * -13%
Average of class Office (0.4244 - 1.135, n=95, last 2 years)	0.545 sec * -3%
HP Elite Dragonfly G3 Intel Core i7-1265U	0.533 sec * -1%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P	0.528 sec *
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z	0.523 sec * +1%
Average Intel Core i7-1260P (0.4559 - 0.727, n=25)	0.5 sec * +5%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U	0.4666 sec * +12%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1616 Points

Cinebench R15 OpenGL 64Bit

98.9 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

174.8 Points

Cinebench R20 CPU (Multi Core)

3702 Points

Cinebench R20 CPU (Single Core)

618 Points

Cinebench R23 Single Core

1621 Points

Cinebench R23 Multi Core

9679 Points

Hjälp

... jämför

Performance Rating
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	93.5 pt
Average of class Office	68.7 pt
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	66.1 pt
Average Intel Core i7-1260P	58 pt
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	57.4 pt
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	54.3 pt
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	51.6 pt
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	46.8 pt

AIDA64 / FP32 Ray-Trace
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	12888 KRay/s +95%
Average of class Office (763 - 24250, n=97, last 2 years)	9494 KRay/s +43%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	8178 KRay/s +23%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	7106 KRay/s +7%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	6624 KRay/s
Average Intel Core i7-1260P (2176 - 10898, n=26)	6522 KRay/s -2%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	6082 KRay/s -8%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	4195 KRay/s -37%

AIDA64 / FPU Julia
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	86078 Points +158%
Average of class Office (4113 - 102228, n=97, last 2 years)	47958 Points +44%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	41649 Points +25%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	33366 Points
Average Intel Core i7-1260P (11015 - 56906, n=26)	31427 Points -6%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	31048 Points -7%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	29521 Points -12%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	20481 Points -39%

AIDA64 / CPU SHA3
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	2901 MB/s +86%
Average of class Office (287 - 4551, n=97, last 2 years)	2254 MB/s +44%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	2183 MB/s +40%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	1987 MB/s +27%
Average Intel Core i7-1260P (669 - 2709, n=26)	1827 MB/s +17%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	1573 MB/s +1%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	1562 MB/s
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	1395 MB/s -11%

AIDA64 / CPU Queen
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	99291 Points +29%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	76881 Points
Average Intel Core i7-1260P (42571 - 82493, n=26)	72878 Points -5%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	72801 Points -5%
Average of class Office (8185 - 115197, n=97, last 2 years)	70170 Points -9%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	67017 Points -13%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	63615 Points -17%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	50082 Points -35%

AIDA64 / FPU SinJulia
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	11910 Points +144%
Average of class Office (404 - 14288, n=97, last 2 years)	6721 Points +37%
Average Intel Core i7-1260P (2901 - 6975, n=26)	5770 Points +18%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	5135 Points +5%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	4890 Points
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	4875 Points 0%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	4793 Points -2%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	4220 Points -14%

AIDA64 / FPU Mandel
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	46317 Points +178%
Average of class Office (2075 - 54365, n=97, last 2 years)	25026 Points +50%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	20804 Points +25%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	17897 Points +7%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	16668 Points
Average Intel Core i7-1260P (5950 - 26376, n=26)	16631 Points 0%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	15475 Points -7%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	11458 Points -31%

AIDA64 / CPU AES
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	69697 MB/s +102%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	57472 MB/s +67%
Average of class Office (7860 - 155900, n=97, last 2 years)	51403 MB/s +49%
Average Intel Core i7-1260P (16041 - 92356, n=26)	45075 MB/s +31%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	42966 MB/s +25%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	34449 MB/s
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	32876 MB/s -5%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	31008 MB/s -10%

AIDA64 / CPU ZLib
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	682 MB/s +51%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	632 MB/s +40%
Average Intel Core i7-1260P (259 - 771, n=26)	607 MB/s +34%
Average of class Office (78 - 1018, n=97, last 2 years)	605 MB/s +34%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	515 MB/s +14%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	471 MB/s +4%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	452 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	357 MB/s -21%

AIDA64 / FP64 Ray-Trace
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	6831 KRay/s +97%
Average of class Office (432 - 12755, n=97, last 2 years)	5035 KRay/s +45%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	4376 KRay/s +26%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	3836 KRay/s +11%
Average Intel Core i7-1260P (1237 - 5858, n=26)	3577 KRay/s +3%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	3467 KRay/s
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	3246 KRay/s -6%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	2358 KRay/s -32%

AIDA64 / CPU PhotoWorxx
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	47031 MPixel/s +28%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	38648 MPixel/s +5%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	37026 MPixel/s +1%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	36837 MPixel/s
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	32881 MPixel/s -11%
Average Intel Core i7-1260P (13261 - 43652, n=26)	30959 MPixel/s -16%
Average of class Office (4814 - 54971, n=97, last 2 years)	29596 MPixel/s -20%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	24838 MPixel/s -33%

Systemets prestanda

Benchmarks för syntetisk systemprestanda liknar CPU-testerna. Lenovo ThinkPad X1 Carbon Gen 10 30th Anniversary Edition fungerar snabbt, men tar inte första platsen. Vid daglig användning visar den sig vara en mycket responsiv enhet.

PCMark 10 / Score
Lenovo ThinkPad Z13 G1-21D20016GE Radeon 680M, R7 PRO 6860Z, Micron 2450 1TB MTFDKCD1T0TFK	6240 Points +15%
Average of class Office (2463 - 7344, n=89, last 2 years)	5657 Points +5%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (4796 - 6068, n=17)	5498 Points +2%
Dell Latitude 9430 2-in-1 Iris Xe G7 96EUs, i7-1265U	5474 Points +1%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL2512HCJQ	5411 Points
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ	5064 Points -6%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR	5038 Points -7%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	4753 Points -12%

PCMark 10 / Essentials
Dell Latitude 9430 2-in-1 Iris Xe G7 96EUs, i7-1265U	10904 Points +10%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (9260 - 11251, n=17)	10341 Points +5%
Lenovo ThinkPad Z13 G1-21D20016GE Radeon 680M, R7 PRO 6860Z, Micron 2450 1TB MTFDKCD1T0TFK	10256 Points +4%
Average of class Office (5575 - 20841, n=89, last 2 years)	10148 Points +3%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ	10128 Points +2%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR	10127 Points +2%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL2512HCJQ	9895 Points
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	9278 Points -6%

PCMark 10 / Productivity
Lenovo ThinkPad Z13 G1-21D20016GE Radeon 680M, R7 PRO 6860Z, Micron 2450 1TB MTFDKCD1T0TFK	8102 Points +21%
Average of class Office (3041 - 10415, n=89, last 2 years)	7747 Points +15%
Dell Latitude 9430 2-in-1 Iris Xe G7 96EUs, i7-1265U	6962 Points +4%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (6167 - 8629, n=17)	6950 Points +3%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR	6856 Points +2%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL2512HCJQ	6715 Points
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ	6653 Points -1%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	5828 Points -13%

PCMark 10 / Digital Content Creation
Lenovo ThinkPad Z13 G1-21D20016GE Radeon 680M, R7 PRO 6860Z, Micron 2450 1TB MTFDKCD1T0TFK	7935 Points +23%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL2512HCJQ	6470 Points
Average of class Office (2126 - 9773, n=89, last 2 years)	6409 Points -1%
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (5231 - 6908, n=17)	6294 Points -3%
Dell Latitude 9430 2-in-1 Iris Xe G7 96EUs, i7-1265U	5865 Points -9%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	5391 Points -17%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ	5231 Points -19%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR	4998 Points -23%

CrossMark / Overall
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1484 - 1811, n=16)	1638 Points +5%
Dell Latitude 9430 2-in-1 Iris Xe G7 96EUs, i7-1265U	1597 Points +2%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL2512HCJQ	1565 Points
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ	1554 Points -1%
Lenovo ThinkPad Z13 G1-21D20016GE Radeon 680M, R7 PRO 6860Z, Micron 2450 1TB MTFDKCD1T0TFK	1505 Points -4%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	1424 Points -9%
Average of class Office (348 - 1891, n=91, last 2 years)	1416 Points -10%

CrossMark / Productivity
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1486 - 1755, n=16)	1592 Points +6%
Dell Latitude 9430 2-in-1 Iris Xe G7 96EUs, i7-1265U	1557 Points +4%
Lenovo ThinkPad Z13 G1-21D20016GE Radeon 680M, R7 PRO 6860Z, Micron 2450 1TB MTFDKCD1T0TFK	1508 Points 0%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL2512HCJQ	1503 Points
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ	1500 Points 0%
Average of class Office (393 - 1870, n=91, last 2 years)	1411 Points -6%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	1387 Points -8%

CrossMark / Creativity
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1451 - 1872, n=16)	1751 Points +2%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL2512HCJQ	1723 Points
Dell Latitude 9430 2-in-1 Iris Xe G7 96EUs, i7-1265U	1706 Points -1%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ	1663 Points -3%
Lenovo ThinkPad Z13 G1-21D20016GE Radeon 680M, R7 PRO 6860Z, Micron 2450 1TB MTFDKCD1T0TFK	1581 Points -8%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	1550 Points -10%
Average of class Office (340 - 1982, n=91, last 2 years)	1476 Points -14%

CrossMark / Responsiveness
Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1253 - 1807, n=16)	1471 Points +11%
Dell Latitude 9430 2-in-1 Iris Xe G7 96EUs, i7-1265U	1417 Points +7%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ	1409 Points +6%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL2512HCJQ	1324 Points
Lenovo ThinkPad Z13 G1-21D20016GE Radeon 680M, R7 PRO 6860Z, Micron 2450 1TB MTFDKCD1T0TFK	1293 Points -2%
Average of class Office (258 - 2017, n=91, last 2 years)	1277 Points -4%
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	1193 Points -10%

PCMark 10 Score		5411 poäng
Hjälp

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	72204 MB/s +19%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	65534 MB/s +8%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	60724 MB/s 0%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	60482 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	59988 MB/s -1%
Average Intel Core i7-1260P (25125 - 71544, n=25)	54361 MB/s -10%
Average of class Office (7158 - 108783, n=98, last 2 years)	49991 MB/s -17%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	48181 MB/s -20%

AIDA64 / Memory Read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	70414 MB/s +3%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	68297 MB/s
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	62550 MB/s -8%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	60586 MB/s -11%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	59682 MB/s -13%
Average Intel Core i7-1260P (24983 - 72065, n=25)	56385 MB/s -17%
Average of class Office (7325 - 127282, n=98, last 2 years)	51192 MB/s -25%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	38899 MB/s -43%

AIDA64 / Memory Write
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	64549 MB/s +3%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	62971 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	61439 MB/s -2%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	61433 MB/s -2%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	58000 MB/s -8%
Average of class Office (7579 - 117935, n=98, last 2 years)	53982 MB/s -14%
Average Intel Core i7-1260P (23512 - 66799, n=25)	53353 MB/s -15%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	51086 MB/s -19%

AIDA64 / Memory Latency
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, Radeon 680M	125.6 ns * -31%
HP Elite Dragonfly G3 Intel Core i7-1265U, Iris Xe G7 96EUs	105.6 ns * -10%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Iris Xe G7 96EUs	102.2 ns * -7%
Average of class Office (6.9 - 185.2, n=97, last 2 years)	96.8 ns * -1%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Iris Xe G7 96EUs	95.9 ns *
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Iris Xe G7 96EUs	81.8 ns * +15%
Average Intel Core i7-1260P (77.9 - 118.4, n=21)	78.7 ns * +18%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	0 ns * +100%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Iris Xe G7 80EUs	0 ns * +100%

* ... smaller is better

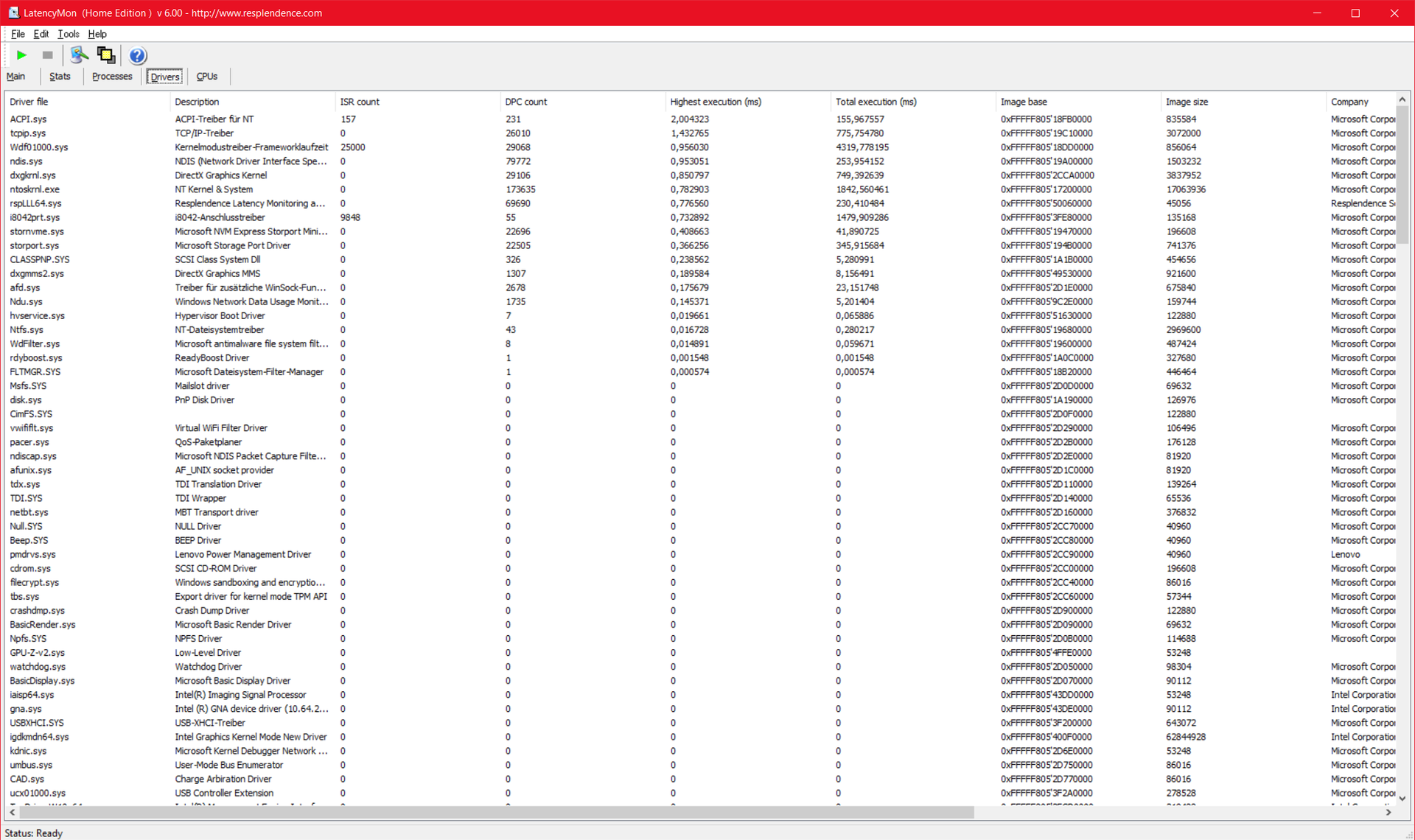

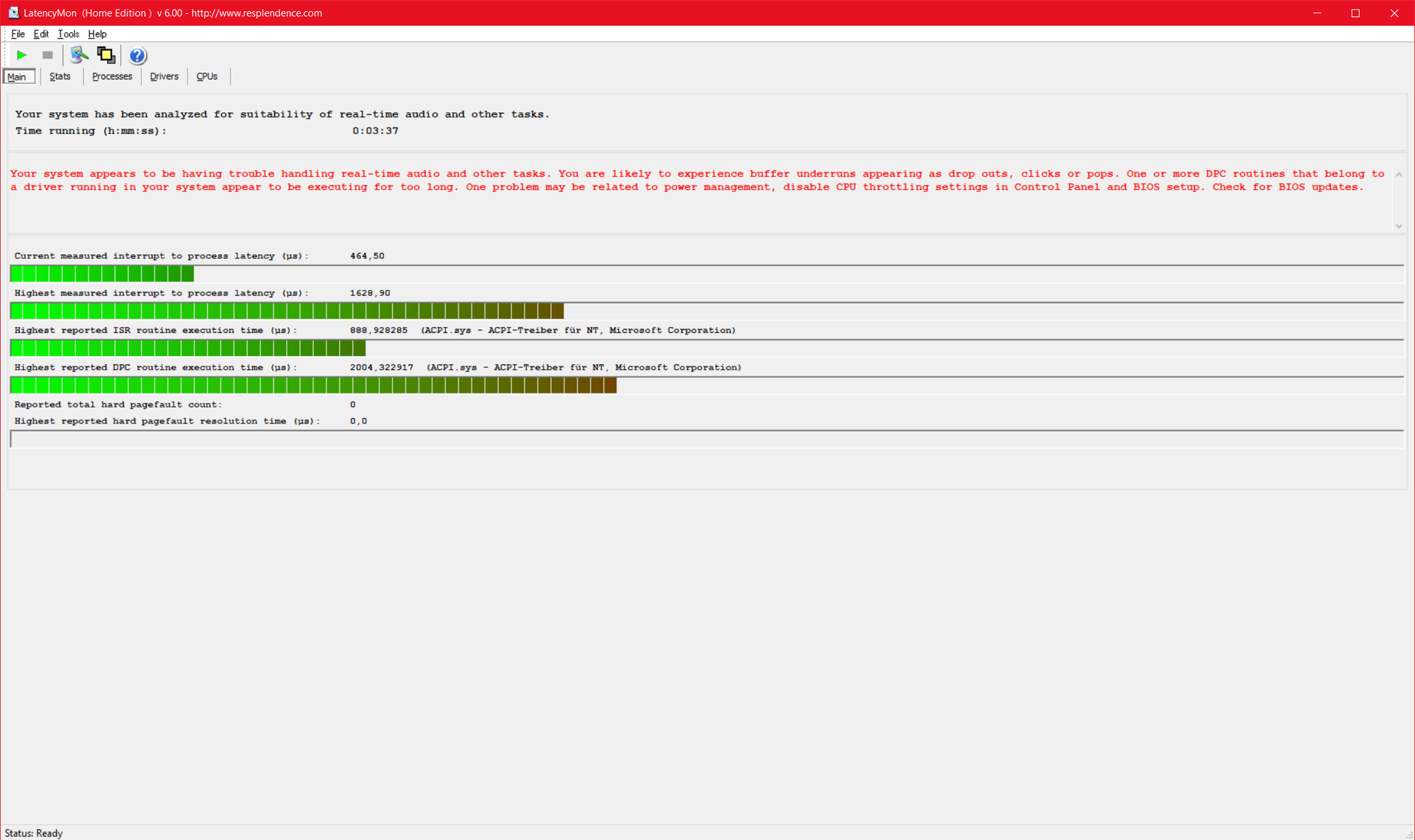

DPC-latenstid

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ	1749.7 μs * -7%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL2512HCJQ	1628.9 μs *
HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	815.6 μs * +50%
Dell Latitude 9430 2-in-1 Iris Xe G7 96EUs, i7-1265U	798.1 μs * +51%
Lenovo ThinkPad Z13 G1-21D20016GE Radeon 680M, R7 PRO 6860Z, Micron 2450 1TB MTFDKCD1T0TFK	616.8 μs * +62%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR	459.2 μs * +72%

* ... smaller is better

Lagringsenheter

M.2 SSD PM91A med en kapacitet på 512 GB kommer från Samsung. Den är ansluten till NVMe PCIe 4.0-standarden och fungerar snabbt, om än något under genomsnittet för denna SSD. Prestandan är åtminstone helt stabil, även vid permanent belastning.

AS SSD

DiskSpd

Samsung PM9A1 MZVL2512HCJQ

Sequential Read: 4473MB/s

Sequential Write: 1935MB/s

4K Read: 71.62MB/s

4K Write: 169.76MB/s

4K-64 Read: 660.38MB/s

4K-64 Write: 2779.77MB/s

Access Time Read: 0.056ms

Access Time Write: 0.024ms

Copy ISO: 1873.82MB/s

Copy Program: 354.55MB/s

Copy Game: 958.84MB/s

Score Read: 1179Points

Score Write: 3143Points

Score Total: 4821Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average Samsung PM9A1 MZVL2512HCJQ	85.6 pt
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	83 pt
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	77 pt
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	71.2 pt
Average of class Office	64 pt
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	60.5 pt
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	53.8 pt
Dell Latitude 9430 2-in-1	45.9 pt

DiskSpd
seq read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	4277 (4190.32^min - 4277.35^max) MB/s +31%
Average Samsung PM9A1 MZVL2512HCJQ (1472 - 4572, n=39)	3501 MB/s +7%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	3266 (3221.17^min - 3265.72^max) MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	3128 (3059.5^min - 3127.9^max) MB/s -4%
Dell Latitude 9430 2-in-1	2733 (2624.58^min - 2732.8^max) MB/s -16%
Average of class Office (121 - 4554, n=94, last 2 years)	2680 MB/s -18%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	1998 (1951.82^min - 1997.75^max) MB/s -39%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	1842 (1735.28^min - 1841.6^max) MB/s -44%
seq write
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	3968 (3782.62^min - 3967.6^max) MB/s +55%
Average Samsung PM9A1 MZVL2512HCJQ (1148 - 4434, n=39)	3289 MB/s +28%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	2750 (2675.13^min - 2749.79^max) MB/s +7%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	2672 (2636.75^min - 2672.09^max) MB/s +4%
Average of class Office (43 - 5842, n=94, last 2 years)	2632 MB/s +2%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	2568 (2513.64^min - 2568.49^max) MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	2436 (2129.45^min - 2436.47^max) MB/s -5%
Dell Latitude 9430 2-in-1	2170 (1948.97^min - 2169.92^max) MB/s -15%
seq q8 t1 read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	6588 (6084.89^min - 6588.24^max) MB/s 0%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	6586 (5683.45^min - 6586.28^max) MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	6493 (5671.14^min - 6492.57^max) MB/s -1%
Average Samsung PM9A1 MZVL2512HCJQ (3387 - 6793, n=39)	6077 MB/s -8%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	5601 (4844.63^min - 5600.99^max) MB/s -15%
Average of class Office (124.2 - 7120, n=94, last 2 years)	4446 MB/s -32%
Dell Latitude 9430 2-in-1	3620 (2848.98^min - 3619.78^max) MB/s -45%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	3314 (3027.66^min - 3314^max) MB/s -50%
seq q8 t1 write
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	4889 (4834.98^min - 4888.88^max) MB/s +8%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	4805 (3760.61^min - 4804.99^max) MB/s +6%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	4545 (4492.13^min - 4545.43^max) MB/s
Average Samsung PM9A1 MZVL2512HCJQ (1146 - 5091, n=39)	4428 MB/s -3%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	3996 (3842.89^min - 3996.08^max) MB/s -12%
Average of class Office (46.7 - 6791, n=94, last 2 years)	3447 MB/s -24%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	3174 (3160.62^min - 3173.98^max) MB/s -30%
Dell Latitude 9430 2-in-1	2765 (2526.65^min - 2764.81^max) MB/s -39%
4k q1 t1 read
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	79.6 (78.39^min - 79.6^max) MB/s +16%
Average Samsung PM9A1 MZVL2512HCJQ (37.6 - 92.9, n=39)	71.9 MB/s +4%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	71.2 (66.5^min - 71.24^max) MB/s +3%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	68.9 (67.96^min - 68.87^max) MB/s
Dell Latitude 9430 2-in-1	62.8 (60.54^min - 62.75^max) MB/s -9%
Average of class Office (5.55 - 89.9, n=94, last 2 years)	58.8 MB/s -15%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	55.7 (54.91^min - 55.74^max) MB/s -19%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	48.8 (46.3^min - 48.76^max) MB/s -29%
4k q1 t1 write
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	213 (183.45^min - 213.01^max) MB/s +53%
Average Samsung PM9A1 MZVL2512HCJQ (125.7 - 241, n=39)	180.3 MB/s +29%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	167 (163.6^min - 166.54^max) MB/s +20%
Average of class Office (1.23 - 429, n=94, last 2 years)	166.4 MB/s +19%
Dell Latitude 9430 2-in-1	153.4 (150.89^min - 153.41^max) MB/s +10%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	148.7 (145.1^min - 148.68^max) MB/s +7%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	139.6 (133.72^min - 139.64^max) MB/s
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	122.8 (118.4^min - 122.83^max) MB/s -12%
4k q32 t16 read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	3241 (1679.39^min - 3240.76^max) MB/s +411%
Average Samsung PM9A1 MZVL2512HCJQ (477 - 3426, n=39)	2058 MB/s +225%
Average of class Office (7.49 - 4425, n=94, last 2 years)	1287 MB/s +103%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	1129 (1036.67^min - 1128.6^max) MB/s +78%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	866 (847.85^min - 866.45^max) MB/s +37%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	669 (572^min - 669.2^max) MB/s +6%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	634 (560.19^min - 633.77^max) MB/s
Dell Latitude 9430 2-in-1	489 (472.27^min - 489.19^max) MB/s -23%
4k q32 t16 write
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	1750 (1179.86^min - 1749.65^max) MB/s +457%
Average Samsung PM9A1 MZVL2512HCJQ (253 - 3567, n=39)	1535 MB/s +389%
Average of class Office (1.5 - 3254, n=94, last 2 years)	944 MB/s +201%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	546 (520.41^min - 546.17^max) MB/s +74%
Dell Latitude 9430 2-in-1	379 (355.42^min - 379.43^max) MB/s +21%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	347 (333.57^min - 347.02^max) MB/s +11%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	340 (298.75^min - 340.3^max) MB/s +8%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	314 (303.87^min - 313.83^max) MB/s

AS SSD
Score Total
Average Samsung PM9A1 MZVL2512HCJQ (3573 - 8620, n=38)	5933 Points +23%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	4991 Points +4%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	4873 Points +1%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	4821 Points
Average of class Office (704 - 9204, n=91, last 2 years)	4269 Points -11%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	3864 Points -20%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	3758 Points -22%
Dell Latitude 9430 2-in-1	2239 Points -54%
Score Read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	2162 Points +83%
Average Samsung PM9A1 MZVL2512HCJQ (1079 - 3224, n=38)	2099 Points +78%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	1688 Points +43%
Average of class Office (252 - 3364, n=91, last 2 years)	1499 Points +27%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	1238 Points +5%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	1179 Points
Dell Latitude 9430 2-in-1	1064 Points -10%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	986 Points -16%
Score Write
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	3143 Points
Average Samsung PM9A1 MZVL2512HCJQ (1258 - 4036, n=38)	2819 Points -10%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	2426 Points -23%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	2297 Points -27%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	2117 Points -33%
Average of class Office (247 - 4111, n=91, last 2 years)	2045 Points -35%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	1826 Points -42%
Dell Latitude 9430 2-in-1	675 Points -79%
Seq Read
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	4698.96 MB/s +5%
Average Samsung PM9A1 MZVL2512HCJQ (2629 - 5546, n=38)	4658 MB/s +4%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	4473 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	4337 MB/s -3%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	3577.18 MB/s -20%
Average of class Office (508 - 5796, n=91, last 2 years)	3503 MB/s -22%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	2759 MB/s -38%
Dell Latitude 9430 2-in-1	2642.2 MB/s -41%
Seq Write
Average Samsung PM9A1 MZVL2512HCJQ (1108 - 3925, n=38)	2766 MB/s +43%
Average of class Office (294 - 5880, n=91, last 2 years)	2408 MB/s +24%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	1955 MB/s +1%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	1954.78 MB/s +1%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	1935 MB/s
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	1882 MB/s -3%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	1503.79 MB/s -22%
Dell Latitude 9430 2-in-1	1386.77 MB/s -28%
4K Read
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	77.4 MB/s +8%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	71.62 MB/s
Average Samsung PM9A1 MZVL2512HCJQ (39.2 - 85.1, n=38)	67.8 MB/s -5%
Dell Latitude 9430 2-in-1	62.95 MB/s -12%
Average of class Office (18 - 91.1, n=91, last 2 years)	58.7 MB/s -18%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	54.52 MB/s -24%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	52.64 MB/s -27%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	45.05 MB/s -37%
4K Write
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	206.3 MB/s +22%
Dell Latitude 9430 2-in-1	192.34 MB/s +13%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	182.62 MB/s +8%
Average Samsung PM9A1 MZVL2512HCJQ (105.4 - 216, n=38)	174.9 MB/s +3%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	169.76 MB/s
Average of class Office (28.2 - 350, n=91, last 2 years)	168.7 MB/s -1%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	156.67 MB/s -8%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	131.01 MB/s -23%
4K-64 Read
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	1751.37 MB/s +165%
Average Samsung PM9A1 MZVL2512HCJQ (533 - 2783, n=38)	1566 MB/s +137%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	1176 MB/s +78%
Average of class Office (182.3 - 2713, n=91, last 2 years)	1090 MB/s +65%
Dell Latitude 9430 2-in-1	736.38 MB/s +12%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	713.5 MB/s +8%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	664.77 MB/s +1%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	660.38 MB/s
4K-64 Write
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	2779.77 MB/s
Average Samsung PM9A1 MZVL2512HCJQ (1010 - 3480, n=38)	2393 MB/s -14%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	2032 MB/s -27%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	1969.95 MB/s -29%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	1764.74 MB/s -37%
Average of class Office (183.4 - 3394, n=91, last 2 years)	1636 MB/s -41%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	1492.76 MB/s -46%
Dell Latitude 9430 2-in-1	343.94 MB/s -88%
Access Time Read
Dell Latitude 9430 2-in-1	0.085 ms * -52%
Average of class Office (0.022 - 0.302, n=91, last 2 years)	0.07814 ms * -40%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	0.065 ms * -16%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	0.056 ms *
Average Samsung PM9A1 MZVL2512HCJQ (0.023 - 0.089, n=37)	0.048 ms * +14%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	0.043 ms * +23%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	0.032 ms * +43%
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	0.025 ms * +55%
Access Time Write
Lenovo ThinkPad Z13 G1-21D20016GE Micron 2450 1TB MTFDKCD1T0TFK	0.132 ms * -450%
Dell Latitude 9430 2-in-1	0.117 ms * -388%
HP Elite Dragonfly G3 Micron 3400 MTFDKBA512TFH 512GB	0.074 ms * -208%
Average of class Office (0.016 - 0.625, n=91, last 2 years)	0.06732 ms * -181%
Average Samsung PM9A1 MZVL2512HCJQ (0.02 - 0.076, n=38)	0.03368 ms * -40%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Samsung PM9A1 MZVL2512HCJQ	0.024 ms *
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Samsung PM9A1 MZVL2512HCJQ	0.023 ms * +4%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Samsung PM9A1 MZVL21T0HCLR	0.02 ms * +17%

* ... smaller is better

Sustained Read Performance: DiskSpd Read Loop, Queue Depth 8

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE: Ø5330 (4771.13-5379.68)

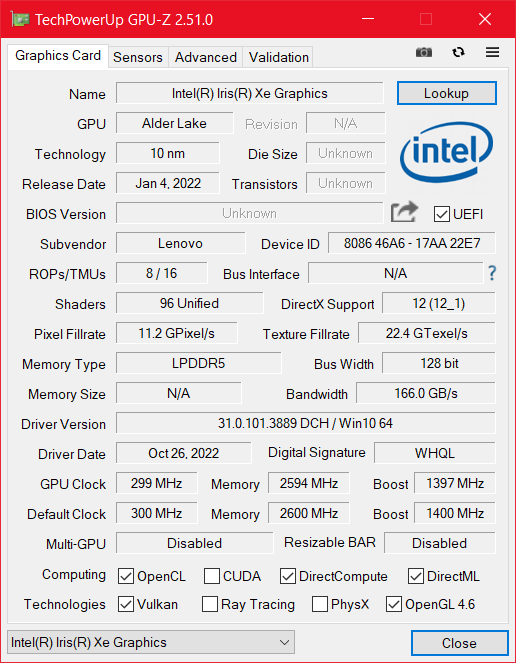

Grafikkort

Jämfört med vårt första testprov av X1 Carbon 2022 har även GPU:n ändrats, eftersom IntelIris Xe som är installerad här har 96 istället för 80 exekveringsenheter. Detta resulterar i en liten prestandaökning, men gör egentligen ingen större skillnad. GPU:n är tillräcklig för enkla uppgifter, men X1 Carbon G10 är fel bärbar dator för allt annat, inklusive både spel och CAD.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Lenovo ThinkPad Z13 G1-21D20016GE AMD Radeon 680M, AMD Ryzen 7 PRO 6860Z	100 pt
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	66.9 pt
Dell Latitude 9430 2-in-1 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	66.4 pt
Average of class Office	66.4 pt
HP Elite Dragonfly G3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	64.7 pt
Average Intel Iris Xe Graphics G7 96EUs	64 pt
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	57.5 pt
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1250P	53.2 pt

3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad Z13 G1-21D20016GE AMD Radeon 680M, AMD Ryzen 7 PRO 6860Z	10714 Points +95%
Average of class Office (1468 - 13132, n=93, last 2 years)	6794 Points +24%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6591 Points +20%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7676, n=202)	6353 Points +16%
Dell Latitude 9430 2-in-1 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6231 Points +14%
HP Elite Dragonfly G3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6155 Points +12%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	5482 Points
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1250P	5475 Points 0%

3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad Z13 G1-21D20016GE AMD Radeon 680M, AMD Ryzen 7 PRO 6860Z	47241 Points +141%
Dell Latitude 9430 2-in-1 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	29113 Points +48%
HP Elite Dragonfly G3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	27360 Points +39%
Average of class Office (7982 - 58068, n=67, last 2 years)	26802 Points +37%
Average Intel Iris Xe Graphics G7 96EUs (13162 - 38578, n=180)	26508 Points +35%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1250P	22859 Points +16%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	19632 Points
1920x1080 Fire Strike Graphics
Lenovo ThinkPad Z13 G1-21D20016GE AMD Radeon 680M, AMD Ryzen 7 PRO 6860Z	6865 Points +49%
Dell Latitude 9430 2-in-1 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	5046 Points +10%
HP Elite Dragonfly G3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4954 Points +8%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6482, n=215)	4920 Points +7%
Average of class Office (1089 - 9375, n=94, last 2 years)	4910 Points +7%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4830 Points +5%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4602 Points
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1250P	4318 Points -6%
2560x1440 Time Spy Graphics
Lenovo ThinkPad Z13 G1-21D20016GE AMD Radeon 680M, AMD Ryzen 7 PRO 6860Z	2170 Points +43%
Average of class Office (313 - 4109, n=94, last 2 years)	1601 Points +5%
Dell Latitude 9430 2-in-1 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1570 Points +3%
HP Elite Dragonfly G3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1549 Points +2%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1522 Points
Average Intel Iris Xe Graphics G7 96EUs (707 - 1871, n=212)	1495 Points -2%
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1493 Points -2%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1250P	1098 Points -28%

3DMark 11 Performance		5769 poäng
3DMark Cloud Gate Standard Score		14688 poäng
3DMark Fire Strike Score		4154 poäng
3DMark Time Spy Score		1722 poäng
Hjälp

... jämför

Blender
v3.3 Classroom HIP/AMD
Average of class Office (298 - 1215, n=15, last 2 years)	727 Seconds *
Lenovo ThinkPad Z13 G1-21D20016GE AMD Radeon 680M, AMD Ryzen 7 PRO 6860Z	387 Seconds *
v3.3 Classroom CPU
HP Elite Dragonfly G3 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	923 Seconds * -31%
Average of class Office (343 - 3964, n=94, last 2 years)	762 Seconds * -8%
Dell Latitude 9430 2-in-1 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	729 Seconds * -3%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	707 Seconds *
Average Intel Iris Xe Graphics G7 96EUs (336 - 1259, n=101)	696 Seconds * +2%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Radeon 680M, AMD Ryzen 7 PRO 6860Z	483 Seconds * +32%

* ... smaller is better

Performance Rating - Percent
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, AMD Radeon 680M	98.7 pt
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	83.9 pt
Average of class Office	78.3 pt
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	76.6 pt
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	69.3 pt
Lenovo ThinkPad X1 Carbon G10 21CC001RGE ^-1! Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs	55.2 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, AMD Radeon 680M	18.3 (15^min, 17^P1) fps +42%
Average of class Office (3.8 - 34, n=79, last 2 years)	14.8 fps +15%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	14.4 (13^min) fps +12%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps +7%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	12.9 (11^min) fps
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs	10.5 (8^min) fps -19%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, AMD Radeon 680M	21.7 fps +67%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	17 fps +31%
Average of class Office (3.86 - 35.7, n=92, last 2 years)	16 fps +23%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	15.8 fps +22%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	13 fps
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs	9.4 fps -28%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, AMD Radeon 680M	38.9 (28.8^min, 30.1^P1) fps +96%
Average of class Office (9.6 - 56.5, n=75, last 2 years)	27 fps +36%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	26.4 (7.3^min, 9.46^P1) fps +33%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25.4 (6.6^min, 8.78^P1) fps +28%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	19.8 (5^min, 5^P1) fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, AMD Radeon 680M	60.6 (52.2^min) fps +39%
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	57.4 (49.4^min) fps +32%
Average of class Office (13.4 - 121.2, n=99, last 2 years)	51.7 fps +19%
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	50.9 (42.5^min) fps +17%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	43.5 (38.5^min) fps
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs	32.8 (29^min) fps -25%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	36.6 fps +7%
Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, AMD Radeon 680M	34.3 fps 0%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	34.2 fps
HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	31.2 fps -9%
Average of class Office (8.88 - 92.6, n=95, last 2 years)	30.1 fps -12%
Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs	24.1 fps -30%

Witcher 3 FPS Chart

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE i7-1260P, Iris Xe G7 96EUs: Ø11.9 (10-15)

	låg	med.	hög	ultra	QHD
The Witcher 3 (2015)	83.3	51	27.2	12.9
Dota 2 Reborn (2015)	99.8	74.7	50.3	43.5
Final Fantasy XV Benchmark (2018)	39.8	18.6	13		9.59
X-Plane 11.11 (2018)	38.1	38.2	34.2
Strange Brigade (2018)	79.2	34.2	25.8	19.8

Utsläpp: Ökad prestanda innebär större fläktljud

Buller

Medan prestandavärdena har förbättrats är det tvärtom med fläktljudet, som är högre än i vårt första testprov och som också körs oftare. Till och med i tomgångsläge kickar kylsystemet ibland in då och då. Som jämförelse är det bara Lenovo ThinkPad Z13 som har en högre kylning under belastning. ThinkPad X1 Carbon G10 är därför inte nödvändigtvis rätt val för älskare av tystnad, särskilt eftersom fläktarna också har relativt hög frekvens.

Något spolningsvisslande har inte upptäckts.

Ljudnivå

Låg belastning		22.8 / 22.8 / 24.6 dB(A)
Hög belastning		38.2 / 38.2 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) environment noise: 22.8 dB(A)

	Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Iris Xe G7 96EUs, i7-1260P, Samsung PM9A1 MZVL2512HCJQ	Lenovo ThinkPad X1 Carbon G10 21CC001RGE Iris Xe G7 80EUs, i5-1250P, Samsung PM9A1 MZVL2512HCJQ	Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR	Lenovo ThinkPad Z13 G1-21D20016GE Radeon 680M, R7 PRO 6860Z, Micron 2450 1TB MTFDKCD1T0TFK	HP Elite Dragonfly G3 Iris Xe G7 96EUs, i7-1265U, Micron 3400 MTFDKBA512TFH 512GB	Dell Latitude 9430 2-in-1 Iris Xe G7 96EUs, i7-1265U
Noise		5%	2%	-6%	9%	-4%
off / environment *	22.8	22.81 -0%	23.66 -4%	24.3 -7%	22.8 -0%	23.7 -4%
Idle Minimum *	22.8	22.81 -0%	23.6 -4%	24.3 -7%	23.2 -2%	23.7 -4%
Idle Average *	22.8	22.81 -0%	23.6 -4%	24.3 -7%	23.2 -2%	23.7 -4%
Idle Maximum *	24.6	22.81 7%	23.6 4%	24.3 1%	23.2 6%	23.7 4%
Load Average *	38.2	31.59 17%	33.5 12%	41 -7%	25.1 34%	35.1 8%
Witcher 3 ultra *	38.1	35.59 7%		41 -8%	32 16%	43.3 -14%
Load Maximum *	38.2	35.47 7%	34.3 10%	41 -7%	35.2 8%	43 -13%

* ... smaller is better

Temperatur

Den mesta värmeutvecklingen är koncentrerad till det övre vänstra hörnet av höljet. Omkring 50 grader Celsius uppnås här under belastning, både på toppen och botten, och till och med lite mer i Witcher 3 -testet. Tack och lov är detta områden som vanligtvis inte berörs under användning, men Lenovo ThinkPad X1 Carbon G10 30th Anniversary Edition kan verkligen inte beskrivas som en svalkande bärbar dator.

Under stresstester, dvs. samtidig belastning av GPU och CPU, är processorn permanent begränsad till endast 17 watt. Denna TDP-relaterade strypning har ingen ytterligare inverkan på den dagliga användningen, bortsett från den redan existerande begränsningen av CPU-prestandan. I det här fallet förbrukar GPU:n ytterligare en del av TDP-budgeten.

Hög belastning

Låg belastning

Witcher 3


47 °C	50 °C	31 °C
45.5 °C	39.6 °C	26.8 °C
27 °C	23.9 °C	23.6 °C

Max: 50 °C
Medel: 34.9 °C


29.9 °C	45.7 °C	49.7 °C
28.6 °C	34.7 °C	42 °C
24.1 °C	26.3 °C	28.1 °C

Max: 49.7 °C
Medel: 34.3 °C

Strömförsörjning (max.) 37.5 °C | Rumstemperatur 22.5 °C | Fluke 62 Max+

Hög belastning

Låg belastning

Witcher 3


32.3 °C	32.4 °C	26.4 °C
30.3 °C	28 °C	23.8 °C
25 °C	22.9 °C	22.5 °C

Max: 32.4 °C
Medel: 27.1 °C


25.8 °C	31.6 °C	32.3 °C
25 °C	28.1 °C	29.7 °C
23.7 °C	24.7 °C	26 °C

Max: 32.3 °C
Medel: 27.4 °C

Strömförsörjning (max.) 32.1 °C | Rumstemperatur 20.3 °C | Fluke 62 Max+

Hög belastning

Låg belastning

Witcher 3


46.6 °C	51.6 °C	33.5 °C
44.7 °C	35 °C	29.1 °C
28.8 °C	26.6 °C	25.5 °C

Max: 51.6 °C
Medel: 35.7 °C


30.8 °C	50.8 °C	51.7 °C
29.8 °C	36.3 °C	45.4 °C
26.7 °C	28.7 °C	32.1 °C

Max: 51.7 °C
Medel: 36.9 °C

Strömförsörjning (max.) 41.2 °C | Rumstemperatur 23.4 °C | Fluke 62 Max+

(±) The average temperature for the upper side under maximal load is 34.9 °C / 95 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 50 °C / 122 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 49.7 °C / 121 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.1 °C / 81 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.7 °C / 96 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.8 °C / 83.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-1.2 °C / -2.1 F).

	Lenovo ThinkPad X1 Carbon G10 21CB00DCGE Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	Lenovo ThinkPad X1 Carbon G10 21CC001RGE Intel Core i5-1250P, Intel Iris Xe Graphics G7 80EUs	Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	Lenovo ThinkPad Z13 G1-21D20016GE AMD Ryzen 7 PRO 6860Z, AMD Radeon 680M	HP Elite Dragonfly G3 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	Dell Latitude 9430 2-in-1 Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
Heat		6%	6%	9%	17%	24%
Maximum Upper Side *	50	45 10%	51.5 -3%	45.6 9%	39 22%	39.2 22%
Maximum Bottom *	49.7	44 11%	45.3 9%	51 -3%	42.2 15%	44.8 10%
Idle Upper Side *	32.4	31.2 4%	29.6 9%	27 17%	26.8 17%	21.4 34%
Idle Bottom *	32.3	33.2 -3%	30 7%	27.9 14%	28.2 13%	22.4 31%

* ... smaller is better

Högtalare

Jämfört med högtalarna iDell Latitude 9430är de fyra högtalarna i Lenovo ThinkPad X1 Carbon G10 betydligt tystare, men något mer balanserade. Kombinationen av två woofers i botten och två diskanter i toppen är tillräckligt kraftfull för att fylla ett litet rum med ljud.

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE audio analysis

(±) | speaker loudness is average but good (75.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.8% lower than median
(±) | linearity of bass is average (14.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.5% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.1% away from median
(+) | highs are linear (2.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.2% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 8% of all tested devices were better, 2% similar, 90% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Dell Latitude 9430 2-in-1 audio analysis

(+) | speakers can play relatively loud (94.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.3% lower than median
(+) | bass is linear (5.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2% away from median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.4% higher than median
(+) | highs are linear (3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.6% difference to median)
Compared to same class
» 8% of all tested devices in this class were better, 4% similar, 88% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 6% of all tested devices were better, 2% similar, 91% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Energihantering: OLED förkortar batteritiden för X1 Carbon G10

Effektförbrukning

Den högre upplösningen av OLED-skärmen har en klart negativ effekt på konsumtionen. Den lägsta förbrukningen vid tomgång är mer än dubbelt så hög som den första modellen av ThinkPad X1 Carbon G10, som var utrustad med en IPS WUXGA-panel. Åtminstone är X1 Carbon nästan på samma nivå som ThinkPad Z13, som också har en OLED-skärm.

Strömförsörjningen är mer än tillräckligt stor för den maximala förbrukningen på 62,5 watt, vilket också bara representerar toppbelastningen.

Strömförbrukning

Av/Standby	0.2 / 0.5 Watt
Låg belastning	6.4 / 7.4 / 8.3 Watt
Hög belastning	56.5 / 62.5 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad X1 Carbon G10 21CB00DCGE i7-1260P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, OLED, 2880x1800, 14"	Lenovo ThinkPad X1 Carbon G10 21CC001RGE i5-1250P, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS LED, 1920x1200, 14"	Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW i7-1165G7, Iris Xe G7 96EUs, Samsung PM9A1 MZVL21T0HCLR, IPS LED, 3840x2400, 14"	Lenovo ThinkPad Z13 G1-21D20016GE R7 PRO 6860Z, Radeon 680M, Micron 2450 1TB MTFDKCD1T0TFK, OLED, 2880x1800, 13.3"	HP Elite Dragonfly G3 i7-1265U, Iris Xe G7 96EUs, Micron 3400 MTFDKBA512TFH 512GB, IPS, 1920x1280, 13.5"	Dell Latitude 9430 2-in-1 i7-1265U, Iris Xe G7 96EUs, , IPS, 2560x1600, 14"	Average Intel Iris Xe Graphics G7 96EUs	Average of class Office
Power Consumption		28%	-10%	-3%	16%	19%	-3%	9%
Idle Minimum *	6.4	2.9 55%	5 22%	5.7 11%	3.4 47%	2.9 55%	5.34 ?(2.2 - 46.5, n=193) 17%	4.5 ?(2.2 - 13.8, n=94, last 2 years) 30%
Idle Average *	7.4	4.9 34%	10.2 -38%	7.6 -3%	5.6 24%	5.8 22%	8.55 ?(3.8 - 63, n=193) -16%	7.46 ?(3.8 - 14.9, n=94, last 2 years) -1%
Idle Maximum *	8.3	6 28%	11 -33%	8.4 -1%	8.4 -1%	6.6 20%	10.8 ?(5.8 - 68.9, n=193) -30%	9.09 ?(4.89 - 18.6, n=94, last 2 years) -10%
Load Average *	56.5	29.3 48%	51.7 8%	54.4 4%	40.8 28%	49.2 13%	45.3 ?(12.5 - 87.3, n=193) 20%	42.8 ?(8.7 - 77.9, n=90, last 2 years) 24%
Witcher 3 ultra *	37.5	36.6 2%		48.1 -28%	35.5 5%	35.3 6%
Load Maximum *	62.5	63.3 -1%	67.5 -8%	62.7 -0%	68.4 -9%	63.1 -1%	67.5 ?(30.1 - 123.3, n=193) -8%	61.8 ?(11.1 - 107, n=94, last 2 years) 1%

* ... smaller is better

Power consumption Witcher 3 / Stress test

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE; Witcher 3 ultra: Ø37.5 (32.5-62.3)

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø50.9 (44.7-62.5)

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE; Idle 150cd/m2: Ø7.63 (6.83-9.12)

Power Consumption with an external monitor

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE; Prime95 V2810 Stress (external Monitor): Ø32.2 (28.9-62.4)

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE; Cinebench R15 Multi (external Monitor): Ø32.1 (27-62.3)

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.3 (30.4-60.6)

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE; 1920x1080 The Witcher 3 ultra (external Monitor): Ø42.7 (38.6-62.3)

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE; Idle 1min (external Monitor): Ø7.74 (6.88-9.07)

Batteritid

Batterikapaciteten på 57 watttimmar är oförändrad. OLED-skärmens högre förbrukning påverkar batteritiderna avsevärt: Lenovo ThinkPad X1 Carbon G10 30th Anniversary Edition tar slut efter bara fem timmar i vårt Wi-Fi-test (150 cd/m² ljusstyrka). Detta är mycket svagt. I jämförelse: ThinkPad Z13, som också har en strömkrävande OLED-skärm, uppnådde mer än sju timmar i samma test.

Ett sätt att uppnå längre batteritider i bärbara datorer med OLED-skärm är det mörka läget. Vårt WiFi-test består huvudsakligen av webbplatser med ljusa bakgrunder, vilket innebär högre förbrukning på en del av de självlysande pixlarna. Moderna webbläsare kan ställas in så att alla webbplatser visas i mörkt läge. Vi upprepade WiFi-testet under dessa förhållanden. I mörkt läge uppnår Lenovo ThinkPad X1 Carbon G10 OLED en drifttid på cirka sju timmar i Wi-Fi-testet. Köpare av den här modellen och andra bärbara OLED-datorer bör använda mörkt läge när det är möjligt.

Batteritid


WiFi Websurfing (Edge 108)		5tim 00min

Battery Runtime - WiFi v1.3
Average of class Office (300 - 1349, n=95, last 2 years)	612 min +104%
Lenovo ThinkPad X1 Carbon G10 21CB00DCGE i7-1260P, Iris Xe G7 96EUs, 57 Wh	300 min
Lenovo ThinkPad X1 Carbon G10 21CC001RGE i5-1250P, Iris Xe G7 80EUs, 57 Wh	610 min
Lenovo ThinkPad X1 Carbon G9-20XWCTO1WW i7-1165G7, Iris Xe G7 96EUs, 57 Wh	442 min
Lenovo ThinkPad Z13 G1-21D20016GE R7 PRO 6860Z, Radeon 680M, 51.5 Wh	451 min
HP Elite Dragonfly G3 i7-1265U, Iris Xe G7 96EUs, 68 Wh	706 min
Dell Latitude 9430 2-in-1 i7-1265U, Iris Xe G7 96EUs, 60 Wh	767 min

För

+ högkvalitativt fodral

+ OLED-bländskyddad skärm

+ WiFi 6E och 4G

+ äldre portar

+ bekväma inmatningsenheter

+ bra högtalare

+ förbättrad 1080p-kamera

Emot

- dålig batteritid på grund av OLED

- Problem med DPC-avbrott

- lödda RAM-minne

- ingen SD-kortläsare

- display med PWM

Bedömning: Högkvalitativ OLED-skärm förkortar batteritiden

I granskning: Lenovo ThinkPad X1 Carbon Gen 10 30th Anniversary Edition: Test: Lenovo ThinkPad X1 Carbon Gen 10 30th Anniversary Edition

Även utan OLED-skärm är Lenovo ThinkPad X1 Carbon Gen 10 en mycket bra bärbar dator för affärsbruk. Vår första granskningsenhet, med en IPS-panel, fick ett helhetsbetyg på 90 procent. Med OLED ökar skärmkvaliteten betydligt, men kompromisser måste göras på andra ställen: Batteritiden lider avsevärt på grund av den högre förbrukningen, och X1 Carbon G10 OLED kan knappast användas på språng under längre perioder utan det aktiverade mörkerläget för alla appar och webbplatser. Det är synd, eftersom den antireflexiva OLED-panelen faktiskt är mycket väl lämpad för utomhusbruk.

En annan spännande aspekt av denna översynsuppdatering var CPU-prestanda, som ansågs bristfällig i vår första översyn av den X1 Carbon G10 mit i5-CPU. Lyckligtvis har detta förbättrats och Lenovo har löst problemet med firmwareuppdateringar. Fläkten går dock lite högre under belastning än tidigare.

Lite jubileumsanda, men en mycket bra OLED-skärm: Lenovo ThinkPad X1 Carbon Gen 10 30th Anniversary Edition

Du märker knappt att det här är en jubileumsutgåva i vardagligt bruk, bortsett från den färgglada logotypen som en påminnelse. Lenovo slarvade bort chansen att skapa något unikt här, vilket innebär att OLED-skärmen är huvudfokus i den här modellen. Detta är faktiskt fortfarande en ganska sällsynt funktion bland bärbara datorer för företag, och den höga bildkvaliteten är ett mycket bra argument för X1 Carbon Gen 10 30th Anniversary Edition. Den kanske inte är lika praktisk som andra affärsmodeller på grund av den kortare batteritiden, men det är ett nöje att använda OLED-skärmen.

Om portarna och den mer klassiska ThinkPad-designen inte är så viktiga kan Lenovo ThinkPad Z13 OLED kan vara ett bra alternativ. Den är ännu kraftfullare och har en längre batteritid. De andra tillverkarnas företagskonkurrens erbjuder inte OLED, men den HP Elite Dragonfly G3 har en mycket bra IPS LCD i 3:2-format, vilket kan vara intressant för vissa läsare. Dell Latitude 9430 2-i-1 är betydligt tyngre, men har i gengäld en ljusare skärm. Både de bärbara datorerna från Dell och HP har också en mycket bättre batteritid.

Download your licensed rating image as SVG / PNG

Pris och tillgänglighet

Beroende på var du befinner dig finns Lenovo ThinkPad X1 Carbon Gen 10 30th Anniversary Edition tillgänglig via Lenovos officiella webbplats som en fritt konfigurerbar bärbar dator. Priserna i USA börjar vid 1 397,40 USD. Startpriser i Storbritannien och Singapore är 2 310,00 pund respektive 2 303,74 SG$ (detta är inte en uttömmande lista).

Priserna gäller från och med 22.12.2022 och kan ändras.

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE - 12/21/2022 v7 ^(old)
Benjamin Herzig

Design

89 / 98 → 91%

Tangentbord

90%

Mus

95%

Anslutningar

72 / 80 → 90%

Vikt

73 / 20-75 → 97%

Batteri

63%

Skärm

94%

Spelprestanda

62 / 78 → 80%

Programprestanda

89 / 95 → 93%

Temperatur

85%

Ljudnivå

95%

Audio

77%

Camera

32 / 85 → 38%

Medel

78%

89%

Office - Vägt medel

Price comparison

Editor of the original article: Jacob Fisher - Translator - 1378 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 464535 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Lenovo ThinkPad X1 Carbon G10 30th Anniversary Laptop recension: OLED-utgåva med problem med uthållighet

Benjamin Herzig, 2022-12-23 (Update: 2022-12-23)

Potentiella konkurrenter i jämförelse

Skillnader jämfört med den vanliga modellen

Storleksjämförelse

OLED-skärmen i X1 Carbon är nästan matt

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

Prestanda: Lenovo sätter TDP-gränsen högre den här gången

Provningsförhållanden

Processor

Cinebench R15 Multi Sustained Load

Systemets prestanda

DPC-latenstid

Lagringsenheter

Sustained Read Performance: DiskSpd Read Loop, Queue Depth 8

Grafikkort

Witcher 3 FPS Chart

Utsläpp: Ökad prestanda innebär större fläktljud

Buller

Temperatur

Högtalare

Lenovo ThinkPad X1 Carbon G10 21CB00DCGE audio analysis

Dell Latitude 9430 2-in-1 audio analysis

Energihantering: OLED förkortar batteritiden för X1 Carbon G10

Effektförbrukning

Power consumption Witcher 3 / Stress test

Power Consumption with an external monitor

Batteritid

För

Emot

Bedömning: Högkvalitativ OLED-skärm förkortar batteritiden

Pris och tillgänglighet

More articles related to this device

Price comparison
