Minisforum Venus Series NAB6 recension: Den eleganta minidatorn med en snabb Intel Core i7-12650H och aktiv SSD-kylning!

Name: Minisforum Venus Series NAB6
Brand: Minisforum

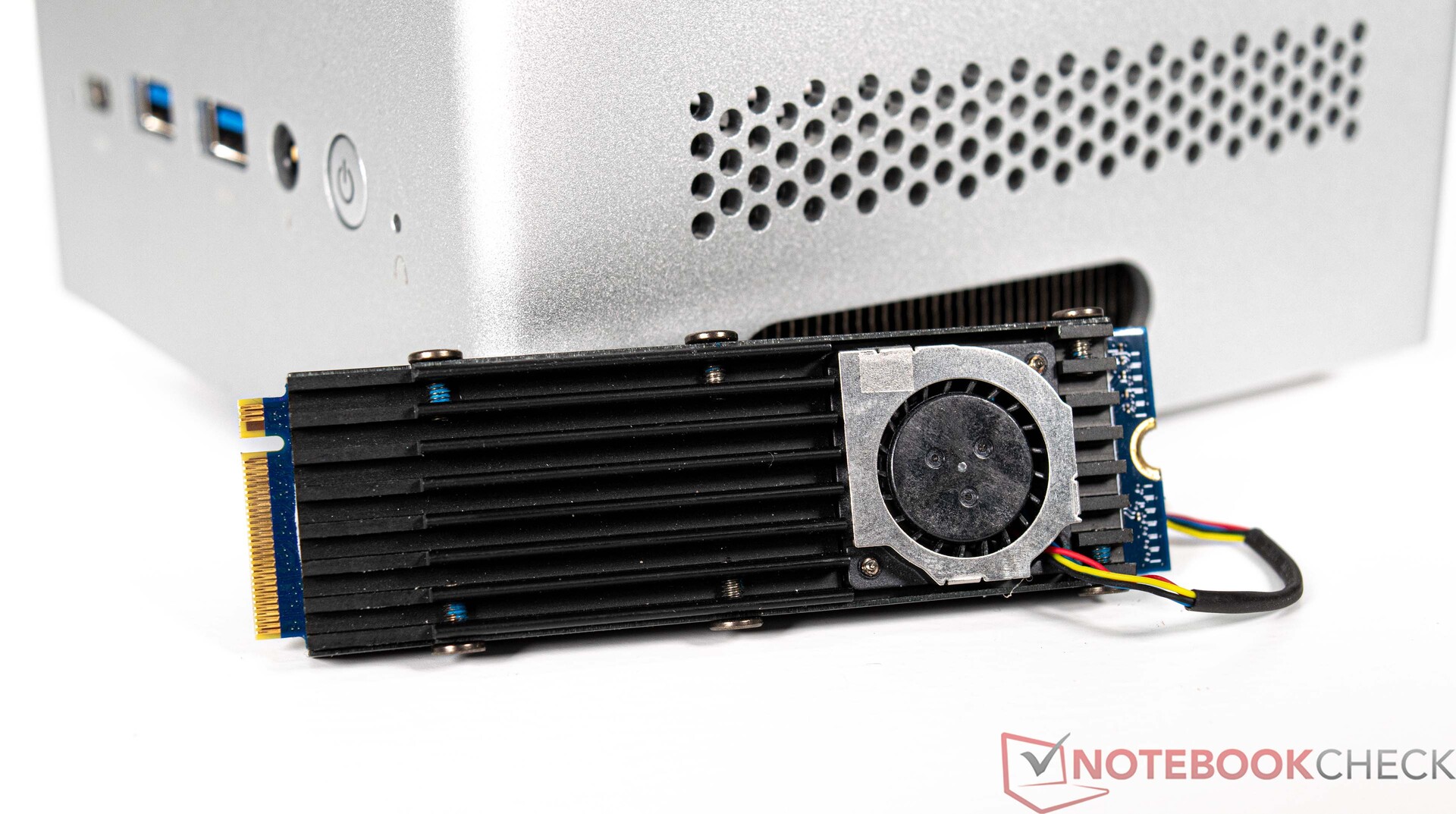

Väl kylt är halvt färdigt!

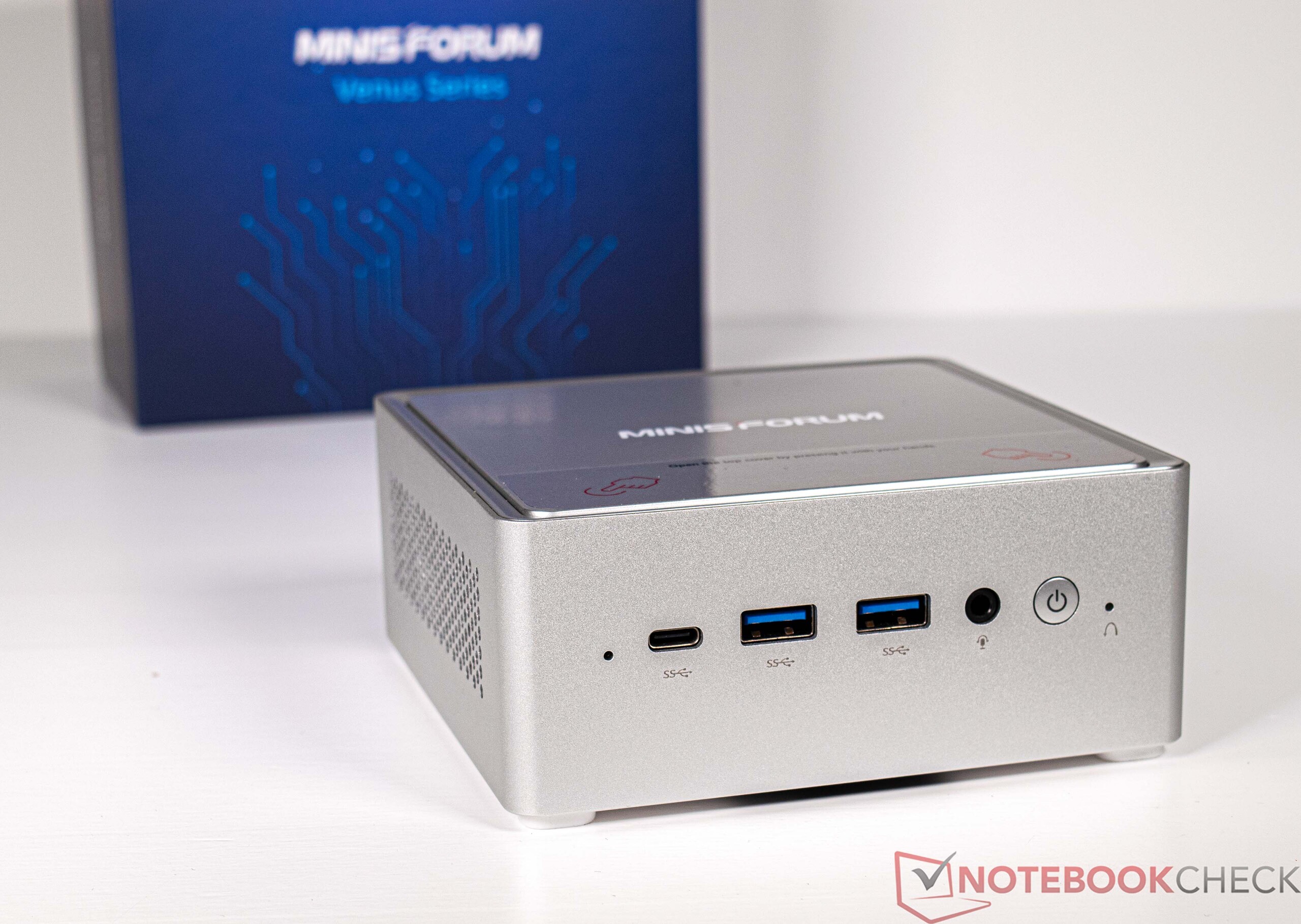

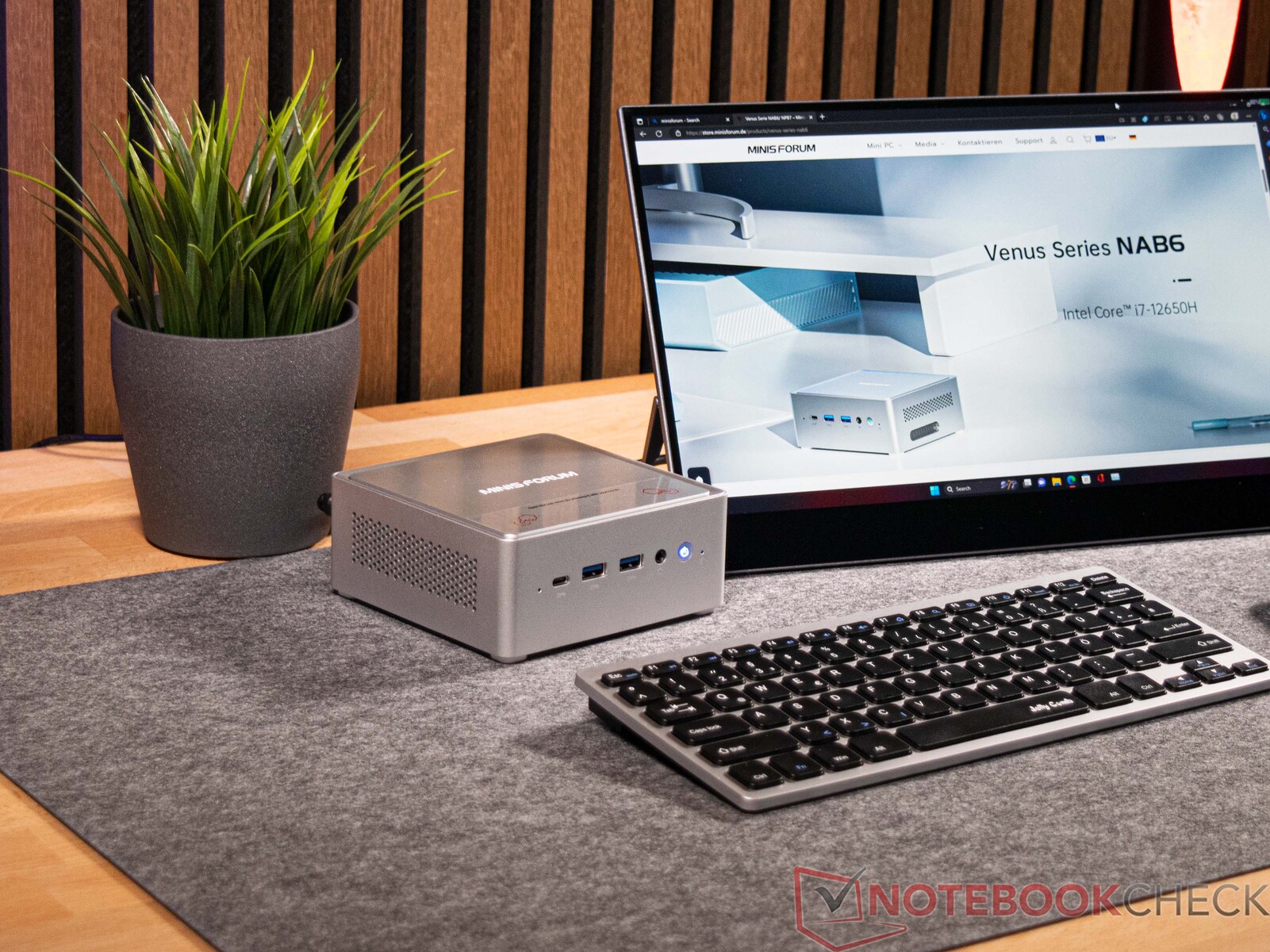

Minisforum har utökat sin Venus-serie med den eleganta minidatorn NAB6. Baserad på en Intel Core i7-12650H är NAB6 väl förberedd för många olika användningsområden. Dess pris är okej, men några kompromisser kommer troligen att behöva göras. Vilka kompromisser detta exakt är kommer att diskuteras i vår detaljerade recension.

Sebastian Bade (översatt av DeepL / Ninh Duy), Published 05/07/2023 🇺🇸 🇩🇪 ...

Intel Mini PC Desktop Alder Lake

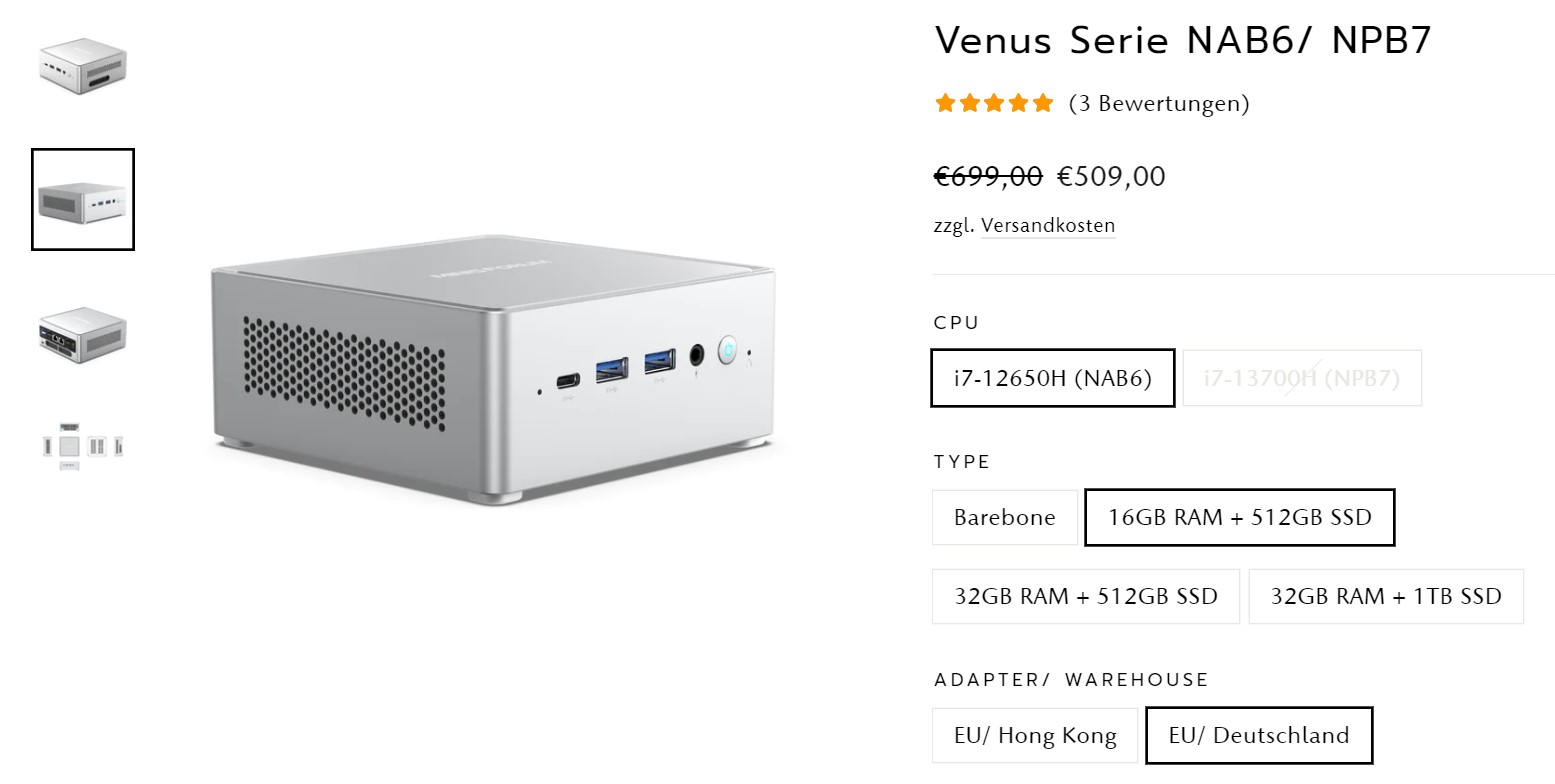

Minisforum Venus Series NAB6, konfigurationer (källa: Minisforum)

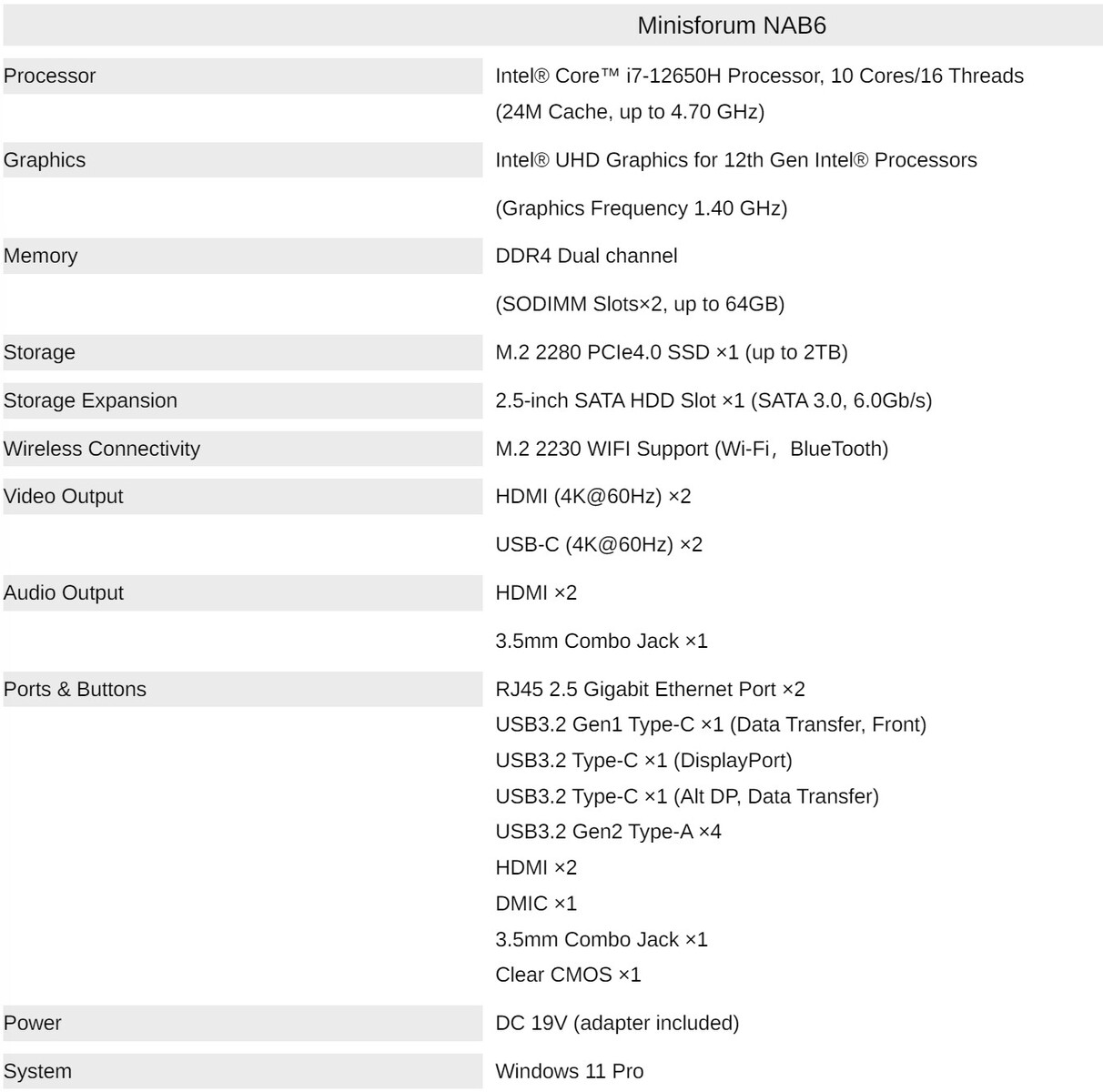

Minisforum Venus Series NAB6, specifikationer (källa: Minisforum)

Minisforum Venus Series NAB6 är ytterligare en kompakt och kraftfull minidator från den kinesiska systemtillverkaren. I det här testet kommer vi att ta en titt på systemet baserat på enIntel Core i7-12650Hmed 16 GB RAM-minne och en 512 GB SSD. Vi kommer att använda Windows 11 Professional som operativsystem och den här konfigurationen finns för närvarande att köpa för 449 dollar. Barebone-versionen utan RAM och SSD finns för närvarande för 359 dollar. Dessa priser är ganska typiska för den här typen av minidatorer, eftersom dess konkurrenter i allmänhet kan köpas för ett liknande pris.

Minisforum erbjuder för närvarande endast Venus Series NAB6 baserad på en Intel Core i7-12650H. Under etiketten Venus Series NPB7 erbjuder tillverkaren en modell som är byggd på samma sätt men som istället är baserad på enIntel Core i7-13700H. Denna modell ska vara tillgänglig från mitten av maj. För närvarande finns inga priser för denna modell att hitta på tillverkarens hemsida.

Vi har valt en rad liknande kompakta stationära datorer som jämförelseenheter för den här recensionen. Du kan se en översikt över dessa enheter i följande tabell.

Test device courtesy of Minisforum

Download your licensed rating image as PNG / SVG

Minisforum Venus Series NAB6

Processor

Intel Core i7-12650H 10 x 1.7 - 4.7 GHz, 64 W PL2 / Short Burst, 45 W PL1 / Sustained, Alder Lake-H

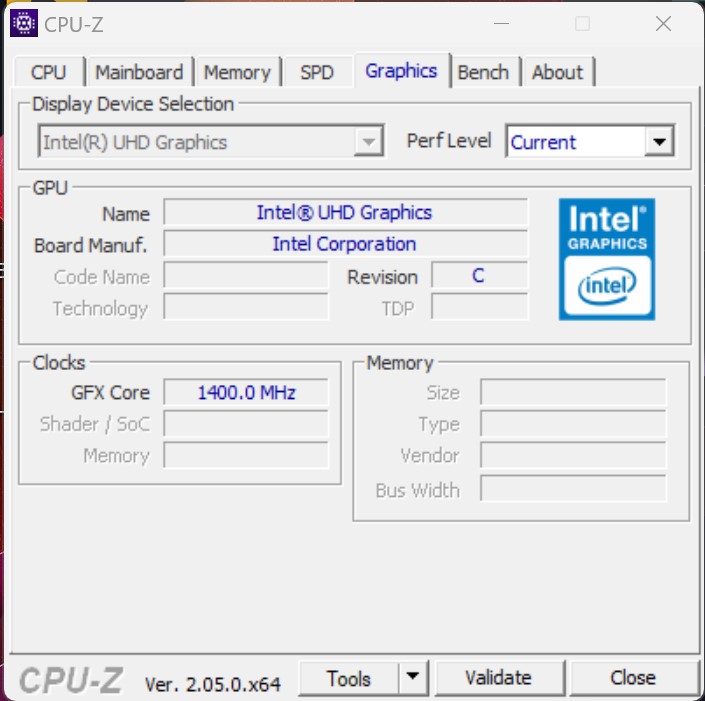

Grafikkort

Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kärna: 1400 MHz, Minne: 2660 MHz, 31.0.101.4146 DCH

Minne

16 GB

, DDR4-2666, 2 of 2 installed, max. 64 GB

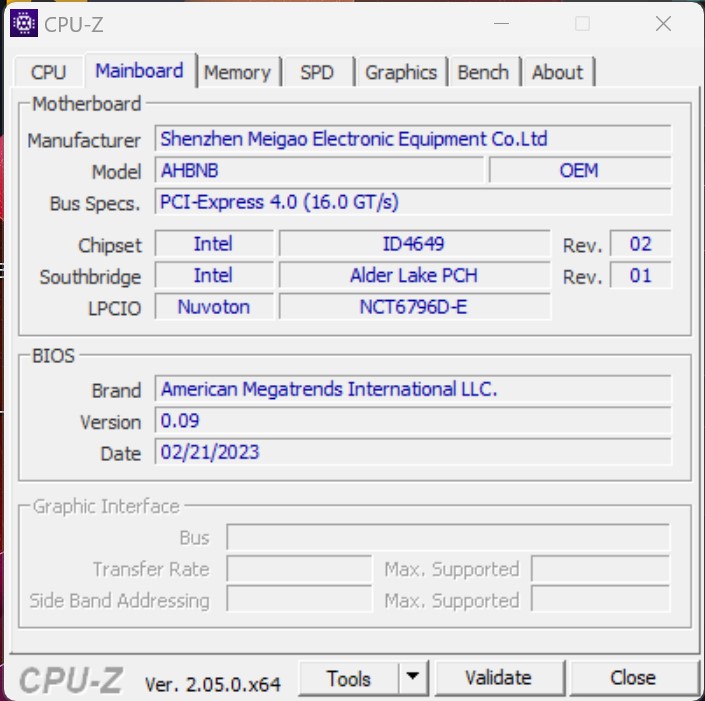

Moderkort

Intel Alder Lake-P PCH

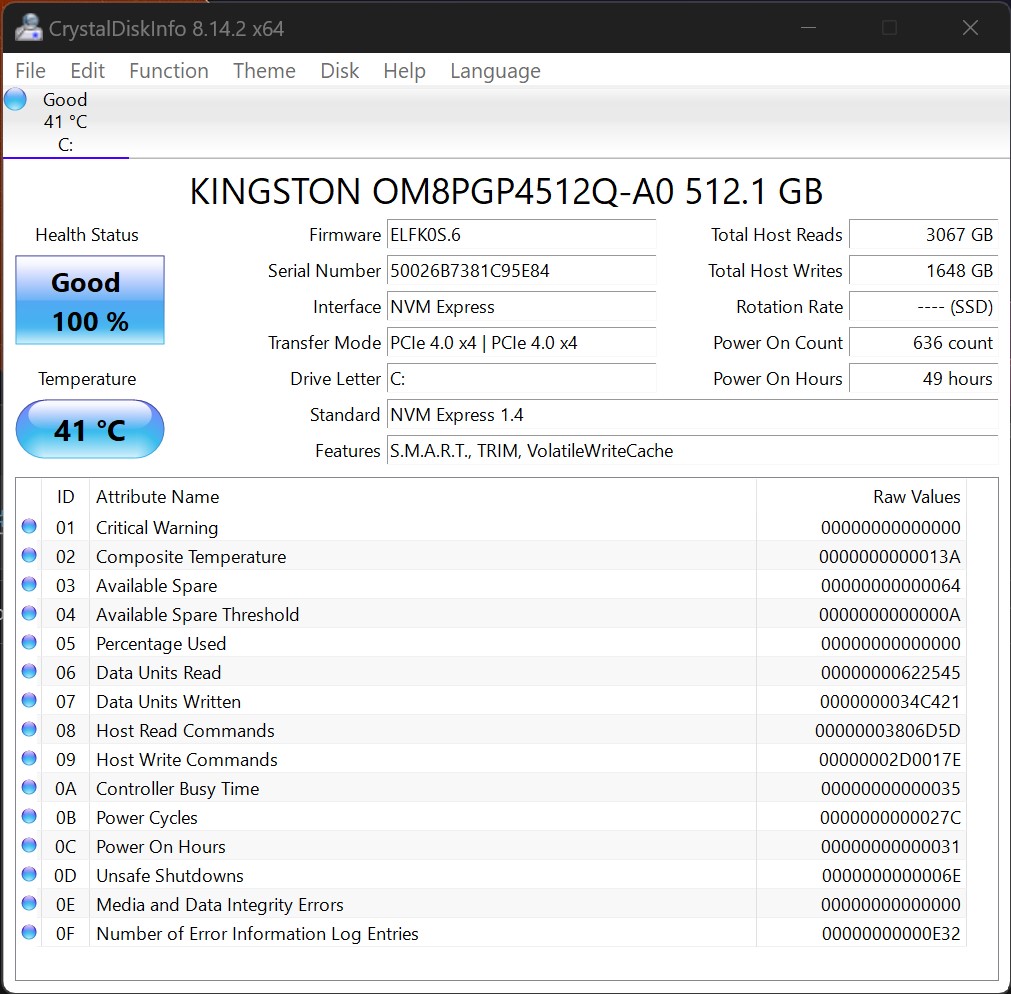

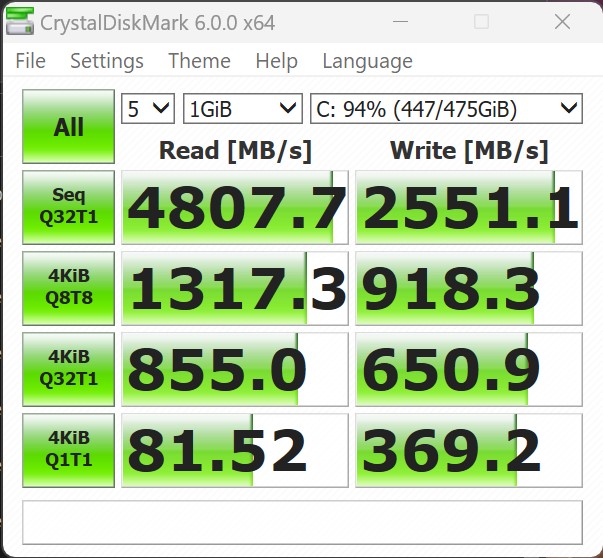

Hårddisk

Kingston OM8PGP4512Q-A0, 512 GB

, M.2-2280, NVMe, 450 GB ledigt

Ljudkort

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Anslutningar

7 USB 3.1 Gen2, USB-C Power Delivery (PD), 2 HDMI, 2 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5mm Kombibuchse, Intel Ethernet Controller I225-V

Nätverk

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Storlek

höjd x bredd x djup (i mm) 55 x 127 x 127

Operativsystem

Microsoft Windows 11 Pro

Övrigt

Power adapter with cable, HDMI cable, Vesa mount montage kit, handbook, 24 Månader Garanti

Vikt

616 g, Strömförsörjning: 456 g

Pris

699 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Potentiella konkurrenter i jämförelse

Rating	Date	Model	Weight	Height
81.9 % v7 ^(old)	05/2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
85.5 % v7 ^(old)	03/2023	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
86.1 % v7 ^(old)	02/2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	48 mm
80.8 % v7 ^(old)	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm
82.3 % v7 ^(old)	05/2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
85.1 % v7 ^(old)	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
v ^(old)	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm

Minisforum Venus-serien NAB6 i detalj

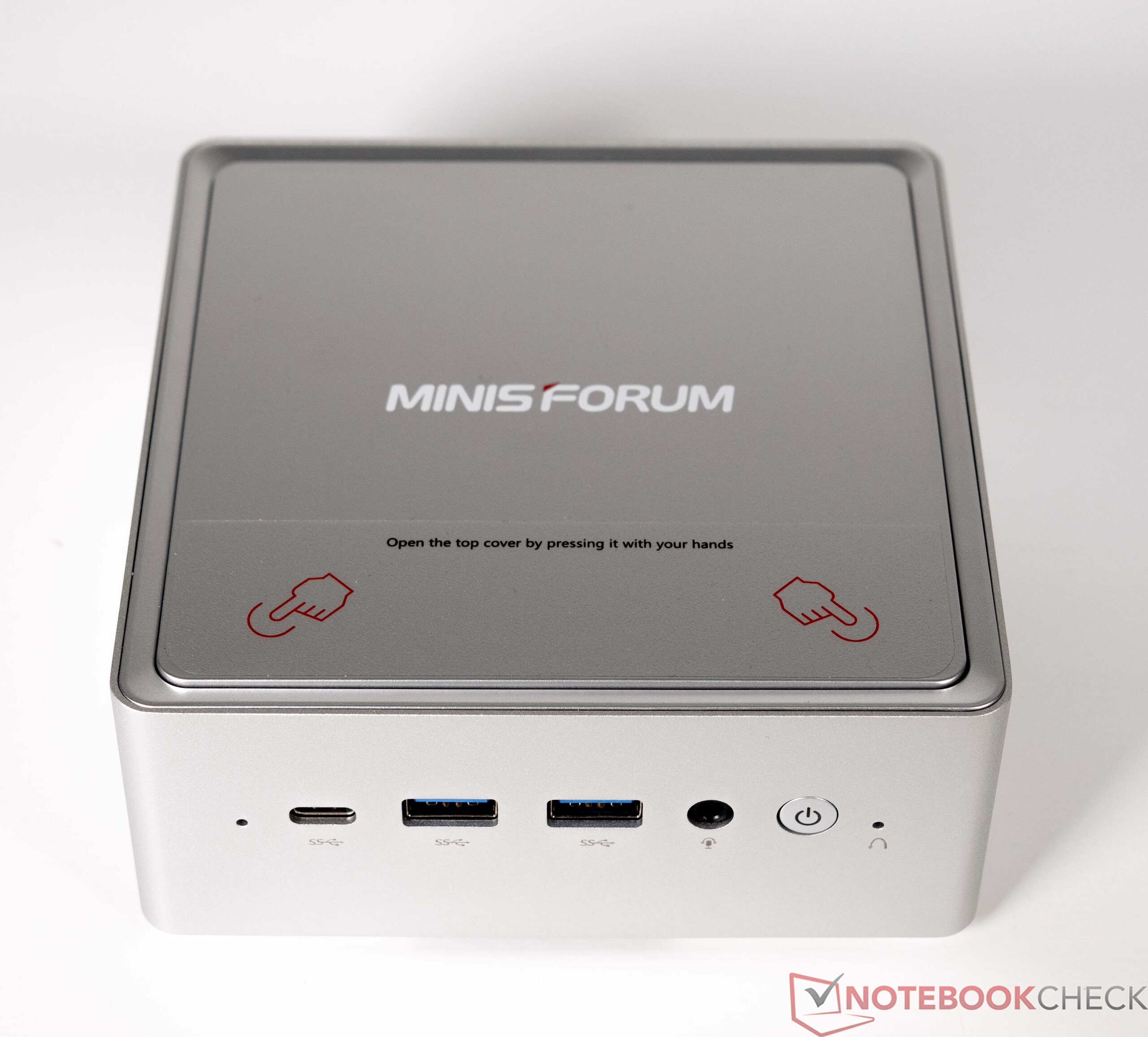

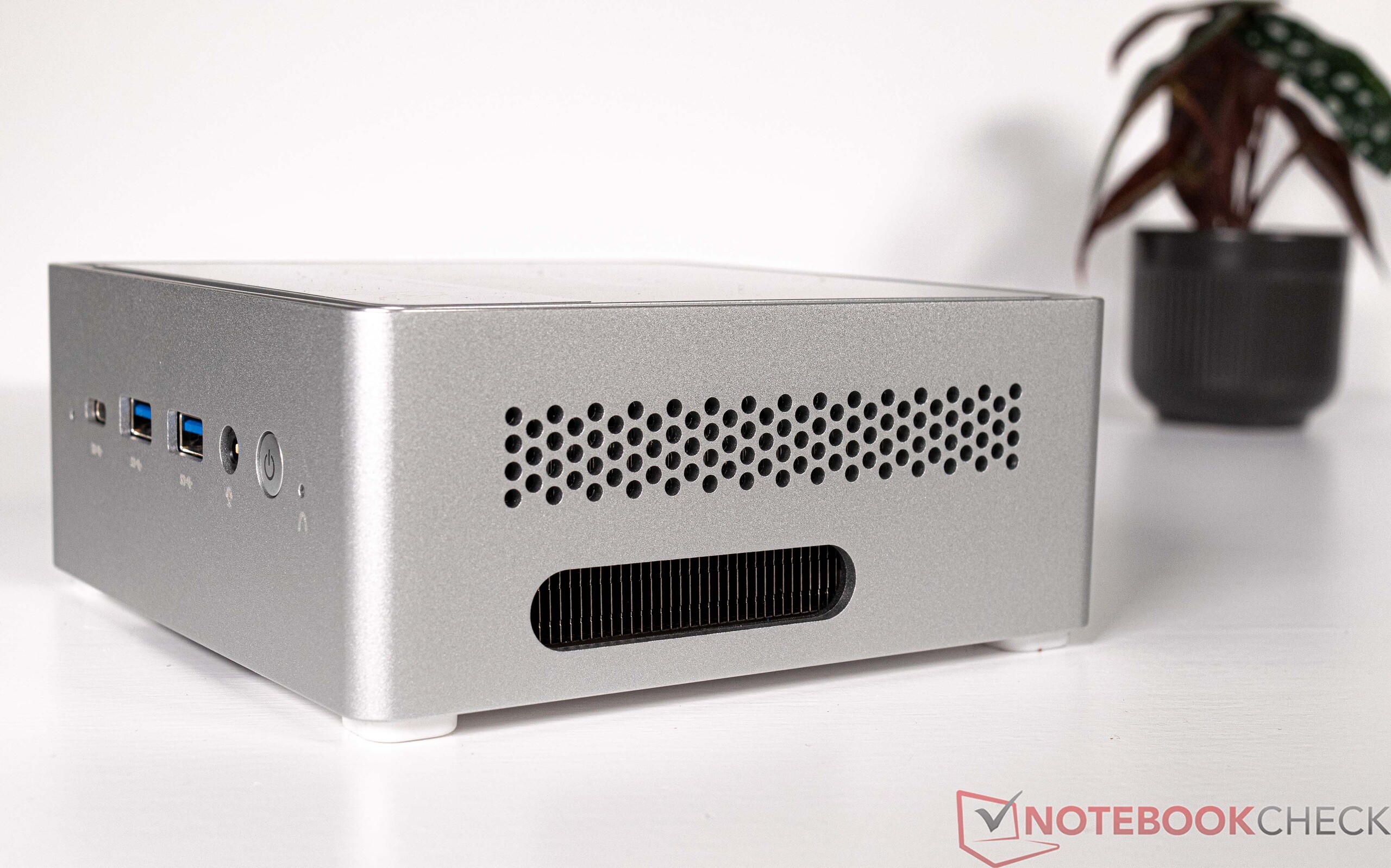

Fall

Även om NAB6 hör till Venus-serien finns det inga verkliga likheter med UM690 när det gäller byggandet. Här tog tillverkaren ett helt annat grepp om enhetens materialval. NAB6 består mestadels av aluminium och plast, vilket ger enheten en enorm stabilitet. Dess lock, insidan samt botten av enheten är gjorda av plast. Att locket matchar resten av fodralets färg är en härlig detalj. Det är inte alltid lätt att uppnå en enhetlig färg när man har att göra med flera olika material (aluminium och plast). Vårt testprov gör detta perfekt. Enhetens undersida ser lite billig ut på grund av sin vita färg.

Den kompakta storleken innebär att Minisforum Venus Series NAB6 inte tar upp för mycket plats på ditt skrivbord. Enhetens fotavtryck mäter 12,7 x 12,7 centimeter och du kan fästa den på baksidan av en bildskärm med hjälp av den medföljande monteringsplattan (VESA-fäste). Enheten är också ganska lätt och väger endast 616 gram. Dess nätadapter väger 456 gram, vilket är ungefär lika mycket som konkurrenterna.

Storleksjämförelse

Minisforum Neptune Series NAD9 Minipc Union Ace Magician AMR5 Morefine M600, 6900HX Minisforum Venus Series NAB6 Minisforum Mars Series MC560 Intel NUC 13 Pro Kit NUC13ANK Intel NUC 12 Pro Kit NUC12WSKi7 DIN A4 ❌

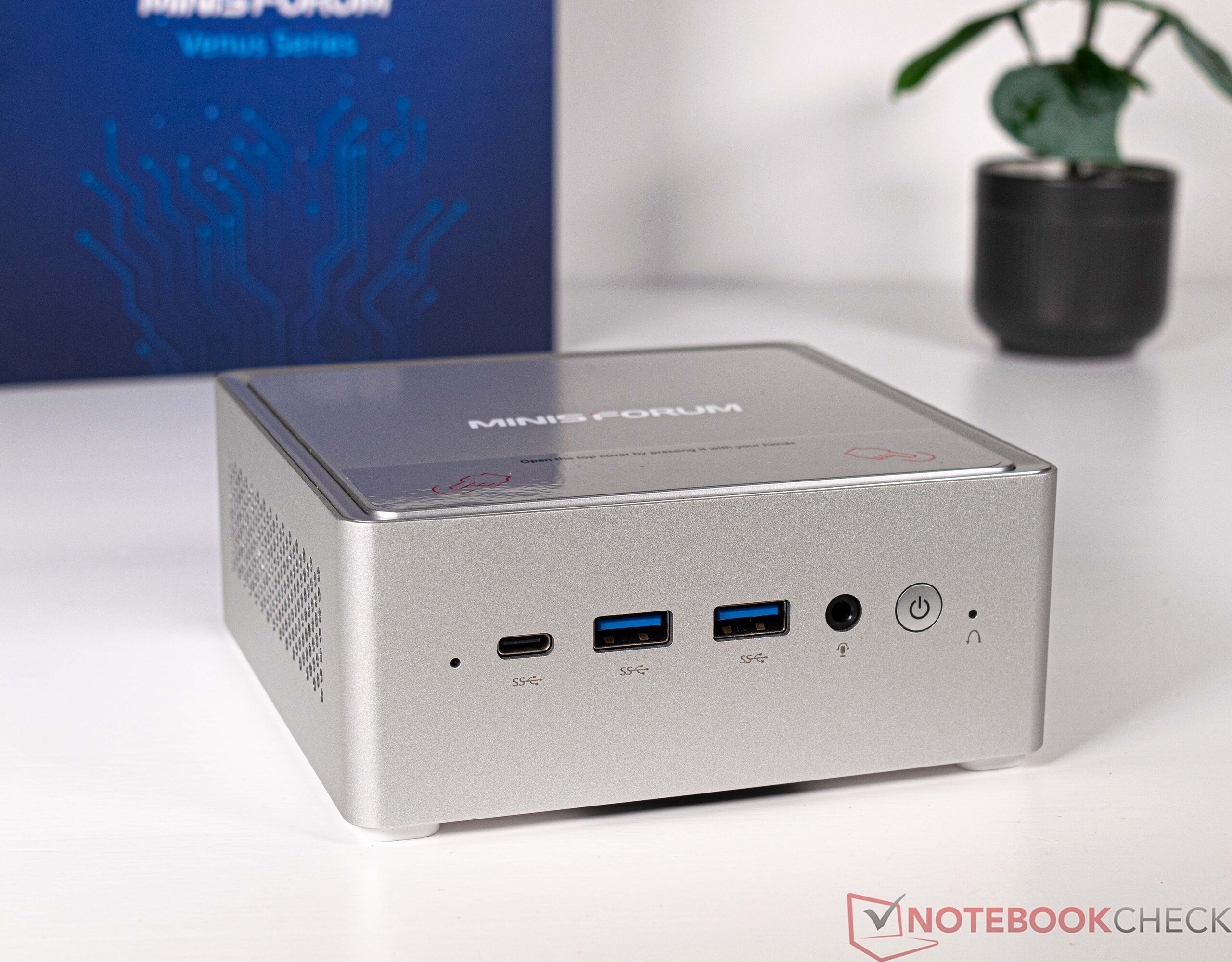

Anslutningsmöjligheter

Kompakthet innebär inte nödvändigtvis färre anslutningsmöjligheter - det vet vi redan från flera minidatorer. Detta är inte annorlunda på Minisforum Venus Series NAB6, som har sju USB-portar totalt. Detta är fler än konkurrenterna, även om användare kanske vänder sig till andra modeller på grund av att Thunderbolt-alternativet saknas. Sammantaget har Minisforum Venus Series NAB6 fortfarande mer än tillräckligt med anslutningsmöjligheter - du kan till och med ansluta upp till fyra skärmar samtidigt. Att portarna är begränsade till enhetens framsida och baksida är i våra ögon ett bra designval.

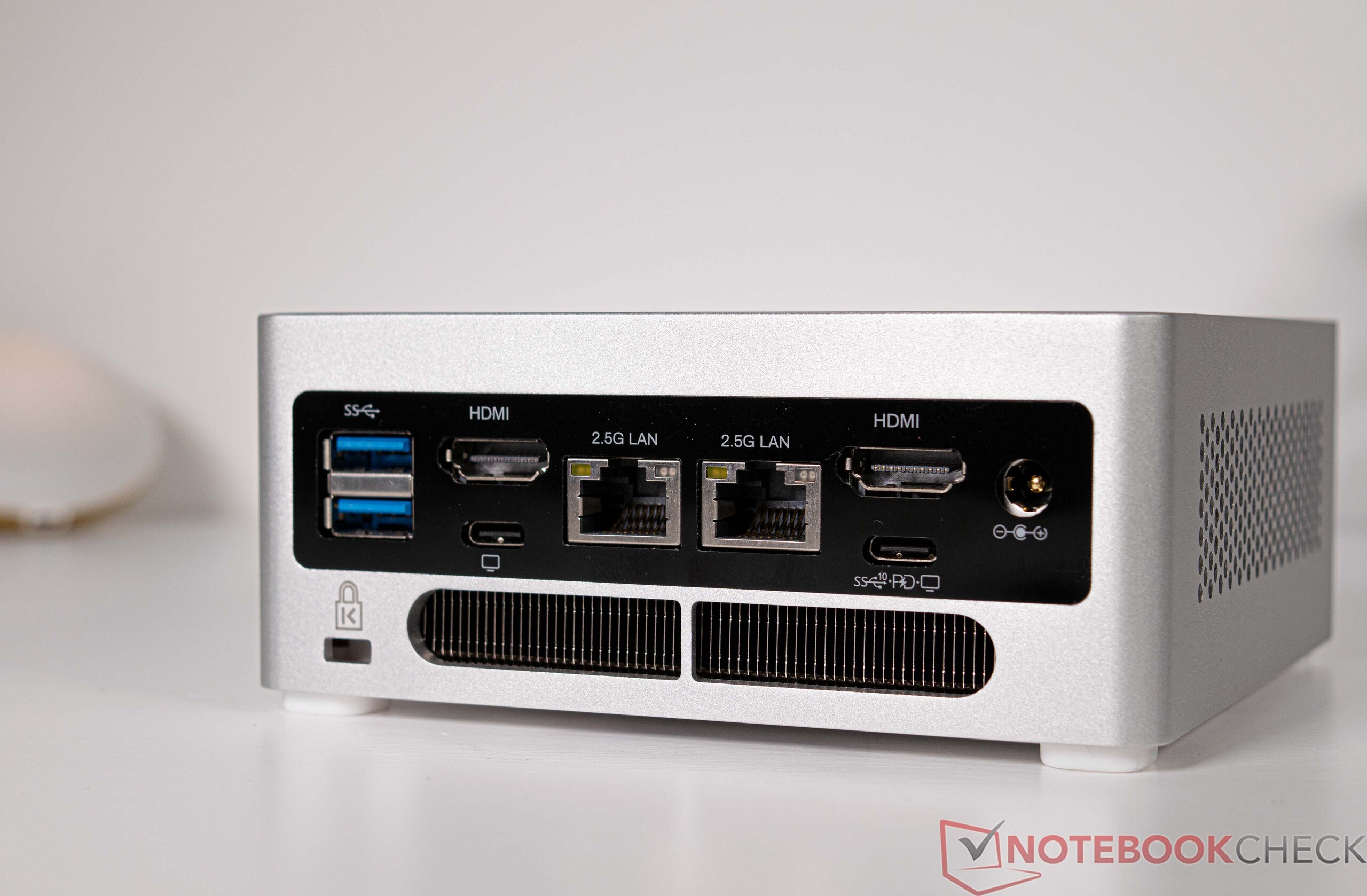

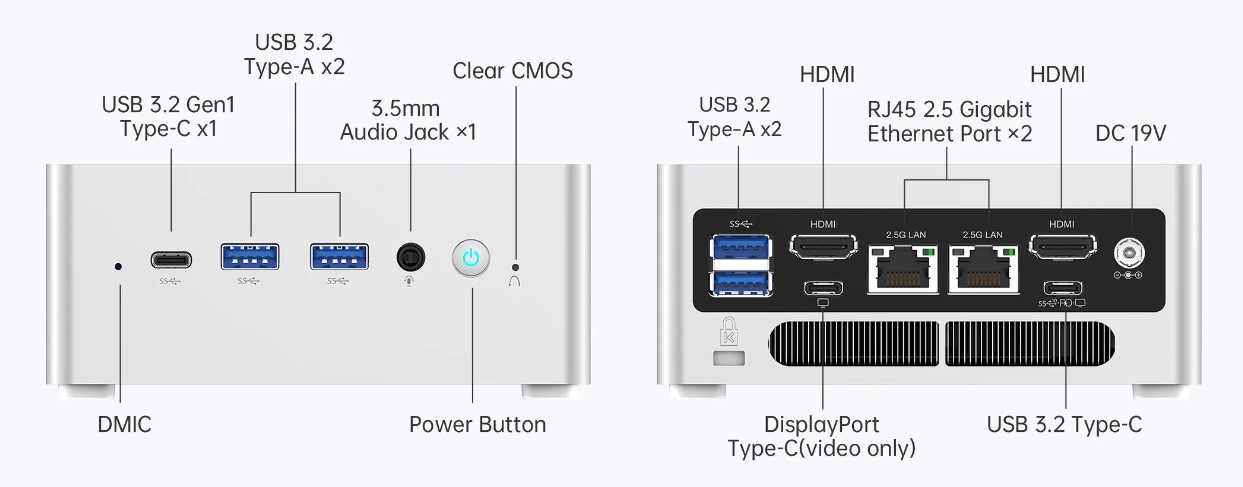

Minisforum Venus Series NAB6:s externa portar (källa: Minisforum)

Kommunikation

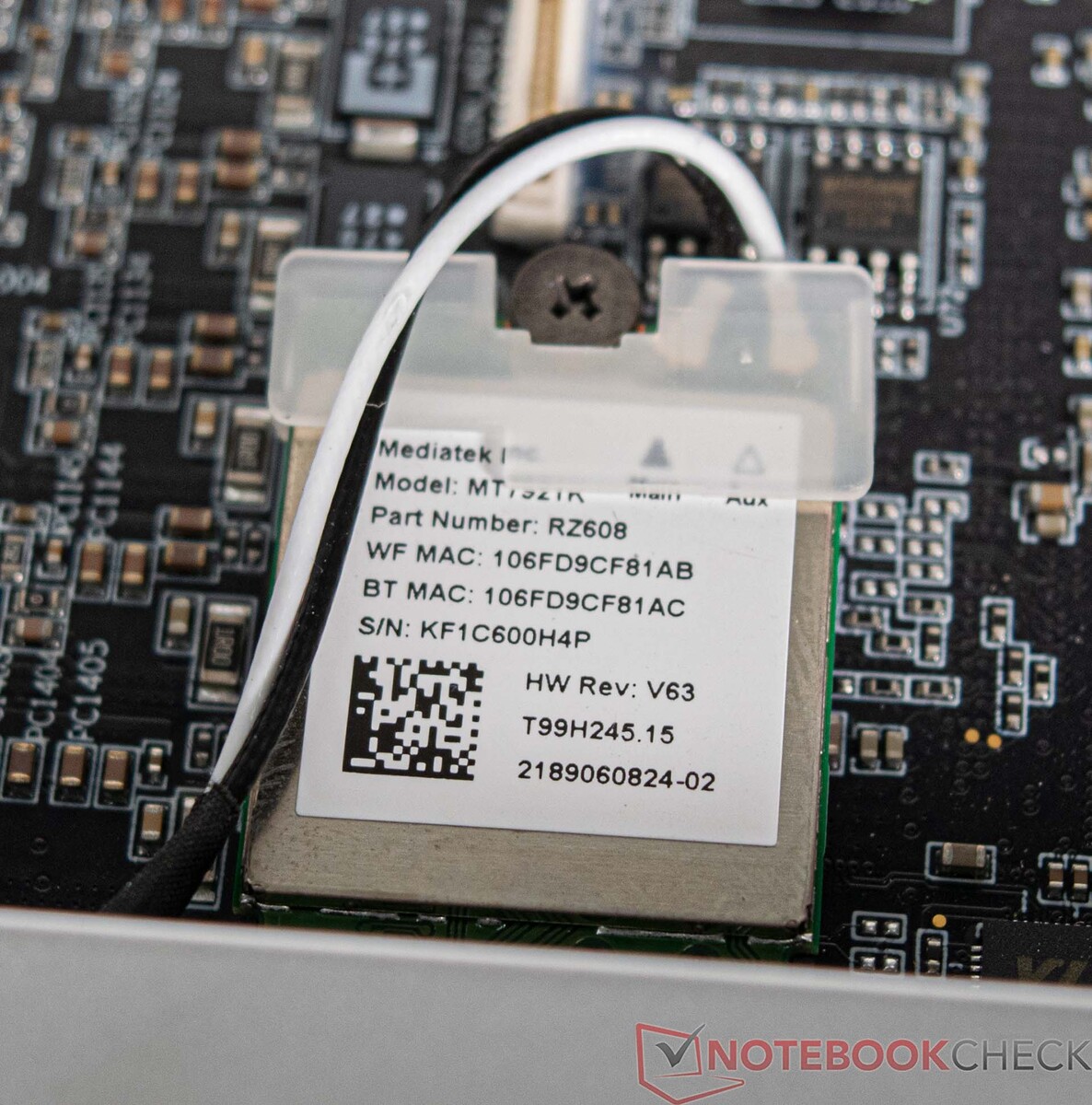

WLAN-modul i Minisforum Venus-serien NAB6

Minisforum NAB6 har en Wi-Fi 6E-modul från Mediatek. Samma modul kan ses iMiniforum Venus-serien UM690, som levererade bättre prestanda än den i vårt testprov. Vi använde en Asus ROG Rapture GT-AXE11000 som testrouter för våra tester. Överföringshastigheterna var inte förfärliga, men i jämförelse klarar sig vårt prov inte särskilt bra i nuläget. Som ett alternativ har Minisforum Venus Series NAB6 också en snabb trådbunden anslutning, vilket gör hastigheter på upp till 2,5 GBit/s möjliga. Den har faktiskt till och med två av dessa anslutningar, vilket inte alltid är normen för den här enhetsklassen.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s +111%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1519 (1392^min - 1699^max) MBit/s +92%
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s +75%
Minisforum Venus Series UM690 MediaTek RZ608	961 (954^min - 967^max) MBit/s +21%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s +14%
Average MediaTek RZ608 (430 - 961, n=16)	826 MBit/s +4%
Minisforum Venus Series NAB6 MediaTek RZ608	791 (776^min - 799^max) MBit/s
iperf3 transmit AXE11000 6GHz
Geekom Mini IT12 Intel Wi-Fi 6E AX211	1622 (1561^min - 1670^max) MBit/s +76%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s +57%
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s +45%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s +5%
Minisforum Venus Series NAB6 MediaTek RZ608	919 (853^min - 980^max) MBit/s
Average MediaTek RZ608 (572 - 980, n=16)	825 MBit/s -10%
Minisforum Venus Series UM690 MediaTek RZ608	787 (638^min - 865^max) MBit/s -14%
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +67%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s +21%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s +20%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +19%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s +18%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s +18%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +15%
Average MediaTek RZ608 (430 - 975, n=20)	886 MBit/s +13%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +111%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +54%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s +54%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s +51%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +47%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +38%
Average MediaTek RZ608 (572 - 979, n=20)	860 MBit/s +37%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s +33%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s

Minisforum Venus Series NAB6; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø919 (853-980)

Minisforum Venus Series NAB6; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø791 (776-799)

Minisforum Venus Series NAB6; iperf3 receive AXE11000; iperf 3.1.3: Ø786 (752-801)

Minisforum Venus Series NAB6; iperf3 transmit AXE11000; iperf 3.1.3: Ø616 (301-689)

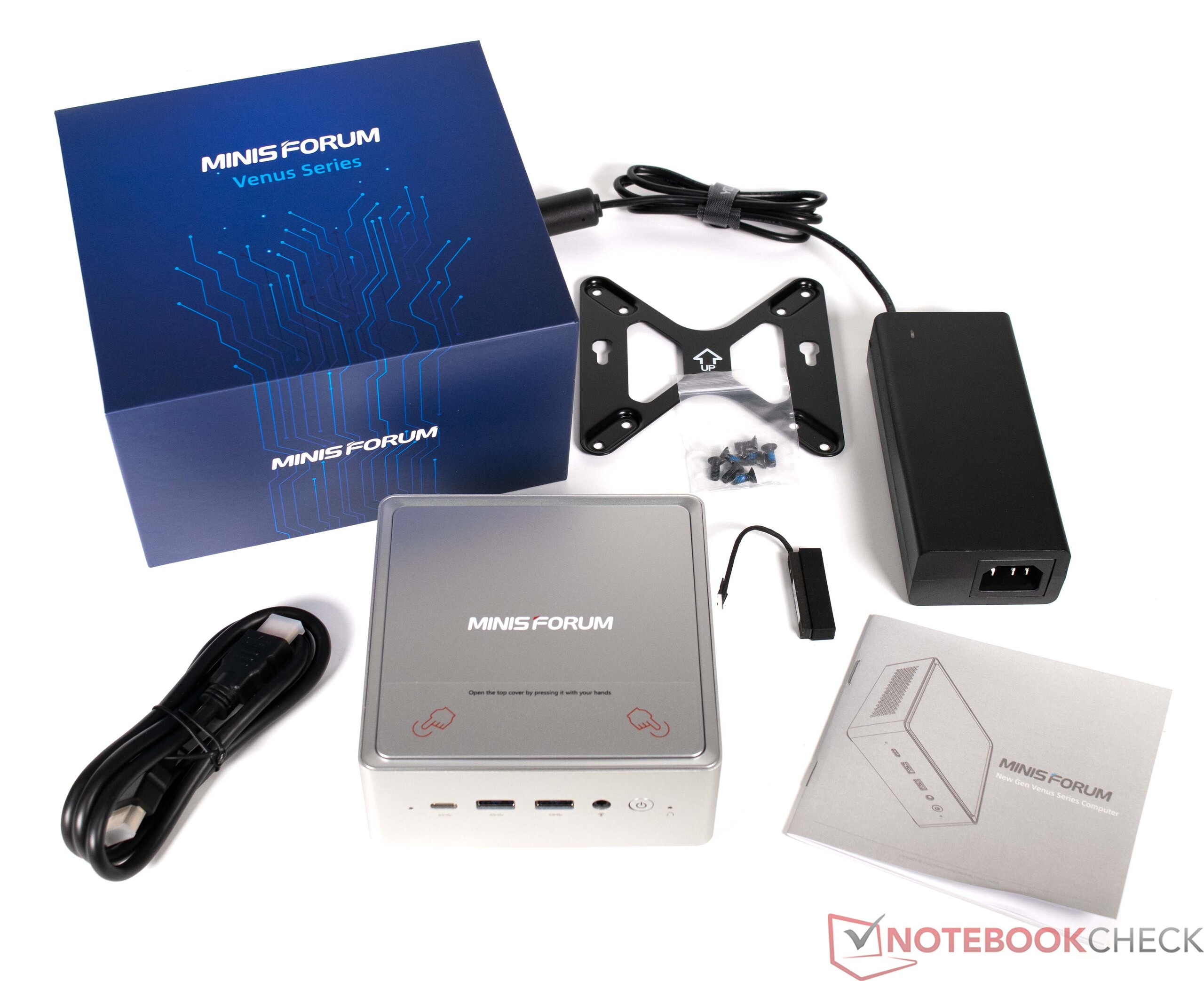

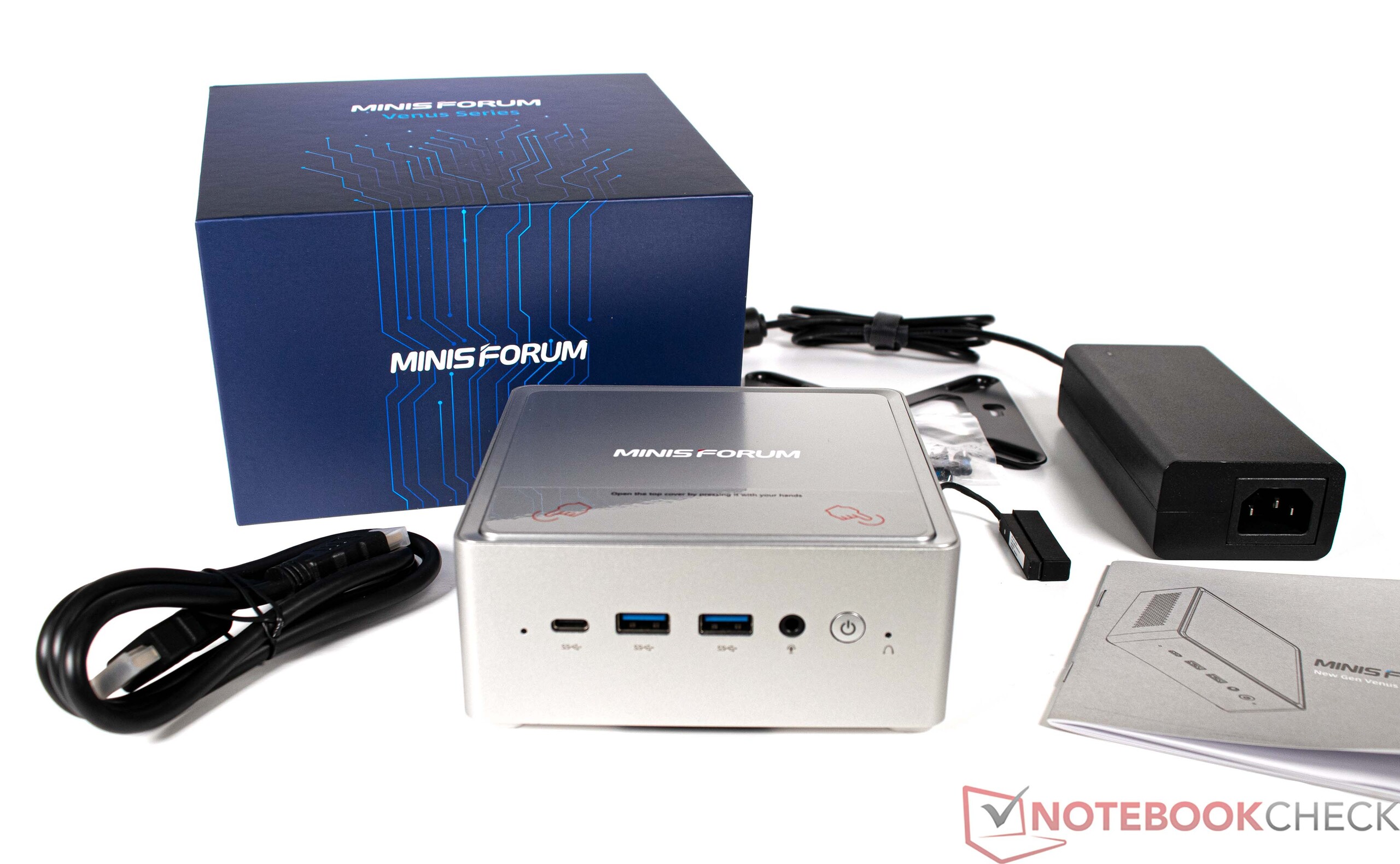

Tillbehör

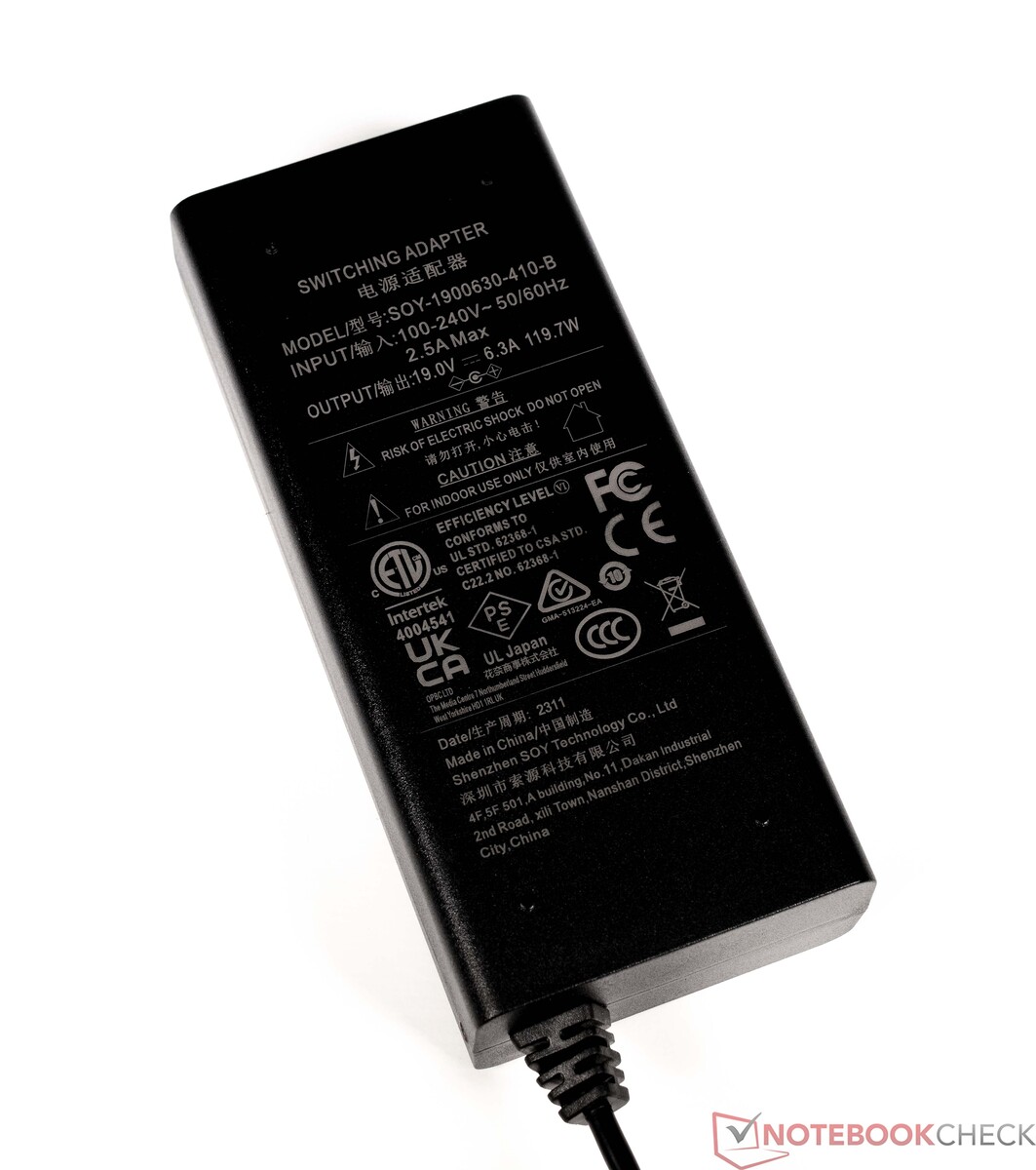

Minidatorn levereras med en 120-watts nätadapter och ett VESA-fäste för att ansluta enheten till en bildskärm. En HDMI-kabel och en kort bruksanvisning ingår också.

Underhåll

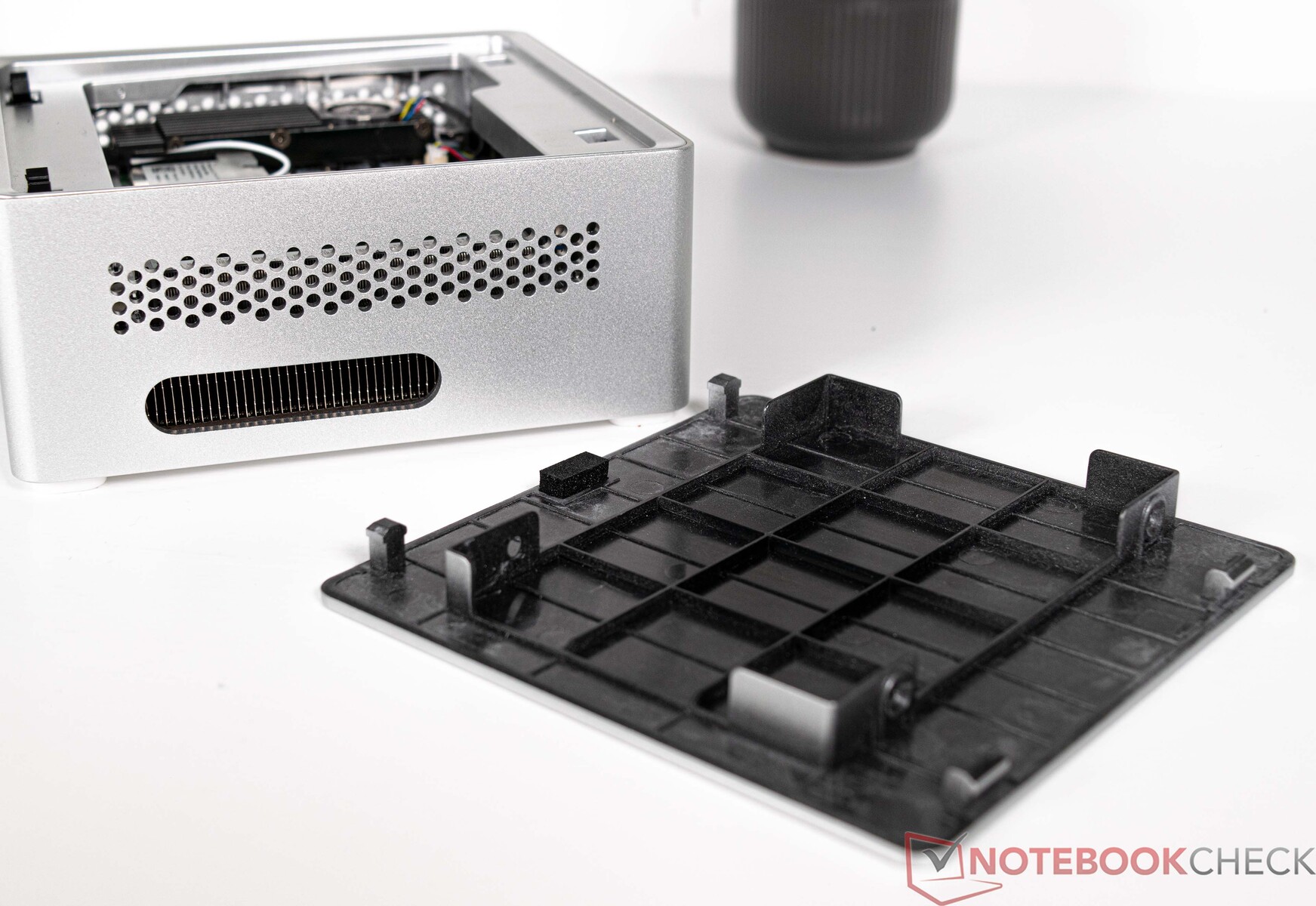

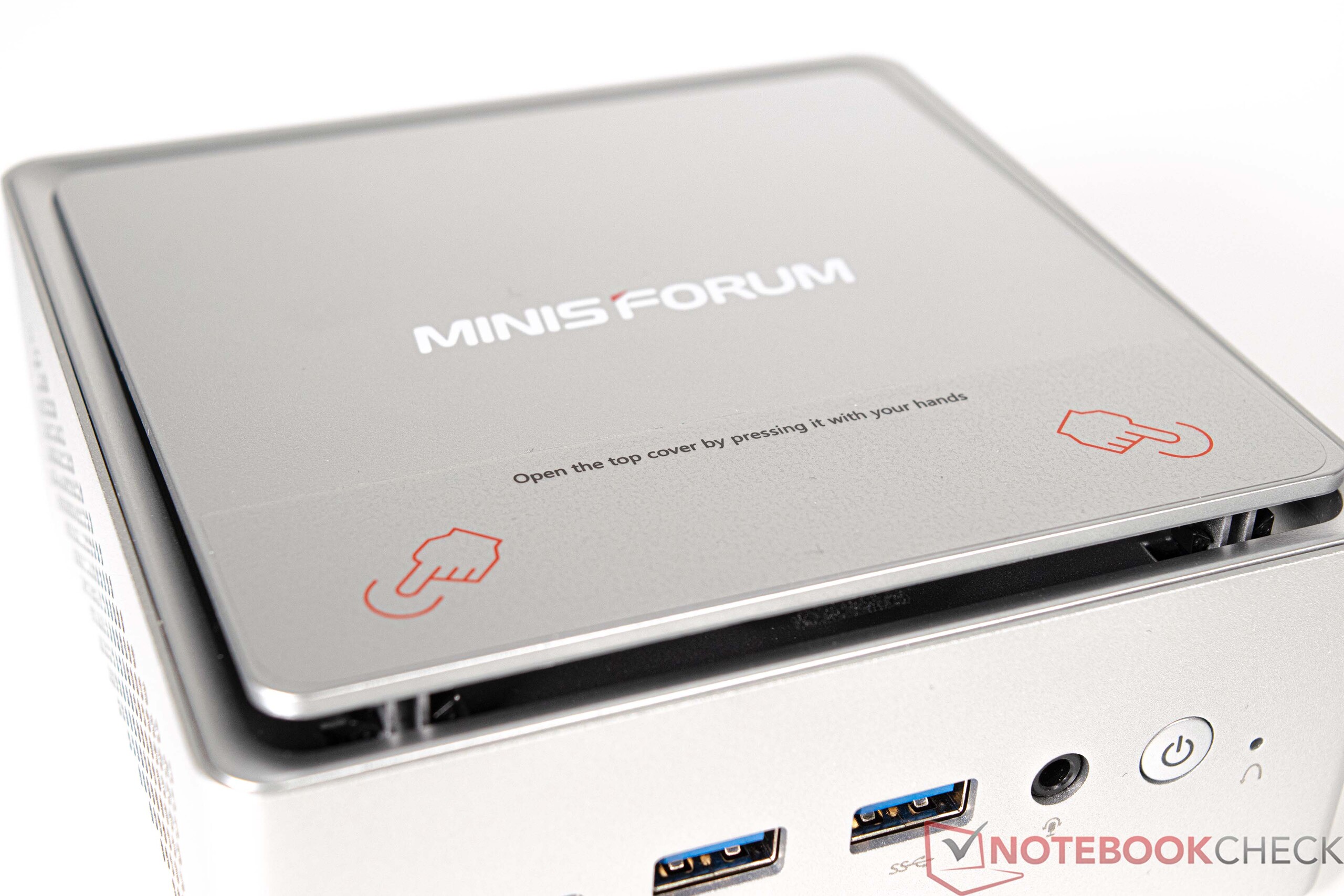

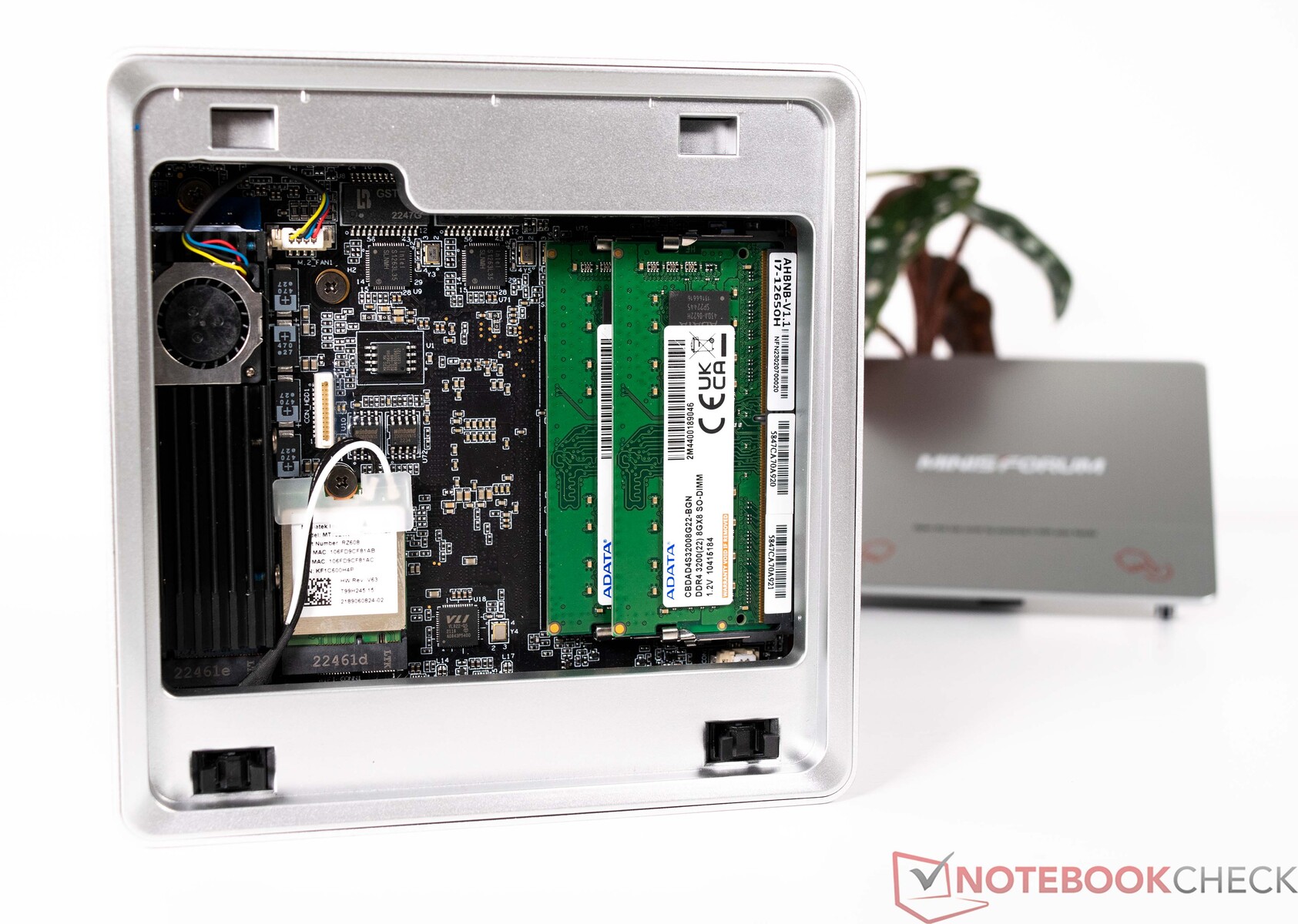

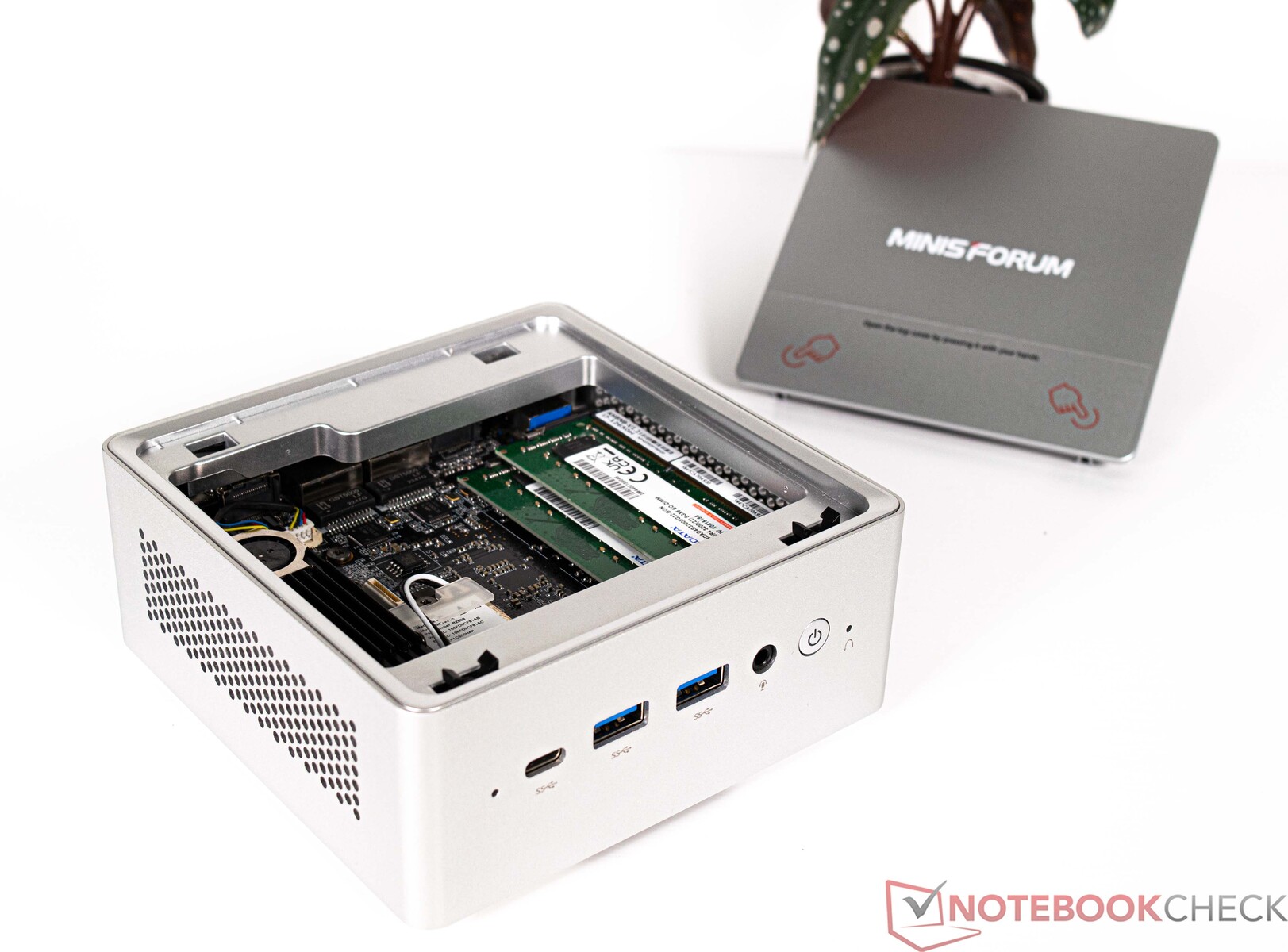

Minisforum Venus Series NAB6 med löst lock

Prestanda - en Intel Alder Lake-P med tio kärnor

Minisforumet Venus Series NAB6:s Intel Core i7-12650Här en användbar SoC som gör sig bra i vardagligt bruk. Direkt ur lådan är du välutrustad med 16 GB RAM och en 512 GB SSD. Både RAM och SSD kan bytas ut och uppgraderas vid ett senare tillfälle, vilket inte är fallet med SoC:n. Om du inte är nöjd med Intel Core i7-12650H:s prestanda kan du ta en titt på Minisforum Venus Series NPB7 istället. Den har enIntel Core i7-13700Hoch kommer att vara tillgänglig att köpa inom en snar framtid.

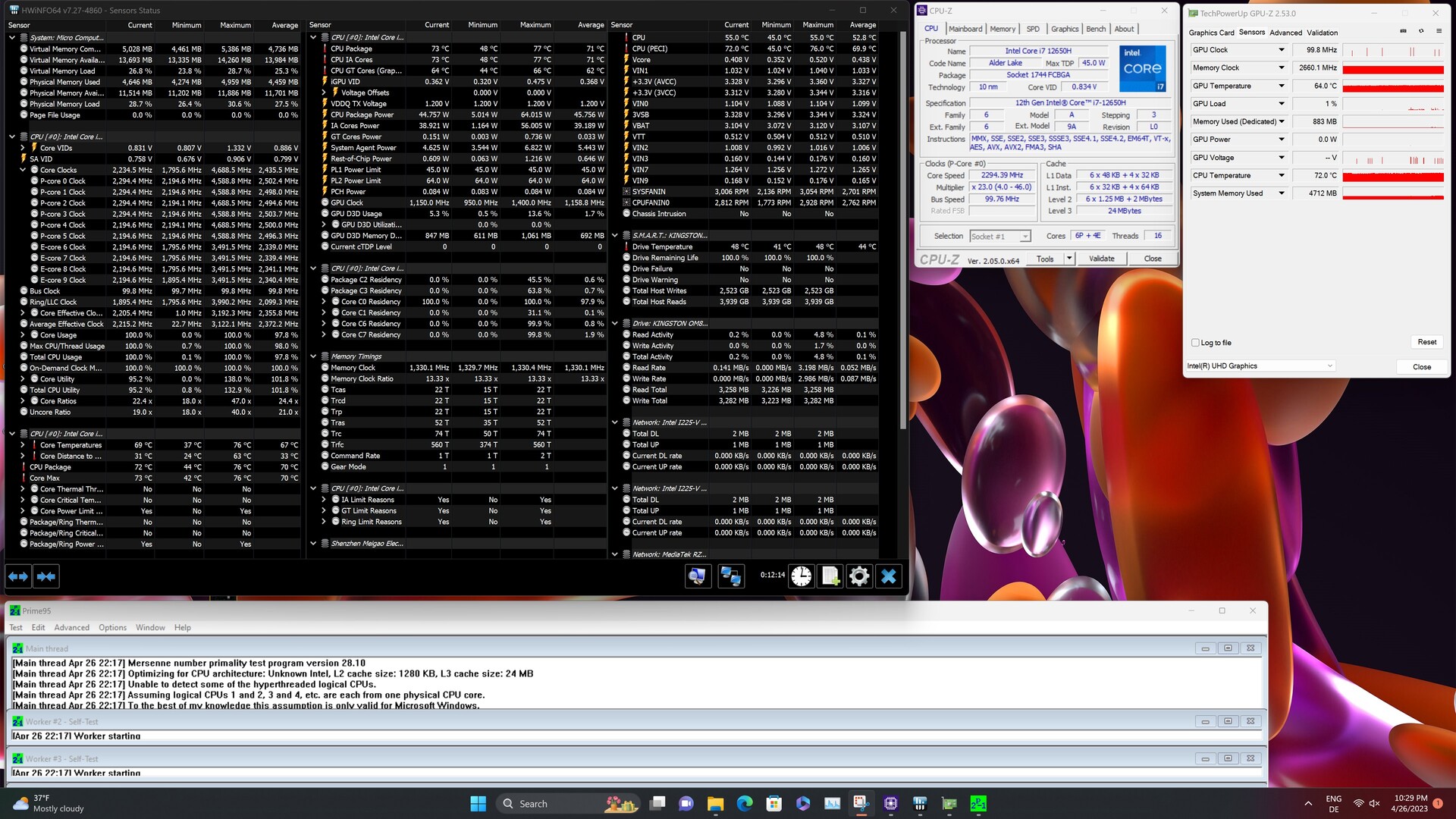

Provningsförhållanden

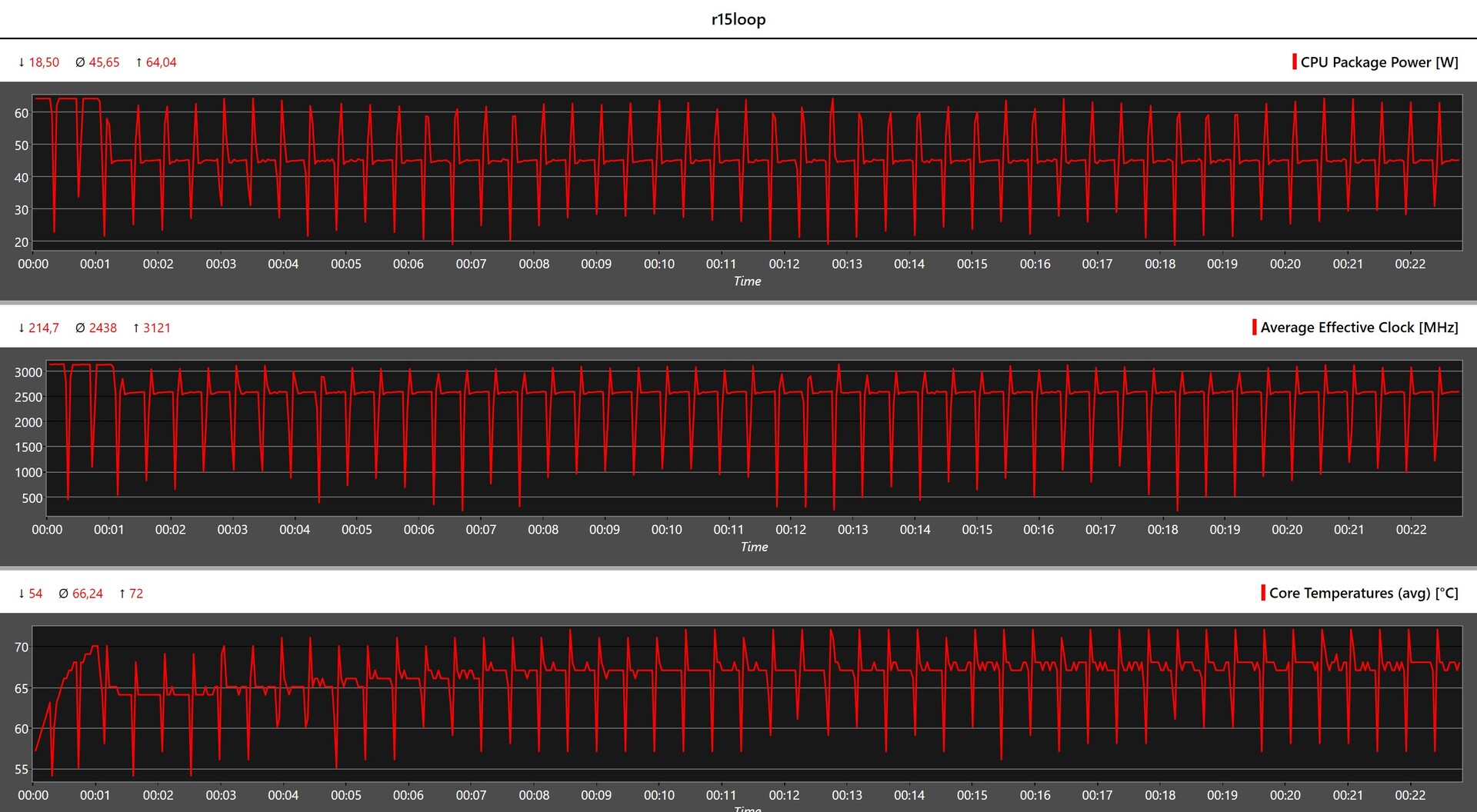

Vi körde alla våra tester med energiprofilen "balanserad". SoC:ns prestanda ändrades inte i BIOS och har lämnats i det skick vi fick den i, i enlighet med tillverkarens inställningar.

Processor

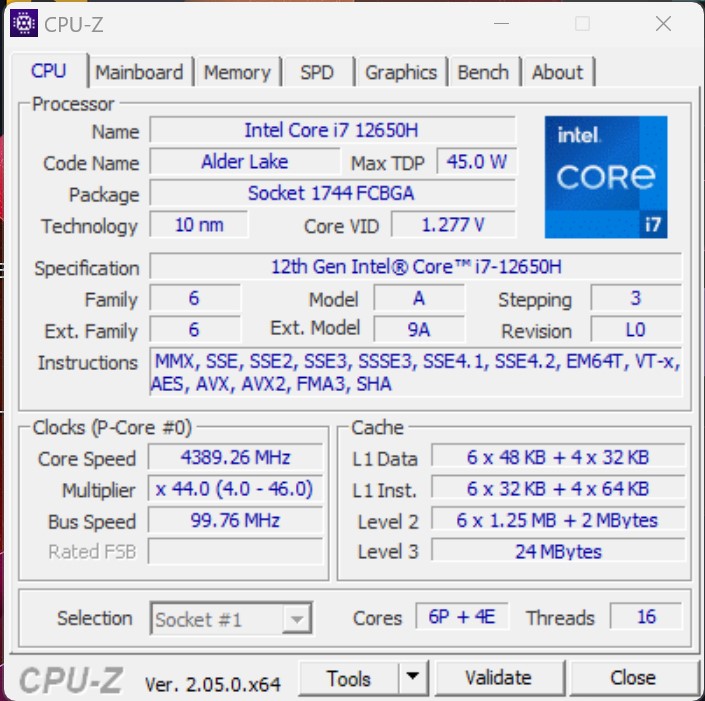

Intel Core i7-12650H (källa: Minisforum)

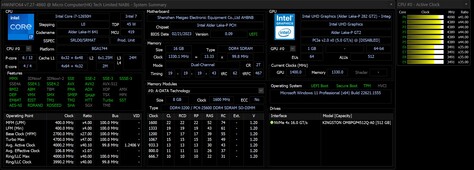

Minisforumet Venus Series NAB6:sIntel Core i7-12650Här en solid SoC som har tio kärnor och kan bearbeta totalt 16 trådar samtidigt. I vårt test placerade sig enheten någonstans i mitten och låg överraskande nog bara två procent bakom Intel NUC 13 (alla CPU-benchmarks jämfördes). Intel Core i7-12650H har en effektgräns på 64 watt och vid kontinuerlig belastning har den tillgång till 45 watt. Dessa siffror uppnåddes - detta kan vi retas redan nu. Det betyder att det inte finns någon prestandabegränsning på grund av otillräcklig kylning.

För ytterligare jämförelser och benchmarks kan du ta en titt på vår jämförelsetabell för CPU:er på

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	50.8 pt
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	50.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	49.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	49.6 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.9 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.5 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.3 pt

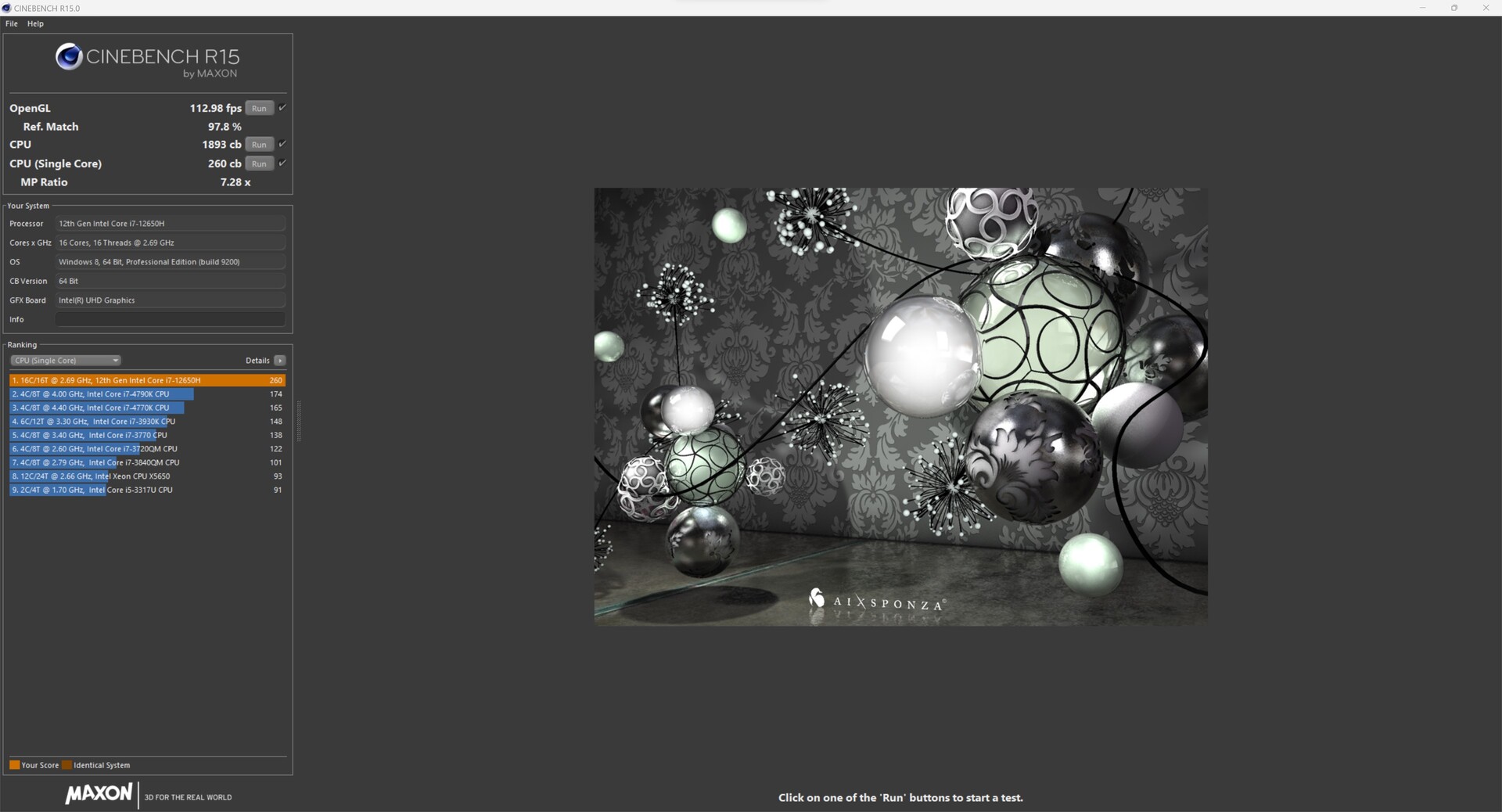

Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	271 Points +4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -14%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points +18%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2030 Points +7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -33%

Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	736 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points -10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points -14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points -23%
CPU (Multi Core)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	4887 Points +2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -38%

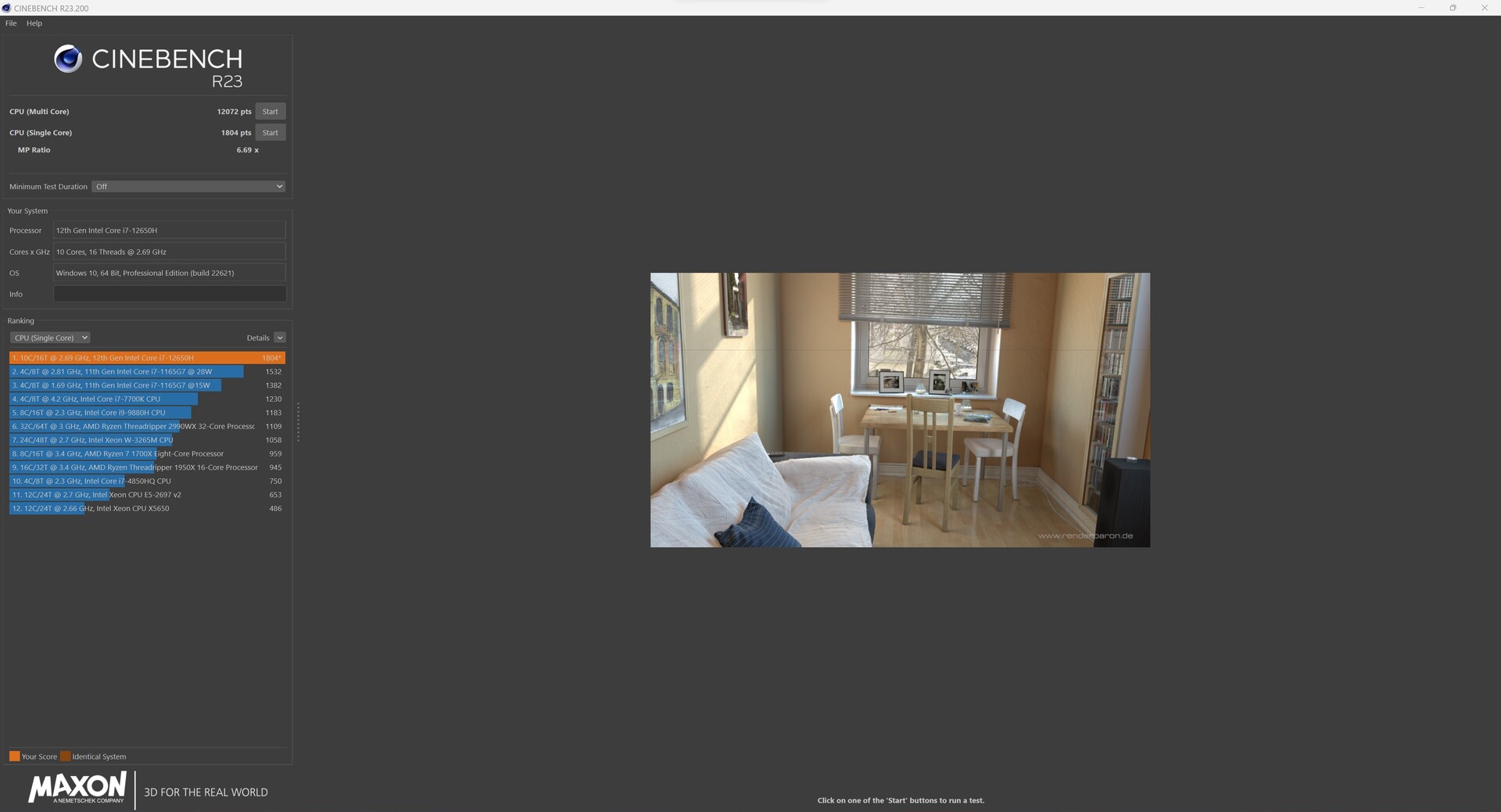

Cinebench R23
Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1909 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1743 Points -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1693 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1616 Points -10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1533 Points -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1376 Points -24%
Multi Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	13320 Points +10%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13222 Points +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12637 Points +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12375 Points +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8846 Points -27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7615 Points -37%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.3 Points +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points -7%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points -8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points -16%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points +19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	25.12 Points +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -33%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	15471 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points -7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	12943 Points -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points -12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -24%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	76758 Points +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	76744 Points +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -34%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -40%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds *
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	275 Seconds * +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * +18%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * +19%

wPrime 2.10
32m
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -45%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * -21%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	3.735 s * -1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s *
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +8%
1024m
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	277.01 s * +32%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * +42%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * +54%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +62%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * +75%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * +77%

X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	312 (305^min - 331^max) fps 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps -16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -25%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -28%
Pass 2
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	116.4 (108.5^min - 128.8^max) fps +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -32%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s -13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s -24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s -25%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s -28%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5759 KB/s -37%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s +33%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	12.5 GB/s +24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s +20%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -24%
Twofish Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	2.2 GB/s +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -39%
Serpent Mean 100MB
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1.2 GB/s +9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -36%

Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10574 Points +13%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -34%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1850 Points +5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -19%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	10249 Points +13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -33%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points -8%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	1557 Points -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -20%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points -12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	6698 Points -13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -24%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	39852 Points +14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +14%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -30%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	17973 Points -2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points -14%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -31%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS +28%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS +19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	52959 MIPS +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -22%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	5961 MIPS -3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -14%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps +26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	14.2 fps +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -26%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -26%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * -3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * -0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	0.445 sec * +4%

LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * -29%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * -23%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * -21%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	43.7 s * -10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +4%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	305 Points -1%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -17%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * -24%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * -11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms * -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * -4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms *
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	494 ms * +5%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points +21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	20158 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -24%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points +16%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	21523 Points -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -19%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -26%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +15%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points +2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, 1600 MHz	9334 Points +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -41%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.3 pt
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.9 pt
Average of class Mini PC	75 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	73.8 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	69.4 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	60.2 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	57 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s +39%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s +27%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -16%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -27%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points +82%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points +61%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -26%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s +24%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -16%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points +26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -5%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -18%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points +76%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points +67%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -25%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points +97%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points +67%
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points +22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -26%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +48%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -15%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s -19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s -39%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s +28%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +20%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +9%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s +6%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -25%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s +26%
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -20%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -28%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s +4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s 0%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s -1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -31%

Minisforum Venus Series NAB6 vs. Cinebench R15 Multi Loop

Cinebench R15 continuous loop ger oss en inblick i hur SoC:n beter sig under en längre tidsperiod. Minisforum Venus Series NAB6 presterade bra under de 50 körningarna, även om en liten prestandadämpning kunde ses efter den tredje körningen. The Intel Core i7-12650Hnådde bara sin maximala effektgräns på 64 watt under en kort tid efter den fjärde körningen. SoC:ns medeltemperatur var inte särskilt hög, 66 °C.

CPU-mätvärden under Cinebench R15-slingan

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Systemprestanda

Återigen hamnar Minisforum Venus Series NAB6 någonstans i mitten när det gäller systemprestanda under de syntetiska benchmarks. Dess konkurrenter med en AMD Ryzen 9 6900HX presterade bättre och låg i genomsnitt 10-16 procent före. Under Crossmark-testet presterade Intels minidatorer bäst. Här uppnådde vårt testprov en andraplats och kom på tredje plats under minnestestet AIDA64. The Morefine M600ochMinisforum Venus Series UM690presterade bättre tack vare sina DDR5 RAM-minnen. Subjektivt sett är Minisforum Venus Series NAB6:s systemprestanda bra. Vi uppmätte inga märkbara latenser vid daglig användning.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points +16%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points +10%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	6281 Points +4%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -5%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -7%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	11596 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points -2%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points -9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -9%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points -11%

PCMark 10 / Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points +23%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +17%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	7893 Points -3%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -6%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -9%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +1%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1810 Points -3%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points -7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points -8%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points -19%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points -27%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points -17%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points -20%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1578 Points -24%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points -39%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points -40%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1970 Points +9%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points -1%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points -3%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points -4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points -9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points -24%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +2%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ	1740 Points -7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points -7%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points -8%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points -21%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points -25%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s +7%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s +2%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s -4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -25%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s +2%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s -1%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s -4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s -5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -23%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s +16%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s +16%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -1%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -21%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -40%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -34%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * -29%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -28%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * -16%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -12%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns *

* ... smaller is better

DPC-fördröjning

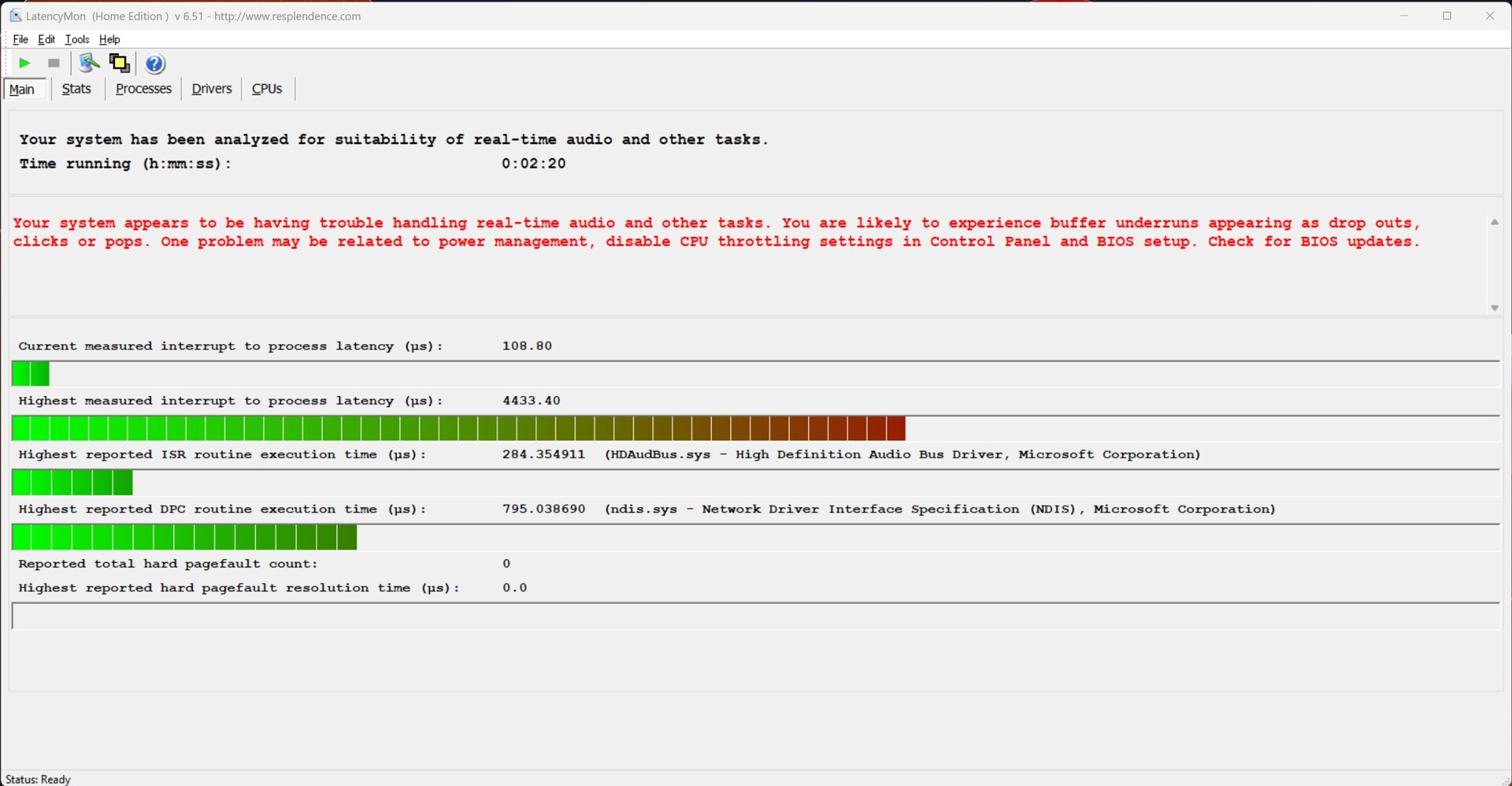

Verktyget LatencyMon uppmätte något förhöjda fördröjningar när man öppnade flera flikar med Edge, vilket blev högre när vi startade vår 4K-testvideo. Prime95 ledde inte till några ännu högre värden. I jämförelse klarade sig Minisforum Venus Series NAB6 fortfarande ganska bra och säkrade andraplatsen bakomAce Magician AMR5.

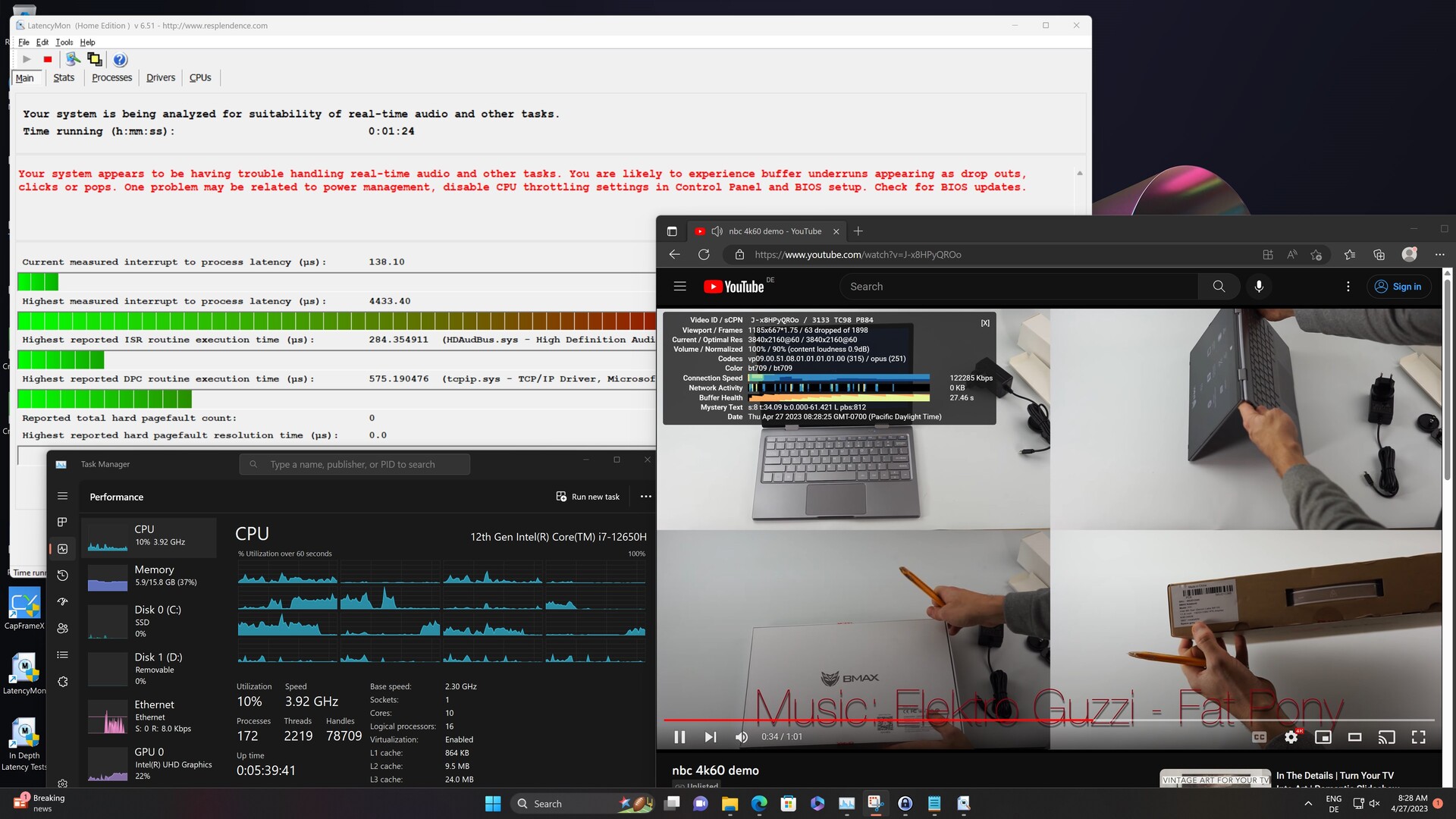

Maximal latens vid öppning av flera webbläsarflikar och uppspelning av 4K-video

Maximala latenser efter tio sekunders Prime95

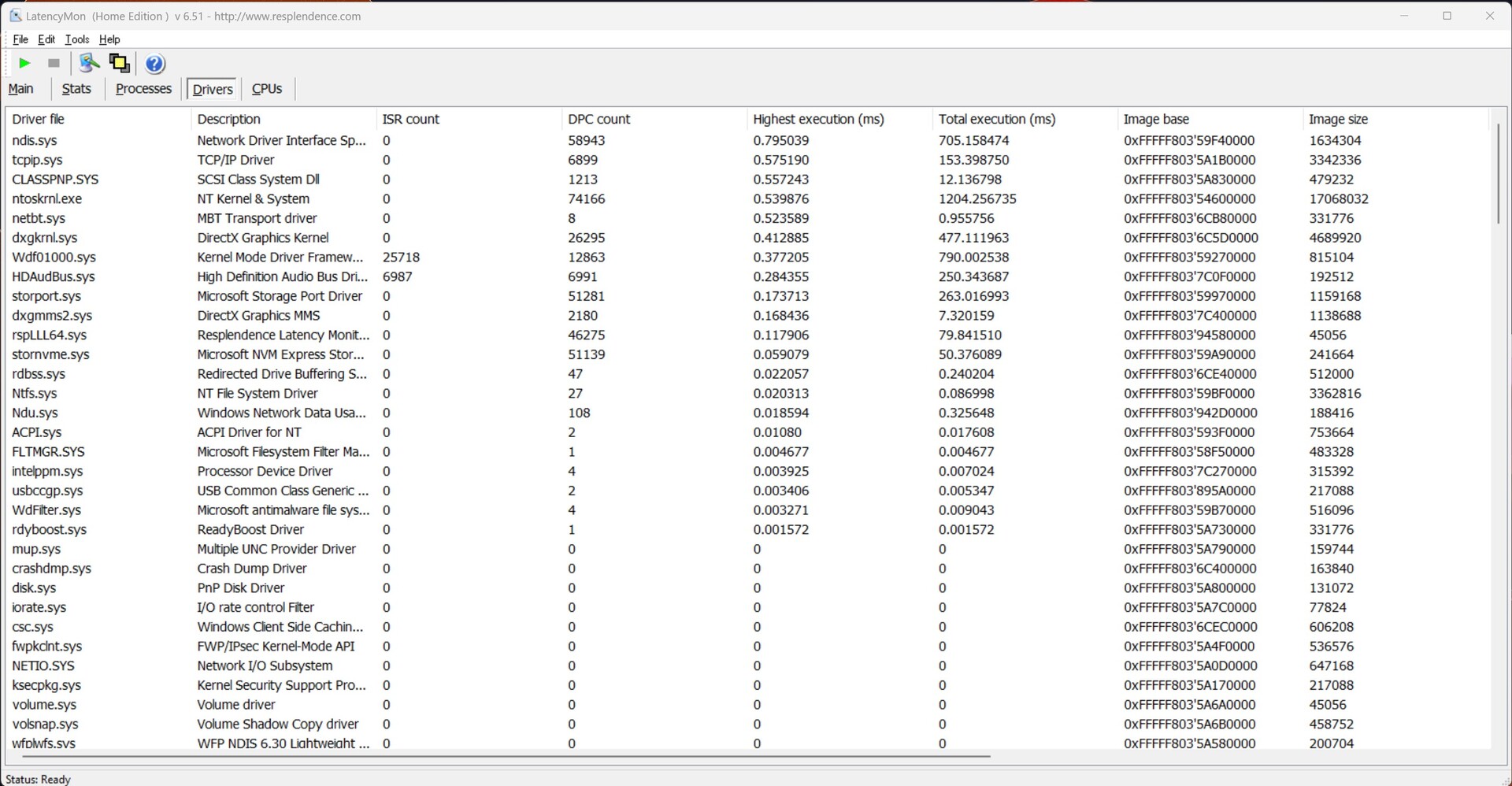

Förare rangordnade efter längsta genomförandetid

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1488 μs * -87%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1317 μs * -66%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -40%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * -37%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * -24%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * +4%

* ... smaller is better

Lagringsenheter

Minisforum har utrustat Venus Series NAB6 med en 512 GB NVMe SSD från Kingston. Liknande enheter finns iMinisforum Neptune-serien NAD9samt iMinisforum Venus Series UM690. Kingston SSD i vår testenhet kan helt enkelt inte hänga med jämfört med sina konkurrenter från samma tillverkare. Vår testenhet behöver dock inte gömma sig. Läsningshastigheterna var bra - särskilt 4K-läsningshastigheterna på över 100 MB/s.

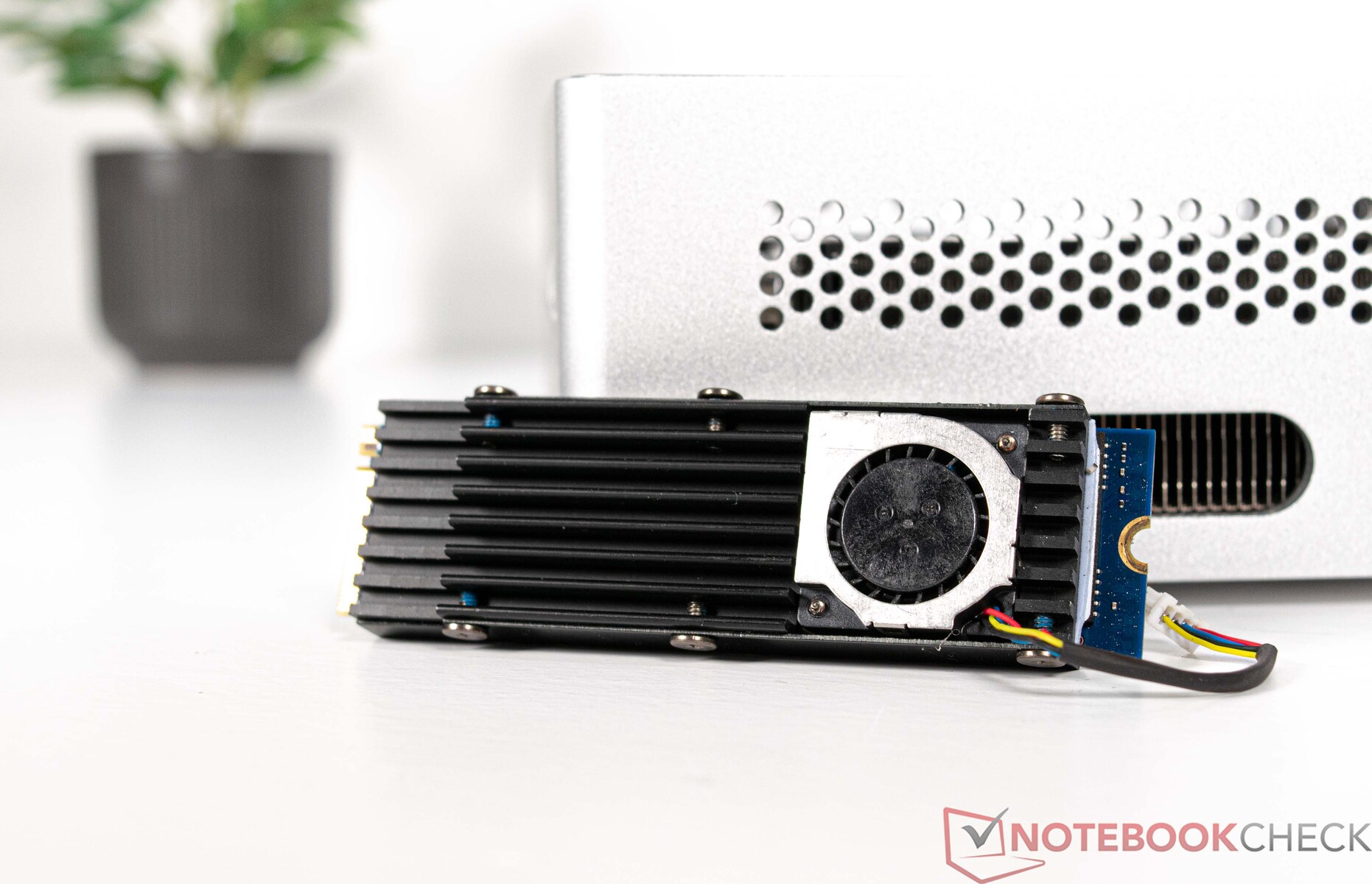

När det gäller kylning tar NAB6 ett lite annorlunda grepp med sitt installerade kylsystem med en liten fläkt. SSD:n lyckades i det kontinuerliga testet - och utan några prestandakollaps. Vi upprepade dock samma test med fläkten avaktiverad och resultaten var i princip desamma. Detta väcker frågan om varför tillverkaren valde att installera aktiv SSD-kylning. Fast det fungerar åtminstone tillräckligt tyst för att det inte ska störa dig vid daglig användning.

Totalt kan tre SSD-enheter installeras i Minisforum Venus Series NAB6. Vid sidan av NVMe-SSD:n kan du även installera en SSD i M.2 2242-format - men endast med SATA-hastigheter. Dessutom kan en 2,5-tums lagringsenhet också installeras i enheten. Du behöver bara se till att den inte är högre än 7 millimeter.

För ytterligare jämförelser och riktmärken kan du ta en titt på vår jämförelsetabell.

En 2,5-tums lagringsenhet kan installeras i locket

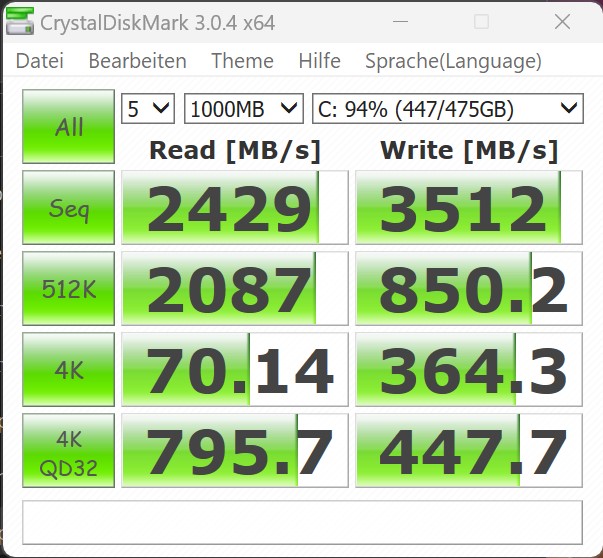

CrystalDiskMark 3.0

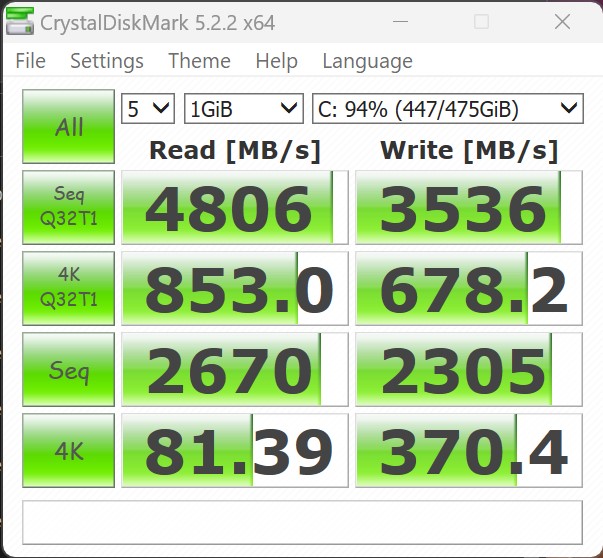

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston OM8PGP4512Q-A0

Sequential Read: 2429 MB/s

Sequential Write: 3512 MB/s

512K Read: 2087 MB/s

512K Write: 850.2 MB/s

4K Read: 70.14 MB/s

4K Write: 364.3 MB/s

4K QD32 Read: 795.7 MB/s

4K QD32 Write: 447.7 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	83.4 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	79.3 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	70.4 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	67.9 pt
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	65.2 pt
Average of class Mini PC	50.1 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	39.2 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	35.5 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +26%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +19%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +5%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s -15%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s -23%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -46%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1176 (1169.13^min - 1175.87^max) MB/s -56%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s 0%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s -5%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s -31%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s -49%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1530 (603.77^min - 1530.08^max) MB/s -57%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -66%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +40%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s 0%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s 0%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s -23%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s -49%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1987 (1409.4^min - 1987.27^max) MB/s -59%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -65%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s 0%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s -20%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s -23%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -50%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -66%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	1084 (553.02^min - 1084.16^max) MB/s -69%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s -1%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s -14%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s -33%
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s -34%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -37%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	48.5 (48.27^min - 48.47^max) MB/s -41%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s -42%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +1%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s -31%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s -34%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	220 (212.2^min - 220.15^max) MB/s -48%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s -50%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s -54%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -58%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s 0%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s 0%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s -30%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s -37%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -78%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	354 (11.43^min - 353.56^max) MB/s -82%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s -2%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s -29%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s -62%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s -72%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	893 (601.78^min - 892.97^max) MB/s -74%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s -81%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -82%

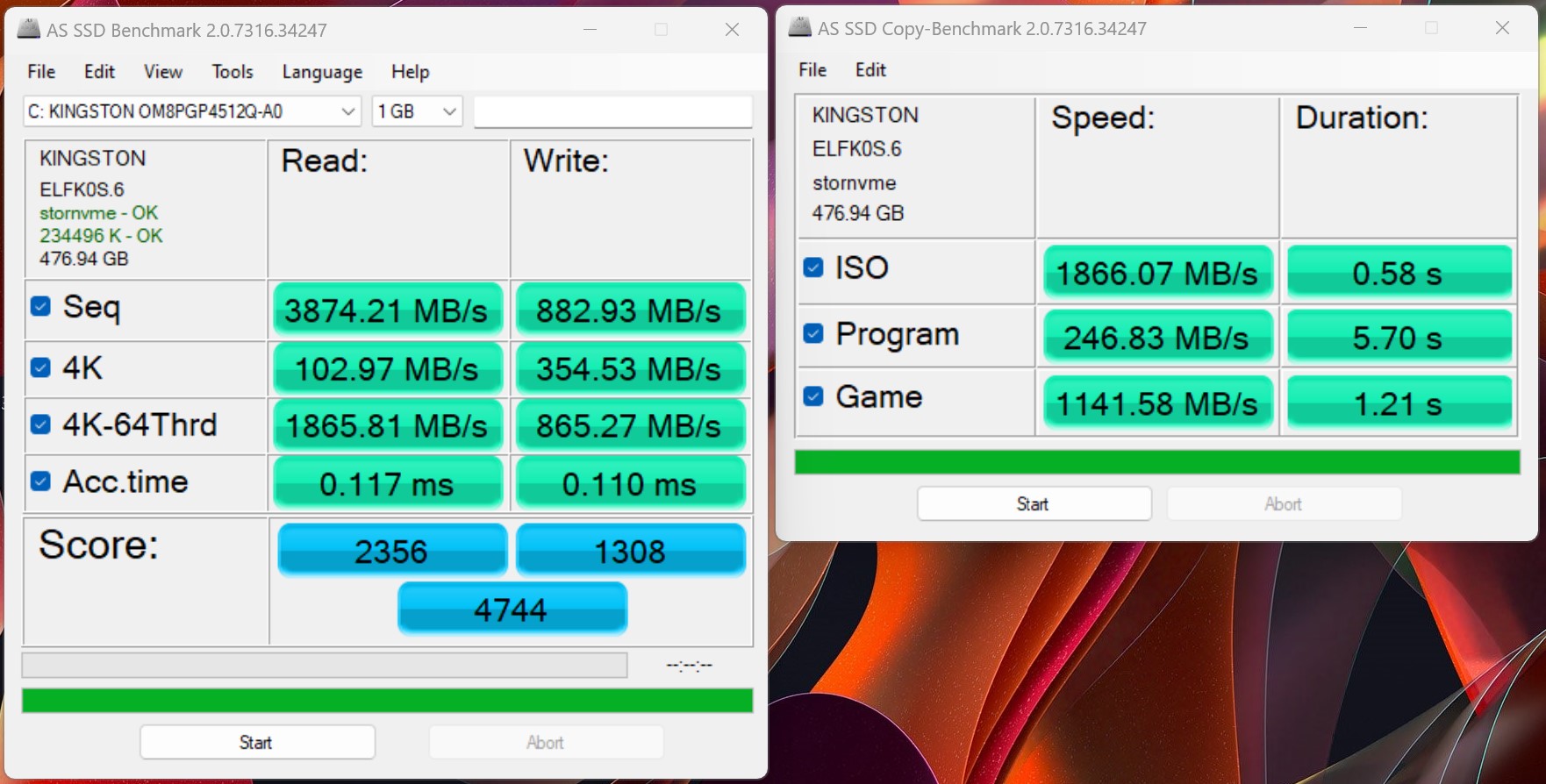

AS SSD
Score Total
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	9030 Points +90%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +50%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points +40%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +27%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points -13%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points -41%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -47%
Score Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3635 Points +54%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +1%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points -29%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points -35%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points -51%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -69%
Score Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3615 Points +176%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +173%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +170%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points +140%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points +42%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points +11%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points -19%
Seq Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	5338 MB/s +38%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +23%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +7%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s +5%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s -18%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s -28%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s -42%
Seq Write
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3927 MB/s +345%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +273%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s +243%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +177%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s +151%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +86%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s +40%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +1%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s -16%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s -24%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.6 MB/s -35%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s -43%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -53%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +3%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s -23%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s -32%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	209 MB/s -41%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s -41%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -51%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -59%
4K-64 Read
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3035 MB/s +63%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s 0%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s 0%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s -38%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s -40%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s -53%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -79%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +261%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	3013 MB/s +248%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +229%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s +201%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s +68%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s +23%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s -13%
Access Time Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms *
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +16%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * +17%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +36%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +37%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.066 ms * +44%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * +44%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +62%
Access Time Write
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -7%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -5%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms *
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +7%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * +72%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * +72%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +82%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	0.018 ms * +84%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Minisforum Venus Series NAB6: Ø4789 (4164.37-4807.96)

Grafikkort

Anordningen har en integreradIntel UHD Graphicsgrafikkort med 64 EUs. Om man bara tittar på prestandan kan den här modellen egentligen bara användas för 2D-visning. IGPU:n är helt enkelt för svag för att visa för komplexa 3D-renderingar. Den nyareIntel Iris Xe Graphics G7modeller är något mer kraftfulla, men jämfört med AMD:s i aktuella iGPU:er som t.ex AMD Radeon 680Msläpar de fortfarande efter.

För fler jämförelser och benchmarks, ta en titt på vårG PU-jämförelsetabellen.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	99.1 pt
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	98 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	72.5 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	69.8 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	63 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	53.8 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	51.4 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	11055 Points +102%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	10845 Points +99%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points +31%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points +29%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points +21%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +3%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	43275 Points +102%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	41124 Points +92%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +42%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points +29%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +23%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points +6%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points
1920x1080 Fire Strike Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	6679 Points +63%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6644 Points +62%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +35%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +28%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points +19%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -12%
2560x1440 Time Spy Graphics
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2408 Points +98%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	2351 Points +93%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +37%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +36%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +26%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -9%
Fire Strike Extreme Graphics
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	3206 Points +72%
Morefine M600, 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3066 Points +64%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +32%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2340 Points +25%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points +15%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1472 Points -21%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	98.3 pt
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90 pt
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	62.5 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57.9 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	55.8 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	49.4 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48.8 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	34.6 fps +76%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	33.6 fps +71%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	23.6 fps +20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +18%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps +7%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps -10%
Extreme Preset DX11
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	33.4 fps +64%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	32.2 fps +58%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	24.5 fps +20%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps +18%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps +6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -16%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	21 fps +64%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	18.8 fps +47%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	15.1 fps +18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps +3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -12%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	22.8 fps +51%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	21.3 fps +41%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	17.7 fps +17%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +7%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps +1%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -24%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7111 Points +183%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	5813 Points +131%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	3603 Points +43%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points +35%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points +32%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points +28%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points
1024x600 Normal, Fluid 3DTex
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	400 Points +85%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	371 Points +72%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	284 Points +31%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points +10%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points +8%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points +4%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	404 Points +84%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	367 Points +67%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	277 Points +26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points +13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points +8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points -4%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2030 Points +320%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1677 Points +247%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +103%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	911 Points +89%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points +76%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points +71%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1945 Points +153%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1473 Points +91%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points +12%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	862 Points +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points +8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2332 Points +183%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	1924 Points +134%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1268 Points +54%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points +45%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points +43%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points +9%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points

3DMark 05 Standard		40841 poäng
3DMark 06 Standard Score		31196 poäng
3DMark Vantage P Result		21147 poäng
3DMark 11 Performance		6122 poäng
3DMark Ice Storm Standard Score		63449 poäng
3DMark Cloud Gate Standard Score		19838 poäng
3DMark Fire Strike Score		3858 poäng
3DMark Fire Strike Extreme Score		1851 poäng
3DMark Time Spy Score		1398 poäng
Hjälp

... jämför

Spelprestanda

Minisforum Venus Series NAB6 är inte bäst lämpad för spel på grund av iGPU:ns begränsade 3D-prestanda. Vi såg endast spelbara bildfrekvenser när vi spelade äldre spel. TheIntel UHD Graphicsbehärskar endast aktuella spel i 720p och med låga detaljer. Om du lägger större vikt vid 3D-prestanda är det bättre att ta en titt påMiniforum Venus Series UM690. Dess iGPU presterar mycket bättre. Alternativt kan du ta en titt påHX99GochNUCXi7- också från Minisforum. Dessa två erbjuder bra spelprestanda tack vare sina dedikerade grafikkort.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	131.8 fps +63%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +41%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +20%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps +8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.8 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -24%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	41.3 fps +58%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +50%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +22%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps +19%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps +10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	26.2 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps -25%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +97%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	82.1 fps +78%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +28%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps +21%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	53.4 fps +16%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps +13%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	46 fps
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	26.5 fps +119%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +99%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +34%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps +34%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps +22%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	13.3 fps +10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.1 fps

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +17%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	149.3 (5.43^min, 100^P1) fps +15%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps +4%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	129.9 (16.1^min, 83.3^P1) fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps -3%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps -8%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	114.3 (8.54^min, 76.9^P1) fps -12%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +189%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	49.3 (7.78^min, 34.5^P1) fps +166%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	27.2 (6.42^min, 20^P1) fps +47%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps +14%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps +1%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	18.5 (6.9^min, 14.3^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +50%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	71 (39^min) fps +42%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps +14%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps 0%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	50 (44^min) fps
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps -8%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	44 (38^min) fps -12%
1920x1080 High Preset AA:T
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	39 (34^min) fps +77%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +55%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps +14%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps +14%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	22 (19^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	20 (17^min) fps -9%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +38%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	65 (50^min) fps +35%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps +8%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48 (32^min) fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps -4%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	40 (31^min) fps -17%
1920x1080 High Preset
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	37 (17^min) fps +61%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +61%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +22%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps +22%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps +9%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	23 (17^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19 (16^min) fps -17%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	143 (124.5^min) fps +6%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +2%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	134.7 (102.1^min) fps
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps -1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps -8%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	111 (97.1^min) fps -18%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -20%
1920x1080 high (2/3)
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	84.3 (74.6^min) fps +46%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +42%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +18%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps +17%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps +5%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	57.8 (54.5^min) fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	50.5 (43.6^min) fps -13%

	låg	med.	hög	ultra
GTA V (2015)	129.9	113.4	18.5	8.01
The Witcher 3 (2015)	80.8		26.2	11.9
Dota 2 Reborn (2015)	134.7	99.6	57.8	53.3
Final Fantasy XV Benchmark (2018)	38.2	20.1	14.5
X-Plane 11.11 (2018)	52.6	39.7	35.4
Far Cry 5 (2018)	50	24	22	21
Strange Brigade (2018)	84.5	34.5	27.2	22.1
Shadow of the Tomb Raider (2018)	41.2	19.9	18.8	15.7
Far Cry New Dawn (2019)	48	24	23	21
Metro Exodus (2019)	37.6	17	12.5	10.2
Borderlands 3 (2019)	46	20.1	12.1	9.01
F1 2020 (2020)	78.4	38.2	29	18.3
F1 2021 (2021)	92.1	42.6	33.2	22.5
Tiny Tina's Wonderlands (2022)	25.1	19.6	12.1	9.33
F1 22 (2022)	37.6	34	24.7	18.8

Utsläpp - bra genomsnitt

Bullerutsläpp

Apparaten gav genomsnittliga resultat i våra mätningar av bulleremissioner. Minisforum Venus Series NAB6 är tyst i tomgångsläge och vid låg belastning. Vid genomsnittlig belastning uppmätte vi 34,6 dB(A) och vid maximal belastning uppmätte vi 36 dB(A) under en kort period - vilket gör enheten högre än sina konkurrenter. Allt som allt befinner sig vårt testprov fortfarande placerat i den goda mitten. Även om vi är vana vid att Minisforum levererar betydligt bättre resultat - särskilt om vi jämför direkt medMinisforum Neptune Series NAD9, som var nästan helt tyst under alla våra prestandatester.

Ljudnivå

Låg belastning		29.4 / 29.5 / 29.7 dB(A)
Hög belastning		34.6 / 36.1 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) environment noise: 29.4 dB(A)

	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7
Noise		-4%	-3%	-7%	2%	3%	-20%
off / environment *	29.4	30.4 -3%	30.5 -4%	29.8 -1%	29.8 -1%	30.2 -3%	30.5 -4%
Idle Minimum *	29.4	30.9 -5%	31.6 -7%	30.2 -3%	29.9 -2%	30.5 -4%	31.5 -7%
Idle Average *	29.5	31.5 -7%	31.6 -7%	31.1 -5%	30.1 -2%	30.5 -3%	32.6 -11%
Idle Maximum *	29.7	31.5 -6%	31.6 -6%	31.9 -7%	30.2 -2%	30.5 -3%	33.8 -14%
Load Average *	34.6	37.5 -8%	33.9 2%	40 -16%	32.1 7%	30.5 12%	49.3 -42%
Load Maximum *	36.1	34.1 6%	34.4 5%	40.5 -12%	32.5 10%	30.5 16%	50.9 -41%

* ... smaller is better

Temperatur

Minisforum Venus Series NAB6:s hölje värmde bara upp lite i tomgångsläge. Vid belastning steg temperaturen på höljet - men temperaturen på metallytorna hölls inom gränserna. Termiska hotspots kunde endast ses runt fläktöppningarna på sidan och baksidan av minidatorn.

Med hjälp av stresstestet Prime95 nådde Intel Core i7-12650H en högsta temperatur på 76 °C, vilket fortfarande är lågt jämfört med de andra testerna. Den har en genomsnittlig paketeffekt på 45 watt - vilket innebär att SoC:n fortfarande fungerar inom gränserna vid maximal belastning. De 45 watt motsvarar exakt PL1-värdet. PL2-värdet på 64 watt uppnåddes kort efter att testprogrammet hade startat. Här uppnådde SoC:n sin maximala temperatur - därefter hade den en genomsnittlig temperatur på 69 °C. Med FurMark noterade vi upp till 82 °C - ganska högt, men enligt datorns specifikationer borde detta ändå inte orsaka några problem.

Minisforum Venus Series NAB6 vs. stresstest (framsida)

Minisforum Venus Series NAB6 vs. stresstest (tillbaka)

Minisforum Venus Series NAB6 vs. stresstest (utan lock)

Energiförbrukning

Minisforum Venus Series NAB6 är inte den mest sparsamma enheten. Jämfört med konventionella stationära datorer klarar sig de flesta minidatorer ändå ganska bra när det gäller utsläpp. Vi uppmätte 10,4-12,4 watt - ofta levererade konkurrenterna bättre resultat. Vid genomsnittlig belastning klarade sig vår testenhet ungefär lika bra som sina konkurrenter. Med drygt 101 watt nådde Minisforum Venus Series NAB6 sitt toppvärde under stresstestet (Prime95 + FurMark). Nätadaptern kan leverera upp till 120 watt och var inte vid något tillfälle överbelastad under vårt test. Detta lämnar lite extra utrymme för två ytterligare lagringsenheter.

Strömförbrukning

Av/Standby	1.8 / 1.9 Watt
Låg belastning	10.4 / 12.3 / 12.4 Watt
Hög belastning	72.9 / 101.2 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Morefine M600, 6900HX R9 6900HX, Radeon 680M	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	Average of class Mini PC
Power Consumption		4%	14%	24%	32%	-16%	32%	9%	4%
Idle Minimum *	10.4	9.9 5%	8.7 16%	5.1 51%	5 52%	12.1 -16%	8.4 19%	9.53 ?(3.6 - 14.3, n=11) 8%	9.48 ?(1.9 - 45.7, n=119, last 2 years) 9%
Idle Average *	12.3	11 11%	9.6 22%	5.8 53%	7 43%	13 -6%	8.7 29%	11.4 ?(5.3 - 16.8, n=11) 7%	11.5 ?(1.9 - 47.5, n=117, last 2 years) 7%
Idle Maximum *	12.4	11.2 10%	10.5 15%	10.2 18%	10.7 14%	18.2 -47%	9.3 25%	15.9 ?(7 - 28.7, n=11) -28%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -20%
Load Average *	72.9	74.2 -2%	65.8 10%	68.1 7%	50.3 31%	70.6 3%	46.4 36%	52.6 ?(34.7 - 76.9, n=10) 28%	57.4 ?(11.3 - 170.6, n=119, last 2 years) 21%
Load Maximum *	101.2	103.2 -2%	94.5 7%	108.3 -7%	82 19%	113 -12%	52 49%	71.9 ?(44.6 - 101.2, n=11) 29%	97.5 ?(18.1 - 423, n=119, last 2 years) 4%

* ... smaller is better

Energy consumption with external monitor

Minisforum Venus Series NAB6; Prime95 V2810 Stress (external Monitor): Ø75.3 (64.6-96.2)

Minisforum Venus Series NAB6; Cinebench R15 Multi (external Monitor): Ø91.5 (85.9-92.1)

Minisforum Venus Series NAB6; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø62.1 (57.7-94.5)

Minisforum Venus Series NAB6; 1920x1080 The Witcher 3 ultra (external Monitor): Ø66.5 (64.3-97)

Minisforum Venus Series NAB6; Idle 1min (external Monitor): Ø12.4 (11.2-16.8)

För

+ snygg, snygg design

+ mycket stabilt fodral

+ full kraftförsörjning på SoC

+ max. fyra skärmar kan användas samtidigt

+ många USB-portar

+ plats för tre SSD-diskar

+ VESA-monteringsalternativ

Emot

- ingen SD-kortläsare

- hörbar kylning vid belastning

- ingen Thunderbolt

- tveksamt aktivt kylsystem för SSD:er

Slutsats - en solid enhet för vardagsbruk

Minisforum Venus Series NAB6 recension - testenheten tillhandahölls av Minisforum

Minisforum Venus Series NAB6 är en relativt ospecifik minidator för vardaglig kontorsanvändning. Baserat på en Intel Core i7-12650H erbjuder datorodjuret konsekvent solida prestandanivåer. SoC:ns fulla prestanda kan nås hela tiden. Även vid permanent belastning behöver du inte strypa dess prestanda. Dessutom kommer Minisforum Venus Series NAB6 garanterat att imponera med sitt goda hölje, som är mycket stabilt tack vare ett smart materialval. Dess finish är felfri och att kunna öppna fallets ovansida utan verktyg är en extra bonus. Resten av enhetens komponenter, såsom RAM och SSD, har valts ut perfekt i vår testenhet och bör vara ett minimum för att inte behöva uppgradera någon gång inom kort.

Minisforum Venus Series NAB6 är en bra fungerande enhet med mer än tillräckliga reserver. Trots detta kämpar minidatorn för att sticka ut från mängden.

Vi måste vara lite mer kräsna när det gäller dess anslutningsmöjligheter, eftersom konkurrenterna har en tendens att inkludera den framtidssäkra Thunderbolt-porten - som med rätt tillbehör verkligen breddar enhetens användningsområden. Minisforum Venus Series NAB6 nekas denna möjlighet. Om du inte kan eller är beredd att avstå från denna funktion bör du istället ta en titt på Miniforum Venus Series UM690. Trots detta har NAB6 fortfarande ett generellt sett bra antal externa portar. Du kanske till och med kan förlåta avsaknaden av en SD-kortläsare och vända dig till en adapterlösning. Dessutom har enheten två 2,5 Gbit LAN-anslutningar, vilket inte nödvändigtvis är normen för minidatorer.

Vad anledningen är till att tillverkaren beslutat sig för ett aktivt kylsystem för SSD:n - detta är vi inte helt säkra på. Vid permanent belastning märkte vi inte av någon nedgång i prestanda - även utan att fläkten aktiverades. Dess WLAN-överföringshastigheter är också en liten besvikelse. Vid 5 och 6 GHz klarade sig konkurrenterna generellt sett bättre.

Priser och tillgänglighet

Minisforum Venus Series NAB6kan köpas direkt från deras webbplats https://store.minisforum.com/products/minisforum-nab6?variant=43800152211701. För närvarande kan du få barebone-modellen för 489 dollar. Du kan också hitta enheten på Amazon för cirka 487,92 dollar.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Minisforum Venus Series NAB6 - 05/03/2023 v7 ^(old)
Sebastian Bade

Design

82 / 98 → 84%

Anslutningar

60 / 81 → 74%

Vikt

81%

Spelprestanda

66%

Programprestanda

94%

Workstation

56%

Ljudnivå

90%

Medel

76%

82%

Mini PC - Vägt medel

Potentiella konkurrenter i jämförelse

Minisforum Venus-serien NAB6 i detalj

Fall

Storleksjämförelse

Anslutningsmöjligheter

Kommunikation

Tillbehör

Underhåll

Prestanda - en Intel Alder Lake-P med tio kärnor

Provningsförhållanden

Processor

Minisforum Venus Series NAB6 vs. Cinebench R15 Multi Loop

Systemprestanda

DPC-fördröjning

Lagringsenheter

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Grafikkort

Spelprestanda

Utsläpp - bra genomsnitt

Bullerutsläpp

Temperatur

Energiförbrukning

Energy consumption with external monitor

För

Emot

Slutsats - en solid enhet för vardagsbruk

Priser och tillgänglighet

Transparency

More articles related to this device
