Recension av Intel NUC Pro Chassis Element - Modulär barebone för många ändamål

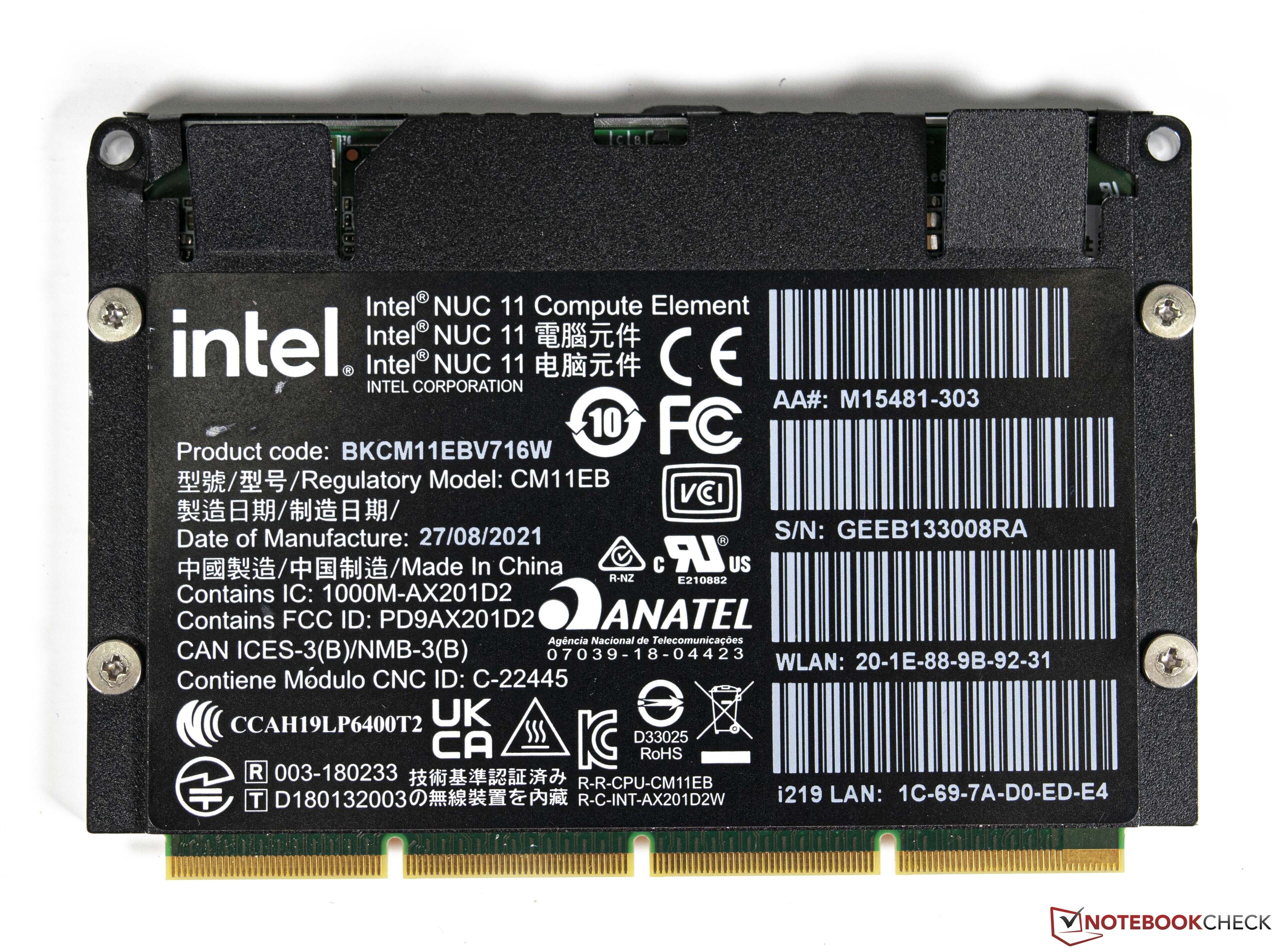

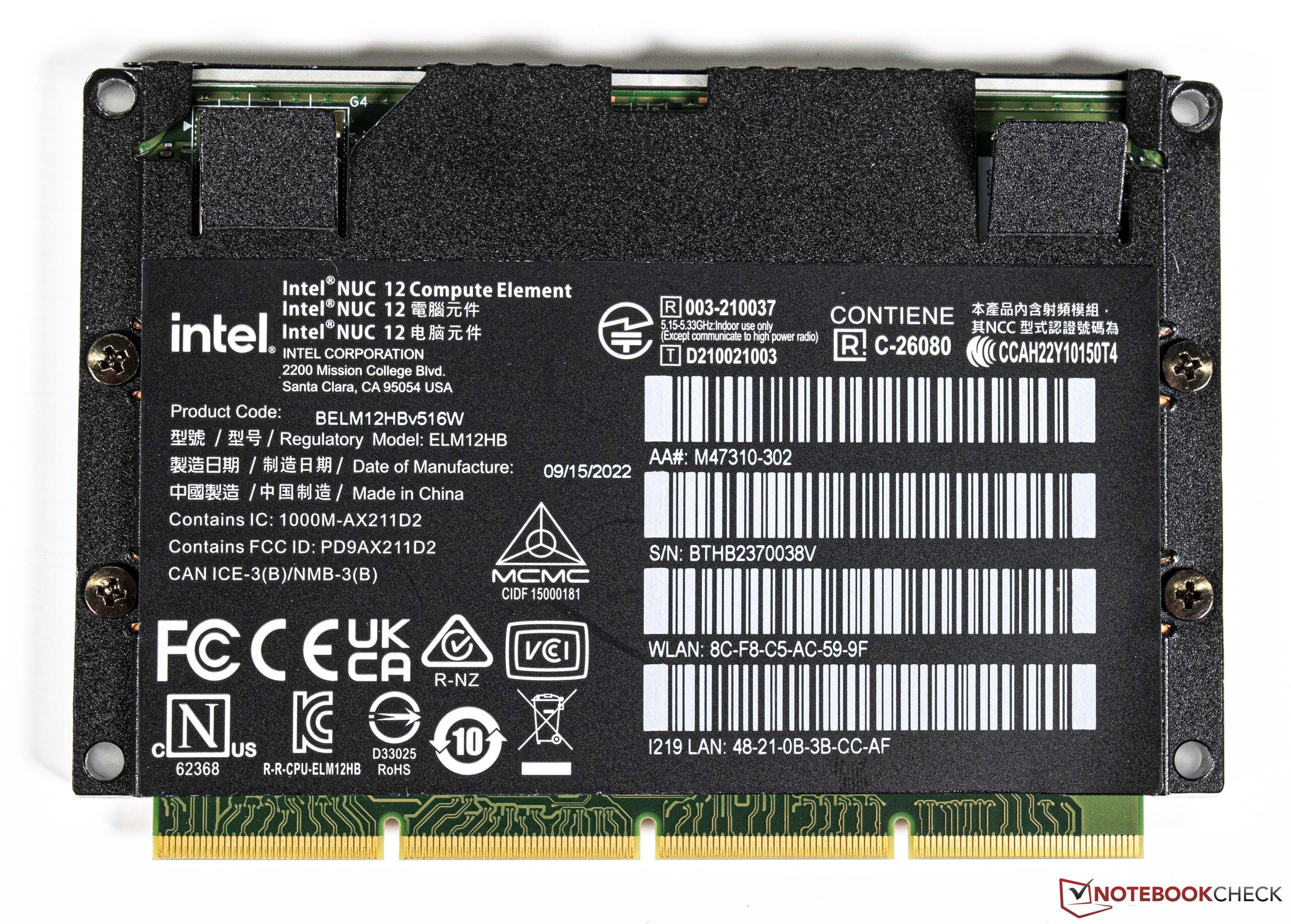

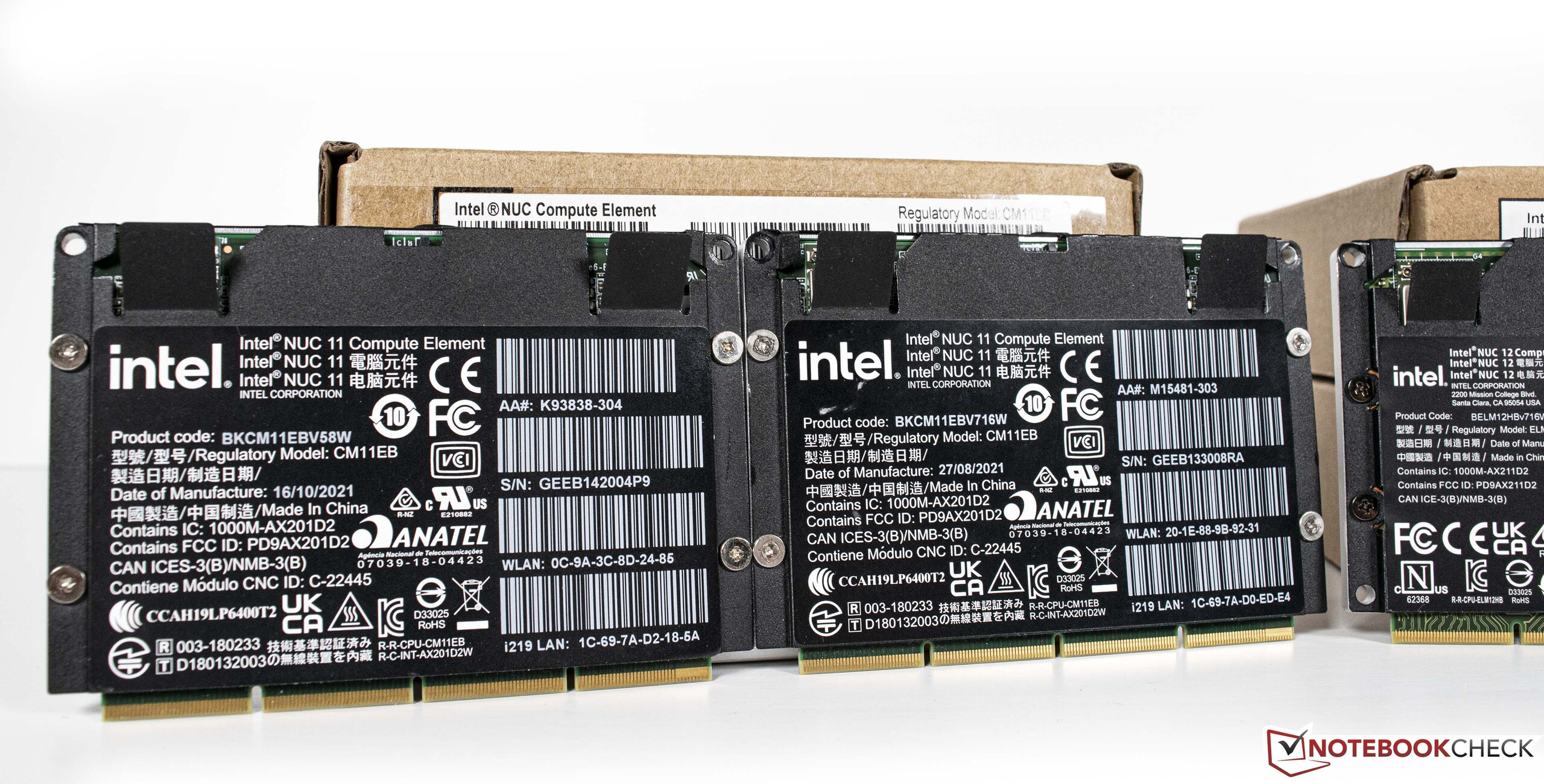

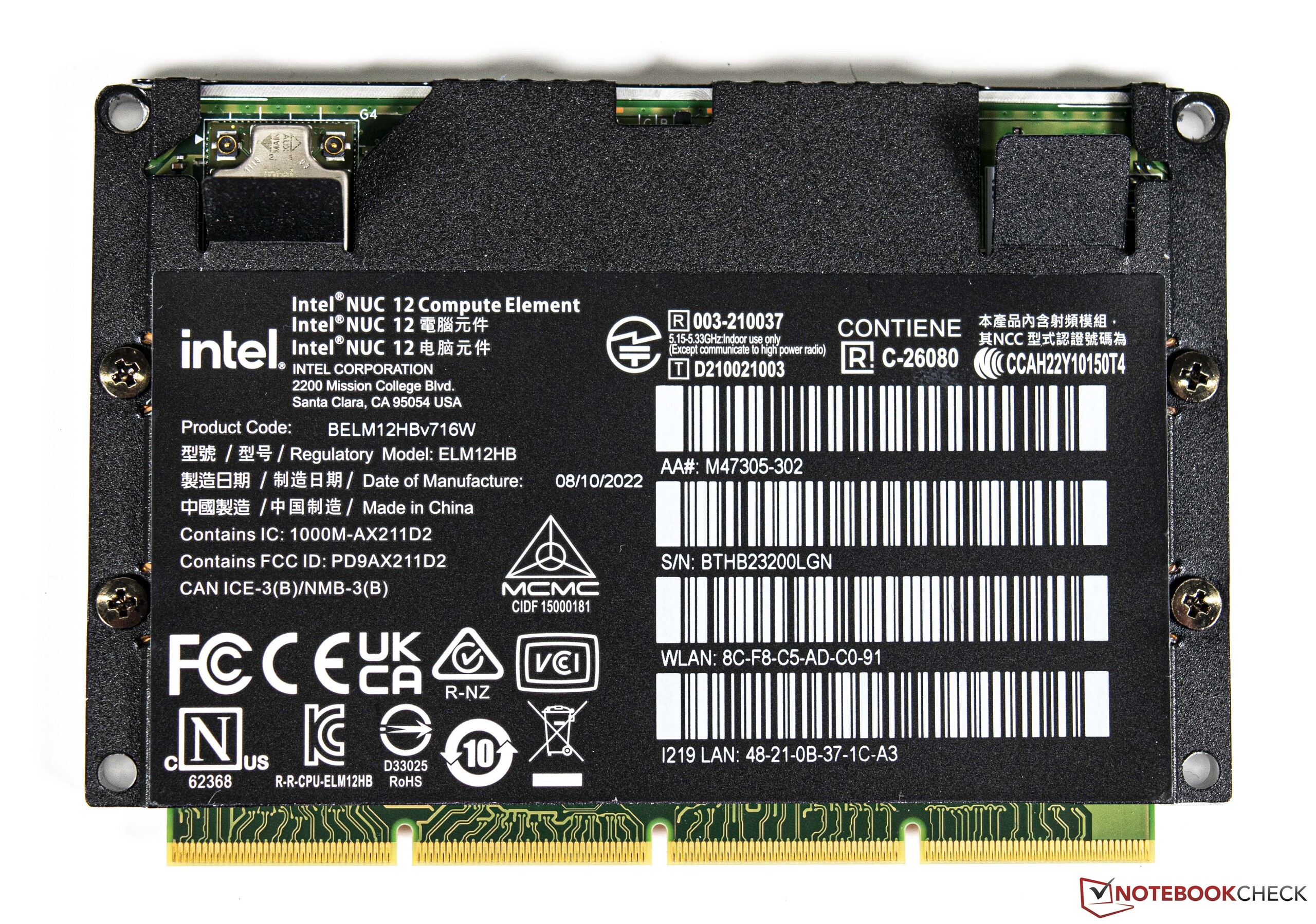

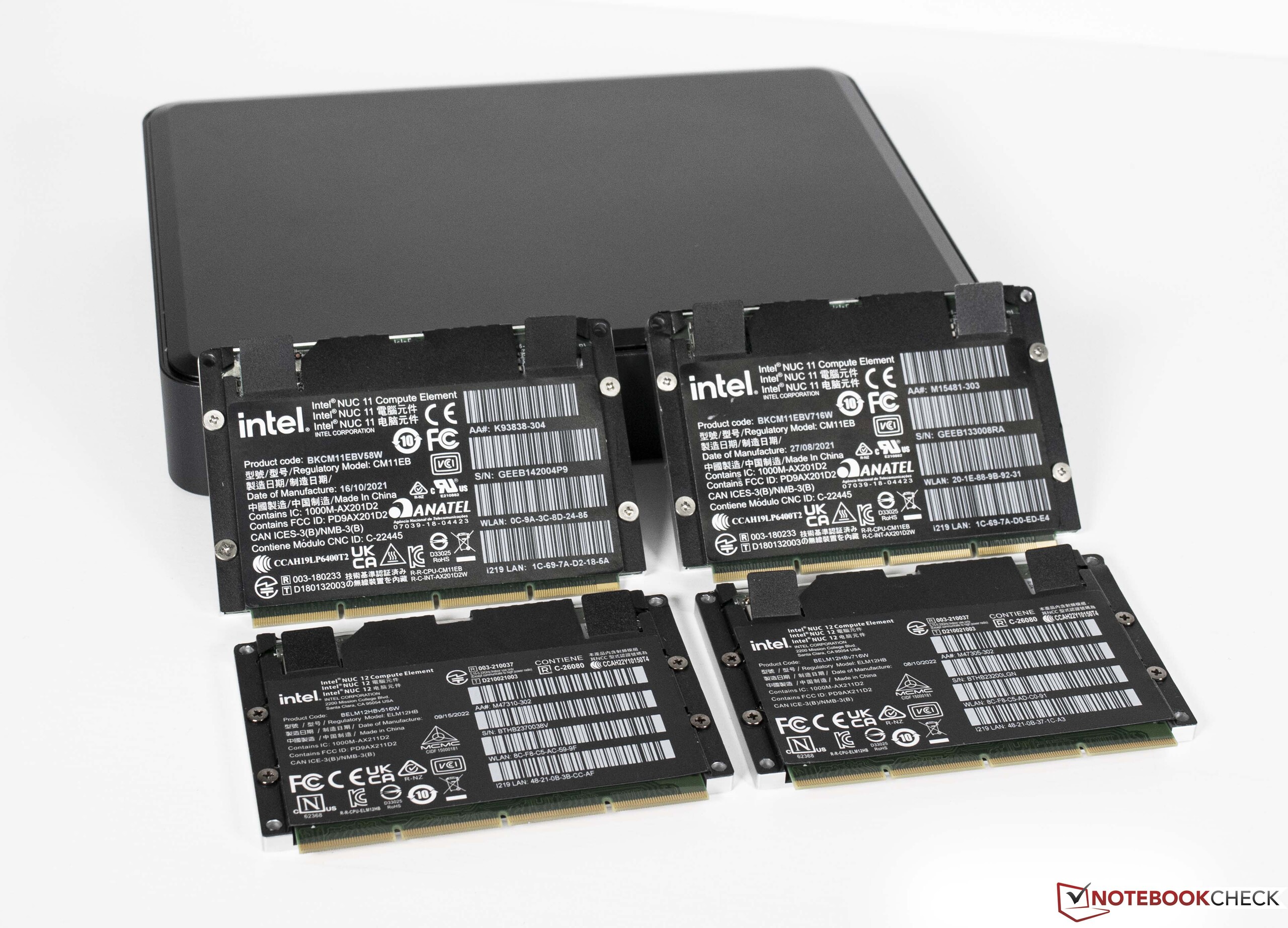

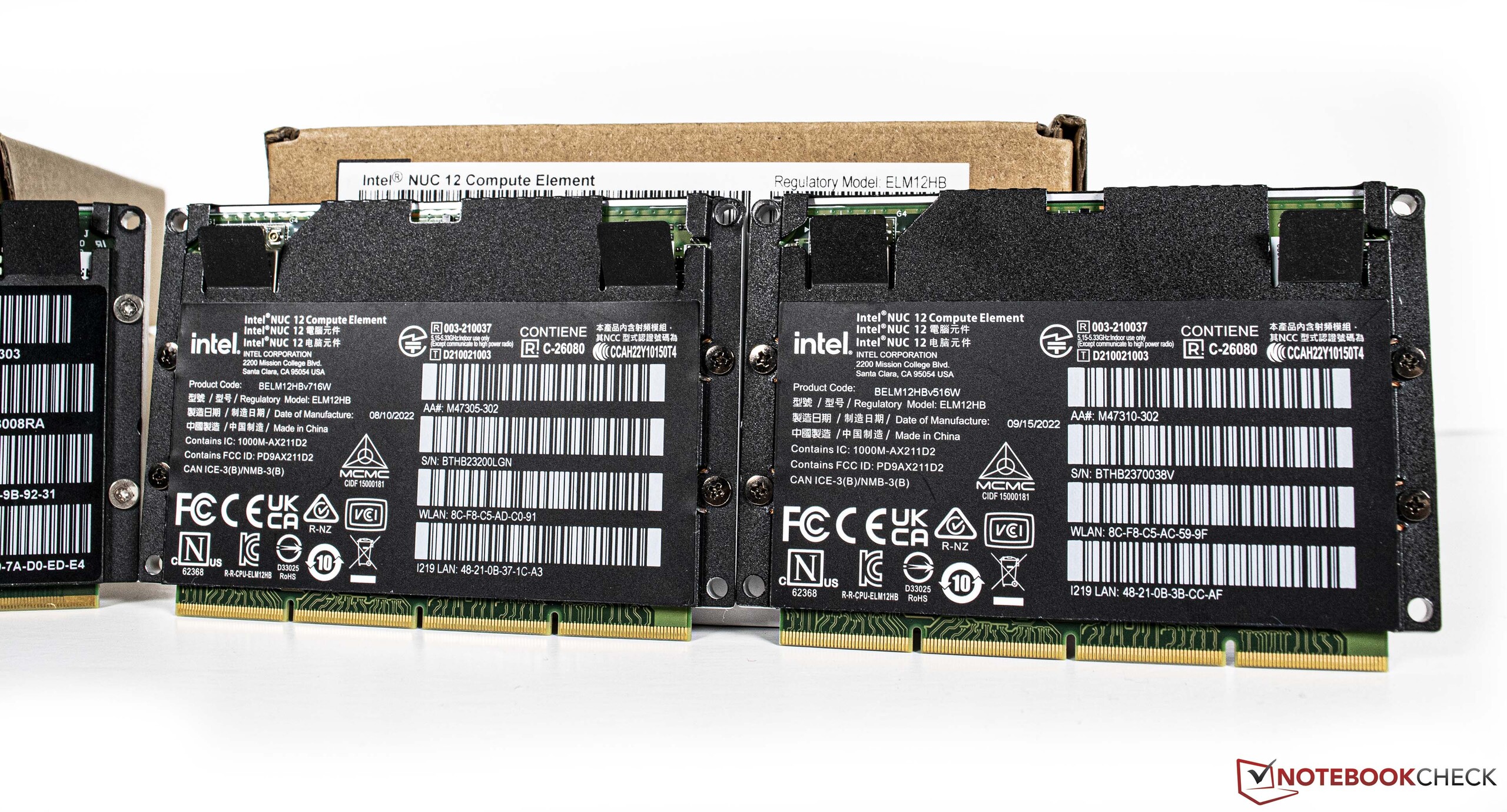

Till skillnad från konventionella Intel NUC-system, som ibland levereras som barebone-versioner utan RAM och SSD, levereras Intel NUC Pro Chassis Element inte med en SoC i grundkonfigurationen. Den installeras på ett separat beräkningselement och installeras som ett extra instickskort i systemet.

NUC Pro Chassis Element kostar för närvarande cirka 340 euro, vilket inte är billigt med tanke på tilläggskostnaderna för beräkningselementet och masslagret. I den minsta versionen som vi testade måste man räkna med cirka 850 euro, modellen i kombination med den Intel Core i7-1265Ukan lätt kosta 1 250 euro. Intel följer också ett liknande tillvägagångssätt med den bärbara datorn Intel NUC P14E, som också kan utrustas med motsvarande beräkningselement. Enligt Intel är basens livslängd en stor fördel, både för den bärbara och den stationära versionen. Det är dock för närvarande omöjligt att veta hur stödet kommer att se ut för nyare moduler i framtiden. En översikt över de använda beräkningselementen kan ses i följande tabell.

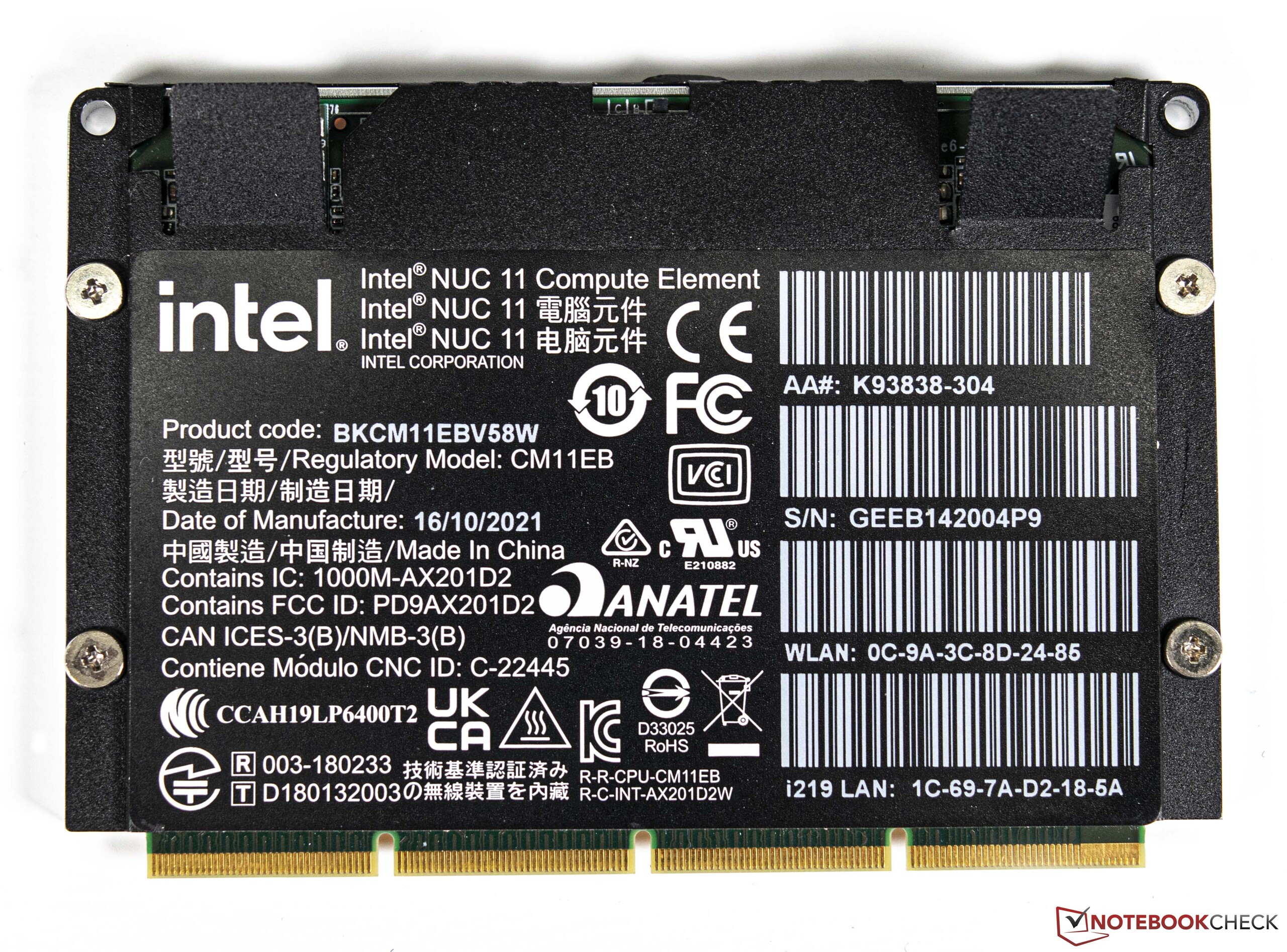

Modell	Intel NUC 11 Compute Element (CM11EBv58W)	Intel NUC 11 Compute Element (CM11EBv716W)	Intel NUC 12 Compute Element (ELM12HBv5)	Intel NUC 12 Compute Element (ELM12HBv7)
SoC	Intel Core i5-1145G7	Intel Core i7-1185G7	Intel Core i5-1245U	Intel Core i7-1265U
Kärnor / trådar	4 / 8	4 / 8	10 / 12	10 / 12
RAM	8 GB (LPDDR4x-4266)	16 GB (LPDDR4x-4266)	8 GB, 16 GB (LPDDR5-5200)	16 GB, 32 GB (LPDDR5-5200)
WiFi	Intel Wi-Fi 6 AX201	Intel Wi-Fi 6 AX201	Intel Wi-Fi 6E AX211	Intel Wi-Fi 6E AX211
Pris i US-dollar	447	669	508	765 - 885

Fall

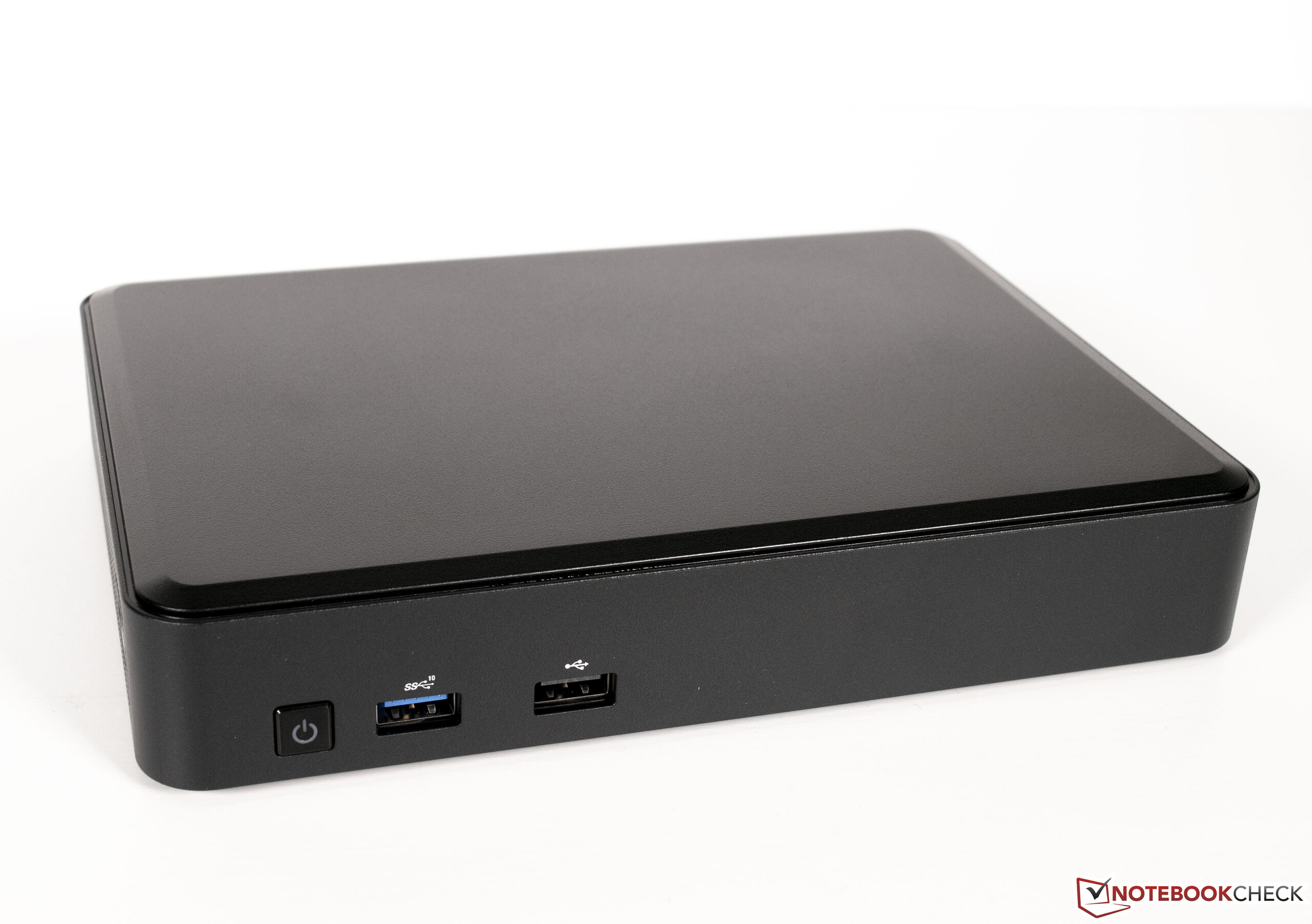

Intel NUC Pros chassielement är helt svart och ser därför relativt ospectakulärt ut, man skulle till och med kunna säga ganska tråkigt. Trots detta är byggkvaliteten på en hög nivå, som vi känner till den från Intels NUC-system. Allt är tillverkat av plast på utsidan och på insidan finns en robust metallram som ger enheten den nödvändiga stabiliteten.

Utrustning

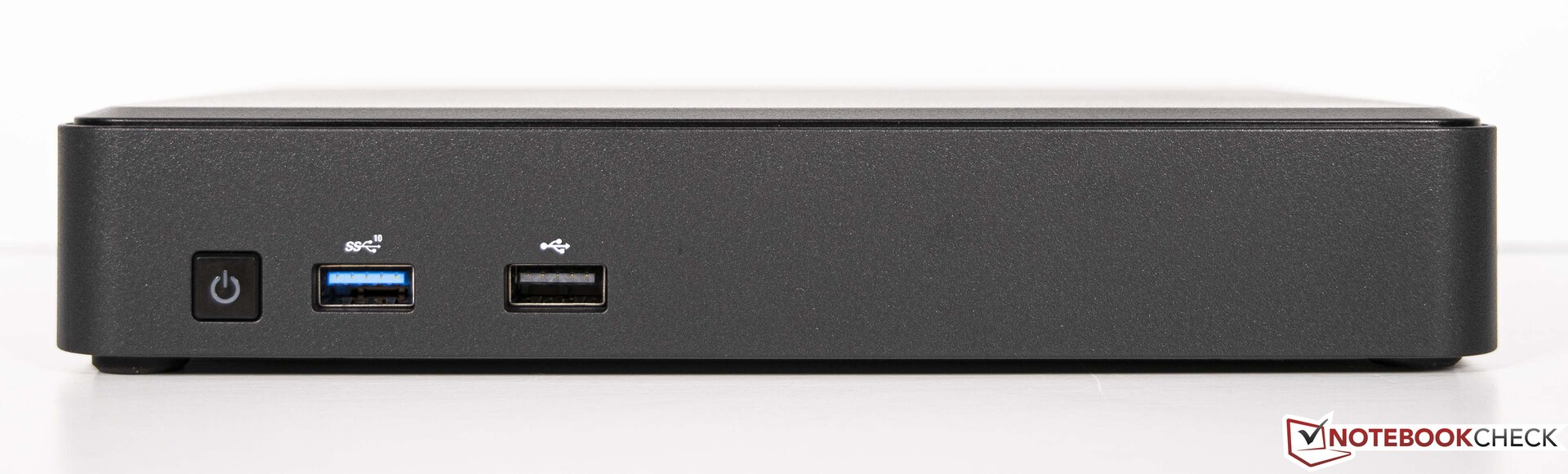

Vid en första anblick finns det mycket att upptäcka när det gäller anslutningsmöjligheter. En närmare titt avslöjar dock en viss desillusionering. 3x USB 2.0 är helt enkelt inte vad man kan förvänta sig år 2022. Detta kan ändå tolereras när musen och tangentbordet styrs via den. Trots detta hade vi gärna sett mer moderna gränssnitt - särskilt USB-C inklusive Thunderbolt. De två HDMI-utgångarna är bra och kan driva en installation med dubbla bildskärmar, men LAN-portarna brister med en hastighet på 1 GBit. Även här skulle åtminstone en LAN-port med 2,5 GBit vara vad man för närvarande bör förvänta sig.

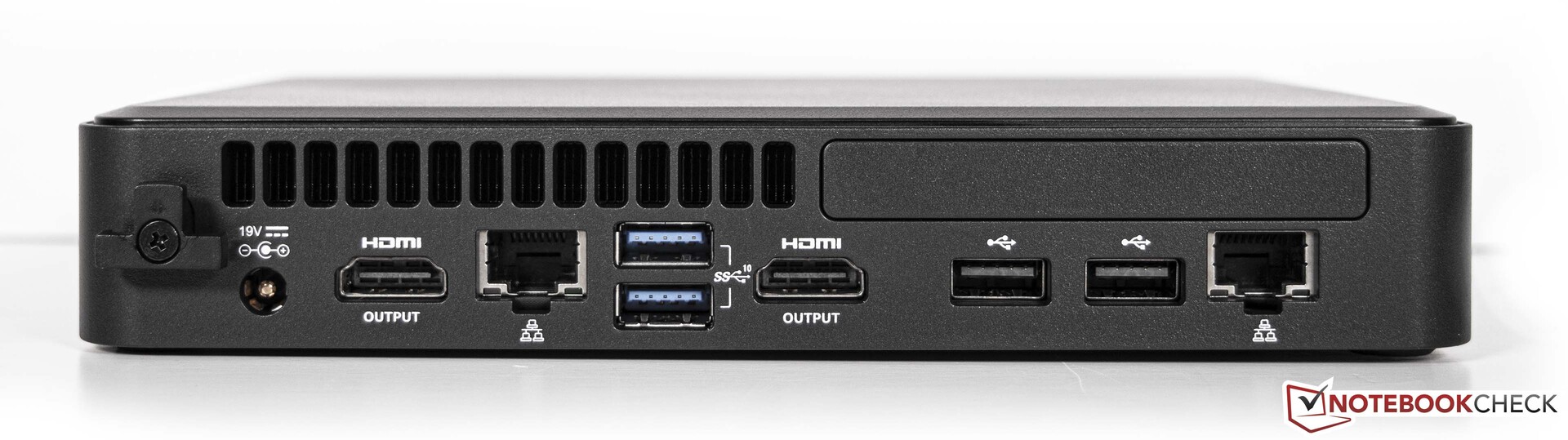

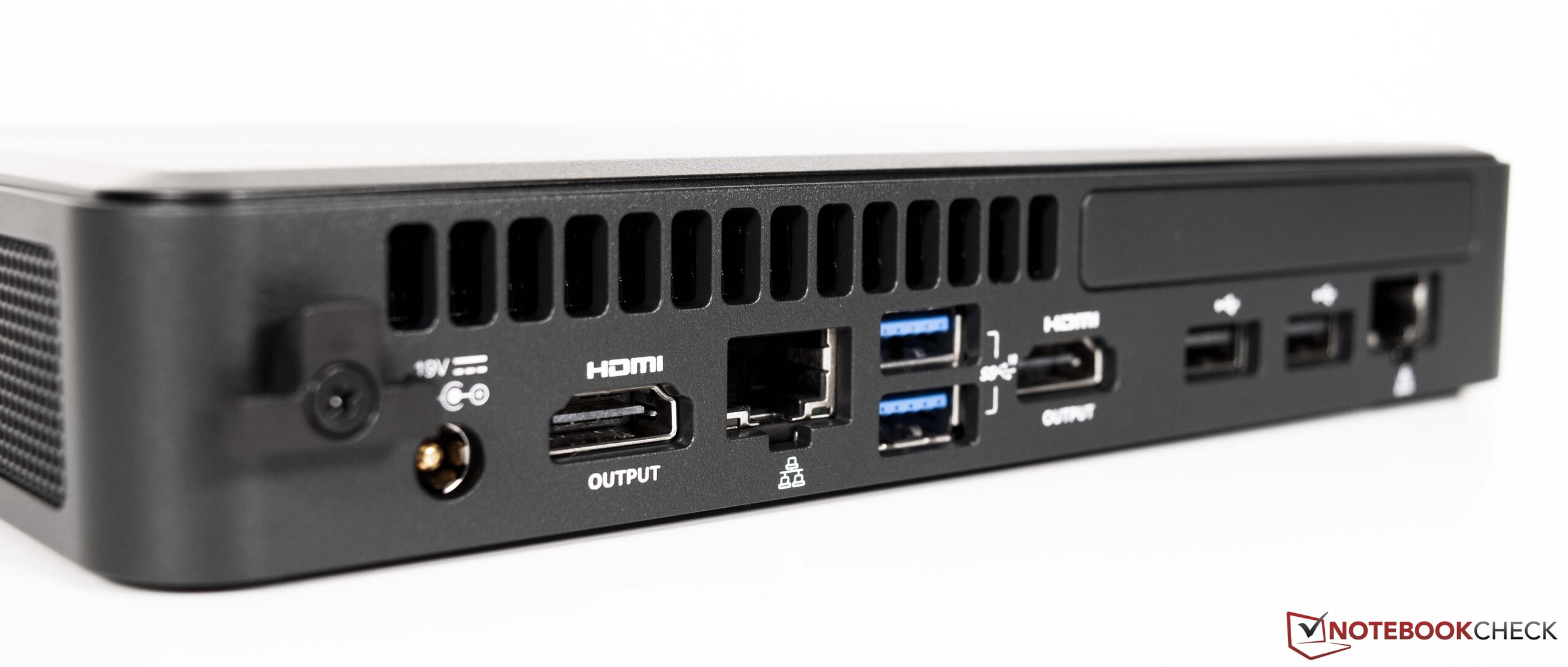

Bakåt: Strömkontakt, 2x HDMI, 2x LAN (Intel i219-LM GbE +Intel i211-AT GbE), 2x USB3.1 Gen.2, 2x USB2.0

Kommunikation

När det gäller de Wi-Fi-moduler som används förlitar sig Intel på en Intel Wi-Fi 6 AX201 för Tiger-Lake-baserade beräkningselement, medan Alder-Lake SoC:erna är utrustade med en något modernare Intel Wi-Fi 6 AX211. Prestandan för alla testade konfigurationer är bra och skiljer sig endast med några få procent. Vår testrouter ASUS ROG Rapture GT-AXE11000 användes för det här testet.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1713 (1694^min - 1728^max) MBit/s
Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211	1701 (854^min - 1715^max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1093 (570^min - 1168^max) MBit/s
Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211	1062 (1009^min - 1098^max) MBit/s
iperf3 receive AXE11000
Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201	1688 (1377^min - 1732^max) MBit/s
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201	1685 (841^min - 1722^max) MBit/s 0%
iperf3 transmit AXE11000
Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201	1060 (544^min - 1101^max) MBit/s
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201	1011 (529^min - 1068^max) MBit/s -5%

Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1062 (1009-1098)

Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1074 (570-1168)

Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1671 (854-1715)

Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1712 (1694-1728)

Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1687 (1377-1732)

Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1657 (841-1722)

Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø1042 (544-1101)

Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø993 (529-1068)

Underhåll

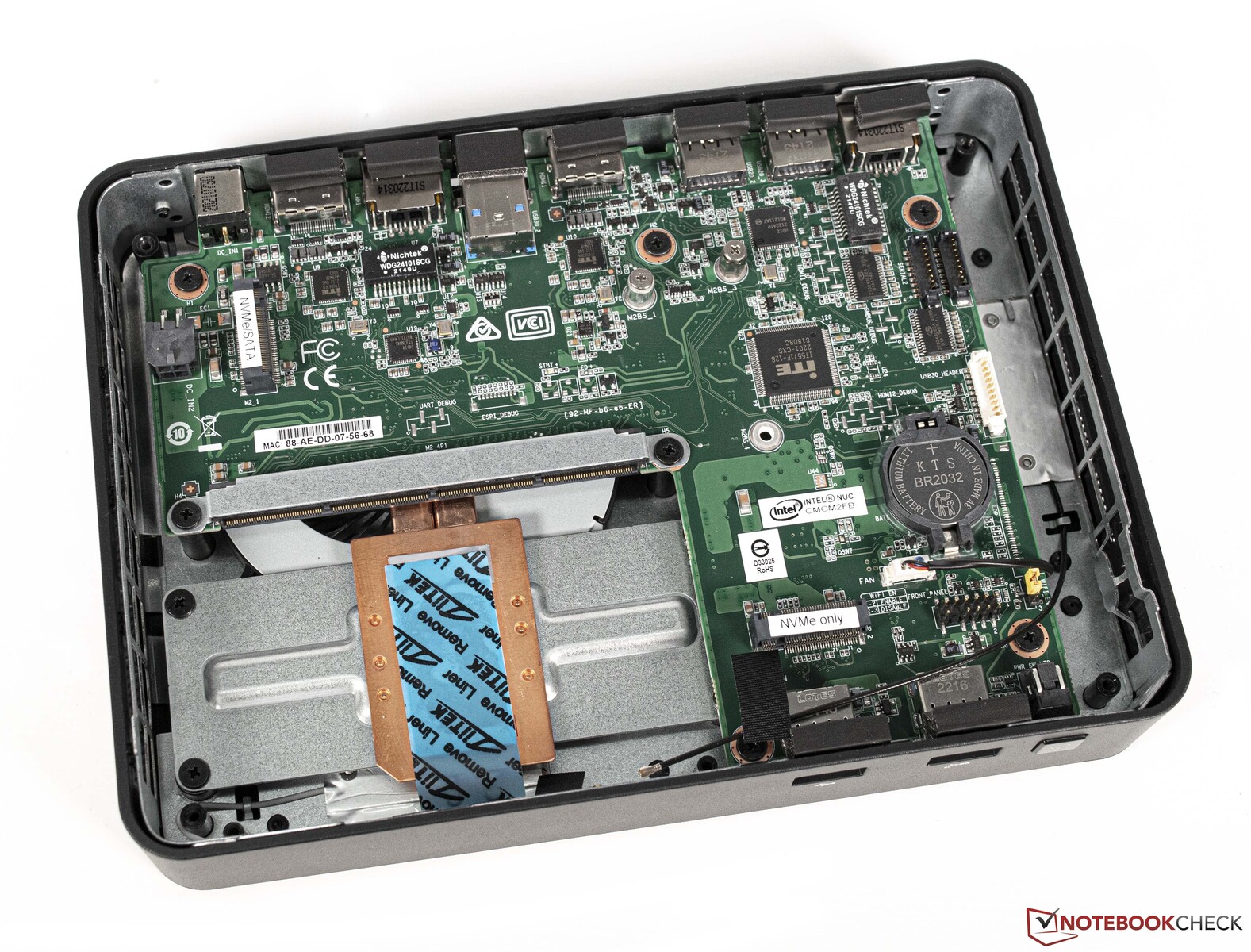

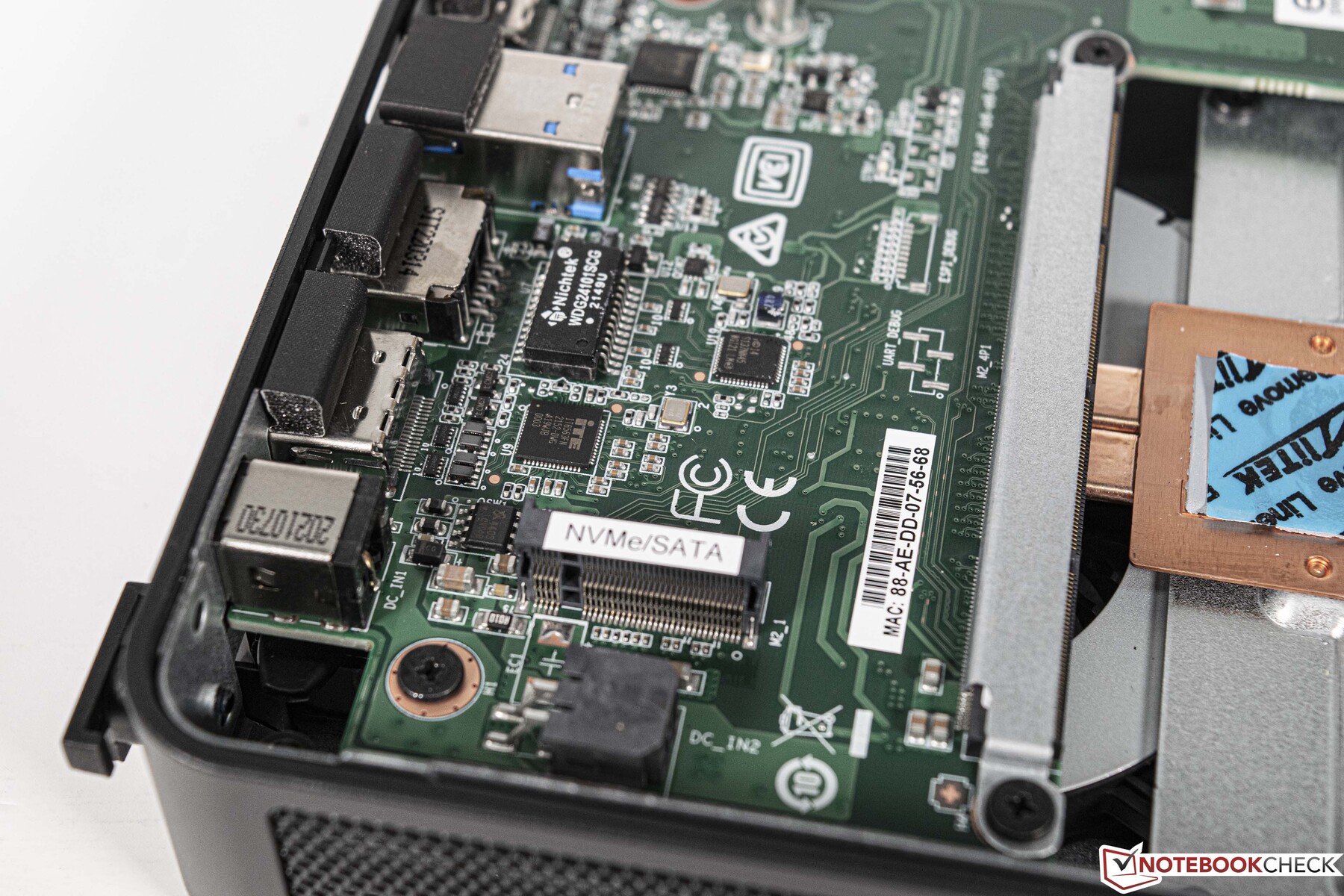

Barebone-alternativet gör det enkelt att öppna Intel NUC Pro Chassis Element. Grundplattan är fäst med fyra skruvar. Inuti kan du enkelt komma åt de nödvändiga gränssnitten för att utrusta enheten med det mest väsentliga. Beräkningselementet har sin plats i det främre området. Dessutom har en värmeledningsdyna redan applicerats för att säkerställa värmeavledning. Dessutom måste de två WLAN-antennerna anslutas, som också är förinstallerade. Upp till två M.2 SSD-diskar kan installeras för masslagring.

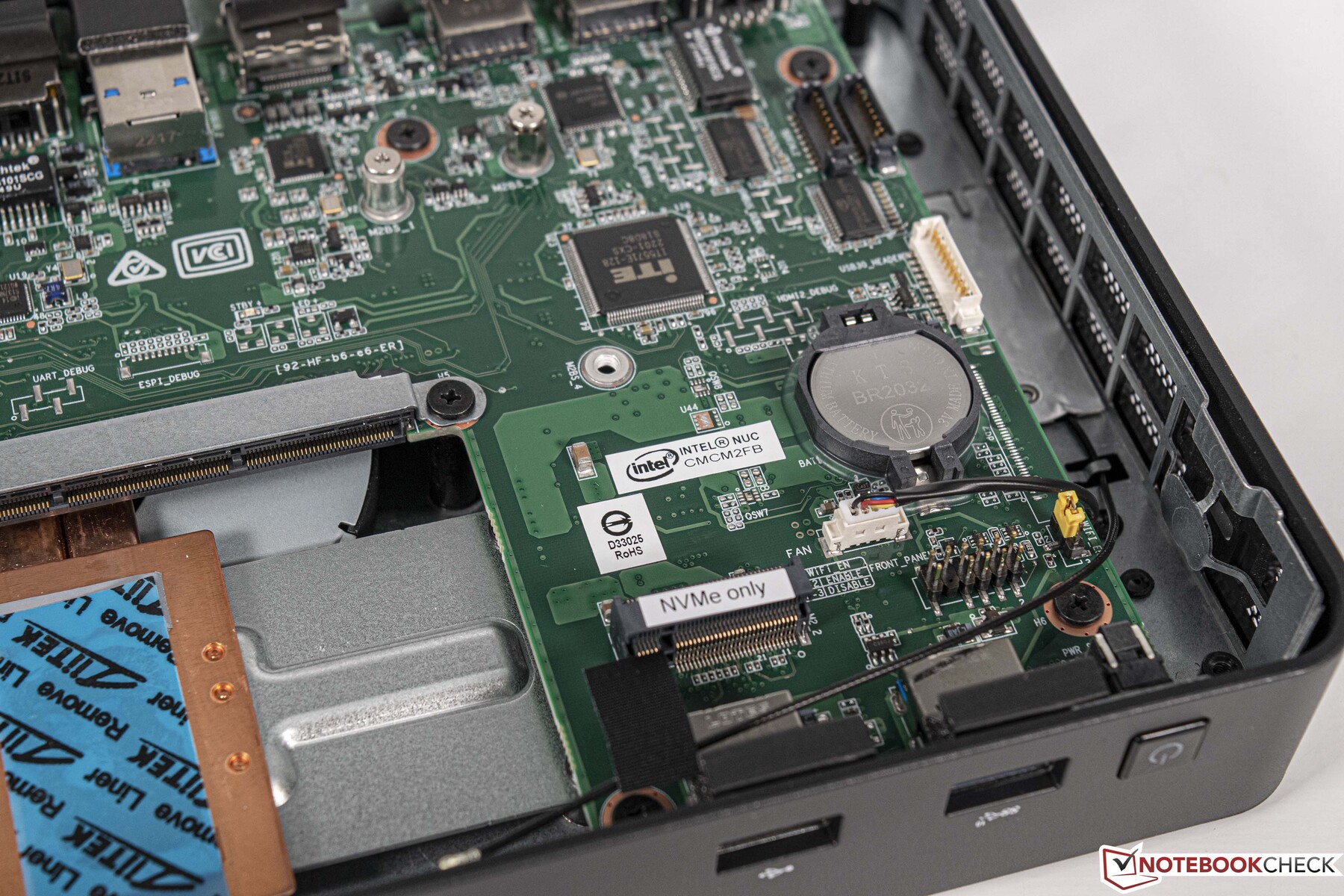

Intel NUC Pro Chassis Element utan bottenplatta

Prestanda

När det gäller prestanda kan var och en själv avgöra hur mycket som behövs. Tack vare den modulära konstruktionen kan Intel NUC Pro Chassis Element utrustas enligt användningsfallet och budgeten.

Benchmarks för processorer

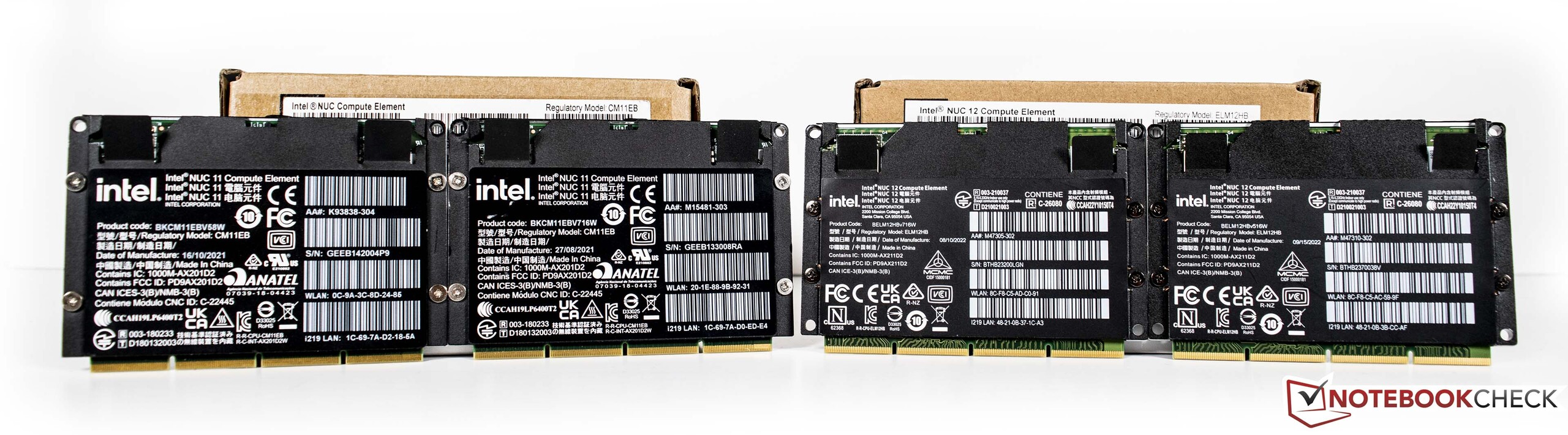

De olika beräkningselementens CPU-prestanda skiljer sig från varandra som förväntat. Skillnaden mellan Intel Core i5-1145G7 och Intel Core i7-1265U. Prestandaskillnaden mellan de två Alder Lake SoC:erna är dock marginell. De presterar nästan identiskt tack vare samma antal kärnor och trådar. För att bättre kunna bedöma prestandan har vi även testat PrimeBook Circular. Denna är också utrustad med ett beräkningselement och rankas bland de bästa enheterna baserat på Intel Core i7-1165G7, vilket placerar den direkt bakom Intel Core i7-1185G7 i rankingen. Jämfört med en AMD Ryzen 5 5600Usom vi testade i Ace Magician AMR5 kan Intel NUC Pro-chassielementet med Alder-Lake SoC:erna lätt skilja sig åt.

För ytterligare jämförelser och benchmarks hänvisar vi till vårJämförelsetabell för processorer.

Performance Rating - Percent
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	45.5 pt
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	45.1 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	41.3 pt
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	38.6 pt
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	38 pt
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	37.8 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	35.5 pt

Cinebench R15
CPU Single 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	245 Points +21%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	242 Points +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	223 Points +10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	221 Points +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	215 Points +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	202 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	197 Points -2%
CPU Multi 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1320 Points +67%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1311 Points +66%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1265 Points +60%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	832 Points +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	791 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	791 Points 0%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	560 Points -29%

Cinebench R20
CPU (Single Core)
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	654 Points +23%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	649 Points +22%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	568 Points +7%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	558 Points +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	534 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	531 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	517 Points -3%
CPU (Multi Core)
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	3234 Points +63%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	3153 Points +58%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	2975 Points +49%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	2051 Points +3%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	2027 Points +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1990 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1440 Points -28%

Cinebench R23
Single Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1713 Points +26%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1690 Points +24%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1487 Points +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1451 Points +7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1376 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1361 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1346 Points -1%
Multi Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8342 Points +67%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	8199 Points +64%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	7615 Points +53%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5240 Points +5%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5222 Points +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4991 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	3721 Points -25%

Cinebench R11.5
CPU Single 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	2.99 Points +27%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	2.92 Points +24%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	2.64 Points +12%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	2.58 Points +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	2.52 Points +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	2.36 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	2.31 Points -2%
CPU Multi 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	16.48 Points +81%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	16.2 Points +78%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	14.78 Points +62%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	9.78 Points +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	9.12 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	8.99 Points -1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	6.37 Points -30%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	13904 Points +33%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	13501 Points +29%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	11620 Points +11%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	11343 Points +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	11098 Points +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	10472 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	10395 Points -1%
Rendering Multiple CPUs 64Bit
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	61863 Points +75%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	60266 Points +70%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	45363 Points +28%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	36902 Points +4%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	35564 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	35372 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	24499 Points -31%

Blender - v2.79 BMW27 CPU
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	759 Seconds * -26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	750 Seconds * -25%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	601 Seconds *
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	590 Seconds * +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	399 Seconds * +34%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	388 Seconds * +35%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	380 Seconds * +37%

wPrime 2.10
32m
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6.875 s * -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	6.799 s * -5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6.499 s *
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	6.428 s * +1%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	5.435 s * +16%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5.377 s * +17%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5.242 s * +19%
1024m
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	286.835 s * -26%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	240.405 s * -6%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	229.096 s * -1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	227.285 s *
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	217.425 s * +4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	216.279 s * +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	156.33 s * +31%

X264 HD Benchmark 4.0
Pass 1
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	265.5 (255^min - 284^max) fps +38%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	263 (250^min - 286^max) fps +37%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	234 (233^min - 235^max) fps +22%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	209 (207^min - 221^max) fps +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	198.8 (197.5^min - 231^max) fps +4%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	192 (188.3^min - 208^max) fps
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -14%
Pass 2
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	80.95 (79.9^min - 96.6^max) fps +75%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	78.35 (77.6^min - 101.7^max) fps +69%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +64%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	48.7 (48.7^min - 55.5^max) fps +5%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	46.6 (46.4^min - 53.9^max) fps +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	46.3 (46^min - 51^max) fps
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -21%

WinRAR - Result
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6877 KB/s +32%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	6154 KB/s +18%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6045 KB/s +16%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5960 KB/s +14%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5717 KB/s +9%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5223 KB/s
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4185 KB/s -20%

TrueCrypt
AES Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	9.7 GB/s +73%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9.2 GB/s +64%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	7.7 GB/s +38%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5.8 GB/s +4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5.7 GB/s +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5.6 GB/s
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5.3 GB/s -5%
Twofish Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1.6 GB/s +100%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1.5 GB/s +87%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1.1 GB/s +37%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.819 GB/s +2%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.813 GB/s +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.802 GB/s
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.755 GB/s -6%
Serpent Mean 100MB
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	0.901 GB/s +92%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	0.872 GB/s +86%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	0.7 GB/s +49%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.496 GB/s +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.469 GB/s
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.448 GB/s -4%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.447 GB/s -5%

Geekbench 5.5
Multi-Core
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9065 Points +66%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8772 Points +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6175 Points +13%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5813 Points +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5467 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4898 Points -10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4851 Points -11%
Single-Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1714 Points +20%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1675 Points +17%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1543 Points +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1506 Points +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1430 Points 0%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1427 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1391 Points -3%

Geekbench 5.0
5.0 Multi-Core
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	8911 Points +67%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	8807 Points +65%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	6117 Points +14%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5745 Points +7%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	5351 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4841 Points -10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4813 Points -10%
5.0 Single-Core
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	1674 Points +18%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	1585 Points +11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	1553 Points +9%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	1508 Points +6%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	1423 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	1385 Points -3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	1383 Points -3%

Geekbench 4.4
64 Bit Single-Core Score
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	7515 Points +21%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	7065 Points +13%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	6686 Points +7%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6305 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6226 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5911 Points -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5854 Points -6%
64 Bit Multi-Core Score
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	33057 Points +59%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	33040 Points +59%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	24495 Points +18%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	22175 Points +7%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	21011 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	20787 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	19288 Points -7%

3DMark 11 - 1280x720 Performance Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	16005 Points +39%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	15485 Points +34%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	12608 Points +9%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	11536 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	11284 Points -2%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	7797 Points -32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	7792 Points -32%

7-Zip 18.03
7z b 4
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	39207 MIPS +70%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	36343 MIPS +57%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	35918 MIPS +55%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	24006 MIPS +4%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	23471 MIPS +2%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	23123 MIPS
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	17636 MIPS -24%
7z b 4 -mmt1
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	5353 MIPS +10%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	5255 MIPS +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5249 MIPS +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	5235 MIPS +8%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	5097 MIPS +5%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4853 MIPS
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	4788 MIPS -1%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	10.1 fps +53%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	9.7 fps +47%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	9.47 fps +43%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	6.6 fps
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	6.55 fps -1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	5.26 fps -20%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	4.74 fps -28%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	0.639 sec * -1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	0.63 sec *
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	0.609 sec * +3%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	0.599 sec * +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	0.537 sec * +15%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	0.511 sec * +19%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	0.4856 sec * +23%

LibreOffice - 20 Documents To PDF
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	52 s * -11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	51.8 s * -10%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	51.1 s * -9%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	49.4 s * -5%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	48.9 s * -4%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	46.9 s *
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	46.1 s * +2%

WebXPRT 3 - Overall
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	271 Points +16%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	263 Points +12%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	255 Points +9%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	252 Points +8%
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	245 Points +5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	236 Points +1%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	234 Points

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	724 ms * -0%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	722 ms *
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	695 ms * +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	646 ms * +11%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	643 ms * +11%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	597 ms * +17%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	575 ms * +20%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	18463 Points +37%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	18218 Points +35%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	17568 Points +30%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	13479 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	12661 Points -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	9561 Points -29%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	9094 Points -33%
1920x1080 Fire Strike Physics
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	18467 Points +38%
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	18108 Points +35%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	18076 Points +35%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	13413 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	12768 Points -5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	9354 Points -30%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	8668 Points -35%
2560x1440 Time Spy CPU
Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz	6307 Points +41%
Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz	6185 Points +38%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz	5443 Points +21%
Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz	4487 Points
Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz	4426 Points -1%
Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz	3070 Points -32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz	2867 Points -36%

* ... smaller is better

De olika beräkningselementen i Cinebench R15 multi-loop

Ett liknande beteende ses i alla fyra konstellationerna. Processorns prestanda sjunker avsevärt efter den första körningen på grund av temperaturerna. Prestandaförlusten är betydligt större i de nyare Alder Lake SoC:erna. Prestandan förblir dock i stort sett stabil i det fortsatta förloppet

Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7: Ø757 (739.28-828.86)

Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7: Ø757 (738.48-856.13)

Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U: Ø1222 (1193.03-1456.4)

Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U: Ø1254 (1145.71-1444.46)

Syntetiska riktmärken och tillämpningsprestanda

I de syntetiska riktmärkena ser vi ett nästan identiskt resultat som tidigare i de rena CPU-testerna. Den här gången går 1:a och 2:a platsen till de två Alder Lake SoC:erna i omvänd ordning. Det visar alltså ännu en gång att Core i7-1265Uinte alltid är det bättre alternativet. De Tiger-Lake-baserade beräkningselementen ligger på liknande sätt nära varandra, så att den Core i7-1185G7 inte heller här har en tydligare seger.

Performance Rating | PCMark 10 | 3DMark | 3DMark 11 | CrossMark

Performance Rating - Percent
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	98.3 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	97.9 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	78.6 pt
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	76 pt
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	64.6 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 pt

PCMark 10 - Score
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	5761 Points +20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	5510 Points +15%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	5387 Points +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	5160 Points +8%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	4892 Points +2%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	4792 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	4521 Points -6%

3DMark
1920x1080 Fire Strike Physics
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	18467 Points +38%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	18108 Points +35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	18076 Points +35%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	13413 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	12768 Points -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	9354 Points -30%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	8668 Points -35%
2560x1440 Time Spy CPU
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	6307 Points +41%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	6185 Points +38%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	5443 Points +21%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	4487 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	4426 Points -1%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	3070 Points -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	2867 Points -36%

3DMark 11 - 1280x720 Performance Physics
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	16005 Points +39%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	15485 Points +34%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	12608 Points +9%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	11536 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	11284 Points -2%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	7797 Points -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	7792 Points -32%

CrossMark - Overall
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	1577 Points +23%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	1559 Points +22%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	1477 Points +15%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	1474 Points +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	1373 Points +7%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	1279 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	1245 Points -3%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	70620 MB/s +18%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	69882 MB/s +17%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	65021 MB/s +9%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	62171 MB/s +4%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	59767 MB/s
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -41%

AIDA64 / Memory Read
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	65856 MB/s +7%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65177 MB/s +6%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	63583 MB/s +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	61758 MB/s
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	59634 MB/s -3%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -38%

AIDA64 / Memory Write
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	66791 MB/s +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	66047 MB/s
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	63908 MB/s -3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	63385 MB/s -4%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	63277 MB/s -4%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -43%

AIDA64 / Memory Latency
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	100 ns * -16%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs	99.9 ns * -16%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	98.1 ns * -14%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs	92.3 ns * -7%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -6%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs	86.4 ns *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +20%

* ... smaller is better

DPC-fördröjningar

Endast kombinationen med Intel Core i7-1265U sticker ut lite när det gäller DPC-latenserna. Ett upprepat test visade samma resultat. Det fanns inga problem i de andra tre konstellationerna enligt LatancyMon. IGPU:n utnyttjades till 30 - 40 procent vid uppspelning av 4K YouTube-videon.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Prime Computer PrimeBook Circular-i7-1165G7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW)	4415 μs * -698%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1151 μs * -108%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * -38%
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	740 μs * -34%
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	738 μs * -33%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * -19%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	553.1 μs *

* ... smaller is better

Masslagring

Intel NUC Pro Chassis Element stöder upp till två masslagringsenheter i M.2-format. De som använder en M.2 SSD med SATA-hastighet måste dock vara uppmärksamma på rätt val av M.2-gränssnittet. Endast en kortplats stöder det något långsammare formatet. Vi använde vår WDC PC SN720 med 512 GB för testet. Trots den identiska SSD:n finns det betydande skillnader i testet, vilket märks i åtkomsttiderna samt i 4K-läs- och skrivhastigheterna. Det finns inga problem under permanent belastning. Termiska kuddar på bottenplattan för båda SSD-platserna säkerställer god värmeavledning.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN720 SDAQNTW-512G

Sequential Read: 2451 MB/s

Sequential Write: 2512 MB/s

512K Read: 1521 MB/s

512K Write: 1490 MB/s

4K Read: 41.97 MB/s

4K Write: 212.4 MB/s

4K QD32 Read: 683.2 MB/s

4K QD32 Write: 435.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	91.7 pt
Average of class Mini PC	86.8 pt
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	81.1 pt
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	77.2 pt
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	74.1 pt

DiskSpd
seq read
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s +26%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2228 (1938.09^min - 2228.38^max) MB/s +23%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2058 (1847.09^min - 2057.65^max) MB/s +14%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1811 (1731.93^min - 1810.83^max) MB/s 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1810 (1705.56^min - 1810.26^max) MB/s
seq write
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s +41%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2249 (2126.93^min - 2248.57^max) MB/s +29%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2198 (2143.62^min - 2198.23^max) MB/s +26%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2149 (2077.61^min - 2148.85^max) MB/s +24%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1739 (1663.04^min - 1739.25^max) MB/s
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s +7%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3497 (2944.82^min - 3496.65^max) MB/s +1%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	3487 (2948.62^min - 3486.57^max) MB/s 0%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	3485 (3116.01^min - 3485^max) MB/s 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	3479 (2889.34^min - 3478.93^max) MB/s
seq q8 t1 write
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s +7%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2573 (2526.46^min - 2573.42^max) MB/s 0%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2573 (2547.29^min - 2572.88^max) MB/s 0%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2564 (2533.74^min - 2564.49^max) MB/s 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	2561 MB/s
4k q1 t1 read
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s +30%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	46.8 (46.64^min - 46.84^max) MB/s +11%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	44.7 (43.85^min - 44.67^max) MB/s +6%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	43.2 (42.7^min - 43.23^max) MB/s +2%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	42.2 (41.96^min - 42.19^max) MB/s
4k q1 t1 write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	232 (230.89^min - 232.39^max) MB/s +54%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s +29%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	155.6 (152.79^min - 155.57^max) MB/s +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	150.5 (149.1^min - 150.47^max) MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	127.3 (125.68^min - 127.3^max) MB/s -15%
4k q32 t16 read
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1750 (1724.46^min - 1749.88^max) MB/s +82%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +41%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	963 (935.31^min - 963.3^max) MB/s
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	926 (896.56^min - 926.49^max) MB/s -4%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	643 (632.31^min - 643.46^max) MB/s -33%
4k q32 t16 write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1380 (935.1^min - 1380.02^max) MB/s +235%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +212%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	423 (402.45^min - 423.18^max) MB/s +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	412 (397.32^min - 412.23^max) MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	328 (314.14^min - 327.95^max) MB/s -20%

AS SSD
Score Total
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	4415 Points +1%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	4358 Points
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points -5%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3536 Points -19%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	3526 Points -19%
Score Read
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1657 Points 0%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1656 Points
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points -7%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1269 Points -23%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1042 Points -37%
Score Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1997 Points +6%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1936 Points +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1888 Points
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points -2%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1652 Points -12%
Seq Read
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s +4%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	3039 MB/s
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	3030 MB/s 0%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2881 MB/s -5%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	2854 MB/s -6%
Seq Write
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	2390 MB/s +5%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	2273 MB/s
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s -3%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1960 MB/s -14%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1846 MB/s -19%
4K Read
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s +27%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	49.78 MB/s +7%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	46.54 MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	45.38 MB/s -2%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	43.07 MB/s -7%
4K Write
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	205.06 MB/s +5%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	201.42 MB/s +3%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	195.91 MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	182.89 MB/s -7%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s -11%
4K-64 Read
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1305.92 MB/s
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1304.51 MB/s 0%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s -11%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	940.13 MB/s -28%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	708.14 MB/s -46%
4K-64 Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1617.56 MB/s +10%
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	1495.31 MB/s +2%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	1464.88 MB/s
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s -1%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	1262.16 MB/s -14%
Access Time Read
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	0.237 ms * -85%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	0.128 ms *
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	0.124 ms * +3%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * +24%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.053 ms * +59%
Access Time Write
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -449%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.022 ms * -5%
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G	0.021 ms *
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G	0.02 ms * +5%
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G	0.019 ms * +10%

* ... smaller is better

Continuous Read: DiskSpd Read Loop, Queue Depth 8

Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G: Ø3473 (3163.1-3486.1)

Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G: Ø3480 (2916.51-3492.11)

Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G: Ø3482 (3157.08-3490.29)

Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G: Ø3481 (3067.45-3492.18)

Grafikkort

En Intel Iris Xe Graphics G7 med 80 eller 96 EUs används som integrerad GPU för beräkningselementen. Det finns små skillnader i prestanda på grund av detta. Modellen med 96 EUs är ca 15 % snabbare, men detta är inte subjektivt märkbart. Prestandan hos AMD Radeon RX Vega 7 kan nästan alltid överträffas här vid en jämförelse.

För fler jämförelser och benchmarks hänvisar vi till vårG PU-jämförelsetabell.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	99.7 pt
SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	88.3 pt
Average of class Mini PC	28.7 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	19 pt
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	18 pt
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	16.7 pt
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	16.4 pt
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	15.6 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	15.5 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	14.7 pt

3DMark 11 - 1280x720 Performance GPU
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	32662 Points +471%
SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	27741 Points +385%
Average of class Mini PC (574 - 47892, n=119, last 2 years)	10064 Points +76%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6676 Points +17%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6210 Points +9%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6091 Points +7%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	5718 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -2%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	5378 Points -6%

3DMark
1280x720 Cloud Gate Standard Graphics
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	153853 Points +569%
SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	130964 Points +470%
Average of class Mini PC (2346 - 168736, n=111, last 2 years)	37991 Points +65%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +14%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	25485 Points +11%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	22983 Points
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	22735 Points -1%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	21602 Points -6%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	21276 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -11%
1920x1080 Fire Strike Graphics
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	24135 Points +472%
SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	20081 Points +376%
Average of class Mini PC (307 - 34047, n=118, last 2 years)	6972 Points +65%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	4959 Points +18%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4902 Points +16%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4360 Points +3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	4249 Points +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	4217 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -12%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -15%
2560x1440 Time Spy Graphics
SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H	8425 Points +536%
Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS	8316 Points +528%
Average of class Mini PC (179 - 13961, n=114, last 2 years)	2559 Points +93%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1570 Points +19%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1556 Points +18%
Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7	1324 Points
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1287 Points -3%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	1234 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -16%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -17%

Spelprestanda

SoC:s iGPU lämpar sig endast i begränsad utsträckning som en spellösning. Spelbara bildfrekvenser är ofta möjliga i låga upplösningar och lägsta detaljer. De dokumenterade bildfrekvenserna sjunker drastiskt i högre upplösningar. Trots detta presterar iGPU:erna i beräkningselementen i Intel NUC Pro-chassielementet ganska bra, vilket kan ses i den genomsnittliga prestandan.

GTA V
1024x768 Lowest Settings possible
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	179.6 (3.66^min, 142.9^P1) fps +90%
Average NVIDIA GeForce RTX 3060 Laptop GPU (164 - 186.8, n=38)	179.5 fps +90%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +21%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	105.8 (17.8^min, 71.4^P1) fps +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	102.1 (19.6^min, 58.8^P1) fps +8%
Average Intel Iris Xe Graphics G7 96EUs (52 - 166.4, n=162)	98.5 fps +4%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	97.6 (17.8^min, 62.5^P1) fps +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	94.4 (6.11^min, 50^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (36.5 - 144.6, n=81)	83.1 fps -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps -28%
1366x768 Normal/Off AF:4x
Average NVIDIA GeForce RTX 3060 Laptop GPU (152 - 183.4, n=36)	174.1 fps +117%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	172.2 (4.2^min, 125^P1) fps +114%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +30%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	95.2 (17.8^min, 58.8^P1) fps +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +17%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	89.4 (9.45^min, 55.6^P1) fps +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	87.4 (20.5^min, 50^P1) fps +9%
Average Intel Iris Xe Graphics G7 96EUs (24.1 - 149.3, n=165)	83.1 fps +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	80.3 (13.6^min, 47.6^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=84)	70.6 fps -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps -32%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	367 (5.67^min, 43.9^P0.1, 264^P1) fps +352%
Average NVIDIA GeForce RTX 3060 Laptop GPU (221 - 449, n=35)	324 fps +299%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89 (38.4^min, 43.3^P0.1, 52.8^P1) fps +10%
Average Intel Iris Xe Graphics G7 96EUs (28.9 - 117.2, n=186)	84 fps +3%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	81.4 (31.8^min, 35.9^P0.1, 47.9^P1) fps 0%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	81.2 (4.78^min, 20.4^P0.1, 42.9^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -19%
Average Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101)	65.4 fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -24%
1366x768 Medium Graphics & Postprocessing
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	260 (41.7^min, 170.3^P0.1, 202^P1) fps +400%
Average NVIDIA GeForce RTX 3060 Laptop GPU (204 - 296, n=33)	237 fps +356%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps +15%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	57.9 (25.7^min, 27.5^P0.1, 33^P1) fps +11%
Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=184)	53.6 fps +3%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	52.3 (22.4^min, 24.9^P0.1, 29.9^P1) fps +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	52 (3.24^min, 25.2^P0.1, 29.7^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.5 (31^min, 32.6^P0.1, 36.6^P1) fps -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	42.6 (10.6^min, 28.7^P0.1, 33.9^P1) fps -18%
Average Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=103)	41.9 fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps -24%

Far Cry 5
1280x720 Low Preset AA:T
Average NVIDIA GeForce RTX 3060 Laptop GPU (102 - 168, n=23)	141.4 fps +195%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	137 (108^min) fps +185%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	52 (46^min) fps +8%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	52 (41^min) fps +8%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	51 (46^min) fps +6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps 0%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	48 (28^min) fps
Average Intel Iris Xe Graphics G7 96EUs (23 - 75, n=92)	46.5 fps -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps -8%
Average Intel Iris Xe Graphics G7 80EUs (14 - 63, n=50)	38.8 fps -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps -48%
1920x1080 Medium Preset AA:T
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	122 (97^min) fps +352%
Average NVIDIA GeForce RTX 3060 Laptop GPU (88 - 135, n=25)	114.2 fps +323%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30 (26^min) fps +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	28 (24^min) fps +4%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	27 (24^min) fps
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	27 (23^min) fps 0%
Average Intel Iris Xe Graphics G7 96EUs (14 - 39, n=90)	25.5 fps -6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps -22%
Average Intel Iris Xe Graphics G7 80EUs (9 - 31, n=47)	20.1 fps -26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps -37%

Far Cry New Dawn
1280x720 Low Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	114 (90^min) fps +165%
Average NVIDIA GeForce RTX 3060 Laptop GPU (107 - 115, n=2)	111 fps +158%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	50 (39^min) fps +16%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	48 (34^min) fps +12%
Average Intel Iris Xe Graphics G7 96EUs (29 - 69, n=19)	47.2 fps +10%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	47 (28^min) fps +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +2%
Average Intel Iris Xe Graphics G7 80EUs (29 - 59, n=5)	44 fps +2%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	43 (28^min) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps -33%
1920x1080 Medium Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	102 (81^min) fps +278%
Average NVIDIA GeForce RTX 3060 Laptop GPU (91 - 96, n=2)	93.5 fps +246%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30 (23^min) fps +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +7%
Average Intel Iris Xe Graphics G7 96EUs (16 - 38, n=19)	27.2 fps +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	27 (21^min) fps
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	27 (20^min) fps 0%
Average Intel Iris Xe Graphics G7 80EUs (15 - 32, n=6)	25.5 fps -6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps -26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps -41%

F1 2020
1280x720 Ultra Low Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	325 (264^min) fps +418%
Average NVIDIA GeForce RTX 3060 Laptop GPU (215 - 260, n=6)	242 fps +285%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +51%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	92.6 (77^min) fps +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +44%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	89.9 (79^min) fps +43%
Average Intel Iris Xe Graphics G7 96EUs (49 - 109.6, n=34)	82 fps +31%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	66.1 (58^min) fps +5%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	62.8 (58^min) fps
Average Intel Iris Xe Graphics G7 80EUs (45 - 76.6, n=10)	62.5 fps 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps -4%
1920x1080 Medium Preset AF:16x
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	242 (200^min) fps +478%
Average NVIDIA GeForce RTX 3060 Laptop GPU (150 - 204, n=6)	173.8 fps +315%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	48 (39^min) fps +15%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	47.1 (40^min) fps +12%
Average Intel Iris Xe Graphics G7 96EUs (23.1 - 57.5, n=34)	42.8 fps +2%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	41.9 (34^min) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps -22%
Average Intel Iris Xe Graphics G7 80EUs (24.8 - 42, n=12)	32.3 fps -23%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	31.6 (26^min) fps -25%

Strange Brigade
1280x720 lowest AF:1
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	447 (227^min, 334^P1) fps +424%
Average NVIDIA GeForce RTX 3060 Laptop GPU (253 - 471, n=37)	347 fps +307%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89.9 (20^min, 32.7^P1) fps +5%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	87.6 (11.7^min, 31^P1) fps +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	85.3 (18.6^min, 27.1^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (48.5 - 115.1, n=168)	84.8 fps -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps -15%
Average Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=81)	67.4 fps -21%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	66.1 (9.6^min, 21.1^P1) fps -23%
1920x1080 medium AA:medium AF:4
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	216 (163.8^min, 183.9^P1) fps +497%
Average NVIDIA GeForce RTX 3060 Laptop GPU (154.9 - 242, n=38)	193.8 fps +435%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	38.3 (10.4^min, 17.6^P1) fps +6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	38.1 (8.7^min, 14.5^P1) fps +5%
Average Intel Iris Xe Graphics G7 96EUs (18.2 - 51.4, n=166)	36.5 fps +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	36.2 (12.6^min, 20.5^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps -17%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	29.6 (9.5^min, 16^P1) fps -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps -22%
Average Intel Iris Xe Graphics G7 80EUs (6 - 48.8, n=83)	28.1 fps -22%

Borderlands 3
1920x1080 Medium Overall Quality (DX11)
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	111.2 fps +420%
Average NVIDIA GeForce RTX 3060 Laptop GPU (102 - 107.4, n=2)	104.7 fps +389%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	25.7 fps +20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25.1 fps +17%
Average Intel Iris Xe Graphics G7 96EUs (15.8 - 30.9, n=20)	24.3 fps +14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.1 fps +8%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	21.9 fps +2%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	21.4 fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21.2 fps -1%
Average Intel Iris Xe Graphics G7 80EUs (16.5 - 25.8, n=5)	21.2 fps -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	15.8 fps -26%
1280x720 Very Low Overall Quality (DX11)
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	127.5 fps +173%
Average NVIDIA GeForce RTX 3060 Laptop GPU (116 - 133.7, n=2)	124.9 fps +167%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	60.1 fps +29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	53.4 fps +14%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	52.7 fps +13%
Average Intel Iris Xe Graphics G7 96EUs (33.9 - 67.2, n=20)	51.6 fps +10%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	51.3 fps +10%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	47.8 fps +2%
Average Intel Iris Xe Graphics G7 80EUs (37.9 - 57.6, n=5)	47.3 fps +1%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	46.7 fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	33.9 fps -27%

Metro Exodus
1280x720 Low Quality AF:4x
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	198.4 (107.04^min) fps +456%
Average NVIDIA GeForce RTX 3060 Laptop GPU (151 - 154.3, n=2)	152.7 fps +328%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.2 (25.3^min) fps +10%
Average Intel Iris Xe Graphics G7 96EUs (28.2 - 45.8, n=17)	39.2 fps +10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	37.9 (22.1^min) fps +6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	37.8 (20.62^min) fps +6%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	36.6 (21.07^min) fps +3%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	35.7 (20.6^min) fps
Average Intel Iris Xe Graphics G7 80EUs (28 - 39.4, n=4)	34.2 fps -4%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	33.6 (18.95^min) fps -6%
1920x1080 Medium Quality AF:4x
Average NVIDIA GeForce RTX 3060 Laptop GPU (96.3 - 104, n=2)	100.2 fps +493%
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	98.8 (51.07^min) fps +485%
Average Intel Iris Xe Graphics G7 96EUs (15 - 32.2, n=17)	20.2 fps +20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	19.3 (10.26^min) fps +14%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	17.5 (10.13^min) fps +4%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	16.9 (9.18^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 (7.91^min) fps -3%
Average Intel Iris Xe Graphics G7 80EUs (13.7 - 18.8, n=4)	16.2 fps -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	15.9 (8.1^min) fps -6%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	15.4 (8.13^min) fps -9%

F1 2021
1280x720 Ultra Low Preset
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	326 (232^min, 231^P1) fps +222%
Average NVIDIA GeForce RTX 3060 Laptop GPU (130 - 360, n=9)	266 fps +163%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	108.1 (81^min, 77^P1) fps +7%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	107.4 (80^min, 79^P1) fps +6%
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs	101.1 (74^min, 72^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (74^min, 75^P1) fps -3%
Average Intel Iris Xe Graphics G7 96EUs (59.4 - 129.9, n=46)	95.7 fps -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps -6%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	80.9 (62^min, 62^P1) fps -20%
Average Intel Iris Xe Graphics G7 80EUs (15.6 - 102, n=18)	67.4 fps -33%
1920x1080 Medium Preset AA:T AF:16x
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M	283 (213^min, 204^P1) fps
Average NVIDIA GeForce RTX 3060 Laptop GPU (120 - 287, n=9)	195 fps
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	51.8 (41^min, 41^P1) fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	51.8 (32^min, 41^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (29.4 - 64.9, n=45)	46.5 fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.5 (34^min, 34^P1) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	36.4 (30^min, 28^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (20.1 - 42.9, n=12)	33 fps

Utsläpp

Bullerutsläpp

Intel NUC Pro-chassielementet uppför sig på samma sätt när det gäller bulleremissioner, oavsett vilket datorelement som är installerat. Små fluktuationer i den maximala volymen är ibland mätbara. Trots detta ligger ljudnivån redan en bra bit över 40 dB(A) även vid genomsnittlig belastning. Dessutom finns det ett relativt högfrekvent fläktljud, vilket ökar den subjektiva upplevelsen av bullret ytterligare.

	Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G
Noise		-1%	1%	0%
off / environment *	30.5	30.2 1%	30.5 -0%	30.5 -0%
Idle Minimum *	31.4	31.6 -1%	31.3 -0%	31.4 -0%
Idle Average *	31.4	31.6 -1%	31.3 -0%	31.4 -0%
Idle Maximum *	31.4	31.6 -1%	31.3 -0%	31.4 -0%
Load Average *	44.2	44.5 -1%	42.9 3%	43.8 1%
Load Maximum *	44.3	45.3 -2%	44.5 -0%	44 1%

* ... smaller is better

Temperatur

Temperaturerna i höljet är inte märkbara i Intel NUC Pro-chassiet. Det ser dock lite annorlunda ut för SoC:erna i beräkningselementen. SoC:erna är alla definierade med en effektgräns (PL2) på högst 64 watt. Vi kunde dock inte nå upp till detta i testet. Temperaturen inuti chipet stiger för snabbt. Till skillnad från bärbara datorer, som till övervägande del använder sig av direktkylning av chipet, avges den värme som genereras i beräkningselementen först via metallbaksidan, som sedan i sin tur kan avge värmen till värmerören i Intel NUC Pro-chassielementet. Vi har alltså ytterligare en värmeöverföring som måste övervinnas.

Intel NUC Pro chassielement under stresstestet (ovansida)

Intel NUC Pro chassielement under stresstestet (nederst)

Strömförsörjningen i Intel NUC Pro Chassis Element under stresstestet

Energiförbrukning

Jämfört med konventionella stationära datorer har kompakta minidatorer baserade på beprövad teknik för bärbara datorer en stor fördel när det gäller energiförbrukning. Vi noterade ett genomsnitt på 55 watt i stresstestet, även om vi även spräckte 100-wattgränsen under en kort tid i början. Detta överbelastar strömförsörjningen under en kort tid eftersom den kan leverera maximalt 90 watt. Vi antar att tillverkaren har tillåtit en liten buffert eftersom systemet inte kraschade på grund av otillräcklig strömförsörjning i testet.

Power Consumption: Prime95 V2810 Stress (external Monitor) | Cinebench R15 Multi (external Monitor) | 1280x720 Prime95 28.10 and Furmark 1.25 | Idle 1min (external Monitor)
: Idle Minimum

Power Consumption / Prime95 V2810 Stress (external Monitor)
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	55.4 (48.7^min, 51^P1 - 100.1^max) Watt * -17%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	52.5 (48.2^min, 48.4^P1 - 88.8^max) Watt * -11%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	47.5 (42.4^min, 43.5^P1 - 84.2^max) Watt *
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	46.8 (39.4^min, 40.6^P1 - 81.7^max) Watt * +1%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	42.1 (36.8^min, 36.9^P1 - 52.4^max) Watt * +11%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	31.4 (27.8^min, 27.9^P1 - 68.7^max) Watt * +34%

Power Consumption / Cinebench R15 Multi (external Monitor)
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	83.7 (80.7^min, 80.8^P1 - 97^max) Watt * -51%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	72.3 (48.3^min, 48.3^P1 - 87^max) Watt * -30%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	55.5 (42.5^min, 42.5^P1 - 73.7^max) Watt *
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	55.4 (38.4^min, 40.2^P1 - 77.3^max) Watt * -0%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	44.8 (36.1^min, 38.4^P1 - 47.8^max) Watt * +19%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	32.9 (23.9^min, 24.6^P1 - 55.3^max) Watt * +41%

Power Consumption / Prime95 28.10 and Furmark 1.25
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	53.3 (49.6^min, 50.2^P1 - 86.1^max) Watt * -12%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	52.2 (40.4^min, 48.1^P1 - 97.5^max) Watt * -10%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	47.4 (44.2^min, 45.5^P1 - 91.3^max) Watt *
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	46.9 (44.1^min, 44.8^P1 - 87.4^max) Watt * +1%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	43.6 (41.6^min, 41.7^P1 - 51^max) Watt * +8%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	30.6 (11^min, 27.7^P1 - 68.5^max) Watt * +35%

Power Consumption / Idle 1min (external Monitor)
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G	12.9 (11.6^min, 11.6^P1 - 21.8^max) Watt * -18%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	12.7 (11.1^min, 11.3^P1 - 16.2^max) Watt * -17%
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G	10.9 (7.54^min, 9.51^P1 - 16.4^max) Watt *
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G	10.6 (5.92^min, 7.36^P1 - 21.2^max) Watt * +3%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	9.27 (8.82^min, 8.91^P1 - 10.3^max) Watt * +15%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	7.02 (6.54^min, 6.57^P1 - 9.28^max) Watt * +36%

Power Consumption
Idle Minimum
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	3.4 Watt *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	8.4 Watt *
Idle Average
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	5.7 Watt *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	8.7 Watt *
Idle Maximum
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	7 Watt *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	9.3 Watt *
Load Average
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	36.5 Watt *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	46.4 Watt *
Load Maximum
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68 Watt *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	52 Watt *

* ... smaller is better

Bedömning - Minidator med hållbarhetsstrategi

Intel NUC Pro Chassis Element med fyra olika beräkningselement i recension - tillhandahållen av Intel Germany

Intel NUC Pro Chassis Element är inte en minidator i klassisk mening, eftersom ingenting fungerar utan ett beräkningselement. Det måste stå klart om enheten, som kostar cirka 340 euro, står högst upp på din önskelista. Den modulära konstruktionen säkerställer dock att enheten är fritt konfigurerbar enligt dina önskemål när det gäller prestanda. Intels senaste Alder Lake SoC:er med totalt 10 kärnor och 12 trådar finns för närvarande tillgängliga, som presterade bra i testet. Rent prismässigt är beräkningselementet med den Intel Core i5-1245U den mest intressanta, eftersom den också har 12 trådar och dessutom är utrustad med ett snabbt 16 GB DDR5-arbetsminne. De som är beroende av 32 GB arbetsminne kan dock för närvarande inte komma runt compute-elementet (ELM12HBv7) baserat på den Intel Core i7-1265U.

Intel NUC Pro Chassis Element är ett intressant tillvägagångssätt för den medvetna kunden som vill använda en befintlig bas under en längre tid. Tack vare olika beräkningselement kan systemet också paras ihop med de senaste SoC:erna.

Visuellt är Intel NUC Pro Chassielement ingen fröjd för ögonen, och Intel kunde även här ha fört enheten upp till det senaste. På anslutningssidan finns det inget Thunderbolt-stöd och nätverksgränssnitten erbjuder endast maximalt 1 GBit. Antalet portar, som åtminstone finns tillgängliga i ett dubbelpaket, är dock tillräckligt. WLAN-prestandan är begränsad till respektive beräkningselement. Således är den senaste 6 GHz-standarden endast tillgänglig med Intels NUC 12-computeelement. WLAN-prestandan hos de äldre Intel NUC 11-computeelementen är dock i nivå med den nyare generationen och fortfarande snabbare än den trådbundna anslutningen.

Hållbarhetsidén är bra och ganska lämplig i dagens läge. Vi kan dock för närvarande inte säga hur framtiden kommer att se ut med nya beräkningselement.

Om man bara tar hänsyn till prestandan erbjuder Intel NUC Pro-chassielementet med de aktuella Alder Lake SoC:erna hyfsade resultat till ett jämförelsevis högt pris. Å andra sidan är de två jämförelseenheterna - Ace Magician AMR5 och Ace Magician TK11-A0- är mer attraktiva när det gäller priset.

Priser och tillgänglighet

Intel NUC Pro Chassis Element är för närvarande listad på Amazon för 340 euro (~$340) listad. De datorelement som användes i testet (CM11EBv58W, CM11EBv716W, ELM12HBv516W, ELM12HBv732W) kan också köpas där för närvarande för mellan 511 och 1 100 euro.

Recension av Intel NUC Pro Chassis Element - Modulär barebone för många ändamål

Bra ansats!

Detaljerade uppgifter om de beräkningselement som används i detta test

Fall

Utrustning

Kommunikation

Underhåll

Prestanda

Benchmarks för processorer

De olika beräkningselementen i Cinebench R15 multi-loop

Syntetiska riktmärken och tillämpningsprestanda

DPC-fördröjningar

Masslagring

Continuous Read: DiskSpd Read Loop, Queue Depth 8

Grafikkort

Spelprestanda

Utsläpp

Bullerutsläpp

Temperatur

Energiförbrukning

Power consumption with external monitor

För

Emot

Bedömning - Minidator med hållbarhetsstrategi

Priser och tillgänglighet
