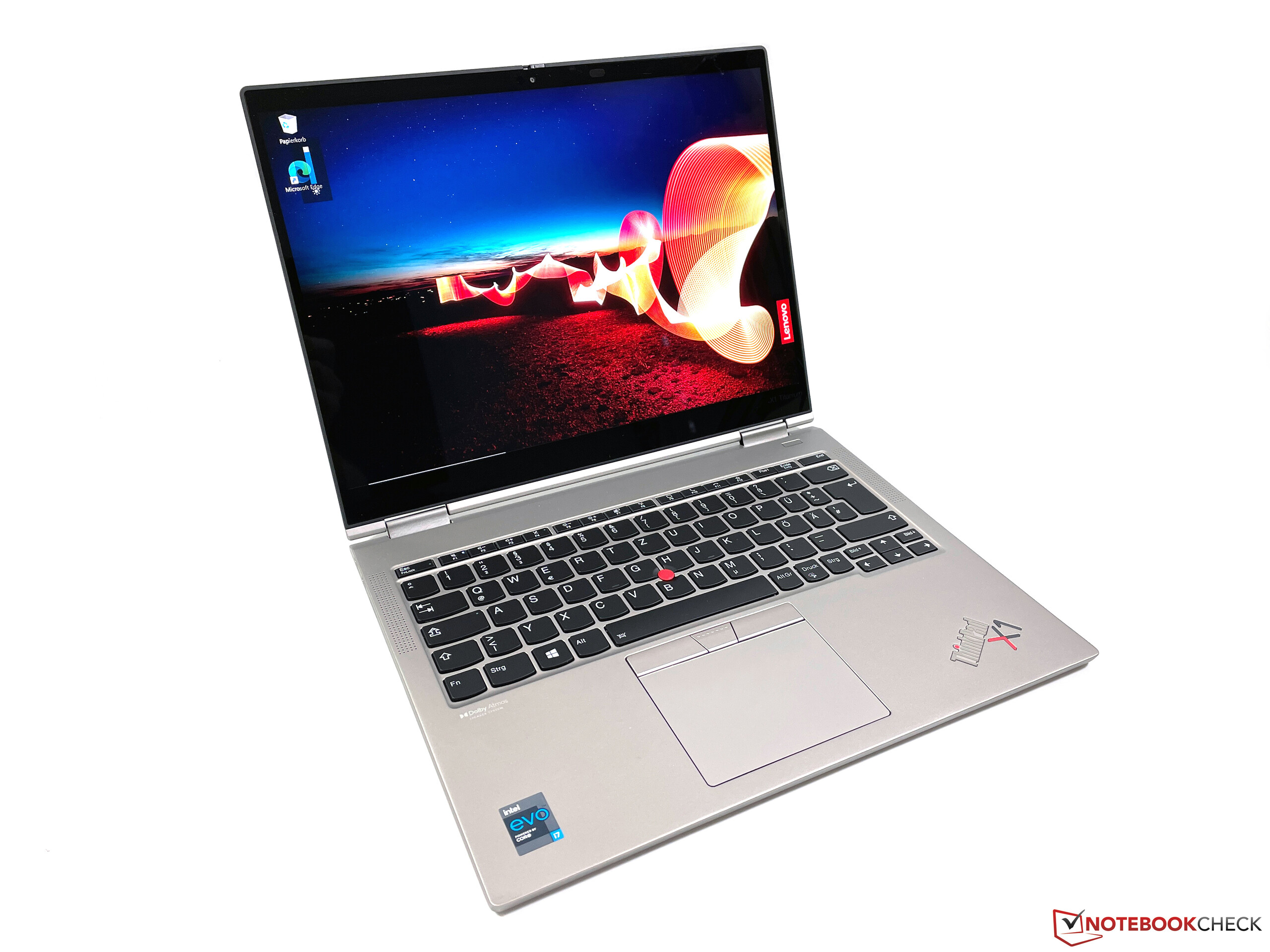

Recension av Lenovo ThinkPad X1 Titanium Yoga: Slank konvertibel Titanium med i5

Silver-snygging med kompromisser.

Vi har redan testat Lenovos ThinkPad X1 Titanium Yoga med en i7. Nu följer en kort recension av en Core i5-version av den dyraste konvertibla ThinkPad-modellen.
Business Convertible / 2-in-1 Laptop / Notebook ThinkPad Thunderbolt Tiger Lake Intel Evo Ultrabook Touchscreen Windows

Bland de 2021 X1 ThinkPads var Lenovo ThinkPad X1 Titanium Yoga inte den största succén. X1 Titanium var den enda modellen som inte fick den uppdaterade versionen inför CES. Vi har testat ThinkPad X1 Titanium Yoga en gång med Intel Core i7, och nu följer en kort testuppdatering av i5-versionen. Eftersom vi redan har granskat design, konfiguration och inmatningsenheter i den tidigare nämnda granskningen av X1 Titanium Yoga med i7 hoppar vi över dessa avsnitt och börjar direkt med skärmen.

ThinkPad X1 Titanium Yoga G1 i5-1140G7 (ThinkPad X1 Titanium Yoga G1 Serie)
Processor
Intel Core i5-1140G7 4 x 1.8 - 4.2 GHz, 35 W PL2 / Short Burst, 12 W PL1 / Sustained, Tiger Lake-UP4
Grafikkort
Intel Iris Xe Graphics G7 80EUs
Minne
16 GB
, LPDDR4X-4266, on-board, dual-channel
Skärm
13.50 tum 3:2, 2256 x 1504 pixlar 200 PPI, 10-point multitouch, native pen support, LPM135M467, IPS LED, glansig: ja, HDR
Moderkort
Intel Tiger Lake-UP4 PCH-LP
Hårddisk
Lenovo UMIS RPJTJ256MEE1OWX, 256 GB
, M.2 2242, NVMe PCIe 3.0, 130 GB ledigt
Ljudkort
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Anslutningar
2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 2 DisplayPort, 1 Kensingtonlås, Ljudanslutningar: 3.5mm Audio, 1 Fingeravtrycksläsare, Sensorer: Gyroscope, Proximity, ToF Sensor, Accelerometer
Nätverk
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1, Fibocom L850-GL, LTE, GPS
Storlek
höjd x bredd x djup (i mm) 11.5 x 297.5 x 232.7
Batteri
44.5 Wh Litiumpolymer
Operativsystem
Microsoft Windows 10 Pro 64 Bit
Camera
Webbkamera: 720p w/IR & ThinkShutter
Övrigt
Högtalare: 2 W stereo, Tangentbord: 6 row Chiclet 95 %, 1.35mm travel, Tangentbordsbelysning: ja, Lenovo Commercial Vantage, 36 Månader Garanti
Vikt
1.196 kg, Strömförsörjning: 323 g
Pris
3191 Euro
Länkar
Lenovo hemsida
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Jämförelse av potentiella konkurrenter

Rating
Date
Model
Weight
Height
Size
Resolution
Price
88.5 %
v7 (old)
03/2022
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
i5-1140G7, Iris Xe G7 80EUs		1.2 kg11.5 mm13.50"2256x1504
91.4 %
v7 (old)
09/2021
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
i7-1165G7, Iris Xe G7 96EUs		1.4 kg15 mm14.00"1920x1200
91.1 %
v7 (old)
Lenovo ThinkPad X13 Yoga G2
i7-1165G7, Iris Xe G7 96EUs		1.2 kg15.39 mm13.30"2560x1600
90.8 %
v7 (old)
06/2021
HP Elite Dragonfly Max
i7-1185G7, Iris Xe G7 96EUs		1.2 kg16 mm13.30"1920x1080
89.5 %
v7 (old)
08/2021
Dell Latitude 12 7210 2-in-1
i7-10610U, UHD Graphics 620		850 g9.35 mm12.30"1920x1280

Storleksjämförelse

❌
314.4 mm 223 mm 15 mm 1.4 kg305 mm 213.9 mm 15.39 mm 1.2 kg304.3 mm 197.6 mm 16 mm 1.2 kg297.5 mm 232.7 mm 11.5 mm 1.2 kg292 mm 208.8 mm 9.35 mm 850 g297 mm 210 mm 1 mm 5.7 g
Networking
iperf3 transmit AX12
Dell Latitude 12 7210 2-in-1
Intel Wi-Fi 6 AX201
1690 (1490min - 1764max) MBit/s
Lenovo ThinkPad X13 Yoga G2
Intel Wi-Fi 6 AX201
1456 (702min - 1509max) MBit/s
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Wi-Fi 6 AX201
1429 (1337min - 1478max) MBit/s
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Wi-Fi 6 AX201
1389 (1273min - 1436max) MBit/s
HP Elite Dragonfly Max
Intel Wi-Fi 6 AX201
1263 (990min - 1412max) MBit/s
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=324)
1161 MBit/s
iperf3 receive AX12
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Wi-Fi 6 AX201
1439 (691min - 1539max) MBit/s
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Wi-Fi 6 AX201
1358 (764min - 1537max) MBit/s
Lenovo ThinkPad X13 Yoga G2
Intel Wi-Fi 6 AX201
1333 (1301min - 1360max) MBit/s
HP Elite Dragonfly Max
Intel Wi-Fi 6 AX201
1272 (1206min - 1323max) MBit/s
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=324)
1261 MBit/s
Dell Latitude 12 7210 2-in-1
Intel Wi-Fi 6 AX201
919 (714min - 1122max) MBit/s
7648449241004108411641244132414041484Tooltip
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1332 (764-1537)
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1429 (1337-1478)
ColorChecker
3.7 ∆E
6 ∆E
9.4 ∆E
10 ∆E
10.3 ∆E
6.6 ∆E
10.4 ∆E
6.6 ∆E
8.3 ∆E
2.2 ∆E
6.9 ∆E
5.6 ∆E
4.7 ∆E
3.3 ∆E
5.5 ∆E
5.2 ∆E
5 ∆E
4 ∆E
4.4 ∆E
1.7 ∆E
2.2 ∆E
2 ∆E
2.4 ∆E
5.8 ∆E
ColorChecker Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE: 5.51 ∆E min: 1.7 - max: 10.41 ∆E

Skärm - 3:2-format som ett unikt försäljningsargument bland ThinkPad-laptops

Subpixelgaller
Subpixelgaller
Knappt någon blödning av bakgrundsbelysning (visas intensifierat här)
Knappt någon blödning av bakgrundsbelysning (visas intensifierat här)

Skärmen är fortfarande den största attraktionen på Lenovo ThinkPad X1 Titanium Yoga. Det är den enda bärbara ThinkPad-datorn med ett bildförhållande på 3:2. Även bortsett från det är Lenovo ThinkPad X1 Titanium Yoga G1 ganska speciell för en ThinkPad, eftersom det bara finns ett skärmalternativ: den 13,5-tums LCD-skärm med 2,2 K-upplösning (2 256 x 1 504) som testats här, en blank panel med antireflexbeläggning.

Å andra sidan är det ganska typiskt för ThinkPads att det finns mer än en skärmleverantör. Tyvärr innehåller vår testenhet samma IPS-panel från Japan Display (JDI) som den tidigare recenserade modellen. Vi kunde alltså inte testa den alternativt använda AUO-panelen. Trots detta var det spännande att se om panelen som installeras här kan bekräfta resultaten från det första provet.

Den uppnår målet, även om svarstiderna är lite lägre. Sammantaget verkar seriespridningen hos denna högkvalitativa IPS-panel endast vara svag, och ljusstyrkavärdena är praktiskt taget identiska.


430
cd/m²		447
cd/m²		451
cd/m²
444
cd/m²		465
cd/m²		460
cd/m²
436
cd/m²		464
cd/m²		458
cd/m²
Distribution av ljusstyrkan
LPM135M467 tested with X-Rite i1Pro 2
Max: 465 cd/m² (Nits) Medel: 450.6 cd/m² Minimum: 6.7 cd/m²
Distribution av ljusstyrkan: 92 %
Mitt på batteriet: 465 cd/m²
Kontrast: 1661:1 (Svärta: 0.28 cd/m²)
ΔE Color 2 | 0.5-29.43 Ø4.92, calibrated: 0.7
ΔE Greyscale 2.9 | 0.5-98 Ø5.2
68.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
98% sRGB (Argyll 2.2.0 3D)
66.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.09
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
LPM135M467, IPS LED, 2256x1504, 13.5"		Lenovo ThinkPad X1 Yoga G6-20Y0S00200
LP140WU1-SPB1, IPS, 1920x1200, 14"		Lenovo ThinkPad X13 Yoga G2
LP133WQ1-SPF2, IPS LED, 2560x1600, 13.3"		HP Elite Dragonfly Max
InfoVision X133NVFL R0, IPS, 1920x1080, 13.3"		Dell Latitude 12 7210 2-in-1
Sharp LQ123N1, IPS, 1920x1280, 12.3"		Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
LPM135M467, IPS, 2256x1504, 13.5"
Display
3%
2%
0%
Display P3 Coverage
66.8
69.8
4%
68.3
2%
67.9
2%
sRGB Coverage
98
97.1
-1%
99.1
1%
96.8
-1%
AdobeRGB 1998 Coverage
68.6
72.2
5%
70.3
2%
68.8
0%
Response Times
37%
23%
29%
60%
31%
Response Time Grey 50% / Grey 80% *
64 ?(34, 30)
49.2 ?(22.8, 26.4)
23%
52 ?(22, 30)
19%
44.8 ?(20.4, 24.4)
30%
29 ?(4, 25)
55%
53.6 ?(26, 27.6)
16%
Response Time Black / White *
44 ?(22, 22)
22 ?(7.6, 14.4)
50%
32 ?(20, 12)
27%
32 ?(18.8, 13.2)
27%
16 ?(4, 12)
64%
24 ?(9.2, 14.8)
45%
PWM Frequency
1250 ?(30)
Screen
-20%
13%
2%
-11%
6%
Brightness middle
465
417
-10%
460
-1%
777.5
67%
380
-18%
466
0%
Brightness
451
404
-10%
423
-6%
727
61%
378
-16%
454
1%
Brightness Distribution
92
93
1%
85
-8%
75
-18%
86
-7%
94
2%
Black Level *
0.28
0.22
21%
0.33
-18%
0.44
-57%
0.31
-11%
0.23
18%
Contrast
1661
1895
14%
1394
-16%
1767
6%
1226
-26%
2026
22%
Colorchecker dE 2000 *
2
2.8
-40%
1
50%
1.62
19%
2.28
-14%
2.1
-5%
Colorchecker dE 2000 max. *
4.7
4.7
-0%
1.5
68%
5.26
-12%
3.93
16%
4.5
4%
Colorchecker dE 2000 calibrated *
0.7
1.6
-129%
0.8
-14%
1.32
-89%
0.97
-39%
Greyscale dE 2000 *
2.9
3.7
-28%
1.2
59%
1.6
45%
2.56
12%
2.7
7%
Gamma
2.09 105%
2.08 106%
2.26 97%
2.2 100%
2.32 95%
2.08 106%
CCT
6181 105%
6545 99%
6652 98%
6538 99%
6130 106%
6210 105%
Color Space (Percent of AdobeRGB 1998)
65.9
64.4
72.3
63
61.1
Color Space (Percent of sRGB)
96.6
99.12
94.8
97
94.9
Total Average (Program / Settings)
7% / -7%
13% / 12%
16% / 7%
16% / 1%
19% / 11%

* ... smaller is better

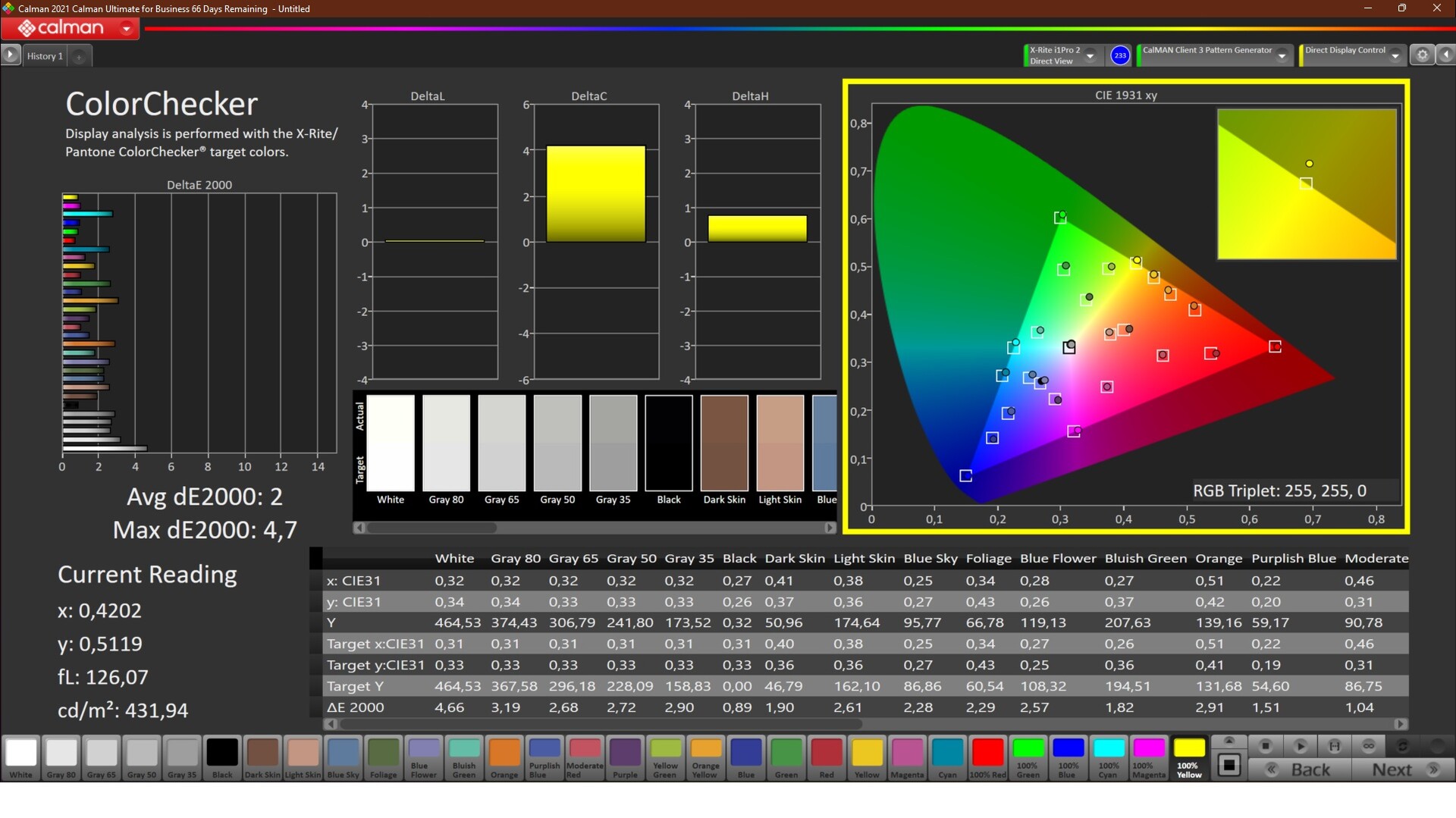

Färger
Färger

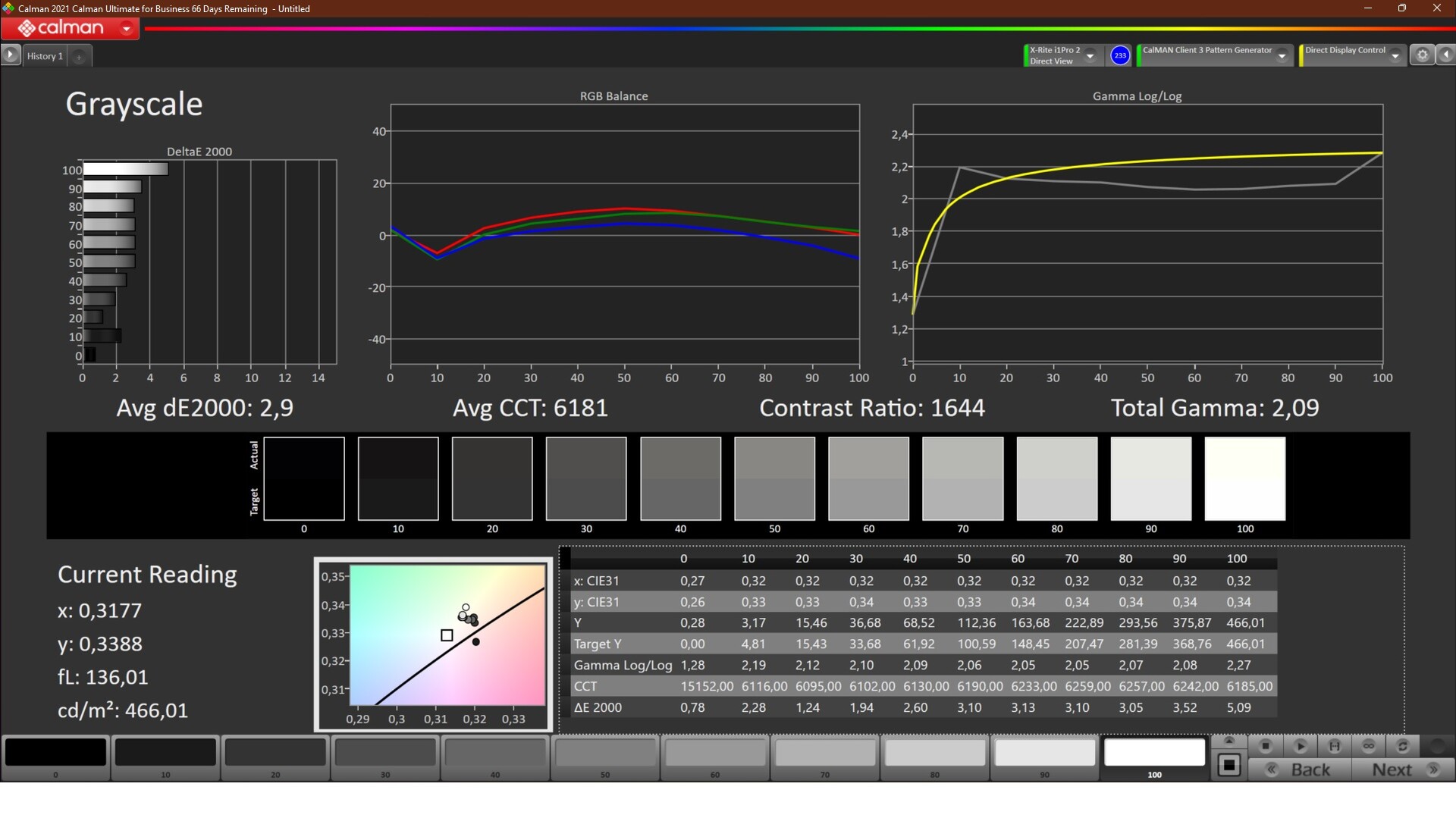

Gråskala
Gråskala

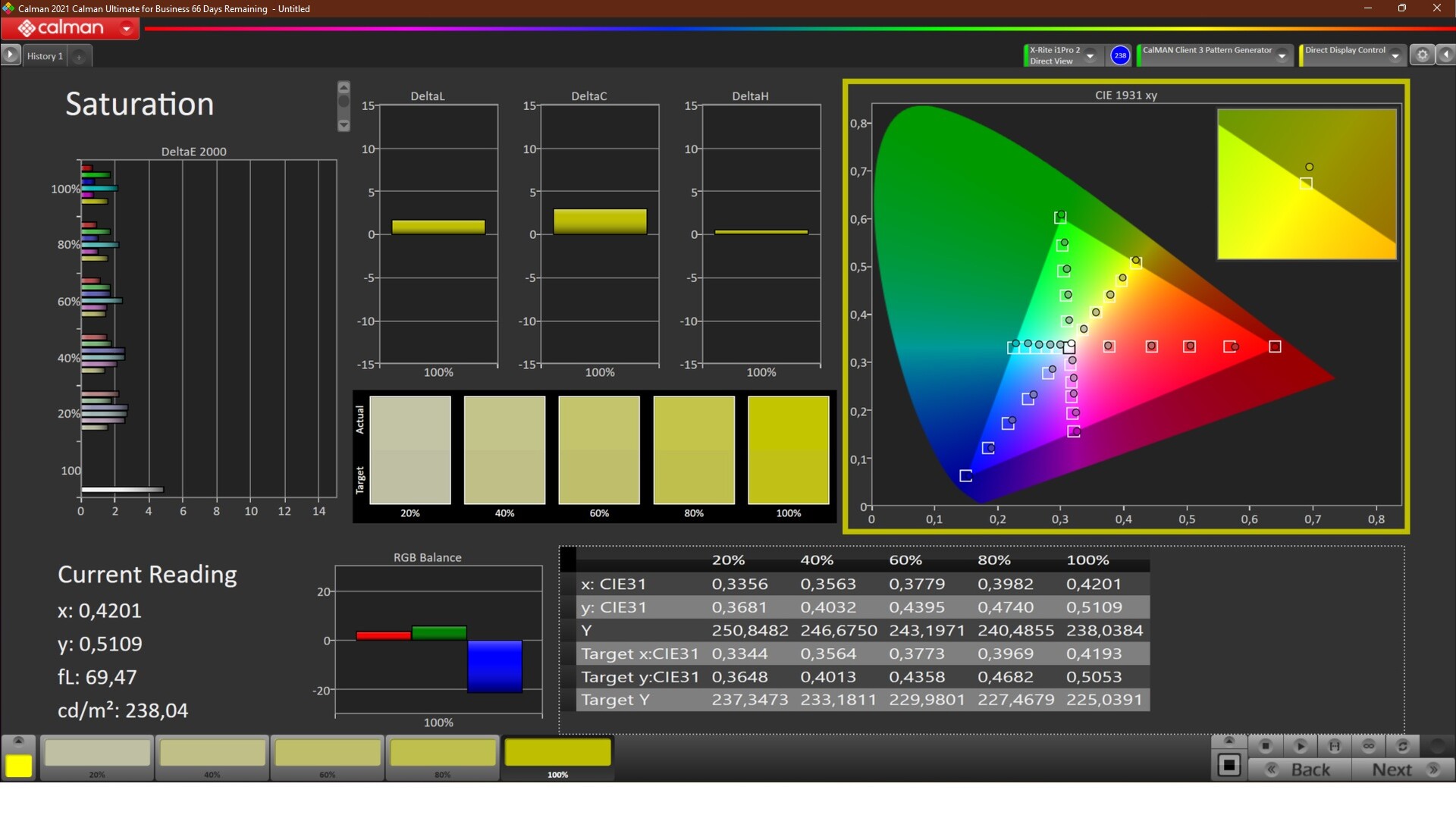

Mättnad
Mättnad
Färger (kalibrerade)
Färger (kalibrerade)
Gråskala (kalibrerad)
Gråskala (kalibrerad)

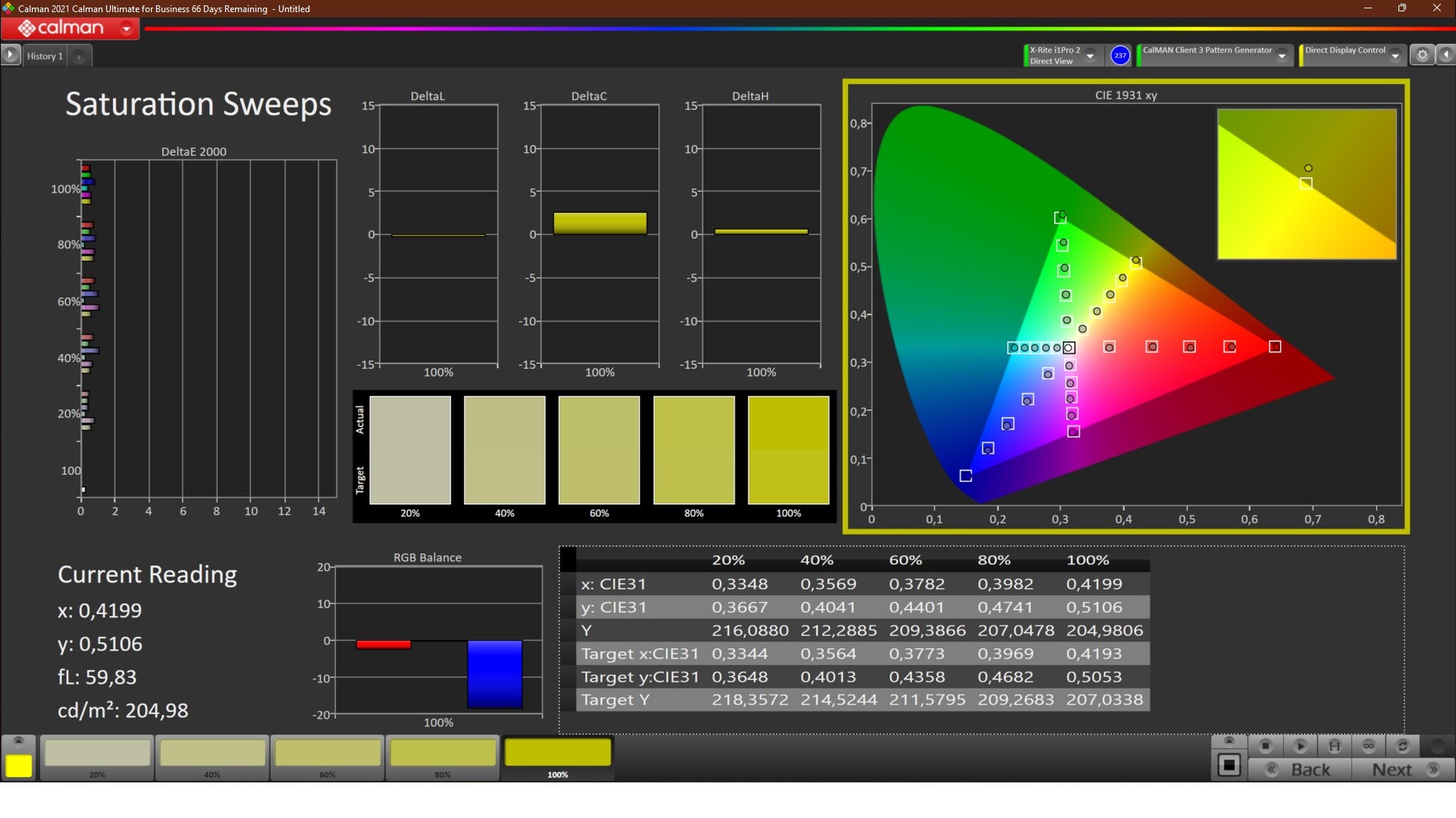

Mättnad (kalibrerad)
Mättnad (kalibrerad)

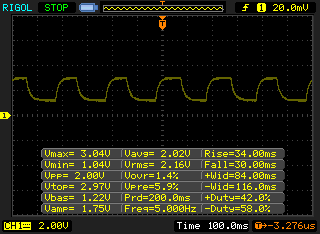

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

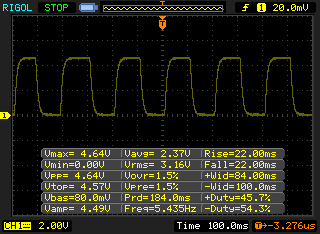

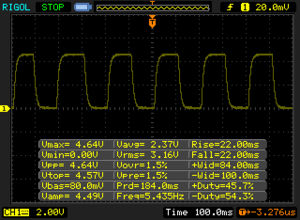

   ↔    Response Time Black to White
44 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 98 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

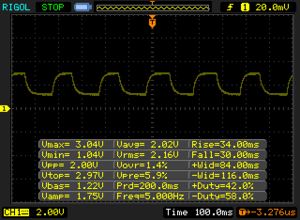

   ↔    Response Time 50% Grey to 80% Grey
64 ms ... rise ↗ and fall ↘ combined↗ 34 ms rise
↘ 30 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 97 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

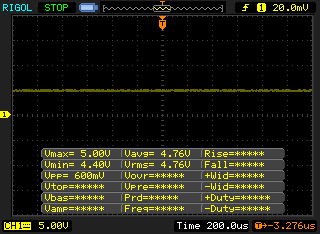

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured.

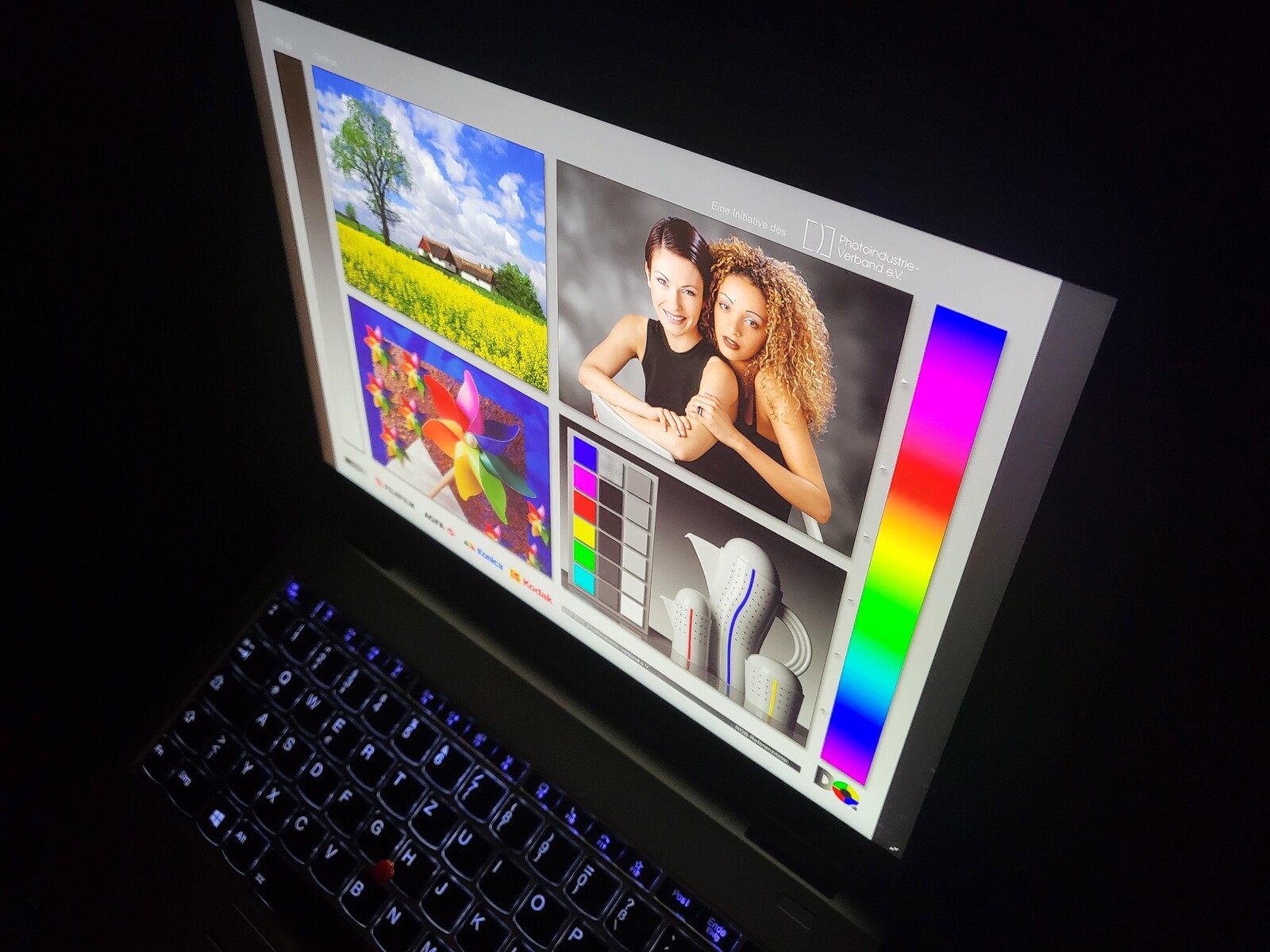

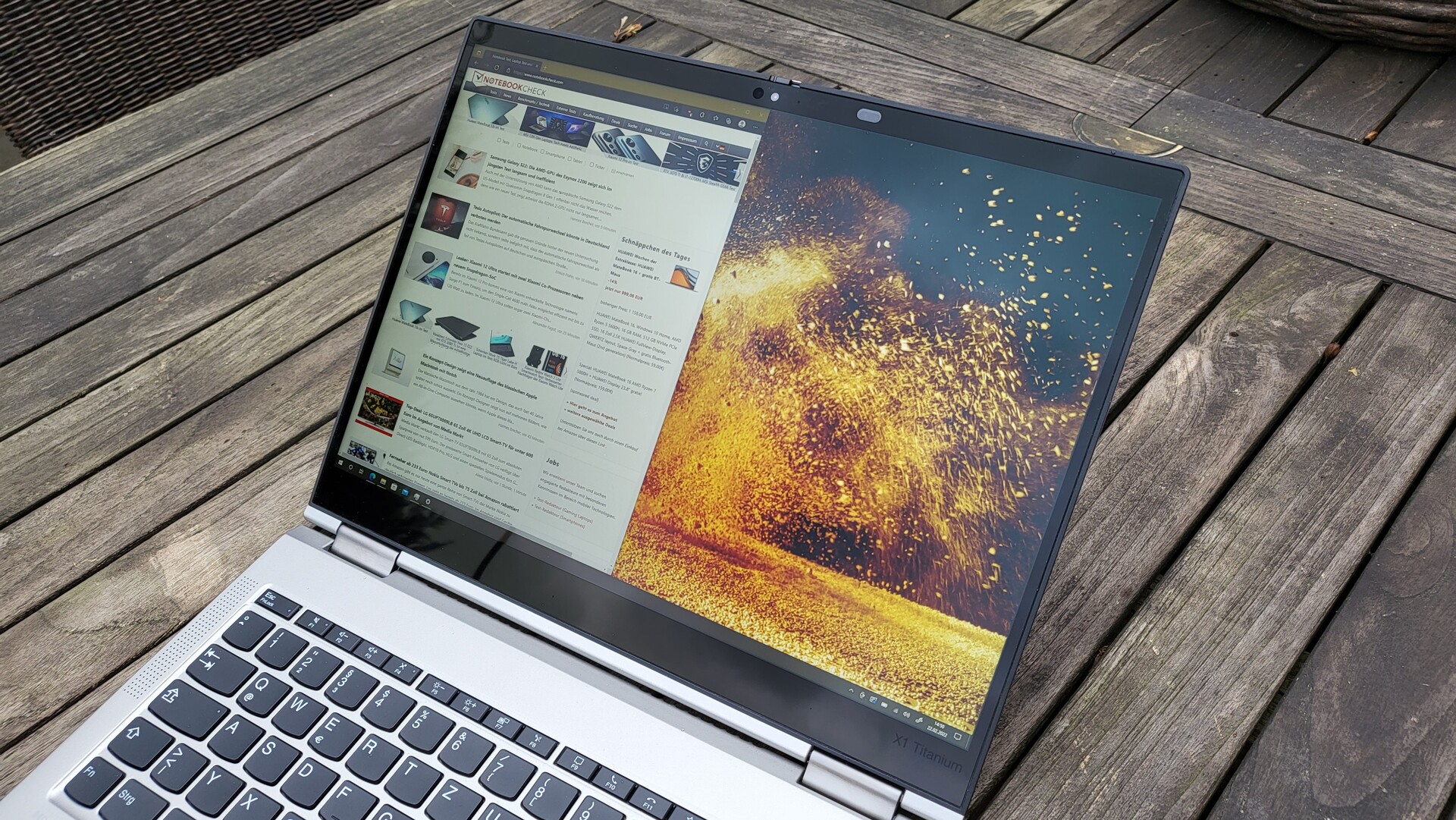

Utomhus (i skuggan)
Utomhus (i skuggan)
Betraktningsvinkel (ovanifrån)
Betraktningsvinkel (ovanifrån)
Betraktningsvinkel (underifrån)
Betraktningsvinkel (underifrån)

Prestanda - Lenovo X1 Titaniums akilleshäl

Fyra Intel Tiger-Lake UP4-processorer finns tillgängliga för ThinkPad X1 Titanium Yoga: Den Core i5-1130G7, den i5-1140G7, den i7-1160G7och i7-1180G7. Denna ultratunna ThinkPad har visserligen ingen diskret grafikprocessor. Användarna får nöja sig med den integrerade iGPU:n Intel Iris Xe med 80 EUsmed i5-konfigurationen, och med i5-konfigurationen Iris Xe med 96 EUsvid i7-konfiguration.

Lenovo förser processorn och GPU:n med 8-16 GB snabbt LPDDR4X-4266-minne, som är fastlödda på moderkortet. Åtta gigabyte arbetsminne erbjuds uteslutande i kombination med i5-processorerna. För SSD:n väljer Lenovo den ovanliga formfaktorn M.2 2242 med enkelsidig montering. Det finns endast en M.2-plats för SSD:en.

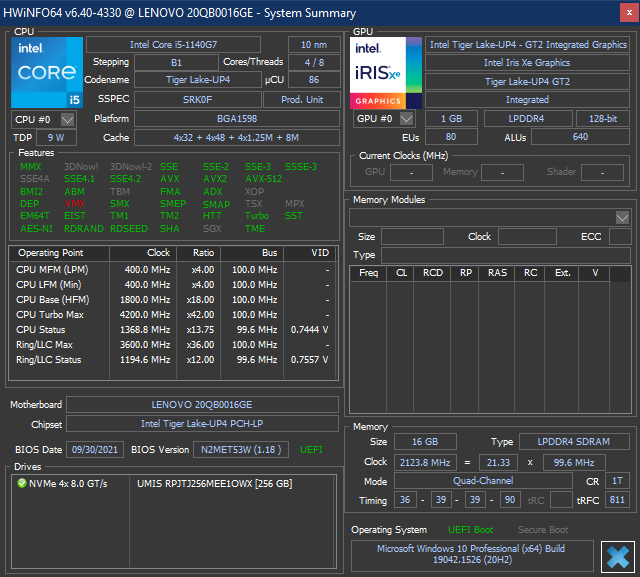

HWiNFO
HWiNFO

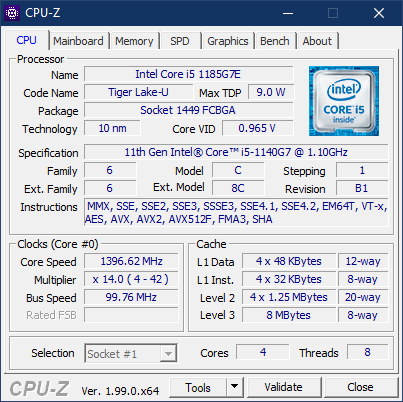

CPU-Z
CPU-Z

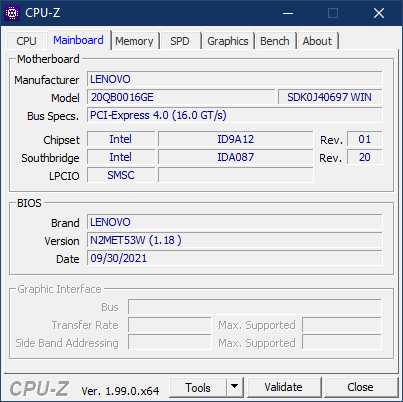

CPU-Z Mainboard
CPU-Z Mainboard

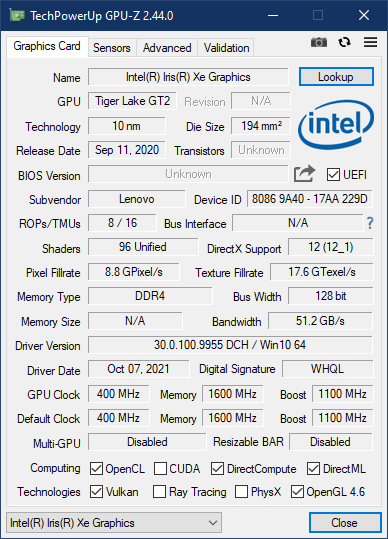

GPU-Z
GPU-Z

Provningsvillkor

Lenovo ThinkPad X1 Titanium Yoga har tre olika driftlägen som kan ställas in via Windows energiinställningar. I läget "Bästa energibesparing" är Boost TDP endast 10 watt och 7 watt förbrukas permanent. I inställningen "Balanserad" ökar Boost TDP till 15 watt och den permanenta effektgränsen till 10 watt. Profilen "bästa prestanda" måste vara aktiv för maximal prestanda. Här är boost TDP 35 watt och CPU:n har en termisk budget på 12 watt under längre belastning.

Processor

Intel Core i5-1140G7 är vPro-varianten av Core i5-1130G7. Jämfört med den sistnämnda är den maximala klockan för de fyra Tiger Lake -kärnorna cirka 200 MHz högre (1,8 till 4,2 GHz). Eftersom det är en UP4-processor är den typiska TDP endast 15 watt, men som vi fann i ThinkPad X1 Nano kan tillverkarna ignorera denna specifikation och använda mycket högre värden.

Det motsatta gäller för ThinkPad X1 Titanium Yoga som redan beskrivits i testvillkoren: den bärbara datorn från Lenovo får inte mer än 12 watt nedkylt i längden. Prestandakurvan visar sig också vara instabil: den sjunker efter det första testet och blir sedan konstant. I detta avseende finns det ingen förändring jämfört med det tidigare testade exemplaret, eventuella uppdateringar av den fasta programvaran sedan det första testet orsakade inga förändringar. Sammantaget är prestandan något lägre jämfört med X1 Titanium med i7, som har ett övertag när det gäller att öka prestandan och enkelkärnig drift på grund av den högre klockfrekvensen.


Cinebench R15 Multi Constant Load Test

050100150200250300350400450500550600650700750800850900Tooltip
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE Intel Core i5-1140G7: Ø472 (411.56-629.91)
Lenovo ThinkPad X1 Yoga G6-20Y0S00200 Intel Core i7-1165G7: Ø804 (719.39-910.5)
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7: Ø654 (610.84-834.6)
HP Elite Dragonfly Max Intel Core i7-1185G7: Ø569 (508.72-617.22)
Dell Latitude 12 7210 2-in-1 Intel Core i7-10610U: Ø549 (532.2-581.16)
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE Intel Core i7-1160G7: Ø515 (481.9-753.14)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Average of class Convertible

87.1 pt
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
64.8 pt
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
55.9 pt
HP Elite Dragonfly Max
Intel Core i7-1185G7
55.7 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
50.6 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
44.5 pt
Average Intel Core i5-1140G7

44.5 pt
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
44.1 pt
Cinebench R23 / Multi Core
Average of class Convertible
  (616 - 18070, n=63, last 2 years)
10263 Points +293%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
5751 Points +120%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
4754 Points +82%
HP Elite Dragonfly Max
Intel Core i7-1185G7
3861 (3696.44min - 3861max) Points +48%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
3852 Points +48%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
3233 Points +24%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
2611 Points
Average Intel Core i5-1140G7
  ()
2611 Points 0%
Cinebench R23 / Single Core
Average of class Convertible
  (308 - 1970, n=63, last 2 years)
1610 Points +29%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
1473 Points +18%
HP Elite Dragonfly Max
Intel Core i7-1185G7
1401 Points +12%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
1305 Points +5%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
1266 Points +2%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
1246 Points
Average Intel Core i5-1140G7
  ()
1246 Points 0%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
1151 Points -8%
Cinebench R20 / CPU (Multi Core)
Average of class Convertible
  (242 - 6954, n=63, last 2 years)
3888 Points +245%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
2174 Points +93%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
1510 Points +34%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
1473 Points +31%
HP Elite Dragonfly Max
Intel Core i7-1185G7
1451 Points +29%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
1224 Points +9%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
1126 Points
Average Intel Core i5-1140G7
  ()
1126 Points 0%
Cinebench R20 / CPU (Single Core)
Average of class Convertible
  (149.8 - 755, n=62, last 2 years)
617 Points +41%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
559 Points +28%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
544 Points +24%
HP Elite Dragonfly Max
Intel Core i7-1185G7
543 Points +24%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
484 Points +11%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
452 Points +3%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
438 Points
Average Intel Core i5-1140G7
  ()
438 Points 0%
Cinebench R15 / CPU Multi 64Bit
Average of class Convertible
  (110.1 - 2889, n=65, last 2 years)
1718 Points +173%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
911 (719.39min - 910.5max) Points +45%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
835 (610.84min - 834.6max) Points +33%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
753 Points +20%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
630 (411.56min - 629.91max) Points
Average Intel Core i5-1140G7
  ()
630 Points 0%
HP Elite Dragonfly Max
Intel Core i7-1185G7
617 (508.72min - 617.22max) Points -2%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
579 Points -8%
Cinebench R15 / CPU Single 64Bit
Average of class Convertible
  (68.6 - 287, n=62, last 2 years)
235 Points +31%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
219 Points +22%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
210 Points +17%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
195 Points +9%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
179 Points
Average Intel Core i5-1140G7
  ()
179 Points 0%
HP Elite Dragonfly Max
Intel Core i7-1185G7
168 Points -6%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
133 Points -26%
Blender / v2.79 BMW27 CPU
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
993 Seconds *
Average Intel Core i5-1140G7
  ()
993 Seconds * -0%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
900 Seconds * +9%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
798 Seconds * +20%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
778 Seconds * +22%
HP Elite Dragonfly Max
Intel Core i7-1185G7
738 Seconds * +26%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
602 Seconds * +39%
Average of class Convertible
  (193 - 1059, n=59, last 2 years)
368 Seconds * +63%
7-Zip 18.03 / 7z b 4
Average of class Convertible
  (12977 - 72400, n=60, last 2 years)
42699 MIPS +182%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
23698 MIPS +56%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
20211 MIPS +33%
HP Elite Dragonfly Max
Intel Core i7-1185G7
19688 MIPS +30%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
16540 MIPS +9%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
15740 MIPS +4%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
15167 MIPS
Average Intel Core i5-1140G7
  ()
15167 MIPS 0%
7-Zip 18.03 / 7z b 4 -mmt1
Average of class Convertible
  (3672 - 6493, n=60, last 2 years)
5229 MIPS +24%
HP Elite Dragonfly Max
Intel Core i7-1185G7
5100 MIPS +21%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
5017 MIPS +19%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
4934 MIPS +17%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
4621 MIPS +10%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
4201 MIPS
Average Intel Core i5-1140G7
  ()
4201 MIPS 0%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
4136 MIPS -2%
Geekbench 5.5 / Multi-Core
Average of class Convertible
  (663 - 14016, n=63, last 2 years)
8658 Points +121%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
5805 Points +48%
HP Elite Dragonfly Max
Intel Core i7-1185G7
5258 Points +34%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
4991 Points +27%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
4224 Points +8%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
4117 Points +5%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
3921 Points
Average Intel Core i5-1140G7
  ()
3921 Points 0%
Geekbench 5.5 / Single-Core
Average of class Convertible
  (319 - 2003, n=63, last 2 years)
1642 Points +21%
HP Elite Dragonfly Max
Intel Core i7-1185G7
1520 Points +12%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
1513 Points +12%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
1477 Points +9%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
1465 Points +8%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
1353 Points
Average Intel Core i5-1140G7
  ()
1353 Points 0%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
1155 Points -15%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Convertible
  (0.73 - 20.1, n=62, last 2 years)
11.3 fps +196%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
6.04 fps +58%
HP Elite Dragonfly Max
Intel Core i7-1185G7
5.12 fps +34%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
5 fps +31%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
4.57 fps +20%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
4.24 fps +11%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
3.82 fps
Average Intel Core i5-1140G7
  ()
3.82 fps 0%
LibreOffice / 20 Documents To PDF
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
67 s * -31%
Average of class Convertible
  (42 - 121.5, n=59, last 2 years)
51.5 s * -0%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
51.3 s *
Average Intel Core i5-1140G7
  ()
51.3 s * -0%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
49.8 s * +3%
HP Elite Dragonfly Max
Intel Core i7-1185G7
45.9 s * +11%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
44.3 s * +14%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
40.7 s * +21%
R Benchmark 2.5 / Overall mean
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U
0.781 sec * -7%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7
0.729 sec *
Average Intel Core i5-1140G7
  ()
0.729 sec * -0%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7
0.647 sec * +11%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7
0.615 sec * +16%
HP Elite Dragonfly Max
Intel Core i7-1185G7
0.599 sec * +18%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7
0.596 sec * +18%
Average of class Convertible
  (0.4102 - 1.013, n=59, last 2 years)
0.517 sec * +29%

* ... smaller is better

Cinebench R10 Rendering Multiple CPUs 32Bit
19199
Cinebench R10 Rendering Single 32Bit
7771
Cinebench R11.5 CPU Single 64Bit
2.25 Points
Cinebench R11.5 CPU Multi 64Bit
7.06 Points
Cinebench R15 CPU Single 64Bit
179 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
75.6 fps
Cinebench R15 CPU Multi 64Bit
630 Points
Cinebench R20 CPU (Single Core)
438 Points
Cinebench R20 CPU (Multi Core)
1126 Points
Cinebench R23 Multi Core
2611 Points
Cinebench R23 Single Core
1246 Points
Hjälp
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating
Average of class Convertible

96.4 pt
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
74.3 pt
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
64.3 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
57.5 pt
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
56.5 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
53.9 pt
Average Intel Core i5-1140G7

53.9 pt
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
50.6 pt
AIDA64 / FP32 Ray-Trace
Average of class Convertible
  (468 - 25226, n=63, last 2 years)
9993 KRay/s +131%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
7110 KRay/s +64%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
5623 KRay/s +30%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
4922 KRay/s +14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
4381 KRay/s +1%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
4324 KRay/s
Average Intel Core i5-1140G7
  ()
4324 KRay/s 0%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
4052 KRay/s -6%
AIDA64 / FPU Julia
Average of class Convertible
  (2644 - 106512, n=62, last 2 years)
50581 Points +124%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
29298 Points +30%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
27234 Points +21%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
24205 Points +7%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
22541 Points
Average Intel Core i5-1140G7
  ()
22541 Points 0%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
21038 Points -7%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
20810 Points -8%
AIDA64 / CPU SHA3
Average of class Convertible
  (182 - 4764, n=62, last 2 years)
2385 MB/s +55%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
1949 MB/s +27%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
1617 MB/s +5%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
1572 MB/s +2%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
1540 MB/s
Average Intel Core i5-1140G7
  ()
1540 MB/s 0%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
1468 MB/s -5%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
1350 MB/s -12%
AIDA64 / CPU Queen
Average of class Convertible
  (10502 - 120368, n=62, last 2 years)
69661 Points +87%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
51815 Points +39%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
50561 Points +35%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
50403 Points +35%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
50053 Points +34%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
43912 Points +18%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
37316 Points
Average Intel Core i5-1140G7
  ()
37316 Points 0%
AIDA64 / FPU SinJulia
Average of class Convertible
  (659 - 14835, n=62, last 2 years)
6921 Points +123%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
4793 Points +54%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
4339 Points +40%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
3870 Points +24%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
3528 Points +13%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
3280 Points +5%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
3110 Points
Average Intel Core i5-1140G7
  ()
3110 Points 0%
AIDA64 / FPU Mandel
Average of class Convertible
  (1420 - 56839, n=62, last 2 years)
25716 Points +107%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
17707 Points +42%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
14992 Points +20%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
13771 Points +11%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
12969 Points +4%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
12447 Points
Average Intel Core i5-1140G7
  ()
12447 Points 0%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
12083 Points -3%
AIDA64 / CPU AES
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
69045 MB/s +27%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
58411 MB/s +7%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
57314 MB/s +5%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
54364 MB/s
Average Intel Core i5-1140G7
  ()
54364 MB/s 0%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
52577 MB/s -3%
Average of class Convertible
  (1279 - 169089, n=62, last 2 years)
49947 MB/s -8%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
17672 MB/s -67%
AIDA64 / CPU ZLib
Average of class Convertible
  (61.4 - 1088, n=62, last 2 years)
670 MB/s +185%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
363 MB/s +54%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
333 MB/s +42%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
291 MB/s +24%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
257 MB/s +9%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
235 MB/s
Average Intel Core i5-1140G7
  ()
235 MB/s 0%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
232 MB/s -1%
AIDA64 / FP64 Ray-Trace
Average of class Convertible
  (254 - 13175, n=62, last 2 years)
5261 KRay/s +130%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
3832 KRay/s +68%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
3054 KRay/s +34%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
2681 KRay/s +17%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
2290 KRay/s 0%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
2287 KRay/s
Average Intel Core i5-1140G7
  ()
2287 KRay/s 0%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
2163 KRay/s -5%
AIDA64 / CPU PhotoWorxx
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
40256 MPixel/s +22%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
40158 MPixel/s +22%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
37929 MPixel/s +15%
Average of class Convertible
  (5136 - 53406, n=62, last 2 years)
36802 MPixel/s +12%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
32979 MPixel/s
Average Intel Core i5-1140G7
  ()
32979 MPixel/s 0%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
31191 MPixel/s -5%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
19128 MPixel/s -42%

Systemprestanda

Till skillnad från CPU-prestanda är det inte någon större skillnad mot i7-modellen när det gäller systemprestanda. Lenovo ThinkPad X1 Titanium Yoga körs snabbt vid daglig användning.

PCMark 10: Score | Essentials | Productivity | Digital Content Creation
PCMark 10 / Score
Average of class Convertible
  (1486 - 7963, n=59, last 2 years)
5978 Points +34%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
5454 Points +22%
Lenovo ThinkPad X13 Yoga G2
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
5146 Points +15%
HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G
4932 Points +10%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Iris Xe G7 96EUs, i7-1160G7, Toshiba BG4 KBG40ZNT512G
4554 Points +2%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
4471 Points
Average Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
  ()
4471 Points 0%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
4120 Points -8%
PCMark 10 / Essentials
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
11505 Points +17%
Lenovo ThinkPad X13 Yoga G2
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
10706 Points +9%
HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G
10664 Points +8%
Average of class Convertible
  (3975 - 12059, n=59, last 2 years)
10581 Points +8%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Iris Xe G7 96EUs, i7-1160G7, Toshiba BG4 KBG40ZNT512G
10372 Points +5%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
9832 Points
Average Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
  ()
9832 Points 0%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
8541 Points -13%
PCMark 10 / Productivity
Average of class Convertible
  (2764 - 10800, n=59, last 2 years)
7965 Points +30%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
6964 Points +14%
HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G
6904 Points +13%
Lenovo ThinkPad X13 Yoga G2
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
6779 Points +10%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
6710 Points +9%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Iris Xe G7 96EUs, i7-1160G7, Toshiba BG4 KBG40ZNT512G
6602 Points +8%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
6135 Points
Average Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
  ()
6135 Points 0%
PCMark 10 / Digital Content Creation
Average of class Convertible
  (811 - 12360, n=59, last 2 years)
7035 Points +75%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
5495 Points +37%
Lenovo ThinkPad X13 Yoga G2
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
5096 Points +27%
HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G
4424 Points +10%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
4021 Points
Average Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
  ()
4021 Points 0%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Iris Xe G7 96EUs, i7-1160G7, Toshiba BG4 KBG40ZNT512G
3744 Points -7%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
3313 Points -18%
PCMark 10 Score
4471 poäng
Hjälp
AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency
AIDA64 / Memory Copy
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
65183 MB/s +17%
Average of class Convertible
  (16353 - 108544, n=62, last 2 years)
64619 MB/s +16%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
61324 MB/s +10%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
58924 MB/s +6%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
57065 MB/s +2%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
55822 MB/s
Average Intel Core i5-1140G7
  ()
55822 MB/s 0%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
28179 MB/s -50%
AIDA64 / Memory Read
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
61384 MB/s +7%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
61000 MB/s +7%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
60992 MB/s +7%
Average of class Convertible
  (12706 - 125359, n=62, last 2 years)
58210 MB/s +2%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
57227 MB/s 0%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
57202 MB/s
Average Intel Core i5-1140G7
  ()
57202 MB/s 0%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
30129 MB/s -47%
AIDA64 / Memory Write
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
66873 MB/s +8%
Average of class Convertible
  (10177 - 117920, n=62, last 2 years)
65576 MB/s +6%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
63600 MB/s +3%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
62948 MB/s +2%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
62310 MB/s +1%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
61910 MB/s
Average Intel Core i5-1140G7
  ()
61910 MB/s 0%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
31746 MB/s -49%
AIDA64 / Memory Latency
Average of class Convertible
  (7.4 - 173, n=62, last 2 years)
113.1 ns * -22%
Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, UHD Graphics 620
106 ns * -14%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Iris Xe G7 96EUs
105 ns * -13%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Iris Xe G7 80EUs
92.6 ns *
Average Intel Core i5-1140G7
  ()
92.6 ns * -0%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Iris Xe G7 96EUs
89.1 ns * +4%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Iris Xe G7 96EUs
87.7 ns * +5%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Iris Xe G7 96EUs
82.8 ns * +11%

* ... smaller is better

DPC-fördröjningar

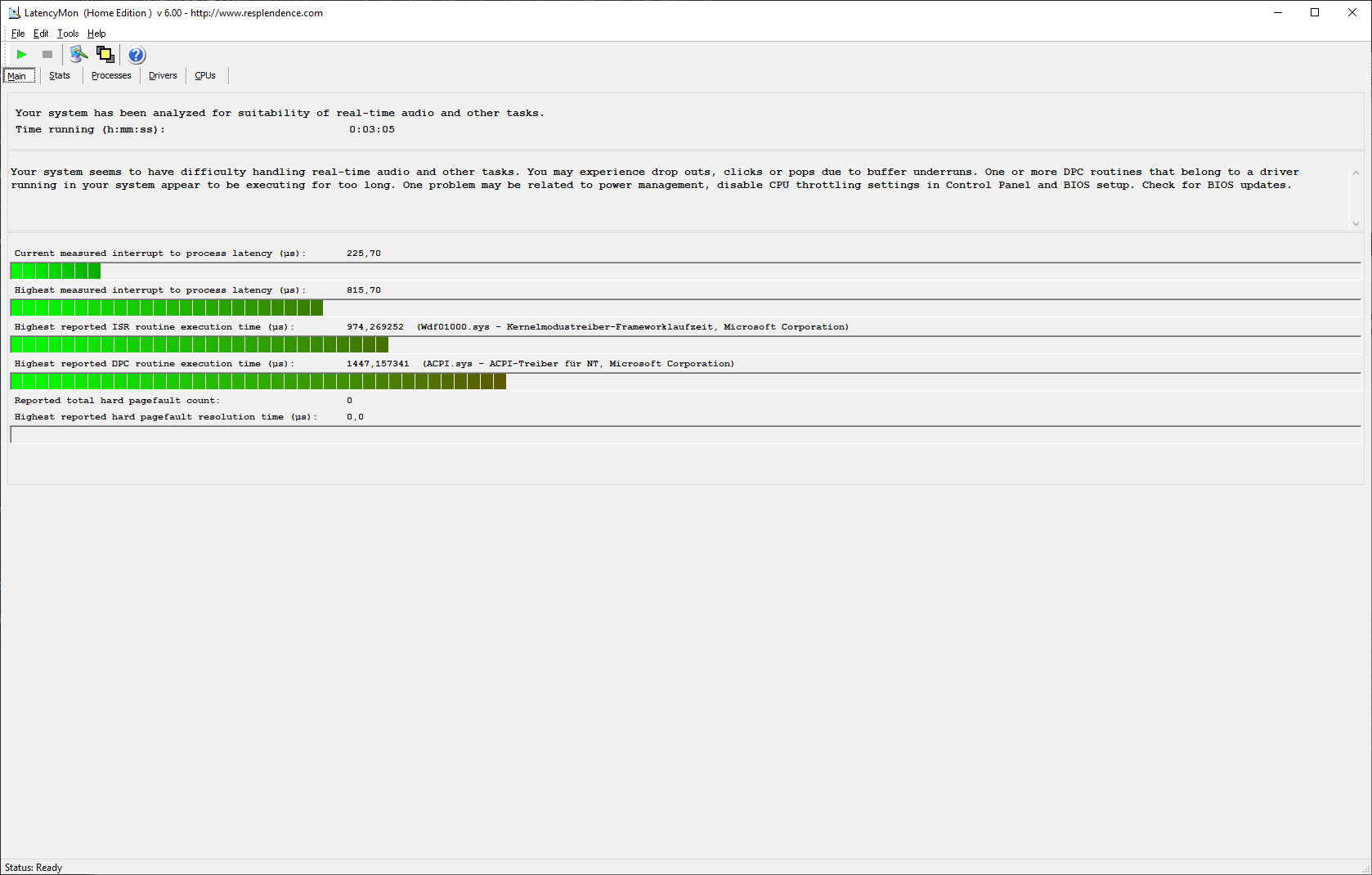

LatencyMon
LatencyMon

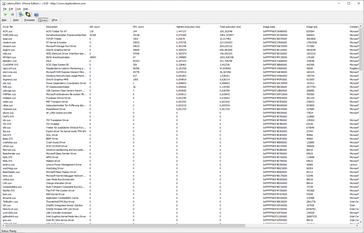

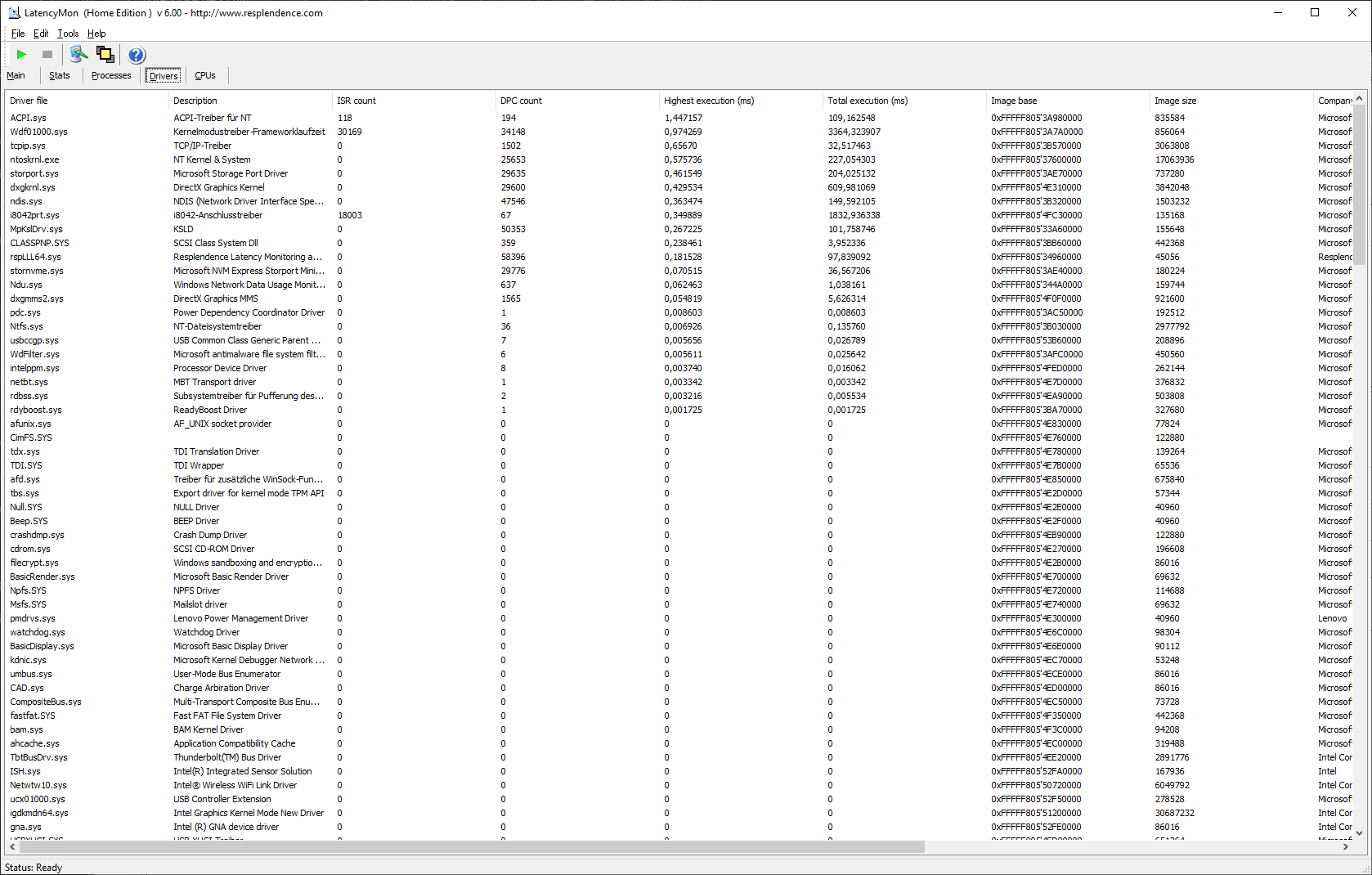

LatencyMon drivrutiner
LatencyMon drivrutiner
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR
3706 μs * -354%
HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G
3249 μs * -298%
Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
1737 μs * -113%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Iris Xe G7 96EUs, i7-1160G7, Toshiba BG4 KBG40ZNT512G
1437 μs * -76%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX
816 μs *
Lenovo ThinkPad X13 Yoga G2
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00
618 μs * +24%

* ... smaller is better

Lagringslösning

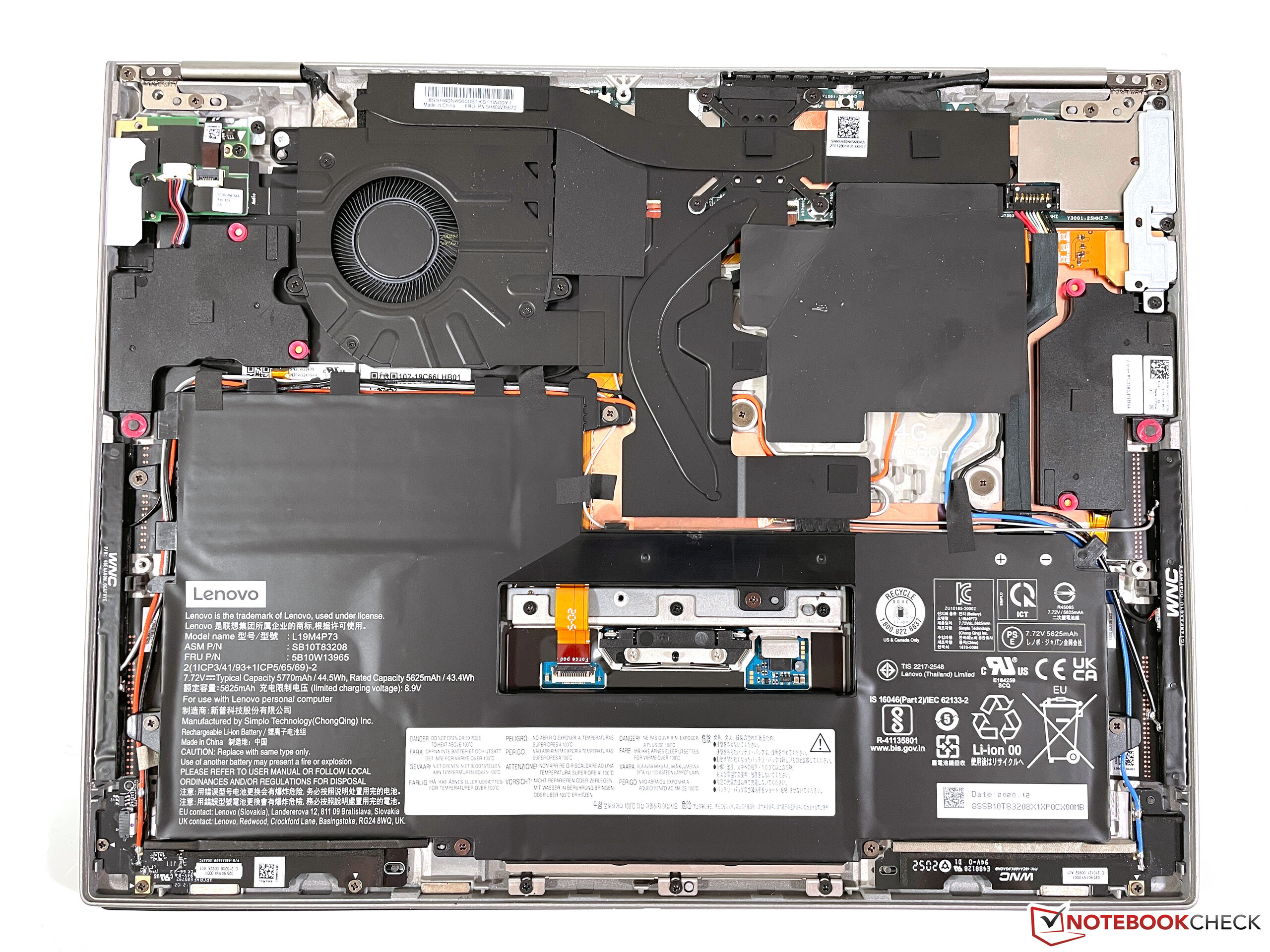

Lenovo ThinkPad X1 Titanium Yoga använder den ovanliga formfaktorn M.2 2242, vilket innebär att SSD-enheten endast kan ha en enkelsidig konfiguration på grund av den låga höjden på kortplatsen. Dessutom är NVMe-SSD:n begränsad till PCIe 3.0. Följaktligen är SSD-prestandan svagare jämfört med den ThinkPad X1 Yoga G6som är utrustad med en PCIe 4.0 SSD.

AS SSD
DiskSpd
hddimg
Lenovo UMIS RPJTJ256MEE1OWX
Sequential Read: 1887MB/s
Sequential Write: 1198MB/s
4K Read: 62.1MB/s
4K Write: 215.6MB/s
4K-64 Read: 489.4MB/s
4K-64 Write: 639MB/s
Access Time Read: 0.06ms
Access Time Write: 0.019ms
Score Read: 740Points
Score Write: 975Points
Score Total: 2081Points
Drive Performance Rating | DiskSpd | AS SSD
Drive Performance Rating - Percent
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
97.9 pt
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
52.2 pt
Average of class Convertible

52 pt
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
44.5 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
43.8 pt
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
41.1 pt
Average Lenovo UMIS RPJTJ256MEE1OWX

38.6 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
36.7 pt
DiskSpd
seq read
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
4457 (4233.73min - 4457.39max) MB/s +141%
Average of class Convertible
  (321 - 4714, n=61, last 2 years)
2699 MB/s +46%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
2232 (2140.98min - 2231.94max) MB/s +21%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1849 (1839.72min - 1848.93max) MB/s
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
1775 (1518.24min - 1774.84max) MB/s -4%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (1458 - 1911, n=4)
1713 MB/s -7%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
1424 (1415.89min - 1424.47max) MB/s -23%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
1363 (1352.64min - 1363.15max) MB/s -26%
seq write
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
4237 (4211.88min - 4236.96max) MB/s +229%
Average of class Convertible
  (195.5 - 5301, n=61, last 2 years)
2529 MB/s +97%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
1919 (1800.16min - 1918.68max) MB/s +49%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
1767 (1706.96min - 1767.3max) MB/s +37%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1286 (852.26min - 1285.5max) MB/s
Average Lenovo UMIS RPJTJ256MEE1OWX
  (1110 - 1286, n=4)
1222 MB/s -5%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
975 (936.15min - 975.05max) MB/s -24%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
444 (436.38min - 444.34max) MB/s -65%
seq q8 t1 read
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
6688 (5948.78min - 6687.65max) MB/s +213%
Average of class Convertible
  (399 - 7152, n=61, last 2 years)
4642 MB/s +117%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
3405 (2986.03min - 3404.84max) MB/s +59%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
3277 (2843.74min - 3276.75max) MB/s +53%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
2468 (1688.4min - 2467.61max) MB/s +16%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
2196 (2031.01min - 2196.34max) MB/s +3%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
2135 (2000.05min - 2134.62max) MB/s
Average Lenovo UMIS RPJTJ256MEE1OWX
  (1755 - 2139, n=4)
2042 MB/s -4%
seq q8 t1 write
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
4928 (4914.89min - 4927.89max) MB/s +452%
Average of class Convertible
  (215 - 5667, n=61, last 2 years)
3391 MB/s +280%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
3070 (2459.44min - 3070.23max) MB/s +244%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
2936 (2928.7min - 2936.22max) MB/s +229%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (892 - 1290, n=4)
1188 MB/s +33%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
1075 (1020.63min - 1075.21max) MB/s +21%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
892 (620.13min - 891.92max) MB/s
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
446 (426.76min - 446.27max) MB/s -50%
4k q1 t1 read
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
93.9 (93.59min - 93.89max) MB/s +54%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
61.8 (60.92min - 61.84max) MB/s +1%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
61 (60.92min - 60.96max) MB/s
Average of class Convertible
  (11.3 - 90.3, n=61, last 2 years)
57.7 MB/s -5%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (42.6 - 62.5, n=4)
53.3 MB/s -13%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
53.2 (52.48min - 53.22max) MB/s -13%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
47.9 (46.84min - 47.85max) MB/s -21%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
39.5 (39.19min - 39.45max) MB/s -35%
4k q1 t1 write
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
250 (246.91min - 249.91max) MB/s
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
249 (247.46min - 248.6max) MB/s 0%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
192 (183.71min - 191.66max) MB/s -23%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (104.4 - 250, n=4)
176.6 MB/s -29%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
175 (172.38min - 174.9max) MB/s -30%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
143 (140.1min - 142.5max) MB/s -43%
Average of class Convertible
  (48.4 - 398, n=61, last 2 years)
141.9 MB/s -43%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
136 (118.01min - 135.52max) MB/s -46%
4k q32 t16 read
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
2833 (2537.95min - 2833.22max) MB/s +483%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
1278 (1272.48min - 1277.91max) MB/s +163%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
1080 (691.21min - 1079.81max) MB/s +122%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
1014 (640.06min - 1013.78max) MB/s +109%
Average of class Convertible
  (156.4 - 3881, n=61, last 2 years)
1003 MB/s +106%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
891 (879.88min - 890.84max) MB/s +83%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (462 - 844, n=4)
589 MB/s +21%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
486 (485.16min - 486.03max) MB/s
4k q32 t16 write
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
2378 (2031.57min - 2377.56max) MB/s +138%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1000 (886.78min - 1000.24max) MB/s
Average Lenovo UMIS RPJTJ256MEE1OWX
  (276 - 1000, n=4)
765 MB/s -23%
Average of class Convertible
  (99.8 - 3537, n=61, last 2 years)
690 MB/s -31%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
506 (411.74min - 506.07max) MB/s -49%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
500 (314.82min - 499.83max) MB/s -50%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
421 (362.77min - 421.13max) MB/s -58%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
268 (264.81min - 268.09max) MB/s -73%
AS SSD
Score Total
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
8020 Points +285%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
3824 Points +84%
Average of class Convertible
  (394 - 8028, n=59, last 2 years)
3690 Points +77%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
3389 Points +63%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
3197 Points +54%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
2316 Points +11%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
2081 Points
Average Lenovo UMIS RPJTJ256MEE1OWX
  (1441 - 2740, n=4)
1984 Points -5%
Score Read
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
3400 Points +359%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
1372 Points +85%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
1286 Points +74%
Average of class Convertible
  (186 - 3137, n=59, last 2 years)
1225 Points +66%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
1138 Points +54%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
828 Points +12%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (614 - 994, n=4)
759 Points +3%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
740 Points
Score Write
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
2938 Points +201%
Average of class Convertible
  (116 - 3348, n=59, last 2 years)
1896 Points +94%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
1809 Points +86%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
1527 Points +57%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
1460 Points +50%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
1087 Points +11%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
975 Points
Average Lenovo UMIS RPJTJ256MEE1OWX
  (550 - 1254, n=4)
858 Points -12%
Seq Read
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
4878 MB/s +159%
Average of class Convertible
  (473 - 5684, n=59, last 2 years)
3547 MB/s +88%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
2700 MB/s +43%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
2631 MB/s +39%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
2185 MB/s +16%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
1898 MB/s +1%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1887 MB/s
Average Lenovo UMIS RPJTJ256MEE1OWX
  (1629 - 1939, n=4)
1825 MB/s -3%
Seq Write
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
3660 MB/s +206%
Average of class Convertible
  (180 - 5229, n=59, last 2 years)
2152 MB/s +80%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
1731 MB/s +44%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
1483 MB/s +24%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
1280 MB/s +7%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
1198 MB/s
Average Lenovo UMIS RPJTJ256MEE1OWX
  (694 - 1209, n=4)
1069 MB/s -11%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
1065 MB/s -11%
4K Read
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
85.1 MB/s +37%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
62.1 MB/s
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
58 MB/s -7%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (47.9 - 63.4, n=4)
55.7 MB/s -10%
Average of class Convertible
  (11.4 - 82.4, n=59, last 2 years)
53.9 MB/s -13%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
50.4 MB/s -19%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
48.73 MB/s -22%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
46.28 MB/s -25%
4K Write
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
222.7 MB/s +3%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
215.6 MB/s
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
208 MB/s -4%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
200.7 MB/s -7%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
161.6 MB/s -25%
Average of class Convertible
  (41.5 - 347, n=59, last 2 years)
160.7 MB/s -25%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (107 - 216, n=4)
158.6 MB/s -26%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
126.4 MB/s -41%
4K-64 Read
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
2827 MB/s +478%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
1058 MB/s +116%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
1021 MB/s +109%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
819 MB/s +67%
Average of class Convertible
  (126.9 - 2508, n=59, last 2 years)
818 MB/s +67%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
580 MB/s +19%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (411 - 737, n=4)
522 MB/s +7%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
489.4 MB/s
4K-64 Write
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
2349 MB/s +268%
Average of class Convertible
  (38.4 - 2855, n=59, last 2 years)
1520 MB/s +138%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
1473 MB/s +131%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
1252 MB/s +96%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
1125 MB/s +76%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
779 MB/s +22%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
639 MB/s
Average Lenovo UMIS RPJTJ256MEE1OWX
  (377 - 950, n=4)
593 MB/s -7%
Access Time Read
Average of class Convertible
  (0.021 - 0.244, n=59, last 2 years)
0.08632 ms * -44%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
0.069 ms * -15%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
0.066 ms * -10%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (0.059 - 0.076, n=4)
0.06575 ms * -10%
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
0.064 ms * -7%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
0.06 ms *
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
0.052 ms * +13%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
0.023 ms * +62%
Access Time Write
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Toshiba BG4 KBG40ZNT512G
0.16 ms * -742%
Average of class Convertible
  (0.017 - 0.445, n=59, last 2 years)
0.09741 ms * -413%
HP Elite Dragonfly Max
Toshiba XG6 KXG60ZNV512G
0.093 ms * -389%
Dell Latitude 12 7210 2-in-1
WDC PC SN530 SDBPTPZ-512G
0.046 ms * -142%
Average Lenovo UMIS RPJTJ256MEE1OWX
  (0.019 - 0.035, n=4)
0.027 ms * -42%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Samsung PM9A1 MZVL21T0HCLR
0.02 ms * -5%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo UMIS RPJTJ256MEE1OWX
0.019 ms *
Lenovo ThinkPad X13 Yoga G2
WDC PC SN730 SDBQNTY-1T00
0.017 ms * +11%

* ... smaller is better

Continuous load read: DiskSpd Read Loop, Queue Depth 8

1670.21770.21870.2Tooltip
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE: Ø1889 (1670.19-1913.6)

Grafikkort

Den största skillnaden i prestanda jämfört med X1 Titanium med i7-1160G7 finns i iGPU:n. Detta är inte förvånande: i7 har trots allt en något starkare iGPU med fler exekveringsenheter. Testenhetens GPU-prestanda är dock också lägre än de andra Intel Xe med 80 EU-enheter vilket förmodligen beror på att iGPU:n i UP4-versionen av Tiger-Lake är klockad lite lägre.

3DMark Performance Rating | 3DMark 11 | 3DMark
3DMark Performance Rating - Percent
Average of class Convertible

100 pt
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
77.4 pt
Lenovo ThinkPad X13 Yoga G2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
70.4 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7
65 pt
Average Intel Iris Xe Graphics G7 80EUs

57 pt
HP Elite Dragonfly Max
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
54.7 pt
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7
48.7 pt
Dell Latitude 12 7210 2-in-1
Intel UHD Graphics 620, Intel Core i7-10610U
21.4 pt
3DMark 11 - 1280x720 Performance GPU
Average of class Convertible
  (471 - 40768, n=61, last 2 years)
8672 Points +103%
Lenovo ThinkPad X13 Yoga G2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6687 Points +57%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6634 Points +56%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7
5554 Points +30%
Average Intel Iris Xe Graphics G7 80EUs
  (2246 - 6477, n=109)
5179 Points +21%
HP Elite Dragonfly Max
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
4841 Points +14%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7
4265 Points
Dell Latitude 12 7210 2-in-1
Intel UHD Graphics 620, Intel Core i7-10610U
1988 Points -53%
3DMark
1920x1080 Fire Strike Graphics
Average of class Convertible
  (365 - 29684, n=62, last 2 years)
6383 Points +96%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5384 Points +65%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7
4686 Points +44%
Lenovo ThinkPad X13 Yoga G2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
4616 Points +42%
Average Intel Iris Xe Graphics G7 80EUs
  (1560 - 5305, n=111)
3794 Points +16%
HP Elite Dragonfly Max
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
3625 Points +11%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7
3258 Points
Dell Latitude 12 7210 2-in-1
Intel UHD Graphics 620, Intel Core i7-10610U
1379 Points -58%
2560x1440 Time Spy Graphics
Average of class Convertible
  (94 - 11749, n=61, last 2 years)
2259 Points +117%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1614 Points +55%
Lenovo ThinkPad X13 Yoga G2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1394 Points +34%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1160G7
1298 Points +25%
Average Intel Iris Xe Graphics G7 80EUs
  (561 - 1511, n=108)
1172 Points +13%
HP Elite Dragonfly Max
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1160 Points +12%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1140G7
1039 Points
Dell Latitude 12 7210 2-in-1
Intel UHD Graphics 620, Intel Core i7-10610U
441 Points -58%
3DMark 11 Performance
4315 poäng
3DMark Fire Strike Score
2864 poäng
3DMark Time Spy Score
1146 poäng
Hjälp
The Witcher 3: 1024x768 Low Graphics & Postprocessing | 1366x768 Medium Graphics & Postprocessing | 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
The Witcher 3 / Low Graphics & Postprocessing
Average of class Convertible
  (22 - 354, n=48, last 2 years)
102.1 fps +124%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
83 fps +82%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
72.4 (25min) fps +59%
Average Intel Iris Xe Graphics G7 80EUs
  (30.2 - 97.4, n=101)
65.4 fps +43%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
65.2 (58min) fps +43%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs
56 fps +23%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
45.6 (31min) fps
The Witcher 3 / Medium Graphics & Postprocessing
Average of class Convertible
  (28 - 257, n=42, last 2 years)
66.4 fps +107%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
59 fps +84%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
48.2 (41min) fps +50%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
43.2 (36min) fps +35%
Average Intel Iris Xe Graphics G7 80EUs
  (21.8 - 56.9, n=103)
41.9 fps +31%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs
40.7 (32min, 33P1) fps +27%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
32.1 (27min) fps
The Witcher 3 / High Graphics & Postprocessing (Nvidia HairWorks Off)
Average of class Convertible
  (16 - 155.3, n=46, last 2 years)
36.6 fps +100%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
28.9 (27min) fps +58%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
25.2 (1min, 1P1) fps +38%
Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
24.2 (19min) fps +32%
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs
22.8 fps +25%
Average Intel Iris Xe Graphics G7 80EUs
  (9.3 - 33.5, n=101)
21.6 fps +18%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
18.3 (15min) fps
The Witcher 3 / Ultra Graphics & Postprocessing (HBAO+)
Average of class Convertible
  (10 - 123.3, n=49, last 2 years)
21.3 fps +124%
HP Elite Dragonfly Max
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
13.6 (12min) fps +43%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
12 fps +26%
Average Intel Iris Xe Graphics G7 80EUs
  (6.26 - 28, n=91)
11.2 fps +18%
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs
9.53 (7min) fps

The Witcher 3 FPS Chart

8910Tooltip
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE i5-1140G7, Iris Xe G7 80EUs: Ø9.83 (8-11)
lågmed.högultra
The Witcher 3 (2015) 45.6 32.1 18.3 9.53
Dota 2 Reborn (2015) 87.8 63.9 40.6 36.1
X-Plane 11.11 (2018) 17.1 15.1 14.2

Utsläpp och energihantering - Mer högljudd fläkt kyler Lenovos bärbara dator bättre

Bullerutsläpp

Fläktljudet har ökat lite under belastning jämfört med det första testprovet med i7 - vid 40 dB(A) är fläkten ganska hörbar. I gengäld förblir den nu alltid avstängd i tomgång.

Ljudnivå

Låg belastning
25.61 / 25.61 / 25.61 dB(A)
Hög belastning
40.14 / 40.14 dB(A)
  red to green bar


30 dB
tyst
40 dB(A)
hörbar
50 dB(A)
högt ljud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm avstånd)   environment noise: 25.61 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2024.644.52525.238.93121.434.94034.229.95030.126.86327.221.3802127.110033.524.212523.529.816019.527.820019.826.925020.226.531519.927.640019.126.250014.523.363012.726.580010.926.6100015.229.9125010.429.216009.329.820009.526.8250010.428315010.627.4400010.828.9500010.828.6630010.929.2800011.127.61000011.124.91250011.118.61600011.116.2SPL25.740.1N0.73.6median 11.1median 27.4Delta3.62hearing rangehide median Fan NoiseLenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Iris Xe G7 80EUs, i5-1140G7, Lenovo UMIS RPJTJ256MEE1OWX		Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Iris Xe G7 96EUs, i7-1160G7, Toshiba BG4 KBG40ZNT512G		Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR		Lenovo ThinkPad X13 Yoga G2
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00		HP Elite Dragonfly Max
Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G		Dell Latitude 12 7210 2-in-1
UHD Graphics 620, i7-10610U, WDC PC SN530 SDBPTPZ-512G
Noise
5%
4%
10%
10%
9%
off / environment *
25.61
25.1
2%
24.2
6%
24
6%
24.9
3%
25
2%
Idle Minimum *
25.61
25.1
2%
24.2
6%
24
6%
24.9
3%
25
2%
Idle Average *
25.61
25.1
2%
24.2
6%
24
6%
24.9
3%
25
2%
Idle Maximum *
25.61
27.1
-6%
29.9
-17%
24
6%
24.9
3%
25
2%
Load Average *
40.14
32.7
19%
33.7
16%
32.72
18%
29.7
26%
28.7
29%
Load Maximum *
40.14
35.8
11%
36.7
9%
33.88
16%
31.3
22%
34.5
14%
Witcher 3 ultra *
32.7
33.7
31.3

* ... smaller is better

Temperatur

Stresstest (Prime95 + FurMark)
Stresstest (Prime95 + FurMark)

Temperaturen under belastning är något lägre än för jämförelseenheten med i7. Maximaltemperaturen är nästan lika hög, men resten av höljet förblir svalare. Den något starkare löpande fläkten är förmodligen anledningen till att ThinkPad X1 Titanium med i5 inte blir lika varm.

Stresstestet bekräftar resultatet av CPU-testerna: processorn kan inte förbruka mer än 12 watt i längden.

Hög belastning
 40.3 °C46.3 °C30.5 °C
 33.3 °C36.3 °C26.7 °C
 28.6 °C26.6 °C25.3 °C
Max: 46.3 °C
Medel: 32.7 °C
32.4 °C43.3 °C39.5 °C
29.1 °C37.8 °C33.5 °C
26.5 °C27.7 °C28.1 °C
Max: 43.3 °C
Medel: 33.1 °C
Strömförsörjning (max.)  30.2 °C | Rumstemperatur 23.1 °C | Fluke 62 Max+
(±) The average temperature for the upper side under maximal load is 32.7 °C / 91 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(-) The maximum temperature on the upper side is 46.3 °C / 115 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.6 °C / 83.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-0.5 °C / -0.9 F).
Stresstest (ovansida)
Stresstest (ovansida)
Stresstest (botten)
Stresstest (botten)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE
Intel Core i5-1140G7, Intel Iris Xe Graphics G7 80EUs		Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
Intel Core i7-1160G7, Intel Iris Xe Graphics G7 96EUs		Lenovo ThinkPad X1 Yoga G6-20Y0S00200
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs		Lenovo ThinkPad X13 Yoga G2
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs		HP Elite Dragonfly Max
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs		Dell Latitude 12 7210 2-in-1
Intel Core i7-10610U, Intel UHD Graphics 620
Heat
-1%
2%
-10%
-9%
13%
Maximum Upper Side *
46.3
46.5
-0%
44.1
5%
47.2
-2%
39.4
15%
37.5
19%
Maximum Bottom *
43.3
45.2
-4%
47.3
-9%
51.5
-19%
50
-15%
36.2
16%
Idle Upper Side *
26.8
27.3
-2%
25.5
5%
30
-12%
31.6
-18%
25.7
4%
Idle Bottom *
28.3
27.7
2%
26.6
6%
30.5
-8%
33.4
-18%
24.3
14%

* ... smaller is better

Högtalare

För en beskrivning av talarkvaliteten hänvisar vi till den tidigare granskningen av ThinkPad X1 Titanium Yoga med i7.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.633.42524.325.73129.335.84028.831.55031.331.76323.427802226.41002631.812524.531.816026.236.62002344.725021.546.9315184940015.35150013.655.863012.460.280011.361.210001266.3125011.367.8160010.671200010.768.8250011.166.4315011.465.640001264.750001262.4630012.461.2800012.562.61000012.655.11250012.750.41600011.651.9SPL25.177.8N0.738.1median 12.4median 60.2Delta3.69.127.43023.82532.128.329.828.226.73121.129.321.527.824.73720.842.11949.619.558.417.660.617.163.913.667.314.365.312.167.611.572.510.87110.870.110.571.610.572.510.971.211.471.111.765.611.966.112.166.512.261.612.165.81260.911.35524.281.60.653median 12.1median 65.83.16.1hearing rangehide median Pink NoiseLenovo ThinkPad X1 Titanium Yoga G1 20QA001RGELenovo ThinkPad X1 Yoga G6-20Y0S00200
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE audio analysis

(±) | speaker loudness is average but good (77.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.1% lower than median
(±) | linearity of bass is average (7.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6% higher than median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.8% away from median
(+) | highs are linear (4.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.2% difference to median)
Compared to same class
» 54% of all tested devices in this class were better, 12% similar, 34% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 55% of all tested devices were better, 7% similar, 38% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo ThinkPad X1 Yoga G6-20Y0S00200 audio analysis

(±) | speaker loudness is average but good (81.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.8% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (4.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.1% difference to median)
Compared to same class
» 16% of all tested devices in this class were better, 2% similar, 82% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 11% of all tested devices were better, 3% similar, 86% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Effektförbrukning

Energimätningarna bekräftar i stort sett resultaten från det första testet, även om detta prov har en något lägre belastningsförbrukning här. Energimätningarna vid längre belastning är intressanta: här är upp till 35 watt möjligt till en början, varefter den totala förbrukningen begränsas till 25 watt. X1 Titanium levereras med ett 65-watts nätaggregat, men en 45-watts modell skulle lätt räcka.

Strömförbrukning
Av/Standbydarklight 0.28 / 0.45 Watt
Låg belastningdarkmidlight 3.75 / 7.75 / 8.69 Watt
Hög belastning midlight 33.12 / 35.19 Watt
 color bar
Förklaring: min: dark, med: mid, max: light        Metrahit Energy

Power Consumption: The Witcher 3 / Stress Test

05101520253035Tooltip
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; Witcher 3 ultra: Ø28.7 (24.6-36.4)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø28 (23.8-35.2)

Power Consumption With External Montitor

051015202530Tooltip
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; Prime95 V2810 Stress (external Monitor): Ø29.1 (22.1-34.3)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; Cinebench R15 Multi (external Monitor): Ø27.3 (21.1-30.8)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø28.3 (21.6-34)
Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE; 1920x1080 The Witcher 3 ultra (external Monitor): Ø25.2 (20.4-33.9)

Batteriets livslängd

Vi har inte testat batteritiden igen. Den nuvarande konfigurationen skiljer sig trots allt inte nämnvärt från den redan testade konfigurationen Lenovo ThinkPad X1 Titanium Yoga med i7.

Battery Runtime - WiFi v1.3
Lenovo ThinkPad X1 Yoga G6-20Y0S00200
i7-1165G7, Iris Xe G7 96EUs, 57 Wh
717 min
HP Elite Dragonfly Max
i7-1185G7, Iris Xe G7 96EUs, 56 Wh
659 min
Average of class Convertible
  (305 - 981, n=61, last 2 years)
594 min
Lenovo ThinkPad X13 Yoga G2
i7-1165G7, Iris Xe G7 96EUs, 52.8 Wh
555 min
Lenovo ThinkPad X1 Titanium Yoga G1 20QA001RGE
i7-1160G7, Iris Xe G7 96EUs, 44.5 Wh
506 min
Dell Latitude 12 7210 2-in-1
i7-10610U, UHD Graphics 620, 38 Wh
489 min

För

+ hög kvalitet och tunt fodral
+ Thunderbolt 4 och USB 4
+ mycket bra 3:2 pekskärm
+ LTE-modem
+ bekväm i surfplatteläge

Emot

- endast 2x USB-C
- ingen PCIe 4.0 SSD
- skärmlocket har en liten förskjutning
- sämre prestanda än andra modeller

Omdöme - Tillverkad för speciella användningsområden

I granskning: Lenovo ThinkPad X1 Titanium Yoga G1
I granskning: Lenovo ThinkPad X1 Titanium Yoga G1

Även efter ett år har vår bedömning av Lenovo ThinkPad X1 Titanium Yoga inte ändrats i grunden. Det här recensionsexemplaret har inte färgfelet på locket, men det har problemet att locket är något förskjutet åt vänster. Det verkar alltså vara ett standardkonstruktionsproblem. Den här gången kan vi dock inte fastställa tillverkningsfelet på pekplattan, som vår första testenhet hade. Vi tyckte inte att den haptiska pekplattan var lika obehaglig i omtestet som i den första granskningen. Lenovo kan ha förbättrat drivrutinerna här.

På det hela taget är ThinkPad X1 Titanium Yoga en bärbar dator som endast lämpar sig för vissa uppgifter. Den uppfyller sin roll som konvertibel bättre än andra modeller, inklusive ThinkPad X1 Yoga G6, tack vare sin låga profil och vikt, och 3:2-skärmen är utmärkt för att läsa och skriva text. Köparna måste i gengäld kompromissa med anslutningsmöjligheter och prestanda.

En arbetshäst för den som skriver mycket och en bra konvertibel med många funktioner - Lenovo ThinkPad X1 Titanium Yoga övertygar på dessa punkter. Andra modeller är bättre om prestanda, RAM-minne och portar är mycket viktigt.

Vi kan fortfarande rekommendera ThinkPad X1 Titanium Yoga G1, även om prestandanedsättningen snart blir mycket större på grund av lanseringen av Alder Lake- och Rembrandt ThinkPads. Det är synd att Lenovo tydligen överger den här plattformen efter bara ett år.

Det första alternativet är Lenovo ThinkPad X1 Yoga G6 som är lite billigare, erbjuder mycket bättre högtalare, ett bekvämare tangentbord och mer prestanda samt portar. Den är dock också mycket skrymmande i gengäld. ThinkPad X13 Yoga G2 har ett ännu attraktivare pris och är mer jämförbar med X1 Titanium när det gäller vikten. Även om den inte är lika behaglig att använda som surfplatta och endast har en 13,3-tums 16:10-skärm verkar X13 Yoga G2 vara lite kraftfullare överlag och kan vara den närmaste matchningen till X1 Titanium när det gäller mobilitet. Från andra tillverkare finns HP Elite Dragonfly Max inte så långt från X1 Titanium Yoga, men 16:9 LCD-skärmen är en stor nackdel.

Download your licensed rating image as SVG / PNG

Pris och tillgänglighet

Lenovo ThinkPad X1 Titanium Yoga G1 med den testade konfigurationen kostar för närvarande 2 240 euro (~2 000 dollar) i Lenovos egen webbutik. Amazon har för närvarande X1 Titanium Yoga för cirka 1 846 dollar.

Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE - 03/16/2022 v7 (old)
Benjamin Herzig

Design
84 / 98 → 86%
Tangentbord
87%
Mus
87%
Anslutningar
68 / 75 → 90%
Vikt
73 / 20-75 → 96%
Batteri
85%
Skärm
90%
Spelprestanda
61 / 78 → 78%
Programprestanda
83 / 85 → 97%
Temperatur
92%
Ljudnivå
93%
Audio
70 / 91 → 77%
Camera
38 / 85 → 45%
Medel
78%
89%
Convertible - Vägt medel

More articles related to this device

Lenovo ThinkPad X1 Titanium Yoga G1 20QB0016GE (ThinkPad X1 Titanium Yoga G1 Serie)

Price comparison

Please share our article, every link counts!
Mail Logo
> Bärbara datorer, laptops - tester och nyheter > Tester > Recension av Lenovo ThinkPad X1 Titanium Yoga: Slank konvertibel Titanium med i5
Benjamin Herzig, 2022-03-21 (Update: 2022-03-22)
