Recension av NiPoGi CK10 med Intel Core i7-10810U - Liten kontorsdator med plats för tre SSD-diskar

Name: Minipc Union NiPoGi CK10 - 10810U
Brand: Minipc Union

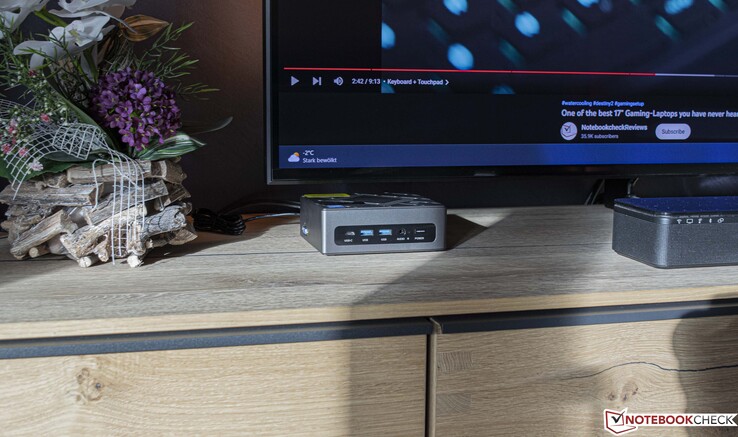

En tyst kontorsdator!

I tider av ständigt stigande energipriser är kompakta datorer mycket populära eftersom de har en betydligt lägre energiförbrukning än sina traditionella stationära syskon. Med NiPoGi CK10 har vi testat denna lilla kontorsdator med sex kärnor. Det är en extremt tyst enhet, men hur snabb är dess SoC? I vår recension avslöjar vi allt du behöver veta om den Intel Core i7-10810U-baserade NiPoGi CK10.

Sebastian Bade (översatt av DeepL / Ninh Duy), Published 12/02/2022 🇺🇸 🇩🇪 ...

Desktop Intel Mini PC Comet Lake

Vi är redan bekanta med den kinesiska systemtillverkaren Minipc Union efter att ha granskat både Ace Magician AMR5 samt Ace Magician TK11-A0 - två intressanta minidatorer. Nu har ytterligare en liten PC-kandidat dykt upp i form av vårt recensionsexemplar NiPiGi CK10. Systemet är baserat på en Intel Core i7-10810U från Comet Lake-serien. SoC:n är inte längre den nyaste ungen på blocket trots hur lovande 6 kärnor och 12 trådar kan låta. Tillsammans med 16 GB DDR4 RAM och en 512 GB SSD samt en Windows-licens kostar enheten cirka 600 euro

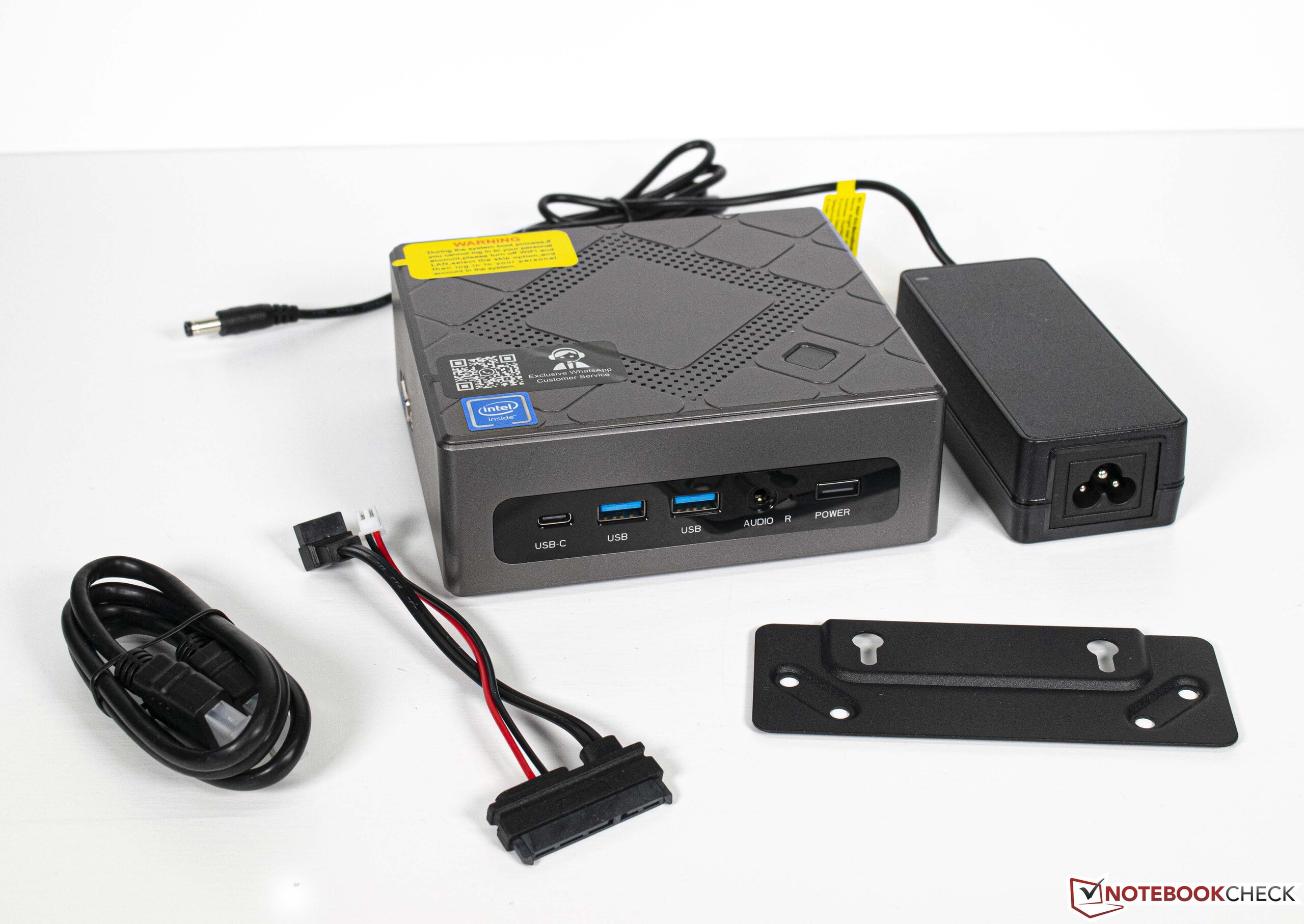

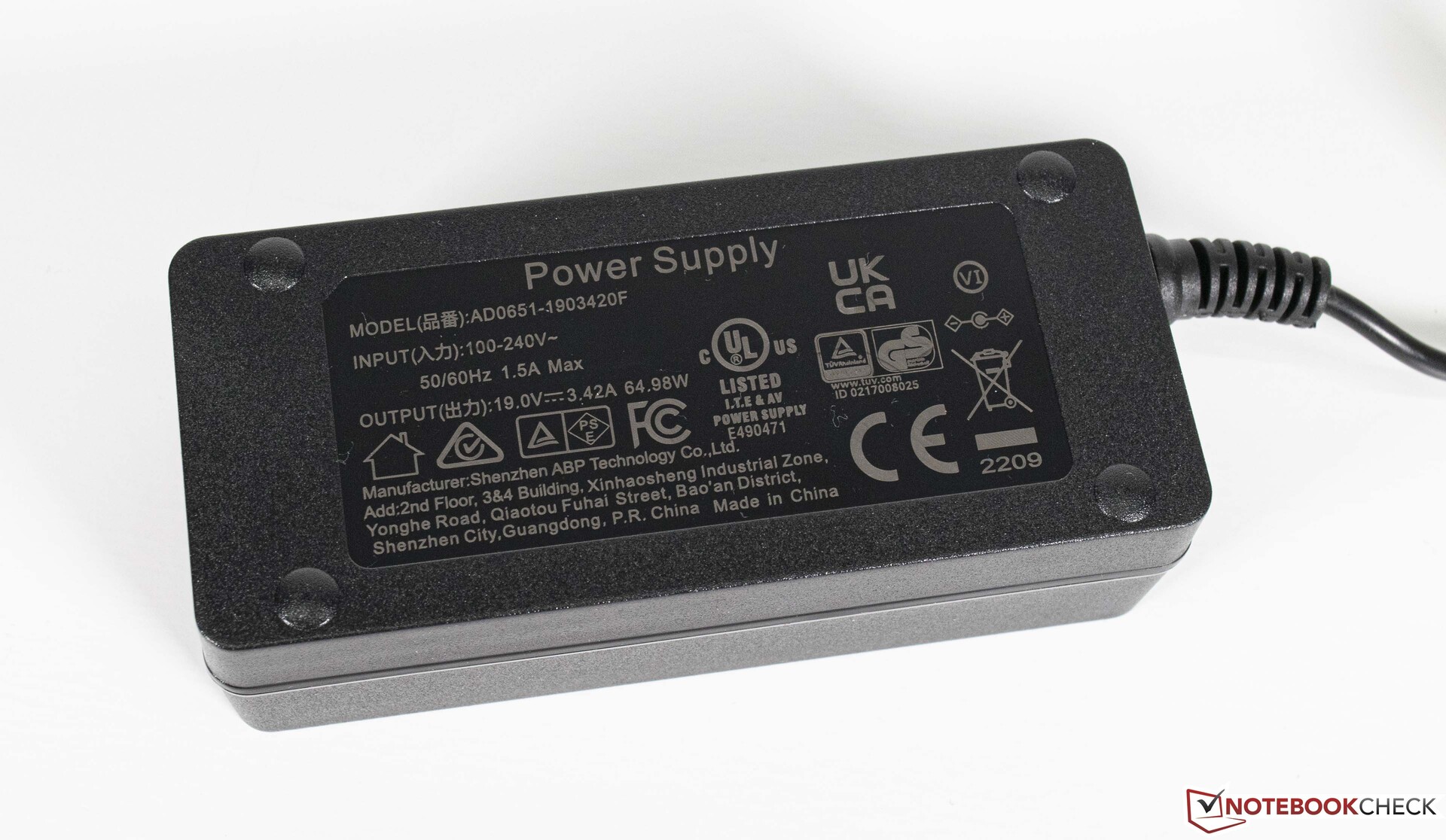

Mini PC:n kom i en kompakt förpackning, inklusive en 65-watts nätadapter och ett VESA-fäste som gör det möjligt att fästa enheten på en bildskärm. En översikt över potentiella konkurrenter finns i tabellen nedan.

Minipc Union NiPoGi CK10 - 10810U

Processor

Intel Core i7-10810U 6 x 1.1 - 4.9 GHz, 40 W PL2 / Short Burst, 15 W PL1 / Sustained, Comet Lake-U

Grafikkort

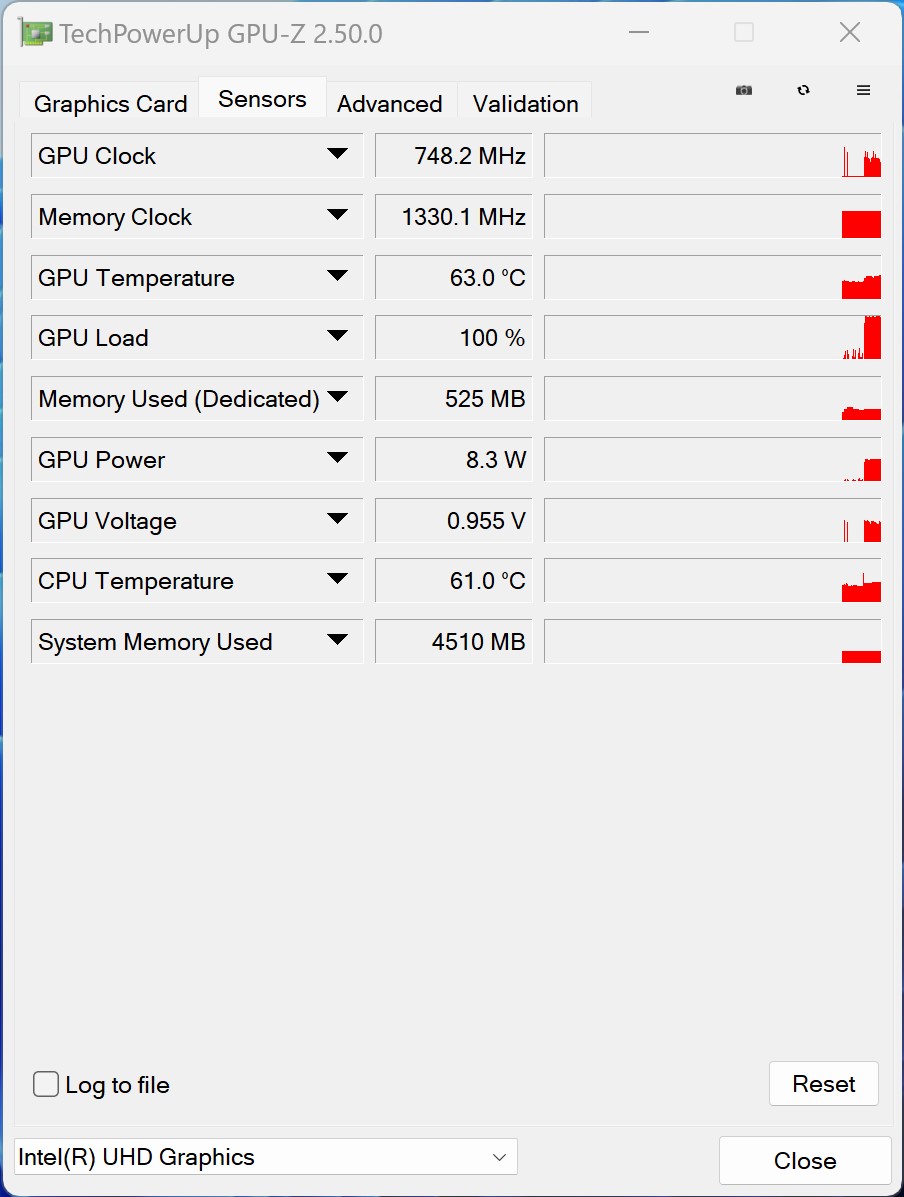

Intel UHD Graphics 620, Kärna: 1150 MHz, Minne: 1333 MHz

Minne

16 GB

, DDR4 2666, 1 of 2 installed, max. 32 GB

Moderkort

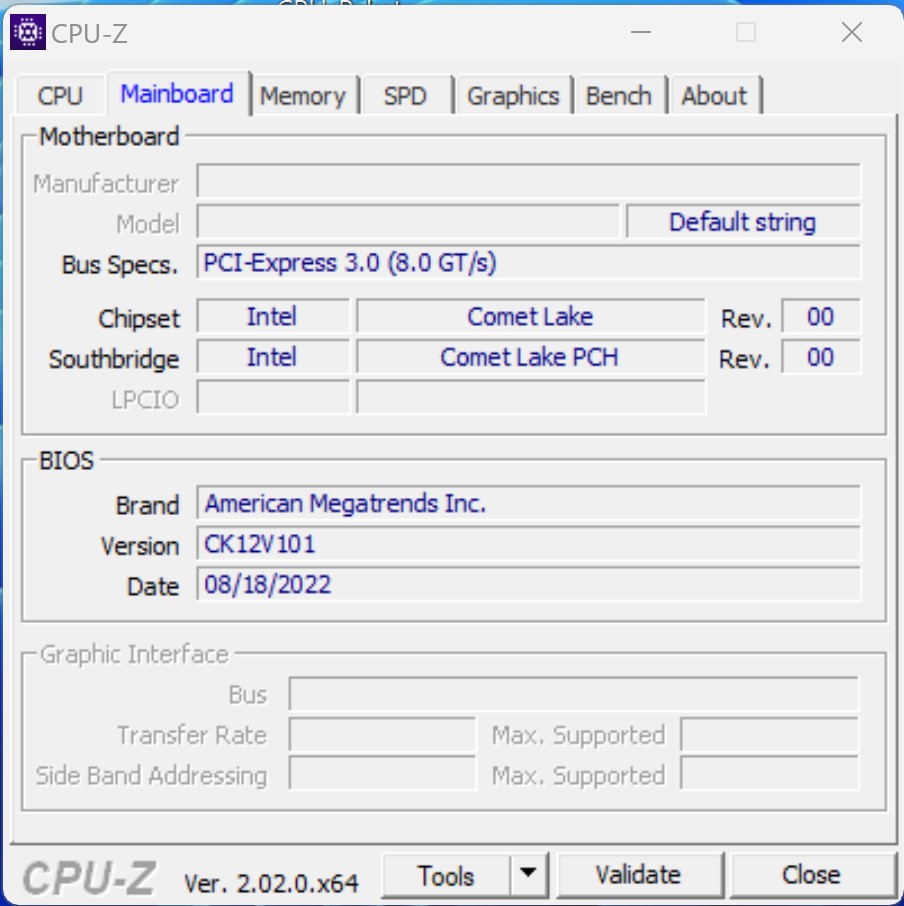

Intel Comet Lake-U PCH-LP Premium

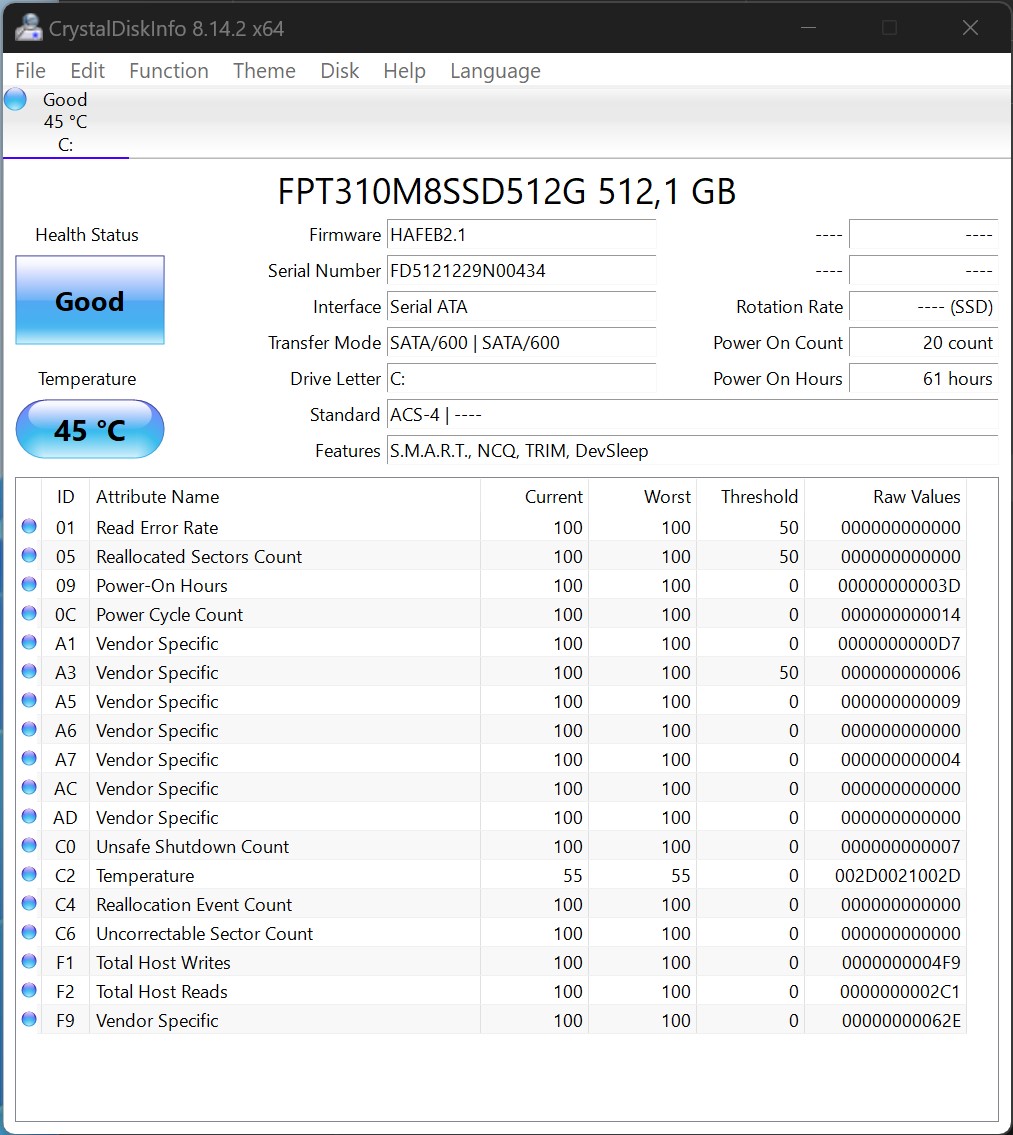

Hårddisk

FPT310M8SSD512G, 512 GB

, M.2 2280 SATA SSD, 440 GB ledigt

Ljudkort

Intel Comet Lake PCH-LP - cAVS

Anslutningar

5 USB 3.0, 1 VGA, 2 HDMI

Nätverk

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), RealTek Semiconductor, Device ID: C821 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 50 x 137.5 x 125

Operativsystem

Microsoft Windows 11 Pro

Övrigt

12 Månader Garanti

Vikt

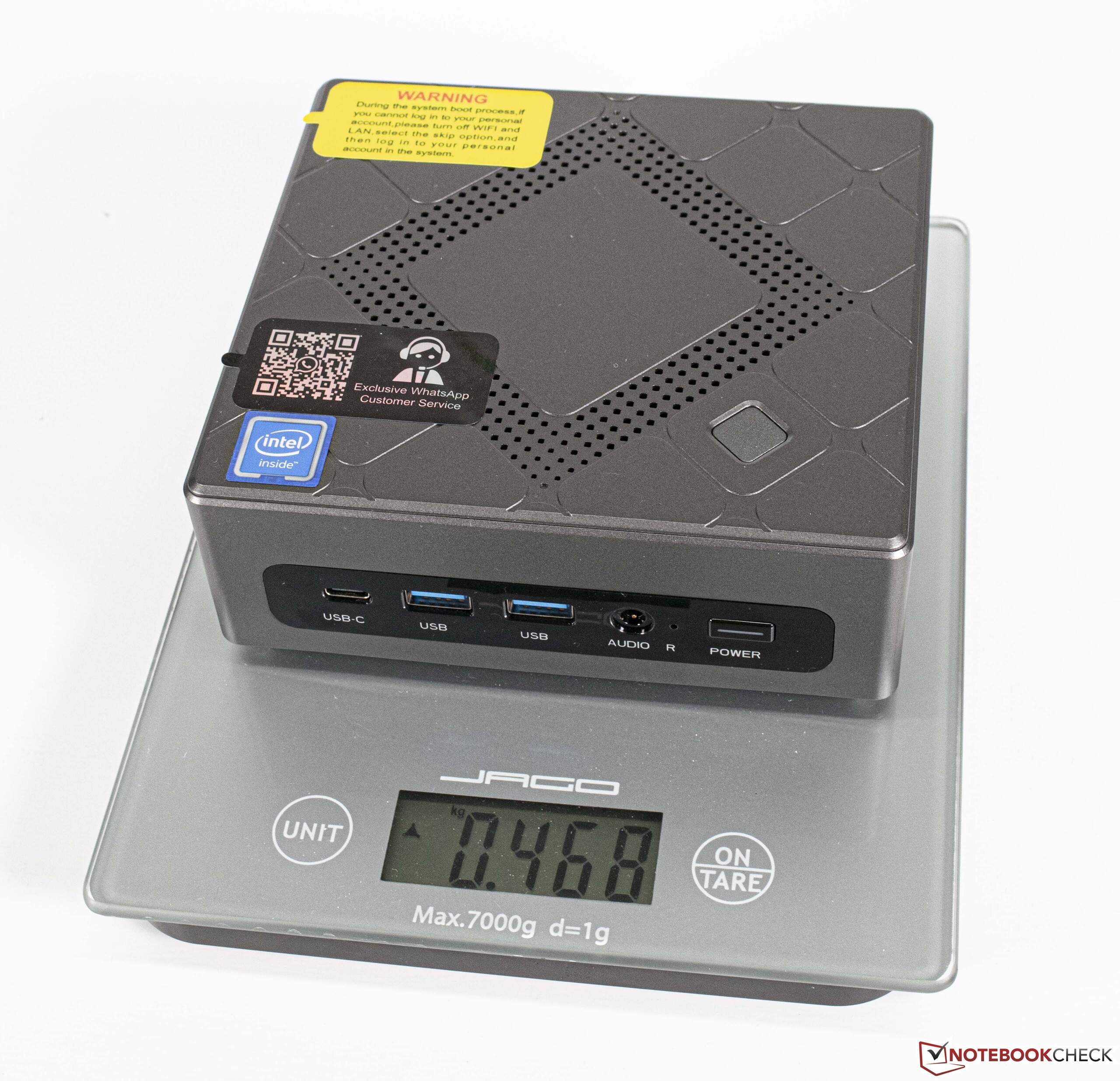

468 g, Strömförsörjning: 233 g

Pris

599 EUR

Länkar

Minipc Union hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Potentiella konkurrenter i jämförelse

Rating	Date	Model	Weight	Height
70.9 % v7 ^(old)	12/2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
v ^(old)	01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
v ^(old)	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
v ^(old)	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
v ^(old)	02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
v ^(old)	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
v ^(old)	12/2021	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
v7 ^(old)	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

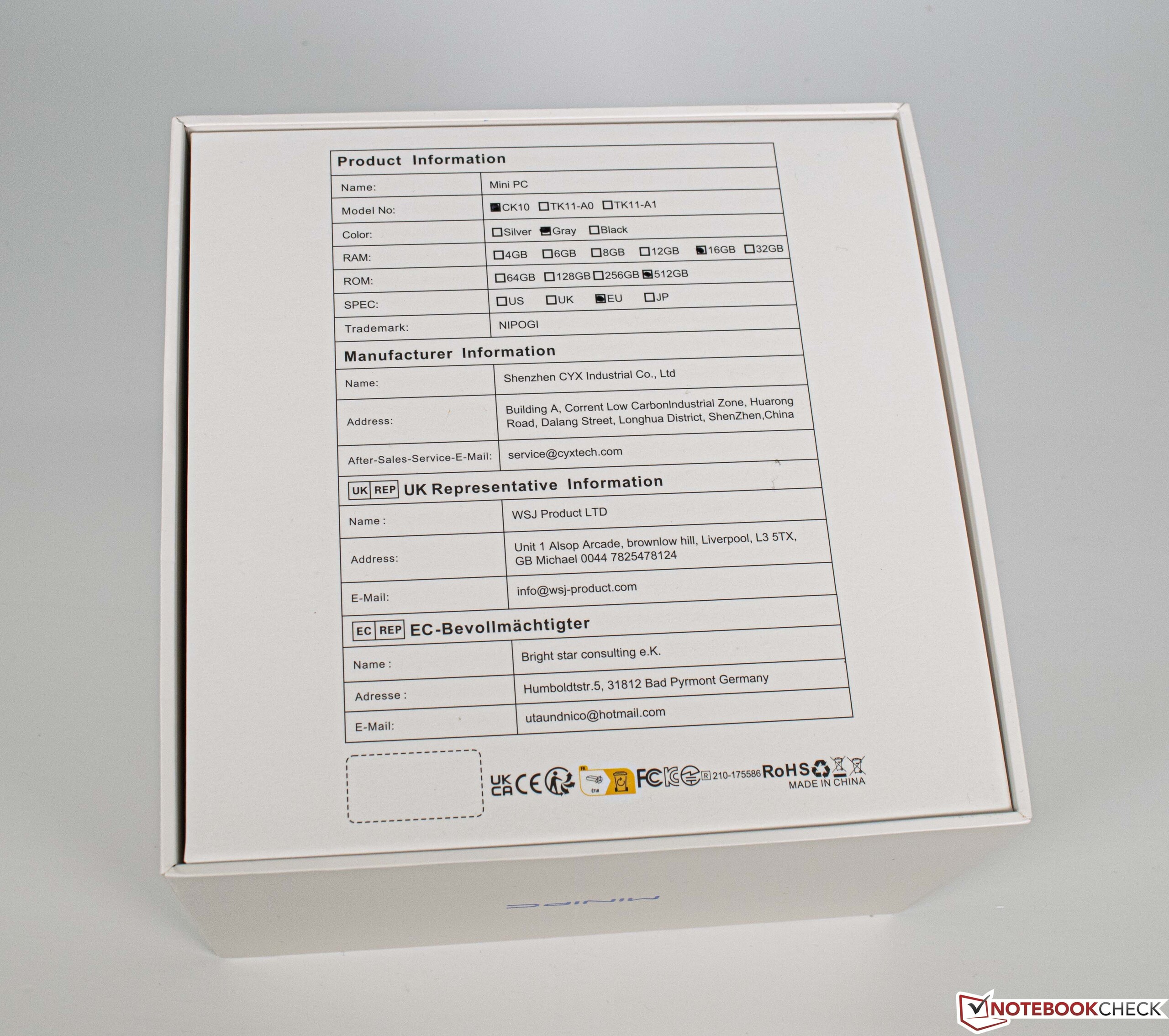

NiPoGi CK10 - Förpackning med specifikationer

Fall

NiPoGi CK10 är en enkel minidator utan några särskilda höjdpunkter att nämna. Med ett fotavtryck på 13,7 x 12,5 centimeter är den mindre än många av sina konkurrenter. Höjdmässigt sitter den kompakta PC:n på nästan exakt fem centimeter. När det gäller materialvalet är NiPoGi CK10 huvudsakligen tillverkad av plast. Tillverkaren har helt undvikit att införa en stabiliserande metallram. En fingeravtrycksläsare som är en dummy finns på toppen av enheten och tyder på att fallet har förberetts för ytterligare konfigurationsmöjligheter.

Storleksjämförelse

Minisforum EliteMini HX90 Minipc Union Ace Magician AMR5 Minisforum EliteMini B550 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Minipc Union NiPoGi CK10 - 10810U Morefine S500+ DIN A4 ❌

Anslutningsmöjligheter

När det gäller externa gränssnitt erbjuder NiPoGi CK10 ett enkelt standardutbud. Totalt fem USB-portar är bra och bör räcka till för de flesta användare. Den tillgängliga Type-C-porten erbjuder inget Thunderbolt-stöd. VGA-anslutningen kompenserar dock för detta med känslor av nostalgi. Hur intressant den analoga bildskärmsporten är kommer att bero på användarna själva. Icke desto mindre kan upp till två moderna skärmar användas utan problem via HDMI.

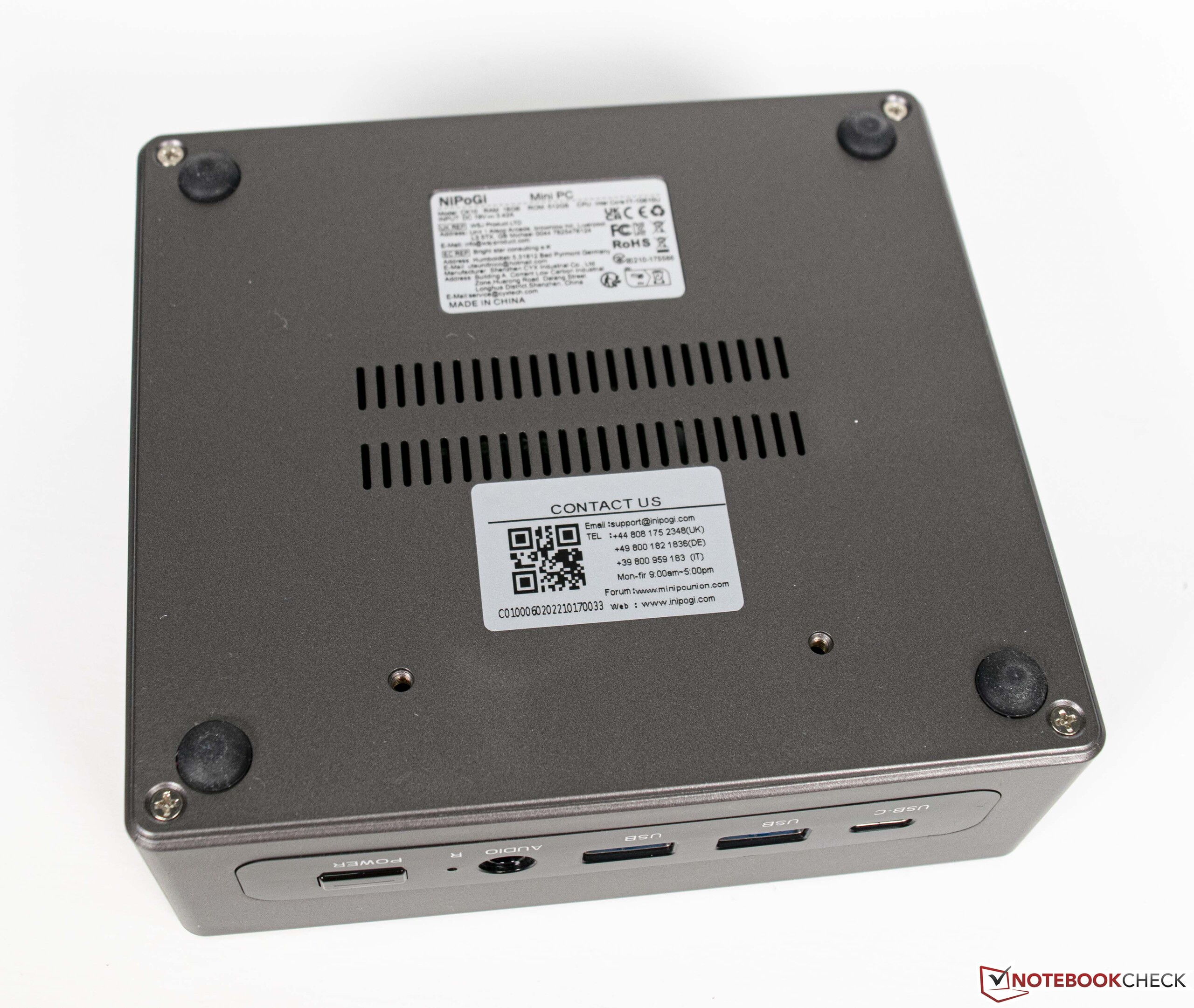

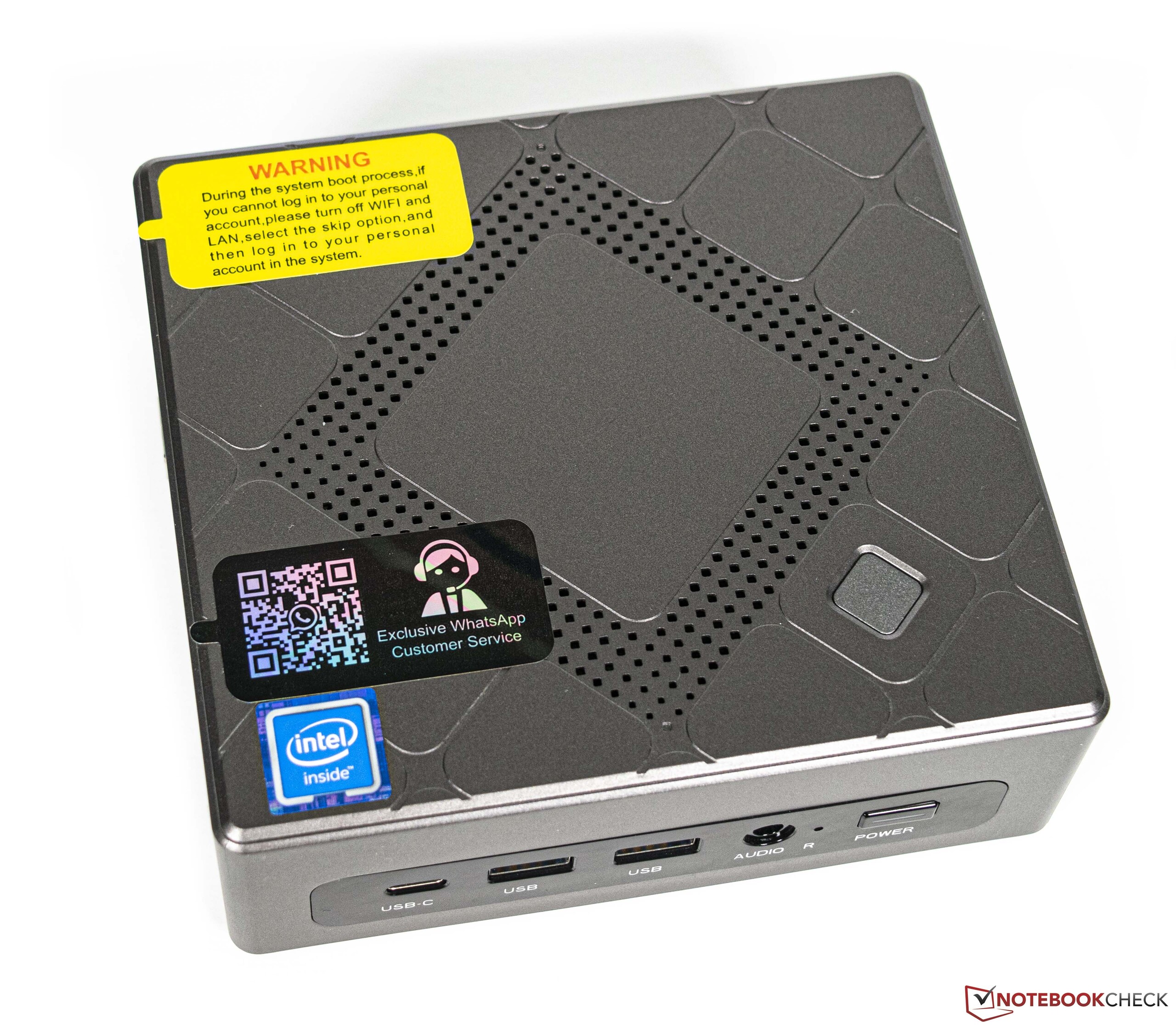

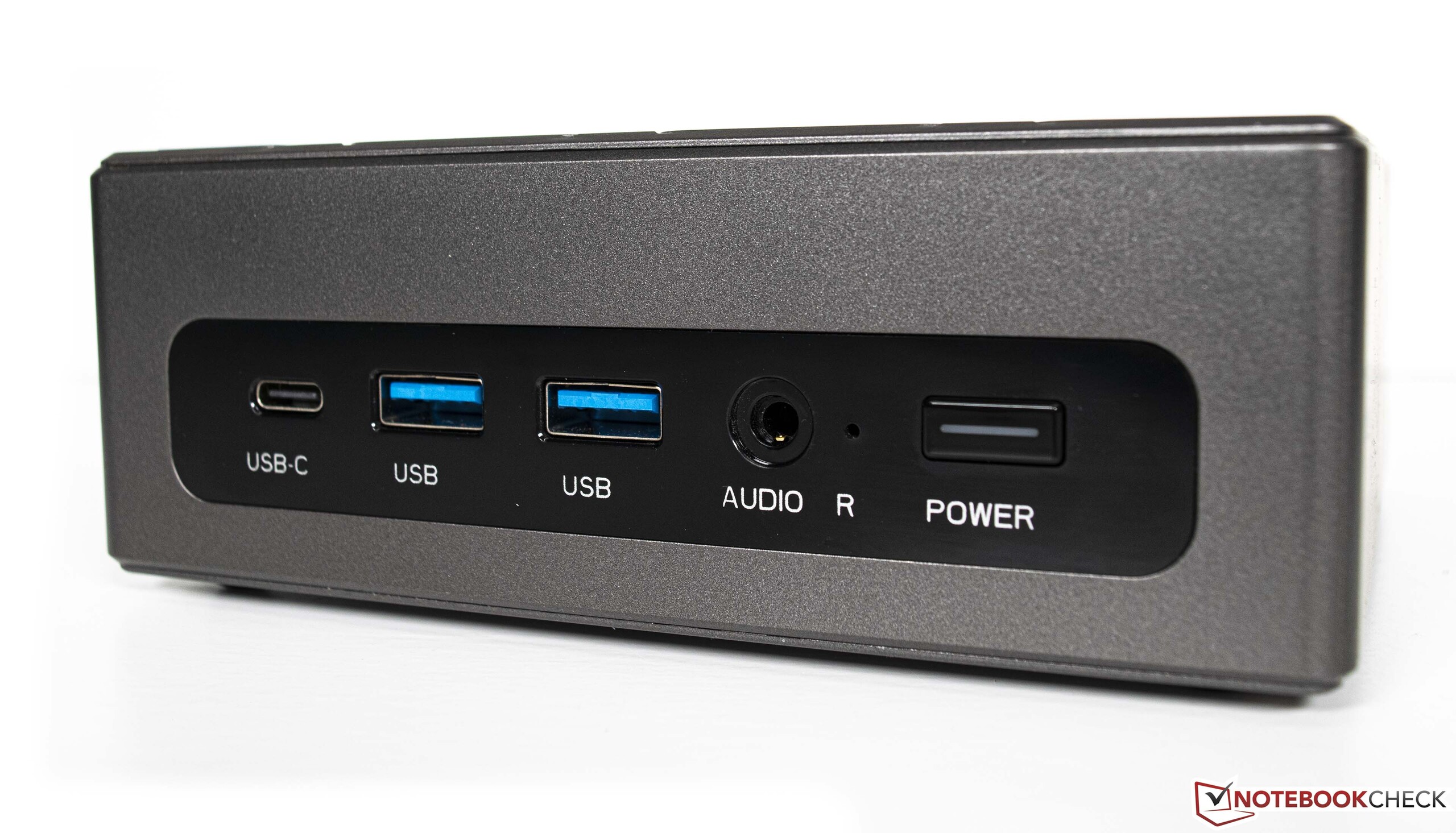

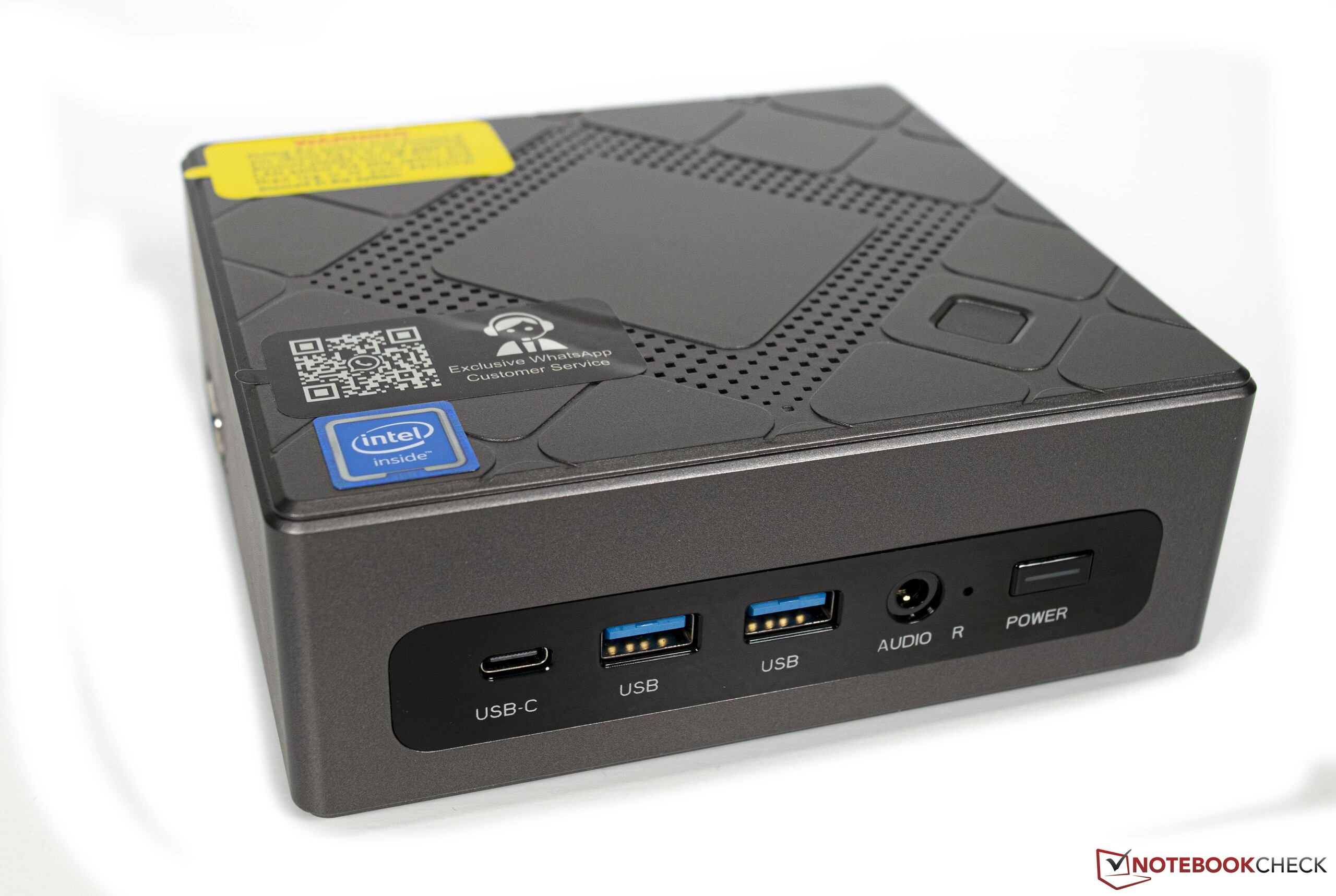

Framsida: USB Typ C (data), 2x USB 3.0, 3,5-mm-ljuduttag, strömbrytare

Baksidan: 2x USB 3.0, 2x HDMI, GBit LAN, nätanslutning

Kommunikation

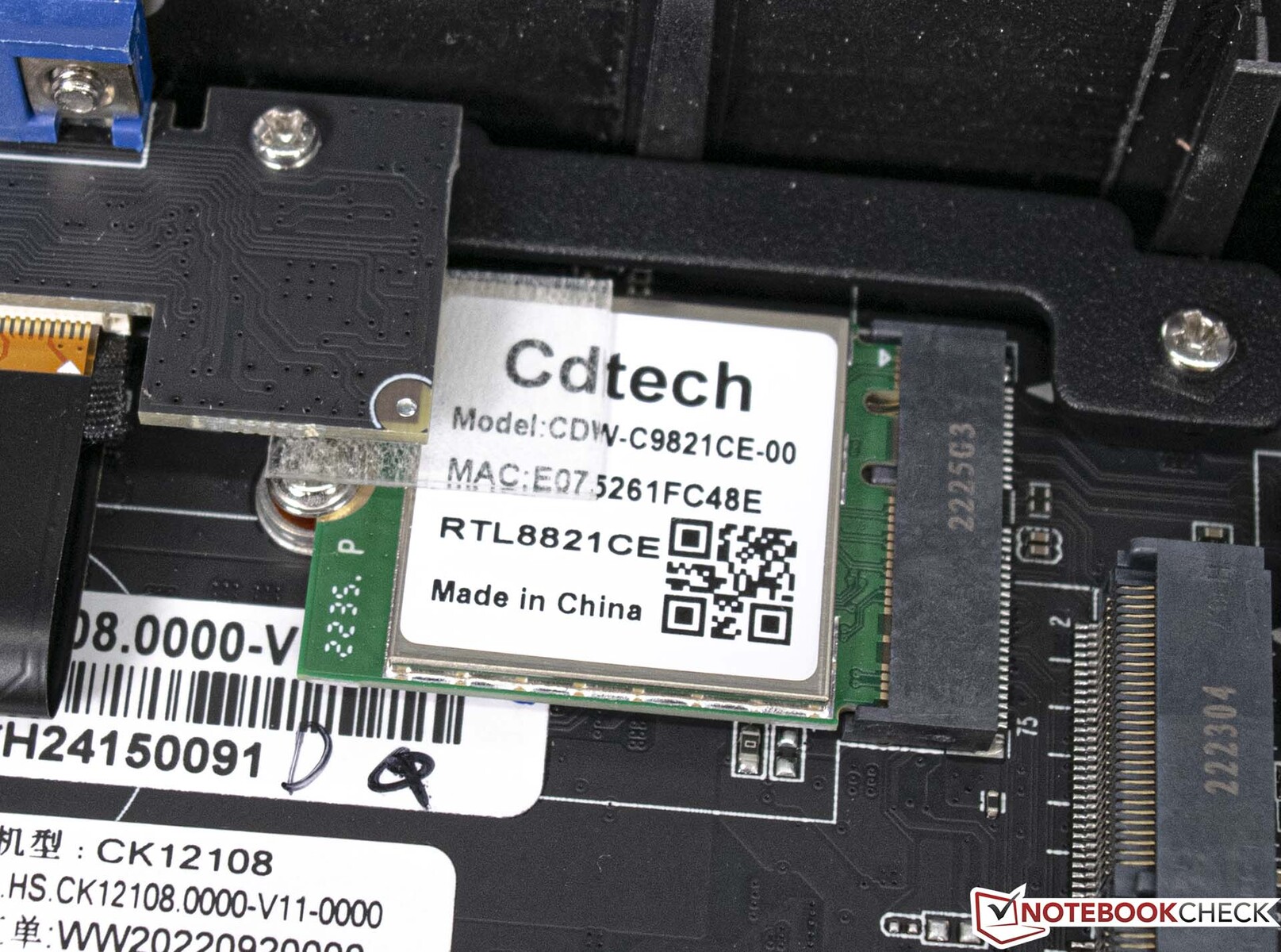

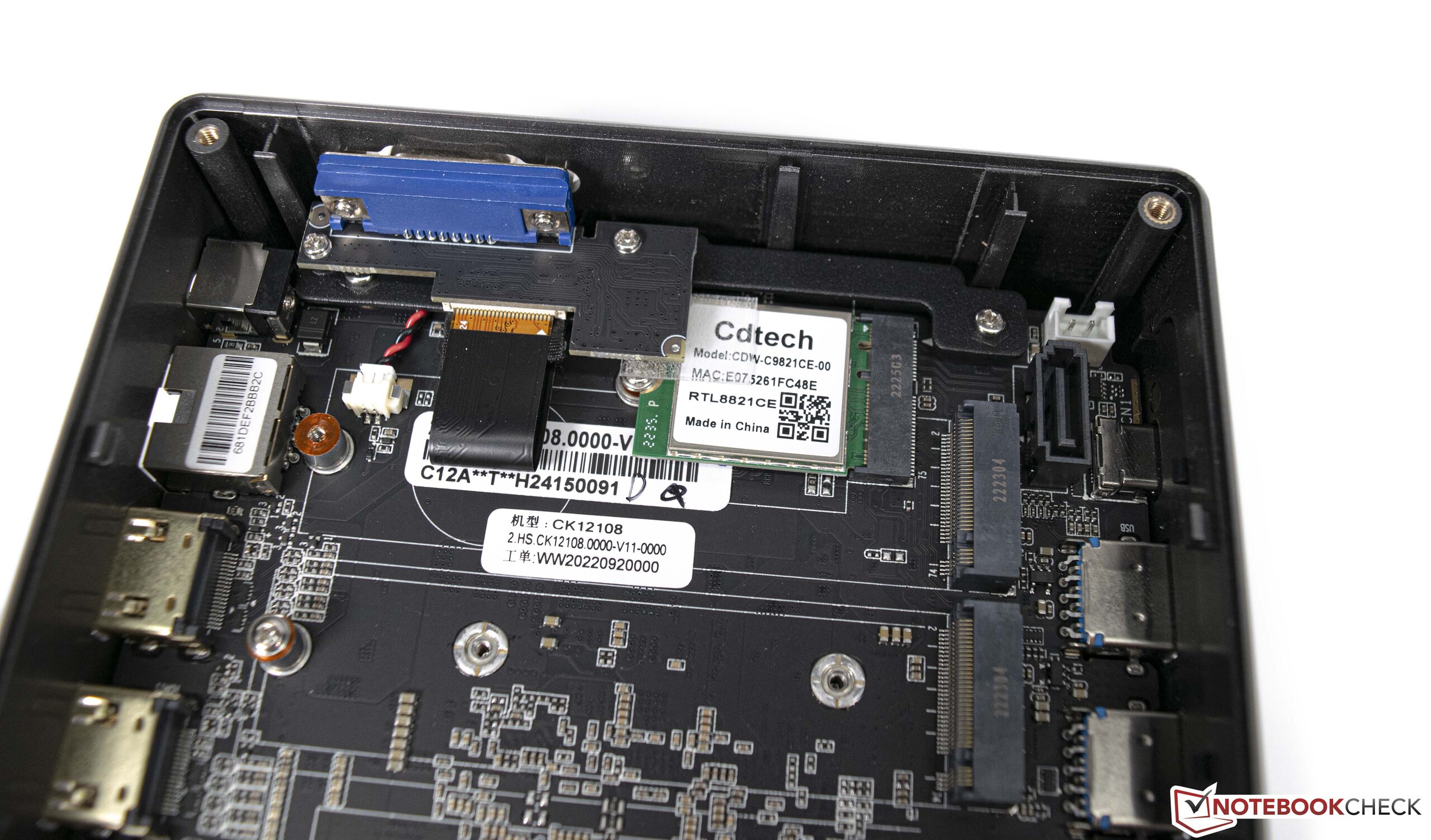

En Realtek Wi-Fi-modul är gömd inuti NiPoGi CK10. Under testningen kunde den trådlösa modulen tyvärr inte leverera övertygande prestanda när den var kopplad till vår testrouter, Asus ROG Rapture GT-AXE11000. Med betydande marginal tog testprovet sista platsen i vår jämförelsetabell. Lyckligtvis är en snabbare internetanslutning på upp till 1 GBit/s möjlig när man använder en trådbunden anslutning.

Networking
iperf3 receive AXE11000
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s +383%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +368%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s +302%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s +123%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s +102%
Average RealTek Semiconductor, Device ID: C821 (192.9 - 349, n=2)	271 MBit/s +40%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +182%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s +152%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +152%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s +117%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s +67%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s
Average RealTek Semiconductor, Device ID: C821 (272 - 343, n=2)	308 MBit/s -10%

Minipc Union NiPoGi CK10 - 10810U; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)

Minipc Union NiPoGi CK10 - 10810U; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

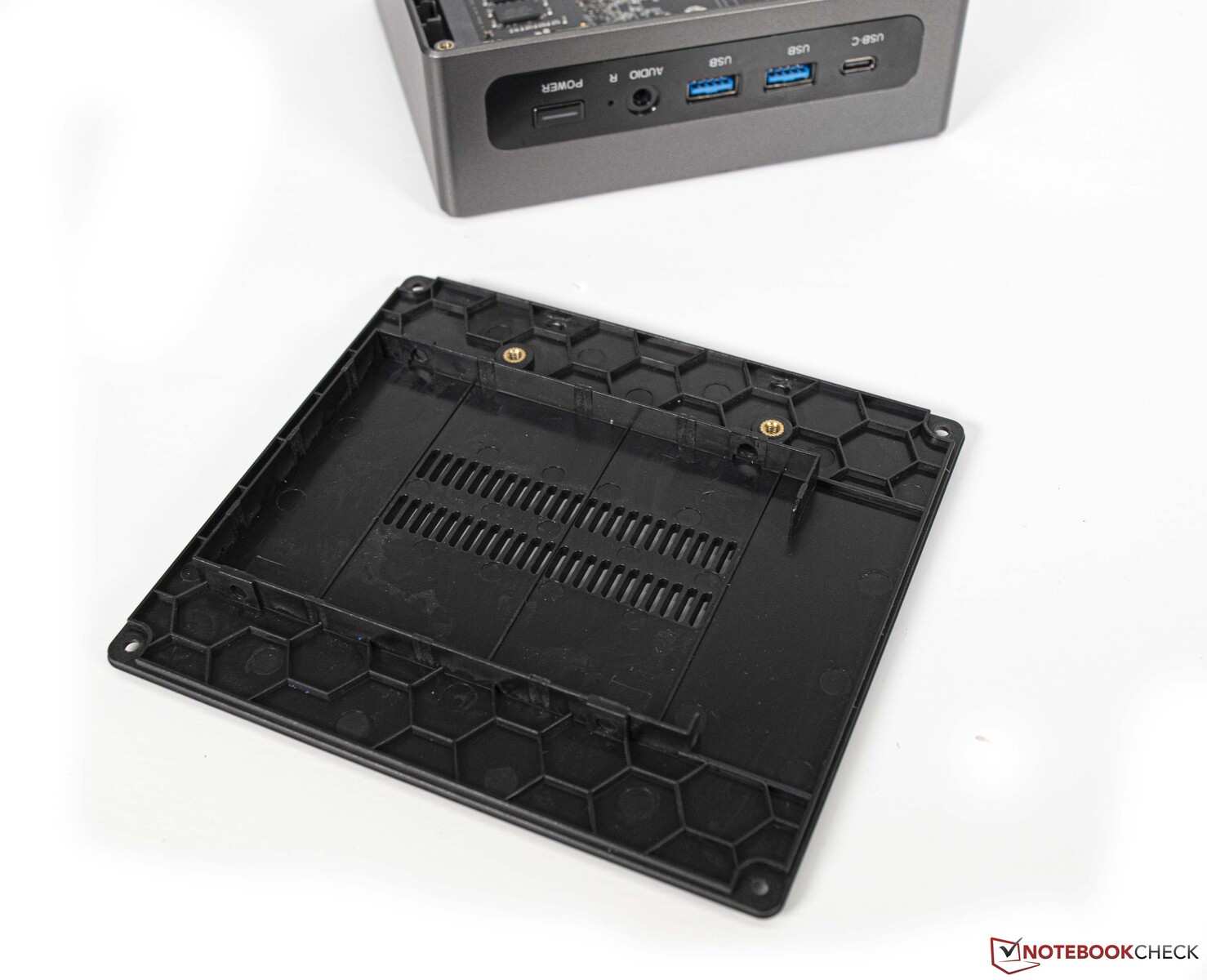

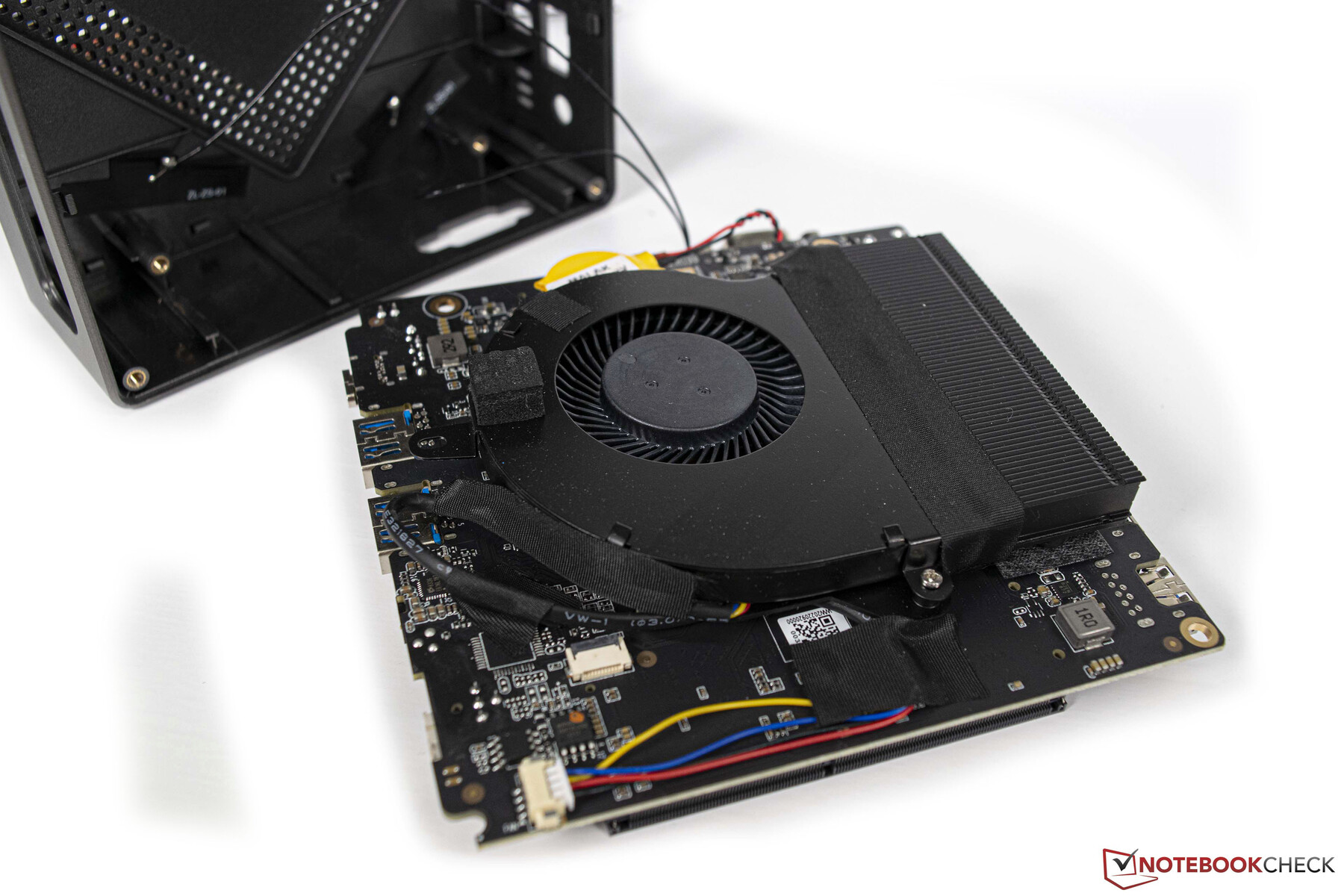

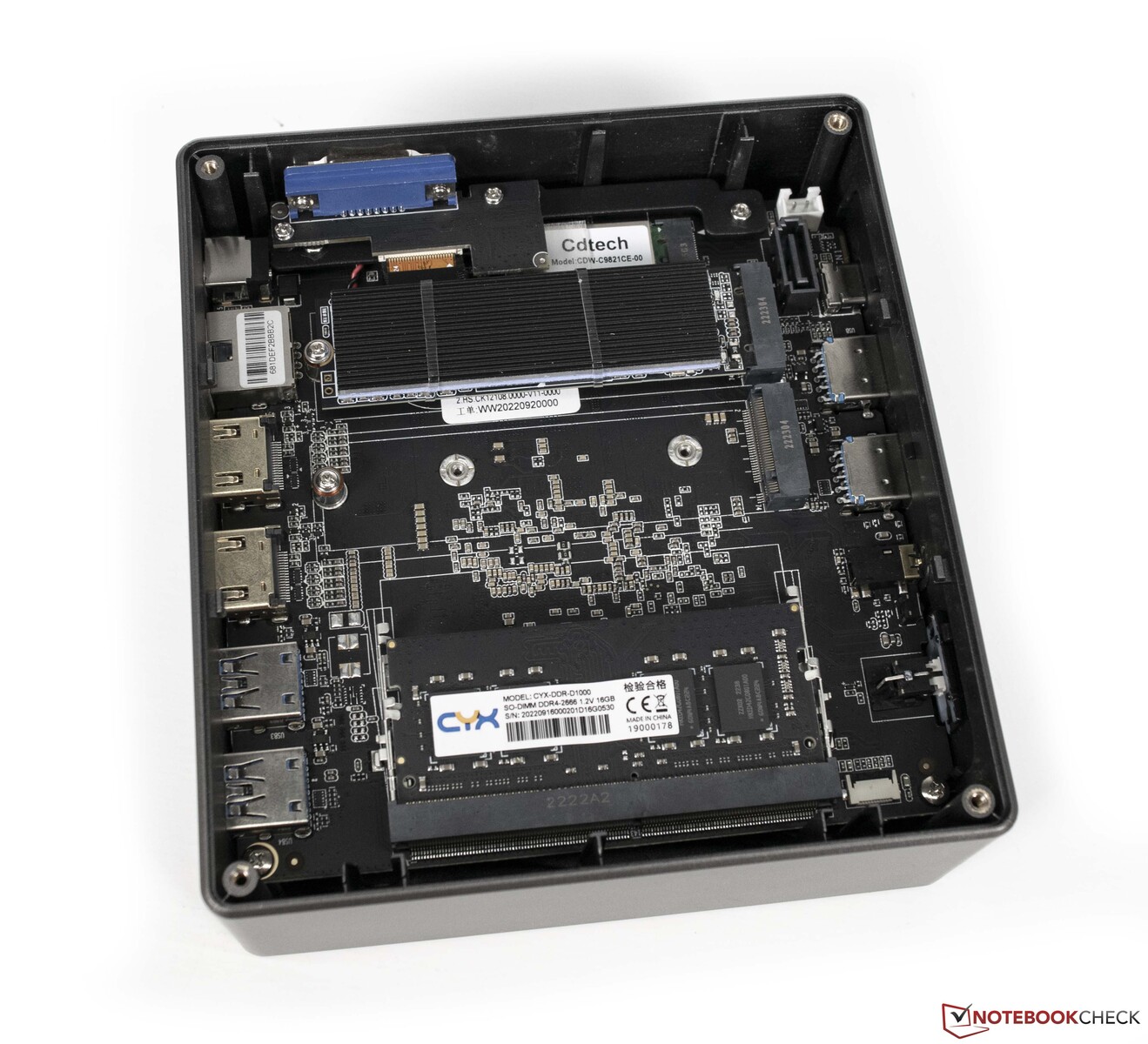

Underhåll

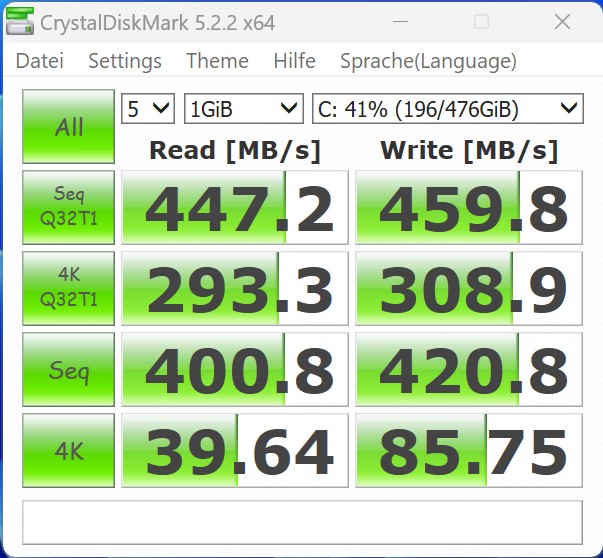

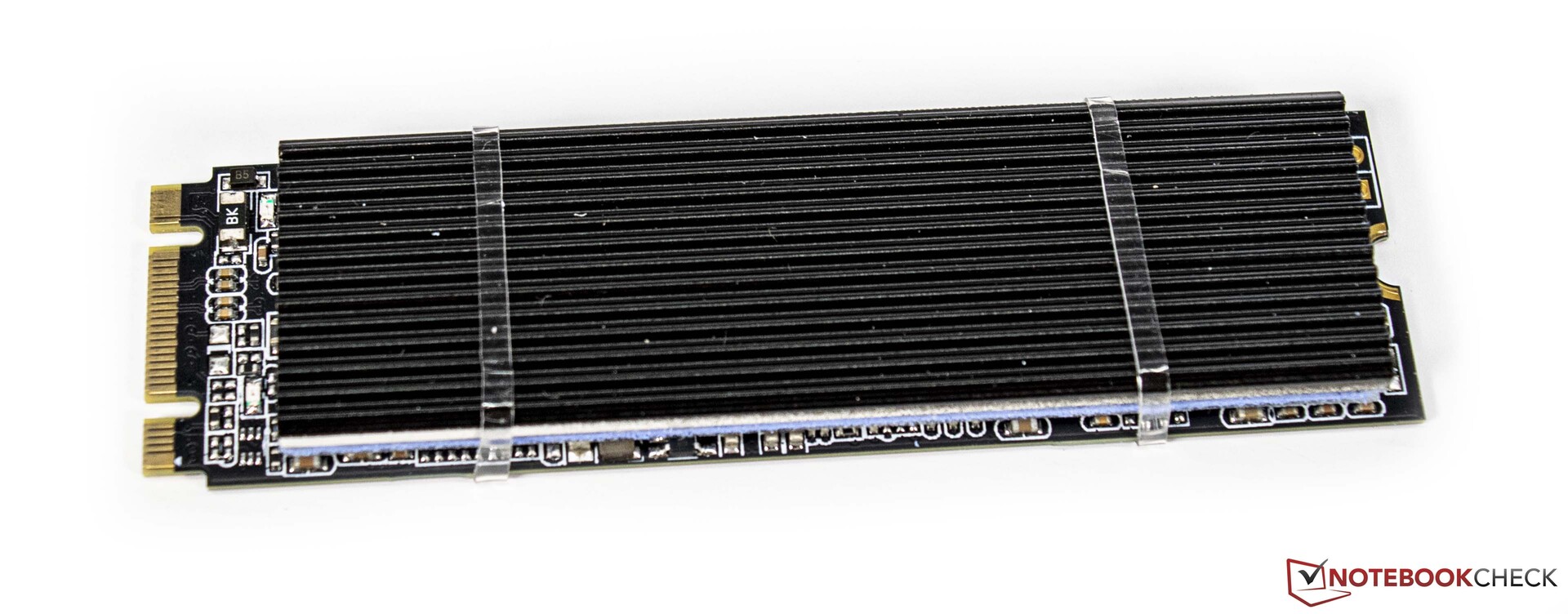

För närvarande är en uppgradering inte nödvändig på grund av den solida baskonfigurationen. Om du ändå vill komma åt de inbyggda komponenterna kan detta enkelt göras eftersom endast fyra små skruvar behöver skruvas loss för att ta bort bottenplattan. En extra plats för ytterligare en SO DIMM-modul samt ytterligare två masslagringsenheter kunde rymmas i vårt testprov. Om du vill rengöra fläkten krävs ytterligare demontering utan att det är särskilt problematiskt.

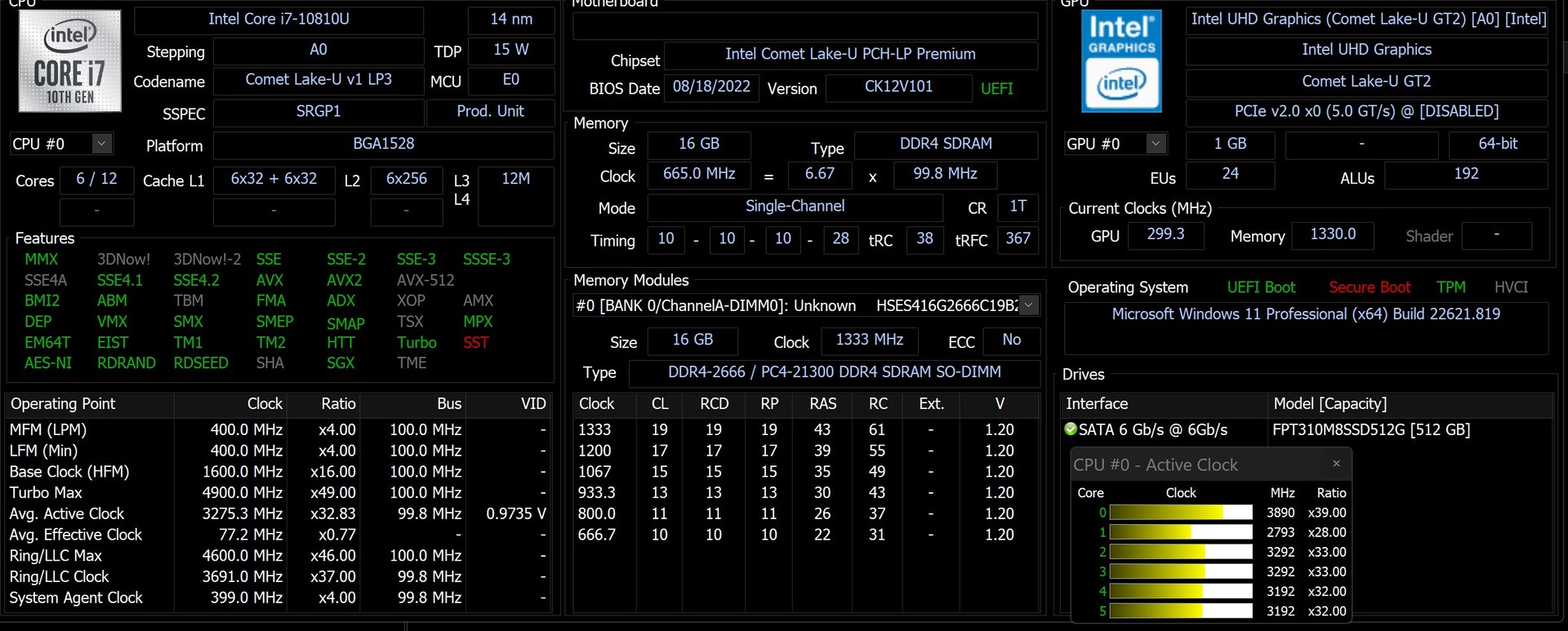

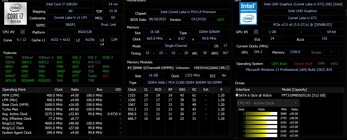

Prestanda

Intel Core i7-10810U är lämplig för kontorsapplikationer och lätta arbetsbelastningar med flera trådar som behandlas effektivt tack vare de 12 trådarna. Tyvärr har tillverkaren slösat bort en del av prestandan genom att installera endast en RAM-modul. Detsamma gäller den inbyggda SSD:n som endast kan skryta med SATA-hastighet.

Provningsförhållanden

Alla prestandatester utfördes med fabriksinställningar. Vi gjorde inga ändringar av SoC:s effektgränser. BIOS tillåter dock att dessa värden ändras.

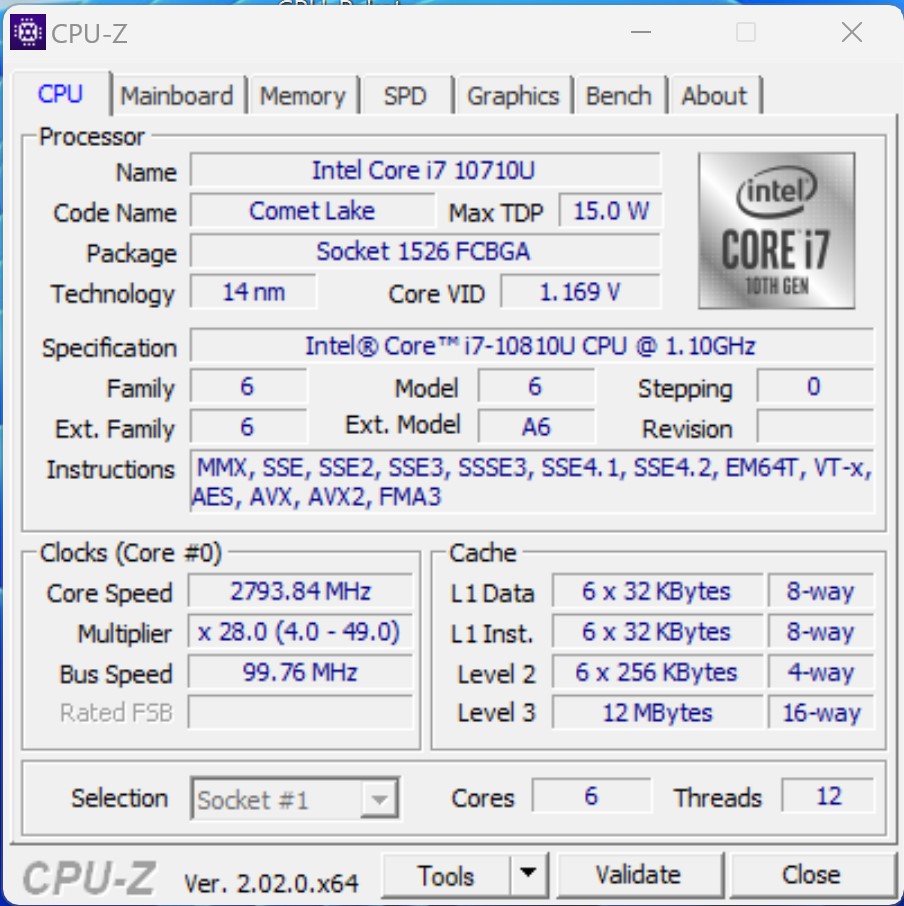

Processor

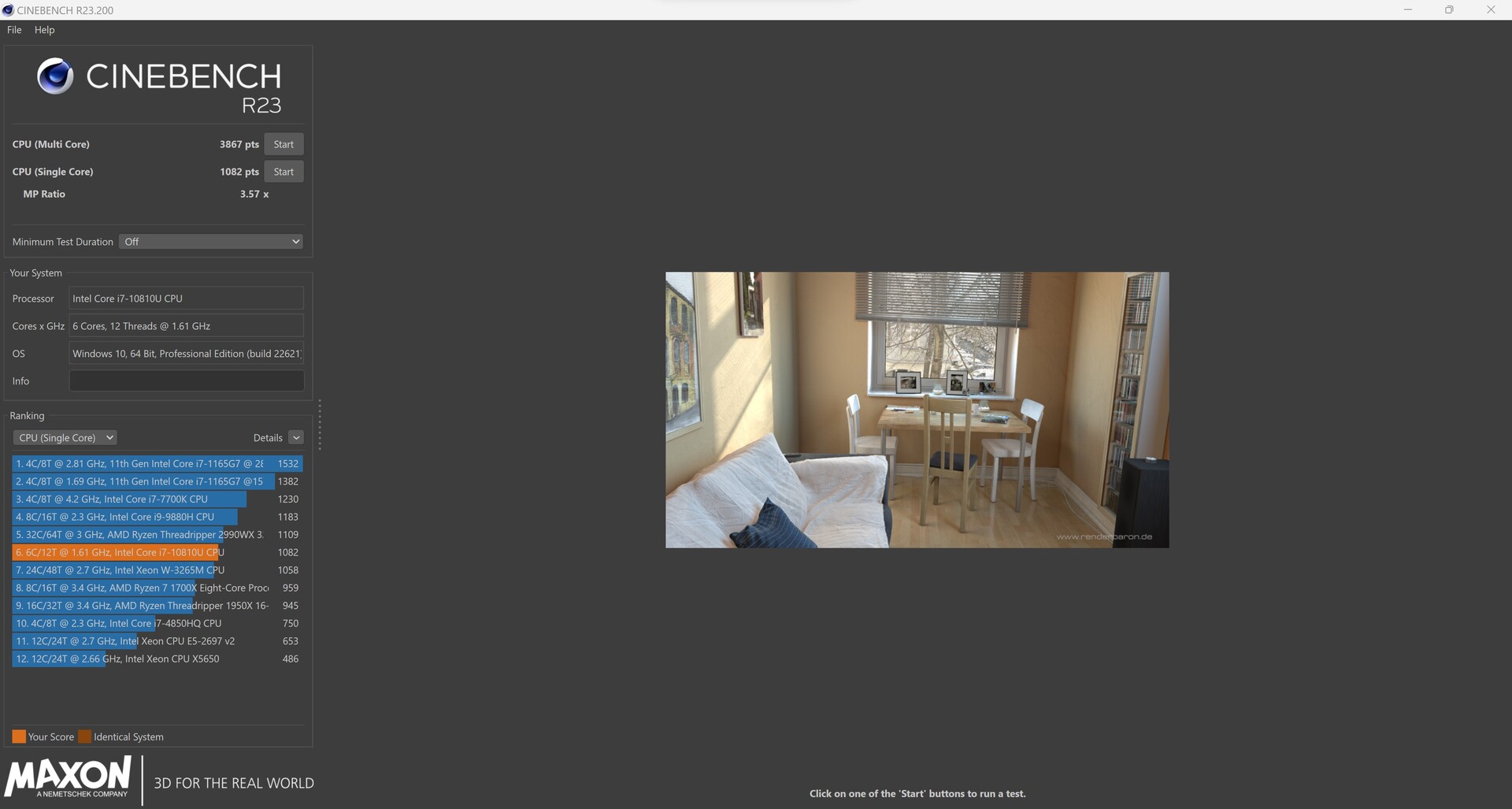

Intel Core i7-10810U tillhör Comet Lake-serien och erbjuder sex Hyper-Threading-aktiverade beräkningskärnor för totalt 12 trådar. Strömförbrukningen är begränsad till 40 watt (kortsiktig strömgräns) och 15 watt (långsiktig strömgräns), och tillverkaren agerar mycket konservativt på detta område. Kylsystemet har fortfarande reserver för att locka fram mer prestanda ur SoC:n. Detta innebär att NiPoGi CK10 har svårt att hålla jämna steg med konkurrenterna. Endast Ace Magician TK11-A0 kommer i närheten och kan slås i många benchmarks med flera trådar. Den åldrande Intel Core i7-10810U kämpar när den jämförs med konkurrenter med 8 kärnor

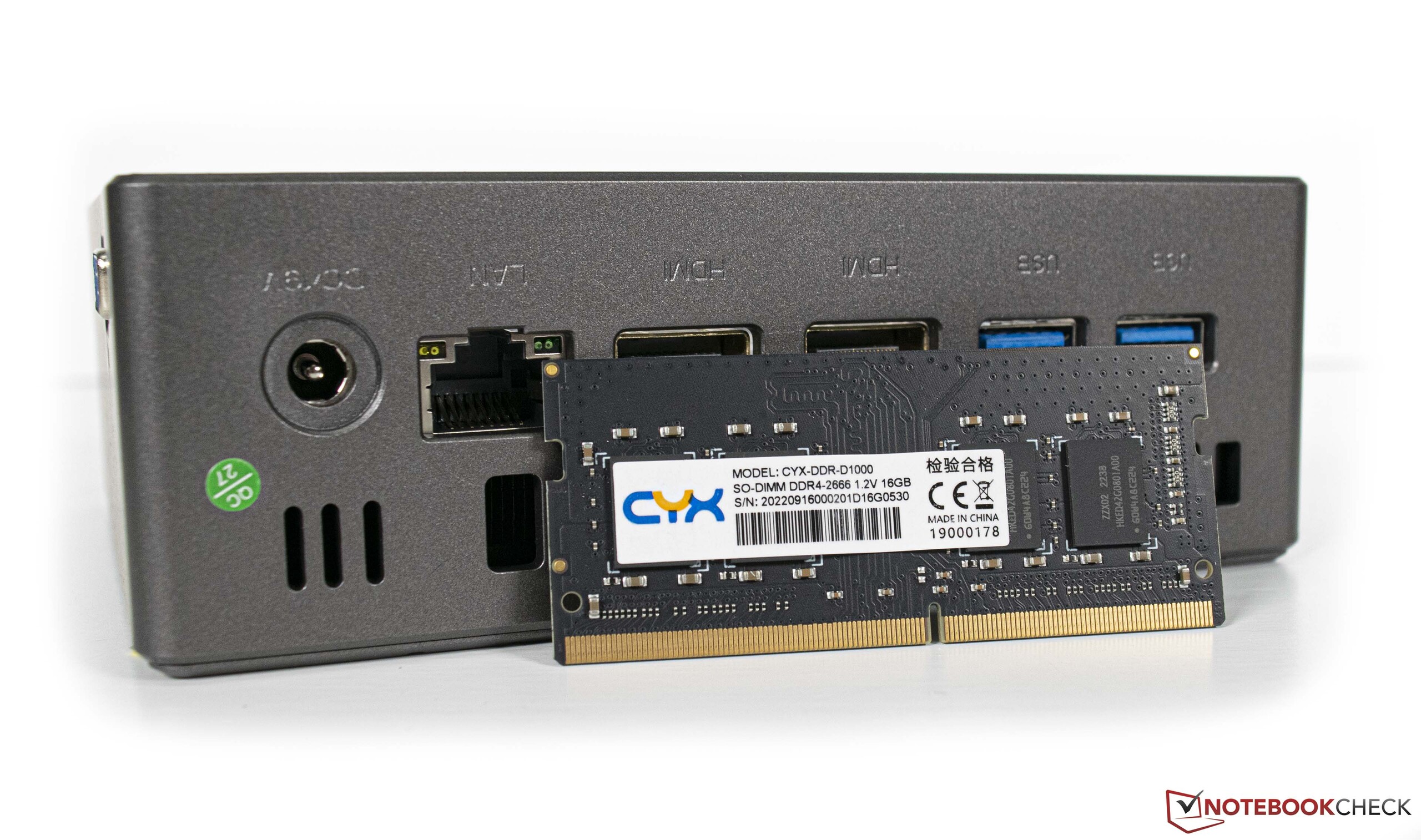

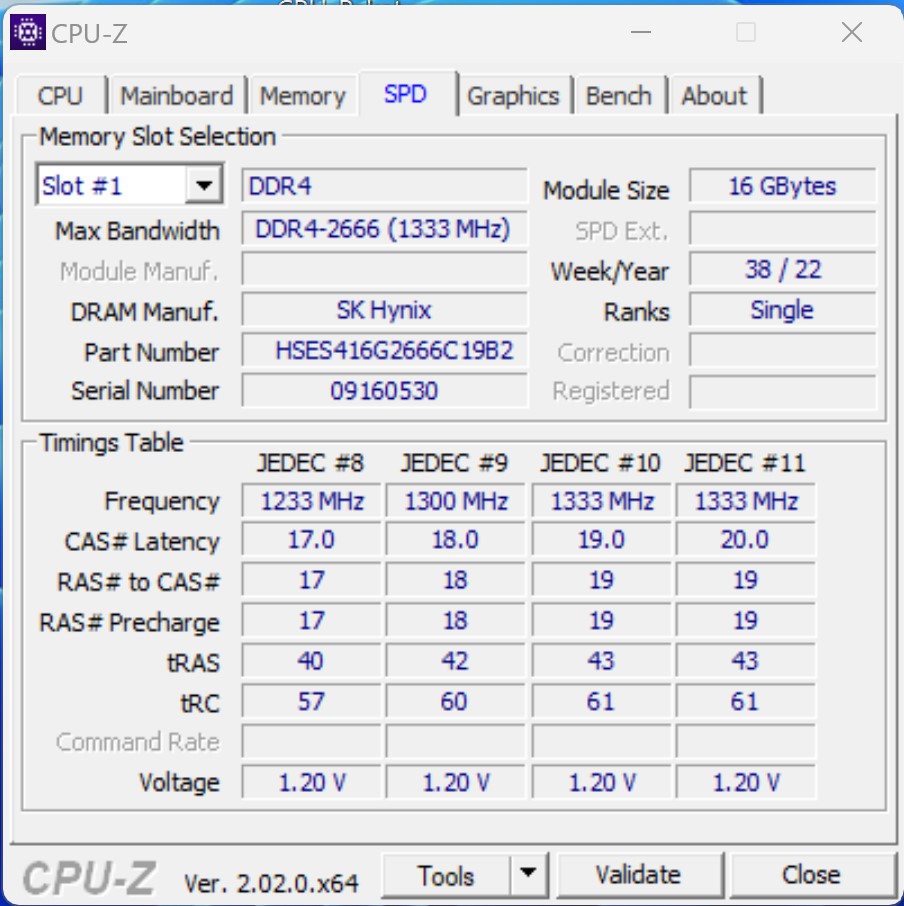

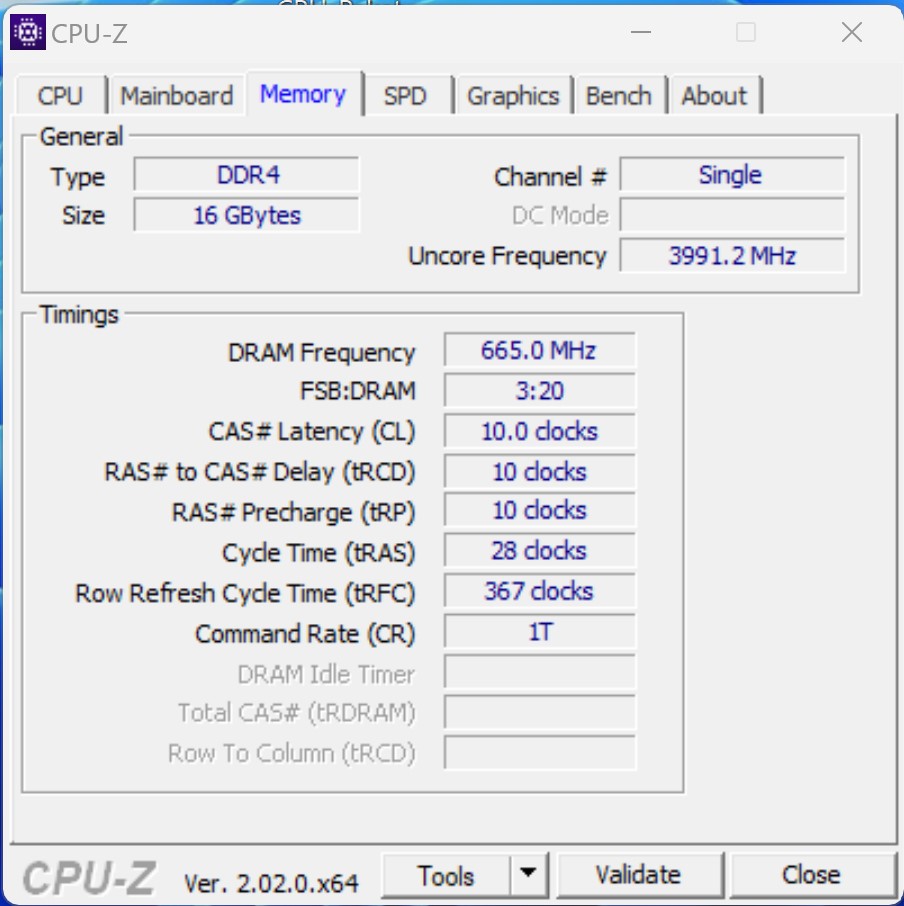

I minnesjämförelser är den enda inbyggda RAM-modulen ödesdiger för NiPoGi CK10. Dubbelkanalläge kan endast användas med två RAM-moduler och är något som hela systemet skulle gynnas av

Du kan hitta ytterligare processorjämförelser här.

Performance Rating - Percent
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	47.8 pt
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.6 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	47.3 pt
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	43.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	40 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt
Average Intel Core i7-10810U	34.8 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	33.9 pt

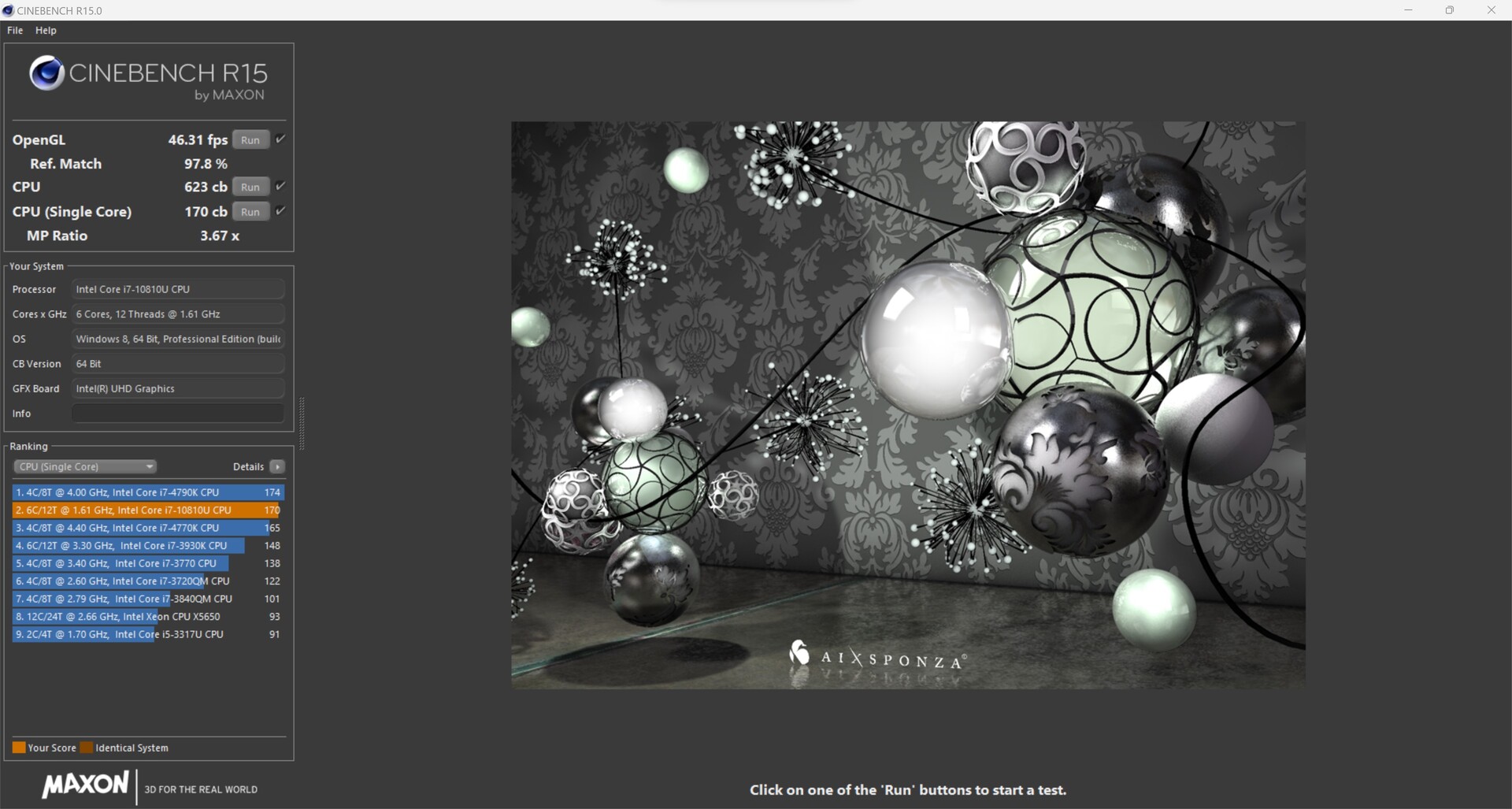

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points +31%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points +16%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points +14%
Average Intel Core i7-10810U (161 - 183, n=5)	175.6 Points +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +257%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +218%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points +216%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +208%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points +103%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points +52%
Average Intel Core i7-10810U (623 - 1064, n=4)	799 Points +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -10%

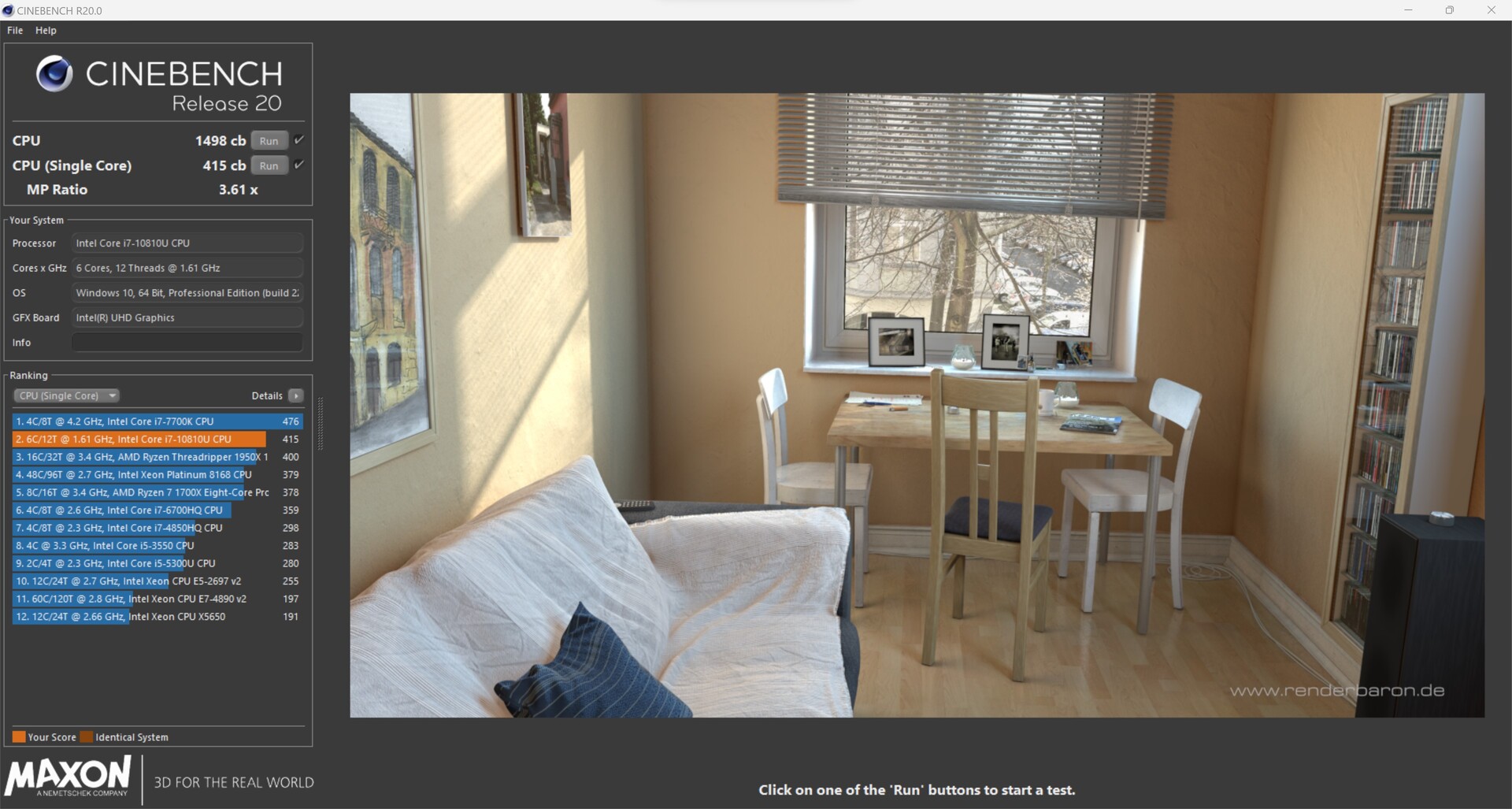

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points +25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points +22%
Average Intel Core i7-10810U (396 - 447, n=5)	425 Points +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +246%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +211%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points +206%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +200%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points +99%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points +55%
Average Intel Core i7-10810U (1498 - 2344, n=5)	1778 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -4%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +47%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points +35%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points +18%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points +15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1.95 Points
Average Intel Core i7-10810U ()	1.95 Points 0%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +267%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points +230%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +227%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +215%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points +112%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points +54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.98 Points
Average Intel Core i7-10810U ()	6.98 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -9%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +41%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points +21%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points +18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8591 Points
Average Intel Core i7-10810U ()	8591 Points 0%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +211%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +182%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points +178%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +174%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points +80%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	23491 Points
Average Intel Core i7-10810U ()	23491 Points 0%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds *
Average Intel Core i7-10810U (571 - 875, n=5)	689 Seconds * +1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * +26%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * +43%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * +64%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +67%

wPrime 2.10
32m
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.952 s *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * +2%
Average Intel Core i7-10810U (4.86 - 6.95, n=2)	5.9 s * +15%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +48%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +52%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * +54%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	267.369 s *
Average Intel Core i7-10810U (205 - 267, n=2)	236 s * +12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +63%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +66%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * +69%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +95%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +92%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +86%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps +65%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps +52%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps +17%
Average Intel Core i7-10810U (141.6 - 153.7, n=2)	147.7 fps +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +198%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +186%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +94%
Average Intel Core i7-10810U (39.2 - 39.7, n=2)	39.4 fps +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -6%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +45%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s +15%
Average Intel Core i7-10810U (4747 - 4927, n=2)	4837 KB/s +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4747 KB/s
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s -9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -12%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +83%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s +31%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s +29%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.9 GB/s
Average Intel Core i7-10810U (5.5 - 5.9, n=2)	5.7 GB/s -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -10%
Twofish Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s +100%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +50%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s +10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1 GB/s
Average Intel Core i7-10810U (0.956 - 1, n=2)	0.978 GB/s -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -24%
Serpent Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s +112%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +112%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +94%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s +24%
Average Intel Core i7-10810U (0.566 - 0.64, n=2)	0.603 GB/s +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.566 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -21%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points +84%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points +25%
Average Intel Core i7-10810U (3351 - 5553, n=5)	4350 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points +17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points +14%
Average Intel Core i7-10810U (1219 - 1274, n=5)	1240 Points +2%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points +56%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points +43%
Average Intel Core i7-10810U (3924 - 5631, n=3)	4908 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points +23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points +13%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points +1%
Average Intel Core i7-10810U (1220 - 1235, n=3)	1229 Points +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +37%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +35%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points +23%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points +11%
Average Intel Core i7-10810U (4762 - 5281, n=3)	5082 Points +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +65%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points +14%
Average Intel Core i7-10810U (19324 - 22533, n=3)	21447 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points 0%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +157%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +118%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +113%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points +93%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points +87%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points +78%
Average Intel Core i7-10810U (6537 - 10599, n=5)	8591 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6537 Points

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +173%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +173%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS +143%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS +33%
Average Intel Core i7-10810U (16072 - 25244, n=5)	21290 MIPS +6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -13%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS +13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS
Average Intel Core i7-10810U (4398 - 4794, n=5)	4561 MIPS -2%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +206%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +185%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +179%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps +148%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps +51%
Average Intel Core i7-10810U (3.81 - 6.45, n=5)	5.31 fps +2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec *
Average Intel Core i7-10810U (0.651 - 0.717, n=5)	0.682 sec * +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * +11%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +29%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +29%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +30%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s *
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * +3%
Average Intel Core i7-10810U (60.6 - 68.2, n=5)	65.4 s * +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +26%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +29%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points +24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points +15%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points
Average Intel Core i7-10810U (202 - 207, n=5)	205 Points 0%

Mozilla Kraken 1.1 - Total
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms *
Average Intel Core i7-10810U (853 - 968, n=5)	901 ms * +7%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * +21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +38%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +38%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +38%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +183%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +175%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +171%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points +124%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points +107%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points +63%
Average Intel Core i7-10810U (8470 - 11179, n=2)	9825 Points +16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points +13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +179%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +168%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +166%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points +101%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points +53%
Average Intel Core i7-10810U (9003 - 11864, n=5)	10590 Points +18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +200%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +160%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +155%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points +139%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points +91%
Average Intel Core i7-10810U (2331 - 4127, n=5)	3331 Points +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.7 pt
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	84 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.4 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	58.4 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	30.5 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +239%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s +224%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +193%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +189%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s +95%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s +61%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +283%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +231%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +225%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points +206%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +119%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -8%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +181%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +178%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +100%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s +87%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s +57%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +86%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points +80%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +73%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +67%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -18%

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points +211%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +175%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +163%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +157%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +78%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points +8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -15%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +341%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +279%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +274%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points +236%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points +49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +655%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +569%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +544%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s +337%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s +327%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s +320%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +229%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +198%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s +191%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +165%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +156%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s +73%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s +40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -9%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +233%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s +226%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s +83%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s +59%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +203%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +167%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +97%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s +95%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s +48%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s

NiPoGi CK10 Cinebench R15 multi-loop

Cinebench R15 continuous loop visade att det inbyggda kylsystemet inte riktigt har sitt jobb med den Intel Core i7-10810U. Den konservativa inställningen säkerställer en mycket kort turboklockhastighet vilket är anledningen till att vi endast observerade en minimal prestandaförlust efter den första körningen. Med ett genomsnitt på 612 poäng var prestandan exceptionellt stabil under alla 50 körningar.

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Systemets prestanda

Benchmarks visar att SoC:n redan är mer än två år gammal. Subjektivt sett är systemets prestandabegränsningar märkbara på grund av den relativt långsamma SSD:n och RAM-minnet, som endast fungerar i enkanalsdrift. Ibland kan små latenstider observeras när program öppnas. Dessutom har den under genomsnittet liggande Wi-Fi-prestandan inte heller någon fördelaktig effekt på arbetsflöden.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +68%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +62%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points +48%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points +43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points +32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points +16%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points

PCMark 10 / Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points +39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points +38%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points +36%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points +28%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points +21%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points +19%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points

PCMark 10 / Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +53%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +49%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +48%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +43%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points +24%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points +3%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -5%

Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity

Performance Rating
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	89 pt
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	69.9 pt

CrossMark / Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points +28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points +22%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points

CrossMark / Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +63%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +62%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points +62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points +57%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points

CrossMark / Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +39%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points +33%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points +20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points +15%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points

CrossMark / Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +33%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +29%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points +26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points +20%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +156%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +151%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +121%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +99%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +98%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s +87%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s +85%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s +67%
Average Intel Core i7-10810U (18973 - 28662, n=2)	23818 MB/s +26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s

AIDA64 / Memory Read
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +146%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +139%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +138%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +123%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +119%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s +106%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s +96%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s +94%
Average Intel Core i7-10810U (19621 - 30124, n=2)	24873 MB/s +27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s

AIDA64 / Memory Write
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +185%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +175%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +128%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s +114%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s +105%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s +93%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s +92%
Average Intel Core i7-10810U (18296 - 32064, n=2)	25180 MB/s +38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -59%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -53%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -52%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * -50%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * -32%
Average Intel Core i7-10810U (60.2 - 94.3, n=2)	77.3 ns * -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * -23%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns *

* ... smaller is better

DPC-fördröjningar

NiPoGi CK10 har problem med latens när du öppnar flera flikar i Edge. Latency försämrades inte vid uppspelning av 4K Youtube-videor. Intel Core i7-10810U's iGPU arbetar med en belastning på cirka 35 procent när en sådan video spelas upp.

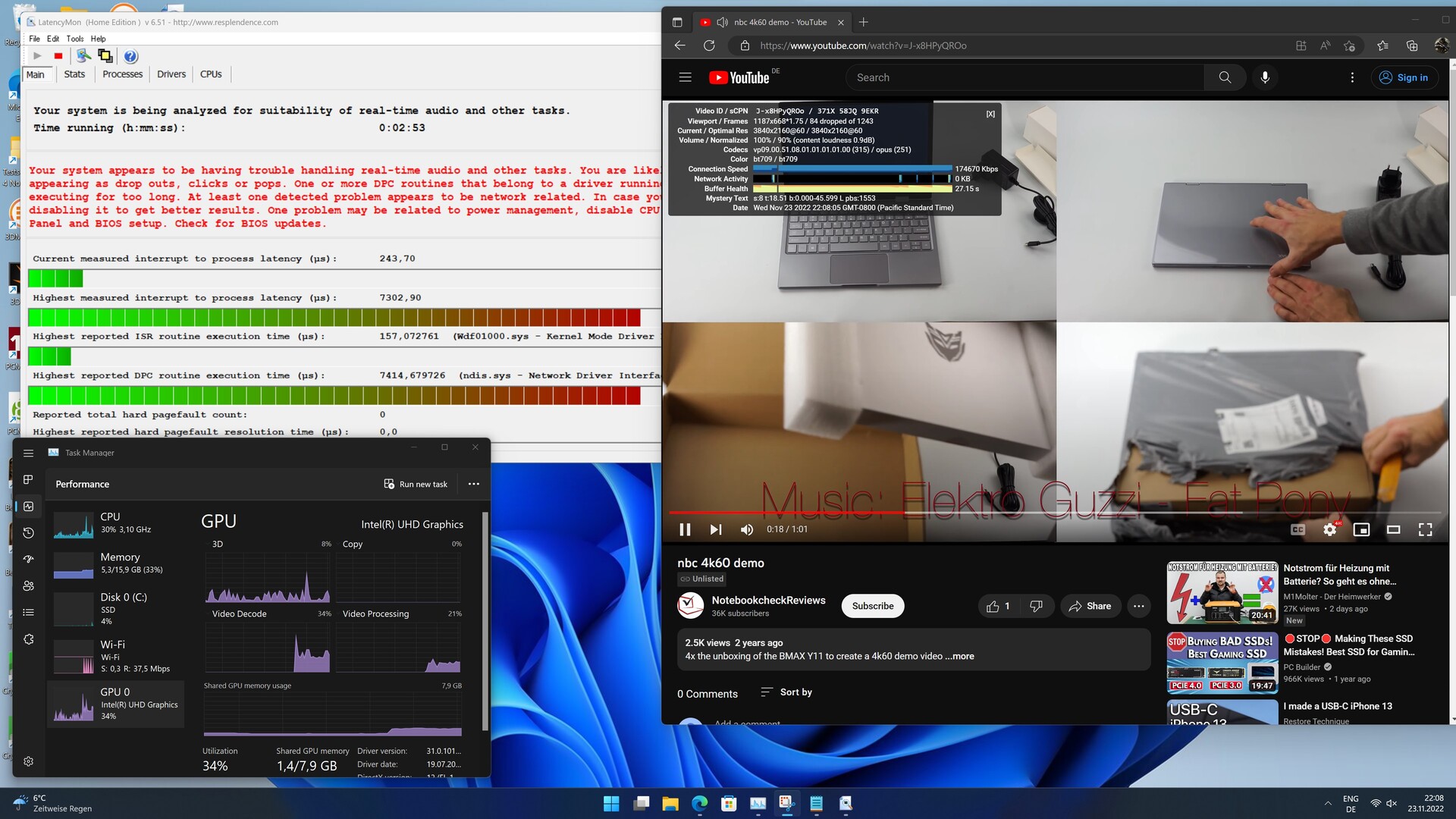

Maximal latens vid öppning av flera webbläsarflikar och uppspelning av 4K-videomaterial

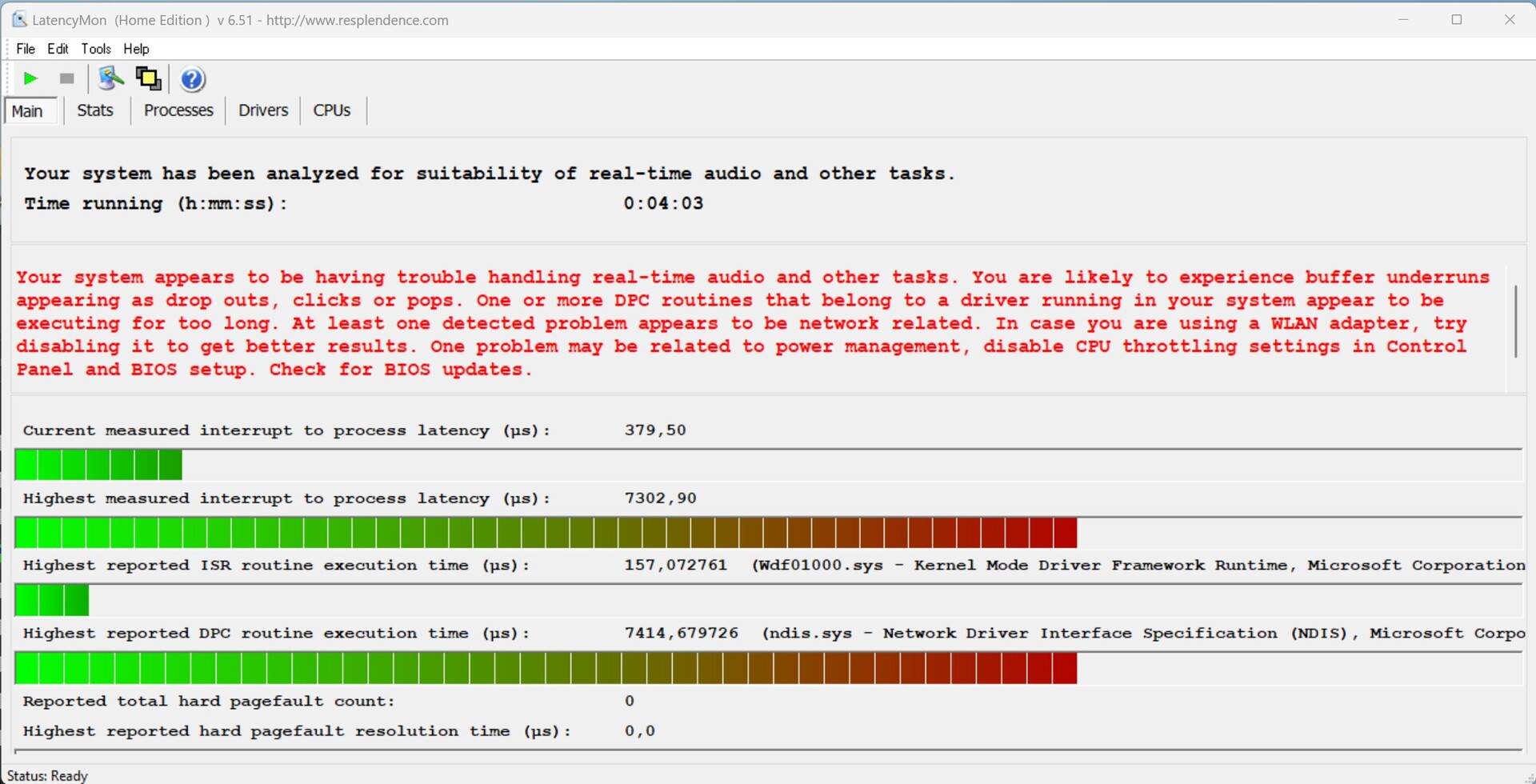

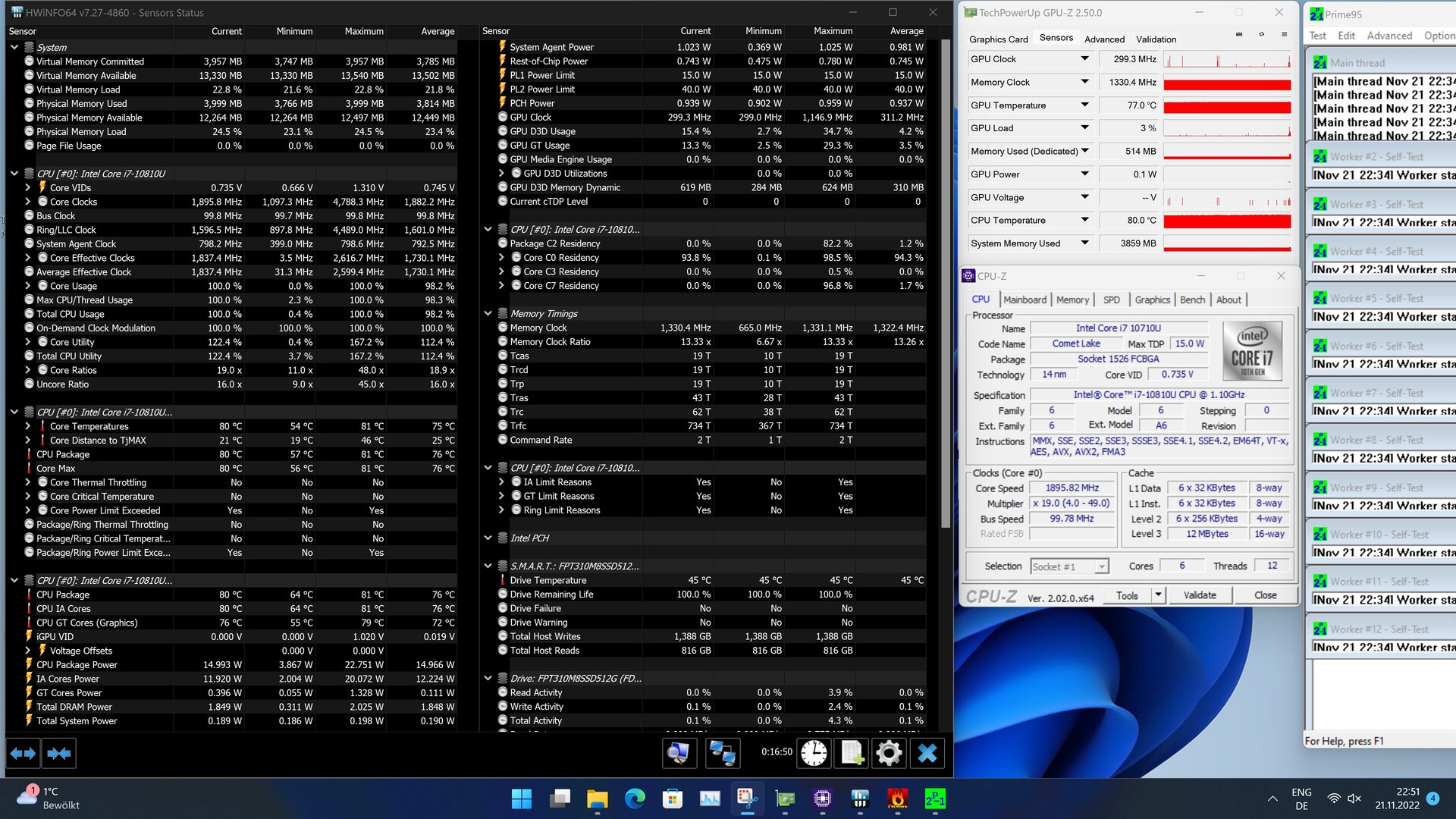

Maximal latenstid efter tio sekunders Prime95

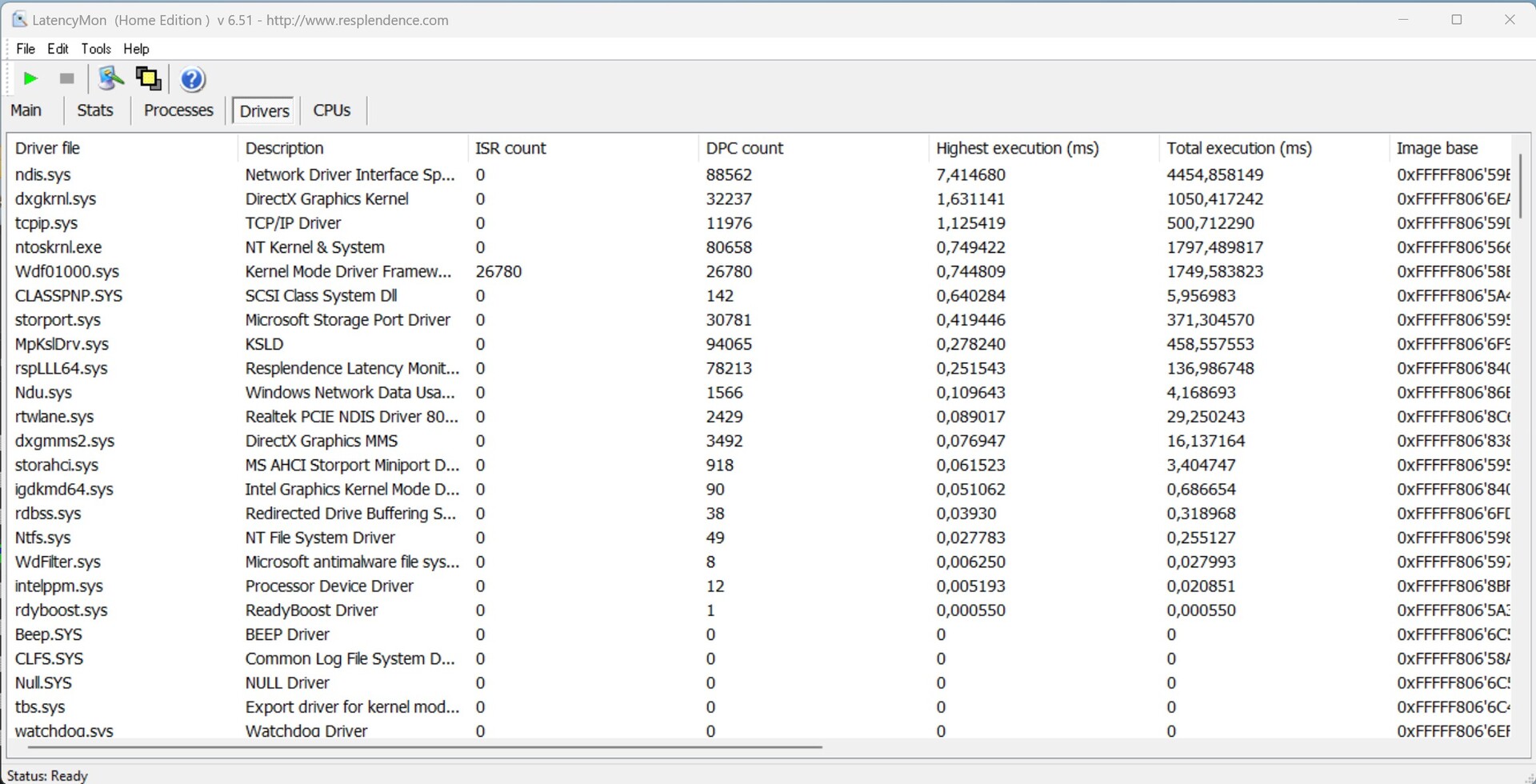

Drivrutiner rangordnade efter högsta latenstid

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7414 μs *
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * +75%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * +78%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * +85%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +90%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +91%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +95%

* ... smaller is better

Masslagring

CK10 drivs av en okänd SSD med en lagringskapacitet på 512 GB. Detta är en SATA-baserad M.2 2280 SSD som tydligt kan ses i benchmarks. Nackdelarna är uppenbara när man jämför med snabbare alternativ som NVMe SSD:er. Prestandan för 4K-läsning ligger dock på en bra nivå. Minidatorn kan utrustas med upp till tre masslagringsenheter (2x M.2 2280, 1x 2,5 tum).

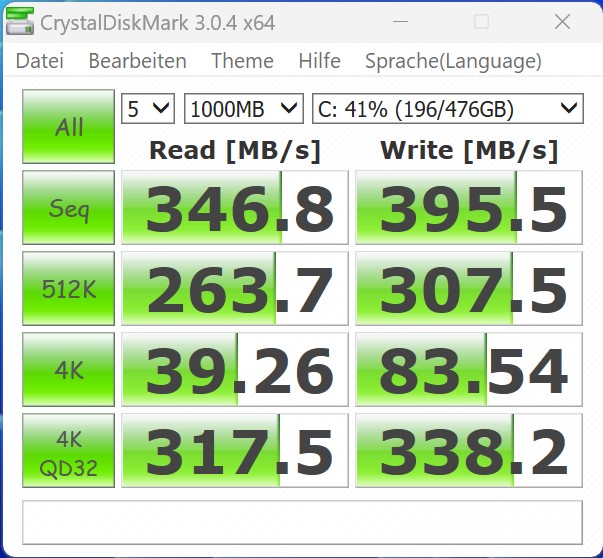

CrystalDiskMark 3.0

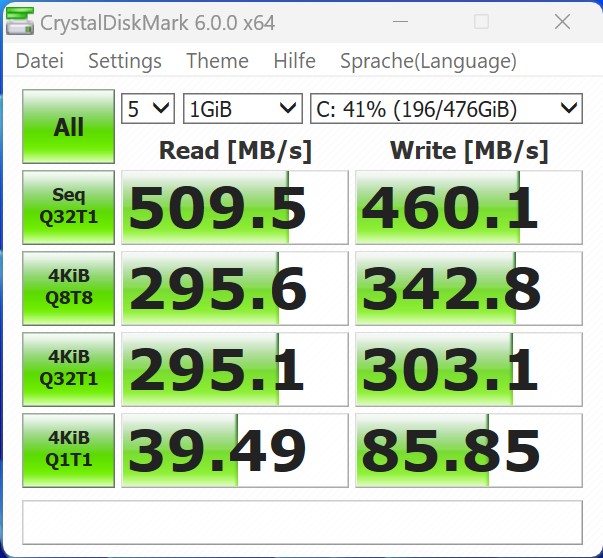

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

FPT310M8SSD512G

Sequential Read: 346.8 MB/s

Sequential Write: 395.5 MB/s

512K Read: 263.7 MB/s

512K Write: 307.5 MB/s

4K Read: 39.26 MB/s

4K Write: 83.54 MB/s

4K QD32 Read: 317.5 MB/s

4K QD32 Write: 338.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	87.4 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	85.7 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	82.4 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	71.1 pt
Minisforum HM90 ^-11! Kingston OM8PDP3256B	68.6 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	68.3 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	64.8 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	27.5 pt

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +602%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +569%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s +554%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s +451%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s +392%
Minisforum HM90 Kingston OM8PDP3256B	1445 (1382.19^min - 1445.15^max) MB/s +365%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s +324%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s
seq write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +308%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +308%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s +191%
Minisforum HM90 Kingston OM8PDP3256B	1211 (1193.91^min - 1211.31^max) MB/s +176%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s +170%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s +123%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s +26%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s
seq q8 t1 read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +469%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +450%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s +436%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s +430%
Minisforum HM90 Kingston OM8PDP3256B	2177 (1922.11^min - 2177.05^max) MB/s +390%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s +388%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s +344%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s
seq q8 t1 write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +288%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +284%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s +185%
Minisforum HM90 Kingston OM8PDP3256B	1245 (1229.98^min - 1245.08^max) MB/s +170%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s +160%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s +112%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s +20%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s
4k q1 t1 read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +24%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s +22%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +16%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s +14%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -2%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -24%
Minisforum HM90 Kingston OM8PDP3256B	27.1 (26.54^min - 27.09^max) MB/s -30%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +166%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +156%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +140%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s +104%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s +95%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s +68%
Minisforum HM90 Kingston OM8PDP3256B	125 (123.91^min - 124.78^max) MB/s +53%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s
4k q32 t16 read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +259%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +240%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +235%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s +171%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s +127%
Minisforum HM90 Kingston OM8PDP3256B	589 (585.51^min - 588.52^max) MB/s +99%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s +6%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s
4k q32 t16 write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +214%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +197%
Minisforum HM90 Kingston OM8PDP3256B	932 (920.96^min - 931.78^max) MB/s +183%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +171%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +135%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +100%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s +60%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s

AS SSD
Score Total
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +1491%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +1441%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points +1400%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points +1139%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points +1103%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points
Score Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +204%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +202%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points +162%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points +124%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points +83%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points
Score Write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +623%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +576%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +566%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +512%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points +473%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points
Seq Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +370%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +361%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s +350%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s +318%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s +263%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s
Seq Write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +311%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +301%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s +214%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s +186%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s +132%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s
4K Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +38%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +30%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +25%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -6%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -34%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +370%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s +287%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s +266%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s +263%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s +208%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s
4K-64 Read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +206%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +203%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s +144%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s +113%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s +60%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s
4K-64 Write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +951%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +878%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +779%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +701%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s +696%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -38%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms *
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * +6%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * +28%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +33%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +46%
Access Time Write
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms *
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * +9%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * +9%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +10%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +74%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +79%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G: Ø453 (292.09-461.16)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Grafik

Intel UHD Graphics 620 har svårt att hålla jämna steg med sina efterföljare. Uppföljningsmodellen - Intel Iris Xe Graphics - kan konkurrera med AMD:s Radeon RX Vega 8. 3D-prestandan skulle förbättras om enheten utrustades med en andra DDR4 RAM-modul. Som referenspunkt inkluderade vi den HP EliteBook x360 1040 G7 i jämförelsetabellen.

Du kan hitta ytterligare riktmärken här.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	96.3 pt
Average Intel Iris Xe Graphics G7 96EUs	89.9 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	86.5 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	84.4 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	77.1 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	76.5 pt
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	73.2 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	72 pt
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	30.5 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	23.3 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +329%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +293%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7676, n=202)	6353 Points +283%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +280%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +248%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +238%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	5567 Points +235%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points +235%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	1959 Points +18%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +303%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +254%
Average Intel Iris Xe Graphics G7 96EUs (13162 - 38578, n=180)	26508 Points +225%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +221%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points +221%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	23739 Points +191%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points +189%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points +150%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	11437 Points +40%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points
1920x1080 Fire Strike Graphics
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6482, n=215)	4920 Points +356%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +339%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +305%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +250%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points +246%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points +233%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	3414 Points +217%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points +213%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	1444 Points +34%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	92.6 pt
Average Intel Iris Xe Graphics G7 96EUs	91.6 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	90.7 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	78.5 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	77.7 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	74.6 pt
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	73.3 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	69.4 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	23.5 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Average Intel Iris Xe Graphics G7 96EUs (17.3 - 31.2, n=21)	23.3 fps +331%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +330%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +263%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps +228%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps +220%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps +200%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps +176%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	13.5 fps +150%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps
Extreme Preset DX11
Average Intel Iris Xe Graphics G7 96EUs (17.7 - 31.9, n=21)	23.9 fps +319%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +309%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +275%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +216%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps +211%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps +200%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps +195%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	15.4 fps +170%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Average Intel Iris Xe Graphics G7 96EUs (11.3 - 20, n=19)	15 fps +285%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +282%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +264%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +197%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +195%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps +190%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps +172%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	10 fps +156%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Average Intel Iris Xe Graphics G7 96EUs (11.7 - 21.7, n=19)	16.6 fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.8 fps

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points +361%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	3843 Points +327%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	3499 Points +289%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	3499 Points +289%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	3414 Points +280%
Average Intel Iris Xe Graphics G7 96EUs (2693 - 3877, n=25)	3403 Points +279%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points +259%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points +200%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	899 Points
1024x600 Normal, Fluid 3DTex
Average Intel Iris Xe Graphics G7 96EUs (186 - 420, n=25)	308 Points +258%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	306 Points +256%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points +221%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	235 Points +173%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	235 Points +173%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	235 Points +173%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points +160%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points +116%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	86 Points
1024x600 Normal, Fluid 2DTexArr
Average Intel Iris Xe Graphics G7 96EUs (204 - 398, n=25)	300 Points +257%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	292 Points +248%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points +224%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	231 Points +175%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	231 Points +175%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	220 Points +162%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points +152%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points +143%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	84 Points
1024x600 Normal, Mandel Vector
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points +623%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1217 Points +588%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1066 Points +502%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1066 Points +502%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +455%
Average Intel Iris Xe Graphics G7 96EUs (558 - 918, n=25)	789 Points +346%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	763 Points +331%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points +215%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	177 Points
1024x600 Normal, Mandel Scalar
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1115 Points +458%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1047 Points +424%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	964 Points +382%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	964 Points +382%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +353%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	853 Points +327%
Average Intel Iris Xe Graphics G7 96EUs (747 - 888, n=25)	836 Points +318%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points +276%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	200 Points
1024x600 Normal, QJuliaRayTrace
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points +242%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1200 Points +241%
Average Intel Iris Xe Graphics G7 96EUs (936 - 1323, n=25)	1169 Points +232%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1123 Points +219%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1002 Points +185%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1002 Points +185%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +182%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points +156%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	352 Points

3DMark 05 Standard		16972 poäng
3DMark 06 Standard Score		11379 poäng
3DMark Vantage P Result		6899 poäng
3DMark 11 Performance		1848 poäng
3DMark Ice Storm Standard Score		51368 poäng
3DMark Cloud Gate Standard Score		7637 poäng
3DMark Fire Strike Score		1004 poäng
3DMark Fire Strike Extreme Score		474 poäng
3DMark Time Spy Score		419 poäng
Hjälp

... jämför

Spelprestanda

Intel UHD Graphics 620 är överväldigad av alla aktuella spel. Även äldre titlar kan ofta bara spelas smidigt i 720p och med detaljerna inställda på låg nivå. IGPU:n klarar sig bäst med de enklaste casual-spelen i native-upplösning

Ytterligare jämförelser och benchmarks hittar du i vår GPU-spellista.

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +301%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +242%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +237%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps +235%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps +193%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	92.8 (13.8^min, 62.5^P1) fps +174%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps +101%
Average Intel UHD Graphics 620 (33.9 - 35.7, n=2)	34.8 fps +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	33.9 (12.8^min, 19.2^P1) fps
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +339%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +271%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +250%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +237%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps +205%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 (12.9^min, 50^P1) fps +194%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps +96%
Average Intel UHD Graphics 620 (28 - 30.6, n=2)	29.3 fps +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (12.2^min, 16.9^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +464%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +400%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +336%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (41^min) fps +318%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps +300%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps +300%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps +127%
Average Intel UHD Graphics 620 (6 - 16, n=12)	12.9 fps +17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (10^min) fps
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +480%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +480%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +340%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (18^min) fps +320%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps +320%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps +320%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps +240%
Average Intel UHD Graphics 620 (5 - 7, n=5)	6.6 fps +32%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (5^min) fps

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +409%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +336%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +300%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +282%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41 (31^min) fps +273%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps +264%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps +164%
Average Intel UHD Graphics 620 (11 - 13, n=2)	12 fps +9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (8^min) fps
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +480%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +460%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +340%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (17^min) fps +320%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps +300%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps +300%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps +220%
Average Intel UHD Graphics 620 (5 - 7, n=2)	6 fps +20%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (4^min) fps

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +347%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +271%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +265%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +255%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps +253%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.7 (65^min) fps +213%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps +137%
Average Intel UHD Graphics 620 (25.5 - 29.2, n=4)	27.1 fps +6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.5 (19^min) fps
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +368%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +322%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps +265%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps +264%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.6 (32^min) fps +242%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps +188%
Average Intel UHD Graphics 620 (11.1 - 13.5, n=4)	12.2 fps +8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11.3 (5^min) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +89%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +74%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +72%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +71%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps +52%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.5 (88.7^min) fps +38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	79.1 (53.9^min) fps +9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	72.8 (60.3^min) fps
Average Intel UHD Graphics 620 (42.4 - 90, n=92)	71.9 fps -1%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +137%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +114%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +109%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps +100%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.4 (69^min) fps +78%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	71.4 (52.5^min) fps +58%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	45.1 (40.8^min) fps
Average Intel UHD Graphics 620 (8.6 - 57.1, n=92)	43.5 fps -4%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +289%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +241%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +240%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +214%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps +212%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps +184%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.6 (43.7^min, 64.9^P1) fps +182%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.7 (5.3^min, 6.92^P1) fps
Average Intel UHD Graphics 620 (17 - 31, n=5)	23.9 fps -7%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +290%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +281%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +242%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +220%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps +208%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.1 (23.3^min, 25.9^P1) fps +197%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps +189%
Average Intel UHD Graphics 620 (7 - 12.5, n=5)	10.2 fps +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	9.8 (5^min, 5^P1) fps

	låg	med.	hög	ultra
GTA V (2015)	33.9	28	6.56	2.67
Dota 2 Reborn (2015)	72.8	45.1	18.4	16
Final Fantasy XV Benchmark (2018)	10.8	5.08	3.75
X-Plane 11.11 (2018)	20.2	13.1	12
Far Cry 5 (2018)	11	5	5
Strange Brigade (2018)	25.7	9.8	10.1
Far Cry New Dawn (2019)	11	5	5
Metro Exodus (2019)	12.3	5.95	4.61
Borderlands 3 (2019)	14.9	5.83	3.69
F1 2020 (2020)	25.5	11.3		5.34
F1 2021 (2021)	28	12.2	9.22
Tiny Tina's Wonderlands (2022)	7.02	5.06	3.3

Utsläpp - konsekvent tyst och ekonomisk

Bullerutsläpp

Omvänt kan Intel Core i7-10810Us konservativa effektgräns (PL1 och PL2) garanterar ett mycket tyst driftsljud. NiPoGi CK10 är aldrig riktigt hörbar, varken på tomgång eller under belastning. Med 31 dB(A) var minidatorn mycket tyst under stresstesterna och slår därför alla jämförelsedatorer som testats här med råge.

Ljudnivå

Låg belastning		30.8 / 30.9 / 30.9 dB(A)
Hög belastning		31 / 31 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) environment noise: 30.4 dB(A)

	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs
Noise		-2%	-9%	-23%	-8%
off / environment *	30.4	30.2 1%	30.2 1%	30.5 -0%	30.28 -0%
Idle Minimum *	30.8	30.5 1%	30.8 -0%	31.5 -2%	31.82 -3%
Idle Average *	30.9	30.5 1%	32.1 -4%	32.6 -6%	32.27 -4%
Idle Maximum *	30.9	30.5 1%	32.9 -6%	33.8 -9%	33.17 -7%
Load Average *	31	31.2 -1%	33.9 -9%	49.3 -59%	35.82 -16%
Load Maximum *	31	35.1 -13%	41.4 -34%	50.9 -64%	37.1 -20%

* ... smaller is better

Temperatur

Temperaturen i NiPoGi CK10:s hölje är mestadels låg och små hotspots syns endast selektivt. Under SoC-belastningstestning med Prime95 observerade vi en temperatur på maximalt 81 °C. Även vid full belastning kan Intel Core i7-10810U inom sin specifikation och överskrider klart basklockfrekvensen på 1,1 GHz.

NiPoGi CK10 nätadapter under stresstestning

Effektförbrukning

När det gäller strömförbrukning drar NiPoGi CK10 nytta av sin mycket ekonomiska SoC. Vare sig det gäller tomgång eller låg belastning klarade sig vårt prov väl mot konkurrenterna. Under stresstesterna fick nätadaptern på 65 watt dra upp till 54 watt under en kort tid. Detta lämnar lite utrymme för ytterligare en masslagringsenhet och en ytterligare SO-DIMM-modul.

Strömförbrukning

Av/Standby	0.3 / 0.4 Watt
Låg belastning	4.8 / 4.9 / 5.5 Watt
Hög belastning	23 / 54 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Average Intel UHD Graphics 620	Average of class Mini PC
Power Consumption		-143%	-64%	-20%	-24%	-127%
Idle Minimum *	4.8	8.9 -85%	8.4 -75%	3.4 29%	3.81 ?(1 - 12.4, n=259) 21%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -98%
Idle Average *	4.9	9.6 -96%	8.7 -78%	5.7 -16%	6.94 ?(2.8 - 15.7, n=261) -42%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -135%
Idle Maximum *	5.5	11.8 -115%	9.3 -69%	7 -27%	8.75 ?(3.8 - 30, n=259) -59%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -171%
Load Average *	23	98.9 -330%	46.4 -102%	36.5 -59%	35 ?(8.1 - 51.6, n=259) -52%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -150%
Load Maximum *	54	101.8 -89%	52 4%	68 -26%	47.5 ?(22 - 96.3, n=261) 12%	97.5 ?(18.1 - 423, n=119, last 2 years) -81%

* ... smaller is better

Power consumption with an external monitor

Minipc Union NiPoGi CK10 - 10810U; Prime95 V2810 Stress (external Monitor): Ø29.1 (25.3-42.4)

Minipc Union NiPoGi CK10 - 10810U; Cinebench R15 Multi (external Monitor): Ø32.6 (23.3-53.5)

Minipc Union NiPoGi CK10 - 10810U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø24.4 (23-37.2)

Minipc Union NiPoGi CK10 - 10810U; Idle 1min (external Monitor): Ø5.49 (5.09-6.37)

För

+ Litet fotavtryck

+ 6 kärnor och 12 trådar

+ 16 GB RAM och 512 GB SSD

+ Upp till tre lagringsenheter möjliga

+ Lätt att öppna

+ Alltid tyst

+ Låga energikrav

Emot

- Långsamt Wi-Fi

- Endast en RAM-modul installerad (enkelkanal)

- Ingen Thunderbolt

- Ingen SD-kortläsare

- Mycket hög DPC-fördröjning

Bedömning - En extremt tyst kontorsdator

Den granskade enheten levererades av Minipc Union

Först och främst är NiPoGi CK10 en kompakt kontorsdator som bygger på en Intel Core i7-10810U. Även om SoC:n inte längre är en av de aktuella modellerna kan den fortfarande uppnå utmärkta prestanda med flera trådar tack vare sina 6 kärnor och totalt 12 trådar. Dessutom lovar en titt på databladet också mycket när det gäller RAM-minne och masslagring. Vid en närmare granskning skulle systemet dock ha gynnats av att i slutändan slösa bort användbar prestanda. RAM-minnet fungerar endast i singelkanalläge och SSD-minnet erbjuder endast SATA-hastighet. Dessa små nackdelar kan åtgärdas eftersom uppgraderingsalternativ är möjliga

Jämfört med konkurrenterna här i vårt test kämpade NiPoGi CK10 på grund av de ovannämnda begränsningarna. För den som kan hantera dessa begränsningar utgör NiPoGi CK10 en bra minidator för kontorsanvändning. Den kompakta PC:ns största pluspunkt är dess utsläppsvärden

NiPoGi CK10 är en bra arbetsstation för hemmet. Enheten är dock ganska ointressant på grund av priset.

I första hand är NiPoGi CK10 ett bra val för enkel, hemmabaserad kontorsanvändning. Det finns dock utmärkta alternativ, varav vissa tillverkas i egen regi och ger bättre valuta för pengarna. Ace Magician TK11-A0 befinner sig i samma prestandakategori, om än med vissa egna nackdelar. Dessutom har Minisforum också intressanta alternativ i sin portfölj. En jämförelse med EliteMini TH50 är värd att göra här.

Pris och tillgänglighet

NiPoGi CK10 med våra specifikationer kan för närvarande köpas på Amazon för 599 euro i Tyskland. Den identiska maskinen säljs i USA under namnet KAMURI CK10 med samma specifikationer. Just nu finns minidatorn på för 599 dollaräven på Amazon.

Notebookcheck fick NiPoGi CK10 att testa. Tillverkaren utövade inget inflytande på resultatet av granskningen. Dessutom fick tillverkaren inte den färdiga granskningen innan den publicerades.

Minipc Union NiPoGi CK10 - 10810U - 11/25/2022 v7 ^(old)
Sebastian Bade

Design

81 / 98 → 82%

Anslutningar

48 / 81 → 59%

Vikt

84%

Spelprestanda

44%

Programprestanda

84%

Ljudnivå

88%

Medel

71%

Mini PC - Vägt medel

Price comparison

Editor of the original article: Andrew Dickson - Translator - 113 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 459232 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Recension av NiPoGi CK10 med Intel Core i7-10810U - Liten kontorsdator med plats för tre SSD-diskar

Sebastian Bade, 2022-12- 2 (Update: 2022-12- 2)

Potentiella konkurrenter i jämförelse

Fall

Storleksjämförelse

Anslutningsmöjligheter

Kommunikation

Underhåll

Prestanda

Provningsförhållanden

Processor

NiPoGi CK10 Cinebench R15 multi-loop

Systemets prestanda

DPC-fördröjningar

Masslagring

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Grafik

Spelprestanda

Utsläpp - konsekvent tyst och ekonomisk

Bullerutsläpp

Temperatur

Effektförbrukning

Power consumption with an external monitor

För

Emot

Bedömning - En extremt tyst kontorsdator

Pris och tillgänglighet

More articles related to this device

Price comparison
