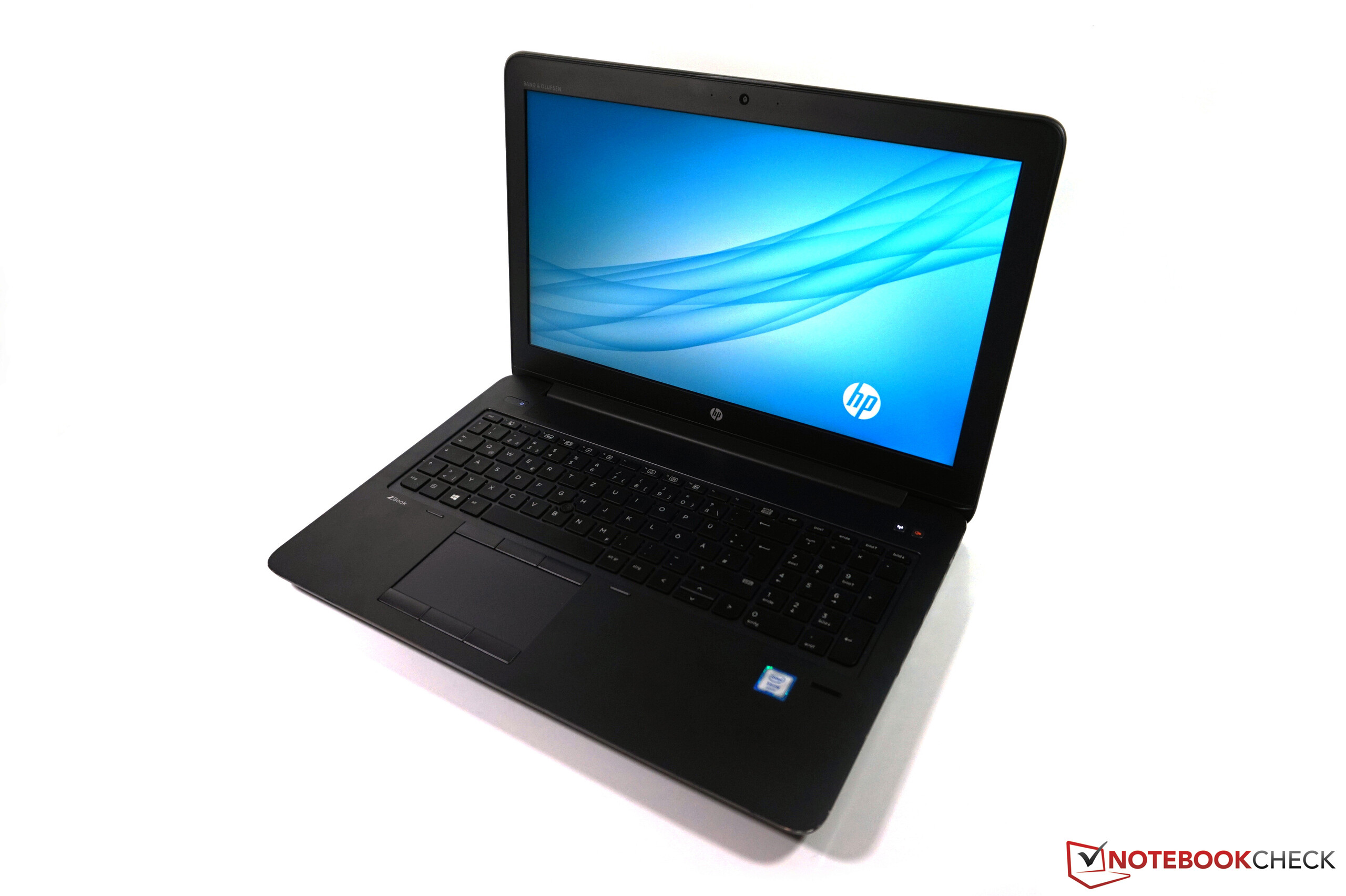

Test: HP ZBook 15 G3 Workstation (sammanfattning)

Name: HP ZBook 15 G3
Brand: HP

Extremt dyr = extremt bra? HP:s mobila arbetsstationer är traditionellt sett några av de dyraste bärbara datorerna på marknaden. ZBook 15 G3 ändrar inte på det, men lever den upp till våra höga förväntningar?

Andreas Osthoff, ✓ Tanja Hinum, Published 04/19/2016 🇺🇸 🇩🇪 ...

Laptop / Notebook Skylake Windows Workstation

Test device courtesy of HP Deutschland

Download your licensed rating image as PNG / SVG

HP ZBook 15 G3 (ZBook 15u G4 Serie)

Processor

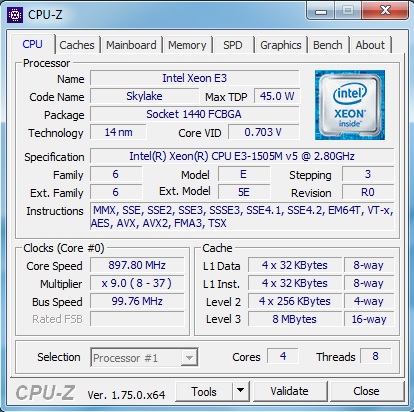

Intel Xeon E3-1505M v5 4 x 2.8 - 3.7 GHz, Skylake

Grafikkort

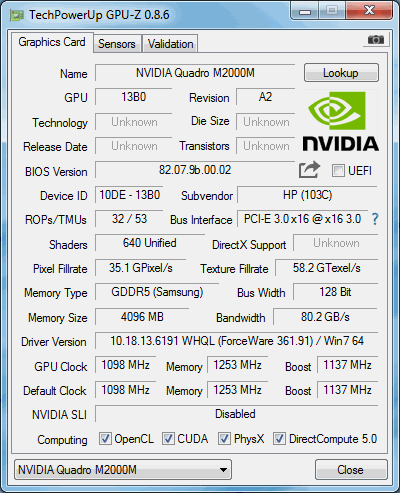

NVIDIA Quadro M2000M - 4 GB VRAM, Kärna: 1137 MHz, Minne: 1252 MHz, GDDR5, 361.91, Optimus

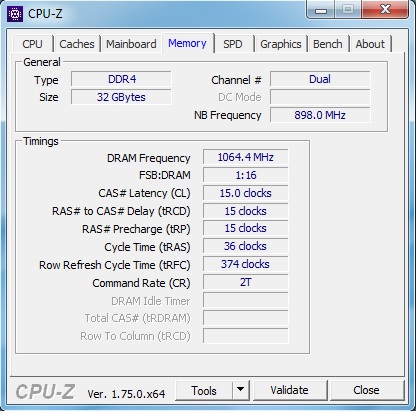

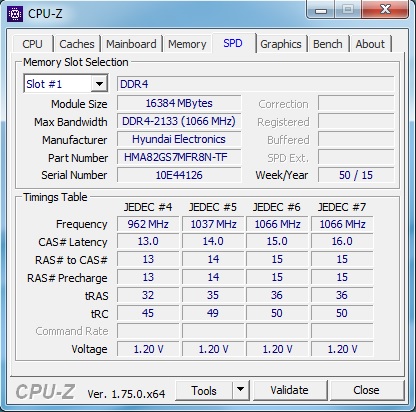

Minne

32 GB

, DDR4-2133, Dual-Channel, 2 av 4 platser används, max 64 GB

Skärm

15.60 tum 16:9, 1920 x 1080 pixlar 141 PPI, Samsung SDC5344, UWVA-IPS, glansig: nej

Moderkort

Intel CM236 (Skylake PCH-H)

Hårddisk

Samsung SM951 MZVPV512HDGL m.2 PCI-e, 512 GB

Ljudkort

Intel Skylake PCH-H High Definition Audio Controller

Anslutningar

3 USB 3.0, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 VGA, 1 HDMI, 1 Kensingtonlås, Ljudanslutningar: Headset, Kortläsare: SD-läsare (SD, SDHC, SDXC UHS-II), 1 SmartCard, 1 Fingeravtrycksläsare

Nätverk

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Storlek

höjd x bredd x djup (i mm) 26 x 386 x 264

Batteri

90 Wh Litiumpolymer, 9 celler

Operativsystem

Microsoft Windows 7 Professional 64 Bit

Camera

Webbkamera: 720p HD Webcam

Övrigt

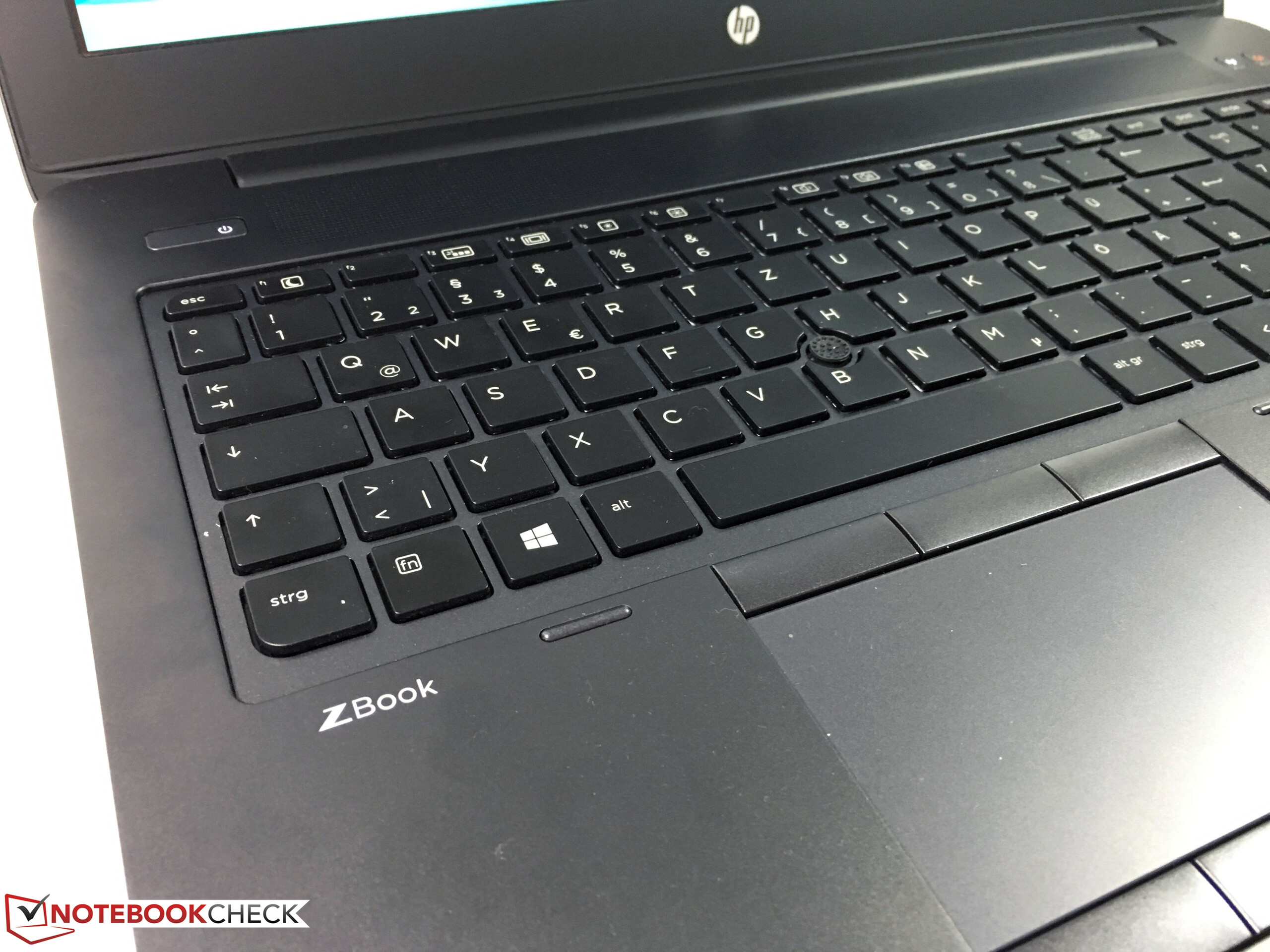

Högtalare: Stereo, Bang & Olufsen HD Audio, Tangentbord: Chiclet, Tangentbordsbelysning: ja, 150-Watts adapter, Windows 10 Pro (med rätt att nedgradera till Windows 7 Pro), HP Performance Advisor, HP Remote Graphics Software, HP Velocity, HP Client Security, Microsoft Security Essentials, HP ePrint Driver, HP Recovery Manager, Foxit PhantomPDF Express, 36 Månader Garanti

Vikt

2.625 kg, Strömförsörjning: 460 g

Pris

4000 Kr

Länkar

HP hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

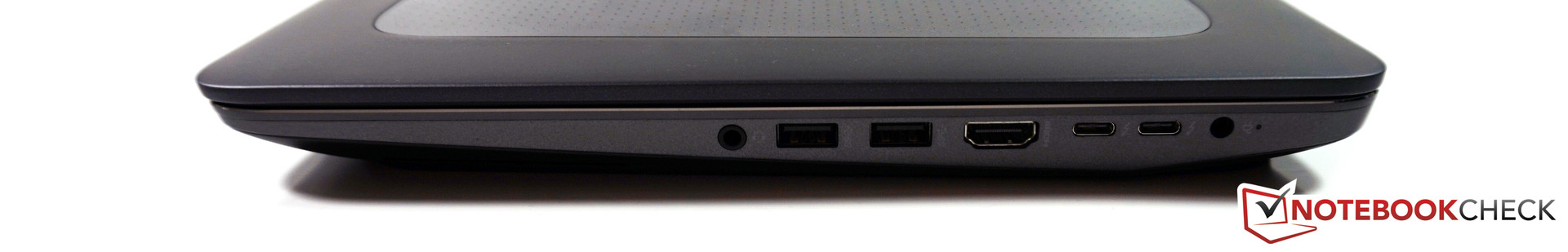

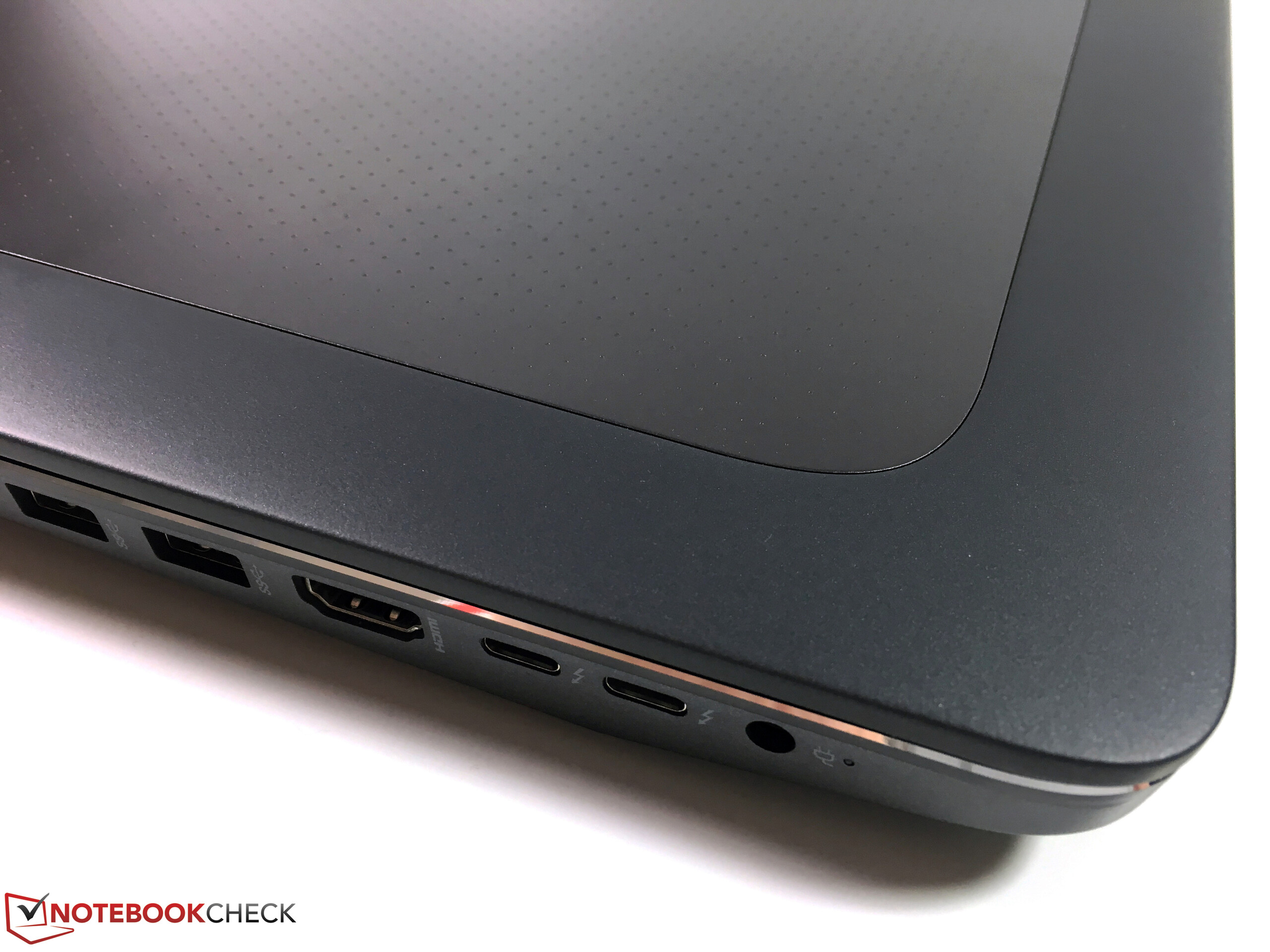

Right: SmartCard reader, 3.5 mm audio, 2x USB 3.0, HDMI, 2x Thunderbolt 3, power

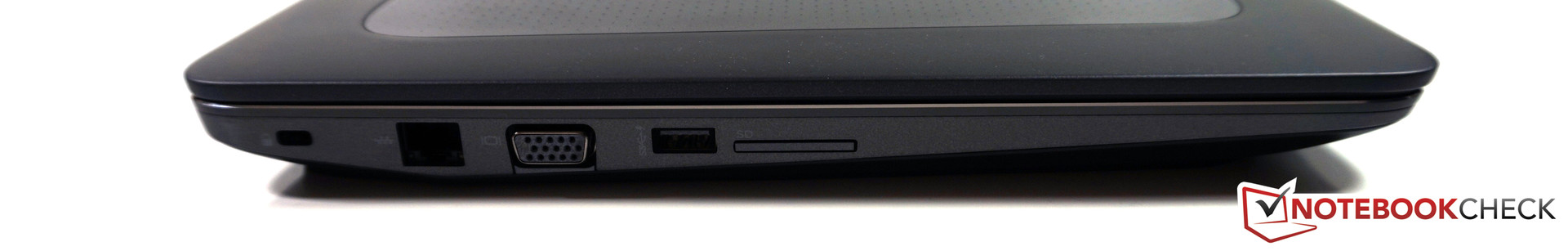

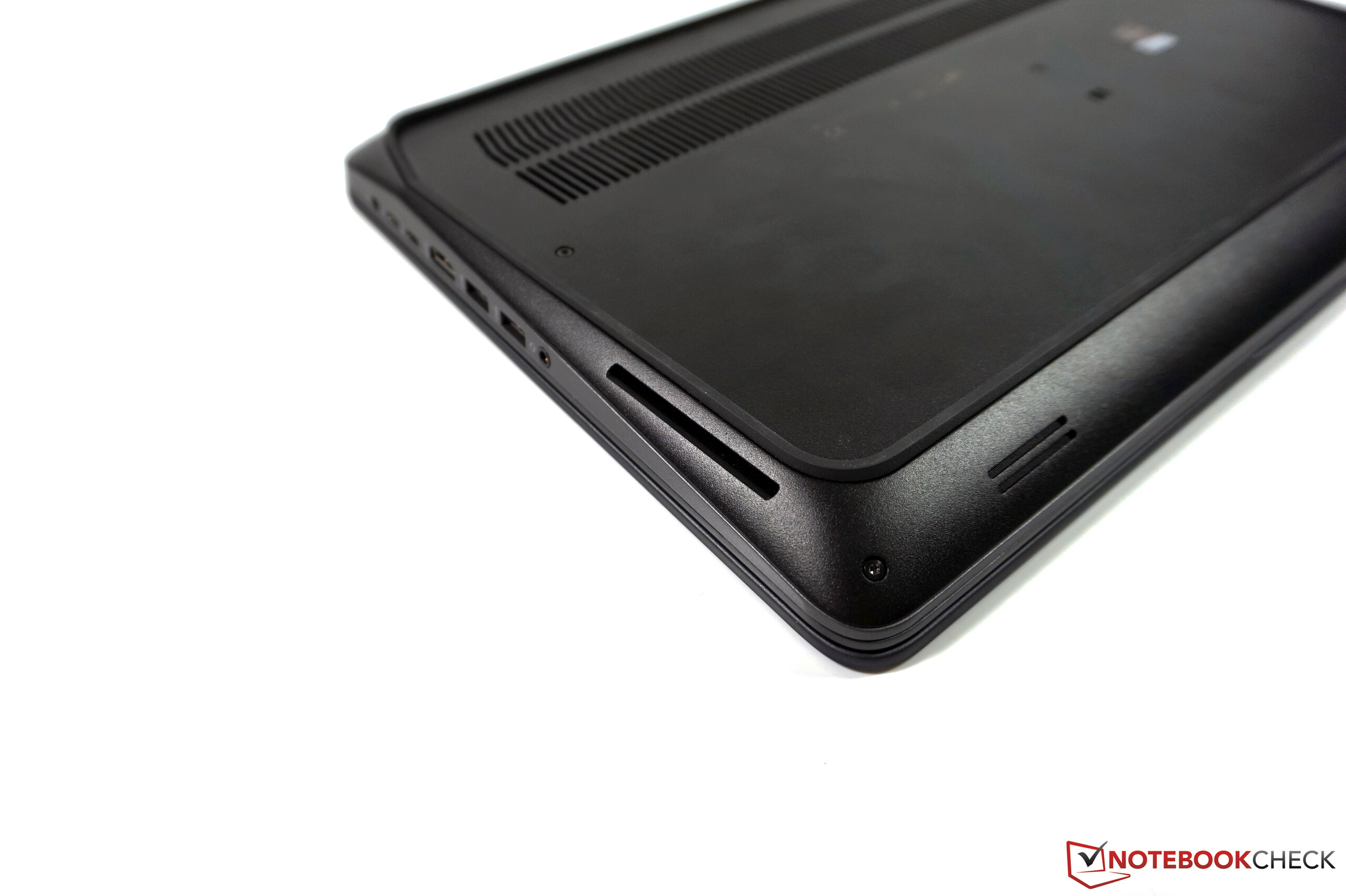

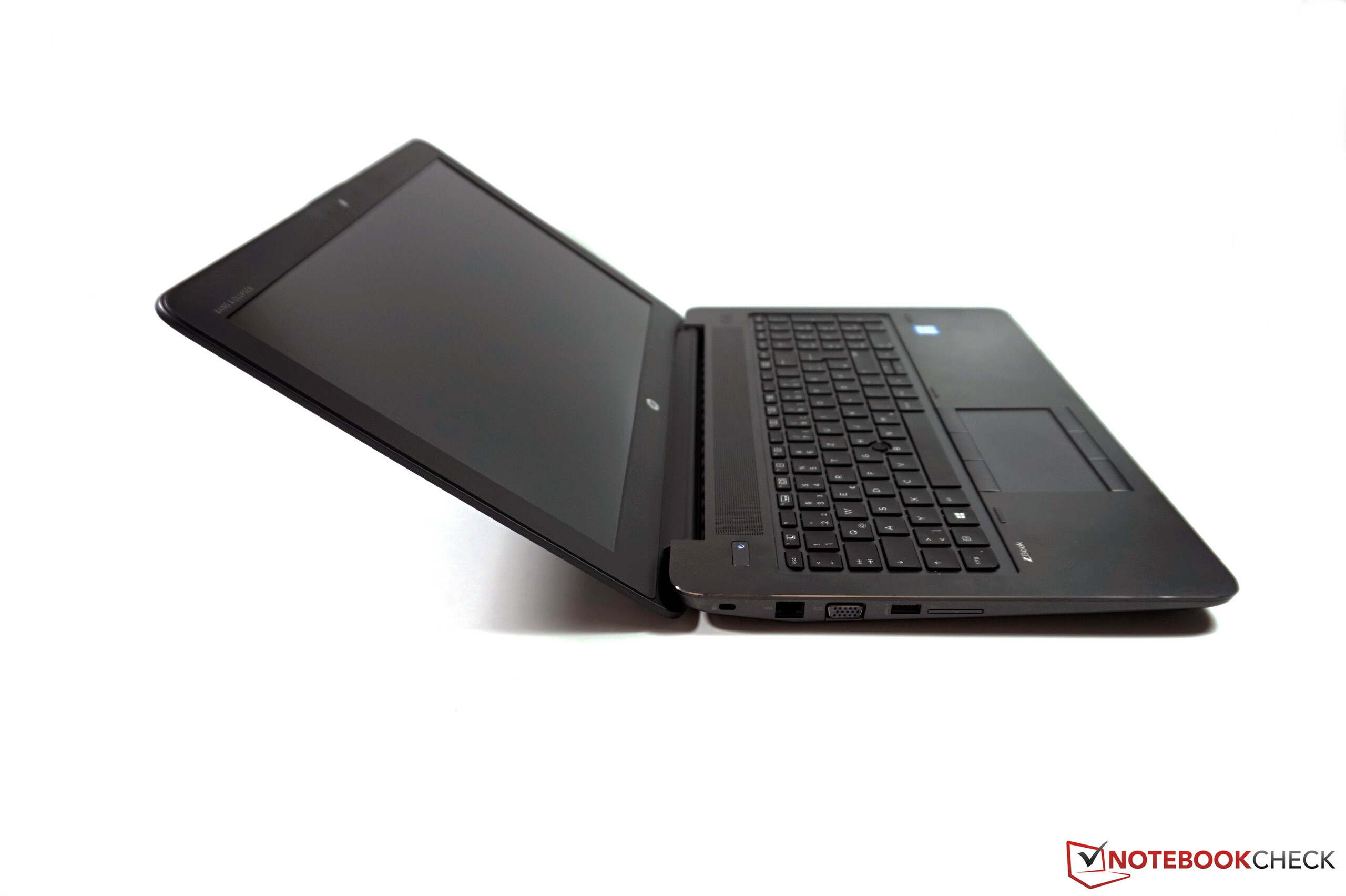

Left: Kensington lock, Gigabit Ethernet, VGA, USB 3.0 (Always-On), SD reader


297 cd/m²	310 cd/m²	300 cd/m²
276 cd/m²	306 cd/m²	286 cd/m²
270 cd/m²	263 cd/m²	294 cd/m²

Distribution av ljusstyrkan

Samsung SDC5344 tested with X-Rite i1Pro 2

Max: 310 cd/m² (Nits) Medel: 289.1 cd/m² Minimum: 14.6 cd/m²
Distribution av ljusstyrkan: 85 %
Mitt på batteriet: 306 cd/m²
Kontrast: 900:1 (Svärta: 0.34 cd/m²)
ΔE Color 5.1 | 0.5-29.43 Ø4.93
ΔE Greyscale 7.4 | 0.5-98 Ø5.2
95% sRGB (Argyll 1.6.3 3D)
63% AdobeRGB 1998 (Argyll 1.6.3 3D)
69% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.5% sRGB (Argyll 2.2.0 3D)
66.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.37

Download ICC-fil (X-Rite i1Pro 2)

	HP ZBook 15 G3 Samsung SDC5344, UWVA-IPS, 1920x1080	Lenovo ThinkPad P50 LP156WF6-SPK1, IPS, 1920x1080	Dell Precision 5510 SHP143E, 7PHPT_LQ156D1, IGZO LED, 3840x2160	Dell XPS 15 2016 9550 Sharp SHP1453 LQ156M1 Dell PN: 1203M, IPS, 1920x1080	HP ZBook 15 G2 Samsung SDC5344, IPS LED, 1920x1080
Display		-40%	27%	3%	2%
Display P3 Coverage	66.8	39.13 -41%	88.4 32%	68.8 3%	68.5 3%
sRGB Coverage	95.5	58.5 -39%	100 5%	97.9 3%	97.3 2%
AdobeRGB 1998 Coverage	69	40.45 -41%	99.5 44%	70.7 2%	70.7 2%
Response Times		21%	0%	19%
Response Time Grey 50% / Grey 80% *	54 ?(24.4, 29.6)	46 ?(17, 29) 15%	56.4 ?(23.2, 33.2) -4%	62 ?(25, 37) -15%
Response Time Black / White *	35.6 ?(11.6, 24)	26 ?(9, 17) 27%	34 ?(11, 23) 4%	40 ?(13, 27) -12%
PWM Frequency	198 ?(95)			362 ?(10) 83%
Screen		-3%	17%	18%	-2%
Brightness middle	306	263 -14%	391 28%	399 30%	309 1%
Brightness	289	236 -18%	361 25%	394 36%	289 0%
Brightness Distribution	85	78 -8%	87 2%	89 5%	84 -1%
Black Level *	0.34	0.34 -0%	0.4 -18%	0.24 29%	0.47 -38%
Contrast	900	774 -14%	978 9%	1663 85%	657 -27%
Colorchecker dE 2000 *	5.1	2.35 54%	4.85 5%	5.95 -17%	3.82 25%
Colorchecker dE 2000 max. *	9.9
Greyscale dE 2000 *	7.4	3.33 55%	4.01 46%	8.41 -14%	5.94 20%
Gamma	2.37 ^93%	2.38 ^92%	2.18 ^101%	2.35 ^94%	2.16 ^102%
CCT	7263 ^89%	6917 ^94%	7340 ^89%	7010 ^93%	6996 ^93%
Color Space (Percent of AdobeRGB 1998)	63	37 -41%	96 52%	64 2%	63.8 1%
Color Space (Percent of sRGB)	95	58 -39%	100 5%	98 3%
Total Average (Program / Settings)		-7% / -7%	15% / 17%	13% / 15%	0% / -1%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

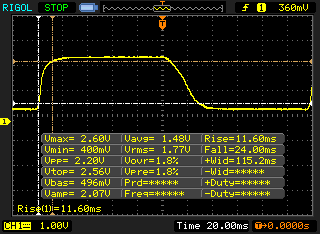

↔ Response Time Black to White
35.6 ms ... rise ↗ and fall ↘ combined	↗ 11.6 ms rise
35.6 ms ... rise ↗ and fall ↘ combined	↘ 24 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

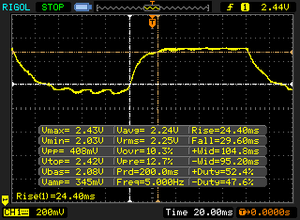

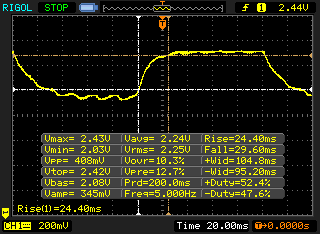

↔ Response Time 50% Grey to 80% Grey
54 ms ... rise ↗ and fall ↘ combined	↗ 24.4 ms rise
54 ms ... rise ↗ and fall ↘ combined	↘ 29.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 90 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

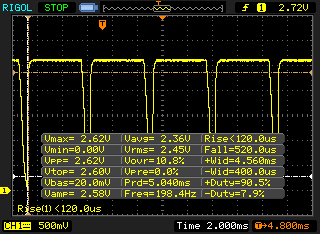

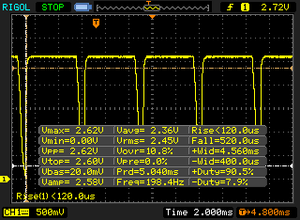

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

198 Hz

≤ 95 % brightness setting

The display backlight flickers at 198 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 95 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 198 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15 | Cinebench R11.5 | Cinebench R10

Cinebench R15
CPU Multi 64Bit
Dell Precision 5510 Intel Xeon E3-1505M v5	732 Points 0%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	732 Points
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	674 Points -8%
HP ZBook 15 G2 Intel Core i7-4910MQ	651 Points -11%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	592 Points -19%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	461 Points -37%
CPU Single 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	158 Points 0%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	158 Points
HP ZBook 15 G2 Intel Core i7-4910MQ	149 Points -6%
Dell Precision 5510 Intel Xeon E3-1505M v5	142 Points -10%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	118 Points -25%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	117 Points -26%

Cinebench R11.5
CPU Multi 64Bit
Dell Precision 5510 Intel Xeon E3-1505M v5	7.93 Points 0%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	7.91 Points
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	7.42 Points -6%
HP ZBook 15 G2 Intel Core i7-4910MQ	7.05 Points -11%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	6.48 Points -18%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	5.28 Points -33%
CPU Single 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	1.78 Points 0%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	1.78 Points
HP ZBook 15 G2 Intel Core i7-4910MQ	1.69 Points -5%
Dell Precision 5510 Intel Xeon E3-1505M v5	1.6 Points -10%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	1.47 Points -17%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	1.32 Points -26%

Cinebench R10
Rendering Multiple CPUs 32Bit
HP ZBook 15 G3 Intel Xeon E3-1505M v5	21834 Points
Dell Precision 5510 Intel Xeon E3-1505M v5	21436 Points -2%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	20115 Points -8%
HP ZBook 15 G2 Intel Core i7-4910MQ	19910 Points -9%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	17506 Points -20%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	16161 Points -26%
Rendering Single 32Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	5670 Points +2%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	5560 Points
HP ZBook 15 G2 Intel Core i7-4910MQ	5457 Points -2%
Dell Precision 5510 Intel Xeon E3-1505M v5	5367 Points -3%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	4759 Points -14%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	4420 Points -21%
Rendering Multiple CPUs 64Bit
HP ZBook 15 G3 Intel Xeon E3-1505M v5	28384 Points
Dell Precision 5510 Intel Xeon E3-1505M v5	28057 Points -1%
HP ZBook 15 G2 Intel Core i7-4910MQ	26355 Points -7%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	23333 Points -18%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	22840 Points -20%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	21034 Points -26%
Rendering Single CPUs 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	7347 Points +2%
HP ZBook 15 G2 Intel Core i7-4910MQ	7223 Points 0%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	7222 Points
Dell Precision 5510 Intel Xeon E3-1505M v5	6890 Points -5%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	6180 Points -14%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	5791 Points -20%

Cinebench R10 Rendering Single CPUs 64Bit

7222 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

28384 Points

Cinebench R10 Shading 64Bit

6838 Points

Cinebench R10 Shading 32Bit

6841

Cinebench R10 Rendering Multiple CPUs 32Bit

21834

Cinebench R10 Rendering Single 32Bit

5560

Cinebench R11.5 OpenGL 64Bit

94 fps

Cinebench R11.5 CPU Multi 64Bit

7.91 Points

Cinebench R11.5 CPU Single 64Bit

1.78 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

115.1 fps

Cinebench R15 CPU Multi 64Bit

732 Points

Cinebench R15 CPU Single 64Bit

158 Points

Hjälp

... jämför

PCMark 7 | PCMark 8

PCMark 7 - Score
HP ZBook 15 G2	5846 Points +6%
HP ZBook 15 G3	5521 Points
MSI WS60-6QJE316H11	5340 Points -3%
Dell Precision 5510	5317 Points -4%
Dell XPS 15 2016 9550	5128 Points -7%
Lenovo ThinkPad P50	4892 Points -11%

PCMark 8
Home Score Accelerated v2
HP ZBook 15 G2	4654 Points +18%
Lenovo ThinkPad P50	4213 Points +6%
HP ZBook 15 G3	3959 Points
Dell Precision 5510	3941 Points 0%
Dell XPS 15 2016 9550	3575 Points -10%
MSI WS60-6QJE316H11	3134 Points -21%
Creative Score Accelerated v2
HP ZBook 15 G2	4990 Points +14%
Dell Precision 5510	4429 Points +1%
HP ZBook 15 G3	4392 Points
Dell XPS 15 2016 9550	4257 Points -3%
Work Score Accelerated v2
HP ZBook 15 G3	5221 Points
HP ZBook 15 G2	5200 Points 0%
Dell Precision 5510	5100 Points -2%
Lenovo ThinkPad P50	4677 Points -10%
MSI WS60-6QJE316H11	4045 Points -23%

Legend

HP ZBook 15 G3 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M, Samsung SSD PM871 MZNLN256HCHP

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Dell XPS 15 2016 9550 Intel Core i5-6300HQ, NVIDIA GeForce GTX 960M, WDC WD10SPCX-75KHST0 + LiteON CS1-SP32-11 M.2 2242 32GB

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M, Toshiba NVMe THNSN5128GP

PCMark Vantage Result		23161 poäng
PCMark 7 Score		5521 poäng
PCMark 8 Home Score Accelerated v2		3959 poäng
PCMark 8 Creative Score Accelerated v2		4392 poäng
PCMark 8 Work Score Accelerated v2		5221 poäng
Hjälp

... jämför

CrystalDiskMark 3.0

AS SSD

Samsung SM951 MZVPV512HDGL m.2 PCI-e

Sequential Read: 1502 MB/s

Sequential Write: 1538 MB/s

512K Read: 1164 MB/s

512K Write: 1432 MB/s

4K Read: 59.1 MB/s

4K Write: 207.3 MB/s

4K QD32 Read: 798 MB/s

4K QD32 Write: 393.8 MB/s

SPECviewperf 12 | SPECviewperf 11

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	71.7 fps +9%
HP ZBook 15 G3 NVIDIA Quadro M2000M	66 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	63 fps -5%
Dell Precision 5510 NVIDIA Quadro M1000M	62 fps -6%
HP ZBook 15 G2 AMD FirePro M5100	39.72 fps -40%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	22.41 fps -66%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	22.03 fps -67%
1900x1060 Siemens NX (snx-02)
HP ZBook 15 G3 NVIDIA Quadro M2000M	35.87 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	33.95 fps -5%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	32.52 fps -9%
Dell Precision 5510 NVIDIA Quadro M1000M	31 fps -14%
HP ZBook 15 G2 AMD FirePro M5100	29.69 fps -17%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	21.35 fps -40%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	2.39 fps -93%
1900x1060 Showcase (showcase-01)
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	24.25 fps +2%
HP ZBook 15 G3 NVIDIA Quadro M2000M	23.86 fps
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	21.73 fps -9%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	21.35 fps -11%
Dell Precision 5510 NVIDIA Quadro M1000M	20 fps -16%
HP ZBook 15 G2 AMD FirePro M5100	16.36 fps -31%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	11.23 fps -53%
1900x1060 Medical (medical-01)
HP ZBook 15 G3 NVIDIA Quadro M2000M	15.03 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	14.68 fps -2%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	14.4 fps -4%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	12.3 fps -18%
Dell Precision 5510 NVIDIA Quadro M1000M	12 fps -20%
HP ZBook 15 G2 AMD FirePro M5100	7.82 fps -48%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	2.16 fps -86%
1900x1060 Maya (maya-04)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	38.46 fps +7%
HP ZBook 15 G3 NVIDIA Quadro M2000M	35.94 fps
Dell Precision 5510 NVIDIA Quadro M1000M	30 fps -17%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	29.89 fps -17%
HP ZBook 15 G2 AMD FirePro M5100	24.92 fps -31%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	15.82 fps -56%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	15.37 fps -57%
1900x1060 Energy (energy-01)
HP ZBook 15 G3 NVIDIA Quadro M2000M	3.29 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	3.2 fps -3%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	3.16 fps -4%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	0.74 fps -78%
Dell Precision 5510 NVIDIA Quadro M1000M	0.69 fps -79%
HP ZBook 15 G2 AMD FirePro M5100	0.44 fps -87%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	0.17 fps -95%
1900x1060 Creo (creo-01)
HP ZBook 15 G3 NVIDIA Quadro M2000M	40.61 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	38.95 fps -4%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	37.48 fps -8%
Dell Precision 5510 NVIDIA Quadro M1000M	34 fps -16%
HP ZBook 15 G2 AMD FirePro M5100	19.64 fps -52%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	19.14 fps -53%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	10.72 fps -74%
1900x1060 Catia (catia-04)
HP ZBook 15 G3 NVIDIA Quadro M2000M	47.08 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.26 fps -2%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	44.29 fps -6%
Dell Precision 5510 NVIDIA Quadro M1000M	37 fps -21%
HP ZBook 15 G2 AMD FirePro M5100	23.62 fps -50%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	19.6 fps -58%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	15.76 fps -67%

SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	43.31 fps 0%
HP ZBook 15 G3 NVIDIA Quadro M2000M	43.17 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	42.14 fps -2%
Dell Precision 5510 NVIDIA Quadro M1000M	41 fps -5%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	30.87 fps -28%
HP ZBook 15 G2 AMD FirePro M5100	26.63 fps -38%
1920x1080 Tcvis
HP ZBook 15 G3 NVIDIA Quadro M2000M	44.89 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	43.93 fps -2%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	42.91 fps -4%
Dell Precision 5510 NVIDIA Quadro M1000M	40 fps -11%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	34.34 fps -24%
HP ZBook 15 G2 AMD FirePro M5100	21.43 fps -52%
1920x1080 SolidWorks
HP ZBook 15 G2 AMD FirePro M5100	56.1 fps +17%
Dell Precision 5510 NVIDIA Quadro M1000M	51 fps +6%
HP ZBook 15 G3 NVIDIA Quadro M2000M	48.13 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	47.71 fps -1%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.69 fps -3%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	41.64 fps -13%
1920x1080 Pro/ENGINEER
HP ZBook 15 G3 NVIDIA Quadro M2000M	21.57 fps
Dell Precision 5510 NVIDIA Quadro M1000M	21 fps -3%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	17.54 fps -19%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	17.4 fps -19%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	15.96 fps -26%
HP ZBook 15 G2 AMD FirePro M5100	10.64 fps -51%
1920x1080 Maya
HP ZBook 15 G2 AMD FirePro M5100	60.3 fps +5%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	58.3 fps +1%
HP ZBook 15 G3 NVIDIA Quadro M2000M	57.7 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	56.9 fps -1%
Dell Precision 5510 NVIDIA Quadro M1000M	56 fps -3%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	52 fps -10%
1920x1080 Lightwave
HP ZBook 15 G2 AMD FirePro M5100	75.8 fps +46%
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +4%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	52.5 fps +1%
HP ZBook 15 G3 NVIDIA Quadro M2000M	52 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	48.27 fps -7%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	47.6 fps -8%
1920x1080 Ensight
HP ZBook 15 G3 NVIDIA Quadro M2000M	46.68 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.43 fps -1%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	43.49 fps -7%
Dell Precision 5510 NVIDIA Quadro M1000M	39 fps -16%
HP ZBook 15 G2 AMD FirePro M5100	25.07 fps -46%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	24.64 fps -47%
1920x1080 Catia
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +1%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	53.5 fps 0%
HP ZBook 15 G3 NVIDIA Quadro M2000M	53.5 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	48.98 fps -8%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	39.12 fps -27%
HP ZBook 15 G2 AMD FirePro M5100	35.61 fps -33%

LuxMark v2.0 64Bit | SiSoft Sandra 2016

LuxMark v2.0 64Bit
Room GPUs-only
HP ZBook 15 G3 NVIDIA Quadro M2000M	930 Samples/s
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	903 Samples/s -3%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	895 Samples/s -4%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	791 Samples/s -15%
Dell Precision 5510 NVIDIA Quadro M1000M	534 Samples/s -43%
HP ZBook 15 G2 AMD FirePro M5100	375 Samples/s -60%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	68 Samples/s -93%
Sala GPUs-only
HP ZBook 15 G3 NVIDIA Quadro M2000M	1556 Samples/s
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	1434 Samples/s -8%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	1426 Samples/s -8%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	1417 Samples/s -9%
Dell Precision 5510 NVIDIA Quadro M1000M	889 Samples/s -43%
HP ZBook 15 G2 AMD FirePro M5100	675 Samples/s -57%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	146 Samples/s -91%

SiSoft Sandra 2016
Image Processing
HP ZBook 15 G3 NVIDIA Quadro M2000M	228.6 MPix/s
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	155.8 MPix/s -32%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	155.7 MPix/s -32%
Dell Precision 5510 NVIDIA Quadro M1000M	127.5 MPix/s -44%
GP Cryptography (Higher Security AES256+SHA2-512)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	12.28 GB/s +25%
HP ZBook 15 G3 NVIDIA Quadro M2000M	9.82 GB/s
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	9.28 GB/s -5%
Dell Precision 5510 NVIDIA Quadro M1000M	7.38 GB/s -25%
GP Financial Analysis (FP High/Double Precision)
HP ZBook 15 G3 NVIDIA Quadro M2000M	21.8 KOPT/s
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	21.75 KOPT/s 0%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	21.63 KOPT/s -1%
Dell Precision 5510 NVIDIA Quadro M1000M	17 KOPT/s -22%

3DMark 11 | 3DMark | Unigine Valley 1.0 | Unigine Heaven 3.0

3DMark 11
1280x720 Performance
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	5593 Points +3%
HP ZBook 15 G3 NVIDIA Quadro M2000M	5414 Points
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	5375 Points -1%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	5375 Points -1%
Dell Precision 5510 NVIDIA Quadro M1000M	4648 Points -14%
1280x720 Performance GPU
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	5258 Points +5%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	5220 Points +4%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	5107 Points +2%
HP ZBook 15 G3 NVIDIA Quadro M2000M	4997 Points
Dell Precision 5510 NVIDIA Quadro M1000M	4234 Points -15%

3DMark
1920x1080 Fire Strike Score
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	3952 Points +3%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	3907 Points +2%
HP ZBook 15 G3 NVIDIA Quadro M2000M	3820 Points
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	3813 Points 0%
Dell Precision 5510 NVIDIA Quadro M1000M	3344 Points -12%
HP ZBook 15 G2 AMD FirePro M5100	2253 Points -41%
1920x1080 Fire Strike Graphics
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	4362 Points +7%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	4243 Points +4%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	4126 Points +1%
HP ZBook 15 G3 NVIDIA Quadro M2000M	4091 Points
Dell Precision 5510 NVIDIA Quadro M1000M	3517 Points -14%
HP ZBook 15 G2 AMD FirePro M5100	2358 Points -42%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	20.4 fps 0%
HP ZBook 15 G3 NVIDIA Quadro M2000M	20.4 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	20.3 fps 0%
Dell Precision 5510 NVIDIA Quadro M1000M	18.7 fps -8%
1920x1080 Extreme HD Preset OpenGL AA:x8
HP ZBook 15 G3 NVIDIA Quadro M2000M	18.3 fps
Dell Precision 5510 NVIDIA Quadro M1000M	16.2 fps -11%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	13.8 fps -25%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	13.2 fps -28%

Unigine Heaven 3.0
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	53.4 fps +3%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	52.5 fps +1%
HP ZBook 15 G3 NVIDIA Quadro M2000M	51.8 fps
Dell Precision 5510 NVIDIA Quadro M1000M	44.9 fps -13%
HP ZBook 15 G2 AMD FirePro M5100	28 fps -46%
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
HP ZBook 15 G3 NVIDIA Quadro M2000M	51.6 fps
Dell Precision 5510 NVIDIA Quadro M1000M	43.4 fps -16%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	33.9 fps -34%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	32.4 fps -37%
HP ZBook 15 G2 AMD FirePro M5100	22.9 fps -56%

3DMark 06 Standard Score		25462 poäng
3DMark Vantage P Result		21026 poäng
3DMark 11 Performance		5414 poäng
3DMark Ice Storm Standard Score		89211 poäng
3DMark Cloud Gate Standard Score		18230 poäng
3DMark Fire Strike Score		3820 poäng
Hjälp

... jämför

	låg	med.	hög	ultra
BioShock Infinite (2013)	211	133	115.8	72.2
The Witcher 3 (2015)	75.7	46.8	25.9	13.6
Rise of the Tomb Raider (2016)	72.6	44.6	25.5	21.8

Ljudnivå

Låg belastning		30 / 30 / 30 dB(A)
Hög belastning		45.3 / 49.7 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Audix TM1 Arta (15 cm avstånd) environment noise: 30 dB(A)

	HP ZBook 15 G3 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100	MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M
Noise		8%	3%	6%	-13%
off / environment *	30
Idle Minimum *	30	30 -0%	30 -0%	30.6 -2%	37.2 -24%
Idle Average *	30	30 -0%	30 -0%	30.6 -2%	37.2 -24%
Idle Maximum *	30	30 -0%	30 -0%	30.6 -2%	37.2 -24%
Load Average *	45.3	34.5 24%	42.08 7%	35.7 21%	42.1 7%
Load Maximum *	49.7	42.1 15%	46.78 6%	43.2 13%	50.7 -2%

* ... smaller is better

Hög belastning

Låg belastning


40.7 °C	54.6 °C	39.6 °C
29.5 °C	40 °C	29.7 °C
27.3 °C	28.6 °C	27 °C

Max: 54.6 °C
Medel: 35.2 °C


34.7 °C	60.8 °C	34.5 °C
30.9 °C	42.3 °C	30.2 °C
28 °C	32.5 °C	26.9 °C

Max: 60.8 °C
Medel: 35.6 °C

Strömförsörjning (max.) 59.1 °C | Rumstemperatur 20 °C | Fennel FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 35.2 °C / 95 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 54.6 °C / 130 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 60.8 °C / 141 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 27.7 °C / 82 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.6 °C / 83.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-0.8 °C / -1.5 F).

	HP ZBook 15 G3 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100	MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M
Heat		11%	8%	10%	2%
Maximum Upper Side *	54.6	36.7 33%	45.8 16%	44.1 19%	42.3 23%
Maximum Bottom *	60.8	41.3 32%	46.7 23%	45.7 25%	60.1 1%
Idle Upper Side *	30.3	31.1 -3%	31.2 -3%	29.6 2%	32.7 -8%
Idle Bottom *	30.7	36.2 -18%	31.9 -4%	32.2 -5%	33.1 -8%

* ... smaller is better

Strömförbrukning

Av/Standby	0.3 / 1.1 Watt
Låg belastning	5.7 / 12.2 / 12.6 Watt
Hög belastning	83.1 / 138.2 Watt


Förklaring: min: , med: , max: Metrahit Energy

	HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	Lenovo ThinkPad P50 Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP	Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	HP ZBook 15 G2 FirePro M5100, 4910MQ, SanDisk A110 SD6PP4M-256G-1006	MSI WS60-6QJE316H11 Quadro M2000M, E3-1505M v5, Toshiba NVMe THNSN5128GP
Power Consumption		15%	-22%	-71%	-106%
Idle Minimum *	5.7	5.6 2%	8.6 -51%	17.1 -200%	18.8 -230%
Idle Average *	12.2	8.6 30%	16.2 -33%	21.9 -80%	29.6 -143%
Idle Maximum *	12.6	9.3 26%	16.7 -33%	23.2 -84%	30.3 -140%
Load Average *	83.1	89.5 -8%	82.6 1%	86.6 -4%	90.4 -9%
Load Maximum *	138.2	105 24%	131.8 5%	120.7 13%	150.2 -9%

* ... smaller is better

Batteritid

Låg belastning (utan WLAN, min. ljusstyrka)		13tim 42min
WiFi Websurfing (IE 11)		6tim 26min
Big Buck Bunny H.264 1080p		7tim 29min
Hög belastning (maximal ljusstyrka)		1tim 50min

	HP ZBook 15 G3 90 Wh	Lenovo ThinkPad P50 90 Wh	Dell Precision 5510 56 Wh	HP ZBook 15 G2 83 Wh	MSI WS60-6QJE316H11 47 Wh
Battery Runtime		14%	-33%	-44%	-69%
Reader / Idle	822	860 5%	428 -48%	370 -55%	160 -81%
H.264	449	533 19%	197 -56%	260 -42%	141 -69%
WiFi v1.3	386	498 29%	286 -26%	278 -28%	106 -73%
Load	110	113 3%	109 -1%	53 -52%	51 -54%
WiFi			298	237

För

+ mycket robust och sofistikerat chassi

+ bra prestanda

+ mycket bra IPS-skärm (efter kalibrering)

+ snabb SSD

+ lång batteritid

+ moderna portar

+ bra uppgraderingsmöjligheter

+ snabbt Wi-Fi

+ 3 års garanti

Emot

- svårt att komma åt vissa komponenter (ink. SIM-kortplats!)

- batteriet kan inte längre nås från utsidan

- processorn kan inte leverera maxprestanda under längre perioder

- varm och högljudd under belastning

- oljud från fläktarna

- dyr

In review: HP ZBook 15 G3. Test device courtesy of HP Germany.

En längre version av testet kan läsas här.

Med ZBook 15 G3 har HP framgångsrikt förbättrat den redan övertygande föregångaren. Det helt omarbetade chassit gör ett mycket elegant intryck och behöver inte gömma sig bakom konkurrenterna kvalitetsmässigt.

Förutom uppdateringen till en Skylake-processor implementerar HP samtidigt alla moderna gränssnitt, både internt och externt. Prestandan är också bra och tangerar för närvarande gränsen för vad en mobil arbetsstation med 15-tumsskärm klarar av.

Efter ett antal trista FHD-paneler under den senaste tiden är IPS-panelen i ZBook 15 G3 ett lyft, även om du bör kalibrera den. Det finns också en Dreamcolor-bildskärm som tillval om du behöver bättre färgrymd.

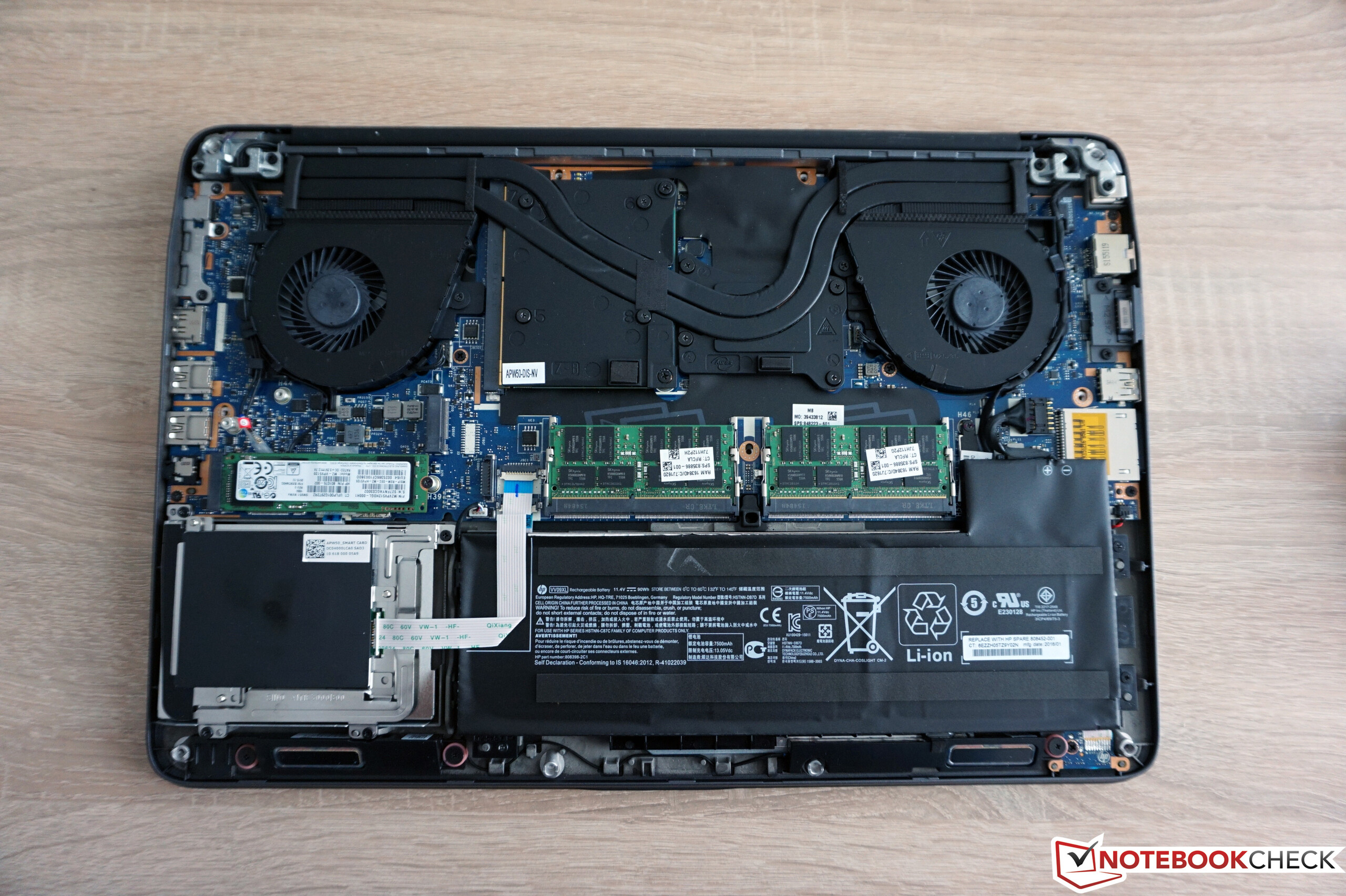

Det finns faktiskt bara några mindre detaljer som vi inte gillar. Det inkluderar batteriet, som inte kan nås från utsidan längre, och de skramlande fläktarna som också är mycket mer högljudda under belastning jämfört med föregångaren. Några av de inre komponenterna är svåra att nå. Vi begriper heller inte varför SIM-platsen placerades under M.2-SSD:n och Wi-Fi-modulen.

Skärmen använder PWM för nästan varje ljusstyrkeinställning och processorn begränsas av sin TDP när du belastar alla kärnor. HP kunde även förbättrat tangentbordet lite. Det är en mycket bra inmatningsenhet, men Lenovo ThinkPad P50 är fortfarande lite bättre. En annan faktor är det uppenbart höga priset, även om motsvarande konkurrenter också är utrustade med svindlande prislappar.

HP ZBook 15 G3 - 2016-04-18 04/18/2016 v5.1 ^(old)
Andreas Osthoff

Design

94 / 98 → 96%

Tangentbord

91%

Mus

89%

Anslutningar

80 / 81 → 99%

Vikt

59 / 10-66 → 88%

Batteri

89%

Skärm

85%

Spelprestanda

81%

Programprestanda

93%

Workstation

68%

Temperatur

85 / 95 → 89%

Ljudnivå

80 / 90 → 89%

Audio

73%

Camera

42 / 85 → 49%

Medel

79%

85%

Workstation - Vägt medel

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1692 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Test: HP ZBook 15 G3 Workstation (sammanfattning)

Andreas Osthoff, 2016-04-19 (Update: 2016-04-19)
