Test: HP ZBook 15u G3 Workstation (sammanfattning)
| |||||||||||||||||||||||||
Distribution av ljusstyrkan: 89 %
Mitt på batteriet: 297.8 cd/m²
Kontrast: 351:1 (Svärta: 0.849 cd/m²)
ΔE Color 8.68 | 0.5-29.43 Ø4.91
ΔE Greyscale 9.3 | 0.5-98 Ø5.2
80.42% sRGB (Argyll 1.6.3 3D)
50.99% AdobeRGB 1998 (Argyll 1.6.3 3D)
54.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
80.1% sRGB (Argyll 2.2.0 3D)
53.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.27
| |||||||||||||||||||||||||
Distribution av ljusstyrkan: 79 %
Kontrast: ∞:1 (Svärta: 0 cd/m²)
ΔE Color 3.7 | 0.5-29.43 Ø4.91
ΔE Greyscale 5.1 | 0.5-98 Ø5.2
98% sRGB (Argyll 1.6.3 3D)
64% AdobeRGB 1998 (Argyll 1.6.3 3D)
69.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
98% sRGB (Argyll 2.2.0 3D)
67.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.21
| HP ZBook 15u G3 15.6", 1920x1080 | Lenovo ThinkPad W550s 20E2-000PGE 15.5", 2880x1620 | Dell Precision 5510 15.6", 3840x2160 | HP ZBook 15 G2 15.6", 1920x1080 | |
|---|---|---|---|---|
| Display | 13% | 57% | 26% | |
| Display P3 Coverage | 53.2 | 62.3 17% | 88.4 66% | 68.5 29% |
| sRGB Coverage | 80.1 | 86.5 8% | 100 25% | 97.3 21% |
| AdobeRGB 1998 Coverage | 54.9 | 62.6 14% | 99.5 81% | 70.7 29% |
| Response Times | -12% | |||
| Response Time Grey 50% / Grey 80% * | 45.6 ? | 56.4 ? -24% | ||
| Response Time Black / White * | 34.4 ? | 34 ? 1% | ||
| PWM Frequency | 198.4 ? | |||
| Screen | 33% | 56% | 31% | |
| Brightness middle | 297.8 | 360 21% | 391 31% | 309 4% |
| Brightness | 284 | 323 14% | 361 27% | 289 2% |
| Brightness Distribution | 89 | 81 -9% | 87 -2% | 84 -6% |
| Black Level * | 0.849 | 0.54 36% | 0.4 53% | 0.47 45% |
| Contrast | 351 | 667 90% | 978 179% | 657 87% |
| Colorchecker dE 2000 * | 8.68 | 3.45 60% | 4.85 44% | 3.82 56% |
| Colorchecker dE 2000 max. * | 14.98 | |||
| Greyscale dE 2000 * | 9.3 | 2.98 68% | 4.01 57% | 5.94 36% |
| Gamma | 2.27 97% | 2.06 107% | 2.18 101% | 2.16 102% |
| CCT | 10585 61% | 6338 103% | 7340 89% | 6996 93% |
| Color Space (Percent of AdobeRGB 1998) | 50.99 | 56 10% | 96 88% | 63.8 25% |
| Color Space (Percent of sRGB) | 80.42 | 86.3 7% | 100 24% | |
| Total Average (Program / Settings) | 23% /
28% | 34% /
46% | 29% /
30% |
* ... smaller is better

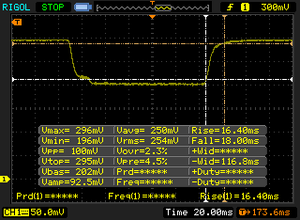

Display Response Times

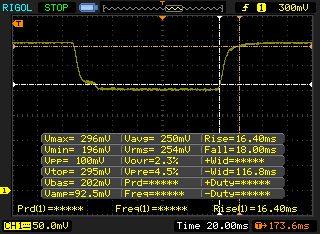

| ↔ Response Time Black to White | ||
|---|---|---|
| 34.4 ms ... rise ↗ and fall ↘ combined | ↗ 16.4 ms rise |  |
| ↘ 18 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 91 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

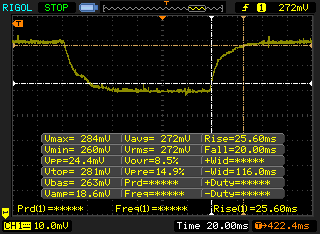

| ↔ Response Time 50% Grey to 80% Grey | ||
| 45.6 ms ... rise ↗ and fall ↘ combined | ↗ 25.6 ms rise |  |
| ↘ 20 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 76 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

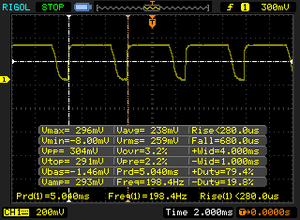

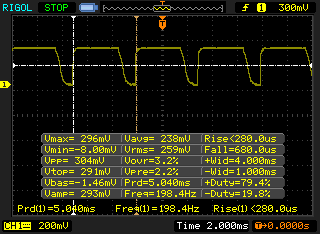

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 198.4 Hz | ≤ 90 % brightness setting |  |
The display backlight flickers at 198.4 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 198.4 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8719 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Cinebench R10 | |
| Rendering Single CPUs 64Bit (sort by value) | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| Rendering Multiple CPUs 64Bit (sort by value) | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| Cinebench R11.5 | |
| CPU Single 64Bit (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| CPU Multi 64Bit (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| Cinebench R15 | |
| CPU Single 64Bit (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| CPU Multi 64Bit (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| PCMark 7 - Score (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| PCMark 8 | |
| Home Score Accelerated v2 (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| Work Score Accelerated v2 (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| Creative Score Accelerated v2 (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| PCMark 7 Score | 5493 poäng | |
| PCMark 8 Home Score Accelerated v2 | 3974 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 4453 poäng | |
| PCMark 8 Work Score Accelerated v2 | 4900 poäng | |
Hjälp | ||
| 3DMark 06 Standard Score | 12929 poäng | |
| 3DMark 11 Performance | 2173 poäng | |
| 3DMark Ice Storm Standard Score | 37532 poäng | |
| 3DMark Cloud Gate Standard Score | 6567 poäng | |
| 3DMark Fire Strike Score | 1517 poäng | |
Hjälp | ||
| 3DMark 11 - 1280x720 Performance (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| 3DMark | |
| 1920x1080 Fire Strike Score (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| 1280x720 Cloud Gate Standard Score (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| 1280x720 Ice Storm Standard Score (sort by value) | |
| HP ZBook 15u G3 | |
| Dell Precision 5510 | |
| Lenovo ThinkPad W550s 20E2-000PGE | |
| HP ZBook 15 G2 | |
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 85.2 | 38.42 | 34.08 | 13.64 |
| Rise of the Tomb Raider (2016) | 14 | 8 |
| HP ZBook 15u G3 FirePro W4190M, 6600U, Samsung SM951 MZVPV256HDGL m.2 PCI-e | Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB | Lenovo ThinkPad W550s 20E2-000PGE Quadro K620M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP | HP ZBook 15 G2 FirePro M5100, 4910MQ, SanDisk A110 SD6PP4M-256G-1006 | MSI WS60 2OJ8H11W7P Quadro K2100M, 4710HQ, Toshiba HG6 THNSNJ128G8NU | |
|---|---|---|---|---|---|
| Noise | -4% | 13% | 0% | 1% | |
| Idle Minimum * | 29.8 | 30 -1% | 26.9 10% | 30.6 -3% | 30.4 -2% |
| Idle Average * | 29.8 | 30 -1% | 26.9 10% | 30.6 -3% | 30.4 -2% |
| Idle Maximum * | 29.8 | 30 -1% | 26.9 10% | 30.6 -3% | 30.4 -2% |
| Load Average * | 39.5 | 42.08 -7% | 30.4 23% | 35.7 10% | 36.6 7% |
| Load Maximum * | 43.2 | 46.78 -8% | 38.1 12% | 43.2 -0% | 42.3 2% |
* ... smaller is better
Ljudnivå
| Låg belastning |
| 29.8 / 29.8 / 29.8 dB(A) |
| Hög belastning |
| 39.5 / 43.2 dB(A) |
 | ||
30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud |
||
min:  , med:  , max:  BK Precision 732A (15 cm avstånd) | ||
(±) The maximum temperature on the upper side is 44.6 °C / 112 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 46 °C / 115 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 23.1 °C / 74 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.7 °C / 83.7 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-0.9 °C / -1.7 F).
| Av/Standby | / 0.68 Watt |
| Låg belastning | 4.3 / 7.9 / 11.5 Watt |
| Hög belastning |
43.3 / 72.3 Watt |

| |
Förklaring:
min: ,
med: ,
max: Metrahit Energy | |
| HP ZBook 15u G3 FirePro W4190M, 6600U, Samsung SM951 MZVPV256HDGL m.2 PCI-e | Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB | Lenovo ThinkPad W550s 20E2-000PGE Quadro K620M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP | HP ZBook 15 G2 FirePro M5100, 4910MQ, SanDisk A110 SD6PP4M-256G-1006 | MSI WS60 2OJ8H11W7P Quadro K2100M, 4710HQ, Toshiba HG6 THNSNJ128G8NU | |
|---|---|---|---|---|---|
| Power Consumption | -85% | 6% | -149% | -83% | |
| Idle Minimum * | 4.3 | 8.6 -100% | 4 7% | 17.1 -298% | 8.8 -105% |
| Idle Average * | 7.9 | 16.2 -105% | 9.6 -22% | 21.9 -177% | 12.4 -57% |
| Idle Maximum * | 11.5 | 16.7 -45% | 10.8 6% | 23.2 -102% | 22.4 -95% |
| Load Average * | 43.3 | 82.6 -91% | 36.9 15% | 86.6 -100% | 89 -106% |
| Load Maximum * | 72.3 | 131.8 -82% | 54.5 25% | 120.7 -67% | 111.7 -54% |
* ... smaller is better
| HP ZBook 15u G3 FirePro W4190M, 6600U, Samsung SM951 MZVPV256HDGL m.2 PCI-e | Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB | Lenovo ThinkPad W550s 20E2-000PGE Quadro K620M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP | HP ZBook 15 G2 FirePro M5100, 4910MQ, SanDisk A110 SD6PP4M-256G-1006 | MSI WS60-6QJE316H11 Quadro M2000M, E3-1505M v5, Toshiba NVMe THNSN5128GP | |
|---|---|---|---|---|---|
| Battery Runtime | -25% | 111% | -41% | -70% | |
| Reader / Idle | 756 | 428 -43% | 1728 129% | 370 -51% | 160 -79% |
| WiFi v1.3 | 312 | 286 -8% | 715 129% | 278 -11% | 106 -66% |
| Load | 141 | 109 -23% | 247 75% | 53 -62% | 51 -64% |
| H.264 | 197 | 667 | 260 | 141 | |
| WiFi | 298 | 237 |
För
Emot
Läs en längre version av testet på engelska här.
För ungefär ett år sedan fick den större modellen HP ZBook 15 G2 extremt bra betyg av oss tack vare förstklassig byggkvalitet, underhålls- och uppgraderingsmöjligheter, inmatningsenheter, bildkvalitet och prestanda. Ett år senare lämnar oss den ungefär 30% lättare ZBook 15u G3 med fler frågor än svar. Visst finns det en hel del att gilla här, såsom ett lätt men robust chassi, bra portar och lagringsalternativ (inklusive NVMe-SSD), låg ljudnivå/temperaturer och skaplig batteritid.
Men sedan finns det kompromisser som kan vara svåra att svälja för dem som sedan tidigare bekantat sig med den kompromisslösa arbetsstationen ZBook 15 G2. Den tvåkärniga CPU-prestandan och grafikkretsen AMD FirePro W4190M är veritabla lättviktare i jämförelse med konkurrenterna och föregångaren med högre TDP.
Vi kunde heller inte pressa ut turbofrekvenser från vare sig CPU eller GPU under hög belastning. Sedan kvarstår det faktum att vår testenhet begåvats med en undermålig 1080p-skärm med svag kontrast och färgåtergivning, vilket kanske inte spelar så stor roll för vissa köpare, men det är fortfarande ett stort steg bakåt från föregångaren. Lyckligtvis finns andra konfigurationsalternativ att tillgå.
HP:s ZBook 15u G3 kan säkerligen passa vissa köpare med särskilda krav. Datorn är relativt prisvärd och säljs med en på-plats-garanti på tre år. Dessutom behöver inte alla en fyrkärnig CPU eller prestandagrafik i sin bärbara dator, medan ytterligare andra kan tänka sig att tumma på bildkvaliteten för att spara pengar.
ZBook 15u G3 är en av få bärbara datorer som lägger sig på linjen mellan Ultrabook och mobil arbetsstation utan störta alltför långt in i någon av kategorierna. Å andra sidan – och om priset inte är ett problem – är det svårt att rekommendera den istället för t.ex. Dell Precision M5510, som förmodligen är den närmaste konkurrenten till ZBook 15u.
HP ZBook 15u G3
- 03/07/2016 v5 (old)
Steve Schardein
