Test: Lenovo ThinkPad Helix 2 (sammanfattning)
| |||||||||||||||||||||||||
LG LD116WF1-SPN2 tested with X-Rite i1Pro 2
Max: 375 cd/m² (Nits) Medel: 342.2 cd/m²Distribution av ljusstyrkan: 86 %
Mitt på batteriet: 365 cd/m²
Kontrast: 1109:1 (Svärta: 0.329 cd/m²)
ΔE Color 4.37 | 0.5-29.43 Ø4.91
ΔE Greyscale 2.8 | 0.5-98 Ø5.2
Gamma: 2.3
| Lenovo ThinkPad Helix 2 HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB | Dell Venue 11 Pro 7140 HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G | Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM | Toshiba Portege Z10t-A2111 HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP | |
|---|---|---|---|---|
| Display | ||||
| Display P3 Coverage | 63.6 | 46.17 | ||
| sRGB Coverage | 88.8 | 65.2 | ||
| AdobeRGB 1998 Coverage | 65.6 | 48 | ||
| Screen | -15% | -20% | -53% | |
| Brightness middle | 365 | 386 6% | 355.3 -3% | 331.1 -9% |
| Brightness | 342 | 357 4% | 338 -1% | 315 -8% |
| Brightness Distribution | 86 | 84 -2% | 91 6% | 70 -19% |
| Black Level * | 0.329 | 0.4 -22% | 0.33 -0% | 0.511 -55% |
| Contrast | 1109 | 965 -13% | 1077 -3% | 648 -42% |
| Colorchecker dE 2000 * | 4.37 | 3.71 15% | 4.72 -8% | 14.29 -227% |
| Greyscale dE 2000 * | 2.8 | 5.4 -93% | 6.53 -133% | 3.03 -8% |
| Gamma | 2.3 96% | 2.33 94% | 2.17 101% | 1.96 112% |
| CCT | 6595 99% | 6666 98% | 6707 97% | 6525 100% |
| Color Space (Percent of AdobeRGB 1998) | 59.37 | 44 | ||
| Total Average (Program / Settings) | -15% /
-15% | -20% /
-20% | -53% /
-53% |
* ... smaller is better
| Cinebench R11.5 | |
| CPU Single 64Bit (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Microsoft Surface Pro 3 | |
| Toshiba Portege Z10t-A2111 | |
| Lenovo ThinkPad Helix | |
| CPU Multi 64Bit (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Microsoft Surface Pro 3 | |
| Toshiba Portege Z10t-A2111 | |
| Lenovo ThinkPad Helix | |
| Cinebench R15 | |
| CPU Single 64Bit (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Toshiba Portege Z10t-A2111 | |
| CPU Multi 64Bit (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Toshiba Portege Z10t-A2111 | |
| X264 HD Benchmark 4.0 | |
| Pass 1 (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Microsoft Surface Pro 3 | |
| Toshiba Portege Z10t-A2111 | |
| Lenovo ThinkPad Helix | |
| Pass 2 (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Microsoft Surface Pro 3 | |
| Toshiba Portege Z10t-A2111 | |
| Lenovo ThinkPad Helix | |
Toshiba THNSFJ256GDNU 256 GB
Överföringshastighet min.:
161.3 MB/s
Överföringshastighet max.:
361.2 MB/s
Överföringshastighet med.:
263.9 MB/s
Accesstid:
0.1 ms
Burst rate:
141.5 MB/s
CPU-användning:
8.1 %
| PCMark 7 - Score (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Microsoft Surface Pro 3 | |
| Toshiba Portege Z10t-A2111 | |
| Lenovo ThinkPad Helix | |
| PCMark 8 | |
| Home Score Accelerated v2 (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Toshiba Portege Z10t-A2111 | |
| Creative Score Accelerated v2 (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Toshiba Portege Z10t-A2111 | |
| Work Score Accelerated v2 (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Toshiba Portege Z10t-A2111 | |
| PCMark 7 Score | 4602 poäng | |
| PCMark 8 Home Score Accelerated v2 | 2690 poäng | |
| PCMark 8 Creative Score Accelerated v2 | 3090 poäng | |
| PCMark 8 Work Score Accelerated v2 | 3806 poäng | |
Hjälp | ||
| 3DMark 11 - 1280x720 Performance GPU (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Microsoft Surface Pro 3 | |
| Toshiba Portege Z10t-A2111 | |
| Lenovo ThinkPad Helix | |
| 3DMark | |
| 1280x720 Ice Storm Standard Graphics (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Toshiba Portege Z10t-A2111 | |
| Lenovo ThinkPad Helix | |
| 1280x720 Cloud Gate Standard Graphics (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Toshiba Portege Z10t-A2111 | |
| Lenovo ThinkPad Helix | |
| 1920x1080 Fire Strike Graphics (sort by value) | |
| Lenovo ThinkPad Helix 2 | |
| Dell Venue 11 Pro 7140 | |
| Toshiba Portege Z10t-A2111 | |
| Lenovo ThinkPad Helix | |
| 3DMark 06 Standard Score | 4686 poäng | |
| 3DMark 11 Performance | 753 poäng | |
| 3DMark Ice Storm Standard Score | 35119 poäng | |
| 3DMark Cloud Gate Standard Score | 3522 poäng | |
| 3DMark Fire Strike Score | 450 poäng | |
Hjälp | ||
| låg | med. | hög | ultra | |
|---|---|---|---|---|
| Tomb Raider (2013) | 35.9 | 18.8 | 12.6 | |
| BioShock Infinite (2013) | 27.1 | 15 | 12.6 | 3.9 |
| Dota 2 (2013) | 50.9 | 28.6 | ||
| Fifa 15 (2014) | 28.2 | 21.2 |
(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.1 °C / 108 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 42.3 °C / 108 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37.5 °C / 99.5 F.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-9.5 °C / -17.1 F).
(±) The maximum temperature on the upper side is 42.1 °C / 108 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 42.3 °C / 108 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37.5 °C / 99.5 F.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-9.5 °C / -17.1 F).
Strömförbrukning
| Av/Standby |   0 / 0.4 Watt |
| Låg belastning |  2 / 6 / 6.6 Watt |
| Hög belastning |
17.6 / 29.7 Watt |

| |
Förklaring:
min: ,
med: ,
max: Extech Power Analyzer 380803 | |
| Lenovo ThinkPad Helix 2 35 Wh | Microsoft Surface Pro 3 58 Wh | Dell Venue 11 Pro 7140 42 Wh | Lenovo ThinkPad Helix 70 Wh | |
|---|---|---|---|---|
| Battery Runtime | 1% | 16% | -10% | |
| Reader / Idle | 964 | 1096 14% | 777 -19% | 559 -42% |
| H.264 | 360 | |||
| WiFi | 396 | 504 27% | 562 42% | 438 11% |
| Load | 197 | 124 -37% | 244 24% | 200 2% |

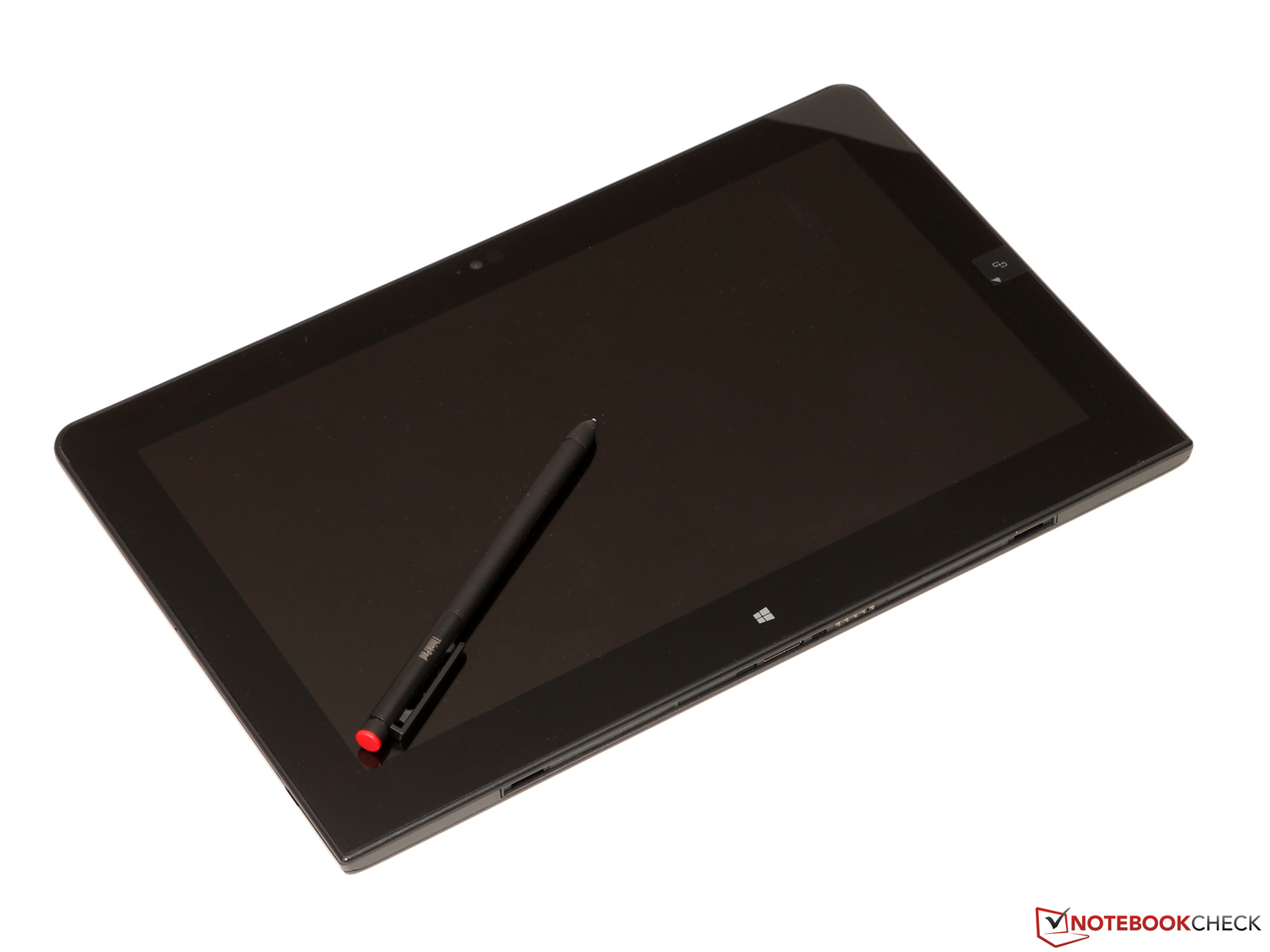

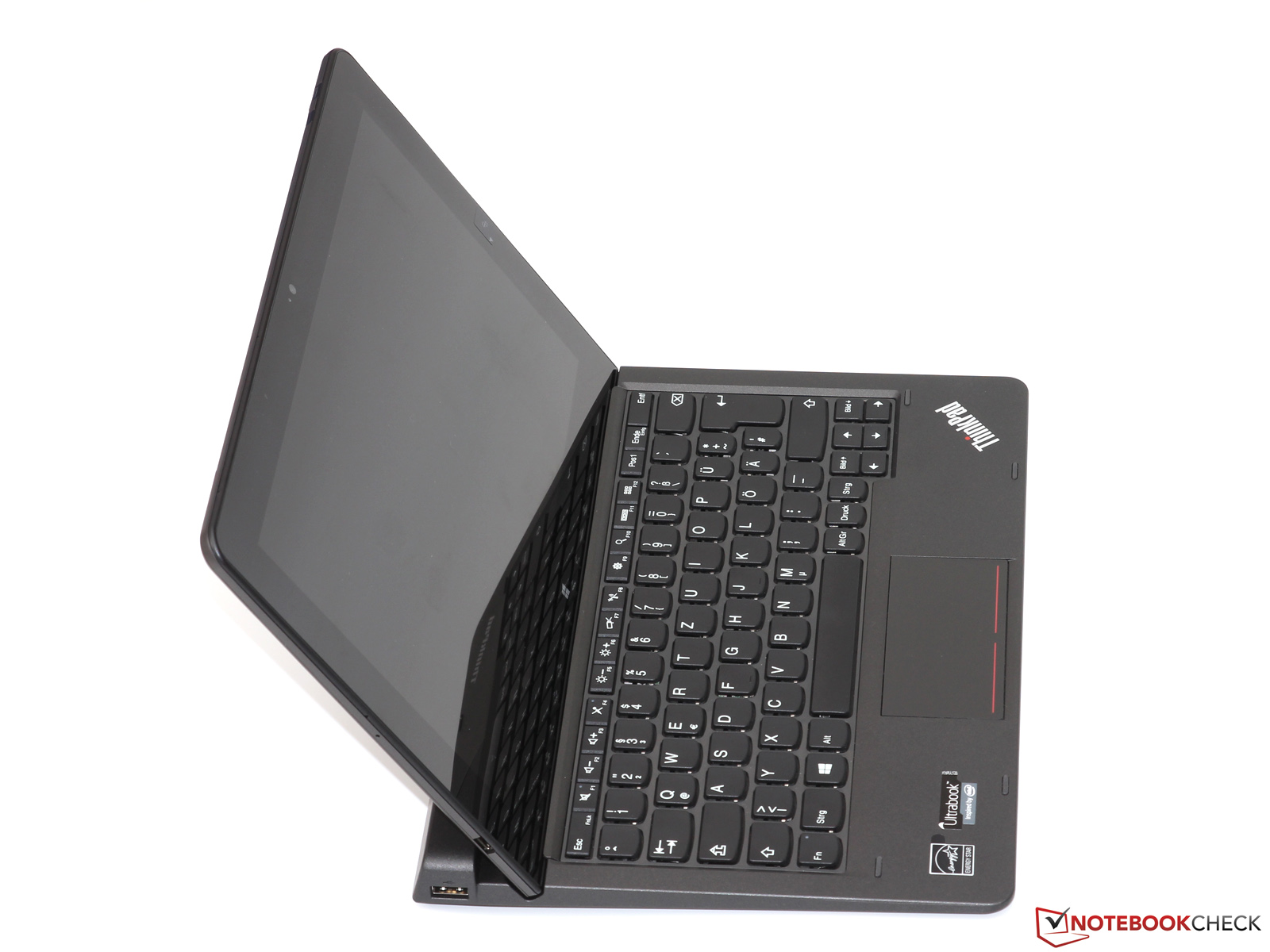

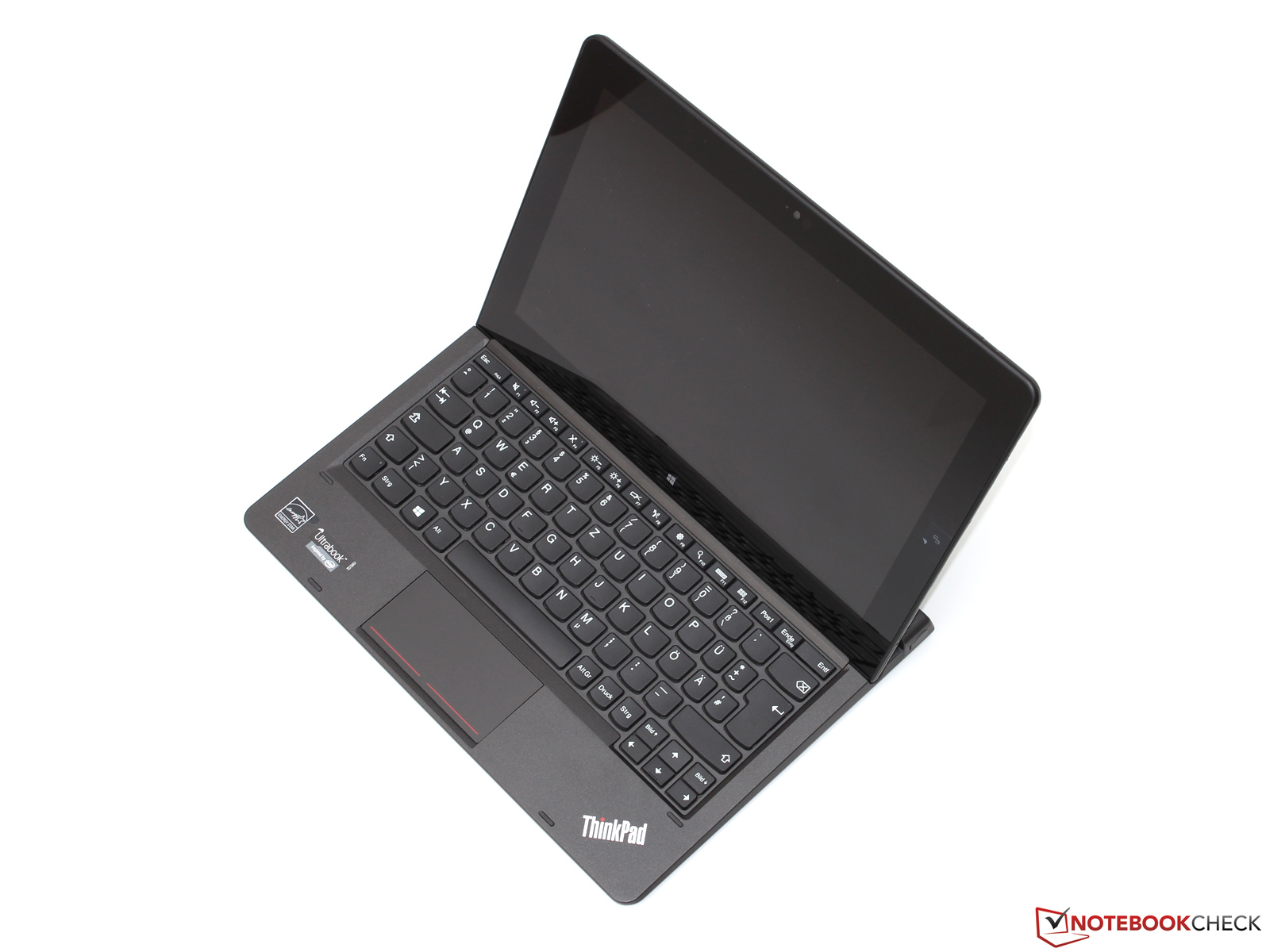

Med ThinkPad Helix 2 har Lenovo förbättrat konceptet med att kombinera surfplatta och kontorsdator i en och samma enhet. Det har krävt en del hårdvarukompromisser, men totalt sett är den mycket bättre tack vare den nya CPU-plattformen.

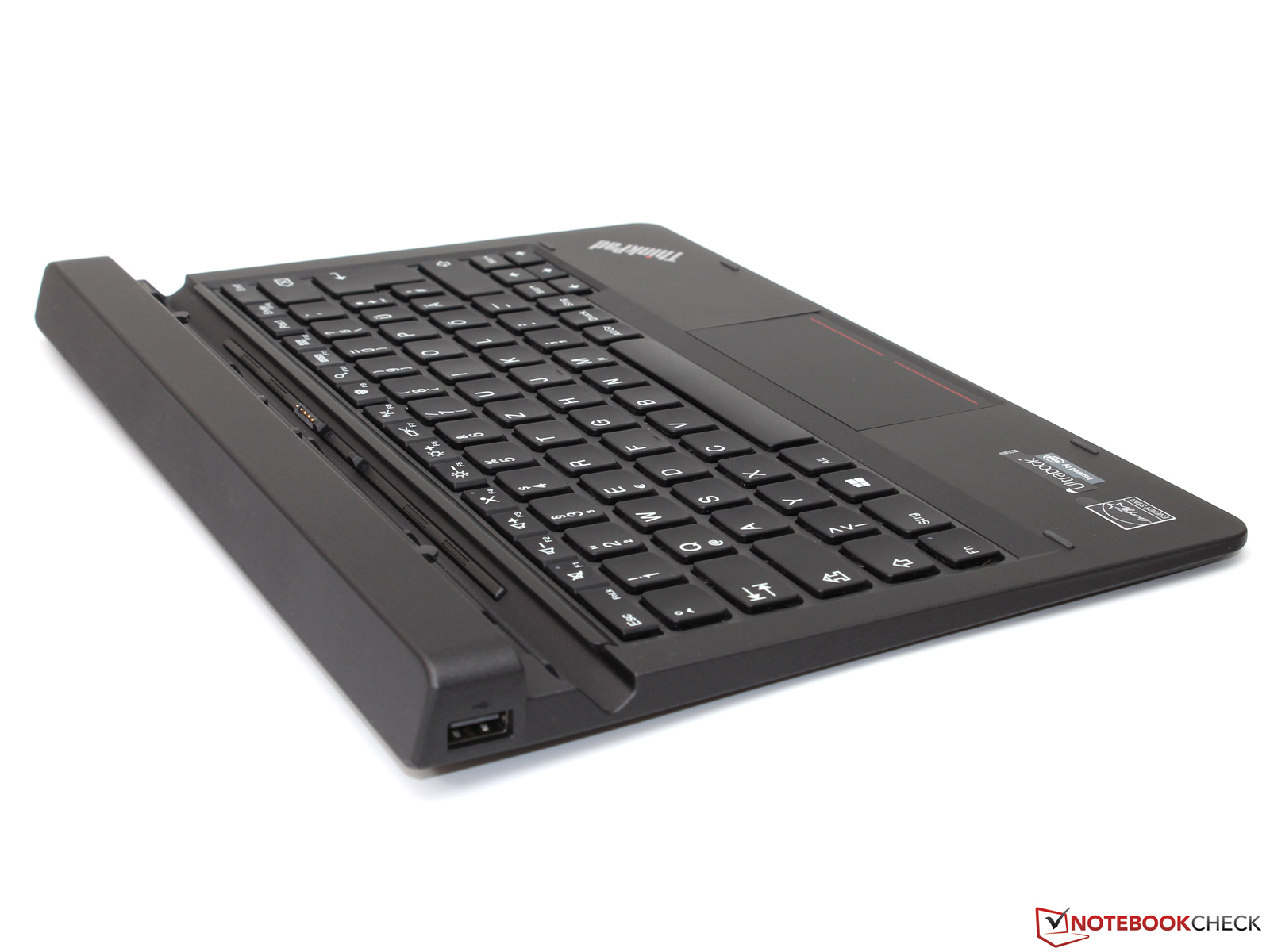

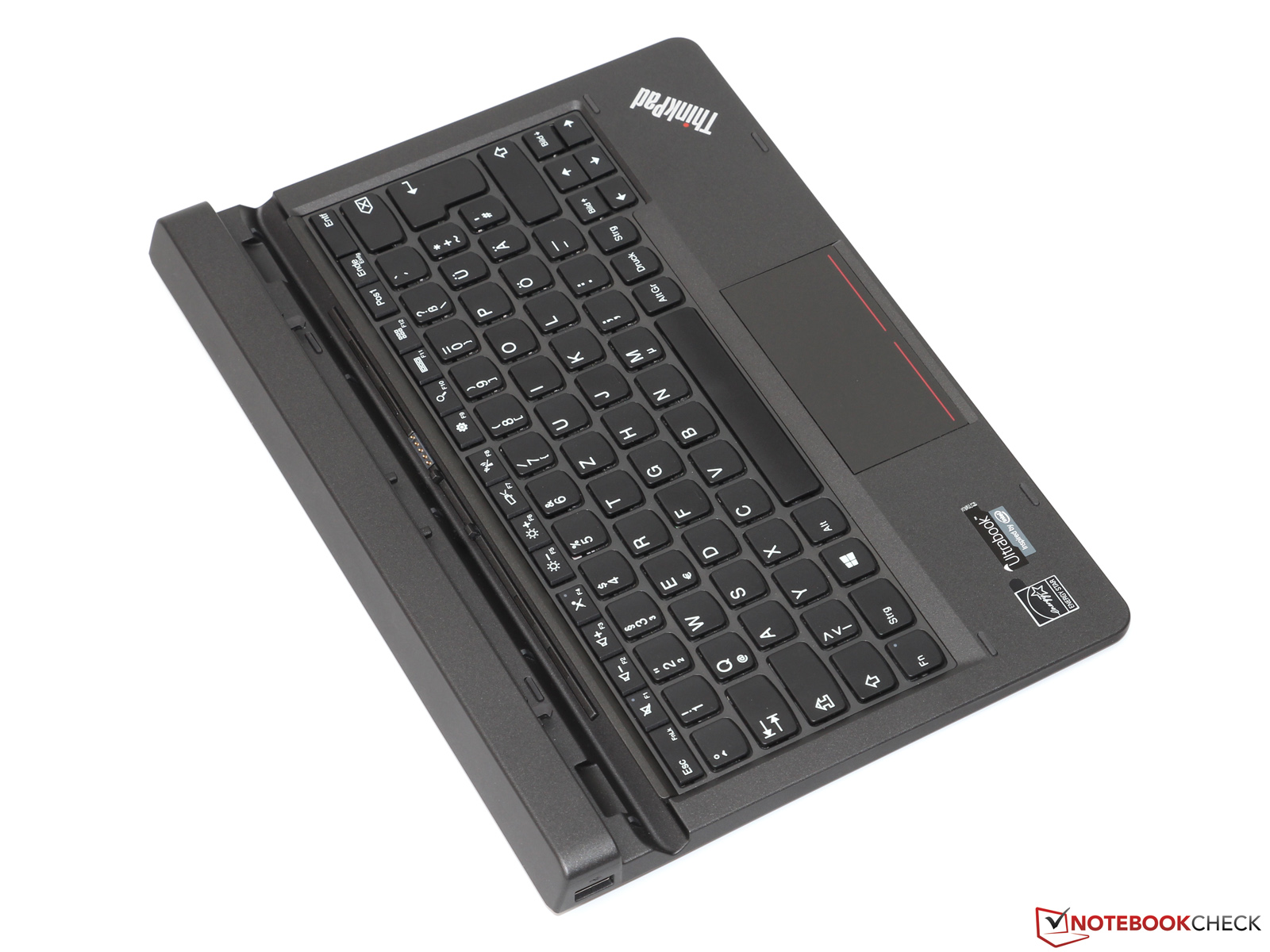

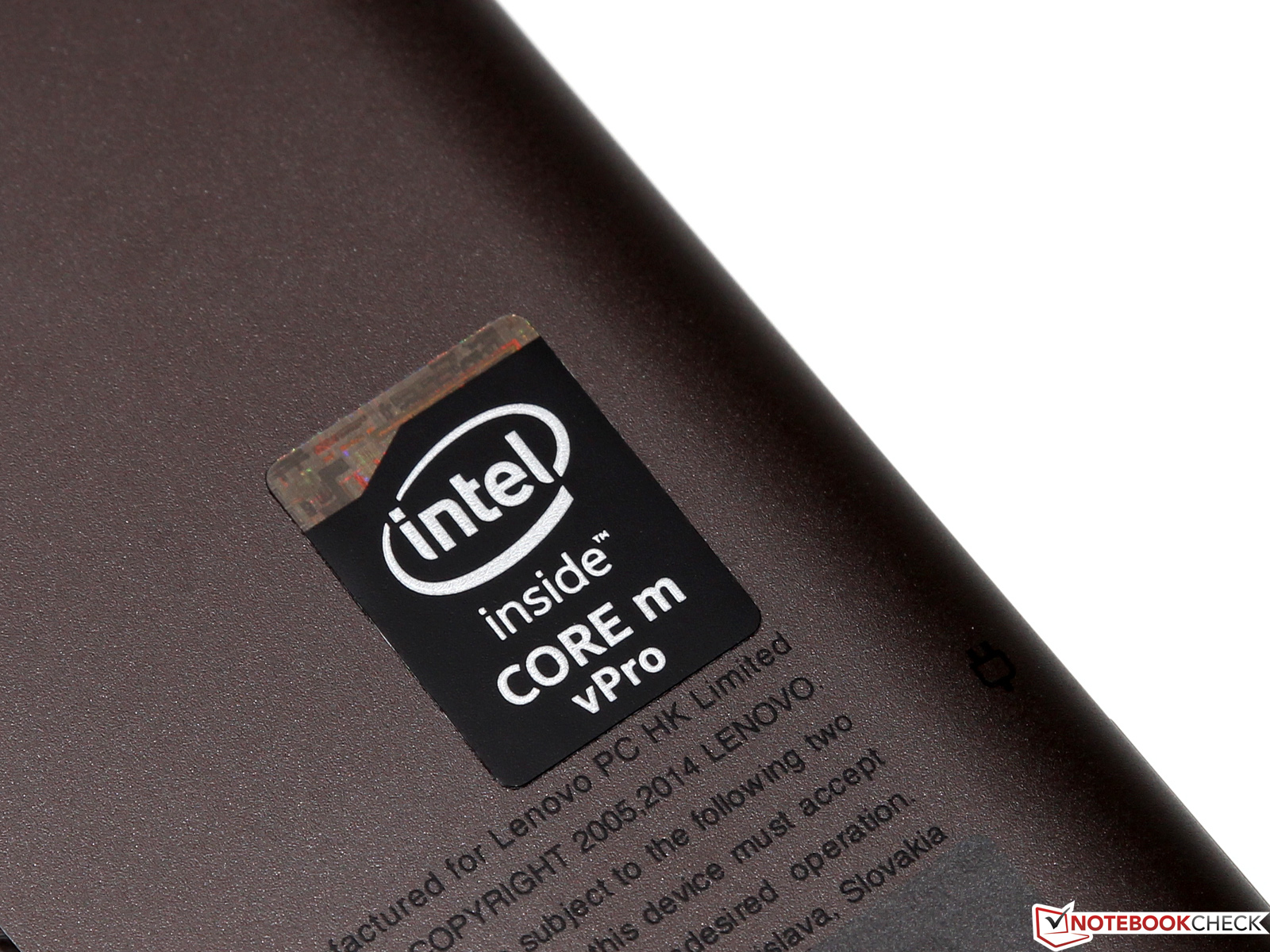

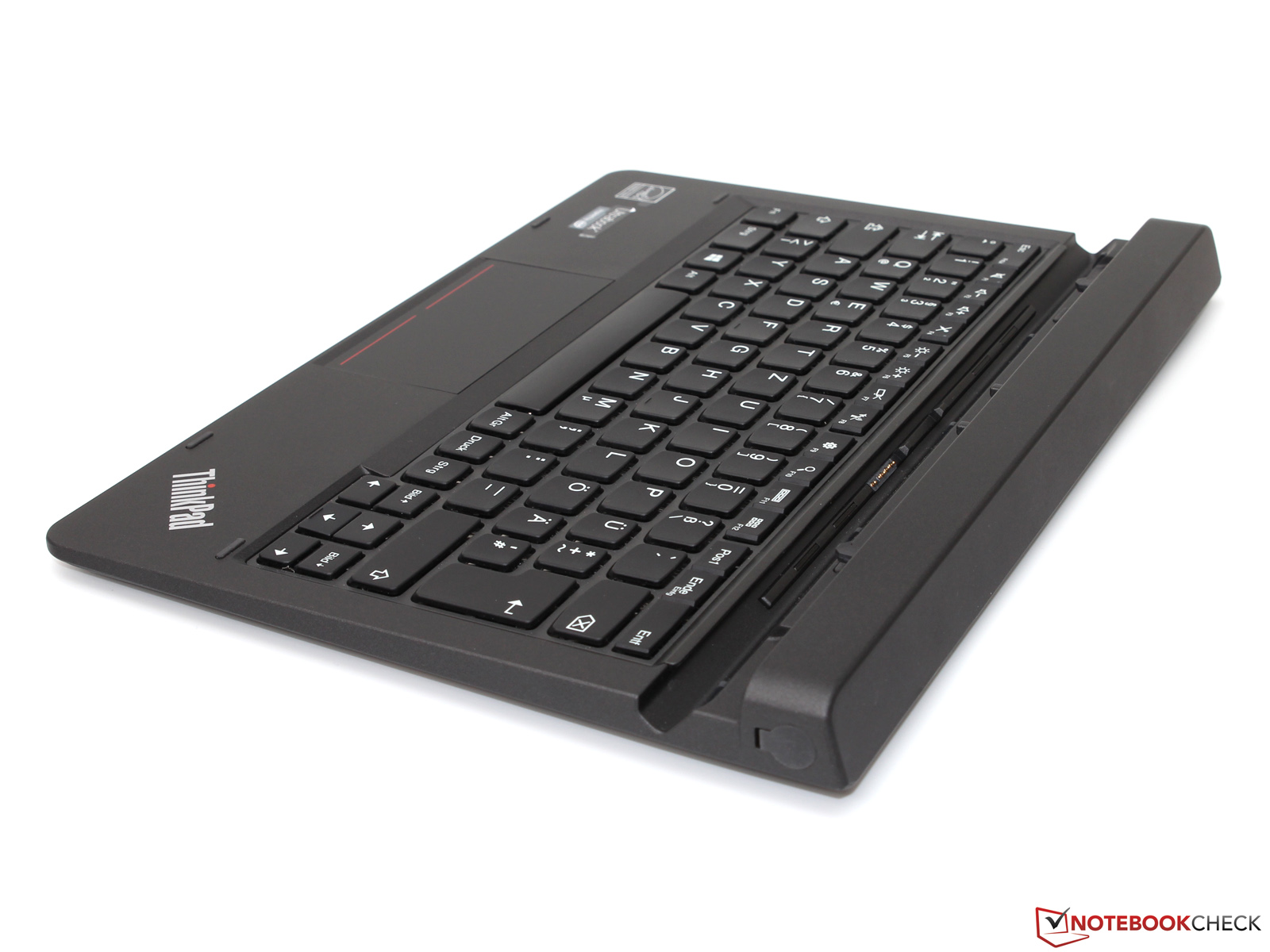

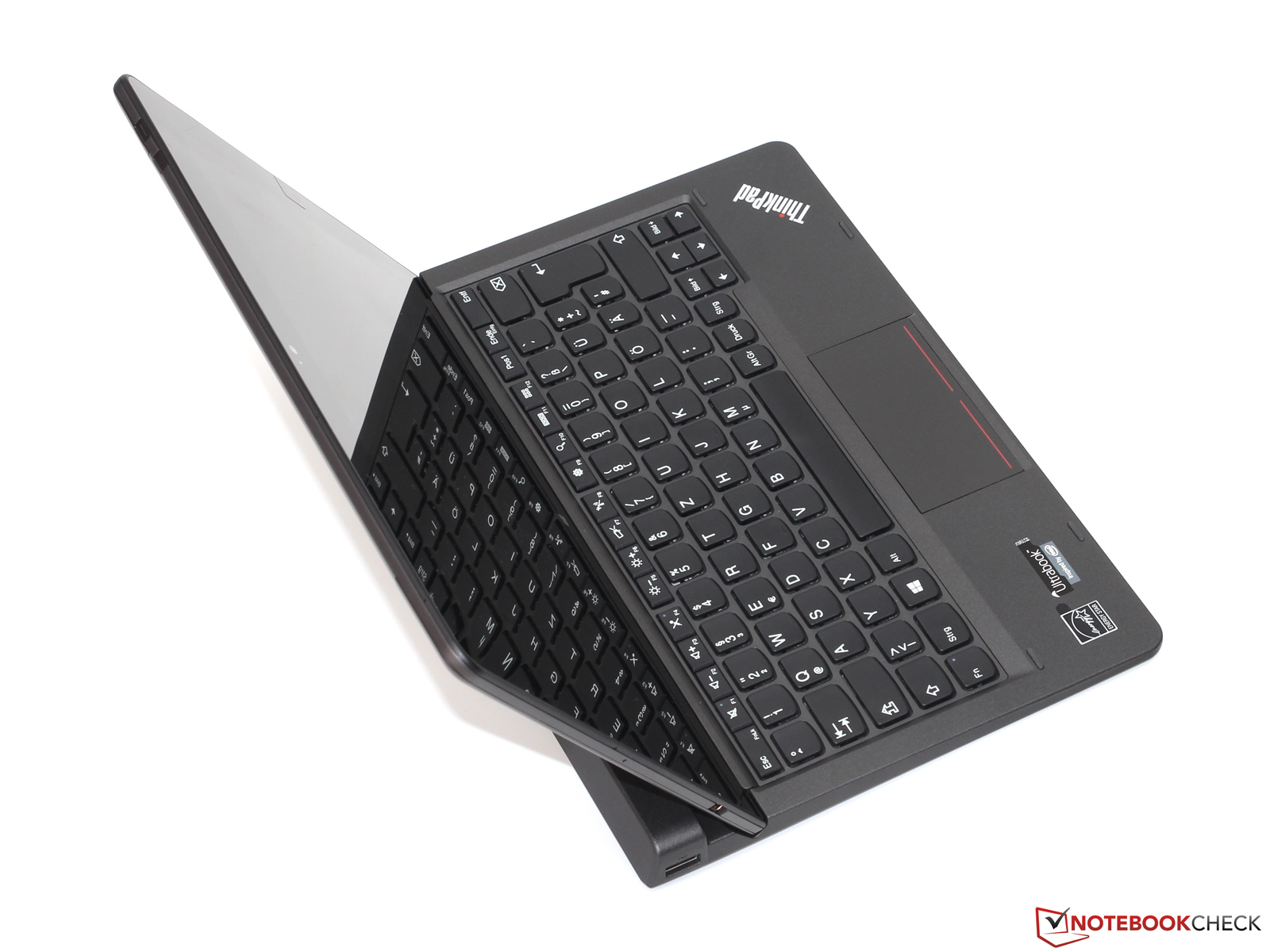

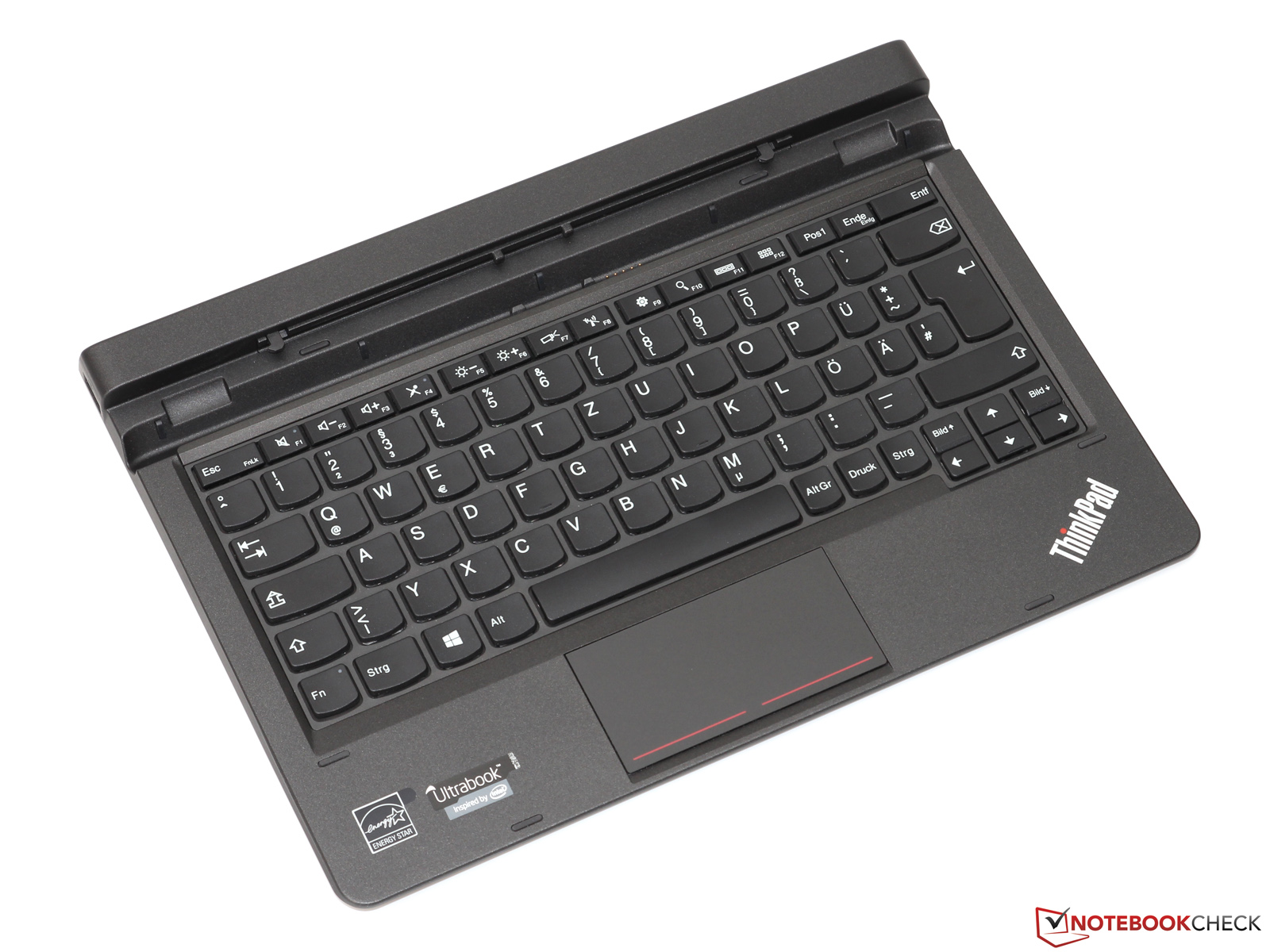

Strömsnåla Core M-5Y71 imponerar inte bara med sina låga kylningsbehov (den passiva kylningen räcker), utan också bra prestanda som är mer än tillräcklig för alla kontorsprogram. Den förbättrade energieffektivitet har också en positiv effekt på batteritiden – det integrerade 35 Wh-batteriet klarar lätt 6 timmar eller mer. Med tangentbordet Ultrabook Pro (tillval) blir enheten ännu mer uthållig, men också betydligt dyrare.
Det här är också vår främsta kritik: det höga priset. Vår testenhet kostar för närvarande nästan 1400 euro, vilket är för mycket trots komponenterna (8 GB RAM, 256 GB SSD, LTE). Priset är ännu svårare att acceptera i en enhet vars byggkvalitet och chassi inte helt uppfyller Lenovos anspråk på ”premiumstatus".
Slutligen tar vi en titt på utmanarna: potentiella Helix 2-köpare bör överväga alternativ som Dell Venue Pro 11 eller Microsoft Surface Pro 3. Dells enhet har ett tilltalande pris/prestanda-förhållande beroende på konfiguration, medan Surface, med sitt mycket sofistikerade chassi, också är ett starkt alternativ till Helix.
